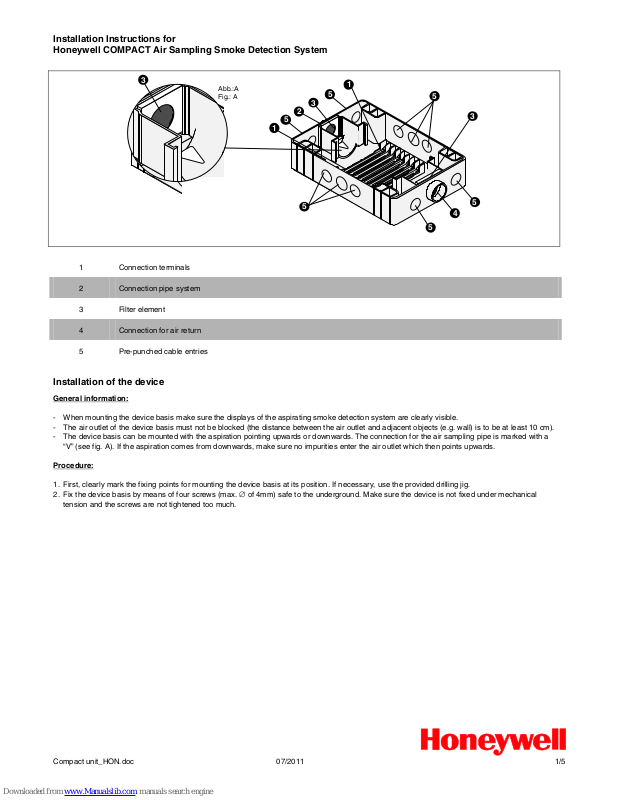

Installation Instructions for
Honeywell COMPACT Air Sampling Smoke Detection System
5
5
5
2
5
1
1
5
5
4
Abb.:A
Fig.: A
3
3
3
1 Connection terminals
2 Connection pipe system
3 Filter element
4 Connection for air return
5 Pre-punched cable entries
Installation of the device
General information:
- When mounting the device basis make sure the displays of the aspirating smoke detection system are clearly visible.
- The air outlet of the device basis must not be blocked (the distance between the air outlet and adjacent objects (e.g. wall) is to be at least 10 cm).
- The device basis can be mounted with the aspiration pointing upwards or downwards. The connection for the air sampling pipe is marked with a
“V” (see fig. A). If the aspiration comes from downwards, make sure no impurities enter the air outlet which then points upwards.
Procedure:
1. First, clearly mark the fixing points for mounting the device basis at its position. If necessary, use the provided drilling jig.
2. Fix the device basis by means of four screws (max. ∅ of 4mm) safe to the underground. Make sure the device is not fixed under mechanical
tension and the screws are not tightened too much.
Page 2
Compact unit_HON.doc 07/2011 2/5
Notes:
- For the fixing of the device basis only use installation material that is suitable for the on-site installation and that ensures a safe and durable fixing.
- When fixing the device basis, attention has to be paid to the marking for the connection of the pipe system (see fig. A).
3. Open the necessary pre-punched cable entries in the device basis (max. 8 x M20 and 6 x M25). If necessary, use a screwdriver.
4. Carefully equip the cable entry/entries with M20 or M25 cable entries (2 x M25, 1 x M20 included in the delivery) by inserting them into the corresponding cable entries.
5. Insert the required connection cable(s) (max. 2,5 mm
2
) into the prepared cable entries and wire the devices according to the circuit connections
described at the following page.
Note:
If the detection unit of Honeywell COMPACT is to be installed at a later stage, the mounted device basis can be protected against excessive contamination by using the bottom of the supplied card box.
In order to use the bottom of the card box as a dust protection, please proceed as follows:
1. Carefully separate the cover along the pre-punched perforation from the bottom of the carton.
2. Open the required openings for the connections of the pipe system, the air return and the cable entries by separating the openings carefully along
the pre-punched perforation from the bottom of the card box.
3. Put the bottom of the card box as protection over the mounted device basis.
Page 3
Compact unit_HON.doc 07/2011 3/5

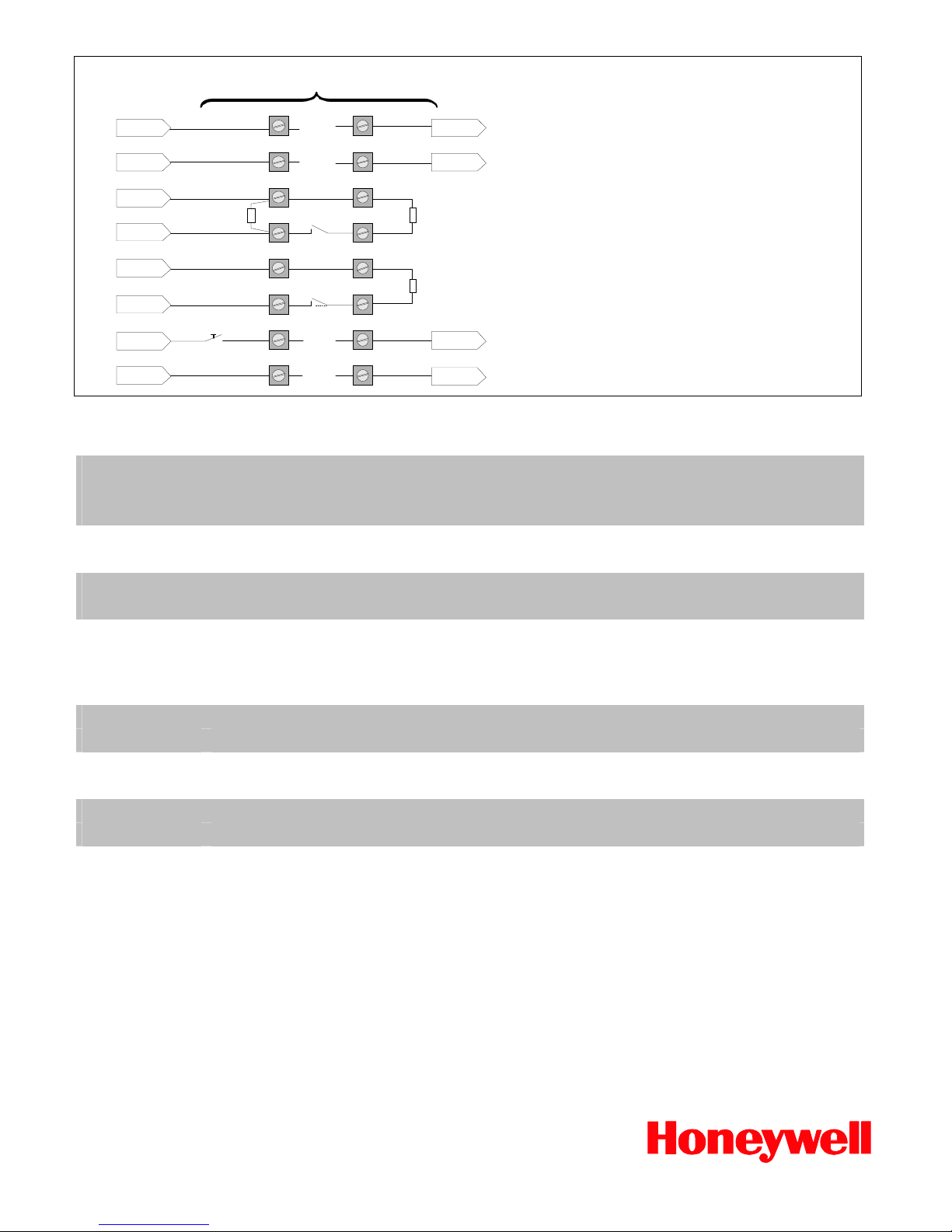

Connections for
Honeywell COMPACT ASD
Inputs
1a +24 V= Supply voltage
2a 0 V = Supply voltage
3a + Line connection “fire alarm”
4a - Line connection “fire alarm” (and termination element line “fire alarm”)
5a + Line connection “fault”
6a - Line connection “fault”
7a + 24 V= Reset
8a 0 V = Reset
Outputs
1b +24 V= Supply voltage
2b 0 V = Supply voltage
3b Alarm element line “fire alarm”
4b Alarm element line “fire alarm”
5b Termination element line “fault”
6b Termination element line “fault”
7b Data bus A
8b Data bus B
(connection for accessories)
+24V=
0V=
-
1a
2a
3a
4a
5a
6a
7a
8a
1b
2b
3b
4b
5b
6b
7b
8b
Data bus
+24V=
0V=
Data B
Data A
L1 +
L1 -
L1 +
L1 -
Reset
+
Data
B
24V=
-
+
+24V=
0V=
-
+
R
A
R
E
R
E
R
A
R
E
Alarm element =
Termination element
=
Elements are dependent on the connected fire panel
Fig.:
Alarm relais
Fault relais
1
1)
2
2)
internal connection detection unit
A
Page 4
Compact unit_HON.doc 07/2011 4/5
Conformity certification pursuant to EU Construction Products Directive 89/106/EEC
• The conformity of the air sampling smoke detector for fire detection and fire alarm systems in buildings according to DIN EN 54-20 has been
established by a test at the VdS laboratory.
• The EC certificate of conformity has been issued by notified product certification body (ID no. 0786, VdS).
• The CE designation according to DIN EN 54-20 has been carried out.
0786
WAGNER Group GmbH
Schleswigstrasse 1 - 5 30853 Langenhagen
07
Nr. 0786 – CPD – 20322
EN 54-20: 2006
Air sampling smoke detector for fire detection
and fire alarm systems in buildings
0,1 % light obscuration/m
Class: A, B and C
0,5 % light obscuration/m
Class: A, B and C
Honeywell Life Safety Systems
140 Waterside Road
Hamilton Industrial Park
Leicester
LE5 1TN
Tel (+44) 116 246 2000
