USER’S MANUAL
CD3000M-2PH
THYRISTOR UNIT
From 125A to 700A
Rev. 12/2004
CD3000M-2PH Thyristor Unit from 125A to 700A
Index:
1. Glossary 4
1.1 Terminology 4
1.2 Input signal 4
1.3 Power feed back 4
1.4 What is a thyristor unit 4
2. Technical specifications 5
2.1 General Features: 5
2.2 Input features 5
2.3 Output features 6
2.4 Derating curve 6
2.5 Fans 6
3. Ordering information 7
4. Installation and wiring information 8
4.1 Identification of the unit 8
4.2 Installation 8
4.3 Dimensions 9
4.4 Fixing Holes 10
5. Wiring Instructions 11
5.1 Removing the cover 11
5.2 Cabling detail 14
5.3 Wiring connection 17
5.4 LED Status Table 18
6. Start up 19
6.1 Auxiliary supply 20
6.2 Analog input 21
6.3 Heater Break Alarm 23
7. Thyristor firing mode 26
7.1 Zero Crossing (ZC) 26
7.2 Burst Firing (BF) 26
7.3 Configurator 27
8. Fuses and fuseholder 30
8.1 Fuses and Fuse Code 30
9. Modbus communication 31
9.1 Physical requirements 31
9.2 ModBus RTU protocol 31
9.3 Word parameters 36
9.4 Thyristor unit Configuration 41
9.5 Address Configuration 45
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
10. Maintenance 48
10.1 Trouble Shooting 48
10.2 Repairing procedure 49
10.3 Fans 49
10.4 Servicing 49
10.5 Warranty conditions 49
1 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
CAUTION
Thyristor units are used in power industrial equipment. When the thyristor unit is working, there are on the unit the following voltages
- Maximum main supply voltage on power terminals up to 600V.
- Auxiliary supply 230-460Vac.
- Fan voltage 230Vac 50/60Hz Power consumption 14W. Don't remove the plastic cover which provides adequate protection against electric shock. Don’t use this thyristor in aerospace and nuclear application.
Electric Shock Hazard (Risque the choque électrique)
When thyristor unit has been connected to main supply voltage and is switched off, before to touch it be secure that the unit is isolated and wait at least one minu te to permit to discharge internal capacitors. Thus be secure that:
access to thyristor unit is only permitted to specialized personnel;
the authorised personnel must read this manual before to have access to the unit;
the access to the units must be denied to unauthorized personnel.
Important warnings(attention)
Local regulations regarding electrical installation should be rigidly observed.
Safety regulations must be rigidly observed.
Don't bend components to maintain insulation distances.
Protect the units from high temperature, humidity and vibrations.
Don't touch components to prevent electrostatichal discharges on them.
Verify that all ratings are in line with real needs.
If authorized personnel must measure voltage, current etc. on units, take away rings and other
jewels from fingers and hands.
Authorized personnel working on thyristor unit under power supply voltage must work on insulated board. Be secure that board is not connected to earth.
This listing does not represent a complete enumeration of all necessary safety cautions.
www.honeywell.com/imc 2
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
Protection(protection)
CD3000 thyristor family has a polymeric plastic cover in compliance to International specification IP20. To understand if IP20 protection is sufficient should be evaluated the installation place where the units are installed. Open Type Equipment(équipment de type ouvert). Maximum surrounding air temperature 40°C(Temperature de l’air environnante maximum 40°C).
Earth(terre)
CD3000 family has isolated heatsink. For safety connect the heatsink to earth to avoid shocks in case that circuit board or thyristors lost insulation. Earth impedance should be correspondent to local earth regulation. Periodically the earth efficiency should be inspected.
Electronic Supply(alimentation électronique)
CD3000 family electronic circuit should be supplied by dedicated voltage supply for all electronic circuit but not in parallel with contactor's coil, solenoids and other inductive or capacitive loads. It's recommended to use a shielded transformer.
Electromagnetic compatibility (compatibilité électromagnétique)
Our thyristor unit has an excellent immunity to electromagnetic interferences if all suggestions contained in this manual are respected. In respect to a good Engineering practise, all inductive loads like solenoids contactor coils should have a filter in parallel.
Emissions (emission)
All thyristor switching at high speed generate some radiofrequency disturbance. CD3000 serie complies with EMC rules for CE mark. In many installations near electronic devices has not been noted problems. If radiofrequency device at low frequency are used near the thyristor unit, some precautions should be taken like line filters and shielded cables for input signal an d for load cables.
CU
LISTED
S
U
L
®
NOTE
We reserves the right to apply modifications to the our products without any advice.
3 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
1. Glossary
1.1 Terminology
V: voltage power supply. I: the full circulating current in thyristor unit. P: total load power.
1.2 Input signal
SSR: This input type is a square waveform generated by a temperature controller. AN: Analog input. IRS: Communication command.
1.3 Power feed back
Feedback: supply voltage fluctuation changes the power to the load. To overcome this effect
the voltage supplied to the load is measured and compared with power demand from controller, the error signal is used to automatically hold the power at deman d ed level.
1.4 What is a thyristor unit
A thyristor unit is semiconductor device which acts as a switch formed by two thyristors in antiparallel. To switch on the alternating current the input signal will be on and the thyristor will switch off at first zero crossing voltage with no input signal. The benefits of thyristor units compared with elettromechanical contactors are numerouses: no mooving parts, no maintenance and capacity to switch very fast. Thyristors are the only solution to control transformers and special loads that change resistance with temperature and with age.
LOAD
www.honeywell.com/imc 4
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
2. Technical specifications
2.1 General Features:
Operating temperature 0÷45°C for higher temperature see derating curve Voltage power supply 24 V minimum, 480V max and 600 V on request Input signal SSR
4÷20 mA 0÷10V potentiometer (10k ohm) customer configurable with automatic zero/span calibration
Firing mode
One of these firing modes can be configured on line via serial port Zero Crossing (ZC) Fast Cycle (FC) Burst Firing (BF)
Auxiliary voltage supply
230 Æ 200÷230V ±15%; 10 VA power consumption
460 Æ 300÷460V ±15%; 10 VA power consumption
Fan voltage supply 230V ± 15 %;
110V ± 15 %; On request Fuses Internal Heather break alarm
Discrimination better than 20%. Circuit microprocessor based to
diagnose partial or total load failure and short circuit on Thyristors.
Latching alarm plus reset. Relay output 0.5A at 125VAC Line Drop Voltage Automatic compensation ±15% of supply voltage with analog input Mounting Bulk head mounting Protection IP20
2.2 Input features
Input signal
Maximum
current drain
Input
Impedance
ON condition OFF condition
SSR 5mA constant current 4V-max 30V ≤1V
Analog 0-10V - 8200 ohm
Analog 4-20mA - 100 ohm
Potentiometer
10 K ohm
8200 ohm
5 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
2.3 Output features
Current Voltage
range
Ripetitive peak
reverse voltage
Latching
current
Max peak one cycle
Leakage
current
I2T value
thyristor
Frequency
range
Power
loss
Isolation
Voltage
(A) (V) (480V) (600V) (mAeff)
(10msec.)
(A)
(mAeff) tp=10msec (Hz)
I=Inom
(W)
Vac
125 24÷500 1200 1600 450 2000 15 19100 47÷70 255 2500 150 24÷500 1200 1600 300 5250 15 128000 47÷70 268 2500 200 24÷500 1200 1600 300 5250 15 128000 47÷70 380 2500 275 24÷500 1200 1600 300 4800 15 108000 47÷70 623 2500 400 24÷500 1200 1600 200 7800 15 300000 47÷70 875 2500 450 24÷500 1200 1600 200 7800 15 300000 47÷70 1021 2500 500 24÷500 1200 1600 200 8000 15 306000 47÷70 1061 2500 600 24÷500 1200 1600 1000 17800 15 1027000 47÷70 1178 2500 700 24÷500 1200 1600 1000 17800 15 1027000 47÷70 1425 2500
2.4 Derating curve
1
0.8
0.6
0.4
0.2
0
45 55 65 75 85
K
°C
I = I x K
NOMMAX
2.5 Fans
The thyristor units are equiped with a fan. The fan supply must be protected with a fuse. Fan voltage supply is standard 230VAC ± 15% 50/60Hz or optional 110VAC ± 15% 50/60Hz. The power consumption is given in the table below.
Size
Number of fans
UL Number of fans
125A, 150A, 200A One Fan - 14W One Fan - 14W 275A, 450A, 700A Four Fan - 60W Four Fan - 60W 400A, 500A, 600A Two Fans - 30W Four Fan - 60W
www.honeywell.com/imc 6
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
3.Ordering information
Model CD3000M 2PH
1 2 3 4 5 6 7
CD3000M-2PH
Ex:CD3000M 2PH/
150A/ 400V/ 480V/ 460V
/
SSR/ ZC/ UL
1 Nominal current of CD3000M
125A 275A 500A 150A 400A 600A 200A 450A 700A
2 Operating Load Voltage (incoming voltage supply)
Specify the value of the line supply.
3 Max VOLTAGE of CD3000M
480V 600V The voltage on the identification label must be equal or more than operating voltage. The minimum voltage supply to the load is 24V.
4 Auxiliary Voltage
230V 200÷230V ±15%; 10VA 460V 300÷460V ±15%; 10VA 600V 600V ±15%; 10VA (on request)
5 Input
SSR 4÷30VDC 0-10V 0÷10V analog input 4-20mA 4÷20mA analog input 10K pot Potentiometer
6 Firing
ZC Zero Crossing BF Burst firing. Specify the number on ON cycles at 50% of
power.
7 Options
COMM MODBUS protocol in RS485 is standard CD-KP External Keypad HB Heater Break Alarm FAN110
Fan voltage supply 110VAC ± 15% (std 230VAC ± 15%) 14W 50/60Hz
UL UL Certification
7 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
4. Installation and wiring information
4.1 Identification of the unit
Before to install the CD3000M unit examine for damages or deficiencies. If any is found, notify the carrier immediately. Check that the product features shown on CD3000M identification label corresponds to that ordered.
An identification label provide all the informations regarding the factory settings of the unit. This label is on the board inside the unit, as represented below:
Identification Label
FIRING FIR.OPT
AMPS SUPPLY
INPUT
4.2 Installation
CD3000M unit should be always mounted in vertical position to improve air cooling on heatsink. Maintain minimum distances in vertical and in horizontal as below represented. Don’t install in proximity of hot elements and near units generating
electromagnetic interferences. When more units are mounted inside a cubicle provide air circulation as below represented. Sometimes it is necessary to provide a fan to have better air circulation.
www.honeywell.com/imc 8
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
4.3 Dimensions
Size W(mm) H(mm) D(mm)
125A (S9) 116 316 187
150A (S9) 116 316 187 200A (S10) 116 350 220 275A (S14) 262 520 270 400A (S14) 262 520 270 450A (S14) 262 520 270 500A (S14) 262 520 270 600A (S14) 262 520 270 700A (S14) 262 520 270
9 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
4.4 Fixing Holes
A
B
C
Size A(mm) B(mm) C(mm)
125A (S9) 96 290 104 150A (S9) 96 290 104
200A (S10) 100 335 100 275A (S14) 222 495 222 400A (S14) 222 495 222 450A (S14) 222 495 222 500A (S14) 222 495 222 600A (S14) 222 495 222 700A (S14) 222 495 222
www.honeywell.com/imc 10
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
5. Wiring Instructions
5.1 Removing the cover
To open the unit apply as follow. For S9 and S10 sizes, you must open the cover to configure the unit and to view the fuses
For S14 size, you must open the cover to cable, to configure the unit and to view the fuses
Warning: this procedure can be done just by specialized personnel CD3000M unit has isolated heatsink. For safety connect the heatsink to hearth using
its terminal with hearth symbol.
CD3000M can be susceptible to airborne interferences from near equipment or from interferences on main supply, so a number of precautions must be taken.
Contactors coils and chokes must have in parallel a RC filter and must be supplied with a different voltage line.
All input/output signal must use screened bifilar wires.
Signal input and output must not routing in same cable try and must not be parallel.
Local regulations regarding electrical installation should be rigidly observed.
11 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
5.1.1 Auxiliary Terminals
Before connect or disconnect, make sure that the power, control cables and wires are insulated from the voltage.
Terminal Description
1 Auxiliary supply voltage 230-460Vac (600V on request) 2 N.C. not connected 3 Auxiliary supply voltage 230-460Vac (600V on request) 4 N.C. not connected 5 Fan supply 240V (if mounted) 6 Fan supply 240V (if mounted) 7 Reset 8 Reset
9 + Input command signal 4÷20mA, 0÷10V, SSR 10 - Input command signal 4÷20mA, 0÷10V, SSR 11 Volt GND 12 Output + 8Vdc stabilized, 1mA max 13 + Output command signal to CD3000 slave 14 - Output command signal to CD3000 slave 15 + External HB Calibration command 24Vdc max 16 - External HB Calibration command 24Vdc max 17 Used for the future 18 NO HB relay alarm ** (coil not energized) 19 Common relay HB alarm 20 NC HB relay alarm ** (coil not energized)
** In alarm condition or without auxiliary voltage the coil is not energized. In normal condition (no alarm) the coil is energized.
Auxiliary terminals
www.honeywell.com/imc 12
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
5.1.2 Power Terminals
Before connect or disconnect, make sure that the power, control cables and wires are insulated from the voltage.
Terminal Description
L1 Line Input Phase 1 T1 Load Output Phase 1 – controlled by the thyristor L2 Line Input Phase 2 T2 Load Output Phase 2 – NOT controlled by the thyristor L3 Line Input Phase 3 T3 Load Output Phase 3 – controlled by the thyristor
L1 L2 L3
T
1 T2 T3
13 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
5.2 Cabling detail
Use 75°C copper (CU) conductor only, provided with the terminal type indicated below.
Current/courant
Torque/couple
Lb-in (N-m)
Wire
Range/cable
Wire
Terminal/terminal
125A, 150A,
200A, 225A
310 (35.0)
Polymeric Terminal
Block M8
275A 372 (42.0) Bus Bar Adapter M8
400A
18 - 600kcmil
450A, 500A
600A, 700A
505 (57.0)
Bus Bar
Bus Bar Adapter M10
www.honeywell.com/imc 14
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
Power terminals: wire details:
Current Supply
L1, L2 and L3
Load
T1, T2 and T3
Cable Cable
mm
2
AWG
Screw
M
mm
2
AWG
Screw
M
125A 50 1 M8 50 1 M8 150A 70 1/0 M8 70 1/0 M8 200A 95 3/0 M8 95 3/0 M8 225A 120 4/0 M8 120 4/0 M8 275A 2 x 70 2 x 1/0 M8 2 x 70 2 x 1/0 M8 400A 2 x 95 2 x 3/0 M10 2 x 95 2 x 3/0 M10 450A Bus Bar 30 x 6 mm Bus Bar 30 x 6 mm 500A Bus Bar 60 x 4 mm Bus Bar 60 x 4 mm 600A Bus Bar 60 x 5 mm Bus Bar 60 x 5 mm 700A Bus Bar 60 x 6 mm Bus Bar 60 x 6 mm
Auxiliary connectors and earth:
Current Auxiliary Supply Earth
Cable
Cable
mm
2
AWG
mm
2
AWG
Screw
M
125A 0,50 18 16 6 M6 150A 0,50 18 16 6 M6 200A 0,50 18 25 4 M8 225A 0,50 18 35 2 M8 275A 0,50 18 50 1 M8 400A 0,50 18 50 1 M8 450A 0,50 18 70 1/0 M8 500A 0,50 18 70 1/0 M8 600A 0,50 18 70 1/0 M8 700A 0,50 18 70 1/0 M8
15 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
5.2.1 Serial Communication Terminals
5
1
6
9
www.honeywell.com/imc 16
Pin 1 PMS5 (+5V) Pin 2 GND 0V Pin 3 GND 0V Pin 4 Reserved (Rxd0) Pin 5 GND 0V Pin 6 RS485 A Pin 7 RS485 B Pin 8 nc Pin 9 Reserved (Txd0)
B
RS485
A
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
5.3 Wiring connection
5.3.1 CD3000 125-700A
RESET 7 RESET 8
INPUT + 9
INPUT - 10
0V GND 11
+ 8V 12
SLAVE + 13
SLAVE - 14

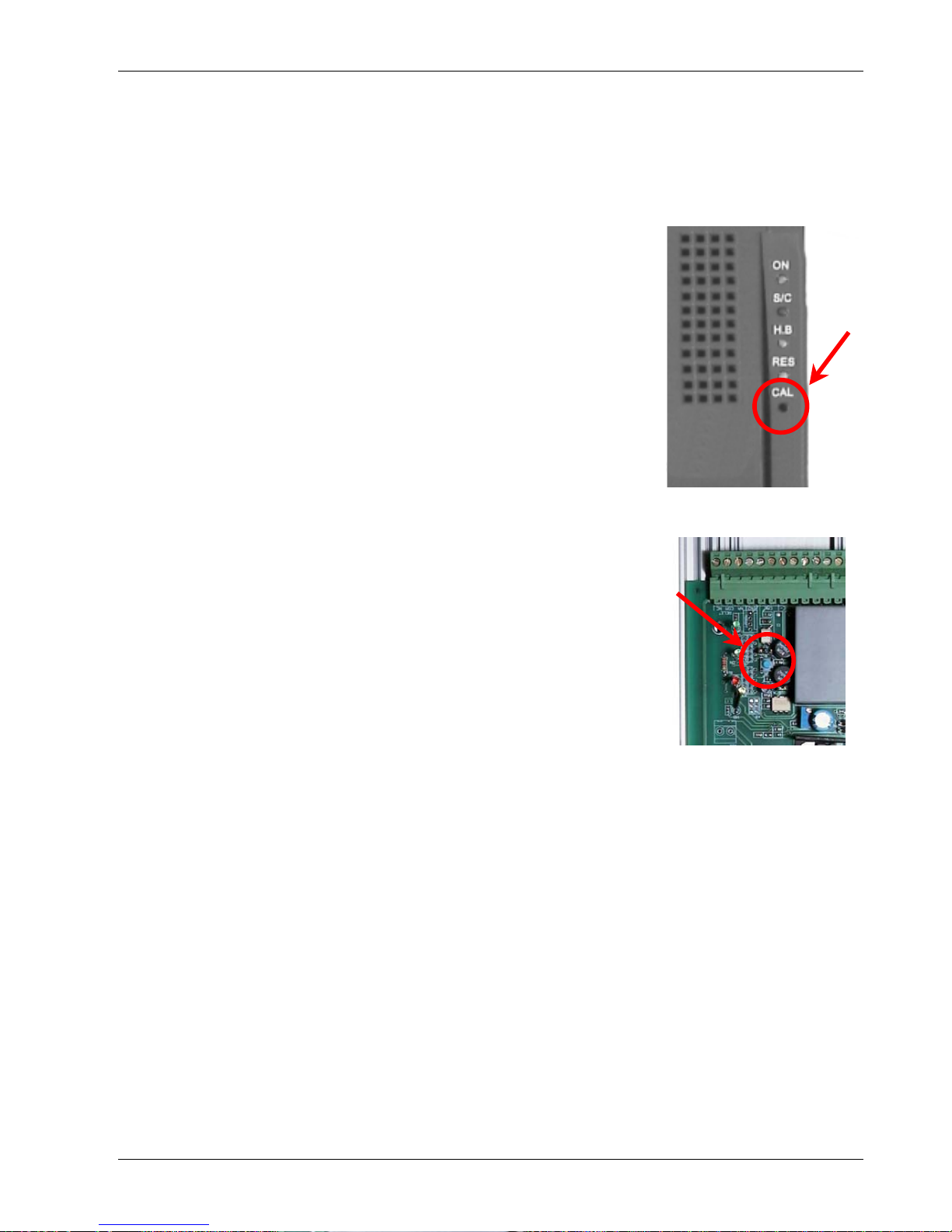

+ CAL 15
- CAL 16 17
N.C. 18
L2 L3
L3
L2L1
T3T2T1
L1
Star Load
460/230V 3
PE 4 FAN 5 FAN 6
460/230V 1
2
COM 19
N.O. 20
FAN SUPPLY 230V Std
HB RELAY OUTPUT
INPUT SIGNAL
SSR/Volt/mA
EXTERNAL HB
CALIBRATION 24 V dc
INPUT POT 10 Kohm
**
NOTE: IMPORTANT
* The user installation must be protected by electromagnetic circuit breaker or by fuse isalator. The auxiliary voltage supply must be connected as above, and must be syncronized with load voltage power supply (L1, L2).
** If the auxiliary voltage (written on the identification label) is different from supply voltage (to the load), use an external transformer, as reported above.
To work terminals 7-8 must be linked.
Fan voltage supply is standard 230VAC ± 15% 50/60Hz or optional 110VAC ± 15% 50/60Hz. For power consumption see fan paragraph.
17 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
5.4 LED Status Table
LED STATUS DESCRIPTION
PW
(green led)
Auxiliary supply is not connect
Auxiliary supply is connect
ON
(green led)
OFF Condition (Load IS NOT Powered)
ON Condition (Load IS Powered)
SC
(red led)
SCR OK
SCR short circuit
HB
(yellow led)
Laod OK
Load Fault
= Light OFF
= Light ON
www.honeywell.com/imc 18
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
6. Start up
Before to supply the thyristor unit:
verify that load current equal or less than nominal; For resistive load
I
P
tot
=
V
3
verify that there is no short circuit on load;
verify that main voltage equal or less than nominal;
verify that all auxiliary connections are right and syncronized to main voltage!!!;
Fan voltage equal than nominal (220-240V std, 110-120V optional)
After which supply thyristor unit giving the maximum input signal and verify that load current is equal or less than thyristor unit nominal current.
Warning: this procedure can be done just by specialized personnel.
The thyristor unit is delivered configured and tuned in line with customer requirements. If it’s necessary to change on site the configuration, procede as below specified.
19 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
6.1 Auxiliary supply
Warning: this procedure can be done just by specialized personnel.
To change auxiliary supply voltage sold the correct link-jumper on main PCB
Auxiliary supply jumpers for S9 and S10 sizes
Auxiliary supply jumpers for S14 size
230V Auxiliary supply
To set the auxiliary power supply to 230V, close J9 and J11 and open J10 as shown below.
460V Auxiliary supply
To set the auxiliary power supply to 460V, close J10 and open J9 and J11 as shown below.
600V Auxiliary supply
This is a special version on request. In this case the unit is supplied already configured.
J11
J10
J9
J11
J10
J9
J11
J10
J9
J11
J10
J9
J11 J10 J9
If the Auxiliary Voltage (written on the identification label) is diff erent from Supply Voltage (to the load ), use an external transformer.
If load voltage is not included in range of 230V ±15% or 460V +15% provide an external transformer with primary equal to load voltage and secondary 230V if your unit is setted to 230V.
www.honeywell.com/imc 20
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
6.2 Analog input
CD3000M is delivered configured and tuned by Honeywell in line with customer’s requirements. If it’s necessary to change on site the configuration, proceed as specified. To change input type open cover and configure jumpers as represented below:
Warning: this procedure can be done just by specialized personnel.
Location of auxiliary supply jumpers for S9 size
Location of auxiliary supply jumpers for S12 size
Jumpers Configuration
MAIN PCB
Input J7 J16 J17
SSR
ABC
ABC
ABC
0÷10V
ABC
ABC
ABC
4÷20MA
ABC
ABC
ABC
21 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
6.2.1 Tuning Analog input
Warning: this procedure can be done just by specialized personnel.
UNIT OFF
START TUNE
END
TUNE
Mantain Kay CAL pushed
and Switch ON
SSR input (3-30V)
is tuned
Analog input
is tuned
Wait for more than 10 sec.
from start flashing
yellow and red leds
Within 10 sec. from start
flashing yellow and red leds
push again momentary
CAL Key
Yellow led only is
flashing, apply
0 input Signal
I.E.: 0V for 0-10V
4mA for 4-20mA
Red led only is
flashing, apply
10V for 0-10V input
or
20mA for 4-20mA input
Now press CAL Key again
Now press CAL Key again
The leds will
stop flashing
Release key
when red and yellow
led are ON
Y ello and red leds
are flashing
SSR
ANALOG
INPUT TY PE
ON
ON
ON
2sec.
S/C
S/C
S/C
H.B.
H.B.
H.B.
ON S/C H.B
ON S/C H.B
0 Signal
Max Signal
www.honeywell.com/imc 22
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
6.3 Heater Break Alarm
Heater Break Alarm is a microprocessor based circuit to diagnose partial or total load failure and short circuit on SCR and fuses failure.
The contacts of these relays are intented to be connected only to a Class 2 Power Supply or a Limited Voltage Limited Current source of supply with Class 2 characteristics.
discrimination better than 20%;
latching alarm plus reset.;
relay output 0.5A at 125VAC.
H.B. circuit read load current via a current transformer 100-250/0.05 or 400-900/0.05 depending on the thyristor unit size. The current trasformers are internal to the unit..
Minimum current readable is 10% fo nominal current of the thyristor unit.
6.3.1 Heater Break Alarm indication
The Heater Break status is displayed with a relay and two leds, as the following table.
SC
(red led)
SCR OK
SCR short circuit
HB
(yellow led)
Laod OK
Load Fault
: light OFF : light ON
6.3.2 H.B. Relay
The contact of the H.B. Relay is available on auxiliary termin als.
18 NC HB relay alarm ** (coil not energized) 19 Common relay HB alarm 20 NO HB relay alarm ** (coil not energized)
** In alarm condition or without auxiliary voltage the relay coil is not energized. In normal condition (no alarm) the relay coil is energized.
Switch cut-off capacity of the contact relay output is 0.5A at 125VAC.
6.3.3 Reset
To reset Heater Break Alarm open RESET contact on terminal 7-8.
23 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
6.3.4 Calibration (only with HB option)
This procedure is necessary to give the Heater Break set point. The unit reads the load current many times and when the value is the same for three times, takes it as set point.
Cal. for S9 and S10 sizes
Calibration procedure:
verify that connections are correct;
supply the thyristor unit;
push “CAL” button on front of the unit (for S9 and S10) or on the
PCB board (for S14), or supply with 24Vdc terminals 15 (+) and 16 (-) or send command via RS485;
the thyristor unit goes in conduction state to measure load current;
all LEDS are ON, this means that calibration procedure is active;
after one minute LEDS for H.B. and S/C switch off (calibration
procedure is done);
the thyristor unit is ready to work.
Cal. for S14 size
www.honeywell.com/imc 24
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
6.3.5 Digital input Command HB calibration
RESET 7 RESET 7 RESET 8 RESET 8
INPUT + 9 INPUT + 9
INPUT - 10 INPUT - 10 0V GND 11 0V GND 11
+ 8V 12 + 8V 12
SLAVE + 13 SLAVE + 13
SLAVE - 14 SLAVE - 14
+ CAL 15 + CAL 15
- CAL 16 - CAL 16 17 17
N.C. 18 N.C. 18
L3
L3
L1
L1
440/220V 3 440/220V 3
PE 4 PE 4 FAN 5 FAN 5 FAN 6 FAN 6
440/220V 1 440/220V 1
2 2
COM 19 COM 19
N.O. 20 N.O. 20
HB RELAY OUTPUT HB RELAY OUTPUT
T3
T3
T1
T1
EXTERNAL HB
CALIBRATION 24 V dc
Reset Push But ton (normally closed)
Reset Push Button (no rmally closed)
6.3.6 RS485 Command HB calibration
RS485 BUS
If load current decreases for partial or total load failure (sensitivity 20% standard Adjustable v ia RS485) the yellow LED becomes ON and alarm relay changes status. If CD3000M is still in conduction with no input signal (LED green OFF) it means that there is a short circuit on thyristors and red LED (SC) becomes ON.
The diagnostic is active only when the switching period is longer than 60ms (3 main voltage cycle).
If the load has been changed calibration procedure must be done again.
25 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
7. Thyristor firing mode
SSR fr om c o ntroller
LOAD VOLTAGE (V)
VOLTAGE SUPPLY (V)
ZERO CROSSING
7.1 Zero Crossing (ZC)
ZC firing mode is used with Logic Output from temperature controllers and the
T
hyristor operates like a contactor. The Cycle time is performed by temperature controller. ZC minimizes interferences because the Thyristor unit switches ON-OFF at zero voltage.
VOLTAGE SUPPLY (V)
20%
50%
70%
100%
7.2 Burst Firing (BF)
This firing performed in Digital mode in Honeywell Thyristor unit gives a lot of advantages because switches Thyristor at zero voltage crossing without EMC interferences. Analog input is necessary for BF and can be decided how many complete cycles we want at 50% of power demand.
T
his value can be implemented from 1 to 255 complete cycles doing the firing less or more fast. When 1 is setted the firing name becomes Single Cycle (see above).
www.honeywell.com/imc 26
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
7.3 Configurator
To configure CD3000M unit, you can download the free software and the Configurator Manual from our web site www.honeywell.com/imc.
To configure the unit you can use the standard communication on RS485 port or use a programming cable with K11 connector.
27 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
7.3.1 RS485 standard communication port
If you use this port, you must have a RS232/485 converter.
5
1
6
9
B
RS485
A
www.honeywell.com/imc 28
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
7.3.2 Programming via K11 connector
If you use the K11 connector, you need the special programming cable supplied by Honeywell.
29 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
8. Fuses and fuseholder
8.1 Fuses and Fuse Code
CD3000M unit must be protected by fuses against short circuit selecting the proper I²t that must be lower than thyristor one. The same caution must be taken if Circuit Breaker is used. Remember that is very difficult to protect the thyristor if this choice is done.
WARNING!! Equipment short circuit protected by Semiconductor Fuse type with proper I
2
t
Bussmann Div - Cooper (UK) Ltd (200 kA
RMS
Symmetrical A.I.C.)
Ferraz Shawmut SA (200 kA
RMS
Symmetrical A.I.C.)
Sizes
Fuse Mod. No. /modéle fusible
Current
(A
RMS
)
I
2
t
(A
2
sec)
V ac Fuse Mod. No.
/modéle fusible
Current
(A
RMS
)
I
2
t
(A
2
sec)
Vac
125A 200 FEE 200 11400 660
6,6 URY 000
BS88 200
200 16000 660
400A 550 FMM 550 215000 660
6,6 URZ 2X000
BS88 Z 550
550 208000 660
450A 2x 315 FM 315 77000 660
2 x 6,6 URB 000
BS88 315
315 82000 660
500A 2x 315 FM 315 77000 660
2 x 6,6 URB 000
BS88 315
315 82000 660
600A 2x 450 FMM 450 105000 660
2x 6,6 URZ
2X000 BS88 450
450 126000 660
700A 2x 450 FMM 450 105000 660
2x 6,6 URZ
2X000 BS88 450
450 126000 660
SIBA (300kA @ 600V, 200kA @700V) FERRAZ (200kA @ 660V)
150A 20 559 20 250 44000 660
6,6 URB 000
BS88/250
250 52000 660
200A 20 559 20 315 77000 660
6,6 URB 000
BS88/315
315 82000 660
275A 20 559 20 315 77000 660
6,6 URB 000
BS88/315
315 82000 660
High speed fuses are only used for the thyristor protection and can not be used to protect the installation.
The user installation must be protect by electromagnetic circuit breaker or by fuse isolator.
The warranty of thyristor is null if no proper fuses are used. See tab above.
www.honeywell.com/imc 30
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9. Modbus communication
The CD3000M is equipped with two-wire RS485-compatible serial communications, by which means communication may occur between the Controller and a master device (e.g. a computer or terminal).
9.1 Physical requirements
9.1.1 Character Transmission
Data format is fixed to be one start bit, eight data bits, one stop bit, baud rate 9600 and the parity none.
9.2 ModBus RTU protocol
The standard RS485 Communications uses the industry standard MODBUS RTU protocol. The following restrictions are imposed:
Baud rates is fixed to 9600 Baud only.
Support for multi-parameter Write operations is limited to support of the Multi-
Word Write Function (Number 16) but it permits the writing of only one parameter per message.
The following MODBUS functions are supported:
Function Function Number Read Holding Registers (Read n Word) 03 Preset Multiple Registers (Write n Word) 16
The Controller will identify itself in response to a Read Holding Registers message which enquires the values of word parameters 121 and 122 (see Table 4-2). MODBUS Function 17 (Report Slave ID) is not supported.
9.2.1Message Formats
The first character of every message is the Controller address, in the range 1 - 255 and 0 for broadcast messages. The second character is always the Function Number. The contents of the remainder of the message depends upon this Function Number. In most cases the Controller is required to reply to the message by echoing the address and Function Number.
Broadcast messages are supported at address 0 (to which the CD3000M responds by taking some action without sending back any reply).
Data is transmitted as eight-bit binary bytes with one start bit, one stop bit and parity checking set to none. A message is terminated simply by a delay of more than three character lengths at the Baud rate used(in this case 9600 baud); any character received after such a delay is considered to be the potential address at the start of a new message.
31 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
Since only the RTU form of the protocol is supported, each message is followed by a two-byte CRC 16 (a 16-bit cyclic redundancy checksum). This checksum is calculated in accordance with a formula which involves recursive division of the data by a polynomial, with the input to each division being the remainder of the results of the previous division.
The dividing polynomial is 2
16
+ 215 + 22 + 1(Hex 18005)
but this is modified in two ways:
because the bit order is reversed, the binary pattern is also reversed, making the most significant bit (MSB) the right-most bit;
because only the remainder is of interest, the right-most (most significant) bit can be discarded.
Thus, the polynomial has the value Hex A001.
9.2.2 Bit’s order
Normal bit order
Most significant bit Least significant bit
Most significant byte Least significant Byte
Reversed bit order
Least significant bit Most significant bit
Least significant Byte Most significant byte
N.B.: Reversed order apples, so CRC16 return Reversed bit order
www.honeywell.com/imc 32
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
START
Setting FFFF (Hex) To CR
CR= CRC error chec k data ( 1 word) I = Digits of calculation characters in command message J = Check on the number of times of CR calculation
Settin g 1 to I
Settin g 1 to J
CR is shifted by
1 bit to right
Added 1t o J
Added 1 to I
END
After shifting CR by 1 bit to righ t, A001(Hex) and exclusive logical sum
(XOR) are executed for s etting the result i n CR
Bit at right and of CR is 1?
NO
NO
NO
YES
YES
YES
Eight times of calculation
is completed?
J>8
Calculation of all charactersis completed?
I>All characters numbers
Exclusive logical Sum (XOR) is e x ecuted on one character (1 byte) at I
charactor of CR and de signat ed messa ge , an d results are set t o CR.
33 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
9.2.3 C Language CRC 16 Example
static short CRC16 (unsigned char *p_first,unsigned char *p_last) { unsigned int crc=0xffff; short j;
for (;p_first<=p_last;p_first++) { crc ^= *p_first; for(j=8;j>0;j--) { if(crc & 0x0001) { crc = crc >> 1; crc ^= 0xA001; } else { crc = crc >> 1; } }
} return (crc); }
9.2.4 Read Holding Registers (Read n Words) – Function 03
The message sent to the Controller to obtain the value of one or more registers comprises the following eight bytes:
Addr. unit Func. Address
1° word
N° of Word CRC 16
3
3Hex
HI LO HI LO HI LO
The normal reply will echo the first two characters of the message received follow ed by a single­byte data byte count (which will not includ e itself or the CRC). For this message, the count value equals the number of parameter v a lues read multiplied by two. Following the byte count, the specified number of parameter values are transmitted, followed by the CRC16 bytes:
Addr. unit Func. Cont. 1° Value Last Value CRC 16
3
3Hex
HI LO HI LO HI LO
www.honeywell.com/imc 34
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9.2.5 Preset Multiple Registers (Write n Words) - Function 16
This is an eleven-byte message. only one parameter may be written for each received message. The usual pre-amble is followed by the address of the parameter to be written, a two-byte word count (always set to 1), a single-byte byte count (always set to 2), the value to be written and the CRC16 bytes:
Addr. unit Func. Addr of
1° Word
N° of Word Cont. Valore CRC 16
16
10Hex
HI LO 0 1 2 HI LO HI LO
The Controller normally responds with the following eight-bit reply:
Addr. unit Func. N° of Word N° Word CRC 16
16
10Hex
HI LO 0 1 HI LO
9.2.6 Error and Exception Responses
If a received message contains a corrupted character (parity check failure, framing error etc.) or if the CRC16 check fails, or if the received message is otherwise syntact ically flawed (e.g. byte count or word count is incorrect), the thyristor will ignore that message.
If the received message is syntactically correct but nonetheless contains an illegal value, the thyristor will send a five-byte exception response as follows :
Addr. unit Func. N.Exception CRC 16
HI LO
The Function Number byte contains the function number contained in the message which caused the error, with its top bit set (i.e. Function 3 becomes 0x83) and the Exception Number is on of the following codes:
Code Name Cause 1 ILLEGAL FUNCTION Function number out of range 2 ILLEGAL DATA ADDRES Parameter ID out of range or not supported 3 ILLEGAL DATA VALUE Attempt to write invalid data/required action not
executed
NOTE: Writing a parameter value equal to its current value is a valid transaction; this will not cause an error response.
35 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
9.3 Word parameters
Parameter N. Notes
Heater nominal current 1 Read only Set-point HB 2 Read /write Status Table (shown in Tab 2.1.2) 3 Read only Comand Table (shown in Tab 2.1.3) 4 Read /write
Output Power (0 – FFH) 5
Read - (Write if BIT1in Command table i = 1) (0->0% - FF->100%)
Power Adjust (0 – FFH) 6
Read -- (Write if BIT1in Command table i =
1) (0->0% - FF->100%)*
9.3.1 Heater nominal current Parameter 1 Operation: Read
Meaning:
It correspond at one value in points (0-255,0-FF Hex). It represents average current value flowing into thyristors. Value depends on current transformer ratio that is different from one size to the other one (see below table)
Nominal current
(A)
Zero (0 , 0 Hex)
(A)
Max ( 255 , ff Hex)
(A)
3,5 0 3,5
15 0 25 25 0 25 35 0 50 45 0 50 60 0 100 90 0 100
110 0 100
www.honeywell.com/imc 36
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9.3.2 Set-point HB Parameter 2 Operations: Read/Write
Meaning:
It correspond at one value in points (0-255, o-FF Hex). It’s the set of current value below which HB alarm occurs. This value is the load current minus % value of parameter 124H. This value depend on nominal current of transformer that change in function of thyristor nominal current as described in below tab.
Nominal current
(A)
Zero (0 , 0 Hex)
(A)
Max ( 255 , ff Hex)
(A)
3,5 0 3,5
15 0 25 25 0 25 35 0 50 45 0 50 60 0 100 90 0 100
110 0 100
9.3.3 Status Table Parameter 3 Operations: Read
Meaning:
It’s a tab in bit that represent the “Status” of thyristor unit
9.3.4 Comand Table Parameter 4 Operations: Read/Write
Meaning:
It’s a tab in bit for remote commands via RS485 (see tab)
37 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
9.3.5 Output Power Parameter 5
Command from controller
Operations: Read Meaning:
It rapresent a value in points (0-255, 0-FF Hex) and it’s the power demand in % of controller. Example:
0% = 0 0 (Hex) 50% = 128 80 (Hex) 100% = 255 FF (Hex)
Command via RS485
Operations : Read/Write
Meaning:
It’s a value in points (0-255, 0-FF Hex) It’s power set point setted in thirst buffer
Example: 0% = 0 0 (Hex) 50% = 128 80 (Hex) 100% = 255 FF (Hex)
9.3.6 Power adjust Parameter 6 Operations: Read/Write
Meaning:
Its’ a value in points (0-255, 0-FF Hex) Its’ a scaling factor of power demand
Example 1:
www.honeywell.com/imc 38
0% = 0 50% = 128 100% = 255
Example 2:
Output Power :100 Power Limit :100
-> Power real : 100
Output Power :100 Power Limit :50
-> Power real : 50
Output Power :80 Power Limit :50
-> Power real : 40
100
Power Adjust = 100 %
Power Adjust = 80%
Power Adjust = 40%
80
60
40
20
0
4020 60 10080
Inpu t %
OUT %
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9.3.7 Status Table
Bit Meaning Notes
0 Short circuit on SCR Read only 1 Load Failure Read only 2 On-Off Read only 3 HB Calibration in progress Read only 0=Normal - 1=Calibration
9.3.7.1 Short circuit on SCR Bit 0
Operations: Read
Meaning:
Its’ a status but that represents the short circuit on thyristor 0 = OK
1 = Short circuit
9.3.7.2 Load Failure Bit 1
Operations: Read
Meaning:
It’s a bit that represent partial or total load failure. 0 = OK
1 = Load failure
9.3.7.3 On-Off Bit 2
Operations: Read
Meaning:
It’s a bit that represent when input signal is ON 0 = Input signal OFF
1 = Input signal ON
9.3.7.4 HB Calibration in progress Bit 3
Operations: Read Meaning:
It’s a bit status that represent “calibration in progress”
0 = No calibration 1 = Calibration in progress
39 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
9.3.8 Command Table
Bit Meaning Notes
0 HB Calibration
Read /write 0=Off - 1=ACTVATE Calibration ( normal mode set to 0)
1 Firing command Read /write 0=from terminal - 1=from RS485 2 On-Off Read /write 0=Off - 1=On
3 RESET HB
Read /write 0=Off - 1=RESET ( normal mode set to 0)
N.B.: When unit is switch off all command parameter are set to 0
9.3.8.1 HB Calibration Bit 0
Operations: Read / Write
Meaning:
It’s a bit that starts the HB calibration procedure When this bit is zero start the calibration procedure and reset itself automatically at the end.
9.3.8.2 Firing command Bit 1
Operations: Read / Write
Meaning:
It’s a command bit used to switch from analog external command to command via RS485 0 = Command of analog input
1 = Command of RS485 input
9.3.8.3 On-Off Bit 2
Operations: Read / Write
Meaning:
Its’ an enable bit to switch ON-OFF the power. 0 = Power disabled
1 = Power enabled
9.3.8.4 HB RESET Bit 3
Operations: Read / Write
Meaning:
It’s a command bit to reset HB alarm. This parameter has to be at 0 to have the alarm working properly
0 = Reset disabled 1 = Reset enabled
www.honeywell.com/imc 40
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9.4 Thyristor unit Configuration
Parameter N. Notes
Password 123 Write Delay trigger 124L Read /write % HB 124H Read /write Firing type 125L Read /write Soft start time 125H Read /write N° burst 126L Read /write Delay time HB 126H Read /write Max power for SSR Input 127L Read /write Cycle time 127H Read /write N° of half period for Delayed triggering 128L Read /write (Mantenere a 1) 128H Read /write
9.4.1 Password Parameter 123 Operations: Write
Meaning:
If properly setted give the access to configuration
9.4.2 Delay triggering Parameter 124L Operations: Read/Write
Meaning:
It’s correspond to a value in points (0-50, 0-32 Hex) Each step is 0,1msec. Range is 0-5msec. This parameter is the delay of firig in first half period with respect zero voltage crossing.
9.4.3 % HB Parameter 124H Operations: Read/Write
Meaning:
It’s correspond to a value in point (0-255, 0-ff Hex) This parameter is the value in % that decrease the load current to establish the HB current set point
Example: Load current = 10A
Parameter 124H = 20% 51 Dec 33 Hex Parameter 2 will be setted at 8A
41 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
9.4.4 Firing type Parameter 125L Operations: Read/Write
Meaning:
Selection table of firing modes.
Value Type Option
H L 0 1 Zero Crossing ­0 2 Single Cycle ­0 3 Burst ­1 1 Zero Crossing Soft Start 1 2 Single Cycle ­1 3 Burst Soft Start 2 1 Zero Crossino Delay trigger 2 2 Single Cycle 2 3 Burst Delay triggering 2 4 Phase angle Soft start
9.4.5 Soft start time Parameter 125H Operations: Read/Write
Meaning :
Time
Soft Start Time Par 125H x 5msec
OUT
It’s correspond to a value in points (0 – 255, 0 – FF Hex). Each step is 5msec .
The unit start in phase angle mode with a ramp starting from zero up to full voltage in a presetted and Adjustable time. The time is setted by this parameter.
Value of this parameter must be less than cycle time.
For burst firing: Value of this parameter must be less than: 50Hz -> 20msec x Number of cycles (Parameter 126L). 60Hz -> 16,6msec x Number of cycles (Parameter 126L).
www.honeywell.com/imc 42
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9.4.6 N° burst Parameter 126L Operations: Read/Write
Meaning:
It’s a value in point (0 – 255, 0 – FF Hex). In burst firing mode it rapresents the number of cycles at 50% power demand
9.4.7 Delay time HB Parameter 126H Operations: Read/Write
Meaning:
It’s a value in point (0 – 255, 0 – FF Hex). Each step is 50msec. It represent a delay to have HB alarm active
When is used soft start this time must be longer than soft start time. Par126H x 50msec > Par125H x 5msec
When zero crossing firing is used must be less than cycle time Par126H x 50msec > Par127H x 50msec
9.4.8 Max power for SSR Input Parameter 127L Operations: Read/Write
Meaning:
It’s a value in points (0 – 255, 0 – FF Hex). When SSR input is used it represent the value of the power (%) when is in ON status. It’s the power % when firing command is given on RS485 (1). Example: 0% = 0 0 (Hex)
50% = 128 80 (Hex) 100% = 255 FF (Hex)
43 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
9.4.9 Cycle time Parameter 127H Operations: Read/Write
Meaning:
It’s a value in points (0 – 255, 0 – FF Hex). Each step is 50msec .
Cycle Time
Time
20%
ON OFF
50% 70% 100%
When single cycle (SC) and burst firing (BF) is used must be setted at 240 (FO Hex) When SSR input is used set at 240 (FO Hex) When is used zero crossing (ZC) represents the cycle time
(ON time + OFF time, default 60(3C Hex) )
9.4.10 Number of half periods for DT firing Parameter 128L Operations: Read/Write
Meaning:
Must be setted at 1.
www.honeywell.com/imc 44
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
9.5 Address Configuration
Up to 255 CD3000M units, each with a unique address, may be connected to a master device. To configure communication address open cover and set the dip-switch as specified
9.5.1 Address table
ID 8 7 6 5 4 3 2 1 ID 8 7 6 5 4 3 2 1
1 - - - - - - - X 26 - - - X X - X ­2 - - - - - - X - 27 - - - X X - X X 3 - - - - - - X X 28 - - - X X X - ­4 - - - - - X - - 29 - - - X X X - X 5 - - - - - X - X 30 - - - X X X X ­6 - - - - - X X - 31 - - - X X X X X 7 - - - - - X X X 32 - - X - - - - ­8 - - - - X - - - 33 - - X - - - - X 9 - - - - X - - X 34 - - X - - - X ­10 - - - - X - X - 35 - - X - - - X X 11 - - - - X - X X 36 - - X - - X - ­12 - - - - X X - - 37 - - X - - X - X 13 - - - - X X - X 38 - - X - - X X ­14 - - - - X X X - 39 - - X - - X X X 15 - - - - X X X X 40 - - X - X - - ­16 - - - X - - - - 41 - - X - X - - X 17 - - - X - - - X 42 - - X - X - X ­18 - - - X - - X - 43 - - X - X - X X 19 - - - X - - X X 44 - - X - X X - ­20 - - - X - X - - 45 - - X - X X - X 21 - - - X - X - X 46 - - X - X X X ­22 - - - X - X X - 47 - - X - X X X X 23 - - - X - X X X 48 - - X X - - - ­24 - - - X X - - - 49 - - X X - - - X 25 - - - X X - - X 50 - - X X - - X -
8 7 6 5 4 3 2 1
45 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
ID 8 7 6 5 4 3 2 1 ID 8 7 6 5 4 3 2 1
51 - - X X - - X X 101 - X X - - X - X 52 - - X X - X - - 102 - X X - - X X ­53 - - X X - X - X 103 - X X - - X X X 54 - - X X - X X - 104 - X X - X - - ­55 - - X X - X X X 105 - X X - X - - X 56 - - X X X - - - 106 - X X - X - X ­57 - - X X X - - X 107 - X X - X - X X 58 - - X X X - X - 108 - X X - X X - ­59 - - X X X - X X 109 - X X - X X - X 60 - - X X X X - - 110 - X X - X X X ­61 - - X X X X - X 111 - X X - X X X X 62 - - X X X X X - 112 - X X X - - - ­63 - - X X X X X X 113 - X X X - - - X 64 - X - - - - - - 114 - X X X - - X ­65 - X - - - - - X 115 - X X X - - X X 66 - X - - - - X - 116 - X X X - X - ­67 - X - - - - X X 117 - X X X - X - X 68 - X - - - X - - 118 - X X X - X X ­69 - X - - - X - X 119 - X X X - X X X 70 - X - - - X X - 120 - X X X X - - ­71 - X - - - X X X 121 - X X X X - - X 72 - X - - X - - - 122 - X X X X - X ­73 - X - - X - - X 123 - X X X X - X X 74 - X - - X - X - 124 - X X X X X - ­75 - X - - X - X X 125 - X X X X X - X 76 - X - - X X - - 126 - X X X X X X ­77 - X - - X X - X 127 - X X X X X X X 78 - X - - X X X - 128 X - - - - - - ­79 - X - - X X X X 129 X - - - - - - X 80 - X - X - - - - 130 X - - - - - X ­81 - X - X - - - X 131 X - - - - - X X 82 - X - X - - X - 132 X - - - - X - ­83 - X - X - - X X 133 X - - - - X - X 84 - X - X - X - - 134 X - - - - X X ­85 - X - X - X - X 135 X - - - - X X X 86 - X - X - X X - 136 X - - - X - - ­87 - X - X - X X X 137 X - - - X - - X 88 - X - X X - - - 138 X - - - X - X ­89 - X - X X - - X 139 X - - - X - X X 90 - X - X X - X - 140 X - - - X X - ­91 - X - X X - X X 141 X - - - X X - X 92 - X - X X X - - 142 X - - - X X X ­93 - X - X X X - X 143 X - - - X X X X 94 - X - X X X X - 144 X - - X - - - ­95 - X - X X X X X 145 X - - X - - - X 96 - X X - - - - - 146 X - - X - - X ­97 - X X - - - - X 147 X - - X - - X X 98 - X X - - - X - 148 X - - X - X - ­99 - X X - - - X X 149 X - - X - X - X 100 - X X - - X - - 150 X - - X - X X -
www.honeywell.com/imc 46
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
ID 8 7 6 5 4 3 2 1 ID 8 7 6 5 4 3 2 1
151 X - - X - X X X 201 X X - - X - - X 152 X - - X X - - - 202 X X - - X - X ­153 X - - X X - - X 203 X X - - X - X X 154 X - - X X - X - 204 X X - - X X - ­155 X - - X X - X X 205 X X - - X X - X 156 X - - X X X - - 206 X X - - X X X ­157 X - - X X X - X 207 X X - - X X X X 158 X - - X X X X - 208 X X - X - - - ­159 X - - X X X X X 209 X X - X - - - X 160 X - X - - - - - 210 X X - X - - X ­161 X - X - - - - X 211 X X - X - - X X 162 X - X - - - X - 212 X X - X - X - ­163 X - X - - - X X 213 X X - X - X - X 164 X - X - - X - - 214 X X - X - X X ­165 X - X - - X - X 215 X X - X - X X X 166 X - X - - X X - 216 X X - X X - - ­167 X - X - - X X X 217 X X - X X - - X 168 X - X - X - - - 218 X X - X X - X ­169 X - X - X - - X 219 X X - X X - X X 170 X - X - X - X - 220 X X - X X X - ­171 X - X - X - X X 221 X X - X X X - X 172 X - X - X X - - 222 X X - X X X X ­173 X - X - X X - X 223 X X - X X X X X 174 X - X - X X X - 224 X X X - - - - ­175 X - X - X X X X 225 X X X - - - - X 176 X - X X - - - - 226 X X X - - - X ­177 X - X X - - - X 227 X X X - - - X X 178 X - X X - - X - 228 X X X - - X - ­179 X - X X - - X X 229 X X X - - X - X 180 X - X X - X - - 230 X X X - - X X ­181 X - X X - X - X 231 X X X - - X X X 182 X - X X - X X - 232 X X X - X - - ­183 X - X X - X X X 233 X X X - X - - X 184 X - X X X - - - 234 X X X - X - X ­185 X - X X X - - X 235 X X X - X - X X 186 X - X X X - X - 236 X X X - X X - ­187 X - X X X - X X 237 X X X - X X - X 188 X - X X X X - - 238 X X X - X X X ­189 X - X X X X - X 239 X X X - X X X X 190 X - X X X X X - 240 X X X X - - - ­191 X - X X X X X X 241 X X X X - - - X 192 X X - - - - - - 242 X X X X - - X ­193 X X - - - - - X 243 X X X X - - X X 194 X X - - - - X - 244 X X X X - X - ­195 X X - - - - X X 245 X X X X - X - X 196 X X - - - X - - 246 X X X X - X X ­197 X X - - - X - X 247 X X X X - X X X 198 X X - - - X X - 248 X X X X X - - ­199 X X - - - X X X 249 X X X X X - - X 200 X X - - X - - - 250 X X X X X - X ­ 251 X X X X X - X X X = ON 252 X X X X X X
- = OFF 253 X X X X X X X 254 X X X X X X X 255 X X X X X X X X
47 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
10. Maintenance
10.1 Trouble Shooting
Small problems sometimes can be solved locally with the help of the below tab of t rouble shootin g. If you don’t succeed, contact us or your nearest distributor.
Symptom Indication on
front unit
Possible reasons of the symptom
Actions
Green LED is
always light off.
- No voltage auxiliary power supply to terminals 1-3 (see wiring diagram).
- Give auxiliary voltage supply to terminals 1-3.
Green LED (PW) light on and green LED (ON) in light off condition.
- No input signal.
- Reversed polarities of
input signal.
- Reset contact in open condition (see wiring diagram).
- Provide to give input signal.
- Reverse the input signal polarity.
- Make link on reset terminals.
Thyristor unit doesn’t go in conduction with input signal.
Green LED (PW) in light on condition and green LED (ON) in light on condition.
- Fuse failure.
- Load failure.
- Load connection
interruption.
- Thyristor faulty and always in open circuit.
- With HB option the yellow led (HB) in light on condition.
- Substitute the fuse.
- Repair the load.
- Provide to repair the wiring.
- Substitute the faulty thyristor.
- Check the load.
Load current flows also with no input signal.
Green LED (ON) always in light off condition.
- Short circuit on thyristor. If there is HB circuit the red LED (SC) is light on.
- Substitute the thyristor. Check that load is not in short circuit.
Current flows at nominal value but yellow LED (HB) in light on condition.
Yellow HB in light on condition.
- HB circuit not tuned.
- Current transformers
not properly wired (if are external to CD3000).
- Push CAL button in front unit to start HB calibration procedure.
- Control current transformers wiring and Push CAL button in front unit to start HB calibration procedure.
Red LED (SC) is lighted also if current is at nominal value.
Red LED in light on condition.
- HB circuit not properly tuned.
- Push CAL button in front unit to start HB calibration procedure.
Thyristor unit doesn’t work properly.
- Wrong input signal selection.
- Wrong input signal calibration (out of range).
- Auxiliary voltage supply out of limits.
- Control input signal setting.
- Repeat input calibration
procedure.
- Verify the auxiliary voltage supply.
www.honeywell.com/imc 48
User’s Manual CD3000M-2PH from 125A to 700A Honeywell
10.2 Repairing procedure
Phone to us.
Explain to Service Engineer the problem because sometimes it can be solved with a phone call.
If this is not possible ship the unit to us or to your distributor.
Write a fault description and give the name of your personnel to which refer.
Use a rugged packaging to ship the unit.
10.3 Fans
The thyristor unit with forced ventilation uses fans that rotate permanently when the unit is supplied. In case of accidental fan failure, there is an over heating temperature on heatsink. In this case to give protection to thyristor there is a thermal switch properly setted. The function of this switch is to open the input signal until the h eatsink temperature falls below the setted value. This means that also with input signal in ON condition the unit is switched OFF and the system can not work at full power. For these reason is important to control periodically the fan status checking that is rotating.
10.4 Servicing
In order to have correct cooling, the user must clean the heatsink and the protective grill of fan. The frequence of this servicing depends on environmenta l pollution. Check periodically also if the screw for the power cables and safety earth are tightened correctly
10.5 Warranty conditions
We gives a 12 months warranty to its products. The warranty is limited to repairing and parts substitution in our factory and does exclude products not properly used and fuses. Warranty does not includes products with serial numbers deleted. The faulty product should be shipped to us at your cost and our Service will evaluate if product is un d er warranty terms. Substituted parts remains our property.
49 www.honeywell.com/imc
Honeywell CD3000M-2PH from 125A to 700A User’s Manual
Sales and Service
For application assistance, current specifications, pricing, or name of the nearest Authorized Distributor, contact one of the offices below.
Warranty/Remedy
Honeywell warrants goods of its manufacture as being free of defective materials and faulty work-manship. Contact your local sales office of warranty information. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair of replace without charge those items it finds defective. The foregoing is Buyer’s sole remedy
and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. Specifications may change without notice. The information we supply is believed to be accurate
and reliable as of printing. However, we assume no responsibility for its use. While we provide application assistance personally, through our literature and the Honeywell website, it is up to the customer to determine the suitability of the product in the application.
ASIA PACIFIC
Control Products Asia Pacific Headquarters
Phone: +(65) 6355-2828 Fax: +(65) 6445-3033
Australia
Honeywell Limited Phone: +(61) 2-9370-4500 FAX: +(61) 2-9370-4525 Toll Free 1300-36-39-36 Toll Free Fax: 1300-36-04-70
China – PRC - Beijing
Honeywell China Inc. Phone: +(86-10) 8458-3280 Fax: +(86-10) 8458-3102
China – PRC - Shanghai
Honeywell China Inc. Phone: (86-21) 6237-0237 Fax: (86-21) 6237-1237
China - Hong Kong S.A.R.
Honeywell Ltd. Phone: +(852) 2953-6412 Fax: +(852) 2953-6767
China – PRC - Chengdu
Honeywell China Inc. Phone: +(86-28) 6786-348 Fax: +(86-28) 6787-061
China – PRC - Guangzhou
Honeywell China Inc. Phone: +(86-20) 3879-1169 Fax: +(86-20) 3879-1269
China – PRC - Shenzhen
Honeywell China Inc. Phone: +(86) 755-518-1226 Fax: +(86) 755-518-1221
Indonesia
Honeywell Indonesia Pte Ltd. Phone: +(62) 21-535-8833 FAX: +(62) 21-5367 1008
India
TATA Honeywell Ltd. Phone: +(91) 20 687 0445/0446 Fax: +(91) 20 681 2243/ 687 5992
Japan
Honeywell Inc Phone: +(81) 3 5440 1425 Fax: +(81) 3 5440 1368
South Korea
Honeywell Korea Co Ltd Phone: +(822) 799-6167 Fax: +(822) 792-9013
Malaysia
Honeywell Engineering Sdn Bhd Phone: +(60-3) 7958­4988 Fax: +(60-3) 7958-8922
New Zealand
Honeywell Limited Phone: +(64-9) 623-5050 Fax: +(64-9) 623-5060 Toll Free (0800) 202-088
Philippines
Honeywell Systems (Philippines) Inc. Phone: +(63-2) 636-1661 /1662
Fax: +(63-2) 638-4013
Singapore
Honeywell South East Asia Phone: +(65) 6355-2828 Fax: +(65) 6445-3033
Thailand
Honeywell Systems (Thailand) Ltd. Phone: +(662) 693-3099 FAX: +(662) 693-3085
Taiwan R.O.C.
Honeywell Taiwan Ltd. Phone: +(886-2) 2245­1000 FAX: +(886-2) 2245­3242
EUROPE
Austria
Honeywell Austria GmbH Phone: +43 (316)400123 FAX: +43 (316)40017
Belgium
Honeywell SA/NV Phone: +31(0)205656999 FAX: +31(0)165330746
Bulgaria
Honeywell EOOD Phone: +(359) 2 79 40 27 FAX: +(359) 2 79 40 90
Czech Republic
Honeywell spol. s.r.o. Phone: +420-54324­5014 FAX: +420-54324-5011
Denmark
Honeywell A/S Phone: +(45) 39 55 55 55 FAX: +(45) 39 55 55 58
Finland
Honeywell OY Phone: +358 (3) 2727625 FAX: +358 (3) 2728600
France
Honeywell SA Phone: +33 (0)1 60198075 FAX: +33 (0)1 60198201
Germany
Honeywell AG Phone: +49 (69)8064336 FAX: +49 (69)806497336
Hungary
Honeywell Kft. Phone: +36-1-451 4335 FAX: +36-1-451 4343
Italy
Honeywell S.p.A. Phone: +39 02 9214 6503 FAX: +39 0292146377
The Netherlands
Honeywell B.V. Phone: +31(0)205656999 FAX: +31(0)165330746
Norway
Honeywell A/S Phone: (45) 39 55 55 55
Poland
Honeywell Sp. zo.o Phone: +48-22-6060900 FAX: +48-22-6060901
Portugal
Honeywell Portugal Lda Phone: +351 21 424 5000 FAX: +351 21 424 50 99
Romania
Honeywell Bucharest Phone: 40212110076 FAX: +40 (40212103375)
Commonwealth of Independent States (CIS)
Z.A.O. Honeywell Phone: +(7 095) 796 98 36 FAX: +(7 095) 796 98 93
Slovak Republic
Honeywell s.r.o. Phone: +421-2-58247 410 FAX: +421-2-58247 415
Spain
Honeywell S.A. Phone: +34 (0)91313 61 00 FAX: +34 (0)91313 61 30
Sweden
Honeywell AB Phone: +(46) 8 775 55 00 FAX: +(46) 8 775 56 00
Switzerland
Honeywell AG Phone: +41 18552448 FAX: +(41) 1 855 24 45
Turkey
Honeywell Turkey A.S. Phone: +90 216 575 6600 FAX: +90 216 575 6637
United Kingdom
Honeywell Control Systems Ltd Phone: +(44) 1698 481730 FAX: +(44) 1698 481276
MIDDLE EAST
Abu Dhabi U A E
Middle East Headquarters Honeywell Middle East Ltd Phone: +971 2 4041220 FAX: +971 2 4432536
Sultanate of Oman
Honeywell & Co Oman LLC Phone: +968 701397 FAX +968 787351
Egypt Honeywell Egypt Ltd Phone: +202 4514460 /1/ 2/ 3/ 4/ 5/ 6 FAX : +2024514467
Saudia Arabia Honeywell Turki Arabia Limited Phone: +966-3-341-0140 Fax: +966-3-341-0216
Kuwait Honeywell Kuwait KSC Phone: +965 2421327
AFRICA
Mediterranean & African Distributors
Honeywell SpA Phone: +39 (02) 250 10 604 FAX: +39 (02) 250 10 659
South Africa (Republic of)
Honeywell Southern Africa Honeywell S.A. Pty. Ltd Phone: +27 11 6958000 FAX +27 118051504
NORTH AMERICA
Canada
Honeywell LTD Phone: 1-800-737-3360 FAX: 1-800-565-4130
USA
Honeywell Control Products, International Headquarters Phone: 1-800-537-6945 1-815-235-6847 FAX: 1-815-235-6545 E-mail: info.sc@honeywell.com
LATIN AMERICA
Argentina
Honeywell S.A.I.C. Phone: +(54-11) 4383-3637 FAX: +(54-11) 4325-6470
Brazil
Honeywell do Brasil & Cia Phone: +(55-11) 7266-1900 FAX: +(55-11) 7266-1905
Chile
Honeywell Chile, S.A. Phone: +(56-2) 233-0688 FAX: +(56-2) 231-6679
Mexico
Honeywell S.A. de C.V. Phone: +(52) 55 5259-1966 FAX: +(52) 55 5570-2985
Puerto Rico
Honeywell Inc. Phone: +(809) 792-7075 FAX: +(809) 792-0053
Trinidad
Honeywell Inc Phone: +(868) 624-3964 FAX: +(868) 624-3969
Venezuela
Honeywell CA Phone: +(58-2) 238-0211
FAX: +(58-2) 238-3391
www.honeywell.com/imc 50
Loading...
