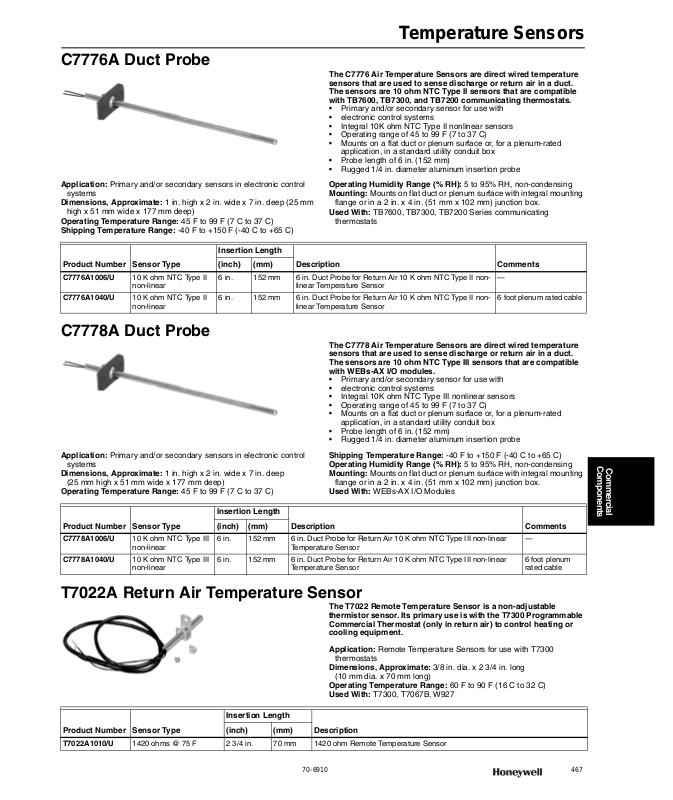

Temperature Sensors
C7776A Duct Probe
Application: Primary and/or secondary sensors in electronic control systems
Dimensions, Approximate: 1 in. high x 2 in. wide x 7 in. deep (25 mm high x 51 mm wide x 177 mm deep)
Operating Temperature Range: 45 F to 99 F (7 C to 37 C) Shipping Temperature Range: -40 F to +150 F (-40 C to +65 C)
The C7776 Air Temperature Sensors are direct wired temperature sensors that are used to sense discharge or return air in a duct. The sensors are 10 ohm NTC Type II sensors that are compatible with TB7600, TB7300, and TB7200 communicating thermostats.
•Primary and/or secondary sensor for use with
•electronic control systems
•Integral 10K ohm NTC Type II nonlinear sensors
•Operating range of 45 to 99 F (7 to 37 C)
•Mounts on a flat duct or plenum surface or, for a plenum-rated application, in a standard utility conduit box
•Probe length of 6 in. (152 mm)
•Rugged 1/4 in. diameter aluminum insertion probe
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Mounting: Mounts on flat duct or plenum surface with integral mounting flange or in a 2 in. x 4 in. (51 mm x 102 mm) junction box.
Used With: TB7600, TB7300, TB7200 Series communicating thermostats
|
|
|
|
|
|
|
|
Insertion Length |
|
|
|
|
|
|
|
|
|
Product Number |
Sensor Type |
(inch) |
(mm) |
Description |
Comments |
|
|
|
|
|
|
C7776A1006/U |
10 K ohm NTC Type II |
6 in. |
152 mm |
6 in. Duct Probe for Return Air 10 K ohm NTC Type II non- |
— |
|
non-linear |
|
|
linear Temperature Sensor |
|
|
|
|
|
|
|
C7776A1040/U |
10 K ohm NTC Type II |
6 in. |
152 mm |
6 in. Duct Probe for Return Air 10 K ohm NTC Type II non- |
6 foot plenum rated cable |
|
non-linear |
|
|
linear Temperature Sensor |
|
|
|
|
|
|
|
C7778A Duct Probe
Application: Primary and/or secondary sensors in electronic control systems
Dimensions, Approximate: 1 in. high x 2 in. wide x 7 in. deep (25 mm high x 51 mm wide x 177 mm deep)
Operating Temperature Range: 45 F to 99 F (7 C to 37 C)
The C7778 Air Temperature Sensors are direct wired temperature sensors that are used to sense discharge or return air in a duct. The sensors are 10 ohm NTC Type III sensors that are compatible with WEBs-AX I/O modules.
•Primary and/or secondary sensor for use with
•electronic control systems
•Integral 10K ohm NTC Type III nonlinear sensors
•Operating range of 45 to 99 F (7 to 37 C)
•Mounts on a flat duct or plenum surface or, for a plenum-rated application, in a standard utility conduit box
•Probe length of 6 in. (152 mm)
•Rugged 1/4 in. diameter aluminum insertion probe
Shipping Temperature Range: -40 F to +150 F (-40 C to +65 C) Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Mounting: Mounts on flat duct or plenum surface with integral mounting flange or in a 2 in. x 4 in. (51 mm x 102 mm) junction box.
Used With: WEBs-AX I/O Modules
|
|
|
|
|
|
|
|
Insertion Length |
|
|
|
|
|
|
|
|
|
Product Number |
Sensor Type |
(inch) |
(mm) |
Description |
Comments |
|
|
|
|
|
|
C7778A1006/U |
10 K ohm NTC Type III |
6 in. |
152 mm |
6 in. Duct Probe for Return Air 10 K ohm NTC Type III non-linear |
— |
|
non-linear |
|
|
Temperature Sensor |
|
|
|
|
|
|
|
C7778A1040/U |
10 K ohm NTC Type III |
6 in. |
152 mm |
6 in. Duct Probe for Return Air 10 K ohm NTC Type III non-linear |
6 foot plenum |
|
non-linear |
|
|
Temperature Sensor |
rated cable |
|
|
|
|
|
|
T7022A Return Air Temperature Sensor
The T7022 Remote Temperature Sensor is a non-adjustable thermistor sensor. Its primary use is with the T7300 Programmable Commercial Thermostat (only in return air) to control heating or cooling equipment.
Application: Remote Temperature Sensors for use with T7300
|
|
|
|
thermostats |
|
|
|
|
Dimensions, Approximate: 3/8 in. dia. x 2 3/4 in. long |
|
|
|
|
(10 mm dia. x 70 mm long) |
|
|
|
|
Operating Temperature Range: 60 F to 90 F (16 C to 32 C) |
|
|
|
|
Used With: T7300, T7067B, W927 |
|
|
|
|
|
|
|
Insertion Length |
|
|
|
|
|
|
|
Product Number |
Sensor Type |
(inch) |
(mm) |
Description |
|
|
|
|
|
T7022A1010/U |
1420 ohms @ 75 F |
2 3/4 in. |
70 mm |
1420 ohm Remote Temperature Sensor |
|
|
|
|
|
<![endif]>Commercial
<![if ! IE]><![endif]>Components
70-6910 |
|
|
|
467 |
|
|
