INTRODUCTION
Honeywell’s access point devices with Bluetooth
customers with a flexible and convenient solution for wireless communication
in a variety of environments, including retail, healthcare, and manufacturing.
The access point device separates charging functions from communication
functions, allowing the user to optimize the available radio range.
Choose from Class II (10 meters) Bluetooth communication or Class I
(100 meters) to meet the specific needs of the application.
ACCESS POINT INTERFACE SUPPORT
AP-010-BT
OR
AP-100-BT
S
Applicable for IBM
Interfaces supported include:
• RS232
• RS485
®
Host applications.
S
Base Kit Components and Optional Accessories
BASIC KIT
Part # Description
®
wireless technology provide
• USB
• Keyboard Wedge
AP-010-BT
OR
AP-100-BT
70-79035
Access Point Device (Class 2 radio: 10 m)
OR
Access Point Device (Class 1 radio: 100 m)
Access Point Device with Bluetooth® Wireless Technology
Installation Guide*
* Available for download at www.metrologic.com
OPTIONAL ACCESSORIES
Part # Description
AC to DC Power Transformer- Regulated 5.2VDC @ 1A output.
46-00525 90VAC-255VAC United States, Canada, and Japan
46-00526 90VAC-255VAC Continental European
46-00527 90VAC-255VAC United Kingdom
46-00528 90VAC-255VAC Australia
46-00529 90VAC-255VAC China
1
INTRODUCTION
OPTIONAL ACCESSORIES
Part # Description
55-55500-3 RS232 Straight PowerLink Cable, Black
55-55502-N-3 Keyboard Wedge Straight Cable, Black
55-55512-3 RS485S Applications,Straight PowerLink Cable
55-55535-N-3 USB Type A Straight Cable, Black
55-55567-3 AUX Cable, Black
S
Applicable for IBM® host applications.
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or call Metrologic’s Customer Service Department at
1-800-ID-METRO or 1-800-436-3876.
Components
ITEM NO. DESCRIPTION LOCATION
Page/Disconnect Button &
1
Blue LED (see page 8)
2 Mounting Holes, Qty. 2
3 10-Pin RJ45, Female Socket
Pinhole for Cable Release
4
(see page 5)
5 Address Bar Code
www.metrologic.com 2
Figure 1. Components
INTRODUCTION
Mounting Specifications
1. Drill two, 1.6 mm pilot holes in the mounting surface. The pilot holes should
be located on a common centerline and be spaced 68.80 mm (2.70") apart.
2. Secure the access point device to the mounting surface with the
M2.5 x 1.1 - 10 mm, Phillips wood screws provided with the access point.
Figure 2. Mounting Specifications
Cable Removal
Turn off power to the host system before removing the cable from the access
point device. If the cable is a PowerLink cable, disconnect the power supply on
the cable.
Figure 3. Cable Removal
1. Locate the small pinhole on the top of the access point device
(see figure above).
2. Bend an ordinary paperclip into the shape shown above.
3. Insert the paperclip into the pinhole on the device. Apply pressure to
release the connector’s lock.
4. Pull on the cable’s strain-relief to remove the cable.
3
INTRODUCTION
Product Labels
The serial number label located on the bottom of the access point device
provides important information including the model number, date of manufacture,
serial number, address bar code, safety and regulatory information. An
additional copy of the address bar code is location on the top of the device near
the Honeywell logo. The figure below provides examples of the labels and their
locations on the access point device.
Figure 4. Label Location with Examples
Caution
To maintain compliance with applicable standards, all circuits connected to the
scanner must meet the requirements for SELV (Safety Extra Low Voltage)
according to EN/IEC 60950-1.
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and
norm EN/IEC 60950-1, the power source should meet applicable performance
requirements for a limited power source.
The AP-010-BT and AP-100-BT are intended for use with Listed UL computer
and/or Listed PS with LPS/Class 2 output.
www.metrologic.com 4
INSTALLATION
Cable to Access Point Connection
1. Align the tab on the modular connector with the pinhole on the access point
device (see figure below).
2. Insert the modular connector into the device’s socket.
3. Test the cable’s connection to ensure the connector lock has engaged.
Important: If the cable is not fully latched, the unit can power intermittently.
4. Refer to pages 5 – 6 for the appropriate host connections applicable to the
interface type.
RS232 Host Connections
1. Turn off power to the host system.
Figure 5. Cable Installation
2. Connect the female, 9-Pin D-type
connector to a dedicated RS232
communication port on the host
system.
3. Plug the external power supply into
the power jack on the PowerLink
cable.
Check the AC input requirements of the power supply verify the
voltage matches the AC outlet. The outlet must be located near the
equipment.
See caution information on page 4.
4. Connect AC power to the transformer.
5. Turn on power to the host system.
5
Figure 6. RS232 Host Connections
INSTALLATION
USB Host Connections
1. Turn off power to the host system.
2. Plug the USB connector into the to
a dedicated USB serial port.
3. Turn on power to the host system.
Keyboard Wedge Host Connections
1. Turn off power to the host system.
2. Disconnect the keyboard from the
3. Connect the “Y” ends of the
4. Turn on power to the host system.
RS485
1. Turn off power to the host system.
2. Connect the SDL connector into
3. Plug the external power supply
host system.
communication cable to the
keyboard and the keyboard port on
the host system. If necessary, use
the male/female adapter cable
supplied with the device for proper
connections.
S
Host Connections
a dedicated Port 9 on the host
system.
into the power jack on the
PowerLink cable
Figure 9. RS485 Host Connections
Figure 7. USB Host Connections
Figure 8. KBW Host Connections
Check the AC input requirements of the power supply verify the voltage
matches the AC outlet. The outlet must be located near the equipment.
See caution information on page 4.
4. Connect AC power to the transformer.
5. Turn on power to the host system.
S
Applicable for IBM
®
Host applications.
www.metrologic.com 6
ESTABLISHING COMMUNICATION
Between the Scanner and the Access Point Device
To establish communication between the scanner and access point device:
1. Connect the access point device to the host system (see pages 5 - 6).
2. Scan the address bar code on the access point device to establish a
communication connection between the scanner and the access point
device.
Figure 10. Address Bar Code
3. If successful, the scanner will respond with two beeps and the LED's on
both the scanner and access point device will stop flashing.
Important Note:
The communication link between the scanner and the
access point device is determined by the last address
code scanned.
7
ACCESS POINT DEVICE OPERATION
Page/Disconnect Button
The access point has a button located on
the top of the device that can be used to
either page the scanner or disconnect the
communication link between the scanner
and the access point.
The page and disconnect button features are not supported in
CodeXML protocol mode. The scanner must be configured for the
Metro protocol mode for feature functionality. Refer to page 9 for
more information on Metro Protocol Compatibility.
To page the scanner:
1. Press the page button on the top of the access point device.
2. The scanner will start to beep and alternately flash the LEDs.
3. Locate the scanner.
4. Pull the scanner’s trigger or press the page button on the top of the access
point to stop paging.
To disconnect communication:
1. Press and hold down the button on the access point device for
more than 3 seconds. The blue LED on the access point device will start to
flash indicating there is no communication link established.
To re-establish communication:
1. Scan the address bar code on access point device with the scanner.
Figure 11.
Visual Indicators
The page/disconnect button is also the blue LED status indicator (see figure
above). The activity of the blue LED reflects the connection, operation and
communication status of the access point device.
If the blue LED is:
• not illuminated, the access point device is not receiving power.
• flashing on and off, the access point device is receiving power but does not
have a communication link to a scanner.
• always illuminated there is a communication link established between the
access point device and a scanner.
After a successful scan, the Blue LED will temporarily turn off while
data is being sent to the host system. The LED will turn back on
when data transmission is complete.
www.metrologic.com 8
CONFIGURATION PROCEDURES
The following information is for replacement applications or situations requiring
scanner reconfiguration. Some of the configuration procedures require the user
to scan the recall defaults bar code. If the recall defaults code is scanned, the
scanner’s factory pre-configurations and custom configurations will be lost.
The scanner will need to be reconfigured in order to work with the access point
device.
Metro Protocol Compatibility
By default, the Metro protocol is enabled before the access point device and
scanner leave the factory. The protocol supports page/disconnect functions,
scanner firmware upgrades through the access point device, and all features
supported by the Code XML protocol.
When a scanner is using the Metro protocol, configuration data is stored in the
access point device. The stored data is automatically sent to the scanner when a
communication link is established between the scanner and the access point
device. Scanned data and custom configuration settings will be lost if a
communication link is not established between the scanner and the access
point.
Scanner configuration changes can be done either by scanning configuration bar
codes in the MetroSelect Single-Line Configuration Guide (MLPN 00-02544x), or
with the MetroSet2
®
program, version 3.2.0.16 or higher.
Metro Protocol Firmware Requirements
Scanner Model and REV Firmware Version
FocusBT (A) 40268 or higher
FocusBT (B) 40268 or higher
Focus BT (F) all versions are compatible
To configure a scanner to use the Metro protocol:
1. Scan the Recall Defaults bar code then the Enable Metro Protocol bar
code.
Recall Defaults
Enable Metro Protocol
³999998
³125614
2. Scan the address bar code located on the top of the access point device
(see Figure 11, on page 8) to establish a communication link between the
scanner and access point.
3. The scanner will beep and the access point’s blue LED will flash once.
4. The scanner will receive the configuration from the access point device
automatically.
9
CONFIGURATION PROCEDURES
CodeXML Protocol Compatibility
The CodeXML protocol does not support page/disconnect button functions, or
scanner firmware upgrades through the access point device and Metroset2.
When a scanner is using the CodeXML protocol, configuration data is stored in
the scanner. The stored data is not transmitted to the access point device.
Special configuration steps are required for the customization of system formats
and protocols. Instructions on how to configure a scanner in the CodeXML
protocol mode via the access point device are outlined on page 11.
CodeXML Firmware Requirements
Scanner Model Firmware Version
Focus BT 15701 or higher
To configure a scanner to use the CodeXML protocol:
1. Scan the Disable Metrologic Protocol bar code.
Disable Metro Protocol
³125604
2. Scan the Recall Defaults bar code.
Recall Defaults
³999998
3. Scan the Enable CodeXML Protocol bar code.
Enable CodeXML Protocol
³125617
4. Scan the address bar code located on the top of the access point device
(see Figure 11, on page 8) to establish a communication link between the
scanner and access point.
5. The scanner will beep to indicate a connection has been established.
www.metrologic.com 10
CONFIGURATION PROCEDURES
Access Point Device Configuration in CodeXML Mode
When a scanner is using the CodeXML protocol all configuration data is stored in
the scanner. Since the data is not transmitted to the access point device, the
following process is required to configure the device for custom system formats
or protocol requirements.
To configure the access point device:
1. Verify a communication link is established between the scanner and
access point.
2. Scan the Disable CodeXML Protocol bar code.
Disable CodeXML Protocol
³125607
3. Scan the Enable Metro Protocol bar code.
Enable Metro Protocol
³125614
4. Scan all configuration bar codes required for the custom configuration (i.e.
keyboard type, country keyboard type, suffix or prefix settings).
Country keyboard bar codes are located on page 14. Additional
configuration bar codes can be found in the MetroSelect SingleLine Configuration Guide (PN 00-02544x) and the Area Imaging
Supplemental Configuration Guide (PN 00-02281x).
5. Scan the Disable Metro Protocol bar code.
Disable Metro Protocol
³125604
6. Scan the Enable CodeXML Protocol bar code.
Enable CodeXML Protocol
³125617
† MetroSet2 (version 3.2.0.16 or higher) can also be used for access point
configuration if the device is connected to an RS232 com port or a USB
serial port.
11
CONFIGURATION PROCEDURES
Optional Configuration Bar Codes
The following bar codes are for reference only.
Suffix Characters
Disable Carriage Return Suffix
Enable Carriage Return Suffix
³116603
Disable Line Feed Suffix
³116602
Disable CodeXML New Line Suffix
³125606
Disable Protocol
Disable CodeXML Protocol
³116613
The scanner transmits a
carriage return after each
bar code.
Enable Line Feed Suffix
³116612
The scanner transmits a line
feed after each bar code.
Disabled when keyboard
wedge defaults are loaded.
Enable CodeXML New Line
Suffix
³125616
³125607
Disable Metro Protocol
³125604
www.metrologic.com 12
CONFIGURATION PROCEDURES
The following bar codes require an established communication link between the
access point device and a scanner using the Metro Protocol. Default settings are
marked with an asterisk ( * ).
Send Bluetooth® Software Version
Send Address
³998044
Communications
Load RS232 Defaults
³999992
Load USB IBM OEM Defaults
³999970
LED
* Enable LED
³118310
* Enable LED Flash
when Disconnected
³998045
Load Keyboard Wedge Defaults
³999994
Load RS485 Defaults
³999952
Disable LED
³118300
Disable LED Flash
when Disconnected
³123712
³123702
* Bright LED
³123906
Dim LED
³123916
13
CONFIGURATION PROCEDURES
Country/Scan Code Table Selects
* Enable USA Keyboard
Enable Swiss Keyboard
³416260
Enable Spanish Keyboard
³416250
Enable German Keyboard
³416230
Enable UK Keyboard
³416210
Enable Japanese Keyboard
³4162100
³416280
Enable Italian Keyboard
³416240
Enable French Keyboard
³416220
Enable Belgium Keyboard
³416200
Enable IBM 4700 Financial
Keyboard
³416270
Enable Sweden/Finland Keyboard
³416290
Enable Turkish Keyboard
³4162120
www.metrologic.com 14
Enable Russian Keyboard
³4162130
Enable Slovenian Keyboard
³4162110
UPLOADING AND DOWNLOADING SETTINGS
Uploading Settings via MetroSet2
†
The upload
number and configuration settings of an access point device connected to a
personal computer.
To upload settings via MetroSet2:
1. Verify the access point device is
connected to the host system and a
communication link has been
established with a scanner.
2. Start the MetroSet2 software.
3. Click on the plus sign (+) next to POS
Scanners to expand the supported
scanner list.
4. Choose the Focus BT with Access
Point‡ from the list.
feature in MetroSet2 allows the user to retrieve the current software

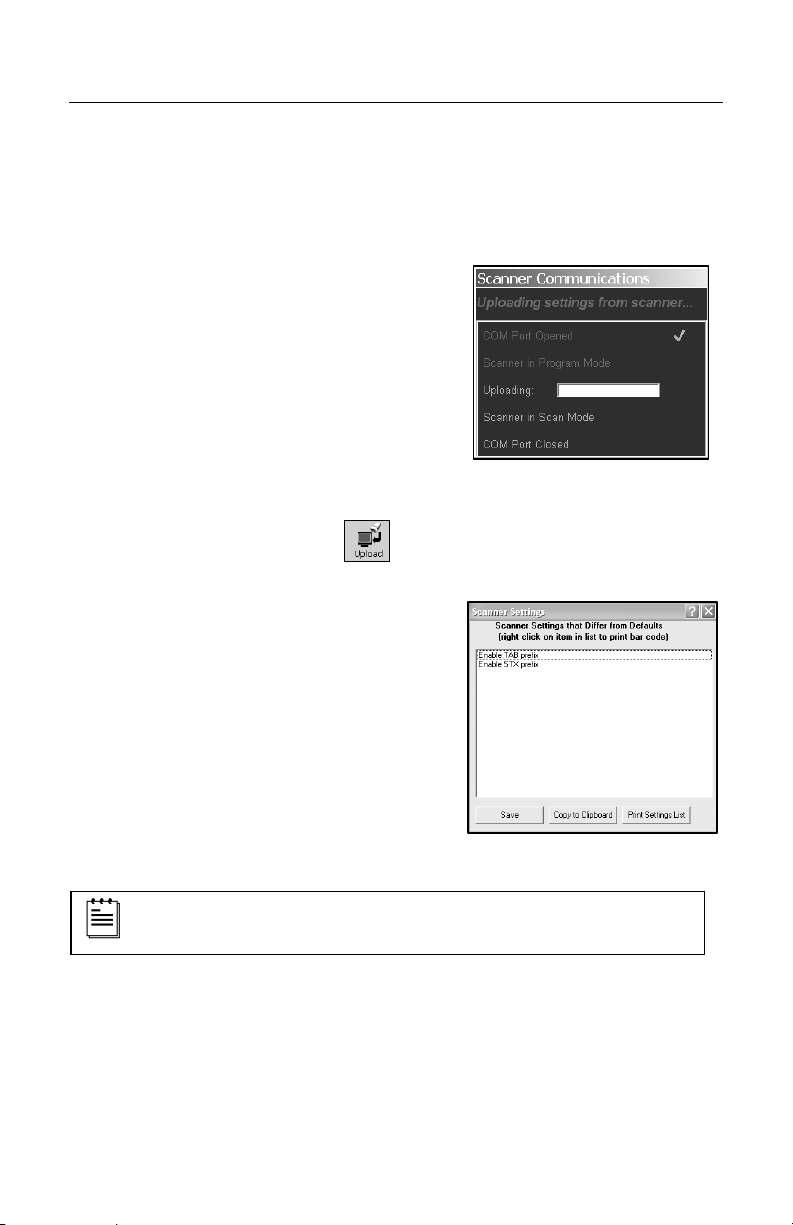

Figure 12. Scanner Communications
5. Click on the Upload button.
6. A communications window will open
displaying the progress of the upload.
A message will appear in the window
when the upgrade is complete.
7. Click on the Tools menu at the top of the
screen.
8. Select View Current Settings from the
drop down list.
9. The Scanner Settings window will open
listing the custom settings uploaded
from the access point device. Default
settings will not be listed (see example
in
Figure 13).
All the settings shown in
Figure 13 are for illustrative purposes only
Figure 13. Scanner Settings
and will differ depending upon the configuration.
† Minimum system requirements: A personal computer with Microsoft®
Windows
®
95 or greater with an available RS232 serial or USB port and
MetroSet2 (minimum software version 3.2.016).
‡ Scanner model is application dependent.
15
UPLOADING AND DOWNLOADING SETTINGS
Downloading Settings via MetroSet2
The download† feature in MetroSet2 allows the user to download custom
configuration settings selected in MetroSet2 to the access point and the linked
scanner ‡.
To download settings via MetroSet2:
1. Verify the access point device is
connected to the host system and
a communication link has been
established with a scanner.
2. Start the MetroSet2
3. Click on the plus sign (+) next to
POS Scanners to expand the
supported scanner list.
4. Choose Focus BT with
Access Point
5. Select an interface (i.e. RS232,
Keyboard Wedge, USB) then
click OK.
6. Select and modify the configuration
options in the Scanner Functions Menu.
7. Choose Save As from the File menu to
save the configuration.
†
software.
‡
from the list.
Figure 14. Global Defaults Page
8. Click on the Down button.
9. A communications window will open
displaying the progress of the download.
The unit will beep and a message will
appear in the window when the
download is complete.
† Minimum system requirements: A personal computer with Microsoft®
Windows® 95 or greater with an available RS232 serial or USB port and
MetroSet2 (minimum software version 3.2.016).
‡ Scanner model is application dependent.
www.metrologic.com 16
UPGRADING THE FIRMWARE
Upgrading the Firmware in the Access Point Device
The access point device is part of Metrologic's product series with flash
upgradeable firmware. The upgrade process requires, a new firmware file
supplied to the customer by a customer service representative and Metrologic's
MetroSet2 software
an available RS232 serial or USB port is required to complete the upgrade.
Do not use the standard cable supplied with Keyboard Wedge or
RS485 Access Point interface kits for firmware upgrades. If using USB
or RS232 for the upgrade process, the standard USB or RS232 cable
provided with the scanner can be used.
To upgrade the firmware in the access point device:
1. Plug the unit into a serial communication port on the host system.
2. Start the MetroSet2 software.
3. Click on the plus sign (+) next to POS Scanners to expand the supported
scanner list.
4. Choose the Focus BT with Access Point from the list.
5. Click on the C
6. Select the interface from the Prompt Window.
7. Choose AP NEC or AP Silabs from the options list located on the left side
of the screen to upgrade firmware in Access Point device.
8. Click on the Select File button in the window.
9. Locate and open the flash upgrade file supplied by Metrologic.
10. Select the COM port that the scanner is connected to on the host system.
11. Verify the settings listed in the Flash Utility window.
12. Click on the Flash Scanner button to begin the flash upgrade.
13. A message will appear on the screen when the upgrade is complete.
Metrologic's customer service department can be reached at
1-800-ID-METRO or 1-800-436-3876.
MetroSet2 is available for download, at no additional cost, from
http://www.metrologic.com/corporate/download
. A personal computer running Windows 95 or greater with
onfigure Focus BT with Access Point Scanner button.
.
17
UPGRADING THE FIRMWARE
Upgrading FocusBT Firmware via the Access Point Device
With MetroSet2, scanner firmware upgrades can be accomplished through the
communication link between the access point device and scanner. This feature
is not supported in scanners using the CodeXML protocol. The scanner
must be in Metro protocol mode.
Do not use the standard cable supplied with Keyboard Wedge, USB or
RS485 Access Point interface kits for firmware upgrades. If using
RS232 for the upgrade process, the standard RS232 cable provided
with the scanner can be used.
To upgrade the firmware in FocusBT via the access point device:
1. Plug the unit into a serial communication port on the host system.
2. Start the MetroSet2 software.
3. Click on the plus sign (+) next to POS Scanners to expand the supported
scanner list.
4. Choose the Focus BT with Access Point from the list.
5. Click on the C
6. Select the interface from the Prompt Window.
7. Choose FocusBT from the options list located on the left side of the screen
to upgrade FocusBT firmware.
8. Click on the Select File button in the window.
9. Locate and open the flash upgrade file supplied by Metrologic.
10. Select the COM port that the scanner is connected to on the host system.
11. Verify the settings listed in the Flash Utility window.
12. Click on the Flash Scanner button to begin the flash upgrade.
13. A message will appear on the screen when the upgrade is complete.
Metrologic's customer service department can be reached at
1-800-ID-METRO or 1-800-436-3876.
MetroSet2 is available for download, at no additional cost, from
http://www.metrologic.com/corporate/download
onfigure Focus BT with Access Point Scanner button.
.
www.metrologic.com 18
DESIGN SPECIFICATIONS
Access Point Device
OPERATIONAL
System Interfaces:
Indicator: Blue LED
MECHANICAL
Length: 111 mm (4.4")
Width: 77 mm (3.0")
Height: 16 mm (0.6")
Weight: 75 g ( 2.7 oz )
ELECTRICAL
AP-010-BT AP-100-BT
Input Voltage: 5.0VDC ± 0.25V 5.0VDC ± 0.25V
Power: 0.8 W (Maximum) 0.85 W (Maximum)
Current: 160 mA (Maximum) 170 mA (Maximum)
DC Transformers: Class II; 5.2VDC@ 1A Class II; 5.2VDC@ 1A
Wireless
Technology:
Radio Range: 10 m (33 ft) 100 m (328 ft)
For regulatory compliance information, see pages 23 –24.
RS232, Keyboard Wedge, RS485S, USB
S
Applicable for IBM® Host applications.
Bluetooth V2.0 Bluetooth V2.0
ENVIRONMENTAL
Temperature:
Humidity: 5% to 95% relative humidity, non-condensing
Shock: Designed to withstand 1.5 m (5 ft.) drops
Environmental
Sealing:
Specifications are subject to change without notice.
19
Operating 0°C to 40°C (32°F to 104°F)
Storage -20°C to 60°C (-4°F to 140°F)
IP54

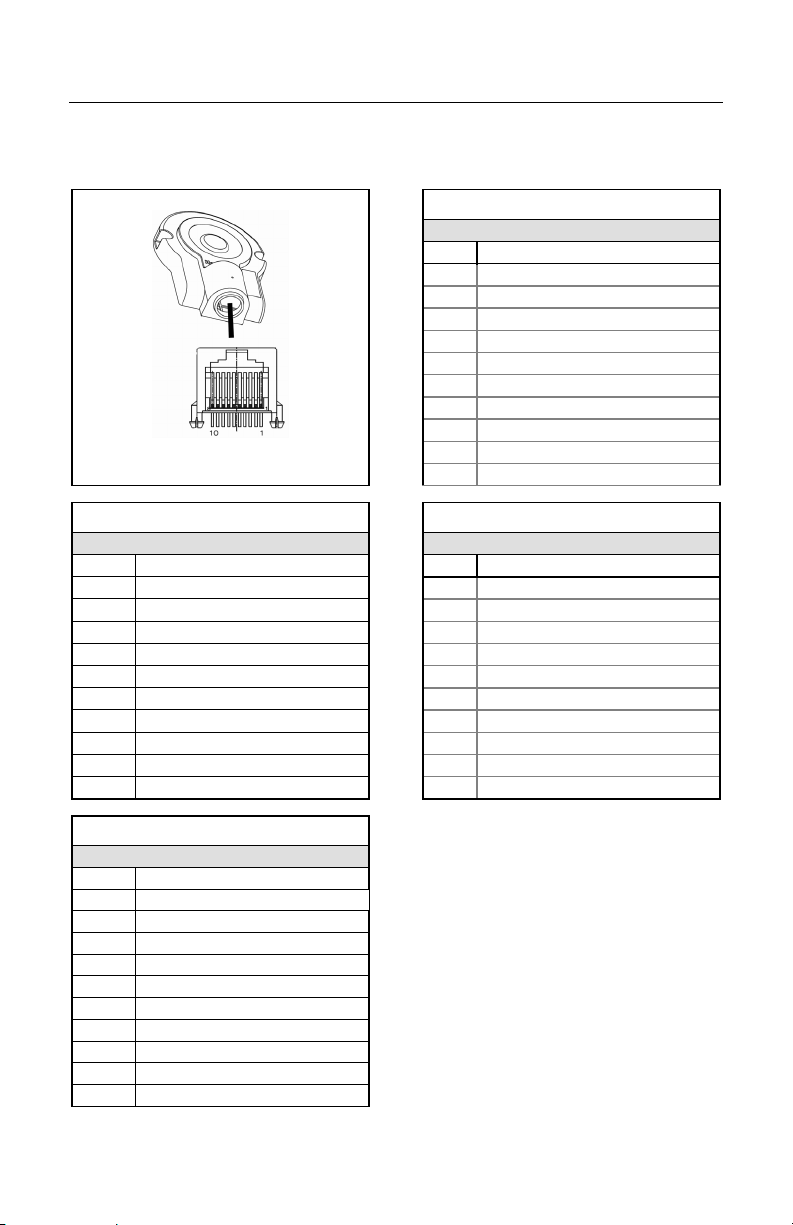

DEVICE AND CABLE TERMINATIONS
The access point device terminates to a single 10-Pin RJ45, Female Socket.
The following charts provide the pinout information for each of the available
interfaces.
Pin Function
1 Ground
2 CTS RS232 Input
3 Receive RS232 Input
4 Reserved
5 Reserved
6 RTS RS232 Output
7 Reserved
Figure 15
8 Transmit RS232 Output
9 Adapt +5VDC
10 Shield Ground
USB Keyboard Wedge
10-Pin, RJ45 10-Pin, RJ45
Pin Function Pin Function
1 Ground 1 Ground
2 Tied to Pin4 in Cable 2 Tied to Pin3 in Cable
3 Reserved 3 Tied to Pin2 in Cable
4 Tied to Pin2 in Cable 4 PC Data
5 Reserved 5 PC Clock
6 USB D+ 6 KB Clock
7 Tied to Pin9 in Cable 7 Reserved
8 USB D- 8 KB Data
9 PC +5VDC 9 PC +5VDC
10 Shield Ground
10 Shield Ground
RS485S
10-Pin, RJ45
Pin Function
1 Ground
S
Applicable for IBM
2 Tied to Pin6 in Cable
3 Reserved
4 IBM A+
5 IBM B6 Tied to Pin2 in Cable
7 Reserved
8 Reserved
9 Adapt +5VDC
10 Shield Ground
RS232
10-Pin, RJ45
®
Host applications.
www.metrologic.com 20
DEVICE AND CABLE TERMINATIONS

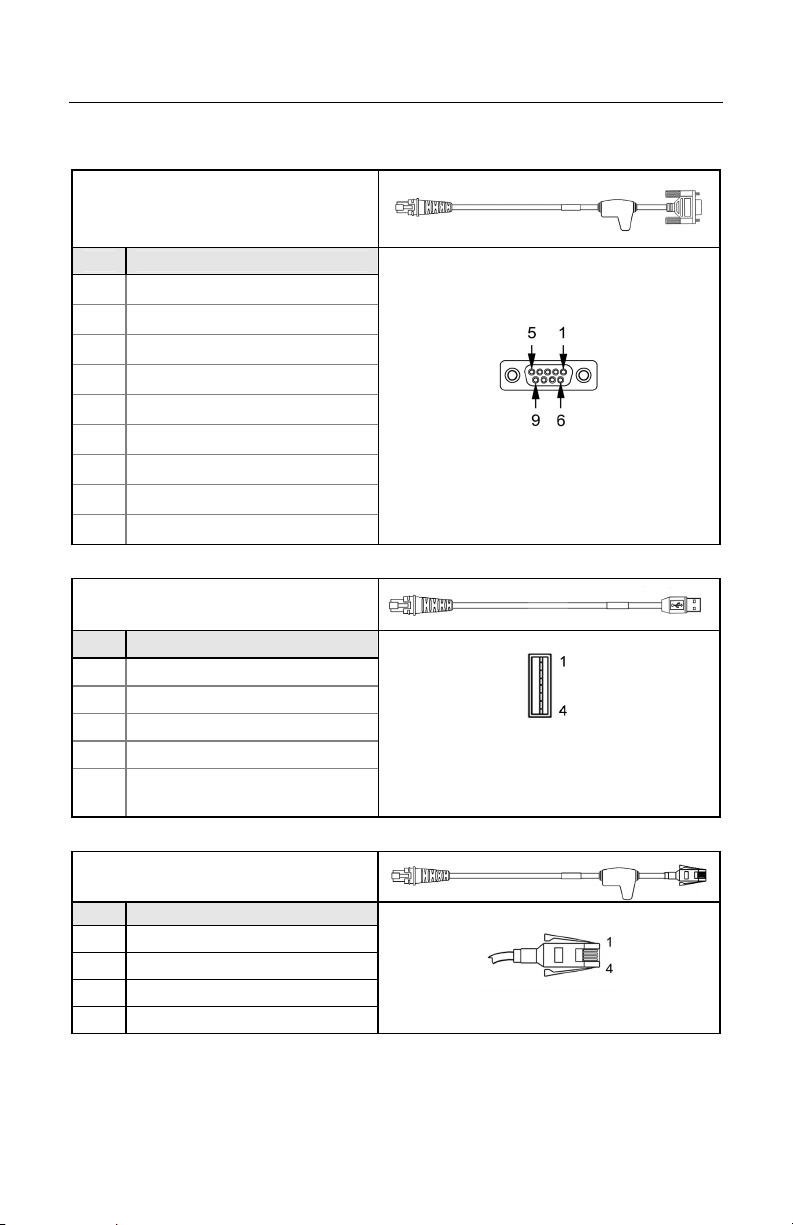

Cable Pinout Connections
RS232 PowerLink Cable
MLPN 55-55500
Pin Function
1 Shield Ground
2 CTS
3 RXD
4 Reserved
5 Reserved
6 RTS
7 Reserved
8 TXD
9 +5VDC
USB Communication Cable
Pin Function
1 PC +5V/V_USB
2 D-
3 D+
4 Ground
Shield Shield
MLPN 55-55535
9-Pin D-Type Connector
Non-Locking, Type A
RS485S Cable
MLPN 55-55512
Pin Function
1 Ground
2 IBM A+
3 IBM B-
4 Reserved
SDL A Key
S
Applicable for IBM
®
Host applications.
21
DEVICE AND CABLE TERMINATIONS
Cable Pinout Connections
Keyboard Wedge Cable
MLPN 55-55502
Pin Function
1 Keyboard Clock
2 Keyboard Data
3 No Connect
4 Power Ground
5 +5 Volts DC
5-Pin DIN, Female
Pin Function
1 PC Data
2 No Connect
3 Power Ground
4 +5 Volts DC
5 PC Clock
6-Pin DIN, Male
6 No Connect
Metrologic will supply an adapter cable with a 5-pin DIN male connector on one
end and a 6-pin mini DIN female connector on the other. According to the
termination required, connect the appropriate end of the adapter cable to the
PowerLink cable, leaving the necessary termination exposed for connecting to
the keyboard and the keyboard port on the PC.
Keyboard Wedge Adapter Cable
Pin Function
1 PC Clock
2 PC Data
3 No Connect
4 Power Ground
5 +5VDC
Pin Function
1 Keyboard Data
2 No Connect
3 Power Ground
4 +5VDC
5 Keyboard Clock
6 No Connect
www.metrologic.com 22
5-Pin DIN, Male
6-pin Mini DIN, Female
REGULATORY COMPLIANCE
EMC
Emissions
FCC Part 15, ICES-003, CISPR 22, EN 55022, EN300 328 V1.6.1, EN310 489-17 V1.2.1
Immunity
CISPR 24, EN 55024
Note: Immunity performance is not guaranteed for scanner cables greater than 3 meters in length
when fully extended.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Class A Devices
The following is applicable when the cable is greater
fully extended:
Les instructions ci-dessous s’appliquent aux cables de dépassant 3 métres (9.8 pieds) de
long en extension maximale:
Folgendes trifft zu, wenn das kabel länger als 3 Meter ist:
This equipment has been tested and found to comply with limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at their own
expense. Any unauthorized changes or modifications to this equipment could void the user’s
authority to operate this device.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Notice
This Class A digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe A est conforme à la norme canadienne NMB-003.
European Standard
Warning
This is a class A product. In a domestic environment this product may cause radio interference
in which case the user may be required to take adequate measures.
Funkstöreigenschaften nach EN55022:1998
Warnung!
Dies ist eine Einrichtung der Klasse A. Diese Einrichtung kann im Wohnbereich Funkstörungen
verursachen. In diesem Fall kann vom Betreiber verlangt werden, angemessene Massnahmen
durchzuführen.
Standard Europeo
Attenzione
Questo e’ un prodotto di classe A. Se usato in vicinanza di residenze private potrebbe causare
interferenze radio che potrebbero richiedere all’utilizzatore opportune misure.
Attention
Ce produit est de classe “A”. Dans un environnement domestique, ce produit peut être la cause
d’interférences radio. Dans ce cas l’utiliseteur peut être amené à predre les mesures
adéquates.
in length than 3 meters (9.8 feet) when
23
REGULATORY COMPLIANCE
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Class B Devices
The following is applicable when the cable is less than 3 meters
(9.8 feet) in length when fully extended:
Les instructions ci-dessous s’appliquent aux cables de ne dépassant pas 3 métres (9.8
pieds) de long en extension maximale:
Folgendes trifft zu, wenn das kabel kürzer als 3 Meter ist:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected
• Consult the dealer or an experienced radio/TV technician for help
Notice
This Class B digital apparatus complies with Canadian ICES-003.
Remarque
Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.
Exposure to Radio Frequency Energy
The radiated output power of this intentional wireless radio is far below the FCC radio frequency
exposure limits. The internal wireless radio operates within guidelines found in radio frequency
safety standards and recommendations, which reflect the consensus of the scientific community.
The level of energy emitted is far less than the electromagnetic energy emitted by wireless devices
such as mobile phones. However, the use of wireless radios may be restricted in some situations
or environments, such as aboard airplanes. If you are unsure of restrictions, you are encouraged
to ask for authorization before turning on the wireless radio.
For more information from the US FCC about exposure to RF energy, see:
www.fcc.gov/oet/rfsafety.
For information about the scientific research related to RF energy exposure, see the EMF
Research Database maintained by the World Health Organization at:
www.who.int/emf
.
www.metrologic.com 24
LIMITED WARRANTY
The AP-010-BT and AP-100-BT access point devices are manufactured by Metrologic at its Suzhou,
China facility. The AP-010-BT and AP-100-BT access point devices have a two (2) year limited warranty
from the date of manufacture. Metrologic warrants and represents that allAP-010-BT and AP-100-BT
access point devices are free of all defects in material, workmanship and design, and have been
produced and labeled in compliance with all applicable U.S. Federal, state and local laws, regulations
and ordinances pertaining to their production and labeling.
This warranty is limited to repair, replacement of product or refund of product price at the sole discretion
of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities:
Blackwood, New Jersey, USA; Madrid, Spain; or Suzhou, China. To do this, contact the appropriate
Metrologic Customer Service/Repair Department to obtain a Returned Material Authorization (RMA)
number.
In the event that it is determined the equipment failure is covered under this warranty, Metrologic
shall, at its sole option, repair the Product or replace the Product with a functionally equivalent unit
and return such repaired or replaced Product without charge for service or return freight, whether
distributor, dealer/reseller, or retail consumer, or refund an amount equal to the original purchase
price.
This limited warranty does not extend to any Product, which in the sole judgment of Metrologic,
has been subjected to abuse, misuse, neglect, improper installation, or accident, nor any damage
due to use or misuse produced from integration of the Product into any mechanical, electrical or
computer system. The warranty is void if: (i) the case of the Product is opened by anyone other
than Metrologic's repair department or authorized repair centers; or (ii) any software is installed on
the Product other than a software program approved by Metrologic.
THIS LIMITED WARRANTY, EXCEPT AS TO TITLE, IS IN LIEU OF ALL OTHER WARRANTIES
OR GUARANTEES, EITHER EXPRESS OR IMPLIED, AND SPECIFICALLY EXCLUDES,
WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE UNDER THE UNIFORM COMMERCIAL CODE, OR ARISING OUT OF
CUSTOM OR CONDUCT. THE RIGHTS AND REMEDIES PROVIDED HEREIN ARE
EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS OR REMEDIES. IN NO EVENT SHALL
METROLOGIC BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES TO PERSON OR PROPERTY, OR EFFECT ON
BUSINESS OR PROPERTY, OR OTHER DAMAGES OR EXPENSES DUE DIRECTLY OR
INDIRECTLY TO THE PRODUCT, EXCEPT AS STATED IN THIS WARRANTY. IN NO EVENT
SHALL ANY LIABILITY OF METROLOGIC EXCEED THE ACTUAL AMOUNT PAID TO
METROLOGIC FOR THE PRODUCT. METROLOGIC RESERVES THE RIGHT TO MAKE ANY
CHANGES TO THE PRODUCT DESCRIBED HEREIN.
NORTH AMERICA
Metrologic Instruments, Inc.
90 Coles Rd. Metrologic Eria Ibérica, SL
Blackwood, NJ 08012-4683 C/Alfonso Gomez, 38-40, 1D
Customer Service Department 28037 Madrid
Tel: 1-800-ID-METRO Tel: +34 913 751 249
Fax: 856-228-6673 Fax: +34 913 270 437
Email: info@metrologic.com
AUTO ID INSTRUMENTS (SHANGHAI) CO., LTD
MTLG
Suzhou Sales Office
BLK A, Room# 03/03-04
No.5 Xinghan Street, Xinsu Industrial Square
China-Singapore Suahou Industrial Park, Suzhou, PRC
Tel: 86-512-67622550
Fax: 86-512-67622560
Email: info@cn.metrologic.com
METROLOGIC EUROPEAN REPAIR CENTER
(MERC)
25
INDEX
A
AC ..................................see power
Accessories .................................. 2
Address Bar Code ........................ 2
Interface ..................................19
Keyboard Wedge.........1, 2, 6, 22
RS232 .........................1, 2, 5, 21
RS485 .........................1, 2, 6, 21
USB.................................1, 2, 21
B
Blue ............................see indicator
Button................................... 17, 18
C
Cable
AUX ..........................................2
Keyboard Wedge .................. 2, 6
PowerLink ............................. 2, 5
RS232....................................... 5
RS485................................... 2, 6
USB ......................................2, 6
Caution
compliance................................ 4
SELV......................................... 4
CE ................................................4
Compliance ............................ 4, 23
Configuration ........................ 17, 18
Customer Service................... 2, 25
D
DC ..................................see power
E
EMC ...........................................23
Emissions ................................... 23
F
Firmware ..............................17, 18
I
Immunity..................................... 23
Indicator...................................... 19
Visual ........................................ 2
K
Keyboard Wedge ....... see Interface
L
Labels ...........................................4
LED............................ see indicator
M
Manual ..........................................2
Mounting hole ...............................2
P
Page/Disconnect Button ...............2
Power........................................2, 5
R
RMA............................................25
RS232........................see Interface
RS485........................see Interface
T
terminations ..........................21–22
transformer..................... see power
U
UL .................................................4
Upgrade ................................17, 18
USB ...........................see Interface
W
Warranty .....................................25
www.metrologic.com 26
70-79035A
October 2008
Printed in China
© 2008 Honeywell International Inc.
Loading...
