Honda Ridgeline 2017 Owner's Manual

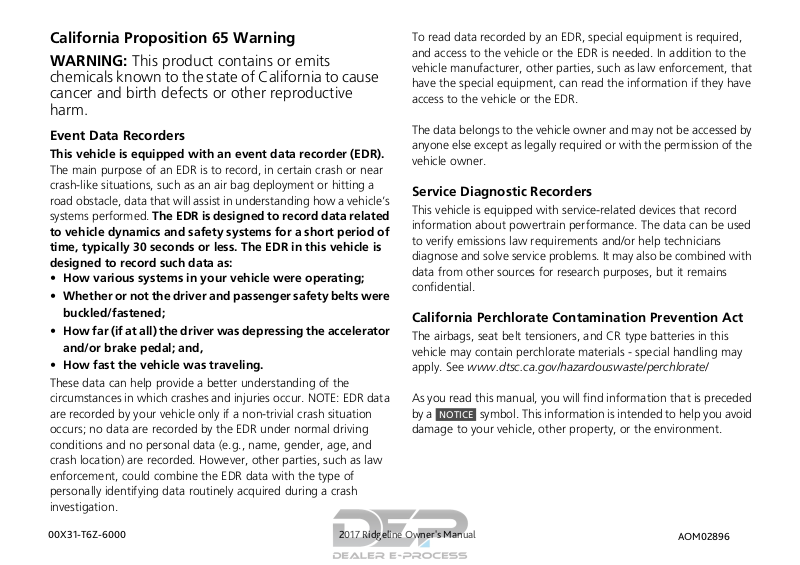

California Proposition 65 Warning

WARNING: This product contains or emits

chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.

NOTICE

To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can read the information if they have
access to the vehicle or the EDR.

Event Data Recorders

This vehicle is equipped with an event data recorder (EDR).

The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related

to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.

00X31-T6Z-6000 2017 Ridgeline Owner's Manual

The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.

Service Diagnostic Recorders

This vehicle is equipped with service-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential.

California Perchlorate Contamination Prevention Act

The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.

AOM02896

A Few Words About Safety

3DANGER

3WARNING

3CAUTION

You will find this important safety information in a variety of forms,
including:

Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.

Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.

● Safety Labels - on the vehicle.

● Safety Messages - preceded by a safety alert symbol

one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:

You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

You CAN be HURT if you don’t follow
instructions.

● Safety Headings - such as Important Safety Precautions.

● Safety Section - such as Safe Driving.

● Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please
read it carefully.

3

and

Contents

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.

Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.

This owner’s manual is for vehicles sold in the United States and
Canada.

The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.

2 Safe Driving P. 27

For Safe Driving P. 28 Seat Belts P. 33 Airbags P. 40

2 Instrument Panel P. 71

Indicators P. 72 Gauges and Multi-Information Display P. 101

2 Controls P. 107

Clock P. 108 Locking and Unlocking the Doors P. 109
Security System P. 131 Opening and Closing the Windows P. 134
Adjusting the Mirrors P. 159 Adjusting the Seats P. 161
Heating and Cooling System

*

P. 193

2 Features P. 197

Audio System P. 198
General Information on the Audio System P. 296
HomeLink® Universal Transceiver

*

P. 334 Bluetooth® HandsFreeLink® P. 337, 362

2 Driving P. 395

Before Driving P. 396 Towing a Trailer P. 404
Parking Your Vehicle P. 487

Multi-View Rear Camera P. 496

2 Maintenance P. 503

Before Performing Maintenance P. 504 Maintenance MinderTM P. 507
Checking and Maintaining Wiper Blades P. 529
Heating and Cooling System

*

/Climate Control System* Maintenance P. 542

2 Handling the Unexpected P. 551

Tools P. 552 If a Tire Goes Flat P. 553
Overheating P. 569 Indicator, Coming On/Blinking P. 571
When You Cannot Unlock the Fuel Fill Door P. 581

2 Information P. 585

Specifications P. 586 Identification Numbers P. 588
Emissions Testing P. 591 Warranty Coverages P. 593

Contents

Child Safety P. 53 Exhaust Gas Hazard P. 68 Safety Labels P. 69

Opening and Closing the Tailgate P. 126 Opening and Closing the Trunk P. 128
Opening and Closing the Moonroof
Interior Lights/Convenience Items P. 169 Climate Control System

Audio System Basic Operation P. 204, 222 Audio Error Messages P. 292
Customized Features P. 303

Off-Highway Driving Guidelines P. 416 When Driving P. 418 Braking P. 474
Refueling P. 498 Fuel Economy and CO

Maintenance Under the Hood P. 511 Replacing Light Bulbs P. 523
Checking and Maintaining Tires P. 531 Battery P. 540 Remote Transmitter Care P. 541
Cleaning P. 543 Accessories and Modifications P. 549

Engine Does Not Start P. 562 Jump Starting P. 565 Shift Lever Does Not Move P. 568
Fuses P. 575 Emergency Towing P. 580
Refueling P. 582

*

P. 138 Operating the Switches Around the Steering Wheel P. 140

Emissions P. 501

2

*

P. 186

Quick Reference Guide

Safe Driving

Instrument Panel

Controls

Features

Driving

Maintenance

Handling the Unexpected

Information

Index

P. 4

P. 27

P. 71

P. 107

P. 197

P. 395

P. 503

P. 551

P. 585

P. 597

Devices that Emit Radio Waves P. 589 Reporting Safety Defects P. 590
