This manual should be considered a permanent part of the scooter
and should remain with the scooter when it is resold.
This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any
obligation.
No part of this publication may be reproduced without written
permission.
The vehicle pictured in this owner’s manual may not match your
actual vehicle.
© 2017 Honda Motor Co., Ltd.
Page 3
Welcome
Congratulations on your purchase of a new
Honda scooter. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
scooter.
To protect your investment, we urge you to
take responsibility for keeping your scooter
well serviced and maintained. Also, observe
the break-in guidelines, and always perform
the pre-ride inspection and other periodic
checks in this manual.
When service is required, remember that
your Honda dealer knows your scooter best.
If you have the required mechanical “knowhow” and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks. 2 P. 99
Read the warranty information thoroughly so
that you understand the warranty coverage
and that you are aware of your rights and
responsibilities. 2 P. 100
You may also want to visit our website at
www.powersports.honda.com.
Canada
www.honda.ca.
Happy riding!
Page 4
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this scooter safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a scooter. You must
use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the scooter
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your scooter, other
property, or the environment.
Page 5
Contents
Scooter Safety P. 2
Operation Guide P. 16
Maintenance P. 34
Troubleshooting P. 74
Information P. 82
Specifications P. 104
Index P. 107
Page 6
Scooter Safety
This section contains important information for safe riding of your scooter.
Please read this section carefully.
Safety Guidelines................................................. P. 3
Safety Labels.........................................................P. 7
Safety Precautions............................................... P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications........................... P. 13
Loading ................................................................ P. 14
Page 7
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved motorcycle helmet and
protective apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you are wearing an approved scooter
helmet and protective apparel.
Take Time to Learn & Practice
Even if you have ridden other scooters, practice
riding in a safe area to become familiar with
how this scooter works and handles, and to
become accustomed to the scooter's size and
weight.
Continued
Scooter Safety
3
Page 8
Safety Guidelines
We recommend that all riders take a certified
Scooter Safety
course approved by the Motorcycle Safety
Foundation (MSF). New riders should start with
the basic course, and even experienced riders
will find the advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
USA
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your scooter.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
4
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Don't Drink and Ride
Alcohol and riding don't mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time
gets worse with every additional drink. Don't
drink and ride, and don't let your friends drink
and ride either.
Page 9
Safety Guidelines
Keep Your Honda in Safe Condition
It's important to keep your scooter properly
maintained and in safe riding condition.
Inspect your scooter before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 14), and do not modify
your scooter or install accessories that would
make your scooter unsafe (2 P. 13).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your scooter. Inspect for fluid
leaks, check the tightness of critical nuts and
bolts, and check the handlebar, control levers,
brakes, and wheels. Ride slowly and cautiously.
Your scooter may have suffered damage that is
not immediately apparent. Have your scooter
thoroughly checked at a qualified service facility
as soon as possible.
Continued
Scooter Safety
5
Page 10
Safety Guidelines
Carbon Monoxide Hazard
Scooter Safety
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your scooter inside a garage or other
enclosure.
6
3WARNING
Running the engine of your scooter
while in an enclosed or even partially
enclosed area can cause a rapid buildup of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your scooter's engine when it
is located in a well ventilated area
outdoors.
Page 11
Safety Labels
Safety Labels
Safety and information labels on your scooter
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Continued
Scooter Safety
7
Page 12
Safety Labels
Scooter Safety
8
Page 13
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the floor.
● Always consider the safety of other drivers
and riders.
Protective Apparel
Make sure that you are wearing an approved
motorcycle helmet, eye protection, and highvisibility protective clothing. Ride defensively in
response to weather and road conditions.
Helmet
#
Should be safety-standard certified, highvisibility, and correct size for your head
●
Must fit comfortably but securely, with the
chin strap fastened.
●
Face shield with unobstructed field of vision
or other approved eye protection
Safety Precautions
USA
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you always wear an
approved helmet and protective
apparel.
Gloves
#
Full-finger leather gloves with high abrasion
resistance
Scooter Safety
Continued
9
Page 14
Riding Precautions
Boots or Riding Shoes
#
Scooter Safety
Sturdy boots with non-slip soles and ankle
protection
Jacket and Pants
#
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
10
Riding Precautions
Break-in Period
During the first 60 miles (100 km) of running,
follow these guidelines to ensure your scooter's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking.
u Sudden braking can reduce the scooter's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Page 15
Riding Precautions
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness.
● For full braking effectiveness, operate both
the front and rear brakes together.
Wet or Rainy Conditions
#
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the scooter cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the scooter unattended.
Use of an anti-theft device is also
recommended.
Continued
Scooter Safety
11
Page 16
Riding Precautions
Parking with the Center Stand
#
Scooter Safety
1.
Stop the engine.
2.
To lower the center stand, stand on the left
side of the scooter.
Hold the left handle grip and the rear grip.
Press down on the tip of the center stand
with your right foot and, simultaneously, pull
up and back.
Left handle grip
Rear
grip
3.
Turn the handlebar fully to the left.
4.
Turn the ignition switch to the LOCK
position and remove the key. 2 P. 23
12
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded gasoline.
● Use recommended octane number. Using
lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 98
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Center
stand
Page 17
Accessories & Modifications
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your scooter by Honda or
make modifications to your scooter from its
original design. Doing so can make it unsafe.
Modifying your scooter may also void your
warranty and make your scooter illegal to
operate on public roads and highways. Before
deciding to install accessories on your scooter
be certain the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your scooter. Your scooter was not designed for
these attachments, and their use can seriously
impair your scooter's handling.
Do not attempt modify the scooter to carry a
passenger. The subframe was not designed to
carry the additional weight of a passenger.
Scooter Safety
13
Page 18
Loading
Loading
Scooter Safety
● Carrying extra weight affects your scooter's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 104
● Tie all luggage securely, evenly balanced
and close to the center of the scooter.
● Do not place objects near the lights or the
muffler.
14
3WARNING
Overloading, improper loading or
carrying a passenger can cause a crash
and you can be seriously hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Page 19
Scooter Safety
15
Page 20
Basic Operation Flow
Pre-ride Inspection (P.40)
#
Operation Guide
16
Carefully inspect your scooter to
make sure that it is safe to ride.
How to use basic features.
•
Instruments (P.20)
•
Indicators (P.21)
•
Switches (P.22)
•
Steering Lock (P.23)
Starting the Engine (P.25)
#
Start and warm the engine.
Avoid revving the engine.
Acceleration (P.28)
#
Apply throttle gradually.
Obey the speed limit.
Starting the
#
Scooter (P.28)
Before pulling away, indicate
your direction with the turn
signal switch, and check for
oncoming traffic.
Page 21
Braking (P.29)
#
Stopping
#
If pulling off the road, signal early
enough to show traffic that you are
pulling over, and pull over smoothly.
Close the throttle and apply the
front and rear brakes together.
u
The brake light will indicate
that you have applied the
brakes.
Turning Corners
#
Do your braking
before entering
corners.
Gradually reapply throttle
when exiting turn.
Parking (P.11)
#
Park on a firm level surface.
Use the stand and lock the
steering.
Refueling (P.30)
#
Operation Guide
17
Page 22

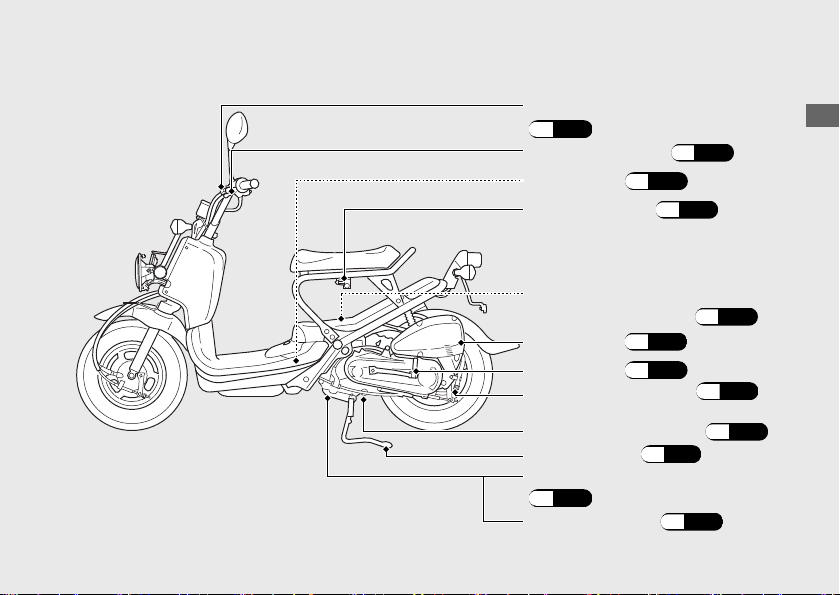

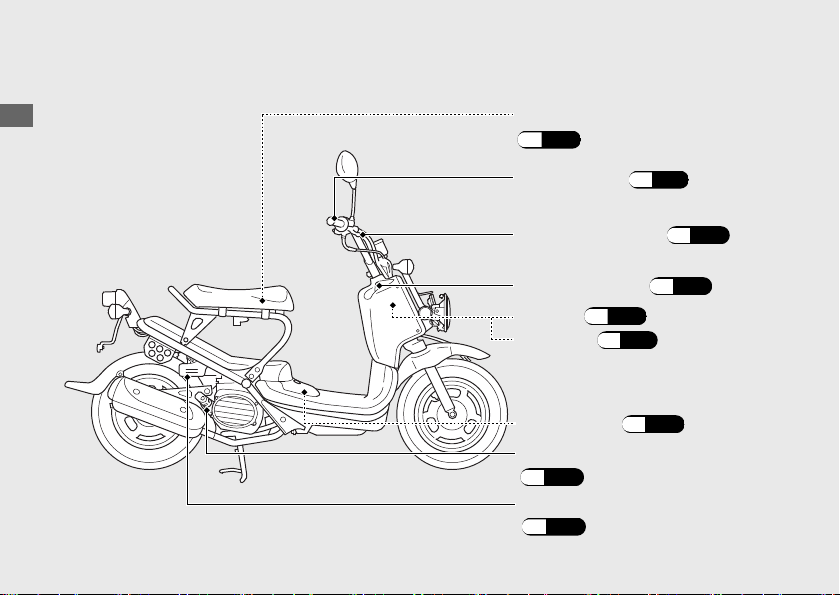

Parts Location
Operation Guide
18
Owner’s manual storage
)
(P.33
Throttle grip (P.71)
Front brake lever (P.66)
Ignition switch (P.22)
Battery (P.52)

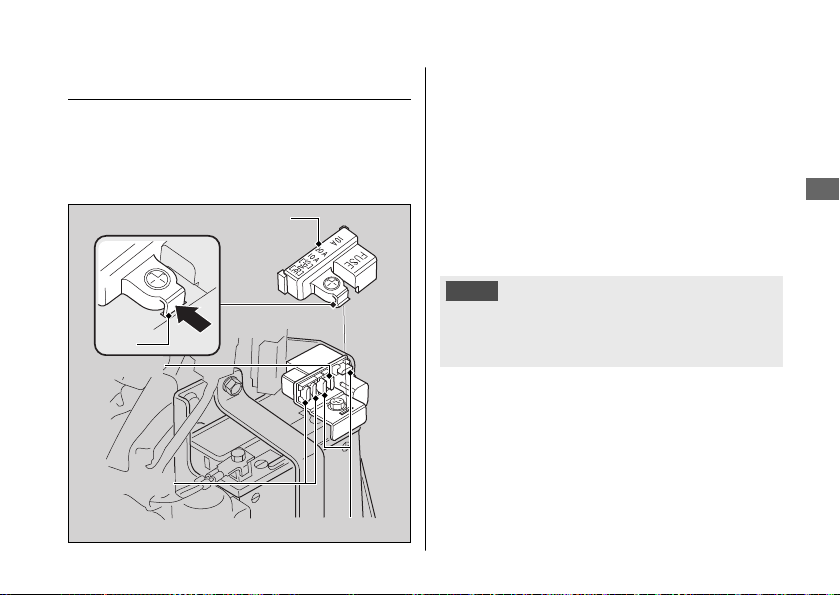

Fuse box (P.81)
Fuel fill cap (P.30)

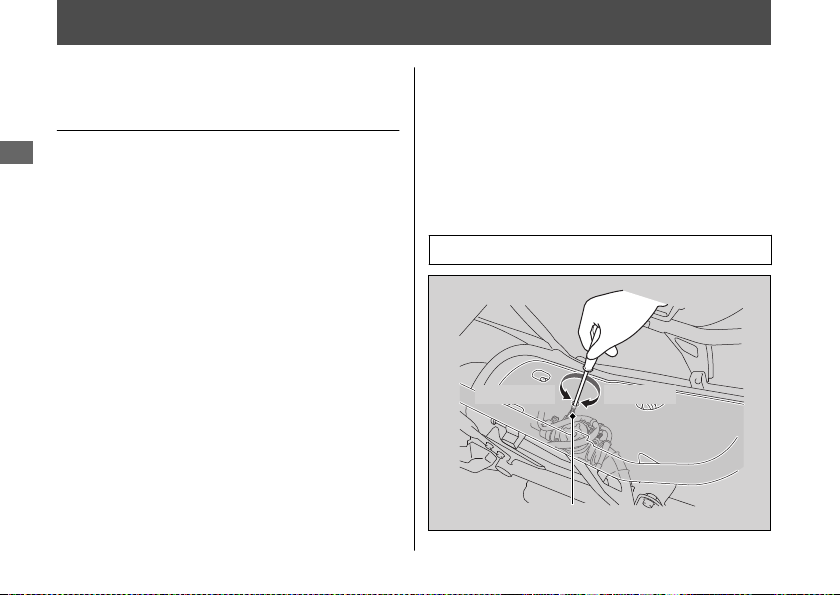

Engine oil fill cap/dipstick
)
(P.58
Coolant reserve tank
)
(P.64
Page 23
Rear brake lock lever
)
(P.24
Rear brake lever (P.66)
Spark plug (P.56)
Helmet holder (P.32)
Throttle stop screw
(engine idle speed)
(P.62
)
Air cleaner (P.63)
Kickstarter (P.26)
Crankcase breather (P.72)
Engine oil drain bolt (P.59)
Center stand (P.12)
Engine oil strainer screen
)
(P.59
Engine oil plug (P.59)
Operation Guide
19
Page 24

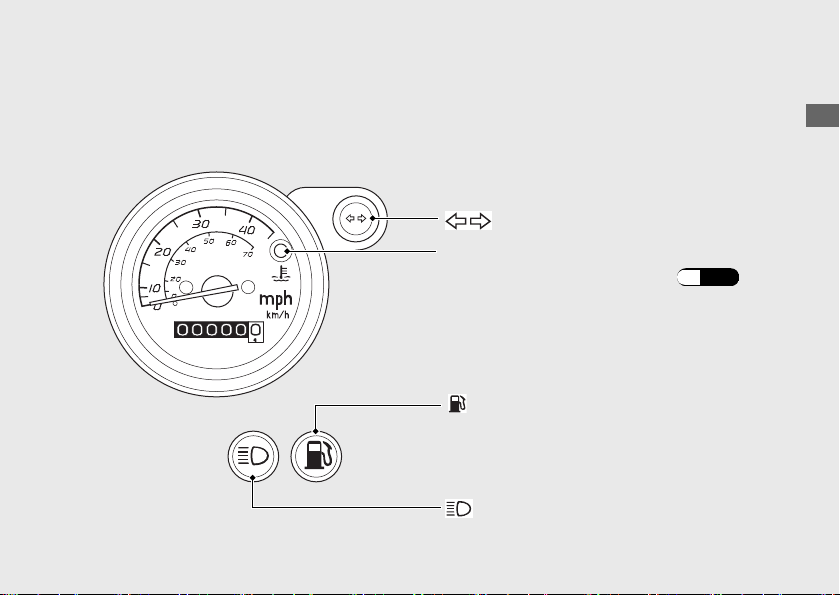

Instruments
Operation Guide
20
Speedometer
Shows riding speed in miles (USA) or
kilometers (Canada) per hour.
Odometer
Shows the total miles (USA) or
kilometers (Canada) ridden.
Page 25
Indicators
If one of these indicators does not come on when it should, have your dealer check
for problems.
Turn signal indicator
High coolant temperature indicator
If it comes on while riding: (P.76)
Fuel reserve indicator
When this indicator comes on while riding,
fuel reserved in the tank about:
0.32 US gal (1.2 liters)
High beam indicator
Operation Guide
21
Page 26

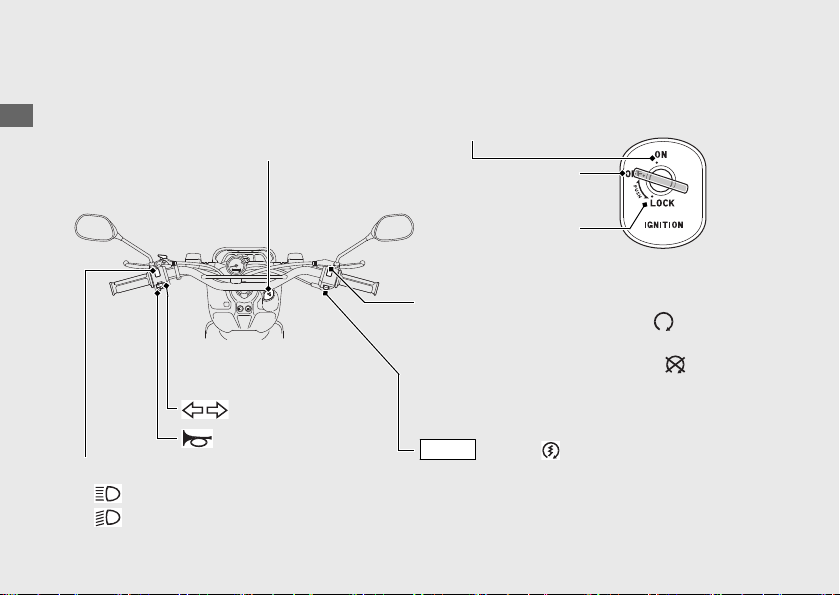

Switches
Ignition Switch
Switches the electrical system on/off, locks the
Operation Guide
steering.
u Key can be removed when in the OFF or
LOCK position.
Turn signal switch
Horn button
Headlight dimmer switch
• : High beam
• : Low beam
22
ON
Turns electrical system on for
starting/riding.
OFF
Turns engine off.
LOCK
Locks steering.
Engine stop switch
Should normally remain in the (Run)
position.
u In an emergency, switch to the (Stop)
position (the starter motor will not operate)
to stop the engine.
START
(USA) /
Start button
Headlights turn off when operating the
starter motor.
(Canada)
Page 27

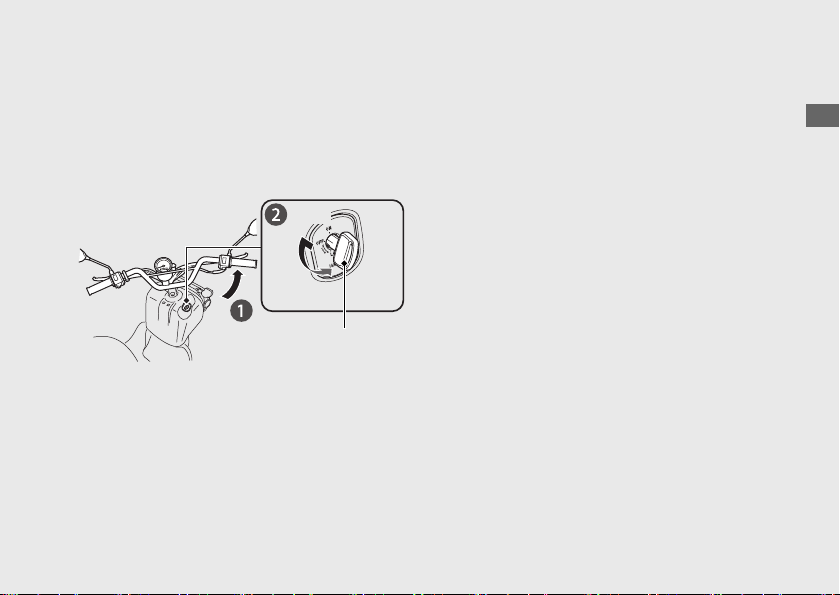

Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
Push
Turn
Ignition key
Locking
#
a
Turn the handlebar all the way to the left.
b
Push the key down, and turn the ignition
switch to the LOCK position.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the key.
Unlocking
#
Insert the key, push it in, and turn the ignition
switch to the OFF position.
Operation Guide
23
Page 28
Rear Brake Lock
Be sure the rear brake lock is applied while
starting and warming up the engine.
Operation Guide
Locking
#
Squeeze the rear brake lever and set the rear
brake lock lever.
u The rear brake lock will not function if the
rear brake is not adjusted properly.
(P.67)
Unlocking
#
Squeeze the rear brake lever.
Before riding, make sure that the rear brake
u
lock is fully released so there is no drag on
the rear wheel.
24
Rear brake
lever
Rear brake
lock lever
Page 29
Starting the Engine
Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.
NOTICE
• (Using the start button)
If the engine does not start within 5 seconds,
turn the ignition switch to the OFF position
and wait 10 seconds before trying to start the
engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine, and the exhaust
system.
a
Place the scooter on its center stand.
b
Lock the rear brake.
u The starter motor will only work when
the brake lever is pulled in.
c
Make sure the engine stop switch is in the
(Run) position.
d
Turn the ignition switch to the ON position.
Operation Guide
Continued
25
Page 30
Starting the Engine (Continued)
To Start the Engine with Electric Starter
e
Press the start button with the throttle
Operation Guide
completely closed. Release the start button
as soon as the engine starts.
USA
Canada
26
To Start the Engine with Kickstarter
e
With the throttle closed, operate the
kickstarter with a rapid, continuous motion.
u Do not operate the kickstarter while the
engine is running as engine damage
could result. Do not apply excessive
force on the kickstarter.
u Fold up the kickstarter after the
kickstarter is returned to the pedal stop.
u
Allowing the kickstarter to snap back
freely against the pedal stop can
damage the engine case.
u
Raise the kickstarter pedal after the
kickstarter lever is returned to the stop.
Page 31
If the engine does not start:
Open the throttle 1/8 - 1/4 turn while starting
the engine.
1/8
1/4
Operation Guide
If Engine Will Not Start (P.75
#
)
27
Page 32
Riding
Starting the Scooter
a
Push the scooter forward off the center
Operation Guide
stand.
u Lock the rear brake lock.
u Keep throttle closed.
b
Get on the scooter.
u Mount the scooter from the left side,
keeping at least one foot on the ground.
c
Release the rear brake lock.
u To prevent unexpected movement,
squeeze brake levers.
28
d
Acceleration and deceleration
To accelerate: Open the throttle slowly.
To decelerate: Close the throttle.
Open
Close
(Accelerate)
(Decelerate)
Page 33
Braking
Close the throttle and apply the front and
rear brake levers together.
Do not apply the brake lock while riding.
It may cause the wheel to lock, reducing
control of the scooter.
Operation Guide
Rear brake lever
Front brake lever
29
Page 34
Refueling
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Operation Guide
Tank capacity: 1.32 US gal (5.0 L)
Refueling and Fuel Guidelines (P.12)
#
Fuel tank lid
Lower edge of
filler neck

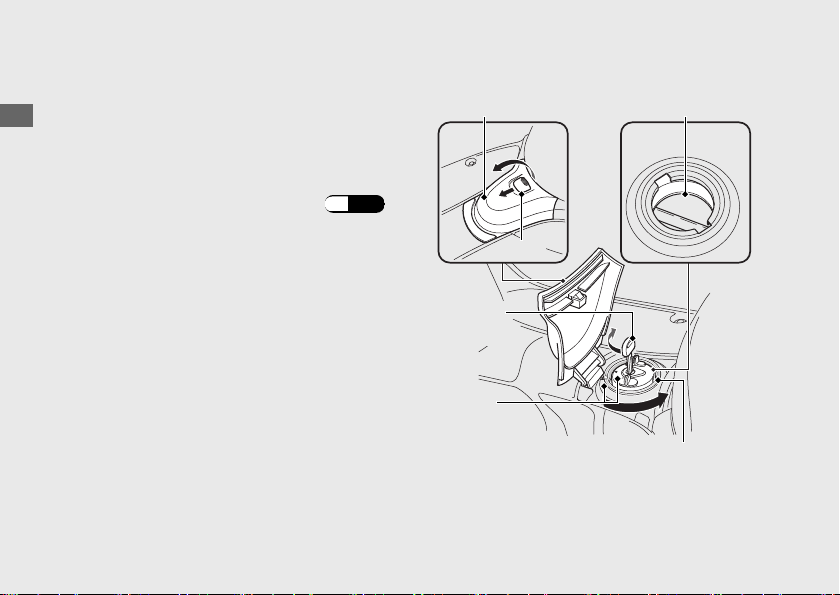

Opening the Fuel Fill Cap
a
Pull the tab and open the fuel tank lid.
b
Insert the ignition key in the fuel fill cap and
turn it clockwise until it stops.
c
Turn the fuel fill cap counterclockwise until it
stops and remove the cap.
30
Tab
Ignition
key
Arrow
marks
Fuel fill cap
Do not fill with fuel above the lower edge of
the filler neck.
Page 35
Closing the Fuel Fill Cap
a
Install and tighten the fuel fill cap by turning
it clockwise.
u Make sure that the arrow marks on the
cap and fuel tank are aligned.
b
Turn the key counterclockwise until it stops
and remove the key.
c
Close the fuel tank lid.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Operation Guide
31
Page 36
Storage Equipment
Helmet Holder
The helmet holder is located at the left seat
rail.
Operation Guide
Helmet holder
Pin
Locking
#
a
Hang your helmet on the holder pin and
push it in to lock.
b
Remove the key.
u Use the helmet holder only when parked.
3WARNING
Riding with a helmet attached to the
holder can interfere with the rear wheel
or suspension and could cause a crash
in which you can be seriously hurt or
killed.
Unlocking
#
Insert the ignition key and turn it
counterclockwise.
32
Ignition key
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Page 37

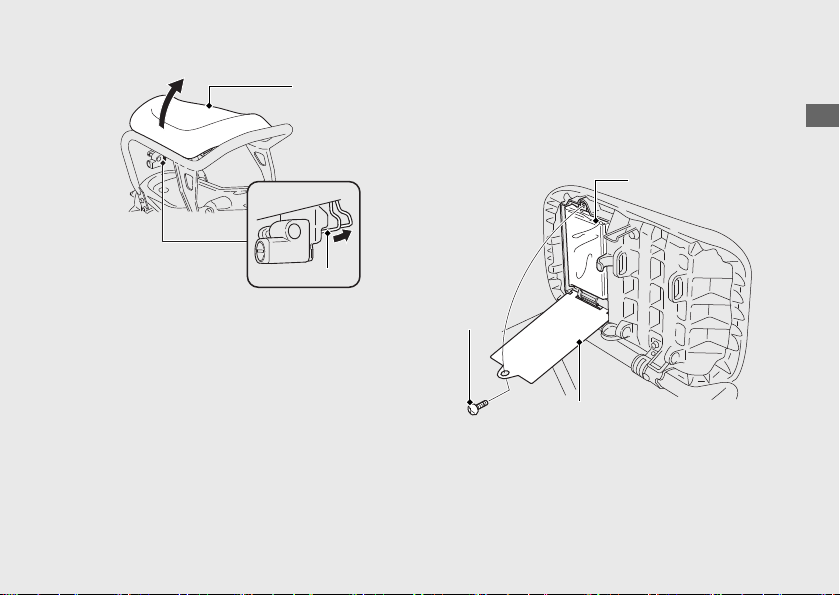

Seat
Seat hook
Document Bag
The document bag is in the owner’s manual
storage compartment on the underside of
the seat.
Document bag
Operation Guide
To open the seat
#
Push the seat hook and lift the seat.
To close the seat
#
Lower the seat. Push down on the left side of
the seat until it locks.
Make sure the seat is securely closed.
Screw
Cover
To open
#
a
Open the seat.
b
Remove the screw with a coin and open the
cover.
33
Page 38
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
An optional larger tool kit may be available.
Check with your Honda dealer's parts department.
Importance of Maintenance ........................... P. 35
Maintenance Schedule..................................... P. 37
Maintenance Fundamentals ...........................P. 40
Removing & Installing Body Components..P. 52
Battery.................................................................... P. 52
Inner Cover ........................................................... P. 54
Maintenance Lid .................................................. P. 55
Spark Plug ........................................................... P. 56
Engine Oil ............................................................ P. 58
Engine Idle Speed.............................................. P. 62
Air Cleaner........................................................... P. 63
Coolant................................................................. P. 64
Brakes................................................................... P. 66
Throttle ................................................................P. 71

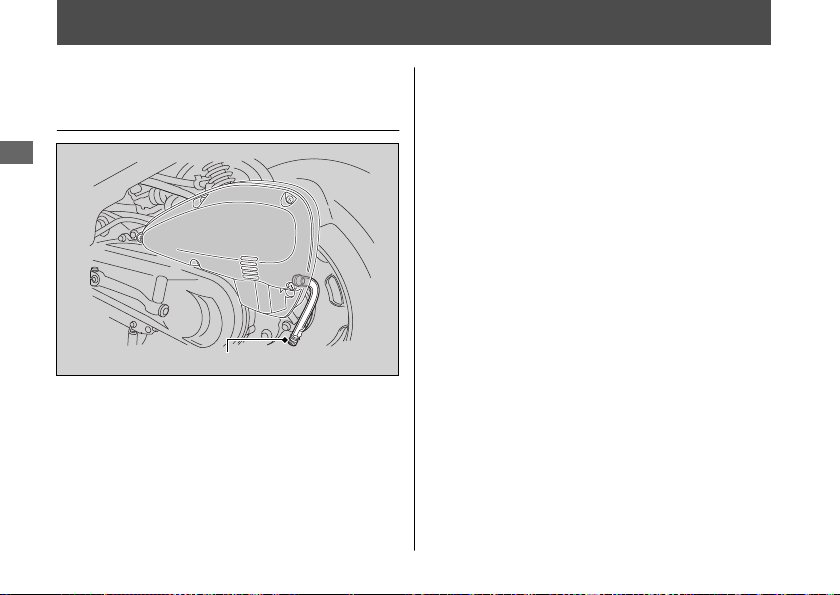

Crankcase Breather ........................................... P. 72
Other Adjustments............................................ P. 73

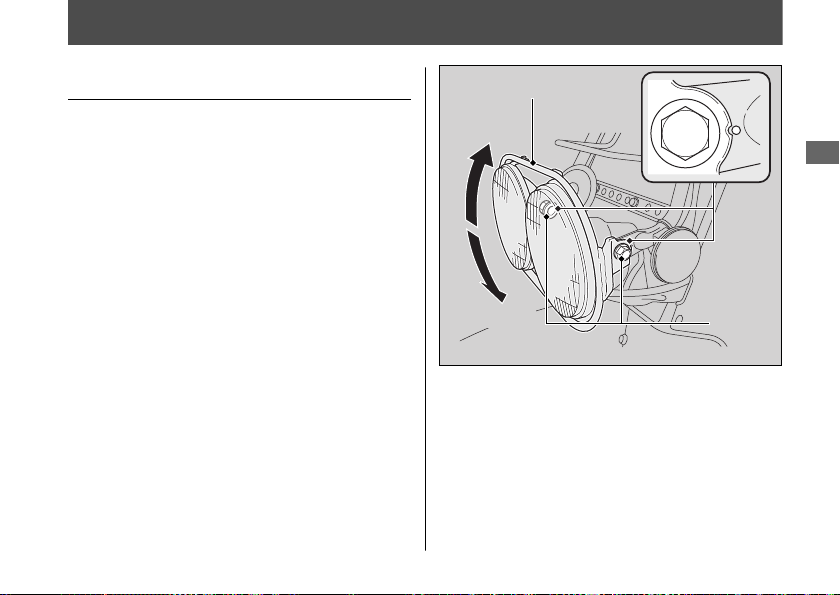

Adjusting the Headlight Aim ............................ P. 73
Page 39
Importance of Maintenance
Importance of Maintenance
Keeping your scooter well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your scooter
before each ride, and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 37
3WARNING
Improperly maintaining your scooter or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), and the
Environment and Climate Change Canada
(ECCC). 2 P. 91
USA
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any motorcycle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance
35
Page 40
Importance of Maintenance
Maintenance Safety
Always read the maintenance instructions
before you begin each task, and make sure that
you have the tools, parts, and skills required.
Maintenance
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
36
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your scooter on a firm, level surface
using the center stand or a maintenance
stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
Page 41
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. Keep an accurate record of
maintenance to help ensure that your scooter is
properly maintained.
Make sure that whomever performs the
maintenance completes this record.
All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the scooter, these receipts
should be transferred with the scooter to the
new owner.
Continued
Maintenance
37
Page 42
Maintenance Schedule
Items
Fuel Line –
Maintenance
Throttle Operation 71
Air Cleaner
Crankcase Breather
Spark Plug 56
Valve Clearance
Engine Oil
Engine Oil Strainer Screen 59
Engine Idle Speed 62
Emission-Related Items
Radiator Coolant
Cooling System –
Secondary Air Supply System –
Frequency
*2
*3
*4
× 1,000 mi 0.6 2.5 5 7.5
× 1,000 km 1.0 4 8 12
Every 15,000 mi (24,000 km):
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 2,500 mi (4,000 km) or 6 months:
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
:
Replace
:
Clean
Procedures are provided in an official Honda Service
Manual (2 P. 99).
: Technical. In the interest of safety, have your scooter
serviced by your dealer.
38
Odometer Reading
*1
Refer to
page
51, 63
72
–
59
64
Page 43
Maintenance Schedule
Frequency
Items
Brake Shoes Wear 70
Brake System 66
Brake Lock Operation 24, 67
Headlight Aim 73
Clutch Shoes Wear –
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tires 48
Non-Emission-Related Items
Steering Head Bearings –
× 1,000 mi 0.6 2.5 5 7.5
× 1,000 km 1.0 4 8 12
Odometer Reading
*1
Notes:
*
1 : At higher odometer readings, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : Replace every 2 years. Replacement requires mechanical skill.
Refer to
page
Maintenance
39
Page 44
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
Maintenance
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your scooter:
● Tire tread wear and air pressures are within
limits. 2 P. 48
●
Lights, horn, and turn signals operate
normally.
Check the following items if you are carrying a
cargo:
●
Combined weight is within load limits.
2 P. 104
●
Cargo is secured properly.
40
Check the following items after you get on your
scooter:
● Throttle action moves smoothly without
binding. 2 P. 71
● Brake levers operate normally.
● Refuel when needed. 2 P. 12, 2 P. 30
● Engine stop switch functions properly.
2 P. 22
Check the following items at regular intervals:
● Oil level is between the upper and lower
level marks. 2 P. 58
●
Engine coolant level is between the UPPER
and LOWER level marks. 2 P. 64
●
Rear brake lock works properly. 2 P. 24
Page 45
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 37
Maintenance Fundamentals
Maintenance
Tires and wheels

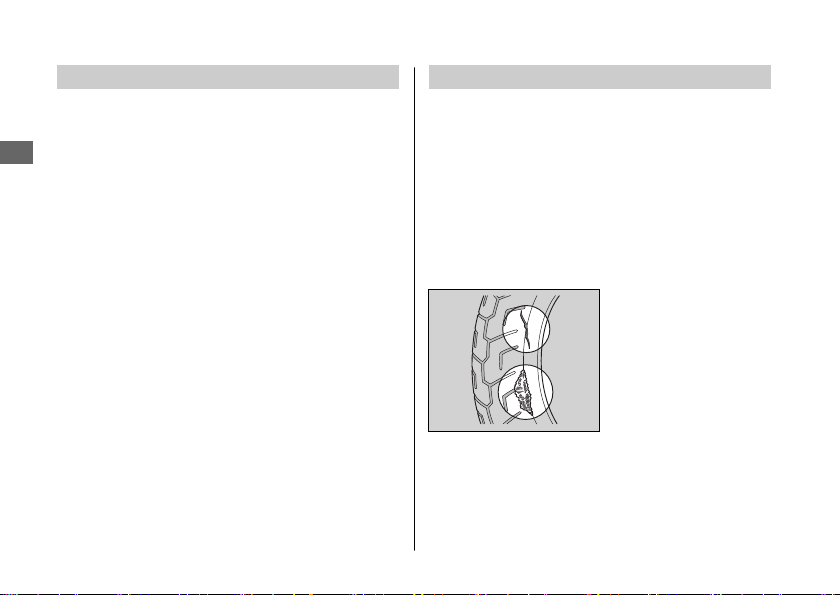

Check the air pressure (2 P. 48), examine tread for wear and damage
(2 P. 48), and check the wheels for damage.
Fluid levels Check the engine oil level (2 P. 58), engine coolant level (2 P. 64).
Lights
Controls
Check that the headlight, brake light, taillight, and turn signals are
working properly.
Check the freeplay of the front and rear brake levers (2 P. 66), and
throttle grip (2 P. 71).
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
41
Page 46
Maintenance Fundamentals
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
Maintenance
the model name, color, and code mentioned on
the color label.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label. The color label is attached to the
right seat rail. 2 P. 33
42
Color label
3WARNING
Installing non-Honda parts may make
your scooter unsafe and cause a crash
in which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your scooter.
Page 47
Maintenance Fundamentals

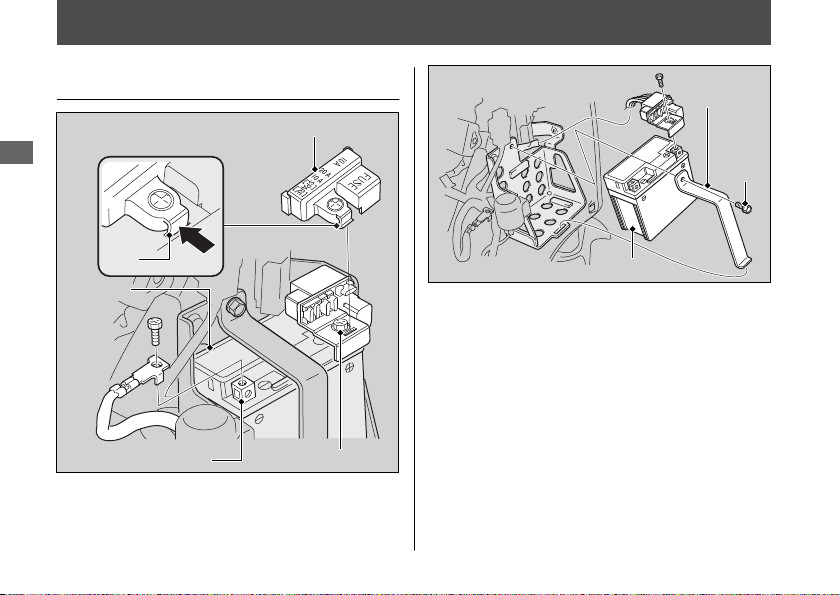

Battery
Your scooter has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
What to do in an emergency
#
If any of the following occur, immediately see
your doctor.
●
Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
● Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
Continued
Maintenance
43
Page 48
Maintenance Fundamentals
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
Maintenance
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
44
Cleaning the Battery Terminals
#
1.
Remove the battery. 2 P. 52
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
Page 49
Charging
#
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
Maintenance Fundamentals
NOTICE
Jump starting using an automobile battery can
damage your scooter's electrical system and is
not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
scooter. If something electrical on your scooter
stops working, check for and replace any blown
fuses. 2 P. 81
Inspecting and Replacing Fuses
#
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 105
Maintenance
Continued
45
Page 50
Maintenance Fundamentals
Blown fuse
Maintenance
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your scooter inspected by
your dealer.
46
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
Selecting the Engine Oil
#
For recommended engine oil, see
“Specifications.” 2 P. 105
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
●
SAE standard*2: 10 W-30
● API classification
*1
: MA
*3
: SG or higher
Page 51
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MA classification.
Oil code
Oil classification
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.
Maintenance Fundamentals
Recommended Coolant
Pro Honda HP Coolant is a pre-mixed solution
of antifreeze and distilled water.
Concentration:
50% antifreeze and 50% distilled water
A concentration of antifreeze below 40% will
not provide proper corrosion and cold
temperature protection.
A concentration of up to 60% will provide better
protection in colder climates.
NOTICE
Using coolant not specified for aluminum
engines or tap/mineral water can cause
corrosion.
Maintenance
Not recommended
Recommended
47
Page 52
Maintenance Fundamentals

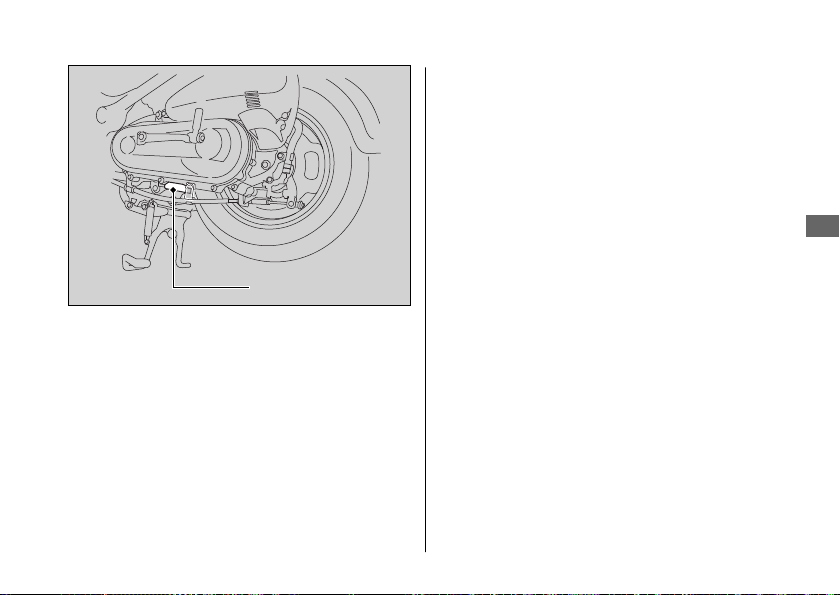

Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the scooter is washed or
overturned. Service if the deposit level can be
Maintenance
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing
poor engine performance. 2 P. 72
48
Tires (Inspecting/Replacing)
Checking the Air Pressure
#
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
Inspecting for Damage
#
Inspect the tires for
cuts, slits, or cracks that
exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
Page 53

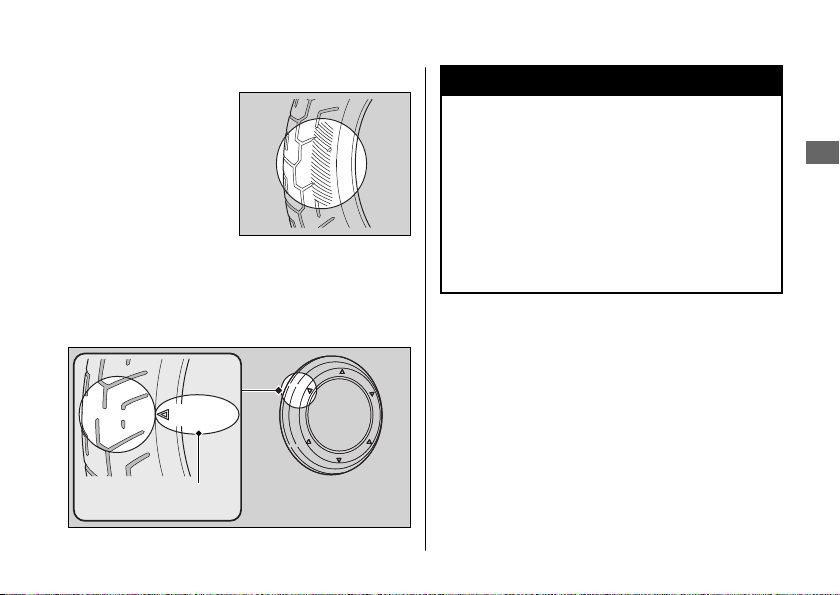

Inspecting for Abnormal Wear
#
Inspect the tires for
signs of abnormal wear
on the contact surface.
Inspecting Tread Depth
#
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
or TWI
Wear indicator
location mark
Maintenance Fundamentals
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Have your tires replaced by your dealer.
For recommended tires and air pressure, see
“Specifications.” 2 P. 105
Follow these guidelines whenever you replace
tires.
●
Use the recommended tires or equivalents
of the same size, construction, speed rating,
and load range.
● Do not install a tube inside a tubeless tire on
this scooter. Excessive heat build-up can
cause the tube to burst.
Maintenance
Continued
49
Page 54
Maintenance Fundamentals
● Use only tubeless tires on this scooter.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tubetype tire could slip on the rim and cause the
Maintenance
tire to rapidly deflate.
3WARNING
Installing improper tires on your
scooter can adversely affect handling
and stability, and can cause a crash in
which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner's manual.
50
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
Page 55
Maintenance Fundamentals
Tire Identification Number (TIN)
#
The tire identification number (TIN) is a group
of numbers and letters located on the sidewall
of the tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
a XXXX:
b XXXX:
c 22 09:
requirements of the U.S. Department
of Transportation.
Factory code
Tire type code
Date of manufacture (week & year).
Example: week 22 in year 09.
Tire Labeling Example
Tire identification
number (TIN)
Air Cleaner
This scooter is equipped with a viscous type air
cleaner element which cannot be cleaned with
compressed air or otherwise without degrading
its performance.
If the filter becomes dirty, replace it with a new
one.
Maintenance
51
Page 56
Removing & Installing Body Components
Battery
Maintenance
Battery
Negative terminal
52
Tab
Fuse box cover
Positive terminal
Battery
holder
Bolt
Battery
Removal
#
Make sure the ignition switch is in the OFF
position.
1.
Remove the inner cover. 2 P. 54
2.
Disconnect the negative - terminal from
the battery.
Release the tab, then remove the fuse box
3.
cover.
Disconnect the positive + terminal from
4.
the battery.
Page 57
5.
Remove the battery holder by removing
the bolt.
Remove the battery taking care not to
6.
drop the terminal nuts.
Installation
#
Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 43
“Battery Goes Dead.” 2 P. 78
Removing & Installing Body Components u Battery
Maintenance
53
Page 58
Removing & Installing Body Components u Inner Cover
Inner Cover
Screws
Maintenance
Inner
cover
54
Tabs
Removal
#
1.
Remove the screws.
2.
Release the tabs, then remove the inner
cover.
Installation
#
Install the parts in the reverse order of
removal.
Page 59
Removing & Installing Body Components u Maintenance Lid
Maintenance Lid
Fuel tank lid
Tab
Maintenance lid
Removal
#
1.
Pull the tab and open the fuel tank lid.
2.
Remove the maintenance lid.
Installation
#
Install the parts in the reverse order of removal.
Maintenance
55
Page 60
Spark Plug
Changing Spark Plug
For the recommended spark plug, see
“Specifications.” 2 P. 105
Maintenance
Use only the recommended type of spark
plug in the recommended heat range.
NOTICE
Using a spark plug with an improper heat range
can cause engine damage.
56

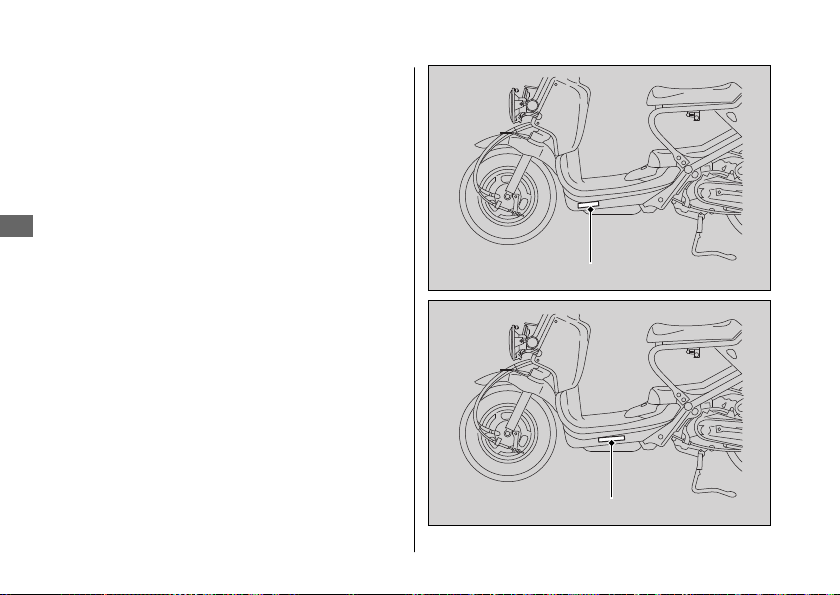

Under step board
Spark plug cap
1.
Remove the maintenance lid. 2 P. 55
2.
Disconnect the spark plug cap from the
spark plug.
3.
Clean any dirt from around the spark plug
base.
4.
Remove the spark plug using a suitable
spark plug wrench.
5.
Install the new spark plug. With the plug
washer attached, thread the spark plug in
by hand to prevent cross-threading.
Page 61
6.
Tighten the spark plug:
● If the old plug is good:
1/8 turn after it seats.
● If installing a new plug, tighten it twice
to prevent loosening:
a) First, tighten the plug:
1/2 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.
NOTICE
An improperly tightened spark plug can damage
the engine. If a plug is too loose, a piston may be
damaged. If a plug is too tight, the threads may
be damaged.
Install the parts in the reverse order of
7.
removal.
When reinstalling the spark plug cap,
u
take care to avoid pinching any cables
or wires.
Spark Plug u Changing Spark Plug
Maintenance
57
Page 62
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
Maintenance
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your scooter on its center stand on
a firm, level surface.
Remove the oil fill cap/dipstick and wipe it
4.
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don't screw it in.
Check that the oil level is between the
6.
upper level and lower level marks on the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
58
Upper
level
Lower
level
Oil fill cap/dipstick
Page 63
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 46, 2 P. 105
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your scooter on its center stand
on a firm, level surface when checking
the oil level.
Do not overfill above the upper level
u
mark.
u
Make sure no foreign objects enter the
oil filler opening.
Wipe up any spills immediately.
u
Engine Oil u Adding Engine Oil
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 46
Changing Engine Oil, Cleaning
Strainer Screen
Changing the oil and cleaning the strainer
screen requires special tools. We recommend
that you have your scooter serviced by your
dealer.
Maintenance
Continued
59
Page 64
Engine Oil u Changing Engine Oil, Cleaning Strainer Screen
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
Turn the ignition switch to the OFF
2.
position and wait for 2 to 3 minutes.
Maintenance
3.
Place your scooter on its center stand on
a firm, level surface.
4.
Place a drain pan under the drain bolt
and oil plug.
5.
Remove the oil fill cap/dipstick, drain bolt
and sealing washer to drain the oil.
6.
Remove the oil plug, O-ring, spring and
oil strainer screen and let the remaining
oil drain out.
Discard the oil at an approved
u
recycling center.
7.
Clean the oil strainer screen.
8.
Check that the oil strainer screen and
sealing rubber are in good condition.
9.
Replace the O-ring and apply a thin coat
of engine oil to the new O-ring before
installing it.
60
Oil fill cap/dipstick
Oil plug
Spring
Oil strainer screen
Sealing washer
Drain bolt
O-ring
Page 65
10.
Install the oil strainer screen, spring and
oil plug and tighten.
Torque: 15 lbf·ft (20 N·m, 2.0 kgf·m)
Install a new sealing washer onto the
11.
drain bolt. Tighten the drain bolt.
Torque: 18 lbf·ft (24 N·m, 2.4 kgf·m)
12.
Fill the crankcase with the recommended
oil (2 P. 46, 2 P. 105) and install the oil fill
cap/dipstick.
Required oil
When changing oil & cleaning the
strainer screen:
0.7 US qt (0.7 L)
When changing oil only:
0.6 US qt (0.6 L)
Check the oil level. 2 P. 58
13.
Check that there are no oil leaks.
14.
Engine Oil u Changing Engine Oil, Cleaning Strainer Screen
Maintenance
61
Page 66
Engine Idle Speed
Adjusting the Engine Idle
Speed
The best way to assure proper carburetion is
Maintenance
to see your dealer for regularly scheduled
servicing, including carburetor adjustment.
Remember, idle speed adjustment is not a
“cure-all” for other problems in your engine's
fuel-delivery system. Adjusting the idle will
not compensate for a fault elsewhere.
For information about high altitude
carburetor adjustment, see “High Altitude
Carburetor Adjustment”. 2 P. 97
The engine must be at normal operating
temperature for accurate idle speed
adjustment. 10 minutes of stop-and-go riding
is sufficient.
62
1.
Warm up the engine, place the scooter
on its center stand.
Open the seat. 2 P. 33
2.
Lock the rear brake. 2 P. 24
3.
4.
Connect a tachometer to the engine.
5.
Adjust idle speed with the throttle stop
screw.
Idle speed (In neutral): 2,000 ± 100 rpm
Under seat
Decrease Increase
Throttle stop screw
Page 67
Air Cleaner
Changing Air Cleaner Element
Use a new Honda Genuine air cleaner
element or an equivalent specified for your
scooter.
NOTICE
Using the wrong air cleaner element may cause
premature engine wear or performance
problems.
Remove the air cleaner housing cover by
1.
removing the screws.
2.
Remove the air cleaner element.
Install the new air cleaner element.
3.
u Make sure the air cleaner element is
installed securely.
4.
Install the parts in the reverse order of
removal.
ScrewsScrews
Maintenance
Air cleaner housing cover
Air cleaner
element
63
Page 68

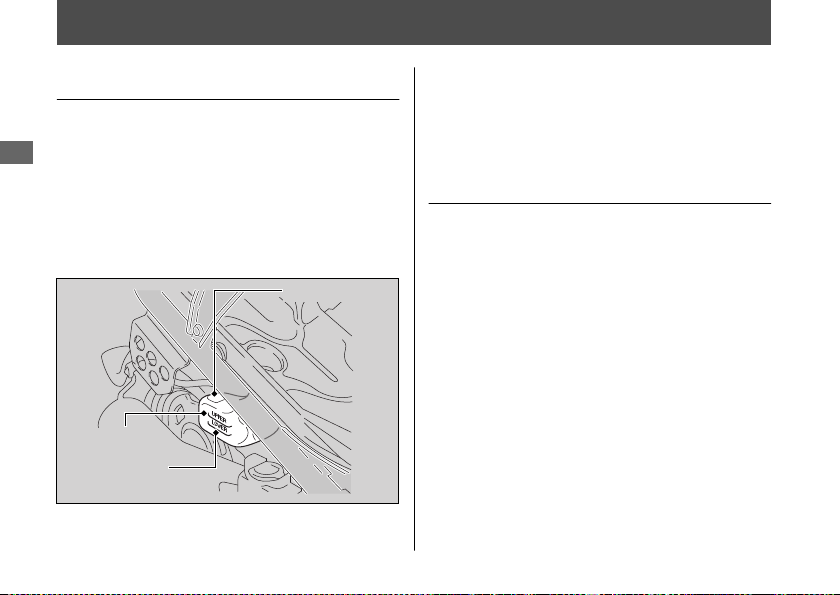

Coolant
Checking the Coolant
Check the coolant level in the reserve tank
while the engine is cold.
Maintenance
1.
Place your scooter on its center stand on
a firm, level surface.
2.
Check that the coolant level is between
the UPPER level and LOWER level marks
on the reserve tank.
UPPER level
LOWER level
64
Reserve tank
If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your scooter inspected by
your dealer.
Adding Coolant
If the coolant level is below the LOWER level
mark, add the recommended coolant
(2 P. 47) until the level reaches the UPPER
level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.
Page 69
Coolant u Changing Coolant
Reserve
tank cap
Reserve tank
1.
Remove the reserve tank cap and add
fluid while monitoring the coolant level.
Do not overfill above the UPPER level
u
mark.
Make sure no foreign objects enter the
u
reserve tank opening.
2.
Securely reinstall the reserve tank cap.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Changing Coolant
Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.
Maintenance
65
Page 70
Brakes
Inspecting the Brake Lever
Freeplay
1.
Maintenance
Place your scooter on its center stand on
a firm, level surface.
Measure the distance the front and rear
2.
brake levers move before each brake
takes hold.
Freeplay at the tip of the brake levers:
3/8 - 13/16 in (10 - 20 mm)
Freeplay Freeplay
66
Check the brake cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the brake cable with a
commercially available cable lubricant to
prevent premature wear and corrosion.
Make sure the brake arm, spring and fastener
are in good condition.
Page 71
Adjusting the Rear Brake Lever
Freeplay
Adjust the freeplay of the brake lever with the
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
Adjusting nut
Brake arm pin
If proper adjustment cannot be obtained by
this method, see your dealer.
Brakes u Adjusting the Rear Brake Lever Freeplay
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
Adjusting
nut
Increase
Brake
arm pin
Apply the brake several times and check
2.
for free wheel rotation after the brake
lever is released.
Decrease
Freeplay
Freeplay
Maintenance
Continued
67
Page 72
Brakes u Adjusting the Front Brake Lever Freeplay
3.
Push the brake arm to confirm that there
is a gap between the rear brake adjusting
nut and brake arm pin.
Brake arm
Maintenance
Push
Brake arm pin
Gap
After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
68
Adjusting nut
Adjusting the Front Brake Lever
Freeplay
Adjust the freeplay of the brake lever with the
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
Brake arm pin
If proper adjustment cannot be obtained by
this method, see your dealer.
Adjusting nut
Page 73
1.
Adjust by turning the front brake
adjusting nut a half-turn at a time.
Adjusting
nut
Brakes u Adjusting the Front Brake Lever Freeplay
Brake arm
Push
Brake arm pin
Gap Adjusting nut
Maintenance
Brake
arm pin
Increase
Freeplay
Decrease
Freeplay
Apply the brake several times and check
2.
for free wheel rotation after the brake
lever is released.
3.
Push the brake arm to confirm that there
is a gap between the front brake
adjusting nut and brake arm pin.
After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
69
Page 74

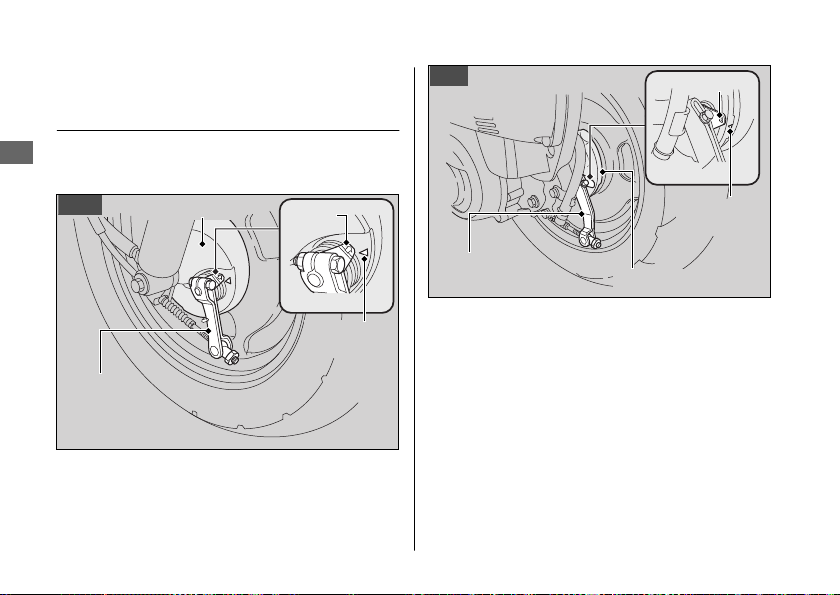

Brakes u Inspecting the Brake Shoe Wear
Inspecting the Brake Shoe
Wear
The front and rear brake are equipped with a
Maintenance
brake wear indicator.
Front
70
Brake
arm
Brake panel
Arrow
Reference
mark
Rear
Brake
arm
When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.
When the brake service is necessary, see your
dealer. Use only Honda Genuine Parts or its
equivalent.
Brake panel
Arrow
Reference
mark
Page 75
Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the scooter
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Freeplay
Flange
Adjusting the Throttle Freeplay
1.
Slide the rubber dust cover.
2.
Loosen the lock nut.
3.
Turn the adjuster until the freeplay is 1/16
- 1/4 in (2 - 6 mm).
4.
Tighten the lock nut, return the rubber
dust cover, and inspect the throttle action
again.
Rubber dust
cover
Adjuster Lock nut
71
Maintenance
Page 76
Crankcase Breather
Cleaning the Crankcase
Breather
Maintenance
Crankcase breather tube plug
72
1.
Place a suitable container under the
crankcase breather tube.
Remove the crankcase breather tube plug
2.
from the tube.
3.
Drain deposits into a suitable container.
4.
Install the crankcase breather tube plug.
Page 77
Other Adjustments
Adjusting the Headlight Aim
You can adjust vertical aim of the headlights
for proper alignment by moving the
headlight guard. To move the headlight
guard, loosen the bolts.
Tighten the bolts after adjustment.
Obey local laws and regulations.
Headlight guard
Raise
Lower
Maintenance
Bolts
73
Page 78
Troubleshooting
Engine Will Not Start........................................ P. 75
Overheating (High coolant temperature
indicator is on) ................................................. P. 76
Tire Puncture ...................................................... P. 77
Electrical Trouble............................................... P. 78
Battery Goes Dead .............................................. P. 78
Burned-out Light Bulb........................................ P. 78
Blown Fuse ............................................................ P. 81
Page 79
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 25
Check that there is gasoline in the fuel
●
tank.
Starter Motor Does Not
Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 25
Make sure engine stop switch is in the
●
(Run) position. 2 P. 22
● Check for a blown fuse. 2 P. 81
Check for a loose battery connection
●
(2 P. 52) or battery terminal corrosion
(2 P. 43).
● Check the condition of the battery.
2 P. 78
If the problem continues, have your scooter
inspected by your dealer.
Troubleshooting
75
Page 80
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following
occurs:
● High coolant temperature indicator
comes on.
● Acceleration becomes sluggish.
Troubleshooting
If this occurs, pull safely to the side of the
road and perform the following
procedure.
Extended fast idling may cause the high
coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine
can cause serious damage to the engine.
Stop the engine using the ignition switch.
1.
76
2.
Allow the engine to cool with the ignition
switch in the OFF position.
After the engine has cooled, inspect the
3.
radiator hose and check if there is a leak.
2 P. 64
If there is a leak:
Do not start the engine. Transport your
scooter to your dealer.
4.
Check the coolant level in the reserve
tank. 2 P. 64
u
Add coolant as necessary.
5.
If 1-4 check normal, you may continue
riding, but closely monitor the high
coolant temperature indicator.
Page 81
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your scooter with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your scooter with a temporary
tire repair can be risky. If the temporary
repair fails, you can crash and be
seriously injured or killed.
Troubleshooting
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
77
Page 82
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the scooter before
charging.
Troubleshooting
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your scooter's electrical system and is
not recommended.
Bump starting is also not recommended.
78
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or LOCK
position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 105
Page 83
Headlight Bulb
#
Bulb
Dust
cover
TOP
mark
Connector
Pin
Headlight
Electrical Trouble u Burned-out Light Bulb
1.
Disconnect the connector by pressing the
tabs.
Remove the dust cover.
2.
Unhook the pin and remove the bulb.
3.
4.
Install a new bulb and parts in the reverse
order of removal.
u Install the dust cover with its TOP mark
facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
Troubleshooting
Continued
79
Page 84
Electrical Trouble u Burned-out Light Bulb
Brake/Taillight Bulb
#
Taillight lens
Troubleshooting
Screws
1.
Remove the taillight lens by removing the
screws.
2.
Slightly press the bulb in and turn it
counterclockwise.
3.
Install a new bulb and parts in the reverse
order of removal.
After putting back the lens packing in
u
place, install the taillight lens.
80
Lens packing
Bulb
Front/Rear Turn Signal Bulb
#
Turn signal
lens
Bulb
Lens packing
1.
Remove the turn signal lens by removing
the screw.
2.
Slightly press the bulb and turn it
counterclockwise.
3.
Install a new bulb in the reverse order of
removal.
After putting back the lens packing in
u
place, install the turn signal lens.
Screw
Page 85
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 45
Fuse Box Fuses
#
Fuse box cover
Tab
Main fuse
Spare fuses
Circuit fuses
Electrical Trouble u Blown Fuse
1.
Remove the inner cover. 2 P. 54
2.
Remove the fuse box cover by pressing
the tab.
Pull the main fuse and circuit fuses out
3.
one by one and check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
4.
Install the fuse box cover.
5.
Install the inner cover.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your scooter inspected
by your dealer.
Troubleshooting
81
Page 86
Information
Keys....................................................................... P. 83
Instruments, Controls, & Other Features..... P. 84
Caring for Your Scooter................................... P. 85
Storing Your Scooter ........................................ P. 88
Transporting Your Scooter.............................. P. 89
You & the Environment.................................... P. 89
Vehicle Identification Number.......................P. 90
Emission Control Systems ............................... P. 91
Catalytic Converter ...........................................P. 96
High Altitude Carburetor Adjustment .........P. 97
Oxygenated Fuels.............................................. P. 98
Authorized Manuals .........................................P. 99
Warranty Coverage and Service .................. P. 100
Honda Contacts ............................................... P. 101
USA
Reporting Safety Defects ..................... P. 103
Page 87
Keys
Ignition Key
Be sure to record the key number provided with
the original keys. Store the spare key and
recorded key number in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all ignition keys and the key number,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Keys
Information
83
Page 88
Instruments, Controls, & Other Features
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Information
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
84
Odometer
The odometer returns to 0 when the read-out
exceeds 99,999.9.
Document Bag
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bag located underside of the seat.
Page 89
Caring for Your Scooter
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean scooter
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your scooter thoroughly
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your scooter thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lenses, panels, and
other plastic components with extra care
to avoid scratching them.
Avoid directing water into the air cleaner,
muffler, and electrical parts.
Caring for Your Scooter
3.
Thoroughly rinse your scooter with plenty of
clean water and dry with a soft, clean cloth.
4.
After the scooter dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Apply a coat of wax to prevent corrosion.
u
Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your scooter.
Keep the wax clear of the tires and brakes.
u If your scooter has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
Continued
Information
85
Page 90
Caring for Your Scooter
Washing Precautions
#
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u
Water in the air intake can be drawn into the
carburetor and/or enter the air cleaner.
● Do not direct water at the muffler:
Information
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
●
Do not direct water under the seat:
u Water in the owner’s manual storage
compartment can damage your
documents and other belongings.
●
Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
86
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
u Any condensation inside the headlight
should dissipate after a few minutes of
running the engine with the headlight(s)
on.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
matte painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
Page 91
Caring for Your Scooter
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline or detergents on the
instruments, panels, or headlight.
Exhaust Pipe and Muffler
When the exhaust pipe and muffler are painted,
do not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Information
87
Page 92
Storing Your Scooter
Storing Your Scooter
If you store your scooter outdoors, you should
consider using a full-body motorcycle cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your scooter and wax all painted
Information
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Place your scooter on its center stand and
position a block so that both tires are off the
ground.
●
After rain, remove the body cover and allow
the scooter to dry.
●
Remove the battery (2 P. 52) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
88
After removing your scooter from storage,
inspect all maintenance items required by the
Maintenance Schedule.
USA
For more information about storage, refer
to the Honda Winter Storage Guide, available
from your dealer.
Canada
For more information about storage,
visit our website at www.honda.ca and look up
“Storage Tips” under the “Honda Warranty” in
the Warranty tab for your Model.
Page 93
Transporting Your Scooter
Transporting Your Scooter
If your scooter needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform, and motorcycle tie-down
straps. Never try to tow your scooter with a
wheel or wheels on the ground.
NOTICE
Towing your scooter can cause serious damage
to the transmission.
You & the Environment
Owning and riding a scooter can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash your
scooter. Avoid aerosol spray cleaners that contain
chlorofluorocarbons (CFCs) which damage the
atmosphere's protective ozone layer.
Recycle Wastes
Put oil and other toxic wastes in approved containers
and take them to a recycling center. Call your local or
state office of public works or environmental services
to find a recycling center in your area, and to get
instructions on how to dispose of non-recyclable
wastes. Do not place used engine oil in the trash, or
pour it down a drain or on the ground. Used oil,
gasoline, coolant, and cleaning solvents contain
poisons that can hurt refuse workers and
contaminate drinking water, lakes, rivers, and oceans.
89
Information
Page 94
Vehicle Identification Number
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your scooter and are required in order
to register your scooter. They may also be
required when ordering replacement parts.
The VIN is stamped on the left side of the frame
Information
and also appears on the Safety Certification
Label attached to the left side of the frame.
The engine number is stamped on the back of
the crankcase near the rear wheel.
You should record these numbers and keep
them in a safe place.
90
VIN
VIN
Page 95
Engine number
Emission Control Systems
Emission Control Systems
Your scooter engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Information
Continued
91
Page 96
Emission Control Systems
Exhaust Emission Requirements
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment and Climate Change
Canada (ECCC) require that your scooter
comply with applicable exhaust, crankcase, and
fuel permeation emission standards during its
useful life, when operated and maintained
Information
according to the instructions provided.
CARB also requires that your scooter comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
USA
Compliance with the terms of the
Distributor's Warranties for Honda Scooter
Emission Control Systems is necessary in order
to maintain a valid emissions system warranty.

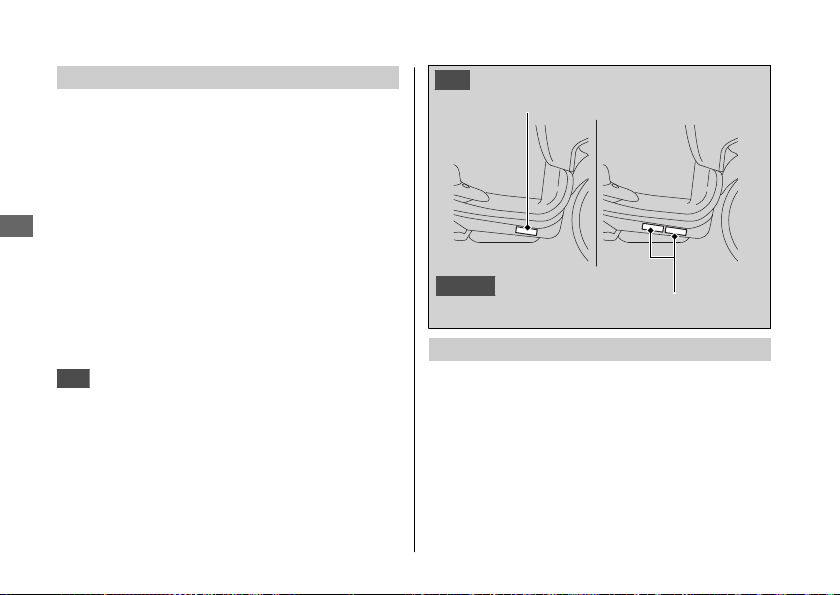

The Vehicle Emission Control Information label
is attached to the right side of the frame body
under the footrest.
92
USA
Vehicle emission control information label
Canada
Vehicle emission control information label
Noise Emission Requirements
The EPA requires that scooters built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Page 97
Emission Control Systems
Exhaust Emission Control System
The exhaust emission control system consists of
appropriate carburetor settings, and no
adjustment should be made except idle speed
adjustment with the throttle stop screw.
Secondary Air Injection System
#
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner and the intake
manifold.
Continued
Information
93
Page 98
Emission Control Systems
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
Information
94
Noise Emission Control System
TAMPERING WITH THE NOISE CONTROL
#
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Page 99
Emission Control Systems
AMONG THOSE ACTS PRESUMED TO
#
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Scooter Exhaust
Emissions
Have your scooter inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Information
95
Page 100
Catalytic Converter
Catalytic Converter
This scooter is equipped with an oxidation
catalytic converter. The catalytic converter
contains precious metals that serve as catalysts
in high temperature chemical reactions that
convert hydrocarbons (HC) and carbon
monoxide (CO) in the exhaust gasses into safe
Information
compounds.
A defective catalytic converter contributes to air
pollution and can impair your engine's
performance. A replacement unit must be an
original Honda part or equivalent.
96
Follow these guidelines to protect your
scooter's catalytic converter.
● Always use unleaded gasoline. Leaded
gasoline will damage the catalytic converter.
● Keep the engine in good running condition.
A poorly running engine can cause the
catalytic converter to overheat causing
damage to the converter or the scooter.
● If your engine is misfiring, backfiring, stalling,
or otherwise not running properly, stop
riding and turn off the engine. Have your
scooter serviced as soon as possible.
Loading...
