HONDA Element 2008 User Manual
Introduction
2008 Element
Main Menu

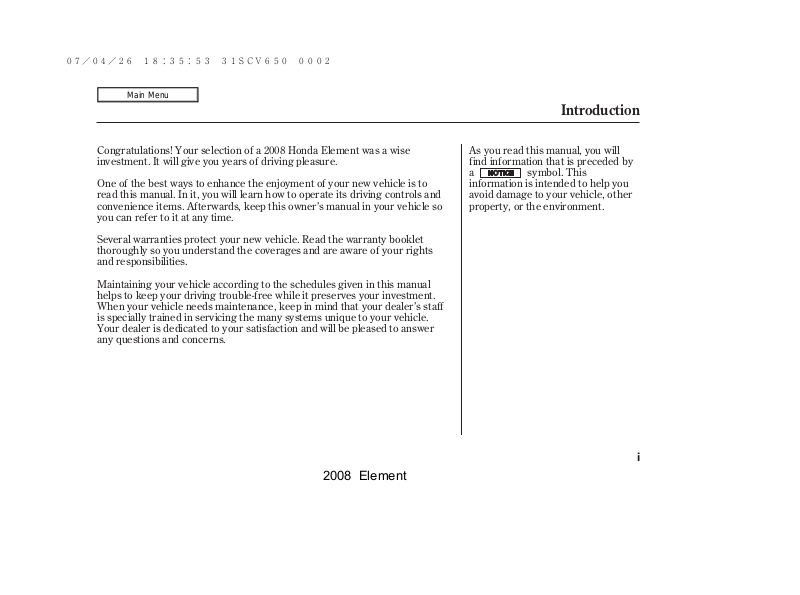

Congratulations! Your selection of a 2008 Honda Element was a wise
investment. It will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your dealer’s staff
is specially trained in servicing the many systems unique to your vehicle.
Your dealer is dedicated to your satisfaction and will be pleased to answer
any questions and concerns.
As you read this manual, you will
find inf ormation that is preceded by
a symbol. This
information is intended to help you
avoid damage to your vehicle, other
property, or the environment.
i
Introduction
2008 Element
Main Menu
California Proposition 65 Warning
WARNING:
defects or other reproductive harm.
Event Data Recorders
This vehicle is equipped with one or more devices commonly referred to as event data recorders. These
devices record front seat belt use, f ront passenger seat occupancy, airbag deployment data, and the f ailure
of any airbag system component.
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about powertrain performance. The data
can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may
also be combined with data f rom other sources for research purposes, but it remains confidential.
This product contains or emits chemicals known to the State of California to cause cancer and birth
This data belongs to the vehicle owner and may not be accessed by anyone else
ii
AFewWordsAboutSafety
2008 Element
Main Menu
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This inf ormation alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.

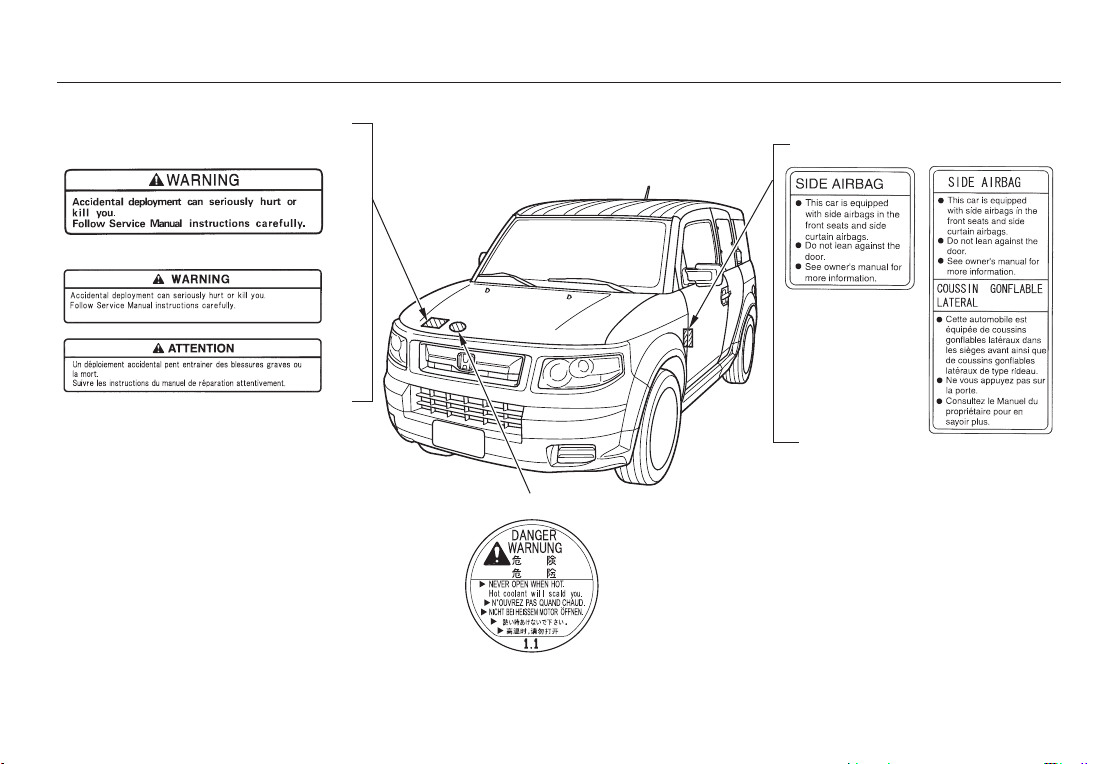

You will f ind this important safety information in a variety of forms,
including:
−

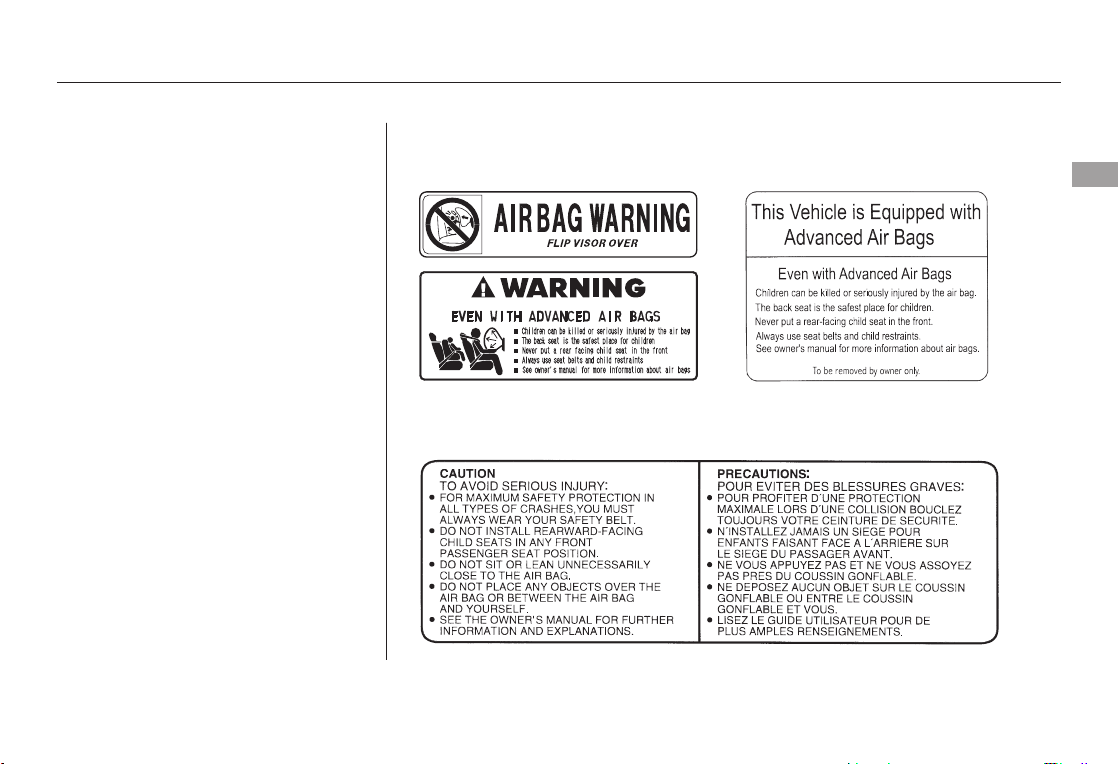

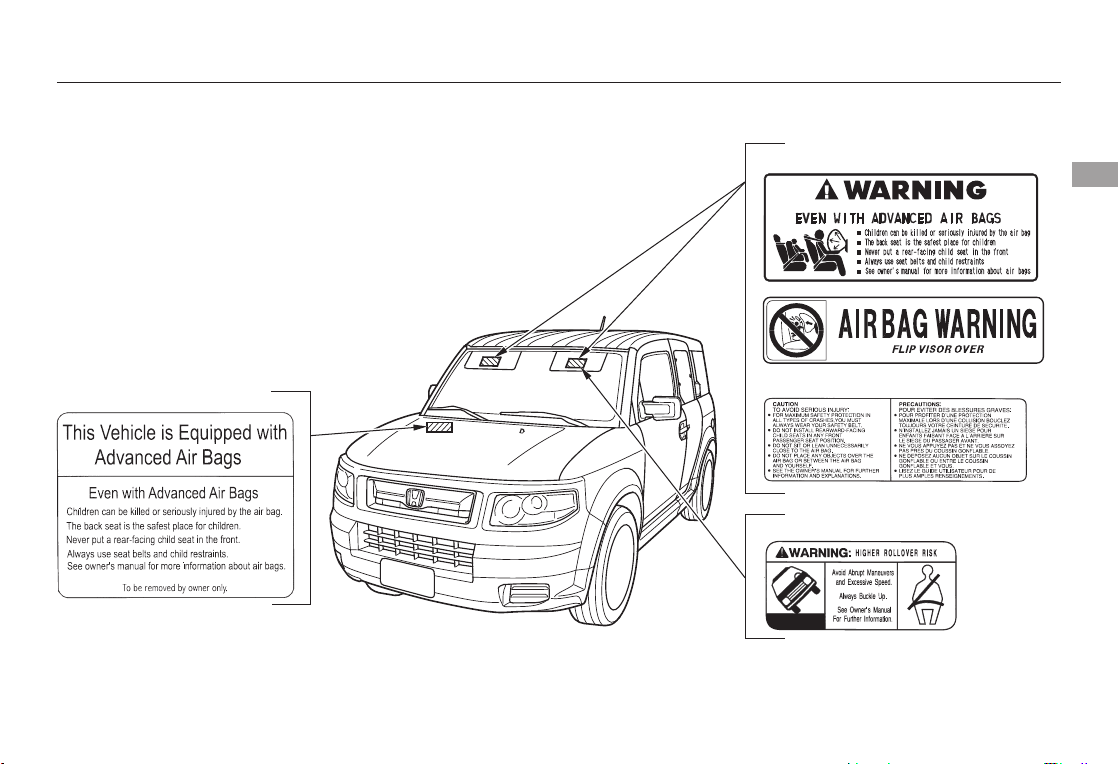

Safety Labels
Safety Messages
three signal words: , , or .
These signal words mean:
Safety Headings
Safety Precautions.
Safety Section
Instructions
This entire book is f illed with important saf ety information please read it
carefully.
on the vehicle.
−
preceded by a safety alert symbol and one of
DANGER WARNING CAUTION
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
−
such as Important Safety Reminders or Important
−
such as Driver and Passenger Safety.
−
how to use this vehicle correctly and safely.
−
iii
Important Handling Information
2008 Element
Main Menu
Your Element has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher
ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and
rough terrain. It also provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high
center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a
significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly
more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear
seat belts.
For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page of this manual and the
Off-Highway Driving Guidelines
control or an accident.
section on page . Failure to operate your vehicle correctly might result in loss of
179
156
iv
2008 Element Online Reference Owner's Manual
Contents
Owner's Identification Form
Introduction .......................................................................................................................................................... i
A Few Words About Safety .............................................................................................................................. iii
Important Handling Information .................................................................................................................... iv
Your Vehicle at a Glance (main controls) .................................................................................................... 4
Driver and Passenger Safety (seat belts, SRS, and child protection) .................................................... 7
Instruments and Controls
Features (heating and cooling
Before Driving (fuel, vehicle break- in, and cargo loading) ..................................................................... 139
Driving (engine and transmission operation) ................................................................................................ 155
Maintenance (minder, fluid checking, minor services, and vehicle storage)........................................... 183
Taking Care of the Unexpected (flat tire, dead battery, overheating, and fuses) ............................. 221
Technical Information (vehicle specifications, tires, and emissions controls) ....................................... 245
Warranty and Customer Relations (U. S. and Canada only) (warranty and contact information) ... 261
Authorized Manuals (U. S. only) (how to order) ......................................................................................... 265
Index ............................................................................................................................... ........................................ I
(indicators, gauges, dashboard, and steering column)
, audio, steering wheel, and cruise control )
........................................................... 101
............................................ 57
Service Information Summary ( fluid capacities and tire pressures)
1
00X31-SCV-6502
2
2008 Element
Main Menu
Overview of Contents
2008 Element
Main Menu
Contents
A convenient reference to the
sections in this manual.
Your Vehicle at a Glance
A quick reference to the main
controls in your vehicle.
Driver and Passenger Saf ety
Important information about the
proper use and care of your vehicle’s
seat belts, an overview of the
supplemental restraint system, and
valuable inf ormation on how to
protect children with child restraints.
Instruments and Controls
Explains the purpose of each
instrument panel indicator and gauge,
and how to use the controls on the
dashboard and steering column.
Features
How to operate the heating and air
conditioning system, the audio
system, and other convenience
features.
Before Driving
What gasoline to use, how to breakin your new vehicle, and how to load
luggage and other cargo.
Driving
The proper way to start the engine,
shift the transmission, and park; plus
what you need to know if you’re
planning to tow a trailer.
Maintenance
The maintenance minder shows you
when you need to take your vehicle
to the dealer for maintenance service.
There is also a list of things to check
and instructions on how to check
them.
Taking Care of the Unexpected
This section covers several problems
motorists sometimes experience,
and details how to handle them.
Technical Information
ID numbers, dimensions, capacities,
and technical information.
Warranty and Customer
Relations
(U.S. and Canada only)
A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual for detailed
information.
Authorized Manuals
(U.S. only)
How to order manuals and other
technical literature.
Index
Service Information Summary
A summary of the information you
need when you pull up to the fuel
pump.
3
Your Vehicle at a Glance
2008 Element
Main Menu
POWER DOOR
LOCK SWITCH
(P.80)
POWER WINDOW
SWITCHES
(P.91)
HOOD RELEASE
HANDLE
(P.142)
A/T model is shown.
4
MIRROR CONTROLS
(P.92)
AUTOMATIC TRANSMISSION
MANUAL TRANSMISSION
(P.159)
(P.161)
INSTRUMENT PANEL
GAUGES(P.66)
(P.59)
DRIVER’S FRONT
AIRBAG
PASSENGER’S
FRONT AIRBAG
(P.11, 34)
HEATING/COOLING
CONTROLS
(P.102)
PARKING BRAKE
(P.93)
(P.11, 27)
Your Vehicle at a Glance
2008 Element
Main Menu
HEADLIGHTS/TURN SIGNALS
(P.71)
REMOTE AUDIO
CONTROLS
(P.134)
＊
2
CRUISE CONTROL
MASTER BUTTON
(P.135)
VEHICLE STABILITY
ASSIST(VSA) SYSTEM
ON/OFF SWITCH
(P.172)
A/T model is shown.
＊＊To use the horn, press the center pad of the steering wheel.1:
2 : If equipped
WINDSHIELD
WIPERS/WASHERS
(P.70)
PASSENGER AIRBAG
OFF INDICATOR
(P.34)
AUDIO SYSTEM
(P.107)
DIGITAL CLOCK
(P.132)
REAR WINDOW
DEFOGGER
(P.73)
ACCESSORY POWER
SOCKET
(P.98)
HAZARD WARNING
BUTTON
HORN
＊
1
(P.73)
STEERING WHEEL ADJUSTMENT CRUISE CONTROL BUTTONS
(P.74)
(P.135)
Your Vehicle at a Glance
5
6
2008 Element
Main Menu
Driver and Passenger Saf ety
2008 Element
Main Menu
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
infants and children in your vehicle.
.........Important Safety Precautions . 8
.......Your Vehicle’s Safety Features . 9
.....................................Seat Belts . 10
.........................................Airbags . 11
.........Protecting Adults and Teens . 13
.....1. Close and Lock the Doors . 13
...........2. Adjust the Front Seats . 13
............3. Adjust the Seat-Backs . 14
...4. Adjust the Head Restraints . 15
5. Fasten and Position the
............................Seat Belts . 16
6. Maintain a Proper Sitting
................................Position . 17
.....Advice for Pregnant Women . 18
...Additional Safety Precautions . 18
Additional Information About Your
.................................Seat Belts . 20
..Seat Belt System Components . 20
......................Lap/Shoulder Belt . 21
Automatic Seat Belt
...............................Tensioners . 22
...............Seat Belt Maintenance . 22
Additional Information About Your
.....................................Airbags . 24
......Airbag System Components . 24
How Your Front Airbags
.........................................Work . 27
...How Your Side Airbags Work . 30
How Your Side Curtain Airbags
.........................................Work . 32
How the SRS Indicator
.......................................Works . 33
How the Side Airbag Off
......................Indicator Works . 34
How the Passenger Airbag Off
......................Indicator Works . 34
.............................Airbag Service . 35
...Additional Safety Precautions . 36
Protecting Children General
All Children Must Be
All Children Should Sit in a
−
................................Guidelines . 37
...............................Restrained . 37
.................................Back Seat . 38
The Passenger’s Front Airbag
If You Must Drive with Several
...................................Children . 40
If a Child Requires Close
..................................Attention . 40
Protecting Infants and
.........................Small Children . 42
.......................Protecting Infants . 42
.....................Selecting a Child Seat . 44
....................Installing a Child Seat . 45
...............................With LATCH . 46
..............................With a Tether . 50
...............Checking Seat Belt Fit . 51
..................Using a Booster Seat . 52
When Can a Larger Child Sit in
.........................................Front . 52
.............Carbon Monoxide Hazard . 54
...................................Safety Labels . 55
.........Can Pose Serious Risks . 38
Driver and Passenger Safety
...Additional Safety Precautions . 41
.........Protecting Small Children . 43
.........With a Lap/Shoulder Belt . 48
...........Protecting Larger Children . 51
...Additional Safety Precautions . 53
7
Important Safety Precautions
2008 Element
Table Of Contents
Main Menu
You’ll find many saf ety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
Always Wear Your Seat Belt
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
16
8
Restrain All Children
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat
(see pages ).37 53
Be Aware of Airbag Hazards
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to f ollow all instructions and
warnings in this manual.
Don’t Drink and Drive
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
−
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Control Your Speed
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
185
(5)
2008 Element
Table Of Contents
Main Menu
(7)
(11)
(8)
Your Vehicle’s Saf ety Features
Your vehicle is equipped with many
(4)(3)
(9)
(1)
features that work together to
protect you and your passengers
during a crash.
Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment; front and rear crush
zones, a collapsible steering column;
and tensioners that tighten the seat
belts in a crash.
Driver and Passenger Safety
(2)
(10)
(8)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Front Seat Belt Tensioners
(11) Door Locks
(6)
(2)
However, you and your passengers
can’t take full advantage of these
features unless you remain sitting in
a proper position and
your seat belts
features can contribute to injuries if
they are not used properly.
The f ollowing pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
. In fact, some safety
always wear
9
Your Vehicle’s Saf ety Features
2008 Element
Table Of Contents
Main Menu
Seat Belts
Your vehicle is equipped with seat
belts in all seating positions.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to fasten your seat belts.
Why Wear Seat Belts
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
10
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
What You Should Do:
Always wear your seat belt, and
make sure you wear it properly.
Airbags
2008 Element
Table Of Contents
Main Menu
Your Vehicle’s Saf ety Features
Driver and Passenger Safety
Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe f rontal collision (see page
for more information on how
your front airbags work).
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
30
information on how your side airbags
In addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, front passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side impact (see page
work).27 32
your side curtain airbags work).
for more information on how
CONTINUED
11
Your Vehicle’s Saf ety Features
2008 Element
Table Of Contents
Main Menu
The most important things you need
to know about your airbags are:
Airbags do not replace seat belts.
They are designed to supplement
the seat belts.
Airbags off er no protection in rear
impacts, or minor frontal or side
collisions.
Airbags can pose serious hazards.
To do their job, airbags must
inflate with tremendous f orce. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
12
What you should do:
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.
The rest of this section gives more
detailed inf ormation about how you
can maximize your safety.
Remember however, that no safety
system can prevent all injures or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
The f ollowing pages provide
2008 Element
Table Of Contents
Main Menu
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.
5337
See pages for important
−
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Your vehicle has a door and
tailgate open monitor on
the instrument panel to indicate
when a specific door or the tailgate
or the hatch is not tightly closed.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers f rom
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
See page for how to lock the
doors, and page for how the door
80
63
and tailgate monitor system works.
Protecting Adults and Teens
Adjust theFront SeatsClose and Lock the DoorsIntroduction 2.1.
Driver and Passenger Safety
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
CONTINUED
13
Protecting Adults and Teens
2008 Element
Table Of Contents
Main Menu
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down (see
page ).
74
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
14
Once a seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position.
See page for how to adjust the
front seats.
83
Adjust the Seat-Backs3.
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seatbacks should also adjust their seatback to a comfortable, upright
position.
Protecting Adults and Teens
2008 Element
Table Of Contents
Main Menu
Adjust the Head Restraints4.
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust the
seat-backs.
83
Adjust the driver’s head restraint so
the center of the back of your head
rests against the center of the
restraint.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible.
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
85
Driver and Passenger Safety
15
Protecting Adults and Teens
2008 Element
Table Of Contents
Main Menu
Fasten and Position the Seat
5.
Belts
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
16
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the forces of a crash
over the strongest bones in your
upper body.
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Protecting Adults and Teens
2008 Element
Table Of Contents
Main Menu
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
No one should sit in a seat with an
inoperative seat belt.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page for additional
20
information about your seat belts
and how to take care of them.
Maintain a Proper Sitting
6.
Position
After all occupants have adjusted
their seats and head restraints, and
put on their seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of
position in the front seat can be
seriously or f atally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
17
Driver and Passenger Safety
Protecting Adults and Teens
2008 Element
Table Of Contents
Main Menu
Advice for Pregnant Women Additional Safety Precautions
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Never let passengers ride in the
cargo area or on top of a foldeddown back seat.
If they do, they
could be very seriously injured in a
crash.
Passengers should not stand up or
change seats while the vehicle is
moving.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
If you are pregnant, the best way to
Each time you have a checkup, ask
your doctor if it’s okay for you to
drive.
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
Two people should never use the
same seat belt.
If they do, they
could be very seriously injured in a
crash.
18
Protecting Adults and Teens
2008 Element
Table Of Contents
Main Menu
Do not put any accessories on seat
belts.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Do not place hard or sharp objects
between yourself and a front
airbag.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
Do not attach or place objects on
the f ront airbag covers.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interf ere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inf late.
Do not attach hard objects on or
near a door.
If a side airbag or a
side curtain airbag inflates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Keep your hands and arms away
from the airbag covers.
If your
hands or arms are close to an
airbag cover, they could be injured
if the front airbag inflates.
19
Driver and Passenger Safety
Additional Information About Your Seat Belts
2008 Element
Table Of Contents
Main Menu
Seat Belt System Components
Your seat belt system includes lap/
shoulder belts in all four seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
This system uses the same sensors
as the front airbags to monitor
whether the front seat belts are
latched or unlatched, and how much
weight is on the front passenger’s
seat (see pages and ).
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
This system monitors the front seat
belts. If you turn the ignition switch
to the ON (II) position before your
seat belt is fastened, the beeper will
sound and the indicator will flash. If
your seat belt is not fastened bef ore
29 30
The seat belt system
includes an indicator on the
20
the beeper stops, the indicator will
stop flashing but remain on.
If a front passenger does not fasten
their seat belt, the indicator will
come on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either the driver or a front
passenger does not fasten their seat
belt, the beeper will sound and the
indicator will flash again at regular
intervals.
When no one is sitting in the front
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no front
seat passenger and no items on the
front seat, something may be
interfering with the monitoring
system. Look f or and remove:
Any items under the f ront
passenger’s seat.
Any object(s) hanging on the seat
or in the seat-back pocket.
Any objects, such as a folded-down
back seat, that are touching the
rear of the seat-back.
If no obstructions are found, have
your vehicle checked by a dealer.
Additional Information About Your Seat Belts
2008 Element
Table Of Contents
Main Menu
Lap/Shoulder Belt
The lap/shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
16
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. Af ter exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all positions except
the driver’s have a lockable retractor
that must be activated to secure a
child seat (see page ).
If the shoulder part of the belt is
pulled all the way out, the lockable
retractor will activate. The belt will
retract, but it will not allow the
passenger to move freely.
To deactivate the lockable retractor,
unlatch the buckle and let the seat
belt fully retract. To refasten the
seat belt, pull it out only as far as
needed.
48
21
Driver and Passenger Safety
Additional Information About Your Seat Belts
2008 Element
Table Of Contents
Main Menu
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in position.
22
The tensioners are designed to
activate in any collision severe
enough to cause the front airbags to
deploy, or if a sensor detects your
vehicle is about to roll over (see page
32
).
If a side airbag or side curtain airbag
deploys during a side impact, the
tensioner on that side of the vehicle
will also deploy.
The tensioners can also be activated
during a collision in which the front
airbags . In this case, the
airbags would not be needed, but the
additional restraint could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled.
do not deploy
Seat Belt MaintenanceAutomatic Seat Belt Tensioners
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
209
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a limited warranty
on seat belts. See your
Warranty Information
details.
Honda
booklet for
If a seat belt is worn during a crash,
2008 Element
Table Of Contents
Main Menu
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
Additional Information About Your Seat Belts
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Driver and Passenger Safety
23
Additional Information About Your Airbags
2008 Element
Table Of Contents
Main Menu
Airbag System Components
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Position Detection System (OPDS) Sensors
(12) Supplemental Restraint System (SRS) Indicator
(13) Rollover Sensor
(14) Seat Belt Buckle Tensioners
(15) Rear Safing Sensor
24
(12)
(1)
(8) (2)(9)
(3)
(5)
(6)
(10)
(4)
(13)
(15)
(10)
(14)
(11)
(5)
(4)
(7)
(16)
2008 Element
Table Of Contents
Main Menu
(16) Side Curtain Airbags
(17) Side Impact Sensors (Second)
Additional Information About Your Airbags
Your airbag system includes:
Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seatbacks. Both are marked ‘‘SIDE
(17)
AIRBAG’’ (see page ).
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).2732
30
CONTINUED
Driver and Passenger Safety
25
Additional Information About Your Airbags
2008 Element
Table Of Contents
Main Menu
Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact,
side impact, or rollover.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag off (see
page ).
31
Sensors that can detect whether
the driver’s seat belt and the front
passenger’s seat belt are latched
or unlatched (see page ).
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
).
29
22
20
26
Weight sensors that monitor the
weight on the front passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
infant or small child), the
passenger’s front airbag will be
turned off (see page ).
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and f ront
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
33
29
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned off (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
34
34
Loading...
