Honda Click150i (2017) User guide

This manual should be considered a permanent part of the scooter and
should remain with the scooter when it is resold.

This publication includes the latest production information available before
printing. Honda Motor Co., Ltd. reserves the right to make changes at any
time without notice and without incurring any obligation.

No part of this publication may be reproduced without written permission.

The vehicle pictured in this owner’s manual may not match your actual
vehicle.

© 2016 Honda Motor Co., Ltd.

Welcome

Congratulations on your purchase of a new
Honda scooter. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda’s
reputation for building quality into every
product.

To ensure your safety and riding pleasure:

● Read this owner’s manual carefully.

● Follow all recommendations and

procedures contained in this manual.

● Pay close attention to safety messages

contained in this manual and on the
scooter.

● The following code in this manual indicates

the country.

Country Codes

Code

Country

ACB150CBT

II PH Philippines

3

DANGER

3

WARNING

3

CAUTION

NOTICE

A Few Words About Safety

Your safety, and the safety of others, is very
important. Operating this scooter safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could hurt
you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a scooter. You must
use your own good judgement.

You will find important safety information in a
variety of forms, including:

● Safety labels on the scooter.

● Safety Messages preceded by a safety alert

symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:

You WILL be KILLED or SERIOUSLY HURT
if you don’t follow instructions.

You CAN be KILLED or SERIOUSLY HURT
if you don’t follow instructions.

You CAN be HURT if you don’t follow
instructions.

Other important information is provided
under the following titles:

Information to help you avoid
damage to your scooter, other
property, or the environment.

Contents

Scooter Safety P. 2

Operation Guide P. 12

Maintenance P. 42

Troubleshooting P. 80

Information P. 97

Specifications P. 110

Index P. 113

Scooter Safety

This section contains important information for safe riding of your scooter.
Please read this section carefully.

Safety Guidelines .......................................... P. 3

Safety Precautions ........................................ P. 6

Riding Precautions........................................ P. 7

Accessories & Modifications...................... P. 10

Loading ........................................................ P. 11

Safety Guidelines

Scooter Safety

Safety Guidelines

Follow these guidelines to enhance your safety:

● Perform all routine and regular inspections

specified in this manual.

● Stop the engine and keep sparks and flame

away before filling the fuel tank.

● Do not run the engine in enclosed or partly

enclosed areas. Carbon monoxide in exhaust
gases is toxic and can kill you.

Always Wear a Helmet

It’s a proven fact: helmets and protective apparel
significantly reduce the number and severity of
head and other injuries. So always wear an
approved motorcycle helmet and protective
apparel.

2 P. 6

Before Riding

Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check

that you and your passenger are both wearing
an approved motorcycle helmet and protective
apparel. Instruct your passenger on holding onto
the grab rail or your waist, leaning with you in
turns, and keeping their feet on the footpegs,
even when the scooter is stopped.

Take Time to Learn & Practice

Even if you have ridden other scooters, practice
riding in a safe area to become familiar with how
this scooter works and handles, and to become
accustomed to the scooter’s size and weight.

Ride Defensively

Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.

continued

3

Safety Guidelines

Scooter Safety

Make Yourself Easy to See

Make yourself more visible, especially at night, by
wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using your
horn when necessary.

Ride within Your Limits

Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.

Don’t Drink and Ride

Alcohol and riding don’t mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time gets
worse with every additional drink. Don’t drink
and ride, and don’t let your friends drink and ride
either.

4

Keep Your Honda in Safe Condition

It’s important to keep your scooter properly
maintained and in safe riding condition.
Inspect your scooter before every ride and
perform all recommended maintenance. Never
exceed load limits (
your scooter or install accessories that would
make your scooter unsafe (

2 P. 11), and do not modify

2 P. 10).

If You are Involved in a Crash

Personal safety is your first priority. If you or
anyone else has been injured, take time to assess
the severity of the injuries and whether it is safe
to continue riding. Call for emergency assistance
if needed. Also follow applicable laws and
regulations if another person or vehicle is
involved in the crash.

If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your scooter. Inspect for fluid

Safety Guidelines

Scooter Safety

3

WARNING

leaks, check the tightness of critical nuts and
bolts, and check the handlebar, control levers,
brakes, and wheels. Ride slowly and cautiously.
Your scooter may have suffered damage that is
not immediately apparent. Have your scooter
thoroughly checked at a qualified service facility
as soon as possible.

Running the engine of your scooter
while in an enclosed or even partially
enclosed area can cause a rapid build-up
of toxic carbon monoxide gas.

Breathing this colourless, odorless gas

Carbon Monoxide Hazard

Exhaust contains poisonous carbon monoxide, a
colourless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.

If you run the engine in confined or even partly
enclosed area, the air you breathe could contain
a dangerous amount of carbon monoxide. Never
run your scooter inside a garage or other
enclosure.

can quickly cause unconsciousness and
lead to death.

Only run your scooter's engine when it
is located in a well ventilated area
outdoors.

5

Safety Precautions

Scooter Safety

3

WARNING

Safety Precautions

● Ride cautiously and keep your hands on the

handlebar and feet on the floor.

● Keep passenger’s hands onto the grab rail or

your waist, passenger’s feet on the footpegs
while riding.

● Always consider the safety of your passenger,

as well as other drivers and riders.

Protective Apparel

Make sure that you and any passenger are
wearing an approved motorcycle helmet, eye
protection, and high-visibility protective clothing.
Ride defensively in response to weather and
road conditions.

Helmet

#

Safety-standard certified, high-visibility, correct
size for your head

● Must fit comfortably but securely, with the chin

strap fastened.

6

● Face shield with unobstructed field of vision or

other approved eye protection

Not wearing a helmet increases the
chance of serious injury or death in a
crash.

Make sure that you and any passenger
always wear an approved helmet and
protective apparel.

Gloves

#

Full-finger leather gloves with high abrasion
resistance

Boots or Riding Shoes

#

Sturdy boots with non-slip soles and ankle
protection

Jacket and Trousers

#

Protective, highly visible, long-sleeved jacket and
durable trousers for riding (or a protective suit)

Riding Precautions

Scooter Safety

Riding Precautions

Running-in Period

During the first 500 km (300 miles) of running,
follow these guidelines to ensure your scooter’s
future reliability and performance.

● Avoid full-throttle starts and rapid

acceleration.

● Avoid hard braking.

● Ride conservatively.

Brakes

Observe the following guidelines:

● Avoid excessively hard braking.

u Sudden braking can reduce the scooter’s

stability.

u Where possible, reduce speed before

turning; otherwise you risk sliding out.

● Exercise caution on low traction surfaces.

u The tyres slip more easily on such surfaces,

and braking distances are longer.

● Avoid continuous braking.

u Repeated braking, such as when

descending long, steep slopes can seriously
overheat the brakes, reducing their
effectiveness.

● For full brake effectiveness, operate both the

front and rear brakes together.

Combi Brake

#

Your scooter is equipped with a brake system
that distributes the braking force between the
front and rear brakes.
The distribution of the braking force applied to
the front and rear brakes when operating the
front brake lever only and when operating the
rear brake lever only is different.
For full braking effectiveness, operate both the
front and rear brakes together.

continued

7

Riding Precautions

Scooter Safety

Wet or Rainy Conditions

#

Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.

Parking

● Park on a firm, level surface.

● If you must park on a slight incline or loose

surface, park so that the scooter cannot move
or fall over.

● Make sure that high-temperature parts cannot

come into contact with flammable materials.

● Do not touch the engine, muffler, brakes and

other high-temperature parts until they cool
down.

8

● To reduce the likelihood of theft, always lock

the handlebar, remove the key and close the
shutter when leaving the scooter unattended.
Use of an anti-theft device is also recommended.

Parking with the Side Stand or Centre Stand

#

1.

Stop the engine.

2.

Using the side stand

Push the side stand down.
Slowly lean the scooter to the left until its
weight rests on the side stand.

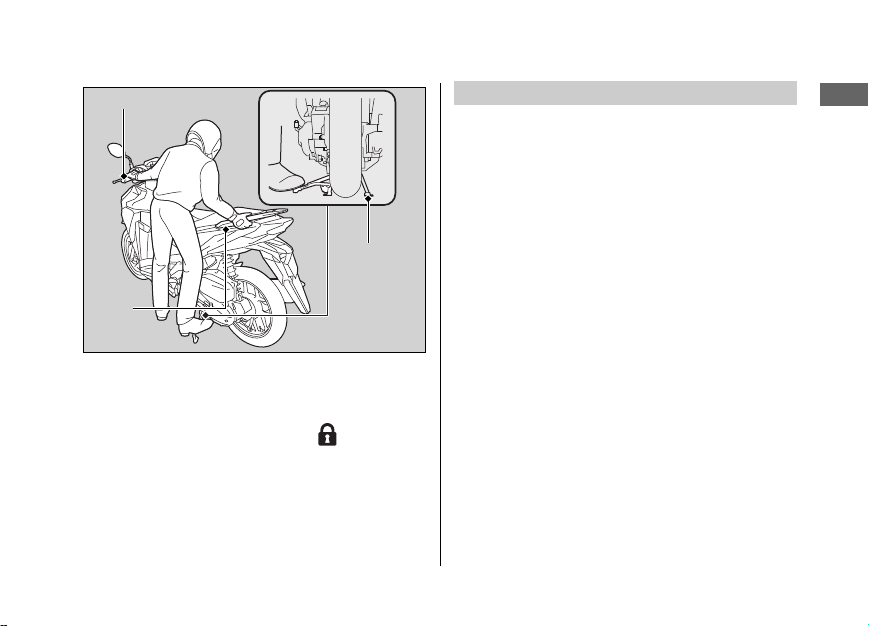

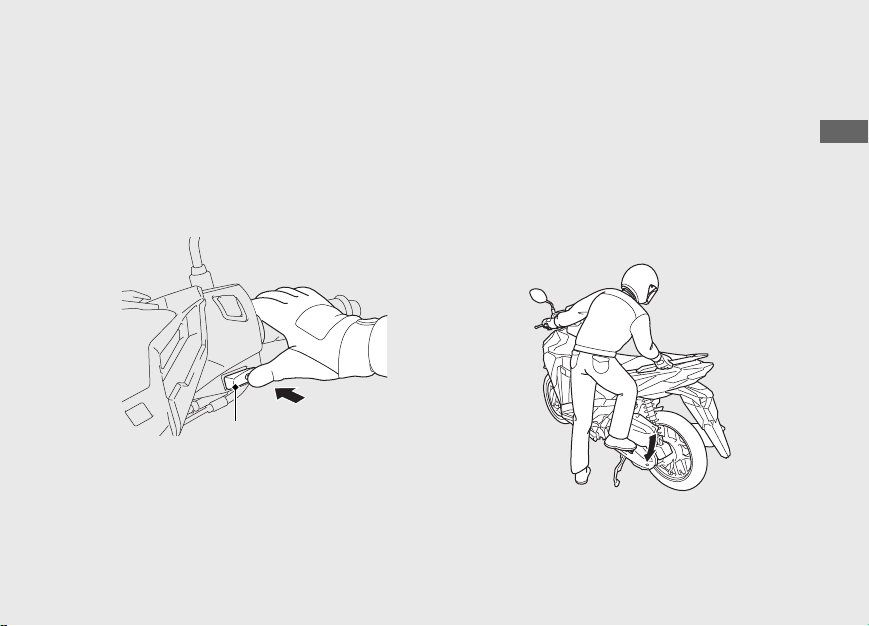

Using the centre stand

To lower the centre stand, stand on the le
side of the scooter. Hold the left handle grip
and the grab rail. Press down on the tip of the
centre stand with your right foot and,
simultaneously, pull up and back.

ft

Scooter Safety

Left handle grip

Grab
rail

Centre stand

3.

4.

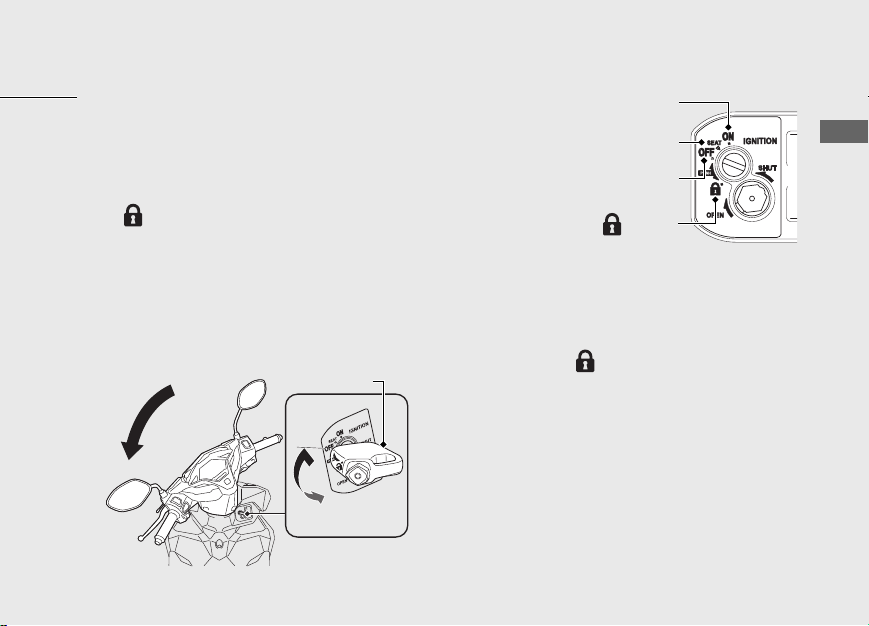

Turn the handlebar fully to the left.

u Turn the handlebar to the right reduces

stability and may cause the scooter to fall.

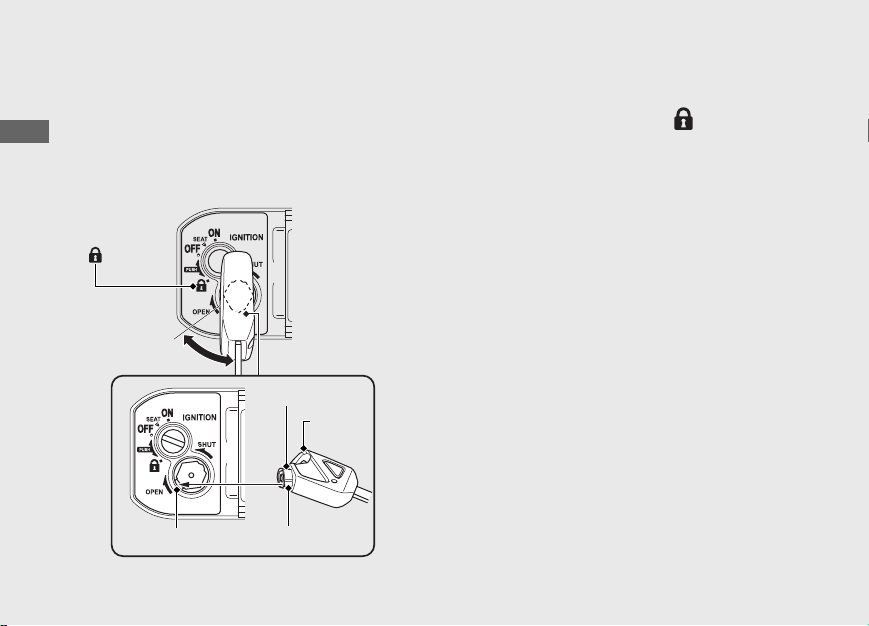

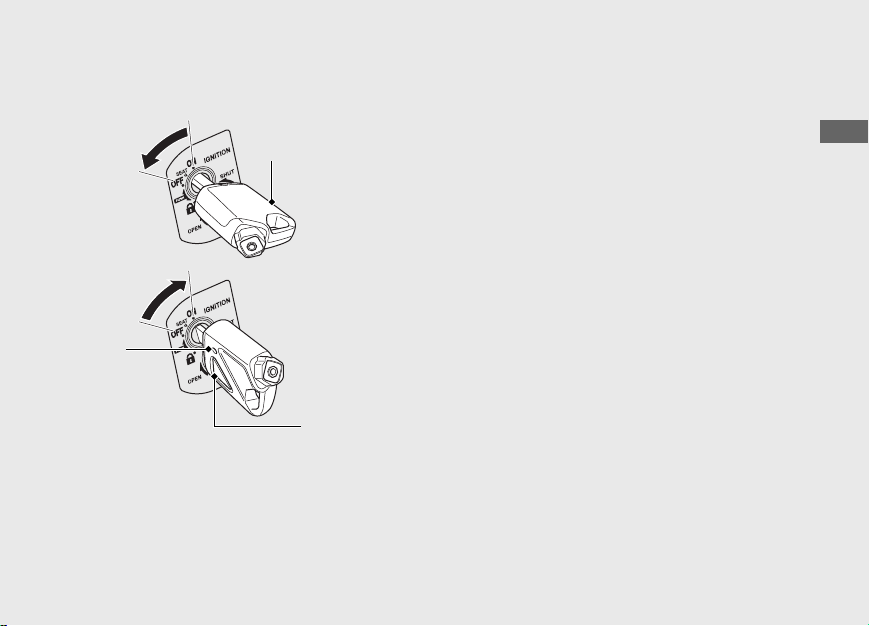

Turn the ignition switch to the (LOCK)
position, remove the key and close the shutter.

2 P. 19, 20

Riding Precautions

Refuelling and Fuel Guidelines

Follow these guidelines to protect the engine,
fuel system and catalytic converter:

● Use only unleaded petrol.

● Use recommended octane number. Using

lower octane petrol will result in decreased
engine performance.

● Do not use fuels containing a high

concentration of alcohol.

● Do not use stale or contaminated petrol or an

oil/petrol mixture.

● Avoid getting dirt, or water in the fuel tank.

2 P. 108

9

Accessories & Modifications

Scooter Safety

3

WARNING

Accessories &
Modifications

We strongly advise that you do not add any
accessories that were not specifically designed
for your scooter by Honda or make
modifications to your scooter from its original
design. Doing so can make it unsafe.
Modifying your scooter may also void your
warranty and make your scooter illegal to
operate on public roads and highways. Before
deciding to install accessories on your scooter be
certain the modification is safe and legal.

10

Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding accessories and
modifications.

Do not pull a trailer with, or attach a sidecar to,
your scooter. Your scooter was not designed for
these attachments, and their use can seriously
impair your scooter’s handling.

Scooter Safety

Loading

3

WARNING

Loading

● Carrying extra weight affects your scooter’s

handling, braking and stability. Always ride at a
safe speed for the load you are carrying.

● Avoid carrying an excessive load and keep

within specified load limits.

Maximum weight capacity / Maximum
luggage weight

● Tie all luggage securely, evenly balanced and

close to the centre of the scooter.

● Do not place objects near the lights or the

muffler.

2 P. 110

Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.

Follow all load limits and other loading
guidelines in this manual.

11

Operation Guide

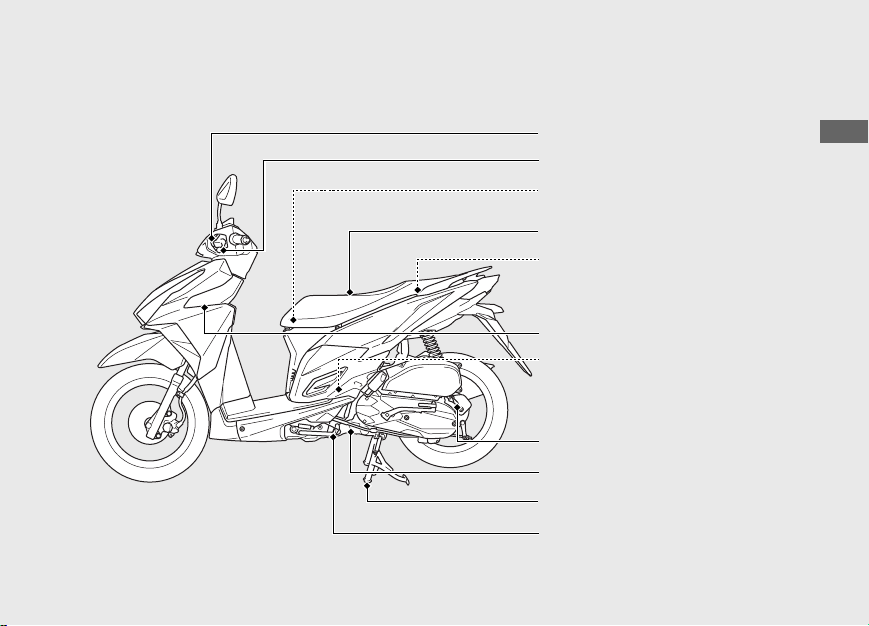

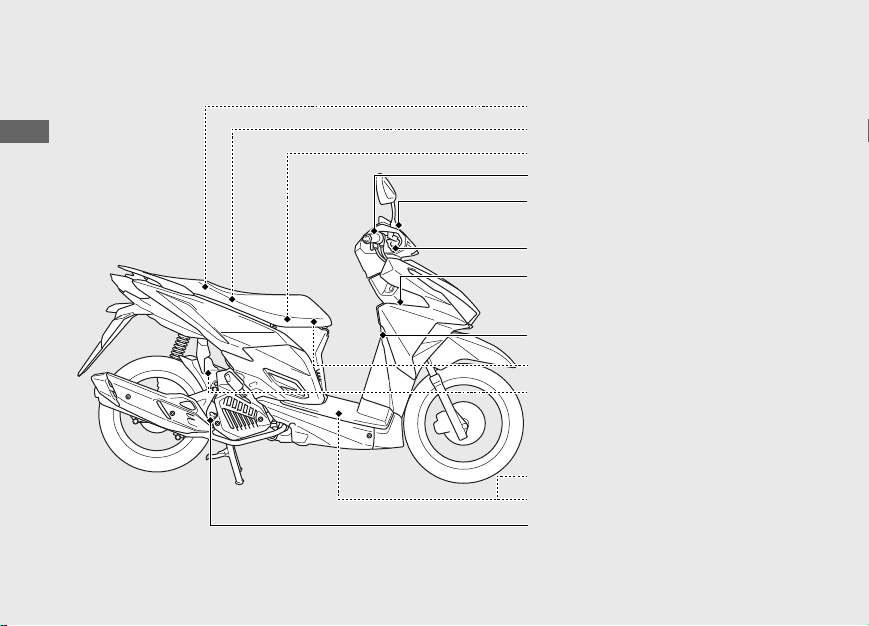

Parts Location

Front brake fluid reservoir

(P69)

Throttle grip (P75)

Engine oil fill cap/dipstick

(P63)

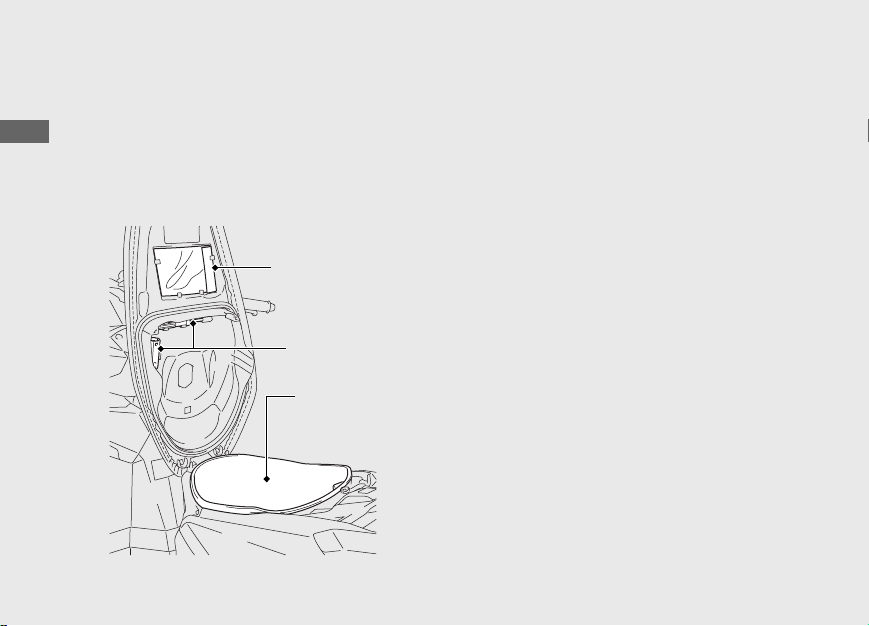

Document bag (P40)

Luggage box (P40)

Glove box (P41)

Front brake lever

Coolant reserve tank

(P67)

Hook (P41)

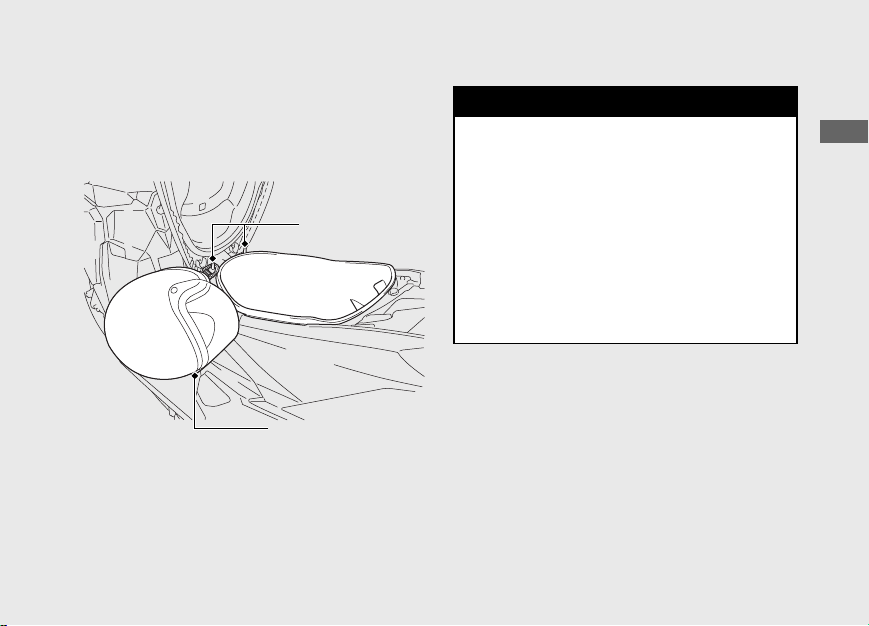

Helmet holder (P39)

Tool (P40)

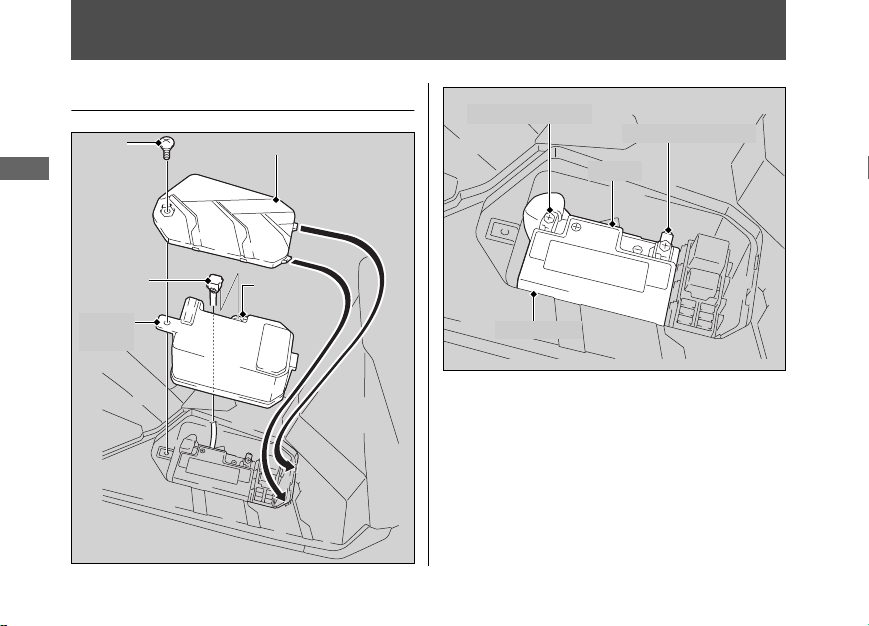

Battery (P58)
Main Fuse (P95)

12

Operation Guide

Side stand (P74)

Helmet holder (P39)

Seat (P38)

Fuel fill cap (P36)

Crankcase breather (P76)

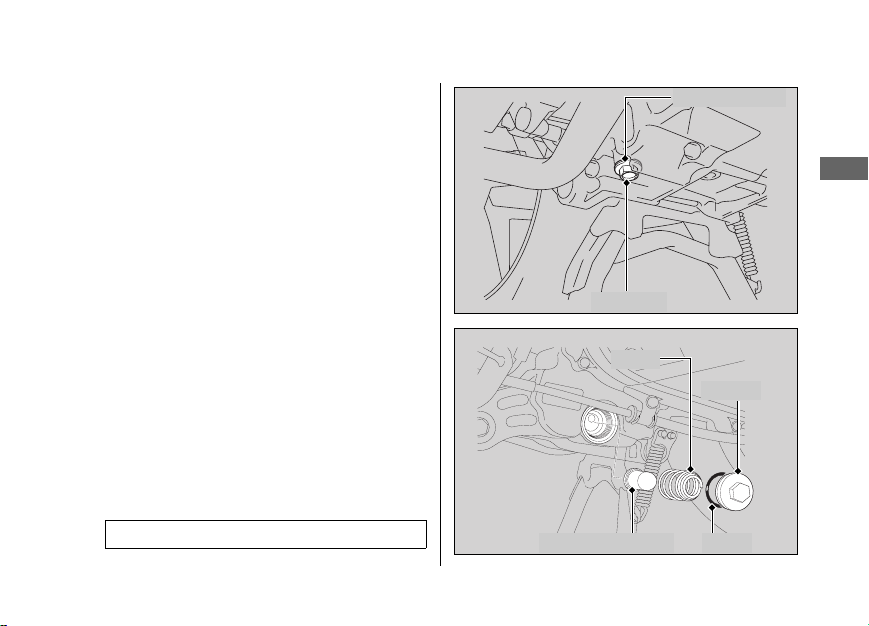

Engine oil drain bolt (P65)

Centre stand (P8)

Spark plug (P61)

Rear brake lever (P70)

Brake lock lever (P25)

Glove box (P41)

13

Operation Guide

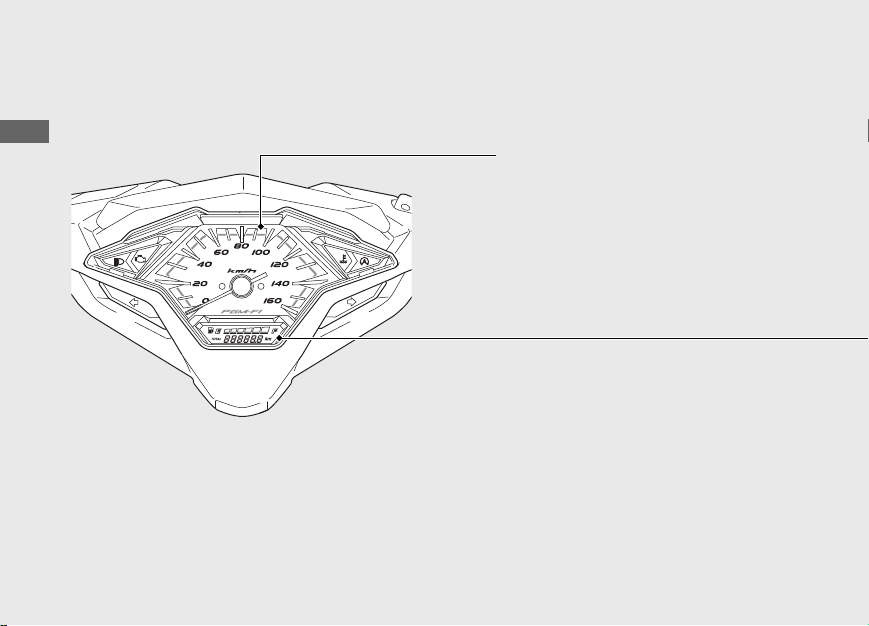

Instruments

Display Check

When the ignition switch is turned to ON position, the speedometer needle swings to the
maximum scale on the dial once, all the mode and digital segments will temporarily show.
If any part of these displays does not come on when it should, have your dealer check for
problems.

Speedometer

14

Operation Guide

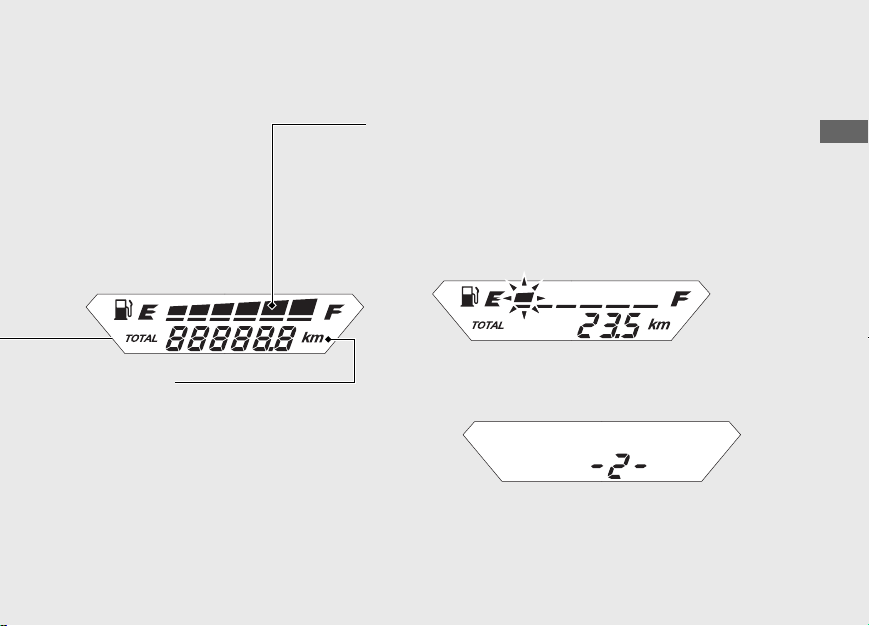

Odometer

Total distance ridden.
If the mileage is over 100,000 km, the highest
digit of the total mileage shows briefly before
showing the remaining digits in the display.

Fuel gauge

Remaining fuel when only 1st (E) segment left:
approximately 1.5 litres (0.40 US gal, 0.33 lmp gal).
This segment flashes when the fuel decreases further.

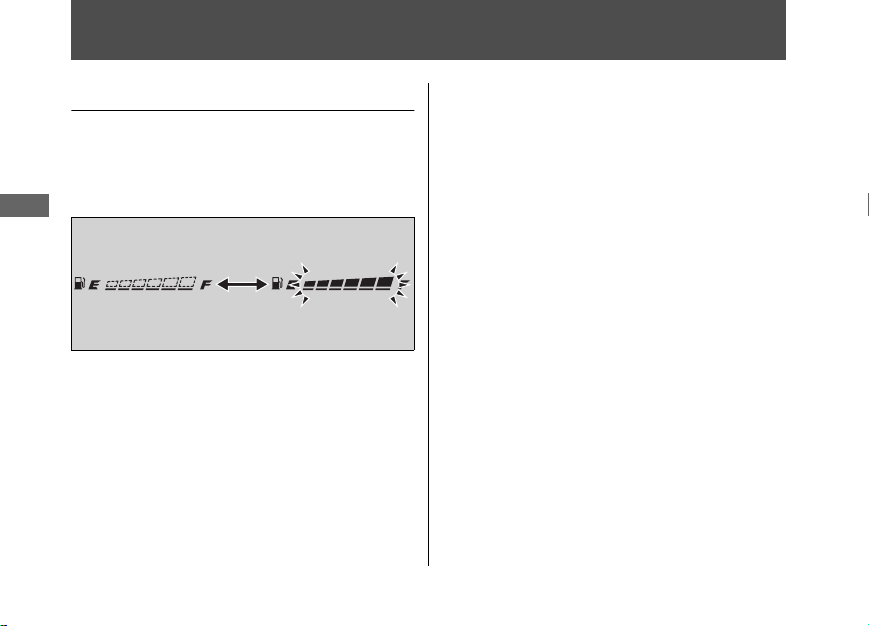

If the fuel gauge indicator flashes in a repeat
pattern or turns off:

(P84)

(If the mileage is over 200,000 km)

15

Operation Guide

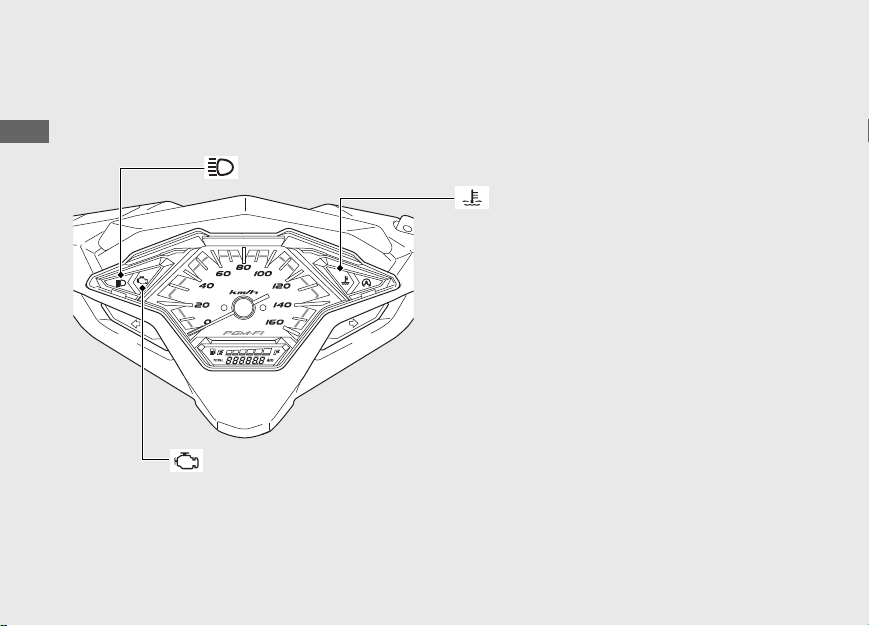

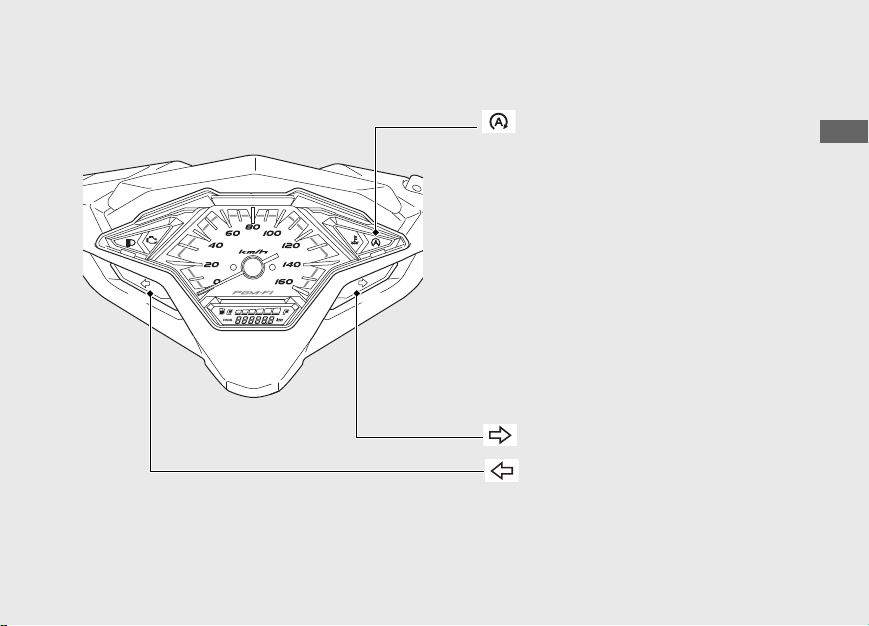

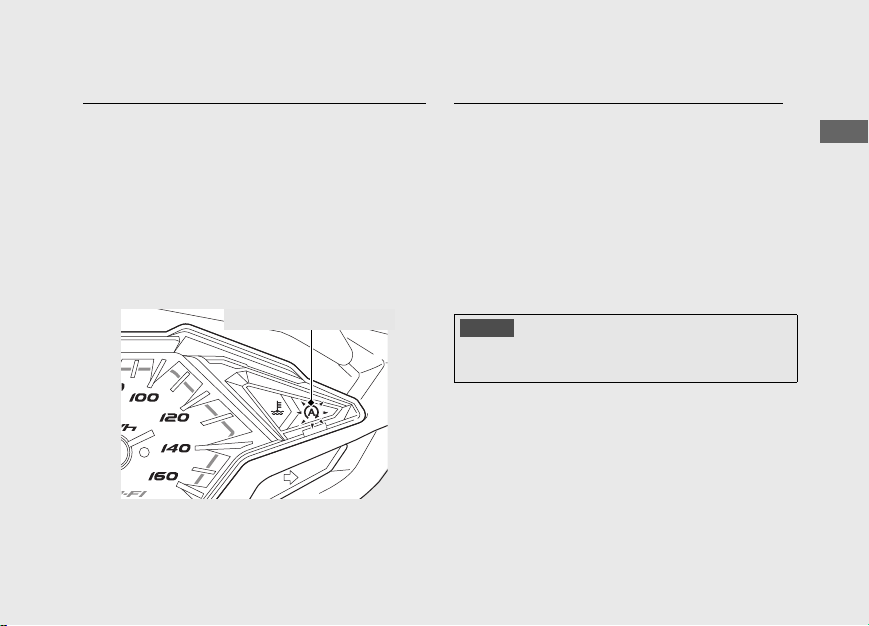

Indicators

Comes on briefly when the ignition switch is turned on.

If it comes on while engine is running: (P83)

PGM-FI (Programmed Fuel Injection) malfunction

indicator lamp (MIL)

High coolant temperature

indicator
If it comes on while riding: (P82)

High beam indicator

If one of these indicators does not come on when it should, have your dealer check for
problems.

16

Operation Guide

Left turn signal indicator

Right turn signal indicator

Comes on briefly when the Idling
Stop switch in the IDLING STOP

with the ignition switch turned on.

Idling Stop system:

(P26)

Idling Stop indicator

17

Operation Guide

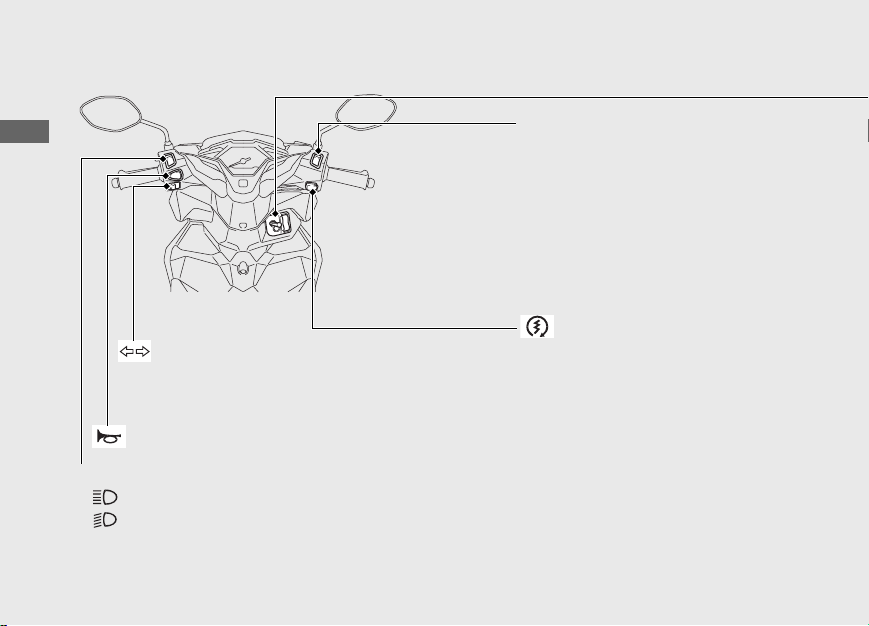

Switches

Start button

Horn button

Turn signal switch

Headlight dimmer switch

• : High beam

• : Low beam

Idling Stop switch

Switches the Idling Stop system
on/off.

• IDLING STOP : The Idling Stop

system is on.

• IDLING : The Idling Stop system

is off.

Idling Stop system:

(P26)

u Pressing the switch turns

the turn signal off.

18

Operation Guide

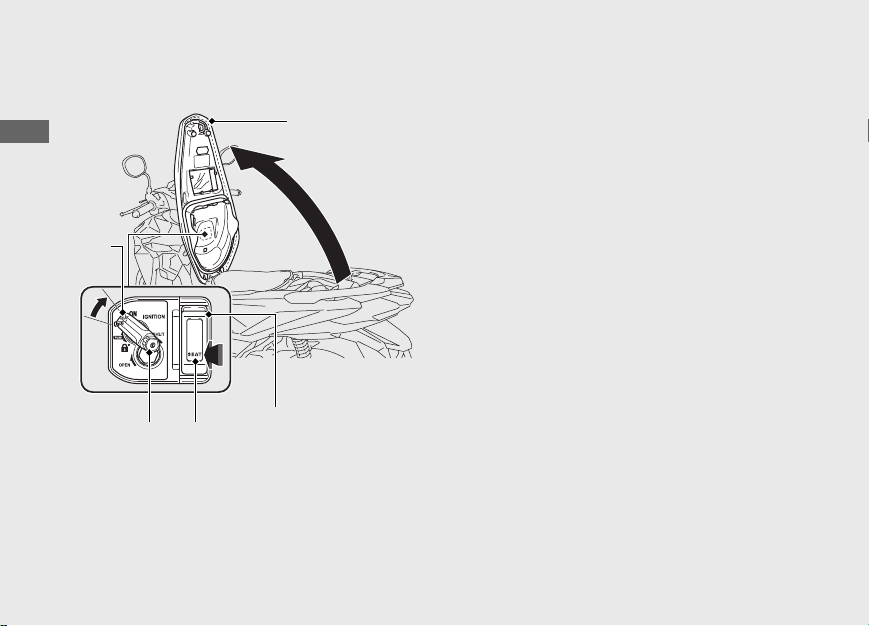

Ignition Switch

Switches the electrical system on/off,
locks the steering, and operates the
seat opener switch.

u Key can be removed when in the OFF

or (LOCK) position.

ON

Turns electrical system on for starting/riding.

OFF

Turns engine off.

(LOCK)

SEAT

Operates the seat opener switch.

Push

Ignition key

!a

!b

Turn

Lock the steering when parking to help
prevent theft.
An U-shaped wheel lock or similar device is
also recommended.

Steering Lock

Locking

#

!a Turn the handlebar all the way to the left or

right.

!b Push the key down, and turn the ignition

switch to the (LOCK) position.

u Jiggle the handlebar if the lock is difficult

to engage.

!c Remove the key.

Unlocking

#

Insert the key, push it in, and turn the ignition
switch to the OFF position.

continued

19

Switches

Operation Guide

Ignition
key

Close

Shutter key

Projection

Slot

Open

(LOCK)

(Continued)

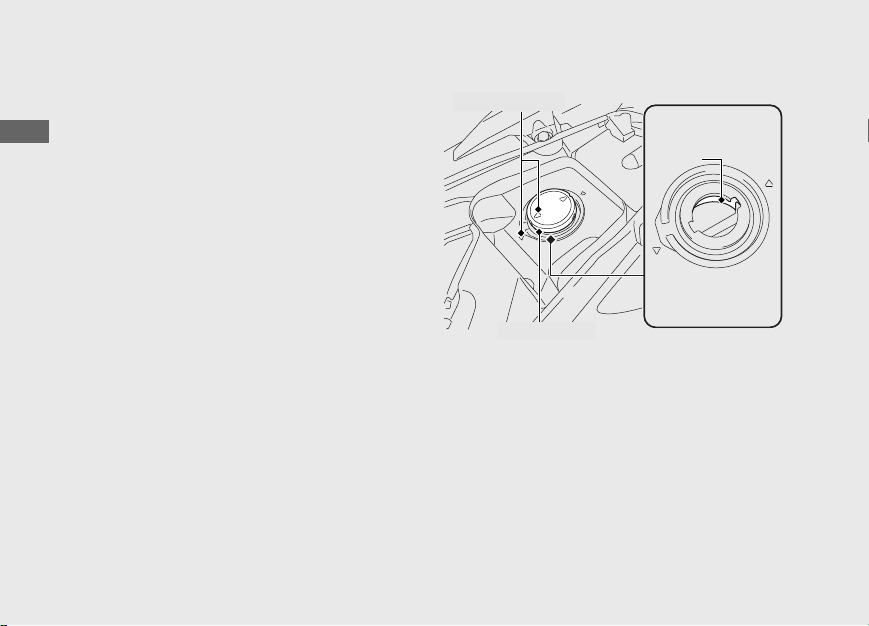

Shutter

The ignition switch for this scooter is
equipped with an automatic shutter. After
parking the scooter, close the shutter for
theft prevention.

The shutter will automatically close when you
remove the ignition key at the (LOCK)
position.
Also you can close the shutter manually.

Close

#

!a Remove the ignition key from the ignition

switch.

!b Align the projection of the shutter key with

the slot of the shutter, and turn the shutter
key counterclockwise.

!c Remove the key.

20

Open

#

Align the projection of the shutter key with the
slot of the shutter, and turn the shutter key
clockwise.

Operation Guide

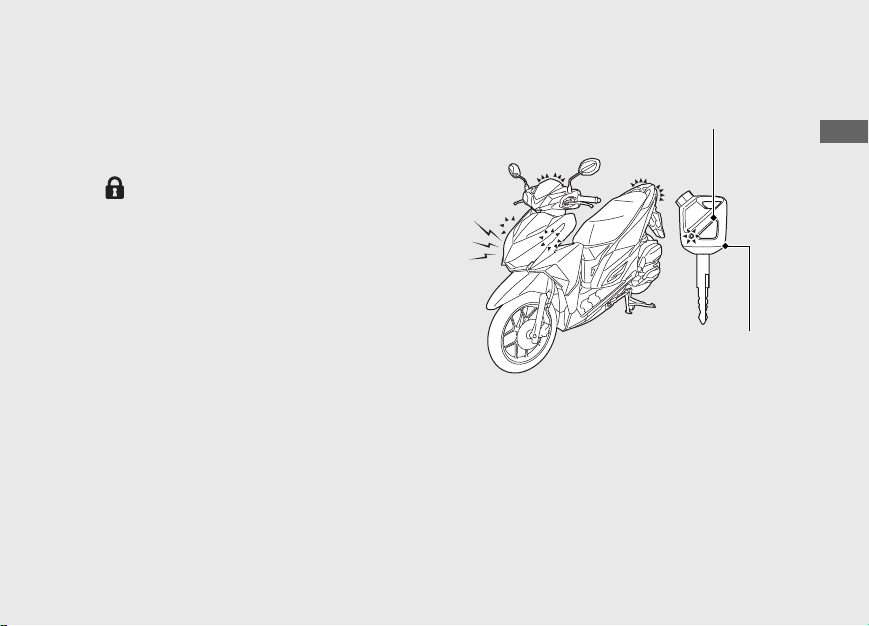

Answer Back System

ANSWER BACK
button

Integrated
ignition key

The answer back system is a device to find the
position of your scooter. When you press the
ANSWER BACK button on the integrated
ignition key with the ignition switch in the OFF
or (LOCK) position, your scooter informs
you the position by turn signal lights blinking,
buzzer sounding.

The answer back system uses low-intensity
radio waves. It may affect medical equipment
such as a cardiac pacemaker.

continued

21

Operation Guide

NOTICE

Answer Back System

Operation

#

Press the ANSWER BACK button on the
integrated ignition key.

u Answer back system will not function when

the ignition switch is in the ON position.

If the ignition switch is left in the OFF position
for more than 10 days, the answer back
system will no longer operate. To reset the
system, turn the ignition switch to the ON
position once.

22

(Continued)

When the battery in the scooter is weak, the answer back
system may not function.

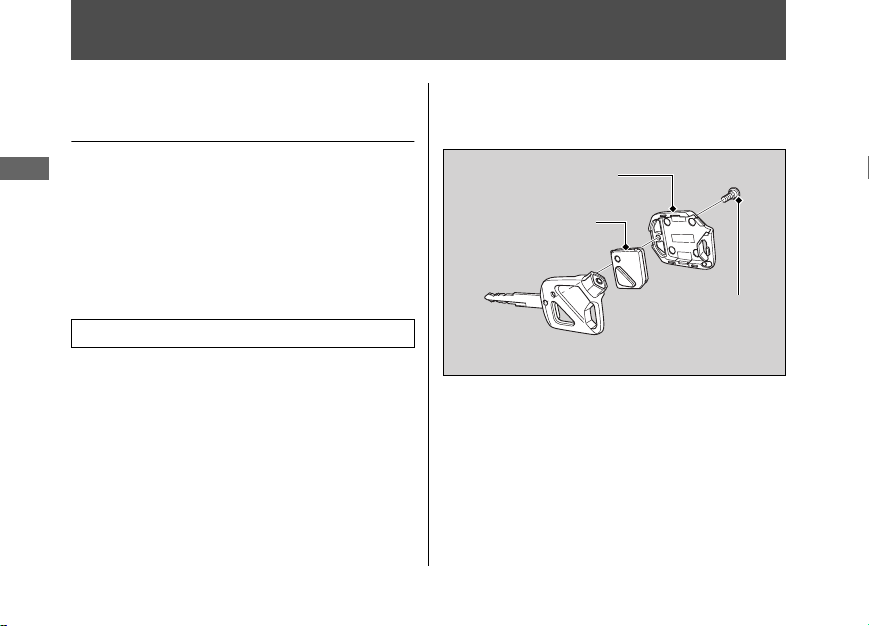

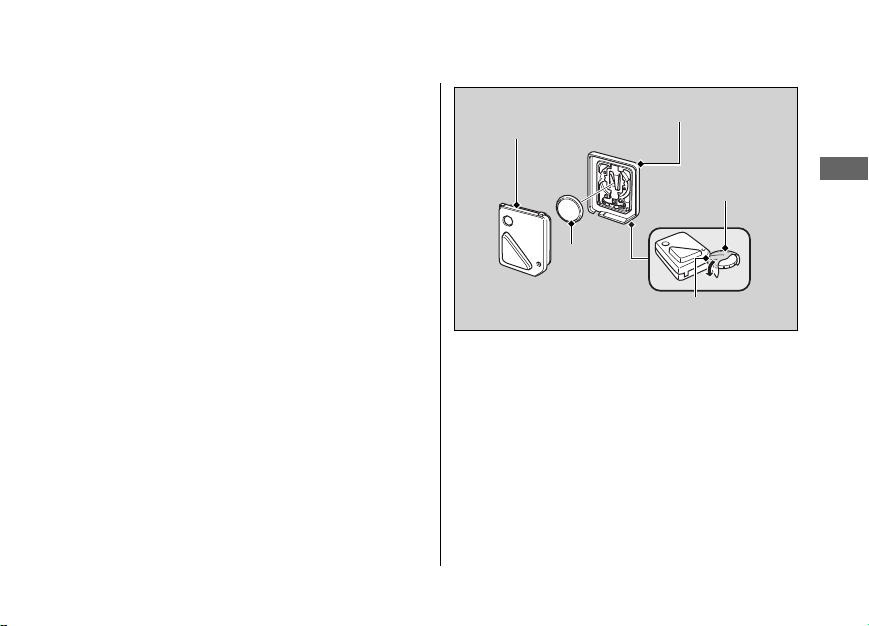

Replacing the Transmitter Unit Battery

#

(P78)

Operation Guide

ANSWER BACK
button

ON

LED

Integrated
ignition key

OFF

Answer Back System Settings

Adjusting the Answer Back Buzzer

#

Sound Volume Level

You can select 3 buzzer sound volume levels
or mute.

!a Turn the ignition switch to the OFF position.
!b Repeat this step for 3 times as follows:

Turn the ignition switch from the OFF
position to the ON position and press
ANSWER BACK button 2 times. Then turn the
ignition switch from the ON position to the
OFF position within 5 seconds.

u You need to operate this process from the

OFF position to the ON position within 5
seconds.

!c Turn and keep the ignition switch to the ON

position. Press the ANSWER BACK button to
select among 3 levels of sound volume or
mute within 1 minute.

!d Turn the ignition switch to the OFF position to

finish setting the buzzer sound volume level.

Make sure that the LED on the integrated
ignition key is green before setting the buzzer
sound volume level. Because if it is red, you
cannot be able to set the sound volume level.

continued

23

Operation Guide

Changing the Answer Back Buzzer

#

Sound Pattern

You can select 3 buzzer sound patterns.

!a Turn the ignition switch to the OFF position.
!b Repeat this step for 3 times as follows:

Turn the ignition switch from the OFF
position to the ON position and press
ANSWER BACK button on remote transmitter
3 times. Then turn the ignition switch from
the ON position to the OFF position within 5
seconds.

u You need to operate this process from the

OFF position to the ON position within 5
seconds.

!c Turn and keep the ignition switch to the ON

position. Press the ANSWER BACK button to
select among 3 buzzer sound patterns within
1 minute.

!d Turn the ignition switch to the OFF position

to finish setting the buzzer sound patterns.

24

Make sure that the LED on the integrated
ignition key is green before setting the sound
pattern. Because if it is red, you cannot be able
to set the sound pattern.

Temporary Silence Mode

#

Temporary silence mode is the immediate way
to turn off the answer back system buzzer
sound.

Enable:

Press and hold the ANSWER BACK button
around 2 seconds, the LED on the integrated
ignition key is changed to be red.

Disable:

Re-press and hold the ANSWER BACK button
around 2 seconds, the LED on the integrated
ignition key is changed to be green.

Operation Guide

Rear brake
lock lever

Rear brake lever

Rear brake lever

Rear Brake Lock

Be sure the rear brake lock is applied while
starting and warming up the engine.

Locking

#

Squeeze the rear brake lever and set the rear
brake lock lever.

u The rear brake lock will not function if the rear

brake is not adjusted properly.

(P71 )

Unlocking

#

Squeeze the rear brake lever.

u Before riding, make sure that the rear brake

lock is fully released so there is no drag on
the rear wheel.

25

Operation Guide

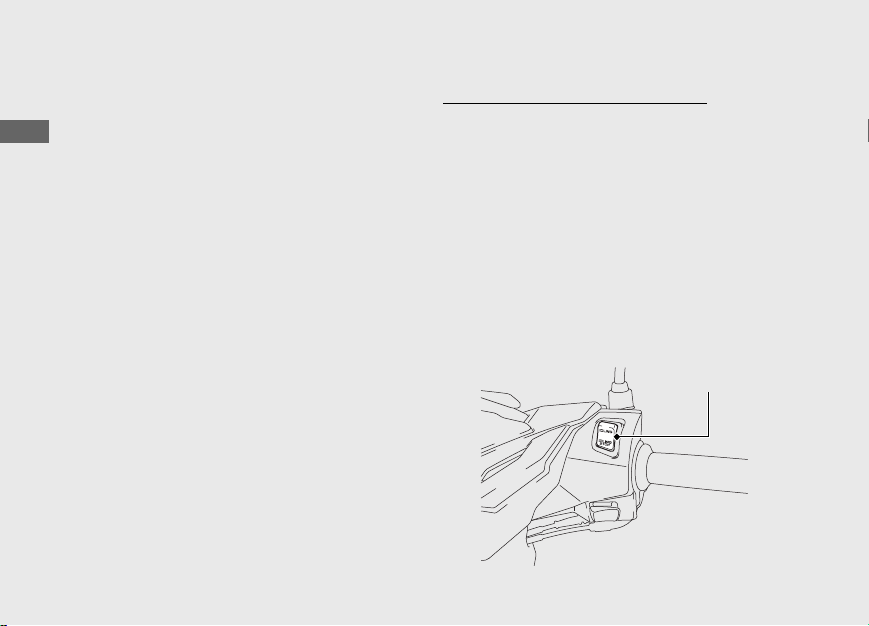

Idling Stop System

Idling Stop switch

Idling Stop system is designed to help reduce
the fuel consumption and noise, by idling stop
while making a stop such as waiting at an
intersection.

Switching the Idling Stop System On or

#

Off

Switches the Idling Stop system on or off using
the Idling Stop switch.

•ON: IDLING STOP

u Idling Stop indicator comes on when the

Idling Stop system becomes ready to stop
the engine while riding. Idling Stop
indicator flashes when the engine is
stopped by the Idling Stop system.

•OFF: IDLING

u Idling Stop indicator does not come on

when the Idling Stop system is off.

26

Activation of the Idling Stop system
The Idling Stop system becomes ready to stop
the engine and Idling Stop indicator comes on
when the following requirements are satisfied
with the Idling Stop switch in the IDLING STOP
position:

• Started the engine by the start button.

• Warmed up the engine enough

• Ridden the scooter at speed over 10 km/h
(6 mph).

Idling Stop Indicator Does Not Come

#

On: (P85)

Operation Guide

Stopping the engine by the Idling Stop system

Idling Stop Indicator

NOTICE

The engine stops and Idling Stop indicator
changes to flash after you close the throttle
completely and stop the scooter while the
Idling Stop indicator is on.

u While the engine is stopped by the Idling Stop

system, if you press the Idling Stop switch to
IDLING, the Idling Stop system will be
cancelled. The engine will not restart even
when you open the throttle.

Safety Precaution for the Idling Stop System
Do not go away from the scooter while the
Idling Stop indicator is flashing. When you go
away from the scooter, always turn the
ignition switch to the OFF position.

u The engine may start unexpectedly if the

throttle is opened.

Engine is Not Stopped by the Idling

#

Stop System While the Idling Stop
Indicator is On:

Stopping by the Idling Stop system for a long time may
cause battery discharge.

(P86)

continued

27

Operation Guide

NOTICE

Idling Stop System

(Continued)

Restarting the Engine
Check that the Idling Stop indicator is flashing,
and then open the throttle.

u If it is not flashing, you can’t restart the engine

with the Idling Stop system, even if you open
the throttle.

u While the engine is stopped by the Idling Stop

system, if you operate the side stand, the
flashing Idling Stop indicator turns off or stops
flashing and stays on, then the engine will not
restart even when you open the throttle.

Engine Does Not Start Even If the Throttle

#

is Opened: (P87)

28

Headlight stays on after the engine is stopped by the
Idling Stop system. The battery may discharge and you
may not be able to restart engine.
When the battery is weak, switch the Idling Stop switch to
IDLING and do not use the Idling Stop system. See your
dealer to check the battery.

See your dealer for checking the battery as
specified in the maintenance schedule.

Maintenance Schedule: (P44)

#

Operation Guide

Starting the Engine

NOTICE

NOTICE

Start your engine using the following
procedure, regardless of whether the engine
is cold or warm.

Consult your dealer for advice if you plan to
ride your scooter at an altitude above 2,500 m
(8,000 feet).

This scooter is equipped with a side stand
ignition cut-off system.

u If the side stand is down, the engine cannot be

started.

u If you lower the side stand with the engine

running, it will automatically shut off.

•

If the engine does not start within 5 seconds, turn the
ignition switch to the OFF position and wait 10 seconds
before trying to start the engine again to recover
battery voltage.

•

Extended fast idling and revving the engine can
damage the engine, and the exhaust system.

•

The engine will not start if the throttle is fully open.

If the scooter is transported to a place 2,000 m (6,500 feet)
higher or lower than the start point, you may not be able
to achieve sufficient engine performance at the new
altitude. Consult your dealer before transporting your
scooter.

continued

29

Starting the Engine

Operation Guide

!b

!c

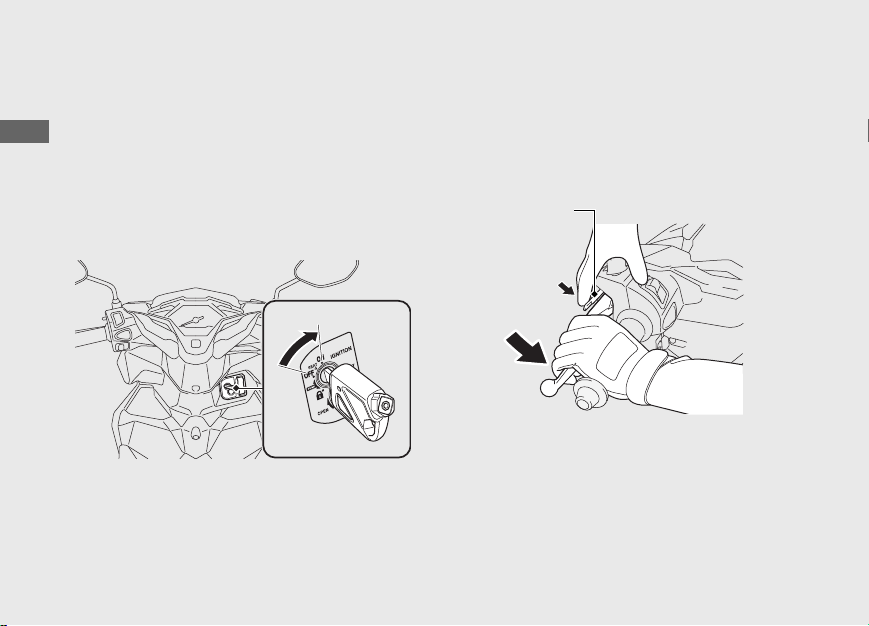

!a Place the scooter on its centre stand.
!b Turn the ignition switch to the ON position.

Confirm the following:

(Continued)

• The PGM-FI malfunction indicator lamp
(MIL) is OFF.

• The high coolant temperature indicator is
OFF.

30

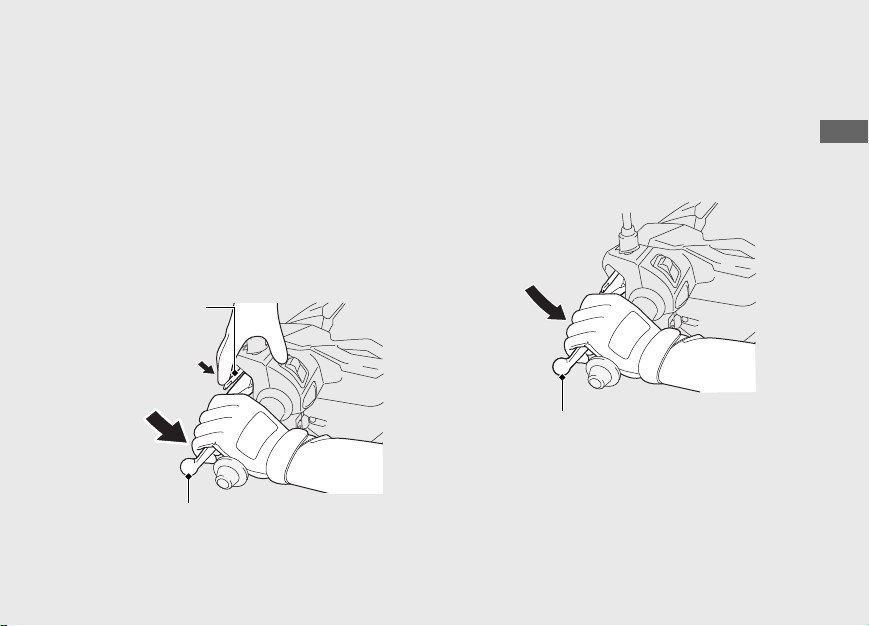

!c Lock the rear wheel by squeezing the rear

brake lever and setting the brake lock lever.

u The starter motor will only work when the

brake lever is squeezed and the side stand
is up.

Operation Guide

Starting the Engine with the Electric

!d

!d

Starter

!d With the throttle closed, press the start

button.
Release the start button as soon as the
engine starts.

Starting the Engine without the Electric
Starter

!d Lightly depress the kickstarter until resistance

is felt. Then let the kickstarter return to the
top of its stroke. With the throttle closed,
operate the kickstarter with a rapid and
continuous motion.

continued

31

Starting the Engine

Operation Guide

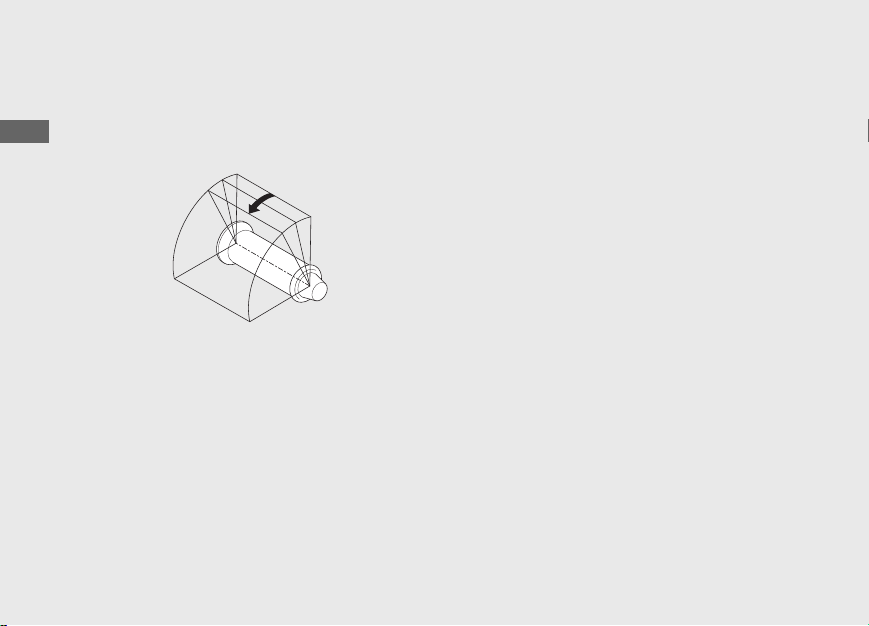

1/8

1/4

(Continued)

If you cannot restart a warm engine:

Rotate the throttle 1/8 - 1/4 turn while starting
the engine.

32

If the engine does not start:
Using the start button

!a Open the throttle fully and press the start

button for 5 seconds.

!b Follow the normal starting procedure.
!c If the engine starts with unstable idle, open

the throttle slightly.

!d If the engine does not start, wait for 10

seconds, then follow steps !a - !c again.

Operation Guide

Using the kickstarter

!a Turn the ignition switch to the OFF position.
!b Open the throttle fully and crank the engine

several times with the kickstarter.

!c Turn the ignition switch to the ON position.
!d Follow the normal starting procedure.
!e If the engine starts with unstable idle, open

the throttle slightly.

If Engine Will Not Start (P81)

#

33

Operation Guide

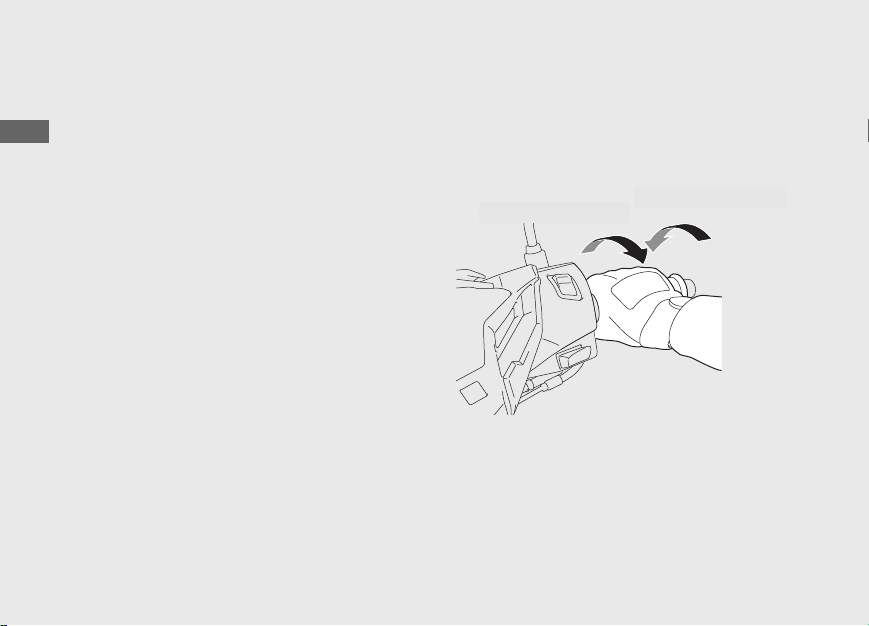

Riding

Open (Accelerate)

Close (Decelerate)

Starting the Scooter

!a Push the scooter forward off the centre

stand.

u Lock the rear brake lock.
u Keep throttle closed.

Make sure the side stand and centre stand
are up.

!b Get on the scooter.

u Mount the scooter from the left side,

keeping at least one foot on the ground.

!c Release the rear brake lock.

!d Acceleration and deceleration

To accelerate: Open the throttle slowly.

To decelerate: Close the throttle.

34

Operation Guide

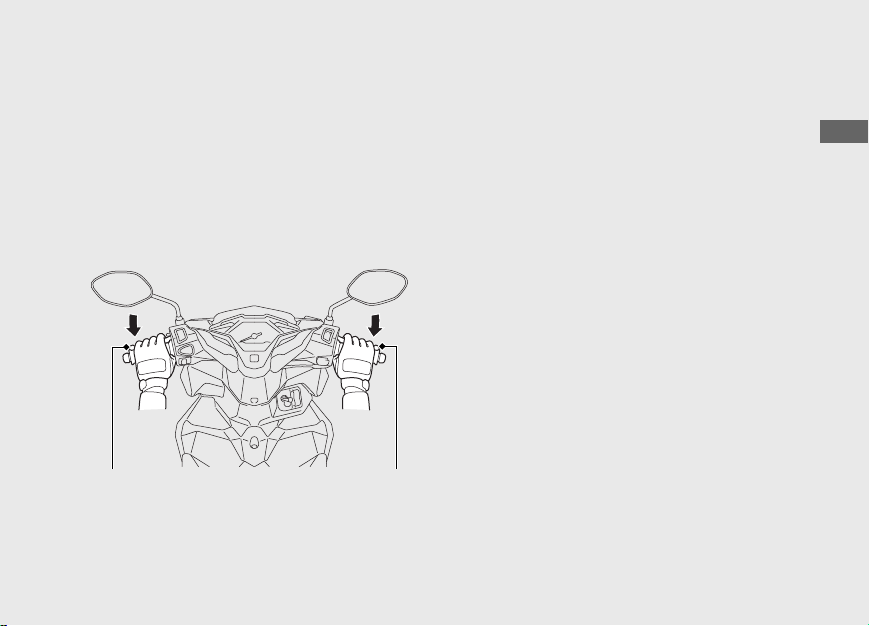

Braking

Rear brake lever Front brake lever

Close the throttle and apply the front and
rear brake levers together.

Do not apply the brake lock while riding.
It may cause the wheel to lock, reducing
control of the scooter.

35

Operation Guide

Refuelling

Lower edge
of filler
neck

Arrow marks

Fuel fill cap

Fuel type: Unleaded petrol only
Fuel octane number: Your scooter is

designed to use Research Octane Number
(RON) 88 or higher.
Tank capacity: 5.5 litres (1.45 US gal, 1.21
Imp gal)

Refuelling and Fuel Guidelines (P9)

#

Opening the Fuel Fill Cap

!a Open the seat. (P38)
!b Turn the fuel fill cap counterclockwise until it

36

stops and remove the cap.

Do not fill with fuel above the lower edge of
the filler neck.

Operation Guide

Closing the Fuel Fill Cap

3

WARNING

!a Install and tighten the fuel fill cap firmly by

turning it clockwise.

u Make sure that the arrow marks on the

cap and fuel tank are aligned.

!b Close the seat.

Petrol is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat,
sparks, and flame away.

• Handle fuel only outdoors.

• Wipe up spills immediately.

37

Operation Guide

Storage Equipment

Ignition key

Seat

SEAT

Seat opener
switch

SEAT

Seat Open

!a Turn the handlebar pointed straight ahead.
!b Insert the ignition key and turn it to the

position of SEAT.

!c Push the SEAT side of the seat opener switch.
!d Open the seat.

38

Seat Close

Close and push down on the rear of the seat
until locks. Make sure that the seat is locked
securely to pull it up lightly.

Operation Guide

Helmet Holder

Helmet

Helmet
holders

3

WARNING

The helmet holders are located under the
seat.

u Use the helmet holders only when parked.

Riding with a helmet attached to the
holder can interfere with your ability to
safely operate the scooter and could
lead to a crash in which you can be
seriously hurt or killed.

Use the helmet holder only while parked.
Do not ride with a helmet secured by the
holder.

continued

39

Storage Equipment

Operation Guide

Document bag

Tools

Luggage box

(Continued)

Luggage Box

Never exceed the maximum weight limit.

Maximum Weight: 10 kg (22 lb)

u Do not store any items that are flammable or

susceptible to heat damage.

u Do not store valuables or fragile articles.

40

Tool

The tools are on the reverse side of the seat.

Document Bag

The document bag is in the document
compartment on the reverse side of the seat.

Operation Guide

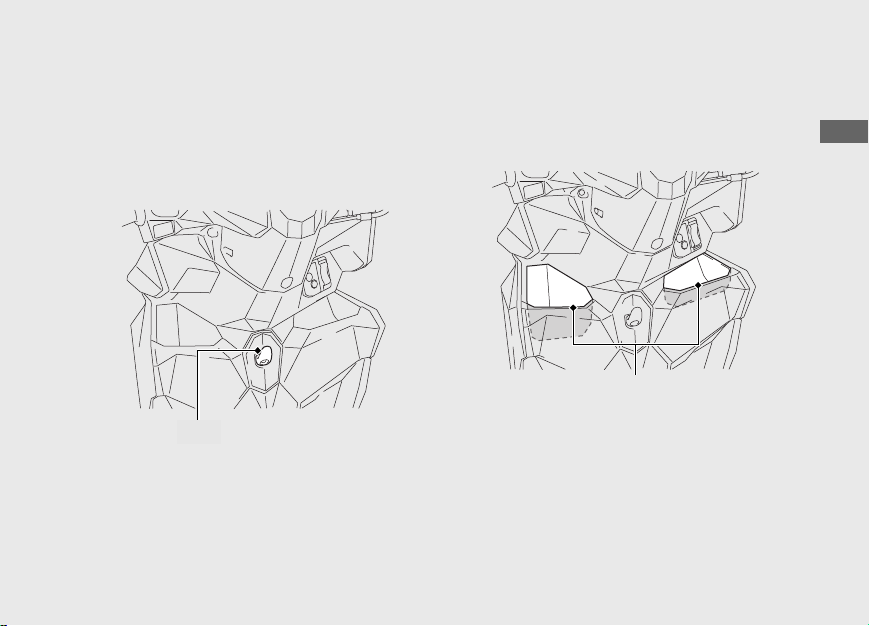

Hook

Hook

Glove boxes

The hook is provided below the handlebar.

u Do not attach large luggage to the hook that

would hang out from the scooter and/or
interfere with the movement of your feet.

Glove box

The glove boxes are provided below the
handlebar.

The maximum allowable load on the hook and
the glove boxes shall be no more than 1.5 kg
(3.3 lb).

41

Maintenance

Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.

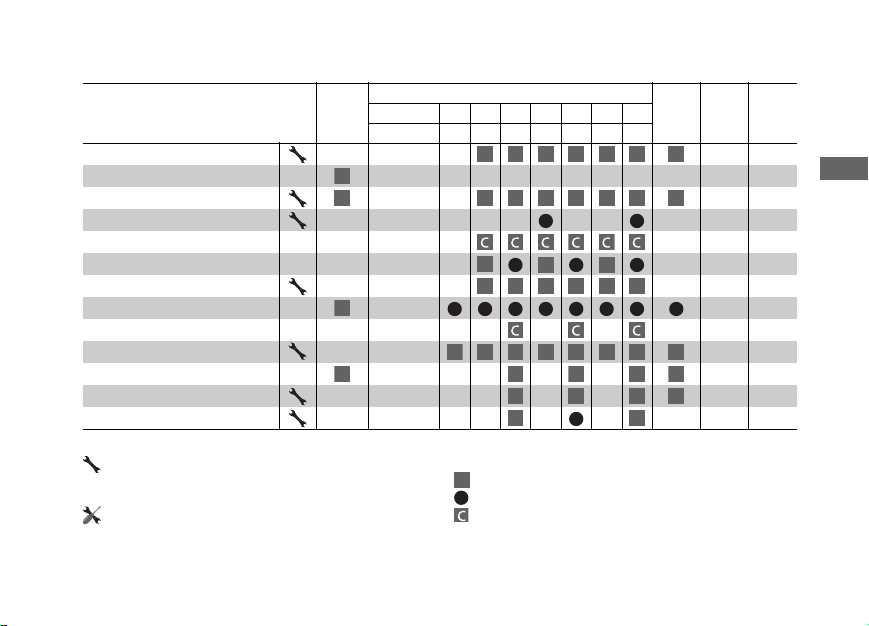

Importance of Maintenance ...................... P. 43

Maintenance Schedule ............................... P. 44

Maintenance Fundamentals....................... P. 47

Tool............................................................... P. 57

Removing & Installing Body Components...

Battery.....................................................................P. 58

Front Top Cover ...................................................P. 60

Spark Plug.................................................... P. 61

Engine Oil..................................................... P. 63

P. 58

Coolant .........................................................P. 67

Brakes ...........................................................P. 69

Side Stand ....................................................P. 74

Throttle.........................................................P. 75

Crankcase Breather .....................................P. 76

Other Adjustments...................................... P. 77

Headlight Aim....................................................... P. 77

Other Replacement .....................................P. 78

Maintenance

Importance of Maintenance

3

WARNING

Importance of Maintenance

Keeping your scooter well-maintained is
absolutely essential to your safety and to protect
your investment, obtain maximum performance,
avoid breakdowns, and reduce air pollution.
Maintenance is the owner’s responsibility. Be
sure to inspect your scooter before each ride,
and perform the periodic checks specified in the
Maintenance Schedule.

Improperly maintaining your scooter or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.

Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.

2 P. 44

Maintenance Safety

Always read the maintenance instructions before
you begin each task, and make sure that you
have the tools, parts, and skills required. We
cannot warn you of every conceivable hazard
that can arise in performing maintenance. Only
you can decide whether or not you should
perform a given task.

Follow these guidelines when performing
maintenance.

● Stop the engine and remove the key.

● Place your scooter on a firm, level surface

using the side stand, centre stand or a
maintenance stand to provide support.

● Allow the engine, muffler, brakes, and other

high-temperature parts to cool before
servicing as you can get burned.

● Run the engine only when instructed, and do

so in a well-ventilated area.

43

Maintenance

Maintenance Schedule

The maintenance schedule specifies the
maintenance requirements necessary to
ensure safe, dependable performance, and
proper emission control.

Maintenance work should be performed in
accordance with Honda’s standards and
specifications by properly trained and
equipped technicians. Your dealer meets all of
these requirements. Keep an accurate record
of maintenance to help ensure that your
scooter is properly maintained.
Make sure that whomever performs the
maintenance completes this record.

44

All scheduled maintenance is considered a
normal owner operating cost and will be
charged to you by your dealer. Retain all
receipts. If you sell the scooter, these receipts
should be transferred with the scooter to the
new owner.

Honda recommends that your dealer should
road test your scooter after each periodic
maintenance is carried out.

Maintenance

I

R

R

I

R

I

IIIII

R

Maintenance Schedule

*1

Pre-ride

Items × 1,000 km 1 6 12 18 24 30 36

Check

2 P. 47

× 1,000 mi 0.6 4 8 12 16 20 24
Fuel Line –

Fuel Level –

Throttle Operation 75

*2

Air Cleaner

Crankcase Breather

*3

I I I I I I I I

Spark Plug 61

Valve Clearance –

Engine Oil 63

Engine Oil Strainer Screen 64

Engine Idle Speed –

Radiator Coolant

*4

Cooling System –

Drive Belt –

Maintenance Level

: Intermediate. We recommend service by your dealer, unless

you have the necessary tools and are mechanically skilled.
Procedures are provided in an official Honda Shop Manual.

: Technical. In the interest of safety, have your scooter serviced

by your dealer.

Frequency

Annual

Check

I I I I I I I

I

R

R

I

R

I

I I I I I I

R R R

R R R R

I I I I I I I

I I I I

I

I

Maintenance Legend

: Inspect (clean, adjust, lubricate, or replace, if necessary)

I

: Replace

R

: Clean

Regular

Refer to

Replace

page

3 Years 67

–

76

continued

45

Maintenance

IIIIIII

IIIIIIIII

I

IIIIIII

III

I

Maintenance Schedule

*1

Frequency

Annual
Check

Final Drive oil

Pre-ride

Items × 1,000 km 1 6 12 18 24 30 36

*4

Check

2 P. 47

× 1,000 mi 0. 6 4 8 12 16 20 24

Battery 49

*4

Brake Fluid

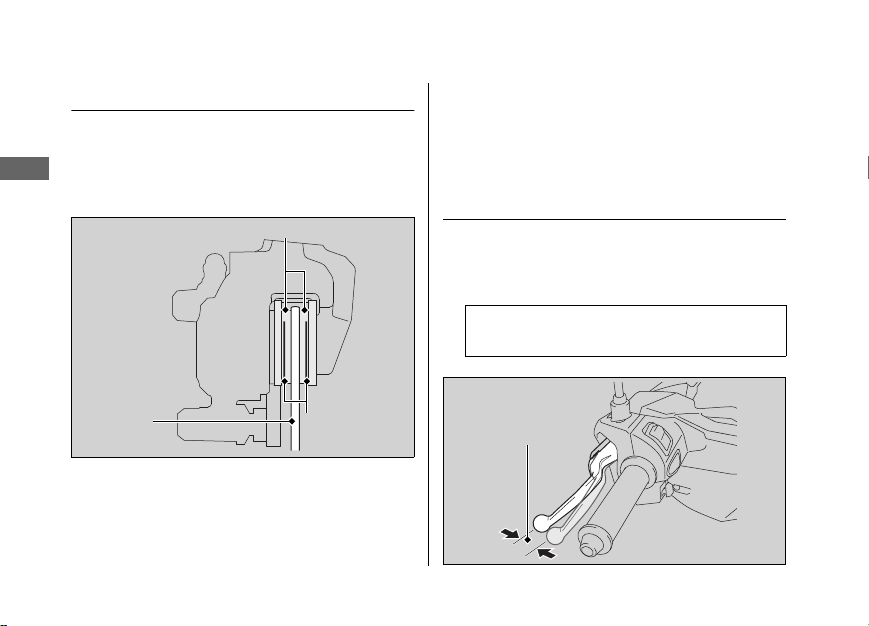

Brake Shoes/Pads Wear 70, 73

I I I I I I I I

I I I I I I I I

Brake System 69

Brake Lock Operation –

Headlight Aim 77

I

I

I I I I I I I

I I

I

I

Lights/Horn –

Clutch Shoes Wear –

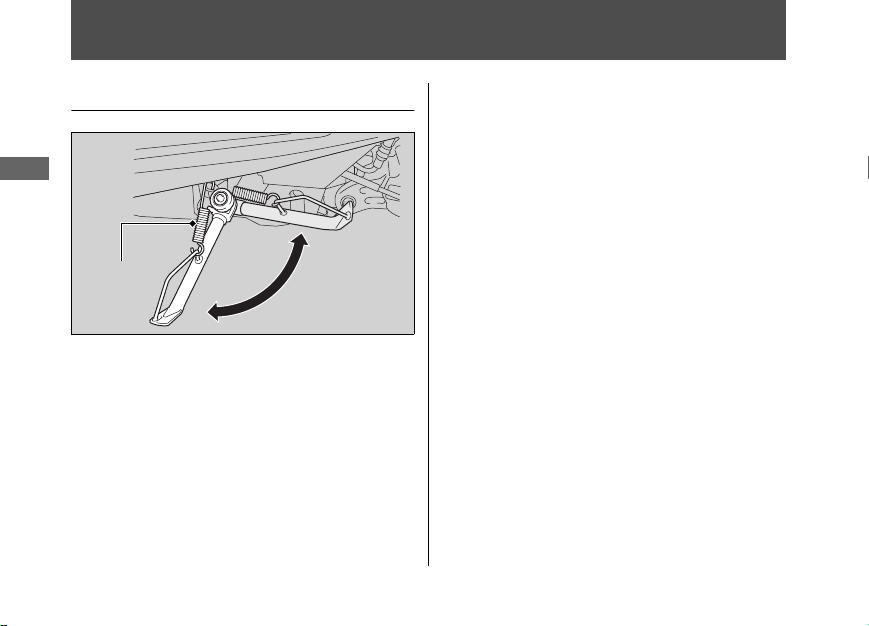

Side Stand 74

I I I I I I I I

I I I

Suspension –

Nuts, Bolts, Fasteners –

Wheels/Tyres 53

I I I I I I I I

I I I I I

Steering Head Bearings –

Notes:

*1 :

At higher odometer reading, repeat at the frequency interval established here.

*2 :

Service more frequently when riding in unusually wet or dusty areas.

*3 :

Service more frequently when riding in rain or at full throttle.

*4 :

Replacement requires mechanical skill.

46

Regular

Refer to

Replace

page

2 Years –

2 Years 69

Maintenance

Maintenance Fundamentals

Pre-ride Inspection

To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre­ride inspection is a must, not only for safety,
but because having a breakdown, or even a
flat tyre, can be a major inconvenience.

Check the following items before you get on
your scooter:

● Fuel level-Fill fuel tank when necessary.

2 P. 36

● Throttle-Check for smooth opening and full

closing in all steering positions.

● Engine oil level-Add engine oil if necessary.

Check for leaks. 2 P. 63

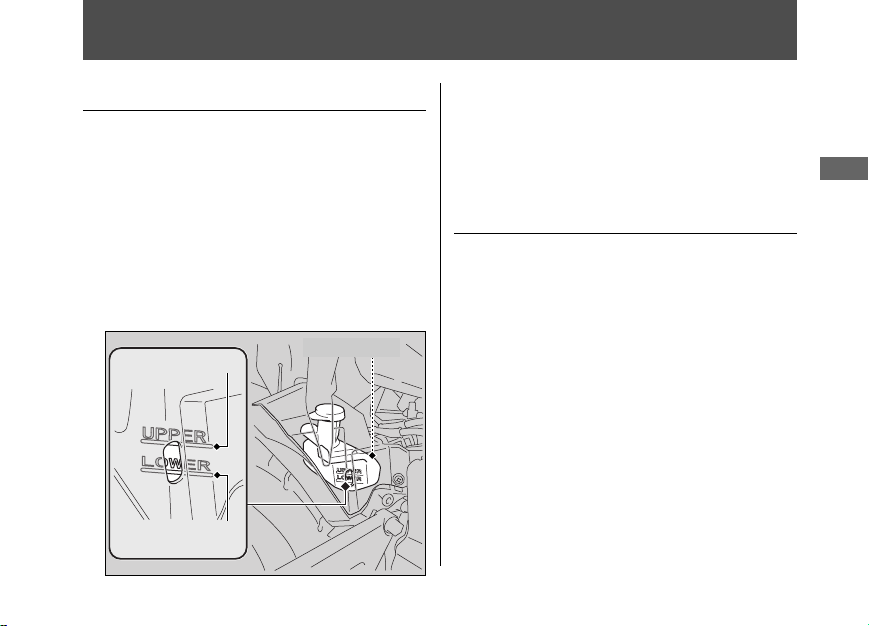

● Coolant level-Add coolant if required.

Check for leaks. 2 P. 67

2 P. 75

● Brakes-Check operation;

Front: check brake fluid level and

pads wear. 2 P. 69, 70

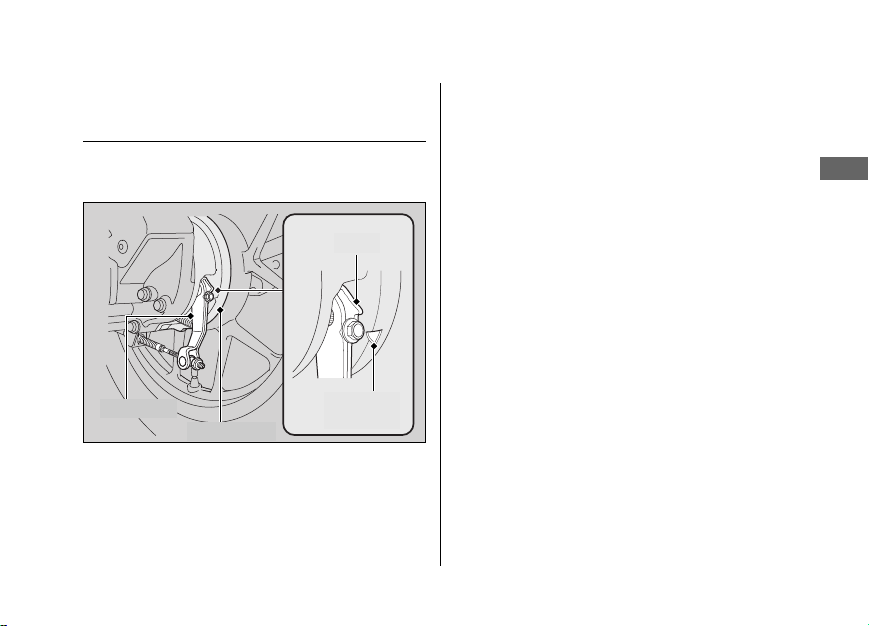

Rear: check shoes wear and

freeplay, adjust if necessary.

2 P. 70, 73

● Lights and horn-Check that lights, indicators

and horn function properly.

● Side stand ignition cut-off system-Check for

proper function. 2 P. 29, 74

● Wheels and tyres-Check condition, air

pressure and adjust if necessary.

2 P. 53

47

Maintenance Fundamentals

Maintenance

3

WARNING

Replacing Parts

Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.

48

Installing non-Honda parts may make
your scooter unsafe and cause a crash in
which you can be seriously hurt or killed.

Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your scooter.

Maintenance

NOTICE

3

WARNING

Battery

Your scooter has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is no
need to remove the cap when charging.

Your battery is a maintenance-free type and can be
permanently damaged if the cap strip is removed.

Maintenance Fundamentals

The battery gives off explosive hydrogen
gas during normal operation.

A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.

Wear protective clothing and a face
shield, or have a skilled mechanic do the
battery servicing.

Cleaning the Battery Terminals

#

1.

Remove the battery. 2 P. 58

2.

If the terminals are starting to corrode and are
coated with a white substance, wash with
warm water and wipe clean.

continued

49

Maintenance

NOTICE

NOTICE

Blown fuse

50

Maintenance Fundamentals

3.

If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.

4.

After cleaning, reinstall the battery.

The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.

Installing non-Honda electrical accessories can overload
the electrical system, discharging the battery and possibly
damaging the system.

Fuses

Fuses protect the electrical circuits on your
scooter. If something electrical on your scooter
stops working, check for and replace any blown
fuses.

2 P. 95

Inspecting and Replacing Fuses

#

Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.”

Replacing a fuse with one that has a higher rating greatly
increases the chance of damage to the electrical system.

2 P. 112

Maintenance

If a fuse fails repeatedly, you likely have an

Oil code

Oil classification

Not recommended Recommended

electrical fault. Have your scooter inspected by
your dealer.

Engine Oil

Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil or
old oil should be changed as soon as possible.

Selecting the Engine Oil

#

For recommended engine oil, see
“Specifications.”

2 P. 111

If you use non-Honda engine oil, check the label
to make sure that the oil satisfies all of the
following standards:

● JASO T 903 standard

● SAE standard

● API classification

*2

: 10W-30

*3

: SG or higher

*1

: MB

Maintenance Fundamentals

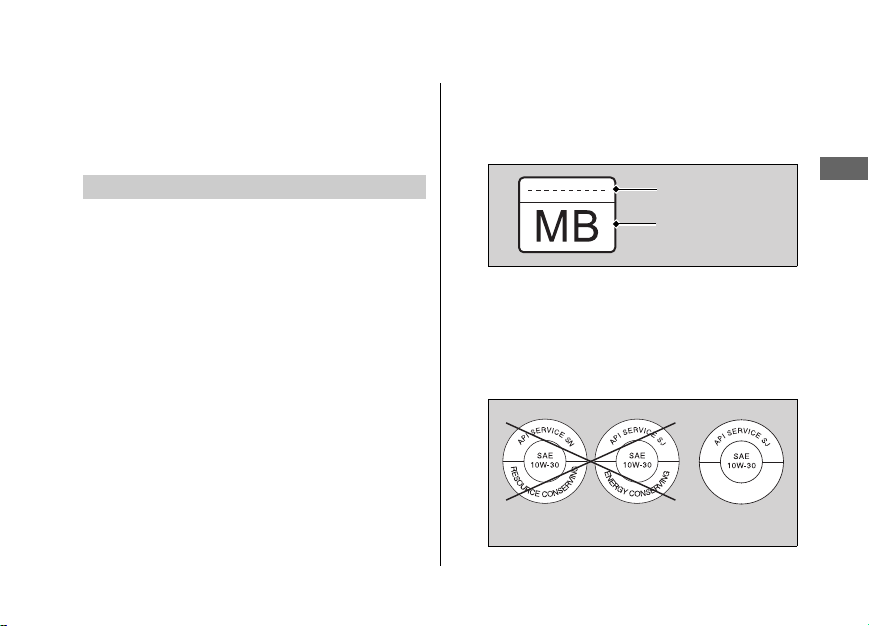

*1.

The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MB classification.

*2.

The SAE standard grades oils by their viscosity.

*3.

The API classification specifies the quality and
performance rating of engine oils. Use SG or
higher oils, excluding oils marked as “Energy
Conserving” or “Resource Conserving” on the
circular API service symbol.

51

Maintenance Fundamentals

Maintenance

NOTICE

NOTICE

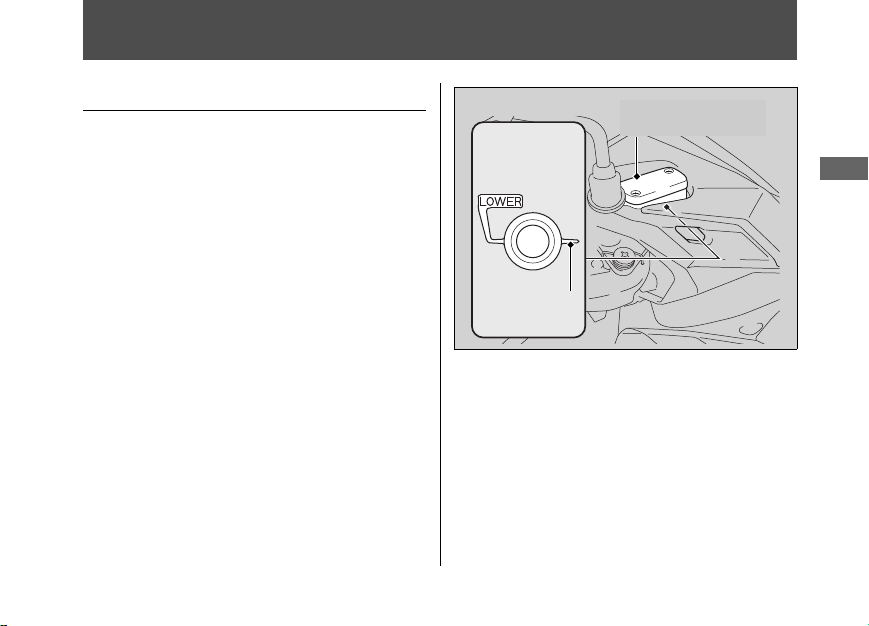

Brake Fluid

Do not add or replace brake fluid, except in an
emergency. Use only fresh brake fluid from a
sealed container. If you do add fluid, have the
brake system serviced by your dealer as soon as
possible.

Brake fluid can damage plastic and painted surfaces.
Wipe up spills immediately and wash thoroughly.

Recommended brake fluid:

Honda DOT 3 or DOT 4 Brake Fluid or
equivalent

52

Recommended Coolant

Use only genuine Honda PRE-MIX COOLANT
without diluting with water. Genuine Honda PRE­MIX COOLANT is excellent at preventing
corrosion and overheating.
The coolant should be inspected and replaced
properly by following the maintenance schedule.

2 P. 44

Using coolant not specified for aluminium engines, or
ordinary tap water or mineral water can cause corrosion.

Crankcase Breather

Service more frequently when riding in rain, at
full throttle, or after the scooter is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil causing
poor engine performance.

2 P. 76

Maintenance

Tyres (Inspecting/Replacing)

Checking the Air Pressure

#

Visually inspect your tyres and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tyres look low. Always check air pressure when
your tyres are cold.

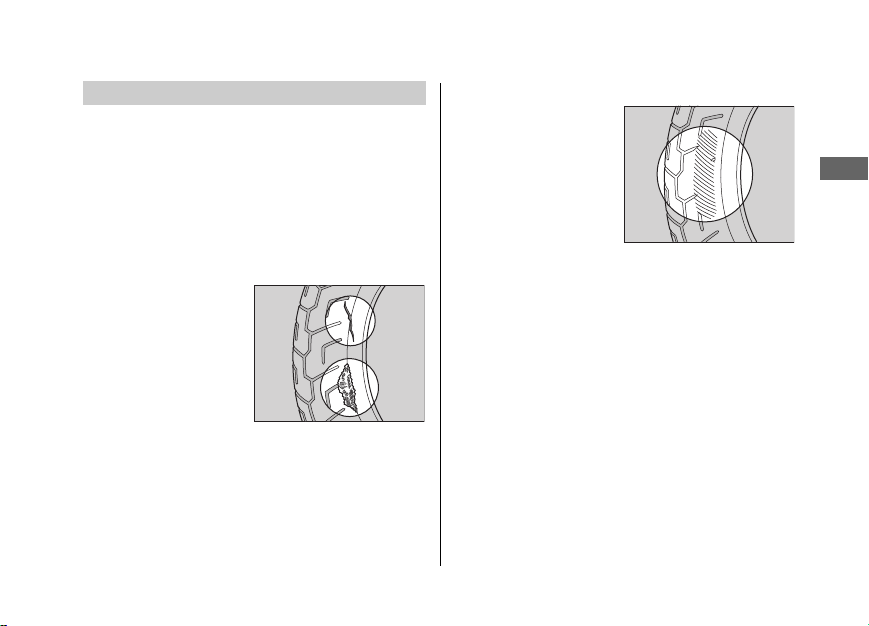

Inspecting for Damage

#

Inspect the tyres for
cuts, slits, or cracks
that exposes fabric or
cords, or nails or other
foreign objects
embedded in the side
of the tyre or the
tread. Also inspect for
any unusual bumps or bulges in the side walls of
the tyres.

Maintenance Fundamentals

Inspecting for Abnormal Wear

#

Inspect the tyres for
signs of abnormal
wear on the contact
surface.

continued

53

Maintenance Fundamentals

Maintenance

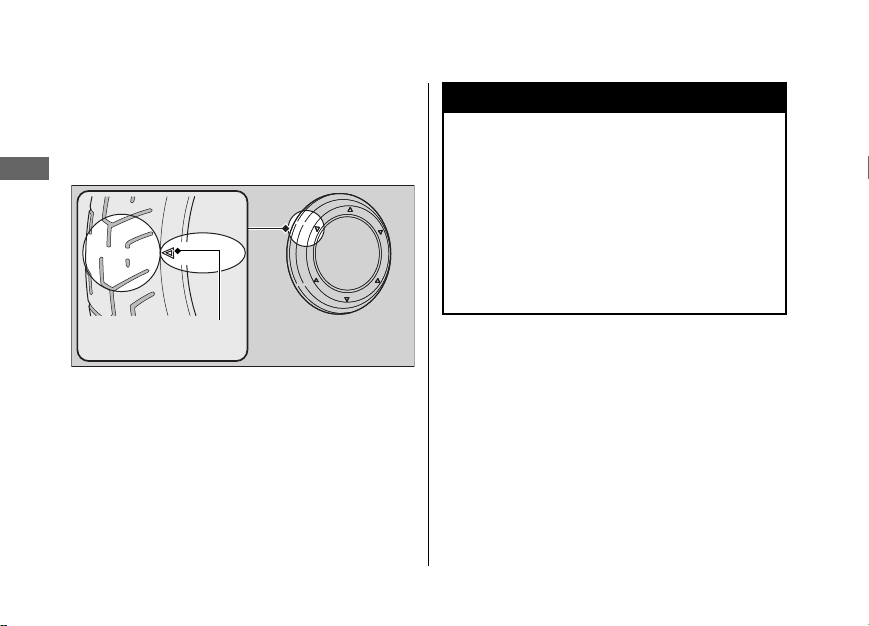

Wear indicator
location mark

3

WARNING

Inspecting Tread Depth

#

Inspect the tread wear indicators. If they become
visible, replace the tyres immediately.
For safe riding, you should replace the tyres
when the minimum tread depth is reached.

54

Riding on tyres that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.

Follow all instructions in this owner’s
manual regarding tyre inflation and
maintenance.

Maintenance

3

WARNING

Have your tyres replaced by your dealer.
For recommended tyres, air pressure and
minimum tread depth, see “Specifications.”

2 P. 111

Follow these guidelines whenever you replace
tyres.

● Use the recommended tyres or equivalents of

the same size, construction, speed rating, and
load range.

● Do not install a tube inside a tubeless tyre on

this scooter. Excessive heat build-up can cause
the tube to burst.

● Use only tubeless tyres on this scooter. The

rims are designed for tubeless tyres, and
during hard acceleration or braking, a
tube-type tyre could slip on the rim and cause
the tyre to rapidly deflate.

Maintenance Fundamentals

Installing improper tyres on your scooter
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.

Always use the size and type of tyres
recommended in this owner’s manual.

55

Maintenance Fundamentals

Maintenance

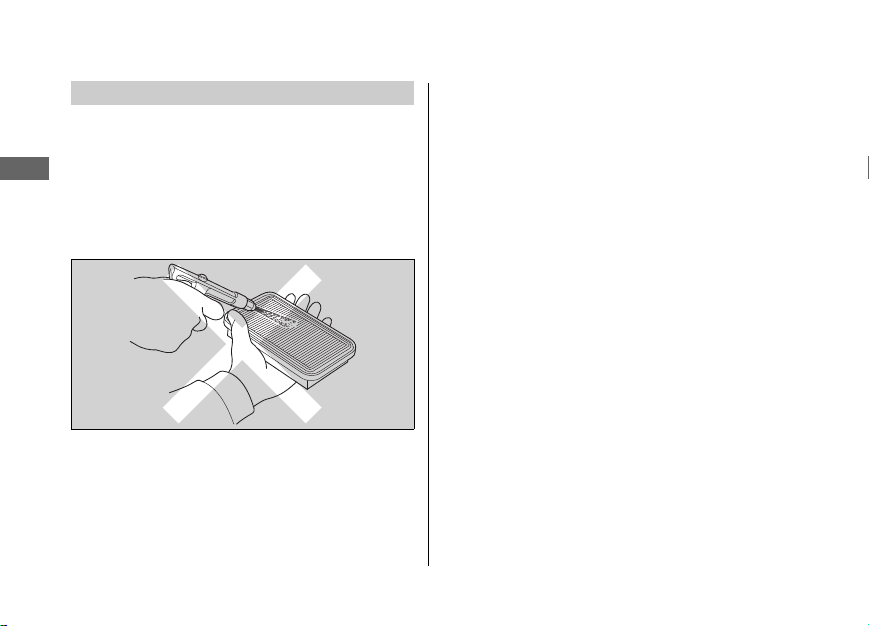

Air Cleaner

This scooter is equipped with a viscous type air
cleaner element.
Air blow cleaning or any other cleaning can
degrade the viscous element performance and
cause the intake of dust.
Do not perform the maintenance.
Should be serviced by your dealer.

56

Maintenance

Tool

The tools are in reverse side of the seat.

2 P. 40

You can perform some roadside repairs,
minor adjustments and parts replacement
with the tools contained in the kit.

● Spark plug wrench

● Standard/Phillips screwdriver

● Screwdriver handle

57

Maintenance

Removing & Installing Body Components

Battery lid

Service
coupler

Screw

Battery
cover guide

Battery
cover

Battery box

Negative terminal

Battery

Positive terminal

Battery

58

Removal

#

Make sure the ignition switch is in the OFF
position.

1.

Remove the battery lid from step floor by
removing the screw.

2.

Remove the service coupler from the
battery cover guide.

Maintenance

3.

Remove the battery cover from step floor.

4.

Disconnect the negative - terminal from
the battery.

5.

Disconnect the positive + terminal from
the battery.

6.

Remove the battery taking care not to drop
the terminal nuts.

Removing & Installing Body Components u Battery

Installation

#

Install the parts in the reverse order of
removal. Always connect the positive +
terminal first. Make sure that bolts and nuts
are tight.
For proper handling of the battery, see
“Maintenance Fundamentals.”
“Battery Goes Dead.” 2 P. 89

2 P. 47

59

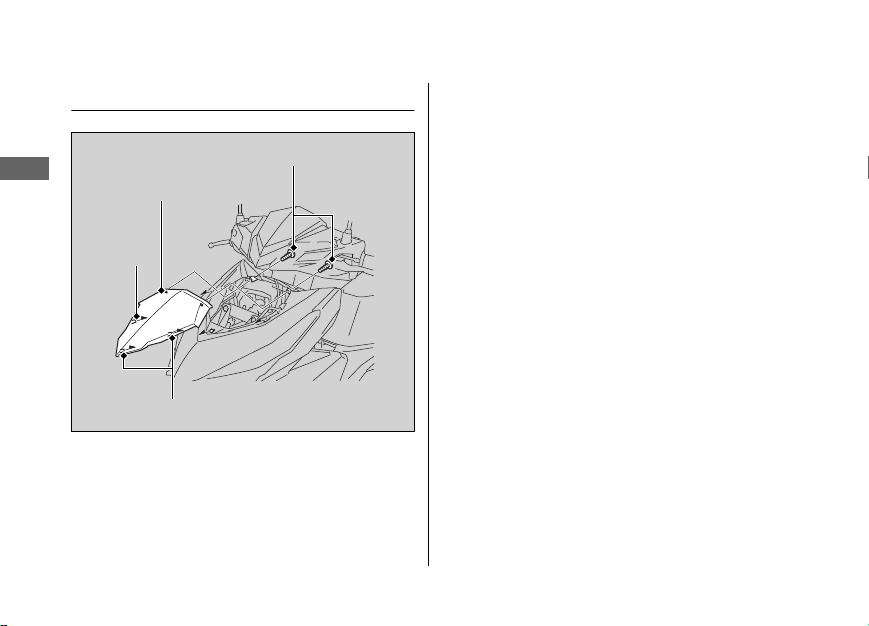

Removing & Installing Body Components u Front Top Cover

Maintenance

Tabs

Tab

Front top cover

Screws

Front Top Cover

60

Removal

#

1.

Remove the screws.

2.

Release the tabs from the slots.

3.

Remove the front top cover.

Installation

#

Install the parts in the reverse order of
removal.

u Make sure the tabs are settled on the

proper position.

Maintenance

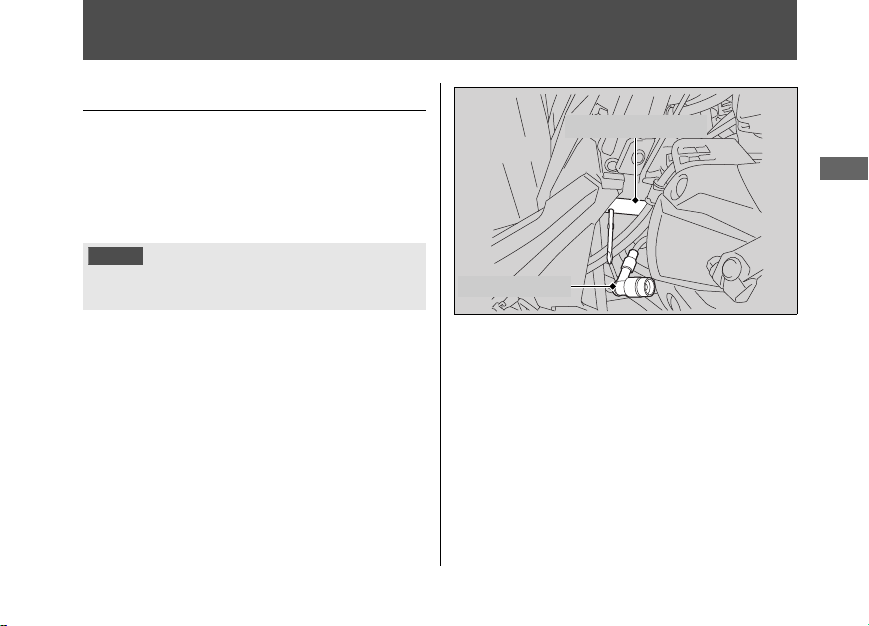

Spark Plug

NOTICE

Spark plug cap

Spark plug wrench

Checking the Spark Plug

For the recommended spark plug, see
“Specifications.” 2 P. 111

Use only the recommended type of spark plug
in the recommended heat range.

Using a spark plug with an improper heat range can cause
engine damage.

1.

2.

3.

Disconnect the spark plug cap from the
spark plug.
Clean any dirt from around the spark plug
base.
Remove the spark plug using provided
spark plug wrench (2 P. 57).

4.

Inspect the electrodes and centre
porcelain for deposits, erosion or carbon
fouling.

u If the erosion or deposit is heavy,

replace the plug.

u Clean a carbon or wet-fouled plug with

a plug cleaner, otherwise use a wire
brush.

continued

61

Spark Plug u Checking the Spark Plug

Maintenance

Spark plug gap

Side electrode

NOTICE

5.

6.

7.

62

Check the spark plug gap using a wire­type feeler gauge.

u If adjustment is necessary, bend the

side electrode carefully.

The gap should be:

0.8 to 0.9 mm (0.03 to 0.04 in)

Make sure the plug washer is in good
condition.
Install the spark plug. With the plug
washer attached, thread the spark plug in
by hand to prevent cross-threading.

8.

Tighten the spark plug:

● If the old plug is good: 1/8 turn after it

seats.

● If installing a new plug tighten it twice

to prevent loosening
a) First, tighten the plug:

NGK: 1/2 turn after it seats.

DENSO: 3/4 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:

1/8 turn after it seats.

An improperly tightened spark plug can damage the
engine. If a plug is too loose, a piston may be damaged. If
a plug is too tight, the threads may be damaged.

9.

Reinstall the spark plug cap. Take care to
avoid pinching any cables or wires.

Maintenance

Oil fill cap/dipstick

Upper
level

Lower
level

Engine Oil

Checking the Engine Oil

Check the engine oil with the Idling Stop
switch at IDLING.

1.

If the engine is cold, idle the engine for 3 to
5 minutes.

2.

Turn the ignition switch to the OFF position
and wait 2 to 3 minutes.

3.

Place your scooter on its centre stand on a
firm, level surface.

4.

Remove the oil fill cap/dipstick and wipe it
clean.

5.

Insert the oil fill cap/dipstick until it seats,
but don’t screw it in.

6.

Check that the oil level is between the
upper level and lower level marks in the oil
fill cap/dipstick.

7.

Securely install the oil fill cap/dipstick.

63

Engine Oil u Adding Engine Oil

Maintenance

NOTICE

Adding Engine Oil

If the engine oil is below or near the lower
level mark, add the recommended engine oil.

2 P. 111

1.

Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the upper
level mark.

u Place your scooter on its centre stand on

a firm, level surface when checking the
oil level.

u Do not overfill above the upper level

mark.

u Make sure no foreign objects enter the

oil filler opening.

u Wipe up any spills immediately.

2.

Securely reinstall the oil fill cap/dipstick.

Overfilling with oil or operating with insufficient oil can
cause damage to your engine. Do not mix different brands
and grades of oil.

64

For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”

2 P. 51

Changing Engine Oil, Cleaning
Strainer Screen

Changing the oil and cleaning the strainer
screen requires special tools. We recommend
that you have your scooter serviced by your
dealer.

Change the engine oil with the Idling Stop
switch at IDLING.

1.

If the engine is cold, idle the engine for 3
to 5 minutes.

2.

Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.

Maintenance

Sealing washer

Drain bolt

Spring

Oil strainer screen O-ring

Oil plug

3.

Place your scooter on its centre stand on
a firm, level surface.

4.

Place a drain pan under the drain bolt and
oil plug.

5.

Remove the oil fill cap/dipstick, drain bolt
and sealing washer to drain the oil.

6.

Remove the oil plug, O-ring, spring and
oil strainer screen and let the remaining
oil drain out.

u Discard the oil at an approved

recycling centre.

7.

Clean the oil strainer screen.

8.

Check that the oil strainer screen and
sealing rubber are in good condition.

9.

Replace the O-ring and apply a thin coat
of engine oil to the new O-ring before
installing it.

10 .

Install the oil strainer screen, spring and oil
plug and tighten.

Torque: 20 N·m (2.0 kgf·m, 15 lbf·ft)

Engine Oil u Changing Engine Oil, Cleaning Strainer Screen

continued

65

Engine Oil u Changing Engine Oil, Cleaning Strainer Screen

Maintenance

11 .

Install a new sealing washer onto the drain
bolt. Tighten the drain bolt.

Torque: 24 N·m (2.4 kgf·m, 18 lbf·ft)

12 .

Fill the crankcase with the recommended
oil (2 P. 51) and install the oil fill cap/
dipstick.

Required oil

When changing oil &
cleaning the strainer screen:

0.9 litres (1.0 US qt, 0.8 Imp qt)

When changing oil:

0.8 litres (0.8 US qt, 0.7 Imp qt)

13 .

Check the oil level. 2 P. 63

14 .

Check that there are no oil leaks.

66

Maintenance

Coolant

Reserve tank
UPPER level
mark

LOWER level
mark

Checking the Coolant

Check the coolant level in the reserve tank
while the engine is cold.

1.

Place your scooter on its centre stand on a
firm, level surface.

2.

Hold your scooter in an upright position.

3.

Check that the coolant level is between the
UPPER level and LOWER level marks in the
reserve tank.

If the coolant level is dropping noticeably or
the reserve tank is empty, you likely have a
serious leak. Have your scooter inspected by
your dealer.

Adding Coolant

If the coolant level is below the LOWER level
mark, add the recommended coolant
(

2 P. 52) until the level reaches the UPPER

level mark.
Add fluid only from the reserve tank cap and
do not remove the radiator cap.

1.

Remove the reserve tank cover by
removing the screw.

2.

Remove the reserve tank cap and add fluid
while monitoring the coolant level.

u Do not overfill above the UPPER level

mark.

u Make sure no foreign objects enter the

reserve tank opening.

continued

67

Coolant u Changing Coolant

Maintenance

3

WARNING

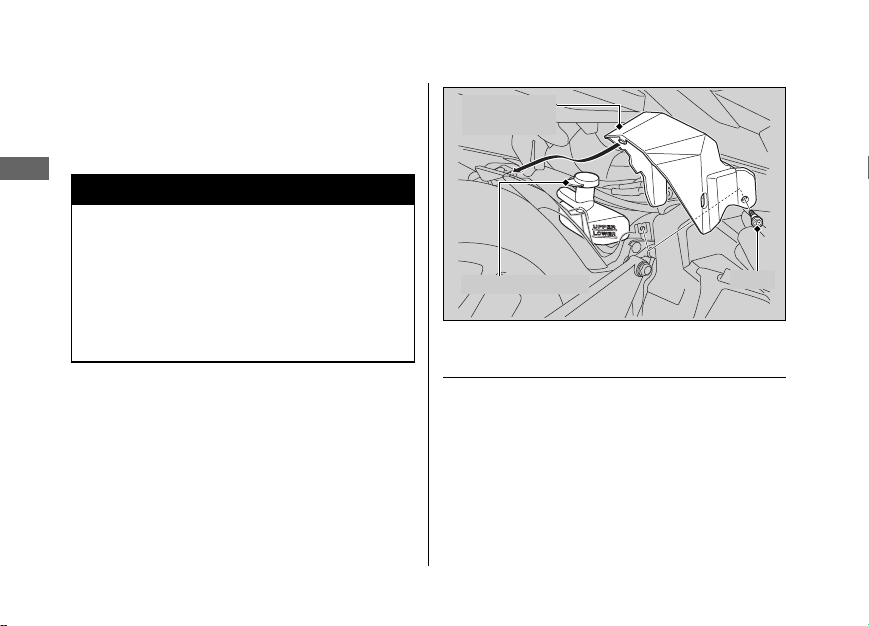

Screw

Reserve tank
cover

Reserve tank cap

3.

Securely reinstall the reserve tank cap.

4.

Install the removed parts in the reverse
order of removal.

Removing the radiator cap while the
engine is hot can cause the coolant to
spray out, potentially scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Changing Coolant

68

Have your dealer change the coolant unless
you have the proper tools and are
mechanically qualified.

Maintenance

Front brake fluid
reservoir

LOWER level
mark

Brakes

Checking the Front Brake Fluid

1.

Place your scooter in an upright position
on a firm, level surface.

2.

Check that the brake fluid reservoir is
horizontal and that the fluid level is

above the LOWER level mark.
If the brake fluid level in the reservoir is below
the LOWER level mark or the brake lever
freeplay becomes excessive, inspect the brake
pads for wear. If the brake pads are not worn,
you most likely have a leak. Have your scooter
inspected by your dealer.

69

Brakes u Inspecting the Front Brake Pads

Maintenance

Brake pads

Wear
indicators

Disc

Freeplay

Inspecting the Front Brake Pads

Check the condition of the brake pad wear
indicators.
The pads need to be replaced if a brake pad is
worn to the indicator.

Inspect the brake pads from below the brake
caliper.
If necessary have the pads replaced by your
dealer.

70

Always replace both left and right brake pads
at the same time.

Inspecting the Rear Brake Lever
Freeplay

1.

Place the scooter on its centre stand.

2.

Measure the distance of the rear brake
lever before the starts to take hold.

Freeplay at the tip of the brake
lever: 10 to 20 mm (0.4 to 0.8 in)

Brakes u Adjusting the Rear Brake Lever Freeplay

Maintenance

Brake arm pin

Adjusting nut

Check the brake cable for kinks or signs of
wear. If necessary have it replaced by your
dealer.
Lubricate the brake cable with a commercially
available cable lubricant to prevent premature
wear and corrosion.
Make sure the brake arm, spring and fastener
are in good condition.

Adjusting the Rear Brake Lever
Freeplay

Adjust the freeplay of the brake lever with the
front wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.

If proper adjustment cannot be obtained by
this method, see your dealer.

continued

71

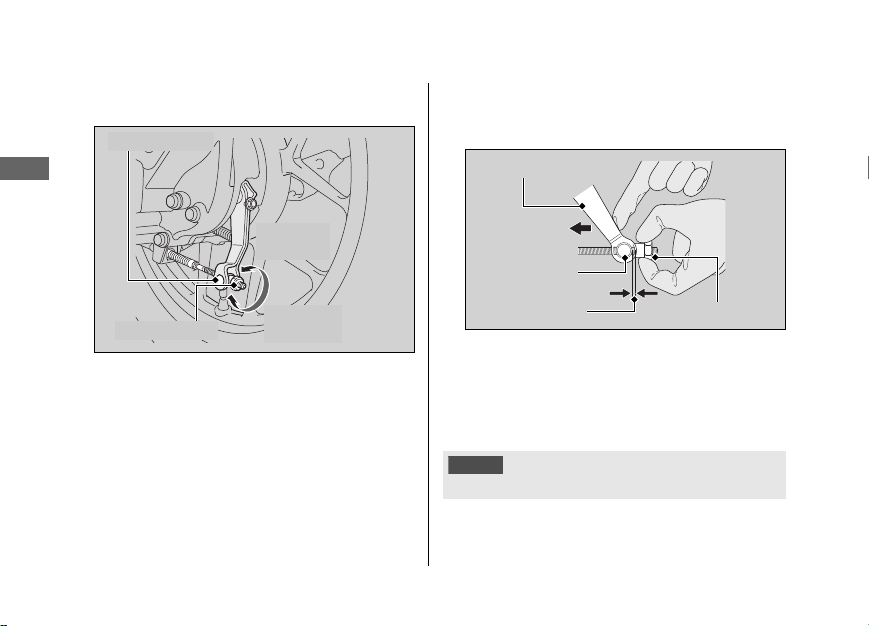

Brakes u Adjusting the Rear Brake Lever Freeplay

Maintenance

Brake arm pin

Increase
Freeplay

Adjusting nut

Decrease
Freeplay

NOTICE

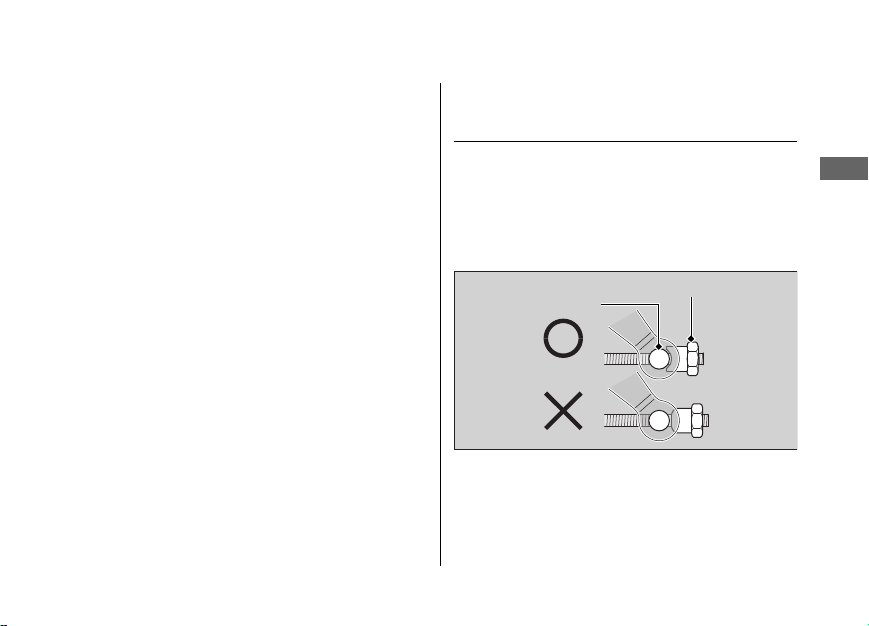

Brake arm

Gap

Adjusting nut

Push

Pin

1.

Adjust by turning the rear brake adjusting
nut a half-turn at a time.

3.

Push the brake arm to confirm that there is
a gap between the rear brake adjusting nut
and brake arm pin.

2.

72

Apply the brake several times and check
for free wheel rotation after the brake lever
is released.

After adjustment, confirm the freeplay of the
brake lever.
Make sure the brake arm, spring and fastener
are in good condition.

Do not turn the adjuster beyond its natural limits.

Brakes u Inspecting the Rear Brake Shoe Wear

Maintenance

Brake arm

Reference
mark

Brake panel

Arrow

Inspecting the Rear Brake Shoe
Wear

The rear brake is equipped with a brake wear
indicator.

When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.

When the brake service is necessary, see your
dealer. Use only Honda Genuine Parts or its
equivalent.

73

Maintenance

Checking the Side Stand

Side stand
spring

1.

2.

3.

74

Side Stand

Place your scooter on its centre stand on a
firm, level surface.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and lubricate
the pivot bolt with clean grease.
Check the spring for damage or loss of
tension.

4.

Sit on the scooter and raise the side stand.

5.

Start the engine.

6.

Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn’t stop, have your
scooter inspected by your dealer.

Maintenance

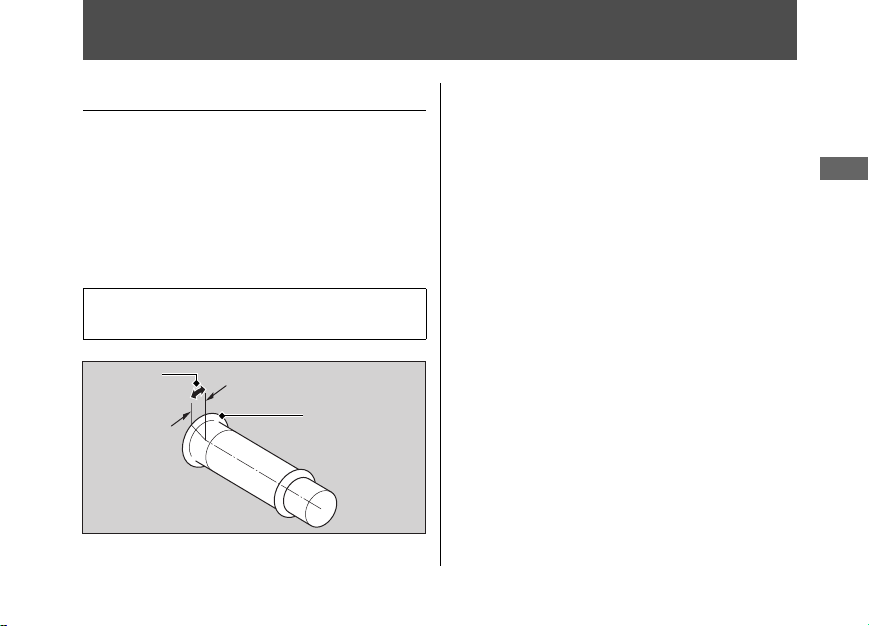

Freeplay

Flange

Throttle

Checking the Throttle

With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the scooter inspected
by your dealer.

Freeplay at the throttle grip flange:

2 to 6 mm (0.1 to 0.2 in)

75

Maintenance

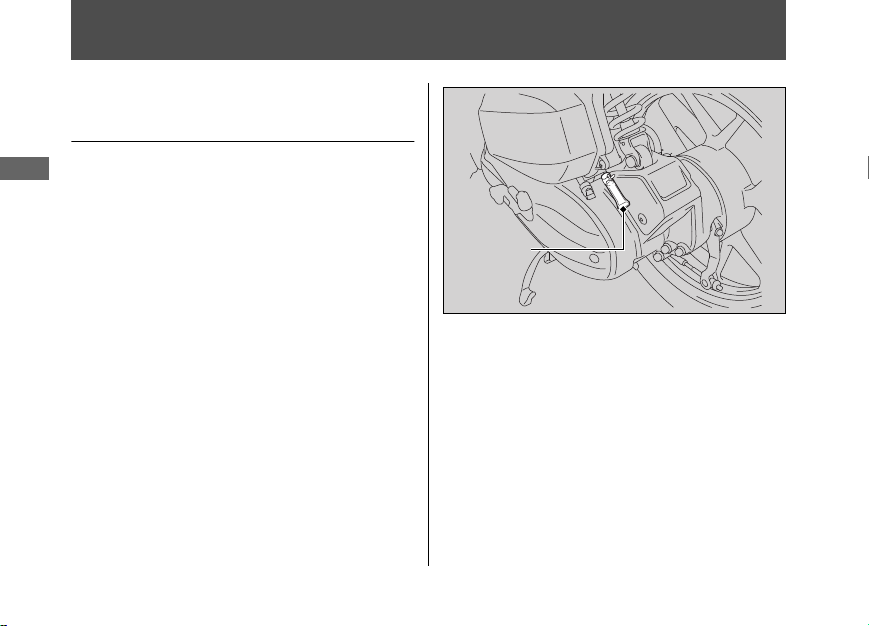

Cleaning the Crankcase

Crankcase
breather
tube

Breather

1.

2.

3.

76

Crankcase Breather

Place a suitable container under the
crankcase breather tube.
Remove the crankcase breather tube and
drain deposits.
Reinstall the crankcase breather tube.

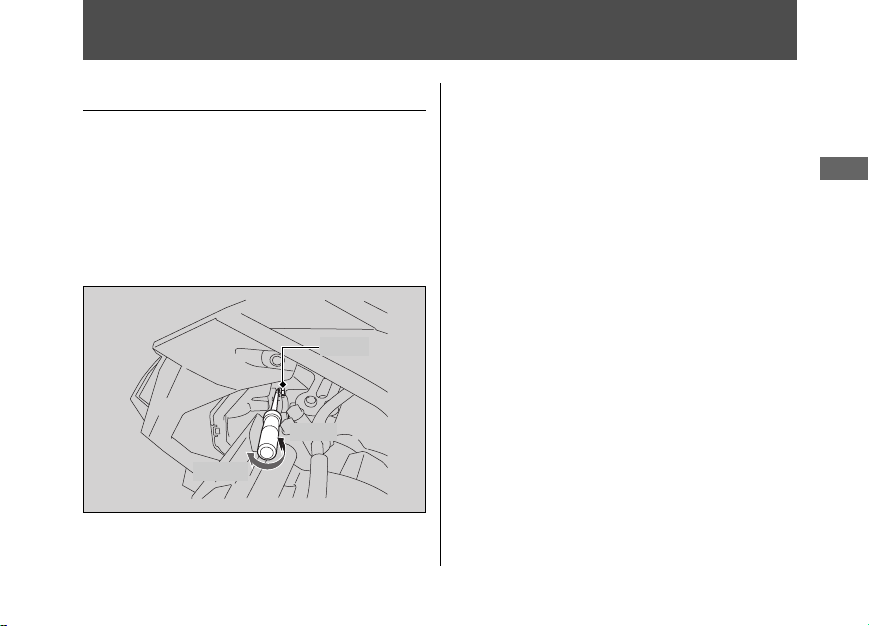

Maintenance

Raise

Lower

Pinion

Other Adjustments

Adjusting the Headlight Aim

The right and left headlight aim can be
adjusted in the same way.
You can adjust vertical aim of the headlights
for proper alignment. Turn the pinion in or out
as necessary using provided Phillips
screwdriver (
Obey local laws and regulations.

2 P. 57).

77

Maintenance

Other Replacement

Integrated ignition
key cover

Screw

Transmitter unit

Replacing the Transmitter Unit
Battery

When the transmitter unit battery begins to
get weak, it may take several pushes on the
button to operate the answer back system,
and the LED will get dim. Replace the battery
as soon as possible.
We recommend to see your dealer for this
service.

Battery type: CR1220

78

1.

Remove the integrated ignition key cover
and transmitter unit by removing the
screw.

Maintenance

2.

Water
protection cover

Battery

Transmitter unit

Protective
cloth

Slit

Other Replacement u Replacing the Transmitter Unit Battery

Disassemble the transmitter unit by

inserting a coin or a flat head screwdriver

into the slit on the bottom of the

transmitter unit.

u Wrap a coin or a screwdriver with a

protective cloth to prevent scratching
the transmitter unit.

u Do not touch the circuit or terminal. This

may cause problems.

u Be careful to avoid scratching the

waterproof covering or allowing dust to
enter.

u Do not forcibly dismantle the remote

transmitter body.

3.

Replace the old battery with a new battery
with the negative - side facing up.

4.

Snap the two halves of the transmitter unit
back together.

u Make sure that water protection cover is

set in the right position.

79

Troubleshooting

Engine Will Not Start ..................................P. 81

Overheating (High coolant temperature

indicator is on)...........................................P. 82

Warning Indicators On or Flashing ...........P. 83

PGMI-FI (Programmed Fuel Injection)

Malfunction Indicator Lamp (MIL) ................. P. 83

Other Warning Indications.........................P. 84

Fuel Gauge Failure Indication ...........................P. 84

When the Idling Stop System Does Not

Operate Properly .......................................P. 85

Idling Stop Indicator Does Not Come On..... P. 85

Engine Is Not Stopped by the Idling Stop System

While the Idling Stop Indicator is On............P. 86

Engine Does Not Start Even If the Throttle is

Opened.................................................................P. 87

Tyre Puncture.............................................. P. 88

Electrical Trouble ........................................ P. 89

Battery Goes Dead...............................................P. 89

Burned-out Light Bulb.........................................P. 89

Blown Fuse.............................................................P. 95

Unstable Engine Operation Occurs

Intermittently ............................................ P. 96

Troubleshooting

Engine Will Not Start

Starter Motor Operates But
Engine Does Not Start

Check the following items:

● Check the correct engine starting sequence.

2 P. 29

● Check that there is petrol in the fuel tank.

● Check if the PGM-FI malfunction indicator

lamp (MIL) is on.

u If the indicator light is on, contact your

dealer as soon as possible.

Starter Motor Does Not
Operate

Check the following items:

● Check the correct engine starting sequence.

P. 29

2

● Check for a blown fuse. 2 P. 95

● Check for a loose battery connection or

battery terminal corrosion. 2 P. 49, 58

● Check the condition of the battery. 2 P. 89

If the problem continues, have your scooter
inspected by your dealer.

81

Troubleshooting

Overheating (High coolant temperature indicator is on)

NOTICE

If there is a leak:

The engine is overheating when the following
occurs:

● High coolant temperature indicator comes

on.

● Acceleration becomes sluggish.

If this occurs, pull safely to the side of the road
and perform the following procedure.
Extended fast idling may cause the high
coolant temperature indicator comes on.

Continuing to ride with an overheated engine can cause
serious damage to the engine.

82

1.

Stop the engine using the ignition switch.

2.

Allow the engine to cool with the ignition
switch in the OFF position.

3.

After the engine has cooled, inspect the
radiator hose and check if there is a leak.

2 P. 67

Do not start the engine. Transport your
scooter to your dealer.

4.

Check the coolant level in the reserve tank.

2 P. 67

u Add coolant as necessary.

5.

If 1-4 check normal, you may continue
riding, but closely monitor the high coolant
temperature indicator.

Troubleshooting

Warning Indicators On or Flashing

PGM-FI (Programmed Fuel
Injection) Malfunction Indicator
Lamp (MIL)

If the indicator comes on while riding, you
may have a serious problem with the PGM-FI
system. Reduce speed and have your scooter
inspected by your dealer as soon as possible.

83

Troubleshooting

Other Warning Indications

Fuel Gauge Failure Indication

If the fuel system has an error, all segments
will blink or go off as shown in the illustration.
If these occur, see your dealer as soon as
possible.

84

Troubleshooting

When the Idling Stop System Does Not Operate Properly

If the Idling Stop switch is at IDLING:

If you started the engine with the kickstarter:

If the engine is cold:

If you did not ride the scooter after engine
starts:

If PGM-FI malfunction indicator lamp (MIL)
lights:

If the battery voltage is low:

Idling Stop Indicator Does Not
Come On

When the Idling Stop indicator does not come
on, perform the followings.

Ride the scooter at speeds of over 10 km/h
(6 mph). The Idling Stop system does not
operate until you ride once.

Press the Idling Stop switch to IDLING STOP.

If you started the engine with the kickstarter,
the Idling Stop system may not operate.
Restart the engine with the start button,
referring to the starting procedure (
for standard engine starting.

Warm up the engine.
The Idling Stop system does not operate when
the engine is cold.

2 P. 29)

When the PGM-FI malfunction indicator lamp
(MIL) lights, the Idling Stop system does not
operate for protection of the engine. See your
dealer.

Ride the scooter awhile, then stop the engine
and then restart the engine with the start
button, referring to the starting procedure
(

2 P. 29) for standard engine starting. The

Idling Stop system may not operate if the
battery voltage is low.
If this occurs frequently, contact your dealer.

85

When the Idling Stop System Does Not Operate Properly

Troubleshooting

If the scooter does not stop completely:

If the throttle is not closed completely:

Engine Is Not Stopped by the
Idling Stop System While the
Idling Stop Indicator is On

When the engine is not stopped by Idling Stop
system while the Idling Stop indicator is on,
perform the followings.

Stop the scooter completely. The Idling Stop
system operates if the speed is only at 0 km/h
(0 mph).

Close the throttle completely.

86

u

Engine Is Not Stopped by the Idling Stop System While the Idling Stop Indicator is On

When the Idling Stop System Does Not Operate Properly

Troubleshooting

If the side stand is down:

If the Idling Stop switch is at IDLING:

Low (or dead) battery or battery lead is loose:

u

Engine Does Not Start Even If the Throttle is Opened

Engine Does Not Start Even If
the Throttle is Opened

Engine does not start even if the throttle is
opened, perform the followings.

While the engine is stopped by the Idling Stop
system, if you operate the side stand, the
flashing Idling Stop indicator turns off or stops
flashing and stays on, and the Idling Stop
system is cancelled. Restart the engine with
the start button, referring to the starting
procedure (

2 P. 29) for standard engine

starting.

While the engine is stopping by the Idling
Stop system, if you press the Idling Stop switch
to IDLING, the Idling Stop system will be
cancelled. Restart the engine with the start
button, referring to the starting procedure
(

2 P. 29) for standard engine starting.

Idling Stop indicator flashes (the Idling Stop
switch is at IDLING STOP position), but engine
does not start even if the throttle is opened,
perform the followings.

Check the battery and battery terminals. If the
battery is weak, contact your dealer.

87

Troubleshooting

Tyre Puncture

3

WARNING

Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tyre inspected/replaced by your dealer.

Riding your scooter with a temporary
tyre repair can be risky. If the temporary
repair fails, you can crash and be
seriously injured or killed.

Emergency Repair Using a Tyre
Repair Kit

If your tyre has a minor puncture, you can
make an emergency repair using a tubeless
tyre repair kit.
Follow the instructions provided with the
emergency tyre repair kit.
Riding your scooter with a temporary tyre
repair is very risky. Do not exceed 50 km/h
(30 mph). Have the tyre replaced by your
dealer as soon as possible.

88

If you must ride with a temporary tyre
repair, ride slowly and carefully and do
not exceed 50 km/h (30 mph) until the
tyre is replaced.

Troubleshooting

Electrical Trouble

NOTICE

Battery Goes Dead

Charge the battery using a motorcycle battery
charger.
Remove the battery from the scooter before
charging.
Do not use an automobile-type battery
charger, as these can overheat a scooter
battery and cause permanent damage.
If the battery does not recover after
recharging, contact your dealer.

Jump starting using an automobile battery is not
recommended, as this can damage your scooter’s
electrical system.

Burned-out Light Bulb

Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF or
(LOCK) position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.

For the light bulb wattage, see
“Specifications.”

2 P. 112

89

Electrical Trouble

Troubleshooting

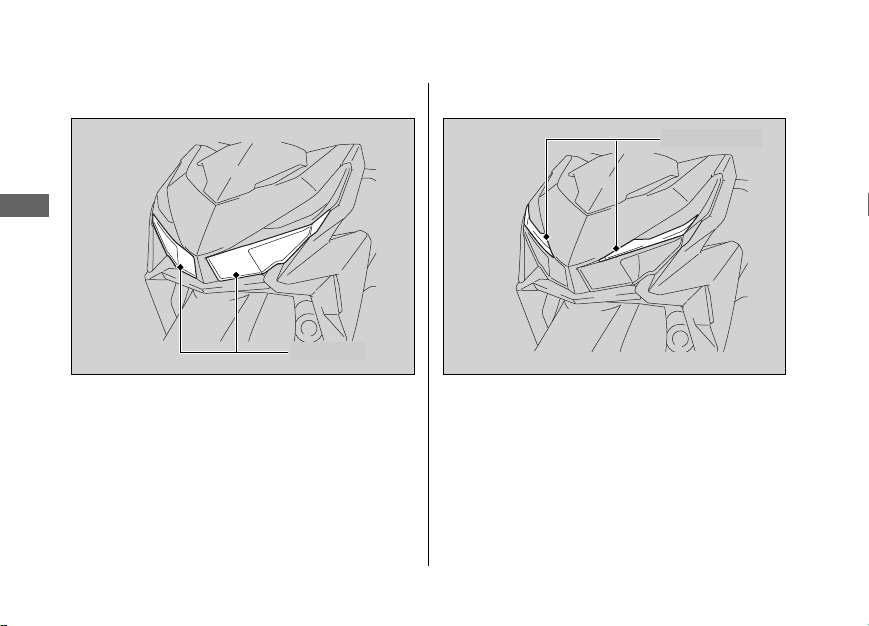

Headlight

Position light

u

Burned-out Light Bulb

Headlight Bulb

#

The headlight uses several LEDs.
If there is a LED which is not turned on, see
your dealer for this servicing.

90

Position Light

#

The position light uses several LEDs.
If there is a LED which is not turned on, see
your dealer for this servicing.

Electrical Trouble u Burned-out Light Bulb

Troubleshooting

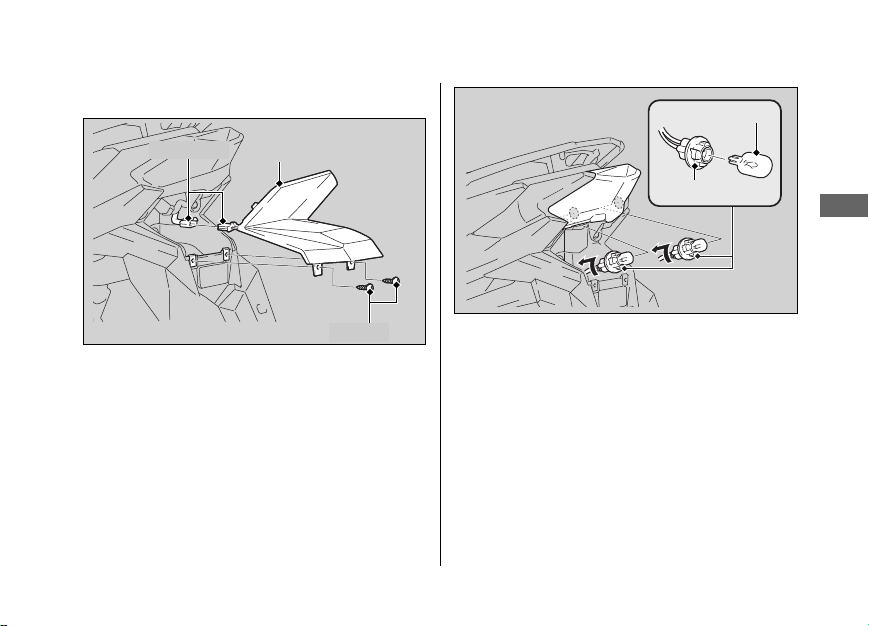

Connector

License light base
cover

Screws

Bulb

Socket

Brakelight Bulb

#

3.

Turn the sockets counterclockwise, then

1.

Remove the license light base cover by

removing the screws.

2.

Disconnect the connector.

pull them out.

4.

Pull out the bulbs without turning.

5.

Install a new bulb in the reverse order of
removal.

6.

Install the removed parts in the reverse
order of removal.

continued

91

Electrical Trouble

Troubleshooting

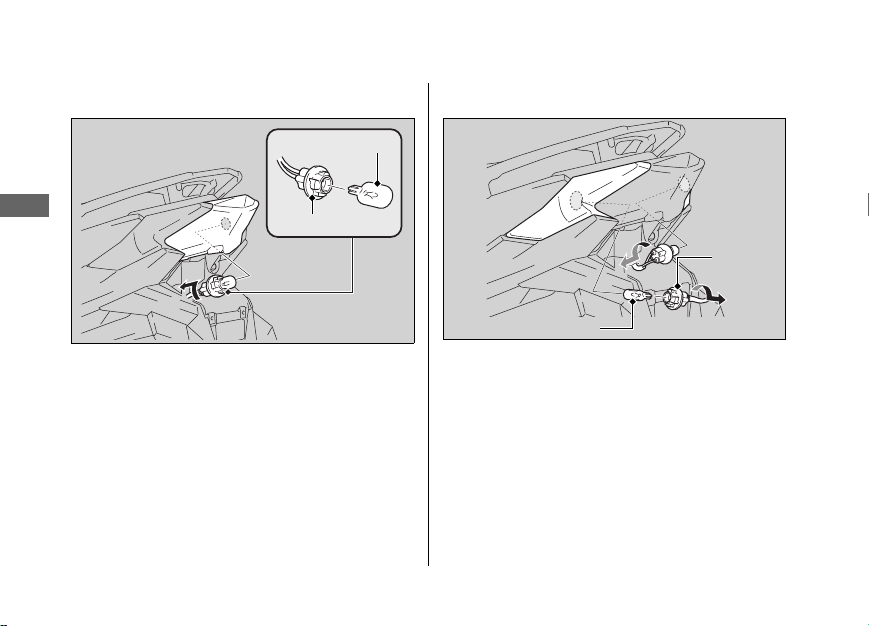

Bulb

Socket

Bulb

Socket

u

Burned-out Light Bulb

Taillight Bulb

#

1.

Remove the license light base cover.

2 P. 91

2.

Turn the socket counterclockwise, then pull
it out.

3.

Pull out the bulb without turning.

4.

Install a new bulb in the reverse order of
removal.

5.

Install the removed parts in the reverse
order of removal.

92

Rear Turn Signal Bulb

#

1.

Remove the license light base cover.

2 P. 91

2.

Turn the socket counterclockwise, then pull
it out.

3.

Pull out the bulb without turning.

Electrical Trouble u Burned-out Light Bulb

Troubleshooting

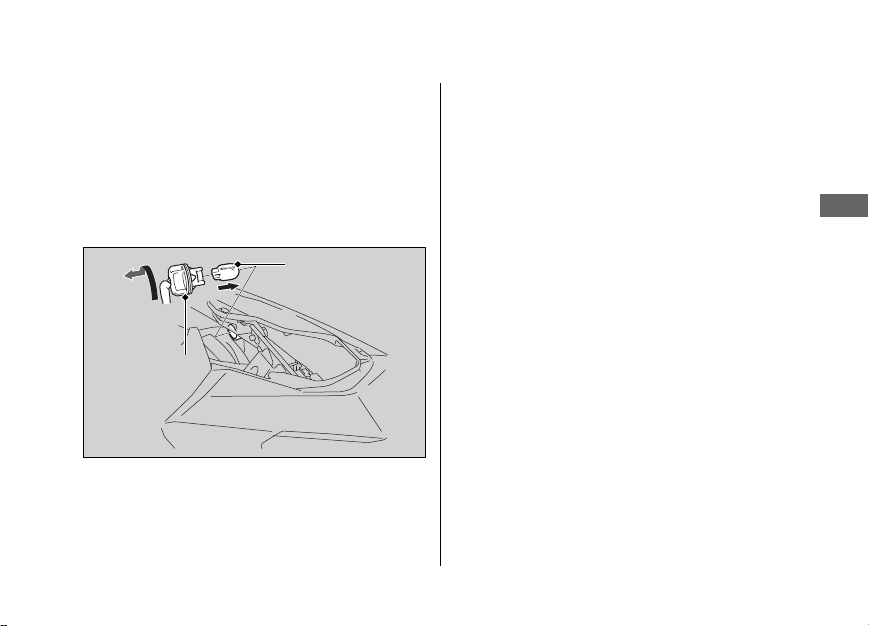

Bulb

Socket

4.

Install a new bulb in the reverse order of

removal.

u Use only the amber bulb.

5.

Install the removed parts in the reverse

order of removal.

Front Turn Signal Bulb

#

1.

Remove the front top cover. 2 P. 60

2.

Turn the socket counterclockwise, then pull
it out.

3.

Pull out the bulb out without turning.

4.

Install a new bulb in the reverse order of
removal.

u Use only the amber bulb.

5.

Install the removed parts in the reverse
order of removal.

continued

93

Electrical Trouble

Troubleshooting

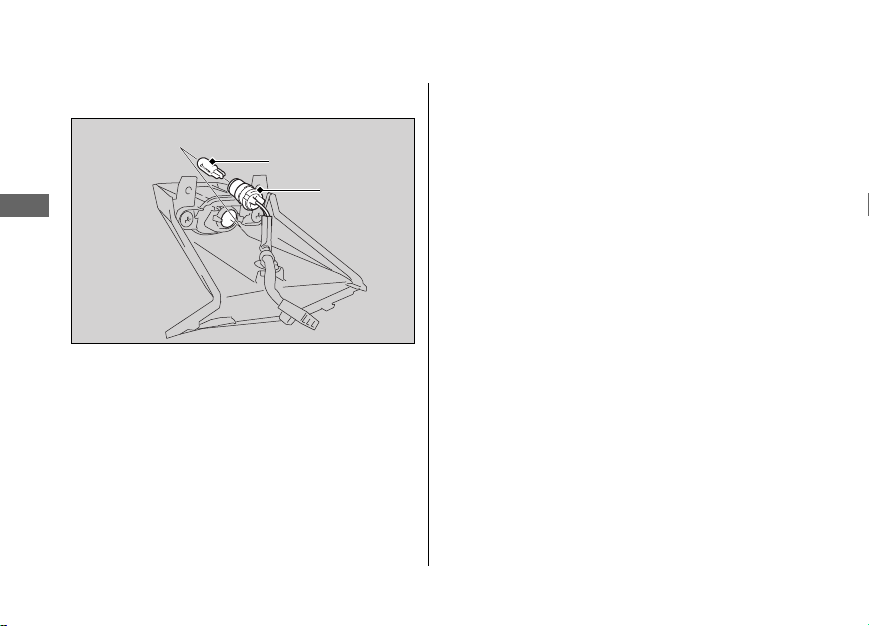

Socket

Bulb

License Plate Light Bulb

#

1.

Remove the license light base cover.

2 P. 91

2.

Pull out the socket without turning.

3.

Pull out the bulb without turning.

4.

Install a new bulb in the reverse order of
removal.

5.

Install the removed parts in the reverse

u

Burned-out Light Bulb

order of removal.

94

Troubleshooting

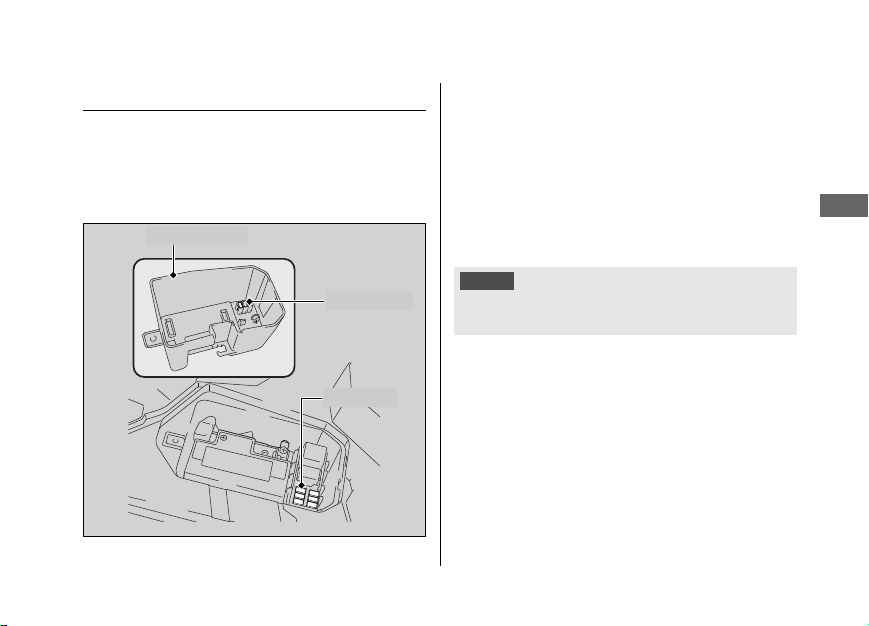

Battery cover

Spare fuses

Main fuse

NOTICE

Blown Fuse

Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 50

Fuse Box Fuses

#

Electrical Trouble

1.

Remove the battery lid and the battery
cover from the step floor.

2.

Pull out the fuses one by one to check for a

u

2 P. 58

Blown Fuse

blown fuse. Always replace a blown fuse
with a spare of the same rating.

u Spare fuses are provided on the reverse

side of the battery cover.

3.

Install the battery lid and the battery cover.

If a fuse fails repeatedly, you likely have an electrical
problem. Have your scooter inspected by your dealer.

95

Troubleshooting

Unstable Engine Operation Occurs Intermittently

If the fuel pump filter is clogged, unstable
engine operation will occur intermittently
while riding.
Even if this symptom occurs, you can
continue to ride your scooter.
If unstable engine operation occurs even if
sufficient fuel is available, have your scooter
inspected by your dealer as soon as possible.

96
