Honda Click125i (2023) User guide

ACB125BF
This manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is resold.
This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
No part of this publication may be reproduced without written permission.
The vehicle pictured in this owner’s manual may not match your actual vehicle.
© 2022 Honda Motor Co., Ltd.
Welcome
Congratulations on your purchase of a new Honda vehicle. Your selection of a Honda makes you part of a worldwide family of satisfied customers who appreciate Honda's reputation for building quality into every product.
To ensure your safety and riding pleasure:
Read this owner's manual carefully.
Follow all recommendations and
procedures contained in this manual.
Pay close attention to safety messages
contained in this manual and on the vehicle.
The following code in this manual
indicates the country.
Country Codes
Code Country
ACB125CBF
II PH Philippines
A Few Words About Safety
Your safety, and the safety of others, is very important. Operating this vehicle safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on safety labels and in this manual. This information alerts you to potential hazards that could hurt you or others. Of course, it is not practical or possible to warn you about all hazards associated with operating or maintaining a vehicle. You must use your own good judgement.
You will find important safety information in a variety of forms, including:
Safety labels on the vehicle
Safety Messages preceded by a safety alert symbol and one of three signal words: DANGER, WARNING, or CAUTION. These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow instructions.
Other important information is provided under the following titles:
NOTICE
Information to help you avoid damage to your vehicle, other property, or the environment.
Contents
Vehicle Safety P. 2
Operation Guide P. 18
Maintenance P. 53
Troubleshooting P. 82
Information P. 91
Specifications P. 102
Vehicle Safety
This section contains important information for safe riding of your vehicle. Please read this section carefully.
Safety Guidelines................................................. P. 3
Image Labels......................................................... P. 6
Safety Precautions............................................. P. 10
Riding Precautions ............................................ P. 11
Accessories & Modifications........................... P. 15
Loading ................................................................ P. 16
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
Perform all routine and regular inspections
specified in this manual.
Stop the engine and keep sparks and flames
away before filling the fuel tank.
Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective apparel significantly reduce the number and severity of head and other injuries. So always wear an approved helmet and protective apparel. 2 P. 10
Before Riding
Make sure that you are physically fit, mentally focused, and free of alcohol and drugs. Check
that you and your passenger are both wearing an approved helmet and protective apparel. Instruct your passenger on holding onto the grab rail or your waist, leaning with you in turns, and keeping their feet on the footpegs, even when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice riding in a safe area to become familiar with how this vehicle works and handles, and to become accustomed to the vehicle's size and weight.
Ride Defensively
Always pay attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.
Continued
Vehicle Safety
3
Safety Guidelines
Make Yourself Easy to See
Vehicle Safety
Make yourself more visible, especially at night, by wearing bright reflective clothing, positioning yourself so other drivers can see you, signaling before turning or changing lanes, and using your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or faster than conditions warrant. Fatigue and inattention can impair your ability to use good judgement and ride safely.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one alcoholic drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. The same is true for drug use. Don't drink or use and ride, and don't let your friends do it either.
4
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly maintained and in safe riding condition. Inspect your vehicle before every ride and perform all recommended maintenance. Never exceed load limits (2 P. 16), and do not modify your vehicle or install accessories that would make your vehicle unsafe (2 P. 15).
If You are Involved in a Crash
Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.
Safety Guidelines
If you decide to continue riding, first turn the ignition switch to the (Off) position, and evaluate the condition of your vehicle. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the handlebar, control levers, brakes, and wheels. Ride slowly and cautiously. Your vehicle may have suffered damage that is not immediately apparent. Have your vehicle thoroughly checked at a qualified service facility as soon as possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a colourless, odorless gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death.
If you run the engine in a confined or even partly enclosed area, the air you breathe could contain a dangerous amount of carbon monoxide.
Never run your vehicle inside a garage or other enclosure.
3WARNING
Running the engine of your vehicle while in an enclosed or even partially enclosed area can cause a rapid build­up of toxic carbon monoxide gas.
Breathing this colourless, odorless gas can quickly cause unconsciousness and lead to death.
Only run your vehicle's engine when it is located in a well ventilated area outdoors.
Vehicle Safety
5
Image Labels
Image Labels
Vehicle Safety
The following pages describe the label meanings. Some labels warn you of potential hazards that could cause serious injury. Others provide important safety information. Read this information carefully and don't remove the labels.
If a label comes off or becomes hard to read, contact your dealer for a replacement.
There is a specific symbol on each label. The meanings of each symbol and label are as follows.
6
Read instructions contained in Owner's Manual carefully.
Read instructions contained in Shop Manual carefully. In the interest of safety, take the vehicle to be serviced only by your dealer.
DANGER (with RED background)
You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.
WARNING (with ORANGE background)
You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.
CAUTION (with YELLOW background)
You CAN be HURT if you don't follow instructions.
Image Labels

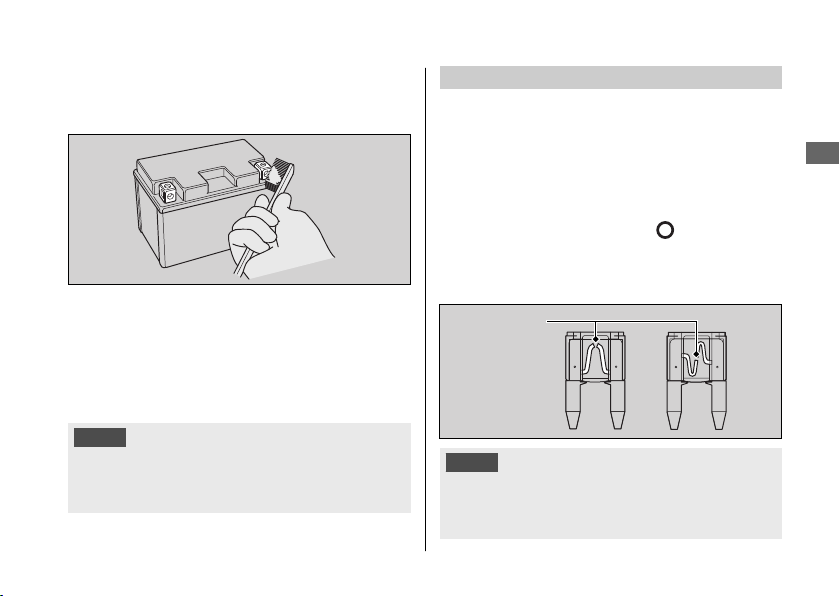

BATTERY LABEL DANGER
Keep flame and spark away from the battery. Battery
produce explosive gas that can cause explosion.
Wear the eye protection and rubber gloves when handling the battery, or you can get burned or lose your eyesight by the battery electrolyte.
Do not allow children and other people to touch a
battery unless they understand proper handling and hazards of the battery very well.
Handle the battery electrolyte with extreme care as it
contains dilute sulfuric acid. Contact with your skin or eyes can burn you or cause loss of your eyesight.
Read this manual carefully and understand it before handling the battery. Neglect of the instructions can cause personal injury and damage to the vehicle.
Do not use a battery with the electrolyte at or below the lower level mark. It can explode causing serious injury.
Continued
Vehicle Safety
7
Image Labels
Vehicle Safety
8

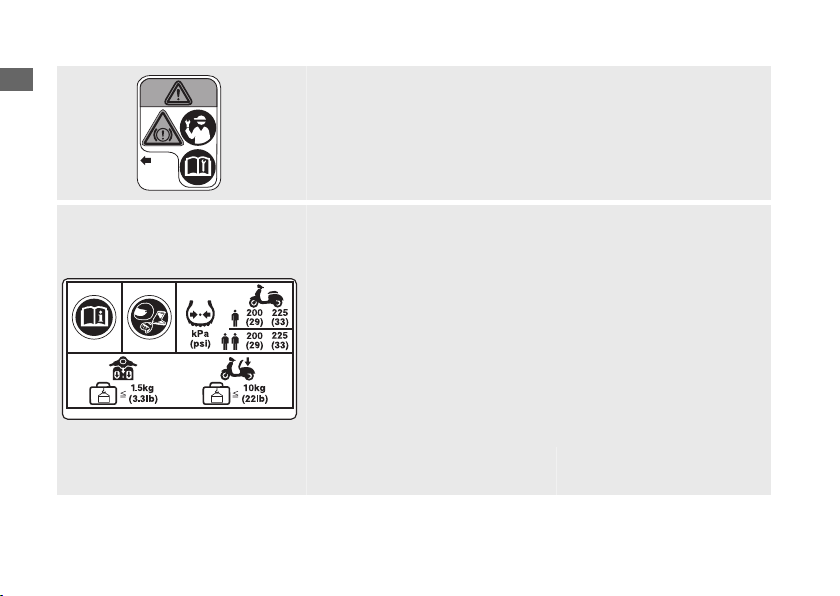

CBS CAUTION LABEL
Cable adjustment must be done by Honda dealer.
TYRE INFORMATION & CARGO LIMIT LABEL
For your protection, always wear helmet, protective apparel. Cold tyre pressure: [Driver only]
Front Rear
200 kPa (2.00 kgf/cm2, 29 psi) 225 kPa (2.25 kgf/cm2, 33 psi)
[Driver and passenger]
Front Rear
200 kPa (2.00 kgf/cm2, 29 psi) 225 kPa (2.25 kgf/cm2, 33 psi)
Cargo limit:
Front box/Hook/Inner rack Centre compartment
1.5 kg (3.3 lb) 10 kg (22 lb)
Image Labels
AIR CLEANER ELEMENT NOTICE LABEL
Air blow cleaning or any other cleaning can degrade the viscous element performance and cause the intake of dust. Do not perform the maintenance. Should be serviced by your dealer.
Vehicle Safety
9
Safety Precautions
Safety Precautions
Vehicle Safety

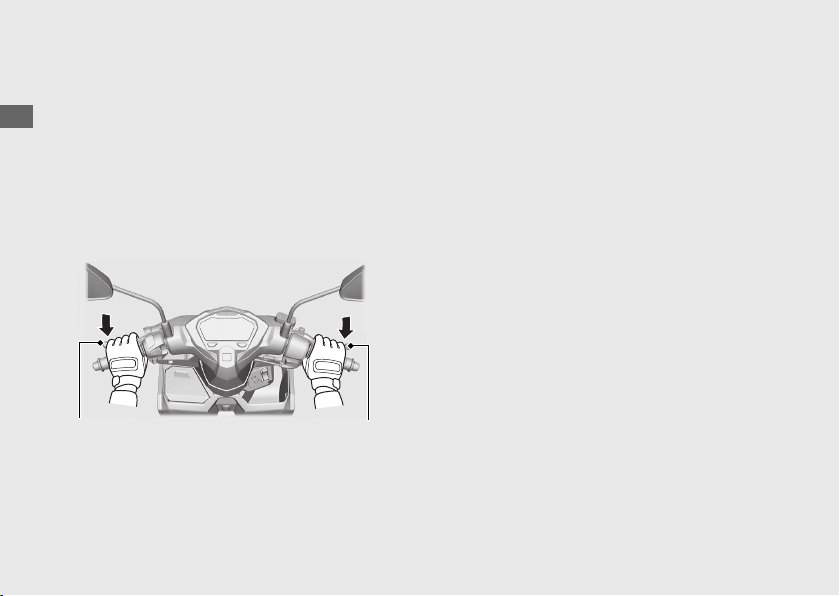

Ride cautiously and keep your hands on the
handlebar and feet on the floor.
Instruct your passenger to keep their hands
on the grab rail or your waist and their feet on the footpegs while riding.
Always consider the safety of your
passenger, as well as other drivers and riders.
Protective Apparel
Make sure that you and any passenger are wearing an approved helmet, eye protection, and high-visibility protective clothing. Avoid wearing loose clothes that could get caught on any part of the vehicle. Ride defensively in response to weather and road conditions.
Helmet
#
Safety-standard certified, high-visibility, correct size for your head
Must fit comfortably but securely, with the chin strap fastened
10
Face shield with unobstructed field of vision or other approved eye protection
3WARNING
Not wearing a helmet increases the chance of serious injury or death in a crash.
Make sure that you and any passenger always wear an approved helmet and protective apparel.
Gloves
#
Full-finger leather gloves with high abrasion resistance
Boots or Riding Shoes
#
Sturdy boots with non-slip soles and ankle protection
Jacket and Trousers
#
Protective, highly visible, long-sleeved jacket and durable trousers for riding (or a protective suit)
Riding Precautions
Riding Precautions
Running-in Period
During the first 500 km (300 miles) of running, follow these guidelines to ensure your vehicle's future reliability and performance.
Avoid full-throttle starts and rapid
acceleration.
Avoid hard braking.
Ride conservatively.
Brakes
Observe the following guidelines:
Avoid excessively hard braking.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Exercise caution on low traction surfaces.
u The tyres slip more easily on such
surfaces and braking distances are longer.
Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can seriously overheat the brakes, reducing their effectiveness.
For full braking effectiveness, operate both
the front and rear brakes together.
Combi Brake
#
Your vehicle is equipped with a brake system that distributes the braking force between the front and rear brakes. The distribution of the braking force applied to the front and rear brakes when operating the front brake lever only and when operating the rear brake lever only is different. For full braking effectiveness, operate both the front and rear brakes together.
Continued
Vehicle Safety
11
Riding Precautions
Wet or Rainy Conditions
#
Vehicle Safety
Road surfaces are slippery when wet, and wet brakes further reduce braking efficiency. Exercise extra caution when braking in wet conditions. If the brakes get wet, apply the brakes while riding at low speed to help them dry.
12
Parking
Park on a firm, level surface.
If you must park on a slight incline or loose
surface, park so that the vehicle cannot move or fall over.
Make sure that high-temperature parts
cannot come into contact with flammable materials.
Do not touch the engine, muffler, brakes
and other high-temperature parts until they cool down.
To reduce the likelihood of theft, always lock
the handlebar and remove the key and close the shutter when leaving the vehicle unattended. Use of an anti-theft device is also recommended.
Parking with the Side Stand or Centre
#
Stand
1.
Stop the engine.
2.
Using the side stand
Push the side stand down. Slowly lean the vehicle to the left until its weight rests on the side stand.
Using the centre stand
To lower the centre stand, stand on the left side of the vehicle. Hold the left handle grip and the grab rail. Press down on the tip of the centre stand with your right foot and, simultaneously, pull up and back.
Riding Precautions
Grab rail
Centre stand
Left handle grip
3.
Turn the handlebar fully to the left.
Turning the handlebar to the right
u
reduces stability and may cause the vehicle to fall.
4.
Turn the ignition switch to the (Lock) position (2 P. 34), remove the key and close the shutter (2 P. 35).
Vehicle Safety
Continued
13
Riding Precautions

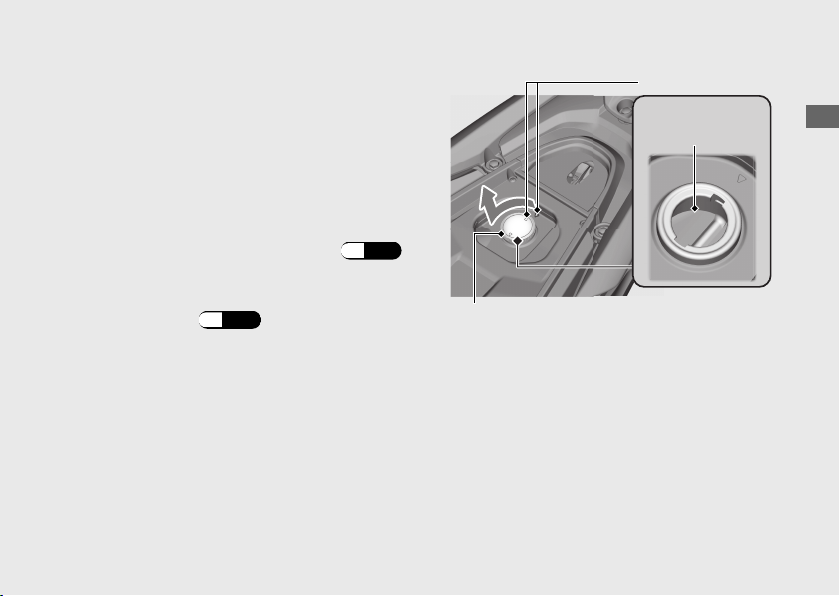

Refuelling and Fuel Guidelines
Vehicle Safety
Follow these guidelines to protect the engine, fuel system and catalytic converter:
Use only unleaded petrol.
Use the recommended octane number.
Using lower octane petrol will result in decreased engine performance.
Do not use fuels containing a high
concentration of alcohol. 2 P. 100
Do not use stale or contaminated petrol or
an oil/petrol mixture.
Avoid getting dirt or water in the fuel tank.
14
Accessories & Modifications
Accessories & Modifications
We strongly advise that you do not add any accessories that were not specifically designed for your vehicle by Honda or make modifications to your vehicle from its original design. Doing so can make it unsafe. Modifying your vehicle may also void your warranty and make your vehicle illegal to operate on public roads. Before deciding to install accessories on your vehicle, be certain the modification is safe and legal.
3WARNING
Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding accessories and modifications.
Do not pull a trailer with, or attach a sidecar to, your vehicle. Your vehicle was not designed for these attachments, and their use can seriously impair your vehicle's handling.
Vehicle Safety
15
Loading
Loading
Vehicle Safety
Carrying extra weight affects your vehicle's
handling, braking and stability. Always ride at a safe speed for the load you are carrying.
Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity / Maximum luggage weight 2 P. 102
Tie all luggage securely, evenly balanced,
and close to the centre of the vehicle.
Do not place objects near the lights or the
muffler.
16
3WARNING
Overloading or improper loading can cause a crash and you can be seriously hurt or killed.
Follow all load limits and other loading guidelines in this manual.
Vehicle Safety
17

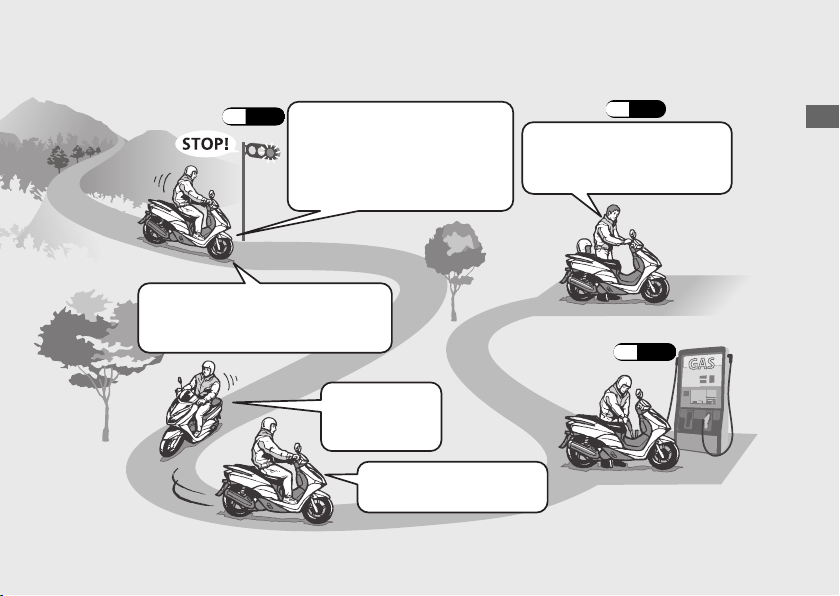

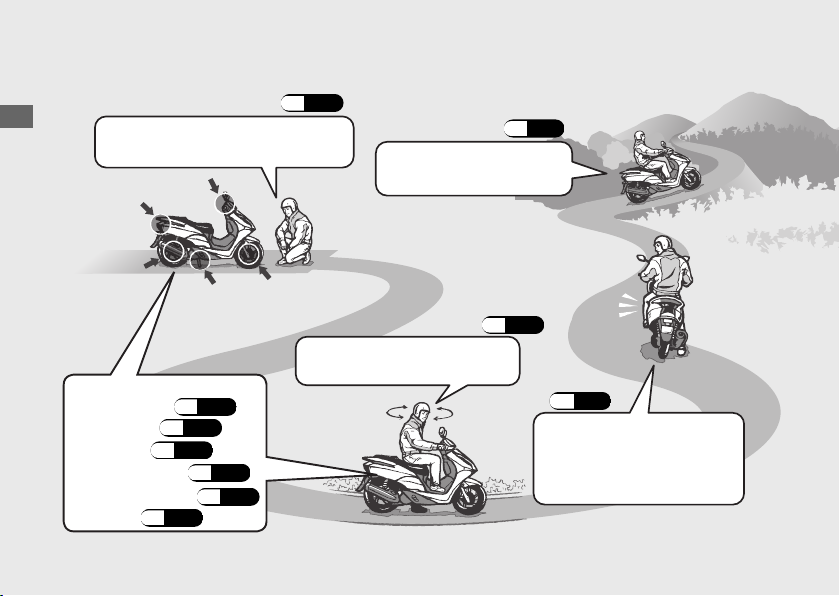

Basic Operation Flow
Pre-ride Inspection (P.58)
#
Operation Guide
18
Carefully inspect your vehicle to make sure that it is safe to ride.
How to use basic features.

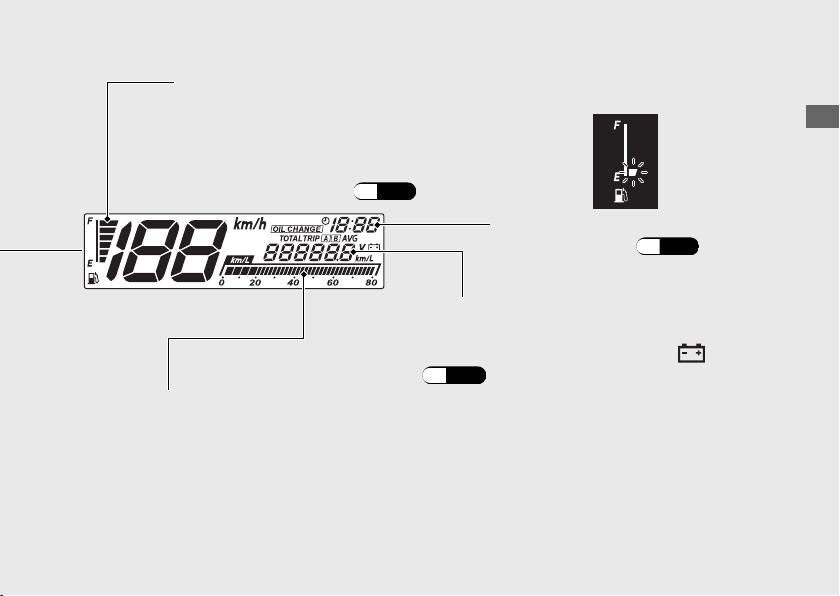

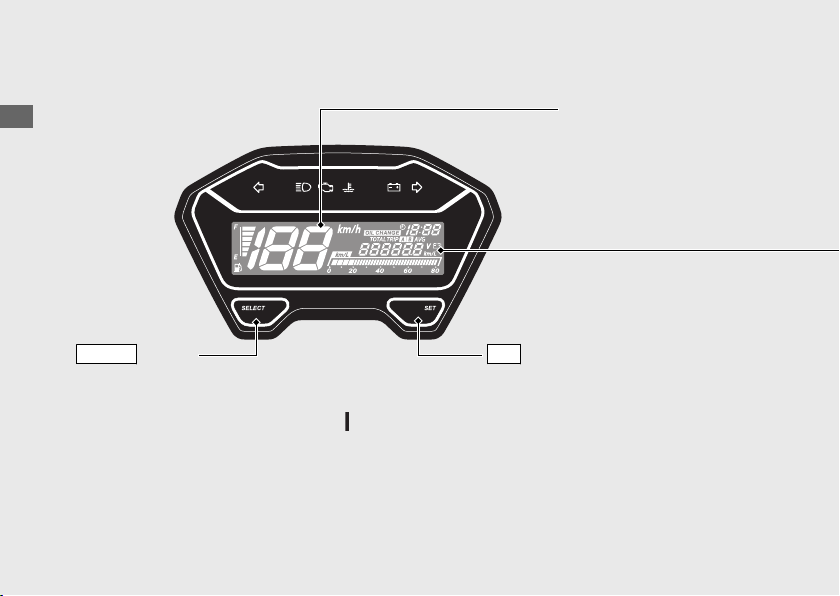

Instruments (P.22)
Indicators (P.30)
Switches (P.32)
Steering Lock (P.34)
Rear Brake Lock
Shutter (P.35)
(P.36)
Starting the Engine (P.37)
#
Start and warm the engine. Avoid revving the engine.
Acceleration (P.41)
#
Apply throttle gradually. Obey the speed limit.
#
Before pulling away, indicate your direction with the turn signal switch, and check for oncoming traffic.
Starting the Vehicle
(P.41)
Braking (P.42)
#
Stopping
#
If pulling off the road, signal early enough to show traffic that you are pulling over, and pull over smoothly.
Close the throttle and apply the front and rear brakes together.
u
The brakelight will indicate that you have applied the brakes.
Turning Corners
#
Do your braking before entering corners.
Gradually reapply throttle when exiting turn.
Parking (P.12)
#
Park on a firm level surface. Use the stand, lock the steering.
Refuelling (P.43)
#
Operation Guide
19
Parts Location
Operation Guide
20
Document bag (P.50) Tool (P.67)
Seat (P.47)
Throttle grip (P.81)
Front brake fluid reservoir (P.74)
Front brake lever
Inner lack (P.52) Helmet holder (P.48) Coolant reserve tank
Battery (P.68)
Fuse box (P.89)
Engine oil fill cap/dipstick
)
(P.70
(P.72)
USB socket (P.45) Front box (P.51)
Rear brake lock (P.36)
Rear brake lever (P.77)
Centre compartment
)
(P.49
Hook (P.52)
Centre stand (P.13)
Side stand (P.80)
Operation Guide
21
Instruments
Operation Guide
SELECT
button
Display Check
When the ignition switch is turned to the (On) position, the display will temporarily show all the modes and digital segments so you can make sure the liquid crystal display is functioning properly. If any part of these displays does not come on when it should, have your dealer check for problems.
22
SET
Speedometer
This shows your speed in kilometer per hour (km/h).
button
Fuel gauge
Remaining fuel when only 1st (E) segment left: approximately
1.7 L (0.45 US gal, 0.37 Imp gal). This segment flashes when the fuel decreases further.

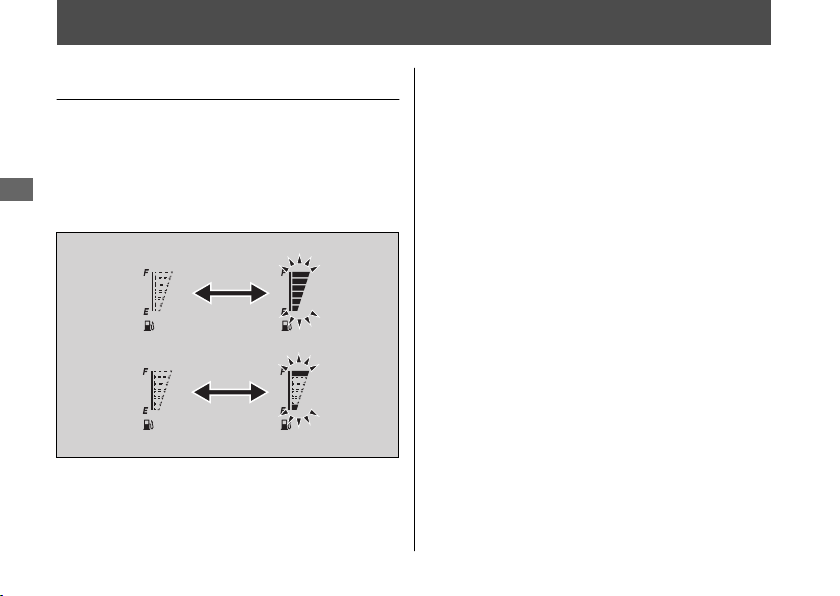

If the fuel gauge indicator flashes in a repeat pattern or turns off:
(P.86
)
Clock (12-hour display) To set the clock: (P.28)
Odometer [TOTAL]/Tripmeter [TRIP A/B]/Average fuel mileage meter [AVG]/Battery voltage meter [
(P.24)
Current fuel mileage meter
Current instant fuel mileage. Display range: 0 to 80 km/L.
If the calculated value is 80 km/L or more: “80 km/L” is displayed.
When your speed is less than about 3 km/h : “0” is displayed.
When “0” is displayed at speeds above 3 km/h, go to your dealer for service.
Operation Guide
]
Continued
23
Instruments (Continued)
Odometer [TOTAL]/Tripmeter [TRIP A/B]/Average fuel mileage meter [AVG]/ Battery voltage meter [ ]
SELECT
Operation Guide
24
button selects the odometer, tripmeter A, tripmeter B, average fuel mileage, and battery voltage.
Odometer Tripmeter A Tripmeter B
Average fuel mileage
Odometer
Total distance ridden. When “------” is displayed, go to your dealer for service.
Tripmeter
Distance ridden since tripmeter A or tripmeter B respectively were reset.
To reset tripmeter A, press and hold
SET
button while tripmeter A is displayed. When to
reset tripmeter A, the average fuel mileage is also reset.
To reset tripmeter B, press and hold
SET
button while tripmeter B is displayed.
When “---.-” is displayed, go to your dealer for service.
Battery voltage
Average fuel mileage meter
The average fuel mileage will be based on tripmeter A. Average fuel mileage since tripmeter A was reset. Display range: 0.0 to 99.9 km/L.
If the calculated value is 99.9 km/L or more: “99.9 km/L” is displayed.
When the tripmeter A is reset: “--.-” is displayed.
When “--.-” is displayed except after the average fuel mileage has been reset, go to your dealer for service.
Battery voltage meter
Displays the current voltage.
Operation Guide
Continued
25
Instruments (Continued)

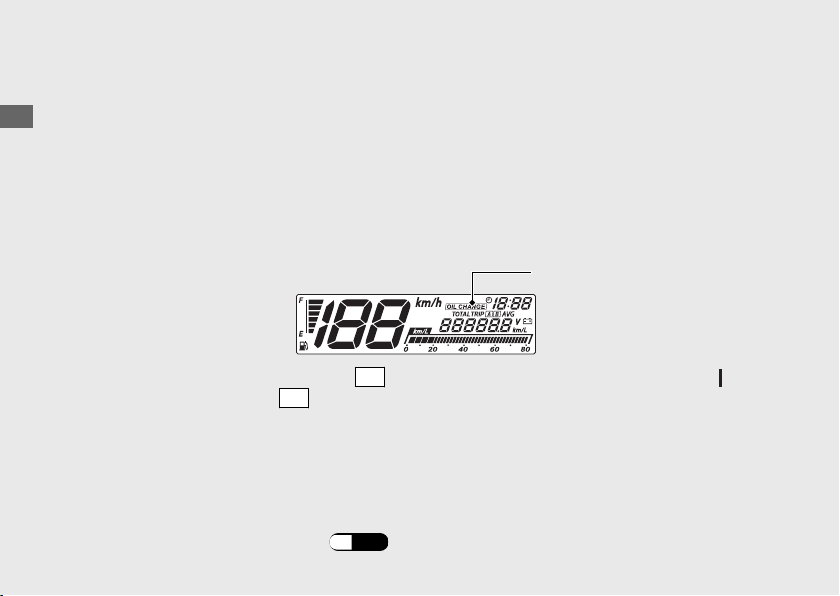

OIL CHANGE indicator
The indicator is turned on whenever the running distance reaches the programed oil change interval.
Operation Guide
u
When the running distance reaches about 1,000 km:
Reset the indicator after changing the engine oil for the 1st time.
u
When the running distance reaches about every 6,000 km after the 1st time resetting:
Reset the indicator after changing the engine oil.
After changing the engine oil, be sure to reset the indicator.
OIL CHANGE indicator
To reset the indicator, press and hold the position, and keep holding the
u
The indicator does not go off until it is reset. If the oil is changed before the OIL CHANGE indicator comes on, be sure to reset the OIL CHANGE
u
indicator after changing the oil. When resetting the indicator during no indication, the indicator will appear for 2 seconds, then disappear.
SET
SET
button while turning the ignition switch to the (On)
button for more than 3 seconds.
You can change the setting of the distance until the OIL CHANGE indicator lights again.
To set the OIL CHANGE indicator: (P.27)
26
Ordinary display
Setting Mode
Clock setting mode Clock setting
OIL CHANGE
indicator setting
mode
OIL CHANGE
indicator setting
Display Setting
Following items can be changed sequentially.
Clock setting
OIL CHANGE indicator setting
The following moves the ordinary display at display setting.
The button is not pressed for about 30
seconds
Turn the ignition switch to the (Off)
position and then to the (On) position
Press and hold button
SET
Press
Press
button
SELECT
SELECT
button
button and
Operation Guide
SET
Continued
27
Instruments (Continued)
1 Clock setting:
a
Turn the ignition switch to the (On)
Operation Guide
position.
b
Press and hold button, the all clock digits start flashing. Press
SET
button, the hour digits start
c
flashing. Press
SELECT
button until the desired hour
d
is displayed.
u
Press and hold to advance the hour fast.
SELECT
button and
SET
Press
SELECT
button until the desired
f
minute is displayed.
u Press and hold to advance the minute
fast.
Press
SET
button. The clock is set, and then
g
the display moves to the interval value of OIL CHANGE indicator.
28
e
Press flashing.
SET
button. The minute digits start
2 OIL CHANGE indicator setting:
The indicator is turned on whenever the running distance reaches the programmed oil change interval. You can adjust the interval value of OIL CHANGE indicator.
Press
SET
button. The OIL CHANGE
c
indicator is set.
The established setting can also be set by turning the ignition switch to the (Off) position.
Operation Guide
Press
SET
button. The OIL CHANGE
a
indicator start flashing.
Press
SELECT
button until the desired value
b
is displayed.
u The oil change interval can be set every
500 km (300 miles) within the range 500 to 6,000 km (300 to 4,000 miles).
The control is automatically switched from the setting mode to the ordinary display if the switch is not pressed for about 30 seconds. In this case, undecided settings will not be maintained.
29
Indicators
If one of these indicators does not come on when it should, have your dealer check for problems.
Operation Guide
30
High beam indicator
High coolant temperature indicator
If it comes on while riding: (P.84)
PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is turned to the (On) position.
If it comes on while engine is running:
(P.85
)
Left turn signal indicator
Right turn signal indicator
Battery Charging Condition indicator
When the Battery Charging Condition indicator on:
(P.85
Operation Guide
)
31
Switches
Operation Guide
Headlight dimmer switch
: High beam
: Low beam
32
Turn signal switch
u Pressing the switch turns the turn signal off.
Horn button
Start button
Seat opener switch
Pressing the switch opens the seat.
To open the seat: (P.47)
Ignition switch
Switches the electrical system on/off, locks the steering, and operates the seat opener switch.
u Key can be removed when in the
(Off) or (Lock) position.
Turns electrical system on for
Operates the seat opener switch.
Turns engine off.
(On)
starting/riding.
SEAT
(Off)
(Lock)
Locks steering.
Operation Guide
Continued
33
Switches (Continued)
Steering Lock
Lock the steering when parking to help
Operation Guide
prevent theft. A U-shaped wheel lock or similar device is also recommended.
Locking
#
a
Turn the handlebar all the way to the left or right.
b
Push the key down, and turn the ignition switch to the (Lock) position.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the key.
34
a
Ignition key
Push
Turn
b
Unlocking
#
Insert the key, push it in, and turn the ignition switch to the (Off) position.
Shutter
The ignition switch for this vehicle is equipped with an automatic shutter. After parking the vehicle, close the shutter for theft prevention.
(Lock)
Open
The shutter will automatically close when you remove the ignition key at the (Lock) position. Also you can close the shutter manually.
Close
#
a
Remove the ignition key from the ignition switch.
b
Align the projection of the shutter key with the slot of the shutter, and turn the shutter key counterclockwise.
c
Remove the key.
Operation Guide
Close
Shutter key
Ignition key
Slot Projection
Open
#
Align the projection of the shutter key with the slot of the shutter, and turn the shutter key clockwise.
35
Rear Brake Lock
Be sure the rear brake lock is applied while starting and warming up the engine.
Operation Guide
Locking
#
Squeeze the rear brake lever and set the rear brake lock lever.
u The rear brake lock will not function if the
rear brake is not adjusted properly.
(P.77)
Rear brake lock lever
Rear brake lever
36
Unlocking
#
Squeeze the rear brake lever.
u Before riding, make sure that the rear brake
lock is fully released so there is no drag on the rear wheel.
Starting the Engine
Start your engine using the following procedure, regardless of whether the engine is cold or warm.
This vehicle is equipped with a side stand ignition cut-off system.
u If the side stand is down, the engine cannot
be started.
u
If you lower the side stand with the engine running, it will automatically shut off.
NOTICE
If the engine does not start within 5 seconds,
turn the ignition switch to the (Off) position and wait 10 seconds before trying to start the engine again to recover battery voltage.
Extended fast idling and revving the engine
can damage the engine and the exhaust system.
If the vehicle is over-turned, you must first
turn the ignition switch to the (Off) position and then inspect the vehicle carefully.
Consult your dealer for advice if you plan to ride your vehicle at an altitude above 2,500 m (8,000 feet).
NOTICE
If the vehicle is transported to a place 2,000 m (6,500 feet) higher or lower than the start point, you may not be able to achieve sufficient engine performance at the new altitude. Consult your dealer before transporting your vehicle.
Operation Guide
Continued
37
Starting the Engine (Continued)
a
Place the vehicle on its centre stand.
b

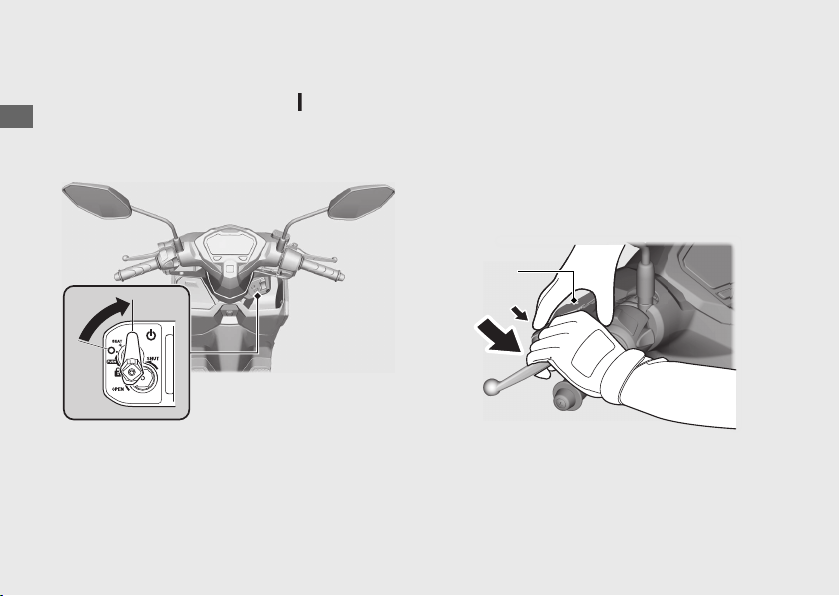

Turn the ignition switch to the (On)
Operation Guide
position.
b
38
c
Lock the rear wheel by squeezing the rear brake lever and setting the brake lock lever.
u The starter motor will only work when
the rear brake lever is squeezed and the side stand is up.
c
d
With the throttle completely closed, press the start button. Release the start button as soon as the engine starts.
d
If you cannot start the engine:
a
Place the vehicle on its centre stand. Lock the rear wheel by squeezing the rear brake lever and setting the brake lock lever.
b

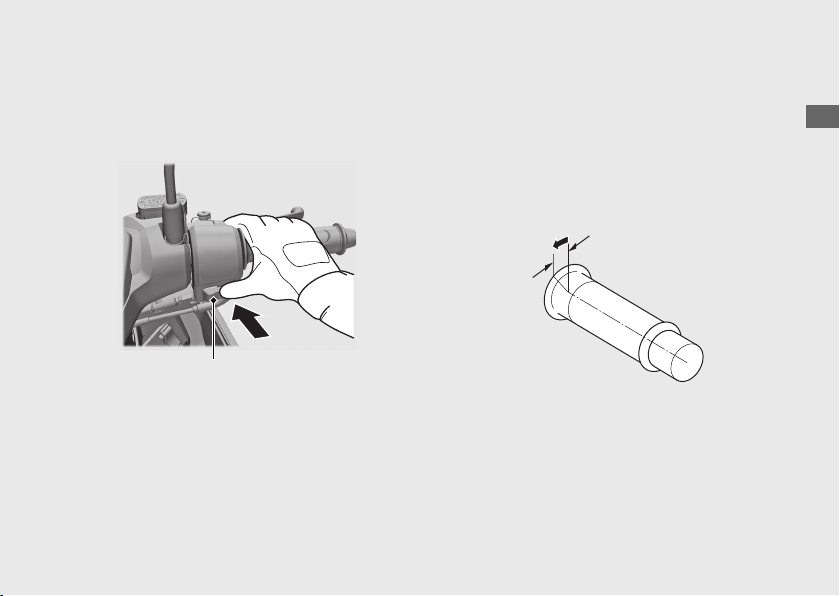

With the throttle slightly open (about 3 mm, without freeplay), press the start button.
About 3 mm, without freeplay
Operation Guide
Continued
39
Starting the Engine (Continued)
If the engine does not start:
a
Open the throttle fully and press the start
Operation Guide
button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly if idling is unstable.
d
If the engine does not start, wait 10 seconds before trying steps a - c again.
If Engine Will Not Start (P.83)
#
40
Riding
Starting the Vehicle
a
Push the vehicle forward off the centre stand.
u Lock the rear brake lock. u Keep throttle closed.
Make sure the side stand and centre stand are up.
b
Get on the vehicle.
u Mount the vehicle from the left side,
keeping at least one foot on the ground.
c
Release the rear brake lock.
d
Acceleration and deceleration
To accelerate: Open the throttle slowly. To decelerate: Close the throttle.
Open (Accelerate)
Close (Decelerate)
Operation Guide
Continued
41
Riding (Continued)

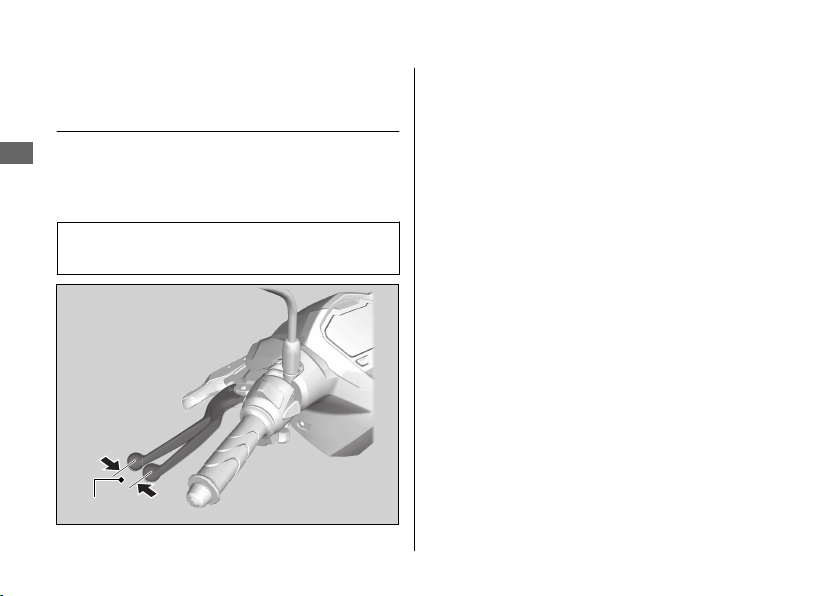

Braking
Close the throttle and apply the front and rear brake levers together.
Operation Guide
Do not apply the brake lock while riding. It may cause the wheel to lock, reducing control of the vehicle.
Rear brake lever Front brake lever
42
Refuelling
Fuel type: Unleaded petrol only Fuel octane number: Your vehicle is
designed to use Research Octane Number (RON) 91 or higher.
Tank capacity: 5.5 L (1.45 US gal, 1.21 Imp gal)
Refuelling and Fuel Guidelines (P.14)
#
Arrow marks
Lower edge of filler neck
Operation Guide
Opening the Fuel Fill Cap
a
Open the seat (P.47)
b
Turn the fuel fill cap counterclockwise until it stops and remove the cap.
Fuel fill cap
Do not fill with fuel above the lower edge of the filler neck.
Continued
43
Refuelling (Continued)
Closing the Fuel Fill Cap
a
Install and tighten the fuel fill cap firmly by
Operation Guide
turning it clockwise.
u Make sure that the arrow marks on the
fuel fill cap and fuel tank are aligned.
b
Close the seat.
3WARNING
Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
Stop the engine, and keep heat,
sparks, and flames away.
Only handle fuel outdoors.
Wipe up spills immediately.
44
USB Socket
The USB socket is located in the front box. Use USB devices at your own risk. In no event shall Honda be liable for any damage to your USB device when in use.
Only USB devices within the following specifications can be connected. USB type-A connectors can be used. Rated capacity is
10.5 W (5 V, 2.1 A)..
u The USB socket is for charging only.
Do not connect USB devices that exceed the rated capacity. They may not be charged or work properly even if connected. For information on usage or malfunction of the USB device you connect, refer to its instruction manual.
To connect your USB device
a
Open the front box lid. (P.51)
b
Open the cover to access the USB socket.
Cover
USB socket
Operation Guide
Continued
45
USB Socket (Continued)
c
Connect a certified USB cable to the USB socket.
u To prevent the battery from becoming weak
Operation Guide
(or dead), keep the engine running while drawing current from the USB socket.
u To prevent entry of foreign matter into the
USB socket, be sure to close the cover when the USB socket is not used.
u Carefully secure all connected devices, as
vibration may cause damage to them or they could shift unexpectedly.
NOTICE
Using any heat-generating USB devices or
improperly rated USB devices can damage the USB socket.
Do not use the USB socket in wet conditions,
when or while washing or any other wet conditions as these will damage the USB socket. Do not allow the USB's harness to become
pinched or trapped.
46
Storage Equipment
Seat
SEAT
Ignition key SEAT
Seat opener switch
Seat Open
a
Turn the handlebar pointed straight ahead.
b
Insert the ignition key and turn it to the SEAT position.
c
Push the SEAT side of the seat opener switch.
d
Open the seat.
Seat Close
Close and push down on the rear of the seat until it locks. Make sure that the seat is locked securely by pulling it up lightly. Take care not to lock your key in the compartment under the seat.
Operation Guide
Continued
47
Storage Equipment (Continued)
Helmet Holder
The helmet holders are located under the seat.
Operation Guide
u Use the helmet holders only when parked.
Helmet holders
48
3WARNING
Riding with a helmet attached to the holder can interfere with your ability to safely operate the vehicle and could lead to a crash in which you can be seriously hurt or killed.
Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.
A helmet can be stored in the centre compartment. Set in the front of the helmet forward.
u Some helmets may not fit in the
compartment due to their size or design.
Helmet
Centre compartment
Centre compartment
Never exceed the maximum weight limit. Maximum Weight: 10 kg (22 lb)
u Do not store any items that are flammable
or susceptible to heat damage.
u Do not store valuables or fragile articles.
Operation Guide
Continued
49
Storage Equipment (Continued)
Document Bag
The document bag is in the document compartment in the reverse side of the seat.
Operation Guide
Tool
The tools are in the reverse side of the seat.
Document bag
Document compartment
50
Tools
Front Box
Front box lid
Open
#
Push the front box lid, then open the front box lid.
Close
#
Close the front box lid by pressing the front box lid.
The maximum allowable load on the hook and in the front box and inner rack shall be no more than
1.5 kg (3.3 lb). Make sure that the front box lid is closed securely.
Do not store valuables or fragile articles.
u
Operation Guide
Continued
51
Storage Equipment (Continued)
Hook/Inner Rack
The hook and inner rack are provided below the handlebar.
Operation Guide
u Do not attach large luggage to the hook
that would hang out from the vehicle and/or interfere with the movement of your feet.
Hook Inner rack
52
The maximum allowable load on the hook and in the front box and inner rack shall be no more than
1.5 kg (3.3 lb).
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
Importance of Maintenance ........................... P. 54
Maintenance Schedule..................................... P. 55
Maintenance Fundamentals ...........................P. 58
Tools ..................................................................... P. 67
Removing & Installing Body Components..P. 68
Battery.................................................................... P. 68
Engine Oil ............................................................ P. 70
Coolant................................................................. P. 72
Brakes................................................................... P. 74
Side Stand ...........................................................P. 80
Throttle ................................................................P. 81
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is absolutely essential to your safety and to protect your investment, obtain maximum
Maintenance
performance, avoid breakdowns, and reduce air pollution. Maintenance is the owner's responsibility. Be sure to inspect your vehicle before each ride and perform the periodic checks specified in the Maintenance Schedule.
2 P. 55
3WARNING
Improperly maintaining your vehicle or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed.
Always follow the inspection and maintenance recommendations and schedules in this owner's manual.
54
Maintenance Safety
Always read the maintenance instructions before you begin each task and make sure that you have the tools, parts, and skills required. We cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.
Follow these guidelines when performing maintenance.
Stop the engine and remove the key.
Place your vehicle on a firm, level surface using the side stand, centre stand or a maintenance stand to provide support.
Allow the engine, muffler, brakes, and other high-temperature parts to cool before servicing as you can get burned.
Run the engine only when instructed, and do so in a well-ventilated area.
Maintenance Schedule
The maintenance schedule specifies the maintenance requirements necessary to ensure safe, dependable performance, and proper emission control.
Maintenance work should be performed in accordance with Honda's standards and specifications by properly trained and equipped technicians. Your dealer meets all of these requirements. Keep an accurate record of maintenance to help ensure that your vehicle is properly maintained. Make sure that whomever performs the maintenance completes this record.
All scheduled maintenance is considered a normal owner operating cost and will be charged to you by your dealer. Retain all receipts. If you sell the vehicle, these receipts should be transferred with the vehicle to the new owner.
Honda recommends that your dealer should road test your vehicle after each periodic maintenance is carried out.
Continued
Maintenance
55

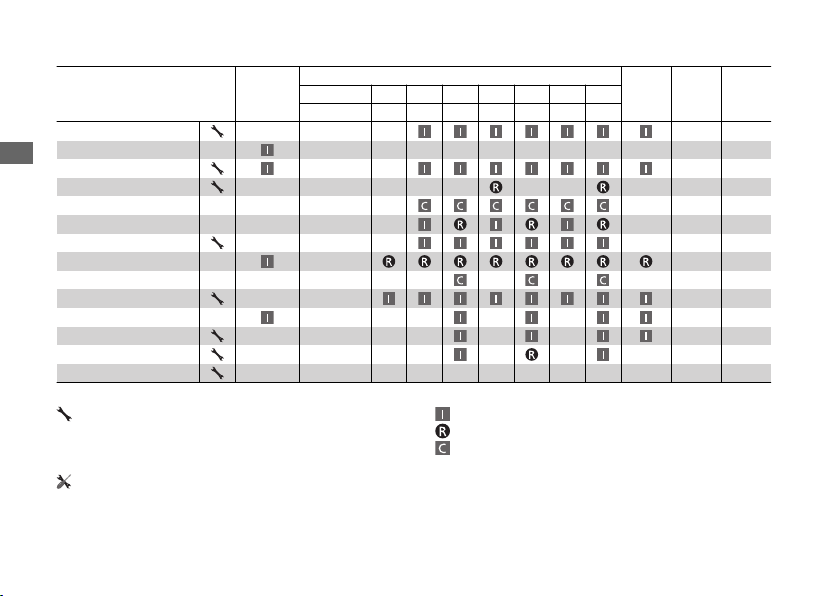

Maintenance Schedule
*1
Items
Fuel Line
Fuel Level 43
Maintenance
Throttle Operation 81
Air Cleaner
Crankcase Breather
Spark Plug
Valve Clearance
Engine Oil
Engine Oil Strainer Screen
Engine Idle Speed
Radiator Coolant
Cooling System
Drive Belt
Final Drive Oil
*2
*3
*4
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 58
× 1,000 mi 0.6 4 8 12 16 20 24
Frequency
Annual
Check
Maintenance Level Maintenance Legend
:
Intermediate. We recommend service by your dealer, unless you have the necessary tools and are mechanically skilled.
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
:
Replace
:
Clean
Procedures are provided in an official Honda Shop Manual.
:
Technical. In the interest of safety, have your vehicle serviced by your dealer.
56
Regular
Refer to
Replace
page
3 Years 72
2 Years
Maintenance Schedule
*1
Items
Brake Fluid
Brake Shoes/Pads Wear
Brake System 58
Brake Lock Operation 36
Headlight Aim
Lights/Horn
Clutch Shoes Wear
Side Stand 80
Suspension
Nuts, Bolts, Fasteners
Wheels/Tyres 64
Steering Head Bearings
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 58
× 1,000 mi 0.6 4 8 12 16 20 24
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : Replacement requires mechanical skill.
Frequency
Annual
Check
Regular
Refer to
Replace
page
2 Years 74
75, 79
Maintenance
57
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to perform a pre-ride inspection and make sure that any problem you find is corrected. A pre-
Maintenance
ride inspection is a must, not only for safety, but because having a breakdown, or even a flat tyre, can be a major inconvenience.
Check the following items before you get on your vehicle:
Fuel level - Fill fuel tank when necessary
2 P. 43
Throttle - Check for smooth opening and full closing in all steering positions 2 P. 81
Engine oil level - Add engine oil if necessary. Check for leaks 2 P. 70
Coolant level - Add coolant if required. Check for leaks 2 P. 72
58

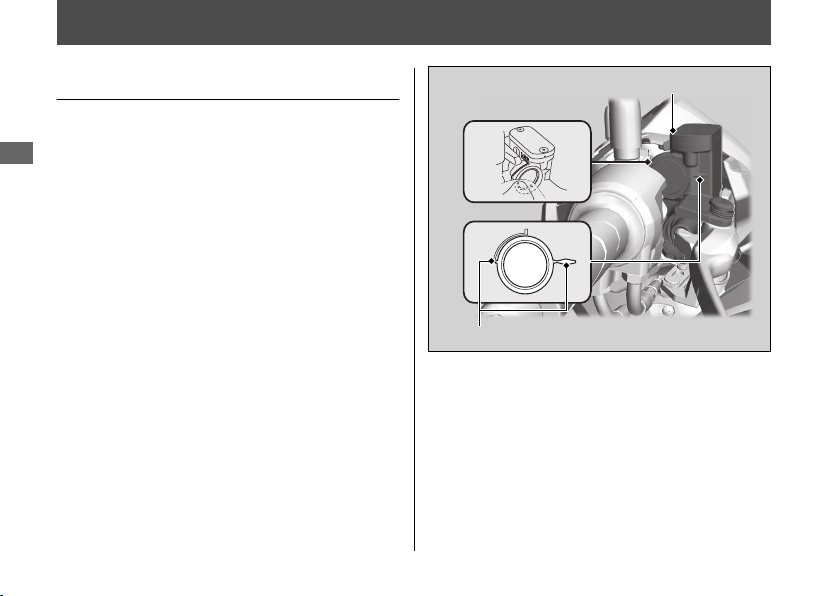

Brakes - Check operation;

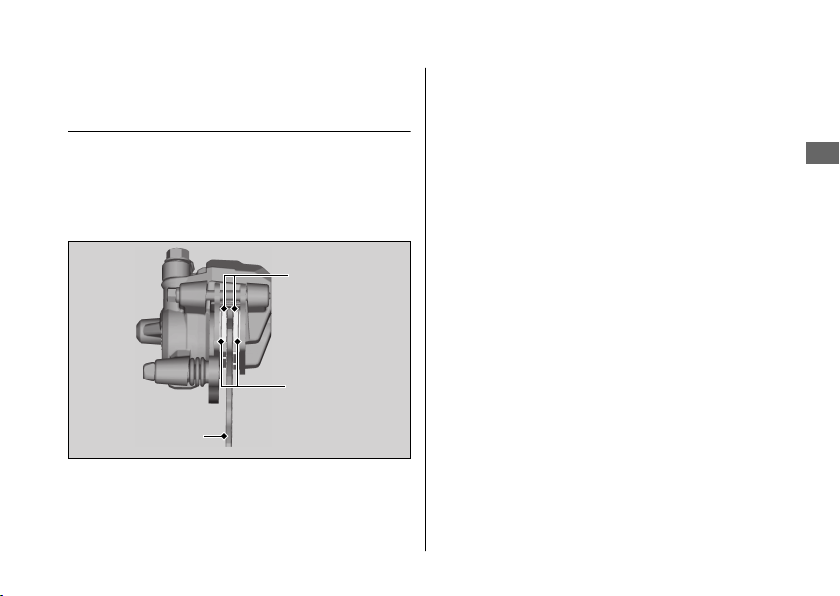

Front: check brake fluid level and pads wear
2 P. 74, 2 P. 75
Rear: check shoes wear and freeplay, adjust if necessary 2 P. 79, 2 P. 76
Lights and horn - Check that lights,
indicators and horn function properly
Side stand ignition cut-off system - Check
for proper function 2 P. 80
Wheels and tyres - Check condition, air
pressure and adjust if necessary 2 P. 64
Maintenance Fundamentals
Replacing Parts
Always use Honda Genuine Parts or their equivalents to ensure reliability and safety.
3WARNING
Installing non-Honda parts may make your vehicle unsafe and cause a crash in which you can be seriously hurt or killed.
Always use Honda Genuine Parts or equivalents that have been designed and approved for your vehicle.
Battery
Your vehicle has a maintenance-free type battery. You do not have to check the battery electrolyte level or add distilled water. Clean the battery terminals if they become dirty or corroded. Do not remove the battery cap seals. There is no need to remove the cap when charging.
NOTICE
Your battery is a maintenance-free type and can be permanently damaged if the cap strip is removed.
Continued
Maintenance
59
Maintenance Fundamentals
NOTICE
An improperly disposed of battery can be harmful to the environment and human health. Always confirm local regulations for proper battery disposal instruction.
Maintenance
What to do in an emergency
#
If any of the following occur, immediately see your doctor.
Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water under pressure can damage your eyes.
Electrolyte splashes onto your skin:
Remove affected clothing and wash your
u
skin thoroughly using water.
Electrolyte splashes into your mouth:
Rinse mouth thoroughly with water, and
u
do not swallow.
60
3WARNING
The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.
Wear protective clothing and a face shield, or have a skilled mechanic do the battery servicing.

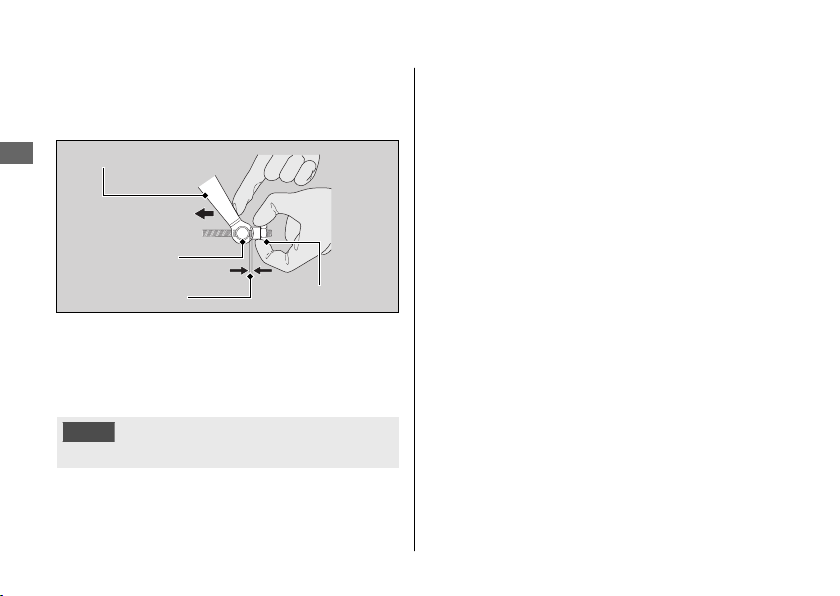

Cleaning the Battery Terminals
#
1.
Remove the battery. 2 P. 68
2.
If the terminals are starting to corrode and are coated with a white substance, wash with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean and polish the terminals with a wire brush or sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your dealer about when you should replace the battery. Always replace the battery with another maintenance-free battery of the same type.
NOTICE
Installing non-Honda electrical accessories can overload the electrical system, discharging the battery and possibly damaging the system.
Maintenance Fundamentals

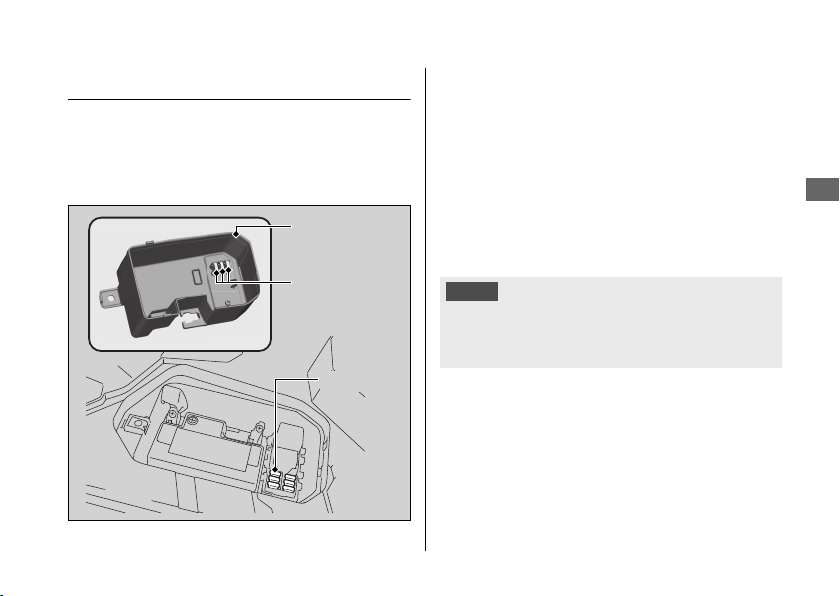

Fuses
Fuses protect the electrical circuits on your vehicle. If something electrical on your vehicle stops working, check for and replace any blown fuses. 2 P. 89
Inspecting and Replacing Fuses
#
Turn the ignition switch to the (Off) position to remove and inspect fuses. If a fuse is blown, replace with a fuse of the same rating. For fuse ratings, see “Specifications.” 2 P. 104
Blown fuses
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system.
Maintenance
Continued
61
MB
Maintenance Fundamentals
If a fuse fails repeatedly, you likely have an electrical fault. Have your vehicle inspected by your dealer.
Engine Oil
Maintenance
Engine oil consumption varies and oil quality deteriorates according to riding conditions and time elapsed. Check the engine oil level regularly, and add the recommended engine oil if necessary. Dirty oil or old oil should be changed as soon as possible.
Selecting the Engine Oil
#
For recommended engine oil, see “Specifications.”2 P. 103 If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards:
JASO T 903 standard*1: MB
SAE standard*2: 10W-30
API classification*3: SJ or higher
62
*1.
The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. For example, the following label shows the MB classification.
Oil code
Oil classification
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and performance rating of engine oils. Use SJ or higher oils, excluding oils marked as “Energy Conserving” or “Resource Conserving” on the circular API service symbol.
Not recommended Recommended
Maintenance Fundamentals
Brake Fluid
Do not add or replace brake fluid, except in an emergency. Use only fresh brake fluid from a sealed container. If you do add fluid, have the brake system serviced by your dealer as soon as possible.
NOTICE
Brake fluid can damage plastic and painted surfaces. Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 3 or DOT 4 Brake Fluid or equivalent
Recommended Coolant
Use only genuine HONDA PRE-MIX COOLANT without diluting with water. Genuine HONDA PRE-MIX COOLANT is excellent at preventing corrosion and overheating. The coolant should be inspected and replaced properly by following the maintenance schedule. 2 P. 55
NOTICE
Using coolant not specified for aluminium engines or tap/mineral water can cause corrosion.
Maintenance
63
Maintenance Fundamentals
Crankcase Breather

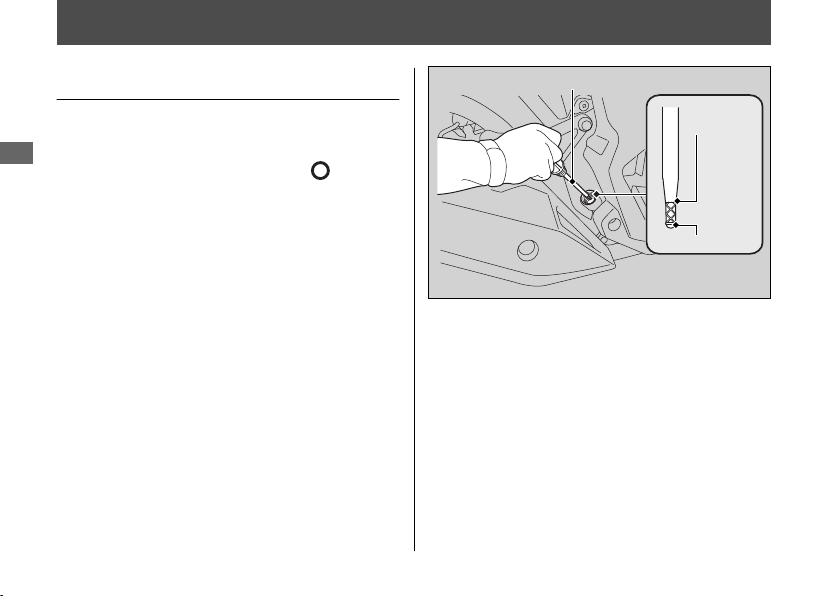

Service more frequently when riding in rain, at full throttle, or after the vehicle is washed or overturned. Service if the deposit level can be
Maintenance
seen in the transparent section of the drain tube. If the drain tube overflows, the air filter may become contaminated with engine oil, causing poor engine performance.
Tyres (Inspecting/Replacing)
Checking the Air Pressure
#
Visually inspect your tyres and use an air pressure gauge to measure the air pressure at least once a month or any time you think the tyres look low. Always check air pressure when your tyres are cold.
64
Inspecting for Damage
#
Inspect the tyres for cuts, slits, or cracks that expose fabric or cords, or nails or other foreign objects embedded in the side of the tyre or the tread. Also inspect for any unusual bumps or bulges in the side walls of the tyres.
Inspecting for Abnormal Wear
#
Inspect the tyres for signs of abnormal wear on the contact surface.
Inspecting Tread Depth
#
Inspect the tread wear indicators. If they become visible, replace the tyres immediately.
or TWI
Wear indicator location mark
Maintenance Fundamentals
3WARNING
Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding tyre inflation and maintenance.
Maintenance
Continued
65
Maintenance Fundamentals
Have your tyres replaced by your dealer. For recommended tyres and air pressure, see “Specifications.” 2 P. 103 Follow these guidelines whenever you replace tyres:
Maintenance
Use the recommended tyres or their
equivalents of the same size, construction, speed rating, and load range.
Do not install a tube inside a tubeless tyre
on this vehicle. Excessive heat build-up can cause the tube to burst.
Use only tubeless tyres on this vehicle.
The rims are designed for tubeless tyres, and during hard acceleration or braking, a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.
66
3WARNING
Installing improper tyres on your vehicle can adversely affect handling and stability, and can cause a crash in which you can be seriously hurt or killed.
Always use the size and type of tyres recommended in this owner's manual.
Tools
The tools are in the reverse side of the seat.
2 P. 50
You can perform some roadside repairs, minor adjustments and parts replacement with the provided tools.
Spark plug wrench
Standard/Phillips screwdriver
Screwdriver handle
Maintenance
67
Removing & Installing Body Components
Battery
Screw Battery lid
Maintenance
Service coupler
Battery cover
68
Battery cover guide
Negative terminalPositive terminal
Battery
Battery box
Removal
#
Make sure the ignition switch is in the
(Off) position.
1.
Remove the battery lid from step floor by removing the screw.
2.
Remove the service coupler from the battery cover guide.
3.
Remove the battery cover. Disconnect the negative - terminal from
4.
the battery.
5.
Disconnect the positive + terminal from the battery.
6.
Remove the battery, taking care not to drop the terminal nuts.
Removing & Installing Body Components u Battery
Installation
#
Install the parts in the reverse order of removal. Always connect the positive +
terminal first. Make sure bolts and nuts are tight. Make sure the clock information is correct after the battery is reconnected. 2 P. 28
For proper handling of the battery, see “Maintenance Fundamentals.” 2 P. 59 “Battery Goes Dead.” 2 P. 88
Maintenance
69
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
Maintenance
to 5 minutes.
2.
Turn the ignition switch to the (Off) position and wait for 2 to 3 minutes.
3.
Place your vehicle on its centre stand on a firm, level surface. Remove the oil fill cap/dipstick and wipe it
4.
clean.
5.
Insert the oil fill cap/dipstick until it seats, but don't screw it in. Check that the oil level is between the
6.
upper level and lower level marks on the oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
70
Oil fill cap/dipstick
Upper level
Lower level
Engine Oil u Adding Engine Oil
Adding Engine Oil
If the engine oil is below or near the lower level mark, add the recommended engine oil.
2 P. 62, 2 P. 103
1.
Remove the oil fill cap/dipstick. Add the recommended oil until it reaches the upper level mark.
u Place your vehicle on its centre stand
on a firm, level surface when checking the oil level. Do not overfill above the upper level
u
mark.
u
Make sure no foreign objects enter the oil filler opening. Wipe up any spills immediately.
u
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient oil can cause damage to your engine. Do not mix different brands and grades of oil.
For the recommended oil and oil selection guidelines, see “Maintenance Fundamentals.”
2 P. 62
Maintenance
71
Coolant
Checking the Coolant
Check the coolant level in the reserve tank while the engine is cold.
Maintenance
1.
Place your vehicle on its centre stand on a firm, level surface.
2.
Check that the coolant level is between the UPPER level and LOWER level marks on the reserve tank.
UPPER level mark
LOWER level mark
72
Reserve tank
If the coolant level is dropping noticeably or the reserve tank is empty, you likely have a serious leak. Have your vehicle inspected by your dealer.

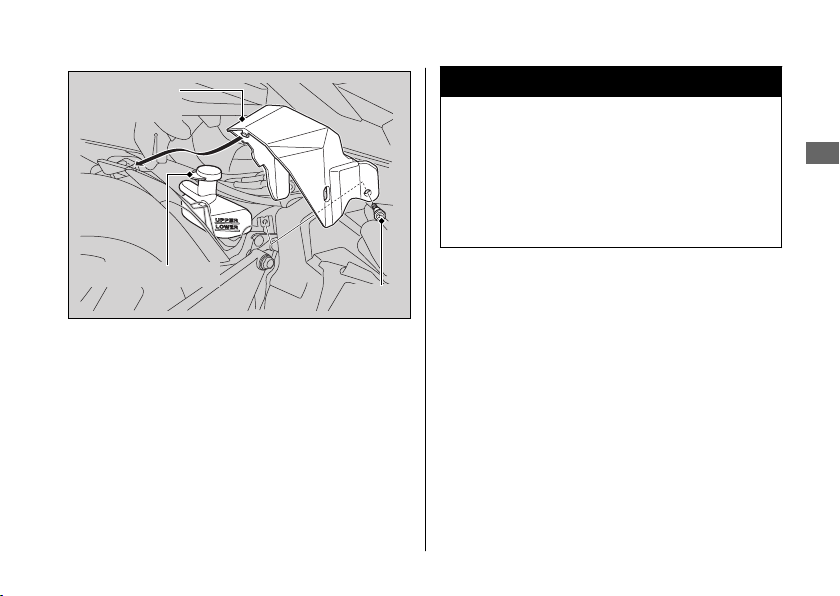

Adding Coolant
If the coolant level is below the LOWER level mark, add the recommended coolant (2 P. 63) until the level reaches the UPPER level mark. Add fluid only from the reserve tank cap and do not remove the radiator cap.
1.
Remove the reserve tank cover by removing the screw.
2.
Remove the reserve tank cap and add fluid while monitoring the coolant level.
Do not overfill above the UPPER level
u
mark. Make sure no foreign objects enter the
u
reserve tank opening.
Coolant u Adding Coolant
Reserve tank cover
Reserve tank cap
3.
Securely reinstall the reserve tank cap.
4.
Install the parts in the reverse order of removal.
Screw
3WARNING
Removing the radiator cap while the engine is hot can cause the coolant to spray out, potentially scalding you.
Always let the engine and radiator cool down before removing the radiator cap.
Maintenance
73
Brakes
Checking the Front Brake Fluid
1.
Place your vehicle in an upright position
Maintenance
on a firm, level surface.
2.
Check that the brake fluid reservoir is horizontal and that the fluid level is above the LWR mark.
If the brake fluid level in the reservoir is below the LWR mark or the brake levers freeplay becomes excessive, inspect the brake pads for wear. If the brake pads are not worn, you most likely have a leak. Have your vehicle inspected by your dealer.
74
Front brake fluid reservoir
LWR mark
Brakes u Inspecting the Front Brake Pads
Inspecting the Front Brake Pads
Check the condition of the brake pad wear indicators. The pads need to be replaced if a brake pad is worn to the indicator.
Brake pads
Wear indicators
Disc
Inspect the brake pads from below the brake caliper.
If necessary, have the pads replaced by your dealer. Always replace both left and right brake pads at the same time.
Maintenance
75
Brakes u Inspecting the Rear Brake Lever Freeplay
Inspecting the Rear Brake Lever Freeplay
1.
Maintenance
Place the vehicle on its centre stand.
2.
Measure the distance the rear brake lever moves before the brake takes hold.
Freeplay at the tip of the brake lever:
10 - 20 mm (0.4 - 0.8 in)
Freeplay
76
Check the brake cable for kinks or signs of wear. If necessary, have it replaced by your dealer. Lubricate the brake cable with a commercially available cable lubricant to prevent premature wear and corrosion. Make sure the brake arm, spring and fastener are in good condition.
Adjusting the Rear Brake Lever Freeplay
Adjust the freeplay of the brake lever with the front wheel pointed straight ahead. Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting the freeplay.
Brake arm pin
If proper adjustment cannot be obtained by this method, see your dealer.
Adjusting nut
Brakes u Adjusting the Rear Brake Lever Freeplay
1.
Adjust by turning the rear brake adjusting nut a half-turn at a time.
Brake arm pin
Increase Freeplay
Decrease Freeplay
Adjusting nut
Apply the brake several times and check
2.
for free wheel rotation after the brake lever is released.
Maintenance
Continued
77
Brakes u Adjusting the Rear Brake Lever Freeplay
3.
Push the brake arm to confirm that there is a gap between the rear brake adjusting nut and brake arm pin.
Brake arm
Maintenance
Push
Brake arm pin
Gap Adjusting nut
After adjustment, confirm the freeplay of the brake lever. Make sure the brake arm, spring and fastener are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
78
Brakes u Inspecting the Rear Brake Shoe Wear
Inspecting the Rear Brake Shoe Wear
The rear brake is equipped with a brake wear indicator.
Brake panel
Arrow
Brake arm
Reference mark
When the brake is applied, an arrow attached to the brake arm moves toward a reference mark on the brake panel. If the arrow aligns with the reference mark on full application of the brake, the brake shoes must be replaced. See your dealer for this service.
When brake service is necessary, see your dealer. Use only Honda Genuine Parts or their equivalent.
Maintenance
79
Side Stand
Checking the Side Stand
Maintenance
Side stand spring
80
1.
Place your vehicle on its centre stand on a firm, level surface. Check that the side stand operates
2.
smoothly. If the side stand is stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean grease.
3.
Check the spring for damage or loss of tension.
4.
Sit on the vehicle and raise the side stand.
5.
Start the engine.
6.
Lower the side stand all the way. The engine should stop as you lower the side stand. If the engine doesn't stop, have your vehicle inspected by your dealer.
Throttle
Checking the Throttle
With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly or close automatically, or if the cable is damaged, have the vehicle inspected by your dealer.
Freeplay at the throttle grip flange:
2 - 6 mm (0.1 - 0.2 in)
Freeplay
Flange
Maintenance
81
Troubleshooting
Engine Will Not Start........................................ P. 83
Overheating (High coolant temperature
indicator is on) ................................................. P. 84
Warning Indicators On or Flashing...............P. 85
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 85
Battery Charging Condition indicator ............P. 85
Other Warning Indications.............................. P. 86
Fuel Gauge Failure Indication...........................P. 86
Tyre Puncture ..................................................... P. 87
Electrical Trouble............................................... P. 88
Battery Goes Dead .............................................. P. 88
Burned-out Light Bulb........................................ P. 88
Blown Fuse ............................................................ P. 89
Unstable Engine Operation Occurs
Intermittently ...................................................P. 90
Engine Will Not Start
Starter Motor Operates But Engine Does Not Start
Check the following items:
Check the correct engine starting
sequence. 2 P. 37 Check that there is petrol in the fuel tank.
Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not Operate
Check the following items:
Check the correct engine starting
sequence. 2 P. 37 Check for a blown fuse. 2 P. 89
Check for a loose battery connection
(2 P. 68) or battery terminal corrosion (2 P. 59).
Check the condition of the battery.
2 P. 88
If the problem continues, have your vehicle inspected by your dealer.
Troubleshooting
83
Overheating (High coolant temperature indicator is on)
The engine is overheating when the following occurs:
High coolant temperature indicator
comes on.
Acceleration becomes sluggish.
If this occurs, pull safely to the side of the
Troubleshooting
road and perform the following procedure. Extended fast idling may cause the high coolant temperature indicator to come on.
NOTICE
Continuing to ride with an overheated engine can cause serious damage to the engine.
84
1.
Stop the engine using the ignition switch.
2.
Allow the engine to cool with the ignition switch in the (Off) position. After the engine has cooled, inspect the
3.
radiator hose and check if there is a leak.
2 P. 72
If there is a leak:
Do not start the engine. Transport your vehicle to your dealer.
4.
Check the coolant level in the reserve tank. 2 P. 72
Add coolant as necessary.
u
5.
If 1-4 check normal, you may continue riding, but closely monitor the high coolant temperature indicator.
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)
If the indicator comes on while riding, you may have a serious problem with the PGM-FI system. Reduce speed and have your vehicle inspected by your dealer as soon as possible.
Battery Charging Condition indicator
If the indicator comes on while riding, you may have a condition of low battery voltage or battery performance degradation. Have your vehicle inspected by your dealer.
u If the battery does not have enough
voltage to drive the indicator system, the indicator may not come on.
Troubleshooting
85
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustrations. If this occurs, see your dealer as soon as
Troubleshooting
possible.
86
Tyre Puncture
Repairing a puncture or removing a wheel requires special tools and technical expertise. We recommend you have this type of service performed by your dealer. After an emergency repair, always have the tyre inspected/replaced by your dealer.
Emergency Repair Using a Tyre Repair Kit
If your tyre has a minor puncture, you can make an emergency repair using a tubeless tyre repair kit. Follow the instructions provided with the emergency tyre repair kit.
Riding your vehicle with a temporary tyre repair is very risky. Do not exceed 50 km/h (30 mph). Have the tyre replaced by your dealer as soon as possible.
3WARNING
Riding your vehicle with a temporary tyre repair can be risky. If the temporary repair fails, you can crash and be seriously injured or killed.
Troubleshooting
If you must ride with a temporary tyre repair, ride slowly and carefully and do not exceed 50 km/h (30 mph) until the tyre is replaced.
87
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle battery charger. Remove the battery from the vehicle before charging.
Troubleshooting
Do not use an automobile-type battery charger, as these can overheat a motorcycle battery and cause permanent damage. If the battery does not recover after recharging, contact your dealer.
NOTICE
Jump starting using an automobile battery can damage your vehicle's electrical system and is not recommended.
88
Burned-out Light Bulb
All light bulbs on the vehicle are LEDs. If there is an LED which is not turned on, see your dealer for servicing.
Blown Fuse
Before handling fuses, see “Inspecting and Replacing Fuses.” 2 P. 61
Fuse Box Fuses
#
Battery cover
Spare fuses
Main fuse
Electrical Trouble u Blown Fuse
1.
Remove the battery lid and the battery cover from the step floor. 2 P. 68 Pull the fuses out one by one check for
2.
blown fuse. Always replace a blown fuse with a spare fuse of the same rating.
u Spare fuses are provided on back side
of the battery cover.
3.
Install the battery lid and the battery cover.
NOTICE
If a fuse fails repeatedly, you likely have an electrical problem. Have your vehicle inspected by your dealer.
Troubleshooting
89
Unstable Engine Operation Occurs Intermittently
If the fuel pump filter is clogged, unstable engine operation will occur intermittently while riding. Even if this symptom occurs, you can continue to ride your vehicle.
If unstable engine operation occurs even if
Troubleshooting
sufficient fuel is available, have your vehicle inspected by your dealer as soon as possible.
90
Information
Keys....................................................................... P. 92
Instruments, Controls, & Other Features..... P. 92
Caring for Your Vehicle.................................... P. 93
Storing Your Vehicle.........................................P. 96
Transporting Your Vehicle ..............................P. 97
You & the Environment.................................... P. 98
Serial Numbers................................................... P. 99
Fuels Containing Alcohol ..............................P. 100
Catalytic Converter .........................................P. 101
Keys
Keys
Ignition Key
Be sure to record the key number provided with the original keys. Store the spare key and key number in a safe location. To make a duplicate, take the spare key or the key number to your dealer.
Information
If you lose all ignition keys and the key number, the ignition switch and key shutter set will need to be replaced.
A metal key holder may cause damage to the area surrounding the ignition switch.
92
Instruments, Controls, & Other Features
Ignition Switch
Leaving the ignition switch in the (On) position with the engine stopped will drain the battery.
Do not turn the key while riding.
Odometer
The display remains at 999,999 when the odometer exceeds 999,999.
Tripmeter
Each tripmeter resets to 0.0 when the trip mileage exceeds 999.9.
Caring for Your Vehicle
Document Bag
The owner’s manual, registration, and insurance information can be stored in the plastic document bag located in the reverse side of the seat.
Caring for Your Vehicle
Frequent cleaning and polishing is important to ensure the life of your Honda. A clean vehicle makes it easier to spot potential problems. In particular, seawater and salts used to prevent ice on roads promote the formation of corrosion. Always wash your vehicle thoroughly after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel with mild cleaner to remove road grime.
u Clean the windscreen, headlight lens,
panels, and other plastic components with extra care to avoid scratching them. Avoid directing water into the air cleaner, muffler, and electrical parts.
Continued
Information
93
Caring for Your Vehicle
3.
Thoroughly rinse your vehicle with plenty of clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving parts.
u Make sure that no lubricant spills onto
the brakes or tyres. Brake discs, pads, drum or shoes contaminated with oil will
Information
suffer greatly reduced braking effectiveness and can lead to a crash.
5.
Apply a coat of wax to prevent corrosion.
u
Avoid products that contain harsh detergents or chemical solvents. These can damage the metal, paint, and plastic on your vehicle. Keep the wax clear of the tyres and brakes.
u If your vehicle has any mat painted parts,
do not apply a coat of wax to the mat painted surface.
94
Washing Precautions
#
Follow these guidelines when washing:
Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air cleaner.
Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the brakes intermittently at low speed to help dry them.
Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other belongings.
Caring for Your Vehicle
Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding in the rain. This does not impact the headlight function. However, if you see a large amount of water or ice accumulated inside the lens(es), have your vehicle inspected by your dealer.
Do not use wax or polishing compounds on mat painted surfaces:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean mat painted surfaces. Dry with a soft clean cloth.
Aluminium Components
Aluminium will corrode from contact with dirt, mud, or road salt. Clean aluminium parts regularly and follow these guidelines to avoid scratches:
Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches and blemishes:
Wash gently using a soft sponge and plenty
of water.
To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty of water.
Avoid getting petrol, brake fluid, or
detergents on the instruments, panels, or headlight.
Continued
Information
95
Storing Your Vehicle
Exhaust Pipe and Muffler
If the exhaust pipe and muffler are painted, do not use a commercially available abrasive kitchen cleaning compound. Use a neutral detergent to clean the painted surface on the exhaust pipe and muffler. If you are not sure if your exhaust pipe and muffler are painted, contact your dealer.
Information
96
Storing Your Vehicle
If you store your vehicle outdoors, you should consider using a full-body cover. If you won't be riding for an extended period, follow these guidelines:
Wash your vehicle and wax all painted
surfaces (except mat painted surfaces). Coat chrome pieces with rust-inhibiting oil.
Place your vehicle on its centre stand and
position a block so that both tyres are off the ground.
After rain, remove the body cover and allow the vehicle to dry.
Remove the battery (2 P. 68) to prevent discharge. Fully charge the battery and then place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to prevent discharge.
After removing your vehicle from storage, inspect all maintenance items required by the Maintenance Schedule.
Loading...
