OWNER’S MANUAL
CB125F/CBF125M
Page 2
This manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is resold.
This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.
No part of this publication may be reproduced without written permission.
The vehicle pictured in this owner’s manual may not match your actual vehicle.
© 2020 Honda Motor Co., Ltd.
Page 3
Welcome
Congratulations on your purchase of a new Honda vehicle. Your selection of a Honda makes you part of a worldwide family of satisfied customers who appreciate Honda's reputation for building quality into every product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the vehicle.
● The following code in this manual
indicates the country.
Country Code Code
Country
CBF125M
ED
European direct sales
Page 4
A Few Words About Safety
Your safety, and the safety of others, is very important. Operating this vehicle safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on safety labels and in this manual. This information alerts you to potential hazards that could hurt you or others. Of course, it is not practical or possible to warn you about all hazards associated with operating or maintaining a vehicle. You must use your own good judgement.
You will find important safety information in a variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert symbol and one of three signal words: DANGER, WARNING, or CAUTION. These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow instructions.
Other important information is provided under the following titles:
NOTICE
Information to help you avoid damage to your vehicle, other property, or the environment.
Page 5
Contents
Vehicle Safety P. 2
Operation Guide P. 16
Maintenance P. 43
Troubleshooting P. 76
Information P. 85
Specifications P. 97
Index P. 100
Page 6
Vehicle Safety
This section contains important information for safe riding of your vehicle. Please read this section carefully.
Safety Guidelines................................................. P. 3
Image Labels......................................................... P. 6
Safety Precautions............................................. P. 10
Riding Precautions ............................................ P. 11
Accessories & Modifications........................... P. 14
Loading ................................................................ P. 15
Page 7
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective apparel significantly reduce the number and severity of head and other injuries. So always wear an approved helmet and protective apparel. 2 P. 10
Before Riding
Make sure that you are physically fit, mentally focused and free of alcohol and drugs. Check that you and your passenger are both wearing an approved helmet and protective apparel.
Instruct your passenger on holding onto the grab rail or your waist, leaning with you in turns, and keeping their feet on the footpegs, even when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice riding in a safe area to become familiar with how this vehicle works and handles, and to become accustomed to the vehicle's size and weight.
Ride Defensively
Always pay attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.
Continued
Vehicle Safety
3
Page 8
Safety Guidelines
Make Yourself Easy to See
Vehicle Safety
Make yourself more visible, especially at night, by wearing bright reflective clothing, positioning yourself so other drivers can see you, signaling before turning or changing lanes, and using your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or faster than conditions warrant. Fatigue and inattention can impair your ability to use good judgement and ride safely.
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one alcoholic drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. The same is true for drug use. Don't drink or use and ride, and don't let your friends do it either.
4
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly maintained and in safe riding condition. Inspect your vehicle before every ride and perform all recommended maintenance. Never exceed load limits (2 P. 15), and do not modify your vehicle or install accessories that would make your vehicle unsafe (2 P. 14).
If You are Involved in a Crash
Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.
Page 9
Safety Guidelines
If you decide to continue riding, first turn the ignition switch to the (Off) position, and evaluate the condition of your vehicle. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the handlebar, control levers, brakes, and wheels. Ride slowly and cautiously. Your vehicle may have suffered damage that is not immediately apparent. Have your vehicle thoroughly checked at a qualified service facility as soon as possible.
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a colourless, odorless gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death.
If you run the engine in confined or even partly enclosed area, the air you breathe could contain a dangerous amount of carbon monoxide.
Never run your vehicle inside a garage or other enclosure.
3WARNING
Running the engine of your vehicle while in an enclosed or even partially enclosed area can cause a rapid build­up of toxic carbon monoxide gas.
Breathing this colourless, odorless gas can quickly cause unconsciousness and lead to death.
Only run your vehicle's engine when it is located in a well ventilated area outdoors.
Vehicle Safety
5
Page 10
Image Labels
Image Labels
Vehicle Safety
The following pages describe the label meanings. Some labels warn you of potential hazards that could cause serious injury. Others provide important safety information. Read this information carefully and don't remove the labels.
If a label comes off or becomes hard to read, contact your dealer for a replacement.

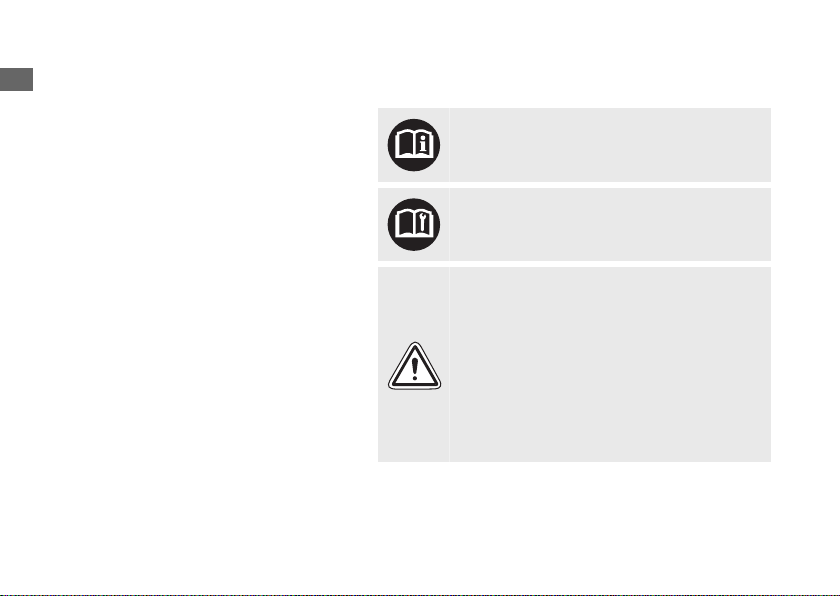

There is a specific symbol on each label. The meanings of each symbol and label are as follows.
6
Read instructions contained in Owner's Manual carefully.
Read instructions contained in Shop Manual carefully. In the interest of safety, take the vehicle to be serviced only by your dealer.
DANGER (with RED background)
You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.
WARNING (with ORANGE background)
You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.
CAUTION (with YELLOW background)
You CAN be HURT if you don't follow instructions.
Page 11
Image Labels

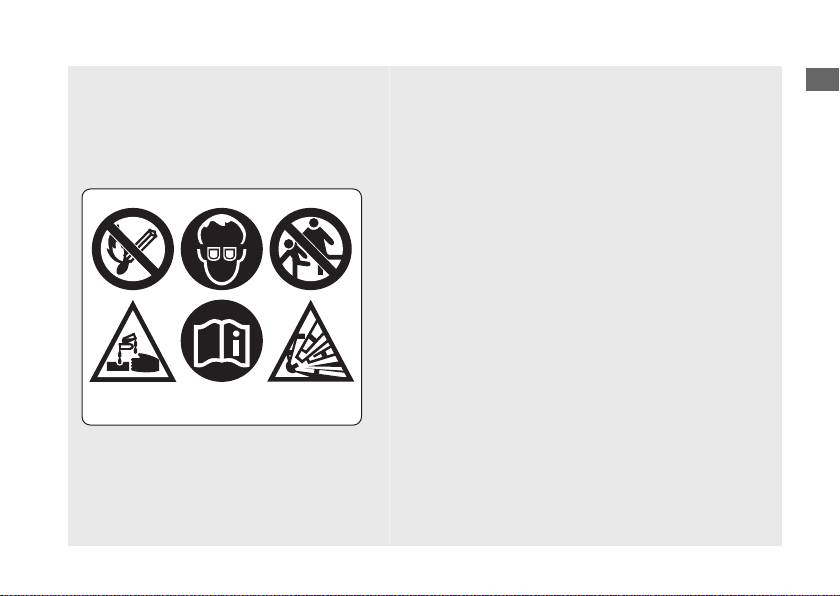

BATTERY LABEL DANGER
• Keep flame and spark away from the battery.
Battery produce explosive gas that can cause explosion.
• Wear the eye protection and rubber gloves when
handling the battery, or you can get burned or lose your eyesight by the battery electrolyte.
• Do not allow children and other people to touch a
battery unless they understand proper handling and hazards of the battery very well.
• Handle the battery electrolyte with extreme care as
it contains dilute sulfuric acid. Contact with your skin or eyes can burn you or cause loss of your eyesight.
• Read this manual carefully and understand it
before handling the battery. Neglect of the instructions can cause personal injury and damage to the vehicle.
• Do not use a battery with the electrolyte at or
below the lower level mark. It can explode causing serious injury.
Continued
Vehicle Safety
7
Page 12
Image Labels
Vehicle Safety
8

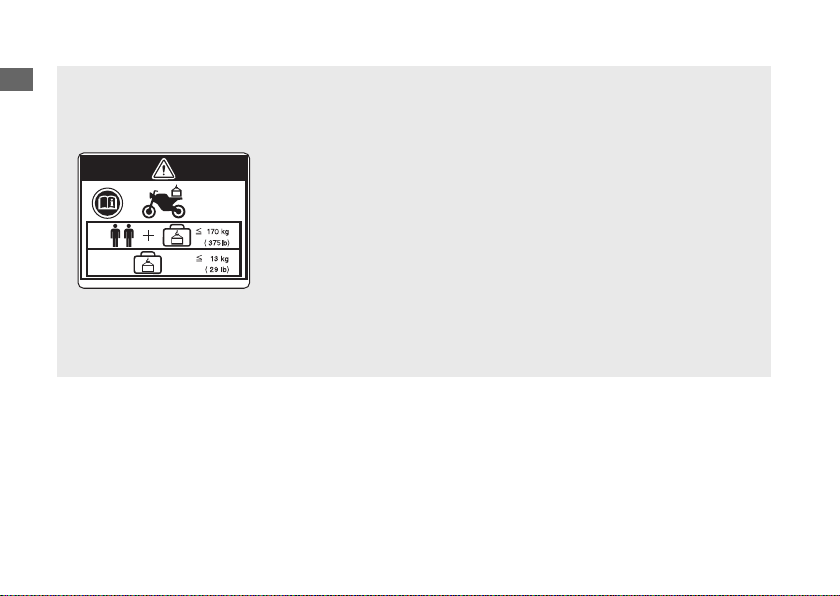

ACCESSORIES AND LOADING WARNING LABEL WARNING
ACCESSORIES AND LOADING
• The safety stability and handling of this vehicle may be affected
by the addition of accessories and luggage.
• Read carefully the instructions contained in user's manual and
installation guide before installing any accessory.
• The total weight of accessories and luggage added to rider's and
passenger's weight should not exceed 170 kg (375 lb), which is the maximum weight capacity.
• The luggage weight must not exceed 13 kg (29 lb) under any
circumstances. The fitting of large fork-mounted or large handlebar mounted
•
fairing is not recommended.
Page 13
Image Labels

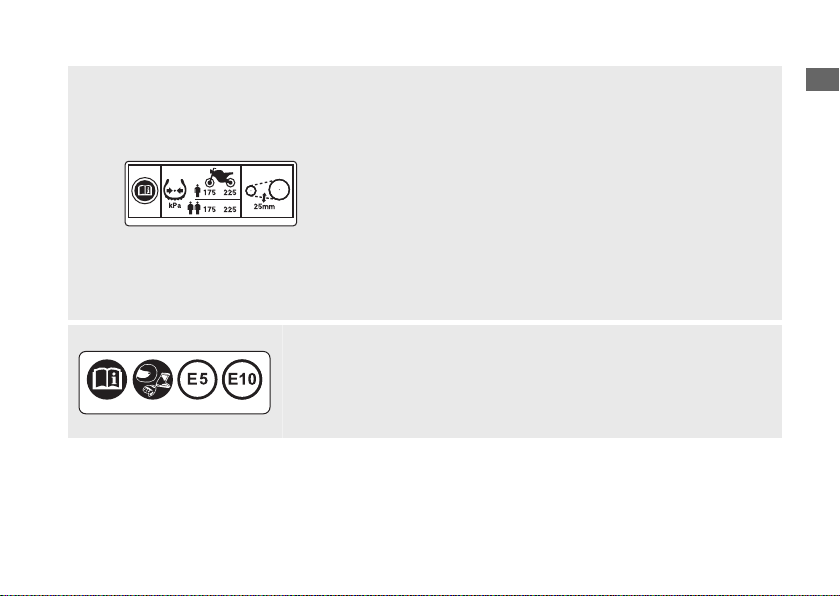

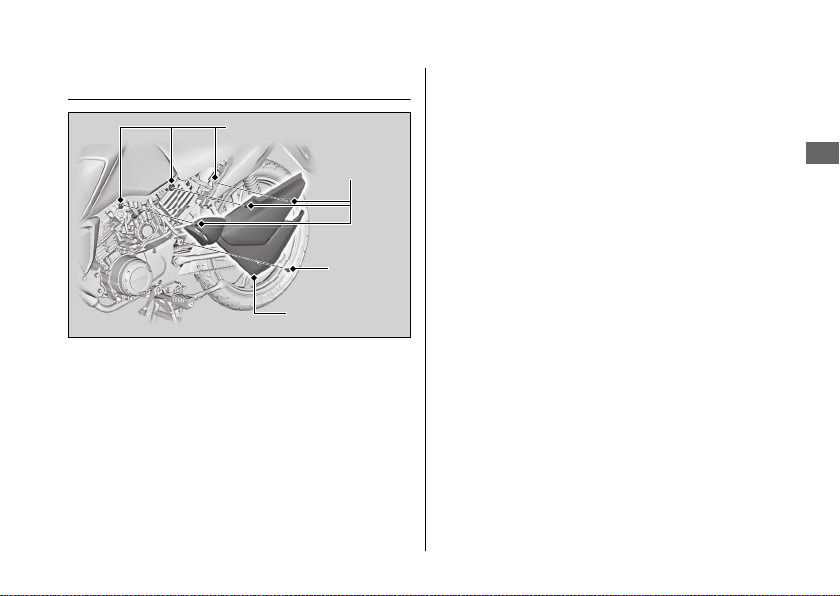

TYRE INFORMATION & DRIVE CHAIN LABEL
Cold tyre pressure: [Driver only]
Front 175 kPa (1.75 kgf/cm2, 25 psi)
Rear 225 kPa (2.25 kgf/cm2, 33 psi)
[Driver and passenger]
Front 175 kPa (1.75 kgf/cm2, 25 psi)
Rear 225 kPa (2.25 kgf/cm2, 33 psi)

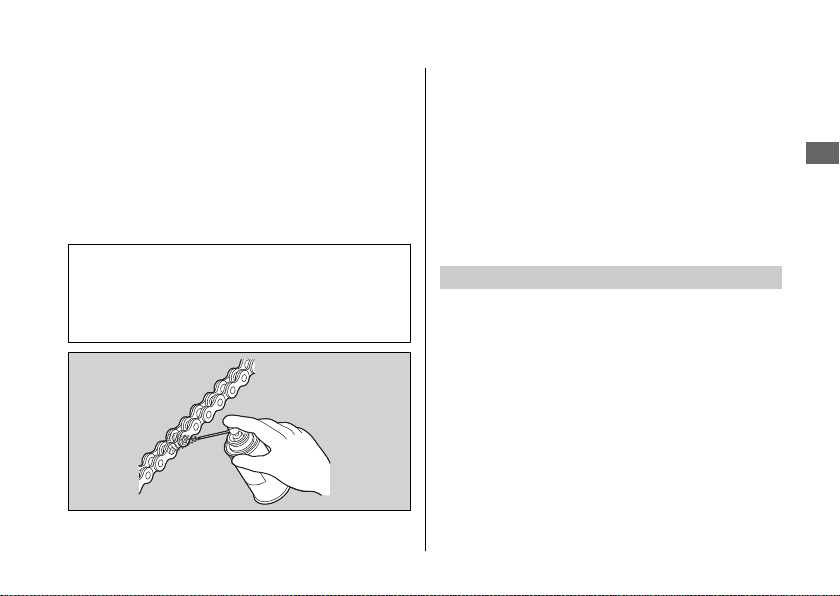

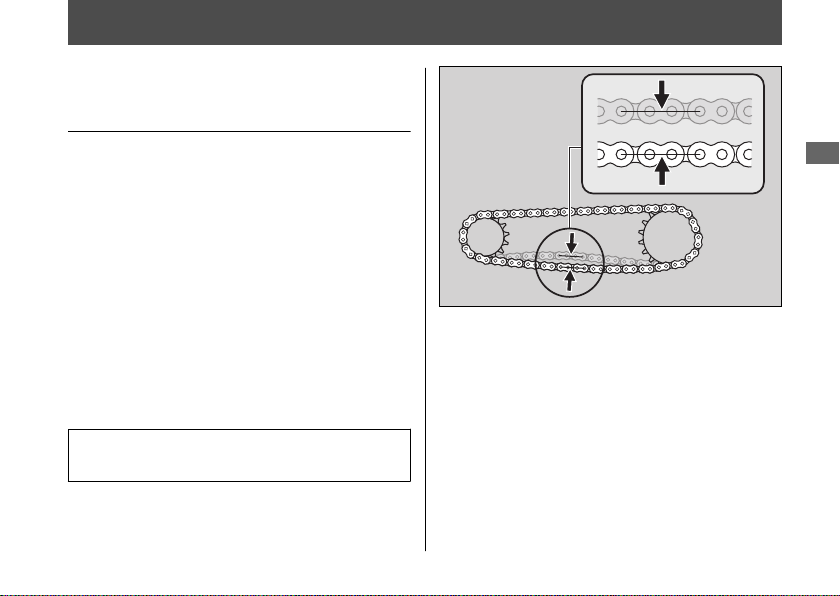

Keep chain adjusted and lubricated. Freeplay 20 - 30 mm (0.8 - 1.2 in)
SAFETY REMINDER LABEL
For your protection, always wear helmet, protective apparel.
FUEL LABEL
Unleaded petrol only ETHANOL up to 10 % by volume
Vehicle Safety
9
Page 14
Safety Precautions
Safety Precautions
Vehicle Safety
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Keep passenger's hands onto the grab rail
or your waist, passenger's feet on the footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and riders.
Protective Apparel
Make sure that you and any passenger are wearing an approved helmet, eye protection, and high-visibility protective clothing. Avoid wearing loose clothes that could get caught on any part of the vehicle. Ride defensively in response to weather and road conditions.
Helmet
#
Safety-standard certified, high-visibility, correct size for your head
●
Must fit comfortably but securely, with the chin strap fastened.
10
● Face shield with unobstructed field of vision
or other approved eye protection
3WARNING
Not wearing a helmet increases the chance of serious injury or death in a crash.
Make sure that you and any passenger always wear an approved helmet and protective apparel.
Gloves
#
Full-finger leather gloves with high abrasion resistance
Boots or Riding Shoes
#
Sturdy boots with non-slip soles and ankle protection
Jacket and Trousers
#
Protective, highly visible, long-sleeved jacket and durable trousers for riding (or a protective suit)
Page 15
Riding Precautions
Riding Precautions
Running-in Period
During the first 500 km (300 miles) of running, follow these guidelines to ensure your vehicle's future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and downshifting.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
● Exercise caution on low traction surfaces.
u The tyres slip more easily on such
surfaces and braking distances are longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can seriously overheat the brakes, reducing their effectiveness. Use engine braking with intermittent use of the brakes to reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
Combi Brake
#
Your vehicle is equipped with a brake system that distributes the braking force between the front and rear brakes. The distribution of the braking force applied to the front and rear brakes when operating the lever only and when operating the pedal only is different.
Continued
Vehicle Safety
11
Page 16
Riding Precautions
For full braking effectiveness, operate both the
Vehicle Safety
front and rear brakes together.
Engine Braking
#
Engine braking helps slow your vehicle down when you release the throttle. For further slowing action, downshift to a lower gear. Use engine braking with intermittent use of the brakes to reduce speed when descending long, steep slopes.
Wet or Rainy Conditions
#
Road surfaces are slippery when wet, and wet brakes further reduce braking efficiency. Exercise extra caution when braking in wet conditions. If the brakes get wet, apply the brakes while riding at low speed to help them dry.
12
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they cool down.

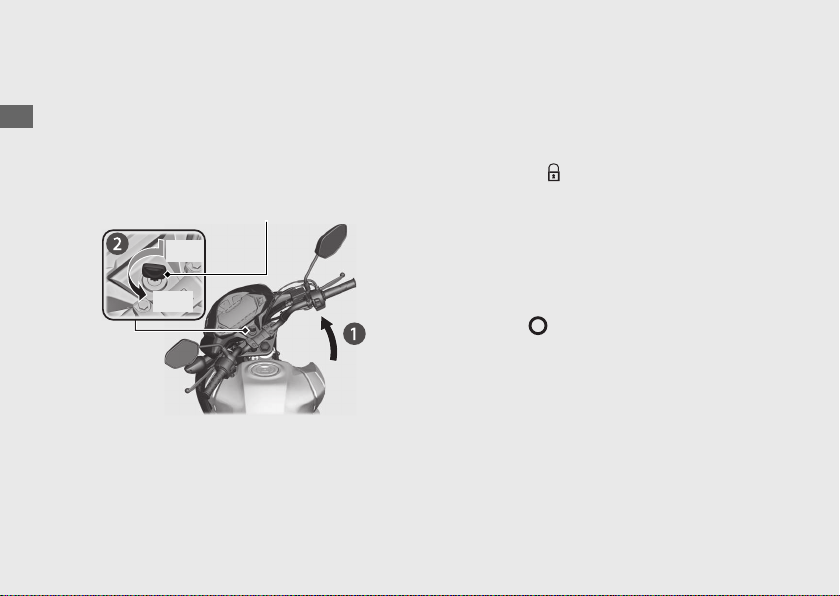

● To reduce the likelihood of theft, always lock
the handlebar and remove the key when leaving the vehicle unattended. Use of an anti-theft device is also recommended.
Page 17

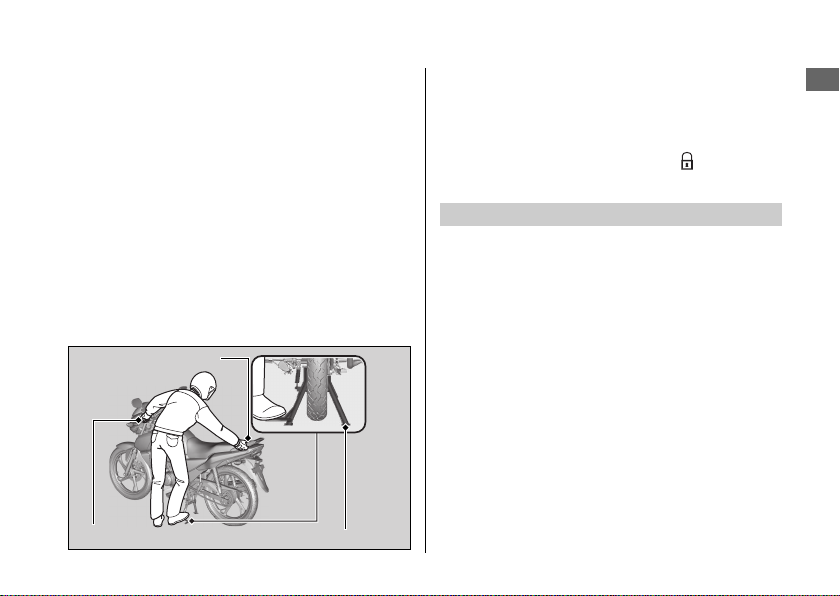

Parking with the Side Stand or Centre
#
Stand
1.
Stop the engine.
2.
Using the side stand
Push the side stand down. Slowly lean the vehicle to the left until its weight rests on the side stand.

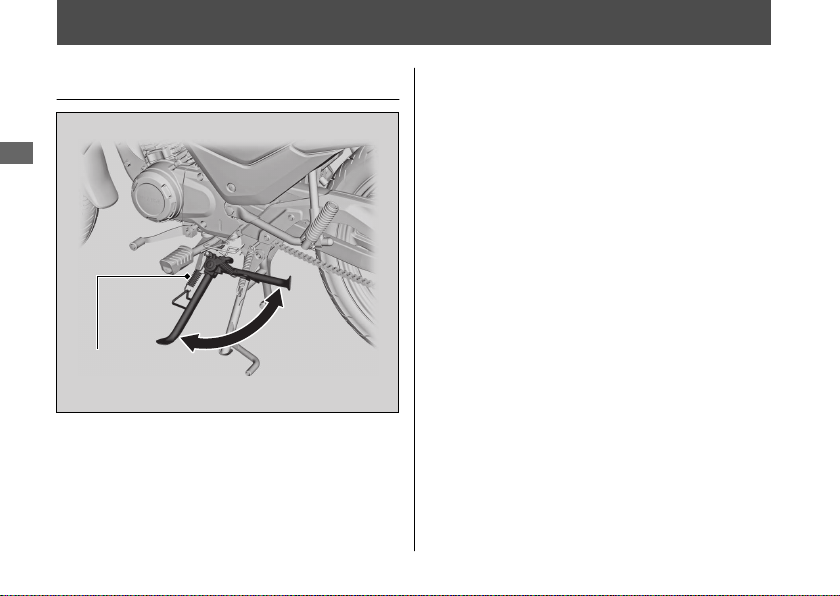

Using the centre stand
To lower the centre stand, stand on the left side of the vehicle. Press down on the tip of the centre stand with your right foot and, simultaneously, pull up and back.
Grab rail
Riding Precautions
3.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the vehicle to fall.
4.

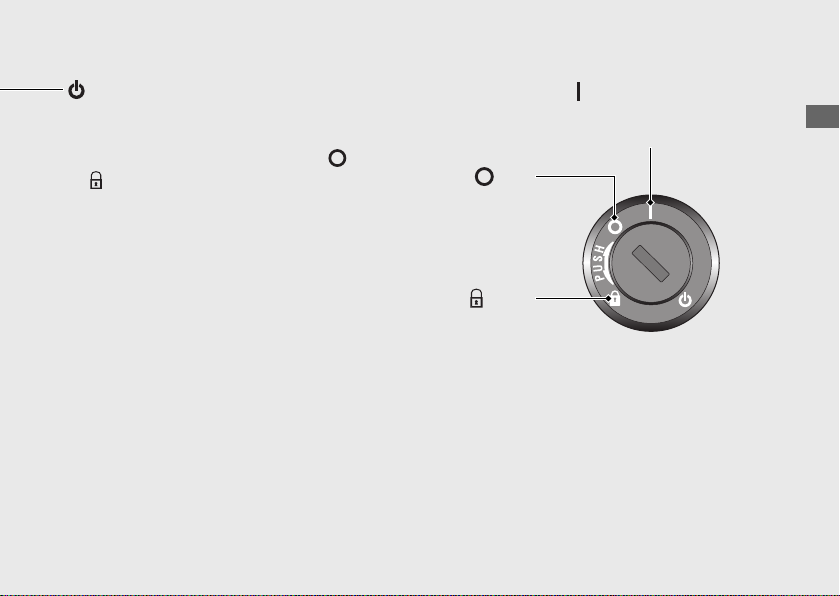

Turn the ignition switch to the (Lock) position and remove the key. 2 P. 36

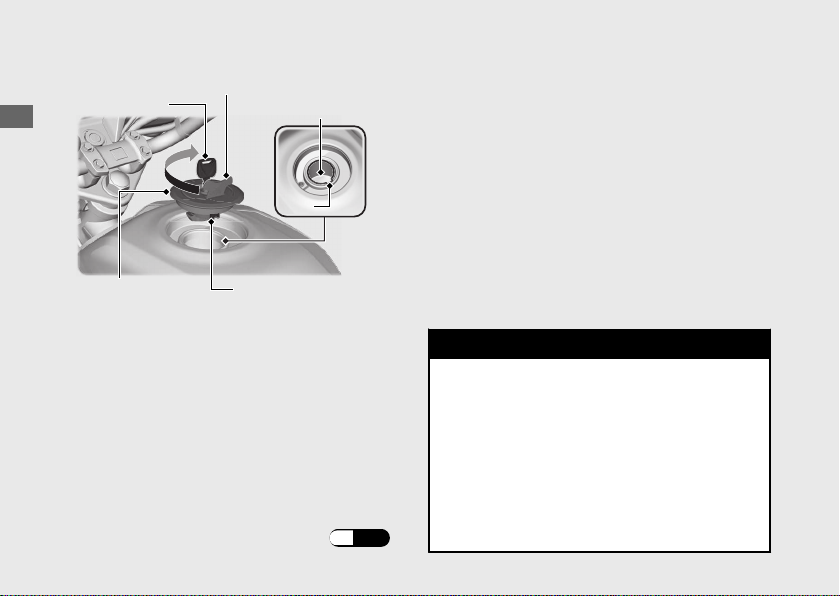

Refuelling and Fuel Guidelines
Follow these guidelines to protect the engine, fuel system and catalytic converter:
● Use only unleaded petrol.
● Use recommended octane number. Using
lower octane petrol will result in decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 95
● Do not use stale or contaminated petrol or
an oil/petrol mixture.
● Avoid getting dirt or water in the fuel tank.
Vehicle Safety
Left handle grip
Centre stand
13
Page 18
Accessories & Modifications
Accessories &
Vehicle Safety
Modifications
We strongly advise that you do not add any accessories that were not specifically designed for your vehicle by Honda or make modifications to your vehicle from its original design. Doing so can make it unsafe. Modifying your vehicle may also void your warranty and make your vehicle illegal to operate on public roads. Before deciding to install accessories on your vehicle be certain the modification is safe and legal.
14
3WARNING
Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding accessories and modifications.
Do not pull a trailer with, or attach a sidecar to, your vehicle. Your vehicle was not designed for these attachments, and their use can seriously impair your vehicle's handling.
Page 19
Loading
Loading
● Carrying extra weight affects your vehicle's
handling, braking and stability. Always ride at a safe speed for the load you are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity/Maximum luggage weight 2 P. 97
● Tie all luggage securely, evenly balanced
and close to the centre of the vehicle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can cause a crash and you can be seriously hurt or killed.
Follow all load limits and other loading guidelines in this manual.
Vehicle Safety
15
Page 20

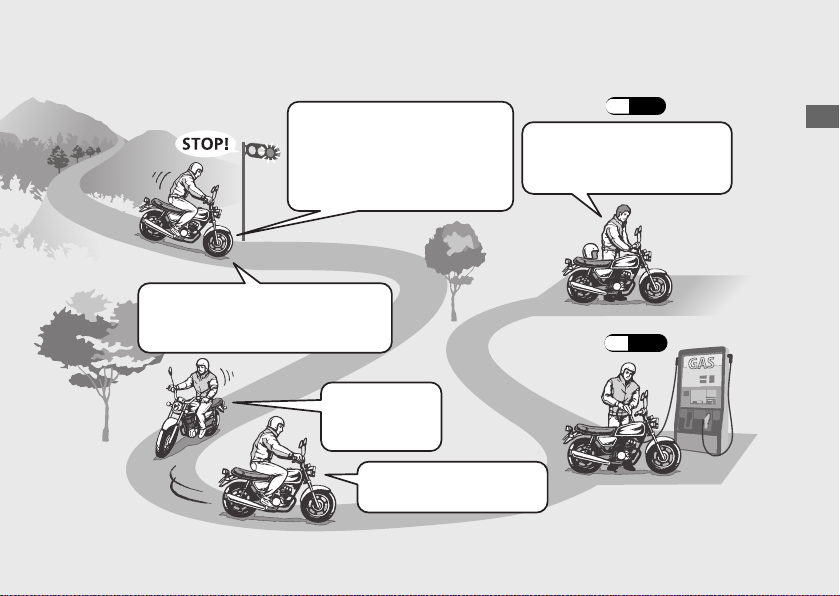

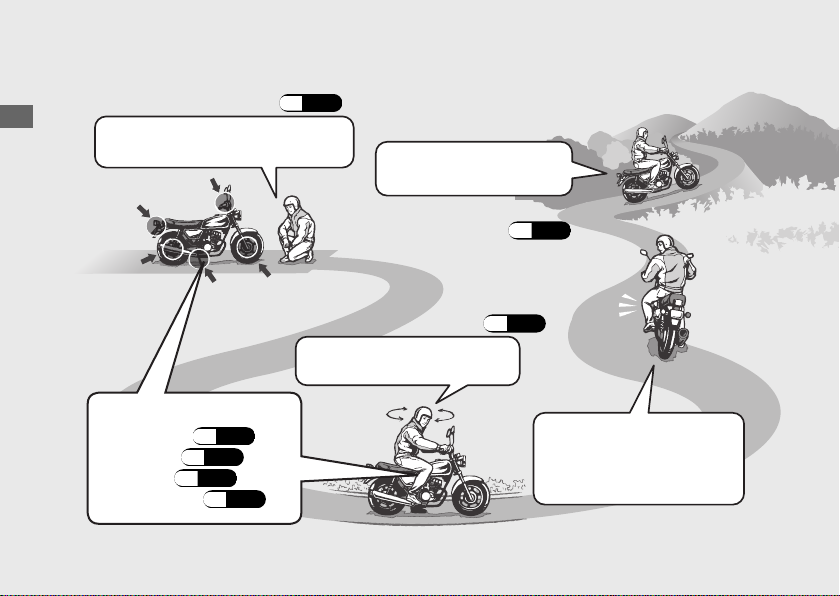

Basic Operation Flow
Pre-ride Inspection (P.48)
#
Operation Guide
16
Carefully inspect your vehicle to make sure that it is safe to ride.
How to use basic features.
• Instruments (P.20)
• Indicators (P.32)
• Switches (P.34)
• Steering Lock (P.36)
Starting the Engine (P.37)
#
Start and warm the engine. Avoid revving the engine.
Acceleration
#
Apply throttle gradually. Obey the speed limit.
Shift Change (P.39)
#
Starting the
#
Vehicle
Before pulling away, indicate your direction with the turn signal switch, and check for oncoming traffic.
Page 21
Braking
#
Stopping
#
If pulling off the road, signal early enough to show traffic that you are pulling over, and pull over smoothly.
Close the throttle and apply the front and rear brakes together.
u
The brakelight will indicate that you have applied the brakes.
Turning Corners
#
Do your braking before entering corners.
Gradually reapply throttle when exiting turn.
Parking (P.12)
#
Park on a firm level surface. Use the stand, and lock the steering.
Refuelling (P.40)
#
Operation Guide
17
Page 22

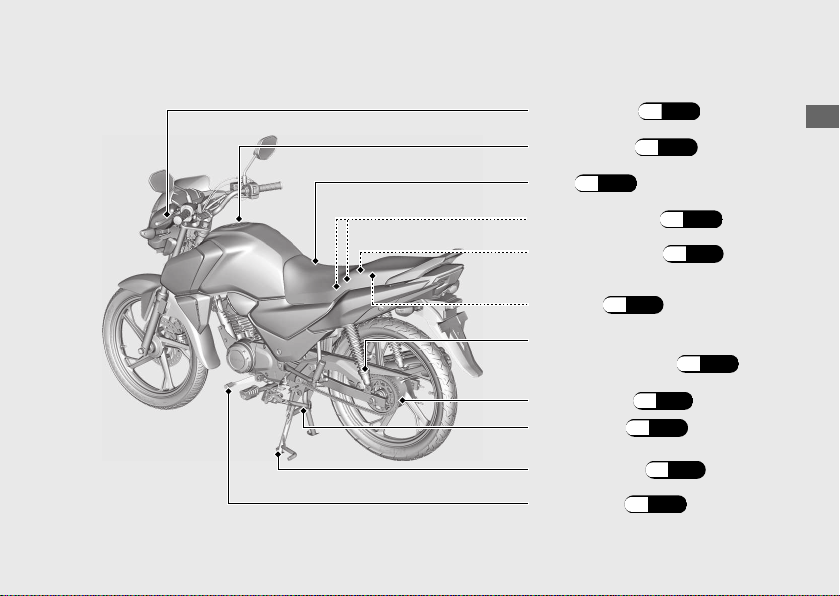

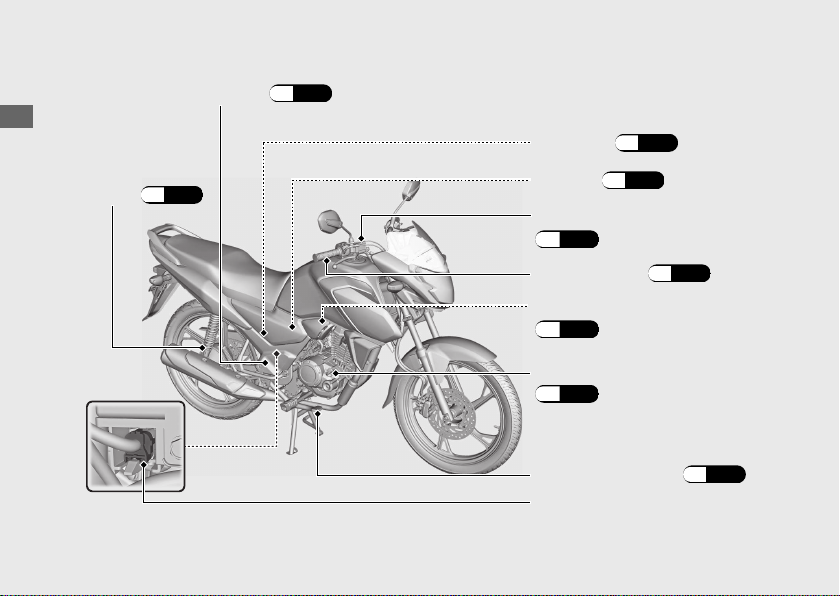

Parts Location
Brakelight switch (P.69)
Operation Guide
Rear suspension spring preload adjuster
18
(P.75
Fuse box (P.84)
)

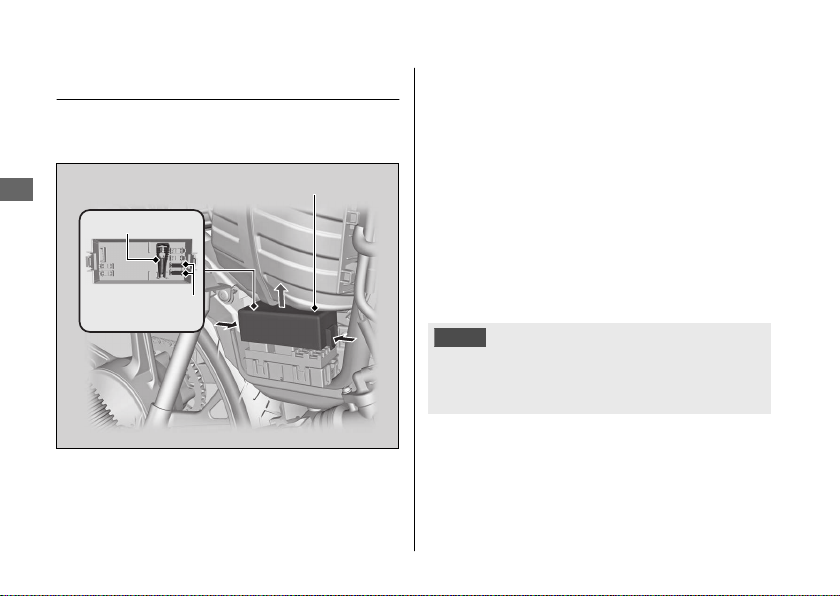

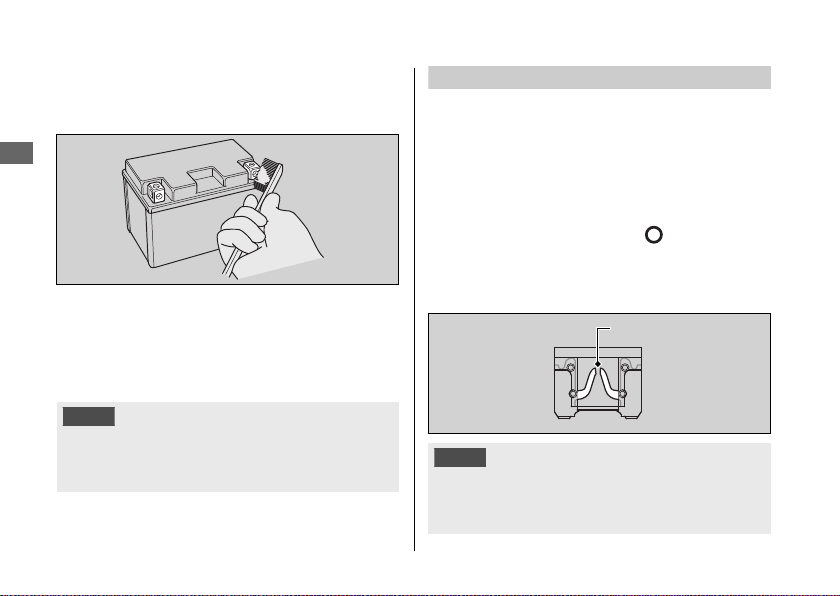

Battery (P.59)

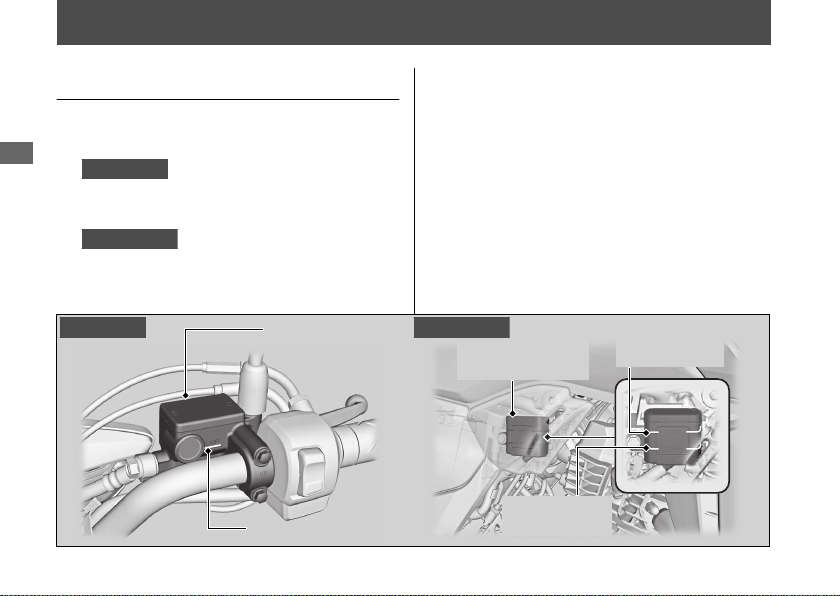

Front brake fluid reservoir
)
(P.64
Throttle grip (P.74)
CBS brake fluid reservoir
)
(P.64
Engine oil fill cap/dipstick
)
(P.62
Rear brake pedal (P.66) Data link connector
Page 23
Clutch lever (P.72)
Fuel fill cap (P.40)

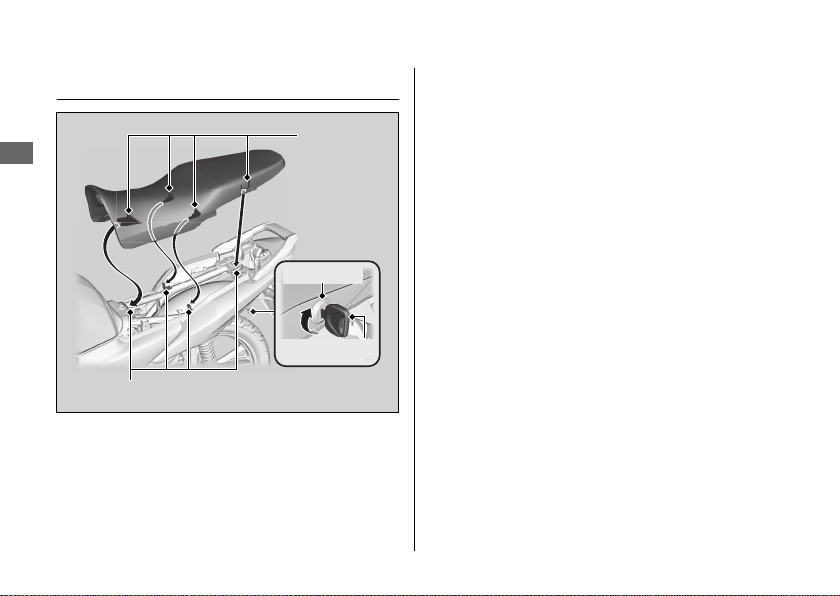

Seat (P.60)

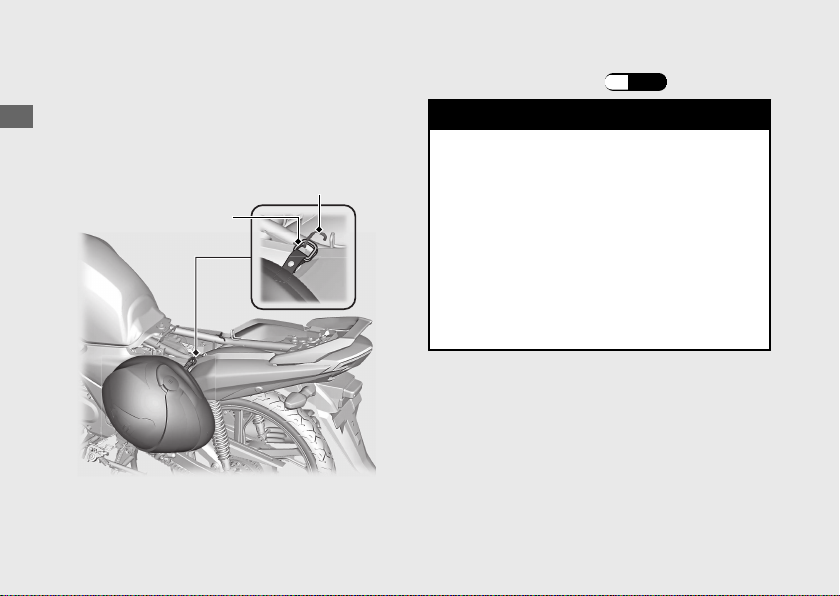

Helmet holder (P.42)

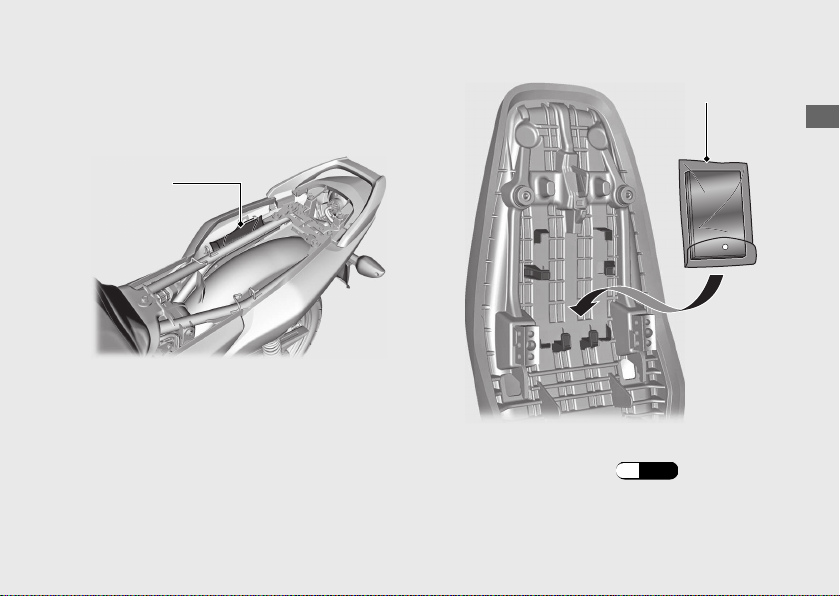

Document bag (P.41)
Tool kit (P.41)
Rear suspension spring preload adjuster
(P.75
Drive chain (P.71) Side stand (P.70)
Centre stand (P.13)

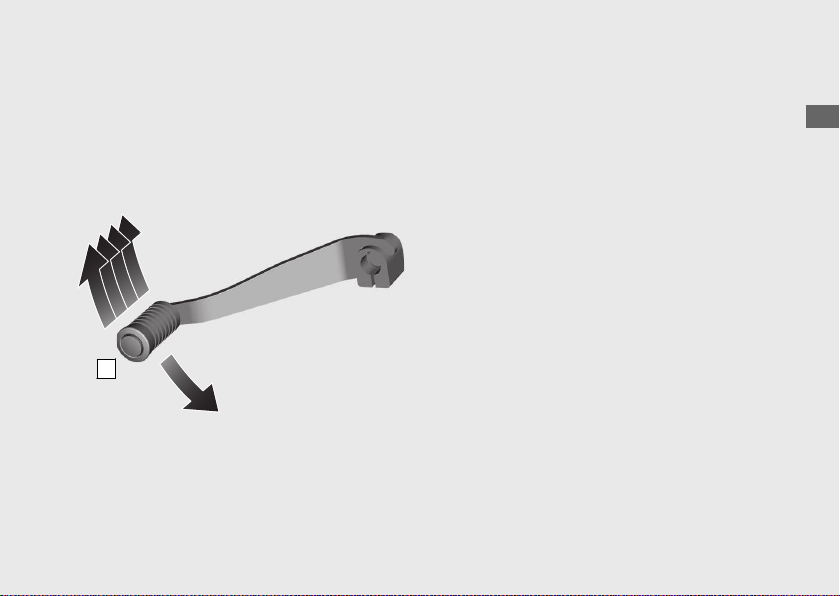

Shift lever (P.39)
Operation Guide
)
19
Page 24

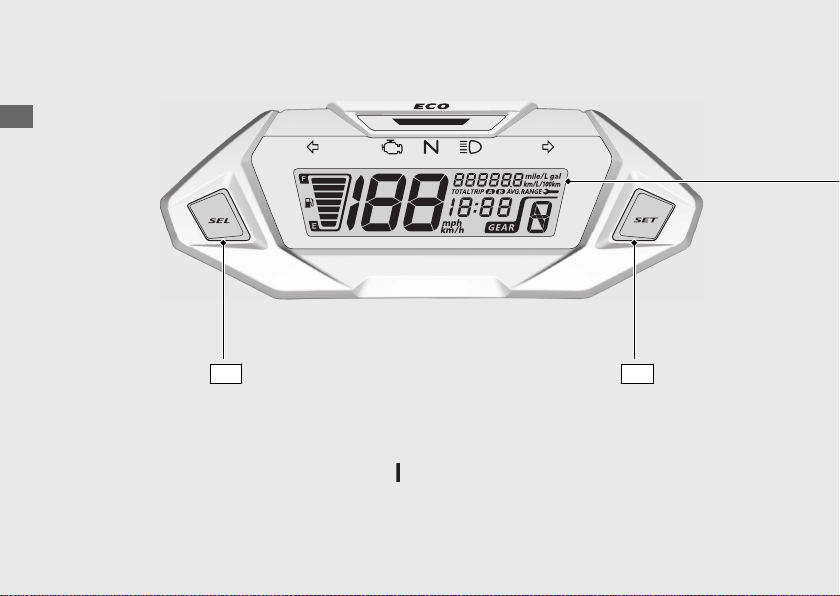

Instruments
Operation Guide
20
SEL
button
Display Check
When the ignition switch is turned to the (On) position, initial animation will show. If any part of these displays does not come on when it should, have your dealer check for problems.
SET
button
Page 25

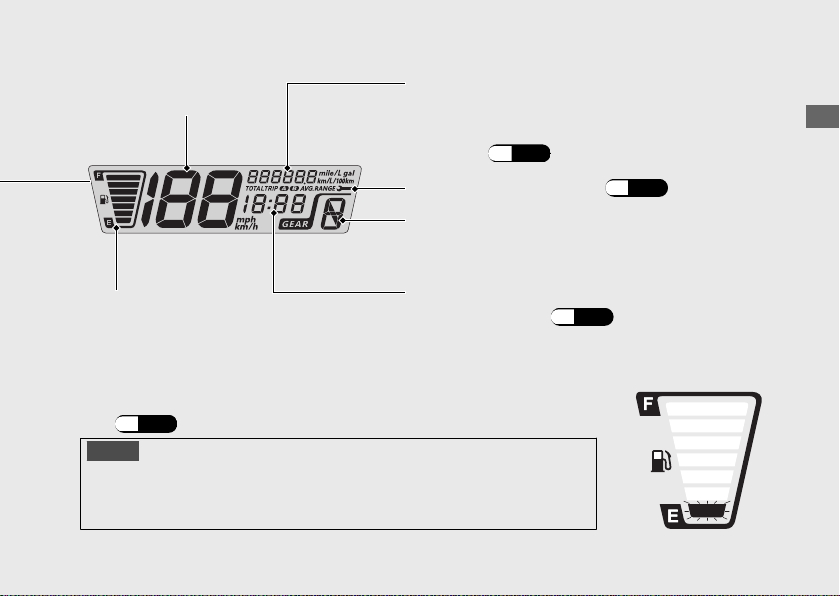

Speedometer
Current fuel mileage, Average fuel mileage [A AVG], Available driving distance
Odometer [TOTAL], Tripmeter [TRIP A/B],
[RANGE]
(P.22)
SERVICE DUE indicator (P.25)
Gear position indicator
The gear position is shown in the gear position indicator.
Fuel gauge
Remaining fuel when only 1st (E) segment
Clock (12-hour display) To set the clock: (P.29)
starts flashing: approximately 0.8 L (0.2 US gal, 0.18 Imp gal)

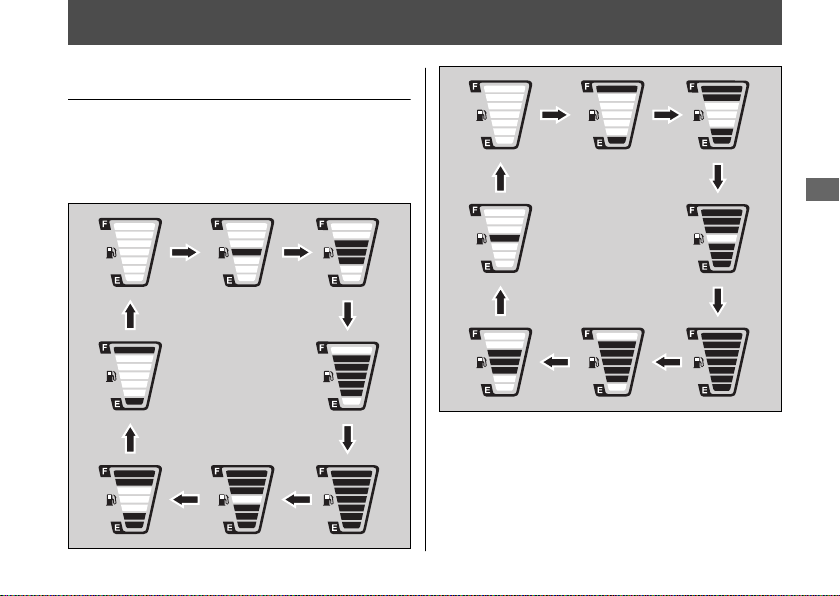

If the fuel gauge indicator flashes in a repeat pattern or turns off:
NOTICE
You should refuel when the reading approaches the E (1st) segment. Running out of fuel can cause the engine to misfire, damaging the catalytic converter.
(P.79
)
Operation Guide
Continued
21
Page 26

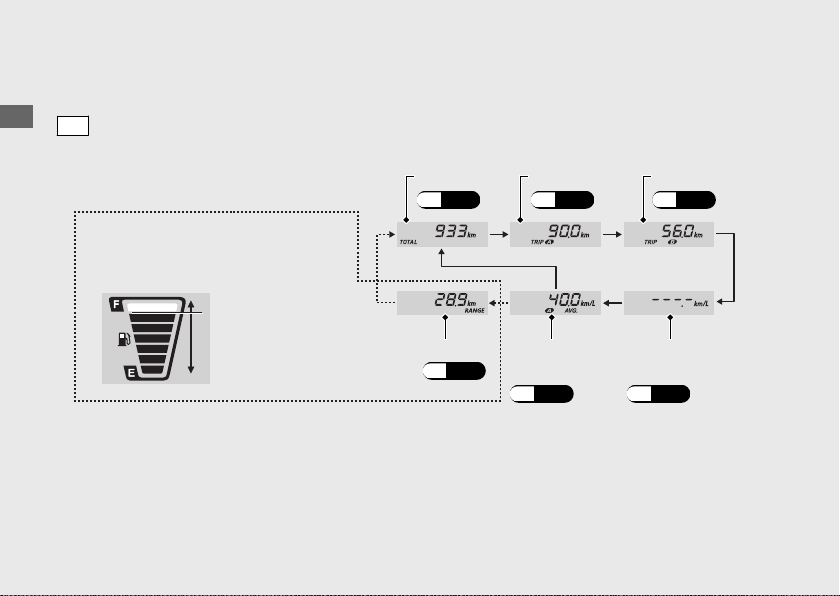

Instruments (Continued)
Odometer [TOTAL], Tripmeter [TRIP A/B], Current fuel mileage, Average fuel mileage [A AVG], Available driving distance [RANGE]
SEL
Operation Guide
button selects between the odometer, tripmeter A, tripmeter B, current fuel mileage,
average fuel mileage and available driving distance.
)
Tripmeter A
)
(P.23
Odometer
(P.23
Unselectable when all the fuel gauge segments light
Unselectable
Tripmeter B
)
(P.23
22
Selectable
Available driving distance
(P.24
Average fuel
)
mileage
(P.24
Current fuel mileage
)
(P.23
)
Page 27
Odometer [TOTAL]
#
Total distance ridden. When “------” is displayed, go to your dealer for service.
Tripmeter [TRIP A/B]
#
Distance ridden since tripmeter was reset. When “----.-” is displayed, go to your dealer for service.
To reset the tripmeter: (P.26)
Current fuel mileage
#
Displays the current instant fuel mileage. Display range: 0.0 to 99.9 L/100km (km/L or mile/L) or 0.0 to 299.9 mile/gal
•
More than 99.9 L/100km (km/L or mile/L): “99.9” is displayed. More than 299.9 mile/gal: “299.9” is
•
displayed. If your speed is less than about 5 km/h (3
•
mph) or immediately after ignition switch is turned to
or mile/L) or “---.-”(mile/gal) is displayed. When “--.-” (L/100km, km/L or mile/L) or “---.-”(mile/gal) is displayed except for the above-mentioned cases, go to your dealer for service.
(On), “--.-” (L/100km, km/L
Operation Guide
Continued
23
Page 28
Instruments (Continued)
Average fuel mileage [A AVG]
#
Displays the average fuel mileage since tripmeter A was reset.
Operation Guide
The average fuel mileage will be based on the tripmeter A. Display range: 0.0 to 99.9 L/100km (km/L or mile/L) or 0.0 to 299.9 mile/gal
• More than 99.9 L/100km (km/L or mile/L):
“99.9” is displayed.
• More than 299.9 mile/gal: “299.9” is
displayed.
• When the tripmeter A is reset: “--.-” (L/
100km, km/L or mile/L) or “---.-”(mile/gal)
is displayed. When “--.-” (L/100km, km/L or mile/L) or “---.-”(mile/gal) is displayed except for the above-mentioned case, go to your dealer for service.
To reset the average fuel mileage:
(P.26)
24
Available driving distance [RANGE]
#
Displays the estimated distance you can travel on remaining fuel. It is unselectable when all the fuel gauge segments light. Display range: 999 to 5 km or 999 to 3 mile
• Above 999 km (mile): “999” is displayed.
•
Less than 5 km (3 mile) or the remaining fuel amount is less than 0.1 L or only 1st (E) segment of fuel gauge flashing: “---” is
displayed. The indicated available driving distance is calculated based on the driving conditions, and the indicated figure may not always be the actual available distance. For a while after resetting the tripmeter A: “---” is displayed. When “---” is displayed except for the above­mentioned cases, go to your dealer for service.
To reset the available driving distance:
(P.26)
Page 29
SERVICE DUE indicator
#
It turns on when the running distance reaches about 1,000 km (621 miles) for the first time and every 6,000 km (3,726 miles) after resetting the indicator. It indicates that your vehicle has reached the specified distance for service. When it turned on, go to your dealer for service. After vehicle is serviced, be sure to reset the indicator.
To reset the SERVICE DUE indicator
Press and hold the
SET
switch while turning the ignition switch to the (On) position, and keep holding the
SET
switch for more than 3
seconds.
u The indicator does not go off until it is reset. u If your vehicle is serviced before the
SERVICE DUE indicator comes on, be sure to reset the SERVICE DUE indicator after vehicle is serviced. When resetting the indicator during no indication, the indicator will appear for about 2 seconds, then disappear.
Operation Guide
Continued
25
Page 30
Instruments (Continued)

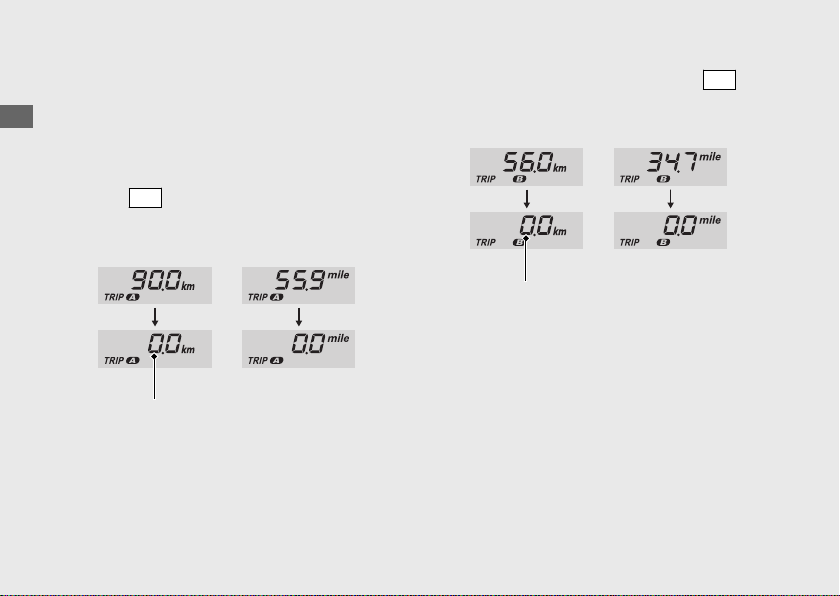

To reset the tripmeter [TRIP A/B],
#
average fuel mileage [A AVG] and available driving distance [RANGE]
Operation Guide
To reset tripmeter A, average fuel mileage and available driving distance together, press and hold displayed.
SET
button with tripmeter A
To reset tripmeter B, press and hold button with tripmeter B displayed.
or
or
SET
26
Tripmeter A
or
or
Tripmeter B
Page 31

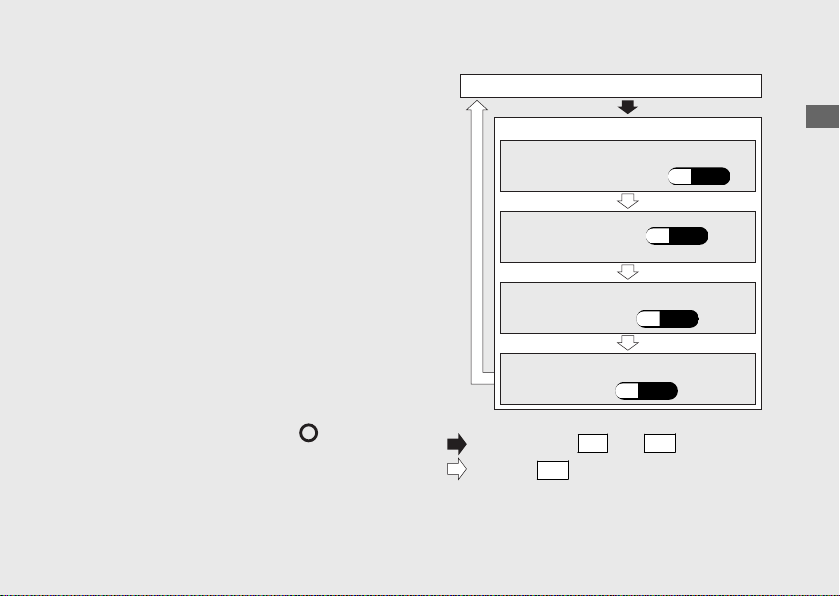

Display Setting
Following items can be changed sequentially.
• Activate or deactivate the ECO indicator
• Clock setting
• Changing of speed and mileage unit
•
Changing of fuel mileage meter unit
If the buttons are not pressed for about 30 seconds, the control is automatically switched from the setting mode to the ordinary display. If the buttons are not pressed for about 30 seconds, items in the process of being set will be discarded and only items that were set and finalized will be applied. Only if the ignition switch is turned to the
(Off) position, items in the process of being set and those that are finalized will be applied.
Activate or deactivate the ECO indicator
Clock setting (P.29)
Changing of speed and mileage unit
Changing of fuel mileage meter unit
Press and hold
Press the
SET
Ordinary display
Setting Mode
(P.28
(P.30
)
(P.30
SEL
button
and
SET
Operation Guide
)
)
buttons
Continued
27
Page 32
Instruments (Continued)

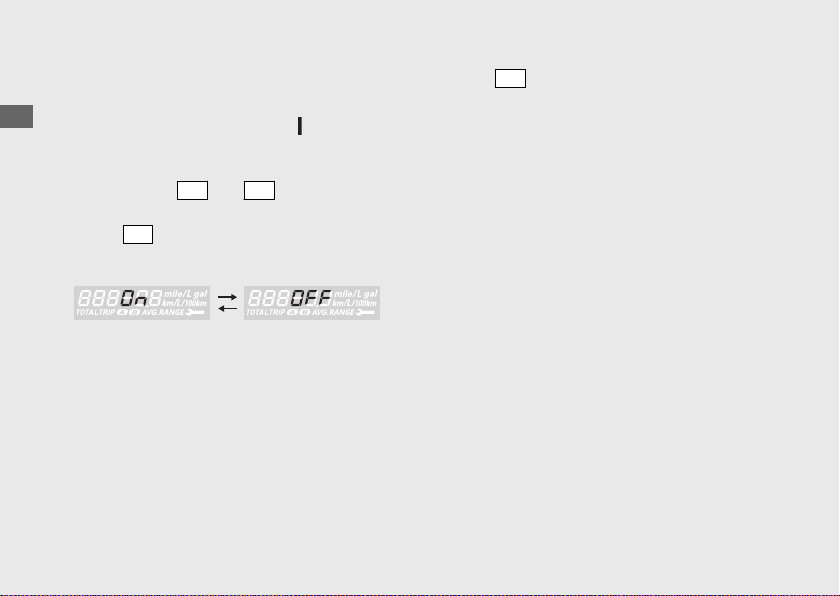

1 Activate or deactivate the ECO indicator:
a
Operation Guide
Turn the ignition switch to the (On) position.
b
With odometer [TOTAL] displayed, press and hold the
SEL
and indicator starts flashing. Press
SEL
button to select “ON” (activate) or
c
“OFF” (deactivate).
28
SET
button until ECO
Press
SET
button. The ECO indicator is set,
d
and then the display moves to the clock setting.
Page 33

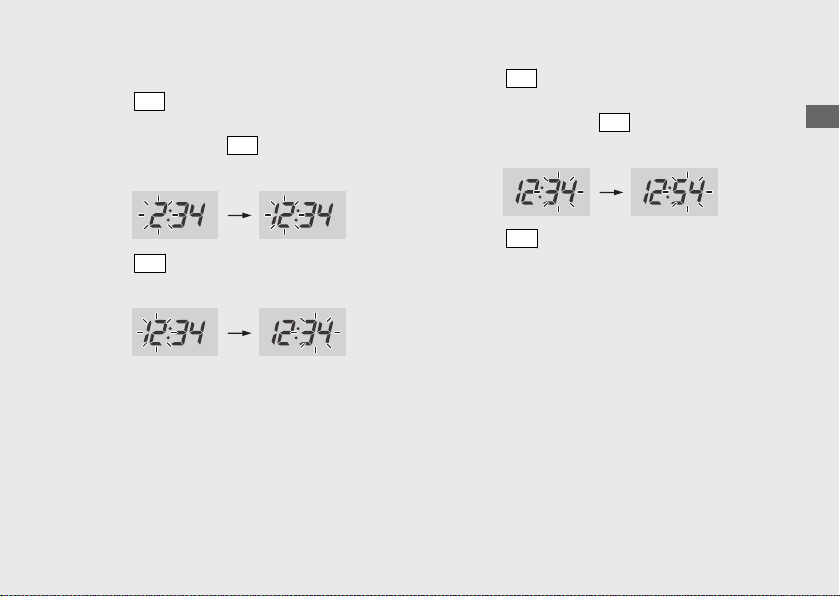

2 Clock setting:
Press
SEL
button until the desired hour is
a
displayed.
u Press and hold
the hour quickly.
SEL
button to advance
Press
SEL
button until the desired minute is
c
displayed.
u Press and hold
the minute quickly.
SEL
button to advance
Operation Guide
b
Press flashing.
SET
button. The minute digits start
Press
SET
button. The clock is set, and then
d
the display moves to the changing of speed and mileage unit.
Continued
29
Page 34
Instruments (Continued)

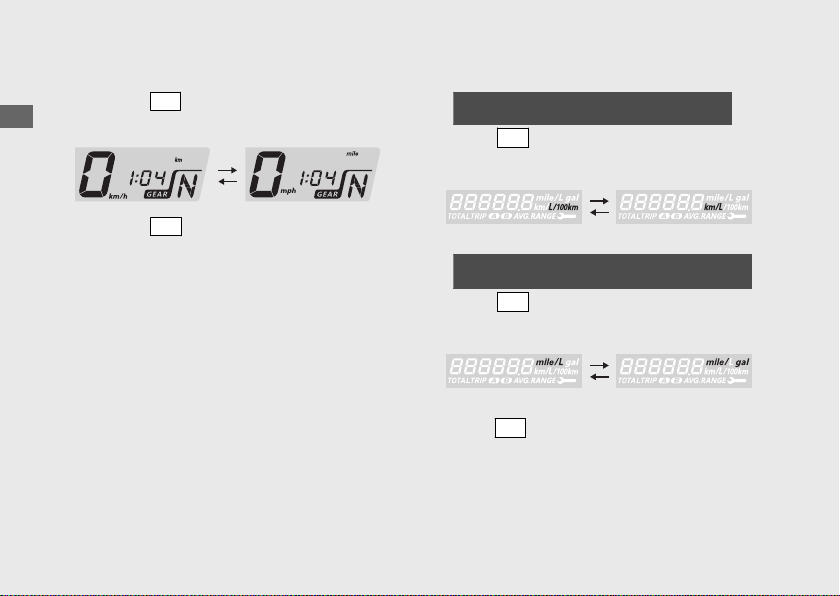

3 Changing of speed and mileage unit:
a
Press the
Operation Guide
and “km” or “mph” and “mile”.
SEL
button to select either “km/h”
4 Changing of fuel mileage meter unit:
When the “km/h” for speed and “km” for
a
mileage are selected
SEL
Press
button to select “L/100km” or
“km/L”.
b
Press the
SET
button. The speed and mileage unit is set, and then the display moves to the changing of fuel mileage meter unit.
30
When the “mph” for speed and “mile” for mileage are selected
SEL
Press
button to select “mile/L” or
“mile/gal”.
Press
SET
button. The fuel mileage meter
b
unit is set, and then the display moves to the ordinary display.
Page 35
Operation Guide
31
Page 36

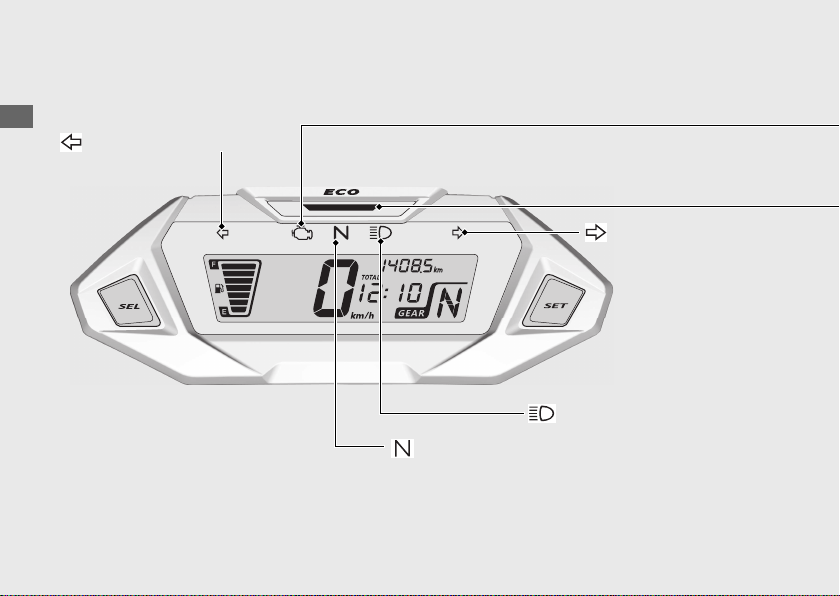

Indicators
If one of these indicators does not come on when it should, have your dealer check for problems.
Operation Guide
Left turn signal indicator
Right turn signal indicator
High beam indicator
Neutral indicator
Comes on when the transmission is in Neutral.
32
Page 37
PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL)
Comes on briefly when the ignition switch is turned to the (On) position.
If it comes on while engine is running: (P.78)
ECO indicator
When fuel consumption improves the ECO indicator will come on.
u When the vehicle comes to a stop, the ECO indicator will turn off.
Activate or deactivate the ECO indicator: (P.28)
Operation Guide
33
Page 38

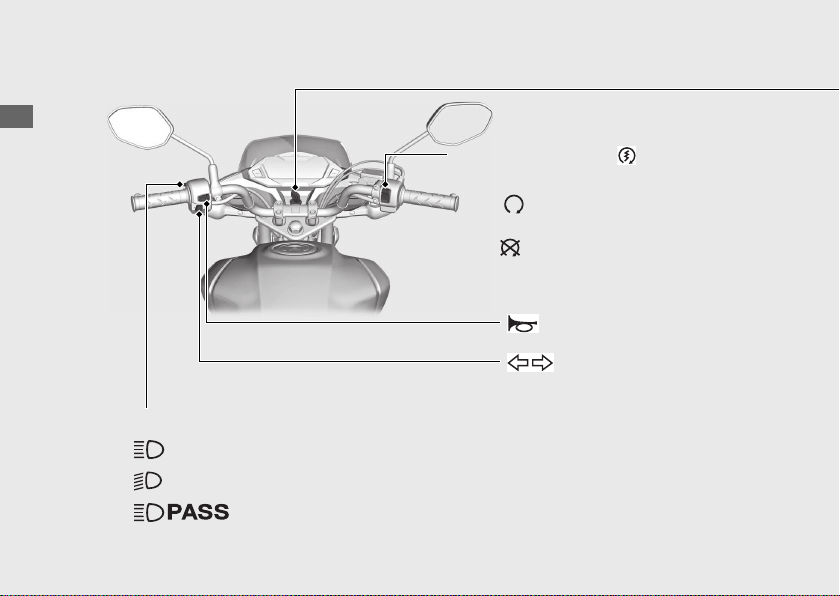

Switches
Operation Guide
Headlight dimmer/Passing light control switch
• : High beam
• : Low beam
• : Flashes the high beam headlight.
34
Engine stop switch/ Start button
Should normally remain in the
(Run) position.
u In an emergency, switch to the
(Stop) position (the starter motor will not operate) to stop the engine.
Horn button
Turn signal switch
u Pressing the switch turns the
turn signal off.
Page 39
Ignition switch
Switches the electrical system on/off, locks the steering.
u Key can be removed when in the (Off) or
(Lock) position.
(Off)
Turns engine off.
(Lock)
Lock steering.
(On) Turns electrical system on for starting/riding.
Operation Guide
Continued
35
Page 40
Switches (Continued)
Steering Lock
Lock the steering when parking to help
Operation Guide
prevent theft. A U-shaped wheel lock or similar device is also recommended.
Ignition key
Push
Turn
36
Locking
#
a
Turn the handlebar all the way to the left or right.
b
Push the key down, and turn the ignition switch to the (Lock) position.
u Jiggle the handlebars if the lock is
difficult to engage.
c
Remove the key.
Unlocking
#
Insert the key, push it in, and turn the ignition switch to the (Off) position.
Page 41

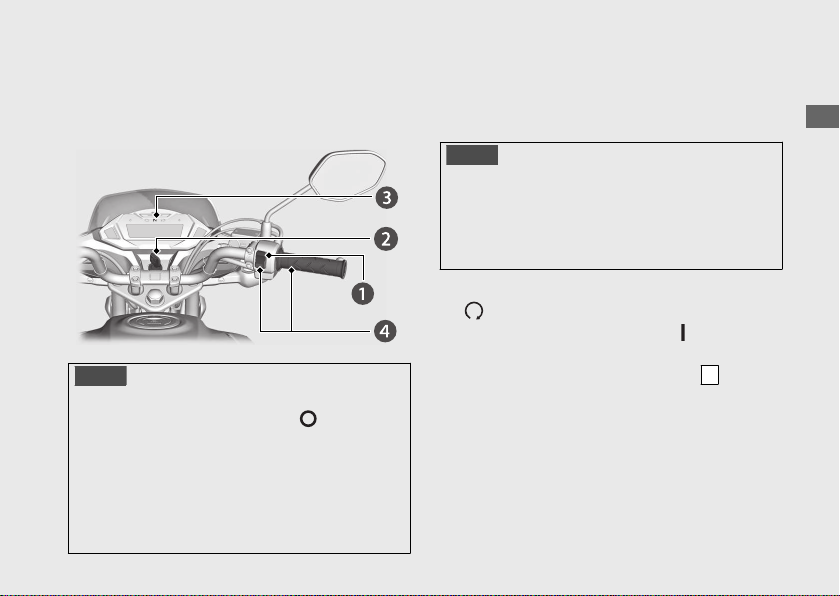

Starting the Engine
Start your engine using the following procedure, regardless of whether the engine is cold or warm.
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the (Off) position and wait 10 seconds before trying to start the engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine, and the exhaust system.
Consult your dealer for advice if you plan to ride your vehicle at an altitude above 2,500 m (8,000 feet).
NOTICE
If the vehicle is transported to a place 2,000 m (6,500 feet) higher or lower than the start point, you may not be able to achieve sufficient engine performance at the new altitude. Consult your dealer before transporting your vehicle.
a
Make sure the engine stop switch is in the
(Run) position.
b
Turn the ignition switch to the (On) position.
c
Shift the transmission to Neutral (
N
indicator comes on). Alternatively, pull in the clutch lever to start your vehicle with the transmission in gear so long as the side stand is raised.
d
Press the start button with the throttle completely closed.
Continued
Operation Guide
37
Page 42
Starting the Engine (Continued)
If you cannot start the engine:

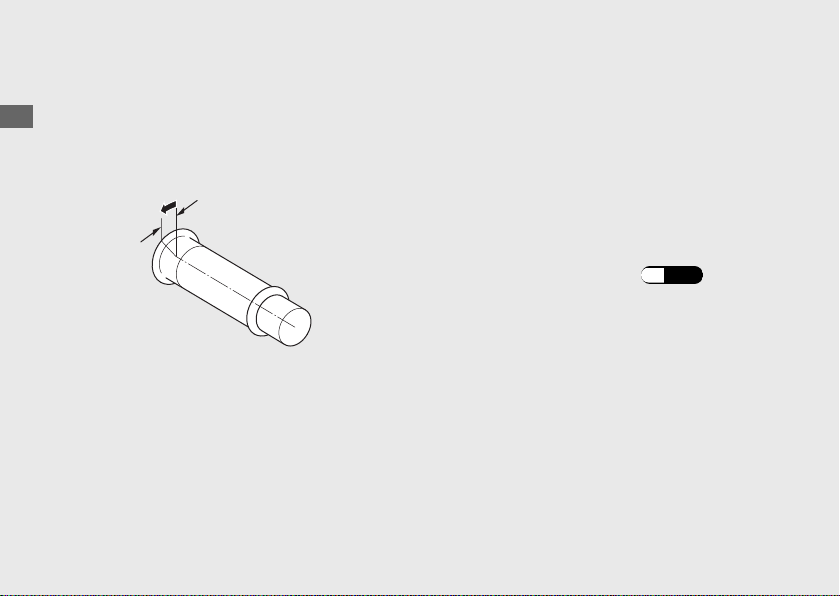

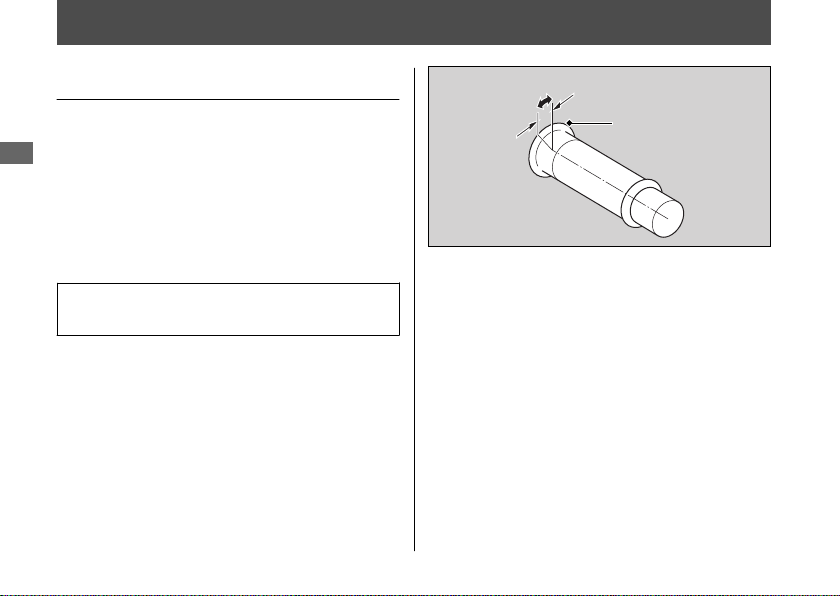

Open the throttle slightly (about 3 mm (0.1 in), without freeplay).
Operation Guide
About 3 mm (0.1 in), without freeplay
38
If the engine does not start:
a
Open the throttle fully and press the start button for 5 seconds.
b
Repeat the normal starting procedure.
c
If the engine starts, open the throttle slightly if idling is unstable.
d
If the engine does not start, wait 10 seconds before trying steps a & b again.
If Engine Will Not Start (P.77)
#
Page 43
Shifting Gears
Your vehicle transmission has 5 forward gears in a one-down, four-up shift pattern. If you put the vehicle in gear with the side stand down, the engine will shut off.
5
4
3
2
N
1
Operation Guide
39
Page 44
Refuelling
Ignition key
Operation Guide
Fuel fill cap
Do not fill with fuel above the lower edge of the filler neck.
Fuel type: Unleaded petrol only Fuel octane number: Your vehicle is
designed to use Research Octane Number (RON) 91 or higher. Tank capacity: 11.0 L (2.91 US gal, 2.42 Imp gal)
Refuelling and Fuel Guidelines (P.13)
#
40
Lock cover
Lower edge of filler neck
Slot
Fuel cap latch
Opening the Fuel Fill Cap
Open the lock cover, insert the ignition key, and turn it clockwise to open the fuel fill cap.
Closing the Fuel Fill Cap
a
After refuelling, align the fuel cap latch with the slot in the filler neck. Push the fuel fill cap into the filler neck until it snaps closed and locks.
b
Remove the ignition key and close the lock cover.
u
The ignition key cannot be removed if the cap is not locked.
3WARNING
Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
Stop the engine, and keep heat,
•
sparks, and flame away.
•
Handle fuel only outdoors.
• Wipe up spills immediately.
Page 45
Storage Equipment
Tool Kit/Document Bag
#
The tool kit is located under side of the seat. Document bag is located under the seat.
Tool kit
Document bag
Removing the Seat (P.60)
#
Operation Guide
Continued
41
Page 46
Storage Equipment (Continued)
Helmet holder
#
The helmet holders are located under the
Operation Guide
seat.
u Use the helmet holder only when parked.
Helmet holder
Helmet D-ring
42
Removing the Seat (P.60)
#
3WARNING
Riding with a helmet attached to the holder can interfere with the rear wheel or suspension and could cause a crash in which you can be seriously hurt or killed.
Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.
Page 47
Maintenance
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
Importance of Maintenance ........................... P. 44
Maintenance Schedule..................................... P. 45
Maintenance Fundamentals ...........................P. 48
Tool....................................................................... P. 58
Removing & Installing Body Components..P. 59
Battery.................................................................... P. 59
Seat ......................................................................... P. 60
Side Cover.............................................................P. 61
Engine Oil ............................................................ P. 62
Brakes................................................................... P. 64
Side Stand ...........................................................P. 70
Drive Chain.......................................................... P. 71
Clutch ...................................................................P. 72
Throttle ................................................................P. 74
Other Adjustments............................................ P. 75
Adjusting the Rear Suspension ........................ P. 75
Page 48
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is absolutely essential to your safety and to protect your investment, obtain maximum
Maintenance
performance, avoid breakdowns, and reduce air pollution. Maintenance is the owner's responsibility. Be sure to inspect your vehicle before each ride, and perform the periodic checks specified in the Maintenance Schedule.
2 P. 45
3WARNING
Improperly maintaining your vehicle or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed.
Always follow the inspection and maintenance recommendations and schedules in this owner's manual.
44
Maintenance Safety
Always read the maintenance instructions before you begin each task, and make sure that you have the tools, parts, and skills required. We cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.
Follow these guidelines when performing maintenance.
●
Stop the engine and remove the key.
●
Place your vehicle on a firm, level surface using the side stand, centre stand or a maintenance stand to provide support.
●
Allow the engine, muffler, brakes, and other high-temperature parts to cool before servicing as you can get burned.
●
Run the engine only when instructed, and do so in a well-ventilated area.
Page 49
Maintenance Schedule
The maintenance schedule specifies the maintenance requirements necessary to ensure safe, dependable performance, and proper emission control.
Maintenance work should be performed in accordance with Honda's standards and specifications by properly trained and equipped technicians. Your dealer meets all of these requirements. Keep an accurate record of maintenance to help ensure that your vehicle is properly maintained. Make sure that whomever performs the maintenance completes this record.
All scheduled maintenance is considered a normal owner operating cost and will be charged to you by your dealer. Retain all receipts. If you sell the vehicle, these receipts should be transferred with the vehicle to the new owner.
Honda recommends that your dealer should road test your vehicle after each periodic maintenance is carried out.
Continued
Maintenance
45
Page 50

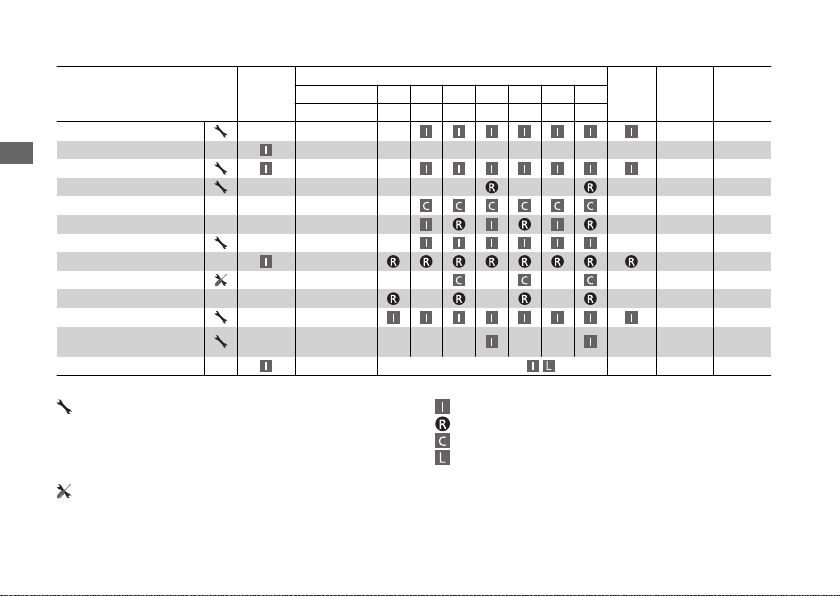

Maintenance Schedule
Maintenance Schedule
*1
Items
Fuel Line –
Fuel Level –
Maintenance
Throttle Operation 74
Air Cleaner
Crankcase Breather
Spark Plug –
Valve Clearance –
Engine Oil 62
Engine Oil Strainer Screen –
Engine Oil Filter –
Engine Idle Speed –
Evaporative Emission Control System
Drive Chain
*2
*3
Pre-ride
Check
2 P. 48
× 1,000 km 1 6 12 18 24 30 36
× 1,000 mi 0.6 4 8 12 16 20 24
Frequency
1000 km (600mi) :
Annual
Check
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are mechanically skilled. Procedures are provided in an official Honda Shop
Inspect (clean, adjust, lubricate, or replace, if necessary)
:
Replace
:
Clean
:
Lubricate
:
Manual.
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
46
Regular Replace
Refer to
page
–
–
–
71
Page 51
Maintenance Schedule
*1
Items
Brake Fluid
Brake Shoe/Pad Wear 65, 68
Brake System 64
Brakelight Switch 69
Headlight Aim –
Lights/Horn –
Engine Stop Switch –
Clutch System 72
Side Stand 70
Suspension 75
Nuts, Bolts, Fasteners –
Wheels/Tyres 56
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : Replacement requires mechanical skill.
*4
Pre-ride
Check
× 1,000 km 1 6 12 18 24 30 36
2 P. 48
× 1,000 mi 0.6 4 8 12 16 20 24
Frequency
Annual
Check
Regular
Refer to
Replace
page
2 Years 64
Maintenance
47
Page 52
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to perform a pre-ride inspection and make sure that any problem you find is corrected. A pre-
Maintenance
ride inspection is a must, not only for safety, but because having a breakdown, or even a flat tyre, can be a major inconvenience.
Check the following items before you get on your vehicle:
● Fuel level - Fill fuel tank when necessary.
2 P. 40
●
Throttle - Check for smooth opening and full closing in all steering positions. 2 P. 74
●
Engine oil level - Add engine oil if necessary. Check for leaks. 2 P. 62
●
Drive chain - Check condition and slack, adjust and lubricate if necessary. 2 P. 71
48
● Brakes - Check operation;
Front: check brake fluid level and pads wear.
2 P. 64, 2 P. 65
Combi Brake: check brake fluid level. 2 P. 64 Rear: check shoes wear and freeplay, adjust if necessary. 2 P. 68, 2 P. 66
● Lights and horn - Check that lights,
indicators and horn function properly.
● Engine stop switch - Check for proper
function. 2 P. 34
● Clutch - Check operation;
Adjust freeplay if necessary. 2 P. 72
●
Side stand ignition cut-off system - Check for proper function. 2 P. 70
●
Wheels and tyres - Check condition, air pressure and adjust if necessary. 2 P. 56
Page 53
Maintenance Fundamentals
Replacing Parts
Always use Honda Genuine Parts or their equivalents to ensure reliability and safety.
When ordering coloured components, specify the model name, colour, and code mentioned on the colour label. The colour label is attached to the frame under the seat. 2 P. 60

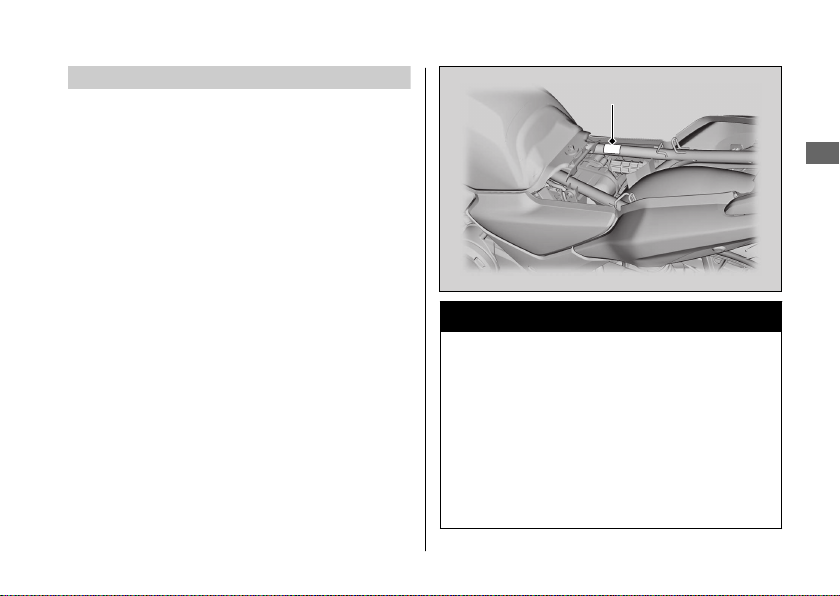

Colour label
Maintenance
3WARNING
Installing non-Honda parts may make your vehicle unsafe and cause a crash in which you can be seriously hurt or killed.
Always use Honda Genuine Parts or equivalents that have been designed and approved for your vehicle.
49
Page 54
Maintenance Fundamentals
Battery
Your vehicle has a maintenance-free type battery. You do not have to check the battery electrolyte level or add distilled water. Clean the
Maintenance
battery terminals if they become dirty or corroded. Do not remove the battery cap seals. There is no need to remove the cap when charging.
NOTICE
Your battery is a maintenance-free type and can be permanently damaged if the cap strip is removed.
50
This symbol on the battery means that this product must not be treated as household waste.
NOTICE
An improperly disposed of battery can be harmful to the environment and human health. Always confirm local regulations for proper battery disposal instruction.
Page 55
What to do in an emergency
#
If any of the following occur, immediately see your doctor.
● Electrolyte splashes into your eyes:
u Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water under pressure can damage your eyes.
Electrolyte splashes onto your skin:
●
u Remove affected clothing and wash your
skin thoroughly using water.
Electrolyte splashes into your mouth:
●
u Rinse mouth thoroughly with water, and
do not swallow.
Maintenance Fundamentals
3WARNING
The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.
Wear protective clothing and a face shield, or have a skilled mechanic do the battery servicing.
Cleaning the Battery Terminals
#
1.
Remove the battery. 2 P. 59
2.
If the terminals are starting to corrode and are coated with a white substance, wash with warm water and wipe clean.
Maintenance
Continued
51
Page 56
Maintenance Fundamentals
3.
If the terminals are heavily corroded, clean and polish the terminals with a wire brush or sandpaper. Wear safety glasses.
Maintenance
4.
After cleaning, reinstall the battery. The battery has a limited life span. Consult your dealer about when you should replace the battery. Always replace the battery with another maintenance-free battery of the same type.
NOTICE
Installing non-Honda electrical accessories can overload the electrical system, discharging the battery and possibly damaging the system.
52
Fuses
Fuses protect the electrical circuits on your vehicle. If something electrical on your vehicle stops working, check for and replace any blown fuses. 2 P. 84
Inspecting and Replacing Fuses
#
Turn the ignition switch to the (Off) position to remove and inspect fuses. If a fuse is blown, replace with a fuse of the same rating. For fuse ratings, see “Specifications.” 2 P. 99
Blown fuse
NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system.
Page 57
If a fuse fails repeatedly, you likely have an electrical fault. Have your vehicle inspected by your dealer.
Engine Oil
Engine oil consumption varies and oil quality deteriorates according to riding conditions and time elapsed. Check the engine oil level regularly, and add the recommended engine oil if necessary. Dirty oil or old oil should be changed as soon as possible.

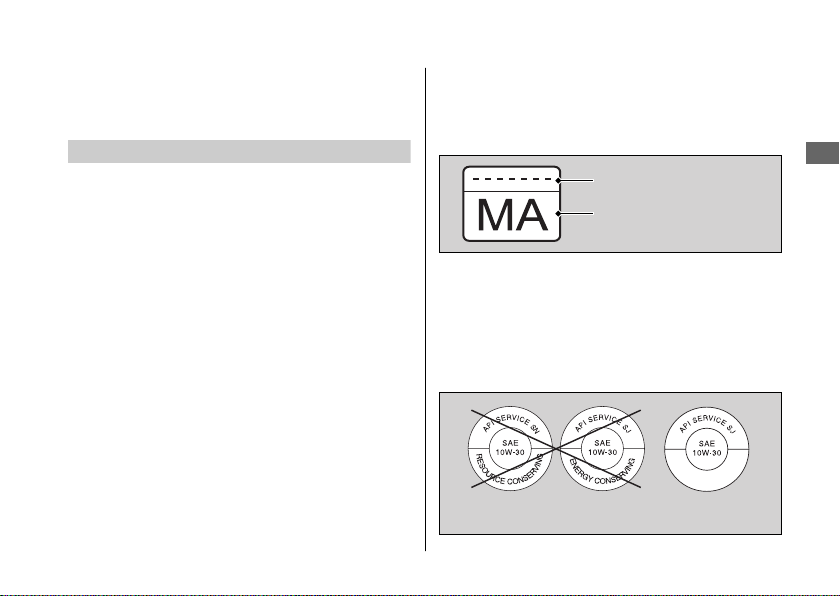

Selecting the Engine Oil
#
For recommended engine oil, see “Specifications.” 2 P. 98
If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards:
●
JASO T 903 standard*1: MA
● SAE standard
● API classification
*2
: 10W-30
*3
: SG or higher
Maintenance Fundamentals
*1.
The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. For example, the following label shows the MA classification.
Oil code
Oil classification
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and performance rating of engine oils. Use SG or higher oils, excluding oils marked as “Energy Conserving” or “Resource Conserving” on the circular API service symbol.
Not recommended Recommended
Maintenance
53
Page 58
Maintenance Fundamentals
Brake Fluid
Do not add or replace brake fluid, except in an emergency. Use only fresh brake fluid from a sealed container. If you do add fluid, have the
Maintenance
brake system serviced by your dealer as soon as possible.
NOTICE
Brake fluid can damage plastic and painted surfaces. Wipe up spills immediately and wash thoroughly.
Recommended brake fluid:
Honda DOT 3 or DOT 4 Brake Fluid or equivalent
Drive Chain
The drive chain must be inspected and lubricated regularly. Inspect the chain more frequently if you often ride on bad roads, ride at high speed, or ride with repeated fast acceleration. 2 P. 71
54
If the chain does not move smoothly, makes strange noises, has damaged rollers, has loose pins, has missing O-rings, or kinks, have the chain inspected by your dealer.

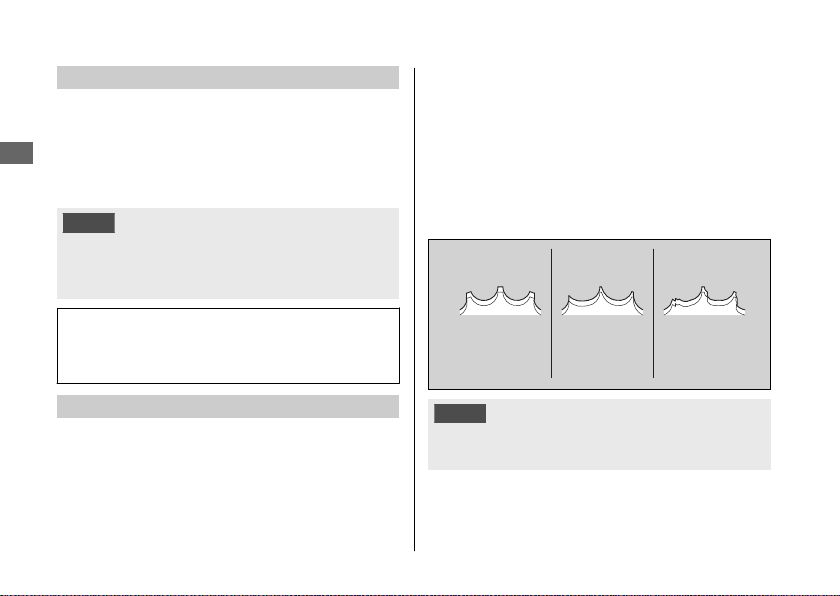

Also inspect the drive sprocket and driven sprocket. If either has worn or damaged teeth, have the sprocket replaced by your dealer.
Normal
(GOOD)
NOTICE
Use of a new chain with worn sprockets will cause rapid chain wear.
Worn
(REPLACE)
Damaged
(REPLACE)
Page 59
Maintenance Fundamentals
Cleaning and Lubricating
#
After inspecting the slack, clean the chain and sprockets while rotating the rear wheel. Use a dry cloth with chain cleaner designed specifically for O-ring chains, or neutral detergent. Use a soft brush if the chain is dirty. After cleaning, wipe dry and lubricate with the recommended lubricant.
Recommended lubricant:
Drive chain lubricant designed specifically for O-ring chains If not available, use SAE 80 or 90 gear oil.
Do not use a steam cleaner, a high pressure cleaner, a wire brush, volatile solvent such as petrol and benzene, abrasive cleaner, chain cleaner or lubricant NOT designed specifically for O-ring chains as these can damage the rubber O-ring seals. Avoid getting lubricant on the brakes or tyres. Avoid applying excess chain lubricant to prevent spray onto your clothes and the vehicle.
Crankcase Breather
Service more frequently when riding in rain, at full throttle, or after the vehicle is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube. If the drain tube overflows, the air filter may become contaminated with engine oil causing poor engine performance.
Maintenance
55
Page 60
Maintenance Fundamentals
Tyres (Inspecting/Replacing)
Checking the Air Pressure
#
Visually inspect your tyres and use an air pressure gauge to measure the air pressure at
Maintenance
least once a month or any time you think the tyres look low. Always check air pressure when your tyres are cold.

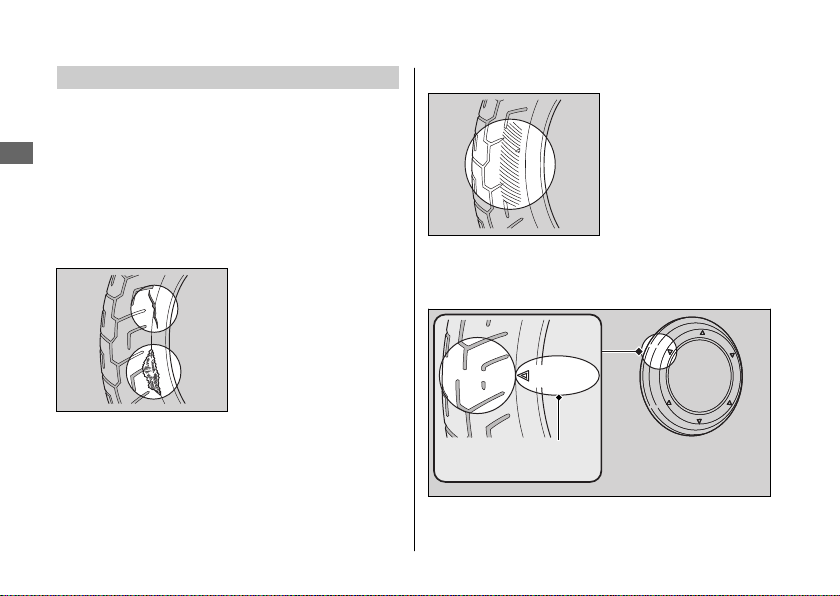

Inspecting for Damage
#
Inspect the tyres for cuts, slits, or cracks that exposes fabric or cords, or nails or other foreign objects embedded in the side
of the tyre or the tread. Also inspect for any unusual bumps or bulges in the side walls of the tyres.
56
Inspecting for Abnormal Wear
#
Inspect the tyres for signs of abnormal wear on the contact surface.
Inspecting Tread Depth
#
Inspect the tread wear indicators. If they become visible, replace the tyres immediately.
or TWI
Wear indicator location mark
Page 61
Maintenance Fundamentals
3WARNING
Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner's manual regarding tyre inflation and maintenance.
Have your tyres replaced by your dealer. For recommended tyres and air pressure, see “Specifications.” 2 P. 98 Follow these guidelines whenever you replace tyres.
●
Use the recommended tyres or equivalents of the same size, construction, speed rating, and load range.
●
Do not install a tube inside a tubeless tyre on this vehicle. Excessive heat build-up can cause the tube to burst.
● Use only tubeless tyres on this vehicle.
The rims are designed for tubeless tyres, and during hard acceleration or braking, a tube-type tyre could slip on the rim and cause the tyre to rapidly deflate.
3WARNING
Installing improper tyres on your vehicle can adversely affect handling and stability, and can cause a crash in which you can be seriously hurt or killed.
Always use the size and type of tyres recommended in this owner's manual.
Maintenance
57
Page 62
Tool
The tool kit is stored under side of the seat.
2 P. 60
You can perform some roadside repairs, minor adjustments and parts replacement with the
Maintenance
provided tools.
● 14 × 17 mm Open end wrench
● Spark plug wrench
● Standard/Phillips screwdriver
● Pin spanner
58
Page 63

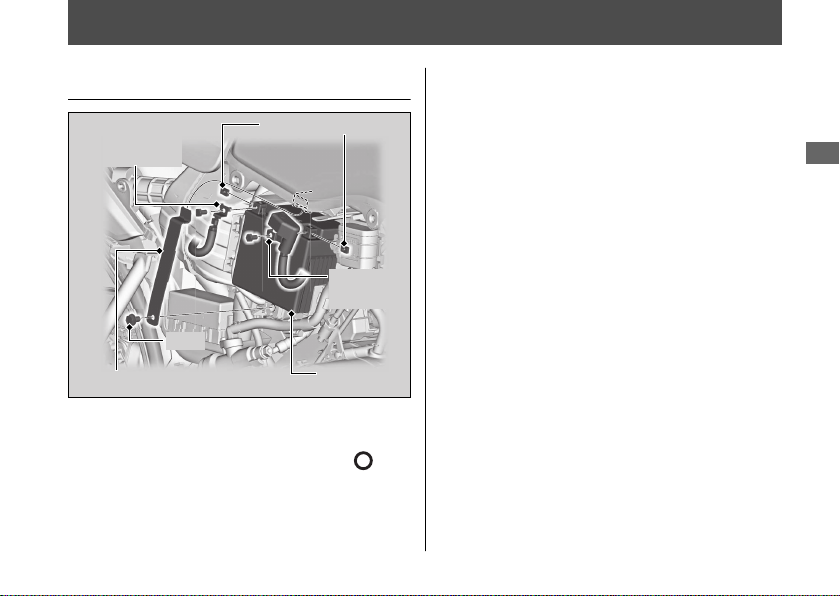

Removing & Installing Body Components
3.
Battery
Negative terminal
Bolt
Battery holder
Removal
#
Make sure the ignition switch is in the (Off) position.
1.
Remove the right side cover. 2 P. 61 Remove the bolt.
2.
Terminal nuts
Positive terminal
Battery
Remove the battery holder.
4.
Disconnect the negative - terminal from the battery.
Disconnect the positive + terminal from
5.
the battery. Remove the battery taking care not to
6.
drop the terminal nuts.
Installation
#
Install the parts in the reverse order of removal. Always connect the positive +
terminal first. Make sure that bolts and nuts are tight. Make sure the clock information is correct after the battery is reconnected. 2 P. 29 For proper handling of the battery, see “Maintenance Fundamentals.” 2 P. 50 “Battery Goes Dead.” 2 P. 81
Maintenance
59
Page 64
Removing & Installing Body Components u Seat
Seat
Prongs
Maintenance
Seat lock
Ignition key
Removal
#
1.
Insert the ignition key into the seat lock.
2.
Turn it clockwise, then pull the seat up and back.
Installation
#
1.
Insert the prongs into the stays on the frame.
2.
Push forward and down on the rear of the seat until it locks in place. Make sure that the seat is locked securely in position to pull it up lightly.
60
Stays
The seat locks automatically when closed. Take care not to lock your key in the compartment under the seat.
Page 65
Removing & Installing Body Components u Side Cover
Side Cover
Grommets
Side cover
Prongs
Screw
The right and left side covers can be removed in the same manner.
Removal
#
Remove the screw.
1.
2.
Remove the prongs from the grommets.
3.
Remove the side cover.
Installation
#
Install the parts in the reverse order of removal.
Maintenance
61
Page 66

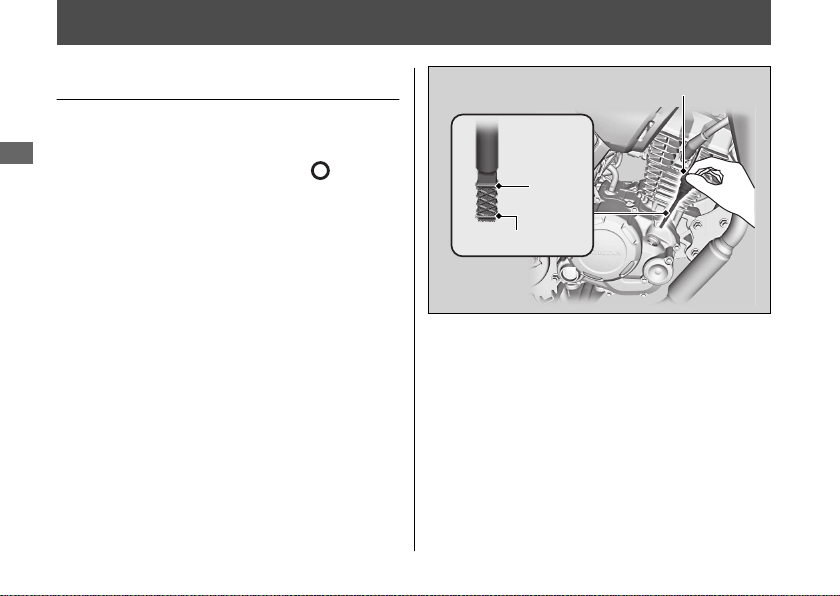

Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
Maintenance
to 5 minutes.
2.
Turn the ignition switch to the (Off) position and wait for 2 to 3 minutes.
3.
Place your vehicle in an upright position on a firm, level surface. Remove the oil fill cap/dipstick and wipe it
4.
clean.
5.
Insert the oil fill cap/dipstick until it seats, but don't screw it in. Check that the oil level is between the
6.
upper level and lower level marks on the oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
62
Oil fill cap/dipstick
Upper level
Lower level
Page 67
Adding Engine Oil
If the engine oil is below or near the lower level mark, add the recommended engine oil.
2 P. 53, 2 P. 98
1.
Remove the oil fill cap/dipstick. Add the recommended oil until it reaches the upper level mark.
u Place your vehicle in an upright
position on a firm, level surface when checking the oil level. Do not overfill above the upper level
u
mark.
u
Make sure no foreign objects enter the oil filler opening. Wipe up any spills immediately.
u
Engine Oil u Adding Engine Oil
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient oil can cause damage to your engine. Do not mix different brands and grades of oil. They may affect lubrication and clutch operation.
For the recommended oil and oil selection guidelines, see “Maintenance Fundamentals.”
2 P. 53
Maintenance
63
Page 68
UPPER
LOWER
LWR
Brakes
Checking Brake Fluid
1.
Place your vehicle in an upright position
Maintenance
on a firm, level surface.
Front brake
2.
Check that the brake fluid reservoir is horizontal and that the fluid level is above the LWR level mark.
Combi brake
Check that the brake fluid
reservoir is horizontal and that the fluid
Front brake Combi brake
Front brake fluid reservoir
LWR level mark
64
level is between the LOWER level and
UPPER level marks. If the brake fluid level in either reservoir is below the LWR level mark or LOWER level mark or the brake lever freeplay becomes excessive, inspect the brake pads for wear. If the brake pads are not worn, you most likely have a leak. Have your vehicle inspected by your dealer.
Rear brake fluid reservoir
UPPER level mark
LOWER level mark
Page 69
Brakes u Inspecting the Front Brake Pads

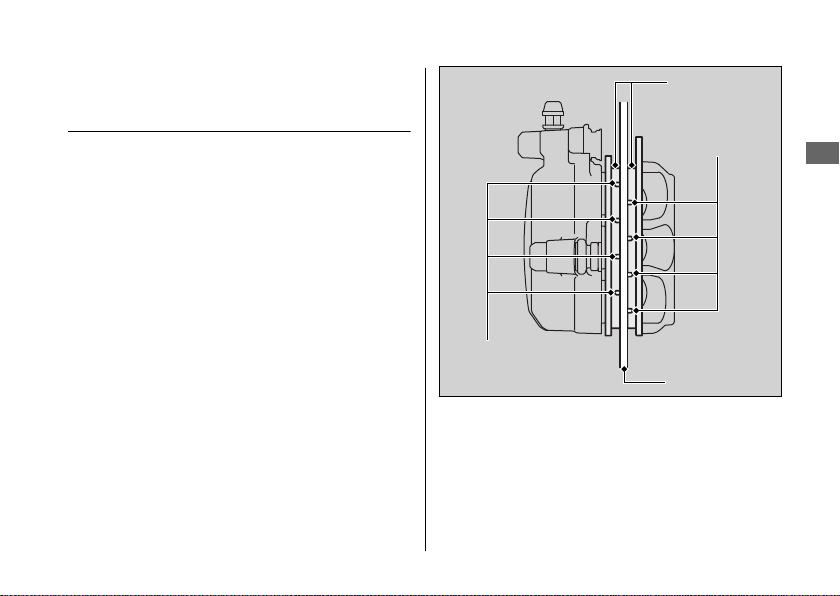

Inspecting the Front Brake Pads
Check the condition of the brake pad wear indicators. The pads need to be replaced if a brake pad is worn to the bottom of the indicator.
Inspect the brake pads from in front of the brake caliper.
If necessary have the pads replaced by your dealer. Always replace both left and right brake pads at the same time.
Wear indicators
Brake pads
Wear indicators
Maintenance
Disc
65
Page 70

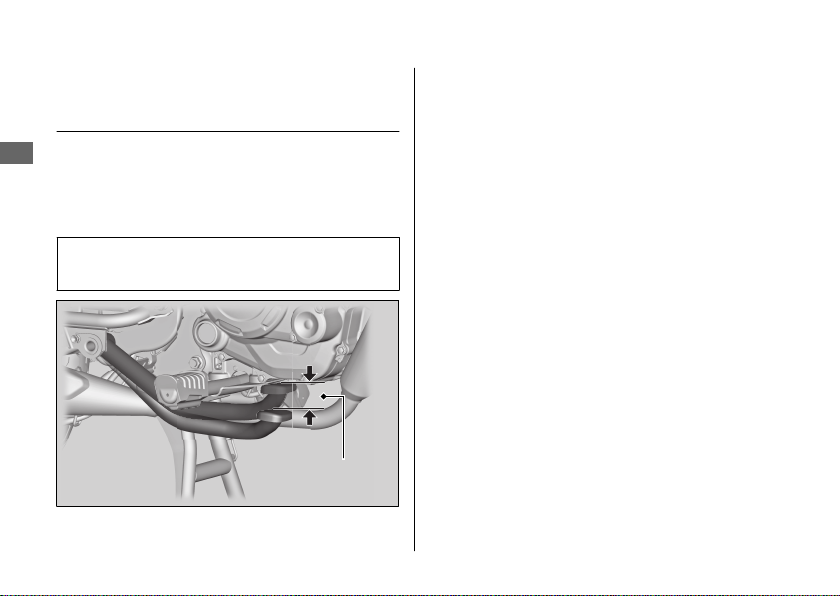

Brakes u Inspecting the Rear Brake Pedal Freeplay
Inspecting the Rear Brake Pedal Freeplay
1.
Maintenance
Place your vehicle on its centre stand on a firm, level surface.
2.
Measure the distance the rear brake pedal moves before the brake takes hold.
Freeplay at the tip of the brake pedal:
20 - 30 mm (0.8 - 1.2 in)
66
Make sure the brake rod, brake arm, spring and fastener are in good condition.
Freeplay
Page 71

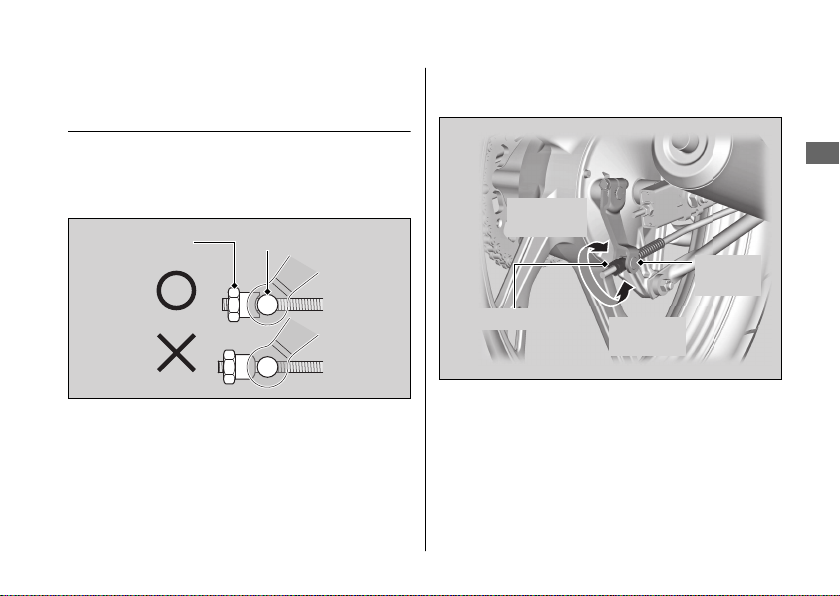

Brakes u Adjusting the Rear Brake Pedal Freeplay
Adjusting the Rear Brake Pedal Freeplay
1.
Adjust by turning the rear brake adjusting nut a half-turn at a time.
Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting the freeplay.
Brake arm pinAdjusting nut
If proper adjustment cannot be obtained by this method, see your dealer.
Decrease Freeplay
Brake arm pin
Adjusting nut
Apply the brake several times and check
2.
for free wheel rotation after the brake pedal is released.
Increase Freeplay
Continued
Maintenance
67
Page 72

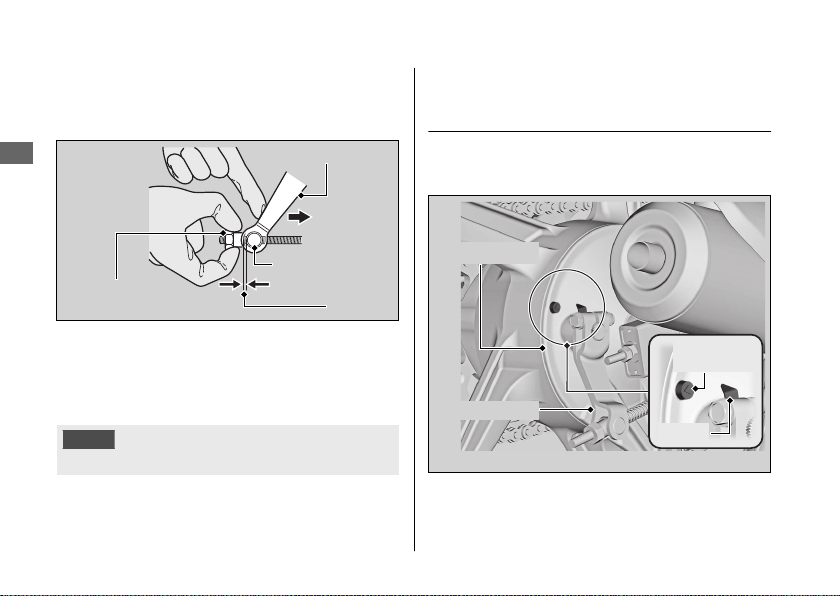

Brakes u Inspecting the Rear Brake Shoe Wear
3.
Push the brake arm to confirm that there is a gap between the rear brake adjusting nut and brake arm pin.
Maintenance
Adjusting nut
After adjustment, confirm the freeplay of the brake pedal. Make sure the brake rod, brake arm, spring and fastener are in good condition.
NOTICE
Do not turn the adjuster beyond its natural limits.
68
Brake arm
Brake arm pin
Inspecting the Rear Brake Shoe Wear
The rear brake is equipped with a brake wear indicator.
Push
Brake panel
Gap
Reference mark
Brake arm
Arrow
Page 73
Brakes u Adjusting the Brakelight Switch
When the brake is applied, an arrow attached to the brake arm moves toward a reference mark on the brake panel. If the arrow aligns with the reference mark on full application of the brake, the brake shoes must be replaced. See your dealer for this service.
When the brake service is necessary, see your dealer. Use only Honda Genuine Parts or its equivalent.

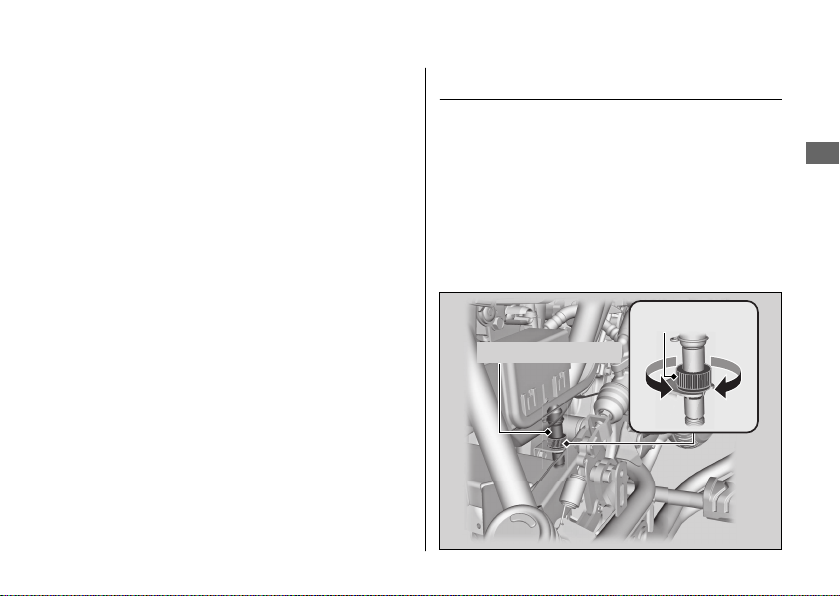

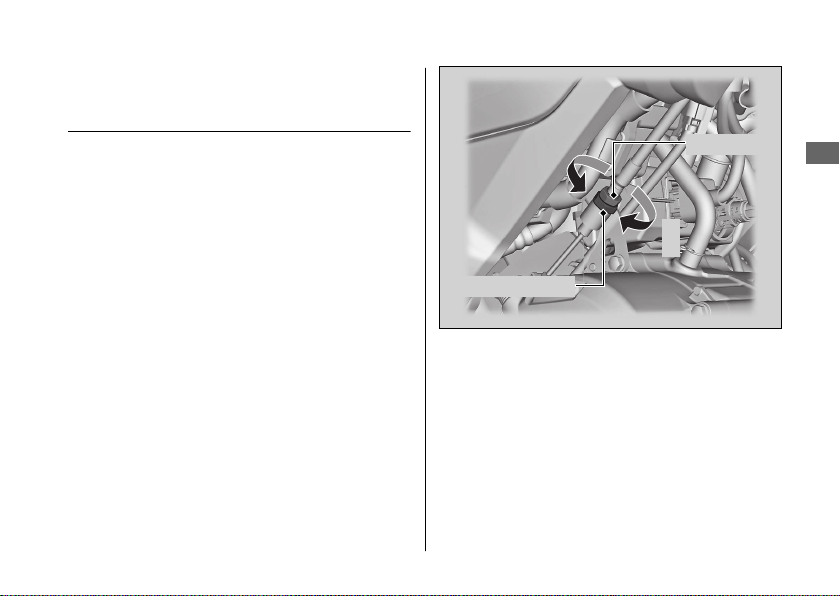

Adjusting the Brakelight Switch
Check the operation of the brakelight switch.
1.
Remove the right side cover. 2 P. 61
2.
Hold the brakelight switch and turn the adjusting nut in the direction A if the switch operates too late, or turn the nut in the direction B if the switch operates too soon. Install the right side cover.
3.
Adjusting nut
Brakelight switch
B
A
Maintenance
69
Page 74
Side Stand
Checking the Side Stand
Maintenance
Side stand spring
70
1.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
2.
Check the spring for damage or loss of
tension.
3.
Sit on the vehicle, shift the transmission to
Neutral, and raise the side stand.
4.
Start the engine, pull the clutch lever in,
and shift the transmission into gear.
5.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your vehicle inspected by your dealer.
Page 75
Drive Chain
Inspecting the Drive Chain Slack
Check the drive chain slack at several points along the chain. If the slack is not constant at all points, some links may be kinked and binding. Have the chain inspected by your dealer.
1.
Shift the transmission to Neutral. Stop the engine. Place your vehicle on its centre stand on a
2.
firm, level surface. Check the slack in the lower half of the
3.
drive chain midway between the sprockets.
Drive chain slack:
20 - 30 mm (0.8 - 1.2 in)
Do not ride your vehicle if the slack
u
exceeds 50 mm (2.0 in).
4.
Rotate the rear wheel and check that the chain moves smoothly.
5.
Inspect the sprockets. 2 P. 54
6.
Clean and lubricate the drive chain.
2 P. 55
Maintenance
71
Page 76
Clutch
Checking the Clutch

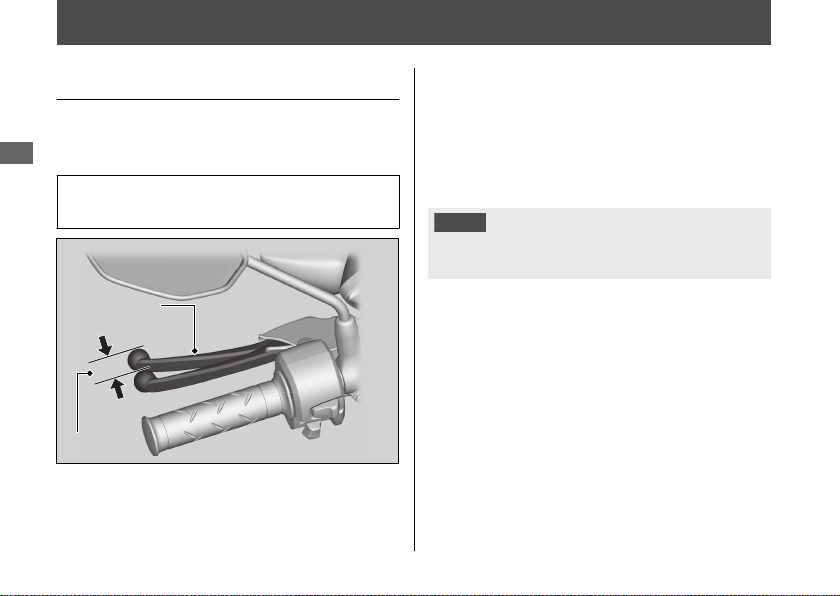

Checking the Clutch Lever Freeplay
#
Check the clutch lever freeplay.
Maintenance
Freeplay at the clutch lever:
10 - 20 mm (0.39 - 0.79 in)
Clutch lever
Freeplay
72
Check the clutch cable for kinks or signs of wear. If necessary have it replaced by your dealer. Lubricate the clutch cable with a commercially available cable lubricant to prevent premature wear and corrosion.
NOTICE
Improper freeplay adjustment can cause premature clutch wear.
Page 77
Adjusting the Clutch Lever Freeplay
1.
Loosen the lock nut.
2.
Turn the adjusting nut until the clutch lever freeplay is 10 - 20 mm (0.39 - 0.79 in).
3.
Tighten the lock nut and check the clutch lever freeplay again. Start the engine, pull the clutch lever in,
4.
and shift into gear. Make sure the engine does not stall and the vehicle does not creep. Gradually release the clutch lever and open the throttle. Your vehicle should move smoothly and accelerate gradually.
Clutch u Adjusting the Clutch Lever Freeplay
+
Lock nut
-
Adjusting nut
If proper adjustment cannot be obtained or the clutch does not work correctly, see your dealer.
Maintenance
73
Page 78
Throttle
Checking the Throttle
With the engine off, check that the throttle rotates smoothly from fully closed to fully
Maintenance
open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the vehicle inspected by your dealer.
Freeplay at the throttle grip flange:
2 - 6 mm (0.1 - 0.2 in)
74
Freeplay
Flange
Page 79
Other Adjustments
Adjusting the Rear Suspension
Adjusting the suspension requires a pin spanner. We recommend that you have your vehicle serviced by your dealer.
Spring Preload
#
You can adjust the spring preload by the adjuster to suit the load or the road surface. Use the pin spanner to turn the adjuster. Position 1 is for a decrease spring preload (soft), or turn the position 3 to 5 to increase spring preload (hard). The standard position is 2.
1 2 3 4 5
Pin spanner
Adjuster
NOTICE
Attempting to adjust directly from 1 to 5 or 5 to 1 may damage the shock absorber.
NOTICE
Do not turn the adjuster beyond its limits. Adjust both left and right shock absorbers to the same spring preload.
Maintenance
75
Page 80
Troubleshooting
Engine Will Not Start........................................ P. 77
Warning Indicators On or Flashing...............P. 78
PGM-FI (Programmed Fuel Injection)
Malfunction Indicator Lamp (MIL).................P. 78
Other Warning Indications.............................. P. 79
Fuel Gauge Failure Indication...........................P. 79
Tyre Puncture ..................................................... P. 80
Electrical Trouble............................................... P. 81
Battery Goes Dead .............................................. P. 81
Burned-out Light Bulb........................................ P. 81
Blown Fuse ............................................................ P. 84
Page 81
Engine Will Not Start
Starter Motor Operates But Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 37 Check that there is petrol in the fuel tank.
●
● Check if the PGM-FI malfunction indicator
lamp (MIL) is on.
u If the indicator lamp is on, contact
your dealer as soon as possible.
Starter Motor Does Not Operate
Check the following items:
● Check the correct engine starting
sequence. 2 P. 37 Make sure engine stop switch is in the
●
(Run) position. 2 P. 34
● Check for a blown fuse. 2 P. 84
Check for a loose battery connection
●
(2 P. 59) or battery terminal corrosion (2 P. 50).
● Check the condition of the battery. 2 P. 81
If the problem continues, have your vehicle inspected by your dealer.
Troubleshooting
77
Page 82
Warning Indicators On or Flashing
PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)
Reasons for the indicator lamp to come
Troubleshooting
on or blink
● Comes on if there is a problem with the
engine emissions control system.
● Blinks when engine misfiring is detected.
What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a dealer.
What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least 10 minutes with the engine stopped until it cools.
78
NOTICE
If you drive with the malfunction indicator lamp on, the emissions control system and the engine could be damaged.
NOTICE
If the malfunction indicator lamp blinks again when restarting the engine, drive to the nearest dealer at 50 km/h (31 mph) or less. Have your vehicle inspected.
Page 83
Other Warning Indications
Fuel Gauge Failure Indication
If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustrations. If these occur, see your dealer as soon as possible.
Troubleshooting
79
Page 84
Tyre Puncture
Repairing a puncture or removing a wheel requires special tools and technical expertise. We recommend you have this type of service performed by your dealer. After an emergency repair, always have the tyre inspected/replaced by your dealer.
Troubleshooting
Emergency Repair Using a Tyre Repair Kit
If your tyre has a minor puncture, you can make an emergency repair using a tubeless tyre repair kit. Follow the instructions provided with the emergency tyre repair kit.
Riding your vehicle with a temporary tyre repair is very risky. Do not exceed 50 km/h (30 mph). Have the tyre replaced by your dealer as soon as possible.
80
3WARNING
Riding your vehicle with a temporary tyre repair can be risky. If the temporary repair fails, you can crash and be seriously injured or killed.
If you must ride with a temporary tyre repair, ride slowly and carefully and do not exceed 50 km/h (30 mph) until the tyre is replaced.
Page 85
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle battery charger. Remove the battery from the vehicle before charging.
Do not use an automobile-type battery charger, as these can overheat a motorcycle battery and cause permanent damage. If the battery does not recover after recharging, contact your dealer.
NOTICE
Jump starting using an automobile battery can damage your vehicle's electrical system and is not recommended.
Burned-out Light Bulb
Follow the procedure below to replace a burned-out light bulb. Turn the ignition switch to the (Off)or (Lock) position.
Allow the bulb to cool before replacing it. Do not use bulbs other than those specified. Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see “Specifications.” 2 P. 99
The headlight uses several LEDs. If there is an LED which is not turned on, see
your dealer for servicing.
Continued
Troubleshooting
81
Page 86
Electrical Trouble u Burned-out Light Bulb

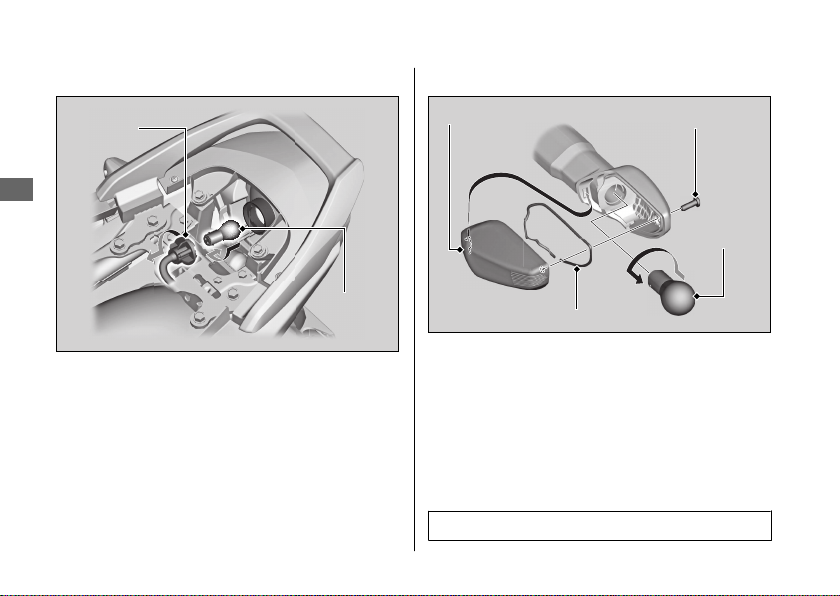

Brakelight/Taillight Bulb
#
Socket
Troubleshooting
1.
Remove the seat. 2 P. 60
2.
Turn the socket counterclockwise, and remove it.
3.
Slightly press the bulb and turn it counterclockwise.
4.
Install a new bulb and parts in reverse order of removal.
82
Bulb
Front/Rear Turn Signal Light Bulb
#
Turn signal lens
Lens packing
1.
Remove the screw.
2.
Remove the turn signal lens and lens
packing.
3.
Slightly press the bulb and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
Torque: 1 N·m (0.1 kgf·m, 0.7 lbf·ft)
Screw
Bulb
Page 87

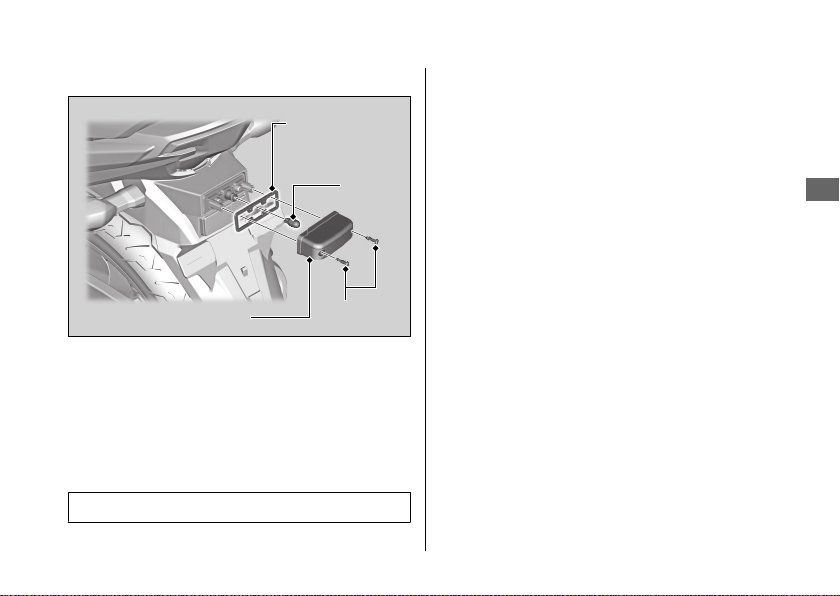

License Plate Light Bulb
#
Electrical Trouble u Burned-out Light Bulb
License light cover packing
License light cover
1.
Remove the screws, license light cover and license light cover packing.
2.
Pull out the bulb without turning it.
3.
Install a new bulb and parts in reverse order of removal.
4.
Install and tighten the screws.
Torque: 1 N·m (0.1 kgf·m, 0.7 lbf·ft)
Bulb
Screws
Troubleshooting
83
Page 88
Electrical Trouble u Blown Fuse
Blown Fuse
Before handling fuses, see “Inspecting and Replacing Fuses.” 2 P. 52
Fuse box cover
Troubleshooting
Fuse puller
Spare fuses
84
1.
Remove the right side cover. 2 P. 61
2.
Remove the fuse box cover.
Pull the fuses out one by one with the
3.
fuse puller in the fuse box cover and
check for a blown fuse.
Always replace a blown fuse with a spare
fuse of the same rating.
u Spare fuses are provided in the fuse
box cover.
4.
Reinstall parts in the reverse order of
removal.
NOTICE
If a fuse fails repeatedly, you likely have an electrical problem. Have your vehicle inspected by your dealer.
Page 89
Information
Service Diagnostic Recorders......................... P. 86
Keys....................................................................... P. 86
Instruments, Controls, & Other Features..... P. 87
Caring for Your Vehicle.................................... P. 88
Storing Your Vehicle.........................................P. 91
Transporting Your Vehicle ..............................P. 92
You & the Environment.................................... P. 93
Serial Numbers................................................... P. 94
Fuels Containing Alcohol................................. P. 95
Catalytic Converter ...........................................P. 96
Page 90
Service Diagnostic Recorders
Service Diagnostic Recorders
Your vehicle is equipped with service-related devices that record information about powertrain performance and riding conditions. The data can be used to help technicians diagnose, repair and maintain the vehicle. This
Information
data may not be accessed by anyone else except as legally required or with the permission of the vehicle owner. However this data may be accessed by Honda, its authorised dealers and authorised repairers, employees, representatives and contractors only for the purpose of the technical diagnosis, research and development of the vehicle.
86
Keys
Ignition Key
Be sure to record the key number provided with the key number plate. Store the spare key and key number in a safe location. To make a duplicate, take the spare key or the key number to your dealer. If you lose all ignition keys and the key number, the ignition switch assembly will probably have to be removed by your dealer to determine the key number. A metal key holder may cause damage to the area surrounding the ignition switch.
Page 91
Instruments, Controls, & Other Features
Instruments, Controls, & Other Features
Ignition Switch
Leaving the ignition switch in the (On) position with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an emergency. Doing so when riding will cause the engine to suddenly turn off, making riding unsafe. If you stop the engine using the engine stop switch, turn the ignition switch to the (Off) position. Failing to do so will drain the battery.
Odometer
The display locks at 999,999 when the read-out exceeds 999,999.
Tripmeter
The tripmeters return to 0.0 when each read­out exceeds 9,999.9.
Also average fuel mileage and available driving distance are reset at the same time.
Document Bag
The owner's manual, registration, and insurance information can be stored in the plastic document bag located under the seat. 2 P. 60
Ignition Cut-off System
A banking (lean angle) sensor automatically stops the engine and fuel pump if the vehicle falls over. To reset the sensor, you must turn the ignition switch to the (Off) position and back to the (On) position before the engine can be restarted.
Information
87
Page 92
Caring for Your Vehicle
Caring for Your Vehicle
Frequent cleaning and polishing is important to ensure the life of your Honda. A clean vehicle makes it easier to spot potential problems. In particular, seawater and salts used to prevent ice on roads promote the formation of corrosion. Always wash your vehicle thoroughly
Information
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care to avoid scratching them. Avoid directing water into the air cleaner, muffler, and electrical parts.
88
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tyres. Brake discs, pads, drum or shoes contaminated with oil will suffer greatly reduced braking effectiveness and can lead to a crash.
5.
Lubricate the drive chain immediately after
washing and drying the vehicle.
6.
Apply a coat of wax to prevent corrosion.
u Avoid products that contain harsh
detergents or chemical solvents. These can damage the metal, paint, and plastic on your vehicle. Keep the wax clear of the tyres and brakes.
u If your vehicle has any matte painted
parts, do not apply a coat of wax to the matte painted surface.
Page 93
Caring for Your Vehicle
Washing Precautions
#
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical parts, rendering them inoperable.
u Water in the air intake can be drawn into
the throttle body and/or enter the air cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the brakes intermittently at low speed to help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding in the rain. This does not impact the headlight function. However, if you see a large amount of water or ice accumulated inside the lens(es), have your vehicle inspected by your dealer.
●
Do not use wax or polishing compounds on mat painted surface:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean mat painted surfaces. Dry with a soft clean cloth.
Continued
Information
89
Page 94
Caring for Your Vehicle
Aluminium Components
Aluminium will corrode from contact with dirt, mud, or road salt. Clean aluminium parts regularly and follow these guidelines to avoid scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Information
Panels
Follow these guidelines to prevent scratches and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty of water.
● Avoid getting petrol, brake fluid, or
detergents on the instruments, panels, or headlight.
90
Exhaust Pipe and Muffler
When the exhaust pipe and muffler are painted, do not use a commercially available abrasive kitchen cleaning compound. Use a neutral detergent to clean the painted surface on the exhaust pipe and muffler. If you are not sure if your exhaust pipe and muffler are painted, contact your dealer.
Page 95
Storing Your Vehicle
Storing Your Vehicle
If you store your vehicle outdoors, you should consider using a full-body cover. If you won't be riding for an extended period, follow these guidelines:
● Wash your vehicle and wax all painted
surfaces (except matte painted surfaces). Coat chrome pieces with rust-inhibiting oil.
● Lubricate the drive chain. 2 P. 54
● Place your vehicle on its centre stand and
position a block so that both tyres are off the ground.
●
After rain, remove the body cover and allow the vehicle to dry.
●
Remove the battery (2 P. 59) to prevent discharge. Fully charge the battery and then place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to prevent discharge.
After removing your vehicle from storage, inspect all maintenance items required by the Maintenance Schedule.
Information
91
Page 96
Transporting Your Vehicle
Transporting Your Vehicle
If your vehicle needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps. Never try to tow your vehicle with a wheel or wheels on the ground.
Information
NOTICE
Towing your vehicle can cause serious damage to the transmission.
92
Page 97
You & the Environment
You & the Environment
Owning and riding a vehicle can be enjoyable, but you must do your part to protect the environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash your vehicle. Avoid aerosol spray cleaners that contain chlorofluorocarbons (CFCs) which damage the atmosphere's protective ozone layer.
Recycle Wastes
Put oil and other toxic wastes in approved containers and take them to a recycling centre. Call your local or state office of public works or environmental services to find a recycling centre in your area, and to get instructions on how to dispose of non-recyclable wastes. Do not place used engine oil in the trash, or pour it down a drain or on the ground. Used oil, petrol, and cleaning solvents contain poisons that can hurt refuse workers and contaminate drinking water, lakes, rivers, and oceans.
Information
93
Page 98
Serial Numbers

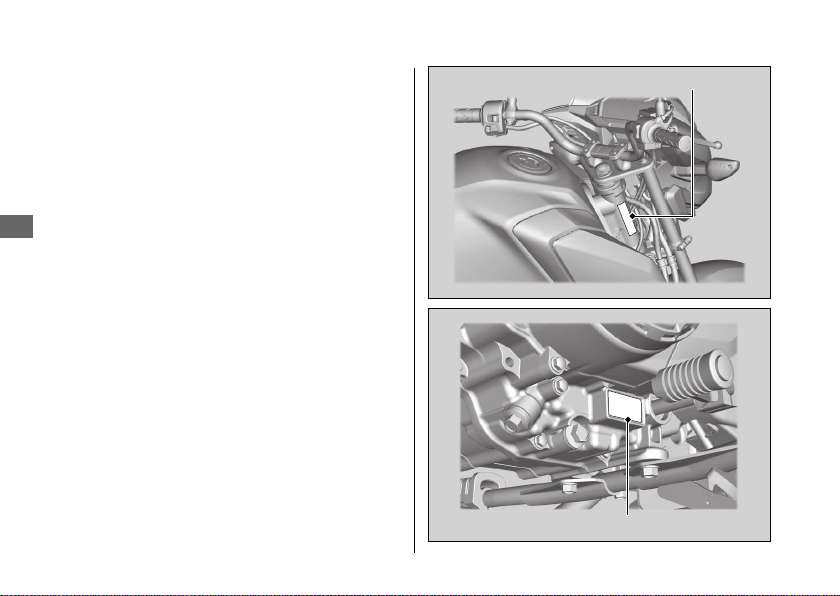

Serial Numbers
The frame and engine serial numbers uniquely identify your vehicle and are required in order to register your vehicle. They may also be required when ordering replacement parts. You should record these numbers and keep them in a safe place.
Information
94
Frame number
Engine number
Page 99
Fuels Containing Alcohol
Fuels Containing Alcohol
Some conventional fuels blended with alcohol are available in some locales to help reduce emissions to meet clean air standards. If you plan to use blended fuel, check that it is unleaded and meets the minimum octane rating requirement.
The following fuel blends can be used in your vehicle:
● Ethanol (ethyl alcohol) up to 10% by volume.
u Petrol containing ethanol may be
marketed under the name Gasohol.
The use of petrol containing more than 10% ethanol may:
● Damage the painting of the fuel tank.
● Damage the rubber tubes of the fuel line.
● Cause corrosion of the fuel tank.
● Cause poor drivability.
NOTICE
Use of blended fuels containing higher than approved percentages can damage metal, rubber, plastic parts of your fuel system.
If you notice any undesirable operating symptoms or performance problems, try a different brand of petrol.
Information
95
Page 100
Catalytic Converter
Catalytic Converter
This vehicle is equipped with a three-way catalytic converter. The catalytic converter contains precious metals that serve as catalysts in high temperature chemical reactions that convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the
Information
exhaust gasses into safe compounds.
A defective catalytic converter contributes to air pollution and can impair your engine's performance. A replacement unit must be an original Honda part or equivalent.
96
Follow these guidelines to protect your vehicle's catalytic converter.
● Always use unleaded petrol. Leaded petrol
will damage the catalytic converter.
● Keep the engine in good running condition.
● Have your vehicle serviced if your engine is
misfiring, backfiring, stalling, or otherwise
not running properly, stop riding and turn
off the engine.
Loading...
