D A F T A R I S I

PETUNJUK PEMAKAIAN

KELOMPOK MESIN

KELOMPOK RANGKA

INDEKS NOMOR PART

1

2

3

4

INDEKS NAMA PART

5

Instruksi penggunaan parts catalog

DAFTAR ISI

• Parts catalog ini telah dibuat pertanggal 10 Desember 2019.

• Setelah tanggal ini, mungkin terjadi perubahan pada parts di dalam catalog ini, dan parts tertentu diganti dengan parts lain atau dihapus (tidak dijual lagi).

• Bacalah parts catalog news untuk revisi yang dilakukan setelah

10 Desember 2019.

• Selalu beritahu nomor part sewaktu memesan part.

• Periksa model, tipe, nomor seri, warna, pabrik pembuat, dan ukuran seperlunya sebelum memesan part.

• Perhatikan bahwa ilustrasi (gambar part) dapat berbeda dalam bentuknya dari part sebenarnya. Ilustrasi hanya diberikan untuk membantu anda mencari parts tersebut.

• Sewaktu terjadi modiﬁ kasi atau penambahan pada parts catalog ini,

maka akan diterbitkan edisi yang direvisi pada waktu yang sesuai, yang memuat nomor revisi yang berurutan pada sampulnya. Kami menganjurkan agar anda mendapatkan revisi-revisi tersebut supaya parts catalog anda tetap mengikuti perkembangan mutakhir setiap waktu. Untuk mengetahui apakah revisi parts catalog telah diterbitkan, hubungi distributor Honda anda.

Versi penerbitan pertama

tanggal 10 Desember 2019

Honda Motor Co., Ltd.

Halaman

Instruksi penggunaan parts catalog ............................. 1

•

Cara mencari informasi part ......................................... 2

•

Struktur parts catalog ................................................... 3

•

Jika parts telah direvisi ................................................. 5

•

Singkatan-singkatan yang dipakai di dalam parts catalog .... 5

•

Blok part dan pengecekan nomor seri .......................... 6

•

Model, kode parts catalog dan nomor seri

•

yang berlaku ................................................................. 7

Tabel warna .................................................................. 8

•

Selang bahan bakar, selang untuk keperluan umum

•

dan selang vinyl ............................................................ 16

FLAT RATE SERVICE TIME ......................................... 20

•

Indeks gambar .............................................................. 25

•

KELOMPOK MESIN ..................................................... 32

•

KELOMPOK RANGKA ................................................. 54

•

INDEKS NOMOR PART ................................................ 107

•

INDEKS NAMA PART .................................................... 113

•

1

2

3

4

5

1

10.12.2019

1

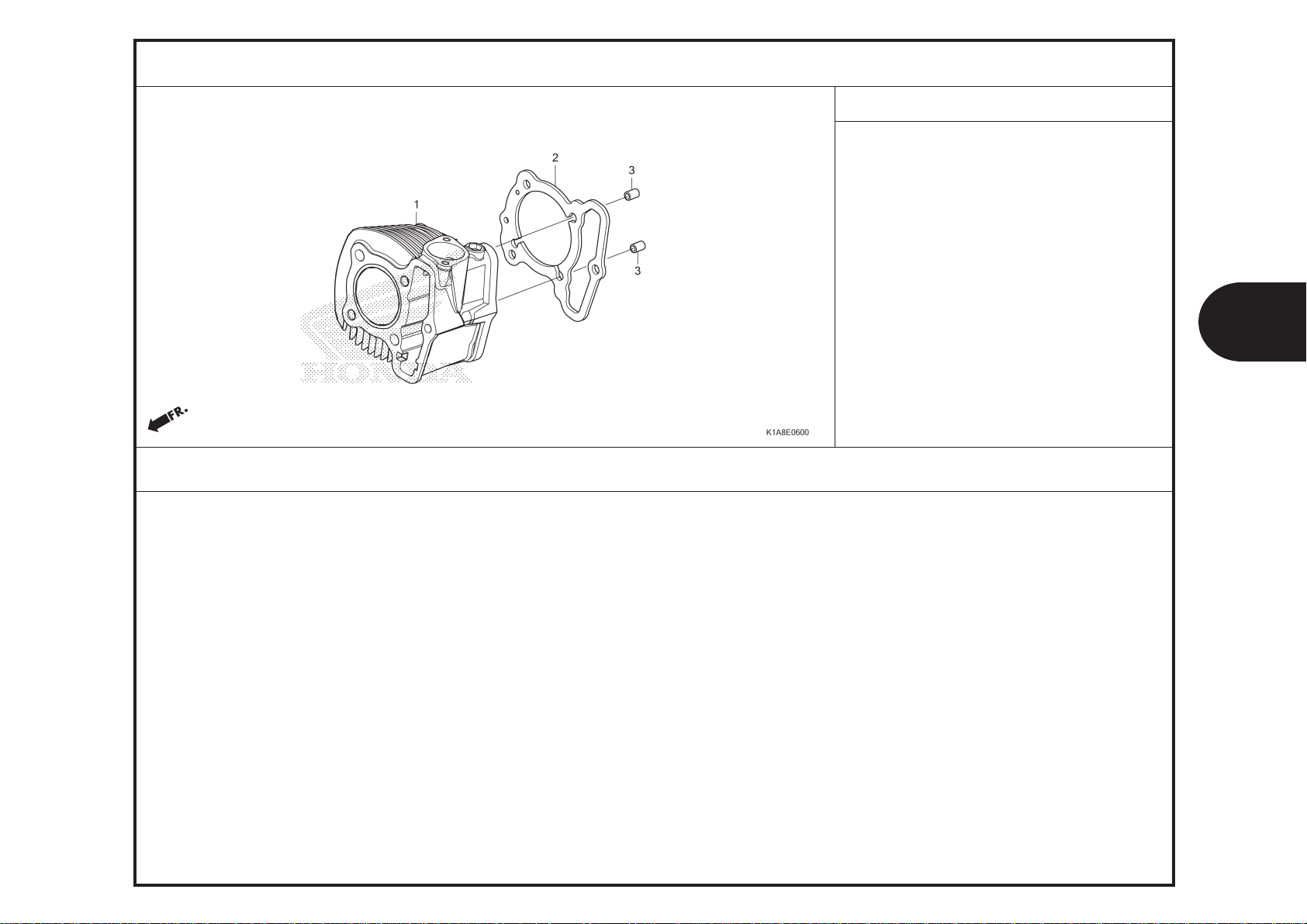

CYLINDER

E-6

1 12100-KZL-930 CYLINDER COMP. .......................... 1 1 1

2 12191-GGC-900 GASKET, CYLINDER ........................ 1 1 1

3 90701-KFM-900 DOWEL PIN, SPECIAL, 8X14 ................ 2 2 2

No. Ref.

L.O.N.

(Nomor ref. relatif)

Deskripsi

F.R . T.

20.08.2012

32

No. Ref.

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT PGM-FI

CW CBS SPOKE

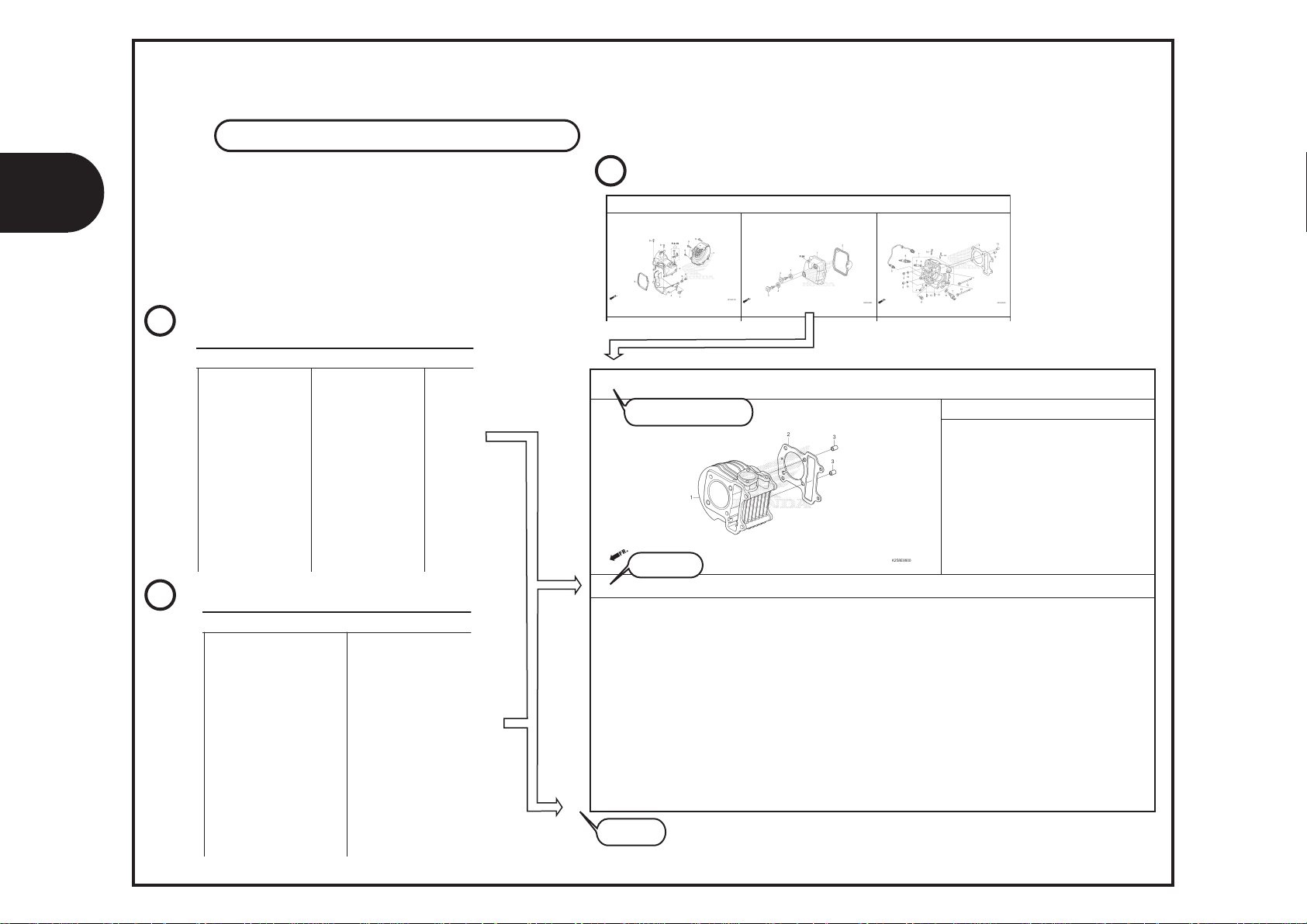

Cara mencari informasi part

1

Mencari parts dengan “Indeks nomor part”

Mencari parts dengan “Indeks nama part”.

2

B

C

INDEKS NOMOR PART

Nomor Part

13011-KVY-700 E-20 2 13011-KWW-740 E-20 2 13012-KVY-700 E-20 2 13013-KVY-700 E-20 2 13014-KVY-700 E-20 2 13015-KVY-700 E-20 2 13021-KWW-740 E-20 2 13031-KWW-740 E-20 2 13041-KWW-740 E-20 2 13051-KWW-740 E-20 2 13101-KVY-700 E-20 3 13101-KZL-C30 E-20 3 13102-KVY-700 E-20 3 13102-KZL-305 E-20 3 13103-KVY-700 E-20 3 13103-KZL-305 E-20 3 13104-KVY-700 E-20 3 13104-KZL-305 E-20 3 13105-KVY-700 E-20 3 13105-KZL-305 E-20 3 13111-087-001 E-20 4 13115-GN5-911 E-20 5 14100-KZL-A00 E-4 2 14100-KZL-C00 E-4 18 14125-KVY-900 E-4 3 14126-KPH-901 E-4 4 14321-KVY-900 E-4 5 14321-KZL-E00 E-4 5 14401-KVB-901 E-5 1 1443A-KVB-C30 E-4 6 1443A-KVY-960 E-4 6 1444A-KVB-C30 E-4 7 1444A-KVY-960 E-4 7 14461-KVB-900 E-4 8 14510-KVB-901 E-5 2

No. Blok Ref

INDEKS NAMA PART

Nama Part No. Kel Ref Nama Part No. Kel

BOLT, FLANGE, 5X14 E-8 6 BOLT, FLANGE, 6MM F-40 5 F-24 16 BOLT, FLANGE, 6X10 E-3 13 BOLT, FLANGE, 6X100 E-3 21 E-3-1 16 BOLT, FLANGE, 6X115 E-16 16 BOLT, FLANGE, 6X12 F-24 21 F-41 20 F-41-1 25 F-26 18 F-26-1 20 F-28-10 22 F-5 21 BOLT, FLANGE, 6X14 F-41-1 26 E-16 20 E-16 18 BOLT, FLANGE, 6X16 E-8 9 F-30 8 BOLT, FLANGE, 6X18 F-28-10 23 BOLT, FLANGE, 6X20 F-41 21 E-22 21 E-8 11 BOLT, FLANGE, 6X22 E-16 12 E-22 20 E-5 10 E-8 11 F-5 22 BOLT, FLANGE, 6X25 E-1 9 E-1-1 11 BOLT, FLANGE, 6X30 E-1-1 10 F-12 17 E-16 19 BOLT, FLANGE, 6X32 F-22-10 12 F-22-30 9

Nomor Part

16015-KVY-901 E-21 4 16016-KRP-981 E-21 5 16016-KVB-S51 E-22 1 16028-KVB-901 E-21 6 16037-KCW-000 E-21 7 16046-KZL-A01 E-21 8 16050-KVY-901 E-21 9 16075-GHB-640 E-21 10 16075-KVB-S51 E-22 2 16081-KPH-701 E-22 3 16100-KZL-A01 E-21 11 16107-GCC-000 E-21 12 16111-KVB-902 E-21 13 16119-KZL-A01 E-21 14 16131-ZW9-801 E-21 15 16140-GFC-901 E-21 16 16155-KJ9-751 E-21 17 16163-KGF-911 E-21 18 16165-KVB-901 E-21 19 16169-KVB-S51 E-22 4 16180-KGH-971 E-21 20 16190-GEE-003 E-21 21 16199-KZL-A01 E-21 22 16201-KVY-900 E-3 5 16222-MV4-300 E-3 6 16236-KVG-900 E-13 7 16400-KZL-C31 E-22 5 16410-KZL-C31 E-22 6 16423-KGH-901 E-21 23 16450-KVB-S51 E-22 7 16472-KPC-D50 E-22 8 16480-KVB-S51 E-22 9 16485-KVB-S51 E-22 10 16700-KZL-931 F-26-1 1 16706-GGL-J01 F-26-1 2

-

Nomor Part

17230-KZL-C30 17231-KZL-A00

17234-KCW-871

17253-KZL-A00 17253-KZL-C30 17254-KVY-900 17256-KZL-A00 17257-KVB-900 17258-KVY-900 17260-KFL-D00 17260-KZL-A00 17260-KZL-A00 17261-KVB-T00

17274-KZL-A00 17367-KZL-A00 17368-KZL-A00 17505-KZL-930

17510-KZL-A00 17510-KZL-C00 17517-GGL-J00 17518-GGL-J00 17525-KBN-900

17528-KZL-E01 17560-KZL-930 17570-KZL-930 17572-GGL-J00 17575-KZL-A00

17577-KSS-B31 17620-KGH-600

-

No. Blok Ref

BOLT, SETTING, 6X16 F-35 BOLT, SIDE STAND PIVOT F-35 BOLT, SOCKET, 5X8 F-41 F-41-1 BOLT, SOCKET, 8MM (HT) F-17 F-17 BOLT, SOCKET, 8X30 (HT) F-17 BOLT, SPECIAL, 6MM F-11 F-12 BOLT, SPECIAL, 6X18 F-28 F-28-1 BOLT, STUD, 6X12 E-3 E-3-1 BOLT, STUD, 6X28 E-3 BOLT, STUD, 6X40 E-3-1 BOLT, SWITCH SETTING F-35 BOLT, TORX, 8X25 F-18 BOLT-WASHER, 6X10 F-24 BOLT-WASHER, 6X12 F-37-10 F-39 F-14 BOLT-WASHER, 6X13 E-3-1 BOLT-WASHER, 6X18 F-41 BOLT-WASHER, 6X18 F-41-1 BOLT-WASHER, 6X20 E-1 E-1-1 F-14 F-4 BOLT-WASHER, 6X30 F-28-10 BOLT-WASHER, 6X40 F-28 F-28-1 F-24 BOOT B F-18 BOOT COMP. F-5 BOOT, PIN BUSH(NI) F-18

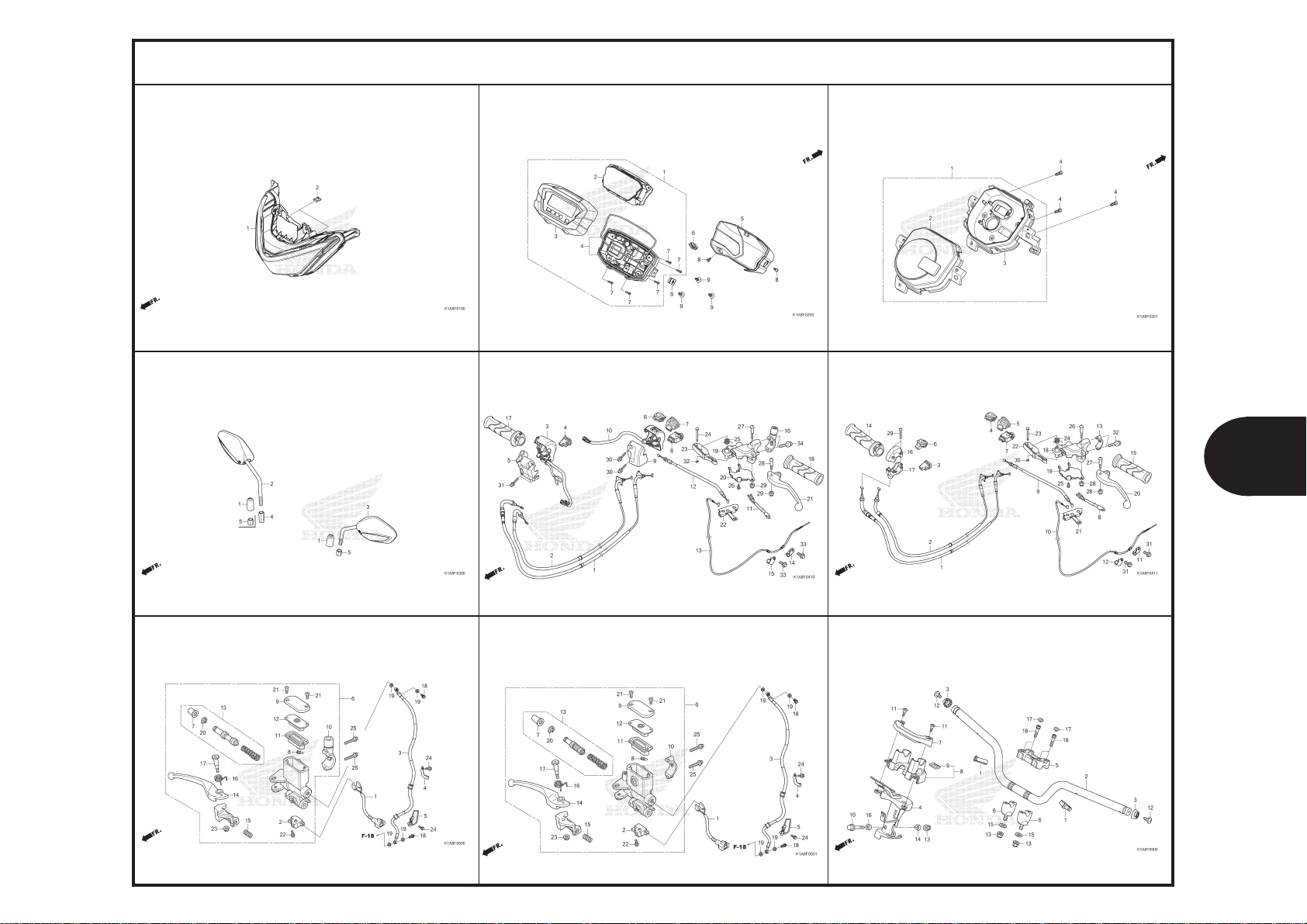

Mencari parts dengan “Indeks gambar”

A

.(/2032.0(6,1

6+528')$1&29(5 &</,1'(5+($'&29(5 &</,1'(5+($'( ( (

No. Blok

No. Ref

No. Hal

10.12.2019

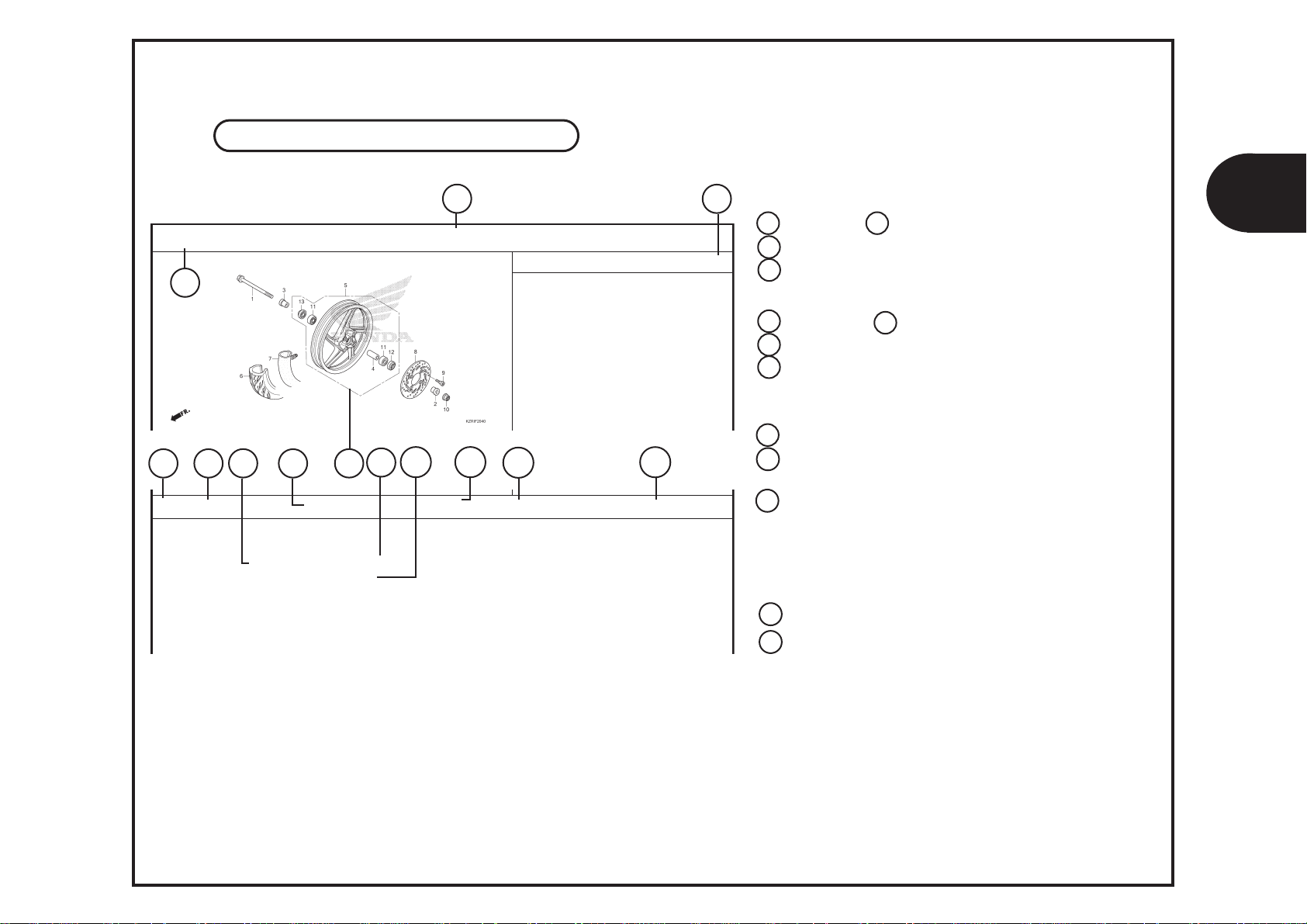

Struktur Parts Catalog

1

F-20-40

2

4 5

No.

Ref.

1 44301-KVG-950 AXLE, FR. WHEEL ........................... 1 1

2 44311-KVB-910 COLLAR, FR. WHEEL SIDE .................... 1 1

3 44312-KZR-600 COLLAR, FR. WHEEL SIDE .................... 1 1

4 44620-KVB-910 COLLAR, FR. DISTANCE ...................... 1 1

5 44650-KZR-600ZC WHEEL SUB ASSY., FR.

*NH303M* ............ MAT AXIS GRAY METALLIC 1 1

6 44711-KVB-931 TIRE, FR.(SRI)(80/90-14 M/C 40P) .......... 1 1

7 44712-KZT-901 TUBE, TIRE(SRI) ........................... 1 1

8 45351-KVB-931 DISK, FR. BRAKE(YUTAKA) ................... 1 1

45351-KVB-S02 DISK, FR. BRAKE(SUNSTAR) .................. 1 1

9 90105-KGH-900 BOLT, BRAKE DISK, 8X24 .................... 4 4

10 90306-KGH-901 NUT, U, 12MM .............................. 1 1

11 91052-KVB-901 BEARING, RADIAL BALL, 6201(U) .. (FUJIKOSHI) 2 2

91052-KVB-S51 BEARING, RADIAL BALL, 6201U .......... (NSK) 2 2

91052-KWB-601 BEARING, RADIAL BALL, 6201U .......... (NTN) 2 2

6

No. Part Deskripsi No. Seri Kode Parts Catalog

-

7

8

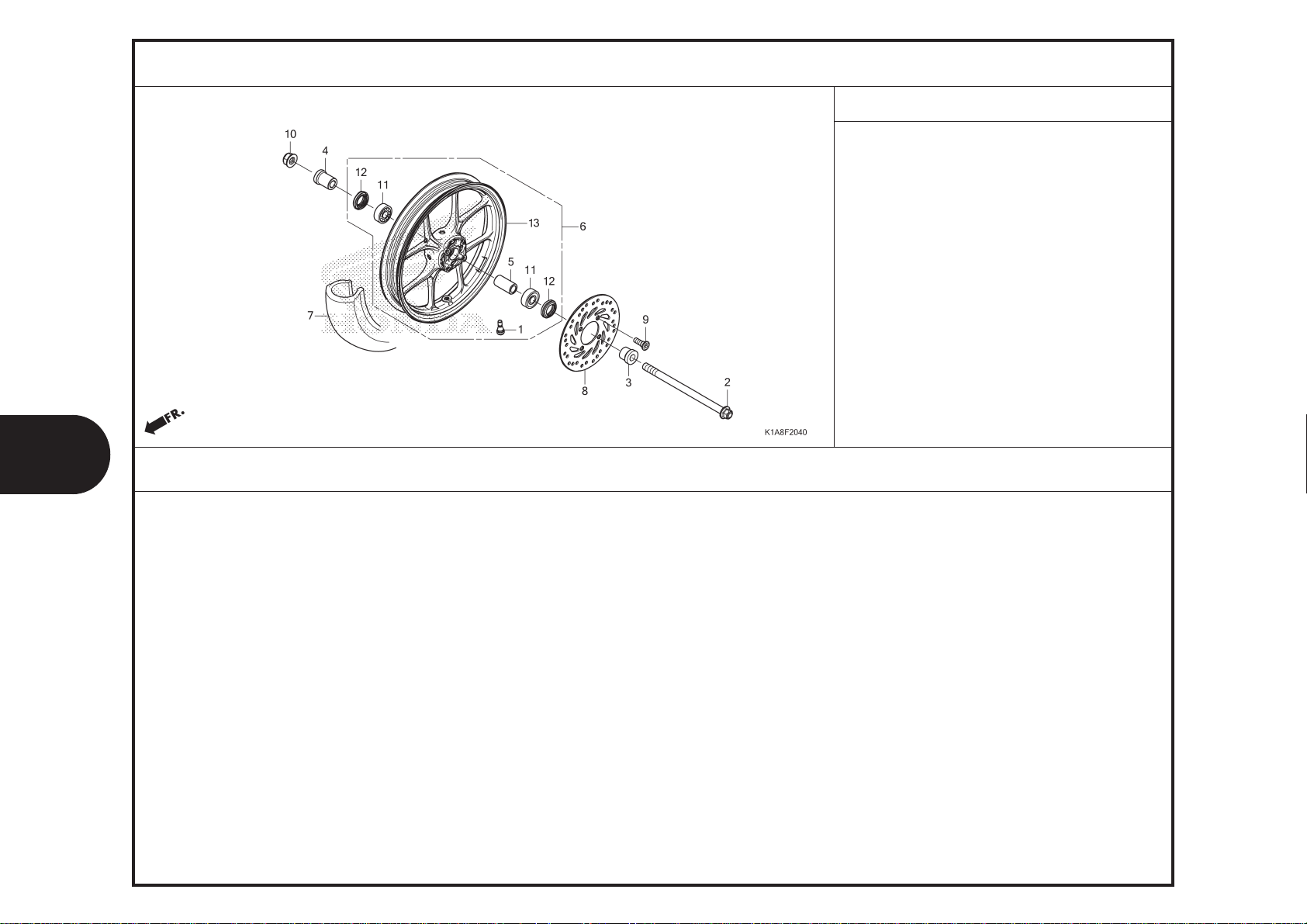

FRONT WHEEL

9

10

Jumlah

VARIO

STD CBS

11

L.O.N.

(Nomor ref. relatif)

No. Ref.

1 (12,13)

710151 AXLE, FRONT WHEEL ................... 0,2

5 7101D4 FRONT WHEEL ......................... 0,8

6 710139 FRONT TIRE(SATU) .................... 0,7

7 710140 TUBE, FRONT TIRE(SATU) .............. 0,7

8 711120 DISC, FRONT BRAKE ................... 0,3

11 710115 BEARING, FRONT WHEEL(SATU) .......... 0,4

710115G .Penggantian 1 bearing tambahkan .... 0,1

12

Deskripsi

13

3

F.R . T.

Nama Blok Nomor Blok Bagian yang diservis/Flat Rate Time (F.R.T.)

3

Nomor referensi

4

2 1

• Nomor referensi yang diberikan tanda kurung menunjukkan bahwa ia dilanjutkan dari halaman sebelumnya.

5

Nomor part Kode warna Honda Deskripsi

7

Assembly (Susunan/rakitan)

8

6

• Bagian-bagian yang diberikan bingkai dengan garisgaris patah pada gambar terurai tersedia dalam rakitan

lengkap. (tersedia pula dalam satuan terpisah).

Deskripsi warna

9

Catatan

10

• Catatan ditulis dalam tanda kurung di kolom nama part.

Jumlah

11

• Jumlah yang ditulis dalam tanda kurung menunjukkan part pilihan (optional part).

• Jumlah yang ditandai dengan “N” menunjukkan part pilihan yang harus dipilih sebanyak yang diperlukan.

• Jumlah yang diperlukan menunjukkan jumlah part yang dipakai di blok ini.

Nomor seri

12

Kode parts catalog

13

• Jika kolom kode parts catalog kosong, berarti bahwa part berlaku untuk semua kode.

1

10.12.2019

3

1

14 15

1617 18

E-16-1 CARBURETOR(CRF100F)

14

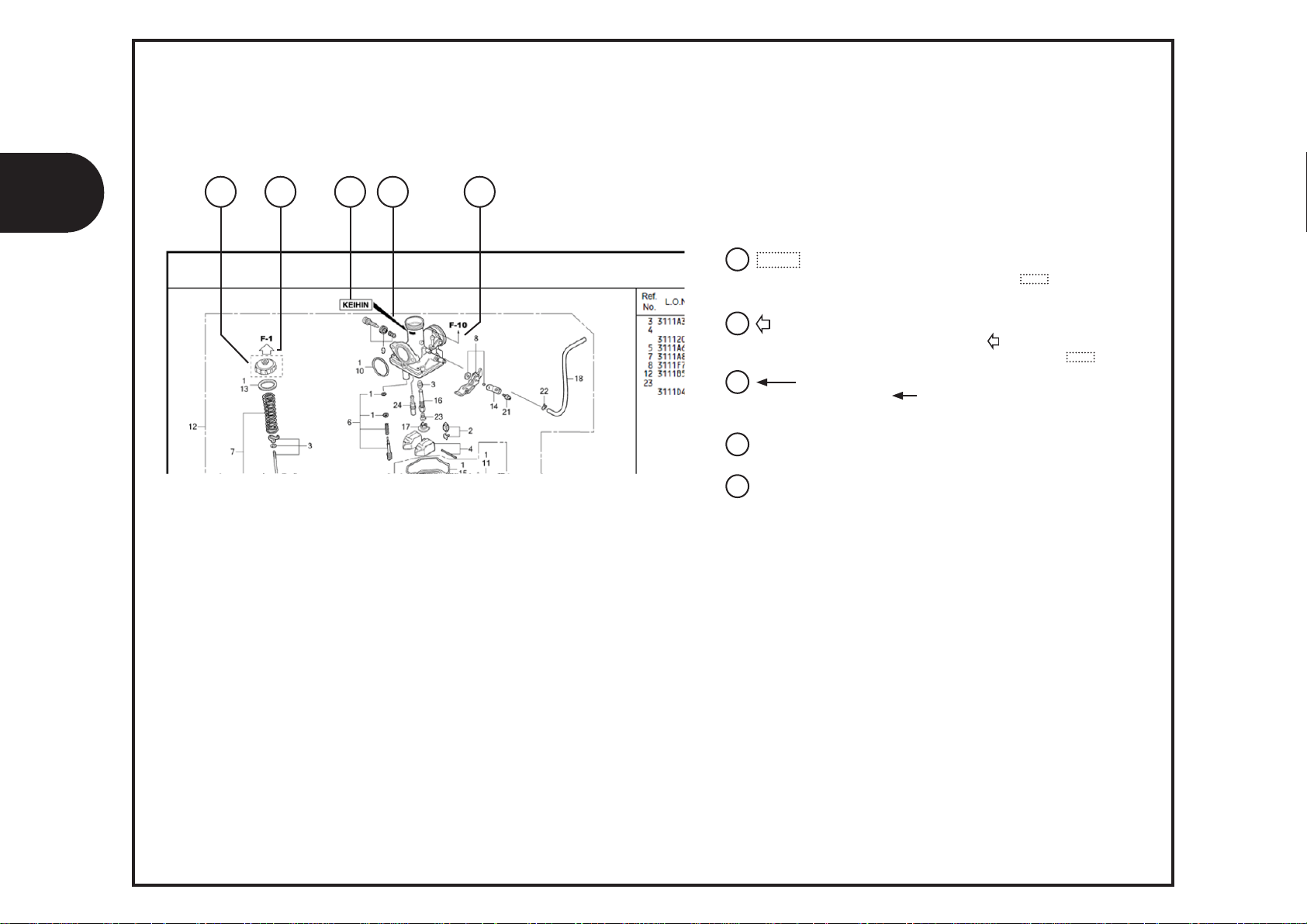

• Part yang dikelilingi dengan garis titik-titik dijelaskan pada blok lain.

15

• Panah yang kosong di dalamnya menunjuk ke No. blok untuk part yang dikelilingi dengan garis titik-titik .

16

• Panah yang padat menunjuk ke No. blok dimana part yang bersangkutan terhubung.

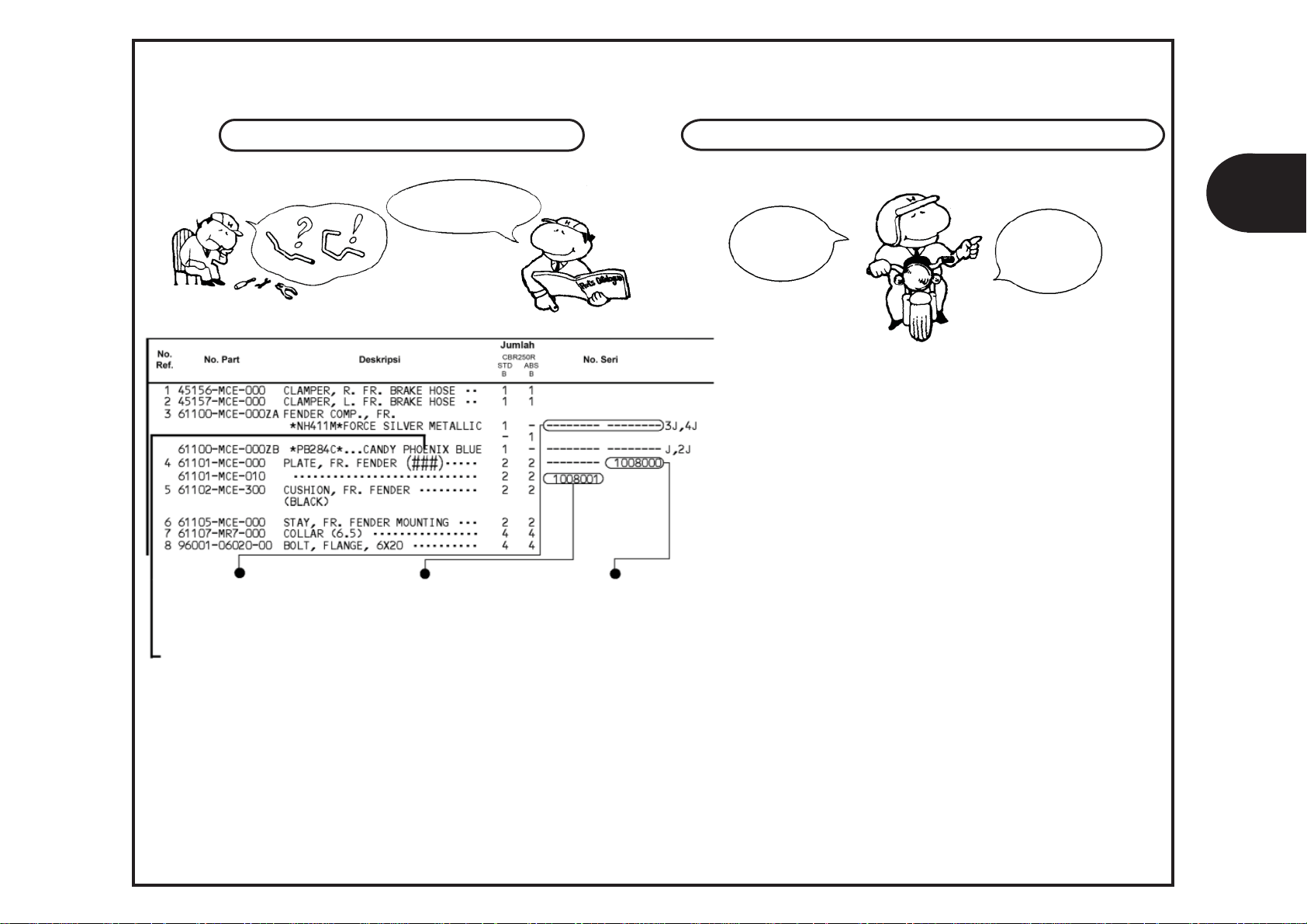

Informasi Identiﬁ kasi Penggantian Untuk No. Part

17

Yang Ditunjuk Lokasi Informasi Identiﬁ kasi Penggantian Untuk No.

18

Part Yang Ditunjuk

• Jika tanda panah menunjuk ke 18, part ini tidak sesuai dengan No. Part yang berbeda.

• Pastikan untuk memesan part dari pabrikan yang sama, termasuk komponen part.

• Untuk pemesanan, indikasi No. Part termasuk simbol yang ditampilkan pada bagian yang berlaku pada part yang akan diganti.

4

10.12.2019

Jika parts telah direvisi Singkatan-singkatan yang dipakai di dalam parts catalog

Pastikan untuk memeriksa nomor seri!!

Nomor telah dipakai sejak dari model pertama tanpa revisi.

• Part yang tercantum dengan “###” pada ujung nama part mempunyai jangka waktu pemasokan terbatas (part tidak dijual).

Jika diperlihatkan pada sisi kiri, maka berlaku untuk model-model dari No. 1008001 dan nomor- nomor berikutnya.

Ji ka diperlihatkan pada sisi kanan, maka berlaku untuk model-model sampai No.

1008000.

KANAN disingkat dengan “R” (RIGHT).

• “L.” atau “R.” pada uraian dari sebuah part merupakan singkatan dari sisi kiri (LEFT) atau sisi kanan (RIGHT). Kiri atau kanan ditentukan seakanakan anda sedang duduk di tempat duduk sepeda motor/skuter.

Singkatan-singkatan sebagai berikut dipakai di dalam parts catalog ini.

A ............ Ampere

ABS ........ Anti-lock brake system

A.C ......... Alternating current

A.M ......... Attaching mark

ASSY ...... Assembly

C.D.I. ..... Capacitive discharge

ignition

COMP. ... Complete

D.C. ....... Direct current

EX. ......... Exhaust

FR. ......... Front

G ............ Gram

HEX. ...... Hexagonal

IN. .......... Inlet

KPH ........ Kilometers per hour

L. ............ Left

L (100L) .. Link (100 Links)

L.E.D ...... Light emitted diode

MM ........ Millimeter

MPH ...... Miles per hour

R. ........... Right

RR. ........ Rear

STD. ...... Standard

T (22T) ... Tooth (22 Teeth)

TCS ....... Traction control system

T.M. ........ T ranscript mark

V ............ Volt

W ........... Watt

WL ......... With labelling

WOL ...... Without labelling

KIRI disingkat dengan “L” (LEFT).

1

10.12.2019

5

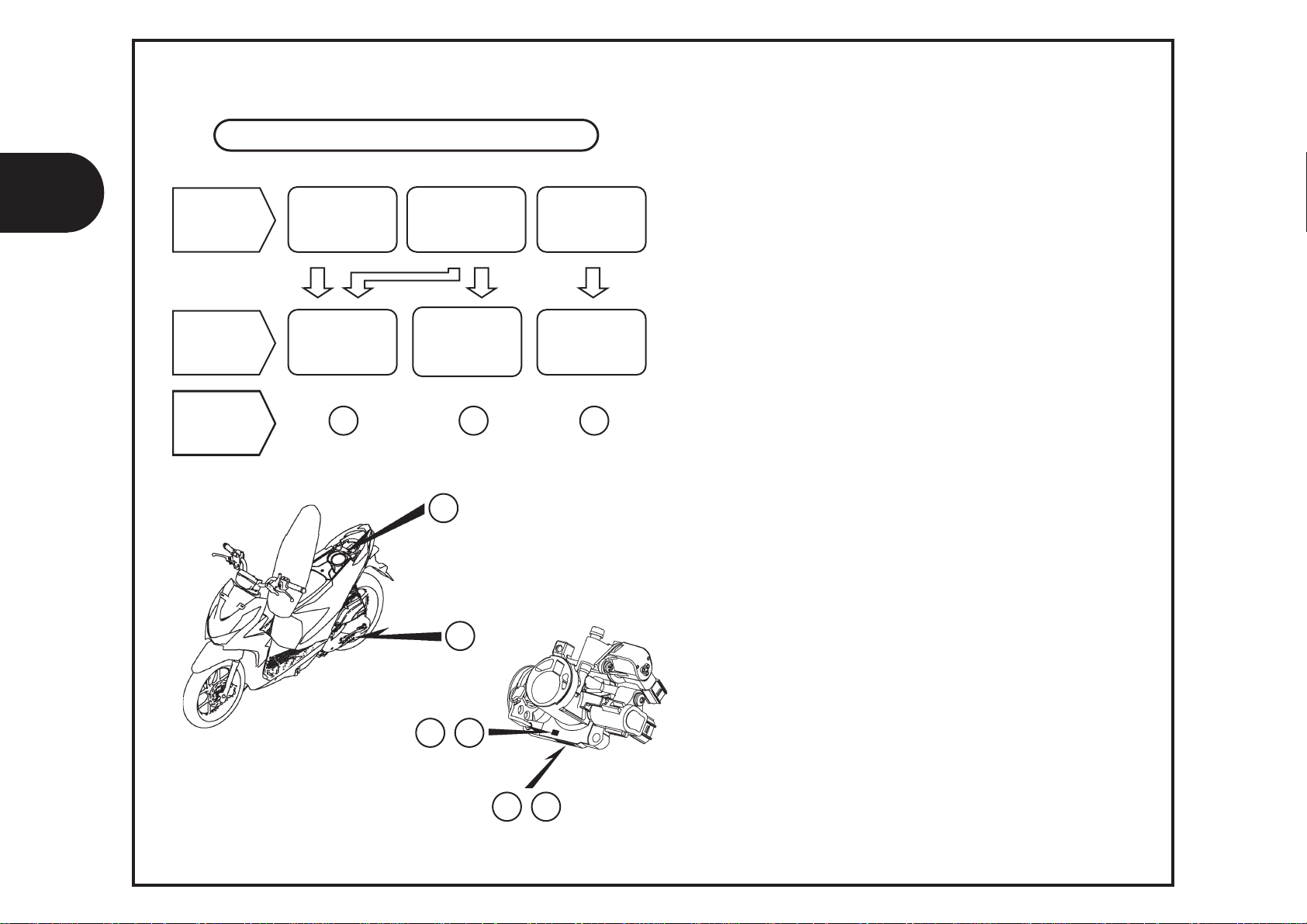

Blok part dan pengecekan nomor seri

1

Blok part

No seri

yang

diperlukan

Titik

pemeriksaan

Parts mesin

E-1~

Nomor seri

mesin

1

Parts throttle body

E-22

Nomor seri

Throttle body

2 3

3

1

Parts rangka

F-1~

Nomor seri

rangka

2

A

-

B

2

-

6

10.12.2019

Model, kode parts catalog dan nomor seri yang berlaku

Model, kode parts catalog dan No. seri yang berlaku yang diberikan di dalam parts catalog ini dapat diidentiﬁ kasi sebagai berikut.

Model

area

BEAT

(ACH110CBFL)

BEAT

(ACH110CBT

* Dari nomor identiﬁ kasi karburator/throttle body, hanya bagian yang digaris bawahi di bawah ini yang dipakai untuk registrasi.

L)

2IN STREET

IN CBS JM81E1000201~ MH1JM8116LK000201~

3IN CBS ISS

IN CBS ISS JM91E1000101~ MH1JM9115LK000101~

GQ RJC A KC

A

Tipe Tahun

B

Mesin yang berlaku

JM82E1000101~ MH1JM8214LK000101~

2020

JM91E1000201~ MH1JM9119LK000201~

2020

Kode

No. Seri

Rangka yang berlaku

No. identiﬁ kasi

throttle body yang

1

berlaku

GQRJC A

10.12.2019

7

Tabel warna

• Ketika memesan part berwarna, bacalah tabel di bawah ini dan gunakan nomor part yang terdiri dari nomor part dasar yang bersangkutan

yang telah ditambahkan kode warna part.

BEAT & BEAT STREET (ACH110CBFL) TIPE STREET .............2IN

1

MODEL WARNA

KODE

No.

1 COVER, FR. 64301-K1A-N00 MGB MCS HSM F-12 1 2 COVER SET, HANDLE 53250-K1A-N20 ZB ZB ZB F-9 8 3 COVER, L. BODY 83600-K1A-N00 MGB MCS FMB F-15 4 4 COVER SET, LICENSE LIGHT 80105-K1A-N00 ZA ZA ZA F-39 4 5 COVER, R. BODY 83500-K1A-N00 MGB MCS FMB F-15 2 6 COVER, CENTER 80151-K1A-N00 ZA ZA ZA F-15 1 7 COVER, FR. HANDLE 53205-K1A-N20 ZB ZB ZB F-9 7 8 COVER, FR. LOWER 64308-K1A-N00 ZA ZA ZA F-12 3 9 COVER, FR. TOP 64302-K1A-N00 ZA ZA ZA F-12 2 10 COVER, INNER LOWER 81141-K1A-N00 ZA ZA ZA F-12 7 11 COVER, INNER UPPER 81131-K1A-N00 ZA ZA ZA F-12 5

Nama parts berwarna

No. dasar

part

Mat

gunpowder

black

metallic

NH-436M

NH436 NHA40 NHC21

NH-A40M

ACH110CBFL (TIPE STREET)

Mat

crypton

silver

metallic

Hurricane

silver

metallic

NH-C21M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

12 COVER, L. BODY SIDE 83620-K1A-N00 ZA ZA ZA F-15 5 13 COVER, METER LOWER 53207-K1A-N20 ZA ZA ZA F-2 5 14 COVER, R. BODY SIDE 83520-K1A-N00 ZA ZA ZA F-15 3 15 COVER, RR. CENTER 83700-K1A-N00 ZA ZA ZA F-15 6 16 COVER, UNDER 64340-K1A-N00 ZA ZA ZA F-12 4 17 FENDER, FR. 61100-K1A-N00 MGB MCS FMB F-11 1 18 FENDER, RR. 80110-K1A-N00 ZA ZA ZA F-39 5 19 HOLDER, HANDLE PIPE UPPER 53131-K81-N30 ZA ZA ZA F-9 5

8

20 HOOK, LUGGAGE 81132-GAH-000 YV YV YV F-12 6

10.12.2019

BEAT & BEAT STREET (ACH110CBFL) TIPE STREET .............2IN

MODEL WARNA

KODE

No.

21 LID, BATTERY 64460-K1A-N00 ZA ZA ZA F-14 3 22 MARK, COMBI BRAKE 86534-K1A-N00 ZG ZE - F-48 5 23 MARK, COMBI BRAKE 86534-K81-N00 - - ZB F-48 5 24 MARK, HONDA 65MM 86101-K1A-N20 - - ZB F-48 1 25 MARK, HONDA 65MM 86101-K81-NC0 - ZA - F-48 1 26 MARK, HONDA 65MM 86101-K81-ND0 ZA - - F-48 1 27 MARK, HONDA 100MM 86102-K1A-N00 ZF ZE ZD F-48 2 28 MARK, HONDA 45MM 86103-K1A-N00 ZA ZA ZA F-48 3 29 PLUG, HOLE 90656-GCC-000 ZE ZE ZE F-16 7 30 STEP, FLOOR 64310-K1A-N00 ZA ZA ZA F-14 2 31 STRIPE, L. BODY COVER 86832-K1A-N20 ZC ZB ZA F-48 9

Nama parts berwarna

No. dasar

part

Mat

gunpowder

black

metallic

NH-436M

NH436 NHA40 NHC21

NH-A40M

ACH110CBFL (TIPE STREET)

Mat

crypton

silver

metallic

Hurricane

silver

metallic

NH-C21M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

1

32 STRIPE, L. FR. COVER 86642-K1A-N20 ZC ZB ZA F-48 7 33 STRIPE, R. BODY COVER 86831-K1A-N20 ZC ZB ZA F-48 8 34 STRIPE, R. FR. COVER 86641-K1A-N20 ZC ZB ZA F-48 6

10.12.2019

9

BEAT & BEAT STREET (ACH110CBFL) TIPE CBS .............IN

1

MODEL WARNA

KODE

No.

1 COVER, FR. 64301-K1A-N00 FMB RSW VRD ARB F-12 1 2 COVER, L. BODY 83600-K1A-N00 FMB RSW FMB RSW F-15 4 3 COVER SET, LICENSE LIGHT 80105-K1A-N00 ZA ZA ZA ZA F-39 4 4 COVER, R. BODY 83500-K1A-N00 FMB RSW FMB RSW F-15 2 5 COVER, SPEEDOMETER 53204-K1A-N00 FMB FMB FMB FMB F-9-1 5 6 COVER, CENTER 80151-K1A-N00 ZA ZA ZA ZA F-15 1 7 COVER, FR. HANDLE 53205-K1A-N00 ZG ZF ZB ZJ F-9-1 3 8 COVER, FR. LOWER 64308-K1A-N00 ZA ZA ZA ZA F-12 3 9 COVER, FR. TOP 64302-K1A-N00 ZA ZA ZA ZA F-12 2 10 COVER, INNER LOWER 81141-K1A-N00 ZA ZA ZA ZA F-12 7 11 COVER, INNER UPPER 81131-K1A-N00 ZA ZA ZA ZA F-12 5

Nama parts berwarna

No. dasar

part

Black

NH-1

NH1 NH196 R383 B234

Ross white

NH-196

ACH110CBFL (TIPE CBS)

Arcade

Valiant red

R-383

blue

metallic

B234M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

10

12 COVER, L. BODY SIDE 83620-K1A-N00 ZA ZA ZA ZA F-15 5 13 COVER, R. BODY SIDE 83520-K1A-N00 ZA ZA ZA ZA F-15 3 14 COVER, RR. CENTER 83700-K1A-N00 ZA ZA ZA ZA F-15 6 15 COVER, RR. HANDLE 53206-K1A-N00 ZA ZA ZA ZA F-9-1 4 16 COVER, UNDER 64340-K1A-N00 ZA ZA ZA ZA F-12 4 17 FENDER, FR. 61100-K1A-N00 FMB RSW FMB RSW F-11 1 18 FENDER, RR. 80110-K1A-N00 ZA ZA ZA ZA F-39 5 19 HOOK, LUGGAGE 81132-GAH-000 YV YV YV YV F-12 6 20 LID, BATTERY 64460-K1A-N00 ZA ZA ZA ZA F-14 3

10.12.2019

BEAT & BEAT STREET (ACH110CBFL) TIPE CBS .............IN

MODEL WARNA

KODE

No.

21 MARK, COMBI BRAKE 86534-K1A-N00 - - - ZF F-48-1 5 22 MARK, COMBI BRAKE 86534-K81-N00 ZB ZA ZB - F-48-1 5 23 MARK, HONDA 60MM 86101-K81-N00 ZA ZA ZA ZA F-48-1 1 24 MARK, HONDA 100MM 86102-K1A-N00 - - - ZG F-48-1 2 25 MARK, HONDA 100MM 86102-K81-D10 - - ZA - F-48-1 2 26 MARK, HONDA100MM 86102-K81-N00 ZE ZB - - F-48-1 2 27 MARK, HONDA 45MM 86103-K1A-N00 ZA ZA ZA ZA F-48-1 3 28 PLUG, HOLE 90656-GCC-000 ZE ZE ZE ZE F-16 7 29 STEP, FLOOR 64310-K1A-N00 ZA ZA ZA ZA F-14 2 30 STRIPE, L. BODY COVER 86832-K1A-N00 ZC ZB ZC ZA F-48-1 15 31 STRIPE, L. FR. COVER 86642-K1A-N00 ZG ZF ZE ZD F-48-1 7

Nama parts berwarna

No. dasar

part

Black

NH-1

NH1 NH196 R383 B234

Ross white

NH-196

ACH110CBFL (TIPE CBS)

Arcade

Valiant red

R-383

blue

metallic

B234M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

1

32 STRIPE, R. BODY COVER 86831-K1A-N00 ZC ZB ZC ZA F-48-1 13 33 STRIPE, R. FR. COVER 86641-K1A-N00 ZG ZF ZE ZD F-48-1 6

10.12.2019

11

BEAT (ACH110CBTL) TIPE CBS ISS .............3IN

1

MODEL WARNA

KODE

No.

1 COVER, FR. 64301-K1A-N00 MGB MCS F-12-1 1 2 COVER, L. BODY 83600-K1A-N00 MGB MCS F-15 4 3 COVER SET, LICENSE LIGHT 80105-K1A-N00 ZA ZA F-39 4 4 COVER, R. BODY 83500-K1A-N00 MGB MCS F-15 2 5 COVER, SPEEDOMETER 53204-K1A-N00 FMB FMB F-9-1 5 6 COVER, CENTER 80151-K1A-N00 ZA ZA F-15 1 7 COVER, FR. HANDLE 53205-K1A-N00 ZE ZH F-9-1 3 8 COVER, FR. LOWER 64308-K1A-N00 ZA ZA F-12-1 3 9 COVER, FR. TOP 64302-K1A-N00 ZA ZA F-12-1 2 10 COVER, INNER LOWER 81141-K1A-N10 ZA ZA F-12-1 7 11 COVER, INNER UPPER 81131-K1A-N10 ZA ZA F-12-1 5

Nama parts berwarna

No. dasar

part

Mat

gunpowder

black

metallic

NH-436M

NH436 NHA40

ACH110CBTL (TIPE CBS ISS)

Mat

crypton

silver

metallic

NH-A40M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

12

12 COVER, L. BODY SIDE 83620-K1A-N00 ZA ZA F-15 5 13 COVER, R. BODY SIDE 83520-K1A-N00 ZA ZA F-15 3 14 COVER, RR. CENTER 83700-K1A-N00 ZA ZA F-15 6 15 COVER, RR. HANDLE 53206-K1A-N10 ZA ZA F-9-1 4 16 COVER, UNDER 64340-K1A-N00 ZA ZA F-12-1 4 17 EMBLEM, BEA T 86834-K1A-N30 ZA ZA F-48-1 18 18 FENDER, FR. 61100-K1A-N00 MGB MCS F-1 1 1 19 FENDER, RR. 80110-K1A-N00 ZA ZA F-39 5 20 HOOK, LUGGAGE 81 132-GAH-000 YV YV F-12-1 6

10.12.2019

BEAT (ACH110CBTL) TIPE CBS ISS .............3IN

MODEL WARNA

KODE

No.

21 KNOB, INNER POCKET 81144-K1A-N10 ZA ZA F-12-1 9 22 LID ASSY., INNER POCKET 81145-K1A-N10 ZA ZA F-12-1 10 23 LID, BA TTERY 64460-K1A-N00 ZA ZA F-14 3 24 LID, INNER POCKET 81142-K1A-N10 ZA ZA F-12-1 8 25 MARK, COMBI BRAKE 86534-K1A-N00 ZG ZE F-48-1 5 26 MARK, COMPACT SPORTMATIC 86839-K1A-N10 ZB ZA F-48-1 20 27 MARK, HONDA 60MM 86101-K81-N00 ZA ZA F-48-1 1 28 MARK, HONDA 100MM 86102-K81-ND0 ZA - F-48-1 2 29 MARK, HONDA 100MM 86102-K81-NC0 - ZA F-48-1 2 30 MARK, HONDA 45MM 86103-K1A-N00 ZA ZA F-48-1 3 31 MARK, IDLE STOP 86835-K1A-N30 ZA ZA F-48-1 19

Nama parts berwarna

No. dasar

part

Mat

gunpowder

black

metallic

NH-436M

NH436 NHA40

ACH110CBTL (TIPE CBS ISS)

Mat

crypton

silver

metallic

NH-A40M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

1

32 PLUG, HOLE 90656-GCC-000 ZE ZE F-16 7 33 STEP, FLOOR 64310-K1A-N00 ZA ZA F-14 2

10.12.2019

13

BEAT (ACH110CBTL) TIPE CBS ISS .............IN

1

MODEL WARNA

KODE

No.

1 COVER, FR. 64301-K1A-N00 MGB MNB EMM F-12-1 1 2 COVER, L. BODY 83600-K1A-N00 MGB MGB MGB F-15 4 3 COVER SET, LICENSE LIGHT 80105-K1A-N00 ZA ZA ZA F-39 4 4 COVER, R. BODY 83500-K1A-N00 MGB MGB MGB F-15 2 5 COVER, SPEEDOMETER 53204-K1A-N00 FMB FMB FMB F-9-1 5 6 COVER, CENTER 80151-K1A-N00 ZA ZA ZA F-15 1 7 COVER, FR. HANDLE 53205-K1A-N00 ZE ZD ZC F-9-1 3 8 COVER, FR. LOWER 64308-K1A-N00 ZA ZA ZA F-12-1 3 9 COVER, FR. TOP 64302-K1A-N00 ZA ZA ZA F-12-1 2 10 COVER, INNER LOWER 81141-K1A-N10 ZA ZA ZA F-12-1 7 11 COVER, INNER UPPER 81131-K1A-N10 ZA ZA ZA F-12-1 5

Nama parts berwarna

No. dasar

part

Mat

gunpowder

black

metallic

NH-436M

NH436 PB419 RP200

natuna blue

PB-419M

ACH110CBTL (TIPE CBS ISS)

Mat

metallic

Electropop

magenta

metallic

RP-200M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

14

12 COVER, L. BODY SIDE 83620-K1A-N00 ZA ZA ZA F-15 5 13 COVER, R. BODY SIDE 83520-K1A-N00 ZA ZA ZA F-15 3 14 COVER, RR. CENTER 83700-K1A-N00 ZA ZA ZA F-15 6 15 COVER, RR. HANDLE 53206-K1A-N10 ZA ZA ZA F-9-1 4 16 COVER, UNDER 64340-K1A-N00 ZA ZA ZA F-12-1 4 17 FENDER, FR. 61100-K1A-N00 MGB MGB MGB F-11 1 18 FENDER, RR. 80110-K1A-N00 ZA ZA ZA F-39 5 19 HOOK, LUGGAGE 81132-GAH-000 YV YV YV F-12-1 6 20 KNOB, INNER POCKET 81144-K1A-N10 ZA ZA ZA F-12-1 9

10.12.2019

BEAT (ACH110CBTL) TIPE CBS ISS .............IN

MODEL WARNA

KODE

No.

21 LID ASSY., INNER POCKET 81145-K1A-N10 ZA ZA ZA F-12-1 10 22 LID, BATTERY 64460-K1A-N00 ZA ZA ZA F-14 3 23 LID, INNER POCKET 81142-K1A-N10 ZA ZA ZA F-12-1 8 24 MARK, COMBI BRAKE 86534-K1A-N00 ZG ZG ZG F-48-1 5 25 MARK, COMPACT SPORTMATIC 86839-K1A-N10 ZB ZB ZB F-48-1 20 26 MARK, HONDA 60MM 86101-K81-N00 ZA ZA ZA F-48-1 1 27 MARK, HONDA 100MM 86102-K1A-N00 - ZD ZE F-48 2 28 MARK, HONDA 100MM 86102-K81-ND0 ZA - - F-48-1 2 29 MARK, HONDA 45MM 86103-K1A-N00 ZA ZA ZA F-48-1 3 30 PLUG, HOLE 90656-GCC-000 ZE ZE ZE F-16 7 31 STEP, FLOOR 64310-K1A-N00 ZA ZA ZA F-14 2

Nama parts berwarna

No. dasar

part

Mat

gunpowder

black

metallic

NH-436M

NH436 PB419 RP200

natuna blue

PB-419M

ACH110CBTL (TIPE CBS ISS)

Mat

metallic

Electropop

magenta

metallic

RP-200M

Model yang

berlaku

Model

pertama

yang

berlaku

Model

akhir yang

berlaku

No.

blok

yang

berlaku

No.

Ref.

1

32 STRIPE A, L. FR. COVER 86646-K1A-N10 ZD ZC ZB F-48-1 10 33 STRIPE A, R. FR. COVER 86645-K1A-N10 ZD ZC ZB F-48-1 9 34 STRIPE B, L. FR. COVER 86648-K1A-N10 ZD ZC ZB F-48-1 12 35 STRIPE B, R. FR. COVER 86647-K1A-N10 ZD ZC ZB F-48-1 11 36 STRIPE, L. BODY COVER 8683B-K1A-N10 ZC ZB ZA F-48-1 16 37 STRIPE, R. BODY COVER 8683A-K1A-N10 ZC ZB ZA F-48-1 14

10.12.2019

15

1

Selang bahan bakar, selang untuk keperluan umum dan selang vinyl

• Selang bahan bakar, selang pemakaian umum dan selang vinyl yang standard dapat diganti dengan part borongan yang dijual dalam bentuk gulungan.

• Sewaktu memesan part pengganti untuk selang bahan bakar, selang pemakaian umum dan selang vinyl yang standard, pakailah nomor part borongan yang dicantumkan pada parts catalog dalam tanda kurung ( ) di bawah nama part, atau pakailah catalog di bawah.

(Panjang standard part borongan adalah 1 m, akan tetapi, yang dicantumkan di dalam catalog dengan < > tersedia dalam panjang 3 m dan 8 m)

• Sewaktu akan memasang selang borongan pengganti, potong dalam panjang yang sama seperti pada part standard.

(Untuk cara pemotongan part borongan, dan cara pemesanan dsb., bacalah manual servis dan instruksi yang diberikan pada part borongan)

• Daftar di bawah adalah catalog dari nomor part standard dan nomor part borongan. Perhatikan bahwa nomor-nomor itu hanya berlaku untuk part pengganti yang terdaftar saja.

16

Selang/Pipa bahan bakar

No part

standard

95001-30xxx-2x 95001-30001-20M 3,0 1 95001-30xxx-3x 95001-30001-30M 3,0 1 95001-30xxx-4x 95001-30001-40M 3,0 1 95001-35xxx-2x 95001-35001-50M 1

<95001-35003-50M> 3 95001-35xxx-3x 95001-35001-60M

<95001-35003-60M> 95001-35xxx-4x 95001-35001-60M 1

<95001-35003-60M> 3 95001-35xxx-5x 95001-35001-50M 1

<95001-35003-50M> 3 95001-35xxx-6x 95001-35001-60M 1

<95001-35003-60M> 3 95001-45xxx-2x 95001-45001-50M 1

<95001-45003-50M> 3 95001-45xxx-3x 95001-45001-60M 1

<95001-45003-60M> 3 <95001-45008-60M> 8

95001-45001-60M 1 95001-45xxx-4x <95001-45003-60M> 3 <95001-45008-60M> 8

95001-45001-50M 1 95001-45xxx-5x <95001-45003-50M> 3

95001-45001-60M 1 95001-45xxx-6x <95001-45003-60M> 3 <95001-45008-60M> 8

95001-55001-50M 1 95001-55xxx-2x <95001-55003-50M> 3 <95001-55008-50M> 8

No. part

borongan

Part borongan

Diameter

dalam (mm)

3,5

3,5 1

3,5

4,5

5,5

Panjang

(m)

95001-55001-60M 1 95001-55xxx-3x <95001-55003-60M> 5,5 3 <95001-55008-60M> 8

95001-55001-60M 1 95001-55xxx-4x <95001-55003-60M> 5,5 3 <95001-55008-60M> 8

95001-55001-50M 1 95001-55xxx-5x <95001-55003-50M> 5,5 3 <95001-55008-50M> 8

95001-55001-60M 1 95001-55xxx-6x <95001-55003-60M> 5,5 3 <95001-55008-60M> 8

95001-75xxx-2x 95001-75001-50M 1 <95001-75003-50M> 3

95001-75001-60M 1 95001-75xxx-3x <95001-75003-60M> 7,5 3 <95001-75008-60M> 8

95001-75001-60M 1 95001-75xxx-4x <95001-75003-60M> 7,5 3 <95001-75008-60M> 8

95001-75xxx-5x 95001-75001-50M 1 <95001-75003-50M> 7,5 3

95001-75001-60M 1 95001-75xxx-6x <95001-75003-60M> 7,5 3 <95001-75008-60M> 8

95001-80xxx-2x 95001-80001-50M 8,0 1 95001-80xxx-3x 95001-80001-60M 8,0 1 95001-80xxx-4x 95001-80001-60M 8,0 1 95001-80xxx-5x 95001-80001-50M 8,0 1 95001-80xxx-6x 95001-80001-60M 8,0 1

10.12.2019

No part

standard

Selang/Pipa bahan bakar

No. part

borongan

Part borongan

Diameter

dalam (mm)

7,5

Panjang

(m)

Pipa vinyl

Part borongan

No part

standard

95003-01xxx-3x 95003-01001-60M 1 <95003-01003-60M> 3

95003-01xxx-60 95003-01001-60M 1 <95003-01003-60M> 3

95003-03xxx-3x 95003-03001-60M 1 <95003-03003-60M> 3

95003-03xxx-60 95003-03001-60M 1 <95003-03003-60M> 3

95003-05001-60M 1 95003-05xxx-3x <95003-05003-60M> 3 <95003-05008-60M> 8

95003-05001-60M 1 95003-05xxx-60 <95003-05003-60M> 3 <95003-05008-60M> 8

95003-07001-10M 1 95003-07xxx-1x <95003-07003-10M> 4,0 7,0 3 <95003-07008-10M> 8

95003-07001-10M 1 95003-07xxx-20 <95003-07003-10M> 4,0 7,0 3 <95003-07008-10M> 8

95003-07001-60M 1 95003-07xxx-3x <95003-07003-60M> 4,0 7,0 3 <95003-07008-60M> 8

95003-07001-60M 1 95003-07xxx-60 <95003-07003-60M> 4,0 7,0 3 <95003-07008-60M> 8

95003-07001-70M 1 95003-07xxx-7x <95003-07003-70M> 4,0 7,0 3 <95003-07008-70M> 8

95003-08001-10M 1 95003-08xxx-1x <95003-08003-10M> 4,5 6,5 3 <95003-08008-10M> 8

95003-09xxx-3x 95003-09001-60M 1 <95003-09003-60M> 3

95003-09xxx-60 95003-09001-60M 1 <95003-09003-60M> 3

95003-10xxx-1x 95003-10001-10M 1 <95003-10003-10M> 3

95003-10xxx-20 95003-10001-10M <95003-10003-10M>

95003-10xxx-3x 95003-10001-60M 1 <95003-10003-60M> 3

95003-10xxx-60 95003-10001-60M 1 <95003-10003-60M> 3

95003-11001-60M 1 95003-11xxx-3x <95003-11003-60M> 5,0 9,0 3 <95003-11008-60M> 8

95003-11xxx-60 95003-11001-60M 1 <95003-11003-60M> 5,0 9,0 3 <95003-11008-60M> 8

95003-12001-10M 1 95003-12xxx-1x <95003-12003-10M> 5,0 7,0 3 <95003-12008-10M> 8

95003-12001-10M 1 95003-12xxx-20 <95003-12003-10M> 5,0 7,0 3 <95003-12008-10M> 8

No. part

borongan

Diameter

dalam

(mm)

dalam

(mm)

2,9 6,8

3,0 6,0

3,5 6,5

4,5 8,0

5,0 8,0

5,0 8,0 1

5,0 8,0

Panjang

(m)

Pipa vinyl

Part borongan

No part

standard

95003-14xxx-1x 95003-14001-10M 1 <95003-14003-10M> 3

95003-14xxx-20 95003-14001-10M 1 <95003-14003-10M> 3

95003-14xxx-3x 95003-14001-60M 1 <95003-14003-60M> 3

95003-17xxx-1x 95003-17001-10M 1 <95003-17003-10M> 3

95003-19xxx-1x 95003-19001-10M 1 <95003-19003-10M> 7,0 11,0 3 <95003-19008-10M> 8

95003-19xxx-20 95003-19001-10M 1 <95003-19003-10M> 7,0 11,0 3 <95003-19008-10M> 8

95003-19xxx-3x 95003-19001-60M 1 <95003-19003-60M> 7,0 11,0 3 <95003-19008-60M> 8

95003-19001-60M 1 95003-19xxx-60 <95003-19003-60M> 7,0 11,0 3 <95003-19008-60M> 8

95003-21xxx-1x 95003-21001-10M <95003-21003-10M>

95003-21xxx-20 95003-21001-10M 1 <95003-21003-10M> 3

95003-23xxx-1x 95003-23001-10M 1 <95003-23003-10M> 3

95003-23xxx-20 95003-23001-10M 1 <95003-23003-10M> 3

95003-23001-60M 1 95003-23xxx-3x <95003-23003-60M> 8,0 12,0 3 <95003-23008-60M> 8

95003-23xxx-60 95003-23001-60M 1 <95003-23003-60M> 8,0 12,0 3 <95003-23008-60M> 8

95003-25xxx-1x 95003-25001-10M 1 <95003-25003-10M> 3

95003-25xxx-20 95003-25001-10M 1 <95003-25003-10M> 3

95003-25xxx-3x 95003-25001-60M 1 <95003-25003-60M> 3

95003-25xxx-7x 95003-25001-70M 1 <95003-25003-70M> 3

95003-27xxx-1x 95003-27001-10M 1 <95003-27003-10M> 3

95003-27xxx-20 95003-27001-10M 1 <95003-27003-10M> 3

95003-27xxx-3x 95003-27001-60M 1 <95003-27003-60M> 3

95003-27xxx-60 95003-27001-60M 1 <95003-27003-60M> 3

95003-33xxx-1x 95003-33001-10M 1 <95003-33003-10M> 3

95003-33xxx-20 95003-33001-10M 1 <95003-33003-10M> 3

No. part

borongan

Diameter

dalam

Diameter

dalam

(mm)

6,0 9,0

7,0 9,0

8,0 9,0 1

6,0 9,0

8,0 12,0

9,0 11,0

9,0 13,0

10,0 14,0

(mm)

Panjang

10.12.2019

(m)

Pipa vinyl

Part borongan

No part

standard

95003-36xxx-1x 95003-36001-10M 1 <95003-36003-10M> 3 <95003-36008-10M> 8

95003-36xxx-20 95003-36001-10M 1 <95003-36003-10M> 3 <95003-36008-10M> 8

95003-37xxx-3x 95003-37001-60M 1 95003-37003-60M> 3

95003-37xxx-60 95003-37001-60M 1 <95003-37003-60M> 3

95003-38xxx-1x 95003-38001-10M 1 <95003-38003-10M> 3

95003-38xxx-20 95003-38001-10M 1 <95003-38003-10M> 3

95003-39xxx-1x 95003-39001-10M 1 <95003-39003-10M> 3

95003-39xxx-20 95003-39001-10M 1 <95003-39003-10M> 3

95003-40xxx-20 95003-40001-10M 1 <95003-40003-10M> 3

95003-40xxx-3x 95003-40001-60M 1 <95003-40003-60M> 3

95003-40xxx-60 95003-40001-60M 1 <95003-40003-60M> 3

95003-43001-10M 1 95003-43xxx-1x <95003-43003-10M> 3 <95003-43008-10M> 8

95003-43xxx-20 95003-43001-10M 1 <95003-43003-10M> 3 <95003-43008-10M> 8

95003-45xxx-1x 95003-45001-10M 1 <95003-45003-10M> 3 <95003-45008-10M> 8

95003-45001-10M 1 95003-45xxx-20 <95003-45003-10M> 3 <95003-45008-10M> 8

95003-50xxx-1x 95003-50001-10M 1 <95003-50003-10M> 3

95003-50xxx-20 95003-50001-10M 1 <95003-50003-10M> 3

95003-50xxx-3x 95003-50001-60M 1 <95003-50003-60M> 3

95003-55xxx-1x 95003-55001-10M 1 <95003-55003-10M> 3

95003-55xxx-20 95003-55001-10M 1 <95003-55003-10M> 3

95003-60xxx-1x 95003-60001-10M 1 <95003-60003-10M> 3

95003-60xxx-20 95003-60001-10M 1 <95003-60003-10M> 3

95003-60xxx-3x 95003-60001-60M 1 <95003-60003-60M> 3

95003-60xxx-60 95003-60001-60M 1 <95003-60003-60M> 3

No. part

borongan

Diameter

dalam

(mm)

11,0 13,0

11,0 15,0

12,0 13,0

12,0 14,0

12,0 16,0

13,0 15,0

14,0 18,0

16,0 19,0

17,5 20,5

22,0 27,0

Diameter

dalam

(mm)

Panjang

(m)

1

17

Selang pemakaian umum

1

Part borongan

No part

standard

95005-11xxx-3x 95005-11001-30M 11,0 1 95005-11xxx-5x 95005-11001-50M 11,0 1 95005-12xxx-1x 95005-12001-10M 1

<95005-12003-10M> 3 95005-12xxx-2x 95005-12001-20M 12,0 1 95005-12xxx-3x 95005-12001-30M 12,0 1 95005-12xxx-5x 95005-12001-50M 12,0 1 95005-14xxx-1x 95005-14001-10M 14,0 1 95005-14xxx-2x 95005-14001-20M 1

<95005-14003-20M> 3 95005-14xxx-3x 95005-14001-30M 14,0 1 95005-14xxx-5x 95005-14001-50M 14,0 1 95005-17xxx-1x 95005-17001-10M 17,0 1 95005-17xxx-2x 95005-17001-20M 17,0 1 95005-17xxx-3x 95005-17001-30M 17,0 1 95005-17xxx-5x 95005-17001-50M 17,0 1 95005-30xxx-3x 95005-30001-30M 3,0 1 95005-30xxx-5x 95005-30001-50M 3,0 1 95005-35001-10M 1

95005-35xxx-1x <95005-35003-10M> 3,5 3 <95005-35008-10M> 8

95005-35xxx-2x 95005-35001-20M 3,5 1 95005-35xxx-3x 95005-35001-30M 3,5 1 95005-35xxx-4x 95005-35001-10M 1

<95005-35003-10M> 3,5 3 <95005-35008-10M> 8

95005-35xxx-5x 95005-35001-50M 3,5 1 95005-45001-10M 1

95005-45xxx-1x <95005-45003-10M> 4,5 3 <95005-45008-10M> 8

95005-45xxx-2x 95005-45001-20M 4,5 1 95005-45xxx-3x 95005-45001-30M 4,5 1

No. part

borongan

Diameter

dalam (mm)

12,0

14,0

Panjang

(m)

Part borongan

No part

standard

95005-45xxx-4x 95005-45001-10M 1 <95005-45003-10M> 4,5 3 <95005-45008-10M> 8

95005-45xxx-5x 95005-45001-50M 4,5 1 95005-50xxx-3x 95005-50001-30M 1

<95005-50003-30M> 3 95005-50xxx-5x 95005-50001-50M 5,0 1 95005-55001-10M 1

95005-55xxx-1x <95005-55003-10M> 5,3 3 <95005-55008-10M> 8

95005-55xxx-2x 95005-55001-20M 1 <95005-55003-20M> 3

95005-55xxx-4x 95005-55001-10M 1 <95005-55003-10M> 5,3 3 <95005-55008-10M> 8

95005-65xxx-1x 95005-65001-10M 1 <95005-65003-10M> 3

95005-65xxx-2x 95005-65001-20M 6,5 1 95005-70xxx-3x 95005-70001-30M 1

<95005-70003-30M> 3 95005-70xxx-5x 95005-70001-50M 7,0 1 95005-75xxx-1x 95005-75001-10M 1

<95005-75003-10M> 3 95005-75xxx-2x 95005-75001-20M 7,3 1 95005-80xxx-1x 95005-80001-10M 1

<95005-80003-10M> 3 95005-80xxx-2x 95005-80001-20M 8,0 1 95005-80xxx-3x 95005-80001-30M 8,0 1 95005-80xxx-5x 95005-80001-50M 8,0 1 95005-91xxx-3x 95005-91001-30M 12,0 1 95005-91xxx-5x 95005-91001-50M 12,0 1 95005-92xxx-3x 95005-92001-30M 12,0 1 95005-92xxx-5x 95005-92001-50M 12,0 1

No. part

borongan

Diameter

dalam (mm)

5,0

5,3

6,5

7,0

7,3

8,0

Panjang

(m)

18

CATATAN: X ditampilkan untuk mewakili angka yang dihilangkan dan

huruf-huruf alfabet romawi.

HATI-HATI : BERBAHAYA sekali apabila selang bahan bakar tertukar dengan selang pemakaian umum atau selang vinyl.

Jangan sekali-kali menggunakan selang pemakaian umum atau selang vinyl sebagai pengganti selang bahan bakar atau sebaliknya. Selalu pakai nomor part borongan yang tepat pada parts catalog, mengikuti service manual atau instruksi-instruksi yang menyertai part borongan.

10.12.2019

• Nomor part borongan untuk selang bahan bakar, selang pemakaian umum dan selang vinyl.

Contoh)

(

9 5 0 0 1- 7 5 0 0 1- 5 0 M

Nomor part borongan: Menunjuk ke part borongan.

Kode penandaan (tipe selang): (selang bahan bakar dan selang pemakaian umum). Ubah kode (untuk selang tambahan): (Selang vinyl)

• Menunjukkan tanda nomor atau urutan perubahan, namun, kode untuk part borongan harus benar- benar 0 (nol).

Tipe kode:

Selang bahan bakar 2: Kepangan merah di luar (dia. dalam 3 mm saja) 5: Kepangan hitam di dalam 3: Merah (dia. dalam 3 mm saja) 4: Abu-abu dengan garis merah (dia. dalam 3 mm saja) 6: Hitam

Panjang: 001: 1 m (standard) 003: 3 m

008: 8 m

Kode D.D.: (selang bahan bakar dan selang pemakaian umum) 30: 3,0 mm 11: 11 mm

35: 3,5 mm 91: 12 mm (dia. luar 15) mm 45: 4,5 mm 92: 12 mm (dia. luar 16) mm 50: 5,0 mm 12: 12 mm (dia. luar 17) mm 55: 5,3 mm, 5,5 mm 14: 14 mm 65: 6,5 mm 17: 17 mm 70: 7,0 mm 75: 7,3 mm, 7,5 mm 80: 8,0 mm

Kode DD./DL.: (selang vinyl) 01: ID. 2,9 OD. 6,8 mm 14: ID. 6,0 OD. 9,0 mm 37: ID. 11,0 OD. 15,0 mm

03: ID. 3,0 OD. 6,0 mm 17: ID. 7,0 OD. 9,0 mm 38: ID. 12,0 OD. 13,0 mm 05: ID. 3,5 OD. 6,5 mm 19: ID. 7,0 OD. 11,0 mm 39: ID. 12,0 OD. 14,0 mm 07: ID. 4,0 OD. 7,0 mm 21: ID. 8,0 OD. 9,0 mm 40: ID. 12,0 OD. 16,0 mm 08: ID. 4,5 OD. 6,5 mm 23: ID. 8,0 OD. 12,0 mm 43: ID. 13,0 OD. 15,0 mm 09: ID. 4,5 OD. 8,0 mm 25: ID. 9,0 OD. 11,0 mm 45: ID. 14,0 OD. 18,0 mm 12: ID. 5,0 OD. 7,0 mm 27: ID. 9,0 OD. 13,0 mm 50: ID. 16,0 OD. 19,0 mm 10: ID. 5,0 OD. 8,0 mm 33: ID. 10,0 OD. 14,0 mm 55: ID. 17,5 OD. 20,5 mm 11: ID. 5,0 OD. 9,0 mm 36: ID. 11,0 OD. 13,0 mm 60: ID. 22,0 OD. 27,0 mm

• Selang vinyl 1: Tembus pandang 2: Hitam 3: Merah muda 6: Merah muda

7: Hitam pucat

1

• Selang umum 1: Abu-abu 2: Abu-abu 3: Hitam

5: Hitam

Tipe selang: 1: Selang bahan bakar 3: Selang vinyl 5: Selang umum

10.12.2019

19

FLAT RATE SERVICE TIME

1

Flat rate service time (FRT) adalah waktu standard yang diperlukan untuk menyervis sebuah sepeda motor/skuter, yang terdaftar di dalam parts catalog ini untuk membantu AHASS mengontrol proses kerja yang sesungguhnya dan menghitung biaya servis dengan memakai FRT sebagai patokan.

Sistem penentuan FRT

Waktu servis sesungguhnya Pelepasan, Pembongkaran/perakitan kembali, Pemasangan Pemeriksaan, Pengukuran, Penyetelan, Konﬁ rmasi Pendiagnosaan/troubleshooting (Sistem kelistrikan) Pemeriksaan akhir Waktu jeda Persiapan

(Pemeriksaan proses, Konﬁ rmasi penyusunan tools yang diperlukan).

Pekerjaan yang berhubungan (Pemindahan kendaraan).

Metode Penulisan

Bagian-bagian yang diservis yang diperlihatkan di dalam teks yang tercantum dengan waktu pekerjaan part-part yang diganti sebagai subyeknya. Bagian-bagian lain yang diservis yang tidak menggunakan penggantian parts (pelepasan/pemasangan, penyetelan, pemeriksaan/pengukuran, dan pekerjaan lain) tercantum secara bersama pada bagian pendahuluan yang digolongkan menurut jenis pekerjaan.

Standard penentuan FRT

• Sistem desimal (dalam satuan 0,1) dipakai untuk menentukan FRT oleh karena mudah untuk menghitung upah.

Contoh: (0,1) 6 menit, (0,2) 12 menit [Ongkos jasa per jam] x [FRT] = [Upah]

• FRT ditentukan dengan tool (perkakas) tangan.

• Bagian-bagian yang diservis dan FRT dapat berubah tergantung pada pengembangan tools dan peralatan servis serta perbaikan pada prosedur servis.

20

* Waktu jeda ditentukan dengan mengalikan waktu servis sesungguhnya

dengan koeﬁ sien tertentu.

10.12.2019

Prosedur kerja

• Oleh karena prosedur kerja ditentukan berdasarkan waktu kerja dengan metode kerja yang diuraikan di dalam Buku Pedoman Reparasi, pakailah Buku ini sebagai pegangan.

• Pekerjaan servis yang memerlukan waktu singkat harus tetap memperhatikan keamanan pekerjaan dan garansi dari sepeda motor/skuter dalam penentuan bagian-bagian yang diservis yang tidak dimuat di dalam Buku Pedoman Reparasi.

• Pada dasarnya pekerjaan dilakukan oleh satu orang, dan apabila diperlukan dua atau lebih orang untuk mengerjakannya, penentuan waktu kerja dilakukan sebagai waktu total untuk sejumlah orang tersebut.

• Nilai yang ditentukan untuk tingkat kemampuan seorang pekerja adalah tiga tahun pengalaman dalam perbaikan kendaraan-kendaraan Honda sebagai standard.

• Special tools dan peralatan servis yang dipakai dalam penentuan FRT adalah yang ditentukan atau dianjurkan di dalam Buku Pedoman Reparasi.

Bagian yang diservis yang tidak ada FRTnya

• Aksesori dan parts yang diservis yang tidak terdaftar di dalam parts catalog ini.

• Lokasi-lokasi yang mengalami sedikit sekali pemburukan kondisi atau kerusakan dalam pemakaian normal.

• Pekerjaan servis yang dapat diselesaikan dengan sekali sentuh.

• Pekerjaan servis yang jarang sekali dilakukan (yaitu yang jarang sekali mengalami masalah dan frekuensi servis).

* Jika FRT tidak tercantum, hitunglah upah kerja berdasarkan perkiraan waktu

kerja sesungguhnya.

Pekerjaan yang tidak ada FRTnya

• Pembuangan oli dan cairan coolant, Waktu tunggu untuk pemanasan mesin dan sebagainya.

• Pekerjaan tambahan yang meliputi pelepasan/pemasangan perlengkapan luar yang standard.

• Waktu tidak langsung untuk melakukan servis dengan mendatangi pembeli sepeda motor/skuter, tukar tambah, dan pengiriman sepeda motor/skuter.

• Waktu tidak langsung yang diperlukan untuk pemesanan dan penyerahan parts.

• Ongkos untuk bahan perekat, grease, dsb. yang dipakai untuk pekerjaan servis.

1

10.12.2019

21

1

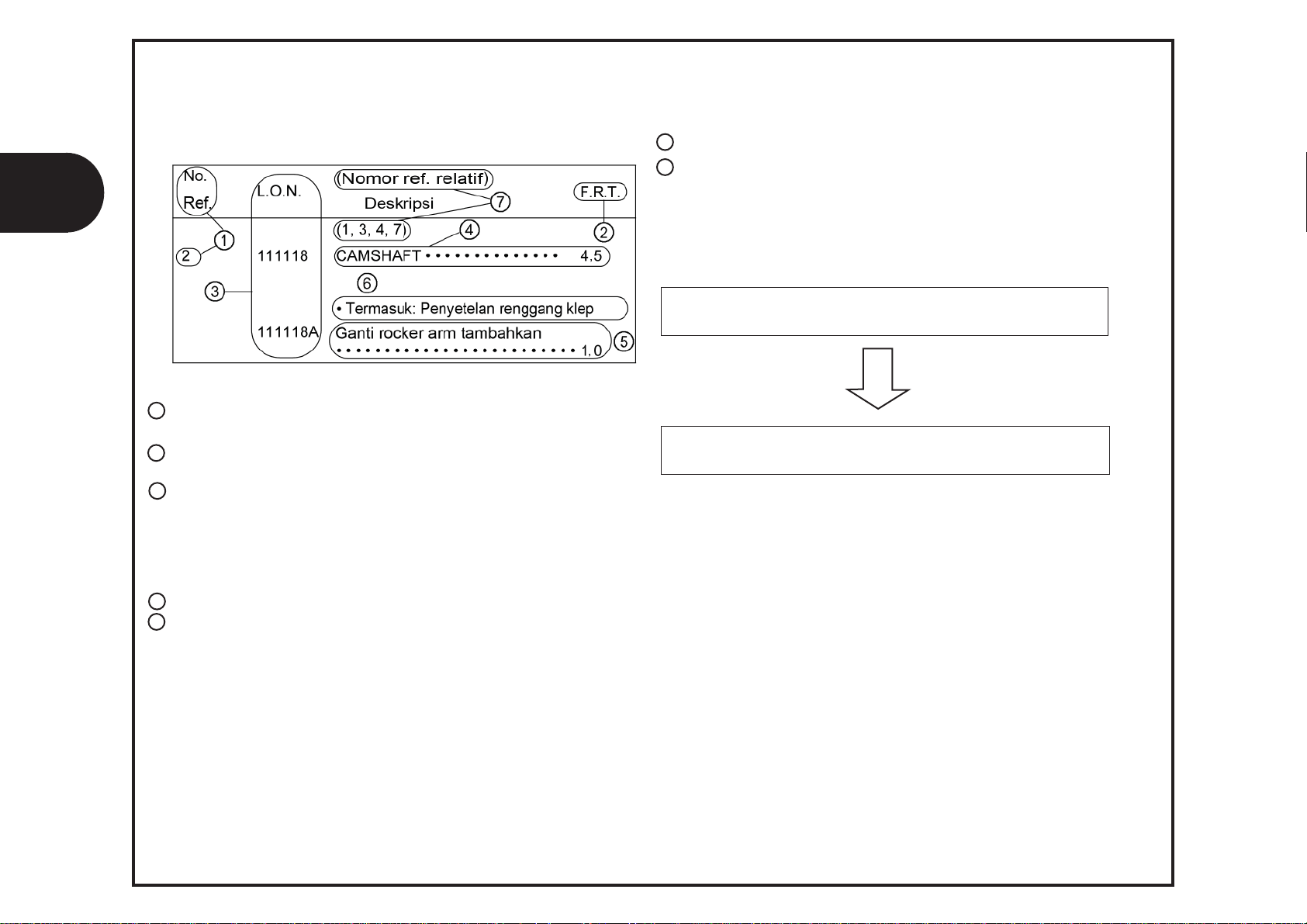

Penjelasan FRT dengan menggunakan contoh (Contoh mungkin berbeda dari item yang tercantum)

No. Referensi dari gambar part yang menunjukkan lokasi kerja untuk

1

penggantian.

FRT adalah singkatan dari Flat Rate Time menunjukkan waktu servis standard

2

yang dibutuhkan untuk penggantian.

LON adalah singkatan dari Labor Operation Number, yaitu klasiﬁ kasi dari item

3

servis dengan kode unit kerja. Kode kerja yang sama digunakan tidak tergantung dari model. Pengerjaan standard ditandai dengan kode 6 digit, dan pengerjaan tambahan

ditandai dengan kode 7 digit.

6

Menyatakan isi pekerjaan yang termasuk di dalam bagian yang diservis.

7

Menyatakan No. referensi yang pekerjaan dan waktunya adalah sama dengan

FRT4,5 untuk camshaft.

(Daerah jangkauan aplikasi terbatas pada bagian-bagian yang diservis tanpa

penentuan LON di dalam blok yang sama)

Cara mencari bagian yang diservis dengan memakai contoh (penggantian camshaft)

Buka ke halaman blok dimana gambar spare part camshaft diperlihatkan.

Carilah gambar camshaft, dan carilah bagian yang diservis dan FRT yang sesuai dengan No. referensi.

22

4

Menyatakan penggantian camshaft dan FRT4,5.

5

Menyatakan bahwa FRT1,0 akan ditambahkan jika pekerjaan tambahan

(penggantian rocker arm) dilakukan sehubungan dengan penggantian

camshaft.

10.12.2019

Tanda penunjuk untuk pencantuman bagian-bagian yang diservis yang terdapat lanjutan pada halaman berikutnya

Tanda yang diperlihatkan pada baris terakhir.

Blok yang tidak ada penentuan FRT

TIDAK ADA INFORMASI

• Sistem kode LON

...........................

1 11 1 18 A

a c

a) Kode kategori dan klasiﬁ kasi Kode Kategori

1 Mesin 2 Transmisi 3 Bahan bakar & Pembuangan gas 4 Rangka & Badan 5 Kemudi/Suspensi 6 Kelistrikan 7 Roda/Rem 8 Alat pengontrol/instrumen 9 0 -

1

1 11 1 18 A

a b c d e

a) Kode golongan ......... Mesin

b) Kode lokasi/fungsi ..... Bagian atas mesin

c) Kode pekerjaan ......... Ganti

d) Nomor urutan pekerjaan (Kode unit dapat diperlihatkan dengan abjad)

..................... camshaft

(Tidak ada aturan kode tetap)

e) Kode tambahan .........Ganti rocker arm

(Tidak ada aturan kode tetap)

10.12.2019

c) Kode pekerjaan dan klasiﬁ kasi Kode Kategori pekerjaan

1 Ganti, Pelepasan/Pemasangan, Ganti

2 Overhaul 3 Setel, Balans 4 (Pekerjaan yang berhubungan dengan pengecatan:

Lapisan-atas) 5 Test, Pemeriksaan/diagnosa, Pengukuran, Pemeriksaan 6 (Pekerjaan yang berhubungan dengan overhaul:

Rebore = korter) 7 (Pekerjaan yang berhubungan dengan overhaul:

Reseal = perapatan kembali) 8 (Resurface = Pembentukan kembali permukaan) 9 (Pekerjaan yang berhubungan dengan pengecatan:

Reﬁ nish = perhalus permukaan) 0 Perbaikan, Pembersihan, Pembuangan angin palsu

23

Bagian utama yang diservis tanpa memakai spare parts Pelepasan/Pemasangan, Penyetelan, Pemeriksaan/Pengukuran, Pekerjaan lain E: Mesin, F: Rangka

* PEKERJAAN LAIN SELAIN PENGGANTIAN PARTS

• Pelepasan/Pemasangan

Set untuk konﬁ gurasi dengan parts dilepaskan dari kendaraan.

• Pemeriksaan/Pengukuran

1

LON

1101E5

E

3111D5

1101E6

• Penyetelan

LON

3143A0 6143A1 BUSI-PENYETELAN/PEMBERSIHAN 0,1

E

1113A0

6163A0 LAMPU DEPAN- MENGARAHKAN 0,1

7113A1

DESKRIPSI FRT

MEMIRINGKAN ASSY., MESINPELEPASAN/PEMASANGAN

TERMASUK: Semua penyetelan yang diperlukan

ASSY., THROTTLE BODYPELEPASAN/PEMASANGAN

PEMISAHAN CRANKCASE

TERMASUK: Penurunan dan pemasangan mesin

DESKRIPSI FRT

PUTARAN STASIONER MESIN PENYETELAN

JARAK RENGGANG KLEPPENYETELAN

CATATAN: Untuk 1 kendaraan

REM BELAKANG - PENYETELAN

TIDAK TERMASUK: Penyetelan kampas rem belakang

2,1

0,9

4,1

0,1

0,4

0,1

LON

1115A0

E

6145A0

6105A0

F

• Pekerjaan lain

LON DESKRIPSI FRT

E 1130A1 SARINGAN KASA OLI- PEMBERSIHAN 0,2

7110A0

F

3115A3 PENGENALAN INISIALISASI ECM 0,2

6185A0 UPDATE ECM/PCM 0,3

TEKANAN KOMPRESSI- PENGUKURAN

WAKTU PENGAPIAN- PEMERIKSAAN BATTERY- PENGISIAN

TERMASUK: Dalam kasus jenis battery terbuka, periksa tinggi permukaan electrolyte dan pengisian

REM DEPANPEMBUANGAN ANGIN PALSU

DESKRIPSI

FRT

0,2

0,3

0,2

24

F

7113A1A

3113A3 PENGOPERASIAN GAS-PENYETELAN 0,1

Penyetelan equalizer tambahkan CATATAN: Tipe Street

Penyetelan equalizer tambahkan(A)

0,1

0,3

10.12.2019

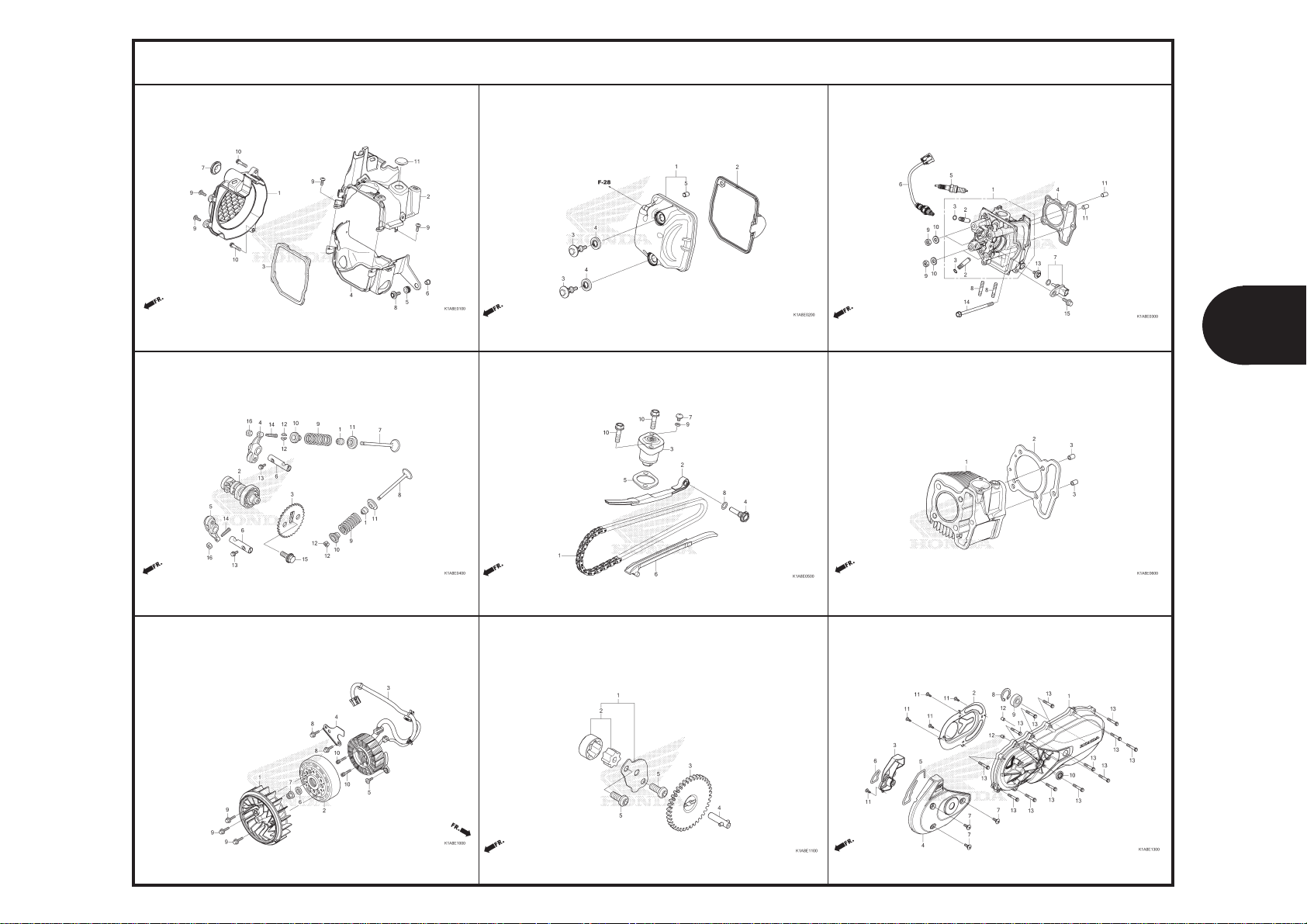

KELOMPOK MESIN

E-1

SHROUD/FAN COVER

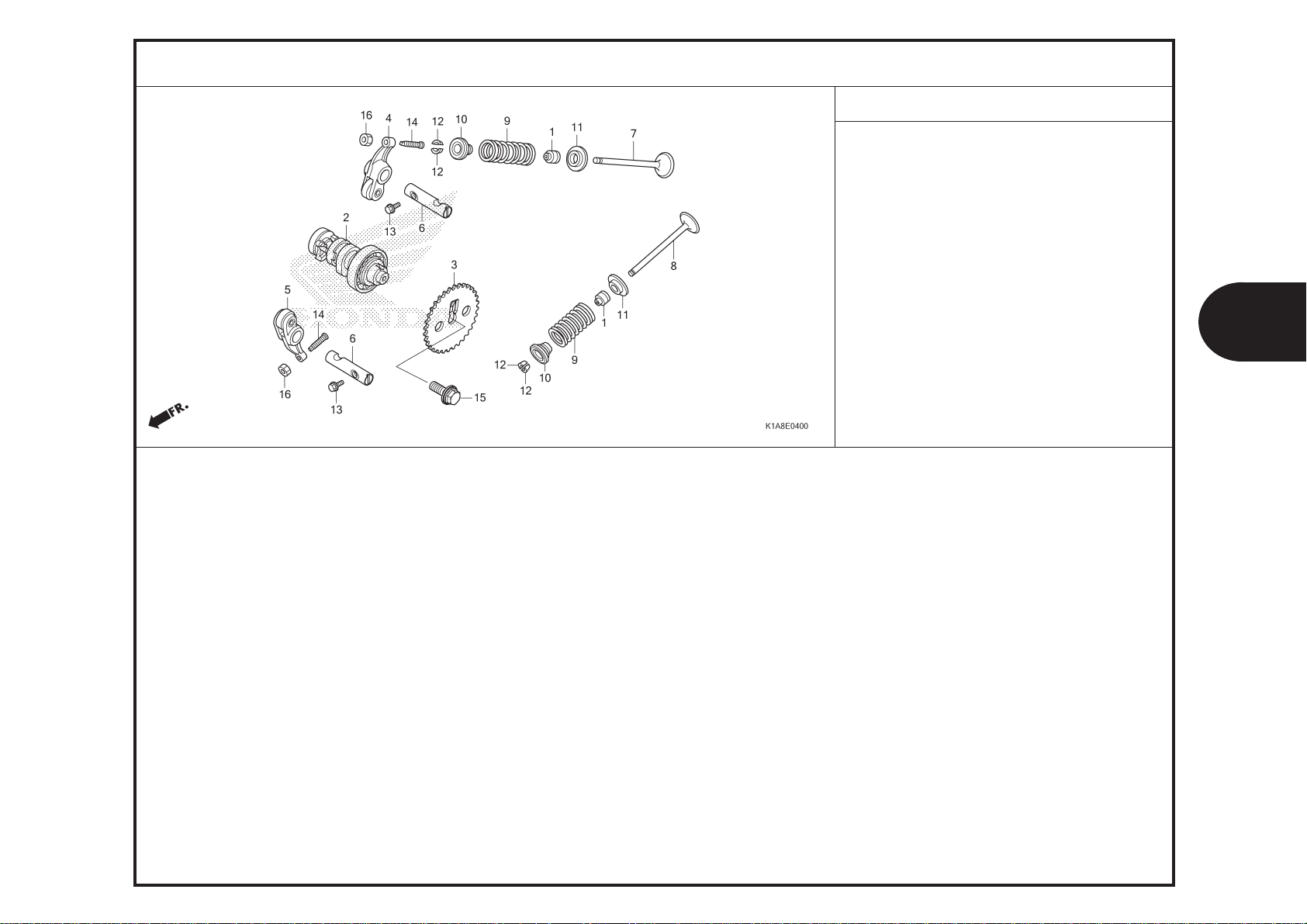

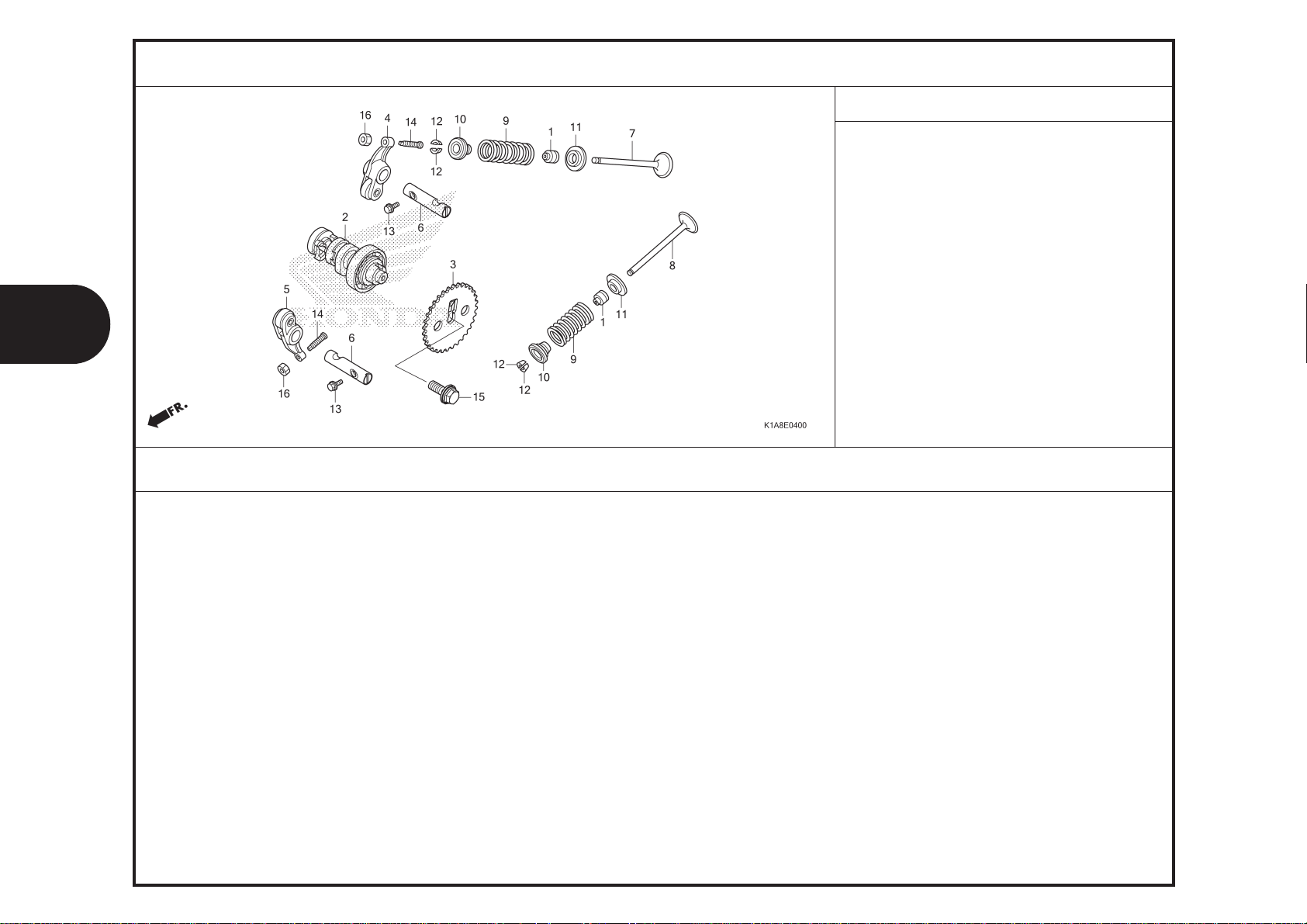

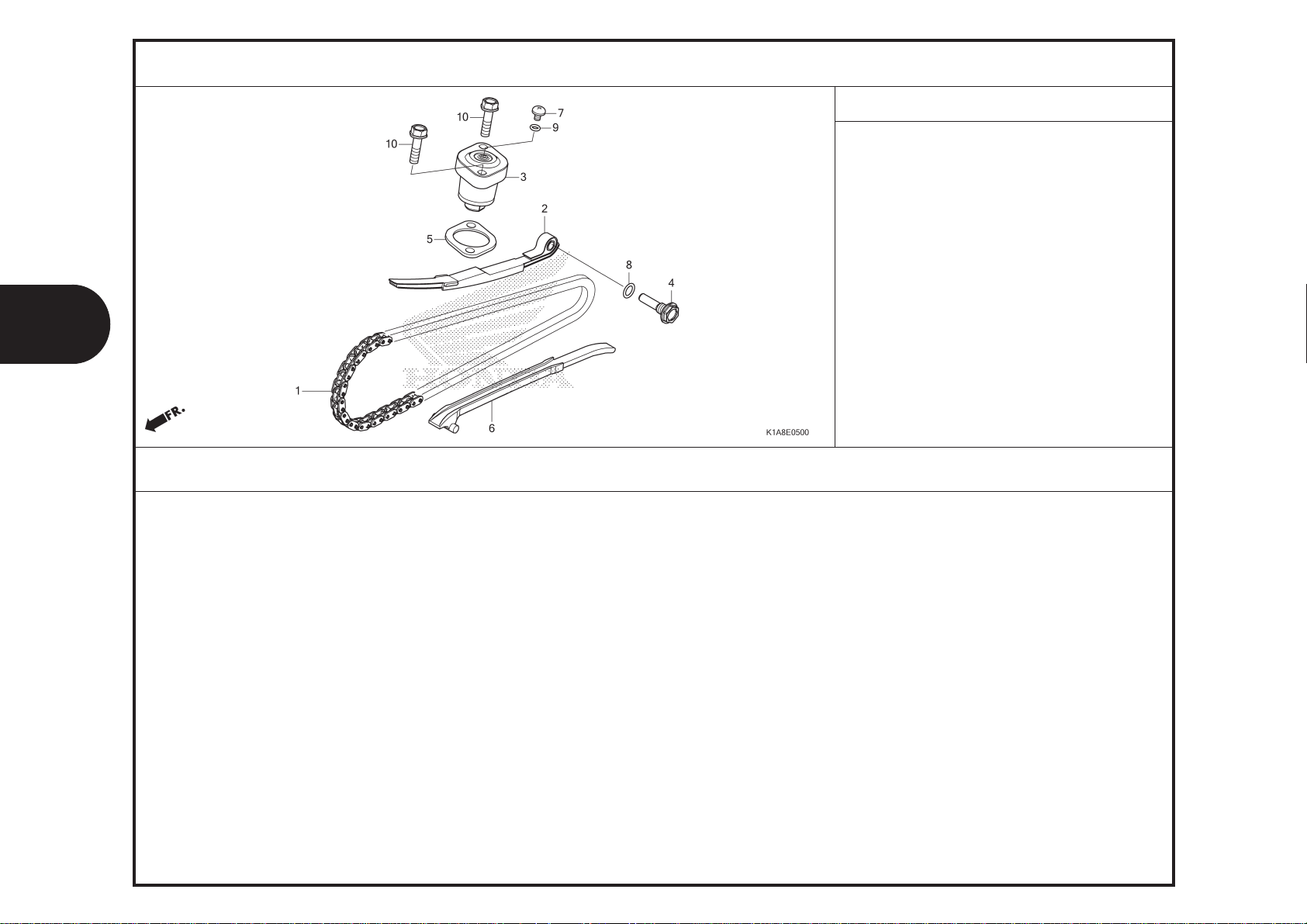

CAMSHAFT/VALVE CAM CHAIN/TENSIONERE-4

E-2

E-5

CYLINDER HEAD COVER

E-3

E-6

CYLINDER HEAD

2

CYLINDER

E-10

A.C.G. STARTER

E-11

OIL PUMP

10.12.2019

E-13

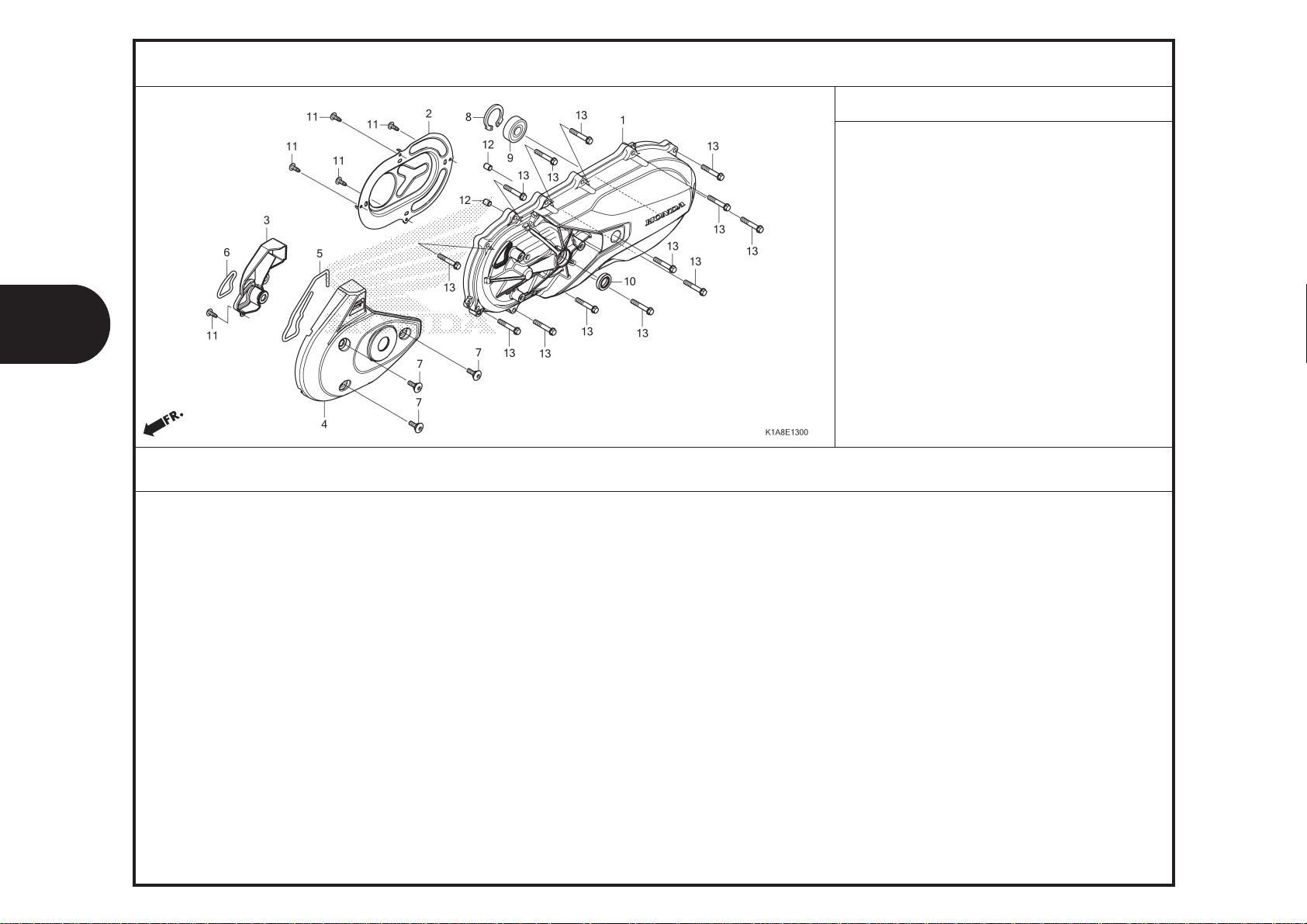

LEFT SIDE COVER

25

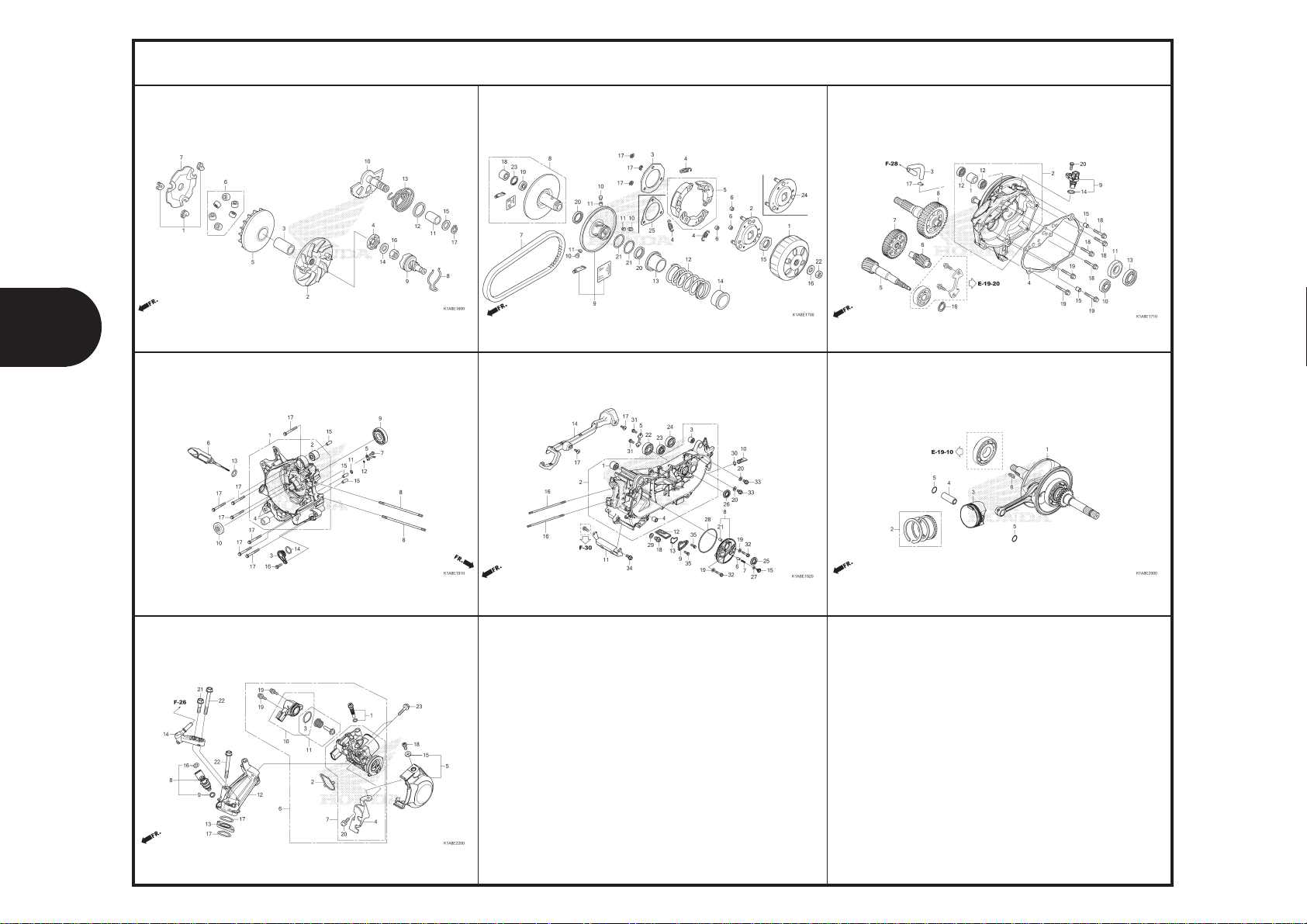

KELOMPOK MESIN

2

E-16

DRIVE FACE

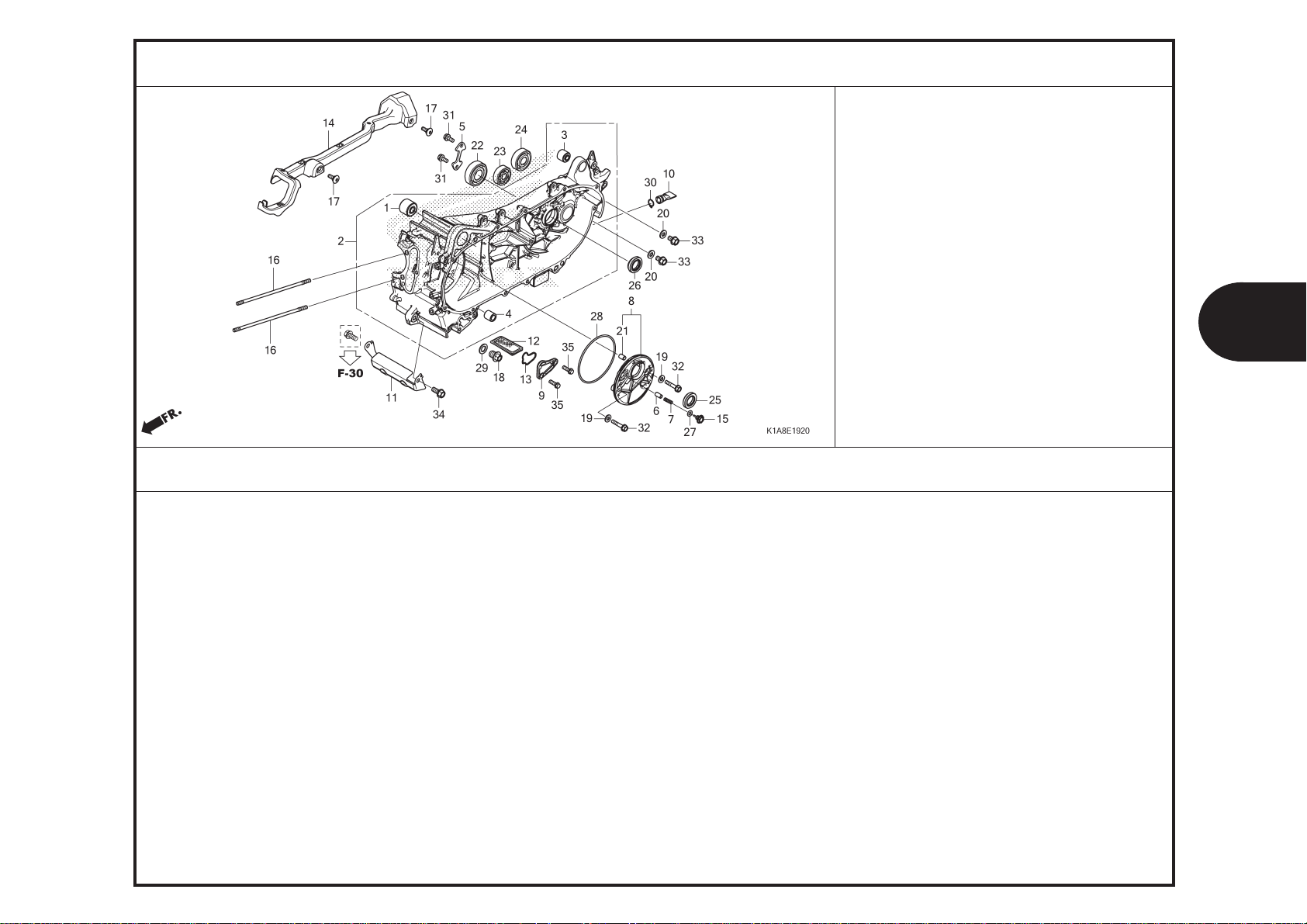

RIGHT CRANKCASE LEFT CRANKCASEE-19-10

E-17 E-17-10

E-19-20

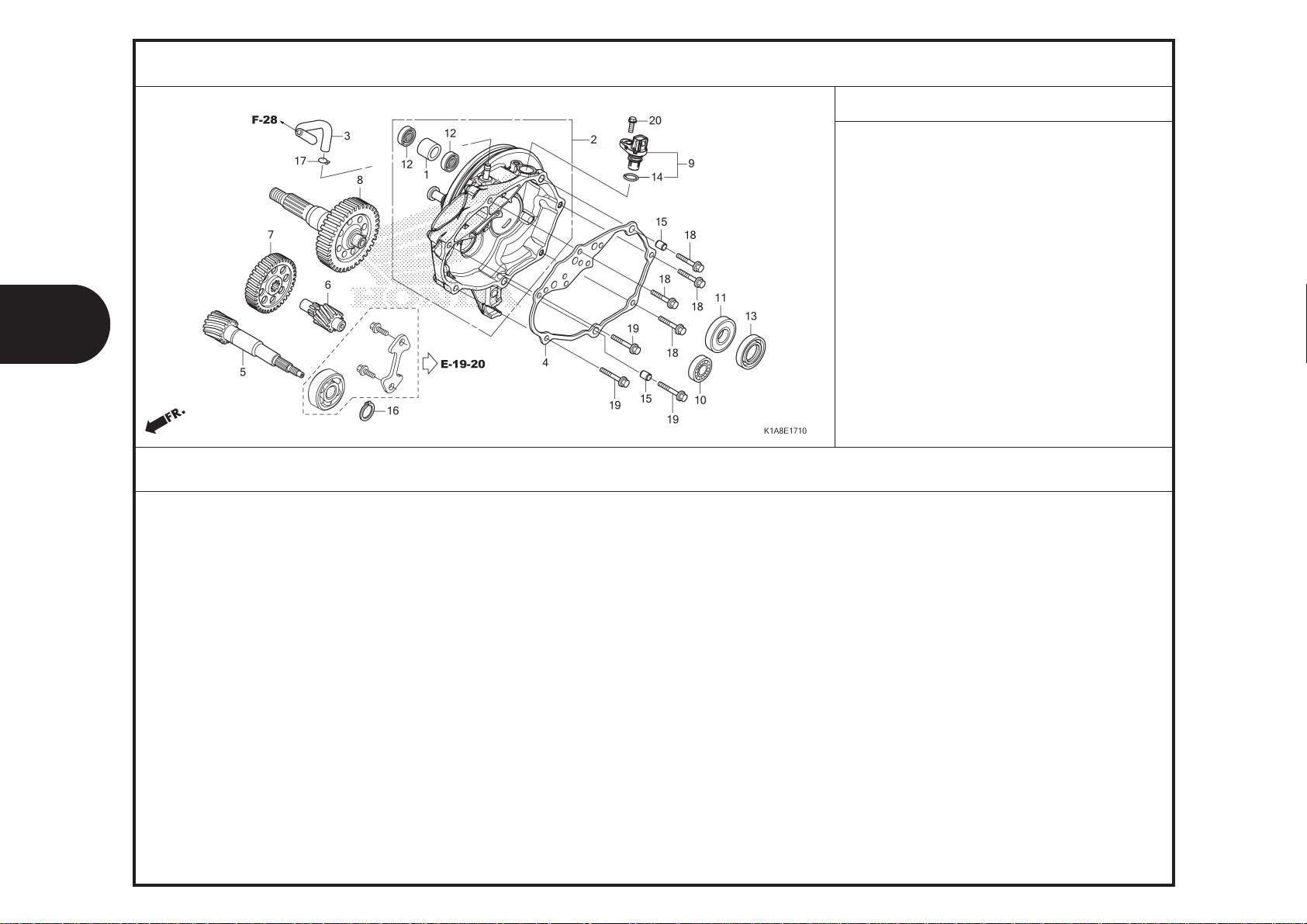

DRIVEN FACE TRANSMISSION

E-20

CRANKSHAFT/PISTON

26

E-22

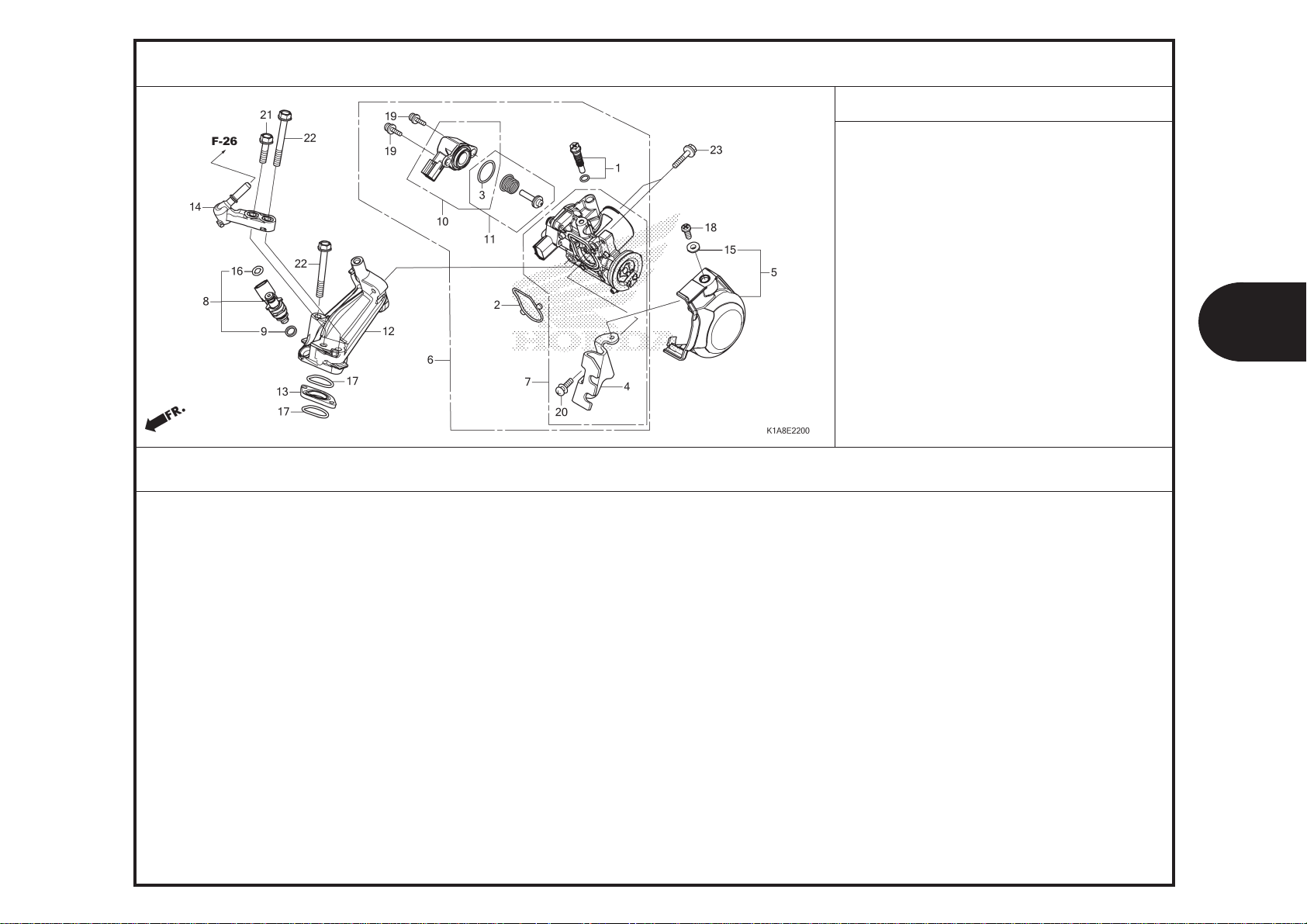

THROTTLE BODY

10.12.2019

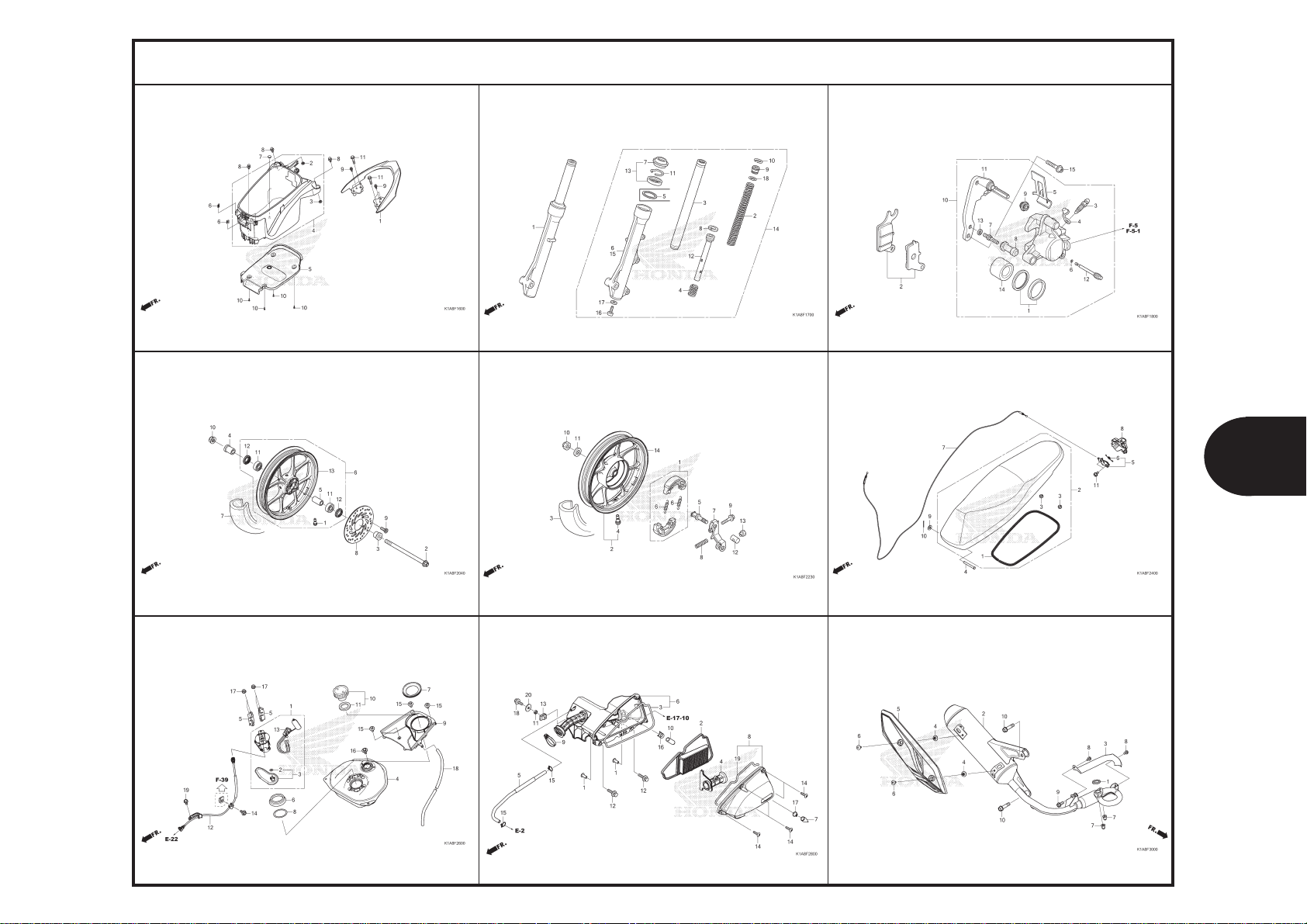

KELOMPOK RANGKA

F-1 F-2 F-2-1

F-3 F-4-10 F-4-11

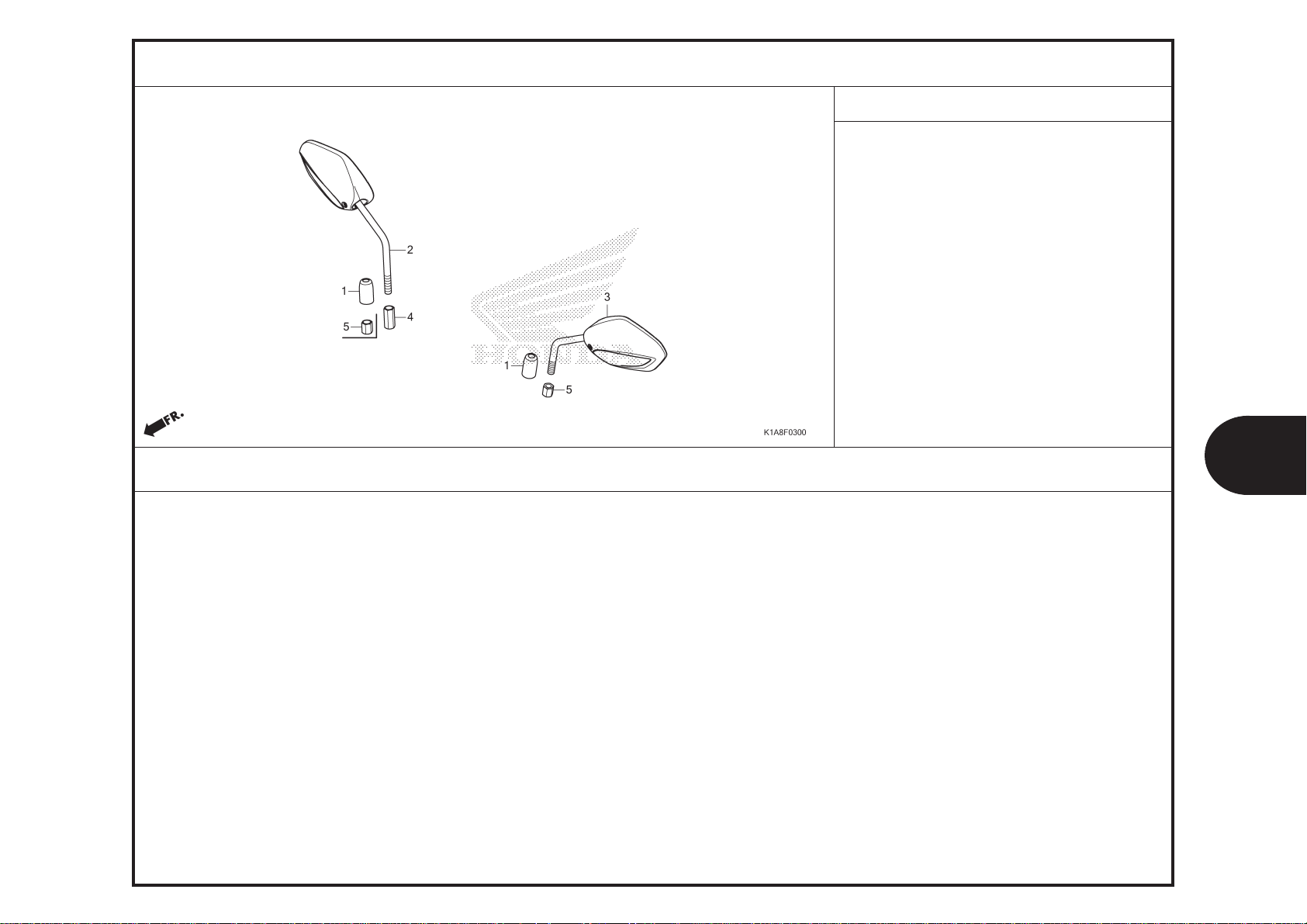

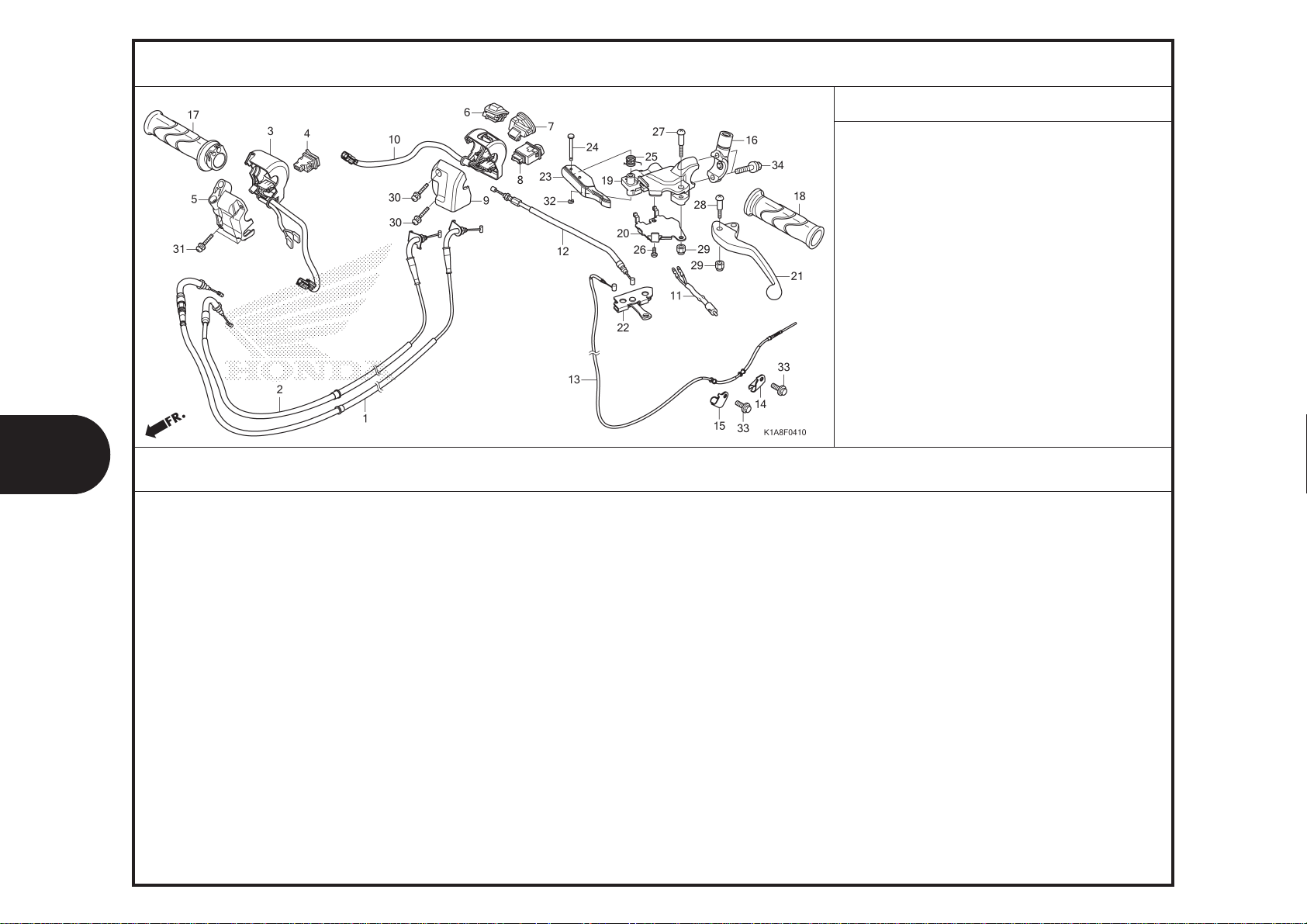

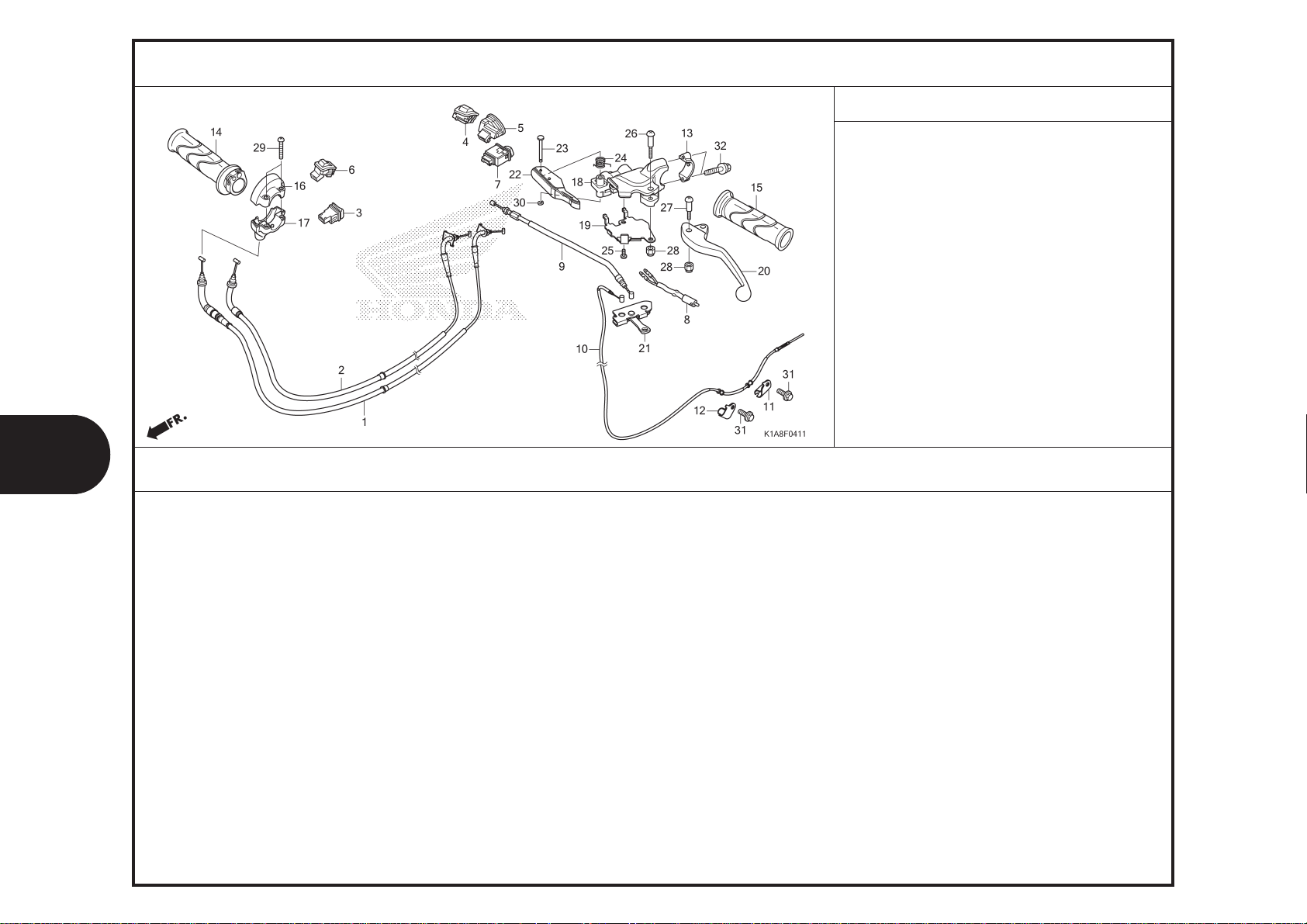

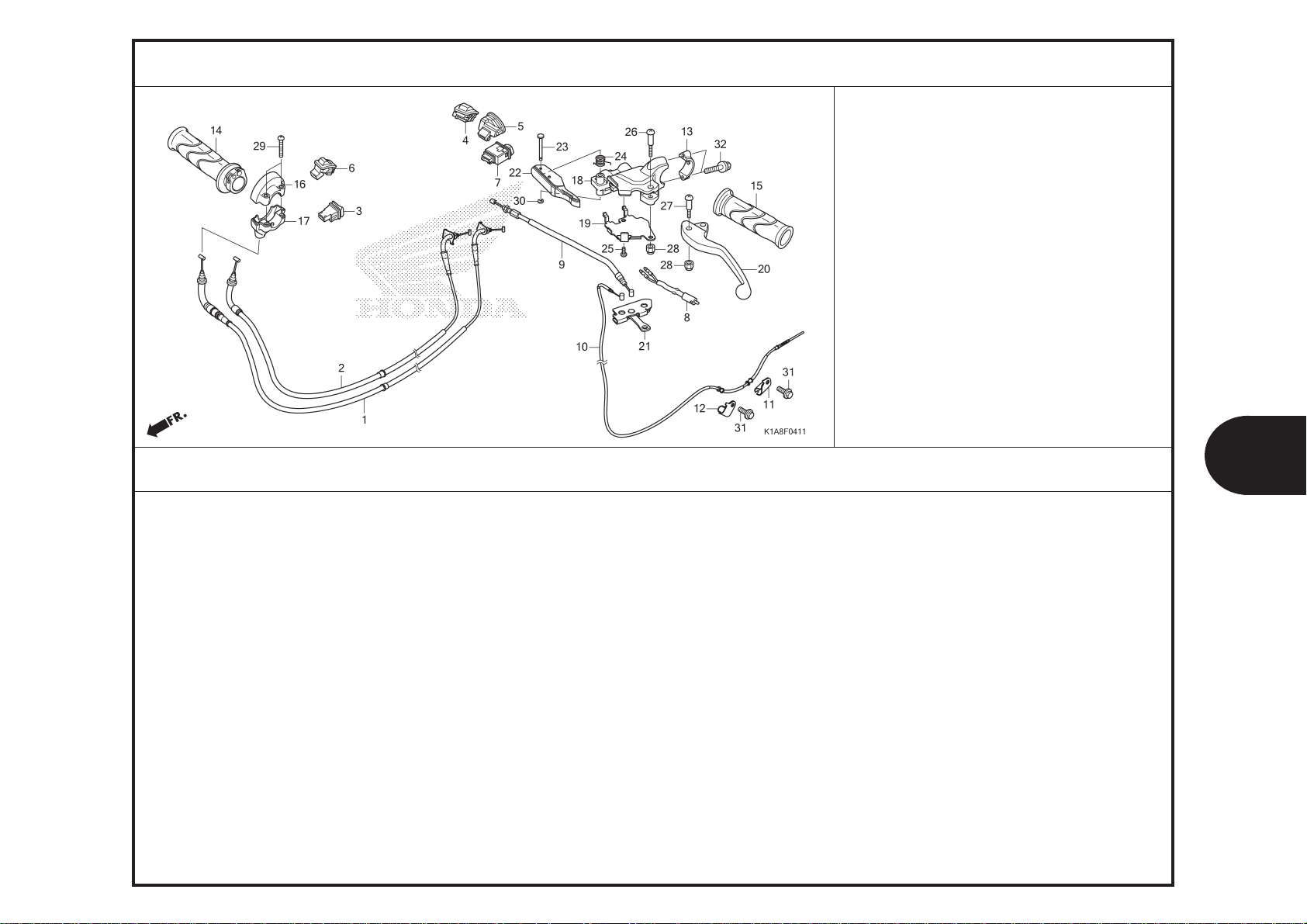

HANDLE LEVER/SWITCH/CABLE(1)MIRROR HANDLE LEVER/SWITCH/CABLE(2)

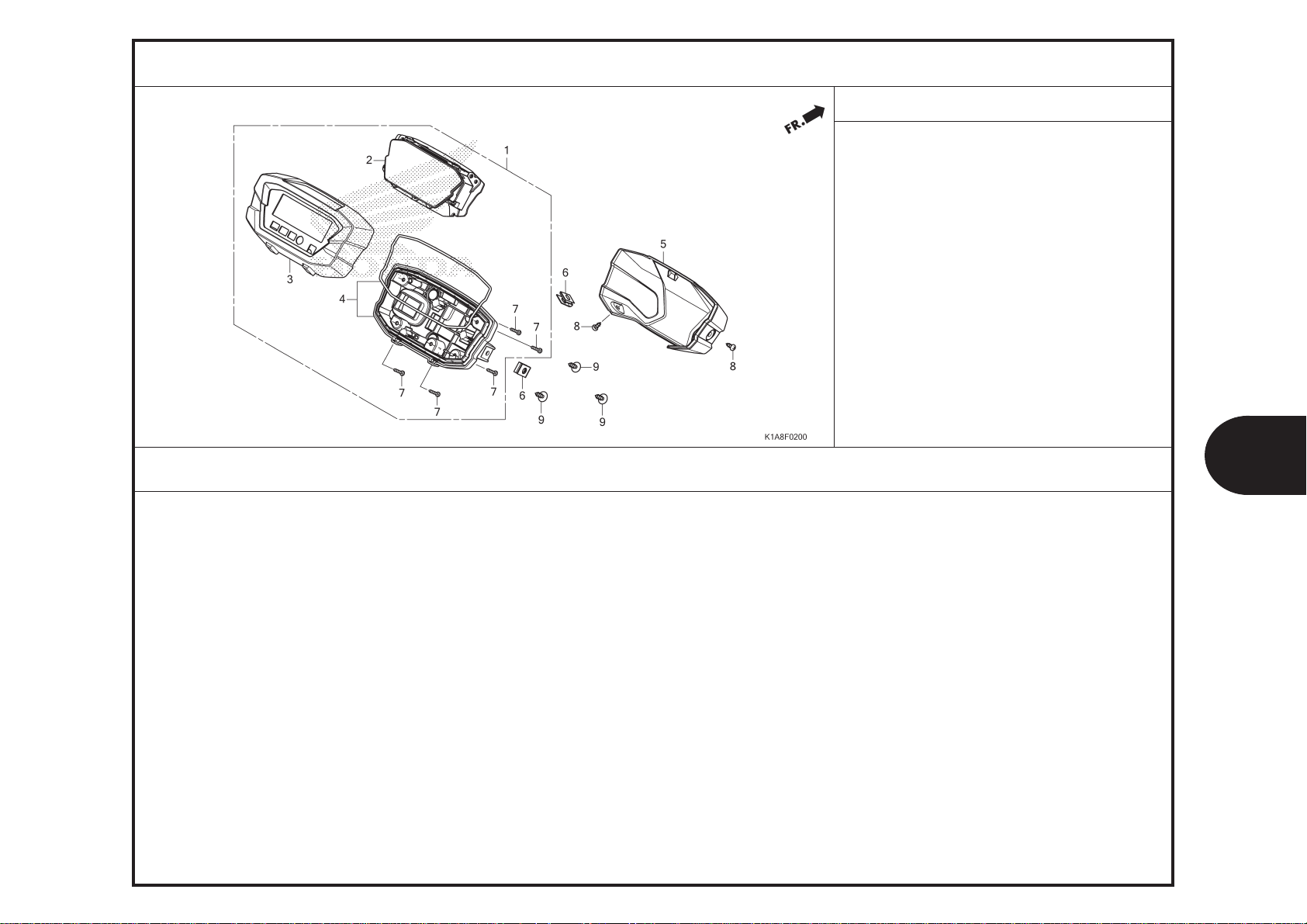

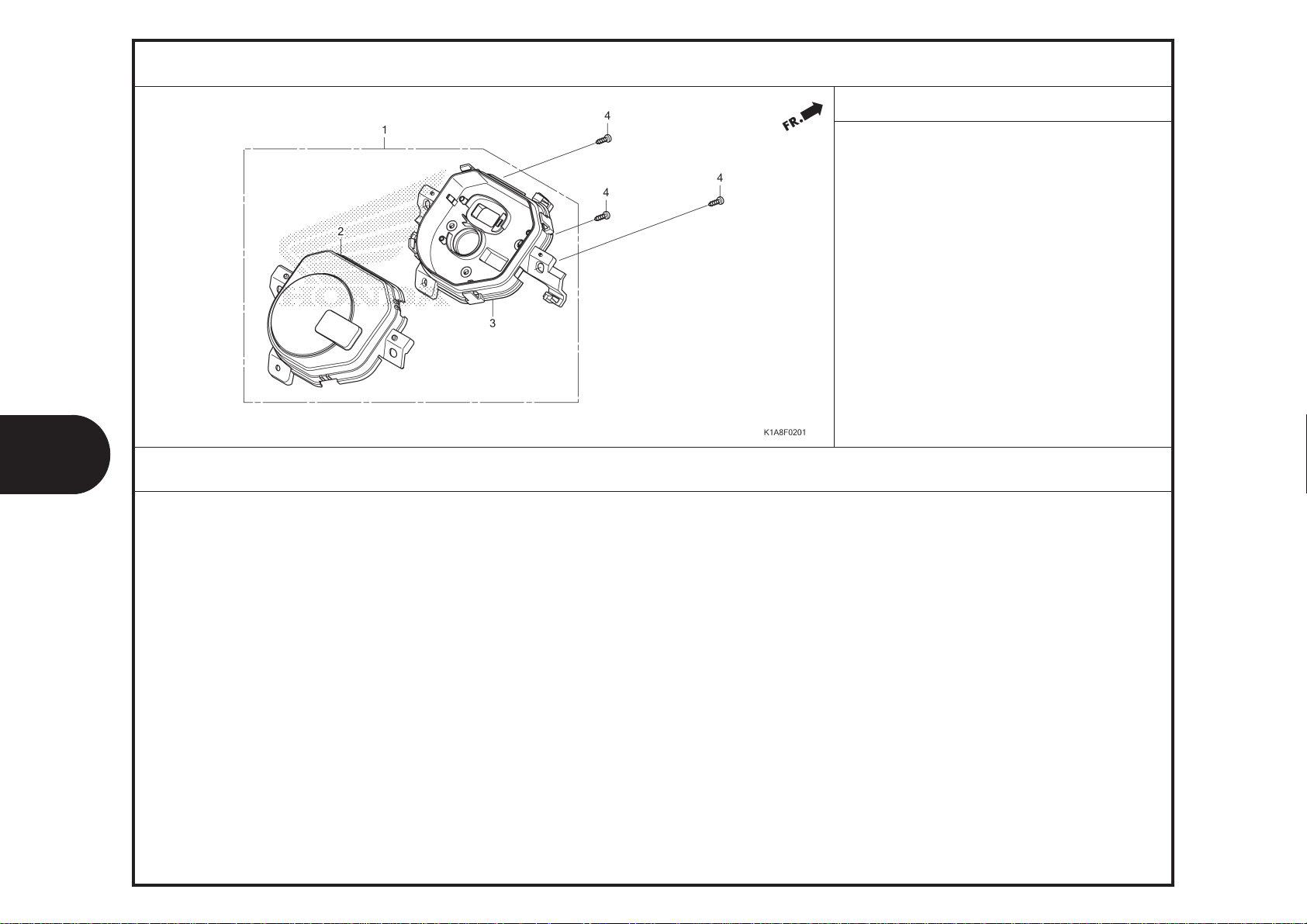

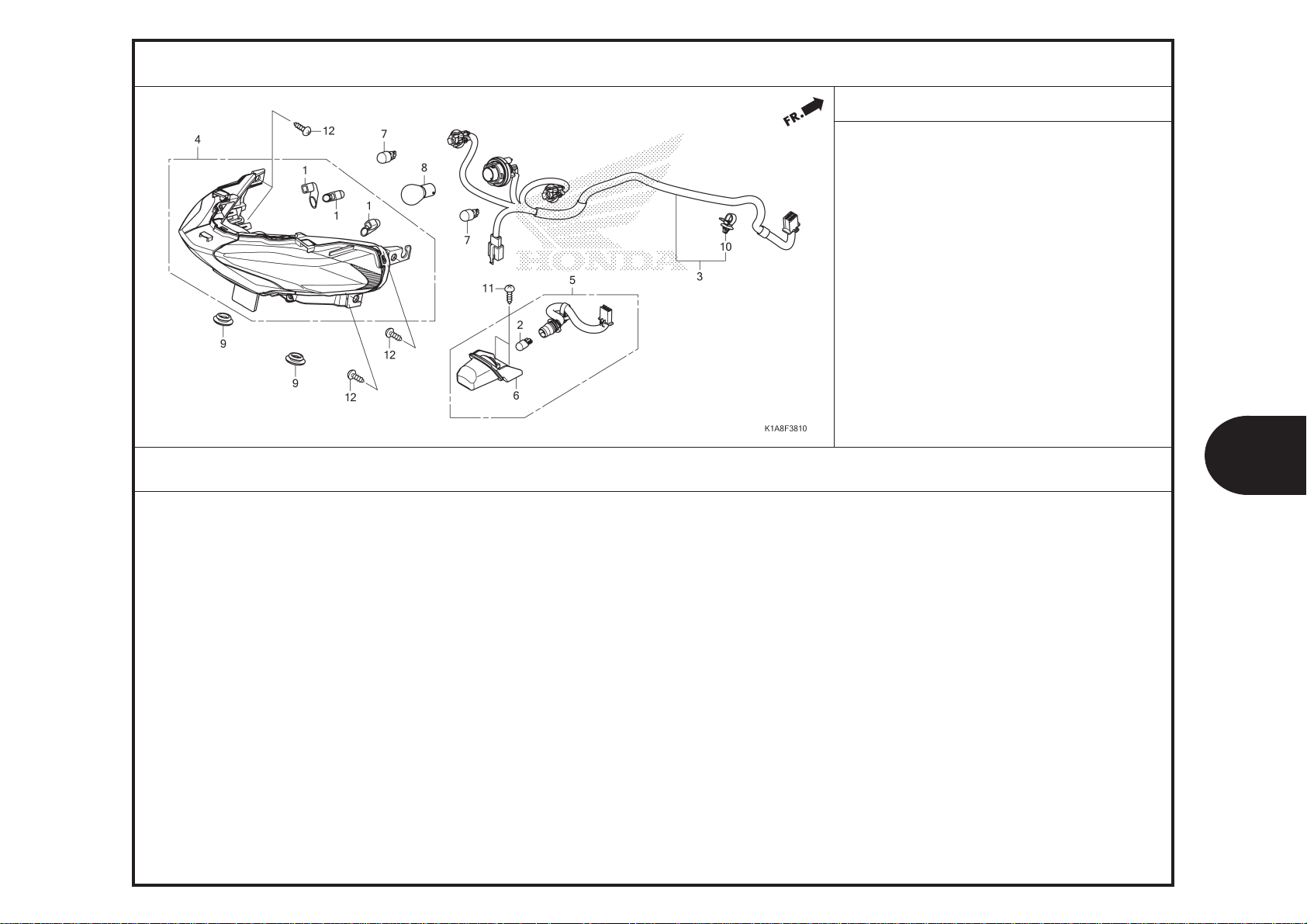

METER(1) METER(2)HEADLIGHT

3

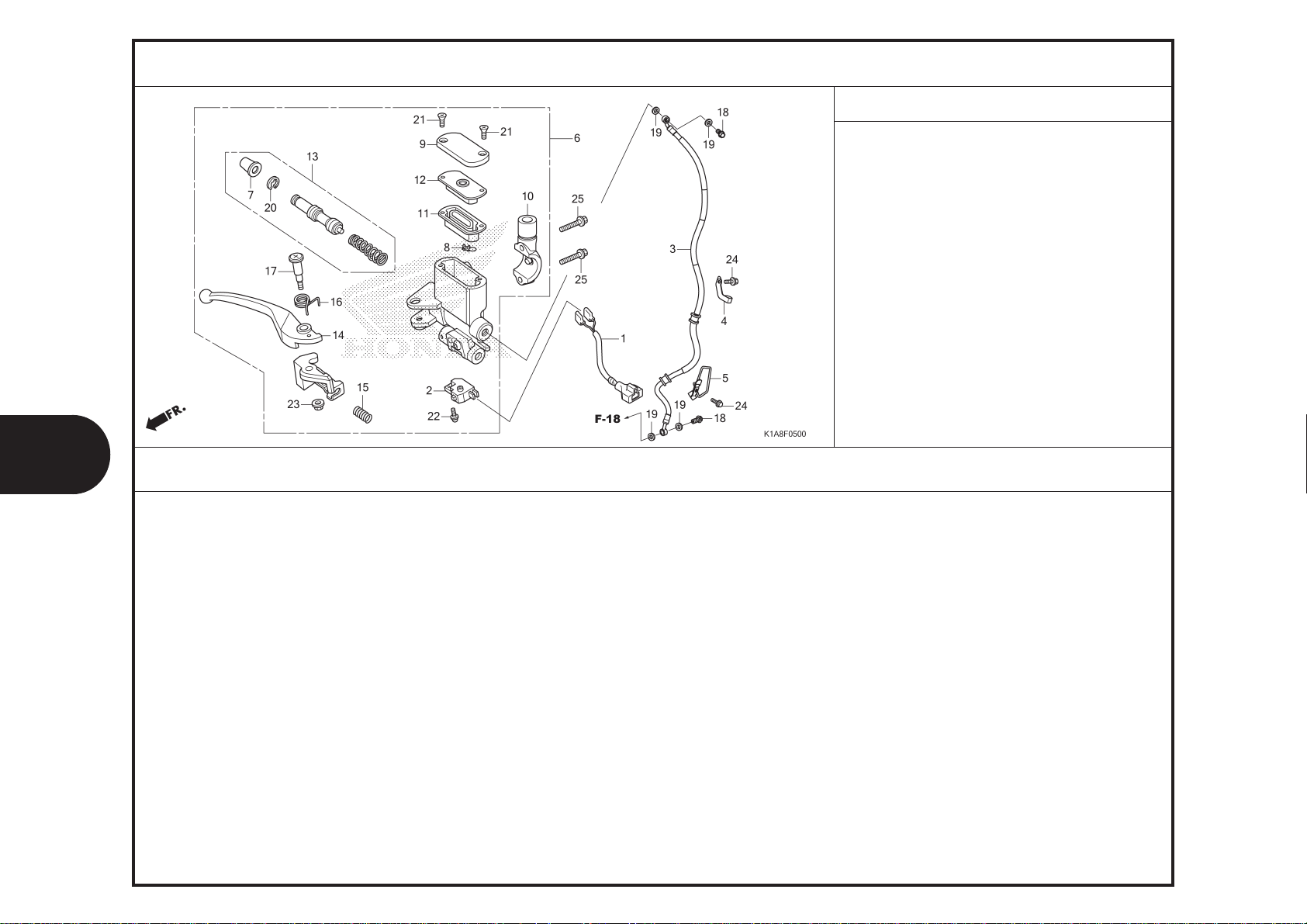

FRONT BRAKE MASTER CYLINDER(1)

F-5 F-5-1 F-9

10.12.2019

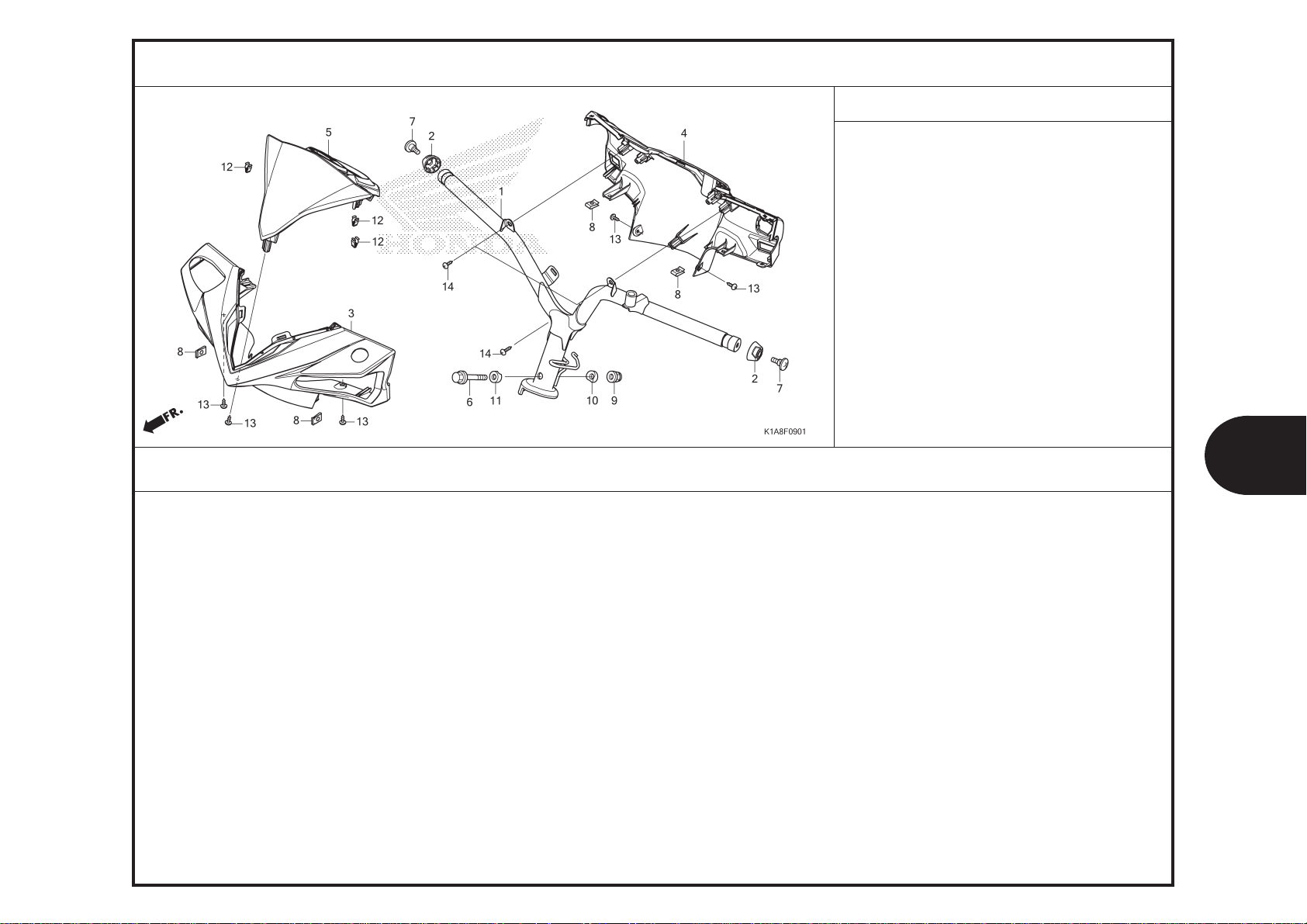

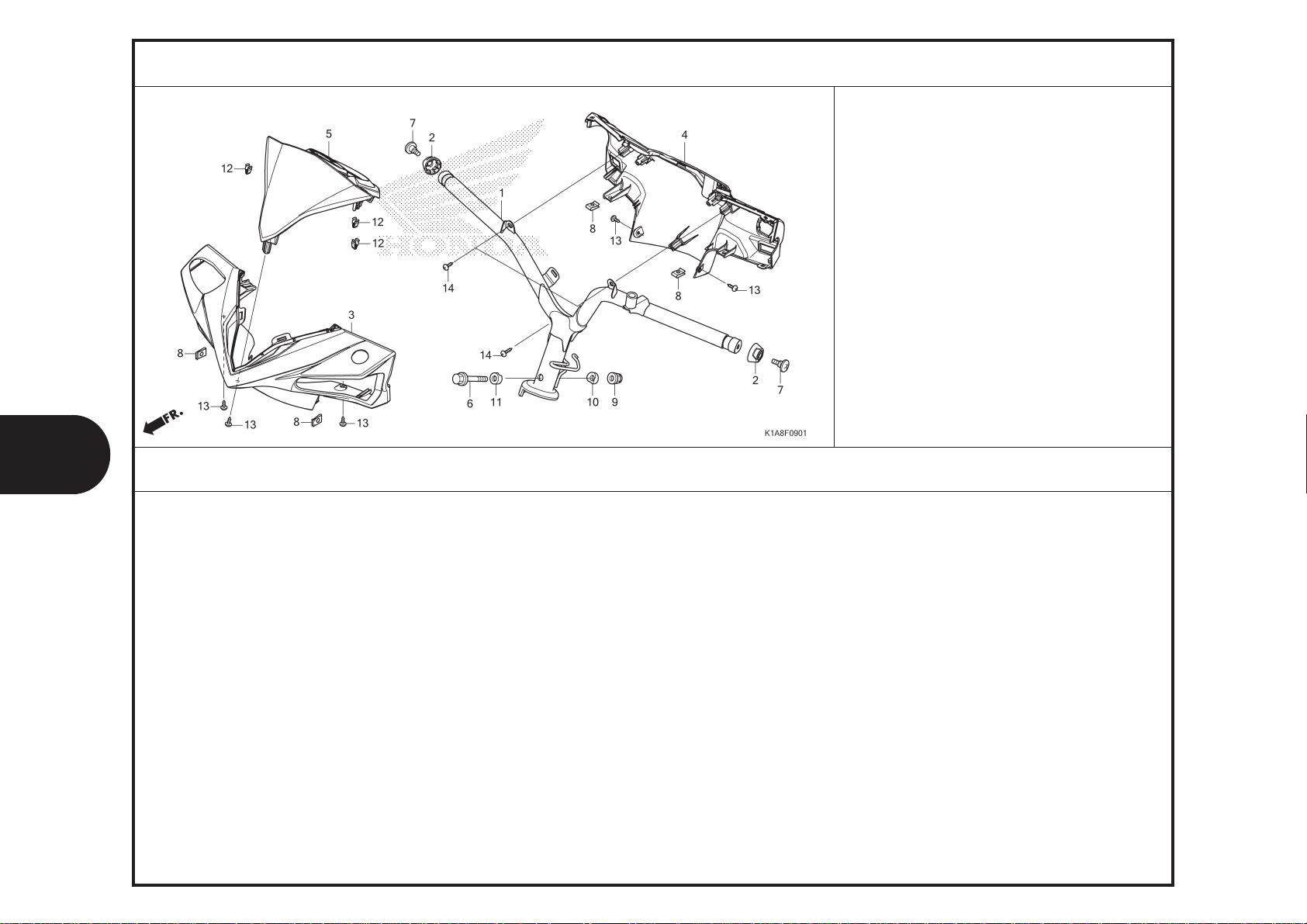

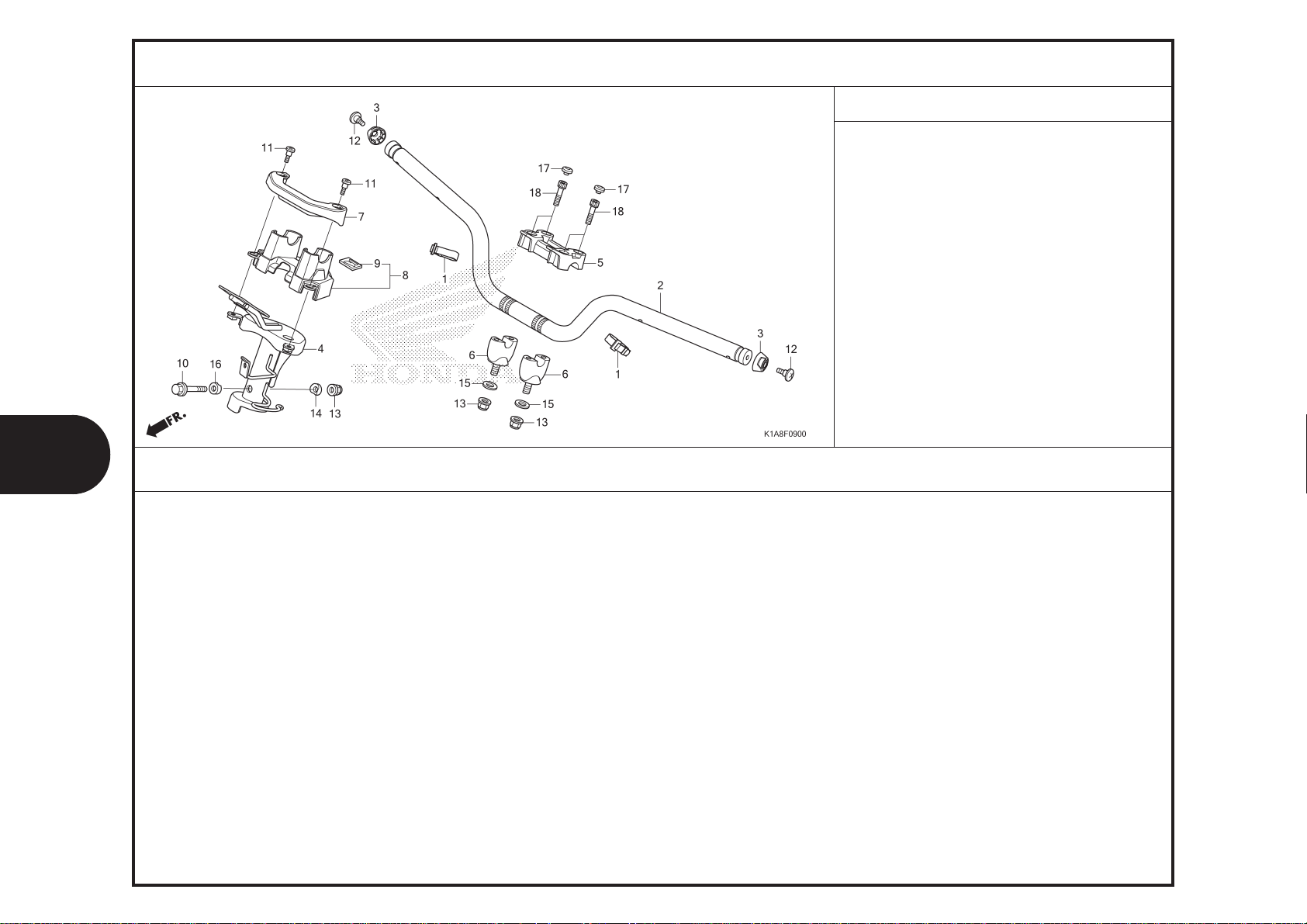

HANDLE PIPE/HANDLE COVER(1)FRONT BRAKE MASTER CYLINDER(2)

27

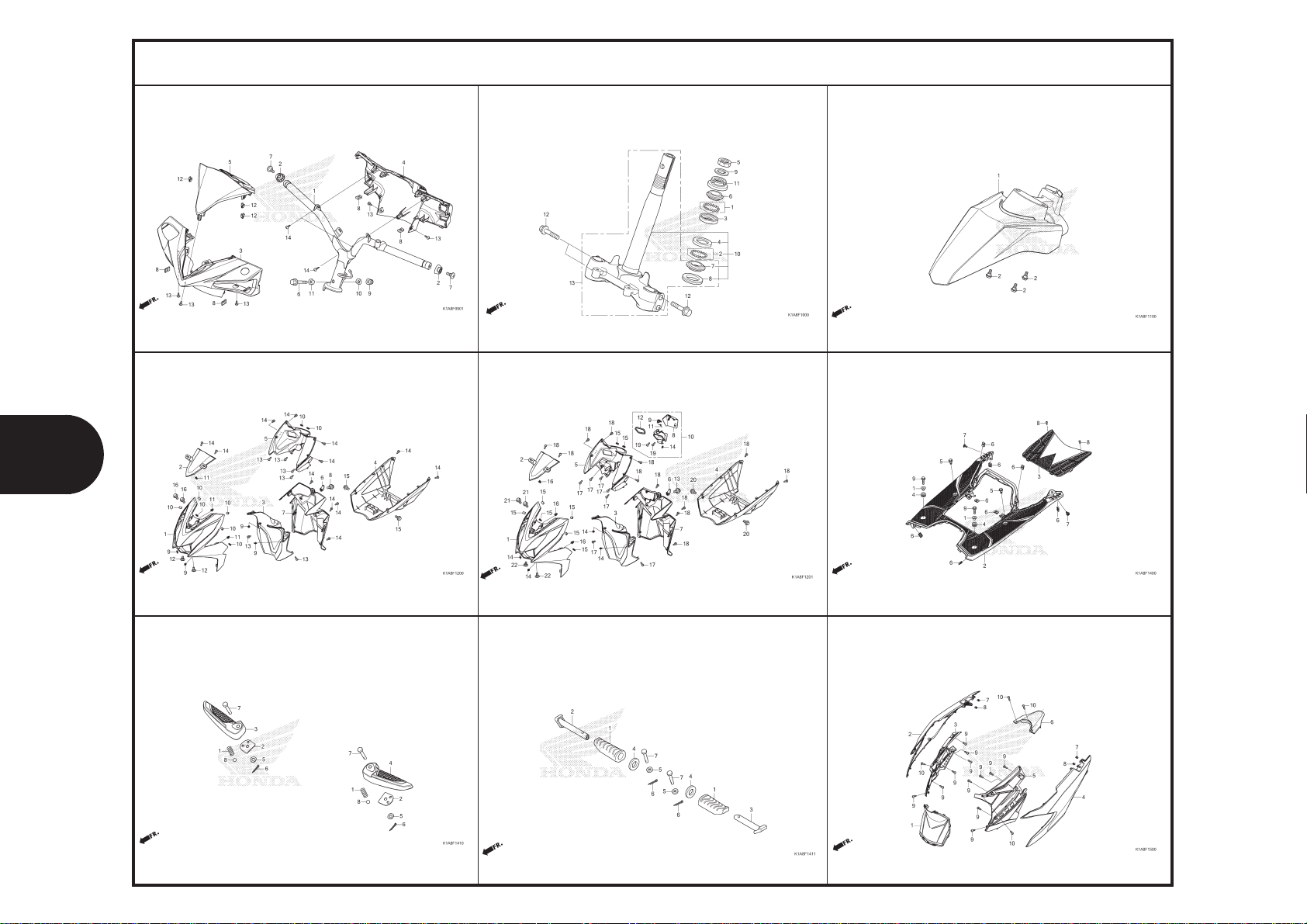

KELOMPOK RANGKA

3

F-9-1 F-10 F-11

F-12 F-12-1 F-14

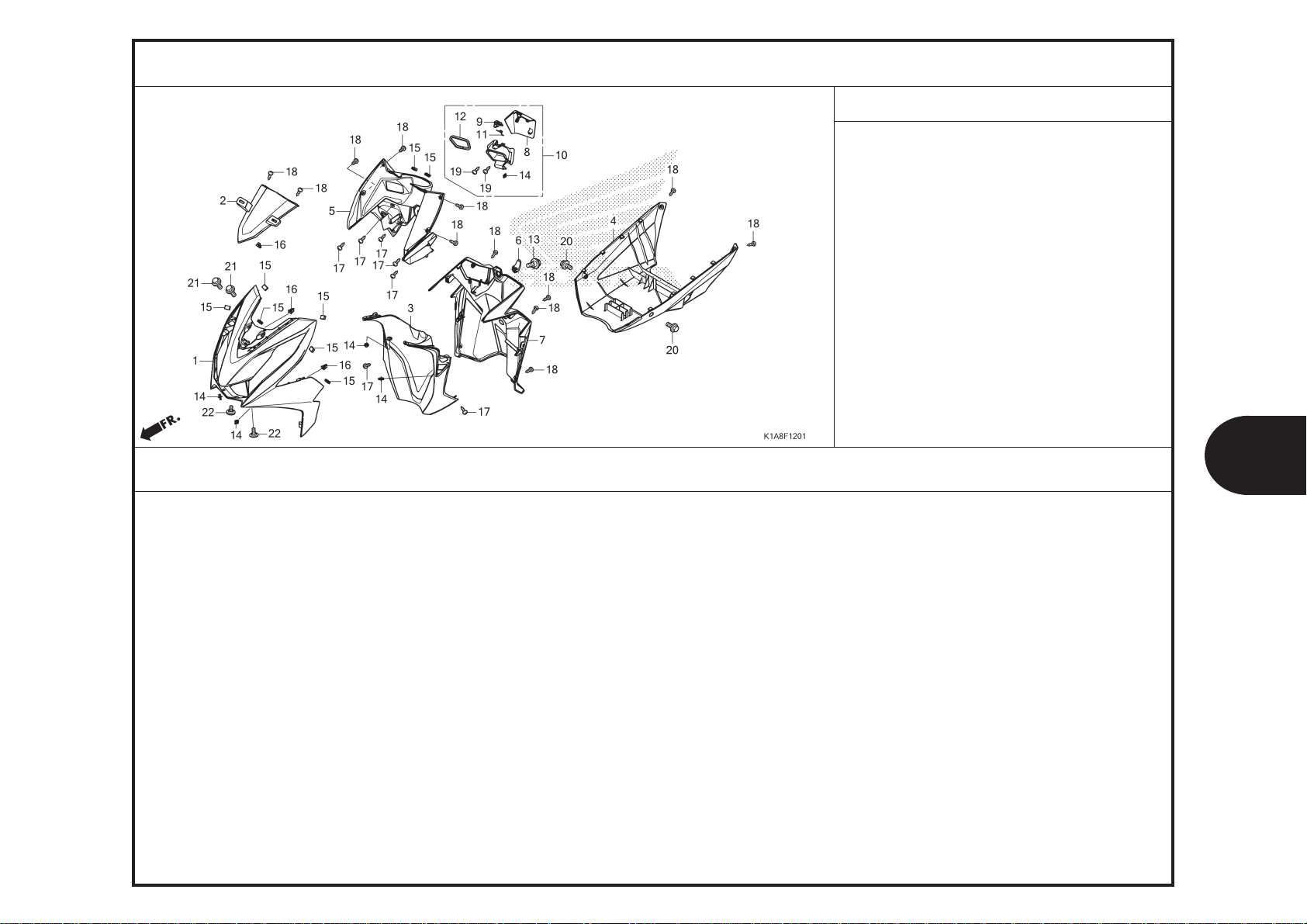

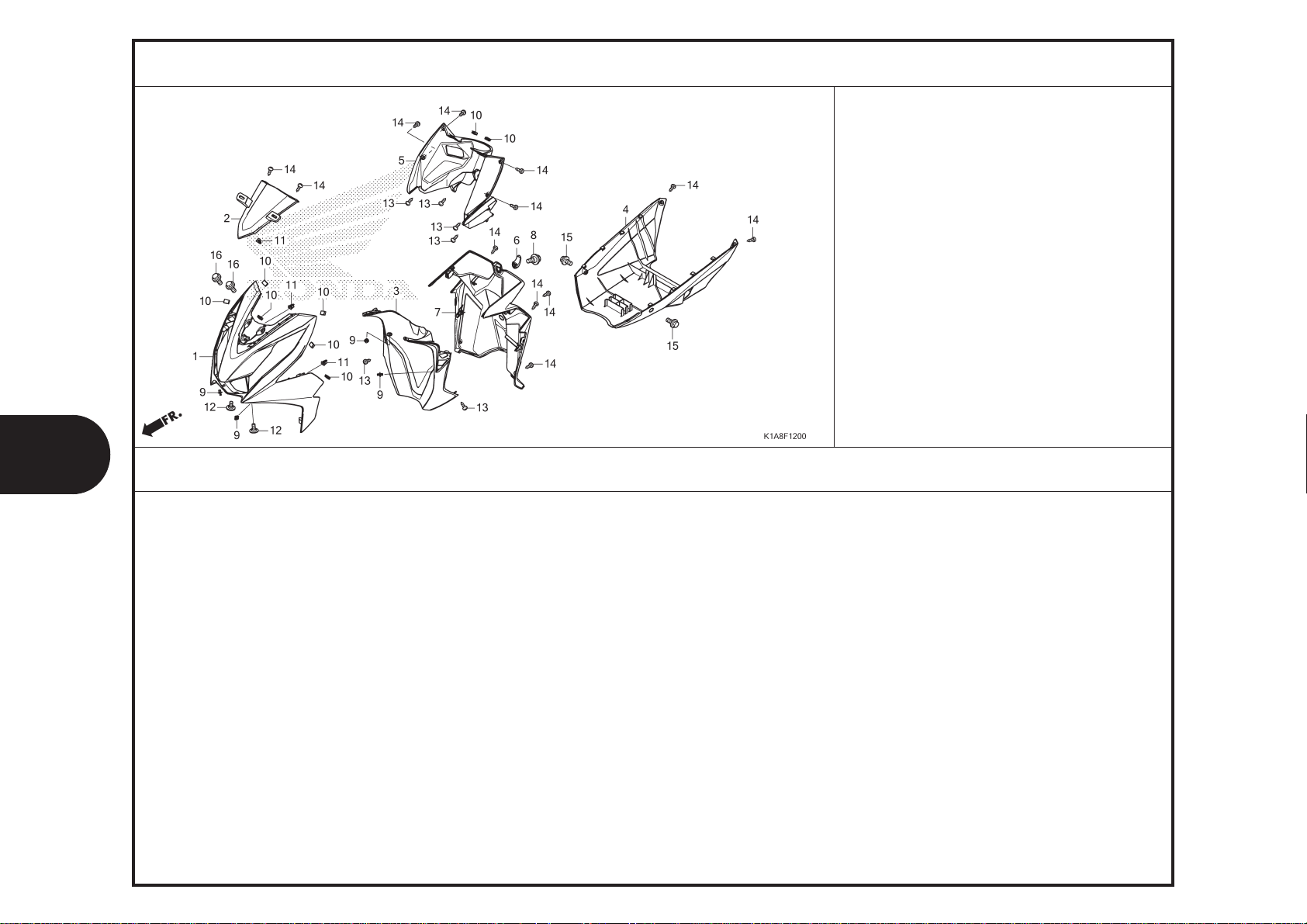

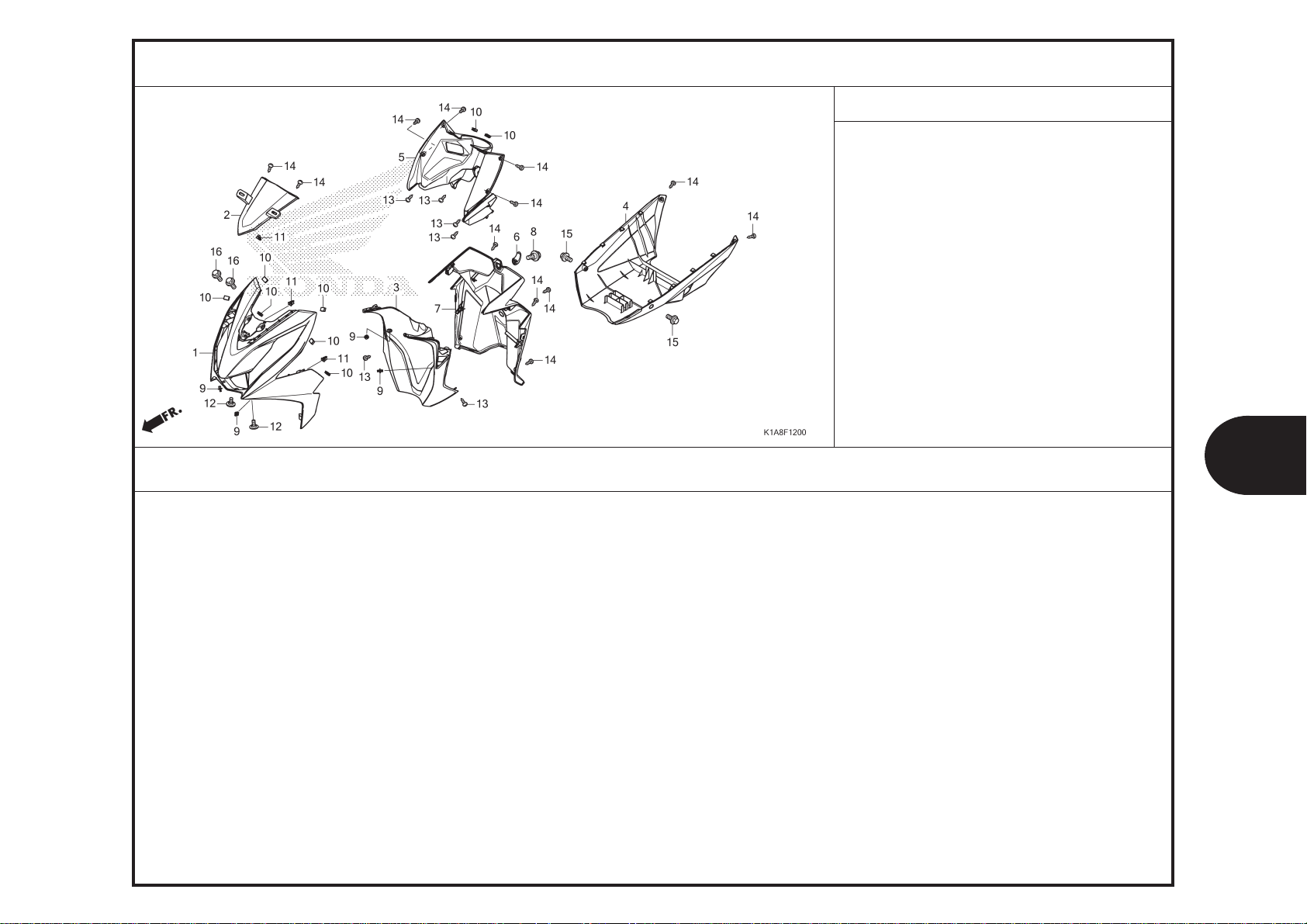

FRONT COVER/INNER COVER

(ACH110CBF)

FRONT COVER/INNER COVER

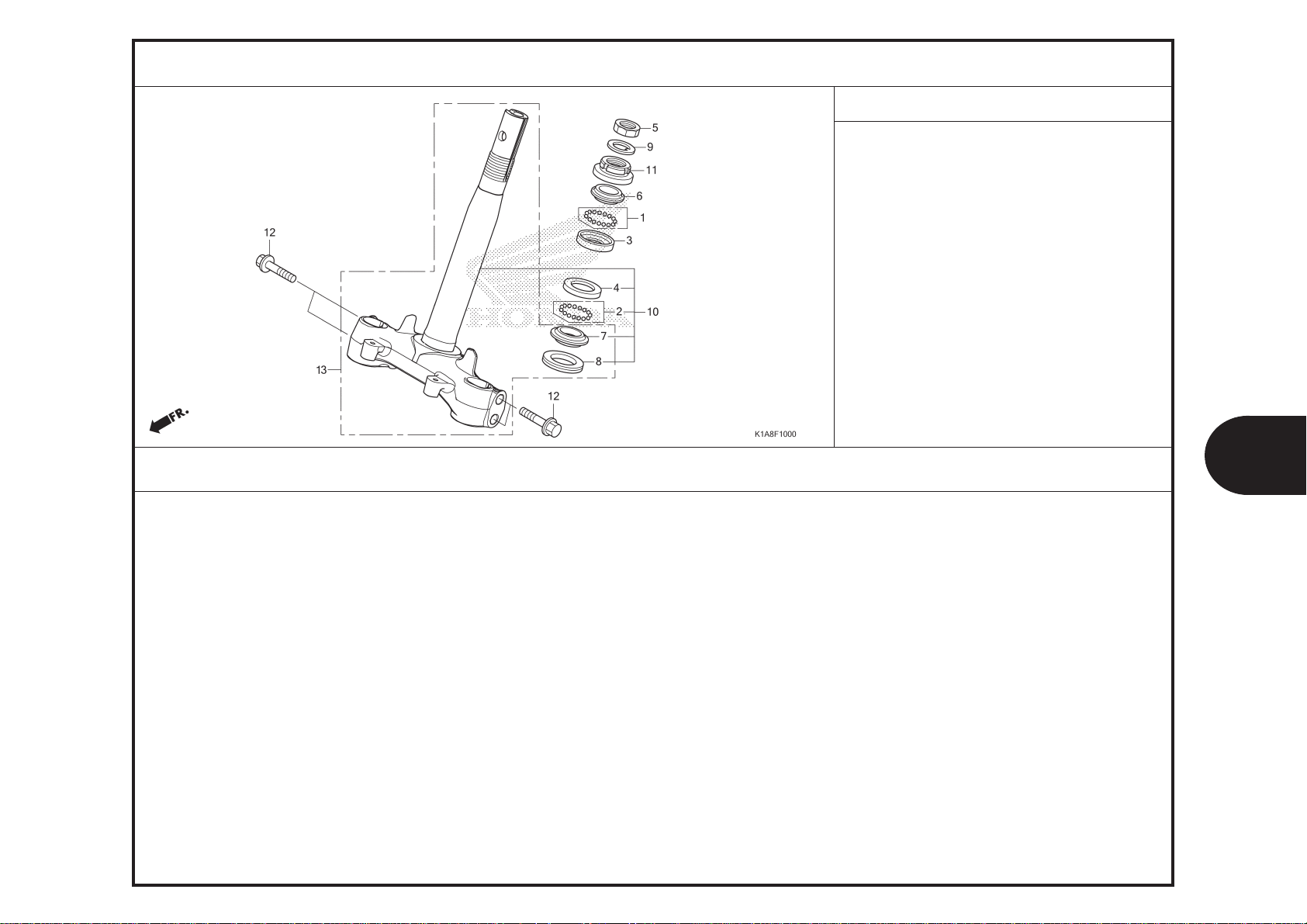

STEERING STEM FRONT FENDERHANDLE PIPE/HANDLE COVER(2)

(ACH110CBT)

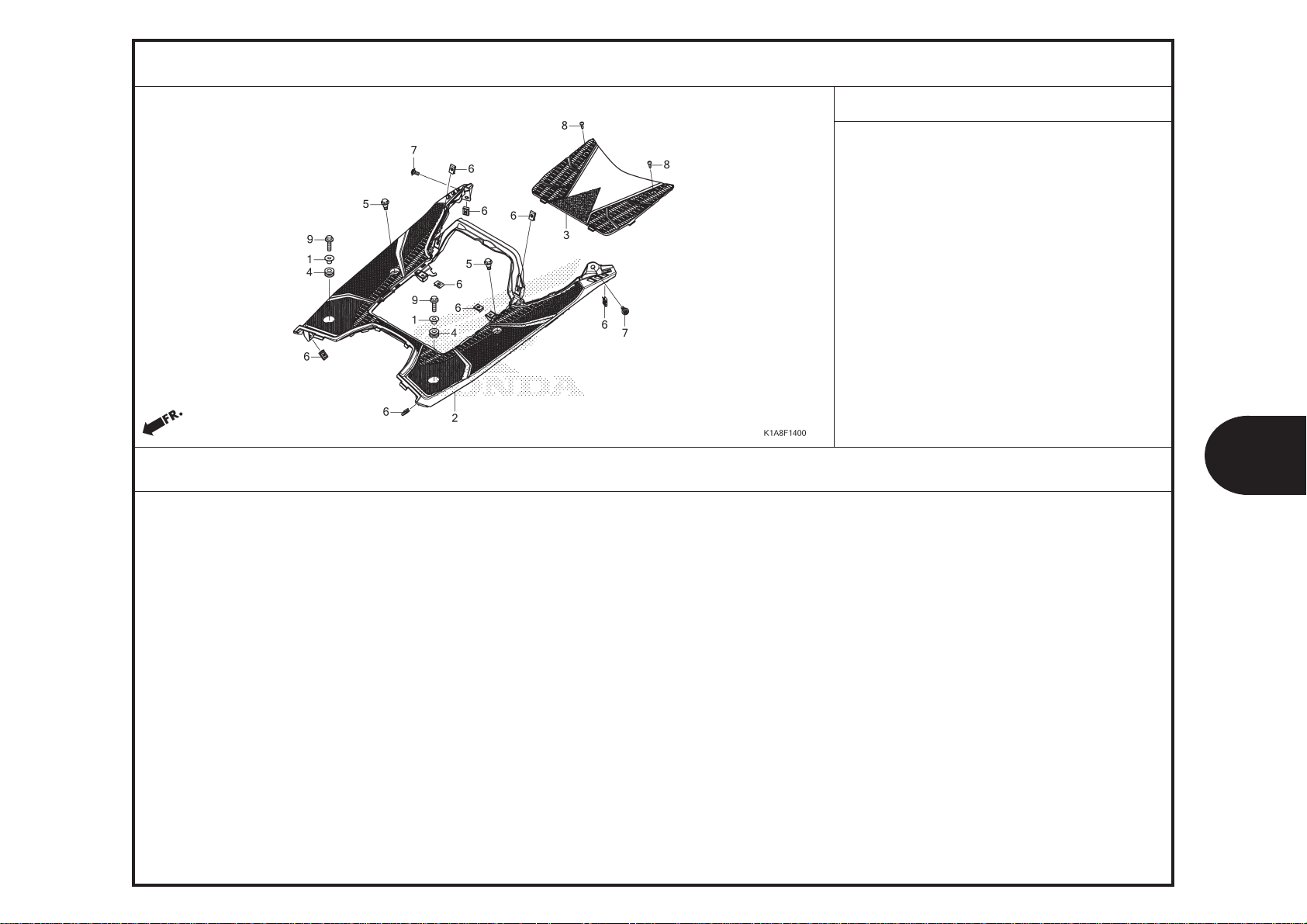

FLOOR STEP

28

F-14-10 F-14-11 F-15

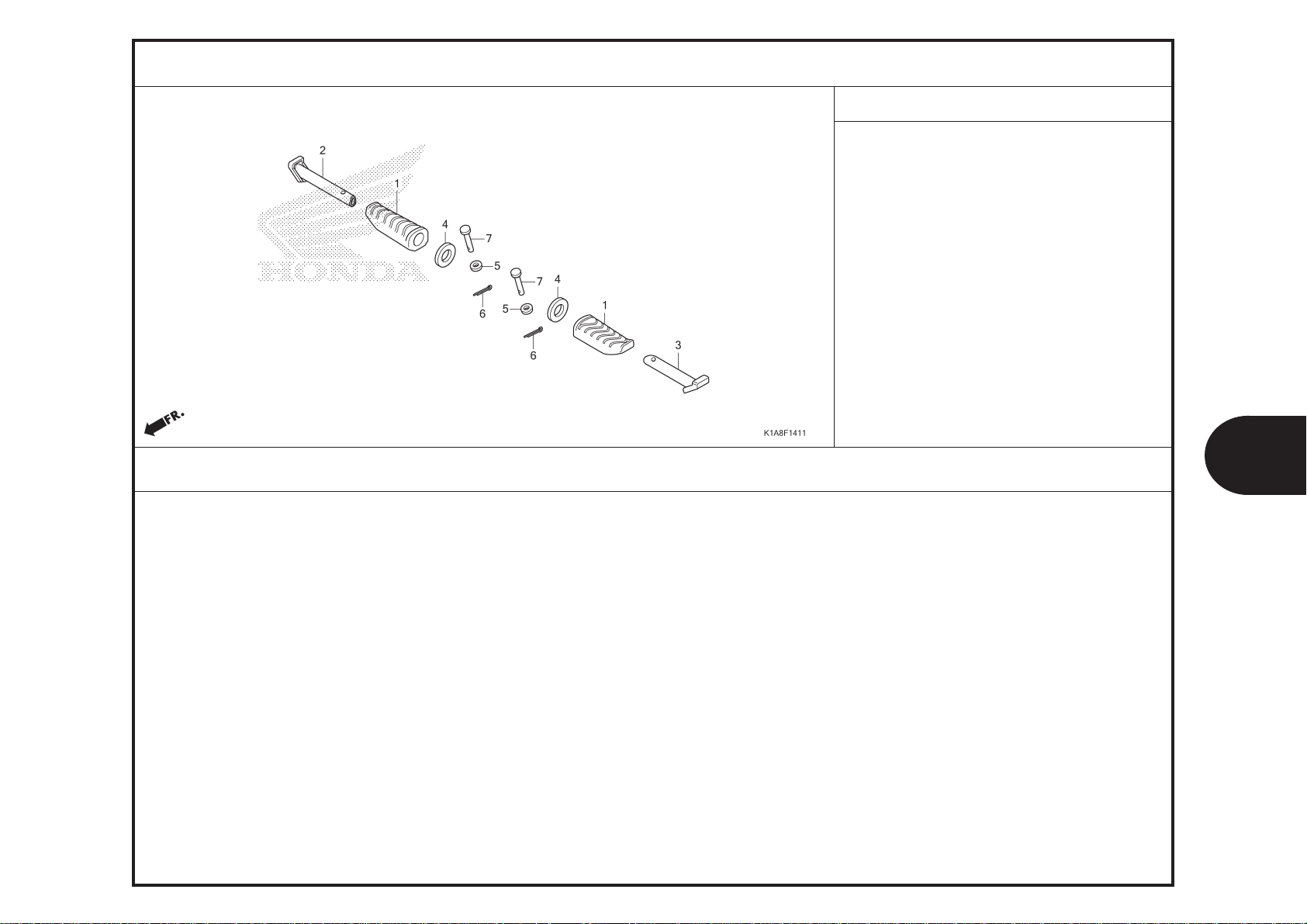

PILLION STEP(1)

10.12.2019

BODY COVERPILLION STEP(2)

KELOMPOK RANGKA

F-16 F-17 F-18

F-20-40 F-22-30 F-24

FRONT FORK FRONT BRAKE CALIPERLUGGAGE BOX/GRAB RAIL

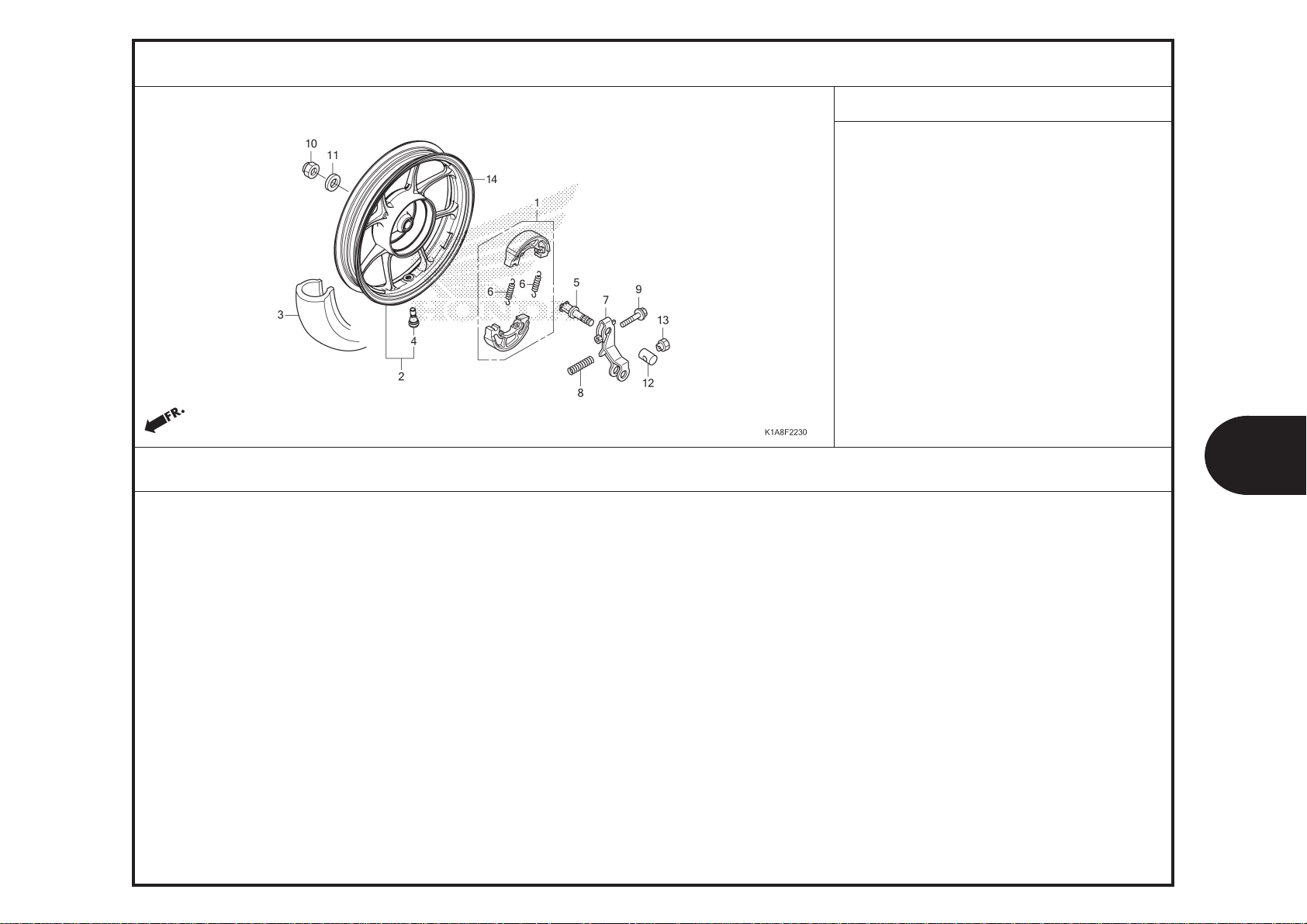

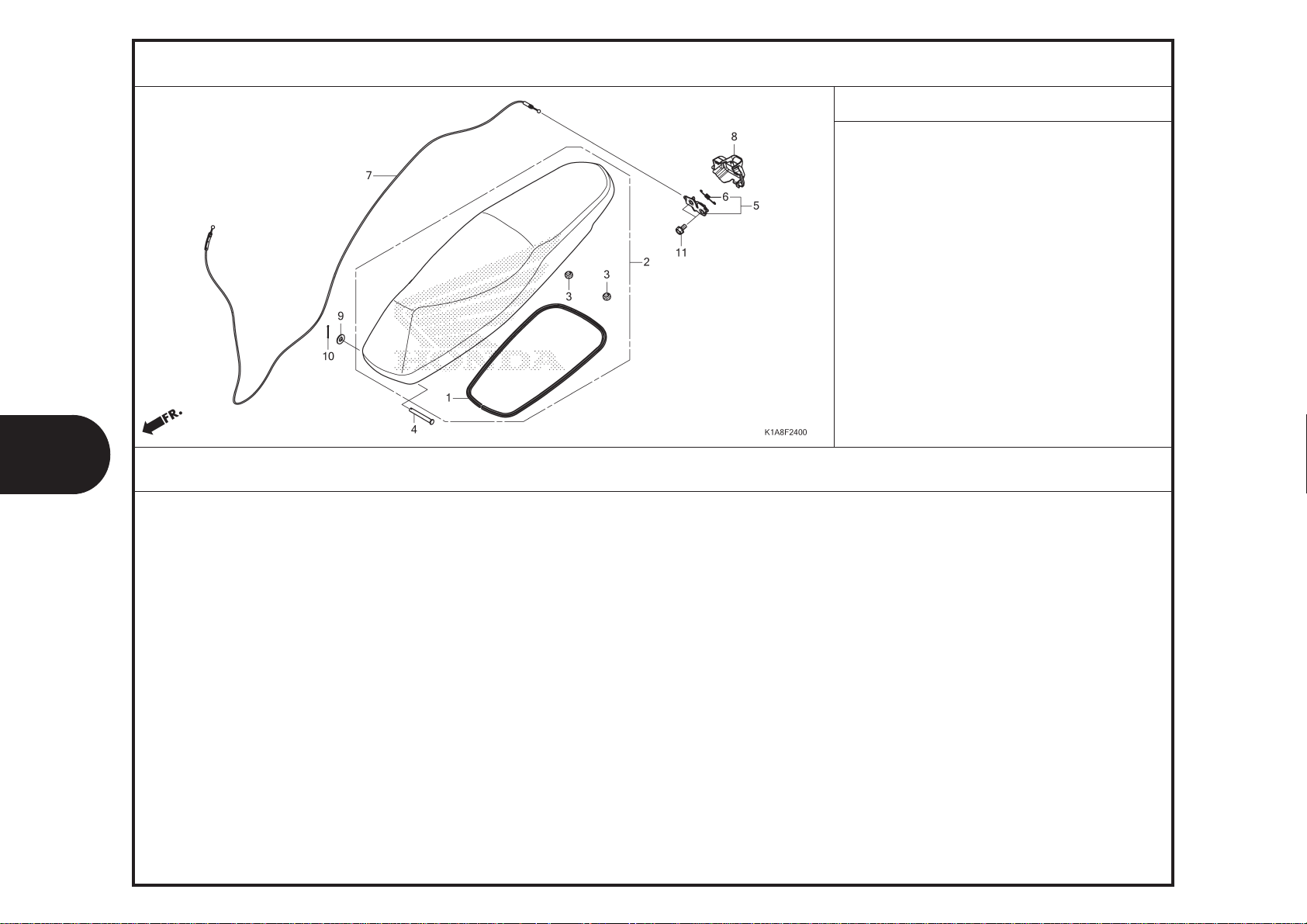

REAR WHEELFRONT WHEEL SEAT

3

F-26 F-28 F-30

FUEL TANK/FUEL PUMP

10.12.2019

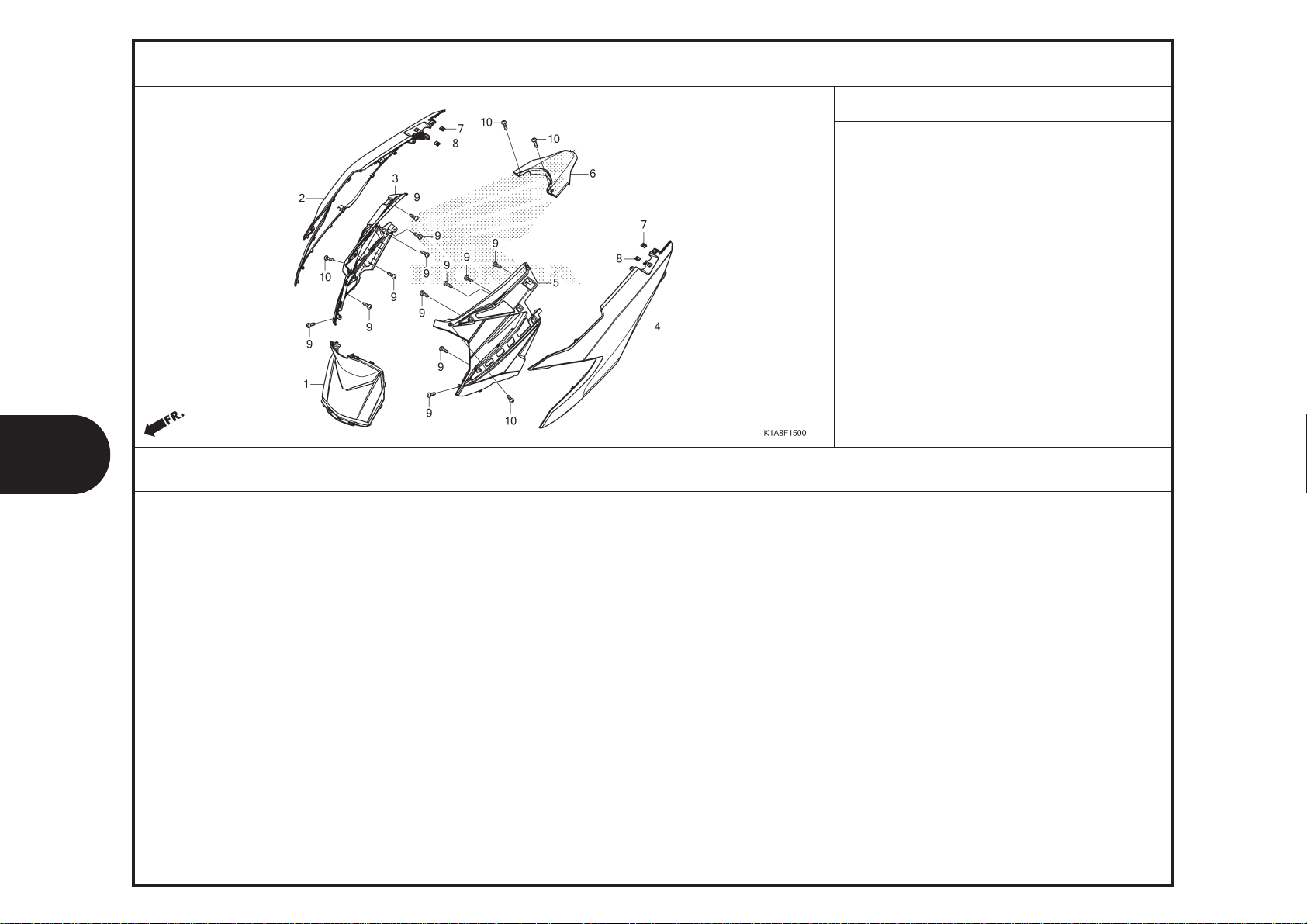

EXHAUST MUFFLERAIR CLEANER

29

KELOMPOK RANGKA

3

F-35 F-36 F-37-10

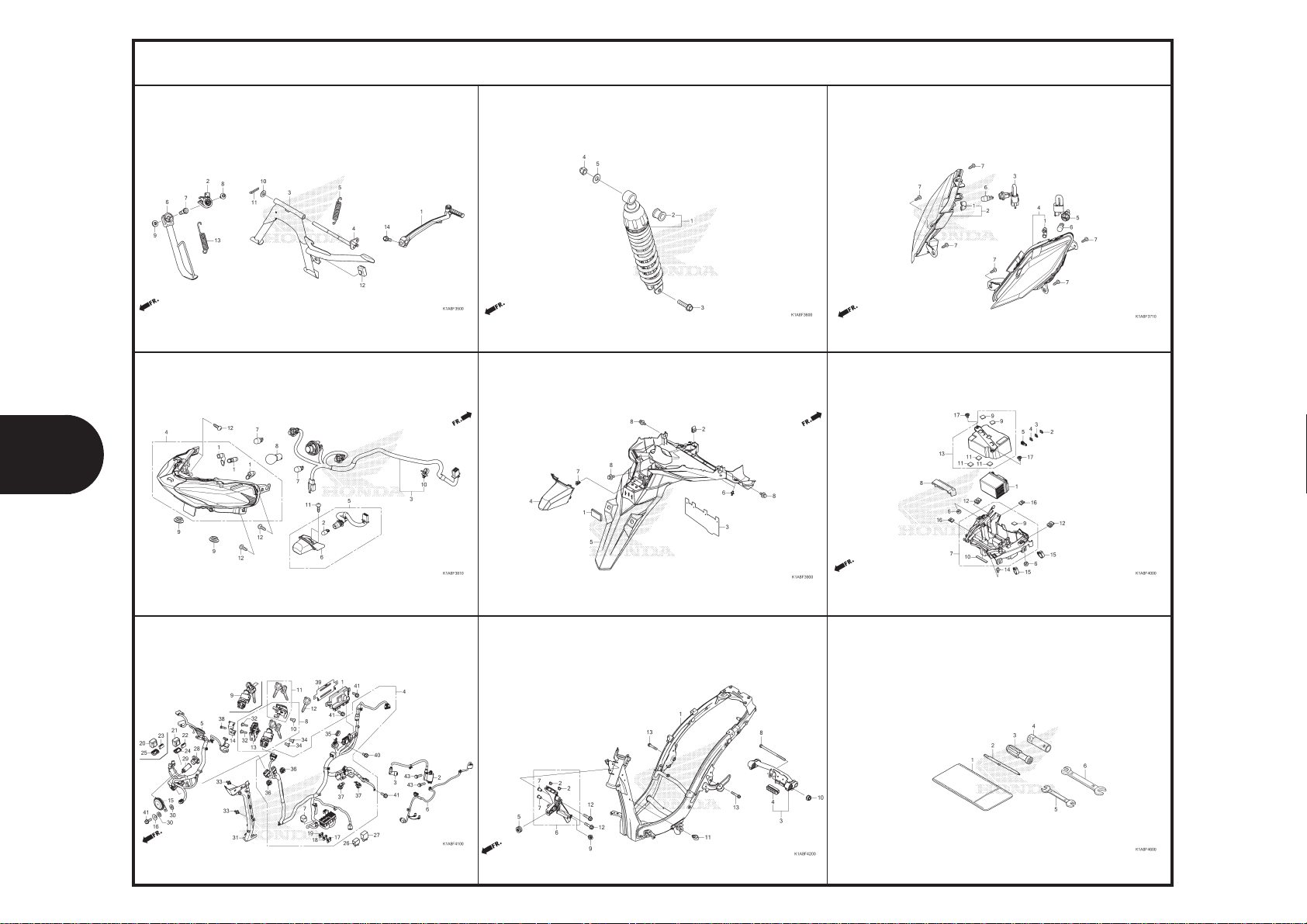

F-38-10 F-39 F-40

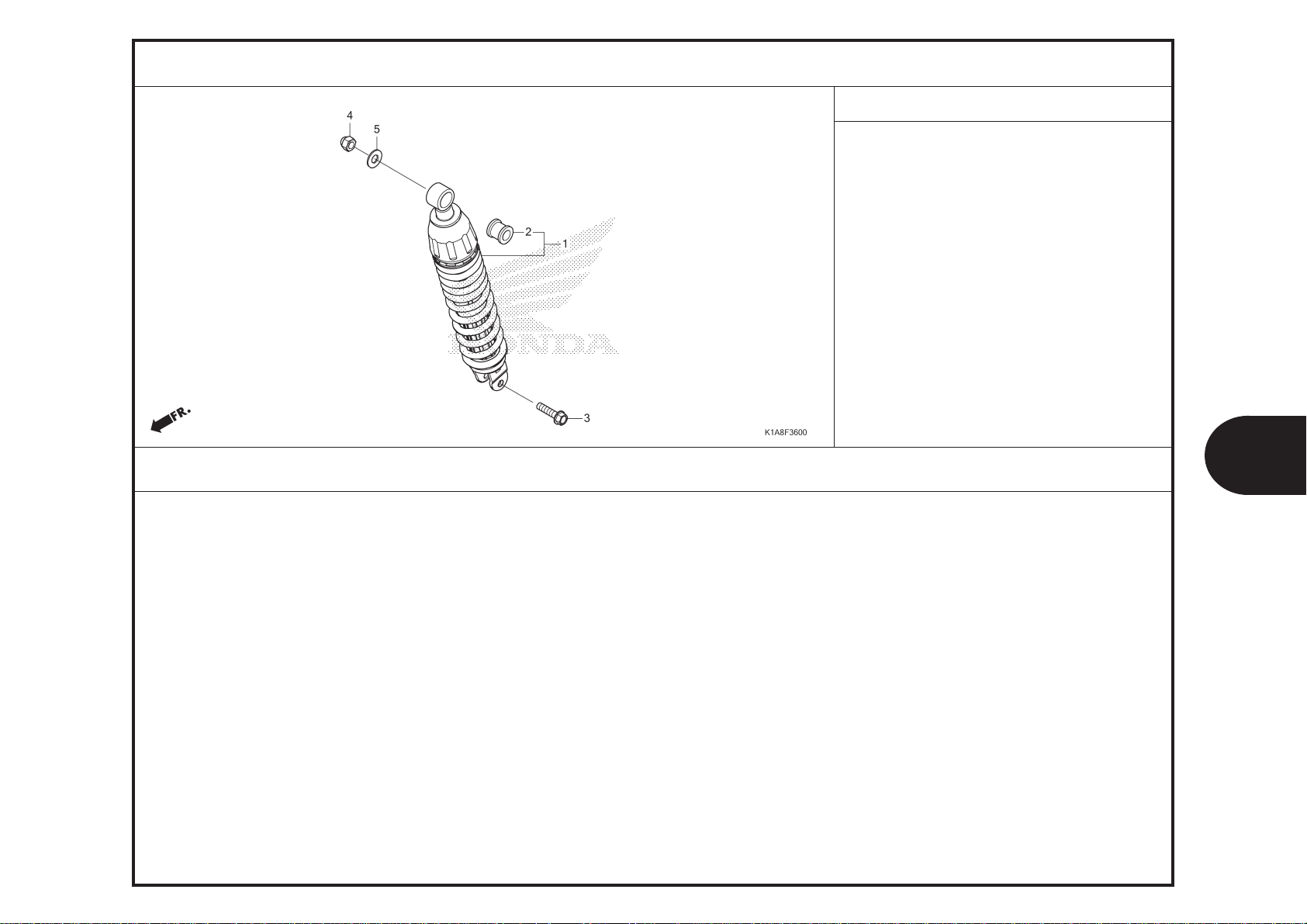

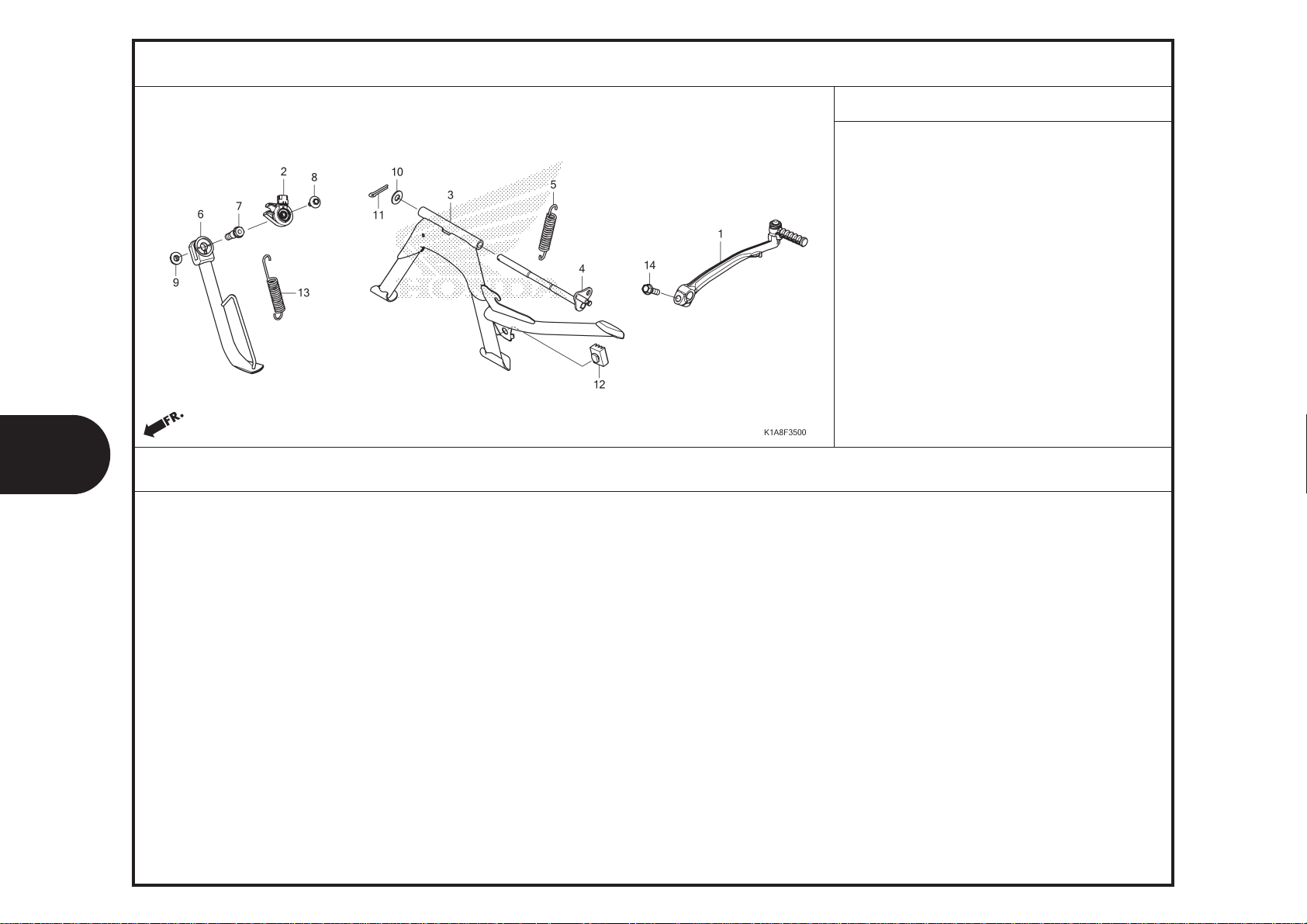

REAR CUSHION FRONT WINKERSTAND/KICK PEDAL

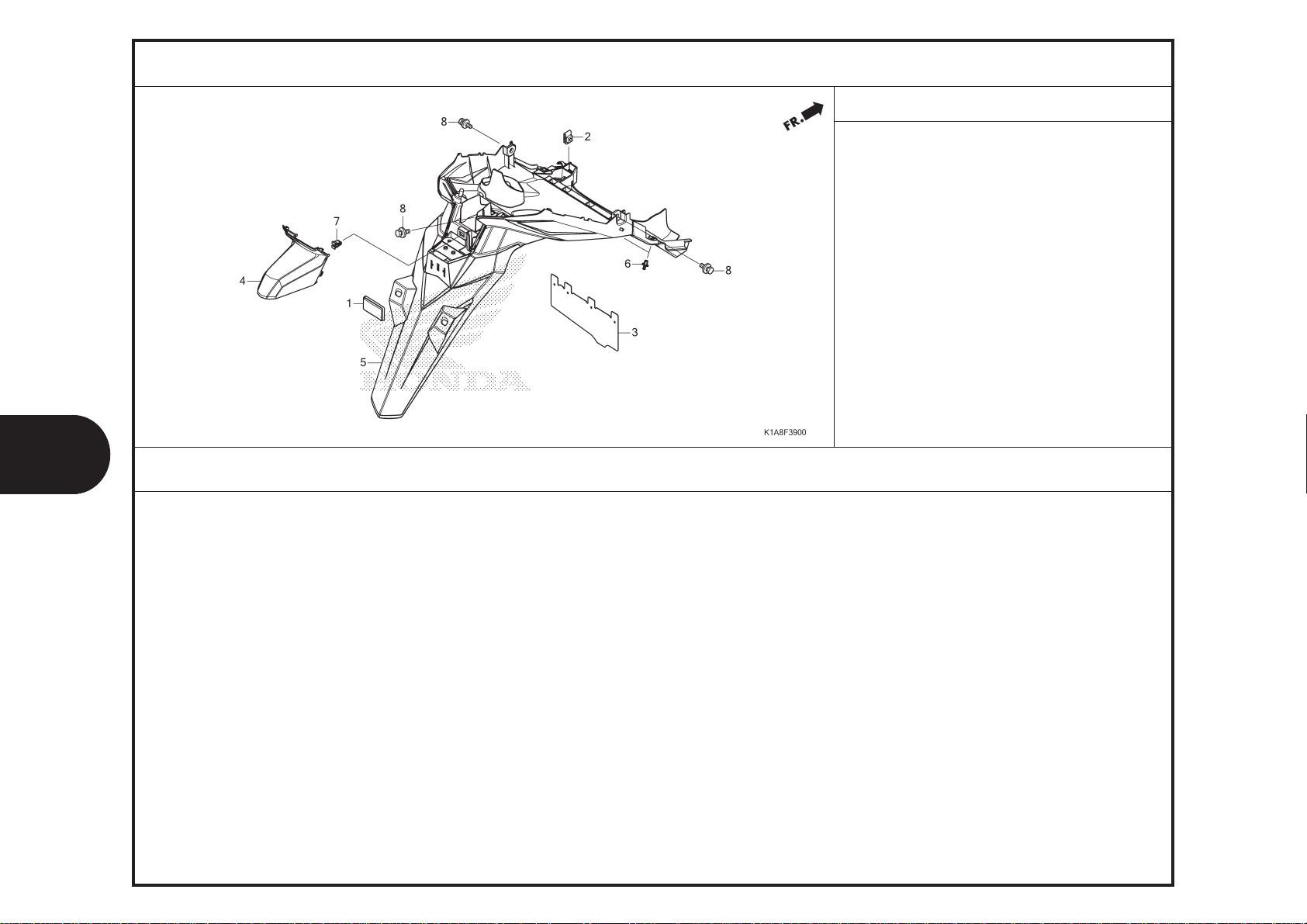

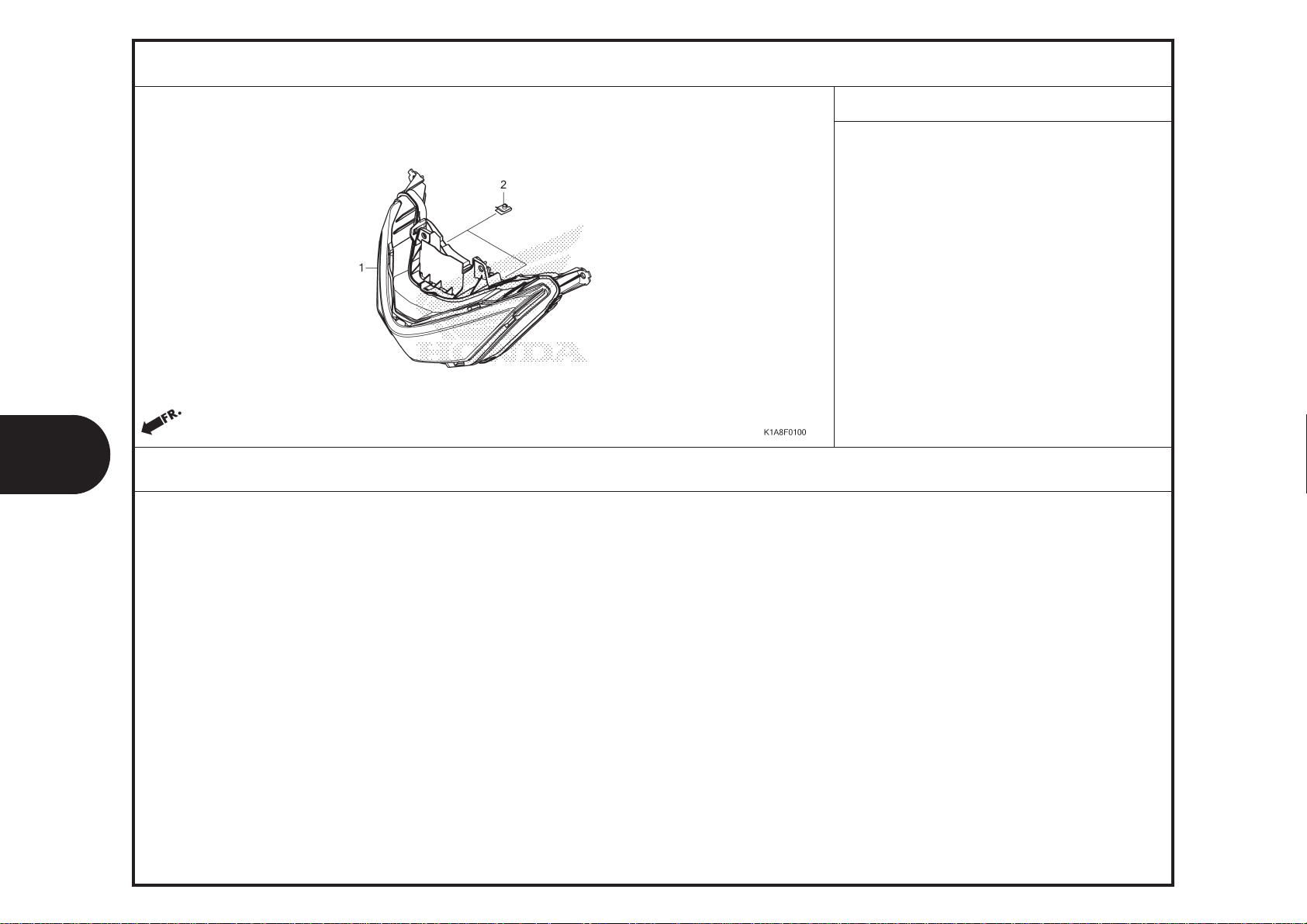

REAR FENDERREAR COMBINATION LIGHT BATTERY

30

F-41 F-42 F-46

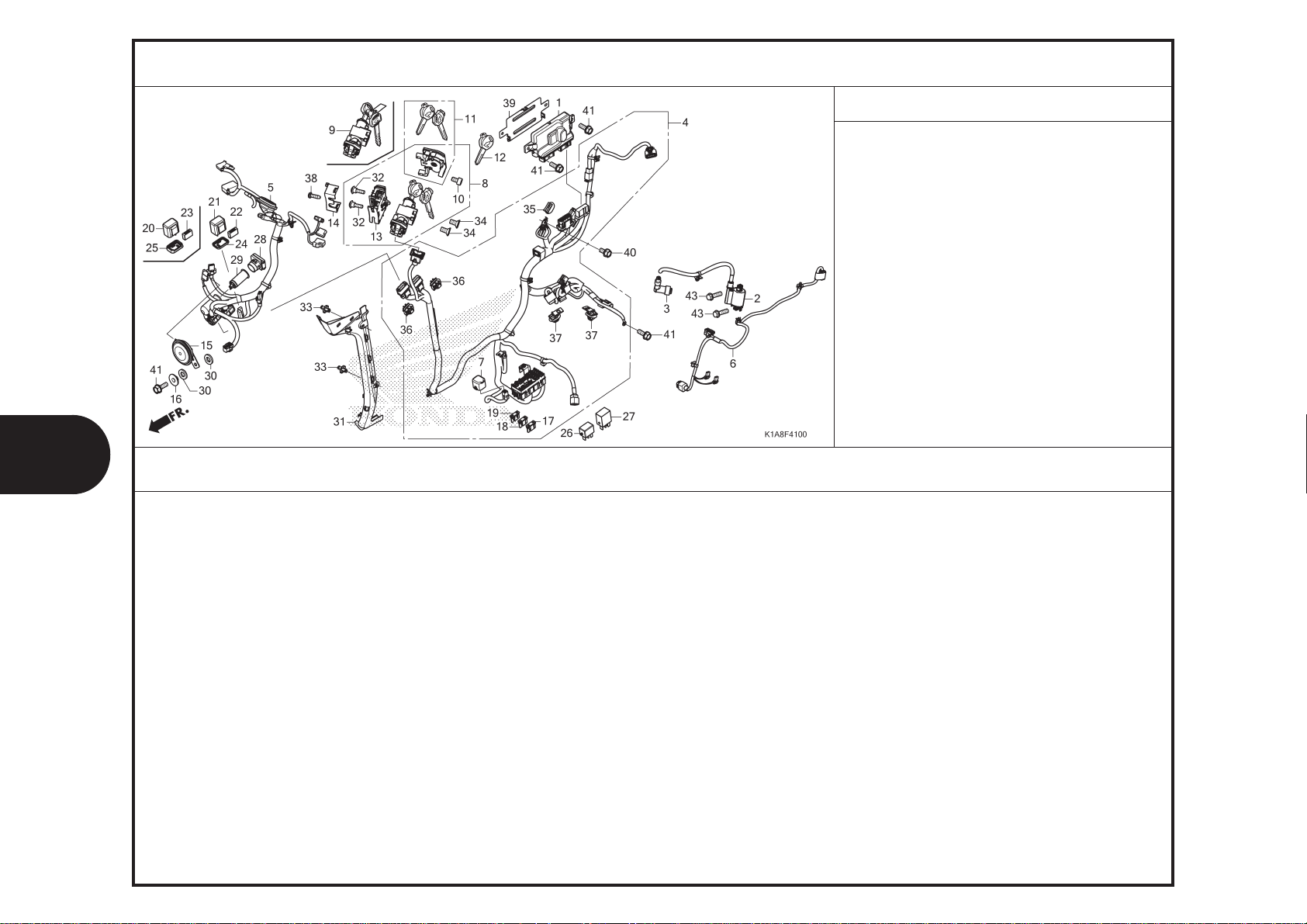

WIRE HARNESS

10.12.2019

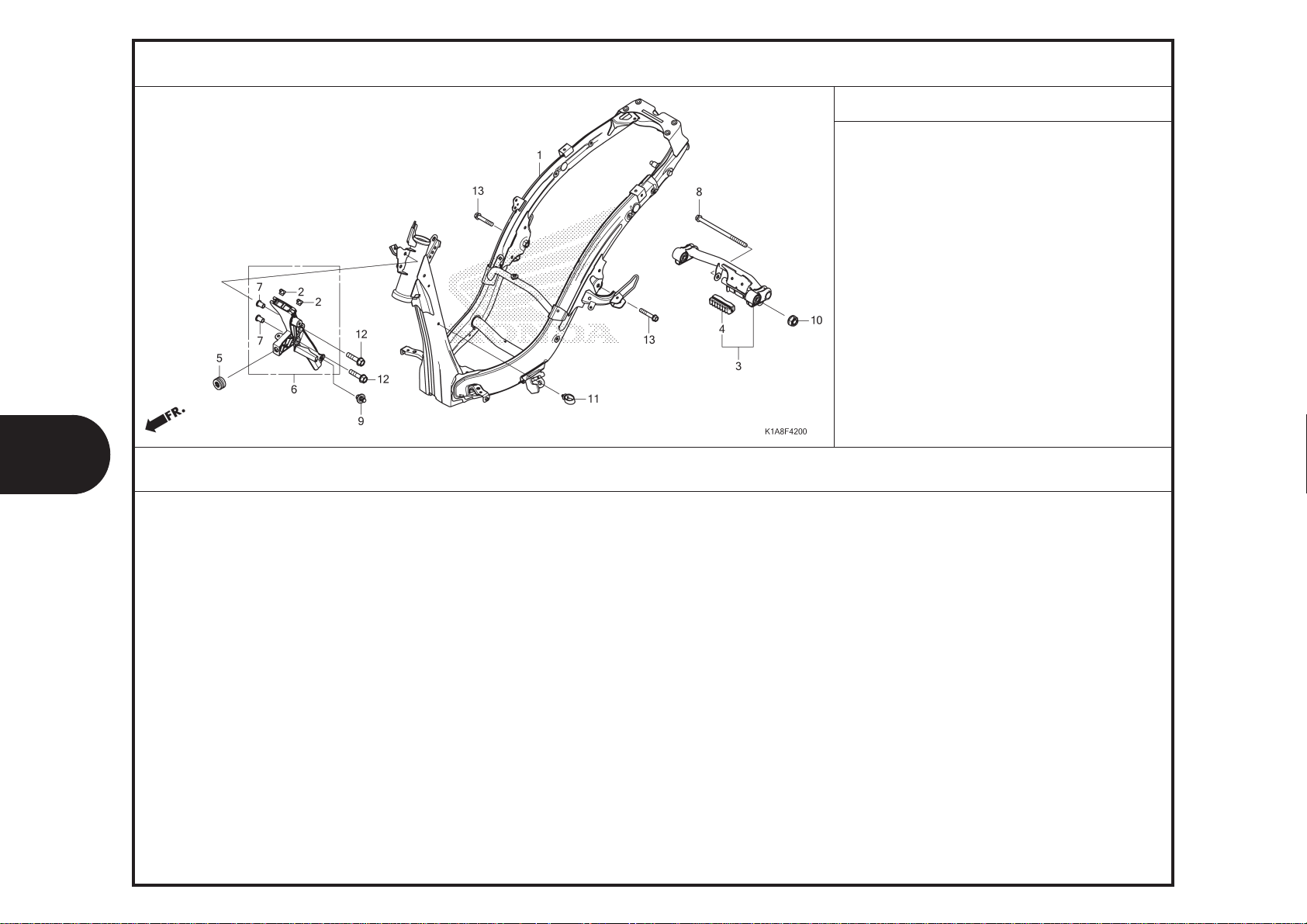

TOOLSFRAME BODY

KELOMPOK RANGKA

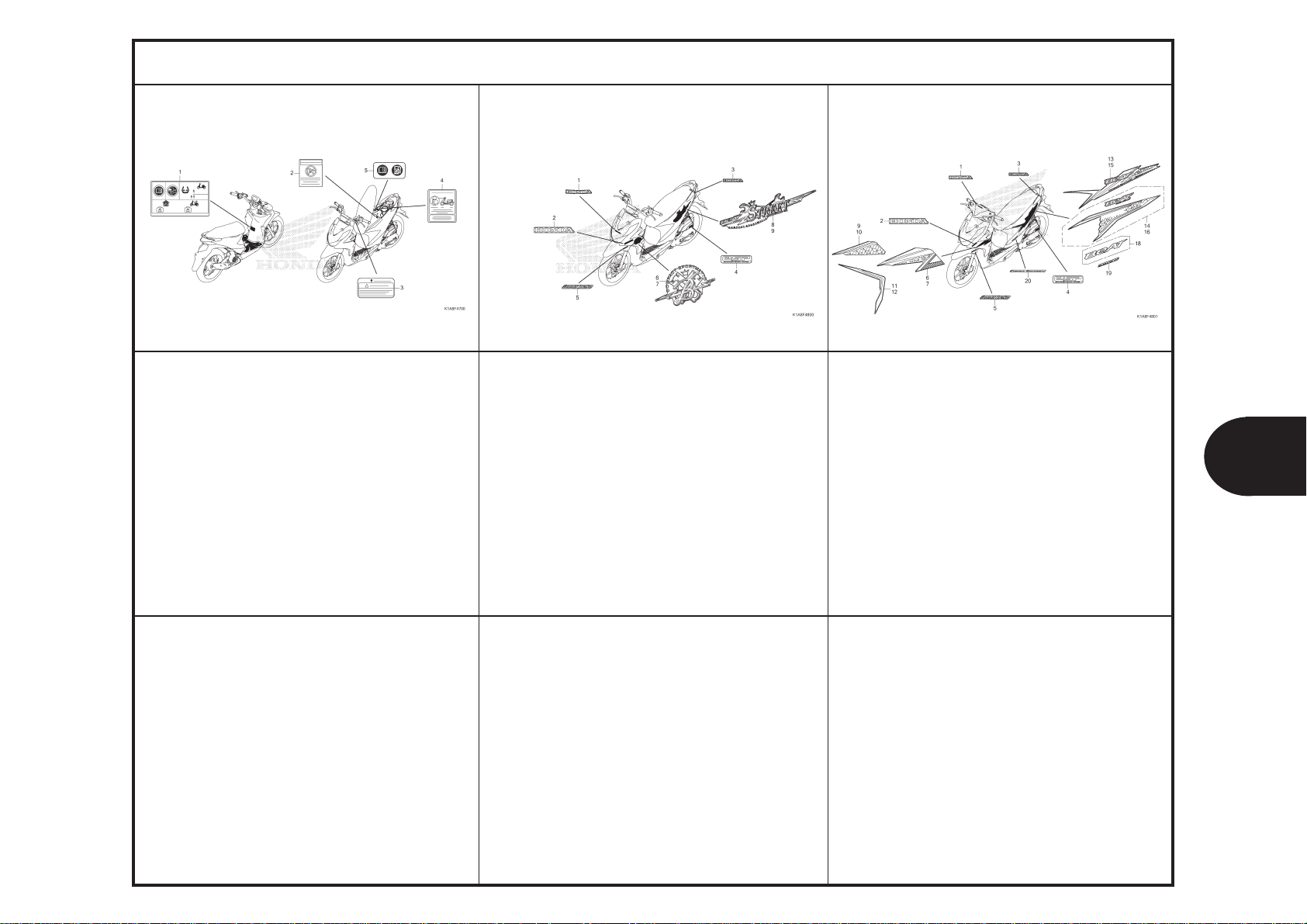

MARK(1) MARK(2)CAUTION LABELF-47 F-48 F-48-1

3

10.12.2019

31

2

E-1

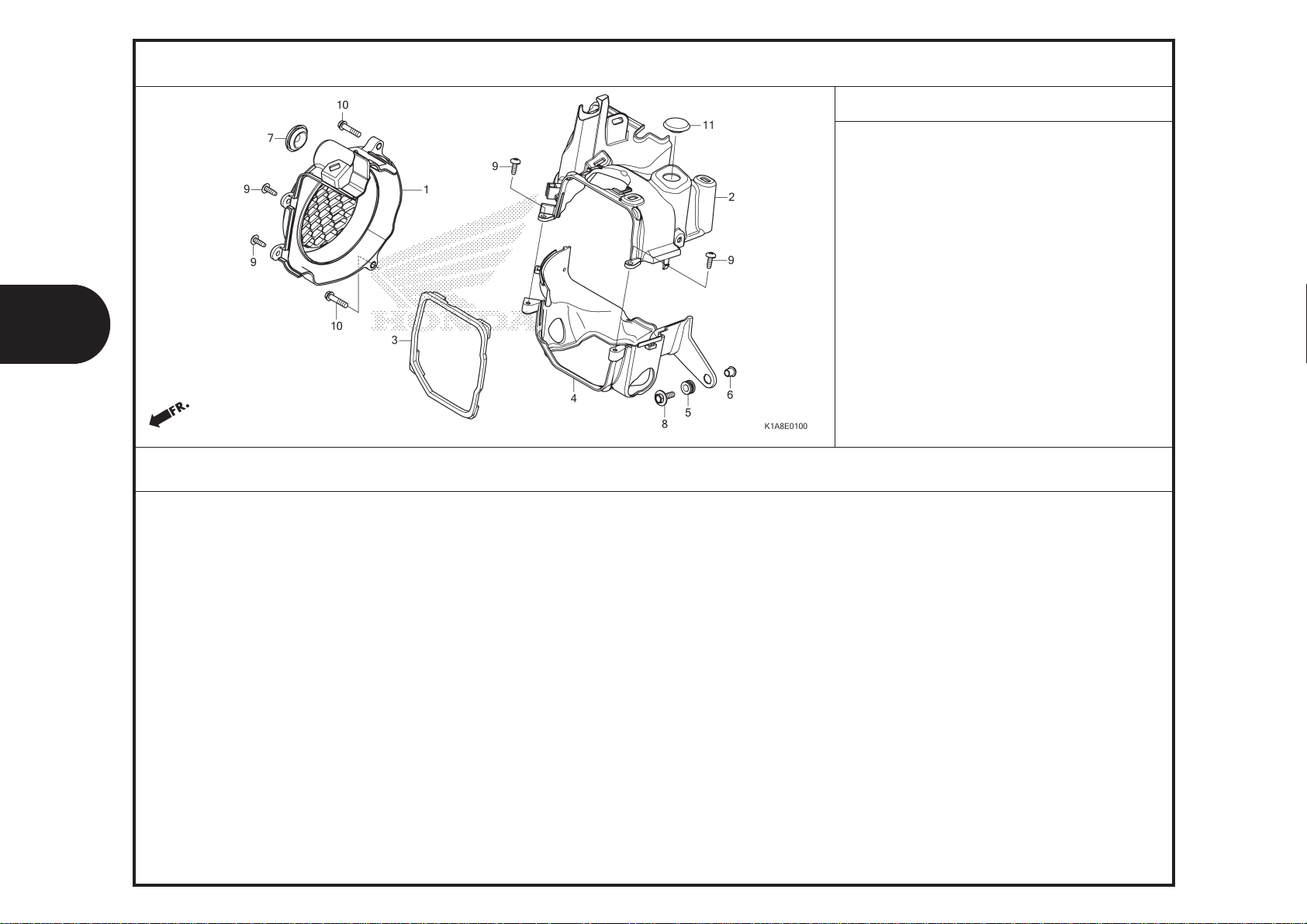

SHROUD/FAN COVER

No.

L.O.N.

Ref.

1 1151E0 COVER, FAN ...................... 0,1

2 1111U9 SHROUD, ENGINE :UPPER ........... 1,1

4 1111V0 SHROUD, ENGINE :LOWER ........... 0,8

1111Y1 SHROUD, ENGINE :KEDUA-DUANYA .... 1,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 19610-K0J-N00 COVER COMP., FAN .......... 1 1

2 19621-K1A-N00 SHROUD, IN. ............... 1 1

3 19625-K0J-N00 SEAL, SHROUD .............. 1 1

4 19631-K1A-N00 SHROUD, EX. ............... 1 1

5 19639-GBC-000 RUBBER, MOUNTING .......... 1 1

6 33715-GB0-900 COLLAR, TAILLIGHT SETTING . 1 1

7 82871-KTP-900 GROMMET, DRAIN HOLE ....... 1 1

8 93404-06020-00 BOLT-WASHER, 6X20 ......... 1 1

9 93903-25380 SCREW, TAPPING, 5X16 ...... 4 4

10 96001-06025-07 BOLT, FLANGE, 6X25 ........ 2 2

11 19623-K0P-D00 GROMMET, TENSIONER HOLE .. 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

32

10.12.2019

E-2

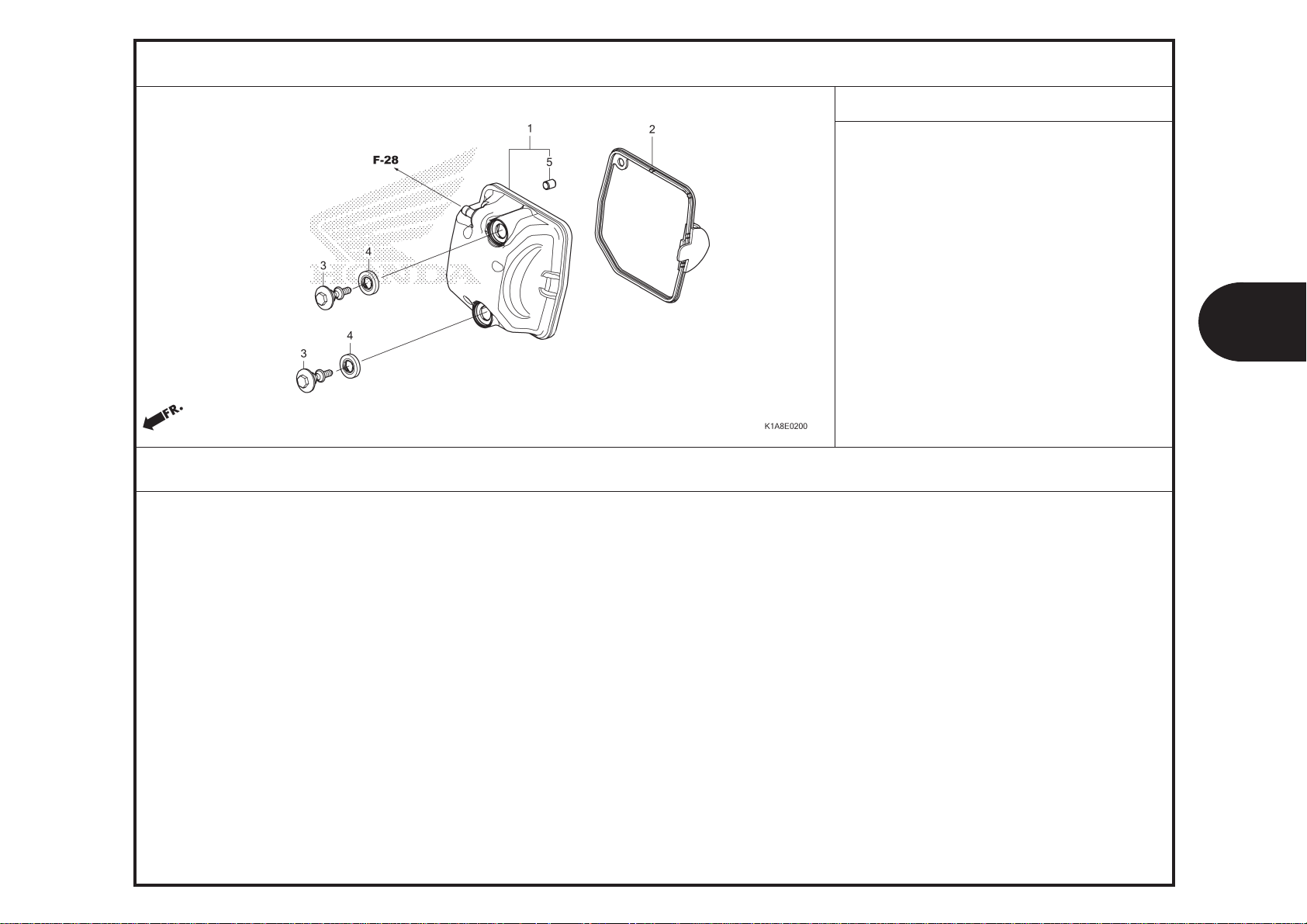

CYLINDER HEAD COVER

No.

L.O.N.

Ref.

1 1111C4 COVER, CYLINDER HEAD ............ 0,2

2 1111D2 GASKET, CYLINDER HEAD COVER ..... 0,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

No.

Ref.

1 12310-K1A-N00 COVER COMP., HEAD ......... 1 1

2 12391-K0J-N01 GASKET COMP., CYLINDER HEAD COVER(OH) 1 1 12391-K1A-N01 GASKET COMP., CYLINDER HEAD COVER(NO) 1 1 12391-K1A-N02 GASKET COMP., CYLINDER HEAD .. COVER(SP) 1 1

3 90017-GCC-000 BOLT, HEAD COVER .......... 2 2

4 90543-MV9-670 RUBBER, MOUNTING .......... 2 2

5 94301-08100 DOWEL PIN, 8X10 ........... 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

33

2

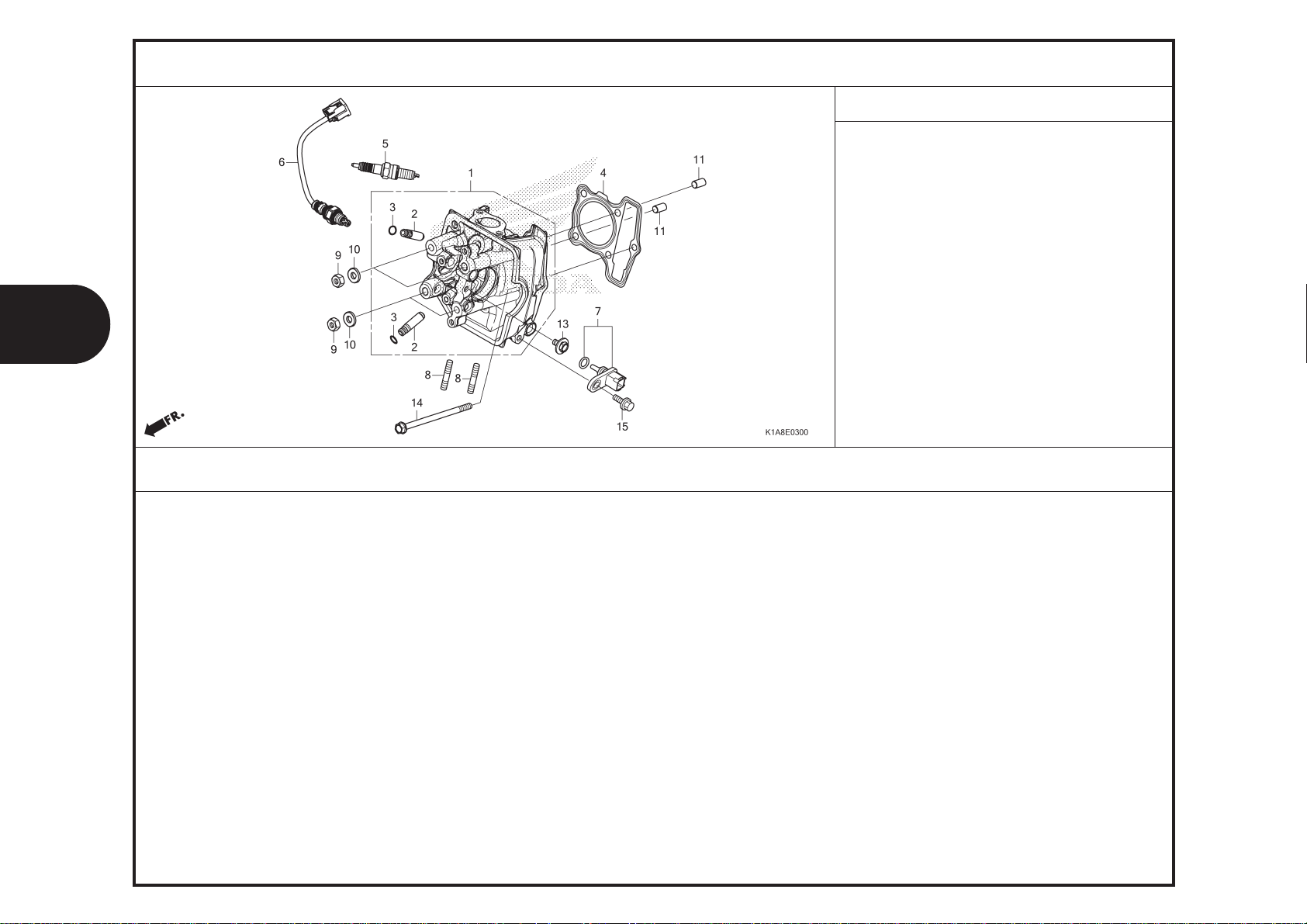

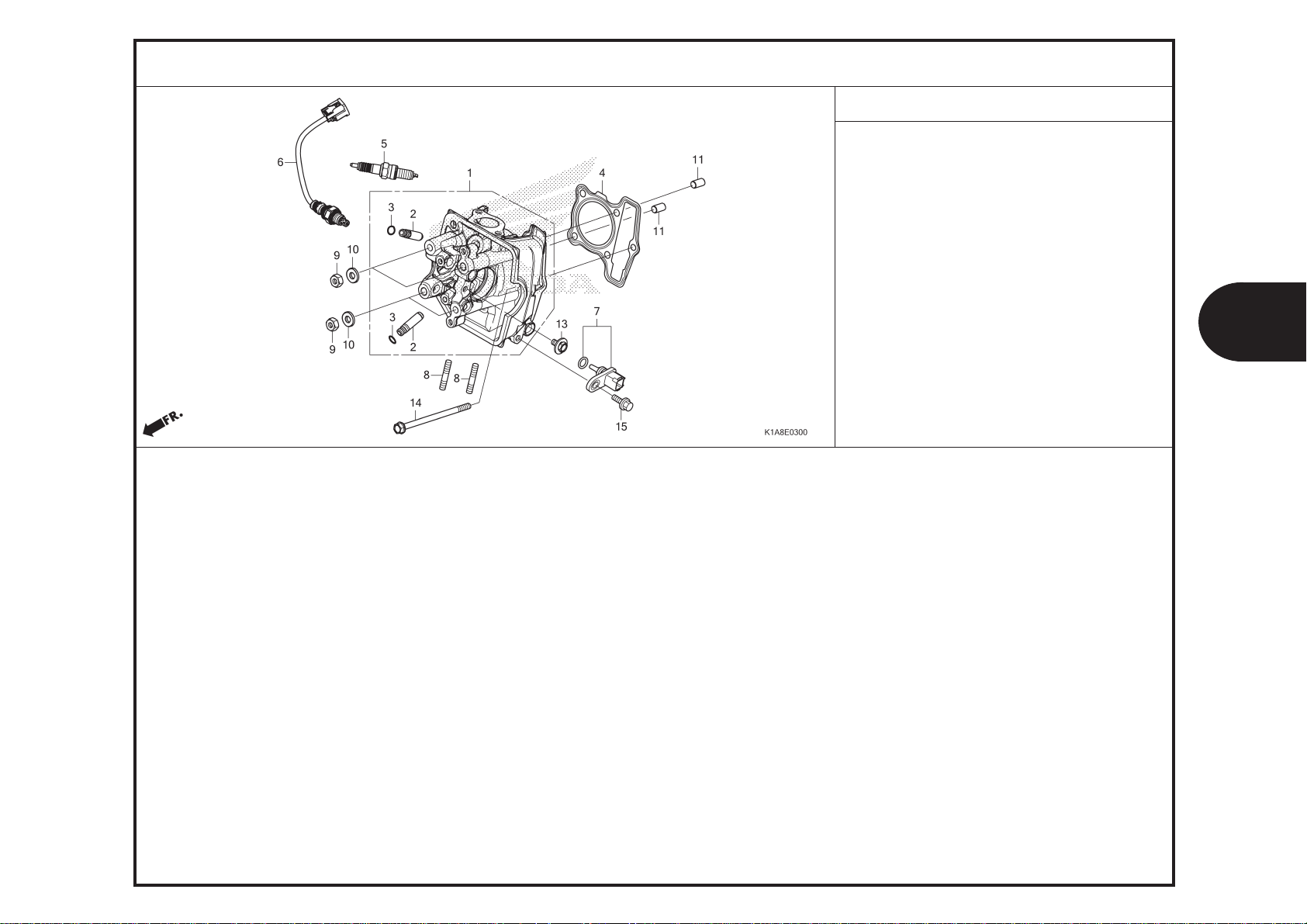

E-3

No.

Ref.

1 12200-K1A-N00 HEAD COMP., CYLINDER ...... 1 1

2 12204-K0J-P00 GUIDE, VALVE(O.S.) ........ 2 2

3 12206-K0J-N00 CLIP, VALVE GUIDE ......... 2 2

4 12251-K0J-N01 GASKET, CYLINDER HEAD (STD./0.25/0.50) 1 1 12252-K0J-N00 GASKET, CYLINDER HEAD(O.S.) (0.75/1.00) (1) (1) 5 31919-K25-601 PLUG, SPARK(MR9C-9N)(NG) .. 1 1 31919-K25-602 PLUG, SPARK(U27EPR-N9)(DS) 1 1

6 36532-K1A-N01 SENSOR, OXYGEN ............ 1 1

7 37750-K0J-N21 SENSOR ASSY., OIL TEMPERATURE (MI) 1 1 37750-K1A-N01 SENSOR ASSY., OIL TEMPERATURE (PS) 1 1

8 90032-K0J-N00 BOLT, STUD, 7X16.5 ........ 2 2

9 90201-GCC-000 NUT, HEX., 7MM ............ 4 4

10 90402-KWW-740 WASHER, 7.2X16X2.5 ........ 4 4

No. Part Deskripsi No. Seri Kode Parts Catalog

CYLINDER HEAD

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

No.

L.O.N.

Ref.

1 111106 HEAD, CYLINDER .................. 3,9

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Penyetelan dan skir klep

2 1111L9 GUIDE, INTAKE VALVE(SATU) ....... 3,6

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Reaming .TERMASUK: Penyetelan dan skir klep

1111M0 GUIDE, EXHAUST VALVE(SATU) ...... 3,6

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Reaming .TERMASUK: Penyetelan dan skir klep 1111M9 GUIDE, VALVE :UNTUK 1 KENDARAAN 3,9 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Reaming .TERMASUK: Penyetelan dan skir klep

+ 4 111115 GASKET, CYLINDER HEAD ........... 2,7

(Nomor ref. relatif)

Deskripsi

F.R.T.

11 90701-KFM-900 DOWEL PIN, SPECIAL, 8X14 .. 2 2

13 93404-06012-00 BOLT-WASHER, 6X12 ......... 1 1

14

15 96001-06016-00 BOLT, FLANGE, 6X16 ........ 1 1

95701-06105-00

BOLT, FLANGE, 6X105 ....... 1 1

34

10.12.2019

CYLINDER HEADE-3

No.

L.O.N.

Ref.

+ 4 .TERMASUK: Penurunan dan pemasangan mesin

5 614130 PLUG, SPARK ..................... 0,2

6 617121 SENSOR, OXYGEN .................. 0,7

7 617151 SENSOR, OIL TEMPERATURE ......... 0,3

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

10.12.2019

35

2

CAMSHAFT/VALVEE-4

No.

Ref.

1 12209-K56-N01 SEAL, VALVE STEM(NO) ...... 2 2

12209-ML0-722 SEAL, VALVE STEM(AR) ...... 2 2

2 14100-K0J-N00 CAMSHAFT COMP. ............ 1 1

3 14321-K0J-N00 SPROCKET, CAM(32T) ........ 1 1

4 14430-K1A-N00 ARM COMP., IN. VALVE ROCKER 1 1 5 14440-K1A-N00 ARM COMP., EX. VALVE ROCKER 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

No.

L.O.N.

Ref.

2 111118 CAMSHAFT ........................ 2,9

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Penyetelan klep

3 1111Q4 SPROCKET, CAM ................... 1,6

4 (6) 1111K8 ARM, INTAKE VALVE ROCKER(SATU) .. 2,9 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Penyetelan klep 5 (6) 1111K9 ARM, EXHAUST VALVE ROCKER(SATU) . 2,9 .TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Penyetelan klep 1111L8 ARM, VALVE ROCKER

:UNTUK 1 KENDARAAN ............. 2,9

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Penyetelan klep

7 1111N0 VALVE, INTAKE(SATU) ............. 3,2

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Skir klep

(Nomor ref. relatif)

Deskripsi

F.R.T.

6 14451-K0J-N00 SHAFT, ROCKER ARM ......... 2 2

7 14711-K0L-D00 VALVE, IN. ................ 1 1

8 14721-K0J-N00 VALVE, EX. ................ 1 1

9 14751-K0J-N02 SPRING, VALVE ............. 2 2

14751-K1A-N01 SPRING, VALVE(CH) ......... 2 2

10 14771-K0J-N00 RETAINER, VALVE SPRING .... 2 2

11 14777-K0J-N00 SEAT, VALVE SPRING ........ 2 2

12 14781-KYJ-710 COTTER, VALVE ............. 4 4

14781-ML0-720 ......................... 4 4

13 90002-KWB-600 BOLT, FLANGE, 5X12 ........ 2 2

15 90082-KYY-900 BOLT-WASHER, 8X22 ......... 1 1

16 90206-001-000 NUT, TAPPET ADJUSTING ..... 2 2

90012-KWW-740 SCREW, TAPPET ADJUSTING ... 2 2

14

36

10.12.2019

E-4

CAMSHAFT/VALVE

No.

L.O.N.

Ref.

8 1111N1 VALVE, EXHAUST(SATU) ............ 3,2

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Skir klep

1111P0 VALVE :UNTUK 1 KENDARAAN ........ 3,4

.TERMASUK: Penurunan dan pemasangan mesin .TERMASUK: Skir klep 9 (1,10,11,12) 1111P2 INTAKE VALVE SPRING DAN/ATAU

STEM SEAL(SATU) ................ 3,0

.TERMASUK: Penurunan dan pemasangan mesin 1111P3 EXHAUST VALVE SPRING DAN/ATAU

STEM SEAL(SATU) ................ 3,0

.TERMASUK: Penurunan dan pemasangan mesin 1111Q2 VALVE SPRING DAN/ATAU STEM SEAL

:UNTUK 1 KENDARAAN ............. 3,1

.TERMASUK: Penurunan dan pemasangan mesin

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

10.12.2019

37

2

E-5

CAM CHAIN/TENSIONER

No.

L.O.N.

Ref.

1 110140 CHAIN, CAM ...................... 3,2

.TERMASUK: Penurunan dan pemasangan mesin

2 111130 TENSIONER, CAM CHAIN ............ 3,2

.TERMASUK: Penurunan dan pemasangan mesin 3 (5)

111133 LIFTER, TENSIONER ............... 1,2

6 111139 GUIDE, CAM CHAIN ................ 2,7

.TERMASUK: Penurunan dan pemasangan mesin

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 14401-K1A-N01 CHAIN, CAM(BORG WARNER)(90L) 1 1

14401-K44-V81 CHAIN, CAM(DAIDO)(90L) .... 1 1

2 14510-K0J-N00 TENSIONER, CAM CHAIN ...... 1 1

3 14520-K1A-N01 LIFTER ASSY.,TENSIONER(AD).. 1 1 14520-K25-901 LIFTER ASSY.,TENSIONER(NJ).. 1 1 4 14531-K0J-N00 PIVOT, CAM CHAIN TENSIONER 1 1 5 14560-K1A-N01 GASKET, TENSIONER LIFTER(NC) 1 1 14560-K97-T01 GASKET, TENSIONER LIFTER(NL) 1 1

6 14611-K0J-N00 GUIDE, CAM CHAIN .......... 1 1

7 90005-KY7-000 SCREW, PAN, 6X6 ........... 1 1

8 91301-K0J-N00 O-RING, 6.8X2.0 ........... 1 1

9 91306-MG3-000 O-RING, 1.5X9.5 ........... 1 1

10 95701-06022-00 BOLT, FLANGE, 6X22 ........ 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

38

10.12.2019

E-6

CYLINDER

No.

L.O.N.

Ref.

1 1111A5 CYLINDER ........................ 3,1

.TERMASUK: Penurunan dan pemasangan mesin

2 111102 GASKET, CYLINDER ................ 3,0

.TERMASUK: Penurunan dan pemasangan mesin

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

No.

Ref.

1 12100-K0J-N00 CYLINDER COMP. ............ 1 1

2 12191-K0J-N01 GASKET, CYLINDER(NK) ...... 1 1

12191-K1A-N01 GASKET, CYLINDER(NC) ...... 1 1

3 90701-KFM-900 DOWEL PIN, SPECIAL, 8X14 .. 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

39

2

E-10

A.C.G. STARTER

No.

L.O.N.

Ref.

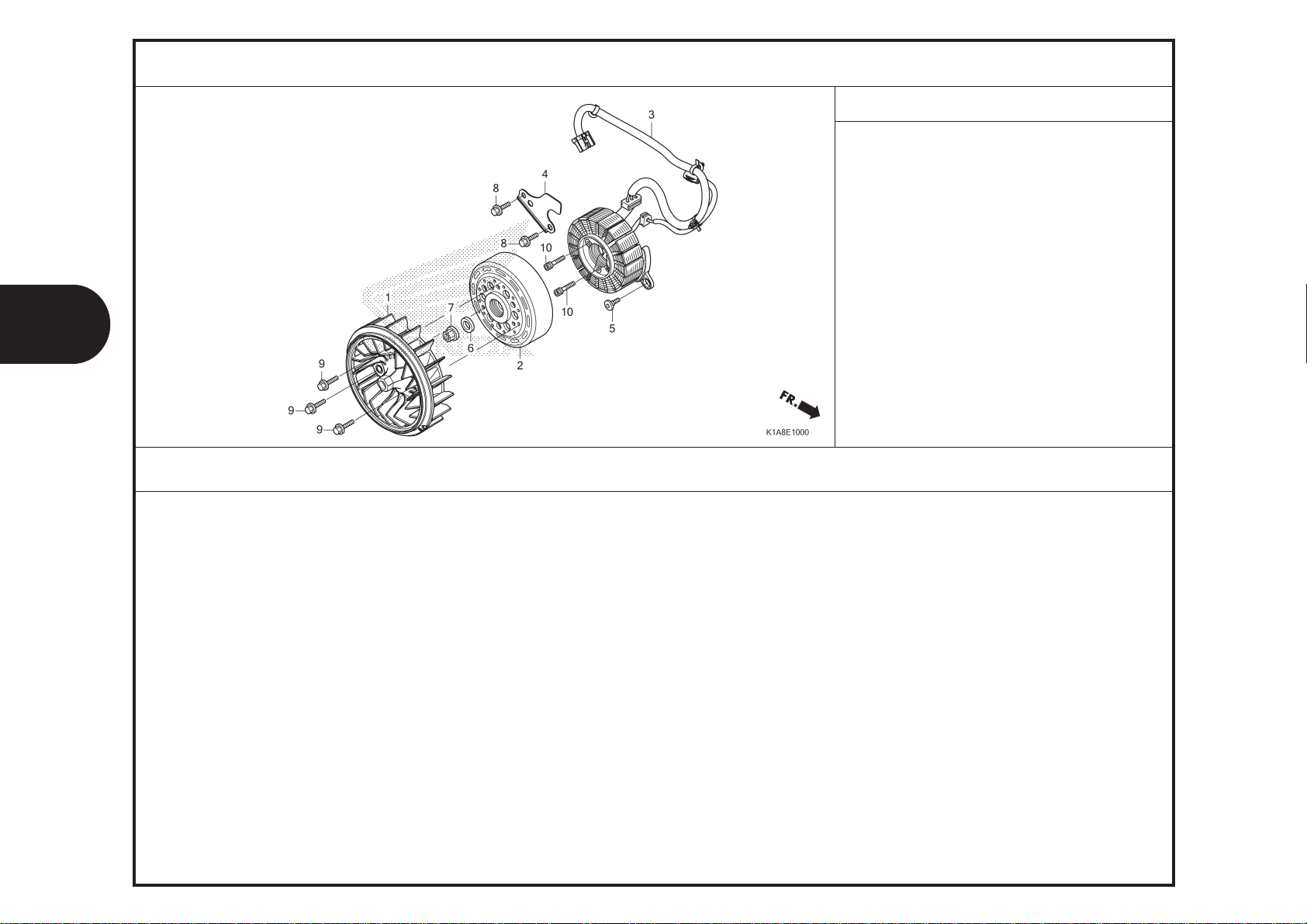

1 1151A6 FAN, COOLING .................... 0,2

2 613105 ROTOR ATAU FLYWHEEL ............. 0,4

3 6131A3 STATOR .......................... 1,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 19510-K0J-N00 FAN COMP., COOLING ........ 1 1

2 31210-K1A-N01 FLYWHEEL COMP. ............ 1 1

3 31220-K1A-N01 STATOR COMP. .............. 1 1

4 32961-K0J-N00 CLAMPER, A.C. GENERATOR CORD 1 1

5 90001-KWR-000 BOLT, SOCKET, 6X18 ........ 1 1

6 90439-KWZ-900 WASHER, 12X24X2.3 ......... 1 1

7 94050-12000 NUT, FLANGE, 12MM ......... 1 1

8 95701-06014-00 BOLT, FLANGE, 6X14 ........ 2 2

9 95701-06016-00 BOLT, FLANGE, 6X16 ........ 3 3

10 96700-06020-00 BOLT, SOCKET, 6X20 ........ 3 3

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

40

10.12.2019

E-11

OIL PUMP

No.

L.O.N.

Ref.

1 (2)

113105 PUMP ASSY., OIL ................. 0,6

3 1131C4 GEAR, OIL PUMP DRIVEN ........... 0,5

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

No.

Ref.

1 15010-K1A-N00 PUMP SET, OIL ............. 1 1

2 15021-K0J-N00 ROTOR SET, OIL PUMP ....... 1 1

3 15133-K0J-N00 GEAR, OIL PUMP DRIVEN(38T) 1 1

4 15135-K0L-D00 SHAFT COMP., OIL PUMP ..... 1 1

5 90004-K0J-N00 BOLT, SPECIAL, 6X14 ....... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

41

2

LEFT SIDE COVERE-13

No.

L.O.N.

Ref.

1 1101A6 COVER, CRANKCASE :LEFT .......... 0,5

4 (3,5,6)

1101H4 DUCT, BELT COVER ................ 0,1

9 2101F0 BEARING, DRIVESHAFT :LEFT ....... 0,4

2101J1 BEARING, DRIVESHAFT :KEDUA-DUANYA

10 112105 OIL SEAL, KICK STARTER SPINDLE .. 0,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

1,3

No.

Ref.

1 11341-K0J-N00 COVER, L. SIDE ............ 1 -

11341-K0J-N10 ......................... - 1

2 11342-K0J-N00 PLATE, L. COVER ........... 1 1

3 19641-K0J-N00 DUCT, L. COVER ............ 1 1

4 19642-K0J-N00 CAP, L. COVER ............. 1 1

5 19748-K0J-N00 SEAL, DUCT ................ 1 1

6 19749-K0J-N00 SEAL, L. COVER DUCT ....... 1 1

7 90101-K29-900 BOLT, SOCKET, 6X18 ........ 3 3

8 90601-KZL-930 CIRCLIP, INTERNAL, 32MM ... 1 1

9 91005-KVB-N50 BEARING COMP.(6002UU) ..... 1 1

10 91211-K1A-N01 OIL SEAL, 16X26X6(NO) ..... 1 1

91212-K44-V01 OIL SEAL, 16X26X6(AR) ..... 1 1

11 93903-34320 SCREW, TAPPING, 4X12 ...... 5 5

12 94301-08100 DOWEL PIN, 8X10 ........... 2 2

13 96001-06035-00 BOLT, FLANGE, 6X35 ........ 13 13

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

42

10.12.2019

DRIVE FACEE-16

No.

L.O.N.

Ref.

2 (4)

2111A0 FACE, DRIVE ..................... 0,4

5 2111A1 FACE, MOVABLE DRIVE ............. 0,4

6 (1,7)

2111A4 ROLLER, WEIGHT .................. 0,4

9 (8)

1121A9 GEAR, KICK STARTER DRIVEN ....... 0,2

10 1121A2 SPINDLE, KICK STARTER ........... 0,4

13 112103 SPRING, KICK STARTER RETURN ..... 0,4

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

No.

Ref.

1 22011-K0J-N00 PIECE SET, SLIDE(BA) ...... 1 1

22011-K1A-N00 PIECE SET, SLIDE(BP) ...... 1 1

2 22102-K0J-N00 FACE, DRIVE ............... 1 1

3 22105-K0J-N00 BOSS, DRIVE FACE .......... 1 1

4 22109-KZL-840 RATCHET, STARTER .......... 1 1

5 22110-K0J-N00 FACE COMP., MOVABLE DRIVE 1 1

6 22123-K0J-N00 ROLLER SET, WEIGHT(BA) .... 1 1

22123-K1A-N00 ROLLER SET, WEIGHT(DP) .... 1 1

7 22131-K0J-N00 PLATE, RAMP ............... 1 1

8 28223-KZL-840 SPRING, KICK DRIVEN GEAR .. 1 1 9 28230-K0J-N00 GEAR COMP., KICK DRIVEN(7T) 1 1 10 28250-K0J-N00 SPINDLE COMP., KICK STARTER 1 1

11 28253-KVB-900 BUSH, KICK SPINDLE ........ 1 1

12 28255-GS6-000 COLLAR, KICK BOSS ......... 1 1

13 28281-KZL-C00 SPRING, KICK RETURN ....... 1 1

14 90426-KZL-840 WASHER, SPECIAL, 14MM ..... 1 1

15 90439-443-740 WASHER, 16X22 ............. 1 1

16 94030-14200 NUT, HEX., 14MM ........... 1 1

17 94511-16000 CIRCLIP, EXTERNAL, 16MM ... 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

43

2

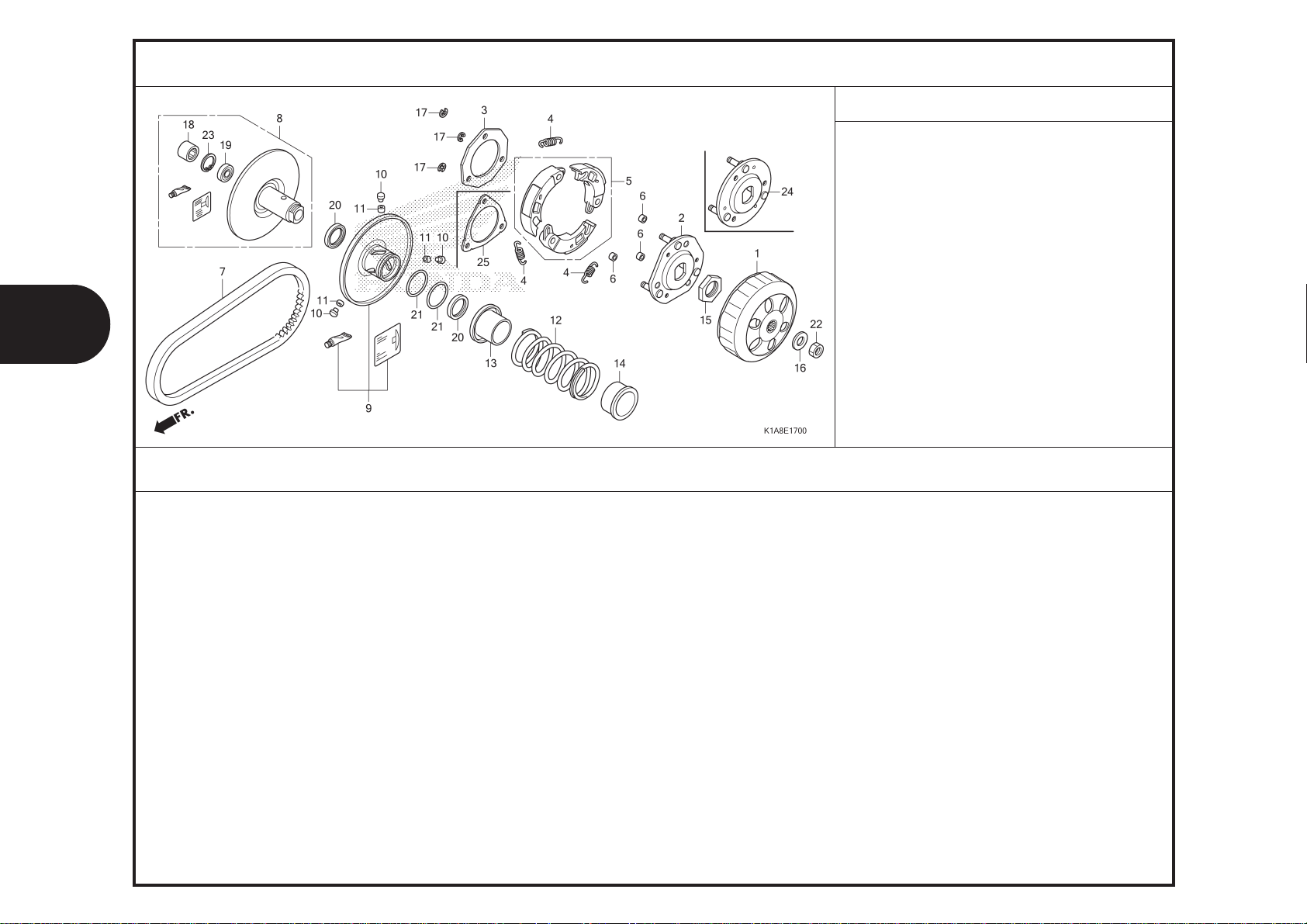

DRIVEN FACEE-17

No.

L.O.N.

Ref.

1 2121A0 OUTER, CLUTCH ................... 0,3

5 (2,4,24)

2121A6 WEIGHT SET, CLUTCH .............. 0,6

7 2111B2 BELT, DRIVE ..................... 0,4

8 (10,11,13)

2111A2 FACE, DRIVEN .................... 0,5

9 (20,21)

2111A3 FACE, MOVABLE DRIVEN ............ 0,5

12 (14)

2111A7 SPRING, DRIVEN FACE ............. 0,5

18 (19)

2111A8 BEARING, DRIVEN FACE ............ 0,6

2111A8A .Ganti 1 bearing tambahkan ...... 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 22100-K0J-N01 OUTER COMP., CLUTCH ....... 1 -

22100-K1A-N11 ......................... - 1

2 22350-K0J-N01 PLATE COMP., DRIVE ........ 1 -

3 22361-K44-V81 PLATE, CLUTCH SIDE ........ 1 -

4 22401-KVY-900 SPRING, CLUTCH ............ 3 -

22401-K1A-N11 ......................... - 3

5 22535-K81-N00 WEIGHT SET, CLUTCH ........ 1 -

6 22804-148-000 RUBBER, CLUTCH DAMPER ..... 3 3

7 23100-K0J-N01 BELT, DRIVE(BA) ........... 1 1 -------- -------- 3IN,IN

23100-K1A-N23 BELT, DRIVE(MO) ........... 1 - -------- -------- 2IN

8 23205-K0J-N00 FACE SET, DRIVEN .......... 1 -

23205-K1A-N10 ......................... - 1

9 23224-K0J-N00 FACE SET, MOVABLE DRIVEN .. 1 -

23224-K1A-N10 ......................... - 1

10 23225-KSY-900 PIN, ROLLER GUIDE ......... 3 3

11 23226-KVB-900 ROLLER, GUIDE ............. 3 -

23226-K27-V02 ......................... - 3

12 23233-K0J-N01 SPRING, DRIVEN FACE ....... 1 -

23233-K1A-N11 ......................... - 1

13

23237-K1G-V01 ......................... - 1

14 23238-KVB-900 COLLAR, SPRING ............ 1 -

23238-KZR-600 ......................... - 1

15 90202-KN7-670 NUT, SPECIAL, 28MM ........ 1 -

90202-K0P-D02 ......................... - 1

44

No. Part Deskripsi No. Seri Kode Parts Catalog

23237-GY6-940 COLLAR, SEAL .............. 1 -

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

DRIVEN FACEE-17

2

No.

Ref.

16 90441-GY6-940 WASHER, 12.2X29X2.5 ...... 1 1

17 90454-GB2-000 CIRCLIP, 6MM ............. 3 -

90454-K16-A41 CIRCLIP, 4MM(EX) .......... - 3

18 91001-KCW-003 BEARING, NEEDLE, 20X29X18(NT) 1 - 91109-GGC-G01 BEARING, NEEDLE, 20X29X18(FC) 1 - 91109-KVY-902 BEARING, NEEDLE, 20X29X18(SC) 1 - 19 91002-GA7-701 BEARING, RADIAL BALL, 6902U(NT) 1 - 91002-GA7-702 BEARING, RADIAL BALL, 6902U(FK) 1 - 91004-GGC-G01 BEARING, RADIAL BALL, 6902U(FC) 1 - 91009-KVY-961 BEARING, RADIAL BALL, 6902U(NK) 1 - 20 91211-K81-N01 SEAL, DRIVEN FACE, 34X41X4(FC) 2 - 91211-K0P-D02 SEAL, DRIVEN FACE, 34X39X3 - 2

21 91384-KVB-900 O-RING, 38.8X1.9 ......... 2 -

91351-642-000 O-RING, PINION CAP ........ - 2

22 94030-12200 NUT, HEX., 12MM ........... 1 1

23 94520-28000 CIRCLIP, INTERNAL, 28MM ... 1 -

24 22350-K16-A41 PLATE COMP., DRIVE ........ - 1

25 22361-K16-A41 PLATE, CLUTCH SIDE ........ - 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

45

2

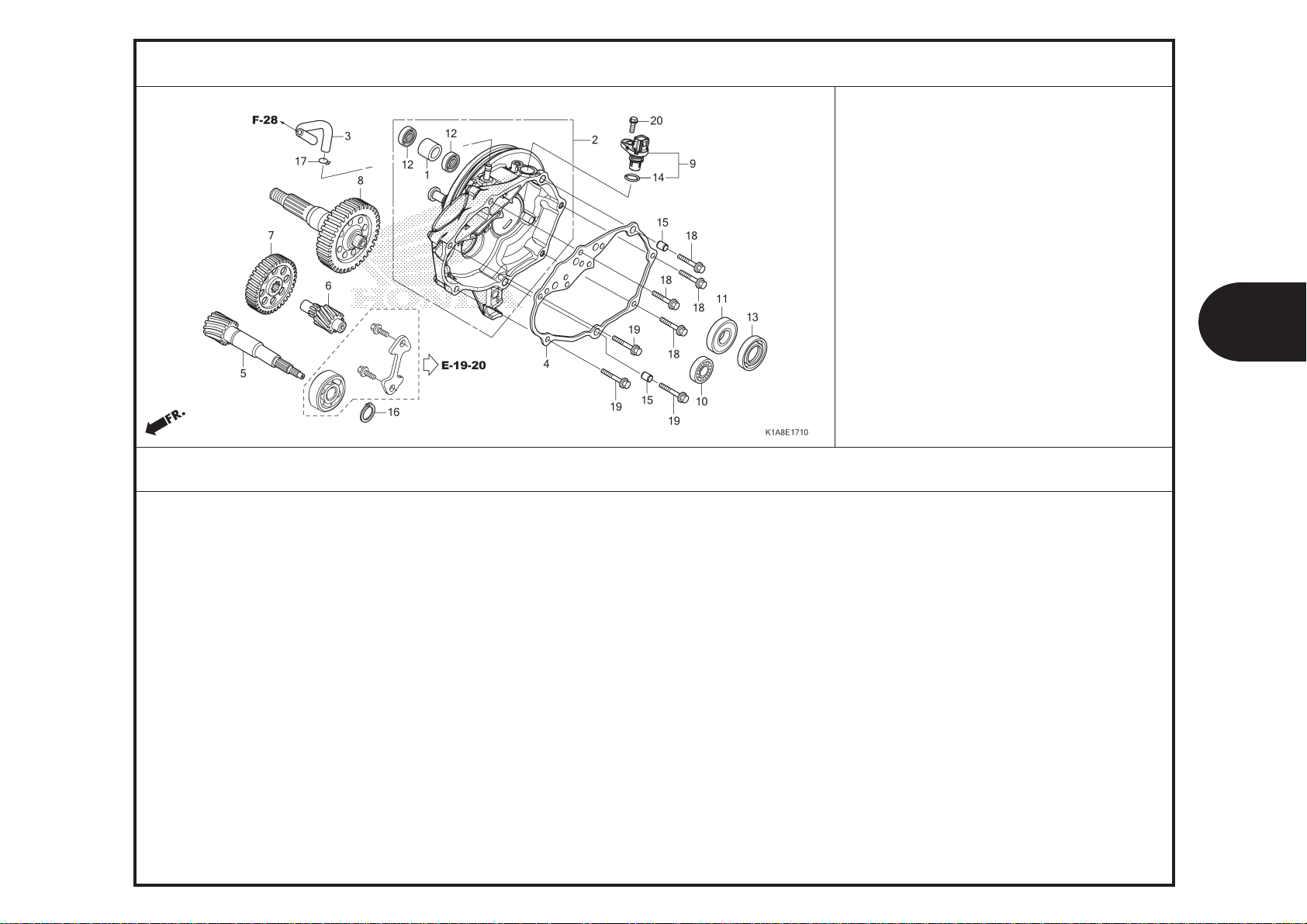

TRANSMISSIONE-17-10

No.

L.O.N.

Ref.

2 2101A2 CASE, TRANSMISSION .............. 1,2

4 2101A3 GASKET, TRANSMISSION CASE ....... 0,9

5 2101E9 SHAFT, DRIVE .................... 1,2

6 210142 COUNTERSHAFT, TRANSMISSION ...... 0,9

7 2101A5 GEAR, COUNTER ................... 0,9

8 210170 SHAFT, FINAL GEAR ............... 0,9

9 (14)

617197 SENSOR, WHEEL SPEED :REAR ....... 0,9

10 2101C8 BEARING, COUNTERSHAFT :RIGHT .... 1,1

2101C9 BEARING, COUNTERSHAFT :KEDUA-DUANYA . 1,2 11 (13) 2101E6 BEARING, FINAL GEAR SHAFT

:RIGHT ......................... 1,1

2101J0 BEARING, FINAL GEAR SHAFT

:KEDUA-DUANYA .................. 1,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 11204-KGF-900 SLEEVE, RR. BRAKE CAM ..... 1 1

2 21200-K1A-N00 CASE COMP., MISSION ....... 1 1

3 21211-K0J-N00 TUBE, TRANSMISSION BREATHER 1 1 4 21395-K1A-N01 GASKET, MISSION CASE(NC) .. 1 1 21395-K1A-N02 GASKET, MISSION CASE(NK) .. 1 1

5 23411-K0J-N00 DRIVESHAFT(18T) ........... 1 1

6 23421-K0J-N00 COUNTERSHAFT(12T) ......... 1 1

7 23422-K0J-N00 GEAR, COUNTER(51T) ........ 1 1

8 23430-K0J-N00 GEAR COMP., FINAL(45T) .... 1 1

9 37700-K0J-N01 SENSOR ASSY., SPEED(NS) ... 1 1 37700-K0L-D11 SENSOR ASSY., SPEED(PS) ... 1 1 10 91006-K50-T01 BEARING, RADIAL BALL, 6201(SK) 1 1 91006-KZR-601 BEARING, RADIAL BALL, 6201(NT) 1 1 91006-KZR-602 BEARING, RADIAL BALL, 6201(FK) 1 1

11 91009-K0J-N01 BEARING, RADIAL BALL, 60/22 UU (SK) 1 1 91009-K44-V01 BEARING, RADIAL BALL, 60/22 UU (JT) 1 1 91009-K50-T01 BEARING, RADIAL BALL, 60/22 UU (FK) 1 1 12 91201-434-003 OIL SEAL, 14X20X3.2(AR) ... 2 2 91201-434-005 OIL SEAL, 14X20X3.2(NO) ... 2 2

13 91204-K50-T01 OIL SEAL, 29X44X7 ......... 1 1

14 91303-K0J-N01 O-RING, 11.4X2.1 .......... 1 1

15 94301-08140 DOWEL PIN, 8X14 ........... 2 2

46

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

TRANSMISSIONE-17-10

2

No.

Ref.

16 94510-20000 CIRCLIP, EXTERNAL, 20MM ... 1 1

17 95002-50000 CLIP, TUBE(C9) ............ 1 1

18 95701-06038-00 BOLT, FLANGE, 6X38 ........ 4 4

19 95701-06050-00 BOLT, FLANGE, 6X50 ........ 3 3

20 96001-06016-00 BOLT, FLANGE, 6X16 ........ 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

47

2

RIGHT CRANKCASEE-19-10

No.

L.O.N.

Ref.

1 110120 CRANKCASE :RIGHT ................ 4,7

.TERMASUK: Penurunan dan pemasangan mesin

1101A2 CRANKCASE :KEDUA-DUANYA ......... 5,5

.TERMASUK: Penurunan dan pemasangan mesin

9 1101B7 BEARING, CRANKSHAFT :RIGHT ...... 4,4

.TERMASUK: Penurunan dan pemasangan mesin

10 110132 OIL SEAL, CRANKSHAFT :RIGHT ..... 4,3

.TERMASUK: Penurunan dan pemasangan mesin 1101H3 OIL SEAL, CRANKSHAFT :KEDUA-DUANYA 4,4 .TERMASUK: Penurunan dan pemasangan mesin

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 11100-K0J-N00 CRANKCASE COMP., R. ....... 1 1

2 11103-K0J-N00 BUSH, ENGINE HANGER RUBBER 1 1

11103-K0J-N21 ......................... 1 1

3 11105-K0J-N00 CAP, R. CRANKCASE ......... 1 1

4 11205-GBC-300 BUSH, MAIN STAND .......... 1 1

11205-K0J-N00 ......................... 1 1

5 15201-K0J-N00 JET COMP., PISTON ......... 1 1

6 15651-K0J-N00 GAUGE, OIL LEVEL .......... 1 1

7 90003-K0J-N00 BOLT, SPECIAL, 6X12 ....... 1 1

8 90031-K0J-N00 BOLT, CYLINDER STUD, 7X119.5 2 2 9 91001-K0J-N01 BEARING, RADIAL BALL, 22X56X11.5(FK) 1 1 91001-K0J-N02 BEARING, RADIAL BALL, 22X56X11.5(SK) 1 1 91001-K1A-N01 BEARING, RADIAL BALL, 22X56X11.5(NT) 1 1 10 91201-K44-V01 OIL SEAL, 20.8X30.5X6(AR) . 1 1 91201-K50-T01 OIL SEAL, 20.8X30.5X6(NO) . 1 1

11 91303-001-010 O-RING, 8MM ............... 1 1

12 91305-K0J-N00 O-RING, 3.8X1.4 ........... 1 1

13 91307-035-000 O-RING, 18X3 .............. 1 1

14 91308-K0J-N00 O-RING, 18.8X2.4 .......... 1 1

15 94301-08200 DOWEL PIN, 8X20 ........... 3 3

16 96001-06018-00 BOLT, FLANGE, 6X18 ........ 1 1

17 96001-06050-00 BOLT, FLANGE, 6X50 ........ 8 8

48

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

LEFT CRANKCASEE-19-20

No.

L.O.N.

Ref.

2 110115 CRANKCASE :LEFT ................. 5,0

.TERMASUK: Penurunan dan pemasangan mesin

1101A2 CRANKCASE :KEDUA-DUANYA ......... 5,5

.TERMASUK: Penurunan dan pemasangan mesin 12 (9,13)

1131B5 SCREEN, OIL FILTER .............. 0,2

22 2101F1 BEARING, DRIVESHAFT :RIGHT ...... 1,2

2101J1 BEARING, DRIVESHAFT :KEDUA-DUANYA 1,3

23 2101C7 BEARING, COUNTERSHAFT :LEFT ..... 1,1

2101C9 BEARING, COUNTERSHAFT :KEDUA-DUANYA 1,2 24 2101E5 BEARING, FINAL GEAR SHAFT

:LEFT .......................... 1,1

2101J0 BEARING, FINAL GEAR SHAFT

:KEDUA-DUANYA .................. 1,2

25 110131 OIL SEAL, CRANKSHAFT :LEFT ...... 0,6

1101H3 OIL SEAL, CRANKSHAFT :KEDUA-DUANYA 4,4

.TERMASUK: Penurunan dan pemasangan mesin

26 2101E7 OIL SEAL, DRIVESHAFT ............ 1,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

No.

Ref.

1 11103-K0J-N00 BUSH, ENGINE HANGER RUBBER 1 1

11103-K0J-N21 ......................... 1 1

2 11200-K1A-N00 CRANKCASE COMP., L. ....... 1 1

3 11203-K35-J00 11203-KVB-901 (HO) 1 1

4 11205-GBC-300 BUSH, MAIN STAND .......... 1 1

11205-K0J-N00 ......................... 1 1

5 11208-K0J-N00

6 11215-K0J-N00 PLUG, BEARING PUSH ........ 1 1

7 11216-K0J-N00 SPRING, BEARING PUSH ...... 1 1

8 11320-K0J-N00 SEPARATOR COMP., OIL ...... 1 1

9 11333-K0J-N00 COVER, OIL SCREEN ......... 1 1

10 11343-KVG-900 TUBE, DRAIN ............... 1 1

11 11411-K0J-N00 PLATE, ENGINE GUARD ....... 1 1

12 15421-K0J-N00 SCREEN, OIL FILTER ........ 1 1

13 15422-K0J-N00 GASKET, OIL SCREEN COVER .. 1 1 14 32112-K0J-N00 PROTECTOR, SPEED SENSOR ... 1 1

15 90001-K0J-N00 BOLT, SPECIAL, 8MM ........ 1 1

16 90031-K0J-N00 BOLT, CYLINDER STUD, 7X119.5 2 2

17 90101-K29-900 BOLT, SOCKET, 6X18 ........ 2 2

18 90131-883-000 BOLT, DRAIN PLUG, 12X15 ... 1 1

19 90401-K0J-N00 WASHER, SEALING, 6MM ...... 2 2

20 90474-333-000 WASHER, SEALING, 8MM ...... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

BUSH, RR. CUSHION UNDER RUBBER BUSH, RR. CUSHION UNDER RUBBER

PLATE, MISSION BEARING SETTING

1 1

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

49

2

LEFT CRANKCASEE-19-20

No.

Ref.

21 90702-KVR-C00 DOWEL PIN, SPECIAL, 8X12 .. 1 1 22 91003-K50-T01 BEARING, RADIAL BALL, 6204 (SK) 1 1 91003-KZR-601 BEARING, RADIAL BALL, 6204 (NT) 1 1 91003-KZR-602 BEARING, RADIAL BALL, 6204 (FK) 1 1 23 91005-K50-T01 BEARING, RADIAL BALL, 6301 (SK) 1 1 91005-KZR-601 BEARING, RADIAL BALL, 6301 (NT) 1 1 91005-KZR-602 BEARING, RADIAL BALL, 6301 (FK) 1 1 24 91008-K50-T01 BEARING, RADIAL BALL, 6302 (SK) 1 1 91008-KZR-601 BEARING, RADIAL BALL, 6302 (NT) 1 1 91008-KZR-602 BEARING, RADIAL BALL, 6302 (FK) 1 1 25 91202-K0J-N01 OIL SEAL, 19.5X31.5X6(NO) . 1 1 91202-K1A-N01 OIL SEAL, 19.5X31.5X6(AR) . 1 1

26 91203-K35-J01 OIL SEAL, 20X32X6(AR) ..... 1 1

91203-K50-T01 OIL SEAL, 20X32X6(NO) ..... 1 1

27 91301-K0J-N00 O-RING, 6.8X2.0 ........... 1 1

28 91307-K0J-N00 O-RING, 95X2.0 ............ 1 1

29 94109-12000 WASHER, DRAIN PLUG, 12MM .. 1 1

50

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

LEFT CRANKCASEE-19-20

2

No.

Ref.

30 95002-80000 CLIP, TUBE(C12) ........... 1 1

31 95701-06016-00 BOLT, FLANGE, 6X16 ........ 2 2

32 95701-06030-00 BOLT, FLANGE, 6X30 ........ 2 2

33 95701-08012-00 BOLT, FLANGE, 8X12 ........ 2 2

34 95701-08018-00 BOLT, FLANGE, 8X18 ........ 1 1

35 96001-06018-00 BOLT, FLANGE, 6X18 ........ 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

51

2

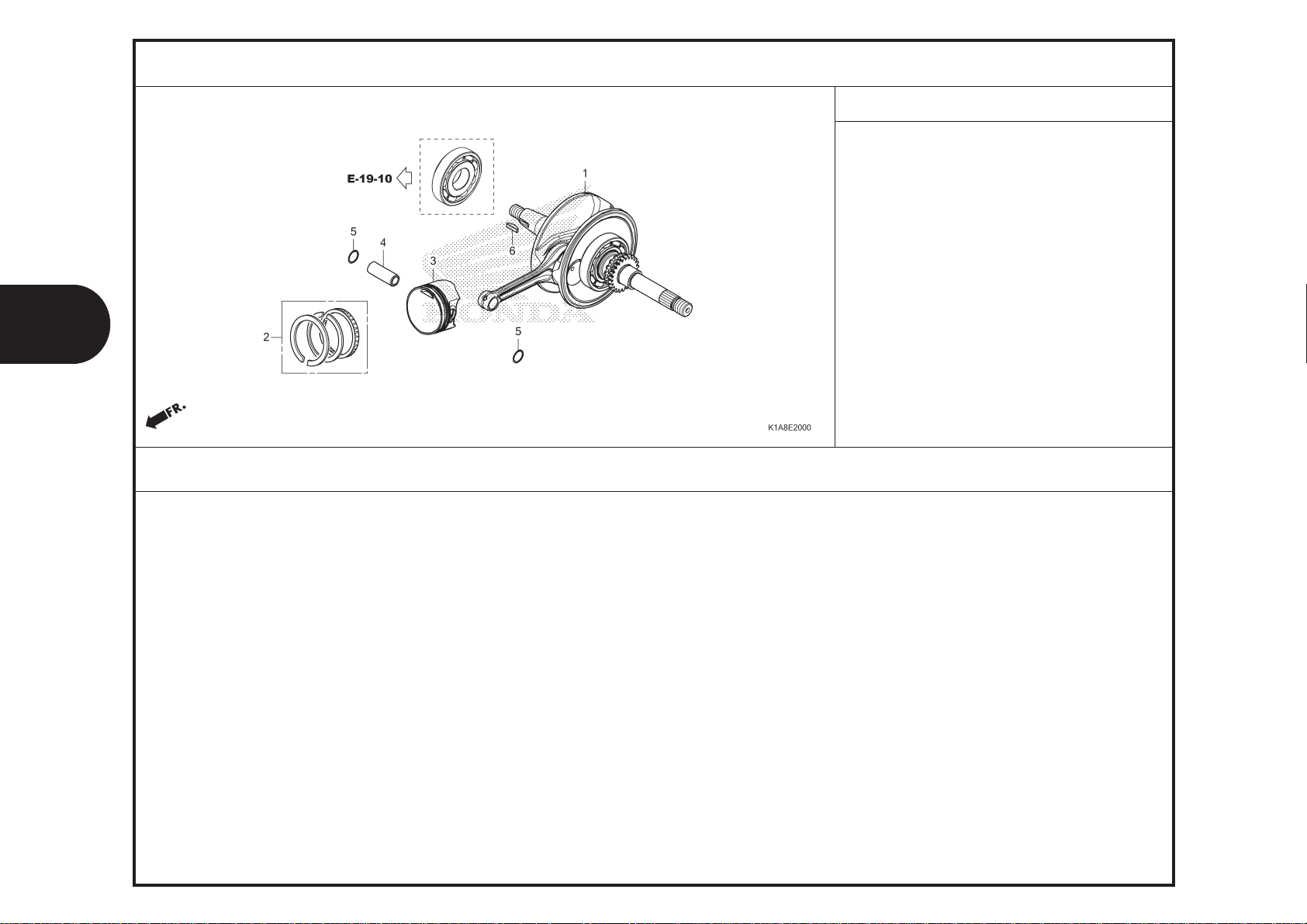

CRANKSHAFT/PISTONE-20

No.

L.O.N.

Ref.

1 1101B5 CRANKSHAFT ...................... 4,7

.TERMASUK: Penurunan dan pemasangan mesin 3 (2,4,5) 111103 PISTON RING DAN/ATAU PISTON(SATU) 3,2 .TERMASUK: Penurunan dan pemasangan mesin

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 13000-K1A-N00 CRANKSHAFT COMP. ......... 1 1

2 13011-K0J-N00 RING SET, PISTON(STD.)(RK) 1 1 13012-K0J-N00 RING SET, PISTON(STD.)(TP) 1 1 13021-K0J-N00 RING SET, PISTON(O.S. 0.25) (RK) (1) (1) 13022-K0J-N00 RING SET, PISTON(O.S. 0.25) (TP) (1) (1) 13031-K0J-N00 RING SET, PISTON(O.S. 0.50) (RK) (1) (1) 13032-K0J-N00 RING SET, PISTON(O.S. 0.50) (TP) (1) (1) 13041-K0J-N00 RING SET, PISTON(O.S. 0.75) (RK) (1) (1) 13042-K0J-N00 RING SET, PISTON(O.S. 0.75) (TP) (1) (1) 13051-K0J-N00 RING SET, PISTON(O.S. 1.00) (RK) (1) (1) 13052-K0J-N00 RING SET, PISTON(O.S. 1.00) (TP) (1) (1)

3 13101-K0J-P00 PISTON(STD) ............... 1 1

13102-K0J-P00 PISTON(O.S. 0.25) ......... (1) (1)

13103-K0J-P00 PISTON(O.S. 0.50) ......... (1) (1)

13104-K0J-P00 PISTON(O.S. 0.75) ......... (1) (1)

13105-K0J-P00 PISTON(O.S. 1.00) ......... (1) (1)

4 13111-K0J-N00 PIN, PISTON ............... 1 1

5 13115-K23-900 CLIP, PISTON PIN, 12MM .... 2 2

6 90741-003-010 KEY, WOODRUFF, 4MM ........ 1 1

52

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

THROTTLE BODYE-22

No.

L.O.N.

Ref.

6 (2)

311132 BODY ASSY., THROTTLE ............ 1,0

7 311130 BODY, THROTTLE .................. 1,1

8 (9,14,16)

311145 INJECTOR, FUEL .................. 0,8

10 (3,11)

311125 VALVE, STARTER .................. 1,2

12 (13,17)

111107 MANIFOLD, INTAKE ................ 0,9

(Nomor ref. relatif)

Deskripsi

F.R.T.

2

No.

Ref.

1 16016-K0J-N01 SCREW SET ................. 1 1

2 16075-K0J-N01 O-RING, THROTTLE BODY ..... 1 1

3 16077-KVB-S51 O-RING, 1.9X20.4 .......... 1 1

4 16169-K0J-N01 STAY, WIRE ................ 1 1

5 16305-K0J-N00 COVER COMP., THROTTLE BODY 1 1

6 16400-K0J-N01 BODY ASSY., THROTTLE(GQRJC A) 1 1

7 16410-K0J-N01 BODY SET .................. 1 1

8 16450-K0J-N01 INJECTOR ASSY., FUEL ...... 1 1

9 16472-KPC-D50 RING, SEAL ................ 1 1

10 16480-K0J-N01 SOLENOID .................. 1 1

11 16485-GGZ-J01 SEAT SET .................. 1 1

12 17111-K0J-N00 PIPE, IN. ................. 1 1

13 17119-K0J-N00 INSULATOR, IN. PIPE ....... 1 1

14 17560-K0J-N00 JOINT COMP., INJECTOR ..... 1 1

15 61106-GGN-J00 COLLAR,THROTTLE BODY COVER 1 1

16 91301-GGL-J01 O-RING, 6.3X2.2 ........... 1 1

17 91301-KRJ-901 O-RING, 29X2 .............. 2 2

18 93500-05012-0A SCREW, PAN, 5X12 .......... 1 1

19 93891-04010-18 SCREW-WASHER, 4X10 ........ 2 2

20 93892-05012-18 SCREW-WASHER, 5X12 ........ 1 1

21 95701-06022-00 BOLT, FLANGE, 6X22 ........ 1 1

22 95701-06050-00 BOLT, FLANGE, 6X50 ........ 2 2

23 96001-06020-00 BOLT, FLANGE, 6X20 ........ 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

53

F-1

HEADLIGHT

No.

L.O.N.

Ref.

1 6161A7 HEADLIGHT UNIT................. 0,6

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 33100-K1A-N01 HEADLIGHT ASSY. ............. 1 1

2 90677-KAN-T00 NUT, CLIP, 5MM .............. 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

54

10.12.2019

F-2

METER(1)

No.

L.O.N.

Ref.

1 8121A1 METER ASSY., COMBINATION....... 0,2

2 8121A2 METER, COMBINATION............. 0,3

3 8121B4 CASE, METER :UPPER............. 0,2

4 8121B5 CASE, METER :LOWER............. 0,2

5 4131Q2 COVER, METER :LOWER............ 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 37100-K1A-N21 METER ASSY., COMBINATION(KPH) 1 - -------- -------- 2IN

2 37110-K1A-N21 METER COMP., LCD ............ 1 - -------- -------- 2IN

3 37120-K1A-N21 CASE ASSY., UPPER ........... 1 - -------- -------- 2IN

4 37130-K1A-N21 CASE ASSY., UNDER ........... 1 - -------- -------- 2IN

5 53207-K1A-N20ZA COVER, METER LOWER ..........

*NH1* ................. BLACK 1 - -------- -------- 2IN

6 90302-KWW-A00 NUT, SPRING, 4MM ............ 2 - -------- -------- 2IN

7 93903-22420 SCREW, TAPPING, 3X16 ........ 5 - -------- -------- 2IN

8 93903-34380 SCREW, TAPPING, 4X12 ........ 2 - -------- -------- 2IN

9 93913-25380 SCREW, TAPPING, 5X14(PO) .... 3 - -------- -------- 2IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

55

F-2-1

METER(2)

No.

L.O.N.

Ref.

1 8121A5 METER ASSY., COMBINATION(A).... 0,5

2 8121A3 SPEEDOMETER ASSEMBLY........... 0,5

3 8121B3 CASE, METER.................... 0,4

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 37100-K1A-N01 METER ASSY., COMBINATION(KPH) 1 - -------- -------- IN

37100-K1A-N11 ........................... - 1

2 37110-K1A-N01 METER ASSY., SPEED .......... 1 - -------- -------- IN

37110-K1A-N11 ........................... - 1

3 37120-K1A-N01 CASE ASSY., UNDER ........... 1 1 -------- -------- 3IN,IN

4 93903-35320 SCREW, TAPPING, 5X16 ........ 3 3 -------- -------- 3IN,IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

56

10.12.2019

F-3

MIRROR

No.

L.O.N.

Ref.

TIDAK ADA INFORMASI ...........

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 88115-KWN-980 CAP, LOCK NUT ............... 2 2

2 88210-K1A-N01 MIRROR COMP., R. ............ 1 1 -------- -------- 3IN,IN

88210-K1A-N00 ........................... 1 - -------- -------- 2IN

3 88220-K1A-N01 MIRROR COMP., L. ............ 1 1 -------- -------- 3IN,IN

88220-K1A-N20 ........................... 1 - -------- -------- 2IN

4 90314-KVB-900 NUT, LOCK .................. 1 1 -------- -------- 3IN,IN

5 90314-KVR-600 NUT, LOCK .................. 1 1 -------- -------- 3IN,IN

........................... 2 - -------- -------- 2IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

57

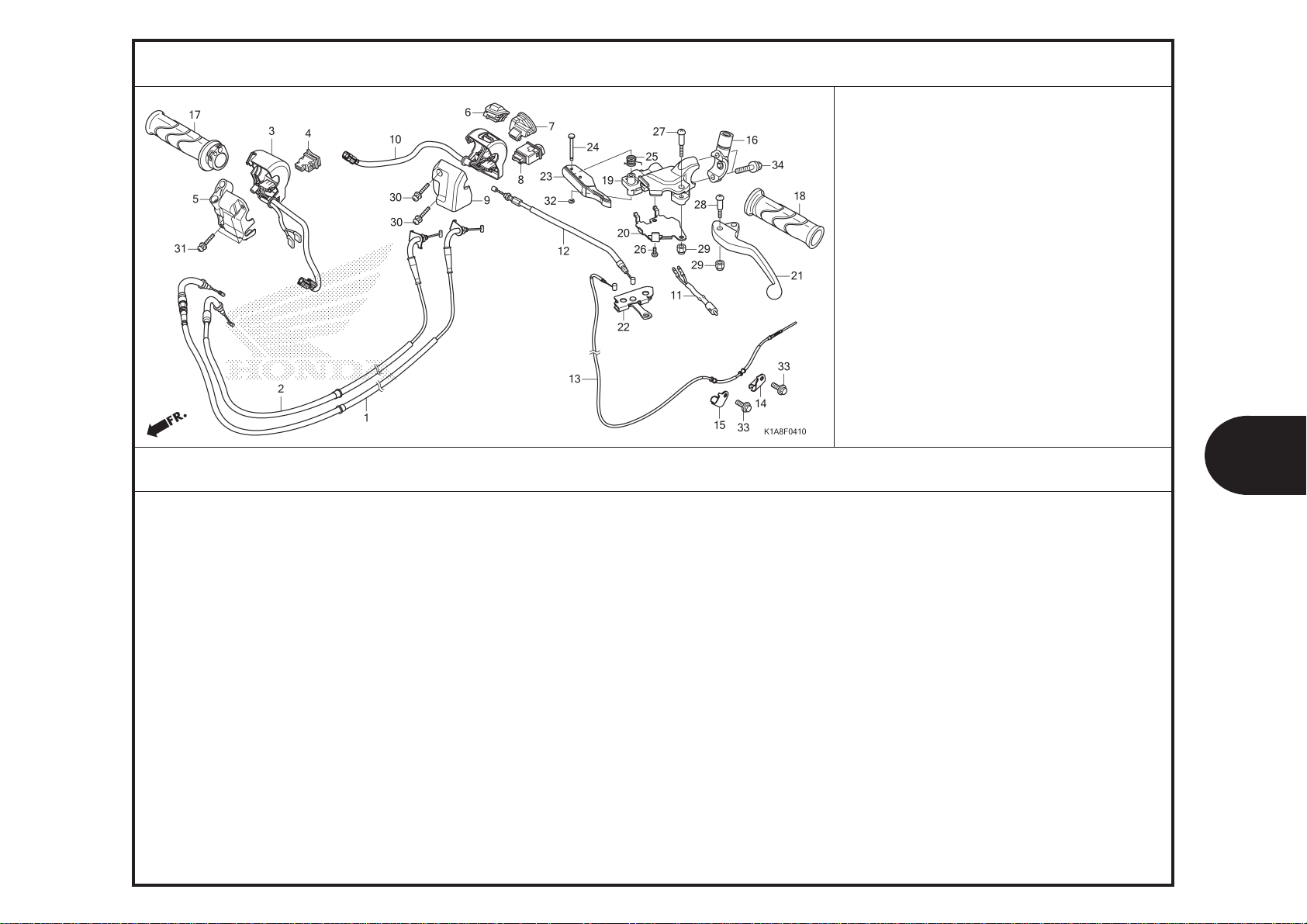

F-4-10

HANDLE LEVER/SWITCH/CABLE(1)

No.

Ref.

1 (2)

811100 CABLE, THROTTLE................ 1,6

.CATATAN: Waktu sama untuk dua unit

3 8101K8 HOUSING. STARTER SWITCH........ 1,0

4 615116 SWITCH, STARTER................ 1,0

6 615117 SWITCH, DIMMER................. 0,5

7 6151A3 SWITCH, HORN................... 0,5

8 615118 SWITCH, WINKER................. 0,5

10 8101K9 HOUSING. WINKER SWITCH......... 0,5

11 6151B3 SWITCH, REAR STOP :LEVER SIDE.. 0,6

6151B6 SWITCH, STOP :KEDUA-DUANYA..... 0,8

12 8111B9 CABLE, FRONT BRAKE CONNECTING.. 0,6

13 811130 CABLE, REAR BRAKE.............. 1,0

17 810150 GRIP, THROTTLE................. 0,2

18 8101C0 GRIP, HANDLE :LEFT............. 0,1

19 8101C8 BRACKET, HANDLE LEVER :LEFT.... 0,5

21 8101C6 LEVER, HANDLE :LEFT............ 0,1

8101F5 LEVER, HANDLE :KEDUA-DUANYA.... 0,2

22 8101D1 EQUALIZER, BRAKE CABLE......... 0,5

23 8101D2 LEVER, REAR BRAKE LOCK......... 0,1

L.O.N.

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 17910-K1A-N21 CABLE COMP. A, THROTTLE ..... 1 - -------- -------- 2IN

2 17920-K1A-N21 CABLE COMP. B, THROTTLE ..... 1 - -------- -------- 2IN

3 35134-K1A-N21 HOUSING COMP., STARTER SWITCH 1 - -------- -------- 2IN

4 35160-K20-T21 SWITCH UNIT, STARTER ........ 1 - -------- -------- 2IN

5 35164-K81-N31 HOUSING, RR. STARTER SWITCH . (FR.) 1 - -------- -------- 2IN

6 35170-K93-N01 SWITCH UNIT, DIMMER ......... 1 - -------- -------- 2IN

7 35180-K20-T21 SWITCH UNIT, HORN ........... 1 - -------- -------- 2IN

8 35200-K03-N31 SWITCH UNIT, WINKER ......... 1 - -------- -------- 2IN

9 35202-GGZ-J02 HOUSING, WINKER SWITCH RR. .. (FR.) 1 - -------- -------- 2IN 10 35205-K1A-N21 HOUSING COMP.,WINKER SWITCH . 1 - -------- -------- 2IN

11 35340-K81-N31 SWITCH ASSY., FR. STOP ...... 1 - -------- -------- 2IN

12 43440-K1A-N21 CABLE COMP., FR. BRAKE CONNECTING 1 - -------- -------- 2IN

13 43450-K1A-N21 CABLE COMP., RR. BRAKE ...... 1 - -------- -------- 2IN

14 43455-K0J-N00 CLAMPER A, RR. BRAKE CABLE .. 1 - -------- -------- 2IN 15 43456-K1A-N00 CLAMPER B, RR. BRAKE CABLE .. 1 - -------- -------- 2IN

16 45517-K81-N30 HOLDER, MIRROR .............. 1 - -------- -------- 2IN

17 53140-K44-V00 GRIP COMP., THROTTLE ........ 1 - -------- -------- 2IN

18 53166-KWB-600 GRIP, L. HANDLE ............. 1 - -------- -------- 2IN

19 53172-K0J-N00 BRACKET, L. BRAKE LEVER ..... 1 - -------- -------- 2IN

20 53173-K0J-N00 COVER, L. BRAKE LEVER BRACKET 1 - -------- -------- 2IN

21 53178-K0J-N00 LEVER, L. STEERING HANDLE ... 1 - -------- -------- 2IN

22 53184-K59-A70 EQUALIZER COMP. ............. 1 - -------- -------- 2IN

23 53185-K0J-N00 LEVER COMP., BRAKE LOCK ..... 1 - -------- -------- 2IN

58

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

F-4-10

HANDLE LEVER/SWITCH/CABLE(1)

No.

Ref.

24 53186-K81-N30 PIN, BRAKE LOCK LEVER ....... 1 - -------- -------- 2IN

25 53188-K81-N30 SPRING, BRAKE LOCK ARM RETURN 1 - -------- -------- 2IN

26 90104-K81-N30 SCREW, PAN, 5X8 ............. 1 - -------- -------- 2IN

27 90115-K81-N30 SCREW, HANDLE LEVER PIVOT ... 1 - -------- -------- 2IN 28 90116-K81-N30 SCREW, HANDLE LEVER PIVOT ... 1 - -------- -------- 2IN

29 90302-K1A-N00 NUT, 5MM(PT) ................ 2 - -------- -------- 2IN

90302-KVB-T01 NUT, U, 5MM ................. 2 - -------- -------- 2IN

30 93892-05020-07 SCREW-WASHER, 5X20 .......... 2 - -------- -------- 2IN

31 93892-05025-07 SCREW-WASHER, 5X25 .......... 3 - -------- -------- 2IN

32 94540-03010 E-RING, 3MM ................. 1 - -------- -------- 2IN

33 96001-06012-00 BOLT, FLANGE, 6X12 .......... 2 - -------- -------- 2IN

34 96001-06022-07 BOLT, FLANGE, 6X22 .......... 2 - -------- -------- 2IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

59

3

F-4-11

No.

Ref.

1 17910-K1A-N01 CABLE COMP. A, THROTTLE(HX) . 1 1 -------- -------- 3IN,IN 17910-K1A-N02 CABLE COMP. A, THROTTLE(DC) . 1 1 -------- -------- 3IN,IN 2 17920-K1A-N01 CABLE COMP. B, THROTTLE(HX) . 1 1 -------- -------- 3IN,IN 17920-K1A-N02 CABLE COMP. B, THROTTLE(DC) . 1 1 -------- -------- 3IN,IN

3 35160-K20-T21 SWITCH UNIT, STARTER(TO) .... 1 - -------- -------- IN

35160-K27-V01 SWITCH UNIT, STARTER(AS) .... - 1

4 35170-K93-N01 SWITCH UNIT, DIMMER(TO) ..... 1 - -------- -------- IN

35170-K1A-N11 SWITCH UNIT, DIMMER(AS) ..... - 1

5 35180-K20-T21 SWITCH UNIT, HORN(TO) ....... 1 - -------- -------- IN

35180-K47-N01 SWITCH UNIT, HORN(AS) ....... - 1

6 35190-K1A-N11 SWITCH UNIT, IDLE(AS) ....... - 1

7 35200-K03-N31 SWITCH UNIT, WINKER(TO) ..... 1 - -------- -------- IN

35200-K47-N01 SWITCH UNIT, WINKER(AS) ..... - 1

8 35340-KPH-901 SWITCH ASSY., FR. STOP ...... 1 1 -------- -------- 3IN,IN

9 43440-K1A-N01 CABLE COMP., FR. BRAKE CONNECTING 1 - -------- -------- IN

43440-K1A-N11 ........................... - 1

10 43450-K1A-N01 CABLE COMP., RR. BRAKE ...... 1 - -------- -------- IN

43450-K1A-N11 ........................... - 1

11 43455-K0J-N00 CLAMPER A, RR. BRAKE CABLE .. 1 1 -------- -------- 3IN,IN 12 43456-K1A-N00 CLAMPER B, RR. BRAKE CABLE .. 1 1 -------- -------- 3IN,IN

13 45517-K44-V81 HOLDER, MASTER CYLINDER ..... 1 1 -------- -------- 3IN,IN

14 53140-K44-V00 GRIP COMP., THROTTLE ........ 1 1 -------- -------- 3IN,IN

15 53166-KWB-600 GRIP, L. HANDLE ............. 1 1 -------- -------- 3IN,IN

16 53167-K66-V00 HOUSING, UPPER THROTTLE ..... 1 1 -------- -------- 3IN,IN

17 53168-K66-V00 HOUSING, UNDER THROTTLE ..... 1 1 -------- -------- 3IN,IN

18 53172-K1A-N00 BRACKET, L. BRAKE LEVER ..... 1 1 -------- -------- 3IN,IN

60

No. Part Deskripsi No. Seri Kode Parts Catalog

HANDLE LEVER/SWITCH/CABLE(2)

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

No.

L.O.N.

Ref.

1 (2)

8111D4 CABLE, THROTTLE(A)............. 1,8

.CATATAN: Waktu sama untuk dua unit

3 6151G1 SWITCH, STARTER(A)............. 0,5

4 615117 SWITCH, DIMMER................. 0,5

5 6151A3 SWITCH, HORN................... 0,5

6 6151C4 SWITCH, IDLE................... 0,5

7 615118 SWITCH, WINKER................. 0,5

8 6151F6 SWITCH, REAR STOP(A)...........

:LEVER SIDE................... 0,8

6151F7 SWITCH, STOP(A) :KEDUA-DUANYA.. 1,1 9 8111H3 CABLE, FRONT BRAKE CONNECTING

(A)............................ 0,8

10 8111C8 CABLE, REAR BRAKE(A)........... 1,1

14 8101J5 GRIP, THROTTLE(A).............. 0,6

15 8101C0 GRIP, HANDLE :LEFT............. 0,1

17 810155 HOUSING, THROTTLE.............. 0,6

18 8101H7 BRACKET, HANDLE LEVER(A) :LEFT 0,9

20 8101H6 LEVER, HANDLE(A) :LEFT......... 0,3

8101H8 LEVER, HANDLE(A) :KEDUA-DUANYA 0,4

21 8101P1 EQUALIZER, BRAKE CABLE(A)...... 0,7

22 8101D2 LEVER, REAR BRAKE LOCK......... 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

F-4-11

HANDLE LEVER/SWITCH/CABLE(2)

No.

Ref.

19 53173-K0J-N00 COVER, L. BRAKE LEVER BRACKET 1 1 -------- -------- 3IN,IN 20 53178-K1A-N00 LEVER, L. STEERING HANDLE ... 1 1 -------- -------- 3IN,IN

21 53184-K59-A70 EQUALIZER COMP. ............. 1 1 -------- -------- 3IN,IN

22 53185-K1A-N00 LEVER COMP., BRAKE LOCK ..... 1 1 -------- -------- 3IN,IN

23 53186-K81-N30 PIN, BRAKE LOCK LEVER ....... 1 1 -------- -------- 3IN,IN

24 53188-K81-N30 SPRING, BRAKE LOCK ARM RETURN 1 1 -------- -------- 3IN,IN

25 90104-K81-N30 SCREW, PAN, 5X8 ............. 1 1 -------- -------- 3IN,IN

26 90115-K1A-N00 SCREW, HANDLE LEVER PIVOT ... 1 1 -------- -------- 3IN,IN 27 90115-KWN-900 SCREW, HANDLE LEVER PIVOT ... 1 1 -------- -------- 3IN,IN

28 90302-K1A-N00 NUT, 5MM(PT) ................ 2 2 -------- -------- 3IN,IN

90302-KVB-T01 NUT, U, 5MM ................. 2 2 -------- -------- 3IN,IN

29 93500-05020-0A SCREW, PAN, 5X20 ............ 2 2 -------- -------- 3IN,IN

30 94540-03010 E-RING, 3MM ................. 1 1 -------- -------- 3IN,IN

31 96001-06012-00 BOLT, FLANGE, 6X12 .......... 2 2 -------- -------- 3IN,IN

32 96001-06022-00 BOLT, FLANGE, 6X22 .......... 2 2 -------- -------- 3IN,IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

61

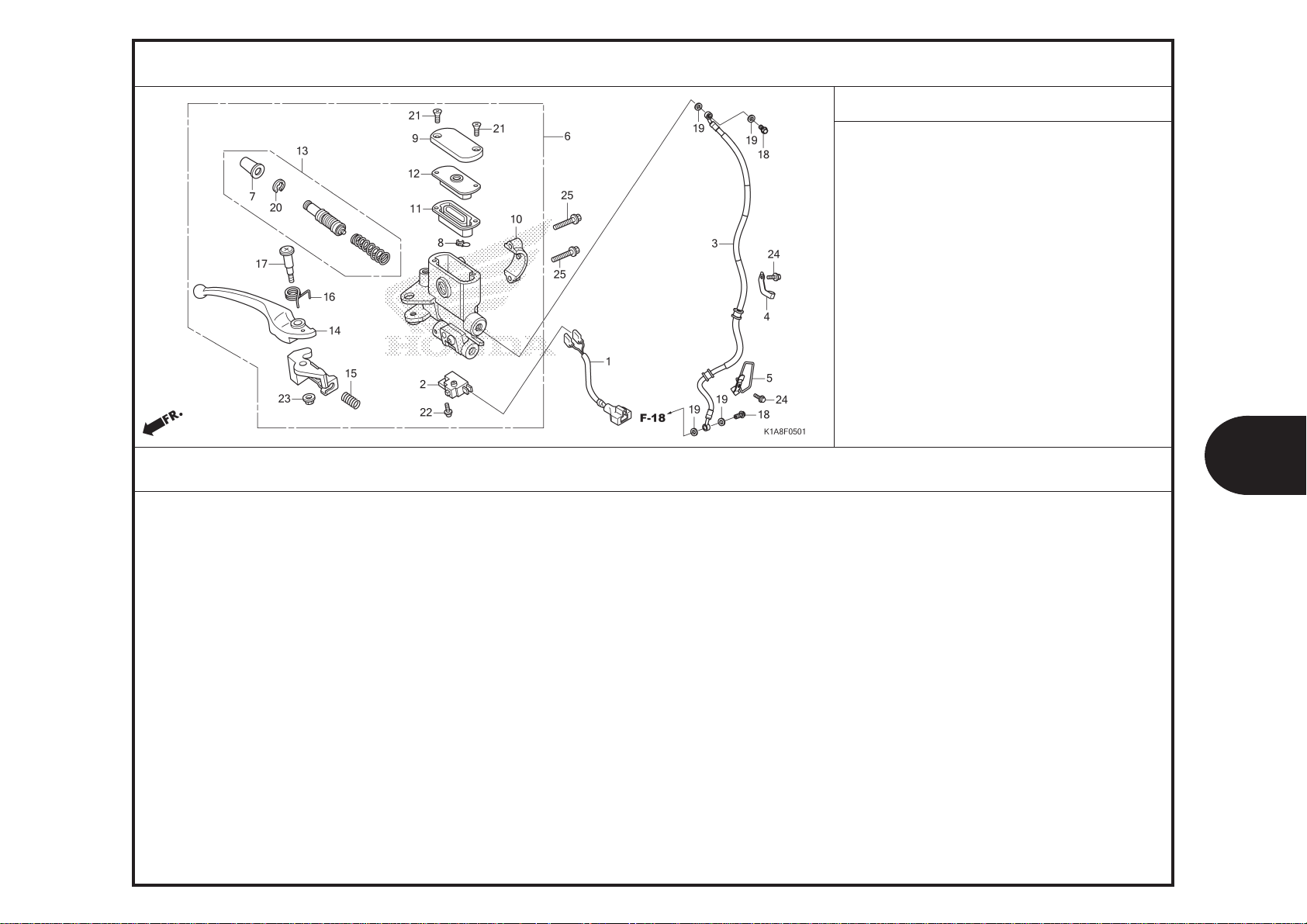

F-5

FRONT BRAKE MASTER CYLINDER(1)

No.

L.O.N.

Ref.

1 6111B3 SUB HARNESS, FRONT STOP SWITCH 0,2

2 6151B2 SWITCH, FRONT STOP............. 0,4

6151B6 SWITCH, STOP :KEDUA-DUANYA..... 0,8

3 7121A0 HOSE, FRONT BRAKE.............. 0,9

.TERMASUK: Pembuangan angin palsu 6 712105 CYLINDER, FRONT BRAKE MASTER... 0,6 .TERMASUK: Pembuangan angin palsu 11 7121G6 DIAPHRAGM, FRONT BRAKE MASTER

CYLINDER...................... 0,1

13 7121G9 PISTON SET, FRONT BRAKE MASTER 0,6 .TERMASUK: Pembuangan angin palsu

14 8101C7 LEVER, HANDLE :RIGHT........... 0,1

8101F5 LEVER, HANDLE :KEDUA-DUANYA.... 0,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 32101-K1A-N00 SUB CORD, FR. STOP SWITCH ... 1 - -------- -------- 2IN

2 35340-KWB-601 SWITCH ASSY., FR. STOP ...... 1 - -------- -------- 2IN

3 45126-K1A-N21 HOSE COMP., FR. BRAKE ....... 1 - -------- -------- 2IN

4 45156-K1A-N00 CLAMPER A, FR. BRAKE HOSE ... 1 - -------- -------- 2IN

5 45157-KVB-T00 CLAMPER B, BRAKE HOSE ....... 1 - -------- -------- 2IN

6 45500-K81-N31 CYLINDER ASSY., FR. BRAKE MASTER 1 - -------- -------- 2IN

7 45504-410-003 BOOT COMP. .................. 1 - -------- -------- 2IN

8 45512-MA6-006 PROTECTOR ................... 1 - -------- -------- 2IN

9 45513-GW0-911 CAP, MASTER CYLINDER ........ 1 - -------- -------- 2IN

10 45517-K81-N30 HOLDER, MIRROR .............. 1 - -------- -------- 2IN

11 45520-GW0-911 DIAPHRAGM ................... 1 - -------- -------- 2IN

12 45521-GW0-911 PLATE, DIAPHRAGM ............ 1 - -------- -------- 2IN

13 45530-K03-M61 CYLINDER SET, MASTER ........ 1 - -------- -------- 2IN

14 53175-K81-N31 LEVER, R. STEERING HANDLE ... 1 - -------- -------- 2IN

15 53198-GBL-870 SPRING, RETURN .............. 1 - -------- -------- 2IN

16 53199-KVG-910 SPRING, BRAKE LEVER RETURN .. 1 - -------- -------- 2IN

17 90114-K44-V01 BOLT, HANDLE LEVER .......... 1 - -------- -------- 2IN

18 90145-GAZ-981 BOLT, OIL, 10X22 ............ 2 - -------- -------- 2IN

90145-KPH-B30 BOLT, OIL, 10X22(NI) ........ 2 - -------- -------- 2IN

19 90545-300-000 WASHER, OIL BOLT ............ 4 - -------- -------- 2IN

20 90651-K03-M61 CIRCLIP, INTERNAL, 18.8 ..... 1 - -------- -------- 2IN

21 93600-04012-1G SCREW, FLAT, 4X12 ........... 2 - -------- -------- 2IN

22 93893-04012-17 SCREW-WASHER, 4X12 .......... 1 - -------- -------- 2IN

23 94050-06000 NUT, FLANGE, 6MM ............ 1 - -------- -------- 2IN

24 96001-06012-00 BOLT, FLANGE, 6X12 .......... 2 - -------- -------- 2IN

25 96001-06022-07 BOLT, FLANGE, 6X22 .......... 2 - -------- -------- 2IN

62

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

F-5-1

FRONT BRAKE MASTER CYLINDER(2)

No.

L.O.N.

Ref.

1 6111W5 SUB HARNESS, FRONT STOP SWITCH

(A)............................ 0,4

2 6151F5 SWITCH, FRONT STOP(A).......... 0,5

6151F7 SWITCH, STOP(A) :KEDUA-DUANYA.. 1,1

3 7121N4 HOSE, FRONT BRAKE(A)........... 0,7

.TERMASUK: Pembuangan angin palsu 6 7121K9 CYLINDER, FRONT BRAKE MASTER

(A)........................... 0,8

.TERMASUK: Pembuangan angin palsu 11 7121G6 DIAPHRAGM, FRONT BRAKE MASTER

CYLINDER...................... 0,1

13 7121K8 PISTON SET, FRONT BRAKE MASTER

(A)........................... 0,8

.TERMASUK: Pembuangan angin palsu

14 8101H5 LEVER, HANDLE(A) :RIGHT........ 0,3

8101H8 LEVER, HANDLE(A) :KEDUA-DUANYA 0,4

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 32101-K1A-N00 SUB CORD, FR. STOP SWITCH ... 1 1 -------- -------- 3IN,IN

2 35340-KWB-601 SWITCH ASSY., FR. STOP ...... 1 1 -------- -------- 3IN,IN

3 45126-K1A-N01 HOSE COMP., FR. BRAKE ....... 1 1 -------- -------- 3IN,IN

4 45156-K1A-N00 CLAMPER A, FR. BRAKE HOSE ... 1 1 -------- -------- 3IN,IN

5 45157-KVB-T00 CLAMPER B, BRAKE HOSE ....... 1 1 -------- -------- 3IN,IN

6 45500-K1A-N01 CYLINDER ASSY., FR. MASTER .. 1 1 -------- -------- 3IN,IN

7 45504-410-003 BOOT COMP. .................. 1 1 -------- -------- 3IN,IN

8 45512-MA6-006 PROTECTOR ................... 1 1 -------- -------- 3IN,IN

9 45513-GW0-911 CAP, MASTER CYLINDER ........ 1 1 -------- -------- 3IN,IN

10 45517-K44-V81 HOLDER, MASTER CYLINDER ..... 1 1 -------- -------- 3IN,IN

11 45520-GW0-911 DIAPHRAGM ................... 1 1 -------- -------- 3IN,IN

12 45521-GW0-911 PLATE, DIAPHRAGM ............ 1 1 -------- -------- 3IN,IN

13 45530-K03-M61 CYLINDER SET, MASTER ........ 1 1 -------- -------- 3IN,IN

14 53175-K81-N51 LEVER, R. STEERING HANDLE ... 1 1 -------- -------- 3IN,IN

15 53198-GBL-870 SPRING, RETURN .............. 1 1 -------- -------- 3IN,IN

16 53199-KVG-910 SPRING, BRAKE LEVER RETURN .. 1 1 -------- -------- 3IN,IN

17 90114-K44-V81 BOLT, HANDLE LEVER .......... 1 1 -------- -------- 3IN,IN

18 90145-GAZ-981 BOLT, OIL, 10X22 ............ 2 2 -------- -------- 3IN,IN

90145-KPH-B30 BOLT, OIL, 10X22(NI) ........ 2 2 -------- -------- 3IN,IN

19 90545-300-000 WASHER, OIL BOLT ............ 4 4 -------- -------- 3IN,IN

20 90651-K03-M61 CIRCLIP, INTERNAL, 18.8 ..... 1 1 -------- -------- 3IN,IN

21 93600-04012-1G SCREW, FLAT, 4X12 ........... 2 2 -------- -------- 3IN,IN

22 93893-04012-17 SCREW-WASHER, 4X12 .......... 1 1 -------- -------- 3IN,IN

23 94050-06000 NUT, FLANGE, 6MM ............ 1 1 -------- -------- 3IN,IN

24 96001-06012-00 BOLT, FLANGE, 6X12 .......... 2 2 -------- -------- 3IN,IN

25 96001-06022-00 BOLT, FLANGE, 6X22 .......... 2 2 -------- -------- 3IN,IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

63

F-9

HANDLE PIPE/HANDLE COVER(1)

No.

Ref.

2 810100 PIPE, STEERING HANDLE.......... 0,6

4 5101C8 POST, HANDLE................... 1,1

6 8101B9 HOLDER, HANDLE :LOWER.......... 1,1

.CATATAN: Waktu sama untuk dua unit

7 4131B5 COVER, HANDLE :FRONT........... 0,5

8 4131B6 COVER, HANDLE :REAR............ 0,5

4131U1 COVER, HANDLE :KEDUA-DUANYA.... 0,5

L.O.N.

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 32161-404-000 BAND B1, WIRE ............... 2 - -------- -------- 2IN

2 53100-K1A-N20 PIPE COMP., HANDLE .......... 1 - -------- -------- 2IN

3 53102-K66-V00 COVER, GRIP END ............ 2 - -------- -------- 2IN

4 53110-K1A-N20 POST COMP., HANDLE .......... 1 - -------- -------- 2IN

5 53131-K81-N30ZA HOLDER, HANDLE PIPE UPPER *NH303M* MAT AXIS GRAY METALLIC 1 - -------- -------- 2IN

6 53132-K04-930 HOLDER, HANDLE UNDER ........ 2 - -------- -------- 2IN

7 53205-K1A-N20ZB COVER, FR. HANDLE *NH303M* MAT AXIS GRAY METALLIC 1 - -------- -------- 2IN 8 53250-K1A-N20ZB COVER SET, HANDLE *NH303M* MAT AXIS GRAY METALLIC 1 - -------- -------- 2IN

9 86150-KTJ-C60 EMBLEM, PRODUCT ............. 1 - -------- -------- 2IN

10 90102-KZL-930 BOLT, FLANGE, 10X48 ......... 1 - -------- -------- 2IN

11 90107-K04-930 SCREW, PAN, 6X17 ............ 2 - -------- -------- 2IN

12 90164-K66-V00 SCREW, SPECIAL, 6MM ......... 2 - -------- -------- 2IN

13 90304-KGH-901 NUT, U, 10MM ................ 3 - -------- -------- 2IN

14 90501-KPH-880 COLLAR A, HANDLE SETTING .... 1 - -------- -------- 2IN

15 90502-KWN-670 WASHER, 10MM ................ 2 - -------- -------- 2IN

16 90505-KPH-880 COLLAR B, HANDLE SETTING .... 1 - -------- -------- 2IN

17 91456-371-770 CAP, SOCKET BOLT ............ 4 - -------- -------- 2IN

18 96600-08032-00 BOLT, SOCKET, 8X32 .......... 4 - -------- -------- 2IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

64

10.12.2019

F-9-1

HANDLE PIPE/HANDLE COVER(2)

No.

Ref.

1 8101H9 PIPE, STEERING HANDLE(A)....... 1,2

3 4131AP COVER, HANDLE(A) :FRONT........ 0,2

4 4131AQ COVER, HANDLE(A) :REAR......... 0,4

4131AR COVER, HANDLE(A) :KEDUA-DUANYA 0,4

5 4131X1 COVER, HANDLE :UPPER........... 0,1

L.O.N.

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 53100-K1A-N00 PIPE COMP., HANDLE .......... 1 1 -------- -------- 3IN,IN

2 53102-K66-V00 COVER, GRIP END ............. 2 2 -------- -------- 3IN,IN

3 53205-K1A-N00ZB COVER, FR. HANDLE ...........

*R383* .......... VALIANT RED 1 - -------- -------- IN

53205-K1A-N00ZF *NH196* .......... ROSS WHITE 1 - -------- -------- IN

53205-K1A-N00ZG *NH1* ................. BLACK 1 - -------- -------- IN

53205-K1A-N00ZJ *B234M* ARCADE BLUE METALLIC 1 - -------- -------- IN 53205-K1A-N00ZH *NHA40M* MAT CRYPTON SILVER METALLIC - 1 -------- -------- 3IN 53205-K1A-N00ZE *NH436M* MAT GUNPOWDER BLACK METALLIC - 1 53205-K1A-N00ZC *RP200M* ELECTROPOP MAGENTA METALLIC - 1 -------- -------- IN 53205-K1A-N00ZD *PB419M* MAT NATUNA BLUE METALLIC - 1 -------- -------- IN 4 53206-K1A-N00ZA COVER, RR. HANDLE

*NH1* ................. BLACK 1 - -------- -------- IN

53206-K1A-N10ZA *NH1* ................. BLACK - 1

5 53204-K1A-N00FMB COVER SET, SPEEDOMETER (NO STRIPE)

*NH1* ................. BLACK 1 1 -------- -------- 3IN,IN

53280-K1A-N00ZA COVER SET, SPEEDOMETER (WITH STRIPE)

*NH1* ................. BLACK 1 1 -------- -------- 3IN,IN

6 90102-KZL-930 BOLT, FLANGE, 10X48 ......... 1 1 -------- -------- 3IN,IN

7 90164-K66-V00 SCREW, SPECIAL, 6MM ......... 2 2 -------- -------- 3IN,IN

8 90302-KWW-A00 NUT, SPRING, 4MM ............ 4 4 -------- -------- 3IN,IN

9 90304-KGH-901 NUT, U, 10MM ................ 1 1 -------- -------- 3IN,IN

10 90501-KPH-880 COLLAR A, HANDLE SETTING .... 1 1 -------- -------- 3IN,IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

65

F-9-1

HANDLE PIPE/HANDLE COVER(2)

3

No.

Ref.

11 90505-KPH-880 COLLAR B, HANDLE SETTING .... 1 1 -------- -------- 3IN,IN

12 90666-K59-A11 CLIP, SNAP FITTING(PO) ...... 3 3 -------- -------- 3IN,IN

13 93903-34380 SCREW, TAPPING, 4X12 ........ 5 5 -------- -------- 3IN,IN

14 93903-34421 SCREW, TAPPING, 4X16 ........ 3 3 -------- -------- 3IN,IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

66

10.12.2019

F-10

STEERING STEM

No.

L.O.N.

Ref.

3 (1)

5101A0 RACE, STEERING BALL :UPPER..... 1,7

4 5101A1 RACE, STEERING BALL :LOWER..... 1,9

5101C9 RACE, STEERING BALL :KEDUA-DUANYA 1,9

6 5101A9 RACE, STEERING TOP CONE........ 1,7

7 (3)

5101B0 RACE, STEERING BOTTOM CONE..... 1,9

10 510100 STEM OR SHAFT ASSY., STEERING.. 1,7

11 5101B2 THREAD, STEERING HEAD TOP...... 1,5

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 06530-GBG-B20 BALL SET, STEEL, #6X23 ...... 1 1

2 06531-GBG-B20 BALL SET, STEEL, #6X29 ...... 1 1

3 50301-GN5-901 RACE, STEERING TOP BALL ..... 1 1

4 50302-GN5-900 RACE, STEERING BOTTOM BALL .. 1 1

5 50306-GN5-900 NUT, STEERING STEM LOCK ..... 1 1

6 53211-GN5-900 RACE, STEERING TOP CONE ..... 1 1

7 53212-GN5-900 RACE, STEERING BOTTOM CONE .. 1 1

8 53214-GN5-900 DUST SEAL, STEERING HEAD .... 1 1

9 53216-GN5-830 WASHER, STEERING STEM NUT ... 1 1

10 53219-K0J-N00 STEM SUB ASSY., STEERING .... 1 1

11 53220-GN5-900 THREAD COMP., STEERING HEAD TOP 1 1

12 95801-10045-08 BOLT, FLANGE, 10X45 ......... 4 4

13 5320C-K0J-N00 STEM ASSY., STEERING ........ 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

67

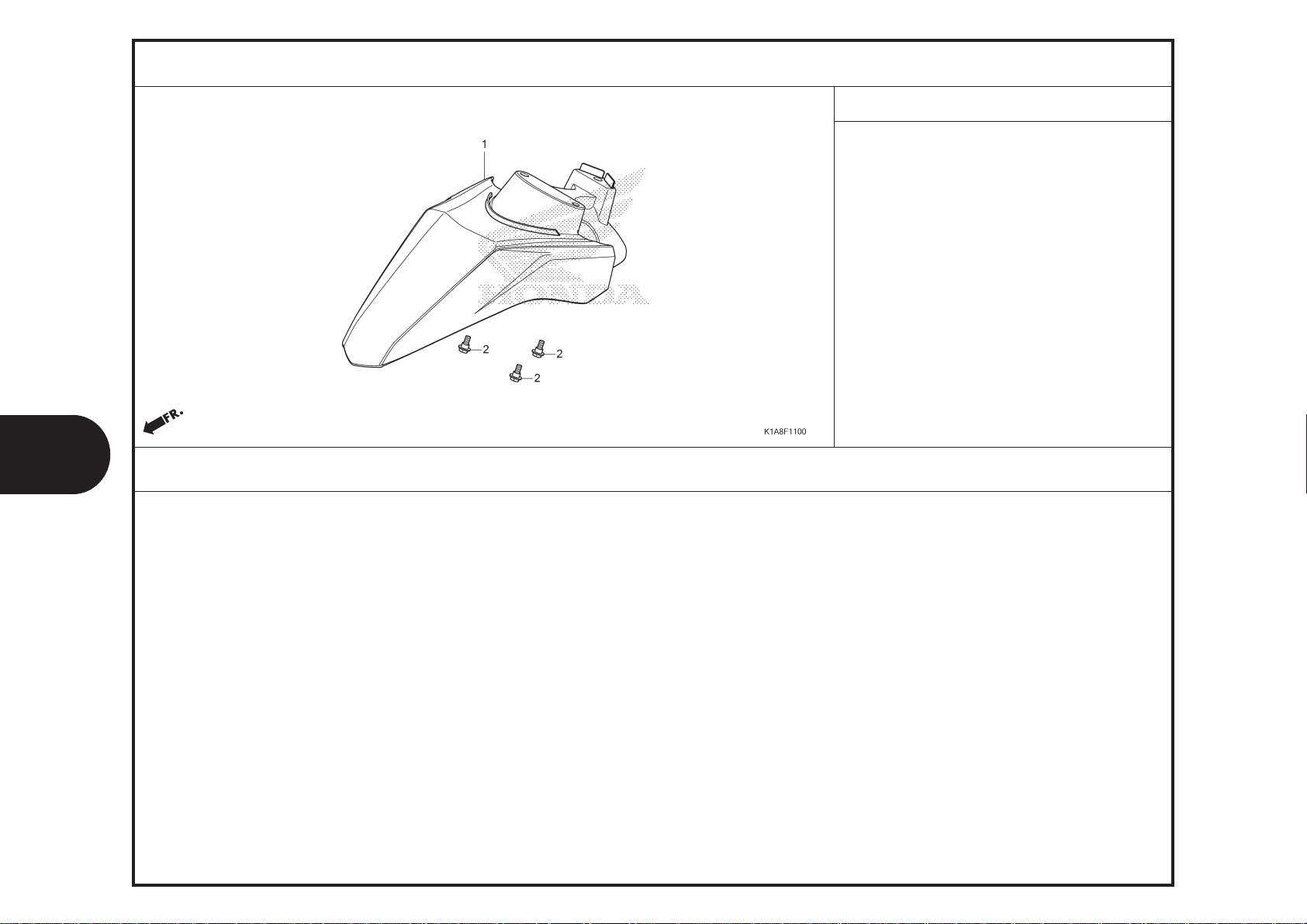

F-11

FRONT FENDER

No.

L.O.N.

Ref.

1 4131B7 FENDER, FRONT.................. 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 61100-K1A-N00MGB FENDER FR.(NO STRIPE) *NH436M* MAT GUNPOWDER BLACK METALLIC 1 1 -------- -------- 2IN,3IN,IN 61100-K1A-N00MCS *NHA40M* MAT CRYPTON SILVER METALLIC 1 1 -------- -------- 2IN,3IN

61100-K1A-N00FMB *NH1* ................ BLACK 1 - -------- -------- 2IN,IN

61100-K1A-N00RSW *NH196* .......... ROSS WHITE 1 - -------- -------- IN

61110-K1A-N00ZE FENDER SET, FR.(WITH STRIPE)

*TYPE5* ................... 1 1 -------- -------- 2IN,3IN

61110-K1A-N00ZG *TYPE3* ................... 1 - -------- -------- 2IN

61110-K1A-N00ZJ *TYPE1* ................... 1 -

61110-K1A-N00ZF *TYPE4* ................... 1 - -------- -------- IN

61110-K1A-N00ZH *TYPE2* ................... 1 - -------- -------- IN

61110-K1A-N00ZG *TYPE3* ................... - 1

2 90107-KVB-900 BOLT, SPECIAL, 6MM .......... 3 3

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

68

10.12.2019

F-12

FRONT COVER/INNER COVER(ACH110CBF)

No.

L.O.N.

Ref.

1 4111E3 COVER, FRONT................... 0,4

2 3101B6 COVER, FRONT TOP............... 0,1

3 413130 COVER, FRONT LOWER............. 0,4

4 4131B4 COVER, UNDER................... 0,1

5 4111H5 PANEL, INNER :UPPER............ 0,6

7 4111H6 PANEL, INNER :LOWER............ 0,6

4111E6 PANEL, INNER :KEDUA-DUANYA..... 0,7

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 64301-K1A-N00MGB COVER, FR.(NO STRIPE) *NH436M* MAT GUNPOWDER BLACK METALLIC 1 - -------- -------- 2IN 64301-K1A-N00MCS *NHA40M* MAT CRYPTON SILVER METALLIC 1 - -------- -------- 2IN 64301-K1A-N00HSM *NHC21M* HURRICANE SILVER METALLIC 1 - -------- -------- 2IN

64301-K1A-N00FMB *NH1* ................. BLACK 1 - -------- -------- IN

64301-K1A-N00RSW *NH196* .......... ROSS WHITE 1 - -------- -------- IN

64301-K1A-N00VRD *R383* .......... VALIANT RED 1 - -------- -------- IN

64301-K1A-N00ARB *B234M* ARCADE BLUE METALLIC 1 - -------- -------- IN 64300-K1A-N20ZA COVER SET, FR.(WITH STRIPE)

*TYPE3* .................... 1 - -------- -------- 2IN

64300-K1A-N20ZB *TYPE2* .................... 1 - -------- -------- 2IN

64300-K1A-N20ZC *TYPE1* .................... 1 - -------- -------- 2IN

64300-K1A-N00ZE *TYPE4* .................... 1 - -------- -------- IN

64300-K1A-N00ZF *TYPE3* .................... 1 - -------- -------- IN

64300-K1A-N00ZG *TYPE2* .................... 1 - -------- -------- IN

64300-K1A-N00ZH *TYPE1* .................... 1 - -------- -------- IN

2 64302-K1A-N00ZA COVER, FR. TOP

*NH1* ................. BLACK 1 -

3 64308-K1A-N00ZA COVER, FR. LOWER

*NH1* ................. BLACK 1 -

4 64340-K1A-N00ZA COVER, UNDER

*NH1* ................. BLACK 1 -

5 81131-K1A-N00ZA COVER, INNER UPPER

*NH1* ................. BLACK 1 -

6 81132-GAH-000YV HOOK, LUGGAGE

*NH1* ................. BLACK 1 -

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

69

F-12

FRONT COVER/INNER COVER(ACH110CBF)

3

No.

Ref.

7 81141-K1A-N00ZA COVER, INNER LOWER

*NH1* ................. BLACK 1 -

8 90107-KVB-900 BOLT, SPECIAL, 6MM .......... 1 -

9 90116-K0A-E11 RIVET, PUSH, 6MM ............ 4 -

10 90302-KWW-A00 NUT, SPRING, 4MM ............ 8 -

11 90666-K59-A11 CLIP, SNAP FITTING(PO) ...... 3 -

12 91509-GE2-760 SCREW, PAN, 5X11.5 .......... 2 -

13 93903-34320 SCREW, TAPPING, 4X12 ........ 6 -

14 93903-34380 SCREW, TAPPING, 4X12 ........ 12 -

15 95701-06012-07 BOLT, FLANGE, 6X12 .......... 2 -

16 95701-06012-08 BOLT, FLANGE, 6X12 .......... 2 -

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

70

10.12.2019

F-12-1

FRONT COVER/INNER COVER(ACH110CBT)

No.

L.O.N.

Ref.

1 4111E3 COVER, FRONT................... 0,4

2 3101B6 COVER, FRONT TOP............... 0,1

3 413130 COVER, FRONT LOWER............. 0,4

4 4131B4 COVER, UNDER................... 0,1

5 4111H5 PANEL, INNER :UPPER............ 0,6

7 4111H6 PANEL, INNER :LOWER............ 0,6

4111E6 PANEL, INNER :KEDUA-DUANYA..... 0,7

8 4101R5 LID, INNER BOX................. 0,1

9 4111CL KNOB, POCKET LID............... 0,1

10 4111CF POCKET, INNER.................. 0,6

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 64301-K1A-N00MGB COVER, FR.(NO STRIPE) *NH436M* MAT GUNPOWDER BLACK METALLIC - 1 -------- -------- 3IN,IN 64301-K1A-N00MCS *NHA40M* MAT CRYPTON SILVER METALLIC - 1 -------- -------- 3IN 64301-K1A-N00MNB *PB419M* MAT NATUNA BLUE METALLIC - 1 -------- -------- 3IN 64301-K1A-N00EMM *RP200M* ELECTROPOP MAGENTA METALLIC - 1 -------- -------- 3IN 64300-K1A-N30ZA COVER SET, FR.(WITH STRIPE)

*TYPE2* ................... - 1 -------- -------- 3IN

64300-K1A-N30ZB *TYPE1* ................... - 1 -------- -------- 3IN

64300-K1A-N10ZB *TYPE3* ................... - 1 -------- -------- IN

64300-K1A-N10ZC *TYPE2* ................... - 1 -------- -------- IN

64300-K1A-N10ZD *TYPE1* ................... - 1 -------- -------- IN

2 64302-K1A-N00ZA COVER, FR. TOP

*NH1* ................. BLACK - 1

3 64308-K1A-N00ZA COVER, FR. LOWER

*NH1* ................. BLACK - 1

4 64340-K1A-N00ZA COVER, UNDER

*NH1* ................. BLACK - 1

5 81131-K1A-N10ZA COVER, INNER UPPER

*NH1* ................. BLACK - 1

6 81132-GAH-000YV HOOK, LUGGAGE

*NH1* ................. BLACK - 1

7 81141-K1A-N10ZA COVER, INNER LOWER

*NH1* ................. BLACK - 1

8 81142-K1A-N10ZA LID, INNER POCKET

*NH1* ................. BLACK - 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

71

F-12-1

FRONT COVER/INNER COVER(ACH110CBT)

3

No.

Ref.

9 81144-K1A-N10ZA KNOB, INNER POCKET

*NH1* ................. BLACK - 1

10 81145-K1A-N10ZA LID ASSY., INNER POCKET

*NH1* ................. BLACK - 1

11 81145-K93-N00 SPRING, LID ................. - 1

12 81291-K1A-N10 SEAL, INNER POCKET .......... - 1

13 90107-KVB-900 BOLT, SPECIAL, 6MM .......... - 1

14 90116-K0A-E11 RIVET, PUSH, 6MM ............ - 5

15 90302-KWW-A00 NUT, SPRING, 4MM ............ - 8

16 90666-K59-A11 CLIP, SNAP FITTING(PO) ...... - 3

17 93903-34320 SCREW, TAPPING, 4X12 ........ - 7

18 93903-34380 SCREW, TAPPING, 4X12 ........ - 12

19 93903-34380 SCREW, TAPPING, 4X12 ........ - 2

20 95701-06012-07 BOLT, FLANGE, 6X12 .......... - 2

21 95701-06012-08 BOLT, FLANGE, 6X12 .......... - 2

22 91509-GE2-760 SCREW, PAN, 5X11.5 .......... - 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

72

10.12.2019

F-14

FLOOR STEP

No.

L.O.N.

Ref.

2 4131D2 STEP, FLOOR.................... 0,7

3 6101A1 COVER, BATTERY................. 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 17232-KYJ-900 COLLAR, AIR CLEANER MOUNTING 2 2

2 64310-K1A-N00ZA STEP, FLOOR .................

*NH1* ................. BLACK 1 1

3 64460-K1A-N00ZA LID, BATTERY

*NH1* ................. BLACK 1 1

4 83545-KCJ-690 RUBBER, SIDE COVER .......... 2 2

5 90101-K15-900 BOLT, SPECIAL, 6MM .......... 2 2

6 90302-KWW-A00 NUT, SPRING, 4MM ............ 8 8

7 91509-GE2-760 SCREW, PAN, 5X11.5 .......... 2 2

8 93903-34380 SCREW, TAPPING, 4X12 ........ 2 2

9 95701-06020-07 BOLT, FLANGE, 6X20 .......... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

73

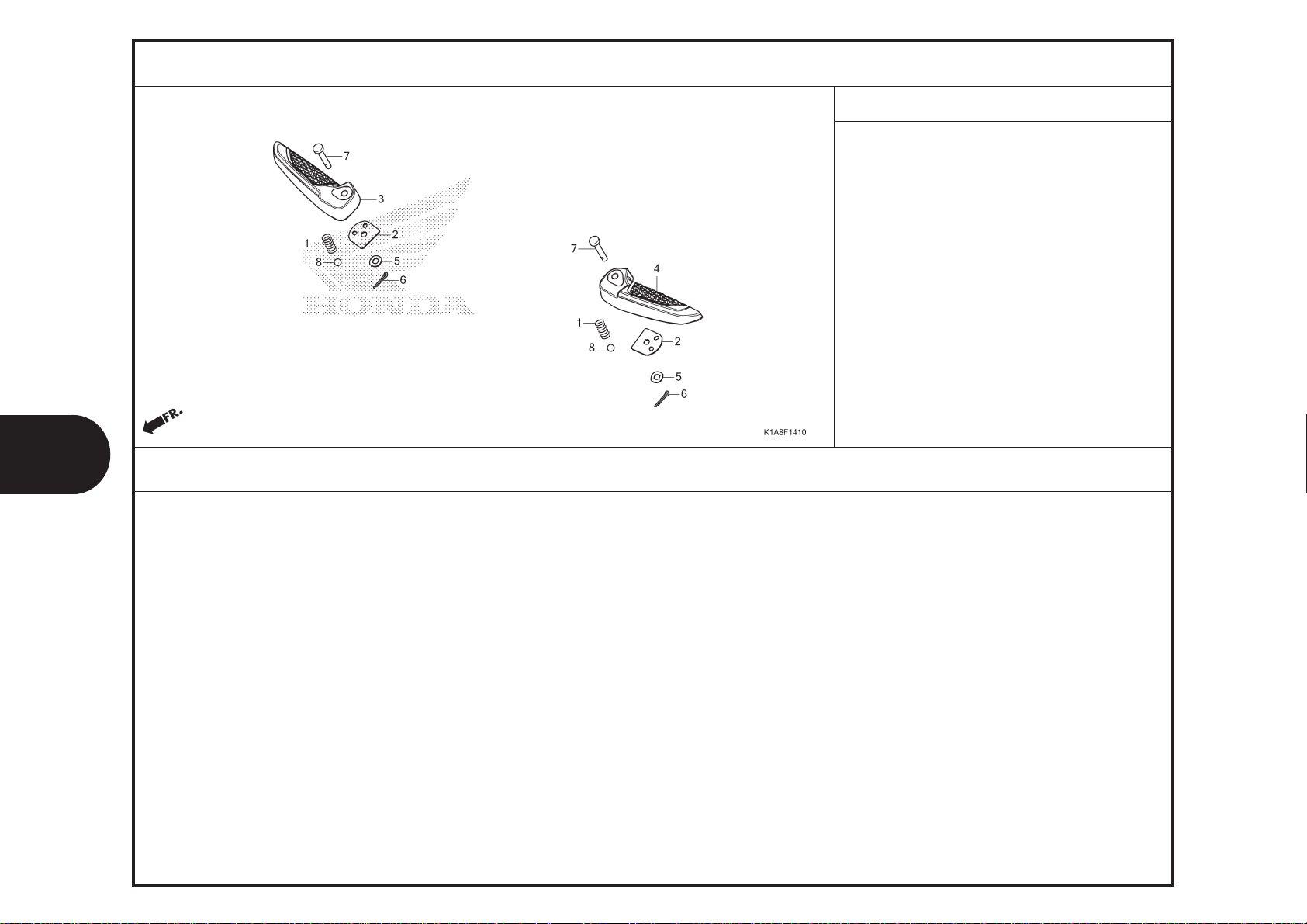

F-14-10

PILLION STEP(1)

No.

L.O.N.

Ref.

3 4101C8 BAR, PILLION STEP :RIGHT....... 0,1

4 4101C7 BAR, PILLION STEP :LEFT........ 0,1

4101P4 BAR, PILLION STEP :KEDUA-DUANYA 0,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 28333-300-000 SPRING, KICK STARTER STOPPER 2 - -------- -------- 2IN 2 50718-K59-A70 PLATE, PILLION STEP CLICK ... 2 - -------- -------- 2IN

3 50720-K0J-N00 ARM, R. PILLION STEP ........ 1 - -------- -------- 2IN

4 50730-K0J-N00 ARM, L. PILLION STEP ........ 1 - -------- -------- 2IN

5 94101-06000 WASHER, PLAIN, 6MM .......... 2 - -------- -------- 2IN

6 94201-16150 PIN, SPLIT, 1.6X15 .......... 2 - -------- -------- 2IN

7 95015-81000 PIN A, PILLION STEP ......... 2 - -------- -------- 2IN

8 96211-08000 BALL, STEEL, #8(1/4) ........ 2 - -------- -------- 2IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

74

10.12.2019

F-14-11

PILLION STEP(2)

No.

L.O.N.

Ref.

1 4101DX RUBBER, PILLION STEP :LEFT..... 0,1

4101DY RUBBER, PILLION STEP :RIGHT.... 0,1

4101DZ RUBBER, PILLION STEP :KEDUA-DUANYA 0,2

2 4101C8 BAR, PILLION STEP :RIGHT....... 0,1

3 4101C7 BAR, PILLION STEP :LEFT........ 0,1

4101P4 BAR, PILLION STEP :KEDUA-DUANYA 0,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 50710-KWB-600 RUBBER, PILLION STEP ........ 2 2 -------- -------- 3IN,IN

2 50711-K25-900 BAR, R. PILLION STEP ........ 1 1 -------- -------- 3IN,IN

3 50712-K25-900 BAR, L. PILLION STEP ........ 1 1 -------- -------- 3IN,IN

4 50715-KE8-000 PLATE, PILLION STEP SIDE .... 2 2 -------- -------- 3IN,IN

5 94101-06000 WASHER, PLAIN, 6MM .......... 2 2 -------- -------- 3IN,IN

6 94201-16150 PIN, SPLIT, 1.6X15 .......... 2 2 -------- -------- 3IN,IN

7 95015-81000 PIN A, PILLION STEP ......... 2 2 -------- -------- 3IN,IN

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

75

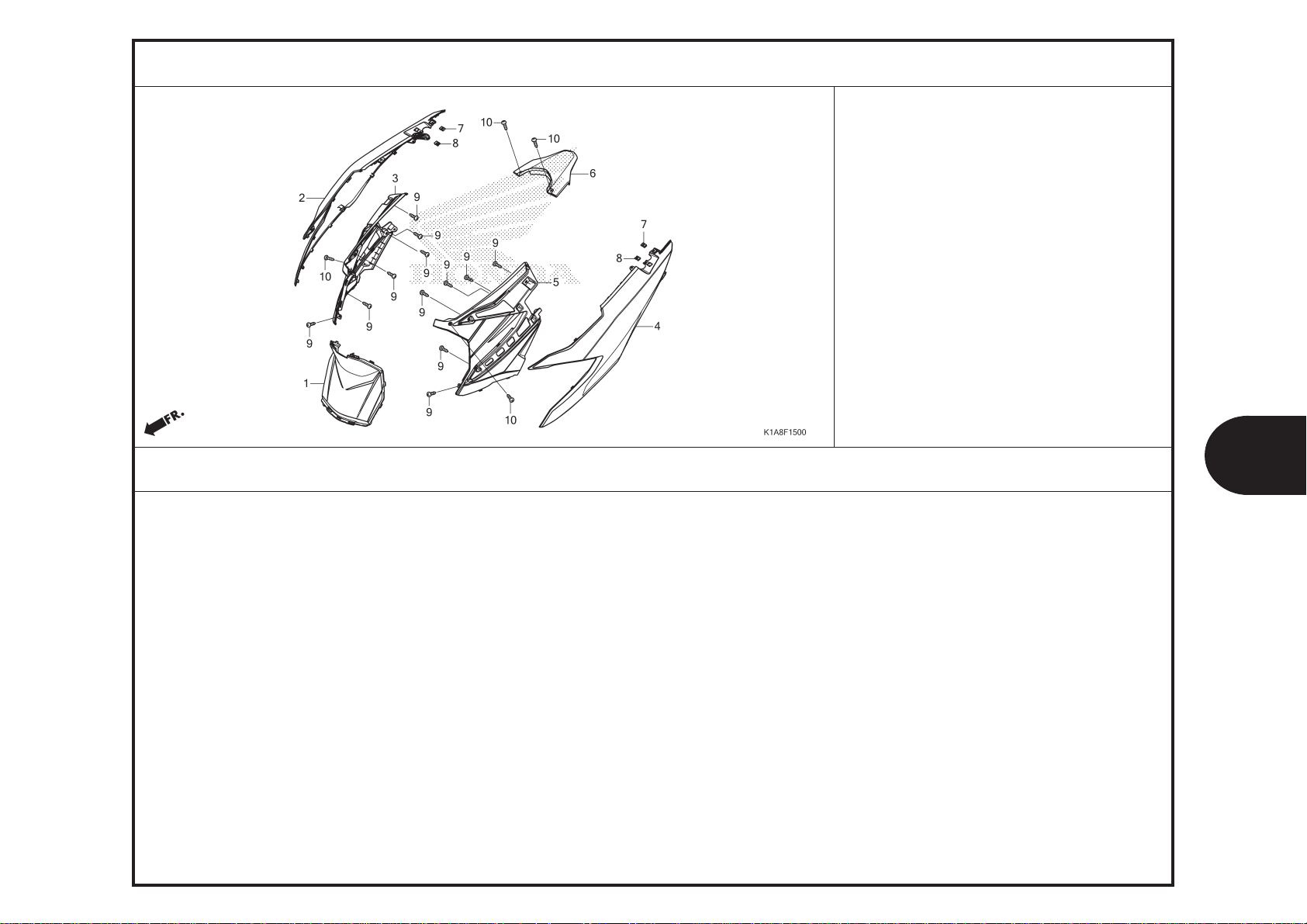

F-15

BODY COVER

No.

L.O.N.

Ref.

1 4131R6 COVER, BODY :CENTER............ 0,2

2 4131J0 COVER, BODY :RIGHT............. 0,6

3 4131J4 COVER, BODY SIDE :RIGHT........ 0,6

4 4131H9 COVER, BODY :LEFT.............. 0,6

4131J1 COVER, BODY :KEDUA-DUANYA...... 0,8

5 4131J3 COVER, BODY SIDE :LEFT......... 0,6

4131L6 COVER, BODY SIDE :KEDUA-DUANYA 0,6

6 4131J8 COVER, REAR CENTER............. 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 80151-K1A-N00ZA COVER, CENTER

*NH1* ................. BLACK 1 1

2 83500-K1A-N00MGB COVER, R. BODY(NO STRIPE) *NH436M* MAT GUNPOWDER BLACK METALLIC 1 1 -------- -------- 2IN,3IN,IN 83500-K1A-N00MCS *NHA40M* MAT CRYPTON SILVER METALLIC 1 1 -------- -------- 2IN,3IN

83500-K1A-N00FMB *NH1* ................ BLACK 1 - -------- -------- 2IN,IN

83500-K1A-N00RSW *NH196* .......... ROSS WHITE 1 - -------- -------- IN

83505-K1A-N20ZA COVER SET, R. BODY(WITH STRIPE)

*TYPE3* ................... 1 - -------- -------- 2IN

83505-K1A-N20ZB *TYPE2* ................... 1 - -------- -------- 2IN

83505-K1A-N20ZC *TYPE1* ................... 1 - -------- -------- 2IN

83505-K1A-N00ZA *TYPE3* ................... 1 - -------- -------- IN

83505-K1A-N00ZB *TYPE2* ................... 1 - -------- -------- IN

83505-K1A-N00ZC *TYPE1* ................... 1 - -------- -------- IN

83505-K1A-N30ZA *TYPE2* ................... - 1 -------- -------- 3IN

83505-K1A-N30ZB *TYPE1* ................... - 1 -------- -------- 3IN

83505-K1A-N10ZA *TYPE3* ................... - 1 -------- -------- IN

83505-K1A-N10ZB *TYPE2* ................... - 1 -------- -------- IN

83505-K1A-N10ZC *TYPE1* ................... - 1 -------- -------- IN

3 83520-K1A-N00ZA COVER, R. BODY SIDE

*NH1* ................. BLACK 1 1

4 83600-K1A-N00MGB COVER SET, L. BODY(NO STRIPE) *NH436M* MAT GUNPOWDER BLACK METALLIC 1 1 -------- -------- 2IN,3IN,IN 83600-K1A-N00MCS *NHA40M* MAT CRYPTON SILVER METALLIC 1 1 -------- -------- 2IN,3IN

83600-K1A-N00FMB *NH1* ................ BLACK 1 - -------- -------- 2IN,IN

83600-K1A-N00RSW *NH196* .......... ROSS WHITE 1 - -------- -------- IN

76

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

F-15

BODY COVER

No.

Ref.

4) 83605-K1A-N20ZA COVER SET, L. BODY(WITH STRIPE)

*TYPE3* .................... 1 - -------- -------- 2IN

83605-K1A-N20ZB *TYPE2* .................... 1 - -------- -------- 2IN

83605-K1A-N20ZC *TYPE1* .................... 1 - -------- -------- 2IN

83605-K1A-N00ZA *TYPE3* .................... 1 - -------- -------- IN

83605-K1A-N00ZB *TYPE2* .................... 1 - -------- -------- IN

83605-K1A-N00ZC *TYPE1* .................... 1 - -------- -------- IN

83605-K1A-N30ZA *TYPE2* .................... - 1 -------- -------- 3IN

83605-K1A-N30ZB *TYPE1* .................... - 1 -------- -------- 3IN

83605-K1A-N10ZA *TYPE3* .................... - 1 -------- -------- IN

83605-K1A-N10ZB *TYPE2* .................... - 1 -------- -------- IN

83605-K1A-N10ZC *TYPE1* .................... - 1 -------- -------- IN

5 83620-K1A-N00ZA COVER, L. BODY SIDE ........

*NH1* ................. BLACK 1 1

6 83700-K1A-N00ZA COVER, RR. CENTER

*NH1* ................. BLACK 1 1

7 90302-KWW-A00 NUT, SPRING, 4MM ............ 2 2

8 90677-KAN-T00 NUT, CLIP, 5MM .............. 2 2

9 93903-34320 SCREW, TAPPING, 4X12 ........ 12 12

10 93903-34380 SCREW, TAPPING, 4X12 ........ 4 4

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

77

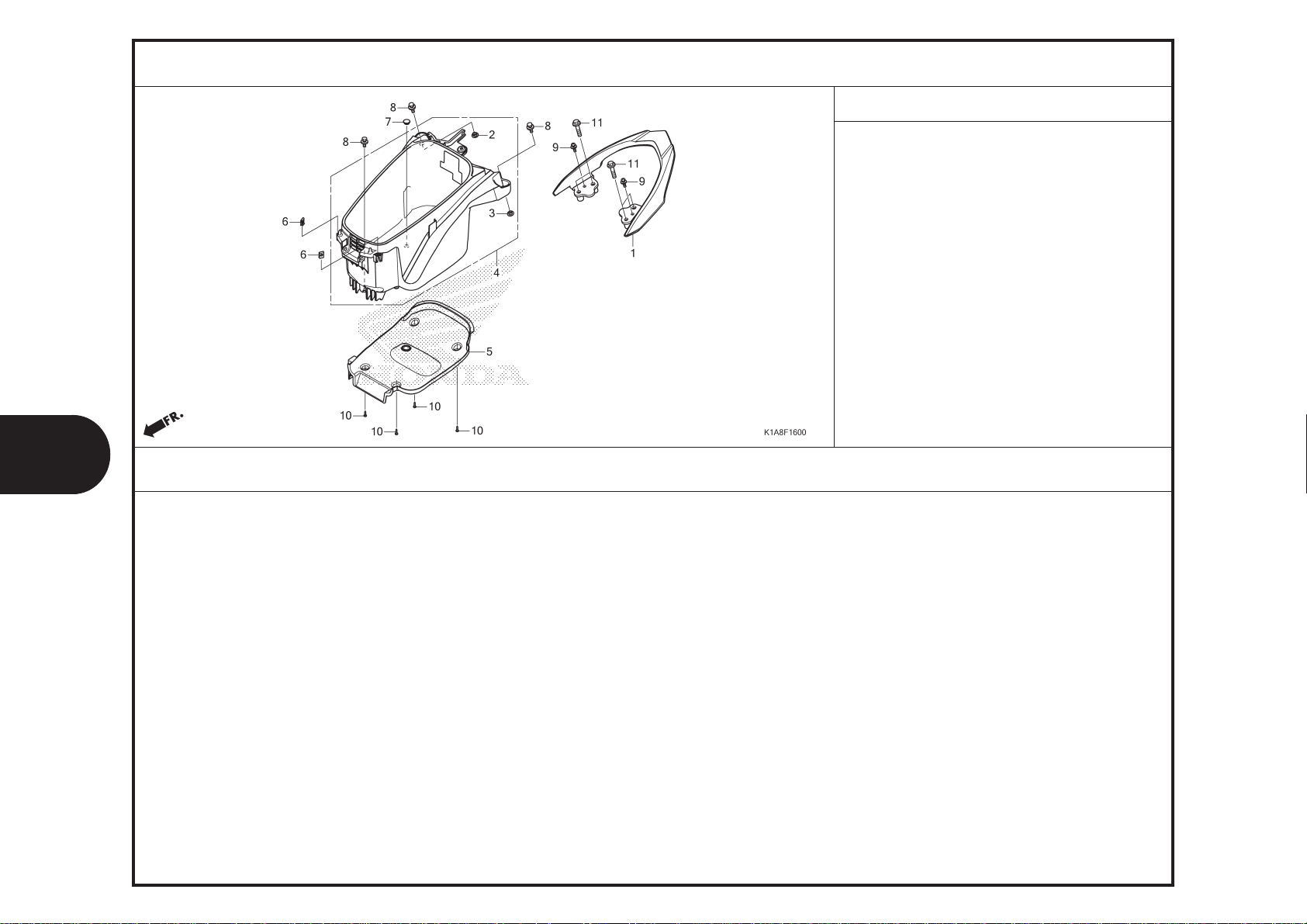

F-16

LUGGAGE BOX/GRAB RAIL

No.

L.O.N.

Ref.

1 4131F6 RAIL, GRAB :REAR............... 0,1

4 412102 BOX, LUGGAGE................... 0,7

5 4121V1 COVER, LUGGAGE BOX............. 0,6

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 81200-K1A-N00 RAIL, RR. GRAB .............. 1 1

2 81201-K81-N00 COLLAR, LUGGAGE BOX(OVAL) ... 1 1

3 81202-K81-N00 COLLAR, LUGGAGE BOX ......... 1 1

4 81250-K1A-N00 BOX ASSY., LUGGAGE .......... 1 1

5 81255-K1A-N00 COVER, LUGGAGE BOX .......... 1 1

6 90302-KWW-A00 NUT, SPRING, 4MM ............ 2 2

7 90656-GCC-000ZE PLUG, HOLE

*NH1* ................. BLACK 1 1

8 93404-06018-00 BOLT-WASHER, 6X18 ........... 3 3

9 93894-05020-07 SCREW-WASHER, 5X20 .......... 2 2

10 93903-34480 SCREW, TAPPING, 4X16 ........ 4 4

11 95701-08040-07 BOLT, FLANGE, 8X40 .......... 4 4

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

78

10.12.2019

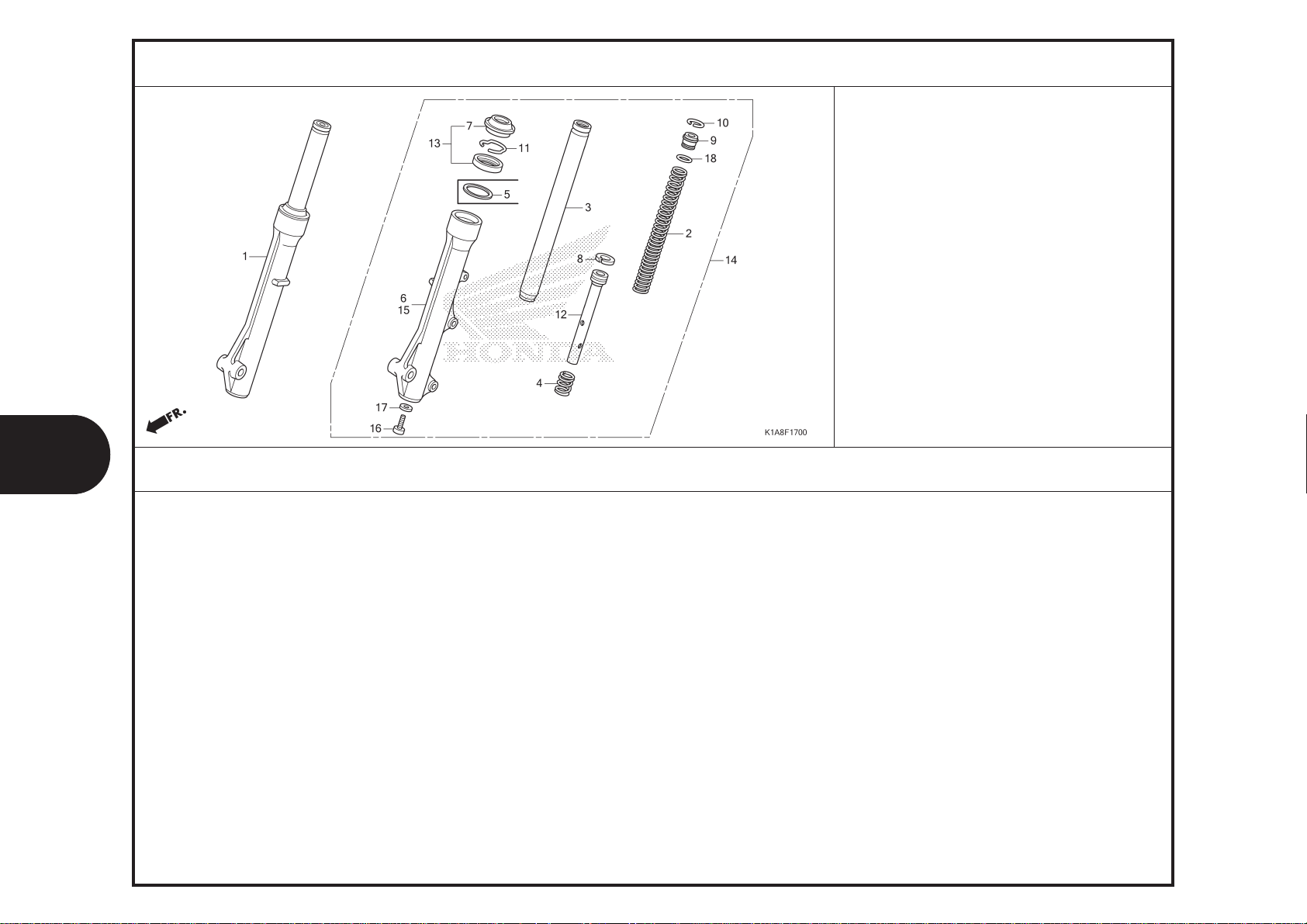

F-17

FRONT FORK

No.

L.O.N.

Ref.

1 5111C3 FORK ASSY., FRONT :RIGHT....... 0,3

2 5111C5 SPRING, FRONT FORK :LEFT....... 0,5

5111C6 SPRING, FRONT FORK :RIGHT...... 0,5

5111C7 SPRING, FRONT FORK :KEDUA-DUANYA 0,8 3 (4,8,12)

5111G2 PIPE, FRONT FORK :LEFT......... 0,7

5111G3 PIPE, FRONT FORK :RIGHT........ 0,7

5111G4 PIPE, FRONT FORK :KEDUA-DUANYA 1,2

6 5111D2 CASE, BOTTOM :RIGHT............ 0,8

13 5111E7 SEAL SET, FRONT FORK :LEFT..... 0,8

5111E8 SEAL SET, FRONT FORK :RIGHT.... 0,8

5111E9 SEAL SET, FRONT FORK :KEDUA-DUANYA 1,4

14 5111C2 FORK ASSY., FRONT :LEFT........ 0,3

5111C4 FORK ASSY., FRONT :KEDUA-DUANYA 0,4

15 5111D1 CASE, BOTTOM :LEFT............. 0,8

5111D3 CASE, BOTTOM :KEDUA-DUANYA..... 1,4

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 51400-K1A-305 FORK ASSY., R. FR.(SW) ...... 1 -

51400-K59-T11 FORK ASSY., R. FR.(KA) ...... - 1

2 51401-K0J-N01 SPRING, FR. FORK(SW) ........ 2 -

51401-K93-N02 SPRING, FR. FORK(KA) ........ - 2

3 51410-K0J-N01 PIPE COMP., FR. FORK(SW) .... 2 -

51410-K93-N02 PIPE COMP., FR. FORK(KA) .... - 2

4 51412-GN5-901 SPRING, REBOUND(SW) ......... 2 -

51411-K59-T11 SPRING, FR. REBOUND(KA) ..... - 2

5 51412-KWB-601 RING, BACK UP ............... 2 -

6 51420-K1A-305 CASE COMP., R. FR. BOTTOM ... 1 -

51420-K59-T11 CASE, R. FR. BOTTOM ......... - 1

7 51425-GN5-901 SEAL, DUST(SW) .............. 2 -

51425-K93-N02 SEAL, DUST(KA) .............. - 2

8 51437-KWB-601 RING, PISTON ................ 2 -

51437-KVG-901 ........................... - 2

9 51454-K58-TC1 SEAT B, SPRING .............. 2 -

51454-K93-N02 CAP, FR. FORK ............... - 2

10 51456-KPH-901 RING, STOPPER ............... 2 -

51456-K93-N02 RING, SNAP(KA) .............. - 2

11 51466-065-901 RING, OIL SEAL STOPPER(SW) .. 2 -

51447-KVG-901 RING, SNAP(KA) .............. - 2

12 51470-K81-N01 PIPE, SEAT(SW) .............. 2 -

51440-K93-N02 PIPE, SEAT(KA) .............. - 2

13 51490-KGH-901 SEAL SET, FR. FORK(SW) ...... 2 -

51490-K93-N02 SEAL SET, FR. FORK(KA) ...... - 2

14 51500-K1A-305 FORK ASSY., L. FR.(SW) ...... 1 -

51500-K59-T11 FORK ASSY., L. FR.(KA) ...... - 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

79

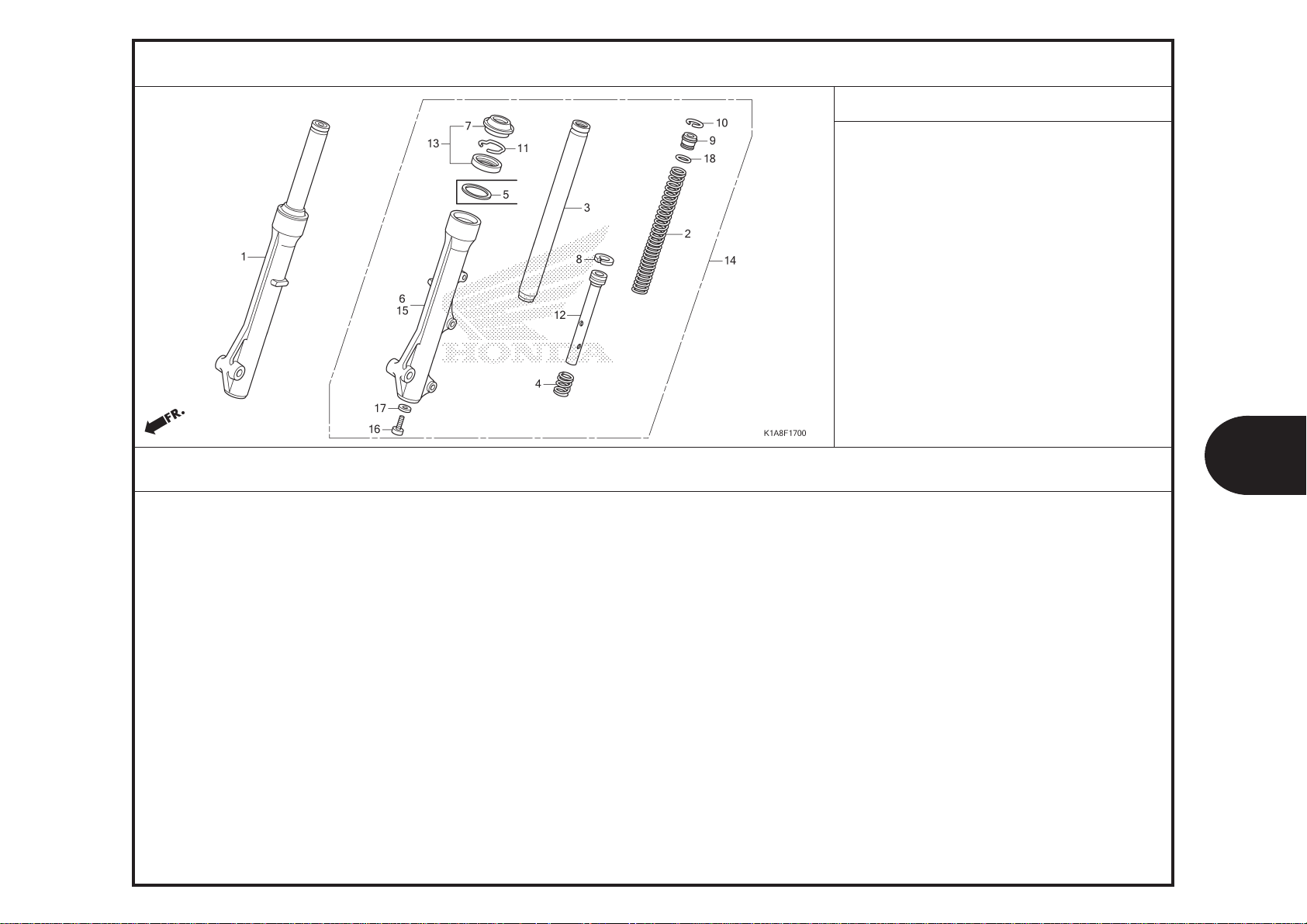

F-17

FRONT FORK

3

No.

Ref.

15 51520-K1A-305 CASE COMP., L. FR. BOTTOM(SW) 1 -

51520-K59-T11 CASE, L. FR. BOTTOM(KA) ..... - 1

16 90116-KV3-701 BOLT, SOCKET, 8MM(SW) ....... 2 -

90116-KVG-A31 BOLT, SOCKET, 10X25 ........ - 2

17 90544-283-000 WASHER, SPECIAL, 8MM(SW) ... 2 -

51442-K93-N02 WASHER, OIL BOLT ........... - 2

52442-KA3-731 ........................... - 2

18 91256-166-003 O-RING, 16.8X2.4 ........... 2 -

91356-KVG-901 ........................... - 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

80

10.12.2019

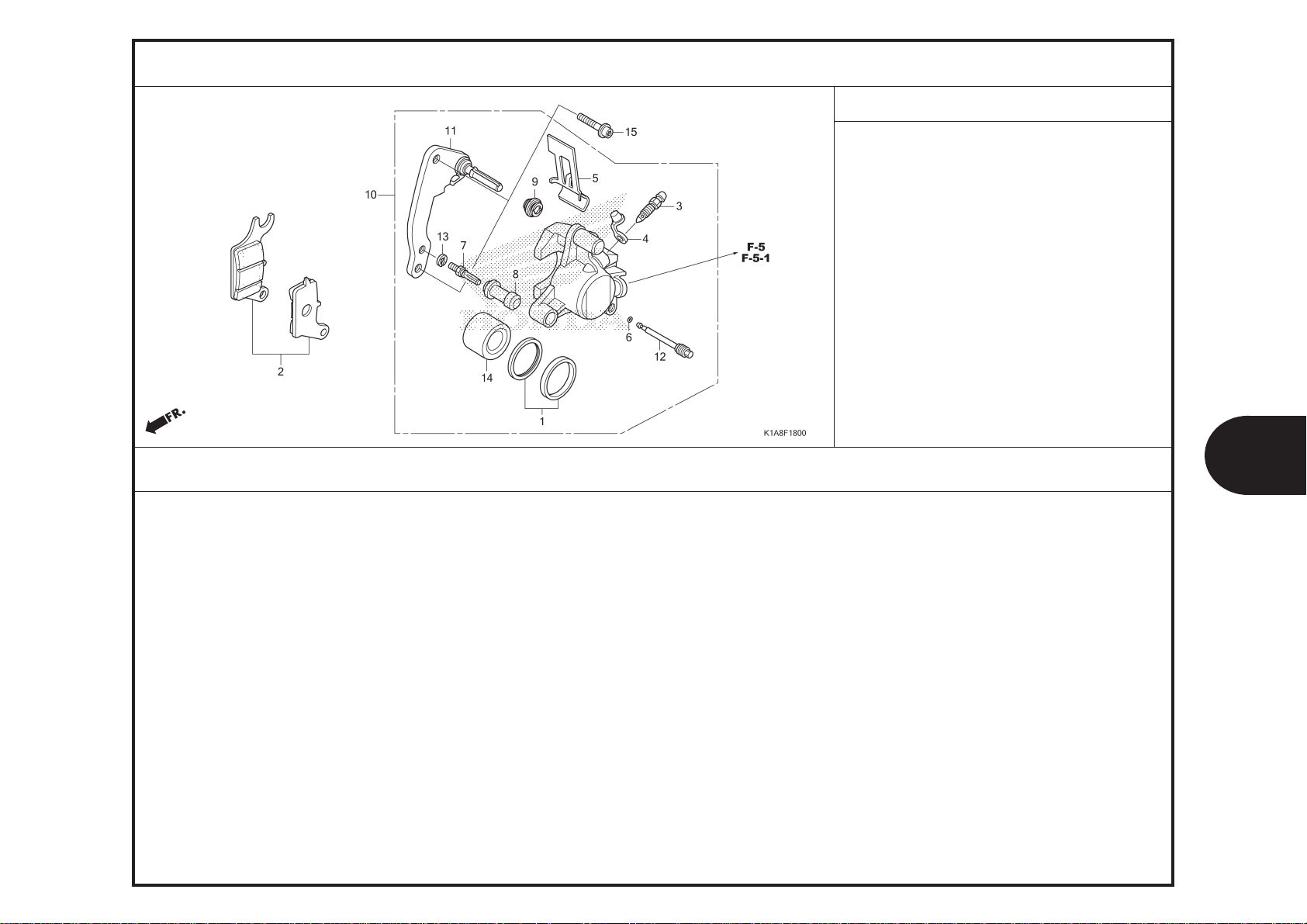

F-18

FRONT BRAKE CALIPER

No.

L.O.N.

Ref.

2 711115 SHOE(PAD) SET, BRAKE :FRONT.... 0,1

10 711130 CALIPER, FRONT BRAKE........... 0,4

.TERMASUK: Pembuangan angin palsu

11 7111G0 BRACKET, FRONT CALIPER......... 0,2

14 (1)

7111D1 PISTON, FRONT BRAKE CALIPER.... 0,5

.TERMASUK: Pembuangan angin palsu

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 06451-961-405 SEAL SET, PISTON ............ 1 1

2 06455-K46-N21 PAD SET, FR. BRAKE .......... 1 1 -------- -------- 3IN,IN

06455-KVB-T01 ........................... 1 - -------- -------- 2IN

3 43352-568-003 SCREW, BLEEDER(NI) .......... 1 1

43352-K81-N01 SCREW, BLEEDER .............. 1 1

4 43353-461-771 CAP, BLEEDER ................ 1 1

5 45108-KVB-T01 SPRING, PAD ................. 1 1

6 45111-MAJ-G41 RING, STOPPER ............... 1 1

7 45131-GZ0-006 BOLT, PIN ................... 1 1

45131-K81-N01 ........................... 1 1

8 45132-166-016 BOOT, PIN BUSH .............. 1 1

9 45133-MA3-006 BOOT B ...................... 1 1

10 45150-K81-N01 CALIPER SUB ASSY., L. FR.(NI) 1 1 -------- -------- 3IN,IN

45150-K1A-N21 ........................... 1 - -------- -------- 2IN

11 45190-KZL-A01 BRACKET SUB ASSY., FR. CALIPER 1 1 -------- -------- 3IN,IN

45190-K44-D01 ........................... 1 - -------- -------- 2IN

12 45215-KPH-951 PIN, HANGER ................. 1 1

13 45216-166-006 WASHER, WAVE ................ 1 1

14 45218-KWB-601 PISTON ...................... 1 1

15 90131-KPH-880 BOLT, TORX, 8X25 ............ 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

81

F-20-40

FRONT WHEEL

No.

L.O.N.

Ref.

2 (12)

710151 AXLE, FRONT WHEEL.............. 0,2

6 7101D4 FRONT WHEEL.................... 0,6

7 710139 FRONT TIRE(SATU)............... 0,5

8 711120 DISC, FRONT BRAKE.............. 0,3

11 710115 BEARING, FRONT WHEEL(SATU)..... 0,4

710115G .Ganti 1 bearing tambahkan..... 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 42753-KWF-901 VALVE, RIM .................. 1 1

2 44301-KVG-950 AXLE, FR. WHEEL ............. 1 1

3 44311-KVB-910 COLLAR, FR. WHEEL SIDE ...... 1 1

4 44312-KZR-600 COLLAR, FR. WHEEL SIDE ...... 1 1

5 44620-KVB-910 COLLAR, FR. DISTANCE ........ 1 1

6 44650-K1A-N00 WHEEL SUB ASSY., FR. ........ 1 1

7 44711-K59-A12 TIRE, FR.(80/90-14 M/C 40P) . 1 1

8 45351-K0J-N01 DISK, FR. BRAKE(YT) ......... 1 1

45351-K1A-N01 DISK, FR. BRAKE(SS) ......... 1 1

45351-K93-N01 DISK, FR. BRAKE(NH) ......... 1 1

9 90105-KGH-900 BOLT, BRAKE DISK, 8X24 ...... 4 4

10 90306-KGH-901 NUT, U, 12MM ................ 1 1

11 91052-K03-N41 BEARING, RADIAL BALL(6201U L) (SK) 2 2 91052-K24-901 BEARING, RADIAL BALL(6201U L) (NK) 2 2 91052-K24-902 BEARING, RADIAL BALL(6201U L) (NT) 2 2 91052-K24-903 BEARING, RADIAL BALL(6201U L) (FK) 2 2 91052-K24-904 BEARING, RADIAL BALL(6201U L) (FA) 2 2

12 91251-KZR-601 DUST SEAL, 21X32X5 .......... 2 2

13 44601-K0J-N01 WHEEL, FR.(PK) .............. 1 1

44601-K0J-N02 WHEEL, FR.(ZL) .............. 1 1

44601-K1A-N11 WHEEL, FR.(EC) .............. 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

82

10.12.2019

F-22-30

REAR WHEEL

No.

L.O.N.

Ref.

1 711140 SHOE(PAD) SET, BRAKE :REAR..... 0,4

2 710118 REAR WHEEL..................... 0,6

3 710142 REAR TIRE(SATU)................ 0,6

5 7111B4 CAM, BRAKE :REAR............... 0,5

7 7111C4 ARM, BRAKE :REAR............... 0,5

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 06430-K44-V80 SHOE SET, BRAKE(NK) ......... 1 1

06430-KWN-900 SHOE SET, BRAKE(JB) ......... 1 1

06430-KZL-930 SHOE SET, BRAKE(ASK) ........ 1 1

2 42650-K1A-N00 WHEEL SUB ASSY., RR. ........ 1 1

3 42711-K0J-N01 TIRE, RR.(90/90-14 M/C 46P) . 1 1

4 42753-KWF-901 VALVE, RIM .................. 1 1

5 43141-K0J-N00 CAM, RR. BRAKE .............. 1 1

6 43151-329-000 SPRING, BRAKE SHOE .......... 2 2

7 43410-KVB-900 ARM, RR. BRAKE .............. 1 1

8 43472-KVB-900 SPRING, RR. BRAKE ARM ....... 1 1

9 90112-KVB-900 BOLT, FLANGE, 6X32 .......... 1 1

10 90305-KVB-901 NUT, U, 16MM ................ 1 1

11 90501-KBN-900 WASHER, 16MM ................ 1 1

12 95015-32001 JOINT B, BRAKE ARM .......... 1 1

13 95015-42000 NUT B, BRAKE ROD ADJUSTING .. 1 1

14 42601-K0J-N01 WHEEL, RR.(PK) .............. 1 1

42601-K0J-N02 WHEEL, RR.(HT) .............. 1 1

42601-K1A-N11 WHEEL, RR.(EC) .............. 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

83

F-24

SEAT

No.

L.O.N.

Ref.

2 4131E4 SEAT :DOUBLE................... 0,6

5 4131E8 CATCH, SEAT :REAR SIDE......... 0,8

7 811175 CABLE, SEAT LOCK............... 1,4

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 77115-K1A-N00 RUBBER, SEAL ................ 1 1

2 77200-K1A-N00 SEAT COMP., DOUBLE .......... 1 1

3 77215-KW7-900 RUBBER C, SEAT SETTING ...... 2 2

4 77215-KZL-930 PIN, SEAT HINGE ............. 1 1

5 77230-K59-A10 LOCK COMP., SEAT ............ 1 1

6 77234-KYZ-900 SPRING, SEAT LOCK ........... 1 1

7 77240-K0J-N01 CABLE COMP., SEAT LOCK ...... 1 1

77240-K1A-N01 CABLE COMP., SEAT LOCK(YA) .. 1 1

8 77244-K0J-N00 COVER, SEAT CATCH ........... 1 1

9 94101-08000 WASHER, PLAIN, 8MM .......... 1 1

10 94201-16180 PIN, SPLIT, 1.6X18 .......... 1 1

11 95701-06010-08 BOLT, FLANGE, 6X10 .......... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

84

10.12.2019

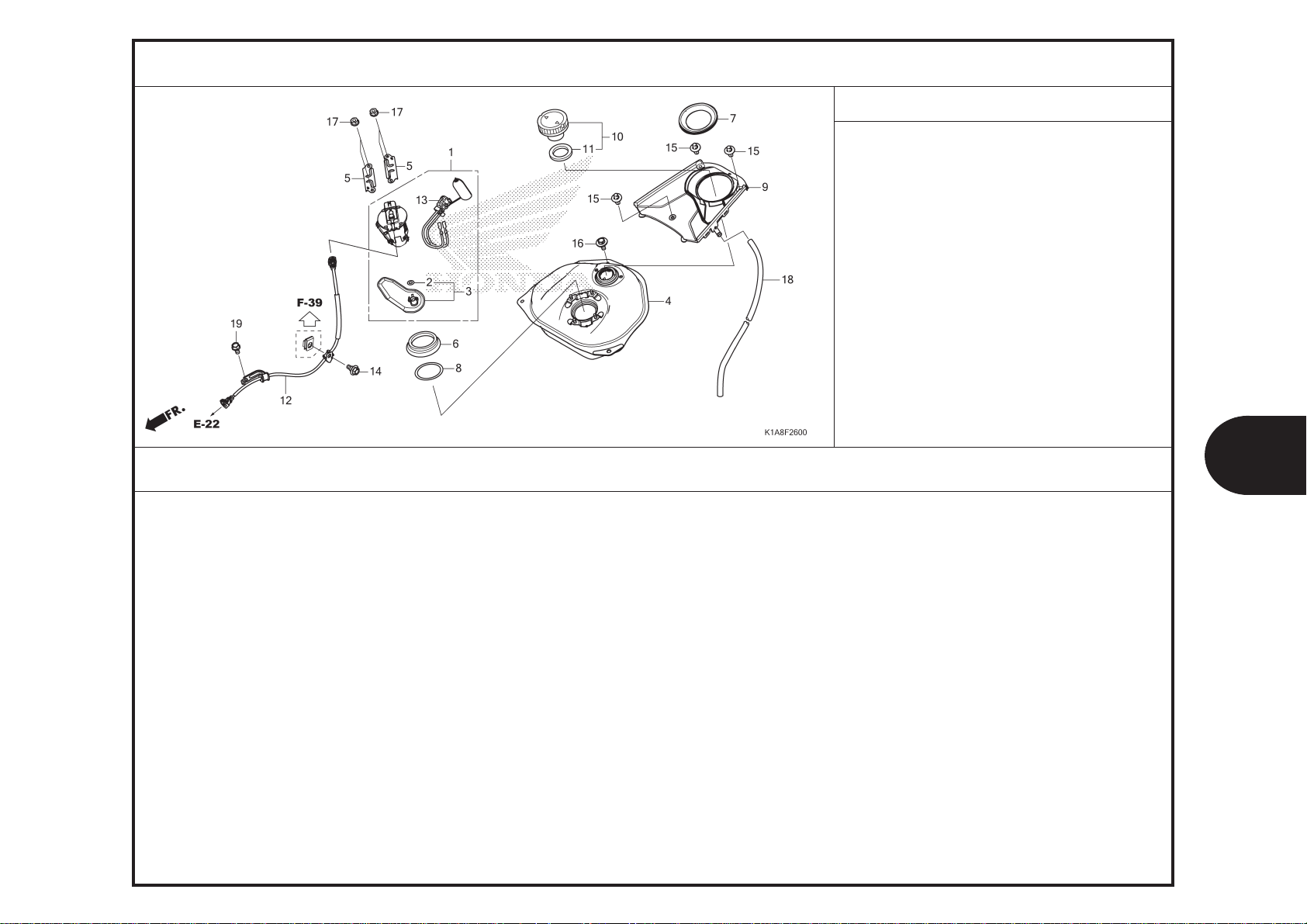

F-26

FUEL TANK/FUEL PUMP

No.

L.O.N.

Ref.

1 (6,8)

310120 PUMP ASSY., FUEL............... 0,9

3 (2)

3101C7 FILTER, FUEL................... 1,0

4 310100 TANK, FUEL..................... 0,9

9 413121 COVER, FUEL TANK TOP........... 0,6

12 310162 HOSE, FUEL FEED................ 0,8

13 617105 FUEL TANK SENDING UNIT......... 1,0

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 16700-K0J-N01 PUMP UNIT ASSY., FUEL ....... 1 1

2 16706-K0J-N01 O-RING(P5) .................. 1 1

3 16707-K0J-N01 FILTER SET .................. 1 1

4 17510-K0J-N00 TANK COMP., FUEL ............ 1 1

5 17517-GGL-J00 RETAINER, FUEL PUMP ......... 2 2

6 17518-GHB-602 SEAL, DUST .................. 1 1

7 17525-K0J-N00 RUBBER, FUEL SEAL ........... 1 1

8 17572-GHB-601 O-RING, FUEL PUMP ........... 1 1

9 17575-K1A-N00 COVER, FUEL TANK ............ 1 1

10 17620-K29-J00 CAP COMP., FUEL FILLER ...... 1 1

11 17632-383-831 PACKING, FUEL FILLER CAP .... 1 1

12 17651-K1A-N01 HOSE COMP., FUEL FEED ....... 1 1

13 37800-K0J-N01 FUEL UNIT ................... 1 1

14 90111-K1A-N00 BOLT, FLANGE, 6MM ........... 1 1

15 90116-K0A-E11 RIVET, PUSH, 6MM ............ 3 3

16 93404-06016-00 BOLT-WASHER, 6X16 ........... 1 1

17 94050-06000 NUT, FLANGE, 6MM ............ 4 4

18 95003-23060-31 TUBE, VINYL, 8X12X600 (95003-23001-60M) 1 1

19 95701-06012-00 BOLT, FLANGE, 6X12 .......... 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

85

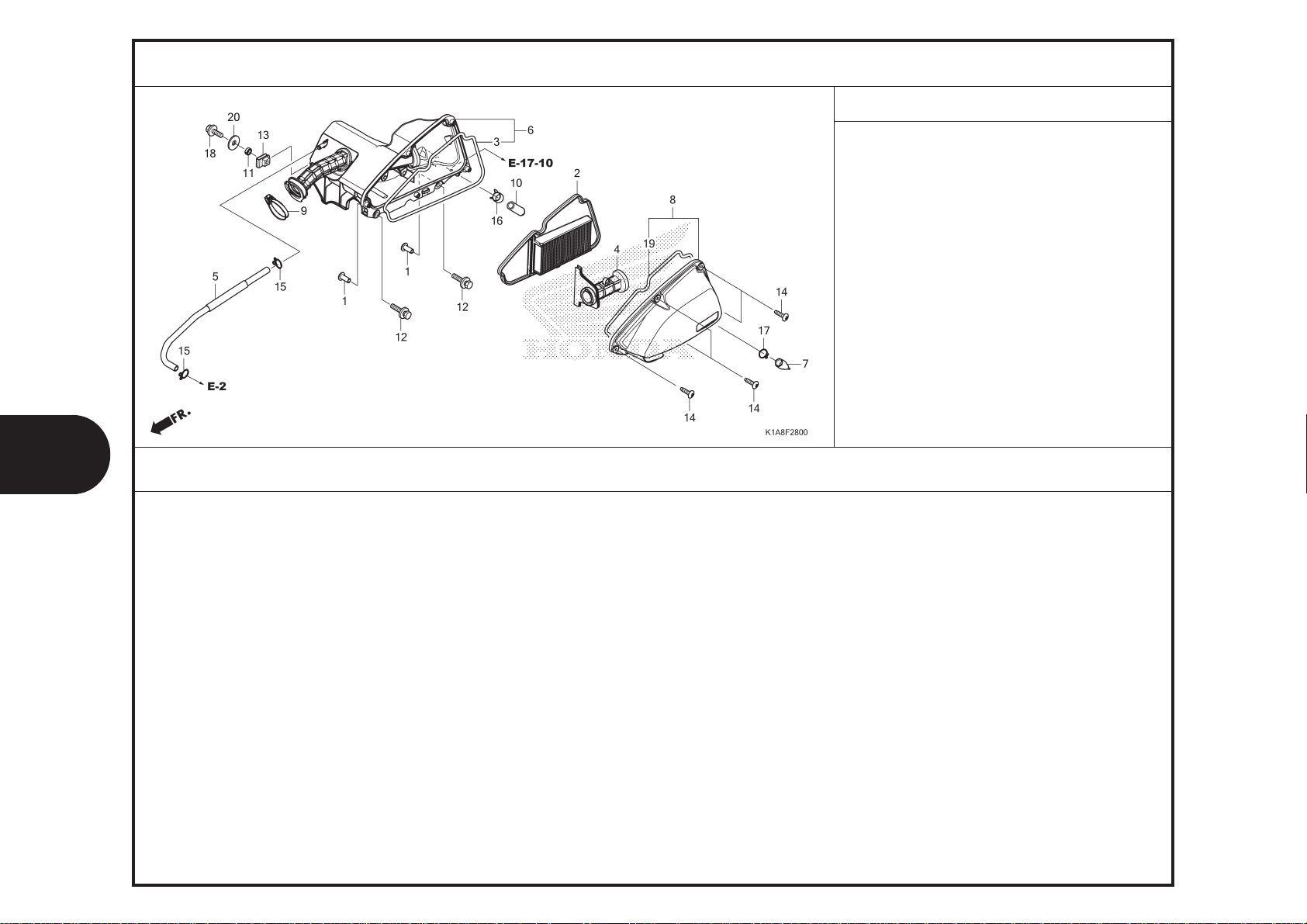

F-28

AIR CLEANER

No.

L.O.N.

Ref.

2 (3,19)

312105 ELEMENT, AIR CLEANER........... 0,1

6 3121A5 CASE, AIR CLEANER.............. 0,8

8 (4)

312102 COVER, AIR CLEANER CASE........ 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 17208-K1A-N00 COLLAR, AIR CLEANER SETTING . 2 2 -------- -------- 3IN,IN

17208-GFM-970 ........................... 2 - -------- -------- 2IN

2 17210-K1A-N00 ELEMENT COMP., AIR CLEANER .. 1 1 -------- -------- 3IN,IN

17210-K0J-N00 ........................... 1 - -------- -------- 2IN

3 17212-K0J-N00 SEAL, AIR CLEANER COVER ..... 1 1

4 17215-K1A-N00 DUCT, AIR CLEANER ........... 1 1

5 17218-K0J-N00 TUBE, BREATHER .............. 1 1

6 17225-K1A-N00 CASE SUB ASSY., AIR CLEANER . 1 1 -------- -------- 3IN,IN

17225-K0J-N00 ........................... 1 - -------- -------- 2IN

7 17236-KVB-900 PLUG, AIR CLEANER DRAIN ..... 1 1

8 17245-K1A-N00 COVER SUB ASSY., AIR CLEANER 1 1 -------- -------- 3IN,IN

17245-K0J-N00 ........................... 1 - -------- -------- 2IN

9 17256-K0J-N00 BAND, AIR CLEANER CONNECTING TUBE(48) 1 1

10 17261-K0J-N00 TUBE, DRAIN ................. 1 1

11 80108-K45-N40 COLLAR, RR. FENDER .......... 1 1

12 90101-K1A-N00 BOLT-WASHER, 6X42 ........... 2 2

13 90311-MT3-000 NUT, CLIP, 6MM .............. 1 1

14 93903-25480 SCREW, TAPPING, 5X20 ........ 5 5

15 95002-02130 CLIP, TUBE(B12.5) ........... 2 2

16 95002-41200-08 CLAMP, TUBE(D12) ............ 1 1

17 95002-80000 CLIP, TUBE(C12) ............. 1 1

18 95701-06020-00 BOLT, FLANGE, 6X20 .......... 1 1

19 17212-K0J-N00 SEAL, AIR CLEANER COVER ..... 1 1

20 94103-06000 WASHER, PLAIN, 6MM ......... 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

86

10.12.2019

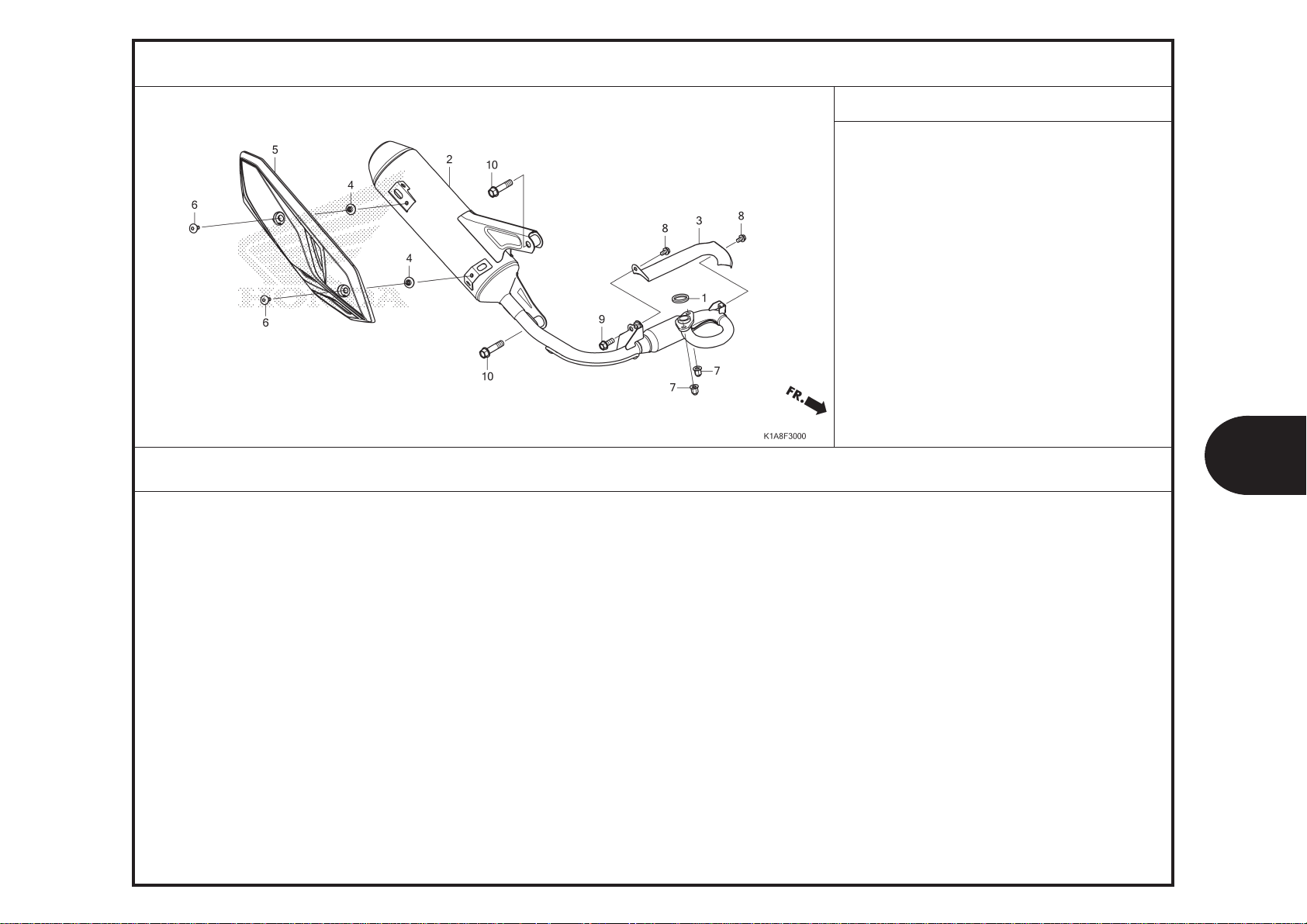

F-30

EXHAUST MUFFLER

No.

L.O.N.

Ref.

1 3131B4 GASKET, EXHAUST PIPE........... 0,2

2 313120 MUFFLER........................ 0,2

3 4101L6 GUARD, HEAT.................... 0,1

5 313121 PROTECTOR, MUFFLER............. 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 18291-KVB-900 GASKET, EX. PIPE ............ 1 1

2 18300-K1A-N00 MUFFLER COMP., EX. .......... 1 1

3 18301-K1A-N00 GUARD, HEAT ................. 1 1

4 18316-K50-T00 COLLAR, MUFFLER PROTECTOR ... 2 2

5 18318-K1A-N00 PROTECTOR, MUFFLER .......... 1 1

6 90107-K26-900 BOLT, SPECIAL, 6X16 ......... 2 2

7 90304-K1A-N00 NUT, HEX. CAP, 7MM .......... 2 2

8 95701-06010-02 BOLT, FLANGE, 6X10 .......... 2 2

9 95701-08020-02 BOLT, FLANGE, 8X20 .......... 1 1

10 95701-10040-07 BOLT, FLANGE, 10X40 ......... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

87

F-35

STAND/KICK PEDAL

No.

L.O.N.

Ref.

1 112107 ARM, KICK STARTER.............. 0,1

2 615195 SWITCH, SIDE STAND............. 0,2

3 (4)

410175 STAND, MAIN.................... 0,3

5 410176 SPRING, MAIN STAND............. 0,2

6 410180 BAR, SIDE STAND................ 0,2

13 410182 SPRING, SIDE STAND............. 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 28300-K0J-N00 ARM ASSY., KICK STARTER ..... 1 1

2 35700-K0J-N01 SWITCH ASSY., SIDE STAND(AL) 1 1 35700-K1A-N01 SWITCH ASSY., SIDE STAND(PS) 1 1

3 50500-K0J-N00 STAND COMP., MAIN ........... 1 1

4 50503-K0J-N00 SHAFT, MAIN STAND ........... 1 1

5 50520-KVB-900 SPRING, MAIN STAND .......... 1 1

6 50530-K0J-N00 BAR COMP., SIDE STAND ....... 1 1

7 90108-MK6-670 BOLT, SIDE STAND PIVOT ...... 1 1

8 90147-KVB-900 BOLT, SPECIAL, 6X16 ......... 1 1

9 90203-KVB-900 NUT, SIDE STAND ............. 1 1

10 94101-10800 WASHER, PLAIN, 10MM ......... 1 1

11 94201-30200 PIN, SPLIT, 3.0X20 .......... 1 1

12 95011-61000 RUBBER A, STAND STOPPER ..... 1 1

13 50535-KW7-900 SPRING, SIDE STAND .......... 1 1

14 95701-08025-07 BOLT, FLANGE, 8X25 .......... 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

88

10.12.2019

F-36

REAR CUSHION

No.

L.O.N.

Ref.

1 512115 CUSHION ASSY., REAR............ 0,9

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 52400-K0J-305 CUSHION ASSY., RR. .......... 1 1

2 52485-KVY-901 BUSH, RUBBER ................ 1 1

3 90131-K01-900 BOLT, FLANGE, 8X32 .......... 1 1

4 94021-10000-0S NUT, CAP, 10MM .............. 1 1

5 94101-10000 WASHER, PLAIN, 10MM ......... 1 1

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

89

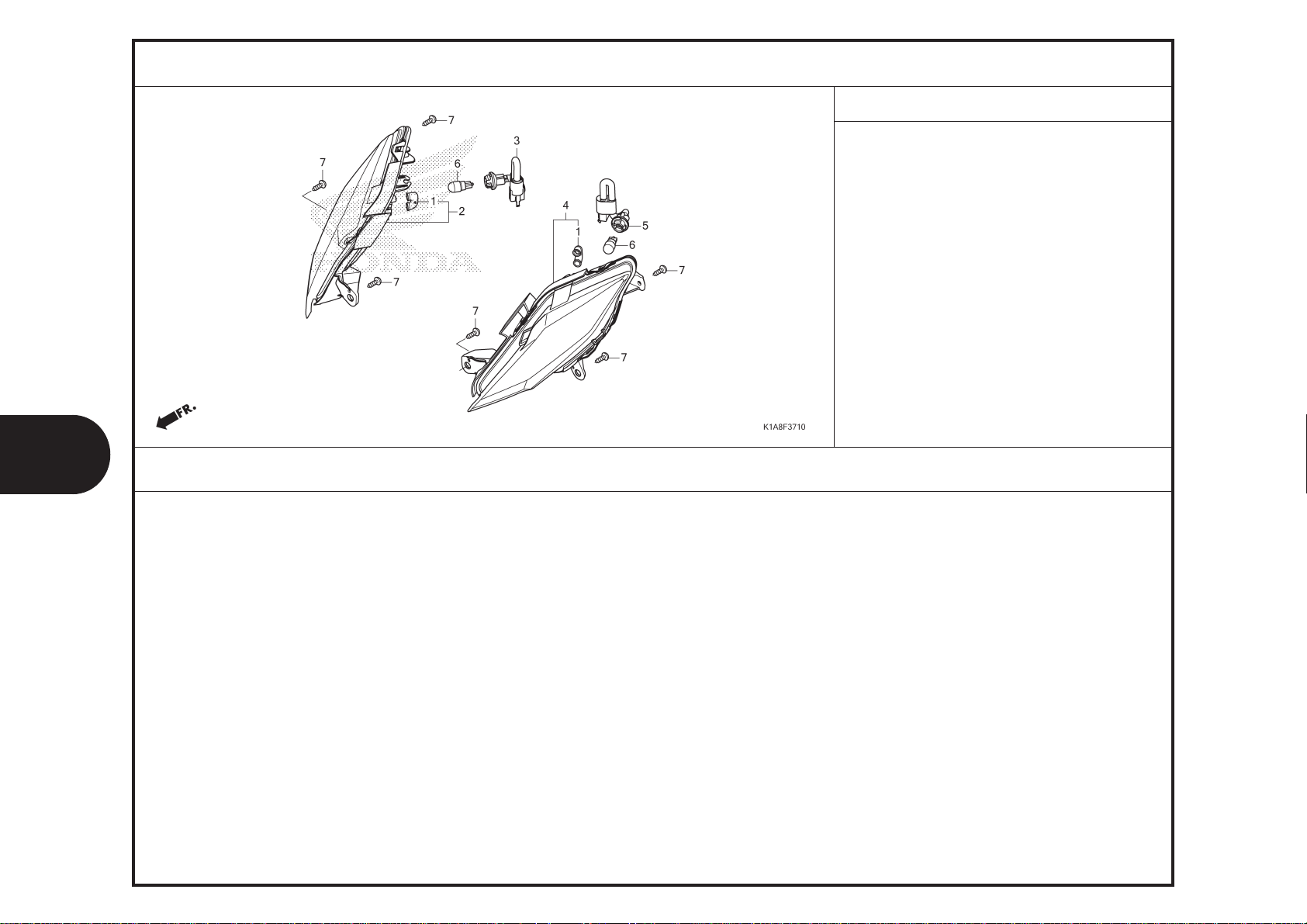

F-37-10

FRONT WINKER

No.

L.O.N.

Ref.

2 6161C4 WINKER :RIGHT FRONT............ 0,4

3 6161B6 SOCKET, WINKER :RIGHT FRONT.... 0,2

4 6161C3 WINKER :LEFT FRONT............. 0,4

6161C5 WINKER :KEDUA-DUANYA FRONT..... 0,4

5 6161B5 SOCKET, WINKER :LEFT FRONT..... 0,2

6161B7 SOCKET, WINKER :KEDUA-DUANYA FRONT 0,3

6 616133 BULB, WINKER :FRONT............ 0,1

.CATATAN: Waktu sama untuk dua unit 6161G0 BULB, WINKER :UNTUK 1 KENDARAAN 0,2

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 33113-MJW-J80 TUBE, VENT .................. 2 2

2 33402-K1A-N01 WINKER COMP., R. FR. ........ 1 1

3 33407-K1A-N01 SOCKET COMP., R. FR. WINKER . 1 1

4 33452-K1A-N01 WINKER COMP., L. FR. ........ 1 1

5 33457-K1A-N01 SOCKET COMP., L. FR. WINKER . 1 1

6 34905-KSS-C02 BULB, WINKER(12V 10W)(AMBER) 2 2

7 93903-35320 SCREW, TAPPING, 5X16 ........ 6 6

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

90

10.12.2019

F-38-10

REAR COMBINATION LIGHT

No.

L.O.N.

Ref.

2 (6)

6161F3 BULB, LICENSE LIGHT............ 0,1

3 6161E7 SOCKET, TAILLIGHT.............. 0,6

4 6161D5 TAILLIGHT UNIT................. 0,6

5 6161E9 SOCKET, LICENSE LIGHT.......... 0,2

7 616139 BULB, WINKER :REAR............. 0,1

.CATATAN: Waktu sama untuk dua unit 6161G0 BULB, WINKER :UNTUK 1 KENDARAAN 0,2

8 6161G1 BULB, TAILLIGHT................ 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 33113-K20-901 PIPE, CP .................... 3 3

2 33301-K07-901 BULB, POSITION(12V 5W) ...... 1 1

3 33702-K1A-N01 SOCKET COMP., RR. COMBINATION 1 1 4 33707-K1A-N01 LIGHT COMP., RR. COMBINATION 1 1 5 33720-K1A-N01 LIGHT ASSY., LICENSE(12V 5W) 1 1

6 33721-K1A-N01 LIGHT COMP., LICENSE ........ 1 1

7 34905-KAN-W01 BULB, WINKER(12V 10W)(AMBER) 2 2 8 34906-GB6-921 BULB, TAILLIGHT(12V 18/5W) .. 1 1

9 83601-MN5-000 GROMMET, SIDE COVER ......... 2 2

10 91540-TA0-003 CLIP, HARNESS BAND(NATURAL) (100.1MM) 1 1

11 93903-25320 SCREW, TAPPING, 5X16 ....... 2 2

12 93903-35320 SCREW, TAPPING, 5X16 ....... 4 4

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

91

F-39

REAR FENDER

No.

L.O.N.

Ref.

4 6161P5 COVER, LICENSE LIGHT........... 0,1

5 413102 FENDER, REAR................... 1,0

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 33741-KAN-961 REFLECTOR, RR. REFLEX ....... 1 1

2 80102-K0J-N00 NUT, CLIP, 6MM ............. 1 1

3 80104-K0J-N00 GUARD, SPLASH .............. 1 1

4 80105-K1A-N00ZA COVER SET, LICENSE LIGHT(WL)

*NH1* ................. BLACK 1 1

5 80110-K1A-N00ZA FENDER, RR.

*NH1* ................. BLACK 1 1

6 90116-K0A-E11 RIVET, PUSH, 6MM ........... 2 2

7 90666-K59-A11 CLIP, SNAP FITTING(PO) ...... 1 1

8 93404-06012-00 BOLT-WASHER, 6X12 .......... 3 3

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

92

10.12.2019

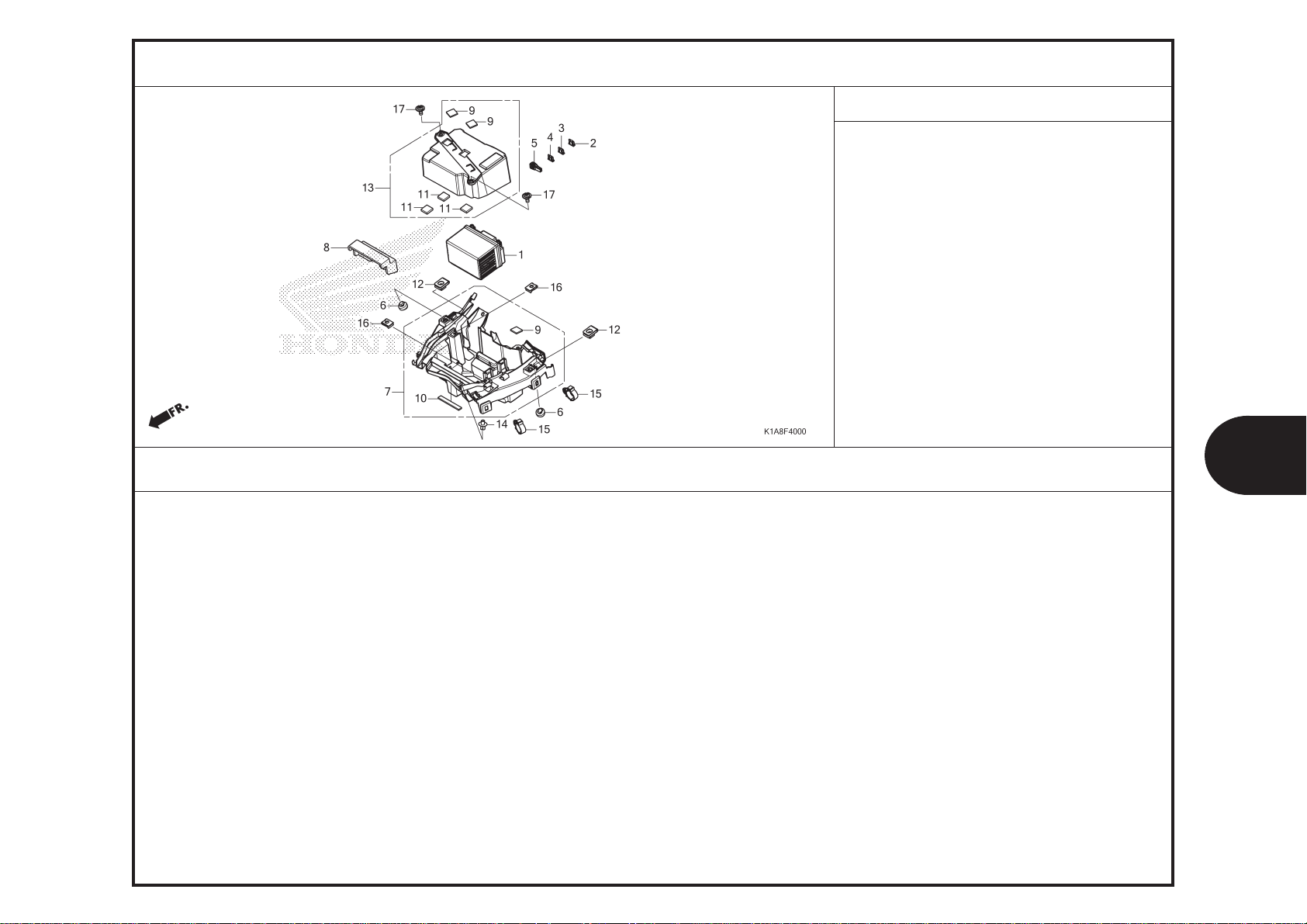

F-40

BATTERY

No.

L.O.N.

Ref.

1 610100 BATTERY........................ 0,2

7 410185 BOX, BATTERY................... 0,8

13 6101A1 COVER, BATTERY................. 0,1

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 31500-KWW-A03 BATTERY(NTZ4V)(NP) .......... 1 -

31500-KWW-A01 BATTERY(GTZ4V)(GS) ......... 1 -

31500-KWW-A02 BATTERY(YTZ4V)(YU) .......... 1 -

31500-KZR-601 BATTERY(YTZ6V)(YU) .......... - 1

31500-KZR-602 BATTERY(GTZ6V)(YU) .......... - 1

2 38221-SNA-A41 FUSE, BLADE(10A) ............ 1 1

3 38221-SNA-A61 FUSE, BLADE(20A) ............ 1 1

4 38221-TZ3-A01 FUSE, BLADE(5A) ............. 1 1

5 38235-TA0-A01 PULLER, FUSE ................ 1 1

6 50352-K84-900 RUBBER, STOPPER ............. 2 2

7 64320-K1A-N00 BOX COMP., BATTERY .......... 1 1

8 64331-K0J-N00 SPACER, BATTERY ............. 1 -

9 64332-K0J-N00 CUSHION A, BATTERY .......... 3 3

10 64334-K0J-N00 CUSHION B, BATTERY .......... 1 1

11 64335-K0J-N00 CUSHION C, BATTERY .......... 3 3

12 80102-K0J-N00 NUT, CLIP, 6MM .............. 2 2

13 80120-K1A-N00 COVER COMP., BATTERY ........ 1 1

14 90116-K0A-E11 RIVET, PUSH, 6MM ........... 1 1

15 90652-K0J-N01 CLAMP B, CABLE ............. 2 2

16 90677-KAN-T00 NUT, CLIP, 5MM ............. 2 2

17 91509-GE2-760 SCREW, PAN, 5X11.5 ......... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

93

F-41

WIRE HARNESS

No.

L.O.N.

Ref.

1 618135 ENGINE CONTROL MODULE(ECM)..... 0,8

2 614105 COIL, IGNITION................. 1,3

3 6141E3 CAP, NOISE SUPPRESSOR.......... 1,2

4 611100 HARNESS, WIRE.................. 1,8

5 6111D7 SUB HARNESS, FRONT............. 0,8

6 611142 SUB HARNESS, ENGINE............ 0,9

8 6151A1 KEY SET........................ 1,3

9 615145 SWITCH, COMBINATION & LOCK..... 1,3

11 6151A2 KEY, SHUTTER................... 1,3

.TIDAK TERMASUK: Key cutting

13 6151E8 SWITCH, SEAT AND BOX........... 0,6

15 616169 HORN........................... 0,4

21 (20)

6111C3 RELAY, WINKER.................. 0,7

26 611155 RELAY, MAIN.................... 0,2

27 6111C5 RELAY, STARTER................. 0,2

29 (28)

8121A0 SOCKET, ACCESSORY.............. 0,7

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 30400-K1A-N01 CONTROL UNIT, ENGINE ........ 1 -

30400-K1A-N11 ........................... - 1

2 30510-K1A-N01 COIL COMP., IGNITION ........ 1 1

3 30700-K1A-N01 CAP ASSY., NOISE SUPPRESSOR (TD) 1 1 30700-K44-V81 CAP ASSY., NOISE SUPPRESSOR 1 1

4 32100-K1A-N00 HARNESS, WIRE ............... 1 -

32100-K1A-N10 ........................... - 1

5 32103-K1A-N20 SUB HARNESS, FR. ............ 1 - -------- -------- 2IN

32103-K1A-N00 ........................... 1 - -------- -------- IN

32103-K1A-N10 ........................... - 1

6 32105-K0J-N00 SUB HARNESS, ENGINE ......... 1 1

7 32606-GEV-761 CAP, DUMMY(4P)(RED) ......... 1 1

8 35010-K1A-N00 KEY SET ..................... 1 1

9 35101-K1A-N01 SWITCH COMP., COMBINATION & LOCK 1 1

10 90111-MR5-000 BOLT, SOCKET, 5X9 ........... 1 1

11 35110-K1A-N01 SHUTTER, KEY ................ 1 1

12 35121-K1A-N00 KEY, BLANK(N0KEYTOP2REPORDER) (1) (1) 13 35190-K1A-N01 SWITCH ASSY., SEAT OPENER ... 1 1

14 35191-K27-V01 COVER, CABLE ................ 1 1

15 38110-KZV-Y02 HORN COMP.(HIGH) ............ 1 1

16 38112-KZL-A00 COLLAR, HORN SETTING ........ 1 1

17 38221-SNA-A41 FUSE, BLADE(10A) ............ 1 1

18 38221-SNA-A61 FUSE, BLADE(20A) ............ 1 1

19 38221-TZ3-A01 FUSE, BLADE(5A) ............. 5 6

94

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

F-41

No.

Ref.

No. Part Deskripsi No. Seri Kode Parts Catalog

BEAT & BEA T STREET (ACH1 10)

WIRE HARNESS

Jumlah

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

20 38301-KPH-881 RELAY COMP., WINKER ......... 1 1

21 38301-KZR-C01 RELAY COMP., WINKER ......... 1 1

22 38306-K16-901 SUSPENSION, WINKER RELAY .... 1 1

23 38306-KK4-000 SUSPENSION, WINKER RELAY .... 1 1

24 38307-K16-901 COVER, SEAL ................. 1 1

25 38307-K93-N01 COVER, SEAL ................. 1 1

26 38501-KVZ-631 RELAY ASSY., POWER (MICRO ISO 4P)(MB) 1 1 38501-KWN-901 RELAY COMP., POWER (MICRO ISO 4P)(OR) 1 1 27 38502-GGZ-J01 RELAY COMP., POWER (MICRO ISO 5P)(MB) 1 1 38502-K81-N01 RELAY COMP., POWER (MICRO ISO 5P)(OR) 1 1

28 39602-K41-N21 CAP ASSY. ................... - 1

29 39624-K41-N21 SOCKET ASSY. ................ - 1

30 61106-KW6-840 RUBBER B, MOUNTING .......... 2 2

31 64333-K1A-N00 GUIDE, HARNESS .............. 1 1

32 90101-MT4-000 SCREW, SCREEN SETTING ....... 2 2

33 90116-K0A-E11 RIVET, PUSH, 6MM ............ 2 2

34 90164-KZL-A00 SCREW, U-LOCK FLAT, 6X12 .... 2 2

35 91534-SWA-003 CLIP, COUPLER(DARK GRAY) .... 1 1

36 91535-STK-003 CLIP, COUPLER(DARK BLUE) .... 2 2

37 91535-TA0-003 CLIP, COUPLER(DARK BROWN) ... 2 2

38 93901-24320 SCREW, TAPPING, 4X12 ........ 1 1

39 30401-K1A-N00 COVER, ENGINE CONTROL UNIT .. 1 1

40 95701-06012-00 BOLT, FLANGE, 6X12 .......... 1 1

41 95701-06016-00 BOLT, FLANGE, 6X16 .......... 4 4

43 96001-06022-00 BOLT, FLANGE, 6X22 .......... 2 2

F-42

FRAME BODY

No.

L.O.N.

Ref.

1 410100 BODY, FRAME.................... 5,7

.TERMASUK: Penurunan dan pemasangan mesin

3 4101B5 LINK, ENGINE HANGER............ 2,4

.TERMASUK: Penurunan dan pemasangan mesin

6 411105 STAY, FRONT COVER.............. 0,6

(Nomor ref. relatif)

Deskripsi

F.R.T.

3

No.

Ref.

1 50100-K1A-N00 BODY COMP., FRAME ........... 1 1

2 50315-K97-T00 NUT, FR. COVER STAY ......... 2 2

3 50350-K0J-N00 LINK ASSY., ENGINE HANGER ... 1 1

4 50352-K0J-N00 RUBBER, LINK STOPPER ........ 1 1

5 61304-415-000 RUBBER, HEADLIGHT CASE MOUNTING 1 1

6 64223-K1A-N00 STAY COMP., FR. COVER ....... 1 1

7 64224-K1A-N00 COLLAR, 8MM ................. 2 2

8 90105-K0J-N00 BOLT, FLANGE, 10X190 ........ 1 1

9 90116-K0A-E11 RIVET, PUSH, 6MM ............ 1 1

10 90304-KGH-901 NUT, U, 10MM ................ 1 1

11 90651-K0J-N01 CLAMP A, CABLE .............. 1 1

12 95801-08032-00 BOLT, FLANGE, 8X32 .......... 2 2

13 95801-10055-00 BOLT, FLANGE, 10X55 ......... 2 2

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

96

10.12.2019

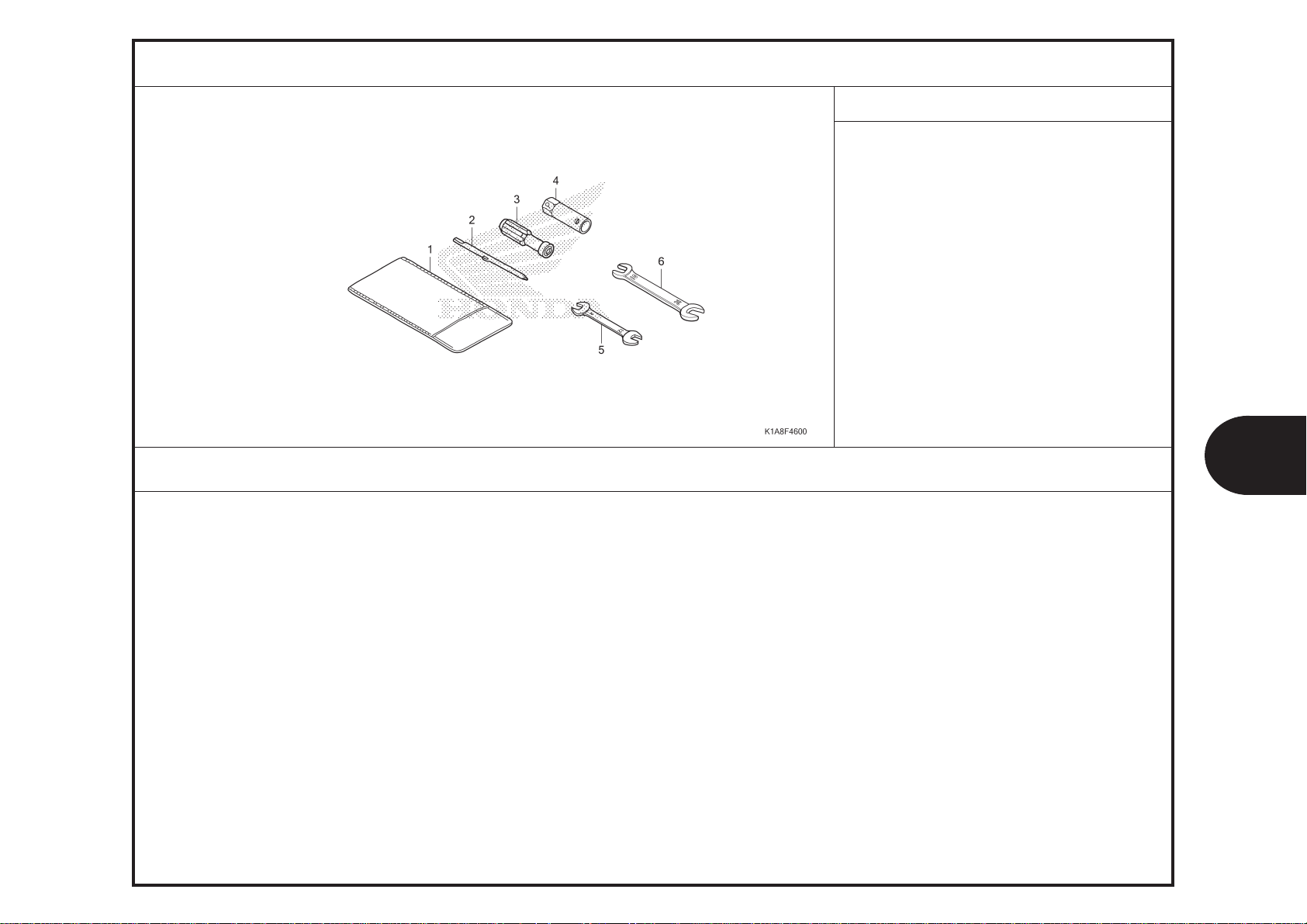

F-46

TOOLS

No.

L.O.N.

Ref.

TIDAK ADA INFORMASI ...........

(Nomor ref. relatif)

Deskripsi

F.R.T.

No.

Ref.

1 83642-KZR-600 BAG, OWNERS MANUAL .......... 1 1

2 89102-538-000 DRIVER, SCREW(NO.2 + -) ..... 1 1

3 89103-538-000 GRIP ........................ 1 1

4 89216-KVY-960 WRENCH, SPARK PLUG .......... 1 1

5 99001-08120 SPANNER, 8X12 ............... (1) (1)

6 99001-10120 SPANNER, 10X12 .............. (1) (1)

No. Part Deskripsi No. Seri Kode Parts Catalog

Jumlah

BEAT & BEA T STREET (ACH1 10)

CBS(CBF) CBS ISS(CBT)

(L) 2020(L)

2020

10.12.2019

3

97

Honda BEAT & BEAT STREET (2022) User guide [id, en]
