HOLUX FunTrek130 Pro
FunTrek 130 Pro
User Manual
Holux Technology Inc.
HOLUX FunTrek 130 Pro
Copyright Declaration
HOLUX is trademarks of HOLUX Technology, Inc.
All other trademarks belong to registered companies.
The contents of this manual will be modified without further notice.
Without the written consent of HOLUX Technology, Inc, this manual may not be
translated or copied. Copyright HOLUX Technology, Inc. All rights reserved.
Software Copyright
FunTrek 130 software is China and international copyright law protection. Copyright
HOLUX Technology, Inc. All rights reserved. Other products mentioned herein and
company names are trademarks of their respective owners.
1
HOLUX FunTrek 130 Pro
Product Caution
About operation environment
The operating temperature for the product is between -10℃~60℃.
Operating or recharging in an environment with a temperature over 45℃ might cause
the system malfunction. However, this should be considered a normal phenomenon.
Please do not operate under extreme temperatures.
About the altimeter
The device estimates altitude based on air pressure. Its means that altitude readings
for the same location may vary with air pressure changes.
The semiconductor pressure sensor used by the device for altitude measurements
also is affected by temperature. When taking altitude measurements, make sure the
device is not subjected to temperature changes.
Do not use this device for measuring altitude in applications that demand professional
or industrial level precision.
Do not rely upon this device for altitude measurements or perform button operations
while sky diving, hang gliding, or riding a gyrocopter where there is the chance of
sudden altitude changes.
The air inside of a commercial aircraft is pressurized. Because of this, the readings
produced by this device will not match the altitude readings announced or indicated
the flight crew.
Power safety precautions
Use the power adapter and USB cable that are included with the package. Using
other power adapters or USB cables than the one provided will result to malfunction
and could proof to be dangerous.
The device should only be used with the supplied batteries.
2
HOLUX FunTrek 130 Pro
About the power adapter
1. Do not use the power adapter in a wet environment. When hands and feet are wet, do
not touch the power adapter.
2. While using the power adaptor, ensure that the area is well ventilated. Do not let
paper or other material cover the power adaptor, as this will interfere with cooling. Do
not use the power adaptor whilst it is in a bag.
3. Do not attempt to repair the device. If device is damaged or is in a wet environment,
replace the device immediately.
4. It is not recommended to charge from a PC because the PC power voltage is not
enough to supply the device.
About the battery
1. Use only the original factory approved power adapter.
2. A Lithium battery is built into the device. To prevent fire or skin burns, do not
disassemble, pierce, impact, or expose the battery to fire. The battery will crack,
explode, or release dangerous chemicals if placed in a fire.
Important instructions
1. Note: Replacing with an incorrect battery may result in an explosion. When disposing
of the battery, follow the instructions. The replacement battery must be a factory
approved original.
2. Regulations must be observed when recycling or disposing of batteries.
3. The battery should only be used in this device.
Normal care and maintenance
FunTrek 130 Pro is a product of superior design and craftsmanship and should be treated
with care. The following suggestions will help you protect your warranty coverage.
1. If your device does get wet, remove the battery, allow the device to dry completely
and then replace the battery.
2. Use a soft clean cloth to wipe the screen.
3
HOLUX FunTrek 130 Pro
3. Do not use or store the device in dusty, dirty areas. Accessories can be damaged.
4. Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
5. Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic circuit
boards.
6. Please do not disassemble the product other than in accordance with the user
manual. This may void the warranty and damage the unit.
7. Do not drop, knock or shake the device. Rough handling will break internal circuit
boards and fine machinery.
8. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
device
9. Do not paint the device. Paint can clog the moving parts and prevent proper
operation.
10. Please remember to back up important information such as track log, waypoints, and
routes.
11. Sometimes you can reset the device to ensure the best operation status, please turn
off the power and remove the battery.
These proposals are only applicable to FunTrek130, its battery, charger or any other
accessories.
4
HOLUX FunTrek 130 Pro
Product introduction
Receiver function:
GPS Positioning：：：：hidden antenna design, high-sensitivity GPS receiver chip can do
quick positioning.
Electronic compass：：：：Provides direction for location information, with compass
function.
Altimeter：：：：Measure the altimeter by using the GPS altitude and pressure altimeter
calibration.
Touch screen LCD: A high resolution color, touch screen TFT LCD with backlight.
Water resistant: IPX6 Waterproof
Language support：：：：Simplified Chinese/ Traditional Chinese/ English
Chinese/ English handwriting input: Support Simplified Chinese/ Traditional
Chinese/ English handwriting functions.
Memory：：：：Use micro SD card to store waypoints, routes and navigation map. It is can
be used as a removable storage device (flash drive).
Navigation record:
Record information：：：：Store waypoints (including coordinates, altitude etc), track log
(including coordinates, altitude etc), and edit routes.
Display information：：：：Contains waypoints, track log, routes, speed, track distance,
moving average speed, vertical speed, altitude change, heading, location, reducing
the carbon content, temperature, and slope, and the other 40 Trip Computer. It also
displays the changes on altitude maps information chart.
Support Map：：：：Support all kinds of navigation maps that were developed for FunTrek
130 Pro.
5
HOLUX FunTrek 130 Pro
Outdoor function:

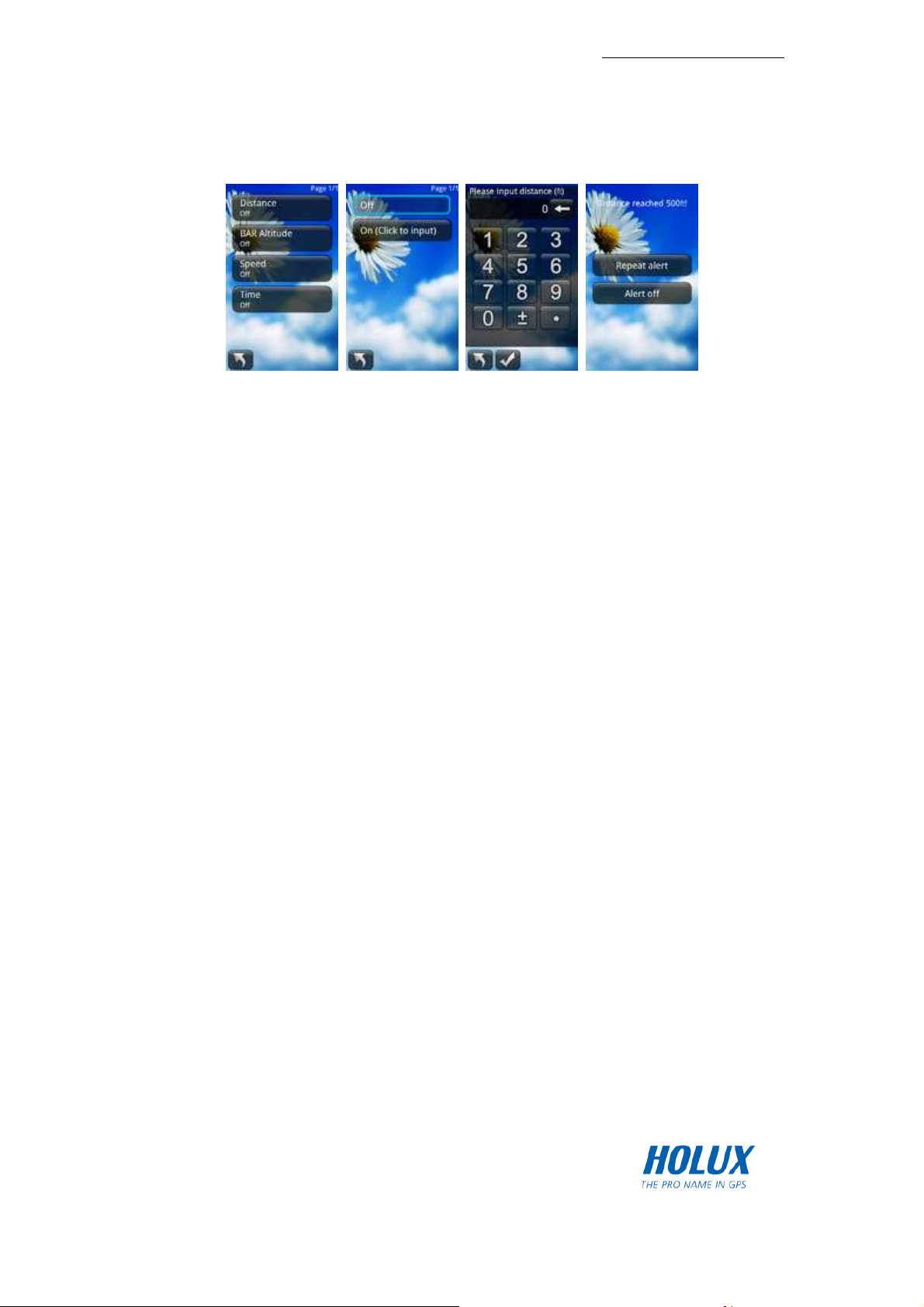

Alert setting：：：：You can set the alert for altitude, speed, distance and time. It can be
used for outdoor climbing.

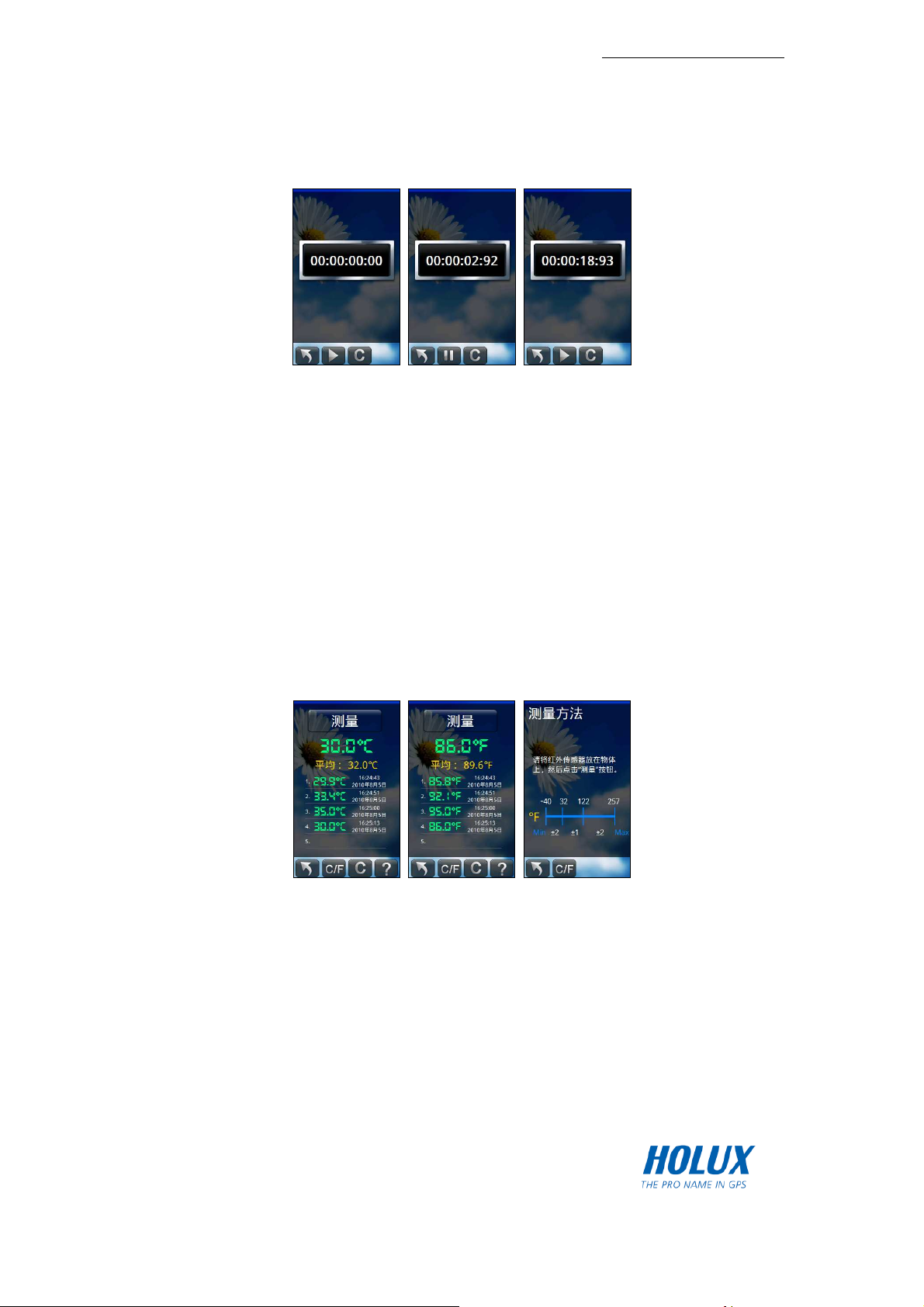

Thermometer：：：：With IR Sensor to measure temperature and land temperature at any
time.
Heart rate monitor：：：：With heart rate monitor sensor to measure heart rate.
Cadence sensor：：：：With cadence sensor to measure cadence.
Speedometer：：：：With speed sensor for bike.
Application functions：：：：

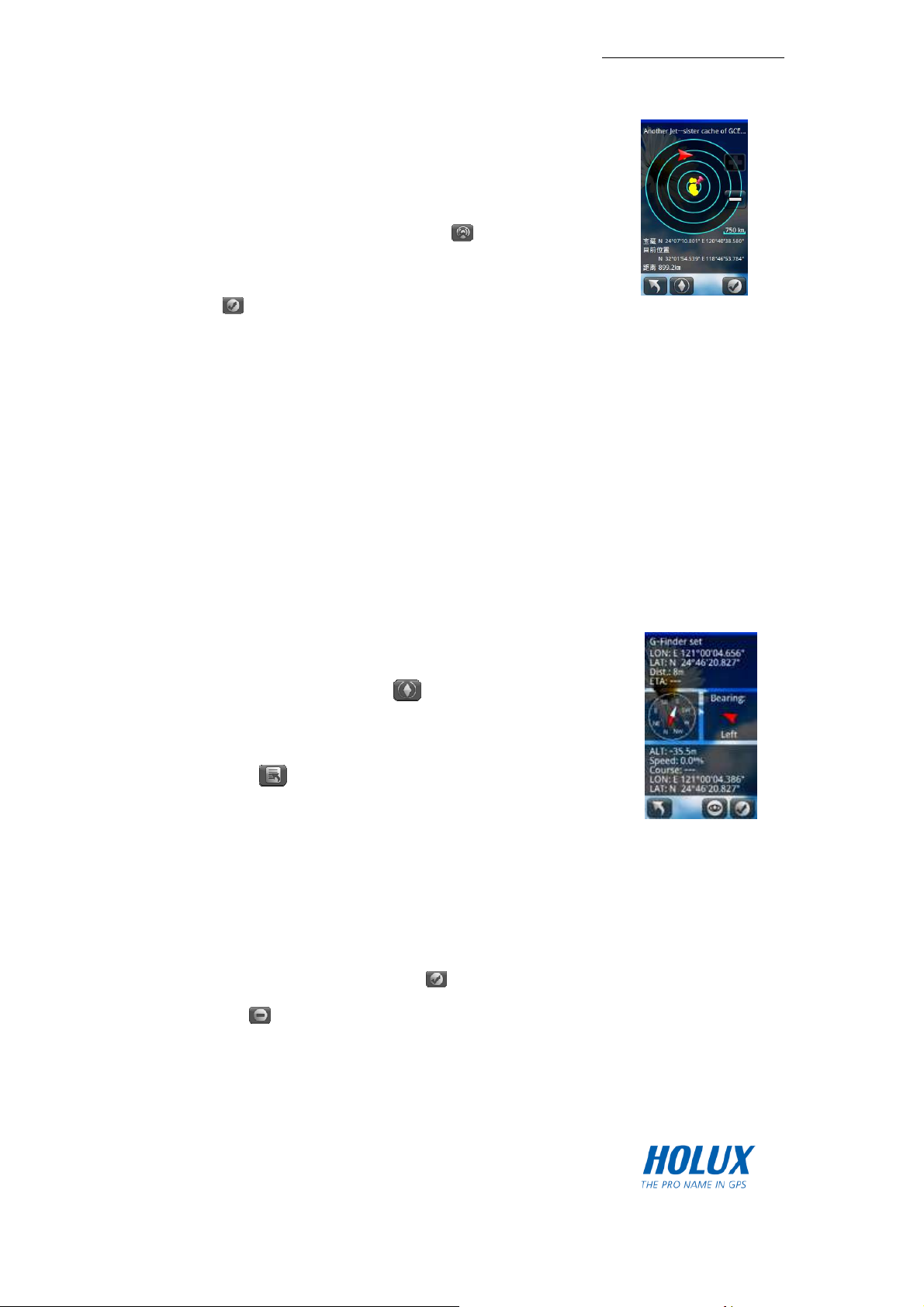

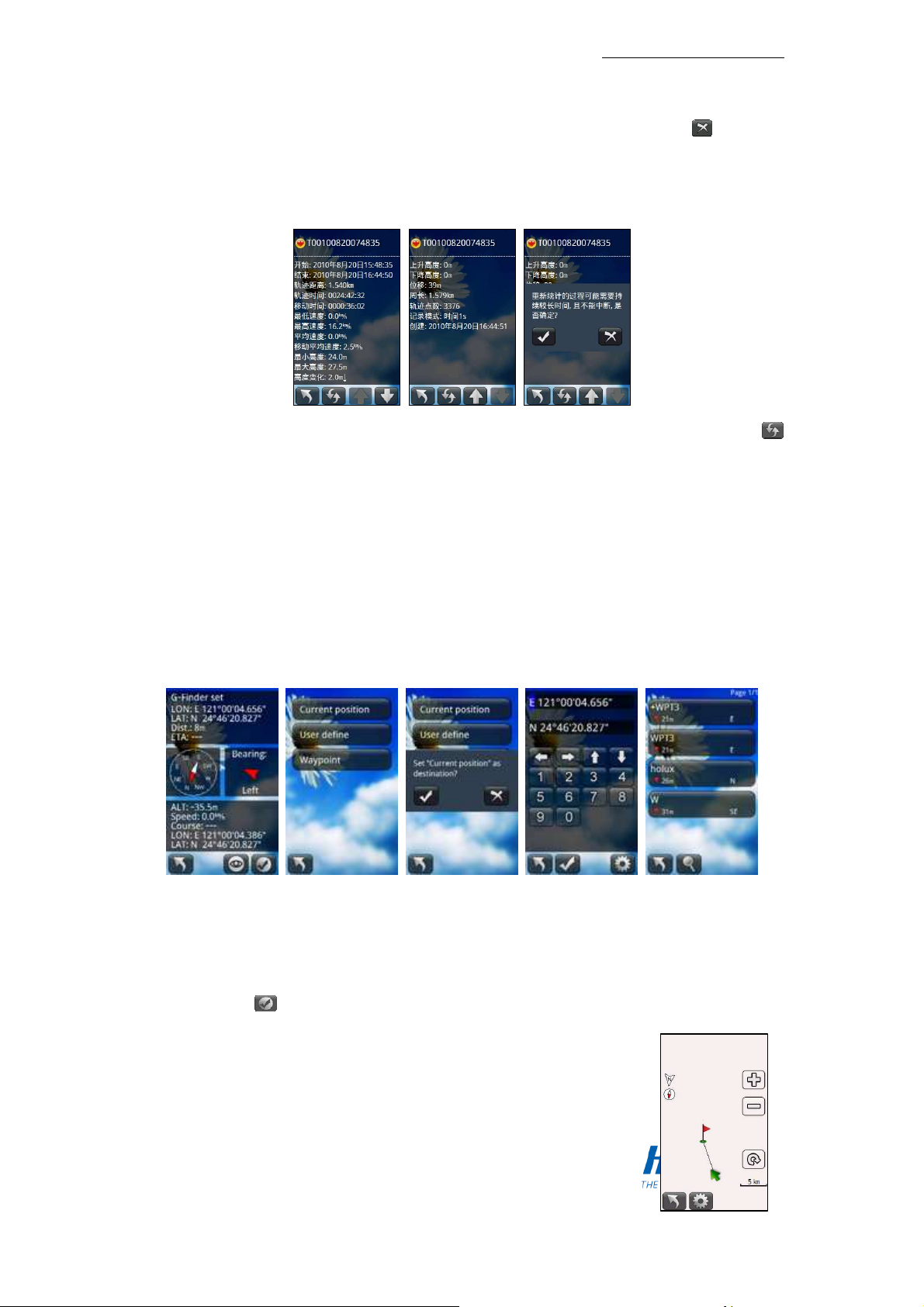

G-Finder：：：：Use the G-Finder feature to calibrate points in order to measure the field
area.
Coordinate Datum switching：：：：Support Beijing1954, Xian 80, Taiwan TWD 67, TWD
97 and WGS 1984 coordinates system which are switchable. You also can set more
than 250 coordinates.

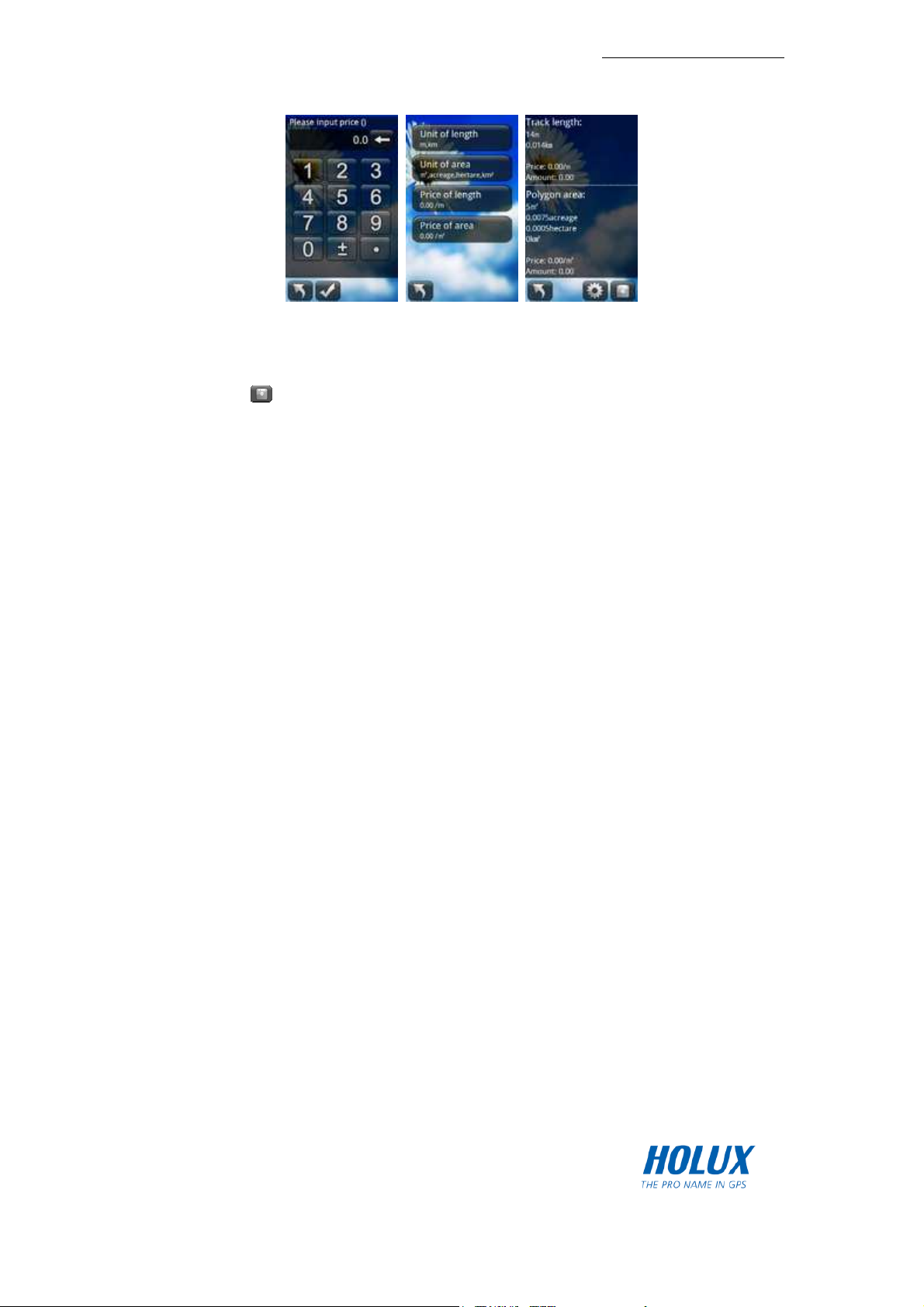

Area calculation：：：：Measures area for Resources Field Survey.
Average location：：：：Calculate average value of coordinates and average altitude.
Other application：：：：Contains calendar, calculator, stopwatch, and Geocaching.
Electronic map database：：：：
Maps characteristic：：：：FunTrek 130 is pre-installed China’s (or Taiwan) factory for
land-based electronic navigation map on a 2GB microSD card. Its virtual map
supports turn-by-turn navigation.
Maps characteristic：：：：The map contents includes highway, state and provincial roads,
and all other road information; details on the road map of cities across the country
generally.
Point of Interest (POI) information：：：：About 5 million in mainland China, Taiwan,
more than 310,000 points of interest, including landmarks, attraction, restaurants, gas
station all kind of facilities, institutions, information-rich to meet the needs of various
6
HOLUX FunTrek 130 Pro
types of queries. It supports fast and easy search functions based on the category or
the manual text entering query.
FunTrek 130 has a variety of GPS applications, not only hiking, bike, also a best partner
for car driving to outdoor, which is a convenient tool for the measurement work that is truly
full-function handheld product.
7
HOLUX FunTrek 130 Pro
Table of Contents
Copyright Declaration ..........................................................................................................1
Software Copyright ..............................................................................................................1
Product Caution ...................................................................................................................2
Product introduction.............................................................................................................5
Table of Contents.................................................................................................................8
Product Spec......................................................................................................................10
Main program spec.....................................................................................................10
Hardware spec ...........................................................................................................11
Unit Overview .............................................................................................................12
Basic Operation .................................................................................................................14
Power on and off ........................................................................................................14
Charging Battery.........................................................................................................14
Install/ Remove microSD card....................................................................................14
Power on and Positioning...........................................................................................16
Right button ................................................................................................................17
Left button...................................................................................................................19
Lock/ Unlock the screen.............................................................................................22
Connect to PC ............................................................................................................23
Main menu list....................................................................................................................25
Status bar....................................................................................................................25
Main Menu..................................................................................................................27
Map View ...........................................................................................................................28
Area calculation .................................................................................................................29
Managing the Tracks .........................................................................................................31
Search track log..........................................................................................................31
Track Detail.................................................................................................................31
Altitude/ Speed Plot ....................................................................................................32
View Track ..................................................................................................................33
Edit track.....................................................................................................................34
Delete Track................................................................................................................34
Copy to new................................................................................................................34
View multiple Tracks...................................................................................................35
Waypoints ..........................................................................................................................36
Search waypoints .......................................................................................................36
Waypoint detail ...........................................................................................................37
View map....................................................................................................................37
Edit waypoints.............................................................................................................38
8
HOLUX FunTrek 130 Pro
Delete waypoints ........................................................................................................38
Reposition...................................................................................................................39
Average position.........................................................................................................39
Copy to new................................................................................................................41
Project to new.............................................................................................................41

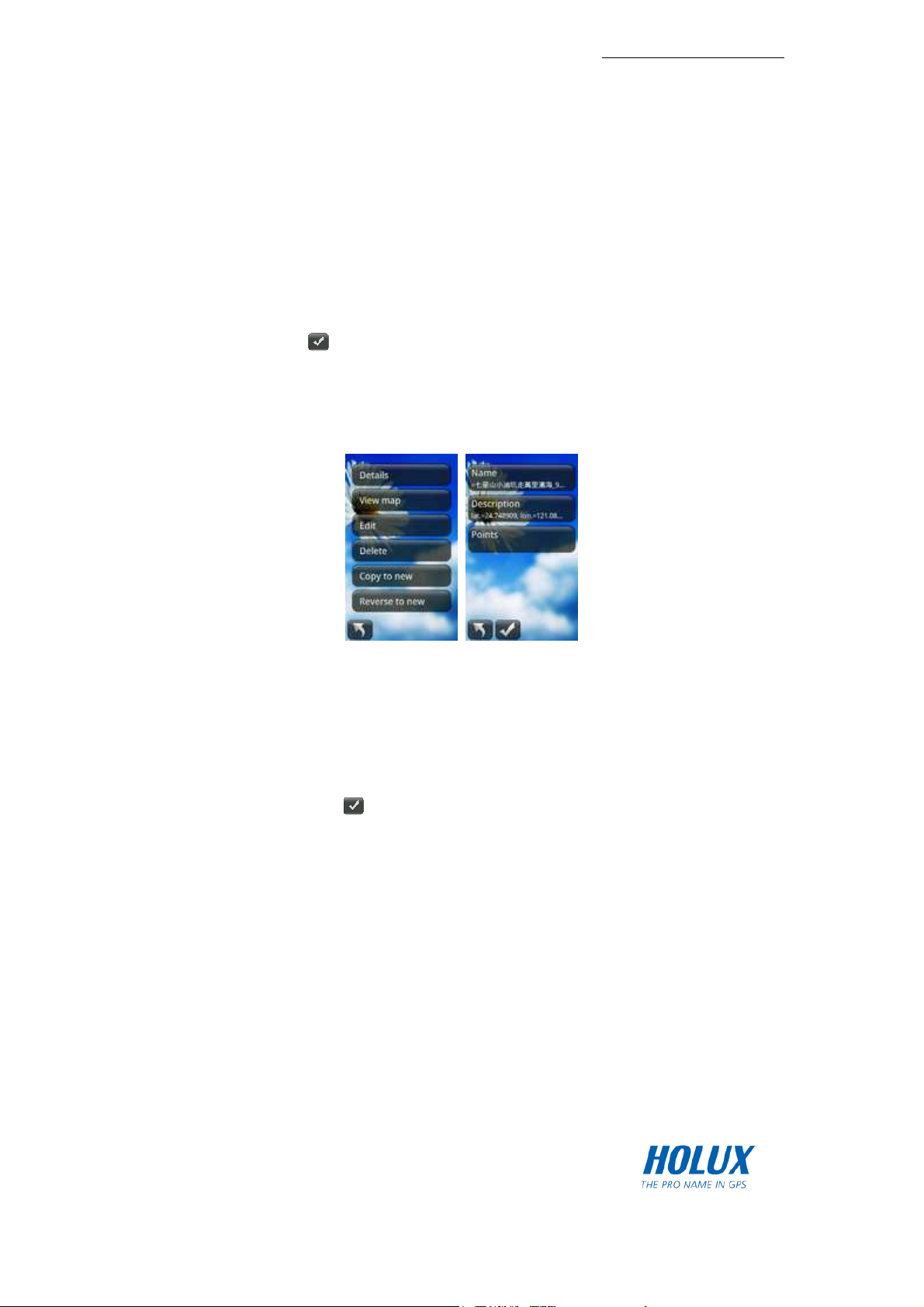

Routes................................................................................................................................42
New routes..................................................................................................................42
Details.........................................................................................................................42
View map....................................................................................................................43
Edit..............................................................................................................................44
Delete .........................................................................................................................45
Copy to new................................................................................................................45
Reverse to new...........................................................................................................46

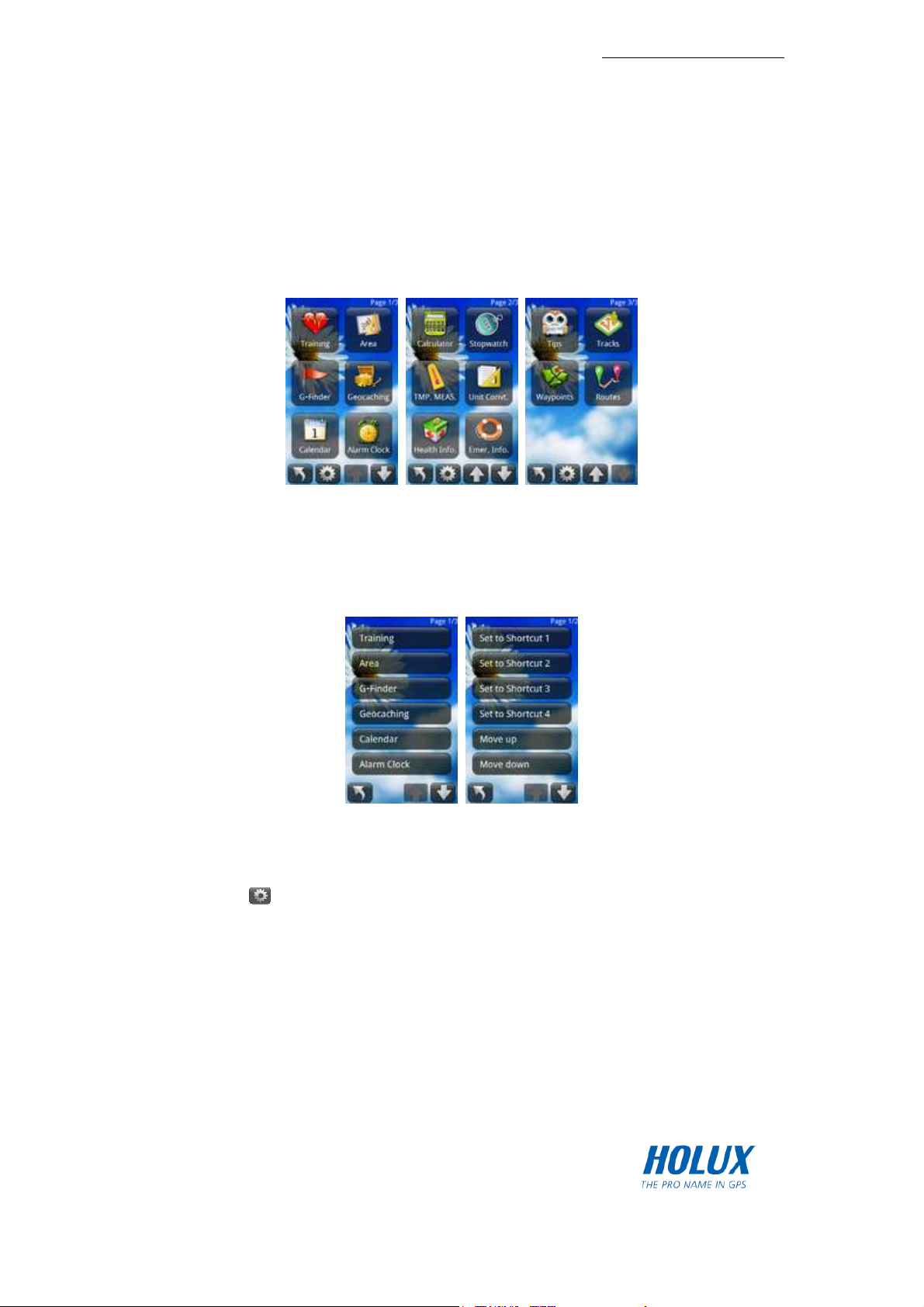

Application .........................................................................................................................47
Shortcut ......................................................................................................................47
Using an External Application.....................................................................................48
Training.......................................................................................................................49
G-Finder......................................................................................................................53
Calendar .....................................................................................................................54
Alarm clock .................................................................................................................54
Calculator....................................................................................................................55
Stopwatch ...................................................................................................................56
Temperature Measurement ........................................................................................56
Unit Conversion..........................................................................................................57
Health .........................................................................................................................58
Emer. (Emergency info)..............................................................................................58
Tips .............................................................................................................................59
Geocaching.................................................................................................................59
Settings ..............................................................................................................................62
Personal......................................................................................................................62
Create Map.................................................................................................................66
Sensors.......................................................................................................................67
System........................................................................................................................71
Coordinates Setup......................................................................................................75
Alerts...........................................................................................................................81
Default ........................................................................................................................82
About ..........................................................................................................................82
ezTour Plus Installation......................................................................................................83
9
HOLUX FunTrek 130 Pro
Product Spec
Main program spec
Item Spec parameter
Operation interface Simplified Chinese/ Traditional Chinese/
English switching operation
Support external program Yes
The numbers of waypoints 2000
The numbers of routes 1000
Waypoints of every route 1000
Track log 10000
The total number of sub-record
Record by time interval Yes
Record by distance interval Yes
Atomically record Yes
Continuous recording time 8 hours
Datum Yes
Beijing 1954 Yes
Xian 80 Yes
Huzih Mountain system Yes
TWD 67 Yes
WGS 1984 (TWD 97) Yes
Users define Coordinate
Datum
Coordinate format Yes
Latitude and longitude Yes
UTM Yes
Users define coordinate format
Computing DGPS differences
feature
MSAS, WAAS and EGNOS receiver system
1000
Yes
Yes
10
Hardware spec
HOLUX FunTrek 130 Pro
CPU
Samsung S3C2416 ARM9 BASE,
400MHz
GPS chip
High Sensitivity (-159dBm) GPS Chip.
Memory
128M Memory
Built-in 2GB Flash..
Support SD V2.0
Display
3.0 ‘’WQVGA (16:9) TFT LCD
Transflective Touch Screen (Sunlight
viewable)
Battery
8.5 hrs (on the basis of 50% backlight
brightness)
Rechargeable, Li-Ion 1050mAh
Waterproof
IPX-6
IO interface
USB 2.0 (mini USB )
Adaptor
Input: 100 ~ 240V, 0.15 A, 50~60Hz
DC output: 5 V, 1A
Dimension:
58 x 105 x 23 mm
240 x 400 Pixels Resolution
Sensors
3D Digital Compass
Altimeter
Auto backlight adjustment sensor
Support 2.4G wireless ANT+ Sport
Weight
124g (with battery)
Environment temperature
Operating Temp: -10℃~60℃
Storage Temp: -20℃~70℃
11
Unit Overview
Component Function Description: (Front View)
Item Description
HOLUX FunTrek 130 Pro
Touch Screen
LCD
Right button When the device is powered off, press the right button for 3
Left button When the device is powered on, press the left button to switch to
LED 1. The LED flashes red when charging
The device is using the touch-screen control.
seconds to turn on this device.
When powered on, press this button for 3 seconds to turn off.
the Main Menu, Trip Computer page and Navigation.
2. The LED stop flashing but lights on when charging is
complete.
3. The LED dims when the USB is unplugged.
4. The LED will first light on a second, and the opening screen
appears on the screen.
Component Function Description: (Rear View)
Item Description
Battery lid Press and push to open the battery lid for installing or replacing
batteries.
Screw holes Fix and secure screws.
Component Function Description:
Item Description
USB port Connect power or PC/NB for charger or data transfer.
Stylus Lanyard You can attach the bundled stylus to the device.
12
HOLUX FunTrek 130 Pro
Front View
Back View
Low Rear View
13
HOLUX FunTrek 130 Pro
Basic Operation
Power on and off
When device is turned on, press and hold the right button for 3 seconds to power off the
device. The prompt "Saving data… please wait." will appear while the device is powering
off. When device is turned off, press and hold the right button for 3 seconds to power on.
Charging Battery
You may choose one of the following methods to charge the device.
1. Connect the USB adapter to a wall outlet.
2. Connect the USB cable to your computer. For details, please refer to the charging
mode
3. If the supplier includes with a car power adapter, plug the respective ends of the
device to the card cigarette lighter and the USB cable interface in order to charge the
device.
Install/ Remove microSD card
Step:
1. Open the battery lid and remove the battery.
2. Insert microSD with its chip facing down and flat into the microSD slot and push
upward to lock the microSD card slot.
14
HOLUX FunTrek 130 Pro
3. To remove the microSD card, unlock the SD socket and remove the SD card.
15
HOLUX FunTrek 130 Pro
Power on and Positioning
First positioning
Please take the device out of the room, and turn on the device. Then enter into the
satellite status page to displays the position status. When searching satellite signal will
display “Acquiring”. “2D Fixed” means the positioning status mode. “3D fixed” means the
coordinate information is available for reference.
Only after the positioning is successfully for the first time, it will begin to record the track.
General positioning
Once starts up, it will automatically do the positioning.
Satellite status page
Positioning precision
Satellite Distribution
WGS1984
coordinate value
Positioning status
Satellite number
User define coordinates value
GPS Estimated Position Error
GPS measured
Height
GPS signal's CN
value
Average location
Satellite signal strength
Cold start
16
HOLUX FunTrek 130 Pro
Right button
Backlight
Step:
Press the right button once to enter the operation page as shown above.
Click the button to increase/decrease the backlight brightness.
Auto Light
FunTrek 130 is equipped with a sensor that automatically detects the ambient light level
and adjusts the backlight brightness to save power.
Step:
Press the right button once to enter the operation page.
Select in the backlight adjustment area and the backlight brightness will be
automatically adjusted to suit the ambient light.
New Track
17
HOLUX FunTrek 130 Pro
Step:
Press the right button once to enter the operation page.
The middle area of the screen shown as is the operation area.
Automatically record: Users have to complete the satellite positioning and altimeter
calibration when they first powered on. The device will record track log automatically.
Manually record: press the button to enter the new a track log. On the page,
users can edit name, notes, and view sport modes.
Press the button to save the track log, and start to record.
Press the button to pause recording; press the button to start/continue
recording.
Press the button to stop recording, and save the track data.
Note:
Track log name can be input up to 20 words, notes can be input up to 50 words.
When device is manually powered off, the track log will be automatically saved.
The track log will be lost if power is accidentally interrupted or the battery is removed
after a crash.
Mark waypoint
Step:
Press the right button once to enter the operation page.
The bottom of page is the area to mark waypoints . Press the button to
enter the waypoint edit page. You can edit waypoint name, select waypoint symbol,
18
HOLUX FunTrek 130 Pro

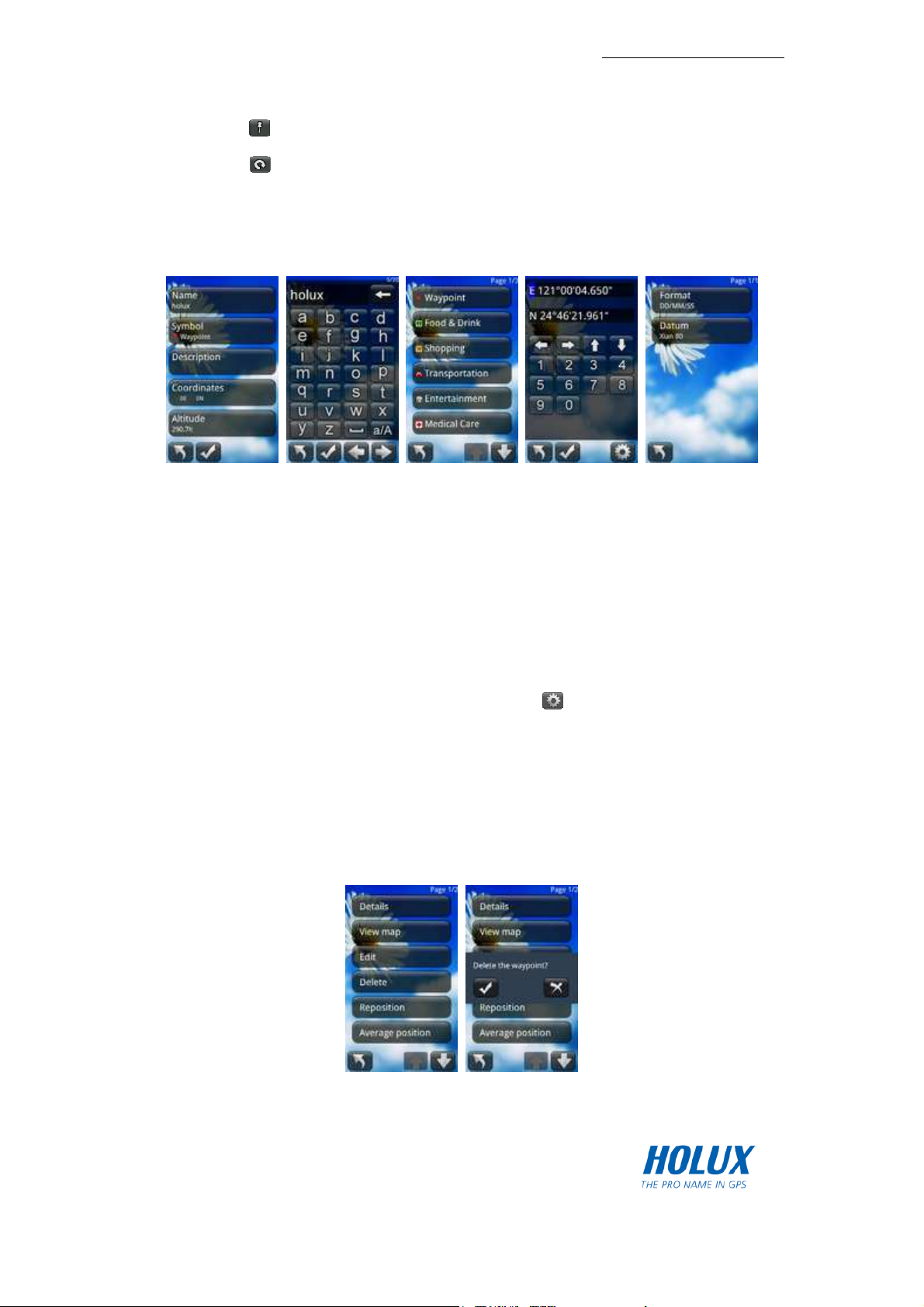

add notes, edit waypoint coordinates location and input waypoint altitude.
Click “location” button to define the waypoint coordinates. Press the button to set
coordinates formate and system. Press the button to save the coordinates edit
result.
Click “altitude” button to define the altitude information of waypoints Press the
button to save the altitude editing result.
When completed, return to waypoints edit page, and press the button to save
waypoints information.
Note: Waypoint name can be input up to 20 words, notes can be input up to 50 words.
Left button
Trip Computer
Step:
Press the left button once to enter the Trip Computer.
In the Trip Computer page, you can view travel distance, travel time, current speed
and altitude, and the other 40 Trip Computer.
Use the button to check more navigation data.
19
HOLUX FunTrek 130 Pro
Change Trip Computer Items
Step:
Press the setting button . You can select the item that you want to change. Click
the item to enter the Trip Computer list, and use the up/down button to flip page and
search.
Select the item to be added, press confirmation button to change.
Page Display Selection
In the Trip Computer, press the button. You can use the and buttons to
change the number of pages displayed on the screen.
: displays 3 items of Trip Computer on screen.
: displays 8 items of Trip Computer on screen.
View statistical curve
FunTrek130 can record the height, speed, pressure, temperature, time and distance curve
for the user to view the analysis.
20
HOLUX FunTrek 130 Pro
Step:
Press the left button once to enter the Trip Computer.
Press the button, and enter the statistical curve page.
Click the two trip information areas on the top of page, you can switch the item. You
can select from the 5 items: “Time”, “Location”, “ALT”, “Speed” and “Air Pressure”.
Press the button to switch axis. User can select the axis item to display to the
altitude, speed, pressure and temperature chart according to its changes with time or
distance.
Use the and buttons to zoom in and zoom out the altitude chart.
When you change the graph scale, use to return normal status.
Note: If you didn’t record track log, the device doesn’t have the altitude, speed, pressure
and temperature information and it also doesn’t display the statistical curve.
Compass
Step:
Press the left button once to enter the Trip Computer.
Press the button to enter compass page. On the compass page, you can view
21
HOLUX FunTrek 130 Pro
current direction, azimuth and compass.
Compass which has not done with its calibration can not accurately show the
direction. Press the button to calibrate the compass. For details, please refer to
the Compass.
General information
Step:
Press the left button once to enter the Trip Computer.
Press the button to enter general page. Users can view GPS coordinates
information, GPS signal strength, DOP and Time.
Lock/ Unlock the screen
If the screen is unlocked, press the left button for 3 seconds to lock the screen, the
message of "Screen locked” appears on the screen. The “unlock" message pops up on
the screen if press the left button for 3 seconds. Once the screen is locked, press the left
button for 3 seconds to unlock the screen.
22
HOLUX FunTrek 130 Pro
Connect to PC
When the FunTrek 130 Pro is connected to a PC, the following prompt will appear. You
can choose to enter storage mode or charging mode.
Read the microSD card data
Connect Funtrek 130 Pro to the PC with a USB cable and turn on the device. When the
prompt appears, click to enter storage mode.
Note: Press the left button to start the navigation. If the navigation does not appear on the
screen, do not plug in the USB cable.

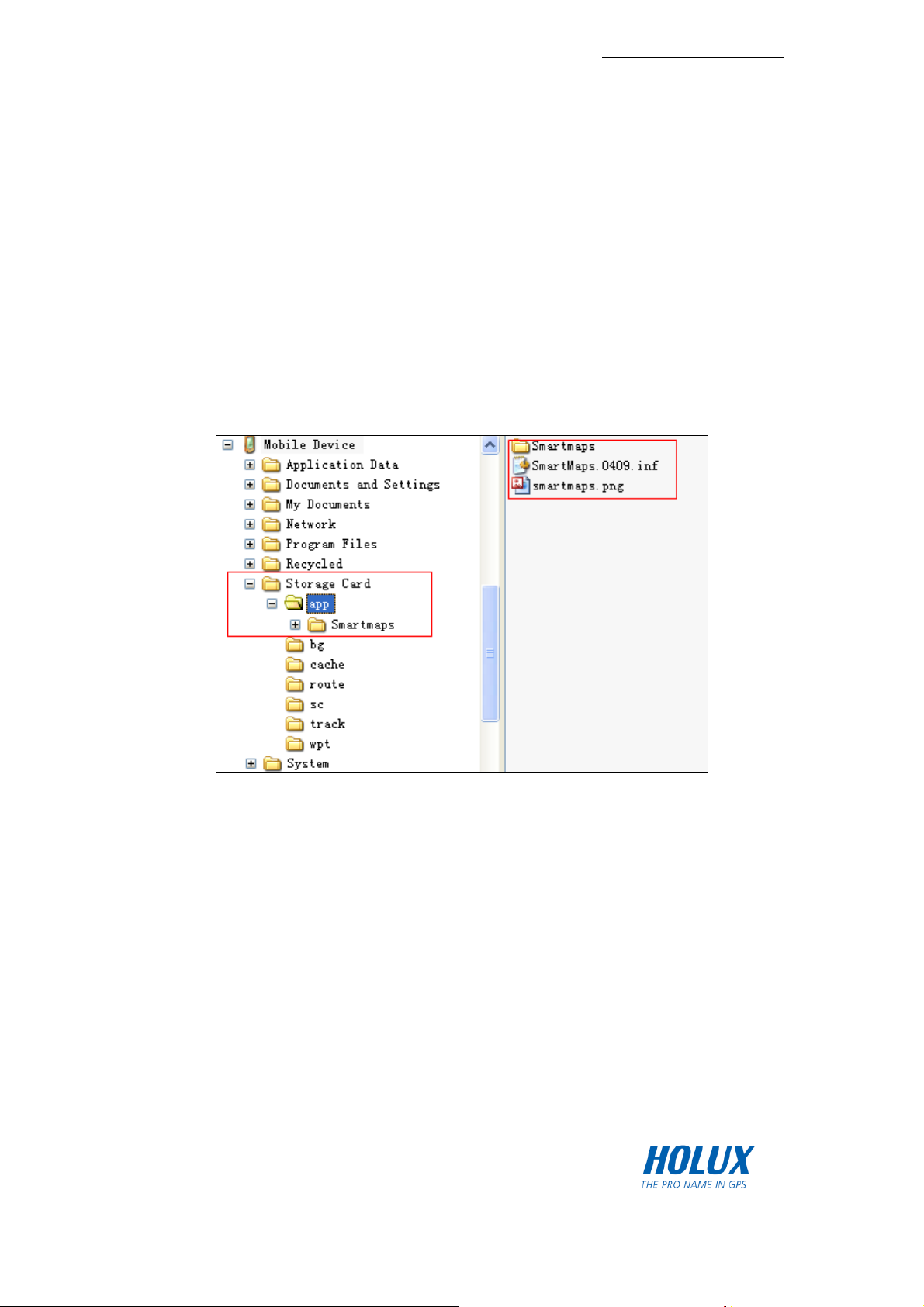

Folders
In Storage mode you will be able to see the folders in the memory card.
Folder Name Description
bg Stores background pictures. The user can add or delete
pictures in this folder.
map Stores the navigation program.
sc Store screenshot pictures.
track Stores track files. The user can add or delete tracks in this
folder.
route Stores route files. The user can add or delete route in this
folder.
wpt Stores waypoint files. The user can add or delete
waypoints in this folder.
23
HOLUX FunTrek 130 Pro
update Stores applications.
Charging mode
Connect Funtrek 130 Pro to the PC with an USB cable. When the prompt appears, click
to enter charging mode. When the device is power off and connect to the PC, enter
charging mode.
Screenshot
FunTrek 130 Pro can take a screenshot and save as a picture. Press both the left and
right buttons at once to take a screenshot. If screenshot is successful, a prompt will
appear. When the Funtrek 130 Pro is connected to a PC in storage mode, the saved
screenshot can be accessed in the "sc" folder.
Note: Do not use the capture screen function when the screen is locked.
24
HOLUX FunTrek 130 Pro
Main menu list
When the device turned is on, the status bar is displayed on the top of main menu. The six
icons are function lists in below of main menu.
Status
Main Menu
Status bar
Satellite information
Icon Description Operation
Time
/
The signal strength /
GPS positioning
Cold start Click the cold start button in
Calculate average location Click the icon to enter the
Click the icon to enter the
satellite page
satellite page to re-search the
satellite signal.
average location page.
Icon Description Operation
Time information Click the icon to enter
Alarm is turned on Click the icon to enter. Please
refer to Alarm.
25
HOLUX FunTrek 130 Pro
Alarm is turned off. Click the icon to enter. Please
refer to Alarm.
Note：GPS positioning should be enabled to ensure that the correct time is displayed.

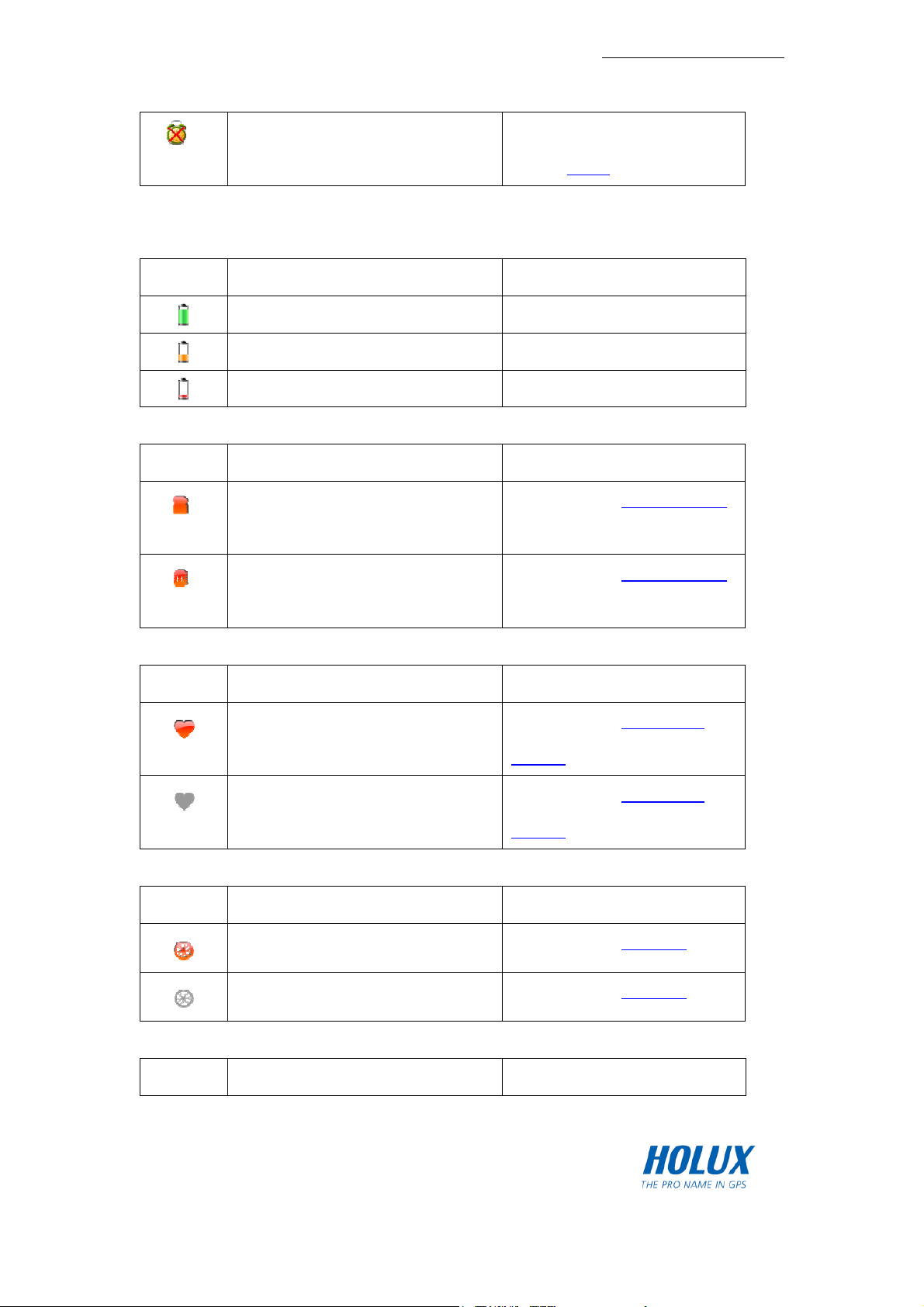

Power message
Icon Description Operation
Power message
Battery down to 45% charge Click the icon to enter.
Battery down to 30% charge Click the icon to enter.
Click the icon to enter.
Storage mode
Icon Description Operation
Track and waypoint data stored in
microSD card.
Track and waypoint data store in
internal memory.
Please refer to Storage media
Please refer to Storage media
Heart rate monitor (HRM)
Icon Description Operation
HRM sensor is turned on. Please refer to Heart Rate
Monitor
HRM sensor is turned off. Please refer to Heart Rate
Monitor
Cadence
Icon Description Operation
Cadence sensor is turned on. Please refer to Cadence
Cadence sensor is turned off. Please refer to Cadence
Compass
Icon Description Operation
26
Compass calibrated Please refer to Compass
Compass requires calibration Please refer to Compass
Alarm clock
Icon Description Operation
Alarm is turned on. Please refer to Alarm
Alarm is turned off. Please refer to Alarm
Backlight
Icon Description Operation
Backlight is on. Please refer to Backlight
HOLUX FunTrek 130 Pro
Backlight is off. Please refer to Backlight
Locked the screen
Icon Descript Operation
The screen is locked. Please refer to Screen Lock/
Unlock
The screen is unlocked. Please refer to Screen Lock/
Unlock
Track log
Icon Descript Operation
The track log was recording. Please refer to New Track
The track log was paused. Please refer to New Track
Main Menu
The main menu contains four shortcuts, Application and Settings. For shortcut items can
be set, the default is “Area”, “Tracks”, “Waypoints” and “Routes”.
27
HOLUX FunTrek 130 Pro

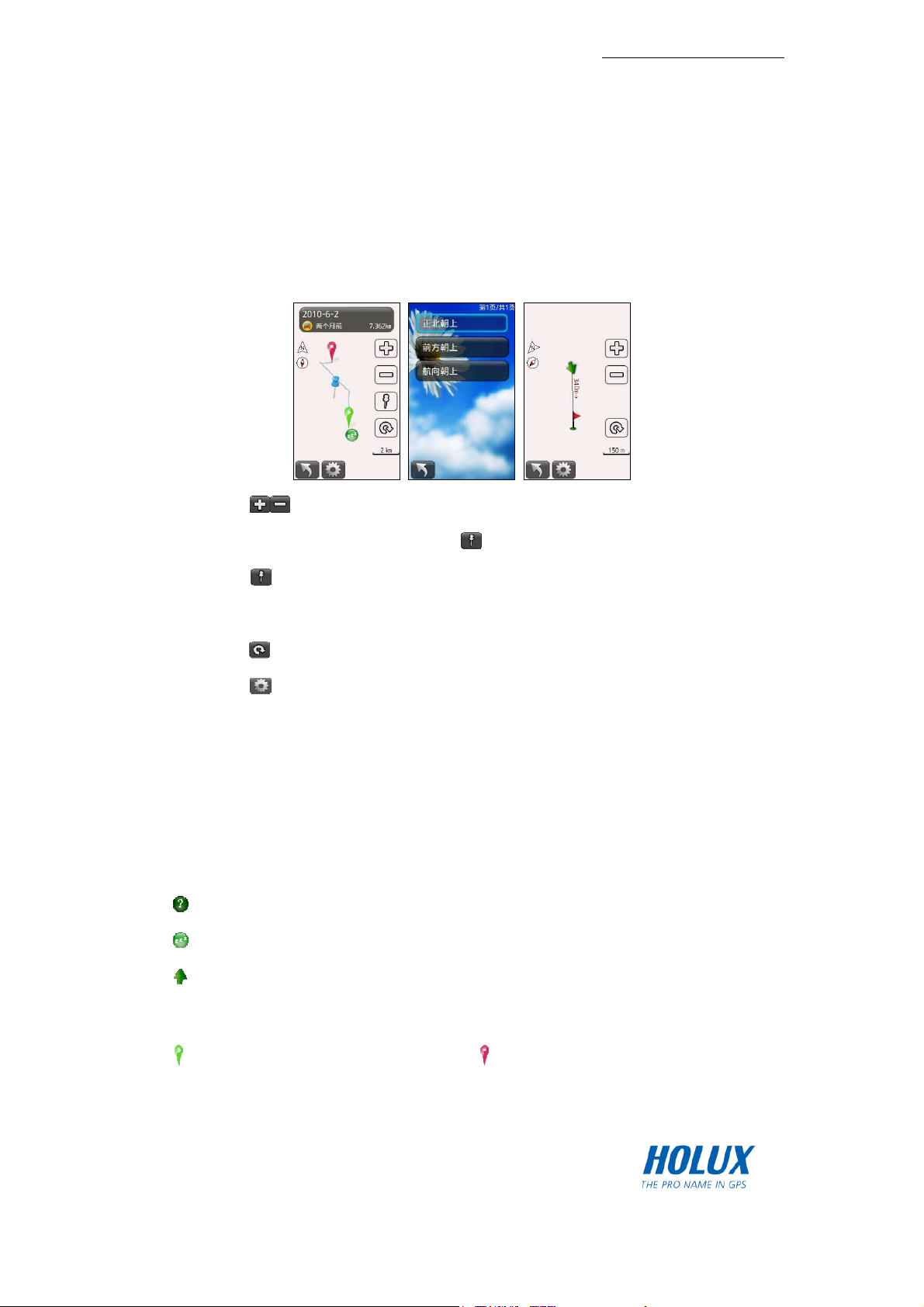

Map View
With the map view, user can browse the tracks, waypoints, routes and areas. Following
are the map features:
Press the button to zoom in/out on the map.
Adding marker on the map: Press the button to mark the location on the map.
Press the button again to locate the position in the middle of the screen which
makes it easier to browse.
Press the button to set the center of the screen position.
Press the button to set the display including the three options: “North up”, “Front
up” and “Course up”.
North up: Maps of the northern part.
Front side: Equipment for the Northern direction.
Course up: Navigate direction up.
The track will show three states:
- the location is unknown.
- the location is found and at idle state.
- it is moving, and the direction of the movement is indicates by the direction of the
arrow.
- the starting point of the path or route, - the end of the track or route.
28
HOLUX FunTrek 130 Pro
Area calculation
Area calculation can immediately measure the area, and the routes can be saved as a
track log.
Step:
On the main menu page, click “Area” to enter the area measure page.
Press the button to enter track display page.
When completed, press the button to display the measure of the track area.

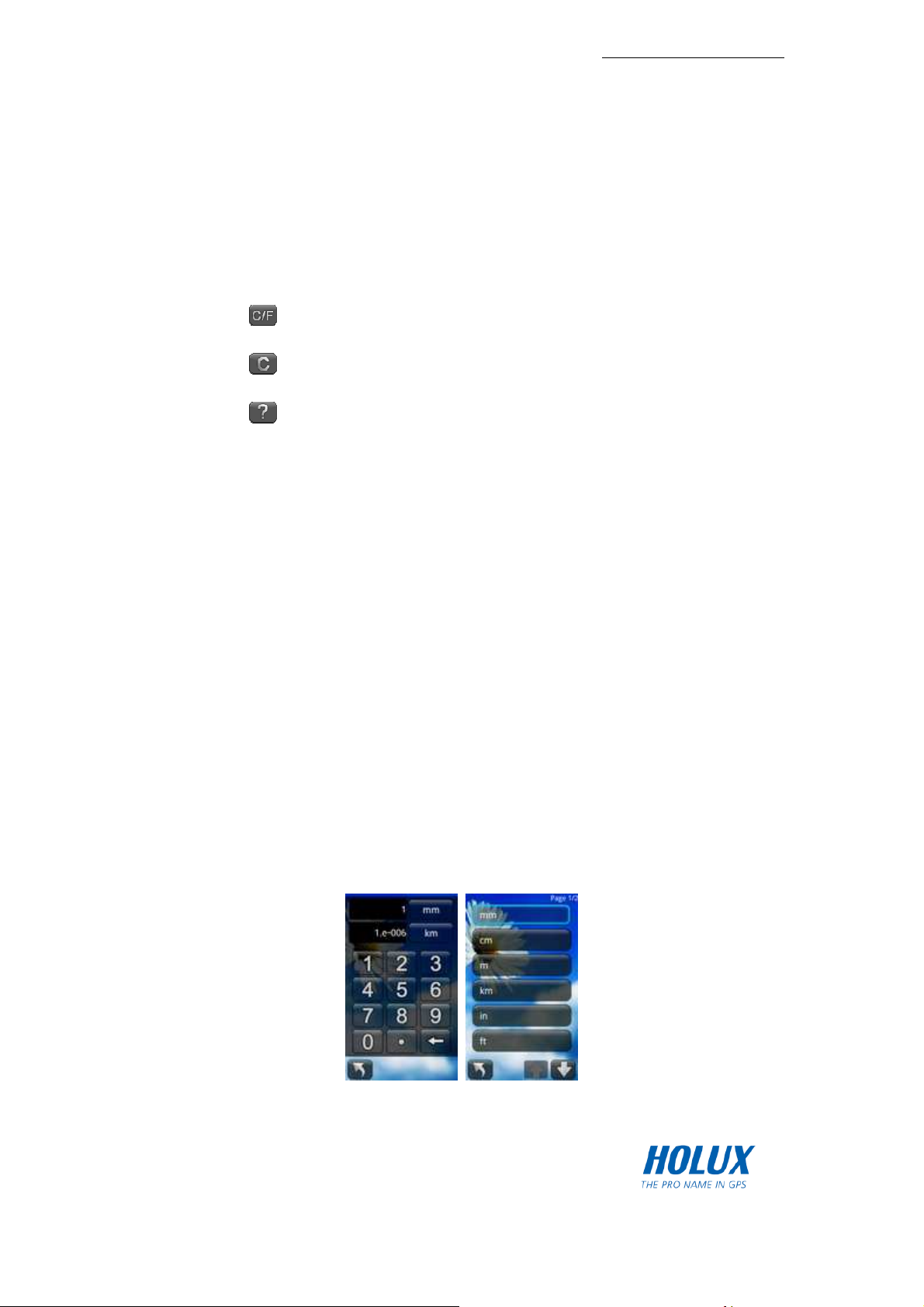

On the length/area unit page, press the button to change the unit of length/area.
Click “Unit of length” or “Unit of area” button to enter the unit list. Users can click one
of the unit buttons to “Move down”, “Insert before”, “Insert behind” and “Delete” the
unit. On this page, press the button to add other units.
29
HOLUX FunTrek 130 Pro
Click “Price of length” or “price of area” button and input price of length/area. You can
view the total price of length/area on the track log display page.
Press the button to save the track, and press the “OK” button to save the track
log.
30
HOLUX FunTrek 130 Pro
Managing the Tracks
With Track management, you view, edit, or copy the track, or get the detail information of
each track log. You can also search for a particular track.

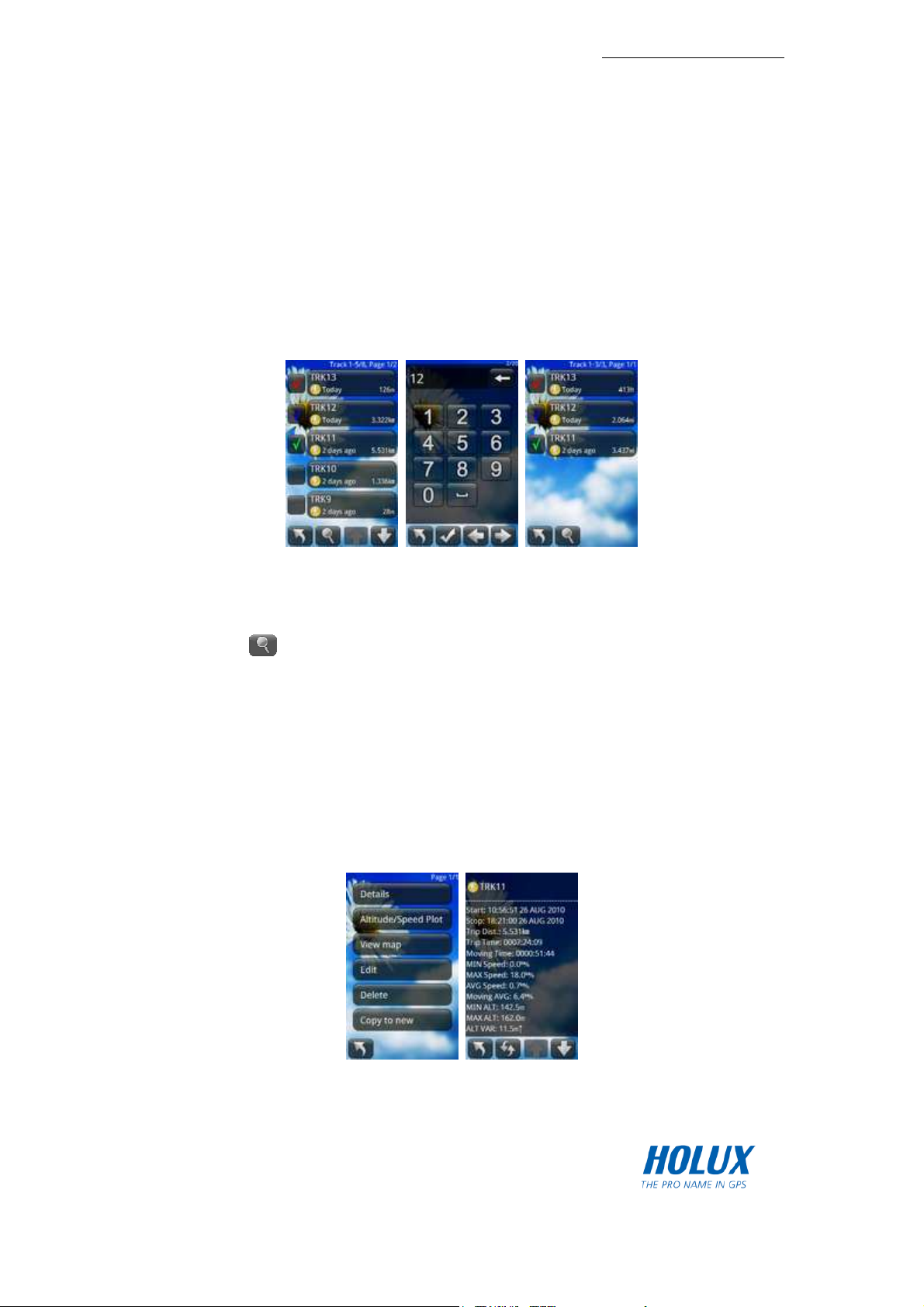

Search track log
Step:
On the main menu page, click “Tracks” to enter the track list.
Press the button to enter the input page. Enter the track log name or keywords.
After completed, press “confirmation” button to display the search result.
Note: After search, if you exit the track management, it will no longer display the search
results page. Next time, enter the track management page to view all track lists.
Track Detail
Step:
On the main menu page, click “Tracks” to enter the track list.
31
HOLUX FunTrek 130 Pro
Select the track that you will operate, click to enter the Track Menu.
Select “Detail”. Details vary with the different modes such as walking mode which
includes the amount of carbon reduction, the tree planting quantity. The car mode
does not include the same functions as walking mode.
Note:
If you edit sport mode, press the button to refresh the track information.
Altitude/ Speed Plot
With Altitude map, you can playback the track record to view the changes of the altitude.
Step:
On the main menu page, click “Tracks” to enter the track list.
Select the track that you will operate, click to enter the Track Menu.
Click “Altitude/ Speed Plot” to enter the altitude page. After drawing graphics, you can
zoom in/out and drag the graphic, view the altitude, speed, time, coordinates, and air
pressure.
Click the two trip information areas on the top of page and you can switch those items.
You can select “Time”, “Location”, “ALT”, “Speed” and “Air Pressure” item.
Press the button to switch axis. User can select the axis item to display to curve.
32
HOLUX FunTrek 130 Pro

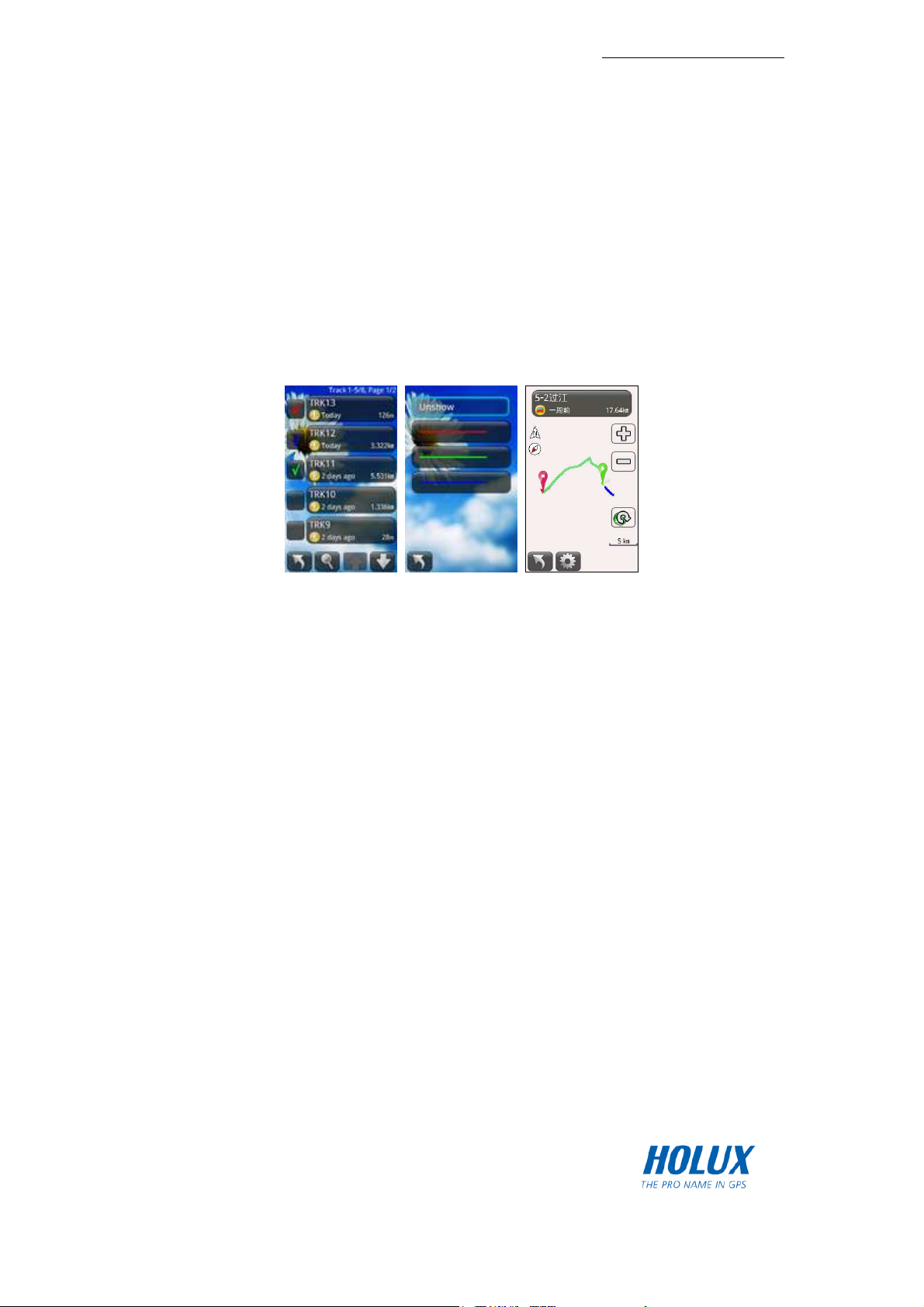

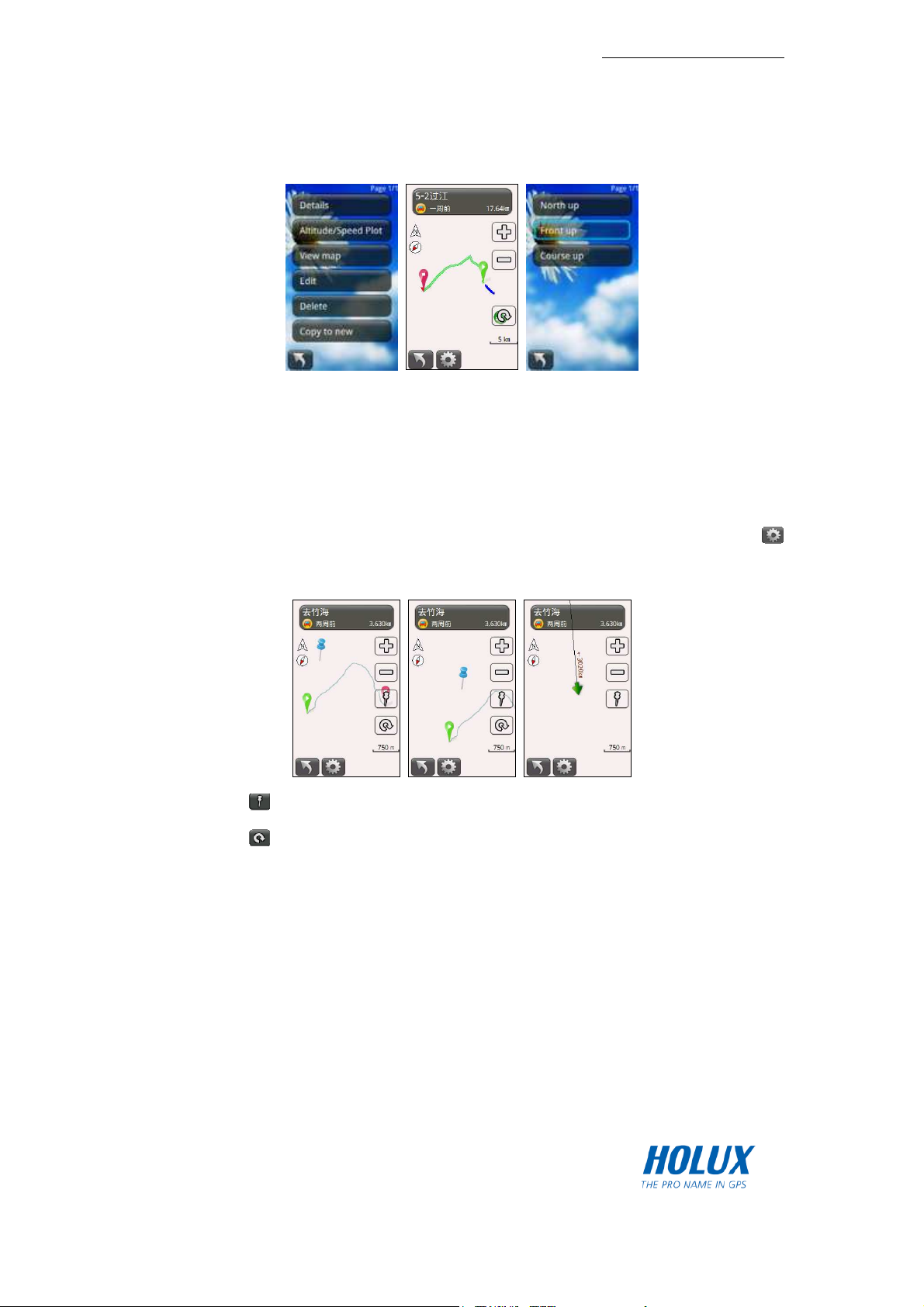

View Track
Step:
On the main menu page, click “Tracks” to enter the track list.
Select the track that you will operate, click to enter the Track Menu.
Select “view map”, the screen will display the track. You can zoom in or zoom out to
change the scale. The track name is shown on the top of the screen. Press the
button to set the map display direction.
Press the button and click the location on the map to mark a point.
Press the button to move the point to center of the screen.
33
HOLUX FunTrek 130 Pro

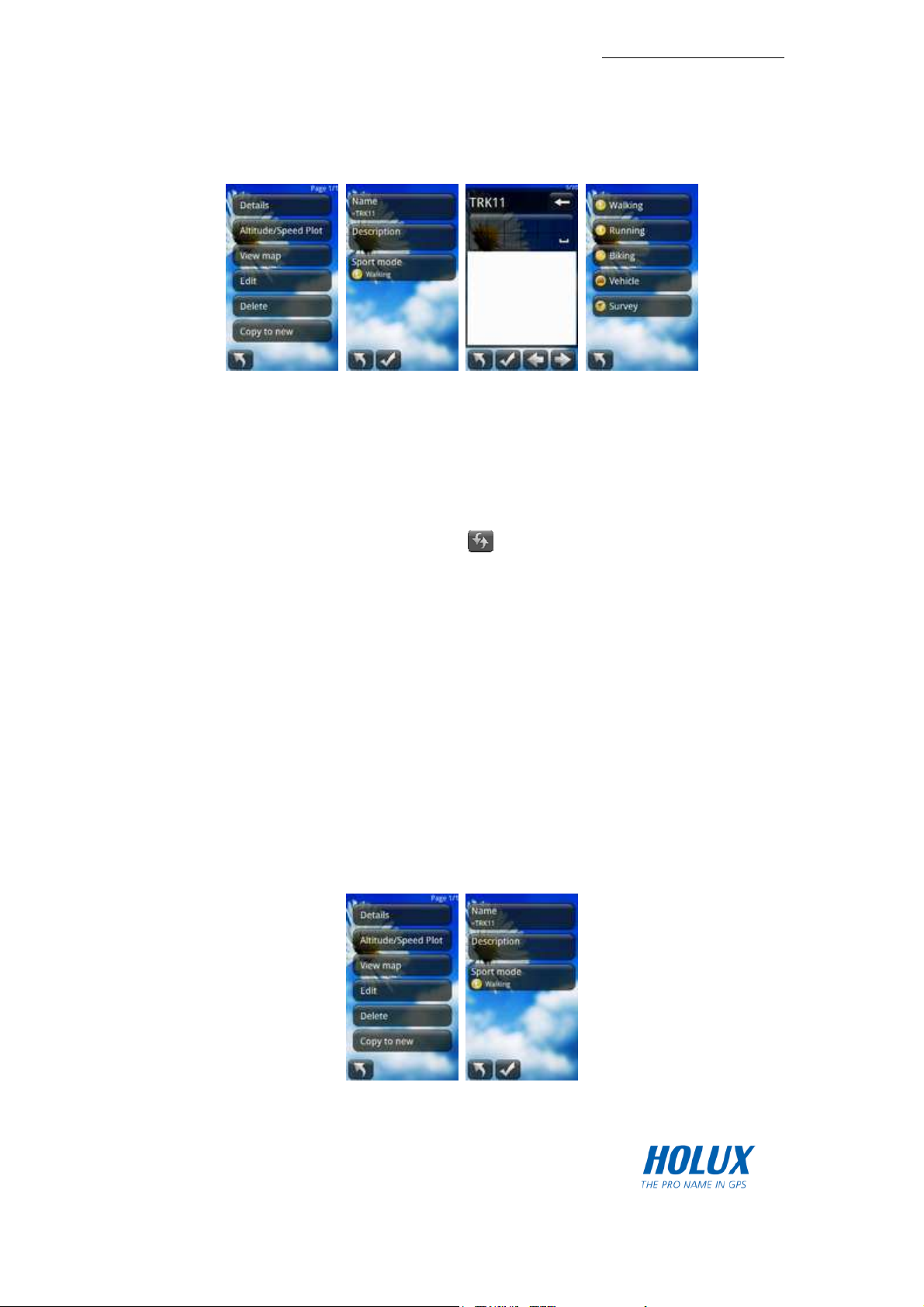

Edit track
Step:
On the main menu page, click “Tracks” to enter the track list.
Select the track that you will operate, click to enter the Track Menu.
Select “Edit” to edit track name, notes and sport modes.
If you change the sport mode, press the button to refresh the track information.
Delete Track
Step:
On the main menu page, click “Tracks” to enter the track list.
Select the track that you will operate, click to enter the Track Menu and select
“Delete”.
Copy to new
34
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Tracks” to enter the track list.
Select the track that you will operate, click to enter the Track Menu.
Select “Copy Track” to enter the edit track page.
Press the confirmation button to copy.
View multiple Tracks
Step:
On the main menu page, click “Tracks” to enter the track list. Check the tracks you
want to display.
You can select up to three tracks to be displayed at one time.
Select one of the tracks, you can still view multiple tracks on the map.
Note:
The FunTrek130 stores one track per GPX file.
If a GPX file with multiple tracks is downloaded from the Internet, FunTrek 130 will
display them as one single track.
35
Waypoints

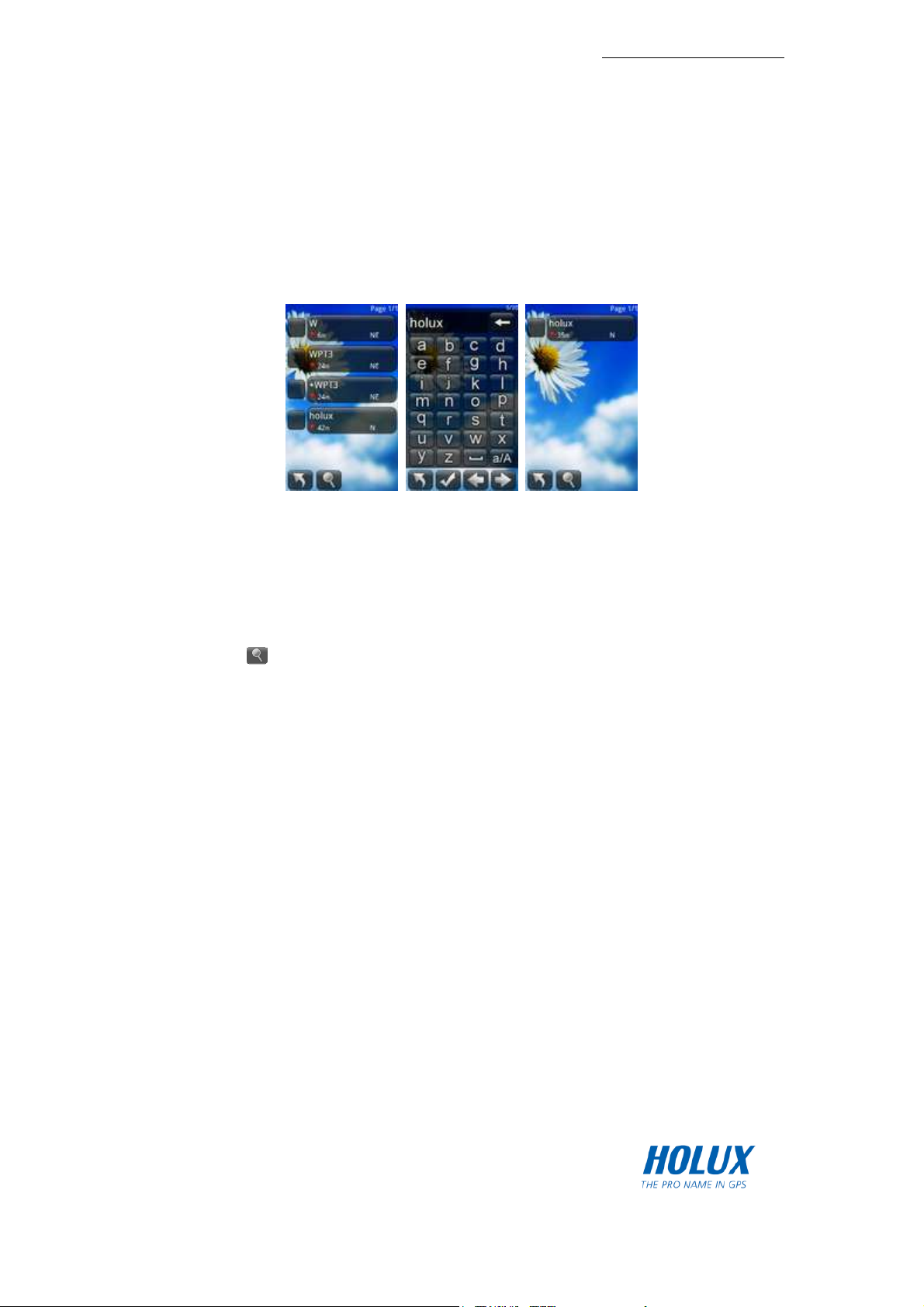

Search waypoints
HOLUX FunTrek 130 Pro
There are plenty of destinations that you can choose. Use the search function to quickly
find the desired destination.
Step:
On the main menu page, click “Waypoints”.
Click the button to enter the input method page. Enter the key words of the
waypoints.
Press the confirmation button to display the searching results.
Note: After search, if you exit the waypoints management page, it will no longer display
the search results. Next time, enter the waypoints management page to view all waypoints
lists.
36
HOLUX FunTrek 130 Pro
Waypoint detail
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.
Select “detail” to view the detail information of the selected waypoint.
View map
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.
Select "Browse”, the screen will display the waypoint position.
37
HOLUX FunTrek 130 Pro
Press the button and click the location on the map to mark a point.
Press the button to move the point to the center of the screen.
Edit waypoints
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.

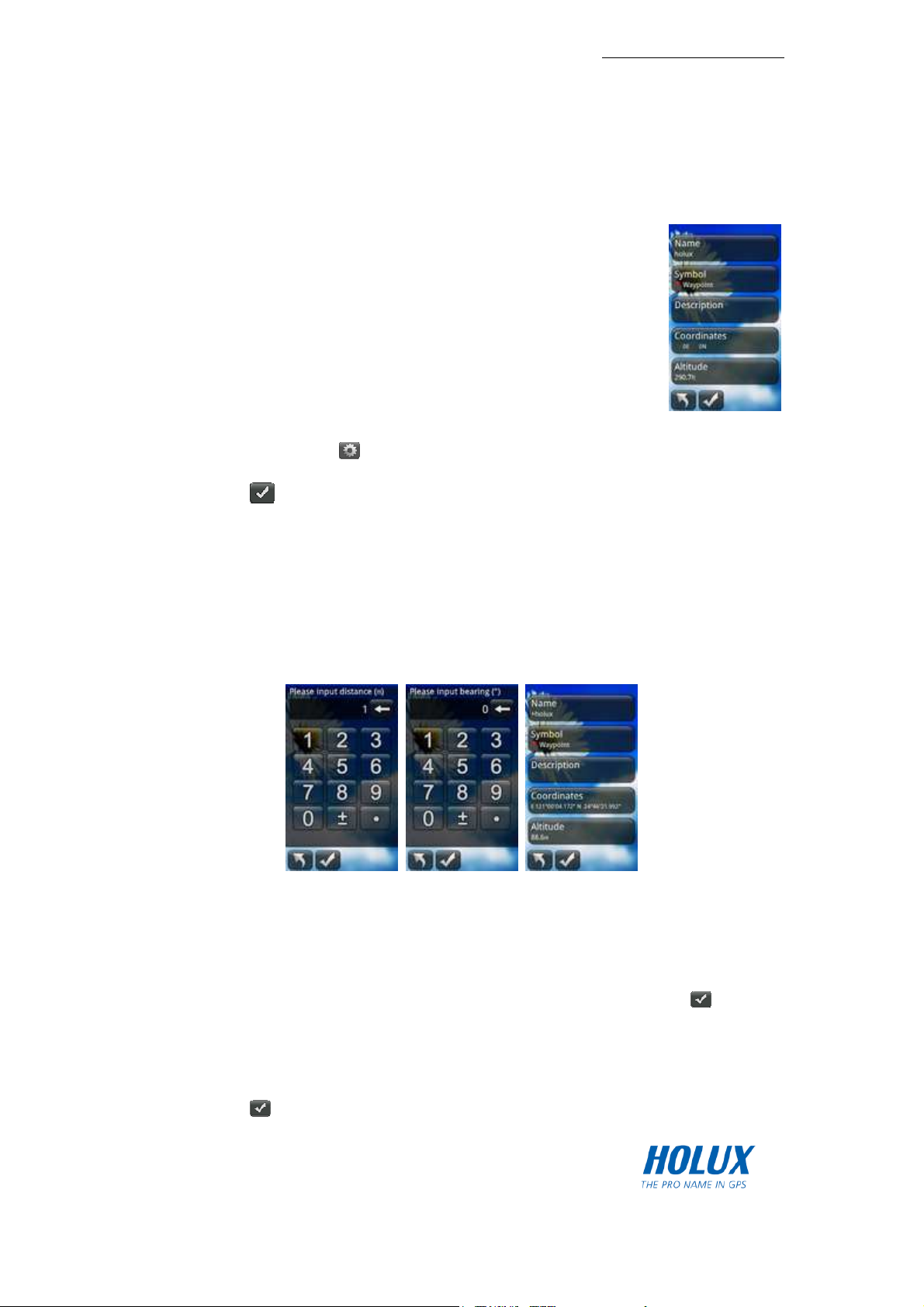

Select “Edit” to enter the waypoint edit page. You can edit waypoint name, select
waypoint symbol, add notes, edit waypoint coordinates location, and input waypoint

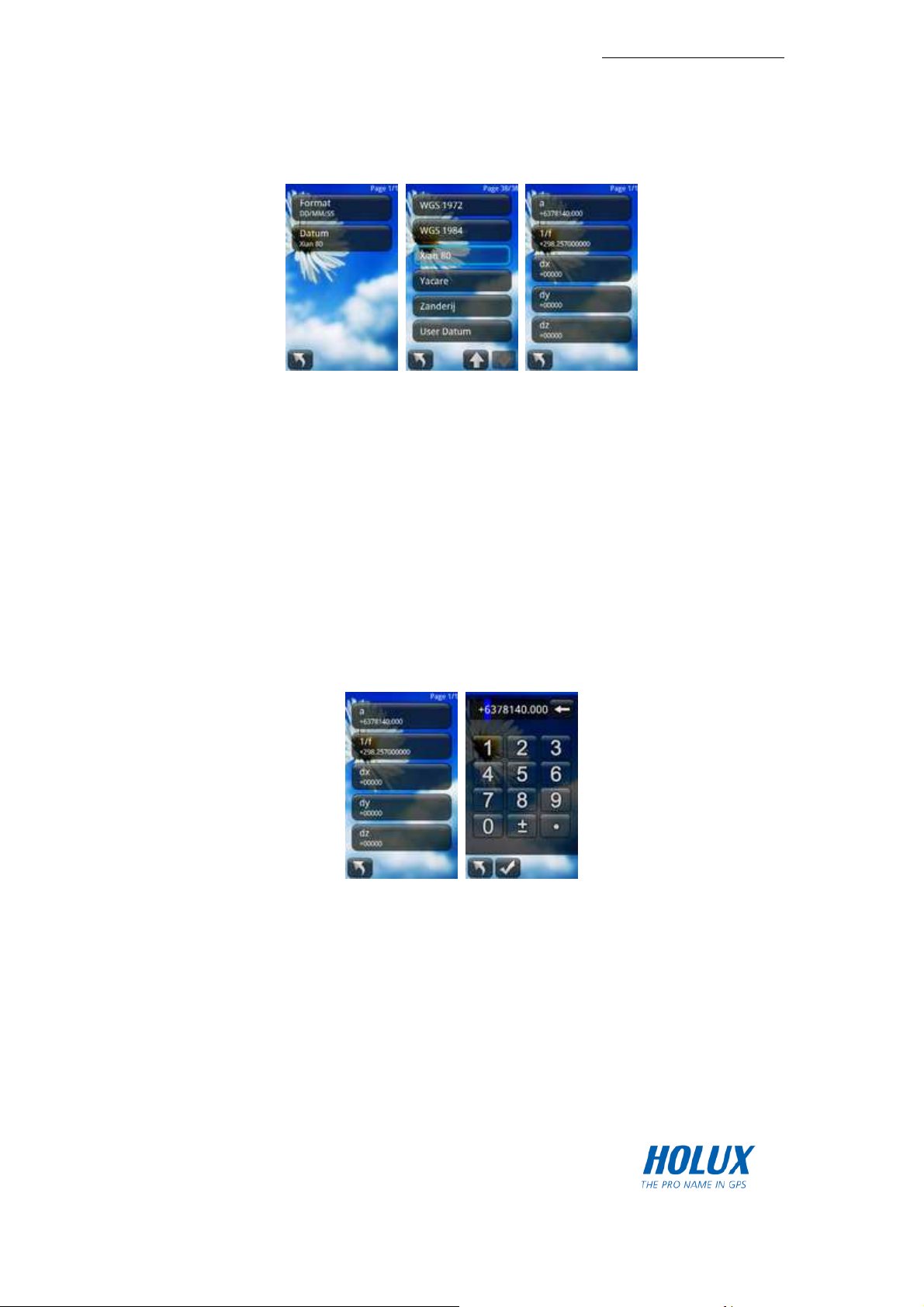

altitude. On “Coordinates input” page, press the button to set the condinates
format and system.
Press the confirmation button to delete.
Delete waypoints
38
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.
Select “Delete”. The confirmation message appears on the screen.
Press the confirmation button to delete.

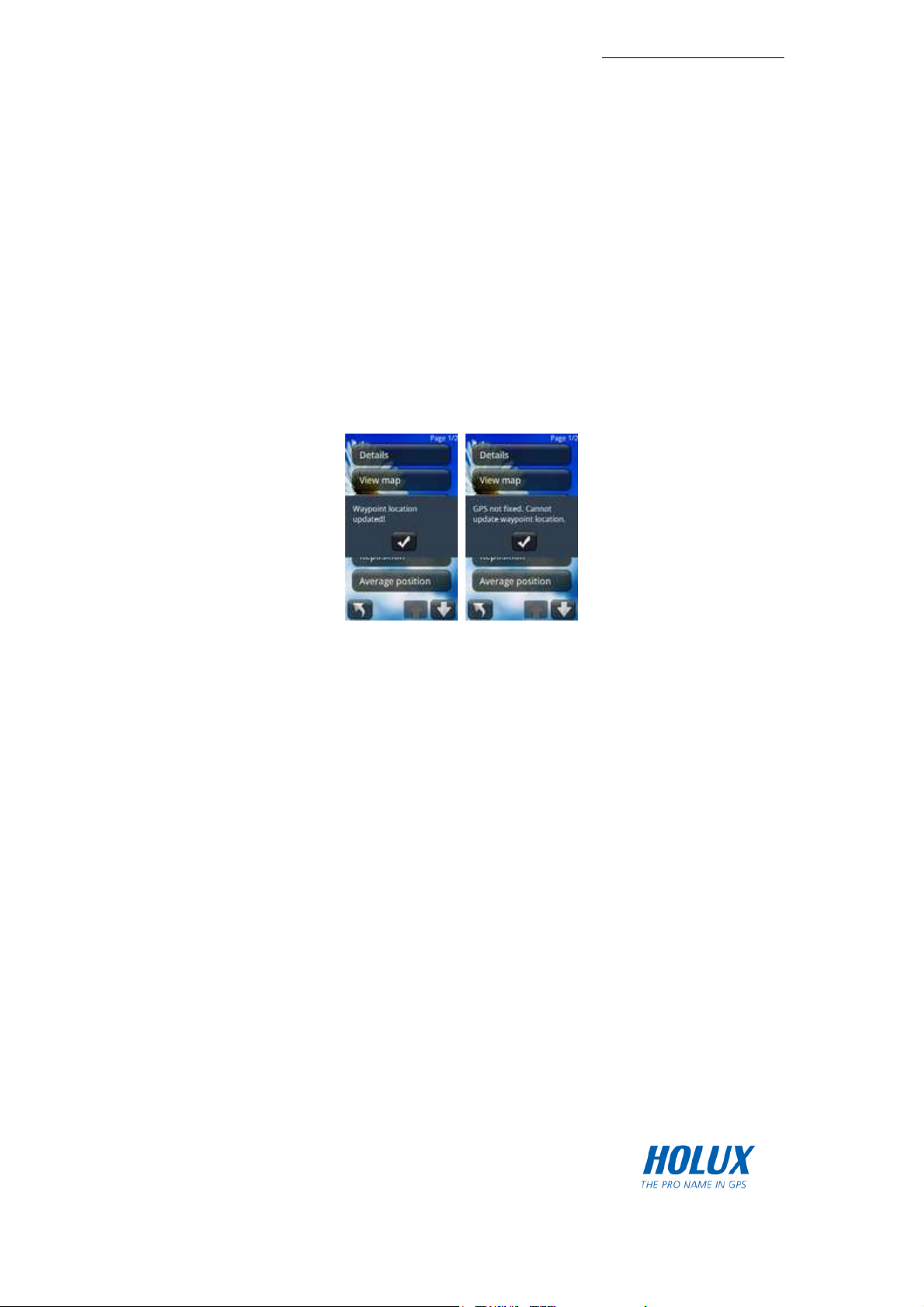

Reposition
With reposition, you can use the current point to replace the original coordinates with the
updated waypoints coordinates.
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.
Select “reposition” to update the waypoints coordinates to the current location
coordinates.
When repositioning is completed, a message appears on the screen. Press the
"confirm" button.
If GPS does not acquire the satellite signal, the device can not repositioning.

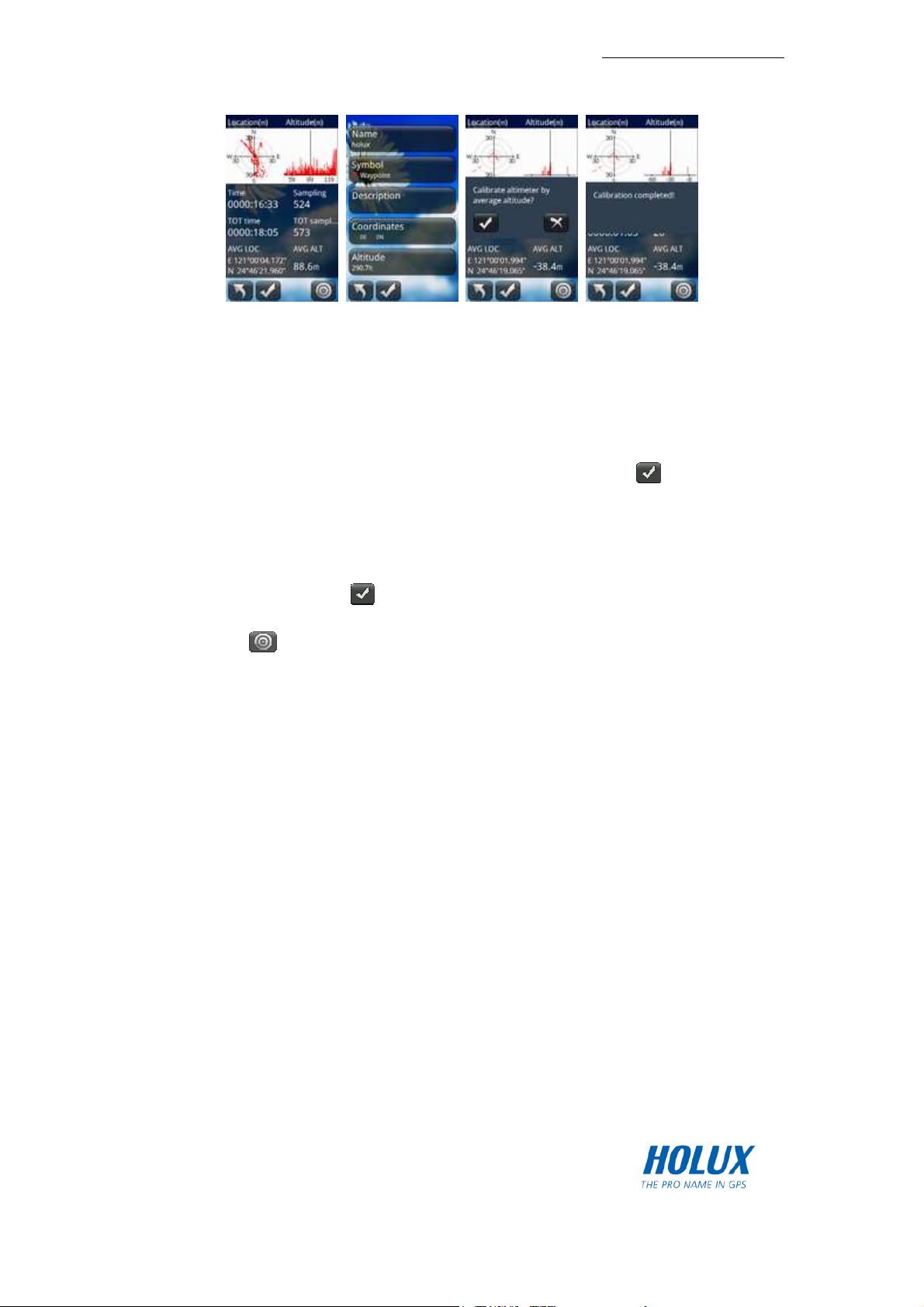

Average position
“Average position” calculates the average value of altitude the GPS sampling points and
coordinates information in order to obtain the accurate values on both altitude and
coordinate information.
39
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.
Select “Average position” to calculate current position and altitude.
When you have achieved the required sampling, press the button to enter
waypoint edit page. The waypoints’ coordinates value are replaced with the average
coordinates value.
On the edit page, press button to save the waypoint information.
Press the button to calibrate altimeter by average altitude.
On the Location map of 10 meters, 20 meters or 30 meters radius, when the sampling
point is focused on the center, the average coordinate value is closely paralleled the true
value.
On the Altitude map, the height value is the horizontal axis, and the origin of the horizontal
axis is the average height. When the sampling point is achieved, the average altitude
value is closely paralleled the true value (as shown on the first illustration above). If the
same circumstances, if there is a sudden altitude changes, the altitude reading will be
inaccurate. It is recommended to measure it again when the GPS signal and situation are
in better conditions.
40
HOLUX FunTrek 130 Pro
Copy to new
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints
menu.
Select “Copy a new” to enter the waypoint edit page. You can edit
waypoint name, select waypoint symbol, add notes, edit waypoint
coordinates location, and enter waypoint altitude. On “Coordinates
input” page, press the button to set the condinates format and system.
Press the button to save the new waypoints.
Project to new
“Project to new” is the origin to a waypoint, enter the distance and azimuth to create a new
waypoint.
Step:
On the main menu page, click “Waypoints”.
Select the point that you will operate, click to enter the Waypoints menu.
Select “Project to new” and enter the distance and bearing. Press the button to
save.
Enter a new waypoint edit page, a confirmed coordinates and altitude information.
Press the button to create a project waypoint.
41
HOLUX FunTrek 130 Pro
Routes
You can use waypoints to build routes, and edit routes name, description, and points.
New routes
Step:
On the main menu page, click “Routes”.
Press the button to enter a new routes page.
Click “points” to enter the point list. Click the button to select waypoints add into
the routes. User can selects single or multiple waypoints.
After added waypoints, return to new routes page. Press the button to save the
routes.
Notes：
Waypoints mean the route destinations.
Routes name can be input up to 20 words, notes can be input up to 50 words.
Details
The details information contains name, length and area.
42
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Routes”.
Select the route that you will operate, click to enter the Routes Menu.
Select “Details” to view the detail information of the selected route. After you have
reached the destinations, user can view the route name, comments, starting
destinations. The starting and ending points link to a closed areas perimeter and
dimension, and the route creates the changes of date and time.
View map
Step:
On the main menu page, click “Routes”.
Select the route that you will operate, click to enter the Routes Menu.
Select “View map”.
43
Edit
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Routes”.
Select the route that you will operate, click to enter the Routes menu.
Select “Edit” to enter the route edit page. You can edit route name, add notes, edit
route points.
Click “Points” to enter point list. Click the point that you will operate to enter the point
operation menu. On this page, you can “forward”, “backward”, “insert” and “delete”
the points. Click the button to select waypoints to add into the routes.
Coordinates location and enter the waypoint altitude. On “Coordinates input” page,
press the button to set the condinates format and system.
After edit waypoints, return to new routes page. Press the button to save the
routes.
44
HOLUX FunTrek 130 Pro
Delete
Step:
On the main menu page, click “Routes”.
Select the route that you will operate, click to enter the Routes menu.
Select “Delete” button and then a deletion confirmation message appears on the
screen. Press the button to delect the route.

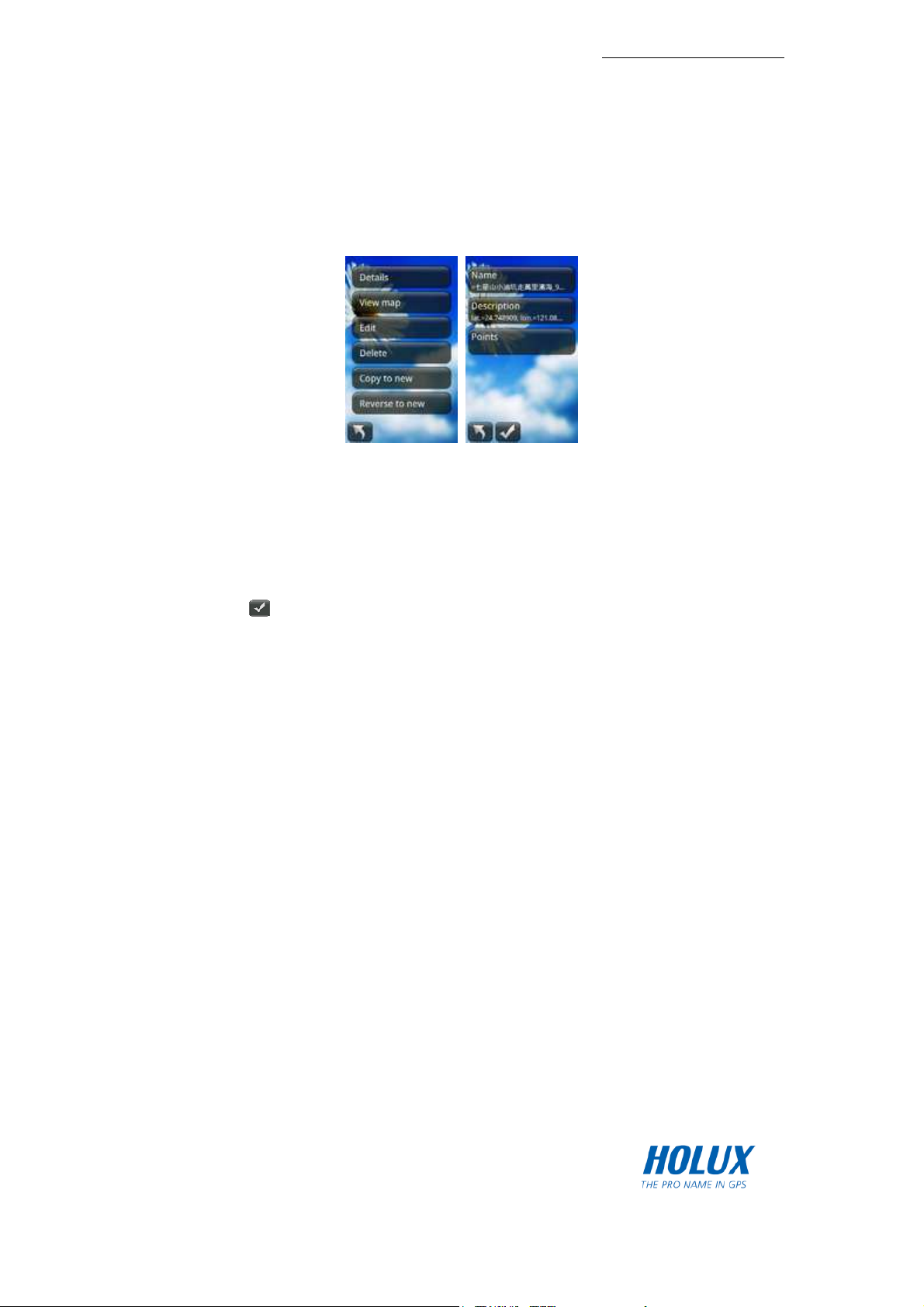

Copy to new
Step:
On the main menu page, click “Routes”.
Select the route that you will operate, click to enter the Routes menu.
Select “Copy a new”, you can copy a new route name, description, and points.
After editing, press the button to copy a new route.
45
HOLUX FunTrek 130 Pro
Reverse to new
With “Reverse to new” function, you can create a route in the opposite direction with the
original route.
Step:
On the main menu page, click “Routes”.
Select the route that you will operate, click to enter the Routes menu.
Select “Reverse to new” to enter the route edit page.
Press the button to create an opposite route.
46
Application
Application contains all main functions of FUNTREK 130 PRO.
HOLUX FunTrek 130 Pro
Shortcut
All functions in application page can be set as shortcuts on the main page.
Step:
On the main menu page, click “Application”.
Press the button to enter function list.
Select the function that you will set as shortcut, and click to enter shortcut list. Select
the location of the shortcut, and return to the application page.
47
HOLUX FunTrek 130 Pro
Using an External Application
User can add any third party navigation software developer (either from other countries or
regions) into FunTrek130.
For example, SmartMaps installation:
Connect the device to the computer by using the USB cable. On the Storage Card (or
SD card), create an “app” folder. The same operation steps applied to Storage Card
or SD card.
To install the third party software, copy the related file to the “Storage\app” folder.
In the “Storage Card\app” folder, place the SmartMaps icon which is in PNG format.
For example, the filename is “smartmaps.png”. In the main menu, this icon represents
the third party software’s icon.
In the “Storage Card\app” folder, create an INF file for SmartMaps. For example,
“smartmaps.0409.inf”. Refer to the following guideline:
name=SmartMaps
icon=\Storage Card\app\smartmaps.png
exec=\Storage Card\app\SmartMaps\smartmapspna.exe
To start using the application, launch SmartMaps on the “Main menu/Programs”.
Note：
48
HOLUX FunTrek 130 Pro
Basically, user can execute the exe program and PNG images on any storage
location on FunTrek130. Be sure that the inf file contains the correct path for name,
icon, and exec.
Inf file information:
“
name=SmartMaps” – the third party software name to be displayed on the main
menu. If not specified, it will be displayed as a “shortcut”;
“
icon=\Storage Card\app\smartmaps.png” – the third party software icon in the
main menu. If not specified, or specify with the wrong path, the default short icon is
FunTrek130;
“
exec=\Storage Card\app\SmartMaps\smartmapspna.exe” – the execution location.
If it is not specified or specify with the wrong path, the third party software will fail to
launch.
Inf file is a setup file. You can create a txt text file, edit and save the file. Rename the
txt file to inf file format.
Inf file naming convention is the “Software name, Language ID number”. Language
ID number have to cooperate with FunTrek130 languages. If FunTrek130 main
program is the Simplified Chinese version, the inf file name should be "Software
Name .0804." (in Simplified Chinese). If the third-party software operating language is
English, and FunTrek130 main menu displays third-party software in Simplified
Chinese names. Then English is used for the third-party software operation. If the
language ID number and FunTrek130 language does not match, an error will occur
when running the third-party software.
0409 is 4-digit language ID that represents American English, 0804 represent
Simplified Chinese, 0404 represents Traditional Chinese.
Training
Connected with the heart rate monitor, cadence and speed sensor, users can do the
49
HOLUX FunTrek 130 Pro
exercise training.
Step:
On the main menu page, click “Application”.
First connect heart rate monitor, cadence and speed sensor. Details reference for
Heart Rate Monitor, Cadence Sensor and Speedometer sections. After connected, it
starts to receive the data. Click “Training” button to enter the training page.
“HR Grade”: Before you set the HR grade, please read the message that appears on
the screen. Press the button to enter HR Grade list and select the appropriate
heart rate range.
“Cadence Grade”: Before you set the Cadence grade, please read the message that
appears on the screen. Press the button to enter cadence grade list and select
the appropriate cadence range.
Users can define the cadence range. Click “User Define” to enter the minimum
cadence value and press the “confirmation” button. Next, enter the maximum
cadence value and press the “confirmation” button to save.
50
HOLUX FunTrek 130 Pro

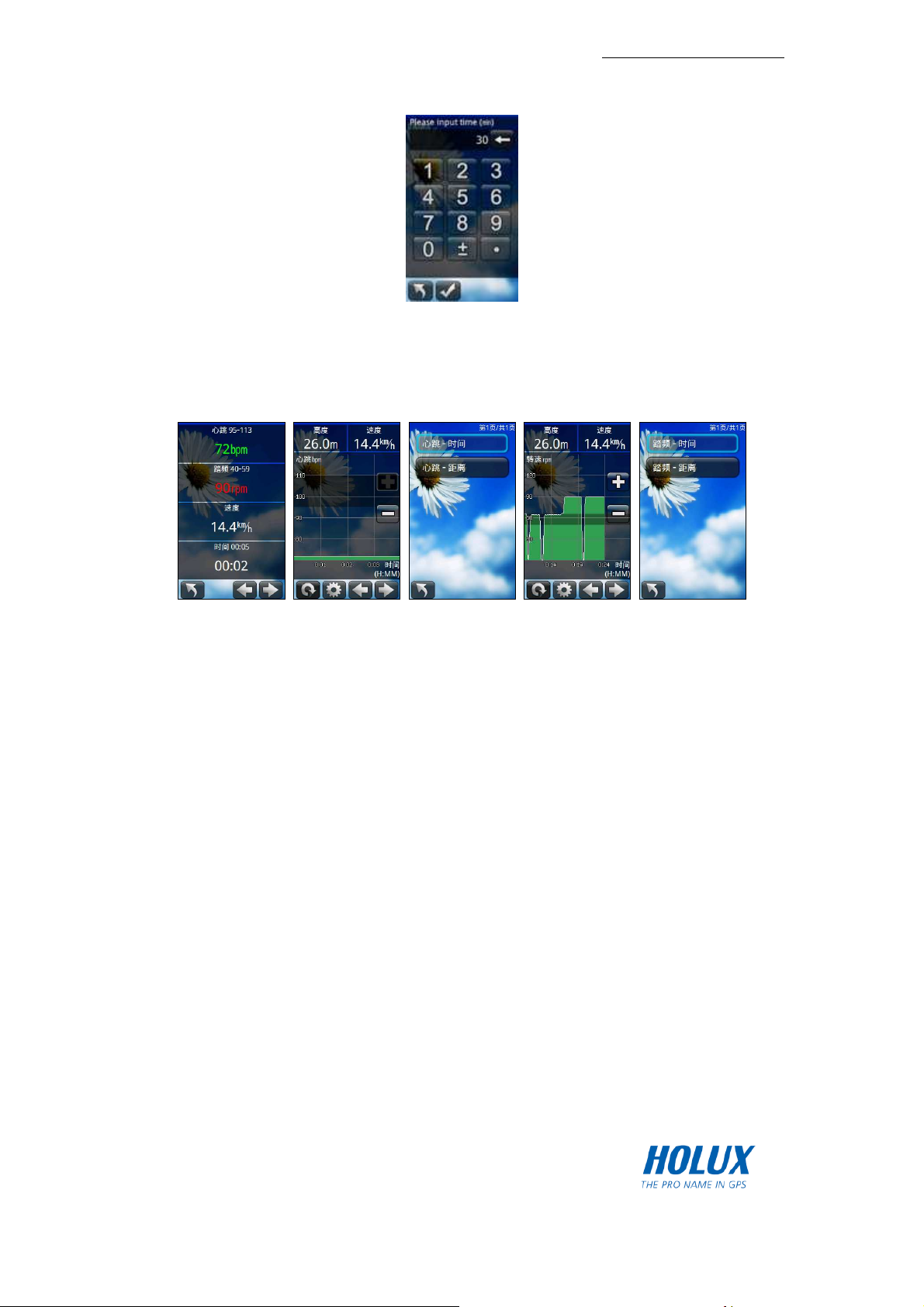

“Training Time”: Enter the training time, and then press the “confirmation” button to
save.
“New Training”: Enter training page.
The training information page displays heart rate, cadence rage, speed, and training
time, etc.
Note: The heart rate or cadence which is currently lower than the preset minimum value is
displayed in green, higher than the preset maximum value is shown in red, and displayed
in white within the default display.
The training information page is based on the connection situation, then display different
status:
The sensor is disconnected, it displays as “---”;
The sensor is connected and the signal is good, it displays the data and the icon is
blinking;
The sensor is connected, but the signal is poor and the display data shown is below than
the minimum value for 1 to 5 seconds, cadence and speed data decreases, the icon does
not blinking;
The heart rate data is displayed as the last time, the icon does not blinking;
51
HOLUX FunTrek 130 Pro
The sensor is connected, but the signal is poor or the display data shown is low for 6
seconds to 1 minute, cadence and speed data are 0, and the icon is not blinking. The
signal data is displayed as “???”, the alert beep is on in every 10 seconds;
The sensor is connected and the poor signal lasts more than 1 minute, the cadence,
speed and heart rate are displayed as “---”.
FunTrek130 pro training information range is: Heart rate 30-220bmp, Cadence 20-255rpm,
Speed 2.4-244km/h.
Cadence, speed and heart rate data which are higher than the maximum value, the display will
continue to show the maximum value.
On the training information page, press the button to flip to the HR or
Cadence graphics page. Press the button to switch axis. In the graphics, the
dark horizontal bands is the setting rage of heart rate/cadence. Browse the charts for
reference.
Click the heart rate/cadence chart at the top of the "altitude" or "speed" block to enter
the information option lists. Select different information to display on the chart.
In training process, press the “Back” button and a message appears on the screen.
Press the button to exit the training, or press the button to continue training.
52
HOLUX FunTrek 130 Pro
When training is completed, pops up the training is finished. Press the button to
ends the training and saves records. User can view multiple training records in the
track management.
“Last training”: You can review the detail information of last training. Press the
button to refresh the information.
G-Finder
The G-Finder enables users to mark their starting points. It helps you get the current
position and distance from where you started. This helps guide you to return to the starting
point.
Step:
On the main menu page, click “Applications”.
Click “G-Finder”.
Press the button to enter G-Finder points list.
“Current position”: Current location will be set as the G-Finder
point.
“User define”: Input coordinates value of the G-Finder point.
53
HOLUX FunTrek 130 Pro
“Waypoint”: Select waypoint of the G-Finder point.
After all settings are completed, it will display the G-Finder information.
Press the button to view G-Finder screen.
Note: If GPS has not completed the positioning, the information will not be displayed.

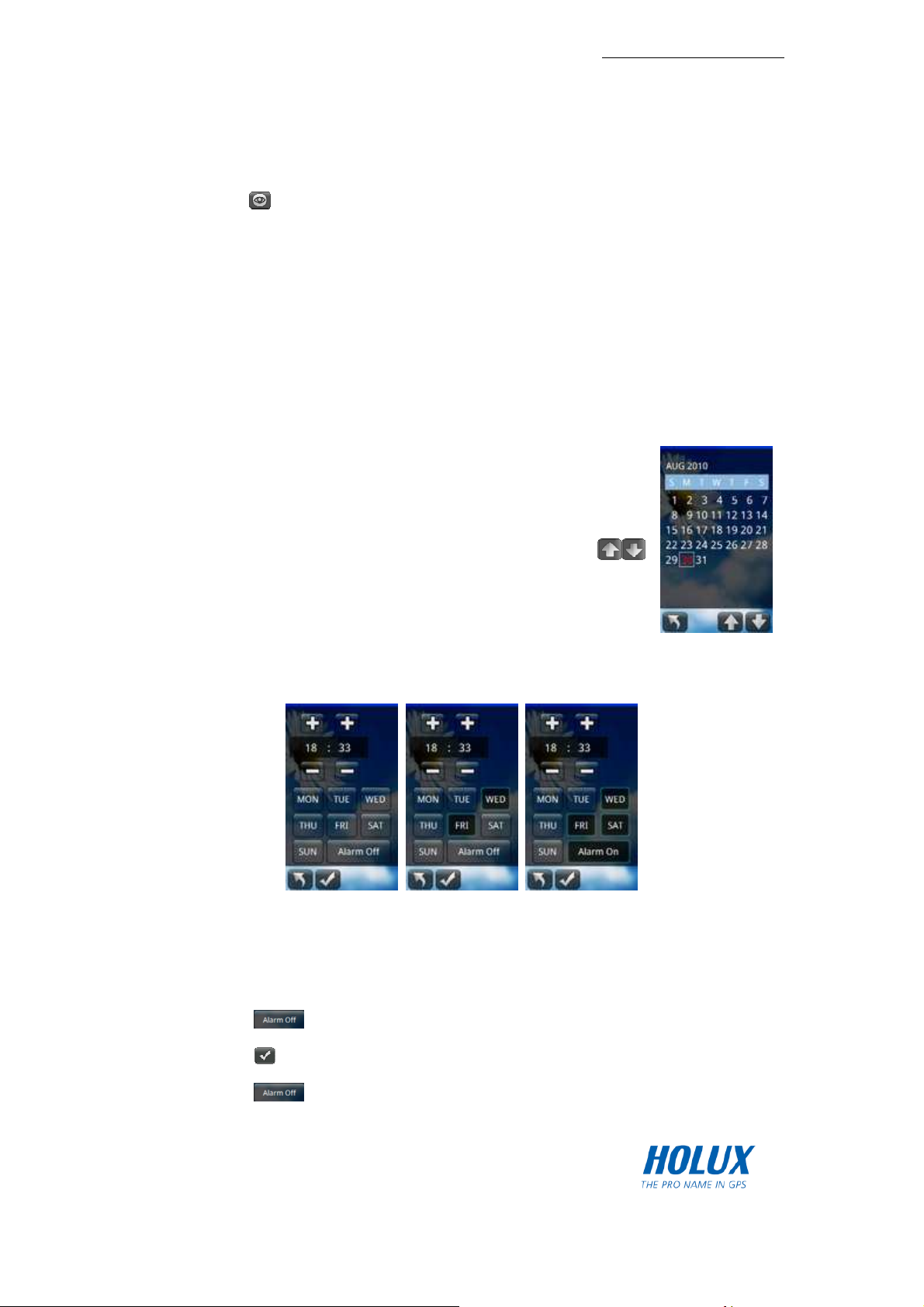

Calendar
Step:
On the main menu page, click “Applications” icon to enter the
Program menu.
Click “Calendar” icon to view the calendar page. Use the
button to change month.
Alarm clock
Step:
On the main menu page, click “Applications” icon to enter the Program menu.
Click “Alarm clock” icon to enter the Alarm clock page.
Press the button to turn on the alarm clock.
Press the button to save the value.
Press the button to turn off the alarm clock.
54
HOLUX FunTrek 130 Pro
Note:
When setting the alarm, do not select a date. When the alarm is on, the system will
only ring once on the set alarm. If you set the alarm earlier than the current time, it will
ring on the next alarm.
When the alarm is ringing, select “keep repeat”, it will ring again after 10 minutes. It
can be repeated 6 times.
When the device is power off, the alarm clock is still work. However during the power
charging time, the alarm clock will not work.
Calculator
Step:
On the main menu page, click “Applications” icon to enter the Program menu.
Click “Calculator” icon to enter the Calculator page.
Note:
Input with up to 13 digits can be entered into the calculator.
If the result exceeds 13 places, it will be displayed using scientific notation.
55
HOLUX FunTrek 130 Pro
Stopwatch
Step:
On the main menu page, click “Applications” icon to enter the Program menu.
Click “Stopwatch” icon to enter the Stopwatch page.
In timing process, users can pause or continue timing.
Temperature Measurement
FunTrek130 includes a temperature measurement feature that can measure the
environment and object surface temperature.
Step:
On the main menu page, click “Applications” icon to enter the Program menu.
Click “Temperature Measurement” icon to enter the Temperature Measure page.
Align the device’s infrared temperature sensor towards the tested object and adjust
the sensor and the distance between the tested object. The tested objects can be
covered within the entire range of the sensor view. Sensor lens and the distance
between the tested object should be less than 1.5 times of the minimum diameter of
56
HOLUX FunTrek 130 Pro
the tested object.
Wait for 2 ~5 seconds, press the “Measure” button to display the temperature and
measurement time. Press the “Measure” button again to display the next set of
temperature and time. For multiple measurements, the calculations show the average
measured temperature.
Press the button to toggle the Celsius and Farenheit (℃/℉)unit.
Press the button to clear the temperature measuring and recording.
Press the button to display temperature measurement help page.
Note:
Do not point the IR sensor to the sun, fire or the high temperature objects. This may
cause device malfunction.
If you are measuring temperature at places with big difference temperature, use the
device after a few minutes.。
When quickly moving from high to cold temperatures, please take note if there is
water droplet or frost on the lens. It will affect the temperature measurement.
Tested as far as possible when measuring the surface or surface part within the range
of the sensor view. Do not let the sensor to "see" any other objects as it will have
more accurate measurement of temperature value.
Unit Conversion
Step:
57
HOLUX FunTrek 130 Pro
On the main menu page, click the “Applications” icon to enter the Program menu.
Click the “Unit” icon. Users can converts units of length, area, weight and volume.
Click the input box and enter the value that you want to convert. You can do two
conversions at one time.
Click unit name to convert units.
Health
Step:
On the main menu page, click the “Applications” icon to enter the Program menu.
Click the “Health” icon.
Select one of the options, click it to enter and view the Health Info.
Emer. (Emergency info)
Step:
On the main menu page, click the “Applications” icon to enter the Applications menu.
Click the “Emer.” icon to enter browser page.
58
HOLUX FunTrek 130 Pro

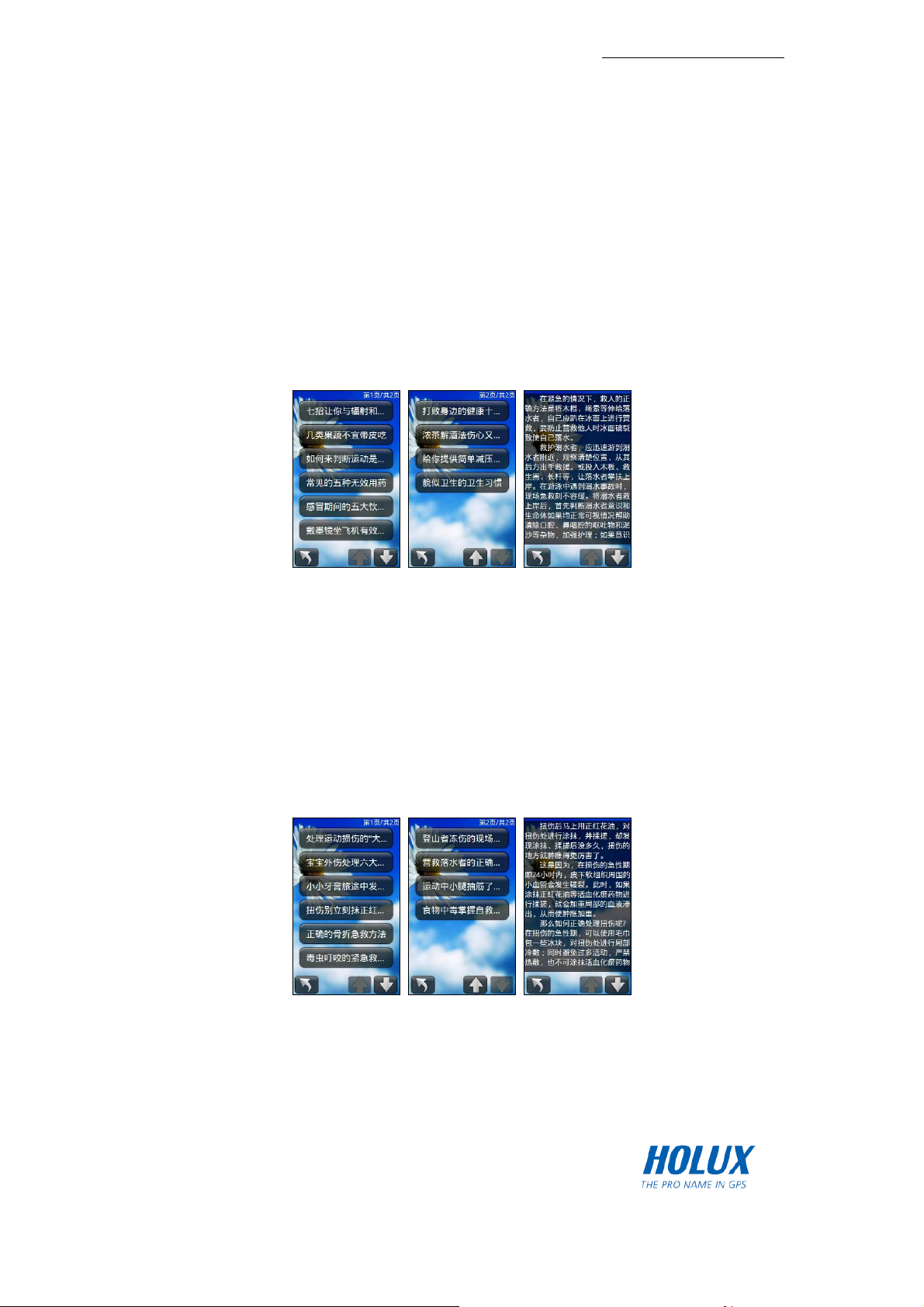

Tips
Tips function can help user to understand FunTrek 130 Pro and GPS
knowledge. The default is displayed at power on. Users can view all
tips content in application function.
Step:
On the main menu page, click the “Applications” icon to enter the
Applications menu.
Press the “Tips” icon to view the contents.
Geocaching
Visit www.geocaching.com website to download the geocaching documents.
Information
The information includes “Difficulty”, “Terrain”, “Cache Size” and “Trackable” and Hints.
Step:
On the main menu page, click the “Applications” icon to enter the Program menu.
Click the “Geocaching” icon. The cache that has been found will be marked as ,
contrarily, it is marked as .
Click Geocaching to view the information.
Note: The FunTrek 130 Pro can store up to 500 cache locations.
59
HOLUX FunTrek 130 Pro
GeoRadar
Step:
On the GeoRadar page, press the button to view the
GeoRadar information.
Press to mark the cache that has been found and added notes. If you don’t add
any note, it returns to the GeoRadar page directly.
Compass
Step:
On the GeoRadar page, click button to view the compass
information.
Press the button of compass bottom page to return
information page.
Mark Found
Step:
On the GeoRadar page, press the button to mark found.
Press the button to mark not found.
60
HOLUX FunTrek 130 Pro
Add Geocaching Notes
Step:
On the Compass page, press the button to mark found and add notes.
After adding the comments, it returns to the GeoRadar page.
61
HOLUX FunTrek 130 Pro
Settings

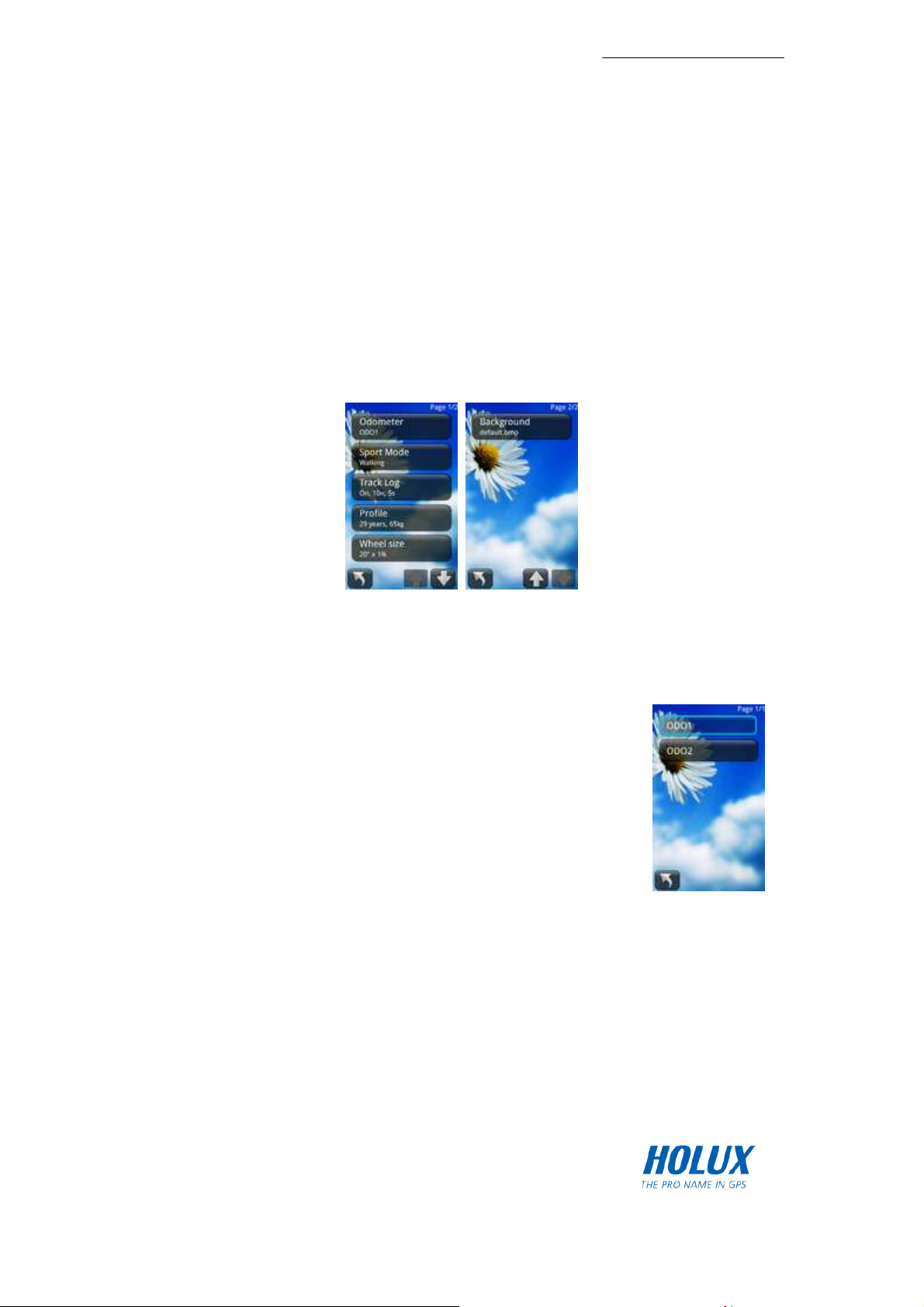

Personal
The Profile function contains “Odometer”, “Sport Mode”, “Track Log”, “Profile”, “Wheel
Size” and “Background”.
Odometer
You can save trip information in ODO1 or ODO2.
Step:
On the main menu page, click Settings.
Select “Personal” to enter you personal settings list.
Select “Odometer” to enter “ODO1” or “ODO2”.
The default value is “ODO1”.
Note: “ODO1” and “ODO2” are the same functions that can save the trip information.
Sport Mode
Users can set different sport mode to calculate calories consumed. Select different mode
to record track log, and the track information will be different.
62
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click Settings.
Select “Personal” to enter your personal settings list.
Select “Sport Mode” to enter the sport mode menu.
After selecting one of the modes, a message appears on the screen. When
completed, it returns to the main menu page.
The default mode is “Biking”.
Note: After restart the device, it will automatically enter the new Sport mode.
Track Record
Manually/ Automatically record track
User can set the track record mode, select start tracking manually or automatically, and
track the interval recording time.
Step:
On the main menu page, click Settings.
Select “Personal” to enter your personal settings list.
63
HOLUX FunTrek 130 Pro
Select “Track Log” to enter the track log mode.
Select “Manually” or “Automatically”. If "Manually" is selected you must use the right
button to create a new track in order to begin recording.
After restart the device, the new setting will be applied.

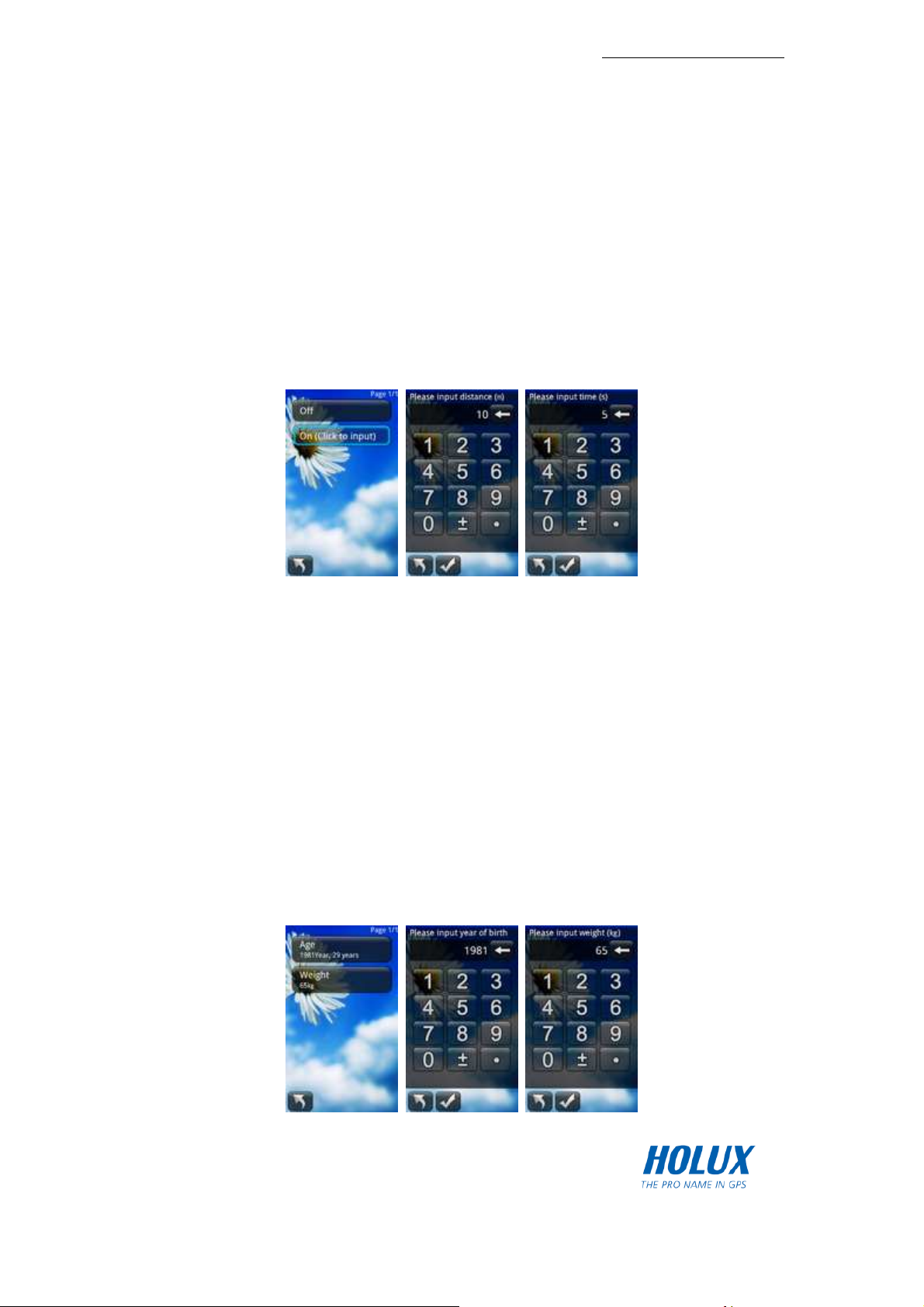

Log Interval
Select time or distance for log interval.
Step:
On the main menu page, click Settings.
Select “Personal” to enter your personal settings list.
Select “Log Interval” to open the menu. The two options are "Distance" and "Time".
Select "Distance" or "Time" to enter the enable/disable menu.
Select “Enable” to enter the time or distance interval.
When completed, press the confirmation button.
Profile
64
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click Settings.
Select “Personal” to enter your personal settings list.
Select “Personal” to enter the personal information list.
Select each item in turn to enter appropriate information.
When completed, press confirmation button to save your setting.

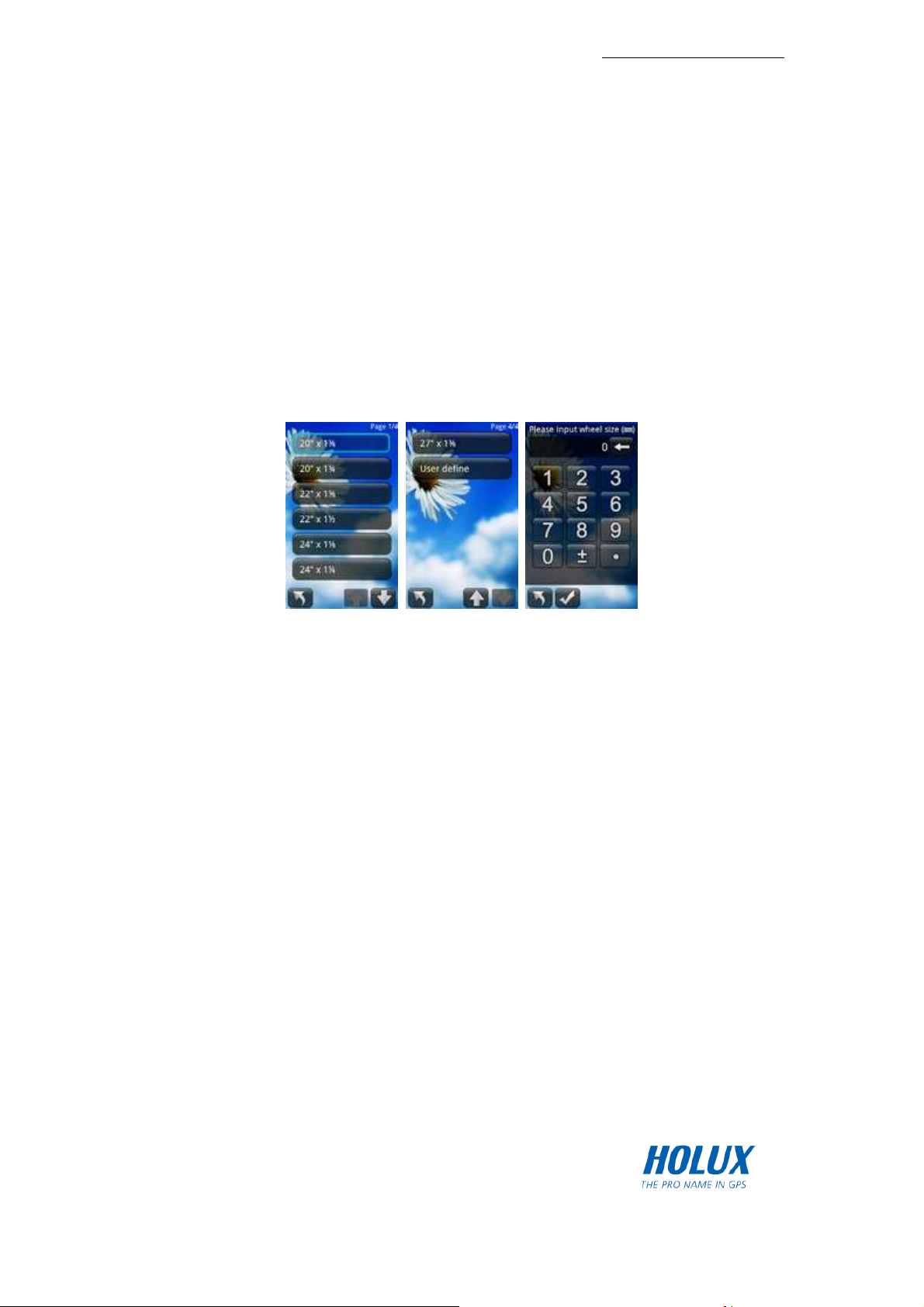

Wheel Size
Users can set the wheel size to calculate the speed of the wheel.
Step:
On the main menu page, click Settings.
Select “Personal” to enter your personal settings list.
Select “Wheel size” to enter the wheel size list.
Select the size from the list or define the size.
When completed, press the confirmation button.

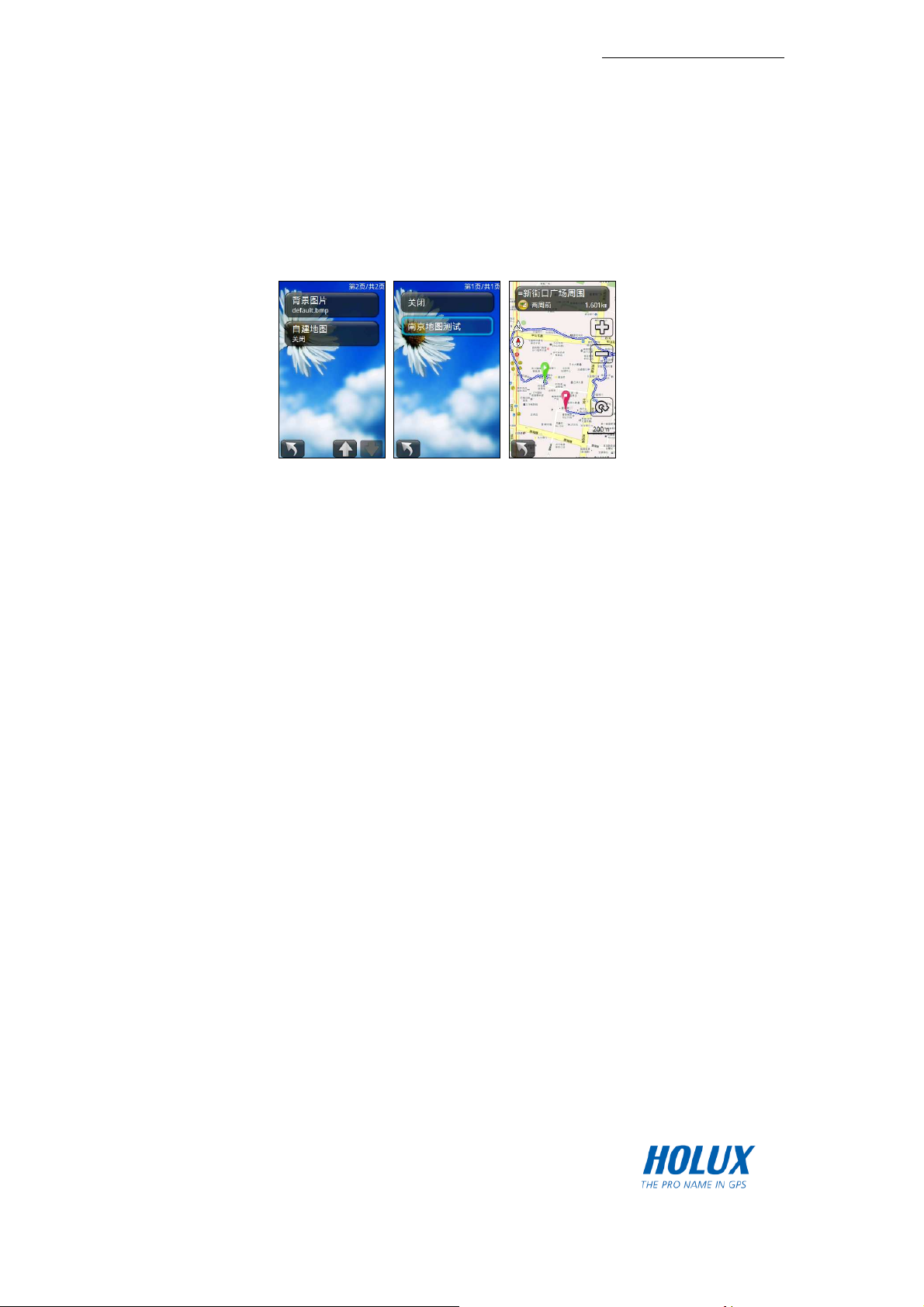

Background
Step:
On the main menu page, click Settings.
Select “Personal” to enter your personal settings list.
Select “Background” to enter the “Background” menu.
You can add pictures to the list by loading the picture files to the “bg” file folder.
65
HOLUX FunTrek 130 Pro
Note: FunTrek 130 Pro only supports the “bmp” file format and the best resolution is
240×400 pixels.
Create Map
FunTrek 130 pro supports the Convert Tool to transfer smd map file, which enables user to
create a new smd map to be added in the device.
Steps:
Use Convert Tool to convert bmp, jpg, and other map images into smd map. Please
refer to the Convert Tool’s user manual.
In the Holux device or SD card, create a folder name “hmp”.
Place the converted smd file into the “hmp” folder, and start the FunTrek130.
On the main screen, click “Setting”, select “System Setting”.
Use the arrow keys to browse, select “Create Map”, and then enter the Create Map
menu.
Click on the map that you want to add, or you can view the converted map while
browsing the map. You can also close the new map.
Note:
To zoom in/out the map, you need to convert some images with different sizes into one
smd map.
If you only convert to one size picture into the map, you cannot zoom in/out when
browsing the map.
66
HOLUX FunTrek 130 Pro
Sensors
Sensors contain “Heart Rate Monitor”, “Cadence Sensor”, “Speedometer”, “Compass”,
“Altitude” and “Screen”.
Heart Rate Monitor
Step:
On the main menu page, click Settings.
Select “Sensor” to enter the sensor settings menu.
Select “Heart Rate Monitor”, and press the “Search” button.
After searching match heart rate monitor sensor, the device will display the list.
Select the heart rate sensor that you need, and press the confirmation button to
enable the function. The heart rate information will be displayed on the left-key info
page.
Users can enable or disable the sensor.
67
Cadence Sensor
Step:
On the main menu page, click Settings.
Select “Sensor” to enter the sensor settings menu.
HOLUX FunTrek 130 Pro
Select “Cadence Sensor”, and press “Search” button.
After searching match cadence sensor, the device will display the list.
Select the cadence sensor that you need, and press the confirmation button to enable
the function. The cadence information will be displayed on the left-key info page.
Users can enable or disable the sensor.
Speedometer
Step:
On the main menu page, click Settings.
Select “Sensor” to enter the sensor settings menu.
Select “Speedometer”, and press “Search” button.
After searching match speed sensor, the device will display the list.
68
HOLUX FunTrek 130 Pro
Select the speed sensor that you need, and press the confirmation button to enable
the function. The speed information will be displayed on the left-key info page.
Users can enable or disable the sensor.
Compass
To use the compass for the first time, the compass reading is not accurate; please
calibrate the compass.
Step:
On the main menu page, click Settings.
Select “Sensor” to enter the sensor settings menu.
Select “Compass”. Press the button to calibrate the compass.
Altimeter
Users can use GPS to calibrate or manually calibrate the altimeter.
Step:
On the main menu page, click Settings.
69
HOLUX FunTrek 130 Pro
Select “Sensor” to enter the sensor settings menu.
Select “Altimeter” to view the option of altimeter calibration mode. You can select
“GPS” or “Manual” calibration.
If "Adopt GPS Altimeter" is selected, a confirmation message will appear on the
screen.
If you choose manual calibration, enter the current altitude. The initial value that
appears on the keypad can be used as reference for the current altitude data.
Screen
When you touch the screen, you can adjust the screen calibration if there is a difference
on the response location.
Step:
On the main menu page, click Settings.
Select “Sensor” to enter the sensor settings menu.
Select “Screen”, a confirmation message will appear on the screen. Press the
confirmation button, and start to calibrate screen.
After calibrating the screen, tap the screen or wait for 30 seconds to exit.
70
HOLUX FunTrek 130 Pro
System
Left key- Info pages
Use the “Left key- Info pages” to set the project displayed on Trip information and the
auto-flip.
Select pages
You can select 1 ~5 information page to set the shortcuts for the “Left key- Info pages”.
Step:
On the main menu page, click Settings.
Select “System”.
Select” “Left key- Info pages”.
Select” “Select pages”.
You can select by checking items to be displayed for the Left Key operation. Available
options are: Trip Computer1, Trip Computer2, Altitude Graph, Compass and
Information.
71
HOLUX FunTrek 130 Pro
When completed, it returns to the main menu page.

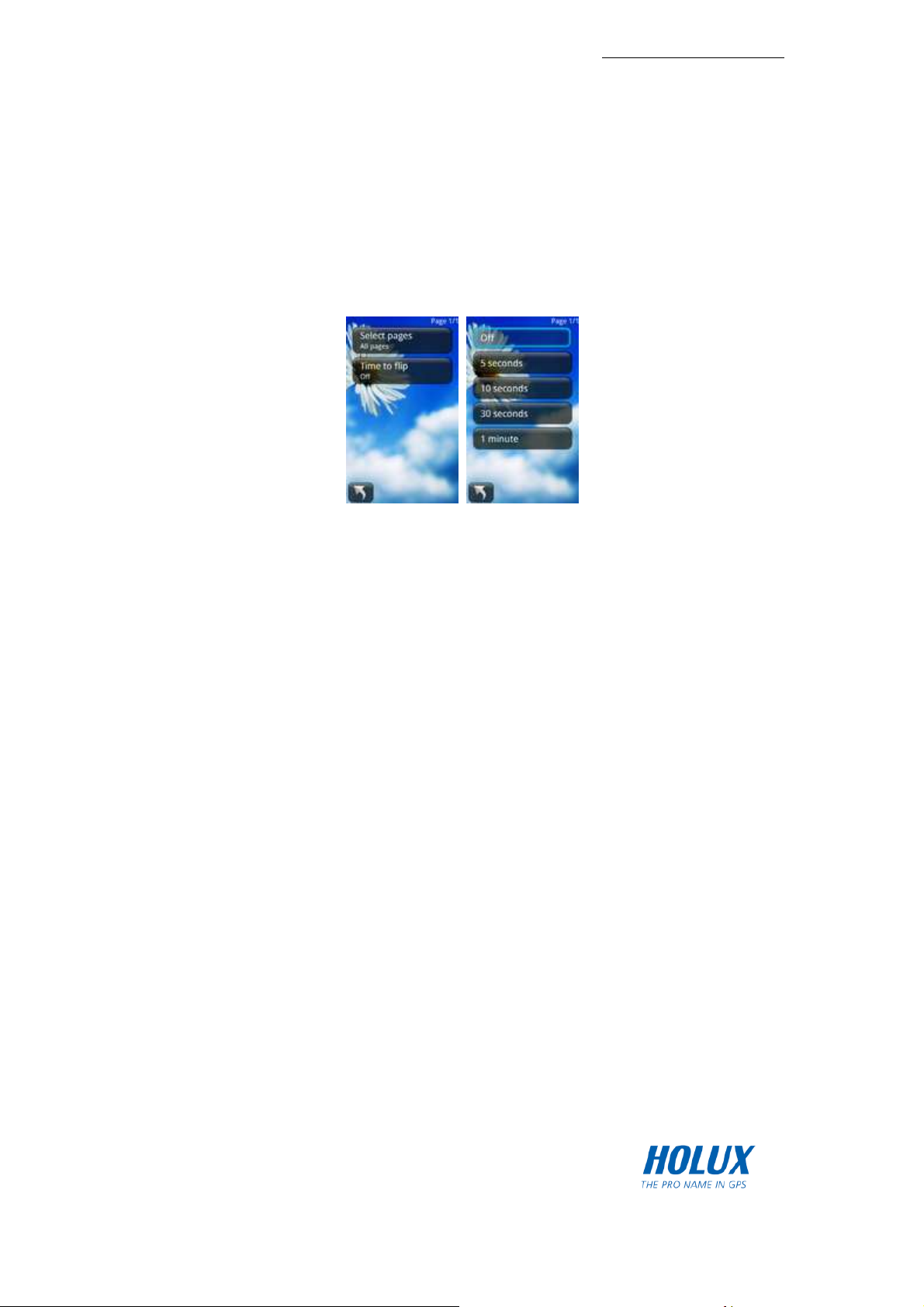

Time to flip
Flip page time is the selected time interval to automatically switch among Info Page for
the Left Key operation.
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select” “Left key- Info pages” to enter the left menu options.
From the list, select” “Time to flip” to automatic exchange the information page at a
preset time. When completed, it returns to main menu page.
Note: When using the automatic switching mode, you need to select more than one
information page.
Altitude mode
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Altitude mode” to enter the altitude mode options. Select your option, and
when completed, it returns to main menu page.
Note: “Auto select”: If GPS is already in the positioning mode or the barometer has not
been calibrated, the device will automatically use GPS to measure the altitude. If both
72
HOLUX FunTrek 130 Pro
cases happened at the same time, the default is barometer.
Speed mode
FunTrek 130 Pro provides speed display including speedometer and GPS.
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select” “Speed mode” to enter the speed mode options. Select your option, and when
completed, it returns to main menu page.
Note: “Auto select”: If GPS is already in the positioning mode or the speedometer has
not been calibrated, the device will automatically use GPS to measure the speed. If both
cases happened at the same time, the default is speedometer.
Screen Lock
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Screen lock” to enter the screen lock mode options. Select your option, and
when completed, it returns to main menu page.
Backlight
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Backlight” to enter the backlight mode options.
Select your option, and when completed, it returns to the main menu page.
73
HOLUX FunTrek 130 Pro
Beep
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Beep” to enter the beep submenu. You can change settings for “sound” and
“volume”.
Select “Sound” to set the sound setting.
Select “Volume” to set the volume setting.
Note: For details on beep information, refer to the device pop-up message.
Auto shutdown
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Auto Power Off” to set the auto power off setting.
Note:
If FunTrek 130 fails to acquire a fix within the set time, it will automatically power off.
If a satellite fix is acquired within the set time, the timer will be reset.
74
Coordinates Setup
Coordinates Format
User can choose the appropriate format for their use.
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Set Coordinate” to view the coordinate lists.
Select “Coordinate Format” to set the coordinate format.
When completed, it returns to the previous screen.
User Grid:
Select User Grid in Coordinates Format List, and enter the parameter page.
Select the parameter you want to define, and the digital keyboard appears. In
longitude and latitude page, you can use and to change the directions.
Set the respective parameters. When completed, it returns to the previous screen.
75
HOLUX FunTrek 130 Pro
Coordinate Datum
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Set Coordinate” to view the coordinate lists.
Select “Coordinate Datum” to set the coordinates.
If you select “Beijing1954” or “Xian80” datum, you have to input the parameter. “a”
and “1/f” cannot be edited.
When completed, it returns to the previous screen.
Customizing the Coordinate Datum:
On the “Datum” page, select “User Datum”.
Set the respective parameters. When completed, it returns to the previous screen.
Units
Users can set the units of Speed/ Distance and Temperature.
76
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Units” to enter the options list.
Select “Distance/Speed” or “Temperature” to set the respective units.
When completed, it returns to the previous screen.
Time
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Time”.
Select “Time Format”. Select from the following format: “24 hours” and “12 hours”.
Select “Time Zone” to set the time zone.
When completed, it returns to the previous screen.
Storage media
Users can save track log files into the internal memory or the micro SD card.
77
HOLUX FunTrek 130 Pro
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Storage media”.
Select “Holux Internal Memory” or “SD card”.
When completed, a “Setup OK! Restart is required to take effect” message appears
on the screen.
User can restart the device to complete the setting.
Language
In the Language setup menu you can change the language interface. Available options
are: Simplified Chinese, Traditional Chinese and English.
Step:
On the main menu page, click “Settings” icon to enter the
settings page.
Select “System Settings” to enter menu options.
Select “Language” to enter the language setup menu.
Set your desired language. When completed, it returns to the
previous menu.
78
HOLUX FunTrek 130 Pro

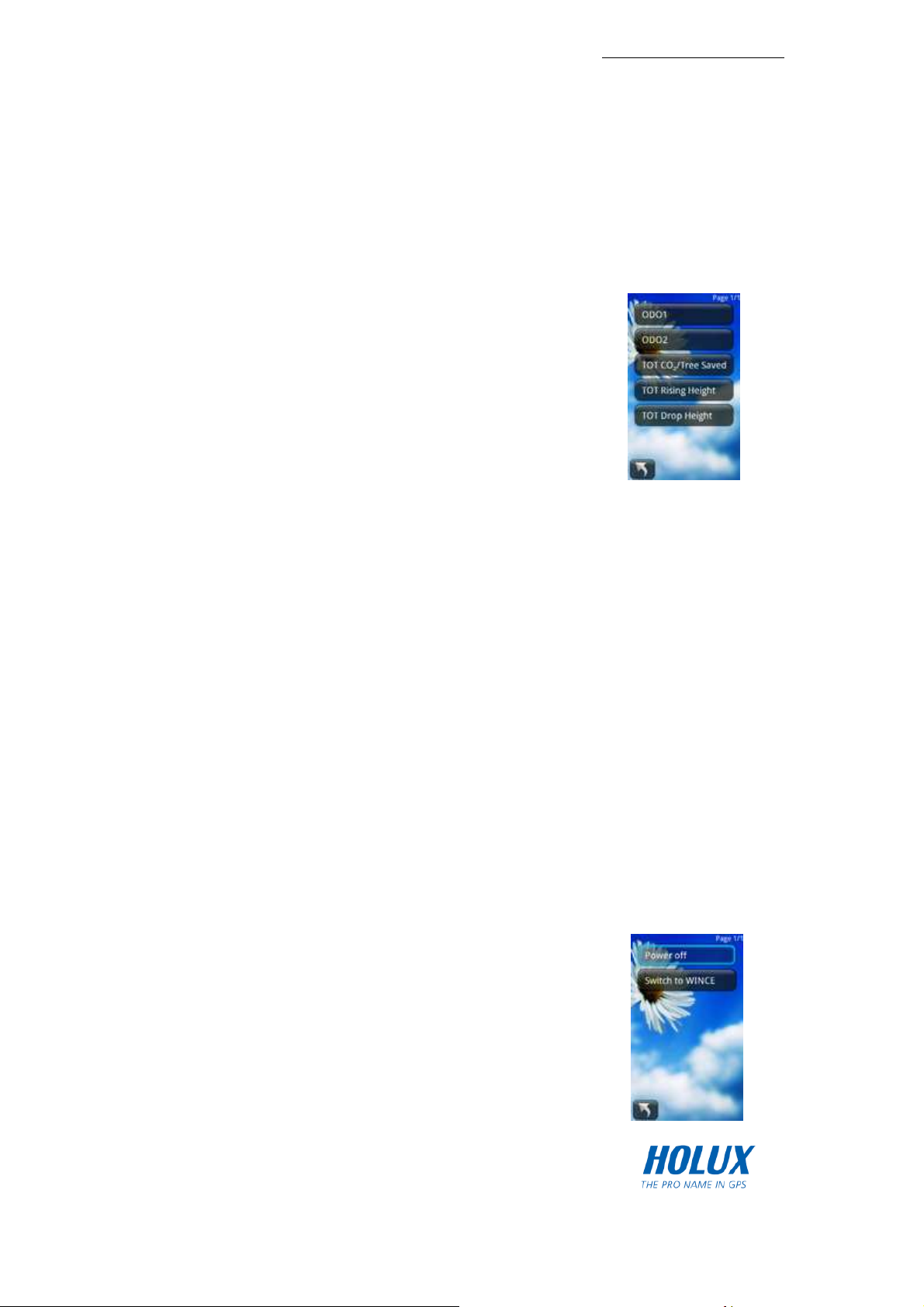

Clear counters
Clear counters enable users to clear the existing trip information that contains with the
Odometer, total CO2/Tree Saved, and total rising/drop height information.
Step:
On the main menu page, click “Settings” icon to enter the
settings page. Select “System Settings”.
Select “Clear counters”, and select the items that you want to
reset.
When the “Reset confirmation” message appears on the
screen, press the confirmation button to clear the selected items.
MSAS/WAAS/EGNOS
Enable the function to improve the GPS positioning accuracy.
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “MSAS/WAAS/EGNO”. Click “Open” to enable the MSAS/WAAS/EGNO
function.
Holding right key
FunTrek 130 Pro offers the function that user can switch to
WinCE.
Step:
On the main menu page, click “Settings” icon to enter the
settings page. Select “System Settings”.
79
HOLUX FunTrek 130 Pro
Select “Holding right key”.
Select “Power off” to power off the device by pressing the right key; “Switch to
WinCE” to switch to WinCE system.
！！！！Note:
Generally, user is not recommended to enter the WINCE system of FunTrek 130 Pro. In
the WINCE, improper operation will cause the system malfunction.

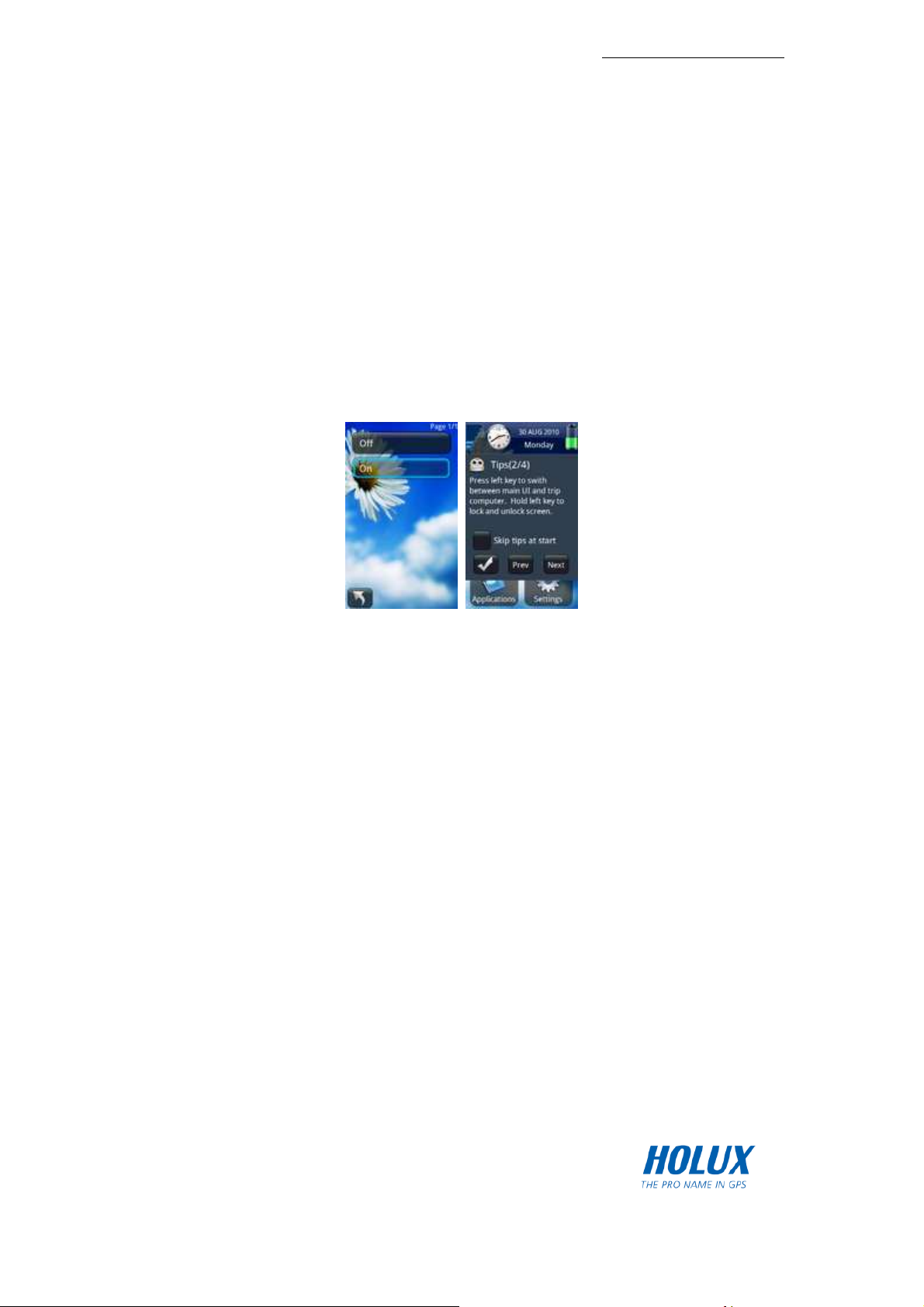

Show tips at start
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Show tips at start”.
Select “Open” to show tips when you restart the device. If you select “Close”, the tips
will not appear when you restart the device.
When you restart the device, you can also disable the tips pop-up by checking the
“Do not display tips on next start up”.
80
HOLUX FunTrek 130 Pro
Alerts
Step:
On the main menu page, click “Settings” icon to enter the settings page. Select
“System Settings”.
Select “Alert” to enter the alert lists.
Select “Distance”, “BAR Altitude”, “Speed” or “Time” button to set the alert.
Select “On (Click to input)” to enter the Digital Keypad, and then enter the appropriate
value.
Note:
Before use altimeter function, please read the section of Product Caution/ About the
altimeter.
When current altitude reaches the set value, the altitude alert message will appear ob
the screen. The alert can help climbers to prevent the acute mountain sickness
(AMS).
If the altimeter detected current altitude reaches or exceeds the set value within 1
minute, the altitude alert message will appear on the screen.
If "Repeat Alert" is selected then the alert will continue to appear on the screen when
the current altitude is equal or exceeds the set value. To turn off alert, select "Alert
Off".
A warning message will appear on the screen when the current speed has reached its
default value.
When the current speed reaches the set value, the speed alert message will appear
81
HOLUX FunTrek 130 Pro
on the screen.
Default
Step:
On the main menu page, click “Settings” icon to enter the
settings page.
Select “Default” to restore the factory default settings.
About
You can get the software version information of the operation system (OS) and
applications for this device.
82
HOLUX FunTrek 130 Pro
ezTour Plus Installation
To download the recorded track log and view it on your computer, first, you will need to
install the bundled ezTour Plus. Insert the bundled installation CD into the computer’s CD
drive to install ezTour Plus. For details, please refer to the included ezTour Plus user
manual.
End of Holux FunTrek130’s user manual
Wish you a pleasant use
83
HOLUX FunTrek 130 Pro
Website: www.holux.com
84
Loading...
