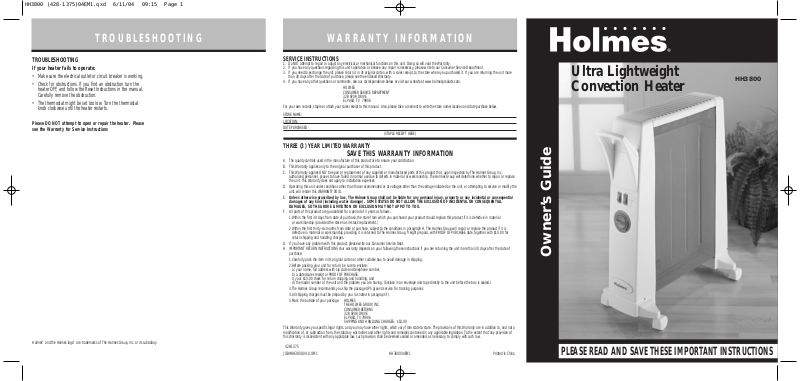

Holmes HH3800 User Manual

Ultra Lightweight
Convection Heater

Owner ’s Guide

HH3800

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

TROUBLESHOOTING

WARRANTY INFORMATION

SERVICE INSTRUCTIONS

1. Do NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the Warranty.

2. If you have any questions regarding this unit’s operation or believe any repair is necessary, please write to our Consumer Service Department.

3. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you purchased it. If you are returning the unit more
than 30 days after the date of purchase, please see the enclosed Warranty.

4. If you have any other questions or comments, see our correspondence below or visit our website at www.holmesproducts.com.

HOLMES
CONSUMER SERVICE DEPARTMENT
32B SPUR DRIVE
EL PASO, TX 79906

For your own records, staple or attach your sales receipt to this manual. Also, please take a moment to write the store name/location and date purchase below.
STORE NAME:

LOCATION:
DATE PURCHASED:

(STAPLE RECEIPT HERE)

THREE (3) YEAR LIMITED WARRANTY

SAVE THIS WARRANTY INFORMATION

A. The quality controls used in the manufacture of this product are to ensure your satisfaction.
B. This Warranty applies only to the original purchaser of this product.
C. This Warranty applies ONLY to repair or replacement of any supplied or manufactured parts of this product that, upon inspection by The Holmes Group, Inc.,

authorized personnel, proves to have failed in normal use due to defects in material or workmanship. The Holmes Group will determine whether to repair or replace
the unit. This Warranty does not apply to installation expenses.

D. Operating this unit under conditions other than those recommended or at voltages other than the voltage indicated on the unit, or attempting to service or modify the

unit, will render this WARRANTY VOID.

E. Unless otherwise proscribed by law, The Holmes Group shall not be liable for any personal injury, property or any incidental or consequential

damages of any kind (including water damage). SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

F. All parts of this product are guaranteed for a period of 3 years as follows:

1.Within the first 30 days from date of purchase, the store from which you purchased your product should replace this product if it is defective in material
or workmanship (provided the store has in-stock replacement.)

2.Within the first thirty-six months from date of purchase, subject to the conditions in paragraph H, The Holmes Group will repair or replace the product if it is
defective in material or workmanship providing it is returned to The Holmes Group, freight prepaid, with PROOF OF PURCHASE date, together with $10.00 for
return shipping and handling charges.

G. If you have any problem with this product, please write our Consumer Service Dept.
H. IMPORTANT RETURN INSTRUCTIONS Your warranty depends on your following these instructions if you are returning the unit more than 30 days after the date of

purchase:

1.Carefully pack the item in its original carton or other suitable box to avoid damage in shipping.

2.Before packing your unit for return; be sure to enclose:
a) your name, full address with zip code and telephone number,
b) a dated sales receipt or PROOF OF PURCHASE,
c) your $10.00 check for return shipping and handling, and
d) the model number of the unit and the problem you are having. (Enclose in an envelope and tape directly to the unit before the box is sealed.)

3.The Holmes Group recommends you ship the package UPS ground service for tracking purposes.

4.All shipping charges must be prepaid by you (as noted in paragraph F).

5.Mark the outside of your package: HOLMES

THE HOLMES GROUP, INC.
CONSUMERRETURNS
32B SPURDRIVE
EL PASO, TX 79906
SHIPPING AND HANDLING CHARGES: $10.00

This Warranty gives you specific legal rights, and you may have other rights, which vary from state to state. The provisions of this Warranty are in addition to, and not a
modification of, or subtraction from, the statutory warranties and other rights and remedies contained in any applicable legislation. To the extent that any provision of
this Warranty is inconsistent with any applicable law, such provision shall be deemed voided or amended, as necessary, to comply with such law.

JOB#HH3800.04.U.OM1 HH380004EM1 Printed in China

TROUBLESHOOTING

If your heater fails to operate:

• Make sure the electrical outlet or circuit breaker is working.

• Check for obstructions. If you find an obstruction turn the
heater OFF, and follow the Reset Instructions in the manual.
Carefully remove the obstruction.

• The thermostat might be set too low. Turn the thermostat
knob clockwise until the heater restarts.

Please DO NOT attempt to open or repair the heater. Please
see the Warranty for Service Instructions

428-1375

Holmes®and the Holmes logo®are trademarks of The Holmes Group, Inc. or its subsidiary.

HH3800 (428-1375)04EM1.qxd 6/11/04 09:15 Page 1

OPERATING INSTRUCTIONS

1. Make sure the mode knob is in the OFF position.

2. Plug in the unit.

3. Turn the THERMOSTAT knob to the highest setting.

4. Turn the MODE control knob to the desired heat setting. (LO
or HI).

TIP: The Power light will remain lit while the heater is in operation.

THERMOSTAT INSTRUCTIONS

This function allows you to set the heater to your desired comfort
level. The heater will maintain your desired room temperature.

1. Set the THERMOSTAT knob to the highest setting, clockwise
as far as it will turn.

2. When the desired temperature level is reached, lower the
thermostat setting, by turning the THERMOSTAT knob count­er-clockwise until it clicks. The heater will stop operating.

3. The thermostat will now automatically maintain the pre-set
temperature level by turning the heater on and off. The
thermostat is now set.

TIP: It is normal for the heater to cycle on and off as it main­tains the preset temperature. To prevent the unit from cycling,
raise the thermostat setting.

CLEANING/MAINTENANCE

During Season Care:

1. Always unplug the heater before cleaning.

2. Clean the unit with a soft cloth moistened with a mild soap
solution.

3. NEVER use abrasive or flammable solvents to clean the unit.

4. After cleaning, be sure to completely dr y the unit with a
cloth or towel.

After Season Care:

1. Store heater in a cool, dr y location.

2. The manufacturer recommends that you store the unit in its
original carton.

FEATURES - OPERATIONS

PLEASE READ AND SAVE THESE

IMPORTANT SAFETY INSTRUCTIONS

FEATURES - OPERATIONS

When using electrical appliances, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons, including the following:

1. Read all instructions before using the appliance.

2. To avoid fire or shock hazard, plug the appliance directly into
a 120V AC electrical outlet.

3. The heater is hot when in use. To avoid burns, DO NOT let
bare skin touch hot surfaces. If provided, use handles when
moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at
least 3 ft (0.9 m) from the front of the heater and keep
them away from the sides and rear.

4. DO NOT run cord under carpeting. DO NOT cover cord with
throw rugs, runners, or the like. Arrange cord away from
traffic area and where it will not be tripped over.

5. This heater is not intended for use in bathrooms, laundry
areas and similar indoor location. NEVER locate heater
where it may fall into a bathtub or other water container.

6. Extreme caution is necessary when any heater is used by, or
near children or invalids, and whenever the heater is left
operating and unattended.

7. Always unplug the heater when not in use.

8. When unplugging, be sure to pull by the plug and not the
cord.

9. DO NOT insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an electric
shock or fire, or damage the heater.

10. DO NOT operate heater with a damaged cord or plug, or
after the heater malfunctions, has been dropped or damaged
in any manner. Return appliance to manufacturer for
examination, electrical or mechanical adjustment, or repair.

11. A heater has hot and arcing or sparking parts inside.
DO NOT use it in areas where gasoline, paint, or flammable
liquids are used or stored.

12. Use appliance only for intended household use as described
in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to
persons. The use of attachments not recommended or sold
by The Holmes Group may cause hazards.

13. DO NOT use outdoors.

14. To prevent a possible fire, DO NOT block air intakes or
exhaust in any manner. DO NOT use on soft surfaces, like a
bed, where openings may become blocked.

15. To disconnect heater, turn controls to OFF, then remove plug
from outlet.

16. Avoid the use of an extension cord because the extension
cord may overheat and cause a risk of fire. However, if you
have to use an extension cord, the cord shall be No. 14 AWG
minimum size and rated not less than 1875 watts.

17. If the heater will not operate, see specific instructions on
Auto Safety Shut-off.

18. DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void your
warranty. The inside of the unit contains no user serviceable
parts. All servicing should be performed by qualified
personnel only.

19. Discontinue use if plug or outlet is hot. It is recommended
that the outlet be replaced if plug or outlet is hot to touch.

PLEASE READ AND SAVE

THESE IMPORTANT

SAFETY INSTRUCTIONS

TECHNICAL SPECIFICATIONS

• Wattage: 1500 W (+5% –15%)

• Working voltage: 120v AC/60Hz

AUTO SAFETY SHUT-OFF WITH INSTANT TIP OVER
PROTECTION

When the unit is accidently knocked over it will temporarily shut
off. Return unit to upright position. This heater is equipped with a
patented, technologically-advanced, safety system that requires
the user to reset the heater if there is a potential overheat

ASSEMBLY INSTRUCTIONS

1. Make sure the unit is unplugged. Carefully turn the unit
over so the caster platforms can be attached

2. Slide the casters platform into the bottom plastic end cap;
following the grooves (see Figure 2)

3. Using a slotted or Phillips head screwdriver, attach the two
caster platforms to the unit; (Using the 2 longest screws)
(see Figure 3)

4. Attach the rolling casters to the platforms. Do this 4 times
using the remaining four shorter screws until the casters are
on (see Figure 4)

5. Return unit to the upright position; however you are not
done yet!

6. Attach the carry handle on to the unit by inserting into the slot
(up and in) and then lock into place. (see Figures 5 and 6)

situation. When a potential overheat temperature is reached,
the system will automatically shut the heater off. It can only
resume operation when the user resets the unit. For specific
reset instructions please refer to the unit.

To Reset the Heater

If the unit shuts down:

1. Unplug unit.

2. Wait 10 minutes for unit to cool down.

3. Plug in and operate normally.

Tip Over Shut-Off

When the unit is accidentlly knocked over, it will instantly shut
off. To reset simply place in an upright position and operate
normally.

PRE-OPERATING INSTRUCTION

Wheel Assembly

Tools required for assembly:Phillips head screwdriver, or slotted
screwdriver.

Carefully unpack your Holmes

®

heater from the box. It is rec­ommended to save the box for off-season storage. You will
find the following pieces:

1. Four casters (wheels)

2. Four shorter screws (for wheels)

3. Two longer screws (for caster platform)

4. Two caster wheel platforms

5. Carry handle

WARNING:DO NOT ATTEMPT TO OPERATE THE
HEATER WITHOUT THE WHEELS IN PLACE

Handle

Caster Platform

Control

Panel

Casters

(Wheels)

X 4

FIGURE 1

FIGURE 7

Power
Switch/Power
Light

Thermostat Knob

Mode Switch

FIGURE 2

FIGURE 3

FIGURE 4

FIGURE 5

FIGURE 6

This product is for use on 120 volts.
The cord has a plug (A) as shown.
An adapter (C) is available for con­necting three-blade grounding-type
plugs to two-slot receptacles (B).

The green grounding lug extending
from the adapter must be connected to a permanent ground such as
a properly grounded outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.

THIS PRODUCT IS EQUIPPED WITH A 3-PRONG PLUG

HH3800 (428-1375)04EM1.qxd 6/11/04 09:15 Page 2
