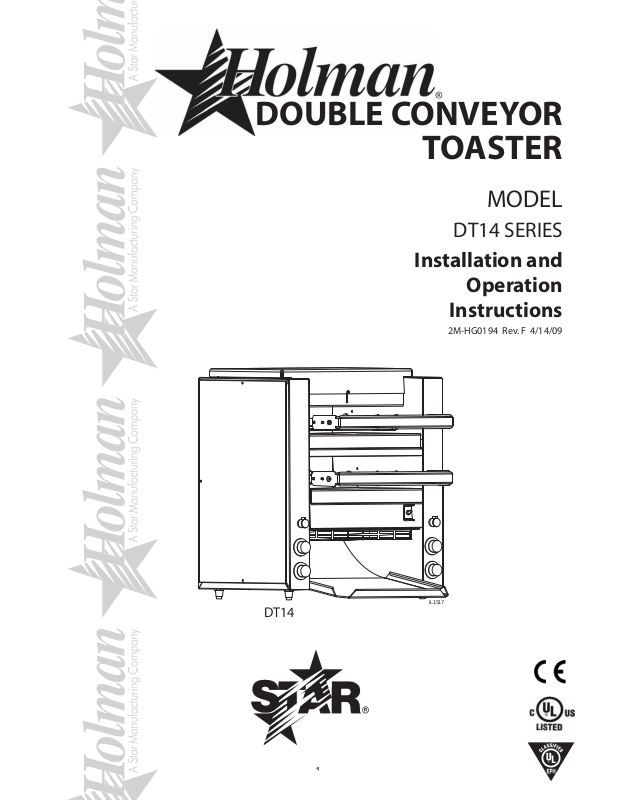

Holman DT 14 User Manual

®

DOUBLE CONVEYOR

IL1517

TOASTER

MODEL

DT14 SERIES

Installation and

Operation

Instructions

2M-HG0194 Rev. F 4/14/09

DT14

1

2

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have it ready when you call to

ensure faster service.

SAFETY SYMBOL

Model No.

Serial No.

Voltage

Purchase Date

Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:

Telephone: [phone] Local [phone]
Fax: [phone] Local [phone]

E-mail [e-mail]

[e-mail]
[e-mail]

Website: www.star-mfg.com

The Star Service Help Desk

Authorized Service Agent

Reference the listing provided with the unit

or

for an updated listing go to:

Website: www.star-mfg.com
E-mail [e-mail]
Telephone: [phone] Local [phone]

Mailing Address: Star Manufacturing International Inc.

10 Sunnen Drive
St. Louis, MO 63143
U.S.A

2

SPECIFICATIONS:

CAUTION

HOT SURFACES

19-1/2"

[49.5cm]

10-1/2"[26.6cm]

Toasting Chamber

12-1/2"[31.8cm]

Toasting Chamber

23-1/2"

[59.7cm]

13-1/4"

[33.7cm]

19-3/16"
[48.8cm]

24-1/16"
[61.1cm]

1"[2.5cm]

14-5/16"
[36.4cm]

AIR INTAKE

UNLOAD CHUTE/

HOLDING AREA

6 EA HEATER TUBES

PER TOASTING CHAMBER

AIR INTAKE

IL1516

9H-DT14

Type: Double Conveyor Toaster

208V, 4,800 watts, 60 hz, 23.6 amp, NEMA 6-30P
220V, 4,800 watts, 60 hz, 22.3 amp, NEMA 6-30P
240V, 4,800 watts, 60 hz, 20.5 amp, NEMA 6-30P

220V, 4,800 watts, 50 hz, 22.3 amp, not supplied with cord or plug
240V, 4,800 watts, 50 hz, 20.5 amp, not supplied with cord or plug

Product Opening

TOP = 1" to 2 1/4" BOTTOM = 1 3/4"
Approximate weight: installed - 29 Lb s (13 kg), shipping - 102 Lbs (224.4 kg)
Dimensions: 19 1/2" - Width, 23 1/2" - Depth, 24 1/16" - Height

(49.5 cm - Width, 59.7 cm - Depth, 61.1 cm - Height)

Shipping Dimensions: 30 1/4" - Width, 26" - Depth, 30 1/2" - Height

GENERAL INSTALLATION DATA

CAUTION

This equipment is designed and sold for commercial use only by personnel trained and

experienced in its operation and is not sold for consumer use in and around the home nor
for use directly by the general public in food service locations.

Before using your new equipment, read and understand all the instructions & labels

associated with the unit prior to putting it into operation. Make sure all people associated
with its use understand the units operation & safety before they use the unit.

All shipping containers should be checked for freight damage both visible and concealed.

This unit has been tested and carefully packaged to insure delivery of your unit in perfect
condition. If equipment is received in damaged condition, either apparent or concealed, a
claim must be made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is

unpacked, a request for inspection of concealed damage must be made with carrier within
15 days. Be certain to retain all contents plus external and internal packaging materials for
inspection. The carrier will make an inspection and will supply necessary claim forms.

3

INSPECTION & ASSEMBLY

FRONT DISCHARGE REAR DISCHARGE

TOAST CHUTE
MOUNTING STUDS

IL1515

HEAT
SHUTTER

IL1514

UNCRATING AND INSPECTING

Unpack the unit and components from the shipping container. Remove all visible packing

material and those from inside the cooking chamber. If damage is discovered, le a claim

immediately with the carrier that handled the shipment. Do not operate the unit if it was
damaged during shipping.

ASSEMBLY AND INSTALLATION

The unit was shipped fully assembled and ready to plug into a 6-30R receptacle. If

improper electrical supply is determined, contact a qualied electrician prior to using the

unit. Removal and replacement of the power cord and plug will void the warranty. For
assistance, contact your local authorized service agent for service or required maintenance.
Refer to the Authorized Service Agent Listing that was supplied with unit, or go to the inside

cover to nd out how to obtain one.

Level unit using the adjustable feet under the unit (approximately 1/2" adjustment).

Before using the unit for the rst time, wipe down the exterior with a damp cloth.

The toast chute may be installed for either front or rear product discharge as shown below.

ADJUSTABLE HEAT SHUTTER

The DT14 is equipped with an adjustable

front heat shutter. This is designed to
maintain a temperature, by preventing the
heat from escaping. This shutter may be
adjusted from an opening clearance of 1
1/2" up to 3". To adjust shutter, loosen
the single Phillips screw on the front of
the top cover, slide the shutter up or down
to desired height and tighten the Phillips
screw.

4

CRUMB TRAYS

CLEAN

OPERATE

IL1513

The DT14 is equipped with two (2)

crumb trays that are positioned under
each conveyor. Operating the unit
without the crumb trays will cause it
to operate at a higher temperature
which will lead to unit shutting down.
Be sure to wipe the crumb trays clean
using a damp cloth, each day.

Crumb Tray Installation & Removal

CAUTION

Allow enough space around the toaster for adequate ventilation. Do not operate the unit

without the crumb tray properly positioned. Overheating and poor toasting may occur.
Read all labels on the unit and follow their instructions.

ELECTRICAL CONNECTION

WARNING

Before making any electrical connection to this unit, check that the power supply is

adequate for the voltage, amperage and requirements stated on the rating plate.

A wiring diagram is included herewith.
Disconnect the unit from the power source before installing or removing any parts.
Be absolutely sure that the ground connection for the receptacle is properly wired. Do not

connect equipment to power without proper ground connections. Improper grounding may

result in personal injury or fatality.

WARNING

DO NOT CUT OR REMOVE THE SUPPLIED PLUG OR GROUNDING PRONG

FROM THE PLUG.

WARNING

CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE

DATA PLATE OF THE UNIT.

WARNING

MAKE SURE ALL INPUT IS OFF OR THAT THE UNIT IS DISCONNECTED FROM

THE POWER SUPPLY BEFORE INSTALLING OR REMOVING ANY PART.

WARNING

BEFORE INSTALLING UNIT (S), CHECK WITH LOCAL POWER COMPANY TO

DETERMINE ACTUAL VOLTAGE AT THE JOB SITE. NEVER PLUG A 208-VOLT

UNIT INTO 240-VOLTS OR A 240-VOLT UNIT INTO A 208-VOLT.

5
