Holman 1110H, 1130H, 1120H Instruction Manual

Retractable Hose Reel

10m / 20m / 30m Models

Instruction Manual

Installation, Care & Troubleshooting

1110H – Product Dimensions(mm): W:330 H:300 L:170 Weight:3.9kg
1120H – Product Dimensions(mm): W:430 H:370 L:180 Weight: 7.0kg
1130H – Product Dimensions(mm): W:440 H:410 L:220 Weight: 10.4kg

Introduction

Thank you for purchasing this HOLMAN Retractable Hose Reel. This product uses a 12mm

reinforced hose for added strength and durability, and includes a multi-function hose gun.

(Hose Gun styling is subject to change)

For your information, please read these installation instructions before using the

Retractable Hose Reel. Please keep all instructions and refer to them when necessary.

Glossary

Mounting Tube

Wall Plugs / Hexagonal Coach Bolts (included)

180º Wall Bracket

12mm Reinforced Hose

Multi Function Gun

Retractable Hose Reel

180º Swivel Bracket

Tap to Reel Hose

Retractable Hose Reel - Instruction Manual

The Retractable Hose Reel should be installed

distance from tap

max 2m (1120H/1130H)

max 1m (1110H)

Take the mounting bracket and place against either a wall or
wooden post.

Mark the position of where you would like the screws to be
placed through the centre of the bracket holes to prepare for
drilling.

nearest to your chosen water source for
convenience of use. Check that the tap to reel
hose can reach the tap prior to mounting the
hose reel.

distance from tap

max 2m (1120H/1130H)

max 1m (1110H)

Please note that if you are attaching your hose
reel to a wooden post, you will not require the wall
plugs as the coach bolts screw directly into wood.

Take the wall plugs (supplied with the hose reel)
and measure the correct drill bit width to use. It is
recommended that you drill slightly undersize as

masonry materials all have dierent properties and
this will ensure the wall plugs have a secure t.

1110H 10m 1120H 20m 1130H 30m

PLUG

MASONRY DRILL

WOOD DRILL

BO LT

It is very important to use the correct size drill bit,

so a very secure t of the wall bracket is made

before installing the Retractable Hose Reel.

When ready drill all four holes, then hammer the
wall plugs gently into your wall (if attaching to a
wall).

IMPORTANT - DO NOT LEAVE TAP
ON. TURN TAP OFF AFTER USE..

7.7m m 11.7mm 11.7mm

7.5mm

10.0mm 10.0mm

5.0mm 7.0 m m 7. 0 m m

6.0mm 8.0mm 8.0mm

Retractable Hose Reel - Instruction Manual

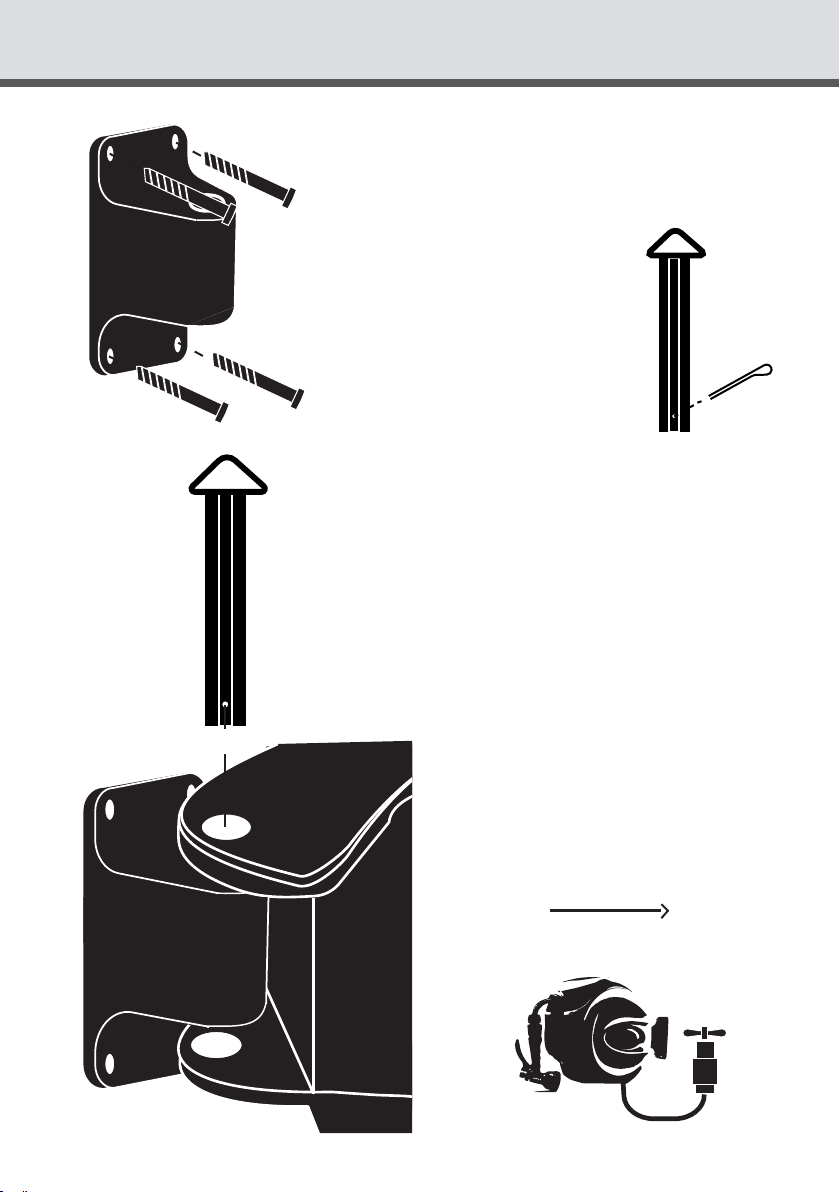

Place the bracket in position over the four wall plugs and
screw each hexagonal coach bolt into your wall or wooden
post. Screw in each bolt until all four have a secure hold on the
bracket against the surface.

Take your Retractable Hose Reel,
and remove the securing pin at the
base of the mounting tube. Remove
the mounting tube from the hose reel
and slot the hose reel around the wall

bracket, so the tting tube hole lines

up with the wall bracket hole.

Then replace the mounting tube into its hole to hold the hose
reel in place and replace the securing pin into the base of the
mounting tube.

Connect the tap to reel hose, to the
garden tap.

distance from tap

max 2m (1120H/1130H)

max 1m (1110H)

Care & Troubleshooting

You will nd an indication sticker 1 metre before the maximum length.

Do not pull the hose past this point

When walking the hose back to the unit, turn o the tap, press the lever on the watering gun to

release the water pressure in the hose. This makes the retraction to the hose reel a lot easier and
prolongs the life of your hose reel.

Fully Extended Hose Not Retracting

If the hose retraction wheel is stuck and the hose is fully extended, the wheel still has movement past
this point. Grip the hose close to the guide hole and gently pull

The retraction wheel will give you enough movement to unlock itself before you slowly allow the auto
retraction wheel to wind the hose back into the unit.

Warnings

� Do not leave the water turned on with the hose under pressure when not in use.

� Always turn the water o and draw the water from the hose after use.

� Do not attempt to pull hose reel apart.

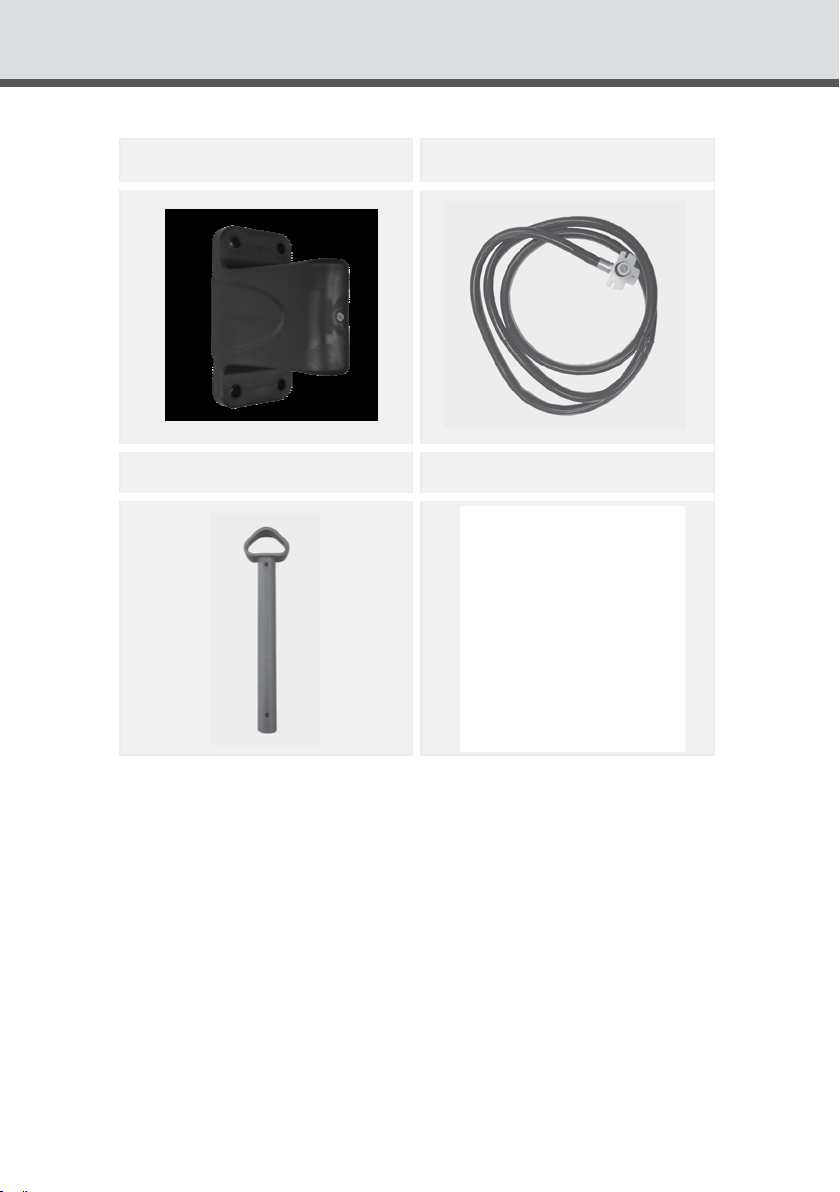

Spare Parts

Tap to reel hosePlastic wall bracket

Hose stopperMounting Tube

To order spare parts please call our customer service team on 1300 716 188.

Do not dismantle the hose reel for additional spare parts. Other internal metal parts
can cause injury if tampered with. These parts are not available for replacement.

Warranty

2 Year Replacement Guarantee

Holma n offers a 2 year replacement guarante e with this product.

In Australia our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entit led to a replacement or refund fo r a major fa ilure and c ompens ation for a ny other
reasonably for eseeab le loss or d amage. You are a lso entitled to have the g oods repa ired or re placed i f
the good s fail to be of ac ceptab le quali ty and the f ailure do es not amount to a major f ailure.

As well as y our statutory rig hts referr ed to above an d any other rights and re medie s you have und er any
other law s relatin g to your Holm an produc t, we also prov ide you wi th a Holman g uarante e.

Holma n guarantees this pr oduct against defe cts caus ed by fault y workmanship and materia ls for
2 years domestic u se from the d ate of purch ase. Duri ng this gua rantee pe riod Holman will r eplace
any defective product. Packaging and instructions may not be replaced unless faulty.

In the e vent of a produc t being r eplaced dur ing th e guara ntee p eriod , the gu arant ee on th e replaceme nt prod uct
will ex pire 2 ye ars fr om the p urcha se date of the or igina l prod uct, n ot 2 years from th e date of r eplacemen t.

To the extent permitted by law, this Holman Replacement Guarantee excludes liability for consequential loss or
any other loss or damage caus ed to prope rty of pe rsons ar ising fr om any caus e whatsoever. It also exclu des
defects caused by the product not being used in accordance with instructions, accidental damage, misuse,
or bein g tampered with by unauthori sed pers ons, exclu des norm al wear an d tear and do es not cove r the
cost of cl aiming u nder the wa rranty o r transporting t he goods to and from the p lace of purchase.

Should you suspect your product may be defective and need some clarification or advice please contact us directly:

1300 716 188
[e-mail]
11 Walters Drive, Osborne Park 6017 WA

If you ar e cer tain yo ur prod uct is d efect ive and i s covered by the t erms of t his war rant y, you wil l
need t o prese nt your d efect ive product a nd your p urchase rec eipt as p roof of p urch ase to th e place
you pur chas ed it fro m, where the re tail er will r eplac e the pr oduc t for you on o ur beha lf.



For additional support, visit www.holmanindustries.com.au/retractable-hose-reels/
