- 1 -

HLP-C

Inverters

Contents

Ⅰ.Introduction………………………………………… 1

1.Checks upon Delivery …………………………………………2

2.Nameplate Information of HLP-C+ Series……………………3

Ⅱ. Safety Precautions ……………………………… 4

1.Before the Power Up ………………………………………… 4

2.During the Power Up………………………………………… 6

3.Duing the Operation …………………………………………… 6

Ⅲ. Standard Specifications ………………………… 8

1.Particular Specications …………………………………… 8

2.General Specifications ……………………………………… 8

Ⅳ. Storage and Installation………………………… 10

1.Storage………………………………………………………… 10

2.Installation Locationand Environment …………………… 10

3.Installation Space and Direction …………………………… 10

Ⅴ. Wiring ……………………………………………… 12

1.Main Circuit Schematic Diagram ………………………… 12

2.Terminals Description ……………………………………… 13

3.Basic Connection Diagram ………………………………… 14

4.Precautions on Wiring ………………………………………15

Ⅵ. Instruction of the digital operator……………… 18

1.Description Of The Digital Operator ……………………… 18

2.Display Description of Indication Status ………………… 18

3.Operation Instruction ………………………………………19

Ⅶ. Commissioning ………………………………… 20

1.Important Checks Before the Commissioning …………… 20

2.Commissioning Methods …………………………………… 20

- 2 -

HLP-C

Inverters

Ⅷ. Function List ……………………………………… 21 Ⅸ. Descriptions of Functions ………………………28 Ⅹ. Care & Maintenance, Fault Information and Troubleshooting ……………………………… 80

1.Precautions about Inspection and Maintenance ………… 80

2.Periodical Inspection and Maintenance items…………… 80

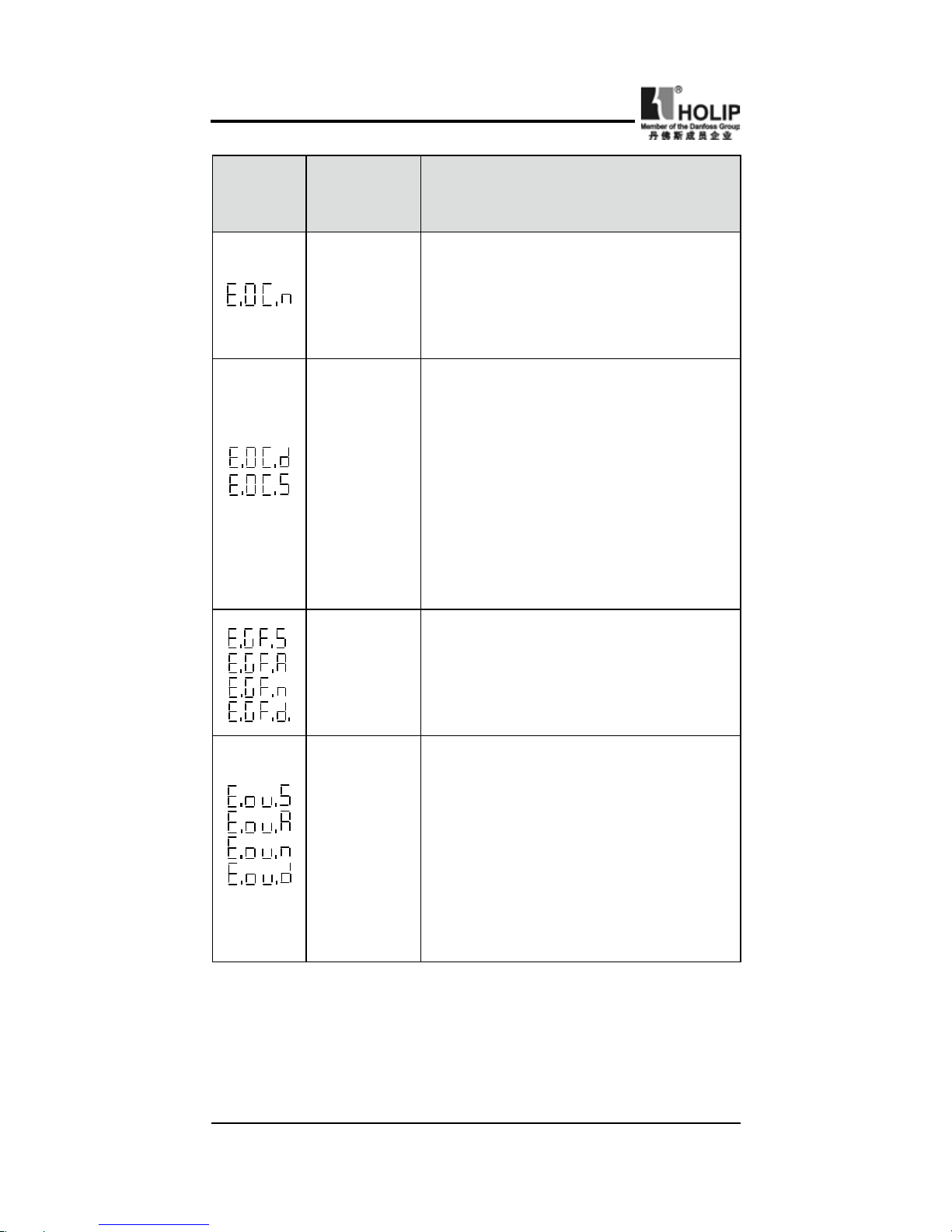

3.Fault indication and troubleshooting ……………………… 81

4.Faults and Analysis ………………………………………… 85

Ⅺ. Selection of Peripheral Devices and Disposition………………………………………… 88

1.Options ……………………………………………………… 88

2.D isposition ………………………………………………… 89

Ⅻ. Appendices ……………………………………… 91

Appendix 1：

Application demonstrations ………………… 91

Appendix 2：

External Appearance and

Installation Dimensions …………………… 93

Appendix 3：

User’s Records and Feedback ……………… 95

- 1 -

HLP-C

Inverters

I.Introduction

Thank you for purchasing and using the general-purpose inverter of HLP- C+ Series of multi-functions and high performance. The inverter of HLP- C+ Series has been developed on basis of HLP-A Series keeping the main functions of HLP-A Series and with additional functions on request of customers as well as smaller size. So the inverter of HLP- C+ Series features more compact and more powerful functions. Please read caref ully t he ope ration manual before put t he inverter to use so as to correctly install and operate the inverter, give full play to its functions and ensure the safety. Please keep the operation manual handy for future reference, maintenance, inspection and repair. Due to the inverter of a kind of electrical and electronic product it mu st be installed, tested and adjusted with parameters by specialized engineering persons of motor. The marks of and other simbols in the manual remind you of the safet y and prevention caustions during the tra nsportat ion, instal lation, r unning and inspect ion. Please follow the se instructions to make sure the safe use of the inverter. In case of any doubt please contact our local agent for consultation. Our professional persons are willing and ready to serve you. The manual is subject to change without notice.

Danger

Caution

Danger

indicates wrong use may kill or injure people.

Caution

indicates wrong use may damage the inverter

or mechanical system.

Danger

● Be sure to turn off the input power supply before wiring.

● Do not touch any internal ecectrical circuit or component

when the charging lamp is still on after the AC power supply is disconnected, which means the inver ter still has high voltage inside and it is very dangerous.

- 2 -

HLP-C

Inverters

● Do not check components and signals on the circuit boards.

● Do not dissemble or modify the any internal connecting

cord, wiring or component of the inverter by yourself.

● Be sure to make correct ground connection of the ear th

terminal of the inverter.

● Neve r remo d e l it or exc h a nge c ont r ol bo a rd s and

components by yourself. It may expose you to an electrical shock or explosion, etc.

Caution

● Do not make any voltage with standing test with any

component inside the inverter. These semi-conductor parts are subject to the damange of high voltage.

● Never connect the AC main circuit power supply to output

terminals U.V W. of the inverter.

● The main electric circuit boards of CMOS and IC of the

inver ter are subject to the effect and damage of static electricity. Donn’t touch the main circuit boards.

● Installation, testing and maintenance must be performed by qualied professional personnel.

● The inverter should be discarded as industrial waste. Avoid

burning.

( 1 ) Checks upon Delivery

The inverter has been strictly and well packed before ex-work. In consideration of various factors during the transportation special attention should be paid to the following points before the assembly and installation. If there is anything abnormal please notify the dealer or the relevant people of our company.

● Check if the inverter has got any damage or defor mation

during the transportation.

● Check if there is one piece of HLP-C+ series inverter and one

copy of the instruction manual available after unpacking it.

● C heck t h e information on t h e namepla t e to s ee if t he

specifications meet your order (Operating voltage and KAV value).

- 3 -

HLP-C

Inverters

MODE: HLPC+01D543B

INPUT: 3PH380V50Hz/60Hz

OUTPUT: 3PH380V4.0A1.5KW

Freq Range: 0.1-600Hz

HLP ELECTRONICS CO., LTD

Type：HLP C

01D5 43 B

Hardware Version

Voltage Rating,

43 means 3-phase380V

Inverter Capacity, 01D5 means 1.5KW

Series No.

Trade Mark

● Check if there is something wrong on the inner parts, wiring

and circuit board.

● Check if each terminal is tightly locked andif there is any

foreign article insie the inverter.

● Check if the operator buttons are all right.

● Check if the optional components you ordered is contained in

it.

● Check if there is a certicate of qualication and a warranty

card.

( 2 ) Nameplate Information of HLP-C+ Series

- 4 -

HLP-C

Inverters

Caution

● Check to be sure that the voltage of the main circuit AC

power supply matches the input voltage of the inverter.

Caution

●

symbol is the ground terminal. Be sure to make correct

ground connection of the earth terminals of the motor and the inverter for safety. E can't be connected to Line zero.

● No contactor should be installed between the power supply

and theinverter to use it for sta rting or stopping of the inverter. Otherwise it will affect the service life of the inverter.

Danger

● R.S.T terminals are power input terminals, never mixed with

U.V.W terminals. Be sure that the wiring of the main circuit is correct. Otherwise it will cause damages of the inverter when the power is delivered to it.

● Do not carry the front cover of the inverter directly when

handling, It should be handled with the base to prevent the fall off of the front cover and avoid the dropping of the inverter,which may possibly cause the injuries to people and the damages to the inverter.

● Mount the inver ter on a metal or ot her noncombustible material to avoid the risk of re.

● Install the inverter in a safe site, avoid high temperature,

direct sunlight, humid air or water.

● Keep the inverter from the reach of children or persons not

concerned.

II.Safety Precautions

⑴ Before the Power Up

Caution

- 5 -

HLP-C

Inverters

● The inverter can only be used at the places accredited by

our company. Any unauthorized working environment may

have the risks of re, gas explosion, electric shock and other

incidents.

● Install a cooling fan or other cooling device when installing

more than one inverters in the same enclosure so that the temperature inside the enclosure be kept below 40℃ to

avoid overheat or the risk of re. .

● Be sure to turn off the power supply before dissembling or

assembling the operation keyboard and fxing the front cover to avoid bad contact causing faults or non-display of the operator.

● Do not install the inverter in a space with explosive gas to

avoid the risk of explosion.

● If the inverter is used at or above 1000m above seal level,

the cooling efficiency will be worse, so please run it by changing down.

● Do not install any contactor and other components of related

capacitor o var istor on the out put side of the inverter. Other wise it will cause malfunctions and damages of components of the inverter.

● Do not install any switching component like air breaker

or contactor on the output side of the inverter. If any of such components must be installed because of process and other needs, it must be ensured that the inverter has no output when the switch takes actions. In addition, it is forbidden to install any for improvement of power factors or varistors against thunder on the output side. Otherwise it

Inverter

- 6 -

HLP-C

Inverters

⑵ During the Power Up

Danger

● Do not plug the connectors （CONNECTOR）of the inverter

when it is in the delivery of current to avoid any surge into the main control board due to plugging, which might cause the damage of the inverter.

● Always have the protective cover in place before delivery of

current to avoid electrical shock injury.

⑶ During the Operation

will cause malfunctions, tripping protecton and damages of components of the inverter. Please remove them as shown in the above diagram.

● The function of STOP switch is only valid after it is set. Its

use is different with the emergency stop switch. Be careful when using it.

● It will affect the service life of the inverter if a contact is

connected to the front end of input of the inverter to control its starting and stopping. Generally it is required to control it through FOR or REV terminals. Special attention should be paid to its use in the case of frequent starts and stops.

● Please use an independent power supply for the inverter.

Do avoid using the common power supply with an electric welder and other equipment. Otherwise it will cause the protection or damage of the inverter.

Danger

● Never connect or disconnect the motor set while the inverter

is in running. Otherwise it will cause overcurrent trip and even burn up the main circuit of the inverter.

● Never remove the front cover of t he inver ter while t he

inverter is powered on to avoid any injury of electric shock..

● Do not come close to the machine when the fault restart

function is used to avoid anything unexpected. The motor may automatically restart after stopping running

- 7 -

HLP-C

Inverters

Caution

● Do not touch the heat sink, braking resistor, or other heat

elements. These can become very hot.

● Be sure that the motor and machine is within the applicable

speed ranges before starting operation because the inverter is quite easy to run from lower speed to higher speed.

● Do not check the signals on circuit boards while the inverter

is running to avoid danger.

● Be careful when changing the inverter settings. The inverter

has been adjusted and set before ex-work. Do not adjust it wantonly. Please make proper adjustments according to the required functions.

● Do consider the vibration, noise and the speed limit of the

motor bearings and the mechanical devices when the inverter is running at or above the frequency of 50Hz.

- 8 -

HLP-C

Inverters

III. Standard Specifications

⑴ Particular Specifications

Type Input Voltage

Power

(KW)

Inverter

Capacity

（

KVA

）

Output

Current

（A）

Suitable

Motor

（

）

HLPC+0D7543B

3φ380V

50/60Hz

0.75 2.2 2.7 0.75 HLP C+01D543B 1.5 3.2 4.0 1.5 HLP C+02D243B 2.2 4.0 5.0 2.2 HLP C+00D423B

Single &

Three Phase

220V 50/60Hz

0.4 1.0 2.5 0.4 HLP C+0D7523B 0.75 2.0 5.0 0.75 HLP C+01D523B 1.5 2.8 7.0 1.5

⑵ General Specifications

Descriptions HLP- C

Control Type SPWM

Input Power

400V class：345~440V

；

230V class：170~230V

Range 0.1~600.0Hz

Acuracy

Digital：0.01%（-10~40

℃）；

Analogue：0.1%（25±10

℃）

Setting Resolution

Digital：0.1Hz；Analogue：1‰ of Max.

Operating Frequency Output Resolution 0.1Hz Operator Setting

Method

Press directly ∧ or ∨ to set.

Analog Setting Method

External Voltage 0-5V，0-10V，4-20mA

，

0-20mA

Other Functions

Frequency lower limit, starting frequency,

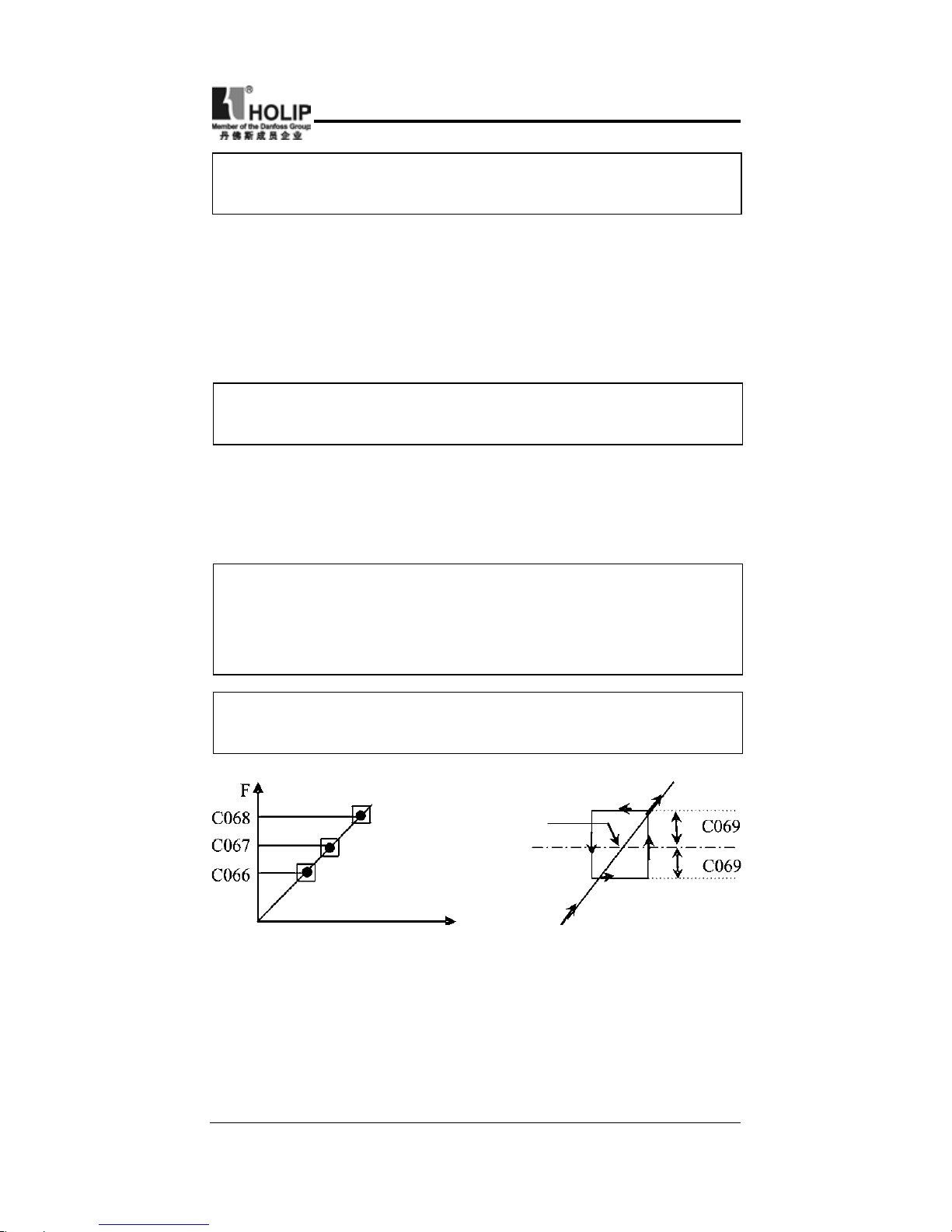

stopping frequency, three skip frequencies

can be individually set and so on.

Acceleration/

Deceleration time Control

Four selectable combinations of

independent acceleration and deceleration

settings (0.1-6500s).

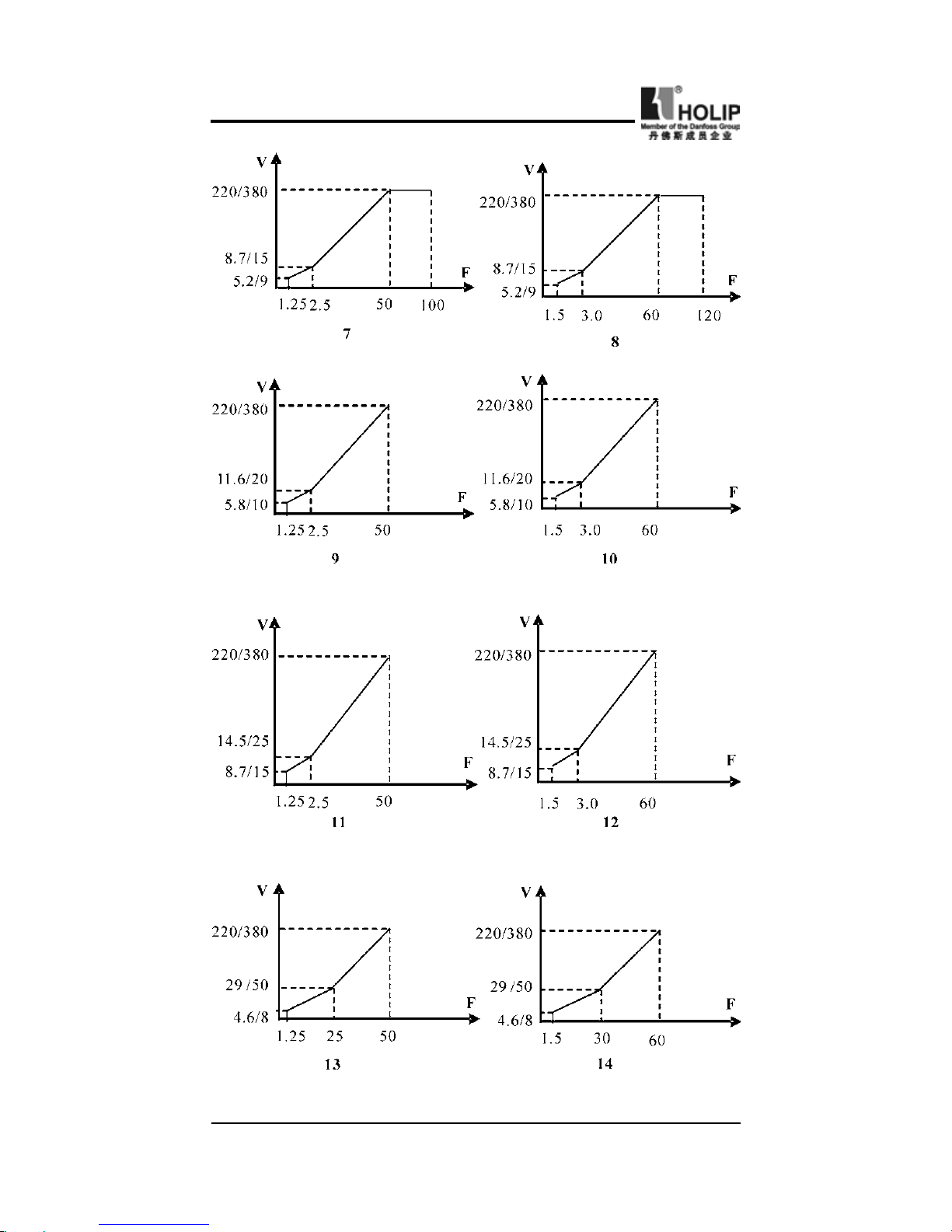

V/FCurve Set V/F curve at will

Frequency Control

- 9 -

HLP-C

Inverters

Torgue Control

Torque increase settable by max. 10.0%.

The star ting torque ca n reach 150% at

1.0Hz.

Multi-function input terminals

6 multi-input terminals for 8–speed steps

cont rol , prog r a m operation, switch of

4-steps Accel/Decel, UP/DOWN function,

counter, external emergency stop and other

functions.

Multi-function Onput terminals

2 multi-function output terminals for the

displaying and warning of running, zero

speed, counter, external fault, program

operation and other information.

Other Functions

AVR (auto voltage regulation), Deceleration

stop or self-st op, DC brake, auto reset

and restart, speed search, PLC, traverse

function, drawing control, auto energy-

savings, carrier adjustable by max. 16KHz,

etc.

4-Ddigits Display & Status Lamp

Display frequency, curre nt, revolution,

voltage, counter, temperature, pressure,

forward or reserve running, and fault, etc.

Communication Control RS485 Operation Temperature -10~40

℃

Humidity 0~95% Relative Humidity（without dew

）

Viobration Below 0.5G

Over Voltage

230V class：DC Voltage＞400V400V class

：

DC Voltage＞800V

Low Voltage

230V cla s s：DC Volta g e＜20 0V400V

class：DC Voltage＜400V Instant Stop

and Restart

Restarted by speed search after

instantaneous stop. Stall Prevention Anti-stall in Acc/Dec Run Output Eend

Shorts

Electronic circuit protecting

Other Functions

Fin over-heat protection, restriction of reverse

running, fault reset, parameter lock, etc.

General Control

Protection Functions

- 10 -

HLP-C

Inverters

IV.Storage & Installation

⑴ Storage

The inverter must be kept in its original package box before installation. Pay attention to the followings when keeping it in storage if the inverter is not used for the time being:

● It must be stored in a dry place without rubbish or dust.

● The suitable temperature for storage is between -20℃ and

+65℃.

● The relative humidity required is 0-95%, no condensation.

● There is no corrosive gas or liquid in the storage ambience..

● It’s better to lay the inverter on a rack and keep it in a proper

ipackage.

● It is bet ter not to store t he inver ter for long time. Long

time storage of the inverter will lead to the deterioration of electrolytic capacity. If it needs to be stored for long time be sure to power it one time within a yearand the power on time should be at least above five hours. When powered In input the voltage must be increased slowly with a voltage regulator to the rated voltage value.

⑵ Installation Locationand Environment

Attention: The ambient conditions of the inverter will affect its service life.

● Ambient operating temperature -10℃ to 40℃ wit h good

ventilation.

● No water drop and low moisture.

● Free from direct sunshine, high temperature and heavy dust

fall.

● Free from corrosive gas or liquid.

● Less dust, oil gas and metallic particles

● Free from vibration and easy for service and inspection.

● Free from the inteference of electromagnetic noise.

⑶ Installation Space and Direction

● There must be enough space left around the inverter for easy

maintenance and cooling. See Diagram 1.

- 11 -

HLP-C

Inverters

● The inverter must be installed vertically and to ensure the

smooth ventilation for effective cooling.

；

● If there is any instability when installing the inverter, please

put a f lat board under the inverter bottom base and install again. If the inverter is installed on a loose surface, stress may cause damage in main circuit so as to damage the inverter.

● The inverter should be installed on non-combustible materials,

such as iron plates.

● If several inverters are installed together in one cabinet, please

add heat dissipation plates and leave enough space between the inverters. See Diagram.

- 12 -

HLP-C

Inverters

V. Wiring

⑴ Main Circuit Schematic Diagram

Power supply:

Verify that the inverter’s rated voltage coincides with AC power supply voltage to avoid a damage of the inverter.

No fuse breaker:

Refer to the related list.

Ground fault circuit interrupter

：

Use one of anti-high harmonic.

Magnetic contactor: Note:

Do not use the magnetic contactor as the

power supply on/off button for the inverter.

AC reactor:

It is recommended to install a AC reactor for power factor improvement if the intput capacity is more than 1000KVA.

Inverter:

● Be sure to make correct connections of the

main circuit wires and control signal wires of the inverter.

● Be sure to make correct setting of parameters

for the inverter.

- 13 -

HLP-C

Inverters

⑵ Function Description of Circuit Terminals

1. Main Circuit Terminals Arrangement

2. Control Circuit Terminals Arrangement

FA FB FC DRV FOR REV RST SPL SPM SPH GND AM VI AI +10V

3. Function description of main circuit terminals

4、Function description of control circuit terminals

Symbol Function Description

R.S.T

Input terminals of AC line power.(230V class, for

both single/three phase, single phase connected to

any two phases)

U.V.W Output terminals to motor.

P.P.r External braking resistor terminals.

Ground terminals: the third kind of grounding for 230V and special grounding for 400 V of Electrical Engineering Regulations.

Symbol Function Description Factory setting

FOR Multi-function input 1 Forward run

REV Multi-function input 2 Reverse run

RST Multi-function input 3 Reset SPH Multi-function input 4 High speed

SPM Multi-function input 5 Intermediate Speed

SPL Multi-function input 6 Low Speed

GND

Common end for digit control signals

- 14 -

HLP-C

Inverters

Mark: The pin denitions of RS485 communication interface

are as follows:

Pin1 Pin6

Pin1：GND； Pin2：+5V； Pin3：RS+； Pin4：RS-； Pin5：GND； Pin6：GND

⑶ Basic Wiring Diagram

The whole wiring of the inverter is divided into two parts, main circuit terminal connections and control circuit terminal connections. Users can see the main circuit terminals, and the control circuit terminals after removing the outer cover. The terminals must be connected correctly as the following wiring circuit diagrams.

Symbol Function Description Factory setting

+10

Power supply for analog freqency

+10V

A n a l o g f r e q u e n c y reference input (voltage)

0~+10V corresponding to the highest operating frequency

A n a l o g f r e q u e n c y reference input (current)

4 ~20 m A co r r e s p o n d i n g to t he h i g he s t op e rat i ng frequency

DRV

Mu lti-function out put terminal (Optical couple output)

DC24V/100mA

FA FB FC

Mu lti-function out put

terminal 3 (N/O or N/C)

3A/250VAC3A/30VDC

D i g i t a l f r e q u e n c y outputtermina

0-10V

RS485 communication

interface

- 15 -

HLP-C

Inverters

The following diagram shows the factory standard connection of Model HLP-C+

(4) Precautions on Wiring

a：For main circuit wiring:

● While wiring the sizes and specications of wires should be

selected and the wiring should be executed according to the electrical engineering regulations to ensure the safety.

● It is better to use shield wire or wire and tube for power cord

and ground the shield layer or two ends of wire tube.

● Be sure to install a No Fuse Breaker (NFB) between the power

supply and the input terminals (R.S.T). (If using ground fault circuit interrupter, please choose the one cor responding to high frequency)

● The power line and the cont rol line should be arranged

separately and should not be laid in the same ducts..

● Never connect AC power to the output terminals (U.V.W) of

the inverter.

● Output wires mustn’t be in touch of the metal part of the outer

cover, or it will cause earth short-circuit.

● Phase-shifting capacitor, LC, RC noise lters, etc, can never

- 16 -

HLP-C

Inverters

Model

HLPC+00

D423B

HLPC+0 D7523B

HLPC+0 1D523B

HLPC+0 2D223B

HLPC+0

D7543B

HLPC+0

1D543B

HLPC+0 2D243B

NFB

Capacity

16A 16A 32A 32A 16A 16A 16A

Wire

Size

2.5mm² 2.5mm² 2.5mm² 4mm² 2.5mm² 2.5mm² 2.5mm²

Screw M4 M4 M4 M4 M4 M4 M4

Note: The parameters above are only for reference, not a standard.

be connected between the motor and the output terminals (U.V.W) of the inverter.

● The main circuit wire must be enough far away from other

control equipments.

● When the wiring between the inverter and the motor exceeds

15 meters for 230V class or 30 meters for 440V class, much

higher dV/dT will be produced inside the coil of motor, which

will cause the destroy to the interlayor insulation of motor. Please change it to a special AC motor for the inverter or add a reactor on the side of the inverter.

● Please lower the carrier frequency if there is longer distance

betweent the inerter and the motor. Because the higher carrier frequency will result in the bigger leakage current of highorder harmonics of the cables the leakage current will have unfavorable effect on the inverter and other equipment.

Specications for NFB and Wire

b：For control circuit wiring (signal line)

● The signal line should be separately laid in a different duct

with the main circuit wire to avoid any possible interference.

● Please use the shielded cable with the size of 0.5-2mm2 for

signal lines and make one end grounding. while the shielded cable with the size of 1 mm² is recommended for the control line.

● Use the control terminals correctly according to your needs.

c：Grounding

● Ground i ng t er m i nal : T he t h i rd g rounding me t hod

- 17 -

HLP-C

Inverters

⑴ Good ⑵ Good ⑶ Not good

(Grounding resistance should be 100. or lower.)

● Choose grounding wires according to the basic length ans

size of the technical requirements of the electric equipment.

● Do avoid shar ing grounding wire with other large power

equipment such as electric welder, dynamic machine, etc. The grounding wire should be kept away from the power supply wires.

● The-grounding method for several inverters together should

be done as the first and second diagrams. Avoid the third diagram.

● The grounding wire must be as shorter as possible.

● Please make correct grounding in the earthing terminal area.

Never connect it to zero line.

- 18 -

HLP-C

Inverters

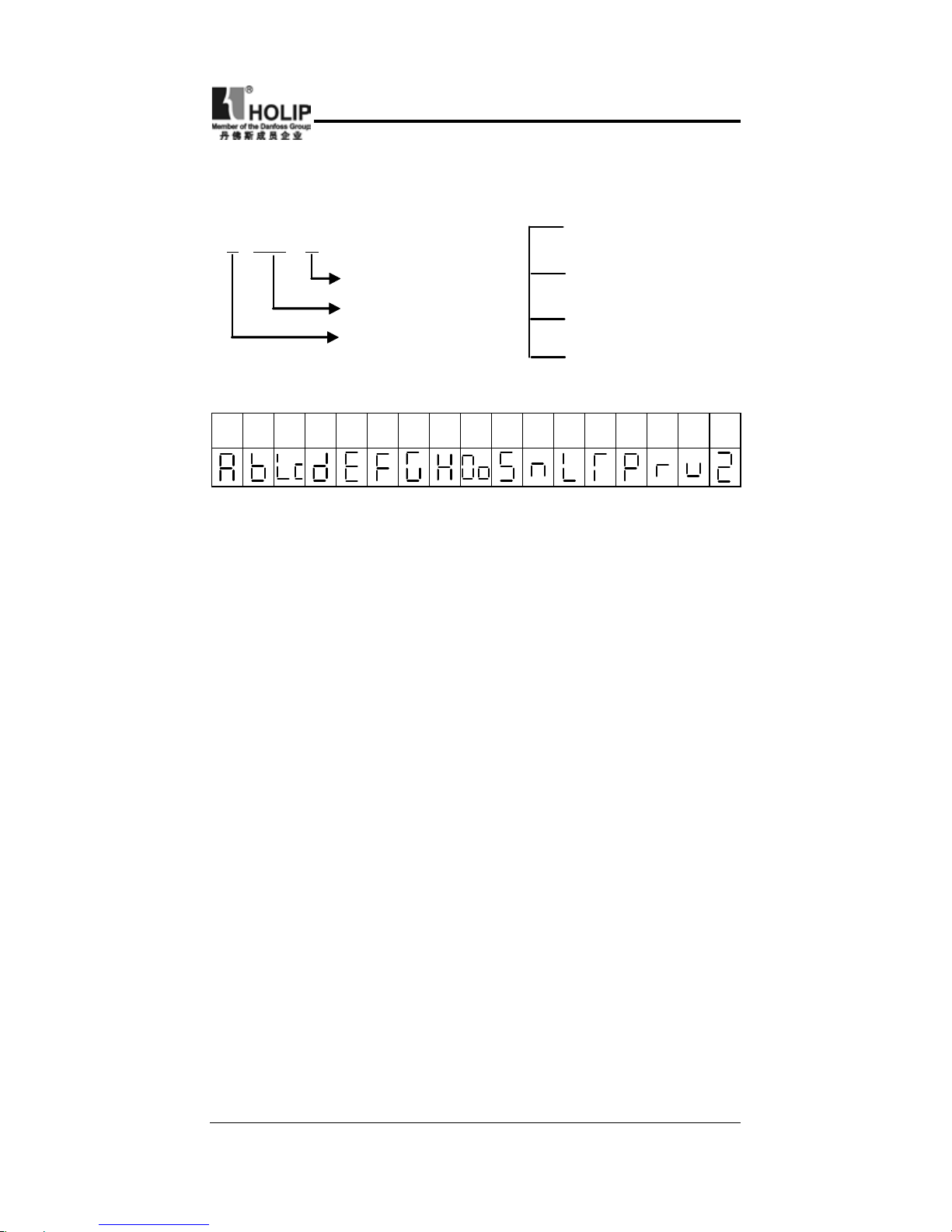

VI. Description of Digital Operator

⑴ Description of Digital Operator

⑵ Display Status

.During stopping: STOP on.

During operation

a: In case of output, RUN on, STOP dark; in case of forward

rotating, FWD on, in case of reverse rotatying, REV on.

b：Run→Stop, then RUN on, STOP ashing→RUN dark, STOP

on.

c：Forward→Reverse, then FW D on, R EV flashing→FWD

ashing, REV on.

d：When the inverter is operated in 0.00HZ, RUN ashing and

STOP off.

e：In jogging, RUN on, STOP ashing.

- 19 -

HLP-C

Inverters

⑶ Operation instruction

A. Description: Displaying Contents

1、

Output Frequency 50.0Hz

2、

Set Frequency 50.0Hz

3、

Output Current 2.0A

4、

Output Voltage 220V

5、

DC Voltage 540V

6、

Temperature 39

℃

7、

Counter

8、

PID feedback is 50%

9、

Revolution

10、

Forward Moving

11、

Reverse Moving

B. DC voltage, the temperature, counter, PID feedback and revolution can only be displayed af ter set ting. For specific parameter refer to C121.

C. Show the interface content before power off at power on

D. Under the status of FOR, REV, CXXX and parameter content, it can automatically ret u r n to the i nterfaces of f requency, voltage, electric current, etc. automatically after several seconds.

E. Under the status of Running and Stopping, it continues to display the original interface. But the corresponding contents will change with the running situation and the indicator lamp will indicate the corresponding status. During the operation the fan is running and when stopping the fan stops running.

- 20 -

HLP-C

Inverters

VII. Commissioning

(1) Important Checks Before the Commissioning

● If there is any wrong connected wires? Pay special attention to

the terminals: U.V.W; Make sure the power supply wires are connected to R.S.T, not U.V.W.

● If there is any metal powder or other wires left on the base

plate of the inverter or at the terminals, which might cause short circuit.

● If the scews are tightly locked and if the connecting parts are

loose.

● If there is any short circuit or earth fault in the output parts.

(2)Commissioning Methods

The procedure of the operator is factory set up for the control method of HLP series. The commissioning can be carried out through the digital operator. Generally, the commissioning can be conducted at 5.00 Hz.

Procedures Display Indicator Lamp POWER ON F000 FOR、STOP on Press 00.00 FOR、STOP on Press 05.00 FOR、STOP on Press RUN F05.0 FOR、RUN on. The fan operates. Press STOP F05.0 FOR、STOP on. The fan stops.

Note: The fan runs whe n the i nver ter is ope r ating or the temperature is reached within the inverter. In the process the inverter shuts down with the operation frequency dropping to

0.00HZ, STOP indicator lamp glimmer and will be on when the inverter stops.

- 21 -

HLP-C

Inverters

VIII. Function List

Parameter and Function List (Part 1)

Function

code

Function

Set Range & Function

Explanation

Factory

Setting C000 Main frequency 0.0~600.0Hz 0.00 C001 Accel. Time 0.1~6500S 5.0 C002 Decel. Time 0.1~6500S 5.0 C003 V/F Curve 0~16 00 C004 Max. voltage 0.1~255/510 220/380 C005 Base frequency 0.01~600 50/60

C006

Intermediate voltage

0.1~255/510 *

C007

Intermediate frequency

0.01~600 *

C008 Min. voltage 0.1~* * C009 Min. frequency 0.1~20.0Hz *

C010 Max. frequency 10.0~600.0 50.00

C011

Frequency lowe r limit

0.0~600 0.00

C012 Running control 0~2 0

C013

Running frequency select

0~2 0

C014

Starting mode select

0~1 0

C015 Stopping mode 0~1 0 C016 FOR/REV select 0~1 1 C017 STOP key select 0~1 1 C018 S-Curve Time 0~6500S 0 C019 Carrier frequency 0~15 09

C020 Starting Frequency 0.1~10 1.5

C021

Stopping Frequency

0.1~10 1.5

C022 Jog Frequency 0~600 5.0

C023

Jog Accel/Decel

Time

0.1~25.0 1.0

- 22 -

HLP-C

Inverters

Parameter and Function List (Part 2)

Function

code

Function

Set Range & Function

Explanation

Factory

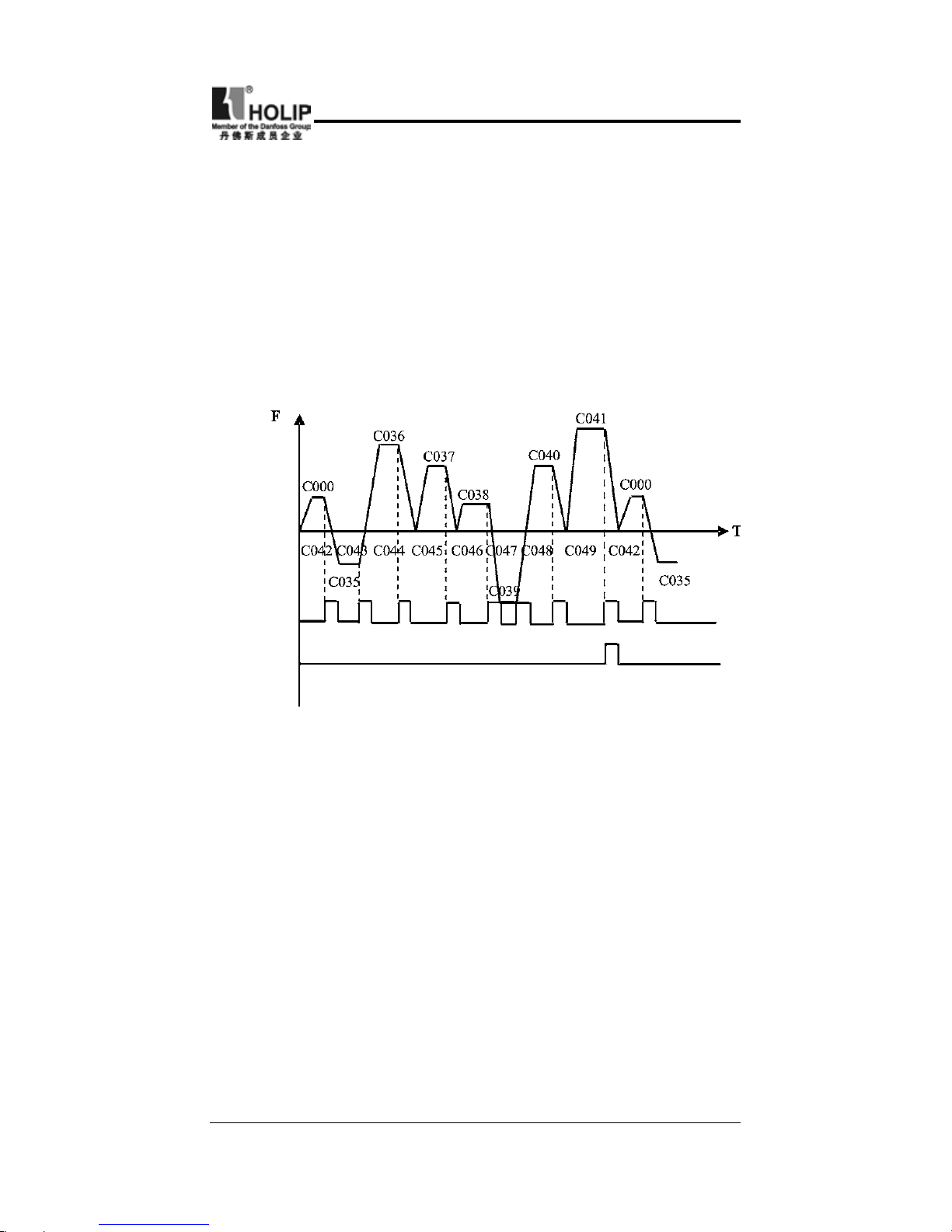

Setting C024 PLC operation 0~5 0

C025

Auto PLC operation

0~3 0

C026

PLC rotation Direction

0~255 0

C027

PLC Accel/Decel

Time 1

0~255 0

C028

PLC Accel/Decel

Time 2

0~255 0

C029 Accel. Time 2 0.1~6500S 10.0

C030 Decel. Time 2 0.1~6500S 10.0 C031 Accel. Time 3 0.1~6500S 50.0 C032 Decel. Time 3 0.1~6500S 50.0 C033 Accel. Time 4 0.1~6500S 100.0

C034 Decel. Time 4 0.1~6500S 100.0

C035 Frequency 2 0.0~600.0Hz 15.0 C036 Frequency 3 0.0~600.0Hz 20.0 C037 Frequency 4 0.0~600.0Hz 25.0 C038 Frequency 5 0.0~600.0Hz 30.0 C039 Frequency 6 0.0~600.0Hz 35.0

C040 Frequency 7 0.0~600.0Hz 40.0

C041 Frequency 8 0.0~6500S 0.50

C042 PLC Timer 1 0.0~6500S 10.0

C043 PLC Timer 2 0.0~6500S 10.0 C044 PLC Timer 3 0.0~6500S 0.0 C045 PLC Timer 4 0.0~6500S 0.0 C046 PLC Timer 5 0.0~6500S 0.0 C047 PLC Timer 6 0.0~6500S 0.0 C048 PLC Timer 7 0.0~6500S 0.0 C049 PLC Timer 8 0.0~6500S 0.0

- 23 -

HLP-C

Inverters

Parameter and Function List (Part 3)

Function

code

Function

Set Range & Function

Explanation

Factory

Setting

C050 Multi-input FOR 0: I n v a lid ; 1:Ru n ; 3:

Fo r. rotation; 4: Rev. r o t a t i on ; 5: Sto p ; 5:

For/Rev.; 6: Jog; 7: Jog For rotation; 8: Jog Rev

Rotation; 9: Emergency s t o p; 10 : Re s e t ; 12 : O ve r he a t of r a di a t or or mot or; 13: Timer 1 start; 14: Timer 2 start;

17: Hi g h s p e e d ; 18 :

Intermediate speed; 19: Low speed; 20: MultiSpeed 1; 21: Multi-Speed 2; 22: Multi- Speed 3;

23: Accel/Decel select 1; 24: Accel/Decel select

2; 2 5: U P f u n c t i on ; DOWN f unc t ion; 27: 2 7: C o u n t e r p u l s e;

28: Count er reset; 29:

Drawing start; 31: Auto PLC Reset suspend; 32: PID valid

02 C051 Multi-input REV 03 C052 Multi-input RST 10 C053 Multi-input SPH 17

C054 Multi-input SPM 18

C055 Multi-input SPL 19

- 24 -

HLP-C

Inverters

Parameter and Function List (Part 4)

Function

code

Function

Set Range & Function

Explanation

Factory

Setting

C056 Multi-output DRV 0: I nvalid; 1: Run; 2:

Fa u lt S ig n al; 3: Z e r o Sp eed; 4: DC Bra king i n d i c a t i o n ; 5 : S e t Fr e q u e nc y r e a c h ; 6: U n i f o r m Fr e q u e n c y 1 re a ch ; 7: Un i fo r m

Frequency 2 reach; 8: In

Accel.; 9: In Decel.; 10: Inverter Overload alarm; 11: Mot o r Ov e r lo a d alarm; 12: Overtorque detect; 13: Undervoltage a l a r m ; 1 4 : S i n g l e stage end; 15: Process end ; 16: Set Cou n t er reach; 17: Inter mediate

C o u n t e r r e a c h ; 18 :

Externally c o nt r olled T i m e r 1 r e a c h ; 19 : Externally c o nt r olled T i m e r 2 r e a c h ; 2 0 4~20mA disconnected; 2 7 : D r a w i n g r e a c h ;

28: PI D Down L i m i t

alarm; 29: PID Up Limit alarm; 30: Fan run; 31: Electromagnetic Relay act; 32: Braking Resistor act

C057

Multi-output FABC

C058 Multi–Analog AM 0~7 0 C059 Analog output gain 0~100 100

C060 Up/down mode 0~1 0

C061 Reserved

- 25 -

HLP-C

Inverters

Function

code

Function

Set Range & Function

Explanation

Factory

Setting C062 Timer 1 time 0.0~10.0 00.0 C063 Timer 2 time 0~100 000 C064 Counter 0~9999 0

C065

Intermediate Counter

0~9999 0

C066 Skip Frequency 1 0~600 0.0 C067 Skip Frequency 2 0~600 00.00 C068 Skip Frequency 3 0~600 0.0

C069

Skip Frequency range

0.1~10.00 0.50

C070

Uniform Frequency 1

0.0~600 00.00

C071

Uniform Frequency 2

0.0~600 00.00

C072

Analog Quantity Select

0~4 0

C073

Low end frequency of analog quantity

0.0~600 00.00

C074

Bia s direction of low end frequency

0~1 0

C075

High end frequency of analog quantity

0.0~600 51.0

C076

Bia s direction of high end frequency

0~1 0

C077

N e g a t i v e b i a s reverse

0~1 0

C078

An a log Fi l t e r ing Constant

0~50 20

C079

Over voltage stal l prevention

0~1 1

C080

St a ll preve n tio n level during accel.

0~200 150

C081

St a ll preve n tio n level during running

0~200 000

Parameter and Function List (Part 5)

- 26 -

HLP-C

Inverters

Function

code

Function

Set Range & Function

Explanation

Factory

Setting

C082

St a ll preve n tio n level during decel.

0~200 180

C083

Over torque detect level

0~200 000

C084

Over torque detect time

0.1~20.0 01.0

C085

Rated Motor Voltage

* 220/380

C086

Rated Motor Current

* *

C087 Motor poles 02~60 04

C088

Rated Motor Revolution

0~9999 1440

C089

Motor no-load current

0~100 40

C090 Slip compensation 0~1.0 0.000

C091 DC braking voltage 0.0~20.0 2.0

C092

DC braking time at starting

0.0~25.0 0.0

C093

DC braking time at stopping

0.0~25.0 0.0

C094 Speed search time 0.0~20.0 5.0

C095

Speed search current level

0~200 150

C096

Restart after instantaneous stop

0~1 0

C097

Allowable poweroff time

0.1~5.0 0.5

C098

Number of abnormal restart

00~10 00

C099

Auto voltage regulation function

0:Invalid 1：Effective 1

C100

Auto torgue compensation

0.0~10.0 2.0

Parameter and Function List (Part 6)

- 27 -

HLP-C

Inverters

Function

code

Function

Set Range & Function

Explanation

Factory

Setting

C101

Auto Energy Saving

0.0~20.0 0.0

C102 PID P value 0~1000 100.0 C103 PID I value 0.0~3600 5.0 C104 PID D value 0.01~10 0.00 C105 PID target value 0.0~100 0.0 C106 PID target value 0~1 0 C107 PID up limit 0~100 100 C108 PID down limit 0~100 000 C109

Communication adresses0~250 000

C110

Baud rate of communication

0~3 1

C111

C o m m u n i c a t i o n agreement

0~7 0

C120 Parameter lock 0~1 0 C121 Display contents 0~255 00 C122 Inverter model * * C123

Rated inverter voltag

e Set up by type *

C124

Rated inverter current

Set up by type * C125 Countries 0~1 0/1 C126 Manufacture date Year：Month：Week * C127 Serial No. * *

C128

Fault reset and clear

00~8 00

C129

Vo l t a g e u p t i m e during Speed search

0.1~10.0 0.5

C130

Stall & decel time during running

0.1~25.5 2.5

C131 Fault reset time 0.2~25.0 1.0

C132

Counte r memer y for power-off

0~1 0

C133

Drawing memory function

0~1 0

Parameter and Function List (Part 7)

- 28 -

HLP-C

Inverters

C000 Main Frequency Set Range

：

0.00~600.0Hz Unit：0.01 Factory Setting

：

0.00

C001 Accel. Time Set Range

：

0.1~6500.0S Unit：0.1S Factory Setting

：

5.0

C002 Decel. Time Set Range

：

0.1~6500.0S Unit：0.1S Factory Setting

：

5.0

IX. Description of Functions

In the digital operator method, the inverter will run at the setting value of C000. During running, the running frequency can

be changed by pressing the ▲ or ▼ key. During multi-speed

running, the main frequency is the first speed step frequency. In the external terminals method, if C013 is set to 1, i.e. the running f requency is given by the potentiometer. The f irst speed step is given by the potentiometer of the panel or external potentiometer. Concrete conditions can be selectec by jump wires of CN1. The setting of main frequency is limited by the max. operation frequency.

Accelerating Time means the time needed for the inver ter f r eq u enc y fr o m 0H z t o 50Hz (S e e t1 i n t h e d i ag ra m). Decelerating Time means time needed for inverter frequency from 50Hz to 0Hz(See t2 in the diagram)

HLP-C+ Series inverter have 4 Accel/Decel Times. For Accel/ Decel Time 2.3.4 the different accelerating and decelerating

- 29 -

HLP-C

Inverters

C003 V/F Curve

Set Range

：

0~16 Unit：1 Factory Setting

：

0：Wanton curve 1~16：16 curves are wanton and available. When C003 is set to 0, the curve can be written wantonly by the customer. When C003 is set to 1~16, there are 16 curves for choice.

( ) ( )

( )

time can be selected through the exter nal ter minals and by

switching of Accel/Decel Time according to actual needs. In the internal control multi-speed running, different Accel/Decel time

can be selected through simple PLC.

- 30 -

HLP-C

Inverters

( )

( ) ( )

- 31 -

HLP-C

Inverters

Given values for the inverter of 230V/400V class

：

Use C003 C010 C005 C007 C009 C006 C008

Remarks

1 50 50 2.5 1.25 8.6/15 5.2/9

→

2 60 60 3.0 1.5 8.6/15 5.2/9 3 60 50 2.5 1.25 8.6/15 5.2/9 4 72 60 3.0 1.5 8.6/15 5.2/9 5 75 50 2.5 1.25 8.6/15 5.2/9 6 90 60 3.0 1.5 8.6/15 5.2/9 7 100 50 2.5 1.25 8.6/15 5.2/9 8 120 60 3.0 1.5 8.6/15 5.2/9

9 50 50 2.5 1.25 11.5/19.9 5.7/9.9 10 60 60 3.0 1.5 11.5/19.9 5.7/9.9 11 50 50 2.5 1.25 14.4/25 8.6/15 12 60 60 3.0 1.5 14.4/25 8.6/15 13 50 50 25 1.25 28.9/50 4.6/7.9 14 60 60 30 1.5 28.9/50 4.6/7.9 15 50 50 25 1.25 57.9/100 4.6/7.9 16 60 60 30 1.5 57.9/100 4.6/7.9

( )

Constant Torque

Start High

Fan Model

While restor ing the factor y settings, default of Cur ve 1 or 2 is related to the setting value of C125. When C125 is set to 0, the factory value is restored and the default of C003 is 1, while C125 is set to 1, the factory value is restored and the default of C003 is 2. The relevant parameters refer to the explanation of C125. After the determination of 16 curves, C004, C005, C006, C007,

C008, C009 still can be adjusted and set. C016 is for checking the

setting.

- 32 -

HLP-C

Inverters

C004 Max. Voltage Set Range

：

0.1~255/510V Unit：0.1V Factory Setting

：

220/380

This parameter can set any intermediate voltage in the V/F

curve. If it is set improperly, it will cause motor over current or

decit torque, or even an inverter tripping.

This set value is limited by the max voltage value.

C005 Base Frequency Set Range：0.01~600.00Hz Unit：0.1Hz Factory Setting：50.00/60.00

C006 Intermediate voltage Set Range

：

0.1~255/510V Unit：0.1V Factory Setting

：

C007 Intermediate Frequency Set Range

：

0.01~600.00Hz Unit：0.01Hz Factory Setting

：

This parameter can set any intermediate frequency in the V/F

curve. If it is set improperly, it will cause motor over current or

decit torque, or even an inverter tripping.

This set value is limited by the setting of base frequency.

C008 Voltage at Lower Frequency

Set Range:0.1~* Unit:0.1V Factory Setting:*

This parameter can set the lowest starting voltage in the V/F

curve. This setti ng value is limited by t he volt age at the highest operating frequency.

C009 Min. Frequency Set Range:0.1~20.00Hz Unit:0.01Hz Factory Setting:*

This parameter sets the lowest starting frequency in the V/F

curve.

C010 Highest Running Frequency Set Range:10.0~600.0Hz Unit:0.01Hz Factory Setting:

50.00/60.00

- 33 -

HLP-C

Inverters

This parameter sets the highest operating frequency of the inverter.

The settings of C006, C007, C008 and C009 are related to the

setting value of C125. When C125 is set as 0, the factory setting

is the rst V/F curve, while C125 is set as 1, the factory setting is the second V/F curve. When restoring the factory setting the

memorized contents are as above. Note: means uncertain values or various setting values.

C011 Frequency Lower Limit Set Range

：

0.0~600.0 Unit：0.1Hz Factory Setting

：

0.00

This is set for preventing workers from false operation, avoiding overheat or some other mechanical faults, which might be caused due to the too low running frequency. When the setup frequency is below the lower limit the inverter is running at frequency lower limit. This set value is limited by frequency upper limit.

C012 Control Mode Set Range

：

0~2 Unit：1 Factory Setting

：

0：Control by the digital operator. The r unning command is given through the digital operator. 1：Control by external terminals. The running command is given through external terminals (multi-function input terminals). 2：Control by the communication ports. The running command is given through communication ports.

C013 Running Frequency Select Set Range

：

0~2 Unit：1 Factory Setting

：

0：Set by digital operator. The running frequency is given through the digital operator. 1：Set by potentiometer. The running f requency is controlled by the analog sig nal through external terminals or potentiometer of the panel. Relate to CNI state.

- 34 -

HLP-C

Inverters

CN1 State

1 2 3

Potentiometers of the panel Analog quantities of external

terminals

2：Set by the communication ports. The run ning frequency is given through the serial communication ports.

C014 Starting Mode Select Set Range

：

0~1 Unit：1 Factory Setting

：

Two starting modes are available for different equipment. 0：Start from the starting frequency. When C092 is set as 0, i.e. DC brake is invalid when starting, it starts running from its starting frequency. When C092 is set to any non zero value, i.e. DC brake is valid when starting, it will

rst have a DC braking when starting, and then start from the

starting frequency. Related parameters refer to C091 and C092. 1：Starting by Speed Search This function can be used in the restarting of large inertia load. When restarting, the inverter will trace the former speed from the set frequency downward. In case of large inertia equipment, when restarting, it can implement the running command right away withourt waiting for the complete stop of the equipment by tracking the former frequency to save time. Note: When the inverter is restarted by speed search, it will start tracking the frequency from its set frequency downward, and search it at the highest speed. When starting, the current will be high, and over current or stall may occur. Be sure to pay attention to the adjustment of current standard position of speed search. Generally, C095 should be set around 100%. The concrete value should be specifically set according to the characteristics of mechanical load.

- 35 -

HLP-C

Inverters

C015 Stopping Mode Set Range

：

0~1 Unit：1 Factory Setting

：

Two stopping modes a re available for the requirements of different equipment. 0：Decelerate to stop When C093 is set as 0, DC braking is invalid. When DC braking is invalid, the inverter will decelerate to the stopping frequency, and then stop toutput, and the motor will have a free running

to a nal stop. When C093 is set for any non-zero value 0, the DC braking is valid, and the inverter will rst decelerate to the stopping frequency, and then stop nally by DC braking.

When stopping, the DC braking is usually used in high position stopping or for position control. Be sure to notice that frequent uses of DC braking will cause the motor overheat. Related parameters refer to C091 and C093. 1：Free-running Stop W h e n t h e inver te r r eceive s a ST O P com m a nd , it wil l immediately stop output and the motor will have a free running till a stop. When the free-running stopping mode is selected for the motor, DC braking is invalid.

C016 For/Rev Rotation

Select Set Range:0~1 Unit:1 Factory Setting:1

0:Reverse Run is forbidden. 1:Reverse Run is allowed. This function is suitable for the motor, which cannot have reverse rotation, to prevent workers from false operation. When the reverse rotation is forbidden, the motor can only rotate forward, and cannot have reverse rotation. When the reverse rotation is forbidden, if switching between

For/Rev rotation on the panel, the panel will show Rev Run, but

the motor is actually making forward rotation with the indicator lamp indicating For Run.

C017 STOP key Select Set Range:0~1 Unit:1 Factory Setting:1

- 36 -

HLP-C

Inverters

0:STOP is invalid. 1:STOP is valid. This parameter set is only valid when C012 is set as l or 2. When the control method is set for exte r n al terminals or communications, the STOP key on the panel can be chosen to be valid or not. When choosing it as valid, the STOP key can stop the inverter in running. When it needs restarting, the for mer running signal should be released first and then restarting is allowable.

C018 S-Curve Time

Set Range:0~6500S Unit:1 Factory Setting:0

This parameter can be set for no impact slow start or slow stop of the inverter when starting or stopping. When starting S-curve the inverter will make accel or decel curve of different speed

rates according to Accel/Decel Time. When C018 is set to 0, S-curve is invalid, i.e. accelorate or

decelorate in straight line. Without consideration of stall the

actual Accel/Decel Time is equal to the set Acel/Decel Time

plus S-curve Time.

C019 Carrier frequency (Note:0 ~ 15 corresponding to 0 ~ 16K Hz) Set Range:0~15 Unit:01 Factory Setting:09

The carrier frequency has some affect on the electromagnetic noise of the motor, a nd meanwhile the level of t he car r ier frequency has certain relation with the heating capacity of the inverter and the interference to the environment. See the following table:

Carrier

Frequency

Electromagnetic

Noise

Heating

Capacity

Interference

to the

Environment

Low

↓

High

↓

Low

Small

↓

Large

Little

↓

Great

- 37 -

HLP-C

Inverters

Carrier frequency corresponding table

：

Set Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Carrier

Frequency

KHz

1.5 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

As shown in the table above, with a higher carrier frequency, the electromagnetic noise will be lower, but the interference to other systems must be prevented. With a lower carrier frequency, the electromagnetic noise will be a little higher, but the heating capacity will be small. So the carrier frequency should be set as low as possible, especially with large power machines, if the noice demand is not so high.

C020 Starting Frequency Set Range

：

0.1~10.0Hz Unit：0.1Hz Factory Setting

：

1.5

Starting frequency is the initial frequency when the inverter is started. If the starting frequency is set to 4.0Hz, the inverter will begin to run at 4.0Hz,and later on run between 4.0 ~ 600Hz .

C021 Stopping Frequency Set Range

：

0.1~10.0Hz Unit：0.1Hz Factory Setting

：

1.5

When the inverter receives a stop command, it will immediately decelerate to the stopping frequency, stop output or start DC

brake to a nal stop.

If C093 is set to 0, DC brake is invalid when stopping and the inverter will stop output. If C093 is set to any other parameter except “0”, DC brake is valid; the inverter will stop by DC braking.

C022 Jog Frequency Set Range

：

0.0~600.0 Unit：0.1 Factory Setting

：

5.0

The parameter set can realize the jogging function when the inver ter is tested. The jog operat ion can be achieved only through the exter nal terminals, which can be set by multifunct ion input terminals. Jog frequency is limited by the

lower/upper limit of the frequency. While the jog function is

implemented, other run commands are invalid. The accelerate

- 38 -

HLP-C

Inverters

time of jog frequency is set by C023. Jog stopping mode is the same as the normal run stopping mode, which can be set by C15. This function is only valid at stop condition. It is invalid at running. When C012 is set to 1, it is valid.

C023 Jog Accel/Decel Time

Set Range

：

0.1~25.0 Unit：0.1 Factory Setting

：

1.0

The set value of Jog Accel/Decel Time responds to Accel/Decel

Time of 0~50Hz.

C024 PLC Operation Set Range

：

0~5 Factory Setting

：

0：Normal operation, i.e. the inventer is running by the normal control method. 1：Excternal control 4- Speed Steps In the excternal control 4-Speed Steps the disturbance function

can be used at intermediate speed. Then C41 (Frequency 8) is

the disturbance amplitude. If it is equal to zero this function is invalid. C042 Time 1 and C043 Time 2 are disturbance time. Detail descriptions refer to the function description and diagram of three terminals of high, intermediate and low speed C050

～

C055. 2：Excternal control multi- speeds

- 39 -

HLP-C

Inverters

Multi-function Terminals

Results

Multi-

speed 1

Multi-

speed 2

Multi-

speed 3

OFF OFF OFF

Main frequency and frequency ar e d e t er m ine d b y C 0 00 or potentiometer.

ON OFF OFF

Multi-speed 1 and frequency are determined by C035.

OFF ON OFF

Multi-speed 2 and frequency are determined by C036.

ON ON OFF

Multi-speed 3 and frequency are determined by C0375.

OFF OFF ON

Multi-speed 4 and frequency are

determined by C038.

ON OFF ON

Multi-speed 5 and frequency are determined by C039.

OFF ON ON

Multi-speed 6 and frequency are determined by C040.

ON ON ON

Multi-speed 7 and frequency are determined by C041.

Note:

(1) To realize Excternal control 8-Speed Steps it is only valid

when Multi-input is set for Multi-speed 1, 2, 3 and C024 is set to 2. (2) By using Multi-speed 1, 2, 3 they can make up 7- Speed Steps. Adding the main frequency it will compose the setting of

8-Speed Steps.

(3) The frequencies of Step 1 ~ Step 7 are determined by C035~C41.

(4) Each Acel/Decel Time is determined by the external multi-

function terminal. (5) The directions of each program running are determined by the external multi-function terminals. (6) The main frequency can be given in two ways. One method is to set it by C000 and another is to set it by the potentiometer. When C013 is set to 1 the frequency of Main Frequency is given by the potentiometer of the panel or external analog quantiy. (7) The common use of Multi-speed and analog quantity is only

- 40 -

HLP-C

Inverters

Note:

⑴

The frequency at each inflection point is determinded by

C000 and C035.

⑵

Skip Frequency is determined by C041.

⑶

Running Time is determined by Timer C042 and C043.

⑷

Restart after power off. The running status of frequency will not be memorized. 4：Internal control Multi-speed

valid in the external control multi-speed. It is invalid in the external control 4- speeds. 3: Disturbance (Traverse function) This is a special parameter in the chemical fiber and printing and dying industries to realize the traverse function. Except the commands of stop, external faults and emergency stop all other commands will not be accepted at running.

Note:

(1) Main speed and 7-speeds composes 8-speeds.

- 41 -

HLP-C

Inverters

(2) Acel/Decel Time of each speed is set by PLC Acel/Decel Time C027 and C028. Refer to the detail descriptions of C027 and C028.

(3) Running Time is set by Timer C042~C049. For the control step not used the timer can be set to 0. (4) Running direction of each speed is determined by C026. (5) In the internal control multi-speed running the running time and direction are determined by the setting of internal

parameters. Any external switch of time and For/Rev rotation is

invalid. (6) Restart after power off. It will restart from the main speed. The status before the power off will not be memorized. 5:Drawing This is a special parameter for the constant speed of unwinding and rewinding. By using this function the linare speed constance within a certain accuracy can be realized.

Mult-input Multi-output

Note: (1) Through the trigger of the external multi-function terminal the drawing action beging to be implemented. (2) In implementation of drawing the actual running time is T=C042×10; (3) when the drawing is finished the inverter will have output of C036 at the constant seed and the corresponding multi-ouput contact will act. Until receiving the Stop command the inverter will stop running and the multi-ouput contact will reset. (4) In case of C133=1, it has the memory function of power off. When it restarts after the power off the prior status will be memorized. (5) The output frequency for drawing can be either up or down.

- 42 -

HLP-C

Inverters

C025 Auto PLC Operation Set Range

：

0~3 Factory Setting

：

0：Stop after the program runs for onw week. 1：Cycling Running. 2：Stop after it runs automatically for one week（Stop for intervention）. 3：Auto r un n i ng （Stop for i ntervention）and r e c ycling operation. Note: This parameter set is only valid when C024 is set to 4. For relevant parameters refer to C000, C024, C035~C049.

0：Stop after the program runs for onw week. Whe n the command of auto program r unni ng is given the inverter start to operate with the setting of internal parameters. It stops automatically after running for one week. Only with another running cammand given the inverter can restart. 1：Cycling Running. When the running command is given t he inverte r start to operate in sequence w ith the section speed frequency and running time set by each internal parameter and recyclied. During the recycling operation, except the commands of stop, external faults and emergency stop, all other commands will not be accepted.

2：Stop after it runs automatically for one week（Stop for intervention

）

Note: (1) Whhen the command of automatic program running is given

- 43 -

HLP-C

Inverters

the inverter will operate according to each parameter, but it will

stop rst and then restart at the change of each stage. It will stop

automatically after running for onw week. Only with another running cammand given the inverter can restart. (2) The f r equencies of e ach speed step a re s et by C 0 0 0, C035~C041. (3) The running times of each speed step are set by C042~C049. (4) The running direction is set by C026.

3:Auto running (Stop for intervention) and recycling operation.

Step nished

Command

Pattern nished

Command

Note: (1) After the auto pattern run command is given the inverter will run according to the parameters, but at every change of step it

will stop rst and then start again. It will continue and stop until

the OFF command for auto run is given.

(2) When each step is nished the corresponding multi-function

output contac will act.

(3) When each pattern run is nished the corresponding multi-

function output contac will act. (4) The width of output pulse is 20 ms. (5) When running again after power off all the actions will be started from the beginning and the previous states will not be memorized.

- 44 -

HLP-C

Inverters

C026 PLC Rotation Direction Set Range:0~255 Factory Setting:0

This parameter is only valid when C024 is set to 4. The setting of this parameter determines the rotation directions of each frequency step of C035~C041 and C000 in the pattern run. The setting method is as follows:

The rotation direction is set rst in the binary bit mode, and then

converted to a decimal value for the setting of this parameter. For instance: bit 0-7

7 6 5 4 3 2 1 0

0 1 0 0 1 0 1 0

0:For 1:Rev Main Speed (C000)For Step 1 (C035) Rev Step 2 (C036) For Step 3 (C037) Rev

Step 4 (C038) For

Step 5 (C039) For Step 6 (C040) Rev Step 7 (C041) For

The parameter value 01001010 is converted to a decimal value: 1×26+1×23+1×21=64+8+2=74 Then C026=74

C027 PLC Accel. / Decel. Time 1

Set Range:0~255 Factory Setting:0

This parameter is only valid when C024 is set to 4.

Thisparameter is set to determine the accel/decel time values

of Step 1~4 of the internally controlled multi-speed. Its setting method is as follows:

- 45 -

HLP-C

Inverters

(1) Determine each accel/decel time in in the binary 2 bit mode

Bit1 Bit2 Accel/Decel Time

0 0 Accel/Decel Time 1: C001, C002 0 1 Accel/Decel Time 2: C029, C030 1 0 Accel/Decel Time3: C031, C032 1 1 Accel/Decel Time 4: C033, C034

(2) Determine the accel/decel time of each speed step in in the binary 8 bit mode

Speed No. 4 Speed No. 3 Speed No. 2 Speed No. 1

t4 t3 t2 t1

0 1 1 0 0 0 1 1

t1 Select Accel. Time 4 t2 Select Accel. Time 1 t3 Select Accel. Time 3 t4 Select Accel. Time 2 The setting value: 1×20+1×21+1×25+1×26=99, So C027is set to 99. Attach:20=1+21=2, 22=4, 23=8, 24=16, 25=32, 26=64

C028 PLC Accel. / Decel. Time 2

Set Range:0~255 Factory Setting:0

Thisparameter is set to determine the accel/decel time of Step 5~8 of the internally controlled multi-speed. Its setting method

is the same as C026 and C027. Details refer to the description of C027.

C029 Accel. Time 2 Set Range:0.1~6500S Unit:0.1S Factory Setting:10.0

C030 Decel. Time 2 Set Range:0.1~6500S Unit:0.1S Factory Setting:10.0

C031 Accel. Time 3 Set Range

：

0.1~6500S Unit：0.1S Factory Setting

：

50.0

C032 Decel. Time 3 Set Range:0.1~6500S Unit:0.1S Factory Setting:50.0

- 46 -

HLP-C

Inverters

C033 Accel. Time 4 Set Range:0.1~6500S Unit:0.1S Factory Setting:100.0

C034 Decel. Time 4 Set Range:0.1~6500S Unit:0.1S Factory Setting:100.0

C035 Frequency 2 Factory Setting: 15.0 C036 Frequency 3 Factory Setting: 20.0 C037 Frequency 4 Factory Setting: 25.0

C038 Frequency 5 Factory Setting: 30.0

C039 Frequency 6 Factory Setting: 35.0 C040 Frequency 7 Factory Setting: 40.0

C041 Frequency 8 Factory Setting: 0.50

Set Range:0.0~600.0Hz Unit:0.1Hz

C042 PLC Timer 1 Set Factory Setting: 10.0 C043 PLC Timer 2 Set Factory Setting: 10.0 C044 PLC Timer 3 Set Factory Setting: 0.0 C045 PLC Timer 4 Set Factory Setting: 0.0 C046 PLC Timer 5 Set Factory Setting: 0.0 C047 PLC Timer 6 Set Factory Setting: 0.0

C048 PLC Timer 7 Set Factory Setting: 0.0 C049 PLC Timer 8 Set Factory Setting: 0.0

Set Range:0.0~6500S Unit:0.1S The related parameters refer to the descriptions of C024, C025,

C026, C027 and C028.

C050 Multi-Input FOR Factory Setting

：

02 C051 Multi-Input REV Factory Setting：03 C052 Multi-Input RST Factory Setting：10 C053 Multi-Input SPH Factory Setting：17 C054 Multi-Input SPM Factory Setting：18 C055 Multi-Input SPL Factory Setting：19

Set Range

：

00~32 Unit

：

00：Invalid: When the terminal is set for empty, it can avoid

faulse operation.

- 47 -

HLP-C

Inverters

01：Run: It can be combined with other terminals to combine

various control methods. 02：Forward rotation 03：Reverse rotation 04：Stop 05：For/Rev switching 06：Jog07：Jog For rotation

08：Jog Rev rotation

09：Emer gency Stop: It c a n receive externally coming

emergency stop or other fault signals. When the terminal

is closed, the inverter will stop output and come to a stop

at free running. 10：Reset: This terminal can be used to reset after the fault is

removed. 12：Overheat of radiator or motor: This contact can be used

to detect overheat of the radiator or motor to protect the

motor and inverter. 13： Externally Controlled Timer 1 start: When the contact is

closed, the timer will start and begin to count time. When

the timer reaches the point the responding multi-inputs

will act. 14：Externally Controlled Timer 2 start 17：Hig h Sp eed: High, int er mediate a nd low spe ed can

compose three kinds of different operation patterns.

18：Intermediate Speed: In the three terminals the high-end

signal has priority. 19：Low Speed : Low, intermediate a n d hig h speed are

determined by Frequency 2, 3, 4. 20：Multi-speed 1 21：Multi-speed 2: Multi-speed 1, 2, 3 can compose 7-Steps. 22：Multi-speed 3 23：Acel/Decel Select 1: This terminal can be used to selcect

the acel/decel time of the inverter.

24：Acel/Decel Select 2: 4 kinds of Acel/Decel are available

for choice. 25：UP f u nction: When th i s t e r mi n al s w itch a c t s the

frequency of the inverter will increase or decrease. When

the terminal switch is hold the frequency will rapidly

- 48 -

HLP-C

Inverters

increment upward or decrement downward. The up or

down speed is determined by the present accel/decel time.

The function of power-off memory can be set through

C060. 26：DOWN function 27：Counter pulse: When the terminal is set for the counter

it can receive the pulse signal of ≤250HZ and count the

time.

28：Counter reset: the action of this contact can clear the

pres e nt counting values a nd r estore C00 to r estar t

counting. 29：Drawing star t : W h e n the contact i s t r igge r e d t h e

actionofdrawing will start. 31：Auto PLC reset suspend: This contact can be used to

realize the function of suspending clear-up of Auto PLC.

A. Using the t h r e e mult i-function terminals to form the connection method of three-wire system for the realization of

switching FOR/REV, which is extentively applied in the case of switching For/Rev of photoelectric switches.

This function is only valid when C012 is set to 1. Setting：C050=02 C051=03 C052=04 C012=1

Action Description: When triggering FOR, the inverter will rotate forward (starting); Whentriggering REV, the inverter will rotate reversely; When pressing STOP, the inverter will stop.

- 49 -

HLP-C

Inverters

B. Use RUN, DCM, F/R to combine for Starting, Stopping and For/Rev

：

①

Select the terminals of FOR and

REV

②

Parameter setting: C012=1 to set the exterminal control. C050=01 to set RUN

C051=05 to set F/R

When K2 is open it rotates forward, while K2 is closed it rotates reversely.

C. Description of Accel/Decel Time 1 and 2 Select

⑴

It is only valid when C024 is set to 0, 1, 2. Under the

disturbance and internal control of nulti-step it is invalid.

⑵

Any two multi-function input terminals can be combined to 4

kinds of Accel/Decel for selection.

⑶

The related multi-function input terminals are set to Accel/

Decel Select 1,2.Take the terminals of SPH and SPM as example, when the terminals of SPH C053 is set to 23 and the terminals of

SPM to 24, then the terminals of SPH and SPM should be Accel/

Decel Time 1, 2 Select.

SPH Terminal SPM Terminal Result

OFF OFF Accel/Decel Time 1

ON OFF Accel/Decel Time 2

OFF ON Accel/Decel Time 3

ON ON Accel/Decel Time 4

- 50 -

HLP-C

Inverters

D. Fu nct ion description of High, inter m e d i a t e a nd low terminals

：

RUN

SPL

Terminal

SPM

Terminal

SPH

Terminal

Result

ON OFF OFF OFF

M a i n f r eq ue nc y a n d frequency run with the set value of C000.

ON ON OFF OFF

Low speed and frequency run with the set value of C035.

ON ON/OFF ON OFF

Intermediate speed and frequency run with the set value of C036.

ON ON/OFF ON/OFF ON

High speed and frequency run with the set value of C037.

Note:

⑴

This function is only valid when C024 is set to 1, i.e.externally

controlled 4-steps.

⑵

Low, intermediate and high speed frequency are determined

by Frequency2,3, 4.

⑶

Accel/Decel time is determined by Accel/De cel select

terminals.

- 51 -

HLP-C

Inverters

⑷

When all High, intermediate and low speed has signal input it will give priority in the sequence of high, intermediate and low speed.

Note:

⑴

When C41 is not set to 0 it has such disturbance function. Its disturbance amplitude is determined by C41.

⑵

Its down time of disturbance is set by C43, while its up time is set by C42.

E. Description of UP and DOWN Function

UP DOWN Result

ON OFF Frequency up

OFF ON Frequency down

ON ON No up, no down

- 52 -

HLP-C

Inverters

Note:

⑴

The function of UP and DOWN is only valid when the operation of Operator is delected for the source of the running frequency, i.e. C013=0.

⑵

When UP is closed the inverter’s frequency will increment.

⑶

When D OWN is closed t he inver t e r’s f requ e ncy w i l l

decrement.

⑷

When both UP and DOWNare closed at the same time the frequency will neither increase nor decrease. It is regaded as invalid.

⑸

When the frequency reaches the max. operation frequency it will not increase.

⑹

When the frequency reaches the min.. frequency or its lowe limit, it will not decrease.

⑺

It has the function of memory, including the memor y for power-off. (Setting C60=1)

⑻

When adopting the function of UP and DOWN, its up and

down speed rate is determined by the present Accel/Decel Tiem.

⑼

When keeping pressing UP or DOWN，the frequency will increase or decrease rapidly.

⑽

The function of UP and DOWN is valid in operation. The frequency cannot be changed during wait.

待机

F. Description of Multi-speed 1, 2 and 3 Functions They are only valid when C024 is set to 2. Details refer to C024.

G. Description of Counter Function

Value reach

Value reset

Note:

⑴

The signal width triggered should not be lower than 2msec

- 53 -

HLP-C

Inverters

C056 Multi-Output DRV Factory Setting：01 C057 Multi-Output FA, FB, FC Factory Setting

：

（t1、

t2≥2msec）;

⑵

When the coundting value is reached the corresponding multi-

functionoutput contact will act.

⑶

This counter is reverse counter. When the counter is reset the

setting value will be displayed and then start counting.

⑷

When the counting value is reached the displayed value is 0.

It will not count againand only start counting after it reset.

⑸

It has the function of memory. When C132=1, the counting

result can be memorized for power-off.

00：Invalid. When the terminal is set for no f unction it can

prevent false action.

01：Run. The contact will act when the inverter is in running or

receives the running command signals.

02：Fault indication. The contact will act when the inverter

detects abnormal condition.

03：Zero Speed: The contact will act when the inverter output

frequency is lower than its starting frequency.

04：DC Braking ind ication: T he contact will act when t he

inverter is in DC braking condition.

05：Set Frequency reach: The contact will act when the output

frequency reaches the set frequency.

06：Uniform Frequency 1 Reach: The contact will act when the

output frequency reaches the designated frequency (C070).

07：Uniform Frequency 2 reach: The contact will act when the

output frequency reaches the designated frequency (C071).

08：In Accel: The contact will act when the inverte r is in

acceleration status.

09：In Decel: The contact will act whe n the inverter is in

deceleration status.

10：Inverter Overload alarm: The contact will act when the

inverter detects overload.

11：Motor Overload ala r m: The contact will act when the

inverter detects overloadof motor.

12： Overtorgue detect: The contact will act when the inverter

- 54 -

HLP-C

Inverters

detects over torque.

13：Undervoltage alarm: The contact will act when the inverter

detects under voltage.

14：Single Step end: The contact will act and output a pulse

when the inverter nishes a single step in implementation of

pattern operation.

15：Process end: The contact will act and output a pulse when

the inver ter f i nishes all the steps in implementation of pattern operation (i.e. after one week).

16：Set Counter reach: The contact will act when the inverter

implements the external counter and the counting value is equal to the set value (C064).

17：Intermediate Counter reach: The contact will act when the

inverter implements the external counter and the counting value is more than or equal to the set value (C065).

18：Externally Controlled Timer 1 reach: The contact will act

when the timer reaches the set value. 19：Externally Controlled Timer 1 reach 20：4∽20mA disconnected. When the AI input signal is opend

the contact will act. 27：Drawing Reach: The contact will act when the drawing

action is nished. The contact will automatically reset when

the inverter stops.

28：PID Lower Limit alarm: This contact will act when the PID

feedback quantity is lower than the lower limit (C108).

29：PID Upper Limit alarm: This contact will act when the PID

feedback quantity is higher than the upper limit (C107). 30：Fan run: When the inverter is working in high temperature

or in running, this contact will act. 31：Electromagnetic Relay act: When the contact pulls in the

corresponding multi-function terminal will act. 32：Braking Resistor act: When the inverter in running and the

DC voltage reaches the braking voltage the contact will act.

- 55 -

HLP-C

Inverters

C058 Multi Analog AM

Set Range

：

0~7 Factory Setting

：

Function: Digital frequency output terminal, In combination with C059 it can be connected to a frequency meter with the measuring range of 10V or below for external monitoring. 0：Analog Quantity Output: Displaying output frequency, 0~10V

corresponding to 0~ Max. operation frequency.

1：Analog Quantity Output: Displaying output current, 0~10V

corresponding to 0~2 x Rated current.

2：Analog Quantity Output: Display ing out put DC voltage,

0~10V corresponding to 0~1000V.

3：Analog Qua ntity Output: Displaying output AC voltage,

0~10V corresponding to 0~510/255V.

4：Pulse Quantity Output: The corresponding relation of pulse

quantity and output frequency: 1 Pulse/Hz.

5：Pulse Quantity Output: The corresponding relation of pulse

quantity and output frequency: 2 Pulse/Hz.

6：Pulse Quantity Output: The corresponding relation of pulse

quantity and output frequency: 3 Pulse/Hz.

7：Pulse Quantity Output: The corresponding relation of pulse

quantity and output frequency: 6 Pulse/Hz.

C059 Analog AM Output Gain Set Range

：

0~100% Factory Setting

：

100%

This parameter can be used to adjust the output voltage value of the multi-output AM to suit frequency meter with different measuring range and also used to correct a frequency meter. For example, for an externally connected frequency meter with the measuring range of 0~5V, a multi-function terminal can be used to display its operation frequency. Then it can be corrected with this parameter, Setting C059=50 will do. *Note: When selecting a frequency meter please select one with measuring range below 0~10V.

- 56 -

HLP-C

Inverters

C060 Up-down Mode Set Range

：

0~1 Unit：1 Factory Setting

：

0：Not memorized 1：Memorized Through the setting of this parameter whether the value changed by UP-DOWN will be memorized after stopping can be selected. When C060 is set to 1, if restarting after stopping, the value at stopping will be memorized. If restarting after power off, the values at power off will not be memorized, but the value set by C000 will be memorized. When C060 is set to 0, if restarting after stopping, it will retur n to the value of C000, the value changed by up-down will not be memorized..

C062 Timer 1 Time Set Range

：

0.0~10.0 Unit：1 Factory Setting

：

0 C063 Timer 2 Time Set Range

：

0~100 Unit：1 Factory Setting

：

Timer 1 is a timer of 0~10.0S and Timer 2 is a timer of 0~100S. When the timer for multi-input terminal is opened or closed the timer starts to count time. When the set time is reached the corresponding multi-output contact will act. When the timer cut off open the timer for multi-output will reach to reset time. During running, if the machine stops due to fault, the timer will count time normally and not suspend; if the machine stops due to power off, the timer will reset automatically. he counter can be regarded as the trigger by many function outside end sons, when counter value reaches establishing value C064, corresponding many function output contact movement, after putting by counter, counter put the location, count and resume, touching off the signal can be utilized and close to the switch , photoelectric switch ,etc..

- 57 -

HLP-C

Inverters

C064 Counter Set Range

：

0~9999 Unit：1 Factory Setting

：

An external terminal of multi-function can be used as a trigger for the counter. When the counter reaches set value C064 the corresponding multi-function output contact will act. After the counter is reset and returns it will start counting again. A proximity switch or optoelectronic switch can be used for the trigger signals.

C065 Intermediate Counter Set Range

：

0~9999 Unit：1 Factory Setting

：

Intermediate Counting Value is one value of counting range. When the counter reachesthis value the corresponding multifunction output contact will act and output one pulse signal. It is valid when the set value of C065 is smaller than C064.

C066 Skip Frequency 1 C067 Skip Frequency 2

C068 Skip Frequency 3

Set Range

：

0.00~600.00Hz Unit：0.1Hz Factory Setting

：

0.0

C069 Skip Frequency Range Set Range

：

0.1~10.00Hz Unit：0.1Hz Factory Setting

：

0.5

Frequency

To avoid a mechanical resonance point three frequency hop points are set. In case of C069=0, all hopping frequencies are invalid. The actual hopping frequency range is two times that of C069, as shown in the above diagram.

- 58 -

HLP-C

Inverters

C070 Uniform Frequency 1 Set C071 Uniform Frequency 2 Set Set Range

：

0.00~600 Unit：0.1Hz Factory Setting

：

0.0

When the output frequency reaches the set values of C070, C071 the corresponding multi-function output contact will act.

C072 Analog Quantity Select Set Range

：

0~4 Factory Setting

：

0~10V 1

：

0~5V 2

：

0~20mA 3:4~20mA 4:0~10V and 4~20mA stacked This parameter can be set to satisfy different analog input signals. When C072=4, output frequency =（U/Umax + I/Imax）*50Hz/2 Among which: U：Analog Quantity Voltage Quantity; Umax: Maximu m A n alog Quantit y Voltage Q u a ntity; I: A n alog Quantity Current Quantity; Imax: Maximum Analog Quantity Current Quantity. For example, When +10V and 20mA are repectively entered for the analog quantity, the output frequency of the inverter is 50Hz. (In case the max. operation frequency is set to 50Hz)

C073 Analog Quantity Low End Frequency Set Range

：

0.0~600.0Hz Unit：0.1Hz Factory Setting

：

0.0

074 Bias Direction of Low End Frequency Set Range

：

0~1 Factory Setting

：

0：Forward dirction 1：Reverse direction

C075 Analog Quantity High End Frequency Set Range

：

0.0~600.0Hz Unit：0.1Hz Factory Setting

：

51.0

C076 Bias Direction of High End Frequency Set Range

：

0~1 Factory Setting

：

0：Forward dirction 1：Reverse direction

- 59 -

HLP-C

Inverters

Setting：C073=50 C074=1 C075=50 C076=0 C077=1N Note: 5~10V corresp. to 0~50Hz

C073=50 C074=0 C075=0 C076=0 Note:0~10Vcorresp.50~0H

C073=10 C074=1 C075=40 C076=0 C077=1 Note:0~10V corresp.10~40Hz，

-10Hz means Rev 10Hz

C077 Negative bias Reverse of Analog Quantity Set Range

：

0~1 Factory Setting

：

0：Negative bias Rev is not allowable. 1：Negative bias Rev is allowable.

The parameter group is set for the measuring range and zero point of the external analog terminals and can be combined for any kind of curve to control the operation of the motor.

Example

：

Rev. Area For. Area

- 60 -

HLP-C

Inverters

C073=10 C074=1 C073=40 C077=0 In case of C077=0, 2V-10Vsignal is valid; 0V-2V is invalid. Motor will not run

C078 Analog Quantity Filtering Constant

Set Range

：

0~50 Unit：1 Factory Setting

：

The setting of this parameter is related to the responding speed

of analog quantity. The higher the value of C078 is set, the

slower the responding speed of analog quantity will become.

Too low setting of C078 may cause the instability of frequency

with fructuation.

C079 Overvoltage Stall Prevention Select Set Range

：

0~1 Factory Setting

：

0：Overvoltage stall prevention function is invalid. 1：Overvoltage stall prevention function is valid. When the inverter is in decelerating, due to the effect of load inerttia, the motor will produce a return energy to the inverter and cause the DC side voltage of the inverter increase. So when the function of overvoltage stall prevention is set valid and the DC voltage of the inverter becomes too high, the inverter will stop decelerating till the DC side voltage decreases to its rated value, then the inverter will go on to execute deceleration and the deceleration time will be extended automatically. * Note: When the output voltage is higher the inverter will become abnormal or turn to protection. In such case C079 can be set to 0 (Invalid), which is easy to cause overvoltage protection.

- 61 -

HLP-C

Inverters

C080 Stall Prevention Level During Acceleration

Set Range

：

0~200% Unit：1% Factory Setting

：

150

When the inverter is in accelerating, due to over load or too short acceleration time, the output current of the inverter will go up quickly and exceed the rated standard level. When this happens, the inverter will stop accelerating until the current returns under its rated value, will the inverter go on to accelerate. When using

the speed search function the value of C080 should be lowered

properly. The greater the load initia quantity is, the smaller the

value of C080 should be set. Otherwise it is extremely easy to

cause overcurrent protection.

Stall Prev. Level

Current

Output

100% current is the rated current of the motor. W hen this parameter is set to 0, the stall prevention function is invalid.

C081 Stall Prevention Level at Constant Speed

Set Range

：

0~200% Unit：1 Factory Setting

：

When the inverter is in constant running, due to load uctuation

and other reasons, the current will go up. When the current excee ds its rated value, the inverter w ill lower t he out put frequency. When the output current returns to its normal range the inverter will accelerate again to its set frequency.

- 62 -

HLP-C

Inverters

Stall prevention level during running

Output frequency

C082 Stall Prevention Level During Deceleration

Set Range

：

0~200% Unit：1 Factory Setting

：

180

100% current is the rated current of the motor. When this parameter is set to 0, the stall prevention function is invalid.

Related introduction refer to C079. When this parameter is set to 0, the stall prevention function is invalid.

C083 Overtorque Detect Level

Set Range

：

0~200% Unit：1% Factory Setting

：

When the output current exceeds the over torque detection level and also exceeds half of the set over torque detection time (factory setting: 1.0s), the over torque detection will begin to indicate, and the corresponding multi-function contact will act. When it exceeds the set time value, the inverter will turn into selfprotection. But when this parameter is set to 0, the over torque detection will be invalid

C084 OverTorque Detect Time

Set Range

：

0.1~20.0S Unit：0.1S Factory Setting

：

1.0

When the inverter detects that the output current has exceeded the motor cur rent set value, the inverter begins to calculate the over torque time. When the over torque time has exceeded half of the over torque detection time, the corresponding multifunction output contact will act, the over torque alarm will be produced, while the inverter will continue running. When the over torque time has exceeded the set detection time (set by

- 63 -

HLP-C

Inverters

C083), the inverter will turn into self-protection, display the

fault signal and stop output.

The related parameters see C083

C085 Rated Motor Voltage

It is set according to the rated voltage value of the namplate. For 230V class inverters the default is 220, while for 400 V class

inverters the default is 380V.

C086 Rated Motor Current

It is set according to the rated value of the namplate. This parameter can be used to restrict output current of the inverter to prevent overcurrent and protect the motor. If the current of the motor has exceeded this value the inverter of AC motor will turn into self-protection.

C087 Motor Poles

Set Range

：

02~60 Factory Setting

：

This parameter is set for the pole number of the motor according to the namplate of the motor.

C088 Rated Motor Revolution

Set Range

：

0~9999 Factory Setting

：

1440

This should be set according to the actual revolution of the motor. The displayed value is the same as this parameter. It can be used as monitoring parameter, which is convenient to the user. This parameter set value corresponds to the revolution speed at 50Hz.

C089 Motor No-load Current

Set Range

：

0~100 Factory Setting

：

The setting of Motor no-load current will affect the quantity of slip compensation. 100% current is the rated current of the motor.

- 64 -

HLP-C

Inverters

T h i s set t i ng is v a li d on l y when C014 is set to 0. Related introduction refer to C014.

C090 Slip Compensation Set Range

：

0~1.0 Factory Setting

：

When the inverter drives the motor the slip will become bigger due to the increase of load. This parameter can be set for slip compensation to decrease the slip and make the running speed of the motor closer to synchronous speed of revolution.

C091 DC Braking Voltage Set Range

：

0.0~20.0% Unit：0.1% Factory Setting

：

2.0

This parameter is set for the DC brake voltage to of the motor at starting and stopping. It can be adjusted for different brake voltage. When adjusting the parameter it must be increased

slowly from lower values to high values until the sufcient brake

torgue is achieved. 100% voltage is the voltage at maximum frequency.

C092 DC Braking Time at Starting Set Range

：

0.0~25.0S Unit：0.1S Factory Setting

：

0.0

This parameter is set for DC Brake at starting and giving the lasting time of DC Brake current of the motor at starting. If it is set to 0 it means DC brake is invalid. DC braking before running is normally applied in the cases in which the load is movable in the “stop” state, such as windmill and other machines. Because of the load existing before the inverter drives, the motor is always in a free r unning state, with an uncertain running direction. So the DC braking can be executed before starting the motor to prevent the inverter from tripping.

- 65 -

HLP-C

Inverters

This parameter is valid when C015 is set to 0. The related parameters see C015.

C093 DC Braking Time at Stopping Set Set Range

：

0.0~25.0S Unit：0.1S Factory Setting

：

0.0

Note: When this parameter is set to non-zero value it starts DC brake at stopping and gives the DC brake time of the motor. DC brake at stopping is often used for a high-level stop or position control.

C094 Speed Search Time Set Range

：

0.0~20.0S Unit：0.1S Factory Setting

：

2.0

This parameter is set as speed search time when the inverter restarts by the speed search method after the external errors or temporary power off. For the starting and stopping of some large inertia load, because of its large inertia, if restarting the machine after its complete stop, it will waste much time. But if the speed search function is started, it is not necessary to wait for the machines to come to a full stop for restart. The inverter will search the speed from high to low with the set frequency. After searching it it will continue to accelerate to reach the set frequency.

C095 Speed Search Current Level Set Range

：

0~200% Unit：1% Factory Setting

：

150

When the inverter search speed this set value sould be taken as the level for output current. When the output current is higher than this level the inverter will suspend searching. When the current is restored below the current level it will then execute the speed search again. Af ter starting the speed search please decrease properly the speed search current level according to the actual condition

- 66 -

HLP-C

Inverters

of load. Otherwise it is extremely easy to cause overcurrent protection.

C096 Restart after Instantaneous Stop Set Range

：

0~1 Factory Setting

：

0：Invalid, i.e. the inverter will not restart after an instantaneous stop. 1：Speed search Start. Refer to C094.

C097 Allowable Power-off Time Set Range

：

0.1~5.0S Unit：0.1S Factory Setting

：

0.5

This parameter is set for the maximum allowable power off time. If exceeding the set time the inverter will continue to stop input after power on. To execute the restart it needs to follow the general starting procedures.

*Attention：When using this function special attention should be paid to the safety. During the process of instantaneous power off and power on the inverter may restart. It is easy to produce danger. Be careful to use this function.

C098 Number of Abnormal Restart

Set Range

：

00~10 Unit：1 Factory Setting

：

After the abnormal conditions (such as overcurrent, overvoltage) happen the invrter will automatically reset and restart. If the starting mode is set for general mode it will start according to the general mode. If it is set for speed search start it will start in the speed search mode. After start it will restore the set number again if there is not any thing unusual happened within 60 seconds. If there is any error and it reaches the set number the inverter will not have input. It can only be started after reset. If

C098 is set to 0 the inverter will not carry out the functions of

automatic reset and restart.

C099 Auto Voltage Regulation Set Range

：

0~1 Factory Setting

：

0：Invalid 1：Valid

- 67 -

HLP-C

Inverters

When the input poer supply is not stable and if the voltage is over high the operation of the motot with the power of exceeding the rated voltage will cause the temperature of the moto increasing, the insulation damaged and the output torgue unstable. This auto voltage regulation can automatically stablize the output voltage within the rated voltage range of the motor under the condition of unstable output power supply When this function is set to invalid the output voltage will

uctuate.

C100 Auto Torgue Compensation Set Range

：

0.1~10.0% Unit：0.S% Factory Setting

：

2.0

This parameter can be set for the auto output of extra voltage when the inverter is running for higher torgue, which can

compensate for the insufcient torgue at lower frequency. The

torgue compensation should not be too big and it should be set slowly from low to high according to the actual situation. Insufficient compensation will result in the insufficient torgue of the motor at low frequency. And over compensation will lead to too bigger torgue, which will produce a shock to the machine and even result in a trip of the inverter under serious situation.

C101 Auto Energy Saving Set Range

：

0.0~20.0% Unit：1% Factory Setting

：

Torge Comp.

When it is set to 0 this function is invalid. When Auto energy saving function is opened the inverter will run at the full voltage during acceleration and deceleration. During the operationa at constant speed the inverter can automatically calculate the optimum voltage value according to the power of load to supply

- 68 -

HLP-C

Inverters

it to the load in order to meet the the goal of energy saving. The output voltage can be regulated automatically and it can be decreaed by max. 30% of normal output voltage.

Attention：For the load of frequent change or closing to full load, this function is not applicable.

C102 PID Constant P Set Range

：

0.0~1000% Unit：1 Factory Setting

：

100

This proportional constant is set for the error value gain. If I=0, D=0,it is only for proportional control.

C103 PID Constant I Set Range

：

0.1~3600 Unit：1 Factory Setting

：

5.0

The integral time (I) is set for the reaction speed for PID. The larger the I value is the slower the reaction speed is. But if the integral time value is set too small, it will cause vibration.

C104 PID Constant D Set Range

：

0.01~10.0 Unit：0.01 Factory Setting

：

This didderential time (D) is set for the depression operation of PID. The larger the D value is, the more obvious the depression operation is. When D is set to 0, it means this function invalid.

C105 PID Constant Target Value Set Range

：

0.0~100.0 Unit：0.1 Factory Setting

：

0.0

This target value can be set through external voltage signal or the digital operator.100% target value is corresponding to the frequency quantity at +10V. PID closed-loop control is usually used in the process control of no fast physical quantity changes, such as pressure control, temperature control, etc. The feedback signal is usually taken

- 69 -

HLP-C

Inverters

from temperature, or pressure transmitter, etc. When under PID control, the feedback signal input path is the analog current signal 4-20mA. PID Control Block Diagram:

Target value

Feedback

Transmitter

General operating methods of PID control:

⑴

Choose the correct transmitter (with the output specication

of standard current signal 4-20mA)

⑵

Set the right target value.

⑶

If t h e ou tput d o e sn’t h a ve o s c i llat i o n , inc r e ase t h e

proportional constant (P);

⑷

If the output doesn’t have oscillation, decrease the integral

time (Ti);

⑸

If the output doesn’t have oscillation, increase the differential

time (Td).

1.Decrease the Over Output a：Decrease the differential time (D) b：Increase the integral time (I)

2.Decrease the oscillation a：Decrease the differential time (D) b：Extend the integral timke （P

）

- 70 -

HLP-C

Inverters

PID closed-loop control is valid only when the multi-function inputs PID are open.

C106 PID Constant Target Value Set Range

：

0~1 Unit：1 Factory Setting

：

The selection of target value can be set through the selection of the panel or external analog quantity. The external analog quantity is 0~10V signal or control of the potentiometer. When C106=0,the target value of PID is set by C105. When C106=1,the target value of PID is set by external analog signal 0-10V(corresponding 0 -100%), the setting of C105 is invalid. It should be noticed that in using PID control PID is only valid when C013 is set to 0.

C107 PID Upper Limit Set Range

：

0~100% Unit：1 Factory Setting

：

100%

When PID feedback value is more than the set value of C107 the corresponding multi-output terminal will act and the machine will not stop.

C108 PID Lower Limit

Set Range

：

0~100% Unit：1 Factory Setting

：

When PID feedback value is less than the set value of C108 the

corresponding multi-output terminal will act and the machine will not stop.

C109 Communication Addresses Set Range

：

00~250 Unit：1 Factory Setting

：

When the inverter is set t o have R S- 485 Com munication

int erface c ontrol, each of the inverter s w ill be set for its

individual identication number through C109.

00：No communication function 01~250：Individual identication number for the inverters

- 71 -

HLP-C

Inverters

Byte 0 1 2 3 4 5 6 7

ASCII Code

30H 31H 32H 33H 34H 35H 36H 37H

Byte 8 9 A B C D E F

ASCII Code

38H 39H 41H 42H 43H 44H 45H 46H

C110 Communication Baud Rate Set Range

：

0~3 Unit：1 Factory Setting

：

0：4800 b/s 1：9600 b/s 2：19200 b/s 3：34800 b/s

C111 Communication Data Method Set Range

：

0~7 Unit：1 Factory Setting

：

0：8N1 FOR ASCII 1：8E1 FOR ASCII 2：8O1 FOR ASCII 3：8N1 FOR RTU 4：8E1 FOR RTU 5：8O1 FOR RTU

HLP MODBUS Communication Protocol

When using the RS485 communication interface, each of the

inverters must set its own address so that the computer can use this individual address to carry out the control.

1：Communication port terminal setting The communication protocol has two modes： RS485Communication Port ⑴ RTU mode (Remote Terminal Unit) ⑵ASCII mode（American Standand Code for imformation interchange

）

Information of code.

RT U mode: E a ch of 8-bit data is c omposed of t wo 4 -bit

(hexadecimal), for example: 64H

ASCII mode: Each of 8-bit data is composed of two ASCⅡbyte,

for example:

One 1-bit data 64H (hexadecimal) is composed of ASCⅡbyte “64”, included“6”(36H) and “4”(34H).

- 72 -

HLP-C

Inverters

2：Communication Data Method

Start bit

Bit string

Charator frame

Start bit

Bit string

Charator frame

Start bit

Bit string

Charator frame

Start bit

Bit string

Charator frame

Start bit

Bit string

Charator frame

Bit string

Charator frame

- 73 -

HLP-C

Inverters

STX

“：”

(3AH)

ADDR FUNC LEN

DATA

（n-1）

....

DATA

CRC

END

CR(0DH)

LF(0AH)

3：Communication Document Formats

3.1 ASCII Mode Communication Document Forms

⑴

STX：Starting unit“：”（3AH

）

⑵

ADDR communication address,8-bit data is composed of two

ASCⅡ byte. 00：Broadcast mode is MODBUS 01~250：the addresses of corresponding inverters.

⑶

FUNC：Function code 8-bit data is composed of two ASC Ⅱ byte. 01：FUNC READ, Read the data of function code 02：FUNC WRIT, write the data of function code 03：write control data 04：read control status data 05：write inverter frequency data 06：Reserved 07：Reserved

08：Loop test

a：Read function code data format: ADDR 01 LEN FUNC Data ADDR=0 means no answer

ADDR≠0 means a reply from inverter of this address

When inverter reply normal, the format as follows

：

ADDR 01 LEN FUNC Data If DATA is one word, the LEN=3, If DATA is one byte, the LEN=2 . When inverter has no this function code or reply no effect, the format as follows

：

ADDR 81H 01 FUNC

b：Write function code data Format

：

ADDR 02 LEN FUNC Data

- 74 -

HLP-C

Inverters

7 6 5 4 3 2 1 0

jogr jogf jog r/f stop rev for run

ADDR=0 for broadcast, it write to all inverter, but no reply.

ADDR≠0, set data and reply from inverter of this address.

When inverter has no this function code or reply of no effect, the format as follows

：

ADDR 81H 01 FUNC

c：Control commands Format

：

ADDR 03 LEN CNTR ADDR=0 for broadcast, it write to all inverter, but no reply

ADDR≠0, reply and return.

CNTR

When the setting is correct return to present control status. Format：ADDR 03 LEN CNST CNST

7 6 5 4 3 2 1 0

start

Braking r/f joging running r/f jog run

When check is not correct,

ADDR 83H 01 CNST

d：Read status value Format

：

ADDR 04 01 CFG ADDR=0, no reply

ADDR≠0, reply.

CFG=0~7, reply single data 0：Set F 1：Out F 2：Out A 3：RoTT 4：DCV 5：ACV 6：Cout 7：Tmp For example: read set frequency Send：01 04 03 00 41 89 Return：01 04 03 13 88 89 A6 2D

13 88 are data 13 is high order, 88 is low order.

⑷

LEN：data length, It means the length of D(n-1)…D0,

长

- 75 -

HLP-C

Inverters

Quiet ADDR FUNC LEN D

（n-1）~D(0)

CRC Quiet

＞50ms ＞50ms

Length set: when one word, LEN=3，when one byte or ＜1byte, LEN=2

。

⑸

DATA：<Data characters> data content. 2n ASCII compose

n bytes, it have fty ASCⅡ at most.

⑹

LRC：longitudinal redundancy check ASCII mode: Get LRC methods is that add ADDR to the last data, if the result is more than 256,then the result subtract 256

until the result is less then 256 (if the result is 128H, take 28H),

then 100H subtract the result get LRC.

⑺

For example: write 30.00Hz to inverter of 01（write to C000

）

STX ADDR FUNC LEN DATA LRC END

“：”

“0”

“1”

“0” “2”

“0”“0”“0”

“B”“HB”“8”

“3” “7”

“CR” “LF”

3AH

30H

31H

30H 32H

30H 33H

30H 30H 30H 42H 42H 38H

33H 37H

0DH 0AH

Calculate LRC: 01H+02H+03H+00H+0BH+B8H=C9H

C9H subtracted from 100H: 37H So the sent data is following：3AH 30H 31H 30H 32H 30H 33H 30H 30H 30H

42H 42H 38H 33H 37H 0DH 0AH

3.2 RTU Mode

⑴

Quiet: the time of no data is more than 50 ms

⑵

ADDR：Communication address, 8-bit data

⑶

FUNC：Function code, 8-bit data, refers to 3.1-3

⑷

LEN：Data length, the length of D（n-1）~D0

⑸

DATA：data content, n*8-bit

⑹

LRC：Longitudinal Redundancy Check

RTU mode: get CRC（cyclical Redundancy Check）. The CRC calculation method is following:

⑴

make a 16 -bit register and set value 0FFFFH(call CRC register)

⑵

done rst byte of data Exclusive OR with low byte of 16-bit

- 76 -

HLP-C

Inverters

CRC register and save the result to CRC register

⑶

done 1 bit right shift with CRC register and ll zero to left

bit, then check low bit of CRC register.

⑷

if the low bit is zero, then do repeat setp3, else CRC register do Exclusive OR with 0A001H.

⑸

done repeat step 3 and 4,until CRC register done right shift 8

times,then the byte is fully done.

⑹

done repeat step 2 to 5 for the next byte of data, until process completely all data. The last data of CRC register is CRC value. When send CRC value in command data, low bytes must change

the sequence with high bytes, i.e. low bytes will be sent rst.

⑺

for example 1: Write 30.00Hz to inverter of 01

Command data

ADDR FUNC LEN DATA CRC

01H 02H 03H 00H 0BH B8H 7FH 0CH

Sent data：01H 02H 03H 00H 0BH B8H 7FH 0CH

⑻

for example 2: The following is that get CRC value with C language. The function has two parameters:

Unsigned char data ← the point of data buffer Unsigned char lengh ← number of data buffer

This function will send back the CRC value with unsigned integer format. unsigned int crc_chk(unsigned char data,unsigned char lengh) { int j; unsigned int reg_crc=0xffff; while (lengh--){ reg_crc^=*data=++;

for(j=0;j<8;j++={ if(reg_crc&0×01){/*LSB(b0)=1*/

reg_crc=(reg_crc>>1)^0xa001; }else{ reg_crc=reg_crc>>1;

- 77 -

HLP-C

Inverters

} } } return reg_crc; }

C120 Parameter lock Set Range

：

0~1 Unit：1 Factory Setting

：

0：Invalid. The parameter can be set. 1：Valid, i.e. parameter lock. Except this parameter and C000 other parameterscan bechanged. This parameter can be used to prevent any wrong setting of other values by non maitenance persons.

C121 Display Contents Set Range

：

0~255 Factory Setting

：

DC Voltage: 1 Temperature: 2 Counter: 4

Feedback Value: 8

RPM: 16 Normally we can see directly output frequency, set frequency, output cu r rent,output voltage, but temperat ue, DC voltage, count er, PID feedb a ck a nd revolution s peed can o n ly be monitored and displayed in sequence through switching keys after the setting of C121. Set the corresponding code for C121. If it often displays the content of more than tow items set the corresponding code for C121 again. For example: when asking for displaying the temperature and

revolution, then C121=2+16=18，just set C121to 18.

C122 Inverter Model Factory Setting：*

Factory Setting. It can be monitored, but not set.

C123 Rated Inverter Voltage Factory Setting：*

Factory Setting. Depending on the model. It can be monitored, but not set.

- 78 -

HLP-C

Inverters

C124 Rated Inverter Current Factory Setting：*

Factory Setting. Depending on the model. It cann’t be changed. It can be monitored, but not set.

C125 Country 50/60Hz

Set Range

：

0~1 Factory Setting

：

0：50Hz 1：60Hz

Specic setting according to the grid.

C126 Inverter manufacture date

Factory Setting：****

Factor y Setting. It can be monitored, but not set.

Week

Month

Year

C127 Manufacture Serial No.



Factory Setting：*

Factory Setting. It can be monitored, but not set. Through the manufacture serial number the manufavtury date, nymber as well as the information aobut the inverter such as the numbers of main circuit board and base plate, etc. can be checked.

C128 Parameter Reset, Fault and Clear-up

Set Range：0~12

Unit

：１

Factory Setting

：０

0：Software Version No. 1~4：Fault record 6：Fault clear up 8：Restore factory settings 10：Input frequency at fault 11：Input current at fault 12：Bus voltage at fault

Through C128 the software version no., fault record can be

checked. In case of no fault record Display 1 will appear. Enter into the parameter and set it to 0~4 so as to check fault record.

Through the setting of C128 the fault record can be cleared

- 79 -

HLP-C

Inverters

up and the factory If the value has not been set properly due

to some reasons or the value is abnormal it can be set to 08 to

restore the factory setting and then reset again. Items 0~4: They can be monitored, but not set.

C129 Voltage Up Time during Speed Search Set Range

：

0.1~10.0S Unit

：

0.1

Unit：0.5

When the starting method of the inverter is set to speed search there is a process of voltage increase during the speed search. Whhen the voltage is increae rapidly the current will be high and the searching process will be fast. When the voltage is up slowly the current will be low and the searching process will be slow. Generally the value is set less for the machine with smallr

power and set more r the machine with larger power.

C130 Stall & Decel Time during Running Set Range

：

0.1~25.5S Unit：0.1 Factory Setting

：

2.5

Set the speed of frequency decrease for stall prevention at constant speed.

C131 Fault Reset Time Set Range

：

0.2~25.0S Unit：0.1 Factory Setting

：

1.0

When the inverter is set to fault restart and if theinverter has fault trip and the time exceeds the setting of C131, the inverter will restart. Pay attention to the safety when using this function.

C132 Counter Memory for Power-off Set Range

：

0~1 Unit：1 Factory Setting

：

0：not memorized. 1：memorized.

*：means this setting has several choices or it should be set according to actual situation or it is factory setting.

- 80 -

HLP-C

Inverters

X.Care & Maintenance, Fault Information and Troubleshooting

The inverter will keep its normal operation for long time if the maintenances and inspections can be periodically carried out for it during the use.

(1) Precautions about inspection and maintenance:

● Be sure to turn off the power supply to the inverter （R.S.T

）

rst before the inspection and maintenance.

● After confir ming the main circuit power supply has been

turned off and the display has disappeard, wait until the

internal indicator lamp for high voltage goes out before

performaning the inspection and maintenance.

● During the inspection, do not pull out or wrongly distribute

the internal power supply, wires and cablesr. Otherwise it will

cause malfunction or damage to the inverter.

● Do not leave any screw or other part inside the inverter during

the installation, or it will result in the short circuit of circuit

board.

● Keep the inverter clean, ffree from dust, oil mist and moisture

after the installation.

(2) Periodical Inspection Items

● Check whether the power supply voltage conforms to the rated

voltage of the inverter. (Pay special attention that whether

there is any damage on the power supply wires and the motor.)

● Check whether the wiring terminals and the connectors are

tight (and whether the power supply wires and termi nal

connection wires have any broken strand).

● Check whether there is dust, iron lings or corrosive uid in

the inverter and make periodical cleanup.

● Never measure the inverter’s insulation impedance.

● Exami ne the out put voltage, out put current and out put

frequency of the inverter. (The difference of the measuring

resuls should not be too big.)

● Check whether the a mbient temperat u re of t he inverter

- 81 -

HLP-C

Inverters

is between -5℃ and 40℃ and whet her t he i n s t allation

environment has good ventilation.

● C h eck w h et h er t he h u m i d it y is k e pt b elow 9 0 % (no

condensation).

● Check whether the motor makes unusual noises or abnormal

vibration in running. (The inverter should not be installed in a

place with high vibration.)

● Please make periodical cleaning of the ventholes.

(3) Faults Information and Troubleshooting

HLP-C+ serie s is relatively perfective with the protection functions of overload, interphase short circuit, earthing short circuit, undervoltage, overheat and overcurrent., etc. When a protection function happens with the inverter please check the resons of fault according to the information listed in the table below. After the disposal restart the running. If the fault cannot be disposed please contact the local distributor.

Fault

Display

Fault

Contents &

Description

Disposal methods

Overcurrent

at accel

⒈

Check whether the motor has got short circuit or partial short circuit and whether the output wire is good.

⒉

Extend the acceleration time.

⒊

The configuration of the inveter is not reasonable and its capacity should be increased.

⒋

Lower the torque and increase the set value

Overcurrent

at constant

speed

⒈

Ch e ck w h et h e r t he m o to r has got short circuit a nd whe t her the insulation of the output wires is good.

⒉

Check whether the motor is rotating with some external jam ming force and whether there is a sudden change of mechanical load.

- 82 -

HLP-C

Inverters

Fault

Display

Fault

Contents &

Description

Disposal methods

Overcurrent

at constant

speed

⒊

C h e ck w he t he r t h e i n ve t e r ’s capacity is too small and increase its capacity.

⒋

Check whether there is a sudden

change in the power grid voltage.

Overcurrent

at decel

Overcurrent

at stopping

⒈

Check whether the insulation of the output wires is good and whether the motor has got short circuit.

⒉

Extend the deceleration time.

⒊

Replace it with an inverter of larger capacity.

⒋

DC braking quantity is too high.

Decrease DC braking quantity.

⒌

The inverter has failure. Please send it to the factory for repair.

Short circuit

to earth

⒈

Check whether the connection wire

of the motor has got short circuit.

⒉

Check whether the insulation of

the output wires is good.

⒊

Please send it for repair.

Overcoltage

at stopping

Overvoltage

at accel

Overvoltage

at constant

speed

Overvoltage

at decel

⒈

Extend the deceleration time or add a braking resistor.

⒉

Improve the power grid voltage and check whether theres is any voltage leap happened.

- 83 -

HLP-C

Inverters

Fault

Display

Fault Contents & Description

Disposal

Low voltage

⒈

Check whether the input voltage in

normal.

⒉

Check whet h e r there is s udden

change in load.

⒊

Check whether there is any phase

absent.

Overheat of

inverter

⒈

Check whether the fan is in stoprot ation and whe t her there is a ny foreign matter stuck in the cooling

ns.

⒉

C h e c k wh e t he r t h e a m b i e n t

temperature is normal.

⒊

Check w hether there is enoug h ve n t i l a t i on sp a c e a nd goo d a i r convection.

Inveter

overload

150%1 min.

⒈

Check whether the capacity of the inverter is lower. Otherwise it should be increasd.

⒉

C h e c k w h e t h e r t h e r e i s an y

jamming in the mechanical load.

⒊

The set t i ng of V/Fcur ve is bad.

Reset it.

Motor

overload

150%1 min.

⒈

Check whether there is any sudden change in the mechanical load.

⒉

The equipped motor is too small.

⒊

The motor is hot and the insulation becomes bad.⒋Check whether the

voltage has big uctuation.

⒌

Check whether there is any phase absent.

⒍

The mechanical load is increased.

- 84 -

HLP-C

Inverters

Fault

Display

Fault Contents & Description

Disposal

Motor

overtorgue

⒈

C he ck whe t h e r t h e r e is a n y

uctuation in the mechanical load.

⒉

Check whether the equipped motor

is smaller.

No feedback

from

auxiliary

coil of the

Please contact the factory.

Braking

transistor

damage

Please send it for repair.

CPU fault Please contact the factory.

E2Prom

fault

Please contact the factory.

Er Braking transistor Isolate the interference source Es Emergency Stop In Emergency Stop Status 20 4~20mAz wire broken Join the broken wires Pr Setting error Correct the setting

DCb DC braking In DC braking status

- 85 -

HLP-C

Inverters

Note:

⑴

Fault Code Form:

E XX Y

Status

Alarm message

Fault

S：in stopping

Y A：at accel

N：at constant speed

D：at decel

A B C D E F G H O S N L T P R U 2

⑵

Code Comparison Table:

(4) Faults and Analysis

⑴

When pressing Run key the motor doesn’t run.

①

The set ting of operat ion mode is wrong, i.e. under the operation mode of the externally controlled terminal, it is started by the operator or under the operation mode of the operator, it is started by the externally controlled terminal.

②

The frequency command is too low or not given.

③

The peripheral wiring is wrong. For example, the setting of wiring of two-wire system and three-wire system and other related parameters have errors.

④

The setting of multi-funct ion t erminals is wrong(in the external control).

⑤

The inverter is in the fault protection status.

⑥

The motor fails.

⑦

The inverte fails

⑵

The parameters can be set.

①

Password lock. Please decrypt it before setting it again.

②

The inverter is in running.

③

The connection of the connecting parts is abnor mal. The

communication of Digital operator is abnormal. Take out the operator after poweroff and then mount it again for a trial.

- 86 -

HLP-C

Inverters

⑶

The motor can rotate reversely.

Reverse rotation is forbidden.

⑷

The motor rotatess in the opposite direction. The output lines have been wrongly connected. Please change any three lines of U.V.W over.

⑸

The deceloration of the motor is too slow.

①

The setting of Decel Time is too long. Decrease Decel Time.

②

Add a braking resistor.

③

Add a DC brake.

⑹

Overheat of the motor

①

Too big load. The actual torgue has exceeded the rated torgue

of the motor. It is recommended to increase the capacity of motor.

②

The ambient temperature is too high. In a place with higher

teperaturethe motor will be burn out. Please decrease the temperature around the motor.

③

The phase t o phase withstand volt a ge of t he motor is

insufcient.

The actions of seitches of the inverter will make the winding coil of tehmotor produce shock wave. Normally the maximum shock voltage will reach 3 times that of input power supply of the inverter. Please select a motor with the phase to phase withstand voltage against shock higher than the maximum shock voltage.

⑺

The starting of the inverter interferes other control devices

①

Lower the carrier frequency and reduce the number of actions

of the internal switches.

②

Install a noice lter on the input side of power supply of the

inverter.

③

Install a noice lter on the output side of the inverter.

④

Make correct grounding for the inverter and the motor.

⑤

Use metal tube to cover the cable to shield it.

⑥

Make separate wiring for the maon circuit wires and control

wires.

- 87 -

HLP-C

Inverters

⑻

When the fan starts an overcurrent stall is detected with the inverter.

①

At starting the fan rotates disorderly. Please set it for DC

braking at starting.

②

DC braking at starting has been set. Please increase the DC

braking value.

⑼

The machine has the noise of vibration and roar

①

The vibration frequency of mechanical system resonates with

the carrier. Adjust the carrier to avoid the point of resonance.

②

The vibration frequency of mechanical system resonates with

the output frequency of the inverter. a：Set skip function to avoid the point of resonance.. b：Put rubber vibration isolator on the base plate of motor.

- 88 -

HLP-C

Inverters

XI. Selection of Peripheral Devices and Disposition

(1) Options

Description Functions

NFB or Ground

fault interrupter

for wire

connection

Protect the wiring of the inverter. Be sure to connect a breaker to the power supply line. Please select a grou nd fault circuit interrupter against high-order harmonics.

Electromagnetic

contactor

In order to prevent the braking resistor from burning out, please add an electromagnetic contactor and connect a surge absorber to the coil when using it.

Surge absorber

Absorb the switching surge current from the electromagnetic contactor and control relays.

Isulating

transformer

Its function of isolating the input and output of the inverter is effect ive to reduce the interference to other electric devices.

DC reactor

I m p rove t h e input p ower f a ct o r of the inverter.

AC reactor

Improve the input powerfactor of the inverter and prevent the shock of surge voltage.

Braking resistor,

brtaking unit

Consume the regenerating energy of motor and shorten the deceleration time.

⑴

Leakage switch There is earth st atic capacity inside of the inverter and the motor as well asthe input and output leads. Due to higher carrier frequency of the inverter the inverter has higher earth leakage current, especially for serial inverters of large capacity. When using a leakage switch it may sometimes result in the errous action of the protective circuit. So when using a leakage switch attention shoud be paid to its selection and the proper reduction of carrier frequency and shortening the leads, etc.

⑵

AC reactor An AC reactor can constrict the high-order harmonic of input

- 89 -

HLP-C

Inverters

Model Current Inductance（mH

）

00D423B 2.5 4.2

0D7523B 5.0 2.1

01D523B 10 1.1

02D223B 15 0.71

0D7543B 2.5 8.4

01D543B 5.0 4.2

02D243B 7.5 3.6

⑵

AC reactor

Model Current（A

）

Inductance（mH

）

220V

class

00D423B 2.5 4.2

0D7523B 5 2.1

01D523B 10 1.1

02D223B 15 0.7

current of the inveter to improve its input power factor and prevent the shock of surge. It is recommended to use an input AC reactor under the following circumstances: a：Unbalancing of three-phase power supply. b：Any equipment with thyristors or power factor compensation

unit with switching control connected to the same power supply.

⑶

DC reactor It is necessary to install a DC reactor when the capacity of power supply is more than 1000 KVA ot the grid capacity is higher than the rated capacity of the inverter. An DC reactor is also needed for the case with higher demand on the improvement of power factor of power supply. This DC reactor can be used together with an AC reactor to achieve the obvious effect of decreasing high-order harmonic of input. If it is necessary to install a DC reactor please contact the local distributor.

(2) Disposition

⑴

DC reactor

- 90 -

HLP-C

Inverters

Inverter model

Specication

Braking torgue

10%ED

Special Motor

W Q

HLPC+00D423B 80 200 125 0.4

HLPC+0D7523B 100 200 125 0.75

HLPC+01D523B 300 100 125 1.5

HLPC+02D223B 300 70 125 2.2

HLPC+0D7543B 80 750 125 0.75

HLPC+01D543B 300 400 125 1.5

HLPC+02D243B 300 250 125 2.2

⑶

Braking resistor

Note:

①

Please select the resistor value and working frequency given

by our company.

②

If it caused any damage to the inverter and other devices due

to the use of any braking resistor and braking model group not supplied by our company, we will take no responsibility.

③

Be sure to consider the safe t y of t he e nviron me nt and

ignitability when installing a braking resistor. The distance to the inverter should be 100 mm.

④

If it is necessary to change the resistor value and power value,

please contact the local distributor.

⑤

In need of a braking resistor a separate order must be placed.

Please contact the local distributor for details.

⑥

For any mach ine wit h larger ine r tia the capacity of the

braking resistor should be increased. Please contact the local distributor for details.

Model Current（A

）

Inductance（mH

）

380V

class

0D7543B 2.5 8.4

01D543B 5 4.2

02D243B 7.5 3.6

- 91 -

HLP-C

Inverters

Action Description:

①

XII. Appendices

Appendix 1: Simple Application Example

1. Common application example of analog and multi-speed steps

Requirement: The frequency for the rst step is given by analog

quantity. Afterswitching with a swith turn to the operation of external multi-speed.

K1State K2 State Running Frequency

OFF OFF Given by the potentiometer

ON OFF Speed Step 2 (15Hz)

OFF ON Speed Step 3 (30Hz)

ON ON Speed Step 4 (25Hz)

②

For/Rev switching can be carried out by switching of multifunction terminals or switching of For/Rev on the panel ( The switching of For/Rev on the panel is adopted in this example.)

- 92 -

HLP-C

Inverters

2. On common drive of multi inverters.

Note:

①

The f requency of the main machine can be s et by t he

potentiometer.

②

The proportional relation of each inverter can be adjusted by

C075.

For exam ple, w h e n F

变频

：

变频

：

变频

=1：2：3，th e n the

parameter of C075can be changed to: Inverter 1：C075=50

，

Inverter 2：C075=100，Inverter 3：C075=150，when the analog quantity is 10V, the corresponding frequencies are respectively 50Hz，100Hz，150Hz with the proportional relation of 1：2：3.

③

For easy operation and adjustment a ne tuning potentiometer

can be added. Please check and consult for details.

- 93 -

HLP-C

Inverters

3. Parameter setting for the application of fast stopping When using it in the application of loom demanding on fast stopping the parameter setting is recommended as follows:

①

Decel Time is set to 0.1S.

②

Give a certain DC braking quantity at stopping (if necessary

install additional braking resistor.

③

Voltage stall prevention is set to invalid.

④

In need of positioning, 2 ~3-speed steps can be used for

adjustment.

Appendix 2: External Appearance and Installation Dimensions

- 94 -

HLP-C

Inverters

Model A B C D E F

HLPC+00D423B

74 85 130 141.5 113 ф5

HLPC+0D7523B

HLPC+01D523B

HLPC+02D223B

89 100 140 151.0 116.5 ф5

HLPC+0D7543B

HLPC+01D543B

HLPC+02D243B

4. Explanation of Operator Model

OP-C B-04

C serial keypad

B Version

C Series

OPERATOR

3. Operator’s External Appearance and Size (Unit: mm)

- 95 -

HLP-C

Inverters

Appendix 3: User’s Records and Feedback

Code Function

Factory

Setting

User’s

Parameter

Code Code

Factory

Setting

User’s

Parameter

C000

Main Frequency Set

0.0 C014 Select 0

C001

Accel Time Set

5.0 C015

Stopping Mode Select

C002

Decel Time Set

5.0 C016

Rev rotation allowable

C003 V/F Curve * C017

STOP key select

C004

Highest Voltage Set

220/380

C018

S-curve time set

C005

Base Frequency Set

50/60 C019

Carrier frequency select

C006

Intermediate Voltage Set

* C020

Starting frequency set

1.5

C007

Intermediate Frequency Set

* C021

Stopping frequency select

1.5

C008

Min. Voltage Set

* C022

Jog requency select

C009

Min. Frequency Set

* C023

Jog accel/

decel select

1.0

C010

Highest Frequency Set

50 C024

PLC operation select

C011

Lower Limit Frequency Set

0 C025

Auto PLC operation select

C012

Running Control

0 C026

Speed search time

C013

Running Frequency Select

0 C027

PLC accel/

decel time 1

- 96 -

HLP-C

Inverters

Code Function

Factory

Setting

User’s

Parameter

Code Code

Factory

Setting

User’s

Parameter

C028

PLC

accel/decel

time 2

0 C046

PLC Timer 5 Set

C029

Accel Time 2 Set

10 C047

PLC Timer 6 Set

C030

Decel Time 2 Set

10 C048

PLC Timer 7 Set

C031

Accel Time 3 Set

50 C049

PLC Timer

8 Set

C032

Decel Time 3 Set

50 C050

Multiinput FOR

C033

Accel Time 4 Set

100 C051

Multiinput REV

C034

Decel Time 4 Set

100 C052

Multiinput RST

C035

Frequency 2

15 C053

Multiinput SPH

C036

Frequency 3

20 C054

Multiinput SPM

C037

Frequency 4

25 C055

Multiinput SPL

C038

Frequency 5

30 C056

Multiinput DRV

C039

Frequency 6

35 C057

Multi-input FABC

C040

Frequency 7

40 C058

Multianalog AM

C041

Frequency

0.5 C059

AM output gain of analog quantity

100

C042

PLC Timer 1 set

10 C060

UP-DOWN mode

C043

PLC timer 2 set

10 C061

UP-DOWN speed rate

C044

PLC Timer 3 Set

0 C062

Timer 1 Set

C045

PLC Timer 4 Set

0 C063

Timer 2 Set

Holip hlp-c+, HLPC+00D423B, HLPC+0D7543B, HLPC+01D543B, HLPC+0D7523B Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
