HOLEMAKER HMCS100-2 User Manual

ANNULAR CUTTER

SHARPENING MACHINE

HMCS100-2

USER MANUAL

1. List of contents

1. List of contents 2

2. Description 3

2.1. Directed use 3

2.2. Description of work 3

2.3. Technical data 3

2.4. Equipment 4

3. General Safety Advise 5

3.1. User’s duty 5

3.2. Basic safety advise 5

3.3. Demands for operators 6

3.4. Special risks 6

4. Installation

4.1. Work environment 7

4.2. Before first installation 7

5. Transportation and machine’s storing 8

6. Operation 9

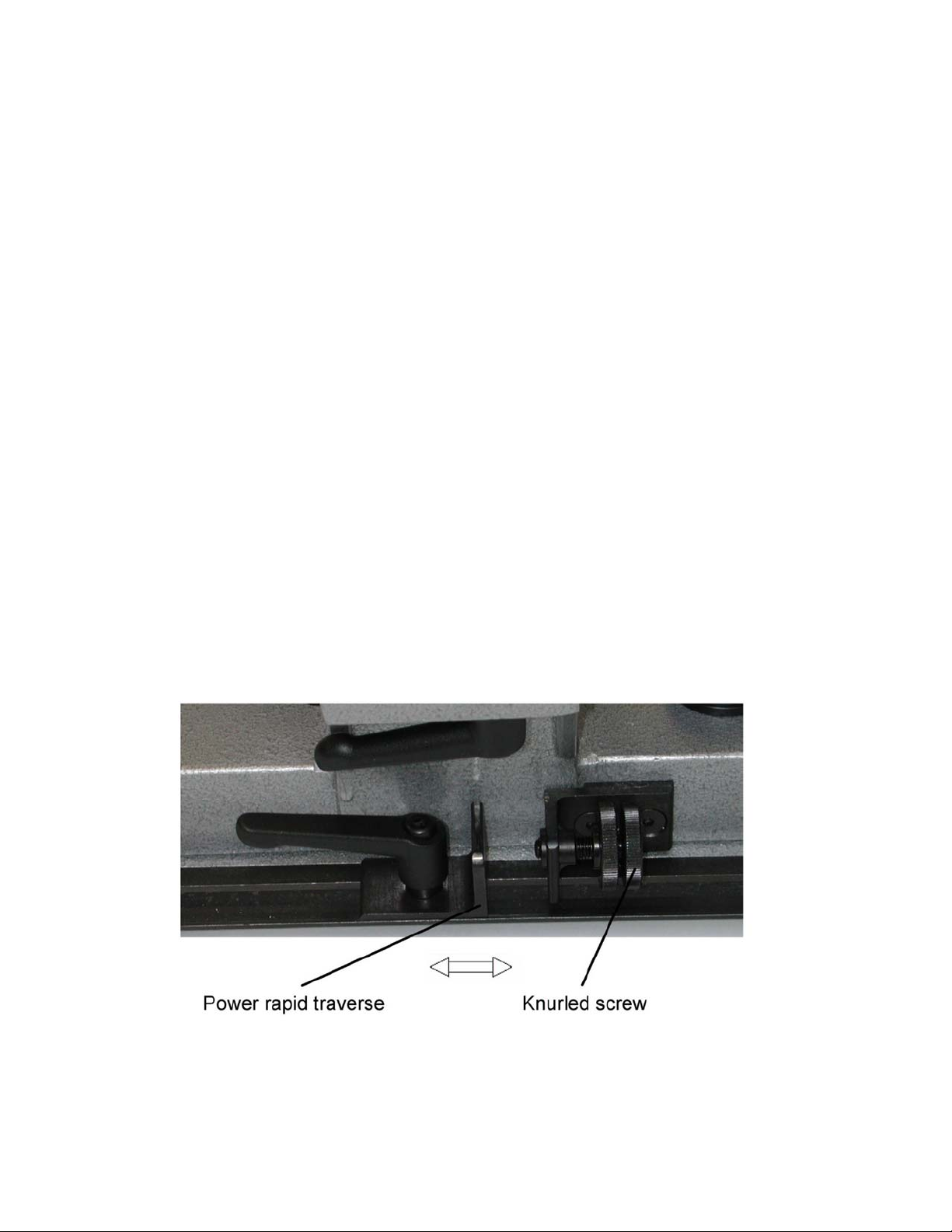

6.1. Components description 9

6.2. Adjustment 10

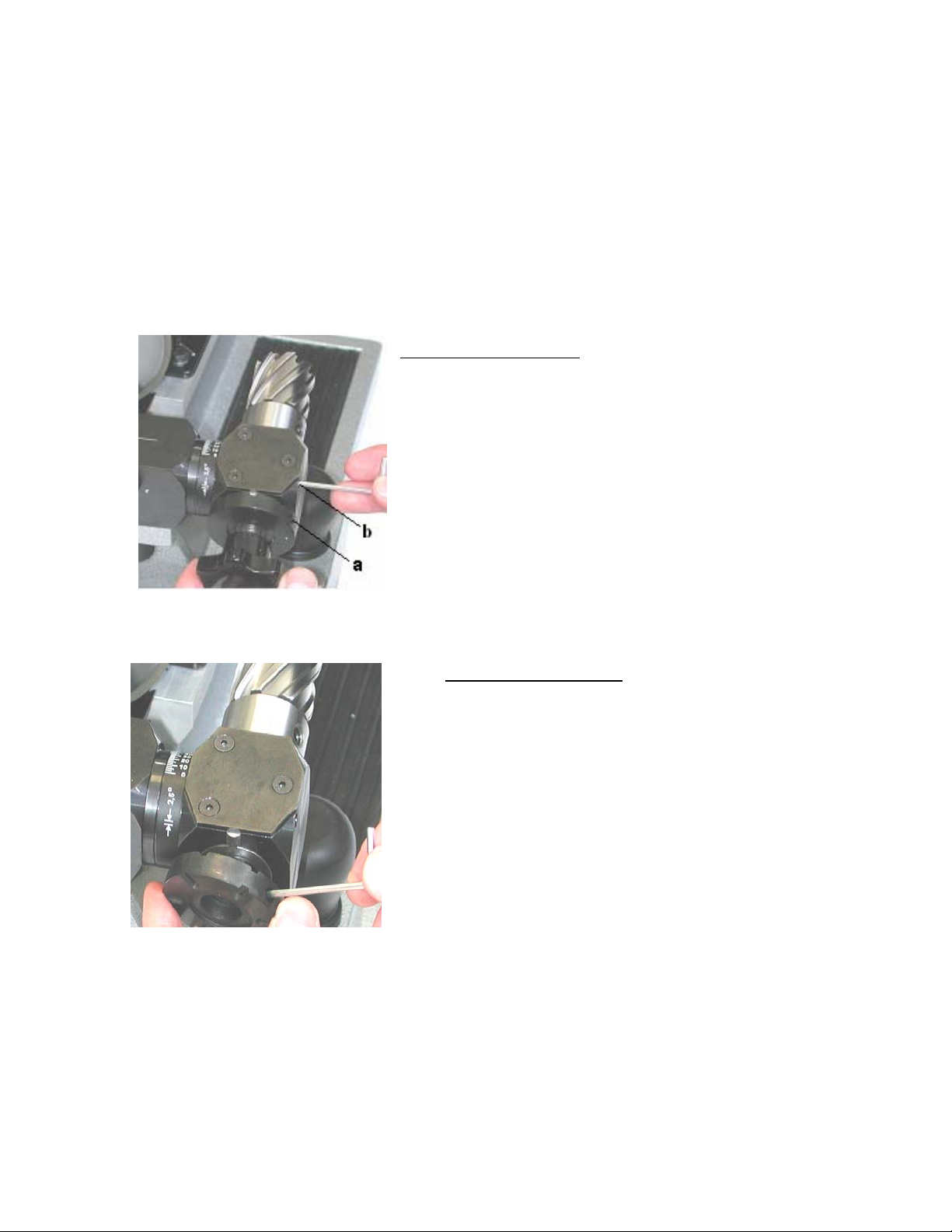

6.2.1. Dividing disc replacement 10

6.2.2. Core drill’s adjustment 11

6.3. Regular Work 12

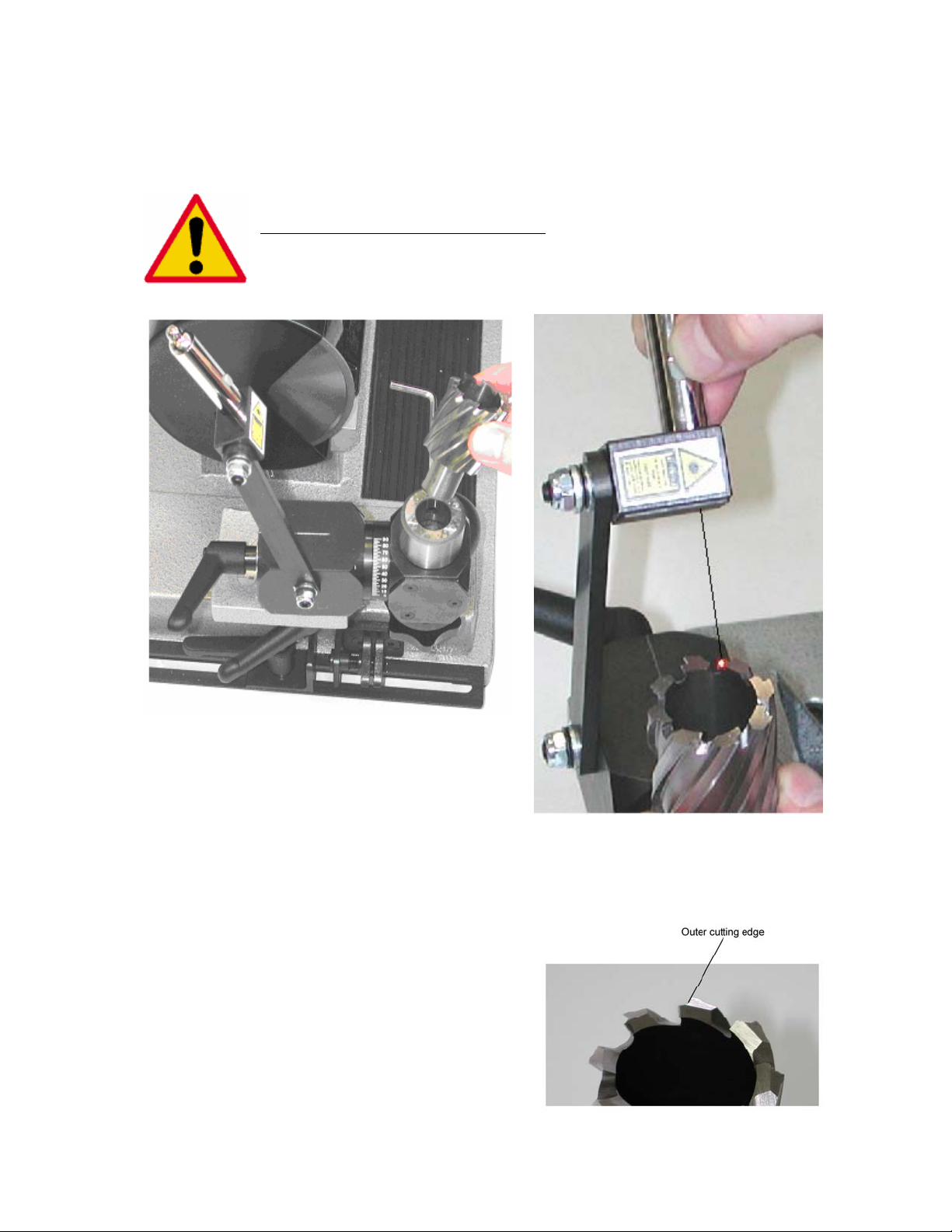

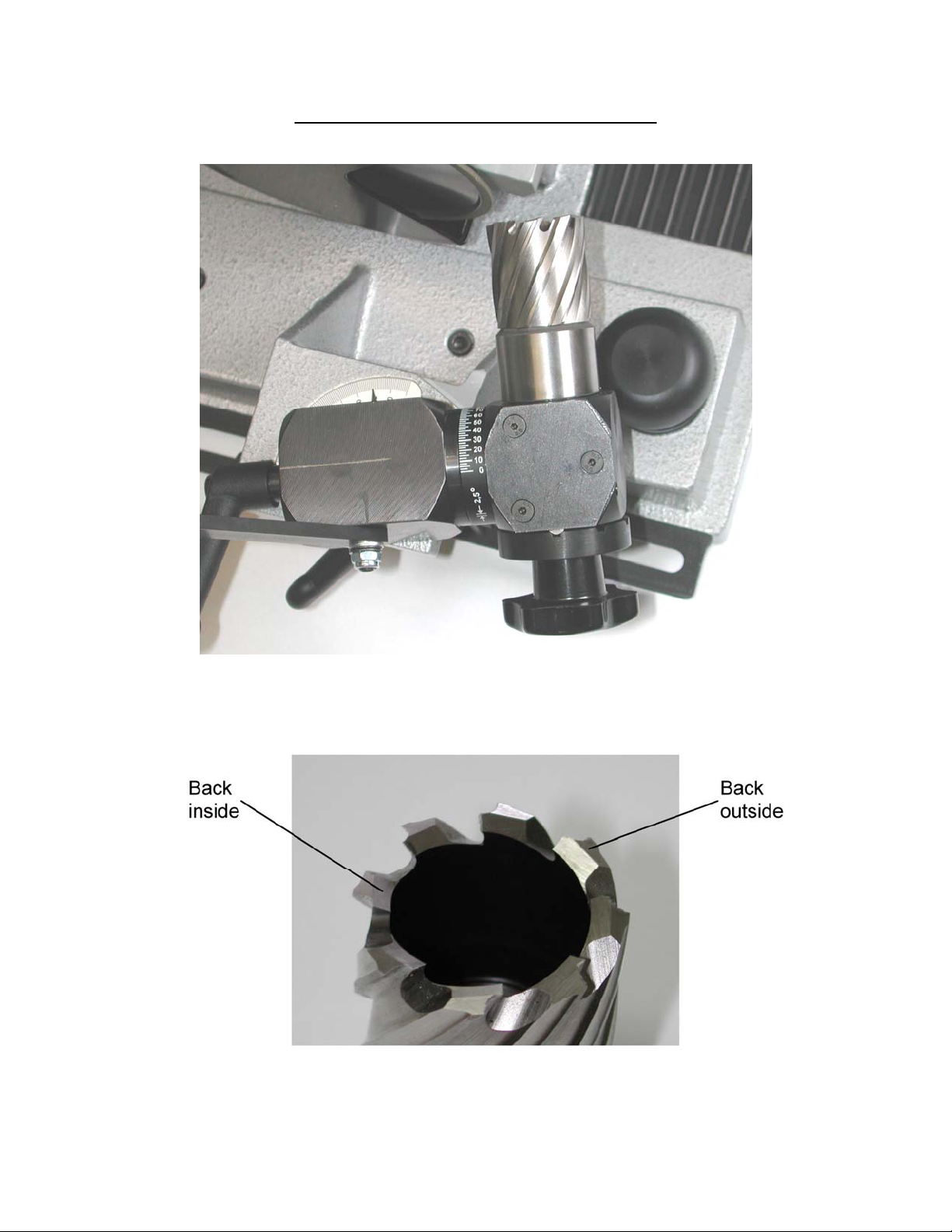

6.3.1. Cutter resharpening 13

6.3.2. Gullet Grinding 17

6.4. Grinding disc replacement 18

7. Maintenance 19

7.1. Cleaning and greasing 19

2

2. Description

2.1. Directed use

Grinding machine HMCS100-2 is designed for HSS and TCT annular cutter
resharpening. Machine is not recommended to any other applications except above
mentioned.
Manufacturer recommends careful reading of the user manual, especially points
regarding basic safety advise.

2.2. Description of work

Grinding machine HMCS100-2 enables easy annular cutter resharpening. Due to
solid & precise construction & small dimensions the HMCS100-2 can be easily
transported to job sites. The HMCS100-2 was designed as a user friendly machine in
order to learn in a short time how to sharpen the annular cutter effectively and
precisely.

2.3. Technical data

Dimensions LxWxH. [mm] 465 x 399 x 355
Weight net [kg] 15.5
Supply [V] 240V AC
Motor [V / kW / rpm.] 240 / 0,18 / 2820

Motor guide [mm] 70 Movement

length
Nosie level dB(A) <70

Grinding disc inert time [s] 10
Grinding disc Electroplated, diamond grinding disc ø 125

Cutter’s clamping [mm] 19 (Weldon shank)
Insulation class

Guiding slide [mm] 162

mm

Ι

Diameter / core drill’s length ø50 mm / 50 mm

3

2.4. Equipment

Annular Cutter resharpening machine HMCS100-2 is delivered to the customer in
carton packing, ready to use. Standard equipment:

- set of dividing discs

- hexagonal keys s=2,5 and s=4,

- Diamond Wheel

- User manual

4

3. General Safety Advise

3.1. User’s Duty

To assist with safe use of the machine make sure that:

• Machine is used as directed

• Machine is free of defects and damage

• Safety guards are in place

• Personal protection equipment is always used

• User manual is always close to the machine

• None of the safety and warning labels are removed from the machine.

3.2. Basic safety advise

User Manual shall be always kept close to the machine in readable condition and
available for any person operating the machine.

Symbols placed on the machine point out that there is a danger to the operator.
Labels placed on the machine have to be kept in good readable condition. Damaged
or not readable labels should be replaced immediately.

Always wear safety glasses during machine work.
Grinding dust can be dangerous for your eyes.

Remove of the grinding disc guard is only permissible for grinding
disc replace. During machine’s operation, guard must always be
mounted.

Before grinding disc replace or machine remove always disconnect
it from electric supply.

5

WARNING!!! LASER. Machine HMCS100-2 is equipped with laser.
In order to avoid eye injury laser CAN NOT be directed into the human eye.

3.3. Demands for operator

Only people familiar with this user manual, can be allowed to work with HMCS100-2
annular cutter grinding machine. A user who does not know this user manual’s
contents before starting the machine, maintenance or service, may cause a
dangerous situation for user’s and neighboring persons safety.

Do not operate the machine under the influence of alcohol, or medicines

3.4. Special risks

Before machine start:

• Check if there is any visible damage.
Defective parts must be replaced.

• Do not start machine if any damage or lack of equipment is observed

• Do not start machine in vicinity of flammable materials or vapors.

• Check power supply cord.

- Damaged power supply cords must be replaced by a licenced
electrician

- Never clean up electric equipment with water

• Do not dismantle safety protection elements

Machine modification
Do Not Modify Machine.
Use Only Genuine Parts.

4. Installation
