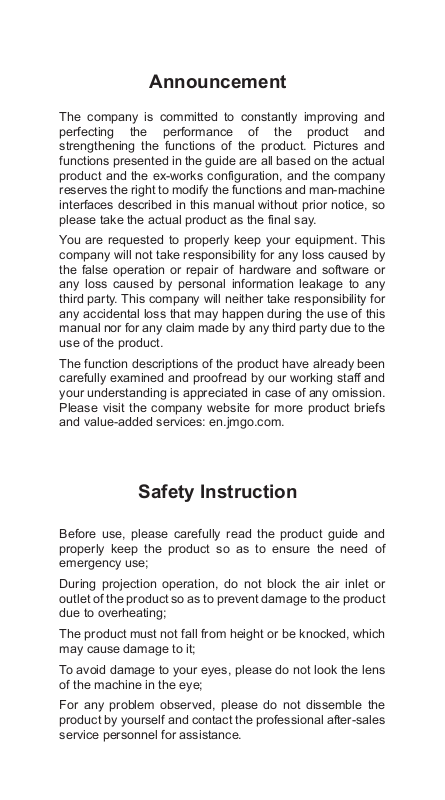

Announcement
The company is committed to constantly improving and
perfecting the performance of the product and
strengthening the functions of the product. Pictures and
functions presented in the guide are all based on the actual
product and the ex-works configuration, and the company
reserves the right to modify the functions and man-machine
interfaces described in this manual without prior notice, so
please take the actual product as the final say.
You are requested to properly keep your equipment. This
company will not take responsibility for any loss caused by
the false operation or repair of hardware and software or
any loss caused by personal information leakage to any
third party. This company will neither take responsibility for
any accidental loss that may happen during the use of this
manual nor for any claim made by any third party due to the
use of the product.
The function descriptions of the product have already been
carefully examined and proofread by our working staff and
your understanding is appreciated in case of any omission.
Please visit the company website for more product briefs
and value-added services: en.jmgo.com.
Safety Instruction
Before use, please carefully read the product guide and
properly keep the product so as to ensure the need of
emergency use;
During projection operation, do not block the air inlet or
outlet of the product so as to prevent damage to the product
due to overheating;
The product must not fall from height or be knocked, which
may cause damage to it;
To avoid damage to your eyes, please do not look the lens
of the machine in the eye;
For any problem observed, please do not dissemble the
product by yourself and contact the professional after-sales
service personnel for assistance.
Product Brief
Dear JMGO fans,
Thank you for purchasing JMGO product! JMGO is
invested by famous Chinese movie stars Ren Quan, Li
Bingbing and Huang Xiaoming. It adopts the concept of
high definition projection combined with smart chip and
astonishing sound quality, and is suitable for both domestic
use and portable use, thus providing you with a life of clear,
refined and genuine large-screen based audio & video
effect.
Before use of the product, please carefully read this product
manual and properly keep the equipment during daily use
for the convenience of better future use.
Chairman of the
Board:
List of Components
Host Remote control Power adaptor
M6
Quick Start Guide & Warranty Card
Magnetic sucker
data line
Remarks: Thank you for purchasing the product of the
company. Please check whether the product you received
is consistent with the list; if any discrepancy observed
between the product or accessories and the component
list, please do not hesitate to contact the customer service
of JMGO.
Cleaning cloth Specification
Appearance and Functions
of Host
Air outlet
Air inlet
Air inlet
Power/power
bank
Selector switch
1/4 screw hole of
international standard
Foot pad
Distance and Projection Size
The distance between the lens and the screen, the zoom
setting and the video format will all impact the size of the
projected picture.
The best project distance of JMGO product is about
0.5m-2.5m, out of which the brightness and definition of
projection will be compromised and the projection result will
be affected.
Projection size is proportional to projection distance: The
longer the distance is the bigger the projection size will be,
but the definition will be compromised accordingly; the user
may choose the proper projection distance according to their
actual need.
Indicator
Four white indicator lights:
Charged state: turn on the power and the white indicator
lights will flicker slowly; then they will be lightened according
to battery capacity.
Project state when the adapter is disconnected: the indicator
lights will go out.
When it is used as a power bank to charge the equipment: the
white indicator lights will be normally on; an indicator light will
be off when the battery meter shows one bar of power used
till all indicator lights are off.
Remote Control
The remote control card in front of the lens can protect the
lens. Please reset the card after turning off the projector.
Power
Direction (up,
down, left, right)
Return
Sound volume + Sound volume -
Remarks:
1.There should be no obstacles between JMGO products
when the user is operating the remote control;
2.It is best to operate the remote control in the face of the
machine. Please do not use it in a big angle of angle of
inclination;
3.Press and hold the menu button to view the shortcut menu;
Menu
Confirm
Homepage
Laser pen switch
If batteries of the remote control need to be replaced, please
press the position shown below vertically and take the battery
cover down.
Focus Adjustment
This product can make the projected pictures reach the best
definition through manual focusing with the focusing roller.
Keystone Correction
Find out Desktop Application >Setting> Image > Keystone
Correction. In case of projection inclination observed during the
use, the keystone correction function can be used to make the
projection produce a standard square image.
Keystone correction
Automatic keystone correction
Manual
3D Play
When playing 3D films, the mode of 3D film source can be set at
the shortcut menu of the player interface which can be called out
but giving a slight press on the JMGO button of remote control.
3D mode
Off
L/R
Up/down
Auto
Network Setting
This product supports wireless WiFi network:
Wireless setting, find out Setting>General Setting>Network
Connection and chose the usable network for WiFi
connection.
Wireless network
Wireless network opened
Current WiFi
Choose the nearby WiFi
System Version
Find out Setting> System Setting>About Equipment and view
system information of the host.
About equipment
Model
System version
UI version
WIFI MAC address
Memory information (available/total)
Storage space (available/total)
DPL information
System Upgrading
This product supports both online upgrading
and local upgrading:
Online upgrading: Find out the Setting menu at the desktop
and successively enter into “General Setting”→”Version
Upgrading” →”System Upgrading”, then the system will
automatically detect whether the system is in the latest
version. If the current system is already the latest version, the
system will indicate the same, while if it is not the latest
version, the system will ask whether to upgrade it.
Remarks: JMGO will constantly provide the online upgrading
and maintenance of product and may deliver system
upgrading service online without prior notice so as to provide
the latest software system and services for your equipment.
Local upgrading: Download the software upgrading package
at the company website and copy it to the root directory of
portable hard drive or USB drive, and plug the drive into the
USB interface; find out “General Setting”→”Version
Upgrading” →”System Upgrading”, and click local upgrading,
then the system will automatically detect the upgrading
package and install it for upgrading.
System upgrading
Online upgrading Local upgrading
Remarks: During upgrading, please do not remove the disc or
cut off the power supply.
Switching of Video
Signal Source
When outside signal source is input into JMGO equipment
through HDMI interface, keep pressing the menu button of the
remote control to call out the shortcut menu or find out the “signal
source menu” on the desktop for entering into the signal source
setting interface. At this interface, you can select the required
video signal source, and as soon as the signal source is
switched, JMGO equipment connects with the outside video
signal source and projects the video content.
Signal source
Current signal source
Manual
Optional
Power-on default item
Local
Power Bank
This product can be used as a power bank intended for power
supply of mobile equipment. There is a function trigger on the
machine body, through which power bank/projection is switched.
Under power-off mode, switch to power bank mode and connect
USB interface of the projector through data line to charge the
equipment.
Mobile Phone display
A mobile phone can be connected to the projector through
direct-plug-in base, that is, to play videos and audios in the
mobile phone on the projector. IPHONE can directly be
connected to the projector so as to share the screen and Android
mobile phones need to download and install the APP.
Remarks: The magnetic interface on the projector base can be
taken down and replaced. This product is provided with three
(Micro USB, Type-c and IPHONE flash interface) standard
mobile phone interfaces, which can be replaced arbitrarily so
as to adapt to different mobile phones.
Peripheral Connection
Download and Installation
of “JMGO Control”
This product supports mobile phone control. Scan the QR
code below and you can download and install the “JMGO
Control” application through which you can use mobile phone
to easily control and operate the equipment.
JMGO Control supports both Android equipment and IOS
equipment.
Usage of Magnetic Data Line
Magnetic sucker and magnetic data line are
connected by magnetism.
Instruction of Environ-
Poisonous and harmful substances or elements
chrome
biphenyls
diphenyl ethers
Pb
Hg
Cd
(Cr(Ⅵ))
PBB
PBDE
control
ment-friendly Use
The service life label indicates that the environment-friendly
service life of this product is 10 years, that is, trace poisonous
and harmful substances or elements contained in this product
will neither leak or mutate and cause serious environmental
pollution and nor cause severe damage to human body and
properties under normal use within 10 years.
Name and content of trace poisonous and harmful substances
or elements contained in all parts of this product:
Polybrominated
Part name
Lead Mercury Cadmium
Host × O O O O O
Remote
× O O O O O
Cable O O O O O O
Adapter × O O O O O
Packing
O O O O O O
material
O: It means that the content of such poisonous and harmful substances in all homogeneous materials of
this part is less than the limited quantity set forth in GB/T 26572 -2011
X: It means that the content of such poisonous and harmful substances in certain homogenous material
of this part is more than the limited quantity set forth in GB/T 26572 -2011. Moreover, now, there is no
mature alternative s
olution in the industry, but it complies with the environmental protection requirements
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
Hexavalent
of RoHS directive.
Polybrominated
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied antenna.
FCC ID：SMC-M6
Manufacturer's Name: SHENZHEN HOLATEK Co.,LTD
Trade Mark: JMGO
Model number: M6
Operating Temperature: -10° C to 40° C
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 0cm
must be maintained between the user’s body and the handset, including
the antenna. Third-party belt-clips, holsters, and similar accessories
used by this device should not contain any metallic components.
Body-worn accessories that do not meet these requirements may not
comply with RF exposure requirements and should be avoided. Use
only the supplied or an approved antenna.
This device in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU. All essential radio test
suites have been carried out.
1. CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS
2. The device complies with RF specifications when the device used at
5cm form your body
Customer’s name:
Contacts:
Customer’s address:
SN:
Store’s name:
Store’s address:
Date of purchase:
Warranty Card
※Warranty (All Regions Except
China Mainland)
JmGO values your business and always attempts to provide you
the very best of service. If this product require maintenance,
either contact the dealer from whom you originaly urchased the
product or visit our product support website at en.jmgo.com for
information on how to obtain service or a Return Material
Authorization(RMA). If it is determined that the product may be
defective, you will be given an RMA number and instructions for
product return. An unauthorized return (i.e., one for which an
RMA number has not been issued) will be returned to you at your
expense. Authorized returns must be shipped in an approved
shipping container, repaired and insured, to the address provided
on your return paper. Your original box and package should be
kept for storing or shipping your JmGO system.
Limited Warranty:
JmGO warrants that the product, in the course of its normal use,
will for the term defined below, be free from defects in materials
and workmanship and will confirm to JmGO's specification
therefor. The term of your limited warranty is for one year and this
period shall commence on the purchase date appearing on your
purchasing receipt. Subject to limitations specified above, your
sole and exclusive warranty shal be. during the period of
warranty, the repair or replacement of the product with an
equivalent or better one.
Contact information:
Manufacturer: Shenzhen Holatek Co., Ltd.
Website: en.jmgo.com
Address of after-sale service center: 5F, Block A1, Yingzhan
Industrial Park, Longtian Community, Kengzi, Pingshan New
District, Shenzhen
1.Copyright © Shenzhen Holatek Co., Ltd. all rights reserved.
2.The materials are for reference only.
The battery cannot be placed under high temperature and the
battery which has been immersed in water cannot be used.
Do not dismantle, impact, squeeze or put the battery in fire.
In case of serious swelling, please replace the battery.
Explosion hazard may be caused by misuse of battery, please
handle the exhausted battery as directed.
Loading...
