HOLATEK G3PRO Users Manual

Guide for Quick Start and Warranty Card
Announcement
This company is committed to constantly improving and perfecting the performance of the product and strengthening the functions of the product. Pictures and functions presented in the guide are all based on the actual product and the ex-works configuration, and the company reserves the right to modify the functions and man-machine interfaces described in this manual without prior notice, so please take the actual product as the final say. You are requested to properly keep your equipment. This company will not take the responsibility for any loss caused by the false operation or repair of hardware and software or any loss caused by personal information leakage to any third party. This company will neither take responsibility for any accidental loss that may happen during the use of this manual and nor for any claim made by any third party due to the use of the product. The function descriptions of the product have already been carefully examined and proofread by our working staff and your understanding is appreciated if any omission is observed. Please visit the company website for more product briefs and value-added services: en.jmgo.com.
Safety instruction
Product Brief
Before use, please carefully read the product guide and properly keep the product so as to ensure the need of emergency use; During projection operation, do not block the air inlet or outlet of the product so as to prevent damage to the product due to overheating; the product must not fall from height or be knocked, which may cause damage to it; The lens slide of the product is electrically controlled and forcible operation by hand is prohibited; For any problem observed, please contact the professional after-sales service personnel for assistance and do not dissemble the product by yourself.
Dear JMGO fans, Thank you for purchasing JMGO product! JMGO is invested by famous chinese movie stars Ren Quan, Li Bingbing and Huang Xiaoming. It adopts the concept of high definition projection combined with smart chip and astonishing sound quality, and is suitable for both domestic use and portable use, thus providing you with a life of clear, refined and genuine large-screen based audio & video effect. Before use of the product, please carefully read this product manual and properly keep the equipment during daily use for the convenience of better future use.
Chairman of the Board:
Projector x1
jec
Pro
tor x1
AC cable x1

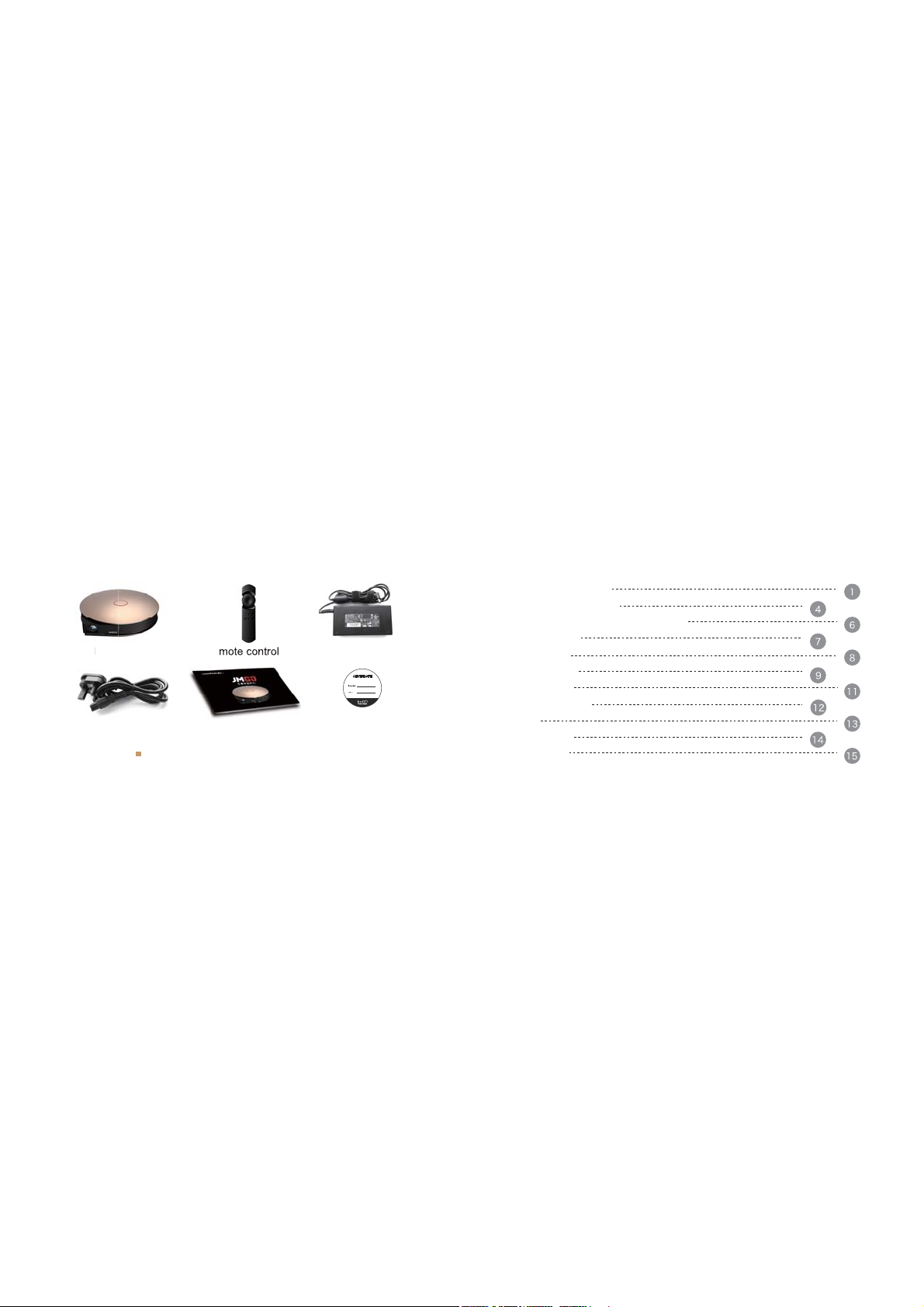

List of components
Remote control x1 Power adapter x1
Manual x1
Remarks: Please check whether the product you recieved is consistent with the list; If
any discrepancy observed between the product or accessories and the component
list, please do not hesitate to contact the customer service of JMGO.
Certificate of
compliance x1
Contents
Appearance and Functions
Distance and Projection Size
Touch-control Power Button and Indicator
Electric Lens Slide
Remote Control
Focus Adjustment
Bluetooth Audio
Keystone Correction
3D Play
Network Setting
System Version
System Upgrading
Switching of Video Signal Source
Setting of Wireless Display
Peripheral Connection
JMmGO Control
Instruction of Environment-friendly Use
Product Warranty Card
Touch-control Power Button
Air inlet

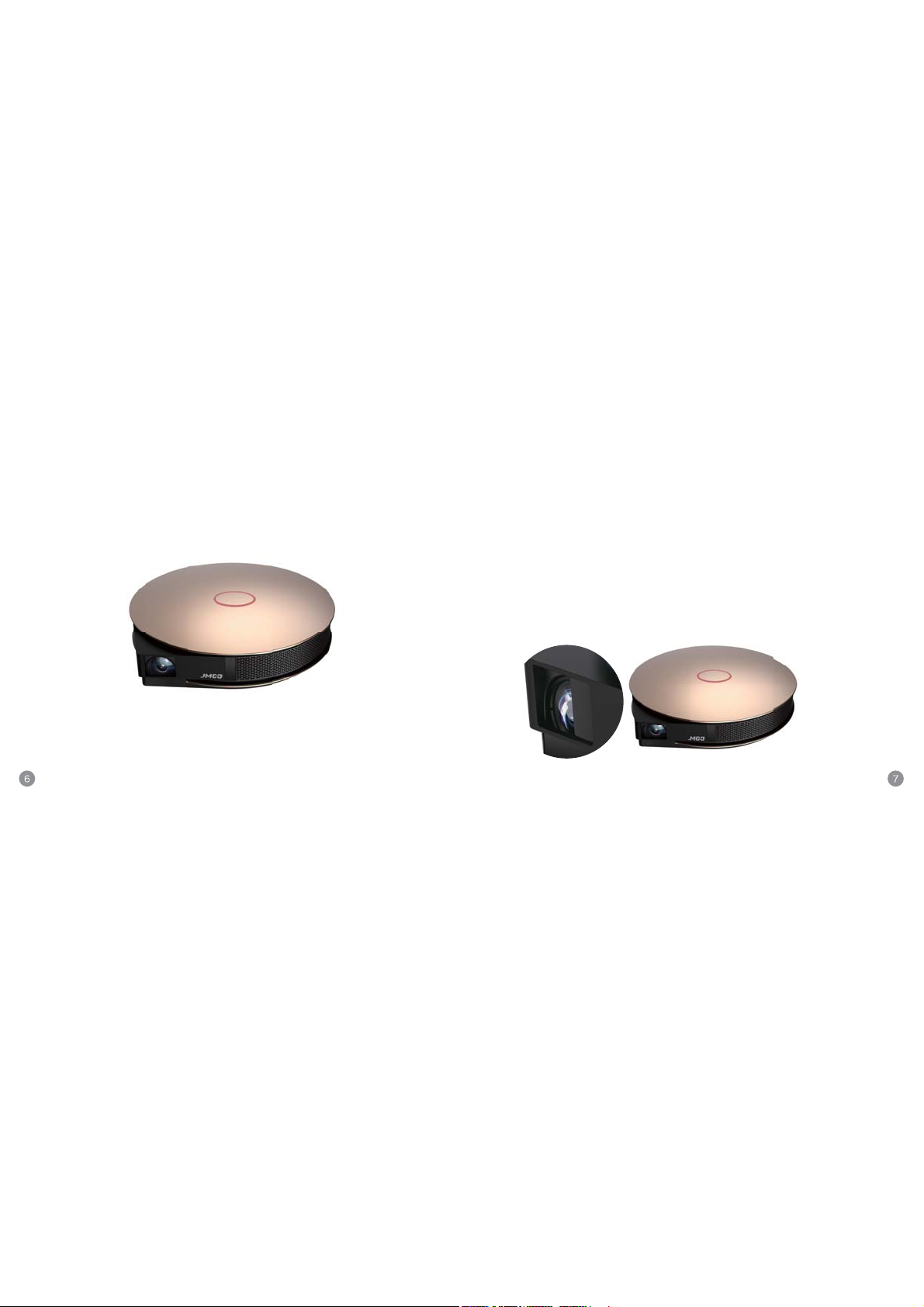

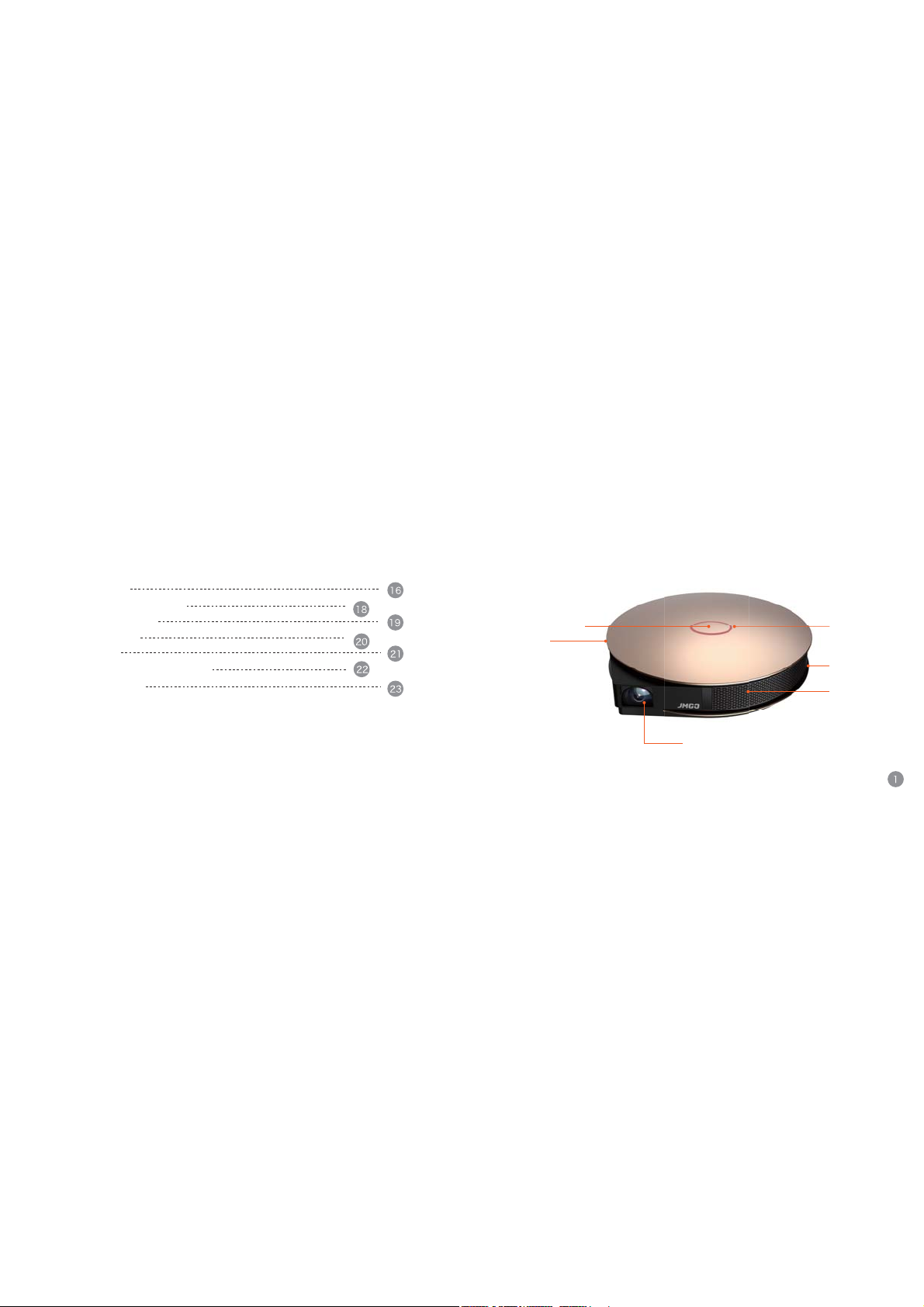

Appearance and Functions of Projector
Indicator
Air inlet
Air outlet
Electric lens slide
Appearance and Functions of Projector

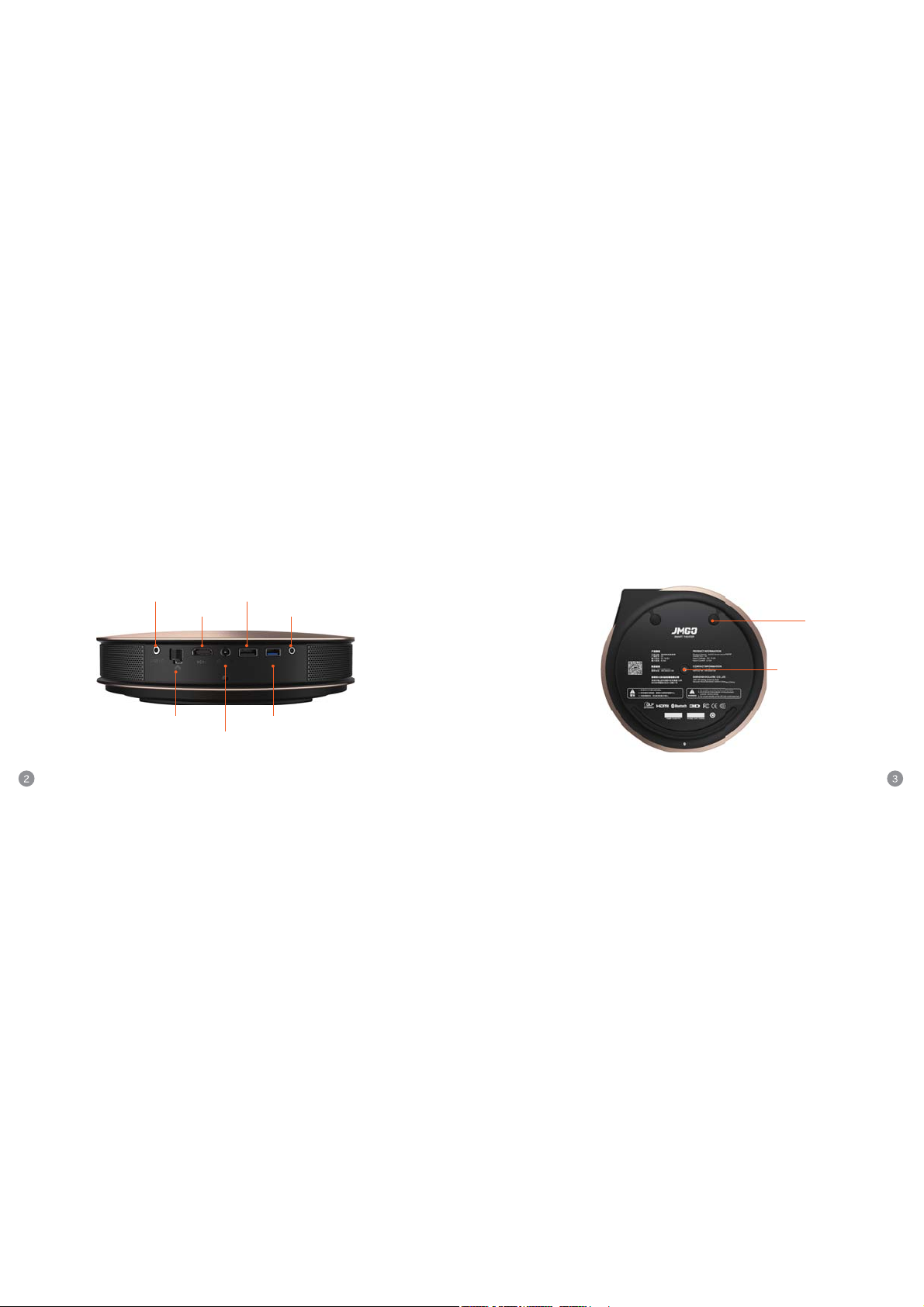

Appearance and Functions of Main Machine
S/PDIF
HDMI
RJ-45 Ethernet
USB2.0
DC
AV-IN
USB3.0
Base Screw(can be
used for the
adjustment of
projection angle)
1/4 screw hole of
international
standard (Support
crane shot)

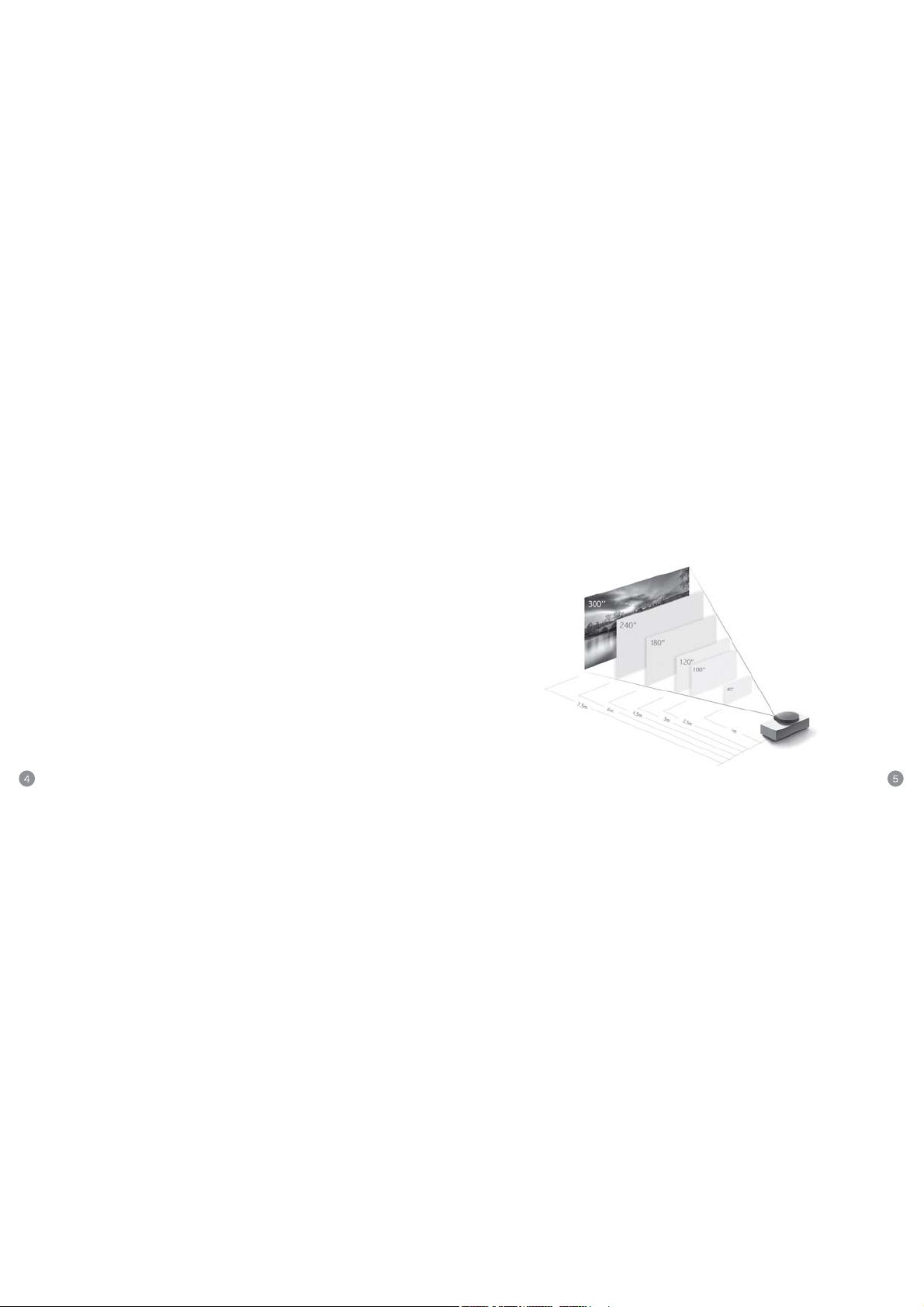

Distance and Projection Size
The distance between the lens and the screen, the zoom setting and the video format will all impact the size of the projected picture.
The best projection distance of JMGO product is about 0.5m~4m, out of which the brightness and definition of projection will be compromised and impact the projection result.
Projection size is proportional to projection distance: The longer the distance is the bigger the projection size will be, but the definition will be compromised accordingly; the user may choose the proper projection distance according to their actual need.
Touch-control Power Button and Indicator
o
he
ng
qui
pme
oug
ngi
ng
dby
giv
lig
r
o
g t
pow
gi
g a
pr
P
d
-control Power Button and In
Electrical Lens Slide
Touch the power button on the top of the machine or give a short press on the power button of remote control to switch on/off projection with the electric lens slide automatically opening/closing; When the machine is switched off, the lens slide can provide a full protection to the lens. Forcible operation of the lens slide by hand or outside force is prohibited; otherwise it may damage the structure of the equipment.
The power button of this product is touch-control based and the switch on/off functions can be realized by touching the power button. The indicator nearby the power button shows different working status of the equipment through the changing of colors.
1. In case of standby mode after power is given, the red indicator will light.
2. In the mode of standby, the equipment can be switched on and enter into projection mode after touching the power button or giving a short press on the Power button of remote control.
utton of this product is touch-control based and the switch
ed by touching the power button. The indicator nearby t nt worki
stan
status of the e
mode after power is
e of standby, the equipment can be switched on and ente
uchin
he
er button or
nt thr
h the cha
en, the red indicator will
vin
short
ess on the
of
h

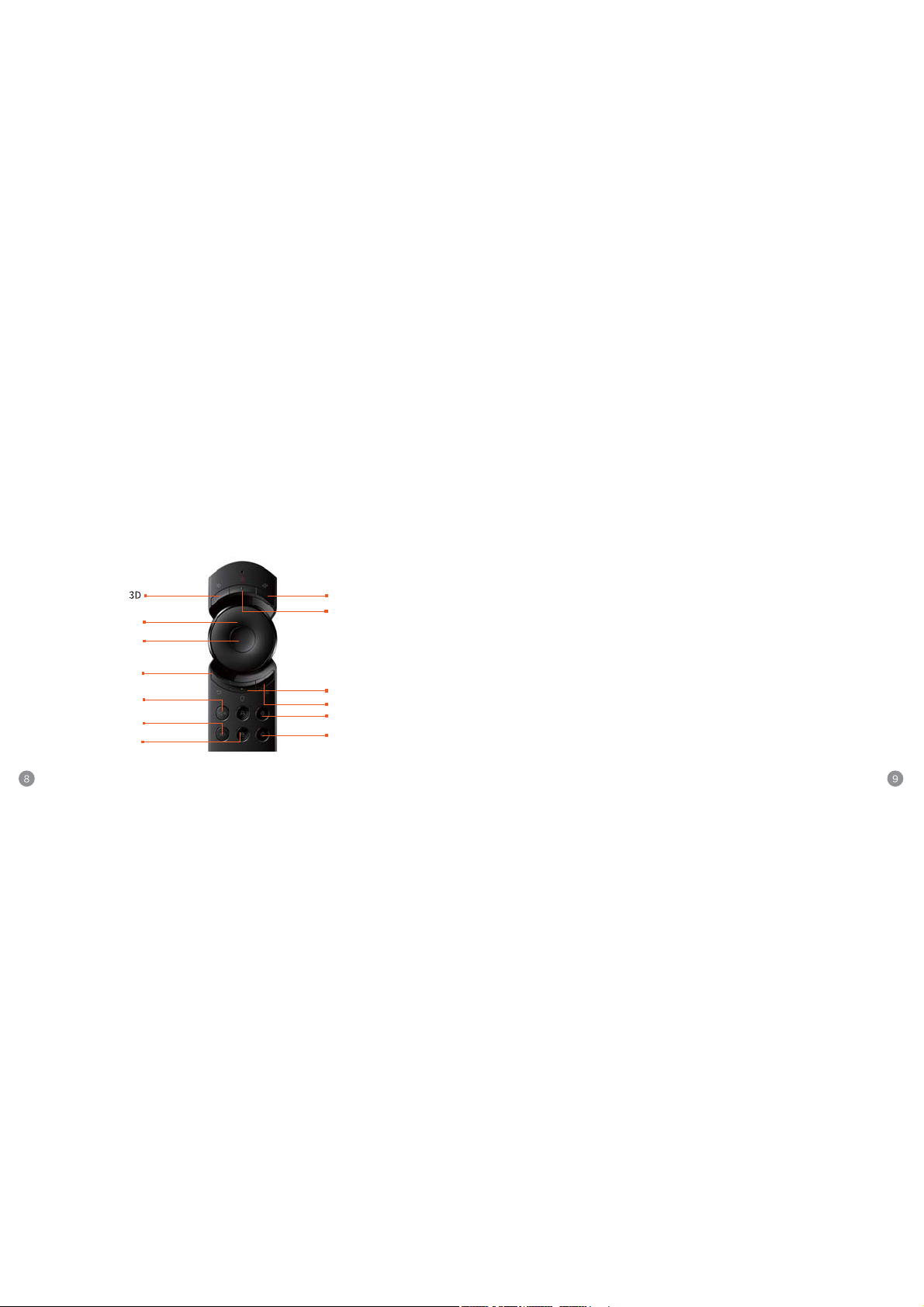

Remote Control
Direction Button(Up,
Down, Left, Right)
Confirmation
Back
(Side) Sound Volume +
(Side) Sound Volume -

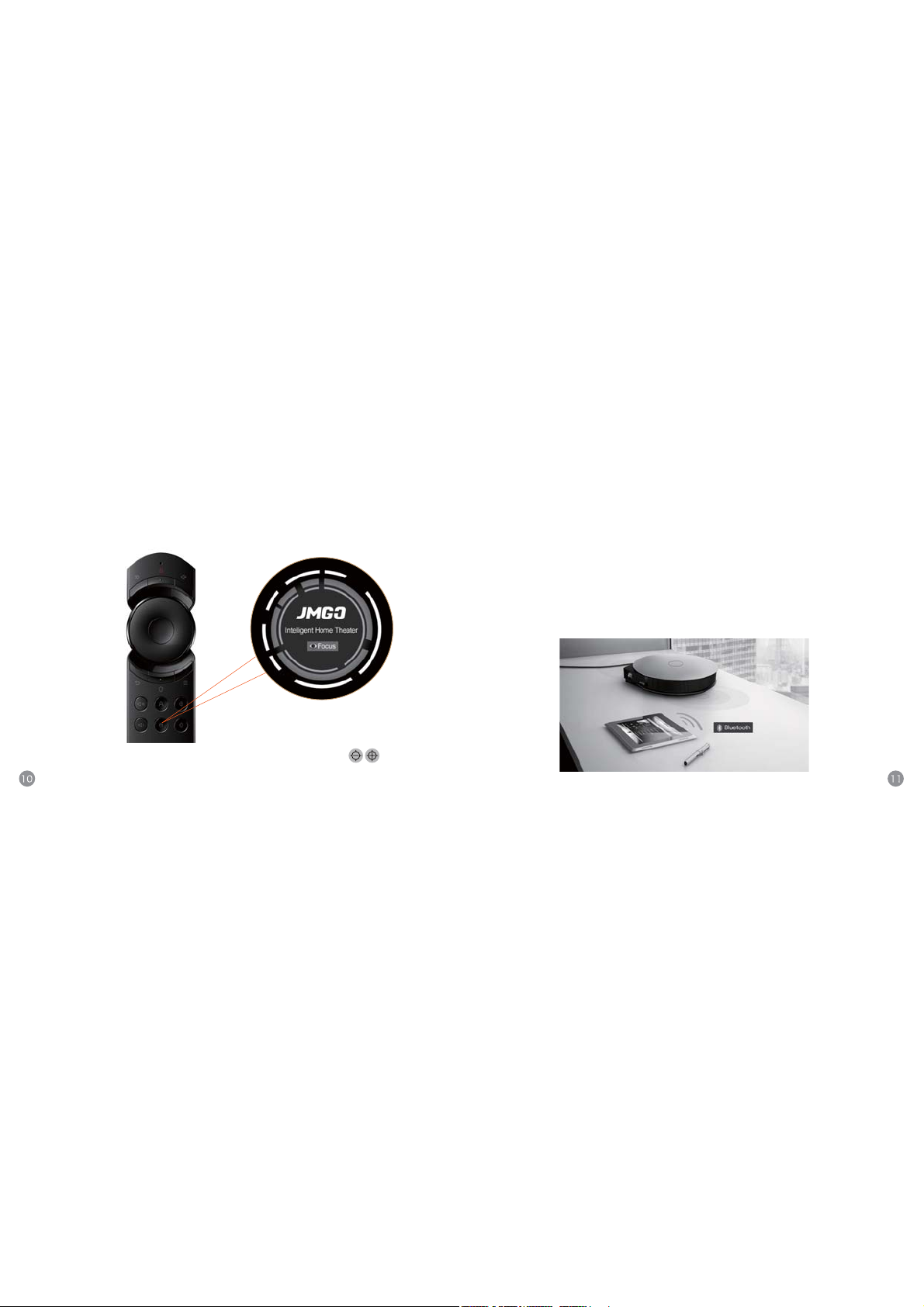

JMmGO Button
Note: 1. When using the remote control, please ensure there is no obstacle between the remote and the JMGO product;
2. The best operation experience of remote control is to make it squarely pointed at the machine with no excessive inclination;
Mute
Power
Home
Menu
Focus Adjustment
Button+
Focus Adjustment
Button-
Focus Adjustment
1. Automatic focusing for a clear project picture can be achieved as soon as the equipment is switched on.
2. When the equipment is moved, G-sensor inside it can make a judgment and adjust the focus automatically to keep a clear project picture.
3. Press and hold the JMGO button and automatic focusing can be activated.
4. The criteria for judging the definition of project picture may differ with personal visual perceptions, so the focus adjustment button on the remote control can be used to slightly correct the projection definition to make the projected picture produce the best result that is required for watching.
Focus Adjustment
This product can realize electric focusing through the focusing buttons so as to make the projected picture reach the best definition.
Bluetooth Audio
After being connected to the power supply, before switching on the projection, the machine can be used as a bluetooth audio which can be connected with other bluetooth equipment such as mobile phone. The connection can be achieved by following steps:
1. Open the bluetooth of the equipment and search the available bluetooth equipment.
2. Find out "JMGO-XX" in the available list, and get them paired up.
3. The pairing-up will be successful when the indicator of the main machine becomes blue and then music can be played through the main machine.
Keystone Correction 3D Play
Find out Desktop Application> Setting> Image> Keystone Correction. In case of projection inclination observed during the use, the keystone correction function can be used to make the projection produce a standard square image.
When playing 3D films, the mode of 3D film source can be set at the shortcut menu of the player interface which can be called out by giving a slight press on the JMGO button of remote control.
Network Setting
Version of System
This product support both cable-based and wireless-based network connection modes: For cable-based connection, it can be achieved by directly plugging in the cable. For wireless connection, find out Desktop>Network>Wireless Network, then select the usable network for WiFi connection.

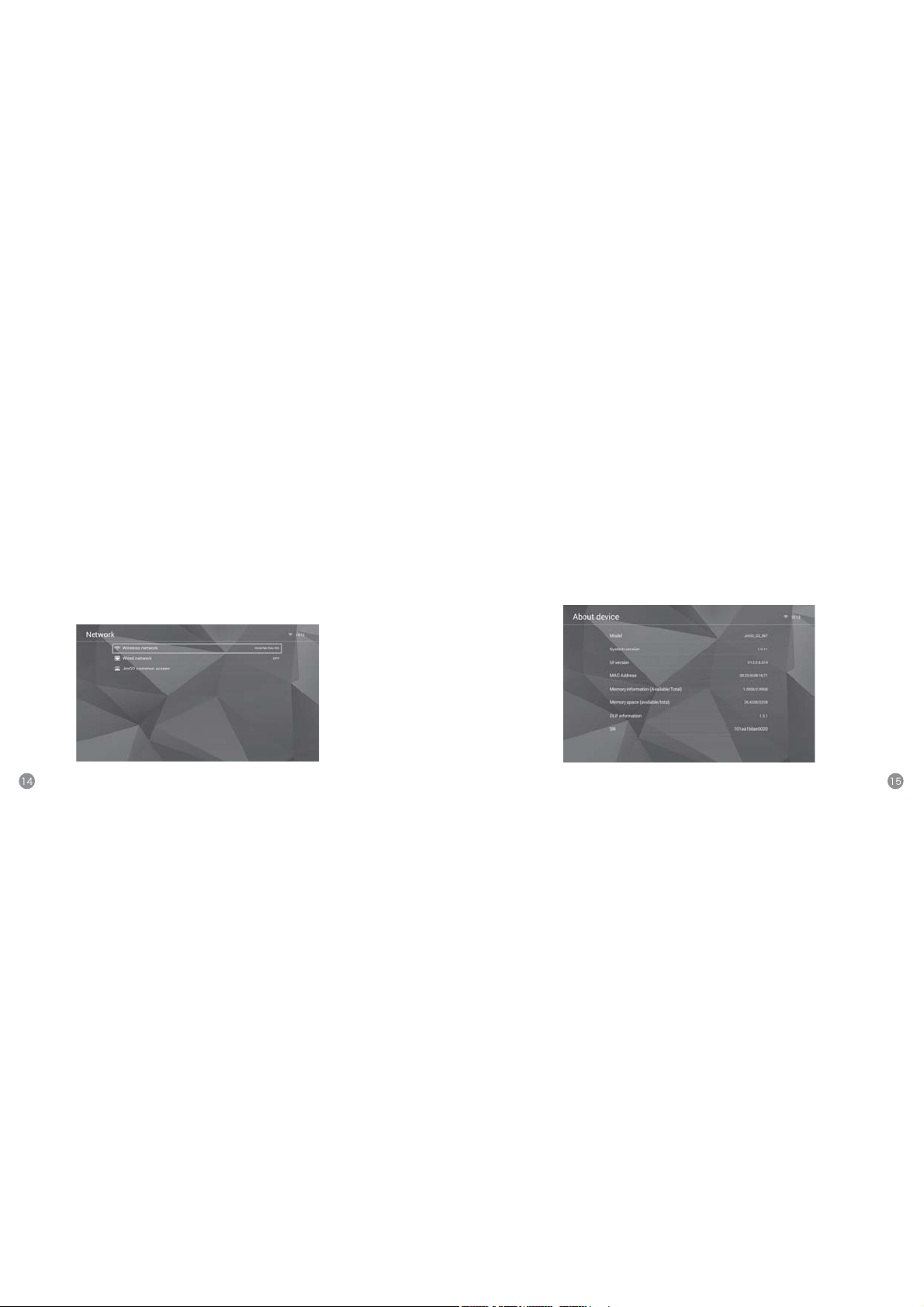

Find out Desktop> Setting> About> About Equipment, and the software version of the main machine can be checked.

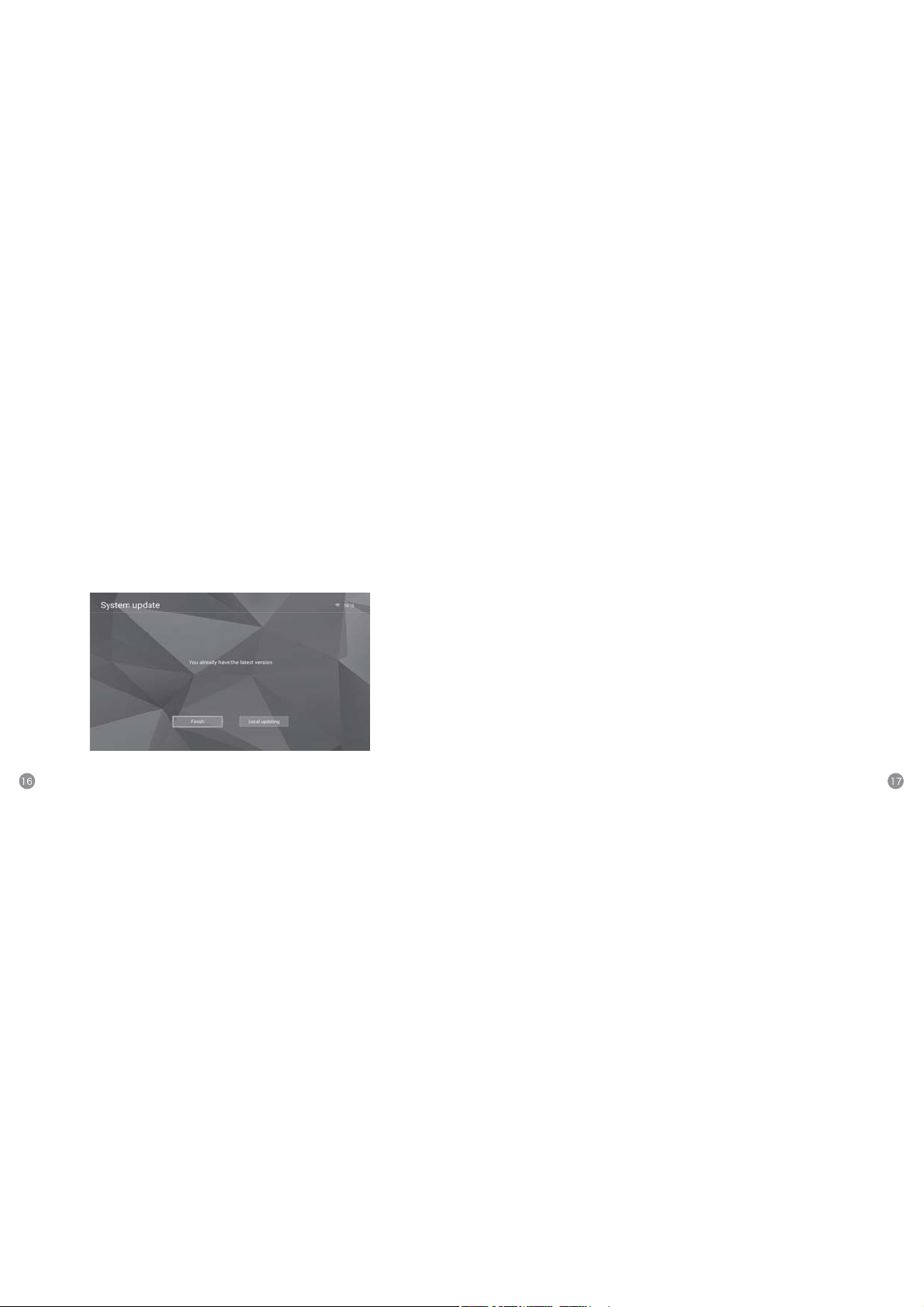

system upgrade
This product supports both online upgrading and local upgrading. Online upgrading: Find out the Setting menu at the desktop and successively enter into
       system is in the latest version. If the current system is already the latest version, the system will indicate the same while if it is not the latest version, the system will ask whether to upgrade it. Note: JMGO will constantly provide the online upgrading and maintenance of product and may deliver system upgrading service online without prior notice so as to provide the latest software system and services for your equipment.
Local upgrading: download the software upgrading package at the company website and copy it to the root directory of portable hard drive or USB drive, and plug the drive into the USB interface; find out Desktop> Setting> About> System Upgrading, and click local upgrading, then the system will automatically detect the upgrading package and install it for upgrading. Note: During upgrading, please do not remove the disc or cut off the power supply.
Switching of Video Signal Source Setting of Wireless Display
When outside signal source is input into JMGO equipment through HDMI or AV interfaces, give a short press on JMGO button of remote control to call out the shortcut menu or find out the "signal source menu" on the desktop for entering into the signal source setting interface. At this interface, you can select the required video signal source, and as soon as the signal source is switched, JMGO equipment connects with the outside video signal source and projects the video content.
This product support wireless display. Find out Desktop> Setting> Network> JmGO Display and directly enter into the display interface and realize wireless display according to the instruction.

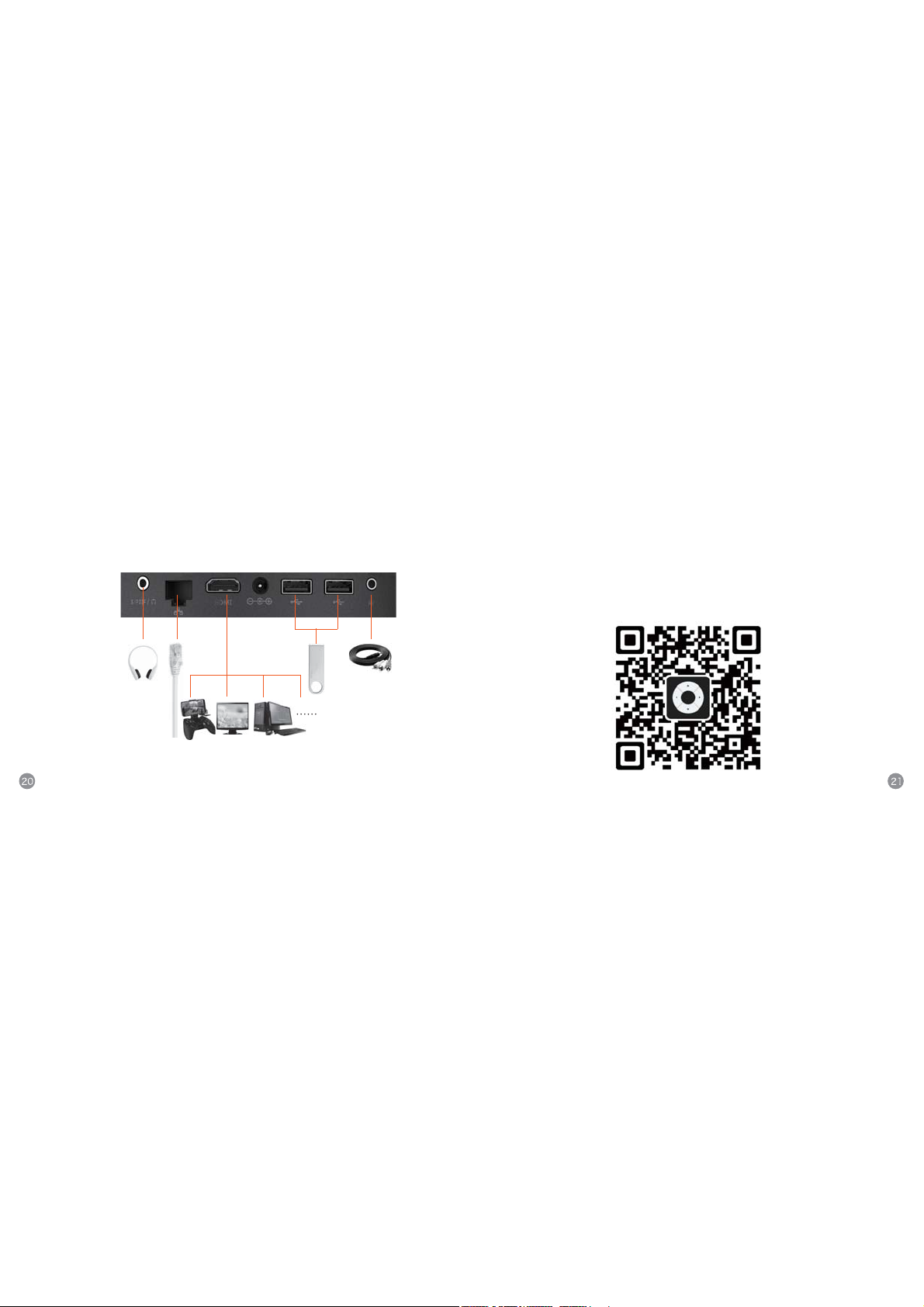

Peripheral Connection
Game
Monitor Computer
Console
Fun Control
This product supports mobile phone control. Scan the barcode below and you can download and install the "Fun Control" application through which you can use mobile to easily control and operate the equipment. Fun Control supports both Android equipment and IOS equipment.
Instruction of Environment-friendly Use

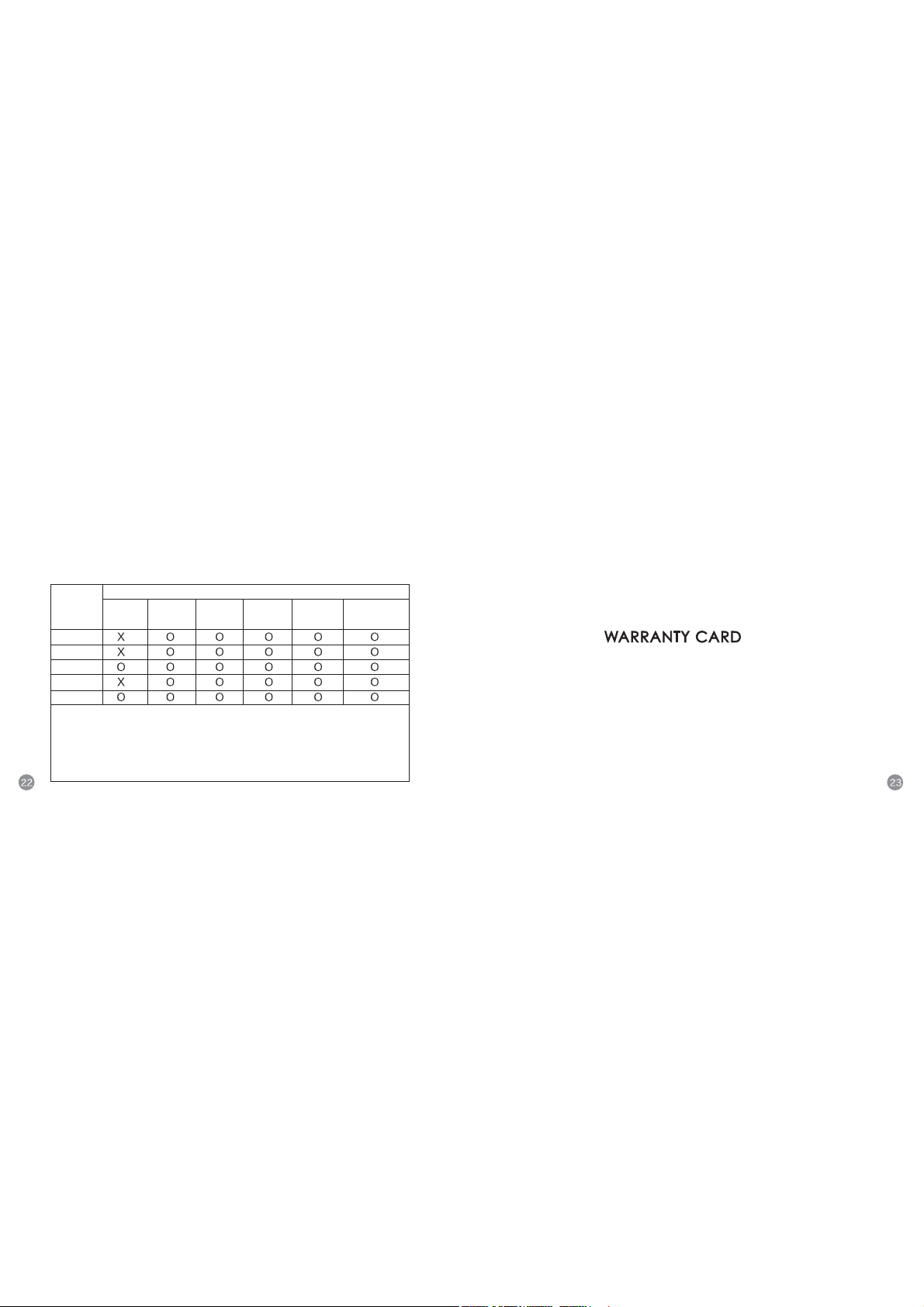

Name and content of micro poisonous and harmful substance or element contained by all parts of this product:
Part Name
Projector
Remote Control
Cable
Adapter
Packing Material
It means that the content of such poisonous and harmful substance in all homogeneous
O:
materials of this part is less than the limited quantity set forth in GB/T 26572-2011
It means that the content of such poisonous and harmful substance in certain homogeneous
X:
material of this part is more than the limited quantity set forth in GB/T 26572-2011. Moreover, now, there is no mature alternative solution in the industry, but it complies with the environmental protection requirement of RoHS directive.
Lead
(Pb)
Toxic Hazards or Element
Mercury
Cadmium
(Hg)
(Cd)
Hexavalent
chrome (Cr(VI))
Polybrominate
(PBDE)
Polybrominated
Diphenyl
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID: SMC-G3PRO
Manufacturer's Name: SHENZHEN HOLATEK Co.,LTD Trade Mark: J0*260$577+($7(5 Model number: G3 Pro Operating Temperature: -0° C to 40° C
This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 0cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. This device in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out.
1. CAUTION : RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
2. The device complies with RF specifications when the device used at cm form your body
RF Secification:
Function
Operation Frequency
Max RF outputpower:
Limit
BT(BR+EDR)
2402MHz–2480MHz
GFSK:0.51dBm
Pi/4
8DPSK:0.55dBm
20 dBm
BT(BR+EDR)
2402MHz–2480MHz
GFSK:-0.72dBm
Pi/4
8DPSK:-1.79 dBm
20 dBm
WIFI 802.11b/g
/
802.11b/g/n(20MHz):2412~2472MHz;
802.11
802.11B: 12.3dBm
802.11g:
802.11n20:
802.11n40: 9.30dBm
20 dBm
802.11a/ n(20/40)
/ac(20/40/80)
5180MHz~5240MHz
02.11a:9.39 dBm
802.11n20:
802.11n40:
802.11ac20:
802.11ac40:
802.11ac80:8.29 dBm
23dBm
DQPSK:0.94 dBm
DQPSK:-0.80 dBm
n(HT20, HT40)
n(40MHz):2422~2462MHz
This product can be usedacross EU memberstates.
9.30dBm
9.50dBm
8.29dBm
8.96dBm
8.78dBm
8.59 dBm
Loading...
