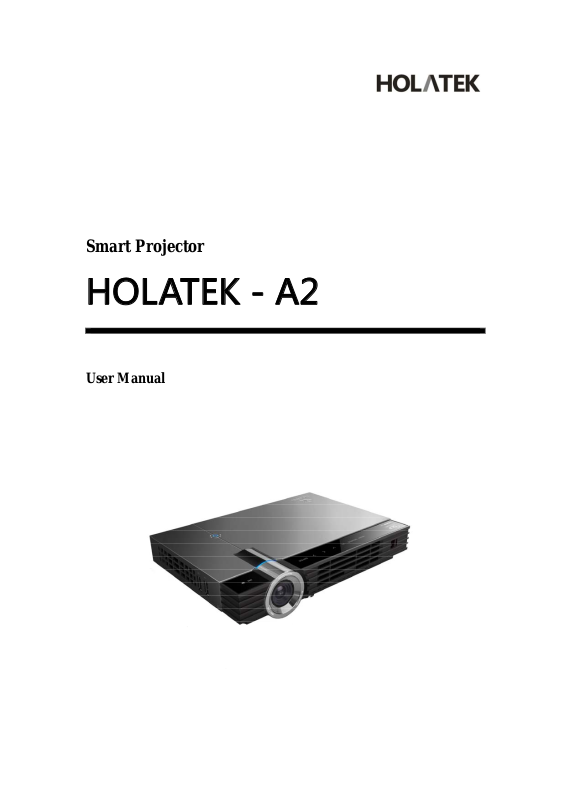

HOLATEK A2 User Manual

Smart Projector

HOLATEK-A2

User Manual

HOLATEK Home Theatre Instructions Content

Safety Instructions
Operation Instructions

About Lamp
Other Instructions

Summary

Packaging List

Control Positions and Functions

Top/Front/Left
Bottom
Back
Control Panel
Remote Control Functions

Projection Image

Installation

Adjusting Projection Size
Projection Instructions

Basic Operations

Starting and Stopping the Machine

Turning on the Power

Turning off the Power
Selecting Language
Selecting Input Source
Adjusting Image
Correcting Keystone
Auto Correcting Keystone

Manual Correcting Keystone

3D Function

Turning on 3D
2D TO 3D
Switching 3D Left/Right Eye
Turning off 3D
Settings

User Maintenance
About Lamp
Indicator

Troubleshooting

Specification

Warranty and Copyright Information
Warranty Certificate (attached)

Safety Instructions

Thank you for using HOLATEK Product. Read carefully the following Safety
Instructions before using this product. Keep the User Manual after reading for future
reference.

Safety Symbol

The User Manual use graphical symbols in order to avoid injury to persons
or property. The definitions of graphical symbols are as follows:

This symbol indicates information that, if ignored, could
possibly result in personal injury or even death due to

Danger

incorrect handling.

This symbol indicates information that, if ignored, could
possibly result in potential personal injury or even death

Warning

due to incorrect handling.

This symbol indicates information that, if ignored, could
possibly result in potential personal injury or even death

Caution

due to incorrect handling.

Operation Instructions

Warning!

●Smoke, Unusual Smells, Hot and Others

If smoke, unusual smells, or any other abnormal occurs, stop using the
machine immediately. Continuing to use may result in fire or electric shock.
Take the measures immediately as follows:

1. Unplug the power plug from the outlet.

2. Contact your dealer or HOLATEK service center.

● Malfunctions

Abnormal images display or other abnormal situations occur under
circumstances of correct operations, stop using the machine

immediately. Continuing to use may result in fire or electric shock. Take
the measures immediately as follows:

1. Turn off the power。

2. Unplug the power plug.

3. Contact your dealer or HOLATEK service center.

●Power Cord

Misusing the power cord may cause the fire and electric shock. Take the
following precautions:

1. Use AC voltage and make sure outplace voltage is corresponding to the rated

voltage of the machine.

2. Do not overload the electrical outlet by using too many devices on

it.

Damaged power cord may cause the fire and electric shock. Take the
following precautions:

1. Do not place heavy objects on the power cord or heat the power cord.

2. Do not stick the power cord between the wall and machine’s table

shelf.

3. Never try to modify the power cord, damage or bend it excessively .

4. Never twist or pull the power cord.

Never touch the power cord or plug with
wet hand, which may cause electronic

shock.
Use the attached power cord in the country that you buy the machine. When using the
machine in other countries, always use the power cord corresponding to the power
standard of that country. Meanwhile notice the safety standard of the country.

●Water and Foreign Object

Do not spill the water on the machine. Fire and electric shock may
result.

Do not place vase or any other container with water on the top of the
machine. Fire and electric shock may result.

Getting water or other liquid, or foreign objects (metal) into
the machine may cause the fire and electric shock. If foreign objects
(metal) are got into the machine, follow the directions
immediately:

1. Turn off the power.

2. Unplug the power plug.

3. Contact your dealer or HOLATEK service center.

● Disassembling and Modifying

Do not disassemble or modify the machine in any way. The high
voltage parts in the machine may cause electric shock and scalding.
Notice that the malfunctions that caused by dismantling or modifying
the machines by yourself are not in the scope of warranty,

HOLATEK do not provide free repair.

Make sure refer all the internal checking, debugging and repair works to your dealer

or HOLATEK service center.

● Falling and Shocking

Continuing to use the damaged machine caused by falling or other
reasons may result in fire and electric shock. Take the measures

immediately as follows:

1. Turn off the power.

2. Unplug the power plug.

3. Contact your dealer or HOLATEK service center.

● Burning

Do not discard the machine by burning. Explosion, fire and
personal injury may result.

● Looking into the Lens or Air Vents When the Lamp is Switched on

Do not look into the lens or air vents when the lamp is switched
on. The hard light from the light machine may damage eyes.

● Blocking the air vents

Do not block the air inlet or outlet. Otherwise the internal heat
accumulates, which may cause the fire and burn the machine. Make
sure to observe the following precautions:

1. Leave the space at least 30 cm between the machine and the wall.

2. Do not place the machine in stagnant air place.

3. Do not cover the machine with the blanket or other objects.

4. Place the machine on the stable and flat surface. Do not use the machine

on the carpet, blanket, towel, cushion and any other soft surface.

5. Do not erect the machine when the machine is in process.

● Lightning
If there is a thunderstorm, do not touch the power plug.

● Remote Control

Never disassemble or modify the remote control in any way.
Otherwise cause electric shock, scalding and personal injury may result.

Make sure refer all the internal checking, debugging and repair works to
your dealer or HOLATEK service center.

Do not wet the remote control. Fire and electric shock may result.

● Wi-Fi Emitted from Radio Module

Never use the product in the airplane or medical facility, or any
other place that forbid the use of the device. Wi-Fi impacts the
electronic devices and medical devices, which may cause accident.

Do not use the product near high-precision electronic instruments or
electronic devices that used for dealing weak radio wave signal.
Wi-Fi impacts these devices, which may cause accident.

● If you are using cardiac pacemaker or any other electronic medical device,
consult the doctor or the product maker before using this product.

Caution!

●Power Cord

Misusing the power cord may cause the fire and electric shock. Always
follow the directions as follows:

1. Do not place the power cord close to the fire.

2. Hold the plug when disconnecting the power cord; do not pull the power

cord.

3. Plug into the bottom of the outlet.

4. Unplug the power cord from the outlet after using the machine.

5. Unplug the power cord from the outlet if the machine will not be used

for a long period.

6. Unplug the power cord from the outlet at least one time every year,

clean the dust of plug pins with dry cloths or vacuum cleaner.

7. Never use the detergent to clean the power cord, especially the plug pin and jack.

8. Before moving the machine, make sure to turn off the power and unplug the

power cord from the outlet.

● Important Data Backup

Backup all the data reserved in the machine memory. The data
reserved in the machine memory may be lost because of
malfunctions, repair and so on.

● Refraction Effects

No fish tank or any other object that has refracting effects in front of the lamp. Fire
may result.

●Lens
Do not touch the lens with hand.

Battery Instructions

Warning!

Misusing batteries may cause batteries fluid leakage and pollute the parts

around, which may cause an explosion, fire and personal injury. Make sure
to observe the following precautions:

z Never disassemble or short-circuit the batteries.
z Never place the batteries in high temperature or abundant in fire
z Never recharge the non-rechargeable batteries

Make sure the batteries are installed in the correct way

Caution!

Misusing batteries may cause batteries fluid leakage and pollute the parts

around, which may cause an explosion, fire and personal injury. Make sure
to observe the following precautions:

z Only use the batteries specified with the remote control

● Exhausted Batteries
Take out the batteries as soon as they run out.

z Take out the batteries if the remote control will not be used for a long

● Batteries Discarding
Discard the used batteries according to the local laws and rules.

period.

Others

If the interior of the machine has not been cleaned for a long time, dust
may build up, which may cause fire and malfunctions. Contact the dealer
or HOLATEK service center one time every year for cleaning the interior of the
machine. Notice that this cleaning service is chargeable.

OperationInstructions

AboutLamp 

z The lamp of this machine is LED.
z The designed life of the lamp is about 20,000 hours. Practical life

differs from the using conditions, setups on the menu and lamps.

z Warranty duration of the lamp wrote in the warranty statement may

be 6,000 hours, take the first-reach duration as standard.

z Lamp does not turn on or is obvious low brightness indicates the lamp

life ends. Contact your dealer or HOLATEK service center to change.

OtherInstructions

This machine consists of precision parts. Malfunctions and incorrect data
storing may result if not observing the following instructions.

● Do not use or store the machine in the following areas, otherwise may
cause the malfunctions and damages on the machine.

z Static electricity areas
z Extremely high temperature areas

z High humidity areas
z Areas where temperature may change suddenly
z Areas where is a lot of dust
z Shaky, slant or unstable areas
z Areas where may be got wet

● Do not use the machine in the following areas, otherwise may cause
the malfunctions and damages on the machine.

z Extreme temperature areas (The working temperature

is 5℃ to 35℃)

z Do not place heavy objects on the machine
z Do not insert or fall the foreign objects into the machine
z Do not place vase or any other containers with water

on the top of the machine.

●Do not leave the exhausted batteries in the remote control for a long
time.
Exhausted batteries has fluid leakage ,which may cause the remote control
trouble or even damage.

● Use soft clean cloth for cleaning
If the machine is dirty, clean it with the soft cloth soaked in the water
or neutral detergent diluted solution. Wring the excess water before
cleaning. Never use thinner, benzene or any other volatile agents to clean
the machine. The printed word may be erased and may stain the machine.

●Screen Dot do not Light on
The machine use the most advantaged digital technology，however, some
dots on the screen may not light up. This is a normal phenomenon, not the
malfunctions.

●Do not shock on the machine when it is in process
If machine suffer fierce shock, the projected images may disappear for
a while. The images will appear soon, but could have abnormal color or
error messages.
If the machine image color is abnormal, reselect the source. If the color
is still abnormal, turn off the machine according to the steps in chapter
“Turn on and off the machine” on page 17, and then restart the machine.

● Cautions After Using
The outlet and its around is very hot when the machine is in process, and
is still very hot when the machine is just turned off, so hold the two
flanks to move the machine.

●Take the Machine into the Carrying Bag
Make sure the machine is not hot before taking it into the carrying bag.

OpenPackage

Unpack the package box, and check below items is complete.

HOLATEK Home Theater Remote control AC power cord

AV-IN cord mini VGA cord User Manual

Software Installation

Computer software driver can be downloaded on the HOLATEK website.
Download link:

http://www.holatek.cn/supports.html

ControlPositionsandFunctions

[Top/Front/Left]

Inlet

USB2.0

[Bottom]

Power On/Off

Outlet

LED Lens

Inlet

Control

Infrared remote

Adjustable pin

VGA

r

USB

[Back]

Support

HDMI

Speake

Speaker Input

[Control Panel]

Infrared remote sensor

Speaker

VGA Input

AV-IN

Menu

Source

Enter Disk

Wi-Fi signal

RemoteControlFunctions

①

Power On/Off PC and Projector

② Source

Enter

Menu setup

Right

 ESC

③ Left
④ Mute
⑤ Down
⑥ Volume
⑦ 3D module menu
⑧ 3D Left/Right Eye Switching
⑨ Up
⑩ Power On/Off Machine

Remote Control Range

Both in the front and back of the machine have infrared remote (IR) sensors. Hold the
remote control; take the angel with IR sensor less than 30 angle to make it effective.
The distance between the remote control and IR sensor cannot be longer than 8 m
(about 26 inch)

Do not place any barrier that blocks the IR between the IR sensors on the remote
control and that on the machine.

Caution！

z Avoid excessive heat and humid.
z Do not place the remote control where the buttons may be pressed

accidently to avoid using out the batteries

z Do not throw the batteries into the fire, which may cause an explosion.
z Take out the batteries to prevent damages from fluid leakage if the

batteries are used out or the remote control will not be used for a
long time

ProjectionImage

Installation

Adjusting Projection Size

Longer the distance between the home theater projector and the wall, bigger
the machine image size.

Refer to the table below to obtain the best size image

屏幕 screen
投影屏尺寸 projection screen size
镜头中心 lens center
投影距离 distance
＊The height from the lens center to the bottom of the projection image (A: when

move the lens at its top height)
单位 units

Distance

Units：
m

Screen Size 40 80 100 150 200 250 300

Min

Distance

Max

Distance

1.2 2.3 2.9 4.4 5.9 7.3 8.8

1.4 2.8 3.6 5.4 7.2 9.0 10.7

There may be a slight different between the designed value and practical
value in the table.

NOTE!

z The lens of the machine is adjustable, the max tilt is up 40 angle

（+40°）,and max tilt down 40 angle（—40°)

z Auto correcting keystone range record is 0±40 angle. If the image tilts

downward, use the manual correcting keystone to adjust the image.

ProjectionInstructions

Warning!

z If installing the machine on the ceiling, this machine should be

z If using adhesives on the ceiling mount to prevent the screws from

When installing or adjusting the ceiling mount, do not use adhesives

Caution!
Working conditions has great effect on the machine efficiency. Use the

machine in the conditions as follows:

z Use the close and easy-using outlet in order to unplug the power cord

installed by refer qualified technicians using only approved
equipment. If installation work is not carried out correctly, the
machine could fall down. This may cause personal injury or accident.
Contact you dealer to install the machine correctly.

loosening, or if using things such as lubricant, oils on the machine,
the machine case may crack causing it fall from the ceiling mount.
This could cause injury to anyone under the ceiling mount and could
damage the machine.

to prevent the screws from loosening and do not use lubricant, oils
and so on.

at any time when it is necessary
Do not place any object inside the dotted line as the figure below.
Leave the distance no less than 30 cm between any object and the inlet
or outlet.

Outlet

Inlet

Inlet

Reserve enough space; do not

block the inlet and outlet.

z The outlet is extreme hot when the machine is in process. Do not touch it with

hand. It is also extreme hot near the outlet. Never place the plastic or any other
object that are sensitive to heat near or below the machine. The heat may cause
deformation and color change.

z Do not place the machine on the unstable or shaky surface. Never place

the machine on the carpet, blanket, towel or any other soft object.

z Do not place the machine where is exposed to direct sunlight.
z Do not place the machine where there is a lot of humidity or dust.
z Keep the machine far away from speakers, televisions, radio and other

magnetic devices, and heater.

z Dust and dirty may build up in the inlet and around after the machine

is used for a long period of time, which may cause malfunctions. Check
if dust built up at the inlet every time before using the machine.
Wipe the dust with cloths if there is dust and dirty in the inlet.

z Do not block the inlet. Block the inlet may reduce the light source

life.

z Airflow from the air conditioner will blow the heat exhausted by the

lens, which cause heat wave in the image. Adjust the air conditioner
or move the machine if this situation turns up.

z Do not place it on one of its side to use the machine, malfunctions

may result.

Projecting in the front

Projecting from the ceiling

BasicOperations

StartingandStoppingtheMachine

AC power Instructions

z Use the AC power cord attached with the machine
z Use AC power of which outplace voltage corresponds to rated voltage

of the machine

z Do not share the outlet with other devices. Make sure the rated current

corresponds to power consumption of this machine if using extension
cord.

z Do not use the bundled power cord
z Do not place objects on the power cord or step on it.
z Do not pull the power cord. Hold the plug when disconnecting it from

the outlet.

z Use the close and easy-using outlet in order to unplug the power cord

at any time when it is necessary

Connect the power inlet with attached AC power cord.

The power on/off indicator on the top of the machine turns to orange when

the power cord is connected to the outlet, which means the machine is
normal and standby.

TurningontheMachine

Press (power) on the top of the machine or (power)（red）on the remote

control to turn on and off the complaceer power， (power)（blue）on the

remote control only turn on and off the project function. When on
the top of the machine lights as white, it indicates that PC disk has started,

when the white indicator flashes continuously, it indicates that PC is
reading the disc, when the white indicator turns dark ,it indicates that
the disc has stopped operation.

TurningofftheMachine

1. Press (power) on the top of the machine to turn off the power.

2. Press (power)（red）on the remote control and confirm the message“Power

off ?Press the power again” displayed at the right down corner of the
screen.

z If you do not turn off the power, the message disappears after 5

seconds. Press [ESC] also can remove the message.

3. Check and make sure that

orange, lens blue light circle goes out and unplug the power cord from the outlet.

4. Make sure that the machine, connected external computer or vedio

device are truned off, unplug the power cord from the connected
devices.

(power) on the top of the machine turns to

SelectingLanguage

Chinese is the default language when the first time to turn on the machine,
follow the steps if you need to change into other languages.

Use the control panel or remote control, press [MENU], and press[∨] or [∧]
to select [Machine setup1], then press [ENTER] to select the language, and then press
[MENU] to confirm the selection.

SelectingInputSource

When turning on the machine, the input source selected at last time will
be the first choice. To select other input sources, follow the steps.

1. Press [SOURCE]

2. Use [▲] and [▼] on the remote control to select the input source name,

then press [ENTER].

AdjustingImage

How to Adjust the Focus

[FOCUS▲] and[FOCUS▼]on the remote control to adjust the focus,
release the button when adjustment is done.

Use the control pane, press [MENU] and press[∨] or [∧] to select [Machine
setup2], then press [Focus], and [＜] or [＞] to adjust , and then press [MENU] to
logoff the operation.

CorrectingKeystone 

When there is a certain angle between the machine and the projection
screen or the wall, the upper and lower sides length of projection image
may be different, this is called “keystone”. This machine has the
function of auto and manual correcting keystone to adjust the projection
image.

Auto Correcting Keystone

Set the menu “Machine setup1→Auto correcting keystone” to “On”, and
machine checks main body of the image in vertical direction, then auto
adjust the shape to oblong.

z The range of Auto correcting keystone is ±40°

Manual Correcting Keystone

[KEYSTONE+] or [KEYSTONE－] on the remote control to correct
keystone.

Use the control pane, press [MENU] and press[∨] or [∧] to select [Image setup],
then press [Keystone], and [＜] or [＞]to adjust , and then press [MENU] to logoff
the operation.

3DFunction

Turning on 3D

Turning on the 3D film source, press [3D] on the remote control to select [Left
／Right mode] or [Up／Down mode], and then press [ENTER] to turn on 3D
function.

2D TO 3D

Turning on the 2D film source, press [3D] on the remote control to select [2D
TO 3D], and then press [ENTER] to turn on 2D TO 3D function.

Switching 3D Left/Right Eye

If you feel uncomfortable or the images have no 3D effect when watching
3D film, use [3DL/R] on the remote control to adjust.

Turning off 3D

Press [3D] on the remote control to select [2D], and press [ENTER] to turn off 2D
TO 3D function.

Settings

When the machine in process, press [MENU] to display the settings on the projection.
Settings applies to setups of different machines.

Settings List

Main Menu Sub Manu
Image Adjust1 Brightness

Contrast
Color balance
Restore menu default

Image Adjust2 Horizontal location

Vertical location

Adjust the clock
Phrase
Restore menu default

Volume Volume

Restore menu default

Image Setup Keystone

Projection mode
Ceiling project
Starting image
Aspect ratio
Blank image
Restore menu default

Input Setup Signal name sign

Restore menu default

Machine Setup1 Auto correct keystone

Energy saving module

Auto power-off
Language
Restore menu default

Machine Setup2 Focus
Operation Information Input signal

Signal name
Horizontal Frequency
Vertical Frequency

Scanning system

Lamp running time

All restore to default Software version

Restore menu default

UserMaintenance

AboutLamp

If the lamp does not turned on, contact you dealer or HOLATEK service center
and refer them to change. Notice that those malfunctions caused by disassembling or
modifying by yourself are out of the range for warranty, HOLATEK do not supply
free repair service

Indicator

Troubleshooting

Check the following items if the machine has any problem:

The machine does not turn on
Cause Solution

Indictor Display

lit orange AC power is connected and ready for start.

The power cord is not alive. Connect the machine power interface and

No image appear
Cause Solution

Not selecting correct input signal Use [SOURCE] on the machine or

The machine does not connect with the
input signal device correctly.
Video signal source does not turn on or
error connection

lit blue PC is turned on and standby
lit white Disc is connected and standby
lit white flashing Disc is operating.
lit white Wi-Fi is on and standby
lit white flashing Wi-Fi is operating.

Meaning

outlet with the power cords, and confirm
the outlet switch is turned on.

remote control to select correct

input signal
Check the connection

Turn on video signal source and check if
the signal cord is error connected

Images are fuzzy
Cause Solution

Lens does not focus correctly Use the remote control to adjust the lens

focus

Machine and screen are not aligned. Adjust the projection angle and direction,

or adjust the height if necessary.

Remote control failure
Cause Solution

Low batteries Change the batteries
There is object between remote control
and machine
Too far from the machine Keep the distance no more than 8 m（26

Remove the barriers

inch）

NOTE!

z Try the following instructions, which may recover the machine

1. Unplug the power cord and wait more than 10 minutes.

2. Plug the power cord back and restart the machine.

z If the machine is still abnormal after operating the above

instructions , send the machine to your dealer or HOLATEK service
center

Specification

The specification may be changed without further notice.

Optical Parameters

Brightness (lumina) 1000
Machine system DLP
DLP chip

（Texas
Instruments）

Size：0.45
inch
Pixel：
WXGA
（1280×
800）

Light source LED

PC Parameters

CPU Intel D2550 dual

core 1.86GHZ,
four threads，
1MB L2 Cache

Graphics card 640MHz Intel

GMA 3650
graphics card
（shared memory
128/224MB)

RAM 4GB

DDR3-1333/1066
Disc 64GB solid disc
WLAN Support

802.11b/g/n

Input ports
Video input Mini VGA×1

HDMI1.4a×1

AV-IN×1
USB USB2.0×3

Control

infrared

×2

Machine

Weight Approx. 1.5 kg
Net size length：204mm

Electricity

Power DC 19V/4.74A
Power
consumption

Environment
Working
temperature
Working
humidity

Working
height

width：143mm
height：35mm

50W（Max）
＜1W(Min)

5 to 35°C

20% to 80%
（no
condensing）
Altitude 0 to
3,000 m

Output ports
Video
outplace
Speaker （stereo）2W×

Audio signal PC audio

Mini VGA×1

2

interface×1

WarrantyandCopyrightInformation

Limited Warranty

HOLATEK supply warranty to any material or artificial defect of this
product under circumstance of abnormal using and storing.
Be sure to supply the purchase date certificate when repairing the product,
if defect is found during the warranty period, HOLATEK has the only
obligation and measures to change the defect part (including sanction fee). Once
defect is found on the product, inform the dealer to obtain warranty
service.

NOTE: HOLATEK limited warranty does not cover those defects that arise
as a result of abnormally use of the product。Especially using the product
in the places where humidity between 20% to 80%, and altitude lower than
3,000 meter, and avoid using the product in the places where is a lot of
dust. This warranty statement gives the customer specific legal rights,
and the customer may also have other rights which depend on the country
you live.

Copyright

HOLATEK all rights reserved 2012. No part of this publication may be reproduced,
transmitted, translated, stored in a retrieval system, or transmitted into any characters
or computer language in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, handwriting, or otherwise, without the prior written permission of
HOLATEK Ltd. Co.

Disclaimer

HOLATEK Ltd. Co. does not make any other warranty or condition of any kind,
whether express or limited warranty or conditions of merchantability, and fitness for a
particular purpose. HOLATEK Ltd. Co. reserves the right to revise and amend the
user manual at any time content without further notice.
*DLP is the trademark of Texas Instruments. Others are copyrights of their
corporations or organizations

WARRANTY

CERTIFICATE

Thank you for purchasing HOLATEK product

According to this warranty statement, during the

applicable warranty period, HOLATEK provides free

repairs to all the malfunctions that are caused by

product quality under circumstance of normally use.

Warranty Statement

Member W a rranty

Register on the official website (www.holatek.cn) 7 days after purchasing the product
to obtain 1 year warranty service。

Product W arranty Strategy:

According to Microcomputer Commodity Repair, Replace, Refund Responsibility
Regulations, refer as to “Three guarantees”, customer can obtain repair, replace or
refund service with invoice and three guarantees certificate. Refer to “Three
guarantees” for details.

Machine Wa rranty:

12 months start from the date on the purchase invoice.
If customer lost the invoice/three guarantees certificate, the guarantee date starts from
the 90th day after the production date.

Unlimited Warranty

－Three guarantees valid period expires
－No valid invoice and three guarantees certificate (not including the certificate that
can prove the product is in valid period)
－The product number on the product warranty certificate or purchase certificate

does not correspond to the number of machine or the number is altered.

－Damages caused by human factors, including using in abnormal working
environment or misusing the product.
－Users disassemble, repair, modify the machine or unauthorized repairs.
－Damages caused by force majeure (such as flood, fire, earthquake,
lightning and so on).

Warranty Ways

1．Make sure to bring the warranty invoice and valid purchase certificate when replace
or repair the product. Contact HOLATEK customer service to inquire the customer
information files if the certificate is lost (the files are built up by registering online
after purchase)

2. You can go to any maintenance center (refer to the official website)

in your country to replace or repair the product.

3.You can post to HOLATEK Ltd. Co. to replace or repair the product.

4. According to “Three guarantees” , for those products which are in the range

of being replaced, HOLATEK Ltd. Co. will offer the same model and the same
specification product to replace free of charge.

Service hotline：[phone]

Original NO.

Product Name:
Product Model No.:
Serial No.:
Purchase Date:
Store Telephone:
Dealer Seal:

Customer Name:
Customer Address:
Customer Phone:
Code:
ID No.:
E-mail:

* This certificate is an important warrant of three guarantees commodity,

please keep it in a right way.

Stick the invoice on this page to prevent it being lost or missing, it
increases the troubles when you go to repair if the invoice is lost or
missing. Taking this manual by hand must be convenient for repairs and
inquiry.

Stick invoice here

HOLTEK service Good! Comfortable! Easy！

FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.

This equipment should be installed and operated with minimum distance 20cm between the radiator
and your body.

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the followingmeasures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

SHENZHEN HOLATEK CO.,LTD.2012

Printed in China
