Instruction Manual • Bedienungsanleitung • Manuel d’utilisation • Manuale di Istruzioni
®
EN
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-todate product literature, visit www.horizonhobby.com and click on the support tab for this product.
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of
injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious
injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury
OR create a high probability of superfi cial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to
operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical
ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other
property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or
alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety,
operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup
or use, in order to operate correctly and avoid damage or serious injury.
Super Cub S
NOTICE
Meaning of Special Language:
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum product found in a Horizon Hobby
product, always purchase from Horizon Hobby, LLC. or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum
product. Horizon Hobby, LLC. disclaims all support and warranty with regards, but not limited to, compatibility and performance of
counterfeit products or products claiming compatibility with DSM or Spektrum.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating
in a manner that does not endanger yourself and others or result in
damage to the product or the property of others.
• Always keep a safe distance in all directions around your model to
avoid collisions or injury. This model is controlled by a radio signal
subject to interference from many sources outside your control.
Interference can cause momentary loss of control.
• Always operate your model in open spaces away from full-size
vehicles, traffi c and people.
• Always carefully follow the directions and warnings for this and
any optional support equipment (chargers, rechargeable battery
packs, etc.).
• Always keep all chemicals, small parts and anything electrical out
of the reach of children.
Charging Warnings
CAUTION: All instructions and warnings must be followed
exactly. Mishandling of Li-Po batteries can result in a fi re,
personal injury, and/or property damage.
• By handling, charging or using the included Li-Po battery, you
assume all risks associated with lithium batteries.
• If at any time the battery begins to balloon or swell, discontinue
use immediately. If charging or discharging, discontinue and
disconnect. Continuing to use, charge or discharge a battery that
is ballooning or swelling can result in fi re.
• Always store the battery at room temperature in a dry area for
best results.
• Always transport or temporarily store the battery in a temperature
range of 40–120º F (5–49º C). Do not store battery or aircraft in
a car or direct sunlight. If stored in a hot car, the battery can be
damaged or even catch fi re.
• Always charge batteries away from fl ammable materials.
• Always avoid water exposure to all equipment not specifi cally
designed and protected for this purpose. Moisture causes damage
to electronics.
• Never place any portion of the model in your mouth as it could
cause serious injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before fl ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
• Always inspect the battery before charging and never charge dead
or damaged batteries.
• Always disconnect the battery after charging, and let the charger
cool between charges.
• Always constantly monitor the temperature of the battery pack
while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO CHARGE
LI-PO BATTERIES. Failure to charge the battery with a compatible
charger may cause fi re resulting in personal injury and/or property
damage.
• Never discharge Li-Po cells to below 3V under load.
• Never cover warning labels with hook and loop strips.
• Never leave charging batteries unattended.
• Never charge batteries outside recommended levels.
• Never attempt to dismantle or alter the charger.
• Never allow minors under the age of 14 to charge battery packs.
• Never charge batteries in extremely hot or cold places (recommended between 40–120° F or 5–49° C) or place in direct
sunlight.
®
2
Included in the Box
Includes
Transmitter
Super Cub S
Bags
EN
B
A
C
For more information and to register your product online, visit www.hobbyzonerc.com
Flying Tips
• Sensor Assisted Flight Envelope (SAFE™) technology
is designed as fl ight assistance, not an autopilot.
600 feet
(183 m)
Wind 0–7 mph
(0–11km/h)
Fly in this area
(upwind of pilot)
Stand here
The pilot is always in control and required to fl y the
aircraft at all times.
• Start in Beginner mode (SAFE switch position 0).
As you learn and become more confi dent, change
modes to advance your fl ying skills.
• Always keep your aircraft in plain sight and upwind
from you.
• Do not attempt your fi rst turn at low altitude. Higher
altitudes allow for greater possibility of correction.
• Always make deliberate and steady control stick
movements for smooth control of your aircraft.
Prefl ight Checklist
1. Find a safe and open area.
2. Charge fl ight battery.
3. Install fl ight battery in aircraft.
4. Perform Control Direction Test.
5. Plan fl ight for fl ying fi eld conditions.
6. Have fun!
3
BNF • RTF
EN
Charging the Flight Battery
CAUTION: When connecting the battery to the
battery charger, make sure the connectors are
aligned as shown. Failure to connect the battery
properly could cause the terminals to short and
result in fi re, personal injury and/or property
damage.
Charger Specifi cations
• Input power: 10–14V
• Max output voltage: 11.1V
• Fixed charge current: 1.3A
• Balances and charges 3S Li-Po cells with a
minimum capacity of 1250mAh
This charger may be connected to the AC adapter
(included with your model).
Super Cub S
Flashing (Charging)
Solid (Charged)
1 hour
DX4e Transmitter
Remove the battery cover, install the four included
batteries (noting proper polarity) and reinstall the
battery cover.
Low Battery Alarm
When the battery voltage drops below 4.7 volts,
an alarm sounds and the voltage LEDs fl ash. The
batteries must be replaced immediately. If this
happens while fl ying, land your aircraft as soon and
as safely as possible.
WARNING:
the antenna. Do not alter or put weight on the
antenna. Damage to antenna parts can decrease
transmitter signal strength, which can result in
loss of model control, injury or property damage.
Do not pick up the transmitter by
SAFE Mode
Switch
Panic Recovery
Button
Throttle Trim
Throttle
Elevator
Trim
Elevator/
Steering
Steering Trim
Power Switch
Mode 2 shown
For more information on the transmitter, go to
www.horizonhobby.com/products/SPMR4400 and
click on the support tab for the Spektrum DX4e to
download the instruction manual.
®
4
Super Cub S
EN
Binding Procedure Reference Table
1. Make sure the transmitter is powered off.
2. Make sure the transmitter controls are
neutral, the throttle and throttle trim are
in the lowest position, and the aircraft is
immobile.
3. Install bind plug in the receiver bind port.
4. Connect the fl ight battery in the aircraft.
The receiver LED will begin to fl ash.
5. Power on the transmitter while holding
the transmitter bind button.
6. When the receiver binds to the transmitter, the light on the receiver will turn
solid. The motor will arm with throttle and
throttle trim at the lowest position.
7. Release the Bind button and remove the
bind plug from the receiver.
8. Disconnect the fl ight battery from the
aircraft, then power off the transmitter.
The receiver should retain the binding instructions
received from the transmitter until another binding
is done.
5
2
2
BIND PLUG
4
Transmitter Binding
The included RTF transmitter should be bound to
the aircraft at the factory, but if you need to re-bind,
follow the binding procedure as shown.
You need to ‘bind’ your chosen Spektrum
®
DSMX
technology equipped aircraft transmitter to
the receiver for proper operation. Please refer to the
optional parts list in this manual or visit
www.bindnfl y.com for a list of compatible transmitters.
™
DSM2®/
5
Assembly
Landing Gear Installation
x4
Bag A
5
BNF • RTF
EN
Assembly continued
Super Cub S
Tail Installation
Clevis adjustment
Gently fl ex
Rudder Control Linkage Install
Clevis
x2
Bag C
Elevator Control Linkage Install
Control
Horn
Clevis
Wing Installation
IMPORTANT: The rubber bands prevent wing damage
from impact. Always replace worn or broken
rubber bands.
Control
Horn
x2
Bag B
x4
Bag B
®
6
Super Cub S
EN
Installing the Flight Battery
Lower the throttle and
throttle trim, then power on
the transmitter for at least
5 seconds.
CAUTION: Always disconnect the Li-Po fl ight
battery from the aircraft receiver when not
fl ying to avoid over-discharging the battery.
Batteries discharged to a voltage lower than the
lowest approved voltage may become damaged,
resulting in loss of performance and potential
fi re when batteries are charged.
Keep immobile and
out of the wind for
5 seconds
The aircraft can be held immobile for 5
seconds at any angle convenient for you to
connect the battery.
The Rudder and Elevator
will move, then return to
center when the aircraft is
ready to fl y.
7
BNF • RTF
EN

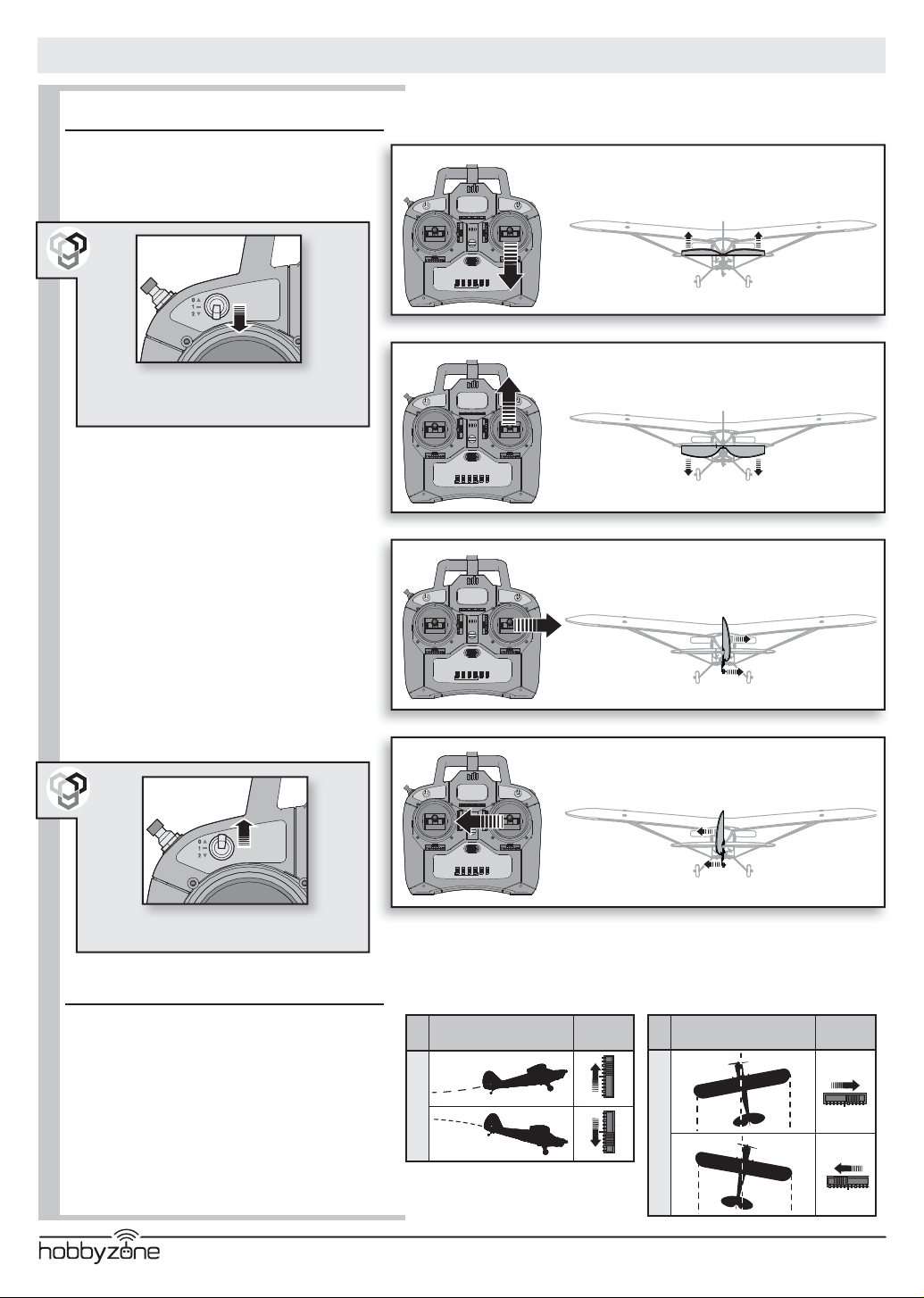

Control Direction Test
Super Cub S
Perform the Control Direction Test with the
transmitter SAFE fl ight mode switch set to
Experienced mode (position 2).
CH 5
Experienced SAFE
Flight Mode
Restrain the aircraft so it does not escape your
control while you are testing your transmitter
controls.
Move the sticks on the transmitter* to ensure the
aircraft responds as shown.
If your model does not respond as shown, DO NOT
FLY! Refer to the Troubleshooting Guide in this
manual for more information. If you need more
assistance, contact the appropriate Horizon
Hobby Product Support department.
Up Elevator (climb)
Down Elevator (descend)
Turn Right
If the aircraft responds as shown, move the SAFE
fl ight mode switch to Beginner mode (position 0)
to prepare to fl y.
CH 5
Beginner SAFE Flight Mode
Trimming
If your aircraft does not fl y straight and level at half
throttle with the steering stick at center, switch to
Intermediate or Experienced mode, then fl y into the
wind and move the trim sliders.
If you move a trim slider more than 8 clicks in one
direction, land and adjust the clevis. Observe the
rudder or elevator surface while the trim slider is off
center. Center the slider. Disconnect the clevis, then
adjust and connect it again so the surface is in the
position you observed. Perform test fl ights as needed.
Turn Left
* Mode 2 transmitter shown. For Mode 1, Elevator control is on the LEFT stick.
Required
Trim
Elevator
Aircraft drift
Required
Trim
Aircraft drift
Rudder
®
8
Climbs at 100% throttle
Super Cub S
Wind 0–7 mph
(0–11km/h)
EN
Takeoff
Hand Launch
Hand launch in Beginner mode for fi rst fl ights.
Get help to hand launch your aircraft so you can
concentrate on fl ying. If you must hand launch the
aircraft alone, hold the model in your dominant hand
and the transmitter in your other hand. An optional
neck strap (SPMP610, sold separately) can help you
hold the transmitter.
CH 5
Beginner Mode
(SAFE Switch Position 0)
Easy Launching
Gently pull back on the
elevator stick to lift off of
the ground
Wind 0–7 mph
(0–11km/h)
Launching is easier in Beginner mode if you
hold the Panic Recovery button. Press and hold
the button, then increase the throttle to 100%.
Launch the aircraft. When the aircraft is up
where you want to fl y, release the button and
decrease the throttle to 50–60%.
CH 5
Ground Launch
Use the Beginner mode for takeoff in fi rst fl ights. If
the ground is not hard and level, get help to hand
launch your aircraft.
30 ft (10 m)
9
BNF • RTF
EN
Flying
In Beginner mode, when properly trimmed, your
aircraft will climb at full throttle without use of the
elevator stick.
• The aircraft fl ies 7 minutes or more on a battery
charge, using proper throttle management.
• If the motor pulses, land the aircraft immediately
and recharge the fl ight battery.
• Make small and steady control stick movements
for smooth control of your aircraft.
• Let the aircraft climb at full throttle, into the wind,
until the aircraft gets about 150 feet (46 meters)
above the ground, then decrease the throttle to
half (50%).
• Flying with the nose pointed toward you is one
of the hardest things to do when learning to fl y.
To practice piloting the aircraft, try fl ying in large
circles high off the ground.
Super Cub S
Full throttle
50% throttle
Reduced throttle
SAFE™ Technology Flight Modes
Beginner Mode:
Pitch (nose up and down) and Roll (wing tips up
and down) angles are limited to help you keep
the aircraft airborne.
Self-leveling
Intermediate Mode:
The pilot is only prevented from entering
extreme fl ight conditions.
Experienced Mode:
Unlimited Flight Envelope
Panic Recovery Mode
If you feel you have
lost control in any
mode, hold the Panic
Recovery button. The
SAFE technology will
return the aircraft to a
stable attitude (wings
level with a slight
climb). Always fl y at a
safe altitude, as Panic
Recovery may cause the aircraft to lose some
altitude when leveling the wings. Release the
Panic Recovery button to turn off Panic mode
and return to the current SAFE fl ight mode.
CH 5
CH 5
Beginner Mode
(Switch Position 0)
CH 5
Intermediate Mode
(Switch Position 1)
CH 5
Experienced Mode
(Switch Position 2)
RollPitch
RollPitch
RollPitch
NOTICE: If the aircraft is
upside down when the
Panic Recovery button
is pressed, suffi cient
altitude is required for
the aircraft to return to
straight and level fl ight.
®
10
Super Cub S
EN
Setup for Optional
Transmitters
To operate the SAFE system in this aircraft, set up
your optional DSM2/DSMX transmitter using the
chart below.
- SAFE Flight mode is selected using
Channel 5 signal (high, middle, low)
- Panic Recovery mode is selected with
Channel 6 signal (high, low)
IMPORTANT: A transmitter with a 2-position Channel
5 switch will only allow the use of position 0 or position 2 fl ight modes. If possible (refer to your transmitter manual) assign Channel 5 in your transmitter to a
3-position switch to operate all 3 fl ight modes.
Refer to your transmitter’s manual for more
information about transmitter setup.
Transmitter
DX4e
(2pos switch)
DX4e
(3pos switch)
DX5e
(2pos switch)
DX5e
(3pos switch)
Non Computerized Transmitter Setup
(DX4e and DX5e)
SAFE
mode
switch
Throttle, Aileron, Elevator and Rudder in Normal Position
ACT/AUX
switch
CH 5
switch
CH 5
switch
CH 5
switch
Panic Recovery Switch
Trainer Button2 Pos Flight Mode
Trainer Button3 Pos Flight Mode
Trainer Switch2 Pos Flight Mode
Trainer Switch3 Pos Flight Mode
SAFE Flight
Modes Supported
Computerized Transmitter Setup
(DX6i, DX7S, DX8, DX9, DX18 and DX18QQ)
Start all transmitter programming with a blank model (do a model reset), then name the model.
Set Dual Rates to:
DX6i
DX7S
DX8
DX9
DX18
DX18QQ
1. Go to the SETUP LIST MENU
2. Set MODELTYPE: ACRO
3. Set REVERSE: Gear Channel
4. Go to ADJUST LIST MENU
5. Set TRAVEL ADJ: Gear/Fmode (0)100%; Gear/Fmode (1) 40%
6. Set FLAPS: Norm 100; LAND 100
7. Set MIX 1: ACT; Gear Gear ACT, RATE D 0%; U + 100%, SW MIX, TRIM INH
Resulting in: The Gear and Mix switches operate the 3 SAFE modes
3. Set SWITCH SELECT: Change all to INH then GEAR: AUX1, FLAP: GEAR
4. Go to the FUNCTION LIST
5. Set SERVO SETUP: Reverse AUX1
Resulting in: Flap/Gyro Switch operates the 3 SAFE modes (0 beginner/1 intermediate/2 advanced)
The Trainer/Bind button operates Panic Recovery
1. Go to the SYSTEM SETUP
2. Set MODEL TYPE: AIRPLANE
3. Set CHANNEL ASSIGN: click NEXT to go to Channel Input Confi g: GEAR: D, AUX1: i
4. Go to the FUNCTION LIST
5. Set SERVO SETUP: Reverse AUX1
Resulting in: Switch D operates the 3 SAFE modes (0 beginner/1 intermediate/2 advanced)
The Bind/I button operates Panic Recovery
HIGH 100%
LOW 70%
11
BNF • RTF
EN
Low Voltage Cutoff (LVC)
NOTICE: Repeated fl ying to when the motor pulses
will damage the battery.
For your fi rst fl ights, set a timer for 7 minutes to
avoid fl ying until the motor pulses. Adjust your timer
for longer or shorter fl ights once you have fl own the
aircraft.

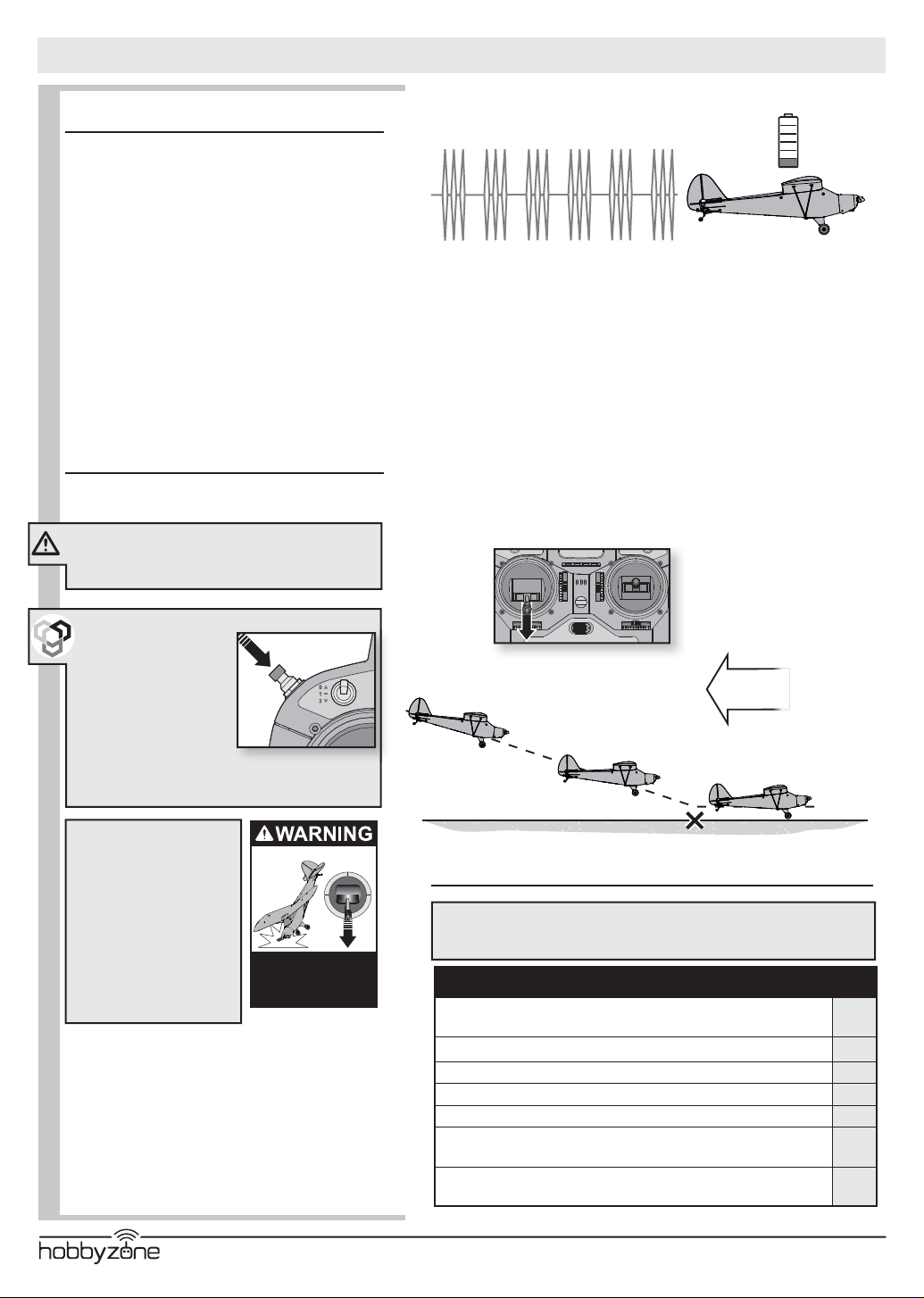

Landing
Land the aircraft in Beginner mode.
CAUTION: Never catch a fl ying aircraft in your
hands. Doing so could cause personal injury and
damage to the aircraft.
Super Cub S
• The aircraft protects the fl ight battery from accidental over-discharge
by applying LVC, removing power supplied to the motor.
• LVC causes the motor to pulse, but power remains to steer the aircraft.
• If the motor pulses, land immediately and recharge the fl ight battery.
• After use, disconnect and remove the battery from the aircraft to
prevent trickle discharge.
• If the Li-Po battery is discharged below 3V per cell, it will not hold a
charge.
Easy Landing
Landing is easier if
you hold the Panic
Recovery button. Line up
for your landing, decrease
the throttle to 0% and
press and hold the Panic
Recovery button. The
aircraft will glide down wings level with the nose
up (fl ared) for landing.
NOTICE: If a crash is
imminent, reduce the
throttle. Failure to do
so could result in extra
damage to the airframe,
as well as damage to the
receiver and motor.
NOTICE: Crash damage is
not covered under
warranty.
decrease throttle at
CH 5
Always
propeller strike.
Prolong Battery Life
• Before storage, charge your battery to about half
capacity. Capacity decreases with use and age.
• During storage, ensure the charge does not fall
below 3V per cell.
Descends at 0% throttle
Wind 0–7 mph
(0–11km/h)
Post Flight
NOTICE: When you are fi nished fl ying, never leave the aircraft in direct
sunlight or in a hot, enclosed area such as a car. Doing so can damage the
foam.
Post Flight Checklist
1. Disconnect fl ight battery from the aircraft. (Required for
Safety)
2. Remove fl ight battery from the aircraft.
3. Power off transmitter.
4. Recharge fl ight battery.
5. Repair or replace all damaged parts.
6. Store fl ight battery apart from the aircraft and monitor the
battery charge.
7. Make note of fl ight conditions and fl ight plan results,
planning for future fl ights.
®
12
Super Cub S
Troubleshooting Guide
ProblemPossible CauseSolution
Damaged propeller or spinnerReplace propeller or spinner
Loose or damaged spinner, propeller,
motor or gear box parts
Aircraft oscillates
Trim is at extreme and
aircraft does not fl y
straight or level
Aircraft will not respond to throttle but
responds to other
controls
Extra propeller noise or
extra vibration
Reduced fl ight time or
aircraft underpowered
Aircraft will not Bind
(during binding) to
transmitter.
Refer to the transmitter manual for binding
instructions
Aircraft will not
connect (after binding)
to transmitter
Refer to the transmitter manual for binding
instructions
Control surface does
not move
Controls reversedTransmitter settings are reversed
Motor power pulses
then motor loses
power
Loose receiverAlign and secure receiver in fuselage
Loose aircraft controls
Worn partsReplace worn parts (especially propeller, spinner or servo)
Trim is not at neutral
Throttle not at lowest position or throttle
trim too high
Throttle channel is reversedReverse throttle channel on transmitter
Motor disconnected from Receiver/ESCMake sure motor is connected to the Receiver/ESC
Damaged propeller and spinner, shaft
or motor
Propeller is out of balanceBalance or replace propeller
Prop nut is too looseTighten the prop nut
Spinner is damaged or loose Repair or replace damaged spinner
Flight battery charge is lowCompletely recharge fl ight battery
Propeller installed backwardsInstall propeller with numbers facing forward
Flight battery damagedReplace fl ight battery and follow fl ight battery instructions
Flight conditions may be too coldMake sure battery is warm before use
Transmitter too near aircraft during
binding process
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Flight battery/transmitter battery charge
is too low
Bind switch or button not held long
enough during bind process
Transmitter too near aircraft during
connecting process
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Flight battery/Transmitter battery charge
is too low
Transmitter may have been bound to a
different aircraft using different DSM
protocol
Control surface, control horn, linkage or
servo damage
Wire damaged or connections looseDo a check of wires and connections, connect or replace as needed
Flight battery charge is lowFully recharge fl ight battery
Receiver is damagedReplace Receiver
Normal Low Voltage Cutoff (LVC)Recharge fl ight battery or replace battery that is no longer performing
Weather conditions might be too coldPostpone flight until weather is warmer
Battery is old, worn out, or damagedReplace battery
Battery C rating might be too smallUse recommended battery
Replace parts or correctly align all parts and tighten fasteners
as needed
Tighten or otherwise secure parts (servo, arm, linkage, horn and
control surface)
If you need to adjust trim more than 8 clicks, return the trim to neutral
and manually adjust the clevis to mechanically remove trim
Reset controls with throttle stick and throttle trim at lowest
setting
Replace damaged parts
Move powered transmitter a few feet from aircraft, disconnect and
reconnect fl ight battery to aircraft
Move aircraft and transmitter to another location and attempt binding
again
Replace/recharge batteries
Power off transmitter and repeat bind process. Hold transmitter bind
button or switch until receiver is bound
Move powered transmitter a few feet from aircraft, disconnect and
reconnect fl ight battery to aircraft
Move aircraft and transmitter to another location and attempt
connecting again
Replace/recharge batteries
Bind aircraft to transmitter
Replace or repair damaged parts and adjust controls
Perform the Control Direction Test and adjust the controls on transmitter appropriately
EN
13
BNF • RTF
EN
Service and Repair
Super Cub S
NOTICE: If you replace the receiver, install the new
receiver in the same orientation and manner as the
original receiver or damage may result.
Thanks to the Z-Foam
fuselage of this aircraft, repairs to the foam can be
made using virtually any adhesive (hot glue, regular
CA (cyanoacrylate adhesive), epoxy, etc).
However, use only foam-compatible CA, foam-compatible accelerant or epoxy on the vertical
and horizontal tail material.
™
material in the wing and
G
D
C
B
A
Disassembly
CAUTION: DO NOT handle the spinner, propeller,
motor or Receiver/ESC unit while the battery is
connected to the Receiver/ESC. Personal injury
could result.
I
H
F
E
J
O
N
M
L
K
1. Remove the spinner (A) from the hex nut.
2. Remove the hex nut (B), washer (C) and propeller (D)
from the gear shaft (E).
3. Remove 3 screws (F) and the cowling (G) from the
fuselage.
4. Remove 4 screws (H), 4 washers (I) and the gearbox
(J) from the fi rewall.
5. In the fuselage, disconnect 2 bullet connectors of
the motor (K) from the ESC connectors (motor wire
colors align with ESC wire colors) and remove the
motor wires from the fuselage.
6. Remove the hex nut (L), spacer (M) and front bearing
(N) from the gear shaft.
7. Remove the gear shaft and rear bearing (O) from the
gearbox.
8. Remove 2 screws (P), 2 rubber washers (Q) and the
motor from the gearbox.
®
P
Q
14
Limited Warranty
Super Cub S
EN
What this Warranty Covers
Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the
product purchased (the “Product”) will be free from defects in materials
and workmanship at the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage,
(ii) damage due to acts of God, accident, misuse, abuse, negligence,
commercial use, or due to improper use, installation, operation or
maintenance, (iii) modifi cation of or to any part of the Product, (iv)
attempted service by anyone other than a Horizon Hobby authorized
service center, (v) Product not purchased from an authorized Horizon
dealer, or (vi) Product not compliant with applicable technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO
OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY
AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE
IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES
THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY
MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall
be that Horizon will, at its option, either (i) service, or (ii) replace, any
Product determined by Horizon to be defective. Horizon reserves the right
to inspect any and all Product(s) involved in a warranty claim. Service
or replacement decisions are at the sole discretion of Horizon. Proof of
purchase is required for all warranty claims. SERVICE OR REPLACEMENT
AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM
IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY
OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event
shall the liability of Horizon exceed the individual price of the Product
on which liability is asserted. As Horizon has no control over use, setup,
fi nal assembly, modifi cation or misuse, no liability shall be assumed nor
accepted for any resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability. If you as the purchaser or
user are not prepared to accept the liability associated with the use of the
Product, purchaser is advised to return the Product immediately in new
and unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to confl ict of law
principals). This warranty gives you specifi c legal rights, and you may also
have other rights which vary from state to state. Horizon reserves the right
to change or modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty
support or service. Once assembly, setup or use of the Product has been
started, you must contact your local distributor or Horizon directly. This
will enable Horizon to better answer your questions and service you in
the event that you may need any assistance. For questions or assistance,
please visit our website at www.horizonhobby.com, submit a Product
Support Inquiry, or call the toll free telephone number referenced in the
Warranty and Service Contact Information section to speak with a Product
Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the
country you live and use the Product in, please use the Horizon Online
Service Request submission process found on our website or call Horizon
to obtain a Return Merchandise Authorization (RMA) number. Pack the
Product securely using a shipping carton. Please note that original
boxes may be included, but are not designed to withstand the rigors of
shipping without additional protection. Ship via a carrier that provides
tracking and insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted at our facility.
An Online Service Request is available at http://www.horizonhobby.com/
content/_service-center_render-service-center. If you do not have internet
access, please contact Horizon Product Support to obtain a RMA number
along with instructions for submitting your product for service. When
calling Horizon, you will be asked to provide your complete name, street
address, email address and phone number where you can be reached
during business hours. When sending product into Horizon, please include
your RMA number, a list of the included items, and a brief summary of
the problem. A copy of your original sales receipt must be included for
warranty consideration. Be sure your name, address, and RMA number are
clearly written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue
with a LiPo battery, please contact the appropriate Horizon Product
Support offi ce.
Warranty Requirements
For Warranty consideration, you must include your original sales receipt
verifying the proof-of-purchase date. Provided warranty conditions have
been met, your Product will be serviced or replaced free of charge. Service
or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be
completed and payment will be required without notifi cation or
estimate of the expense unless the expense exceeds 50% of the
retail purchase cost. By submitting the item for service you are agreeing
to payment of the service without notifi cation. Service estimates are
available upon request. You must include this request with your item
submitted for service. Non-warranty service estimates will be billed
a minimum of ½ hour of labor. In addition you will be billed for return
freight. Horizon accepts money orders and cashier’s checks, as well as
Visa, MasterCard, American Express, and Discover cards. By submitting
any item to Horizon for service, you are agreeing to Horizon’s Terms and
Conditions found on our website http://www.horizonhobby.com/content/_
service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in the
country of use and ownership. If received, a non-compliant Product
will not be serviced. Further, the sender will be responsible for
arranging return shipment of the un-serviced Product, through a
carrier of the sender’s choice and at the sender’s expense. Horizon
will hold non-compliant Product for a period of 60 days from
notifi cation, after which it will be discarded.
15
BNF • RTF
EN
Super Cub S
Warranty and Service Contact Information
Country of PurchaseHorizon HobbyContact InformationAddress
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifi cations not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This product contains a radio transmitter with wireless technology
which has been tested and found to be compliant with the
applicable regulations governing a radio transmitter in the
2.400GHz to 2.4835GHz frequency range.
Antenna Separation Distance
When operating your transmitter,
please be sure to maintain a
separation distance of at least 5 cm
between your body (excluding fi ngers,
hands, wrists, ankles and feet) and
the antenna to meet RF exposure
safety requirements as determined by
FCC regulations.
This illustration show the
approximate 5 cm RF exposure area
and typical hand placement when
operating your transmitter.
IC Information
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
The object of declaration described above is in conformity with
the requirements of the specifi cations listed below, following
the provisions of the European R&TTE Directive 1999/5/EC, EMC
Directive 2004/108/EC and LVD Directive 2006/95/EC:
EN 300-328 V1.7.1: 2006
EN 301 489-1 V1.9.2: 2012
EN 301 489-17 V2.1.1: 2009
The object of declaration described above is in conformity with
the requirements of the specifi cations listed below, following
the provisions of the European R&TTE Directive 1999/5/EC, EMC
Directive 2004/108/EC and LVD Directive 2006/95/EC:
EN 301 489-1 V1.9.2: 2012
EN 301 489-17 V2.1.1: 2009
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
March 26, 2014
Chief Financial Offi cer
Robert Peak
Horizon Hobby, Inc.
Instructions for disposal of WEEE by users in the European Union
This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste
equipment by handing it over to a designated collections point for the recycling of waste electrical and electronic equipment.
The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources
and ensure that it is recycled in a manner that protects human health and the environment. For more information about
where you can drop off your waste equipment for recycling, please contact your local city offi ce, your household waste
disposal service or where you purchased the product.
17
BNF • RTF
Super Cub S
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio
IT
Part # | Nummer
Numéro | Codice
HBZ10029 x 6 Propeller9 x 6 PropellerHélice 9x69 x 6 Elica
HBZ1003
HBZ10041.5A AC Power SupplyHobbyzone 1.5A NetzteilAlimentation secteur 1.5A1.5A AC Alimentatore
SPMA3170
PKZ1033
HBZ7104Prop Shaft
HBZ7106Landing Gear with Tires Fahrwerk m. Bereifung
HBZ7107SpinnerSpinnerCôneOgiva
HBZ7112Battery Door with Latch Super Cub Batteriefachdeckel
HBZ7114Firewall with ScrewsBrandschottCloison pare feu avec visOrdinata motore con viti
HBZ7117Tail WheelRoulette de queueRuotino coda
HBZ7129Gearbox with FirewallGetriebe mit MotorspantRéducteurRiduttore con ordinata
HBZ7134Motor with PinionMotor mit RitzelMoteur avec pignonMotore con pignone
PKZ1536
HBZ7135Metal Pinion (2)Metalritzel (2)Pignon métal (2)Pignone in metallo (2)
HBZ8167
HBZ8110Decal Sheet: Super Cub DekorbogenPlanche de décorationFoglio adesivi
PKZ1060
PKZ1062Servo Gear SetServo Hebel Set Set de pignons pour servoSet ingranaggi servo
PKZ1132
SPMR4400
SPMR4401
Pushrods and Clevis
Set (2)
Motor Screws (2): M
2.5 x 6
Bare Fuselage (no
receiver)
Mini Servo (3W) with
Arms, Short Lead
Servo Arm Assortment
(3W & 5W)
DX4e 4-Channel Full
Range Transmitter Only
(Mode 2)
DX4e 4-Channel Full
Range Transmitter Only
(Mode 1)
Tragfl ächendübel2 tiges de fi xation d’aile
Empennages avec accessoires
Schubstangen mit Clips (2)Set de tringleries avec chapes Set barrette e forcelle (2)
Motorschrauben M2,5x6 (2)
Schaumteilesatz o. Elektronik Fuselage nu
Parkzone Mini Servo, 3 adrig,
kurzes Kabel
Servo Getriebe 3W & 5WAssortiment de bras de servo
