CATALOG OF
REPLACEMENT
PARTS
X33AE SLICER
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
Table Of Contents
3 RING GUARD AND CENTER PLATE
5 ARM ASSEMBLY
7 GAUGE PLATE ASSEMBLY
9 AUTODRIVE ASSEMBLY
10 PRODUCT TABLE
11 KNIFE AND MOTOR ASSEMBLY
13 KNIFE SHARPENER UNIT
15 BOTTOM COVER AND KICKSTAND
F-43160 (November 2008)
- 2 -
© HOBART 2008
X33AE SLICER REPLACEMENT PARTS
4
16
5-6
2
3
11
7
8
9
10
1
12
14
15
13
PL-58860
RING GUARD AND CENTER PLATE
ILLUS. PART NO. NAME OF PART AMT.
PL-58860
1 01-402175-00529 Screw Flat Hd. ........................................................................................................................... 1
2 01-403375-01391 Stud – Post ................................................................................................................................ 1
3 01-402275-00608 Ring – Retaining ........................................................................................................................ 1
4 01-403375-01392 Knob ..........................................................................................................................................1
5 01-404675-01144 Center Plate Assy. (Incls. Items 3, 4, & 6).................................................................................. 1
6 01-403775-00499 Center Plate – Solid ...................................................................................................................1
7 01-403375-01388 Shoulder Stud ............................................................................................................................2
8 01-403275-00237 Shim (1.0 mm) ..........................................................................................................................AR
9 01-403275-00238 Shim (0.5 mm) ..........................................................................................................................AR
10 01-403275-00241 Shim (0.3 mm) ..........................................................................................................................AR
11 01-403775-00497 Ring Guard ................................................................................................................................1
12 01-403875-00249 Foot (Suction) ............................................................................................................................4
13 01-403875-00239 Foot ............................................................................................................................................4
14 01-402275-00586 Washer .......................................................................................................................................2
15 01-402175-02867 Screw – Button Soc. Hd. ............................................................................................................2
16 01-403875-00171 Base ...........................................................................................................................................1
- 3 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
17
22
18
23
19
29
20
21
24
28
27
25
26
1
16
15
14
13
12
11
10
9
8
7
6
2
3
4
5

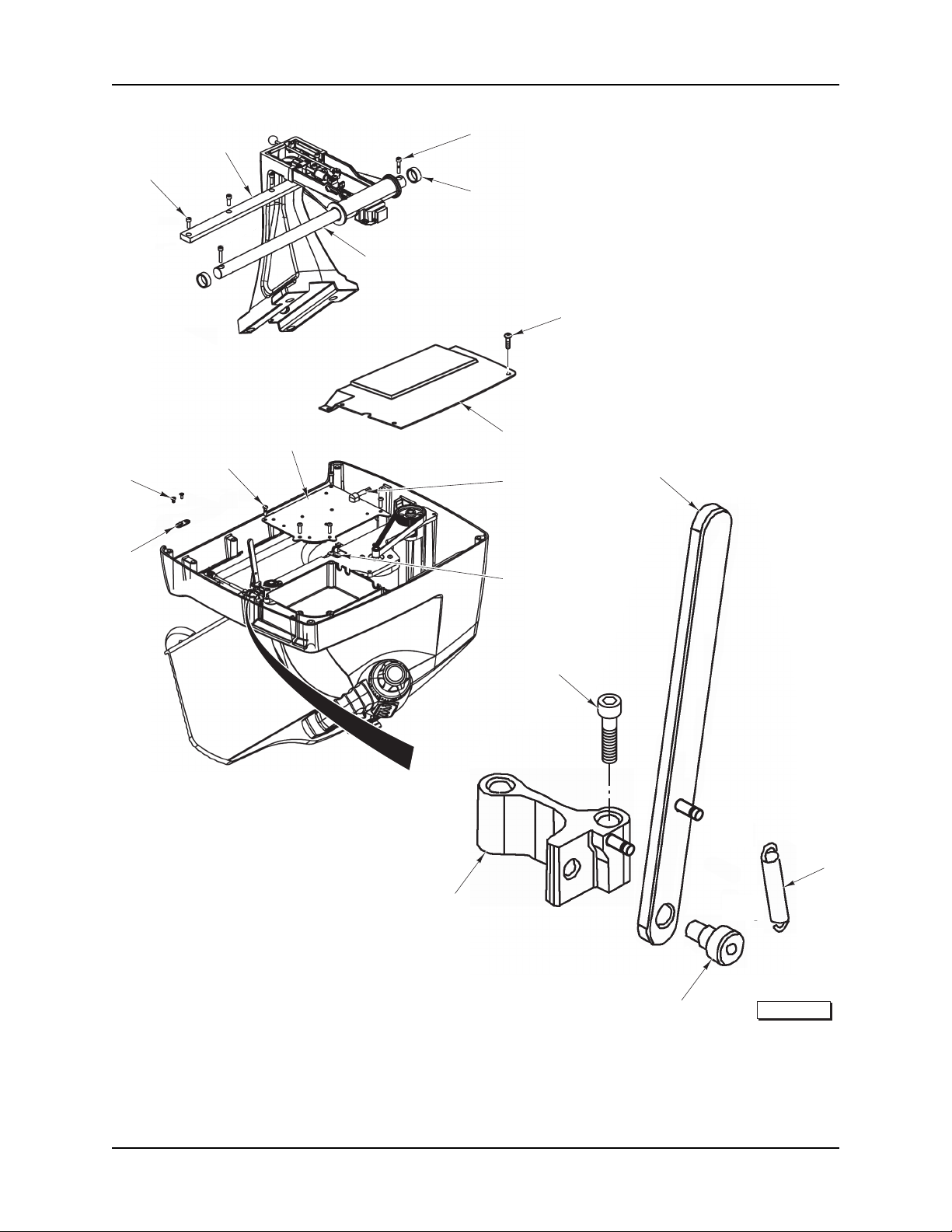

PL-58857
ARM ASSEMBLY
F-43160 (November 2008)
- 4 -
X33AE SLICER REPLACEMENT PARTS
ARM ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
PL-58857
1 01-403875-00250 Top Plate Assy............................................................................................................................1
2 01-402175-02862 Cap Screw Socket Button Hd. ................................................................................................... 1
3 01-403475-01021 Cam – Autodrive Clutch .............................................................................................................1
4 01-403375-01376 Shaft – Clutch Pivot ................................................................................................................... 1
5 01-402275-00592 Disc – Spring .............................................................................................................................1
6 01-403275-00242 Wick – Oil ...................................................................................................................................1
7 01-404375-00226 Arm – Transport (Incls. Item 29) ................................................................................................ 1
8 01-402675-00920 Sensor – Arm .............................................................................................................................1
9 01-402175-02831 Cap Screw Socket Button Hd. ................................................................................................... 2
10 01-404575-01033 Clip Assy. ...................................................................................................................................1
11 01-403475-01023 Plate – Autodrive Clutch ............................................................................................................ 1
12 01-402175-02923 Cap Screw Flat Socket Hd. ........................................................................................................4
13 01-403375-01280 Mount – Transport Roller ........................................................................................................... 1
14 01-403375-01378 Spacer – Shaft ........................................................................................................................... 1
15 01-402375-00167 Roller – Transport ......................................................................................................................1
16 01-402175-00502 Shoulder Bolt .............................................................................................................................1
17 01-402275-00606 Knob – Auto Engage ..................................................................................................................1
18 01-403375-01373 Rod – Clutch Engage .................................................................................................................1
19 01-402175-02862 Cap Screw Socket Button Hd. ................................................................................................... 1
20 01-402375-00184 Clevis – Stock ............................................................................................................................ 1
21 01-403475-01022 Crank – Autodrive Clutch ...........................................................................................................1
22 01-402175-00510 Screw Socket Nylon Hd. ............................................................................................................ 1
23 01-402175-02746 Cap Screw Socket Hd. ...............................................................................................................1
24 01-402175-00541 Plug – Pipe ................................................................................................................................1
25 01-403875-00235 Plug – Top Plate .........................................................................................................................4
26 01-402175-02864 Cap Screw Socket Button Hd. ................................................................................................... 4
27 01-402175-02745 Cap Screw Socket Hd. ...............................................................................................................1
28 01-402275-00587 Washer .......................................................................................................................................1
29 01-402275-00521 Bushing ...................................................................................................................................... 2
- 5 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
3
4
2
1
5
6
27
26
25
24
22
21
28-29
7
8
9
23
10
11
12
13
14
15
F-43160 (November 2008)
20
19
18
17
16
GAUGE PLATE ASSEMBLY
- 6 -
PL-58863
X33AE SLICER REPLACEMENT PARTS
GAUGE PLATE ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
PL-58863
1 01-403875-00237 Mount – Upper ........................................................................................................................... 1
2 01-402175-00528 Screw ......................................................................................................................................... 5
3 01-403175-00952 Overlay ......................................................................................................................................1
4 01-402175-02779 Screw ......................................................................................................................................... 1
5 01-402275-00581 Pin – Dowel ................................................................................................................................1
6 01-403675-00257 Bushing – Flange .......................................................................................................................2
7 01-402175-00501 Shoulder Bolt ............................................................................................................................. 1
8 01-403875-00258 Arm – Slider ............................................................................................................................... 1
9 01-404375-00232 Cam Assy. (Incls Items 5, 7, & 8) ............................................................................................... 1
10 01-402175-00517 Screw ......................................................................................................................................... 2
11 01-403375-01286 Clamp ........................................................................................................................................1
12 01-403775-00458 Plate – Gauge ............................................................................................................................1
13 01-403875-00207 Housing – Lower ........................................................................................................................1
14 01-403375-01393 Stop Pin – Index Knob ............................................................................................................... 1
15 01-402275-00609 Grommet .................................................................................................................................... 1
16 01-402175-02756 Screw ......................................................................................................................................... 2
17 01-402175-00500 Screw ......................................................................................................................................... 1
18 01-403375-01276 Nut – Cylindrical .........................................................................................................................1
19 01-403275-00219 Block – Adjustment ....................................................................................................................1
20 01-403875-00236 Boot ...........................................................................................................................................1
21 01-402275-00414 Plug ............................................................................................................................................1
22 01-402175-00504 Nut ............................................................................................................................................. 1
23 01-403875-00248 Knob – Index ..............................................................................................................................1
24 01-402175-00077 Nut ............................................................................................................................................. 5
25 01-403275-00013 Lockwasher ................................................................................................................................5
26 01-404175-00715 Harness – Upper Wire ............................................................................................................... 1
27 01-402675-00918 PCB Assy. (Upper) .....................................................................................................................1
28 01-403875-00208 Housing – Upper ........................................................................................................................1
29 01-404375-00240 Housing – Upper Assy. (Incls. Item 28 & Magnet) .....................................................................1
01-402175-02744 Screw (Upper To Lower Housing & Housing To Base) .............................................................AR
01-402175-02749 Screw – Long (Housing To Base) .............................................................................................AR
01-402275-00586 Washer (Housing To Base) .......................................................................................................AR
01-404675-01165 LHA Assy. – No Lock (Black) (Incls. Items 1, 2, 3, 6, 9, 10, 11, 13, 14, 15, & 21 thru 29) .........1
- 7 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
1
7
8
6
2
3
4
18
17
16
2
15
14
5
9
10
11
F-43160 (November 2008)
13
12
PL-58856

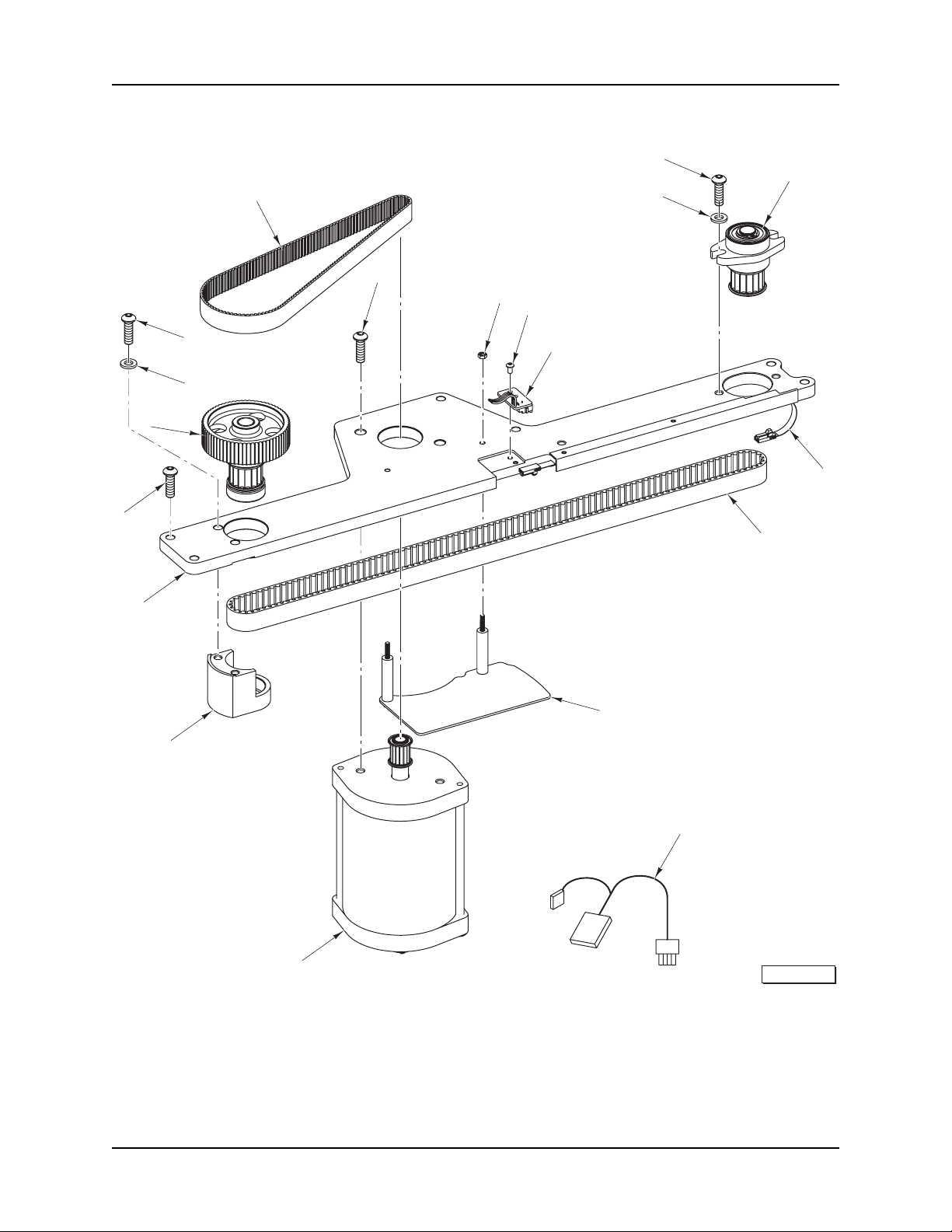

AUTODRIVE ASSEMBLY
- 8 -
X33AE SLICER REPLACEMENT PARTS
AUTODRIVE ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
PL-58856
1 01-402375-00172 Belt – Secondary .......................................................................................................................1
2 01-402175-02868 Cap Screw Socket Button Hd. ................................................................................................... 2
3 01-402175-00522 Lock Nut Hex ............................................................................................................................. 2
4 01-402175-02831 Cap Screw Socket Button Hd. ................................................................................................... 2
5 01-404175-00732 Cable (J4) .................................................................................................................................. 1
6 01-402275-00587 Washer ....................................................................................................................................... 2
7 01-402175-02866 Cap Screw Socket Button Hd. ................................................................................................... 2
8 01-404375-00224 Tensioner Assy. ..........................................................................................................................1
9 01-404175-00714 Flex Cable Assy. ........................................................................................................................ 1
10 01-402375-00171 Belt – Primary ............................................................................................................................ 1
11 01-404675-01151 Guide Assy. (Flex Cable) ...........................................................................................................1
12 01-404175-00716 Cable (J9) (Encode PCB Jumper) ............................................................................................. 1
13 01-404175-00734 Motor Assy. ................................................................................................................................1
14 01-403775-00495 Housing – Autodrive Transmission ............................................................................................ 1
15 01-404975-00481 Autodrive Plate Assy. ................................................................................................................. 1
16 01-404375-00225 Transmission ..............................................................................................................................1
17 01-402275-00603 Washer – Nylon ......................................................................................................................... 2
18 01-402175-02868 Cap Screw Socket Button Hd. ................................................................................................... 2
- 9 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
1
12
2
5
4
11
3
8
7
10
9
PL-58858
PRODUCT TABLE
ILLUS. PART NO. NAME OF PART AMT.
PL-58858
1 01-403875-00177 Pusher Assy. .............................................................................................................................. 1
2 01-404275-00236 Arm – Pusher .............................................................................................................................1
3 01-404575-01035 Handle – Pusher (Black) ............................................................................................................1
4 01-403375-01387 Rail – Guide ............................................................................................................................... 1
5 01-404675-01135 Fence – Product ........................................................................................................................1
6 01-402175-00509 Cap Screw Slotted Flat Hd. .......................................................................................................2
7 01-402275-00605 Knob ..........................................................................................................................................1
8 01-403375-01386 Sleeve ........................................................................................................................................1
9 01-402175-00505 Cap Screw Slotted Flat Hd. .......................................................................................................2
10 01-403875-00247 Handle – Table ...........................................................................................................................1
11 01-402175-02949 Cap Screw Flat Socket Hd. ........................................................................................................1
12 01-404975-00476 Table – Product .......................................................................................................................... 1
01-404675-01164 Table Assy. – Product (Black) (Incls. Items 4 & 6 thru 12) ......................................................... 1
6
F-43160 (November 2008)
- 10 -
X33AE SLICER REPLACEMENT PARTS
1
8
9
5
7
13
6
4
2
3
10
12
11
PL-58861
KNIFE AND MOTOR ASSEMBLY
ILLUS. PART NO. NAME OF PART AMT.
PL-58861
1 01-403675-00277 Knife ...........................................................................................................................................1
2 01-402175-00468 Bolt – Knife ................................................................................................................................1
3 01-402275-00524 Washer ....................................................................................................................................... 1
4 01-404675-01140 Hub Assy. (Knife) ....................................................................................................................... 1
5 01-402175-00469 Nut – Motor Mount ..................................................................................................................... 4
6 01-402175-02744 Screw .........................................................................................................................................4
7 01-404175-00724 Motor (208-240 V., 50/60 Hz., 1 Ph.) .........................................................................................1
8 01-403475-00963 Mount – Knife Motor ..................................................................................................................1
9 01-402375-00176 Belt – Knife Drive ....................................................................................................................... 1
10 01-402175-02746 Cap Screw Socket Hd. ...............................................................................................................4
11 01-402275-00554 O-Ring (Bearing Housing) .........................................................................................................1
12 01-402275-00530 O-Ring (Spindle Mount) ............................................................................................................. 1
13 01-403375-01269 Mount – Spindle .........................................................................................................................1
- 11 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
24
23
22
21
20
19
18
17
1
2
3
4
5
15
14
13
16
6
7
8
9
10
11
12
PL-58859
KNIFE SHARPENER UNIT
F-43160 (November 2008)
- 12 -
X33AE SLICER REPLACEMENT PARTS
KNIFE SHARPENER UNIT
ILLUS. PART NO. NAME OF PART AMT.
PL-58859
1 01-402275-00594 E-Clip ......................................................................................................................................... 1
2 01-402275-00441 Washer ....................................................................................................................................... 1
3 01-402775-00733 Magnet .......................................................................................................................................1
4 01-403875-00231 Frame – Sharpener ....................................................................................................................1
5 01-403375-01381 Shaft – Sharpener Actuator ....................................................................................................... 1
6 01-402275-00594 E-Clip ......................................................................................................................................... 1
7 01-402275-00595 Bushing ......................................................................................................................................1
8 01-403275-00231 Spring – Debur ...........................................................................................................................1
9 01-403875-00230 Frame – Debur ...........................................................................................................................1
10 01-402275-00583 E-Clip .........................................................................................................................................1
11 01-404975-00485 Kit – Debur Spindle (RH) (Incls. Item 15) ..................................................................................1
12 01-403875-00232 Skirt (Debur) .............................................................................................................................. 1
13 01-403675-00283 Stone – Borazon (Debur) ...........................................................................................................1
14 01-402275-00587 Washer .......................................................................................................................................1
*15 01-402175-00540 Nut M6 x 1 Hex (RH) .................................................................................................................1
16 01-403275-00232 Spring – Sharpener Actuator ..................................................................................................... 1
*17 01-402175-00540 Nut M6 x 1 Hex (RH) .................................................................................................................1
18 01-402275-00587 Washer .......................................................................................................................................1
19 01-403675-00283 Stone – Borazon (Sharpener) ....................................................................................................1
20 01-403875-00232 Skirt (Sharpener) ....................................................................................................................... 1
21 01-404975-00484 Kit – Sharpening Spindle (RH) (Incls. Item 17) ..........................................................................1
22 01-403275-00230 Spring – Sharpener ....................................................................................................................1
23 01-402275-00596 Bushing ...................................................................................................................................... 1
24 01-403475-01040 Washer – Fiber .......................................................................................................................... 1
01-404675-01158 Knife Sharpener Assy. (Incls. Items 1 thru 24) ...........................................................................1
*When replacing left hand threaded nuts with right hand threaded nuts, replacement of shafts (items 11 or 21)
with right hand threads will be required.
- 13 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
16
15
20
21
17
18-19
1
2-3
4
5
6
7
8
9
10
14
13
BOTTOM COVER AND KICKSTAND
12
11
PL-58862
F-43160 (November 2008)
- 14 -
X33AE SLICER REPLACEMENT PARTS
BOTTOM COVER AND KICKSTAND
ILLUS. PART NO. NAME OF PART AMT.
PL-58862
1 01-402175-02861 Cap Screw Button Socket Hd. ................................................................................................... 2
2 01-403275-00243 Bumper – Rubber ......................................................................................................................1
3 01-402275-00629 Washer – Bumper .....................................................................................................................AR
4 01-403375-01306 Rail – Round .............................................................................................................................. 1
5 01-402175-02862 Cap Screw Button Socket Hd. ..................................................................................................AR
6 01-403875-00238 Cover – Bottom (Incls. Item 5) ................................................................................................... 1
7 01-404175-00719 Cord – Power .............................................................................................................................1
8 01-402675-00562 Bushing – Strain Relief .............................................................................................................. 1
9 01-403875-00234 Grommet ....................................................................................................................................2
10 01-404375-00235 Leg – Kickstand ......................................................................................................................... 1
11 01-403275-00234 Spring – Extension ..................................................................................................................... 1
12 01-402175-00525 Shoulder Bolt .............................................................................................................................1
13 01-404375-00234 Bracket Assy. – Kickstand ..........................................................................................................1
14 01-402175-00527 Screw ......................................................................................................................................... 2
15 01-403375-01286 Clamp – Interlock .......................................................................................................................3
16 01-402175-02934 Cap Screw Flat Socket Hd ........................................................................................................AR
17 01-402175-02854 Cap Screw Button Socket Hd. ................................................................................................... 5
18 01-402675-00934 PCB Assy. (Main Board) (230 V.) ...............................................................................................1
19 01-402675-00752 Breaker – Circuit (12 Amp., 120 V.) ...........................................................................................1
20 01-402175-02743 Cap Screw Button Socket Hd. ................................................................................................... 4
21 01-403375-01278 Rail – Square ............................................................................................................................. 1
01-404675-01139 Kick Stand Assy. (Incls. Items 10 Thru 13) ................................................................................1
- 15 -
F-43160 (November 2008)
X33AE SLICER REPLACEMENT PARTS
FORM 43160 NOVEMBER 2008 PRINTED IN U.S.A.
Loading...
