Page 1
CATALOG OF
REPLACEMENT
PARTS
4146 GRINDER
ML-33607 (RH) (PAINTED)
ML-33608 (LH) (PAINTED)
ML-33609 (RH) (SST)
ML-33610 (LH) (SST)
PRIOR ML'S COVERED IN THIS
CATALOG
ML-19573 (RH) (PAINTED)
ML-19574 (LH) (PAINTED)
ML-19575 (RH) (SST)
ML-19576 (LH) (SST)
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43264 Rev. A (April 2013)
Page 2
4146 GRINDER REPLACEMENT PARTS
F-43264 Rev. A (April 2013) - 2 - © HOBART 2013
Page 3
Table of Contents
4146 GRINDER REPLACEMENT PARTS
5 SWITCH UNIT
7 CONTROL PANEL UNIT (PREVIOUS CONSTRUCTION)
9 CONTROL PANEL UNIT (CURRENT CONSTRUCTION)
11 SAFETY SWITCH UNIT
13 GRINDER UNIT (NSF)
15 PANELS, LEGS, AND MOTOR ASSEMBLY
17 PANEL HARDWARE
19 GEAR CASE AND DRIVE UNIT
21 MOTOR UNIT (1 PH.)
23 MOTOR UNIT (3 PH. - SINGLE VOLTAGE)
25 MOTOR UNIT (3 PH. - DUAL VOLTAGE)
- 3 - F-43264 Rev. A (April 2013)
Page 4
4146 GRINDER REPLACEMENT PARTS
SWITCH UNIT
F-43264 Rev. A (April 2013) - 4 -
Page 5
SWITCH UNIT
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60060
10 00-087711-183-2 Switch - Push Button (N.C.) (Stop).............................................................................................1
11 SC-013-12 Mach. Screw 6-32 x 1/4 Slotted Flat Hd.....................................................................................4
12 00-291727 Switch - Plate.............................................................................................................................1
13 00-102467-00002 Cap - Push Button (Stop) (Red).................................................................................................1
14 00-102467-00001 Cap - Push Button (Start) (Black)...............................................................................................1
15 00-087711-183-1 Switch - Push Button (N.O.) (Start)............................................................................................1
16 SC-053-35 Mach. Screw 8-32 x 3/8 Slotted Truss Hd..................................................................................2
17 SC-053-35 Mach. Screw 8-32 x 3/8 Slotted Truss Hd..................................................................................2
18 00-293852 Shield Assy.................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-068985 Bracket - Push Button Station....................................................................................................1
2 00-069485 Insulation - Push Button Station.................................................................................................1
*3 Station - Push Button.................................................................................................................1
4 SC-012-74 Mach. Screw 10-32 x 3/4 Slotted Fil. Hd....................................................................................2
5 SC-053-35 Mach. Screw 8-32 x 3/8 Slotted Truss Hd..................................................................................4
6 00-065998 Speed Nut - Tinnerman..............................................................................................................4
7 00-068984-00001 Cap - Push Button (Black)..........................................................................................................1
8 00-068984-00002 Cap - Push Button (Red)............................................................................................................1
*9 Plate - Push Button....................................................................................................................1
00-291919 Kit - Switch & Plate Assy............................................................................................................1
* Item no longer available. Order Service Kit 00-291919 to convert to new style.
Use new switch plate as a template to drill holes in old panels.
- 5 - F-43264 Rev. A (April 2013)
Page 6
4146 GRINDER REPLACEMENT PARTS
CONTROL PANEL UNIT
(PREVIOUS CONSTRUCTION)
F-43264 Rev. A (April 2013) - 6 -
Page 7
CONTROL PANEL UNIT
(PREVIOUS CONSTRUCTION)
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60061
*10 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................4
*11 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................4
*12 00-078752-00002 Retainer (3/4 In.)........................................................................................................................1
13 SC-007-68 Mach. Screw 8-32 x 5/8 Slotted Rd. Hd.....................................................................................1
14 WL-003-14 Lockwasher #8 Helical...............................................................................................................1
*15 SD-009-17 Self-Tapping Screw 8-32 x 5/8 Phil. Pan Hd., Type F................................................................2
*16 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................2
*17 00-117256 Block - Terminal.........................................................................................................................1
18 SC-007-68 Mach. Screw 8-32 x 5/8 Slotted Rd. Hd.....................................................................................2
19 WL-003-14 Lockwasher #8 Helical...............................................................................................................2
PART NO. NAME OF PART AMT.
1 00-123245 Panel - Control...........................................................................................................................1
2 00-946621-00001 Kit - Magnetic Starter Replacement (200-208 V., 60 Hz., 3 Ph.)................................................1
3 00-946621-00002 Kit - Magnetic Starter Replacement (230 V., 60 Hz., 3 Ph.).......................................................1
4 00-946621-00003 Kit - Magnetic Starter Replacement (380 V., 50 Hz., 3 Ph.).......................................................1
5 00-946621-00004 Kit - Magnetic Starter Replacement (460 V., 60 Hz., 3 Ph.).......................................................1
6 00-087712-036-2 Starter - Magnetic (Less Elements) (1 Ph.)................................................................................1
7 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................4
8 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................4
*9 00-123449-00002 Transformer................................................................................................................................1
** Heater Element.......................................................................................................................AR
* Use with Voltage above 250.
** Give Electrical Spec., Mach., Model, & Motor Type.
- 7 - F-43264 Rev. A (April 2013)
Page 8
4146 GRINDER REPLACEMENT PARTS
CONTROL PANEL UNIT
(CURRENT CONSTRUCTION)
F-43264 Rev. A (April 2013) - 8 -
Page 9
CONTROL PANEL UNIT
(CURRENT CONSTRUCTION)
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60062
10 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................4
*11 00-123449-00002 Transformer................................................................................................................................1
*12 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................4
*13 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................4
*14 SD-009-17 Self-Tapping Screw 8-32 x 5/8 Phil. Pan Hd., Type F................................................................2
*15 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................2
*16 00-117256 Block - Terminal.........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-946615 Panel - Control...........................................................................................................................1
2 00-088196-024-2 Relay - Overload (460 V., 60 Hz., 3 Ph.)....................................................................................1
3 00-088196-024-3 Relay - Overload (380 V., 50 Hz., 3 Ph.)....................................................................................1
4 00-088196-024-4 Relay - Overload (200-230 V., 60 Hz., 3 Ph.).............................................................................1
5 00-087713-094-3 Contactor (460 V., 60 Hz., 3 Ph.) & (230 V., 60 Hz., 3 Ph.).......................................................1
6 00-087713-094-2 Contactor (380 V., 50 Hz., 3 Ph.) & (200-208 V., 60 Hz., 3 Ph.)................................................1
7 SC-007-68 Mach. Screw 8-32 x 5/8 Slotted Rd. Hd.....................................................................................3
8 WL-003-14 Lockwasher #8 Helical...............................................................................................................3
9 SD-009-17 Self-Tapping Screw 8-32 x 5/8 Phil. Pan Hd., Type F................................................................4
00-117612-00008 Cord & Plug Assy. (230 V.)........................................................................................................1
* Use with Voltage above 250.
- 9 - F-43264 Rev. A (April 2013)
Page 10
4146 GRINDER REPLACEMENT PARTS
SAFETY SWITCH UNIT
F-43264 Rev. A (April 2013) - 10 -
Page 11
SAFETY SWITCH UNIT
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60063
10 SC-060-39 Mach. Screw 6-32 x 7/8 Slotted Rd. Hd.....................................................................................2
11 00-069483 Shield - Switch Drip....................................................................................................................1
12 SC-021-23 Mach. Screw 10-24 x 1/2 Rd. Hd...............................................................................................1
13 WL-006-06 Lockwasher #10 Helical (SST)...................................................................................................1
14 NS-031-19 Stop Nut 1/4-20 Hex (SST)........................................................................................................1
15 00-068986 Bracket - Safety Switch..............................................................................................................1
16 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................3
17 00-070575-00003 Plunger - Cylinder.......................................................................................................................1
18 RR-006-22 Retaining Ring 1/4 In. (SST)......................................................................................................1
19 WS-017-09 Washer (SST).............................................................................................................................1
20 00-007433-00002 Spring.........................................................................................................................................1
21 WL-006-06 Lockwasher #10 Helical (SST)...................................................................................................1
22 SC-021-23 Mach. Screw 10-24 x 1/2 Rd. Hd...............................................................................................1
23 00-069406 Bracket - Switch Actuating.........................................................................................................1
24 WS-017-10 Washer.......................................................................................................................................1
25 NS-031-19 Stop Nut 1/4-20 Hex (SST)........................................................................................................1
PART NO. NAME OF PART AMT.
1 00-068966-00002 Pan Rest Assy............................................................................................................................1
2 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................2
3 00-913102-00094 Bushing & Speed Nut Assy........................................................................................................1
4 00-070574-00001 Plunger - Pan.............................................................................................................................1
5 RR-006-22 Retaining Ring 1/4 In. (SST)......................................................................................................1
6 WS-003-49 Washer (SST).............................................................................................................................1
7 00-007433-00002 Spring.........................................................................................................................................1
8 00-069679 Barrier - Safety Switch................................................................................................................1
9 00-087711-216-1 Switch - Miniature.......................................................................................................................1
00-069407-00004 Safety Switch Assy. (Incls. Items 4 thru 15 & 17 thru 25)..........................................................1
- 11 - F-43264 Rev. A (April 2013)
Page 12
4146 GRINDER REPLACEMENT PARTS
GRINDER UNIT (NSF)
F-43264 Rev. A (April 2013) - 12 -
Page 13
GRINDER UNIT (NSF)
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60064
10 00-110576 Stud - Plate.................................................................................................................................1
11 00-080982 Washer - Worm Retainer............................................................................................................1
12 00-111823 Worm Assy. (Incls. Item 10).......................................................................................................1
13 00-105806 Pin - Plate...................................................................................................................................3
14 00-101574-00001 Cylinder Assy. (Incls. Item 13)....................................................................................................1
15 00-101121 Bowl - Cylinder...........................................................................................................................1
**16 00-069456-00001 Bracket - Feed Pan Clamp (STL)...............................................................................................1
**17 00-069456-00002 Bracket - Feed Pan Clamp (SST)...............................................................................................1
18 00-080748 Meat Deflector Assy. (Previous Construction) (Use with Item 19).............................................1
***19 Ring - Adjusting (Hand Wheel Type) (Previous Construction)...................................................1
20 00-873570 Wrench - Cylinder.......................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-089272-00018 Stomper - Feed (Plastic)............................................................................................................1
2 00-101219-00001 Feed Pan Assy. (STL) (Opening in LH End of Machine with RH Switch Paneling)...................1
3 00-101219-00002 Feed Pan Assy. (Opening in LH End of Machine with RH Switch Paneling).............................1
4 00-101222-00001 Feed Pan Assy. (STL) (Opening in RH End of Machine with LH Switch Paneling) (Not
Shown).......................................................................................................................................1
5 00-101222-00002 Feed Pan Assy. (SST) (Opening in RH End of Machine with LH Switch Paneling) (Not
Shown).......................................................................................................................................1
6 00-875250 Meat Deflector (Packaged) (Current Construction)....................................................................1
7 00-873697 Ring - Adjusting (Current Construction).....................................................................................1
*8 Plate...........................................................................................................................................1
*9 Knife...........................................................................................................................................1
ML-016906-0000Z Chopper Attachment Assy. (Incls. Items 6, 7, 10 thru 15, & 20)................................................1
* Sharp, high quality knives and plates should be purchased or rented for this
grinder.
** Welded Parts.
*** Item no longer available. Order Items 6 & 7.
- 13 - F-43264 Rev. A (April 2013)
Page 14
4146 GRINDER REPLACEMENT PARTS

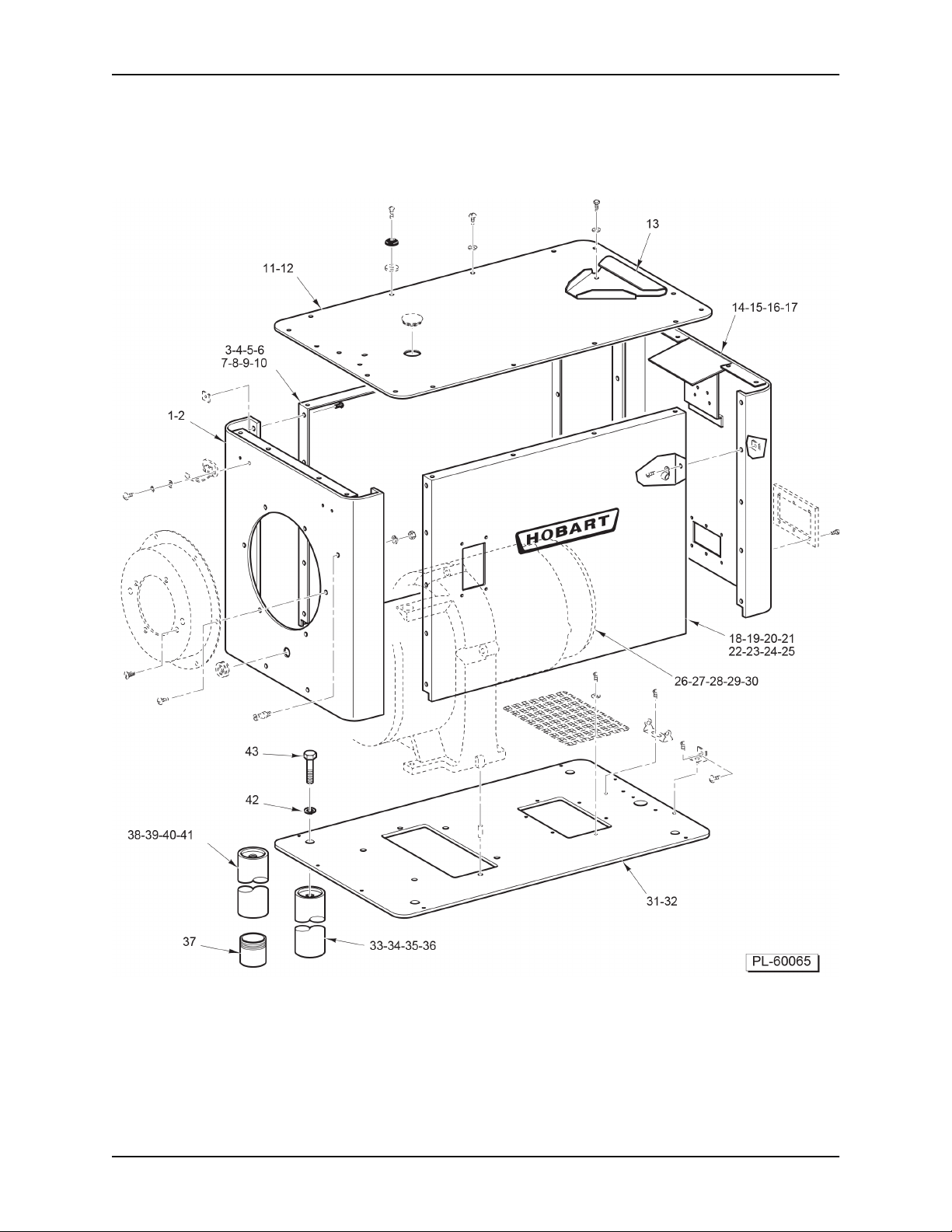

PANELS, LEGS, AND MOTOR ASSEMBLY
F-43264 Rev. A (April 2013) - 14 -
Page 15
4146 GRINDER REPLACEMENT PARTS
PANELS, LEGS, AND MOTOR ASSEMBLY
ILLUS.
PL-60065
10 00-291943-00012 Side Panel & Logo Assy. (Without Switch Opening) (SST) (50 Hz.)..........................................1
11 00-068973-00001 Top Sheet & Weld Nut Assy. (Painted)......................................................................................1
12 00-068973-00003 Top Sheet & Weld Nut Assy. (SST)...........................................................................................1
13 00-064896-00001 Bracket - Housing Hinge............................................................................................................1
14 00-103381-00001 Rear Sheet Assy. (Painted) (Previous Construction).................................................................1
15 00-103381-00003 Rear Sheet Assy. (SST) (Previous Construction)......................................................................1
16 00-946690-00001 Rear Sheet Assy. (Painted) (Current Construction)...................................................................1
17 00-946690-00002 Rear Sheet Assy. (SST) (Current Construction)........................................................................1
18 00-291943-00001 Side Panel & Logo Assy. (RH) With Switch Opening) (Painted) (60 Hz.)..................................1
19 00-291943-00002 Side Panel & Logo Assy. (RH) With Switch Opening) (SST) (60 Hz.).......................................1
20 00-291943-00003 Side Panel & Logo Assy. (RH) With Switch Opening) (Painted) (50 Hz.)..................................1
21 00-291943-00004 Side Panel & Logo Assy. (RH) With Switch Opening) (SST) (50 Hz.).......................................1
22 00-291943-00009 Side Panel & Logo Assy. (Without Switch Opening) (Painted) (60 Hz.).....................................1
23 00-291943-00010 Side Panel & Logo Assy. (Without Switch Opening) (SST) (60 Hz.)..........................................1
24 00-291943-00011 Side Panel & Logo Assy. (Without Switch Opening) (Painted) (50 Hz.).....................................1
25 00-291943-00012 Side Panel & Logo Assy. (Without Switch Opening) (SST) (50 Hz.)..........................................1
26 00-278393-00001 Motor Assy. (200 V., 60 Hz., 1 Ph.)............................................................................................1
27 00-278393-00002 Motor Assy. (230 V., 60 Hz., 1 Ph.)............................................................................................1
28 00-278355-00001 Motor Assy. (200/400 V., 60 Hz., 3 Ph.).....................................................................................1
29 00-278355-00002 Motor Assy. (230/460 V., 60 Hz., 3 Ph.).....................................................................................1
30 00-278355-00003 Motor Assy. (230/400 V., 50 Hz., 3 Ph.).....................................................................................1
31 00-068956 Plate - Base (Previous Construction).........................................................................................1
32 00-946691 Plate - Base (Current Construction)...........................................................................................1
33 00-068932-00001 Leg & Expansion Plug Assy. (16 In.)..........................................................................................3
34 00-068932-00005 Leg & Expansion Plug Assy. (18-1/2 In.)....................................................................................3
35 00-068932-00009 Leg & Expansion Plug Assy. (22 In.)..........................................................................................3
36 00-068932-00011 Leg & Expansion Plug Assy. (21 In.)..........................................................................................3
37 00-068929 Foot - Adjustable Leg.................................................................................................................1
38 00-074862-00001 Adjustable Leg & Foot Assy. (16 In.) (Incls. Item 37).................................................................1
39 00-074862-00005 Adjustable Leg & Foot Assy. (18-1/2 In.) (Incls. Item 37)...........................................................1
40 00-074862-00009 Adjustable Leg & Foot Assy. (22 In.) (Incls. Item 37).................................................................1
41 00-074862-00011 Adjustable Leg & Foot Assy. (21 In.) (Incls. Item 37).................................................................1
42 WL-004-18 Lockwasher 5/8 Light.................................................................................................................4
43 SC-062-25 Cap Screw 5/8-11 x 2-1/4 Hex Hd..............................................................................................4
PART NO. NAME OF PART AMT.
1 00-068975-00005 Front Sheet & Nuts Assy. (Painted)...........................................................................................1
2 00-068975-00008 Front Sheet & Nuts Assy. (SST).................................................................................................1
3 00-291943-00005 Side Panel & Logo Assy. (LH) (With Switch Opening) (Painted) (60 Hz.)..................................1
4 00-291943-00006 Side Panel & Logo Assy. (LH) (With Switch Opening) (SST) (60 Hz.).......................................1
5 00-291943-00007 Side Panel & Logo Assy. (LH) (With Switch Opening) (Painted) (50 Hz.)..................................1
6 00-291943-00008 Side Panel & Logo Assy. (LH) (With Switch Opening) (SST) (50 Hz.).......................................1
7 00-291943-00009 Side Panel & Logo Assy. (Without Switch Opening) (Painted) (60 Hz.).....................................1
8 00-291943-00010 Side Panel & Logo Assy. (Without Switch Opening) (SST) (60 Hz.)..........................................1
9 00-291943-00011 Side Panel & Logo Assy. (Without Switch Opening) (Painted) (50 Hz.).....................................1
- 15 - F-43264 Rev. A (April 2013)
Page 16
4146 GRINDER REPLACEMENT PARTS
PANEL HARDWARE
F-43264 Rev. A (April 2013) - 16 -
Page 17
PANEL HARDWARE
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60066
10 00-106825-00001 Clip - Wiring.............................................................................................................................AR
11 PB-002-27 Plug Button 1.375.......................................................................................................................1
12 00-063934 Washer - Shim.........................................................................................................................AR
13 00-019105-00002 Bumper.......................................................................................................................................4
14 SC-021-27 Mach. Screw 10-24 x 1 Slotted Rd. Hd. (SST)...........................................................................4
15 SC-053-02 Mach. Screw 10-24 x 1/2 Slotted Truss Hd. (SST)..................................................................12
16 WS-019-39 Washer.....................................................................................................................................12
17 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................2
18 WS-003-49 Washer (SST).............................................................................................................................2
19 FE-002-33 Connector - Straight 3/4 Male x 3/4 Flex Conduit......................................................................1
20 FE-007-12 Lock Nut 3/4 Electrical................................................................................................................1
21 00-118544-00001 Lug - Solderless.........................................................................................................................1
22 SC-060-87 Mach. Screw 10-32 x 3/4 Slotted Rd. Hd. (SST)........................................................................1
23 WL-007-12 Lockwasher #10 External Shakeproof........................................................................................2
24 NS-009-30 Nut 10-32 Hex............................................................................................................................1
25 FE-004-21 Cover - Junction Box (Incls. Gasket)..........................................................................................1
26 00-069853 Box - Junction......................................................................................................
27 00-069534 Speed Nut - Tinnerman...........................................................................................................AR
28 00-946632-00002 Cover & Gasket Assy.................................................................................................................1
29 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT............................................................6
30 00-078752-00004 Retainer (7/16 In.)...................................................................................................................AR
31 SC-008-10 Mach. Screw 10-24 x 1/2 Slotted Rd. Hd................................................................................AR
32 SC-060-21 Mach. Screw 10-24 x 1/4 Slotted Rd. Hd...................................................................................6
33 WS-002-51 Washer.......................................................................................................................................6
34 SC-014-57 Mach. Screw 10-24 x 1/2 Slotted Flat Hd...................................................................................4
35 00-066621-00002 Bracket - Capacitor.....................................................................................................................2
36 SC-009-25 Mach. Screw 10-24 x 5/8 Slotted Rd. Hd...................................................................................8
37 00-068978 Bracket - Housing Support.........................................................................................................8
38 SC-053-44 Mach. Screw 1/4-20 x 5/16 Slotted Truss Hd. (SST).................................................................8
39 00-068900 Screen - Air Outlet......................................................................................................................1
40 00-011800-00117 Dowel.........................................................................................................................................2
41 00-065159 Screw - Spanner Wrench Support..............................................................................................1
42 00-069492 Grommet....................................................................................................................................1
43 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................6
44 SC-022-19 Mach. Screw 10-24 x 1/2 Slotted Flat Hd. (SST).......................................................................4
PART NO. NAME OF PART AMT.
1 SC-053-05 Mach. Screw 10-24 x 3/8 Slotted Truss Hd. (SST)....................................................................4
2 WL-008-13 Lockwasher #10 Internal Shakeproof.........................................................................................4
3 WS-019-24 Washer.......................................................................................................................................4
4 00-067319 Clamp - Pan...............................................................................................................................2
5 00-069791 Cap - Trim..................................................................................................................................1
6 00-069534 Speed Nut - Tinnerman............................................................................................................13
7 SC-008-09 Mach. Screw 10-24 x 3/8 Slotted Rd. Hd.................................................................................13
8 WL-006-22 Lockwasher 5/16 Light...............................................................................................................1
9 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................1
.......................1
- 17 - F-43264 Rev. A (April 2013)
Page 18
4146 GRINDER REPLACEMENT PARTS
GEAR CASE AND DRIVE UNIT
F-43264 Rev. A (April 2013) - 18 -
Page 19
GEAR CASE AND DRIVE UNIT
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60067
10 00-109070-00020 Key.............................................................................................................................................1
11 00-069833 Gear - Drive (56T)......................................................................................................................1
12 00-123431 Washer - Tongue........................................................................................................................1
13 WL-017-09 Lockwasher - TW107.................................................................................................................1
14 NS-034-08 Lock Nut - N.D. #N-07................................................................................................................1
15 00-006566 Lock Nut.....................................................................................................................................2
16 WS-011-24 Washer.......................................................................................................................................1
17 00-109070-00017 Key.............................................................................................................................................1
18 00-085812-00001 Gear - Motor Pinion (24T) (60 Hz.).............................................................................................1
19 00-085812-00003 Gear - Motor Pinion (27T) (50 Hz.).............................................................................................1
20 00-072536 Flinger - Oil.................................................................................................................................1
21 00-072537 Spacer - Oil Flinger....................................................................................................................1
22 00-011800-00239 Dowel.........................................................................................................................................2
23 00-085852-00002 Case - Gear................................................................................................................................1
24 00-068987-00001 Tube & Bushing Assy.................................................................................................................1
25 00-069477-00001 Dip Stick & Fill Cap Assy............................................................................................................1
26 SC-060-21 Mach. Screw 10-24 x 1/4 Slotted Rd. Hd...................................................................................2
27 WL-003-20 Lockwasher #10 Light................................................................................................
28 00-120471 Screen - Air Inlet.........................................................................................................................1
29 BB-018-33 Ball Bearing - Fafnir #205KFA....................................................................................................1
30 RR-006-14 Retaining Ring 1.426 ID.............................................................................................................1
31 WL-004-02 Lockwasher 3/8 Helical..............................................................................................................4
32 SC-062-22 Cap Screw 3/8-16 x 1-1/4 Hex Hd..............................................................................................4
33 00-068954-00001 Gear - Main Drive (65T) (60 Hz.)................................................................................................1
34 00-068954-00003 Gear - Main Drive (62T) (50 Hz.)................................................................................................1
35 00-019070-00021 Key.............................................................................................................................................1
36 00-068951 Pinion - Countershaft (19T)........................................................................................................1
37 BB-007-21 Ball Bearing - N.D. 3207.............................................................................................................1
38 NS-013-43 Nut 5/8-11 Hex...........................................................................................................................2
39 00-072981-00002 Stud - Cylinder (4 In. Lg.)...........................................................................................................2
40 NS-048-57 Nut 5/8-11 Flanged Hex.............................................................................................................2
41 00-069431 Pipe - Oil Drain...........................................................................................................................1
42 WS-021-20 Washer.......................................................................................................................................1
43 SC-036-93 Cap Screw 7/16-20 x 3/4 Hex Hd...............................................................................................1
PART NO. NAME OF PART AMT.
1 00-069794 Shaft - Square Drive...................................................................................................................1
2 00-069490 Seal - Square Drive....................................................................................................................2
3 BR-002-21 Roller Bearing - Cup & Cone Assy.............................................................................................1
4 SC-062-24 Cap Screw 5/16-18 x 1-1/2 Hex Hd..........................................................................................12
5 WL-003-45 Lockwasher 5/16 Helical..........................................................................................................12
6 00-118682 Hub - Attachment.......................................................................................................................1
7 00-116775 Conveyor - Oil............................................................................................................................1
8 SC-069-02 Mach. Screw 10-32 x 5/8 Slotted Pan Hd..................................................................................1
9 BR-002-20 Roller Bearing - Cup & Cone Assy.............................................................................................1
................2
- 19 - F-43264 Rev. A (April 2013)
Page 20
4146 GRINDER REPLACEMENT PARTS
MOTOR UNIT
(1 PH.)
F-43264 Rev. A (April 2013) - 20 -
Page 21
MOTOR UNIT
(1 PH.)
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60068
10 00-068968 Spacer - Bearing........................................................................................................................1
11 BB-020-15 Ball Bearing - SKF #6207Z.........................................................................................................1
12 00-022275-00221 Rotor Assy..................................................................................................................................1
13 WL-003-43 Lockwasher 5/16 Light...............................................................................................................1
14 SC-011-98 Mach. Screw 5/16-18 x 1-1/4 Slotted Fil. Hd..............................................................................1
15 00-069632-00001 Sleeve........................................................................................................................................1
16 00-006651 Bushing - Insulating....................................................................................................................1
17 WS-002-15 Washer.......................................................................................................................................8
18 SC-011-56 Mach. Screw 10-32 x 4-3/4 Slotted Fil. Hd.................................................................................8
19 SC-009-85 Mach. Screw 6-32 x 1-1/4 Slotted Rd. Hd..................................................................................4
20 00-117548 Switch - Starting (Stationary Part) (1 Ph.)..................................................................................1
21 00-070487-00017 Capacitor....................................................................................................................................2
22 00-070486-00004 End Cap.....................................................................................................................................2
23 00-119476 Plate - Switch.............................................................................................................................1
24 BB-016-37 Ball Bearing - Fafnir #W204 PPC 1............................................................................................1
25 RR-004-06 Retaining Ring............................................................................................................................1
26 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................1
27 WL-003-14 Lockwasher #8 Helical...............................................................................................................3
28 SC-012-49 Mach. Screw 8-32 x 3/8 Slotted Fil. Hd........................................................................
PART NO. NAME OF PART AMT.
1 00-275183 Fan.............................................................................................................................................1
2 SC-047-12 Set Screw 1/4-20 x 3/8 Socket Hdls., Knife Cup Pt....................................................................2
3 00-119466 Bracket - Bearing........................................................................................................................1
4 SC-011-98 Mach. Screw 5/16-18 x 1-1/4 Slotted Fil. Hd..............................................................................4
5 00-065477-133-1 Stator Assy. (200 V., 60 Hz., 1 Ph.)...........................................................................................1
6 00-069969-00001 Field Ring...................................................................................................................................1
7 SC-040-74 Cap Screw 5/16-18 x 2 Socket Fil. Hd.......................................................................................3
8 WL-003-43 Lockwasher 5/16 Light...............................................................................................................3
9 00-083715 Deflector - Grease......................................................................................................................1
..............3
- 21 - F-43264 Rev. A (April 2013)
Page 22
4146 GRINDER REPLACEMENT PARTS
MOTOR UNIT
(3 PH. - SINGLE VOLTAGE)
F-43264 Rev. A (April 2013) - 22 -
Page 23
MOTOR UNIT
(3 PH. - SINGLE VOLTAGE)
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60069
10 00-015747-00302 Rotor Assy..................................................................................................................................1
11 WL-003-43 Lockwasher 5/16 Light...............................................................................................................1
12 SC-011-98 Mach. Screw 5/16-18 x 1-1/4 Slotted Fil. Hd..............................................................................1
13 00-069632-00001 Sleeve........................................................................................................................................1
14 00-006651 Bushing - Insulating....................................................................................................................1
15 00-065478-045-1 Stator Assy. (200 V., 60 Hz., 3 Ph.)...........................................................................................1
16 00-065478-045-2 Stator Assy. (230 V., 60 Hz., 3 Ph.)...........................................................................................1
17 00-065478-045-3 Stator Assy. (460 V., 60 Hz., 3 Ph.)...........................................................................................1
18 00-065478-045-4 Stator Assy. (220 V., 50 Hz., 3 Ph.)...........................................................................................1
19 00-065478-045-5 Stator Assy. (380 V., 50 Hz., 3 Ph.)...........................................................................................1
20 00-065478-045-6 Stator Assy. (575 V., 60 Hz., 3 Ph.)...........................................................................................1
21 00-064372 Bracket - Bearing........................................................................................................................1
22 00-275183 Fan.............................................................................................................................................1
23 SC-047-12 Set Screw 1/4-20 x 3/8 Socket Hdls., Knife Cup Pt....................................................................2
24 BB-016-37 Ball Bearing - Fafnir #W204 PPC 1............................................................................................1
25 RR-004-06 Retaining Ring............................................................................................................................1
26 KW-003-10 Key - Woodruff 3/16 x 3/4...........................................................................................................1
PART NO. NAME OF PART AMT.
1 SC-011-98 Mach. Screw 5/16-18 x 1-1/4 Slotted Fil. Hd..............................................................................4
2 SC-012-62 Mach. Screw 10-32 x 4 Slotted Fil. Hd.......................................................................................8
3 WS-002-15 Washer.......................................................................................................................................8
4 00-069969-00001 Field Ring...................................................................................................................................1
5 SC-040-74 Cap Screw 5/16-18 x 2 Socket Fil. Hd.......................................................................................3
6 WL-003-43 Lockwasher 5/16 Light...............................................................................................................3
7 00-083715 Deflector - Grease......................................................................................................................1
8 00-068968 Spacer - Bearing........................................................................................................................1
9 BB-020-15 Ball Bearing - SKF #6207Z.........................................................................................................1
- 23 - F-43264 Rev. A (April 2013)
Page 24
4146 GRINDER REPLACEMENT PARTS
MOTOR UNIT
(3 PH. - DUAL VOLTAGE)
F-43264 Rev. A (April 2013) - 24 -
Page 25
MOTOR UNIT
(3 PH. - DUAL VOLTAGE)
4146 GRINDER REPLACEMENT PARTS
ILLUS.
PL-60070
10 00-083715 Deflector - Grease......................................................................................................................1
11 BB-020-15 Ball Bearing - SKF #6207Z.........................................................................................................1
12 00-068968 Spacer - Bearing........................................................................................................................1
13 00-275192 Block - Terminal.........................................................................................................................1
14 SC-012-36 Mach. Screw 10-24 x 3/4 Slotted Fil. Hd....................................................................................2
15 RP-006-03 Roll Pin 1/8 x 3/4 Lg...................................................................................................................4
16 WL-003-43 Lockwasher 5/16 Light...............................................................................................................1
17 SC-011-98 Mach. Screw 5/16-18 x 1-1/4 Slotted Fil. Hd..............................................................................1
18 00-015747-00302 Rotor Assy..................................................................................................................................1
19 BB-016-37 Ball Bearing - Fafnir #W204 PPC 1............................................................................................1
20 RR-004-06 Retaining Ring............................................................................................................................1
21 00-109070-00002 Key.............................................................................................................................................1
22 SC-047-12 Set Screw 1/4-20 x 3/8 Socket Hdls., Knife Cup Pt....................................................................2
23 00-275183 Fan.............................................................................................................................................1
24 00-275151 Bracket - Bearing........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-275156-00002 Ring - Field.................................................................................................................................1
2 SC-012-62 Mach. Screw 10-32 x 4 Slotted Fil. Hd.......................................................................................4
3 WL-003-20 Lockwasher #10 Light................................................................................................................4
4 00-065478-162-1 Stator Assy. (200/400 V., 60 Hz., 3 Ph.)....................................................................................1
5 00-065478-162-2 Stator Assy. (230/460 V., 60 Hz., 3 Ph.)....................................................................................1
6 00-065478-163-1 Stator Assy. (230/400 V., 50 Hz., 3 Ph.)....................................................................................1
7 SC-011-98 Mach. Screw 5/16-18 x 1-1/4 Slotted Fil. Hd..............................................................................3
8 WL-003-43 Lockwasher 5/16 Light...............................................................................................................3
9 SC-040-74 Cap Screw 5/16-18 x 2 Socket Fil. Hd.......................................................................................3
- 25 - F-43264 Rev. A (April 2013)
Page 26
4146 GRINDER REPLACEMENT PARTS
FORM 43264 Rev. A APRIL 2013 PRINTED IN U.S.A.
Loading...
