Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
CL64e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ 342 racks per hour
■ Opti-RinSe™ system
■ Rapid Return Conveyor Drive Mechanism
■ Insulated hinged double doors with door
interlock switches
■ 19.5 inch chamber height opening
■ Top mounted micro-processer control module
■ Energy saver mode
■ Dirty water indicator
■ Low temperature alert
■ Conveyor dwell
■ Delime notication
■ Service diagnostics
■ NAFEM Data Protocol compliant
■ Computational Fluid Dynamic Designed Self-
Aligning Wash Manifolds
■ Stainless steel debossed anti-clogging wash
arms
■ Removable Integrated Pump Intake Screen
■ Stainless steel self-draining pump and impeller
■ Single, sloping scrap screen and deep basket
■ Stainless panels enclose perimeter and bottom
■ Door actuated drain closure
■ Single point electrical connection (three phase
only), does not include the booster heater
■ Convertible hot water or low temp nal rinse
■ Vent fan and booster heater control
DISHWASHER
MODEL
❑ CL64e – Dishwasher
OPTIONS AT EXTRA COST
❑ Stainless steel pressure-less 15/30 KW booster
heater
❑ Higher than standard chamber (24" opening)
ACCESSORIES
❑ Stainless steel vent hoods
❑ Direct drive unloader
❑ Side loader
❑ Blower-dryer
❑ Drain water tempering kit
❑ Flanged feet kit (requires two kits)
Specications, Details and Dimensions on Inside and Back.
CL64e DISHWASHER
DIRECTION OF OPERATION
❑ Right to Left
❑ Left to Right
VOLTAGE
❑ 208/60/1 ❑ 240/60/1 ❑ 380/60/3
❑ 208/60/3 ❑ 240/60/3 ❑ 480/60/3
❑ 600/60/3
F40222 – CL64e Dishwasher Page 1 of 12
Shown with optional vent hoods
CL64e
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
THE CLe WAREWASHER IS NOW STANDARD WITH MORE EFFICIENT FEATURES THAN EVER . . .
Inside and out the CLe warewashers by Hobart are packed with standard components and patented design
innovations that make them the biggest value in the dishwasher industry.
Wash Manifolds. Computational Fluid Dynamic
The insulated hinged inspection doors provide easy
access in the chamber. Exterior wash pipes and
reduced interior bafes reduce clean-up time. The
drive allows for a wide separation between the wash
and the rinse zone.
designed wash manifolds are self-aligning and come
with Hobart’s signature debossed anti-clogging
nozzles for superior result.
The Hobart exclusive microprocessor control module
offers a choice of many features, such as an exclusive
Energy Saver Mode, Low Temperature Alerts, and
Dirty Water Indicator. It also displays pertinent
machine status and has a Delime Notication. The
controls have built-in Service Diagnostics and are
NAFEM Data Protocol Compliant.
Soil Management System. Screen design sheds soil
more easily than at screens, reduces frequency of
cleaning — easy to empty large soil particles . . . Just
lift out the scrap basket.
Opti-RinSe™. Hobart’s exclusive Opti-RinSe™ signi-
cantly reduces operating cost by reducing rinse water
and the energy required to heat the water. The unique
spray pattern uses large droplets to more efciently
sanitize the ware.
OTHER STANDARD FEATURES . . .
• Thermal Layer Curtains help keep the heat inside
the machine.
• Ball Detent Clutch Conveyor Drive for maximum
protection against conveyor Jams
• Integrated Removable Pump Intake Screen to
offer the ultimate guard of keeping debris from
entering the pump.
• Hinged Door Seals and stainless steel labyrinth seal
for drip-free operation
• Low-Temp Convertibility In Field. All machines
shipped hot. Change software in eld at set up to
low temperature if desired – then, if requirements
change, convert from one mode to the other in the
eld. An exclusive feature – standard from Hobart.
• Door Actuated Drain Closure. Closing the door
automatically actuates drain closure, eliminates
extra manual steps, ensures that closure is in the
correct position.
Page 2 of 12 F40222 – CL64e Dishwasher
CL64e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
AVAILABLE OPTIONS AND ACCESSORIES . . .
Flexibility is synonymous with Hobart CLe dishwash ers. If your operation demands a dishwasher with a
vent hood, an extended hood . . . a power scrapper,
just specify the combination of options that suit your
needs.
Built-in Pressureless Stainless Steel Booster Heater.
Interwired and interplumbed. Saves on installation and
saves oor space. Simplies operation with just one
switch to power dishmachine and booster.
Side Loader. Save up to 20 square feet in the dishroom
layout with an optional C-Line Side Loader. Racks are
indexed 90° into the dishwasher automatically – a
feature that cuts space and reduces labor dramatically.
Your dishroom team will appreciate this feature.
Machine Ratings (Mechanical)
Racks per hour (193⁄4" x 193⁄4") 342
Conveyor Speed - feet per minute 9.5 max.
Dishes per Hour (Average 25 per rack) 8,550
Glasses per Hour (Average 45 per rack) 15,390
Floor Space – Table to Table (Inches) 64
Overall Dimensions – H x W x D (Inches) 681⁄2 x 643⁄4 x 301⁄4
Motor H.P. Wash 2 – Rinse 2
Conveyor Drive H.P.
Number of Tanks 2
Tank Capacity – Gallons Wash 23 – Rinse 22
Pump Capacity –
Gallons per Minute - Weir Test Combined 330
Heating Equipment –
(For keeping wash/power rinse hot)
Gas Burners (with Natural Gas/LP)
Electric Heating Unit – Size Used Regulated 25 KW (15-10)
Optional Booster Heater / Final Rinse 15 KW / 30 KW
Rinse – Minutes operated during hour of
maximum operation 60
Final Rinse Flow – Gals. per min.
At 15 PSI Flow Pressure 1.89
At 20 PSI Flow Pressure 2.2
Final Rinse Flow – Gals. per hr. – MAXIMUM
At 15 PSI Flow Pressure 114
At 20 PSI Flow Pressure 132
Rinse 20 PSI Flow Pressure
Gal./Rack
Steam Consumption –
Pounds per hr. - MAXIMUM
Approx. 30 lbs. per hr. = 1 boiler H.P. (BHP)
Dishwasher, based on 20 PSI steam and
on customer supplying final rinse water
at 180°F maximum 130
Steam Booster, if used on 20 PSI steam 20 PSI water flowing - 130°F entering
water raised to 180°F min. 63
Exhaust Requirements –
Cubic Feet per minute
OTHER AVAILABLE ACCESSORIES . . .
Blower-dryer, steam booster heater, and a singlepoint electrical connection to include electric booster
heater.
Peak Rate of Drain Flow – Gallons per minute.
(Initial rate with full tank) 38
Shipping Weight Crated – Approximate lbs. 880
DISHWASHER
CL64e
1
⁄6
156,000 BTU per hr.
(2 - 78,000)
Hot Water Sanitizing -
Chemical Sanitizing
.39 - 180°F – .39 - 120°F
Entrance End 200
Discharge End 400
F40222 – CL64e Dishwasher Page 3 of 12
CL64e
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 4 of 12 F40222 – CL64e Dishwasher
CL64e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DISHWASHER
F40222 – CL64e Dishwasher Page 5 of 12
CL64e
ELECTRIC L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 6 of 12 F40222 – CL64e Dishwasher
CL64e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
ELECTRIC R-L
F40222 – CL64e Dishwasher Page 7 of 12
CL64e

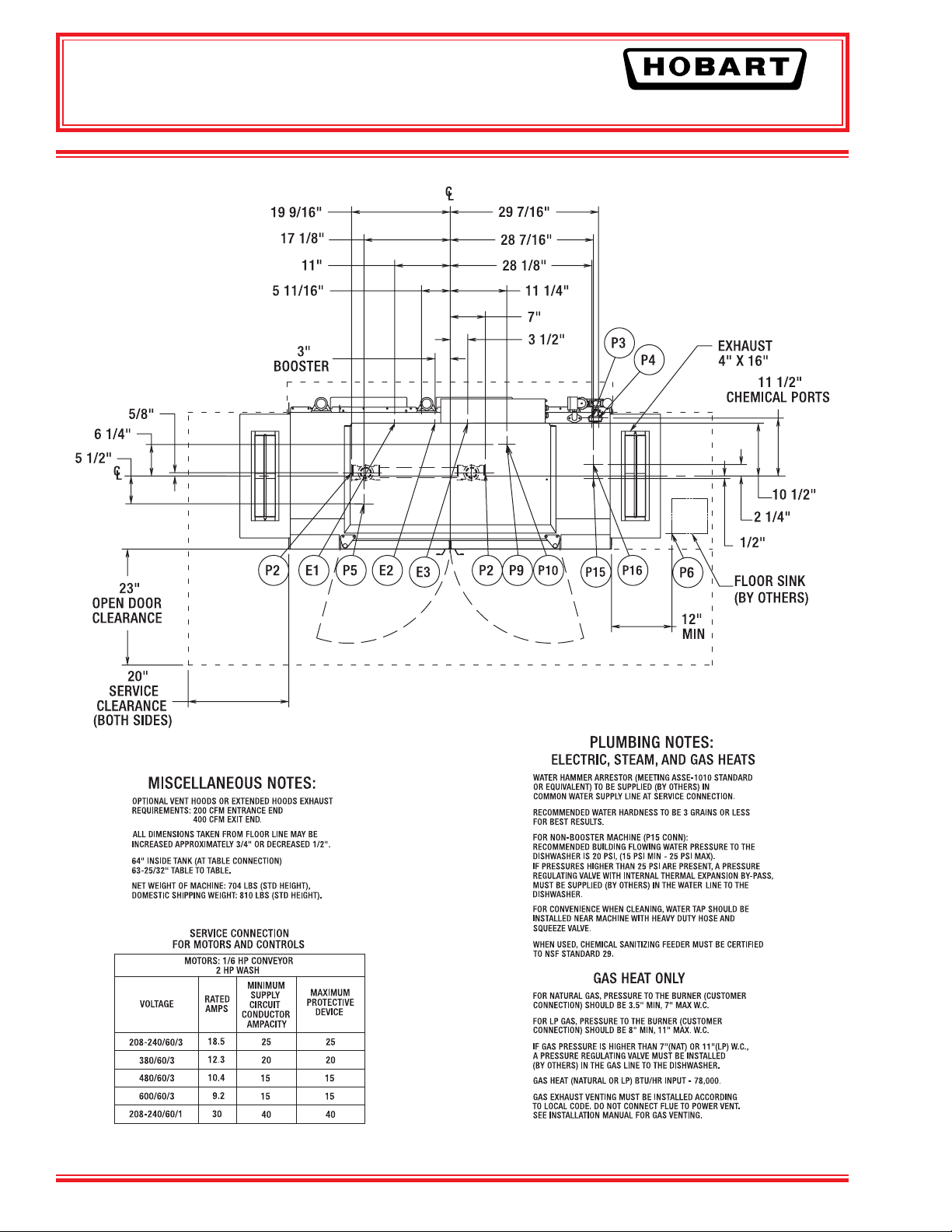

GAS L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 8 of 12 F40222 – CL64e Dishwasher
CL64e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
GAS R-L
F40222 – CL64e Dishwasher Page 9 of 12
CL64e

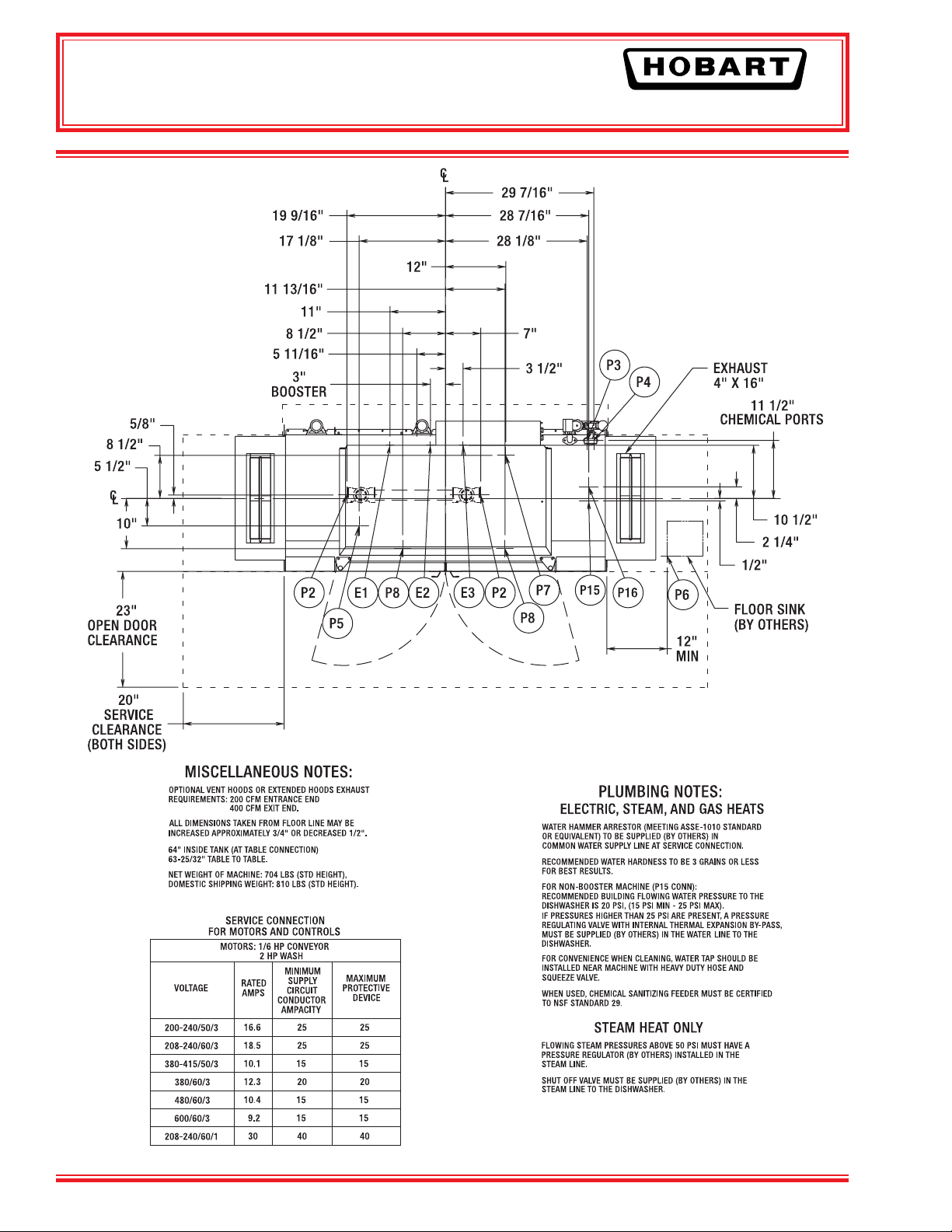

STEAM L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 10 of 12 F40222 – CL64e Dishwasher
CL64e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STEAM R-L
F40222 – CL64e Dishwasher Page 11 of 12
CL64e
DISHWASHER
SPECIFICATIONS: Meets requirements of A.S.S.E. Standard
No. 1004.
DESIGN: Semi automatic, high or low temperature doubletank, rack-type dishwasher with exible thermal layer curtains
at the ends of chamber and between wash, rinse and nal
rinse zones. Insulated hinged inspection doors located in front
of machine provide easy access to wash arms, rinse arms,
strainer, strainer basket, and pump intake screen. Length
of machine inside tank (at table connection) 64". Machine
designed to clean and sanitize with hot water 150°F wash, 160°
power rinse and 180°F (minimum) nal rinse, or low temperature 130°F wash and 120°F nal rinse and a chemical sanitizer.
Water hardness recommended to be 3 gr. for best results.
Automatic interlocks shut off pump and conveyor if door is
opened when machine is in operation.
CONSTRUCTION: Tank, chamber, frame, legs, control box,
doors, and all panels are constructed of stainless steel.
PUMP: Two 165 gpm recirculating stainless steel pumps and
impeller with a ceramic seat seal. Easily accessible pumps
assembly permits quick inspection. The pumps are self-draining. All piping distributing water to the upper and lower wash
arms is stainless steel tubing.
PUMP MOTOR: Built for Hobart 2 hp grease-packed ball bearings, splash proof, ventilated with manual, resettable inherent
overload protection. Available in electrical specications of
208-240/60/1, 208-240/60/3, 480/60/3 and 600/60/3. Also
available, but not submitted for UL listing are 200-240/50/3 and
380-415/50/3.
CONTROLS: A stainless steel control module with power
and “start/stop” buttons is mounted on top of the machine.
Machine control circuitry will be operated from a 120-volt control circuit transformer. Electrical components are completely
wired with 105°C, 600V thermoplastic insulated wire with
stranded conductors routed through UL listed electrical conduit
or covered wire way.
CONVEYOR: This drive is designed for more even throughput of racks and allows for a 18.75-inch separation between
the wash and the rinse zone. Racks conveyed automatically
through wash and rinse zones and onto clean dish table.
Ball Detent Clutch drive prevents damage to machine or
racks, should movement of racks be obstructed. Rack tracks,
conveyor structure, and drive units of stainless steel for 193⁄4" x
193⁄4" racks as standard. Conveyor speed: 9.5 FPM.
DRIVE MOTOR: Built for Hobart, 1⁄6 horsepower gear motor,
ventilated with manual, resettable inherent overload protection. Available in electrical specications of 208-240/60/1,
208-240/60/3, 480/60/3 and 600/60/3. Also available, but not
submitted for UL Listing are 200-240/50/3 and 380-415/50/3.
POWER WASH AND RINSE: Wash and rinse tanks are
equipped with upper and lower stainless steel CFD Wash Arms
which effectively direct water jets to all ware surfaces. Both
upper and lower wash arms are self-aligning and have easily
removable end caps for cleaning without use of tools. A removable perforated stainless steel strainer pan supports a deep
perforated stainless steel basket.
FINAL RINSE: Final rinse ow rate: 2.2 gpm, .39 gpr, 132-gph.
Stainless steel upper and lower Auto Position Rinse Arms™
have single rows of nozzles. Racks entering the rinse zone
automatically trigger rinse. Final rinse water line is equipped
with a vacuum breaker downstream of an electrically operated
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
solenoid valve in common piping system. Removable perforated stainless steel strainer basket can be removed without
removing lower rinse arm. Rinse agent and Low Temp Final
Rinse – Sanitizer agent (5.25% sodium hypochlorite – bleach)
dispenser injection ports provided in nal rinse piping above
chamber. Caution: Certain materials, including silver, aluminum, and pewter are attacked by sodium hypochlorite (bleach)
in the chemical sanitizing dishwasher mode of operation.
FILL: Fill water line is equipped with vacuum breaker on downstream side of electrically operated solenoid valve in common
piping system, for automatic maintenance of tank level.
DRAIN AND OVERFLOW: Large bell-type automatic overow
and drain valve controlled from inside of machine. Drain
automatically seats by closing inspection doors. Drain seal is
large diameter, high temperature o-ring. Drain housing can be
plumbed from load or unload end of machine.
STANDARD EQUIPMENT: Digital display of wash and nal
rinse temperature. Positive low water protection for tank heat.
Thermal Layered Curtains throughout machine are keyed to
ensure proper placement. Drain is automatically closed when
inspection doors are closed. Stainless steel adjustable feet.
Bolted stainless steel enclosure panels around perimeter
and underneath machine. Automatic tank ll. Door interlock.
Auto-timer. Vent fan and booster heater controls. Single point
electrical connection. Low temperature alerts. Service diagnostics. Dirty water indicator. Delime notication. Conveyor dwell.
Energy Saver Mode. NAFEM Data Protocol compliant.
TANK HEATING SELECTIONS (must choose one):
ELECTRIC: Two electric Incoloy® sheathed immersion heaters
(15 KW and 10 KW). Tank water temperature is controlled by
microprocessor controlled thermostat with positive low-water
protection and magnetic contactor. (Disconnect switches not
furnished.) A high limit device mounted on the surface of the
tank additionally protects heating element.
STEAM: One-inch stainless steel steam coil. Tank water
temperature controlled by microprocessor controlled thermostat with positive low-water protection. Steam supplied to
machine through high temperature steam solenoid valve and
line strainer.
GAS: Regulated infrared immersion tube gas burner system.
Microprocessor controlled thermostat and a blower with a
pressure switch control tank water temperature. Positive low
water protection is provided. A high limit device mounted on
the surface of the tube additionally protects immersion tube.
A solid-state igniter board controls the gas valve and provides
ame ignition. A transformer steps the control circuit voltage
down from 120 volts to 24 volts to power the igniter board and
gas valve. For natural gas, gas pressure to burner (customer
connection) not to exceed 7" W.C. For LP gas, gas pressure
to burner (customer connection) not to exceed 11" W.C. If gas
pressure is higher than 7" W.C. natural or 11" W.C. LP pressure
regulating valve must be supplied (by others) in the gas line to
the dishwasher.
OPTIONAL EQUIPMENT AT EXTRA COST:
Stainless steel pressureless booster heater. Stainless steel vent
hoods with vent stack and locking-type damper. Higher than
standard chamber. Side loaders and unloaders. Floor mounted
steam booster. 193⁄4" x 193⁄4" peg, combination and miscellaneous racks. Table limit switch. Drain water tempering kit.
Page 12 of 12 F40222 – CL64e Dishwasher
F40222 (REV. 10/14) LITHO IN U.S.A. (H-01)
Loading...
