PRODUCT DESCRIPTION
Ultrajet® 70 is an economical general-purpose
duster with a new BIGGER blast for
electronic applications. Its exceptional purity
jet instantly cleans surfaces free of particulate
contamination. Ultrajet
®
70 is engineered to
remove dirt, dust, oxide particles and other
airborne particles instantly, and can be used to
facilitate the accelerated drying of solvent
cleaners.
Filtered to 0.2 microns
Ozone safe; CFC and HCFC free
Nonflammable; may be used on
energized equipment
Nonabrasive; safe for most materials.
Will not scratch surfaces
No residue
Cleans hard to reach areas
TYPICAL APPLICATIONS
Ultrajet
®
70 is used in a wide range of
applications including:
Audio/Video Equipment
Fax Machines
Keyboards
Laboratory Instruments
Microcomputers
Photo Equipment
Printers
TYPICAL PRODUCT DATA AND
PHYSICAL PROPERTIES
COMPATIBILITY
Ultrajet
®
70 is generally compatible with most
materials used in printed circuit board
fabrication, including sensitive plastics and
compounds. As with any duster/cleaner,
compatibility must be determined on a noncritical area prior to use.

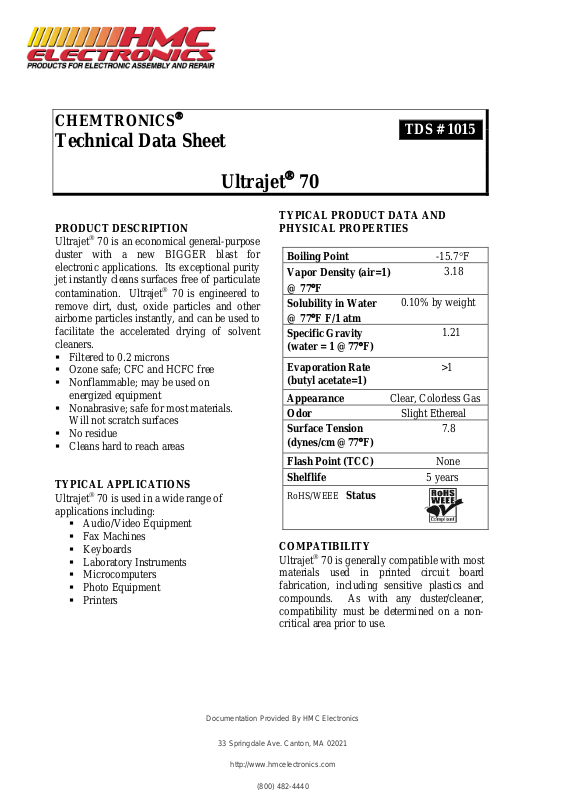

TDS # 1015
CHEMTRONICS
®
Technical Data Sheet
Ultrajet® 70
Boiling Point -15.7°F
Vapor Density (air=1)
@ 77°F
3.18
Solubility in Water
@ 77°F F/1 atm
0.10% by weight
Specific Gravity
(water = 1 @77°F)
1.21
Evaporation Rate >1
(butyl acetate=1)
Appearance Clear, Colorless Gas
Odor
Slight Ethereal
Surface Tension
(dynes/cm @77°F)
7.8
Flash Point (TCC)
None
Shelflife 5 years
RoHS/WEEE Status
Documentation Provided By HMC Electronics
33 Springdale Ave. Canton, MA 02021
http://www.hmcelectronics.com
(800) 482-4440
Material Compatibility
Buna-N Excellent
Graphite Excellent
HDPE Excellent
LDPE Excellent
Lexan™
Excellent
Neoprene Excellent
Cross-Linked PE Excellent
Polyacrylate Excellent
Polystyrene Excellent
PVC Excellent
Silicone Rubber Excellent
Teflon™
Excellent
Viton™
Excellent
PERFORMANCE
Pressure PSIG / Temperature F
200
-
P
150
S
-
I
100
G
-
50
-
0
20 40 60 80 100 120 140
Temperature F
USAGE INSTRUCTIONS
For industrial use only.
Read MSDS carefully prior to use.
No special surface preparation is required
prior to using Ultrajet
®
70. Direct high
pressure spray onto the area to be cleaned to
remove dust, dirt and other contaminant. For
optimum performance and pin point control,
use with the attached extension tube.
AVAILABILITY
ES1015 10 oz. Aerosol
TECHNICAL & APPLICATION
ASSISTANCE
Chemtronics
®
provides a technical hotline to
answer your technical and application related
questions. The toll free number is:
1-800-TECH-401
.
ENVIRONMENTAL IMPACT DATA
ENVIRONMENTAL IMPACT DATA
CFC 0.0% VOC 0.0%
HCFC 0.0% HFC 100.0%
CL Solv. 0.0% ODP 0.0
CFC, HCFC, CL. SOLV., VOC, and HFC numbers shown
are the content by weight. Ozone depletion potential
(ODP) is determined in accordance with the Montreal
Protocol and U.S. Clean Air Act of 1990. The ODP of this
product is 0.0. It is the sum of the ODP of the substances
that may contribute to the depletion of stratospheric ozone,
based upon the weight of each substance in the product’s
formulation.
NOTE:
This information is believed to be accurate. It is intended
for professional end users having the skills to evaluate and
use the data properly. ITW CHEMTRONICS
®
does not
guarantee the accuracy of the data and assumes no liability
in connection with damages incurred while using it.
MANUFACTURED BY:
ITW CHEMTRONICS
8125 COBB CENTER DRIVE
KENNESAW, GA 30152
1-770-424-4888
REV. F (06/06)
