HK hu0403 schematic

Service Documents

Confidential, for authorized service technicians only!

Do not disclose this information to or share these documents

with third parties.

Vertraulich! Nur für autorisierte Servicetechniker!

Nicht zur Weitergabe an Dritte freigegeben!

TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany

Note!

The components used in this product - particularly parts
affecting safety as well as speakers and transformers ­were developed and manufactured to certain specifications.
Please use original spare parts only to ensure the product
remains fully functional and safe.

Achtung!

Die in diesem Produkt verwendeten Komponenten, insbeson­dere sicherheitsrelevante Teile, Lautsprecher und Transforma­toren wurden nach spezifischen Vorgaben entwickelt und ge­fertigt. Bitte benutzen Sie ausschließlich Original-Ersatzteile –
nur so ist die volle Funktionalität und Sicherheit gewährleistet.

Edition Blue

Series

60R

2006/07/19

Directory

features page: 3-6

drawing-numbers-example page: 7

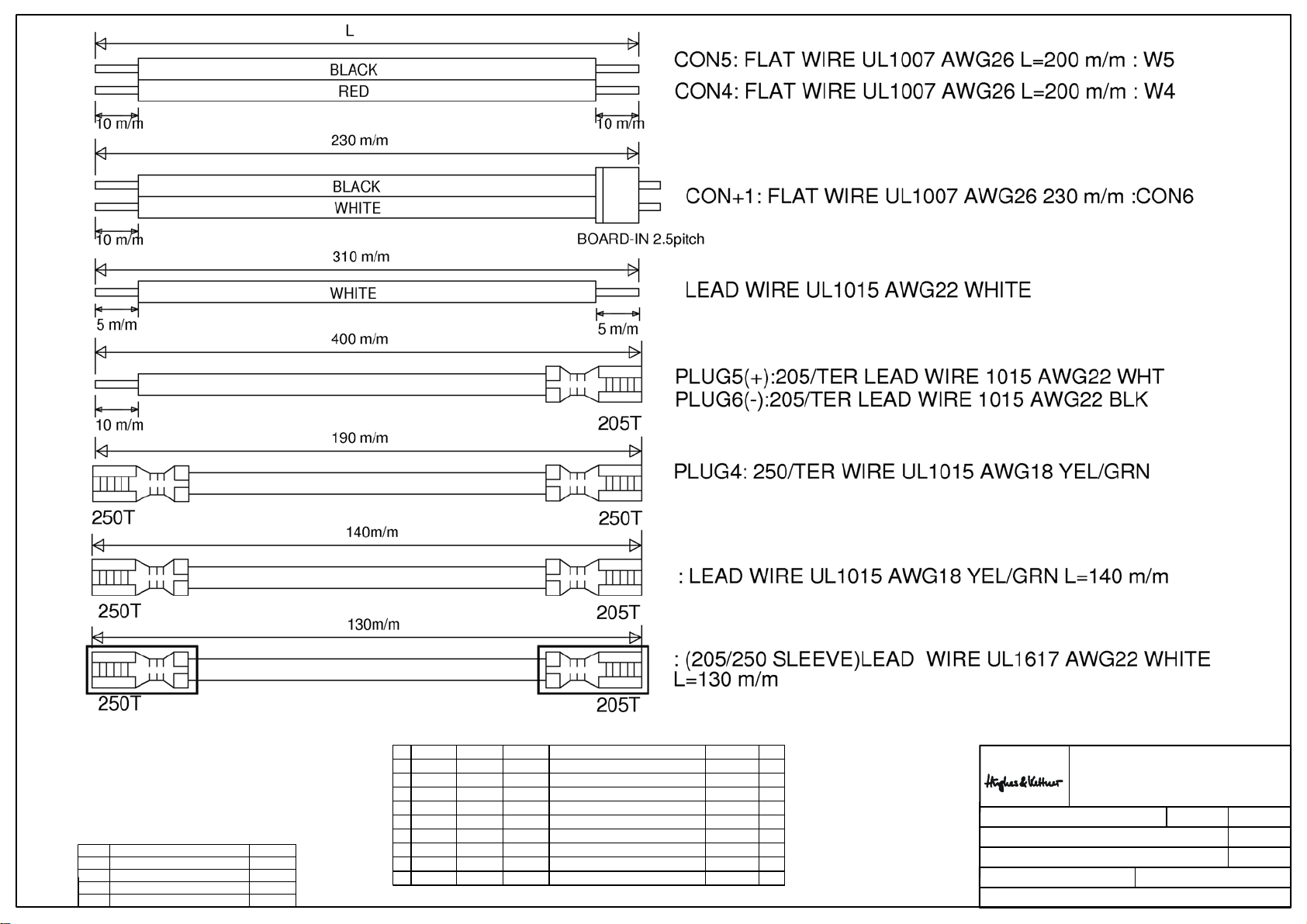

standard for single wire confection page: 8

HU0403-EDITION BLUE 60R page: 9

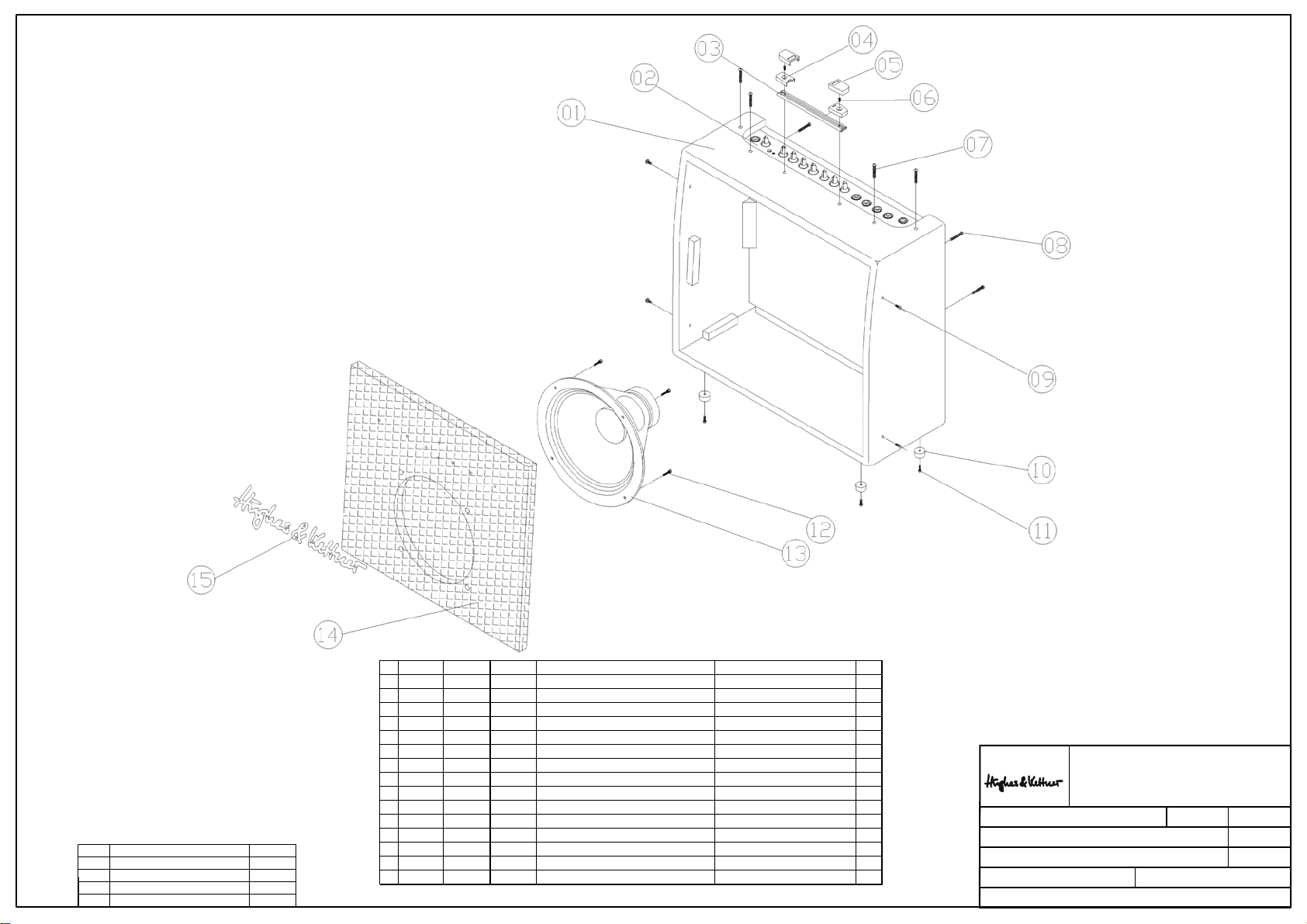

exploded drawings: complete Rev.: A page: 10-11

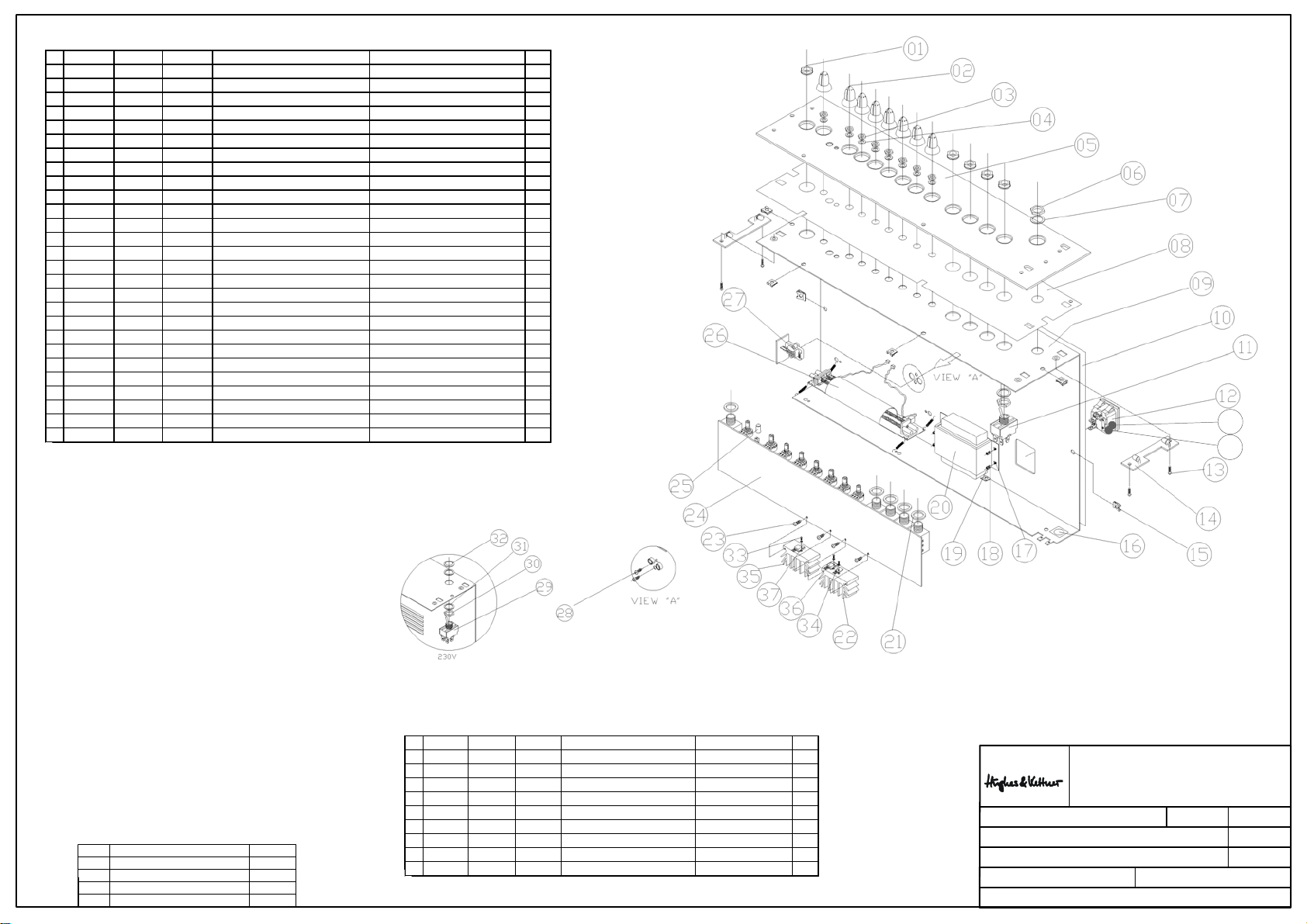

chassis Rev.: A page: 12

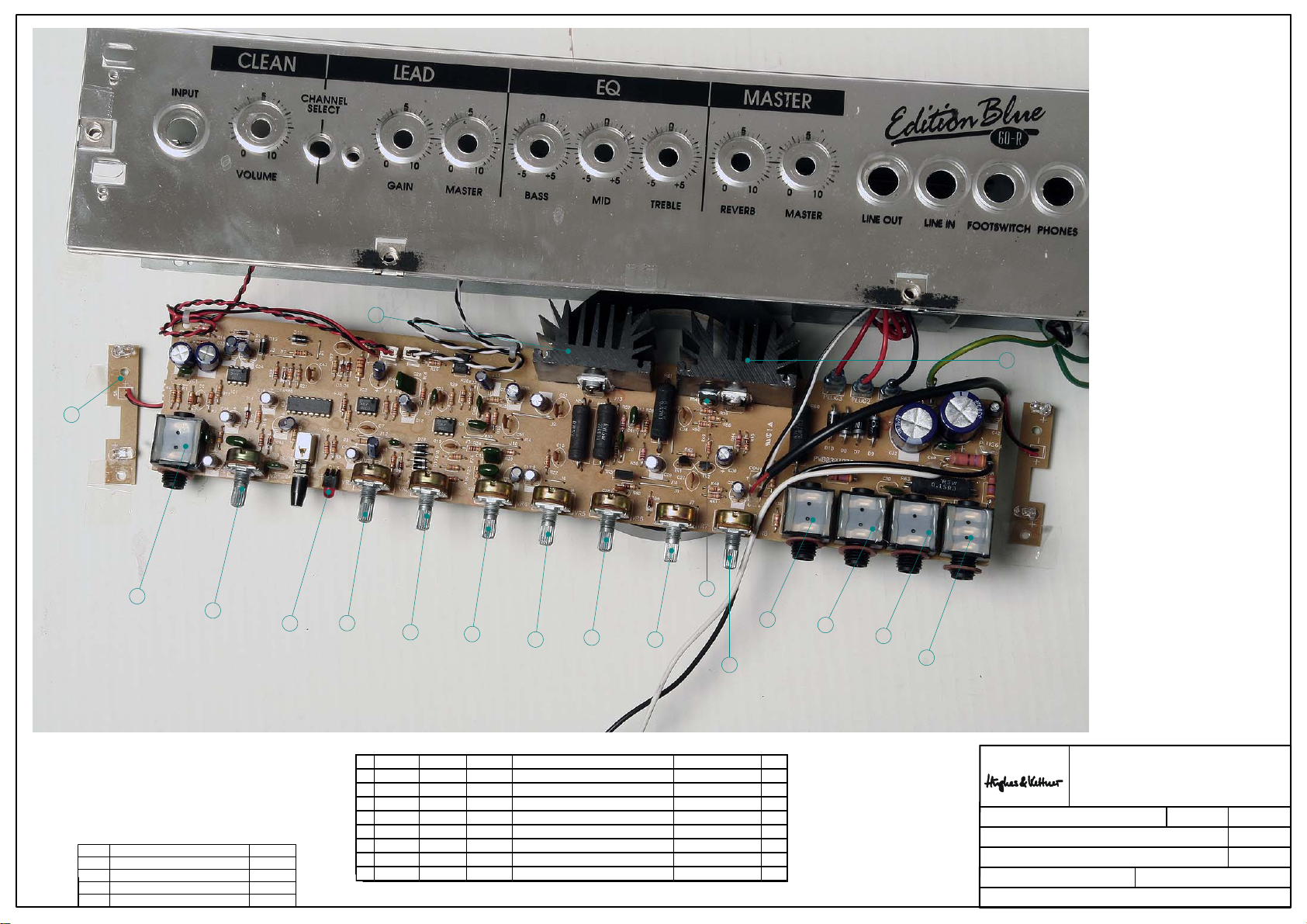

electronics Rev.: A page: 13-14

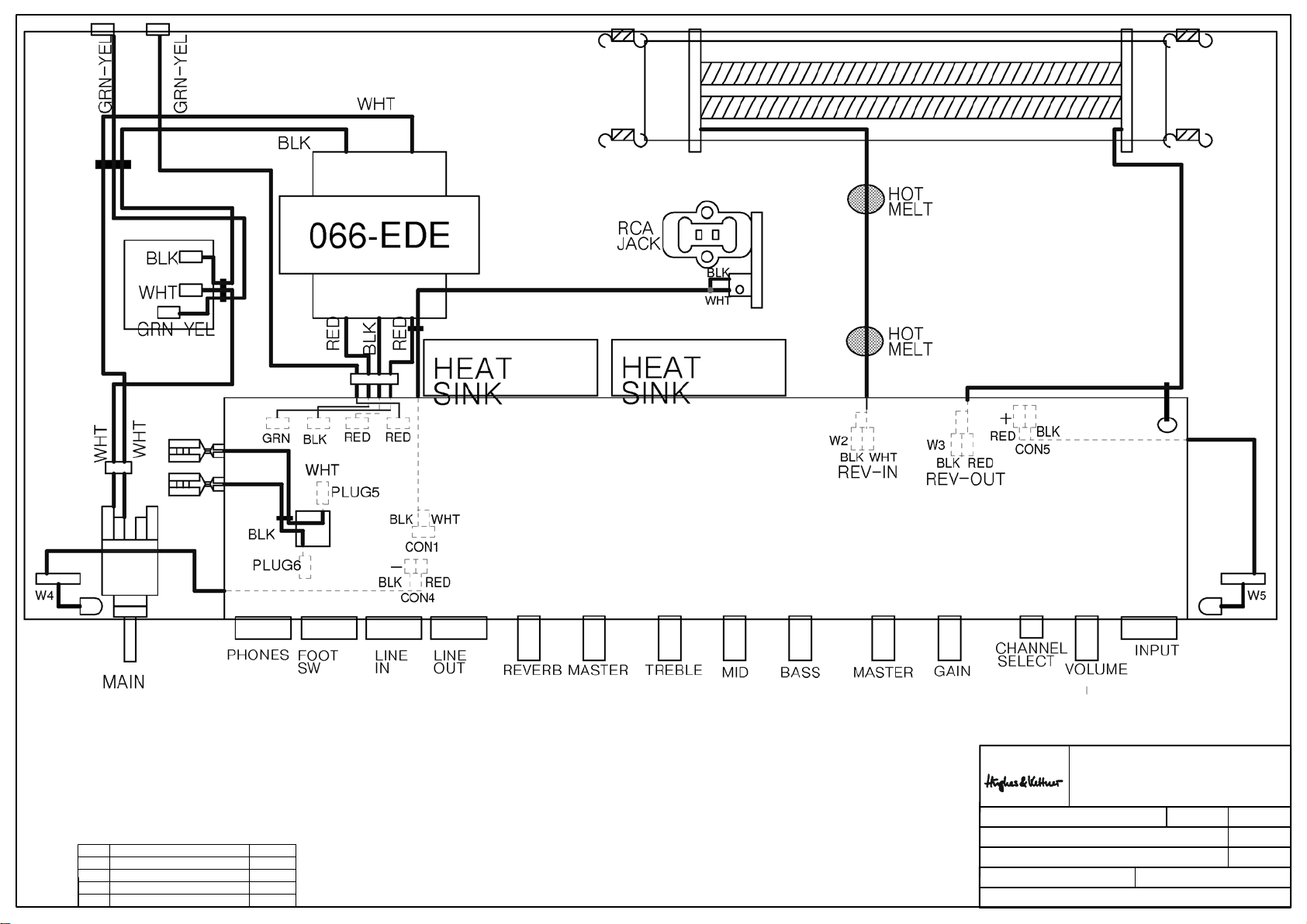

cabling Rev.: A page: 15-16

spare parts list Rev.: A page: 17-18

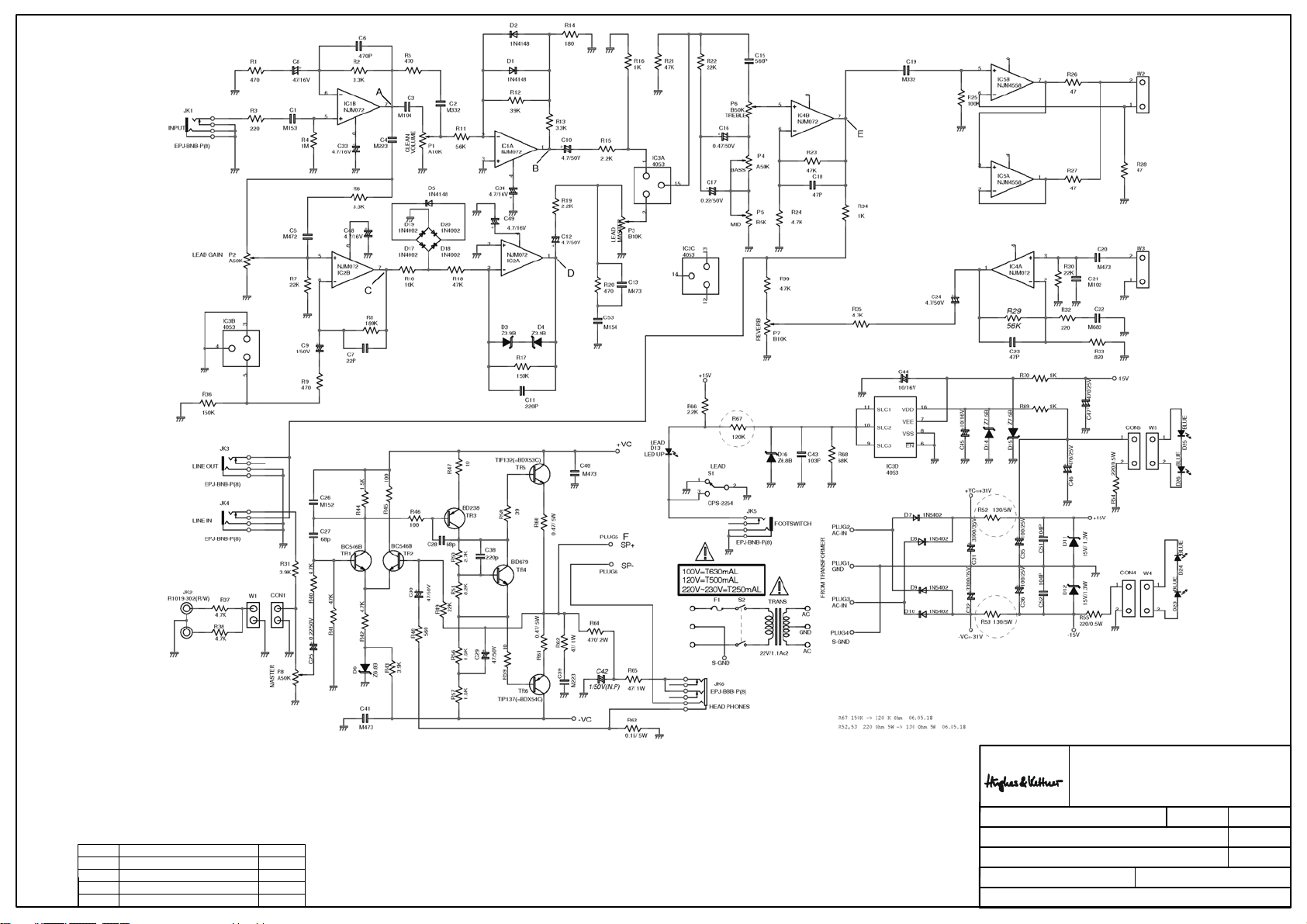

circuit diagrams Rev.: A page: 19

EDITION BLUE 60-R-MANUAL

CONGRATULATIONS AND THANK YOU
FOR CHOOSING THE HUGHES & KETTNER
EDITION BLUE 60-R AMP!

- Check that the local current and the amp's AC power
rating are identical before you plug the power cord
into an AC outlet.

- Ensure that air can circulate freely around your amp's
ventilation ducts.

- Place the amp on a stable platform where it is not
exposed to mechanical shocks and temperature
extremes which may damage the amp or endanger
the safety of bystanders.

- Hughes & Kettner is not liable for damages due to
improper use.

A team of guitarists and technicians developed the
EDITION BLUE 60-R amps with a single purpose in mind:
To provide you with sophisticated guitar sounds and
practical features in an easy-to-handle package.

The EDITION BLUE 60-R is the ideal workhorse for discer­ning players who want happening tone in a compact
amp. The EDITION BLUE 60-R's high-performance Current
Feedback power amp delivers not only 60 watts of
punch, but also the sought-after tone of a classic tube
amp.
One component playing a major role in the overall tone
of the amp is the RockDriver Junior speaker. Custom­made for Hughes & Kettner to our specifications, this
speaker not only perfectly captures the essence of
vintage sound, but also is extremely efficient. This makes
your EDITION BLUE 60-R substantially louder than other
amplifiers having the same output power rating.
As very special treat, the EDITION BLUE 60-R offers the
option of connecting a CD player or tape deck. This
handy add-on feature allows you to play along with
CDs or playback tracks of your own making for rehear­sals, jamming, or even one-man/woman gigs.
The EDITION BLUE 60-R has the versatility, sound, and
features that inspires you to perform your best in smaller
venues, rehearsal rooms and studios.
Its logical control layout gives you immediate access to
the EDITION BLUE 60-R's world of sound. This manual
introduces you to its many features and application
options.

WE WISH YOU A LOT OF FUN AND SUCCESS
WITH YOUR NEW EDITION BLUE 60-R!

1.0 CHANNELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2.0 JACKS AND CONTROL FEATURES . . . . . . . . . . . . . . . . . .6

3.0 STANDARD SETUP/CABLE CONNECTIONS . . . . . . . . . . .7

4.0 OPERATING THE EDITION BLUE 60-R . . . . . . . . . . . . . . . .7

4.1 SELECTING CHANNELS . . . . . . . . . . . . . . . . . . . . . . . . . .7

4.2 THE EDITION BLUE 60-R AND CD PLAYERS . . . . . . . . . . .7

4.3 THE EDITION BLUE 60-R AND SIGNAL PROCESSORS . . . .7

4.4 THE EDITION BLUE 60-R AND MIXING CONSOLES . . . . .7

5.0 SERVICE AND PREVENTIVE MAINTENANCE . . . . . . . . . .7

6.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7.0 TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .8

1.0 CHANNELS

The EDITION BLUE 60-R features a newly developed pre­amp that not only produces authentic harmonic over­drive but also responds dynamically to your picking
style. Based on semiconductors, this innovative circuitry
simulates the sound-shaping elements of tube amps and
delivers sound quality unparalleled in this price range. It
also provides the dynamics demanding guitarists require
for musical expression.

CLEAN:

Depending on the preamp control settings, the
EDITION BLUE 60-R delivers a variety of contemporary
and Vintage clean tones. At higher VOLUME settings,
the "SoftClick" circuitry delivers that slight edge you
would expect from a Vintage tube amp. If desired, the
CLEAN channel can put out plenty of crunch.

LEAD:

This channel delivers direct, in-your-face classic rock
sounds with a very British feel. The MID control is a very
effective sound-shaping tool; it lets you dial in many
different lead sounds. If you drastically taper off the
mids, the EDITION BLUE 60-R will produce the un­mistakable sound of modern tube amps - ideal for
tapping and heavy-duty power chord riffing.

REVERB:

In the signal chain, the EDITION BLUE 60-R reverb section
is located after the FX loop so you can use it for external
effects and still achieve a clean reverb sound.
Additionally, the reverb level automatically adjusts its
own level when you switch between channels, more for
clean, less for lead.

ENGLISH

BEFORE POWERING UP...

5

EDITION BLUE 60-R-MANUAL

2.0 JACKS AND CONTROL FEATURES

2.1. FRONT PANEL:

INPUT: Input sensitivity is broad enough to handle guitars
equipped with humbuckers, active pickups, or single
coils.

CLEAN VOL: Determines the CLEAN channel's volume.
Depending on the type of pickups in your instrument,
the amp will begin to clip somewhere around the 12
o'clock setting (SoftClick).

CHANNEL SELECT: This channel selector switch activates
either the CLEAN or LEAD channel. The LEAD channel is
active when the button is pressed.

RED LEAD LED: The red LED illuminates when the LEAD
channel is active.

LEAD GAIN: Controls the amount of distortion in the
LEAD channel.

LEAD MASTER: Determines the LEAD channel volume
level in relation to the CLEAN channel volume level.

EQ SECTION: Common BASS, MID and TREBLE controls for
the both channels. MID and TREBLE controls influence
each other, as is standard in tube amps: if you boost the
treble, the mids are cut and vice versa. This sound­shaping feature allows you to dial in a wide variety of
subtle tonal variations.

REVERB: Controls how much integrated reverb is added
to the signal. Reverb is automatically adjusted for each
channel when you switch channels.

MASTER: Controls the amp‘s master volume level. The
LINE OUT signal is unaffected by the MASTER control.

LINE OUT: Use this jack to feed the signal to the input of
an FX processor. You can also route the signal to a
second power amp or through a RED BOX to a mixing
console.

LINE IN: If you are sending the LINE OUT signal to an FX
processor, connect the output from that processor to
this jack.

FOOTSWITCH: This jack is for a standard footswitch (e.g.
Hughes & Kettner FS-1) and it allows you to switch back
and forth between the CLEAN and LEAD channels.
When using a footswitch, ensure the CHANNEL SELECT
switch on the amp‘s front panel is set to CLEAN.

PHONES: Headphone jack. The speaker is automatically
switched off when a plug is inserted into this jack.

2.2 REAR PANEL:

MAINS: Connect the included Euro-norm mains cord to
this socket. Ensure the amp's voltage rating matches
your local AC voltage rating before you plug the cord
into the wall socket.

CD INPUT: Jack for connecting CD players
(tape decks).

3.0 STANDARD SETUP/

CABLE CONNECTIONS

6

EDITION BLUE 60-R-MANUAL

4.0 OPERATING THE EDITION BLUE 60-R

4.1 SELECTING CHANNELS

Use the CHANNEL SELECT switch or an external foot­switch to change channels.

NOTE: Before using a footswitch, set the CHANNEL SELECT
switch on front panel of the amp itself to the CLEAN
position.

4.2 THE EDITION BLUE 60-R AND CD PLAYERS

The EDITION BLUE 60-R is equipped with a CD INPUT
located on the rear panel for the connection of a CD
player or another audio source (tape deck, DAT recor­ders). The circuit is controlled directly by the MASTER
circuit of the EDITION BLUE 60-R, which means that you
can use the MASTER knob to adjust the input signal’s
volume. To dial in the desired balance of levels for the
playback and guitar signals, the connected playback
device has to be equipped with some type of variable
output control.
Tip: Most audio playback devices feature a variable
headphones out. Using a corresponding adapter,
you can connect it to the CD INPUT.

Note: Before you switch on the audio playback device,
turn the MASTER knob all the way down. Then turn up the
MASTER knob a tad and dial in the desired balance
levels. Once you’re satisfied with these levels, gradually
turn up the knob to the the desired overall level.

4.3 THE EDITION BLUE 60-R AND SIGNAL
PROCESSORS

The effects loop on the EDITION BLUE 60-R is a serial
effects loop, meaning that the entire preamp signal is
routed to the FX device and processed there.

To connect a signal processor:

• Connect the processor‘s INPUT to the EDITION BLUE 60-

R LINE OUT jack and the processor‘s OUTPUT to the
EDITION BLUE 60-R LINE IN jack.

• To avoid noise, signal degradation, and interrupted

signals, only use high-quality patch cables.

• Make sure the processor is not distorting the signal.

Check the processor's gain LEDs (if it is equipped with
this type of display) and use the input and output
controls to dial in a suitable level.

• Distortion devices are not designed for use in an FX

loop. As a rule of thumb, any kind of device that
compresses the signal should be connected first in the
signal chain. Depending on the type of effect you
want to achieve, you may want to connect your
compressor directly between the instrument and the
amp's input.

• If you are using several processors or stomp boxes,
ensure you connect them in the proper order.

4.4 THE EDITION BLUE 60-R AND MIXING

CONSOLES

If you want to feed the EDITION BLUE 60-R's signal to a
mixing console, we recommend you route it through a
Hughes & Kettner RED BOXTM. Patch the signal from the
LINE OUT jack, as this signal path's level is not influenced
by the MASTER setting. The RED BOXTM balances the
signal and simulates a speaker cabinet.

5.0 SERVICE AND PREVENTIVE

MAINTENANCE

The EDITION BLUE 60-R does not require service of any
type. However, there are a few precautions you should
heed to ensure your amp lasts for many years.

• Ensure all peripheral devices, cords and cables are in
a state of good repair. Defective speaker cables are
the most common cause of power amp failure. Poor­quality cables will cause hum and undesirable noise.

• Make certain your amp's ventilation ducts are not
blocked or covered. Proper cooling will prolong the
life of your amp.

• Avoid mechanical shocks and exposure to extreme
heat, dust and especially moisture.

• When connecting peripheral devices, always pay
close attention to their specifications. Never connect
devices with high output signal levels (e.g. power
amps) to your amp's input.

• Ensure you have the correct AC power rating
available before you plug in the amp. If in doubt, ask
the venue's sound technician or the custodian of the
building you are rehearsing in.

• Refrain from do-it-yourself repairs! Have a qualified
service technician replace internal fuses.

With the unit off and unplugged, use a soft damp cloth
to clean the exterior surface of the EDITION BLUE 60-R.

ENGLISH

7

EDITION BLUE 60-R-MANUAL

6.0 TROUBLESHOOTING

1) The EDITION BLUE 60-R will not switch on:

• The amp is not getting any AC power. Check the
mains cable to see if it is connected properly.

• The mains fuse is defective. Replace the fuse with
another identical fuse. If this fuse also trips, consult
your Hughes & Kettner dealer.

2) The EDITION BLUE 60-R is connected properly,

but no sound is audible.

• One or several GAIN and MASTER controls may be
turned all the way down. Dial in a higher setting.

• A short circuit in the speaker signal chain may have
tripped an internal fuse. Make sure none of the
connections are shorted out and have a qualified
service technician replace the fuse (identical
specifications are a must).

3) The footswitch does not switch channels:

• The front panel selector switch may be in the LEAD
position. Set it to CLEAN (in this case, CLEAN = off).

• The footswitch is not connected to the EDITION BLUE
60-R. Plug it into the appropriate jack.

4) When accessed, the LINE OUT/LINE IN jacks

cause annoying hum.

• An electrical or magnetic field is causing interference.
Use higher-quality cables or re-arrange the cables you
are using to reduce interference to a minimum. If this
still doesn't improve the situation, use a DI box.

• The grounding of the connected devices may be
causing a ground loop. DO NOT SEVER THE GROUND
OF THE CONNECTED DEVICES UNDER ANY CIRCUM­STANCES! Try plugging all devices into the same socket
via an AC power distributor/power strip. If this doesn't
eliminate the noise, you must ensure the connection is
galvanically separated by routing the signal through a
DI box.

5) You have connected an FX processor to the LINE

OUT jack and the signal is totally distorted, even
when you have dialed in a clean sound.

• The LINE OUT signal is overloading the input of the FX
processor. Reduce the processor‘s input sensitivity
("INPUT" or "GAIN").

6) You have connected an FX processor to the LINE

OUT jack of the EDITION BLUE 60-R and the
signal's volume level is way too low.

• The FX processor's output level is set incorrectly. Turn it
up.

7.0 TECHNICAL DATA

PREAMP SECTION

CLEAN + LEAD solid state channels

INPUT: -10 dBV/ 1 M ohm
LINE IN: -6dBV/ 50 k ohms
LINE OUT: 0 dBV/ 1k ohm

POWER AMP SECTION:

'CURRENT FEEDBACK' solid state power amp

Output Power: 60 watts rms into 8 ohms

Freqency response:
20 Hz - 30 kHz (into 8 ohms)

Speaker: RockDriver Junior, 12”, 8 ohms

GENERAL FEATURES:

Voltage: 230 V~ (European model)

117 V~ (North American model)
100 V~ (Japanese model)

Max. power consumption: 70 VA

Mains Fuse: T 250 mA (230 V model)

T 500 mA (117 V model)
T 630 mA (100 V model)

Dimensions: (W x H x D)

480 x 490 x 275 mm
19” x 19.25” x 11”

Weight: approx. 29 Lbs./approx.13 kgs

8

DRAWING-NUMBERS

EXAMPLE

HK0106-EX-R01-1A

VERSION

SERIAL NUMBER

DEPARTMENT:
R = R&D

REVISION

PROJECT-NR.:
HK = HK AUDIO
HU = HUGHES&KETTNER
MP = MINDPRINT

CHARACTER:
BL = SHEET METAL / BLECH
EX = EXPLODED DRAWING / EXPLOSIONSZEICHNUNG
HZ = CABINET / HOLZGEHÄUSE
KU = PLASTIC / KUNSTSTOFF
LP = PCB / LEITERPLATTEN
SO = MISCELLANEOUS / SONSTIGES
SP = SCHEMATIC / SCHALTPLÄNE
TR = TRANSFORMER / TRANSFORMATOR
GK = WIRING DIAGRAM / GERÄTEVERKABELUNG

Stand

W

Y

r

Standard for single wire confection.

16 B 150 638 I - 485 W Z I 1015

style 1015 according UL specifications

I = completely insulated with black shrinktube or appropriate sleeve
IT = partly insulated; only crimp connection insulated.

no marking = without insulation

Z = with additional junction
no marking = without additional junction

W = angled faston
no marking = straight faston

17. Jun 04

Faston connector brass tin-plated DIN 46245
638 = 6,3 * 0,8 [mm]
488 = 4,8 * 0,8 [mm]
485 = 4,8 * 0,5 [mm] if fully insulated (I) insulation with blue shrinktube

if partly insulated (IT) use IF 602 485 .
288 = 2,8 * 0,8 [mm]
285 = 2,8 * 0,5 [mm] if fully insulated (I) insulation with blue shrinktube

if partly insulated (IT) use IF 602 485

abiso = 5mm bared and tin-plated (teilabzug)
text for special constructions, (for example. 4mm ringshaped faston)

the larger faston connector always mentioned at first. (Nathan drawing number controlling)

lenght in mm within a 50 mm raster

colour
B = black (phase conductor)
R = red
BR = brown
BL = blue (neutral conductor)

= white

G = yellow-green (ground bonding/ earthing connection)

cross section
16 = AWG 16 (prefered usage)
Q1.5 = H07VK 1,5mm² (prefered usage)

wire designation:

P + lfd Nr. = AWG single wire black, red, blue, brown or white
E + lfd Nr. = AWG single wire green- yellow
L + lfd N
FQL + lfd Nr. = crossover wiring H07VK

Regarding special wirings like wiring harness or similar, drawings will be prepared and appropriate

. = twisted AWG double wire, lenght specification always in twisted condition

drawing numbers will be stored in the article archive.

Service Documents

Confidential, for authorized service technicians only!

Do not disclose this information to or share these documents with third parties.

TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany

HU0403

Edition Blue

60R

INDEX

ÄNDERUNG

ZEICHNER

Pos. Art ikel-Nr 1 Art ikel-N r 2 Artikel-Nr 3 Descriptio n Bezeichnung Menge

1 C90024 complete ED BLUE 60R wooden cabinet komplettes Holzgehäuse Edition Blue 60R 1
2 C90033 ED BLUE 60R sheet met al chassis Chassis Ed ition Blue 1
3 C90025 ED BLUE H&K strap handle Edition Blue H&K Griff 1
4 C90025 ED BLUE H&K strap handle Edition Blue H&K Griff 2
5 C90025 ED BLUE H&K strap handle Edition Blue H&K Griff 2
6 C90012 cross recessed countersunk screw, M4x30mm Senkkopfschraube 4x30mm vz 2
7 C90012 cross re cessed panhead tapping screw, 4x35mm black Blechschraube 4x35mm sw 4
8 C90012 cross recessed panhead tapping screw, 4x30mm black Blechschraube 4x30mm sw 4
9 C90012 cross recessed panhead tapping screw, 4x50mm black Blechschraube 4x50mm sw 4
10 C900 27 ED BLUE rube r foot 30/25/16mm Fuß, konisch 30/25/16 mm 4
11 C90012 panhead-Z-ABC-spax, 3,5x18mm black Spaxschraube 3,5x18mm 4
12 C90012 cross recessed panhead screw; M5x23mm Linsenkopfschraube M5x23mm 4
13 C90032 12" celestion rockdriver junior speaker 12" Celestion rockdriver junior Speaker 1
14 C90031 ED BLUE 60R acoustic baffle Edition Blue 60R Schallwand 1
15 C90029 ED BLUE H&K logo H&K Logo 1

Item-nr.: C90012 is a screw set with all fittings used in HU0403-Edition Blue 60R

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 1

HU0403-EX-R01-1A-GESAMT

TITEL:

HU0403 Ex-Zeichnung
Edition Blue 60R

OBERFLÄCHE:

VERSION:

AM:

09.06.2006

AM:

REVISION:

BLATT:

7

A1

BLÄTTER

1

3

2

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1C90026 corner Ecke 8
2 C90030 Edition Blue 60R Clothing Editon Blue 60R Bespannstoff 1
3 C90012 panhead-Z-ABC-spax, 3,5x13mm black Spaxschraube 3,5*13mm sw 16

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 2

HU0403-EX-R01-1A-GESAMT

TITEL:

HU0403 Ex-Zeichnung
Edition Blue 60R

OBERFLÄCHE:

VERSION:

AM:

09.06.2006

AM:

REVISION:

BLATT:

7

A1

BLÄTTER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90146 jack nut Gegenmutter Klinkenbuchse 5
2 C90107 ED BLUE poti-knob Potiknopf 8
3 C90147 volume nut Poti Mutter M7 8
4 C90148 volume washer Kunststoffring Poti 8
5 C90034 ED BLUE 60R plexiglas Plexiglas 1
6 C90 149 nut M12 mainswitch ring Mutter Edition Blue Netzschalt er 2
7 C90150 w ashe r d=12mm Kunststoffring d= 12mm 2
9 C90033 ED BLUE 60R sheet metal chassis Chassis Edition Blue 1
11 C90106 mainsswitch Netzschalter 1

12 C90 037 powerinlet Netz buchse 1
13 C90012 cross recessed panhead screw, M3x8mm Linsenschraube M3x8mm vz 4
14 C90 041 ED BLUE LED board LED Pl atine 2
15 C90035 sheet metal nut, 3,9mm brass Blechmutt ern 3,9mm ms 8
17 C90012 cross recessed panhead screw, M4x10mm black Linsenschraube M4x10mm sw 4
18 C90012 spring washer Federring d=4mm 4
19 C90012 nut M4 M4 Mutt er 4

20 C90038 (230V) C90095 (117V) C90094 (100V) ED BLUE 60R mains transformer Transformator 1

21 C90145 jack washer Kunststoffring Klinkenbuchse 5

22 C90120 heat sink (black anod ize) 50x28x40mm (2hole) Kühlkörper, sw 50x28x40mm (inkl. 2 Bohrungen) 1

23 C90012 cross re cessed panhead screw; 3x8mm black Blechschraube 3x8mm sw 4
24 C90036 ED BLUE 60R preamp board Vorstufe Edition Blue 60R 1
25 C90 023 PUSH SWITCH Tast -Schalt er 1
26 C90040 spring reverb unit Federhalleinheit 1
27 C900 22 RCA JACK Chinch Buchse 1
28 C90012 cross recessed panhead scre w; 3x8mm black Blechschraube 3x8mm sw 2
29 C90106 mainsswitch Netzschalter 1

30 C90151 nut M12 Mutter M12 1

38
39

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

31 C90150 washer d= 12mm Kunst stoffring d=12mm 2

32 C90151 nut M12 Mutter M12 1

33 C90012 cross recessed panhead screw, M3x8mm Linsenschraube M3x8mm vz 3
34 C90012 spring washer Federring d=3mm 1
35 C90119 heat sink (black anodize) 50x28x40mm Kühlkörper, sw 50x28x40mm 1
36 C90152 insulated bushing d=3mm Isolationsring d=3mm 2
37 C9015 3 insulated space r TD220, Mica Isolatio nsscheibe 2
38 C90121 fuse case Sicherungseinsatz 1
39 C90122 fuse T250mA L250V Feinsicher ung T25 0mA L250V 1

Item-nr.: C90012 is a screw set with all fittings used in HU0403-Edition Blue 60R

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 3

HU0403-EX-R01-1A-GESAMT

TITEL:

HU0403 Ex-Zeichnung
Edition Blue 60R

OBERFLÄCHE:

VERSION:

AM:

09.06.2006

AM:

REVISION:

BLATT:

7

A1

BLÄTTER

10

11

9

INDEX

2

ÄNDERUNG

1

6

1

ZEICHNER

8

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

7

1 C90014 LED 5mm, color red LED 5mm, Farbe rot 1
2 C90015 mono jack Mono Klinkenbuchse 4
3 C90016 stereo jack Stereo Klinkenbuchse 1
4 C900 17 P OTENTIOMETER RV160-20 15SP B50K (P6) Pot i RV160-20 15SP B50K 1
5 C90018 P OTENT IOMETER RV160- 20 15 SP B 5K (P5) Poti RV 160-20 15SP B5K 1
6 C9 0019 P OTENTIOMETER RV160-20 15SP A10K (P 1) P oti RV160 -20 15SP A10K 1
7 C90020 PO TENTIOMET ER RV160 -20 15SP B10K (P3, P 7) Poti RV16 0-20 15SP B10K 2
8 C90021 PO TENTIOMET ER RV160 -20 15SP A5 0K (P2, P4, P8) Poti RV16 0-20 15SP A50K 3

8

5

4

7

2

8

2

2

3

TITEL:

HU0403 Ex-Zeichnung

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 4

HU0403-EX-R01-1A-GESAMT

Edition Blue 60R

VERSION:

AM:

AM:

OBERFLÄCHE:

09.06.2006

REVISION:

BLATT:

7

A1

BLÄTTER

9

9

1515 13

12 12

9

5

4

3

11 11

11

11

INDEX

7

ÄNDERUNG

10 10

14

14

6

7

ZEICHNER

9 10 10

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 938009 NPN transistor BC 546B (TR1, TR2) NPN Transistor BC 546B 2
2 938022 PNP transistor BD 238 (TR3) PNP Transistor BD 238 1
3 C90108 NPN transistor BD 679A or DB 681 (molding type) (TR4) NPN Transistor BD 679A oder DB 681(formgepresst) 1
4 938034 NPN transistor BDX 53C (or Tip132) (TR5) NPN Transistor BDX 53C oder Tip132 1
5 938035 PNP transistor BDX 54C (or Tip137) (TR6) PNP Transistor BDX 54C oder Tip137 1
6 C90109 sw itching IC HCF4 053BEY (IC3) Schalt IC HCF405 3BEY 1
7 C90110 dual of amp IC NJM072D (IC1, IC2, IC4) Amp IC NJM072D 3
8 C90111 dual of amp IC NJM4558DD (IC5) Amp IC NJM45 58DD (IC5) 1
9 C9 0112 silicon switching diode 1N4148, T (D1, D2, D5 ) Silliz iumdio de 1N4 148, T (D1, D 2, D5) 3

10 C90113 silicon rectifier diode 1N4002, T (D17, D18, D19, D20) Silliziumgleichrichterdiode 1N4002, T 4

11 C90114 silicon rectifier diode 1N5402, T (D7, D8, D9, D10) Silliziumgleichrichterdiode 1N5402, T 4

12 C90115 zener dio de 1N5 228B(3,9V/0,5W),T (D3, D4) Zenerd iode 1N5228B(3,9V/0,5W),T 2
13 C90 116 ze ner diode 1N5 235B (6 ,8V/0 ,5W), T (D6 , D16) Zene rdiode 1N5 235B (6 ,8V/0 ,5W), T 2
14 C90117 z ene r diode 1N5236B (7,5 V/0,5W) T (D14 , D15) Zene rdiod e 1N52 36B (7,5V/0,5W) T 2
15 C90118 z ener d iode ZPY 15 (15 V/1,3W) (D 11, D12) Zenerdiode ZPY15 (15V/1,3W) 2

7

2

1 1

13

TITEL:

HU0403 Ex-Zeichnung

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 5

HU0403-EX-R01-1A-GESAMT

Edition Blue 60R

VERSION:

AM:

AM:

OBERFLÄCHE:

09.06.2006

REVISION:

BLATT:

7

A1

BLÄTTER

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90138 CO N5: FLAT WIRE UL1007 A WG26 L=200m/m: W5 L itz e sw 1
2 C90139 CON4: FL AT WIRE UL100 7 AWG26 L=200m/m: W4 Litze rot 1
3 C90140 CON+1: FL AT WIRE UL 1007 AWG26 230m/m :CON 6 Litz e sw/weiß 1
4 C9014 1 LEAD WIRE UL1015 AWG22 WHITE Litze weiß 1
5 C90142 PLUG5(+):205/TER LEAD WIRE 1015 AWG22 WHT Litze weiß 1
6 C90143 PLUG6(-):205/TER LEAD WIRE 1015 AWG22 WHT Litze sw 1
7 C90144 PLUG4: 250/TER WIRE UL1015 AWG18 YEL/GRN Litze grün/gelb 1
8 C90157 LEA D WIRE UL1015 AWG18 YEL/GRN Lit ze grün/gelb 1
9 C9 0158 LEAD WIRE UL1617 AWG22 WHITE L =130m/m Litz e weiß 1

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 6

HU0403-EX-R01-1A-GESAMT

TITEL:

HU0403 Ex-Zeichnung
Edition Blue 60R

OBERFLÄCHE:

VERSION:

AM:

09.06.2006

AM:

REVISION:

BLATT:

7

A1

BLÄTTER

INDEX

ÄNDERUNG

ZEICHNER

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0403-EX-R01-1A
Martin Drumm 7

HU0403-EX-R01-1A-GESAMT

TITEL:

HU0403 Ex-Zeichnung
Edition Blue 60R

OBERFLÄCHE:

VERSION:

AM:

09.06.2006

AM:

REVISION:

BLATT:

7

A1

BLÄTTER

HU0403-EX-R01-1A-COMPLETE (PAGE 1, 2)

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90024 complete ED BLUE 60R wooden cabinet komplettes Holzgehäuse Edition Blue 60R 1
C90025 ED BLUE H&K strap handle Edition Blue H&K Griff 2
C90026 corner Ecke 8
C90027 ED BLUE ruber foot 30/25/16mm Fuß, konisch 30/25/16mm 4
C90029 ED BLUE H&K logo H&K Logo 1
C90030 Edition Blue 60R Clothing Editon Blue 60R Bespannstoff 1
C90031 ED BLUE 60R acoustic baffle Edition Blue 60R Schallwand 1
C90032 12" celestion rockdriver junior speaker 12" Celestion rockdriver junior Speaker 1
C90033 ED BLUE 60R sheet metal chassis Chassis Edition Blue 1

HU0403-EX-R01-1A-CHASSIS (PAGE 3)

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90022 RCA JACK Chinch Buchse 1
C90023 PUSH SWITCH Tast-Schalter 1
C90033 ED BLUE 60R sheet metal chassis Chassis Edition Blue 1
C90034 ED BLUE 60R plexiglas Plexiglas 1
C90035 sheet metal nut, 3,9mm brass Blechmuttern 3,9mm ms 8
C90036 ED BLUE 60R preamp board Vorstufe Edition Blue 60R 1
C90037 powerinlet Netzbuchse 1
C90038 C90095 C90094 ED BLUE 60R mains transformer Transformator 1
C90040 spring reverb unit Federhalleinheit 1
C90041 ED BLUE LED board LED Platine 2
C90106 mainsswitch Netzschalter 1
C90106 mainsswitch Netzschalter 1
C90107 ED BLUE poti-knob Potiknopf 8
C90119 heat sink (black anodize) 50x28x40mm Kühlkörper, sw 50x28x40mm 1
C90120 heat sink (black anodize) 50x28x40mm (2hole) Kühlkörper, sw 50x28x40mm (inkl. 2 Bohrungen) 1
C90121 fuse case Sicherungseinsatz 1
C90122 fuse T250mA L250V Feinsicherung T250mA L250V 1
C90145 jack washer Kunststoffring Klinkenbuchse 5
C90146 jack nut Gegenmutter Klinkenbuchse 5
C90147 volume nut Poti Mutter M7 8
C90148 volume washer Kunststoffring Poti 8
C90149 nut M12 mainswitch ring Mutter Edition Blue Netzschalter 2
C90150 washer d=12mm Kunststoffring d=12mm 2
C90150 washer d=12mm Kunststoffring d=12mm 2
C90151 nut M12 Mutter M12 1
C90151 nut M12 Mutter M12 1
C90152 insulated bushing d=3mm Isolationsring d=3mm 2
C90153 insulated spacer TD220, Mica Isolationsscheibe 2

HU0403-EX-R01-1A-ELECTRONICS (PAGE 4, 5)

part-no. 1 (230V) part-no. 2 (117V) Ref.Destricption Description Bezeichnung Quantity
938009 TR1, TR2 NPN transistor BC 546B NPN Transistor BC 546B 2
938022 TR3 PNP transistor BD 238 PNP Transistor BD 238 1
938034 TR5 NPN transistor BDX 53C (or Tip132) NPN Transistor BDX 53C oder Tip132 1
938035 TR6 PNP transistor BDX 54C (or Tip137) PNP Transistor BDX 54C oder Tip137 1
C90108 TR4 NPN transistor BD 679A or DB 681 (molding type) NPN Transistor BD 679A oder DB 681(formgepresst) 1
C90109 IC3 switching IC HCF4053BEY Schalt IC HCF4053BEY 1

C90110 IC1, IC2, IC4 dual of amp IC NJM072D Amp IC NJM072D 3
C90111 IC5 dual of amp IC NJM4558DD Amp IC NJM4558DD (IC5) 1
C90112 D1, D2, D5 silicon switching diode 1N4148, T Silliziumdiode 1N4148, T (D1, D2, D5) 3
C90113 D17, D18, D19, D20 silicon rectifier diode 1N4002, T Silliziumgleichrichterdiode 1N4002, T 4
C90114 D7, D8, D9, D10 silicon rectifier diode 1N5402, T Silliziumgleichrichterdiode 1N5402, T 4
C90115 D3, D4 zener diode 1N5228B(3,9V/0,5W),T Zenerdiode 1N5228B(3,9V/0,5W),T 2
C90116 D6, D16 zener diode 1N5235B (6,8V/0,5W), T Zenerdiode 1N5235B (6,8V/0,5W), T 2
C90117 D14, D15 zener diode 1N5236B (7,5V/0,5W) T Zenerdiode 1N5236B (7,5V/0,5W) T 2
C90118 D11, D12 zener diode ZPY15 (15V/1,3W) Zenerdiode ZPY15 (15V/1,3W) 2
C90119 heat sink (black anodize) 50x28x40mm Kühlkörper, sw 50x28x40mm 1
C90121 fuse case Sicherungseinsatz 1
C90122 fuse T250mA L250V Feinsicherung T250mA L250V 1
C90150 washer d=12mm Kunststoffring d=12mm 2
C90151 nut M12 Mutter M12 1
C90152 insulated bushing d=3mm Isolationsring d=3mm 2
C90153 insulated spacer TD220, Mica Isolationsscheibe 2

HU0403-EX-R01-1A-CABLING (PAGE 6, 7)

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90138 CON5: FLAT WIRE UL1007 AWG26 L=200m/m: W5 Litze sw 1
C90139 CON4: FLAT WIRE UL1007 AWG26 L=200m/m: W4 Litze rot 1
C90140 CON+1: FLAT WIRE UL 1007 AWG26 230m/m :CON6 Litze sw/weiß 1
C90141 LEAD WIRE UL1015 AWG22 WHITE Litze weiß 1
C90142 PLUG5(+):205/TER LEAD WIRE 1015 AWG22 WHT Litze weiß 1
C90143 PLUG6(-):205/TER LEAD WIRE 1015 AWG22 WHT Litze sw 1
C90144 PLUG4: 250/TER WIRE UL1015 AWG18 YEL/GRN Litze grün/gelb 1
C90157 LEAD WIRE UL1015 AWG18 YEL/GRN Litze grün/gelb 1
C90158 LEAD WIRE UL1617 AWG22 WHITE L=130m/m Litze weiß 1

HU0403-EDITION BLUE 60R SCREW SET

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90012 cross recessed countersunk screw, M4x30mm Senkkopfschraube 4x30mm vz 2
C90012 cross recessed panhead screw, M3x8mm Linsenschraube M3x8mm vz 7
C90012 cross recessed panhead screw, M4x10mm black Linsenschraube M4x10mm sw 4
C90012 cross recessed panhead screw; 3x8mm black Blechschraube 3x8mm sw 6
C90012 cross recessed panhead screw; M5x23mm Linsenkopfschraube M5x23mm 4
C90012 cross recessed panhead tapping screw, 4x30mm black Blechschraube 4x30mm sw 4
C90012 cross recessed panhead tapping screw, 4x35mm black Blechschraube 4x35mm sw 4
C90012 cross recessed panhead tapping screw, 4x50mm black Blechschraube 4x50mm sw 4
C90012 nut M4 M4 Mutter 4
C90012 panhead-Z-ABC-spax, 3,5x13mm black Spaxschraube 3,5*13mm sw 16
C90012 panhead-Z-ABC-spax, 3,5x18mm black Spaxschraube 3,5x18mm 4
C90012 spring washer Federring d=4mm 4
C90012 spring washer Federring d=3mm 1

INDEX CHANGES

RESP.

66606 St. Wendel / Germany

DRAWING-NO.:

DRAWN BY:

CHECKED BY:

MATERIAL:

FILENAME:

Martin Drumm 1

Schematic_ED60R

TITLE:

HU0403-Schaltplan
Edition Blue 60R

FINISH:

VERSION:

DATE:

20.07.2006

DATE:

REVISION:

PAGE:

1

A1

PAGES
