Service Documents

Confidential, for authorized service technicians only!

Do not disclose this information to or share these documents

with third parties.

Vertraulich! Nur für autorisierte Servicetechniker!

Nicht zur Weitergabe an Dritte freigegeben!

TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany

Note!

The components used in this product - particularly parts
affecting safety as well as speakers and transformers ­were developed and manufactured to certain specifications.
Please use original spare parts only to ensure the product
remains fully functional and safe.

Achtung!

Die in diesem Produkt verwendeten Komponenten, insbeson­dere sicherheitsrelevante Teile, Lautsprecher und Transforma­toren wurden nach spezifischen Vorgaben entwickelt und ge­fertigt. Bitte benutzen Sie ausschließlich Original-Ersatzteile –
nur so ist die volle Funktionalität und Sicherheit gewährleistet.

Edition Blue

Series

15DFX

2006/07/19

Directory

features page: 3-6

drawing-numbers-example page: 7

standard for single wire confection page: 8

HU0705-EDITION BLUE 15DFX page: 9

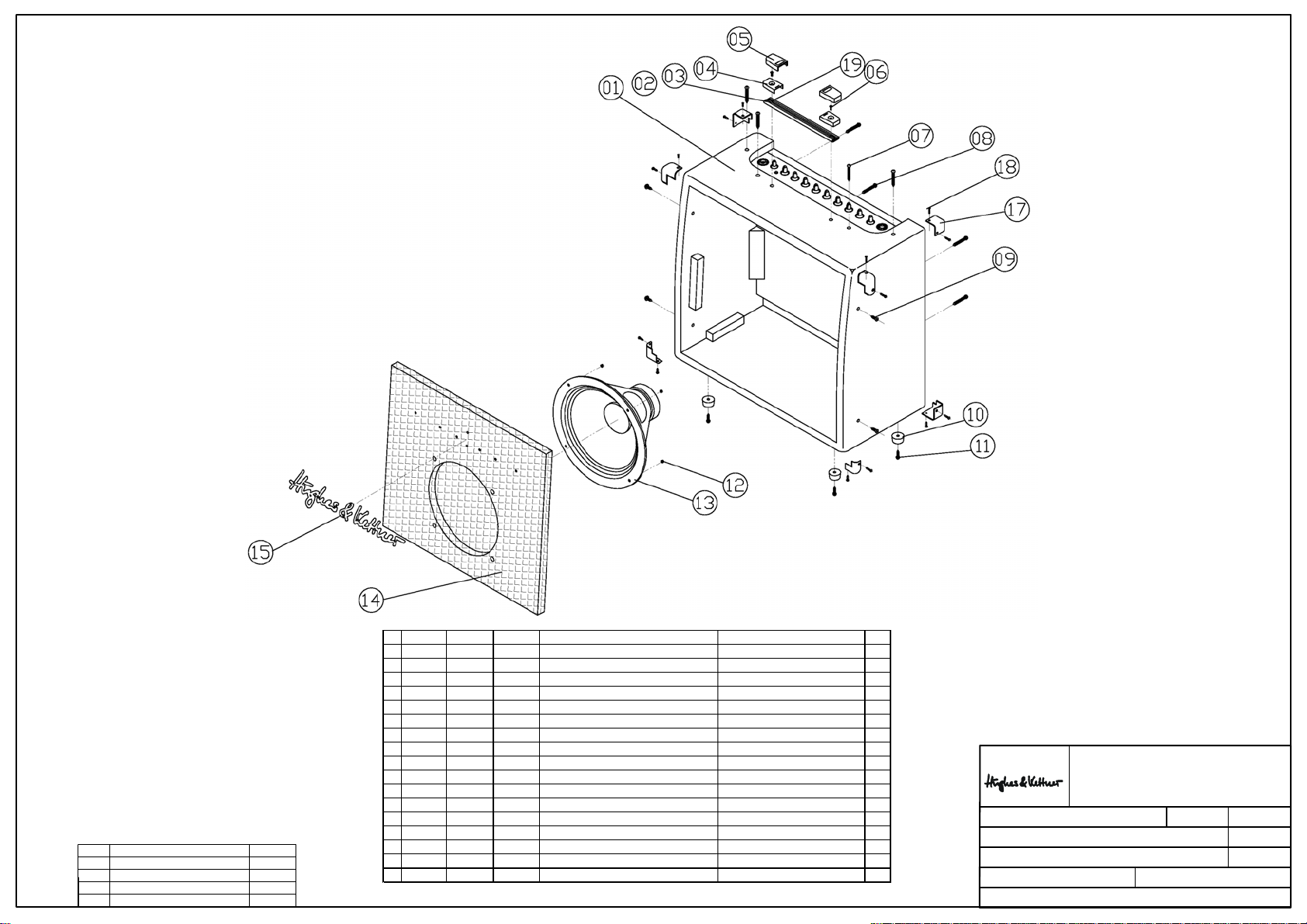

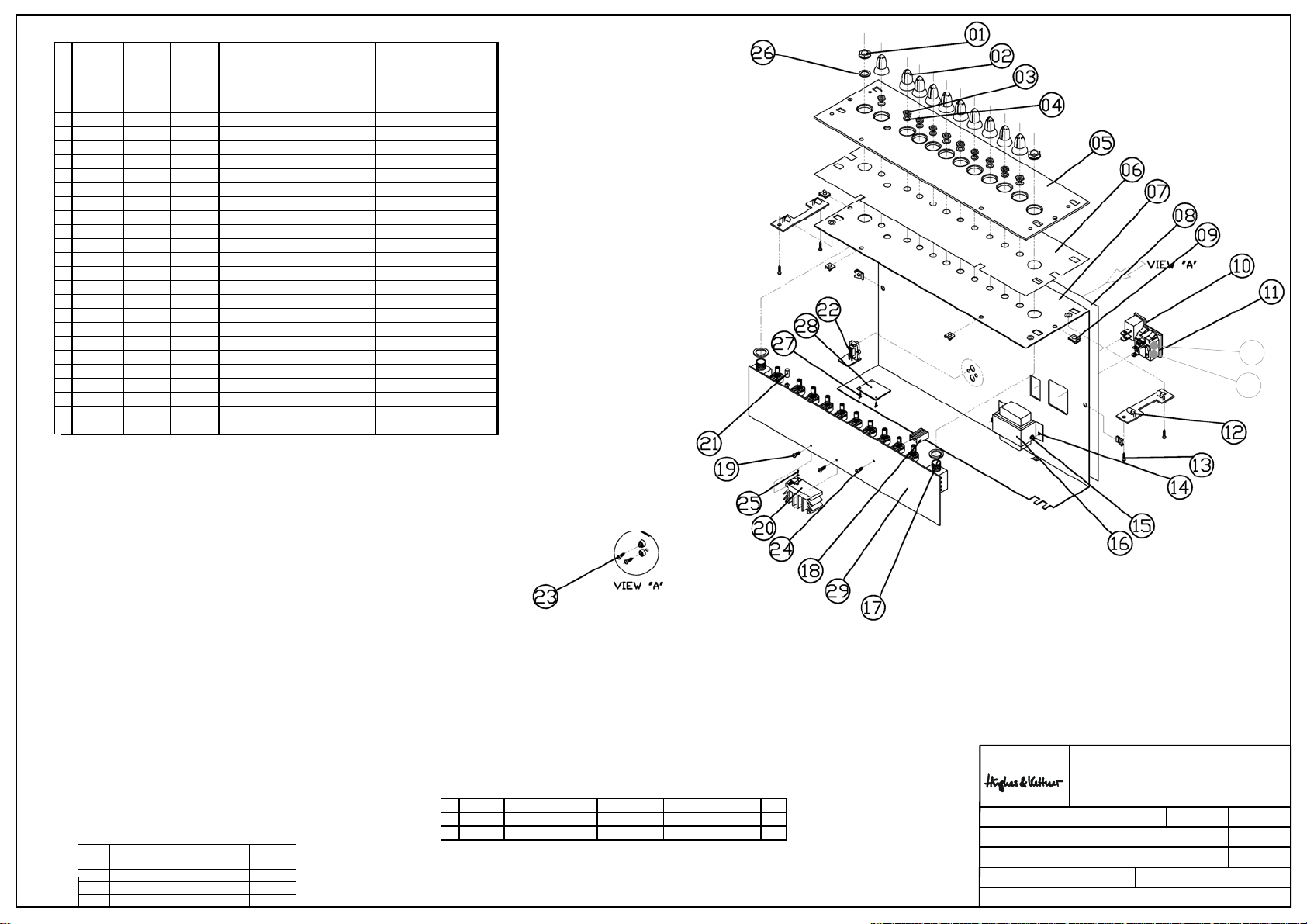

exploded drawings: complete Rev.: A page: 10-11

chassis Rev.: A page: 12

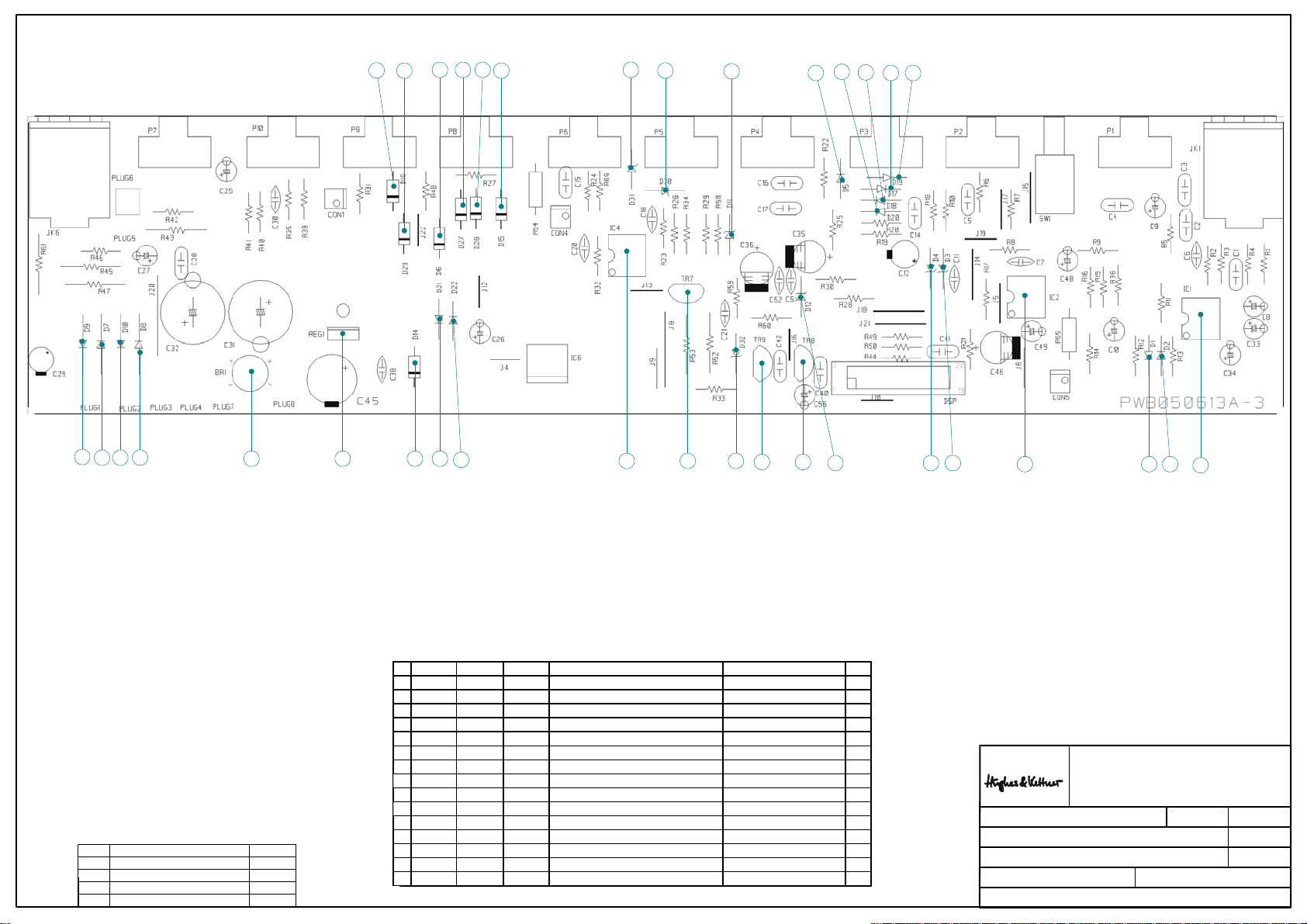

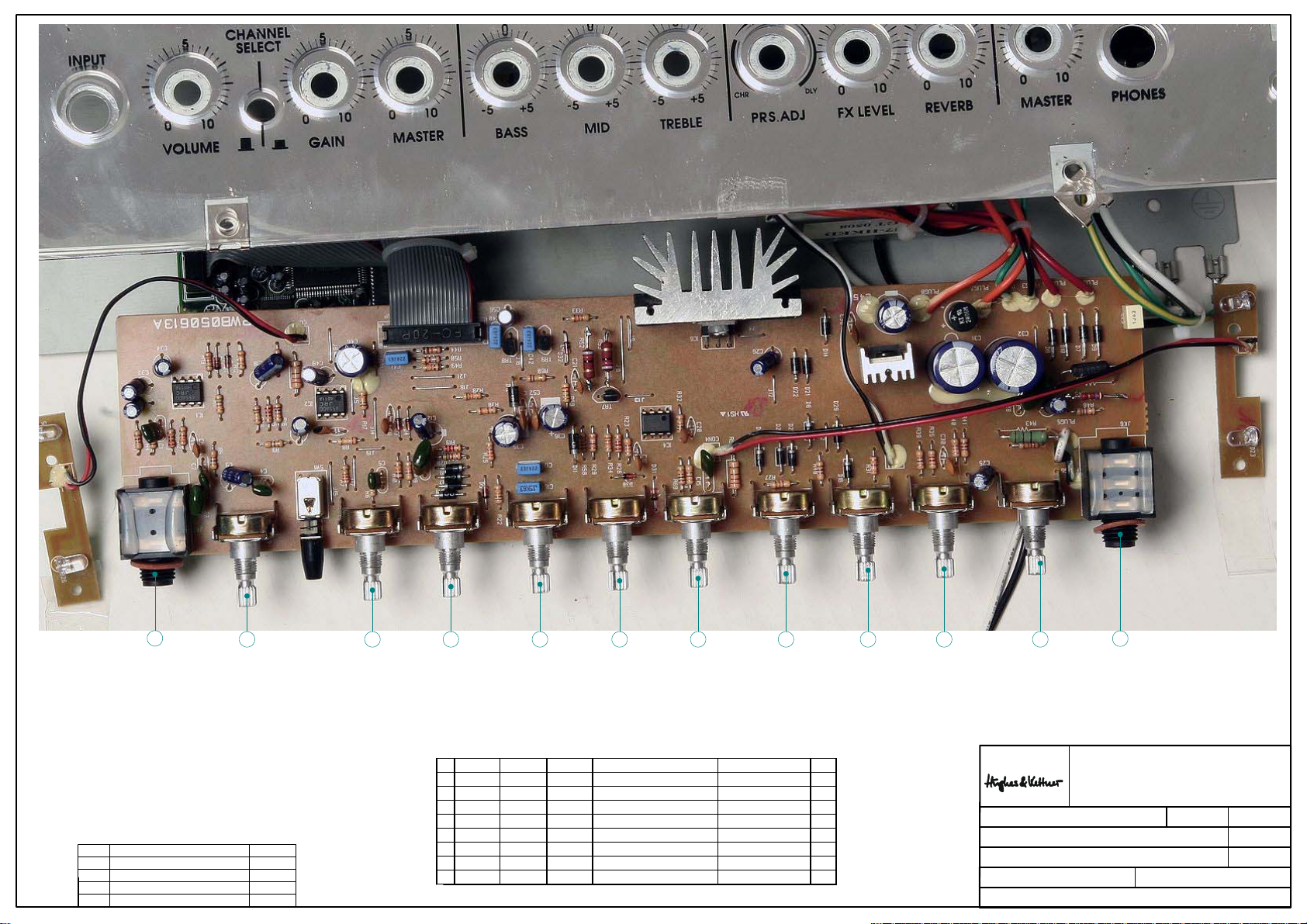

electronics Rev.: A page: 13-14

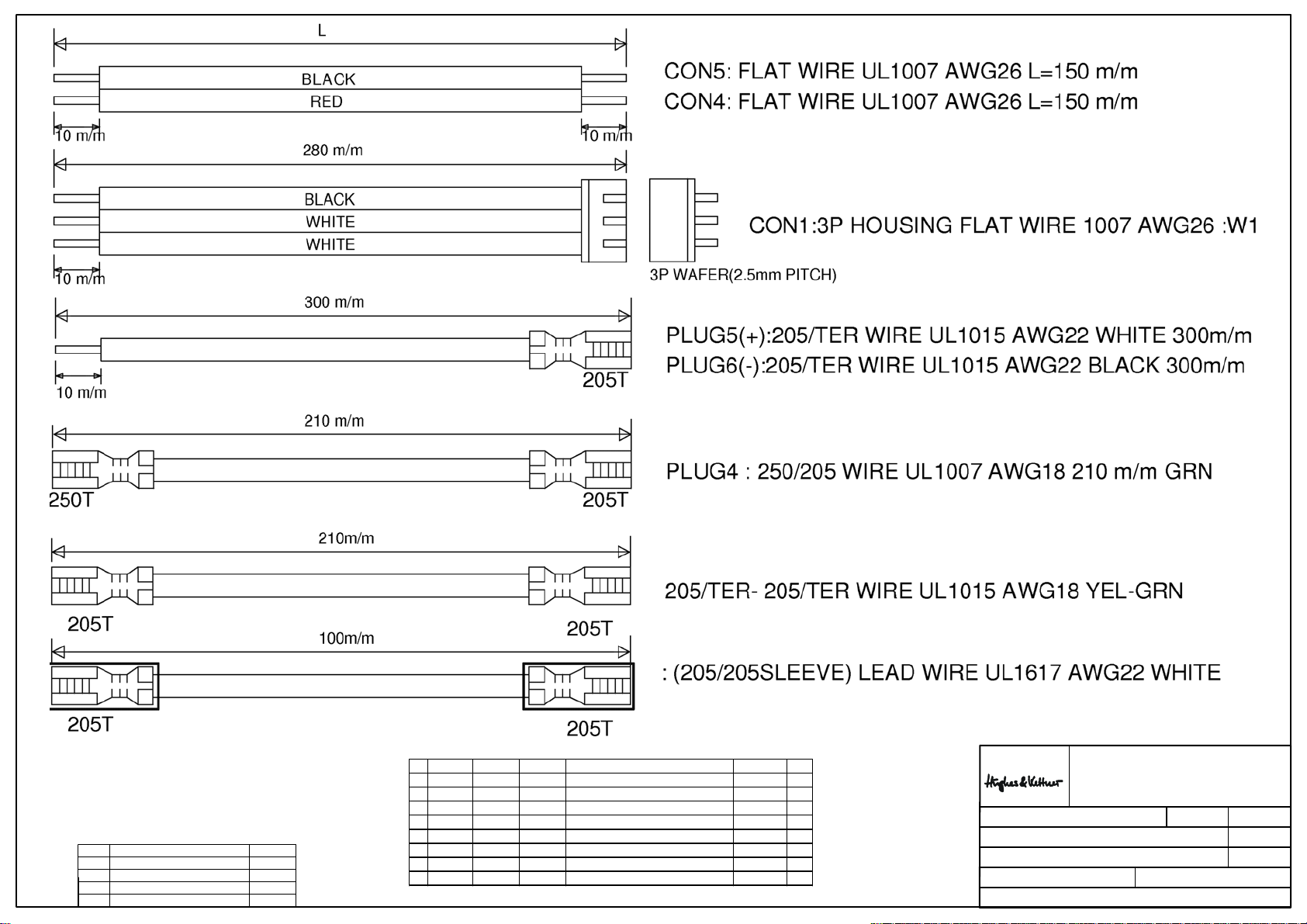

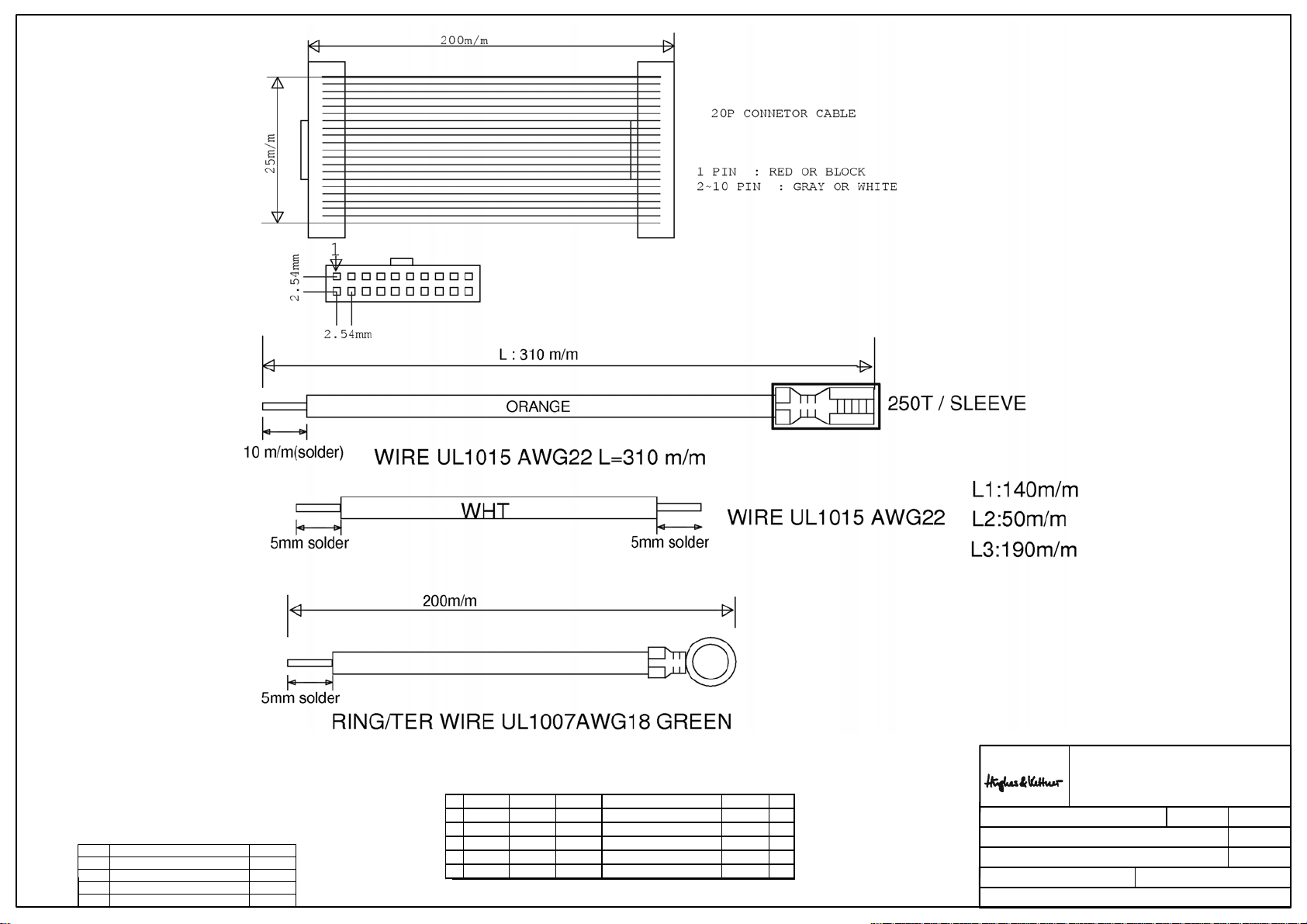

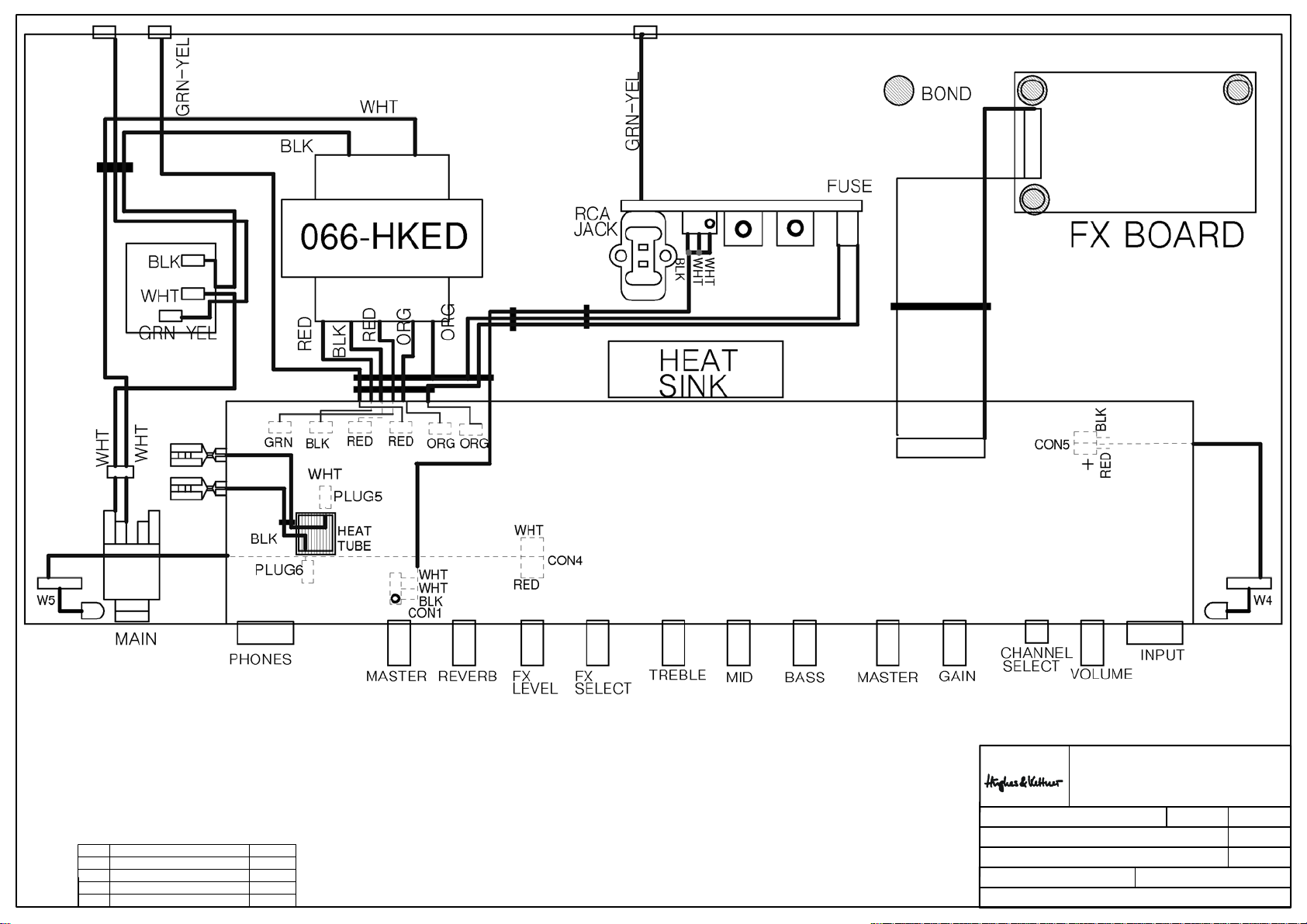

cabling Rev.: A page: 15-17

spare parts list Rev.: A page: 18-19

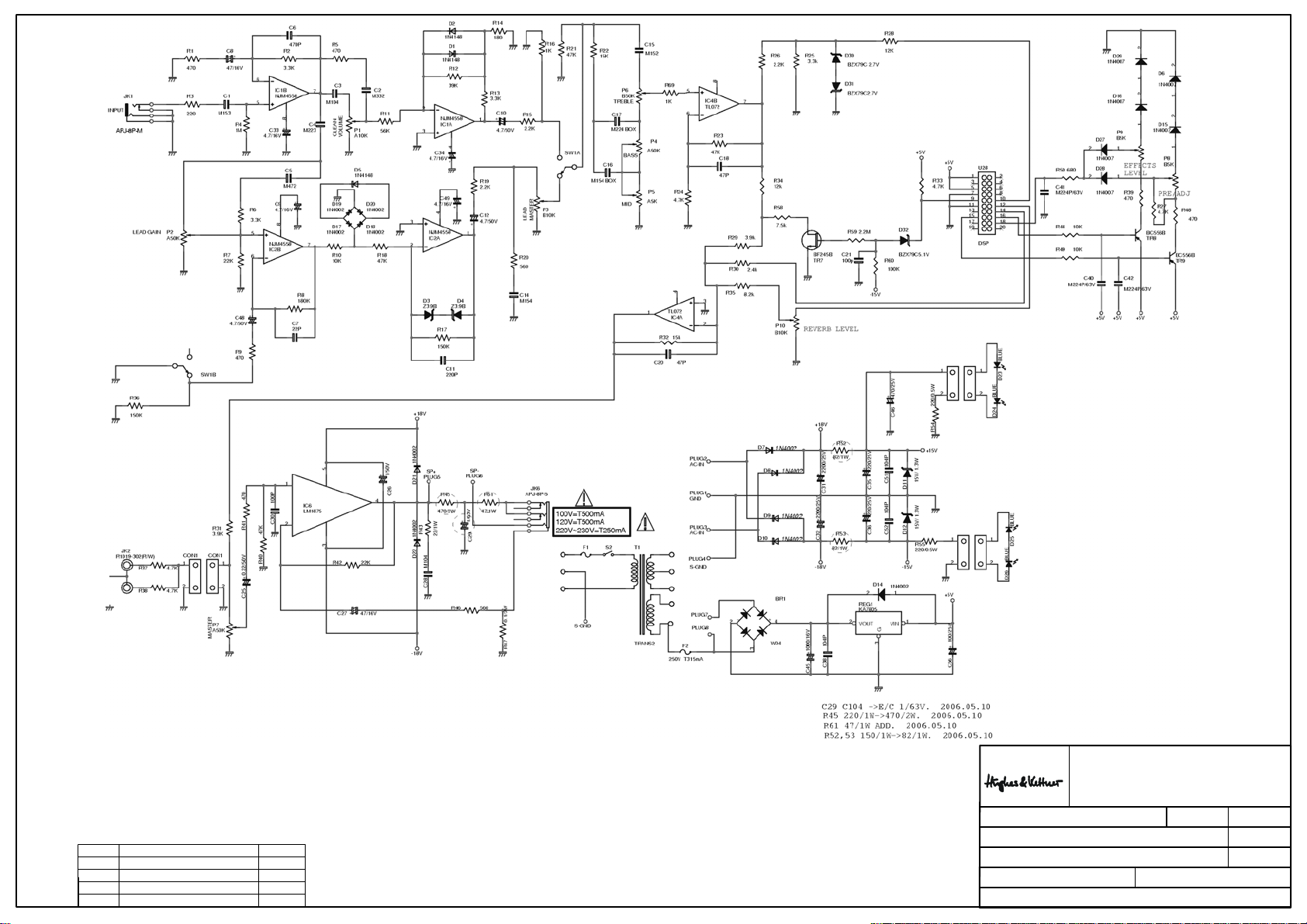

circuit diagrams Rev.: A page: 20

Edition Blue™ 15/30/60 DFX

1The Channels of the Edition Blue™ DFX

The Edition Blue™ DFX is equipped with two channels, Clean and
Lead. Its innovative circuit design, which simulates the important
sound-forming elements of tube amps using semiconductor technique,
gives both channels the dynamics needed by a discerning guitarist for
his/her musical expression. The sensitive preamp of the Edition Blue™
DFX not only produces harmonious overdrive but also a significant
dynamic response to the style of playing.

1.1 The Clean channel

Depending of the preamp control settings, the amp can produce a
variety of contemporary and „vintage“ Clean sounds.

1.2 Volume

Determines the Clean channel‘s Volume. Depending on the type of
pick-ups, the amp will begin to clip somewhere around the 12 o‘clock
setting. If desired, the Clean channel can produce a lot of crunch.

1.3 Channel Select

This Channel Selector switch activates either the Clean or Lead channel.
The Lead channel is active when the button is pressed.

1.4 The Lead channel

Classical, open rock sounds – direct and dynamic. In particular the
effective sound-shaping tool facilitates a large spectrum of Lead sounds.

1.5 Lead Gain

Controls the amount of distortion in the Lead channel.

2 The Effects of the Edition Blue DFX

The Edition Blue DFX is equipped with two independent „signal
processors“. Signal processor 1: modulation effects and Delay, Signal
processor 2: digital spring reverb. Both signal processors can be used
at the same time and are independently adjustable. The settings work
for both the Clean and the Lead channel.

2.1 Preset Adjust

The first effect section of the Edition Blue™ DFX offers you the two
most important modulation effects, Chorus und Flanger, as well as
Delay. They are behind each other on the Preset Adjust control. In the
first section, the Chorus is active; in the second section, the Flanger
is active and in the third section, the Delay. Within a section, you
can change the character of the effects with this potentiometer. The
parameters are selected in such a way that it creates good quality
sounds which Lead quickly and simply to the desired effect. Through
clockwise rotation, the speed (rate) of the modulation effect changes.
Dependent on the rate, the modulations depth is automatically
regulated in such a way that in every control position the best possible
sound effects are always heard. With Delay, the Delay (time) and the
number of repetitions (Feedback) change at the same time. The mixing
ration between „dry“ signal and the effects can be infinitely variedly
regulated with FX Level.

2.2 Chorus

With slow adjustments, the Chorus sounds deep and rich, which
works best for floating ballads. Thanks to the automatic effect depth
adjustment, quicker Chorus adjustments don‘t „scream“.

1.6 Lead Master

Determines the Lead channel Volume Level in relation to the Clean
channel Volume Level.

1.7 Bass, Mid, Treble

The sound control works for both channels. Mid and Treble controls
influence each other (as is also standard and desired on tube amp
models): if you boost the treble, it causes a central lowering and vice
versa. This characteristic enables the greatest possible variety of sound
nuances.

1.8 Master

Controls the Master Volume of the Edition Blue™ DFX inclusive of the
effects. The Line Out signal remains unaffected by this control.

2.3 Flanger

The slow Flanger settings give an intense sweeping effect, while with
rapid adjustments you can produce current rock and pop effects.

2.4 Delay

With the Delay control, the time to the next repetition can be varied
infinitively from 80 ms to 1400 ms. Feedback is automatically adjusted.
Short Delays with little feedback are best suited for „rockabilly“ sounds,
intermediary Delays are perfect for typical „U2“ sounds, while long
times are good for playing the canon-like „Queen“ licks.

2.5 FX Level

This control determines „how many“ Chorus/Flanger/Delays should
be mixed with the sound. At the left control the signal is „dry“, effect
section one more or less switched off. At the right control, a mixing
ratio of 1:1 exists. The FX Level control works independently of the
Reverb control.

Only for Edition 30 and 60 DFX: the FX section can be switched on and
off with the Footswitch. As with the FX Level control, Reverb works
independently. See also 3.3 Footswitch.

8

Edition Blue™ 15/30/60 DFX

2.6 Reverb

The Reverb is an authentic adaptation of a classic string Reverberation.
It works and responds in exactly the same way: the control Reverb
adjusts the Volume of the string Reverberation while the time always
stays the same. The Reverb control works independently of the FX
Level control. In the same way, when the left control is used, the
signal is „dry“ and effect section two is more or less switched off.

3 Outlets and other Controls

Edition Blue 15 DFX

Edition Blue 30 DFX

Edition Blue 60 DFX

To connect a signal processor:

• Connect the processor‘s Input to the Line In jack and the

Output to the Line Out jack.

• To avoid noise, signal degradation, and interrupted signals,

only use high-quality patch cables.

• Always make sure that the signal processor is not distorting

the signal. If necessary also observe the Volume indicator of the
signal processor and use the Input and Output control of the signal
processor for dialing in a suitable Level.

• Distortion devices are not designed for use in an FX loop. Generally,

any kind of device that compresses the signal should be connected
first in the signal chain. Depending on the type of effect you want
to achieve, you may want to connect your compressor directly
between the instrument and the amp‘s Input.

• If you are using several processors or stamp boxes, ensure you

connect them in the proper order.

If you want to feed the Edition Blue™ DFX signal to a mixing console,
we recommend you route it through the Hughes & Kettner® Red
Box®. Patch the signal from the Line Out jack, as this signal path‘s
Level is here. The signal is then independent, balanced and frequency
corrected (speaker simulation) from the Master control.

3.3 Footswitch (not applicable for Edition Blue 15 DFX)

This jack is for a standard 1-way or 2-way Footswitch (e.g. Hughes
& Kettner® FS-1 or FS-2). This allows you to switch back and forth
between the Clean and Lead channels and to turn the effect section
on and off as you want. If you use a 1-way switch, the channels are
switched; if you use a 2-way switch, the channels run through switch 1
and the effects are controlled by switch 2.

If you want to be able to control the channels by the Footswitch,
the Channel Select switch must be switched to the front of the Clean
channel.

english

3.1 Input

Connecting socket for guitar

3.2 Line Out and Line In (not for Edition Blue 15 DFX)

The Edition Blue™ DFX is equipped with a serial insert. The preamp
signal of the amp is completely routed and processed through an
ingrained signal processor. The Line Out can also be used as the
Output for a mixing console.

As soon as the Line Out jack is occupied, the internal signal path

is interrupted in order to feed the external signal. If no external signal
processor is used, this jack must stay free. It cannot be used as an
additional Input.

3.4 Headphones

Headphone jack. The speaker is automatically switched of f when a
plug is inserted into this jack.

3.5 CD Input

Jack for connecting CD players, tape decks or other audio sources. The
circuit is controlled directly by the Master circuit of the Edition Blue™
DFX, which means that you can use the Master control to adjust the
Input signal‘s volume. To dial in the desired balance of levels for the
playback and guitar signals, the connected playback device has to be
equipped with some type of variable Output control.

Most audio sources have an adjustable headphone Output. You
can connect this with the CD Input with an appropriate adapter (stereo
jack/2 x cinch).

3.6 Mains

Jack for the included Mains cable. Ensure the amp‘s voltage matches your
local AC voltage rating before you plug the cord into the wall socket.

9

Edition Blue™ 15/30/60 DFX

Before you switch on the audio playback device, turn the Master
control all the way down. Then turn up the Master control a little and
dial in the desired balance levels. Once you‘re satisfied with these
levels, gradually turn up the control to the desired overall level.

4 Standard Setup and Cable Connections

6 Troubleshooting

The Edition Blue™ DFX will not switch on:

• The amp is not receiving any Mains voltage. Check the Mains cable

to see if it is properly connected.

• The Mains fuse is defective. Replace the fuse with another suitable

fuse. If this fuse is also defective, consult your Hughes & Kettner®
dealer.

The Edition Blue™ DFX is correctly connected but the sound

is inaudible:

• One or more of the Gain and Master controls may be turned down.

• One of the internal fuses is defective. Get a qualified service

technician to replace the fuse (taking care that the values are the same)

The Clean channel cannot be activated through an external

Footswitch:

• The Channel Select switch on the front panel may not be in the „off“

position. Switch the Clean channel on.

5 Service and Maintenance

The Edition Blue™ DFX amps do not require maintenance of any
type. However, there are a few precautions to observe to significantly
lengthen the life of your amp:

• Always ensure that all peripheral devices, cords and cables are in

a state of good repair! Defective speaker cables (short circuits, loose
connections) are the most common cause of failure. Poor-quality
cables will always lead to humming problems.

• Make sure that your amp‘s ventilation ducts are not blocked

or covered.

• Avoid mechanical shocks and exposure to extreme heat, dust and

especially moisture.

• Pay close attention to the specifications of peripheral devices.

• Never connect devices with high Output signal levels (e.g. power

amps) to your amp‘s Input.

• Check for the correct voltage before you plug in the amp. If in

doubt, check with the venue‘s sound technician or the caretaker of
the building.

• Do not carry out “do it yourself” repairs. Get a qualified service

technician to replace internal fuses.

• Use a soft, damp cloth to clean the exterior surface of the

Edition Blue™ DFX.

When using the Line In / Line Out jacks, there is a humming

noise:

• An electrical or magnetic field is causing interference. Here, it is

recommended to use a DI box, e.g. Hughes & Kettner® Red Box®.

You have connected an FX processor to the Line Out jack but

the signal is totally distorted even when using Clean sounds.

• The Input of the FX processor is overloaded. Reduce the processor‘s

Input sensitivity (“Input” or “Gain”).

You have connected an FX processor to the Line Out but the

Output signal is too quiet:

• The FX processor‘s Output Level is set incorrectly. Turn the Output

Level of the processor up high.

10

Edition Blue™ 15/30/60 DFX

7 Technical Specifications

Model: 15 DFX 30 DFX 60 DFX

Output power into 8 ohms: 15 watts 30 watts 60 watts

Max. power consumption: 55 VA 70 VA 100 VA

Mains fuse:

230/240 volt configuration T 250 mA T 315 mA T 250 mA
120 volt configuration T 500 mA T 630 mA T 500 mA
100 volt configuration T 500 mA T 630 mA T 630 mA

Internal Fuses: T 315 mA T 315 mA T 315 mA

Operational temperature range: -10˚ − +35˚ C -10˚ − +35˚ C -10˚ − +35˚ C

Weight: 7.3 kg 9.2 kg 13 kg

Measurements:

Width 404 mm 440 mm 480 mm
Height 375 mm 410 mm 490 mm
Depth 195 mm 220 mm 275 mm

Speaker: 8" Celestion 10" Jensen 12" Celestion

Super 8 Vintage Rockdriver

english

11

DRAWING-NUMBERS

EXAMPLE

HK0106-EX-R01-1A

VERSION

SERIAL NUMBER

DEPARTMENT:
R = R&D

REVISION

PROJECT-NR.:
HK = HK AUDIO
HU = HUGHES&KETTNER
MP = MINDPRINT

CHARACTER:
BL = SHEET METAL / BLECH
EX = EXPLODED DRAWING / EXPLOSIONSZEICHNUNG
HZ = CABINET / HOLZGEHÄUSE
KU = PLASTIC / KUNSTSTOFF
LP = PCB / LEITERPLATTEN
SO = MISCELLANEOUS / SONSTIGES
SP = SCHEMATIC / SCHALTPLÄNE
TR = TRANSFORMER / TRANSFORMATOR
GK = WIRING DIAGRAM / GERÄTEVERKABELUNG

Stand

W

Y

r

Standard for single wire confection.

16 B 150 638 I - 485 W Z I 1015

style 1015 according UL specifications

I = completely insulated with black shrinktube or appropriate sleeve
IT = partly insulated; only crimp connection insulated.

no marking = without insulation

Z = with additional junction
no marking = without additional junction

W = angled faston
no marking = straight faston

17. Jun 04

Faston connector brass tin-plated DIN 46245
638 = 6,3 * 0,8 [mm]
488 = 4,8 * 0,8 [mm]
485 = 4,8 * 0,5 [mm] if fully insulated (I) insulation with blue shrinktube

if partly insulated (IT) use IF 602 485 .
288 = 2,8 * 0,8 [mm]
285 = 2,8 * 0,5 [mm] if fully insulated (I) insulation with blue shrinktube

if partly insulated (IT) use IF 602 485

abiso = 5mm bared and tin-plated (teilabzug)
text for special constructions, (for example. 4mm ringshaped faston)

the larger faston connector always mentioned at first. (Nathan drawing number controlling)

lenght in mm within a 50 mm raster

colour
B = black (phase conductor)
R = red
BR = brown
BL = blue (neutral conductor)

= white

G = yellow-green (ground bonding/ earthing connection)

cross section
16 = AWG 16 (prefered usage)
Q1.5 = H07VK 1,5mm² (prefered usage)

wire designation:

P + lfd Nr. = AWG single wire black, red, blue, brown or white
E + lfd Nr. = AWG single wire green- yellow
L + lfd N
FQL + lfd Nr. = crossover wiring H07VK

Regarding special wirings like wiring harness or similar, drawings will be prepared and appropriate

. = twisted AWG double wire, lenght specification always in twisted condition

drawing numbers will be stored in the article archive.

Service Documents

Confidential, for authorized service technicians only!

Do not disclose this information to or share these documents with third parties.

TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany

HU0705

Edition Blue

15DFX

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90081 complete ED BLUE 15DFX wooden cabinet komplettes Holzgehäuse Edition Blue 15DFX 1
2 C90056 ED BLUE 30DFX sheet metal chassis Chassis Edition Blue 30DFX 1
3 C90025 ED BLU E H&K strap handl e Editio n Blue H&K Griff 1
4 C90025 ED BLUE H&K strap handle Edition B lue H&K Griff 2
5 C90025 ED BLUE H&K strap handl e Editio n Blue H&K Griff 2
6 C90092 cross recessed countersunk screw, M4x20mm Senkkopfschraube 4x20mm vz 2
7 C90092 cross recessed panhead tapping screw, 4x30mm black Blechschraube 4x30mm sw 4
8 C90092 cross recessed panhead tapping screw, 4x25mm black Blechschraube 4x25mm sw 4
9 C90092 cross recessed panhe ad tapping screw, 4x40mm black Blechschraube 4x40mm sw 4
10 C90027 ED BLUE ruber foo t 30/25/16mm Fuß, konisch 30/25/16 mm 4
11 C90092 panhead-Z-ABC-spax, 3,5x15mm black Spaxschraube 3,5x15mm 4
12 C90092 nut M4 M4 Mutt er 4
13 C90075 ED BLUE 15DFX speaker Edition Blue 15DFX Speaker 1
14 C9 0074 ED B LUE 15 DFX a coust ic baffle Edit ion Bl ue 15D FX Schallwa nd 1
15 C90029 ED BLUE H&K logo H&K Logo 1
17 C90026 ED BL UE co rner Eck e 4
18 C90092 panhead-Z-ABC-spax, 3,5x13mm black Spaxschraube 3,5x13mm sw 16

Item-nr.: C90012 is a screw set with all fittings used in HU0903-Edition Blue 60DFX

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 1

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

INDEX

1

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90073 ED BLUE 15DFX clothing Edition Blue 15DFX Bespannstoff 1

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 2

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90146 jack nut Gegenmutter Klinkenbuchse 5

2 C90107 ED BLU E poti-knob Potiknopf 8

3 C90147 volume nut Poti Mutter M7 8
4 C90148 volume washer Kunststoffring Poti 8
5 C90077 ED BLUE 15DFX plexiglas Plexiglas Edition Blue 15DFX 1
7 C90076 ED BLUE 15D FX shee t me tal chassis Chassis Editio n Blue 15DFX 1
9 C90035 sheet metal nut, 3,9mm brass Blechmuttern 3,9mm ms 8

10 C90106 mainsswitch ED BLUE DFX Netzschalter ED Blue DFX 1

11 C90 037 po werinl et Net zbuchse 1

12 C90041 ED BLUE LED board LED Platine 2
13 C90092 cross recessed panhead screw, M3x8mm Linsenschraube M3x8mm vz 4
14 C90092 cross recessed panhead screw, M4x10mm black Linsenschraube M4x10mm sw 2
15 C90092 nut M4 M4 Mutter 2
16 C90079 (230V) C90103 (117V) C90102 (100V) ED BLUE 15DFX mains transformer Transformator 1
17 C90145 jack washer Kunst stoffring Kl inkenbuchse 2
18 C90 135 heat sink al ext rution 15x25x11mm Kühlkörper, 15x25x11mm 1
19 C90092 cross rece ssed panhead screw; 3x8mm black Blechschraube 3x8mm sw 2

20 C90126 heat sink al extrution 79x35x40mm Kühlkörper, sw 79x35x40mm 1

21 C90023 PUSH SWITCH Tast-Schalter 1
22 C90022 RCA jack Chinchbuchse 1
23 C90092 cross recessed panhead screw; 3x8mm black Blechschraube 3x8mm sw 2
24 C90092 cross re cessed panhead screw; 3x6mm black Blechschraube 3x6mm sw 1
25 C90092 cross recessed panhead screw, M3x10mm Linsenschraube M3x10mm vz 1
26 C90150 was her d=12mm Kunststoffr ing d=12mm 1
27 C90155 PCB-Distance Holder 11mm Distanzhalter 11mm 3
28 C90078 ED BLUE 15DFX preamp board Vorstufe Edition Blue 15DFX 1
29 C90061 ED BL UE DFX board DFX Platine 1

30

31

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

30 C90121 fuse case Sicherungseinsatz 1

31 932021 fuse T315mA L250V Feinsicherung T250mA L250V 1

Item-nr.: C90012 is a screw set with all fittings used in HU0903-Edition Blue 60DFX

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 3

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

1

75 7 6 7 4 3 8 8 6

2

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artike l-Nr 1 Artike l-Nr 2 Artikel- Nr 3 Descriptio n Bezeichnung Menge

1 C90015 MONO JACK Mono Kl. Buchse APJ-8P-M 1
2 C90016 STEREO JACK Stereo Kl.Buchse APJ-8P-S 1
3 C90017 Poti RV160-20 15SP B50K (P6) RV160-20 15SP B50K 1
4 C90043 Poti RV160-20 15SP A5K (P5) RV160-20 15SP A5K 1
5 C90019 Poti RV160-20 15SP A10K (P1) RV160-20 15SP A10K 1
6 C90020 Poti RV160-20 15SP B10K (P3, P10) RV160-20 15SP B10K 2
7 C90021 Poti RV160-20 15SP A50K (P2, P4, P7) RV160-20 15SP A50K 3
8 C90018 Poti RV160-20 15SP B5K (P8, P9) RV160-20 15SP B5K 2

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 4

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

8

888

8 8

10

10

12

7

6

7

7 7

7

INDEX

7

7

ÄNDERUNG

7

13

ZEICHNER

5

7

7

7

Pos. Artike l-Nr 1 Artike l-Nr 2 Artik el- Nr 3 Description Bezeichnung Menge

1 938006 PNP transistor BC556B (TR8, TR9) PNP Transistor BC556B 2
2 938028 FET BF245B (TR1) FET BF245B 1
3 C90111 dual of amp IC NJM4558DD (IC1, IC2) Amp IC NJM4558DD 1
4 C90129 dual of amp IC TL072CP (IC4) IC TL072CP 3
5 C90136 R EG IC KA7805 (REG1) IC KA7805 1
6 C90 112 silicon switching diode 1N4148, T (D1, D2, D5) Sill iziumd iode 1N4148, T (D 1, D2, D5) 3
7 C90130 silicon rectifier d iode 1N4004, T (D7,D8,D9,D10,D17,D18 Silliziumgleichrichterdiode 1N4004, T 11

D19, D20, D21, D22, D14)

8 C90131 silicon re ctifier d iod e 1N4007, T (D6, D15 , D16, Silliziumgleichricht erdio de 1N4007, T 6

D27, D28, D29)

9 C90115 zener diode 1N5228B(3,9V/0,5W),T (D3, D4) Zenerdiode 1N5228B(3,9V/0,5W),T 2

10 C90133 zener diode 1N5223B (2,7V/0,5W), T (D30, D31) Zenerdiode 1N5223B (2,7V/0,5W), T 2

11 C90134 zener diode 1N5231B (5,1V/0,5W), T (D32) Zenerdiode 1N5231B (5,1V/0,5W), T 1

12 C90 118 zener diode ZPY15 (15V/1,3W) (D11, D12) Zenerd iode ZPY15 (15V/1,3W) 2
13 C90132 brid ge diode 2W04 M (BR1) Diod enbrücke 2W0 4M 1

4

2

11

1 1

12

9 9

3

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 5

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

6 6

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

3

REVISION:

A1

BLATT:

BLÄTTER

8

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90169 CON5: FLAT WIRE UL1007 AWG26 L=150m/m Litze sw 1
2 C90170 CON4: FLAT WIRE UL1007 AWG26 L=150m/m Litze rot 1
3 C90161 CON1: 3P HOUSING FLAT WIRE UL1007 AWG26: W1 Litze sw/w/w 1
4 C90162 PLUG5(+):205/TER WIRE UL1015 AWG22 WHT 300m/m Litze weiß 1
5 C90163 PLUG6(-):205/TER WIRE UL1015 AWG22 BL 300m/m Litze sw 1
6 C90164 PLUG4: 250/TER WIRE UL1015 AWG18 210m/m GRN Litze grün 1
7 C90165 LEA D WIRE UL 1015 AWG 18 YEL-G RN L =210m/m L itze grün/ge lb 1
8 C90166 (250/205SLEEVE) LEAD WIRE UL1617 AWG22 WHITE Litze weiß 1

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 6

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

INDEX

ÄNDERUNG

ZEICHNER

Pos. Artikel-Nr 1 Artikel-Nr 2 Artikel-Nr 3 Description Bezeichnung Menge

1 C90 167 WIR E UL1015 A WG22 310m/m Litz e o range 1
2 C90171 WIRE UL10 15 A WG22 140m/m Lit ze weiß 1
3 C90172 WIR E UL10 15 AWG22 50 m/m Lit ze we iß 1
4 C9 0173 WIR E UL10 15 A WG22 19m/m L itz e weiß 1
5 C90168 RING/TER WIRE UL1007 AWG18 GREEN Litze grün 1

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 7

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

INDEX

ÄNDERUNG

ZEICHNER

66606 St. Wendel / Germany

ZEICHNUNGS-NR.:

ERSTELLT VON:

GEPRÜFT/
FREIGEGEBEN VON:

WERKSTOFF:

DATEINAME:

HU0705-EX-R01-1A
Martin Drumm 8

Fehler: Keine Referenz

HU0705-EX-R01-1A-GESAMT

TITEL:

HU0705 Ex-Zeichnung
Edition Blue 15DFX

OBERFLÄCHE:

VERSION:

AM:

05.07.2006

AM:

OBERFLÄCHE

REVISION:

BLATT:

8

A1

BLÄTTER

HU0705-EX-R01-1A-COMPLETE (PAGE 1, 2)

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90025 ED BLUE H&K strap handle Edition Blue H&K Griff 2
C90026 ED BLUE corner Ecke 4
C90027 ED BLUE ruber foot 30/25/16mm Fuß, konisch 30/25/16mm 4
C90029 ED BLUE H&K logo H&K Logo 1
C90056 ED BLUE 30DFX sheet metal chassis Chassis Edition Blue 30DFX 1
C90073 ED BLUE 15DFX clothing Edition Blue 15DFX Bespannstoff 1
C90074 ED BLUE 15DFX acoustic baffle Edition Blue 15DFX Schallwand 1
C90075 ED BLUE 15DFX speaker Edition Blue 15DFX Speaker 1
C90081 complete ED BLUE 15DFX wooden cabinet komplettes Holzgehäuse Edition Blue 15DFX 1

HU0705-EX-R01-1A-CHASSIS (PAGE 3)

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
932021 fuse T315mA L250V Feinsicherung T250mA L250V 1
C90022 RCA jack Chinchbuchse 1
C90023 PUSH SWITCH Tast-Schalter 1
C90035 sheet metal nut, 3,9mm brass Blechmuttern 3,9mm ms 8
C90037 powerinlet Netzbuchse 1
C90041 ED BLUE LED board LED Platine 2
C90061 ED BLUE DFX board DFX Platine 1
C90076 ED BLUE 15DFX sheet metal chassis Chassis Edition Blue 15DFX 1
C90077 ED BLUE 15DFX plexiglas Plexiglas Edition Blue 15DFX 1
C90078 ED BLUE 15DFX preamp board Vorstufe Edition Blue 15DFX 1
C90079 C90103 C90102 ED BLUE 15DFX mains transformer Transformator 1
C90106 mainsswitch ED BLUE DFX Netzschalter ED Blue DFX 1
C90107 ED BLUE poti-knob Potiknopf 8
C90121 fuse case Sicherungseinsatz 1
C90126 heat sink al extrution 79x35x40mm Kühlkörper, sw 79x35x40mm 1
C90135 heat sink al extrution 15x25x11mm Kühlkörper, 15x25x11mm 1
C90145 jack washer Kunststoffring Klinkenbuchse 2
C90146 jack nut Gegenmutter Klinkenbuchse 5
C90147 volume nut Poti Mutter M7 8
C90148 volume washer Kunststoffring Poti 8
C90150 washer d=12mm Kunststoffring d=12mm 1
C90155 PCB-Distance Holder 11mm Distanzhalter 11mm 3

HU0705-EX-R01-1A-ELECTRONICS (PAGE 4, 5)

part-no. 1 (230V) part-no. 2 (117V) Ref.Destricption Description Bezeichnung Quantity
938006 TR8, TR9 PNP transistor BC556B PNP Transistor BC556B 2
938028 TR1 FET BF245B FET BF245B 1
C90015 MONO JACK Mono Kl. Buchse APJ-8P-M 1
C90016 STEREO JACK Stereo Kl.Buchse APJ-8P-S 1
C90017 P6 Poti RV160-20 15SP B50K RV160-20 15SP B50K 1
C90018 P8, P9 Poti RV160-20 15SP B5K RV160-20 15SP B5K 2
C90019 P1 Poti RV160-20 15SP A10K RV160-20 15SP A10K 1
C90020 P3, P10 Poti RV160-20 15SP B10K RV160-20 15SP B10K 2
C90021 P2, P4, P7 Poti RV160-20 15SP A50K RV160-20 15SP A50K 3
C90043 P5 Poti RV160-20 15SP A5K RV160-20 15SP A5K 1
C90111 IC1, IC2 dual of amp IC NJM4558DD Amp IC NJM4558DD 1
C90112 D1, D2, D5 silicon switching diode 1N4148, T Silliziumdiode 1N4148, T (D1, D2, D5) 3

C90115 D3, D4 zener diode 1N5228B(3,9V/0,5W),T Zenerdiode 1N5228B(3,9V/0,5W),T 2
C90118 D11, D12 zener diode ZPY15 (15V/1,3W) Zenerdiode ZPY15 (15V/1,3W) 2
C90129 IC4 dual of amp IC TL072CP IC TL072CP 3

D7, D8, D9, D10, D17, D18, D19, D20, D21, D22,
C90130
C90131 D6, D15, D16, D27, D28, D29 silicon rectifier diode 1N4007, T Silliziumgleichrichterdiode 1N4007, T 6
C90132 BR1 bridge diode 2W04M Diodenbrücke 2W04M 1
C90133 D30, D31 zener diode 1N5223B (2,7V/0,5W), T Zenerdiode 1N5223B (2,7V/0,5W), T 2
C90134 D32 zener diode 1N5231B (5,1V/0,5W), T Zenerdiode 1N5231B (5,1V/0,5W), T 1
C90136 REG1 REG IC KA7805 IC KA7805 1

HU0705-EX-R01-1A-CABLING (PAGE 6, 7, 8)

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90161 CON1: 3P HOUSING FLAT WIRE UL1007 AWG26: W1 Litze sw/w/w 1
C90162 PLUG5(+):205/TER WIRE UL1015 AWG22 WHT 300m/m Litze weiß 1
C90163 PLUG6(-):205/TER WIRE UL1015 AWG22 BL 300m/m Litze sw 1
C90164 PLUG4: 250/TER WIRE UL1015 AWG18 210m/m GRN Litze grün 1
C90165 LEAD WIRE UL1015 AWG18 YEL-GRN L=210m/m Litze grün/gelb 1
C90166 (250/205SLEEVE) LEAD WIRE UL1617 AWG22 WHITE Litze weiß 1
C90167 WIRE UL1015 AWG22 310m/m Litze orange 1
C90168 RING/TER WIRE UL1007 AWG18 GREEN Litze grün 1
C90169 CON5: FLAT WIRE UL1007 AWG26 L=150m/m Litze sw 1
C90170 CON4: FLAT WIRE UL1007 AWG26 L=150m/m Litze rot 1
C90171 WIRE UL1015 AWG22 140m/m Litze weiß 1
C90172 WIRE UL1015 AWG22 50m/m Litze weiß 1
C90173 WIRE UL1015 AWG22 19m/m Litze weiß 1

D14

silicon rectifier diode 1N4004, T Silliziumgleichrichterdiode 1N4004, T 11

HU0705-EDITION BLUE 15DFX SCREW SET

part-no. 1 (230V) part-no. 2 (117V) part-no. 3 (100V) Description Bezeichnung Quantity
C90092 cross recessed countersunk screw, M4x20mm Senkkopfschraube 4x20mm vz 2
C90092 cross recessed panhead screw, M3x10mm Linsenschraube M3x10mm vz 1
C90092 cross recessed panhead screw, M3x8mm Linsenschraube M3x8mm vz 4
C90092 cross recessed panhead screw, M4x10mm black Linsenschraube M4x10mm sw 2
C90092 cross recessed panhead screw; 3x6mm black Blechschraube 3x6mm sw 1
C90092 cross recessed panhead screw; 3x8mm black Blechschraube 3x8mm sw 4
C90092 cross recessed panhead tapping screw, 4x25mm black Blechschraube 4x25mm sw 4
C90092 cross recessed panhead tapping screw, 4x30mm black Blechschraube 4x30mm sw 4
C90092 cross recessed panhead tapping screw, 4x40mm black Blechschraube 4x40mm sw 4
C90092 nut M4 M4 Mutter 6
C90092 panhead-Z-ABC-spax, 3,5x13mm black Spaxschraube 3,5x13mm sw 16
C90092 panhead-Z-ABC-spax, 3,5x15mm black Spaxschraube 3,5x15mm 4

INDEX CHANGES

RESP.

66606 St. Wendel / Germany

DRAWING-NO.:

DRAWN BY:

CHECKED BY:

MATERIAL:

FILENAME:

Martin Drumm 1

Fehler: Keine Referenz

Schematic_ED15DFX

TITLE:

HU0705-Schaltplan
Edition Blue 15DFX

FINISH:

VERSION:

DATE:

20.07.2006

DATE:

OBERFLÄCHE

REVISION:

PAGE:

1

A1

PAGES
