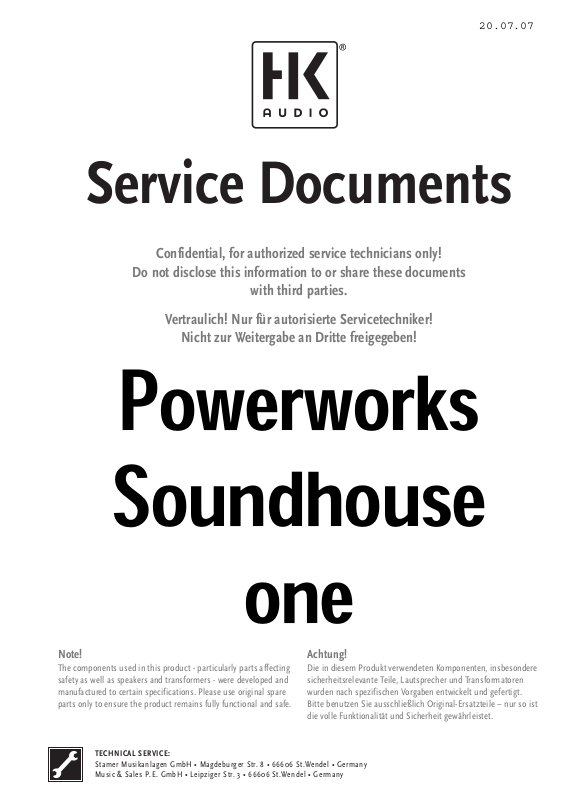

Page 1
Service Documents
Confidential, for authorized service technicians only!
Do not disclose this information to or share these documents
with third parties.
Vertraulich! Nur für autorisierte Servicetechniker!
Nicht zur Weitergabe an Dritte freigegeben!
TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany
Note!
The components used in this product - particularly parts affecting
safety as well as speakers and transformers - were developed and
manufactured to certain specifications. Please use original spare
parts only to ensure the product remains fully functional and safe.
Achtung!
Die in diesem Produkt verwendeten Komponenten, insbesondere
sicherheitsrelevante Teile, Lautsprecher und Transformatoren
wurden nach spezifischen Vorgaben entwickelt und gefertigt.
Bitte benutzen Sie ausschließlich Original-Ersatzteile – nur so ist
die volle Funktionalität und Sicherheit gewährleistet.
Powerworks
Soundhouse
one
20.07.07
Page 2
Directory
features
drawing-numbers-example
standard for single wire confection
HK1006 – Soundhouse One

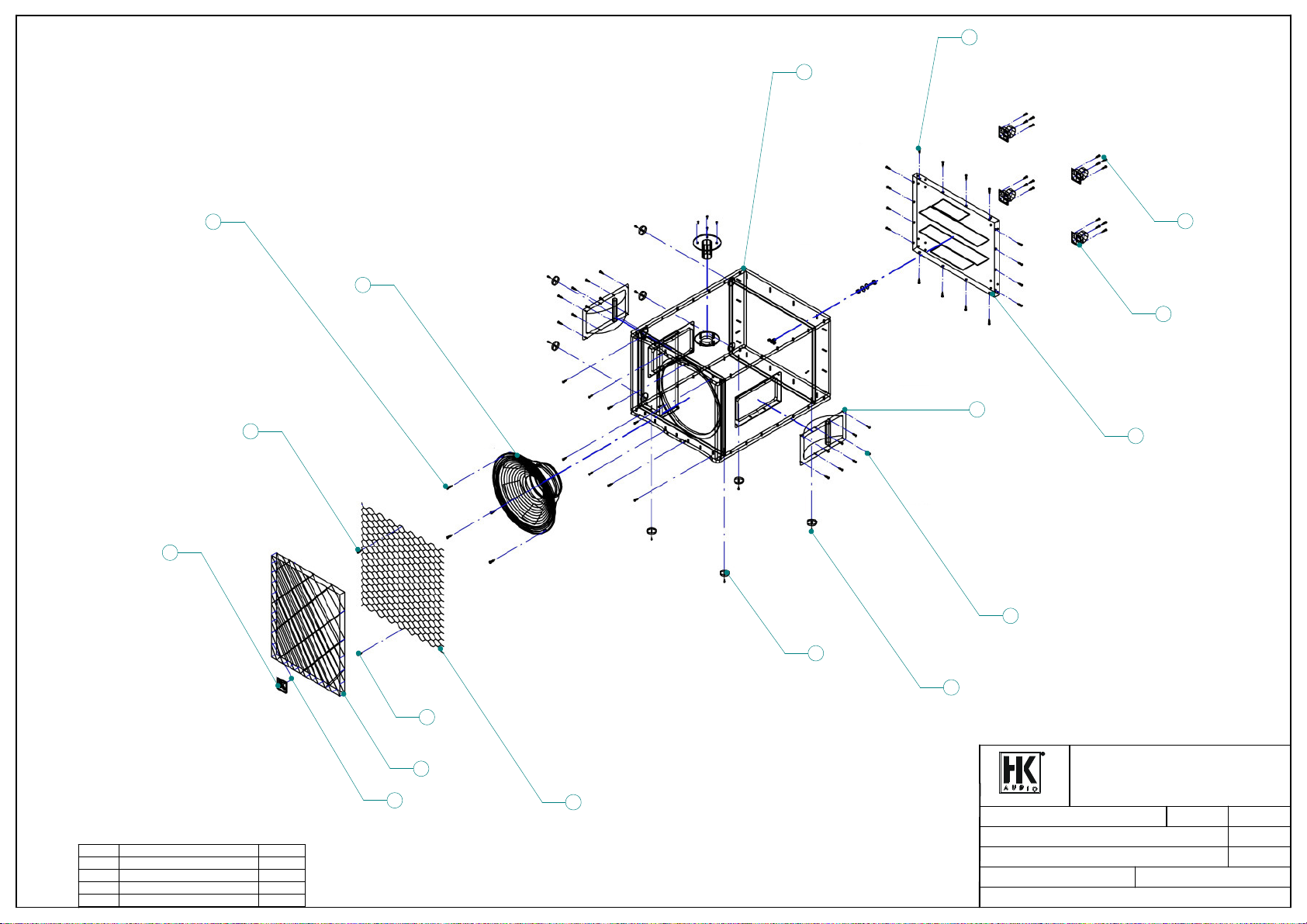

exploded drawings:

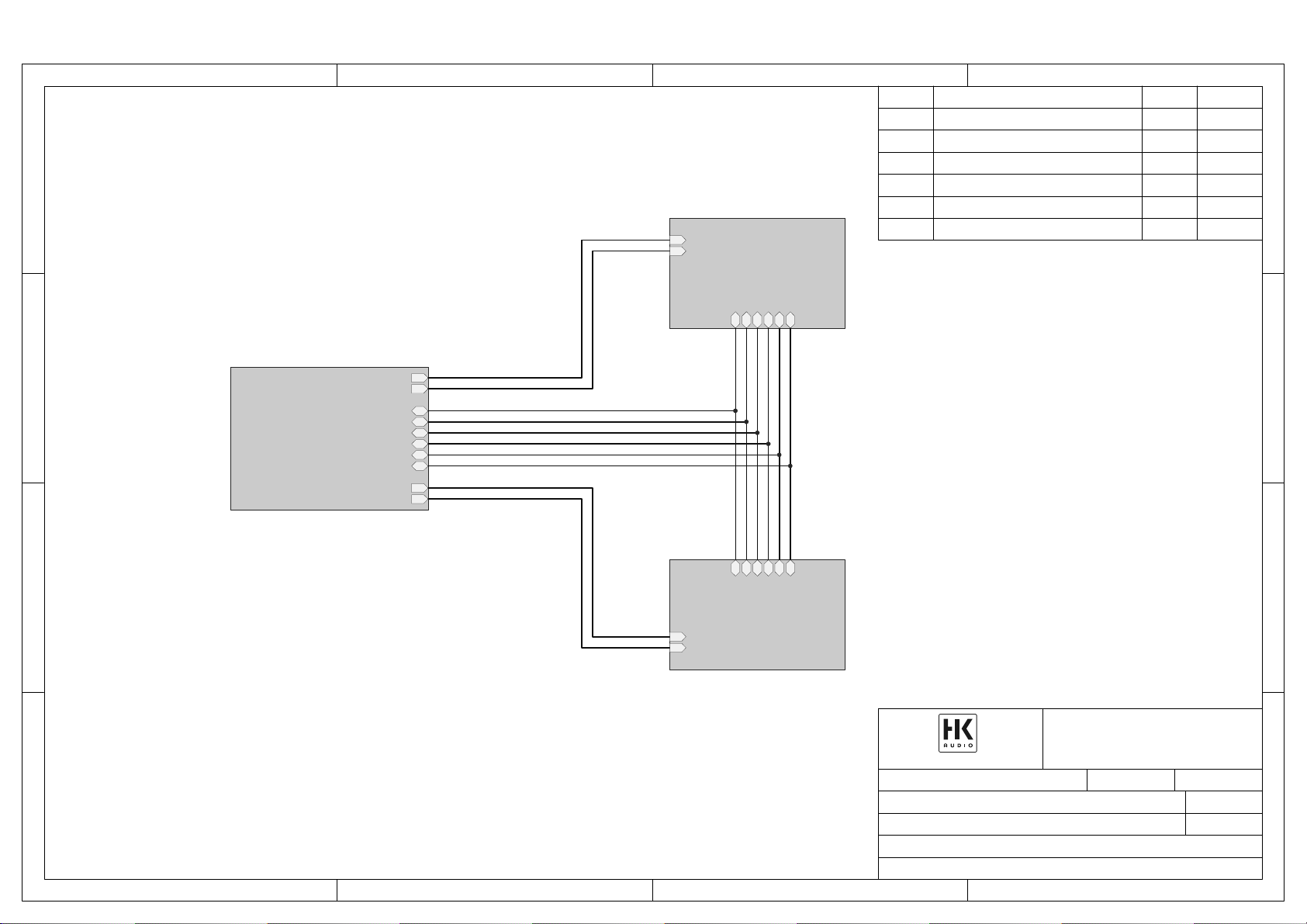

layout diagrams
page: 3-6
page: 7
page: 8
page: 9
sat complete Rev.: page: 10-12
sub complete Rev.: page: 13-17
preamp Rev.: A page: 18
sat poweramp Rev.: A page: 19
sub poweramp Rev.: B page: 20
powersupply Rev.: B page: 21
circuit diagrams

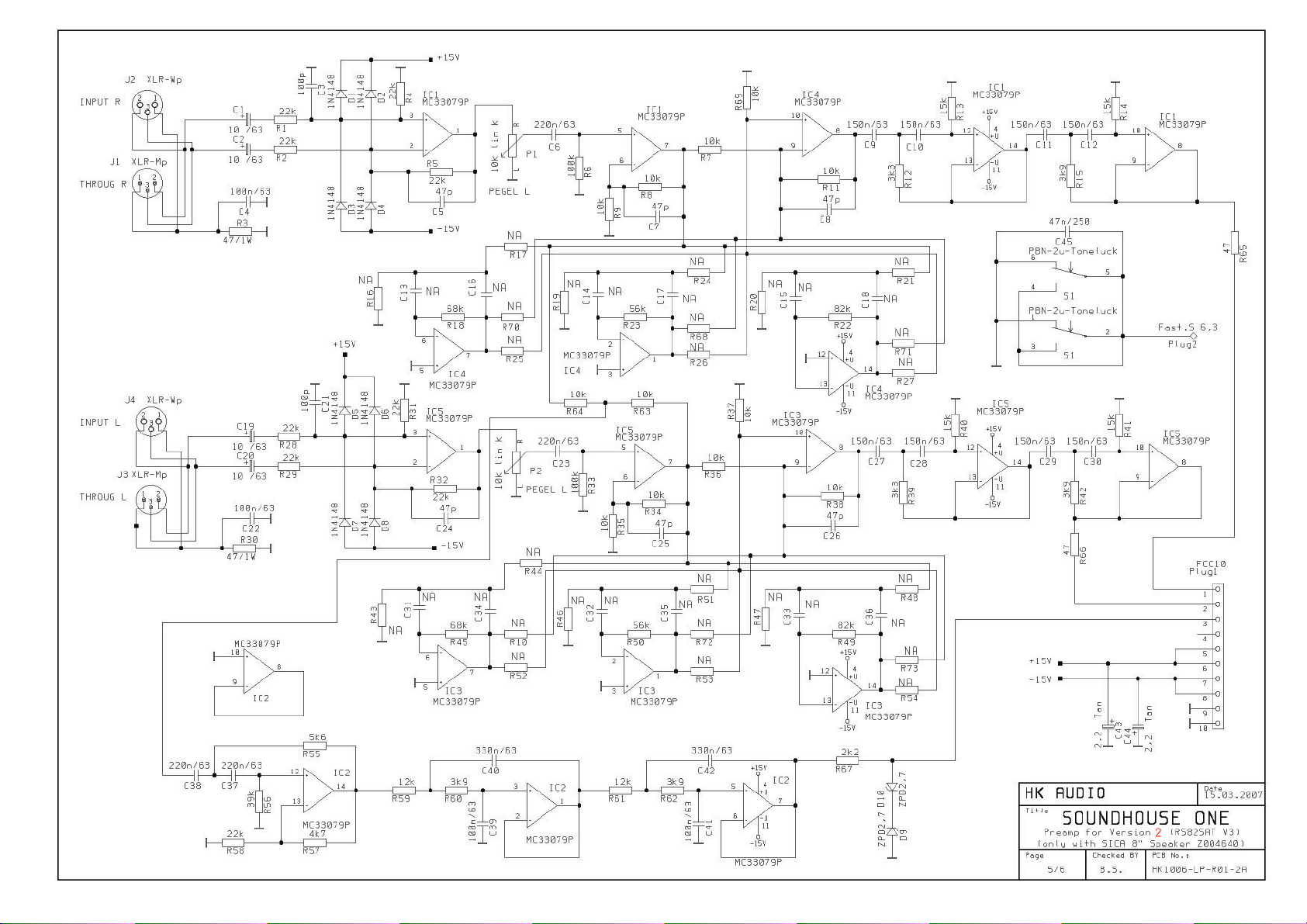

preamp V1 Rev.: A page: 22
preamp V2 Rev.: A page: 23
sat poweramp Rev.: B page: 24-28
sub poweramp Rev.: B page: 29-32
powersupply Rev.: page: 33
Page 3
5
RS 15 Su b A Manual 1.1
ENGLISH
Welcome to the
PowerWorks®family!
The RS 15 A SUB is an active subwoofer featuring an additional stereo
power amp for driving PowerWorks®RS 82 or RS 122 satellite speakers.
All electronic circuits required to operate the system are housed in the
subwoofer enclosure. This includes crossovers, frequency response compensation circuitry, and separate limiters for the satellites and subwoofer,
as well as power amps and protective circuits.
You no longer have to worry about tweaking frequencies and levels.
It’s plug & play all the wayæsimply set up the system components,
connect five cords, and you're ready to roll.
Here’s hoping you enjoy using your rig as much as we enjoyed
designing it!
Your PowerWorks
®
team
Control Features and Connectors
1. Inputs
The two electronically balanced XLR ports serve as audio signal inputs.
You also have two parallel outputs (Through) available for connecting
additional power amps. The RS 15 Sub A can handle a stereo or mono
signal, so you can combine two systems and operate each in mono mode
to provide sound reinforcement for larger venues. Each input is equipped
with a dedicated Gain knob that controls its sensitivity, enabling you to
adjust the RS 15 Sub A’s power amps to match the given input signal
level.
Note:
If you want to operate the RS 15 Sub A in mono mode, you must patch
the mono input signal through to the second input of the RS 15 Sub A
using a microphone cord. In other words, connect the cord from the
Through port of the input that you're using to the second input.
This is the only way the mono signal will be sent to both satellites.
2. Speaker Outputs
Satellites (RS 82 or RS 122) connect to these two Speakon sockets. The
satellite power amps’ impedance is four ohms; never connect speakers
rated lower than four ohms.
3. Mains
Use this socket to connect RS 15 SUB A to a mains power supply. Before
you plug the system into a wall outlet, ensure your local mains voltage
matches the specification indicated on the device. If you attempt to run
RS 15 SUB A on the wrong mains voltage, you can seriously damage the
power amps.
4. Power On
Once you have connected all the required cords, you can switch the
system on.
5. Ground Lift
This switch separates the signal ground from the chassis ground,
enabling you to eliminate potential ground loops.
CAUTION: Never tape over the plug’s ground terminal - this
endangers lives!
INPUT THROUGH GAIN
LEFT
TO SATELLITE LEFT
INPUT THROUGH GAIN
RIGHT
150 WATTS @ 4 OHMS
TO SATELLITE RIGHT
150 WATTS @ 4 OHMS
GROUND
ON OFF
Page 4
9
RS 15 Su b A Manual 1.1
Page 5
Technical Data
Classification: Active Subwoofer
Inputs
Line IN L/ R
Connector: . . . . . . . . . . . . . . . . . . XLR female (1=ground; 2=+; 3=--)
Input type: . . . . . . . . . . . . . . . . . . electronically balanced
& floating
Inp. impedance: . . . . . . . . . . . . . . 47 kohms
Sensitivity: . . . . . . . . . . . . . . . . . . 0 dB (center position)
Max. input level: . . . . . . . . . . . . . . + 24 dB
Outputs
Through L/ R
Connector: . . . . . . . . . . . . . . . . . . XLR male (1=ground; 2=+; 3=--)
Satellite L/ R
Connector: . . . . . . . . . . . . . . . . . . Speakon
®
NL4
(pin 1+= +; pin 1--= --)
Active Crossover
Crossover frequency: . . . . . . . . . . . 130 Hz
Roll-off: . . . . . . . . . . . . . . . . . . . . 24 dB/ octave
Amplifiers
Power output, subwoofer (Mono): . 300 W/ 8 ohms at 1% THD
Power output, each satellite: . . . . 150 W/ 4 ohms at 1% THD
Speaker: . . . . . . . . . . . . . . . . . . . . 1x 15” HK Audio Custom
Sensitivity 1W/1m axial: . . . . . . . 104 dB (half space)
Max. sound pressure: . . . . . . . . . . 123 dB at 10% harmonic
distortion (half space/ 1m)
Dimensions & weight
Width: 540 mm • Height: 440 mm • Depth: 615 mm
Weight: . . . . . . . . . . . . . . . . . . . . 37 kg
General electrical data:
Protection Class 1 (protectively earthed)
Max. current consumption: . . . . . 4,1 A (230 V)
8,1 A (117 V)
9,5 A (100 V)
Max. power consumption: . . . . . . 950 VA
Mains voltage range: . . . . . . . . . . +/- 10%
Ambient temperature range: . . . . -10° C to +60° C
Fuses: . . . . . . . . . . . . . . . . . . . . . IEC 127 T 3,15A (230 V)
IEC 127 T 6,3A (117 V)
IEC 127 T 8A (100 V)
10
RS 15 Su b A Manual 1.1
Page 6
11
RS 15 Su b A Manual 1.1
Für das folgend bezeichnete Erzeugnis
POWERWORKS RS 15 SUB A
wird hiermit bestätigt, daß es den wesentlichen Schutzanforderungen
entspricht, die in der Richtlinie des Rates zur Angleichung der
Rechtsvorschriften der Mitgliedsstaaten über die elektromagnetische
Verträglichkeit (89/336/EWG) und der Niederspannungsrichtlinie
(73/23/EWG) festgelegt sind. Diese Erklärung gilt für alle Exemplare,
und bestätigt die Ergebnisse der Messungen, die durch die Qualitätssicherung der Fa. Stamer Musikanlagen GmbH durchgeführt wurden.
Zur Beurteilung des Erzeugnisses hinsichtlich elektromagnetischer
Verträglichkeit wurden folgende Normen herangezogen: EN 50081-1
• EN 50082-1. Zur Beurteilung der Einhaltung der Niederspannungsrichtlinie wurde folgende Norm herangezogen: EN 60065
Diese Erklärung wird verantwortlich für den Hersteller
abgegeben durch
Lothar Stamer Dipl.Ing.
Geschäftsführer
St.Wendel, den 25/03/04
* Stamer Musikanlagen stellt exklusiv für POWERWORKS her
Stamer Musikanlagen GmbH*
Magdeburger Str. 8
66606 St.Wendel
This is to certify that
POWERWORKS RS 15 SUB A
complies with the provisions of the Directive of the Council of the
European Communities on the approximation of the laws of the
Member States relating to electromagnetic compatibility (EMC
Directive 89/336/EEC) and the low voltage Directive (73/23/EEC).
This declaration of conformity of the European Communities is the
result of an examination carried out by the Quality Assurance
Department of STAMER GmbH in accordance with European Standards
EN 50081-1, EN 50082-1and EN 60065 for low voltage, as laid down
in Article 10 of the EMC Directive.
Lothar Stamer Dipl.Ing.
Managing Director
St.Wendel, 03/25/04
* Stamer Musikanlagen manufactures exclusively for POWERWORKS
Stamer Musikanlagen GmbH*
Magdeburger Str. 8
66606 St.Wendel
Page 7
DRAWING-NUMBERS
EXAMPLE
HK0106-EX-R01-1A
PROJECT-NR.:
HK = HK AUDIO
HU = HUGHES&KETTNER
MP = MINDPRINT
CHARACTER:
BL = SHEET METAL / BLECH
EX = EXPLODED DRAWING / EXPLOSIONSZEICHNUNG
HZ = CABINET / HOLZGEHÄUSE
KU = PLASTIC / KUNSTSTOFF
LP = PCB / LEITERPLATTEN
SO = MISCELLANEOUS / SONSTIGES
SP = SCHEMATIC / SCHALTPLÄNE
TR = TRANSFORMER / TRANSFORMATOR
GK = WIRING DIAGRAM / GERÄTEVERKABELUNG
DEPARTMENT:
R = R&D
SERIAL NUMBER
VERSION
REVISION
Page 8
Stand
W
Y
r
Standard for single wire confection.
16 B 150 638 I - 485 W Z I 1015
style 1015 according UL specifications
I = completely insulated with black shrinktube or appropriate sleeve
IT = partly insulated; only crimp connection insulated.
no marking = without insulation
Z = with additional junction
no marking = without additional junction
W = angled faston
no marking = straight faston
17. Jun 04
Faston connector brass tin-plated DIN 46245
638 = 6,3 * 0,8 [mm]
488 = 4,8 * 0,8 [mm]
485 = 4,8 * 0,5 [mm]
288 = 2,8 * 0,8 [mm]
285 = 2,8 * 0,5 [mm]
abiso = 5mm bared and tin-plated (teilabzug)
text for special constructions, (for example. 4mm ringshaped faston)
the larger faston connector always mentioned at first. (Nathan drawing number controlling)
lenght in mm within a 50 mm raster
colour
B = black (phase conductor)
R = red
BR = brown
BL = blue (neutral conductor)
= white
G = yellow-green (ground bonding/ earthing connection)
if fully insulated (I) insulation with blue shrinktube
if partly insulated (IT) use IF 602 485 .
if fully insulated (I) insulation with blue shrinktube
if partly insulated (IT) use IF 602 485
cross section
16 = AWG 16 (prefered usage)
Q1.5 = H07VK 1,5mm² (prefered usage)
wire designation:
P + lfd Nr. = AWG single wire black, red, blue, brown or white
E + lfd Nr. = AWG single wire green- yellow
L + lfd N
FQL + lfd Nr. = crossover wiring H07VK
Regarding special wirings like wiring harness or similar, drawings will be prepared and appropriate
. = twisted AWG double wire, lenght specification always in twisted condition
drawing numbers will be stored in the article archive.
Page 9
Confidential, for authorized service technicians only! Do not disclose
this information to or share these documents with third parties.
TECHNICAL SERVICE:
Stamer Musikanlagen GmbH • Magdeburger Str. 8 • 66606 St.Wendel • Germany
Music & Sales P.E. GmbH • Leipziger Str. 3 • 66606 St.Wendel • Germany
Service Documents
HK1006
SOUNDHOUSE
ONE
RS15 SUB A / RS82
Page 10
Attention! Important Advice!
There are two different Versions of the Soundhouse-One-System!
Version 1 can be identified by:
–
a V1-label on the inside of the chassis.
Version 2 can be identified by:
–
a V2-label on the inside of the chassis.
–
a red point on the carton, or on the outside of the chassis.
Achtung! Wichtiger Hinweis!
Es gibt verschiedene 2 Versionen des Soundhouse-One-Systems!
Version 1 ist gekennnzeichnet durch:
–
V1-Aufkleber auf der E-Chassis Innenseite.
Version 2 ist gekennzeichnet durch:
–
V2-Aufkleber auf der E-Chassis Innenseite.
–
Roter Punkt auf dem Karton, oder auf der Aussenseite des Chassis.
Page 11
10
16 17
8
6
9
INDEX CHANGES
14
18
7
11
13
1
10
2
12
15
5
3
TITLE:
SOUNDHOUSE ONE HK1006
SATELLITE COMPLETE
66606 St. Wendel / Germany
RESP.
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SAT_complete
FINISH:
VERSION:
DATE:
20.07.2007
DATE:
REVISION:
PAGE:
A1
1
PAGES
Page 12
INDEX CHANGES
RESP.
TITLE:
SOUNDHOUSE ONE HK1006
4
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SAT_complete
SATELLITE COMPLETE
VERSION:
DATE:
20.07.2007
DATE:
FINISH:
REVISION:
PAGE:
A1
2
PAGES
Page 13
INDEX CHANGES
RESP.
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SAT_complete
TITLE:
SOUNDHOUSE ONE HK1006
SATELLITE COMPLETE
VERSION:
DATE:
20.07.2007
DATE:
FINISH:
REVISION:
PAGE:
A1
3
PAGES
Page 14
12
1
7
46
18
45
14
15
2
17
11
13
INDEX CHANGES
RESP.
8
10
TITLE:
5
SOUNDHOUSE ONE HK1006

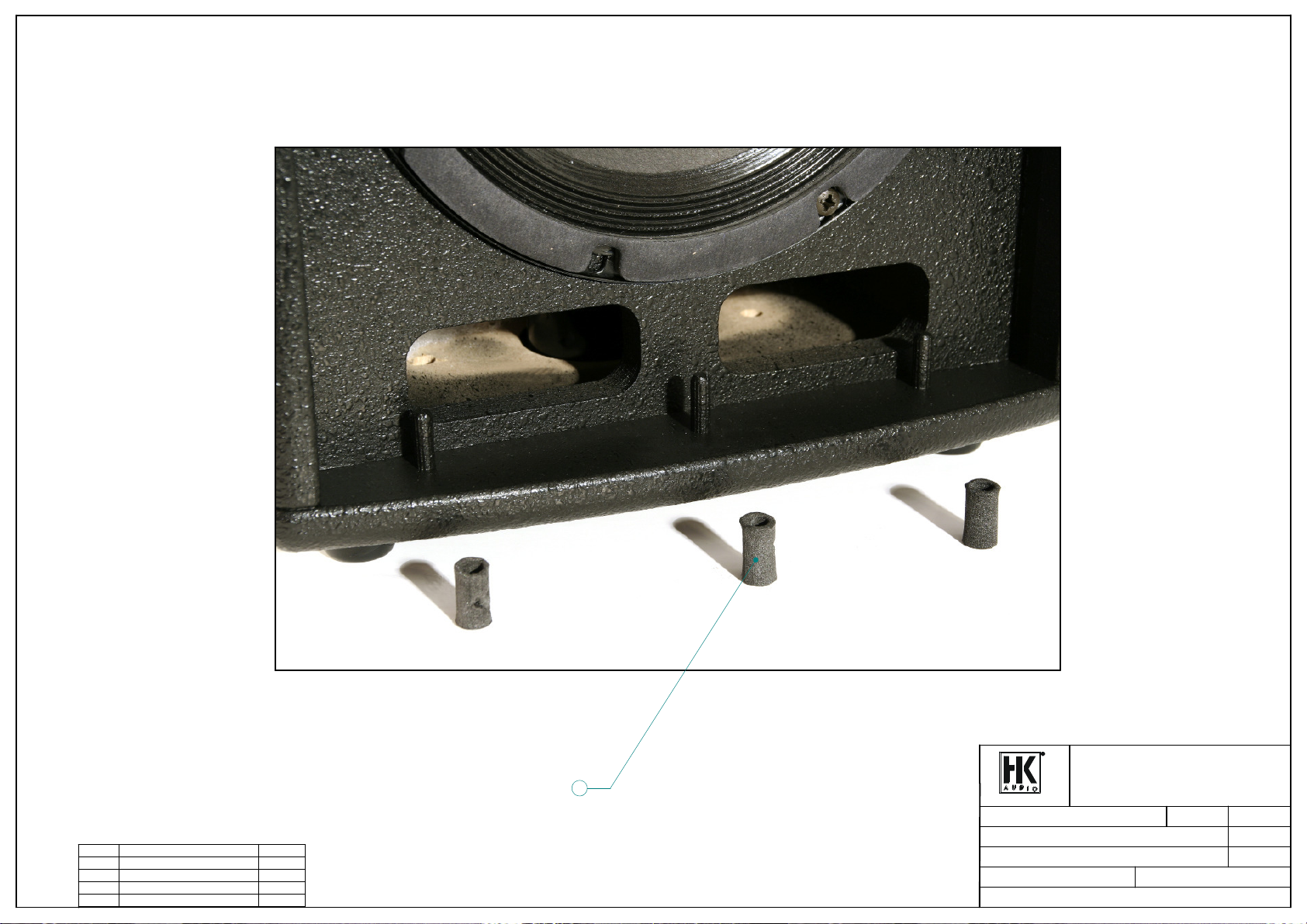

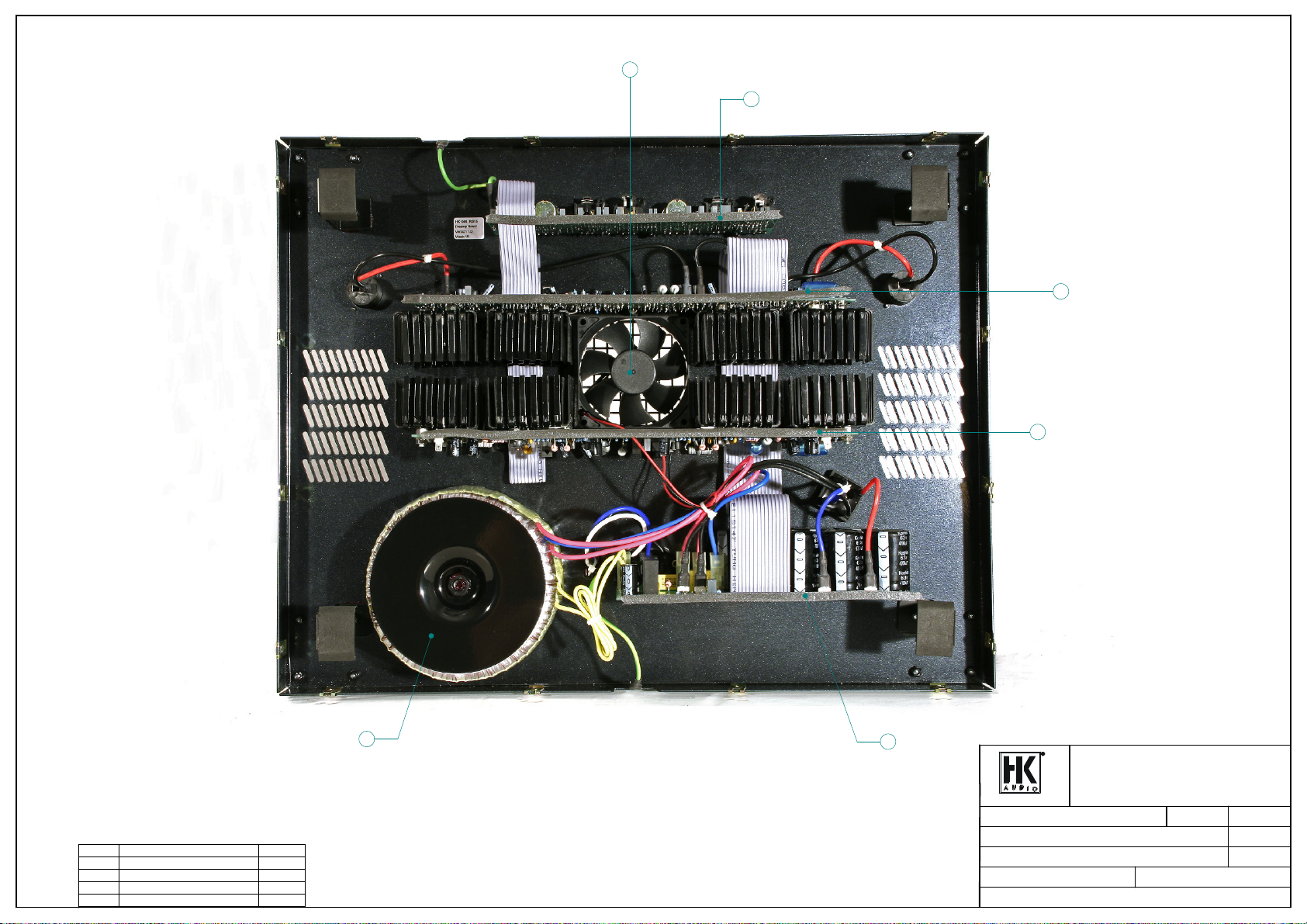

SUBWOOFER COMPLETE+CHASSIS
9
3
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SUB_complete+chassis
FINISH:
VERSION:
DATE:
19.07.2007
DATE:
REVISION:
PAGE:
A1
1
PAGES
Page 15
4
6
INDEX CHANGES
RESP.
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SUB_complete+chassis
TITLE:
SOUNDHOUSE ONE HK1006
SUBWOOFER COMPLETE+CHASSIS
VERSION:
DATE:
19.07.2007
DATE:
FINISH:
REVISION:
PAGE:
A1
2
PAGES
Page 16
30
21
20
19
INDEX CHANGES
RESP.
27
22
TITLE:
SOUNDHOUSE ONE HK1006
SUBWOOFER COMPLETE+CHASSIS
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SUB_complete+chassis
FINISH:
VERSION:
DATE:
19.07.2007
DATE:
REVISION:
PAGE:
A1
3
PAGES
Page 17
29
29
28
INDEX CHANGES
26
23
25
26
TITLE:
SOUNDHOUSE ONE HK1006
SUBWOOFER COMPLETE+CHASSIS
66606 St. Wendel / Germany
RESP.
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SUB_complete+chassis
FINISH:
VERSION:
DATE:
19.07.2007
DATE:
REVISION:
PAGE:
A1
4
PAGES

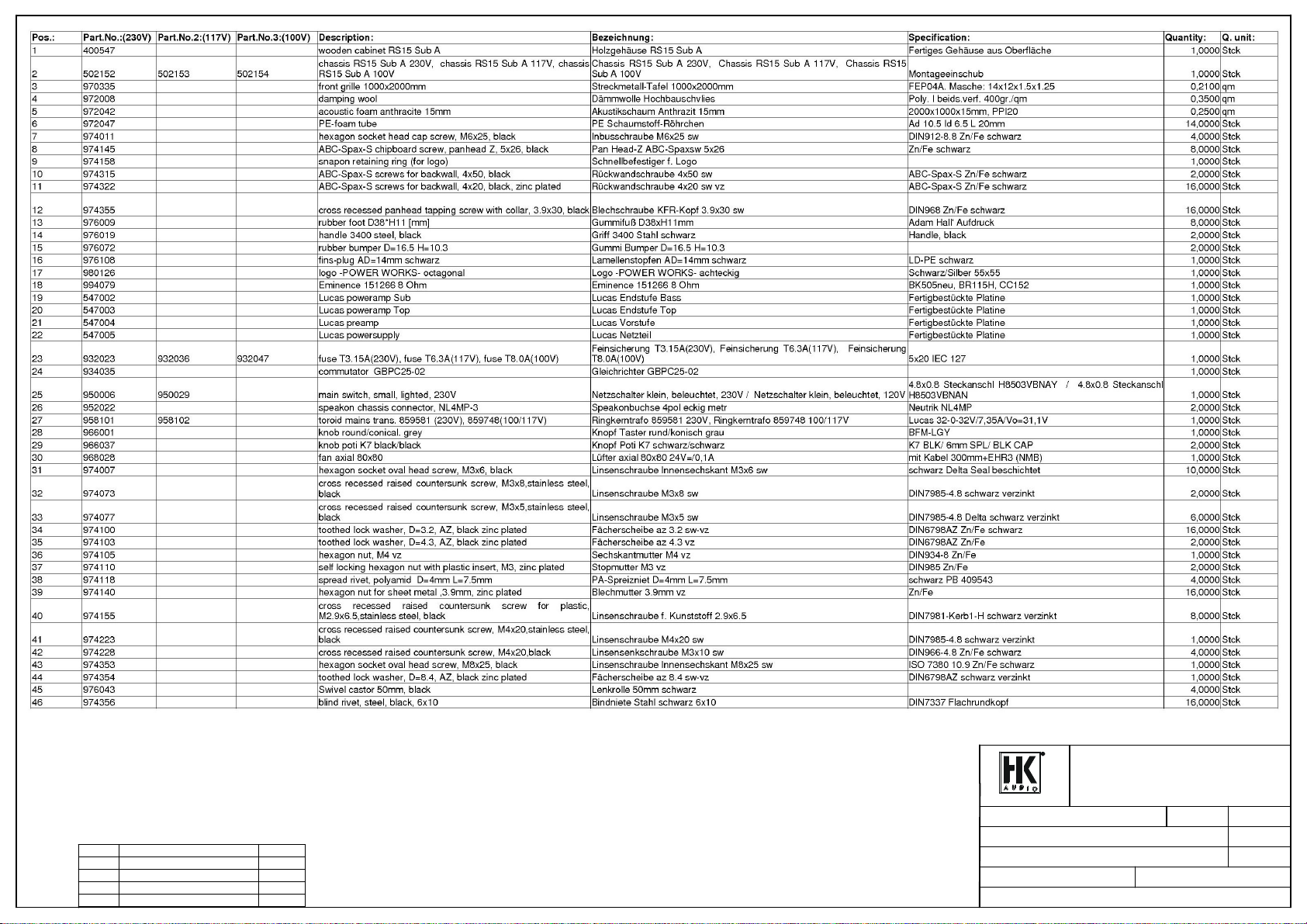

Page 18
INDEX CHANGES
RESP.
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1006_SUB_complete+chassis
TITLE:
SOUNDHOUSE ONE HK1006
SUBWOOFER COMPLETE+CHASSIS
VERSION:
DATE:
19.07.2007
DATE:
FINISH:
REVISION:
PAGE:
A1
5
PAGES
Page 19
2
INDEX CHANGES
4
1
3
4
1
3
TITLE:
SOUNDHOUSE ONE HK1006
PREAMP
66606 St. Wendel / Germany
RESP.
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
HK1006_LP_R01_1A
Fehler: Keine Referenz
HK1006_preamp
FINISH:
VERSION:
DATE:
20.07.2007
DATE:
REVISION:
PAGE:
A1
1
PAGES
Page 20
1 22
6
6
1
5
5
INDEX CHANGES
RESP.
3
34
4
*HK1198 LUKAS POWERAMP SATELLITE is equal to
HK1006 SOUNDHOUSE ONE POWERAMP SATELLITE
TITLE:
L.U.K.A.S HK1198
*
POWERAMP SATELLITE
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
HK1198_LP_R02_4A
Fehler: Keine Referenz
HK1198_LP_R02_4A_poweramp_sat
FINISH:
VERSION:
DATE:
20.07.2007
DATE:
REVISION:
PAGE:
A1
1
PAGES
Page 21
1 22
5
5
1
INDEX CHANGES
4
3 3
4
*HK1198 LUKAS POWERAMP SUBWOOFER is equal to
HK1006 SOUNDHOUSE ONE POWERAMP SUBWOOFER
TITLE:
L.U.C.A.S HK1198
*
POWERAMP SUBWOOFER
66606 St. Wendel / Germany
RESP.
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
HK1198_LP_R01_4B
Fehler: Keine Referenz
HK1198_LP_R01_4B_pweramp_sub
FINISH:
VERSION:
DATE:
20.07.2007
DATE:
REVISION:
PAGE:
B1
1
PAGES
Page 22
3
2
6
6
6
6
6
6
6
6
1
4
5
INDEX CHANGES
RESP.
*HK1198 LUKAS POWERSUPPLY is equal to
HK1006 SOUNDHOUSE ONE POWERSUPPLY
TITLE:
L.U.K.A.S HK1198
*
POWERSUPPLY
66606 St. Wendel / Germany
DRAWING-NO.:
DRAWN BY:
CHECKED BY:
MATERIAL:
FILENAME:
Fehler: Keine Referenz
HK1198_powersupply
FINISH:
VERSION:
DATE:
20.07.2007
DATE:
REVISION:
PAGE:
A1
1
PAGES
Page 23
Page 24
Page 25
1 2 3 4
A
B
C
D
4321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or
by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
Filename: HK1198-SP-R02-4B-01Main.Sch
PCB No.:
Page:
Pages
1
4Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
16.09.2003
22.09.2004
Number: Version: Revision:
4HK1198-SP-R02-4B B
66606 St. Wendel / Germany
Title:
HK1198 -- L.U.C.A.S.
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 TOP Power Amp Unit
Date Modification Revision Name
22.01.2002 Protection Diodes D19 - D22 added 3A F. Sitter
16.09.2003 Transfer to Protel, input cap's increased 4A M. Bohlender
IN A
IN B
FET_DC
LIMIT_A
LIMIT_B
+50V
-50V
+15V
-15V
AGND
INPUTS AND PLUGS
IN A
LIMIT_A
FET_DC
+50V
-50V
-15V
AGND
+15V
POWER AMP CHANNEL A
IN B
FET_DC
LIMIT_B
+50V
-50V
+15V
-15V
AGND
POWER AMP CHANNEL B
22.09.2004 R23/R38 changed to 3k3, D19-D22 = UF4004 4B M. Bohlender
output PLUG1 and PLUG3 changed to WPRINT
Page 26

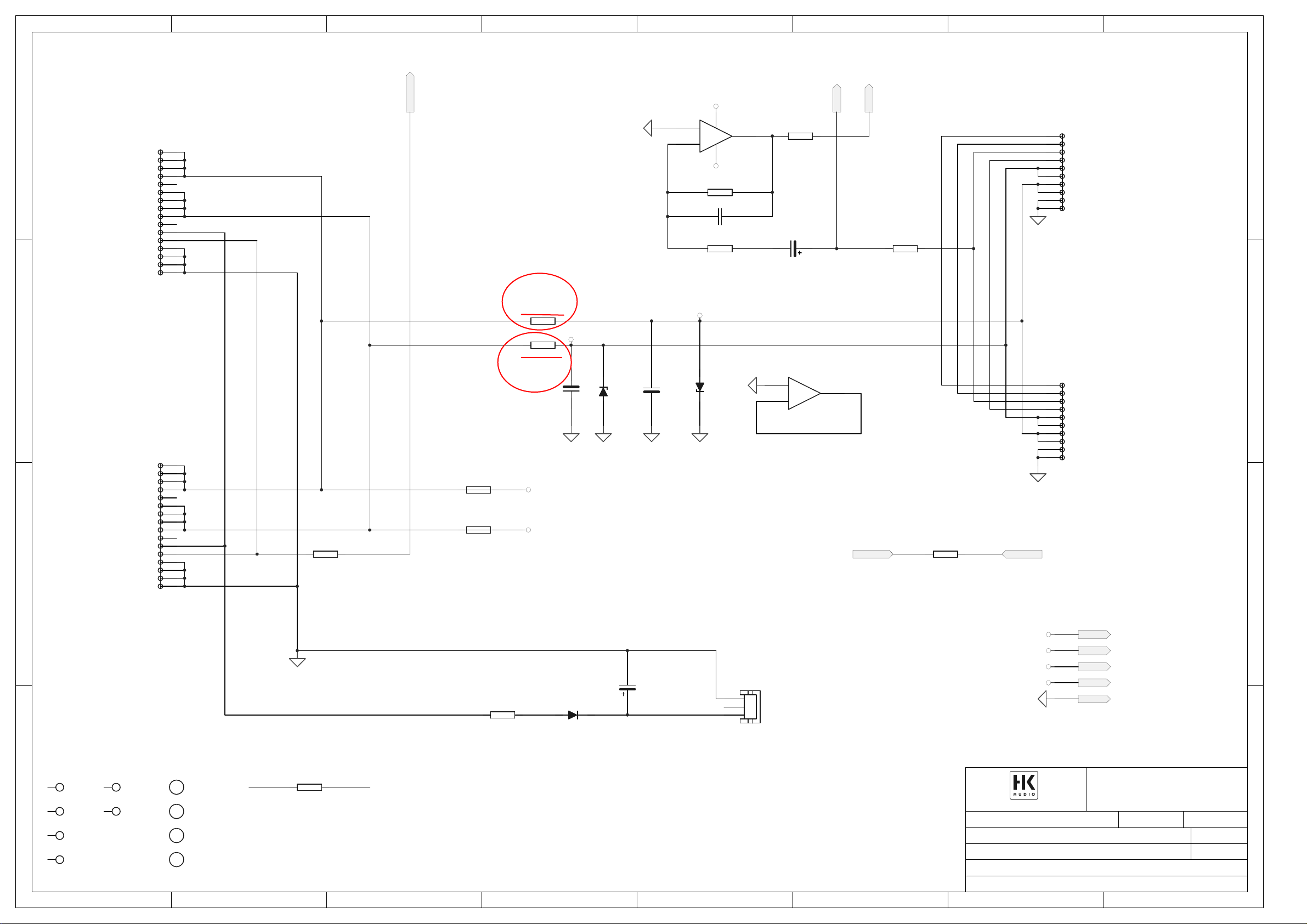

87654321

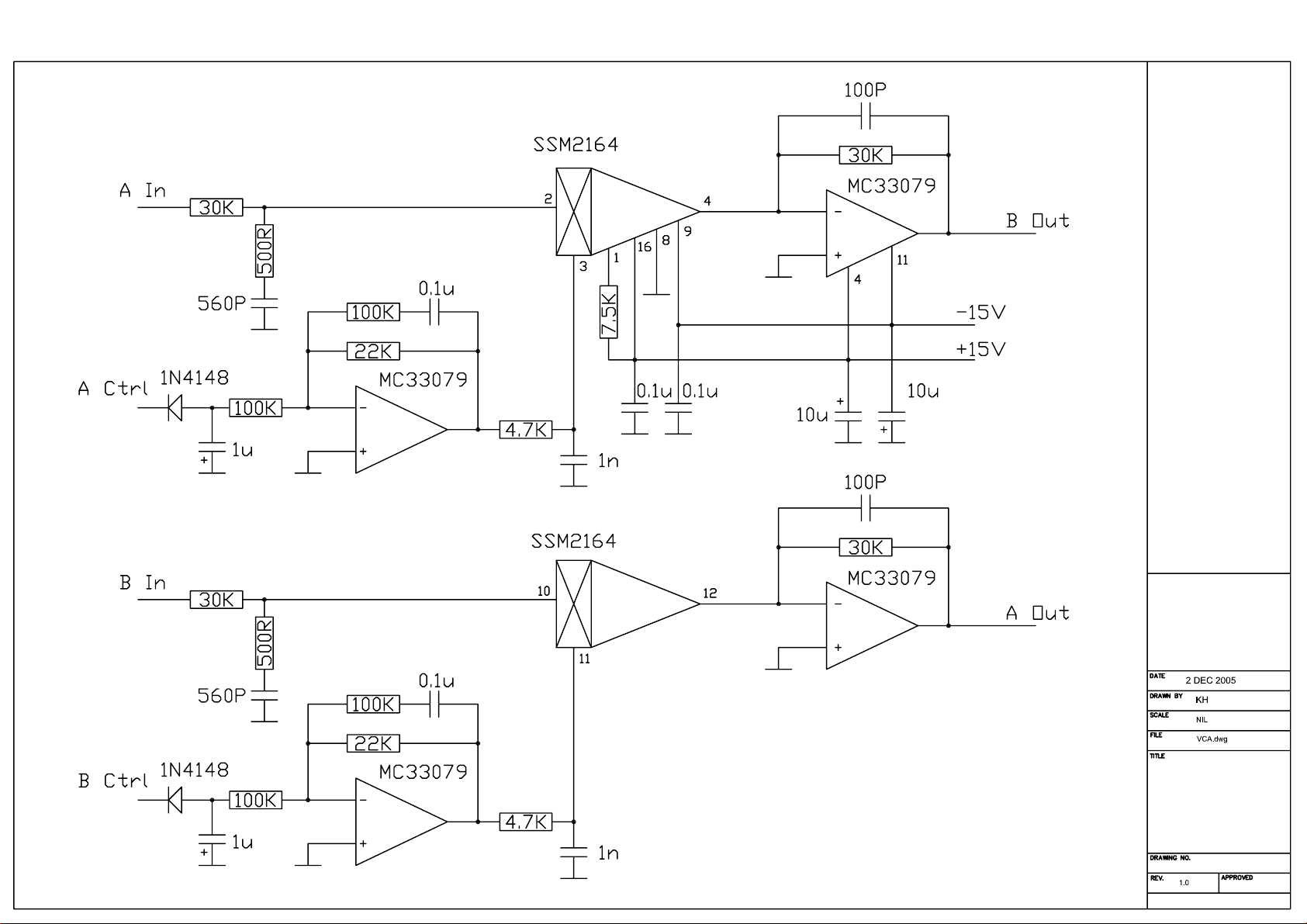

Limiter B with SSM2164
Limiter A with SSM2164
680R/5W
680R/5W
IN A
FET_DC
IN B
D
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Plug5
AWG24-16-2.54
R82
820R/5W
-15V
R60
4K7
R71
4K7
Plug8
1
2
3
4
5
6
7
8
9
10
AWG24-10-2.54
D
+15V
C
16
15
14
13
12
11
10
9
8
7
6
5
4
3
B
2
1
Plug6
AWG24-16-2.54
BR11
0R0
F2
T4000mA
F1
T4000mA
R83
820R/5W
R79
10K
-50V
+50V
Plug7
1
2
3
4
5
6
7
8
9
10
D16
BZX55V_27V
R96
220K
22u/50V
C28
R94
2K2
R95
47K
T27
BC556B
LIMIT_A LIMIT_B
LIMIT_BLIMIT_A
AWG24-10-2.54
C
B
u
R84
PTC-T80/30V
+50V
-50V
+15V
-15V
+50V
-50V
+15V
-15V
AGND
HO1
A
DK-R34-B32
HO2
DK-R34-B32
HO3
DK-R34-B32
HO4
DK-R34-B32
HO5
DK-R34-B32
HO6
DK-R34-B32
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
1 2 3 4 5 6 7 8
HO7
NDK-R0-B40
HO8
NDK-R0-B40
HO9
NDK-R0-B40
HO10
NDK-R0-B40
AGND AGND
BR13
0R0
NA = not assembled part ----- EX = exclusive part, no alternative allowed
Title:
HK1198 -- L.U.C.A.S.
66606 St. Wendel / Germany
Number: Version: Revision:
Drawn by: Date:
Checked by:
Michael Bohlender
Michael Bohlender
AE250 TOP Inputs and Plugs
4HK1198-SP-R02-4B B
Date:
16.09.2003
22.09.2004
Page:
4
PCB No.:
Filename: HK1198-SP-R02-4B-02Inputs.sch
A
2
Pages
Page 27

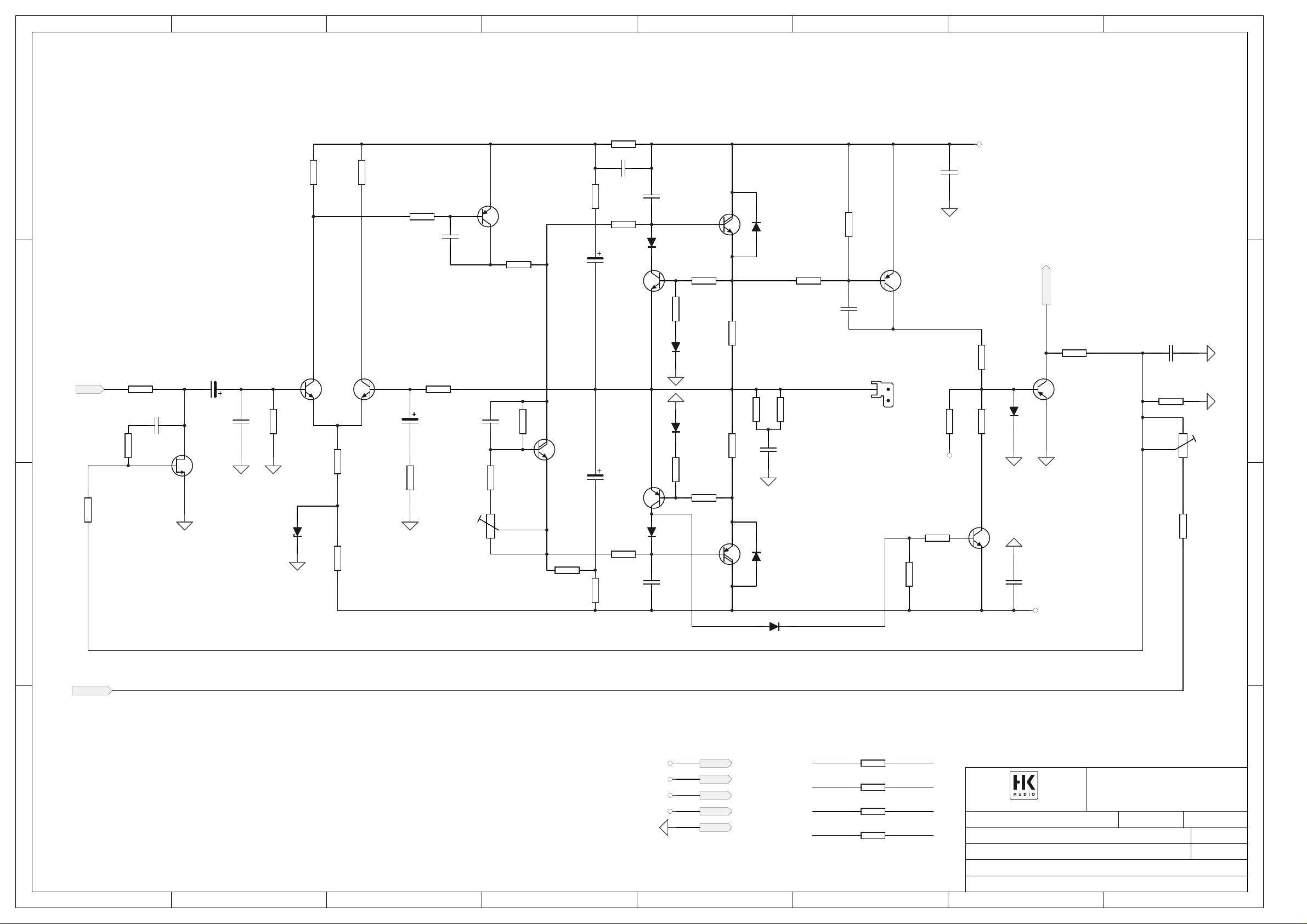

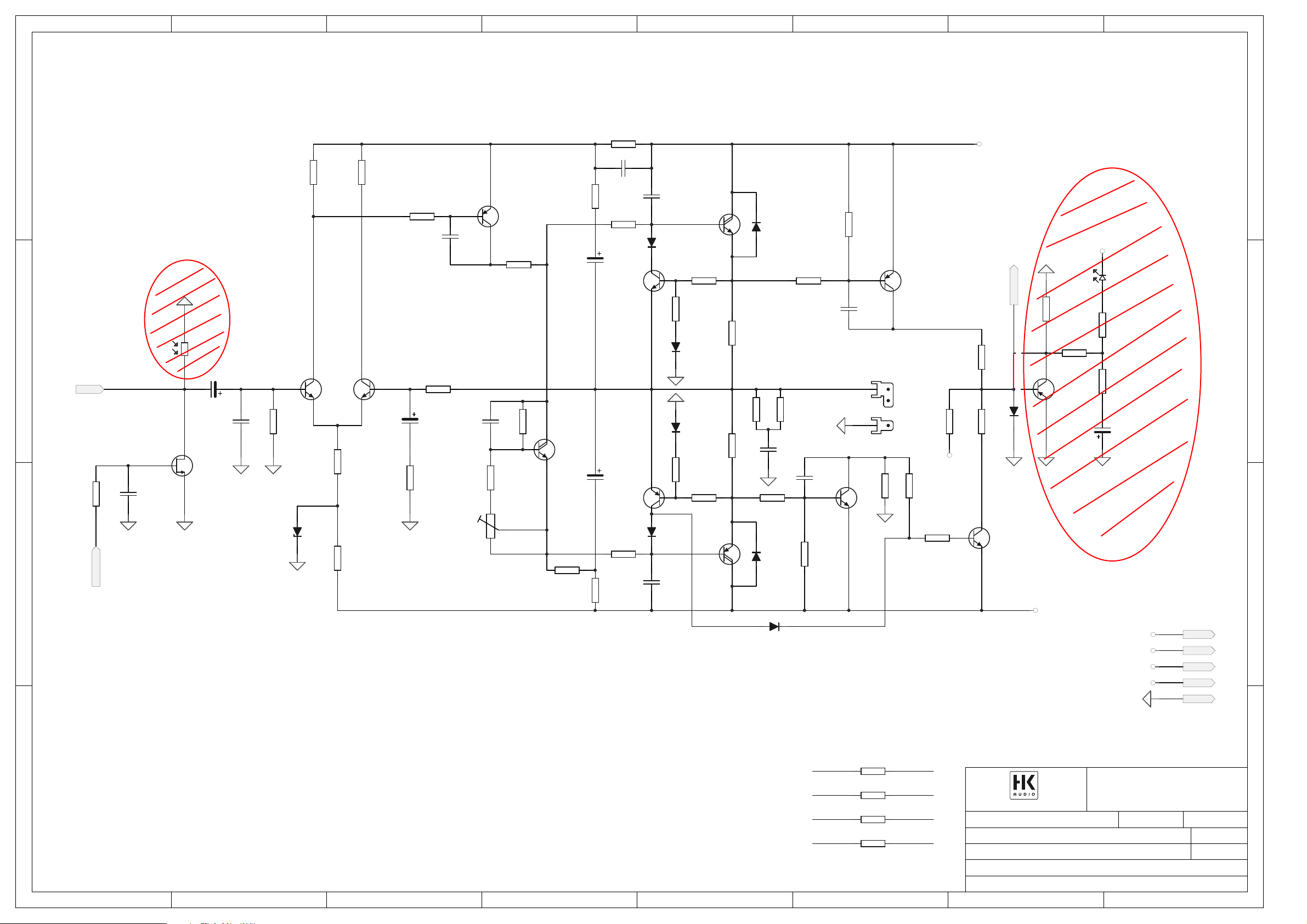

87654321
D
R15
1K5
R16
100R
R21
100R
T6
BD238
C12
100p/100V-K
R22
100R
34
IC1B
T5
BF245B
LT3011/2-1
C5
10u/63V
R27
T7
BC546B
R19
22K
C4
220p/100V-K
D5
BZX55V_6V8
R20
4K7
R11
5K6
T8
BC546B
15K
C3
47u/63V
R10
560R
C11
220p/100V-K
R7
3K9
TR1
L R
PT10LV-10K
R23
3K3
T9
BD679
R17
1K5/1W
C
BR12
0R0
C38
10n/63V-K
R13
4MEG7
IN A
B
R18
180R/2W
C2
4n7/63V
R3
470R/2W
R25
39R
C13
47u/100V
C1
47u/63V
R26
10R
R24
1K5/1W
T4
BC556B
C6
220p/100V-K
D4
1N4007G
T1
BC546B
D1
1N4007G
C10
220p/100V-K
T3_B
R2
470R
R6
10K
D3
1N4007G
D2
1N4007G
R5
47K
R1
2K2
T2_B
T3
MJ11016
T2
MJ11015
T3_ET2_E
R14
R4
0R22/5W
0R22/5W
R9
D19
UF4004
47R/1W
R62
22K
D20
UF4004
D17
1N4007G
R8
47R/1W
C9
47n/250V
R55
22K
C29
220p/100V-K
R63
4K7
R56
4K7
T20
BC639
C27
220p/100V-K
T19
BC640
Plug1
FASTON-4.8-LG
Plug2
FASTON-4.8-ST
R64
22K
R97
220K
R65
220K
-50V
C8
47n/250V
R57
33K
T22
BC639
+50V
R61
22K
R66
22K
LIMIT_A
LIMIT_A
D11
1N4007G
C7
47n/250V
-50V
R58
4MEG7
T21
BC556B
R86
470R
-15V
1 2
IC1A
LT3011/2-1
R87
1K5
R99
47R
C36
100u/25V
D
C
B
FET_DC
+50V
-50V
A
+15V
-15V
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
1 2 3 4 5 6 7 8
+50V
-50V
+15V
-15V
AGND
T3_B T3_B
T3_E T3_E
T2_B T2_B
T2_E T2_E
BR5
0R0
BR4
0R0
BR1
0R0
BR2
0R0
NA = not assembled part ----- EX = exclusive part, no alternative allowed
Title:
HK1198 -- L.U.C.A.S.
66606 St. Wendel / Germany
Number: Version: Revision:
Drawn by: Date:
Checked by:
Michael Bohlender
Michael Bohlender
AE250 TOP Ch. A Power Amp
4HK1198-SP-R02-4B B
Date:
16.09.2003
22.09.2004
Page:
4
PCB No.:
Filename: HK1198-SP-R02-4B-03ChannelA.sch
A
3
Pages
Page 28
87654321
D
R30
1K5
IC2B
C
LT3011/2-1
R31
100R
R34
100R
T12
BD238
C15
100p/100V-K
R35
100R
3 4
IN B
T14
R46
4MEG7
B
FET_DC
C34
10n/63V-K
BF245B
C22
10u/63V
T10
BC546B
R29
22K
C23
220p/100V-K
D6
BZX55V_6V8
R32
4K7
R33
5K6
T11
BC546B
R36
15K
C21
47u/63V
R37
560R
C14
220p/100V-K
R52
3K9
TR2
L R
PT10LV-10K
R38
3K3
T13
BD679
R39
1K5/1W
R43
180R/2W
C18
4n7/63V
R51
470R/2W
R42
39R
C17
47u/100V
C16
47u/63V
R41
10R
R40
1K5/1W
T16
BC556B
C19
220p/100V-K
D10
1N4007G
T15
BC546B
D9
1N4007G
C20
220p/100V-K
T25_B
R47
470R
R49
10K
D7
1N4007G
D8
1N4007G
R50
47K
R48
2K2
T24_B
T25
MJ11016
T24
MJ11015
T25_ET24_E
R45
R44
0R22/5W
0R22/5W
R54
D21
UF4004
47R/1W
R74
22K
D22
UF4004
D18
1N4007G
R53
47R/1W
C26
47n/250V
R67
22K
C32
220p/100V-K
R75
4K7
R68
4K7
T18
BC639
C30
220p/100V-K
T17
BC640
Plug3
FASTON-4.8-LG
Plug4
FASTON-4.8-ST
R76
22K
R80
220K
R77
220K
-50V
R69
33K
T26
BC639
+50V
R73
22K
R78
22K
LIMIT_B
D12
1N4007G
-50V
R70
4MEG7
T23
BC556B
R88
470R
-15V
1 2
IC2A
LT3011/2-1
R89
1K5
R100
47R
C37
100u/25V
+50V
-50V
+15V
-15V
+50V
-50V
+15V
-15V
D
C
B
AGND
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
1 2 3 4 5 6 7 8
T25_B T25_B
T25_E T25_E
T24_B T24_B
T24_E T24_E
BR7
0R0
BR6
0R0
BR9
0R0
BR8
0R0
NA = not assembled part ----- EX = exclusive part, no alternative allowed
Title:
HK1198 -- L.U.C.A.S.
66606 St. Wendel / Germany
Number: Version: Revision:
Drawn by: Date:
Checked by:
Michael Bohlender
Michael Bohlender
AE250 TOP Ch. B Power Amp
4HK1198-SP-R02-4B B
Date:
16.09.2003
22.09.2004
Page:
4
PCB No.:
Filename: HK1198-SP-R02-4B-04ChannelB.sch
A
4
Pages
Page 29
Page 30
1 2 3 4
A
B
C
D
4321
D
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or
by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
Filename: HK1198-SP-R01-4B-01Main.Sch
PCB No.:
Page:
Pages
1
4Checked by:
Drawn by: Date:
Date:
Michael Bohlender
Michael Bohlender
16.09.2003
22.09.2004
Number: Version: Revision:
4HK1198-SP-R01-4B B
66606 St. Wendel / Germany
Title:
HK1198 -- L.U.C.A.S.
NA = not assembled part ----- EX = exclusive part, no alternative allowed
AE250 Bass Power Amp Unit
Date Modification Revision Name
22.01.2002 Protection Diodes D19 - D22 added 3A F. Sitter
16.09.2003 Transfer to Protel, input cap's increased 4A M. Bohlender
IN A
IN B
FET_DC
LIMIT_A
LIMIT_B
+50V
-50V
+15V
-15V
AGND
INPUTS AND PLUGS
IN A
LIMIT_A
FET_DC
+50V
-50V
-15V
AGND
+15V
POWER AMP CHANNEL A
IN B
FET_DC
LIMIT_B
+50V
-50V
+15V
-15V
AGND
POWER AMP CHANNEL B
22.09.2004 R23/R38 changed to 3k3, D19-D22 = UF4004 4B M. Bohlender
output PLUG1 and PLUG3 changed to WPRINT
Page 31
87654321
680R/5W
680R/5W
3
2
-15V
+15V
+
-
-15V
R28
47K
R59
33K
84
VCCVEE
1
IC3A
MC33078P(MOT)
C33
47pF/100V-K
C31
10u/63V
R12
6K2
FET_DC
D
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
Plug5
AWG24-16-2.54
R82
820R/5W
IN A
IN B
R72
5K6
Plug8
1
2
3
4
5
6
7
8
9
10
AWG24-10-2.54
D
+15V
C
16
15
14
13
12
11
10
9
8
7
6
5
4
3
B
2
1
Plug6
AWG24-16-2.54
BR11
0R0
F2
T4000mA
F1
T4000mA
R83
820R/5W
-50V
+50V
+
2u2/35V-T
D14
C24
BZX85C_15V
+
D13
C25
2u2/35V-T
BZX85C_15V
5
6
+
-
IC3B
MC33078P(MOT)
7
LIMIT_A LIMIT_B
BR3
0R0
LIMIT_BLIMIT_A
Plug7
1
2
3
4
5
6
7
8
9
10
AWG24-10-2.54
C
B
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
+50V
-50V
+15V
-15V
AGND
R85
150R/5W
D15
1N4007G
C35
470u/25V
1
B
2
G
3
R
Plug9
JST-B03B-EH-A
+50V
-50V
+15V
-15V
NA = not assembled part ----- EX = exclusive part, no alternative allowed
HO1
DK-R34-B32
HO2
DK-R34-B32
HO3
DK-R34-B32
HO4
DK-R34-B32
HO5
DK-R34-B32
HO6
DK-R34-B32
HO7
NDK-R0-B40
HO8
NDK-R0-B40
HO9
NDK-R0-B40
HO10
NDK-R0-B40
AGND AGND
BR13
0R0
66606 St. Wendel / Germany
Number: Version: Revision:
Drawn by: Date:
Checked by:
Michael Bohlender
Michael Bohlender
PCB No.:
Title:
HK1198 -- L.U.C.A.S.
AE250 Bass Inputs and Plugs
Filename: HK1198-SP-R01-4B-02Inputs.sch
1 2 3 4 5 6 7 8
4HK1198-SP-R01-4B B
16.09.2003
22.09.2004
Date:
Page:
4
A
2
Pages
Page 32
87654321
D
R15
1K5
R16
100R
R21
100R
T6
BD238
C12
100p/100V-K
R22
100R
C
IN A
R92
100K
BR12
0R0
R91
100K
C40
470n/63V
T5
BF245B
C5
10u/63V
T7
BC546B
R19
15K
C4
220p/100V-K
D5
BZX55V_6V8
R20
4K7
R11
5K6
T8
BC546B
B
R27
15K
C3
47u/63V
R10
560R
C11
220p/100V-K
R7
3K9
TR1
L R
PT10LV-10K
R23
3K3
T9
BD679
R17
1K5/1W
R18
180R/2W
C2
4n7/63V
R3
470R/2W
R25
39R
C13
47u/100V
C1
47u/63V
R26
10R
R24
1K5/1W
T4
BC556B
C6
220p/100V-K
D4
1N4007G
T1
BC546B
D1
1N4007G
C10
220p/100V-K
T3_B
R2
470R
R6
10K
D3
1N4007G
D2
1N4007G
R5
47K
R1
2K2
T2_B
T3
MJ11016
T2
MJ11015
T3_ET2_E
R14
R4
0R22/5W
0R22/5W
R9
D19
UF4004
47R/1W
D20
UF4004
D17
1N4007G
R8
47R/1W
C9
47n/250V
R55
22K
R56
4K7
C27
220p/100V-K
T19
BC640
Plug1
FASTON-4.8-LG
R98
22K
R65
220K
-50V
C8
47n/250V
R57
33K
T22
BC639
+50V
R61
22K
R66
22K
D11
1N4007G
C7
47n/250V
LIMIT_A
-50V
LIMIT_A
T21
BC556B
R86
3K3
R90
82K
C41
1u/63V
L R
TR3
PT10LV-500K
R93
330K
D
C
B
FET_DC
+50V
-50V
A
+15V
-15V
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
1 2 3 4 5 6 7 8
+50V
-50V
+15V
-15V
AGND
T3_B T3_B
T3_E T3_E
T2_B T2_B
T2_E T2_E
BR5
0R0
BR4
0R0
BR1
0R0
BR2
0R0
NA = not assembled part ----- EX = exclusive part, no alternative allowed
Title:
HK1198 -- L.U.C.A.S.
66606 St. Wendel / Germany
Number: Version: Revision:
Drawn by: Date:
Checked by:
Michael Bohlender
Michael Bohlender
AE250 Bass Ch. A Power Amp
4HK1198-SP-R01-4B B
Date:
16.09.2003
22.09.2004
Page:
4
PCB No.:
Filename: HK1198-SP-R01-4B-03ChannelA.sch
A
3
Pages
Page 33
87654321
D
R30
1K5
R31
100R
R34
100R
T12
BD238
C15
100p/100V-K
R35
100R
C
IN B
T14
R46
4MEG7
B
FET_DC
C34
10n/63V-K
BF245B
C22
10u/63V
T10
BC546B
R29
15K
C23
220p/100V-K
D6
BZX55V_6V8
R32
4K7
R33
5K6
T11
BC546B
R36
15K
C21
47u/63V
R37
560R
C14
220p/100V-K
R52
3K9
TR2
L R
PT10LV-10K
R38
3K3
T13
BD679
R39
1K5/1W
R43
180R/2W
C18
4n7/63V
R51
470R/2W
R42
39R
C17
47u/100V
C16
47u/63V
R41
10R
R40
1K5/1W
T16
BC556B
C19
220p/100V-K
D10
1N4007G
T15
BC546B
D9
1N4007G
C20
220p/100V-K
T25_B
R47
470R
R49
10K
D7
1N4007G
D8
1N4007G
R50
47K
R48
2K2
T24_B
T25
MJ11016
T24
MJ11015
T25_ET24_E
R45
R44
0R22/5W
0R22/5W
R54
D21
UF4004
47R/1W
D22
UF4004
D18
1N4007G
R53
47R/1W
C26
47n/250V
R67
22K
R68
4K7
C30
220p/100V-K
T17
BC640
Plug3
FASTON-4.8-LG
R81
22K
R77
220K
-50V
R69
33K
T26
BC639
+50V
R73
22K
R78
22K
D12
1N4007G
LIMIT_B
-50V
LIMIT_B
T23
BC556B
+50V
-50V
+15V
-15V
+50V
-50V
+15V
-15V
D
C
B
AGND
A
All rights reserved. No part of this schematic may be reproduced, stored in a retrieval system, transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of the author.
1 2 3 4 5 6 7 8
T25_B T25_B
T25_E T25_E
T24_B T24_B
T24_E T24_E
BR7
0R0
BR6
0R0
BR9
0R0
BR8
0R0
NA = not assembled part ----- EX = exclusive part, no alternative allowed
Title:
HK1198 -- L.U.C.A.S.
66606 St. Wendel / Germany
Number: Version: Revision:
Drawn by: Date:
Checked by:
Michael Bohlender
Michael Bohlender
AE250 Bass Ch. B Power Amp
4HK1198-SP-R01-4B B
Date:
16.09.2003
22.09.2004
Page:
4
PCB No.:
Filename: HK1198-SP-R01-4B-04ChannelB.sch
A
4
Pages

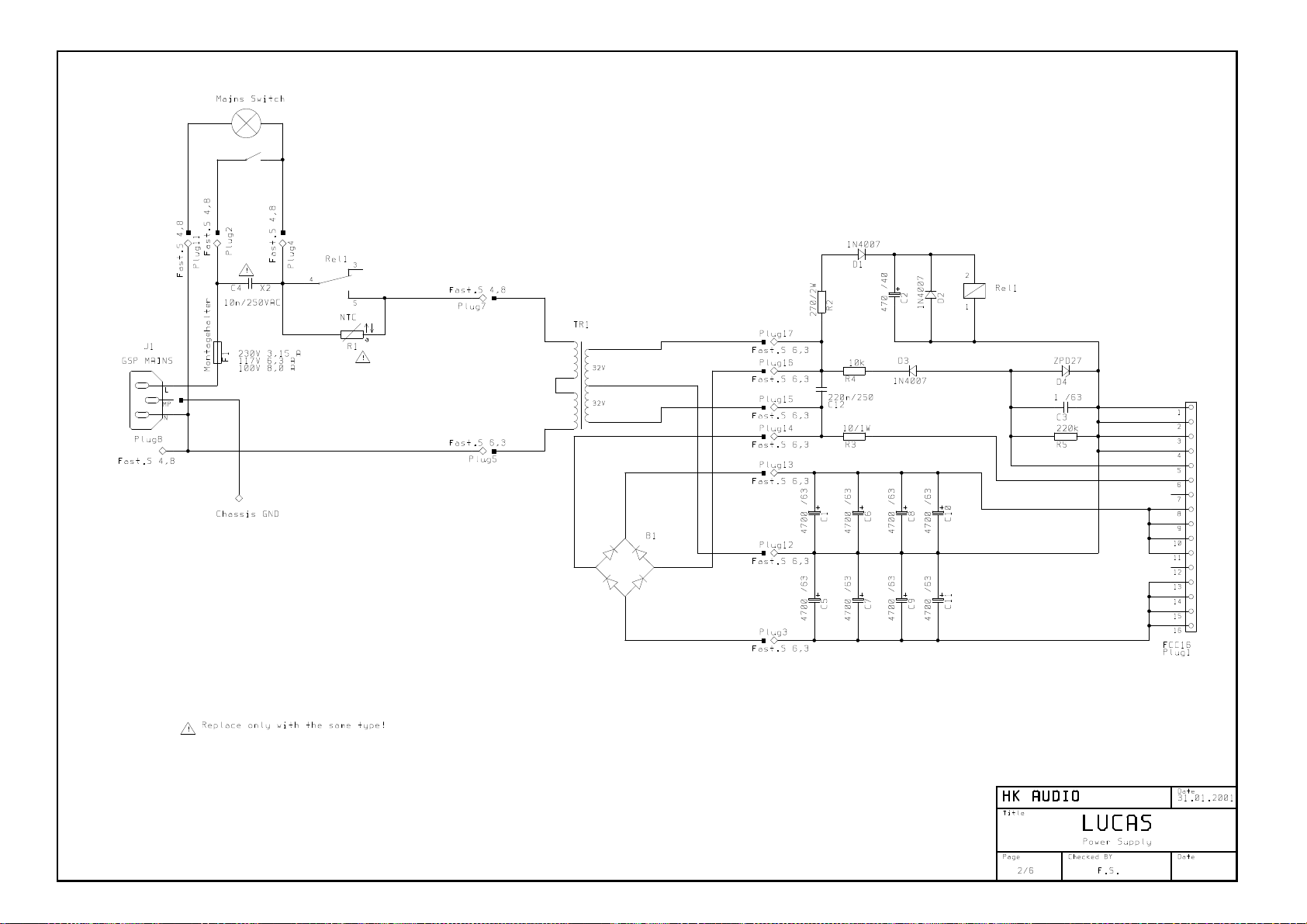

Page 34
Loading...
