HiTi Card Printer

CS-300

User Manual

Hi-Touch Imaging Technologies V.2007.03

www.hi-ti.com

ACKNOWLEDGEMENTS

Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporations.

Pentium is a U.S. registered trademark of Intel Corporation. TrueType is a U.S. trademark of Apple Computer, Inc. Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. Brands and product names are trademarks or registered trademarks of their

respective companies.

The information contained in this document is subject to change without notice. Hi-Touch Imaging Technologies makes no warranty of any kind with regard to

this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hi-Touch Imaging Technologies shall not be liable for any errors or for incidental or consequential damages in connection with the furnishing, the performance, or the use of this material.

Reproduction, adaptation, or translation of this manual is prohibited without prior written permission of Hi-Touch Imaging Technologies, except as allowed under copyright laws.

Hi-Touch Imaging Technologies, HiTi, HiTi company logo, Photo Desiree, Card Desiree, "Digital mini-lab just for you", HiTi name (written in Simplified Chinese or Traditional Chinese), are trademarks or registered trademarks in Taiwan, China and other countries using Hi-Touch Imaging Technologies.

www.hi-ti.com

SAFETY INSTRUCTIONS

1. Read these instructions carefully. Keep these instructions for future reference. Follow all warnings and instructions as marked on the product.

2. Unplug this product from the wall outlet before cleaning. Do not use liquid detergents or aerosol cleaners. Use a damp cloth for cleaning.

3. Do not use this product near water.

4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

5. Openings in the cabinet and at the bottom provide ventilation; to ensure a reliable operation of the product and to protect it form overheating, these openings should not be blocked or covered. Placing the product on a bed, sofa, rug, or other similar surface may never block the openings. These products should never be placed near or over a radiator or a heat register, or in a built-in installation, unless proper ventilation is provided.

6. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult with your dealer or with the local power company.

7. If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the ampere rating of the extension cord. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

8. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other harmful risks. Refer all servicing to qualified service personnel.

www.hi-ti.com

Instruction

Chapter 1

1-1 Check Accessories 6 1-2 Appearance Of CS-300 7 1-3 Install Power Cord & USB Cable 10 1-4 Install Cleaning Roller 11 1-5 Install Card & Ribbon 12

Chapter 2

2-1 Install Driver (Win 2000 & XP ) 15 2-2 Uninstall Driver (Win 2000 & XP ) 16 2-3 Install Card Desiree CS 17 2-4 Driver Instruction 18

Chapter 3

3-1 LCD Display Instruction 28 3-2 Operation Instruction 28

5 Hardware Installation 6

Software Installation 14

Operation Instruction 28

Chapter 4

Chapter 5

Appendix A Hi-Ti Card Printer Specification 44 Appendix B Safety Instructions 45 Appendix C Limited Warranty Statement 46 Appendix D FCC Compliance Statement 48 Appendix E Customer Service Information 53

Appendix F Order Information 55

How To Clean & Maintain 30

4-1 Clean Cleaning Roller 31 4-2 Clean Print Path 32 4-3 Clean TPH Head 33 4-4 Clean Air Filter 34 4-5 Clean Card-insert Mechanism 35 4-6 Clean Ribbon Sensor 36

Troubleshooting 37

5-1 Error Message & Solution 37

www.hi-ti.com

Instruction

Thank you for choosing HiTi Card Printer. We hope this will just be the beginning of our long-term and successful association. With this HiTi card printer, you can easily and conveniently print high quality plastic cards, such as personalized ID cards/credit cards, membership cards,.…etc. Please read this manual carefully and complete the installation before operating the printer.

HiTi Card Printer CS-300 Features

 Supports double-side printing.  High quality printing.  Supports multiple ribbon types.  Supports various card types.  Compatible with HiTi Card Desiree CS professional

software.

www.hi-ti.com

Chapter 1 Hardware Installation

1-1 Check Accessories

Please make sure the following items are included when you unpack the card printer.

1.Card Output Hopper

2. Weight

3. USB Cable

5. User Manual

7. Cleaning Roller

4. Power Cord

6. CD

8. Cleaning Kit

If any of the above items is missing, please contact your nearest HiTi

customer-support facility or your local HiTi distributor. For detailed information, please refer to Appendix E: Customer Service Information.

www.hi-ti.com

1-2 Appearance of CS-300

 CS-300 Front side

A. Card Input Hopper

This is the Card Input Hopper for storing blank cards. Please insert the blank cards gently and remember to shield them with the built-in cover to avoid any dust entering in there.

B. Card thickness selection button

HiTi CS-300 provides four selections for thickness: 0.3 mm (10 mil), 0.5 mm (20 mil), 0.8 mm (30 mil) and 1.0 mm (40 mil). Please move and slide the selector for thickness to the correct thickness position, which matches the thickness of the cards in the Card Input Hopper.

C. LCD Display:

The status of the printer is displayed on the LCD screen, you can use [◄], [►], [OK], [ESC] buttons to control the operation of the printer and for troubleshooting.

D. ID Button

To replace ribbon cartridges, please gently slide the ID button on the top of the printer to open the ribbon door.

E. Rejected box

When an error occurs during the reading/writing process for smart chips and/or magnetic cards, these cards are ejected into a rejected box, which holds about 20 cards. The system will show an error message when cards accumulate to around 20 pieces in the rejected box. Please remove these cards to continue the printing task.

F. Card Output Hopper

The printed cards will be placed here.

www.hi-ti.com

 CS-300 Back side

D C A

A. Power Switch

This switch turns the power of the printer on or off.

B. Power Socket

Connect your power cord here.

C. USB Connector

Please connect the printer to a controlling device, such as a PC or a laptop, hereby using the build-in USB connector.

D. Specification Label

Printer specification and detail information display label.

www.hi-ti.com

 Control Panel.

A. LED Light

Turn the power on. The printer will automatically initiate a system check and turn on the green LED light to indicate that the printer status is normal. If an error occurs, an error message will be shown on the LCD display and flash the LED. Please refer to “Chapter 5 Troubleshooting” for resolving this error message.

Status Light: Green LED means that the status of the card printer is normal. Error Light: Red LED means that an error has occurred. Please begin the

troubleshooting procedures.

B. LCD display

The device status and error messages are displayed on this LCD display.

C. Control Button

You can use [◄], [►], [OK], [ESC] buttons to check the information and the status of the printer or use these buttons to initiate the cleaning process.

www.hi-ti.com

1-3 Install Power Cord & USB Cable

1. Connect the printer to the AC power outlet using the supplied power cord.

2. Please connect the printer to a PC using the supplied USB Cable.

3. Turn on the “Power Switch". Before you turn on the “Power Switch”, please make sure that you have already installed the printer driver. Please refer to Chapter 2.

4. You will see a "New Hardware Found" message display on the PC screen. Then it will automatically initiate the printer driver.

5. The card printer will automatically check the printer status when you turn on the power. If the “status LED” lights stable green; that would indicate that the printer is ready. If the “error LED” lights on, please check the ERROR message displayed on the LCD display and look it up in the troubleshooting procedures.

6. Hardware and driver installation are finished.

www.hi-ti.com

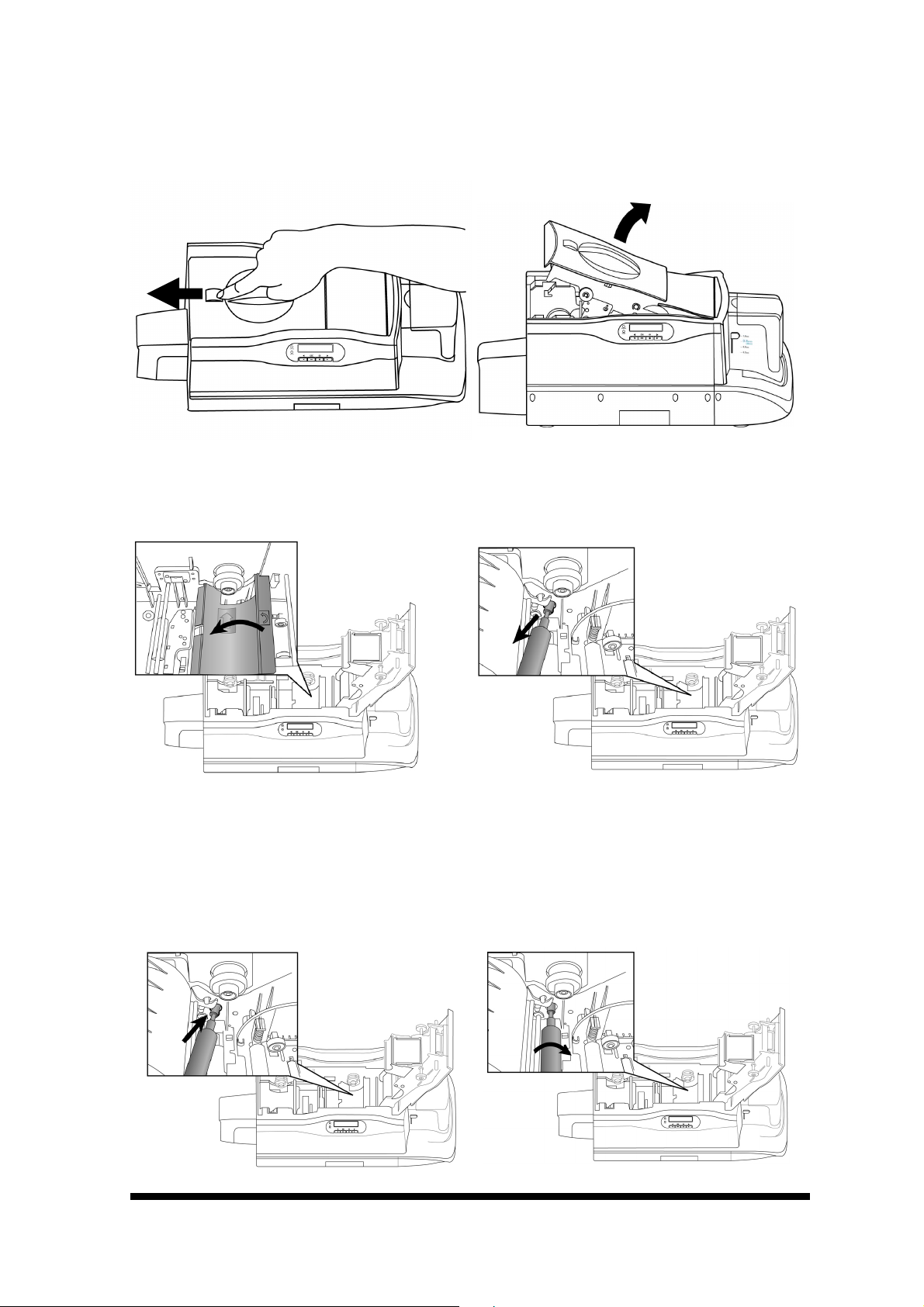

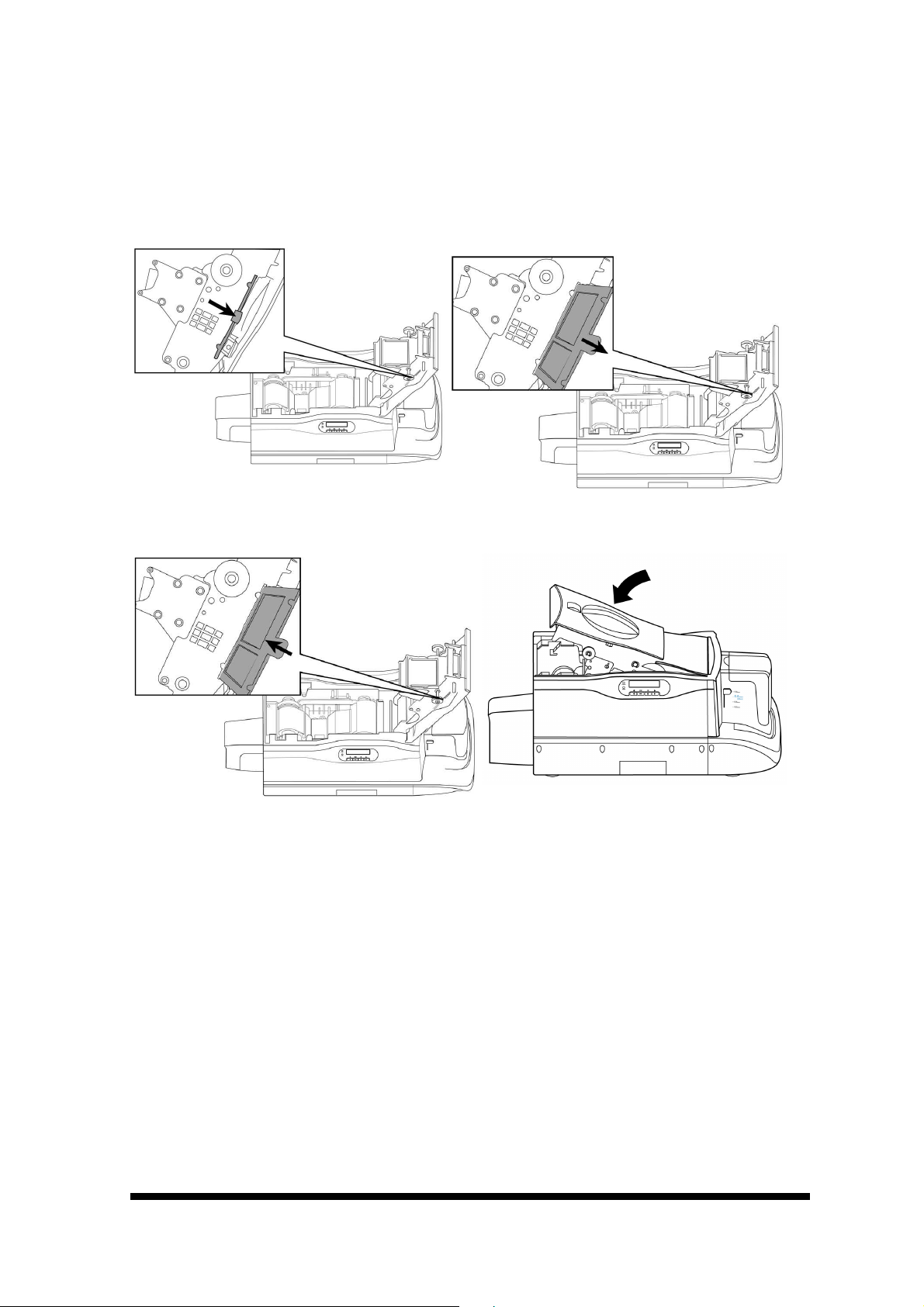

1-4 Install Cleaning Roller

cleaning roller

spool into the spool receivers. Turn the cleaning roller after its installation; if it

turns smoothly, then the installation of the cleaning roller should be correct. If it

Please ※ install the cleaning roller before using the card printer.

Slide the ID button and lift the ribbon door up.

2. Open the cover of the cleaning module, as illustrated.

3. While holding the cover of the cleaning module open, insert the

does not turn smoothly, please re-install the cleaning roller.

4. Please close the cover of the cleaning module and close the ribbon door to finish the installation of the cleaning roller.

www.hi-ti.com

1-5 Install Card & Ribbon

Please move and slide the selector for

rect thickness position

which matches the thickness of the card to

Card

on the weight to position the

be inserted in a specific

If the cards in the Card Input Hopper can not be picked up smoothly by the

printer, please make sure the cards are not sticking to each other by loosening

faces up. Then

please insert it horizontally into the Card

Input Hopper as the instructions indicate

The magnetic stripe faces down.

Then please insert it horizontally into

Card Input Hopper as the

instructions indicate on the Card

※※※※ The HiTi card printer package does not include cards and ribbons. You

can contact your local HiTi distributor or refer to Appendix E for consumer ordering information.

 The Card Installation

1. thickness to the cor

be printed.

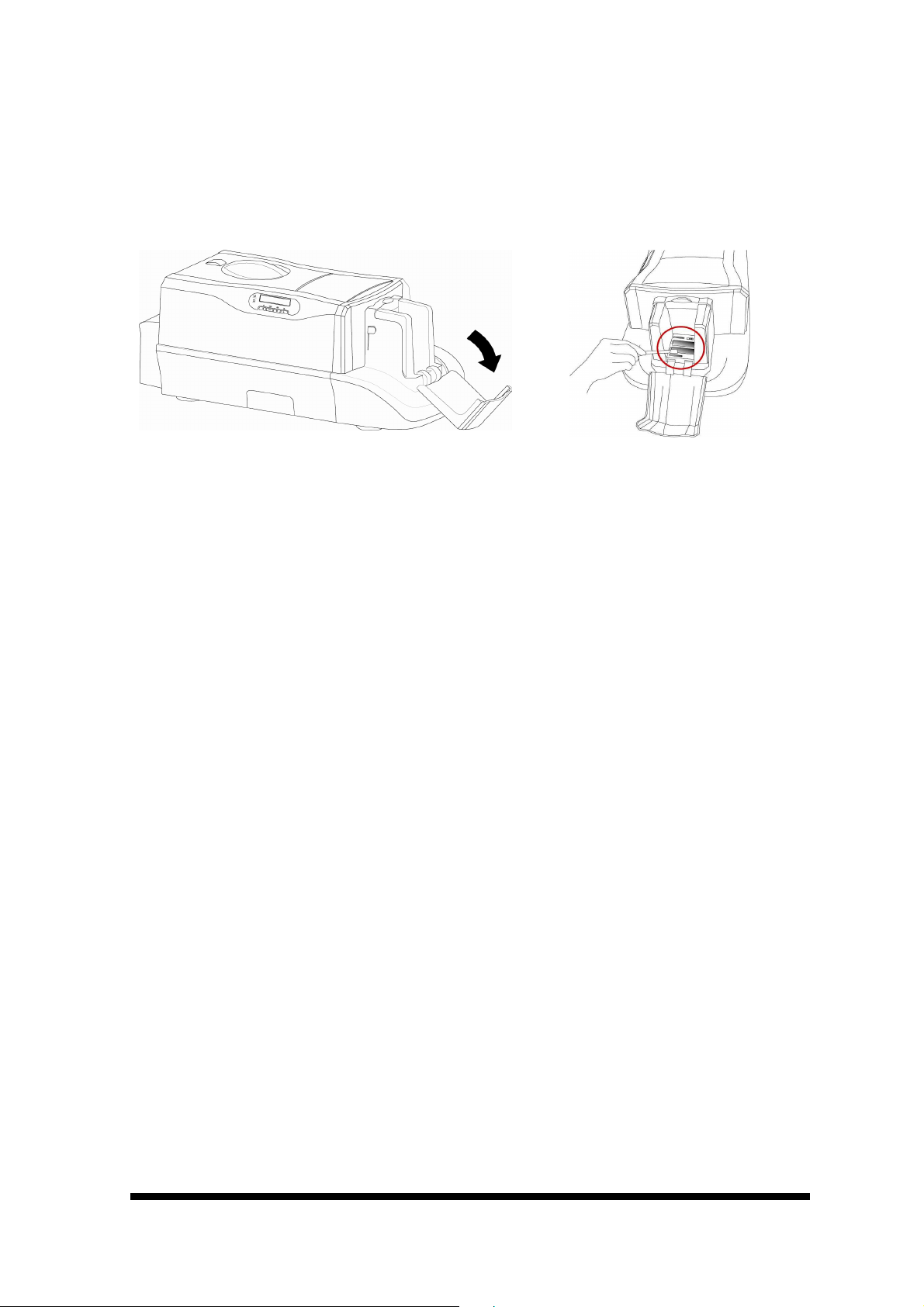

1. Insert a blank card, place the weight on the top and close the door of the Input Hopper. Please refer to the instruction weight properly, as illustrated.

2. Open the door of the Card Input Hopper.

Notes:

1. The card should be inserted horizontally into the Card Input Hopper. The

contact smart card and magnetic stripe card need to way, as illustrated.

2. or shuffling the cards with your finger.

*The contact smart card installation:

The smart card chip

on the Card Input Hopper.

*The magnetic stripe card

installation:

the Input Hopper.

www.hi-ti.com

 The Ribbon Installation

1. Remove the ribbon slack by rotating

the spool as illustrated.

3. Slide the ID button and lift the ribbon door up.

2. Remove the fastener on the ribbon as illustrated

4. Hold the ribbon cartridge handle and insert it into the printer as illustrated. Please make sure the drive gear is properly seated against the ribbon spool.

5. Close the ribbon door. Make sure the STATUS LED displays green light and

the LCD display shows “READY”.

www.hi-ti.com

Chapter 2 Software Installation

System Requirements

Please make sure your PC conforms to the following requirements

 Intel Pentium or compatible PC  Windows 2000/XP  128 MB RAM or higher  Available USB port  100 MB or more free hard disk space  CD-ROM Drive

Notice!!

1. Microsoft, MS, MS-DOS and Windows are registered trademarks of the Microsoft Corporation.

2. Pentium is a U.S. registered trademark of the Intel Corporation.

3. Brands and product names are trademarks or registered trademarks of their

respective companies.

www.hi-ti.com

2-1 Install Driver (Windows 2000/XP)

1.Insert the “Driver CD” into the CD-ROM drive. If the installation doesn’t start

automatically; run the “autorun.exe” in the disk. Please select printer model “CS-300”.

2.Please select “Driver / HiTi CS-300” and install.

3.Click the “Start” button to install the driver.

4.Connect the printer to the PC using the USB cable and turn the printer on.

www.hi-ti.com

5. In Windows 2000 or Windows XP, if there’s message dialog showing “Digital

Signature Not Found” or “Driver Incompatibility”, please click “Yes” to continue to install the driver.

6. After copying several files, the Windows 2000 / XP system recognizes this

printer and the installation will be finished.

2-2 Uninstall Driver

1. Under Control Panel/ Add Remove Programs, you can find “HiTi CS-300” Card Printer”.

2. Select [Remove] option, then the system will begin to uninstall the “HiTi CS-300” driver.

3. The Uninstall program will now prompt you to restart Windows.

www.hi-ti.com

2-3 Install CardDesiree CS

1. Insert the “Driver CD” into the CD-ROM drive, if the disc doesn’t auto start,

then please execute the “autorun.exe” in the disc.

2. Select "Software / CardDesiree CS" and install.

3. Select language and destination; then press the “Start” button.

4. When the installation is finished, a pop-up message will appear to ask whether or not to place a "Card Desiree CS" icon on the Windows Desktop?

5. The "Card Desiree CS" installation is finished.

www.hi-ti.com

2-4 Driver Instruction

You can access the driver settings in Control Panel-> Printers. Select HiTi

CS-300 and right-click the mouse button, then select “Printing Preferences”.

The printer driver is divided into seven different categories (not including general properties) integrated in a main page. The seven different categories list as below:

1. Device Option

2. Printing Area

3. Color

4. Tools

5. Magnetic Encoding

6. Import/Export

7. About

www.hi-ti.com

[Device Option]

You can modify the settings of the card printer in this page.

Ribbon Type: Select the ribbon type you want to use. 1. YMCKO ribbon,2. Resin K

ribbon or 3. YMCO ribbon.

Card Type: Select the card type you want to use. You may choose “Blank Card”,

“6-pin Smart Chip Card”, “8-pin Smart Chip Card”, “Magnetic Stripe Card”, “Chip/Magnetic Card”, and “Adhesive Card”. (Default setting: “Blank Card”)

Quality Mode: Quality Mode is the default setting. If you cancel this option, the

printing speed will increase, but the quality will decrease.

Printing Direction: You can select “Portrait” or “Landscape”. (Default setting:

“Landscape”) Lock: If you are using a 3rd party software application other than Card Desiree CS

and the default printer of your computer is not CS-300, then please enable “Lock” to fix the printing direction.

Copies: Set the number of copies to print. (Default setting: 1)

Front/ back side setting: Setup which side you want to print.

Printing Parameters: Select the printing parameters. When you change the

Ribbon type, it will automatically return to the default setting. If □□□□Using YMC is unmarked, only the Resin K and O portion of the YMCKO ribbon will be applied

during the printing process.

K only on Back: This option is available only for YMCKO ribbons. When it is

marked, the front side of the card will be printed by YMC of YMCKO; meanwhile, the back side will be printed by K of YMCKO. Then the user can print out one double-side card by one set of YMCKO (YMC for the front side; K for the back side).

www.hi-ti.com

※When you select the YMCKO ribbon as your ribbon type, several options for Resin K will be available.

Disable

Always on

Text only

Disable when doing color printing

Black/White The “Resin K” ribbon will represent the color graphic/texts Resin Dither Resin Dither applies different density of black-white

The “Resin K” within YMCKO ribbon will not be applied to print the black section and the black (RGB = 0, 0, 0) in graphical objects. It means the color in black (RGB = 0, 0, 0) will always be composed by Y, M and C. The “Resin K” within the YMCKO ribbon will be applied to print all of the black (RGB = 0, 0, 0) in the images. The “Resin K” within YMCKO ribbon will be applied to print the graphical object- “Text” which is transmitted by GDI command, but will not be applied to the black part in the images or the black (RGB = 0, 0, 0) of the graphical objects transmitted by the GDI command. For example, the Barcode is transmitted by the GDI command, but this option will not apply to Resin K within the YMCKO ribbon to the Barcode. The “Resin K” within the YMCKO ribbon will be applied to print all the black (RGB = 0, 0, 0) graphical objects that are transmitted by the GDI command, but will not be applied to all the black (RGB=0, 0, 0) parts in the images.

in black (RGB=0, 0, 0) and white printing style.

mixing to transfer color graphic to different black level. If the text is the black (RGB=0, 0, 0) graphical object transmitted by GDI, then the text will not be shown by mixing color, but by the actual contents.

NOTE:

1. Graphical Device Interface, a Windows standard for dividing the images to many graphical objects and transmitting them to output devices, such as monitors and printers.

2. It is recommended to select “Disable doing color printing” if you are not going to use Card Désirée CS to print.

When you select ※ Resin K ribbon as your ribbon type, then 2 options

for the Resin K ribbon will be available: Black/White and Resin Dither.

Black/White The “Resin K” ribbon will represent the color graphic/texts in

black (RGB=0, 0, 0) and white printing style.

Resin Dither Resin Dither applies different density of black-white mixing

to transfer color graphic to different black level. If the text is the black (RGB=0, 0, 0) graphical object transmitted by GDI, then the text will not be shown by mixing color, but by the actual contents.

www.hi-ti.com

[Printing Area Setting]

In this page, you may modify printing areas which will be covered and uncovered by the ribbon. You can design printing areas, such as the following instructions.

The dark area represents the area which will be covered by the ribbon, and the blank area represents the area where the ribbon will not cover anything. For example, if you select magnetic/chip cards and select [Printing Area]Overcoat/Dye Panel, the chip area in the front side and magnetic stripe area in the back side will be shown as the white/blank areas, that the ribbon will not be covered by the Over coating and YMC within the YMCKO ribbon during the printing process. In other words, if you do not want an area to be covered by the ribbon, you can use this function to edit the printing area. If you do not want one area to be printed by Resin K within the YMCKO ribbon or the Resin K ribbon, please select [Resin K Panel] to edit the printing area.

A. Overcoat/Dye Panel:When you click [Overcoat/Dye Panel], you can edit the

area which will be covered (black) and uncovered (white) by the over coating and YMC within the YMCKO ribbon.

B. Resin K Panel:When you click [Resin K Panel], you can edit the area which

will be covered and uncovered by the Resin K ribbon or Resin K within the YMCKO ribbon.

C. Designed Area: You can select Standard and press [Edit Area] to create and

to assign a printing area or you can select a template file with a designed area through the drop-down list and press [Edit Area] to edit the designed area. Please refer to the next page for further details.

Notice※※※※ : When you apply [Printing Area] for printing tasks, the Card Type

settings in [Device Option] must be identical to the Card Type settings in Card Désirèe CS. Meanwhile, the chosen template formats from the drop-down list must match the Card Type you selected in both [Device Option] and Card Désirèe CS.

www.hi-ti.com

[Edit Area]

B C D

E F

Designed Area: You can choose the default layout setting or the custom

layout previously designed and saved through the drop-down list. If you would like to create a new layout, please select [User defined].

Delete: Delete the layout setting file.

Save: Save the layout setting file in a particular folder after editing.

Save As: Save the layout setting file in any location after the modification.

Import: Import the layout setting file from any location for editing.

Export: Export the layout setting file to any location.

Add Rectangle: Add a non-printing area. You can set the width, height and

position of this area.

Erase Rectangle: Delete a non-printing area.

Rectangle list: You can select a different rectangle from the rectangle list.

Reverse: You can inverse all no-printing areas to be printing areas by

pressing this button.

Load Preview Image: You can load any image to adjust the position of the

card and preview the effect after its adjustment.

www.hi-ti.com

[Color]

300→Properties→Color

You may set the printing color of your preference in this page.

Color preference setting: There are four options.

1. HiTi Optimized Color (General): The standard color presentation.

2. HiTi Optimized Color (Enhanced): Stronger contrast.

3. Windows Color Management: When applying this option, please follow the procedures as below:

a. Please check whether the “hitechca” file exists or not. [Control Panel]→Printers and Faxes→HiTi CS-

Management

www.hi-ti.com

b. Please press the “Reset” buttons in C. Printer Color Adjuster and E.

4. Do not apply any color preference: Select this option and follow the steps

You may select a color range and print out a color chart to check

ndard color chart for your reference according to

the settings in “A. Color Preferences”, “C. Printer Color Adjuster”, and “D.

in “B. Special Function”

would like to print out the same colors as the ones you selected

from the standard color chart, then please do not change the settings in

A., C., D. for the standard color chart. Otherwise, the colors you print will

If you would like to obtain a maximum color space for the color chart, then

“A. Color

Skin Tone Adjuster respectively. c. Meanwhile, unmark □□□□Image Auto Enhancement in “B. Special

Function”.

below to acquire the maximum color space.

a. Please press the “Reset” buttons in “C. Printer Color Adjuster” and “E. Skin Tone Adjuster” respectively. Also, please set Gamma as 0.75. b. Meanwhile, unmark □□□□Image Auto Enhancement in “B. Special

Function”. Special Function: Image Auto Enhancement (Default selected). This

function increases color the performance of the printing.

Printer Color Adjuster: You may adjust the printing color performance and

sharpness via 8 slider bars or use the “Default” button to return to the default settings.

Skin Tone Preference: You may adjust the skin tone to your preference

through this function. Preference 1.: relatively Red color performance Preference 2.: relatively Yellow color performance

E. Skin Tone Adjuster:

 Yellow/Red Adjuster bar (Y/R bar): The adjustment scale ranges

from-5 to 5 and displays a range of adjustment between Yellow and Red.

 Light / Dark Adjuster bar (L/D bar): The adjustment scale ranges

from-5 to 5 and displays a range of adjustment between Light and Dark.

 Preview: This displays the variation of Skin Tone after adjusting these

bars.

 Reset: Return to the original settings.

Color Chart:

the color preference of the printing.  You can print out the sta

Skin Tone Preference”

 Please unmark □□□□Image Auto Enhancement

before you print out the color chart.

 If you

not be the same as the ones you selected from the standard color chart.



please select “Do not apply any color preference” in

Preference Setting.” Please refer to the description in Preference Setting” for further details.

www.hi-ti.com

[Tools]

You may set the thickness of the card and print

out a test chat, then modify parameter [A] or [B] or [C] to adjust the printing

2. When you modify the printing position, please note that the red line is not

Printing Position Adjuster:

position.

Notice:※

1. Please make sure the position of the thickness adjuster on the printer matches the thickness of the card before proceeding to modify parameter [A] or [B] or [C] to adjust the printing position.

too close to the edge of the card in order to avoid any ribbon damage. Cleaning Tool: You can use the cleaning mode to clean your printer. (Use cleaning cards from HiTi.)

Heating Energy: You can set ”YMC Dye”, ”K” parameters, ranging from 1 to 10 to decide the color intensity. If you use the YMCKO ribbon, then you can adjust the parameters for YMC and Resin K within the YMCKO ribbon; however, if you decide to use the Resin K ribbon, only Resin K parameters can be adjusted.

www.hi-ti.com

. When you are not using the

There are three tracks within the magnetic stripe. The first track includes

c characters and other simple symbols. The second and the third

Track 3 for data encoding, the function of

the path for a

Decide which data to start encoding from a

on is for the user who needs encoding by database but

ead the

purposes. If the reading fails, the device can be set to repeat

for your reference. The format of a

[

Magnetic Encoding

]

C D

Magnetic Encoding Data: Input Magnetic Data directly

database, you can manually enter data for the encoding of the magnetic stripe.

alphanumeri tracks accept numeric characters only.

When you mark □Track 1, □Track 2, □ □Using Database will be disabled. When you mark □Using Database for dat encoding, □Track 1, □Track 2, □Track 3 will be disabled.

Using Database: Apply database for encoding. Browse: browse database. Encoding Data Start From: database.

Notice: The database functi※

is not using Card Desiree CS as their application program.

Encoding Port: The information about the connection port. Times of Retrying: After finishing encoding, the encoder will automatically r

data for verification the process according to the setting of the user.

Database Sample: There is a Database Sample

database must match this sample. After expressing this button, it will show the data samples as follows:

1 ABCDEFRG 2 12345678

www.hi-ti.com

3 2468024680

this format is for encoding both the 2nd & the 3rd

this format is for encoding both the 1st & the 3rd

this format is for encoding all of the 3

4 HIJKLMN 12345678 5 12345678 2468024680 6 HIJKLMN 2468024680

7 HIJKLMN 2468024680 0987654321

a. 1 ABCDEFRG –this format is for encoding the 1st track only – ex: 1 xxxxxxxx b. 2 12345678 – this format is for encoding the 2nd track only – ex: 2 11111111 c. 3 2468024680 –this format is for encoding the 3rd track only – ex: 3 00000000 d. 4 HIJKLMN 12345678 - this format is for encoding both the 1st & the 2nd tracks ex: 4 xxxxxxxx 11111111 e. 5 12345678 2468024680 -

tracks, ex: 5 11111111 00000000

f. 6 HIJKLMN 2468024680 -

tracks, ex: 6 xxxxxxxx 00000000

g. 7 HIJKLMN 2468024680 0987654321 -

tracks, ex: 7 xxxxxxxx 111111111 00000000

[Import/Export]

Import Driver Setting: You can import [Device] and [Color] settings from

other computers to your computer.

Export Driver Setting: You can export the [Device Option] and [Color]

settings from your computer to other computers.

※Notice: The Import/Export function on this page covers the settings for [Device Option] and [Color] and excludes the parameters you set in [Printing Area], please note. Please refer to page 22 for importing/Exporting the settings of the [Printing Area].

[About]

This section describes the detailed information of this driver and website

address for any inquiries.

www.hi-ti.com

Chapter 3 Operation Instruction

In this Chapter, you will find a detailed introduction about the operation through the LCD display.

3-1 LCD display instruction

The printer is equipped with an LCD Display and four buttons, which give access to printer menus. Turn the printer power switch on, the printer system will detect the printer status and feedback the error messages on the LCD display if any error would occur. Some errors may be resolved by troubleshooting instructions from the LCD display. If everything is normal, then the LCD display will display: “Ready”.

[ ◄ ] : Return to the previous option

[ ► ] : Go to the next option

[OK] / [●] : Go to the next setting menu

[ESC] / [－－－－] :

Return to the previous setting menu

3-2 Operation instruction

When the LCD display shows “READY”, you can press ”OK” button to check the printer status or to clean the printer. It will go to the main setting menu as follows.

Main Menu Sub Menu Description

．DEVICE INFO

．．RIBBON TYPE ．．CARD TYPE

．．MODEL NAME ．．FW VERSION ．．IC CARD R/W

The ribbon type in the printer. The card thickness setting for the

printer. The printer model name.

The firmware version. The IC card reading/writing function.

(YES/NO)

．．MAG CARD R/W

．．RF CARD R/W

．．RIBBON CH1

The magnetic stripe card reading/writing function. (YES/NO)

The contactless card reading/writing function. (YES/NO)

The ribbon sensor switch. You can select the sensor CH1 or CH2 here. (CH1/CH2)

www.hi-ti.com

．．CARD OUT SNR

．．ADF SENSOR SEL

．CLEANING MODE ．．PUT CLEANING KIT &

OPEN THE DOOR & CLEAN PROCESSING

The sensor for cards in the card-insert mechanism. (ENABLE / DISABLE). The default setting is

[DISABLE]. However, once you switch [DISABLE] to [ENABLE] and there are no cards in the Card Input Hopper, the error message [CARD OUT] will be shown on the LCD display. If the [Card Out] message continues to exist, even after you have inserted cards into the Card Input Hopper and restart your computer, then please switch [ENABLE] to [DISABLE] and refer to Chapter 5 Troubleshooting→ “The

Error Message shown on the Computer Monitor and the Solutions”→ “Card out or feeding

error” OR “The Error Message shown on the LCD Display and the Solutions” → ”CARD OUT”. After above procedures if this error message still persists, please contact the HiTi customer service center.

The sensors for card (ADF SENSOR 1/ADF SENSOR 2). When the card feeding process fails, you can try to switch ADF SENSOR 1 or ADF SENSOR 2 for troubleshooting. If the problem can not be resolved, please refer to Chapter 5 Troubleshooting→

“The Error Message shown on the Computer Monitor and the Solutions”→ “Card out or feeding

error” OR “The Error Message shown on the LCD Display and the Solutions” → ”CARD OUT”. After above procedures fail and if the card feeding process still fails, please contact the HiTi customer service center. Please follow the instruction on the LCD Display. Remove the peel-off film from the cleaning card. Insert the cleaning card and open the ribbon door. Press [OK] button to initiate the cleaning process.

} }

www.hi-ti.com

Chapter 4 How to maintain your printer

In order to preserve the performance of the printer and the print quality, please remember to maintain your card printer regularly. We will introduce a detailed cleaning procedure in the following sections.

Please pay attention to the following when you use the printer.

1. For a better printing quality, we highly recommend to use the printer in an

indoor- and air conditioned environment, and when storing the card printer, please put it into plastic bag or use a dust cover to avoid dust accumulation.

2. Please don’t touch the Thermal Printing Head or use any type of liquid

detergent to clean it.

3. Please turn off the power after use to avoid printing head damage.

4. Please do NOT re-use any ribbons and cards that have already been printed

on, or ribbons or cards not manufactured by HiTi. It may cause a card jam or a printing error, and subsequently cause damage the printer. In that case, the warranty of your printer would become void.

5. Please use the HiTi cleaning kit to clean the printer after every 100 prints.

www.hi-ti.com

4-1

against

5. Please insert the cleaning roller spool into the spool receivers. Turn the

cleaning roller after installation; if it turns smoothly, the installation of the

install the

Clean Cleaning Roller

1. Switch the card printer off.

2. Slide the ID button and lift the ribbon door up.

3. Open the cover of the cleaning module and take the cleaning roller off, illustrated.

4. Roll the cleaning roller against the adhesive side of the cleaning card or the adhesive tape to remove the dust from the cleaning roller.

cleaning roller is correct. If it does not turn smoothly, please recleaning roller.

www.hi-ti.com

4-2

Clean Print Path

 In Stand alone mode

1. Turn the power switch of the printer on.

2. The printer will check the system status automatically, and show “Ready” on the LCD display.

3. Click the [<] or [>] button, and select [Cleaning mode] to begin the cleaning process.

4. The cleaning process will be displayed on the LCD display. Please follow the instructions step by step.

a. Take off the ribbon cassette. b. Please remove the 3M peel-off film on both sides of the cleaning card and put it into the Card Input Hopper. c. Press the [OK] button to begin the cleaning process.

5. The Cleaning process is finished.

 In PC link mode

1. Turn the power switch of the printer on.

2. Connect the printer to the PC with the USB cable.

3. Find the driver settings under Control Panel/ Printers. Choose HiTi CS-300 and right-click mouse button, and select “Properties”.

4. Select the [Tools] and press the [Cleaning Tools] button.

5. Follow the cleaning process, a. Open the cover of the printer. b. Take off the ribbon cassette. c. Put the cleaning card into the Card Input Hopper. Please remove the release paper from the cleaning card and put the cleaning card into the Card Input Hopper. d. Press the [Cleaning] button to begin the cleaning process.

6. The Cleaning process is finished.

Notices:

1. Do not put your hand into the card printer during the cleaning process.

2. Do not close the cover of the printer during the cleaning process.

3. Do not turn off the power or unplug the USB cable during the cleaning process.

www.hi-ti.com

4-3

Clean TPH Head

1. Please turn off the power before cleaning the TPH head.

2. Open the ribbon door, the TPH head is attached to the ribbon door module.

3. Please use the sponge cleaning swab to clean the TPH head.

※

※ Notices:

※※

1. Please do not touch the TPH head with your hand.

2. Do not use any liquid detergents or aerosol cleaners to clean the

thermal printing head.

4. Please close the ribbon door, make sure the STATUS LED displays green and LCD display displays “READY”. The cleaning process is finished.

www.hi-ti.com

4-4

Slide the air filter out from the side of ribbon door and clean the dust on the

ibbon door. The cleaning

Clean Air Filter

1. Switch the card printer off.

2. Open the ribbon door.

3. filter, as illustrated.

4. Insert the air filter into the ribbon door and close the r

process is finished.

www.hi-ti.com

4-5 Cleaning Card-insert Mechanism

Open and empty the Card Input Hopper. After removing all the cards and the

cleaning swab to clean the rollers and the sensor

1. Switch the card printer off.

weight, please use the sponge on the card-insert mechanism.

www.hi-ti.com

4.6 Clean Ribbon Sensors

1. Switch the card printer off.

2. Open the ribbon door.

3. Remove the ribbon cassette.

4. Please use the sponge cleaning swab to clean the ribbon sensors, as shown.

5. Please re-insert the ribbon cassette and close the ribbon door.

www.hi-ti.com

Chapter 5 Troubleshooting

ed to

The USB cable is not connected to

1. Check if the power cord is properly connected to the

power outlet, and make sure the power switch is

ions are normal, then

2. Please check if the USB cable is properly connected to

Please follow the instruction from the HiTi Card Printer

Card out or feeding

here are no cards in the Card Input

Hopper or an error occurs during the

Please make sure the cards are not sticking to each

If you still can not resolve the problem, please refer to the

with printed back side into the Card Input Hopper,

then please switch CARD OUT SNR to [DISABLE]

If you use a magnetic stripe card, please confirm

magnetic cards or a card with

printed back side, please switch the ADF

If there is any error message displayed on the LCD screen, please record the message first; do not press [OK] immediately. Please follow the instructions below for troubleshooting.

Notice: After you press※ [OK] in the error message dialogue, the printer will

reset and the error message may be erased after “Reset”.

5-1 Error Message and Solution

 The Error Message shown on the Computer Monitor and the

possible Solutions

The Error

Message

Possible Causes Solutions

Check the power cord

1. The power switch is in off position

2. The power cord is not connect

Printer is off-line

Printer doesn’t exist The driver has not been installed.

error

the power outlet

a PC or to the card printer.

feeding process.

turned ON.

2. If the power is ON and all funct

the status light will display solid green.

Check USB Cable

1. Check if the USB cable is properly connected to a PC.

the printer.

CS-300 User Manual to install the driver. You can download the latest driver from the HiTi

website:

1. Please check if the Card Input Hopper is empty. Please check if the thickness of the card in the Card Input Hopper matches the selected card thickness.

3. Please whether the weight is placed on the cards or not.

4. other.

following procedures:

1. If the error message appears after you place the cards

http://www.hi-ti.com

Card mismatch

The card size is not correct. Please insert the standard CR-80 cards.

through the LCD display.

2. The error occurs after feeding a card,



whether the card direction is correct.

 If you use double-

SENSOR to SENSOR2 through LCD display.

www.hi-ti.com

Ribbon out The ribbon has been used up.

Please follow the instructions from the LCD display to

The card printer does not detect the

The ribbon is not installed or the ribbon

is installed in an improper position or

the ribbon door is in the correct

2. Please make sure the ribbon has been properly

Ribbon IC R/W

2. Please clean the chip in the side of the ribbon and

error message still exists, please install a new

Ribbon missing

ribbon.

1. Please install a new ribbon.

switch the ribbon sensors (Please refer to Chapter 3, section 2, the description of RIBBON 1)

If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website: http://www.hi-ti.com

1. Please make sure the ribbon is present.

2. Please make sure the ribbon has been installed properly.

3. Please clean the chip on the side of the ribbon and re-install the ribbon to the card printer.

4. Please close the ribbon door properly.

If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website: http://www.hi-ti.com

1. Please check if the ribbon is present.

Door open

position.

error

Unsupported ribbon Wrong ribbon for this printer. Please install the correct ribbon. Unknown ribbon The ribbon can not be recognized. Please install the correct ribbon.

An error occurs in the chip.

installed, remove and re-install the ribbon if necessary.

3. Please close the ribbon door to the proper position.

1. Please remove the ribbon.

re-install the ribbon.

3. If the

ribbon.

4. If the error message still occurs, please contact your

nearest HiTi distributor or HiTi customer service center. Website: http://www.hi-ti.com

www.hi-ti.com

Card jam in card

path

Card jam in a

Please remove the card by following the instructions on

ore continuing the

] to get step by step

Open the ribbon door to see

whether the card and the ribbon are sticking together or

s jammed card removal. Please

], the card

and remove

]. The

press [<] or [>] to remove the card. After

] to clear the error

], the LCD

”. After

] to clear the error

or the “MANUAL REMOVAL” process, please DO

NOT put your hands into the card printer.

If the LCD display does not show

“NEXT” below the “CARD JAM” message, please

empty the rejected box and continue the

error occurs after printing the first side printing, then

please follow the previous instructions to remove the

if the cleaning roller is installed

Card jam in rejected

show “NEXT” below the

“CARD JAM” message, please empty the rejected box

Please empty the rejected box or follow the instructions

IGNORE

The rejected box is not placed in the

Please check if the rejected box has been properly

installed or please follow the instruction on the LCD

]

Card jam in the device.

the LCD monitor of the printer bef print job. Please press [OK instructions.

1. OPEN THE DOOR:

not.

2. TAKE OFF THE RIBBON: Remove the ribbon.

There are three option press [<] or [>] to select one of these options:

 AUTO REMOVE CARD: Press [OK

printer will show “MOVING CARD” the card automatically.

 SEMI-AUTO REMOVAL: Press [OK

LCD display will show “CONTROL BUTTON”

removing the cards, press [OK message.

 MANUAL REMOVAL: Press [OK

display will “REMOVE BY HAND removing the card, press [OK message.

※

※NOTICE！！！！During “SEMI-AUTO REMOVAL”

※※

NOTICE※

※ ！！！！

※※

flipper

box

R/J Box full The rejected box is full of cards

R/J Box missing

Card jam in the rejected box

proper position

troubleshooting process on the computer monitor.

NOTICE※

※ ！

※※

card and check properly. If not, please follow the instruction in“1Install Cleaning Roller” to install the cleaning roller.

If the LCD display does not

and then continue the troubleshooting process.

from the LCD display and press [NEXT] →[ THE ERROR] to clear this error condition.

display and press [NEXT] → [IGNORE THE ERROR to clear this error condition.

！If the card printer is

！！

www.hi-ti.com

Cam TPH error

The error occurs due to memory inside

card printer. If the error message still

occurs, please contact your nearest HiTi distributor or

Command sequence

The error occurs due to command

USB connection

Your PC adopts USB 1.1 Host

Controller, and uses other USB devices

(Including other HiTi printers) at the

You can check version of the Host Controller via

/ System/ Hardware/ Device Manager/

USB Universal Host Controller". It is USB 2.0 Host

Enhanced Host

connect

to the device, please

Some USB devices and HiTi printer

e same USB 1.1 host

controller, and both work at the same

time, there might be some kind of USB

conflict and this may interrupt the

1. You can either upgrade your computer to USB 2.0 or

stop operating the other USB device while the HiTi

2. You can try to switch the other USB device into a

different USB port and use the program,

CheckUsb.exe, to check if there is any conflict in the

USB connection. (For CheckUsb.exe, please contact

Cam pinch error

Cam flipper error Cam Mag error

Check sum error SDRAM Check sum error – SRAM Check sum error – FLASH Check sum error – Wrong firmware

Nvram R/W error

Nvram CRC error

error

was broken

The error occurs in the mechanism.

The version of the firmware is not correct.

the card printer.

sequence.

same time.

Press the ‘Cancel” button to restart the card printer. Or download the latest version of firmware from HiTi website and follow the instructions from the HiTi Card Printer User Manual to re-install the firmware. If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website: http://www.hi-ti.com

Please restart the

HiTi customer service center. Website: http://www.hi-ti.com

Please restart the card printer or download the latest Firmware from HiTi website and follow the instruction from HiTi Card Printer User Manual to re-install the firmware.

If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website: http://www.hi-ti.com

1. Please do not use any other USB devices at the same

time to avoid USB compatibility problems if your PC is using a USB 1.1 Host Controller.

2. To avoid any kind of USB compatibility problem,

please upgrade your PC to USB 2.0 Host Controller.

Notice:

"Control Panel

Trying to re-

wait a moment

plug into th

printing job.

Controller if you see "xxx xxxx Controller xxxx".

printer is printing.

HiTi customer service center.)

www.hi-ti.com

rint head

1. The printer will detect the printing

temperature automatically. When the

temperature is overheated, the printer

will stop printing temporarily and

cool the temperature down. The card

printer will continue until the

2. When you continue printing more

than 5 to 10 pages, the temperature

might be higher so that the printer

3. This message also occurs when the

temperature is overheated in the

1. Please

wait a while until the thermal printing head

2. Please use the card printer in an indoor environment

There is no card in the Card Input

k if there is any card in the Card Input

if the selected thickness of the card

sticking to each

refer to

1. If this error message appears after you place the

cards with printed back side into the Card Input

Hopper, please switch CARD OUT SNR to

ou are printing a magnetic stripe card,

feeding direction

magnetic cards or the card

with printed back side, please switch ADF

The card printer does not detect the

Thermal p overheat

temperature will be below 60 ℃.

must cool down its temperature.

operating environment.

cools down, and the printer will restart automatically.

with air conditioning.

When an internal error occurs, an error message will display this error on the LCD display. The error messages and their solutions are listed below:

 The Error Message is displayed on the LCD Display and on the

Solutions

The Error Message

CARD OUT

CARD MISMATCH The card size is not correct. Please insert the standard CR-80 cards.

Hopper.

Possible Causes Solutions

1. Please chec

Hopper;

2. Please check matches the card.

3. Verify the weight used.

4. Please make sure the cards are not

other.

If you still can not solve this problem, please

the following procedures:

[DISABLE] through the LCD display.

2. The error occurs after feeding a card,

 If y

please confirm that the card is correct.

 If you use double-

SENSOR to SENSOR2 through LCD display.

RIBBON OUT The ribbon has been used up.

RIBBON MISSING

ribbon.

1. Please replace it with a new ribbon.

2. Please follow the instructions from the LCD display to switch the ribbon sensors (Please refer to Chapter section 2, the description of RIBBON 1)

If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website:http://hi-ti.com

1. Please check if the ribbon is present.

2. Please make sure the ribbon is in the proper position. If you are not sure, please remove and

www.hi-ti.com

carefully re-install it to its proper position.

2. If the error message still exists, please install a new

The wrong ribbon is used on this

The ribbon door is open or does not

Please remove the card by following the instructions

on the printer LCD monitor before continuing the

] to get step by step

ribbon door to see

There are three options for the removal of a jammed

these

the

], the

CONTROL

, press [<] or [>] to remove the

] to

], the

OVE BY

]

If the LCD display does not show

“NEXT” below the “CARD JAM” message,

please empty the rejected box and then continue

the troubleshooting process through the

If the card printer is performing the

ny “Card jam” error

occurs after printing the first side, please follow

then the previous instructions to remove the

card and check if the cleaning roller is installed

properly. If not, please follow the instructions

stall the

3. Please clean the chip on the side of the ribbon and re-install the ribbon.

4. Please make sure the ribbon door is closed.

If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website: http://hi-ti.com

1. Please clean the chip on the side of the ribbon and

re-install the ribbon on the card printer.

RIBBON IC ERROR

RIBBON UNSUPPORTED

RIBBON UNKNOWN DOOR OPEN

CARD JAM / NEXT Card jam in the device.

An error occurs in the chip.

printer. The ribbon can not be recognized. Please install the correct ribbon.

close well.

ribbon. If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website:http://hi-ti.com

Please install the correct ribbon.

Please close the ribbon door again.

print job. Please press [OK instructions.

1. OPEN THE DOOR: Open the if the card and the ribbon are sticking together.

2. TAKE OFF THE RIBBON: Remove the ribbon.

card. Please press [<] or [>] to select one of options:

 AUTO REMOVE CARD: Press [OK],

card printer will show “MOVING CARD” and remove the card automatically.

 SEMI-AUTO REMOVAL: Press [OK

LCD display will show “ BUTTON” card. After removing the cards, press [OK clear the error message.

 MANUAL REMOVAL: Press [OK

LCD display will display “REM HAND”. After removing the card, press [OK to clear the error message.

※

※NOTICE！！！！During “SEMI-AUTO

※※

REMOVAL” or “MANUAL REMOVAL” process, please DO NOT put your hands into the card printer.

※

※NOTICE！

※※

！

！！

computer monitor.

NOTICE※

※ ！！！！

※※

double-side printing, and a

in “1-4 Install Cleaning Roller” to in

cleaning roller.

www.hi-ti.com

RJ-BOX FULL

Please remove the invalid cards from the rejected box

or follow the instructions from the LCD display and

] to clear

The rejected box is not placed in the

Please make sure the rejected box is installed

properly. Or please follow the instructions on the

NORE THE

mware is not

the latest

version of Firmware from the HiTi website and

Printer

The error occurs due to memory

ommand

The rejected box is full of cards

press [NEXT] → [IGNORE THE ERROR this error condition.

RJ-BOX MISSING

PRINT FAIL The printing process fails.

CAM TPH ERROR

CAM PINCH ERROR CAM FLIP ERROR

CAM MAG ERROR

CHECKSUM ERROR

proper position

The error occurs in the mechanism.

The version of the fir correct.

LCD display and press [NEXT] → [IG ERROR] to clear this error condition. Please restart the card printer. If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service department. Website: http://hi-ti.com

If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website:www.hi-ti.com

Please restart the card printer. Or download

follow the instructions from the HiTi Card User Manual to re-install the firmware. If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website: http://hi-ti.com

NVRAM R/W ERROR

NVRAM CRC ERROR

CMD SEQUENCE ERROR

inside the card printer.

The error occurs due to a c sequence.

Please restart the card printer. If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website:http://hi-ti.com

Please restart the card printer or download the latest Firmware from the HiTi website and follow the instructions from the HiTi Card Printer User Manual to re-install the firmware. If the error message still occurs, please contact your nearest HiTi distributor or HiTi customer service center. Website:www.hi-ti.com

www.hi-ti.com

Appendix A CS-300(i) Specification

coercively, Tracks 1, 2, and 3

Model Name CS-300 CS-300i

Print Method

Resolution

Display

Memory

Print Speed

Print Area

Accepted card

Specification

Input hopper card

capacity

Output hopper card

capacity

Software driver

Communication Interface

System request

Lamination Module

Ribbon Options

Photo-quality dye sublimation Thermal Transfer Dual-side Printing 300dpi x 300dpi , 256 levels per color

LCD control panel 32MB, 1MB Flash Quality mode : 45 seconds / single side ; Speed mode : 35 sec / single side CR-80 edge-to-edge 86 mm(L) x 54 mm(W) / 3.375"(L) x 2.125"(W) Size : CR-80 edge-to-edge 86 mm(L) x 54 mm(W) / 3.375"(L) x 2.125"(W)

Thickness : 0.3 mm to 1.0 mm ( 10 mil to 40 mil ) 100 cards (30 mil thickness)

100 cards (30 mil thickness)

Windows 2000 / XP

USB 1.1/ USB 2.0 full speed

IBM-PC or compatible, Windows 2000/XP, Pentium® class 133MHz computer with 128 MB of RAM or higher, 100MB free hard disk space or higher.

NO YES

YMCKO ( 200 prints)

YMCKO ( 200 prints) YMCO ( 200 prints) Resin K (1,000 prints)

****

YMCO ( 200 prints) Resin K (1,000 prints) Lamination (350 prints)

Golden (1,000 prints) Silver (1,000 prints)

****

* *

****

Dimensions 275mm(W)/ 508mm(L)/ 251mm(H)

Weight 8.6 kg 16 kg

Supply Voltage

Supply Frequency

Operating Temperature

Operating Humidity

Encoding Options

Cleaning tool

*Ple

*Please contact the Sales Department or the Customer Ser

ase contact the Sales Department or the Customer Service Department for any further

*Ple*Ple

ase contact the Sales Department or the Customer Serase contact the Sales Department or the Customer Ser

iiiinformation.

nformation.

nformation.nformation.

100~240 VAC 50 Hz ~60 Hz

15° to 32° C / 59° to 89.6° F

20 - 75% non-condensing

ISO Magnetic Stripe Encoding Module Contact-less Smart Card Encoding Module Contact Smart Card Encoding Module

HiTi Card Printer Cleaning Kit, HiTi Card Printer Cleaning Module

275mm(W)/ 867.5mm(L)/ 251mm(H)

****

, dual high- and low-

****

vice Department for any further

vice Department for any furthervice Department for any further

www.hi-ti.com

Appendix B Safety Instructions

Read these instructions carefully. Save these instructions for future reference. Follow all warnings and instructions marked on the product.

1.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

2.Do not use this product near water.

3.Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

4.Openings in the cabinet and the bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. Placing the product on a bed, sofa, rug, or any other similar surface should never block the openings. These products should never be placed near or over a radiator or a heat register, or in a built-in installation unless proper ventilation would be provided.

5.This product should be operated with the type of power indicated on the marking label. If you are not sure about the available power source, consult your dealer or the local power company.

6.If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the ampere rating of the extension cord. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

www.hi-ti.com

Appendix C Limited Warranty Statement

CS-300(i) warranty period is one year from the date of original purchase.

The detail limitations and extent are as described here below:

A. Extent of Limited Warranty

1. Hi-Touch Imaging Technologies (HiTi) warrants to the end-user customer that the HiTi products specified above will be free from defects of materials and workmanship for the duration specified above, which duration begins on the date of purchase by the customer. The customer is responsible for maintaining proof of date of purchase.

2. For software products, HiTi's limited warranty applies only to a failure to execute programming instructions. HiTi does not warrant that the operation of any product will be uninterrupted or error free. The other issue is concerned with warranties of software. Please refer to the declaration of the "License Agreement" during the installation.

3. HiTi's limited warranty covers only those defects, which arise as a result of normal use of the product, and do not apply to any:

Improper or inadequate maintenance or modification.◆ Software, interfacing, media, parts, ribbons, plastic cards, or other ◆

supplies not provided or supported by HiTi.

Bundled software or elements. Their warranties and services should ◆

be supported by the original manufactures.

Operation outside the product specifications. HiTi would no◆ t be

responsible for the services.

4. For HiTi printer products, the use of a non-HiTi ribbon cartridge, or a refilled ribbon cartridge, non-HiTi plastic cards. HiTi will charge its standard time and materials charges to service the printer for the particular failure of any damage.

5. If HiTi receives, during the applicable warranty period, Notice of a defect in any software, media, or ink cartridge product, which is covered by HiTi's warranty, HiTi shall replace the defective product. If HiTi receives, during the applicable warranty period, notice of a defect in any hardware product, which is covered by HiTi's warranty, HiTi shall either repair or replace the defective product, at HiTi's convenience.

6. If HiTi is unable to repair or replace, as applicable, a defective product which is covered by HiTi's warranty, HiTi shall within a reasonable time after being notified of the defect, refund the purchase price for the product.

www.hi-ti.com

B. Limitations of Warranty

To the extent allowed by local law, neither HiTi nor its third party suppliers make any other warranty or condition of any kind, whether express or implied, with respect to the HiTi products, and specifically disclaim the implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.

C. Limitations of Liabilities

1. To the extent allowed by local law, the remedies provided in this Warranty Statement are the customer's sole and exclusive remedy.

2. To the extent allowed by local law, except for the obligations specifically set

forth in this warranty statement, in no event shall HiTi or its third party suppliers be liable for direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory and whether advised of the possibility of such damages.

D. Local Law

 To the extent that this Warranty Statement is inconsistent with local law,

this Warranty Statement shall be deemed modified to be consistent with such local law. Under such local law, certain disclaimers and limitations of this Warranty Statement may not apply to the customer.

www.hi-ti.com

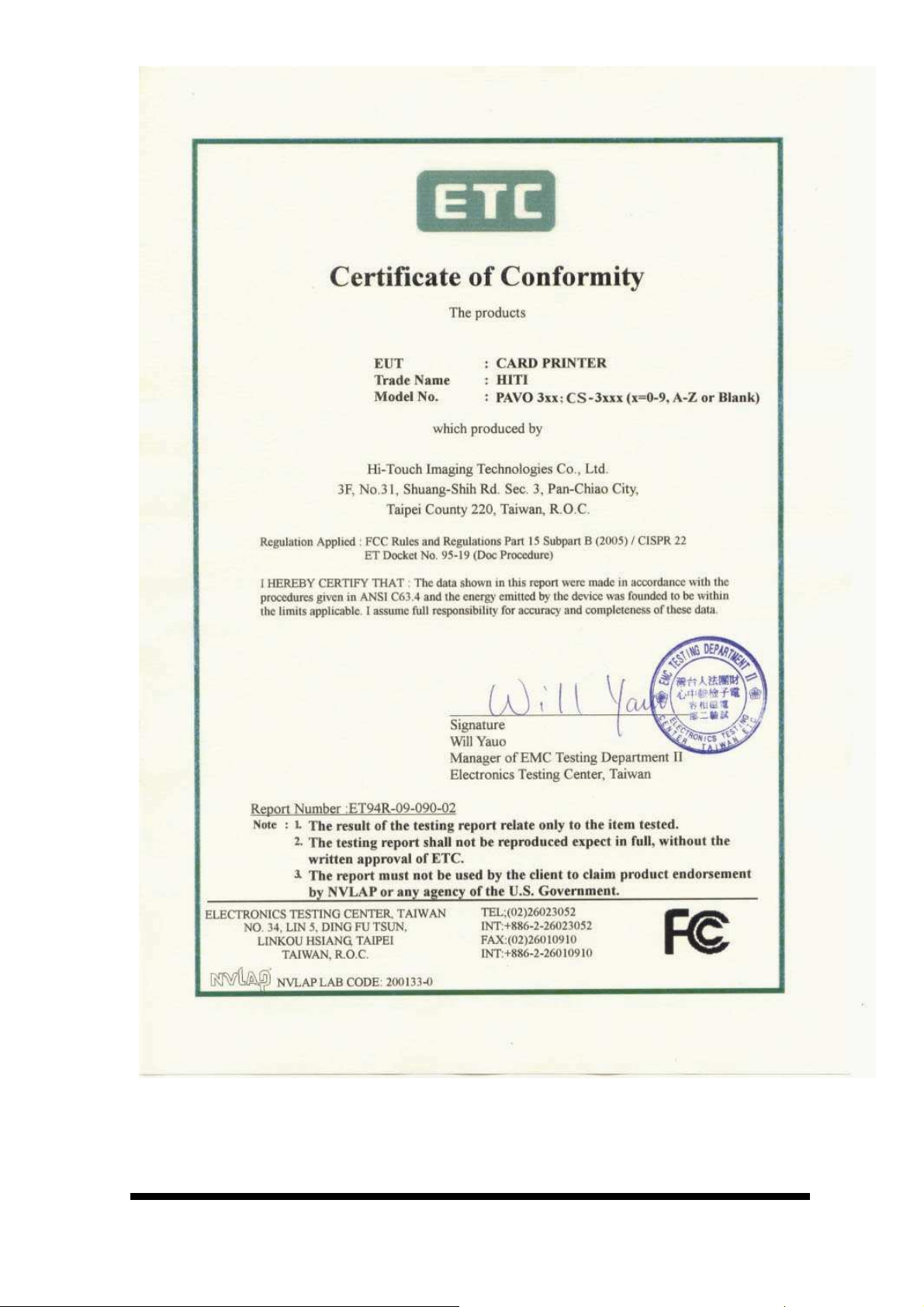

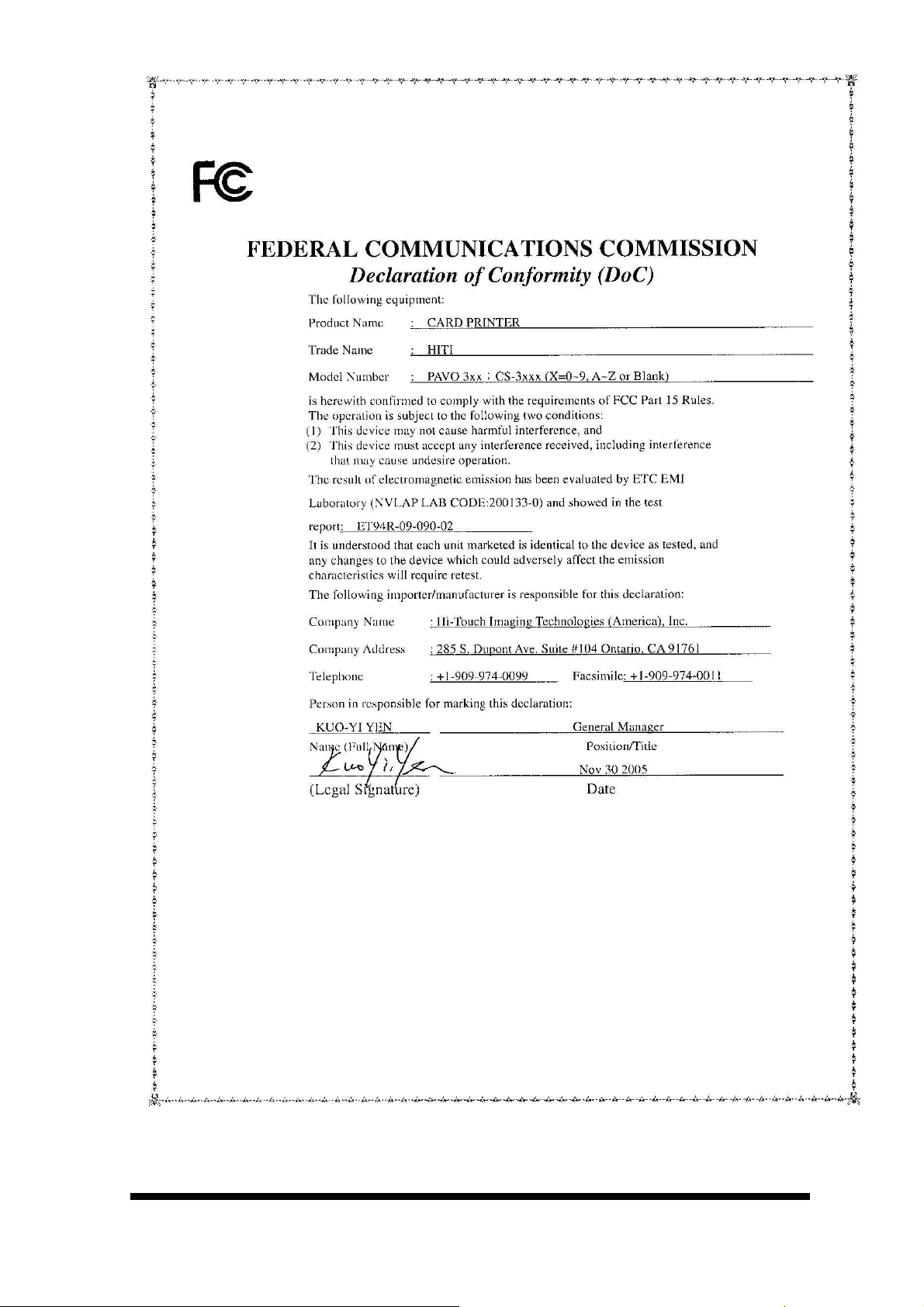

Appendix D FCC Compliance Statement

 FCC Information

The Federal communication Commission Radio Frequency Interference Statement includes the following paragraph:

This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, use and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If these equipment doses cause harmful interference to radio or television reception, which can be determined by interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Never push objects of any kind into these products through cabinet openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the product.

4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

5. The users should not modify or change this equipment without written

approval from this company. Modification could void authority to use this equipment.

www.hi-ti.com

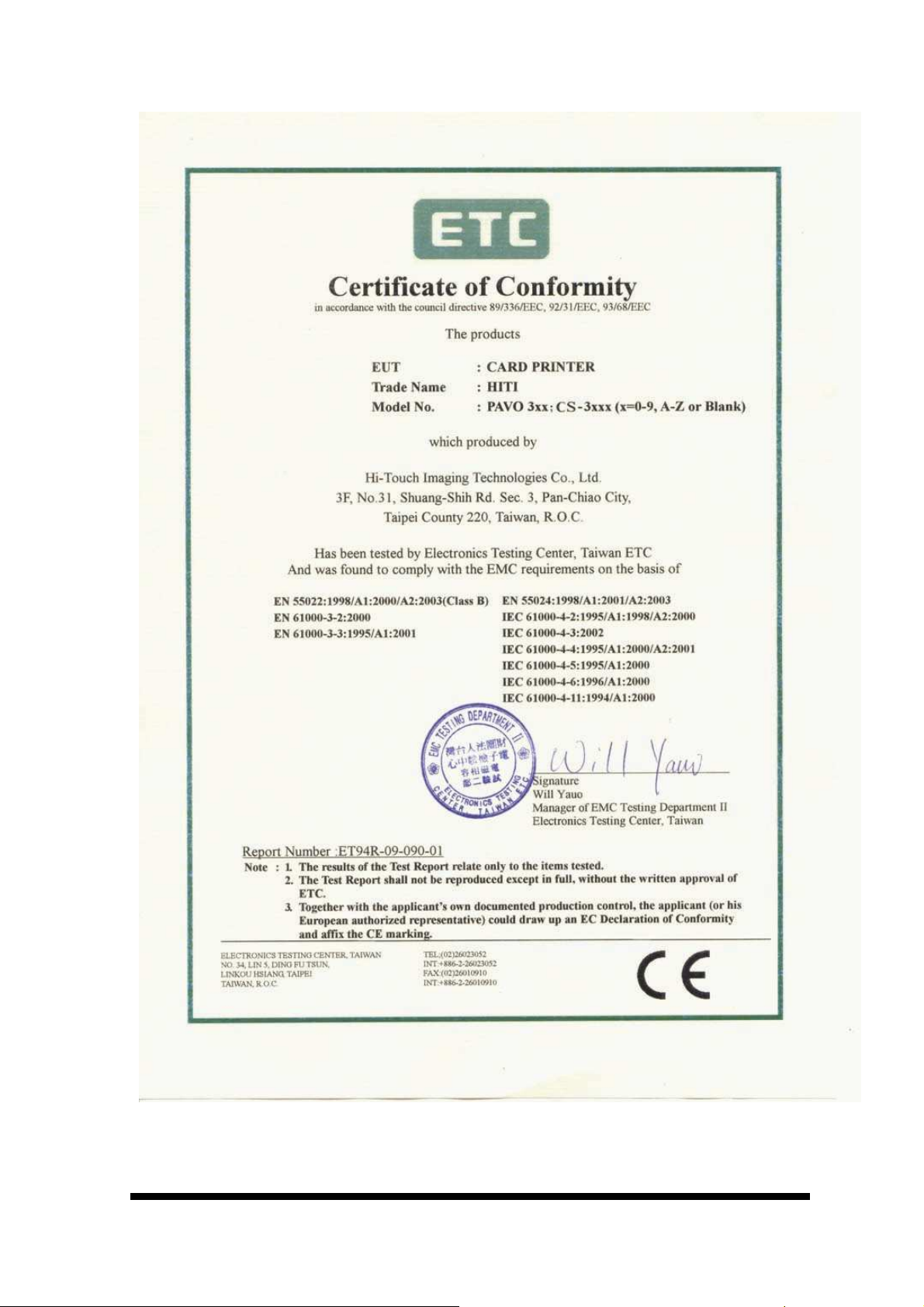

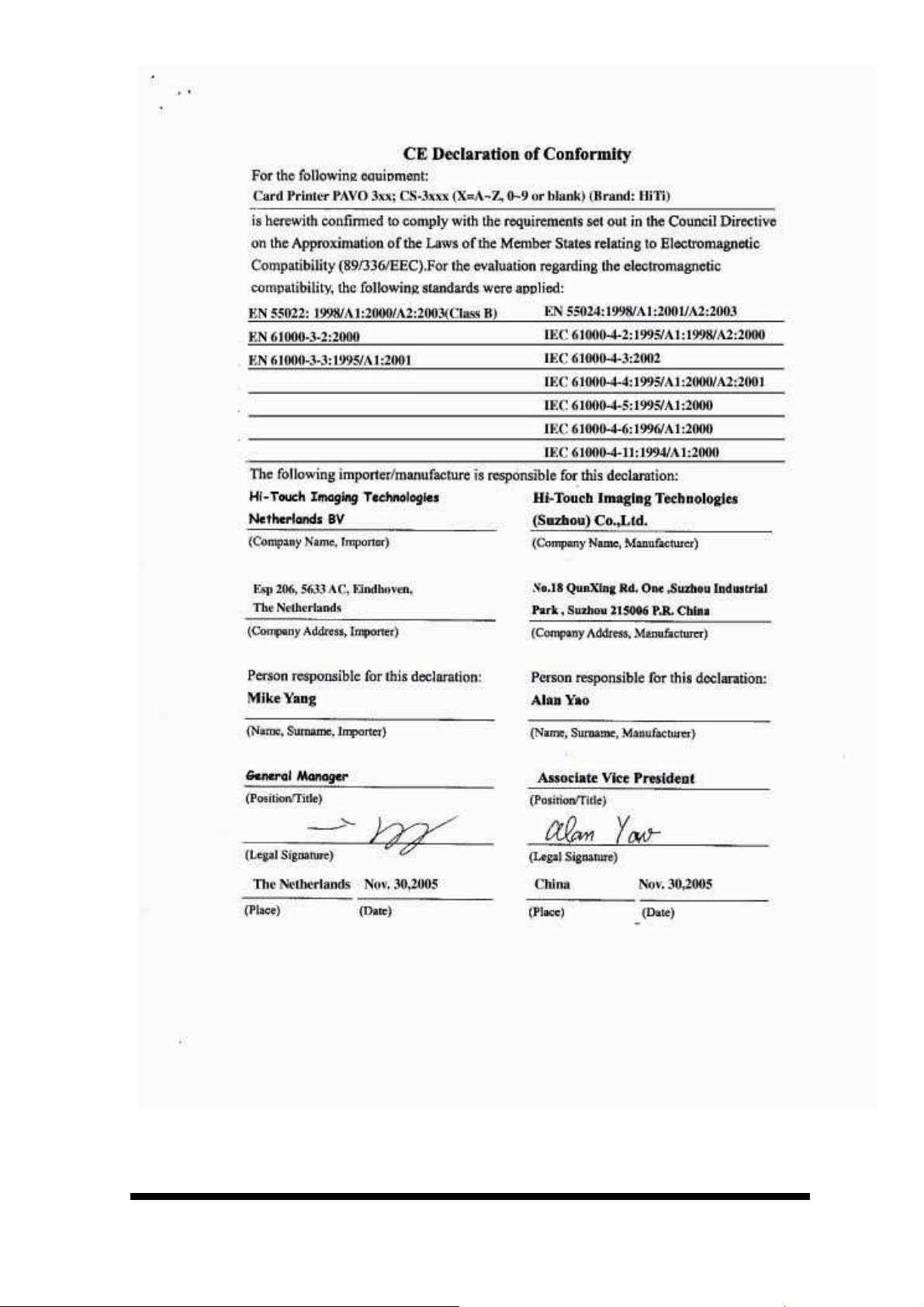

 CE Information

www.hi-ti.com

Appendix E Customer Service Information

If your printer does not function normally, please refer to the following procedures for assistance.

◆

Support Process

◆◆

Before you contact HiTi customer support, please try the following:

1. You have consulted the Quick Installation Guide.

2. You have consulted the troubleshooting tips in the manual.

3. You may also consult your printer’s distributor for assistance.

◆

Web Support

◆◆

If the above procedures can not solve your problem, please visit HiTi’s website for online customer support section. The latest driver, firmware and software applications are also available on HiTi’s websites.

◆

Contact Information

◆◆

Taiwan

Hi-Touch Imaging Technologies 3F, 31, Shuang-Shih Rd. Sec.3, Pan-Chiao City, Taipei County 220, Taiwan Tel:+886-2-82583058 Fax:+886-2-82583062 Web:http://www.hi-ti.com/

China Hi-Touch Imaging Technologies (Suzhou)

Building C, 36# QiHong Road, Suzhou Industrial Park,

Jiangsu Province, PRC Tel :+86-512-8717-1688 Fax :+86-512-512-6760-1186 Web :http://www.hi-ti.com.cn/

America Hi-Touch Imaging Technologies (America), Inc.

285 S. Dupont Ave, Suite #104 Ontario, CA 91761, U.S.A. Tel :+1-909-974-0099 Fax :+1-909-974-0011 Web :http://www.hitouchimaging.com/

United Kingdom Hi-Touch Imaging Technologies (UK) Ltd

Unit 7, Centurion Court, Brick Close, Kiln Farm, Milton Keynes, MK11 3JB,

United Kingdom Tel :+44 (0)1908 266677 Fax :+44 (0)1908 266678 Web :http://www.hi-ti.co.uk

www.hi-ti.com

Netherlands

Hi-Touch Imaging Technologies Netherlands B.V.

ESP 206, 5633 AC, Eindhoven, The Netherlands Tel :+ 31-(0)40-256-5166 Fax :+ 31-(0)40-290-3176 & + 31-(0)40-290-3287 Web :

http://www.hi-ti.nl

Russia

Hi-Touch Imaging Technologies (Russia Representative office)

Trubetskaya str., 30A, Balashikha City143910, Russian Federation TEL：+ 7-905-711-5773

Web：http://www.hi-ti.ru

Middle East & North Africa

Hi-Touch Imaging Technologies (Middle East)

Emaar Business Park Bldg #2, Office #426 P.O Box 261750,

Dubai-United Arab Emirates

TEL: +971-4-3674547

FAX: +971-4-3674221

Web：http://www.hi-ti.ae India

Hi-Touch Imaging Technologies - New Delhi Liaison Office # 401/402, 4th floor, 96, Siddharth Building, Nehru Place, New Delhi 110019, India

TEL: +91-11-4180-8191

FAX: +91-11-4180-8193

Web：http://www.hi-ti.com

www.hi-ti.com

Appendix F Order Information

If you would like to purchase HiTi Printer or accessories. Please contact our dealer or visit HiTi Website http://www.hi-ti.com for quickly order service.

Taiwan

Hi-Touch Imaging Technologies

3F, 31, Shuang-Shih Rd. Sec.3, Pan-Chiao City,

Taipei County 220, Taiwan

Tel :+886-2-82583058 Fax:+886-2-82583062 Web:http://www.hi-ti.com/ E-mail : sales@hi-ti.com

China Hi-Touch Imaging Technologies (Suzhou)

Building C, 36# QiHong Road, Suzhou Industrial Park,

Jiangsu Province, PRC Tel :+86-512-8717-1688 Fax :+86-512-6760-1186

Web :http://www.hi-ti.com.cn/E-mail：sales@hi-ti.com.cn

America Hi-Touch Imaging Technologies (America), Inc.

285 S. Dupont Ave, Suite #104 Ontario, CA 91761 U.S.A. Tel :+1-909-974-0099 Fax :+1-909-974-0011 Web :http://www.hitouchimaging.com E-mail：info@hitouchimaging.com

United Kingdom Hi-Touch Imaging Technologies (UK) Ltd

Unit 7, Centurion Court, Brick Close, Kiln Farm, Milton Keynes, MK11 3JB,

United Kingdom Tel :+44 (0)1908 266677 Fax :+44 (0)1908 266678 Web :http://www.hi-ti.co.uk E-mail：sales@hi-ti.co.uk

Netherlands

Hi-Touch Imaging Technologies Netherlands B.V.

ESP 206, 5633 AC, Eindhoven, The Netherlands Tel :+ 31-(0)40-256-5166 Fax :+ 31-(0)40-290-3176 & + 31-(0)40-290-3287 Web :http://www.hi-ti.nl E-mail：sales@hi-ti.nl

Russia

Hi-Touch Imaging Technologies (Russia Representative office) Trubetskaya str., 30A, Balashikha City143910, Russian Federation Tel :+ 7-905-711-5773 Web :http://www.hi-ti.ru

www.hi-ti.com

Middle East & North Africa

Hi-Touch Imaging Technologies (Middle East)

Emaar Business Park Bldg #2, Office #426 P.O Box 261750,

Dubai-United Arab Emirates

TEL: +971-4-3674547

FAX: +971-4-3674221 Web :

http://www.hi-ti.ae E-mail：sales-me@hi-ti.com

India Hi-Touch Imaging Technologies - New Delhi Liaison Office

# 401/402, 4th floor, 96, Siddharth Building, Nehru Place, New Delhi 110019, India

TEL: +91-11-4180-8191

FAX: +91-11-4180-8193

Web :http://www.hi-ti.com E-mail：sales-india@hi-ti.com

www.hi-ti.com

Hi-Touch Imaging Technologies CS-300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
