Hi-Touch Imaging Technologies 63xPL-PS User Manual

Download

HiTi Photo Printer

63xPL/PS

User Manual

ACKNOWLEDGEMENTS

Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft

Corporations.

Pentium is a U.S. registered trademark of Intel Corporation.

TrueType is a U.S. trademark of Apple Computer, Inc.

Adobe and Acrobat a registered trademarks of Adobe Systems Incorporated.

Brands and product names are trademarks or registered trademarks of their

respective companies.

COPYRIGHT

The information contained in this document is subject to change without notice.

Hi-Touch Imaging Technologies makes no warranty of any kind with regard to

this material, including, but not limited to, the implied warranties of

merchantability and fitness for a particular purpose.

Hi-Touch Imaging Technologies shall not be liable for any errors or for

incidental or consequential damages in connection with the furnishing,

performance, or use of this material.

Reproduction, adaptation, or translation of this manual is prohibited without

prior written permission of Hi-Touch Imaging Technologies, except as allowed

under the copyright laws.

Hi-Touch Imaging Technologies, HiTi, HiTi company logo, PhotoDesiree,

"Digital mini-lab just for you", HiTi name (written in Simplified Chinese or

Traditional Chinese), are trademarks or registered trademarks in Taiwan,

China and other countries of Hi-Touch Imaging Technologies.

SAFETY INSTRUCTIONS

1. Read these instructions carefully. Save these instructions for future

reference. Follow all warnings and instructions marked on the product.

2. Unplug this product from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3. Do not use this product near water.

4. Do not place this product on an unstable cart, stand, or table. The product

may fall, causing serious damage to the product.

5. Openings in the cabinet and the bottom are provided for ventilation; to

ensure reliable operation of the product and to protect it form overheating,

these openings must not be blocked or covered. Placing the product on a

bed, sofa, rug, or other similar surface should never block the openings.

Theirs products should never be placed near or over a radiator or heat

6. This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult

your dealer or local power company.

7. If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not

exceed the extension cord ampere rating. Also, make sure that the total

rating of all products plugged into the wall outlet does not exceed the fuse

rating.

8. Do not attempt to service this product yourself, as opening or removing

covers may expose you to dangerous voltage points or other risks. Refer

all servicing to qualified service personnel.

FCC INFORMATION

The Federal communication Commission Radio Frequency Interference

Statement includes the following paragraph:

This equipment has been tested and found to comply with the limits for a Class

B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, use and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction, may cause harmful interference to radio communication.

However, there is no guarantee that interference will not occur in a particular

installation. If these equipment doses cause harmful interference to radio or

television reception, which can be determined by interference by on or more of

the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Never push objects of any kind into these products through cabinet

openings as they may touch dangerous voltage points or short out parts

that could result in a fire or electric shock. Never spill liquid of any kind on

the product.

4. Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

5. The users should not modify or change this equipment without written

approval from this company. Modification could void authority to use this

equipment.

CE Information

Chapter 1. Welcome

1-1 Our Invitation to HiTi Photo

Printer Family

It is our pleasure to have you onboard as the member of HiTi Photo Printer

family. We thank you for your patronage and hope this is just the beginning

of our long-term association. Through our printer, picture will be transformed

into masterpieces. HiTi Photo Printer offers tremendous creativity, digital age

will become full of wonderful memories and treasures.

Space Age Design with Ultra Slim Dimensions

Boxy and bulky will be words from your grandparent's dictionary. HiTi Photo

Printer gives you a brand new revolution on what printer is all about.

Distinctive color design and vertical body makes your desk bigger than it is.

The joy of darkroom will come alive again. It is the place where your memory

will last forever.

USB Connection

USB connection allows you to connect your printer with any systems or

devices that support USB feature.

Titan of Software Program

Our Desiree is a perfect tool that will perpetuate your Photo Printer to its

optimal performance. Flexible in design, the software allows you to be

creative and innovative. Photo image, calendar, stickers, and many other

features will be just a finger away. The sky is the limit; color, gamma,

brightness, tones, hue and many more refinements are just a button away.

Eye Catching Photo Result

Our naked eyes are the most distinguish judge when it comes to resolution.

Images that are less than 300 dpi can be consider insufficient. With “Dye

Diffusion Thermal Transfer”, HiTi Photo Printer will give you picture with 16.77

million colors and 300 dpi quality to achieve photo quality result in the comfort

of your home. HiTi Photo Printer quality will stand-up with any other printers

that are in the market today.

1-2 Inside view of HiTi Photo

Printer

Led Light

Turn the power on. The printer will automatically start to initialize and LED

blinking green color about 5 seconds. Then LED turn to stable green color.

If not, please begin to check.

Paper Cassette

This is the paper holder for you to insert the paper into. Please slide the

paper all the way in and use caution when inserting the paper Cassette into the

Paper Cassette Slot. The paper will go back and forth between the cassette

cover and printer 4 times.

Ventilation Holes

Ventilation holes are located in the front and back of the printer. Please allow

adequate airflow by removing all matters from the surface of the ventilation

holes. These holes are designed to cool down the printer during operation.

ID Button

To replace used cartridge. Please firmly press down the push button on the top

of the printer.

Ribbon Cartridge Socket

Ribbon cartridge is to be inserted into the correct space. Please pay attention

to the orientation of the ribbon cartridge during installation process.

Paper Output Slot

Please keep clear of the output slot during printing process.

Power Switch

This is where printer can be turned on or off.

Power Socket

Connect your power line here.

USB Connector

Please connect USB cable to the connector to your other device, such as PC

and other peripheral devices.

Specification Label

Printer specification and detail information.

Chapter 2 Quick Installation 2-1

1. Plug the controller cable into the slot in the rear of the printer

2. Please make sure the USB cable is not connected to PC

3. Turn on the power.

4. The main page of the LCD will appear, and ready for the further operation.

Note: If the USB cable is connected to PC, the printer will be in PC Mode

2-2

1. Introduction of the Controller

The HiTi Photo Printer 63xPS Controller provide a full-function printing

interface, the details are as follows:

Standalone Installation (63xPS)

(Shown on the LCD), the controller function will be disable at

the same time.

Standalone Operation Flow (63xPS)

1.6 inches TFT LCD

the panel, all the images preview, editing and printing related information is

LCD

ESC

Arrow Key

EDIT

: Totally 60K pixels and full color (24bit) performance on

accessible through the OSD (On Screen Display) design.

-OK: Confirmation. Confirm the image chosen or the result of the image

editing.

ESC

: Escape to the upper layer or cancel the current job.

: The main page of the OSD. Note: All the jobs in process will be

aborted at the same time.

Edit

: Enter the Editing Page of the OSD, please refer to Photo Printing for

details.

: Press this button and all the jobs have been chosen will be printed in

batch.

2. Main Page:

-The Function List: Totally 8 functions, all the functions will be described

individually.

ID Photo Index


Sticker

Quick Photo

DPOF

Print All

Setup

-Memory Status: Display the current active memory card (CF/SM). Please go

to Setup page if you want to switch the cards manually.

3. Photo

Operation Flow:

Preview Page (4 images at a time)

Press the arrow keys, stop at the image you want to print or edit, press OK

Press the UP and Down arrow keys to select the copies you want to print

(Default setting is 1)

Press OK to confirm and back to the preview page

Continue choosing the images

Press Print Button to proceed the batch printing

Press Print again to reconfirm and start printing

Note:

If two cards (CF and SM) have been already inserted, printer will only let

the card inserted first active, if you want to change the memory card

status, please:

-Pull out the other card

-Enter the Setup page and run the card selection switch

Information for Preview Page:

The images in Preview Page are the thumbnail of all the images captured by

the digital cameras, all the EXIF files (supported by all the digital cameras in

the market) come along with the thumbnail files. There are some cases that

the Preview Page cannot show the thumbnail image properly:

-The thumbnail is damaged or the file doesn’t support thumbnail (not EXIF

format)

Note: The damage of the thumbnail doesn’t mean the image file is

damaged too

-The image file in memory card is damaged

-The total pixels of the image files are more than 6M pixels (4:3 image ratio),

but for 3:2 images, only 5.8M pixels can be supported

-The size of the image file is larger than 3M bytes.

Information for Editing Page:

In the Preview Page, you can press the Edit button anytime to proceed the

image editing, the functions include:

-Move: Press the arrow keys to make the movement in four directions.

-Rotate: Press the Left and Right keys to make the 90-degree rotation, right for

clockwise and left for counterclockwise).

-Resize: Press the Up ad Down keys to make image resizing, Up for

enlargement and Down for contraction.

-Copies: Set the copies to be printed between 1 and 99

-Enhance:

z

Brightness: Right for increase and Left for decrease

z

Contrast: Right increase and Left for decrease

z

Color R/G: Right for more red tone and Left for more green tone

z

Color B/Y: Right for more blue tone and Left for more yellow tone

z

OK: Save the change in enhance and back to Image Editing Page

-OK: Save the change and back to Preview Page

Note:

It takes about 5 to 10 seconds to decode the image file when entering the

Editing Page, the actual time depends on the file size and total pixel of

the images.

4. ID Photo

Operation Flow:

Preview Page

Press the arrow keys, stop at the image to be printed and enter the ID Photo

Editing Page (Note)

Back to Preview Page

Continue choosing other images

Press Print to make the ID Photo batch printing

Press Print to reconfirm and start printing

Note:

The additional function in the ID Photo Editing Page is the ID format

selection, you can switch between 2-inch ID and 1-inch ID

1-inch ID: Print 12 1-inch ID photo on 4x6 photo paper

2-inch ID: Print 9 2-inch ID photo on 4x6 photo paper

5. Index:

Operation Flow:

Select the printing format of index (6x5, 8x7, 5x4), then press OK to confirm

Press Print to confirm and start printing

6. Sticker

Operation Flow:

Sticker format Selection (4x4, 4/2/4)

Select (A-D) , the layout of your favorite, and press OK to enter the Preview

Page

Select the image you want to print, press OK to confirm

Note: It takes 5 to 10 seconds to decode the image file

Move to another position in A-D, and continue selecting the image to be

printed

Once the full page of sticker is occupied, press Print to print the sticker

Press Print to reconfirm and start printing

7. Quick Photo

Operation Flow:

Preview Page

Press the arrow keys to select image you want to print then press OK

Start printing

8. DPOF(Digital Printer Order Format)

Operation Flow:

Press Print to confirm and start printing

9. Print All:

Operation Flow:

Press Print to confirm and start printing

10. Setup

Operation Flow:

Select function

-Card Selection

Press Up and Down arrow keys to switch between CF and SM

Press Ok to save the change of the setting

-Firmware update

Insert the memory card with the new firmware

Press OK to reconfirm and start updating

Note:

Please make sure your memory card is formatted and completely empty

before saving the new firmware into the card . Any related information

about new firmware, please go to www.hi-ti.com

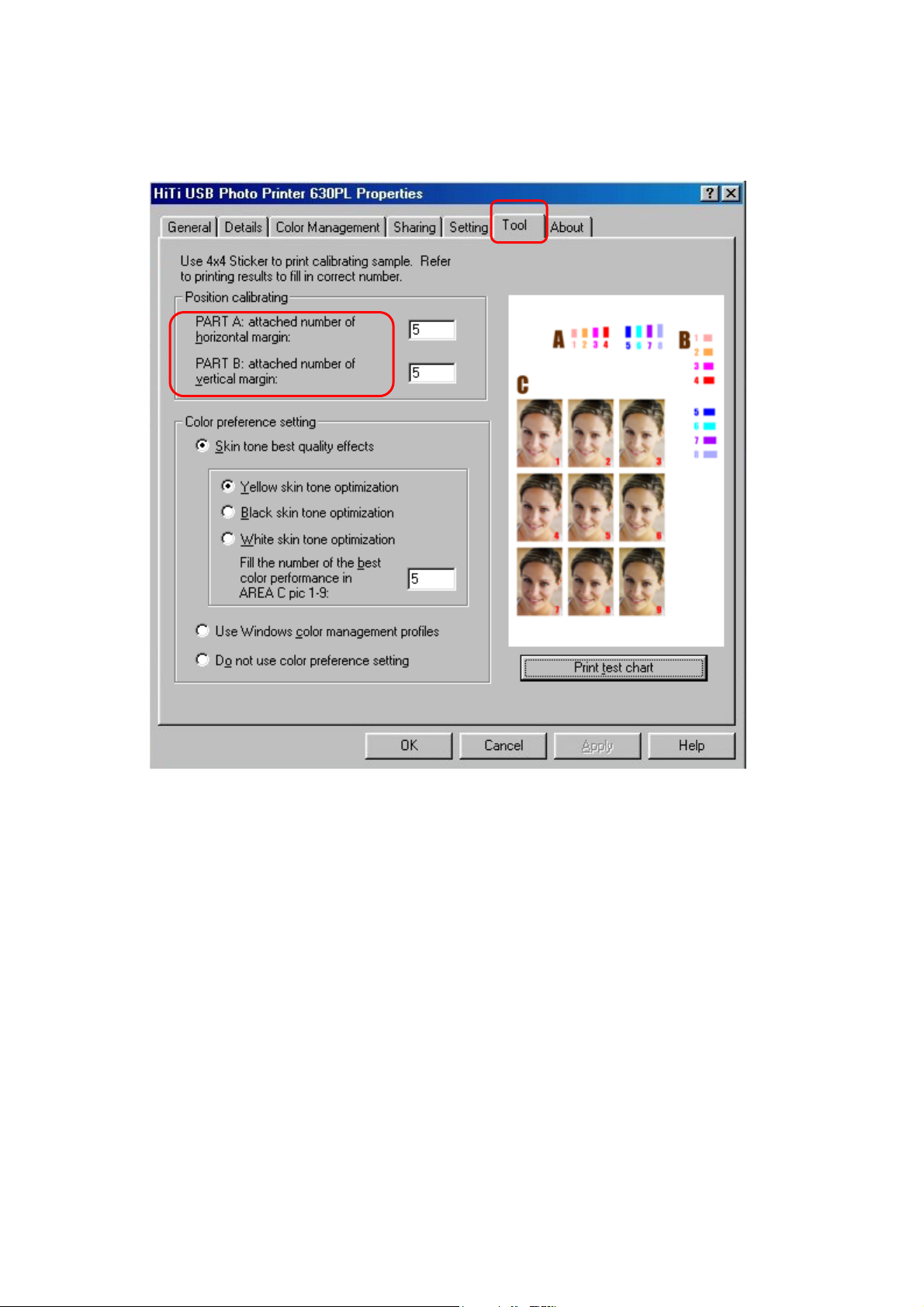

-Printer Calibration

Put a 4x4 sticker into your paper cassette

Press PRINT to get the

According to your print out, you must fill in the number of

which match the sticker blade cutting line, in order to adjust the horizontal

and vertical margin.

-LCD adjustment

Select functions between Brightness, Contrast, Color R/G, Color B/Y

Press Left and Right arrow keys to decrease or increase the value

Press Ok to save the setting and back to the upper layer

-Language

Press Up and Down arrow keys to select language for operation interface

-About

Controller version and Firmware version

Position Calibrating format

on the sticker

PART A

and

PART

2-3 Install Driver (Win98)

1. Please insert "Software CD" into CD-ROM drive.

2. If CD-ROM does not auto start, please double click My Computer Icon in

your Window and double click your CD-ROM drive.

3. Select "Install HiTi Photo Printer 63xPL/PS Driver" and install.

4. When you begin install you will see the following screen.

5. When finish, Install Program will ask you to make this printer as default or

not.

2-4 Install Driver (Win2000)

1. Please insert "Software CD" into CD-ROM drive. (Do not plug USB cable

to printer or PC this time).

2. If CD-ROM does not auto start, please double click My Computer Icon in

your Window and double click your CD-ROM drive.

3. Select "Install HiTi Photo Printer 63xPL/PS Driver" and install.

4. When you begin install you will see the following screen.

5. The Windows 2000 system will display a warning message of “Digital

Signature Not Found.” Please press “yes” to continue.

6. Then will disappear this message to tell you finishing. Press OK to

continue.

7. At this time, connect USB cable to printer and PC, then power on the

machine. Windows 2000 PnP system will find the driver automatically.

8. Windows 2000 make sure this is a USB device.

9. Windows 2000 begin to search a device driver have already installed on

system.

10. Found a driver without “Digital Signature Not found” warning message.

Please press “Yes” to continue.

11. After copy several files, the Windows 2000 system recognize this printer.

Installation is finished.

2-5 Install Driver (Win XP)

1. Please insert “Software CD” into CD-ROM drive.

2. If CD-ROM does not auto start, please double click My Computer Icon in

your Window and double click your CD-ROM drive.

3. Select “Install HiTi Photo Printer 63xPL/PS Driver” and install.

4. When you begin install you will see the following screen.

5. Connect USB cable to printer and PC, then power on the machine.

6. Windows XP begins to search a device driver have already installed on

system.

7. Windows XP shows driver incompatibility, press “Yes” to continue

installation

8. After copy several files, the Windows XP system recognize this printer.

Installation is finished.

2-6 Install PhotoDesiree

1. Please insert "Software CD" into CD-ROM drive.

2. If CD-ROM does not auto start, please double click My Computer Icon in

your Window and double click your CD-ROM drive.

3. Select "Install PhotoDesiree " and install.

4. When Install finished, pop-up a message asking you put "PhotoDesiree"

icon on the Windows Desktop.

5. "PhotoDesiree" icon will display on desktop.

6. Double Clink "PhotoDesiree" icon and execute it.

2-7 Load paper and ribbon

1. There are 3 types of HiTi paper.

Photo Paper (portrait view)

4x4 sticker 4/2/4 sticker

2. While taking out the paper, please take the longer exterior part of the tear

line, in order to prevent your fingerprint on the paper.

3. Please follow the correct way to hold the paper.

4. Make sure the tear-line under the longer exterior aimed at the notch in

paper tray.

5. Press the upper "ID button" to open the "Ribbon Door".

6. Use your right hand to take right-lower "Ribbon Cartridge" handler.

7. Hold the "Ribbon Cartridge" and place it inside the printer. Please pay

attention to meet the “Drive” while putting the "Ribbon Cartridge".

8. When you finished, close "Ribbon Door".

9. Plug paper tray to paper tray slot.

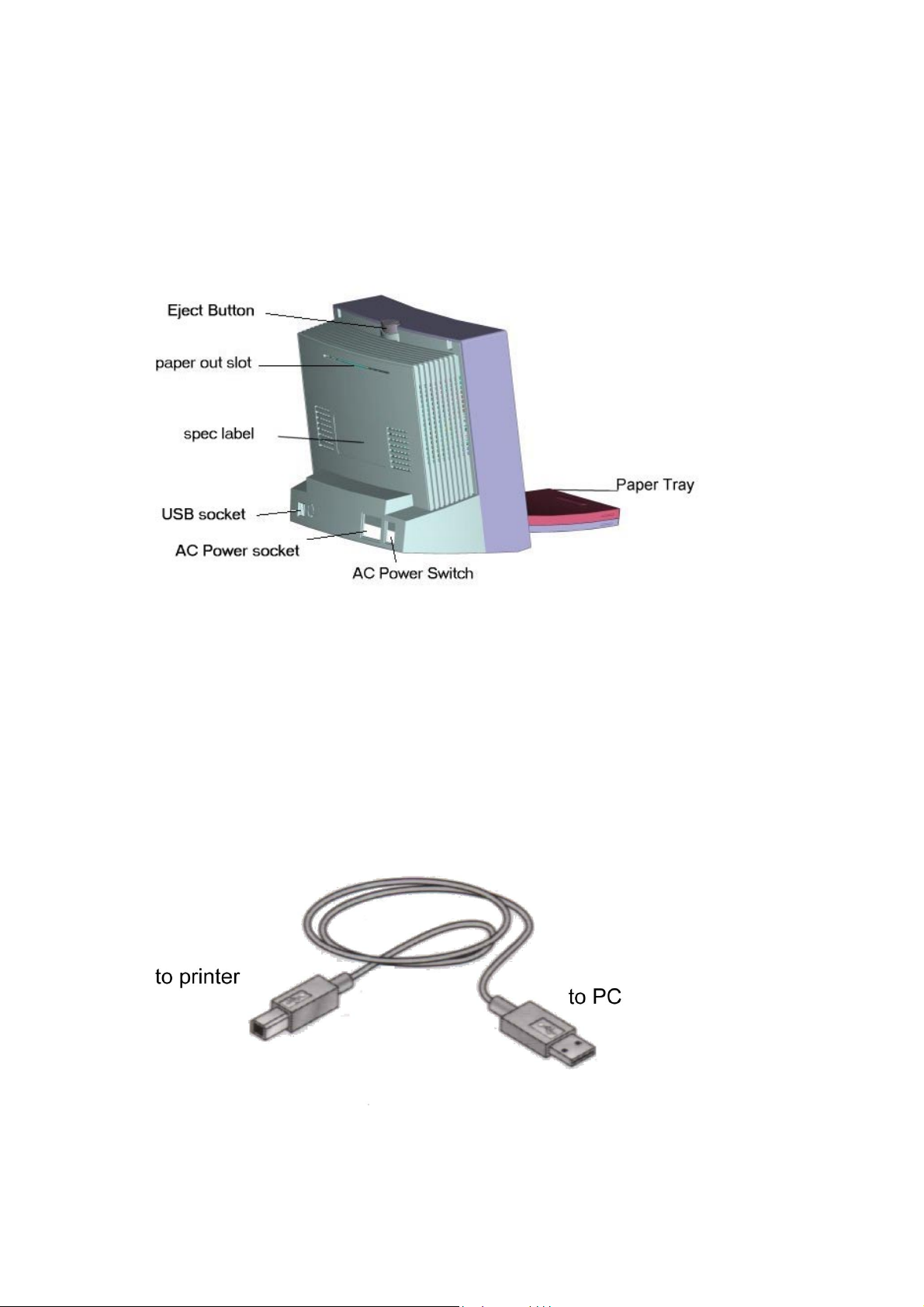

2-8 Install Hardware

1. Connect "Power Cord" to "AC power connector".

2. Connect "USB Cable" to printer. Connect the other side to PC.

3. Turn on "AC power Switch".

4. When LED turns stable green, the printer is ready. If LED turns green

blinking or orange, please check all the printer status.

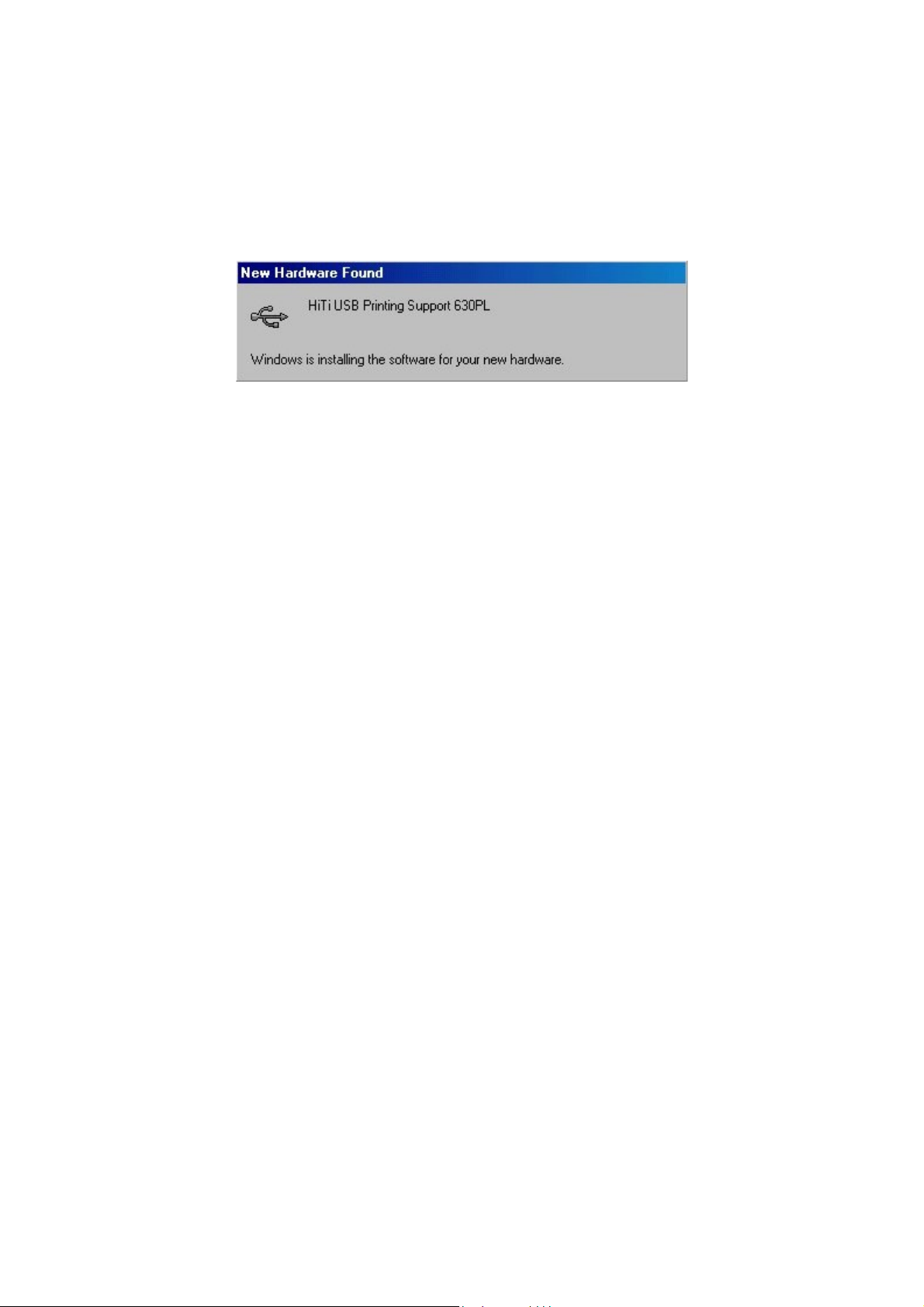

5. You will see "New Hardware found" message on the screen.

6. The message will disappear about 20 seconds. Hardware and driver

install finished.

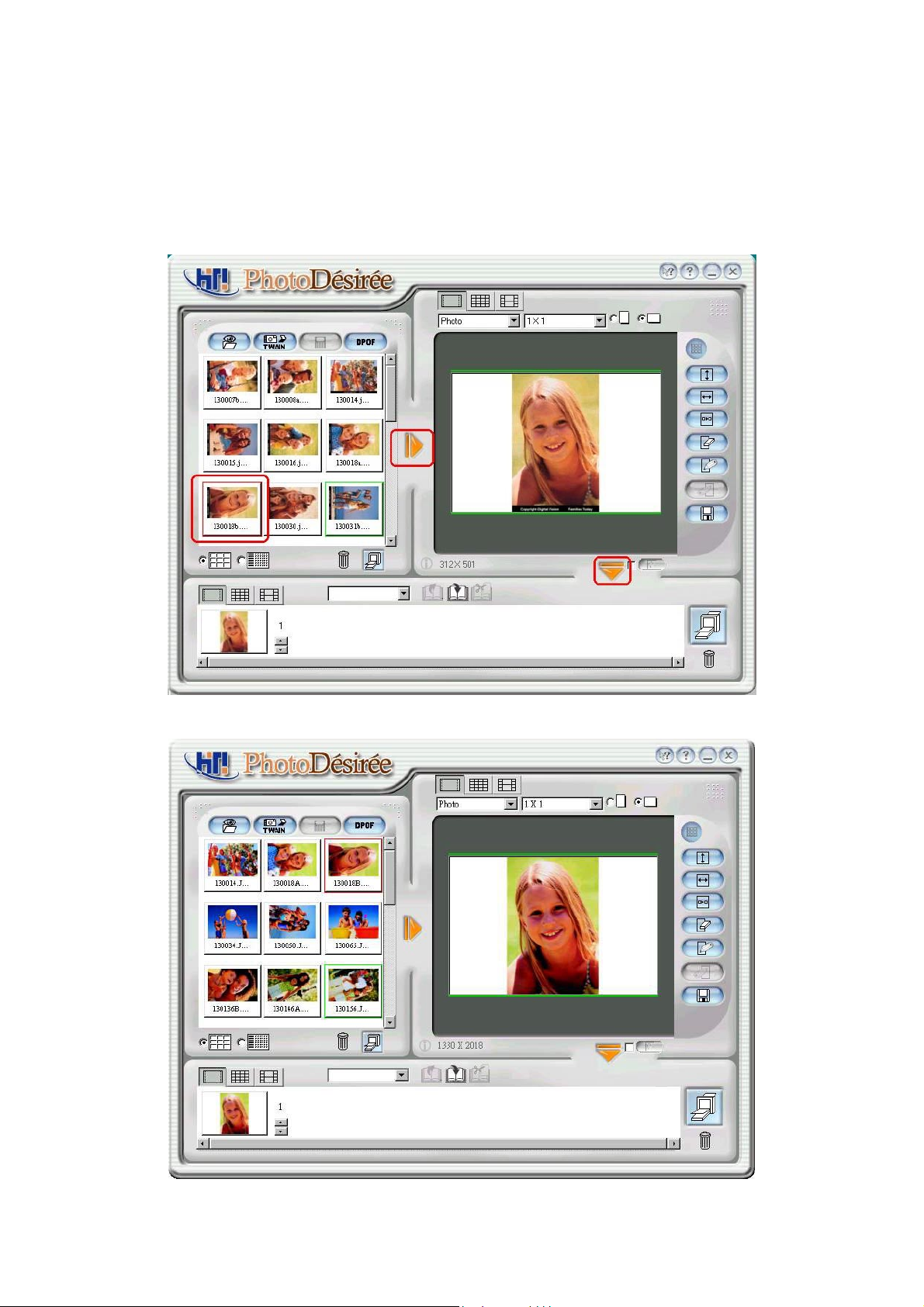

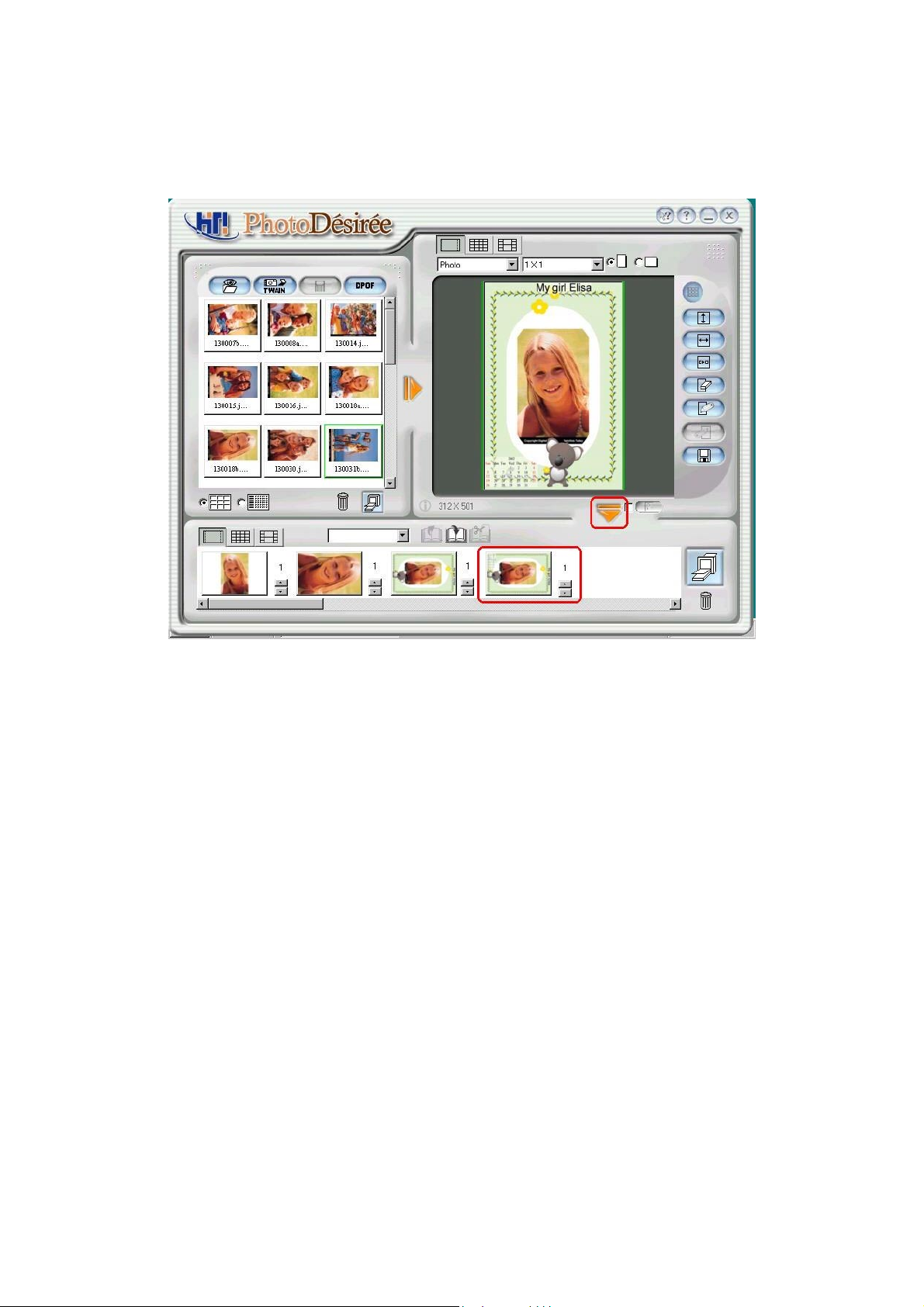

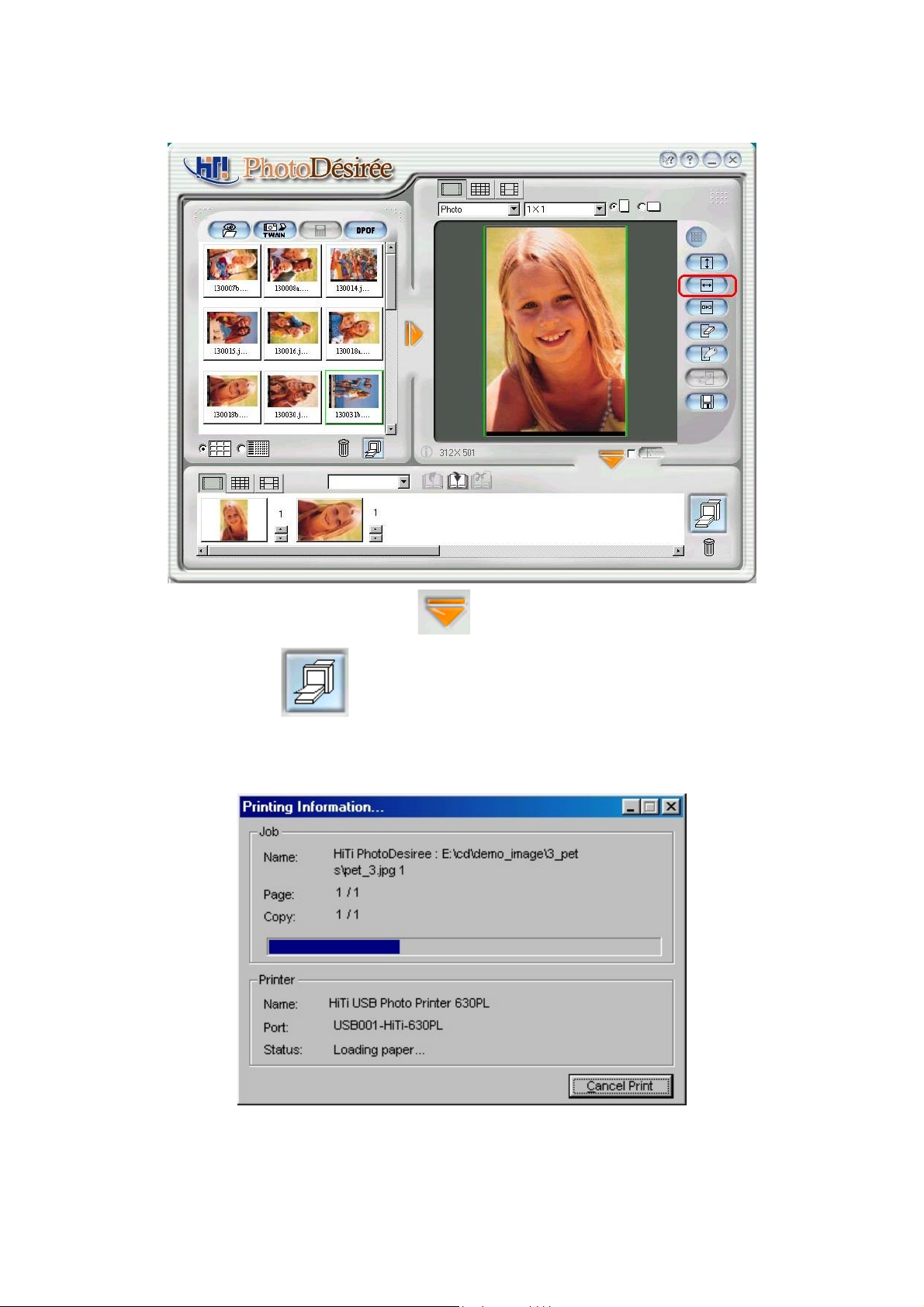

2-9 Print 1st Photo

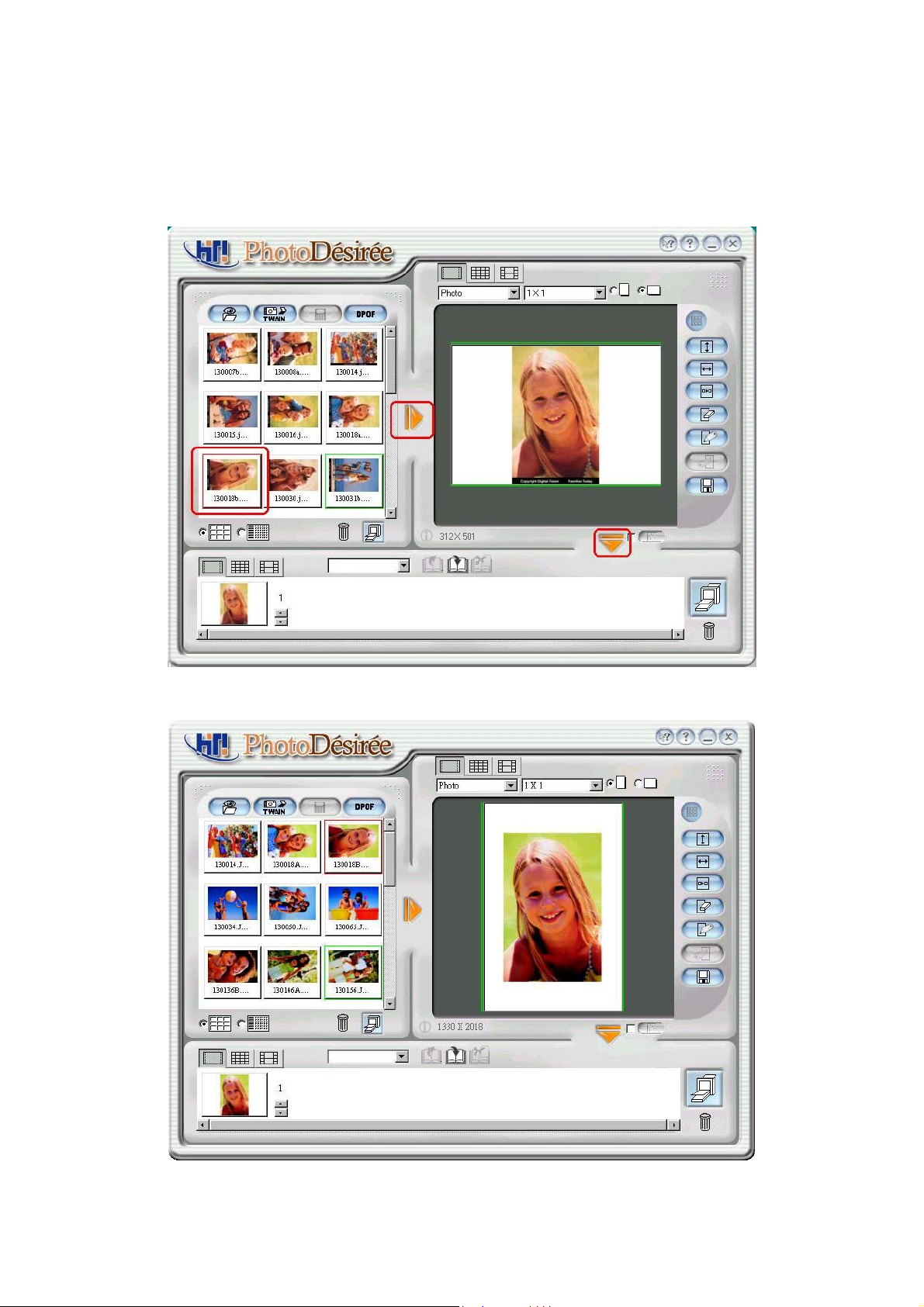

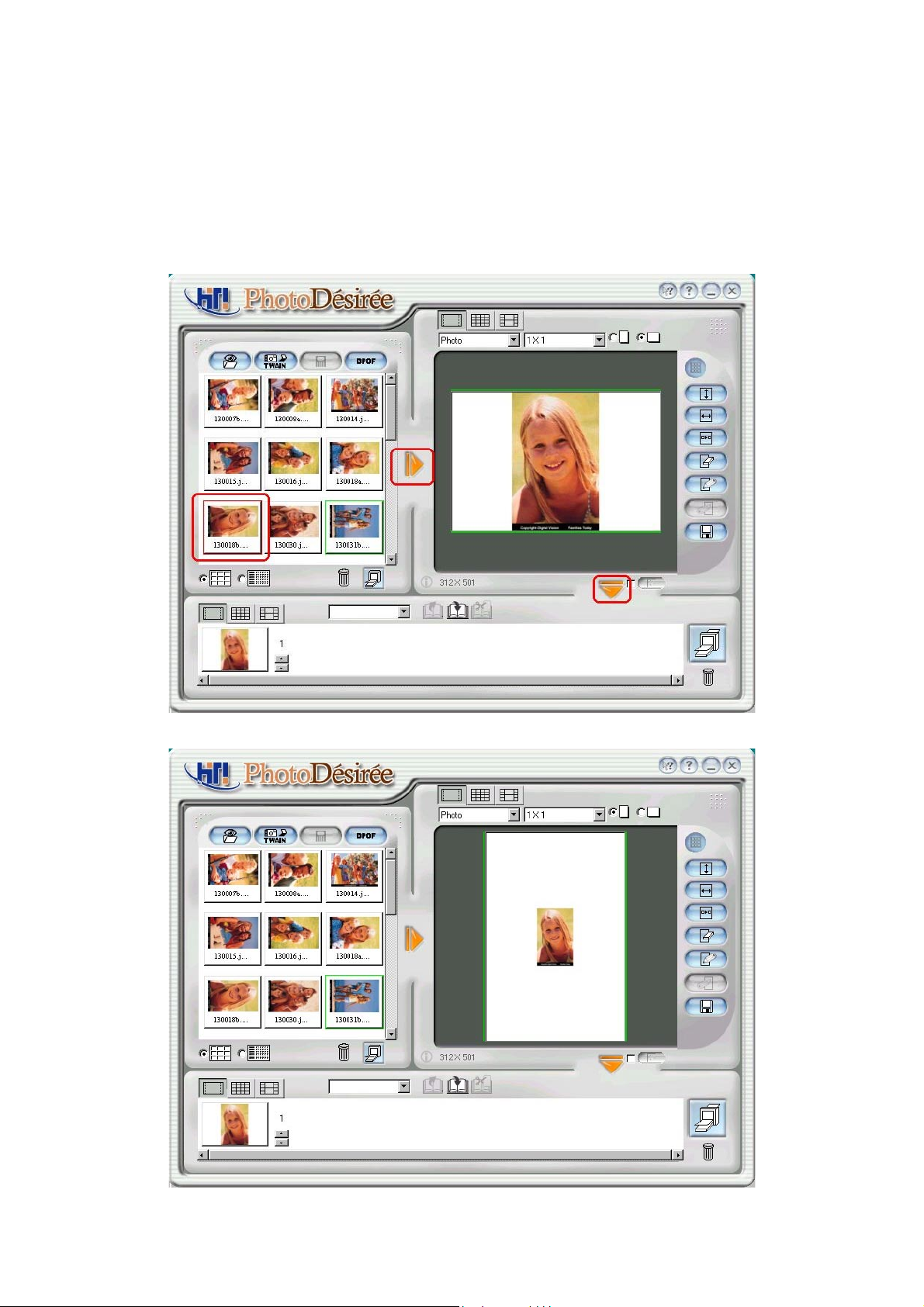

1. Click the image from the Left Window.

2. Change layout style to portrait.

3. Fit to width.

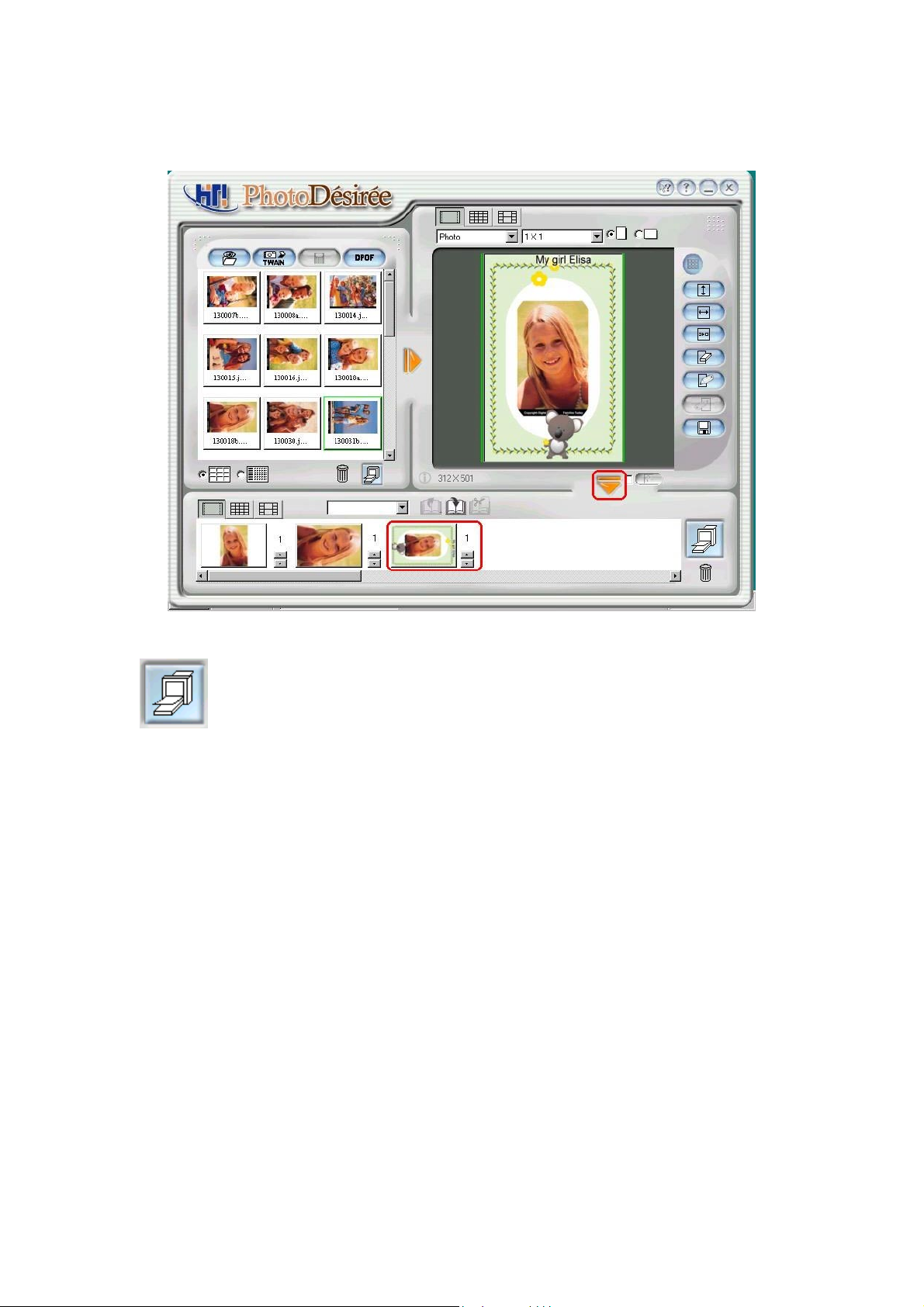

4. Press "Drag Down to Queue" icon.

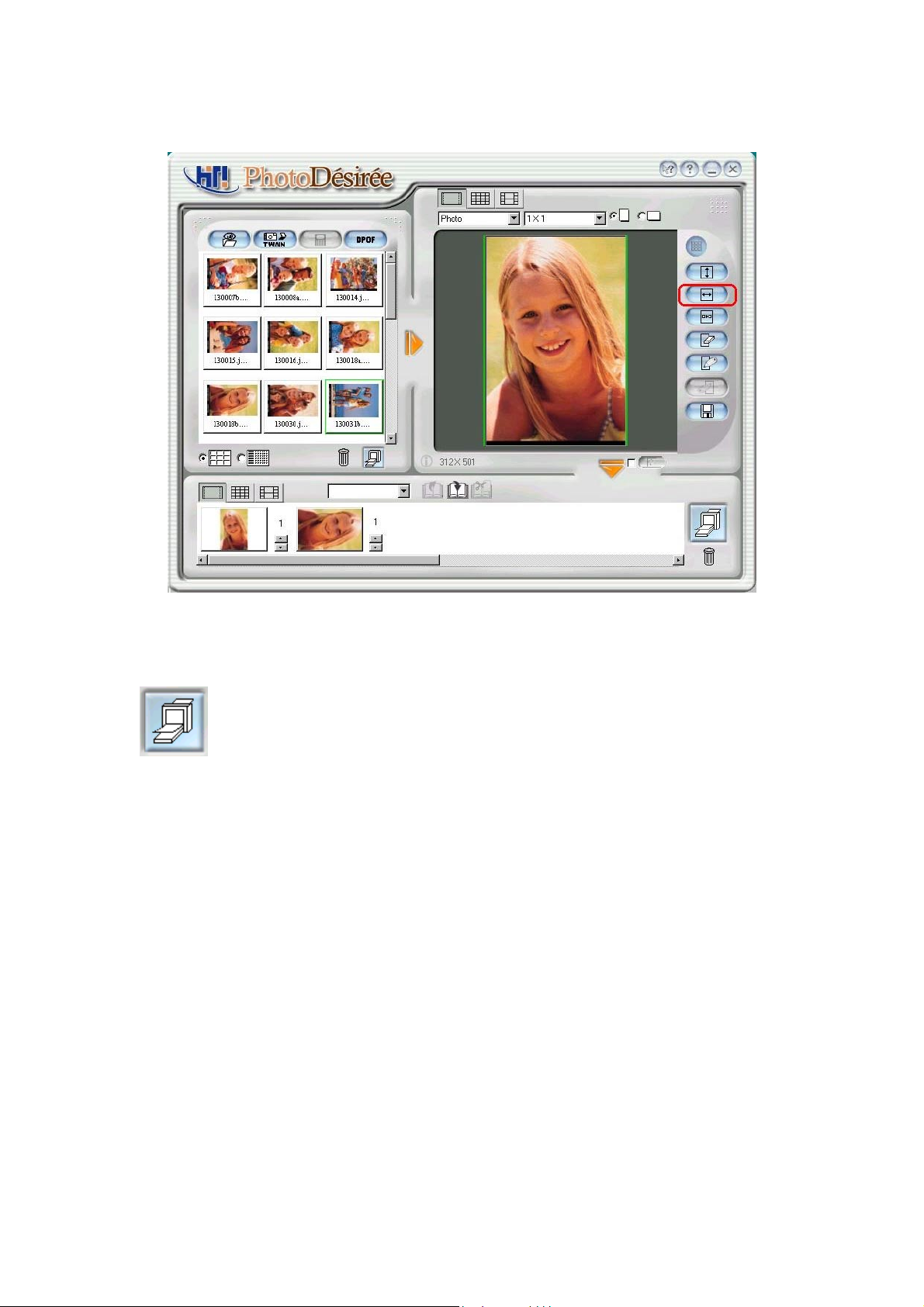

5. Press "Print" icon , then Print it.

6. If success, you will see print progress bar appear.

Chapter 3. PhotoDesiree

This chapter is devoted to provide you with comprehensive detail information

on the functions of our PhotoDesiree software. PhotoDesiree gives you

quality studio result inside the crazy surroundings of your computer. It

changes ordinary to extraordinary. It is the vehicle that brings countless

moments alive.

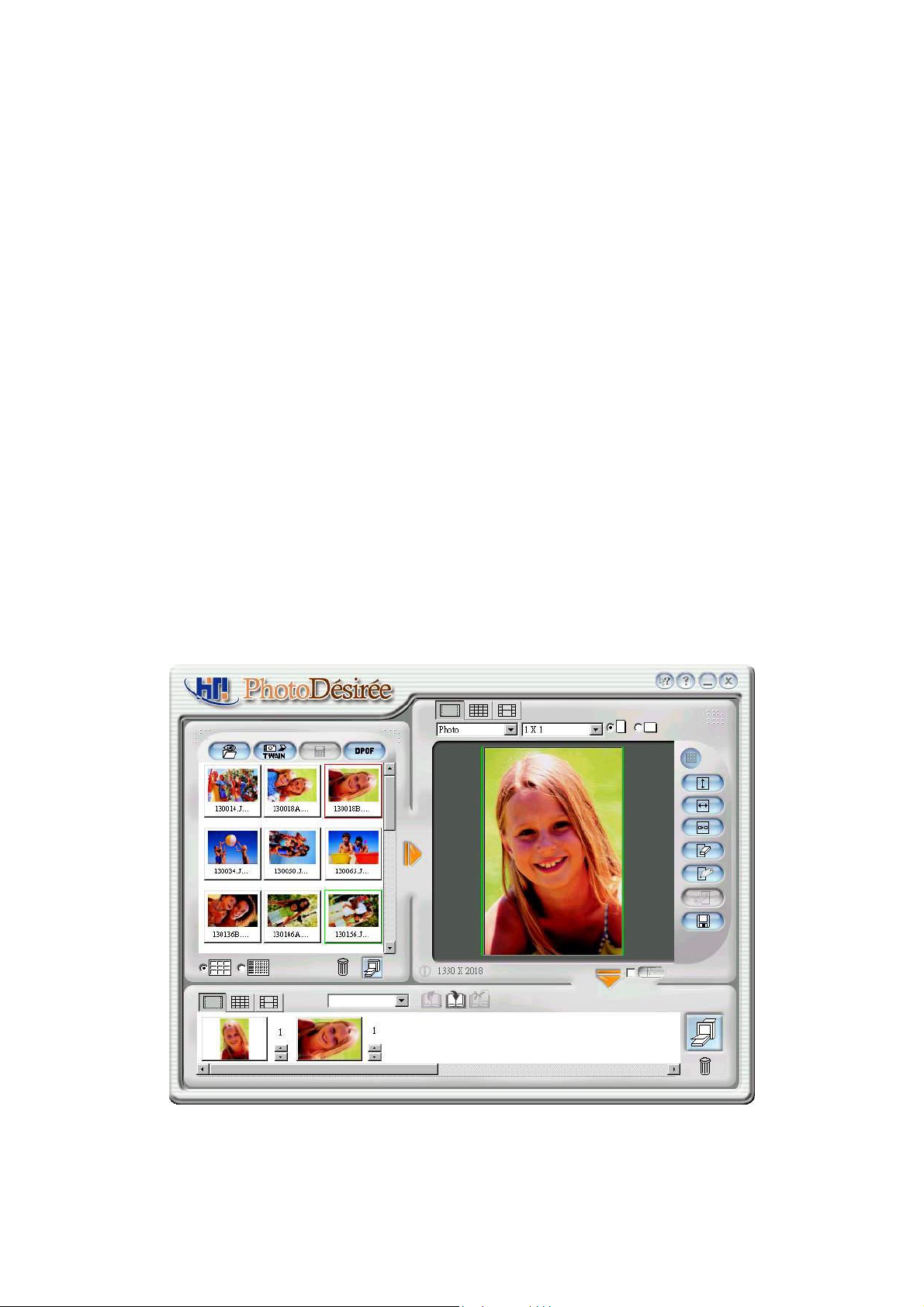

3-1 PhotoDesiree in a view

PhotoDesiree delivers professional quality result and easy to use User

interfaces. The software allows you to create personalized calendars, poster

and greeting cards. With creative color toning buttons; options for adjusting

saturation, contrast, sharpness, brightness, hues. PhotoDesiree makes it

perfect for studio quality result right at your home. Photo is worthless with

PhotoDesiree it is priceless. (New version add rise frame of each thumbnail.

The picture needs update.)

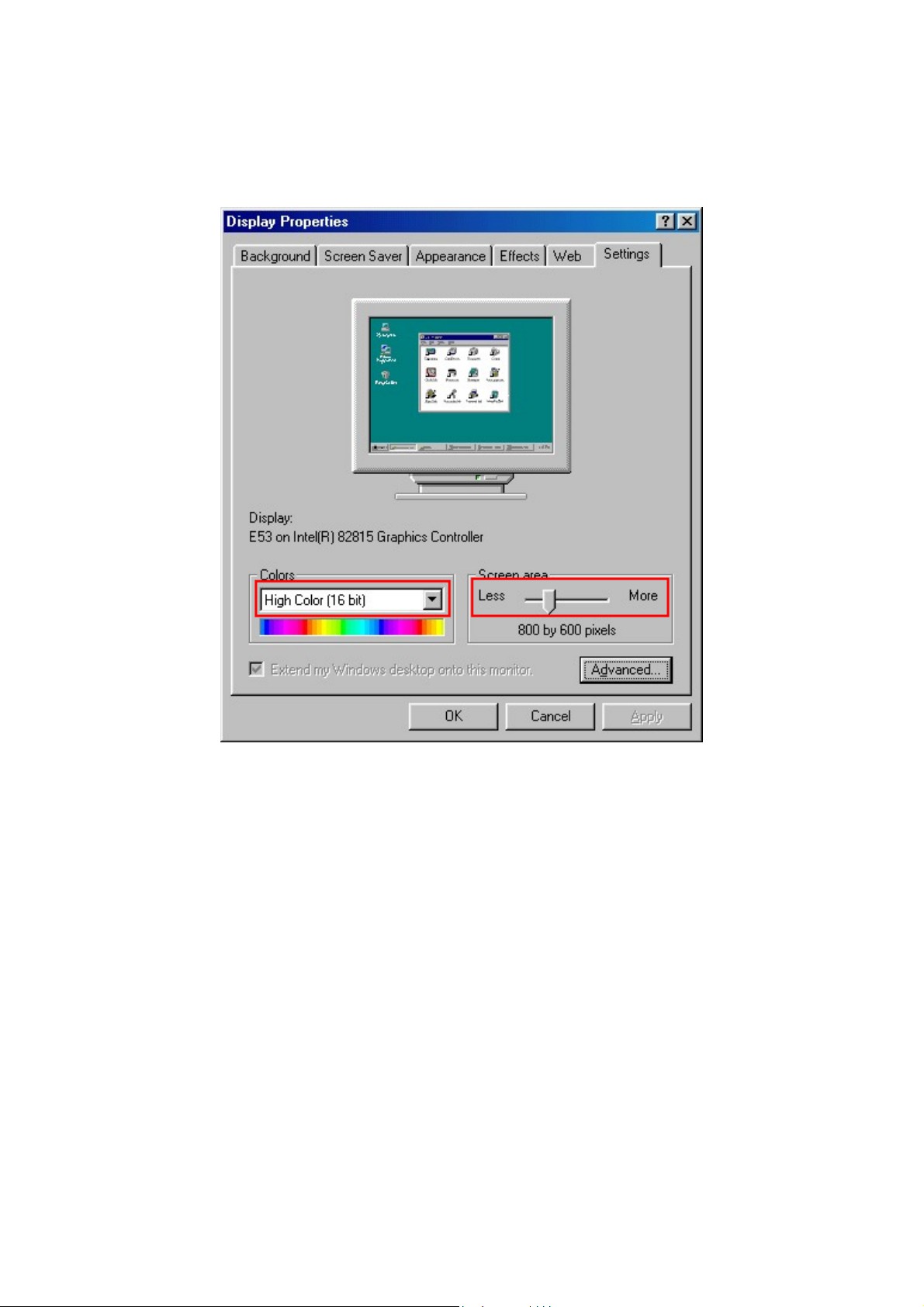

Before you run PhotoDesiree, please preset your display at resolution of 800 x

600 pixels or 1024 x 768 pixels and Hi Color (16bit or higher) or True Color (24

bit) mode.

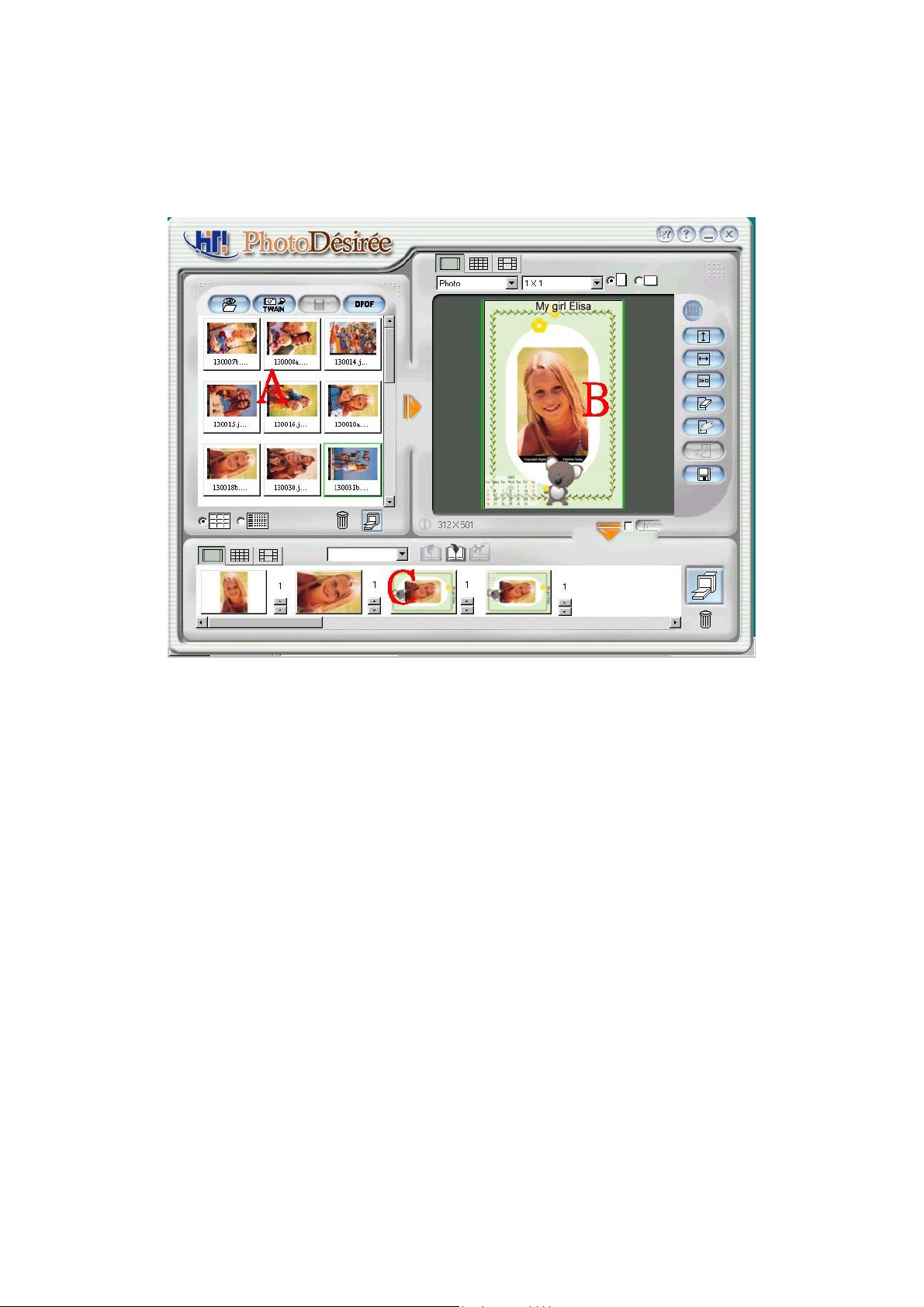

3-2 Basic Operation Concepts

Follow the step for printing.

Step A: Select image file.

Step B: Layout your image, Adjust color effects.

Step C: Drag to Print Queue, then print.

1. Mouse select originated function.

When you open file, you can drag mouse to select multiple files.

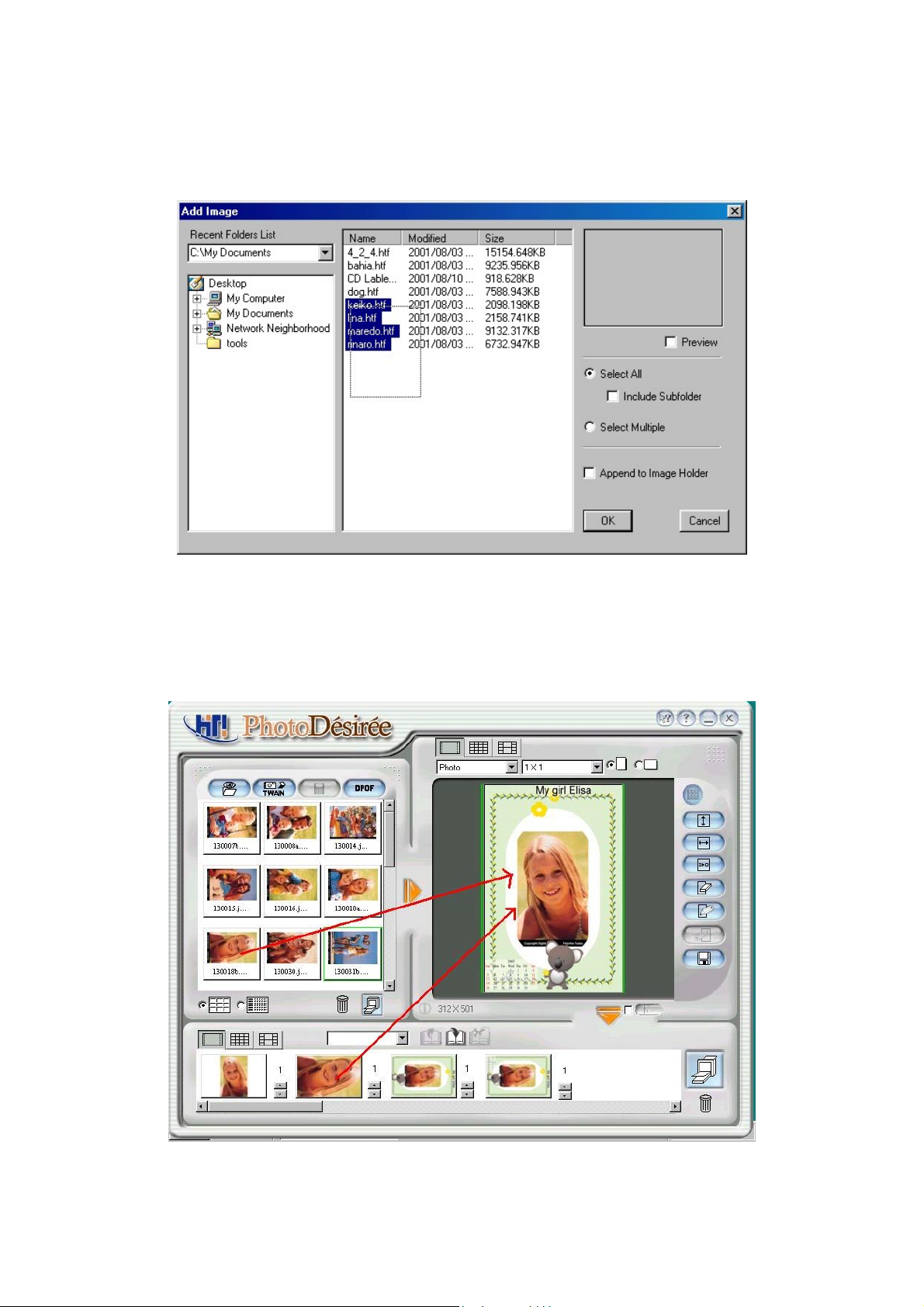

2. Drag and Drop operation.

We can do 2 styles drag and drop.

Path A: file windowsÆ layout windows.

Path B: Printing queue Æ Layout windows.

3. HTF format file

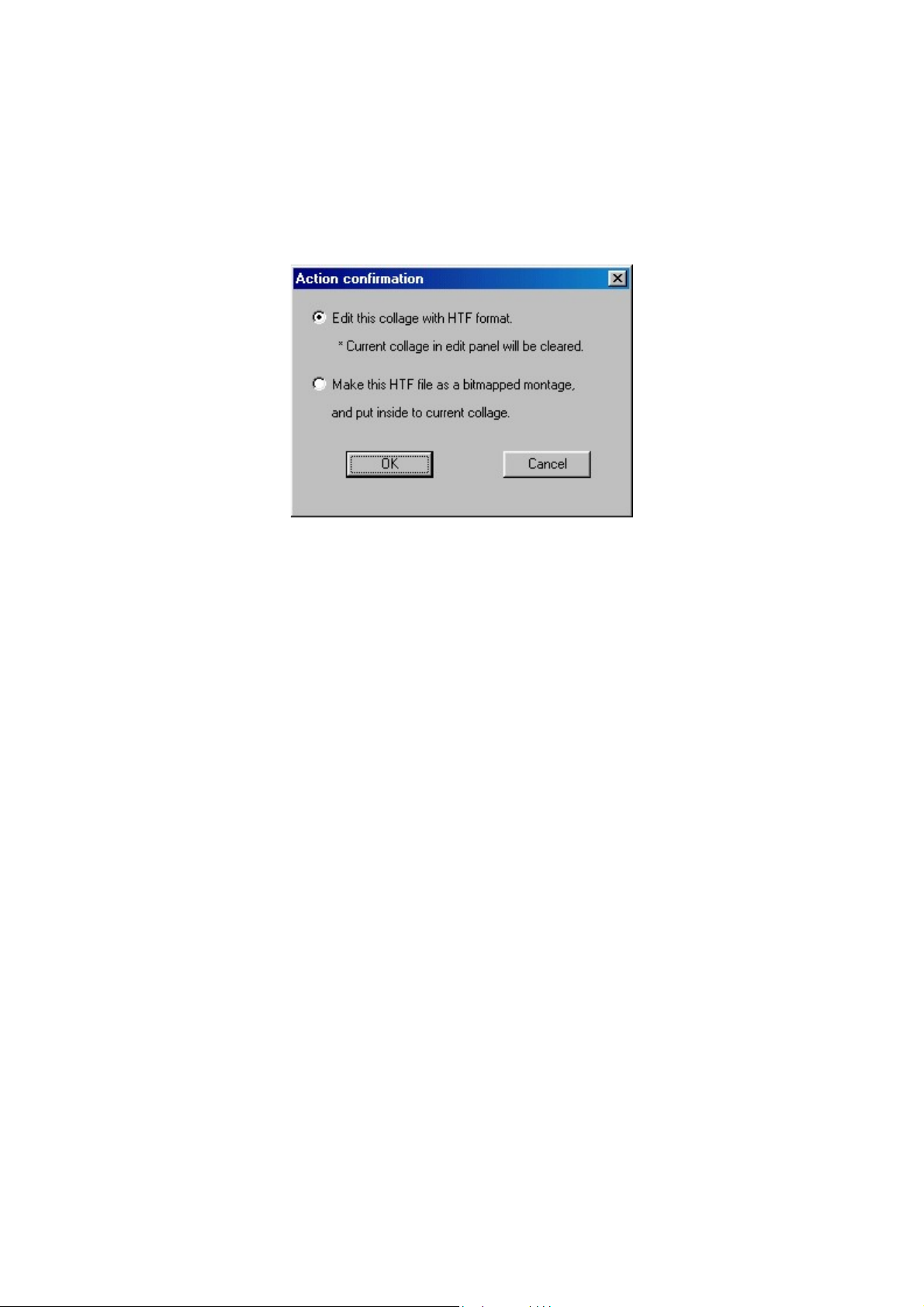

When you drag HTF (HiTi Format) format file, screen will display following

message.

HTF

: special format for HiTi PhotoDesiree. HTF is including original printing

data and original layout.

HTF as COLLECTION:

z

You can save HTF, as your editing/layout project

file. When you “Edit this collage with HTF format”, the layout windows will

recover to the result you layout.

HTF as FILE:

z

You can also use HTF, the same with BMP image.

3-3 Functional Icons

PhotoDesiree can be started from the shortcut in the Windows Start menu or

double clicking icon on your desktop.

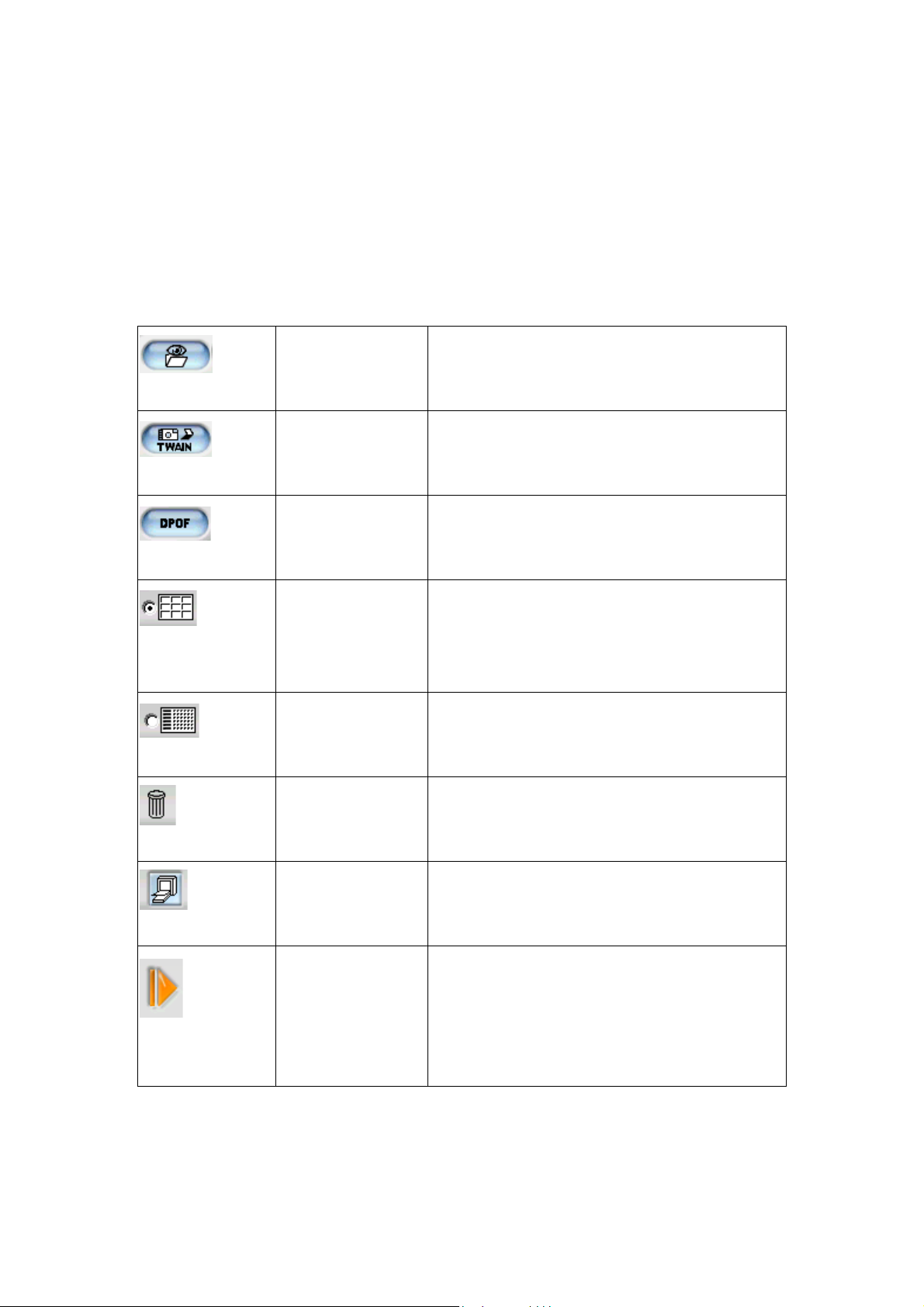

File Window

Add Image

Twain

DPOF

Thumbnail View

Detail View

Brings you images or files that you wish to view and

refine.

Obtain images directly from Twain devices like DSC

and Scanner.

DPOF direct printing.

This is an icon-based format for your image files.

It gives you a preview of the content of your file in

the Image window on the Upper Left side of the

menu.

To view the images files in detailed file info.

Delete

Direct Indexed

Printing

Right pointing

Arrow

Accommodate deleting of image file from the

window. But this function will NOT delete the

physical files.

Fastest way to direct command to print.

Upon selecting your image files from File Window.

Clicking on this right pointing arrow for image

transfer to the editor. Another option is to double

click the file than the transfer will be done

automatically.

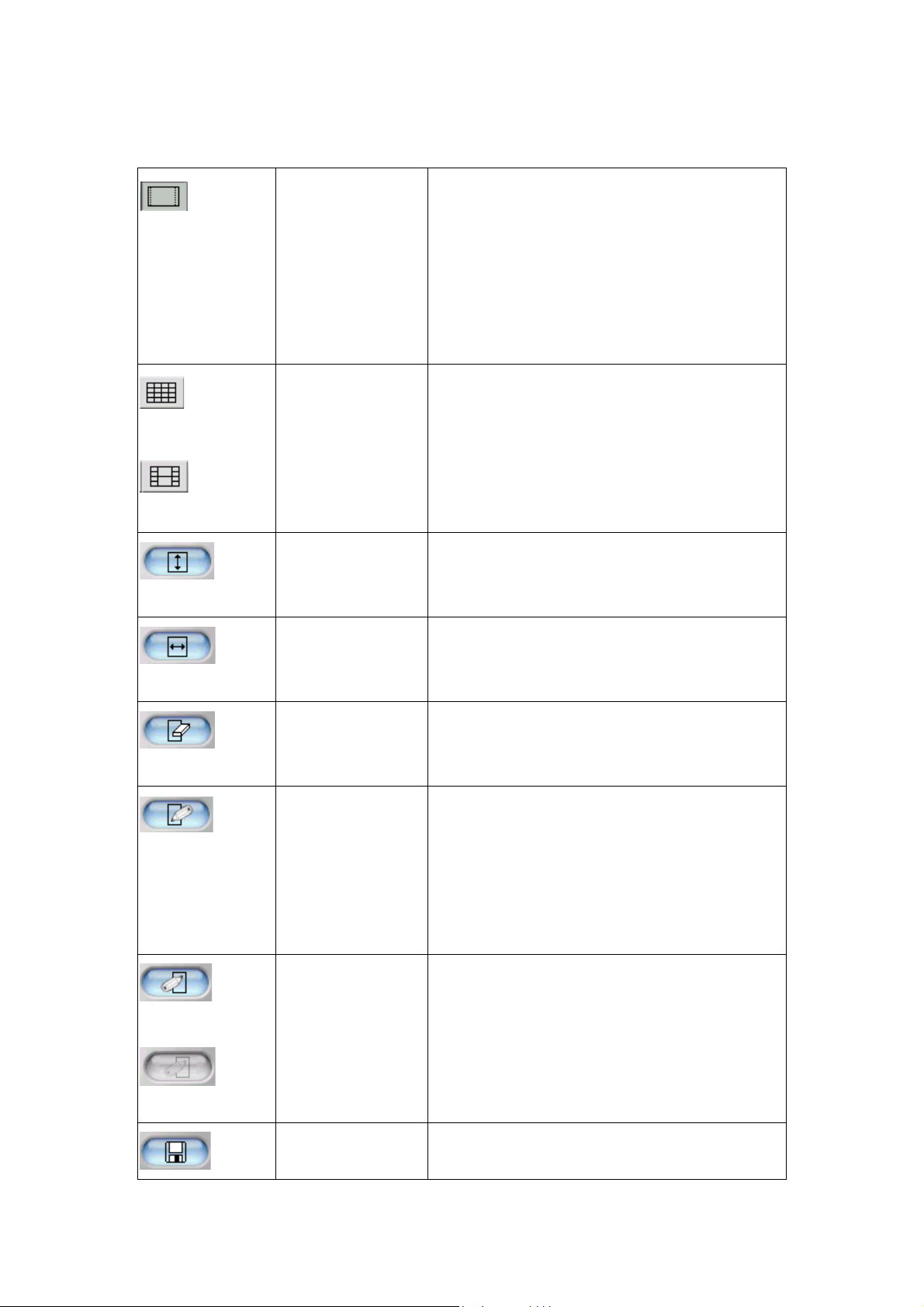

Layout Window

Photo paper

Sticker 4X4

Sticker 4/2/4

Fit to Height

Fit to Width

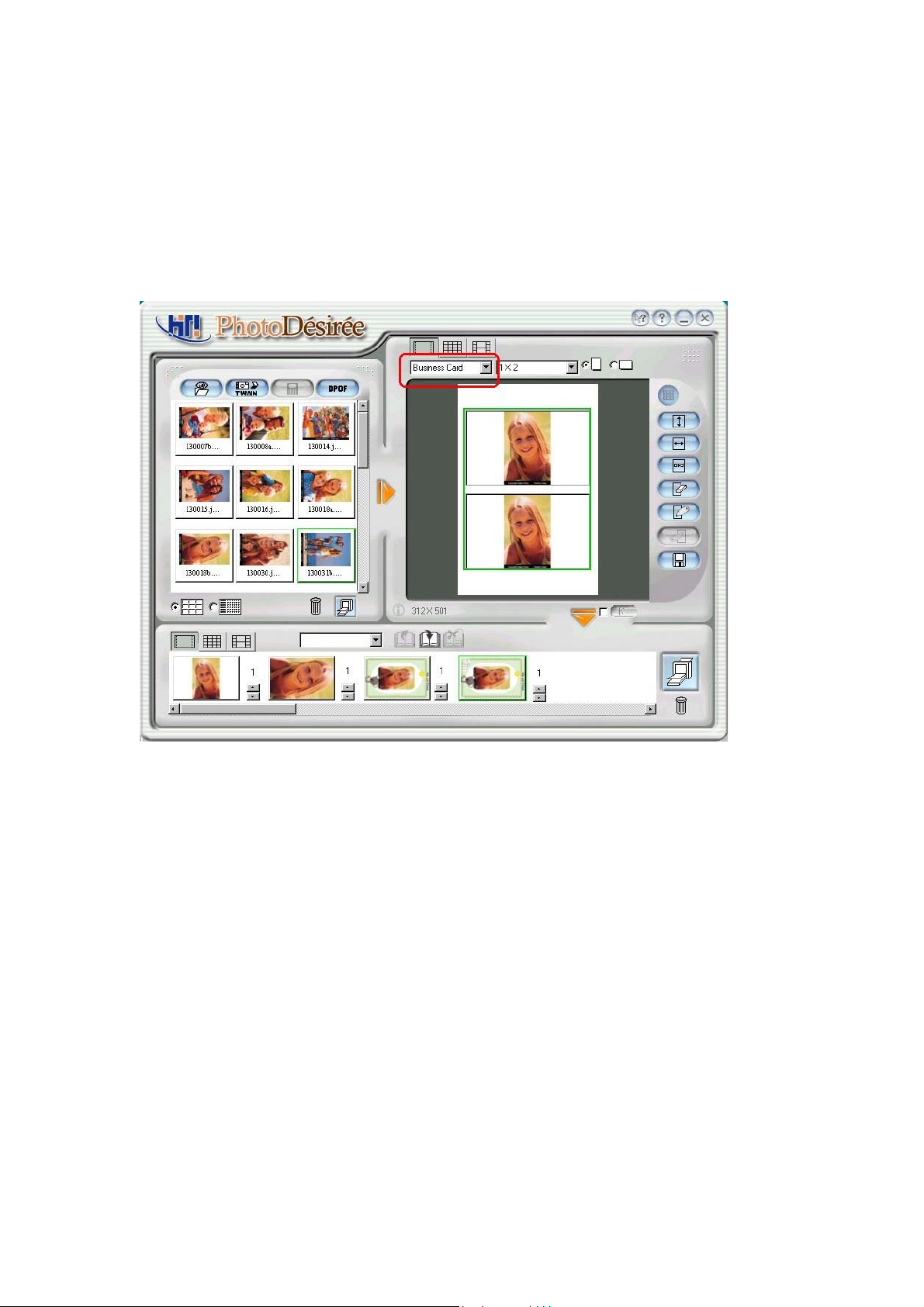

It is full selection of printing formats. Standard A6

photo and variety of different format can be

comprised in this section. Features including ID

photo, Business Card, Book Marker, Credit Card

Photo, and Cute Square. You can even print

different images on the same print out by selecting

the combination icon on the left.

These two selections offer additional preset format

for the stickers. Formats are designed to fit into

special sticker photo paper that brings extra flavors

into your digital fascination.

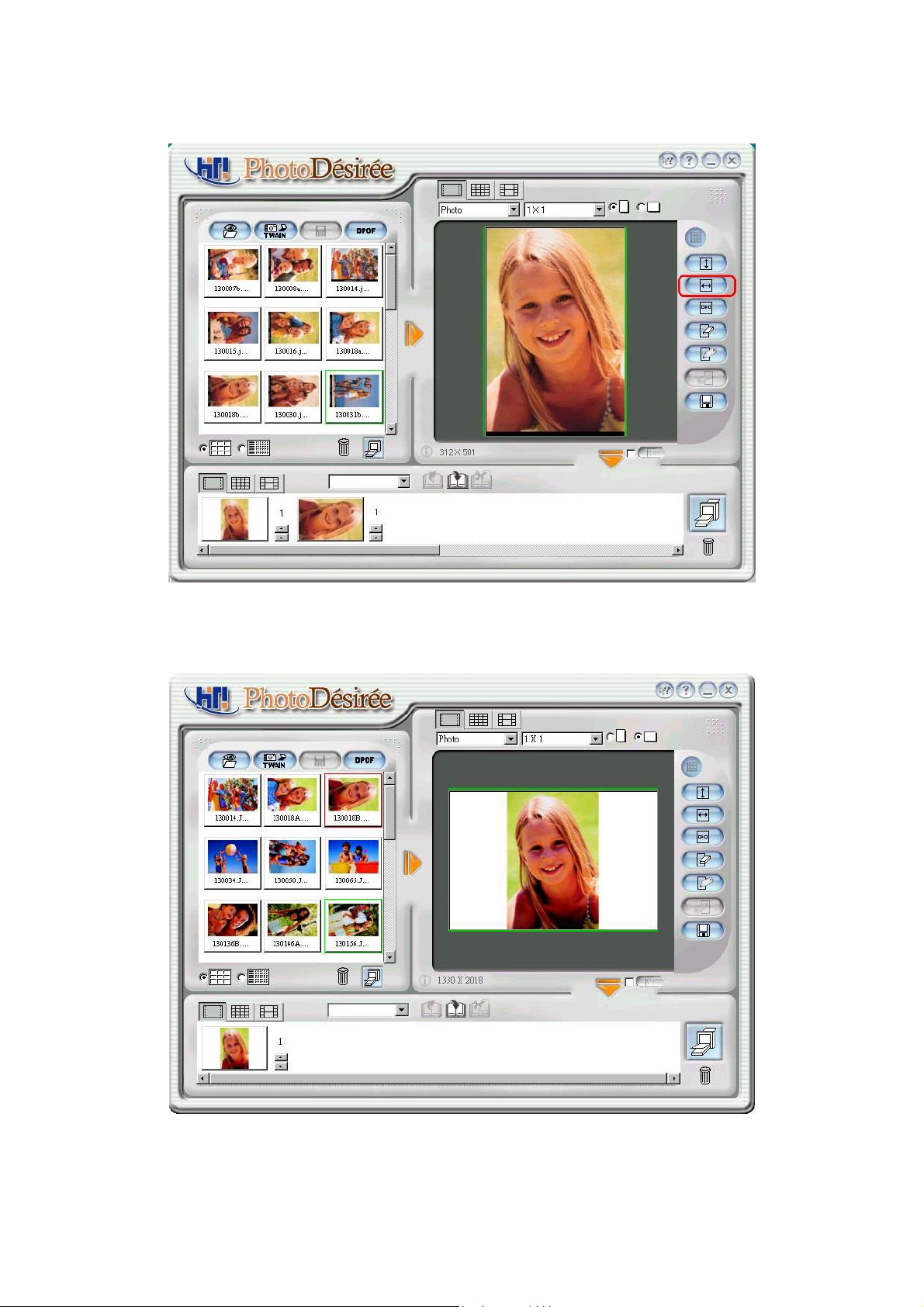

Fits the image vertically into the picture area.

Fits the image horizontally into the picture area.

Delete All

Edit in

ImagEnhancer

Edit External

Image Editor

Gray scaled icon

Save Image

Deletes all the pictures for the layout window. To

reload the pictures you must select another images

from the file window.

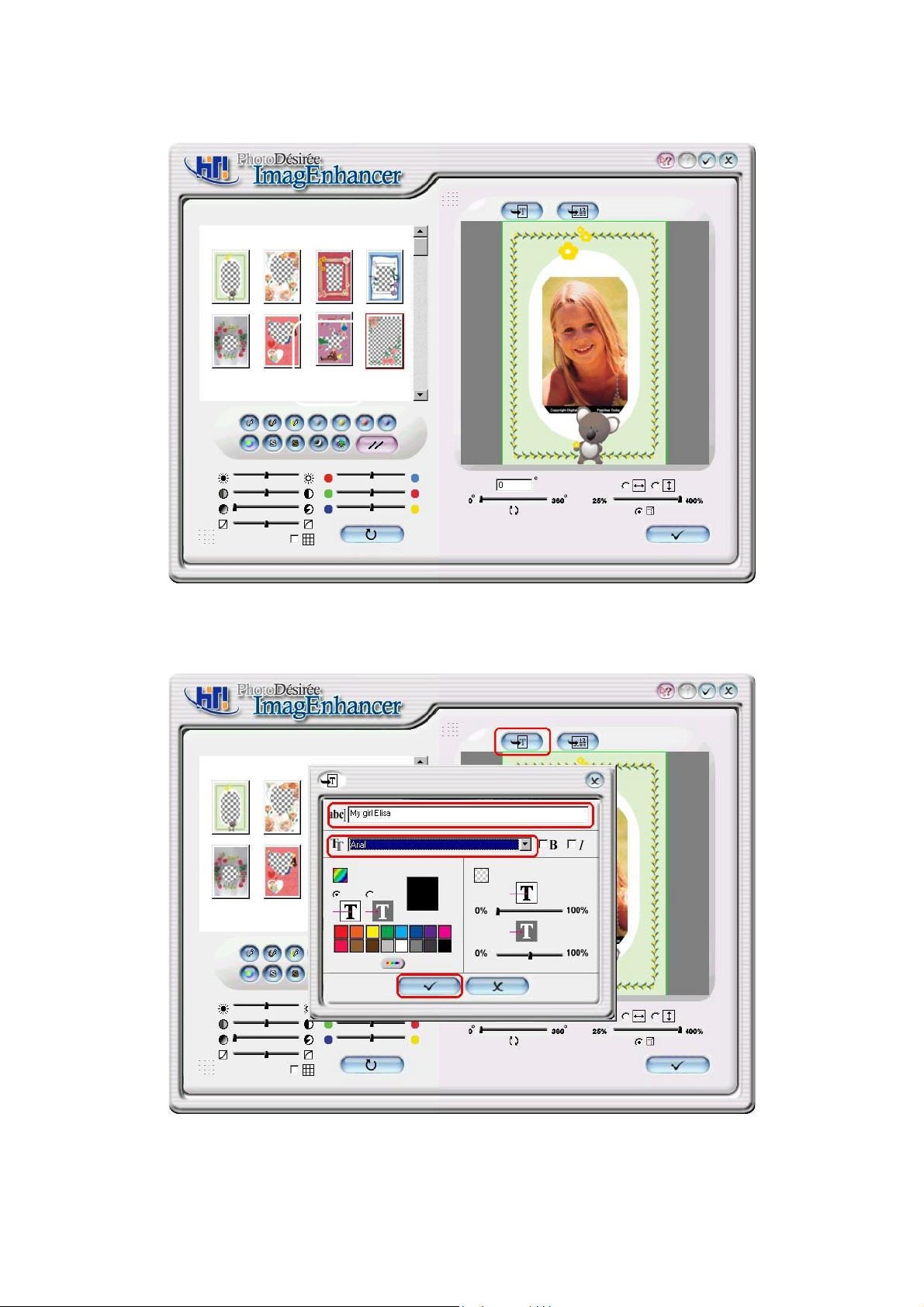

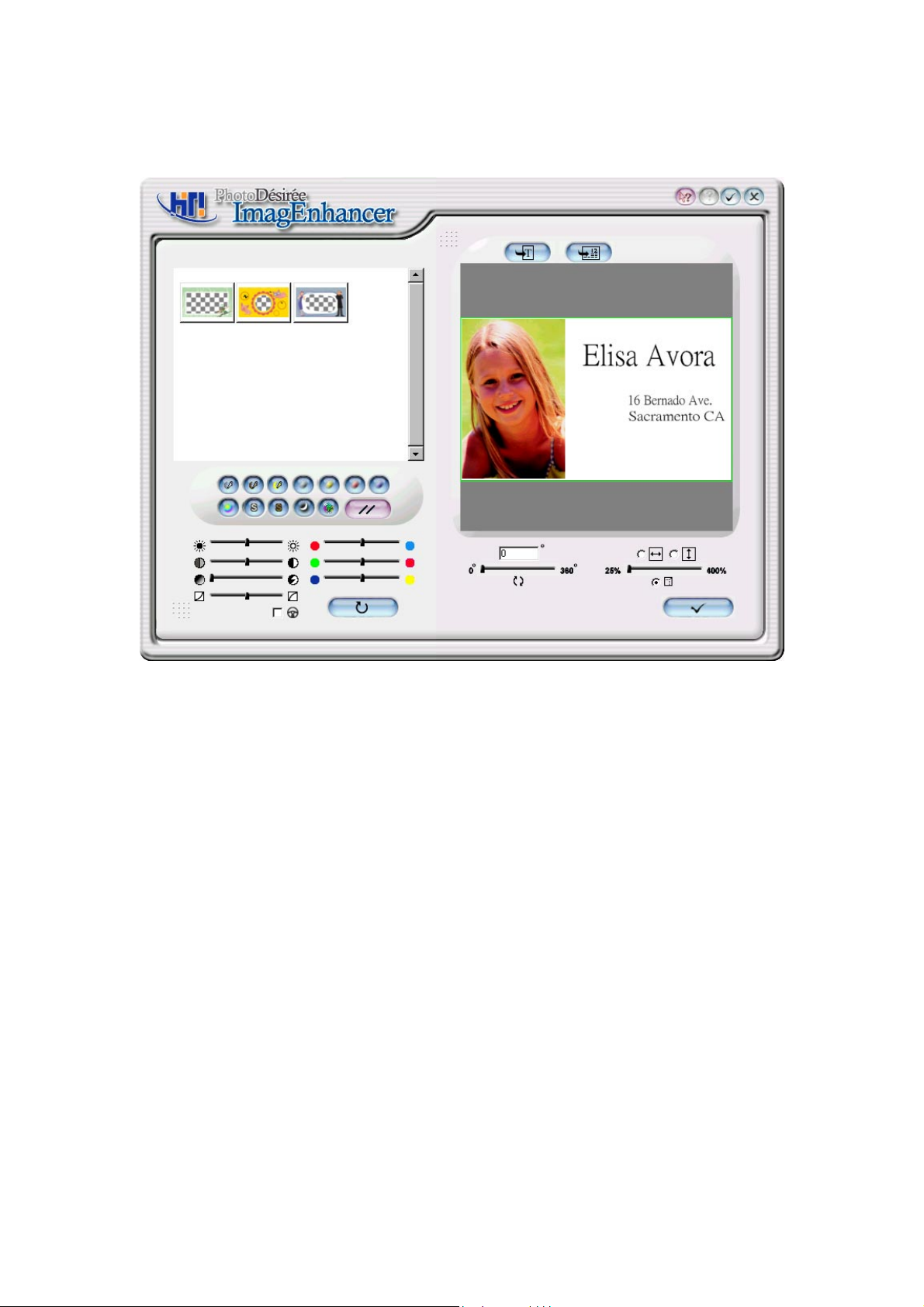

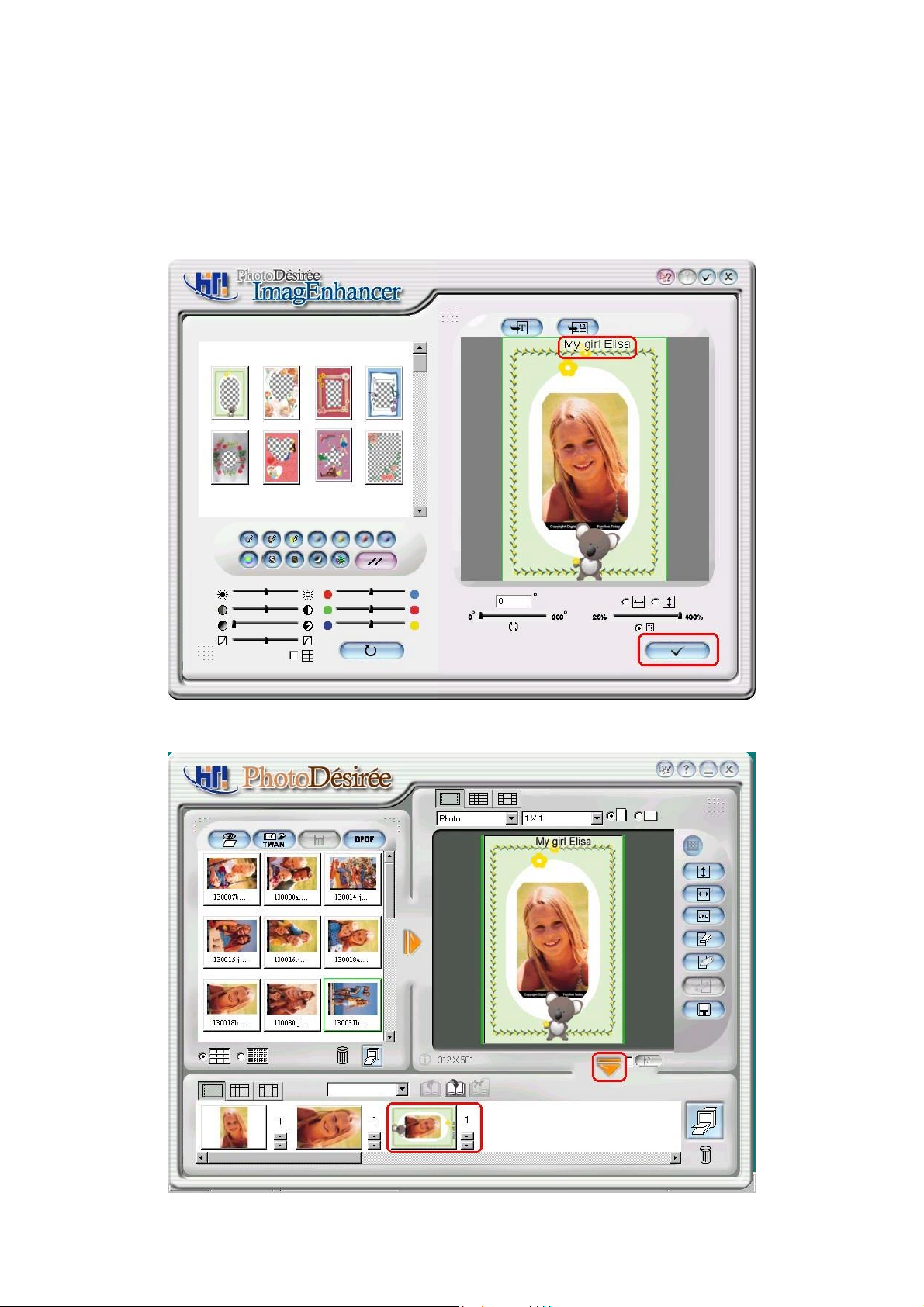

Change to edit your images. By change color tone,

contrast, sharpness, hue, gamma, and text can be

added to create personalize greeting cards,

calendars and business card. In addition image

can be rotated, maximize or minimize into different

size.

Provides direct connection into your other image

editors.

We certified only Photoshop, Photoimpact,

Photopaint and Paint Shop Pro.Note: If you have

no certified software, the icon would be

gray-scaled.

Saving image as file.

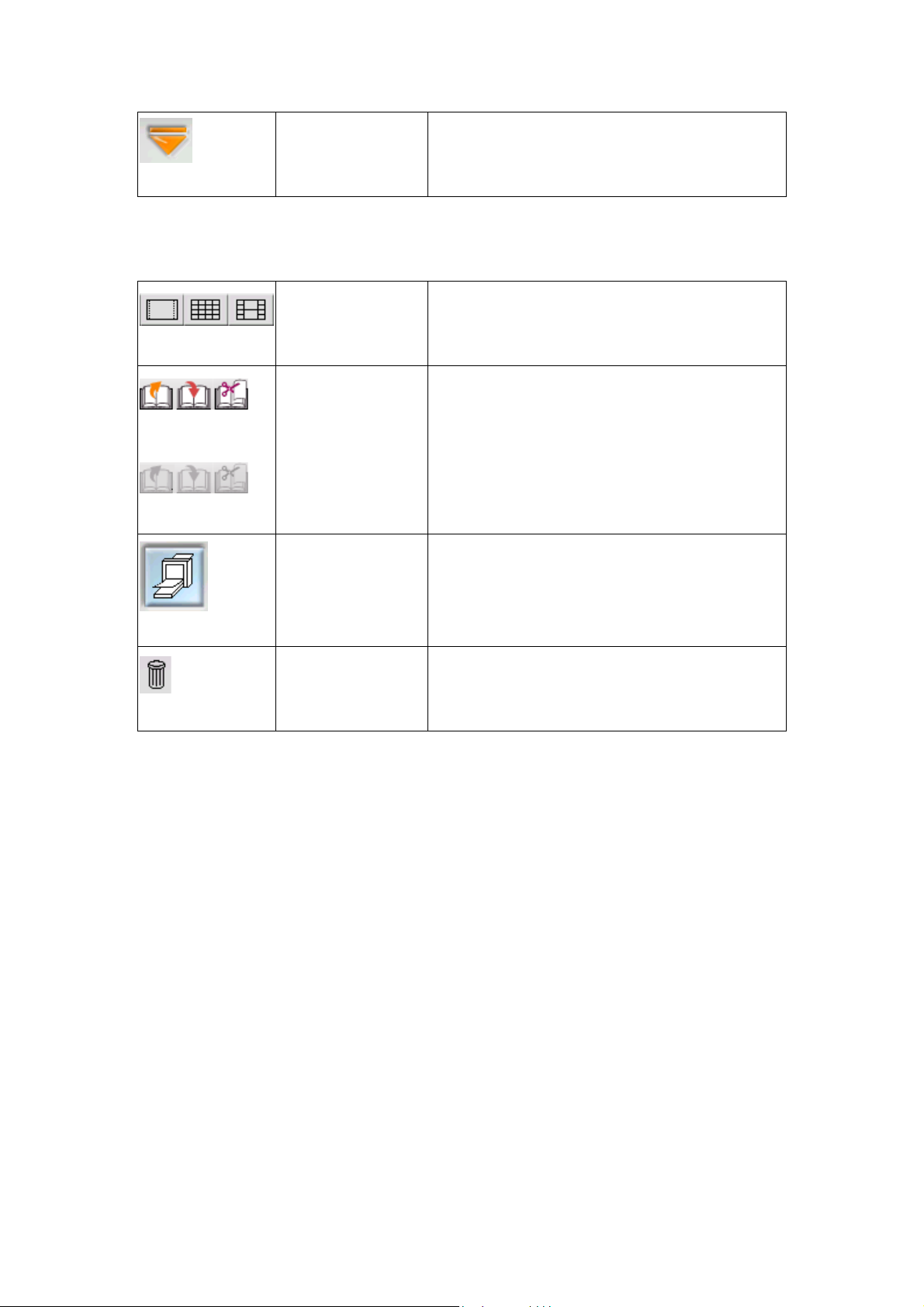

Send to Printer

Click your downward arrow to execute your printing

Queue Window

Queue

Photo paper,

Sticker 4x4 and

Sticker 4/2/4

Load, Save,

Delete to Album

Gray scaled icon

Print Queue

function by placing the images into the bottom

window.

Select paper format on print queue.

Images can be save as in album format for easy

access. If there are on albums, some icons will be

gray-scaled.

Execute the final printer command to the printer for

image print out.

Delete All Images

from Queue

Reset and clean the bottom window for next

printing.

3-4 Photo printing

1. Click the image from the Left Window.

2. Change layout style to portrait.

3. Fit to width.

4. Click the downward arrow for printing queue.

5. Click the "Print Queue" icon for print out.

3-5 ImagEnhancer: light on your


1. Click the image from the Left Window.

2. Change layout style to portrait.

3. Fit to width.

4. Click on editor for ImagEnhancer. Templates of different designs will

appear on the left window.

5. Double click your favorite template.

6. Click on the Text Icon to key in your content, such as “My girl friend Lisa”,

and choose correct font style.

7. Click the finish check on the bottom right.

8. Click the downward arrow for printing queue.

9. Click the Print Queue for print out.

3-6 Calendar

1. Click the image from the Left Window.

2. Click on editor for ImagEnhancer.

3. Click on the top add calendar.

4. Click year and month follow by type of format and background color. Click the finish check on the bottom left.

5. Click the finish icon on the bottom and click finish check icon on the follow

page.

6. Click the downward arrow for printing queue.

7. Click the Print Queue to print out.

3-7 ID Picture

1. Click the image from the Left Window.

2. Click on Photo Icon and drag the box right below Photo Icon and select ID

One Inch or Two Inches.

3. Drag the box right next to the ID card box for picture combinations.

4. (If need) Use ImagEnhancer to

z

Add colored and transparent text.

z

Add colored and transparent calendar.

z

Rotate and resize photo.

z

Adjust Skin tone.

5. Click the Downward Arrow for printing queue.

6. Click the Print Queue for print out.

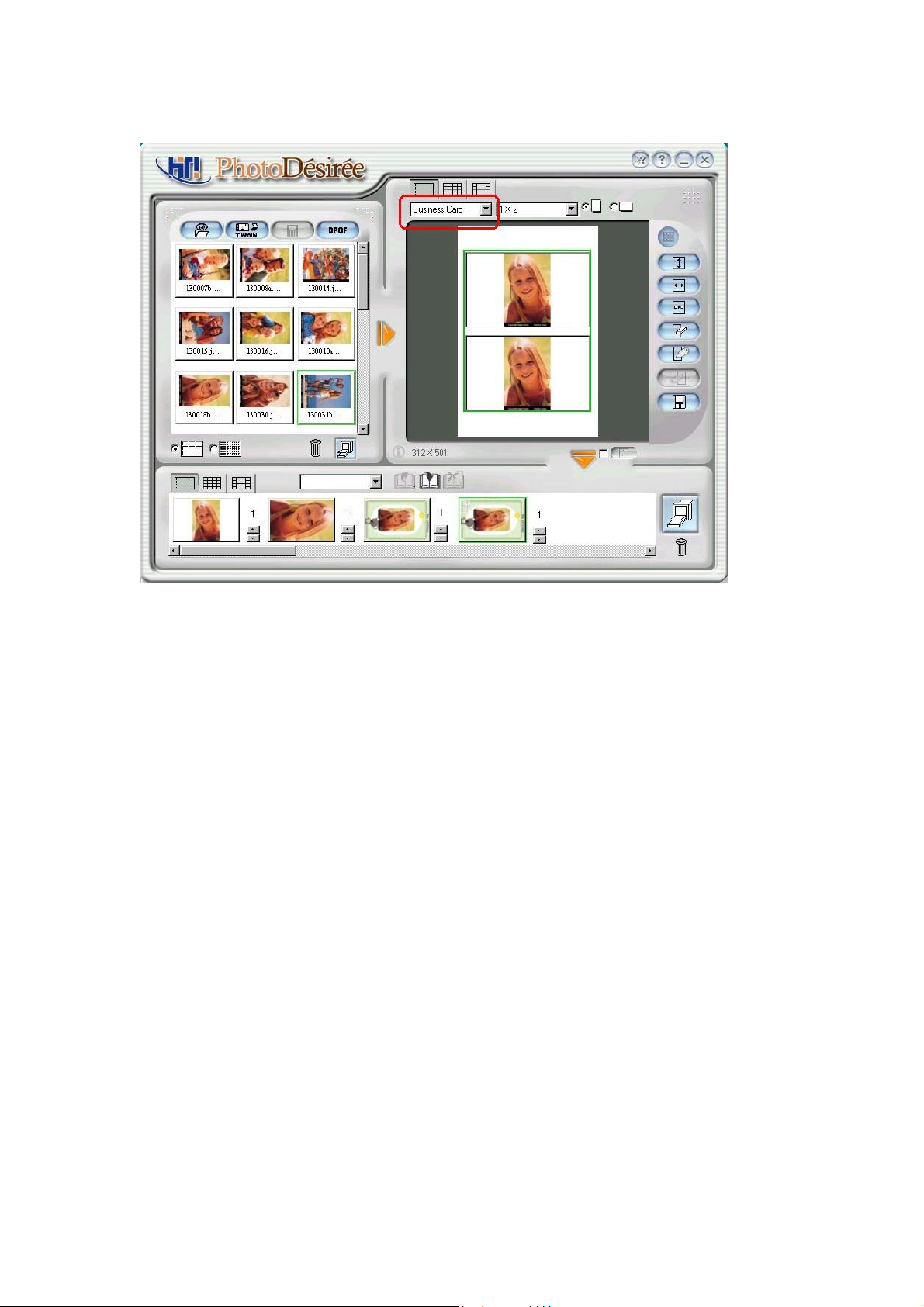

3-8 Business Card

1. Click the image from the Left Window.

2. Click on Photo Icon and drag the box right below Photo Icon and select

Business Card.

3. Drag the box right next to the business card box for picture combinations.

4. Click on the ImagEnhancer.

5. Click on the Text Icon on the top for text editing and color selection. Finish

by Clicking Ok Icon.

6. Click on the bottom left for color and contrast adjustment or Click on the

bottom right for rotation and size adjustments. Click the finish check on

the bottom right and return back to main menu.

7. Click the downward arrow for printing queue.

8. Click the Print Queue for print out.

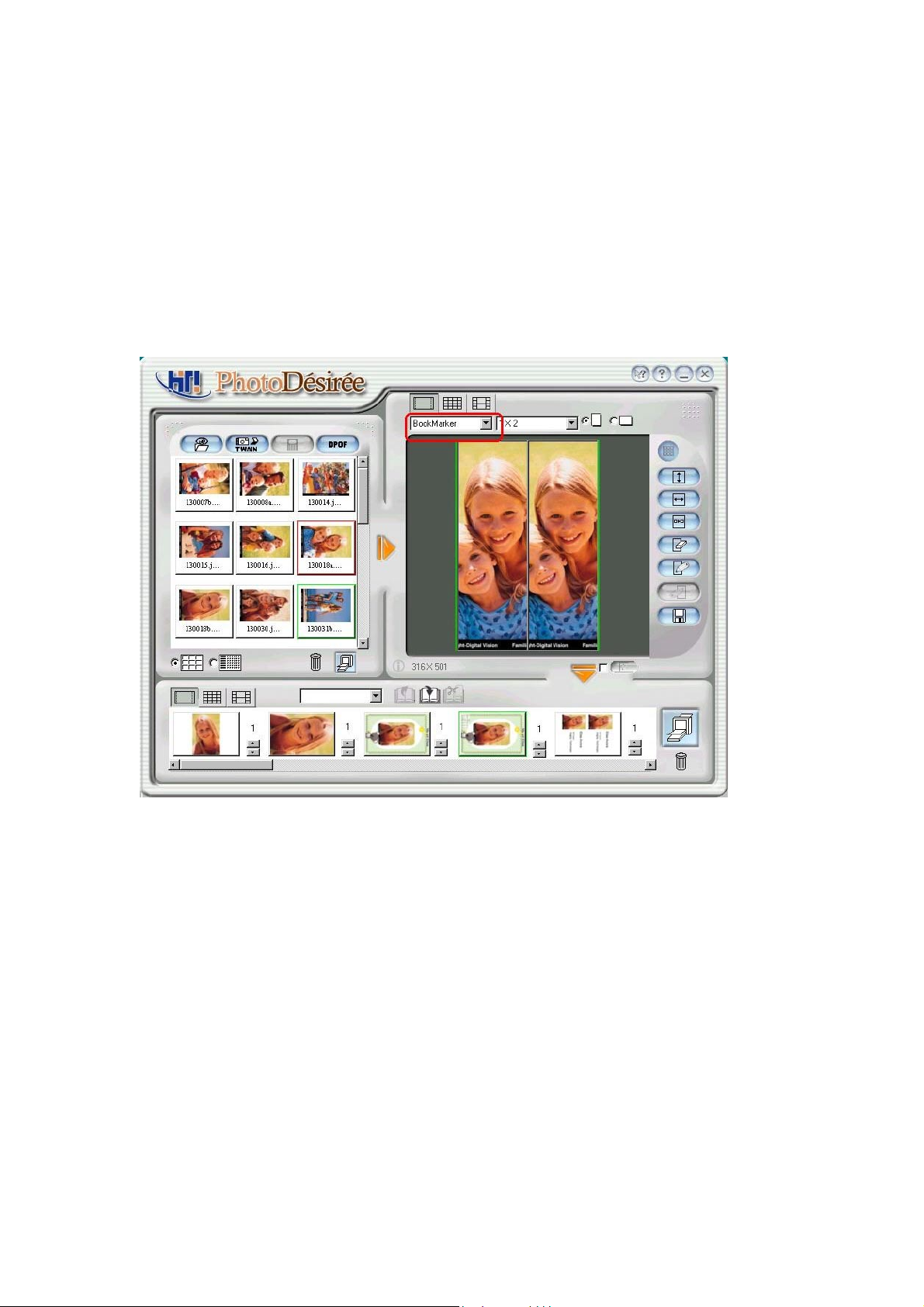

3-9 Book Marker

1. Click the image from the Left Window.

2. Click on Photo Icon and drag the box right below Photo Icon and select

Book Marker.

3. Drag the box right next to the Book Marker box for picture combinations.

4. (If need) Use ImagEnhancer to

z

Add colored and transparent text.

z

Add colored and transparent calendar.

z

Rotate and resize photo.

z

Adjust Skin tone.

5. Click the downward arrow for printing queue.

6. Click the Print Queue for print out.

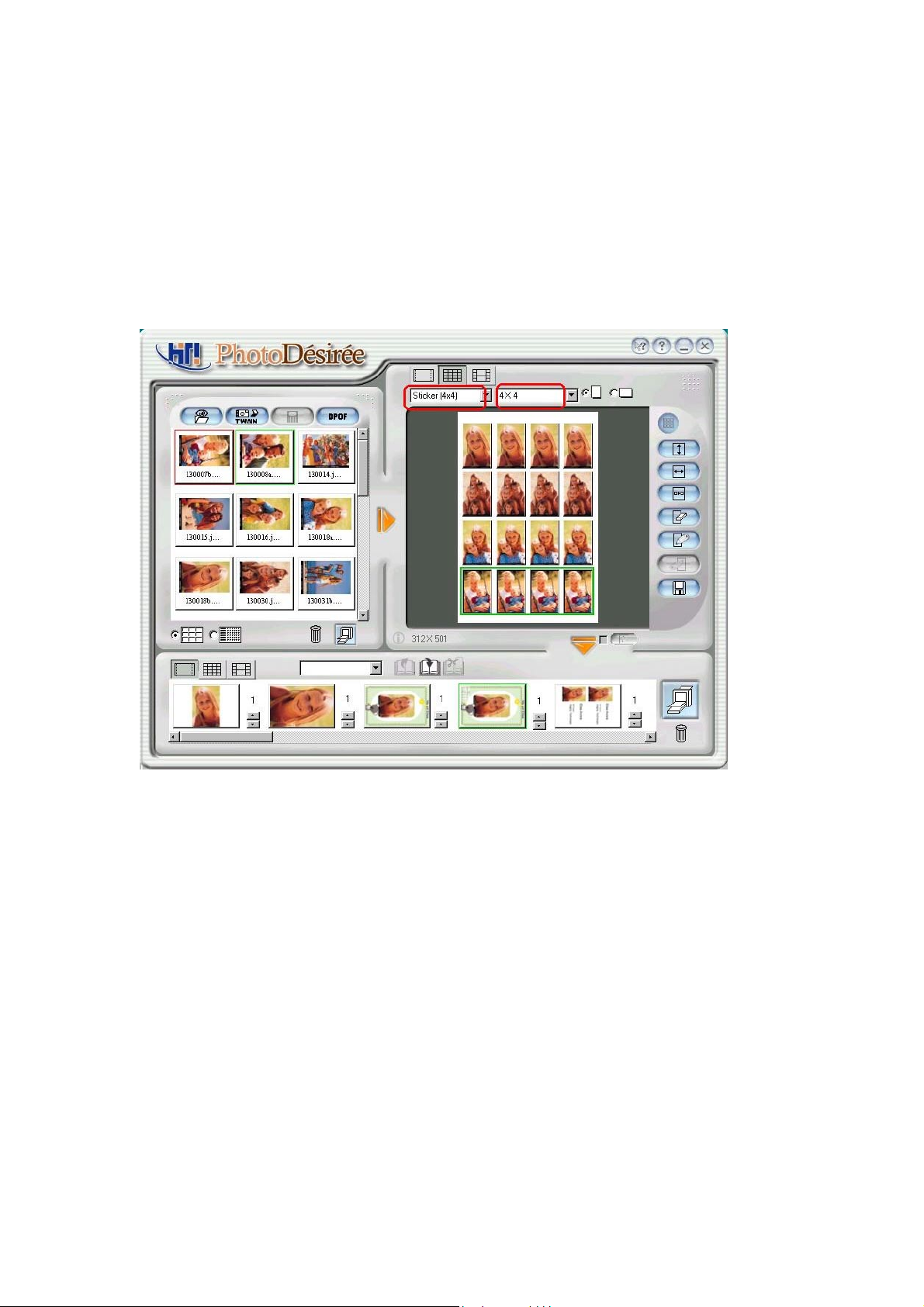

3-10 Sticker

1. Click the image from the Left Window.

2. Click on Sticker Icon.

3. Drag the box right next to the Sticker box for picture combinations.

4. (If need) Use ImagEnhancer to

z

Add colored and transparent text.

z

Add colored and transparent calendar.

z

Rotate and resize photo.

z

Adjust Skin tone.

5. Click the downward arrow for printing queue.

6. Click the Print Queue for print out.

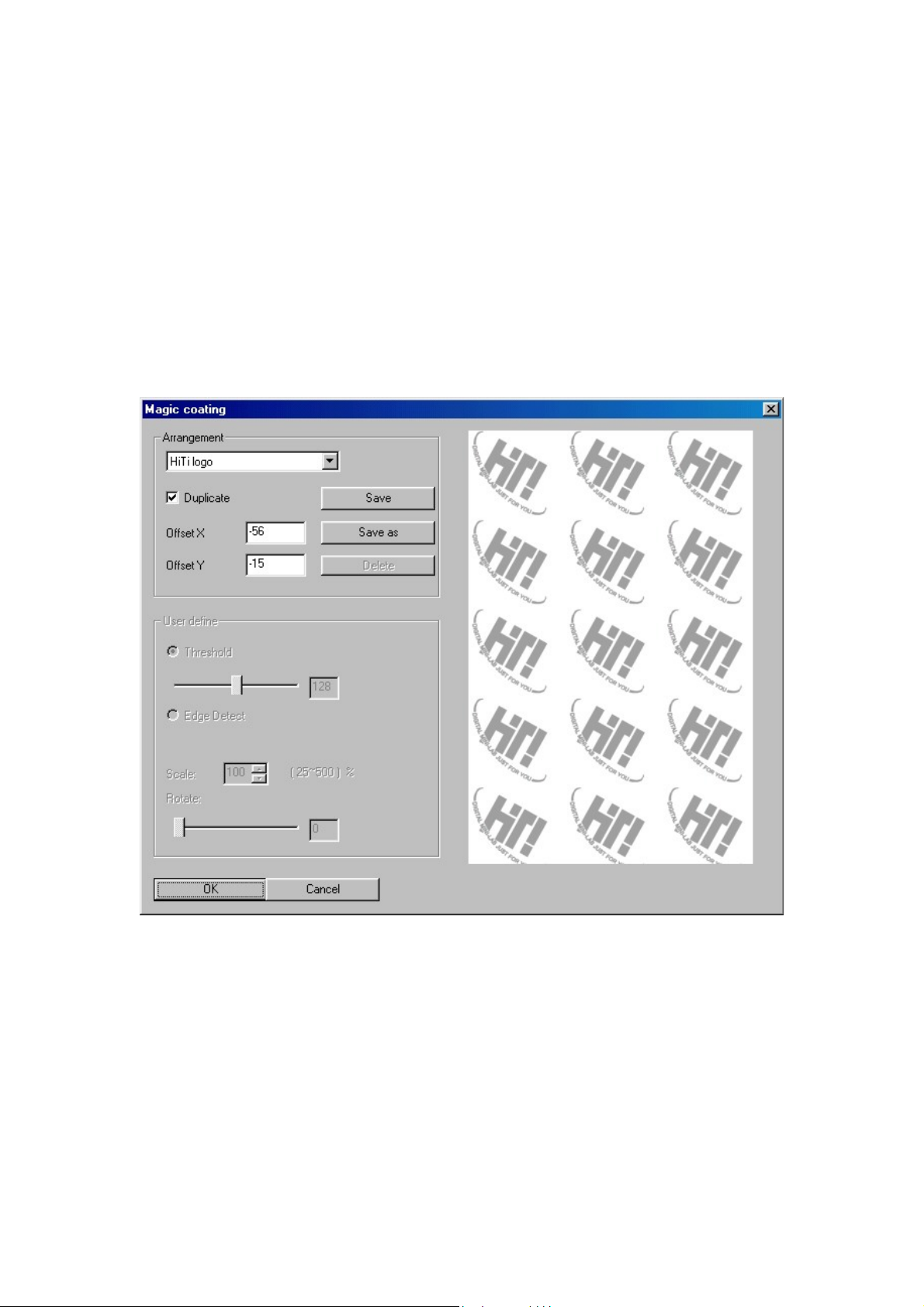

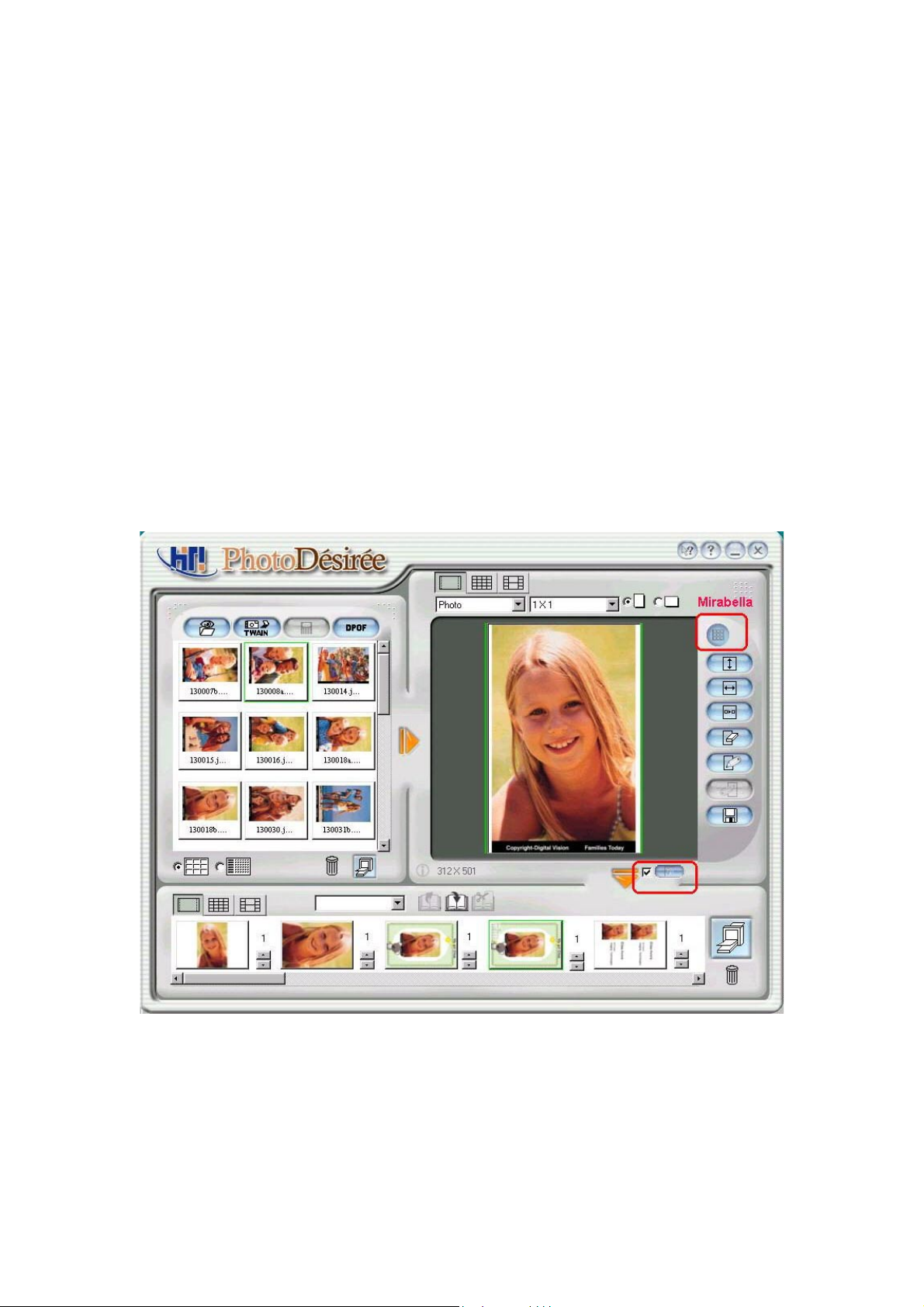

3-11 Magic Coating and Mirabella

Entering into the

horoscope signs or Twelve Branches patterns, or import your image to do

some watermark editing:

1. Duplicate to full page (Duplicate): you can decide whether or not import

your image to the full page duplication

2. Horizontal Position (Offset X): Fill in the appropriate number to determine

the horizontal starting position for the image.

3. Vertical Position (Offset Y): Fill in the appropriate number to determine the

vertical starting position for the image.

Magic Coating

function, you may choose the built-in

You may decide to use which method to convert you color graphic file into a

black and white watermark file.

1. Threshold Method (Threshold): The threshold method will convert the

image to a black and white graphic file with large contrast.

2. Edge Detection Method (Edge Detect): The edge detection method will

enhance the image edging effect when converting it into a black and white

graphic file.

3. Scale (Scale): Adjust the size of the image.

4. Rotate (Rotate): Adjust the angle of the image.

After the configurations are set up, you can save it as a self-defined template

for later use.

Mirabella

Mirabella makes use of the analytical printing method to have 9 kinds of

unspecific effects for the image. You just need to select your favorable color

expression on the monitor screen directly, and you can adjust the color of the

image immediately.

Chapter 4. Driver Details

4-1 Driver Setting (Win98)

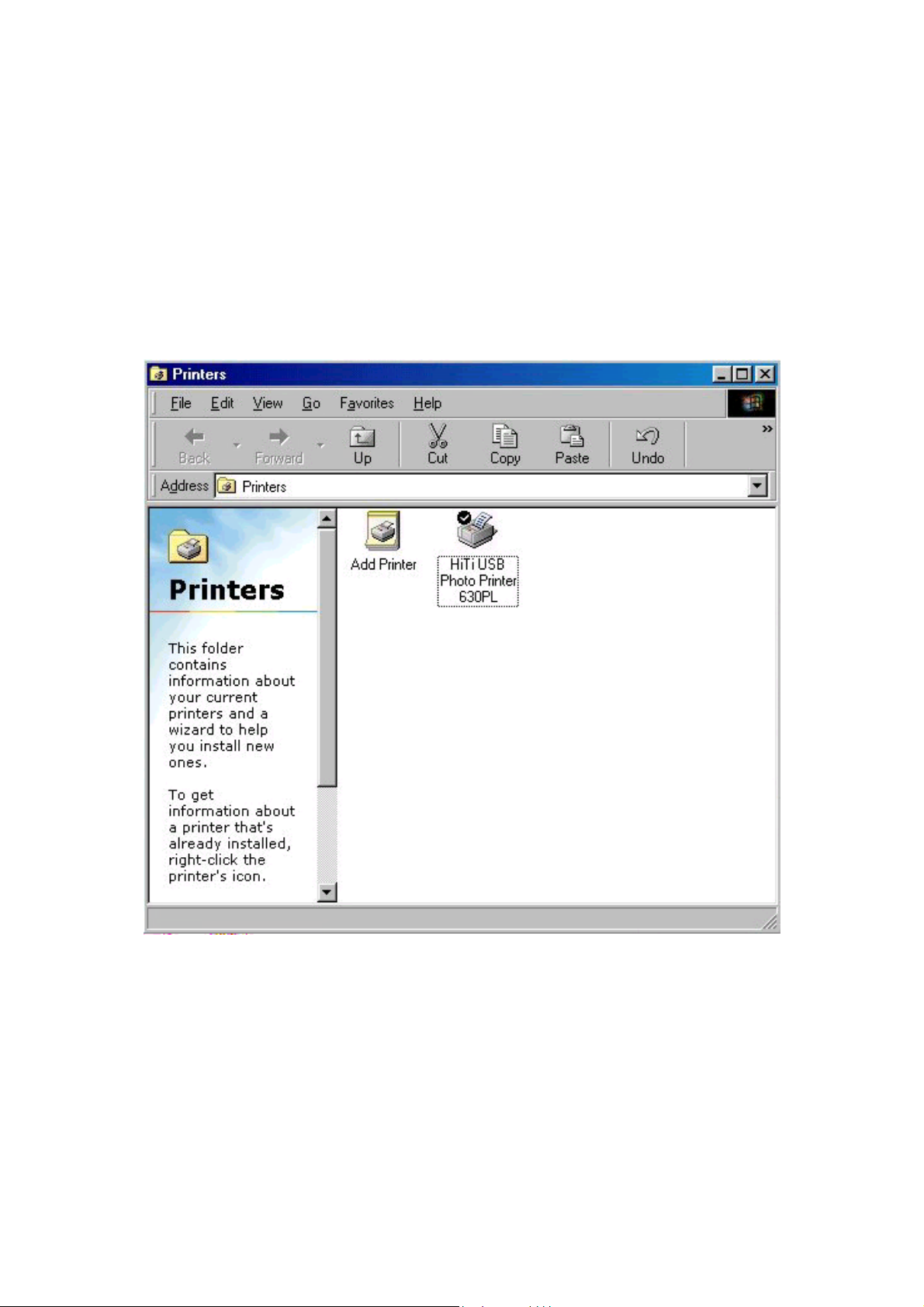

You can find driver setting under Control Panel/Printers. Just choose it and

right click “Properties”, the display every details.

The printer driver is divided into six different categories:

4-1-1 General

This Category gives you greater flexibility in printing out photo of your liking.

It prints out draft copies of your photos with selection window on the top for

image selection and page divider. Upon selecting your photos, please click

the bottom preview bottom for draft print out for your review.

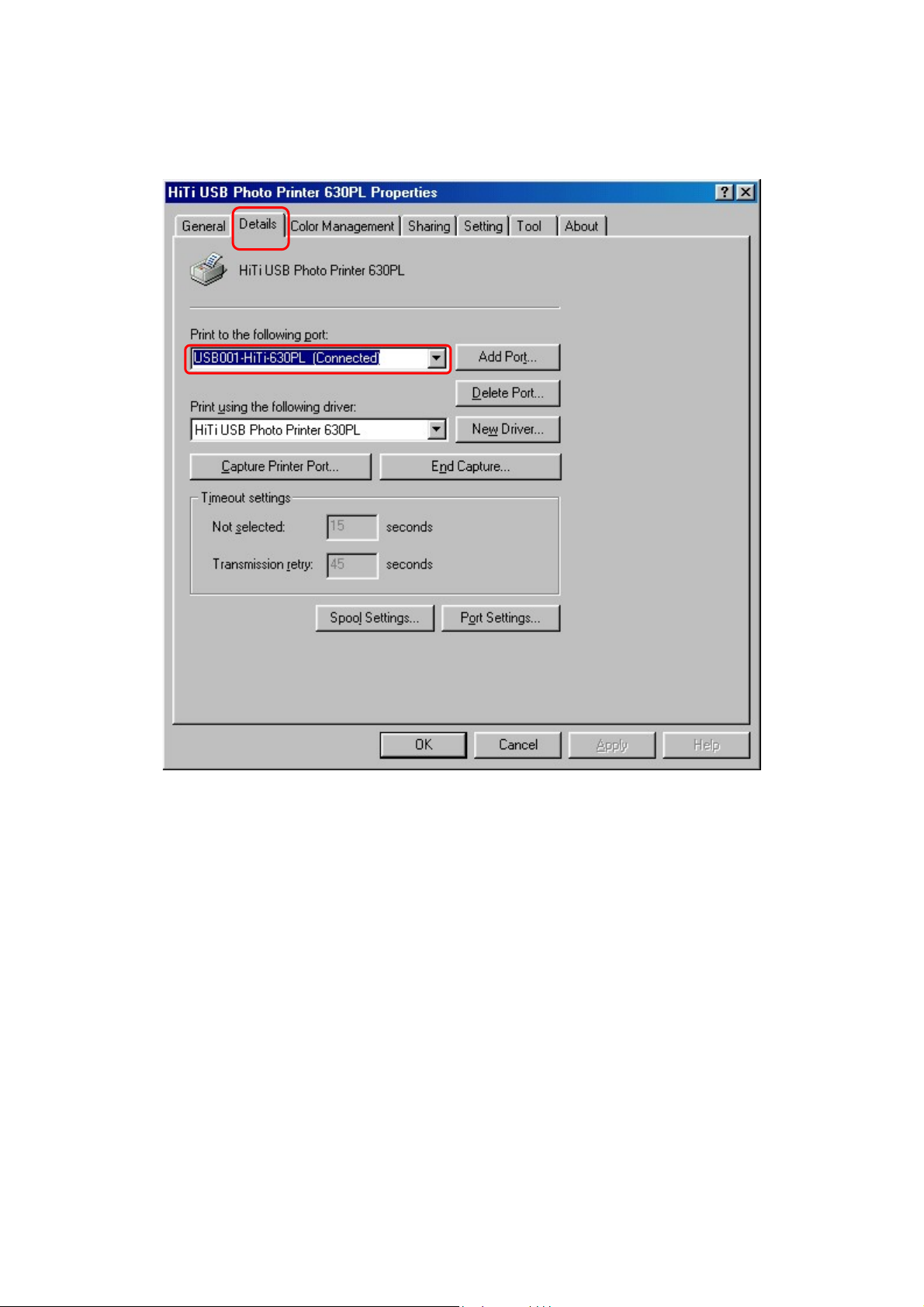

4-1-2 Details

Connect to the below printer icon gives you a selections of various different

printers or paths that have been preinstalled into the system. You can drag

down the right arrow to make your selection. Use the printer driver below for

printing icon provides a full range of driver that you could utilize for printing.

Again drag down the arrow on the right to make your selection. After you

have made your selection please click on connection Icon below

"New connection": Gives you the flexibility to install a new printer or device for

printing.

"Delete": Gives you an option of deleting excess printer.

"New Driver": With this icon you can add additional printer driver on to your

existing setup.

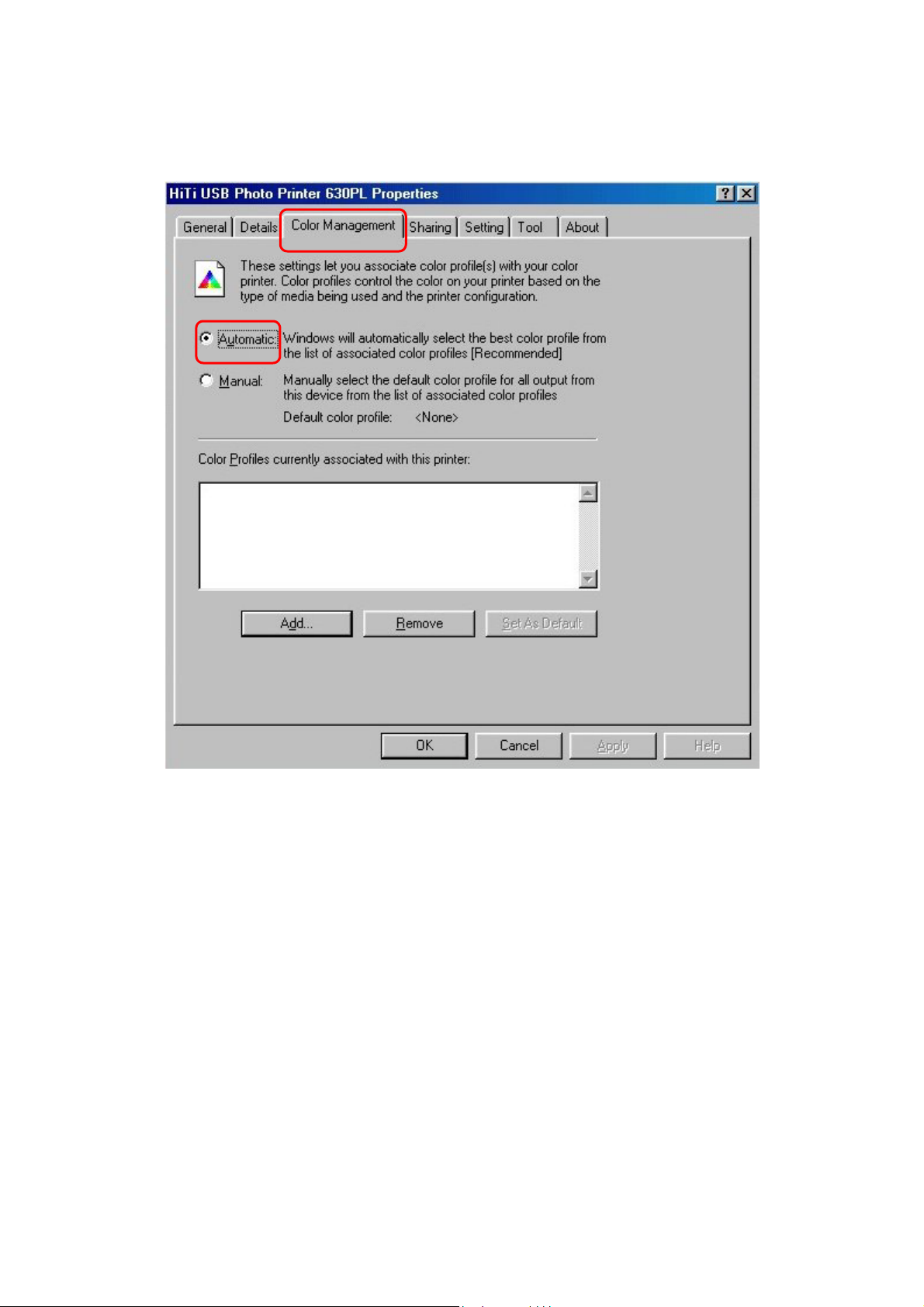

4-1-3 Color Management

This feature allows you to connect or disconnect from various different

software setting that will effect the coloration of the printer out. You may

selection them from the window below. Please press Add or Cancel bottom

to make your selection.

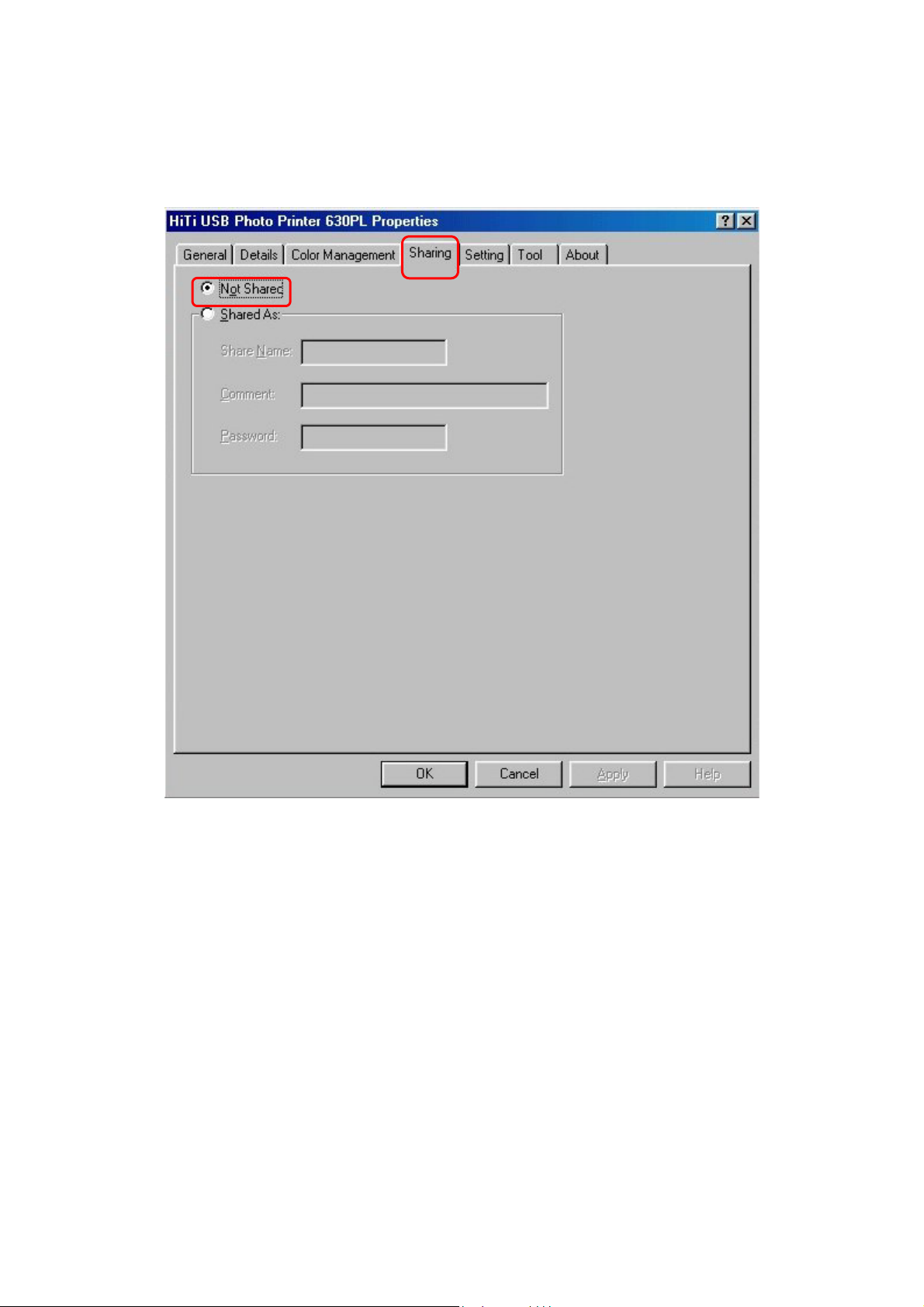

4-1-4 Sharing

This feature is ONLY available when you install “Microsoft Networks". It is

using this printer in a local LAN environment. You can share it as a public

printer,

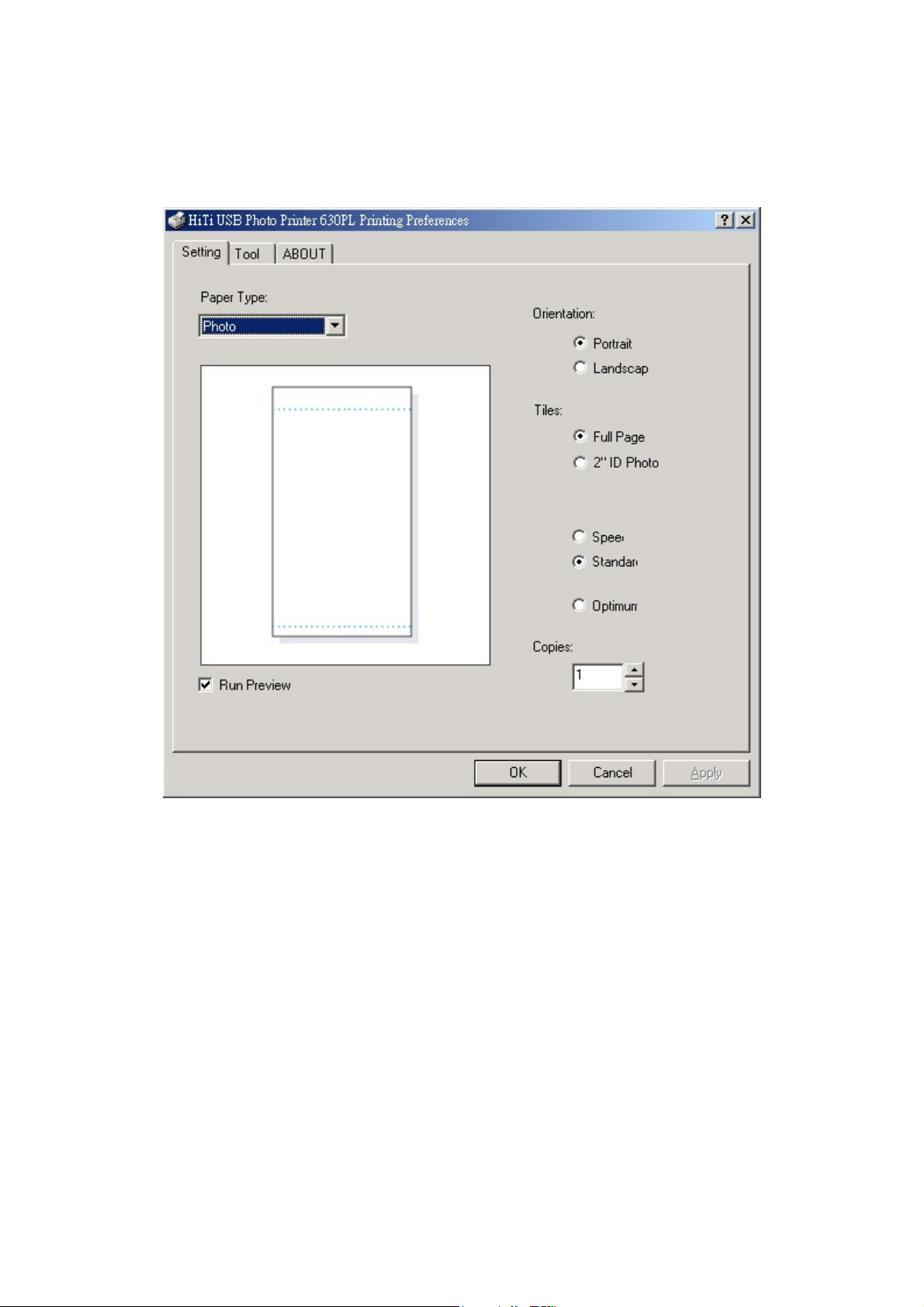

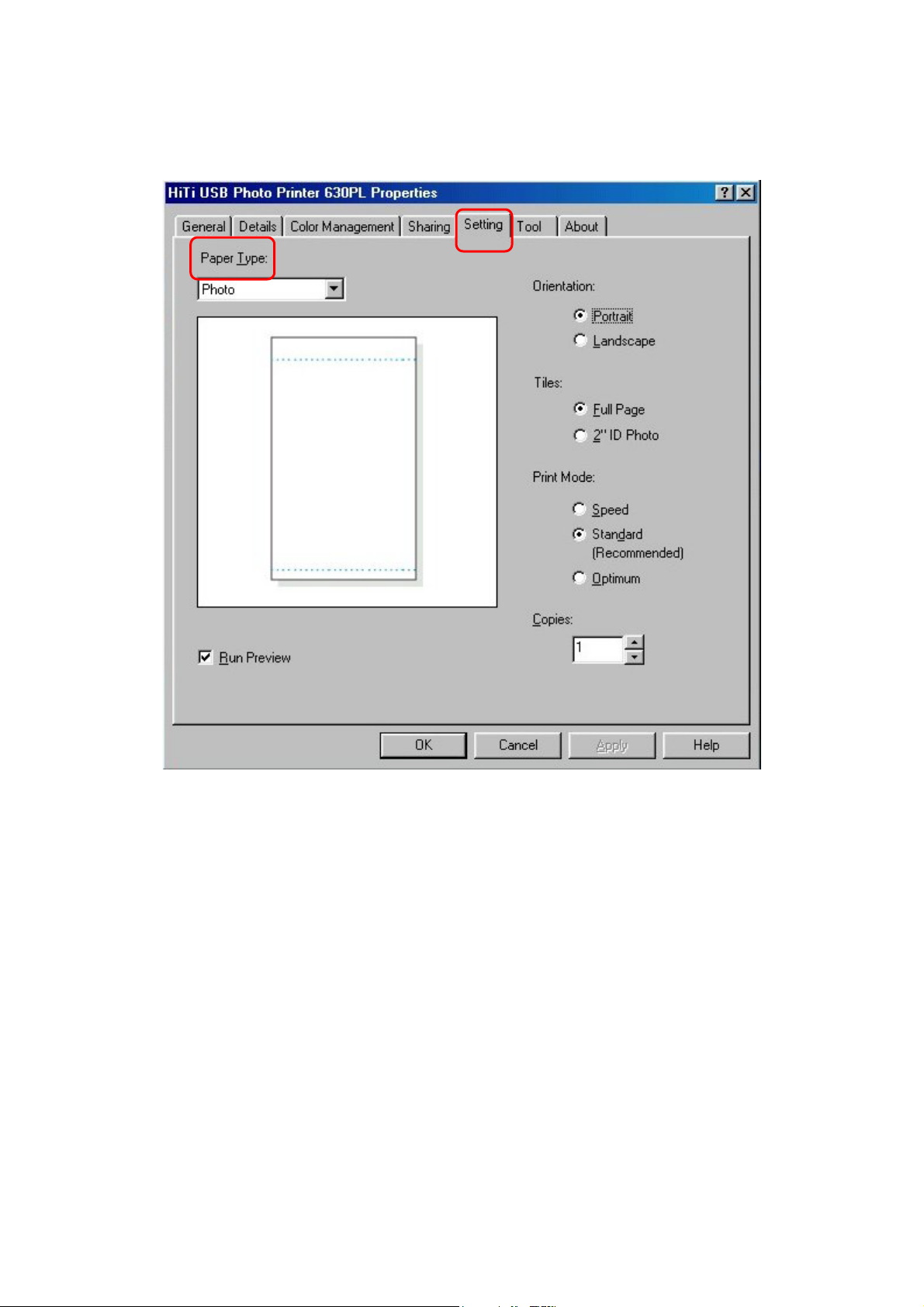

4-1-5 Setting

Photo type

from “photo”, “sticker 4/2/4” and “sticker 4x4”

Orientation

clicking the small circle.

Titles

Printer mode

Copies

combo box identifies output format of your photo. You may select

gives you a choice between portraits of landscape setting by

Gives you a choice between Full Page or 2” ID photo

Provides range of printer speeds for your selection.

edit box set the number of copies that you may want to print.

4-1-6 Tools

Position Calibrating

1. According to your print out, choose the perfect one that matches the sticker

dimension.

2. You must fill in the number of PART A and PART B in order to adjust the

horizontal and vertical margin.

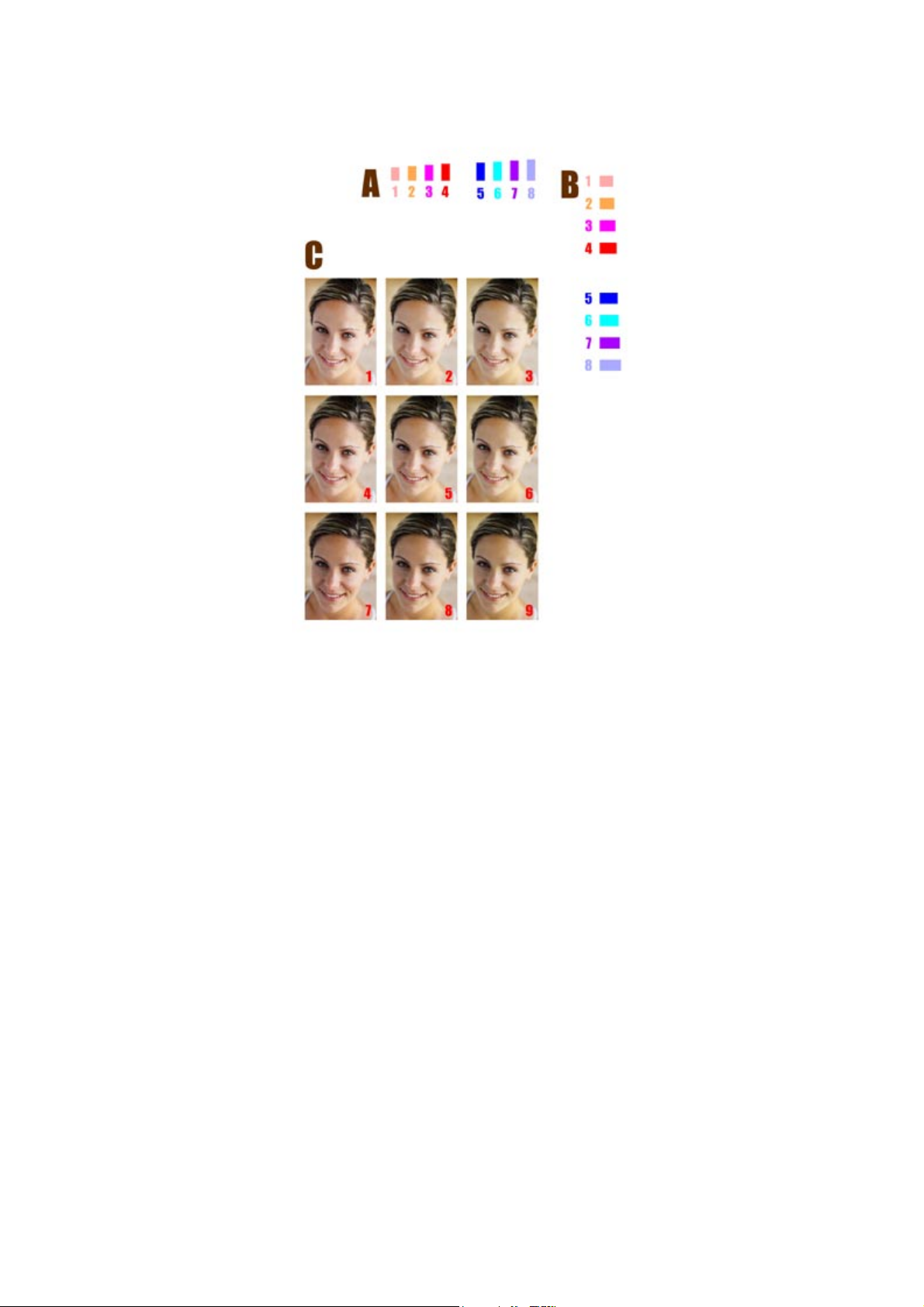

Color Preference Setting

1. This option gives you a natural look of your skin tone in the photo. In

order to make your selection process easier, you may select from 9

different images of pre-toned photos from the nine icons listed in AREA C.

2. Color matching can also be conducted by clicking the circle on the color

matching selection.

3. If you wish to do nothing you can also click the none selection

Holding the mouse icon and dragging it to the location of your preference can

accomplish position adjustment. Upon finishing, click the apply icon on the

bottom. If you feel more detail instruction is needed, please click on the Demo

Icon for detail demonstration.

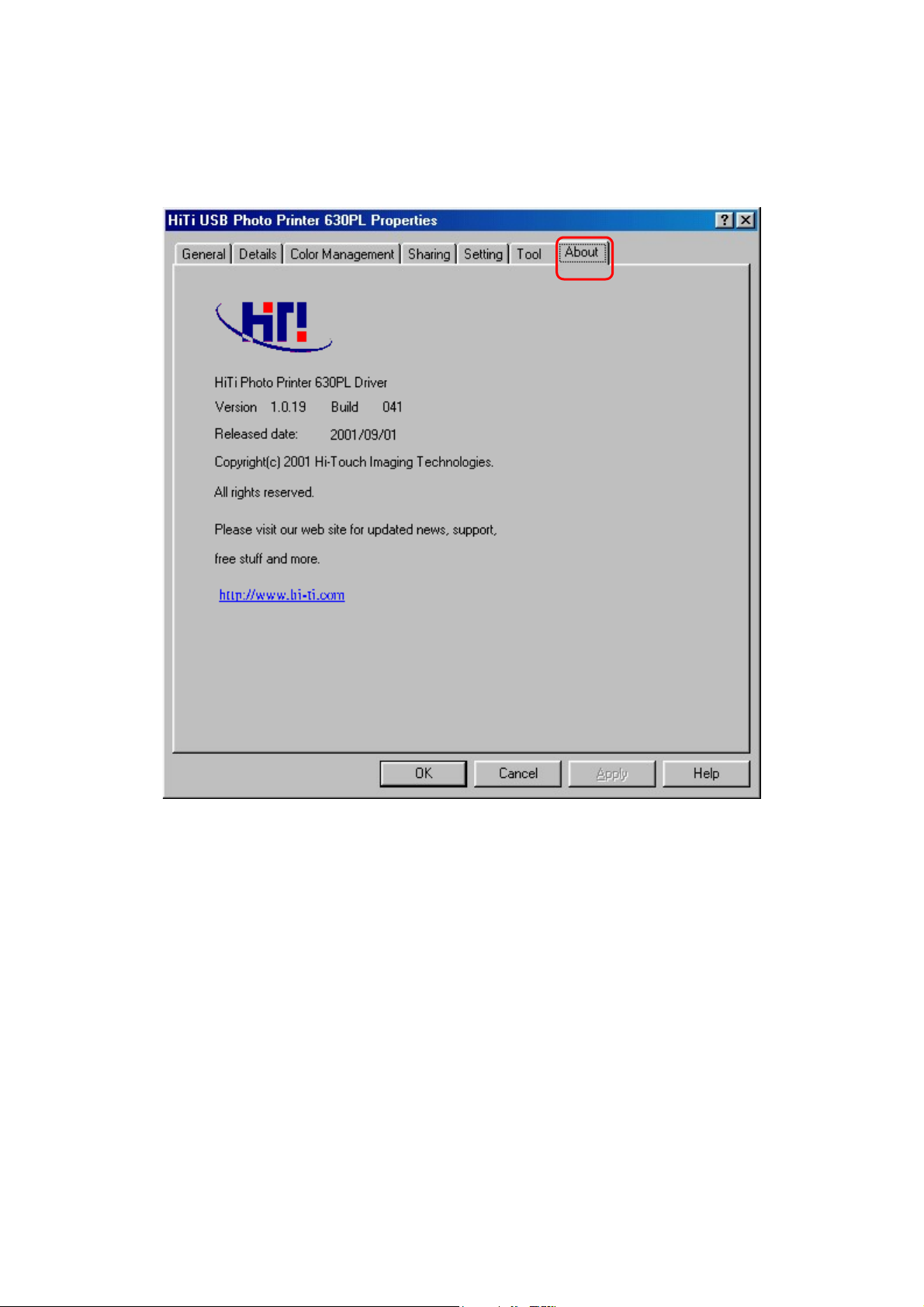

4-1-7 About

This section shows the detail copyright information of this driver and web site

address for any inquiries.

4-2 Driver Setting (Win2000)

You can find driver setting under Control Panel/Printers. Just choose it and

right click “Properties”, the display every details.

In Windows 2000, it is very similar with Windows 98 setting. We only

introduce the difference between Win98 and Win2000.

If other part we not mentioned, please take reference with same part on

Windows 98.

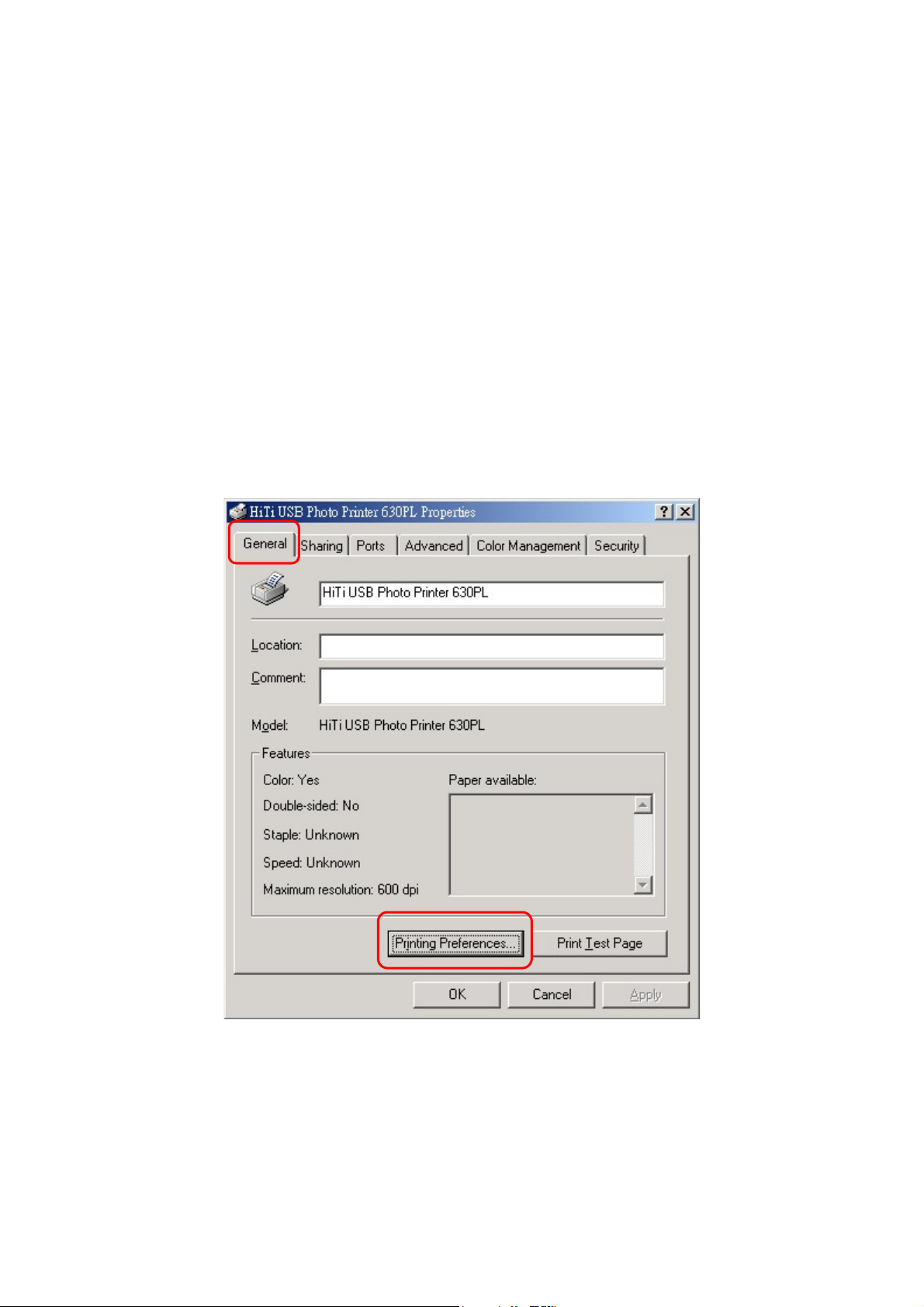

4-2-1 General

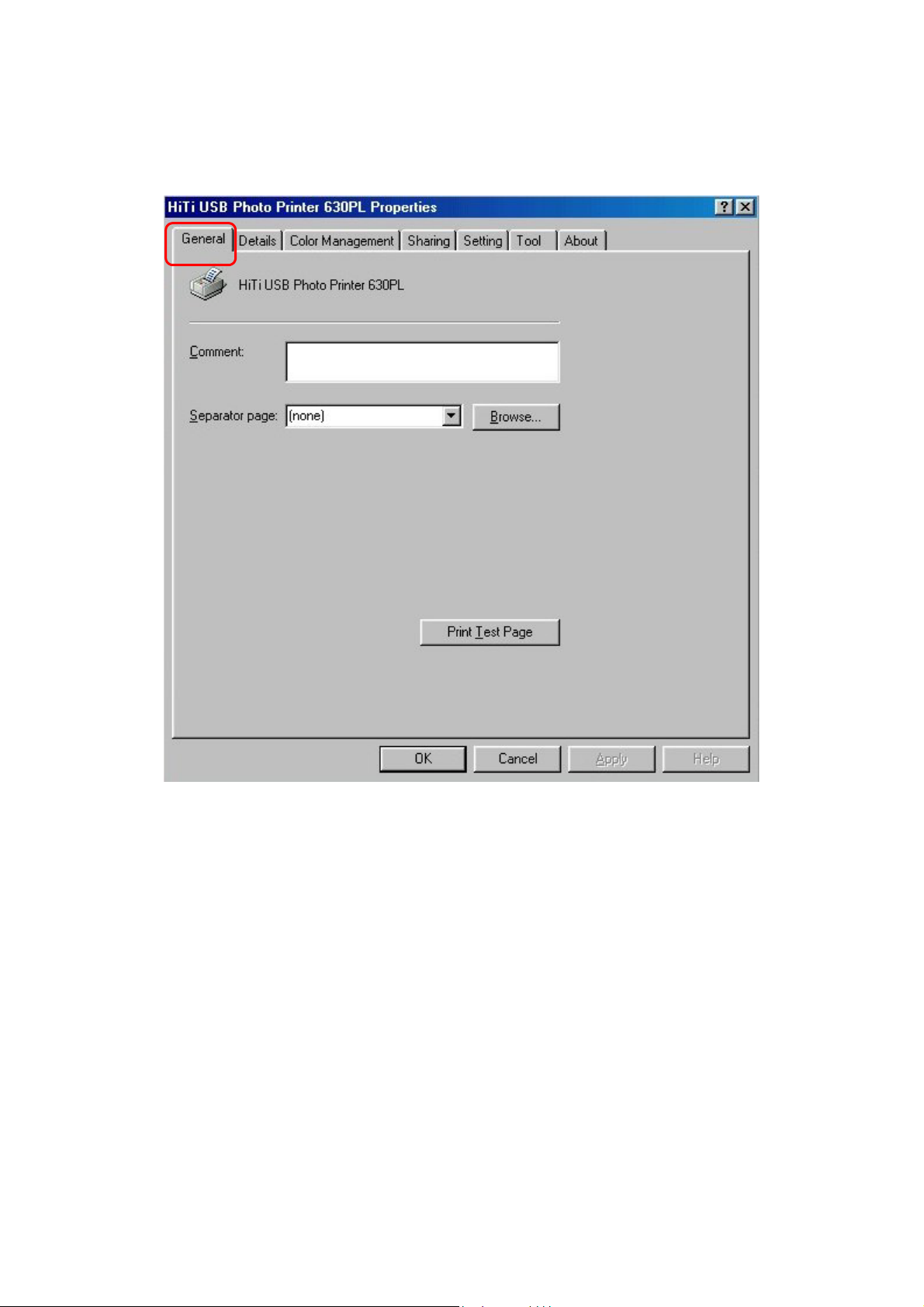

"General" tab only display general info of printer. You can change Location,

and Add comment if you want to share with others.

Please press

Printer Preferences…

button.

4-2-2 Printer Preferences

When you press “Preference” will appear 3 tabs. These 3 tabs functions are

the same as win98 driver. Please "win98 driver settings" for details.

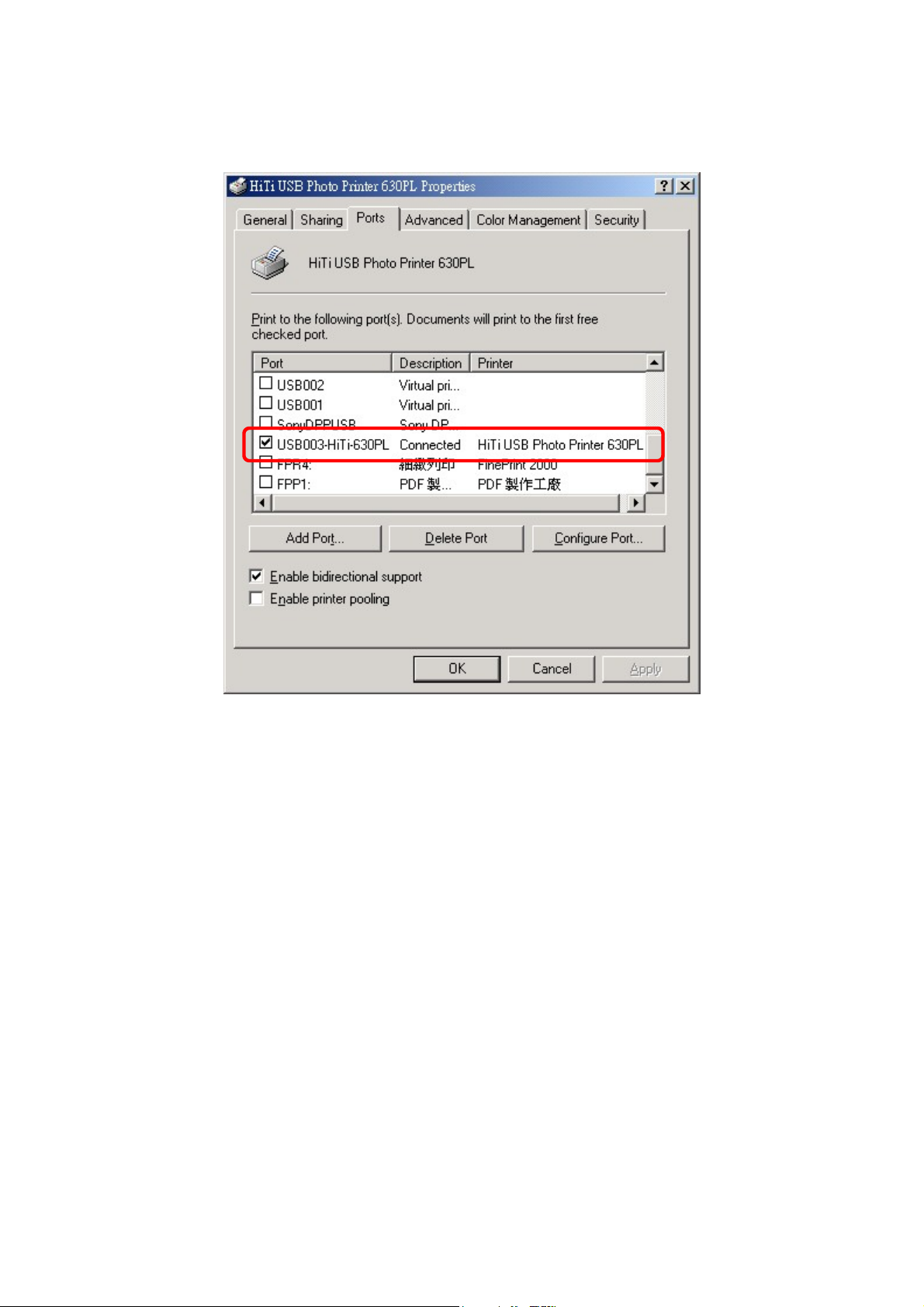

4-2-3 Ports

HiTi printer will create “virtual Printer port” for printing through USB. All you

need to do is to make sure that your Printer status is “Connected”.

4-3 Preview function in driver

In Windows 98 /2000, the preview part is the same.

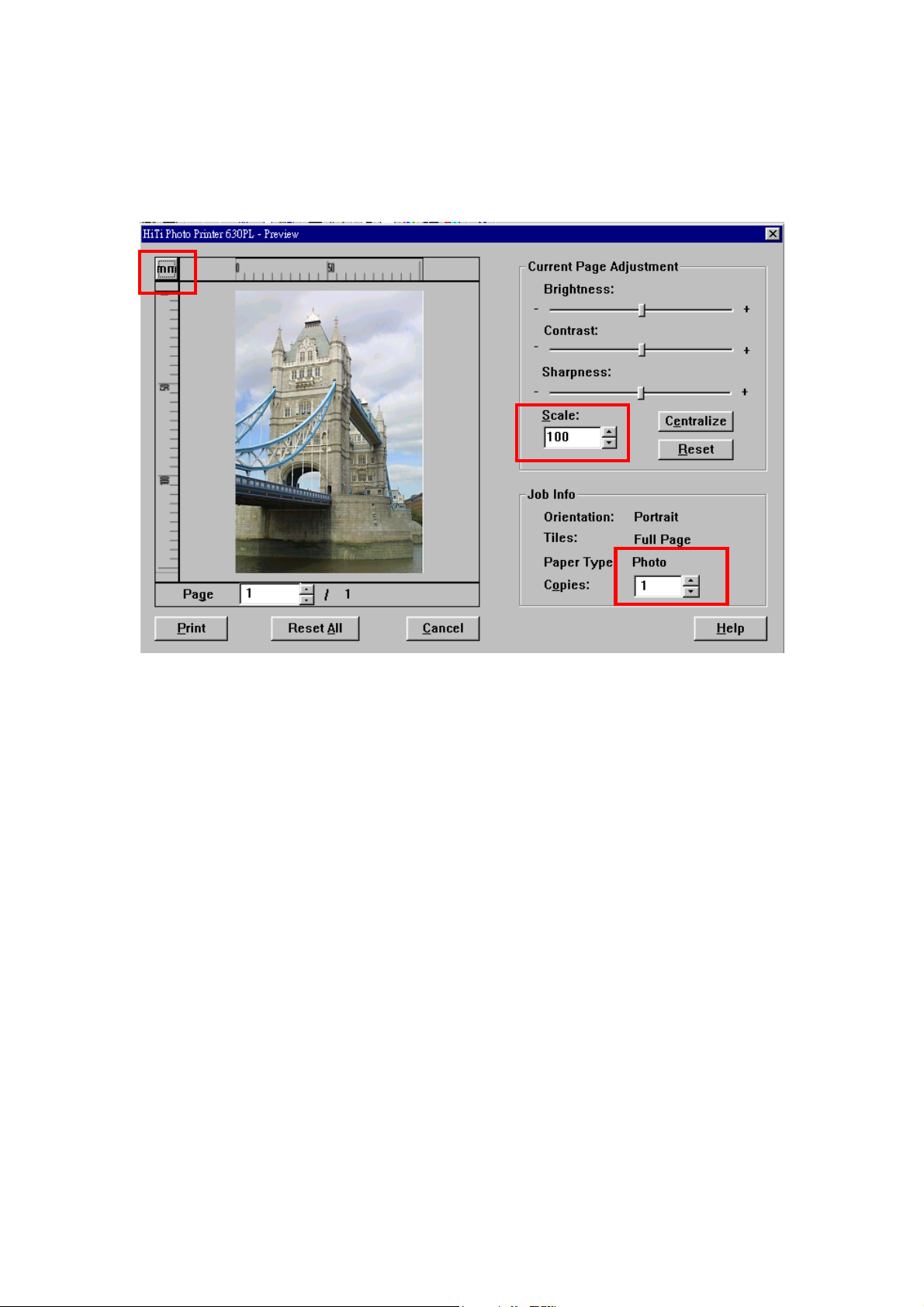

Function: Before you printing, if you have checked the box of “Run preview”

from the contents of “Setting” tab,

checking. You will have the final chance to change and check everything.

1. Adjust Brightness, contrast, sharpness and in page format.

2. Control scaling factor, if not satisfied for the printing size.

3. Check the actual pages printed in specified pages.

4. Change the measurements unit in “mm” or “inches”.

preview application

will run for the final

4-4 Uninstall Driver

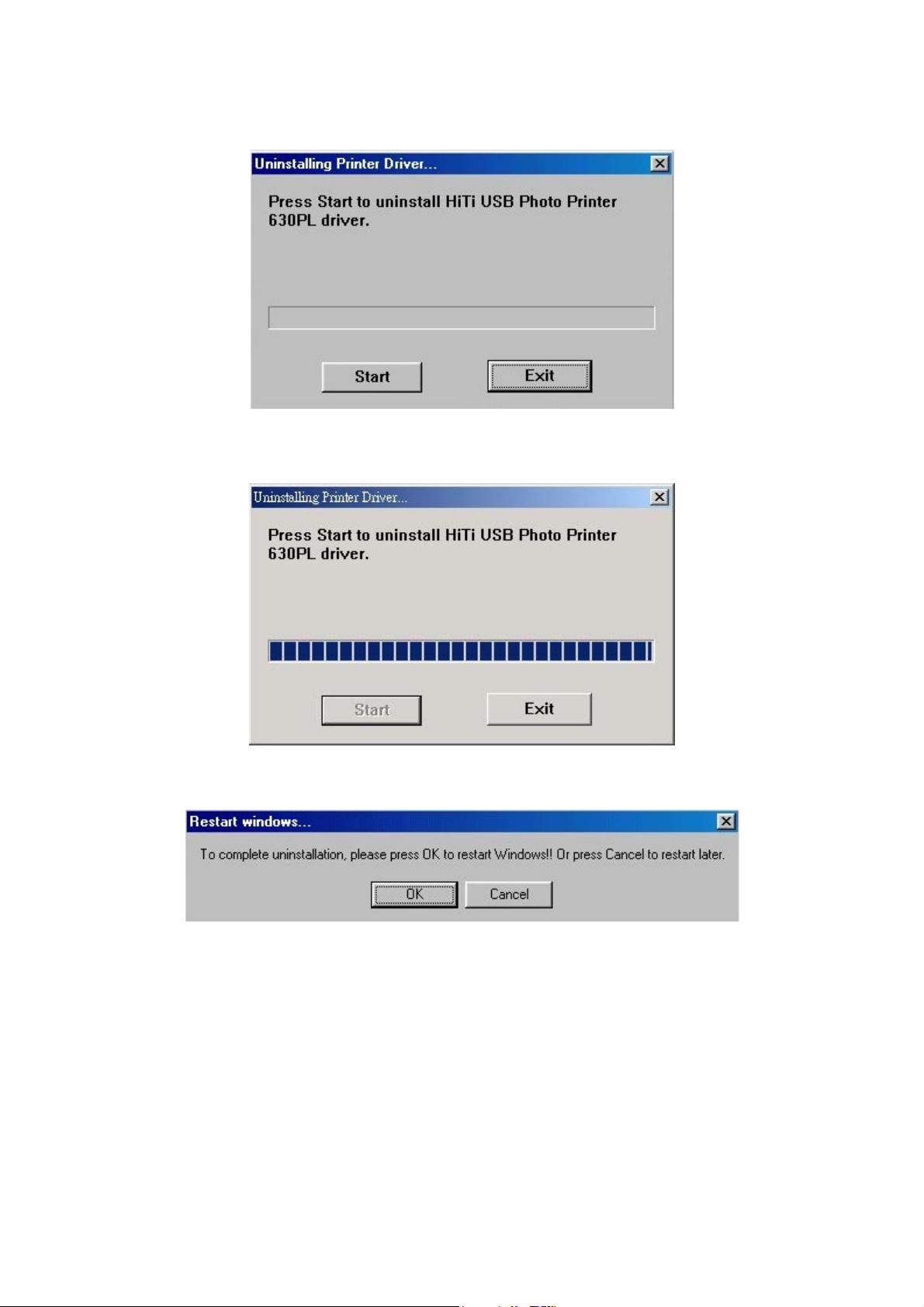

4-4-1 Uninstall Win98 driver

Driver Uninstalling happened on: If you want to complete uninstall your printer

driver, or you want to change new driver.

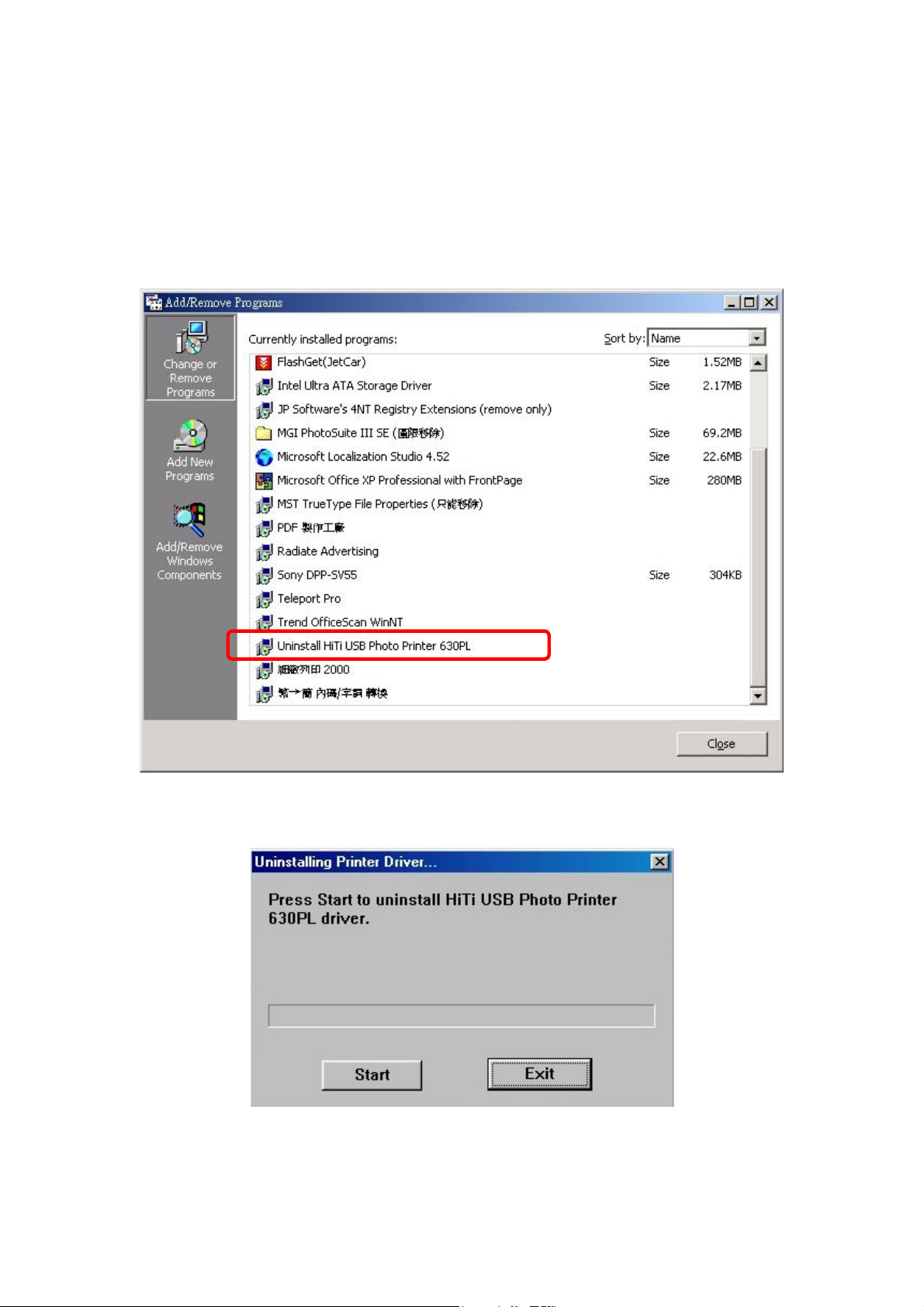

1. Action: Use Control Panel/Printers/ Choose "Uninstall HiTi USB Photo

Printer 63xPL/PS", then press "Add/Remove".

2. Then begin to uninstall driver.

3. Wait the program finished this procedure.

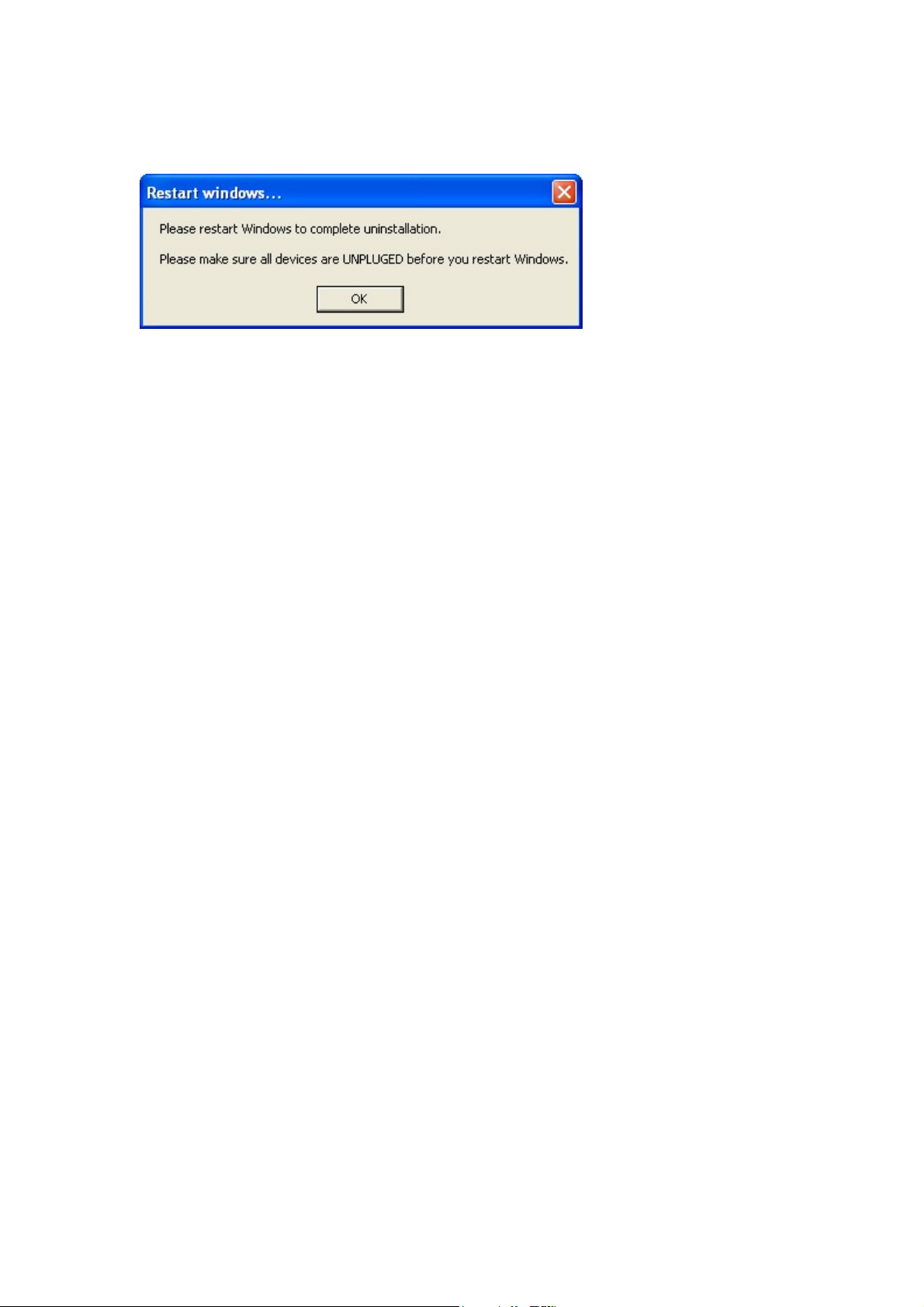

4. Uninstall program will prompt you to restart Windows.

4-4-2 Uninstall Win2000 driver

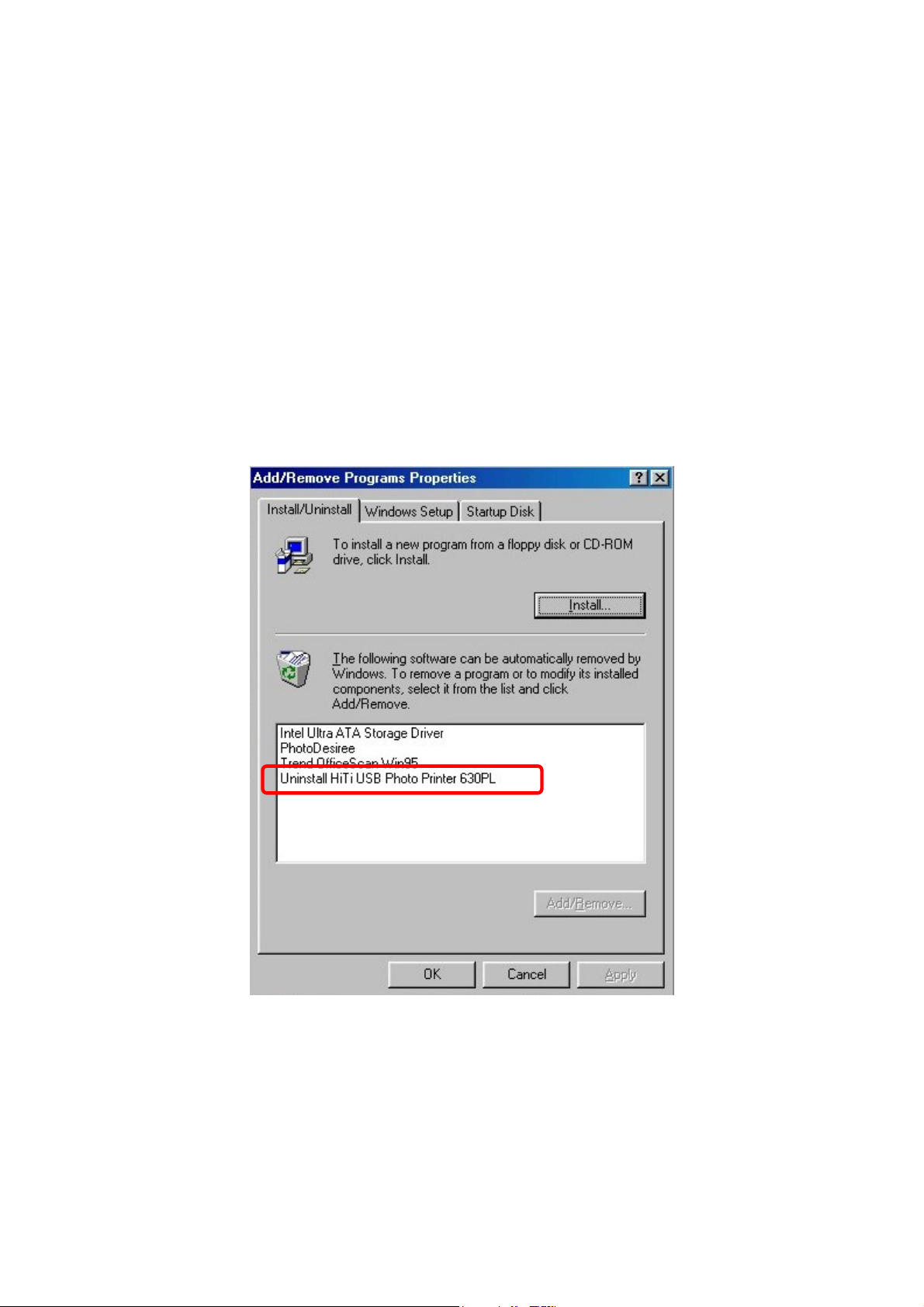

1. Under Control Panel/Add Remove Programs, you can find "Uninstall HiTi

USB Photo Printer".

2. Then begin to uninstall driver.

3. No system restart required. Finished Uninstall driver.

4-4-3 Uninstall WinXP driver

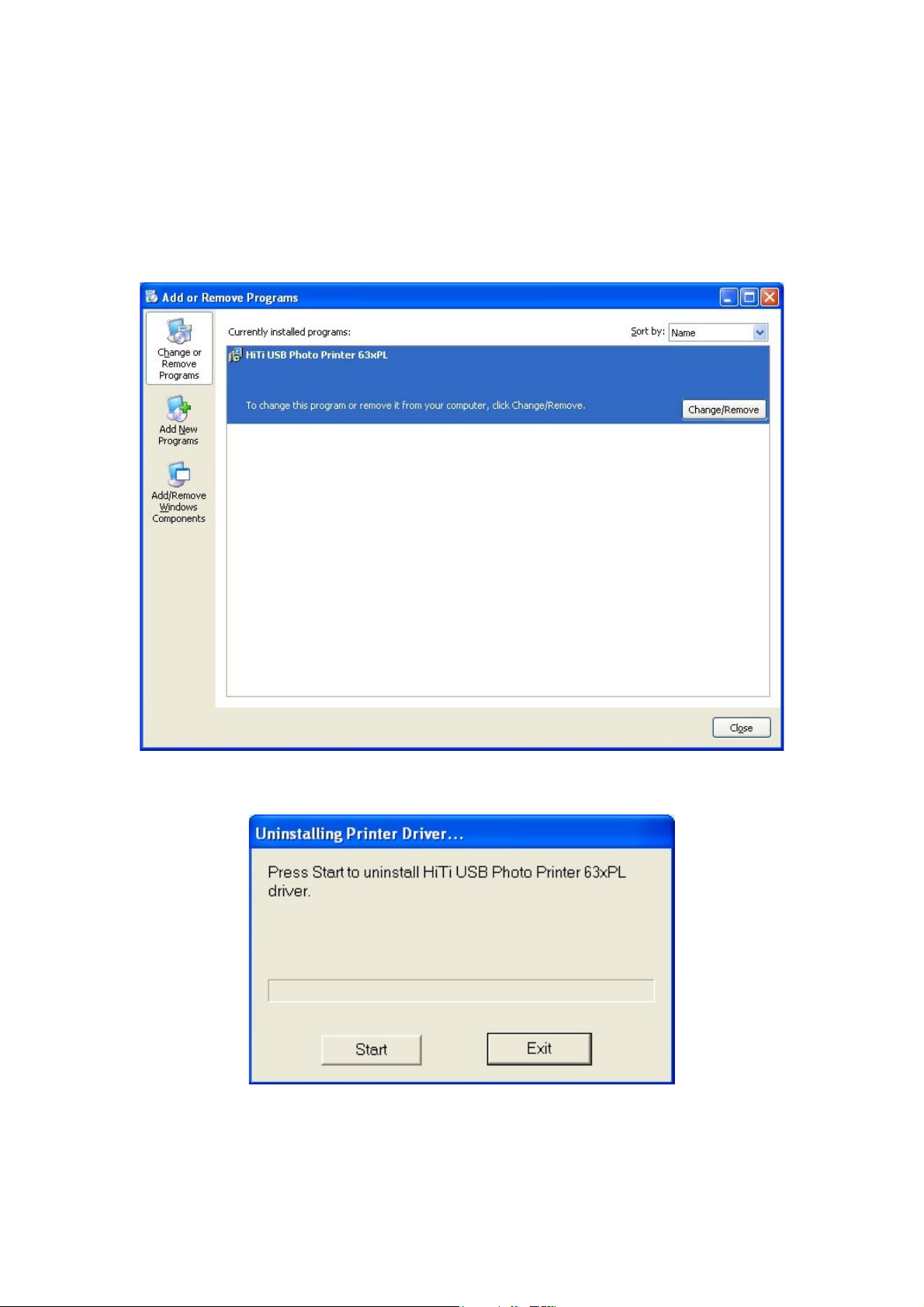

1. Under Control Panel/Add Remove Programs, you can find “Uninstall HiTi

USB Photo Printer”.

2. Then begin to uninstall driver.

3. Uninstall program will prompt you to restart Windows.

Chapter 5. Troubleshooting

Please follow the instructions given below for troubleshooting when you have problems with printing:

1. Identify the problem by the orange indicator on the machine. Refer to

Section 5.1 for troubleshooting.

2. Alternatively, the screen displays error messages. Refer to Section 6.2

for troubleshooting.

5-1 Orange LED and

Troubleshooting

In normal condition, the LED on the front panel of your printer shows a green light, which is steady during idling, and blinking during operation. Once the printer detects a problem, the orange LED blinks periodically. The number of blinks represents different situations, possible causes, and troubleshooting as shown in the following table:

Note: When the printer has two problems concurrently, the indicator will blink according to individual problem. For example, when there are Problems 1 and 3, then the indicator will blink 1 time -> blink 3 times-> blink 1 time-> blink 3 times repeatedly.

No. of

Periodical

Blinks

1 time Ribbon cartridge is not

installed, or not properly fixed into position, or ribbon cover is not properly closed to the fixed position.

2 times Generally, it occurs with

situation 1.

3 times Ribbon cartridge is

used up.

4 times No paper or paper not

properly placed.

5 times Paper jam 1. Do NOT tear the paper immediately

Possible

Problem/Cause

Troubleshooting

1. Check ribbon installation.

2. Recheck if ribbon cartridge is fixed into position. If you are not sure, please carefully remove the ribbon cartridge, and reinstall it.

3. Close the ribbon cover to the fixed position.

Same as Step 1.

Replace the ribbon.

1. Check if there is paper in the tray.

2. Rearrange the paper, and make sure they are properly placed.

because the paper is stuck in the roller of the printer and cannot be removed. Please turn off your printer first.

2. After 5 seconds, power on the printer.

6 times Paper type mismatch.

For example, it is set up for “sticker” in the software, but the tray has “photo paper”; or paper other than the standard paper produced by Hi-Ti may have the same problem.

7 times Memory is insufficient.

Such problem generally arises when the PC is busy in processing other jobs that consumes the system resources, and printing data transmits to the printer unsuccessfully and has the following common situation: (1) open several application programs and the PC is unable to handle the heavy loading. For example, Word, Excel, PowerPoint, Outlook, or other program taking up large system resources; (2) Poor network connection. Concurrently open programs such as the Outlook, and cause the PC to operate improperly; (3) Concurrently execute

After reset, the jammed paper will be released from the roller. Then you can pull the paper gently to remove the jammed paper away.

3. If the aforementioned description does not solve the problem, please contact Hi-Ti Customer Service Department or any Distributor of Hi-Ti. Email: csd@hi-ti.com Web site: www.hi-ti.com

1. Please use the Hi-Ti standard paper.

2. Please confirm the type of paper in the tray that matches with the software setup.

3. If you are not using PhotoDesiree for printing, make sure the setup for paper type is correct in the printer driver as below: Change the setting for paper type at [Control panel]/[Printer]/HiTi USB Photo Printer /[Property]/[Paper Type].

1. Printing by PhotoDesiree can reduce the chance of the occurrence of such problem. Please use PhotoDesiree for printing as much as possible.

2. If you have opened too many application programs, please close them. Or reboot the system.

3. Please do not print to 2 printers concurrently (Multitasking).

4. Do not connect to the network while you are printing, if the connection quality of your network is not good.

5. Check your USB condition (particularly the Intel 815 or Via 694x chipset motherboard). You must have the correct INF update file by Intel/Via and install it into Win98, otherwise your USB port is unable to identify the USB printer and reduce transmission speed. Intel Chipset Software:

http://support.intel.com/support/chipsets/

Via Chipset Driver:

http://www.via.com.tw/jsp/en/dr/driver.jsp

6. Turn off printer and the PC. Reboot after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or distributor for

several I/O operations in the hard disk for the application programs; for example, Photoshop is editing graphic file of large size; (4) Insufficient hard disk space; (5) Insufficient onboard memory

8 times Improper action of

printer head

assistance.

1. Please reboot and check if the printer can automatically resume normal operation.

2. If such problem reoccurs, please contact the distributor or Hi-Ti for repair.

5-2 Error Message and Solution

If you see error message on the screen, do not press [Yes] immediately, record the message first. Please follow the method described in this section for troubleshooting.

Note: After you press [Yes] in the error message window, the printer will reset, and the problem may be cleared during “Reset”.

Error

Message

Printer is offline.

Paper type mismatch

Thermal printing head overheat

Possible Problem/Cause Troubleshooting

Printer is not on, or power cord not connected properly, or the USB cable not connected properly.

The type of paper is not matched, Wrong type of paper. For example, it is set up for “sticker” in the software, but the tray has “photo paper”; or paper other than the standard paper produced by Hi-Ti may have the same problem.

1. The printer will auto-detect the printing temperature. The printer will pause when the temperature is too high, until the heat is down to the temperature below 60 degrees, then it will continue printing.

2. When successive rinting exceeds a certain

Check the Power Cord

1. Check whether the power cord is properly connected and the printer is on .

2. If the power is on and all functions are normal, then the green indicator of the printer is in steady green.

Check the USB Connection

1. Check whether the USB cable is correctly connected to the PC, and re-plug the USB connector to the PC .

2. Check the USB cable is connected to the printer properly, and re-plugs the USB connector to the printer.

1. Please use the Hi-Ti standard paper.

2. Please confirm the type of paper in the tray if it matches with the software setup.

1. Wait for a while until the printer head cools down. The printer will reboot automatically.

2. If you are using the consumer printer for large volume of commercial printing, the same problem may arise. Please notice that such usage is not covered by the warranty.

3. Please use the printer in air-conditioned places.

number (about 5 to 10), the temperature may be too high and needs to cool down.

3. When the temperature of operating environment is too high, it may have the same problem. Do not use a consumer printer for commercial

printing operation. Ribbon door open.

Ribbon cartridge is not

installed or fixed in

position, or the ribbon

cover is not closed into a

fixed position

1. Check ribbon installation.

2. Recheck if ribbon cartridge is fixed into position. If you are not sure, please carefully remove the ribbon cartridge, and reinstall it.

3. Close the ribbon cover to the fixed position.

Ribbon missing

(generally concurrently accompanied with “Ribbon cover is open)

Ribbon cartridge is not installed or fixed in position, or the ribbon cover is not closed into a fixed position

1. Check ribbon installation.

2. Recheck if ribbon cartridge is fixed into position. If you are not sure, please carefully remove the ribbon cartridge, and reinstall it.

3. Close the ribbon cartridge to the fixed position.

Paper Jam Paper Jammed 1. Do NOT tear the paper immediately

because the paper is stuck in the roller of the printer and cannot be removed. Please turn off your printer first.

2. After 5 seconds, power on the printer. After the printer is reset, the jammed paper will be released from the roller. Then you can pull the paper gently to remove the jammed paper away.

3. If the aforementioned description does not solve the problem, please contact Hi-Ti Customer Service Department or any Hi-Ti Distributor.

Paper empty No paper or paper not

properly placed.

Email: csd@hi-ti.com Web site: www.hi-ti.com

1. Check if there is paper in the tray.

2. Rearrange the paper, and make sure they are properly placed.

Read file function error; or

These 5 phenomena generally arise from the same cause, and are

1. Printing by PhotoDesiree can reduce the chance of the occurrence of such problem.

ReadFile time out; or

Printer data underrun; or

Allocate memory fail; or

Create DC fail

Cannot find printer

You have no privilege to create a folder;

You have no privilege to save temporary files.

described as follows: The problem usually comes from the PC that is processing other job consuming lots of system resources, and printing data transmits to the printer unsuccessfully cause by the following conditions: (1) Concurrently open several application programs and cause overloading to the PC. For example, Word, Excel, PowerPoint, Outlook, or other program that requires lots of system resources; (2) Poor connection quality of network, and at the same time open programs like Outlook, and cause improper operation to the PC; (3) Concurrently execute several I/O operations to the hard disk for application programs. For example, Pohtoshop is used to edit large sized graphic file; (4) Insufficient hard disk space; (5) Insufficient memory onboard The printer driver may not be installed, or installed incompletely.

Such problem only occurs in Windows 2000, because: When program is run in Windows 2000, users must set the authority to ”Administrator”, otherwise WIN 2000 will restrict the user’s authority for applications.

Please use PhotoDesiree for printing as much as possible.

2. If you have opened too many application programs, please close them. Or reboot the system.

3. Please do not print to 2 printers concurrently (Multitasking).

4. Do not connect to the network while you are printing, if the connection quality of your network is not good.

5. Check your USB condition (particularly the Intel 815 or Via 694x chipset motherboard ). You must have the correct INF update file by Intel/Via and install it into Win98, otherwise your USB port is unable to identify the USB printer and reduce transmission speed. Intel Chipset Software: http://support.intel.com/support/chipse ts/ Via Chipset Software:

http://www.via.com.tw/jsp/en/dr/driver.j sp

6. Turn off the printer and the PC. Reboot after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or distributor for assistance.

Please refer to the installation guide for the installation of the driver. You may download the most updated driver from the HiTi website:

http://www.Hi-Ti.com

Please set the user’s authority under Windows 2000 as Administrator, and then restart Windows 2000.

The resolution of the monitor setting is too low

The resolution of the screen should be set to 800X600 or above to make the bundled “PhotoDesiree” software run properly.

1. Please set the resolution of the screen to 800X600 or above.

2. You may set the resolution of the screen at the Windows [Start]/Control panel]/[Monitor]/[Setup].

3. The recommended setting is: Resolution setting: 800X600 or 1024X768; Color setting: “High Color (16-Byte)”

Chapter 6. Q&A of Frequently Asked Questions

Operation Problem

Installing and Uninstalling Driver

Printing Problem

Photo output quality Problem

Where Can I Get Service for This Product

Basic Requirements for Widnows Operating System

Problem of Running PhotoDesiree

Operating Problem

Q1: What is the best way of turning off the machine? A1: 1. Please turn off the power switch on the printer.

2. Never turn off the power or unplug the cord while printing.

3. Never turn off the power from external cord while printing.

Q2: Where is the User’s Guide of the Digital Photo Printer? A2: Hi-Ti Photo Printer provides an electronic file of the User’s Guide

bundled in the attached CD. Such User’s Guide is in the PDF format, and you need to browse it in Adobe Acrobat Reader. (Adobe Acrobat Reader v5.0 is also in the attached CD).

Q3:

A3:

Q4: What kind of ribbon cartridge does Hi-Ti Digital Photo Printer use? A4: Please use Hi-Ti YMCO ribbon cartridge.

Q5: What kind of photo paper and sticker does Hi-Ti Digital Photo Printer

use?

A5: Please use Hi-Ti photo paper and sticker.

Q6: How to get the driver of Hi-Ti Digital Photo Printer? A6: When you purchase Hi-Ti Digital Photo Printer, the driver is bundled in a

CD. In addition, you also can download it from the Hi-Ti website:

http://www.hi-ti.com/downloads.html

Q7: How to select the correct paper type? A7: Before printing, please check the setting of paper type. You must be

sure about the paper type and make the correct selection.

1. Please click “Start/Set Up/Printer/HiTi USB Photo Printer 63xPL/Property/Set Up/Photo Paper Type” and select the correct paper type setting.

2. If you are using PhotoDesiree for printing, you may select the paper type from the image frame.

3. If you are using other image processing software for printing, please refer to the applicaton instruction for selecting the correct paper type.

Q8: What is the best way of storing the ribbon cartridge? A8: To maintain the best quality for your ribbon cartridge, please put the

ribbon cartridge into the original aluminum foil bag and then seal with the plastic zipper if you are not going to print for a long period of time to avoid the ribbon cartridge being moistened or deteriorated due to the heat and also avoid the cartridge being contaminated by dust. Further, please avoid putting the ribbon cartridge under direct sunlight.

Q9: What is the best way of storing photo paper and sticker? A9: To maintain the best quality of your photo paper and sticker, please put

your unused photo paper and sticker back into the original packaging bag after you finish if you are not going to print for a long period of time, seal the palstic zipper to prevent the photo paper and sticker being moistened or deteriorated by heat and avoid the paper being contaminated by dust. Further, please avoid putting the photo paper and sticker under direct sunlight.

Q10: How can I speed up the printing if the printing speed is too slow? A10: 1. Please make sure your system complies with our basic

requirements.If you need to print high resolution photo, then your system has to comply with our basic requirements or above. Please refer to the “Basic Requirements of Microsoft Windows Operating System” for our miniminum system configuration.

2. Clear the hard disk space or defrag the hard disk.

3. Close some of the application programs.

4. Add more memories.

Q11: What system is applicable for the Hi-Ti Digital Photo Printer? A11: It is applicable for Windows 98 SE, ME, and 2000.

Q12: Where is the Hi-Ti Digital Photo Printer related software? A12: The software is bundled in the attached CD.

Q13: Why the power indicating light is not on? A13: 1. Please confirm the printer is connected to the computer, and the

power is turned on.

2. If you are using an extension cord, please confirm the extension cord is connected to the socket, and the power switch of the extension cord is on.

Q14: What is the interface between the Hi-Ti Digital Photo Printer and PC? A14: Universal Serial Bus (USB).

Q15: What is the compatible USB port for the Hi-Ti Digital Photo Printer? A15: USB Port Versions 1.0, 1.1, and 2.0.

Q16: How long of the USB cable may I use? Q16: Please use the USB within 1.5 m for the connection to your PC and

printer.

Q17: Is there any restriction on the application of USB device of the Hi-Ti

Digital Photo Printer?

A17: 1. Hi-Ti Digital Photo Printer does not support suspend or sleep mode

for the time being. Please do not let your operating system enter the suspend or sleep mode.

2. If you are using the USB hub to connect the printer, we recommend you to connect the device to the first level of the hub.

3. If you are using USB expansion card to connect the printer, please install the driver bundled with such USB expansion card.

Q18: Is it necessary to turn off the screen saver when using the Hi-Ti Digital

Photo Printer?

A18: It is not necessary to turn off the screen saver when using the Hi-Ti

Digital Photo Printer.

Q19: Why the paper is used up, but there is still ribbon cartridge left? A19: 1. You may have used both photo paper and sticker.

2. You may have reused the cartridge or photo paper. Hi-Ti recommends you not to reuse the ribbon cartridge or paper. As this action may damage the machine and affect the quality of the output pictures.

Q20: Why the ribbon cartridge is used up, but there is still paper left? A20: 1. Situation of paper jam or several pieces of paper concurrently rolled

into the printer may have occurred. If paper is not damage during the paper jam, please reverse ribbon cartridge to an appropriate position, and then put the ribbon cartridge and the photo paper back into position; if the paper is damage during paper jam, directly remove the photo paper and dump it. If several pieces of paper are fed into the printer concurrently, please put the photo paper back into the tray, and reverse the ribbon cartridge to an appropriate position.

2. Situation of unmatched paper size may have occurred. Replace the paper with correct size and set the correct configuration, and also reverse the ribbon cartridge to an appropriate position.

3. You may have turned off the power while printing. For acts of God, such as power failure, please do not using this paper again.

Q21: When should I change the ribbon cartridge? A21: The Hi-Ti Photo Printer - 63xPL/PS will detect the ribbon cartridge

automatically. When the ribbon cartridge is used up, the message of “Out of ribbon” will show on screen to instruct you to replace the ribbon cartridge.

Q22: Who can help me if the bundled software has problem? A22: 1. For problem related to the printer driver and PhotoDesiree, you may

contact Hi-Ti Customer Service for assistance by the following email address or visit the Hi-Ti website. Email: csd@hi-ti.com Website: www.hi-ti.com

Q23: What should I do if the paper cannot be fed?

A23: 1. Turn off the printer.

2. Remove the paper cassette. Carefully remove the paper and make sure the paper is not curled or folded.

3. Make sure your paper is not too old.

4. Tear away the paper edge and make sure you install the paper in the correct direction.

Q24: What happens if we open the ribbon cartridge cover while printing? A24: 1. The photo paper will be jammed inside the printer. Please turn off

the power and the ribbon door, and then turn on the power after 5 seconds. Now, you can gently pull the photo paper from the rear or the front of the printer.

2. The ribbon cartridge will stick on the photo paper. Please notice that improper pulling may damage the ribbon cartridge.

Q25: How to install the ribbon cartridge correctly? A25: 1. Please hold the handle of the ribbon cartridge with your right hand,

and make sure the arrow on the ribbon cartridge points upward.

2. Open the ribbon door, and insert the ribbon cartridge into the printer according to the direction of the arrow.

3. Close the ribbon cartridge door.

Q26: How to remove the ribbon cartridge correctly? A26: 1. Please hold the handle of ribbon cartridge by your right hand.

2. Move the ribbon cartridge upward and pull it out.

Q27: If the ribbon cartridge is exhausted, where can we buy the ribbon

cartridge?

A27: You may buy it from the distributor where you bought your Hi-Ti Digital

Photo Printer, or get more information from the Hi-Ti website:

http://www.hi-ti.com/Taiwan/wheretobuy.htm

Q28: If I am not using the Hi-TiDigital Photo Printer very often, can we put the

ribbon cartridge in the printer all the time?

A28: Hi-Ti recommends that stores the ribbon cartridge into the sealed

palastic bag to avoid moisture, heat, or contamination by dust if the printer is not used for long time.

Q29: May I replace the ribbon inside the ribbon cartridge by myself? A29: Please directly buy the Hi-Ti YMCO Ribbon cartridge Hi-Ti does not

provide ribbon to the consumers for making replacement by themselves.

Q30: May I use photo paper or sticker of other brands? A30: Please do not use the photo paper or sticker of other brands , Since

different photo paper and sticker have different size, thickness, torn edge and the stickiness of printable surface. If it is not printed with Hi-Ti paper, it may cause problems such as paper jam, paper type mismatch, not able to print, or poor photo output quality.

Q31: How can I clean up the thermal printer head?

A31: Please soak the cotton swab into alcohol and wipe the surface of

thermal printer head gently.

Installing and Uninstalling Driver

Q1: When I see “Add New Hardware” in the Windows 98 SE operating

system that I am using before the Hi-Ti Digital Photo Printer driver is installed, what should I do?

A1: 1. Cancel the windows of “Installing Driver”.

2. Insert the driver CD into the CD-ROM drive, and then the CD will run automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

3. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD ROM Drive/63xpl".

Q2: If I am using Windows ME operating system, I see “Add New Hardware”

before the Hi-Ti Digital Photo Printer driver is installed, what should I do?

A2: 1. Cancel the window of ”Installing Driver”.

2. Insert the driver CD into the CD-ROM drive, and then theCD will run automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

3. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD-ROM Drive/63xpl".

Q3: If I am using Windows 2000 operating system, I see “Add New

Hardware” before the Hi-Ti Digital Photo Printer driver is installed, what should I do?

A3: 1. Cancel the window of ”Installing Driver”.

2. Make sure you are loggin in the computer by "Administrator". If not, please reboot, and then log in the computer as the “Administrator”.

3. Insert the driver CD into the CD-ROM drive, and then the CD will run automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

4. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD-ROM Drive/63xpl".

Q4: How can I correctly install the Hi-Ti Digital Photo Printer driver In

Windows 98 SE?

A4: 1. Insert the driver CD into the CD-ROM drive, then the CD will run

automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

2. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD-ROM Drive/63xpl".

3. After you click the installation, the driver window will appear, please select “Yes”.

4. The files will be copied to your hard disk, and the window will show “Do you want to set the Hi-Ti Photo Printer 63xPL/PS as the default printer?”

5. After you selected, the installation is completed.

6. Please connect your computer and printer. After the power of the printer is turned on, the computer will detect the USB device, and automatically complete the installation of printer.

Q5: How can I correctly install the Hi-Ti Digital Photo Printer driver In

Windows ME?

A5: 1. Insert the driver CD into the CD-ROM drive, then the CD will run

automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

2. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD-ROM Drive/63xpl".

3. After you click the installation, the driver window will appear, please select “Yes”.

4. The files will be copied to your hard disk, and the window will show “Do you want to set the Hi-Ti Photo Printer 63xPL/PS as the default printer?”

5. After you selelcted, the installation is completed.

6. Please connect your computer and printer. After the power of the printer is turned on, the computer will detect the USB device, and automatically complete the installation of printer.

Q6: How can I correctly install the Hi-Ti Digital Photo Printer driver in

Windows 2000?

A6: 1. Log in the computer as "Administrator".

2. Insert the driver CD into the CD-ROM drive, then the CD will run automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

3. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD-ROM Drive/63xpl".

4. After you click the installation, the driver window will appear, please select “Yes”.

5. After you press “start”, “Signature for unknown software package” will appear in the window, please select “Yes”.

6. The files will be copied to your hard disk, and the window will show “Installation Completed! Please connect the printer and and finish the installation.” Please select “Yes”.

7. Please connect the computer and printer with the USB cable. Turn on the power, then the message “New Hardware USB Photo Printer is Found” will appear.

8. Windows 2000 will verify such device as the USB interface device.

9. Windows 2000 will search for the driver of such device. The message of “New Hardware Found – Searching for the Driver of This Device” will appear. Please select “Yes”.

10. Then “Digital Signature is Not Found -Printer” will appear. Please select “Yes”.

11. After the files is copied, then the installatin is completed.

Q7: How can I uninstall the Hi-Ti Digital Photo Printer driver in Windows 98

SE correctly?

A7: 1. Press "Start/Setup/Control panel/Add/Delete Program/Uninstall HiTi

USB Photo Printer 63xPL/PS. Press “Add or Delete".

2. The window for uninstalling the printer driver will appear. Press “Start”.

3. The window for restarting the computer will appear. Press “Yes”.

Q8: How can I uninstall the Hi-Ti Digital Photo Printer driver in Windows Me

correctly?

A8: 1. Press "Start/Set Up/Control panel/Add-Delete Program/Uninstall

HiTi USB Photo Printer 63xPL/PS. Press “Add-Delete”.

2. The window for uninstalling the printer driver will appear. Press “Start”.

3. The window for restarting the computer will appear. Press “Yes”.

Q9: How can I uninstall the Hi-Ti Digital Photo Printer driver in Windows

2000 correctly?

A9: 1. Press "Start/Set Up/Control panel/Add/Delete Program/Uninstall

HiTi USB Photo Printer 63xPL/PS. Press "Add/Delete".

2. The window of uninstalling the printer driver will appear. Press “Start”.

3. The window of restarting the computer will appear. Press “Yes”.

Q10: How can I reinstall the Hi-Ti Digital Photo Printer Driver in Windows 98

SE, ME, or 2000?

A10: 1. Press "Start/Set Up/Control panel/Add/Delete Program/Uninstall

HiTi USB Photo Printer 63xPL/PS. Press "Add/Delete".

2. Reboot your computer.

3. Insert the driver CD into the CD-ROM drive, then the CD will run automatically and show the brief introduction of installation. Please install the driver according to the brief introduction.

4. If the CD does not run automatically, please execute the installation program in the folder at the path “My Computer/CD-ROM Drive/63xpl".

Q11: The computer and printer have been connected, but the USB is not

working, what should I do?

A11: 1. Check whether the printer is on .

2. Check whether the USB cable is too long (recommended length: within 1.5 m) .

3. Check whether the USB cable meets the specification .

4. Check whether the USB card is installed properly .

5. Check whether the USB card driver is installed properly .

6. Check your operating system. The Hi-Ti Photo Printer must use in Windows 98, ME, or 2000.

Printing Problem

Q1: If I see “Printer is not working” during printing, what should I do? A1: 1. Make sure the printer is on.

2. Do Not print from two printers simultaneously.

3. Close the opened or running software.

Q2: If I see “Ribbon cartridge cover is open” before printing, what should I

do?

A2: Please make sure the ribbon cartridge cover is closed properly.

Q3: If I see the error message of “Unmatched ribbon cartridge” before

printing, what should I do?

A3: 1. Please open the ribbon cartridge, and make sure the ribbon

cartridge is installed properly.

2. Please make sure your ribbon cartridge is Hi-Ti YMCO ribbon cartridge.

Q4: If I see the error message of ”Out of ribbon”, what should I do? A4: 1. Please check whether the ribbon cartridge is exhausted . (Place

the ribbon cartridge in a position such that the arrow on the cartridge faces towards you, and check the left side of cartridge ).

2. Please check whether the paper enters into the Digital Photo Printer . When the paper enters into the photo printer, the printer will start rotating the ribbon inside the ribbon cartridge automatically (with a slight noise) to locate the labeled mark on the ribbon. After it is found, the photo printer will start printing. If not, the paper will withdraw. If you hear the sound of rotation, but the printer still shows the error message of “Out of ribbon” when you want to print, then remove the ribbon cartridge, and make a mark on the ribbon cartridge before printing. Then remove the ribbon cartridge to confirm the location of the ribbon cartridge. If the position of the ribbon cartridge does not move, then the cartridge or the mortor of the printer may fail﹔if the position of the ribbon cartridge is moved,

then the sensor for ribbon cartridge of the printer may fail. Please contact the distributor where you bought this Digital Photo Printer or Hi-Ti Customer Service Department for repair.

3. If the ribbon cartridge is not exhausted, but the cartridge fails to rotate, please contact the distributor where you bought the consuming material. Furthermore, make sure your ribbon cartridge is Hi-Ti YMCO ribbon cartridge.

Q5: If I see the error message of “Memory is insufficient” during printing,

what should I do?

A5: 1. Please close other opened or current running application programs.

2. Please make sure your computer configuration meets our minimum requirements

3. Increase memory capacity.

Q6: If I see the error message of “Insufficent system resource” during

printing, what should I do?

A6: 1. Please close other opened or current running application programs.

2. Please reboot your computer.

Q7: If I see the error message of “Printing data underrun” during printing,

what should I do?

A7: 1. Make sure the printer and computer are connected properly.

2. Make sure the power of the printer has not been broken down.

3. Make sure you are not printing from two printers.

4. Do not start any other application program during printing.

Q8: If I see the error message of “Printer is offline or suspended” when

printing is needed, what should I do?

A8: 1. Make sure the printer and computer are connected properly.

2. Make sure your system configuration meets our minimum requirements.

3. Make sure the Hi-Ti Digital Photo Printer is selected in your application program.

The factors of other offline situations may cause by less stable computer system /static of VIA chipset or DIY. If the there is any offline-printing problem, you are recommended to take the following procedures:

1. Connect the USB cable to another USB connection port of the computer.

2. Add a PCI interfaced USB Card, and such PCI USB Card has 2 or 4 sets of independent USB ports generally, and you may try to connect the USB cable to any one set of the connection port.

3. Purchase one set of USB Hub, and such hub has 2 to 4 sets of USB connection ports that can share the wideband generally. You may connect the USB cable to any one of the connection ports.

4. Use HiTi 63xPS that does not require to pass through the unstable computer system, and will not have the offline situation anymore.

Q9: If I see the error message of “Allocation memory fails” when printing is

needed, what should I do?

A9: 1. Using PhotoDesiree for printing can minimize the occurrence of

such problem. Please use PhotoDesiree as much as possible for printing.

2. If you open too many application programs, please close them. Or reboot the system.

3. Do not print from 2 different printers (multitasking).

4. Do not log on the network while printing, if the connection quality of your network is poor.

5. Check your USB condition (particularly the Intel 815 or Via 694x chipset motherboard). You must get the Intel/Via INF updated file and install it in Windows 98, otherwise your USB port will not able to identify the USB printer, and lower the transmission speed. Intel Chipset Software: http://support.intel.com/support/chipsets/ Via Chipset Driver: http://www.via.com.tw/jsp/en/dr/driver.jsp

6. Turn off the printer and PC. Turn on the power again after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or its distributor for assistance.

Q10: If I see the error message of “Output data error” when printing is needed,

what should I do?

A10: 1. Using PhotoDesiree for printing can minimize the occurrence of

such problem. Please use PhotoDesiree as much as possible for printing.

2. If you open too many application programs, please close them. Or reboot the system.

3. Do not print from 2 different printers (multitasking).

4. Do not log on the network while printing, if the connection quality of your network is poor.

6. Turn off the printer and PC. Turn on the power again after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or its distributor for assistance.

Q11: If I see the error message of “Printer responds with wrong data” when

printing is needed, what should I do?

A11: 1. Using PhotoDesiree for printing can minimize the occurrence of

such problem. Please use PhotoDesiree as much as possible for printing.

2. If you open too many application programs, please close them. Or reboot the system.

3. Do not print from 2 different printers (multitasking).

4. Do not log on the network while printing, if the connection quality of your network is poor.

identify the USB printer, and lower the transmission speed. Intel Chipset Software: http://support.intel.com/support/chipsets/ Via Chipset Driver: http://www.via.com.tw/jsp/en/dr/driver.jsp

6. Turn off the printer and PC. Turn on the power again after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or its distributor for assistance.

Q12: If I see the error message of “Read/Write file function error” when

printing is needed, what should I do?

A12: 1. Using PhotoDesiree for printing can minimize the occurrence of

such problem. Please use PhotoDesiree as much as possible for printing.

2. If you open too many application programs, please close them. Or reboot the system.

3. Do not print from 2 different printers (multitasking).

4. Do not log on the network while printing, if the connection quality of your network is poor.

6. Turn off the printer and PC. Turn on the power again after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or its distributor for assistance.

Q13: If I see the error message of “Read/Write file timeout” when printing is

needed, what should I do?

A13: 1. Using PhotoDesiree for printing can minimize the occurrence of

such problem. Please use PhotoDesiree as much as possible for printing.

2. If you open too many application programs, please close them. Or reboot the system.

3. Do not print from 2 different printers (multitasking).

4. Do not log on the network while printing, if the connection quality of your network is poor.

6. Turn off the printer and PC. Turn on the power again after 5 seconds.

7. If the problem is still there, please contact Hi-Ti or its distributor for assistance.

Q14: After pressing “Print”, can I cancel the printing job? A14: 1. When you only choose one photo for printing, you are unable to

cancel such printing.

2. When you choose several photos for printing, you may cancel the printing of the next coming photos.

Q14: If the printer is unable to print, what should I do ? A14: 1. Turn off the computer and unplug the printer. Make sure the printer

and computer are connected properly. Reboot the computer and printer, and print again.

2. Make sure you have installed the Hi-Ti Photo Printer 63xPL/PS driver.

Q15: What should I do if I see the error message of “Paper empty” in

Windows 98, ME, and 2000 operating system?

A15: 1. Check the paper cassette whether there is paper . Put appropriate

quantity of paper in the tray before printing again.

2. If the error message is still there, turn off the printer, remove the paper cassette, and check if the paper is properly placed.

3. Turn on the printer.

4. Put the paper into the paper cassette.

5. Start printing again.

Q16: What should I do if I see the error message of “Paper type mismatch” in

Windows 98, ME, and 2000 operating system?

A16: 1. Make sure the paper in the tray matches the setting for the software.

2. Make sure the paper is Hi-Ti photo paper.

Q17: What should I do when the paper drop not come out completely, or has

wrinkles on it?

A17: 1. Make sure the paper is Hi-Ti photo paper.

2. Make sure you have placed the paper properly in the paper cassette.

3. Check the location where you put the photo printer whether it has enough space of it back to allow the drop out of the paper without contact any hard object in its way.

4. Make sure your paper is a complete and flat sheet before printing.

Q18: What should I do for paper jam? A18: 1. Please do not pull out the paper immediately because the paper is

jammed in the roller inside the printer and you are unable to remove it then. Turn off the printer first.

2. Turn on the printer again after 5 seconds. The printer will reset, and the paper will be released from the roller. Then pull the paper gently, and you can remove the jammed paper easily.

3. If the above method does not work, contact the Hi-Ti Customer Service Department or the Hi-Ti distributors. Email: csd@hi-ti.com Web site: www.hi-ti.com

Q19: How can I avoid bringing several sheets of paper into the printing job? A19: 1. Make sure your paper is Hi-Ti photo paper.

2. Make sure your paper is not a used one.

3. Make sure the printable side of the paper faces upward.

Q20: What size of paper should I use for printing ? A20: Please use Hi-Ti 4x6-inch photo paper, 4x4 sticker, or 4/2/4 sticker.

Photo output quality Problem

Q1: Why the color on the printed photo is different from that seen in the

computer?

A1: 1. First, you have to know how color is created. The monitor shows

red,green, and blue. Hi-Ti Photo Printer uses thermal sublimation technology transferring yellow, red, and blue color onto the thermal printing paper. In fact, it is difficult to distinguish the transmission and reflection of these colors visually. Due to the property of transmission, therefore the monitor color reflection is transferred to the printed product that shows a broader range of colors.

2. Most monitors have not been calibrated properly to display the color correctly. Adobe Photoshop has a monitor calibrator ”Adobe Gamma” that can do the calibration, and such function is included in the control panel of Windows. Some high-level monitor calibrator uses suction cup to be stuck on the monitor in order to get the color range. Such hardware and software combined device produces better and more precise colors solution than use software only.

3. Using color matching system for printing has large effect on the output. We should know that how to use different color management system. Please refer to related documents and website of manufacturers for color matching systems.

4. To assure the photo printed from Hi-Ti Digital Photo Printer is close to the one you see on screen, please confirm the following:

1) Calibrate your monitor.

2) Test different color management systems

3) Try using ICM (Windows98 or 2000).

Q2: How to improve the printing quality if it is unacceptable? A2: 1. Make sure you use the actual size to print the photo. If you use low

resolution photo and enlarg it to print, the printed photo will be very unclear.

2. Check the paper setting matches with the paper you put in.

3. Check the paper is facing upward.

4. Check your paper is Hi-Ti photo paper. Hi-Ti paper is exclusive for printing high quality photo.

5. Try to print from different computer. It can eliminate the problems of using bad transmission wire, bad USB port, or bad software.

6. If the problem is still there, try to replace ribbon cartridge and paper.

Q3: What resolution should my graphic file have to be to show good quality

photos?

A3: Hi-Ti recommends you to use 1200x1600 or above for printing graphic

files.

Q4: How to improve the problem of printing at incorrect starting point? A4: 1. Check the version of your Digital Photo Printer driver is correct.

2. Check whether the position of paper is placed properly from the torn edge.

3. Check if the Digital Photo Printer is set to correct ”Position Calibration” Set the position calibration from “Start/Set Up/Printer/HiTi USB Photo Printer 63xPL/Property/Tool”.

4. Make sure your paper is Hi-Ti photo paper.

Q5: How to improve if the output photo is blurred? A5: 1. Check whether the version of your Digital Photo Printer driver is

correct.

2. Make sure the printable side is facing upward.

3. Make sure you use the actual size to print the photo. If you use low resolution photo and enlarg it to print, the printed photo will be very unclear.

4. Make sure your paper is Hi-Ti photo paper.

Q6: How to improve if the output photo has yellow, red, and blue shadows? A6: 1. Check the version of your Digital Photo Printer driver is correct.

2. Check the position of paper is placed properly from the torn edge.

3. Make sure your paper is Hi-Ti photo paper.

Q7: How to improve if the edge of the output photo is skewed? A7: 1. Make sure the setting in the software matches the paper size.

2. Refer to the instruction given by your software for correct setting of paper size.

3. If you are printing stickers, make sure you have erected the paper stop panel in paper cassette

Q8: How to improve the situation of incorrect printing position or size? A8: 1. Make sure the setting in the software matches the paper size.

2. Make sure the installed Hi-Ti Digital Photo Printer driver is the correct version.

3. Uninstall and reinstall the Digital Photo Printer driver.

Q9: How to improve the situation of having threads or hairy solids on the


A9: 1. Dust may adhere to the thermal printer head, internal ribbon

cartridge, paper feed roller, or paper exit roller. Please clean them with cleaning kit.

2. Dust may adhere to the blank ribbon cartridge or paper. Do not open the ribbon cartridge cover or paper cassette unless it is

necessary.

3. Avoid using this printer outdoors or in the environment with lots of dust.

Q10: How to improve the situation of having scratches on the photo? A10: 1. Dust may attach on the thermal printer head. Please clean it with

the cleaning kit

2. Dust may attach on the paper feeding path. Please clean it with the cleaning kit.

Q11: Why there is fingerprint on the output photo? A11: 1. You probably touch the printing surface before printing.

2. You probably touch the ribbon cartridge before printing.

3. You probably touch the paper roller before printing.

Q12: Why there is vertical or horizontal color lines on the output photo? A12: 1. The memory of the printer may be damaged.

2. The driver may not be installed properly.

3. Old driver may not be cleared properly.

Q13: What problem is it if the photo outputted by the Hi-Ti Digital Photo

Printer is lighter in color?

A13: You probably put the photo paper up side down. Refer to the “User’s

Guide” for placing paper.

Q14: Why the photo printed with Photoshop, PhotoImpact, or ACDsee is not

the same size as the original picture?

A14: 1. Photoshop, PhotoImpact, or ACDsee does not provide function of

automatically matching the photo size. Therefore you have to adjust the size before printing manually.

2. The image processing software, PhotoDesiree bundled with the Hi-Ti Digital Photo Printer provides you the automatic function of matching the photo size. It is recommended to use this software for printing.

Q15: Why there is wrinkled colors on the output photo? A15: 1. The ribbon cartridge in the cartridge may be compressed and

become uneven. Using uneven ribbon may cause such wrinkling color.

2. Do not use the recycled ribbon cartridge for printing.

Q16: Why there is horizontal dash lines on the output photo? A16: The input AC voltage may be not stable. Do not use the printer with

other device consuming high electricity.

Q17: Why there is greasy stain on the output photo? A17: There may be grease adhere to the paper feeding/exit path or roller.

The grease was cleaned up by the paper during printing, and such problem will be solved by itself.

Hi-Touch Imaging Technologies 63xPL-PS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

ACKNOWLEDGEMENTS

COPYRIGHT

FCC INFORMATION

CE Information

Chapter 1. Welcome

2-3 Install Driver (Win98)

2-4 Install Driver (Win2000)

2-5 Install Driver (Win XP)

2-6 Install PhotoDesiree

2-7 Load paper and ribbon

2-8 Install Hardware

2-9 Print 1st Photo

Chapter 3. PhotoDesiree

3-1 PhotoDesiree in a view

3-2 Basic Operation Concepts

3-3 Functional Icons

3-4 Photo printing

3-6 Calendar

3-7 ID Picture

3-8 Business Card

3-9 Book Marker

3-10 Sticker

3-11 Magic Coating and Mirabella

Chapter 4. Driver Details

4-1 Driver Setting (Win98)

4-1-1 General

4-1-2 Details

4-1-3 Color Management

4-1-4 Sharing

4-1-5 Setting

4-1-6 Tools

4-1-7 About

4-2 Driver Setting (Win2000)

4-2-1 General

4-2-2 Printer Preferences

4-2-3 Ports

4-3 Preview function in driver

4-4 Uninstall Driver

4-4-1 Uninstall Win98 driver

4-4-2 Uninstall Win2000 driver

4-4-3 Uninstall WinXP driver

Chapter 5. Troubleshooting

5-2 Error Message and Solution

Chapter 6. Q&A of Frequently Asked Questions

Operating Problem

Installing and Uninstalling Driver

Printing Problem

Photo output quality Problem
