Hitmate
User Guide
INTRODUCTION

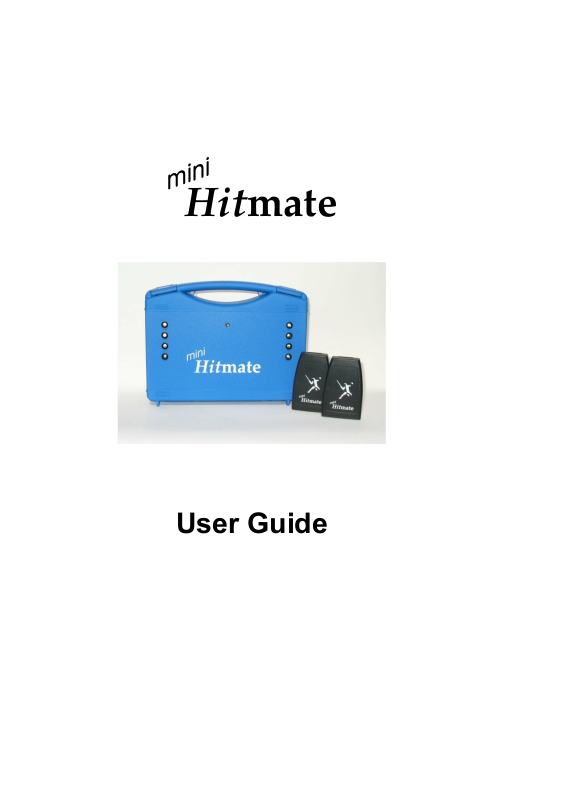

Mini Hitmate has been developed to familiarise young fencers with
scoring in fencing training using plastic swords with electric tips.
Hitmate provides accurate timing for hit duration, double hits and
lockout after each hit. A switch inside the case provides for selection
of weapon type: one setting for Foil training, the other for Epée training.
Fencers are rewarded for a valid hit by red or green lights and a
sounder.
OPERATION
The carry-case contains two transmitter units, one marked red and
the other green. The swords are connected into these and can then
be placed in a pocket, clipped onto a belt or track suit bottom waist
band using the belt clip, or hung from the jacket 'D' ring using a strap.
(Strap not supplied).
The transmitters are ready for use as soon as the swords are plugged
in. There is no on-off switch, so it is advised to unplug the sword and
wire after use.
The receiver is integrated with the carry-case. Once switched on it
can be closed and positioned where the scoring lights can be seen
by the participating fencers. The receiver has a yellow push button
to switch it on, and it will automatically switch off after 30 minutes of
inactivity.
OPERATING CODE
The set, consisting of the receiver and two transmitters, is given an
operating code during manufacture. This is shown as a 2-digit
number inside the case and on each of the transmitters.
The receiver responds only to signals from transmitters with a
matching operating code. This allows many mini Hitmates to be used
together without interference.
SCORING FOR FOIL
The fencers must distinguish between on-target and off-target hits.
When a fencer hits the opponent, the receiver shows red or green
lights to confirm the hit. For a hit to be valid, the tip must remain
pressed for a minimum of 15ms.
If both fencers hit at the same time, within 300ms, a double hit is
scored. Both red and green lights show. If the second hit is more
than 300ms later, only the first to hit will be scored.
Once a hit is scored, the equipment locks out further activity for a
period of 2 seconds.
Conventional electric foils cannot be used with Mini Hitmate. The
correct sword to use is a plastic foil with a tip switch which closes
when pressed against the target.
SCORING FOR EPEE
When a fencer hits the opponent, the receiver shows red or green
lights to confirm the hit. For a hit to be valid, the tip must remain
pressed for a minimum of 4ms.
If both fencers hit at the same time, within 40ms, a double hit is
scored. Both red and green lights show. If the second hit is outside
the 40ms limit, only the first to hit will be scored.
Once a hit is scored, the equipment locks out further activity for a
period of 2 seconds.
BATTERIES
The 9v battery in the receiver will last up to 100 hours of normal
operation. It should be replaced when the terminal voltage falls below
7 volts. Below this voltage the receiver may begin to score erratically.
Replace the receiver battery with a good-quality 9v alkaline type.
The life of the battery in each transmitter is in excess of 5 years.
If your Hitmate develops a fault, please return the set to your
supplier, or send an email describing the problem to
hmservice@hitmate.com. We will do our best to provide a
speedy and satisfactory solution.
DISPOSAL INFORMATION
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authority for
recycling advice.
Hitmate
www.hitmate.co.uk
Training and practice equipment for the twenty-first century
