Hitachi VM-H720A, VM-H620A User Manual

For Your Safety - 1 -

Instruction Manual

8mm Video Camcorder

VM-H620A / VM-H720A

Hitachi Home Electronics (America), Inc. HITACHI (HSC) CANADA INC

3890 Steve Reynolds Blvd., Norcross, GA 30093 3300 Trans Canada Highway, Pointe Claire,
Tel. [phone] Quebec, H9R 1B1, CANADA

HITACHI SALES CORPORATION OF HAWAII, INC

3219 Koapaka Street, Honolulu, Hawaii 96819
Tel. [phone]

Thank you for buying a Hitachi product. Please take time to become familiar with the manual and
how it is set up. Keep it handy for feature reference.

QR14543 © Hitachi, Ltd. 1995 Printed in Japan KG-TF(N)

Tel. [phone]

For Your Safety - 2 -

TABLE OF CONTENTS

For Your Safety...................................................................................................................4

Important Safeguards ..........................................................................................................6

IMPORTANT SAFETY INSTRUCTIONS FOR AC ADAPTER/CHARGER ................9

Read This First..................................................................................................................10

Before You Begin..............................................................................................................11

Features....................................................................................................................... 11

Components and Accessories..................................................................................11

Optional RF Adapter..................................................................................................12

Attaching the Shoulder Strap....................................................................................12

Lens Cap......................................................................................................................13

Getting Started...................................................................................................................14

Charging the Battery..................................................................................................14

Adjusting the Electronic Viewfinder.........................................................................15

Eyepiece Adjustment.................................................................................................16

Adjustment the Hand Strap.......................................................................................16

Loading Batteries........................................................................................................16

Using Alternative Power Sources............................................................................21

Inserting and Removing Cassettes..........................................................................22

Using the Linear Time Counter................................................................................24

Remaining Tape .........................................................................................................24

Setting the Date and Time ........................................................................................24

Getting Started, Identifying Controls................................................................................26

Basic Techniques...............................................................................................................29

Making a Basic Recording........................................................................................29

Playing Back Your Recording...................................................................................30

Advanced Techniques .......................................................................................................34

Date Recording...........................................................................................................34

Using the Power Zoom..............................................................................................35

Using the Digital Zoom ..............................................................................................35

Using the INST. ZOOM (Instant Zoom) Button......................................................36

Using Auto Focus.......................................................................................................36

Using Manual Focus..................................................................................................37

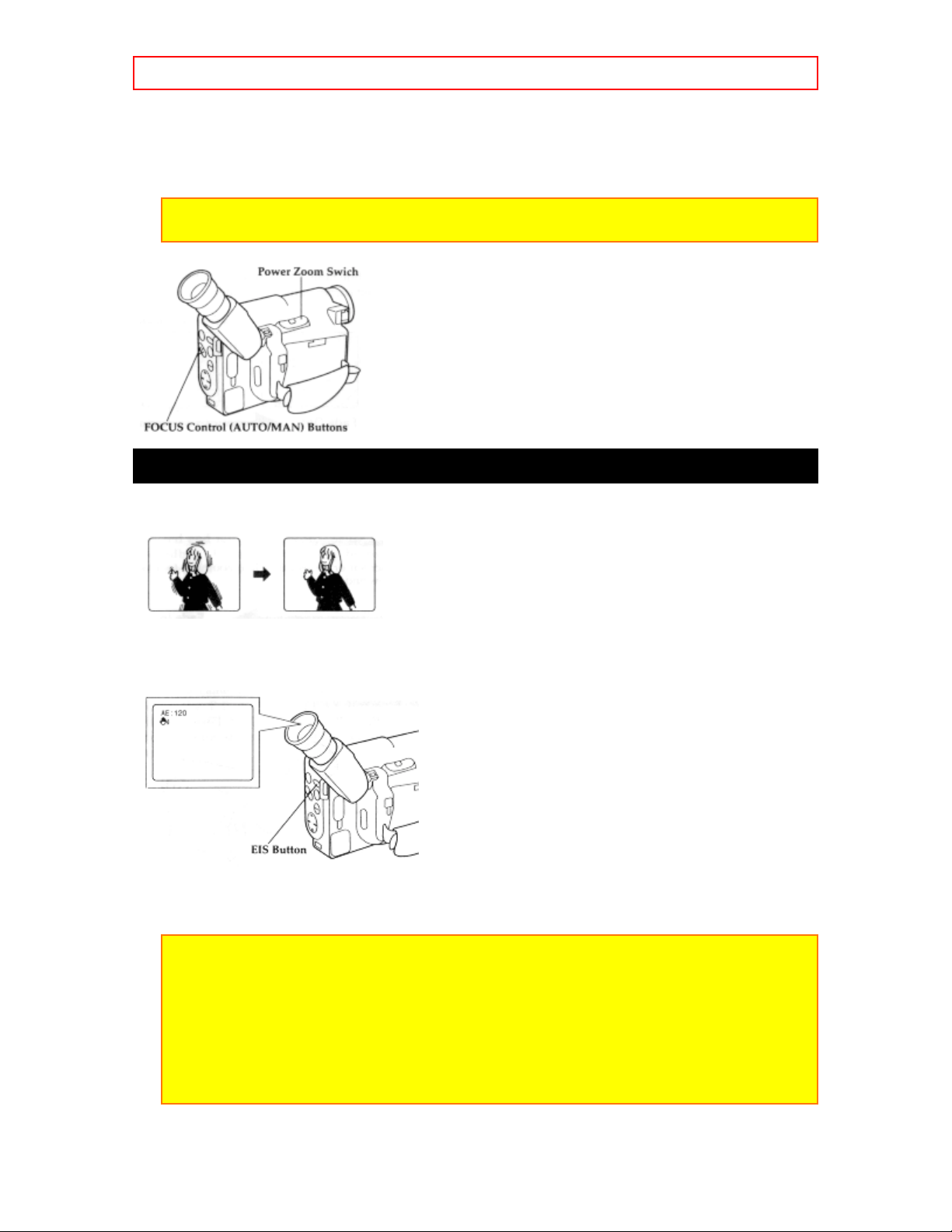

Using the Electronic Image Stabilizer .....................................................................38

Using Fade ..................................................................................................................39

Using 16x9...................................................................................................................40

Using Instant Review.................................................................................................40

Using Quick Edit.........................................................................................................40

Using Macro ................................................................................................................41

Date Search.................................................................................................................41

Using Memory.............................................................................................................42

Using the Display Button...........................................................................................42

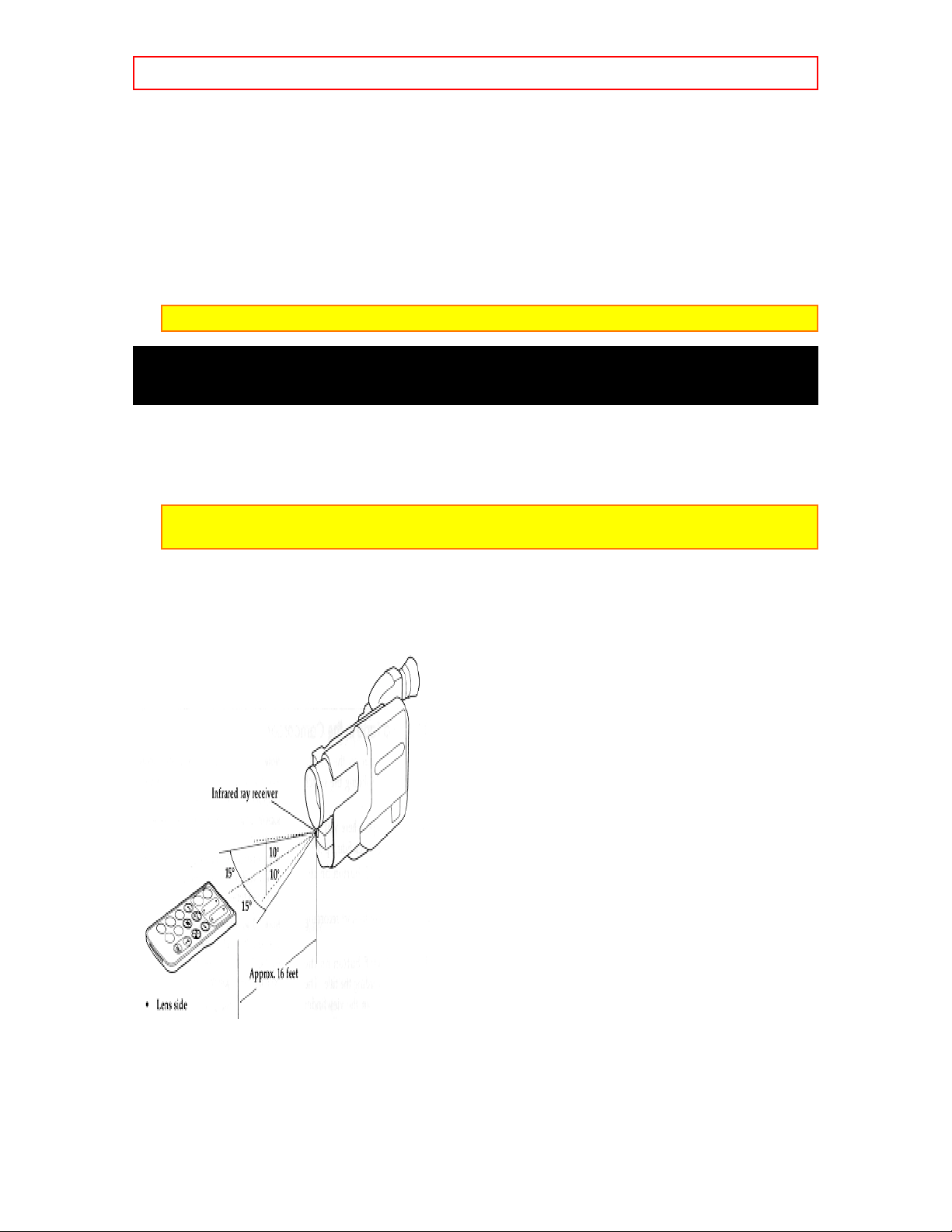

Using the Wireless Remote Control ........................................................................43

Creating and Recording A Title................................................................................43

Dubbing from the camcorder to a VCR ................................................................... 45

Using Synchro Edit.....................................................................................................45

For Your Safety - 3 -

Simple Programmable Edit (Edit remote control is optional accessory)............46

Controlling Your TV with the Camcorder's Remote Control................................49

Using Audio/Video Dubbing......................................................................................50

Recording Television Programs...............................................................................51

Attaching the Optional Wide or Tele Conv er te r Lens...........................................51

Attaching the Optional DC Camera Light ...............................................................52

Viewfinder Bright, Color and Tint Control (Only for VM-H720A).........................54

General Maintenance.........................................................................................................55

Cleaning the camcorder Heads................................................................................55

Cleaning the Lens and Picture Tube of the Electronic Viewfinder .....................55

Periodic Maintenance................................................................................................56

Troubleshooting..........................................................................................................56

Specifications..............................................................................................................59

Accessories Add Excitement............................................................................................. 61

Available Accessories................................................................................................61

More Available Accessories......................................................................................61

To Order in the United States...................................................................................61

For Your Safety - 4 -

For Your Safety

The CAM/OFF/VIDEO switch turns the camcorder on and off, leaving the date/time feature
unaffected. If the unit is to be left unattended for a long period of time, turn the camcorder off and
attach the lens cap.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.

The camcorder and AC adapter/charger have the following caution marks.

Identifications of caution marks

This symbol warms the user that uninsulated voltage within the unit may have
sufficient magnitude to cause electrical shock. Therefore, it is dangerous to make any kind of
contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and
maintenance of this unit has been included. Therefore, it should be read carefully to avoid
any problems.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, AND FULLY INSERT PLUG.

WARNING: Many television programs and films are copyrighted. In certain circumstances,
copyright law may apply to private in-home videotaping of copyrighted materials.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.

This camcorder can use
cassette is

The liquid crystal display (LCD) panel is made by highly precise technology. More than 99.99% of
its picture elements (pixels) are effective, but some (less than 0.01%) may appear as colored
bright dots. This does not indicate a fault as the LCD panel stretches the limits of current
technology. (only for VM-H720A)

Warning: This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant of Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a

or and records and plays it back correctly

and video cassettes. It automatically determines the loaded

For Your Safety - 5 -

particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

-- Consult the dealer or an experienced radio/TV technician for help.
Caution to the user: Changes or modifications not expressly approved by the manufacture
could void the user's authority to operate the equipment.

"Note to CATV system installer: This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the grounding system
of the building, as close to the point of cable entry as practical".

Notes:

• This unit uses 8mm video format cassettes.

• It records and plays back in the SP mode (14.3 mm/sec).

• It cannot record and play back in the LP mode (7.2 mm/sec).

• This camcorder uses a Hi-Fi stereo sound system. When a tape recorded by this camcorder
is played by a conventional 8mm camcorder, monaural sound is output. When a tape
recorded by a conventional 8mm camcorder is played by this machine, monaural sound is
output.

MOISTURE

Avoid operating your camcorder immediately after moving it from a cold
place to a warm, humid place. Give the camcorder 2 to 3 hours to stabilize
in the ambient conditions of the surroundings before inserting a cassette.
When moved from a cold place to a warm, humid place, moisture may
condense on the head drum inside the machine. This moisture could
cause the tape to stick to the headwheel and damage the headwheel or
tape.
When a small amount of moisture is sensed, "TAPE" flashes in the
viewfinder. Remove the cassette and set the CAM/OFF/VIDEO switch to
OFF, then wait for about one hour.

Important Safeguards - 6 -

Important Safeguards

In addition to the careful attention devoted to quality standards in the manufacture of your video
product, safety is a major factor in the design of every instrument. But, safety is your
responsibility too.
This page lists important information that will help to assure your enjoyment and proper use of a
Video camcorder and accessory equipment. Please read it carefully before operating your video
product and keep it in a handy place for future reference.

INSTALLATION

1 Read and Follow Instructions -- All the safety and operating instructions should be read

before the video product is operated. Follow-all operating and use instructions.

2 Retain Instructions -- The safety and operating instructions should be retained for future
reference.
3 Heed Warnings -- Comply with all warnings on the video product and in the operating
instructions.
4 Polarized Plug -- This video product is equipped with a polarized alternating-current line plug
(a plug having one blade wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.
To prevent electric shock do not use this polarized plug with an extension cord, receptacle or
other outlet unless the blades can be fully inserted without blade exposure. If you need an
extension, use a polarized cord.

5 Power Sources -- This video product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supply to your home,
consult your video dealer or local power company. For video products intended to operate from
battery power, or other sources, refer to the operating instructions.
6 Overloading -- Do not overload wall outlets and extension cords as this can result in a risk of
fire or electric shock. Overloaded AC outlets and extension cords are dangerous, and so are
frayed power cords, damaged or cracked wire insulation and broken plugs. They may result in a
shock or fire hazard. Periodically examine the cord and have it replaced by your service
technician if appearance indicates damage or deteriorated insulation.

7 Power-Cord Protection -- Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point where they exit from the appliance.
8 Ventilation -- Slots and openings in the cabinet are provided for ventilation to ensure reliable
operation of the video product and to protect it from overheating. These openings must not be
blocked or covered. The openings should never be blocked by placing the video product on a

Important Safeguards - 7 -

bed, sofa, rug or other similar surface. This video product should never be placed near or over a
radiator or heat register. This video product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or the video product manufacturer's
instructions have been followed.

9 Attachments -- Do not use attachments unless recommended by the video product
manufacturer as they may cause hazards.

Caution: Maintain electrical safety. Powerline operated equipment or accessories connected
to this unit should bear the UL listing mark or CSA certification mark on the accessory itself
and should not have been modified so as to defeat the safety features. This will help avoid
any potential hazard from electric shock or fire. If in doubt, contact qualified service
personnel.

10 Water and Moisture -- Do not use this video product near water - for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the
like.
11 Accessories -- Do not place this video product on an unstable card, stand, tripod, bracket, or
table. The video product may fall, causing serious injury to a child or adult, and serious damage
to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the video product. Any mounting of the product should follow the
manufacturer's instructions, and should use a mounting accessory recommended by the
manufacturer.
11A An appliance and cart combination should be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and cart combination to overturn.

12 Outdoor Antenna Grounding -- If an outside antenna or cable system is connected to the
video product, be sure the antenna or cable system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See example below:
EXAMPLE OF ANTENNA GROUNDING

13 Power Lines -- An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme care should be taken to keep from
touching or approaching such power lines or circuits as contact with them might be fatal. Installing
an outdoor antenna can be hazardous and should be left to a professional antenna installer.

USE

14 Cleaning -- Unplug this video product from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.
15 Object and Liquid Entry -- Never push objects of any kind into this video product through
openings as they may touch dangerous voltage points or short-out parts that could result in a fire
or electric shock. Never spill liquid of any kind on the video product.

Important Safeguards - 8 -

16 Lightning -- For added protection for this video product during a lightning storm, or when it its
left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect
the antenna or cable-system. This will prevent damage to the video product due to lightning and
power-line surges.

17 Servicing -- Do not attempt to service this video product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
18 Conditions Requiring Service -- Unplug this video product from the wall outlet and refer
servicing to qualified service personnel under the following conditions.
a. When the power-supply cord or plug is damaged
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions. Improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the video product to its normal operation.
e. If the video product has been dropped or the cabinet has been damaged.
f. When the video product exhibits a distinct change in performance - this indicates a need for
service.
19 Replacement Parts -- When replacement parts are required, have the service technician
verify that the replacements he uses have the same safety characteristics as the original parts.
Use of replacements specified by the video product manufacturer can prevent fire, electric shock
or other hazards.
20 Safety Check -- Upon completion of any service or repairs to this video product, ask the
service technician to perform safety checks recommended by the manufacturer to determine that
the video product is in safe operating condition.
21 Heat -- The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.

SERVICE

IMPORTANT SAFETY INSTRUCTIONS FOR AC
ADAPTER/CHARGER - 9 -

IMPORTANT SAFETY INSTRUCTIONS FOR AC ADAPTER/CHARGER

1. Save these Instructions -- This page contains important safety and operating instructions for
AC Adapter/Charger Model VM-AC 85A.

2. Before using AC Adapter/Charger, read all instructions and cautionary markings on (1) AC
Adapter/Charger, (2) battery and (3) product using battery.

3. Also read all instructions on pages 4 and 5.

4. Caution -- To reduce risk of injury, charge only rechargeable battery, VM-BP82G, VM­BP82 or VM-BP84.
Other types of batteries may burst causing personal injury and damage.

5. Do not expose charger to rain or snow.

6. Use of an attachment nor recommended or sold by the battery charger manufacturer may
result in a risk of fire, electric shock, or injury to persons.

7. To reduce risk of damage to electric plug and cord, pull by plug rather than cord when
disconnecting charger.

8. Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected
to damage or stress.

9. Do not operate charger with damaged cord or plug - replace them immediately.

10. An extension cord should not be used unless absolutely necessary.
Use of improper extension cord could result in a risk of fire and electric shock. If extension cord
must be used, make sure:
A. The pins on plug of extension cord are the same number, size, and shape as those of plug on
charger.
B. That extension cord is properly wired and in good electrical condition; and
C. That wire size should be met below:
Minimum
AWG size Length of extension cord (feet)
18 Equal to or less than 100
16 Equal to or less than 150

11. Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged
in any way; take it to a qualified serviceman.

12. Do not disassemble charger: take it to a qualified serviceman when service or repair is
required. Incorrect reassembly may result in a risk of electric shock or fire.

13. To reduce risk of electric shock, unplug charger from outlet before attempting any
maintenance or cleaning.

Read This First - 10 -

Read This First

To guide you, we've included:

• A "Before You Begin" section containing important cautions for your family's safety as well as

instruction for getting your video camcorder ready for use. Please read and understand this
section thoroughly before moving on.

• A "Getting Started" section to familiarize yourself with the controls and prepare you for
recording.

• A "Basic Techniques" section to allow you to use your video camcorder quickly and confidently
before advancing to the more sophisticated features of the Hitachi VM-H620A/H720A.

• "Advanced Techniques" to help you with some of the exciting, sophisticated features of the
Hitachi VM-H620A/H720A. We hope you will take the time to learn about these functions since
they have been designed for you. You can use the video camcorder without reading this section.

• A "General Maintenance" section to help keep your purchase in good repair.

We want this manual to be as helpful as possible, so it includes two easy ways to find the
information you need:

• A quick index for the information you use most often (this page).

• A detailed table of contents directing you to specific information quickly (page 10).

Get to know your video camcorder by using this manual, and get to know Hitachi. We appreciate
your business.

Before You Begin - 11 -

Before You Begin

Any problems that occur as a result of any of the following conditions will not be covered by our
warranty.
 Be careful that no water, dust or sand enters the camcorder and all accessories.
 When you shoot at a scene which contains an extremely bright object such as the sun or a light
source, a bright vertical bar may appear in the picture.
Your camcorder is functioning properly, but the solid-state pickup device (C.C.D) usually causes
this as an inherent characteristic. Try to avoid shooting an excessive bright object directly.
 Be sure not to leave the camcorder in a place where the temperature exceeds 140°F (60°C), or
the pickup device may be damaged.
Dangerous includes:

• Inside a car with the windows closed and in direct sunshine.

• Near heating appliances.
 Do not leave the viewfinder lens facing sunlight for a prolonged period, or the phosphorescent
surface of the cathode ray tube or the liquid crystal display (LCD) panel may be damaged.

Features

• Easy to use

• 24x zoom ratio

• Instant zoom

• Multi-function TV/Cam remote control

• Electronic Image stabilization (EIS)

• Recorded date search

• Automatic title recording

• Differences between models VM-H620A/H720A

VM-H620A VM-H720A

Viewfinder type Black-and-White Color

• This instruction manual shows the illustrations for the VM-H720A. The appearance of the
viewfinder is different as shown in the photos on the cover.

Components and Accessories

Check that you have all the following components and accessories before preceding.

1. AV stereo output cable with S-VIDEO plug

2. Battery pack

3. AC adapter/charger

4. Batteries for date/title and remote control

5. Shoulder strap

6. DC cord

7. Remote control

8. Lens cap string

Before You Begin - 12 -

Optional RF Adapter

If you wish to connect this camcorder to a television that does not have audio/video input jacks
you will need to use the optional RF adapter model VM-RF86A (R).
The RF adapter can be purchased by calling the telephone number below. For your convenience
Visa, Master Card, and American Express credit cards are accepted. The RF adapter can also be
purchased by mail by sending either money order or your credit card information to the following
address:
HiTRON, Inc.
675, Old Peachtree RD.
Suwanee, GA 30174
Tel: [phone]
For more information concerning the purchase of camcorder accessories, please see the optional
accessory listing on page 67.

Attaching the Shoulder Strap

Thread the ends of the provided shoulder strap through the slots at the back of the camcorder
and thread through the shoulder straps' buckles.

Note: Make sure that the straps are securely fastened before using the shoulder strap to
carry the camcorder.

Before You Begin - 13 -

Lens Cap

Using the lens cap string:

Pass the string through the lens cap and grip belt and attach it as shown in the figure.

Removing the lens cap

Always attach the lens cap to protect the lens when carrying or storing the camcorder. During
shooting attach the lens cap as shown in the figure to prevent it from being lost.

Getting Started - 14 -

Getting Started

This section guides you through the initial preparation of the camcorder. None of these processes
are complex. Set aside some time, relax, and familiarize yourself with this quality instrument.
Enjoy getting to know all about your Hitachi 8mm camcorder. The more comfortable and familiar
you are with the machine and its features, the more you can make it do for you. Let's get started!
It is crucial that you read and understand all the safety instructions before you begin. If you
haven't read the safety instructions yet, please take the time to do so now.

Charging the Battery

The first step is to set the battery to charge. It takes approximately an hour (VM-BP82G), enough
time to familiarize yourself with some of the basic features of the camcorder. Once fully charged
the battery will give an operating time of approximately 55 minutes, but this is reduced to a half to
one-third depending on how often you use zoom and start/stop functions.
Charge the battery at a temperature range of 50°F(10°C) - 86°F(30°C) to prevent damage to the
battery.

1. Plug the AC adapter/charger power cord into an AC outlet. Make sure that the wide blade fits
into the wide slot. If it doesn't fit try reversing it. If you still cannot make fit the blades fully into the
outlet either contact an electrician to replace your obsolete outlet, or use a polarized cord or outlet
accessory.

2. To insert the battery into the charger align the reference arrow on the battery with the reference
arrow on the AC adapter/charger. Push the battery till it is flush with the AC adapter/charger
sliding it in the direction of the arrow as shown in the figure.

3. The CHARGE light remains on while the battery charges, turning off when charging completes.
Note: Remove the DC cord from the AC adapter/charger before attempting to charge the

battery. The CHARGE light flashes if the DC cord remains connected while you attempt to
charge the battery.
Note: Do not operate the battery at temperature below 14°F (-10°C) or above 95°F (35°C). At
extremely low temperatures operation time decreases, while at high temperature the battery
may be damaged.

After charging set the mark switch to red so that you may quickly identify

whether the battery is charged or uncharged.

Note: The marker switch does not guarantee the batteries charge status.

Additional Information

To use a battery in optimum condition:

• Use the battery until the low charge light (

recharging it may shorten the operation time.

• It is recommended to refresh a battery before recharging it when it has not been used for long

time; otherwise its operation time becomes short. Press the refresh button.
After refreshing is complete, the REFRESH light turns off and the CHARGE light turns on and
charging begins automatically.

) flashes. Using a battery for a short time and then

Getting Started - 15 -

Refreshing a fully charged battery takes approximately 4 hours (VM-BP82G), adding
considerable time to battery charging.
With repeated normal charging and use the battery will gradually lose operating time. When
operation time becomes too short to be useful, replace the battery.
If the POWER light begins to flash during charging, remove the battery and then reattach it to the
AC charger/adapter. If the POWER light continues to flash after several attempts to attach it, the
battery is unable to take a charge and must be replaced.
Do not attach a hot battery to the AC adapter/charger. Allow it to cool. Attaching a hot battery to
the AC adapter/charger causes the POWER light to flash.

THERE ARE NO USER-SERVICEABLE PARTS INSIDE THE BATTERY OR AC

THROWING THE BATTERY INTO FIRE OR EXPOSING IT TO EXCESSIVE HEAT (ABOVE

149°F [65°C]) MAY CAUSE INJURY.

SHORTING THE BATTERY'S TERMINAL INCREASES RISK OF FIRE OR ELECTRICAL

ADAPTER/CHARGER.

SHOCK.

ATTENTION:

The product that you have purchased contains a rechargeable battery.
The battery is recyclable. At the end of its useful life, under various state
and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your
area for recycling options or proper disposal.

Adjusting the Electronic Viewfinder

The electronic viewfinder adjusts simply by pivoting it to a position where it is comfortable and
easy to see through. Place the viewfinder back in its original position before storing the
camcorder in its case or carrying the camera recorder around to avoid damaging the viewfinder or
camcorder.

Getting Started - 16 -

Eyepiece Adjustment

To use the electronic viewfinder, turn this control for your optimum focus adjustment.

Adjustment the Hand Strap

Adjust the hand strap to best fit your hand. After adjustment, hook the hand strap's pad securely.

Loading Batteries

Install the batteries to prevent misplacing them.

Clock Battery

Getting Started - 17 -

1. Pull out the battery holder.

2. Insert the battery with the "+" terminal facing up.

3. Fully insert the battery holder into the camcorder.

Remote Control Battery

1. Push the tab to the right of the remote control and hold it, then remove the battery holder.

2. Press the PLAY button and hold it for about two seconds.

3. Insert the battery with the "+" terminal facing up as shown in the figure.

4. Replace the battery holder with battery in the remote control making sure that it is fully

inserted.

WARNING: KEEP THE BATTERIES AWAY FROM CHILDREN AND PETS.
IF SWALLOWED CONSULT A PHYSICIAN IMMEDIATELY FOR EMERGENCY
TREATMENT.

Note: Replace the batteries with 3V micro lithium cells such as Maxell CR2025 or its

equivalent.

Note: Dispose of battery safely in accordance with local laws. Do not dispose of in fire.
Note: Do not short circuit the batteries.
Note: Do not take apart the batteries.
Note: Do not hold the batteries with the metallic tweezers.
Note: Do not re-charge the batteries.

Getting Started - 18 -

Note: Keep the batteries in a dark, cool, dry place.

Camcorder Batteries Using Battery Pack

Before you install the battery for the first time it must be fully charged. Refer to "Charging the
Battery" on page 12 for details.

1. Lift the OPEN lever and pull it up. The power supply attachment cover will open.

2. With the battery compartment facing you, align arrow on the battery with the arrow on the

camcorder.

3. Once the arrows are aligned, push down on the battery.

4. While pushing down the battery, slide it to the right until it "clicks" into place.

5. After installing the battery, close the cover. Hold the OPEN lever and align the tabs on both

sides of the cover with the end of the attachment section.

Getting Started - 19 -

Note: If the OPEN lever is flat, the cover will not close.
Note: Always remove the battery from the camcorder after use.
Note: We cannot guarantee against malfunctions of the camcorder which occur when you

use battery packs other than those specified.
Note: Always attach a battery by the procedure described here. Attaching a battery forcibly
could damage it.

Removing the Battery Pack

1. Lift the OPEN lever and pull it up. The power supply attachment cover will open.

2. Push the side of the battery in the direction of the arrow. A click will be heard and the battery is

released.

3. Remove the battery and close the cover.

Checking the Battery's Charge

A battery charge indicator is located on the upper right corner of the viewfinder. One of three
symbols displays when the battery is used.

This symbol indicates a fully charged battery.
