型號

R-X730FJ

Model

只限在台灣使用

For use in Taiwan only.

HOW TO USE

REFRIGERATOR-FREEZER

使用說明書

日立多門電冰箱

6 doors

Made in Japan

● It takes time to cool for the ﬁrst time.

Pg.48, 49

It may take more than 4 ∼ 24 hours to fully cool.

● Make sure that no food protrudes beyond the storage height limit of

each compartment, and allow clearance between each food in each compartment.

Pg.58, 60 Otherwise, food and/or package may not be stored in each compartment properly, and as a result, the door may not be closed completely. It may cause the refrigerator not to cool sufciently and/or not to make ice.

● 購買後初次使用時。

10, 11

頁

初次使用時，庫內冷卻可能需要約4小時至24小時以上。

● 請遵守可容納食物的高度及食品之間空開間隙儲放。

20, 22

頁

過分塞堵食物，會造成食品及袋子被門夾住關不緊，製冷效率低，不能製冰等。

Thank you very much for purchasing a Hitachi Refrigerator. This refrigerator is designed for home use only. Do not use this refrigerator for the business use and/or any purpose other than storing food. Please read this operation manual carefully and ensure you use the appliance correctly. In particular, be sure to read the “Safety Suggestions” section of this operation manual before use. Please keep this operation manual along with your guarantee card. Hand over this operation manual together with the refrigerator when the refrigerator is passed to a third party and used in a different location, or when it is sent to a recycling plant.

非常感謝您購買日立電冰箱。此電冰箱僅供家庭使用，請勿使用於商業用途和儲存食品以外的目的上。請詳閱本使用說明書，以確保正確使用。使用前請務必詳閱「安全上之注意事項」。請妥善保管本使用說明書與保証書，當將電冰箱交給他人在別的場所使用時，以及交給回收工廠時，請將本使用說明書隨電冰箱一同轉交。

家庭用

For household use

六門日本製

R-X670FJ R-G670FJ

特長

FEATURES

常見問題

FREQUENTLY-ASKED QUESTIONS (FAQs

)

■ 白金蔬果睡眠保鮮室

採用[睡眠保鮮]功能，利用白金觸媒的效果保持鮮度及營養素。產生碳酸氣來抑制蔬果營養素的耗損，保持鮮度。

■ 白金真空睡眠冰溫室

以約

0.8

氣壓的[真空保存]，防止食品氧化，保持鮮度及營養素。採用以白金觸媒的[睡眠保鮮]技術，抑制鮮度降低。 ※ 所謂真空是指比大氣壓力還要低的壓力狀態。真空冰溫室內約

0.8

氣壓，比大氣壓力低，故

本公司將此稱為真空。

■ 省能源

大容量

藉由［霜能再利用冷卻］等的各種省能源技術，來降低電力的消耗。如果想要更節省電力時，可以選擇［節電］模式。在結構上還巧下功夫，不僅利用真空隔熱材料達到冰箱的薄壁化，還讓定格內的容積更寬廣，盡可能讓層架、置物盒、抽屜加大空間，增加實際食品的收納量。

■ 電動冷藏室門

電動抽屜

全開式設計(蔬果保鮮室

)

縱使存放大量的食品，也可以輕鬆地開啟。

※ 電動冷藏室門只有

R-X730FJ, R-X670FJ

型號配備

■ Sleep Vegetable Compartment

Adopted a Sleep Preservation function that utilizes the effect of a platinum catalyst to preserve freshness and nutrients. Carbon dioxide suppresses the consumption of nutrients of vegetables and keeps them fresh.

■ Vacuum Compartment

The Vacuum Preservation at approx. 0.8 hPa suppresses oxidation and preserves freshness and nutrients. The Sleep Preservation technology, which is also adopted for the Vegetable Compartment, utilizes the platinum catalyst to prevent a reduction in freshness. ※

Vacuum represents a state in which pressure is lower than the atmospheric pressure. The pressure in the Vacuum Compartment is about 0.8 hPa, which is lower than the atmospheric pressure, so Hitachi calls it vacuum.

■ Energy saving & large capacity

Power consumption is reduced more thanks to various energy-saving technologies including “Frost Recycle Cooling” and others. In addition, [Energy Saving] mode is available for saving energy further. We have devised ways of increasing the rating internal capacity by enlarging shelves, pockets and slide cases as much as possible to store more foods while by using vacuum insulation to reduce the wall thickness.

■

Auto Door, Auto Drawer and Full Open (Vegetable Compartment)

You can open it with ease even if you store a lot.

[

三重抗菌除臭

]

利用三種除臭素材的完美組合，有效地捕捉並去除冰箱內含有硫磺系、氮系、醛系、酸系等四大異味分子。此外，並可抑制濾網所捕捉的細菌活動。

除臭濾網具有除菌效果。

●

試驗機關：一般財團法人

BOKEN

品質評價機構 ●

試驗方法：濾網密著法

(JIS Z 2801)

●

處理零件名：濾網 ●

除菌方法：將氧化觸媒塗抹在濾網 ●

對象：

濾網所捕捉的細菌 ●

試驗結果：24小時後達到

99%

的除菌效果。只是濾網單體的性能。此除菌效果並無法遍及冰箱內整體及所有食品。

[Triple Power Deodorizing Effect]

A combination of 3 types of deodorizing materials leads to deodorize various odorous substances in the refrigerator including 4 major odors such as sulfur, nitrogen, aldehyde and oxidization odors. Activities of bacteria collected by the ﬁlter are also restricted.

Deodorant ﬁlter has the effect of sterile ﬁltration.

● Testing laboratory: Boken Quality Evaluation Institute, a general incorporate foundation ● Test method: Film contacting method (JIS Z 2801) ● Name of the part used for treatment: Filter ● Sterilization method: applying oxidation catalyst to the ﬁlter ● Target: bacteria collected by the ﬁlter ● Test result: sterilization effect of 99 % after 24 hours by using a ﬁlter only. This has not always effect on the entire refrigerator or foods.

無法結冰時

頁

If the ice is not made

Pg.72

If the refrigerator is not cooled down well

Pg.73

If frost or dew is formed

Pg.73

冰箱內冷度不夠時

頁

結霜或結露時

頁

※ Auto Door is available only for R-X730FJ, R-X670FJ.

節省能源的使用方法

減少冰箱門的開閉，切勿時間過長

開閉次數多，冷氣向外流失，保冷效果差。

切勿塞滿過多的食物

一旦塞滿過多的食物，冷氣的流通循環不良，不僅無法讓冰箱內均一冷卻，而且還會消耗電力。存放食品時請適度地保留間隙。

將熱的食物放冷之後再放入冰箱

將熱的食物放入冰箱時，冰箱內部的溫度升高，周邊食物的溫度也隨之升高。

冰箱周邊應保留適當的間隙

若周邊無保留間隙時，冰箱無法散熱，而導致電力的浪費。

更換受損的冰箱門墊圈

因受損後所產生的間隙可讓冷氣流失，而導致電力的浪費。將名片等夾在其間，若因無法夾緊而滑落，請更換冰箱門的墊圈。

Tip for using the refrigerator wisely for energy savings

1. Open or close a door less frequently and quickly.

Frequent ope

ning and closing leads to waste of energy.

2. Do not overﬁll the refrigerator.

Overﬁlling the refrigerator prevents a smooth circulation of cool air, precluding even cooling

throughout the refrigerator and consuming unnecessary power. Place food at appropriate intervals.

3. Do not place hot food in the refrigerator.

Placing hot food raises the temperature in the refrigerator, which, in turn, raises

the temperature

of surrounding food.

4. Provide an appropriate gap around the refrigerator.

Installing the refrigerator with little clearance between the refrigerator and the surrounding objects

prevents the release of heat and thus leads to the waste of power.

5. Replace a damaged door gasket.

Cool air leaks through a damaged gasket, which leads to the waste of power. If a name card

inserted betwee

n the gasket and the refrigerator slides down, the gasket needs replacing.

使用之前

安全上的注意事項

..............................

確認事項

............................................

各室的名稱・存放食物

................................

附屬品

.........................................................

操作面板的功能

..........................................

事前準備

............................................

使用前的準備

..............................................

移動・搬運的事前準備(搬家時

)

................

使用方法

電動冷藏室門

.....................................

設定電動冷藏室門

.......................................

使用電動冷藏室門

.......................................

電動抽屜

............................................

設定電動抽屜

..............................................

使用電動抽屜

..............................................

冷藏室

................................................

調整置物架・層架的高度

............................

使用活動式萬用盒

.......................................

調節冷藏室溫度

..........................................

急速冷卻食品(急冷藏

)

...............................

真空冰溫室

.........................................

開閉真空冰溫室門

.......................................

變更真空冰溫室的設定

................................

製冰室（自動製冰機）

.........................

製冰方法

.....................................................

急速製冰

.....................................................

製冰停止

.....................................................

收納量・製冰時間

.......................................

告知給水警示燈

..........................................

「製冰」顯示為閃爍時

.................................

冷凍室

................................................

使用上層冷凍室

..........................................

使用下層冷凍室

..........................................

食品收納時請格外注意

................................

調節冷凍室的溫度

.......................................

將食品急速冷凍(急冷凍

)

...........................

蔬果保鮮室

.........................................

收納食品

.....................................................

食品收納時請格外注意

................................

使用下層存放空間

.......................................

若想以更冷的溫度來保鮮時（蔬果室強）

.....

各種功能

.......

.....................................

「節電」模式的設定

.....................................

eco

運轉顯示燈

...........................................

冰箱門開閉顯示燈

...............................................

操作面板鎖定功能

.......................................

箱門警報器

..................................................

箱門警報器及操作音的音量調節

.................

將防止結露的加熱器設定為弱

.....................

溫度微調節（冷藏室・冷凍室）

......

..............

保養方法

〈定期檢查〉

........................

電源插頭/冰箱背面・地板/箱門表面

........

各層架・置物架・置物盒/箱門密封墊/液汁承接處

...

真空冰溫室/電動抽屜

................................

製冰機清潔

..................................................

給水槽/製冰盤

...........................................

卸除組件的方法・安裝的方法

............

可調式層架上段・中段（玻璃層架）

............

箱門置物架

..................................................

固定層架

.....................................................

可調式層架下段

..........................................

真空冰溫盒

..................................................

儲冰盒（製冰室）・上層冷凍盒（上層冷凍室）

...

上層滑動盒・中層滑動盒・下層冷凍盒（下層冷凍室）

...

上層滑動盒・玻璃隔板・下層置物盒（蔬果保鮮室）

拉取式門的安裝方法（製冰室・上層冷凍室・下層冷凍室）

...

遇到問題時

.........................................

初次使用時

..................................................

操作面板

.....................................................

自動製冰

......................................................

不冷

............................................................

結霜・結露

..................................................

太冷

............................................................

操作部的「」顯示等呈閃爍的狀態

.........

聲音不對

.....................................................

箱門高低不平衡以及歪斜

............................

冰箱發熱

.....................................................

真空冰溫室的問題

.......................................

有異味

.........................................................

電動冷藏室門

..............................................

電動抽屜

.....................................................

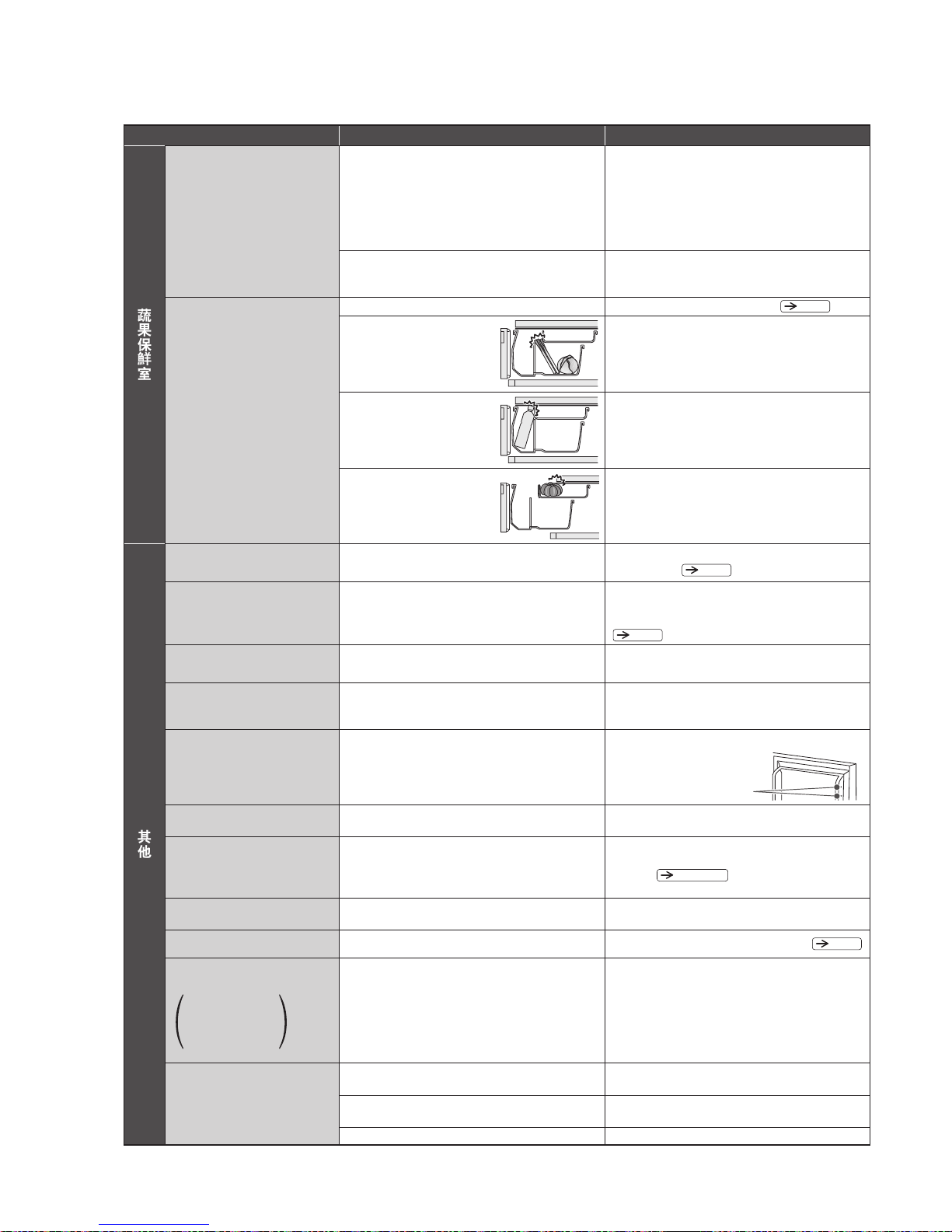

蔬果保鮮室

...................................................

其他

............................................................

另購零件

............................................

有關碳氫化合物的冰箱／規格／可容納的食品重量

...

● 請勿讓電線．插頭破損。

在已受損的狀態下使用時，會引發觸電．短路．火災的危險。

・

電源線損壞時，須由製造廠商或其服務處或具有

相關資格的人員加以更換以避免危險。

● 使用時請勿高於插座或配線器具的額定電流。請勿使用交流額定電壓以外的電源。

若與其他電器插頭併用，或使用三面插座等，會因異常發熱而造成火災的危險。

・

請單獨使用額定電流

15A

以上的插座。

警告

注意

此標示欄表示「可能會造成死亡或嚴重人身傷害」。

此圖示標示為「禁止」內容（請勿執行之事項）。

「提醒警告及注意」的內容。

此圖示標示為「強制」內容（請務必執行之事項）。

此標示欄表示「可能會發生人身傷害或財產損失之預測內容」。

警告

安裝時

電源及電源電線

● 請確實實施接地。

避免因故障．漏電等因素而發生觸電。

・

請務必委託經銷商執行接地工程。

頁

● 請勿用潮濕的手，拔除插頭。

・

會引起觸電。

● 進行冰箱保養，請務必拔掉插頭。

有觸電或受傷的危險。

頁

・

請將插頭確實的從插座內拔出。

● 將插頭的電線向下，將插頭確實插入插座內。

・

如果插頭方向相反插入，會給電線增加負擔，成為短路．觸電．起火的原因。

・

如果插頭插得不夠完全，也將會成為因觸電，發熱而導致火災的原因。

● 請定期清除插頭上的灰塵。

當插頭堆積灰塵時會因濕氣而造成絕緣不良，進而引起火災。

・

請拔除插頭再用乾布擦拭乾淨。

● 針對地震等天然災害做好防止翻倒處置。

・

避免因翻倒而受傷。

● 請勿設置於潮濕或會被水淋到的場所。

・

避免因電氣絕緣不良而引起觸電．火災的危險。

接地端子

接地連接螺絲

連接接地線

禁止

禁止濕手

禁止淋濕

電源

110V

請勿讓電線受損．加工．接近發熱器具．勉強彎曲．扭曲．拉扯．乘載重物．讓冰箱壓住電線或捆綁電線。

搖晃不定

安全上的注意事項

請務必遵守

為了防止危害到使用者或其他人及造成財務上的損失，請務必遵守以下事項。

■ 以下將以標示方式，區分及說明忽視標示內容而誤用時所產生的危害與損失程度。

■ 以下將以圖示標示方式，區分及說明應遵守內容的種類。（以下為圖示標示例）

在一般使用的情況下

● 請勿用水淋濕主體與箱內。

・

避免因電氣絕緣不足而引起觸電．火災。

● 請勿放入容易引火的物品。

・

揮發油．乙醚．LP瓦斯．稀釋液．

黏著劑會發生引爆的危險。

● 請勿懸在箱門上嬉戲，或踏在收納盒上。

・

避免因翻倒，夾到手指而受傷。

● 不要將箱門開得過大或靠在打開的箱門上等給箱門施加勉強的力。

●

請不要拆卸冰箱內燈的蓋子。

・

燈泡損壞時，須由製造廠商或其服務處或具有相關資格的人員加以更換以避免危險。

● 不要用力碰撞門。

● 請勿用來保存藥品或學術試樣。

・

必須嚴格管理的物品，不可保存於家庭用冰箱內。

● 在附近請勿使用可燃性噴霧用品。

・

避免因箱門開關等電氣接點引起的火花引發火災。

● 請勿將含水容器放在冰箱上。

・

翻倒的水會造成電氣組件絕緣不良而發生漏電．火災．觸電的危險。

● 請勿在冰箱上放置物品。

・

避免因開閉箱門，造成物品掉落

而受傷。

● 請注意不要讓孩子們玩耍。 ● 如果幼兒可能玩弄電動冷藏室門或電動抽屜時，請停止使用電動冷藏室門・電動抽屜的功能。

12,13

頁

● 請勿手觸自動製冰機的機

械部位。

・

製冰盤旋轉時，手恐怕會受傷。

禁止淋濕

禁止

禁止接觸

警告

binder

LP gas

Benzine

安全上的注意事項

關於冷媒（由於這是一種可燃性的氣體，請注意以下的事項。）

● 不可以螺絲等銳利物品刮傷冰箱本體。

由於使用可燃性的冷媒，當冷媒從冰箱內壁的配管外洩，會有起火．爆炸的危險。

● 除廠商建議方法外，不得使用機械工具或其它工具來加速除霜的過程。

● 請勿在冰箱內部使用電器用品。

・

如冷媒外洩，電氣接點所產生的火花，會有起火．爆炸的危險。

● 請勿損傷冰箱的冷卻管路。

冷媒配管損壞時，請將冰箱遠離火源並避免使用電器用品。配管損壞時，請儘快將門窗打開，並與經銷商或日立技術中心聯絡。

● 安裝的時候，在周圍要離開一些間隙，確保有足夠的散熱空間。

頁

若冷媒外洩的情況持續，會有起火．爆炸的危險。

● 如需進行廢棄處理時，請聯絡經銷商或環保署資源回收中心專線

(0800-085-717)

，交給他們進行

專業處理。

若冷媒外洩會有起火．爆炸的危險。

禁止

萬一有下列情形

廢棄處理時

● 當產品異常或故障時，請拔掉插頭停止運轉。

有觸電或受傷的危險。

・

請務必在拔除插頭時握住插頭。

● 在等待廢棄物再利用保管之際，因有幼兒被誤困在箱內之虞，請將門墊拆下來。

● 可燃性氣體外漏時，勿接觸冰箱，請立即開啟窗戶進行換氣。

・

避免因箱門開關等電氣接點的火花，而發生引爆．火災．燙傷等危險。

● 請勿自行分解．修理．改造。

避免發生火災，異常動作而受傷。

・

需分解．維修時，請洽經銷

代理商。

禁止分解

警告

關上開關

● 請勿用膝蓋去按電動抽屜的開關。

● 請勿把瓶子之類的物品放在電動抽屜附近。

● 請勿將手放在冷藏室門手把上，開閉抽屜門。

● 他人同時觸摸時請勿進行開閉動作。

● 請勿將手放在抽屜門手把上，開閉電動冷藏室門。

● 請勿在容易刮傷的地板上使用冰箱滑輪。

避免因滑輪而刮傷地板。

・

請在容易刮傷的地板上鋪

上保護板。

● 請勿以吊車吊起手把部位。

● 請勿碰撞冰箱背面・側面。

● 請勿將瓶子放在冷凍室內。

・

內容物結凍會使瓶子破裂，容易受傷。

● 請勿在超大瓶飲料的縫隙間再塞入其他瓶罐。

�

・

勉強放入超大瓶飲料瓶後，在開閉箱門時，可能會因掉落而受傷。

● 請勿讓食品凸出層架。

・

避免因鉤到瓶罐後掉落而受傷。

禁止

移動•搬運時

● 搬運時，請用手持手把搬運。

倘若沒有手持把手，可能會因手滑而受傷。�

・

請僱用2人以上手持手把搬運

。

・

搬運時請如圖示般將箱門朝上。

・

請不要用起重機等吊起把手。

・

為了防止箱門開啟，以膠布固定。防止電源插頭、電線下垂，請以膠布固定。

小心

在一般使用的情況下

● 請勿食用有異味，已變色的食品。

・

避免因食品腐敗而引發疾病。

● 請勿用潮濕的手碰觸冷凍室內的食品或容器。

・

避免凍傷。（尤其是金屬製產品）

● 開啟最底層的箱門時，請勿讓腳靠近冰箱。

・

避免在開啟箱門時，碰觸到腳底而受傷。

● 手腳不要放進冰箱的底部。

清理時將手伸入冰箱底下時，可能會被鐵板割傷。

● 請勿施加強烈撞擊力於玻璃層架及玻璃隔板。(可能因玻璃層架及玻璃隔板破裂而導致受傷

)

● 如果有人在冰箱前，操作電動冷藏室門時，可能會因撞到打開的冷凍室門，而造成意想不到的傷害，請格外注意。

● 請勿在玻璃層架及玻璃隔板的玻璃面上加熱，或放置熱的物品。

● 存放食物於活動式萬用盒時，請切勿重疊置放。

● 開閉冰箱門時，若有異常聲音或磨耗粉末掉落等異常現象時，請停止使用，並請維修人員到府察看。

● 為了防止水滴到地板上。

長時間門與冰箱間有縫隙時，結露水或除霜水可能會滴下。請確實關緊冰箱門讓門與冰箱之間沒有縫隙。

● 因為玻璃層架及玻璃隔板很重，安裝、拆卸時請格外注意。

● 當打開冰箱門時，若其他門也在進行開閉動作時，為了避免被打開的冰箱門之間夾傷手或手指，請格外注意。

● 關閉冰箱門時，請勿握住冰箱門把手以外的部位進行關閉。

禁止

注意

安全上的注意事項

※ 是在環境溫度

30˚C

、不放食物、關著門、安定時的標準值。

●收納時請保留食品間的空隙。

●建議您在存放強烈氣味食物時，先以保鮮膜包覆之後再放入冰箱。

●可以收納食品重量的大概基準。

頁

Rice

Frozen

wheat noodle

Hamburger

Deep-fried chicken

New

tea

leaves

Fish

sausage

Butter

Vienna

sausage

Milk

Tea

ogur

確認事項

各室的名稱・存放食物

附屬品

冷藏室

頁

約

2˚C ~ 6˚C

製冰室

頁

約

-20˚C ~ -18˚C

上層・下層冷凍室

頁

約

-20˚C ~ -18˚C

蔬果保鮮室

頁

約

4˚C ~ 8˚C

真空冰溫室

頁

約

-1˚C ~ +1˚C

保證書

維修時請出示保證書

專用工具

(

付調整墊2個

)

請在固定冰箱時使用

頁

冷藏食品

自動製冰機所製作的冰塊

【只有

R-X730FJ

】

保冷劑・冰棒等

頁

冷凍食品，冰淇淋及乾貨。

蔬菜，水果，飲料

上層存放空間

貯冰空間

小物品收納空間

肉類・魚類等的生鮮食品

真空與白金觸媒的效果，抑制鮮度降低。

使用過的蔬菜、小型蔬菜、水果等

箱門置物架附近溫度會稍高。

Tea

Mineral

water

Mineral

water

豎放儲存區

較高大的蔬菜及2公升的寶特瓶

豎放儲存區的溫度較高。

下層存放空間

葉菜類(菠菜、小松菜等)、大型蔬菜(高麗菜、萵苣等

)

敬請依照指示操作

操作面板的功能

確認事項

操作面板的上段為顯示部、下段為操作部。顯示部及操作部通常為熄燈狀態。請觸按

鍵，讓其顯示亮燈。

操作部為觸控式面板。請觸按面板來切換設定。

告知之顯示

節電設定溫度設定製冰設定

設定冷卻模式真空冰溫室設定

電動抽屜

冷藏室電動門

顯示部分

操作部

給水

開閉多

減少電力消耗，啟動運轉時顯示燈亮燈

頁

電動抽屜功能「開」亮燈

頁

電動冷藏室門功能「開」亮燈

頁

※ 只有

R-X730FJ, R-X670FJ

操作面板按鍵鎖，上鎖時顯示燈亮燈

頁

告知異常時，顯示燈閃爍

頁

當給水槽中的水減少時，顯示燈亮燈

頁

冰箱門開關次數多時則顯示亮燈

頁

將各室的冷卻減弱，節省電力。

平常請設定在「中」的位置。

節電

頁

冷藏室

頁

冷凍室

頁

急速製冰

頁

製冰

頁

製冰停止

頁

急冷藏

頁

急冷凍

頁

蔬果室強

頁

+1˚C

頁

-1˚C

頁

關

頁

(

非真空的冰溫

)

● 觸控面板會根據周圍的溫度・濕度、使用者的身體狀態及旁邊的電器製品的使用狀況，其反應會有所變化。

● 按了也沒有反應(顯示內容不變)的時候，請把手指離開一下再按。兩次按按鈕的時間間隔過短有可能導致檢測出錯誤訊息(感應為持續按)。用力按也不會改善感應度的。

● 玻璃觸碰部濕或髒了的時候，會沒有反應。請以乾布擦拭。

● 冷藏室門打開時，或顯示部閃爍時觸按操作部則不會有任何反應。

通知事項

最初碰觸

鍵

※ 為了更清楚說明，所有的顯示都呈燈亮的狀態。

● 觸按

鍵時，所有顯示亮燈後，即顯示目前的設定狀態。此外，打開冷藏室門，亦可顯示目前的設定狀態。

● 操作結束後，再次觸按

鍵時，顯示部及操作部的顯示會熄燈。

此外，縱使不觸按

鍵，經過約40秒，為節省電力，顯示部及操作部的顯示會自動熄燈。

但，設定成「節電」模式時，「急冷藏」「急冷凍」「急速製冰」的運轉顯示及「製冰停止」「給水」的通知顯示、「關」的顯示、環保節能運轉中的

[eco

運轉顯示

] [

冰箱門開關顯示]不會熄燈。

● 打開冷藏室門時，顯示部及操作部會亮燈。關上冷藏室門約15秒後則熄燈。

通知事項

設置在以下的場所

● 堅固・水平的地板地毯・榻榻米（日式草蓆地板）・木板地・塑膠地板等恐怕會有變形・變色的可能，請墊（超過

1cm

厚的）板材。

● 避免陽光直射和高溫

● 不潮濕・空氣流通的地方這些可防止冷卻功率下降，避免電費增加。而且可抑制變色以及生銹。

● 與其他的電器間隔一段距離防止對電視等造成雜音或影像不安定等情形。

※ 為了保持良好冷卻效率，在周圍請空開充分的散熱空間。 ※ 本體側面的中央部分是比所表示的尺寸稍大。

設置時請確保充裕的空間。

※ 背面可靠牆設置。若有振動音或是不願讓牆壁弄髒及變色的話，

請空開一些間隙。

調整墊(附屬品

)

固定冰箱

旋轉冰箱前方下側的調整腳，來調整冰箱平衡。(請使用附屬專用工具及2個調整墊

)

箱門的平衡調整

● 設置的地方不平，地板太軟，加上食物的重量，冰箱腳會下沉，箱門會稍有歪斜。

→

機能上沒有問題，如介意請按如下的步驟進行平衡調整。進行左右水平調整，並使冰箱的前側稍微高一點可方便關門以避免門沒關好。

事前準備

使用前的準備

手持遮蔽架的兩端，用力拉向身前卸下。

請使用附屬的專用工具調整箱門下沉一方的調整腳，直到左右冰箱門平行為止。

調整腳的旋轉量是，每旋轉1圈相當於箱門的高低差距

1mm

。

請將遮蔽架的卡榫(左右)插入冰箱的安裝孔內安裝。

調整後，冰箱本體與地板的適應需要約

天的時間。經過一段時間後冰箱仍無法平衡時請再次按步驟進行調整。

將調整墊放在調整腳的下方。

請將調整腳調整至前後左右平衡的狀態。

旋轉降低調整腳，以固定冰箱。(左右兩個地方

)

請使用專用工具配合調整腳的形狀夾住調整腳。

●

在放入調整墊之前，請將調整腳的底部與地板擦拭乾淨。若有髒污時將有可能會刮傷地板。

● 旋轉調整腳時，請使用專用工具並請注意勿傷及地板。

調整腳

專用工具(附屬品

)

■ 左側下歪 ■ 右側下歪

旋轉降低左邊的調整腳

旋轉降低右邊的調整腳

安裝孔

卡榫

遮蔽架

左右

0.5cm

以上

上方為

5cm

以上

1 2

2 3

● 在冰箱門開啟的狀態下，手放開時，有可能冰箱門會慢慢自動關上，這並非故障。

通知事項

將電源插頭插入

設置後直接就可插上電源插頭。請用獨立的插座。（電源

110V

�額定電流

15A

以上）

● 請確認電源插頭及電線是否夾在冰箱背面及牆壁中間。為了防止電線發熱。

事前準備

● 若在有硫化氣體噴出的溫泉地區等設置時，可能有必要進行配管的防銹處理，請預先與經銷店洽商。此外，氣體造成的故障不屬於保修範圍。

● 插上電源插頭後，冰箱會發出運轉的準備聲音。此外，冰箱在充分冷卻之前，壓縮機及風扇會發出較大的聲音。

● 剛開始使用時可能會有些許塑膠的氣味。請保持室內通風良好。使用後此氣味不久即消失。

● 請勿將背面的標籤撕下，或拆卸側面下方的塑膠製品。

● 磁鐵裝飾或是吸盤吸附在冰箱本體或冰箱門表面有可能會留下痕跡。

● 周圍溫度較高時，因冰箱門表面產生露水，貼在冰箱門的紙等，有可能會吸濕。

通知事項

冰箱內開始冷卻

● 根據冰箱周圍溫度、食品的存放方式不同，冰箱內充分冷卻

約需要4小時。夏天天氣炎熱時，也有可能需要24小時以上

。

在冰箱尚未充分冷卻前請勿將冰淇淋或未充分冷卻的食品、易受損的食品，放入冰箱。

● 初次使用自動製冰時，請操作自動製冰機的

「製冰機清潔」

。

頁

● 自動進行連續的製冰運轉是必須在冰箱內充分冷卻之後才能開始。

(

初次使用時，

最初的結冰可能需要花24小時以上

。

)

為了防止萬一觸電，請實施接地。

● 如設置地方特別潮濕，請與經銷店洽商，接地線或安裝漏電開關。

標貼

塑膠製品零件（左右）

不可接地線的地方

● 自來水管（有觸電的危險）

● 煤氣管（有爆炸的危險）

● 電話線及避雷針的地線（打雷時會發生危險）

接地端子

接地安裝螺絲

地線（銅線直經

1.6mm

）

在地板上鋪上鋪墊或布，將冰箱往後傾倒，讓內部的水流出

將食物及冰塊取出

拆除冰箱遮蔽架，將調整腳升高

將給水槽、製冰盤的水倒掉

以膠布將冰箱門・電源線固定

在預定放置的位置，請依照「使用前的準備」的指示進行設置。

頁

拔除電源插頭

要搬動之前拔除即可

移動・搬運時請鋪上保護用的鋪墊或布

防止刮傷地板、或冰箱內部殘留水流至地板。

搬運時請握住搬運把手搬運，並請2人以上進行搬運

運輸時請勿將冰箱橫放。

(

冰箱故障的原因

)

移動・搬運的事前準備(搬家時

)

舊的布巾等

使用電動冷藏室門

當觸碰電動冷藏室門操作部，發出操作音，門自動開啟。

關閉時，以手握住手把關閉冷藏室門。電動無法關閉。

電動冷藏室門的功能可切換成「入」（動作）或「切」（停止）。工廠出廠時設定為「入」。

電動冷藏室門

冷藏室門

(左)

冷藏室門

(右)

使用電動冷藏室門功能，只要以手指輕輕觸碰，即可輕鬆地開啟冷藏室門。（只有

R-X730FJ, R-X670FJ

）

電動開門器

電動冷藏室門操作部

(自動)

把手

(手動)

注意

● 如果幼兒可能玩弄電動冷藏室門時，請停止使用電動冷藏室門功能。

● 如果有人在冰箱前，請勿操作電動冷藏室門。(可能會因撞到打開的冷藏室門，而造成意想不到的傷害

)

● 冰箱上面請勿放置物品。

● 要清理電動冷藏室門時，請務必將電源插頭從插座拔除。

設定電動冷藏室門

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

秒以上，直到發出設定音為止

要停止電動冷藏室門的功能時，請設定為「關」。

1 2

按下

顯示燈亮

電動冷藏室門的功能

「開」「關」

「冷藏室電動門ON」的顯示

燈亮

熄滅

設定音

嗶

−

嗶嗶

電動冷藏室門的

開啟方式

開啟單一邊冷藏室門

一次開啟兩邊的冷藏室門

操作方法

觸碰開啟的冷藏室門的操作部

※ 請用手指操作。

以手指在操作部的一端滑動到另一端

(

依順序開啟操作的冷藏室門

)

電動冷藏室門的操作音

嗶嗶

−

●當電動冷藏室門設定為「關」時，請以把手開啟冷藏室門。

●無法將「冷藏室門(右)」或「冷藏室門(左)」單一邊停止冷藏室電動門功能。

通知事項

從冰箱上方的俯視圖從冰箱上方的俯視圖

●「製冰室」、「上層冷凍室」的任何一個在開啟的狀態下時，為了防止手被夾傷，電動冷藏室門無法操作。

●電動冷藏室門是為了減輕開啟冷藏室門的負擔所設計的功能。隨著冰箱的設置條件、冰箱門置物盒內飲料食品的收納狀況，電動冷藏室門開啟的角度可能有所改變，或在開啟之後會有稍微關閉的情形，這並非異常。

●當碰觸電動冷藏室門操作部後，冷藏室門在開啟的動作時會發出聲音，這並非異常。

●當電動冷藏室門的操作部濕或髒時，有可能冷藏室門沒有反應。請以沾濕的布將污垢擦拭之後，再以乾布擦拭乾淨。

●同時觸碰電動冷藏室門操作部周邊，持續約1秒以上時，冷藏室門有可能無法開啟。

敬請依照指示操作

用手按下電動抽屜開關，抽屜就會開啟。

關閉時，請以手動將左右把手推進。電動無法關閉。

電動冷藏室門／電動抽屜

電動抽屜的功能可切換成「入」（動作）或「切」（停止）。工廠出廠時設定為「入」。

●

如果孩童可能玩弄電動抽屜，可以停止電動抽屜功能。

●

當你按下蔬果保鮮室的電動抽屜開關時，腳請勿靠近冰箱。（

避免開啟箱門時撞到腳而受傷）

● 請勿握持箱門把手以外的部分關閉箱門（可能造成因冰箱門夾住手指而受傷的情形）

● 用手操作電動抽屜開關。

● 務必先拔下電源插頭，然後再維修電動抽屜。

電動抽屜開關

(

自動

)

把手(手動

)

電動抽屜

把手(手動

)

使用電動抽屜

使用電動抽屜功能，縱使存放了許多食品，重量相當重，也能輕輕鬆鬆的取出。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

秒以上，直到發出設定音為止

若要停止電動抽屜功能時，請將設定切換為「關」。

注意

電動抽屜的功能

「開」

(

可使用電動抽屜的開關

)

「關」

(

無法使用電動抽屜的開關

)

「電動抽屜ON」的顯示

燈亮

熄滅

設定音

嗶

−

嗶嗶

設定電動抽屜

●當電動抽屜設定在「關」時，請拉左右的把手打開抽屜。

●「下層冷凍室」或是「蔬果保鮮室」，無法只停止任何一方的電動抽屜功能。

● 為了減輕拉出抽屜時的負擔所設計的功能，開始動作時，推出抽屜的尺寸約在

15cm

以上。因冰箱設置條件不同，有可能拉出

抽屜的尺寸稍微不同，或是門以電動的方式開啟後又稍微退回，這些都不是異常現象。

● “下層冷凍室”和“蔬果保鮮室”不能同時用電動開啟。

● 當“下層冷凍室”和“蔬果保鮮室”中任何一方被開啟，電動抽屜功能將不能操作。

● 當你按下電動抽屜開關時，可聽見聲響。這不是異常。

● 電動抽屜按鍵上若沾上食品液體時，請立即擦拭乾淨。會造成電動抽屜按鍵機構部的故障，或是抽屜門無故地開啟的原因。

通知事項

11-4

按下

11-4

顯示燈亮

下層冷凍室

蔬果保鮮室

敬請依照指示操作

●剛出廠時的狀態 ●剛出廠時的狀態●收納鍋子等 ●收納鍋子等

將層架安裝在中段將層架翻轉安裝於

上段

●收納紙盒裝牛奶等 ●收納紙盒裝牛奶等

將層架安裝在下段將層架翻轉安裝於

下段

冷藏室

冷氣吹出口

LED

庫內燈

可調式置物架

可調式層架上段・中段

（玻璃層架）

可調式置物架

急速冷藏區

可調式層架下段

容器置物架

(右)

※ 在

R-X670FJ

說明

置蛋架

固定層架

容器置物架

(左)

固定容器置物架

冷藏室溫度感測器

活動式萬用盒

旋轉隔板

● 將含水份較多的食物或罐裝飲料放置在冷氣吹出口附近時，有可能因結凍而導致破裂的情形。

●

稍有熱度的食物請放置在急速冷藏區或可調式層架。若將食品放置太靠近溫度感測器時，冷藏室溫度會過低，而導致冷藏室內側面板有結露的產生。

● 將麵包放入塑膠袋後放入冷藏室存放時，塑膠袋中可能會因結露而將麵包弄濕。

● 請勿將箱門開得過大或靠在打開的箱門上等給箱門施加勉強的力。箱门有可能会损坏。

敬請依照指示操作

注意事項

注意

■操作玻璃層架時

● 請勿對玻璃層架施加強力的撞擊。

(

玻璃層架可能因破裂而導致受傷

)

● 因玻璃層架較重，安裝，卸除時請特別小心。

■以手動打開冰箱門時

● 請勿握住旋轉隔板部開啟冰箱門。

(

可能造成冰箱門無法開啟

)

■關閉冰箱門時

● 當旋轉隔板為立起的狀態時請勿關閉冰箱門。

(

可能造成冰箱門無法完全關閉

)

旋轉隔板

調整置物架・層架的高度

配合食品或飲料的大小，置物架及層架的位置可以做適度的調整。關於拆卸方式・安裝方式請參閱

頁

R-X730FJ R-X670FJ, R-G670FJ

■ 可調式置物架

■ 可調式層架上段・中段（玻璃層架）

配合食品及飲料的高低可以做適度的調整。

■ 可調式層架下段　

調節可分為3個階段。

冷藏室

按下

調節冷藏室溫度

使用活動式萬用盒

急速冷卻食品(急冷藏

)

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

在急速冷藏區放食物

放在中央的內側部分可較快冷卻。（冷氣吹出口前面）

按下

按鍵，可以變更適當的溫度

按下按鈕時依如右圖所示順序切換。出廠時設定為「中」。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵「急冷藏」顯示燈亮

「急冷藏」在運轉中時「急冷藏」的顯示燈亮燈。

[eco

運轉顯示燈]熄燈。

約50分鐘運轉後自動停止，此時「急冷藏」的顯示燈熄滅。

按下操作面板的

按鍵，顯示燈亮

按下

按鍵「急冷藏」顯示燈熄滅

中途解除

● 通常請使用“中”的位置。溫度因使用條件而有所變動。

● 調節更細微的溫度時

頁

● 設定改為「強」或「弱」時，真空冰溫室的溫度也會稍微改變。

● 箱門層架比右圖所示溫度略高。

● 夏天時，若覺得冷卻度不夠時，請設定為「強」。

● 在冬天，長時間設定為「強」時，食品有可能因而結凍。若覺得冰箱內太冷時，請設定為「中」或是「弱」。

※ 是在周圍溫度

30˚C

、不放入食品、關閉冰箱門、

安定的狀況下的冷藏室的大致溫度。

● 罐裝飲料及水份較多的食品請離背面冷氣吹出口一段距離置放。有可能會結凍、破裂。

通知事項

注意事項

約2∼

6˚C

（出廠時）

比“中”低約1∼

3˚C

比“中”高

約1∼

3˚C

急速冷藏區

冷藏室

放入雞蛋等食品，可以在冷藏室內自由選擇保存位置。

可以存放

個雞蛋。

市售雞蛋盒可以直接放入。

可將置蛋架翻轉，可以用來放置小型的食品。

按下按下按下

● 移動時請緊握把手。

● 因食物可能會落下，請勿將食品重疊存放。

● 比置物盒前方邊緣還高的食品，請勿放入。

● 請不要用此容器來製冰。有可能造成容器的破損。

● 在冷氣出風口處放置水份較多的食品、罐裝飲料、雞蛋等，可能因結凍而破損。請放置在離冷氣出風口稍遠的位置。

● 請勿將食品放置在比層架靠前方的位置。

敬請依照指示操作

活動式萬用盒

把手

置蛋架

真空冰溫室

白金觸媒

利用白金觸媒的效果，將肉類・魚類所散發出的氣味成分分解，轉變為碳酸氣，因而抑制食品鮮度的降低。

真空幫浦

把手

真空冰溫盒

(

付鋁製托盤

)

LED

庫內燈

當打開冷藏室門時，燈光即照射在真空冰溫盒。

真空解除閥(藍色

)

向上提起把手解除鎖定，藉由真空解除閥可以解除真空狀態。

解除真空時會有「咻」的聲音。

開閉真空冰溫室門

開啟箱門時關閉箱門時

將把手往上扳起，解除鎖定

將真空冰溫盒往前拉出

將真空冰溫盒往內推進

將把手往下扳，讓其鎖定

1 1

咻

把手

真空冰溫盒

● 若沒有將手把確實地往下扳，則無法形成真空狀態。

● 在未鎖定把手的狀況下關上冷藏室門，則可能造成零件、食品的破損，或是門縫間產生間隙，造成無法充分冷卻的原因。

● 關閉真空冰溫盒，鎖緊把手，再關閉冰箱門時，此時則啟動真空幫浦。

● 開始啟動真空幫浦時，會有發出聲音，這不是異常的情形。是正常運作。

● 真空幫浦啟動後至達到真空狀態，約需

3〜4

分

鐘。在4分鐘以內打開真空冰溫盒，有可能沒有

“咻”的聲音。

● 在沒有同時開啟左右冰箱門的狀態下拉出真空冰溫盒時，可能造成零件的破損。

● 若能聽到“咻”的聲音時，因為是正在解除真空的狀態，無法拉出真空冰溫盒。請在聲音消失後再往前方拉出。

通知事項

● 白金觸媒不須要更換。請勿將其拆除。

● 請勿將過多的食品、容器塞入真空冰溫室。

有可能導致真空冰溫盒無法拉出。

● 在真空冰溫盒開啟的狀態下，關閉冷藏室門時，有可能造成零件及食品的破損。

敬請依照指示操作

真空冰溫室

變更真空冰溫室的設定

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好變更設定

按下按鈕時依下列的順序切換。出廠時設定為真空冰溫。

1 2

※周圍溫度

30˚C

沒有放入食物，冰箱門關閉的狀態，在安定時的真空冰溫室的約略溫度。

「

-1˚C」(約-1˚C)

（出廠時）

「

+1˚C」(約+1˚C)

非真空狀態的冰溫

(約-1˚C)

設定與存放食品

-1˚C

(約-1˚C)

+1˚C

(約+1˚C)

真空關閉

關

(約-1˚C)

存放下列的食品時，請設定為「

-1˚C

」。

存放下列的食品時，請設定為「

+1˚C

」。

冷凍的肉類、魚類要解凍時，也請設定為

-1˚C

狀態。

含水分較多的食物有可能會凍結。

真空功能停止運作。建議存放需裝在「密封袋」、「密封容器」的食物時選擇該模式。因為是冰溫室，含水分較多的食物可能因低溫而凍結。

維也納香腸，乳酪片等。

茄子小黃瓜

優格・起司等豆腐・蒟蒻・油炸豆腐

・

白絲蒟蒻・水煮蛋等

咖啡豆・茶葉等切好的新鮮蔬菜、切好的水果

● 密封袋包裝食品

密封袋在儲存時可能會膨脹而擠壓到其他食品。

● 不耐低溫的蔬菜

低溫可能會使得蔬菜表面變質。請收納在蔬果保鮮室。

黃秋葵・蘆筍・生薑・青椒

● 塑膠密閉容器

塑膠密閉容器的蓋子在儲存時可能會鬆開或脫離原來的位置。取出時請注意。

●肉類・加工肉品

●乳製品

●切好的蔬菜、水果

●

魚貝類・海鮮類・魚類加工食品

●其他

● 結凍時

會造成品質、

口感變差的食物

儲存時需要注意的食品與容器

不適於儲存的食品

注意

● 縱使食品以保鮮膜包覆，也不會改變真空的效果。

● 周圍溫度低時，水分較多的食物可能因低溫而凍結。

● 將冷藏室・冷凍室的溫度設定調至「強」或是「弱」時，真空冰溫室的溫度會稍有改變。

● 為達到省電目的，約40秒顯示燈即熄燈，所設定的功能將持續有效。

● 因為真空冰溫室是密閉的狀態，食品和空氣中所含的水分，有可能在冷凍室內結成水滴或結霜，請以柔軟的布沾溫水擦拭。(產生水滴或結霜並不會對冷卻性能造成影響。

)

● 若您在意食品上有水滴、霜、結冰，建議您在存放食品時，以保鮮膜包裹。

● 真空冰溫室內若水或食品的液汁溢出時，請立刻擦拭乾淨。

通知事項

注意事項

敬請依照指示操作

水滴、結霜、冰

按下

真空

MINERAL

WATER

Tea

JUICE

操作部

● 建議使用自來水煮沸冷卻後來製冰

請向當地相關機關確認水質狀況。

● 因衛生上的理由，請至少每週更換一次水，並清洗容器。

● 使用含豐富礦物質的礦泉水製作冰塊時，會產生白色的粉末，這是礦物質成分，在衛生上無害。

● 本說明書所提到的水，皆須符合飲用水質標準。

製冰室

（自動製冰機）

給水槽

(約1.0公升)

製冰功能切換鍵

自動製冰機

儲冰盒

顯示

製冰鍵

告知給水警示燈

製冰室

● 由於會導致故障，或是會造出畸形・連體的冰等，請不要使用這些(液體)。

● 如下列所示，因為容易受到細菌污染，平常請三天清洗容器一次。

礦泉水

（硬度：

100mg/L

以下）

果汁類運動飲料水汽水茶

過濾水或

煮沸後的水

井水

（皆須符合飲用水質標準。）

製冰方法

按下操作面板的

按鍵，顯

示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，顯

示燈亮

下列的情形時，可能會延長製冰的所需時間。

・

開始使用時(可能需要24小時以上

)

・

設定成「節電」模式時

・

冰箱門開關次數頻繁時

・

冰箱內同時放進大量食物時

・

停電時

・

冬天周圍溫度較低時

・

清潔製冰盤後

・

冷凍室或製冰室門呈半開的狀態

・

冷凍室溫度設定為「弱」時

・

將稍有熱度的食物放入小物品收納空間(只

R-X730FJ)

時

通知事項

敬請依照指示操作

按下

製冰室

冰鏟

滿水位

滿冰位

貯冰空間

小物品收納空間

再裝回給水槽

往前推入到超過「水槽安裝位置」的線位。給水槽必須推至比水槽安裝位置更裡面，才會進行給水。 ※ 給水槽傾斜會將水灑出。水灑出請立即擦乾。

自動開始製冰運轉

● 冰塊儲存在儲冰盒中。

● 一次製冰約可製12個冰塊。

● 當冰塊積滿至滿冰位時，則會暫時停止製冰功能。當冰塊減少時，會自動啟動製冰功能。

● 當製冰盒內的沒有冰塊時，從製冰盤掉落冰塊，可能會有較大的聲音。

打開給水槽蓋加水

加到滿水線。 ※ 請勿加水至滿水位以上。

給水槽蓋

滿水位

水槽安裝位置

初次製冰時、或是一星期以上沒有製冰時，請操作「製冰機清潔」。

頁

給水線

取出給水槽

「告知給水警示燈」亮起，

或是水量已經接近「給水線」時請補充水。

製冰盤

R-X670FJ R-G670FJ

R-X730FJ

型號

R-X730FJ．R-X670FJ．R-G670FJ

冰的收納量

正常運轉

約90個

將冰塊整平

約

150

個

一次

(12個)

的

製冰時間

通常的「製冰」

約

110分~140

分

「急速製冰」

約80分

※

周圍溫度

30˚C

，各冰箱的溫度設定在「中」的位置，無開關冰箱門狀態的約略值。

收納食品

保冷劑・冰棒等

冰鏟冷凍食品

儲冰量止動桿儲冰量止動桿

冷凍食品在裡面嗎？製冰鏟是否放回

規定的位置？

操作面板

製冰室

︵自動製冰機︶

●「告知給水警示燈」燈顯示燈亮的狀態下開啟冰箱箱門時，「告知給水警示燈」會滅燈(最長會熄滅3小時)，若沒有補充水時則會再次燈亮。

●自動製冰機設定為「製冰停止」時，「告知給水警示燈」不會顯示燈亮。

●滿水線表示的是冰塊平放在冰盒中時的最大容量。如果冰盒內只有一部分冰塊，但是冰塊碰到了止動桿，即使冰塊數量很少，製冰機也會停止製冰。

●當放入稍有熱度的食物時，貯冰空間的冰塊融化，可能延長製冰的時間。

●因為是間接冷卻，冰淇淋有可能變軟。

●請務必將蓋子蓋上後使用。請勿放入蓋子無法關緊的大件物品。

●請小心開關製冰室門。若太用力開關製冰室門時，冰塊可能從儲冰盒掉到下層冷凍室。

● 貯冰空間，除了自動製冰機所製造的冰塊之外，請勿放入其他的冷凍食品。(有可能造成無法製冰、或因食品接觸到製冰機的零件而導致門無法開啟、零件破損等情形。

)

●

即使給水槽中有水，但是安裝給水槽時沒有確實推入，「告知給水警示燈」會顯示燈亮。此時請確實地將給水槽往前推入至固定位置。

●「製冰停止」的顯示燈不會熄滅。

通知事項

敬請依照指示操作

注意事項

通知事項

急速製冰

告知給水警示燈

收納量・製冰時間

「製冰」顯示為閃爍時

製冰停止

按下操作面板的

按鍵，

顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

約7小時「急速製冰」的運轉則自動停止，切換至「製冰」模式。

按下操作面板的

按鍵，

顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，

「急速製冰」顯示燈亮

比「製冰」更縮短製冰時間。

一次製冰約可製12個冰塊。

「急速製冰」運轉時，「急速製冰」的顯示亮燈。

其他的顯示約在40秒後滅燈。

按下

按鍵，

「製冰停止」顯示燈亮

自動製冰停止。

※ 一星期以上「製冰停止」時，自動製冰機則需進

行清潔。

30, 31

頁

1 1

2 2

給水槽的水量減少時，「告知給水警示燈」顯示燈亮。請補充水至給水槽內。

●當給水的通知顯示亮燈時，縱使設定在「製冰」或「急速製冰」時也無法製冰。

製冰盤有可能碰到製冰盒內的食物。

請先將製冰盒內清空，再操作「製冰機清潔」。

頁

顯示燈亮

按下按下

按下

顯示燈亮

貯冰空間

小物品收納空間

（只有

R-X730FJ

）

冷凍室

上層冷凍盒

（附鋁製托盤）

急速冷凍區

上層滑動盒

中層滑動盒

豎放儲存區

下層冷凍盒

（附鋁製托盤）

●將上層冷凍室的鋁製托盤往上層滑動盒左側移動，便可作為急冷凍區使用。

●上層滑動盒裡請勿存放

500mL

的塑膠瓶。塑膠瓶凍結後會

膨脹，導致中層滑動盒拉不出來。

●請勿將上層滑動盒或中層滑動盒拆下。食品會掉落到下層冷凍盒的後面，導致門無法關緊。

●在豎放儲存區裏儲放高的食物時，請注意不要碰到上層滑動盒及中層滑動盒。

●請只使用於存放冷凍對應的寶特瓶類及能夠冷凍的食品。

（前）

上層滑動盒

上層冷凍室門

下層冷凍室門

中層滑動盒

使用上層冷凍室

使用下層冷凍室

食品收納時請格外注意

約略高度

收納食品

上層滑動盒

小件物品，冷凍食品等

中層滑動盒

冷凍包裝，密封容器等

下層冷凍盒

冷凍食品，麵包，冰淇淋等

豎放儲存區

上層冷凍盒

冷凍包裝、密封容器等可當作小件冷凍食品的存放空間

急速冷凍區

急速地冰凍將鮮味密封的急速冷凍機能。

頁

請使用於急速冷凍肉類或魚類時。

內配3 層冷凍盒，能夠充分地存放，整齊地收拾。

適於存放需長期保存的東西，容易融化的冰淇淋等。

請注意每個盒子所能容納的食品高度。

可能因箱門沒有完全關緊，而造成不夠冷的情形。此外，也可能造成食品、盒子破損的情形。請勿讓上部的上層滑動盒或是中層滑動盒的底部接觸到其他食物。

在短時間內冷凍肉類、魚類時

存放冷凍專用寶特瓶等

上層冷凍室

下層冷凍室

上層冷凍盒

到盒子頂端

上層滑動盒

高度約

5cm

中層滑動盒

到盒子頂端為限

下層冷凍盒

到盒子頂端為限

高

23.5cm

以內

豎放儲存區

急速冷凍區

冷凍室

調節冷凍室的溫度

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好變更設定。

按下按鈕時依如右圖所示順序切換。出廠時設定為「中」。

● 將上層冷凍室的鋁製托盤移至下層冷凍室的上層滑動盒左側，可做為急速冷凍區使用。

● 通常請使用“中”的位置。溫度因使用條件而有所變動。

● 操作部分的詳細使用方式

頁

● 將冷凍室溫度設定為「強」(低音冷凍)，比設定為「中」時，消耗電力約增加

20%

。

● 冷凍室「強」長時間使用時，冰淇淋等會變硬、儲存的食品的解凍時間會變長。

● 改變冷凍室溫度設定時，製冰室的溫度也會隨著改變。

※ 是冰箱周圍溫度

30˚C

，冷藏室、冷凍室的溫度都設定在

「中」，且不放入食品關閉冰箱門，安定運轉時的大致溫度。

通知事項

約

-20∼-18˚C

（出廠時）

比“中”低

約1∼

3˚C

(

低溫冷凍

注

)

比“中”高約1∼

3˚C

將食品急速冷凍(急冷凍

)

上層冷凍室的鋁製托盤上放用保鮮膜包好的食品

將食品分開小塊、薄片，不但能快速冷卻到中心部，而且方便取出。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵「急冷凍」顯示燈亮

「急冷凍」運轉中時，「急冷凍」持續顯示亮燈。

[eco

運轉顯示燈]則熄滅。

約

120

分鐘運轉自動結束，「急冷凍」顯示自動熄滅。

按下操作面板的

按鍵，顯示燈亮，

再按下

按鍵「急冷凍」顯示燈熄滅

中途解除

● 「急冷凍」中，為了優先冷卻冷凍室，特別是冷藏室的門開關頻繁的時候，冷藏室的溫度容易升高。

● 可以直接冷凍熱的飯等。放入熱的食品時，會有燙傷的危險，請注意!建議冷卻到可以用手拿的溫度之後再放入。

● 「急冷凍」結束後的60分鐘以內，再次按

鍵時，雖然「急冷凍」顯示燈亮，但「急冷凍」不運轉。60分鐘過後才恢復運轉。

● 為了防止食品粘在鋁製托盤上，請務必包上保鮮膜。

通知事項

按下

按下按下按下

LED

庫內燈

打開蔬果保鮮室門時，燈光即照射蔬果保鮮室內。

蔬果保鮮室

蔬活保濕裝置

※ 請勿將其拆除。

豎放儲存區上層存放空間

玻璃隔板下層存放空間

上層滑動盒

下層置物盒

※ 拆除時請先卸下玻璃

隔板。玻璃隔板有可能因掉落而破損。

玻璃隔板

密合扣

(

內含白金觸媒

)

※ 請勿將其拆除。

白金觸媒

利用白金觸媒的效果，將食品所散發出的氣味成分、蔬菜所散發的乙烯氣分解，轉變為碳酸氣，因而抑制食品鮮度的降低。

潤澤護蓋

※ 請勿將其拆除。

收納食品

蔬果保鮮室門

● 上層、下層、豎放儲存的各個收納空間，因蔬菜的存放量及種類不同，保存的狀態也隨之改變。

● 因蔬果保鮮室的溫度較高，盒內、蔬活保濕裝置表面、潤澤護蓋上可能產生結露。

● 豎放儲存區比其他的空間溫度略高。

通知事項

上層存放空間

未使用完的蔬菜、小型蔬菜、水果等

豎放儲存區

較高大的蔬菜及2公升的寶特瓶

下層存放空間

葉菜類(菠菜、小松菜等)、大型蔬菜(高麗菜、萵苣等

)

● 蔬果保鮮室內濕度高，因存放的蔬菜數量及種類不同，可能上層滑動盒、下層置物盒、食品表面會有結露情形，這不是異常現象。水份聚集時容易讓食品受損，請以軟布擦拭。

● 可能因食品包裝袋及容器阻塞蔬活保濕裝置，會發生更多的結露情形。請將阻塞在蔬活保濕裝置的食品包裝袋及容器移至其他地方。

● 如果擔心結露，請用保鮮膜包裹食品。

● 將米、海苔等乾燥食品存放在蔬果保鮮室時，請放置於密閉的容器(袋)內。乾燥食品容易吸收濕氣。

● 蔬菜較少時，因為無法保持較高的濕度，請包上保鮮膜後再放入存放。

敬請依照指示操作

食品收納時請格外注意

● 請勿存放食品超過置物盒的高度。

・

冰箱門無法確實關緊，可能造成冷卻效果變差。此外，也可能造成食品、盒子、潤澤護蓋的破損。

・

將較高的食品存放於下層存放空間時，請注意切勿讓食品頂住上層置物盒的底部。有可能會造成上層置物盒無法關閉。

● 請勿硬將食品、飲料擠入豎放儲存區、上層置物盒。

・

因寶特瓶的種類不同，有可能過大而致無法收納。

・

可能造成玻璃隔板、潤澤護蓋的破損。

約略高度

蔬果保鮮室門蔬果保鮮室門蔬果保鮮室門

潤澤護蓋潤澤護蓋潤澤護蓋

（前）（前）（前）

上層滑動盒

下層置物盒豎放儲存區

食品的高度

● 茄子、小黃瓜等比較不耐低溫的蔬菜，當設定為「蔬果室強」時，可能造成蔬菜表面凹陷、變色的情形。若有這樣情形請解除「蔬果室強」的設定。

● 設定為「蔬果室強」時，蔬果保鮮室內的結露量會增多。若擔心結露請解除「蔬果室強」的設定。

蔬果保鮮室

若想以更冷的溫度來保鮮時

（蔬果室強）

使用下層存放空間

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

，「蔬果室強」的顯示燈亮

以比平常更低的溫度來保存。（平常約

4∼8˚C →「

蔬果室強」約

2∼ 6˚C

）

※ 是冰箱周圍溫度

30˚C

，冷藏室、冷凍室的溫度都設定在「中」，且不放入食品關閉

冰箱門，安定運轉時的大致溫度。

按下操作面板的

，顯示燈亮後，

再按下

「蔬果室強」的顯示燈熄滅

解除

● 長時間使用「蔬果室強」功能時，含水分較多的蔬菜有可能會結凍。請解除「蔬果室強」的設定。

● 「蔬果室強」與「急冷凍」「急冷藏」無法同時設定。在「蔬果室強」模式中，切換成「急冷凍」「急冷藏」之後，「急冷凍」「急冷藏」自動停止運轉時也不會自動回復到「蔬果室強」模式，請再次設定。

● 在「蔬果室強」模式中，設定成「節電」模式的情形時，冷卻效果會由「蔬果室強」轉向較弱的冷卻效果。

頁

● 當外面氣溫低時，置物盒內溫度可能會變低。

通知事項

敬請依照指示操作

按下

打開時關閉時

押住上層滑動盒中央的鎖定手把，推向裡面。

往前拉上層滑動盒中央的鎖定手把，直到發出「卡幾」聲，即鎖定。

1 1

卡幾

● 為了達到省電目的顯示在40秒後即熄燈，此設定將持續進行直到解除為止。

[eco

運轉顯示燈]熄燈。

注意事項

茄子小黃瓜

不耐低溫的蔬菜

黃秋葵・蘆筍・生薑・青椒

關上蔬果保鮮室門時，上層滑動盒會回到原來的位置且鎖定。

若沒押住鎖定手把，則上層滑動盒無法向裡面推進。

按下

按鍵，可依照個人喜好變更

設定

按下按鈕時依下列的順序切換。出廠時，設定成節電模式「關」(熄滅)的狀態。

各種功能

「節電」模式的設定

eco

運轉顯示燈

冰箱門開閉顯示燈

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

1 2

● 將冷卻轉換為弱的時候，冰淇淋等會變軟、冷凍食品有可能會結霜。此外讓食品冷凍的凍結時間以及製冰時間也會增長。

● 當「節電」設定中，設定「急速製冰」、「急冷凍」、「急冷藏」時，則「節電」的設定會暫時解除。等「急速製冰」、「急冷凍」、「急冷藏」運轉結束後，會再次回復至「節電」的設定。

● 「節電」模式與「蔬果室強」同時設定時，冷卻從「蔬果室強」轉變到較弱的冷卻效果。

頁

● 「冷凍室」「冷藏室」雙方，或任一方的溫度設定在「弱」的時候，為了維持各存放室內的食品的新鮮度，冷卻效

果不轉弱。

通知事項

節電模式

將各冷藏室的冷卻調弱，可達到省電目的。

開啟冷藏室門達30秒以上時，冷藏室的

LED

庫內燈及真空冰溫室內的

LED

庫內燈的亮度會減弱，以節省電力。

此外，蔬果保鮮室的門開啟達30秒以上時，蔬果保鮮室的

LED

庫內燈的亮度會減弱，以節省電力。

此外，長時間沒有開關冰箱門時，

冰箱內部會緩慢冷卻，可以更加抑制電力消耗。

設定成節電模式時，將切換成以下的運轉方式，節省電力。

霜能再利用冷卻時，因以較低的電力消費量來運轉，

[eco

運轉顯示燈

]

則自動亮燈，告知正在進行省能源運轉。

減少冰箱門的開關次數，盡量縮短每次開啟的時間，請做為使用時的參考。

當冰箱門開閉次數多時，冰箱門開閉顯示燈的

則自動亮燈。減少冰箱門的開關次數，盡量縮短每次開啟的時間，請做為使用時的參考。

熄滅

（出廠時）

[eco

運轉顯示燈

]

[eco

運轉顯示燈]無法燈亮時，可能是以下的原因。

・

剛設置完成後、或一次儲放大量的食品時

・

冰箱門開閉次數頻繁時(冰箱門開閉顯示燈亮燈

)

・

當食品或包裝袋被箱門夾住，而箱門關不緊時

・

設定為「急冷凍」「急冷藏」「急速製冰」「蔬果室強」時

・

冰箱周圍溫度達到

35˚C

以上時

・

[

冰箱門開閉顯示燈]亮燈後，約5分鐘後自動熄燈。

・

[

冰箱門開閉顯示燈]亮燈時，

[eco

運轉顯示燈]則熄燈。

通知事項

冰箱門開閉顯示燈

各種功能

箱門警報器及操作音的音量調節

操作面板鎖定功能

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

秒以上，直到發出設定音為止

操作音的音量可切換成「標準」「大」「關閉」。設定的切換依照此順序輪替，請依個人需求切換設定音。(參照下表

)

出廠時，設定成標準音量。

持續按住

秒以上，直到發出設定音為止

操作面板按鍵鎖可切換「開」或「關」。出廠時，設定成「

」(熄滅)的狀態。

● 箱門警報器或操作音，無法只調整任何一方的音量。

● 設定為不會發出聲響時，冰箱門警報器的文字顯示燈的閃爍也停止。

●

雖音量設定為「關閉」時，「製冰機清潔」的警報器、電動冷藏室門「開」以及電動抽屜「開」的操作音也會發出聲響。

● 當拔除電源插頭再插上插頭時，或停電後恢復供電時，冰箱門警報音則恢復到原來的標準狀態的設定。

●雖設定為操作面板鎖定，但電動抽屜的

功能也不會因而停止。

如果想要停止電動冷藏室門以及電動抽屜的設定時，請先解除操作部的鎖定，持續按住

或 3

秒以上直到發

出嗶嗶聲音。

12, 13

頁

●拔除電源插頭再插上插頭時，或停電後

恢復供電時，有可能解除操作面板的鎖定。

通知事項

箱門警報器及操作音可設定為更大音量，也可以設定為靜音。

讓操作無效，是為了防止誤觸操作面板，及兒童玩弄冰箱而設計的功能。

(

按鍵鎖) 的顯示燈亮燈時，即使按了其他的操作部也無法切換。

音量

標準大音量關閉音量標準

設定音

−

嗶−嗶

−

嗶

−

嗶嗶

操作面板按鍵鎖的設定

「開」

(

鎖定中

)

「關」

(

解除鎖定

)

「」顯示

燈亮

熄滅

設定音

嗶

−

嗶嗶

箱門警報器

當任何一個冰箱門開啟長達1分鐘以上時，會發出聲響來告知冰箱門正開啟中。此外，顯示部會閃爍，操作部會亮燈。

R-G670FJ

的上層冷凍室沒有箱門警報器功能。

● 只有設定為節電模式時，當冰箱門開啟30秒後警示聲才會響。但，開啟超過1分鐘後顯示部開始閃爍。

● 冰箱門警報器機能啟動中，顯示部閃爍時縱使按下操作部也沒有反應。

箱門的打開時間

分鐘後

警報音

嗶

−

(3次)

嗶

−

(5次)

嗶

−

(

連續)大音量

(

出廠時

)

各種功能

（續前頁）

將防止結露的加熱器設定為弱

（旋轉隔板部・隔板鐵板部）

將防止結露的加熱器設定為弱時，可達到省電的目的。

當旋轉隔板及隔板鐵板部有結露時，請設定為標準模式。旋轉隔板及隔板鐵板部的設定分為1至4階段，階段4最能達到省電目的。

加熱器設定為弱

標準

弱設定階段

標準

設定音

−

嗶

−

嗶

−

(2次)

嗶

−

(3次)

嗶

−

(4次)

嗶嗶

旋轉隔板的設定

隔板的鐵板部的設定

開啟下層冷凍室門

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

關閉下層冷凍室門

持續按住

秒以上，直到發出設定音為止

防止結露加熱器設定為弱的階段將切換。請重複上述的操作，設定所期望的階段(參照上表)。

持續按住

秒以上，直到發出設定音為止

防止結露加熱器設定為弱的階段將切換。請重複上述的操作，設定所期望的階段(參照上表)。

旋轉隔板部

隔板鐵板部

● 當拔除插頭再插入，或是停電恢復供電時，將會回復到標準設定。

通知事項

(

出廠時

)

各種功能

︵續前頁︶

溫度微調節

（冷藏室・冷凍室）

冷藏室和冷凍室的溫度設定可以更細分為11個階段。

顯示

設定

更弱

弱

中強

更強

開啟下層冷凍室門

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

關閉下層冷凍室門

依照1、2、3、4順序操作

操作音「嗶嗶」響起，便回復到通常的調節(3階段)。

持續按住

按鍵5秒以上，直到發出嗶聲為止

按下

或

按鍵，可調節各室的溫度。

按下按鍵，如下圖所示依序切換。平常請使用在「中」的位置。

(

顯示燈亮

顯示燈閃爍

熄滅)

解除

保養方法

〈定期檢查〉

● 清掃時，請一定要把電源插頭從插座拔掉。

警告

■ 發現骯髒時

● 立即擦乾淨。看不到的部分也請一年清掃一次。

電源插頭

一年

1〜2

次

箱門密封墊

一個月一次

箱門表面

一個月一次

各層架・置物架・置物盒

三個月一次

冰箱背面・地板

一年

1〜2

次

液汁承接處

一個月一次

將電源插頭從插座拔掉

附著在電源插頭上的灰塵擱置而不清掃的話，會導致火災。

箱門表面請以柔軟的布，沾溫水將污垢擦拭後，再用乾布擦拭乾淨。玻璃表面殘留有膠布黏膠時，以塑膠橡皮擦擦拭之後，再以乾布擦拭乾淨。

請以軟布沾溫水擦拭。卸除方法請參閱

32, 33

頁

由於此部分容易髒，請擦乾淨。積著液汁時，請擦乾淨。

檢查

・

電線有損壞嗎？

・

電源插頭發熱嗎？

※ 如果發現異常時，請與購買的販賣店聯繫。

將遮蔽架往前拉出卸下

安裝時，從正面插入

使調整腳浮起離開地面，將冰箱往身前筆直地拖出

若是容易刮壞的地板，則鋪上保護用的板等

將電源插頭確實插入插座上

用乾布擦去灰塵等

擦乾淨背面・側面導管・牆壁・地板上的污垢

背面由於空氣對流的關係，容易堆積灰塵而弄髒。

1 1

以逆時針方向旋轉調整腳

側面導管

液汁接收處

● 因為可能會造成箱門、塗裝面、塑膠受損、變色，請勿使用以下的東西。

・

鹼性和弱鹼性的廚房用洗潔劑・去污粉・肥皂粉・石油・熱開水・刷子・酸・揮發油・稀釋劑・酒精・漂白劑等等

（請確認洗潔劑上「根據家庭用品品質表示法表示」的「液性」欄）

● 若使用化學抹布時，請遵守其使用上的注意事項。

● 沾到食用油・柑橘類的果汁・食品液汁時，請務必擦乾淨。因為其可能引發箱門、漆面與塑膠部件的損傷與變色。

● 因置物盒或抽屜的滑動軌道接觸面上塗抹了潤滑劑，保養時請勿擦拭。

● 磁鐵裝飾或是吸盤吸附在冰箱本體的側面或冰箱門表面時，有可能會在表面留下痕跡。

● 拔除電源插頭時，會解除操作面板設定的功能，請再次確認設定。

注意事項

● 用水清洗蔬果保鮮室下層置物盒時，請倒轉讓水滴乾，並用乾布充分擦拭乾淨。此外請勿使用牙刷、洗碗刷等長刷毛的刷子清洗。可能會造成置物盒受損及蔬活保濕裝置破損。

敬請依照指示操作

保養方法

真空冰溫室

一個月一次

拉出真空冰溫盒

卸除方法請參閱

頁

請務必取出保存在真空冰溫盒內食品。

若真空冰溫密封墊安裝溝槽中有髒污請擦拭乾淨。

以下的零件，請以沾溫水的軟布擦拭

※ 請勿使用洗潔劑。

安裝真空冰溫盒

安裝方式請參閱

頁

從真空冰溫盒取下真空冰溫密封墊

以手握住右上方的真空冰溫密封墊的突起，小心地拆下密封墊。

真空冰溫密封墊污垢時

髒污的部分請以柔軟的海棉等清洗乾淨

※ 請勿使用洗潔劑。

以乾布將水擦拭乾淨後自然乾燥

安裝真空冰溫密封墊

將真空冰溫密封墊的突起對準凹槽上的缺口，牢牢地固定。

3 4

突起

真空冰溫密封墊安裝溝槽

真空冰溫密封墊

凹槽的缺口

突起

真空容器

真空冰溫密封墊承受部

鋁製托盤

真空冰溫密封墊

如果真空冰溫密封墊鬆了或是接觸不良，則無法維持真空狀態。

●請勿用水洗電動抽屜組件，會導致故障。

●請勿拆卸電動抽屜組件，會導致故障及受傷。

●請注意切勿移動連結部。可能造成故障。

●冰箱室內的頂部(白金觸媒

・

LED

庫內燈的部分)，

請輕輕擦拭。用力擦拭時可能造成破損。

●真空冰溫密封墊如果使用溫水以外的洗潔劑，則有可能破損、變形、變色，無法保持真空狀態。

注意事項

敬請依照指示操作

電動抽屜

當有食品掉在電動抽屜中，或卡在抽屜上方，以及液體沉積時，請清洗電動抽屜。

電源插頭一定要從插座拔掉

卸除下層冷凍室以及蔬果保鮮室各箱盒

頁

請取出掉下而被夾著的食品等

請用柔軟的乾布擦乾積水

1 2 3

● 保養前請務必拔下電源插頭，以免受傷。

警告

電動抽屜組件

連結部

保養方法

（續前頁）

● 請勿觸摸自動製冰機的機械部分。

(

當製冰盤旋轉時，會有受傷的危險

)

警告

製冰機清潔

初次使用時

自動製冰機一週以上沒有使用時

操作前請確認以下事項

都確認完了之後請操作下一個步驟。

關閉所有的箱門

準備

給水槽

・

裝水至滿水線

・

超過儲水槽的安裝位置，正確的安裝。

儲冰盒��

・

有殘留冰塊時請清除

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

按鍵5秒以上，直到發出警示聲響為止

「急速製冰」・「製冰」・「製冰停止」三個顯示閃爍，請在警示聲響了之後放開手指。「製冰機清潔」便開始運作。(約4分鐘

)

・

大約4 分鐘之間，顯示閃爍、警報器會一直響。

・

操作「製冰機清潔」功能時在途中無法停止。

・

操作「製冰機清潔」功能當中，如果打開冰箱的任何一個門時，則有可能無法正常運作。請在製冰機清潔運作結束之前不要開啟冰箱門。

・

冰箱門警示聲設定在停止的狀態下警示聲也會發出聲響。

頁

警示聲響及顯示燈閃爍停止後，塞住儲冰盒內部的缺口部分，在儲冰盒的底部鋪上乾淨的毛巾。

鋪上毛巾的主要目的是，清潔儲冰盒時存在于內部的水會從製冰盒裡面的缺口部分流出，鋪上毛巾來吸收流出的水。

將儲冰盒內的水擦拭乾淨後安裝在製冰室內

請取出擦拭水分後的毛巾。給水槽裡剩下的水，可以繼續直接使用。

「製冰機清潔」結束後，自動設定回「製冰」。

按下

11-4

閃爍

缺口部分

毛巾毛巾

以水來沖洗製冰盤及給水管路。

R-X730FJ

R-X670FJ, R-G670FJ

保養方法

︵續前頁︶

給水槽

一週一次

製冰盤

一年

〜

次

取出給水槽，卸除水槽蓋

請依照水槽蓋上前方的箭頭指示方向拿起即可卸除。

從水槽蓋取下密封墊圈及盒子

盒子由旋轉方式卸下來。

從盒子取下淨水濾片

以手指拉淨水濾網，從扣勾處卸下後再卸除箱盒。

以水清洗給水槽各零件

以柔軟的海綿等用水洗乾淨。請不要使用洗潔劑等。

將給水槽的各部零件組裝，加入水之後再安裝

請從水槽蓋的後方插入，往箭頭方向關上。

按下操作面板的

按鍵，顯

示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

打開製冰室門，取出製冰盤

將扳手往橫的方向押。

拉出框架。護蓋(▲部)往身前方向揭起從框架裡取出製冰盤。

騰空製冰盤，用流水簡單沖洗。

請勿使用海綿・去污粉。請勿刮傷表面。

打開製冰室門，安裝製冰盤

安裝製冰盤並關上。關上護蓋，直到發出「卡嘰」聲將框架往裡面推進，直到發出「卡嘰」聲請前後搖動框架，確認是否緊實地固定住。

按下操作面板的

按鍵，顯

示燈亮，再按下

按鍵，「製

冰」顯示燈亮

開始自動製冰

按下

按鍵，「製冰

停止」顯示燈亮

停止往製冰盤給水。 ※ 當「製冰停止」閃爍時，約

分鐘待燈亮之後再進行以下操作。

此外，外框無法拉出。

1 1

密封墊

水槽蓋

盒子

淨水濾片

給水槽

倒勾

● 礦泉水、井水、淨水器的水、冷開水等(不含氯元素的水)，比自來水容易產生水垢、黏性物質，請3天清潔一次。

● 一週以上不使用自動製冰機時，請將給水槽充分乾燥後再安裝在規定的位置。(特別是淨水濾片請務必充分乾燥

)

此外，一週以上不使用自動製冰機，開始使用前請依照「製冰機清潔」操作。

頁

●

製冰盤的「框架推不到底」時，因為沒有設定「製冰停止」，所以驅動製冰盤的馬達有可能已啟動。一旦卸除製冰盤，只將框架推入並關上所有的門，在按下

按鍵，設定為「製冰停止」。

約一分

鐘後，製冰盤的驅動馬達的準備完成後，便可安裝。

通知事項

製冰盤

護蓋

框架

扳手

卡嘰

按下

扣勾

●為了防止淨水濾網長黴及黏性物質，請讓濾網充分乾燥。

●更換的基準約3 ∼

年。

頁

敬請依照指示操作

通知事項

滑動

● 卸除零件時，請先將放在零件上的食品移除。

● 請勿拆除此處未說明的零件。想要卸除說明書上沒有說明的零件來清潔等時，請向技術中心諮詢。

卸除組件的方法

・

安裝的方法

注意事項

可調式層架上段・中段

（玻璃層架）

安裝時，把層架插放到最內側之後，把層架內側稍微抬高並推進去。

（將層架的卡榫掛在最內側的配件上）

把層架內側稍微抬高，往前拉出。

如圖，將層架竪起後翻轉、卸除。

層架的扣勾

(左右)

直接把層架拉出有可能損傷箱門。因玻璃層架較重，安裝，卸除時請特別小心。掉落時可能會被撞傷或是因破裂而被刮傷。

通知事項

箱門置物架

固定層架

真空冰溫盒

可調式層架下段

往前拉出來、將右下2 處的扣勾拆開並取下。

拉出真空冰溫盒，往前方稍微向上抬起，上下搖動後拉出。

讓真空冰溫盒的左右突起順著真空容器的導引軌道滑動推入。

最後再將把手往下扳到底鎖住。

卸除方法安裝方法

稍微抬高並取下。

導引軌道

真空冰溫盒

真空容器

突起

咚咚

安裝後請數次拉出推進，確認是否正確安裝。

敬請依照指示操作

往前方直接拉出層架時，有可能會刮傷冰箱門。

注意事項

一邊輕敲底部左右一邊提高便可卸取。

(

牢固地固定

)

注意事項

安裝時，請完全裝入到最底。如安裝不牢，會掉落，可能導致人員受傷。

扣勾扣勾

R-X730FJR-X730FJ

R-X670FJ, R-G670FJR-X670FJ, R-G670FJ

將箱門往跟前全部拉出，如圖將上層滑動盒往上拉。

卸除組件的方法・安裝的方法

儲冰盒

（製冰室）

・

上層冷凍盒

（上層冷凍室）

上層滑動盒・中層滑動盒・下層冷凍盒

（下層冷凍室）

上層滑動盒・玻璃隔板・下層置物盒

（蔬果保鮮室）

拉取式門的安裝方法

（製冰室・上層冷凍室・下層冷凍室）

安裝冷凍盒時，請將下層冷凍盒左右突出的部分向門框兩旁的洞插入固定。請將中層滑動盒兩旁的止動裝置插入下層冷凍盒的外側。

組裝時，請將下層置物盒左右裡側的突起放入外框的方孔穴，再將下層置物盒的邊緣放在外框上組裝。要組裝玻璃隔板時，將印有〔

FRONT

〕文字朝正面下方，再組裝下層置物盒。

● 蔬果保鮮室的抽屜門無法拆除。

打開門，向前方取出。

安裝時要將箱底面裝載在框架上。

●

R-X730FJ

的製冰盒，請先將小物品收納空間的蓋子往前拉蓋住

之後，再卸下製冰盒。

【只有

R-X730FJ

】

請依照以下的順序拆除小物品收納空間的蓋子。

(

安裝時請依照反順序進行

)

製冰室・上層冷凍室下層冷凍室

盒底部

蓋子

扣勾

盒

框架

上層滑動盒

滑動軌道

下層置物盒

打開門後，拉出上層滑動盒及中層滑動盒。

將蓋子滑動至一半的狀態，再將盒的側面扭曲，鬆開蓋子的扣勾。

向上取出下層冷凍盒。

讓蓋子滑動，從後面拉出。

拆卸玻璃隔板。

● 手持玻璃隔板的兩側，向上拿起玻璃隔板。

下層的置物盒朝身體方向向上抬起。

中層滑動盒

突起(左右

)

扣勾(左右

)

框的方形孔

框架

下層冷凍盒

框架

● 要拆卸下層置物盒之前，請務必先卸除玻璃隔板。

● 開啟冰箱門時，請注意腳勿靠近。腳有可能被門夾傷。

● 請勿碰觸到滑動軌道。可能因碰觸到鐵板邊緣而受傷。

● 請注意，蓄積的水可能從下層置物盒背面流出。

敬請依照指示操作敬請依照指示操作敬請依照指示操作

● 若沒有正確的安裝玻璃隔板及上層置物盒，因上層置物盒無法完全的鎖定，有可能造成置物盒的零件破損。安裝後請試著前後滑動上層置物盒，確認是否正確安裝。

● 請勿拆除潤澤護蓋、下層置物盒的蔬活保濕裝置。

敬請依照指示操作

玻璃隔板

遇到問題時

在委託修理之前，請再次檢查以下幾點。狀況仍然不好的時候，請聯絡所購買的經銷店或敝公司技術中心。

這種情況下請確認請依照這樣做。就是這樣的理由。

初次使用時

不冷

設置後是否未達24小時？

設置後至完全冷卻需要24小時。請將存放的食品間保留間隙，並儘量減少開閉次數，耐心等待。此外，夏天或食品大量存放時，至完全冷卻需更多時間。

無法製冰

設置後是否未達24小時？

剛設置後，因冰箱未完全冷卻，到可以製冰需要

小時以上。請將存放的食品間保留間隙，並儘量減少開閉次數，耐心等待。

操作面板

玻璃觸碰部不起反應

是否顯示部

顯示亮燈？

操作部設定為鎖定。

請解除操作面板鎖定設定。

頁

冷藏室門開著嗎？請關閉後再操作。

操作部分是否附著著水滴或是污垢？以沾濕的布擦拭髒污後，再以乾布擦拭乾淨。

戴著手套或貼著膠布嗎？請直接用手指按。

是否碰觸到周圍的操作部？請只碰觸想要操作的操作部。

操作部熄燈

−−−−−

操作結束後，為節省電力，40秒後顯示部熄燈。

頁

若要讓其亮燈時，請觸按

按鍵，或打開冷藏

室門。

自動製冰

完全不能製冰

是否顯示部的「製冰停止」顯示亮燈？設定為製冰停止。

請設定「製冰」或「急速製冰」。

18, 19

頁

是否顯示部的「給水」顯示亮燈？給水槽內的水變少。

請加水至給水槽內。

18, 19

頁

是否給水槽的水變少？

水量變少時，有可能無法製冰。請試試加水加到給水槽的滿水線。

頁

給水槽是否推入到超過「水槽安裝位置」線？請將給水槽推至比水槽安裝位置更裡面。

頁

是否將框架往裡面推進，直到發出「卡嘰」聲？

請將框架往裡面推進，直到發出「卡嘰」聲。

頁

儲冰盒裡面是否存放了冰以外的東西？請從儲冰盒中取出。

儲冰量是否有局部超過最大儲冰界線？請將冰塊整平。

頁

很難結冰

是否頻繁地敞開門，是否一次存放了大量的食物呢？

冰箱內無法充分冷卻。請試試在冰箱內冷卻前，盡量減少開閉門。請試試盡量空開儲存食品之間的間隙。

是否冰箱周圍的溫度變低？

冬天，到可以製冰需要4小時以上。請儘量減少冰箱門開閉次數，耐心等待。

是否剛從「製冰停止」設定改為「製冰」？

剛改變設定後，可能需要更多時間。請儘量減少冰箱門開閉次數，耐心等待。

食品或袋子是否被夾著，冷凍室或製冰室門是否關緊？

請去除被夾住的食品，確實關緊冰箱門。

是否設定為「節電」模式？請解除「節電」模式。

頁

冰塊有凸起

−−−−−

是製冰盤的溝上積水凍結了。不是異常。

所儲存的冰塊變小冰塊之間粘在一起

是否積存了舊的冰塊？舊的冰塊會變小，且會互相黏結。

是否頻繁地敞開門，是否一次存放了大量的食物呢？

請盡量迅速開關箱門，以及減少開關的次數。

冷藏室門或抽屜是否沒完全關緊？關閉冰箱門時，請確實關緊。

製成的冰塊很小

是否給水槽的水變少了？

當剩餘的水變少時，製冰機可能製成小的冰塊。請試試加水加到給水槽的滿水線。

頁

製成粘在一起的冰塊

是否將框架推到底，發出“卡嘰”聲？

請將框架推到底，發出“卡嘰”聲。

製冰盤是否受損？

製冰盤一旦受損，可能造成冰塊將難以從製冰盤分離，破損的冰塊互相黏結的情形。請與購買的專賣店洽詢。

−−−−−

製冰盤的溝槽部分殘留的冰塊會互相黏結。不是異常。

冰塊裡有白色混濁

−−−−−

是因為混在水中的氣泡被封在冰塊裡面了。

用礦泉水製冰了嗎？

水中含有的礦物質凍結會變白而混濁。即使在水裡融化了也會有白色混濁，不過無害。

製冰盤的框架拉不出來

是否設定為「製冰停止」？

當自動製冰機正在製冰時拉不出來。請設定為

「製冰停止」。當「製冰停止」顯示閃爍時，請等

約一分鐘，等「製冰停止」顯示燈亮後再拉出。

頁

無法製冰時

−−−−−

請設定成「製冰停止」。請參考「製冰停止」。

頁

這種情況下請確認請依照這樣做。就是這樣的理由。

不冷

不夠冷冰淇淋變軟

食品或袋子是否被夾著，門關緊了嗎？

請去除被夾住的食品，確實關緊冰箱門。此外，食品收納時請注意食品的高度。

是否塞入過多食品，是否一次放入了大量的食物呢？

食品之間請空開間隙存放。

各存放室的盒子是否確實地安裝？請正確安裝好。

頁

根據冰箱的設置場所及空隙，環境狀況等，有可能會難以冷卻的情形。

請確認是否已正確安裝。

頁

是否設定為「節電」模式？請解除「節電」模式。

頁

是否溫度設定在「弱」？

冷卻不足的室內溫度設定請切換為「中」或「強」。

15, 21

頁

在夏季等，電冰箱的環境溫度高嗎？

冷卻不足的室內溫度設定請切換為「強」。

15, 21, 23

頁

是否長時間開啟冰箱門，或冰箱門開啟頻繁？

冰箱門敞開著時，冰箱內的溫度會逐漸上升。頻繁地開閉或是長時間敞開著門的話，冰箱內的溫度會難以下降。請減少冰箱門的開閉次數及盡量縮短開閉的時間。

結霜・結露

冰箱內及・抽屜框架上結霜・結露・冰

冰箱門或抽屜是否沒完全關緊？

關閉抽屜或冰箱門時，請確實確認是否夾到食品或包裝袋，請確實關緊。

−−−−−

當冰箱門開閉時，可能因空氣中含的水分變成霜、冰，凝結在冷凍室的壁面或零件上。請盡量迅速開關箱門，以及減少開關的次數。此時請以乾布將霜、露水擦拭。

冰箱的外側結露

冰箱周圍的溼度是否過高？

下雨天等室內濕度高的時候會結露。此時請以乾布將露水擦拭。

是否防止結露的加熱器設定為弱的狀態？

冰箱周圍的溼度變高時，可能會有結露的情形。請將防止結露的加熱器設定為「標準」。請以乾布擦拭露水。

是否溫度設定在「強」？

溫度設定為「強」時，冰箱門表面可能會有結露情形。請將溫度設定為「中」。請以乾布擦拭露水。

冷藏室中凝結露水

是否長時間開啟冰箱門，或冰箱門開啟頻繁？

冰箱門的開關次數頻繁時，或冰箱周圍溫度高時，壁面會起霧，在冷氣出風口附近會凝結露水。並不是故障。此時請以乾布擦拭。

太冷

太冷凍結了

溫度調節為「強」了嗎？請設定為「中」。

15, 21

頁

環境溫度是否

5˚C

以下呢？

周圍溫度低時可能冰箱內的溫度會太冷。請將溫度調節為「弱」。

是否放置在冷氣吹出口的前方？請不要放在冷氣吹出口的前面。

操作部的﹁

﹂顯示等呈閃爍的狀態

閃爍

是否閃爍持續數次？顯示的閃爍是何種模式？

告知發生異常情形。請與購買的經銷店商洽。

閃爍

在製冰室內除了自動製作的冰塊之外，是否放入其他的食物或冰塊？

有可能食品等碰到製冰盤。請先將製冰室內清空，再操作「製冰機清潔」。

頁

閃爍

是否在服務人員檢查後所發生的？

有可能是設定在服務人員確認運轉用的模式。約15分鐘後恢復通常模式。使用上沒有問題。

閃爍

是否在服務人員檢查後所發生的？

有可能是設定在服務人員確認運轉用的模式。約10分鐘後恢復通常模式。使用上沒有問題。

全部呈閃爍

是否觸按「製冰」按鍵長達5秒以上。

正在進行「製冰機清潔」。閃爍約4分鐘即停止。在顯示燈閃爍時，請勿開啟冰箱門。

閃爍

是否設定為「製冰停止」後所發生的？

自動製冰機正在運作中。閃爍約1分鐘即停止。在顯示燈閃爍時，無法取出製冰室的框架。

全部的顯示閃爍

是否冰箱門開啟中？是否冰箱門夾住食品，或無確實關緊？

若冰箱門開啟狀態時，請關閉冰箱門。若冰箱門夾住食品，或無確實關緊，請除去被夾住的食品，將冰箱門確實關緊。

以上各項以外的顯示燈閃爍

−−−−−

請與購買的經銷店商洽。

凝結露水

遇到問題時

這種情況下請確認請依照這樣做。就是這樣的理由。

聲音不對

關門時其他的門會開

是否冰箱門用力關上？

因為各室的冷氣通路是相通的，關門時由於風壓使其他門會一瞬間打開。

冰箱發出的聲音嘈雜

地板是否有彎曲？

請鋪上堅固的板子後，再將冰箱安裝在板子上。

頁

冰箱是否靠著牆或家具？請在冰箱的周圍空出間隙安裝。

冰箱是否充分冷卻？

購買後，剛開始使用等冰箱還未冷卻時・箱門開閉頻繁時・周圍的溫度高時，由於壓縮機高速運作，可能會感覺到聲音大。

是否設定為「急冷凍」「急冷藏」「急速製冰」？

設定在「急冷凍」「急冷藏」「急速製冰」時，壓縮機及風扇馬達會加速運轉，聲音會變大。

運作音長

−−−−−

因正處於省能源運轉狀態，壓縮機慢慢地運轉，所以可能運轉聲音會維持較久時間。

有時聲音變大

−−−−−

因應冰箱內的溫度變化，而變更運轉的強度，所以有時會發出較大的聲音。

開閉蔬果保鮮室門時，發出「空」的聲音

−−−−−

這是抽屜軌道的動作聲音。並不是異常現象。

其他例如聽到這樣的聲音時

像流水的聲音（楸囉楸囉）像碰撞的聲音（叩吱叩吱）像沸騰的聲音（啵啵啵）像燒肉的聲音（唧∼）

是電冰箱的冷媒流動聲・融霜時的水流聲蒸發聲。不是異常。

像摩擦的聲音（啤唏）（“叩動”聲）

是冰箱的溫度變化時，或真空開

+1˚C

室的氣壓變化

時，部

件的摩擦聲。

不是異常。

像什麼被卡著的聲音（嗑

嗑）像呻吟的聲音（噗∼）像剛關門時的聲音（吥∼）

是控制冰箱內溫度的電氣部件或真空幫浦的運作聲。不是異常。

自動製冰機的聲音

（啾∼）（嘎啦嘎啦）（咯

噃咯噃

）

是冰塊從自動製冰機的製冰盤掉落時，或是製冰盤裡給水時所發出的聲音。不是異常。按下

按

鍵，讓其顯示為「製冰停止」時，就不會發出聲音。

頁

時常有的聲音（卡嗒卡嗒）

為了冷卻冰箱內開始運作時的聲音。不是異常。

箱門高低不平衡

以及歪斜

左右箱門高低不平衡箱門歪斜

設置的地點是否呈水平？

性能上沒有問題，可以照舊使用，不過介意的話，試試調整左右的調整腳。

頁

是否由於地板材質太軟加上儲放物的重量使冰箱腳下沉？

冰箱本體傾斜的時候，請鋪上

1cm

以上厚的堅固的板子。

關上門之後再立刻打開時感到吃力

是否冰箱門長時間開啟著？

是因為進入了冰箱內的空氣忽然受到冷卻，氣壓一時變低。冰箱門請勿長時間開啟，以短時間開閉的方式拿取食物。

冰箱發熱

電冰箱的側面發熱箱腳底下吹出暖風

−−−−−

為了讓冷卻裝置運作時所產生的熱氣向外排而會發熱。剛安裝後或是夏季，可能會有

50〜60˚C

，在安全

上及性能上沒有問題，但請勿以手觸摸。

真空冰溫室的問題

打開時，不發出「咻-」的聲音

真空冰溫室的設定是否為「關」(非真空的冰溫)？

請將設定改為「

-1˚C

」或「

+1˚C」

頁

把手往上翹著嗎？請將把手往下押，鎖定。

把手是否有推到最終的位置，牢牢地鎖住？

如果沒有鎖住，則無法啟動真空機能。請將把手往下推押到底，確實地鎖緊。

真空冰溫密封墊是否脫離？請安裝真空冰溫密封墊。

頁

真空冰溫密封墊與承受部之間是否夾著食品的包裝袋、頭髮等？食品的汁液等是否沾在墊圈的表面？

若食品包裝等異物被夾住時，請除去異物。請清洗髒污的真空冰溫密封墊。

頁

是否在真空冰溫室或冷藏室門開啟關閉之後？

真空幫浦啟動後，至達到真空狀態約需3∼4分鐘。開閉後，請等待4分鐘以上。

遇到問題時

（續前頁）

綫

頭

垃圾

這種情況下請確認請依照這樣做。就是這樣的理由。

真空冰溫室的問題

不知道是否在真空

打開真空冰溫時，是否發出聲音？打開時如有「咻-」的聲音，便是正常。

把手不能上鎖

真空冰溫密封墊部分及真空冰溫盒的裡面是否有食品等被夾著呢？

若有被夾住請除去異物。

是否正確地安裝真空冰溫盒？

請依照「安裝方法」所指示安裝真空冰溫盒。

頁

真空冰溫室的周圍發出

「吥∼」的聲音和振動

−−−−−

是真空幫浦的運作聲音。如夜間等介意有聲音的時候，可以停止真空幫浦的運作。真空冰溫室請變更設定為「關(非真空的冰溫)」

頁

是否真空冰溫盒夾住物品，或真空冰溫的墊圈髒汙？是否將把手往下推押到底，確實地鎖緊？

可能頻繁發出聲音及震動。若食品包裝等異物被夾住時，請除去異物。請清洗髒污的真空冰溫密封墊。

頁

請將把手往下推押到底，確實地鎖緊。

真空冰溫室的內部或真空冰溫盒的周邊有水滴或結霜，冰

是否存放了含水份多的食物？

因為真空冰溫室是密封的狀態，如果存放水分較多的食品時，水分蒸發會在室內凝結成露水或結成霜。水分較多的食品建議以保鮮膜包覆。如果附著了水滴或結霜，請以乾布擦拭。

存放的蔬菜表面呈凹陷，變色

是否存放了茄子、黃瓜等不耐低溫的蔬菜呢？

請移動至蔬果保鮮室。

頁

真空冰溫室的食品凍結

設定是否為「

-1˚C

」或是「關(非真空的冰溫)」的

狀態？

請設定為「

+1˚C」

頁

有異味

有塑膠味

−−−−−

是因為在冰箱內使用了多數的塑膠部件，不過，充分冷卻後自然就會慢慢減輕。不是異常。

冰塊有異味

給水槽・淨水濾片骯髒嗎？冰塊舊嗎？為了防止「發黏」「水垢」，請定期清洗。

頁

−−−−−

由於自來水中的氯元素凝縮，氯的氣味會很重。

冰箱內有異味

是否直接地儲放了氣味重的食品呢？

脫臭機能不能完全去除所有的氣味。請用保鮮膜等密封後儲放。

電動冷藏室門

聲響很大有些不正常的聲響

碰撞的聲音（嗊嗊・嗊嗊）這是電動冷藏室門的操作聲響。不是異常。低沉的聲音（吭吭）這是電動冷藏室門的操作聲響。不是異常。

電動冷藏室門的操作聲音左右各不相同。

隨著冰箱的設置條件、冷藏室門層架的收納食品多寡有所不同。不是異常。

雖碰觸電動冷藏室門的操作部，也打不開

顯示燈是否熄滅了？請讓

顯示燈亮。

製冰室或上層冷凍室的任何一個是否開啟狀態？

請關閉開啟的抽屜門後，再碰觸電動冷藏門的操作部。

電動冷藏室門不能關閉

是否有食品或食品袋卡在抽屜內

請除去被夾住的食品等異物。

電動操作時是否停電或者箱門受到了撞擊

因為電動冷藏室門的功能在中途停止，請以手動方式關上冷藏室門。

電動冷藏室門的開啟程度較小

收納的飲料或食品是否觸及冷藏室內壁？請除取觸及內壁的飲料或食品。

是否放置的位置呈水平狀態？

隨著冰箱的設置條件，電動冷藏室門開啟的角度可能有所改變，或在開啟之後會稍微關閉的情形，這並非故障。

縱使操作面板鎖定時電動冷藏室門仍可以動作

−−−−−

即使操作面板鎖定時電動冷藏室門的功能也不會停止。若想讓電動冷藏室門功能停止時，首先先解除操作面板的鎖定，再按下

按鍵持續3秒直到發

出嗶嗶聲響為止。

12, 25

頁

電動抽屜

聲響很大有些不正常的聲響

碰撞的聲音（嗊嗊・嗊嗊）

這是電動抽屜的操作聲響。不是異常。

呻吟的聲音（噗∼）

這是電動抽屜的操作聲響。不是異常。

蔬果保鮮室比冷凍室下層的運轉聲音大。

“蔬果保鮮室”的操作聲量比“下層冷凍室”的大。

此外，會因收納食品的量的不同而有所差異。不是異常。

即使按下電動抽屜開關，箱門也不開啟

顯示燈是否熄滅了？請讓

顯示燈亮。

“下層冷凍室”或“蔬果保鮮室”是否開著

關上開著的電動抽屜，再按下你要打開的電動抽屜開關。

電動抽屜不能開啟／關閉

是否有食品或食品袋、保鮮膜等被夾住

請除去被夾住的食品等異物。

電動操作時是否停電或者箱門受到了撞擊

箱門不能開關自如，因為沒有正常完成電動抽屜功能操作。用力地將箱門推入。或者請在拉開門的狀態下拔掉電源插頭，等10秒左右後再插上。

上層置物盒與潤澤護蓋之間夾著食品等異物？請將被夾住的物品去除。

此外，潤澤護蓋內有食物時請勿強硬將門關閉。

電動抽屜開啟得不夠大

−−−−−

開始動作時，推出抽屜的尺寸大約在

15cm

以上。隨著冰箱的設置條件，有可能拉出抽屜的尺寸稍微不同，或是門以電動的方式開啟後又稍微退回的現象。不是異常。

縱使操作面板鎖定時電動抽屜仍可以動作

−−−−−

即使操作面板鎖定時電動抽屜的功能也不會停止。若想讓電動抽屜功能停止時，首先先解除操作面板的鎖定，再按下

按鍵持續3秒直到發出嗶嗶聲

響為止。

13, 25

頁

水滴或露

遇到問題時︵續前頁︶

這種情況下請確認請依照這樣做。就是這樣的理由。

蔬果保鮮室

蔬果保鮮室中凝結露水

是否存放大了量的含水份多的蔬菜？

因為蔬果保鮮室比其他保存室的濕度高，會因蔬菜的存放量及種類，而可能出現在蔬果保鮮室的頂部、食品的表面產生結露的情形。這並非異常現象。若在意結露的情形，建議將食品以包鮮膜包裹後再放入。此外，結露變多時，蔬果保鮮室的存放盒內可能會有水滴蓄積。請以乾布將蓄積的水擦拭乾淨。

是否蔬活保濕裝置被食品的外袋或容器所阻塞？

蔬活保濕裝置一旦被阻塞，很容易發生結露情形。請將阻塞在蔬活保濕裝置的食品外袋或容器移至他處。請以軟布將結露擦拭乾淨。

蔬果保鮮室的門無法關閉・蔬果保鮮室的門開啟時上層滑動盒無法回復到鎖定的位置

玻璃隔板的方向是否正確？請依照正確的方向安裝玻璃隔板。

頁

上層滑動盒與下層置物盒之間是否夾有食品等異物？

請除去被夾住的異物。

上層滑動盒的密合扣是否碰到寶特瓶或食品？

存放寶特瓶或食品時請注意避免碰觸到密合扣。

是否有食物被夾在上段置物盒及潤澤護蓋之間？請去除被夾住的物品。

此外，請勿在食品接觸到潤澤護蓋的狀態下，硬將冰箱門關上。

其他

觸碰到機體會感覺到微量的電流

−−−−−

電冰箱會帶有靜電，安全上沒有問題。介意的話，請實施接地。

頁

電視機・收音機等發生有雜音・映像的花亂

−−−−−

是從電冰箱發出的微弱電磁波的影響。要安裝時請遠離電視機、收音機、門鈴對講機等。建議在離開天線等的地方接電源，實施接地。

頁

塑膠零件上有像傷痕一樣的細線

−−−−−

是塑膠成型時發生的樹脂流痕。透明的部件會特別顯眼，強度上沒有問題，不會破裂。

箱門面或側面．頂面上有波紋或歪扭

−−−−−

冰箱的製造工程上，會發生輕微的波紋或歪扭。根據照射方向及亮度等會感到顯眼，這不是異常現象，在性能上也沒有問題。

箱門內側有小的洞

−−−−−

這個洞是在冰箱製造過程中，填充斷熱材料時為了讓內部的空氣往外散所挖的洞。不是損傷也不是異常情形。

停電了

−−−−−

在到恢復之間，請減少箱門的開閉，避免重新再存放食品。停電後恢復供電時，請確認操作部位的設定。

長時間不使用冰箱

−−−−−

請將冰箱內的東西全部清出。請先將電源插頭拔除，再進行冰箱內、自動製冰機的清潔。

28∼31

頁

所有的門打開讓其乾燥

2 〜3

天。

除霜

−−−−−

此電冰箱自動除霜，不需要操作。溶解了的水會積在蒸發盤上，自動蒸發。

移動・搬運

−−−−−

請參閱「移動・搬運的事前準備(搬家時)」

頁

玻璃破裂　冰箱門玻璃

　玻璃層架　玻璃隔板

−−−−−

請勿觸碰破碎的玻璃，立刻聯絡購買的銷售店，委託修理。

小蒼蠅等昆蟲飛入冰箱時

周圍是否有蒼蠅？

敬請保持周邊環境乾淨。請放置蒼蠅忌避物品或補蠅器。

冰箱內是否存放氣味強烈的食品？

為了避免氣味吸引蒼蠅，請將食品加蓋或以保鮮膜包覆。

箱門是否長時間開啟？請盡量在拿取食品後馬上關上箱門。

遇到問題時

（續前頁）

孔（門內側）

另購零件

■以下零件更換時，請務必向經銷店指明冰箱的型號，購買專用的零件。

這種情況時商品名型號商品型號

冰塊有味道時

● 可能淨水濾片老舊、髒污。

(約3〜4

年更換一次

)

自動製冰用淨水濾片全機種通用

RJK-30

無法維持真空狀態

● 可能破損・變形・變色

真空冰溫密封墊

R-X730FJ R-X7300F 311

R-X670FJ R-G670FJ

R-C6700 321

遇到問題時︵續前頁︶

／另購零件

MEMO

BEFORE USE

SAFETY SUGGESTIONS

................................

LEARN NAME & FUNCTION OF EACH PART

...

Name of each compartment/Food stored

................

Accessories

............................................................

Functions of the Control Panel

.................................

BEFORE USE

................................................

Preparation before use

............................................

Transporting your refrigerator (transport for moving)

....

GENERAL USE

Auto Door

....................................................

Setting the

Auto Door

................................................

Using the Auto Door

................................................

Auto Drawer

................................................

Set the Auto Drawer

................................................

Using the Auto Drawer

............................................

REFRIGERATOR COMPARTMENT

.................

Adjust the height of a pocket/shelf

..........................

Using a multiuse egg case

......................................

Adjusting temperature in a refrigerator compartment

...

Cooling food Quickly (Quick Cooling)

.......................

VACUUM COMPARTMENT

............................

When opening/closing the door of the Vacuum Case

...

Change the settings of the Vacuum Compartment

...

ICE COMPARTMENT (AUTOMATIC ICE MAKER)

...

How to make Ice

.....................................................

Quick Ice Making

....................................................

Stop Ice Making

......................................................

Stored ice amount and ice-making time

..................

Water Supply indicator

............................................

When the “Ice Making” indicator lamp blinks

..........

FREEZER COMPARTMENT

...........................

Using the Upper Freezer

..........................................

Using the Lower Freezer

.........................................

Caution on how to store foods

................................

Adjust the temperature of the freezer compartment

...

Quickly freezing foods (Quick Freezing)

...................

VEGETABLE COMPARTMENT

.......................

Stored foods

...........................................................

Caution on how to store foods

.................................

Using the space for Sleep Vegetables

......................

To cool it more [Vegetable Compartment (MAX)]

......

VARIOUS FUNCTIONS

..................................

Setting “Energy Saving” mode

................................

“

eco” Operation indicator lamp

...............................

Door Open & Close indicator lamp

...........................

Locking the Control Panel

.......................................

Door Alarm

.............................................................

Door Alarm and volume adjustment of the operation sound

...

Set the condensation prevention heater to MIN.

..............

Fine adjustment of the temperature (Refrigerator Compartment / Freezer Compartment)

....................

MAINTENANCE

MAINTENANCE (REGULAR CHECK)

.............

Power plug/The back/ﬂoor of the refrigerator/Surface of door

...

Each shelf/pocket/case/Door gaskets/Liquid receivers

...

Vacuum Compartment/Auto Drawer

........................

Ice Maker Cleaning

.................................................

Water supply container/Ice tray

...............................

HOW TO REMOVE/ATTACH PARTS

...............

Height adjustable upper and middle shelf (Glass shelf)

...

Door pocket

............................................................

Fixed shelf

..............................................................

Height adjustable lower shelf

..................................

Vacuum Case

..........................................................

Ice Case (Ice Compartment)・Upper Freezer case (Upper Freezer)

...

Slimline slide case, slide case and lower freezer case (Lower Freezer)

...

Upper Case, Glass Partition, Lower Case (Vegetable Compartment)

How to attach the slide door (Ice Compartment/Upper Freezer/ Lower Freezer)

...........................................................

TROUBLESHOOTING

.....................................

Initial stage

.............................................................

Control Panel

..........................................................

Automatic ice making

.............................................

Refrigerator does not cool

.......................................

Frost and/or dew occur

...........................................

Refrigerator cools overly

.........................................

[ ] display on the control panel ﬂashes

..............

Abnormal operating sound is generated

..................

Door is not in a horizontal state

...............................

Refrigerator becomes hot

.......................................

There is something strange with the Vacuum Compartment

...

It smells strange

.....................................................

Auto Door

...............................................................

Auto Drawer

...........................................................

Vegetable Compartment

..........................................

Others

....................................................................

AVAILABLE PARTS

.......................................

ABOUT NON-CFC REFRIGERATORS/ SPECIFICATION/STORABLE WEIGHT

...........

CONTENTS

WARNING

CAUTION

Suggestions headed by this pictograph indicate "There is high chance of serious injury or death" if ignored.

This symbol indicates something you must not do. (Prohibited)

This symbol indicates warning or calls for attention.

This symbol indicates something you must do. (Compulsory)

Suggestions headed by this pictograph indicate "There is a high chance of injury or damage to property" i

f ignored.

WARNING

Installation

●

Install earth leakage circuit breaker when installing the refrigerator in a humid or damp environment.

Electrical leakage due to failure, etc. could result in electrical shock.

・ Make sure to contact the dealer for earthing

installation.

Pg.49

● Take measures to prevent overturning of refrigerator due to

earthquake, etc.

・ Overturning of the refrigerator could result in personal injury.

●

Do not install the

refrigerator in damp places or where water may splash.

・ This may impair electricity

insulation causing electric shock or re.

earth terminal

earth connection screw

Earth

Connection

Wetting

Prohibited

trembling and unstable

●

Do not do anything that may damage the power cord or plug.

Using a damaged power cord may cause electric shock, short circuits, or re.

・ Please consult with a retailer about the repair of

the power cord or plug.

●

Avoid usage that may cause the wall outlet or power cord components to work beyond the speciﬁed voltage. Also do not use power sources that are not a rated voltage current.

If a power source is shared with other appliances, double or multipoint adapters may heat up beyond normal levels and cause re.

・ Use a wall outlet rated above 15 ampere by

itself.

Handling the power and power cable

● Do not insert or remove the

power plug with wet hands.

・ This may result in electric

shock.

●

Be sure to unplug the power

plug before maintaining the refrigerator.

Continued use may cause electric shock or injury.

Pg.66

・ Always hold the plug when unplugging it.

●

Connect the power plug ﬁrmly to a power outlet with the cord running down.

・

Connection of the power plug with the cord running up could apply stress on the cord and cause electrical short or overheat, which could result in electrical shock or re.

・ Incomplete connection of the power plug could

result in electrical shock or re due to heat.

● Clean the dust on the power

plug frequently.

Insulation failure from moisture when dust collects on the power plug may cause re.

・

Unplug the power plug and wipe it with a dry cloth.

Prohibited

Wet Hands

Prohibited

Power

110V

The power cord or plug should not be cut, modied, touched with hot implements, bent by force, twisted, pulled, have heavy objects placed on it, squeezed by the refrigerator, or be bound or tied up.

SAFETY SUGGESTIONS

Ensure to follow

these precautions

When using this appliance, failure to follow safety precautions may result in personal harm, harm to other people, and also damage to property.

■ The following pictographs categorize and explain the level

of possible harm on damage that may occur from ignoring suggestions resulting in missing the appliances.

■

How the suggestions should be taken are

indicated and categorized by the following symbols accompanied by explanations. (The symbols below are examples)

WARNING

During use

● Do not splash water on

or inside the refrigerator.

・

This may impair electrical insulation causing electric shock or re.

● Do not put in things that

may catch ﬁre.

・

Benzine, ether, LP gas, thinner, adhesives may ignite an explosion.

● Do not hang on the doors

or step on the various compartments.

・

Injury may be caused by the refrigerator tipping over or hands getting caught between doors.

● Do not put too much force on the door

by opening it too much or leaning on the opened door.

● Do not remove the cover of

the interior lamp.

・

When the interior lamp is damaged, please contact the service centre for replacing the lamp to avoid injury.

● Do not add impact to the glass door.

●

Drugs, chemicals, research and experimental substances should not be stored in the refrigerator.

・

Substances that require precise conditions for storage cannot be stored in a domestic refrigerator.

●

Do not use ﬂammable

sprays near the refrigerator.

・

Sparks from points of electrical contact such as door switches may ignite a re.

● Do not put water containers

on the refrigerator.

・

Spilled water may impair insulation of electrical components causing faulty electrical currents. This may result in electric sho

ck or re.

● Do not put things on top of

the refrigerator.

・

Opening and closing doors etc. may cause things placed on top of the refrigerator to fall resulting in injury.

● Children should be supervised to

ensure that they do not play with the appliance.

● When an infant child may use the Auto

Door or Auto Drawer (electrical drawer compartment) to make mischief, please stop the Auto Door / Auto Drawer (electrical drawer compartment) function.

Pg.50, 51

● Do not touch the

machinery components of the automatic ice maker.

・

There is a danger of injury when the ice trays are rotating.

Wetting

Prohibited

Contact

Prohibited

binder

LP gas

Benzine

Safety Suggestions

WARNING

Concerning the refrigerant (Be careful of the following related to the use of ﬂammable gas.)

● Do not scratch or damage

the main body of the refrigerator with a sharp object such as screw.

Since the refrigerant used is ﬂammable, any leakage from the pipe inside the wall may cause ignition and explosion.

● Do not use mechanical devices or other

means to accelerate the defrosting process, other than th

ose recommended

by the manufacturer.

● Do not use electrical appliances inside the

refrigerator.

・ If the refrigerant leaks, sparks on the contact

may cause ignition and explosion.

● Do not damage the

refrigerant circuit. If you happen to damage the refrigerant pipe, stay away from the refrigerator and avoid using ﬁre and electrical appliances.

Should you damage the refrigerator, open the window to ventilate and contact the authorised service centre.

● Allow clearance around

the refrigerator and keep ventilation openings when installing it.

Pg.48

Leakage of the refrigerant may accumulate and cause ignition and explosion.

● Please consult your dealer

or the Recycle Hotline (0800085-717) of the Recycle Centers in the Environmental Protection Administration when discarding the unit.

If the refrigerant is wet, it may cause ignition and explosion.

Prohibited

In case of emergency

When discarding the unit

● Stop the refrigerator

by unplugging it if it is not running properly or breaks down.

Continue may cause electric shock or injury.

・ Always hold the plug when unplugging it.

● Before discarding the unit or recycling, remove the door gaskets to avoid

the risk of an infant or child to be entrapped inside.

● In the event of gas leak, do not touch the refrigera

tor and

open windows to allow ventilation.

・ Sparks from points of electrical contact such as door switches may

ignite explosions causing re or burn injuries.

● Do not disassemble,

repair, or modify your refrigerator.

Injury may be caused by ignition of re or faulty running.

・ Please consult with a retailer if any repairs

or disassembly are required.

Disassembly

prohibited

turn off

the switch

●

Do not move the refrigerator

by using its wheels as it may damage the ﬂoor.

・

Please lay a protective mat.

●

Never hang the handle

with a crane, etc.

●

Take care not to bang the

back / side of the refrigerator.

Prohibited

CAUTION

When moving the refrigerator

●

Use the carrying handle when carrying it.

Your hands may slip resulting in injury if you hold the refrigerator at other places than the carry handles.

・

More than 2 persons should carry the refrigerator for safety reasons.

・

Carry it with the door facing upward; as shown in the illustration.

・

Never hang the handle with a crane.

・

Use a tape, etc. to x the door so that it won’t open. Also use a tape to x an electric plug/power cord so that it may not hang down.

caution

●

Do not press the auto door switch on the auto door compartment with knee, etc.

● Avoid placing anything like

a bottle near the auto door compartment.

●

Do not open or close a drawer while holding the handle of a door of the Refrigerator Compartment with hand.

●

Do not open or close a door while other person is using the refrigerator.

● Do not open or close a door of the

Refrigerator Compartment whil

e holding the

handle of the drawer.

●

Do not put the glass bottles in the Freezer

Compartment.

・

Bottles may break from the contents freezing and cause injury.

●

Do not put bottles in the Door

Baskets if they do not sit properly on the bottom of the front section.

・ Forcing in items like large bottles may result in

them getting tipped over, causing injury.

●

Do not have food items protruding over the front of the shelves.

・

Injury may be caused from items like bottles getting knocked over.

During use

● Do not eat food that smells strange or has

changed color.

・

Spoiled food may cause serious sickness.

●

Do not touch the food and containers inside the Freezer Compartment with wet hands.

・

This may cause frost injury. (Especially in the case of metal items)

● Do not put your feet too close

when opening the bottom door of the refrigerator.

・

When opening this door you may hit the instep or

other parts of your feet resulting in injury.

● Do not put your hands or feet

under the base surface of the refrigerator.

When cleaning, putting your hands under the base surface of the refrigerator may result in injury by cutting them on sheet metal parts.

● Do not give a hard impact to the glass

shelf/partition. (The glass shelf/partition may be broken, causing personal injury).

●

Be careful not to operate the Auto Door

when another person is in front of the refrigerator, which may lead to personal injury unexpectedly caused by the opening door.

● Neither heat the glass surface of the glass

shelf/partition nor put a hot item on it.

● Do not stack up food in the Multiuse Egg

Case.

● When you hear an abnormal sound or

ﬁnd abrasion powder during the opening or closing of a door, stop using the ref

rigerator and ask us for inspection.

●

To prevent water from dripping on the ﬂoor.

Water due to dew and/or frost may drip on the ﬂoor if there is a gap clearance around the door for a long time. Close the door completely without no gap.

● Take care to remove the glass shelf/

partition because it is heavy.

●

When opening or closing a door while the

adjacent door is left open, exercise caution lest your hand or a ﬁnger should be caught between the opened doors.

●

Do not close a door while

holding a portion other than the handle.

Prohibited

Safety Suggestions

LEARN NAME & FUNCTION OF EACH PART

Name of each compartment/Food stored

Accessories

Warranty certiﬁ cate

Please show it for repair.

Supplied tool

(with 2 cushions) Please use it to ﬁ x the refrigerator.

Pg.48

※ The above temperatures are standard values under the condition that the refrigerator is stable with no food

stored and the door closed, at ambient temperatures of 30ºC.

● Store foods in a loosely arranged way.

● It is recommended to wrap smelling foods.

●

There is a rough guide on the weight of foods that can be stored in the refrigerator.

Pg.79

Rice

Frozen

wheat noodle

Hamburger

Deep-fried chicken

New

tea

leaves

Fish

sausage

Butter

Vienna

sausage

Milk

Tea

ogur

Refrigerator compartment

Pg.52

About 2˚C ~ 6˚C

Upper/lower freezer

Pg.58

About -20˚C ~ -18˚C

Vegetable compartment

Pg.60

About 4˚C ~ 8˚C

Vacuum compartment

Pg.54

About -1˚C ~ +1˚C

Refrigerating food

Frozen food/ice-cream/ dried food

Vegetable, fruits, drink

Upper space

Fresh foods such as meat, ﬁ sh and seafood

The vacuum and the platinum catalyst help prevent a reduction in freshness.

Unﬁ nished vegetables, small vegetables, fruits, etc.

The temperature at the door pocket is slightly high.

Tea

Mineral

water

Mineral

water

Tall Storage Compartment

Tall vegetables, 2L PET bottle, etc.

The temperature of the Tall Storage Compartment is a little higher.

Lower space

Leaf vegetables (spinach, Japanese Mustard Spinach etc.), large vegetables (cabbage, lettuce), etc.

Ice compartment

Pg.56

About -20˚C ~ -18˚C

Ice made by Automatic Ice Maker

[Only for R-X730FJ]

Refrigerants or ice bars

Pg.57

Ice Storage Space

Small Article Case

Request

Learn Name & Function of Each Part

Functions of the Control Panel

The Control Panel is divided into two sections: Display Section in the upper part and Operation Section in the lower part.

The Display and Operation Sections are normally unlit. Touch

to light it up.

The Operation Section is a touch panel. Touch it to toggle the setting.

Providing information

電動抽屜

(Auto Drawer On)

冷藏室電動門

(Auto Door ON)

Display area For operation

給水

(Water Supply

indicator)

開閉多

(Door Open

& Close)

It will turn on while it is working in “eco” mode.

Pg.62

It is lit when the Auto Drawer is set to “ON”.

Pg.51

It is lit when the Auto Door is set to “ON”.

Pg.50

* Only for R-X730FJ, R-X670FJ

It will turn on while the Control Panel is locked.

Pg.63

Blink indicating any trouble.

Pg.73

It will turn on when water in the water supply container is getting low.

Pg.57

Is lit when a door is frequently opened or closed.

Pg.62

● Response of the touch panel may change depending on the surrounding temperature, humidity, physical condition of the user or operation status of

the adjoining electric product.

● Release a ﬁnger and touch the panel again if the panel does not respond after touching it. False detection may occur (it may be kept pressed) if the

time interval between key touches is too short. Response of the touch p

anel does not improve even if you touch it strongly.

● The panel may not respond if it is wet or dirty. Wipe it off with a dry cloth.

●

While a door of the Refrigerator Compartment is left open or the Display Section is blinking, the Operation Section remains inactive even if you touch a button.

Notice

First touch it.

※

All the indicator lamps are lit for the sake of explanation.

● Touch to light up the Control Panel and display the current settings. The current settings are also displayed when a door of the Refrigerator

Compartment is opened.

● Touch

again at the end of operation to turn off the light of the Display and Operation Sections.

Even if you do not touch

, the display and Operation Sections go out after approx. 40 seconds for energy savings, except for the indicators of

the

“

節電

(Energy Saving)” mode,

“

急冷藏

(Quick Cooling)”,

“

急冷凍

(Quick Freezing)”,

“

急速製冰

(Quick Ice Making)”,

“

製冰停止

(Stop

Ice Making)”, “給水 (Water Supply)”,

“

關

(Vacuum off)” (Non-vacuum), [ “eco” Operation], and [Door Open & Close ].

● The Display and Operation Sections are lighted up when

a door of the Refrigerator Compartment is opened. They go out approx. 15 seconds after the

door is closed.

Notice

Setting Energy Saving mode

Adjusting temperature settings

Setting an ice-making Setting a cooling mode

Setting the Vacuum Compartment

Energy-saving by reducing cooling power of each compartment.

Normally, use the

“

中

(MID)” setting.

“

節電

(Energy Saving)”

Pg.62

Refrigerator Compartment

Pg.53

Freezer Compartment

Pg.59

“

急速製冰

(Quick Ice

Making)”

Pg.57

“

製冰

(Ice Making)”

Pg.56

“

製冰停止

(Stop Ice Making)

”

Pg.57

“

急冷藏

(Quick Cooling)”

Pg.53

“

急冷凍

(Quick Freezing)”

Pg.59

“

蔬果室強

(Vegetable

Compartment (MAX))”

Pg.61

+1˚C

Pg.55

-1˚C

Pg.55

“

關

(Vacuum off)”

(Non-vacuum)

Pg.55

Cushion (Accessory)

Please arrange it as shown below

● The ﬂoor should be sturdy and ﬂat.

Lay a board with 1cm thickness on the ﬂoor if the refrigerator is installed on the carpet, tatami mat, ﬂooring or PVC sheet ﬂooring which may be hollow or discolor.

● Place the refrigerator away from direct sunlight and heat.

● Do not place it in damp areas, and ensure good air ventilation.

This will reduce adverse effects to refrigerating power and keep electricity cost down. This will also prevent the refrigerator from discoloring and rusting.

● The place separated from other equipment.

To prevent disturbance (noise / scattered image) to TV and others attributable to the refrigerator.

※ To cool efﬁciently, allow enough space around the refrigerator for radiating heat. ※

The actual size of the center part of the side of the refrigerator’s main body is slightly larger than the

nominal size. Therefore, please allow enough space around when installing the refrigerator.

※

The back of the refrigerator can be placed very close to the wall. If any vibration sound occurs and/

or any discolor/dirt is found on the wall, move the refrigerator away from the wall.

Fix the refrigerator

The adjustable mounts, which are located in the front bottom corners of the refrigerator, can be adjusted by turning them to level the refrigerator. (Make sure to use a supplied tool and 2 cushions)

Adjusting the refrigerator adjustable mount to keep it level

● Left side or right side of the door may be slightly lower when the surface of the installation place is not level or either of the left and right

leg sinks in the ﬂoor su

rface because of the soft ﬂoor material and the addition of food weight.

→ This does not affect the refrigerator function. Adjust the refrigerator adjustable mount to keep it level according to the procedure listed

below if you want to correct it. Correcting any left/right lean and lifting slightly the front side of the refrigerator until the door can close easily and completely.

BEFORE USE

Preparation before use

To remove leg cover, hold both ends of it and pull it towards to you by applying some force.

With the supplied tool, turn an adjustable mount on the side so that the refrigerator is lower to make the Refrigerator Compartment door level.

The height of the door can be adjusted 1mm every one turn of the adjustable mount.

Insert the left and right pins of the leg cover into the mounting holes to attach the leg cover.

It may be approx. 5 days before the refrigerator conforms to the ﬂoor allowing the door to be leveled. Readjustment is required if the door is not leveled.

Place pads under the adjustable mounts.

Place pads under the adjustable mounts evenly so that they can be leveled.

Lower both adjustable mounts (left and right) by turning them to secure the refrigerator.

Clamp the supplied tool adjusting to the shape of the adjustable mounts.

● Always wipe the adjustable mounts and ﬂoor clean before placing pads. Adherents may scratch the ﬂoor if they remain.

● Be careful not to scratch the ﬂoor with a supplied tool when turning the adjustable mount.

Leg cover

Adjustable mounts

Supplied tool (Accessory)

■

The left side of the door is lower.

■

The right side of the door is lower.

Turn the left Adjustable mount to lower the left side of the door.

Turn the right Adjustable mount to lower the right side of the door.

Mounting hole

Fork

Leg cover

1 2

2 3

● When you release your hand from a refrigerator door with the door open, the door may move, but this is normal.

Notice

Required space for right and left of the refrigerator: 0.5 cm or more

Required space above the refrigerator: 5cm or more

Before Use

Plug the power cord.

It is not a problem to plug in the power cord soon after installing the refrigerator. Use a wall outlet exclusively when connecting the power cord. (Alternating current 110V, rated 15A or more)

●

Check that the power plug or the cord is not wedged between the back of the refrigerator and the wall in order to prevent the cord from getting hot.

● If you wish to install the refrigerator in a hot spring area exposed to sulﬁde gas, you may need to apply anti-rust

treatment to the piping. Contact your dealer in advance. Failure caused by sulﬁde gas will not be covered under guarantee.

● After inserting the power plug into a wall outlet, you will hear noise from the refrigerator, which is preparing for

operation. You may also hear a louder no

ise from the compressor or fan until the inside is cooled down enough.

● It may smell of plastics in the beginning when you start to use. Keep the room well-ventilated.

Such smell will disappear gradually.

● Do not peel off the seal on the back or plastics at the lower part of the side.

● When a magnet or suction cup is attached on the side of the body or the surface of a door, it may

leave a mark.

●

When you attach a paper sheet on the door surface in a high ambient temperature, dew may

form on the door surface, or the paper may absorb moisture.

Notice

Cooling inside the refrigerator starts.

●

It may take more than 4 hours

to cool well the inside of the refrigerator, depending on conditions such as the ambient

temperature or storage state of foods. It may

take 24 hours or more in summer, etc.

Do not put ice cream, uncooled foods or perishable foods in it until the inside of the refrigerator is cooled well.

● Perform

“

製冰機清潔

”

(Ice Maker Cleaning)

en using the automatic ice making function ﬁrst.

Pg.68

● A series of ice making operation will start automatically after the inside of the refrigerator is cooled well.

(When using for the ﬁrst time, it may

take 24 hours and more to make ice

It is recommended to ground the refrigerator to prevent possible electrical shock.

● Contact your dealer to ground the refrigerator or install an earth leakage circuit breaker if the refrigerator is installed in especially

damp and humid places.

Stickers

Plastic parts - Left/Right

Never connect the earth wire to the following places:

● Water pipe (Danger of electrical shock)

● Gas pipe (Danger of explosion)

●

Telephone line or earth of lightning rod (Danger when lightning strikes)

Earth terminal

Earth installation screws

Earth wire (Copper wire with diameter of 1.6mm)

Place a sheet or cloth for protection ﬁrst, and then lay it back to drain water.

Take out foods or ice.

Remove the leg covers, and raise the adjustable mounts.

Pour off the water from the water supply container/ice tray.

Use a tape to secure the door/power cord.

See “Preparation before use” for installing the refrigera

tor in a new

location.

Pg.48

Pull off the power plug.

No problem just before move.

Place a sheet or cloth for protection when moving / transporting it.

To prevent damage to the ﬂoor material or water from spilling out.

Make sure to hold the handles when carrying it with 2 persons or more.

Do not lay it down horizontally for transportation (which may cause failure of the refrigerator).

Transporting your refrigerator (transport for moving)

Such as old cloth

Using the Auto Door

When touching the Control Panel for the Auto Door, the operation sound is heard, and then it will open automatically.

When closing it, use the handle with your hand to do so. The door does not close automatically.

You can enable or disable the Auto Door function. The function is enabled when shipped from the factory.

Auto Door

Refrigerator

Compartment

door (left)

Refrigerator Compartment door (right)

You can open the door easily by touching the door lightly with your ﬁngers thanks to the Auto Door function. (Only R-X730FJ, R-X670FJ)

Electric refrigerator unit

Control Panel for the Auto Door

(Automated)

Handle

(manual operation)

Caution

●

When an infant child may use the Auto Door to

make mischief, please stop the Auto Door function.

●

Do not operate the Auto Door when another person is in

front of the refrigerator (which may lead to personal injury unexpectedly by the opening door).

●

Do not put any item on the refrigerator.

● Be sure to unplug the power plug before cleaning the Auto Door.

Setting the Auto Door

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Hold down the

button for 3 seconds or more until the

preset sound is heard.

If you stop Auto Door function, set it to “Off”.

1 2

Auto Door function

“On” “

Off

”

Indicator lamp of the “Auto Door

”

On Off

Preset sound

Long beep 2 beeps

How to open the

Auto Door

Opening one door on either side

Open both doors at a time

How to operate

Touch the Control Panel of the door to be opened

* Operate with a ﬁnger.

Slide your ﬁnger from one edge of the Control Panel to the other.

(Doors will open in turn from the side you touch.)

Operation sound

of the Auto Door

1 beep Long beep

●

Hold the handle with your hand to open the Auto Door when it is set to “Off”.

●

You can’t stop the Auto Door function of either “Refrigerator Compartment door (right)” or “Refrigerator Compartment door (left)” only.

Notice

Request

Top view of the refrigerator Top view of the refrigerator

● The Auto Door does not open when either the “Ice Compartment” or the “Upper Freezer” is opened to prevent a hand from being caught.

● The Auto Door is a function to reduce load incurred at the beginning of the opening of a door of the Refrigerator Compartment. Opening angle of the

door may vary or the door may slightly go back, depending on installation conditions of the refrigerator or how bever

ages or foods are stored in a

door pocket, but this is not an abnormal.

● After touching the Control Panel for the Auto Door, the operation sound may be heard when opening the door, but this is not malfunction.

● If the Control Panel for the Auto Door is wet or dirty, it may not respond. Use a wet cloth to wipe off dirt, and then wipe it with a dry cloth.

● If you touch the Control Panel of the Auto

Door and its neighboring part at the same time, or you touch it for about one second or more, the Auto Door

may not be opened automatically.

Touch it

Light ON

Auto Door / Auto Drawer

You can enable or disable the Auto Drawer function. This function is enabled when shipped from the factory.

●

Stop the auto door function if there is a chance that small children play with the Auto Drawer.

●

Do not bring your foot too near the refrigerator when you press the auto door switch of the vegetable compartment. (You may knock your foot against the door and may cause injury)

● Do not hold any portion of the door other than the handle. (This

can cause pinching of ﬁngers, which could result in inju

ry.)

● Operate the auto door switch with your hand.

● Make sure to disconnect the power plug from the power outlet

before starting maintenance of the Auto Drawer.

Handle

(Manual)

Auto Drawer

Lower Freezer

Vegetable Compartment

Handle (Manual)

Auto Drawer switch (Automatic)

Using the Auto Drawer

Auto Drawer function helps you to pull out the case easily even if it is heavy with plentiful foods in.

The compartment opens and LED lamp is illuminated by pressing the Auto Drawer switch with your hand.

When you close it, push the handle on the right/left to close. The door does not close automatically.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Hold down the button for 3 seconds or more until the preset sound is heard.

If you stop Auto Drawer function, set it to “Off”.

Warning

Auto Drawer function

“On”

(Auto Drawer switch is available)

“

Off

”

(Auto Drawer switch is not available)

“

Auto Drawer” indicator lamp

On Off

Preset sound

Long beep 2 beeps

Set the Auto Drawer

● When you set Auto Drawer to “Off”, pull out the handle on the right/left manually to open.

● It is impossible to stop only one Auto Drawer function of either “Lower Freezer” or “Vegetable Compartment”.

● This function is to reduce an initial load when pulling out the Auto Drawer. The Auto Drawer to be pulled out by approx. 15 cm or more. The length

may vary depending on installation conditions of

the refrigerator, or the door may go back a little after the door is opened automatically, but it is

normal.

● “Lower freezer” and “vegetable compartment” cannot be electrically opened at the same time.

● When one of the “lower freezer” and “vegetable compartment” is open, the auto door function does not work.

● A sound is heard when you press the auto door switch. This is not abnormal.

● Wipe off s

pilled liquid soup and others on the Auto Drawer switch immediately.

Or Auto Drawer switch may fail to work, causing the door open disorderly.

Notice

11-4

Touch it

11-4

Light ON

REFRIGERATOR COMPARTMENT

Refrigerator Compartment

●

State in shipping

●

State in shipping

●

Storage of pans, etc.

●

Storage of pans, etc.

Mount the shelf board at the middle level.

Turn the upside of the shelf board down and mount it at the upper level.

●

Storage of milk carton, etc.

●

Storage of milk carton, etc.

Mount the shelf board at the lower level.

Turn the upside of the shelf board down and mount it at the lower level.

Cold Air Blowout Port

LED lamp

Height adjustable pockets

Height adjustable upper/ middle shelf

(Glass shelf)

Height adjustable pockets

Quick Cooling corner

Height adjustable lower shelf

Double door pockets

(right)

Egg stand

Fixed shelf

Double door pockets

(left)

Pocket

(ﬁxed)

Refrigerator Compartment Temperature Sensor

Multiuse Egg Case

Swing partition

● High moisture foods / canned beverages may be frozen or disr

upted if they are placed around the Cold Air Blowout Port.

● Store hot foods in the Quick Cooling corner or on the Height adjustable shelf. If it is placed near the temperature sensor, the temperature of the

Refrigerator Compartment may get too lower or dew may adhere to the panel at the back of the Refrigerator Compartment.

● Storing a bag containing bread in the Refrigerator Compartment may cause

dew condensation in the bag, which moistens the bread.

● Do not put too much force on the door by opening it too much or leaning on the opened door, which may cause damage to the door.

Request

Caution

CAUTION

■ Handling the glass shelves

● Avoid a high impact on the glass shelf

(A broken glass may cause injury)

● Be careful to attach the glass shelves because they are heavy.

■

When manually opening a door

●

Do not hold the swing partition to open the door. (It may make it impossible to open the door.)

■

When closing a door

●

Do not close the door with the swing partition erected. (It may make it impossible to close the door

completely.)

Swing partition

Adjust the height of a pocket/shelf

You can adjust the position of the pocket and the shelf depending on size of foods or beverages.

For how to remove/attach, see

Pg.70

R-X730FJ R-X670FJ, R-G670FJ

■ Height adjustable pockets

■

Height adjustable upper/middle shelves (Glass shelf)

You can adjust the position of them depending on the height of foods or beverage.

■ Height adjustable lower shelf

You can adjust them in three-stages.

※ Explanation is in the case of R-X670FJ

Refrigerator Compartment

Touch it

Adjusting temperature in a refrigerator compartment

Using a multiuse egg case

Cooling food Quickly (Quick Cooling)

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Place the foods in the Quick Cooling Corner.

The food cools more quickly if it is placed at the center part near the interior wall. (the front of the Cold Air Blowout Port)

Touch button to set the temperature as you like.

Each time you touch the button, the corresponding indicator lamp changes in the order shown in the ﬁgure on the right. The temperature is set to

“

中

(MID)” before shipping.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“

急冷藏

(Quick Cooling)” indicator lamp.

“

急冷藏

(Quick Cooling)” indicator lamp is turned on during the

“

急冷藏

(Quick Cooling)”operation, and other lamps

will be turned off in about 40 minutes. The [ “eco” operation indicator lamp] goes out.

The operation will end automatically in about 50 minutes and

“

急冷藏

(Quick Cooling)”

indicator lamp will turn off.

Touch button to turn on the indicator lamp, and then touch button to turn off

“

急冷藏

(Quick Cooling)” indicator lamp.

To cancel it

● Select

“

中

(MID)” in ordinary usage. The temperature may change

depending on the operation states.

● If you adjust the temperature more ﬁnely.

Pg.65

● The temperatures of the Vacuum Compartment also change if selecting

“

強

(MAX)” or

“

弱

(MIN)”.

● Temperature of the door pocket is set slightly higher than the one in the

ﬁgure on the right.

● If cooling is not enough during summer, select

“

強

(MAX)” .

● When you use

“

強

(MAX)” for a long time during winter, food may be

frozen. If the inside is too cool, use

“

中

(MID)” or

“

弱

(MIN)” .

※ The above temperat

ures are standard values in the Refrigerator Compartment under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30ºC.

● Place canned beverages and foods with a high water content apart from the cold air

blowout port. They may be frozen or burst.

Notice

Caution

About 2 〜 6˚C

(Factory setting)

About 1 〜 3˚C lower

than

“

中

(MID)

”

About 1 〜 3˚C higher

than

“

中

(MID)

”

Quick Cooling corner

This can hold eggs and others in it and be put in the refrigerator compartment.

10 eggs can be stored in this case. The egg pack with eggs in it can be stored as it is.

When the egg stand is turned over, it can be used for small sized food.

Touch it Touch it Touch it

● Hold the carry handle securely when handling it.

● Do not stack food, otherwise they may drop.

● Do not place food higher than the front wall of the egg case.

● Do not make ice with this container. A container may get damaged.

● If placed around the cold air blowout port, foods with a high water

content, canned beverages / eggs may be frozen or burst. Keep and use them away f

rom the cold air blowout port.

● Do not place the egg case such that it protrudes from the shelf.

Request

Multiuse Egg Case

Handle

Egg stand

VACUUM COMPARTMENT

Vacuum Compartment

Platinum catalyst

The platinum catalyst decomposes odor ingredients of meat or ﬁ sh into carbon dioxide to maintain the freshness of foods.

Vacuum Pump

Handle

Vacuum Case

(With an aluminum tray)

LED light

Brightly lights up the Vacuum Case when a door of the Refrigerator Compartment is opened.

Vacuum release valve (in blue)

Raise the handle to unlock it. The vacuum will be released by the vacuum release valve.

Hissing sound is generated when releasing the vacuum.

When opening/closing the door of the Vacuum Case

When opening the door When closing the door

Pull up the handle to unlock.

Pull out the Vacuum Case.

Push the Vacuum Case back to the end.

Press down the handle to lock.

1 1

Hiss

Handle

Vacuum Case

● The Vacuum Case is not

put in the vacuum state unless the handle is pushed down securely.

● Closing a door of the

Refrigerator Compartment without locking the handle may damage parts or food or form a clearance between the doors, which reduces cooling performance.

● The vacuum pump is activated when the door of the

Refrigerator Compartment is closed, with the Vacuum Case close

d and the handle locked.

● Sound occurs upon start of the vacuum pump, which is a

normal event. This is a normal operation.

●

It takes about three to four minutes for the Vacuum Case to be vacuumed after the vacuum pump starts to operate. The hissing sound may not be heard when the Vacuum Case is opened within four minutes.

● If you pull out the

Vacuum Case without opening the door on the left/right,

it may cause

damage to parts.

● The hissing sound indicates that

vacuum is being released. Thus, the Vacuum Case cannot be drawn out while the sound is heard. Draw it out after the sound is no longer heard.

Notice

● The platinum catalyst needs no replacement. Do not remove it.

●

Do not overﬁ ll the Vacuum Compartment with food or containers.

Doing so may make it difﬁ cult to draw out the Vacuum Case.

● If you close the Refrigerator Compartment door with the

Vacuum Case opened, parts or foods may be damaged.

Request

Vacuum Compartment

Change the settings of the Vacuum Compartment

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to change the settings as you like.

The display switches in sequence as shown below every time the button is touched. The temperature is set to “-1˚C (Subzero)” before shipping.

1 2

※ The above values are obtained with an ambient temperature of 30˚C, the temperature in the Vacuum compartment in a stable state with no

food stored and no door opened.

Settings and food stored

The following foods should be stored at “-1˚C (Subzero)” setting.

The following foods should be stored at “+1˚C (Chiller)” setting.

This setting is also suited for thawing. Foods high in water content may freeze.

The vacuum function is disabled. This setting is recommended to store food in “sealed bags” or “sealed plastic containers” , which requires caution in storing. Foods with a high water conten

t may

freeze because this is an ice-temperature compartment.

Vienna sausage, sliced cheese etc.

Eggplant Cucumber

● Food contained in a sealed bag

The bag may be inﬂated during storage, which could result in crushing of other stored food.

●

Vegetable sensitive to low temperature

The surface of the vegetable may deteriorate due to low temperature. Store it in the Vegetable Compartment.

Okra, asparagus, ginger, and green pepper

● Plastic airtight container

The lid of the container may become loose or may not stay in place during storage. Be careful when you take out the container.

●

Meat, processed meat●Fish, seafood, boiled ﬁsh paste

Food and container for which care

needs to be taken during storage

Food which are not suitable for storage

Caution

-1˚C

(Subzero)

(About -1˚C)

+1˚C

(Chiller)

(About +1˚C)

關

(Vacuum off)

(About -1˚C)

● The vacuum effect will not be changed even if foods are wrapped.

● Foods high in water content may freeze if ambient temperature is low.

● The temperatures of the Vacuum Compartments also change if the temperature of Refrigerator/Freezer Compartment is set to

“

強

(MAX)” or

“

弱

(MIN)”.

● Dew and/or frost may be formed in the sealed Vacuum Compartment due to moisture

contained in food or in the air. So

ak a soft cloth in lukewarm water and wipe off the dew and/

or frost with the cloth. (No dew, frost or ice reduce performance)

● If you want to avoid dew, frost or ice, stored food should be wrapped with plastic wrap.

● Wipe water or soup spilled in the compartment soon, if any.

Notice

Caution

Request

Dew, frost or ice

Touch it

Yogurt, cheese etc. Tofu, konnyaku, deep-fried tofu,

string konnyaku, boiled eggs etc.

Coffee beans, tea leaves etc.Precut vegetables or fruits

● Dairy products

● Precut vegetables and fruits ● Others

● Food which form air

bubbles inside if frozen

-1˚C (About -1˚C) (Factory setting)

+1˚C (About +1˚C) Non-vacuum (About -1˚C)

● The display will be turned off after about 40 seconds for energy saving, but the function

that is set once will remain effective.

Caution

Vacuum OFF

Vacuum Vacuum

ICE COMPARTMENT

(AUTOMATIC ICE MAKER)

Mineral water

(Hardness: 100mg/L or less)

Filtered water or

boiled water

Well water

(Required to satisfy the appropriate

water quality standard)

Ice Compartment

MINERAL

WATER

Tea

JUICE

Control Panel

●

We suggest you use boiled tap-water to make the ice after cooling.* *:

please check & verify the water quality condition with local authority.

● Change water and clean the container at least once a week for

hygiene purposes.

● If the ice made of mineral water containing a lot of mineral

ingredients is put into water, white powder may come out, however this is due to those mineral ingred

ients and harmless.

● Required to satisfy the appropriate water quality standard.

Water Supply Container

(Approx. 1.0 L)

Ice Making buttons

AUTOMATIC ICE MAKER

Ice Case

Display

Ice Making button

“

Water Supply” indicator lamp

Ice Compartment

●

Do not use the following ones because they may cause malfunction, deformation or sticking ice.

●

Furthermore, these types of water are easily contaminated with bacteria.

Please wash the container usually once 3 days.

Juice drink Sports drink Carbonated drink Tea

How to make Ice

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“

製冰

(Ice

Making)” indicator lamp.

It may take longer time to make ice in the following cases:

・ It is used for the ﬁrst time (it may take 24 hours or more). ・ It is set to the “Energy Saving” mode. ・ The door is opened/closed frequently. ・ Large volume of foods is stored in the refrigerator at a time. ・ In case of power outage. ・ With the low ambient temperature in winter, etc. ・ After the ice tray is cleaned. ・ When the door of the Freezer Compa

rtment / Ice Compartment is

not closed completely.

・

When the temperature of the Freezer Compartment is set to

“弱(MIN)”.

・

When something hot is stored in the Small Article Case (for only R-X730FJ).

Notice

Request

Touch it

Ice scoop

Container-full line

Containerfull line

Ice Storage Space

Small Article Case

Replace the Water Supply Container.

Push it straight beyond the “Container set position” line completely. Water will not be supplied until the water supply container is pushed to the end. ※ Water may spill out if the water supply container is

inclined. Wipe off spilled water immediately.

Ice-Making starts automatically.

● Ice cubes are stored in the Ice Case.

●

12 pieces of ice cubes are made by one ice-making operation.

● When ice cubes reach the Container-full line, the

automatic ice-making function is suspended. The function automatically resumes when ice gets low.

● When the Ice Case contains no ice cube, you may hear a

large sound when ice cubes fall from the Ice Tray.

Open the lid and add water.

Water level can not exceed “Container-full line”. ※ Do not pour water into it beyond

the full water

line.

Lid

Container-full line

Container set position

Perform

“

製冰機清潔

(Ice Maker Cleaning)” when making ice for the ﬁrst time or for the ﬁrst time in a week or more.

Pg.68

Add water line

Take off the Water Supply Container.

When the “給水 (Water Supply)” indicator lamp is lit or the water level reaches to the“Add water line”, replenish water.

Ice Tray

R-X670FJ R-G670FJ

R-X730FJ

Ice Compartment (Automatic Ice Maker)

●

“

製冰停止

(Stop)” indicator lamp

won't turn off.

Notice

Quick Ice Making Stop Ice Making

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“

急速製冰

(Quick Ice

Making)” indicator lamp.

Ice cubes are made in a shorter time than that of

“

製冰

(Ice Making)” operation. 12 ice cubes are made by one ice-making operation. “

急速製冰

(Quick Ice Making)” indicator continues to be lit

during the

“

急速製冰

(Quick Ice Making)” operation. Other

indicator lamps will be unlit about 40 seconds later.

“

急速製冰

(Quick Ice Making)” operation ends automatic

ally in

about 7 hours, and it is changed to

“

製冰

(Ice Making)” mode.

Touch button to turn on

“

製冰停止

(Stop)

”

indicator lamp.

Automatic Ice Making is stopped and no Ice cubes are made. ※ If you set to

“

製冰停止

(Stop)” for 1 week or more,

maintain the Automatic Ice Maker.

Pg.68, 69

1 1

2 2

Touch it Touch it

Model

R-X730FJ, R-X670FJ, R-G670FJ

Stored ice amount

Normal operation

About 90 pcs

Ice is leveled

About 150 pcs

Time for onetime ice making (12 cubes)

Normal

“

製冰

(Ice Making)

”

About 110 minutes 〜 140 minutes

“

急速製冰

(Quick Ice Making)

”

About 80 minutes

※ The above values are obtained with an ambient temperature of 30˚C, the temperature in

each compartment set to

“

中

(MID)” and no door opened/closed.

Stored foods

Refrigerants or ice bars

Ice scoopFrozen food

Detecting LeverDetecting Lever

Is any frozen food stored in the inner part of the Ice case?

Is the Ice scoop placed in a given place?

Control Panel

● “給水 (Water Supply)” indicator lamp turns off once (for up to 3 hours) when the left door of the

Refrigerator Compartment is opened and closed while the indicator lamp is on, and it turns on again if n

o water is added to replenish the container.

● “給水 (Water Supply)” indicator lamp remains off when

“

製冰停止

(Stop)” is selected for

automatic ice making.

● Limit line of stored ice amount represents the guide line

of stored ice amount when the Automatic Ice Maker makes ice with ice leveled. If the ice is stored partially, the detecting lever may contact the ice early. As a result, the Automatic Ice Maker

may stop making ice

before the amount of stored ice is enough.

● When putting something hot, ice in the Ice Storage Space may melt or ice-making

may take a long time.

● Ice cream may be soft due to indirect cooling.

● Be sure to close the lid. Do not put an object which is too large to close the lid.

●

Gently open and close the door of the Ice Compartment, otherwise ice may fall out of the ice case on

to the lower freezer.

● Do not put frozen food other than the ice cubes made by the

Automatic Ice Maker in Ice Storage Space. (Doing so may prevent ice-making, damage parts or bring a part of the ice maker into contact with food, which may prevent the opening of the door.)

●

“

給水 (Water Supply)” may come on regardless of water level if the water supply container is not

placed properly. Push in the cont

ainer straight and completely if the indicator lamp comes on.

Notice

Request

Caution

Water Supply indicator

Stored ice amount and ice-making time

When the “Ice Making” indicator lamp blinks

“

給水 (Water Supply)” indicator lamp comes on when water in the water supply container is getting low. Replenish the container with water.

● While the “給水 (Water Supply)” indicator lamp is on, the Ice Making function doesn’t work even if the

“

急速製冰

(Quick Ice Making)” is set.

The ice tray may come into contact with foods within the Ice Case.

Empty out the Ice Case once, and then start the “Ice Maker Cleaning”.

Pg.68

Light ON

Touch it

Light ON

Ice Storage Space

Small Article Case

(for R-X730FJ only)

FREEZER COMPARTMENT

Upper Freezer

Lower Freezer

Using the Upper Freezer

Using the Lower Freezer

Caution on how to store foods

Stored foods

Slimline slide case

Small-item and frozen food, etc.

Slide Case

Freezing bag andairtight container etc.

Lower freezer case

Frozen food and bread, ice cream etc.

Tall Storage

Compartment

Upper Freezer case

Freezing bag, airtight container, etc. Space for small-item and frozen food, etc.

Quick Freezing

Corner

With Quick Freezing System, all the moisture, natural nutrients and good ﬂavor in the foods are preserved in an instant.

Pg.59

It is recommended to use this compartment when freezing meat and/or ﬁsh quickly.

3-layer freezer case provides you with large storage space compartment and convenient reach of your freeze food items.

It is suitable for storing the food preserved for a long time and the food that melt easily such as ice cream.

Store foods properly depending on the height of them.

The door will not be closed completely, which leads to inefﬁcient cooling action, and which may cause damage of food or each case. Keep the food off from the upper slimline case and/or the slide case.

When freezing meat or ﬁsh quickly

PET bottle for freezing, etc.

Upper Freezer case

(with an aluminum tray)

Quick Freezing Corner

Slimline slide case

Slide Case

Tall Storage Compartment

Lower freezer case

(with an aluminum tray)

● Moving the aluminium tray in the Upper Freezer to the left side of the

Slimline slide case, it can be used as the Quick Freezing Corner.

● Do not store any 500ml PET bottle in the Slimline slide case. It may not

be taken out because it expands when it is frozen.

● Do not use with the slimline slide case and/or slide case removed.

Food may drop to the inner part of the case, and as a result, the door may not close completely.

● When storing tall food in the tall storage Compartment, make sure that

it does not contact with the Slimline

Slide Case and/or the Slide Case.

● Store only food which can be frozen such as PET bottle which can be

stored in freezer.

(Front)

Slimline slide case

Upper freezer compartment door

Lower freezer compartment door

Slide Case

Guideline for height

Upper Freezer case

The top line of the case

Slimline slide case

Up to 5cm in height

Slide case

The top line of the case

Lower freezer case

The top line of the case

up to the height of

23.5 cm

Tall Storage Compartment

Freezer Compartment

Quick Freezing Corner

Adjust the temperature of the freezer compartment

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to set the temperature as you like.

Each time you touch the button, the corresponding indicator lamp changes in the ﬁgure on the right: The temperature is set to

“

中

(MID)” before shipping.

1 2

● Moving the aluminum tray in the Upper Freezer to the left side of the Slimline slide case in the Lower Freezer, it can be

used as Quick Freezing Corner.

● Select

“

中

(MID)” in ordinary usage. The temperature may

change depending on the operation states.

● For more information about the panel for operation.

Pg.65

●

The

“

強

(MAX)” setting of the Freezer Compartment (lower

temperature freezing) consumes more energy than the

“

中

(MID)”

setting by approximately 20%.

● If operating the refrigerator for a long time with the Freezer

Compartment

“

強

(MAX)” selected, ice cream etc. may become

hard or it may take a longer time to thaw food.

● If the temperature of the Freezer Compartment is changed, the

temperature of the I

ce Compartment changes.

※ The above temperatures are provided as a guide when the inside

temperatures are stabilized at the ambient temperature of 30˚C under the conditions that: The temperatures of the Refrigerator and Freezer Compartments are set to

“

中

(MID)” and the doors

are closed without storing food.

Notice

Quickly freezing foods (Quick Freezing)

Place the food wrapped with plastic ﬁlm on the aluminium tray in the upper Freezer.

Dividing food into small pieces not only make them freeze soon, but also make them be taken out easily.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on the

“

急冷凍

(Quick Freezing)” indicator lamp.

During

“

急冷凍

(Quick Freezing)” mode,

“

急冷凍

(Quick Freezing)” indicator lamp is kept ON.

[ “eco” Operation indicator lamp] is turned off.

The operation will end automatically in about 120 minutes, and

“

急冷凍

(Quick Freezing)”

indicator lamp will be turned off.

Touch button on the Control Panel to turn on the indicator lamp, and touch

button to turn off

“

急冷凍

(Quick Freezing)” indicator lamp.

To cancel it

● Freezing compartment is cooled preferentially in the

“

急冷凍

(Quick Freezing)” operation. For that reason, temperature of the Refrigerator

Compartment may rise if opening/closing the Refrigerator Compartment door frequently.

● Warm food such as rice can be easily frozen by this function. Make sure that you never burn yourself when putting hot food in. It is recommended to

put it in after it is cooled

down to the temperature where you can hold it with your hand.

● Touching

button again within 60 minutes after the end of the

“

急冷凍

(Quick Freezing)” operation, the lamp is illuminated, but the

“

急冷凍

(Quick Freezing)” operation does not start. The operation will start after 60 minutes pass.

● Make sure to wrap the food with plastic ﬁlm to prevent it from sticking on the aluminium tray.

Notice

Touch it

About -20 〜 -18˚C

(Factory setting)

About 1 〜 3˚C

lower than

“

中

(MID)

”

(

Lower temperature freezing

Notes

)

About 1 〜 3˚C

higher than “

中

(MID)

”

Touch it Touch it Touch it

● Do not pile up foods higher than the case.

 ・The door may not be closed securely, which leads to inefﬁ cient cooling. It may also damage food, the case and the Moisture Cover.  ・When storing a tall food in the Lower Space, do not let the food come into contact with the bottom surface of the Upper Case. Doing so may prevent

the closing of the Upper Case.

● Do not stuff foods or drinks into the Tall St

orage Compartment or Upper Case.

・Some PET bottle can’t be stored, depending on its type.

・The glass partition, the cases or the Moisture Cover may be damaged.

VEGETABLE COMPARTMENT

Vegetable Compartment

Tall Storage Compartment Upper space

Glass partition Lower space

Stored foods

●

In the Upper space, Lower space, or Tall Storage Compartment, the state of preservation may vary due to the amount, variety, or freshness of stored vegetables.

●

Since the Vegetable Compartment is highly humid, dew may be condensed on the surface of the case and the Moisture Unit and Cover.

●

The Tall Storage Compartment may have temperature slightly higher than that of other spaces.

Notice

Upper space

Unﬁ nished vegetables, small vegetables, fruits, etc.

Tall Storage Compartment

Tall vegetables, 2L PET bottle, etc.

Lower space

Leaf vegetables (spinach, Japanese Mustard Spinach etc.), large vegetables (cabbage, lettuce), etc.

● Since the Vegetable Compartment is highly humid, dew may be condensed on the Upper and Lower Cases and the surface of

vegetables, depending on the volume or type of vegetables, but it is normal. Water pool, if any, is likely to damage food, so wipe it off with a soft cloth.

●

If the moisture unit is blocked by a bag or container of foods, dew is formed easily. Move out the bag or container of foods from there

● If you feel uneasy about dew condensation, wrap the foods.

● When storing dried foods such as rice, laver and others in the Vegetable Compartment, put them in a sealed container (bag) and

then place them in the Vegetable Compartment. Dried foods may absorb the moisture.

● When the Vegetable Compartment contains a small quantity of vegetables, high humidity cannot be maintained. Wrap a veg

etable

with plastic food wrap before storing it in the refrigerator.

Request

Caution on how to store foods

Guideline for height

Vegetable Compartment Vegetable Compartment Vegetable Compartment

Moisture Cover

(Front) (Front) (Front)

Upper Case

Lower Case Tall Storage Compartment

Height of stored food

Door of the Vegetable Compartment

Moisture Cover Moisture Cover

LED light

Brightly lights up the Vegetable Compartment when the door of the compartment is opened.

Moisture unit

※ Do not remove it.

Upper Case Lower case

※ When removing the Lower

Space, be sure to remove the glass partition. Failing to do so may cause the glass partition to drop.

Glass partition

Locking handle

(Containing platinum catalyst) ※ Do not remove it.

Platinum catalyst

The platinum catalyst decomposes odor ingredients of meat or ﬁ sh and/or ethylene gas from vegetables into carbon dioxide to maintain the f

reshness of foods.

Moisture Cover

※ Do not remove it.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“

蔬果室強

(Vegetable Compartment (MAX))”.

Food is cooled at temperatures lower than usual (Normally, approx.4˚C to 8˚C, →

“

蔬果室強

(Vegetable Compartment

(MAX))

”

: 2˚C to 6˚C)

※ The above temperatures are provided as a guide when the inside temperatures are stabilized at the ambient

temperature of 30˚C under the conditions that: The temperatures of the Refrigerator and Freezer Compartments are set to

“

中

(MID)” and the doors are closed without storing food.

1 2

Touch button on the Control Panel to turn on the indicator lamp, and then touch

button to turn off the

“

蔬果室強

(Vegetable Compartment (MAX))” indicator lamp.

To cancel it

● If foods are kept in the

“

蔬果室強

(Vegetable Compartment (MAX))” for a long time, vegetables high in water content may freeze. Release the

setting of

“

蔬果室強

(Vegetable Compartment (MAX))”.

● You cannot set both

“

蔬果室強

(Vegetable Compartment (MAX))” and

“

急冷藏

(Quick Cooling)”/

“

急冷凍

(Quick Freezing)” concurrently.

If it is switched to

“

急冷凍

(Quick Freezing)”/

“

急冷藏

(Quick Cooling)” mode during the

“

蔬果室強

(Vegetable C

ompartment (MAX))” mode, it

will not return to the

“

蔬果室強

(Vegetable Compartment (MAX))” mode by itself after

“

急冷凍

(Quick Freezing)”/

“

急冷藏

(Quick Cooling)” is

ended automatically. Set it to the

“

蔬果室強

(Vegetable Compartment (MAX))” again.

● When setting

“

節電

(Energy Saving)” mode during the

“

蔬果室強

(Vegetable Compartment (MAX))” mode, the cooling function is shifted to weaker

cooling effects from the

“

蔬果室強

(Ve

getable Compartment (MAX))”.

Pg.62

● When the ambient temperature is low, the temperature in the case may be lower.

● If vegetables sensitive to low temperature such as eggplant and cucumber, etc. are stored with the

setting

“

蔬果室強

(Vegetable Compartment (MAX))”, they may have pits on the surface or get

discolored. In that case, release the setting of

“

蔬果室強

(Vegetable Compartment (MAX))”.

● While it is set to

“

蔬果室強

(Vegetable Compartmen

t (MAX))”, there may be more dew condensation in the Vegetable Compartment. If it is undesirable that dew adheres to the stored vegetables, release the setting of

“

蔬果室強

(Vegetable Compartment (MAX))”.

Notice

Request

Touch it

Vegetable Compartment

To cool it more [Vegetable Compartment (MAX)]

Using the space for Sleep Vegetables

When opening it When closing it

Push the lock handle at the center of the Upper case to slide it to the end.

Draw the lock handle at the center of the Upper case, and then slide it to the end to lock until it snaps.

1 1

Snap!

Eggplant Cucumber

Vegetable sensitive to low temperature

Okra, asparagus, ginger, and green pepper

● For energy saving, the display will be turned off after about 40 seconds, but the setting remains active until it is released.

The [ “eco” Operation indicator lamp] goes out.

Caution

When the Vegetable Compartment door is closed, the Upper case goes back to the original position and is locked.

The upper case won’t slide to the end when you don’t push the lock handle.

If [“eco” Operation indicator lamp] isn’t illuminated, check the following things.

・ Immediately after it is installed, or plentiful foods are stored at a time ・ If the door is frequently opened / closed (when the [Door Open & Close indicator lamp] is lit) ・ If the door is not closed completely because any food/bag is wedged between the door and the body of the refrigerator. ・

“

急冷凍

(Quick Freezing)”,

“

急冷藏

(Quick Cooling)”,

“

急速製冰

(Quick Ice Making)” or

“

蔬果室強

(Vegetable Compartment

(MAX))” is set.

・ The ambient temperature of the refrigerator is about 35˚C or higher.

VARIOUS FUNCTIONS

Setting “Energy Saving” mode

Setting to “Energy Saving” mode, the operation is changed to the following modes for energy saving.

Touch button to change the settings as you like.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below: The Energy Saving mode is set to “Off” (lamp off) before shipping.

“

eco” Operation indicator lamp

Door Open & Close indicator lamp

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

1 2

● Automatic temperature control lowers cooling loads, which may cause ice cream to get soft and frost to form on frozen food. It also

requires longer freezing time and ice making time.

●

When

“

急速製冰

(Quick Ice Making)”,

“

急冷凍

(Quick Freezing)” or

“

急冷藏

(Quick Cooling)” is set in the Energy Saving mode, the Energy Saving

mode is temporarily cancelled, and restored after the completion of the quick ope

ration.

● When both

“

節電

(Energy Saving)” and

“

蔬果室強

(Vegetable Compartment (MAX))” modes are set concurrently, the cooling function will be

weakened from the

“

蔬果室強

(Vegetable Compartment (MAX))”.

Pg.61

● When the temperature of the “Freezer Compartment” and/or “Refrigerator Compartment” is set to

“

弱

(MIN)” , the minimum level of cooling is not

reduced to maintain the freshness of foods.

Notice

“

Energy Saving”

mode

Save electricity by lowering the cooling capability of each compartment.

When a door of the Refrigerator Compartment is left open for 30 seconds or more, the LED lights in the Refrigerator and Vacuum Compartments have reduced brightness for energy savings. Likewise, when the door of the Vegetable Compartment is left open for 30 seconds or more, the LED light in the compartment h

as reduced brightness for energy savings.

If a door is not opened or closed for a long time,

the inside is cooled down slowly to further reduce power consumption.

During energy saving operation, as in Frost Recycling Cooling, [ “eco” Operation indicator lamp]

is automatically turned ON to indicate the energy saving operation. Open or close a door less frequently and quickly. Use this indicator wisely to save energy efﬁciently.

When a door is opened or closed frequently, the Door Open & Close indicator is automatically lit. Open or close a door less frequently and quickly. Use this indicator wisely to save energy efﬁciently.

Lamp off

(Factory setting)

“

eco” Operation

indicator lamp

・The [Door Open & Close indicator lamp] is turned off automatically about ﬁve minutes. ・The [ “eco” Operation indicator lamp] remains unlit when the [Door Open & Close indicator lamp] is lit.

Notice

Door Open & Close

indicator lamp

Various Functions

Door Alarm and volume adjustment of the operation sound

Locking the Control Panel

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Press down button for 3 seconds or more until the preset sound is heard.

The volume level of the operation sound is changed from “Standard” to “Louder” or “Sound off”. Repeat the change of settings to set the operation sound you like (see the table shown below). The sound is set to “Standard” before shipping.

Press down button for 3 seconds or more until the preset sound is heard.

Lock of the Control Panel is changed to “On” or “Off”. It is set to [

]“Off” before shipping.

● It is impossible to adjust the volume level of

either door alarm or operation sound only.

● When the Door Alarm is disabled, characters

on the Control Panel no longer blink.

● Even if the volume level is set to “Sound off”,

the alarm of the Ice Maker Cleaning and the operation sound when the Auto Door and the Auto Drawer are set to “ON” will sound.

● When connecting/disconnecting the power

plug or

after recovering from electric power failure, it will return to the standard setting where the Door Alarm sounds.

●

Electric pulling-out operation will not be disabled even if the Lock function on the panel for operation is set as On.

When stopping the setting of Auto Door and Auto Drawer (electrical drawer compartment), unlock the Control Panel, and touch the or

button for 3 seconds or more until it

beeps twice.

Pg.50, 51

● When connecting/disconnecting the power

plug or after recovering from electric power failure, lock of the panel for operation may be released.

Notice

You can set the sound level of the alarm louder or no alarm sound.

Disenabling operations can prevent erroneous operations or misuse by children. When this indicator lamp

(Lock of the Control Panel) is illuminated, any other portion of the Control Panel will

not be activated by touching it.

Setting of the Control Panel's lock

“On”

(locked)

“

Off

”

(unlocked)

“

indicator lamp

”

On Off

Preset sound

Long beep 2 beeps

Door Alarm

If any of the doors opens for one minute or more, a sound is raised to indicate that the door is open. The Display Section blinks and the Operation Section is lit.

For R-G670FJ, no Door Alarm is installed in the Upper Freezer.

● Door alarm is also raised when a door is left open for 30 seconds or more in the energy saving mode. The Display Section starts to blink after one

minute from the opening.

●

When the indicator lamp on the display area blinks due to the Door Alarm function, the Control Panel will not be activated by touching it.

Duration when door is open

1 minute 2 minutes 3 minutes

Alarm sound

Long beep (3 beeps) Long beep (5 beeps)

Long beep (continuously), Louder

Volume level

Standard Louder Sound off Standard

Preset sound

−

2 long beeps Long beep 2 beeps

(Factory setting)

VARIOUS FUNCTIONS

(CONTINUED)

Set the condensation prevention heater to MIN.

(Swing partition/Partitioning iron plates)

Setting the condensation prevention heater to MIN saves energy.

When dew is formed in the swing partition or the partitioning iron plates, set it to the standard. The temperature settings for the swing partition and the partitioning iron plates can be adjusted by four levels (1 to 4), and level 4 is the most energy saving.

Setting the swing partition

Setting the partition iron plate

Open the door of the Lower Freezer Compartment.

Touch

button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Close the door of the Lower Freezer Compartment.

Press down

button for 3 seconds or more until the preset sound is heard.

The setting of MIN level of the dew condensation prevention heater will be switched. Repeat the above-stated operation to set it to the level you prefer (see the table above).

Press down button for 3 seconds or more until the preset sound is heard.

The setting of MIN level of the dew condensation prevention heater will be switched. Repeat the above-stated operation to set it to the level you prefer (see the table above).

Swing partition

Partitioning iron plates

● The setting will be returned to the standard when the power plug is disconnected and connected or power failure recovery takes place.

Notice

MIN setting of the

heater

Standard

MIN setting

level 1

MIN setting

level 2

MIN setting

level 3

MIN setting

level 4

Standard

Preset sound

−

Long beep Long beep (2 beeps) Long beep (3 beeps) Long beep (4 beeps) 2 beeps

(Factory setting)

Various Functions

(Continued)

Fine adjustment of the temperature

(Refrigerator Compartment / Freezer Compartment)

Temperature settings for Refrigerator and Freezer Compartments can be more ﬁnely adjusted by 11 levels.

Indication

lamp

Setting

MIN and

under

MIN. MID.

MAX.

MAX and

Open the door of the Lower Freezer Compartment.

Touch

button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Close the door of the Lower Freezer Compartment.

Follow the operations shown in Step 1, 2, 3 and 4.

2 beeps sound and you can set the temperature by normal step (3 levels).

Press down button for 5 seconds or more until 1 beep is heard.

Touch

or button to make an adjustment.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below. Usually it is recommended to use it at the setting of

“

中

(MID)” .

(

Lighting Blinking Turned off)

To cancel

MAINTENANCE

(REGULAR CHECK)

● Make sure to unplug the power plug when maintaining the refrigerator.

Warning

■ When dirt is found

● Wipe off it immediately. It is recommended to clean the hidden places once a year.

Power plug

Once or twice a year

Door gaskets

Once a month

Surface of door

Once a month

The back/ﬂoor of the refrigerator

Once or twice a year

Liquid receivers

Once a month

Unplug the power cord from the outlet.

If the dust on the power plug remains not cleaned, it may cause a ﬁre.

Wipe the surface of door using a soft cloth wet by lukewarm water, and then wipe off water with a dry cloth. Remaining adhesives on glass surfaces, if any, can be removed clearly by using a plastic eraser to rub it and then wiping it off with a dry cloth.

Wipe it thoroughly because it can beco

easily dirty.

Wipe off them if liquid collects and/or they becomes dirty.

Check the following matters.

・ Is any damage found on the power cord? ・ Does the power plug become hot?

※ If there is any abnormality, please consult with your dealer

about it.

Pull the leg cover and remove it.

Push it in from the front when installing it.

Float the Adjustable mounts from the ﬂoor and draw the refrigerator straig

ht.

Lay the protection board etc. on the ﬂoor which can be easily scratched.

Connect the power plug ﬁrmly to a power outlet.

Remove the dust and wipe it with a dry cloth.

Wipe off dirt on the back of the refrigerator, duct on the side, wall and ﬂoor.

The back of the refrigerator easily becomes dirty because ﬁne dust is accumulated on it by convection of air.

1 1

Lift up the adjustable mount by turning it anticlockwise.

Duct on the side

Liquid receivers

● Do not use the following items because it may cause damage and discoloration of the door, paintwork and plastic parts. ・

Alkaline and alkalescence detergent for kitchen, plate powder, powder soap, oil, hot water, scrubbing brush, acid, benzine, thinner, alcohol, and bleach, etc.

● When using a chemical dustcloth, follow the instructions of it.

● Make sure to wipe off spilled cooking oil, citrus fruits juice and food soup. Because it may cause damage and discoloration of the door, paint work

and plastic parts.

● Do not wipe off lubricant applied to movable contact surfaces of cases and rails for the slide door.

● When a magnet or suction cup is attached on the side surface of the body or the surface of a

door, it may leave some mark.

● When unplugging the power plug, the settings of the Control Panel may be released. So check the settings.

Caution

Each shelf/pocket/case

Once per three months

Use a soft cloth wet by lukewarm water to wipe off. For how to remove

Pg.70, 71

●

When the lower case of the Vegetable Compartment is washed with water, turn it upside down to drain water, and then wipe off water with a dry cloth. Don’t use thick-pile toothbrush or scrubbing brush to wash. It may cause damage to case or moisture unit.

Request

Maintenance

Vacuum Compartment

Once a month

Wipe off dirt from the groove for attaching the vacuum compartment gasket.

Remove the vacuum compartment gasket from the Vacuum Case.

Grasp the tab of the vacuum compartment gasket on the observer's upper right and remove it by hand carefully.

When the Vacuum Compartment Gasket is dirt

Rinse dirty portion in water using a soft sponge, etc.

※ Do not use the detergents, etc.

Wipe off excess moisture with a dry cloth and dry it out naturally.

Attach the vacuum compartment gasket.

Align the tab to the notch accurately, and then combine them together.

Tab

Groove for attaching the vacuum compartment gasket.

Vacuum compartment gasket

Notch of the groove

Tab

Vacuum Container

Vacuum Compartment

Gasket seat

Aluminum Tray

● Make sure that water never splash to the Auto Drawer unit. Otherwise, it may cause malfunction.

● Do not disassemble the Auto Drawer unit. Otherwise, it may cause injury and/or malfunction.

● Exercise caution not to move the linkage section. Failing to do so may cause a failure.

Caution

Auto Drawer

Clean the auto door unit when food falls onto or is caught in the upper part of the auto door unit and when liquid is deposited on the auto door unit.

Unplug the power plug.

Remove each case of the Lower Freezer or the Vegetable Compartment.

Pg.71

Remove all foods which drop or are caught in.

Wipe off deposited liquid soup using a soft and dry cloth.

1 2

3 4

● Make sure to disconnect the power plug from

the power outlet before starting maintenance to avoid injury.

Warning

Pull out the Vacuum Case.

For how to remove,

Pg.70

Be sure to remove foods contained in the Vacuum Case.

Wipe off following parts with a soft cloth which is steeped in lukewarm water.

※ Do not use the detergents, etc.

Attach the Vacuum Case.

For how to attach,

Pg.70

Loosened vacuum compartment gasket or loose-ﬁtting door of the Vacuum Case may cause the vacuum state unable to keep well.

●

Wipe the ceiling of the compartment (platinum catalyst and LED light) gently. Failing to do so may cause damage.

● If detergents and others except lukewarm water are used

to clean the vacuum compartment gasket, the vacuum compartment gasket may be damaged, deformed or change in

color, which may cause the vacuum state

unable to keep well.

Request

Auto Drawer Unit

Linkage section

Vacuum compartment gasket

MAINTENANCE

(CONTINUED)

● Do not place your hand in the mechanical section

of the automatic ice maker.

(Rotation of the ice tray may cause injury.)

Warning

Ice Maker Cleaning

When using for the ﬁrst time

When not used for more than one week

Be sure to check the followings before

starting the operation.

Go to the next step after checking them.

Close all the doors.

Preparation

Water supply container

・

Water is ﬁlled in it up to the limit line.

・ It is set correctly beyond the tank

set position line.

Ice case

・If there remains ice, remove it.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Hold down button for 5 seconds or more until the alarm sounds.

When the 3 indicator lamps

“

急速製冰

(Quick Ice Making)”,

“

製冰

(Ice Making)” and

“

製冰停止

(Stop)” start to blink and alarm starts to sound, stop holding the button. “

製冰機清潔

(Ice Maker Cleaning)” starts (for about 4 minutes).

・ The indicator lamp will ﬂash and the buzzer will sound for about 4 minutes. ・

“

製冰機清潔

(Ice Maker Cleaning)” can’t be interrupted.

・ If you

open any of the refrigerator doors during Ice Maker Cleaning, the cleaning may not work properly. Do

not open or close the door until cleaning is completed.

・Door alarm sounds even if alarm is disabled.

Pg.63

Place a clean towel, etc. on the bottom in the Ice Case so that the cutout of the Ice Case can be blocked after the alarm and blinking of the indicator lamp end.

Place a water-absorbing towel on the bottom in the Ice Case to prevent trapped water during the ice maker cleaning from spilling out of the cutout of the Ice Case.

Wipe off water inside the Ice Case completely, and then set it to the Ice Co

mpartment.

Remove the towel with which you have wiped off water. There is no problem with using water remaining in the water supply container, if any. After

“

製冰機清潔

(Ice Maker Cleaning)”, it is set to

“

製冰

(Ice Making)” mode, etc.

Touch it

11-4

It blinks

Wash the Ice Tray or water paths with water.

Cutout

Towel Towel

R-X730FJ

R-X670FJ, R-G670FJ

Maintenance

(Continued)

Water supply container

Once a week

Ice tray

Once or twice a year

Remove the water supply container, and then the lid.

Take up the near side of the lid toward in the direction of the arrow, and then remove it.

Remove the gasket from the lid and then the case.

Turn the case and remove it from the lid.

Remove the water ﬁlter from the case.

Pinch the tab of the water ﬁlter with ﬁngers to unset it from the fork, and then remove the case.

Rinse each part of the water supply container in water.

Wash it with a soft wash sponge etc. Do not use the detergents etc.

Attach each part to the water supply container, pour water in and then set it.

Insert the lid from its rear side and close it in the direction of the arrow.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Open the door of the Ice Compartment, and take out the ice tray.

Push the level laterally. draw the frame. Raise the cover ( ▲ part) in the direction of the arrow. Remove the ice tray from the frame.

Empty the ice tray and wash it lightly in the stream.

Do not use a sponge / cleanser, etc. Be sure not to scarify.

Open the Ice Compartment, and then attach the ice tray.

Set the ice tray Hold down the cover to the end until it snaps. Push the frame to the end until it snaps.

Move the frame back and forth to check that it is ﬁxed securely.

Touch button on the Control Panel to turn on the indicator lamp, and then touch

button to

turn on the

“

製冰

(Ice Making)” indicator lamp.

Automatic Ice Making starts.

Touch button to turn on

“

製冰停止

(Stop

)”

indicator lamp.

It stops water supply to the ice tray. ※ When

“

製冰停止

(Stop)” indicator lamp blinks, wait for about 1 minute for it to turn on, and then follow the next steps.

Note that the frame cannot be pulled out.

1 1

Gasket

Lid

Case

Water ﬁlter

Water supply

container

Tab

●

Dechlorinated water such as mineral water, well water, ﬁltered water, cool water after boiling and others tends to cause water stain / slime compared with tap water. So it is recommended to maintain once every 3 days.

●

When the Ice Maker is not used for more than 1 week, dry out the water supply container, and then set it in place (dry out the water ﬁlter, among others). When not used for more t

han 1 week, it is recommended to start Ice

Maker Cleaning before use.

Pg.68

●

When the frame for the ice tray cannot be pushed into the back, the motor that drives the ice-tray may have operated. Remove the ice tray once and then push the frame alone into the back, and then touch

button with all the doors closed to turn

“

製冰停止

(Stop)” . After 1 minute, the ice-tray driving

motor gets ready, allowing you to mount the ice-tray.

Notice

Ice tray

Cover

Frame

Lever

Click

Touch it

Fork

● Dry out the water ﬁlter to prevent molds and guck.

● Replace the water ﬁlter normally every 3 - 4 years.

Pg.77

Request

Notice

Slide

● Before removing parts, take out all the foods on the parts.

● Do not remove parts except the ones listed here.

Please contact with a Hitachi customer service centre for cleaning such parts after removing them.

HOW TO REMOVE/ATTACH PARTS

Caution

Height adjustable upper and middle shelf

(Glass shelf)

Fixed shelf

Vacuum Case

Height adjustable lower shelf

When installing the shelf, slide it until it reaches to the interior wall, then slightly lift up the back of the shelf and push it in. (hitch the forks of the shelf to the parts on the back of the shelf)

Slightly lift up the back of the shelf and draw it.

Draw the shelf, and pull off the 2 pins on the lower right and remove it.

Pull out the Vacuum Case by slightly lifti

ng up

and moving up and down.

Insert the Vacuum Case so that both right and left convex ribs on the case can slide under the guide rail of the Vacuum Container.

Lastly, hold down the handle to lock.

How to remove How to attach

Slightly lift up and pull out.

Raise the shelf as shown in ﬁgure, and turn it and remove it.

Forks of the shelf (Right / Left)

Door may damage if drawing the shelf without turning it. Be careful to attach/remove the glass shelf because it is heavy. If it drops, it may break and cause bruise or injury.

Notice

Guide rail

Vacuum Case

Vacuum Container

Convex rib

Check that it is ﬁxed properly by taking it in and out a few times.

Request

If you pull out the shelf straight, it may hit the door.

Caution

Forks Forks

R-X730FJ

R-X670FJ, R-G670FJ

Door pocket

Lift up the door pocket while tapping the left/right of its bottom surface, and remove it.

(It is ﬁxed a little tightly.)

Tap Tap

Caution

Insert the door pocket fully to the end when installing it. If it drops, it may break and cause bruise or injury.

Slimline slide case, slide case and lower freezer case

(Lower Freezer)

Upper Case, Glass Partition, Lower Case

(Vegetable Compartment)

How to attach the slide door

(

Ice Compartment/Upper Freezer/Lower Freezer

)

When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it. Moreover, hitch the pins on the left/right of the Slide case to the outside of the Lower freezer case.

Ice Compartment/Upper Freezer Lower Freezer

Slimline slide case

Draw the door fully, and draw the Slimline slide case and the Slide case respectively.

Lift up the Lower freezer case.

Slide case

Pin (right and left)

Fork (right and left)

Rectangle hole in the frame

Frame

Lower freezer case

Frame

How to Remove/Attach Parts

In order to install it, put the lugs on the right and left of the lower case into the square holes on the frame, and place the fringe of the lower case on the frame to set. When assembling the glass partition, attach it to the lower case with the characters “

FRONT” in the lower side of the front end.

Draw the door fully and pull up the Upper Case as shown in the ﬁgure.

Remove the glass partition.

● Hold the both sides of the glass

partition and lift it up just above.

Lift up the Lower Case toward you.

● Be sure to remove the glass partition

before removing the lower case.

●

When opening the door, do not place your foot near the door. Doing so may cause it to be caught between the door and the ﬂoor.

● D

o not touch the slide rail. Otherwise, your

may get injured by the end of an iron plate.

● Be careful. Water may drip from the

backside of the lower case.

RequestRequest Request

● When the glass partition or Upper case is not properly installed, the case parts may be damaged due to the failure of Upper

case locking. Slide the Upper case back and forth to check its proper installation.

● Do not remove the Moisture Cover and Unit in the Lower Case.

● The drawer of the Vegetable Compartment cannot be removed.

Caution

Glass partition

Ice Case

(Ice Compartment)

・

Upper Freezer case

(Upper Freezer)

Draw the door fully and lift up the case towards you.

Put the case bottom on the frame and set the case.

● Before taking out the Ice Case of R-X730FJ, close the lid of the Small

Article Case by pulling it to the front.

[Only R-X730FJ]

Remove the lid of the Small Article Case as follows:

(Mount it in the reverse order to removal)

Underside of the case

Lid

Fork

Case

Frame

Slide the lid halfway and deﬂect the side of the Ice Case to remove the fork.

Slide the lid toward the rear and pull it out.

Lower Case

Upper Case

Slide rail

TROUBLESHOOTING

Check the following points before asking repair. Contact your dealer or our customer center if the problem still exists after checking them.

When this happens Check Item Action and Reasons

Initial stage

Not cooled well.

Haven’t 24 hours passed since the installation?

Cooling may take more than 24 hours at installation. Place food at appropriate intervals, refrain from opening and closing a door as much as possible and wait. Cooling takes more time during summer or in case of a lot of food being stored.

No ice is made.

Haven’t 24 hours passed since the installation?

As the entire refrigerator is not cooled immediately after installation, it takes more than 24 hours for the ﬁrst ice to be made. Place food at appropriate intervals, refrain from opening and closing a door as much as possible and wait.

Control Panel

The Control Panel does not respond.

Isn't lit in the Display Section? If so, the Operation Section is locked.

Cancel the lock of the Control Panel.

Pg.63

Is Refrigerator Compartment Door open? Operate after closing it.

Isn’t a water drop or dirt attached to the Control Panel?

Wipe off dirt with a wet cloth and then wipe off moisture with a dry

cloth. Are you wearing gloves or applying a plaster? Touch directly with your ﬁnger. Did you touch adjacent Control Panel wrongly? Touch the target Control Panel only.

The Operation Section is unlit.

−−−−−

The Operation Section goes out about 40 seconds after the

completion of operation for energy savings.

Pg.47

To turn it on, touch or open a door of the Refrigerator

Compartment.

Automatic ice making

Ice cannot be made at all.

Isn't “

製冰停止

(Stop)” lit in the Display Section?

Ice making is set to Stop Ice Making.

Set it to “製冰(Ice Making)” or “

急速製冰

(Quick Ice Making)”

mode.

Pg.56, 57

Isn't "給水 (Water Supply indicator)" lit in the Display Section? The water in the water supply tank is low.

Pour water into the water supply container.

Pg.56, 57

Isn't the water in the water supply tank low?

If the water in the tank is low, ice may not be made.

Add water until water level reaches to the “Container-full line” of the

water supply container.

Pg.56

Is the water supply container pushed ﬁrmly until it is beyond the “Container set position” line?

Push it beyond the “Container set position” line.

Pg.56

Do you push it to the end until it snaps? Push the frame back until it snaps.

Pg.69

Is anything other than ice stored in the ice case? Remove it from the Ice Case.

Is the ice case ﬁlled with ice over the limit line of stored ice amount? Level the ice.

Pg.57

It takes a long time to make ice.

Do you open the door frequently or store a large amount of food at a time?

The inside is not cooled down enough.

Minimize the number of times of opening and closing the door until

it cools fully. Allow clearance as much as possible between each

stored food.

Isn't the surrounding temperature low?

Ice making takes more than four hours during winter. Refrain from

opening and closing a door as much as possible and wait.

Haven't you just changed the setting from “

製冰停止

(Stop)” to “

製

冰

(Ice Making)”?

Ice-making may take time immediately after changing the setting.

Refrain from opening and closing a door as much as possible and

wait. Does any food or package caught in the door of the Freezer or Ice

Compartments prevent the door from closing completely?

Remove caught food, if any, and close the door securely.

Isn’t the “節電 (Energy Saving)” mode “ON”? Exit the “節電 (Energy Saving)” mode.

Pg.62

Projection is generated on ice.

−−−−−

It is frozen water collected in the ice tray groove.

It does not indicate any trouble.

Stored ice becomes small. Ice sticks together.

Isn't old ice left unused for a long time?

The old ice cubes become smaller by themselves and may cling to

each other. Do you open the door frequently or store a large amount of food at a

time?

Open/close the door quickly or reduce frequency of opening and

closing the door. Hasn’t a door of the Refrigerator Compartment or a drawer been

closed incompletely temporarily?

Close the door completely.

Small ice is made.

Isn't the water in the water supply tank low?

If the water in the tank is low, ice may not be made.

Add water until water level reaches to the “Container-full line” of the

water supply container.

Pg.56

Connected ice is made.

Is the frame pushed inside until it clicks into place? Push the ﬂame inside until it clicks into place.

Isn't the Ice Tray damaged?

A damaged Ice Tray precludes the removal of ice cubes from the

Ice Tray, resulting in broken ice cubes or ice cubes sticking to each

other.

Contact your distributor for the replacement of the Ice Tray.

−−−−−

Water in the groove in the Ice Tray may be frozen and sticks to ice

cubes. It does not indicate any trouble.

There is white impurity in ice.

−−−−−

It is because the ﬁne air bubble in water is contained in ice.

Did you use mineral water to make ice?

Mineral contained in water may freeze and become white impurity in

ice. It may remain after thawing in water, but it is harmless.

Ice tray frame cannot be drawn.

Is “

製冰停止

(Stop)” set?

The ice tray cannot be drawn when the auto ice maker is operating.

Set it to “

製冰停止

(Stop)”. When the “

製冰停止

(Stop)” indicator

lamp is blinking, wait for 1 minute until “

製冰停止

(Stop)” is lit,

and then draw the ice tray.

Pg.69

When you do not make ice

−−−−−

Set “

製冰停止

(Stop)”.

See "Stop Ice Making".

Pg.57

When this happens Check Item Action and Reasons

Refrigerator does not cool

Is not cooled down. Ice cream is soft.

Does any food or package caught in the door prevent the door from closing completely?

Remove caught food, if any, and close the door securely. Pay attention to the height of food when placing it in the refrigerator.

Is food squeezed in? or Is a large amount of food put in at one time? Allow clearance between each food in each compartment.

Is the case in each compartment ﬁxed securely? Install them correctly.

Pg.71

Food cannot be cooled enough, depending on the installation place or surrounding situation.

Check to see if the refrigerator is installed properly.

Pg.48

Isn’t the “節電 (Energy Saving)” mode “ON”? Exit the “節電 (Energy Saving)” mode.

Pg.62

Isn't the temperature set to “弱(MIN)”?

Switch the temperature setting of the compartment where it does not fully cool to “中(MID)” or “強(MAX)”.

Pg.53, 59

Does the temperature around the refrigerator become high due to weather (ex: in summer)?

Switch the temperature setting of the compartment where it does not fully cool to “強(MAX)”.

Pg.53, 59, 61

Haven't you left a door open for a long time or opened or closed it frequently?

Temperature in the refrigerator rises little by little while its door is open. If the door is opened/closed frequently or left open for a long time, temperature cannot easily lower. Reduce the number of times of opening and closing the door, or open/close the door quickly.

Frost and/or dew occur

Frost, dew or ice adheres to the inside of the refrigerator or the frame of the drawer.

Was the door or the drawer not temporarily shut completely?

Check that any food or package caught in the door, and then close it completely.

−−−−−

When a door is opened or closed, water in the air may cling to the walls or parts in the Freezer in the form of frost or ice. Open or close the door quickly, or reduce frequency of opening and closing the door. Wipe off the frost or dew with a dry cloth.

Dew adheres to the outside of the refrigerator.

Is the air surrounding the refrigerator humid?

Dew may adhere to those parts when the indoor humidity is high (ex: rainy day). Wipe off the dew with a dry cloth.

Isn't the heater for preventing dew condensation set to Low?

When the air surrounding the refrigerator is humid, dew may be formed. Set the heater for preventing dew condensation to Standard. Wipe off the dew with a dry cloth.

Isn't the temperature set to

“強(MAX)”

When the temperature is set to

“強(MAX)”

, dew may be formed on

the surface of a door. Set the temperature to

“中(MID)”

Wipe off the dew with a dry cloth.

Dew condensation occurs in the Refrigerator Compartment.

Haven't you left a door open for a long time or opened or closed it frequently?

Condensation may form on the wall and/ or around the cold air blowout port when the door is opened and closed frequently or the humidity is high arou

nd the

refrigerator.

No trouble. Wipe it off with a

dry cloth.

Refrigerator

cools overly

Refrigerator cools overly. Food freeze.

“強(MAX)” is selected in the temperature setting. Switch it to “中(MID)”.

Pg.53, 59

The surrounding temperature is lower than 5˚C.

When the ambient temperature is low, the inside of the refrigerator may cool overly. Switch the temperature setting to “弱(MIN)”.

Is it placed in front of the Cold Air Blowout Port? Do not place any food in front of the cold air blowout port.

[ ] display on the control panel ﬂashes

ﬂashing

How many times in succession has it blinked? In what pattern does it blink?

It indicates an abnormal condition. Consult your dealer.

ﬂashing

Don't you put food or ice other than that made by the Automatic Ice Maker in the Ice Compartment?

Some foods, etc. may come into contact with the ice tray. Empty the Ice Compartment and do the “Ice Maker Cleaning”.

Pg.68

ﬂashing

Have you just had your service staff member inspect your refrigerator?

It may be in the operation check mode for serviceman. It will return to the normal mode after about 15 minutes. There is no problem with using the refrigerator.

ﬂashing

Have you just had your service staff member inspect your refrigerator?

It may be in the operation check mode for serviceman. It will return to the normal mode after about 10 minutes. There is no problem with using the refrigerator.

All indicator lamps ﬂash

Haven't your held

“製冰(Ice Making)”

for ﬁve seconds or more?

It is in process of Ice Maker Cleaning. The blink will stop in about four minutes. Do not open any door of the refrigerator during blinking.

ﬂashing

Haven't you just set

“

製冰停止

(Stop)”

The Automatic Ice Maker is working. Blinking stops in about one minute. The frame of the Freezer cannot be removed during blinking.

All displays ﬂashing

Isn't the door opened? Isn't the door closed incompletely due to food being caught?

Close a door when it is open. If a door is closed incompletely due to food being caught, remove the caught food and close it securely.

Blinks other than those above

−−−−−

Consult your dealer.

Dew condensation

Troubleshooting

When this happens Check Item Action and Reasons

Abnormal operating sound is generated

Another door opens after closing 1 door.

Haven't you shut the door with a bang?

Another door may open for a moment by the wind pressure because cool

air path connects each compartment.

Annoying sound is generated by the refrigerator.

Does the ﬂoor bend? Lay a ﬁrm board and then install the refrigerator thereon.

Pg.48

Does the refrigerator come in contact with the wall or furniture, etc.? Install the refrigerator with clearance around it.

Is the refrigerator cooled down enough?

You may feel that the operation sound is loud because the compressor

operates in high-speed under the following conditions: the refrigerator

does not cool fully on the occasion such as using it for the ﬁrst time,

opening/closing the door frequently, the surrounding temperature is high.

Isn't

“

急冷凍

(Quick Freezing)”, “

急冷藏

(Quick Cooling)”

, and

“

急速

製冰

(Quick Ice Making)”

set?

When it is set to “

急冷凍

(Quick Freezing)”/“

急冷藏

(Quick

Cooling)”/“

急速製冰

(Quick Ice Making)”, operation sound of the

compressor or the fan motor gets louder because of high-speed revolution.

Operation sound lasts long.

−−−−−

As the compressor operates slowly for energy savings, you may hear an

operating noise for a long time.

Operation sound sometimes becomes louder.

−−−−−

The operating power varies in response to changes in the inside

temperature of the refrigerator, and thus you may sometimes hear a

large noise.

A hitting sound may be heard when opening or closing the door of the Vegetable Compartment.

−−−−−

The sound is made between the drawer and the rail.

It is not an abnormal state.

When other sounds such as shown in the right table are generated by the refrigerator.

Sound like water ﬂowing (trickling) Sound like collision (tapping) Sound like water boiling (bubbling up) Sound like meat roasting (sizzling)

These sounds are caused when the refrigerant ﬂows or water ﬂows/

evaporates to remove frost.

This is not malfunction.

Sound like squeaking (cracking) (knocking)

This sound is caused because the parts squeaks when the refrigerator

temperature changes.

This is not malfunction. Sound like something is caught (clacking)

Sound like roaring (honking) Sound caused immediately after closing the door (booming)

These sounds are caused when the electric parts to control

the refrigerator temperature operates.

This is not malfunction.

Sounds caused by the Automatic ice maker (zooming) (rattling) (clunking)

These sounds are made when ice is separated from the ice tray of the

auto ice maker or water is supplied to the ice tray.

This is not malfunction.

To stop the sound, touch the

button to change it to “

製冰停止

(Stop)”.

Pg.57

Sound occurs sometimes (clacking) This sound is caused when the refrigerator starts the operation to cool.

Door is not in a

horizontal state

Door is not in a horizontal state.

Is the installation site level?

This does not affect the refrigerator performance. Adjust the refrigerator

adjustable mount to keep it level if you want to correct it.

Pg.48

Does the soft ﬂoor material sink in around the legs due to the weight of stored items?

Lay a ﬁrm board which has more than 1cm thickness on the ﬂoor if the

refrigerator itself inclines.

More force is required to open the door immediately after closing the door.

Isn't a door left open for a long time?

It is because the air that entered the Refrigerator Compartment is rapidly

cooled and the pressure in the Refrigerator Compartment temporarily

lowers.

Do not leave the door open for a long time. Open and close it diligently.

Refrigerator

becomes hot

The side of the refrigerator becomes hot. Hot air comes from the bottom of the refrigerator.

−−−−−

Hot air may come from the bottom of the refrigerator to exhaust the heat

generated when the cooling device operates.

The temperature may rise to 50 – 60 ˚C immediately after installation or

during summer.

It does not pose safety or performance problems, but avoid touching it.

There is something strange with the Vacuum Compartment

Hissing sound does not occur when opening.

Is the setting of the Vacuum Compartment to “關 (Non-vacuum)? Change the setting to “-1˚C (Subzero)” or “+1˚C (Chiller)”.

Pg.55

Is the handle pulled up? Hold down the handle to lock.

Is the handle held down to the end and locked?

The vacuum function will not work unless it is locked.

Press the handle until it stops to lock it.

Isn’t the Vacuum Compartment Gasket removed? Install the Vacuum Compartment Gasket.

Pg.67

Is a food package or a hair caught in the vacuum compartment gasket and the support?

Doesn't the liquid from food cause the gasket ﬁn to adhere to the gasket?

Remove any packing material of foods or other things which are caught in.

Clean the vacuum compartment gasket if it is dirty.

Pg.67

Was the door of the Vacuum Compartment or the Refrigerator Compartment opened / closed just before?

It takes about three to four minutes for the Vacuum Case to be vacuumed

after the vacuum pump starts to operate. Wait for more than four minutes

after opening or closing.

It is not clear whether the Vacuum Compartment has been vacuumized.

Do you hear a sound when opening the Vacuum Compartment?

The Vacuum Compartment has been vacuumized properly if a vacuum

releasing sound (hissing sound) is heard when opening it.

TROUBLESHOOTING

(CONTINUED)

Waste

thread

Scraps

When this happens Check Item Action and Reasons

There is something strange with the Vacuum Compartment

The handle cannot be locked.

Is there any food etc. caught in the inner part of the Vacuum Compartment Case or the vacuum compartment gasket?

Remove any food if it is caught in.

Is the Vacuum Case set in place?

Mount the Vacuum Case as shown in “How to attach the Vacuum Case”.

Pg.70

Booming sound and vibration occur around the Vacuum Compartment.

−−−−−

This sound is caused when the vacuum pump operates. You can stop the vacuum pump operation when you want to stop the sound (ex: night time). Change the setting of the Vacuum Compartment to “

關

(Vacuum off)”

(Non-vacuum).

Pg.54

Isn't something caught in the Vacuum Case or the gasket of the Vacuum Compartment dirty? Do you push down the handle until it stops to lock it?

A sound may be heard or vibration may be felt more frequently. Remove any packing material of foods or other things which are caught in. Clean the vacuum compartment gasket if it is dirty.

Pg.67

Push down the handle until it stops to lock it.

Dew, frost or ice is formed inside the Vacuum Compartment or around the Vacuum Case.

Don't you place food containing a lot of water?

The moisture from the juicy food may cause dew condensation and/ or frost adhering insider the compartment because the Vacuum Compartment is sealed. It is recommended to wrap the juicy food with plastic ﬁlm, etc. Wipe dew and /or frost off with a soft cloth wet by lukewarm water.

The surface of stored vegetables is dented or gets discolored.

Is any vegetable sensitive to low temperature such as eggplant and cucumber stored?

Move them to the Vegetable Compartment.

Pg.55

Food in the Vacuum Compartment freezes.

Is the Vacuum Compartment set to “-1˚C (Subzero)” or “關(Vacuum off)” (Non-vacuum)?

Set the “+1˚C (Chiller)”.

Pg.55

It smells strange

Plastic smells

−−−−−

This smell occurs because a lot of plastic parts are used in the refrigerator, but the smell decreases gradually while cooling. This is not malfunction.

Ice smells

Do the water supply container and/or water ﬁlter become dirty? Or does ice become old?

Wash them regularly to prevent “slime” and/or “fur”.

Pg.69

−−−−−

Chlorine may strongly smell because chlorine in tap water is condensed.

It smells in the refrigerator

Is any food which strongly smells stored without any wrapping?

The deodorizing function cannot completely remove all smells. Seal that kind of food with plastic ﬁlm etc.

Auto Door

Noise is loud. There is an abnormal noise.

Hitting sound (thumping sound)

This is the operating sound of the Auto Door. This is not malfunction.

Buzzing sound (whir)

This is the operating sound of the Auto Door. This is not malfunction.

The operation sound of the Auto Door differs depending on doors (left or right).

This may vary depending on installation conditions of the refrigerator or the volume of foods stored in the door pocket. This is not malfunction.

Auto Door won’t open even if touching the Control Panel.

Is the light not lit? Turn on the light. Turn on the indicator lamp.

Isn’t the Ice Compartment or the Upper Freezer opened? Close the slide door and then touch the Control Panel of the Auto Door.

The Auto Door does not close.

Is any food or food bag caught on the compartment? Remove foods and others that are caught in. Did a power failure occur or did the compartment knock against any

obstacle during electrical operation?

Auto Door stops on the way, so push in the door with hand.

Auto Door does not open widely.

Don’t stored beverages or foods make contact with the wall in the Refrigerator Compartment?

Remove beverages or foods that make contact with the wall.

Is the installation site level?

Opening angle of the Auto Door may vary or the door may go back a little after it is opened automatically depending on installation conditions of the refrigerator, but this is not malfunction.

Auto Door moves even if it is locked on the Control Panel.

−−−−−

Auto Door can not be locked from the Control Panel. In order to stop Auto Door, unlock the Control Panel ﬁrst, and then touch

button for 3 seconds or more until it beeps twice.

Pg.50, 63

Auto Drawer

Noise is loud. There is an abnormal noise.

Hitting sound (thumping sound)

This is the operating sound of the Auto Drawer. This is not malfunction.

Buzzing sound (whirring, grunt)

This is the operating sound of the Auto Drawer. This is not malfunction.

Operation sound of the Vegetable Compartment is louder than that of the Lower Freezer.

Operation sound of the “vegetable compartment” is louder than the “lower freezer”. The operation sound depends on the amount of food stored. This is not malfunction.

The compartment does not open even if the electrical drawer switch is pressed.

Is the light not lit? Turn on the light. Turn on the indicator lamp.

Is either one of the lower freezer or the vegetable compartment open?

Close the open electrical drawer compartment and then press drawer switch for the compartment you want to open.

The Auto Drawer does not open/close.

Is any food, food bag or plastic wrap, etc. caught on the compartment? Remove foods and others that are caught in.

Did a power failure occur or did the compartment knock against any obstacle during electrical operation?

The door does not open/close smoothly because the electrical drawer function is stopped before the operation completes. Manually push in the door with strength. Otherwise, unplug the power plug with the door drawn, and connect it after 10 seconds.

Isn't the food caught between the Upper Case and the Moisture Cover?

Remove it, if any. Do not close the door with force while the food is in contact with the Moisture Cover.

The Auto Drawer does not open much.

−−−−−

The Auto Drawer is pulled out by approx. 15 cm or more.

The length may vary depending on installation conditions of the refrigerator, or the Auto Drawer may go back a little after the door is opened automatically.

This is not

malfunction.

Auto Drawer moves even if it is locked on the panel for operation.

−−−−−

Auto Drawer can not be locked from the panel for operation. In order to stop Auto Drawer function, unlock it ﬁrst on the panel for operation, and then touch

button for 3 seconds or more until it bleeps.

Pg.51, 63

Dew and/or frost

Troubleshooting

(Continued)

When this happens Check Item Action and Reasons

Vegetable Compartment

Dew condensation occurs in the Vegetable Compartment.

Don’t you place a large amount of vegetable containing much water?

As the Vegetable Compartment is more humid than the other compartments, dew may be condensed in the case or ceiling of the Vegetable Compartment or on the surface of food, depending on the amount or type of vegetable stored there. This is not abnormal state. To avoid dew condensation, wrap a vegetable with plastic food wrap before storing it in the Vegetable Compartment. Heavy dew condensation may cause water to be pooled in the Vegetable Compartment. Wipe it off with a soft cloth.

Isn't the Moisture Unit blocked with food bags or containers?

A blocked Moisture Unit is likely to cause dew condensation. Move the food bags or containers that block the Moisture Unit to other portions. Wipe off the dew condensation with a soft cloth.

The Vegetable Compartment door doesn’t close / When the Vegetable Compartment door is opened, the upper case doesn’t go back to the locking position.

Is the glass partition ﬁxed in the right direction?

Install the glass partition in the right direction.

Pg.71

Is any food, etc. caught between the upper case and the lower case?

Remove it if any.

Does PET bottle, food, etc. come in contact with the locking handle of the upper case? Store PET bottle, food, etc. so that they don’t come in contact with the

locking handle.

Isn't food caught between the Upper Case and Moisture Cover?

Remove it, if any. Do not close the door with force while the food is in contact with the Moisture Cover.

Others

You feel electricity a little when touching the main body of the refrigerator.

−−−−−

The refrigerator may be charged with static electricity, but there is no problem with the safety. It is recommended to ground if you want to

remove it.

Pg.49

Radio and/or television are disturbed by noises.

−−−−−

It is caused by the electromagnetic radiation slightly generated from this refrigerator. Install the refrigerator away from the television, radio and interphone. It is recommended to connect the power plug to the power outlet separated

from the antenna terminal and ground the refrigerator.

Pg.49

There are thin lines like scratches on the plastic parts

−−−−−

Those lines are caused by the liquid resin ﬂowing when plastic is molded. They are especially conspicuous for the transparent parts, but there is no problem with the strength and they can never lead to any cracks.

There are waving and/or distortions on the door surface, the side and the top surface of the refrigerator.

−−−−−

Slight waving and/or distortions are generated in the manufacturing process of the refrigerator. They may be conspicuous according to the position of the light source and/or the brightness etc., which is not malfunction. There is no problem with the performance.

There is a small hole inside the door.

−−−−−

This hole is used to escape the air inside when ﬁlling the heat insulation material into the door during the production process. It is neither a ﬂaw nor abnormal thing.

The electric supply failed.

−−−−−

Reduce the number of times of opening and closing the door and avoid storing food additionally until the electric supply is restored. Please check each setting on the panel for operation after the power comes back on.

The refrigerator is not expected to use for a long term.

−−−−−

Remove all the items in the refrigerator. Unplug the refrigerator to take care of the inside or the automatic ice maker.

Pg.66-69

Leave all the doors open to dry the refrigerator for 2 or 3 days.

Remove frost.

−−−−−

Any operation to remove frost is not required because this refrigerator remove frost automatically. Thawed water is collected in the evaporating tray and automatically evaporates.

Transporting and moving care.

−−−−−

See “Transporting your refrigerator (transport for moving)”

Pg.49

Glass is broken

door glass, glass shelf, glass partition

−−−−−

Do not touch a broken glass, but contact your dealer for repair soon.

When a midge ﬂy, etc. enters in the refrigerator

Are there fruit ﬂies around it?

Keep the environment clean. Put something a fruit ﬂy hates or fruit ﬂy traps or something like that.

Is there any food with strong ﬂavor in the refrigerator? Cover food with the lid so that fruit ﬂies can’t be attracted by the ﬂavor.

Is the door left open for a long time? Please close the door as soon as possible.

TROUBLESHOOTING

(CONTINUED)

Hole (inside of the door)

AVAILABLE PARTS

■

If you order any part listed below, specify the model of your refrigerator to a dealer for purchasing genuine parts.

Subject Product Name Model Product Model

Ice smells

● Water ﬁlter may be old and dirty

(available about 3 or 4 years, as a guide)

Water ﬁlter for the automatic ice maker

Common for

all models

RJK-30

Vacuum state can't be maintained

● It may be damaged, deformed or

discolored.

Vacuum compartment gasket

R-X730FJ R-X7300F 311

R-X670FJ R-G670FJ

R-C6700 321

Troubleshooting

(Continued) /

Available Parts

MEMO

● Instead of CFCs, hydrocarbons are used in the coolants and insulation materials used in this refrigerator.

Hydrocarbons do not damage the ozone layer, and they are environmental-friendly materials, having an exceptionally small affect on global warming.

●

Hydrocarbons are ﬂammable. The coolants are sealed in the coolant circuitry, and with normal operation they will not leak, but should the circuitry be damaged, refrain from using ﬂames or other electrical products,

and open windows for ventilation. After that, please contact the dealer or Hitachi customer service centre.

● 本冰箱所使用冷媒及其他斷熱材料皆無使用氟氯化碳、而是使用碳氫化合物。碳氫化合物不會破壞地球臭氧層、對地球溫室效應的影響非常小、屬於環保物質。

● 碳氫化合物為可燃型物質。冷媒密封於冷媒迴路管中、在一般的使用情況下應該不會發生外洩。但萬一有冷媒管線損壞的情況發生、請遠離火源及避免使用電器用品、將門窗打開以利空氣流通。之後、請立即與經銷商或日立技術中心聯絡。

R-X730FJ R-X670FJ R-G670FJ

R-X670FJ, R-G670FJR-X730FJ

Height adjustable upper shelf Height adjustable middle shelf Height adjustable lower shelf, Fixed shelf Upper shelf of the vacuum compartment Vacuum compartment case Multiuse Egg Case Total for the right door pockets Total for the left door pockets

Ice case

Upper Freezer case

Small Article Case

Upper Case Lower Case

Slimline slide case Slide case Lower freezer ca

請勿存放不是本自動製冰機製成的冰塊。

頁

Do not store any ice cubes other than the ones made by the automatic ice maker.

Pg.57

23.0kg

12.0kg

5.5kg

2.0kg

26.0kg

14.5kg

21.0kg

11.0kg

5.0kg

2.0kg

26.0kg

11.0kg

9.0kg

1.0kg

9.0kg

－－

6.0kg

8.0kg

19.0kg

5.5kg

7.0kg

17.0kg

9.5kg

24.0kg

8.5kg

22.0kg

Refrigerator-Freezer

730ℓ 670ℓ 880　 825　

●

28.7ℓ /kWh/ 月 29.6ℓ /kWh/ 月 31.0ℓ /kWh/ 月

●

738　 728　

31kWh/ 月 28kWh/ 月 27kWh/ 月

●

141kg 136kg 135kg

●

● ● ーー

● ● ●

110

V/60 Hz

1833　 1833　

318

95W

298W

95W

298W

●

R600a/93gR600a/96g R600a/93g

可調式層架上段可調式層架中段可調式層架下段, 固定層架真空冰溫室上方的層架真空冰溫室盒活動式萬用盒冰箱門置物架(右側)合計冰箱門置物架(左側)合計

儲冰盒

小物品收納空間

上層冷凍盒

上層滑動盒下層置物盒

上層滑動盒中層滑動盒下層冷凍盒

冷凍冷藏箱

About non-CFC Refrigerators/Speciﬁcation/Storable Weight

有關碳氫化合物的冰箱／規格／可容納的食品重量

ABOUT NON-CFC REFRIGERATORS/SPECIFICATION/STORABLE WEIGHT

Model

Rated Motor Input

Energy Factor

Deodorize

Type

Rated Heater Input

Refrigerant

Automatic Ice Maker

Total Volume

Energy Consumption

Net Weight

Quick Cooling

Door Alarm Auto Door Auto Drawer

Quick Freezing Quick Ice Making

Rated Voltage / Frequency

型號

電動機額定消耗電

功率

能源因數值

脫臭裝置

種類

除霜輸入功率

冷媒種類／充填量

自動製冰機

總有效內容積

消耗電量

總重量（淨重）

急冷藏

箱門警報器

急冷凍急速製冰

額定電壓／額定頻率

外型尺寸

Dimensions

寬

W (mm)

高

H (mm)

深

D (mm)

有關碳氫化合物的冰箱

可容納的食品重量

規格

About non-CFC refrigerators

Storable weight

Speciﬁcation

The following table shows the weight of food that can be stored on the shelves and in the cases.

可容納於層架或收納盒內的食品重量如下：

Refrigerator compartment

Ice compartment

Upper freezer

Lower freezer

Vegetable compartment

冷藏室

製冰室

上層冷凍室

下層冷凍室

蔬果保鮮室

零件名稱

Name of parts

電動冷藏室門電動抽屜

製造商：

Hitachi Appliances, Inc

進口商：日立家電（台灣）股份有限公司

台北市南京東路三段65號2樓　電話：（02）

2516-0500

日立家電網站：

www.hsct.com.tw

日立家電技術中心一覽表

大台北技術中心

TEL： (02) 2771-8200

新北技術中心

TEL： (02) 8941-6169

花蓮技術中心

TEL： (03) 852-9400

中壢技術中心

TEL： (03) 491-2219

台中技術中心

TEL： (04) 2220-1133

嘉義技術中心

TEL： (05) 236-1943

台南技術中心

TEL： (06) 260-6939

高雄技術中心

TEL： (07) 522-9100

R-X730FJ



R-X670FJ R-G670FJ

Cyclopentane is used in the insulation material. The gases in insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

隔熱材料中含有環戊烷

(Cyclopentane)

。當要處理隔熱材料中之氣體時，必須依照特殊的廢棄處理程序。要廢棄本產品時，為了不會對環境造成不良影響，請詢問當地的相關機關。

關於廢棄之重要警告

Severe warning signs for Disposal

Hitachi R-X730FJ, R-X670FJ, R-G670FJ How To Use Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
