HOW TO USE

REFRIGERATOR-FREEZER

使用說明書

日立多門電冰箱

6 doors

Made in Japan

● It takes time to cool for the first time.

Pg.48, 49

It may take more than 4 ∼ 24 hours to fully cool.

● Make sure that no food protrudes beyond the storage height limit of

each compartment, and allow clearance between each food in each
compartment.

Pg.58, 60
Otherwise, food and/or package may not be stored in each compartment properly, and as
a result, the door may not be closed completely. It may cause the refrigerator not to cool
sufficiently and/or not to make ice.

● 購買後初次使用時。

10, 11

頁

初次使用時，庫內冷卻可能需要約4小時至24小時以上。

● 請遵守可容納食物的高度及食品之間空開間隙儲放。

20, 22

頁

過分塞堵食物，會造成食品及袋子被門夾住關不緊，製冷效率低，不能製冰等。

Thank you very much for purchasing a Hitachi
Refrigerator.
This refrigerator is designed for home use only.
Do not use this refrigerator for the business use
and/or any purpose other than storing food.
Please read this operation manual carefully
and ensure you use the appliance correctly. In
particular, be sure to read the “Safety Suggestions”
section of this operation manual before use.
Please keep this operation manual along with your
guarantee card.
Hand over this operation manual together with the
refrigerator when the refrigerator is passed to a
third party and used in a different location, or when
it is sent to a recycling plant.

非常感謝您購買日立電冰箱。
此電冰箱僅供家庭使用，請勿使用於商業用途和儲
存食品以外的目的上。
請詳閱本使用說明書，以確保正確使用。
使用前請務必詳閱「安全上之注意事項」。
請妥善保管本使用說明書與保証書，當將電冰箱交給
他人在別的場所使用時，以及交給回收工廠時，請
將本使用說明書隨電冰箱一同轉交。

家庭用

For household use

六門日本製

R-X670GS
R-X670GH
R-X670GN
R-X670GM

R-G670GS
R-G670GH
R-G670GND
R-G670GN
R-G670GM
R-G670GA

R-G620GS
R-G620GH
R-G620GM
R-G620GA

2

節省能源的使用方法

Tips for using the refrigerator wisely for energy savings

常見問題

FREQUENTLY-ASKED QUESTIONS (FAQs

)

無法結冰時

34

頁

If the ice is not made

Pg.72

If the refrigerator is not cooled down
well

Pg.73

If frost or dew is formed

Pg.73

冰箱內冷度不夠時

35

頁

結霜或結露時

35

頁

1.

減少冰箱門的開閉，切勿時間過長

開閉次數多，冷氣向外流失，保冷效果差。

2.

切勿塞滿過多的食物

一旦塞滿過多的食物，冷氣的流通循環不良，不僅無法讓冰箱內均一冷卻，而且還會消耗電力。存放食品時請適度地保留間隙。

3.

將熱的食物放冷之後再放入冰箱

將熱的食物放入冰箱時，冰箱內部的溫度升高，周邊食物的溫度也隨之升高。

4.

冰箱周邊應保留適當的間隙

若周邊無保留間隙時，冰箱無法散熱，而導致電力的浪費。

5.

更換受損的冰箱門墊圈

因受損後所產生的間隙可讓冷氣流失，而導致電力的浪費。將名片等夾在其間，若因無法夾緊而滑落，請更換冰箱門的墊圈。

1. Open or close a door less frequently and quickly.

Frequent opening and closing leads to waste of energy.

2. Do not overfill the refrigerator.

Overfilling the refrigerator prevents a smooth circulation of cool air, precluding even cooling throughout the refrigerator and

consuming unnecessary power. Place food at appropriate intervals.

3. Do not place hot food in the refrigerator.

Placing hot food raises the temperature in the refrigerator, which, in turn, raises the temperature of surrounding food.

4. Provide an appropriate gap around the refrigerator.

Installing the refrigerator with little clearance between the refrigerator and the surrounding objects prevents the release of heat and

thus leads to the waste of power.

5. Replace a damaged door gasket.

Cool air leaks through a damaged gasket, which leads to the waste of power. If a name card inserted between the gasket and the

refrigerator slides down, the gasket needs replacing.

3

使用之前

安全上的注意事項

..............................

4

確認事項

............................................

8

各室的名稱・存放食物

................................

8

操作面板的功能

..........................................

9

事前準備

............................................

10

使用前的準備

..............................................

10

移動・搬運的事前準備(搬家時

)

................

11

使用方法

電動門

................................................

12

設定電動門

..................................................

12

使用電動冷藏室門

.......................................

13

使用電動抽屜

..............................................

13

冷藏室

................................................

14

調節冷藏室溫度

..........................................

14

調整置物架・層架的高度

............................

15

真空冰溫室

.........................................

16

開閉真空冰溫室門

.......................................

16

變更真空冰溫室的設定

................................

17

製冰室 （自動製冰機）

.........................

18

製冰方法

.....................................................

18

急速製冰

.....................................................

19

製冰停止

.....................................................

19

收納量・製冰時間

.......................................

19

告知給水警示燈

..........................................

19

「On」顯示為閃爍時

....................................

19

冷凍室

................................................

20

使用上層冷凍室

..........................................

20

使用下層冷凍室

..........................................

20

食品收納時請格外注意

................................

20

調節冷凍室的溫度

.......................................

20

使用即鮮冷凍

..............................................

21

設定即鮮冷凍

..............................................

21

想急速將食品冷凍時（急冷凍）

...................

21

蔬果保鮮室

.........................................

22

收納食品

.....................................................

22

食品收納時請格外注意

................................

22

若想以更冷的溫度來保鮮時（蔬果室強）

.....

23

各種功能

............................................

24

「節電」模式的設定

.....................................

24

eco

運轉顯示燈

...........................................

24

冰箱門開閉顯示燈

............................................

24

操作面板鎖定功能

.......................................

25

箱門警報器

..................................................

25

箱門警報器及操作音的音量調節

.................

25

將防止結露的加熱器設定為弱 （旋轉隔板部）

...

26

溫度微調節 （冷藏室・冷凍室）

....................

27

三重抗菌除臭

..............................................

27

保養方法

保養方法

............................................

28

電源插頭/冰箱背面・地板

.........................

28

真空冰溫室

..................................................

28

電動抽屜

.....................................................

29

箱門表面/各層架・置物架・置物盒

/

箱門密封墊/液汁承接處

.............................

29

製冰機清潔

..................................................

30

給水槽/製冰盤

...........................................

31

卸除組件的方法・安裝的方法

............

32

可調式層架上段・中段

................................

32

箱門置物架

..................................................

32

固定層架

.....................................................

32

可調式層架下段

..........................................

32

真空冰溫盒

..................................................

32

儲冰盒（製冰室）・上層冷凍盒（上層冷凍室）

...

33

中層滑動盒・下層冷凍盒（下層冷凍室）

.................

33

上層滑動盒・下層置物盒（蔬果保鮮室）

.................

33

拉取式門的安裝方法（製冰室・上層冷凍室

・

下層冷凍室・蔬果保鮮室）

..................................

33

遇到問題時

遇到問題時

.........................................

34

初次使用時

..................................................

34

操作面板

.....................................................

34

自動製冰

......................................................

34

不冷

............................................................

35

結霜・結露

.....................................

.............

35

太冷

............................................................

35

操作部的「 」顯示等呈閃爍的狀態

.........

35

聲音不對

.....................................................

36

箱門高低不平衡以及歪斜

............................

36

冰箱發熱

.....................................................

36

真空冰溫室的問題

.......................................

36

有異味

.........................................................

37

電動冷藏室門

..............................................

37

電動抽屜

.....................................................

37

蔬果保鮮室

...................................................

38

其他

............................................................

38

另購零件

............................................

39

有關碳氫化合物的冰箱／可容納的食品重量

...........

79

目錄

目錄

4

搖晃不定

警告

注意

此標示欄表示「可能會造成死亡或嚴
重人身傷害」。

此圖示標示為「禁止」內容（請勿執行之事項）。

此圖示標示為「強制」內容（請務必執行之事項）。

此標示欄表示「可能會發生人身傷害
或財產損失之預測內容」。

警告

安裝時

電源及電源電線

● 使用時請勿高於插座或配線
器具的額定電流。
請勿使用交流額定電壓以外
的電源。

若與其他電器插頭併用，或
使用三面插座等，會因異常
發熱而造成火災的危險。

・

請單獨使用額定電流

10A

以上的插座。

● 請勿讓電線．插頭破損。

在已受損的狀態下使用時，會引
發觸電．短路．火災的危險。

・

電源線損壞時，須由製造廠商或其服務處或具有

相關資格的人員加以更換以避免危險。

● 將插頭的電線向下，將插頭確
實插入插座內。

・

如果插頭方向相反插入，會給電
線增加負擔，成為短路．觸電．
起火的原因。

・

如果插頭插得不夠完全，也將會
成為因觸電，發熱而導致火災的原因。

● 針對地震等天然災害做好防止翻倒處置。

・

避免因翻倒而受傷。

● 請勿設置於潮濕或會被水淋
到的場所。

・

避免因電氣絕緣不良而引起觸
電．火災的危險。

禁止

禁止淋濕

請勿讓電線受損．加工．接
近發熱器具． 勉強彎曲．扭
曲．拉扯．乘載重物．讓冰
箱壓住電線或捆綁電線。

此圖示標示為可燃性冷煤的注意事項。

■ 此冰箱使用可燃性的冷煤。以下的標示欄記載關於可燃性冷煤的注意事項。

R600a

安全上的注意事項

請務必遵守

為了防止危害到使用者或其他人及造成財務上的損失，請務必遵守以下事項。

■ 以下將以標示方式，區分及說明忽視標示內容而誤用
時所產生的危害與損失程度。

■ 以下將以圖示標示方式，區分及說明應遵守內容的種
類。（以下為圖示標示例）

● 請定期清除插頭上的灰塵。

當插頭堆積灰塵時會因濕氣而
造成絕緣不良，進而引起火災。

・

請拔除插頭再用乾布擦拭乾淨。

● 進行冰箱保養，請務必
拔掉插頭。

有觸電或受傷的危險。

28

頁

・

請將插頭確實的從插座
內拔出。

在一般使用的情況下

● 請勿用水淋濕主體與箱內。

・

避免因電氣絕緣不足而引起
觸電．火災。

● 請勿放入容易引火的物品。

・

揮發油．乙醚．LP瓦斯．稀釋液．

黏著劑會發生引爆的危險。

● 請勿懸在箱門上嬉戲，或踏
在收納盒上。

・

避免因翻倒，夾到手指而受
傷。

● 不要將箱門開得過大或靠在打開的箱門上
等給箱門施加太強的力。

●

請不要拆卸冰箱內燈的蓋子。

・

燈泡損壞時，須由製造廠商或其
服務處或具有相關資格的人員加
以更換以避免危險。

● 不要用力碰撞門。

● 請勿用來保存藥品或學術試樣。

・

必須嚴格管理的物品，不可保存
於家庭用冰箱內。

● 在附近請勿使用可燃性噴霧
用品。

・

避免因箱門開關等電氣接點
引起的火花引發火災。

● 請勿將含水容器放在冰箱上。

・

翻倒的水會造成電氣組件絕緣不良
而發生漏電．火災．觸電的危險。

● 請勿在冰箱上放置物品。

・

避免因開閉箱門，造成物品掉落

而受傷。

● 請注意不要讓孩子們玩耍。 ● 如果幼兒可能玩要電動冷藏室門或電動抽屜
時，請停止使用電動門的功能。

12,13

頁

● 請勿手觸自動製冰機的機械部位。

・

製冰盤旋轉時，手恐怕會受傷。

禁止淋濕

禁止

禁止接觸

binder

LP gas

Benzine

● 請勿用潮濕的手，拔除插頭。

・

會引起觸電。

● 本電器不能在沒有人員監督以
及指示之下，讓體力、知覺、
以及精神不健全的人獨自操作

(

包含小孩)。並請注意以及隨時監督切勿

讓小孩玩耍本電器。

禁止濕手

警告

電源及電源電線

5

安全上的注意事項

關於冷媒（由於這是一種可燃性的氣體

R600a:

異丁烷，請注意以下的事項。）

● 不可以螺絲等銳利物品刮傷
冰箱本體。

由於使用可燃性的冷媒，當
冷媒從冰箱內壁的配管外
洩， 會有起火．爆炸的危險。

● 除廠商建議方法外，不得使用機械工具或其它
工具來加速除霜的過程。

● 請勿在冰箱內部使用電器用品。

・

如冷媒外洩，電氣接點所產生的火花，會有起火．
爆炸的危險。

● 請勿損傷冰箱的冷卻
管路。

冷媒配管損壞時，請
將冰箱遠離火源並避
免使用電器用品。
配管損壞時，請儘快
將門窗打開，並與經銷商或日立技術中心聯絡。

● 安裝的時候，在周圍要離開一些
間隙，確保有足夠的散熱空間。

10

頁

若冷媒外洩的情況持續，會有起
火．爆炸的危險。

● 如需進行廢棄處理時，請聯絡
經銷商或環保署資源回收中心
專線，交給他們進行專業處理。

若冷媒外洩會有起火．爆炸的
危險。

禁止

萬一有下列情形

廢棄處理時

● 當產品異常或故障時，
請拔掉插頭停止運轉。

有觸電或受傷的危險。

・

請務必在拔除插頭時握住
插頭。

● 在等待廢棄物再利用保管之際，因有幼兒被誤困在箱內之虞，請將門墊拆下來。

● 可燃性氣體外漏時，勿接觸冰箱，請立即開啟窗戶進行換氣。

・

避免因箱門開關等電氣接點的火花，而發生引爆．火災．燙傷等危險。

● 請勿自行分解．修理．改造。

避免發生火災，異常動作而受傷。

・

需分解．維修時，請洽經銷代理商。

禁止分解

關上開關

警告

R600a

● 警告標籤和銘牌必須一直牢固張貼於壓縮器
上和冰箱上。

R600a

6

● 請勿用膝蓋去按電動抽屜的
開關。

● 請勿把瓶子之類的物品放在
電動抽屜附近。

● 他人同時觸摸時請勿進行
開閉動作。

● 請勿將手放在抽屜門手把
上，開閉電動冷藏室門。

● 請勿將瓶子放在冷凍室內。

・

內容物結凍會使瓶子破裂，容易受傷。

● 請勿在超大瓶飲料的縫隙間再
塞入其他瓶罐。

�

・

勉強放入超大瓶飲料瓶後，在開
閉箱門時，可能會因掉落而受傷。

● 請勿讓食品凸出層架。

・

避免因鉤到瓶罐後掉落而受傷。

● 開關冰箱門時，請勿過於用力。

(

存放的食品有可能會掉落

)

在一般使用的情況下

● 請勿食用有異味，已變色的食品。

・

避免因食品腐敗而引發疾病。

● 請勿用潮濕的手碰觸冷凍室內的食品或容器。

・

避免凍傷。（尤其是金屬製產品）

● 開啟最底層的箱門時，請勿讓
腳靠近冰箱。

・

避免在開啟箱門時，碰觸到腳
底而受傷。

● 手腳不要放進冰箱的底部。

清理時將手伸入冰箱底下時，
可能會被鐵板割傷。

● 請勿施加強烈撞擊力於玻璃層架。(可能因
玻璃層架破裂而導致受傷

)

● 請勿在玻璃層架的玻璃面上加熱，或放置熱的
物品。

● 如果有人在冰箱前，操作電動冷藏室門時，可
能會因撞到打開的冷凍室門，而造成意想不到
的傷害，請格外注意。

● 開閉冰箱門時，若有異常聲音或磨耗粉末掉落
等異常現象時，請停止使用，並請維修人員到
府察看。

● 為了防止水滴到地板上。

長時間門與冰箱間有縫隙時，結露水或除
霜水可能會滴下。請確實關緊冰箱門讓門
與冰箱之間沒有縫隙。

● 冰箱門開啟的狀態下，開啟其他的門時，
請注意切勿被開啟

的冰箱門夾傷手或手指。

● 因為玻璃層架很重，安裝、拆卸時請格外注意。

● 當打開冰箱門時，若其他門也在進行開閉動
作時，為了避免被打開的冰箱門之間夾傷手
或手指，請格外注意。

● 關閉冰箱門時，請勿握住冰箱
門把手以外的部位進行關閉。

禁止

注意

禁止

移動•搬運時

● 請勿在容易刮傷的地板
上使用冰箱滑輪。

避免因滑輪而刮傷地板。

・

請在容易刮傷的地板上鋪

上保護板。

● 請勿以吊車吊起手把部位。

● 請勿碰撞冰箱背面・側面。

● 搬運時，請用手持手
把搬運。

倘若沒有手持把手，可能
會因手滑而受傷。�

・

請僱用2人以上手持手把
搬運。

・

搬運時請如圖示般將箱門朝上。

・

請不要用起重機等吊起把手。

・

為了防止電源插頭、電線下垂，請以膠布固
定。

小心！！

7

安全上的注意事項

8

※ 是在環境溫度

30˚C

、冷藏室與冷凍室都設定為「■■」、不放食物、關著門、

溫度穩定時的目標溫度。

●收納時請保留食品間的空隙。

●建議您在存放強烈氣味食物時，先以保鮮膜包覆之後再放入冰箱。

●可以收納食品重量的大概基準。

79

頁

Rice

Frozen

wheat noodle

Hamburger

Deep-fried chicken

Deep-fried chicken

New

tea

leaves

Fish

sausage

Butter

Vienna

sausage

Milk

Tea

Y

ogur

t

L

a

c

t

o

b

a

c

i

l

l

u

s

b

e

v

e

r

a

g

e

確認事項

各室的名稱・存放食物

冷藏室

14

頁

約

2˚C ~ 6˚C

製冰室

18

頁

約

-20˚C ~ -18˚C

上層・下層冷凍室

20

頁

約

-20˚C ~ -18˚C

蔬果保鮮室

22

頁

約

4˚C ~ 8˚C

真空冰溫室

16

頁

約

-1˚C ~ +1˚C

冷藏食品

自動製冰機所製作的冰塊

【只有

R-X730G

型號】

保冷劑・冰棒等

19

頁

冷凍食品，
冰淇淋及乾貨。

蔬菜，水果，飲料

上層存放空間

貯冰空間

小物品收納空間

肉類・魚類等的生鮮食品

真空與白金觸媒的效果，抑制鮮度降低。

使用過的蔬菜、小型蔬
菜、水果等

箱門置物架附近溫度會稍高。

Tea

Mineral

water

Mineral

water

豎放儲存區

較高大的蔬菜及2公升的
寶特瓶

豎放儲存區的溫度較高。

下層存放空間

葉菜類(菠菜、小松菜等)、
大型蔬菜(高麗菜、
萵苣等

)

敬請依照指示操作

9

操作面板的功能

確認事項

操作面板的上段為顯示部、下段為操作部。
顯示部及操作部通常為熄燈狀態。請觸按

鍵，讓其顯示亮燈。

操作部為觸控式面板。請觸按面板來切換設定。

告知之顯示

節電設定 溫度設定 製冰設定

設定冷卻模式 真空冰溫室設定

Auto Door

顯示部分

操作部

Water

Door

減少電力消耗，啟動運轉時顯示燈亮燈

24

頁

電動門機能在「開」的狀態時亮燈

12

頁

操作面板按鍵鎖，上鎖時顯示燈亮燈

25

頁

告知異常時，顯示燈閃爍

35

頁

當給水槽中的水減少時，顯示燈亮燈

19

頁

冰箱門開關次數多時則顯示亮燈

24

頁

將各室的冷卻減弱，
節省電力。

平常請設定在「■■」
的位置。

Save

（節電）

24

頁

冷藏室

14

頁

冷凍室

20

頁

Quick

（急速製冰）

19

頁

On

（製冰）

18

頁

Off

（製冰停止）

19

頁

Delicious Frz

（即鮮冷凍）

21

頁

Freezer

（急冷凍）

21

頁

Veg

（蔬果室強）

23

頁

+1˚C

17

頁

-1˚C

17

頁

Off

（關）

17

頁

(

非真空的冰溫

)

● 觸控面板會根據周圍的溫度・濕度、使用者的身體狀態及旁邊的電器製品的使用狀況，其反應會有所變化。

● 按了也沒有反應(顯示內容不變)的時候，請把手指離開一下再按。兩次按按鈕的時間間隔過短有可能導致檢測出錯誤訊息(感
應為持續按)。用力按也不會改善感應度的。

● 操作部濕或髒了的時候，會沒有反應。請用沾濕的布將髒污擦拭後，再以乾布擦乾。

● 冷藏室門打開時，或顯示部閃爍時觸按操作部則不會有任何反應。

通知事項

最初碰觸

MENU

鍵

※ 為了更清楚說明，所有的顯示都呈燈亮的狀態。

● 觸按

鍵時，所有顯示亮燈後，即顯示目前的設定狀態。此外，打開冷藏室門，亦可顯示目前的設定狀態。

● 操作結束後，再次觸按

鍵時，顯示部及操作部的顯示會熄燈。

此外，縱使不觸按

鍵，經過約40秒，為節省電力，顯示部及操作部的顯示會自動熄燈。

但，設定成「節電」模式時，「

Freezer」「Quick

」的運轉顯示及「

Off

（製冰停止）」「

Water

」、「

Off

（關）」的顯示、環保節能

運轉中的

[eco

運轉顯示

] [

冰箱門開關顯示]不會熄燈。

● 打開冷藏室門時，顯示部及操作部會亮燈。關上冷藏室門約15秒後則熄燈。

通知事項

10

設置在以下的場所

● 堅固・水平的地板
地毯・榻榻米（日式草蓆地板）・木板地・塑膠地板等恐怕會有變形・變色的可能，請墊（超過

1cm

厚的）板材。

● 避免陽光直射和高溫

● 不潮濕・空氣流通的地方
這些可防止冷卻功率下降，避免電費增加。而且可抑制變色以及生銹。

● 與其他的電器間隔一段距離
防止對電視等造成雜音或影像不安定等情形。

※ 為了保持良好冷卻效率，在周圍請空開充分的散熱空間。
※ 本體側面的中央部分是比所表示的尺寸稍大。

設置時請確保充裕的空間。

※

背面可靠牆設置。

當察覺有震動音或濕氣較高時背面因結露而導致牆壁變色或髒汙時，
請

空出間隙（

2cm

以上）

。

調整墊(附屬品

)

固定冰箱

旋轉冰箱前方下側的調整腳，來調整冰箱平衡。(請使用附屬專用工具及2個調整墊

)

箱門的平衡調整

● 可能會因冰箱放置在非水平的場所，或是地板材質柔軟，因存放食品的重量而致冰箱腳下沉等原因，導致冰箱門左
右產生高低差。
機能上沒有問題，如介意請按如下的步驟進行平衡調整。
進行左右水平調整，並使冰箱的前側稍微高一點可方便關門以避免門沒關好。

事前準備

使用前的準備

手持遮蔽架的兩端，用力拉
向身前卸下。

請使用附屬的專用工具調整箱門下沉一方的調整腳，直
到左右冰箱門平行為止。

調整腳的旋轉量是，每旋轉1圈相當於箱門的高低差距

1mm

。

請將遮蔽架的卡榫插入冰箱的安裝孔
內安裝。

可能因地板材質的強度、食品的重量，在
經過數日後(約5天)冰箱門往下降低。
若發生此情形，請再次調整平行。

將調整墊放在調整腳的下方。

請將調整腳調整至前後左右平衡
的狀態。

旋轉降低調整腳，以固定冰
箱。(左右兩個地方

)

請使用專用工具配合調整腳的
形狀夾住調整腳。

●

在放入調整墊之前，請將調整腳的底部與地板擦拭乾淨。若有髒污時將有可能會刮傷地板。

● 旋轉調整腳時，請使用專用工具並請注意勿傷及地板。

● 當過度旋轉調節腳時，可能導致調節腳脫落。

調整腳

專用工具(附屬品

)

■ 左側下歪 ■ 右側下歪

旋轉降低左
邊的調整腳

旋轉降低右
邊的調整腳

安裝孔

卡榫

遮蔽架

1

2

3

左右

1cm

以上

上方為

5cm

以上

1

1 2

2 3

●

在冰箱門開啟的狀態下，手放開時，有可能冰箱門會慢慢自動關上，這並非故障。

通知事項

11

將電源插頭插入

設置後直接就可插上電源插頭。
請用獨立的插座。（電源

220〜240V

�額定電流

10A

以上）

● 請確認電源插頭及電線是否夾在冰箱背面及牆壁中間。為了防止電線發熱。

事前準備

4

● 若在有硫化氣體噴出的溫泉地區等設置時，可能有必要進行配管的防銹處理，請預先與經銷店洽商。
此外，氣體造成的故障不屬於保修範圍。

● 插上電源插頭後，冰箱會發出運轉的準備聲音。此外，冰箱在充分冷卻之前，壓縮機
及風扇會發出較大的聲音。

● 剛開始使用時可能會有些許塑膠的氣味。請保持室內通風良好。使用後此氣味不久即
消失。

● 請勿將背面的標籤撕下，或拆卸側面下方的塑膠製品。

● 磁鐵裝飾或是吸盤吸附在冰箱本體或冰箱門表面有可能會留下痕跡。

● 周圍溫度較高時，因冰箱門表面產生露水，貼在冰箱門的紙等，有可能會吸濕。

通知事項

冰箱內開始冷卻

● 根據冰箱周圍溫度、食品的存放方式不同，冰箱內充分冷卻

約需要4小時。夏天天氣炎熱時，也有可能需要24小時以上

。

在冰箱尚未充分冷卻前請勿將冰淇淋或未充分冷卻的食品、易受損的食品，放入冰箱。

● 初次使用自動製冰時，請操作自動製冰機的

「製冰機清潔」

。

30

頁

● 自動進行連續的製冰運轉是必須在冰箱內充分冷卻之後才能開始。

(

初次使用時，

最初的結冰可能需要花24小時以上

。

)

標貼

塑膠製品零件（左右）

在地板上鋪上鋪墊或
布，將冰箱往後傾倒，
讓內部的水流出

將食物及冰塊取出

拆除冰箱遮蔽架，將調整腳升高

將給水槽、製冰盤的水倒掉

以膠布將冰箱門・電源線固定

在預定放置的位置，請依照「使用前的
準備」的指示進行設置。

10

頁

拔除電源插頭

要搬動之前拔除即可

移動・搬運時請鋪上保護用的鋪墊或布

防止刮傷地板、或冰箱內部殘留水流至地板。

搬運時請握住搬運把
手搬運，並請2人以
上進行搬運

運輸時請勿將冰箱橫放。

(

冰箱故障的原因

)

移動・搬運的事前準備(搬家時

)

1

4

2

5

9

3

6

7

8

舊的布巾等

12

電動門的功能可切換成「開」（動作）或「關」（停止）。工廠出廠時設定為「開」。

電動門

冷藏室門

(左)

冷藏室門

(右)

下層冷凍室

蔬果保鮮室

■

電動冷藏室門

使用電動冷藏室門功能，只要以手指輕輕觸碰，即可輕鬆地開啟冷藏室門。

（只有

R-X730G

型號

, R-X670G

型號）

■

電動抽屜

使用電動抽屜功能，縱使存放了許多食品，重量相當重，也能輕輕鬆鬆的取出。

電動開門器

電動冷藏室門
操作部

(自動)

把手

(手動)

注意

● 如果幼兒可能玩弄電動門時，請停止使用電動門功能。

● 如果有人在冰箱前，請勿操作電動冷藏室門。

(

可能會因撞到打開的冷藏室門，而造成意想不到的傷害

)

● 當你按下蔬果保鮮室的電動抽屜開關時，腳請勿靠近冰
箱。（ 避免開啟箱門時撞到腳而受傷）

● 冰箱上面請勿放置物品。

●

請勿握持箱門把手以外的部分關閉箱門（可能造成因冰
箱門夾住手指而受傷的情形）

●

用手操作電動抽屜開關。

● 要清理電動門時，請務必將電源插頭從插座拔除。

設定電動門

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

（出廠時、設定時）

持續按下

按鍵

3

秒以上，直到發出

設定音（嗶

−

）

，讓

「

Auto Door

」顯示

燈亮

按下操作面板的

，讓顯示亮燈，持續按下

按鍵3秒以上，

直到發出設定音(嗶嗶)，讓「

Auto Door

」顯示熄燈

1
2

顯示燈亮

●請在電動門「關」的狀態下，手持把手，打開抽屜。

●電動冷藏室門或電動抽屜，無法讓單一的電動門機能停止。

通知事項

電動抽屜開關

(自動)

把手

(手動)

把手

(手動)

按下

解除

13

用手按下電動抽屜開關，抽屜就會開啟。

關閉時，請以手動將左右把手推進。
電動無法關閉。

電動門

使用電動冷藏室門

當觸碰電動冷藏室門操作部，
發出操作音，門自動開啟。

關閉時，以手握住手把關閉冷藏室門。
電動無法關閉。

電動冷藏室門的

開啟方式

開啟單一邊
冷藏室門

一次開啟
兩邊的
冷藏室門

操作方法

觸碰開啟的
冷藏室門的
操作部

※ 請用手指操作。

以手指在操作
部的一端滑動
到另一端

(

依順序開啟操作的冷藏室門

)

電動冷藏室門的操作音

嗶 嗶

−

通知事項

從冰箱上方的俯視圖 從冰箱上方的俯視圖

●「製冰室」、「上層冷凍室」的任何一個在開啟的狀態下時，為了防止手被夾傷，電動冷藏室門無法操作。

●電動冷藏室門是為了減輕開啟冷藏室門的負擔所設計的功能。隨著冰箱的設置條件、冰箱門置物盒內飲料食品的收納狀況，電
動冷藏室門開啟的角度可能有所改變，或在開啟之後會有稍微關閉的情形，這並非異常。

●當碰觸電動冷藏室門操作部後，冷藏室門在開啟的動作時會發出聲音，這並非異常。

●當電動冷藏室門的操作部濕或髒時，有可能冷藏室門沒有反應。請以沾濕的布將污垢擦拭之後，再以乾布擦拭乾淨。

●同時觸碰電動冷藏室門操作部周邊，持續約1秒以上時，冷藏室門有可能無法開啟。

使用電動抽屜

● 為了減輕拉出抽屜時的負擔所設計的功能，開始動作時，推出抽屜的尺寸約在

15cm

以上。因冰箱設置條件不同，有可能拉出

抽屜的尺寸稍微不同，或是門以電動的方式開啟後又稍微退回，這些都不是異常現象。

● “下層冷凍室”和“蔬果保鮮室”不能同時用電動開啟。

● 當“下層冷凍室”和“蔬果保鮮室”中任何一方被開啟，電動抽屜功能將不能操作。

● 當你按下電動抽屜開關時，可聽見聲響。 這不是異常。

● 電動抽屜按鍵上若沾上食品液體時，請立即擦拭乾淨。
會造成電動抽屜按鍵機構部的故障，或是抽屜門無故地開啟的原因。

通知事項

敬請依照指示操作

敬請依照指示操作

14

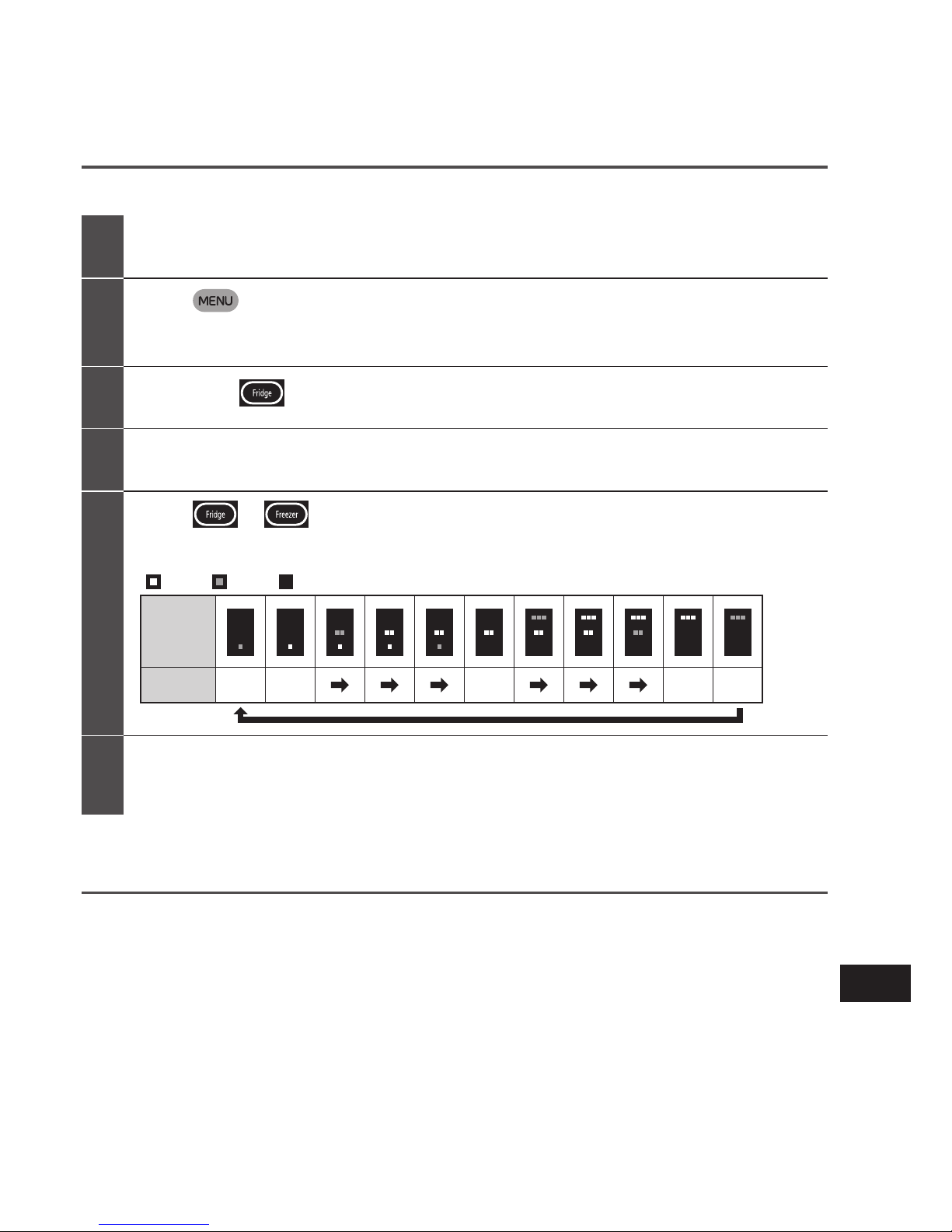

調節冷藏室溫度

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可以變更適當的溫度

按下按鈕時依如右圖所示順序切換。
出廠時設定為「■■」。

1
2

● 通常請使用「■■」的位置。溫度因使用條件而有所變動。

● 調節更細微的溫度時

27

頁

● 設定改為「■■■」或「■」時，真空冰溫室的溫度也會
稍微改變。

● 箱門層架比右圖所示溫度略高。

● 夏天時，若覺得冷卻度不夠時，請設定為「■■■」。

● 在冬天，長時間設定為「■■■」時，食品有可能因而結凍。
若覺得冰箱內太冷時，請設定為「■■」或是「■」。

※ 是在環境溫度

30˚C

、冷藏室與冷凍室都設定為「■■」、

不放食物、關著門、溫度穩定時的目標溫度。

通知事項

約2∼

6˚C

（出廠時）

比「■■」低

約1∼

3˚C

比「■■」高

約1∼

3˚C

冷藏室

冷氣吹出口

LED

庫內燈

可調式置物架

可調式層架上段・中段

（玻璃層架）

可調式置物架

可調式層架下段

容器置物架

(右)

※ 在

R-X670G

型號說明

置蛋架

固定層架

容器置物架

(左)

固定容器置物架

冷藏室溫度感測器

旋轉隔板

● 將含罐裝飲料或水份較多的食物放置在冷氣吹出口附近時，有可能因結凍而導致破裂的情形，請放置在棚架面前的置物架中。

●

稍有熱度的食物請放置在可調式層架。若將食品放置太靠近溫度感測器時，冷藏室溫度會過低，而導致冷藏室內側面板有結露的
產生。

● 將麵包放入塑膠袋後放入冷藏室存放時，塑膠袋中可能會因結露而將麵包弄濕。

● 請勿將冰箱門開得過大或靠在打開的冰箱門上等給冰箱門施加強力。冰箱門有可能會損壞。

敬請依照指示操作

注意事項

按下 按下 按下

冷藏室

15

冷藏室

●剛出廠時的狀態 ●剛出廠時的狀態●收納鍋子等 ●收納鍋子等

將層架安裝在中段 將層架翻轉安裝於

上段

●收納紙盒裝牛奶等 ●收納紙盒裝牛奶等

將層架安裝在下段 將層架翻轉安裝於

下段

注意

■操作玻璃層架時

● 請勿對玻璃層架施加強力的撞擊。

(

玻璃層架可能因破裂而導致受傷

)

● 因玻璃層架較重，安裝，卸除時請特別小心。

■開啟冰箱門時

● 請勿握住旋轉隔板部開啟冰箱門。

(

可能造成冰箱門無法開啟

)

■關閉冰箱門時

● 當旋轉隔板為立起的狀態時請勿關
閉冰箱門。

(

可能造成冰箱門無法完全關閉

)

旋轉隔板

旋轉隔板

調整置物架・層架的高度

配合食品或飲料的大小，置物架及層架的位置可以做適度的調整。關於拆卸方式・安裝方式請參閱

32

頁

R-X670G

型號

, R-G670G

型號

R-X730G

型號

, R-G620G

型號

■ 可調式置物架
可調式層架上段・中段

配合食品及飲料的高低可以做適度的調整。

■ 可調式層架下段　

調節可分為3個階段。

16

真空冰溫室

真空冰溫室

白金觸媒

利用白金觸媒的效果，將肉類・魚類所散發出的氣味成分分解，轉變為碳酸氣，因
而抑制食品鮮度的降低。

真空幫浦

真空冰溫盒

(

付鋁製托盤

)

LED

庫內燈

當打開冷藏室門時，燈光即照
射在真空冰溫盒。

真空解除閥(藍色

)

向上 提 起 把 手 解除鎖定，藉由
真空解除閥可以解除真空狀態。

解除真空時會有「咻」的聲音。

開閉真空冰溫室門

開啟箱門時 關閉箱門時

將把手往上扳
起，解除鎖定

將真空冰溫盒
往前拉出

將真空冰溫盒
往內推進

將把手往下扳，
讓其鎖定

1 1

2

2

咻

把手

真空冰溫盒

● 若沒有將手把確實地
往下扳，則無法形成
真空狀態。

●

在未鎖定把手的狀況
下關上冷藏室門，則
可能造成零件、食品
的破損，或是門縫間
產生間隙，造成無法充分冷卻的原因。

● 關閉真空冰溫盒，鎖緊把手，再關閉冰箱門時，
此時則啟動真空幫浦。

● 開始啟動真空幫浦時，會有發出聲音，這不是異
常的情形。是正常運作。

● 真空幫浦啟動後至達到真空狀態，約需

3〜4

分

鐘。在4分鐘以內打開真空冰溫盒，有可能沒有

“咻”的聲音。

● 在沒有同時開啟左右
冰箱門的狀態下拉出
真空冰溫盒時，可能
造成零件的破損。

● 若能聽到“咻”的聲音時，
因為是正在解除真空的狀態，
無法拉出真空冰溫盒。請在
聲音消失後再往前方拉出。

通知事項

通知事項

通知事項

● 白金觸媒不須要更換。請勿將其拆除。

● 請勿將過多的食品、容器塞入真空冰溫室。

有可能導致真空冰溫盒無法拉出。

●

在真空冰溫盒開啟的狀態下，關閉冷藏室門時，
有可能造成零件及食品的破損。

敬請依照指示操作

敬請依照指示操作

把手

17

真空冰溫室

變更真空冰溫室的設定

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好變更設定

按下按鈕時依下列的順序切換。出廠時設定為「

-1˚C

」。

1
2

※周圍溫度

30˚C

沒有放入食物，冰箱門關閉的狀態，在安定時的真空冰溫室的約略溫度。

「

-1˚C」(約-1˚C)

（出廠時）

「

+1˚C」(約+1˚C)

非真空狀態的冰溫

(約-1˚C)

設定與存放食品

-1˚C

(約-1˚C)

+1˚C

(約+1˚C)

真空關閉

Off

(約-1˚C)

存放下列的食品時，請設定為「

-1˚C

」。

存放下列的食品時，請設定為「

+1˚C

」。

冷凍的肉類、魚類要解凍時，也請設定為

-1˚C

狀態。

含水分較多的食物有可能會凍結。

真空功能停止運作。建議存放需裝在「密封袋」、「密封容器」
的食物時選擇該模 式。因為是 冰溫室，含 水分較 多的食物可
能因低溫而凍結。

維也納香腸，乳酪片等。

茄子 小黃瓜

起司等 豆腐・蒟蒻・油炸豆腐

・

白絲蒟蒻・水煮蛋等

咖啡豆・茶葉等切好的新鮮蔬菜、切好的水果

● 密封袋包裝食品

在收納 時 有 可 能 因袋子膨脹，而
擠壓到其他食物，敬請注意。

● 不耐低溫的蔬菜

低溫可能會使得蔬菜表面變質。
請收納在蔬果保鮮室。

黃秋葵・蘆筍・生薑・青椒

● 塑膠密閉容器

塑膠 密 閉容器的蓋子 在 儲存時可
能會鬆 開 或 脫 離 原來的位置。取
出時請注意。

●肉類・加工肉品

●乳製品

●切好的蔬菜、水果

●

魚貝類・海鮮類・魚類加工食品

●其他

● 結凍時會造成品質、
口感變差的食物

儲存時需要注意的食品與容器

不適於儲存的食品

注意

注意

● 縱使食品以保鮮膜包覆，也不會改變真空的效果。若擔心氣味轉移至其他食品時，請以保鮮膜包覆。

● 周圍溫度低時，水分較多的食物可能因低溫而凍結。

● 將冰溫與冷凍的食材一起放入時，為了防止凍結，請將溫度設定為「

+1˚C

」

● 將冷藏室・冷凍室的溫度設定調至「■■■」或是「■」時，真空冰溫室的溫度會稍有改變。

● 當設定為「

Off

」時，「

Off

」的顯示持續亮燈。

為達到省電目的，約40秒顯示燈即熄燈，所設定的功能將持續有效。

● 因為真空冰溫室是密閉的狀態，食品和空氣中所含的水分，有可能在冷凍室
內結成水滴或結霜、結冰，請以柔軟的布沾溫水擦拭。(產生水滴或結霜、結
冰時，並不會對冷卻性能造成影響。

)

● 若您在意食品上有水滴、霜、結冰，建議您在存放食品時，以保鮮膜包裹。

● 真空冰溫室內若水或食品的液汁溢出時，請立刻擦拭乾淨。

通知事項

注意事項

注意事項

敬請依照指示操作

水滴、結霜、冰

按下

真空

真空

18

操作部

製冰室

（自動製冰機）

給水槽

(約1.0公升)

製冰功能切換鍵

自動製冰機

儲冰盒

顯示

製冰鍵

告知給水警示燈

製冰室

製冰方法

按下操作面板的

按鍵，顯示

燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，「On」

顯示燈亮

出廠時，設定為製冰「開」(燈亮

)

的狀態。

1

2

下列的情形時，可能會延長製冰的所需時間。

・

開始使用時(可能需要24小時以上

)

・

設定成「節電」模式時

・

冰箱門開關次數頻繁時

・

冰箱內同時放進大量食物時

・

停電時

・

冬天周圍溫度較低時

・

清潔製冰盤後

・

冷凍室或製冰室門呈半開的狀態

・

冷凍室溫度設定為「■」時

・

將稍有熱度的食物放入小物品收納空間(只

R-X730G 型號)

時

通知事項

按下

製冰室

冰鏟

滿水線

給水線

滿冰線

貯冰空間

小物品收納空間

再裝回給水槽

往前推入到超過「水槽安裝
位置」的線位。
給水槽必須推至比水槽安裝
位置更裡面，才會進行給水。
※ 給水槽傾斜會將水灑出。水灑出請立即擦乾。

自動開始製冰運轉

● 冰塊儲存在儲冰盒中。

● 一次製冰約可製12個冰塊。

● 當冰塊積滿至滿冰線時，則會暫時停止製冰功能。
當冰塊減少時，會自動啟動製冰功能。

● 當製冰盒內的沒有冰塊時，從製冰盤掉落冰塊，
可能會有較大的聲音。

打開給水槽蓋加水

加到滿水線。
※ 請勿加水至滿水線以上。

給水槽蓋

滿水線

水槽安裝位置

5

6

4

初次製冰時、或是一星期以上沒有製冰時，請操作「製冰機清潔」。

30

頁

給水線

取出給水槽

「

Water

」亮起，或是水量已
經接近「給水線」時請補充
水。

3

製冰盤

R-X730G

型號

R-X670G

型號

R-G670G

型號

R-G620G

型號

MINERAL

WATER

Tea

JUICE

●注意：只可加入飲用水。

●製冰用水根據貴國的飲用水標準而定。
自來水的水質因不同國家而異。
請向地方當局檢查、核實。

●

因衛生上的理由，請至少每週更換一次水，並清洗容器。

31

頁

●使用含豐富礦物質的礦泉水製作冰塊時，會產生白色
的粉末，這是礦物質成分，對人體無害。

● 由於會導致故障，或是會造出畸形・連體的冰等，請

不要使用這些(液體)。

●如下列所示，因為容易受到細菌污染，平常請三天清
洗容器一次。

礦泉水

（硬度：

100mg/L

以下）

果汁類 運動飲料水 汽水 茶

過濾水或

煮沸後的水

井水

（皆須符合飲用水質標準。）

敬請依照指示操作

19

型號

R-X730G

型號．

R-X670G

型號

R-G670G

型號．

R-G620G

型號

冰的收納量

正常運轉

約90個

將冰塊整平

約

150

個

一次

(12個)

的

製冰時間

通常的「On」

約

110分~140

分

「

Quick

」

約80分

※

周圍溫度

30˚C

，各冰箱的溫度設定在「■■」的位置，無開關冰箱門狀態的約略值。

收納食品

保冷劑・冰棒等

冰鏟冷凍食品

儲冰量止動桿儲冰量止動桿

冷凍食品在裡面嗎？ 製冰鏟是否放回

規定的位置？

操作面板

製冰室

︵自動製冰機︶

●「

Water

」燈顯示燈亮的狀態下開啟冰箱左側箱門時，「

Water

」會滅燈(最長會熄

滅3小時)，若沒有補充水時則會再次燈亮。

●自動製冰機設定為「

Off

」時，「

Water

」不會顯示燈亮。

●滿水線表示的是冰塊平放在冰盒中時的最大容量。
如果冰盒內只有一部分冰塊，但是冰塊碰到了止動
桿，即使冰塊數量很少，製冰機也會停止製冰。

●當放入稍有熱度的食物時，貯冰空間的冰塊融化，可能延長製冰的時間。

●因為是間接冷卻，冰淇淋有可能變軟。

●請務必將蓋子蓋上後使用。請勿放入蓋子無法關緊的大件物品。

●請小心開關製冰室門。
若太用力開關製冰室門時，冰塊可能從儲冰盒掉到
下層冷凍室。

● 貯冰空間，除了自動製冰機所製造的冰塊之外，請勿
放入其他的冷凍食品。(有可能造成無法製冰、或因
食品接觸到製冰機的零件而導致門無法開啟、零件破
損等情形。

)

●

即使給水槽中有水，但是安裝給水槽時沒有確實推入，「

Water

」會顯示燈亮。此時請

確實地

將給水槽往前推入至固定位置。

●「

Off

」在運轉中時「

Off

」的顯示

燈亮燈。

通知事項

通知事項

通知事項

敬請依照指示操作

敬請依照指示操作

注意事項

通知事項

急速製冰

告知給水警示燈

收納量・製冰時間

「

On

」顯示為閃爍時

製冰停止

按下操作面板的

按鍵，

顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

約7小時「

Quick

」的運轉則自動停止，切換至

「On」模式。

按下操作面板的

按鍵，

顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，

「

Quick

」顯示燈亮

比「On」更縮短製冰時間。

一次製冰約可製12個冰塊。

按下

按鍵，

「

Off

」顯示燈亮

將自動製冰功能停止時，
則無法製冰。

※ 一星期以上「

Off

」時，自動製冰機則需進行清潔。

30, 31

頁

1 1

2 2

給水槽的水量減少時，「

Water

」顯示燈亮。請補充水至給水槽內。

當「

Water

」亮燈時，縱使設定在「On」或「

Quick

」時也無法製冰。

製冰盤有可能碰到製冰盒內的食物。

請先將製冰盒內清空，再操作「製冰機清潔」。

30

頁

顯示燈亮

按下 按下

顯示閃爍

小物品收納空間

（只有

R-X730G

型號）

●

「

Quick

」在運轉中時「

Quick

」的顯示

燈亮燈。

[eco

運轉顯示燈] 則熄滅。

通知事項

20

上層滑動盒

（即鮮冷凍盤）

即鮮冷凍區

中層滑動盒

豎放儲存區

隔板

下層冷凍盒

冷凍室

上層冷凍盒

參考基準線

●上層滑動盒裡請勿存放

500ml

的塑膠瓶。塑膠瓶凍結後會膨

脹，導致中層滑動盒拉不出來。

●請勿將上層滑動盒或中層滑動盒拆下。 食品會掉落到下層冷
凍盒的後面，導致門無法關緊。

●在豎放儲存區裏儲放高的食物時，請注意不要碰到上層滑動
盒及中層滑動盒。

●請只使用於存放冷凍對應的寶特瓶類及能夠冷凍的食品。

（前）

上層滑動盒

上層
冷凍室門

下層
冷凍室門

中層滑動盒

使用上層冷凍室 使用下層冷凍室

食品收納時請格外注意 調節冷凍室的溫度

約略高度

收納食品收納食品

上層滑動盒

小件物品，冷凍食品等

即鮮冷凍區

中層滑動盒

冷凍包裝，密封容器等

下層冷凍盒

冷凍食品，麵包，冰淇淋等

豎放儲存區

上層冷凍盒

冷凍包裝、密封容器等
可當作小件冷凍食品的存放空間

請將日常使用的食品或使用過的食品保存於此。

內配3 層冷凍盒，能夠充分地存放，
整齊地收拾。

適於存放需長期保存的東西，容易融化的冰淇淋等。

請注意每個盒子所能容納的食品高度。

可能因箱門沒有完全關緊，而造成不夠冷的情形。此外，也可
能造成食品、盒子破損的情形。
請勿讓上部的上層滑動盒或是中層滑動盒的底部接觸到其他食物。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好

變更設定。

按下按鈕時依如右圖所示順序切換。
出廠時設定為「■■」。

● 通常請使用「■■」的位置。溫度因使用條件而
有所變動。

● 調節更細微的溫度時

27

頁

● 將冷凍室溫度設定為「■■■」(低溫冷凍)，比
設定為「■■」時，消耗電力約增加

20%

。

● 冷凍室「■■■」(低溫冷凍)長時間使用時，

冰淇淋等會變硬、儲存的食品的解凍時間會變長。

●

改變冷凍室溫度設定時，製冰室的溫度也會隨著改變。

1
2

※ 是冰箱周圍溫度

30˚C

，冷藏室、冷凍室的溫度都設定在

「■■」，且不放入食品關閉冰箱門，安定運轉時的大致溫度。

約

-20∼-18˚C

（出廠時）

比「■■」低

約2∼

4˚C

(

低溫冷凍

)

比「■■」高

約2∼

4˚C

存放冷凍專用寶特瓶等

肉類、魚類、白飯急速
冷凍時

上層冷凍室

下層冷凍室

上層冷凍盒

至參考基準線為止

上層滑動盒

高度約

5cm

中層滑動盒

到盒子頂端為限

下層冷凍盒

到盒子頂端為限

高

23.5cm

以內

豎放儲存區

按下 按下 按下

● 請勿拆下上層滑動盒與隔板。● 食品存放時請勿超過參考基準線。

注意事項注意事項

21

即鮮冷凍區

出廠時
設定時

冷凍室

使用即鮮冷凍區

●為了省電，顯示在40秒後熄燈，直到操作解除動作，持續原本之設定。

●

當即鮮冷凍設定為「開」時，因使用狀態有可能會比即鮮冷凍「關」的狀態更耗電。

約

120

分鐘運轉自動結束，「

Freezer

」顯示自動熄滅。

通知事項

設定即鮮冷凍

想急速將食品冷凍時

（急冷凍）

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按下

按鍵3秒以上，直到發出設定音

（嗶−），讓「

Delicious Frz

」顯示燈亮

按下

按鍵「

Freezer

」顯示燈亮

「

Freezer

」運轉中時，「

Freezer

」持續顯示亮燈。

[eco

運轉顯示燈] 則熄滅。

按下操作面板的

讓顯示亮燈，持續按下

按鍵3秒以上，

直到發出設定音（嗶嗶），讓「

Delicious Frz

」顯示燈熄滅

按下操作面板的

按鍵，顯示燈亮

按下

按鍵「

Freezer

」顯示燈熄滅

1

1

2

2

解除

中途解除

● 「

Freezer

」中，為了優先冷卻冷凍室，特別是冷藏室的門開關頻繁的時候，冷藏室的溫度容易升高。

●

「

Freezer

」結束後的60分鐘以內，再次按

鍵時，雖然「

Freezer

」顯示燈亮，但「

Freezer

」不運轉。60分鐘過後才恢復運轉。

● 為了防止食品粘在鋁製托盤上，請務必包上保鮮膜或夾鏈袋。

● 設定在「

Delicious Frz

」的設定時，再設定「

Freezer

」，則以「

Freezer

」運轉優先，進行冷卻運轉。

「

Freezer

」運轉結束後，則再次回復到「

Delicious Frz

」的設定。

● 「

Freezer

」運轉中會比平常更耗電。

●請勿將食品重疊放置，盡量擺滿鋁製托盤。

●尚有餘溫的熱飯等也可以直接放入冷凍。放入熱的食物時，有可能會導致燙傷，敬請注意。
建議待食品放冷至手可以拿取的溫度之後再放入冷凍。

通知事項

通知事項

將食品放置在即鮮冷凍區，感測器自動感測，自動切換到冷卻運轉。搭配鋁製托盤的效果，讓食
品能更迅速冷凍。

請將食品用保鮮膜或夾鏈袋包覆後放置在鋁製托盤上。
若將食品分小包裝，不僅可快速冷凍至中心部，也便於拿取，相當方便。

可將即鮮冷凍功能切換成「開」或「關」。出廠時設定成「開」的狀態。

大量購買食材後，想急速將食品冷凍時，加強冷凍室整體的冷卻運轉效果。

按下

按下

22

蔬果保鮮室

蔬果保鮮室

蔬活保濕裝置

※ 請勿將其拆除。

上層滑動盒

下層置物盒

密合扣

(

內含白金觸媒

)

※ 請勿將其拆除。

白金觸媒

利用白金觸媒的效果，將食品所散發出的氣味成
分、蔬菜所散發的乙烯氣分解，轉變為碳酸氣，
因而抑制食品鮮度的降低。

潤澤護蓋

※ 請勿將其拆除。

收納食品

● 上層、下層、豎放儲存的各個收納空間，因蔬菜的存放量及種類不同，保存的狀態也隨之改變。

● 因蔬果保鮮室的溫度較高，盒內、蔬活保濕裝置表面、潤澤護蓋上可能產生結露。

● 豎放儲存區比其他的空間溫度略高。

通知事項

上層存放空間

未使用完的蔬菜、小型蔬菜、水果等

豎放儲存區

較高大的蔬菜及2公升的寶特瓶

下層存放空間

葉菜類(菠菜、小松菜等)、大型蔬菜(高麗菜、萵苣等

)

● 蔬果保鮮室內濕度高，因存放的蔬菜數量及種類不同，可能上層滑動盒、下層置物盒、食品表面會有結露情形，
這不是異常現象。水份聚集時容易讓食品受損，請以軟布擦拭。

● 可能因食品包裝袋及容器阻塞蔬活保濕裝置，會發生更多的結露情形。請將阻塞在蔬活保濕裝置的食品包裝袋
及容器移至其他地方。

● 如果擔心結露，請用保鮮膜包裹食品。

● 將米、海苔等乾燥食品存放在蔬果保鮮室時，請放置於密閉的容器(袋)內。
乾燥食品容易吸收濕氣。

● 蔬菜較少時，因為無法保持較高的濕度，請包上保鮮膜後再放入存放。

敬請依照指示操作

食品收納時請格外注意

● 請勿存放食品超過各存放空間的高度。

・

冰箱門無法確實關緊，可能造成冷卻效果變差。此外，也可能造成食品、盒子、潤澤護蓋的破損。

・

將較高的食品存放於下層存放空間時，有可能會造成上層置物盒無法關閉。

・

請勿將上層滑動盒卸除的狀態下使用。食品可能會掉落到滑動盒的內側，可能而導致門無法關緊。

● 請勿應將食品、飲料擠入各存放空間。

・

因寶特瓶的種類不同，有可能過大而致無法收納。

・

可能造成隔板、潤澤護蓋的破損。

約略高度

蔬果保鮮室門 蔬果保鮮室門 蔬果保鮮室門

潤澤護蓋 潤澤護蓋 潤澤護蓋

（前） （前） （前）

上層存放空間

下層存放空間 豎放儲存區

食品的高度

食品的高度

食品的高度

● 如強行移動潤澤護蓋，則會導致破損或受傷。

注意事項

隔板

※ 請勿將其拆除。

（只有

R-X730G

型號）

隔板

※ 請勿將其拆除。

豎放儲存區 上層存放空間

隔板 下層存放空間

蔬果保鮮室門

23

● 茄子、小黃瓜等比較不耐低溫的蔬菜，當設定為「

Veg

」時，可能造成蔬菜表面凹陷、

變色的情形。若有這樣情形請解除「

Veg

」的設定。

● 設定為「

Veg

」時，蔬果保鮮室內的結露量會增多。若擔心結露請解除「

Veg

」

的設定。

蔬果保鮮室

若想以更冷的溫度來保鮮時

（蔬果室強）

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

，「

Veg

」的顯示燈亮

以比平常更低的溫度來保存。（平常約

4∼8˚C →「 Veg」約2∼ 6˚C

）

※ 是冰箱周圍溫度

30˚C

，冷藏室、冷凍室的溫度都設定在「■■」，且不放入食品關

閉冰箱門，安定運轉時的大致溫度。

1

2

按下操作面板的

，顯示燈亮後，

再按下

「Veg

」的顯示燈熄滅

解除

● 長時間使用「

Veg

」功能時，含水分較多的蔬菜有可能會結凍。請解除「

Veg

」的設定。

● 「

Veg

」與「

Freezer

」無法同時設定。在「

Veg

」模式中，切換成「

Freezer

」之後，「

Freezer

」自動停止運轉時也不會自動回

復到「

Veg

」模式，請再次設定。

● 在「

Veg

」模式中，設定成「節電」模式的情形時，冷卻效果會由「

Veg

」轉向較弱的冷卻效果。

24

頁

● 當外面氣溫低時，置物盒內溫度可能會變低。

通知事項

敬請依照指示操作

按下

● 為了達到省電目的顯示在40秒後即熄燈，此設定將持續進行直到解除為止。
在設定為「

Veg

」時，

[eco

運轉顯示燈]不點亮。

注意事項

茄子 小黃瓜

不耐低溫的蔬菜

黃秋葵・蘆筍・生薑・青椒

24

按下

按鍵「

Save

」顯示燈亮

出廠時，設定成節電模式「關」(熄滅)的狀態。

按下操作面板的

按鍵，顯示燈亮按下

按鍵「

Save

」顯示燈熄滅

各種功能

「節電」模式的設定

eco

運轉顯示燈

冰箱門開閉顯示燈

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

1
2

●

將冷卻轉換為弱的時候，冰淇淋等會變軟、冷凍食品有可能會結霜。此外讓食品冷凍的凍結時間以及製冰時間也
會增長。

● 當設定為「節電」時，「

Save

」的顯示持續亮燈。

● 當「

Save

」設定中，設定「

Quick

」、「

Freezer

」時，則「

Save

」的設定會暫時解除。等「

Quick

」、「

Freezer

」運轉結束後，會再

次回復至「

Save

」的設定。

● 「

Save

」模式與「

Veg

」同時設定時，冷卻從「

Veg

」轉變到較弱的冷卻效果。

23

頁

● 「冷凍室」「冷藏室」雙方，或任一方的溫度設定在「■」的時候，為了維持各存放室內的食品的新鮮度，冷卻效

果不轉弱。

通知事項

設定成節電模式時，將各冷藏室的冷卻調弱，可達到省電目的。

開啟冷藏室門達30秒以上時，冷藏室的

LED

庫內燈及真空冰溫室內的

LED

庫內燈的亮度會減弱，以節省電力。

此外，長時間沒有開關冰箱門時，

冰箱內部會緩慢冷卻，可以更加抑制電力消耗

。

霜能再利用冷卻時，因以較低的電力消費量來運轉，

[eco

運轉顯示燈

]

則自動亮燈，告知正在進行省能源運轉。

減少冰箱門的開關次數，盡量縮短每次開啟的時間，請做為使用時的參考。

當冰箱門開閉次數多時，[冰箱門開閉顯示燈]的

則自動亮燈。
減少冰箱門的開關次數，盡量縮短每次開啟的時間，請做為使用時的
參考。

（出廠時） （設定時）

[eco

運轉顯示燈

]

[eco

運轉顯示燈]無法燈亮時，可能是以下的原因。

・

剛設置完成後、或一次儲放大量的食品時

・

冰箱門開閉次數頻繁時

( [

冰箱門開閉顯示燈]亮燈

)

・

當食品或包裝袋被箱門夾住，而箱門關不緊時

・

設定為「

Freezer」「Quick」「Veg

」時

・

冰箱周圍溫度達到

35˚C

以上時

・

[

冰箱門開閉顯示燈]亮燈後，約5分鐘後自動熄燈。

・

[

冰箱門開閉顯示燈]亮燈時，

[eco

運轉顯示燈]則熄燈。

通知事項

通知事項

[

冰箱門開閉顯示燈

]

按下

解除

25

各種功能

箱門警報器及操作音的音量調節

操作面板鎖定功能

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

3

秒以上，直到發出設定音為止

操作音的音量可切換成「標準」「大」「關閉」。設定的切換依照此順
序輪替，請依個人需求切換設定音。(參照下表

)

出廠時，設定成標準音量。

持續按住

3

秒以上，直到發出設定音為止

操作面板按鍵鎖可切換「開」或「關」。
出廠時，設定成「關」

(

熄滅)

的狀態。

1

1

2

2

● 箱門警報器或操作音，無法只調整任何
一方的音量。

● 設定為不會發出聲響時，冰箱門警報器
的文字顯示燈的閃爍也停止。

●

雖音量設定為「關閉」時，「製冰機清潔」
的警報器、

電動門

「開」的操作音也會

發出聲響。

● 當拔除電源插頭再插上插頭時，或停電
後恢復供電時，冰箱門警報音則恢復到
原來的標準狀態的設定。

●雖設定為操作面板鎖定，但電動門的功

能也不會因而停止。

如果想要停止電動門的設定時，請先解
除操作部的鎖定，持續按住

3

秒

以上直到發出嗶嗶聲音。

12, 13

頁

●

拔除電源插頭再插上插頭時，或停電後恢
復供電時，有可能解除操作面板的鎖定。

通知事項

通知事項

通知事項

箱門警報器及操作音可設定為更大音量，也可以設定為靜音。

讓操作無效，是為了防止誤觸操作面板，及兒童玩弄冰箱而設計的功能。

(

按鍵鎖) 的顯示燈亮燈時，即使按了其他的操作部也無法切換。

音量

標準 大音量 關閉音量 標準

設定音

−

嗶−嗶

−

嗶

−

嗶嗶

操作面板按鍵鎖的設定

「開」

(

鎖定中

)

「關」

(

解除鎖定

)

「 」顯示

燈亮

熄滅

設定音

嗶

−

嗶嗶

箱門警報器

任何一個門開啟1分鐘以上時，會以聲音、燈光來告知冰箱門開啟。

R-G670G

型號

, R-G620G

型號的上層冷凍室沒有箱門警報器功能。

● 只有設定為節電模式時，當冰箱門開啟30秒後警示聲才會響。但，開啟超過1分鐘後顯示部開始閃爍。

● 顯示部閃爍時縱使按下操作部也沒有反應。

(

出廠時

)

箱門的打開時間

1

分鐘後

2

分鐘後 過了3 分鐘以後

警報音

嗶

−

(3次)

嗶

−

(5次)

嗶

−

(連續)

大音量

顯示部分

閃爍 閃爍 閃爍

操作部

燈亮 燈亮 燈亮

26

各種功能

（續前頁）

將防止結露的加熱器設定為弱

（旋轉隔板部）

將防止結露的加熱器設定為弱時，可達到省電的目的。

當旋轉隔板部有結露時，請設定為標準模式。
旋轉隔板部的設定分為1至2階段，階段2最能達到省電目的。

加熱器設定為弱

標準

弱設定 階段

1

弱設定 階段

2

標準

設定音

−

嗶

−

嗶

−

(2次)

嗶嗶

旋轉隔板的設定

開啟下層冷凍室門

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

關閉下層冷凍室門

持續按住

3

秒以上，直到發出設定音為止

防止結露加熱器設定為弱的階段將切換。
請重複上述的操作，設定所期望的階段(參照上表)。

1
2

4

3

旋轉隔板部

● 當拔除插頭再插入，或是停電恢復供電時，將會回復到標準設定。

通知事項

(

出廠時

)

27

各種功能

︵續前頁︶

溫度微調節

（冷藏室・冷凍室）

三重抗菌除臭

冷藏室和冷凍室的溫度設定可以更細分為11個階段。

利用三種除臭素材的完美組合，有效地捕捉並去除冰箱內含有硫磺系、氮系、醛系、酸系等四大
異味分子。此外，並可抑制濾網所捕捉的細菌活動。
除臭濾網具有除菌效果。

●試驗機關：一般財團法人

BOKEN

品質評價機構 ●試驗方法：濾網密著法

(JIS Z 2801)

●處理零件名：濾網 ●除菌方法：將氧

化觸媒塗抹在濾網 ●對象：濾網所捕捉的細菌 ●試驗結果：24小時後達到

99%

的除菌效果。只是濾網單體的性能。此除菌效果

並無法遍及冰箱內整體及所有食品。

開啟下層冷凍室門

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

關閉下層冷凍室門

依照1、2、3、4順序操作

操作音「嗶嗶」響起，便回復到通常的調節(3階段)。

持續按住

按鍵5秒以上，直到發出嗶聲為止

按下

或

按鍵，可調節各室的溫度。

按下按鍵，如下圖所示依序切換。
平常請使用在「■■」的位置。

(

顯示燈亮

顯示燈閃爍

熄滅)

1

5

2

4

解除

3

顯示

設定

更弱

弱

中 強

更強

28

保養方法

● 清掃時，請一定要把電源插頭從插座拔掉。

警告

■ 發現骯髒時

● 立即擦乾淨。看不到的部分也請一年清掃一次。

電源插頭

一年

1〜2

次

真空冰溫室

一個月一次

冰箱背面・地板

一年

1〜2

次

將電源插頭從插座拔掉

附著在電源插頭上的灰塵擱置而不清掃
的話，會導致火災。

拉出真空冰溫盒

卸除方法請參閱

32

頁

請務必取出保存在真空冰溫盒內食品。

檢查

・

電線有損壞嗎？

・

電源插頭發熱嗎？

※ 如果發現異常時，請與購買的販賣店聯繫。

以下的零件，請以沾溫水的軟布擦拭

※ 請勿使用洗潔劑。

安裝真空冰溫盒

安裝方式請參閱

32

頁

將遮蔽架往前拉出卸下

安裝時，從正面插入

從真空冰溫盒取下真空冰溫密封墊

以手握住右上方的
真空冰溫密封墊的
突起，小心地
拆下密封墊。

真空冰溫密封墊污垢時

使調整腳浮起離開
地面，將冰箱往身
前筆直地拖出

若是容易刮壞的地板，則鋪
上保護用的板等

將電源插頭確實插入插
座上

用乾布擦去灰塵等

擦乾淨背面・側面導管

・

牆壁・地板上的污垢

背面由於空氣對流的關係，
容易堆積灰塵而弄髒。

以乾布將水擦拭乾淨後自然乾燥

安裝真空冰溫密封墊

將真空冰溫密封墊的突起對準凹槽上的缺口，牢牢
地固定。

擦拭真空冰溫密封墊
安裝溝槽的汙垢

髒污的部分請以柔軟的海棉等清洗乾淨

※ 請勿使用洗潔劑。

1

1

1

1

2

2

3

2

2

4

3

3

3

5

4

以逆時針方向
旋轉調整腳

側面導管

突起

真空冰溫密封墊安裝溝槽

凹槽的缺口

突起

真空容器

真空冰溫密封墊承受部

鋁製托盤

真空冰溫密封墊

如果真空冰溫密封墊鬆了或是接觸不良，則無法維持
真空狀態。

●冰箱室內的頂部(白金觸媒

・

LED

庫內燈的部分)，

請輕輕擦拭。用力擦拭時可能造成破損。

●真空冰溫密封墊如果使用溫水以外的洗潔劑，則有
可能破損、變形、變色，無法保持真空狀態。

敬請依照指示操作

29

保養方法

●請勿用水洗電動抽屜組件，會導致故障。

●請勿拆卸電動抽屜組件，會導致故障及受傷。

●請注意切勿移動連結部。可能造成故障。

注意事項

電動抽屜

當有食品掉在電動抽屜中，或卡在抽屜上方，以及液體沉積時，請清洗電動抽屜。

電源插頭一定要從插座拔掉

卸除下層冷凍室以及蔬果保鮮室各箱盒

33

頁

請取出掉下而被夾著的食品等

請用柔軟的乾布擦乾積水

1
2
3

4

● 保養前請務必拔下電源插頭，以免受傷。

警告

電動抽屜組件

連結部

箱門密封墊

一個月一次

箱門表面

一個月一次

各層架・置物架・置物盒

三個月一次

液汁承接處

一個月一次

箱門表面請以柔軟的布，沾溫水將污垢擦
拭後，再用乾布擦拭乾淨。
玻璃表面殘留有膠布黏膠時，以塑膠橡皮
擦擦拭之後，再以乾布擦拭乾淨。

請以軟布沾溫水擦拭。
卸除方法請參閱

32, 33

頁

由於此部分容易髒，請擦乾淨。 積著液汁時，請擦乾淨。

液汁接收處

● 因為可能會造成箱門、塗裝面、塑膠、玻璃面受損、變色，請勿使用以下的東西。

・

鹼性和弱鹼性的廚房用洗潔劑・去污粉・肥皂粉・石油・熱開水・刷子・酸・揮發油・稀釋劑・酒精・漂白劑等等

（請確認洗潔劑上「根據家庭用品品質表示法表示」的「液性」欄）

● 若使用化學抹布時，請遵守其使用上的注意事項。

● 沾到食用油・柑橘類的果汁・食品液汁時，請務必擦乾淨。因為其可能引發箱門、漆面與塑膠部件的損傷與變色。

● 因置物盒或抽屜的滑動軌道接觸面上塗抹了潤滑劑，保養時請勿擦拭。

● 磁鐵裝飾或是吸盤吸附在冰箱本體的側面或冰箱門表面時，有可能會在表面留下痕跡。

● 拔除電源插頭時，會解除操作面板設定的功能，請再次確認設定。

注意事項

● 用水清洗蔬果保鮮室下層置物盒時，請倒轉
讓水滴乾，並用乾布充分擦拭乾淨。此外請
勿使用牙刷、洗碗刷等長刷毛的刷子清洗。
可能會造成置物盒受損及蔬活保濕裝置破損。

敬請依照指示操作

30

保養方法

（續前頁）

● 請勿觸摸自動製冰機的機械部分。

(

當製冰盤旋轉時，會有受傷的危險

)

警告

製冰機清潔

初次使用時

自動製冰機一週以上沒有使用時

操作前請確認以下事項

都確認完了之後請操作下一個步驟。

關閉所有的箱門

準備

1

給水槽

・

裝水至滿水線

・

超過儲水槽的安裝位置，
正確的安裝。

儲冰盒���

・

有殘留冰塊時請清除

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

按鍵5秒以上，直到發出警示聲響為止

「

Quick

」・「On」・「

Off

」三個顯示閃爍，請在警示聲響了之後放開手指。

「製冰機清潔」便開始運作。(約4分鐘

)

・

大約4 分鐘之間，顯示閃爍、警報器會一直響。

・

操作「製冰機清潔」功能時在途中無法停止。

・

操作「製冰機清潔」功能當中，如果打開冰箱的任何一個門時，則有可能無法正常運作。
請在製冰機清潔運作結束之前不要開啟冰箱門。

・

冰箱門警示聲設定在停止的狀態下警示聲也會發出聲響。

25

頁

警示聲響及顯示燈閃爍停止後，塞住
儲冰盒內部的缺口部分，在儲冰盒的
底部鋪上乾淨的毛巾。

鋪上毛巾的主要目的是，清潔儲冰盒時存在于內部的水會
從製冰盒裡面的缺口部分流出，鋪上毛巾來吸收流出的水。

將儲冰盒內的水擦拭乾淨後安裝在製冰室內

請取出擦拭水分後的毛巾。
給水槽裡剩下的水，可以繼續直接使用。

「製冰機清潔」結束後，自動設定回「On」。

2

3

4

5

按下

11-4

閃爍

缺口部分

缺口部分

毛巾 毛巾

以水來沖洗製冰盤及給水管路。

R-X730G

型號

R-X670G型號, R-G670G型號, R-G620G

型號

31

保養方法

︵續前頁︶

給水槽

一週一次

製冰盤

一年

1

〜

2

次

取出給水槽，
卸除水槽蓋

請依照水槽蓋上前方的箭
頭指示方向拿起即可卸除。

從水槽蓋取下密封墊圈及盒子

盒子由旋轉方式卸下來。

從盒子取下淨水濾片

以手指拉淨水濾網，從扣勾處
卸下後再卸除箱盒。

以水清洗給水槽各零件

以柔軟的海綿等用水洗乾淨。
請不要使用洗潔劑等。

將給水槽的各部零件組裝，加入
水之後再安裝

請從水槽蓋的後方插入，往箭
頭方向關上。

按下操作面板的

按鍵，顯示

燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

打開製冰室門，取出製冰盤

將扳手往橫的方向押。

拉出框架。
護蓋(▲部)往身前方向揭起
從框架裡取出製冰盤。

騰空製冰盤，用流水簡
單沖洗。

請勿使用海綿・去污粉。
請勿刮傷表面。

打開製冰室門，安裝製冰盤

安裝製冰盤並關上。
關上護蓋，直到發出「卡嘰」聲
將框架往裡面推進，直到發出「卡嘰」聲
請前後搖動框架，確認是否緊實地固定住。

按下操作面板的

按鍵，顯示

燈亮，再按下

按鍵，「On」

顯示燈亮

開始自動製冰

按下

按鍵，「

Off

」

顯示燈亮

停止往製冰盤給水。
※ 當「

Off

」閃爍時，約1分鐘

待燈亮之後再進行以下操作。

此外，外框無法拉出。

1 1

3

4

5

6

2

3

4

5

2

密封墊

水槽蓋

盒子

淨水濾片

給水槽

倒勾

● 礦泉水、井水、淨水器的水、冷開水等(不含氯元素的水)，
比自來水容易產生水垢、黏性物質，請3天清潔一次。

● 一週以上不使用自動製冰機時，請將給水槽充分乾燥後再安
裝在規定的位置。(特別是淨水濾片請務必充分乾燥

)

此外，一週以上不使用自動製冰機，開始使用前請依照「製
冰機清潔」操作。

30

頁

●製冰盤的「框架推不到底」時，因為沒有設定
「

Off

」，所以驅動製冰盤的馬達有可能已啟動。

一旦卸除製冰盤，只將框架推入並關上所有的門，
再按下

按鍵，設定為「

Off

」。約一分鐘後，

製冰盤的驅動馬達的準備完成後，便可安裝。

通知事項

通知事項

製冰盤

護蓋

框架

扳手

卡嘰

卡嘰

按下

扣勾

●為了防止淨水濾網長黴及黏性物質，請讓濾網充分
乾燥。

●更換的基準約3 ∼

4

年。

39

頁

敬請依照指示操作

通知事項

滑動

32

● 卸除零件時，請先將放在零件上的食品移除。

● 請勿拆除此處未說明的零件。
想要卸除說明書上沒有說明的零件來清潔等時，請向技術中心諮詢。

卸除組件的方法

・

安裝的方法

注意事項

可調式層架上段・中段

安裝時，把層架插放到最內側之後，把層架內側稍微抬高並推進去。

（將層架的卡榫掛在最內側的配件上）

把層架內側稍微
抬高，往前拉出。

如圖示將棚架
直立。

讓其迴轉後
拆除。

層架的扣勾(左右

)

直接把層架拉出有可能損傷箱門。
因玻璃層架較重，安裝，卸除時請特別小心。掉落時可能會
被撞傷或是因破裂而被刮傷。

拆除棚架上層之前，請先拆除棚架中層。

安裝後請數次拉出推進，確認是否正確安裝。

通知事項

敬請依照指示操作

敬請依照指示操作

箱門置物架

固定層架

真空冰溫盒

可調式層架下段

往前拉出來、將右下2 處的扣勾拆開並取下。

拉出真空冰溫盒，往前方稍微向上抬
起，上下搖動後拉出。

讓真空冰溫盒的左右突起
順著真空容器的導引軌道
滑動推入。最後再將把手
往下扳到底鎖住。

卸除方法 安裝方法

將棚架的內側稍微抬高後拆除。

咚咚

往前方直接拉出層架時，有可能會刮傷冰箱門。

注意事項

一邊輕敲底部左右一邊提高便可卸取。

(

牢固地固定

)

注意事項

安裝時，請完全裝入到最底。
如安裝不牢，會掉落，可能導致人員受傷。

扣勾 扣勾

R-X670G型號, R-G670G

型號

R-X670G型號, R-G670G

型號

R-X730G型號, R-G620G

型號

R-X730G型號, R-G620G

型號

上段

中段

導引軌道

真空冰溫盒

真空容器

突起

33

將門往身前開啟，手持兩端
往上抬起，再慢慢往拉出，
放在地板上。

卸除組件的方法・安裝的方法

儲冰盒

（製冰室）

・

上層冷凍盒

（上層冷凍室）

上層滑動盒・下層置物盒

（蔬果保鮮室）

拉取式門的安裝方法

（製冰室・上層冷凍室・下層冷凍室・蔬果保鮮室）

組裝下層置物盒時，請將下層置物
盒左右裡側的突起放入外框的方孔
穴，再將下層置物盒的邊緣放在外
框上組裝。
若沒有正確的安裝時，會造成關閉
時的異常聲音以及冰箱門無法關緊
的原因。

打開門，向前方取出。

安裝時要將箱底面裝載在框架上。

●

R-X730G

型號的製冰盒，請先將小物品收納空間的蓋子往前拉蓋

住之後，再卸下製冰盒。

【只有

R-X730G

型號】

請依照以下的順序拆除小物品收納空間的蓋子。

(

安裝時請依照反順序進行

)

製冰室・上層冷凍室 下層冷凍室・蔬果保鮮室

盒底部

蓋子

扣勾

盒

框架

上層滑動盒

將蓋子滑動至一半的狀態，
再將盒的側面扭曲，鬆開蓋
子的扣勾。

讓蓋子滑動，
從後面拉出。

將上層滑動盒抬高。 將下層置物盒往面前抬高。

框架

● 請勿將門完全拆下。

● 開啟冰箱門時，請注意腳勿靠近。腳有可能被門夾傷。

● 請注意，蓄積的水
可能從下層置物盒
背面流出。

敬請依照指示操作

敬請依照指示操作

●

無法卸下隔板。

●

若上層滑動盒沒有正確安裝時，可能導致滑
動盒的零件破損。安裝後，請將上層滑動盒
前後滑動，以確認是否正確安裝。

● 請勿拆除潤澤護蓋、下層置物盒的蔬活保濕
裝置。

敬請依照指示操作

下層置物盒

框架

中層滑動盒・下層冷凍盒

（下層冷凍室）

安裝冷凍盒時，請將下層冷凍盒左右突出的部分向門框兩旁的洞插入固定。
請將中層滑動盒兩旁的止動裝置插入下層冷凍盒的外側。

上層滑動盒

打開門後，拉出中層滑動盒。 向上取出下層冷凍盒。

中層滑動盒

突起(左右

)

突起(左右

)

扣勾(左右

)

框的方形孔

框的方形孔

框架

標貼

下層冷凍盒

● 請勿拆下上層滑動盒。

● 不得拆下下層冷凍室與隔板。

● 請勿撕開標貼。

注意事項 注意事項

注意事項

隔板

隔板

※ 只有

R-X730G

型號

34

遇到問題時

在委託修理之前，請再次檢查以下幾點。狀況仍然不好的時候，請聯絡所購買的經銷店或敝公司技術中心。

這種情況下 請確認 請依照這樣做。就是這樣的理由。

初次使用時

不冷

設置後是否未達24小時？

設置後至完全冷卻需要24小時。請將存放的食品間
保留間隙，並儘量減少開閉次數，耐心等待。此外，
夏天或食品大量存放時，至完全冷卻需更多時間。

無法製冰

設置後是否未達24小時？

剛設置後，因冰箱未完全冷卻，到可以製冰需要

24

小時以上。請將存放的食品間保留間隙，並儘量減
少開閉次數，耐心等待。

操作面板

玻璃觸碰部不起反應

是否顯示部

顯示亮燈？

操作部設定為鎖定。

請解除操作面板鎖定設定。

25

頁

冷藏室門開著嗎？ 請關閉後再操作。

操作部分是否附著著水滴或是污垢？ 以沾濕的布擦拭髒污後，再以乾布擦拭乾淨。

戴著手套或貼著膠布嗎？ 請直接用手指按。

是否碰觸到周圍的操作部？ 請只碰觸想要操作的操作部。

操作部熄燈

−−−−−

操作結束後，為節省電力，40秒後顯示部熄燈。

9

頁

若要讓其亮燈時，請觸按

按鍵，或打開冷藏

室門。

自動製冰

完全不能製冰

是否顯示部的「

Off

（製冰停止）」顯示亮燈？

設定為製冰停止。

請設定「On」或「

Quick」。

18, 19

頁

是否顯示部的「

Water

」顯示亮燈？

給水槽內的水變少。

請加水至給水槽內。

18, 19

頁

是否給水槽的水變少？

水量變少時，有可能無法製冰。
請試試加水加到給水槽的滿水線。

18

頁

給水槽是否推入到超過「水槽安裝位置」線？ 請將給水槽推至比水槽安裝位置更裡面。

18

頁

是否將框架往裡面推進，直到發出「卡嘰」聲？

請將框架往裡面推進，直到發出「卡嘰」聲。

31

頁

儲冰盒裡面是否存放了冰以外的東西？ 請從儲冰盒中取出。

儲冰量是否有局部超過最大儲冰界線？ 請將冰塊整平。

19

頁

很難結冰

是否頻繁地敞開門，是否一次存放了大量的食物呢？

冰箱內無法充分冷卻。
請試試在冰箱內冷卻前，盡量減少開閉門。請試試
盡量空開儲存食品之間的間隙。

是否冰箱周圍的溫度變低？

冬天，到可以製冰需要4小時以上。請儘量減少冰
箱門開閉次數，耐心等待。

是否剛從「

Off

（製冰停止）」設定改為「On」？

剛改變設定後，可能需要更多時間。請儘量減少冰
箱門開閉次數，耐心等待。

食品或袋子是否被夾著，冷凍室或製冰室門是否關緊？

請去除被夾住的食品，確實關緊冰箱門。

是否設定為「節電」模式？ 請解除「節電」模式。

24

頁

冰塊有凸起

−−−−−

是製冰盤的溝上積水凍結了。
不是異常。

所儲存的冰塊變小
冰塊之間粘在一起

是否積存了舊的冰塊？ 舊的冰塊會變小，且會互相黏結。

是否頻繁地敞開門，是否一次存放了大量的食物呢？

請盡量迅速開關箱門，以及減少開關的次數。

冷藏室門或抽屜是否沒完全關緊？ 關閉冰箱門時，請確實關緊。

製成的冰塊很小

是否給水槽的水變少了？

當剩餘的水變少時，製冰機可能製成小的冰塊。
請試試加水加到給水槽的滿水線。

18

頁

製成粘在一起的冰塊

是否將框架推到底，發出“卡嘰”聲？

請將框架推到底，發出“卡嘰”聲。

31

頁

製冰盤是否受損？

製冰盤一旦受損，可能造成冰塊將難以從製冰盤分
離，破損的冰塊互相黏結的情形。
請與購買的專賣店洽詢。

−−−−−

製冰盤的溝槽部分殘留的冰塊會互相黏結。
不是異常。

冰塊裡有白色混濁

−−−−−

是因為混在水中的氣泡被封在冰塊裡面了。

用礦泉水製冰了嗎？

水中含有的礦物質凍結會變白而混濁。即使在水裡
融化了也會有白色混濁，不過無害。

製冰盤的框架拉不出來

是否設定為「

Off

（製冰停止）」？

當自動製冰機正在製冰時拉不出來。請設定為「

Off

（製冰停止）」。當「

Off

（製冰停止）」顯示閃爍時，

請等約一分鐘，等「

Off

（製冰停止）」顯示燈亮後

再拉出。

31

頁

不需要製冰功能時

−−−−−

請設定成「

Off

（製冰停止）」。

請參考「製冰停止」。

19

頁

35

這種情況下 請確認 請依照這樣做。就是這樣的理由。

不冷

不夠冷
冰淇淋變軟

食品或袋子是否被夾著，門關緊了嗎？

請去除被夾住的食品，確實關緊冰箱門。此外，食
品收納時請注意食品的高度。

是否塞入過多食品，是否一次放入了大量的食物呢？

食品之間請空開間隙存放。

各存放室的盒子是否確實地安裝？ 請正確安裝好。

33

頁

根據冰箱的設置場所及空隙，環境狀況等，有可能
會難以冷卻的情形。

請確認是否已正確安裝。

10

頁

是否設定為「節電」模式？ 請解除「節電」模式。

24

頁

是否溫度設定在「■」？

冷卻不足的室內溫度設定請切換為「■■」或

「■■■」。

14, 20

頁

在夏季等，電冰箱的環境溫度高嗎？

冷卻不足的室內溫度設定請切換為「■■■」。

14, 20, 23

頁

是否長時間開啟冰箱門，或冰箱門開啟頻繁？

冰箱門敞開著時，冰箱內的溫度會逐漸上升。頻繁
地開閉或是長時間敞開著門的話，冰箱內的溫度會
難以下降。
請減少冰箱門的開閉次數及盡量縮短開閉的時間。

操作部的顯示是否依次改變？ 因為設定為店面專用模式，請解除。

35

頁

結霜・結露

冰箱內及抽屜框架上
結霜・結露・冰

冰箱門或抽屜是否沒完全關緊？

關閉抽屜或冰箱門時，請確實確認是否夾到食品或
包裝袋，請確實關緊。

−−−−−

當冰箱門開閉時，可能因空氣中含的水分變成霜、
冰，凝結在冷凍室的壁面或零件上。請盡量迅速開
關箱門，以及減少開關的次數。此時請以乾布將霜、
露水擦拭。

冰箱的外側結露

冰箱周圍的溼度是否過高？

下雨天等室內濕度高的時候會結露。
此時請以乾布將露水擦拭。

是否防止結露的加熱器設定為弱的狀態？

冰箱周圍的溼度變高時，可能會有結露的情形。請
將防止結露的加熱器設定為「標準」。請以乾布擦拭
露水。

26

頁

是否溫度設定在「■■■」？

溫度設定為「■■■」時，冰箱門表面可能會有結露
情形。

請將溫度設定為「■■」。

請以乾布擦拭露水。

冷藏室中凝結露水

是否長時間開啟冰箱門，或冰箱門開啟頻繁？

冰箱門的開關次數頻繁時，
或冰箱周圍溫度高時，壁面
會起霧，在冷氣出風口附近
會凝結露水。並不是故障。
此時請以乾布擦拭。

太冷

太冷
凍結了

溫度調節為「■■■」了嗎？ 請設定為「■■」。

14, 20

頁

環境溫度是否

5˚C

以下呢？

周圍溫度低時可能冰箱內的溫度會太冷。請將溫度
調節為「■」。

是否放置在冷氣吹出口的前方？ 請不要放在冷氣吹出口的前面。

操作部的﹁

﹂顯示等呈閃爍的狀態

閃爍

是否閃爍持續數次？
顯示的閃爍是何種模式？

告知發生異常情形。
請與購買的經銷店商洽。

閃爍

在製冰室內除了自動製作的冰塊之外，是否放入
其他的食物或冰塊？

有可能食品等碰到製冰盤。請先將製冰室內清空，
再操作「製冰機清潔」。

30

頁

閃爍

是否在服務人員檢查後所發生的？

有可能是設定在服務人員確認運轉用的模式。
約15分鐘後恢復通常模式。使用上沒有問題。

閃爍

是否在服務人員檢查後所發生的？

有可能是設定在服務人員確認運轉用的模式。
約10分鐘後恢復通常模式。使用上沒有問題。

全部呈閃爍

是否觸按「On」按鍵長達5秒以上。

正在進行「製冰機清潔」。
閃爍約4分鐘即停止。在顯示燈閃爍時，請勿開啟
冰箱門。

閃爍

是否設定為「

Off

（製冰停止）」後所發生的？

自動製冰機正在運作中。
閃爍約1分鐘即停止。在顯示燈閃爍時，無法取出
製冰室的框架。

全部的顯示閃爍

是否冰箱門開啟中？
是否冰箱門夾住食品，或無確實關緊？

若冰箱門開啟狀態時，請關閉冰箱門。
若冰箱門夾住食品，或無確實關緊，請除去被夾住
的食品，將冰箱門確實關緊。

以上各項以外的顯示燈閃爍

−−−−−

請與購買的經銷店商洽。

操作部的顯示依次改變

−−−−−

因為設定為店面專用模式，請操作解除設定。
店面專用模式時，無法冷卻運轉。
打開冷藏室門(左右)、下層冷凍室門。

按下操作面板的

按鍵，讓其顯示亮燈。

持續按下

按鈕長達10秒以上，直到發出嗶嗶

聲響
數秒之內所有的顯示亮燈，店面專用模式解除，即
開始冷卻運轉。
關閉冷藏室門(左右)、下層冷凍室門。

凝結露水

遇到問題時

36

這種情況下 請確認 請依照這樣做。就是這樣的理由。

聲音不對

關門時其他的門會開

是否冰箱門用力關上？

因為各室的冷氣通路是相通的，關門時由於風壓使
其他門會一瞬間打開。

冰箱發出的聲音嘈雜

地板是否有彎曲？

請鋪上堅固的板子後，再將冰箱安裝在板子上。

10

頁

冰箱是否靠著牆或家具？ 請在冰箱的周圍空出間隙安裝。

冰箱是否充分冷卻？

購買後，剛開始使用等冰箱還未冷卻時・箱門開閉
頻繁時・周圍的溫度高時，由於壓縮機高速運作，
可能會感覺到聲音大。

是否設定為「

Freezer」「Quick

」？

設定在「

Freezer」「Quick

」時，壓縮機及風扇馬達

會加速運轉，聲音會變大。

運作音長

−−−−−

因正處於省能源運轉狀態，壓縮機慢慢地運轉，所
以可能運轉聲音會維持較久時間。

有時聲音變大

−−−−−

因應冰箱內的溫度變化，而變更運轉的強度，所以
有時會發出較大的聲音。

其他
例如聽到這樣的聲音時

像流水的聲音（楸囉楸囉）
像碰撞的聲音（叩吱叩吱）
像沸騰的聲音（啵啵啵）
像燒肉的聲音（唧∼）

是電冰箱的冷媒流動聲・融霜時的水流聲蒸發聲。
不是異常。

像摩擦的聲音（啤唏）（“叩動”聲）

是冰箱的溫度變化時，或真空冰溫室的氣壓變化時，
部件的摩擦聲。
不是異常。

像什麼被卡著的聲音（嗑

嗑 ）
像呻吟的聲音（噗∼）
像剛關門時的聲音（吥∼）

是控制冰箱內溫度的電氣部件或真空幫浦的運作聲。
不是異常。

自動製冰機的聲音

（啾∼）
（嘎啦嘎啦）
（咯

噃咯噃

）

是冰塊從自動製冰機的製冰盤掉落時，或是製冰
盤裡給水時所發出的聲音。不是異常。按下

按鍵，讓其顯示為「

Off

（製冰停止）」時，就不會

發出聲音。

19

頁

時常有的聲音（卡嗒卡嗒）

為了冷卻冰箱內開始運作時的聲音。
不是異常。

箱門高低不平衡

以及歪斜

左右箱門高低不平衡箱
門歪斜

設置的地點是否呈水平？

性能上沒有問題，可以照舊使用，不過介意的話，
試試調整左右的調整腳。

10

頁

是否由於地板材質太軟加上儲放物的重量使冰箱腳下沉？

冰箱本體傾斜的時候，請鋪上

1cm

以上厚的堅固的板子。

關上門之後再立刻打開
時感到吃力

是否冰箱門長時間開啟著？

是因為進入了冰箱內的空氣忽然受到冷卻，氣壓一
時變低。
冰箱門請勿長時間開啟，以短時間開閉的方式拿取
食物。

冰箱發熱

電冰箱的側面發熱
箱腳底下吹出暖風

−−−−−

為了讓冷卻裝置運作時所產生的熱氣向外排而會發熱。
剛安裝後或是夏季，可能會有

50〜60˚C

，在安全

上及性能上沒有問題，但請勿以手觸摸。

真空冰溫室的問題

打開時，不發出「咻-」
的聲音

真空冰溫室的設定是否為「

Off

（關）」(非真空的冰溫)？

請將設定改為「

-1˚C

」或「

+1˚C」

17

頁

把手往上翹著嗎？ 請將把手往下押，鎖定。

把手是否有推到最終的位置，牢牢地鎖住？

如果沒有鎖住，則無法啟動真空機能。
請將把手往下推押到底，確實地鎖緊。

真空冰溫密封墊是否脫離？ 請安裝真空冰溫密封墊。

28

頁

真空冰溫密封墊與承受部之
間是否夾著食品的包裝袋、
頭髮等？

若食品包裝等異物被夾住時，請除去異物。

如果密封墊黏在一起就无法保持真空狀態。
如果真空冰溫密封墊髒了請清理。

28

頁

密封墊的飛邊是否因食品湯汁等而黏在密封墊上？

是否在真空冰溫室或冷藏室門開啟關閉之後？

真空幫浦啟動後，至達到真空狀態約需3∼4分鐘。
開閉後，請等待4分鐘以上。

遇到問題時

（續前頁）

線頭

垃圾

垃圾

飛邊

密封墊

37

這種情況下 請確認 請依照這樣做。就是這樣的理由。

真空冰溫室的問題

不知道是否在真空

打開真空冰溫時，是否發出聲音？ 打開時如有「咻-」的聲音，便是正常。

把手不能上鎖

真空冰溫密封墊部分及真空冰溫盒的裡面是否有食
品等被夾著呢？

若有被夾住請除去異物。

是否正確地安裝真空冰溫盒？

請依照「安裝方法」所指示安裝真空冰溫盒。

32

頁

真空冰溫室的周圍發出

「吥∼」的聲音和振動

−−−−−

是真空幫浦的運作聲音。
如夜間等介意有聲音的時候，可以停止真空幫浦的
運作。
真空冰溫室請變更設定為「

Off

（關）」(非真空的冰溫

)

17

頁

是否真空冰溫盒夾住物品，或真空冰溫的墊圈髒汙？
是否將把手往下推押到底，確實地鎖緊？

可能頻繁發出聲音及震動。
若食品包裝等異物被夾住時，請除去異物。
請清洗髒污的真空冰溫密封墊。

28

頁

請將把手往下推押到底，確實地鎖緊。

真空冰溫室的內部或真
空冰溫盒的周邊有水滴
或結霜，冰

是否存放了含水份多的
食物？

因為真空冰溫室是密封的狀態，如果存放水分較多
的食品時，水分蒸發會在室內凝結成露水或結成霜。
水分較多的食品建議以保鮮膜包覆。如果附著了水
滴或結霜，請以乾布擦拭。

存放的蔬菜表面呈凹陷，
變色

是否存放了茄子、黃瓜等不耐低溫的蔬菜呢？

請移動至蔬果保鮮室。

17

頁

真空冰溫室的食品凍結

設定是否為「

-1˚C

」或是「「

Off

（關）」(非真空的冰溫)」

的狀態？

請設定為「

+1˚C」

17

頁

有異味

有塑膠味

−−−−−

是因為在冰箱內使用了多數的塑膠部件，不過，充
分冷卻後自然就會慢慢減輕。不是異常。

冰塊有異味

給水槽・淨水濾片骯髒嗎？冰塊舊嗎？ 為了防止「發黏」「水垢」，請定期清洗。

31

頁

−−−−−

由於自來水中的氯元素凝縮，氯的氣味會很重。

冰箱內有異味

是否直接地儲放了氣味重的食品呢？

脫臭機能不能完全去除所有的氣味。
請用保鮮膜等密封後儲放。

電動冷藏室門

聲響很大
有些不正常的聲響

碰撞的聲音（嗊嗊・嗊嗊） 這是電動冷藏室門的操作聲響。不是異常。
低沉的聲音（吭吭） 這是電動冷藏室門的操作聲響。不是異常。

電動冷藏室門的操作聲音左右各不相同。

隨著冰箱的設置條件、冷藏室門層架的收納食品多
寡有所不同。不是異常。

雖碰觸電動冷藏室門的
操作部，也打不開

顯示燈是否熄滅了？ 請讓

顯示燈亮。

製冰室或上層冷凍室的任何一個是否開啟狀態？

請關閉開啟的抽屜門後，再碰觸電動冷藏門的操作部。

電動冷藏室門不能關閉

是否有食品或食品袋卡在抽屜內

?

請除去被夾住的食品等異物。

電動操作時是否停電或者箱門受到了撞擊

?

因為電動冷藏室門的功能在中途停止，請以手動方
式關上冷藏室門。

電動冷藏室門的開啟程
度較小

收納的飲料或食品是否觸及冷藏室內壁？ 請除取觸及內壁的飲料或食品。

是否放置的位置呈水平狀態？

隨著冰箱的設置條件，電動冷藏室門開啟的角度可
能有所改變，或在開啟之後會稍微關閉的情形，這
並非故障。

縱使操作面板鎖定時
電動冷藏室門仍可以
動作

−−−−−

即使操作面板鎖定時電動冷藏室門的功能也不會停
止。 若想讓電動冷藏室門功能停止時，首先先解除
操作面板的鎖定，再按下

按鍵持續3秒直到

發出嗶嗶聲響為止。

12, 25

頁

電動抽屜

聲響很大
有些不正常的聲響

碰撞的聲音（嗊嗊・嗊嗊）

這是電動抽屜的操作聲響。
不是異常。

呻吟的聲音（噗∼）

這是電動抽屜的操作聲響。
不是異常。

蔬果保鮮室比冷凍室下層的運轉聲音大。

“蔬果保鮮室”的操作聲量比“下層冷凍室”的大。

此外，會因收納食品的量的不同而有所差異。不是
異常。

即使按下電動抽屜開關，
箱門也不開啟

顯示燈是否熄滅了？ 請讓

顯示燈亮。

“下層冷凍室”或“蔬果保鮮室”是否開著

?

關上開著的電動抽屜，再按下你要打開的電動抽屜開關。

電動抽屜不能開啟／
關閉

是否有食品或食品袋、保鮮膜等被夾住

?

請除去被夾住的食品等異物。

電動操作時是否停電或者箱門受到了撞擊

?

箱門不能開關自如，因為沒有正常完成電動抽屜功能操作。
用力地將箱門推入。或者請在拉開門的狀態下拔掉
電源插頭，等10秒左右後再插上。

上層置物盒與潤澤護蓋之間夾著
食品等異物？ 請將被夾住的物品去除。

此外，潤澤護蓋內有食物時請勿強硬將門關閉。

電動抽屜開啟得不夠大

−−−−−

開始動作時，推出抽屜的尺寸大約在

15cm

以上。
隨著冰箱的設置條件，有可能拉出抽屜的尺寸稍微
不同，或是門以電動的方式開啟後又稍微退回的現
象。不是異常。

縱使操作面板鎖定時
電動抽屜仍可以動作

−−−−−

即使操作面板鎖定時電動抽屜的功能也不會停止。
若想讓電動抽屜功能停止時，首先先解除操作面板
的鎖定，再按下

按鍵持續3秒直到發出嗶嗶

聲響為止。

12, 25

頁

水滴或露

遇到問題時︵續前頁︶

38

這種情況下 請確認 請依照這樣做。就是這樣的理由。

蔬果保鮮室

蔬果保鮮室中凝結露水

是否存放大了量的含水份多的蔬菜？

因為蔬果保鮮室比其他保存室的濕度高，會因蔬菜
的存放量及種類，而可能出現在蔬果保鮮室的頂部、
食品的表面產生結露的情形。
這並非異常現象。若在意結露的情形，建議將食品
以包鮮膜包裹後再放入。此外，結露變多時，蔬果
保鮮室的存放盒內可能會有水滴蓄積。請以乾布將
蓄積的水擦拭乾淨。

是否蔬活保濕裝置被食品的外袋或容器所阻塞？

蔬活保濕裝置一旦被阻塞，很容易發生結露情形。
請將阻塞在蔬活保濕裝置的食品外袋或容器移至他處。
請以軟布將結露擦拭乾淨。

蔬果保鮮室的門無法關
閉・蔬果保鮮室的門開
啟時上層滑動盒無法回
復到鎖定的位置

上層滑動盒與下層置物盒之
間是否夾有食品等異物？

請除去被夾住的異物。

是否有寶特瓶或食品碰觸到
上層滑動盒的把手部位？

存放時請勿讓寶特瓶或食品碰觸到把手部位。

是否有食物被夾在上段置物
盒及潤澤護蓋之間？

請去除被夾住的物品。
此外，請勿在食品接觸到潤澤護蓋的狀態下，硬將
冰箱門關上。

其他

觸碰到機體會感覺
到微量的電流

−−−−−

電冰箱會帶有靜電，安全上沒有問題。

電視機・收音機等發生
有雜音・映像的花亂

−−−−−

是從電冰箱發出的微弱電磁波的影響。
要安裝時請遠離電視機、收音機、門鈴對講機等。
建議在離開天線等的地方接電源。

塑膠零件上有像傷痕一
樣的細線

−−−−−

是塑膠成型時發生的樹脂流痕。透明的部件會特別
顯眼，強度上沒有問題，不會破裂。

箱門面或側面．頂面上
有波紋或歪扭

−−−−−

冰箱的製造工程上，會發生輕微的波紋或歪扭。
根據照射方向及亮度等會感到顯眼，這不是異常現
象，在性能上也沒有問題。

箱門內側有小的洞

−−−−−

這個洞是在冰箱製造過程中，填充斷熱材料時為了
讓內部的空氣往外散所挖的洞。不是損傷也不是異
常情形。

※

因商品不同，可能貼著貼紙，使用時請勿將貼紙撕下。

停電了

−−−−−

在到恢復之間，請減少箱門的開閉，避免重新再存放
食品。停電後恢復供電時，請確認操作部

位的設定。

長時間不使用冰箱

−−−−−

請將冰箱內的東西全部清出。
請先將電源插頭拔除，再進行冰箱內、自動製冰機
的清潔。

28∼31

頁

所有的門打開讓其乾燥

2 〜3

天。

除霜

−−−−−

此電冰箱自動除霜，不需要操作。溶解了的水會積
在蒸發盤上，自動蒸發。

移動・搬運

−−−−−

請參閱「移動・搬運的事前準備(搬家時)」

11

頁

玻璃破裂
　冰箱門玻璃

　玻璃層架

−−−−−

請勿觸碰破碎的玻璃，立刻聯絡購買的銷售店，委託
修理。

小蒼蠅等昆蟲飛入
冰箱時

周圍是否有蒼蠅？

敬請保持周邊環境乾淨。
請放置蒼蠅忌避物品或補蠅器。

冰箱內是否存放氣味強烈的食品？

為了避免氣味吸引蒼蠅，請將食品加蓋或以保鮮膜包覆。

箱門是否長時間開啟？ 請盡量在拿取食品後馬上關上箱門。

遇到問題時

（續前頁）

孔（門內側）

孔(冷藏室側面

)

39

另購零件

■以下零件更換時，請務必向經銷店指明冰箱的型號，購買專用的零件。

這種情況時 商品名 型號 商品型號

冰塊有味道時

● 可能淨水濾片老舊、髒污。

(約3〜4

年更換一次

)

自動製冰用淨水濾片 全機種通用

RJK-30

無法維持真空狀態

● 可能破損・變形・變色

真空冰溫密封墊

R-X730G

型號

R-WX7400G 311

R-X670G

型號

R-G670G

型號

R-XG6700G 311

R-G620G

型號

R-XG6200G 311

遇到問題時︵續前頁︶

／另購零件

40

MEMO

41

BEFORE USE

SAFETY SUGGESTIONS

................................

42

LEARN NAME & FUNCTION OF EACH PART

...

46

Name of each compartment/Food stored

................

46

Functions of the Control Panel

.................................

47

BEFORE USE

................................................

48

Preparation before use

............................................

48

Transporting your refrigerator (transport for moving)

....

49

GENERAL USE

Auto Door

....................................................

50

Setting the

Auto Door

................................................

50

Using the Auto Refrigerator Door

.............................

51

Using the Auto Drawer

............................................

51

REFRIGERATOR COMPARTMENT

.................

52

Adjusting temperature in a refrigerator compartment

...

52

Adjust the height of a pocket/shelf

..........................

53

VACUUM COMPARTMENT

............................

54

When opening/closing the door of the Vacuum Case

...

54

Change the settings of the Vacuum Compartment

...

55

ICE COMPARTMENT (AUTOMATIC ICE MAKER)

...

56

How to make Ice

.....................................................

56

Quick Ice Making

....................................................

57

Stop Ice Making

......................................................

57

Stored ice amount and ice-making time

..................

57

Water Supply indicator

............................................

57

When the “On” indicator lamp blinks

......................

57

FREEZER COMPARTMENT

...........................

58

Using the Upper Freezer

..........................................

58

Using the Lower Freezer

.........................................

58

Caution on how to store foods

................................

58

Adjust the temperature of the freezer compartment

...

58

Using the Delicious Freezing

...................................

59

Setting the Delicious Freezing

.................................

59

When you want to freeze food quickly (Quick Freezing)

.......

59

VEGETABLE COMPARTMENT

.......................

60

Stored foods

...........................................................

60

Caution on how to store foods

.................................

60

To cool it more [Vegetable Compartment (MAX)]

......

61

VARIOUS FUNCTIONS

..................................

62

Setting “Energy Saving” mode

................................

62

“

eco” Operation indicator lamp

...............................

62

Door Open & Close indicator lamp

...........................

62

Locking the Control Panel

.......................................

63

Door Alarm

.............................................................

63

Door Alarm and volume adjustment of the operation sound

...

63

Set the condensation prevention heater to MIN. (Swing partition)

...

64

Fine adjustment of the temperature (Refrigerator
Compartment / Freezer Compartment)

....................

65

Triple Power Deodorizing Effect

................................

65

MAINTENANCE

MAINTENANCE

............................................

66

Power plug/The back/floor of the refrigerator

........................

66

Vacuum Compartment

.............................................

66

Auto Drawer

...........................................................

67

Surface of door/Each shelf/pocket/case/
Door gaskets/Liquid receivers

.....................................

67

Ice Maker Cleaning

.................................................

68

Water supply container/Ice tray

...............................

69

HOW TO REMOVE/ATTACH PARTS

...............

70

Height adjustable upper and middle shelf

.....................

70

Door pocket

............................................................

70

Fixed shelf

..............................................................

70

Height adjustable lower shelf

..................................

70

Vacuum Case

..........................................................

70

Ice Case (Ice Compartment)・Upper Freezer case (Upper Freezer)

...

71

Slide case and lower freezer case (Lower Freezer)

..........

71

Upper Case, Lower Case (Vegetable Compartment)

.............

71

How to attach the slide door (Ice Compartment/Upper Freezer/
Lower Freezer/Vegetable Compartment)

...........................

71

TROUBLESHOOTING

TROUBLESHOOTING

.....................................

72

Initial stage

.............................................................

72

Control Panel

..........................................................

72

Automatic ice making

.............................................

72

Refrigerator does not cool

.......................................

73

Frost and/or dew occurs

.........................................

73

Refrigerator cools overly

.........................................

73

[ ] display on the control panel flashes

..............

73

Abnormal operating sound is generated

..................

74

Door is not in a horizontal state

...............................

74

Refrigerator becomes hot

.......................................

74

There is something strange with the Vacuum Compartment

...

74

It smells strange

.....................................................

75

Auto Refrigerator Door

............................................

75

Auto Drawer

...........................................................

75

Vegetable Compartment

..........................................

76

Others

....................................................................

76

AVAILABLE PARTS

.......................................

77

ABOUT NON-CFC REFRIGERATORS/
STORABLE WEIGHT

....................................

.

79

CONTENTS

Contents

trembling
and
unstable

WARNING

CAUTION

Suggestions headed by this pictograph
indicate "There is high chance of serious
injury or death" if ignored.

This symbol indicates something
you must not do. (Prohibited)

This symbol indicates something
you must do. (Compulsory)

Suggestions headed by this pictograph
indicate "There is a high chance of injury or
damage to property" if ignored.

WARNING

Installation

Handling the power and power cable

● Avoid usage that may

cause the wall outlet or
power cord components
to work beyond their specified
electric current.
Also do not use power sources
that are not a rated AC voltage.

If a power source is shared with other
appliances, double or multipoint adapters may
heat up beyond normal levels and cause fire.

・

Use a wall outlet rated above 10 ampere by itself.

● Connect the power plug

firmly to a power outlet with
the cord running down.

・ Connection of the power plug

with the cord running up could
apply stress on the cord and
cause electrical short or overheat, which
could result in electrical shock or fire.

・

Incomplete connection of the power plug could

result in electrical shock or fire due to heat.

● Take measures to prevent overturning

of refrigerator due to earthquake, etc.

・ Overturning of the refrigerator could result

in personal injury.

●

Do not install the

refrigerator in damp places
or where water may splash.

・ This may impair electricity

insulation causing electric
shock or fire.

Prohibited

Wetting

Prohibited

■ The following pictographs categorize and explain the level

of possible harm on damage that may occur from ignoring
suggestions resulting in missing the appliances.

■

How the suggestions should be taken are
indicated and categorized by the following
symbols accompanied by explanations.
(The symbols below are examples)

This symbol denotes the precautions on flammable refrigerants.

■

This refrigerator uses flammable refrigerants. The symbol column below states the precautions on flammable refrigerants.

R600a

SAFETY SUGGESTIONS

Ensure to follow

these precautions

When using this appliance, failure to follow safety precautions may result in personal harm, harm to other people,
and also damage to property.

●

Do not do anything that may
damage the power cord or plug.

Using a damaged power cord
may cause electric shock, short
circuits, or fire.

・ Please consult with a retailer about the repair of

the power cord or plug.

The power cord or plug should not
be cut, modified, touched with hot
implements, bent by force, twisted,
pulled, have heavy objects placed
on it, squeezed by the refrigerator,
or be bound or tied up.

● Clean the dust on the

power plug frequently.

Insulation failure from
moisture when dust collects
on the power plug may
cause fire.

・

Unplug the power plug and wipe it with a dry cloth.

42

During use

● Do not splash water on

or inside the refrigerator.

・

This may impair electrical
insulation causing electric
shock or fire.

● Do not put in things that

may catch fire.

・

Benzine, ether, LP gas, thinner,
adhesives may ignite an
explosion.

● Do not hang on the doors

or step on the various
compartments.

・

Injury may be caused by the
refrigerator tipping over or
hands getting caught between
doors.

● Do not put too much force on the door

by opening it too much or leaning on
the opened door.

● Do not remove the cover of

the interior lamp.

・

When the interior lamp is damaged,
please contact the service centre for
replacing the lamp to avoid injury.

● Do not add impact to the glass door.

●

Drugs, chemicals, research
and experimental substances
should not be stored in the
refrigerator.

・

Substances that require precise
conditions for storage cannot be stored in a domestic
refrigerator.

●

Do not use flammable

sprays near the
refrigerator.

・

Sparks from points of electrical
contact such as door switches
may ignite a fire.

● Do not put water containers

on the refrigerator.

・

Spilled water may impair insulation of
electrical components causing faulty
electrical currents. This may result in
electric sho

ck or fire.

● Do not put things on top of

the refrigerator.

・

Opening and closing doors etc.
may cause things placed on top of
the refrigerator to fall resulting in
injury.

● Children should be supervised to

ensure that they do not play with the
appliance.

● When an infant child may use the Auto

Door or Auto Refrigerator Door to make
mischief, please stop the Auto Door
function.

Pg.50, 51

● Do not touch the

machinery components
of the automatic ice
maker.

・

There is a danger of injury when
the ice trays are rotating.

Wetting

Prohibited

Prohibited

Contact

Prohibited

binder

LP gas

Benzine

● Do not insert or remove the

power plug with wet hands.

・

This may result in electric shock.

●

This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have

been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to

ensure that they do not play with the appliance.

Wet Hands

Prohibited

WARNING

Handling the power and power cable

● Be sure to unplug the

power plug before
maintaining the
refrigerator.

Continued use may
cause electric shock or injury.

Pg.66

・ Always hold the plug when unplugging it.

43

Safety Suggestions

Concerning the refrigerant (Be careful of the following related to
the use of flammable gas.)

● Do not scratch or damage

the main body of the
refrigerator with a sharp
object such as screw.

Since the refrigerant
used is flammable, any leakage from the
pipe inside the wall may cause ignition and
explosion.

● Do not use mechanical devices or other

means to accelerate the defrosting
process, other than th

ose recommended

by the manufacturer.

● Do not use electrical appliances inside the

refrigerator.

・ If the refrigerant leaks, sparks on the contact

may cause ignition and explosion.

● Do not damage the

refrigerant circuit.
If you happen
to damage the
refrigerant pipe,
stay away from the
refrigerator and
avoid using fire and electrical appliances.

Should you damage the refrigerator, open
the window to ventilate and contact the
authorised service centre.

● Allow clearance around

the refrigerator and keep
ventilation openings when
installing it.

Pg.48

Leakage of the refrigerant may
accumulate and cause ignition
and explosion.

● Please consult your dealer

or the Recycle Hotline of
the Recycle Centers in the
Environmental Protection
Administration when
discarding the unit.

If the refrigerant leaks, it may
cause ignition and explosion.

Prohibited

In case of emergency

When discarding the unit

● Stop the refrigerator

by unplugging it if it is
not running properly or
breaks down.

Continuous running may
cause electric shock or injury.

・ Always hold the plug when unplugging it.

● Before discarding the unit or recycling, remove the door gaskets to avoid

the risk of an infant or child being entrapped inside.

● In the event of gas leak, do not touch the

refrigerator and

open windows to allow ventilation.

・ Sparks from points of electrical contact such as door switches may

ignite explosions causing fire or burn injuries.

● Do not disassemble, repair, or modify

your refrigerator.

Injury may be caused by ignition of fire
or faulty running.

・ Please consult with a retailer if any repairs

or disassembly are required.

Disassembly

prohibited

turn off

the switch

● The warning label and name plate including this symbol affixed

on compressor and refrigerator should be kept throughout the
life of the refrigerator.

R600a

WARNING

R600a

44

●

Do not press the auto door
switch on the auto door
compartment with knee, etc.

● Avoid placing anything like

a bottle near the auto door compartment.

●

Do not open or close a door
while other person is using
the refrigerator.

●

Do not open or close a door of

the Refrigerator Compartment
while holding the handle of the drawer.

●

Do not put the glass bottles in the Freezer

Compartment.

・

Bottles may break from the contents freezing and
cause injury.

●

Do not put bottles in the Door

Baskets if they do not sit
properly on the bottom of the
front section.

・ Forcing in items like large bottles may result in

them getting tipped over, causing injury.

●

Do not have food items protruding over the
front of the shelves.

・

Injury may be caused from items like bottles getting
knocked over.

●

Do not open or close the door with force.
(Doing so may cause food to drop)

During use

● Do not eat food that smells strange or has

changed color.

・

Spoiled food may cause serious sickness.

●

Do not touch the food and containers inside
the Freezer Compartment with wet hands.

・

This may cause frost injury. (Especially in the case of
metal items)

● Do not put your feet too close

when opening the bottom
door of the refrigerator.

・

When opening this door you may hit
the instep or

other parts of your feet resulting in injury.

● Do not put your hands or feet

under the base surface of the
refrigerator.

When cleaning, putting your hands
under the base surface of the refrigerator may result
in injury by cutting them on sheet metal parts.

● Neither heat the glass surface of the glass

shelf nor put a hot item on it.

● Do not give a hard impact to the glass

shelf. (The glass shelf may

be broken,

causing personal injury).

●

Be careful not to operate the Auto Door
when another person is in front of the
refrigerator, which may lead to personal injury
unexpectedly caused by the opening door.

● When you hear an abnormal sound or

find abrasion powder during the opening
or closing of a door, stop using the
refrigerator and ask us for inspection.

●

To prevent water from dripping on the floor.

Water due to dew and/or frost may drip on the floor
if there is a gap clearance around the door for a long
time. Close the door completely without no gap.

● Take care when removing the glass shelf

because it is heavy.

●

When opening or closing a door while the

adjacent door is left open, exercise caution
lest your hand or a finger should be caught
between the opened doors.

●

Do not close a door while

holding a portion other than
the handle.

Prohibited

●

When opening and closing a door while other

door is opened, be careful lest your finger or hand

should be caught between the opened doors.

● Do not move the refrigerator

by using its wheels as it may
damage the floor.

・

Please lay a protective mat.

●

Never hang the handle

with a crane, etc.

●

Take care not to bang the

back / side of the
refrigerator.

Prohibited

CAUTION

When moving the refrigerator

●

Use the carrying handle when carrying it.

Your hands may slip resulting in injury
if you hold the refrigerator at other
places than the carrying handles.

・ More than 2 persons should carry the refrigerator for

safety reasons.

・

Carry it with the door facing upward; as shown in the illustration.

・ Never hang the handle with a crane.
・ Use a tape to fix an electric plu

g/power cord so that it

may not hang down.

caution

45

Safety Suggestions

46

LEARN NAME & FUNCTION OF EACH PART

Name of each compartment/Food stored

● Store foods in a loosely arranged way.

● It is recommended to wrap smelling foods.

●

There is a rough guide on the weight of foods that can be stored in the refrigerator.

Pg.79

Rice

Frozen

wheat noodle

Hamburger

Deep-fried chicken

Deep-fried chicken

New

tea

leaves

Fish

sausage

Butter

Vienna

sausage

Milk

Tea

Y

ogur

t

L

a

c

t

o

b

a

c

i

l

l

u

s

b

e

v

e

r

a

g

e

Refrigerator compartment

Pg.52

About 2˚C ~ 6˚C

Upper/lower freezer

Pg.58

About -20˚C ~ -18˚C

Vegetable compartment

Pg.60

About 4˚C ~ 8˚C

Vacuum compartment

Pg.54

About -1˚C ~ +1˚C

Refrigerating food

Frozen food/ice-cream/
dried food

Vegetable, fruits, drink

Upper space

Fresh foods such as meat, fi sh and seafood

The vacuum and the platinum catalyst help prevent a reduction in freshness.

Unfi nished vegetables, small
vegetables, fruits, etc.

The temperature at the door pocket is slightly high.

Tea

Mineral

water

Mineral

water

Tall Storage Compartment

Tall vegetables, 2L
PET bottle, etc.

The temperature of the Tall
Storage Compartment is a
little higher.

Lower space

Leaf vegetables (spinach,
Japanese Mustard Spinach etc.),
large vegetables
(cabbage, lettuce), etc.

Ice compartment

Pg.56

About -20˚C ~ -18˚C

Ice made by Automatic Ice Maker

[Only for R-X730G type]

Refrigerants or ice bars

Pg.57

Ice Storage Space

Small Article Case

Request

※ The above temperatures are standard values under the condition that the refrigerator is stable with no food

stored and the doors closed, at ambient temperatures of approximately 30ºC, whereas the setting is “■■” for
both refrigerating chamber and freezing chamber.

47

Learn Name & Function of Each Part

Functions of the Control Panel

The Control Panel is divided into two sections:
Display Section in the upper part and Operation Section in the lower part.

The Display and Operation Sections are normally unlit. Touch

to light it up.

The Operation Section is a touch panel. Touch it to toggle the setting.

Providing information

Auto Door

Display area For operation

Water

Door

It will turn on while it is working in “eco” mode.

Pg.62

Is lit when the Auto Door function is turned ON.

Pg.50

It will turn on while the Control Panel is locked.

Pg.63

Blink indicating any trouble.

Pg.73

It will turn on when water in the water supply container is getting low.

Pg.57

Is lit when a door is frequently opened or closed.

Pg.62

● Response of the touch panel may change depending on the surrounding temperature, humidity, physical condition of the user or operation status of

the adjoining electric product.

● Release a finger and touch the panel again if the panel does not respond after touching it. False detection may occur (it may be kept pressed) if the

time interval between key touches is too short. Response of the touch p

anel does not improve even if you touch it strongly.

● The panel may not respond if it is wet or dirty. After removing dirt with a wet cloth, wipe off the water with a dry cloth.

●

While a door of the Refrigerator Compartment is left open or the Display Section is blinking, the Operation Section remains inactive even if you touch a button.

Notice

First touch it.

※

All the indicator lamps are lit for the sake of explanation.

● Touch to light up the Control Panel and display the current settings. The current settings are also displayed when a door of the Refrigerator

Compartment is opened.

● Touch

again at the end of operation to turn off the light of the Display and Operation Sections.

Even if you do not touch

, the display and Operation Sections go out after approx. 40 seconds for energy savings, except for the indicators of

the

“Energy Saving”

mode,

“Freezer”

,

“Quick”

,

“Off”

,

“Water”

, “Off” (Non-vacuum), [ “eco” Operation], and [Door Open & Close ].

● The Display and Operation Sections are lighted up when a door of the Refrigerator Compartment is opened. They go out approx. 15 seconds after the

door is closed.

Notice

Setting Energy Saving mode

Adjusting temperature settings

Setting an ice-making Setting a cooling mode

Setting the Vacuum Compartment

Energy-saving by reducing cooling
power of each compartment.

Normally, use the “■■”
setting.

“

Save

”

Pg.62

Refrigerator
Compartment

Pg.52

Freezer Compartment

Pg.58

“Quick”

Pg.57

“On”

Pg.56

“

Off

”

Pg.57

“

Delicious Frz”

Pg.59

“

Freezer”

Pg.59

“

Veg”

Pg.61

+1˚C

Pg.55

-1˚C

Pg.55

“

Off”

Pg.55

(Non-vacuum)

48

Cushion (Accessory)

Please arrange it as shown below

● The floor should be sturdy and flat.

Lay a board with 1cm thickness on the floor if the refrigerator is installed on the carpet, tatami mat, flooring or PVC sheet flooring which
may be hollow or discolor.

● Place the refrigerator away from direct sunlight and heat.

● Do not place it in damp areas, and ensure good air ventilation.

This will reduce adverse effects to refrigerating power and keep electricity cost down. This will also
prevent the refrigerator from discoloring and rusting.

● The place should be separated from other equipments.

To prevent disturbance (noise / scattered image) to TV and others attributable to the refrigerator.

※ To cool efficiently, allow enough space around the refrigerator for radiating heat.
※

The actual size of the center part of the side of the refrigerator’s main body is slightly larger than the

nominal size. Therefore, please allow enough space around when installing the refrigerator.

※

The back of the refrigerator can be placed very close to the wall.
If you care about vibrating sound or dew condensation on the rear or discoloration of or dirt on a wall due to high humidity,

install the refrigerator so as t

o form

a gap of 2 cm or more

.

Fix the refrigerator

The adjustable mounts, which are located in the front bottom corners of the refrigerator, can be adjusted by turning
them to level the refrigerator. (Make sure to use a supplied tool and 2 cushions)

Adjusting the refrigerator adjustable mount to keep it level

● Installing the refrigerator on an unlevel floor or sinking of its leg(s) due to a floor which is not strong enough to support the weight of food

may cause a difference in level between the right and left doors.

This does not affect the refrigerator function. Adjust the refrigerator adjustable mount to keep it level according to the procedure listed

below if you want to correct it.
Correcting any left/right lean and lifting slightly the front side of the refrigerator until the door can cl

ose easily and completely.

BEFORE USE

Preparation before use

To remove leg cover, hold both
ends of it and pull it towards you
by applying some force.

With the supplied tool, turn an adjustable mount on the side
so that the refrigerator is lower to make the Refrigerator
Compartment door level.

The height of the door can be adjusted 1mm every one turn of the adjustable mount.

Insert the fork of the leg cover into the
mounting holes to attach the cover.

Depending on the material or strength of a floor
on which the refrigerator is installed or the weight
of food put in it, a door may sag in several days
(about five days) after the installation.
If this happens, adjust the parallelism between the
doors again.

Place pads under the adjustable
mounts.

Place pads under the adjustable mounts
evenly so that they can be leveled.

Lower both adjustable mounts
(left and right) by turning them
to secure the refrigerator.

Clamp the supplied tool adjusting to
the shape of the adjustable mounts.

● Always wipe the adjustable mounts and floor clean before placing pads. Adherents may scratch the floor if they remain.

● Be careful not to scratch the floor with the supplied tool when turning the adjustable mount.

● Excessively turning an adjustable mount may cause it to detach.

Adjustable mounts

Supplied tool (Accessory)

■

The left side door is lower.

■

The right side door is lower.

Turn the left Adjustable
mount to lower the left
side door.

Turn the right
Adjustable mount to
lower the right side
door.

Mounting hole

Fork

Leg cover

1

2

3

1

1 2

2 3

● When you release your hand from a refrigerator door with the door open, the door may move, but this is normal.

Notice

Required space for right and
left of the refrigerator: 1 cm or more

Required space above the
refrigerator: 5cm or more

49

Before Use

Plug the power cord.

It is not a problem to plug in the power cord soon after installing the refrigerator.
Use a wall outlet exclusively when connecting the power cord. (Alternating current 220 - 240V, rated 10A or more)

●

Check that the power plug or the cord is not wedged between the back of the refrigerator and the wall in order to prevent the cord from getting hot.

4

● If you wish to install the refrigerator in a hot spring area exposed to sulfide gas, you may need to apply anti-rust

treatment to the piping. Contact your dealer in advance. Failure caused by sulfide gas will not be covered under
guarantee.

● After inserting the power plug into a wall outlet, you will hear noise from the refrigerator, which is preparing for

operation. You may also hear a louder no

ise from the compressor or fan until the inside is cooled down enough.

● It may give off a smell of plastics in the beginning when you start to use. Keep the room well-

ventilated. Such smell will disappear gradually.

● Do not peel off the seal on the back or plastics at the lower part of the side.

● When a magnet or suction cup is attached on the side of the body or the surface of a door, it may

leav

e a mark.

● When you attach a paper sheet on the door surface in a high ambient temperature, dew may

form on the door surface, or the paper may absorb moisture.

Notice

Cooling inside the refrigerator starts.

●

It may take more than 4 hours

to cool well the inside of the refrigerator, depending on conditions such as the ambient

temperature or storage state of foods. It may

take 24 hours or more in summer, etc.

Do not put ice cream, uncooled foods or perishable foods in it until the inside of the refrigerator is cooled well.

● Perform

“

Ice Maker Cleaning

”

when using

the automatic ice making function first.

Pg.68

● A series of ice making operation will start automatically after the inside of the refrigerator is cooled well.

(When using for the first time, it may

take 24 hours and more to make ice

.)

Stickers

Plastic parts - Left/Right

Place a sheet or cloth
for protection first, and
then lay it back to drain
water.

Take out foods or ice.

Remove the leg covers, and raise the
adjustable mounts.

Empty the water from

the water

supply container/ice tray.

Use a tape to secure the door/power
cord.

See “Preparation before use” for
installing the refrigerator in a new
location.

Pg.48

Pull off the power plug.

No problem just before moving.

Place a sheet or cloth for protection
when moving / transporting it.

To prevent damage to the floor material or water from spilling out.

Make sure to hold the
handles when carrying it
with 2 persons or more.

Do not lay it down horizontally for
transportation (which may cause failure
of the refrigerator).

Transporting your refrigerator (transport for moving)

1

4

2

5

9

3

6

7

8

Such as old cloth

50

Auto Door

Refrigerator

Compartment

door (left)

Refrigerator
Compartment
door (right)

Lower Freezer

Vegetable Compartment

You can enable or disable the Auto Door function. The function is enabled when shipped from the
factory.

■ Auto Refrigerator Door

You can open the door easily by touching the door lightly with your fingers thanks to
the Auto Door function. (Only R-X730G type, R-X670G type)

■ Auto Drawer

Auto Drawer function helps you to pull out the case easily even if it is heavy with
plentiful foods in.

Electric
refrigerator unit

Open Button for the
Auto Refrigerator
Door

(Automated)

Handle

(manual operation)

Caution

●

When an infant child may use the Auto Door to make mischief,
please stop the Auto Door function.

●

Do not operate the Auto Refrigerator Door Switch when
another person is in front of the refrigerator (which may lead to
personal injury unexpectedly by the opening door).

●

Do not bring your foot too near the refrigerator when you press
the Auto Drawer switch of the vegetable compartment. (You
may k

nock your foot against the door and may cause injury)

●

Do not put any item on the refrigerator.

● Do not hold any portion of the door other than the handle. (This

can cause pinching of fingers, which could result in injury.)

● Operate the auto door switch with your hand.

● Be sure to unplug the power plug before cleaning the Auto Door.

Setting the Auto Door

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Press and hold for
three seconds or more

until the preset sound (long
beep) is heard to turn on
the

“Auto Door”

indicator

lamp.

Touch on the Control Panel to turn on the indicator lamp, press and
hold

for 3 seconds or more until the preset sound (2 beeps) is heard

to turn off the

“Auto Door”

indicator lamp.

1
2

3

Light ON

● When the Auto Door function is turned “off” , open the door with the handle.

● The Auto Door function cannot be disabled for either Auto Refrigerator Door or Auto Drawer only.

Notice

Auto Drawer switch

(Automatic)

Handle

(manual operation)

Handle

(manual operation)

Touch it

(Factory setting / At the time of setting )

51

Auto Door

Using the Auto Refrigerator Door

When touching the Open
Button for the

Auto Refrigerator

Door

, the operation sound is
heard, and then it will open
automatically.

When closing it, use the handle with your hand
to do so.
The door does not close automatically.

How to open the

Auto Door

Opening one door
on either side

Open both doors
at a time

How to operate

Touch the Open
Button of the door
to be opened

* Operate with a finger.

Slide your finger from
one edge of the Open
Button to the other.

(Doors will open in turn from the side you touch.)

Operation sound

of the Auto

Refrigerator Door

1 beep Long beep

Notice

Request

Top view of the refrigerator Top view of the refrigerator

● The Auto Refrigerator Door does not open when either the “Ice Compartment” or the “Upper Freezer” is opened to prevent hands from

being caught.

● The Auto Refrigerator Door is a function to reduce load incurred at the beginning of the opening of the door of the Refrigerator Compartment. Opening

angle of the door may vary or the door may slightly go back, depending on installation condition of the

refrigerator or how beverages or foods are

stored in the door pocket, but this is not malfunction.

● After touching the Open Button for the Auto Refrigerator Door, the operation sound may be heard when opening the door, but this is not malfunction.

● If the Open Button for the Auto Refrigerator Door is wet or dirty, it may not respond. Use a wet cloth to wipe off dirt, and then wipe it with a dry c

loth.

● If you touch the Open Button of the Auto Refrigerator Door and its neighboring part at the same time, or you touch it for about one second or more,

the Auto Refrigerator Door may not be opened automatically.

Using the Auto Drawer

Press the Auto Drawer to automatically open the drawer.

When you close it, push the handle on the right/left to close.
The door does not close automatically.

● This function is to reduce an initial load when pulling out the Auto Drawer. The Auto Drawer can be pulled out by approx. 15 cm or more. The length

may vary depending on installation conditions of the refrigerator, or the door may go back a li

ttle after the door is opened automatically, but it is

normal.

● “Lower freezer” and “vegetable compartment” cannot be electrically opened at the same time.

● When one of the “lower freezer” and “vegetable compartment” is open, the Auto Drawer function does not work.

● A sound is heard when you press the Auto Drawer switch. This is not abnormal.

● Wipe off spilled liquid and others on the Auto Drawe

r switch immediately.

Or Auto Drawer switch may fail to work, causing the door open disorderly.

Notice

52

REFRIGERATOR COMPARTMENT

Refrigerator
Compartment

Adjusting temperature in a refrigerator compartment

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to set the temperature as you like.

Each time you touch the button, the corresponding indicator lamp
changes in the order shown in the figure on the right.
The temperature is set to “■■” before shipping.

1
2

● Select “■■” in ordinary usage. The temperature may change

depending on the operation states.

● If you adjust the temperature more finely.

Pg.65

● The temperature of the Vacuum Compartment also changes if selecting

“

■■■” or “■”.

● Temperature of the door pocket is slightly higher than the one in the

figure on the right.

● If cooling is not enough during summer, select “■■■” .

● When you use “■■■” for a long time during winter, food may be

frozen. If the inside is too cool, use “■■” or “■” .

※ The above temperatures are standard values under

the
condition that the refrigerator is stable with no food
stored and the doors closed, at ambient temperatures
of approximately 30ºC, whereas the setting is “■■”
for both refrigerating chamber and freezing chamber.

Notice

About 2 〜 6˚C

(Factory setting)

About 1 〜 3˚C lower

than

“

■■

”

About 1 〜 3˚C higher

than “■■

”

Touch it Touch it Touch it

Cold Air Blowout Port

LED lamp

Height adjustable
pockets

Height adjustable upper/
middle shelf

(Glass shelf)

Height adjustable
pockets

Height adjustable lower
shelf

Double door pockets

(right)

Egg stand

Fixed shelf

Double door pockets

(left)

Pocket

(fixed)

Refrigerator Compartment
Temperature Sensor

Swing partition

● High moisture foods/canned beverages may be frozen or burst if they are placed around the Cold Ai

r Blowout Port. Place them near the front side of a

shelf or in a pocket.

● Store hot foods on the Height adjustable shelf. If it is placed near the temperature sensor, the temperature of the Refrigerator Compartment may get

too lower or dew may adhere to the panel at the back of the Refrigerator Compartment.

● Storing a bag containing bread in the Refrigerator Compartment may cause dew condensation

in the bag, which moistens the bread.

● Do not put too much force on the door by opening it too much or leaning on the opened door, which may cause damage to the door.

Request

Caution

※ Explanation is in the case of R-X670G type

53

Refrigerator Compartment

●

State in shipping

●

State in shipping

●

Storage of pans, etc.

●

Storage of pans, etc.

Mount the shelf board
at the middle level.

Turn the upside of the shelf
board down and mount it
at the upper level.

●

Storage of milk carton, etc.

●

Storage of milk carton, etc.

Mount the shelf board at
the lower level.

Turn the upside of the shelf
board down and mount it
at the lower level.

CAUTION

■ Handling the glass shelves

● Avoid a high impact on the glass shelf.

(A broken glass may cause injury)

● Be careful to attach the glass shelves because they are heavy.

■

When opening a door

●

Do not hold the swing partition to open the door.
(It may make it impossible to open the door.)

■

When closing a door

●

Do not close the door with the swing partition erected.
(It may make it impossible to close the door

completely.)

Swing partition

Swing partition

Adjust the height of a pocket/shelf

You can adjust the position of the pocket and the shelf depending on size of foods or beverages.
For how to remove/attach, see

Pg.70

.

R-X670G type, R-G670G typeR-X730G type, R-G620G type

■ Height adjustable pockets
Height adjustable upper/middle shelves

You can adjust the position of them depending on the

height of foods or beverage.

■ Height adjustable lower shelf

You can adjust them in three-stages.

54

VACUUM COMPARTMENT

Vacuum Compartment

Platinum catalyst

The platinum catalyst decomposes odor ingredients of meat or fi sh into
carbon dioxide to maintain the freshness of foods.

Vacuum Pump

Vacuum Case

(With an aluminum tray)

LED light

Brightly lights up the Vacuum
Case when a door of the
Refrigerator Compartment is
opened.

Vacuum release valve (in blue)

Raise the handle to unlock it. The
vacuum will be released by the
vacuum release valve.

Hissing sound is generated when
releasing the vacuum.

When opening/closing the door of the Vacuum Case

When opening the door When closing the door

Pull up the
handle to unlock.

Pull out the
Vacuum Case.

Push the Vacuum
Case back to the end.

Press down the
handle to lock.

1 1

2

2

Hiss

Handle

Vacuum Case

● The Vacuum Case is not

put in the vacuum state
unless the handle is
pushed down securely.

●

Closing the door
of the Refrigerator
Compartment without
locking the handle may
damage parts or food or form a clearance between the
doors, which reduces cooling performance.

● The vacuum pump is activated when the door of the

Refrigerator Compartment is closed, with the Vacuum
Case clo

sed and the handle locked.

● Sound is heard when the vacuum pump starts. This is a

normal operation.

●

It takes about three to four minutes for the Vacuum Case
to be vacuumed after the vacuum pump starts to operate.
The hissing sound may not be heard when the Vacuum
Case is opened within
four minutes.

● If you pull out the

Vacuum Case without
opening the door on the
left/right, it may cause
damage to

parts.

● The hissing sound indicates that

vacuum is being released. Thus,
the Vacuum Case cannot be drawn
out while the sound is heard. Draw
it out after the sound is no longer
heard.

Notice

Notice

Notice

● The platinum catalyst needs no replacement. Do not remove it.

●

Do not overfi ll the Vacuum Compartment with food or
containers.

Doing so may make it diffi cult to draw out the Vacuum Case.

●

If you close the Refrigerator Compartment door with the
Vacuum Case opened, parts or foods may be damaged.

Request

Request

Handle

55

Vacuum Compartment

Change the settings of the Vacuum Compartment

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to change the settings as you like.

The display switches in sequence as shown below every time the button is touched.
The temperature is set to “-1˚C (Subzero)” before shipping.

1
2

※ The above values are obtained with an ambient temperature of 30˚C, the temperature in the Vacuum compartment in a stable state with no

food stored and no door opened.

Settings and food stored

The following foods should be stored at “-1˚C (Subzero)” setting.

The following foods should be stored at “+1˚C (Chiller)” setting.

This setting is also suited for thawing. Foods high in water content may
freeze.

The vacuum function is disabled. This setting is recommended to
store food in “sealed bags” or “sealed plastic containers” , which
requires caution in storing. Foods with a high water conten

t may

freeze because this is an ice-temperature compartment.

Vienna sausage, sliced cheese etc.

Eggplant Cucumber

● Food contained in a sealed bag

A bag containing food may inflate and
crush other food.

●

Vegetable sensitive to low temperature

The surface of the vegetable may deteriorate
due to low temperature. Store it in the
Vegetable Compartment.

Okra, asparagus, ginger, and green pepper

● Plastic airtight container

The lid of the container may become loose
or may not stay in place during storage. Be
careful when you take out the container.

●

Meat, processed meat●Fish, seafood, boiled fish paste

Food and container for which care

needs to be taken during storage

Food which are not suitable for storage

Caution

Caution

-1˚C

(Subzero)

(About -1˚C)

+1˚C

(Chiller)

(About +1˚C)

Off

(Vacuum off)

(About -1˚C)

● The vacuum effect will not be changed even if foods are wrapped. If you are concerned about the transfer of smell, be sure to

wrap the food.

● Foods high in water content may freeze if ambient temperature is low.

● When putting together food materials that should be stored at subzero and chiller temperatures, set the temperature to “+1˚C”

to prevent freezing.

● The temperatures of the Vacuum Compa

rtments also change if the temperature of Refrigerator/Freezer Compartment is set to

“

■■■” or “■”.

● Dew and/or frost may be formed in the sealed Vacuum Compartment due to moisture

contained in food or in the air. Soak a soft cloth in lukewarm water and wipe off the dew and/
or frost with the cloth. (Attached dew, frost or ice does not reduce performance.)

● If you want to avoid dew, frost or ice, sto

red food should be wrapped with plastic wrap.

● Wipe water or soup spilled in the compartment soon, if any.

Notice

Caution

Request

Dew, frost or ice

Touch it

Cheese etc. Tofu, konnyaku, deep-fried tofu,

string konnyaku, boiled eggs etc.

Coffee beans, tea leaves etc.Precut vegetables or fruits

● Dairy products

● Precut vegetables and fruits ● Others

● Food which form air

bubbles inside if frozen

-1˚C (About -1˚C)
(Factory setting)

+1˚C (About +1˚C) Non-vacuum (About -1˚C)

●

The “Off” indicator lamp continues to be lit during the“Off”operation. The display will be turned off

after about 40 seconds for energy saving, but the function that is set once will remain effective.

Caution

Vacuum OFF

Vacuum Vacuum

56

ICE COMPARTMENT

(AUTOMATIC ICE MAKER)

Ice Compartment

Control Panel

Water Supply
Container

(Approx. 1.0 L)

Ice Making buttons

AUTOMATIC ICE MAKER

Ice Case

Display

Ice
Making
button

“

Water Supply” indicator lamp

Ice Compartment

How to make Ice

Touch button on the Control
Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are
displayed.

Touch button to turn
on “On” indicator lamp.

The “On” mode is set to “On” (light on)
before shipping.

1

2

It may take longer time to make ice in the following cases:

・ It is used for the first time (it may take 24 hours or more).
・ It is set to the “Energy Saving” mode.
・ The door is opened/closed frequently.
・ Large volume of foods is stored in the refrigerator at a time.
・ In case of power outage.
・ With the low ambient temperature in winter, etc.
・ After the ice tray is cleaned.
・ When the door of the Freezer Compa

rtment / Ice Compartment is

not closed completely.

・

When the temperature of the Freezer Compartment is set to “■

”.

・

When something hot is stored in the Small Article Case (for only R-X730G type

).

Notice

Touch it

Ice scoop

Container-full line

Container­full line

Ice Storage Space

Small Article
Case

Replace the Water
Supply Container.

Push it straight beyond the “Container
set position” line completely.
Water will not be supplied until the water supply container is
pushed to the end.
※ Water may spill out if the water supply container is

inclined. Wipe off spilled water immediately.

Ice-Making starts automatically.

● Ice cubes are stored in the Ice Case.

●

12 pieces of ice cubes are made by one ice-making operation.

● When ice cubes reach the Container-full line, the

automatic ice-making function is suspended. The function
automatically resumes when ice gets low.

● When the Ice Case contains no ice cube, you may hear a

large sound when ice cubes fall from the Ice Tray.

Open the lid and add water.

Water level can not exceed “Container-full line”.
※ Do not pour water into it beyond

the full water

line.

Lid

Container-full line

Container set position

5

6

4

Perform “Ice Maker Cleaning” when making ice for the first time or for the first time in a week or more.

Pg.68

Add water line

Take off the Water Supply Container.

When the “Water” indicator lamp is
lit or the water level reaches to the
“

Add water line”, replenish water.

3

Ice Tray

R-X730G type

Add water line

Tea

JUICE

MINERAL

WATER

●

Do not use the following ones because they may cause malfunction,
deformation or sticking ice.

Mineral water

(Hardness: 100mg/L or less)

Juice drink Sports drink Carbonated drink Tea

Filtered water or

boiled water

Well water

(Required to satisfy the appropriate

water quality standard)

Request

● WARNING: fill with potable water only.

●

Water for ice making is according to your drinking standard. Quality
of tap water may vary in different countries. Please check and verify
with your local authority.

● Change water and clean the container at least once a week for

hygiene purposes.

Pg.69

● If the ice made of mineral water containing a lot of mineral

ingredients is put into water, white powder may come out,
however this is due to those mineral ingredients and harmless.

●

Furthermore, these types of water are easily contaminated with bacteria.

Please wash the container usually once 3 days.

R-X670G type
R-G670G type
R-G620G type

57

Ice Compartment (Automatic Ice Maker)

● “Off” indicator continues to be lit during the “Off”

operation.

Notice

Quick Ice Making Stop Ice Making

Touch button on the Control
Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control
Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn
on

“

Quic

k” indicator lamp.

Ice cubes are made in a shorter time than
that of “On” operation.

12 ice cubes are made by one ice-making
operation.

“

Quick” operation ends automatically in about 7 hours, and it is

changed to “On” mode.

Touch button to turn
on

“

Off

”

indicator lamp.

Stop the Automatic Ice Maker and
make no ice.

※ If you set to “Off” for 1 week or more,

maintain the Automatic Ice Maker.

Pg.68, 69

1 1

2 2

Touch it Touch it

Model

R-X730G type, R-X670G type
R-G670G type, R-G620G type

Stored ice
amount

Normal operation

About 90 pcs

Ice is leveled

About 150 pcs

Time for one­time ice making
(12 cubes)

Normal “On

”

About 110 minutes 〜 140 minutes

“

Quick

”

About 80 minutes

※ The above values are obtained with an ambient temperature of 30˚C, the temperature in

each compartment set to “■■” and no door opened/closed.

Stored foods

Refrigerants or ice bars

Ice scoopFrozen food

Detecting LeverDetecting Lever

Is any frozen food stored in the
inner part of the Ice case?

Is the Ice scoop placed in a
given place?

Control Panel

● “Water” indicator lamp turns off once (for up to 3 hours) when the left door of the Refrigerator

Compartment is opened and closed while the indicator lamp is on, and it turns on again if no water
is

added to replenish the container.

● “Water” indicator lamp remains off when “Off” is selected for automatic ice making.

● Limit line of stored ice amount represents the guide line

of stored ice amount when the Automatic Ice Maker
makes ice with ice leveled. If the ice is stored partially,
the detecting lever may contact the ice early. As a
result, the Automatic Ice Maker may stop making ice
before

the amount of stored ice is enough.

● When putting something hot, ice in the Ice Storage Space may melt or ice-making

may take a long time.

● Ice cream may be soft due to indirect cooling.

● Be sure to close the lid. Do not put an object which is too large to close the lid.

●

Gently open and close the door of the Ice Compartment,
otherwise ice may fall out of the ice case onto the lower freezer.

● Do not put frozen food other than the ice cubes made by the

Automatic Ice Maker in Ice Storage Space. (Doing so may prevent
ice-making, damage parts or bring a part of the ice maker into
contact with food, which may prevent the opening of the door.)

●

“

Water” may come on regardless of water level if the water supply container is not placed properly.

Push in the container straight and completely if the

indicator lamp comes on.

Notice

Notice

Notice

Request

Request

Caution

Water Supply indicator

Stored ice amount and ice-making time

When the “On” indicator lamp blinks

“

Water” indicator lamp comes on when water in the water supply container is getting low. Replenish the container with water.

While the “Water” indicator lamp is on, the Ice Making function doesn’t work even if the “On” and

“Quick”

is set.

The ice tray may come into contact with foods within the Ice Case.

Empty the Ice Case once, and then start the “Ice Maker Cleaning”.

Pg.68

Light ON

Blinking

Small Article Case

(for R-X730G type only)

● “Quick” indicator continues to be lit during the “Quick”

operation. The [ “eco” operation indicator lamp] is not
turned on.

Notice

58

FREEZER COMPARTMENT

Upper Freezer

Lower Freezer

Slimline slide case

(with an aluminum tray)

Delicious Freezing Space

Slide Case

Tall Storage Compartment

Partition

Lower freezer case

● Do not store any 500ml PET bottle in the Slimline slide case. It may not

be taken out because it expands when it is frozen.

● Do not use with the slimline slide case and/or slide case removed.

Food may drop to the inner part of the case, and as a result, the door
may not close completely.

● When storing tall food in the tall storage Compartment, make sure that

it does not contact with the Slimline

Slide Case and/or the Slide Case.

● Store only food which can be frozen such as PET bottle which can be

stored in freezer.

(Front)

Slimline slide case

Upper freezer
compartment
door

Lower freezer
compartment
door

Slide Case

Using the Upper Freezer Using the Lower Freezer

Caution on how to store foods

Adjust the temperature of the freezer compartment

Guideline for height

Stored foodsStored foods

Slimline slide
case

Small-item and frozen food, etc.

Delicious

Freezing Space

Slide Case

Freezing bag andairtight container etc.

Lower freezer
case

Frozen food and bread, ice cream etc.

Tall Storage

Compartment

Upper Freezer
case

Freezing bag, airtight container, etc.
Space for small-item and frozen food, etc.

Use it to keep daily foods or partially used food.

3-layer freezer case provides you with large
storage space compartment and convenient
reach of your freeze food items.

It is suitable for storing the food preserved for a long time and the food that melt
easily such as ice cream.

Store foods properly depending on the
height of them.

Otherwise the door may not be closed completely, which leads to inefficient
cooling action, and also may cause damage to the food or cases.
Keep the food off from bottom of the upper slimline case and/or the slide case.

Touch button on the Control
Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to set the
temperature as you like.

Each time you touch the button, the corresponding indicator
lamp changes in the figure on the right:
The temperature is set to “■■” before shipping.

●

Select “■■” in ordinary usage. The temperature may change depending on

the operation states.

●

If you adjust the temperature more finely.

Pg.65

●

The “■■■” setting of the Freezer Compartment (lower temperature freezing)
consumes more energy than the

“

■■” setting by approximately 20%.

●

If operating the refrigerator for a long time with the Freezer Compartment “■■■”
selected, ice cream etc. may become hard or it may take a longer time to thaw food.

●

If the temperature of the Freezer Compartment is changed, the temperature of
the Ice Comp

artment changes.

1
2

※

The above temperatures are provided as a guide when the inside temperatures are stabilized at the
ambient temperature of 30˚C under the conditions that: The temperatures of the Refrigerator and
Freezer Compartments are set to “■■” and the doors are closed without storing food.

About -20 〜 -18˚C

(Factory setting)

About 2 〜 4˚C

lower than

“

■■

”

(Lower temperature freezing)

About 2 〜 4˚C

higher than

“

■■

”

Notice

PET bottle for freezing, etc.

When you want to freeze meat,
fish or rice quickly

Upper Freezer case

Up to the upper limit line

Slimline slide case

Up to 5cm in height

Slide case

The top line of the case

Lower freezer case

The top line of the case

up to the
height of

23.5 cm

Tall Storage Compartment

Touch it Touch it Touch it

●

Do not remove the Slimline slide case and the partition.

● Don't put foods beyond the upper limit line.

Caution

Caution

Upper Freezer case

Upper limit line

59

Freezer Compartment

Delicious Freezing Space

Using the Delicious Freezing

● Although the indicator goes off about 40 seconds for energy savings, the

setting is valid until it is cancelled.

● Depending on the usage of the Delicious Freezing Space, more power may

be consumed when Delicious Freezing is enabled than when disabled.

The operation will end automatically in about 120 minutes, and “Freezer” indicator lamp
will be turned off.

Notice

Setting the Delicious Freezing

When you want to freeze food quickly

(Quick Freezing)

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Press and hold for three seconds or more until the
preset sound (long beep) is heard to turn on the “Delicious

Frz” indicator lamp.

Touch button to turn on the “Freezer” indicator lamp.

During “Freezer” mode, “Freezer” indicator lamp is kept ON. [ “eco” Operation indicator lamp] is turned off.

Touch on the Control Panel to turn on the indicator lamp. Press and hold the

for three seconds or more until the preset sound (2 beeps) is heard to turn off

the “Delicious Frz” indicator lamp.

Touch

button on the Control Panel to turn on the indicator lamp, and touch

button to turn off “Freezer

”

indicator lamp.

1

1

2

2

Cancel

To cancel it

● Freezer compartment is cooled preferentially in the

“

Freezer

”

operation. For that reason, temperature of the Refrigerator Compartment may rise if the

Refrigerator Compartment door is opend/closed frequently.

● Touching button again within 60 minutes after the end of the “Freezer” operation, the lamp is illuminated, but the “Freezer” operation does

not start. The operation will start after 60 minutes pass.

● Be sure to wrap a food item with food plastic film or put it in a freezing bag to prevent it from sticking to the aluminum tray.

● When selecting the “Freezer” while the “Delicious Frz” is selected, the “Freeze

r” operation takes precedence. After the end of the “Freezer”

operation, the “Delicious Frz” function is also left enabled.

● More power is consumed during the “Freezer” operation than during the normal operation.

● Put food items on the aluminum tray such that they are in a close contact with it, instead of placing

them on the top of each other.

● Hot rice etc. can be frozen while it is still hot.

Placing a hot food in the refrigerator may burn your fingers.

It is recommended that you should cool it down to a temperature that allows you to hold it with your hand.

Notice

Notice

Just by placing a food item in the Delicious Freezing Space, the sensor detects it and
automatically toggles to the cooling operation. It can freeze food more quickly, boosted by
the effect of the aluminum tray.

Wrap a food item with food plastic film or put it in a freezing bag and then place it on the aluminum tray.
Dividing a food item into small lumps and flattening them allows the cen

ter of each lump to be frozen

quickly and facilitates the taking-out of the frozen food.

You can enable or disable the Delicious Freezing function. The function is enabled when shipped from the factory.

When you want to freeze a lot of food that you have bought at a time quickly, enhance the ability to cool the Freezer Compartment.

Factory setting

At the time of setting

Touch it

Touch it

60

● Do not pile up foods higher than the storage space.

 ・The door may not be closed securely, which leads to ineffi cient cooling. It may also damage food, the case and the Moisture Cover.
・Storing a tall food in the Lower Space may prevent the closing of the Upper Case.
・

Do not use the refrigerator with the Upper Case removed. Doing so may cause food to drop into the rear of the case, which may prevent the closing of the door.

● Do not stuff foods or drinks into each space.

・Some PET bottle can’t be stored, depending on its type.

・The partition, the cases or the Moisture Cover may be damaged.

VEGETABLE COMPARTMENT

Vegetable Compartment

Stored foods

●

In the Upper space, Lower space, or Tall Storage Compartment, the state of preservation may vary due to the amount, variety, or
freshness of stored vegetables.

●

Since the Vegetable Compartment is highly humid, dew may be condensed on the surface of the case and the Moisture Unit and Cover.

●

The Tall Storage Compartment may have temperature slightly higher than that of other spaces.

Notice

Upper space

Unfi nished vegetables, small vegetables, fruits, etc.

Tall Storage Compartment

Tall vegetables, 2L PET bottle, etc.

Lower space

Leaf vegetables (spinach, Japanese Mustard Spinach etc.), large vegetables (cabbage, lettuce), etc.

● Since the Vegetable Compartment is highly humid, dew may be condensed on the Upper and Lower Cases and the surface of

vegetables, depending on the volume or type of vegetables, but it is normal. Water pool, if any, is likely to damage food, so wipe it
off with a soft cloth.

●

If the moisture unit is blocked by a bag or container of foods, dew is formed easily. Move out the bag or container of foods from there

.

● If you feel uneasy about dew condensation, wrap the foods.

● When storing dried foods such as rice, laver and others in the Vegetable Compartment, put them in a sealed container (bag) and

then place them in the Vegetable Compartment. Dried foods may absorb the moisture.

● When the Vegetable Compartment contains a small quantity of vegetables, high humidity cannot be maintained. Wrap a veg

etable

with plastic food wrap before storing it in the refrigerator.

Request

Caution on how to store foods

Guideline for height

Vegetable Compartment Vegetable Compartment Vegetable Compartment

Moisture Cover

(Front) (Front) (Front)

Upper space

Lower space Tall Storage Compartment

Height of
stored food

Height of
stored food

Height of
stored food

Moisture Cover Moisture Cover

Moisture unit

※ Do not remove it.

Upper Case

Lower case

Locking handle

(Containing platinum catalyst)
※ Do not remove it.

Platinum catalyst

The platinum catalyst decomposes odor ingredients of meat or fi sh and/or
ethylene gas from vegetables into carbon dioxide to maintain
the freshness of foods.

Moisture Cover

※ Do not remove it.

● If you move the Moisture Cover forcedly, the Cover may be damaged or you may be injured.

Notice

Partition

※ Do not remove it.

(only for R-X730G type)

Partition

※ Do not remove it.

Tall Storage Compartment Upper space

Partition Lower space

Door of the Vegetable Compartment

61

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on “Veg”.

Food is cooled at temperatures lower than usual (Normally, approx.4˚C to 8˚C, → “Veg”: 2˚C to 6˚C)
※ The above temperatures are provided as a guide when the inside temperatures are stabilized at the ambient

temperature of 30˚C under the conditions that: The temperatures of the Refrigerator and Freezer Compartments
are set to

“■■”

and the doors are closed without storing food.

1
2

Touch button on the Control Panel to turn on the indicator lamp, and then touch

button to turn off the “Veg” indicator lamp.

To cancel it

● If foods are kept in the “Veg” for a long time, vegetables high in water content may freeze. Release the setting of “Veg”.

● You cannot set both “Veg” and “Freezer” concurrently.

If it is switched to “Freezer” mode during the “Veg” mode, it will not return to the “Veg” mode by itself after “Freezer” is ended automatically. Set it
to the “Veg” again.

● When setting “Energy Saving” mode during the

“

Veg” mode, the cooling function is shifted to weaker cooling effects from the “Veg”.

Pg.62

● When the ambient temperature is low, the temperature in the case may be lower.

● If vegetables sensitive to low temperature such as eggplant and cucumber, etc. are stored with the

setting “Veg”, they may have pits on the surface or get discolored. In that case, release the setting
of “Veg”.

● While it is set to “Veg” , there may be more dew condensation in the Vegetable Compartment. If it

is unde

sirable that dew adheres to the stored vegetables, release the setting of “Veg”.

Notice

Request

Touch it

Vegetable Compartment

To cool it more [Vegetable Compartment (MAX)]

Eggplant Cucumber

Vegetable sensitive to low temperature

Okra, asparagus, ginger, and green pepper

● For energy saving, the display will be turned off after about 40 seconds, but the setting remains active until it is released.

Meanwhile, note that while the “Veg” setting is on, the [ “eco” Operation indicator lamp] does not turn on.

Caution

62

If [“eco” Operation indicator lamp] isn’t illuminated, check the following things.

・ Immediately after it is installed, or plentiful foods are stored at a time
・ If the door is frequently opened / closed (when the [Door Open & Close indicator lamp] is lit)
・ If the door is not closed completely because some food/bag is wedged between the door and the body of the refrigerator.
・ “Freezer”, “Quick” or

“

Veg” is set.

・ The ambient temperature of the refrigerator is about 35˚C or higher.

VARIOUS FUNCTIONS

Setting “Energy Saving” mode

Setting the “Energy Saving” mode reduces the ability to cool each compartment for energy savings.

Likewise, when the door of the Vegetable Compartment is left open for 30 seconds or more, the LED light in the compartment has reduced brightness for
energy savings.
If a door is not opened or closed for a long time,

the inside is cooled down slowly to further reduce power consumption.

“

eco” Operation in

dicator lamp

Door Open & Close indicator lamp

●

Automatic temperature control lowers cooling loads, which may cause ice cream to get soft and frost to form on frozen food.
It also requires longer freezing time and ice making time.

●

The

“Save”

indicator lamp is turned on during the “Energy Saving” mode.

●

When

“Quick”

,

“Freezer”

is set in the Energy Saving mode, the Energy Saving mode is temporarily cancelled, and restored after the completion of

the quic

k operation.

● When both “Save” and “Veg” modes are set concurrently, the cooling function will be weakened from the “Veg”.

Pg.61

● When the temperature of the “Freezer Compartment” and/or “Refrigerator Compartment” is set to “■” , the minimum level of cooling is not reduced

to maintain the freshness of foods.

Notice

During energy saving operation, as in Frost Recycling Cooling, [ “eco” Operation indicator
lamp]

is automatically turned ON to indicate the energy saving operation.
Open or close a door less frequently and quickly. Use this indicator wisely to save energy
efficiently.

When a door is opened or closed frequently, the [Door Open & Close indicator lamp]

is automatically lit.
Open or close the door less frequently and quickly. Use this indicator wisely to save
energy efficiently.

“

eco” Operation

indicator lamp

・The [Door Open & Close indicator lamp] is turned off automatically after about 5 minutes.
・The [ “eco” Operation indicator lamp] remains unlit when the [Door Open & Close indicator lamp] is lit.

Notice

Notice

[Door Open & Close

indicator lamp]

Touch button to turn on the “Save” indicator lamp.

The Energy Saving mode is set to “Off” (lamp off) before shipping.

Touch button on the Control Panel to turn on the indicator lamp,
and touch

button to turn off “Save

”

indicator lamp.

Touch

button on the Control Panel to turn on the

indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

1

2

(Factory setting) (At the time of setting)

Touch it

Cancel

63

Various Functions

Door Alarm and volume adjustment of the operation sound

Locking the Control Panel

Touch button on the Control Panel to turn
on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn
on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Press down button for 3 seconds or more
until the preset sound is heard.

The volume level of the operation sound is changed from “Standard” to “Louder”
or “Sound off”. Repeat the change of settings to set the operation sound you like
(see the table shown below). The sound is set to “Standard” before shipping.

Press down button for 3 seconds or more
until the preset sound is heard.

Lock of the Control Panel is changed to “On” or “Off”.
The locking of the Control Panel is factory-set to “OFF” (

“

”

is unlit).

1

1

2

2

● It is impossible to adjust the volume level of

either door alarm or operation sound only.

● When the Door Alarm is disabled, characters

on the Control Panel no longer blink.

● Even if the volume level is set to “Sound off” ,

the alarm of the Ice Maker Cleaning is raised
and the operation sound is heard when the
Auto Door is set to “ON”.

● When connecting/disconnecting the power

plug or after recove

ring from electric power
failure, it will return to the standard setting
where the Door Alarm sounds.

●

The Auto Door function will not be disabled
even when the Control Panel is locked.

In order to stop Auto Door function, unlock
the Control Panel, and touch the

button

for 3 seconds or more until it beeps twice.

Pg.50, 51

● When connecting/disconnecting the power

plug or after recovering from electric power
failure, lock of the panel for operation may
be released.

Notice

Notice

You can set the sound level of the alarm louder or no alarm sound.

Disenabling operations can prevent erroneous operations or misuse by children.
When this indicator lamp

(Lock of the Control Panel) is illuminated, any other portion of the Control Panel will

not be activated by touching it.

Setting of the Control Panel's lock

“On”

(locked)

“

Off

”

(unlocked)

“

indicator lamp

”

On Off

Preset sound

Long beep 2 beeps

Door Alarm

If any door is kept opened for 1 minute or more, it is notified with sound or light.

For R-G670G type, R-G620G type, no Door Alarm is installed in the Upper Freezer.

● Door alarm is also raised when a door is left open for 30 seconds or more in the energy saving mode. The Display Section starts to blink after one

minute from the opening.

● While the indicator lamp is blinking on the display area, the

Control Panel remains inactive upon touching.

Volume level

Standard Louder Sound off Standard

Preset sound

−

2 long beeps Long beep 2 beeps

(Factory setting)

Duration when door is open

1 minute 2 minutes From 3 minutes onward

Alarm sound

Long beep (3 beeps) Long beep (5 beeps)

Long beep (continuously), Louder

Display area

Blinking Blinking Blinking

For operation

Light ON Light ON Light ON

64

VARIOUS FUNCTIONS

(CONTINUED)

Set the condensation prevention heater to MIN.

(Swing partition)

Setting the condensation prevention heater to MIN saves energy.

When dew is formed in the swing partition, set it to the standard.
The temperature settings for the swing partition can be adjusted by three levels (1 to 2), and level 2 is the most energy
saving.

Setting the swing partition

Open the door of the Lower Freezer Compartment.

Touch

button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Close the door of the Lower Freezer Compartment.

Press down

button for 3 seconds or more until the preset sound is heard.

The setting of MIN level of the dew condensation prevention heater will be switched on.
Repeat the above-stated operation to set it to the level you prefer (see the table above).

1
2

4

3

Swing partition

● The setting will be returned to the standard when the power plug is disconnected and connected or power failure recovery takes place.

Notice

MIN setting of the heater

Standard

MIN setting

level 1

MIN setting

level 2

Standard

Preset sound

−

Long beep Long beep (2 beeps) 2 beeps

(Factory setting)

65

Various Functions

(Continued)

Fine adjustment of the temperature

(Refrigerator Compartment / Freezer Compartment)

Temperature settings for Refrigerator and Freezer Compartments can be more finely adjusted by 11 levels.

Open the door of the Lower Freezer Compartment.

Touch

button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Close the door of the Lower Freezer Compartment.

Follow the operations shown in Step 1, 2, 3 and 4.

2 beeps sound and you can set the temperature by normal step (3 levels).

Press down button for 5 seconds or more until 1 beep is heard.

Touch

or button to make an adjustment.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below.
Usually it is recommended to use it at the setting of “■■” .

1

5

2

4

To cancel

3

Triple Power Deodorizing Effect

A combination of 3 types of deodorizing materials leads to deodorizing various odorous substances in the
refrigerator including 4 major odors such as sulfur, nitrogen, aldehyde and oxidization odors. Activities of bacteria
collected by the filter are also restricted.
Deodorant filter has the effect of sterile filtration.

● Testing laboratory: Boken Quality Evaluation Institute, a general incorporate foundation ● Test method: Film contacting method (JIS Z 2801)

● Name of the part used for treatment: Filter ● Sterilization method: applying oxidation catalyst to the filter ● Target: bacteria collected by the filter

● Test result: sterilization effect of 99 % after 24 hours by using a filter only. This does not always have effect on the entire refrigerator or foods.

Indication

lamp

Setting

MIN and

under

MIN MID.

MAX

MAX and

more

( Lighting Blinking Turned off)

66

MAINTENANCE

● Make sure to unplug the power plug when maintaining the refrigerator.

Warning

■ When dirt is found

● Wipe off it immediately. It is recommended to clean the hidden places once a year.

Vacuum Container

Vacuum Compartment

Gasket seat

Power plug

Once or twice a year

Vacuum Compartment

Once a month

The back/floor of the refrigerator

Once or twice a year

Unplug the power cord from the outlet.

If the dust on the power plug remains not
cleaned, it may cause a fire.

Pull out the Vacuum Case.

For how to remove,

Pg.70

Be sure to remove foods contained in the Vacuum Case.

Check the following matters.

・ Is any damage found on the power cord?
・ Does the power plug become hot?

※

If there is any abnormality, please consult with your dealer about it.

Wipe off following parts with a soft cloth
which is steeped in lukewarm water.

※ Do not use the detergents, etc.

Attach the Vacuum Case.

For how to attach,

Pg.70

Pull the leg cover and
remove it.

Push it in from the front when installing it.

Remove the vacuum compartment gasket
from the Vacuum Case.

Grasp the tab of the vacuum
compartment gasket on the
observer’s upper right and
remove it by hand carefully.

When the Vacuum Compartment Gasket is dirt

Float the Adjustable
mounts from the
floor and draw the
refrigerator straight.

Lay the protection board etc. on
t

he floor which can be easily scratched.

Connect the power plug
firmly to a power outlet.

Remove the dust and
wipe it with a dry cloth.

Wipe off dirt on the back of
the refrigerator, duct on the
side, wall and floor.

The back of the refrigerator easily becomes
dirty because fine dust is accumulated on it by convection of air.

Wipe off excess moisture with a dry
cloth and dry it out naturally.

Attach the vacuum compartment gasket.

Align the tab to the notch accurately, and then combine
them together.

Wipe off dirt in the vacuum
compartment gasket
mounting groove.

Rinse dirty portion in water using a soft sponge, etc.

※ Do not use the detergents, etc.

1

1

1

1

2

2

3

2

2

4

3

3

3

5

4

Lift up the
adjustable mount
by turning it
anticlockwise.

Duct on the side

Tab

Groove for attaching the vacuum compartment gasket.

Notch of the groove

Tab

Aluminum Tray

Vacuum compartment gasket

Loosened vacuum compartment gasket or loose-fitting door of the
Vacuum Case may cause the vacuum state unable to keep well.

●

Wipe the ceiling of the compartment (platinum catalyst
and LED light) gently. Failing to do so may cause damage.

●

If detergents and others except lukewarm water are used
to clean the vacuum compartment gasket, the vacuum
compartment gasket

may be damaged, deformed or change in

color, which may cause the vacuum state unable to keep well.

Request

67

Maintenance

● Make sure that water never splash to the Auto Drawer unit. Otherwise, it may cause malfunction.

● Do not disassemble the Auto Drawer unit. Otherwise, it may cause injury and/or malfunction.

● Exercise caution not to move the linkage section. Failing to do so may cause a failure.

Caution

Auto Drawer

Clean the auto door unit when food falls onto or is caught in the upper part of the auto door unit and when liquid is deposited on the auto door unit.

Unplug the power plug.

Remove each case of the Lower Freezer or the
Vegetable Compartment.

Pg.71

Remove all foods which drop or are caught in.

Wipe off deposited liquid using a soft and dry cloth.

1
2

3
4

● Make sure to disconnect the power plug from

the power outlet before starting maintenance to
avoid injury.

Warning

Auto Drawer Unit

Linkage section

Door gaskets

Once a month

Surface of door

Once a month

Liquid receivers

Once a month

Wipe the surface of door using a soft cloth wet by
lukewarm water, and then wipe off water with a
dry cloth.
Remaining adhesives on glass surfaces, if any, can
be removed clearly by using a plastic eraser to rub
it and then wiping it off with a dry cloth.

Wipe it thoroughly because it can easily
become dirty.

Wipe them off if liquid collects and/or they
become dirty.

Liquid receivers

● Do not use the following items because it may cause damage and discoloration of the door, paintwork, plastic parts and glass surface
・

Alkaline and alkalescence detergent for kitchen, plate powder, powder soap, oil, hot water, scrubbing brush, acid, benzine, thinner, alcohol, and bleach, etc.

● When using a chemical dustcloth, follow its instructions.

● Make sure to wipe off spilled cooking oil, citrus fruits juic

e and food soup, because it may cause damage and discoloration of the door, paint work

and plastic parts.

● Do not wipe off lubricant applied to movable contact surfaces of cases and rails for the slide door.

● When a magnet or suction cup is attached on the side surface of the body or the surface of a door, it may leave some mark.

● When unplugging the power plug, the settings of the Control Panel m

ay be released. So check the settings.

Caution

Each shelf/pocket/case

Once per three months

Use a soft cloth wet by lukewarm water to wipe off.
For how to remove

Pg.70, 71

●

When the lower case of the Vegetable Compartment is
washed with water, turn it upside down to drain water,
and then wipe off water with a dry cloth. Don’t use
thick-pile toothbrush or scrubbing brush to wash. It
may cause damage to case or moisture unit.

Request

68

MAINTENANCE

(CONTINUED)

● Do not place your hand in the mechanical section

of the automatic ice maker.

(Rotation of the ice tray may cause injury.)

Warning

Ice Maker Cleaning

When using for the first time

When not used for more than one week

Be sure to check the followings before

starting the operation.

Go to the next step after checking them.

Close all the doors.

Preparation

1

Water supply container

・

Water is filled in it up to the limit line.

・ It is set correctly beyond the tank

set position line.

Ice case

・If there remains ice, remove it.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Hold down button for 5 seconds or more until the alarm
sounds.

When the 3 indicator lamps “Quick” , “On” and “Off” start to blink and alarm starts to sound, stop holding the
button.
“

Ice Maker Cleaning” starts (for about 4 minutes).

・ The indicator lamp will flash and the buzzer will sound for about 4 minutes.
・ “Ice Maker Cleaning” can’ t be interrupted.
・ If you open any of the refrigerator doors during Ice Ma

ker Cleaning, the cleaning may not work properly. Do

not open or close the door until cleaning is completed.

・Door alarm sounds even if alarm is disabled.

Pg.63

Place a clean towel, etc. on the bottom in
the Ice Case so that the cutout of the Ice
Case can be blocked after the alarm and
blinking of the indicator lamp end.

Place a water-absorbing towel on the bottom in the Ice Case to
prevent trapped water during the ice maker cleaning from spilling out
of the cutout of the Ice Case.

Wipe off water inside the Ice Case completely, and then set
it to the Ice Co

mpartment.

Remove the towel with which you have wiped off water.
There is no problem with using water remaining in the water supply container, if any.
After “Ice Maker Cleaning” , it is set to “On” mode, etc.

2

3

4

5

Touch it

11-4

It blinks

Wash the Ice Tray or water paths with water.

Cutout

Cutout

Towel Towel

R-X730G type

R-X670G type, R-G670G type, R-G620G type

69

Maintenance

(Continued)

Water supply container

Once a week

Ice tray

Once or twice a year

Remove the water
supply container,
and then the lid.

Take up the near side of the lid
toward in the direction of the
arrow, and then remove it.

Remove the gasket from
the lid and then the case.

Turn the case and remove it from the lid.

Remove the water filter
from the case.

Pinch the tab of the water filter with
fingers to unset it from the fork, and
then remove the case.

Rinse each part of the water supply
container in water.

Wash it with a soft wash sponge etc.
Do not use the detergents etc.

Attach each part to the water supply
container, pour water
in and then set it.

Insert the lid from its rear side and
close it in the direction of the arrow.

Touch button on the Control
Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are
displayed.

Open the door of the Ice Compartment,
and take out the ice tray.

Push the level laterally. draw the frame.
Raise the cover ( ▲ part) in the direction of the arrow.
Remove the ice tray from the frame.

Empty the ice tray and wash
it lightly in the stream.

Do not use a sponge / cleanser, etc.
Be sure not to scarify.

Open the Ice Compartment, and then
attach the ice tray.

Set the ice tray
Hold down the cover to the end until it snaps.
Push the frame to the end until it snaps.

Move the frame back and forth to check that it is fixed
securely.

Touch button on the Control Panel to turn
on the indicator lamp, and then touch

button to turn on the “On” indicator lamp.

Automatic Ice Making starts.

Touch button to turn
on

“

Off

”

indicator lamp.

It stops water supply to the ice tray.
※ When “Off” indicator lamp blinks,

wait for about 1 minute for it to turn
on, and then follow the next steps.

Note that the frame cannot be pulled out.

1 1

3

4

5

6

2

3

4

5

2

Gasket

Lid

Case

Water filter

Water supply

container

Tab

●

Dechlorinated water such as mineral water, well water, filtered water,
cooled boiled water and others tends to cause water stain / slime compared
with tap water. So it is recommended to maintain once every 3 days.

●

When the Ice Maker is not used for more than 1 week, dry out the water
supply container, and then set it in place (dry out the water filter, among
others).
When not used for more than 1

week, it is recommended to start Ice

Maker Cleaning before use.

Pg.68

●

When the frame for the ice tray cannot be pushed into the back,
the motor that drives the ice-tray may have operated. Remove
the ice tray once and then push the frame alone into the back,
and then touch

button with all the doors closed to turn
on “Off” . After 1 minute, the ice-tray driving motor gets ready,
allowing you to mount the ice-tray.

Notice

Notice

Ice tray

Cover

Frame

Lever

Click

Click

Touch it

Fork

● Dry out the water filter to prevent molds and guck.

● Replace the water filter normally every 3 - 4 years.

Pg.77

Request

Notice

Slide

70

● Before removing parts, take out all the foods on the parts.

● Do not remove parts except the ones listed here.

Please contact with a Hitachi customer service centre for cleaning such parts after removing them.

HOW TO REMOVE/ATTACH PARTS

Caution

Height adjustable upper and middle shelf

When installing the shelf, slide it until it reaches to the interior wall, then slightly lift up
the back of the shelf and push it in.
(hitch the forks of the shelf to the parts on the back of the shelf)

Slightly lift up the back
of the shelf and draw it.

Raise the shelf,
as shown in the
drawing.

Rotate and
remove it.

Forks of the shelf (Right / Left)

Door may be damaged if you draw the shelf without turning it.
Be careful to attach/remove the glass shelf because it is heavy.
If it drops, it may break and cause bruise or injury.

Before removing the upper shelf, remove the middle shelf.

Check if it is fixed properly by taking it in and out a few times.

Notice

Request

Request

Door pocket

Fixed shelf

Vacuum Case

Height adjustable lower shelf

Draw the shelf, and pull off the 2 pins on the
lower right and remove it.

Pull out the Vacuum Case by slightly
lifting up and moving up and down.

Insert the Vacuum Case so that both
right and left convex ribs on the case
can slide under the guide rail of the
Vacuum Container.

Lastly, hold down the handle to lock.

How to remove How to attach

Remove the shelf by slightly lifting up the rear of
the shelf.

Tap
Tap

If you pull out the shelf straight, it may hit the door.

Caution

Lift up the door pocket while tapping the left/right of its bottom surface, and remove it.

(It is fixed a little tightly.)

Caution

Insert the door pocket fully to the end when installing it.
If it drops, it may break and cause bruise or injury.

Forks Forks

R-X670G type, R-G670G type R-X670G type, R-G670G typeR-X730G type, R-G620G type R-X730G type, R-G620G type

Upper

shelf

Middle

shelf

Guide rail

Vacuum Case

Vacuum Container

Convex rib

71

How to attach the slide door

(

Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment

)

Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment

Frame

How to Remove/Attach Parts

Ice Case

(Ice Compartment)

・

Upper Freezer case

(Upper Freezer)

Draw the door fully and lift up the case towards you.

Put the case bottom on the frame and set the case.

● Before taking out the Ice Case of R-X730G type, close the lid of the

Small Article Case by pulling it to the front.

[Only R-X730G type]

Remove the lid of the Small Article Case as follows:

(Mount it in the reverse order of removal)

Underside of the case

Lid

Fork

Case

Frame

Slide the lid halfway and
deflect the side of the Ice Case
to remove the fork.

Slide the lid
toward the rear
and pull it out.

Frame

Draw the door fully and pull up
both hands further to pull it out
slowly and to place it on the floor.

Upper Case, Lower Case

(Vegetable Compartment)

To install the Lower Case, put the lugs on the right
and left of the lower case into the square holes on
the frame, and place the fringe of the lower case
on the frame to set.

Wrong setting may cause abnormal noise or half­closed door when opening or closing the door.

Upper Case

Lift up the Upper Case. Lift up the Lower Case toward the

front.

●

Do not detach the door completely.

●

When opening the door, do not place your foot near the door. Doing so may
cause it to be caught between the door and the floor.

● Be careful. Water

may drip from the
backside of the lower
case.

Request

Request

Request

Lower Case

Slide case and lower freezer case

(Lower Freezer)

When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it.
Moreover, hitch the fork on the left/right of the Slide case to the outside of the Lower freezer case.

Slimline slide case

Draw the door fully, and draw the Slide case
respectively.

Lift up the Lower
freezer case.

Slide case

Frame

Seal

Lower

freezer case

● Do not remove the Slimline slide case.

● The partition of the Lower Freezer

can’t be removed.

● Do not peel off the adhesive

seal.

Caution

Caution

Caution

Partition

Partition

※ Only R-X730G type

Pin (right and left)

Pin (right and left)

Fork (right and left)

Rectangle
hole in the
frame

Rectangle hole in the frame

●

The partition cannot be removed.

●

Improper installation of the Upper Case may damage parts,
including cases. Once the Upper Case is installed, slide it in
the front-rear direction to confirm that it is mounted properly.

● Do not remove the Moisture Cover and Unit in the Lower Case.

72

TROUBLESHOOTING

Check the following points before asking repair. Contact your dealer or our customer center if the problem still exists after checking them.

When this happens Check Item Action and Reasons

Initial stage

Not cooled well.

Have 24 hours passed since the installation?

Cooling may take more than 24 hours at installation. Place food at
appropriate intervals, refrain from opening and closing a door as
much as possible and wait. Cooling takes more time during summer
or in case of a lot of food being stored.

No ice is made.

Have 24 hours passed since the installation?

As the entire refrigerator is not cooled immediately after installation,
it takes more than 24 hours for the first ice to be made. Place food
at appropriate intervals, refrain from opening and closing a door as
much as possible and wait.

Control Panel

The Control Panel does not
respond.

Is lit in the Display Section?
If so, the Operation Section is locked.

Cancel the lock of the Control Panel.

Pg.63

Is Refrigerator Compartment Door open? Operate after closing it.

Is a water drop or dirt attached to the Control Panel?

Wipe off dirt with a wet cloth and then wipe off moisture with a dry

cloth.
Are you wearing gloves or applying a plaster? Touch directly with your finger.
Did you touch adjacent Control Panel wrongly? Touch the target Control Panel only.

The Operation Section is
unlit.

−−−−−

The Operation Section goes out about 40 seconds after the

completion of operation for energy savings.

Pg.47

To turn it on, touch or open a door of the Refrigerator

Compartment.

Automatic ice making

Ice cannot be made at all.

Is “

Off

” lit in the Display Section?

Ice making is set to Stop Ice Making.

Set it to “On” or “

Quick

” mode.

Pg.56, 57

Is "Water" lit in the Display Section?
The water in the water supply tank is low.

Pour water into the water supply container.

Pg.56, 57

Is the water in the water supply tank low?

If the water in the tank is low, ice may not be made.

Add water until water level reaches to the “Container-full line” of the

water supply container.

Pg.56

Is the water supply container pushed firmly until it is beyond the
“Container set position” line?

Push it beyond the “Container set position” line.

Pg.56

Do you push it to the end until it snaps? Push the frame back until it snaps.

Pg.69

Is anything other than ice stored in the ice case? Remove it from the Ice Case.

Is the ice case filled with ice over the limit line of stored ice amount? Level the ice.

Pg.57

It takes a long time to make
ice.

Do you open the door frequently or store a large amount of food at a
time?

The inside is not cooled down enough.

Minimize the number of times of opening and closing the door until

it cools fully. Allow clearance as much as possible between each

stored food.

Is the surrounding temperature low?

Ice making takes more than four hours during winter. Refrain from

opening and closing a door as much as possible and wait.

Have you just changed the setting from “

Off

” to “On”?

Ice-making may take time immediately after changing the setting.

Refrain from opening and closing a door as much as possible and

wait.
Does any food or package caught in the door of the Freezer or Ice

Compartments prevent the door from closing completely?

Remove caught food, if any, and close the door securely.

Is the “Energy Saving” mode “ON”? Exit the “Energy Saving” mode.

Pg.62

Projection is generated on ice.

−−−−−

It is frozen water collected in the ice tray groove.

It does not indicate any trouble.

Stored ice becomes small.
Ice sticks together.

Is old ice left unused for a long time?

The old ice cubes become smaller by themselves and may cling to

each other.
Do you open the door frequently or store a large amount of food at a

time?

Open/close the door quickly or reduce frequency of opening and

closing the door.
Has a door of the Refrigerator Compartment or the drawers

incompletely closed temporarily?

Close the door completely.

Small ice is made.

Is the water in the water supply tank low?

If the water in the tank is low, ice may not be made.

Add water until water level reaches to the “Container-full line” of the

water supply container.

Pg.56

Connected ice is made.

Is the frame pushed inside until it clicks into place? Push the flame inside until it clicks into place.

Pg.69

Is the Ice Tray damaged?

A damaged Ice Tray precludes the removal of ice cubes from the

Ice Tray, resulting in broken ice cubes or ice cubes sticking to each

other.

Contact your distributor for the replacement of the Ice Tray.

−−−−−

Water in the groove in the Ice Tray may be frozen and sticks to ice

cubes. It does not indicate any trouble.

There is white impurity in
ice.

−−−−−

It is because the fine air bubble in water is contained in ice.

Did you use mineral water to make ice?

Mineral contained in water may freeze and become white impurity in

ice. It may remain after thawing in water, but it is harmless.

Ice tray frame cannot be
drawn.

Is “

Off

” set?

The ice tray cannot be drawn when the auto ice maker is operating.

Set it to “

Off

”. When the “

Off

” indicator lamp is blinking, wait for 1

minute until “

Off

” is lit, and then draw the ice tray.

Pg.69

When you do not make ice

−−−−−

Set “

Off

”.

See "Stop Ice Making".

Pg.57

73

When this happens Check Item Action and Reasons

Refrigerator does not cool

Is not cooled down.
Ice cream is soft.

Does any food or package caught in the door prevent the door from
closing completely?

Remove caught food, if any, and close the door securely. Pay

attention to the height of food when placing it in the refrigerator.
Is food squeezed in? or Is a large amount of food put in at one time? Allow clearance between each food in each compartment.

Is the case in each compartment fixed securely? Install them correctly.

Pg.71

Food cannot be cooled enough, depending on the installation place
or surrounding situation.

Check to see if the refrigerator is installed properly.

Pg.48

Is the “Energy Saving” mode “ON”? Exit the “Energy Saving” mode.

Pg.62

Is the temperature set to “■”?

Switch the temperature setting of the compartment where it does not

fully cool to “

■■

” or “

■■■

”.

Pg.52, 58

Does the temperature around the refrigerator become high due to
weather (ex: in summer)?

Switch the temperature setting of the compartment where it does not

fully cool to “

■■■

”.

Pg.52, 58, 61

Have you left a door open for a long time or opened or closed it
frequently?

Temperature in the refrigerator rises little by little while its door is

open. If the door is opened/closed frequently or left open for a long

time, temperature cannot easily lower.

Reduce the number of times of opening and closing the door, or

open/close the door quickly.

Is the indication on the Control Panel changing quickly?

The refrigerator is in the demo mode. Please cancel the mode.

Pg.73

Frost and/or dew occurs

Frost, dew or ice adheres to
the inside of the refrigerator
or the frame of the drawer.

Was the door or the drawer not temporarily shut completely?

Check that any food or package caught in the door, and then close it

completely.

−−−−−

When a door is opened or closed, water in the air may cling to the walls

or parts in the Freezer in the form of frost or ice. Open or close the door

quickly, or reduce frequency of opening and closing the door. Wipe off

the frost or dew with a dry cloth.

Dew adheres to the outside
of the refrigerator.

Is the air surrounding the refrigerator humid?

Dew may adhere to those parts when the indoor humidity is high (ex:

rainy day). Wipe off the dew with a dry cloth.

Is the heater for preventing dew condensation set to Low?

When the air surrounding the refrigerator is humid, dew may be

formed. Set the heater for preventing dew condensation to Standard.

Wipe off the dew with a dry cloth.

Pg.64

Is the temperature set to

“

■■■

”

?

When the temperature is set to

“

■■■

”

, dew may be formed on

the surface of a door. Set the temperature to

“■■”

.

Wipe off the dew with a dry cloth.

Dew condensation
occurs in the Refrigerator
Compartment.

Have you left a door open for a long time or opened or closed it
frequently?

Condensation may form on the wall and/

or around the cold air blowout port when

the door is opened and closed frequently

or the humidity is high around the

refrigerator.

No trouble. Wipe it off with a

dry cloth.

Refrigerator

cools overly

Refrigerator cools overly.
Food freeze.

“

■■■

” is selected in the temperature setting. Switch it to “■■”.

Pg.52, 58

The surrounding temperature is lower than 5˚C.

When the ambient temperature is low, the inside of the refrigerator may

cool overly. Switch the temperature setting to “

■

”.

Is it placed in front of the Cold Air Blowout Port? Do not place any food in front of the cold air blowout port.

[ ] display on the control panel flashes

flashing

How many times in succession has it blinked?
In what pattern does it blink?

It indicates an abnormal condition.

Consult your dealer.

flashing

Did you put food or ice other than that made by the Automatic Ice Maker
in the Ice Compartment?

Some foods, etc. may come into contact with the ice tray.

Empty the Ice Compartment and do the “Ice Maker Cleaning”.

Pg.68

flashing

Have you just had your service staff member inspect your refrigerator?

It may be in the operation check mode for serviceman.

It will return to the normal mode after about 15 minutes. There is no

problem with using the refrigerator.

flashing

Have you just had your service staff member inspect your refrigerator?

It may be in the operation check mode for serviceman.

It will return to the normal mode after about 10 minutes. There is no

problem with using the refrigerator.

All indicator lamps flash

Have your held

“On”

for five seconds or more?

It is in process of Ice Maker Cleaning.

The blink will stop in about four minutes. Do not open any door of the

refrigerator during blinking.

flashing

Have you just set

“

Off

”

?

The Automatic Ice Maker is working.

Blinking stops in about one minute. The frame of the Freezer cannot be

removed during blinking.

All displays flashing

Is the door opened?
Is the door closed incompletely due to food being caught?

Close a door when it is open.

If a door is closed incompletely due to food being caught, remove the

caught food and close it securely.

Blinks other than those above

−−−−−

Consult your dealer.

The indication on the Control
Panel is changing quickly.

−−−−−

The refrigerator is in the demo mode. Please cancel the mode.

In the demo mode, the refrigerator does not perform the cooling operation.

Open the right and left doors of the Refrigerator Compartment and the

door of the Lower Freezer.

Touch

on the Control Panel to turn on the indicator lamp.

Press and hold the

button for 10 seconds or more until the preset

sound is heard.

All the indicator lamps are lit for a few seconds, the demo mode is

cancelled and the cooling operation is started.

Close the right and left doors of the Refrigerator Compartment and the

door of the Lower Freezer.

Dew condensation

Troubleshooting

74

When this happens Check Item Action and Reasons

Abnormal operating sound is generated

Another door opens after
closing 1 door.

Have you shut the door with a bang?

Another door may open for a moment by the wind pressure because cool
air path connects each compartment.

Annoying sound is
generated by the
refrigerator.

Is the floor unlevel? Lay a firm board and then install the refrigerator thereon.

Pg.48

Does the refrigerator come in contact with the wall or furniture, etc.? Install the refrigerator with clearance around it.

Is the refrigerator cooled down enough?

You may feel that the operation sound is loud because the compressor
operates in high-speed under the following conditions: the refrigerator
does not cool fully on the occasion such as using it for the first time,
opening/closing the door frequently, the surrounding temperature is high.

Is “Freezer” and “Quick” set?

When it is set to “Freezer”/“Quick”, operation sound of the compressor or
the fan motor gets louder because of high-speed revolution.

Operation sound lasts long.

−−−−−

As the compressor operates slowly for energy savings, you may hear an
operating noise for a long time.

Operation sound sometimes
becomes louder.

−−−−−

The operating power varies in response to changes in the inside
temperature of the refrigerator, and thus you may sometimes hear a
large noise.

When other sounds such
as shown in the right
table are generated by the
refrigerator.

Sound like water flowing (trickling)
Sound like collision (tapping)
Sound like water boiling (bubbling up)
Sound like meat roasting (sizzling)

These sounds are caused when the refrigerant flows or water flows/
evaporates to remove frost.
This is not malfunction.

Sound like squeaking (cracking) (knocking)

This sound is heard when the parts squeaks due to changes in temperature
in the refrigerator or atmospheric pressure in the Vacuum Compartment.
This is not malfunction.

Sound like something is caught (clacking)
Sound like roaring (honking)
Sound caused immediately after closing the door (booming)

These sounds are caused when the electric parts to control
the refrigerator temperature operates.
This is not malfunction.

Sounds caused by the Automatic ice maker
(zooming)
(rattling)
(clunking)

These sounds are made when ice is separated from the ice tray of the
auto ice maker or water is supplied to the ice tray.
This is not malfunction.
To stop the sound, touch the

button to change it to “

Off

”.

Pg.57

Sound occurs sometimes (clacking) This sound is caused when the refrigerator starts the operation to cool.

Door is not in a

horizontal state

Door is not in a horizontal
state.

Is the installation site level?

This does not affect the refrigerator performance. Adjust the refrigerator
adjustable mount to keep it level if you want to correct it.

Pg.48

Does the soft floor material sink in around the legs due to the weight of
stored items?

Lay a firm board which has more than 1cm thickness on the floor if the
refrigerator itself inclines.

More force is required to
open the door immediately
after closing the door.

Is a door left open for a long time?

It is because the air that entered the Refrigerator Compartment is rapidly
cooled and the pressure in the Refrigerator Compartment temporarily
lowers.

Do not leave the door open for a long time. Open and close it diligently.

Refrigerator

becomes hot

The side of the refrigerator
becomes hot. Hot air comes from
the bottom of the refrigerator.

−−−−−

Hot air may come from the bottom of the refrigerator to exhaust the heat
generated when the cooling device operates.
The temperature may rise to 50 – 60 ˚C immediately after installation or
during summer.
It does not pose safety or performance problems, but avoid touching it.

There is something strange with the Vacuum Compartment

Hissing sound does not
occur when opening.

Is the setting of the Vacuum Compartment to “Off” (Non-vacuum)? Change the setting to “-1˚C (Subzero)” or “+1˚C (Chiller)”.

Pg.55

Is the handle pulled up? Hold down the handle to lock.

Is the handle held down to the end and locked?

The vacuum function will not work unless it is locked.
Press the handle until it stops to lock it.

Is the Vacuum Compartment Gasket removed? Install the Vacuum Compartment Gasket.

Pg.66

Is a food package or a hair caught in the
vacuum compartment gasket and the
support?

Remove any packaging material of foods or other things which are caught in.

If something adheres to the gasket, the vacuum state cannot be maintained.
Clean the vacuum compartment gasket if it is dirty.

Pg.66

Does the liquid from food cause the gasket fin to adhere to the gasket?

Was the door of the Vacuum Compartment or the Refrigerator
Compartment just opened / closed?

It takes about three to four minutes for the Vacuum Case to be vacuumed
after the vacuum pump starts to operate. Wait for more than four minutes
after opening or closing.

TROUBLESHOOTING

(CONTINUED)

Waste

thread

Scraps

Fin

Gasket

75

When this happens Check Item Action and Reasons

There is something strange with the Vacuum Compartment

It is not clear whether the
Vacuum Compartment has
been vacuumized.

Do you hear a sound when opening the Vacuum Compartment?

The Vacuum Compartment has been vacuumized properly if a vacuum

releasing sound (hissing sound) is heard when opening it.

The handle cannot be
locked.

Is there any food etc. caught in the inner part of the Vacuum
Compartment Case or the vacuum compartment gasket?

Remove any food if it is caught in.

Is the Vacuum Case set in place?

Mount the Vacuum Case as shown in “How to attach the Vacuum Case”.

Pg.70

Booming sound and
vibration occur around the
Vacuum Compartment.

−−−−−

This sound is caused when the vacuum pump operates.

You can stop the vacuum pump operation when you want to stop the

sound (ex: night time).

Change the setting of the Vacuum Compartment to “Off” (Non-vacuum).

Pg.55

Is something caught in the Vacuum Case or the gasket of the Vacuum
Compartment dirty?
Do you push down the handle until it stops to lock it?

A sound may be heard or vibration may be felt more frequently.

Remove any packaging material of foods or other things which are caught in.

Clean the vacuum compartment gasket if it is dirty.

Pg.67

Push down the handle until it stops to lock it.

Dew, frost or ice is formed
inside the Vacuum Compartment
or around the Vacuum Case.

Did you place food containing a
lot of water?

The moisture from the juicy food may cause dew condensation and/

or frost adhering insider the compartment because the Vacuum

Compartment is sealed.

It is recommended to wrap the juicy food with plastic film, etc.

Wipe dew and /or frost off with a soft cloth wet by lukewarm water.

The surface of stored vegetables
is dented or gets discolored.

Is the vegetable sensitive to low temperature such as eggplant and
cucumber?

Move them to the Vegetable Compartment.

Pg.55

Food in the Vacuum
Compartment freezes.

Is the Vacuum Compartment set to “-1˚C (Subzero)” or “Off” (Non­vacuum)?

Set the “+1˚C (Chiller)”.

Pg.55

It smells strange

Plastic smells

−−−−−

This smell occurs because a lot of plastic parts are used in the

refrigerator, but the smell decreases gradually while cooling.

This is not malfunction.

Ice smells

Do the water supply container and/or water filter become dirty? Or does
ice become old?

Wash them regularly to prevent “slime” and/or “fur”.

Pg.69

−−−−−

Chlorine may strongly smell because chlorine in tap water is condensed.

It smells in the refrigerator

Is any food which strongly smells stored without any wrapping?

The deodorizing function cannot completely remove all smells.

Seal that kind of food with plastic film etc.

Auto Refrigerator Door

Noise is loud.
There is an abnormal noise.

Hitting sound (thumping sound)

This is the operating sound of the Auto Refrigerator Door.

This is not malfunction.

Buzzing sound (whir)

This is the operating sound of the Auto Refrigerator Door.

This is not malfunction.

The operation sound of the Auto Door differs depending on doors (left or
right).

This may vary depending on installation conditions of the refrigerator or

the volume of foods stored in the door pocket.

This is not malfunction.

Auto Door won’t open even if
touching the Open Button.

Is the light not lit? Turn on the light. Turn on the indicator lamp.

Is the Ice Compartment or the Upper Freezer opened?

Close the slide door and then touch the Open Button of the Auto Refrigerator Door.

The Auto Refrigerator Door
does not close.

Is any food or food bag caught on the compartment? Remove foods and others that are caught in.
Did a power failure occur or did the compartment knock against any

obstacle during electrical operation?

Auto Refrigerator Door stops on the way, so push in the door with hand.

Auto Refrigerator Door does
not open widely.

Do stored beverages or foods make contact with the wall in the
Refrigerator Compartment?

Remove beverages or foods that make contact with the wall.

Is the installation site level?

Opening angle of the Auto Refrigerator Door may vary or the door may

go back a little after it is opened automatically depending on installation

conditions of the refrigerator, but this is not malfunction.

Auto Refrigerator Door moves even
if it is locked on the Control Panel.

−−−−−

Auto Refrigerator Door can not be locked from the Control Panel.

In order to stop Auto Refrigerator Door, unlock the Control Panel first, and then touch

button for 3 seconds or more until it beeps twice.

Pg.50, 63

Auto Drawer

Noise is loud.
There is an abnormal noise.

Hitting sound (thumping sound)

This is the operating sound of the Auto Drawer.

This is not malfunction.

Buzzing sound (whirring, grunt)

This is the operating sound of the Auto Drawer.

This is not malfunction.
Operation sound of the Vegetable Compartment is louder than that of the

Lower Freezer.

Operation sound of the “vegetable compartment” is louder than the “lower freezer”.

The operation sound depends on the amount of food stored. This is not malfunction.

The compartment does not
open even if the electrical
drawer switch is pressed.

Is the light not lit? Turn on the light. Turn on the indicator lamp.

Is either one of the lower freezer or the vegetable compartment open?

Close the open electrical drawer compartment and then press drawer

switch for the compartment you want to open.

The Auto Drawer does not
open/close.

Is any food, food bag or plastic wrap, etc. caught on the compartment? Remove foods and others that are caught in.

Did a power failure occur or did the compartment knock against any
obstacle during electrical operation?

The door does not open/close smoothly because the electrical drawer

function is stopped before the operation completes.

Manually push in the door with strength. Otherwise, unplug the power

plug with the door drawn, and connect it after 10 seconds.
Is the food caught between the Upper

Case and the Moisture Cover?

Remove it, if any.

Do not close the door with force while the food is in contact with the Moisture

Cover.

The Auto Drawer does not
open much.

−−−−−

The Auto Drawer is pulled out by approx. 15 cm or more. The length may vary

depending on installation conditions of the refrigerator, or the Auto Drawer may

go back a little after the door is opened automatically. This is not malfunction.

Auto Drawer moves even if
it is locked on the panel for
operation.

−−−−−

Auto Drawer can not be locked from the panel for operation. In order to stop

Auto Drawer function, unlock it first on the panel for operation, and then touch

button for 3 seconds or more until it bleeps.

Pg.50, 63

Dew and/or frost

Troubleshooting

(Continued)

76

When this happens Check Item Action and Reasons

Vegetable Compartment

Dew condensation
occurs in the Vegetable
Compartment.

Did you place a large amount of vegetable containing much water?

As the Vegetable Compartment is more humid than the other
compartments, dew may be found in the case or ceiling of the Vegetable
Compartment or on the surface of food, depending on the amount or
type of vegetable stored there.
This is not abnormal state. To avoid condensation, wrap a vegetable
with plastic food wrap before storing it in the Vegetable Compartment.
Heavy condensation may cause water to be pooled in the Vegetable
Compartment. Wipe it off with a soft cloth.

Is the Moisture Unit blocked with food bags or containers?

A blocked Moisture Unit is likely to cause condensation. Move the food
bags or containers that block the Moisture Unit to other portions.
Wipe off the dew with a soft cloth.

The Vegetable
Compartment door doesn’t
close / When the Vegetable
Compartment door is
opened, the upper case
doesn’t go back to the
locking position.

Is any food, etc. caught between the
upper case and the lower case?

Remove it if any.

Is a plastic bottle and/or food item in
contact with the handle of the Upper
Case? Store PET bottle, food, etc. so that they don’t come in contact with the

locking handle.

Is any food caught between the Upper
Case and Moisture Cover?

Remove it, if any.
Do not close the door with force while the food is in contact with the
Moisture Cover.

Others

You feel electricity a little
when touching the main
body of the refrigerator.

−−−−−

The refrigerator may be charged with static electricity, but there is no
problem with the safety.

Radio and/or television are
disturbed by noises.

−−−−−

It is caused by the electromagnetic radiation slightly generated from this
refrigerator. Install the refrigerator away from the television, radio and interphone.
It is recommended to connect the power plug to the power outlet separated
from the antenna terminal.

There are thin lines like
scratches on the plastic parts

.

−−−−−

Those lines are caused by the liquid resin flowing when plastic is molded.
They are especially conspicuous for the transparent parts, but there is no
problem with the strength and they can never lead to any cracks.

There are waving and/or distortions on
the door surface, the side and the top
surface of the refrigerator.

−−−−−

Slight waving and/or distortions are generated in the manufacturing
process of the refrigerator. They may be conspicuous according to
the position of the light source and/or the brightness etc., which is not
malfunction. There is no problem with the performance.

There is a small hole
inside the door.

−−−−−

This hole is used to escape the air inside when filling the heat insulation
material into the door during the production process. It is neither a flaw
nor abnormal thing.

* Some products have an adhesive seal to conceal the hole. Please do

not peel it off.

The electric supply failed.

−−−−−

Reduce the number of times of opening and closing the door and avoid
storing food additionally until the electric supply is restored.
Please check each setting on the panel for operation after the power
comes back on.

The refrigerator is expected not
to be used for a long term.

−−−−−

Remove all the items in the refrigerator.
Unplug the refrigerator to take care of the inside or the automatic ice
maker.

Pg.66-69

Leave all the doors open to dry the refrigerator for 2 or 3 days.

Remove frost.

−−−−−

Any operation to remove frost is not required because this refrigerator
remove frost automatically. Thawed water is collected in the evaporating
tray and automatically evaporates.

Transporting and moving care.

−−−−−

See “Transporting your refrigerator (transport for moving)”

Pg.49

Glass is broken

door glass,
glass shelf

−−−−−

Do not touch a broken glass, but contact your dealer for repair
soon.

When a fruit fly, etc. enters
the refrigerator

Are there fruit flies around it?

Keep the environment clean.
Put something a fruit fly hates or fruit fly can get trapped in something
like that.

Is there any food with strong smell in the refrigerator? Cover food with the lid so that fruit flies can’t be attracted by the smell.

Is the door left open for a long time? Please close the door as soon as possible.

TROUBLESHOOTING

(CONTINUED)

Hole (inside of the door)

Hole (on a side of Refrigerator Compartment)

77

AVAILABLE PARTS

■

If you order any part listed below, specify the model of your refrigerator to a dealer for purchasing genuine parts.

Subject Product Name Model Product Model

Ice smells

● Water filter may be old and dirty

(Replace it about every 3 or 4 years,
as a guide)

Water filter for the automatic
ice maker

Common for

all models

RJK-30

Vacuum state can't be maintained

● It may be damaged, deformed or

discolored.

Vacuum compartment gasket

R-X730G type R-WX7400G 311

R-X670G type

R-G670G type

R-XG6700G 311

R-G620G type R-XG6200G 311

Troubleshooting

(Continued) /

Available Parts

78

MEMO

79

23.0kg

23.0kg

23.0kg

12.0kg

5.5kg

26.0kg

14.5kg

請勿存放不是本自動製冰機製成的冰塊 。

19

頁

About non-CFC Refrigerators/Storable Weight

有關碳氫化合物的冰箱／可容納的食品重量

有關碳氫化合物的冰箱／可容納的食品重量

ABOUT NON-CFC REFRIGERATORS/STORABLE WEIGHT

R-X730G

型號

R-X730G type

R-X670G

型號

R-G670G

型號

R-X670G type
R-G670G type

R-G620G

型號

R-G620G type

Height adjustable upper shelf
Height adjustable middle shelf
Height adjustable lower shelf, Fixed shelf
Upper shelf of the vacuum compartment
Vacuum compartment case
Total for the right door pockets
Total for the left door pockets

Ice case

Upper Freezer case

Small Article Case

Upper Case
Lower Case

Slimline slide case
Slide cas

e

Lower freezer case

Do not store any ice cubes other than the ones made by the automatic ice maker.

Pg.57

19.5kg

19.5kg

18.5kg

10.0kg

4.5kg

20.0kg

11.0kg

21.0kg

21.0kg

21.0kg

11.0kg

5.0kg

26.0kg

11.0kg

9.0kg 8.0kg

1.0kg －－

9.0kg

－－

6.0kg

8.0kg

19.0kg

5.3kg

6.5kg

15.5kg

5.5kg

7.0kg

17.0kg

8.5kg

24.0kg

7.0kg

18.0kg

7.5kg

22.0kg

可調式層架上段
可調式層架中段
可調式層架下段, 固定層架
真空冰溫室上方的層架
真空冰溫室盒
冰箱門置物架(右側)合計
冰箱門置物架(左側)合計

儲冰盒

小物品收納空間

上層冷凍盒

上層滑動盒
下層置物盒

上層滑動盒
中層滑動盒
下層冷凍盒

可容納的食品重量

Storable weight

The following table shows the weight of food that can be stored on the shelves and in the cases.

可容納於層架或收納盒內的食品重量如下：

Refrigerator
compartment

Ice compartment

Upper freezer

Lower freezer

Vegetable compartment

冷藏室

製冰室

上層冷凍室

下層冷凍室

蔬果保鮮室

零件名稱

Name of parts

Cyclopentane is used in the insulation material.
The gases in insulation material require a special disposal procedure.
Please contact your local authorities in regard to the environmentally safe disposal of this product.

隔熱材料中含有環戊烷

(Cyclopentane)

。
當要處理隔熱材料中之氣體時，必須依照特殊的廢棄處理程序。
要廢棄本產品時，為了不會對環境造成不良影響，請詢問當地的相關機關。

關於廢棄之重要警告

Severe warning signs for Disposal

● Instead of CFCs, hydrocarbons are used in the coolants and insulation materials used in this refrigerator.

Hydrocarbons do not damage the ozone layer, and they are environmental-friendly materials, having an
exceptionally small affect on global warming.

●

Hydrocarbons are flammable. The coolants are sealed in the coolant circuitry, and with normal operation
they will not leak, but should the circuitry be damaged, refrain from using flames or other electrical products,

and open windows for ventilation. After that, please contact the dealer or Hitachi customer service centre.

● 本冰箱所使用冷媒及其他斷熱材料皆無使用氟氯化碳、而是使用碳氫化合物。碳氫化合物不會破壞地球臭氧層、
對地球溫室效應的影響非常小、屬於環保物質。

● 碳氫化合物為可燃型物質。 冷媒密封於冷媒迴路管中、在一般的使用情況下應該不會發生外洩。
但萬一有冷媒管線損壞的情況發生、請遠離火源及避免使用電器用品、將門窗打開以利空氣流通。 之後、請
立即與經銷商或日立技術中心聯絡。

有關碳氫化合物的冰箱

About non-CFC refrigerators

R-X730G

型號

R-X670G

型號

R-G670G

型號

R-G620G

型號

R-X730G Type
R-X670G Type
R-G670G Type
R-G620G Type

Hitachi Tokyo Japan

AFTER-SALES SERVICE

關於售後服務

Please contact the following Hitachi Service Centre if power cord is damaged or service is required.
If some malfunction occurs during operation, unplug the power plug immediately and contact the service
centre to have the refrigerator repaired.

電源線受損或需要維修時，請直接洽詢下列日立服務中心。
使用中出現異常現象時，請立即拔掉電源插頭以及聯絡售後服務中心以進行修理。

• HongKong
 Hitachi(HongKong)Ltd.
 18/F.,EverGainCentre,28OnMukStreet,Shatin,
 N.T.,HongKong,China

Tel : [phone]

 Fax: [phone]

• Singapore
 HitachiHomeElectronicsAsia(S)Pte.Ltd.
 438AAlexandraRoad,#01-01/02/03,
 AlexandraTechnopark,Singapore119967

Tel : [phone]

 Fax: [phone]

• Indonesia
 PT.HitachiModernSalesIndonesia.
 RichPalaceShopHouseBlokD1&D2
 Jl.MeruyaIlirRayaNo.36-40
 Jakarta11620,Indonesia
 Tel : [phone]
 Fax: [phone]

•

香港
 香港日立有限公司
 中國香港新界沙田安睦街28 號永得利中心 18 樓

Tel : [phone]

 Fax: [phone]

• Malaysia
 HitachiSales(Malaysia)Sdn.Bhd.
 Lot12,JalanKemajuan,BangiIndustrialEstate,
 43650BandarBaruBangi,
 SelangorDarulEhsan,Malaysia
 Tel : [phone]
 Fax: [phone]

• India
 HitachiHome&LifeSolutions(India)Ltd.
 9thFloor,Abhijeet,MithakhaliSixRoads
 Navrangpura,Ahmedabad-380006
 Tel : [phone] / [phone]
 E-mail:[e-mail]

• Australia
 HitachiAustraliaPty.Ltd.
 LockedBag2052,NorthRyde,NSW1670,Australia
 Suite801,Level8,123EppingRoad,NorthRyde,NSW,
 2113,Australia

Tel : [phone]

B

About Non-fluorocarbon refrigerator

• This refrigerator, including refrigerant and the heat insulator, is using hydrocarbon (non-fluorocarbon). The hydrocarbon
is a material that does not rip up the ozone and have very little influence on global warming. It is the global environment
friendly material).

• R600a refrigerant is flammable. But the refrigerant is being sealed up by the refrigerate circuit, a

nd never leak by usual
use. In case of the refrigerate circuit being damaged by any chance, please avoid the use of fire and electric product,
open the window and ventilate. Afterwards, please contact Hitachi Service Center.

Severe warning signs for Disposal

Cyclopentane is used as in the insulation. The gases in insulation material require a special disposal procedure.
Please contact your local autho

rities in regard to the environmentally safe disposal of this product.

This symbol mark means that used electrical and electronic products shall not be mixed with general household waste.
Do not try to dismantle the system and unit by yourself as this could have harmful effects on your health and the environment.
Refrigerators must be treated at a specialized treatment facility for recycling and recovery and shall not be disposed of in the
municipal waste stream. Please contact the installer, dealer or local authority for more information.
