型號

R-E6200S R-E6200H R-E6200N R-E6200M

Model

HOW TO USE

REFRIGERATOR-FREEZER

使用說明書

日立多門電冰箱

6 doors

Made in Japan

● It takes time to cool for the ﬁrst time.

Pg.42, 43

It may take more than 4 〜 24 hours to fully cool.

● Make sure that no food protrudes beyond the storage height limit of

each compartment, and allow clearance between each food in each compartment.

Pg.48, 52 Otherwise, food and/or package may not be stored in each compartment properly, and as a result, the door may not be closed completely. It may cause the refrigerator not to cool sufﬁciently and/or not to make ice.

● 購買後初次使用時。

10, 11

頁

初次使用時，庫內冷卻可能需要約4小時至24小時以上。

● 請遵守可容納食物的高度及食品之間空開間隙儲放。

16, 20

頁

過分塞堵食物，會造成食品及袋子被門夾住關不緊，製冷效率低，不能製冰等。

Thank you very much for purchasing a Hitachi Refrigerator. This refrigerator is designed for home use only. Do not use this refrigerator for the business use and/or any purpose other than storing food. Please read this operation manual carefully and ensure you use the appliance correctly. In particular, be sure to read the “Safety Suggestions” section of this operation manual before use. Please keep this operation manual along with your guarantee card. Hand over this operation manual together with the refrigerator when the refrigerator is passed to a third party and used in a different location, or when it is sent to a recycling plant.

非常感謝您購買日立電冰箱。此電冰箱僅供家庭使用，請勿使用於商業用途和儲存食品以外的目的上。請詳閱本使用說明書，以確保正確使用。使用前請務必詳閱「安全上之注意事項」。請妥善保管本使用說明書與保証書，當將電冰箱交給他人在別的場所使用時，以及交給回收工場時，請將本使用說明書隨電冰箱一同轉交。

家庭用

For household use

六門

日本製

只限在新加坡・香港

・

印度尼西亞・馬來西亞使用

For use in Singapore, Hong Kong,

Indonesia and Malaysia only.

BB0040171R_R-E6200SHV_B.indd 1 15.5.25 3:29:35 PM

特長

FEATURES

常見問題

FREQUENTLY-ASKED QUESTIONS (FAQs

)

保存蔬菜的營養素及水嫩

■ 蔬果睡眠保鮮

蔬果保鮮室的下層保鮮盒的內側，採用光觸媒來保存蔬果鮮度及營養素的［睡眠保鮮］功能。利用二氧化碳來抑制蔬菜營養素的消耗，保持鮮度。

利用［睡眠保鮮］功能來保持肉類、魚類的鮮度。

■ 真空冰溫

以約

0.8

氣壓的［真空保存］抑制食品的氧化，保持鮮度及營養素。蔬果保鮮室也使用［睡眠保鮮］技術，及新採用的［抗氧化益鮮盒］，抑制鮮度降低。 ※ 所謂真空是指壓力比一大氣壓還要低的空間。真空冰溫室內的壓力約

0.8

氣壓，因為比大氣壓來要低，本公司稱之為真空。

利用［霜能再利用冷卻］及真空隔熱材等

■ 省能源

大容量

藉由［霜能再利用冷卻］等的各種各種省能源技術，來降低電力的消耗。如果想要更節省電力時，可以選擇［節電］模式。在結構上還巧下功夫，不僅利用真空隔熱材料達到冰箱的薄壁化，還讓定格內的容積更寬廣，盡可能讓層架、置物盒、抽屜加大空間，增加實際食品的收納量。

Keeping freshness and preserving nutrients of vegetables

Aero-care Vege. Compartment

Adopted [Photocatalyst Preservation] function keeps freshness and preserves nutrients by making use of the photocatalyst at the back of the lower case of Vegetable Compartment. Thanks to the effects of carbon dioxide, it will restrict consumption of vegetables’ nutrients and keep them fresh.

Keeping meat and ﬁsh fresh by [Photocatalyst Preservation] function, etc.

Vacuum Compartment

Approx. 0.8 hPa of [Vacuum Preservation] keeps freshness and preserves nutrients by restricting oxidation. [Photocatalyst Preservation] technology used for the Vegetable Compartment and newly adopted [Antioxidant Fresh Cassette] maintain freshness. ※ Vacuum means the space where the pressure is lower than the atmosphere pressure. The pressure in the Vacuum compartment is about 0.8 hPa which is lower

than the atmosphere pressure, so Hitachi calls such state as vacuum.

By using [Frost Recycle Cooling] and vacuum insulation, etc.

Energy saving & large capacity

Power consumption is reduced more thanks to various energy-saving technologies including “Frost Recycle Cooling” and others. In addition, [Energy Saving] mode is available for saving energy further. We have devised ways of increasing the rated internal capacity by enlarging shelves, pockets and slide cases as much as possible to store more foods while using vacuum insulation to reduce the wall thickness.

[

三重抗菌除臭

]

利用三種除臭素材的完美組合，有效地捕捉並去除冰箱內含有硫磺系、氮系、醛系、酸系等四大異味分子。此外，並可抑制濾網所捕捉的細菌活動。

除臭濾網具有除菌效果。

●

試驗機關：一般財團法人

BOKEN

品質評價機構 ●

試驗方法：濾網密著法

(JIS Z 2

801)

●

處理零件名：濾網 ●

除菌方法：將氧化觸媒塗抹在濾網 ●

對象：

濾網所捕捉的細菌 ●

試驗結果：24小時後達到

99%

的除菌效果。只是濾網單體的性能。此除菌效果並無法遍及冰箱內整體及所有食品。

[Triple Power Deodorizing Effect]

A combination of 3 types of deodorizing materials deodorize various odorous substances in the refrigerator including 4 major odors such as sulfur, nitrogen, aldehyde and oxidization odors. Activities of bacteria collected by the ﬁlter are also restricted.

Deodorant ﬁlter has the effect of sterile ﬁltration.

● Testing laboratory: Boken Quality Evaluation Institute, a general incorporate foundation ● Test method: Film contacting method (JIS Z 2801) ● Name of the part used for treatment: Filter ● Sterilization method: applying oxidation catalyst to the ﬁlter ● Target: bacteria collected by the ﬁlter ● Test result: sterilization effect of 99 % after 24 hours by using a ﬁlter only. This does not always effect on the entire refrigerator or foods.

無法結冰時

頁

If the ice is not made

Pg.62

Abnormal operating sound is generated

Pg.63

If the refrigerator is not cooled down well

Pg.62

There is something strange with the Vacuum Compartment

Pg.64

If frost or dew is formed

Pg.63

If any indicator lamp blinks

Pg.64

發出異常聲音時

頁

冰箱內冷度不夠時

頁

發現真空冰溫可能有異常時

頁

結霜或結露時

頁

顯示燈閃爍時

頁

BB0040171R_R-E6200SHV_B.indd 2 15.5.25 3:29:37 PM

使用之前

安全上的注意事項

..............................

確認事項

............................................

各室的名稱・存放食物

................................

附屬品

.........................................................

操作面板的功能

..........................................

事前準備

............................................

使用前的準備

..............................................

移動・搬運的事前準備(搬家時

)

................

使用方法

冷藏室

................................................

調整置物架・層架的高度

............................

調節冷藏室溫度

..........................................

急速冷卻食品(急冷藏

)

...............................

真空冰溫室

.........................................

開閉真空冰溫室門

.......................................

變更真空冰溫室的設定

................................

冷凍室

................................................

使用上層冷凍室

..........................................

使用下層冷凍室

..........................................

食品收納時請格外注意

................................

調節冷凍室的溫度

.......................................

將食品急速冷凍(急冷凍

)

...........................

製冰室（自動製冰機）

.........................

製冰方法

.....................................................

急速製冰

.....................................................

製冰停止

.....................................................

告知給水警示燈

..........................................

「On」顯示為閃爍時

....................................

儲冰盒的冰塊收納量・製冰時間

.................

蔬果保鮮室

.........................................

收納食品

.....................................................

食品收納時請格外注意

................................

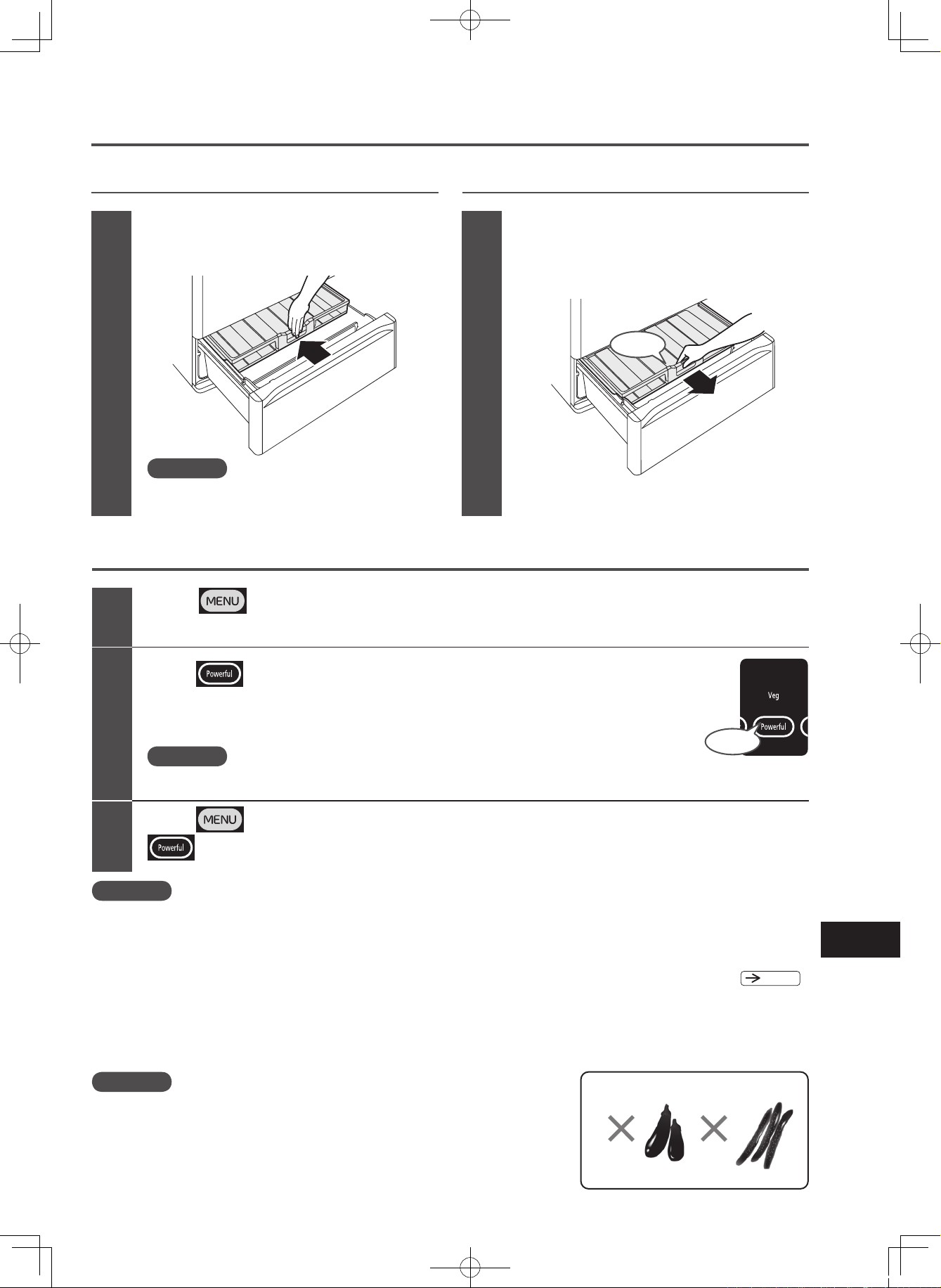

使用蔬果睡眠保鮮空間

................................

若想以更冷的溫度來保鮮時（蔬果室強）

.....

各種功能

............................................

「節電」模式的設定

.....................................

溫度微調節（冷藏室・冷凍室）

....................

操作面板鎖定功能

.......................................

箱門警報器

..................................................

箱門警報器及操作音的音量調節

.................

將防止結露的加熱器設定為弱

.....................

保養方法

............................................

電源插頭/冰箱背面・地板/箱門表面

........

各層架・置物架・置物盒/箱門密封墊/液汁承接處

...

真空冰溫室

..................................................

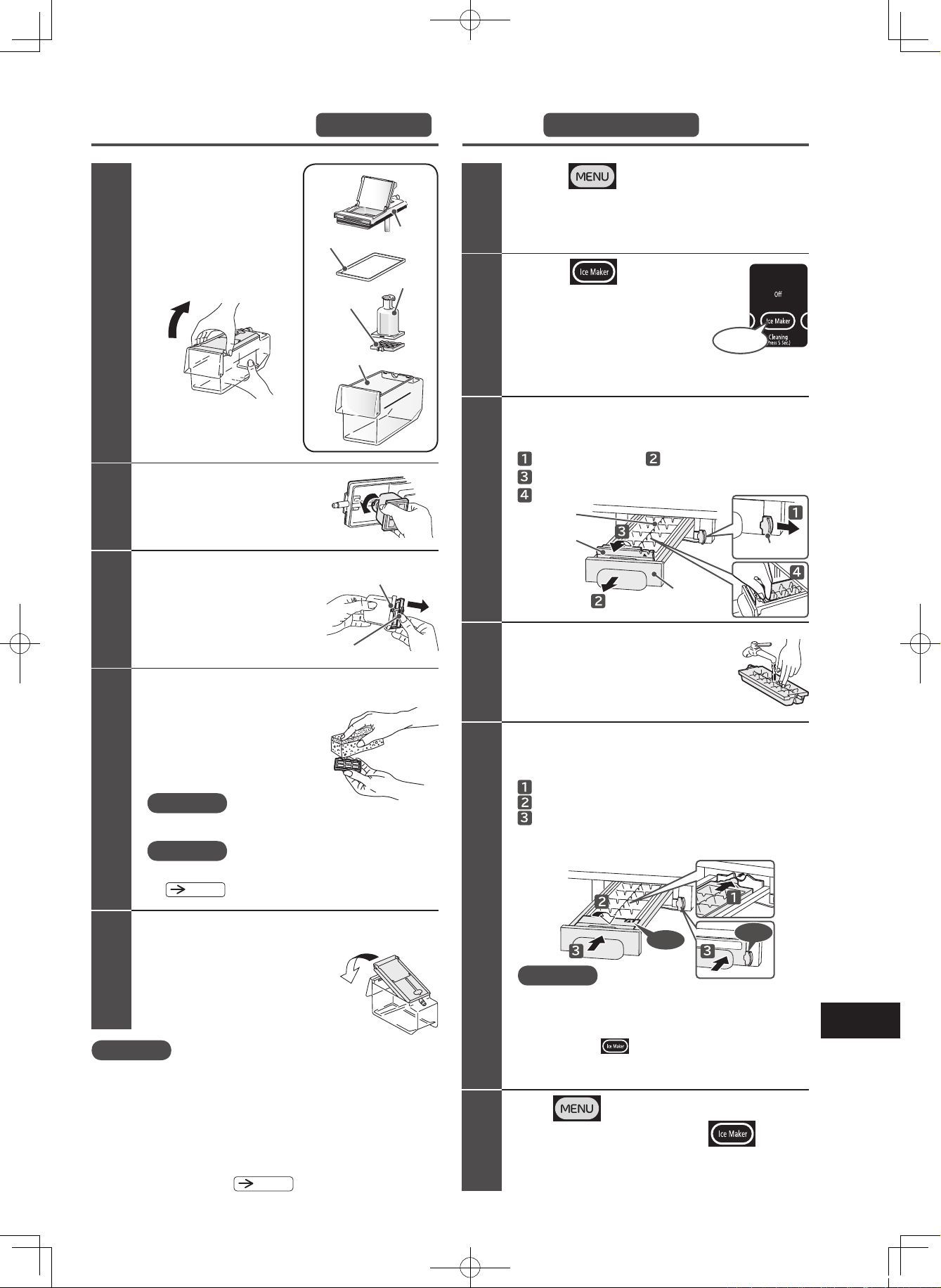

製冰機清潔

..................................................

給水槽/製冰盤

...........................................

卸除組件的方法・安裝的方法

............

可調式層架上段・中段（玻璃層架）

............

箱門置物架

..................................................

固定層架

.....................................................

可調式層架下段

..........................................

真空冰溫盒

..................................................

儲冰盒（製冰室）・上層冷凍盒（上層冷凍室）

...

中層滑動盒・下層冷凍盒（下層冷凍室）

........

上層滑動盒・下層置物盒（蔬果保鮮室）

........

拉取式門的安裝方法（製冰室・上層冷凍室・下層冷凍室・蔬果保鮮室）

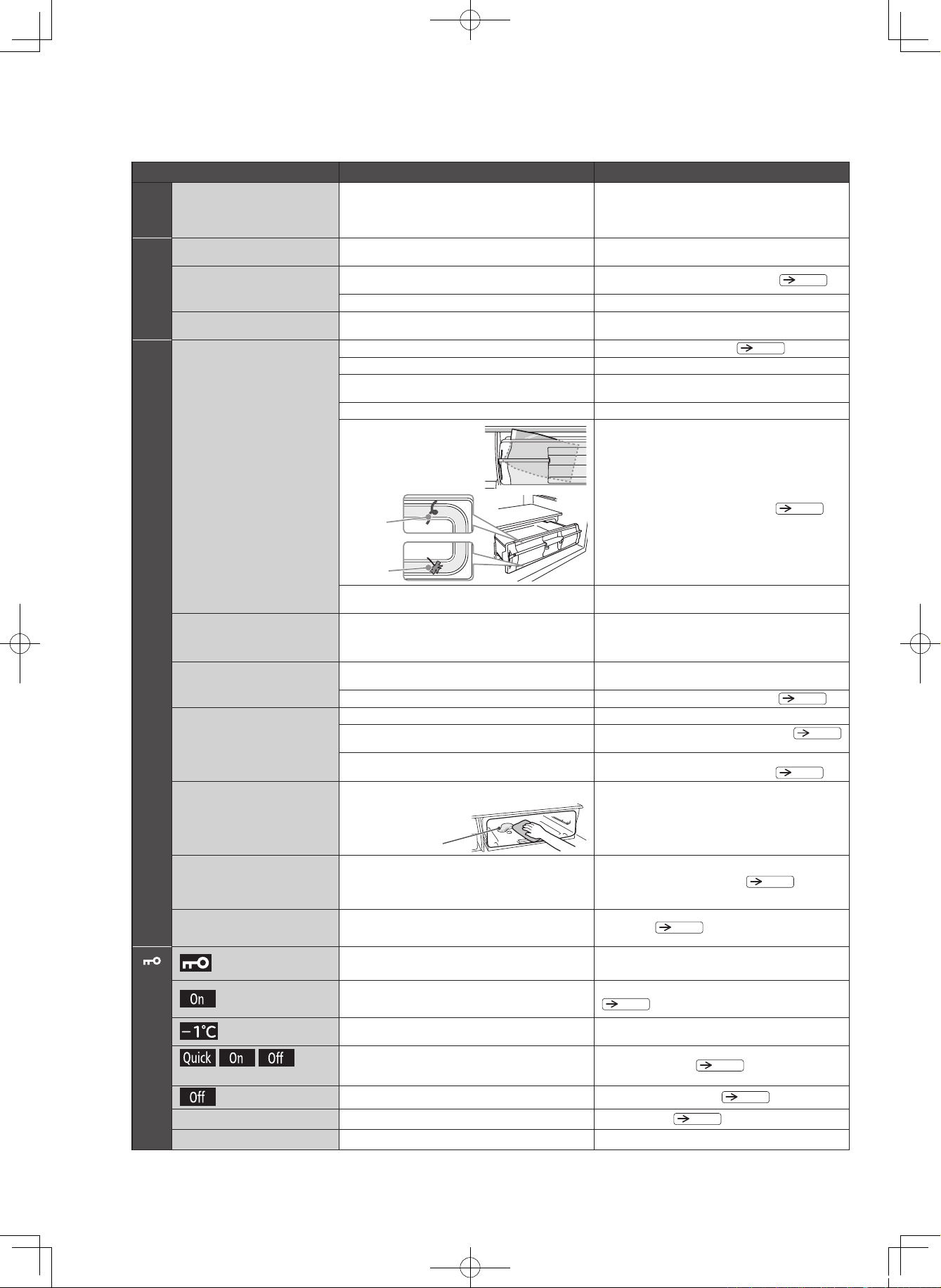

遇到問題時

.........................................

初次使用時

..................................................

操作面板

.....................................................

自動製冰不正常

..........................................

不冷

............................................................

結霜・結露

..................................................

太冷

............................................................

箱門高低不平衡以及歪斜

............................

聲音不對

..................................................

...

冰箱發熱

.....................................................

有異味

.........................................................

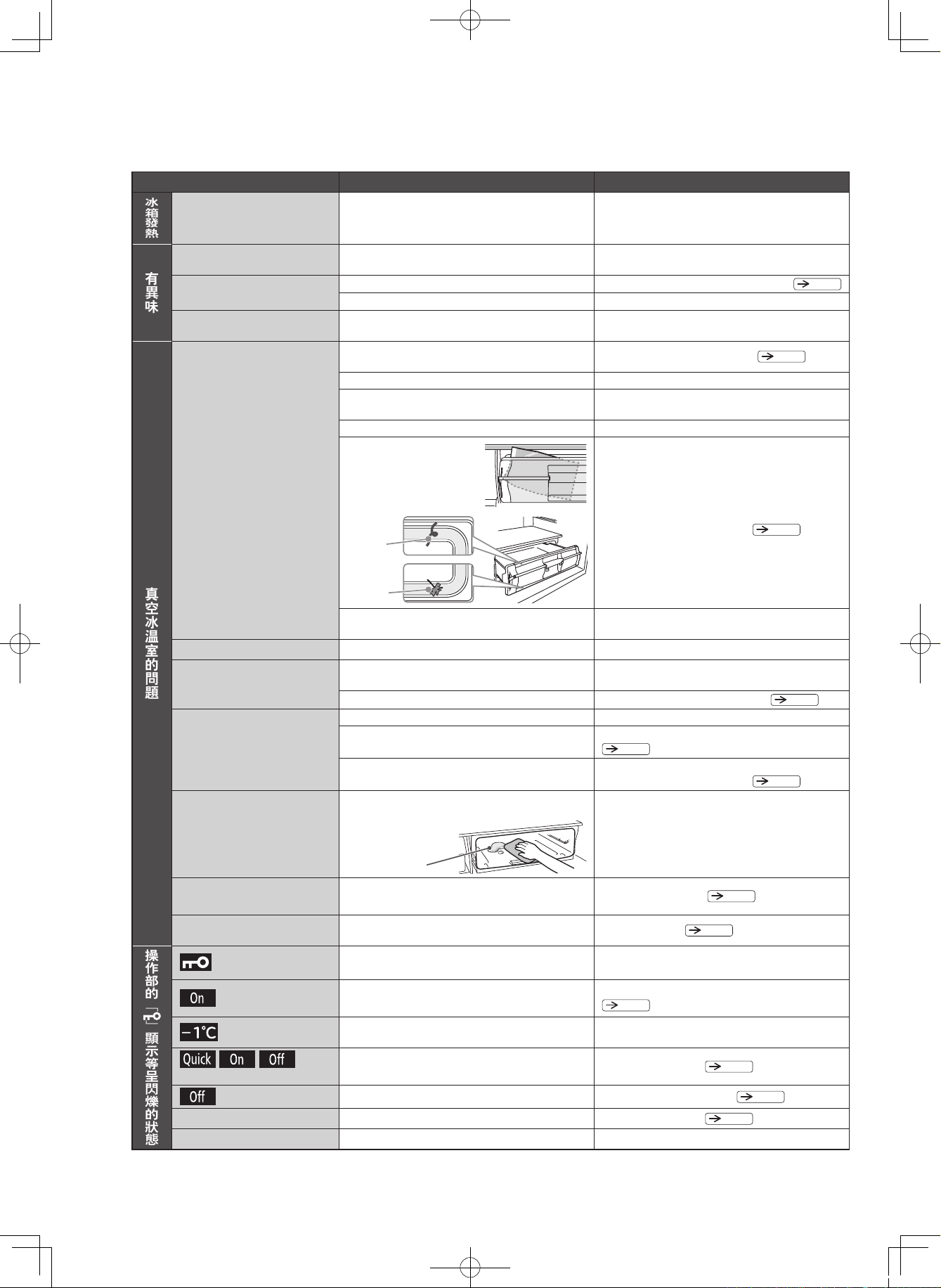

真空冰溫室的問題

.......................................

操作部的「」顯示等呈閃爍的狀態

.........

其他

............................................................

另購零件

............................................

有關碳氫化合物的冰箱／可容納的食品重量

....

BB0040171R_R-E6200SHV_B.indd 3 15.5.25 3:29:38 PM

搖晃不定

警告

注意

此標示欄表示「可能會造成死亡或嚴重人身傷害」。

此圖示標示為「禁止」內容（請勿執行之事項）。

此圖示標示為「強制」內容（請務必執行之事項）。

此標示欄表示「可能會發生人身傷害或財產損失之預測內容」。

警告

安裝時

電源及電源電線

● 使用時請勿高於插座或配線器具的額定電流。請勿使用交流額定電壓以外的電源。

若與其他電器插頭併用，或使用三面插座等，會因異常發熱而造成火災的危險。

・

請單獨使用額定電流

10A

以上的插座。

● 請勿讓電線．插頭破損。

在已受損的狀態下使用時，會引發觸電．短路．火災的危險。

・

電源線損壞時，須由製造廠商或其服務處或

具有相關資格的人員加以更換以避免危險。

● 請勿用潮濕的手，拔除插頭。

・

會引起觸電。

● 本電器不能在沒有人員監督以及指示之下，讓體力、知覺、以及精神不健全的人獨自操作

(

包含小孩)。並請注意以及隨時監督切勿

讓小孩玩耍本電器。

● 將插頭的電線向下，將插頭確實插入插座內。

・

如果插頭方向相反插入，會給電線增加負擔，成為短路．觸電．起火的原因。

・

如果插頭插得不夠完全，也將會成為因觸電，發熱而導致火災的原因。

● 針對地震等天然災害做好防止翻倒處置。

・

避免因翻倒而受傷。

● 請勿設置於潮濕或會被水淋到的場所。

・

避免因電氣絕緣不良而引起觸電．火災的危險。

禁止禁止

禁止濕手

禁止淋濕

請勿讓電線受損．加工．接近發熱器具．勉強彎曲．扭曲．拉扯．乘載重物．讓冰箱壓住電線或捆綁電線。

此圖示標示為可燃性冷煤的注意事項。

■ 此冰箱使用可燃性的冷煤。以下的標示欄記載關於可燃性冷煤的注意事項。

R600a

安全上的注意事項

請務必遵守

為了防止危害到使用者或其他人及造成財務上的損失，請務必遵守以下事項。

■ 以下將以標示方式，區分及說明忽視標示內容而誤用時所產生的危害與損失程度。

■ 以下將以圖示標示方式，區分及說明應遵守內容的種類。（以下為圖示標示例）

BB0040171R_R-E6200SHV_B.indd 4 15.5.25 3:29:39 PM

在一般使用的情況下

● 請勿用水淋濕主體與箱內。

・

避免因電氣絕緣不足而引起觸電．火災。

● 請勿放入容易引火的物品。

・

揮發油．乙醚．LP瓦斯．

稀釋液．黏著劑會發生引爆的危險。

● 請勿懸在箱門上嬉戲，或踏在收納盒上。

・

避免因翻倒，夾到手指而受傷。

● 請不要拆卸冰箱內燈的蓋子。

・

燈泡損壞時，須由製造廠商或其服務處或具有相關資格的人員加以更換以避免危險。

● 不要用力碰撞門。

● 請勿用來保存藥品或學術試樣。

・

必須嚴格管理的物品，不可保存於家庭用冰箱內。

● 在附近請勿使用可燃性噴霧用品。

・

避免因箱門開關等電氣接點引起的火花引發火災。

● 請勿將含水容器放在冰箱上。

・

翻倒的水會造成電氣組件絕緣不良而發生漏電．火災．觸電的危險。

● 請勿在冰箱上放置物品。

・

避免因開閉箱門，造成物品掉

落而受傷。

● 請注意不要讓孩子們玩耍。

● 請勿手觸自動製冰機的機械部位。

・

製冰盤旋轉時，手恐怕會受傷。

禁止淋濕

禁止淋

濕

禁止

禁止接觸

警告

● 進行冰箱保養，請務必拔掉插頭。

有觸電或受傷的危險。

頁

・

請將插頭確實的從插座內拔出。

● 請定期清除插頭上的灰塵。

當插頭堆積灰塵時會因濕氣而造成絕緣不良，進而引起火災。

・

請拔除插頭再用乾布擦拭乾淨。

電源及電源電線

binder

LP gas

Benzine

● 不要將箱門開得過大或靠在打開的箱門上等給箱門施加勉強的力。

禁止

安全上的注意事項

BB0040171R_R-E6200SHV_B.indd 5 15.5.25 3:29:39 PM

● 不可以螺絲等銳利物品刮傷冰箱本體。

由於使用可燃性的冷媒，當冷媒從冰箱內壁的配管外洩，會有起火．爆炸的危險。

關於冷媒（由於這是一種可燃性的氣體

R600a:

異丁烷，請注意以下的事項。）

● 除廠商建議方法外，不得使用機械工具或其它工具來加速除霜的過程。

● 警告標籤和銘牌必須一直牢固張貼於壓縮器上和冰箱上。

● 請勿在冰箱內部使用電器用品。

・

如冷媒外洩，電氣接點所產生的火花，會有起火．爆炸的危險。

● 請勿損傷冰箱的冷卻管路。

冷煤配管損壞時，請將冰箱遠離火源並避免使用電器用品。配管損壞時，請儘快將門窗打開，並與經銷商或日立技術中心聯絡。

● 安裝的時候，在周圍要離開一些間隙，確保有足夠的散熱空間。

頁

若冷媒外洩的情況持續，會有起火．爆炸的危險。

● 如需進行廢棄處理時，請聯絡經銷商或環保署資源回收中心專線，交給他們進行專業處理。

若冷媒外洩會有起火．爆炸的危險。

禁止

禁止禁止

萬一有下列情形

廢棄處理時

● 當產品異常或故障時，請拔掉插頭停止運轉。

有觸電或受傷的危險。

・

請務必在拔除插頭時握住插頭。

● 在等待廢棄物再利用保管之際，因有幼兒被誤困在箱內之虞，請將門墊拆下來。

● 可燃性氣體外漏時，勿接觸冰箱，請立即開啟窗戶進行換氣。

・

避免因箱門開關等電氣接點的火花，而發生引爆．火災．燙傷等危險。

● 請勿自行分解．修理．改造。

避免發生火災，異常動作而受傷。

・

需分解．維修時，請洽經銷

代理商。

禁止分解

警告

R600a

關上開關

BB0040171R_R-E6200SHV_B.indd 6 15.5.25 3:29:40 PM

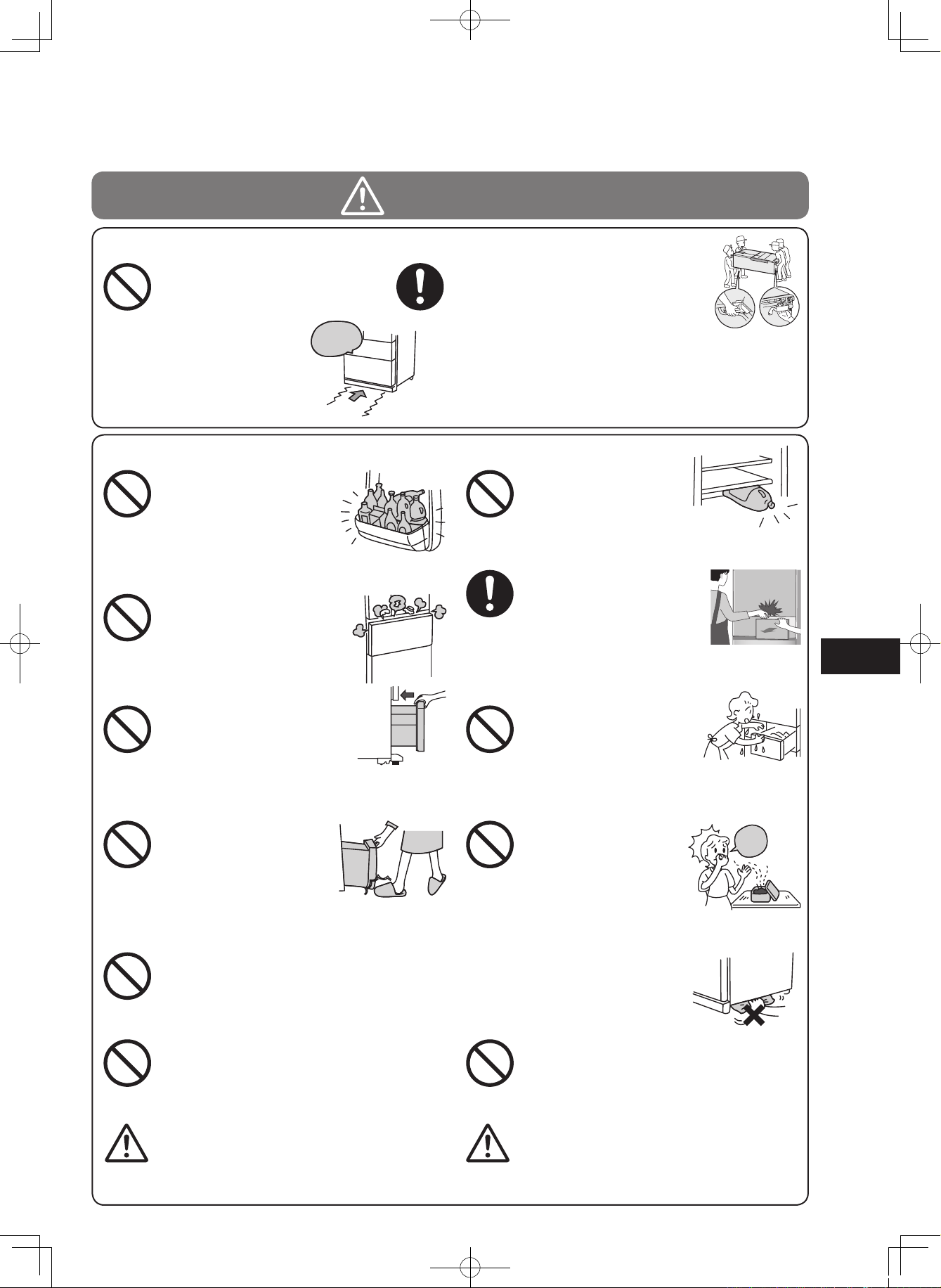

注意

禁止

移動•搬運時

● 請勿在容易刮傷的地板上使用冰箱滑輪。

避免因滑輪而刮傷地板。

・

請在容易刮傷的地板上鋪

上保護板。

● 請勿以吊車吊起手把部位。

● 請勿碰撞冰箱背面・側面。

● 搬運時，請用手持手把搬運。

倘若沒有手持把手，可能會因手滑而受傷。�

・

請僱用2人以上手持手把搬運。

・

搬運時請如圖示般將箱門朝上。

・

請不要用起重機等吊起把手。

・

為了防止電源插頭、電線下垂，請以膠布固定。

在一般使用的情況下

● 請勿在超大瓶飲料的縫隙間再塞入其他瓶罐。

�

・

勉強放入超大瓶飲料瓶後，在開閉箱門時，可能會因掉落而受傷。

● 請勿讓食品凸出層架。

・

避免因鉤到瓶罐後掉

落而受傷。

● 請勿食用有異味，已變色的食品。

・

避免因食品腐敗而引發疾病。

● 請勿用潮濕的手碰觸冷凍室內的食品或容器。

・

避免凍傷。（尤其是金屬製產品）

● 同時開啟二個以上的箱門時，或者其他人也在碰觸冰箱時，請確認手指是否會被冰箱門夾住。

・

避免手指被門與門之間的縫隙所夾傷。

● 請勿將瓶子放在冷凍室內。

・

內容物結凍會使瓶子破裂，容易受傷。

● 開啟最底層的箱門時，請勿讓腳靠近冰箱。

・

避免在開啟箱門時，碰觸到腳底而受傷。

● 手腳不要放進冰箱的底部。

清理時將手伸入冰箱底下時，可能會被鐵板割傷。

● 關抽屜型的箱門時，請勿手持上方推進。

・

按住門上方關抽屜會夾住手指容易受傷。

禁止

禁止禁止

禁止

有怪味

小心！！

● 為了防止水滴到地板上。

長時間門與冰箱間有縫隙時，結露水或除霜水可能會滴下。請確實關緊冰箱門讓門與冰箱之間沒有縫隙。

● 因為玻璃層架很重，安裝、拆卸時請格外注意。

● 請勿施加強烈撞擊力於玻璃層架及玻璃隔板。(可能因玻璃層架及玻璃隔板破裂而導致受傷

)

● 請勿在玻璃層架及玻璃隔板的玻璃面上加熱，或放置熱的物品。

禁止禁止

安全上的注意事項

BB0040171R_R-E6200SHV_B.indd 7 15.5.25 3:29:41 PM

※ 是在環境溫度

30˚C

、不放食物、關著門、安定時的標準值。

●收納時請保留食品間的空隙。

●建議您在存放強烈氣味食物時，先以保鮮膜包覆之後再放入冰箱。

Rice

Frozen

wheat noodle

Hamburger

Deep-fried chicken

New

tea

leaves

Fish

sausage

Butter

Vienna

sausage

Milk

Tea

ogur

確認事項

各室的名稱・存放食物

附屬品

冷藏室

頁

約

2˚C~6˚C

製冰室

頁

約

-20˚C~-18˚C

上層・下層冷凍室

頁

約

-20˚C~-18˚C

蔬果保鮮室

頁

約

3˚C~7˚C

真空冰溫室

頁

約

-1˚C~約1˚C

保證書

維修時請出示保證書

專用工具

(

付調整墊2個

)

請在固定冰箱時使用

頁

冷藏食品

收納自動製冰機所製造的冰塊。

冷凍食品，冰淇淋及乾貨。

蔬菜，水果，飲料

上層存放空間

肉類・魚類等的生鮮食品

利用真空與光觸媒的效果，抑制鮮度降低。

使用過的蔬菜、小型蔬菜、水果等

箱門置物架附近溫度會稍高。

Tea

Mineral

water

Mineral

water

豎放儲存區

較高大的蔬菜及2公升的寶特瓶

豎放儲存區的溫度較高。

蔬果睡眠保鮮空間

葉菜類(菠菜、小松菜等)、大型蔬菜(高麗菜、萵苣等

)

BB0040171R_R-E6200SHV_B.indd 8 15.5.25 3:30:01 PM

操作面板的功能

確認事項

操作部是玻璃觸碰式。按下

按鍵時可以顯示目前的設定。

操作面板的上方是顯示部，下方是操作部。

請按操作部來切換各種設定。

告知之顯

節電設定溫度設定製冰設定

設定冷卻模式真空冰溫室設定

顯示部分

操作部

Water

霜循環冷卻時等，減少消費電力運轉時，則自動燈亮，以告知目前是省能源運轉狀態。

操作面板按鍵鎖，上鎖時顯示燈亮燈

頁

告知異常時，顯示燈閃爍

頁

當給水槽中的水減少時，顯示燈亮燈

頁

節電模式的設定

將各室的冷卻減弱，節省電力。

設定冰箱各存放空間的溫度。

平常請設定在「■■」的位置。

設定製冰模式設定冷卻模式

設定真空冰溫室模式

Trip

（旅行）

頁

Save

（節電）

頁

冷藏室

頁

冷凍室

頁

Quick

（急速製冰）

頁

（製冰）

頁

Off

（製冰停止）

頁

Fridge

（急冷藏）

頁

Freezer

（急冷凍）

頁

Veg

（蔬果室強）

頁

-1˚C

頁

+1˚C

頁

顯示燈全滅燈

頁

■ 關於顯示部

● 請在所有冰箱門關閉的狀態下操作各種設定。當冰箱門開啟時或顯示部的顯示燈閃爍時，操作各種設定則無反應。

● 要確認設定狀況時，請按下

，或打開冷藏室門。顯示部會再次亮燈。

● 操作結束後，再次按下

時，則顯示滅燈。沒有按下

，為了達到省電目的，約40秒後顯示部及操作部也會滅燈。

但「節電」模式的設定及「

Fridge」「Freezer」「Quick

」運轉時的顯示、及「

Off」「Water

」的通知顯示、環保運轉的

「

eco

運轉顯示」則不會滅燈。

● 開啟冰箱門若顯示部及操作部亮燈，冰箱門關閉後約15秒顯示文字則滅燈。

■ 關於操作部

● 觸控面板會根據周圍的溫度・濕度、使用者的身體狀態及旁邊的電器製品的使用狀況，其反應會有所變化。

● 按了也沒有反應(顯示內容不變)的時候，請把手指離開一下再按。在兩次按鈕之間的間隔過短有可能導致檢測出錯誤訊息(感應為持續按)。用力按也不會改善感應度的。

● 玻璃觸碰部濕或髒了的時候，會沒有反應。請以乾布擦拭。

通知事項

最初碰觸

鍵

※ 為了更清楚說明，所有的顯示都呈燈亮的狀態。

● 若要切換設定時，請在冷藏室門關閉的狀態下操作。

注意事項

若無亮燈時，有可能是以下幾種原因所造成時

・

在剛設置後，或一次儲存大量食品時

・

冷藏室門開關頻繁，或是冷藏室門沒有確實關緊時

・

設定成「

Freezer」「Fridge」「Quick」「Veg

」時

・

冷藏庫周圍溫度超過

35˚C

時

通知事項

BB0040171R_R-E6200SHV_B.indd 9 15.5.25 3:30:04 PM

設置在以下的場所

● 堅固・水平的地板地毯・榻榻米（日式草蓆地板）・木板地・塑膠地板等恐怕會有變形・變色的可能，請墊（超過

1cm

厚）的板材。

● 避免陽光直射和高溫

● 不潮濕・空氣流通的地方這些可防止冷卻功率下降，避免電費增加。而且可抑制變色以及生銹。

● 與其他的電器間隔一段距離防止對電視等造成雜音或影像不安定等情形。

● 為了保持良好冷卻效率，在周圍請空開充分的散熱空間。

● 本體側面的中央部分是比所表示的尺寸稍大。設置時請確保充裕的空間。

● 背面可靠牆設置。若有振動音或是不願讓牆壁弄髒及變色的話，請空開一些間隙。

固定冰箱

旋轉冰箱前方下側的調整腳，來調整冰箱平衡。

箱門的平衡調整

● 設置的地方不平，地板太軟，加上食物的重量，冰箱腳會下沉，箱門會稍有歪斜。

→

機能上沒有問題，如介意請按如下的步驟進行平衡調整。進行左右水平調整，並使冰箱的前側稍微高一點可方便關門以避免門沒關好。

事前準備

使用前的準備

手持遮蔽架的兩端，用力拉向身前卸下。

〈使用專用用具時〉

請使用附屬的專用工具調整箱門下沉一方的調整腳，直到左右冰箱門平行為止。

調整腳的旋轉量是，每旋轉1圈相當於箱門的高低差距

1mm

。

請將遮蔽架的卡榫(左右)插入冰箱的安裝孔內安裝

調整後，冰箱本體與地板的適應需要約

天的時間。經過一段時間後冰箱仍無法平衡時請再次按步驟進行調整。

旋轉調整腳，直到冷藏庫腳降至地板時，將其固定。

(

左右各2處

)

・

將調整墊放在調整腳的下方。請將調整腳調整至前後左右平衡的狀態。

・

請使用專用工具配合調整腳的形狀夾住調整腳。

●

在放入調整墊之前，請將調整腳的底部與地板擦拭乾淨。若有髒污時將有可能會刮傷地板。

● 旋轉調整腳時，請使用專用工具並請注意勿傷及地板。

遮蔽架

調整腳

專用工具

調整墊

■ 左側下歪 ■ 右側下歪

旋轉降低左邊的調整腳

旋轉降低右邊的調整腳

安裝孔

卡

榫

遮蔽架

左右

1cm

以上

上方為

5cm

以上

1 2

● 當冰箱門在開啟的狀態下，放開手時，門有可能會動，這並不是故障。

通知事項

BB0040171R_R-E6200SHV_B.indd 10 15.5.25 3:30:05 PM

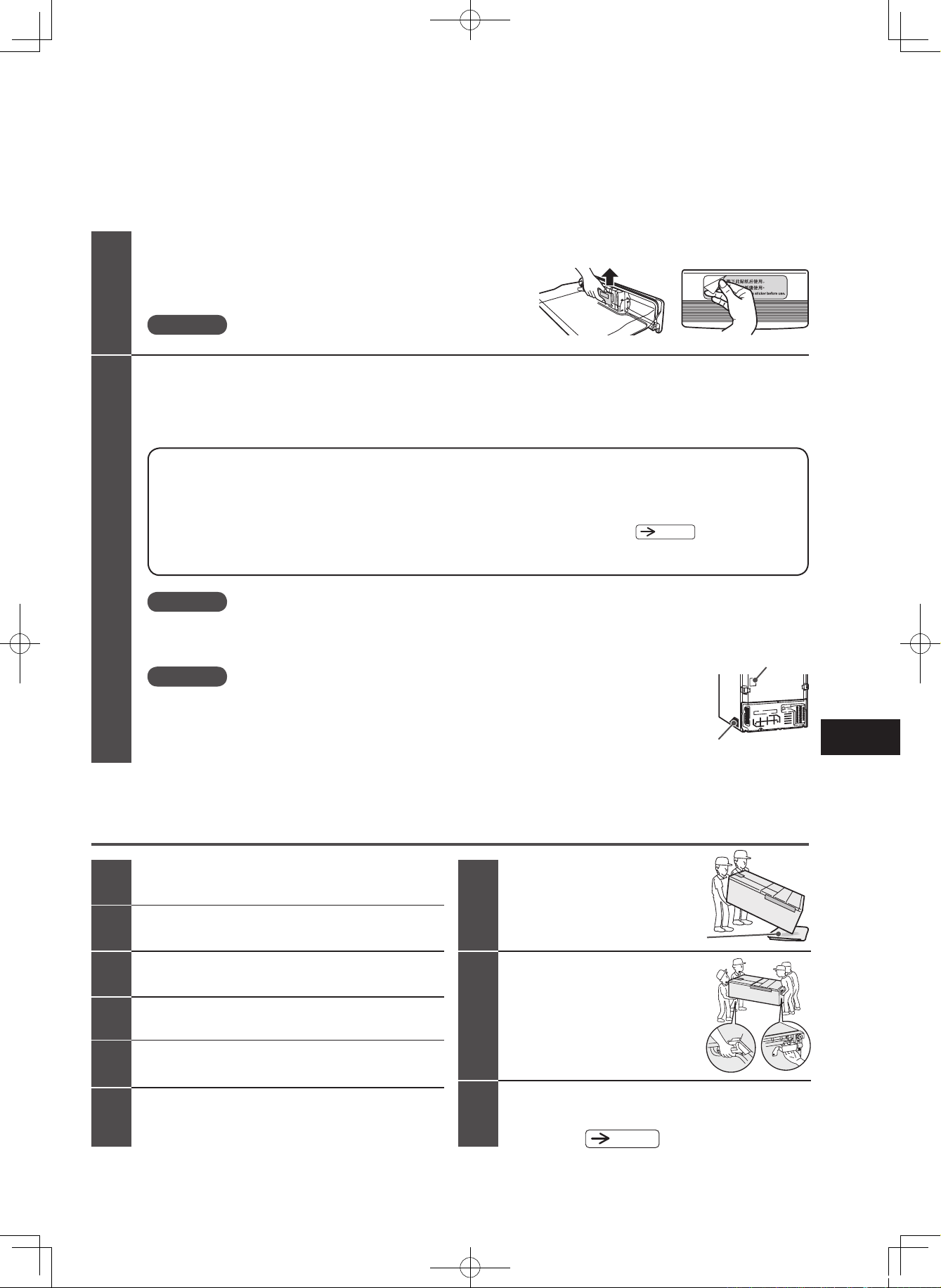

撕下真空冰溫室內的抗氧化益鮮盒上的標籤

使用前請撕下安裝在真空冰溫盒前的抗氧化益鮮盒上的標籤。

● 若沒有撕下標籤，則無法釋放出抗氧化成分及芥子精萃。

將電源插頭插入

設置後直接就可插上電源插頭。請用獨立的插座。（電源

220〜240V

�額定電流

10A

以上）

● 請確認電源插頭及電線是否夾在冰箱背面及牆壁中間。為了防止電線發熱。

事前準備

請往上方取下請撕下標籤，回復至原來位置。

● 請勿水洗。

● 請勿直接聞氣味。會有刺激的氣味。

● 插入電源插頭之後，為了確認冷氣風扇葉的狀態，冷氣風扇葉會持續動作約2分鐘。

(

比平常冷氣風扇葉的動作聲音稍大，這不是異常現象

)

● 剛開始適用時可能會有些許塑膠的氣味。請保持室內通風良好。使用後此氣味不久後即消失。

● 若在有硫化氣體噴出的溫泉地區等設置時，可能有必要進行配管的防銹處理，請預先與經銷店洽商。此外，氣體造成的故障是不屬於保修範圍以內。

● 請勿將背面的標籤撕下，或拆卸側面的導風蓋。

● 磁鐵裝飾或是吸盤吸附在冰箱本體或冰箱門表面有可能會留下痕跡。

注意事項

通知事項

注意事項

冰箱內開始冷卻

● 根據冰箱周圍溫度、食品的存放方式不同，冰箱內充分冷卻

約需要4小時。夏天天氣炎熱時，也有可能需要24小時以上

。

在冰箱尚未充分冷卻前請勿將冰淇淋或未充分冷卻的食品、易受損的食品，放入冰箱。

● 初次使用自動製冰時，請操作自動製冰機的清潔

「製冰機清潔」

。

頁

● 自動進行連續的製冰運轉是必須在冰箱內充分冷卻之後才能開始。

(

初次使用時，

最初的結冰可能需要花24小時以上

。

)

標貼

導風蓋（左右）

在地板上鋪上鋪墊或布，將冰箱往後傾倒，讓內部的水流出

將食物及冰塊取出

拆除冰箱遮蔽架，將調整腳升高

將給水槽、製冰盤的水倒掉

以膠布將冰箱門・電源線固定

在預定放置的位置，請依照「使用前的準備」的指示進行設置。

頁

拔除電源插頭

要搬動之前拔除即可

移動・搬運時請鋪上保護用的鋪墊或布

防止刮傷地板、或冰箱內部殘留水流至地板。

搬運時請握住搬運把手搬運，並請2人以

上進行搬運

運輸時請勿將冰箱橫放。

(

冰箱故障的原因

)

移動・搬運的事前準備(搬家時

)

舊的布巾等

BB0040171R_R-E6200SHV_B.indd 11 15.5.25 3:30:06 PM

● 請勿對玻璃層架施加強力的撞擊。(可能造成玻璃層架的破裂

)

● 因玻璃層架較重，安裝，卸除時請特別小心。

注意事項

●剛出廠時的狀態 ●收納鍋子等 ●收納紙盒裝牛奶等

冷藏室

冷氣吹出口

LED

燈

可調式置物架

急速冷藏區

可調式層架上段

（玻璃層架）

可調式層架中段

（玻璃層架）

可調式置物架

可調式層架下段

容器置物架

(右)

置蛋架

固定層架

容器置物架

(左)

固定容器置物架

冷藏室溫度感測器

旋轉隔板

● 將含水份較多的食物或罐裝飲料放置在冷氣吹出口附近時，有可能因結凍而導致破裂的情形。

●

稍有熱度的食物請放置在急速冷藏區或可調式層架。若將食品放置太靠近溫度感測器時，冷藏室溫度會過低，而導致冷藏室內側面板有結露的產生。

● 請勿將箱門開得過大或靠在打開的箱門上等給箱門施加勉強的力。箱门有可能会损坏。

注意事項

注意

■ 開門時

・

請勿握住旋轉隔板部開啟冰箱門。

(

可能造成冰箱門無法開啟

)

■ 關門時

・

當旋轉隔板立起的狀態時請勿關閉冰箱門。

(

可能造成冰箱門無法完全關閉

)

旋轉隔板旋轉隔板

調整置物架・層架的高度

配合食品或飲料的大小，置物架及層架的位置可以做適度的調整。

關於拆卸方式・安裝方式請參閱

頁

■ 可調式置物架

■ 可調式層架(上段・中段

)

配合食品及飲料的高低可以做適度的調整。

■ 可調式層架(下段

)

調節可分為3個階段。

冷藏室

BB0040171R_R-E6200SHV_B.indd 12 15.5.25 3:30:08 PM

在急速冷藏區放食物

放在中央的內側部分可較快冷卻。（冷氣吹出口前面）

按下

調節冷藏室溫度

急速冷卻食品(急冷藏

)

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可以變更適當的溫度

按下按鈕時依如右圖所示順序切換。出廠時設定為「■■」。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵「

Fridge

」顯示燈亮

「

Fridge

」在運轉中時「

Fridge

」的顯示燈亮燈，其餘的顯示在40秒後即熄滅。

約50分鐘運轉後自動停止，此時「

Fridge

」的顯示燈熄滅。

按下操作面板的

按鍵，顯示燈亮

按下

按鍵「

Fridge

」顯示燈熄滅

中途解除

● 設定改為「

■■■

」或「■」時，真空冰溫室的溫度也會稍微改變。

● 箱門層架比右圖所示溫度略高。

※ 是在周圍溫度

30˚C

、不放入食品、關閉冰箱門、

安定的狀況下的冷藏室的大致溫度。

● 罐裝飲料及水份較多的食品請離背面冷氣吹出口一段距離置放。有可能會結凍、破裂。

● 通常請使用“■■”的位置。溫度因使用條件而有所變動。

● 調節更細微的溫度時

頁

通知事項

注意事項

約2∼

6˚C

（出廠時）

比“■■”低

約1∼

3˚C

比“■■”高

約1∼

3˚C

急速冷藏區

冷藏室

BB0040171R_R-E6200SHV_B.indd 13 15.5.25 3:30:09 PM

真空冰溫室

光觸媒及

LED燈

利用

LED

燈光與光觸媒的效果，將食品中產生味道的成分及蔬菜所產生的乙烯氣體轉換成碳酸氣，抑制酵素的活性。

LED

燈光除了具有光觸媒功能之外，打開冷藏室門時，可照亮真空冰溫室

真空幫浦

把手

真空冰溫盒

(

付鋁製托盤

)

抗氧化益鮮盒

使用前請務必將標籤撕下。

頁

真空冰溫室內呈真空狀態，會從容器內釋放出抗氧化成分及芥子精萃，以保持食品的鮮度及營養素。 ※ 不需要定期更換。

真空解除閥(藍色

)

向上提起把手解除鎖定，藉由真空解除閥可以解除真空狀態。

解除真空時會有「咻」的聲音。

開閉真空冰溫室門

開啟箱門時關閉箱門時

將把手往上扳起，解除鎖定

將真空冰溫盒往內推進

將真空冰溫盒往前拉出

當「咻」的聲音還響著時，因為是真空狀態，真空冰溫盒是不能打開的。當的聲音消失時，握住把手往身前方向打開箱門。

將把手往下扳，讓其鎖定

往下按把手鎖緊。如果沒有壓到最底部時，則真空冰溫功能無法正常啟動。

1 1

咻

把手

真空冰溫盒

在沒有同時開啟左右冰箱門的狀態下拉出真空冰溫盒時，可能造成零件的破損。

在尚未鎖定把手的狀態下關閉冰箱門時，可能造成零件破損及密封墊裂縫。

注意事項注意事項

● 關閉真空冰溫盒，鎖緊把手，再關閉冰箱門時，此時則啟動真空幫浦。

● 開始啟動真空幫浦時，會有發出聲音，這不是異常的情形。

● 啟動真空幫浦至真空狀態，約需3分鐘的時間。在3分鐘以內縱使打開真空冰溫室門也有可能不會有“咻”的聲音，因此要確認真空狀態請等到3分鐘以後再行確認。

● 真空冰溫室是利用間接冷卻的原理，與其他冷藏室比較之下，食品至完全冷卻需要花較久的時間。

● 周圍照明變暗時，可以透過冰箱門的密封墊隱約看見光觸媒正在運作及

LED

燈光。

● 抗氧化益鮮盒若有髒汙時，請用擰乾的濕布擦拭乾淨。

● 請勿以水清洗抗氧化益鮮盒。萬一水洗時，請讓其充分乾燥後再使用。

● 請勿直接在抗氧化益鮮盒上面施加有氣味的物品。可能造成刺激性的氣味。

● 請勿分解抗氧化益鮮盒。

在真空冰溫盒開啟的狀態下，關閉冷藏室門時，有可能造成零件及食品的破損。

通知事項

敬請依照指示操作

注意事項

BB0040171R_R-E6200SHV_B.indd 14 15.5.25 3:30:14 PM

真空冰溫室

變更真空冰溫室的設定

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好變更設定

按下按鈕時依下列的順序切換。出廠時設定為真空冰溫。

1 2

※周圍溫度

30˚C

沒有放入食物，冰箱門關閉的狀態，在安定時的真空冰溫室的約略溫度。

「

-1˚C」(約-1˚C)

（出廠時）

非真空的冰溫

(約-1˚C)

全滅燈

「

+1˚C」(約+1˚C)

設定與存放食品

-1˚C

(約-1˚C)

+1˚C

(約+1˚C)

真空

真空關閉

全滅燈

(

非真空的冰溫

)

(約-1˚C)

存放下列的食品時，請設定為「

-1˚C

」。

存放下列的食品時，請設定為「

+1˚C

」。

冷凍的肉類、魚類要解凍時，也請設定為

-1˚C

狀態。

含水分較多的食物有可能會凍結。

真空功能・光觸媒功能停止運作。建議存放需裝在「密封袋」、

「密封容器」的食物時選擇該模式。因為是一般的「

-1˚C

」冰

溫室，含水分較多的食物可能因低溫而凍結。

維也納香腸，乳酪片等。

茄子小黃瓜

優格・起司等豆腐・蒟蒻・油炸豆腐

・

白絲蒟蒻・水煮蛋等

放入密封袋・容器的蔬菜

・

咖啡豆・茶葉等

生菜沙拉、紫蘇葉等的新鮮蔬菜、柳橙、奇異果等的水果

● 密封袋包裝食品

密封袋在儲存時可能會膨脹而擠壓到其他食品。

● 不耐低溫的蔬菜

低溫可能會使得蔬菜表面變質。請收納在蔬果保鮮室。

黃秋葵・蘆筍・生薑・青椒

● 塑膠密閉容器

塑膠密閉容器的蓋子在儲存時可能會鬆開或脫離原來的位置

。取

出時請注意。

●肉類・加工肉品

●乳製品

●切好的蔬菜、水果

●

魚貝類・海鮮類・魚類加工食品

●其他

● 結凍時會造成品質、口感變差的食物

儲存時需要注意的食品與容器

不適於儲存的食品

注意

● 縱使食品以保鮮膜包覆，也不會改變真空的效果。

● 周圍溫度低時，水分較多的食物可能因低溫而凍結。

● 將冷藏室・冷凍室的溫度設定調至「■■■」或是「■」時，真空冰溫室的溫度會稍有改變。

● 為達到省電目的，約40秒顯示燈即熄燈，所設定的功能將持續有效。

因為真空冰溫室是密閉的狀態，食品和空氣中所含的水分，有可能在冷凍室內結成水滴或結霜。

●若有水滴或結霜時，請以柔軟的布沾溫水擦拭。

●真空冰溫室內若水或食品的液汁溢出時，請立刻擦拭乾淨。 ※ 產生水滴或結霜並不會對冷卻性能造成影響。

通知事項

注意事項

敬請依照指示操作

水滴、結霜

按下

BB0040171R_R-E6200SHV_B.indd 15 15.5.25 3:30:16 PM

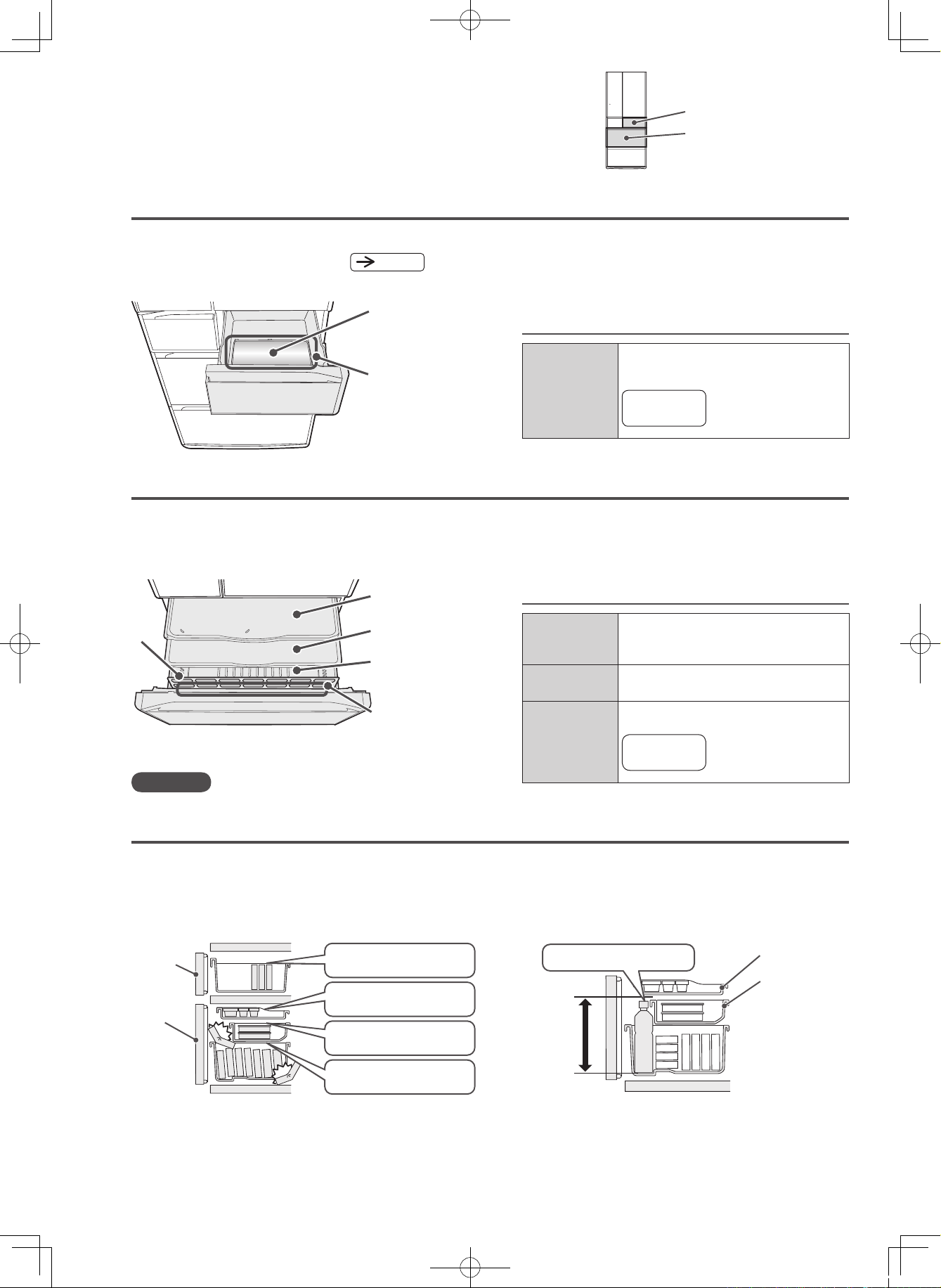

冷凍室

上層冷凍盒

（附鋁製托盤）

急速冷凍區

上層滑動盒

中層滑動盒

豎放儲存區

下層冷凍盒

（附鋁製托盤）

●將上層冷凍室的鋁製托盤往上層滑動盒左側移動，便可作為急冷凍區使用。

●上層滑動盒裡請勿存放

500mL

的塑膠瓶。塑膠瓶凍結後會

膨脹，導致中層滑動盒拉不出來。

●請勿將上層滑動盒或中層滑動盒拆下。食品會掉落到下層冷凍盒的後面，導致門無法關緊。

●在豎放儲存區裏儲放高的食物時，請注意不要碰到上層滑動盒及中層滑動盒。

●請只使用於存放冷凍對應的寶特瓶類及能夠冷凍的食品。

（前）

上層滑動盒

上層冷凍室門

下層冷凍室門

中層滑動盒

使用上層冷凍室

使用下層冷凍室

食品收納時請格外注意

約略高度

收納食品

上層滑動盒

小件物品，冷凍食品等

中層滑動盒

冷凍包裝，密封容器等

下層冷凍盒

冷凍食品，麵包，冰淇淋等

豎放儲存區

上層冷凍盒

冷凍包裝、密封容器等可當作小件冷凍食品的存放空間

急速冷凍區

急速地冰凍將鮮味密封的急速冷凍機能。

頁

請使用於急速冷凍肉類或魚類時。

內配3 層冷凍盒，能夠充分地存放，整齊地收拾。

適於存放需長期保存的東西，容易融化的冰淇淋等。

請注意每個盒子所能容納的食品高度。

可能因箱門沒有完全關緊，而造成不夠冷的情形。此外，也可能造成食品、盒子破損的情形。請勿讓上部的上層滑動盒或是中層滑動盒的底部接觸到其他食物。

在短時間內冷凍肉類、魚類時

存放冷凍專用寶特瓶等

上層冷凍盒

到盒子頂端

上層滑動盒

高度約

5cm

中層滑動盒

到盒子頂端為限

下層冷凍盒

到盒子頂端為限

高

23.5cm

以內

豎放儲存區

上層冷凍室

下層冷凍室

隔板

● 請勿拆下上層滑動盒與隔板。

注意事項

BB0040171R_R-E6200SHV_B.indd 16 15.5.25 3:30:16 PM

冷凍室

調節冷凍室的溫度

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好變更設定。

按下按鈕時依如右圖所示順序切換。出廠時設定為「■■」。

● 冷凍室「■■■」長時間使用時，冰淇淋等會變硬、儲存的食品的解凍時間會變長。

● 將冷凍室上層的鋁製托盤移至冷凍室下層的上層滑動盒左側，可做為急速冷凍區使用。

※ 是在環境溫度

30˚C

、不放食物、關著門、安定時的標

準值。

● 通常請使用“■■”

的位置。溫度因使用條件而有所變動。

● 操作部分的詳細使用方式

頁

注：冷凍室「■■■」(低溫冷凍)是比平常冷凍還要低

溫的狀態來保存食物。與平常冷凍時的運轉相比，消費電力約增加

20%

。

通知事項

約

-20∼-18˚C

（出廠時）

比“■■”低

約1∼

3˚C

(

低溫冷凍

注

)

比“■■”高

約1∼

3˚C

將食品急速冷凍(急冷凍

)

上層冷凍室的鋁製托盤上放用保鮮膜包好的食品

將食品分開小塊、薄片，不但能快速冷卻到中心部，而且方便取出。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵「

Freezer

」顯示燈亮

「

Freezer

」在運轉中時「

Freezer

」的顯示燈亮燈，其餘的顯示在40秒後即熄滅。

約

120

分鐘運轉自動結束，「

Freezer

」顯示自動熄滅。

按下操作面板的

按鍵，顯示燈亮，

再按下

按鍵「

Freezer

」顯示燈熄滅

中途解除

● 「

Freezer

」中，為了優先冷卻冷凍室，特別是冷藏室的門開關頻繁的時候，冷藏室的溫度容易升高。

● 可以直接冷凍熱的飯等。放入熱的食品時，會有燙傷的危險，請注意!建議冷卻到可以用手拿的溫度之後再放入。

● 「

Freezer

」結束後的60分鐘以內，再次按

鍵時，雖然「

Freezer

」顯示燈亮，但「

Freezer

」不運轉。60分鐘過後才

恢復運轉。

● 為了防止食品粘在鋁製托盤上，請務必包上保鮮膜。

通知事項

按下

急速冷凍區

BB0040171R_R-E6200SHV_B.indd 17 15.5.25 3:30:17 PM

MINERAL

WATER

Tea

JUICE

操作部

●注意：只可加入飲用水。

●製冰用水根據貴國的飲用水標準而定。自來水的水質因不同國家而異。請向地方當局檢查、核實。

●

因衛生上的理由，請至少每週更換一次水，並清洗容器。

●使用含豐富礦物質的礦泉水製作冰塊時，會產生白色的粉末，這是礦物質成分，對人體無害。

製冰室

（自動製冰機）

給水槽

(約1.0公升)

製冰功能切換鍵

自動製冰機

儲冰盒

冰鏟

顯示

製冰鍵

告知給水警示燈

製冰盤

給水線

取出給水槽

「

Water

」亮起，或是水量已經接近「給水線」時請補充水。

再裝回給水槽

往前推入到超過「水槽安裝位置」的線位。給水槽必須推至比水槽安裝位置更裡面，才會進行給水。 ※ 給水槽傾斜會將水灑出。

水灑出請立即擦乾。

自動開始製冰運轉

冰塊儲存在儲冰盒中。一次製冰約可製12個冰塊。

打開給水槽蓋加水

加到滿水線。 ※ 請勿加水至滿水位以上。

給水槽蓋

滿水位

滿冰位

水槽安裝位置

初次製冰時、或是一星期以上沒有製冰時，請操作「製冰機清潔」。

頁

製冰室

● 由於會導致故障，或是會造出畸形・連體的冰等，請不要使用這些(液體)。

● 如下列所示，因為容易受到細菌污染，平常請三天清洗容器一次。

礦泉水

（硬度：

100mg/L

以下）

果汁類運動飲料水汽水茶

過濾水或

煮沸後的水

井水

（皆須符合飲用水質標準。）

製冰方法

按下操作面板的

按鍵，顯

示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，顯

示燈亮

下列的情形時，可能會延長製冰的所需時間。

・

開始使用時(可能需要24小時以上

)

・

設定成「節電」模式時

・

冰箱門開關次數頻繁時

・

冰箱內同時放進大量食物時

・

停電時

・

冬天周圍溫度較低時

・

清潔製冰盤後

・

冷凍室或製冰室門呈半開的狀態

・

冷凍室溫度設定為「■」時

通知事項

敬請依照指示操作

按下

製冰室

BB0040171R_R-E6200SHV_B.indd 18 15.5.25 3:30:21 PM

冰的收納量

正常運轉

約

120

個

將冰塊整平

約

150

個

一次的製冰時間

通常的「On」

約

110分~140

分

「

Quick

」

約80分

※ 周圍溫度

30˚C

，各冰箱的溫度設定在「■■」的位置，無開關冰箱門狀態的約略值。

冰鏟冷凍食品

儲冰量止動桿儲冰量止動桿

冷凍食品在裡面嗎？製冰鏟是否放回

規定的位置？

操作面板

製冰室

︵自動製冰機︶

●「

Water

」燈顯示燈亮的狀態下開啟冰箱箱門時，「

Water

」會滅燈(最長會熄

滅3小時)，若沒有補充水時則會再次燈亮。

●自動製冰機設定為「

Off

」時，「

Water

」不會顯示燈亮。

●滿水線表示的是冰塊平放在冰盒中時的最大容量。如果冰盒內只有一部分冰塊，但是冰塊碰到了止動桿，即使冰塊數量很少，製冰機也會停止製冰。

●請小心開關製冰室門。若太用力開關製冰室門時，冰塊可能從儲冰盒掉到下層冷凍室。

請先將製冰盒內清空，再操作「製冰機清潔」。

頁

● 自動製冰設定時，儲冰盒中請勿放冰以外的冷凍食品等。（會造成不能製冰、食品碰到製冰機的部件、門打不開、部件損壞的情況。）

●即使給水槽中有水，但是安裝給水槽時沒有確實推入，「

Water

」會顯示燈亮。

此時請確實地將給水槽往前推入至固定位置。

●「

Off

」的顯示燈不會熄滅。

通知事項

敬請依照指示操作

注意事項

通知事項

急速製冰

告知給水警示燈

「

」顯示為閃爍時

儲冰盒的冰塊收納量・製冰時間

製冰停止

按下操作面板的

按鍵，顯

示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

約7小時「

Quick

」的運轉則自動停止，切換

至「On」模式。

按下操作面板的

按鍵，顯

示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，

「

Quick

」顯示燈亮

比「On」更縮短製冰時間。

一次製冰約可製12個冰塊。

「

Quick

」運轉時，「

Quick

」的顯示亮燈。其他的顯

示約在40秒後滅燈。

按下

按鍵，「

Off

」

顯示燈亮

自動製冰停止。

※ 一星期以上「

Off

」時，自動製冰機則需進行清潔。

26, 27

頁

1 1

2 2

給水槽的水量減少時，「

Water

」顯示燈亮。請補充水至給水槽內。

●當「

Water

」亮燈時，縱使設定在「On」或「

Quick

」時也無法製冰。

製冰盤有可能碰到製冰盒內的食物。

顯示燈亮

按下按下

按下

顯示燈亮

BB0040171R_R-E6200SHV_B.indd 19 15.5.25 3:30:22 PM

光觸媒及

LED燈

利用

LED

燈光與光觸媒的效果，將食品所產生味道的成分及蔬菜所產生的

乙烯氣體分解成碳酸氣，抑制食品鮮度降低。

蔬果保鮮室

潤澤單元

豎放儲存區上層存放空間

玻璃隔板蔬果睡眠保鮮空間

上層滑動盒

玻璃隔板

鎖定把手

下層置物盒

收納食品

蔬果保鮮室門

● 請勿拆卸下層置物盒的潤澤單元及光觸媒。

● 不得拆下玻璃隔板。

注意事項

上層存放空間

未使用完的蔬菜、小型蔬菜、水果等

豎放儲存區

較高大的蔬菜及2公升的寶特瓶

蔬果睡眠保鮮空間

葉菜類(菠菜、小松菜等)、大型蔬菜(高麗菜、萵苣等

)

● 蔬果保鮮室內濕度高，因存放的蔬菜數量及種類不同，可能上層滑動盒、下層置物盒、蔬果保鮮室頂板及食品表面會有結露情形，這不是異常現象。特別是蔬果睡眠保鮮空間內的濕度更高，可能有更多的結露情形。水份聚集時容易讓食品受損，請以軟布擦拭。

● 可能因食品包裝袋及容器阻塞潤澤單元，會發生更多的結露情形。請將阻塞在潤澤單元的食品包裝袋及容器移至其他地方。

● 如果擔心結露，請用保鮮膜包裹食品。

● 將米、海苔等乾燥食品存放在蔬果保鮮室時，請放置於密閉的容器(袋)內。乾燥食品容易吸收濕氣。

敬請依照指示操作

食品收納時請格外注意

請注意每個盒子所能容納的食品高度。

可能因箱門沒有確實關緊，而造成不夠冷的情形。此外，可能造成食品、盒子破損的情形。請勿將食物碰觸到上層滑動盒的底部。

● 請勿存放食品超過置物盒的高度。

・

可能因箱門沒有確實關緊，而造成不夠冷的情形。

・

可能造成食品、盒子、玻璃隔板破損的情形。

・

若上層滑動盒沒確實關緊，則會失去睡眠保鮮效果。

● 請勿將食品、飲料等硬塞入豎放儲存區。

・

因寶特瓶的種類不同，有可能過大而致無法收納。

・

請勿將食品、飲料等硬塞進去。可能會造成玻璃隔板的破損。

約略高度

蔬果保鮮室門

（前）

上層滑動盒

下層置物盒

食品的高度

BB0040171R_R-E6200SHV_B.indd 20 15.5.25 3:30:27 PM

● 茄子、小黃瓜等比較不耐低溫的蔬菜，當設定為「

Veg

」時，可能造成蔬菜表面凹陷、

變色的情形。若有這樣情形請解除「

Veg

」的設定。

● 設定為「

Veg

」時，蔬果睡眠保鮮空間內的結露量會增多。若擔心結露請解除

「

Veg

」的設定。

蔬果保鮮室

若想以更冷的溫度來保鮮時

（蔬果室強）

使用蔬果睡眠保鮮空間

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

，「

Veg

」的顯示燈亮

以比平常更低溫來保存。（平常約

3〜7℃ → 「Veg

」約

1〜5

℃

）

※ 是周圍溫度

30˚C

，在不放入食品關閉冰箱門，安定運轉時的蔬果保鮮室的大致溫度。

關上蔬果保鮮室門時，上層滑動盒會回到原來的位置且鎖定。

按下操作面板的

，顯示燈亮後，

再按下

「Veg

」的顯示燈熄滅

解除

● 長時間使用「

Veg

」功能時，含水分較多的蔬菜有可能會結凍。請解除「

Veg

」的設定。

● 「

Veg

」與「

Freezer」「Fridge

」無法同時設定。在「

Veg

」模式中，切換成「

Freezer」「Fridge

」之後，「

Freezer」「Fridge

」

自動停止運轉時也不會自動回復到「

Veg

」模式，請再次設定。

● 在「

Veg

」模式中，設定成「節電」模式的情形時，冷卻效果會由「

Veg

」轉向較弱的冷卻效果。

頁

● 當外面氣溫低時，置物盒內溫度可能會變低。

● 豎放儲存區比其他存放空間溫度稍高。

通知事項

敬請依照指示操作

按下

打開時關閉時

押住上層滑動盒中央的鎖定手把，推向裡面。

往前拉上層滑動盒中央的鎖定手把，直到發出「卡幾」聲，即鎖定。

1 1

● 若沒押住鎖定手把，則上層滑動盒無法向裡面推進。

● 為了達到省電目的顯示在40秒後即熄燈，此設定將持續進行直到解除為止。

注意事項

茄子小黃瓜

不耐低溫的蔬菜

黃秋葵・蘆筍・生薑・青椒

卡幾

BB0040171R_R-E6200SHV_B.indd 21 15.5.25 3:30:28 PM

各種功能

操作面板鎖定功能

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下

按鍵，可依照個人喜好變更設定

按下按鈕時依下列的順序切換。出廠時，設定成節電模式「關」(全滅燈)的狀態。

持續按住

秒以上，直到發出設定音為止

操作面板按鍵鎖可切換「開」或「關」。出廠時，設定成「

」(熄滅)的狀態。

是為了防止誤觸操作面板，及兒童玩弄冰箱而設計的功能。

(

按鍵鎖) 的顯示燈亮燈時，即使按了其他的操作部也無法切換。

全滅燈

操作面板

按鍵鎖的設定

「開」

(

鎖定中

)

「關」

(

解除鎖定

)

「」顯示

燈亮

熄滅

設定音

嗶

−

嗶嗶

「節電」模式的設定

● 「

Save

」模式與「

Trip

」模式、「

Quick」

(約7小時)、「Freezer」(約120分鐘)

、

「

Fridge」(約50分鐘)

，同時設定時，冷

卻效果以「

Quick

」、「

Freezer

」、「

Fridge

」

優先，運轉結束後，回復到「

Save

」、「

Trip

」

模式。

13, 17, 19

頁

● 「

Save

」模式與「

Trip

」模式、「

Veg

」同

時設定時，冷卻從「

Veg

」轉變到較弱的

冷卻效果。

頁

●「冷凍室」「冷藏室」的溫度設定在「■」的時候，為了維持食品的新鮮度，冷卻效果不轉弱，只降低冷藏室的

LED

燈

及真空冰溫室的

LED

燈的亮度。

●

將冷卻轉換為弱的時候，冰淇淋等會變軟、冷凍食品有可能會結霜。此外讓食品冷凍的凍結時間以及製冰時間也會增長。

通知事項

注意事項

﹁節電﹂模式

將各冷藏室的冷卻調弱，可達到省電目的。

長時間持續開啟冰箱箱門時

(30

秒以上)，冷藏室的

LED

燈及

真空冰溫室的

LED

燈及蔬果保鮮室的

LED

燈的亮度會減弱，以節省用電。 ※

設定為「

Save

」模式時，其節電功能持續進行，直到解除設定為止

。

慢慢地降低冰箱內的溫度，比「

Save

」更能節省消費電力。

(

請在旅行等長期外出時設定此功能

)

※ 設定為

“Trip”

後，一旦開關門後即切換為「

Save

」。

設定成節電模式(「

Save

」・「

Trip」)

時，將切換成以下的

運轉方式，節省電力。

溫度微調節

（冷藏室・冷凍室）

冷藏室和冷凍室的溫度設定可以更細分為11個階段。平常請使用在「■■」的位置。

顯示

設定

更弱

弱

中強

更強

開啟下層冷凍室門

按下

或

按鍵，

可調節各室的溫度。

每按一次則增強一個階段。

（在「更強」時在按一下，則回復為「更弱」）

按下操作面板的

按

鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

關閉下層冷凍室門依照1、2、3順序操作

操作音「嗶嗶」響起，便回復到通常的調節(3階段)。

持續按住

按鍵5秒

以上，直到發出嗶聲為止

(

顯示燈亮

顯示燈閃爍

熄滅

)

1 5 2

解除

●

拔除電源插頭再插上插頭時，或停電後恢復供電時，有可能解除操作面板的鎖定。

通知事項

BB0040171R_R-E6200SHV_B.indd 22 15.5.25 3:30:29 PM

各種功能

箱門警報器及操作音的音量調節

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

秒以上，直到發出設定音為止

操作音的音量可切換成「標準」「大」「關閉」。設定的切換依照此順序輪替，請依個人需求切換設定音。(參照下表

)

出廠時，設定成標準音量。

1 2

● 箱門警報器或操作音，無法只調整任何一方的音量。

● 設定為不會發出聲響時，冰箱門警報器的文字顯示燈的閃爍也停止。

●

雖音量設定為「關閉」時，「製冰機清潔」的警報器、電動冷藏室門「開」以及電動抽屜「開」的操作音也會發出聲響。

● 當拔除電源插頭再插上插頭時，或停電後恢復供電時，冰箱門警報音則恢復到原來的標準狀態的設定。

通知事項

箱門警報器及操作音可設定為更大音量，也可以設定為靜音。

音量

標準大音量關閉音量標準

設定音

−

嗶−嗶

−

嗶

−

嗶嗶

箱門警報器

當冰箱門開啟長達1分以上時，會以如下表的的聲音或顯示來告知冰箱門未關閉。

上層冷凍室沒有箱門警報器功能。

※ 當箱門開啟超過1分鐘以上時，顯示部閃爍，操作部則亮燈。 ※ 只有設定為節電模式時，當冰箱門開啟30秒後警示聲才會響。( 顯示部閃爍，則表示箱門開啟長達1 分鐘以上

)

※ 冰箱門警報器機能啟動中，顯示部閃爍時縱使按下操作部也沒有反應。

箱門的打開時間

分鐘後

警報音

嗶

−

(3次)

嗶

−

(5次)

嗶

−

(

連續)大音量

(

出廠時

)

旋轉隔板的設定隔板的鐵板部的設定

開啟下層冷凍室門開啟下層冷凍室門

按下操作面板的

按鍵，

顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

按下操作面板的

按鍵，

顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

關閉下層冷凍室門關閉下層冷凍室門

持續按住

秒以上，直到發

出設定音為止

防止結露加熱器設定為弱的階段將切換。請重複上述的操作，設定所期望的階段(參照上表)。

持續按住

秒以上，直到發

出設定音為止

防止結露加熱器設定為弱的階段將切換。請重複上述的操作，設定所期望的階段(參照上表)。

1 1 2 2

4 4

3 3

● 當拔除插頭再插入，或是停電恢復供電時，將會回復到標準設定。

通知事項

將防止結露的加熱器設定為弱

（旋轉隔板部・隔板鐵板部）

將防止結露的加熱器設定為弱時，可達到省電的目的。

當旋轉隔板及隔板鐵板部有結露時，請設定為標準模式。旋轉隔板及隔板鐵板部的設定分為1至4階段，階段4最能達到省電目的。

加熱器設定為弱

標準

弱設定階段

標準

設定音

−

嗶

−

嗶

−

(2次)

嗶

−

(3次)

嗶

−

(4次)

嗶嗶

旋轉隔板部

隔板鐵板部

(

出廠時

)

BB0040171R_R-E6200SHV_B.indd 23 15.5.25 3:30:29 PM

保養方法

● 清掃時，請一定要把電源插頭從插座拔掉。

警告

■ 發現骯髒時

● 立即擦乾淨。看不到的部分也請一年清掃一次。

電源插頭

一年

1〜2

次

箱門密封墊

一個月一次

箱門表面

一個月一次

各層架・置物架・置物盒

三個月一次

冰箱背面・地板

一年

1〜2

次

液汁承接處

一個月一次

將電源插頭從插座拔掉

附著在電源插頭上的灰塵擱置而不清掃的話，會導致火災。

箱門表面請以柔軟的布，沾溫水將污垢擦拭後，再用乾布擦拭乾淨。玻璃表面殘留有膠布黏膠時，以塑膠橡皮擦擦拭之後，再以乾布擦拭乾淨。

請以軟布沾溫水擦拭。卸除方法請參閱

28, 29

頁

由於此部分容易髒，請擦乾淨。積著液汁時，請擦乾淨。

檢查

・

電線有損壞嗎？

・

電源插頭發熱嗎？

※ 如果發現異常時，請與購買的販賣店聯繫。

將遮蔽架往前拉出卸下

安裝時，從正面插入

使調整腳浮起離開地面，將冰箱往身前筆直地拖出

若是容易刮壞的地板，則鋪上保護用的板等

將電源插頭確實插入插座上

用乾布擦去灰塵等

擦乾淨背面・側面導管・牆壁・地板上的污垢

背面由於空氣對流的關係，容易堆積灰塵而弄髒。

1 1

以逆時針方向旋轉調整腳

側面導管

液汁接收處

● 因為可能會造成箱門、塗裝面、塑膠受損、變色，請勿使用以下的東西。

・

鹼性和弱鹼性的廚房用洗潔劑・去污粉・肥皂粉・石油・熱開水・刷子・酸・揮發油・稀釋劑・酒精・漂白劑等等

（請確認洗潔劑上「根據家庭用品品質表示法表示」的「液性」欄）

● 若使用化學抹布時，請遵守其使用上的注意事項。

● 沾到食用油・柑橘類的果汁・食品液汁時，請務必擦乾淨。因為其可能引發箱門、漆面與塑膠部件的損傷與變色。

● 因置物盒或抽屜的滑動軌道接觸面上塗抹了潤滑劑，保養時請勿擦拭。

● 磁鐵裝飾或是吸盤吸附在冰箱本體的側面或冰箱門表面時，有可能會在表面留下痕跡。

● 拔除電源插頭時，會解除操作面板設定的功能，請再次確認設定。

注意事項

● 用水清洗蔬果保鮮室下層置物盒時，請倒轉讓水滴乾，並用乾布充分擦拭乾淨。此外請勿使用牙刷、洗碗刷等長刷毛的刷子清洗。可能會造成置物盒受損及潤澤單元破損。

敬請依照指示操作

BB0040171R_R-E6200SHV_B.indd 24 15.5.25 3:30:30 PM

保養方法

真空冰溫室

一個月一次

拉出真空冰溫盒

卸除方法請參閱

頁

請務必取出保存在真空冰溫盒內食品。

若真空冰溫密封墊安裝溝槽中有髒污請擦拭乾淨。

卸除抗氧化益鮮盒

頁

請以擰乾的濕抹布擦拭抗氧化益鮮盒。

安裝真空冰溫盒

安裝方式請參閱

頁

從真空冰溫盒取下真空冰溫密封墊

以手握住右上方的真空冰溫密封墊的突起，小心地拆下密封墊。

真空冰溫密封墊污垢時

髒污的部分請以柔軟的海棉等清洗乾淨

※ 請勿使用洗潔劑。

將抗氧化益鮮盒安裝在真空冰溫盒

以下的零件，請以沾溫水的軟布擦拭

以乾布將水擦拭乾淨後自然乾燥

安裝真空冰溫密封墊

將真空冰溫密封墊的突起對準凹槽上的缺口，牢牢地固定。

突起

真空冰溫密封墊安裝溝槽

真空冰溫密封墊

凹槽的缺口

突起

真空容器

真空冰溫密封墊承受部

鋁製托盤

真空冰溫密封墊

●請勿以水清洗抗氧化益鮮盒。

●真空冰溫室內上方的玻璃(光觸媒及

LED

燈光部分)，請勿用手指觸摸或用乾布擦拭。沾有污垢時，請以沾濕的棉花棒輕輕擦拭除去污垢。

●真空冰溫密封墊如果使用溫水以外的洗潔劑，則有可能破損、變形、變色，無法保持真空狀態。

●如果真空冰溫密封墊鬆了或是接觸不良，則無法維持真空狀態。

注意事項

BB0040171R_R-E6200SHV_B.indd 25 15.5.25 3:30:31 PM

保養方法

（續前頁）

● 請勿觸摸自動製冰機的機械部分。

(

當製冰盤旋轉時，會有受傷的危險

)

警告

製冰機清潔

初次使用時

自動製冰機一週以上沒有使用時

操作前請確認以下事項

都確認完了之後請操作下一個步驟。

關閉所有的箱門

準備

給水槽

・

裝水至滿水線

・

超過儲水槽的安裝位置，正確的安裝。

儲冰盒��

・

有殘留冰塊時請清除

按下操作面板的

按鍵，顯示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

持續按住

按鍵5秒以上，直到發出警示聲響為止

「

Quick

」・「On」・「

Off

」三個顯示閃爍，請在警示聲響了之後放開手指。

「製冰機清潔」(給水路清潔)便開始運作。(約4分鐘

)

・

大約4 分鐘之間，顯示閃爍、警報器會一直響。

・

操作「製冰機清潔」功能時在途中無法停止。

・

操作「製冰機清潔」功能當中，如果打開冰箱的任何一個門時，則有可能無法正常運作。請在製冰機清潔運作結束之前不要開啟冰箱門。

・

冰箱門警示聲設定在停止的狀態下警示聲也會發出聲響。

頁

警示聲響及顯示燈閃爍停止後，塞住儲冰盒內部的缺口部分，在儲冰盒的底部鋪上乾淨的毛巾。

鋪上毛巾的主要目的是，清潔儲冰盒時存在于內部的水會從製冰盒裡面的缺口部分流出，鋪上毛巾來吸收流出的水。

將儲冰盒內的水擦拭乾淨後安裝在製冰室內

卸除儲冰盒，將儲冰盒內的水擦拭乾淨後，請將毛巾等取出。給水槽裡剩下的水，可以繼續直接使用。

「製冰機清潔」結束後，自動設定回「On」。

按下

11-4

閃爍

缺口部分

毛巾

BB0040171R_R-E6200SHV_B.indd 26 15.5.25 3:30:32 PM

保養方法

︵續前頁︶

給水槽

一週一次

製冰盤

一年

1〜2

次

取出給水槽，卸除水槽蓋

請依照水槽蓋上前方的箭頭指示方向拿起即可卸除。

從水槽蓋取下密封墊圈及盒子

盒子由旋轉方式卸下來。

從盒子取下淨水濾片

以手指拉淨水濾網，從扣勾處卸下後再卸除箱盒。

以水清洗給水槽各零件

以柔軟的海綿等用水洗乾淨。請不要使用洗潔劑等。

將給水槽的各部零件組裝，加入水之後再安裝

請從水槽蓋的後方插入，往箭頭方向關上。

按下操作面板的

按鍵，顯

示燈亮

顯示燈全部燈亮後，顯示目前的所有設定。

打開製冰室門，取出製冰盤

將扳手往橫的方向押。

拉出框架。護蓋(▲部)往身前方向揭起從框架裡取出製冰盤。

騰空製冰盤，用流水簡單沖洗。

請勿使用海綿・去污粉。請勿刮傷表面。

打開製冰室門，安裝製冰盤

安裝製冰盤並關上。關上護蓋，直到發出「卡嘰」聲將框架往裡面推進，直到發出「卡嘰」聲

(

請前後搖動框架，確認是否緊實地固定住。

)

按下操作面板的

按鍵，顯

示燈亮，再按下

按鍵，「On」

顯示燈亮

開始自動製冰

按下

按鍵，「

Off

」

顯示燈亮

停止往製冰盤給水。 ※ 當「

Off

」閃爍時，約1分鐘

待燈亮之後再進行以下操作。

1 1

密封墊

水槽蓋

盒子

淨水濾片

給水槽

倒勾

● 礦泉水、井水、淨水器的水、冷開水等(不含氯元素的水)，比自來水容易產生水垢、黏性物質，請3天清潔一次。

● 一週以上不使用自動製冰機時，請將給水槽充分乾燥後再安裝在規定的位置。(特別是淨水濾片請務必充分乾燥

)

此外，一週以上不使用自動製冰機，開始使用前請依照「製冰機清潔」操作。

頁

●

製冰盤的「框架推不到底」時，因為沒有設定「

Off

」，所以驅動製冰盤的馬達有可能已啟動。一旦卸除製冰盤，只將框架推入並關上所有的門，在按下

按鍵，設定為「

Off

」。過了一段時間製冰盤

的驅動馬達的準備完成後，便可安裝。

通知事項

製冰盤

護蓋

框架

扳手

卡嘰

按下

扣

勾

●為了防止淨水濾網長黴及黏性物質，請讓濾網充分乾燥。

●更換的基準約3 ∼

年。

頁

敬請依照指示操作

通知事項

BB0040171R_R-E6200SHV_B.indd 27 15.5.25 3:30:33 PM

● 卸除零件時，請先將放在零件上的食品移除。

● 請勿拆除此處未說明的零件。想要卸除說明書上沒有說明的零件來清潔等時，請向技術中心諮詢。

卸除組件的方法

・

安裝的方法

注意事項

可調式層架上段・中段

（玻璃層架）

箱門置物架

固定層架

真空冰溫盒

可調式層架下段

安裝時，把層架插放到最內側之後，把層架內側稍微抬高並推進去。

（將層架的卡榫掛在最內側的配件上）

把層架內側稍微抬高，往前拉出。

一邊輕敲底部左右一邊提高便可卸取。

(

牢固地固定

)

安裝時，請完全裝入到最底。

往前拉出來、將右下2 處的扣勾拆開並取下。

拉出真空冰溫盒，往前方稍微向上抬起，上下搖動後拉出。

讓真空冰溫盒的左右突起順著真空容器的導引軌道滑動推入。

最後再將把手往下扳到底鎖住。

卸除方法安裝方法

稍微抬高並取下。

如圖，將層架竪起後翻轉、卸除。

層架的扣

勾

( 左右 )

導引軌道

真空冰溫盒

真空容器

突起

直接把層架拉出有可能損傷箱門。因玻璃層架較重，安裝，卸除時請特別小心。掉落時可能會被撞傷或是因破裂而被刮傷。

注意事項

咚咚

扣

勾

安裝後請數次拉出推進，確認是否正確安裝。

敬請依照指示操作

往前方直接拉出層架時，有可能會刮傷冰箱門。

注意事項

如安裝不牢，會掉落，可能導致人員受傷。

BB0040171R_R-E6200SHV_B.indd 28 15.5.25 3:30:35 PM

中層滑動盒・下層冷凍盒

（下層冷凍室）

安裝冷凍盒時，請將下層冷凍盒左右突出的部分向門框兩旁的洞插入固定。請將中層滑動盒兩旁的止動裝置插入下層冷凍盒的外側。

上層滑動盒・下層置物盒

（蔬果保鮮室）

將箱門往跟前全部拉出，如圖將上層滑動盒往上拉。

下層的置物盒朝身體方向向上抬起。

手持門的兩端向上抬起，再慢慢的拉出，放在地板上。

● 請勿將門全部拆卸。 ● 請注意，蓄積的水可能從下層置物盒背面流出。

注意事項注意事項

● 不得拆下玻璃隔板。

● 請勿拆卸下層置物盒的潤澤單元及光觸媒。

注意事項

卸除組件的方法・安裝的方法

儲冰盒

（製冰室）

・

上層冷凍盒

（上層冷凍室）

拉取式門的安裝方法

（製冰室・上層冷凍室・下層冷凍室・蔬果保鮮室）

打開門，向前方取出。

安裝時要將箱底面裝載在框架上。

製冰室・上層冷凍室下層冷凍室・蔬果保鮮室

盒底部

框架

上層滑動盒

打開門後，拉出上層滑動盒及中層滑動盒。向上取出下層冷凍盒。

中層滑動盒

突起(左右

)

扣

勾

(左右)

框的方形孔

框架

下層冷凍盒

框架

上層滑動盒

下層置物盒

● 請勿拆下上層滑動盒。

注意事項

● 不得拆下下層冷凍室與隔板。

注意事項

BB0040171R_R-E6200SHV_B.indd 29 15.5.25 3:30:36 PM

遇到問題時

在委託修理之前，請再次檢查以下幾點。狀況仍然不好的時候，請聯絡所購買的經銷店或敝公司技術中心。

這種情況下請確認解決方法

初次使用時

不冷

夏季或食品多的時候，需要時間冷卻。

並不是故障。安裝之後，可能需要花費

小時以上

。

無法製冰

初次使用時，冰箱內冷卻以後才開始製冰運作，所以較費時。根據食品的量及存放方法，

最初的製冰可能需要

小時以上

。

並不是故障。請迅速地開閉箱門或盡量少開。食品之間請空開間隙存放。

操作面板

玻璃觸碰部不起反應

操作部的鎖定設定是否在「開」(鎖定中)的位置？請解除操作面板鎖定設定。

頁

冷藏室門開著嗎？請關閉後再操作。

操作部分是否附著著水滴或是污垢？請以軟布擦拭。

戴著手套或貼著膠布嗎？請直接用手指按。

是否碰觸到周圍的操作部？請只碰觸想要操作的操作部。

自動製冰不正常

完全不能製冰

自動製冰機的設定是否設定在「

Off

」的狀態？請設定「On」或「

Quick」。

18, 19

頁

「

Water

」是否亮起？請加水至給水槽內。

18, 19

頁

給水槽內的水量減少時，有可能無法製冰。請試試加水加到給水槽的滿水線。

頁

給水槽是否推入到超過「水槽裝置」線？請將給水槽推至比水槽安裝位置更裡面。

頁

是否將框架往裡面推進，直到發出「卡嘰」聲？

請將框架往裡面推進，直到發出「卡嘰」聲。

頁

儲冰盒裡面是否存放了冰外以外的東西？請從儲冰盒中取出。

儲冰量是否有局部超過最大儲冰界線？請將冰塊整平。

頁

很難結冰製冰盤裡不給水

是否頻繁地敞開門，是否一次存放了大量的食物呢？冰箱內恐怕是沒有充分冷卻。

請試試在冰箱內冷卻前，盡量減少開閉門。請試試盡量空開儲存食品之間的間隙。

冬季每結一次冰可能需要4小時以上。並不是故障。

從「

Off

」的設定，變更到「On」的設定之後，結

冰的時間會比平常需更長的時間。

並不是故障。

食品或袋子是否被夾著，冷凍室或製冰室門是否關緊？

被夾住時請除去異物。

是否設定為「節電」模式

(Save・Trip)

？請解除「節電」模式。

頁

冰塊有凸起

是製冰盤的溝上積水凍結了。不是異常。

所儲存的冰塊變小冰塊之間粘在一起

長時間積儲著沒使用的舊冰塊，會自然變小，粘在一起。

請將舊的冰塊丟棄，重新製冰。

是否頻繁地敞開門，是否一次存放了大量的食物呢？

請盡量迅速開關箱門，以及減少開關的次數。

冰箱門或抽屜是否沒完全關緊？關閉冰箱門時，請確實關緊。

製成的冰塊很小

給水槽的水剩的很少時，會製成的冰塊。請試試加水加到給水槽的滿水線。

頁

製成粘在一起的冰塊

框架若沒有安裝在正確位置，可能冰塊會互相粘在一起。

請將框架安裝在正確位置。

頁

若製冰盤裡有損傷，冰塊結成時，難以從製冰盤上取下來，會粘在一起。

確認製冰盤是否有刮傷，請向銷售店洽詢，更換置冰盤。

冰塊裡有白色混濁

是因為混在水中的氣泡被封在冰塊裡面了。不是異常。

用礦泉水製冰了嗎？

水中含有的礦物質凍結會變白而混濁。即使在水裡融化了也會有白色混濁，不過無害。

製冰盤的框架拉不出來

「

Off

」的顯示正在閃爍？

當自動製冰機正在製冰時拉不出來。請「

Off

」的顯示燈亮。當「

Off

」顯示閃爍時，請等約一分鐘，等「

Off

」顯

示燈亮後再拉出。

頁

不冷

不冷結霜・結露冰淇淋太軟

食品或袋子是否被夾著，門關緊了嗎？被夾住時請除去異物。

是否塞入過多食品，是否一次放入了大量的食物呢？

請遵守可容納食品的高度。

16, 20

頁

食品之間請空開間隙存放。

盒子是否確實地安裝？請正確安裝好。

頁

根據冰箱的設置場所及空隙，環境狀況等，有可能會難以冷卻的情形。

請確認是否已正確安裝。

頁

是否設定為「節電」模式

(Save・Trip)

？請解除「節電」模式。

頁

溫度設定為「■」時會冷卻不足。

冷卻不足的室內溫度設定請切換為「■■」或

「■■■」。

13, 17

頁

在夏季等，電冰箱的環境溫度高嗎？

冷卻不足的室內溫度設定請切換為「■■■」。

13, 17, 21

頁

冰箱門敞開著時，冰箱內的溫度會逐漸上升。頻繁地開閉或是長時間敞開著門的話，冰箱內的溫度會難以下降。

請減少冰箱門的開閉次數及盡量縮短開閉的時間。

BB0040171R_R-E6200SHV_B.indd 30 15.5.25 3:30:37 PM

這種情況下請確認解決方法

結霜・結露

冰箱內及・抽屜框架上結霜・結露

冰箱門或抽屜是否沒完全關緊？

關閉抽屜或冰箱門時，請確實確認是否夾到食品或包裝袋，請確實關緊。

有可能是開關次數多、長時間連續打開了。請盡量迅速開關箱門，以及減少開關的次數。

當外部的熱空氣與冰箱內或冰箱門框接觸時，可能會結霜或結露。

此時請以乾布擦拭。

當開關冰箱門時，空氣中所含的水份，會凝結成霜或冰，可能會附著在冷凍室的壁面及零件上。

並不是故障。此時請以乾布擦拭。

冰箱的外側結露

(

箱體、門的密封墊、門、

抽屜等

)

下雨天等室內濕度高的時候會結露。

並不是故障。此時請以乾布擦拭。

將防止結露的加熱器調弱時，濕度較高時隔板的鐵板部份、冰箱門密封墊、冰箱門可能會有結露的情形。

請解除防止結露的加熱器設定。此時請以乾布擦拭。

頁

溫度設定在「■■■」時，冰箱門表面可能會有結露的情形。

此時請以乾布擦拭。把溫度設定調至「■■」的階段。

冷藏室中凝結露水

冰箱門的開關次數頻繁時，或冰箱周圍溫度高時，壁面會起霧，在冷氣出風口附近會凝結露水。

並不是故障。此時請以乾布擦拭。

蔬果保鮮室中凝結露水

蔬果保鮮室特別是蔬果睡眠保鮮空間，比其他的冷藏室的濕度還要高。這是為了避免讓蔬菜乾燥以長久保存，並非異常現象。

若擔心結露，請將食品以保鮮膜包裹後存放。

凝結露水過多時，水可能積在蔬果保鮮室的盒子等中。

水蓄積時很容易造成食品的損壞，請用乾布擦拭乾淨。

可能因食品的包裝袋或容器阻塞潤澤單元，而導致蔬果睡眠保鮮空間內發生結露的現象。

請將阻塞在潤澤單元部分的食品包裝袋及容器移到其他位置。

太冷

太冷凍結了

溫度調節為「■■■」了嗎？請設定為「■■」。

13, 17

頁

環境溫度是否

5˚C

以下呢？

周圍溫度低時可能冰箱內的溫度會太冷。請將溫度調節為「■」。

是否放置在冷氣吹出口的前方？請不要放在冷氣吹出口的前面。

箱門高低不平衡

以及歪斜

左右箱門高低不平衡箱門歪斜

有可能設置的地方沒有水平。

性能上沒有問題，可以照舊使用，不過介意的話，試試調整左右的調整腳。

頁

是否由於地板材質太軟加上儲放物的重量使冰箱腳下沉？

冰箱本體傾斜的時候，請鋪上

1cm

以上厚的堅固的板子。

關上門之後再立刻打開時感到吃力

是因為進入了冰箱內的空氣忽然受到冷卻，氣壓一時變低。

不是異常。

關門時其他的門會開

因為各室的冷氣通路是相通的，關門時由於風壓使其他門會一瞬間打開。

不是異常。

聲音不對

冰箱發出的聲音嘈雜

地板是否有彎曲？

請鋪上堅固的板子後，再將冰箱安裝在板子上。

頁

冰箱是否靠著牆或家具？請在冰箱的周圍空出間隙安裝。

遮蔽架是否脫落了？請正確安裝好遮蔽架。

頁

購買後，剛開始使用等冰箱還未冷卻時・箱門開閉頻繁時・周圍的溫度高時，由於壓縮機高速運作，可能會感覺到聲音大。

充分冷卻後，聲音會變小。

設定在「

Freezer」「Fridge」「Quick

」時，壓縮機

及風扇馬達會加速運轉，聲音會變大。

不是異常。

運作音長

是為了讓壓縮機慢慢地運轉，是在省電運作。不是異常。

有時聲音變大

是因為運轉力隨著冰箱內的溫度變化在變更。不是異常。

其他例如聽到這樣的聲音時

像流水的聲音（楸囉楸囉）像碰撞的聲音（叩吱叩吱）像沸騰的聲音（啵啵啵）像燒肉的聲音（唧∼）

是電冰箱的冷媒流動聲・融霜時的水流聲蒸發聲。不是異常。

像摩擦的聲音（啤唏）（“叩動”聲）

是冰箱的溫度變化時，或真空開

+1˚C

室的氣壓變化時，部件的摩擦聲。不是異常。

像什麼被卡著的聲音（嗑

嗑）像呻吟的聲音（噗∼）像剛關門時的聲音（吥∼）

是控制冰箱內溫度的電氣部件或真空幫浦的運作聲。不是異常。

自動製冰機的聲音

（啾∼）（嘎啦嘎啦）（咯

噃咯噃

）

是冰塊從自動製冰機的製冰盤掉落時，或是製冰盤裡給水時所發出的聲音。給水槽空的時候，每隔

至3小時也會發出聲音。按下

按鍵，讓其顯

示為「

Off

」時，就不會發出聲音。

頁

時常有的聲音（卡嗒卡嗒）

為了冷卻冰箱內開始運作時的聲音。不是異常。

凝結露水

遇到問題時

BB0040171R_R-E6200SHV_B.indd 31 15.5.25 3:30:38 PM

這種情況下請確認解決方法

冰箱發熱

電冰箱的側面發熱箱腳底下吹出暖風

為了讓冷卻裝置運作時所發出的熱氣向外排而會發熱。剛安裝後或是夏季，可能會有

50〜60˚C

，在安全

上及性能上沒有問題，但請勿以手觸摸。

有異味

有塑膠味

是因為在冰箱內使用了多數的塑膠部件，不過，充分冷卻後自然就會慢慢減輕。

不是異常。

冰塊有異味

給水槽・淨水濾片骯髒嗎？冰塊舊嗎？為了防止「發黏」「水垢」，請定期清洗。

頁

由於自來水中的氯元素凝縮，氯的氣味會很重。不是異常。

冰箱內有異味

是否直接地儲放了氣味重的食品呢？

脫臭機能不能完全去除所有的氣味。請用保鮮膜等密封後儲放。

真空冰溫室的問題

打開時，不發出「咻-」的聲音

真空冰溫室的設定是否為「全滅燈」(非真空的冰溫)？

請將設定改為「

-1˚C

」或「

+1˚C」

頁

把手往上翹著嗎？請將把手往下押，鎖定。

把手是否有推到最終的位置，牢牢地鎖住？

如果沒有鎖住，則無法啟動真空機能。請上鎖。

真空冰溫密封墊是否脫離？請安裝真空冰溫密封墊。

真空冰溫密封墊與承受部之間是否夾著食品的包裝袋、頭髮等？

若食品包裝等異物被夾住時，請除去異物。請清洗髒污的真空冰溫密封墊。

頁

是否在真空冰溫室或冷藏室門開啟關閉之後？

真空幫浦是在開始運作的準備狀態下，可能不發出

「咻-」的聲音，並不是故障。

不知道是否在真空

打開時如有「咻-」的聲音，便是正常。

−

把手不能上鎖

真空冰溫密封墊部分及真空冰溫盒的裡面是否有食品等被夾著呢？

若有被夾住請除去異物。

是否正確地安裝真空冰溫盒？請依照要領正確的安裝真空冰溫盒。

頁

真空冰溫室的周圍發出

「吥∼」的聲音和振動

是真空幫浦的運作聲音。不是異常。

如夜間等介意有聲音的時候，可以停止真空幫浦的運作。

請變更真空冰溫室的設定，讓其顯示全滅燈。

頁

(

變為非真空的冰溫

)

當聲音及震動頻繁時，有可能真空冰溫盒夾到異物，或是真空冰溫密封墊有污垢。

若食品包裝等異物被夾住時，請除去異物。請清洗髒污的真空冰溫密封墊。

頁

真空冰溫室的內部或真空冰溫盒的周邊有水滴或結霜

因為真空冰溫室是密封的狀態，如果存放水分較多的食品時，水分蒸發會在室內凝結成露水或結成霜。

水分較多的食品建議以保鮮膜包覆。如果附著了水滴或結霜，請以乾布擦拭。

存放的蔬菜表面呈凹陷，變色

是否存放了茄子、黃瓜等不耐低溫的蔬菜呢？

請移動至蔬果保鮮室。

頁

真空冰溫室的食品凍結

設定是否為「

-1˚C

」或是「全熄燈(非真空的冰溫)」

的狀態？

請設定為「

+1˚C」

頁

操作部的

﹁

﹂顯示等呈閃爍的狀態

閃爍

告知有異常。請與購買的經銷店商洽。

閃爍

有可能食品等碰到製冰盤。

請先將製冰室內清空，再操作「製冰機清潔」。

頁

閃爍

有可能是設定在工作人員確認運轉用的模式。 (※

約15分鐘後恢復通常模式。使用上沒有問題。

全部呈閃爍

正在進行「製冰機清潔」。請確認「製冰機清潔」

頁

閃爍

在製冰中途按下「

Off

」時會閃爍。請確認清潔中的「製冰盤」。

頁

全部的顯示閃爍。

箱門敞開了1分鐘以上的狀態。（門沒關緊等）請確認「箱門警示聲」

頁

以上各項以外的顯示燈閃爍

有可能是服務人員的動作確認模式。(※

請與購買的經銷店商洽。

遇到問題時

（續前頁）

※1長時間（10秒鐘以上）碰觸同一個鍵鈕時，可能會成爲確認運轉用的式樣。

綫

頭

垃圾

水滴或露

BB0040171R_R-E6200SHV_B.indd 32 15.5.25 3:30:39 PM

這種情況下請確認解決方法

其他

觸碰到機體會感覺到微量的電流

−−−−−

電冰箱會帶有靜電，安全上沒有問題。

電視機・收音機等發生有雜音・映像的花亂

是從電冰箱發出的微弱電磁波的影響。

要安裝時請遠離電視機、收音機、門鈴對講機等。建議在離開天線等的地方接電源。

頁

塑膠零件上有像傷痕一樣的細線

是塑膠成型時發生的樹脂流痕。

透明的部件會特別顯眼，強度上沒有問題，不會破裂。

箱門面或側面．頂面上有波紋或歪扭

冰箱的製造工程上，會發生輕微的波紋或歪扭。

根據照射方向及亮度等會感到顯眼，這不是異常現象，在性能上也沒有問題。

操作部顯示滅燈

完成操作之後，為了省電約40秒後滅燈。

不是異常。但「節電」模式的設定及「

Fridge」「Freezer」「Quick

」

運轉時的顯示、及「

Off」「Water

」的通知顯示、

環保運轉的「

eco

運轉顯示」則不會滅燈。

讓其燈亮，請打開冰箱門，或按下

按鈕。

箱門內側有小的洞

這個洞是在冰箱製造過程中，填充斷熱材料時為了讓內部的空氣往外散所挖的洞。

不是損傷也不是異常情形。

停電了

在到恢復之間，請減少箱門的開閉，避免重新再存放食品。

停電後恢復供電時，請確認操作部位的設定。

長時間不使用冰箱

請將冰箱內的東西全部清出。所有的門打開讓其乾燥

2 〜3

天。

24〜27

頁

不製冰時

請設定程「

Off

」。請參考「製冰停止」的說明。

頁

除霜

此電冰箱自動除霜，不需要操作。溶解了的水會積在蒸發盤上，自動蒸發。

移動・搬運

請參閱「移動・搬運的事前準備(搬家時)」

頁

蔬果保鮮室的門無法關閉・蔬果保鮮室的門開啟時上層滑動盒無法回復到鎖定的位置

上層滑動盒與下層置物盒之間是否夾有食品等異物？

請除去被夾住的異物。

上層滑動盒的鎖定把手是否碰到寶特瓶或食品？

存放寶特瓶或食品時請注意避免碰觸到鎖定把手。

玻璃破裂　冰箱門玻璃

　玻璃層架　玻璃隔板

−−−−−

請勿觸碰破碎的玻璃，立刻聯絡購買的銷售店，委託修理。

小蒼蠅等昆蟲飛入冰箱時

周圍是否有蒼蠅？

敬請保持周邊環境乾淨。請放置蒼蠅忌避物品或補蠅器。

冰箱內是否存放氣味強烈的食品？

為了避免氣味吸引蒼蠅，請將食品加蓋或以保鮮膜包覆。

箱門是否長時間開啟？請盡量在拿取食品後馬上關上箱門。

孔（門內側）

遇到問題時︵續前頁︶

BB0040171R_R-E6200SHV_B.indd 33 15.5.25 3:30:40 PM

另購零件

■以下零件更換時，請務必向經銷店指明冰箱的型號，購買專用的零件。

這種情況時商品名商品型號

冰塊有味道時

● 可能淨水濾片老舊、髒污。

(約3〜4

年更換一次

)

自動製冰用淨水濾片

RJK-30

無法維持真空狀態

● 可能破損・變形・變色

真空冰溫密封墊

R-A6200 321

BB0040171R_R-E6200SHV_B.indd 34 15.5.25 3:30:40 PM

BEFORE USE

SAFETY SUGGESTIONS

................................

LEARN NAME & FUNCTION OF EACH PART

...

Name of each compartment/Food stored

................

Accessories

............................................................

Functions of the Control Panel

.................................

BEFORE USE

................................................

Preparation before use

............................................

Transporting your refrigerator (transport for moving)

....

GENERAL USE

REFRIGERATOR COMPARTMENT

.................

Adjust the height of a pocket/shelf

..........................

Adjusting temperature in a refrigerator compartment

...

Cooling food Quickly (Quick Cooling)

.......................

VACUUM COMPARTMENT

............................

When opening/closing the door of the Vacuum Case

...

Change the settings of the Vacuum Compartment

...

FREEZER COMPARTMENT

...........................

Using the Upper Freezer

..........................................

Using the Lower Freezer

.........................................

Caution on how to store foods

................................

Adjust the temperature of the freezer compartment

...

Quickly freezing foods (Quick Freezing)

...................

ICE COMPARTMENT (AUTOMATIC ICE MAKER)

...

How to make Ice

.....................................................

Quick Ice Making

....................................................

Stop Ice Making

......................................................

Water Supply indicator

............................................

When the “On” indicator lamp is blinks

...................

Stored ice amount and ice-making time of the Ice Case

...

VEGETABLE COMPARTMENT

.......................

Stored foods

...........................................................

Caution on how to store foods

.................................

Using the Aero-care Zone

........................................

To cool it more [Vegetable Compartment (MAX)]

......

VARIOUS FUNCTIONS

..................................

Setting

“Energy Saving”

mode

..............................

Fine adjustment of the temperature (Refrigerator Compartment / Freezer Compartment)

....................

Locking the Control Panel

.......................................

Door Alarm

.............................................................

Door Alarm and volume adjustment of the operation sound

...

Set the condensation prevention heater to MIN.

..............

MAINTENANCE

............................................

Power plug/The back/ﬂoor of the refrigerator/Surface of door

...

Each shelf/pocket/case/Door gaskets/Liquid receivers

...

Vacuum Compartment

............................................

Ice Maker Cleaning

.................................................

Water supply container/Ice tray

...............................

HOW TO REMOVE/ATTACH PARTS

...............

Height adjustable upper and middle shelf (Glass shelf)

...

Door pocket

............................................................

Fixed shelf

..............................................................

Height adjustable lower shelf

..................................

Vacuum Case

..........................................................

Ice Case (Ice Compartment)・Upper Freezer case (Upper Freezer)

...

Slide case and lower freezer case (Lower Freezer)

.............

Upper Case, Lower Case (Vegetable Compartment)

.............

How to attach the slide door (Ice Compartment/Upper Freezer/ Lower Freezer/Vegetable Compartment)

...........................

TROUBLESHOOTING

.....................................

Initial stage

.............................................................

Control Panel

..........................................................

Automatic ice making is not properly performed

.....

Refrigerator does not cool

.......................................

Frost and/or dew occur

...........................................

Refrigerator cools overly

.........................................

Door is not in a horizontal state

...............................

Abnormal operating sound is generated

..................

Refrigerator becomes hot

.......................................

It smells strange

.....................................................

There is something strange with the Vacuum Compartment

...

[ ] display on the Control Panel ﬂashes

.............

Others

....................................................................

AVAILABLE PARTS

.......................................

ABOUT NON-CFC REFRIGERATORS/ STORABLE WEIGHT

.....................................

CONTENTS

另購零件

BB0040171R_R-E6200SHV_B.indd 35 15.5.25 3:30:41 PM

trembling and unstable

WARNING

CAUTION

Suggestions headed by this pictograph indicate "There is high chance of serious injury or death" if ignored.

This symbol indicates something you must not do. (Prohibited)

This symbol indicates something you must do. (Compulsory)

Suggestions headed by this pictograph indicate "There is a high chance of injury or damage to property" if ignored.

WARNING

Installation

Handling the power and power cable

● Avoid usage that may

cause the wall outlet or power cord components to work beyond the speciﬁed voltage. Also do not use power sources that are not a rated voltage current.

If a power source is shared with other appliances, double or multipoint adapters may heat up beyond normal levels and cause ﬁre.

・

Use a wall outlet rated above 10 ampere by itself.

●

Do not do anything that may damage the power cord or plug.

Using a damaged power cord may cause electric shock, short circuits, or ﬁre.

・ Please consult with a retailer about the

repair of the power cord or plug.

● Do not insert or remove the

power plug with wet hands.

・

This may result in electric shock.

●

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

● Connect the power plug

ﬁrmly to a power outlet with the cord running down.

・ Connection of the power plug

with t

he cord running up could apply stress on the cord and cause electrical short or overheat, which could result in electrical shock or ﬁre.

・

Incomplete connection of the power plug could

result in electrical shock or ﬁre due to heat.

● Take measures to prevent overturning

of refrigerator due to earthquake, etc.

・ Overturning of the refrigerator could result

in personal injury.

●

Do not install the refrigerator in damp places or where water may splash.

・ This may impair electricity

insulation causing electric shock or ﬁre.

Prohibited Prohibited

Wet Hands

Prohibited

Wetting

Prohibited

The power cord or plug should not be cut, modiﬁed, touched with hot implements, bent by force, twisted, pulled, have heavy objects placed on it, squeezed by the refrigerator, or be bound or tied up.

■ The following pictographs categorize and explain the level

of possible harm on damage that may occur from ignoring suggestions resulting in missing the appliances.

■

How the suggestions should be taken are indicated and categorized by the following symbols accompanied by explanations. (The symbols below are examples)

This symbol denotes the precautions on ﬂammable refrigerants.

■

This refrigerator uses ﬂammable refrigerants. The symbol column below states the precautions on ﬂammable refrigerants.

R600a

SAFETY SUGGESTIONS

Ensure to follow

these precautions

When using this appliance, failure to follow safety precautions may result in personal harm, harm to other people, and also damage to property.

BB0040171R_R-E6200SHV_B.indd 36 15.5.25 3:30:42 PM

WARNING

Handling the power and power cable

During use

● Clean the dust on the

power plug frequently.

Insulation failure from moisture when dust collects on the power plug may cause ﬁre.

・

Unplug the power plug and wipe it with a dry cloth.

● Do not splash water on

or inside the refrigerator.

・

This may impair electrical insulation causing electric shock or ﬁre.

● Do not put in things

that may catch ﬁre.

・

Benzine, ether, LP gas, thinner, adhesives may ignite an explosion.

● Do not hang on the

doors or step on the various compartments.

・

Injury may be caused by the refrigerator tipping over or hands getting caught between doors.

● Do not remove the cover

of the interior lamp.

・

When the interior lamp is damaged, please contact the service centre for replacing the lamp to avoid injury.

● Do not add impact to the glass door.

●

Drugs, chemicals,

research and experimental substances should not be stored in the refrigerator.

・

Substances that require precise conditions for storage cannot be stored in a domestic refrigerator.

●

Do not use ﬂammable

sprays near the refrigerator.

・

Sparks from points of electrical contact such as door switches may ignite a ﬁre.

● Do not put water containers

on the refrigerator.

・

Spilled water may impair insulation of electrical components causing faulty electrical currents. This may result in electric shock or ﬁre.

● Do not put things on top

of the refrigerator.

・

Opening and closing doors etc. may cause things placed on top of the refrigerator to fall resulting in injury.

● Children should be supervised to

ensure that they do not play with the appliance.

● Do not touch

he machinery components of the automatic ice maker.

・

There is a danger of injury when the ice trays are rotating.

● Be sure to unplug the

power plug before maintaining the refrigerator.

Continued use may cause electric shock or injury.

Pg.56

・ Always hold the plug when unplugging it.

Wetting

Prohibited

Wetting

Prohibited

Contact

Prohibited

binder

LP gas

Benzine

Safety Suggestions

● Do not put too much force on the door

by opening it too much or leaning on the opened door.

Prohibited

BB0040171R_R-E6200SHV_B.indd 37 15.5.25 3:30:43 PM

Concerning the refrigerant (Be careful of the following related to the use of ﬂammable gas R600a: ISOBUTANE.)

● Do not scratch or

damage the main body of the refrigerator with a sharp object such as screw.

Since the refrigerant used is ﬂammable, any leakage from the pipe inside the wall may cause ignition and explosion.

● Do not use

mechanical devices or other means to accelerate the defrosting proce

ss, other than those recommended by the manufacturer.

● The warning label and name plate including this symbol afﬁxed

on compressor and refrigerator should be kept throughout the life of the refrigerator.

● Do not use electrical

appliances inside the refrigerator.

・ If the refrigerant leaks,

sparks on the contact may cause ignition and explosion.

●

Do not damage the refrigerant circuit. If you happen to damage the refrigerant pipe, stay away from the refrigerator and avoid using ﬁre and electrical appliances.

Should you damage the refrigerator, open the window to ventilate and contact the authorised service centre.

● Allow clearance around

the refrigerator and keep ventilation openings when installing it.

Pg.42

Leakage of the refrigerant may accumulate and cause ignition and explosion.

● Please consult your dealer

or the Recycle Hotline of the Recycle Centers in the Environmental Protection Administration when discarding the unit.

If the refrigerant is wet, it may cause ignition and explosion.

Prohibited

Prohibited Prohibited

In case of emergency

When discarding the unit

● Stop the refrigerator

by unplugging it if it is not running properly or breaks down.

Continue may cause electric shock or injury.

・ Always hold the plug when unplugging it.

● Before discarding the unit or recycling, remove the door packing to avoid

the risk of an infant or child to be entrapped inside.

● In the event of gas leak, do not touch the refrigera

tor and open

windows to allow ventilation.

・ Sparks from points of electrical contact such as door switches may ignite

explosions causing ﬁre or burn injuries.

● Do not disassemble,

repair, or modify your refrigerator.

Injury may be caused by ignition of ﬁre or faulty running.

・ Please consult with a retailer if any repairs

or disassembly are required.

Disassembly

prohibited

WARNING

R600a

turn off

the switch

BB0040171R_R-E6200SHV_B.indd 38 15.5.25 3:30:44 PM

● Do not move the refrigerator

by using its wheels as it may damage the ﬂoor.

・

Please lay a protective mat.

●

Never hang the handle

with a crane, etc.

●

Take care not to bang the

back / side of the refrigerator.

Prohibited

CAUTION

When moving the refrigerator

●

Use the carrying handle when carrying it.

Your hands may slip resulting in injury if you hold the refrigerator at other places than the carry handles.

・ More than 2 persons should carry the refrigerator for

safety reasons.

・

Carry it with the door facing upward; as shown in the illustration.

・ Never hang the handle with a crane. ・ Use a tape to ﬁx an electric plug/p

ower cord so that it

may not hang down.

During use

●

Do not put bottles in the

Door Baskets if they do not sit properly on the bottom of the front section.

・

Forcing in items like large bottles may result in them getting tipped over, causing injury.

●

Do not have food items protruding over the front of the shelves.

・

Injury may be caused from

items like bottles getting knocked over.

● Do not eat food that

smells strange or has changed color.

・

Spoiled food may cause serious sickness.

●

Do not touch the food

and containers inside the Freezer Compartment with wet hands.

・

This may cause frost injury. (Especially in the case of metal items)

●

When two or more doors

are being opened or another person is using the refrigerator, make sure ﬁngers do not get caught.

・

Fingers may get caught in the spaces between doors causing injury.

● Do not put the glass

bottles in the Freezer Compartment.

・

Bottles may break from the contents freezing and cause injury.

● Do not put your

feet too close when opening the bottom door of the refrigerator.

・ When opening this door

you may hit the instep or other parts of your feet resulting in injury.

● Do not put your hands or feet under the base surface of the refrigerator.

When cleaning, putting your hands u

nder the base surface of the refrigerator may

result in injury by cutting them on sheet metal parts.

● Do not hold the top of the

doors when closing them.

・

If you hold the top of a door when closing it you may get your ﬁngers caught or pinched and cause injury.

Prohibited

Prohibited Prohibited

Prohibited

caution

●

To prevent water from dripping on the ﬂoor.

Water due to dew and/or frost may drip on the ﬂoor if there is a gap clearance around the door for a long time. Close the door completely without no gap.

● Do not give a hard impact to the glass

shelf/partition. (The glass shelf/partition may be broken, causing personal injury).

● Neither heat the glass surface of the

glass shelf/partition nor put a hot item on it.

Prohibited Prohibited

● Take care to remove the glass shelf

because it is heavy.

stink

Safety Suggestions

BB0040171R_R-E6200SHV_B.indd 39 15.5.25 3:30:45 PM

LEARN NAME & FUNCTION OF EACH PART

Name of each compartment/Food stored

Accessories

Warranty certiﬁ cate

Please show it for repair.

Specialized tool

(with 2 cushions) Please use it to ﬁ x the refrigerator.

Pg.42

※ The above temperatures are standard values under the condition that the refrigerator is stable with no food

stored and the door closed, at ambient temperatures of 30ºC.

● Store foods in a loosely arranged way.

● It is recommended to wrap smelling foods.

Rice

Frozen

wheat noodle

Hamburger

Deep-fried chicken

New

tea

leaves

Fish

sausage

Butter

Vienna

sausage

Milk

Tea

ogur

Refrigerator compartment

Pg.44

About 2˚C ~ 6˚C

Ice compartment

Pg.50

About -20˚C ~ -18˚C

Upper/lower freezer

Pg.48

About -20˚C ~ -18˚C

Vegetable compartment

Pg.52

About 3˚C ~ 7˚C

Vacuum compartment

Pg.46

About -1˚C ~ 1˚C

Refrigerating food

The ice cubes made by the automatic ice maker.

Frozen food/ice-cream/ dried food

Vegetable, fruits, drink

Upper space

Fresh foods such as meat, ﬁ sh and seafood

Vacuum and photo-catalyst help to keep foods fresh.

Unﬁ nished vegetables, small vegetables, fruits, etc.

The temperature at the door pocket is slightly high.

Tea

Mineral

water

Mineral

water

Tall Storage Compartment

Tall vegetables, 2L PET bottle, etc.

The temperature of the Tall Storage Compartment is a little higher.

Aero-care Zone

Leaf vegetables (spinach, Japanese Mustard Spinach etc.), large vegetables (cabbage, lettuce), etc.

BB0040171R_R-E6200SHV_B.indd 40 15.5.25 3:31:00 PM

Functions of the Control Panel

The Control Panel is a touch panel made of glass. If you touch button, the current settings will be displayed. The upper portion of the Control Panel is the display and the lower portion is for operation.

Touch the lower portion of the Control Panel to change the settings, if necessary.

Providing information

Setting Energy Saving mode

Adjusting temperature settings

Setting an ice-making Setting a cooling mode

Setting the Vacuum Compartment

Display area For operation

ter

It will be illuminated automatically to show that energy saving mode including Frost Recycle Cooling and others is set to ON when it is operating under the low power consumption.

It will turn on while the Control Panel is locked.

Pg.54

Blink indicating any trouble.

Pg.64

It will turn on when water in the water supply container is getting low.

Pg.51

Set Energy Saving mode.

Energy-saving by reducing cooling power of each compartment.

Set temperature for each compartment. Normally, use the “■■” setting.

Set the ice making mode

Set a cooling mode Set the Vacuum

Compartment mode.

“Trip”

Pg.54

“Save”

Pg.54

Refrigerator Compartment

Pg.45

Freezer Compartment

Pg.49

“

Quic

k”

Pg.51

“On”

Pg.50

“Off”

Pg.51

“Fridge”

Pg.45

“Freezer”

Pg.49

“Veg”

Pg.53

-1˚C

Pg.47

+1˚C

Pg.47

All lamps off

Pg.47

■ About the display

● Close all the doors before adjusting the settings. While a door of the refrigerator is opened or an indicator lamp on the display is blinking, it will not

work even if you touch the Control Panel.

● If you conﬁrm the setting, touch

button or open the refrigerator door. The display will be lit again.

● If you touch

button again after ﬁnishing the operation, it will be unlit. The displayed characters will be unlit 40 seconds later without touching

the

button again for energy-saving. However, the setting of

“Energy Saving”

mode,

“Fridge”, “Freezer”

and

“Quick”

indicator lamps and

“Off”

and

“Water”

indicators and [“eco” operation indicator lamp] will not be unlit.

● When opening the refrigerator door and the displayed characters are lit, they become unlit about 15 seconds after closing it.

■ About the Control Panel

● Response of the touch panel may change depending on the surrounding temperature, humidity, physical condition of the user or operation status of

the adjoining electric product.

● Release a ﬁnger and touch the panel again if the panel does not respond after touching it. False detection may occur (it may be kept pressed) if the

time interval between key touches is too short. Response of the touch panel does not improve even if you touch it strongly.

● The panel may not res

pond if it is wet or dirty. Wipe it off with a dry cloth.

Notice

First touch it.

Learn Name & Function of Each Part

※

All the indicator lamps are lit for the sake of explanation.

● Please close the door of the refrigerator door before changing the settings.

Caution

・ Immediately after installation or when plentiful foods are stored at a time ・ When the door is opened/closed frequently or the door is not closed completely ・ It is set to

“Freezer”, “Fridge”, “Quick”

, or

“Veg”

・ When the ambient temperature around the refrigerator is about 35˚C or higher.

If it is not illuminated, it may be due to the following reason.

Notice

BB0040171R_R-E6200SHV_B.indd 41 15.5.25 3:31:03 PM

Cushion

Please arrange it as shown below

● The ﬂoor should be sturdy and ﬂat.

Lay a board with 1cm thickness on the ﬂoor if the refrigerator is installed on the carpet, tatami mat, ﬂooring or PVC sheet ﬂooring which may be hollow or discolor.

● Place the refrigerator away from direct sunlight and heat.

● Do not place it in damp areas, and ensure good air ventilation.

This will reduce adverse effects to refrigerating power and keep electricity cost down. This will also prevent the refrigerator from discoloring and rusting.

● The place is separated from other equipment.

To prevent disturbance (noise / scattered image) to TV and others attributable to the refrigerator.

● To cool efﬁciently, allow enough space around the refrigerator for radiating heat.

●

The actual size of the center part of the side of the refrigerator’s main body is slightly larger than the

nominal size. Therefore, please allow enough space around when installing the refrigerator.

●

The back of the refrigerator can be placed very close to the wall. If any vibration sound occurs and/

or any discolor/dirt is found on the wall, move the refrigerator away from the wall.

Fix the refrigerator

The adjustable mounts, which are located in the front bottom corners of the refrigerator, can be adjusted by turning them to level the refrigerator.

Adjusting the refrigerator adjustable mount to keep it level

● Left side or right side door may be slightly lower when the surface of the installation place is not level or either left or right leg sinks in

the ﬂoor surface because of the soft ﬂoor material and the addition of food weight.

→

This does not affect the refrigerator function. Adjust the refrigerator adjustable mount to keep it level according to the procedure listed below if you want to correct it. Correcting any left/right lean and lifting slightly the front side of the refrigerator until the door can close easily and completely.

BEFORE USE

Preparation before use

To remove leg cover, hold both ends of it and pull it towards to you by applying some force.

With the supplied tool, turn an adjustable mount on the side so that the refrigerator is lower to make the Refrigerator Compartment door level.

The height of the door can be adjusted 1mm every one turn of the adjustable mount.

Insert the left and right pins of the leg cover into the mounting holes to attach the leg cover.

It may be approx. 5 days before the refrigerator conforms to the ﬂoor allowing the door to be leveled. Readjustment is required if the door is not leveled.

Turn the adjustable mounts to lower them to the ﬂoor and then secure them (both right and left side)

・ Place pads under the adjustable mounts.

Place pads under the adjustable mounts evenly so that they

can be leveled.

・Clamp the supplied tool adjusting to the

shape of the adjustable mounts.

● Always wipe the adjustable mounts and

ﬂoor clean before placing pads. Adherents may scratch the ﬂoor if they remain.

● Be careful not to scratch the ﬂoor with the

supplied tool when turning the adjustable mount.

Leg cover

Adjustable mounts

Supplied tool

■ The left side door is lower. ■ The right side door is lower.

Turn the left Adjustable mount to lower the left side door.

Turn the right Adjustable mount to lower the right side door.

Mounting hole

Fork

Leg cover

Required space for right and left of the refrigerator: 1 cm or more

Required space above the refrigerator: 5cm or more

1 2

● When you release your hand from the refrigerator door with the door open, the door may move, but this is normal.

Notice

BB0040171R_R-E6200SHV_B.indd 42 15.5.25 3:31:05 PM

Before Use

Peel off the seal from the Antioxidation Fresh Cassette in the Vacuum Compartment.

Peel off the seal from the Antioxidation Fresh Cassette set in front of the Vacuum Compartment before use.

●

Antioxidant constituent and hot ﬂavor will not be released until the seal is peeled off.

Plug the power cord.

It is not a problem to plug in the power cord soon after installing the refrigerator. Use a wall outlet

exclusively when connecting the power cord. (Alternating current 220 - 240V, rated 10A or more)

●

Check that the power plug or the cord is not wedged between the back of the refrigerator and the wall in order to prevent the cord from getting hot.

Pull it out right above. Peel off the seal, and then return it back.

● Do not wash it in water.

● Do not smell it directly. It may be irritating to the nose.

● After the power plug is inserted, the cool air ﬂap continues to work for about 2 minutes to check the state of the cool

air ﬂap (it may sound louder than usual, but it is normal).

● It may smell of plastics in the beginning when you start to use. Keep the room well-ventilated. Such smell will

disappear graduall

● If you wish to install the refrigerator in a hot spring area exposed to sulﬁde gas, you

may need to apply anti-rust treatment to the piping. Contact your dealer in advance. Failure caused by sulﬁde gas will not be covered under guarantee.

● Do not peel off the seal on the back or plastics at the lower part of the side.

● When a magnet or suction cup is attached on the side of the body or the sur

face of a door, it

may leave a mark.

Caution

Notice

Caution

Cooling inside the refrigerator starts.

●

It may take more than 4 hours

to cool well the inside of the refrigerator, depending on conditions such as the ambient

temperature or storage state of foods. It may

take 24 hours or more in summer, etc.

Do not put ice cream, uncooled foods or perishable foods in it until the inside of the refrigerator is cooled well.

● Perform

“Ice Maker Cleaning”

when using the automatic ice

making function for the ﬁrst time.

Pg.58

● A series of ice making operation will start automatically after the inside of the refrigerator is cooled well.

(When using for the ﬁrst time, it may

take 24 hours and more to make ice

Stickers

Plastic parts - Left/Right

Place a sheet or cloth for protection ﬁrst, and then lay it back to drain water.

Take out foods or ice.

Remove the leg covers, and raise the adjustable mounts.

Pour off the water from the water supply container/ice tray.

Use a tape to secure the door/power cord.

See “Preparation before use” for installing the refrigerator in a new location.

Pg.42

Pull off the power plug.

No problem just before moving.

Place a sheet or cloth for protection when moving / transporting it.

To prevent damage to the ﬂoor material or water from spilling out.

Make sure to hold the handles when carrying it with 2 persons or more.

Do not lay it down horizontally for transportation (which may cause failure of the refrigerator).

Transporting your refrigerator (transport for moving)

Such as old cloth

BB0040171R_R-E6200SHV_B.indd 43 15.5.25 3:31:06 PM

● Avoid a high impact on the glass shelf (broken glass may cause injury).

● Be careful to attach the glass shelves because they are heavy.

Caution

REFRIGERATOR COMPARTMENT

Refrigerator Compartment

● High moisture foods / canned beverages may be frozen or burst if they are placed around the Cold Air Blowout Port.

● Store hot foods in the Quick Cooling corner or on the Height adjustable shelf. If it is placed near the temperature sensor, the temperature of the

Refrigerator Compartment may get too lower or dew may adhere to the panel at the

back of the Refrigerator Compartment.

● Do not put too much force on the door by opening it too much or leaning on the opened door, which may cause damage to the door.

Caution

Adjust the height of a pocket/shelf

You can adjust the position of the pocket and the shelf depending on size of foods or beverages.

For how to remove/attach, see

Pg.60

■ Height adjustable pockets

■ Height adjustable shelves (upper/middle)

You can adjust the position of them depending on the height of foods or beverage.

Cold Air Blowout Port

LED lamp

Height adjustable pockets

Quick Cooling corner

Height adjustable upper shelf

(Glass shelf)

Height adjustable middle shelf

(Glass shelf)

Height adjustable pockets

Height adjustable lower shelf

Double door pockets

(right)

Egg stand

Fixed shelf

Double door pockets

(left)

Pocket

(ﬁ xed)

Refrigerator Compartment Temperature Sensor

Swing partition

Cold Air Blowout Port

●

State in shipping

●

Storage of pans, etc.● Storage of milk carton, etc.

CAUTION

■ To open the door

・

Do not hold the swing partition to open the door.

(It may make it impossible to open the door.)

■ To close the door

・ Do not close the door with the

swing partition erected.

(It may make it impossible to close the door completely.)

Swing partition Swing partition

■ Height adjustable lower shelf

You can adjust them in three-stages.

BB0040171R_R-E6200SHV_B.indd 44 15.5.25 3:31:08 PM

Refrigerator Compartment

Touch it

Adjusting temperature in a refrigerator compartment

Cooling food Quickly (Quick Cooling)

Touch button on the Control Panel to turn on the indicator lamp

All indicator lamps turn on, and then the current settings are displayed.

Place the foods in the Quick Cooling Corner.

The food cools more quickly if it is placed at the center part near the interior wall. (the front of the Cold Air Blowout Port)

Touch button to set the temperature as you like.

Each time you touch the button, the corresponding indicator lamp changes in the order shown in the ﬁgure on the right. The temperature is set to “■■” before shipping.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“Fridge”

indicator lamp.

“Fridge”

indicator lamp is turned on during the

“Fridge”

operation, and other lamps will be turned off in about 40

seconds.

The operation will end automatically in about 50 minutes and

“Fridge”

indicator lamp will

turn off.

Touch button to turn on the indicator lamp, and then touch button to turn off

“Fridge”

indicator lamp.

To cancel it

● The temperatures of the Vacuum Compartment also change if selecting

“

■■■” or “■”.

● Temperature of the door pocket is set slightly higher than the one in the

ﬁgure on the right.

※ The above temperatures are standard values in the

Refrigerator Compartment under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30ºC.

● Place canned bev

erages and foods with a high water content apart from the cold air blowout port. They may be frozen or burst.

● Select “■■” in ordinary usage. The temperature may change

depending on the operation states.

● If you adjust the temperature more ﬁnely.

Pg.54

Notice

Caution

About 2 〜 6˚C

(Factory setting)

About 1 〜 3˚C lower

than

“

■■

”

About 1 〜 3˚C higher

than “■■

”

Quick Cooling corner

BB0040171R_R-E6200SHV_B.indd 45 15.5.25 3:31:09 PM

VACUUM COMPARTMENT

Vacuum Compartment

Photocatalyst & LED light

Due to lights from LED lights and the effect of photocatalyst, odorous substances of foods and ethylene gas from vegetables are converted into carbon dioxide to restrict activities of the enzymes. The LED light illuminates the

Vacuum Case when a door of the refrigerator is opened.

Vacuum Pump

Handle

Vacuum Case

(With an aluminum tray)

Antioxidation Fresh Cassette

Be sure to peel off the seal before use.

Pg.43

Antioxidant constituents and hot ﬂ avor are released from the Cassette when the Vacuum Compartment is in a vacuum state so as to preserve nutrients and keep freshness. ※ It is not required to replace it

periodically.

vegetables are converted into carbon dioxide to restrict activities of the enzymes. The LED light illuminates the

Vacuum Case when a door of the refrigerator is opened.

When opening/closing the door of the Vacuum Case

When opening the door When closing the door

Pull up the handle to unlock.

Push the Vacuum Case back to the end.

Pull out the Vacuum Case.

The Vacuum Case cannot be opened due to the vacuum state when the hissing sound can still be heard. When the hissing sound stops, pull the handle towards you to open.

Press down the handle to lock.

Fully press down the handle to lock the door. Hold down the handle to the end. Or the Vacuum function will not work

properly.

1 1

Hiss

Handle

If you pull out the Vacuum Case without opening the door on the left/right, it may cause damage to parts.

If you close the door of the refrigerator with the handle unlocked, it may cause damage to parts and gasket gap.

If you close the Refrigerator Compartment door with the Vacuum Case opened, parts or foods may be damaged.

Caution

● The vacuum pump is activated when the door of the Refrigerator Compartment is closed, with the Vacuum Case closed and the handle locked.

● Sound occurs upon start of the vacuum pump, which is a normal event.

● The vacuum pump requires about 3 minutes to produce a vacuum after its activation. No hissing sound comes out when the Vacuum Case is opened

within 3 minutes. Always wait for 3 minutes or lo

nger before checking vacuum state.

● Adopting indirect cooling, the Vacuum Compartment requires longer time than other compartments to cool food.

● In the dark, you may see the light of LED light through the door gaskets of the Refrigerator Compartment while the photocatalyst function works.

● If the antioxidant Antioxidation Fresh Cassette is dirty, wring out a wet cloth and use it to wipe it off.

●

Do not rinse the Antioxidation Fresh Cassette in water. In case it is rinsed, dry it completely before use.

● Do no smell the Antioxidation Fresh Cassette directly. It may be irritating to the nose.

● Do not disassemble the Antioxidation Fresh Cassette.

Notice

Request

Caution

Vacuum Case

Vacuum release valve (in blue)

Raise the handle to unlock it. The vacuum will be released by the vacuum release valve.

Hissing sound is generated when releasing the vacuum.

BB0040171R_R-E6200SHV_B.indd 46 15.5.25 3:31:14 PM

Vacuum Compartment

Change the settings of the Vacuum Compartment

Touch button on the Control Panel to turn on the indicator lamp

All indicator lamps turn on, and then the current settings are displayed.

Touch button to change the settings as you like

The display switches in sequence as shown below every time the button is touched. The temperature is set to “-1˚C” before shipping.

1 2

※ The above values are obtained with an ambient temperature of 30˚C, the temperature in the Vacuum compartment in a stable state with no

food stored and no door opened.

Settings and food stored

-1˚C

(Subzero)

(About -1˚C)

+1˚C

(Chiller)

(About +1˚C)

Vacuum

Vacuum OFF

OFF

(

Non-vacuum

)

(About -1˚C)

The following foods should be stored at “-1˚C” setting.

The following foods should be stored at “+1˚C” setting.

This setting is also suited for thawing. Foods high in water content may freeze.

The vacuum function/photocatalyst function is disabled. This setting is recommended to store food in “sealed bags” or

“sealed containers” which requires caution in storing. Foods high in water content may freeze because this is a regular ice-temperature compartment.

Vienna sausage, sliced cheese etc.

Eggplant Cucumber

● Food contained in a sealed bag

The bag may be inﬂated during storage, which could result in crushing of other stored food.

●

Vegetable sensitive to low temperature

The surface of the vegetable may deteriorate due to low temperature. Store it in the Vegetable Compartment.

Okra, asparagus, ginger, and green pepper

● Plastic airtight container

The lid of the container may become loose or may not stay in place during storage. Be careful when you take out the container.

●

Meat, processed meat

●

Fish, seafood, boiled ﬁsh paste

Food and container for which care

needs to be taken during storage

Food which are

not suitable for storage

Caution

● The vacuum effect will not be changed even if foods are wrapped.

● Foods high in water content may freeze if ambient temperature is low.

● The temperatures of the Vacuum Compartments also change if the temperature of Refrigerator/Freezer Compartment is set to

“

■■■” or “■”.

Dew and/or frost may occur in the Compartment due to moisture contained in foods or in the air because the Vacuum Compartment i

s sealed.

● Wipe dew and/or frost off with a soft cloth wet by lukewarm water.

● Wipe water or soup spilled in the compartment soon, if any. ※ A water droplet and/or frost won't have a bad impact on performance.

Notice

Caution

Request

Dew and/or frost

Touch it

Yogurt, cheese etc. Tofu, konnyaku, deep-fried tofu,

string konnyaku, boiled eggs etc.

Vegetables in sealed bags or airtight containers, coffee beans, tea leaves etc.

Fresh vegetables such as salad / macrophyll & fruits such as orange / kiwi fruit

● Dairy products

● Precut vegetables and fruits ● Others

● Food which form air

bubbles inside if frozen

-1˚C

(Factory setting)

(Non-vacuum)

(Subzero)

All the lamps off.

+1˚C

● The display will be turned off after about 40 seconds for energy saving, but the function

that is set once will remain effective.

Caution

BB0040171R_R-E6200SHV_B.indd 47 15.5.25 3:31:16 PM

Partition

FREEZER COMPARTMENT

Upper Freezer

Lower Freezer

Using the Upper Freezer

Using the Lower Freezer

Caution on how to store foods

Stored foods

Slimline slide case

Small-item and frozen food, etc.

Slide Case

Freezing bag andairtight container etc.

Lower freezer case

Frozen food and bread Ice cream etc.

Tall Storage

Compartment

Upper Freezer case

Freezing bag, airtight container, etc. Space for small-item and frozen food, etc.

Quick Freezing

Corner

With Quick Freezing System, all the moisture, natural nutrients and good ﬂavor in the foods are preserved in an instant.

Pg.49

It is recommended to use this compartment when freezing meat and/or ﬁsh quickly.

3-layer freezer case provides you with large storage space compartment and convenient reach of your freeze food items.

It is suitable for storing the food preserved for a long time and the food that melt easily such as ice cream.

Store foods properly depending on the height of them.

The door will not be closed completely, which leads to inefﬁcient cooling action, and which may cause food deterioration or damage to the cases. Keep the food off from the upper slimline case and/or the slide case.

When freezing meat or ﬁsh quickly

PET bottle for freezing, etc.

Upper Freezer case

(with an aluminum tray)

Quick Freezing Corner

Slimline slide case

Slide Case

Tall Storage Compartment

Lower freezer case

(with an aluminum tray)

● Move the aluminium tray in the Upper Freezer to the left side of the

Slimline slide case, as it can be used as the Quick Freezing Corner.

● Do not store any 500ml PET bottle in the Slimline slide case. It may not

be taken out because it expands when it is frozen.

● Do not use with the slimline slide case and/or slide case removed.

Food may drop to the inner part of the case, and as a result, the door may not close completely.

● When storing tall food in the tall storage Compartment, make sure that

it does not contact with the Slimline

Slide Case and/or the Slide Case.

● Store only food which can be frozen such as PET bottle which can be

stored in freezer.

(Front)

Slimline slide case

Upper freezer compartment door

Lower freezer compartment door

Slide Case

Guideline for height

Upper Freezer case

The top line of the case

Slimline slide case

Up to 5cm in height

Slide case

The top line of the case

Lower freezer case

The top line of the case

up to the height of

23.5 cm

Tall Storage Compartment

● Do not remove the Slimline slide case and the partition.

Caution

BB0040171R_R-E6200SHV_B.indd 48 15.5.25 3:31:17 PM

Freezer Compartment

Quick Freezing Corner

Adjust the temperature of the freezer compartment

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to set the temperature as you like

Each time you touch the button, the corresponding indicator lamp changes in the ﬁgure on the right: The temperature is set to “■■” before shipping.

1 2

● If operating the refrigerator for a long time with the Freezer Compartment “■■■” selected, ice cream etc. may

become hard or it may take a longer time to thaw food.

● Move the aluminum tray in the Upper Freezer to the left side of the Slimline slide case in the Lower Freezer, as it can

be used as Quick Freezing Corner.

※ The temperatures are standard values under the speciﬁc

condition (the surroun

ding temperature of 30˚C, no food stored,

door closed and the temperature in the refrigerator is steady).

● Select “■■” in ordinary usage. The temperature may change

depending on the operation states.

● For more information about the panel for operation.

Pg.54

Notes: For the Freezer Compartment “■■■” (Lower temperature

freezing), food is stored at a lower temperature than the conventional freezing temperature. The energy consumption is approximately 20% higher than that for the conventional freezing operation.

Notice

Quickly freezing foods (Quick Freezing)

Place the food wrapped with plastic ﬁlm on the aluminium tray in the upper Freezer.

Dividing food into small pieces not only makes them freeze soon, but also be taken out easily.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on the

“Freezer”

indicator lamp.

“Freezer”

indicator lamp continues to be lit during the operation, and other indicator lamps will be turned off in about

40 seconds.

The operation will end automatically in about 120 minutes, and

“Freezer”

indicator lamp

will be turned off.

Touch button on the Control Panel to turn on the indicator lamp, and touch

button to turn off

“Freezer”

indicator lamp.

To cancel it

● Freezer compartment is cooled preferentially in the

“Freezer”

operation. For that reason, temperature of the Refrigerator

Compartment may rise if opening/closing the Refrigerator Compartment door frequently.

● Warm food such as rice can be easily frozen by this function. Make sure that you never burn yourself.

when putting hot food in. It is recommended to put it in after it is cooled down to the tempera

ture where you can hold it with your

hand.

● Touching button again within 60 minutes after the end of the

“Freezer”

operation, the lamp is illuminated, but the

“Freezer”

operation does not start. The operation will start after 60 minutes pass.

● Make sure to wrap the food with plastic ﬁlm to prevent it from sticking on the aluminium tray.

Notice

Touch it

About -20 〜 -18˚C

(Factory setting)

About 1 〜 3˚C

lower than

“■■”

(

Lower temperature freezing

Notes

)

About 1 〜 3˚C

higher than

“■■”

BB0040171R_R-E6200SHV_B.indd 49 15.5.25 3:31:18 PM

ICE COMPARTMENT

(AUTOMATIC ICE MAKER)

Tea

JUICE

MINERAL

WATER

● WARNING: ﬁ ll with potable water only.

●

Water for ice making is according to your drinking standard. Quality of tap water may vary in different countries. Please check and verify with your local authority.

● Change water and clean the container at least once a week for

hygiene purposes.

● If the ice made of mineral water containing a lot of mineral

ingredients is put into water, white powde

r may come out,

however this is due to those mineral ingredients and harmless.

Add water line

Take off the Water Supply Container.

When the

“Water”

indicator lamp is lit or the water level reaches to the“Add water line”, replenish water.

Replace the Water Supply Container.

Push it straight beyond the “

Container set position” line completely. Water will not be supplied until the water supply container is push

ed to the end.

※ Water may spill out if the water supply container is

inclined. Wipe off spilled water immediately.

Ice-Making starts automatically

Ice cubes are stored in the Ice Case. 12 pieces of ice cubes are made by one ice-making operation.

Open the lid and add water

Water level can not exceed “Container-full line”. ※ Do not pour water into it beyond the

full water line.

Lid

Container-full line

Cont

ainer set position

Perform

“Ice Make

r Cleaning” when making ice for the ﬁ rst time

or for the ﬁ rst time in a week or more.

Pg.58

●

Do not use the following ones because they may cause malfunction, deformation or sticking ice.

●

Furthermore, these types of water are easily contaminated with bacteria.

Please wash the container usually once 3 days.

Mineral water

(Hardness: 100mg/L or less)

Juice drink Sports drink Carbonated drink Tea

Filtered water or

boiled water

Well water

(Required to satisfy the appropriate

water quality standard)

Ice Compartment

How to make Ice

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“On”

indicator

lamp.

It may take longer time to make ice in the following cases:

・ It is used for the ﬁ rst time (it may take 24 hours or more). ・ It is set to the

“Energy Saving”

mode.

・ The door is opened/closed frequently. ・ Large volume of foods is stored in the refrigerator at a time. ・ In case of power outage. ・ With the low ambient temperature in winter, etc. ・ After the ice tray is cleaned. ・ When the door of the Freezer Compartment / Ice

Compartment is

not closed completely.

・

When the temperature of the Freezer Compartment is set to “■

”.

Notice

Request

Touch it

Control Panel

Water Supply Container

(Approx. 1.0 L)

Ice Making buttons

AUTOMATIC ICE MAKER

Ice Case

Ice scoop

Display

Ice Making button

“

Water Supply” indicator lamp

Ice Tray

Ice Compartment

Add ice line

Add water line

BB0040171R_R-E6200SHV_B.indd 50 15.5.25 3:31:22 PM

Ice Compartment (Automatic Ice Maker)

Stored ice amount

Normal operation

About 120 pcs

Ice is leveled

About 150 pcs

Required time for an ice making operation

Normal “On

”

About 110 minutes 〜 140 minutes

“

Quick

”

About 80 minutes

※ The above values are obtained with an ambient temperature of 30˚C, the temperature in each compartment set to “■■” and no door opened/closed.

●

“Water”

indicator lamp turns off once (for up to 3 hours) when the left door of the

efrigerator Compartment is opened and closed while the indicator lamp is on, and it turns

on again if no water is added to replenish the container.

●

“Water”

indicator lamp remains off when

“Off”

is selected for automatic ice making.

● Limit line of stored ice amount represents the guide line of stored ice amount when the Automatic Ice Maker makes ice

with ice leveled. If the ice is stored partially, the det

ecting lever may contact the ice early. As a result, the Automatic Ice Maker may stop

making ice before the amount of stored ice is enough.

● Gently open and close the door of the Ice Compartment, otherwise ice may fall out of the ice case onto the lower freezer.

●

“Water”

may come on regardless of water level if the water supply container is not placed

properly. Push in the container straight and complet

ely if the indicator lamp comes on.

●

“Off”

indicator lamp won't turn off.

Notice

Request

Caution

Notice

Quick Ice Making

Water Supply indicator

When the “On” indicator lamp is blinks

Stored ice amount and ice-making time of the Ice Case

Stop Ice Making

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“Quick”

indicator lamp.

Ice cubes are made in a shorter time than that of

“On”

operation.

12 ice cubes are made by one ice-making operation.

“Quick”

indicator continues to be lit during the

“Quick”

operation. Other indicator lamps will be unlit about 40 seconds later.

“Quick”

operation ends automatically in about 7 hours, and it is

changed to

“On”

mode.

Touch button to turn on

“Off”

indicator lamp.

Auto Ice Making is stopped and no Ice cubes are made. ※ If you set to

“Off”

for 1 week or more,

maintain the Automatic Ice Maker.

Pg.58, 59

1 1

2 2

“Water”

indicator lamp comes on when water in the water supply container is getting low. Replenish the container with water.

● While the

“Water”

indicator lamp is on, the Ice Making function doesn’t work even if the

“On” and “Quick”

is set.

The ice tray may come into contact with foods within the Ice Case.

Touch it Touch it

Control Panel

Light ON

Ice scoopFrozen food

Detecting LeverDetecting Lever

Is any frozen food stored in the inner part of the Ice case?

Is the Ice scoop placed in the given place?

Empty out the Ice Case once, and then start the “Ice Maker Cleaning”.

Pg.58

● Do not store any food such as frozen food other than ice in

the Ice case when making ice automatically. (Otherwise, it may not make ice, or the door may not open or parts may damage because the food interferes with the parts of the Automatic ice maker.)

Request

Touch it

Light ON

BB0040171R_R-E6200SHV_B.indd 51 15.5.25 3:31:24 PM

VEGETABLE COMPARTMENT

Vegetable Compartment

Photocatalyst & LED light

Due to LED lights and the effect of photocatalyst, odorous substances of foods and ethylene gas from foods are converted into carbon dioxide to maintain freshness.

Moisture unit

Tall Storage Compartment Upper space

Glass partition Aero-care Zone

Upper Case

Glass partition

Locking handle

Lower Case

Stored foods

● Do not remove the moisture unit and photocatalyst from the lower case.

● The glass partition can’t be removed.

Caution

Upper space

Unﬁ nished vegetables, small vegetables, fruits, etc.

Tall Storage Compartment

Tall vegetables, 2L PET bottle, etc.

Aero-care Zone

Leaf vegetables (spinach, Japanese Mustard Spinach etc.), large vegetables (cabbage, lettuce), etc.

● Since the humidity in the Vegetable Compartment is high, dew may be formed around the Upper Case, Upper Case, on the ceiling

of the Vegetable Compartment and surface of vegetables, depending on the volume or type of vegetables, but it is normal. Among others, the humidity is higher within the Aero-care Zone, which results in more amount of dew condensation. Accumulated water may cause damage to f

ood, so use a soft cloth to wipe it off.

● If the moisture unit is blocked by a bag or container of foods, dew is formed easily. Move out the bag or container of foods from

there.

● If you feel uneasy about dew condensation, wrap the foods.

● When storing dried foods such as rice, laver and others in the Vegetable Compartment, put them in a sealed container (bag) and

then place them in the Vegetable Com

partment. Dried foods may absorb the moisture.

Request

Caution on how to store foods

Store foods properly depending on the height of them.

The door will not be closed securely, which leads to inefﬁ cient cooling action. Or, it may cause damage of food or each case. Keep foods away from the bottom of the Upper case.

● Do not pile up foods higher than the case.

・The door will not be closed securely, which leads to inefﬁ cient

cooling action.

・It may cause damage of food, case or glass

partition.

・Upper case doesn’t be closed securely, so that the Photocatalyst

Preservation may have no effect.

● Place too many foods/beverages forcedly in the Tall Storage.

・Some PET bottle can’t be stored, depending on its type. ・Do not put too many foods, beverages, etc. in it.

The glass partition may be broken.

Guideline for height

Door of the Vegetable Compartment

(Front)

Upper Case

Lower Case

Height of stored food

Door of the Vegetable Compartment

BB0040171R_R-E6200SHV_B.indd 52 15.5.25 3:31:28 PM

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to turn on

“Veg”

Foods are stored under the temperature lower than usual (approx. 1 to 5˚C rather than approx. 3 to 7˚C.) ※ The above temperatures are standard values for the Vegetable Compartment under the condition that the refrigerator is

stable with no food stored and the door closed, at ambient temperatures of 30ºC.

1 2

Touch button on the Control Panel to turn on the indicator lamp, and then touch

button to turn off the

“Veg”

indicator lamp.

To cancel it

● If foods are kept in the

“Veg”

for a long time, vegetables high in water content may freeze. Release the setting of

“Veg”

● You cannot set both

“Veg”

and

“Fridge”/“Freezer”

concurrently.

If it is switched to

“Freezer”/“Fridge”

mode during the

“Veg”

mode, it will not return to the

“Veg”

mode by itself after

“Freezer”/“Fridge”

is ended

automatically. Set it to the

“Veg”

again.

● When setting

“Energy Saving”

mode during the

“Veg”

mode, the cooling function is shifted to weaker cool

ing effects from the

“Veg”

Pg.54

● When the ambient temperature is low, the temperature in the case may be lower.

● The temperature of the Tall Storage Compartment is a little higher than other spaces.

● If vegetables sensitive to low temperature such as eggplant and cucumber, etc. are stored with the

setting

“Veg”

, they may have pits on the surface or get discolored. In that case, release the setting

“Veg”

● While it is set to

“Veg”

, ther

e may be more dew condensation in the Aero-care zone. If it is

undesirable that dew adheres to the stored vegetables, release the setting of

“Veg”

Notice

Request

Touch it

Vegetable Compartment

To cool it more [Vegetable Compartment (MAX)]

Using the Aero-care Zone

When the Vegetable Compartment door is closed, the Upper case goes back to the original position and is locked.

When opening it When closing it

Push the lock handle at the center of the Upper case to slide it to the end.

Draw the lock handle at the center of the Upper case, and then slide it to the end to lock until it snaps.

1 1

● The upper case won’t slide to the end when you don’t

push the lock handle.

Caution

Eggplant Cucumber

Vegetable sensitive to low temperature

Okra, asparagus, ginger, and green pepper

● For energy saving, the display will be turned off after about 40 seconds, but the setting remains active until it is released.

Caution

Snap!

BB0040171R_R-E6200SHV_B.indd 53 15.5.25 3:31:30 PM

VARIOUS FUNCTIONS

Locking the Control Panel

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button to change the settings as you like.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below: The Energy Saving mode is set to

“Off”

(all lamps off) before shipping.

Press down button 3 seconds or more until the preset sound is heard.

Lock of the Control Panel is changed to

“On”

“Off”

It is set to [

]

“Off”

before shipping.

This can prevent erroneous operation of the Control Panel or misuse by children. When this indicator lamp (Lock of the Control Panel) is illuminated, any other portion of the Control Panel will not be activated by touching it.

All the lamps off.

Setting of the

Control Panel's lock

“On”

(locked)

“Off”

(unlocked)

“

indicator

lamp

”

On Off

Preset sound

Long beep 2 beeps

Setting “Energy Saving” mode

● When both

“Save”

“Trip”

and

“

Quic

k (about

7 hours) ” / ”Freezer (about 120 minutes)

” /“Fridge (about 50 minutes)” modes are set concurrently,

“Quick” /“Freezer”/“Fridge”

function is performed ﬁrst, and it will be set to

“Save”

“Trip”

mode after the operations are

completed.

Pg.45, 49, 51

● When both

“Save”

“Trip”

and

“Veg”

modes are set concurrently, the cooling function will be weakened from the

“Veg”

Pg.53

● When the temperature in the “Freezer

Compartment”/“Refrigerator Compartment” is set to “■”, it will not be weakened so as to maintain the freshness of foods while LED lights in the Refrigerator Compartment and the Vacuum Compartment only are turned down.

●

Automatic temperature control lowers cooling loads, which may cause ice cream to get soft and frost to form on frozen food. It also requires longer freezing time and ice making time.

Notice

Caution

Energy Saving

Save electricity by lowering the cooling capability of each compartment.

Turning down the LED lights in the Refrigerator Compartment, the Vacuum Compartment and the Vegetable Compartment for power saving if the door of the Refrigerator Compartment is left open for more than 30 seconds. ※

If it is set to “Save” mode, the function continues to work until the setting is released.

Cooling down the inside of the refrigerator slowly leads to more reduction of power consumption.

(Set it to this mode when you go out for a long time such as travel). ※ When the door is opened/closed after it is set to

“Trip”

, it will be switched to

“Save”

mode.

Setting to

“Energy Saving”

mode (Save, Trip), the operation is changed

to the following modes for energy saving.

Fine adjustment of the temperature

(Refrigerator Compartment / Freezer Compartment)

Temperature settings for Refrigerator and Freezer Compartments can be more ﬁnely adjusted by 11 levels. Usually it is recommended to use it at the setting of “■■”.

Indication

lamp

Setting

MIN and under

MIN. MID.

MAX.

MAX and more

Open the door of the Lower Freezer Compartment.

Touch

or button to make an

adjustment.

The temperature becomes higher by 1 level every time you push the button. (Pushing “MAX and more” returns to “MIN and under”.)

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Close the door of the Lower Freezer Compartment.

Follow the operations shown in Step 1, 2 and 3.

2 beeps sound and you can set the temperature by normal step (3 levels).

Press down button for 5 seconds or more until 1 beep is heard.

( Lighting Blinking Turned off)

1 5 2

●

When connecting/disconnecting the power plug or after recovering from electric power failure, lock of the panel for operation may be released.

Notice

cancel

BB0040171R_R-E6200SHV_B.indd 54 15.5.25 3:31:31 PM

Various Functions

Setting the swing partition Setting the partition iron plate

Open the door of the Lower Freezer Compartment.

Touch

button on the Control

Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Close the door of the Lower Freezer Compartment.

Press down button 3 seconds or more until the preset sound is heard.

The setting of MIN level of the dew condensation prevention heater will be switched. Repeat the above-stated operation to set it to the level you prefer (see the table above).

Press down button 3 seconds or more until the preset sound is heard.

The setting of MIN level of the dew condensation prevention heater will be switched. Repeat the above-stated operation to set it to the level you prefer (see the table above).

1 1 2 2

4 4

3 3

●

The setting will be returned to the standard when the power plug is disconnected and connected or power failure recovery takes place.

Notice

Set the condensation prevention heater to MIN.

(Swing partition/Partitioning iron plates)

Setting the condensation prevention heater to MIN saves energy.

When dew is formed in the swing partition or the partitioning iron plates, set it to the standard. The temperature settings for the swing partition and the partitioning iron plates can be adjusted by four levels (1 to 4), and level 4 is the most energy saving.

MIN setting of the heater

Standard MIN setting level 1 MIN setting level 2 MIN setting level 3 MIN setting level 4 Standard

Preset sound

−

Long beep Long beep (2 beeps) Long beep (3 beeps) Long beep (4 beeps) 2 beeps

Swing partition

Partitioning iron plates

(Factory setting)

Door Alarm and volume adjustment of the operation sound

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Press down button for 3 seconds or more until the preset sound is heard.

The volume level of the operation sound is changed from “Standard” to “Louder” or “Sound off”. Repeat the change of settings to set the operation sound you like (see the table shown below). The sound is set to “Standard” before shipping.

1 2

● It is impossible to adjust the volume level of

either door alarm or operation sound only.

● When the Door Alarm is disabled, characters

on the Control Panel no longer blink.

● Even if the volume level is set to “Sound off”,

the alarm of the Ice Maker Cleaning and the operation sound when the AUTO DOOR of the Refrigerator Compartment and the AUTO DOOR are set to

“ON”

will sound.

● When connecting/disco

nnecting the power plug or after recovering from electric power failure, it will return to the standard setting where the Door Alarm sounds.

Notice

You can set the sound level of the alarm louder or no alarm sound.

Door Alarm

When the door is opened for more than 1 minute, sound and light occur indicating the door is open as shown in the table below.

No Door Alarm is installed in the Upper Freezer.

※ When the door is left open for one minute or more, the indicator lamp blinks and the characters on the Control Panel is illuminated. ※ From 30 seconds onwards with the door opened, the Door Alarm sounds only when the energy

saving mode is set. (The indicator lamp blinks when

the door is left open for one minute or more)

※ When the indicator lamp on the display area blinks due to the Door Alarm function, the Control Panel will not be activated by touching it.

Duration when door is open

1 minute 2 minutes 3 minutes

Alarm sound

Long beep (3 beeps) Long beep (5 beeps)

Long beep (continuously), Louder

Volume level

Standard Louder Sound off Standard

Preset sound

−

2 long beeps Long beep 2 beeps

(Factory setting)

BB0040171R_R-E6200SHV_B.indd 55 15.5.25 3:31:32 PM

MAINTENANCE

● Make sure to unplug the power plug when maintaining the refrigerator.

Warning

■ When dirt is found

● Wipe off it immediately. It is recommended to clean the hidden places once a year.

Power plug

Once or twice a year

Door gaskets

Once a month

Surface of door

Once a month

The back/ﬂoor of the refrigerator

Once or twice a year

Liquid receivers

Once a month

Unplug the power cord from the outlet.

If the dust on the power plug remains not cleaned, it may cause a ﬁre.

Wipe the surface of door using a soft cloth wet by lukewarm water, and then wipe off water with a dry cloth. Remaining adhesives on glass surfaces, if any, can be removed clearly by using a plastic eraser to rub it and then wiping it off with a dry cloth.

Wipe it thoroughly because it can beco

easily dirty.

Wipe off them if liquid collects and/or they becomes dirty.

Check the following matters.

・ Is any damage found on the power cord? ・ Does the power plug become hot?

※ If there is any abnormality, please consult with your dealer

about it.

Pull the leg cover and remove it.

Push it in from the front when installing it.

Float the Adjustable mounts from the ﬂoor and draw the refrigerator straig

ht.

Lay the protection board etc. on the ﬂoor which can be easily scratched.

Connect the power plug ﬁrmly to a power outlet.

Remove the dust and wipe it with a dry cloth.

Wipe off dirt on the back of the refrigerator, duct on the side, wall and ﬂoor.

The back of the refrigerator easily becomes dirty because ﬁne dust is accumulated on it by convection of air.

1 1

Lift up the adjustable mount by turning it anticlockwise.

Duct on the side

Liquid receivers

● Do not use the following items because it may cause damage and discoloration of the door, paintwork and plastic parts. ・

Alkaline and alkalescence detergent for kitchen, plate powder, powder soap, oil, hot water, scrubbing brush, acid, benzine, thinner, alcohol, and bleach, etc.

● When using a chemical dustcloth, follow the instructions of it.

● Make sure to wipe off spilled cooking oil, citrus fruits juice and food soup. Because it may cause damage and discoloration of the door, paint work

and plastic parts.

● Do not wipe off lubricant applied to movable contact surfaces of cases and rails for the slide door.

● When a magnet or suction cup is attached on the side surface of the body or the surface of a

door, it may leave some mark.

● When unplugging the power plug, the settings of the Control Panel may be released. So check the settings.

Caution

Each shelf/pocket/case

Once per three months

Use a soft cloth wet by lukewarm water to wipe off. For how to remove

Pg.60, 61

●

When the lower case of the Vegetable Compartment is washed with water, turn it upside down to drain water, and then wipe off water with a dry cloth. Don’t use thick-pile toothbrush or scrubbing brush to wash. It may cause damage to case or moisture unit.

Request

BB0040171R_R-E6200SHV_B.indd 56 15.5.25 3:31:33 PM

Maintenance

Vacuum Compartment

Once a month

Pull out the Vacuum Case.

For how to remove,

Pg.60

Be sure to remove foods contained in the Vacuum Case.

Wipe off dirt from the groove for attaching the vacuum compartment gasket.

Remove the Antioxidation Fresh Cassette.

Pg.43

Wipe off dirt from the Antioxidation Fresh Cassette with a ﬁrmly wringed wet cloth.

Attach the Vacuum Case.

For how to attach,

Pg.60

Remove the vacuum compartment gasket from the Vacuum Case.

Grasp the tab of the vacuum compartment gasket on the observer's upper right and remove it by hand carefully.

When the Vacuum Compartment Gasket is dirt

Rinse dirty portion in water using a soft sponge, etc.

※ Do not use the detergents, etc.

Attach the Antioxidation Fresh Cassette to the Vacuum Case.

Wipe off following parts with a soft cloth whi

ch is steeped in lukewarm

water.

Wipe off excess moisture with a dry cloth and dry it out naturally.

Attach the vacuum compartment gasket.

Align the tab to the notch accurately, and then combine them together.

Tab

Groove for attaching the vacuum compartment gasket.

Vacuum compartment gasket

Notch of the groove

Tab

Vacuum Container

Vacuum Compartment

Gasket seat

Aluminum Tray

Vacuum compartment gasket

● Do not rinse the Antioxidation Fresh Cassette in water.

● Do not touch the glass on the ceiling in the compartment

(photocatalyst & LED light) with a ﬁnger or do not rub it with a dry cloth. Use a wet cotton-tipped stick, etc. to remove dirt, gently, if any.

● If detergents and others except lukewarm water are used

o clean the vacuum compartment gasket, the vacuum compartment gasket may be damaged, deformed or change in color, which may cause the vacuum state unable to keep well.

●

Loosened vacuum compartment gasket or loose-ﬁtting door of the Vacuum Case may cause the vacuum state unable to keep well.

Caution

BB0040171R_R-E6200SHV_B.indd 57 15.5.25 3:31:34 PM

MAINTENANCE

(CONTINUED)

● Do not place your hand in the mechanical section

of the automatic ice maker.

(Rotation of the ice tray may cause injury.)

Warning

Ice Maker Cleaning

When using for the ﬁrst time

When not used for more than one week

Be sure to check the followings before

starting the operation.

Go to the next step after checking them.

Close all the doors.

Preparation

Water supply container

・

Water is ﬁlled in it up to the limit line.

・It is set correctly beyond the tank

set position line.

Ice case

・If there remains ice, remove it.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Hold down button for 5 seconds or more until the alarm sounds.

When the 3 indicator lamps

“Quick”, “On”

and

“Off”

start to blink and alarm starts to sound, stop holding the

button.

“Ice Maker Cleaning”

(water supply route) starts (for about 4 minutes).

・ The indicator lamp will ﬂash and the buzzer will sound for about 4 minutes. ・

“Ice Make

r Cleaning” can’t be interrupted.

・ If you open any of the refrigerator doors during Ice Maker Cleaning, the

cleaning may not work properly. Do

not open or close the door until cleaning is completed.

・Door alarm sounds even if alarm is disabled.

Pg.55

Place a clean towel, etc. on the bottom in the Ice Case so that the cutout of the Ice Case can be blocked after the alarm and blinking of the indicator lamp end.

Place a water-absorbing towel on the bottom in the Ice Case to prevent trapped water during the ice maker cleaning from spilling out of the cutout of the Ice Case.

Wipe off water inside the Ice Case completely, and then set it to the Ice Co

mpartment.

Remove the Ice Case, wipe off water inside the Ice Case, and then remove the towel. There is no problem with using water remaining in the water supply container, if any. After

“Ice Maker Cleaning”

, it is set to

“On”

mode, etc.

Touch it

11-4

It blinks

Cutout

Towel

BB0040171R_R-E6200SHV_B.indd 58 15.5.25 3:31:35 PM

Maintenance

(Continued)

Water supply container

Once a week

Ice tray

Once or twice a year

Remove the water supply container, and then the lid.

Take up the near side of the lid toward in the direction of the arrow, and then remove it.

Remove the gasket from the lid and then the case.

Turn the case and remove it from the lid.

Remove the water ﬁlter from the case.

Pinch the tab of the water ﬁlter with ﬁngers to unset it from the fork, and then remove the case.

Rinse each part of the water supply container in water.

Wash it with a soft wash sponge etc. Do not use the detergents etc.

Attach each part to the water supply container, pour water in and then set it.

Insert the lid from its rear side and close it in the direction of the arrow.

Touch button on the Control Panel to turn on the indicator lamp.

All indicator lamps turn on, and then the current settings are displayed.

Open the door of the Ice Compartment, and take out the ice tray.

Push the level laterally. draw the frame. Raise the cover ( ▲ part) in the direction of the arrow. Remove the ice tray from the frame.

Empty the ice tray and wash

it lightly in the stream.

Do not use a sponge / cleanser, etc. Be sure not to scarify.

Open the Ice Compartment, and then attach the ice tray.

Set the ice tray Hold down the cover to the end until it snaps. Push the frame to the end until it snaps.

(Move the frame back and forth to check that it is ﬁxed securely.)

Touch button on the Control Panel to turn on the indicator lamp, and then touch

button to

turn on the

“On”

indicator lamp.

Automatic Ice Making starts.

Touch button to turn on

“

Off

”

indicator lamp.

It stops water supply to the ice tray. ※ When

“Off”

indicator lamp blinks, wait for about 1 minute for it to turn on, and then follow the next steps.

1 1

Gasket

Lid

Case

Water ﬁlter

Water supply

container

Tab

●

Dechlorinated water such as mineral water, well water, ﬁltered water, cool water after boiling and others tends to cause water stain / slime compared with tap water. So it is recommended to maintain once every 3 days.

●

When the Ice Maker is not used for more than 1 week, dry out the water supply container, and then set it in place (dry out the water ﬁlter, among others). When not used for more t

han 1 week, it is recommended to start Ice

Maker Cleaning before use.

Pg.58

●

When the frame for the ice tray cannot be pushed into the back, the motor that drives the ice-tray may have operated. Remove the ice tray once and then push the frame alone into the back,

and then touch

button with all the doors closed to turn

“Off”

. After a while, the ice-tray driving motor gets ready,

allowing you to mount the ice-tray.

Notice

Ice tray

Cover

Frame

Lever

Click

Touch it

Fork

● Dry out the water ﬁlter to prevent molds and guck.

● Replace the water ﬁlter normally every 3 - 4 years.

Pg.66

Request

Notice

BB0040171R_R-E6200SHV_B.indd 59 15.5.25 3:31:37 PM

● Before removing parts, take out all the foods on the parts.

● Do not remove parts except the ones listed here.

Please contact with a Hitachi customer service centre for cleaning such parts after removing them.

HOW TO REMOVE/ATTACH PARTS

Caution

Height adjustable upper and middle shelf

(Glass shelf)

Door pocket

Fixed shelf

Vacuum Case

Height adjustable lower shelf

When installing the shelf, slide it until it reaches to the interior wall, then slightly lift up the back of the shelf and push it in. (hitch the forks of the shelf to the parts on the back of the shelf)

Slightly lift up the back of the shelf and draw it.

Draw the shelf, and pull off the 2 pins on the lower right and remove it.

Pull out the Vacuum Case by slightly lifti

ng up

and moving up and down.

Insert the Vacuum Case so that both right and left convex ribs on the case can slide under the guide rail of the Vacuum Container.

Lastly, hold down the handle to lock.

How to remove How to attach

Slightly lift up and pull out.

Raise the shelf as shown in ﬁgure, and turn it and remove it.

Forks of the shelf (Right / Left)

Forks

Door may damage if drawing the shelf without turning it. Be careful to attach/remove the glass shelf because it is heavy. If it drops, it may break and cause bruise or injury.

If you pull out the shelf straight, it may hit the door.

Caution

Guide rail

Vacuum Case

Vacuum Container

Convex rib

Check that it is ﬁxed properly by taking it in and out a few

times.

Request

Lift up the door pocket while tapping the left/right of its bottom surface, and remove it.

(It is ﬁxed a little tightly.) Insert the door pocket fully to the end

when installing it.

Tap Tap

Caution

If it drops, it may break and cause bruise or injury.

BB0040171R_R-E6200SHV_B.indd 60 15.5.25 3:31:38 PM

Slide case and lower freezer case

(Lower Freezer)

When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it. Moreover, hitch the pins on the left/right of the Slide case to the outside of the Lower freezer case.

Upper Case, Lower Case

(Vegetable Compartment)

Draw the door fully and pull up the Upper Case as shown in the ﬁgure.

Lift up the Lower Case

toward you.

Lift up both sides of the door toward you and draw it slowly, and then place it on the ﬂoor.

● Do not remove the door completely. ● Be careful. Water may drip from the

backside of the lower case.

Caution Caution

● The glass partition can’t be removed.

● Do not remove the moisture unit and photocatalyst from the lower case.

Caution

Ice Case

(Ice Compartment)

・

Upper Freezer case

(Upper Freezer)

How to attach the slide door

(

Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment

)

Draw the door fully and lift up the case towards you.

Put the case bottom on the frame and set the case.

Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment

Underside of the case

Frame

Slimline slide case

Draw the door fully, and draw the Slimline slide case and the Slide case respectively.

Lift up the Lower freezer case.

Slide case

Pin (right and left)

Fork (right and left)

Rectangle hole in the frame

Frame

Lower freezer case

Frame

How to Remove/Attach Parts

Upper Case

Lower Case

● Do not remove the Slimline slide case.

Caution

● The partition of the Lower Freezer can’t be

removed.

Caution

BB0040171R_R-E6200SHV_B.indd 61 15.5.25 3:31:39 PM

TROUBLESHOOTING

Check the following points before asking repair. Contact your dealer or our customer center if the problem still exists after checking them.

When this happens Check Item How to solve/repair

Initial stage

Not cooled well.

It takes time to cool in summer or when a lot of foods are stored.

No trouble Immediately after installation, it may take

more than 24 hours

No ice is made.

When using for the ﬁrst time, it takes time to make ice because ice making starts after cooling fully. It may take more than 24 hours to make ice according to the amount of food and the way of packing it.

No trouble Open/close the door quickly and/or minimize the number of times of opening and closing the door. Allow clearance between each food in each compartment.

Control Panel

The Control Panel does not respond.

Isn’t the setting of the Lock on the panel for operation is set to “ON” (locked)?

Cancel the lock of the Control Panel.

Pg.54

Is Refrigerator Compartment Door open? Operate after closing it.

Isn’t a water drop or dirt attached to the Control Panel? Wipe it with a soft cloth.

Are you wearing gloves or applying a plaster? Touch directly with your ﬁnger.

Did you touch adjacent Control Panel wrongly? Touch the target Control Panel only.

Automatic ice making is not properly performed

Ice cannot be made at all.

Is the auto ice maker set to “Off”? Set it to “On” or “Quick” mode.

Pg.50, 51

Is “Water” turned on? Pour water into the water supply container.

Pg.50, 51

When water in the water supply container is getting low, Ice Maker may not make ice.

Add water until water level reaches to the “Container-full line” of the water supply container.

Pg.50

Is the water supply container pushed ﬁrmly until it is beyond the “container set position” line?

Push it beyond the “Container set position” line.

Pg.50

Do you push it to the end until it snaps? Push the frame back until it snaps.

Pg.59

Is anything other than ice stored in the ice case? Remove it from the Ice Case.

Is the ice case ﬁlled with ice over the limit line of stored ice amount? Level the ice.

Pg.51

It takes a long time to make

ice. There is no ice in the ice tray.

Do you open the door frequently or store a large amount of food at a time? Refrigerator may not cool fully.

Minimize the number of times of opening and closing the door until it cools fully. Allow clearance as much as possible between each stored food.

It may take more than 4 hours to make ice in winter. No trouble

Immediately after changing from “Off” to “On”, it may take longer than usual to make ice.

No trouble

Does any food or package caught in the door of the Freezer or Ice Compartments prevent the door from closing completely?

Remove it if it is caught.

Isn’t the “Energy Saving” (“Save”/ “Trip”) mode “ON”? Exit the “Energy Saving” mode.

Pg.54

Projection is generated on ice.

It is frozen water collected in the ice tray groove. It does not indicate any trouble.

Stored ice becomes small. Ice sticks together.

Ice naturally becomes small or sticks together if ice is stored for a long term.

Dispose of old ice cubes, and try to make ice again.

Do you open the door frequently or store a large amount of food at a time?

Open/close the door quickly or reduce frequency of opening and closing the door.

Was the door or the drawer not temporarily shut completely?

Close the door completely.

Small ice is made.

Small ice may be made if only a small amount of water remains in the water supply container.

Add water until water level reaches to the “Container-full line” of the water supply container.

Pg.50

Connected ice is made.

If the frame is not set in place properly, ice cubes may stick each other.

Set the frame to the right place.

Pg.59

If the ice tray is damaged, ice may not be easily separated from the ice tray and ice stuck together may be made.

Check that there is a ﬂaw on the ice tray, and then consult with your dealer for replacement.

There is white impurity in ice.

It is because the ﬁne air bubble in water is contained in ice. This is not malfunction.

Did you use mineral water to make ice?

Mineral contained in water may freeze and become white impurity in ice. It may remain after thawing in water, but it is harmless.

Ice tray frame cannot be drawn.

“

Off

”

indicator lamp turned on again?

The ice tray cannot be drawn when the auto ice maker is operating. Set it to “Off”. When the “Off” indicator lamp is blinking, wait for 1 minute until “Off” is lit, and then draw the ice tray.

Pg.59

Refrigerator does not cool

Refrigerator does not cool. Frost and/or dew occur. Ice cream becomes soft.

Does any food or package caught in the door prevent the door from closing completely?

Remove it if it is caught.

Is food squeezed in? or Is a large amount of food put in at one time?

Follow the rules on the height of food that can be stored.

Pg.48, 52

Allow clearance between each food in each compartment.

Is the case ﬁxed securely? Install them correctly.

Pg.61

Food cannot be cooled enough, depending on the installation place or surrounding situation.

Check to see if the refrigerator is installed properly.

Pg.42

Isn’t the “Energy Saving” (“Save”/ “Trip”) mode “ON”? Exit the “Energy Saving” mode.

Pg.54

Refrigerator may not cool fully when the temperature setting is “■”.

Switch the temperature setting of the compartment where it does not fully cool to

“■■”

or “

■■■

”.

Pg.45, 49

Does the temperature around the refrigerator become high due to weather (ex: in summer)?

Switch the temperature setting of the compartment where it does not fully cool to “

■■■

”.

Pg.45, 49, 53

Temperature in the refrigerator rises little by little while its door is open. If the door is opened/closed frequently or left open for a long time, temperature cannot easily lower.

Reduce the number of times of opening and closing the door, or open/ close the door quickly.

BB0040171R_R-E6200SHV_B.indd 62 15.5.25 3:31:40 PM

Troubleshooting

When this happens Check Item How to solve/repair

Frost and/or dew occur

Frost and/or dew adhere to the refrigerator interior or the frame of the drawer compartment.

Was the door or the drawer not temporarily shut completely?

Check that any food or package caught in the door, and then close it completely.

The door may be opened/closed frequently or door may remain open for a long time.

Open or close the door quickly, or reduce frequency of opening and closing the door.

Frost or condensation may be formed when the warm air contacts with inside the compartment or the door frame.

Wipe it off with a dry cloth.

Frost or condensation is formed on the wall or any part of the freezer compartment due to the moisture in the air when the door is opened or closed.

No trouble Wipe it off with a dry cloth.

Dew adheres to the outside of the refrigerator (exterior, door gaskets, door and drawer compartment etc).

Dew may adhere to those parts when the indoor humidity is high (ex: rainy day).

No trouble Wipe it off with a dry cloth.

When the dew-proof heater is set to low, high humidity may cause condensation on the iron partition, the door gasket or the door.

Cancel the settings of the condensation prevention heater. Wipe it off with a dry cloth.

Pg.55

When the temperature is set to “

■■■

”, it may cause condensation

on the surface of the door.

Wipe it off with a dry cloth. Please set the temperature to

“■■”

Dew condensation occurs in the Refrigerator Compartment.

Condensation may form on the wall and/ or around the cold air blowout port when the door is opened and closed frequently or the humidity is high around the refrigerator.

No trouble Wipe it off with a dry cloth.

Dew condensation occurs in the Vegetable Compartment.

The humidity in the Vegetable Compartment, among others, space for aero-care zone is higher than in any other compartment. This is because it is necessary to ensure optimal freshness of vegetables, which is not a malfunction.

When it is undesirable that dew occurs, wrap food and then store.

Water may drop into cases placed in the Vegetable Compartment due to dew concentration.

Water may cause damage to food, so wipe off water with a soft cloth.

If the moisture unit is blocked by food bag or container, dew may be formed in the space for aero-care zone.

Move the food bag or container blocking the moisture unit to other locations.

Refrigerator

cools overly

Refrigerator cools overly Food freeze.

“

■■■

” is selected in the temperature setting. Switch it to “■■”.

Pg.45, 49

The surrounding temperature is lower than 5˚C.

When the ambient temperature is low, the inside of the refrigerator may cool overly. Switch the temperature setting to “

■

”.

Is it placed in front of the Cold Air Blowout Port? Do not place any food in front of the cold air blowout port.

Door is not in a

horizontal state

Door is not in a horizontal state.

The installation site may not be level.

This does not affect the refrigerator performance. Adjust the refrigerator adjustable mount to keep it level if you want to correct it.

Pg.42

Does the soft ﬂoor material sink in around the legs due to the weight of stored items?

Lay a ﬁrm board which has more than 1cm thickness on the ﬂoor if the refrigerator itself inclines.

More force is required to open the door immediately after closing the door.

It is because the air that entered the Refrigerator Compartment is rapidly cooled and the pressure in the Refrigerator Compartment temporarily lowers.

This is not malfunction.

Another door opens after closing 1 door.

Another door may open for a moment by the wind pressure because cool air path connects each compartment.

This is not malfunction.

Abnormal operating sound is generated

Annoying sound is generated by the refrigerator.

Does the ﬂoor bend? Lay a ﬁrm board and then install the refrigerator thereon.

Pg.42

Does the refrigerator come in contact with the wall or furniture, etc.? Install the refrigerator with clearance around it.

Does the leg cover come off? Install it ﬁrmly.

Pg.42

You may feel that the operation sound is loud because the compressor operates in high-speed under the following conditions: the refrigerator does not cool fully on the occasion such as using it for the ﬁrst time, opening/closing the door frequently, the surrounding temperature is high.

The sound becomes soft after cooling fully.

When it is set to “Freezer”/“Fridge”/“Quick”, operation sound of the compressor or the fan motor gets louder because of high-speed revolution.

This is not malfunction.

Operation sound lasts long.

It is because the compressor operates in low-speed for conserving energy.

This is not malfunction.

Operation sound sometimes becomes louder.

It is because the system changes the operating power of the refrigerator according to the temperature change.

This is not malfunction.

When other sounds such as shown in the right table are generated by the refrigerator.

Sound like water ﬂowing (trickling) Sound like collision (tapping) Sound like water boiling (bubbling up) Sound like meat roasting (sizzling)

These sounds are caused when the refrigerant ﬂows or water ﬂows/ evaporates to remove frost. This is not malfunction.

Sound like squeaking (cracking) (knocking)

This sound is caused because the parts squeaks when the refrigerator temperature changes. This is not malfunction.

Sound like something is caught (clacking) Sound like roaring (honking) Sound caused immediately after closing the door (booming)

These sounds are caused when the electric parts to control the refrigerator temperature operates. This is not malfunction.

Sounds caused by the Automatic ice maker (zooming) (rattling) (clunking)

These sounds are made when ice is separated from the ice tray of the auto ice maker or water is supplied to the ice tray. These sounds are also heard every 2 or 3 hours when the water supply container is empty. This is not malfunction. To stop the sound, touch the

button to change it to “Off”.

Pg.51

Sound occurs sometimes (clacking) This sound is caused when the refrigerator starts the operation to cool.

Dew condensation

BB0040171R_R-E6200SHV_B.indd 63 15.5.25 3:31:41 PM

When this happens Check Item How to solve/repair

Refrigerator

becomes hot

The side of the refrigerator becomes hot. Hot air comes from the bottom of the refrigerator.

Hot air may come from the bottom of the refrigerator to exhaust the heat generated when the cooling device operates.

The temperature may rise to 50 – 60 ˚C immediately after installation or during summer. It does not pose safety or performance problems, but avoid touching it.

It smells strange

Plastic smells

This smell occurs because a lot of plastic parts are used in the refrigerator, but the smell decreases gradually while cooling.

This is not malfunction.

Ice smells

Do the water supply container and/or water ﬁlter become dirty? Or does ice become old?

Wash them regularly to prevent “slime” and/or “fur”.

Pg.59

Chlorine may strongly smell because chlorine in tap water is condensed. This is not malfunction.

It smells in the refrigerator

Is any food which strongly smells stored without any wrapping?

The deodorizing function cannot completely remove all smells. Seal that kind of food with plastic ﬁlm etc.

There is something strange with the Vacuum Compartment

Hissing sound does not occur when opening.

Is the setting of the Vacuum Compartment to “Off (Non-vacuum)? Change the setting to “-1˚C” or “+1˚C”.

Pg.47

Is the handle pulled up? Hold down the handle to lock.

Is the handle held down to the end and locked?

The vacuum function will not work unless it is locked. Lock it.

Isn’t the Vacuum Compartment Gasket removed? Install the Vacuum Compartment Gasket.

Is a food package or a hair caught in the vacuum compartment gasket and the support?

Remove any packing material of foods or other things which are caught in. Clean the vacuum compartment gasket if it is dirty.

Pg.57

Was the door of the Vacuum Compartment or the Refrigerator Compartment opened / closed just before?

Hissing sound may not occur because the vacuum pump enters the preparation state for starting the operation, but it does not indicate any trouble.

It is not clear whether the Vacuum Compartment has been vacuumized.

The Vacuum Compartment has been vacuumized properly if a vacuum releasing sound (hissing sound) is heard when opening it.

−

The handle cannot be locked.

Is there any food etc. caught in the inner part of the Vacuum Compartment Case or the vacuum compartment gasket?

Remove any food if it is caught in.

Is the Vacuum Case set in place? Attach the Vacuum Case according to the procedure.

Pg.60

Booming sound and vibration occur around the Vacuum Compartment.

This sound is caused when the vacuum pump operates. This is not malfunction.

You can stop the vacuum pump operation when you want to stop the sound (ex: night time).

Change the setting of the Vacuum Compartment to “Off”.

Pg.47

(It is set to Off (Non-vacuum))

If any sound or vibration occurs frequently, some object may be caught in the Vacuum Case or the Vacuum Compartment Gasket may be dirty.

Remove any packing material of foods or other things which are caught in. Clean the vacuum compartment gasket if it is dirty.

Pg.57

Dew or frost is formed inside the Vacuum Compartment and around the Vacuum Case.

The moisture from the juicy food may cause dew condensation and/ or frost adhering insider the compartment because the Vacuum Compartment is sealed.

It is recommended to wrap the juicy food with plastic ﬁlm, etc. Wipe dew and /or frost off with a soft cloth wet by lukewarm water.

The surface of stored vegetables is dented or gets discolored.

Is any vegetable sensitive to low temperature such as eggplant and cucumber stored?

Move them to the Vegetable Compartment.

Pg.47

Food in the Vacuum Compartment freezes.

Is the Vacuum Compartment set to “-1˚C” or “OFF (Non-vacuum)”? Set the “+1˚C”.

Pg.47

[ ] display on the Control Panel ﬂashes

ﬂashing

This ﬂashing shows that there is a problem. Consult your dealer.

ﬂashing

Some foods, etc. may come into contact with the ice tray.

Empty the Ice Compartment and do the “Ice Maker Cleaning”.

Pg.58

ﬂashing

It may be in the operation check mode for serviceman. (※1)

It will return to the normal mode after about 15 minutes. There is no problem with using the refrigerator.

All indicator lamps ﬂash

It is in process of Ice Maker Cleaning. Read “Ice Maker Cleaning”.

Pg.58

ﬂashing

It will ﬂash if you “Off” during the ice making process. Check how to clean the “Ice Tray”.

Pg.59

All displays ﬂashing

Door remains open for more than 1 minute. (ex: door is not completely closed.)

Check “Door Alarm”.

Pg.55

Blinks other than those above

It may be in the operation check mode for serviceman. (※1) Consult your dealer.

TROUBLESHOOTING

(CONTINUED)

※

1 Touching the button long (more than 10 seconds), the refrigerator may go into the operation check mode.

Waste

thread

Scraps

Dew and/or frost

BB0040171R_R-E6200SHV_B.indd 64 15.5.25 3:31:42 PM

Troubleshooting

(Continued)

When this happens Check Item How to solve/repair

Others

You feel electricity a little when touching the main body of the refrigerator.

−−−−−

The refrigerator may be charged with static electricity, but there is no problem with the safety.

Radio and/or television are disturbed by noises.

It is caused by the electromagnetic radiation slightly generated from this refrigerator.

Install the refrigerator away from the television, radio and interphone. It is recommended to connect the power plug to the power outlet separated from the antenna terminal.

Pg.43

There are thin lines like scratches on the plastic parts

Those lines are caused by the liquid resin ﬂowing when plastic is molded.

They are especially conspicuous for the transparent parts, but there is no problem with the strength and they can never lead to any cracks.

There are waving and/or distortions on the door surface, the side and the top surface of the refrigerator.

Slight waving and/or distortions are generated in the manufacturing process of the refrigerator.

They may be conspicuous according to the position of the light source and/or the brightness etc., which is not malfunction. There is no problem with the performance.

The Control Panel is unlit.

Approximately 40 seconds after the end of operation, indicator lamps will be turned off.

This is not malfunction. However, the setting of “Energy Saving” mode, indicator lamps of “Fridge”, “Freezer” and “Quick”, and indicator lamps of “Off” (of the ice making) and “Water” and “eco operation” at work are still lit. Open the door of the Refrigerator Compartment or touch

button

to turn it on.

There is a small hole inside the door.

This hole is used to escape the air inside when ﬁlling the heat insulation material into the door during the production process.

It is neither a ﬂaw nor abnormal thing.

The electric supply failed.

Reduce the number of times of opening and closing the door and avoid storing food additionally until the electric supply is restored.

Please check each setting on the panel for operation after the power comes back on.

The refrigerator is not expected to use for a long term.

Remove all the items in the refrigerator.

Leave all the doors open to dry the refrigerator for 2 or 3 days.

Pg.56-59

When no ice-making is required.

Please turn on “

Off

”. See “Stop Ice Making”.

Pg.51

Remove frost.

Any operation to remove frost is not required because this refrigerator remove frost automatically.

Thawed water is collected in the evaporating tray and automatically evaporates.

Transporting and moving care.

See “Transporting your refrigerator (transport for moving)”

Pg.43

The Vegetable Compartment door doesn’t close / When the Vegetable Compartment door is opened, the upper case doesn’t go back to the locking position.

Is any food, etc. caught between the upper case and the lower case?

Remove it if any.

Does PET bottle, food, etc. come in contact with the locking handle of the upper case?

Store PET bottle, food, etc. so that they don’t come in contact with the locking handle.

Glass is broken

door glass, glass shelf, glass partition

−−−−−

Do not touch a broken glass, but contact your dealer for repair soon.

When a midge ﬂy, etc. enters in the refrigerator

Are there fruit ﬂies around it?

Keep the environment clean. Put something a fruit ﬂy hates or fruit ﬂy traps or something like that.

Is there any food with strong ﬂavor in the refrigerator? Cover food with the lid so that fruit ﬂies can’t be attracted by the ﬂavor.

Is the door left open for a long time? Please close the door as soon as possible.

Hole (inside of the door)

BB0040171R_R-E6200SHV_B.indd 65 15.5.25 3:31:43 PM

AVAILABLE PARTS

■

If you order any part listed below, specify the model of your refrigerator to a dealer for purchasing genuine parts.

Subject Product Name Product Model

Ice smells

● Water ﬁlter may be old and dirty (available

about 3 or 4 years, as a guide)

Water ﬁlter for the automatic ice maker RJK-30

Vacuum state can't be maintained

● It may be damaged, deformed or discolored.

Vacuum compartment gasket R-A6200 321

BB0040171R_R-E6200SHV_B.indd 66 15.5.25 3:31:43 PM

● Instead of CFCs, hydrocarbons are used in the coolants and insulation materials used in this refrigerator.

Hydrocarbons do not damage the ozone layer, and they are environmental-friendly materials, having an exceptionally small affect on global warming.

●

Hydrocarbons are ﬂammable. The coolants are sealed in the coolant circuitry, and with normal operation they will not leak, but should the circuitry be damaged, refrain from using ﬂames or other electrical products,

and open windows for ventilation. After that, please contact the dealer or Hitachi customer service centre.

● 本冰箱所使用冷媒及其他斷熱材料皆無使用氟氯化碳、而是使用碳氫化合物。碳氫化合物不會破壞地球臭氧層、對地球溫室效應的影響非常小、屬於環保物質。

● 碳氫化合物為可燃型物質。冷媒密封於冷媒迴路管中、在一般的使用情況下應該不會發生外洩。但萬一有冷媒管線損壞的情況發生、請遠離火源及避免使用電器用品、將門窗打開以利空氣流通。之後、請立即與經銷商或日立技術中心聯絡。

R-E6200S, R-E6200H, R-E6200N, R-E6200M

Height adjustable upper shelf Height adjustable middle shelf Height adjustable lower shelf, Fixed shelf Upper shelf of the vacuum compartment Vacuum compartment case

Ice case

Upper Freezer case

Upper Case Lower Case

Slimline slide case Slide case Lower freezer case

Do not store any ice cubes other than the ones made by the automatic ice maker.

Pg.51

請勿存放不是本自動製冰機製成的冰塊。

頁

19.5kg

19.0kg

10.0kg

4.5kg

8.0kg

5.3kg

6.5kg

15.5kg

7.0kg

18.0kg

可調式層架上段可調式層架中段可調式層架下段, 固定層架真空冰溫室上方的層架真空冰溫室盒

儲冰盒

上層冷凍盒

上層滑動盒下層置物盒

上層滑動盒中層滑動盒下層冷凍盒

Available Parts / About non-CFC Refrigerators/Storable Weight

有關碳氫化合物的冰箱／可容納的食品重量

ABOUT NON-CFC REFRIGERATORS/STORABLE WEIGHT

有關碳氫化合物的冰箱

可容納的食品重量

About non-CFC refrigerators

Storable weight

The following table shows the weight of food that can be stored on the shelves and in the cases.

可容納於層架或收納盒內的食品重量如下：

Refrigerator compartment

Ice compartment

Upper freezer

Lower freezer

Vegetable compartment

冷藏室

製冰室

上層冷凍室

下層冷凍室

蔬果保鮮室

零件名稱

Name of parts

Cyclopentane is used in the insulation material. The gases in insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

隔熱材料中含有環戊烷

(Cyclopentane)

。當要處理隔熱材料中之氣體時，必須依照特殊的廢棄處理程序。要廢棄本產品時，為了不會對環境造成不良影響，請詢問當地的相關機關。

關於廢棄之重要警告

Severe warning signs for Disposal

BB0040171R_R-E6200SHV_B.indd 67 15.5.25 3:31:44 PM

Hitachi Tokyo Japan

AFTER-SALES SERVICE

關於售後服務

Please contact the following Hitachi Service Centre if power cord is damaged or service is required. If some malfunction occurs during operation, unplug the power plug immediately and contact the service centre to have the refrigerator repaired.

電源線受損或需要維修時，請直接洽詢下列日立服務中心。使用中出現異常現象時，請立即拔掉電源插頭以及聯絡售後服務中心以進行修理。

• HongKong  Hitachi(HongKong)Ltd.  18/F.,EverGainCentre,28OnMukStreet,Shatin,  N.T.,HongKong,China  Tel : +852-2753-5386  Fax: +852-2753-0993

• Singapore  HitachiHomeElectronicsAsia(S)Pte.Ltd.  438AAlexandraRoad,#01-01/02/03,  AlexandraTechnopark,Singapore119967  Tel : +65-6536-2520  Fax: +65-6536-2521

• Malaysia  HitachiSales(Malaysia)Sdn.Bhd.  Lot12,JalanKemajuan,BangiIndustrialEstate,  43650BandarBaruBangi,  SelangorDarulEhsan,Malaysia  Tel : +60-3-8926-4168  Fax: +60-3-8926-3013

•

香港  香港日立有限公司  中國香港新界沙田安睦街28 號永得利中心 18 樓

 Tel : +852-2753-5386  Fax: +852-2753-0993

• Indonesia  PT.HitachiModernSalesIndonesia.  12/FWismaSLIPISuite1202  JI.Let.Jend.S.ParmanKav.12  Jakarta11480,Indonesia  Tel : +62-21-530.7211  Fax: +62-21-548.1883

R-E6200S



R-E6200H R-E6200N R-E6200M

BB0040171R_R-E6200SHV_B.indd 68 15.5.25 3:31:44 PM

Hitachi R-E6200H, R-E6200N User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
