Hitachi L42A404 Schematic
- NOTICE All warranty parts are provided through
Hitachi Customer Service.
All Servicers should call:
800-654-7013
Updated: 11/03/10 OR
HITACHI TV
L42A404
L42A404 2010-10 v1
CAUTION: Be sure to read this manual before servicing. To ensure safety from fire, electric shock, injury,
harmful radiation and materials, various measures are provided in this LCD TV. Be sure to read cautionary items
described in the manual before servicing. These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electric shock, do not perform any servicing other than that described in the operating
instructions unless you are qualified to do so.
SERVICE WARNING
1. Replacement work should be started after the Panel Module and the AC/DC Power supply have become
sufficiently cool.
2. Special care should be taken when working near the display area in order not to damage its surface.
3. The Panel Module should not be touched with bare hands in order to protect its surface from blemishes and
damage.
4. It is recommended that you use clean soft gloves during the replacement work in order to protect not only the
display area of the Panel Module but also yourself.
Features…….……….…........................................……......3
Dimensions………..……..……………………………………4
General Specification...................................…………........5
Firmware Upgrade.………….………….……………..........6
Adjustment…….…………..………..….…………….…….....7
Troubleshooting…………...……………………...…..….......8
Block Diagram.........………………...………….………......12
Table of Contents
Schematic Diagram……...………………………...………14
Connection Diagram……..……….………….……..……..29
Main Parts View.……..……….………………....…….......30
PCB Layout…………..………………………....……….....31
Exploded View…………..……………..……….................37
Parts List………...…..……..............................................40
HITACHI
L42A404
Caution for Safety
Please read this page before repair the TV.
The following safety precautions are designed to help you stay safe and prevent accidents during the repair work.
● Please take note of these cautionary flags.
WARNING
This means "Potential to sustain injury or even death."
CAUTION
This means "Potential to sustain breakage or irreparable damage."
●
Also note these cautionary icons.
This means "CAUTION"
This means "POTENTIAL
ELECTRIC SHOCK"
This means "MUST"
This means "DO NOT"
WARNING
■ Follow instructions. ■ Must use same types of wires and components.
The cabinet, chassis, and labels
are parts that require attention.
You must follow the caution notes
and safety instructions presented
throughout this User Manual to
prevent damage to them or injury
to yourself.
■ Prevent electric shock.
Exercise caution while working
on the device as the TV contains
high voltage parts and supply. It
is possible to sustain severe
injury or death if you accidentally
touch the wrong parts. You must
disconnect the power supply
while servicing, reassembling, or
change parts. If you touch a live
connection it is possible to
sustain severe injury or death.
■ Use recommended components.
Use only the recommended
components or components that
structurally identical to the
originals. This is to ensure safety
and reliability. Pay special
attention to parts in the parts list
and circuit diagrams marked with
. If you use
non-recommended components,
then electric shock or fire may
result.
■ Perform safety check when done.
The TV uses special tubes and
tapes made from insulated
materials. Moreover, some
materials are kept from making
contact with the PWB for the sake
of safety. Internal leads are kept
from hot parts or high voltage
parts by means of clamps or
other measures. As such, you
must restored these parts to their
original conditions in order to
prevent electric shock or fire.
Every part (such as removed
screws, components, and wiring)
must be restored to their prior
conditions after servicing. Be
sure to check everything that was
repaired for damage or mistakes.
Also measure the insulated
impedance with a meg-ohm
meter to confirm that the
impedance value is more than 4M
ohm. If the impedance value is
less than 4M ohm, then electric
shock or fire may result.
2
L42A404
PRECAUTIONS
● Cleaning the TV’s LCD screen panel
Before cleaning the TV, turn it off and disconnect the power plug from the power outlet. To prevent scratching or
damaging of the LCD screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with
a soft cloth moistened with warm water and dry with a second soft cloth. If it is not enough, then use a cloth with mild
detergent. Do not use harsh or abrasive cleaners.
● Cleaning the TV's cabinet
Use a soft cloth to clean the TV's cabinet and control panel. When excessively soiled, dilute a neutral detergent in
water, wet and wring out the soft cloth in it, gently clean the cabinet, and then wipe it down with a dry soft cloth.
Never use acid/alkaline detergents, alcoholic detergents, abrasive cleaners, powder soaps, OA cleaners, car wax,
glass cleaners, and so on. They will cause discoloration, scratches or cracks.
Features
● Enhanced definition LCD display panel
This specification applies to the 42.0 inch Color TFT-LCD Module T420HW06 V2. This LCD module has a TFT
active matrix type liquid crystal panel 1,920x1,080 pixels, and diagonal size of 42.0 inch. This module supports
1,920x1,080 mode. Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
The T420HW06 V2 has been designed to apply the 8-bit 2 channel LVDS interface method. It is intended to support
displays where high brightness, wide viewing angle, high color saturation, and high color depth are very important.
● New High Gloss Black Frame
● (4) HDMI® (V.1.3 with CEC)
1080p60, 1080p24 Input Compatible
● New Multi-Function Remote Control
● Dynamic/Standard/Movie/Custom/Game
● Picture Memories
● 3 Preset Color Temperatures
● Game Mode
3
Dimensions
L42A404
4
General Specification
Picture Mode Select among 5 pictures modes: Dynamic, Standard, Movie,
Custom, and Game.
Contrast Adjust picture contrast.
Brightness Adjust picture brightness.
Color Adjust color.
Tint Adjust tint.
Sharpness Adjust sharpness.
Video
Audio
Setup
Channels
Color Temp. Set this to High for less intense color with more blue, set to
Medium for natural color and set to Standard for warm colors.
Noise Reduction Reduces conspicuous noise in the picture.
Backlight Adjust to increase or decrease the brightness of backlight.
Auto Movie Select the 3:2 Pull down detection feature Auto/Off. For a film like
picture.
Aspect Ratio Choose the picture format aspect ratio.
Reset Choose to Reset Video Settings to factory settings.
Sound Mode Selects 4 audio presets (Custom,Standard, Movie, News).
Bass Adjust the intensity of low frequencies.
Treble Adjust the intensity of high frequencies.
Balance Adjust the balance.
CONEQ Select sound equalizing mode.
Audio Source Select among three Audio Sources (Stereo, Mono, SAP).
Preferred Language Select Language options if available (Available for digital
channel).
Audio Language Select Language options if available.
Digital Output Select Optical Output options.
Internal Speakers Turn On/Off internal speakers.
Perfect Volume Adjust volume to be closer in level between channels.
Reset Resets all Audio settings the original condition.
Menu Language Choose English, French or Spanish OSD Language.
Time Set Clock Settings.
Sleep Timer Set Sleep Timer intervals (5 minutes ~ 4 hours).
Set Password Set the password for the Parental control access.
Parental Controls Ratings system to block various types of programs.
Closed Captions Feature to turn On/Off closed captions.
Digital Captions Feature to display DIGITAL dialogue/text.
Digital Caption Options Feature to change the appearance of the DIGITAL
CAPTIONS.
Analog Captions Feature to display ANALOG dialogue/text.
Energy Options Select Power Consumption Savings options.
HDMI-CEC Set to ON, this feature will enable simplified operation of compatible
HDMI CEC devices.
Input Labels Label Video Inputs, VCR, DVD, etc.
Component Options Adjust the Phase and applies Reset to any adjustments
made.
RGB Options Adjust Horizontal Position, Vertical Position, Clock, Phase and
Reset.
Reset AV & Setup Resets all Audio, Video and Setup settings to the original
condition.
Source Selects the type of signal to be used Cable or Air.
Signal Strength Access Signal Strength meter.
New Channel Scan Set Auto Channel Scan.
Add Channels to List Adds Channels to the List (Scanned channels remain
the same until New Channel Scan is performed).
Channel List Set Channel List.
Channel Labels Set Labels on the channels.
Favorite Channels Set the Favorite Channels.
L42A404
5
L42A404
Firmware Upgrade
Equipments and materials
1. TV remote control
2. AC power 110V/ 60Hz
3. Flash storage
Preparations
Use PC to write software to a flash storage, press “on” button to start the TV. (Take L46S603 for example)
1. Insert the flash storage into the USB port, and you will see a picture in which you can choose “YES” or “NO”
(Picture1), you choose “YES”, and then the software will update automatically. (Picture 2)
2. After software update is finished, you put out the flash storage and restart the TV.
3. Press “menu+1999+select”, check whether software version is ok. (Picture 3 the fifth row)
Picture 1
Picture 2
Picture 3
6
L42A404
Adjustment
ADC adjustment
1. Press menu key and then press number key 1 Æ 9 Æ 9 Æ 9. It will achieve the factory mode. The factory menu
follow picture:
2.Change TV, press the item “Current Source” to Component mode and change signal to Timing314(Component
720p) and Pattern 122(SMPTE Bar), press the item “Auto Color”;
3.Change TV, press the item “Current Source” to PC mode and change signal to PC TIMING 137(1024X768@60Hz)
Pattern 147 (16 Grays), press the item “Auto Color”.
7
L42A404
Troubleshooting
1). No Picture, No Sound
First, confirm the status of Stand-by / On lamp (LED), then survey by following the flowchart as shown below.
Status of Stand-by / On lamp (LED) Estimated cause, method of survey
Not lighting
Lighting in red Power save mode of Video or PC input. It is not defect.
Lighting in red
Lighting in blue Forward to (2).
Confirm the connection of AC cord is complete, and AC
switch is turned on, then forward to (1).
Turn power on by remote controller.
If it does not turn power on, forward to (2).
(1) Stand-by / On lamp (LED)
is not lighting
The voltage of
pin No.11,No.12 of
CN701 on
Main Board is 5V?
Yes
Main Board
No
Power Board
8
L42A404
(2) Stand-by / On lamp (LED)
is lighting in red or blue
LED Indicates
blue or red?
blue
Backlight of LCD Panel
is lighting?
No Yes
The voltage of
pin No.3,No.4 of CN701
on Main Board is 12V?
red
Yes
No
Turn R/C power on, then
LED change to blue?
Yes
The voltage of
pin No.1 to 4 of CN405
in Main Board is 12V?
LCD Panel.
Main Board
No
Main Board
No
Yes
LCD Panel.
The voltage of
pin No.11 or 12 of CN701
in Main Board is 5V?
No
Power Board
Main Board
Yes
9
L42A404
2). No Picture, Picture Failed (Color Failed, Dark Picture, Beat Noise, Etc.)
First, confirm the connection of all connectors between Board's, then survey by following the flowchart as shown
below.
No Picture, Picture failed
(Color failed, Dark picture,
Beat noise, etc.)
Occured at only
Video1 input (CVBS), or
Video2 input (CVBS, S2)?
No
Voltage of all pin of
CN701 on Main Board is
correct?
Yes
Main Board
Yes
No
Main Board
Power Board
CN701 (1) 3.3V
(2) 0~3.3V
(3)~(4) 12V
(5)~(7) 0V
(8)~(9) 24V
(10)~(12) 5V
10
L42A404
3). No Sound, Sound Failed (Loading Interrupt, Noise, Etc.)
First, confirm the connection of all connectors between Board's and speakers, then survey by following the flowchart
as shown below.
No Sound, Sound failed
(Loading interruption,
Noise, etc)
Occured at only
Video1 input (CVBS), or
Video2 input (CVBS, S2)?
No
Yes
Main Board
Voltage of
pin No.3 or 4 of CN701 on
Main Board is 12V?
Yes
Main Board or Speaker units
No
Power Board
11
Block Diagram
Main Board
L42A404
P24V
P24V
Inverter & Audio Amplifier
Tuner
ENV56S02D8F
VIDEO1
VIDEO2
S-VIDEO1
S-VIDEO2
YPbPr1
YPbPr2
VGA
I2C
AF24BC02
VIF
CVBS
CVBS
Y/C
Y/C
YPbPr
YPbPr
RGB
SN74LVC1G17
Hsync, Vsync
ZR39785HGCF
LVDS
MEN,MCFG0,MCFG1,MODE
GPIO*4
DDRII *2
H5PS5162FFR-25C
FLASH ROM
MX25L3205DMI-12G
GPIO
EJTAG
M24C64
LCD PANEL
With MEMC
5VTP12V
PANEL_5V
3V3_STB
Tuner
U702 AIC1084-18PE
POWER
+5VSB
P12V
+5VSB
U708 G9084P12V
U710 SC4525BSETRT
U706 G5622ADJ
BOARD
VCC5D
VCC5D
U703 G1084-33T43Uf
U704 SC4524BSETRT
U707 SC4524BSETRT
D3V3
System
D1V8
DDRII
VCC1V1
Vcore
POWER INPUT TYPE +5VSB , P12V, P24V
P24V
FOR In ve r te r
U602 TPA3123D2PWPR
6.7A--Max
Reserve
1V8_STB
System
HDMI-1
HDMI-2
HDMI-3
HDMI-4
TMDS
TMDS
TMDS TMDS
TMDS
AV1 AUDIO-R\L
AV2 AUDIO-R\L
YPbPr1 AUDIO-R\L
YPbPr2 AUDIO-R\L
VGA AUDIO-R\L
TPD12S520DBTR
SiI9185A
TMDS
LINE
OUT1
LINE
OUT2
Audio Amplifier
TPA3121D2PWPR
Earphone Amplifier
TPA6113A2DR
TL072CDR
SPEAKER
EAR PHONE
S/PDIF
LINE OUT
R/L
P12V
+5V SB
VCC5D
D3V 3
U708 G9084
U208 AF24BC02-SI
U604 TPA6113A2DR
U703 G1084-33T43Uf
U707 SC4524BSETRT
U401 ZR39785HGCF
U404 MX25L3205DMI-12G
FOR PANEL LVDS
5VT TU201
Sys tem Stan dby Po w er
U702 AIC1084-18PE 1V8_STBU706 G5622ADJ
D3V 3
VCC1V1 U401 ZR39785HGCF
D1V 8U704 SC4524BSETRT
Sys tem
U401 ZR39775HGCF
U410/U411 H5PS5162FFR-25C
1A
3V3_STB
U505 Sil9185
U401 ZR39785HGCF
U505 Sil9185
U401 ZR39785HGCF
System
12
U405 M24C64

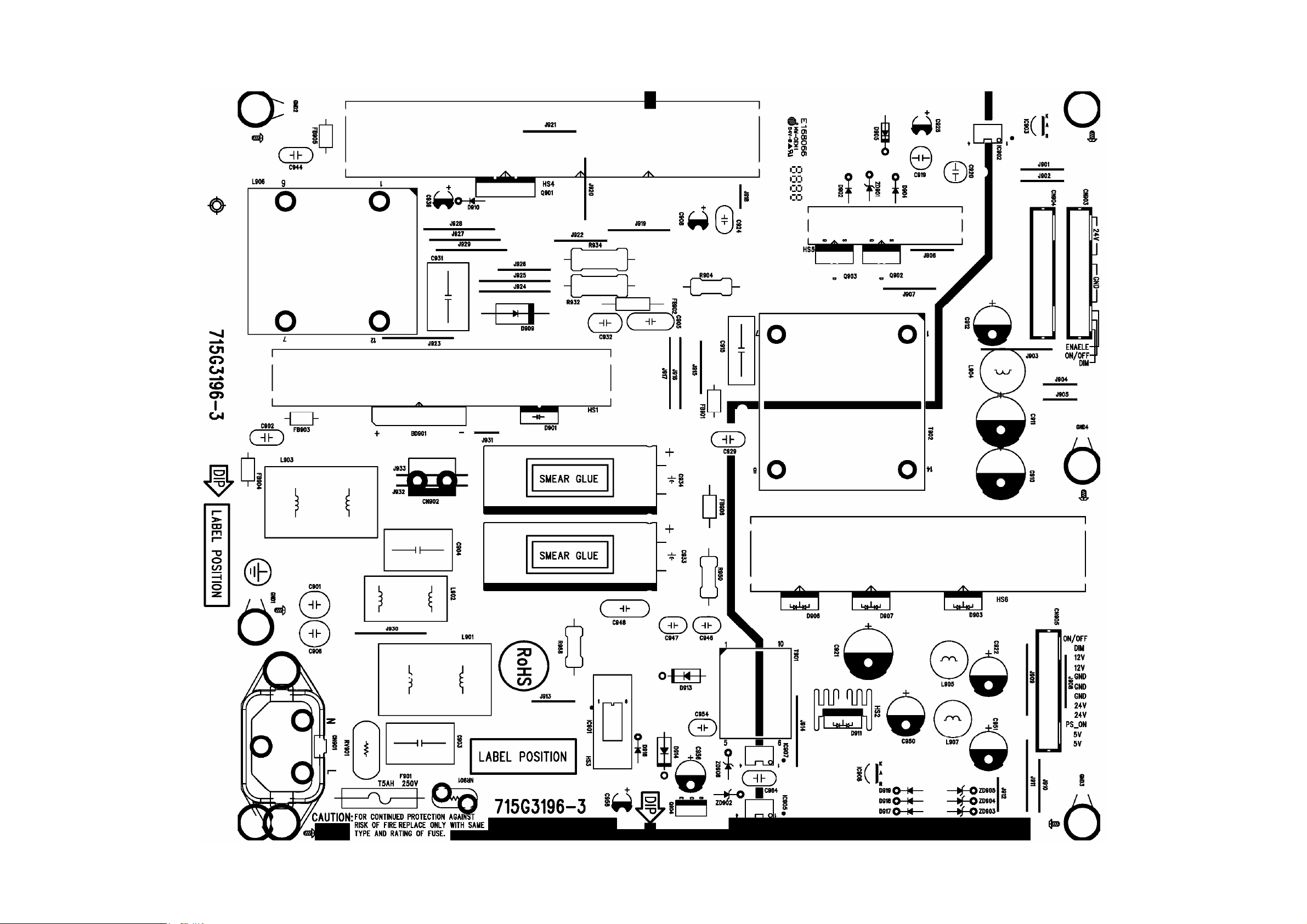

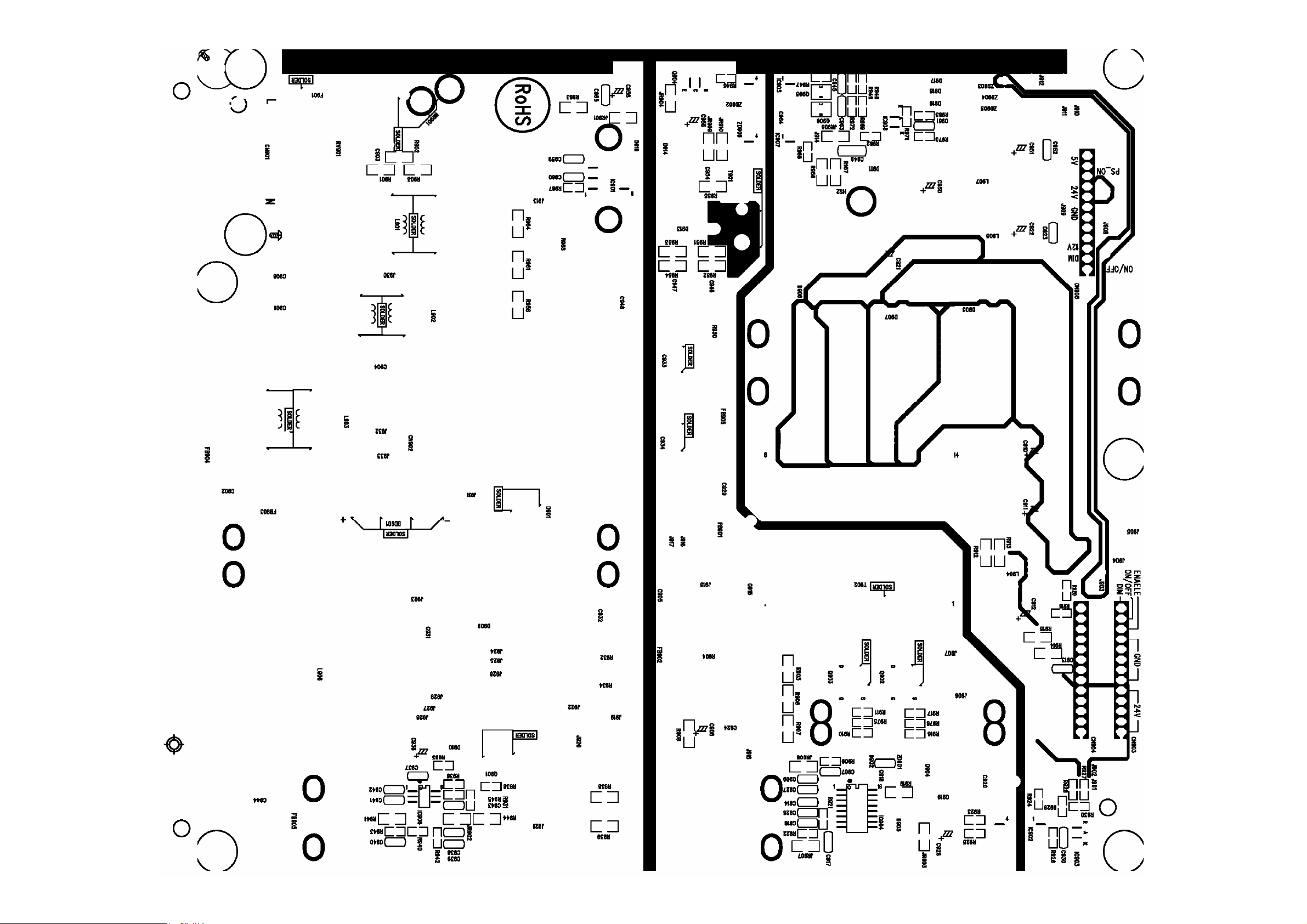

Power Board
EMI FILTER
AC Input
Bridge
PFC CIRCUIT
IC 906
ICE2PCS02G
PFC&Main Power
On/Off Control Circuit
L42A404
Main Power
IC904
SSC9502S
Standby Power
IC 901
IC STR- A6069H
For Inverter 24V
12V
For M/B 5V/2.5V
PS ON/OFF
13
Schematic Diagram
Main Board
715G3269M01001005K
3. Tuner
TU2 01 TUNER
1
NC
2
BB
3
AGC
5
NC
NC
NC
NC
NC
SCL
SDA
NC
+B
TH1
TH2
TH3
TH4
6
8
9
10
11
13
14
15
16
17
19
20
21
22
23
24
25
BT Monitor
IF AGC
IFD-out1
IFD-out2
IF Monitor
21
20
19
18
17
16
15
14
13
12
ENV56S02D8F
11
10
9
8
7
6
5
4
3
2
1
5V :
BB=15mA(MAX)
+B=140mA(MAX)
VB=70mA(MAX)
C262 0.01uF
C206 NC
C268
22N 16V
C201
0.1uF/16V
C202
1uF/16V
C218
0.1uF/16V
C203
0.1uF/16V
C219
22pF
1 2
FB201 600 OHM
1 2
FB203 600 OHM
C217
10U 16V
R205
R206 100R 1/10W 5%
C220
22pF
C269
1uF/16V
2K2 1/10W 5%
100R 1/10W 5%
R203
5VT
D3V3
R204
2K2 1/10W 5%
I2C1_SCL
I2C1_SDA
IF_AGC
IF_AN
IF_AP
I2C1_SCL 5,7
I2C1_SDA 5,7
L42A404
Place parts very close to U401
R289
10R 1/10W 1%
R288
10R 1/10W 1%
L201
1 2
0.22uH 5%
L203
1 2
0.22uH 5%
L202
0.15uH 5%
1 2
C216 0.001uF
C210
82pF
C209 0.001uF
DEMOD_RSTN8
IF_AGC
C207
10N 16V
D3V3
R208 33R 1/10W 5%
R209 4K7 1/10W 5%
R210 NC/20K 1/10W 5%
R211 2K2 1/10W 5%
C221
1uF/16V
Place R211 & C221
C205 10N 16V
R207 3K9 1/10W 1%
C211 0.1uF 16V
C212 0.1uF 16V
C213 0.1uF 16V
C215 0.1uF 16V
close to U401
SIF_N
SIF_P
IF_AINN
IF_AINP
0402
0402
0402
0402
TP1
TP2
PARAM0
RF_AGC
U401P
Demodulator
AF4
SIF_AINN
AE4
SIF_AINP
AF2
IF_AINN
AE2
IF_AINP
AD3
IF_RBI AS
AD2
IF_VINBIAS
AD1
IF_VCM
AF1
IF_VREFN
AE1
IF_VREFP
1
AD8
1
DEMOD_CLKO
AC7
MPEG_FAIL
AC8
DMOD_RST_N
AC6
SA_DATA
AE7
PARAM0
AF8
RF_AGC
AF7
IF_AGC
AA5
IF_DVAL_GPIO
ZR39785HGCF
U401H
Guest Bus
U22
GPO/GADR1_CLE
V24
STV2/GCS_N0
W24
CPV2/GDAT6
W25
TP/ GDAT5
W23
RVS/GDAT7
W22
OE2/GADR 0_ALE
Y26
STH1/GDAT4
Y25
STH2/GDAT3
Y24
CPV/GDAT2
Y23
OE1/GDAT1
Y22
STV1/GDAT0
V23
GOE_N
V22
GWE_N
ZR39785HGCF
14
U401L
No Connect Pins
K22
NC68
ZR39785HGCF
4. AV/YPbPr Inputs
A
A
L42A404
D3V3
V1 Input
(Rear)
V2 Input
(Side)
YPbPr1
Input
CN20 1
JACK
88G 78 13932 C
FOR EMI
CN204
JACK
88G 78 1360S
4
2
8
1 3
CN20 2 DIN J ACK
4
2
6
3
1
5
88G 100 11 ST
JACKCN203
9
8
7
6
5
4
3
2
1
2
1
4
3
6
5
CV2
AV2_L
AV2_R
ZD201
VPORT0603100KV05
1 2
VCC5D
5
6
7
CV1
VCC5D
ZD202
1 2
VPORT0603100KV05
Y1
Pb1
ZD208
ZD209
VPORT0603100KV05
VPORT0603100KV05
1 2
1 2
R276
R277 100R 1/10W 5%
S1Y
S1C
U201
AZC099-04S
4
I/O3
5
VDD
6
I/O4
FB206 30 OHM
R221
75R 1/10W 1%
R278 10K 1/10W 5%
R279 100R 1/10W 5%
U21 2
AZC0 99-0 4S
4
I/O3
5
VDD
6
I/O4
FB209 30 OHM
R231
75R 1/10W 1%
C248
100pF
Pr1
ZD210
VPORT0603100KV05
1 2
I/O2
GND
I/O1
S2Y
S2C
I/O2
GND
I/O1
C249
100pF
10K 1/10W 5%
3
2
1
1 2
3
2
1
1 2
R232 10K 1/10W 5%
R234 10K 1/10W 5%
R242
75R 1/10W 1%
R216
75R 1/10W 1%
R225
75R 1/10W 1%
R243
75R 1/10W 1%
R217
75R 1/10W 1%
D3V3
R226
75R 1/10W 1%
R244
75R 1/10W 1%
AV1_S_DET 5
1 2
FB204 30 OHM
1 2
FB205 30 OHM
AV1_CVBS
AV2_S_DET 8
1 2
FB207 30 OHM
1 2
FB208 30 OHM
AV2_CVBS
R237
R236
10K 1/10W 5%
10K 1/10W 5%
C270
47PF50V
C271
47PF50V
S1_Y
S1_C
S2_Y
S2_C
AV2_Audio_L 11
AV2_Audio_R 11
1 2
FB215 30 OHM
1 2
FB216 30 OHM
1 2
FB217 30 OHM
C272
47PF50V
YPbPr1_Y
YPbPr1_Pb
YPbPr1_Pr
U401F
Place parts very close to U401
S1_Y
S1_C
S2_Y
S2_C
AV1_CVBS
AV2_CVBS
YPbPr1_Pr
YPbPr1_Y
YPbPr1_Pb
YPbPr2_Pr
YPbPr2_Y
YPbPr2_Pb
VGA_R6
VGA_G6
VGA_B6
VGA_R
VGA_G
VGA_B
C222 220N 10V
C223 220N 10V
C224 220N 10V
C225 220N 10V
C230 220N 10V
C231 220N 10V
C264 220N 10V
C265 220N 10V
C266 220N 10V
C267 220N 10V
C236 220N 10V
C237 220N 10V
C238 220N 10V
C239 1000PF 16V
C240 220N 10V
C241 220N 10V
C242 220N 10V
C243 1000PF 16V
C244 220N 10V
C245 220N 10V
C246 220N 10V
C247 10N 16V
VGA_HSY NC6
VGA_VSY NC6
VGA_EDID_WP6
Panel_Ct rl_25, 10
VGA_HSY NC
VGA_VSYNC
VGA_EDID_WP
C250 4.7uF/10V
C251 0.47uF/16V
R238 62K OHM 1/10W
AB11
Video In I/F
U3
SVIDEO0Y
V3
SVIDEO0C
U4
SVIDEO1Y
V4
SVIDEO1C
U5
SVIDEO2Y
V5
SVIDEO2C
AA3
CVBS0
AB3
CVBS1
AB4
CVBS2
AA4
CVBS3
U2
VIN_R 1
U1
VIN_G1
V1
VIN_B1
V2
SOY_I N0
W2
VIN_R 2
W1
VIN_G2
Y1
VIN_B2
Y2
SOY_I N1
T2
VGA_R0
T1
VGA_G0
T3
VGA_B0
T4
SOG_IN0
R5
AFE_HS_I N
T5
AFE_VS_IN
VGA_SCL_GPI O_P28
AE9
VGA_SDA_GPI O_P29
AA1
VREFP
AA2
VREFN
AB1
VCOM
L4
RSET
W3
REFNODE_GND_CVBS
K5
REFNODE_GND_G
L5
REFNODE_GND_R
M5
REFNODE_GND_B
N5
REFNODE_GND_Ch
ZR39785HGCF
YPbPr2
Input
CN205
2
1
4
3
6
5
JACK
88G 78 1360S
Y2
Pb2
ZD211
ZD212
VPORT0603100KV05
VPORT0603100KV05
1 2
1 2
Pr2
ZD213
VPORT0603100KV05
1 2
R248
75R 1/10W 1%
R249
75R 1/10W 1%
R250
75R 1/10W 1%
C273
47PF50V
C274
47PF50V
1 2
FB218 30 OHM
1 2
FB219 30 OHM
1 2
FB220 30 OHM
C275
47PF50V
15
YPbPr2_Y
YPbPr2_Pb
YPbPr2_Pr
5. HDMI Inputs
Run As 100 Ohm Differential Pairs
L42A404
Run As 100 Ohm Differential Pairs
CN50 1 HDMI
7
9
4
6
1
3
10
12
15
16
13
19
18
14
2
5
8
11
17
20
21
22
23
HDMI2_D 0P
HDMI2_D 0N
HDMI2_D 1P
HDMI2_D 1N
HDMI2_D 2P
HDMI2_D 2N
HDMI2_C LKP
HDMI2_C LKN
DDC2_SCL
DDC2_SDA
HDMI_CEC
HDMI_HPD2
TMDSD0+
TMDSD0-
TMDSD1+
TMDSD1-
TMDSD2+
TMDSD2-
TMDSC+
TMDSC-
SCL
SDA
CEC
HPD
VCC5
DSHLD0
DSHLD1
DSHLD2
CSHLD0
DDC_GND
SHLD0
SHLD1
SHLD2
SHLD3
NC
88G 340 19 AV
Side HMDI1
CN50 2 HDMI
7
9
4
6
1
3
10
12
15
16
13
19
18
14
2
5
8
11
17
20
21
22
23
HDMI1_D 0P
HDMI1_D 0N
HDMI1_D 1P
HDMI1_D 1N
HDMI1_D 2P
HDMI1_D 2N
HDMI1_C LKP
HDMI1_C LKN
DDC1_SCL
DDC1_SDA
HDMI_CEC
HDMI_HPD1
TMDSD0+
TMDSD0-
TMDSD1+
TMDSD1-
TMDSD2+
TMDSD2-
TMDSC+
TMDSC-
SCL
SDA
CEC
HPD
VCC5
DSHLD0
DSHLD1
DSHLD2
CSHLD0
DDC_GND
SHLD0
SHLD1
SHLD2
SHLD3
NC
C501
0.1uF/ 16V
C502
0.1uF/ 16V
HDMI2_5V
R501
NC/1K 1/10W 5%
R511
NC/1K 1/10W 5%
R502
10K 1/10W 5%
HDMI1_5V
R512
10K 1/10W 5%
R503
10K 1/10W 5%
R513
10K 1/10W 5%
VCC5D
U501
HDMI2_C LKN
HDMI2_C LKP
HDMI2_D 0N
HDMI2_D 0P
HDMI2_D 1N
HDMI2_D 1P
HDMI2_D 2N
HDMI2_D 2P
1
2
3
4
NC/AZ1 04 5-0 4QU
VCC5D
1
2
3
4
Line-1
Line-2
VDD
Line-3
Line-45NC
U502
Line-1
Line-2
VDD
Line-3
Line-45NC
GND
GND
NC
NC
NC
NC
NC
NC
NC/AZ1 04 5-0 4QU
VCC5D
U504
HDMI1_C LKN
HDMI1_C LKP
HDMI1_D 0N
HDMI1_D 0P
HDMI1_D 1N
HDMI1_D 1P
HDMI1_D 2N HDMI1_D2N
HDMI1_D 2P
1
2
3
4
NC/AZ1 04 5-0 4QU
VCC5D
1
2
3
4
Line-1
Line-2
VDD
Line-3
Line-45NC
U506
Line-1
Line-2
VDD
Line-3
Line-45NC
GND
GND
NC
NC
NC
NC
NC
NC
NC/AZ1 04 5-0 4QU
1
10
9
L501 NC/90 ohm
2
8
1
7
6
L502 NC/90 ohm
2
1
10
9
L503 NC/90 ohm
2
8
1
7
6
L504 NC/90 ohm
2
1
10
9
L505 NC/90 ohm
2
8
1
7
6
L506 NC/90 ohm
2
1
10
9
L507 NC/90 ohm
2
8
1
7
6
L508 NC/90 ohm
2
4
3
4
3
4
3
4
3
4
3
4
3
4
3
4
3
HDMI2_CLKN
HDMI2_CLKP
HDMI2_D0N
HDMI2_D0P
HDMI2_D1N
HDMI2_D1P
HDMI2_D2N
HDMI2_D2P
HDMI1_CLKN
HDMI1_CLKP
HDMI1_D0N
HDMI1_D0P
HDMI1_D1N
HDMI1_D1P
HDMI1_D2P
3V3_STB
FB502
1 2
120OHM
HDMI1_D 0N
HDMI1_D 0P
HDMI1_D 1N
HDMI1_D 1P
HDMI1_D 2N
HDMI1_D 2P
DDC1_SDA
DDC1_SCL
HDMI1_5V
HDMI_HPD2
HDMI2_C LKN
HDMI2_C LKP
HD3V3
HD3V3
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
R509
4K7 1/10W 5%
HDMI_HPD1
HDM I1_CLKN
HDM I1_CLKP
38
37
40
39
AGND
R1XC-
R1XC+
R1X0R1X0+
AVCC33
R1X1R1X1+
AGND
R1X2R1X2+
AVCC18
DSDA1
DSCL1
RPWR1
CEC_D
CEC_A
AVCC33
HPD2
AVCC18
R2XCR2XC+
AGND
R2X0-61R2X0+62AVCC3363R2X1-64R2X1+65AGND66R2X2-67R2X2+68AVCC1869DSDA270DSCL271RPWR272DVDD1873DGND74TEST75HPDIN76TSDA77TSCL78TPWR/I2CADDR79AGND
DDC0_SCL
DDC0_SDA
HDM I0_5V
34
35
30
32
33
31
36
HPD1
DGND
DSCL0
RPWR0
AVCC18
DVDD18
I2CSEL/INT
U505
SiI9185ACTU
DSDA0
U401O
HDMI3_D 2P
HDMI3_D 2N
HDMI3_D 1P
HDMI3_D 1N
HDMI3_D 0P
HDMI3_D 0N
HDMI3_C LKP
HDMI3_C LKN
HDMI3_SC L
HDMI3_SD A
HDMI3_H PD
HDMI3_5V
R507 4K 7 1/10W 5%
R508
10K 1/10W 5%
HDM I0_D2P
HDM I0_D1P
HDM I0_D0P
HDMI0_D0N
HDMI0_D1N
HDMI0_D2N
25
28
29
24
27
26
R0X2-
AGND
R0X1+
R0X2+
AVCC18
22
23
21
R0X0-
R0X1-
R0X0+
AVCC33
AGND
R0XC+
R0XC-
AVCC18
LSCL/PSEL1
LSDA/PSEL0
RESET#
ExtSW ING
AGND
AVCC18
AGND
80
HPD0
TXC-
TXC+
TX0-
TX0+
TX1-
TX1+
TX2-
TX2+
HD1V8A
HD1V8D
1 2
FB503 120OHM
1 2
FB504 120OHM
R510
820R 1/10W R 5%
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
HDMI0_CLKP
HDMI0_CLKN
HDMI_HPD0
HDMI3_CLKN
HDMI3_CLKP
HDMI3_D0N
HDMI3_D0P
HDMI3_D1N
HDMI3_D1P
HDMI3_D2N
HDMI3_D2P
HD3V3
HD3V3
1V8_STB
R505
10K 1/10W 5%
R534
R535
R516 NC
C521
1uF10V
100R 1/10W 5%
100R 1/10W 5%
I2C1_SC L
I2C1_SD A
HDMISW_RSTN
B4
A4
C4
C5
A5
B5
B6
A6
B7
A7
D6
C7
C522
10N 16V
HDMI1 I/F
HDMI1_D 2P
HDMI1_D 2N
HDMI1_D 1P
HDMI1_D 1N
HDMI1_D 0P
HDMI1_D 0N
HDMI1_C LKP
HDMI1_C LKN
HDMI1_SC L
HDMI1_SD A
HDMI1_H PD
HDMI1_5VSEN SE
ZR39785H GCF
I2C1_SC L 3, 7
I2C1_SD A 3,7
HDMISW_RSTN 8
GPIO_P12
GPIO_P14
88G 340 19 AV
Side HMDI2
CN50 3 HDMI
7
9
4
6
1
3
10
12
15
16
13
19
18
14
2
5
8
11
17
20
21
22
23
24
25
26
HDMI0_D 0P
HDMI0_D 0N
HDMI0_D 1P
HDMI0_D 1N
HDMI0_D 2P
HDMI0_D 2N
HDMI0_C LKP
HDMI0_C LKN
DDC0_SCL
DDC0_SDA
HDMI_CEC
HDMI_HPD0
TMDSD0+
TMDSD0-
TMDSD1+
TMDSD1-
TMDSD2+
TMDSD2-
TMDSC+
TMDSC-
SCL
SDA
CEC
HPD
VCC5
DSHLD0
DSHLD1
DSHLD2
CSHLD0
DDC_GND
SHLD_GN D1
SHLD_GN D2
SHLD1
SHLD2
SHLD3
SHLD4
SHLD5
NC
88G 340 21 VT
Rear HMDI1
C509
0.1uF/ 16V
HDMI0_5V
R520
NC/1K 1/10W 5%
R521
10K 1/10W 5%
R522
10K 1/10W 5%
HDMI_CEC 6
HDMI0_C LKN
HDMI0_C LKP
HDMI0_D 0N
HDMI0_D 0P
HDMI0_D 1N
HDMI0_D 1P
HDMI0_D 2N
HDMI0_D 2P
VCC5D
1
2
3
4
NC/AZ1 04 5-0 4QU
VCC5D
1
2
3
4
NC/AZ1 04 5-0 4QU
U508
Line-1
Line-2
VDD
Line-3
Line-45NC
U509
Line-1
Line-2
VDD
Line-3
Line-45NC
10
NC
9
L509 NC/90 ohm
NC
8
GND
7
NC
6
L510 NC/90 ohm
10
NC
9
L511 NC/90 ohm
NC
8
GND
7
NC
6
L512 NC/90 ohm
R517
R518
HDMI3_5V
HDM I2_D2P
HDM I2_D2N
C505
0.1uF/ 16V
HD1V8A
C512
0.1uF/ 16V
DDC2_SCL
DDC2_SDA
HDM I2_5V
C506
0.1uF/ 16V
C513
0.1uF/ 16V
C507
0.1uF/ 16V
C514
0.1uF/ 16V
R536 1K 1/10W 5%
R519
10K 1/10W 5%
HD1V8D
C508
0.1uF/ 16V
C515
C516
0.1uF/ 16V
0.1uF/ 16V
HDM I2_D1P
HDM I2_D0P
HDM I2_D0N
HDM I2_D1N
1
2
1
2
1
2
1
2
4
3
4
3
4
3
4
3
HDMI0_CLKN
HDMI0_CLKP
HDMI0_D0N
HDMI0_D0P
HDMI0_D1N
HDMI0_D1P
HDMI0_D2N
HDMI0_D2P
C503
0.1uF/ 16V
C510
0.1uF/ 16V
HD3V3
C504
0.1uF/ 16V
C511
0.1uF/ 16V
7K5 1/10W 5%
7K5 1/10W 5%
HDMI3_SCL
HDMI3_SDA
HDMI3_HPD
U401D
D1
D2
C1
C2
B1
B2
A1
A2
B3
A3
Panel_Ctrl_310
AV1_S_DET4
AV1_S_DET
D4
E6
HDMI2 I/F
HDMI2_D 2P
HDMI2_D 2N
HDMI2_D 1P
HDMI2_D 1N
HDMI2_D 0P
HDMI2_D 0N
HDMI2_C LKP
HDMI2_C LKN
HDMI2_SC L
HDMI2_SD A
HDMI2_H PD
HDMI2_5VSEN SE
ZR39785H GCF
GPIO_P18
GPIO_P20
16
6. VGA/HDMI Inputs
U20 8
1
A0
2
A1
3
A2
VSS4SDA
AF24 BC02 -SI
ZD204
BAT54C
VCC
WP
SCL
VGA5V +5VSB
1
2
3
8
7
6
VGA_SCL
5
VGA_SDA
C256
220N 10V
VGA_SDA
RGB_HSYNC
RGB_VSY NC
VGA_SCL
R270
R271
4K7 1/10W 5%
10K 1/10W 5%
UART0_TX7
UART0_RX7
R256 100R 1/10W 5%
R258 100R 1/10W 5%
R260 100R 1/10W 5%
R264 100R 1/10W 5%
C253
C254
NC/47pF
NC/ 330pF
R272
4K7 1/10W 5%
R285 220R 1/10W 5%
D3V3
R251 NC
R252 10K 1/10W 5%
UART0_TX
UART0_RX
R265
2K2 1/10W 5%
H:Write Disable
L:Write Enable
VGA_EDID_WP 4
R253 220R 1/10W 5%
R254 220R 1/10W 5%
VCC5D
R266
2K2 1/10W 5%
ZD203
1 2
NC
U206
AZC1 99-0 4S
4
I/O2
I/O3
5
GND
VDD
6
I/O1
I/O4
3
2
1
L42A404
11
12
13
14
15
88G 35315F FX
CN206
DB15
C255
0.1uF /16V
RGB_HSYNC
RGB_VSY NC
1716
18 19
6
1
7
2
8
3
9
4
10
5
D3V3
5
2 4
3
U207
SN7 4LV C1G17 DBVR
D3V3
5
2 4
3
U209
SN7 4LV C1G17 DBVR
VGA5V
ZD205
VPORT0603100KV05
1 2
R269 100R 1/10W 5%
R275 100R 1/10W 5%
ZD206
1 2
VGA Input
ZD207
VPORT0603100KV05
VPORT0603100KV05
1 2
VGA_HSY NC
C257
47PF50V
VGA_VSYN C
C259
47PF50V
R261
75R 1/10W 1%
VGA_HSY NC 4
VGA_VSYN C 4
R262
75R 1/10W 1%
R263
75R 1/10W 1%
RGB_HSYNC
RGB_VSY NC
1 2
FB221 30 OHM
1 2
FB222 30 OHM
1 2
FB223 30 OHM
R286
10K 1/10W 5%
del
D201
D202
R290
R291
R287
10K 1/10W 5%
VGA_R
VGA_G
VGA_B
VGA_HSYNC_DET 8
VGA_VSYN C_DET 8
VGA_R 4
VGA_G 4
VGA_B 4
CN504 HDMI
7
TMDSD0+
TMDSD0-
TMDSD1+
TMDSD1-
TMDSD2+
TMDSD2-
TMDSC+
TMD SC-
SCL
SDA
CEC
HPD
VCC5
NC
DSHLD0
DSHLD1
DSHLD2
CSHLD0
DDC_GND
SHLD_GND1
SHLD_GND2
SHLD1
SHLD2
SHLD3
SHLD4
SHLD5
9
4
6
1
3
10
12
15
16
13
19
18
14
2
5
8
11
17
20
21
22
23
24
25
26
HDMI4_D0P
HDMI4_D0N
HDMI4_D1P
HDMI4_D1N
HDMI4_D2P
HDMI4_D2N
HDMI4_CLKP
HDMI4_CLKN
DDC4_SCL
DDC4_SDA
HDMI_CEC
HDMI_HPD4_A
HDMI4_5V
88G 340 21 VT
Rear HMDI2
HDMI4_5V
R526
7K5 1/10W 5%
R525 1K 1/10W 5%
C520
0.1uF/ 16V
HDMI4_5V
HDMI_HPD4_A
R527
7K5 1/10W 5%
R538 4K7 1/10W 5%
Q503
2N7002K
R540
10K 1/10W 5%
HD3V3
12
ZD501
VPORT0603100KV05
FOR CEC
D501
LL4148
R504
27K 1/10W 5%
HDMI_CEC 5
Q502
2N7002K
HDMI_HPD4
R539
NC/ 4K7 1/10W 5%
C519
0.1uF/ 16V
HDMI4_D1P
HDMI4_D1N
HDMI4_D0P
HDMI4_D0N
HDMI4_CLKP
HDMI4_CLKN
HDMI_CEC
DDC4_SCL
DDC4_SDA
HDMI_HPD4
Run As 100 Ohm Differential Pairs
U511
38
NC
37
ESD_BY P
36
GND
35
TMDS_D2+
34
TMD S_GN D
33
TMDS_D2-
32
TMDS_D1+
31
TMD S_GN D
30
TMDS_D1-
29
TMDS_D0+
28
TMD S_GN D
27
TMDS_D0-
26
TMD S_C K+
25
TMD S_GN D
24
TMD S_C K-
23
CE_REMOTE_OUT
22
DDC_CLK_OUT
21
DDC_DAT_OUT
20
HOTPLUG_D ET_OUT
5V_SUPPLY
LV_SUPPLY
GND
TMDS_D2+
TMDS_GND
TMDS_D2-
TMDS_D1+
TMDS_GND
TMDS_D1-
TMDS_D0+
TMDS_GND
TMDS_D0-
TMD S_C K+
TMDS_GND
TMD S_C K-
CE_REMOTE_IN
DDC_CLK_IN
DDC_DAT_IN
HOTPLUG_DET_IN
TPD12S520DBTR
VCC5D
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
HD3V3
C517
0.1uF /16V
HDMI4_D2PHDMI4_D2P
HDMI4_D2NHDMI4_D2N
HDMI4_D1P
HDMI4_D1N
HDMI4_D0P
HDMI4_D0N
HDMI4_CLKP
HDMI4_CLKN
HDMI3_CEC
C518
0.1uF /16V
HD3V3
R528
7K5 1/10W 5%
R537 1K 1/10W 5%
R533
10K 1/10W 5%
R529
7K5 1/10W 5%
HDMI4_SCL
HDMI4_SDA
HDMI4_HPD
R515
NC
HDMI4_5V
R530 4K7 1/10W 5%
R531
10K 1/10W 5%
HDMI4_D2P
HDMI4_D2N
HDMI4_D1P
HDMI4_D1N
HDMI4_D0P
HDMI4_D0N
HDMI4_CLKP
HDMI4_CLKN
HDMI3_CEC
HDMI4_SCL
HDMI4_SDA
HDMI4_HPD
HDMI_3V3
C523
10N 16V
R532
390R 1/10W 1%
U401G
B8
HDMI0_D2P
A8
HDMI0_D2N
C8
HDMI0_D1P
C9
HDMI0_D1N
A9
HDMI0_D0P
B9
HDMI0_D0N
B10
HDMI0_CLKP
A10
HDMI0_CLKN
D8
HDMI0_CEC
B11
HDMI0_SCL
A11
HDMI0_SDA
D9
HDMI0_HPD
D7
HDMI0_5VSENSE
D3
HDMI_ATEST
C3
HDMI_REXT
ZR39785HGCF
HDMI0 I/F
GPIO_P16
GPIO_P15
GPIO_P17
17
7. SIO I/F
L42A404
D3V3
D3V3
EJTAG I/F
U401C
SIO I/F
JTAG/EJTAG
TAPSEL_CAS
UART0_TX
UART0_RX
UART
UART1_TX
UART1_RX
I2C
TV_I2C2_C
TV_I2C2_D
I2C_MORPH__ENA
SPI
MOR_RESET_N_OUT
USB
ZR39785H GCF
SPI_CLK
SPI_SEL0
SPI_SEL1
SPI_HOLD
RESET_N
TRIN_RESET_N
MOR_RESET_N
CLKOUT_25M
CLKIN_25M
USB_PADN
USB_PADP
USB2_DN
USB2_DP
USB2_REXT
USB2_ATEST
CLKIN_24M
CLKOUT_24M
CLKIN_SEL
TR ST
TD I_T
TDO_T
TMS
TCK
TDI_ M
TDO_M
TAPSEL
IRR
I2C0_C
I2C0_D
I2C1_C
I2C1_D
SPI_DO
SPI_DI
R409
4K7 1/10W 5%
E16
E14
E18
E15
E17
E19
B25
E13
R418 NC/4K7 1/10W 5%
D13
R420 4K7 1/10W 5%
L22
UART0_TX
M22
UART0_RX
P22
N22
R22
KEY_IR
AC16
AC17
AC18
AC19
AC20
AC21
AC22
AB24
R430 47R 1/10W 5%
AC25
R431 47R 1/10W 5%
AB25
R432 47R 1/10W 5%
AC24
R433 47R 1/10W 5%
AC26
AB26
R434 47R 1/10W 5%
0402
C405 0.1uF 16V
W26
AD7
AB22
AB21
N2
N1
AB12
AC12
AF26
AE26
AD26
AD25
U26
U25
AF3
R437 100R 1/10W 5%
R443 10K 1/10W 5%
MOR _RS TN
R441
1M 1/16W 5%
X401 25MHz
C408
27pF
USB2_DN
USB2_DP
R445 6.04 K OHM 1% 1/10W
R448 4K7 1/10W 5%
TR STN
EJTDI
EJTDO
EJTMS
EJTCK
TD I_M
TD O_M
R423 2K2 1/10W 5%
R424 2K2 1/10W 5%
R425 2K2 1/10W 5%
R427 2K2 1/10W 5%
R428 4K7 1/10W 5%
I2C0_SCL
I2C0_SDA
I2C1_SCL
I2C1_SDA
I2C2_SCL
I2C2_SDA
470R 1/10W 5%
R439
R401
4K7 1/10W 5%
C4F6 0.001uF
UART0_TX 6
UART0_RX 6
KEY_IR 8
I2C0_SC L 10
I2C0_SD A 10
I2C1_SC L 3,5
I2C1_SD A 3,5
3V3_STB
R440 10K 1/10W 5%
C412 0.47uF/16V
R442
330R 1/10W 5%
C409
30PF50V
D3V3
R410 33R 1/10W 5%
R411 NC/33R 1/10W 5%
R412 NC/33R 1/10W 5%
R413 33R 1/10W 5%
R415 33R 1/10W 5%
R416 33R 1/10W 5%
R417 33R 1/10W 5%
D3V3
3V3_STB
SPI_WR
SPI_RD
SPI_CLK
SPI_CS_N
SPI_WEN8
RESET_N
SPI_WEN
SPI_HOLD
Crystal X401
35ppm 20
50ppm 0~70
C4E2
NC/22P
C4E6
NC/22P
D3V3
R429
4K7 1/10W 5%
R435
4K7 1/10W 5%
USB5V
R404
1K 1/10W 5%
1
2
3
4
R405
4K7 1/10W 5%
123 4
CN40 2
CONNNECTOR
88G 352 21CL
6 5
R406
1K 1/10W 5%
RESET_N
R407
1K 1/10W 5%
R408
NC
U404 should be programmed
before soldering on PCB
D3V3
C406
0.1uF/ 16V
U40 4
SPI FLASH
32M bit
15
D
8
Q
16
C
7
S
9
W
1
HOLD
14
NC8
2
Vcc
NC1
NC2
NC3
NC4
NC5
NC6
NC7
GND
3
4
5
6
11
12
13
10
MX25L3205DMI-12G
USB
Port
CN401
12
34
56
78
910
1112
1314
NC/E-JTAG2X7
HEADER 2X7P S/T 2.5mm
D3V3
3V3_STB
R491 NC
SW401
1
2
NC/CONN
R422
NC/100K
SW_RST
VCC5D
NC/0.1uF/16V
C4G1
EEPROM_WP18
4
1
C499
NC
EEPROM_WP1
D401
1 2
RB160M-60TE25
U408
IN
EN
GND
2
G5250K1T1U
3V3_STB
5
2 4
3
3V3_STB
I2C0_SCL
I2C0_SDA
5
OUT
3
OC
MCU Reset 2 Circuit
RESET_N
U403
NC
MCU Reset Circuit
Reserve
U412
4
VCC
3
MR
G692L293TCUf 2.91V
C404
220N 10V
R402
R403 100R 1/10W 5%
VCC5D
USB5V
GND
RESET
1
2
R436
10K 1/10W 5%
100R 1/10W 5%
R4K2
100K 1/10W 5%
USB_OC_N 8USB_EN_N8
RESET_N
C436
100Kohm/0.01uF
D3V3
U405
8
VCC
7
WC
6
SCL
5
SDA
M24C64-WMN6P
VSS
1
E0
2
E1
3
E2
4
18
8. GPIO Block
U401K
L42A404
GPIO
BOOT_STRAP0
BOOT_STRAP1
BOOT_STRAP2
BOOT_STRAP3
8051_BOOT
ZR39785H GCF
U401S
AFE I/F_GPO
AFE_CLK
AFE_XCLK
AFE_ATCLK0
AFE_ATCLK1
AFE_TCLK_I N
AFE_TCLK_OUT
AFE_XCLK_TEST
AFE_TEST0
AFE_TEST1
AFE_TEST2
ZR39785H GCF
U401M
TVMM I/F
VID0
VID1
VID2
VID3
VID4
VID5
VID6
VID7
Vsy nc_in
Hsync_in
VCLKx2
TEST_G11
TEST_G12
ZR39785H GCF
CN40 3
CONN
10P S/T 2.0mm
33G380210B Y
GPIO_P0
GPIO_P1
GPIO_P2
GPIO_P3
GPIO_P4
GPIO_P5
GPIO_P6
GPIO_P7
GPIO_P8
GPIO_P9
GPIO_P10
GPIO_P11
GPIO_P13
GPIO_P19
GPIO_P21
GPIO_P22
GPIO_P23
GPIO_P24
GPIO_P25
GPIO_P26
GPIO_P27
Res_AA6
E1
E2
E3
E4
E5
F1
F2
F3
F4
F5
G3
G4
H3
C441
0.1uF/ 16V
1
2
3
4
5
6
7
8
9
10
C10
C11
C12
D10
D11
D12
E12
E11
AB20
AB19
AB18
AB17
C6
D5
U24
U23
R23
AB13
AB14
AB16
AC14
AA6
K4
AE3
M6
N6
U6
V6
AB7
AB10
AB9
AB8
3V3_STB
BOOT_STRAP0
BOOT_STRAP1
BOOT_STRAP2
BOOT_STRAP3
R455 47R 1/10W 5%
R462 33R 1/10W 5%
R459 4K7 1/10W 5%
1
TP4
3V3_STB
R487
10K 1/10W 5%
U409
AZC099-04S
4
I/O2
I/O3
5
GND
VDD
6
I/O1
I/O4
DEMOD_RSTN 3
Panel_Ctrl_1 5,10
AV2_S_DET 4
R490
3K9 1/10W 1%
3
2
1
BL_ON_OFF
EARPHONE_DET
SPI_W EN
TVM_B OOT
TEST_ MODE
LED_1
VGA_VSY NC_DET
EEPROM_WP1
VGA_HSYNC_DET
AUD_SHDN
PWR_ON
KEY_PWR
LED_2
USB_EN_N
HDMISW_RSTN
AUD_AMP_MUTE
PANEL_ON
R421
C4E8
0.001uF
10K 1/10W 5%
C4F3
C4F4
0.001uF
0.001uF
BL_ON_OFF 10,14
EARPHONE_DET 13
USB_OC_N 7
SPI_W EN 7
VGA_VSYNC_DET 6
EEPROM_WP1 7
VGA_HSYNC_DET 6
AUD_SHDN 12
PWR_ON 14
USB_EN_N 7
HDMISW_RSTN 5
AUD_AMP_MUTE 12
PANEL_ON 10, 15
LED Driver
LED_1
LED_2
C4F2
0.001uF
FB406 300 OHM
FB419 300 OHM
FB420 NC/300 OH M
FB421 300 OHM
FB422 300 OHM
FB410 120OHM
C4F5
0.001uF
R484 220R 1/10W 5%
C401
1 2
1 2
1 2
1 2
1 2
1 2
C413
10N 16V
R485 47K 1/10W 5%
10N 16V
LED_B
KEY_PWR
KEY_IN
LIGHT_SENSOR
LED_B
LED_R
KEY_IR
3V3_STB
R481
1K8 1/10W 5%
Q403
MMBT3904
KEY_IR 7
R472
NC
6. POWER ON
7. POWER OFF
D3V3
TEST_ MODE
State
Debug Mode
Normal Mode
LED_R
VCC1V1
R450
4K7 1/10W 5%
TEST MPDE
0
D3V3
3V3_STB
C421
10N 16V
3V3_STB
LL4148
D402
1V8_STB
D1V8
3V3_STB
R479 1K 1/10W 5%
R482 1K 1/10W 5%
R483 1K 1/10W 5%
R486 51K 1/10W 5%
R488
NC/ 9.1KOHM +-1% 1/10W
TVMicro Bootstrap
Configuration
TVM_BOOT
R460
4K7 1/10W 5%
Boot Option
I2C EEPROM
SPI
D3V3
R467
1K 1/10W 5%
R470 845R 1/10W 1%
R471 845R 1/10W 1%
C422
0.1uF 16V
0402 0402
C423
10U 16V
C4E3
C428
0.1uF 16V
1uF/16V
VDD33-BOD
+
C430 100uF/ 16V
KEY_IN
3V3_CHECK
LIGHT_SENSOR
TP5
ADC 0.4V~2.9V
C437 0. 1uF 16V
0402
TVM_BOOT
1
0
R468 1K 1/10W 5%
G2
L6
G1
K6
H6
J6
G5
G6
C424
0.1uF 16V
P4
C4E4
Y3
10U 16V
AB5
AC5
AD6
AD5
1
AD4
AE5
AE6
AB6
AC3
AC4
AF6
C438
22pF
3V3_CHEC K
U401Q
LVDSVCRX_REXT
LVDSVCRX_ATST
LVDSVCTX_REXT
LVDSVCTX_ATST
LVDSVCR X_VDD33_0
LVDSVCR X_VDD33_1
LVDSVCTX_VDD33_0
LVDSVCTX_VDD33_1
PGA_LDO0
AFE_AVSS
VDD33_BOD
ADC8_INA
ADC8_INB
ADC8_INC
ADC8_IND
ADC8_INE
ADC8_INF
ADC8_ING
ADC8_R BIAS
ADC8_VREF
RC_OSC _REXT
ZR39785H GCF
CN409
NC/CONN
AVDD3_SYN C1
AVDD3_H PLL
AVDD18_H PLL
AVSS_HPLL
AVDD3_SYN C
AVDD3_AFE
AVDD18_R
AVDD18_G
AVDD18_B
AVDD18_SVIDEO
AVDD18_C VBS
DVDD18
DM_PLL_VDD
IF_VD D3P3_0
IF_VD D3P3_1
AFE_AVSS0
AFE_AVSS1
AFE_AVSS2
AFE_AVSS3
AFE_AVSS4
AFE_AVSS5
AFE_AVSS6
AFE_AVSS7
AFE_AVSS8
AFE_AVSS9
AFE_AVSS10
VDDADC8
ACOD3_AVDD
ACOD3_AVSS
1
2
3V3_STB
R451
4K7 1/10W 5%
Bootstrap Configuration
BOOT_STRAP3BOOT_STRAP2
BOOT_STRAP1
BOOT_STRAP0
Boot Option
16-Bit NAND-Small Page
SPI
8-Bit NAND-Large Page
8-Bit NAND-Small Page
C416
C417
R3
M4
L3
M3
N3
N4
P2
P1
R1
R2
P3
R4
AB2
AC1
AC2
W4
W5
W6
Y4
Y5
Y6
L7
M7
N7
P7
U7
AF5
AE10
AE11
10N 16V
10N 16V
C4D9
10N 16V
C425
C429
0.1uF 16V
0402
C431
1uF/16V
3V3_STB
C435
0.1uF 16V
C439
1uF/16V
0.001uF
C432
0.1uF 16V
0402
C440
0.1uF 16V
BOOT3
1
1
1
C4C4
0.1uF 16V
C418
1uF/16V
C426
0.1uF 16V
0402
1V8_STB
FB424
1 2
120OHM
C433
10N 16V
FB409
1 2
120OHM
R453 4K7 1/10W 5%
R454 4K7 1/10W 5%
R458 4K7 1/10W 5%
01
1
1
1
C414
10U 16V
C420
1uF/16V
C402
0.1uF 16V
BOOT1
1
01
0
1
1V8_STB
FB402
1 2
80OHM
1 2
C498
10U 16V
D3V3
1 2
C415
0.1uF 16V
BOOT2
FB401
1 2
120OHM
C419
0.1uF 16V
0402
C427
0.001uF
C434
4.7uF/ 10V
3V3_STB
3V3_STB
BOOT0
1
0
1
1
3V3_STB
C4E5
0.1uF 16V
FB405
80OHM
FB407
600 OHM
1V8_STB
D3V3
C4E9
10U 16V
19
9. DDRII SDRAM I/F
S0_VREF
R494
0R05 1/10W 5%
D1V8
S0_DQ15
S0_DQ14
S0_DQ13
S0_DQ12
S0_DQ11
S0_DQ10
S0_DQ9
S0_DQ8
S0_DQ7
S0_DQ6
S0_DQ5
S0_DQ4
S0_DQ3
S0_DQ2
S0_DQ1
S0_DQ0
C444
NC/0.1uF/16V
C451
NC/0.1uF/16V
R495
60.4 OHM 1% 1/10W
U401A
B15
A21
A14
B22
B20
B17
B21
A15
B14
A22
B13
A23
B19
A18
B23
A13
S0_UDM
S0_LDM
A20
A19
A24
B26
A26
A25
R496
60.4 OHM 1% 1/10W
ZR39785HGCF
R497
150R 1/10W 5%
S0 Memory I/F
S0_DQ15
S0_DQ14
S0_DQ13
S0_DQ12
S0_DQ11
S0_DQ10
S0_DQ9
S0_DQ8
S0_DQ7
S0_DQ6
S0_DQ5
S0_DQ4
S0_DQ3
S0_DQ2
S0_DQ1
S0_DQ0
S0_UDM
S0_LDM
S0_VREF
RDRIVER
RDRIVER50
RTERM
S0_UDQS_N
S0_UDQS_P
S0_LDQS_N
S0_LDQS_P
S0_A13
S0_A12
S0_A11
S0_A10
S0_A9
S0_A8
S0_A7
S0_A6
S0_A5
S0_A4
S0_A3
S0_A2
S0_A1
S0_A0
S0_BA2
S0_BA1
S0_BA0
S0_RAS_N
S0_CAS_N
S0_WE_N
S0_CK_N
S0_CK_P
S0_CKE
S0_ODT
C14
C24
C18
D22
D18
D14
D23
D17
C19
C15
C23
C17
D19
D15
C22
C20
D21
A16
B16
B18
A17
D16
C16
D20
B12
A12
C21
C13
S0_A13
S0_A12
S0_A10
S0_A9
S0_A8
S0_A7
S0_A6
S0_A5
S0_A4
S0_A3
S0_A2
S0_A1
S0_A0
S0_BA2
S0_BA1
S0_BA0
S0_UDQSN
S0_UDQS
S0_LDQSN
S0_LDQS
S0_RASN
S0_CASN
S0_WEN
S0_CKN
S0_CK
S0_CKE
S0_ODT
S0_DQ[0:15]
S0_A[0: 12]
R498
100R 1/10W 5%
L42A404
D1V8 D1V8
256Mb (16Mx16) DDRII
56G 615 75
J1
J9
R1
VDDA1VDDE1VDD
S0_A0
S0_A1S0_A11
S0_A2
S0_A3
S0_A4
S0_A5
S0_A6
S0_A7
S0_A8
S0_A9
S0_A10
S0_A11
S0_A12
S0_BA0
S0_BA1
S0_BA2
S0_CK
S0_CKN
S0_CKE
S0_RASN
S0_CASN
S0_WEN
S0_ODT
S0_UDM
S0_LDM
S0_CKNS0_CK
M8
A0
M3
A1
M7
A2
N2
A3
N8
A4
N3
A5
N7
A6
P2
A7
P8
A8
P3
A9
M2
A10
P7
A11
R2
A12
L2
BA0
L3
BA1
L1
NC
J8
CK
K8
CK#
L8
CS
K2
CKE
K7
RAS
L7
CAS
K3
WE
K9
ODT
B3
UDM
F3
LDM
R3
NC
R7
NC
VDDM9VDD
HY5PS561621BFP-25
VSS
VSSE3VSSJ3VSSN1VSSP9VSSDLJ7VSSQB2VSSQB8VSSQD2VSSQD8VSSQE7VSSQF2VSSQF8VSSQH2VSSQ
A3
C1
VDDL
VDDQ
VDDQA9VDDQC3VDDQC7VDDQC9VDDQE9VDDQG1VDDQG3VDDQG7VDDQ
U410
VSSQ
A7
G9
H8
VREF
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
UDQS
UDQS
LDQS
LDQS
NC
NC
NC
C442
J2
S0_VREF
G8
S0_DQ0
G2
S0_DQ1
H7
S0_DQ2
H3
S0_DQ3
H1
S0_DQ4
H9
S0_DQ5
F1
S0_DQ6
F9
S0_DQ7
C8
S0_DQ8
C2
S0_DQ9
D7
S0_DQ10
D3
S0_DQ11
D1
S0_DQ12
D9
S0_DQ13
B1
S0_DQ14
B9
S0_DQ15
B7
S0_UDQS
A8
S0_UDQSN
F7
S0_LDQS
E8
S0_LDQSN
A2
E2
R8
S0_A13
S0_VREF
0.1uF/16V
C443
0.1uF/16V
R492
100R 1/10W 1%
R493
100R 1/10W 1%
C445
0.1uF 16V
C446
0.1uF 16V
C447
0.1uF 16V
040204020402
D1V8
C448
0.1uF 16V
0402
HY5PS561621BFP-25
56G 615 66
NANYA
NT5TU16M16AG-25D
512Mb (32Mx16) DDRII
56G 615 76
H5PS5162FFR-25C
56G 615 67
NANYA
NT5TU32M16CG-25C
C449
0.1uF 16V
0402
C450
1uF/16V
S1_VREF
R4A2
0R05 1/10W 5%
D1V8
C454
NC/ 0.1uF/16V
C461
NC/ 0.1uF/16V
S1_DQ15
S1_DQ14
S1_DQ13
S1_DQ12
S1_DQ11
S1_DQ10
S1_DQ9
S1_DQ8
S1_DQ7
S1_DQ6
S1_DQ5
S1_DQ4
S1_DQ3
S1_DQ2
S1_DQ1
S1_DQ0
S1_UDM
S1_LDM
U401B
F25
M26
E26
N25
L25
H25
M25
F26
E25
N26
D25
P26
K25
J26
P25
D26
L26
K26
R26
ZR39785HGCF
S1_DQ15
S1_DQ14
S1_DQ13
S1_DQ12
S1_DQ11
S1_DQ10
S1_DQ9
S1_DQ8
S1_DQ7
S1_DQ6
S1_DQ5
S1_DQ4
S1_DQ3
S1_DQ2
S1_DQ1
S1_DQ0
S1_UDM
S1_LDM
S1_VREF
S1 Memory I/F
S1_A13
S1_A12
S1_A11
S1_A10
S1_A9
S1_A8
S1_A7
S1_A6
S1_A5
S1_A4
S1_A3
S1_A2
S1_A1
S1_A0
S1_BA2
S1_BA1
S1_BA0
S1_UDQS_N
S1_UDQS_P
S1_LDQS_N
S1_LDQS_P
S1_RAS_N
S1_CAS_N
S1_WE_N
S1_CK_N
S1_CK_P
S1_CKE
S1_ODT
S1_DQ[0:15]
S0_A[0: 12]
E24
S1_A13
R24
S1_A12
J24
S1_A11
N23
S1_A10
J23
S1_A9
E23
S1_A8
P23
S1_A7
H23
S1_A6
K24
S1_A5
F24
S1_A4
P24
S1_A3
H24
S1_A2
K23
S1_A1
F23
S1_A0
N24
S1_BA2
L24
S1_BA1
M23
S1_BA0
G26
S1_UDQSN
G25
S1_UDQS
J25
S1_LDQSN
H26
S1_LDQS
G23
S1_RASN
G24
S1_CASN
L23
S1_WEN
C25
S1_CKN
C26
S1_CK S1_ODT
M24
S1_CKE
D24
S1_ODT
S1_CK
R4A3
100R 1/10W 5%
D1V8
C1
J1
J9
R1
VDDA1VDDE1VDD
S1_A0
S1_A1
S1_A2
S1_A3
S1_A4 S1_DQ1
S1_A5
S1_A6 S1_DQ3
S1_A7
S1_A8
S1_A9
S1_A10
S1_A12
S1_BA0
S1_BA1
S1_BA2
S1_CK
S1_CKN
S1_CKE
S1_RASN
S1_CASN
S1_WEN
S1_UDM
S1_LDM
S1_CKN
M8
A0
M3
A1
M7
A2
N2
A3
N8
A4
N3
A5
N7
A6
P2
A7
P8
A8
P3
A9
M2
A10
P7
A11
R2
A12
L2
BA0
L3
BA1
L1
NC
J8
CK
K8
CK#
L8
CS
K2
CKE
K7
RAS
L7
CAS
K3
WE
K9
ODT
B3
UDM
F3
LDM
R3
NC
R7
NC
VDDM9VDD
VDDL
VDDQ
VDDQA9VDDQC3VDDQC7VDDQC9VDDQE9VDDQG1VDDQG3VDDQG7VDDQ
U411
HY5PS561621BFP-25
VSS
VSSE3VSSJ3VSSN1VSSP9VSSDLJ7VSSQB2VSSQB8VSSQD2VSSQD8VSSQE7VSSQF2VSSQF8VSSQH2VSSQ
A3
VSSQ
A7
G9
H8
VREF
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
UDQS
UDQS
LDQS
LDQS
NC
NC
NC
J2
G8
G2
H7
H3
H1
H9
F1
F9
C8
C2
D7
D3
D1
D9
B1
B9
B7
A8
F7
E8
A2
E2
R8
S1_VREF
S1_DQ0
S1_DQ2
S1_DQ4
S1_DQ5
S1_DQ6
S1_DQ7
S1_DQ8S1_A11
S1_DQ9
S1_DQ10
S1_DQ11
S1_DQ12
S1_DQ13
S1_DQ14
S1_DQ15
S1_UDQS
S1_UDQSN
S1_LDQS
S1_LDQSN
S1_A13
S1_VREF
D1V8
C452
0.1uF/16V
C453
0.1uF/16V
C4F1
10U 16V
Close U411
R499
100R 1/10W 1%
R4A1
100R 1/10W 1%
C455
0.1uF 16V
0402
C456
0.1uF 16V
0402
C457
0.1uF 16V
D1V8
C458
0.1uF 16V
04020402
C459
0.1uF 16V
0402
C460
1uF/16V
20
10. LVDS I/F
Panel_Ctrl_15, 8
D3V3
D3V3
0R05 1/10W 5%
U401J
LVDS I/F
LVDS_CE_P
LVDS_CE_N
LVDS_CO_P
LVDS_CO_N
LVDS_D0E_P
LVDS_D0E_N
LVDS_D1E_P
LVDS_D1E_N
LVDS_D2E_P
LVDS_D2E_N
LVDS_D3E_P
LVDS_D3E_N
LVDS_D4E_P
LVDS_D4E_N
LVDS_D5E_P
LVDS_D5E_N
LVDS_D0O_P
LVDS_D 0O_N
LVDS_D1O_P
LVDS_D 1O_N
LVDS_D2O_P
LVDS_D 2O_N
LVDS_D3O_P
LVDS_D 3O_N
LVDS_D4O_P
LVDS_D 4O_N
LVDS_D5O_P
LVDS_D 5O_N
LVDS_TXATST
LVDS_REXT
ZR39785H GCF
PWM1
PWM2
AF24
AE24
AE19
AF19
AD23
AD24
AE23
AF23
AF22
AE22
AD21
AD22
AE21
AF21
AF20
AE20
AF18
AE18
AD17
AD18
AE17
AF17
AF16
AE16
AD15
AD16
AE15
AF15
AD19
AD20
AB23
AC23
R463
0R05 1/10W 5%
PC2_H
Q411
2N7002K
D3V3
R4A6
NC
R4J4
4K7 1/10W 5%
LVDS8b
10BIT:L
8BIT:H
R4J6
R4J5
0R05 1/10W 5%
PANEL_POWER
2
L402 NC/90 ohm
1
2
L403 NC/90 ohm
1
2
L404 NC/90 ohm
1
2
L405 NC/90 ohm
1
2
L406 NC/90 ohm
1
2
L407 NC/90 ohm
1
2
L408 NC/90 ohm
1
2
L409 NC/90 ohm
1
2
L410 NC/90 ohm
1
2
L411 NC/90 ohm
1
2
L412 NC/90 ohm
1
2
L413 NC/90 ohm
1
R4A8 820R 1/10WR 5%
R4A9 1K 1/10W 5%
3
4
3
4
3
4
3
4
3
4
3
4
3
4
3
4
3
4
3
4
3
4
3
4
R4A5
1K 1/10W 5%
R4A7
NC
SELLVDS
JEIDA:H 10bit
VESA:NC/L 8bit
MEN
GV
MODE
LVDS_D4O_N
LVDS_D3O_N
LVDS_D2O_N
LVDS_D1O_N
LVDS_D0O_N
LVDS_CKO_N
LVDS_D4E_N
LVDS_D3E_N
LVDS_D2E_N
LVDS_D1E_N
LVDS_D0E_N
LVDS_CKE_N
LVDS_CKE_P
LVDS_CKE_N
LVDS_CKO_P
LVDS_CKO_N
LVDS_D0E_P
LVDS_D0E_N
LVDS_D1E_P
LVDS_D1E_N
LVDS_D2E_P
LVDS_D2E_N
LVDS_D3E_P
LVDS_D3E_N
LVDS_D4E_P
LVDS_D4E_N
LVDS_D0O_P
LVDS_D0O_N
LVDS_D1O_P
LVDS_D1O_N
LVDS_D2O_P
LVDS_D2O_N
LVDS_D3O_P
LVDS_D3O_N
LVDS_D4O_P
LVDS_D4O_N
BL_BR_CTRL
C489
10N 16V
C411
1uF/16V
D3V3
MCFG1
CN405
41
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
CONN
21PX2 S/T 2.0mm
33G8027 42
BL_BR_CTRL 14
L42A404
D3V3
D3V3
C464
C465
0.1uF 16V
0402
0402
0402
C4A8
0.1uF 16V
0402
0.1uF 16V
0402
0402
D3V3
C472
C471
0.1uF 16V
0.1uF 16V
0402
D1V8
C479
C478
0.1uF 16V
0.1uF 16V
0402
0402
D3V3
C410
0.1uF 16V
D3V3
C4A2
C4A1
10N 16V
0.1uF 16V
VCC1V1
C4B1
C4A9
0.1uF 16V
0.1uF 16V
04020402
0402 04020402 04020402
C4D1
C4C9
0.1uF 16V
0.1uF 16V
0402
0402
C467
C466
0.1uF 16V
0.1uF 16V
0402
C474
C473
10U 16V
1uF/ 16V
C480
C481
0.1uF 16V
0.1uF 16V
0402
D1V8
C483
C484
1uF/ 16V
10U 16V
FB417
1 2
120OHM
C4B2
0.1uF 16V
VCC1V1
C4D3
C4D2
0.1uF 16V
0.1uF 16V
0402
0402
0402
D3V3
C4B3
0.1uF 16V
04020402
C468
0.1uF 16V
C482
0.1uF 16V
C4B4
0.1uF 16V
C4D4
0.1uF 16V
0402
C4D5
0.001uF
N18
N17
N16
N15
N14
N13
N12
N11
N10
N9
M18
M17
M16
M15
M14
M13
M12
M11
M10
M9
L18
L17
L16
L15
L14
L13
L12
L11
L10
L9
K18
K17
K16
K15
K14
K13
K12
K11
K10
K9
J18
J17
J16
J15
J14
J13
J12
J11
J10
AE25
V25
C4B5
0.1uF 16V
04020402
U401N
Ground
GND48
GND47
GND46
GND45
GND44
GND43
GND42
GND41
GND40
GND39
GND38
GND37
GND36
GND35
GND34
GND33
GND32
GND31
GND30
GND29
GND28
GND27
GND26
GND25
GND24
GND23
GND22
GND21
GND20
GND19
GND18
GND17
GND16
GND15
GND14
GND13
GND12
GND11
GND10
GND9
GND8
GND7
GND6
GND5
GND4
GND3
GND2
GND1
GND0
USB2_GND
PLL_VSS
ZR39785H GCF
C4B6
0.1uF 16V
C4D7
C4D6
1uF/ 16V
1uF/ 16V
GND4 9
GND5 0
GND5 1
GND5 2
GND5 3
GND5 4
GND5 5
GND5 6
GND5 7
GND5 8
GND5 9
GND6 0
GND6 1
GND6 2
GND6 3
GND6 4
GND6 5
GND6 6
GND6 7
GND6 8
GND6 9
GND7 0
GND7 1
GND7 2
GND7 3
GND7 4
GND7 5
GND7 6
GND7 7
GND7 8
GND7 9
GND8 0
GND8 1
GND8 2
GND8 3
GND8 4
GND8 5
GND8 6
GND8 7
GND8 8
GND8 9
GND9 0
GND9 1
GND9 2
GND9 3
GND9 4
GND9 5
GND9 6
GND9 7
GND9 8
GND9 9
GND100
S1_GND
C4B7
0.1uF 16V
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
R9
R10
R11
R12
R13
R14
R15
R16
R17
R18
T9
T10
T11
T12
T13
T14
T15
T16
T17
T18
U9
U10
U11
U12
U13
U14
U15
U16
U17
U18
V9
V10
V11
V12
V13
V14
V15
V16
V17
V18
B24
F6
R25
C4D8
10U 16V
F11
F12
F13
F14
F15
G12
G13
G14
G15
G16
L20
L21
M20
M21
N20
N21
P20
P21
R20
R21
T20
T21
T22
T23
T24
U20
U21
V20
V21
W20
W21
V7
W7
Y7
Y8
Y9
Y10
Y11
Y12
Y13
Y14
Y15
AA8
AA9
AA10
AA11
AA12
AA13
AA14
AA15
T25
T26
AA7
E9
E10
F9
F10
E7
E8
F7
F8
3V3_STB
C4C1
0.1uF 16V
0402
U401R
Power
CORE_VDD0
CORE_VDD1
CORE_VDD2
CORE_VDD3
CORE_VDD4
CORE_VDD5
CORE_VDD6
CORE_VDD7
CORE_VDD8
CORE_VDD9
CORE_VDD 10
CORE_VDD 11
CORE_VDD 12
CORE_VDD 13
CORE_VDD 14
CORE_VDD 15
CORE_VDD 16
CORE_VDD 17
CORE_VDD 18
CORE_VDD 19
CORE_VDD 20
CORE_VDD 21
CORE_VDD 22
CORE_VDD 23
CORE_VDD 24
CORE_VDD 25
CORE_VDD 26
CORE_VDD 27
CORE_VDD 28
CORE_VDD 29
CORE_VDD 30
CORE_VDD 31
CORE_VDD 32
CORE_VDD 33
CORE_VDD 34
CORE_VDD 35
CORE_VDD 36
CORE_VDD 37
CORE_VDD 38
CORE_VDD 39
CORE_VDD 40
CORE_VDD 41
CORE_VDD 42
CORE_VDD 43
CORE_VDD 44
CORE_VDD 45
CORE_VDD 46
CORE_VDD 47
CORE_VDD 48
CORE_VDD 49
CORE_VDD 50
CORE_VDD 51
CORE_VDD 52
HDMI_VDD1V_0
HDMI_VDD1V_1
HDMI_VDD1V_2
HDMI_VDD1V_3
HDMI_VDD3P3_0
HDMI_VDD3P3_1
HDMI_VDD3P3_2
HDMI_VDD3P3_3
CORE_VDD18_STBY0
STBY
POWER
CORE_VDD18_STBY1
CORE_VDD18_STBY2
CORE_VDD18_STBY3
CORE_VDD18_STBY4
CORE_VDD18_STBY5
ZR39785H GCF
C4C2
0.1uF 16V
LDI_VDD33_0
LDI_VDD33_1
USB2_VDD33
IOVDD _STBY0
IOVDD _STBY1
IOVDD _STBY2
IOVDD _STBY3
IOVDD _STBY4
C4C3
1uF/16V
IO_VDD0
IO_VDD1
IO_VDD2
IO_VDD3
IO_VDD4
IO_VDD5
IO_VDD6
IO_VDD7
IO_VDD8
IO_VDD9
IO_VDD 10
IO_VDD 11
IO_VDD 12
IO_VDD 13
IO_VDD 14
IO_VDD 15
IO_VDD 16
IO_VDD 17
IO_VDD 18
IO_VDD 19
IO_VDD 20
IO_VDD 21
IO_VDD 22
IO_VDD 23
IO_VDD 24
M_VDD0
M_VDD1
M_VDD2
M_VDD3
M_VDD4
M_VDD5
M_VDD6
M_VDD7
M_VDD8
M_VDD9
M_VD D 10
M_VD D 11
M_VD D 12
M_VD D 13
M_VD D 14
M_VD D 15
M_VD D 16
M_VD D 17
M_VD D 18
M_VD D 19
M_VD D 20
M_VD D 21
M_VD D 22
M_VD D 23
PLL_VDD33
USB_VDD 1
USB_VDD33
G7
G8
G9
G10
G11
H7
H8
J7
Y16
Y17
Y18
Y19
Y20
Y21
AA16
AA17
AA18
AA19
AA20
AA21
AA22
AA23
AA24
AA25
AA26
E20
E21
E22
F16
F17
F18
F19
F20
F21
F22
G17
G18
G19
G20
G21
G22
H20
H21
H22
J20
J21
J22
K20
K21
V26
AC15
AB15
AC11
AC13
AF25
H4
J4
H5
J5
K7
P5
P6
R6
T6
T7
R7
1V8_STB
0402
C4C5
0.1uF 16V
04020402
D3V3
D1V8
10N 16V
3V3_STB
1V8_STB
C4A5
0.1uF 16V
C4C6
1uF/ 16V
C490
1uF/16V
C492
1uF/16V
C496
C4A6
0.1uF 16V
0402
0402
0402
C491
0.1uF 16V
0402
C493
0.1uF 16V
0402
C462
C463
0.1uF 16V
0.1uF 16V
0402
C470
C469
0.1uF 16V
0.1uF 16V
0402
C477
0.1uF 16V
0402
FB412
1 2
120OHM
FB413
1 2
120OHM
VCC1V1
R414 NC
C497
0.1uF 16V
C4A7
0.1uF 16V
C4C8
C4C7
0.1uF 16V
0.1uF 16V
0402
R4G7
4.7K 1/10W
D3V3
R4G8
4.7K 1/10W
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
MCFG0
LVDS_D4O_P
LVDS_D3O_P
LVDS_D2O_P
LVDS_D1O_P
LVDS_D0O_P
LVDS_CKO_P
LVDS_D4E_P
LVDS_D3E_P
LVDS_D2E_P
LVDS_D1E_P
LVDS_D0E_P
LVDS_CKE_P
C487
+
0.1uF/ 16V
C486
220uF/25V
Panel Control 2 Circuit
Panel_Ctrl_24,5
PANEL_ON8,15
R4E5
47K 1/10W 5%
NXP_PANEL_ON
4K7 1/10W 5%
R4B8
FET 2N7002K
Q409
PC2_H
FET 2N7002K
Q410
D3V3
R4E6
1K 1/10W 5%
R4G9
NC
D3V3
0R05 1/10W 5%
R465
R4E4
47K 1/10W 5%
Q412
MMBT3904
C4E1
0.1uF/ 16V
I2C0_SCL 7
I2C0_SDA 7
VCC5D
Panel_Ctrl_3 5
R4E3
47K 1/10W 5%
Q413
MMBT3904
R4B5
4.7K 1/10W 5%
R4B6
30K 1/10W 5%
Q405
MMBT3904
MEMC
Strong
MEMC
Medium
MEMC OFF
LVDS8b
LVDS 8bit
LVDS 10bit
PC2_H
C4E7
0.01uF
P12V PANEL_POWER
Q404
C4B8
0.33uF/ 16V
R4C5
0R05 1/10W 5%
1
2
3
4
AO4449 -7A/-30V
8
S
D
7
S
D
6
S
D
5
G
D
MCFG1
L
GPIO
GPIO
LH
GPIOMEMC Weak
GPIO
MCFG0
L
GPIO
GPIO
GPIO
LH
GPIO
HH
SELLVDS
H
L
GPIO
HLEN:JEIDA
GPIO
VCC1V1
FB414
1 2
80OHM
D3V3
FB418
1 2
80OHM
C403
0.1uF 16V
C4B9
0.1uF/ 16V
EN:VESA
C494
10N 16V
HDMI_3V3
C4A3
1uF/16V
VCC1V1
C495
0.001uF
C4A4
0.1uF 16V
0402
CMO 120Hz Configuration
GV MODE LVDS8bMCFG1MCFG0MEN
0NC 111
21
11. Audio Inputs
A
A
V
A
A
A
L42A404
U401E
V1
udio
Input
YPbPr1
udio
Input
YPbPr2
udio
Input
CN601
2
A
B
88G 78 1357S
1
4
3
JACK
CN602
2
A
B
88G 78 1357S
1
4
3
JACK
CN603
2
A
B
88G 78 1357S
1
4
3
JACK
ZD602
ZD601
VPORT0603100KV05
1 2
1 2
1 2
1 2
VPORT0603100KV05
ZD604
ZD603
VPORT0603100KV05
1 2
VPORT0603100KV05
ZD606
ZD605
VPORT0603100KV05
1 2
VPORT0603100KV05
C604
100pF
C613
100pF
C615
100pF
R601 10K 1/10W 5%
R603 10K 1/10W 5%
C605
100pF
R615 10K 1/10W 5%
R616 10K 1/10W 5%
C614
100pF
R622 10K 1/10W 5%
R623 10K 1/10W 5%
C616
100pF
R607
R606
10K 1/10W 5%
10K 1/10W 5%
YPbPr1_Audio_L
YPbPr1_Audio_R
R618
R617
10K 1/10W 5%
10K 1/10W 5%
YPbPr2_Audio_L
YPbPr2_Audio_R
R624
R625
10K 1/10W 5%
10K 1/10W 5%
AV1_Audio_L
AV1_Audio_R
Audio IN
AC9
AD13
AF14
M1
M2
K1
K2
H1
H2
K3
L1
L2
J1
J2
J3
LINE_IN1_L
LINE_IN1_R
LINE_IN2_L
LINE_IN2_R
LINE_IN3_L
LINE_IN3_R
LINE_IN4_L
LINE_IN4_R
LINE_IN5_L
LINE_IN5_R
LINE_IN6_L
LINE_IN6_R
ADATAIN_0
ADATAIN_1
ADATAIN_2
ZR39785HGCF
AV1_Audio_L
AV1_Audio_R
AV2_Audio_L4
AV2_Audio_R4
AV2_Audio_L
AV2_Audio_R
YPbPr1_Audio_L
YPbPr1_Audio_R
YPbPr2_Audio_L
YPbPr2_Audio_R
PC_Audio_L
PC_Audio_R
C601 2.2UF6.3V
C602 2.2UF6.3V
C603 2.2UF6.3V
C606 2.2UF6.3V
C607 2.2UF6.3V
C608 2.2UF6.3V
C609 2.2UF6.3V
C610 2.2UF6.3V
C611 2.2UF6.3V
C612 2.2UF6.3V
R602 10K 1/10W 5%
R604 10K 1/10W 5%
R619 10K 1/10W 5%
R620 10K 1/10W 5%
R621 NC/10K 1/10W 5%
GA
udio
Input
U401I
Audio OUT
ADATAOUT_0
ADATAOUT_1
ADATAOUT_2
LINE_OUT1_L
LINE_OUT1_R
LINE_OUT2_L
LINE_OUT2_R
ZR39785HGC F
ACLK0
BCLK0
LRCLK0
IEC958_OUT
VCM
VREF_AAD C
VREF_AD AC
AGNDREF
CN604
PHONEJACK
88G 30252C
AD10
AD9
AD12
AC10
AD14
AE14
AF12
AF11
AF10
AF9
AD11
AE8
AE12
AE13
AF13
3
2
1
AMP_LIN
AMP_RIN
AUDIO_OUT_L
AUDIO_OUT_R
IEC958O
C623
10U 16V
ZD607
VPORT0603100KV05
1 2
AMP_LIN 12,13
AMP_RIN 12,13
AUDIO_OUT_L 13
AUDIO_OUT_R 13
C626
0.1uF 16V
ZD608
1 2
VPORT0603100KV05
R630 100R 1/10W 5%
C624
10U 16V
C627
0.1uF 16V
C625
10U 16V
C617
100pF
C618
100pF
C628
0.1uF 16V
R626 10K 1/10W 5%
R627 10K 1/10W 5%
VCC5D
C620
0.1uF/ 16V
CN605
Coaxial
C622
560pF
3
VIN
2
VCC
1
GND
FIBER-OP TIC 3 P
88G 359 5 JT
PC_Audio_R
PC_Audio_L
R629
R628
10K 1/10W 5%
10K 1/10W 5%
SPDIF
Output
0402
22
Loading...
