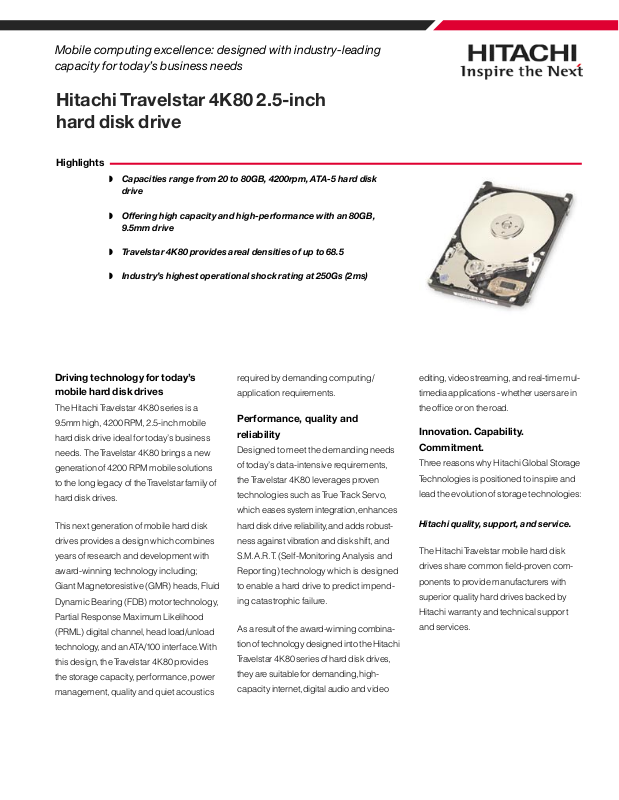

Hitachi HTS428080F9AT00, HTS428060F9AT00, HTS428040F9AT00, HTS428030F9AT00 Reference Guide

Mobile computing excellence: designed with industry-leading
capacity for today’s business needs

Hitachi Travelstar 4K80 2.5-inch
hard disk drive

Highlights

 Capacities range from 20 to 80GB, 4200rpm, ATA-5 hard disk

drive

 Offering high capacity and high-performance with an 80GB,

9.5mm drive

 Travelstar 4K80 provides areal densities of up to 68.5

 Industry’s highest operational shock rating at 250Gs (2ms)

Driving technology for today’s
mobile hard disk drives

The Hitachi Travelstar 4K80 series is a

9.5mm high, 4200 RPM, 2.5-inch mobile

hard disk drive ideal for today’s business

needs. The Travelstar 4K80 brings a new

generation of 4200 RPM mobile solutions

to the long legacy of the Travelstar family of

hard disk drives.

This next generation of mobile hard disk

drives provides a design which combines

years of research and development with

award-winning technology including;

Giant Magnetoresistive (GMR) heads, Fluid

Dynamic Bearing (FDB) motor technology,

Partial Response Maximum Likelihood

(PRML) digital channel, head load/unload

technology, and an ATA/100 interface. With

this design, the Travelstar 4K80 provides

the storage capacity, performance, power

management, quality and quiet acoustics

required by demanding computing/

application requirements.

Performance, quality and

reliability

Designed to meet the demanding needs

of today’s data-intensive requirements,

the Travelstar 4K80 leverages proven

technologies such as True Track Servo,

which eases system integration, enhances

hard disk drive reliability, and adds robust-

ness against vibration and disk shift, and

S.M.A.R.T. (Self-Monitoring Analysis and

Reporting) technology which is designed

to enable a hard drive to predict impend-

ing catastrophic failure.

As a result of the award-winning combina-

tion of technology designed into the Hitachi

Travelstar 4K80 series of hard disk drives,

they are suitable for demanding, high-

capacity internet, digital audio and video

editing, video streaming, and real-time mul-

timedia applications - whether users are in

the office or on the road.

Innovation. Capability.

Commitment.

Three reasons why Hitachi Global Storage

Technologies is positioned to inspire and

lead the evolution of storage technologies:

Hitachi quality, support, and service.

The Hitachi Travelstar mobile hard disk

drives share common field-proven com-

ponents to provide manufacturers with

superior quality hard drives backed by

Hitachi warranty and technical support

and services.

Hitachi family of Travelstar 4K80 hard disk drives specifications

Product name Travelstar 4K80

Model name HTS428080F9AT00, HTS428060F9AT00,
HTS428040F9AT00, HTS428030F9AT00

Configuration

Interface ATA-5
Capacity (GB) 80/60/40/30
Sector size (bytes) 512
Recording zones 16
Data heads 4/3/2/2
Disks 2/2/1/1
Max. areal density (Gbits/sq.inch) 68.5/68.5/68.5/66.7

Performance

Data buffer (MB)1 8/8/2/2
Rotational speed (rpm) 4,200
Latency (average ms) 7.1
Max. media transfer rate (MB/sec) 43.9/43.9/43.9/43.4
Max. interface transfer rate (MB/sec) 100MB/sec Ultra DMA mode-5

16.6MB/sec PIO mode-4
Seek time (ms)
Average (typical) 13
Maximum (typical) 24
Minimum (typical) 3

Reliability

Error rate (non-recoverable) < 1 per 1013 bits transferred
Load/unload cycle 300,000

Power

Requirement +5VDC(±5%)
Dissipation (typical)
Startup (max. peak) 4.5 W
Seek (average) 2.25 W
Read (average) 2.0 W
Write (average) 2.0 W
Low power idle (average) 0.65 W
Low power active (average) 1.65 W
Active idle (average) 0.90 W
Standby (average) 0.15 W
Sleep 0.1 W

Physical size

Height (mm) 9.5
Width (mm) 70
Depth (mm) 100
Weight (g) 95/95/91/91

Environmental characteristics

Operating

Ambient temperature 5° to 55° C
Relative humidity (non-condensing) 5% - 90%
Maximum wet bulb (non-condensing) 29° C
Shock (half sine wave) 250G/2ms
Vibration (sine wave) 1.0 G (22 - 500Hz)

Non-operating

Ambient temp -40° to 70° C
Relative humidity (non-condensing) 5% - 95%
Maximum wet bulb (non-condensing) 40° C
Shock (half sine wave) 800G/1ms
Vibration (sine wave) 5.0G (22 - 500Hz)

Acoustics (A-Weighted Sound Power (Bels))

Idle (typical) 2.4
Op (typical) 3.0
