Drill
FD 10VB • FD 10SB
Handling instructions
FD10VB
Read through carefully and understand these instructions before use.
1 32
2
3
4
A
0
78
B
5
1
<FD10VB> <FD10VB>
4 5
C
1
2
3
4
5
6
7
8
9
0
A
B
C
D
E
D
E
6
Trigger switch
Adjusting knob
High speed
Low speed
Stopper
Lever
Right (clockwise)
Left (counterclockwise)
Drill chuck
Chuck wrench
Tighten (clockwise)
Loosen (counterclockwise)
When the point appears, turn lumber over
Lumber to be drilled
Extra lumber
9
2
3
䡬
䡬
4
䡬
䡬
䡬
1
䡬
䡬
䡬
2
䡬
䡬
䡬
5
6

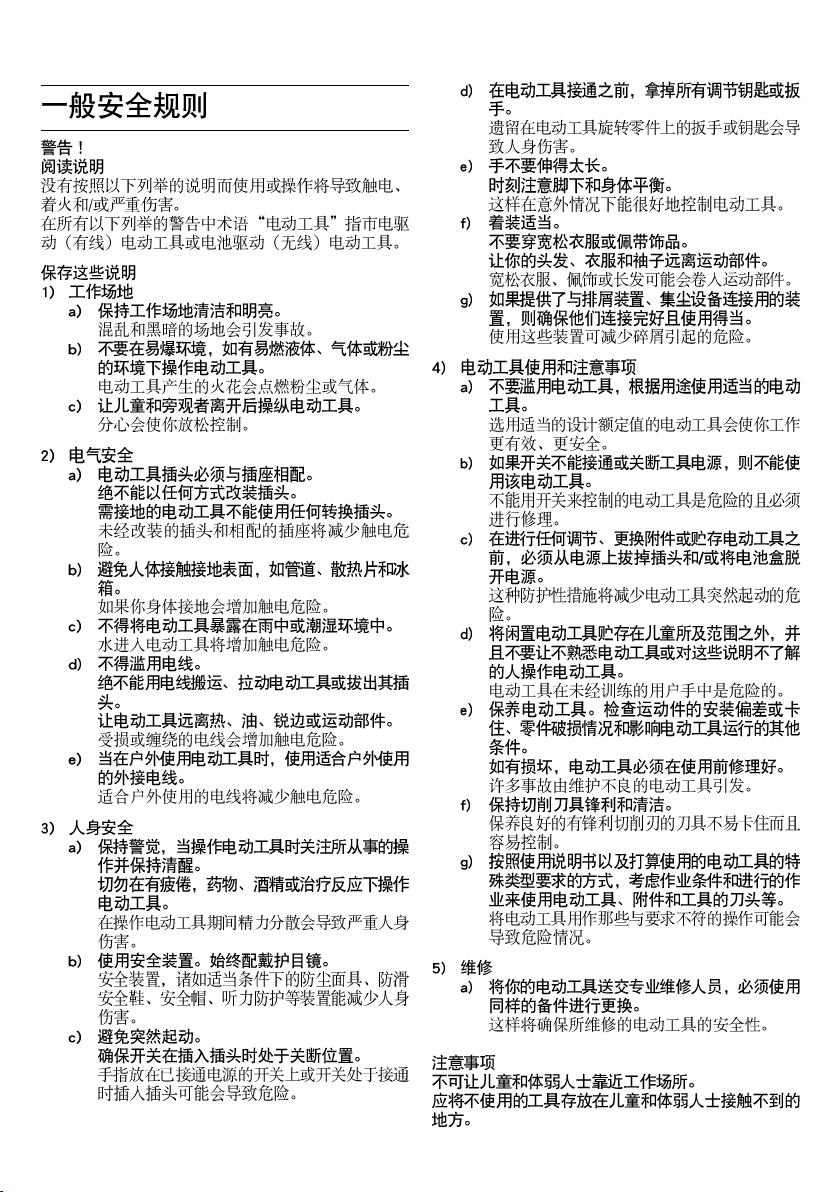

GENERAL SAFETY RULES
WARNING!
Read all instructions
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
The term “power tool” in all of the warnings listed below
refers to your mains operated (corded) power tool or
battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area
a) Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust.
Power tools create sparks which may ignite the
dust of fumes.
c) Keep children and bystanders away while operating
a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in
the off position before plugging in.
Carrying power tools with your finger on the
switch or plugging in power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating part
of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts.
Loose clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used.
Use of these devices can reduce dust related
hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not
turn it on and off.
Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools.
Such preventive safety measures reduce the risk
of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tools operation.
If damaged, have the power tool repaired before
use.
Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions and in the
manner intended for the particular type of power
tool, taking into account the working conditions
and the work to be performed.
Use of the power tool for operations different from
intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power tool
is maintained.
PRECAUTION
Keep children and infirm persons away.
When not in use, tools should be stored out of reach
of children and infirm persons.
7
PRECAUTIONS ON USING DRILL
1. Wear ear protectors with impact drills.
Exposure to noise can cause hearing loss.
2. Use auxiliary handles if supplied with the tool.
Loss of control can cause personal injury.
3. When mounting the drill bit or driver bit, insert it
fully into the drill chuck and completely tighten the
drill chuck with the chuck wrench.
If mounting is not done porperly, it is very dangerous
as the drill bit may slip or loosen during operation.
4. Do not wear gloves made of stuff liable to roll up
such as cotton, wool, cloth or string, etc.
5. Do not touch the bit during or immediately after
operation. The bit becomes very hot during operation
and could cause serious burns.
6. When placing the drill on the floor, make sure that
the drill has stopped completely.
7. Hold the drill firmly with both hands when using.
8. Before drilling into a wall, floor or ceiling, thoroughly
confirm that no items such as electric cables or
conduits are buried inside.
9. When working in high position, take care of
downword direction.
SPECIFICATIONS
Model FD10VB FD10SB
Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power input 420 W*
No-load speed 0 - 2800 / min 2800 / min
Capacity: steel 10 mm
Weight (without cord) 1.4 kg
* Be sure to check the nameplate on product as it is subject to change by areas.
wood 25 mm
APPLICATION
1. Drilling various materials
䡬 Drilling metal
Use an iron-working drill bit
䡬 Drilling wood
Use a wood-working drill bit (However, an ironworking drill bit to make pilot holes for wood screws
or holes smaller than 6.5 mm.)
2. Tightening the wood screw (Only FD10VB model)
Use the driver bit. Use a Phillips screw for easy
tightening.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specified on the product
nameplate.
2. Power switch
Ensure that the power switch is in the OFF position.
If the plug is connected to a receptacle while the
power switch is in the ON position, the power tool
will start operating immediately, which could cause
a serious accident.
3. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be
kept as short as practicable.
4. Check the tightening of the drill chuck
The drill chuck has been tightened at the factory,
but check again that it is in order before use.
Turn the drill chuck clockwise to tighten.
HOW TO USE
1. Operation of switch
Pulling the trigger of switch and push the stopper,
it keeps, the switched-on condition and it is
convenient for the continuous running. When
switched off, the stopper can be disconnected by
means of pulling the trigger again.
2. Adjustment of speed
[FD10SB]
The maximum speed can be obtained by pulling
the trigger switch.
[FD10VB]
(1) The speed is adjustable from zero to maximum
speed according to the extent the trigger switch is
pulled.
(2) The maximum speed is adjustable from zero to
2800/min with the rotation of adjusting knob.
(3) Turn the adjusting knob clockwise for higher speed
and counterclockwise for lower speed. (Rotate the
adjusting knob approximately 1 - 2/3 turns.) (Fig.
1)
(4) The switch can be locked with the stopper at any
required position irrespective as to how far the
adjusting knob has been rotated. Select a proper
position according to the required speed for each
work.
3. Confirm the direction of bit rotation (Fig. 2)
The bit rotates clockwise (viewed from the rear
side) by pushing the R-side of the reversing switch
lever. The L-side of the lever is pushed to turn the
bit counterclockwise.
CAUTION:
Never change the direction of bit rotation while
operatihg. Turn the power switch OFF before
changing the direction of bit rotation.
8
4. For use as a drill
(1) Mounting drill bit
Tighten drill bit with the chuck wrench. There are
three holes in which the chuck wrench should be
inserted. Tighten them equally in turn at three holes,
without tightening them only at one hole. The drill
bit can be removed in the opposite method as
mentioned above. (Fig 3)
(2) How to drill
1 To use for drilling lumber
䡬 Apply the point of the drill bit to the desired drilling
position, hold the drill perpendicular to the workpiece
surface and turn on the switch.
䡬 When drilling a through hole in lumber, remove the
drill from the material as soon as the tip of the drill
bit protrudes from the opposite surface. Then, turn
the workpiece over and complete the drilling from
the opposite side to obtain a clean hole. (Fig. 4)
If extra lumber is applied under the lumber you
want to drill and it is drilled together, a fine hole
will also be made. (Fig. 5)
䡬 A wood-working drill need not be pressed strongly
since it penetrates using the screw at the point.
Even if excessive force is used, a hole will not be
made quickly.
2 To use for drilling metal
䡬 In case you drill metal with an iron-working drill,
apply in advance a center punch in the drilling
position. You can drill metal stably since the point
of the drill does not slip.
䡬 If you apply sewing machine oil or soapy water to
the drill with a brush or an old tooth brush, the
drill will last long.
䡬 Even if more-than-necessary force is used, a hole
will not be made quickly.
On the contrary, the edge of the drill will be
damaged. This will decrease operational efficiency
and shorten the life of this too.
CAUTION:
Do not expose the motor to water as it may cause
motor malfunction and electric shock.
5. To use the driving wood screws (FD10VB)
(1) Driver bit
䡬 For driving a minus wood screw, the driver bit
detaches easily. So use wood screws with a plus
groove as often as possible.
䡬 Select a driver bit matching the plus groove and
the minus groove of the wood screw.
(2) Pilot hole
If a pilot hole is made with a drill a little thinner
than the diameter of the wood screw, the lumber
will not be split and the wood screw will be driven
with ease.
(3) Driving operation
䡬 Put the wood screw lightly in the pilot hole, apply
the bit to the groove, turn on the switch and drive
the screw.
6. Caution to be taken immediately after operation
When placing the drill in dusty places before the
rotating parts has stopped completely, make sure
the machine does not suck in dust and swarf.
MAINTENANCE AND INSPECTION
CAUTION
Be sure to switch power OFF and disconnect the plug
from the receptacle during maintenance and inspection.
1. Inspecting the drill bit and driver bit
Since use of an abraded drill bit will cause motor
malfunctioning and degraded efficiency, replace the
drill bit with a new one or resharpening without
delay when abrasion is noted. If you use a driver
bit of which point is worn or broken, it will be
dangerous since it slips. So replace it with a new
one.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure
that they are properly tightened. Should any of the
screws be loosened, retighten them immediately,
Failure to do so could result in serious hazard.
3. Replacing supply cord
If the replacement of the supply cord is necessary,
this has to be done by Hitachi Authorized Service
Center in order to avoid a safety hazard.
If the supply cord of this power tool is damaged,
it must be replaced by a specially prepared cord
available through the service organization.
4. Servicing
Consult an authorized Service Center in the event
of power tool failure.
5. Service parts list
A : Item No.
B : Code No.
C : No. Used
D : Remarks
CAUTION
Repair, modification and inspection of Hitachi Power
Tools must be carried out by an Authorized Service
Center.
This Parts List will be helpful if presented with the
power tool to the Authorized Service Center when
requesting repair or other maintenance.
In the operation and maintenance of power tools,
the safety regulations and standards prescribed in
each country must be observed.
MODIFICATIONS
Hitachi Power Tools are constantly being improved
and modified to incorporate the latest technological
advancements.
Accordingly, some parts (i.e. code numbers and/or
design) may be changed without prior notice.
NOTE:
Due to HITACHI’s continuing program of research and
development, the specifications herein are subject of
change without prior notice.
9
ABC D
FD10VB
3 312368 1
4 6202VV 1 6202VVCMPS2L
1 980057 1
2 950292 1 “1”
5 939544 1
6 994721 1
7 954789 1
8 608VVM 1 608VVC2PS2L
10 340228E 1 220V-230V
11 626VVM 1 626VVC2PS2L
9A 360456E 1 220V-230V
13 ———— 1
14 302086 7 D4×20
15 930483 2
12-1 312386 1 (MOSS GREEN)
12-2 312387 1 (OFF BLACK GREEN)
16 999041 2
17 981373 2
18 303665 1
19 303656 1
20 312388 1
21 303657 1
22 303666 1
23 ———— 1
24 ———— 1
25-1 307217 1 D7.2
25-2 303662 1 D8.8
26 960266 1
27 305812 2 D4×16
28 ———— 1
29 303654 1
30 303655 1
31 994273 1
32 302488 1
10
1 980057 1
ABC D
FD10SB
3 312368 1
4 6202VV 1 6202VVCMPS2L
2 950292 1 “1”
5 939544 1
6 994721 1
7 954789 1
8 608VVM 1 608VVC2PS2L
10 340228E 1 220V-230V
11 305808 1
12 312371 1
9A 360455E 1 220V-230V
13 626VVM 1 626VVC2PS2L
15 ———— 1
16 302086 7 D4×20
17 305807 1
14-1 312372 1 (MOSS GREEN)
14-2 312373 1 (OFF BLACK GREEN)
18 312370 1
19 930483 2
20 999041 2
21-1 960356 2 M3.5
22 994734 1
23 994273 1
24 960356 2 M3.5
25 302488 1
21-2 980063 2
26 ———— 1
27-1 307217 1 D7.2
27-2 303662 1 D8.8
28 960266 1
29 305812 2 D4×16
30 ———— 1
11
Hitachi Koki Co., Ltd.
Code No. C99071823 G
Printed in China
212
Loading...
