DZMV380E
DZMV350E
English
Français
DZMV350E DZMV380E
Instruction manual
T o obtain the best performance and ensure years of
trouble-free use, please read this instruction
manual completely.
Important Information
English
For Your Safety
The power switch turns the DVD video camera/recorder on and off, leaving the date/time feature unaffected. If the camera/
recorder is to be left unattended for a long period of time, turn it off .
WARNING :TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
WARNING :TO PREVENT FIRE OR SHOCK HAZARD, USE THE
The DVD video camera/recorder and AC adapter/
charger have the following caution marks.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
RECOMMENDED ACCESSORIES ONLY.
Precautions
WARNING: Many television programs and films
are copyrighted. In certain circumstances, copyright law may apply to private in-home
videotaping of copyr ig h t ed materials.
The liquid crystal display (L C D) panel is made
by highly precise technology. More than 99.99%
of its picture elements (pixels) ar e effective, but
some (less than 0.01%) may appear as colored
bright dots. This does not indicate a fault as the
LCD panel st retc hes the limits of cu rrent
technology.
Identifications of caution marks
This symbol warns the user that
uninsulated voltage within the unit
may have sufficient magnitude to cau se
electric shock. Therefore, it is dangerous
to make any kind of contact with any
inside part of this unit.
This symbol alerts the user that
important literature concerning the
operation and maintenance of this unit
has been included. Therefore, it shoul d
be read carefully to avoid any problems.
WARNING: To prevent risk of injury or damage to
your DVD video cam e ra/recorder and the AC
adapter/charger, use only the DZ-BP14S/DZBP14SW battery and D Z-ACS1 AC adapter/
charger.
CLASS 1
LASER PRODUCT
CAUTION
This product contains a laser diode of higher
class than 1. To ensure continued safety, do
not remove any covers or attempt to gain
access to the inside of the product. Refer all
servicing to qualified personnel.
2
(
– POCC RU.0001.11ME28)
INFORMATION ON PRODUCT CERTIFICATION
AC ADAPTER / BATTERY CHARGER
MODEL DZ-ACS1
(Registration number in State Register - POCC RU.0001.11ME28)
Certificate of conformity No.: POCC JP.ME28.B00613
Certificate of conformity issued: The 16
Certificate of conformity valid till: The 16
Model DZ-ACS1 complies with requirements of
normative documents:
Life cycle 7 (seven) years
certified by “MENTEST” of Mendeleevsky CSMS
st
of January 2003
th
of January 2005
GOST R IEC 60065-2002,
GOST R 51318.14.1-99
<<MEHTECT>>
English
3
IMPORTANT SAFEGUARDS
English
In addition to the careful attention devoted to quality standards in the manufacture of your video product, safety is a major
factor in the design of every instrument. But, safety is your responsibility too.
This page lists important information that will help to assure your enjoyment and proper use of DVD video camera/recorder
and accessory equipment. Please read it carefully before operating your video product and keep it in a handy place for
future reference.
1 Read and Follow Instructi ons — All the safety and
INSTALLATION
operating instructions should be read before the video
product is operated. Follow all operating and use
instructions.
2 Retain Instructions — The safety and operating
instructions should be retained for future reference.
3 He ed Warnings — Comply with all warnings on the
video product and in the operating instructions.
4 Power Sources — This video product should be
operated only from the type of power source indicated
on the marking label. If you are not sure of the type of
power supply to your home, consult your video dealer
or local power company. For video products intended
to operate from battery power, or other sources, refer
to the operating instructions.
5 Overloading — Do not overload wall outlets and
extension cords as this can result in a risk of fire or
electric shock. Overloaded AC outlets and extension
cords are dangerous, and so are frayed power cables,
damaged or cracked wire insulation and broken plugs.
They may re sult in a sh ock or fir e hazard. Pe riodicall y
examine the cord and have it replaced by your service
technician if appearance indicates damage or
deteriorated insulation.
6 Power-Cord Protection — Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they
exit from the appliance.
7 Ventilation — Slots and openings in the cabinet are
provided for ventilation to ensure reliable operation of
the video product and to protect it from overheating.
These openings must not be blocked or covered. The
openings should never be blocked by placing the
video product on a bed, sofa, rug, or other similar
surface. This video product should never be placed
near or over a radiator or heat register. This video
product should not be placed in a built-in i nstallation
such as a bookcase or rack unless proper ventilation
is provided or the video product manufacturer’s
instructions have been followed.
8 Attachments — Do not use attachments unless
recommended by the video product manufacturer as
they may cause hazards.
Caution: Maintain electrical safety. Powerline operated
equipment or accessories connected to this unit should
bear the UL listing mark or CSA certification mark on the
accessory itself and should not have been modified so as
to defeat the safety features. This will help avoid any
potential hazard from electric shock or fire. If in doubt,
contact qualified service personnel.
9 Water and Moisture — Do not use this video product
near water — for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, or near
a swimming pool, and the like.
10 Accessories — Do not place this video product on an
unstable cart, stand, tripod, bracket, or table. The
video product may fall, causing serious injury to a child
or adult, and serious damage to the appliance. Use
only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the
video product. Any mounting of the product should
follow the manufacturer’s instructions, and should use
a mounting accessory recommended by the
manufacturer.
11 An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
4
12 Power Lines — An outside antenna system should
not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it can
fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be
taken to keep from touching or approaching such
power lines or circuits as contact with them might be
fatal. Installing an outdoor antenna can be hazardous
and should be left to a professional antenna installer.
USE
13 Cleaning — Unplug this video product from the wall
outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
14 Object and Liquid Entry — Never push objects of
any kind into this video product through openings as
they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never
spill liquid of any kind on the video product.
15 Lightning — For added protection for this video
product during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the
antenna or cable-system. This will prevent damage to
the video product due to lightning and power-line
surges.
16 Servicing — Do not attempt to service this video
SERVICE
product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
17 Conditions Requiring Service — Unplug this video
product from the wall outlet and refer servicing to
qualified service personnel under the following
conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen
into the video product.
c. If the video product has been exposed to rain or
water.
d. If the video product does not operate normally by
following the operating instructions. Adjust only
those contro ls that are cov ered by the oper ating
instructions. Improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the video product to its normal
operation.
e. If the video product has been dropped or the
cabinet has been damaged.
f. When the video product exhibits a distinct change
in performance — this indicates a need for
service.
18 Replacemen t Part s — When repl aceme nt par ts are
required, have the service technician verify that the
replacements he uses have the same safety
characteristics as the original parts. Use of
replacements specified by the video product
manufacturer can prevent fire, electric shock or other
hazards.
19 Safety Check — Upon completion of any service or
repairs to this video product, ask the service
technician to perform safety checks recommended by
the manufacturer to determine that the video product
is in safe operating condition.
20 Heat — The product should be situated away from
heat sources such as radiators, heat registers, stoves,
or other products (including amplifiers) that produce
heat.
English
5
Cautions When Using
English
Handle the liquid crystal display (LCD) with care:
• The LCD is a very delicate display device: Do not press its surface with force, hit it or prick it with a sharp
object.
• If you push the LCD surface, unevenness in display may occur. If unevenness does not disappear soon,
turn the DVD video cam e ra/recorder off, wait for a few moment s, and the n turn it on again.
• Do not place the DVD video camera/recorder with the open LCD screen down.
• Close the LCD monitor when not using the DVD video camera/recorder.
Liquid crystal display and viewfinder:
• The LCD screen and viewfinder are the products of highly pr ecise technology . Among the total number
of pixels (approx. 120,000 pixels for LCD monitor and approx. 1 10,000 pixels for viewfinder), 0.01% or
less pixels may be missing (black dots) or may remain lit as colored dots (red, blue, green). This shows
the limitations of th e current technol ogy , and does not indicate a fault that will inter fere with r ecording.
• The LCD screen and viewfinder will be slightly dimmer than usual when the DVD video camera/
recorder is at low temperature, as in cold areas, or im mediately after power is turne d on. Normal
brightness will be restored when the temperature inside the DVD video camera/recorder rises.
Hold the DVD video camera/recorder correctly:
• Do not hold the viewfinder or LCD monitor when lifting the DVD video camera/recorder: The
viewfinder or LCD monitor could detach and the DVD video camera/recorder may fall.
Do not subject the DVD video camera/recorder to impact:
• This DVD video camera/record er is a precision machine. Ta ke great care that you do not strike it against
a hard object or let it fa ll.
• Do not use the DVD video camera/reco rder on a tripod in a place where it is subject to sever e vibrations
or impact.
No sand or dust!
• Fine sand or d ust en t e rin g t he DVD video camera/recorder or AC adapter/cha rger could cause
malfunctions or defects.
No water or oil!
• Water or oil entering the DVD video camera/recorder or AC adapter/charger could cause electric shock,
malfunctions or defects.
6
Heat on surface of product:
• The surface of the DVD video camera/reco rder will be sligh tly warm, but this does not indicate a fault.
Screen on connected TV:
• Never leave the disc navigation scr een, still i mage or camera im age displayed on your TV to which t he
DVD video came ra/recorder is connected: Doing so coul d result in displayed im ag e ret en t ion or
phosphor degradat ion of TV screen.
Be careful of ambient temperature:
• Using the DVD video camera/recorder in a place where the temperature is over 40°C o r under 0°C will
result in abnormal recording/playback.
• Take car e that the temperature of this DVD video camera/r ecorder , when connected to PC, does not rise
excessively (reference for usage: app rox. 30 minut e s at ab out 30ºC).
• Do not leave the D V D video camera/recorder on beach sa nd or in a clos ed vehicle where the
temperature is very high for a long time: This could cause malfunctions.
Do not point directly at the sun:
• If direct sunlight strikes the lens or viewfinder, the DVD video ca mera/rec ord er could malf unction or
a fire could occu r.
• Do not leave the DVD video camera/recor der with the LCD screen exposed to direct sunlight: This could
cause malfunctions.
Do not use the DVD video camera/recorder near TV or radio:
• This could cause noise to appear on the TV screen or in radio broadcasts.
Do not use the DVD video camera/recorder near strong radio waves or magnetism:
• If the DVD video camera/recorder is used near strong radio waves or magnetism, such as near a radio
wave tower or electric appliances, noise could enter video and a u dio that are being recorded. During
playback of normally recorded video and audio, noise may also be present in picture and sound.
At worst the DVD video camera/recor d e r could ma lfunction.
Do not expose the DVD video camera/recorder to soot or steam:
• Thick soot or steam could damage the DVD video camera/recorder case or cause malfunctions.
Do not use the DVD video camera/recorder near corrosive gas:
• Using it in a place where ther e is dense exhaust gas ge nerated by gasoline or diesel engines, or corrosiv e
gas such as hydrogen sulfide, could corro de the battery connecting terminals, which could result in l oss
of power.
Do not use the DVD video camera/recorder near ultrasonic humidifier:
• With some water in humidifier, calcium and other chemicals dissolved in water could scatter in the air,
and white particle s coul d adher e to the opti cal h ead of the D VD video camera/ r ecor der, which co uld
cause it to operate abnormally.
Do not expose the DVD video camera/recorder to insecticide:
• Insecticide entering the DVD video camera/r ecorder could dirty lens in laser pickup block, so the DVD
video camera/reco rder might not operate nor mally . T urn the DVD video camera/r ecorder off and co ver
it with vinyl she e t, e tc . be fore using insecticide .
Do not use a generally available 8 cm CD lens cleaner:
• Cleaning the lens is not necessary when using this DVD video camera/rec order in the usual way.
• Using 8 cm CD lens cleaner could cause this DVD video camera/recorder to be faulty.
English
7
Be careful of moisture condensation:
• When you move the DVD video camera/record er between places where the difference in t emperatures
English
is great - such as entering a lodge from a ski slope or going out of a cooled room or vehicle - condensation
(vapor in air warmed or cooled to water droplets) could occur on the lens and/or inside the DVD video
camera/recorder. If condensation occurs, do not open the cover of disc or card insertion block if possible.
If condensation occurs on the lens, wipe it off wit h a soft, dry cloth. Even if the external surface of DVD
video camera/recorder ha s d ried, condensation may remain inside: Turn the DVD video camera/
recorder off and leave it in a dry place for at least 1- 2 ho urs b efore us in g it ag ain .
Do not use the DVD video camera/recorder for a long uninterrupted period of time:
• This DVD video camera/recorder cannot be used for a long time continuously as a surveillance camera/
monitor. If you use the DVD video camera/recorder for a long continuous period of time, the
temperature of DVD video camera/r ecorder could exceed a limit and the r ecording/playback operation
could be slowed down: In this case, turn it off and wait for a while before using it again.
Do not turn the DVD video camera/recorder off while the ACCESS/PC ind icator or CARD
ACCESS indicator is lit or blinking:
• The ACCESS/PC or CARD ACCESS indicator is lit or blinking
to show that data is being written to disc or card, or being read
from it. At this time, do not do any of the following, so as not
to damage the data:
− Remove battery
− Disconnect AC adapter/charger
− Plug or unplug PC connec tio n ca ble
− Remove disc or card
− Subject DVD video camera/recorder to severe vibrations or
impact.
− Violently open or close the LCD monitor
If you turn the DVD video camera/recorder off while the ACCESS/PC or CARD ACCESS indicator is lit
or blinking, turn it on agai n with th e dis c or c ard loaded in i t: Repair o f t he disc or car d wi ll be ex ecuted
automatically (see page 147).
CARD
ACCESS
indicator
ACCESS/PC
indicator
Do not wipe the DVD video camera/recorder case with benzene or thinner:
• The coating of case could peel off or the case surface could deteriorate.
• When using a chemical cleaning cloth, follow the instructions.
Also read the instructions attached with optional accessories:
• For optional acc e ssories, observe the cautio ns and fol low instruction manuals att ac h ed .
8
Cautions When Storing
Do not leave the DVD video camer a/recorde r in a plac e where the temper ature is ver y
high for a long period of time.
• The temperature inside a closed vehi cle or trunk can become very high in a hot season. If you leave the
DVD video camera/r ecor der in such a pla ce, it co uld malfuncti on or the cas e could be da maged. Also ,
do not expose the DVD video camera/recorder to direct sunlight or place it near a heater.
Do not store the DVD v ideo camera/record er in a place w here the humidity is h igh or in
a dusty place:
• Dust entering the DVD video camera/recorder could cause malfunc tions. I f the humidity is hi gh, the
lens could be moldy , and the DVD video camera/recorder could become inoperable. It is recommended
that you put the DVD video camera/recorder with desiccant in a box when storing it in a closet, etc.
Do not store the DVD video camera/recorder in a place subjec t to strong magnetism or
intense vibrations:
• This could cause malfunctions.
Detach the battery from the DVD video camera/recorder and store it in a cool place:
• Leaving the battery attached or storing it at high temperature could shorten its life.
English
9
Suggestions and Restrictions
English
Make a trial recording:
• Always make a trial recording before doing actual recording to make sure that recording is normal. The
data that have not been stor ed normally b ecause of a defec t in the DVD video camera /recor der cannot
be restored.
It is recommended that you use DVD-RAM disc from which recorded contents can be deleted for trial
recording.
Do not use the DVD video camera/recorder for professional applications:
• This DVD video camera/recorder is designed and produced for home-use recording and playback.
The recorded contents cannot be compensated for:
• Hitachi cannot compensate for any damages caused when recording is not made normally or recorded
contents cannot be played back because of a defect in the DVD video camera/r ecorder , disc or card. Also,
Hita c hi cannot be respo n sible for yo ur recorded vi deo an d audi o.
• If you or a third party make a mistake when handling this DVD video camera/recorder, disc, card, etc.,
the recorded contents may be lost. We cannot be r esponsible for compens ation for damage due to loss
of recorded contents.
Copyright:
• Data recorded on the disc or card in this DVD video camera/recorder using other digital/analog media
or devices are protected by the copyright a ct a nd canno t be used witho ut permissi on of the owner of
copyright, except for personal enjo yment. Be aware that recording i s restricted for some demonstrations,
performances and exhibitions, even for personal enjoyment.
10
Read This First
T o guide you, we’ v e included following six chapters.
• The section on “Setups” explains how to set up
the DVD video camera/rec order , battery , and set
the date/time.
• The section on “Basic Techniques” explains the
basic operation of this DVD video camera/
record er - recording of mov ies, s till im ages,
external input, and playback of recorded images.
• The section on “Advanced Techniques” explains
settings on this DVD video camera/recorder for
more advanced usage.
• The section on “Disc Navigation” explains
editing with Disc Navigation: Refer to this
section when finalizing DVD-R disc and
initializing DVD-RAM disc.
• The section on "Installing Software" explains the
con ten ts o f pro vid ed C D-R OM a nd h ow t o in sta ll
the software included.
• “Subsidiary Infor mation” includes an
introduction to products sol d separately, proper
cleaning, and troubleshooting.
With this DVD video camera/recorder you can view the picture being recorded or the playback picture
whether on the LCD monitor or in the viewfinder . Opening or closing the LCD monitor switches the pic ture
to appear on the LCD monitor or in the viewfinder . The following text describes the operatio n assuming that
the viewfinder is used as a major monitor device.
We want this manu al to be a s helpful a s possible,
so it includes two easy ways to find the informatio n
you need:
• A quick index for the information you use most
often (this page).
• A detailed table of contents directing you to
specific informatio n qu ic kly (se e p age 14-16).
Get to know your DVD video camera/recorder by
using this manual, and get to know Hitachi. We
appreciate your business.
Quick Index
Available Discs................................................23
Recording Movie..............................................51
Immediately Checking Recorded Scene ......... 66
Connecting to a TV..........................................71
Functions Available with Disc Navigation........97
Installing Software .........................................130
English
Microsoft
Professional, and Windows
Intel
IBM
Manufactured under license from Dolby Laboratories.
“Dolby” and the double- D sym b ol are trademarks of Dolby Laboratori e s.
Other company names and produc t nam e s li st ed are trad e m arks or brand names belonging to each
individual co mp any.
SD logo is a trad e m ark.
®
, Windows®, Windows® 98, Windows® 98 Second Edition, Windows® Me, Windows® 2000
®
, Pentium® Processor, and Celeron® Processor are registered trademarks of Intel Corporation.
®
and PC/AT® are registered trademarks of International Business Machines Corporation.
®
XP are registered trademarks of Micro s oft Cor pora tion.
11
Introduction
English
●You can record even during playback
Unlike tape devices, you do not need to sear ch for the recor ding star t position or loca te the beginning of
blank portion.
You can start recording during playback: New recording will not overwrite any previously recorded data.
Recorded scenes
If you stop playback midway and start recording, overwrite will not occur.
●You can immediately play back desired recorded scenes
You do not n eed to rewind , unlike recorders using tape.
You can select any scene you want and immediately play it back (using Disc Navigation function).
●Use Disc Navigation to create your original movie
Y ou can delete unnecessary scenes, move any scenes, etc., and create your origi nal movie work (PlayList).
Before editing
After editing
12
●You can easily edit scenes, which is
quite difficult with tape
Using this DVD video camera/recorder, you can
collect scenes of your child, for example, o n play list
of Disc Navigation function and create an original
movie: Then simply play back the play list and dub
it on VCR. It is also easy to make any number of
identical tape s.
Up to now, you had to
repeatedly press
buttons
With DVD, you can simply
play back this DVD video
camera/recorder, and
press the record button on
VCR.
●Create original DVDs on PC
You can use a DVD-R disc to create an original
DVD, using the provided software CD-ROM.
The created DVD di sc can b e played back on DVD
player, DVD-ROM drive, etc.
Original DVD being
created
Playback of DVD
English
13
Table of Contents
English
Important Information .........................................2
For Your Safety .................................................. 2
Precautions ........................................................ 2
IMPORTANT SAFEGUARDS ............................4
Cautions When Using......................................... 6
Cautions When Storing.......................................9
Suggestions and Restrictions ........................... 10
Read This First ................................................. 11
Introduction.......................................................12
Table of Contents....... ................. ................. .... 14
Checking Provided Accessories ....................... 17
Names of Parts.................................................18
About This Manual............................................ 22
Discs and Cards ............................................... 23
AVAILABLE DISCS...............................................23
INFORMATION ON DVD-R DISC .........................24
EXAMPLES OF DISCS THAT CANNOT BE USED
ON THIS DVD VIDEO CAMERA/RECORDER: .24
HANDLING DISCS................................................25
AVAILABLE CARDS..............................................26
Storage Capacity on Disc or Card....................27
RECORDABLE TIME OF MOVIE (VIDEO)...........27
RECORDABLE STILLS (PHOTOS) ON DISC ......28
RECORDABLE STILL (PHOTOS) ON CARD.......28
Features of DVD Video Camera/Recorder....... 29
VERSATILE FUNCTIONS AVAILABLE ................29
RECORDING ON DISC.........................................31
RECORDING MOVIE AND STILL.........................31
IMMEDIATE REVIEWING OF
RECORDED IMAGE...........................................32
EDITING IN VARIOUS WAYS ON DVD VIDEO
CAMERA/RECORDER ALONE..........................32
USING WITH VARIOUS DEVICES .......................32
Setups
Setting Up the DVD Video Camera/Recorder... 33
HOLDING DVD VIDEO CAMERA/RECORDER ...33
ATTACHING LENS CAP .......................................33
ATTACHING SHOULDER STRAP........................34
INSERTING BATTERY INTO
REMOTE CONTROL ... ..... ...... ..... ..... ..... .............35
REMOVING BATTERY FROM
REMOTE CONTROL ... ..... ...... ..... ..... ..... .............35
Setting Up the Battery.......................................37
CHARGING BATTERY..........................................37
ATTACHING BATTERY TO DVD VIDEO CAMERA/
RECORDER.......................................................38
REMOVING BATTERY .........................................38
BATTERY REMAINING LEVEL INDICATOR........40
EFFICIENT USE OF BATTERY ............................40
USING DVD VIDEO CAMERA/RECORDER
WITH AC ADAPTER/CHARGER........................41
Inserting and Removing Disc............................ 42
INSERTING DISC ........................................ ..... ....42
REMOVING DISC ........................................ ..... ....44
Inserting and Removing Card........................... 45
Basic Techniques
Basic Handling of DVD Video Camera/
Recorder........................................................46
TURNING DVD VIDEO CAMERA/RECORDER
ON AND OFF .....................................................46
VIEWING SUBJECT THROUGH VIEWFINDER...47
VIEWING IMAGE ON LCD MONITOR SCREEN..47
CLOSING LCD MONITOR....................................48
Setting Date and Time...................................... 49
CHANGING DISPLAY FORMAT OF
DATE AND TIME................................................50
Recording Movie............................................... 51
USING EXTERNAL MICROPHONE .....................53
Recording Stills................................................. 54
Zooming............................................................56
MACRO RECORDING..........................................57
RECORDING SUBJECTS FOR STRONGER
WIDE-ANGLE OR TELEPHOTO EFFECT ........57

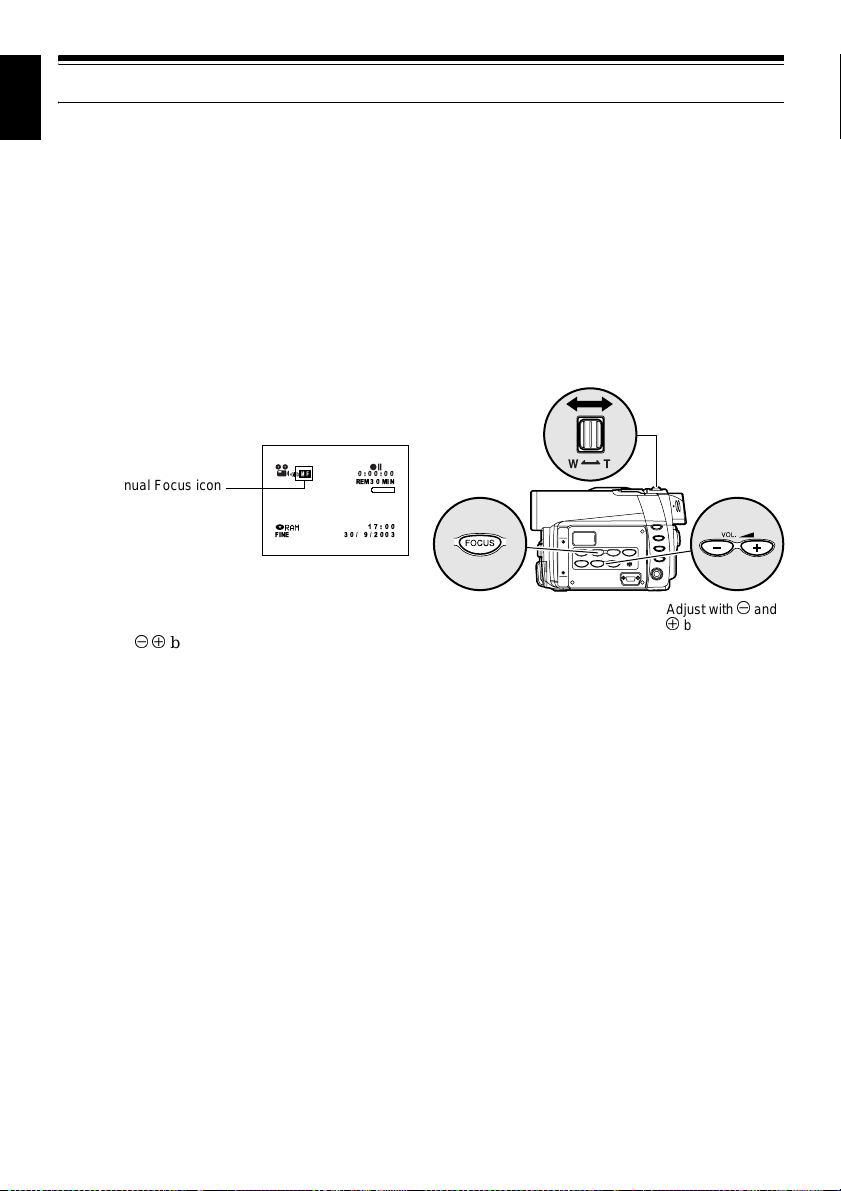

Manually Focusing Subject............................... 58
FOCUSING DURING RECORDING .....................58
Adjusting Exposure Manually........................... 60
Compensating for Backlight.............................. 61

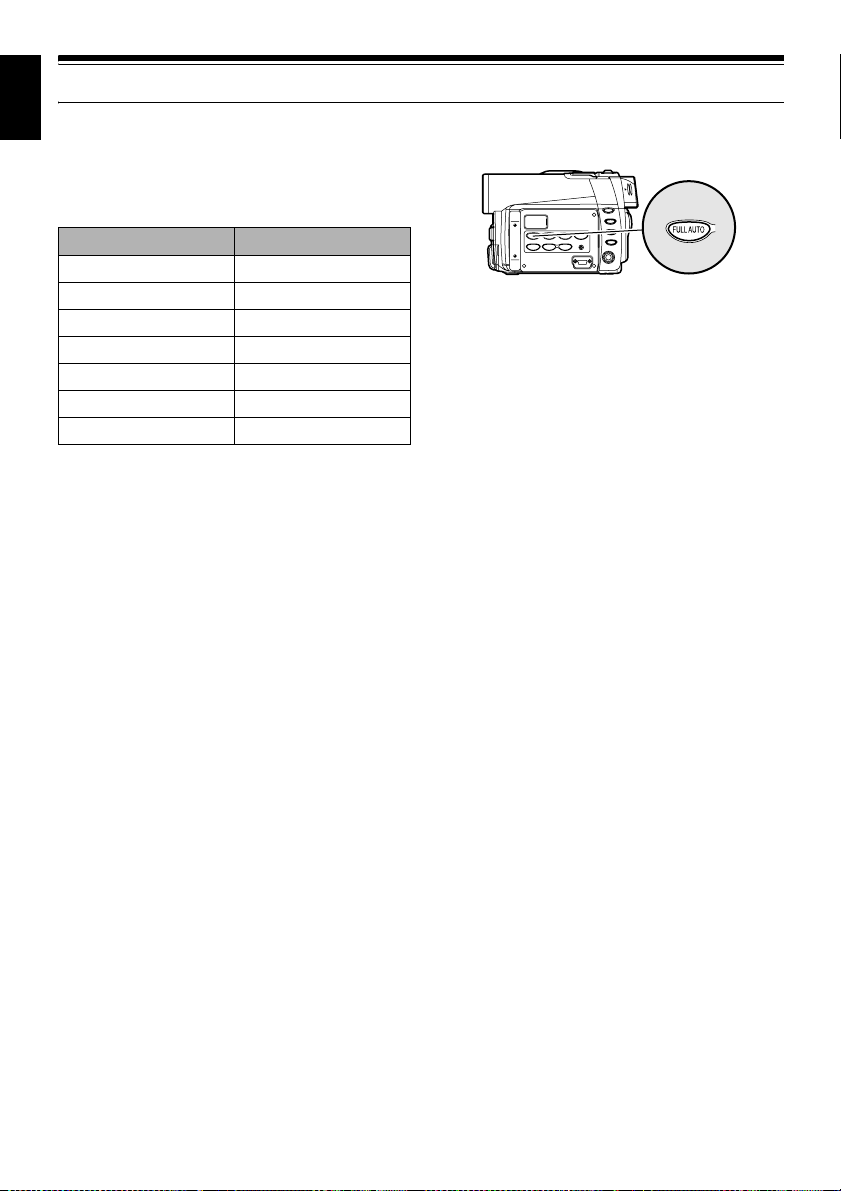

Using Full Au t o Fu n ction ......................... ......... 62
On-Screen Information ..................................... 63
INFORMATION DISPLAY DURING
RECORDING .....................................................63
Playing Back............. ................................ ........ 66
IMMEDIATELY CHECKING RECORDED
SCENE...............................................................66
PLAYBACK FROM START OF DISC OR CARD..67
SEARCH PLAYBACK OF MOVIE.........................67
FRAME ADVANCE/FRAME BACK/SLOW
PLAYBACK OF MOVIE......................................67
SKIP PLAYBACK OF MOVIE................................68
PLAYING BACK STILLS.......................................68
JUMPING TO SPECIFIED POINT (GO TO) .........69
On-Screen Information Display ........................ 70
INFORMATION DISPLAY DURING PLAYBACK..70
Playback on Other Devices.............................. 71
CONNECTING TO A TV .......................................71
VIEWING ON TV SCREEN...................................72
Playback on D V D Pl a ye r .............. ............. .. ..... 73
Playback on DVD Video Recorder/Player ........ 73

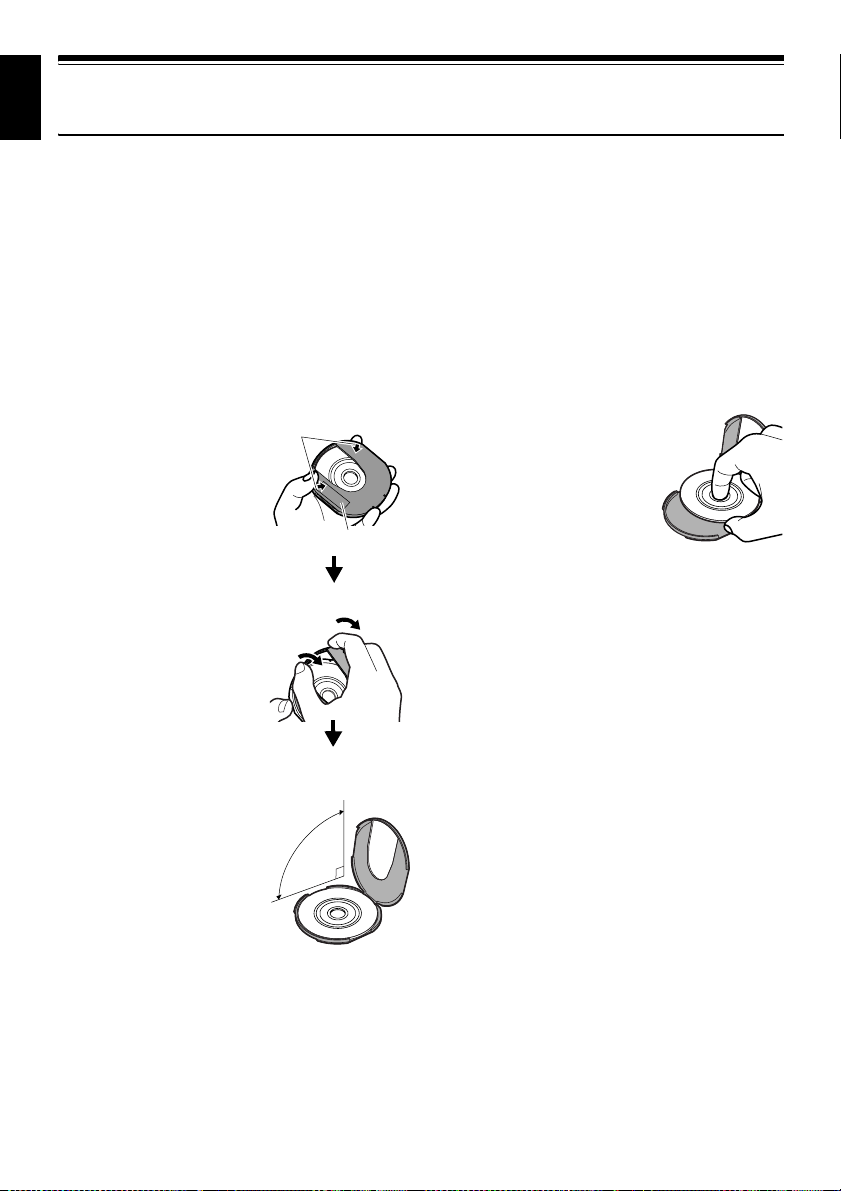

Removing and Replacing from/in Round DVD
Holder ............................................................ 74
HOW TO REMOVE DISC .....................................74
REPLACING DISC IN ROUND DVD HOLDER.....75
14
WHEN THE HINGE OF ROUND DVD HOLDER
COMES OFF ......................................................75
DISC CLEANING...................................................75
Advanced Techniques
Understanding Flow of Menu............................ 76
Setting Up Camera Functions...........................78
SELECTING SHOOTING MODE TO MATCH
THE SUBJECT
(SWITCHING PROGRAM AE MODE)................78
ADJUSTING COLOR (WHITE BALANCE)............79
USING THE ELECTRONIC IMAGE STABILIZER
(EIS)....................................................................81
MAGNIFYING SUBJECT IMAGE (DIG. ZOOM) ...82
REDUCING WIND NOISE DURING
RECORDING (MIC.FILTER) ..............................83
SWITCHING TO 16:9 MODE .............................. .. 84
Setting Up Record Functions............................ 85
SWITCHING MOVIE QUALITY (VIDEO MODE)...85
SWITCHING QUALITY OF STILL IMAGE
(QUALITY)..........................................................86
SELF-TIMER .........................................................87
SETTING ON-SCREEN DISPLAY OUTPUT
ON OR OFF (OSD OUTPUT).............................88
LCD Setup........................................................ 89
SETTING BRIGHTNESS OF LCD SCREEN
(BRIGHTNESS)..................................................89
SETTING COLOR DENSITY OF LCD SCREEN
(COLOR LEVEL) ................................................89
Initial Settings...................................................90
SWITCHING OPERATING SOUND ON OR OFF
(BEEP)................................................................90
TURNING DVD VIDEO CAMERA/RECORDER OFF
AUTOMATICALLY (POWER SAVE)..................90
TURNING RECORD LED ON OR OFF
(RECORD LED)..................................................91
CHANGING DISPLAY LANGUAGE
(LANGUAGE) .....................................................91
RESETTING MENU SETTINGS TO DEFAULTS
(RESET) .............................................................92
Disc Navigation
Using Disc Navigation.......................................93
STARTING DISC NAVIGATION............................93
TERMINATING DISC NAVIGATION .....................95

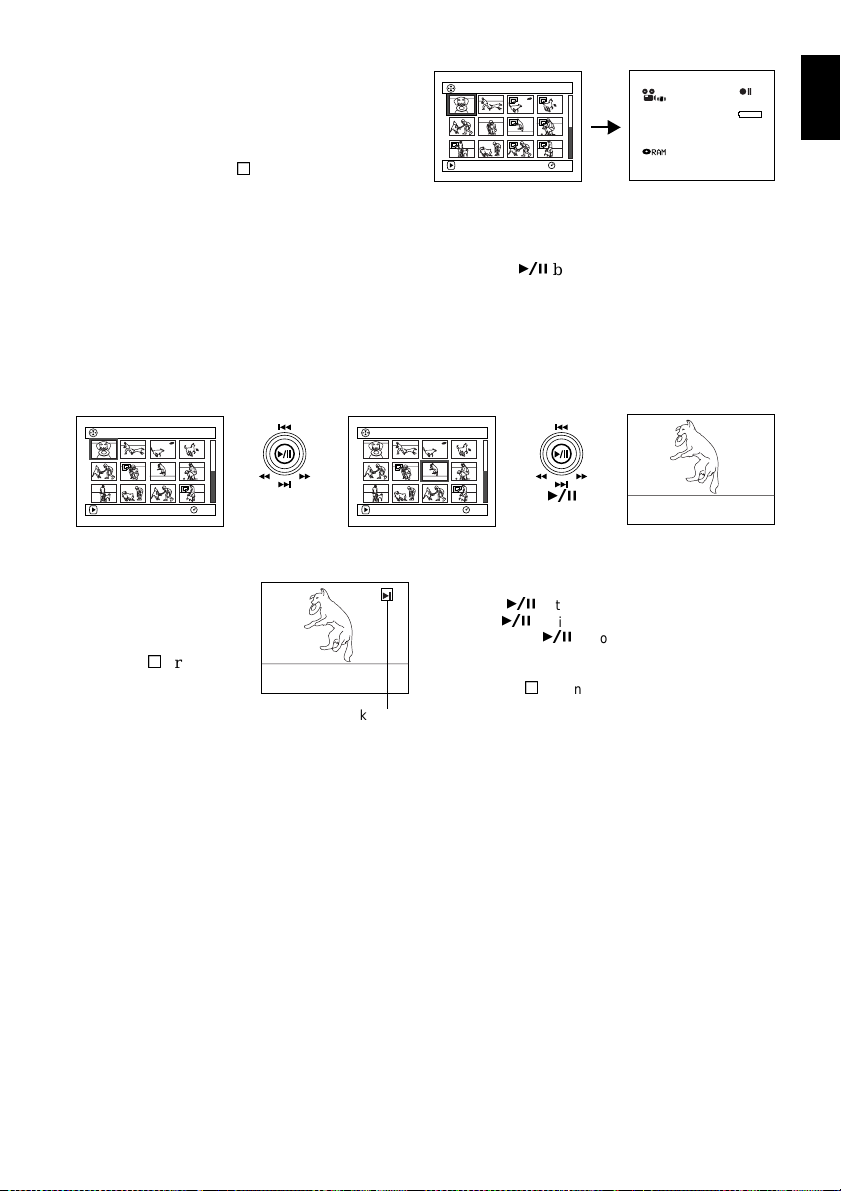

PLAYING BACK FROM DISC NAVIGATION
SCREEN.............................................................95
SELECTING MULTIPLE SCENES........................96
SELECTING CONSECUTIVE SCENES
TOGETHER........................................................96
Disc Navigation Menu................ ....................... 97
FUNCTIONS AVAILABLE WITH DISC
NAVIGATION......................................................97
UNDERSTANDING FLOW OF DISC NAVIGATION
MENU.................................................................98
Scene................................................................ 99
DELETING SCENES (DELETE) .... .......................99
CHANGING IMAGES FOR THUMBNAILS
(EDIT - THUMBNAIL) .......................................101
PLAYING BACK BY SKIPPING SCENES
(EDIT - SKIP)..... ..... ..... .....................................102
ADDING SPECIAL EFFECTS (EDIT - FADE) ....103
ARRANGING ORDER OF SCENES
(EDIT - MOVE).................................................104
COMBINING MULTIPLE SCENES
(EDIT - COMBINE)...........................................105
DIVIDING MOVIES (EDIT - DIVIDE)...................106
COPYING STILLS ON DVD-RAM DISC
TO CARD (COPY)................ ..... ..... ...... ..... ....... 107
LOCKING SCENES ON CARD (LOCK)..............108
DESIGNATING SCENES TO BE PRINTED
(DPOF).............................................................109
SELECTING SCENES USING MENU SCREEN
(SELECT).........................................................110
DISPLAYING INFORMATION USING MENU
SCREEN (DETAIL) ..........................................111
Program.......................................................... 112
WHAT IS “PROGRAM”? .....................................112
SWITCHING TO THUMBNAIL DISPLAY OF
SPECIFIC DATE (SWITCH).............................112
PLAYING BACK PROGRAM (PLAY)..................113
CHANGING TITLE OF PROGRAM (TITLE) .......113
Play List........................... ................ ............... 115
WHAT IS “PLAY LIST”?......................................115
CREATING NEW PLAY LIST (CREATE)............115
SWITCHING TO DISPLAY OF EACH PLAY LIST
(SWITCH).........................................................116
PLAYING BACK A PLAY LIST (PLAY) ...............117
ADDING SCENES TO PLAY LIST (EDITING PLAY
LIST).................................................................118
DELETING SCENES FROM PLAY LIST
(EDITING PLAY LIST)......................................119
ADDING SCENES USING SUBMENU FOR
EDITING (EDITING PLAY LIST)......................119
DELETING SCENES USING SUBMENU FOR
EDITING (EDITING PLAY LIST)......................120
SELECTING SCENES USING SUBMENU FOR
EDITING (EDITING PLAY LIST)......................120
ARRANGING ORDER OF SCENES (MOVE).....121
CHANGING TITLE OF PLAY LIST (TITLE)........122
DELETING PLAY LIST (DELETE)......................122
Go To.............................................................. 123
TOP (END)..........................................................123
Disc or Card Management.............................. 124
VERIFYING REMAINING FREE SPACE ON
DISC OR CARD (CAPACITY)..........................124
PROTECTING DISC FROM WRITING
(PROTECT DISC) ............................................124
INITIALIZING DVD-RAM DISC OR CARD
(FORMAT DISC/FORMAT CARD).................... ..125
UPDATING CONTROL INFORMATION OF
DVD-RAM DISC...............................................126
FINALIZING DVD-R DISC...................................127
Others............................................................. 128
DISPLAYING MOVIES OR STILLS
INDEPENDENTLY (CATEGORY)....................128
PLAYING BACK SCENES REPEATEDLY
(REPEAT PLAY) ..............................................128
SLIDE SHOW (CONTINUOUS PLAYBACK OF
STILLS) ............................................................129
English
15
Installing Software
Contents on Provided CD-ROM ..................... 131
English
INSTALLING USB DRIVER.................................133
INSTALLING UDF DRIVER
(DVD-RAM DRIVER)........................................ 1 35
INSTALLING DVD-MovieAlbumSE.....................137
INSTALLING MyDVD ..........................................139
Creating DVD Video on PC from
DVD-RAM Disc Recorded on
DVD Video Camera/Recorder...................... 141
Subsidiary Information
Cleaning.......................................................... 143
Changing Setting of Demonstration................ 144
No DVD Video Camera/Recorder Operation -
Check the Following:.................................... 145
Trouble Messages..........................................147
Troubleshooting..............................................154
System Reset.................................................161
Major Specifications................... ..................... 162
Introduction to Optional Accessories.............. 164
CAMERA ACCESSORIES..................................164
POWER SUPPLY................................................164
INFORMATION ON SQUARE ADAPTER...........164
Index............................................................... 165
Be sure to read the following before opening
the package of CD-ROM..............................168
16
Checking Provided Accessories
Make sure that you have all the following accessories in package:
Battery (model DZ-BP14S):
Portable power supply for this DVD video
camera/recorder. Charge it before use.
Power cable:
Connect between household AC outlet and
AC adapter/charger.
AV/S out pu t cabl e:
Used when viewing the picture pla yed back
on the DVD video camera/recorder on TV
screen, or output video to another video
device.
AC adapter/charger (model DZ-ACS1):
Used to power the DVD video camera/
recorder from AC outlet, or charge battery.
Infrared remote control
(model DZ-RM3W):
Use to control the DVD video camera/
recorder from a distance.
Shoulder strap:
Attach to the DVD video camer a/recorder t o
hang it from shoulder.
DC power cord:
When powering the DVD video camera/
recorder from household AC outlet, use this
cord to connect the DVD video camera/
recorder and AC adapter/charger.
Lithium battery (model CR2025):
To power the remote control.
WARNING: Keep
this battery away
from children. If
swallowed, consult
a physician
immediately for
emergency
treatment.
Lens cap and lens cap string:
Attach the lens cap when not recording, to
protect the lens.
English
8 cm DVD-R disc (in Round DVD Holder):
To record video (movie) on this DVD video
camera/recorder
PC connection cable:
Ferrite co re:
In order to control radio noise emission,
attach this to external microphone cable if
you are using the external microphone.
Software CD-ROM:
Use this CD-ROM when connecting the DVD
video camera/recorder to PC.
17
Names of Parts
English
7
(Inside the cover)
1234 5 6
8
A/V
MIC
11
910
BATTERY EJECT
(Bottom)
1 Recording indicator (P. 91)
The red indi cator will light during record ing.
2 Optical 10× zoom lens (P. 56)
3 Lens hood (P. 57)
Always remove this lens hood when us in g
generally available tele-conversion or wideconversion lens.
4 Infrared receiver (P. 36)
When the remote control is used to oper ate the
DVD video camera/recorder, this receiver will
receive the infrared signal.
5 Zoom lever (P. 56)
Push the lever to the T side for telephoto, or to
the W side for wide-angle.
6 Accessory shoe (only for DZ-MV380E)
Slide the cover to r emove it, and then attach the
optional video flash, etc., here. (See the
instruction manual of device to be attached for
details.)
18
7 External microphone jack (P . 53)
8 AV output jack (P. 71)
9 Stereo microphone (P. 53)
10 2.5” type liquid crystal display (inside) (P . 47)
11 BATTERY EJECT switch (P. 38)
The BATTERY EJECT switch is located on the
bottom of this DVD video camera/recorder:
Slide it when removing the battery.
12 13 14 1715
ACCESS/PC
DISC EJECT
R
E
C
18 19 20 2221
16
English
12 Viewfinder (P. 47)
13 Diopter control (P. 47)
To adjust the focus of image appearing in the
viewfinder. (Pull out the viewfinder.)
14 ACCESS/PC indicator (P. 8, 51, 54)
Will blink or light while the DVD video camera/
recorder is operating.
15 DISC EJECT button (P. 42)
Press down and release this button to open the
disc guide.
16 CARD ACCESS indicator (P. 8, 54)
17 Card insertion block (P. 45)
18 Battery attachment platform (P. 38)
19 Record button (REC) (P. 51)
20 Power switch (P. 46, 51, 54)
21 Speaker (P. 66)
22 Hand strap (P . 33)
19
23 24 25 26 27 28 29
English
3531 32 33 3430
23 FULL AUTO button (P. 62)
To switch the DVD video camer a /recorder to
full automatic
24 FOCUS button (P. 58)
To switch between manual focus and autofocus.
25 EXPOSURE button (P. 60)
Press this button to adjust the exposure.
26 BLC (backlight compensation) button
(P. 61)
Press this button when subject is being li ghted
from rear.
27 DISC NAVIGATION button (P. 93)
28 SELECT button (P. 96)
29 MENU button (P. 49, 77, 99)
Press this button to displa y the menu for setting
camera functions and Disc Navigation.
The camera menu will appear even if disc is not
loaded.
30 Screen display button (DISPLAY) (P . 70)
Press this button to displa y the details of image
being played back or camera setting status, or
switch the display off.
31 Volume control buttons (VOL)/
(P. 58, 60, 66)
T o adjust the volume of sound from speaker, etc.
32 RESET button (P. 161)
T o reset all setti ngs to defaults (status when the
DVD video camera/recorder was shipped from
the facto r y ).
33 PC connection terminal (TO PC)
34 Joystick (P. 49, 66, 77)
Move the joystick to select a scene or menu item;
then play back the scene or pause it.
35 Stop/cancel button (P. 22, 66, 95)
To end playback or cancel setting of menu.
buttons
20
36
37
38
REC
DIGIT AL
ZOOM
ZOOM
T
W
42
English
43
39
NAVIGATION
40
41
36 REC button (P. 51)
37 DIGITAL ZOOM button (P. 82)
38 Reverse skip button (P. 68)
39 Reverse search button (P. 67)
40 DISC NAVIGATION button (P. 93)
41 MENU button (P. 49, 78, 100)
DISC
MENU
DZ-RM3W
44
45
46
DISPLA Y
47
DELETESELECT
48
49
50
42 ZOOM T button (P. 56)
43 ZOOM W button (P. 56)
44 Forward search button (P. 67)
45 Play/pause button (P. 66)
46 Forward skip button (P. 68)
47 DISPLAY button (P. 70)
48 Stop button (P. 22, 66, 95)
49 DELETE button (P. 99)
50 SELECT button (P. 96)
* The buttons on remote control will function the same as those on DVD video camera/recorder.
21
About This Manual
English
●Displays in this manual
Understand that the di splays are differ ent from those you wil l actually see in the v iewfinder or on the LCD
screen.
●Notation of cancel button
Press the stop/cancel button to stop your operation midway, or return the menu screen to the prec eding
one. The expression “press the
button” will be used in this text.
●, and marks beside headings
Some functions of this DVD video camer a/r ecor der are una vaila ble with di sc or ca r d used. Ref er to the
marks at right above each function to identify whether the disc or card is compati b le with the function.
Refer to these marks and identify the functions and operation t o match the di sc or card you use.
●Illustrations in this manual
Although the external ap p e arances of DZ-MV350E and D Z-M V 380E are different, the method of
operating both models is identical.
The illustrations of DZ-MV350E are used for the explanation in this text.
22
Discs and Cards
The following table lists the storage media (discs and cards) that can be used on this DVD video camera/
recorder and the functions which are available with them:
Function DVD-RAM disc DVD-R disc
Recording movie ∴∴×
Recording still ∴
Deleting recorded image ∴
Editing on this DVD video
camera/recorder
Playback on DVD player
Playback on DVD-RAM
recorder
*1: Can be played back on some DVD players.
*2: Must be finalized on this DVD video camera/recorder before DVD-R disc can be played back on DVD player or DVD
recorder (See P. 73). May not be playable on some DVD players.
*3: Can be played back on some DVD-RAM recorders.
∴
*1
×
∴
×
×
××
*2
∴
*2
∴
SD memory card/
Multimedia card
∴
∴
×
*3
×
∴: Functions available; ×: Not available
AVAILABLE DISCS
Usable discs and logos Shape
DVD-RAM Ver. 2.1 (8 cm)
In Round DVD
DVD-R
[for General Ver. 2.0 (8 cm)]
Holder
English
This DVD video camera/recorder uses 8 cm DVDRAM discs and 8 cm DVD- R d isc s for camcorder
use.
Discs remo ved from Round DVD H older cannot be
used on this DVD video camera/recorder: Use
them only in the holder.
Note:
• It is recommended that you use Hitachi Maxell discs,
since their compatibility with this DVD video camera/
recorder has been confirmed. Using a disc other than
those made by Hitachi Maxell may not allow the DVD
video camera/recorder to deliver optimum performance.
• It is necessary to initialize an unformatted disc. When an
unformatted disc is inserted into the DVD video camera/
recorder, a message will appear: Initialize the disc
following the instructions on screen (P. 125).
• The Round DVD Holder cannot be used on the following
DVD video camera/recorders:
- DZ-MV100E
- DZ-MV200E
- DZ-MV230E
- DZ-MV270E
- Other DVD video camera/recorders that use square
type adapters.
• Image data edited on PC and certain types of image data
may not be visible on this DVD video camera/reco rder.
• The image data recorded on another device may not be
playable on this DVD video c amera/recorder.
23
INFORMATION ON DVD-R DISC
English
Y ou ca nnot record a still on DVD-R di s c, or delet e
any recorded images or data.
For optimum r e cording on DVD-R disc , t h is D VD
video camera/recorder writes control data to the
disc in order to automatically make a djustments
when it is inserted and ejected accompanying
recording. If the disc has no area to be written for
adjustment, recording may not be possible. To
prevent this, do not insert or eject a DVD-R disc
accompanying recording more than 50 times. The
DVD video camera/recorder will not perform
“write adjustment” when the DVD video camera/
recorder is turned on again, from off, for recording
with the disc in it, or when no reco rding is made,
even if the disc is removed and then reinserted.
●Finalizing DVD-R disc
Before using the 8 cm DVD-R disc provided on this
DVD video camera/recorder on a DVD player or
DVD video recorder that is c o m p at ib le with 8 cm
DVD-R disc, the disc must b e finalized on this DVD
video camera/recorde r. For the finalizing
procedure of 8 cm DVD-R disc, refer to “Finalizing
DVD-R Disc” (P. 127).
Note:
• Do not insert a DVD-R disc recorded on this DVD video
camera/recorder but not finalized, into a recordable
device, such as a DVD video recorder: The recorded data
may be damaged.
• DVD-R discs edited and finalized on PC or those finalized
on another DVD video recorder may not be playable on
this DVD video camera/recorder, depending on the
editing software used or recorded status of DVD-R disc.
EXAMPLES OF DISCS THAT CANNOT BE USED ON THIS DVD VIDEO CAMERA/
RECORDER:
• DVD-RAM (2.6 GB) Ver. 1.0 • DVD-ROM • MO
• DVD-R (3.9 GB) Ver. 1.0 • DVD-Video • MD
• DVD-R (4.7 GB) for Aut horing V er . 2.0 • CD-R • iD
• DVD-RW • CD-RW • Floppy disk
• DVD+RW • CD • Discs other than those with diameter
• DVD+R • LD • CD-ROM
of 8 cm
Note:
Discs recorded on PC or DVD video recorder may not be playable on this DVD video camera/recorder: If so, message
“This disc cannot be used.” will appear. Also, blue thumbnails will appear (Fig. 1* on page 25), or normal playback will
not be possible.
24
HANDLING DISCS
Block noise
●Using discs
DVD-RAM and DVD-R discs are very delic a t e
recording media. Carefully read the following
cautions and observe them:
• When using disc on this DVD video camera/
recorder , be sure to keep it in Round DV D Holder.
• Always use a brand new disc when recording
important material.
• Be sure n ot to touch the disc
exposed portion, and be
careful that no dirt adheres to
it.
• If there is dust, scratch, di rt on
disc or if it is warped, the
following phenomena may occur:
− Block noise in playback
− Momentary stop of playback
− Sound in t e rrup t e d du ring
playback, or abnormal sound
− Blue thumbnail
display* (Fig. 1)
− Disc cannot corre ctly be
recognized
− Delay between video
and audio
Even if disc is normal, the
above phenomena may
occasionally occur. While the ACCESS/PC
indicator is lit, do n ot subject disc to vibrations or
impact, and avoid using DVD video camera/
recorder at extremely high or low temperatur es,
or in environment where condensation is likely
to occur.
• When reco rding images ,
the DVD video camera/
record er may avoid t he
portions of disc where
recording is not possible ,
due to dust, scratches, etc.
[It will pause
at such a
portion and automatically
restart recording (
).]
This will cause recording
to be interrupted for sev e ral seconds to several
minutes, and multiple thumbnails will be created
by one recording session as shown above. In this
case, the recordable time on disc will decrease.
• Be careful when removing the disc since the
metal of removal slot of DVD video camera/
recorder, and disc itself, may be hot.
Do not touch
001/ 006All Programs
PLAY
Fig.1
*
PLAY
(Recording one scene
may produce multiple
thumbnails.)
RAM
001 / 002All Programs
RAM
●Storing discs
• When stor in g di sc, insert it in Round DVD
Holder into pla st ic case.
• Be careful that no condensation occurs on disc .
• Do not place disc in following places:
− Direct sunlight for a long time
− Where humidity is high or in dusty place
− While t here is heat from a h e at e r, etc.
Note:
• See page 75 when cleaning the removed disc.
• See page 74 for how to handle disc removed from Round
DVD Holder.
• See page 74 for how to set the disc removed from Round
DVD Holder or another disc correctly in Round DVD
Holder.
English
25
AVAILABLE CARDS
English
SD memory card
and multimedia
card can be used
on this DVD video
camera/recorder.
• When the erasure prevention switch on SD
memory card is locked, no recording, deletion or
editing will be p ossible on the card.
●Handling card
• Do not use cards other than
the designated ones.
• Be sure to use a bran d new
card w hen rec ording v ital
images.
• Do not touch the card
terminal or allow it to touch
metal.
• Do not paste anything other
than exclusive lab e l on label pasting port ion.
• Do not subject card to impact, bend or drop it.
• Do not disassemble card or modify it.
• Do not expose card to water.
• Do not use or store card in the following places:
− Where the temperature is high, such as in
vehicle at high temperatures, under burning
sun or near a heater.
− Where humidity is high, or in dusty place
Terminal
Erasure prevention
switch
Locked status
• It is recommended that you create a backup file
for valuable data on hard disk of PC.
• Do not do the following, or the data on car d may
be damaged or lost:
− Do not remove the card or turn DVD video
camera/recorder off during reading or writing
of data
− Do not use DVD video camera/recorder in a
place subject to static electricity or electrical
noise
Note:
• This DVD vi deo camer a/r eco rde r can play back ima ge
data recorded on other digital cameras conforming to the
DCF (Design rule for Camera File system) standard. The
range of image data playable on this DVD video camera/
recorder is that with pixels from 80 horizontal × 60 vertical
to 4000 horizontal × 3000 vertical.
• DCF is an integrated image file format of digital cameras:
Image files can be used on all digital devices conforming
to DCF.
• Image data edited on PC and certain types of image data
may not be visible on this DVD video camera/reco rder.
• The image data recorded on another device may not be
playable on this DVD video c amera/recorder.
26
Storage Capacity on Disc or Card
RECORDABLE TIME OF MOVIE (VIDEO)
The recordable time will vary depending o n the
recording quality: See page 85 for the setting of
recording quality.
Movie recordable time on one disc (on single side)
(when recording only movies)
Recording
quality
XTRA Approx. 18 min *1No recording
FINE Approx. 30 min
STD Approx. 60 min *3Approx. 60 min
*1:Variable bit recording (recording of more than 18
minutes may be possible because the transfer rate
varies automatically between approx. 3-10 Mbps)
*2:Transfer rate: Approx. 6 Mbps
*3:Transfer rate: Approx. 3 Mbps
DVD-RAM DVD-R
Disc used
possible
*2
Approx. 30 min
*2
*3
:
Note
• No movi e can be reco rd ed on SD mem or y card or
multimedia card.
• The movie quality mode can be changed for recordings
on DVD-RAM disc, but not on DV D-R disc.
• If you record in XTRA mode at high t emp era tu res fo r a
long time, the DVD video camera/recorder will get hot
and the maximum transfer rate will be limited to approx.
6 Mbps.
• If a disc recorded in XTRA mode is used at high
temperatures, norma l playback may be impossible: Tur n
the DVD video camera/ rec ord er o ff onc e, wait unt il t he
ambient temperatur e becomes lower , and t hen operate
it again.
English
27
RECORDABLE STILLS (PHOTOS) ON DISC
English
●Number of recordable stills on one
side of disc: Up to 999
If the disc still has free space after recor d ing 999
stills on it, movies can also be recorded on it.
RECORDABLE STILL (PHOTOS) ON
CARD
The number of recordable st ills will vary
depending on the recording quality: See page 86
for the setting of recording quality.
For DZ-MV350E
Capacity
8 MB
16 MB
32 MB
64 MB
128MB
256 MB
512 MB
Approx. 45 Approx. 95 Approx. 190
Approx. 100 Approx. 200 Approx. 400
Approx. 220 Approx. 440 Approx. 880
Approx. 440 Approx. 880 Approx. 1,760
Approx. 880 Approx. 1,760 Approx. 3,520
Approx. 1,760 Approx. 3,520 Approx. 7,040
Approx. 3,520 Approx. 7,040 Approx. 14,080
For DZ-MV380E
Capacity
8 MB
16 MB
32 MB
64 MB
128MB
256 MB
512 MB
(The numbers of recordable stills above are only for
reference)
Approx. 8 App rox. 14 Approx. 20
Approx. 22 Approx. 35 Approx. 50
Approx. 50 Approx. 80 Approx. 110
Approx. 100 Approx. 160 Approx. 220
Approx. 200 Approx. 320 Approx. 440
Approx. 400 Approx. 640 Approx. 880
Approx. 800 Approx. 1,280 Approx. 1,760
Recording quality
FINE NORM ECO
Recording quality
FINE NORM ECO
:
Note
• Cards used on other devices can be used on this DVD
video camera/recorder.
• No movie or music data recorded on card can be
checked, viewed or heard on this DVD video camera/
recorder. In addition, no such a data file can be displayed
on this DVD video camera/recorder.
• Use the remaining display function to check the
remaining free space on disc before use. See “Verifying
Remaining Free Space on Disc or Card (Capacity)” on
page 124.
• Some still data recorded on this DVD video camera/
recorder may not be playable on another device.
●Still recording quality
The pixel size of JP EG stills that can be recorded on
this DVD video cam e ra/recorder is as follows:
DZ-MV350E: 640 × 480 pixels
DZ-MV380E: 1,280 × 960 p ixels
Although still images are recorded on DVD-RAM
dis c on ly i n th e FIN E mo de, the qua lity mod e ca n be
chosen when recordin g st ills on card.
The following table shows the file size and qualit y
of one JPEG still recorded on card:
Quality
FINE Approx.
NORM Approx.
ECO Approx.
* See page 162 for the number of recordable stills.
Note:
No still can be recorded on DVD-R disc.
File size
DZ-MV350E DZ-MV380E
128 KB
64 KB
32 KB
Approx.
512 KB
Approx.
384 KB
Approx.
256 KB
Application
When image
quality is
prioritized
Standard
When number
of stills is
prioritized
(quality will be
slightly inferior)
28
Features of DVD Video Camera/Record er
VERSATILE FUNCTIONS AVAILABLE
This DVD video camera/recor der has numerous useful functions. However , the functions that can be used
will vary depending on whether DVD-RAM disc, DVD-R disc or card is used.
Use the functions, following the table below:
Camera Functions:
Function
Camera Functions Setup
Record Functions Setup
Date Setup
LCD Setup
Initial Setup
Program AE
White Bal.
EIS
Dig.Zoom
MIC.Filter
16:9
VIDEO Mode
Quality
Self Timer
OSD Output
Date Mode
Date Set
Brightness
Color Level
Beep
Power Save
Record LED
Language
Demo Mode
Reset
Disc/Card used
DVD-RAM DVD-R CARD
∴∴∴
∴∴∴
∴∴×
∴∴∴
∴∴×
∴∴∴
∴∴*1×
××∴
∴ × ∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴∴∴
∴: Available; ×: Unavailable
(*1 Except for XTRA mode)
Reference
page
78
79
81
82
83
84
85
86
87
88
50
49
89
89
90
90
91
91
144
92
English
29
Disc Navigation Functions:
English
Scene Delete
PlayList Switch
Program Switch
Go To Top
Disc Capacity
Others Category All
Function
Edit Thumbnail
Copy
Select Start → Current
Detail
Play
Create
Edit
Title
Delete
Play
Title
End
Protect Disc
Format Disc
Update Control Info.
Finalize Disc
Repeat Play On
Skip
Fade
Combine
Divide
Move
Current → End
All
VIDEO
Off
Disc used
DVD-RAM DVD-R
∴ ×
∴ ×
∴ ×
∴ ×
∴ ×
∴ ×
∴ ×
∴ ×
∴∴
∴∴
∴∴
∴∴
∴ ×
∴ ×
∴ ×
∴ ×
∴ ×
∴ ×
∴∴
∴∴
∴ ×
∴∴
∴∴
∴ ×
∴ ×
∴ ×
∴ ×
× ∴
∴ ×
∴ ×
∴ ×
∴∴
∴∴
∴: Available; ×: Unavailable
Reference
page
99
101
102
103
105
106
104, 121
107
110
110
110
111
116
117
115
118 - 121
122
122
112
113
113
123
123
124
124
125
126
127
128
128
128
128
128
30
Card Navigation Functions:
Function Reference page
Delete 99
Lock 108
Scene
Go To
Card
Slide Show
DPOF 109
Select Start → Current 110
Current → End 110
All 110
Detail 111
Top 123
End 123
Capacity 124
Format Card 125
All 129
DPOF 129
RECORDING ON DISC
Y ou can use both 8 cm DVD-RAM and DVD-R discs
on this DVD vide o camera/r ecord er for rec ording.
The recorded v ideo and audio will be stor ed on an
8 cm DVD-RAM disc or 8 cm DVD-R disc.
Using disc allows you to record without
overwriting previo us reco rding s, and also to store
your valuable recordings for as long as need be
while retaining clarity.
With disc you can immediately access recording
and playback, in contrast to videotape, which must
be fast-forwarded or rewound.
English
In addition, simply loading a DVD-RAM disc into
a PC equipped with DVD-RAM drive and DVD
vide o recording so ftware compatible with 8 cm
DVD-RAM allows you to easily view the r ecorded
disc.
You can fi nalize a recorded DVD-R disc on this
DVD video camera/recorder so that you can play it
back on a DVD player or DVD video recorder that
is compatible with 8 cm DVD-R disc (however, the
finalized DVD-R disc may not be usable on some
DVD players).
RECORDING MOVIE AND STILL
The DVD video camera/recorder can record
movies of events and sports, in the same way as
with conventional camcorders.
It can also record stills on a DVD-RAM disc or card,
as with a digital still camera. With CCD of 800,000
pixels (DZ-MV350E), 1,020,000 pixels (DZMV380E), high-quality movies and stills (on DVDRAM disc only) can be recorded. When recording
movies, subject images can be zoomed up to 240
times; when re cord ing stil ls, subj ect image s can be
zoomed up to 40 times. Movies and stills can be
recorded on the same disc, by simply switching the
recording mode (power switch). However, if you
use a DVD-R disc, a still image cannot be recorded.
(If the DVD video camera/recorder is connected to
PC, the DVD video camera/recorder can capture
still images, suc h as JPEG data.)
31
IMMEDIATE REVIEWING OF RECORDED IMAGE
English
You can check the recorded movie or still in the
viewfinder or on the LCD screen.
EDITING IN VARIOUS WAYS ON DVD VIDEO CAMERA/RECORDER ALONE
This DVD video camera/recorder is provided with
a useful editing/playback tool. Disc Navigation
allows you to easily attach a title or special video
effect to the recorded movie or still. With Disc
Navigation, you can arrange the playback order
and edit multiple images to play them back
continuously . You can create an entire movie on this
DVD video camera/recorder alone, without
inputting video to a PC for editing.
USING WITH VARIOUS DEVICES
Connect this DVD video camera/ recor der to yo ur
TV and you can enjoy the playbac k pi ct ure with
your family and friends o n the l ar ge TV scr een; or
connect it to a video printer (generally available) to
print the recorded image. You can also transfer
recorded movies and stills (for DVD-RAM disc or
card) to PC.
32
Setups
This section explains preparations for recording - setting up the DVD video camera/recorder and
battery.
Setting Up the DVD Video Camera/Recorder
HOLDING DVD VIDEO CAMERA/RECORDER
Insert your right hand from the bottom of DVD
video camera/recorder up t o the b ase of y our
thumb.
Put your hand in a
position where you can
easily operate the REC
button and the Zoom
lever.
Adjust the length of
hand strap so that the
DVD video camera/
record er is stable when
you press the REC button with your thumb.
Note:
Do not adjust the hand strap while holding the DVD video
camera/recorder: Doing this could cause the DVD video
camera/recorder to fall and be damaged.
ATTACHING LENS CAP
Pass the provided string through the hole in the len s cap and atta ch it to the hand strap of DVD video
camera/recorder.
Caution:
Do not lift the DVD video camera/recorder by
holding the viewfinder or LCD monitor: If the
viewfinder or LCD monitor comes off, the DVD video
camera/recorder will fall.
English
1Use the string to attach the cap to the DVD vi deo
camera/recorder.
Note:
• Always keep the lens cap on when not using the DVD
video camera/recorder, to protect the lens.
• When recording, attach the lens cap to the hand strap by
hooking the tab inside the cap onto strap for comfortable
shooting.
2Push the both sides of cap inward and attach it
over the lens.
Push and fit
33
ATTACHING SHOULDER STRAP
English
Be sure to pass through the 2 slots.
Pass the shoulder strap through
the shoulder strap attachments.
34
INSERTING BATTERY INTO REMOTE CONTROL
Insert the provided lithium battery into remote control.
1Slid e the cover to rem ove it.
2Insert the lithium battery with the positive
terminal facing up.
Battery stopper
3Slide the cover to close it.
Note:
The life of lithium battery is approximately one year. If the
battery is discharged, no operation is possible with remote
control: Replace the battery.
REMOVING BATTERY FROM REMOTE CONTROL
1While pushing the battery stopper, slide the
battery out.
While pushing
battery stopper
Battery stopper
English
Warning:
• KEEP THE BATTERY AWAY FROM CHILDREN AND
PETS.
• IF SWALLOWED CONSULT A PHYSICIAN
IMMEDIATELY FOR EMERGENCY TREATMENT.
• BATTERY MAY EXPLODE IF NOT HANDLED
PROPERLY . DO NOT RECHARGE, DISA SSEMBLE OR
DISPOSE OF IN FIRE.
:
Note
• Replace the battery with a Hitachi Maxell, Sony,
Panasonic, Sanyo, Toshiba CR2025, or Duracell
DL2025. Use of another battery may present a risk of fire
or explosion.
• Dispose of battery safely in accordance with local laws.
Do not dispose of in fire.
• Do not short circuit the battery.
• Do not hold the battery with the metallic tweezers.
• Keep the battery in a dark, cool, dry place.
35
●Using Remote Control
Point the remote control to the infrared receiver on
English
the DVD video camera/recorder. The remote
controllable distance is up to 5 m.
10˚
15˚
10˚
m
5
.
x
o
r
p
p
A
Infrared
receiver
15˚
Note:
• When using the remote control, make sure that the
infrared r eceiver on DVD video camera/rec order is not
exposed to direct sunlight or any intense light. If the
infrared receiver is subject to light stronger than the
infrared light from remote control, the DVD video camera/
recorder cannot be operated by remote control.
• If there is an obstacle between the remote control and
infrared receiver on DVD video camera/recorder, remote
control may not be possible.
• The DVD video camera/recorder uses the “VCR2”
remote control code of Hitachi VCRs. If you use a Hitachi
VCR, etc. with remote control code set to “VCR2”, a VCR
placed near the DVD video camera/recorder will also be
operated by the remote control: To prevent this, change
the remote control code of the VCR.
36
Setting Up the Battery
The DZ-BP14S battery provided with this DVD video camera/recorder has not been charged at purchase
time: Charge it before using the DVD video camera/recorder.
Note:
• Be sure to use the DZ-BP14S/DZ-BP14SW batteries for the DVD video camera/recorder: Using other batteries could
cause the DVD video camera/recorder to malfunction, or result in fire.
• Be sure to use the DZ-ACS1 AC adapter/charger to charge the battery: Using other chargers could cause electric shock
or fire.
• Charge the battery at temperatures of 10-30°C.
CHARGING BATTERY
Use the provided AC adapter/charger to charge the battery.
1Con nect the power cable to AC adapte r/
charger.
2Plug the power cable into AC outlet.
The CHARGE indicator on AC ad apter/charger
will light.
POWER and
CHARGE indicators
AC adapter/charger
3Attach the battery to AC adapter/charger.
Note:
When charging a battery, unplug the DC power cord from
the DC output jack on AC adapter/charger.
Battery
Power cable
English
●Battery charged status
Y ou can find out the charged s tatus of battery b y checking the CHARGE indicator on A C adapter/char ger:
Charge status CHARGE indicator
During charge Lit
Charge complete Goes out
Note:
See “Troubleshooting” on page 154 when the CHARGE
indicator blinks.
37
ATTACHING BATTERY TO DVD VIDEO CAMERA/RECORDER
1
2
English
1Fit the battery to the battery attachment
platform on this DVD v ideo camera/recorder
and slide it upward un t il a c lick is heard.
Terminal
must
face up.
Note:
• Make sure that the battery is in the correct orientation.
• Make sure that the battery is securely attached:
Incomplete attachment could cause the battery to fall,
resulting in damage.
REMOVING BATTERY
After using the DVD video camera/recorder, remove the battery from it.
1Slide the BATTER Y EJECT switch on the botto m
of DVD video camer a/recorde r: The battery can
be removed.
Note:
• For safety, be sure to turn the DVD video camera/
recorder off before attaching or removing the battery.
• Be careful not to drop the removed battery.
• If the battery remains attached, minute level current will
flow even if the DVD video camera/recorder is off, and the
battery will discharge.
38
●Recordable time with fully charged
battery (with no zoom operation,
etc.)
The reference for DVD video camer a/ recorder
recordable time with fully charged battery is
between 40 and 60 mi nutes:
For DZ-MV350E
Video
quality
mode
XTRA* When using
FINE When using
STD When using
viewfinder
When using
LCD monitor
viewfinder
When using
LCD monitor
viewfinder
When using
LCD monitor
For DZ-MV380E
Video
quality
mode
XTRA* When using
FINE When using
STD When using
viewfinder
When using
LCD monitor
viewfinder
When using
LCD monitor
viewfinder
When using
LCD monitor
DVD-RAM disc DVD-R disc
approx. 125 min
approx. 100 min
approx. 125 min approx. 125 min
approx. 100 min approx. 100 min
approx. 145 min approx. 145 min
approx. 115 min approx. 115 min
DVD-RAM disc DVD-R disc
approx. 115 min
approx. 95 min
approx. 115 min approx. 115 min
approx. 95 min approx. 95 min
approx. 135 min approx. 135 min
approx. 105 min approx. 105 min
−
−
−
−
Without any extraordinary operation, such
as zooming:
The continuou s ly rec ordab le time of DVD video
camera/recorder in the above table shows the time
available when the DVD video camer a/recorder i s
in the recording mode without using any other
function after recording is started. In act ual
recording, the battery will discharge 2-3 times
faster than this referenc e, since the REC button and
zoom are being operated, and playbac k is
performed. Assume that the reco rdable time with a
fully charged battery is between 40 and 60 minutes,
and prepare the type and number of batteries to
allow for the time you are planning to record on the
DVD video camera/recorder.
Note that the battery discharges faster in cold
places.
●The time taken for charging the
battery is 165 minutes at 25ºC
Note:
• See page 154 when charging is not possible.
• The charge time will vary depending on the battery
remaining level.
• During and after charging, the battery will be warm, but
this does not indicate a fault.
• If the following phenomena appear, the battery may be
dead: Replace it.
- Charging does not start within 10 seconds (the
CHARGE indicator does not light).
- The battery cannot be charged up to 75% if more than
9 hours has elapsed after charging started.
- The battery cannot be fully charged if more than 5 hours
has elapsed after it was charged to 75%.
• Charge the battery at ambient temperature 10ºC to 30ºC:
Charging at temperatures other than this range could
damage the battery.
English
* The XTRA mode can be set only when a DVD-RAM disc
is used. The time is only for reference: It will vary
depending on recording contents.
39

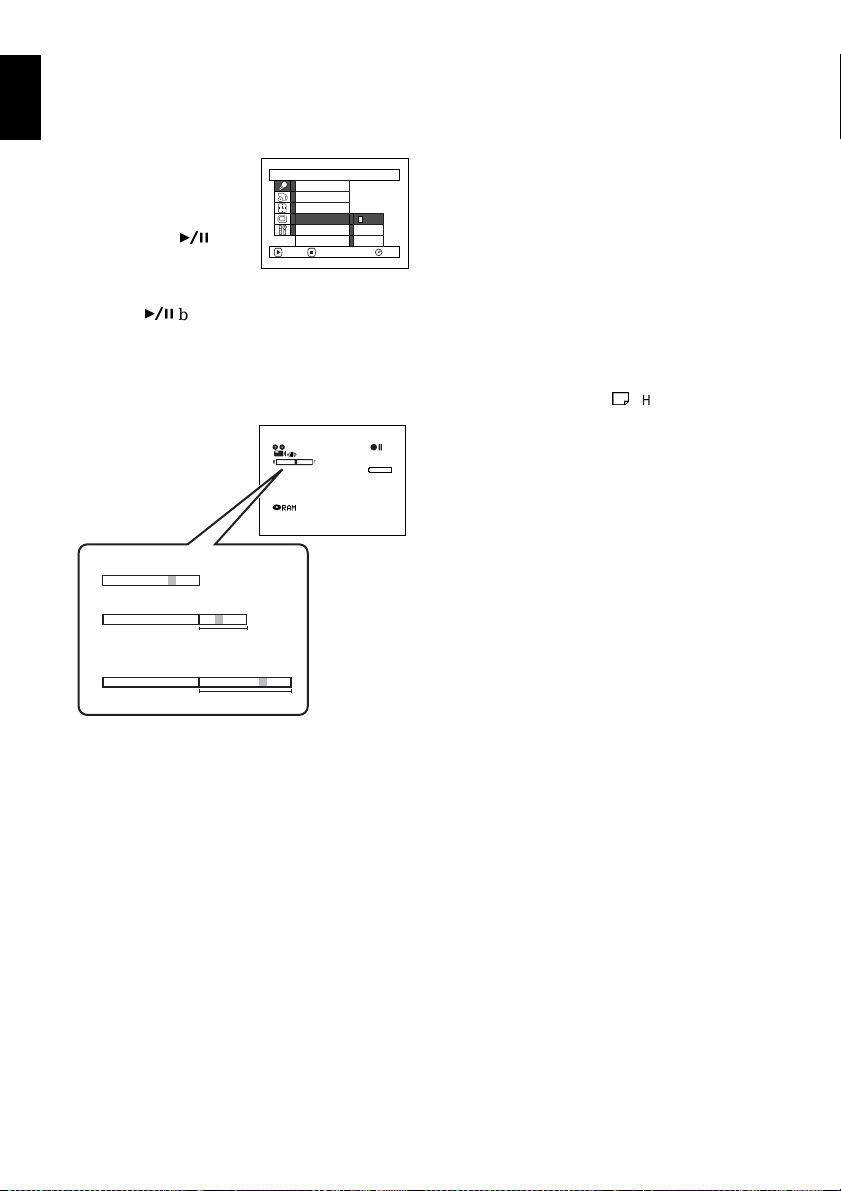

BATTERY REMAINING LEVEL INDICATOR
English
When the battery is used to power the DVD video camera/r ecorder, the battery r emaining level appears
in the viewfinder or on the LCD screen as follows:
Fully charged Nearly empty
(Blinks)
White portion shows remaining level
Note:
The remaining level indicator “” may be displayed for an extended period, and “” or “” may be displayed for
a shorter period.
EFFICIENT USE OF BATTERY
Charge battery immediately before using DVD
video camera/recorder:
The battery will slig htly discharge even if it is
detached from the DVD video camera/r ecorder . If
the battery is left attached to DVD video camera/
recorder, it will consume a slight amount of power.
Therefore, it is recommended that you charge the
battery shortly before using the DVD video
camera/recorder, usually on the day before you
plan to use it.
However , since the battery used for this DVD video
camera/recorder is free from the memory effect,
you do not need to completely discharge the
battery before charging it.
When not using the DVD video camera/recorder
for an extended period:
It is recommended that you fully charge the batter y
once a year, attach it to DVD video camera/
recorder and use it up; th en remove the battery and
store it in a cool place aga in .
Store in cool, dark place:
When you a r e not using t he DVD video camera/
recorder, remove the battery and store it in a c ool,
dark place. If you store it in a place where the
temperature is high, the battery life will be
shortened. Be especially sure not to store the
battery in an environment (in a clos ed vehicle) over
60°C: Neglecting this could damage the battery.
Battery life:
The battery life varies greatly depending on the
ambient environment and how often the DVD
video camera/recor der is used. If the usable time of
DVD video camera/recorder with a fully charged
battery is noticeabl y s ho r t, the battery is probabl y
dead: Purchase a new one.
Power save and discharge of battery:
It is recommended that you turn the DVD video
camera/recorder off in status other than recording,
since even during recor ding pause battery power is
consumed at the same level as during recording.
If, when you specify Power Save On, the recording
pause status continue s for approxi mately 5
minutes, the DVD video camera/recorder will
automatically turn off.
To set or release power save , se e “Turning DVD
Video Camera/Recorder Off Automatically
(Power Save)” on page 90.
40
USING DVD VIDEO CAMERA/RECORDER WITH AC ADAPTER/CHARGER
It is recommended that you use the AC adapter/char ger to power the DVD video camera/rec order from
household AC outlet when you perform settings on it, play back or edit images, or use it indoors.
Note:
Be sure to use the specified AC adapter/charger (DZ-ACS1) to power the DVD video camera/recorder. Using other AC
adapter/chargers could cause electric shock or result in fire.
Power cable
To AC outlet
AC adapter/charger
DC power cord
English
1Con nect the power cable to AC adapte r/
charger.
2Plug the power cable into AC outlet.
3Plug one end of DC power cord into the DC
output jack on AC adapter/charger.
4Attach the other end of DC power cord to the
battery attachment platform on DVD video
camera/recorder.
Note:
• The AC adapter/charger can be used around the world.
An AC plug adapter is required in some foreign countries.
If you need one, purchase it from your Hitachi distributor.
• If the CHARGE indicator does not light when the AC
adapter/charger is plugged into AC outlet, unplug it from
the AC outlet, wait a few moments, and then plug it into
the AC outlet again. If the CHARGE indicator still does
not light, the AC adapter/charger may be faulty. Unplug it
from the AC outlet and cons ult your dealer.
41
Inserting and Removing Disc
English
INSERTING DISC
1Press down the DISC EJECT button once and
release it.
A few moments after th e ACCESS/PC indicator
blinks, the cover of disc insertion block will open
slightly.
2Gently open the cover by hand until it stops.
3Insert the disc, in Round DVD Holder, i nto the
disc guide until it stops.
Note that the recording/playback surface of
disc must face the inside of DVD video camera/
recorder. The orientation for inserting the disc
into the disc guide is also predetermined : Load
the disc correctly, referring to the figure below.
DISC EJECT
button
Disc cover
PUSH CLOSE position
•
The disc exposed portion must face in the same direction
as the lens, as shown in figure.
• The recording/playback side must face the inside (DVD
video camera/recorder ).
Disc
guide
If the disc is not corr ectly inserted, the cover will not
close. Never try to forcibly close the cover: This
could cause damage. Reinsert the disc properly.
Correct
orientation
Incorrect orientation
Incorrect
orientation
4Push the se c tion marked “PUSH CLOSE” on
the cover of disc insertion block, to close the
cover.
5Turn the DVD video came ra/recorder on
VIDEO or PHOTO).
(
When “DISC ACCESS” disappears, the DVD
video camera/recorder is ready for recording.
●Identifying recording/playback
sides of disc:
Single sided disc:
The recording/playback side
is opposite to the printed label.
Double-sided disc:
The recording/playback side
of “SIDE A” is opposite to the
“SIDE A” marked side.
The recording/playback side
of “SIDE B” is the “SIDE A”
marked side.
“SIDE A” mark
The opposite side is
the “SIDE A”
recording/playback
side.
42
Note:
• Disc cannot be inserted or removed unless the battery or
AC adapter/charger is connected to DVD video camera/
recorder.
• See page 75 for how to set disc in Round DVD Holder.
• If there is some delay before recording starts, refer to
page 145.
• The disc insertion orient ation i s predet ermine d: Forc ibly
inserting a disc in wrong orientation could damage the
DVD video camera/recorder or Round DVD Holder of
disc.
• If the disc is not correctly inserted, the cover will not close.
Never try to forcibly close the cover: This could cause
damage. Reinsert the disc properly.
• If a single-sided disc is inserted into DVD video camera/
recorder w ith the pr inted label fa cing the i nside, an error
message will appear. Remove the disc and reinsert it with
its recording/playback side facing the inside. See
“Trouble Messages” on page 147.
●When using brand-new DVD-R disc
Recognition of the disc will
start.
The messages on the right
will appear in sequence by
pressing the
button
between messages.
When recording on this
DVD video camera/
recorder:
When final message
“Format the disc now? ”
appears, choose “YES ” an d
then press the
The disc will be
automatically formatted.
When formatting is
complete, “DVD-R disc,
Video mode cannot be
changed” will appear (See
page 150): Press the
button to erase the message.
Once formatted, a DVD-R
disc can no longer be
changed to a disc for PC, even if it has not been
record ed on t his DV D video came ra/recorder.
Note:
See page 85 for movie quality mode.
button.
m
For
Disc is not formatted.
If it formats, it becomes
possible to use for camera.
NEXT
Format Disc
Howeve r, wh en you r e c ord
f r om PC connect i on
terminal,
please do not format.
NEXT
For
m
ENTER
at Disc
CANCEL
CANCEL
at Disc
Format the disc now?
YES NO
English
When recording data from PC:
While the above messages are being displayed,
press the
disc now?” appears, choose “NO” and then press
the
However, if data from PC has not yet been
recorded, the disc can be made usable on this DVD
video camera/recorder. When inserting the disc
into this DVD video camera/recorder, the same
message will appear: If you wish to use it on this
DVD video camera/recorder, choose “YES”.
Note:
Do not initialize a disc on which you wish to record data
created using the application (MyDVD) of PC.
button, or when message “Format the
button.
43
REMOVING DISC
Hold disc
around thi s
portion.
English
1Set the power switch to
“POWER OFF” to turn the
DVD video came ra/
recorder off.
2Press down the DISC
EJECT butto n once and
release it.
In a moment, the cover of
disc insertion bloc k will
open slightly.
3Gently open the cover until
it stops.
When the cover is f ully
open, the disc wi ll slightly
come out from the disc
guide, and stop.
DISC EJECT
Note:
• It is recommended that you turn the DVD video camera/
recorder off when inserting or removing disc, in order to
prevent faulty operation.
• Even after the DVD video camera/recorder is turned on,
the disc can be removed unless it is in recording status.
Hold down the DISC EJECT button for approximately 2
seconds, and then release it to remove the disc (The
DISC EJECT indicator on the LCD screen will blink.). It is
recommended that you turn the DVD video camera/
recorder off before inserting or removing disc to prevent
misoperation.
• Do not detach the battery or AC adapter/charger until the
DVD video camera/recorder is completely turned off.
• Do not insert anything other than the 8 cm DVD-RAM or
DVD-R disc into the disc insertion block: Doing so could
cause malfunctions.
• Set the power switch to “POWER OFF” to turn the DVD
video camera/recorder off.
• When i nser ting or remo ving the disc, be car eful not to
touch the inside of DVD video camera/recorder
(especially, the lens of laser pickup).
• When inserting or removing the disc, connect a charged
battery or AC adapter/charger to the DVD video camera/
recorder: The disc cover will not open unless the DVD
video camera/recorder is powered.
4Remove the
disc.
Hold the top
of Round
DVD
Holder as
shown in the
illustration an d g ently pull it out.
Note:
Be careful not to touch the disc exposed portion when
removing the disc.
5Gently push the se c tion
indicated “PUSH CLOSE”
on the cover of disc insertion
block, to close the cover.
44
Inserting and Removing Card
Before inserting or removing card, set the power switch to “POWER OFF” to turn the DVD video camera/recorder
off.
1Open the cover of card
insertion block with power
turned off .
Removing Card
Push the center of card
edge: The card will come
out so that it can be held
by fingers.
2Inse rt card with its
terminal inw a rd u ntil it
locks.
3Close the cover of card
insertion block.
English
45
Basic Techniques
English
This section explains about recording of movies and still images, and also basic settings on DVD video
camera/recorder.
Basic Handling of DVD Video Camera/Recorder
TURNING DVD VIDEO CAMERA/RECORDER ON AND OFF
While holding down the red button at the center of
power switch, s e t the switch accordin g to each
record ing functio n:
Set to “ PHOTO”:
To record still on DVDRAM disc
Set to “
VIDEO”:
To record movie on DVDRAM or DVD-R disc
Set to “POWER OFF”:
The DVD video camera/
record er will turn off.
Set to “
PHOTO”:
To record still on SD
memory card or
multimedia card
Power ON status
During playback, set the power switch to “
VIDEO” or “
PHOTO” when using card.
to “
PHOTO” w hen usin g disc, or set i t
T urn the switch while holding down the r ed button
at the center of switch.
Note:
• Once you turn the DVD video camera/recorder on to let
it recognize the disc, you can immediately record or play
back by turning the DVD video camera/recorder on
again. However, if you remove the disc, replace it, or if the
date changes after power is turned on, it will take some
time for the DVD video camera/recorder to start because
it must recognize the disc again (See page 145).
• It will take some time for the DVD video camera/recorder
to display the Disc Navigation screen after power is
turned on.
• If you turn the DVD video camera/recorder on, the
ACCESS indicator will light or blin k to show that the DVD
video camera/recorder is recognizing the disc or card:
During this time, no operation, such as recording, can be
performed.
After several seconds, the ACCESS indicator will go out,
and operating the DVD video camera/recorder will be
possible.
• When the DVD video camera/recorder is turned on, the
self-diagnosis function will work and a message may
appear. In this case, refer to “Trouble Messages” on
page 147 and take corrective action.
• While the ACCESS/PC or CARD ACCESS indicator is lit
or blinking, do not violently open or close the LCD
monitor.
CARD ACCESS
indicator
ACCESS/PC
indicator
46
Power switch
VIEWING SUBJECT THROUGH VIEWFINDER
1Pull out the viewfinder.
Diopter control
2Turn the diopter control knob to adjust the focus
to suit your eyesight.
Note:
• If the LCD monitor is open approximately 90°, the
viewfinder will be off.
• Focusing will not be correct unless the viewfinder is
pulled out.
Pull out the viewfinder.
VIEWING IMAGE ON LCD MONITOR SCREEN
If you open the LCD monitor, you can monitor subject image on the LCD screen.
1Open the LCD monitor.
The LCD monitor has a po rtion where you can
hook your finger . Hook the finger there to open
the monitor.
●Range where the LCD monitor can
be moved
The LCD monitor can be opened up to
approximately 90º.
If the LCD monitor is open 90°, it can be tilted with
the screen down as much as 90°, and can also be
tilted with screen up an d tur ned up to 180° so the
screen faces in the same direction as the lens.
90º
(Bottom)
English
Hook your finger
If the LCD monitor is turned 180° so the scr een faces
in the same direction as the lens during recording,
subject image will also appear in the vi ewfinder as
an mirror image (left/right rever se d).
Tilt the LCD monitor to adjust its vertical angle so
that you can see the screen easily.
Note:
• Be sure to open the LCD monitor approximately 90º
before changing its vertical angle.
• Do not record for a prolonged time with the LCD monitor
turned approximately 180
video camera/recorder body: Doing this could cause the
DVD video camera/recorder and LCD monitor to become
hot.
º in close contact with the DVD
90˚
180˚
47
CLOSING LCD MONITOR
English
Before closing the LCD monitor, be sure to reset it at
right angles to the DVD video camera/recorder.
Replace the LCD monitor on the DVD video
camera/recorder with the LCD screen facing
inward until a click is heard.
Note:
• Be sure to return the LCD monitor at right angles to the
DVD video camera/recorder before closing it or replacing
it on the DVD video camera/recorder with its screen
facing outside. If the LCD monitor is tilted, it cannot be
closed to the DVD video camera/recorder.
• If the LCD monitor is not securely locked to the DVD video
camera/recorder, no image will appear in the viewfinder.
48
Setting Date and Time
Set the current date and time so that the date and time you make a recording can be recorded correctly.
The following procedure can also be used to correct the date and time you have already set.
Tilt up/down and to left/
right to select, and then
to designate.
Da t e Se t up
Da te Mode
Da t e Se t 30/ 9 / 2003
ENTER RETURN
Da t e Se t
3 0 / 9/ 2003 1 7 :00
Date set up?
YES NO
ENTER
17: 00
RAM
RAM
1Turn the DVD video camera/ recorde r on .
2Press the MENU button.
The menu screen will
appear.
3Use the joystick to choose
“Date Setup” and then
“Date Set”.
4Tilt the joystick to right.
The figure for the day will
be selected.
[The digit that is
highlighted first depends
on the date display format
(set up in Date Mode): The digit on the left end
of the date display will be first highlighted.]
Note:
After setting the figure for the day, tilt the joystick to right
to select the digit to be set. If you press the
after selecting the figure for the day, the screen for
verifying the set date will appear instead of screen for
setting month, year or time.
Camera Funct ions Setup
m
AE : Spo r t s
Progra
W
hi te Bal. : Auto
EIS :On
oom
: 40x
Dig. Z
IC.F i l t er :Off
M
16:9 :O
ENTER RETURN
Da t e Se t up
Da te Mode
Da t e Se t 1 / 1/ 2003
ENTER RETURN
Da t e Se t up
Da te Mode
Da t e Se t 1 / 1/ 2003
ENTER RETURN
ff
0:00
0:00
button
press
5Tilt the joystick to left or
right to select the digit
you want to set in
sequence.
Tilt the joystick up or
RAM
down to select the
number for current date/time, and then repea t
step 5 to set the current date and time.
Note:
To stop date/time setting midway, press the button.
6After setting the current
RAM
date and time, press the
button.
The screen for verifying
the set date will appear.
7If the displayed date and time are correct, use the
RAM
joystick to choose “YES”, and then press the
button.
The date and time wil l be set, and the DVD video
camera/recorder will enter the r ecording pause
status.
Choosing “NO” will restore the men u sc reen.
Note:
This DVD video camera/recorder incorporates a
rechargeable battery to store the date and time in memory.
If this built-in battery is exhausted, the date and time will be
reset. To prevent this, connect the AC adapter/charger to
DVD video camera/recorder every 3 months, and leave
them for at least 24 hours with the DVD video camera/
recorder turned off: The built-in battery will be charged.
English
49
CHANGING DISPLAY FORMAT OF DATE AND TIME
English
Y ou ca n se lect one of t hr ee date displa y formats : day/m onth /year, month/day/ye ar or y ear/mont h/
day. Associated with the selected date display, the time display format will also change as follows:
Display format Example of dis p l a y
D/M/Y
M/D/Y
Y/M/D
17:00
30/9/2003
5:00PM
9/30/2003
PM5:00
2003/9/30
1Press the MENU button.
The menu screen will appear.
2Use the joystick to choose
“Date Mode” on the
“Date Setup” menu
screen, and then press the
button.
The options will appear
on the right of “Date Mode”: The
attached to the currently selected option.
Da t e Se t up
Da te Mode
Da t e Se t
ENTER RETURN
D/M/ Y
M/D/ Y
Y/M/D
RAM
mark will be
3Use the joystick to select
the desired date display
format, and then pres s the
button.
The menu screen for
Da t e Se t up
Da te Mode
Da t e Se t
ENTER RETURN
M/D/ Y
RAM
setting date will be
restored, and the “Date Mode” has been
changed as you designated.
4Press the MENU button to switch off the menu
screen.
Note:
If the date display format has been changed, the display
format during playback as well as during recording will also
be changed (See page 63).
50
Recording Movie
Insert a recordable DVD-RAM or DVD-R disc into this DVD video camera/recorder.
English
ACCESS/PC
indicator
Pressing REC
once will start
recording;
pressing it
once again w ill
temporarily
stop recording.
Power switch
1Turn the DVD video camera/ recorde r on .
Set the power switch to “
DVD video camera/recorder on.
After the ACCESS/PC indicator goes out,
perform the subsequent operation:
VIDEO” to turn the
2Check the subject on the screen (viewfinder or
LCD).
If using the viewfinder, pull it out.
3Press the REC button.
The “
screen will change to the “
recording will start.
During recording, the recording indicator on the
front of DVD video camera/recorder will light.
Pressing REC again during recording will set the
DVD video camera/recorder to the recording
pause status.
” mark in the viewfinder or on the LCD
” mark, and
Note:
• See page 145 when recording movie is not possible.
• See page 145 if it takes some time before recording is
possible.
• See page 63 for on-screen information display.
• It is recommended that you use DVD-RAM disc from
which recorded contents can be deleted.
• Sound is recorded from the stereo microphone on the
front of DVD video camera/recorder: Take care that this
microphone is not blocked.
• You can pres s the REC button imm ediately after th e DVD
video camera/recorder enters the recording pause
status, but no further recording can be made while “DISC
ACCESS” is being displayed.
Recording will restart after the message disappears.
• Take care that power is not interrupted while the
ACCESS/PC indicator is blinking.
• The minimum recordable time of movie is approximately
3 seconds.
• See page 91 for setting of Record LED (recording
indicator) On/Off.
• For various functions available during recording, see
“Setting Up Camera Functions” on page 78.
• Hitachi cannot be responsible for video and audio that
cannot be re corded or edited because of any defect.
• The power switch can be changed over even during
recording, but the operation will not be changed.
• Each time the DVD video camera/recorder enters the
recording pause status, the counter display will be reset
to “0:00:00”.
• When using DVD-R disc, do not perform the following, or
data on the disc may not be read:
- Using another device, doing additional recording on
DVD-R disc recorded on this DVD video camera/
recorder
- Using this DVD video camera/recorder, doing
additional recording on DVD-R disc recorded on
another device
4When recording is finished, turn the DVD video
camera/recorder off.
51
●Power save and discharge of battery
If, when “Power Save: On” is specified, the DVD
English
video camera/recorde r is left in the recording
pause status for approximately 5 minutes, it will
automatically turn off.
To restart re cording, set t he power switch to
“POWER OFF”, and then set it to “
To set or release power save, see “Turning DVD
Video Camera/Recorder Off Automatically
(Power Save)” on page 90.
It is recommended that you specify “Power Save:
On”, since even during recording pause battery
power is consumed at the same level as during
recording. Especially when power save ha s be e n
released, turn the DVD video camera/r ecorder off
when not in use.
VIDEO”.
52
USING EXTERNAL MICROPHONE
Connect external microphone (generally available) to the external microphone jack of this DVD video
camera/recorder. Clearer sound can be recorded. Turn on the switch on microphone and start recording.
For details on microphone, see “Major Specifications” on page 162.
To external
microphone jack
A/V
MC
Note:
• If the AV/S output cable is plugged in, you cannot use external microphone: Unplug the AV/S output cable to use the
external microphone .
• This DVD video camera/recorder cannot use a plug-in power type microphone (power supplied from camcorder).
●Attaching Ferrite Core
Although no ferrite core is attached in the il lustrations of the cables in text, be sure to attach the provided
core to the external microphone cable using the following procedure:
English
1Open the cover of ferrite core.
2Attach the core to external micr ophone ca ble at
a position approximately 5 cm from its end.
5cm
3Close the cover of core, taking care that it does
not catch the external microphone ca bl e.
53
English
Recording Stills
Note:
Recording of still images is possible on DVD-RAM disc and
card.
ACCESS/PC
indicator
Power switch
CARD
ACCESS
indicator
1Turn the DVD video camera/ recorde r on .
When using DV D-RAM disc:
Set the power switch to “
When using card:
Set the power switch to “
After the ACCESS indicator goes out, perform
the subsequent operation:
Still recording mode
Number of recordable stills
PHOTO”.
PHOTO”.
REM
999
17:00
30/ 9/2003
(When using DVD-RAM disc)
2Check the subject on the screen (viewfinder or
LCD).
3Press the REC button.
The DVD video camera/rec order automatically
focuses on the subject at the center of screen
(when auto focus is selected ).
The screen will be bl ack, and t hen the r ec ord ed
still will be displayed. When the “
” mark
appears, you can proceed with the next
recording; while “DISC ACCESS” or “CARD
ACCESS” is bein g displayed, you ca n not
proceed with the next recording.
4Set the power switch to “POWER OFF” to turn
the DVD video camera/recorder off.
Note:
• See “Still recording quality” on page 28 for details of stills
on card.
• Do not operate the power switch or remove the card while
the ACCESS/PC or CARD ACCESS indicator is lit or
blinking: Doing so may damage the card or the data on
card.
• With DZ-MV380E, the range of screen in which recording
is possible will be different for movie and still.
Still recording mode
Number of recordable stills
54
REM
17:00
FINE
(When using card)
30/ 9/2003
999
●Setting Video Flash* (see
“Introduction to Optional
Accessories” on page 164)
When recording still s in a dark place, or the subject
is lit from rear, it is r ecommended that you use the
optional DZ-FLH3 Video Flash: Refe r to the
instruction manual of Video Flash for use.
Setting of
Video Flash
AUTO No display Automatically emits
ON Always emits light
OFF No light emission
* Unusable on DZ-MV350E.
On-screen
information
Manner of
emitting li ght
light in dark place or
in a place lit from
rear.
regardless of
brightness
Note:
• The DVD video camera/recorder automatically sets the
shutter speed between 1/800 and 1/30 second (between
1/800 and 1/10 second if Program AE has been set to
Low Light) depending on the subject brightness.
• During recording of stills, the electronic image stabilizer
will not function.
• See “Switching Quality of Still Image (Quality)” on
page 86 if you want to change the still quality mode.
• However, dark subjects may not be in clear focus even if
the Video Flash is used. It is recommended that you light
a subject when recording in a dark place.
English
55
English
Zooming
This DVD video camera/recorder allows you to record using optical 10-power zoom and digital zoom.
Move the zoom leve r t o “T ” control side, and the
subject image will gradually become telescopic:
Move the zoom lever to “W” control side, and the
image will wide n.
If Dig. Zoom 40× or 240× is specified, moving the
zoom lever to “T” control side will engage the
digital zoom midway (See page 82).
Recording in wide
area
Note:
• The setting of digital zoom 240× is effective only during
movie recording. If you set zoom to 240× when recording
still, the digital zoom will be up to 40×.
• When a subject is zoomed, it may be momentarily out of
focus.
• When digital zoom is engaged, the image quality will be
rougher.
• If the zoom ratio is frequently changed at short intervals,
the recorded image will be unclear.
Zoom Out
In case of still recording
In case of movie recording
1 × 10 × 40 × 240 ×
Zooming
Digital zoom range
Recording
enlarged image
FINE
30/ 9/2003
Zoom In
0:00:00
REM
3 0 MIN
17:00
56
MACRO RECORDING
Use the macro function when r ecor ding a small obj ect fr om c lose-up posit ion: You can shoot the subjec t
as close as approximately 2 cm from the lens surface, magnifying the image to fill the screen.
1Aim the DVD video camera/recorder at the
subject, and press the zoom lever to “W” control
side.
Note:
• Zoom can be used, but the subject may not be focused,
depending on the distance to the subject. In this case,
move the zoom to “W” control side to focus.
• The amount of light tends to be insufficient during macro
recording: If the subject image is too dark, use additional
lighting.
RECORDING SUBJECTS FOR STRONGER WIDE-ANGLE OR TELEPHOTO
EFFECT
Use tele-conversion lens or wide-conversion lens to record subjects for stronger telephoto or wide-angle
effect.
Use conversion lenses with the following filter diameters:
DZ-MV350E: 30.5 mm
DZ-MV380E: 37 mm
English
1Remove the lens hood from DVD video camer a/
recorder.
(Remove)
* With DZ-MV380E, you can use the optional conversion lenses:
• Tele-conversion lens (DZ-TL1): For stronger telephoto effect
• Wide-conversion lens (DZ-WL1): For stronger wide-angle effect
Note:
• Be careful not to lose the removed lens hood.
• With DZ-TL1 tele-conversion lens, the focusing range at
“T” (telephoto) control side is between approx. 5 m and
infinite.
• When a conversion lens is attached, note that if you zoom
in on a subject, vignetting will slightly occur on the “W”
(wide-angle) control side (the four corners of screen will
be dim).
2Remove the cap of conversion lens, and screw
the lens into the filter thread of DVD video
camera/recorder until it stops.
Conversion lensLens hood
(Attach)
57
English
Manually Focusing Subject
The DVD video camera/recorder measures the distance to a subject viewed at the center of screen and
automatically focuses on it. If it is difficult to automatically focus the subject, adjust the focus manually.
FOCUSING DURING RECORDING
This DVD video cam era/recorder automatically focuses a subject at the cente r of screen (auto-focus).
When the DVD video camera/recorder is turned on, auto-focus will always be set.
Focusing range
You can swit ch t he d isp lay mode of on-screen information:
• On T (tele) side: approximately 1 m from lens surface to infinity
• On W (wide) side : ap p roxim at e ly 2 cm from lens surface to infinity
1Press the FOCUS button during recording.
“MF” will appear on the screen.
Manual Focus icon
2Press the zoom lever down to “T” control side to
zoom in on subject.
3Use the
buttons to adjust the focus, while
viewing the image in the viewfinder or on the
LCD screen.
Adjust with and
buttons
Note:
• Pressing FOCUS will alternate between manual focus
and auto focus. With auto focus, no indication will appear
on the screen.
• Be sure to zoom in on your subject before manually
focusing on it. If you bring the subject into focus at the “W”
control side, focus will be faulty when you turn the zoom
lever to the “T” control side to zoom in on the subject.
• Manual focus is released when the DVD video camera/
recorder is turned off. When you turn the DVD video
camera/recorder on next time, auto focus will be
restored.
58
Manually focus the following objects, which m ay not be automatically focused:
Objects not in
the center of
screen
Objects
moving rapidly
Object behind
glass with
water droplets,
dirt on it
Objects with
little variation
in brightness,
such as white
wall
Objects lit by
neon sign,
spotlight, etc.
which glares or
emits strong
light
Night view
Objects that
are far and
near at the
same time
Dark objects
English
59
English
Adjusting Exposure Manually
This DVD video camera/recorder measures the subject brightness and automatically adjusts the
exposure. You can also adjust the exposure manually.
1Press the EXPOSURE button during recording.
The exposure indicator will appear on the
screen.
0:00:00
REM
Exposure indicator
FINE
2Use the
buttons to adjust the exposure,
while viewing the image in the viewfinder or on
the LCD screen.
3 0 MIN
17:00
30/ 9/2003
Note:
• Pressing EXPOSURE will alternate between manual
adjustmen t an d auto ex po sur e. Wi th au to ex po sure, no
indication will appear on the screen.
• The exposure setting will return to Auto when the DVD
video camera/recorder is turned off.
Adjust with
buttons
and
60
Compensating for Backlight
When subject is lighted from rear, this function will compensate for lighting so that the subject is not too dark.
1Press the BLC button during recording.
0:00:00
REM
Backlight correction icon
3 0 MIN
English
FINE
30/ 9/2003
The backlight correction icon will appear.
17:00
Note:
• Pressing the BLC button will alternate between backlight
setting between on and off.
• The backlight setting will automatically return to “off”
when the DVD video camera/recorder is turned off.
61
English
Using Full Auto Function
Pressing the FULL AUTO button will fully automate the camera functions.
1Press the FULL AUTO button .
The following settings will reset to defaults:
Function When setting full auto
Program AE Auto
White balance Auto
Exposure Auto
Backlight compensation Off
Focus Auto
EIS On
MIC.Filter Off
62
On-Screen Information
Various types of information will appear in the viewfinder or on the LCD screen during recording.
INFORMATION DISPLAY DURING RECORDING
*1
1234
6
7
8
9
10
FINE
11
The above screen is an example for explanation: It is
differ ent from the actual display.
10
DISC ACCESS
30/
REC
0:00:00
REM
3 0 MIN
17:00
9/2003
1. Recording mode
:Movie
:Still
2.
Program AE (only in movie recording mo de)
No display: Auto
:Sports
:Portrait
: Spotlight
:Sand & Snow
No display: Auto
No display: Backlight compensation OFF
No display: Autofocus
:Low Light
White balance
:Set
: Outdoor
:Indoor
Backlight compensation
: B ac k lig ht c o mpensation ON
Manual focus
: M anual focus
External flash
separately) is attached] (only in still recording
mode)
5
12
13
14
No display: Emits light automatically
3. Mic ropho ne filter (only in movie record ing
15
16
mode)
No display: Microphone filter OFF
4. Self-timer (only in still recording mode)
No display: Self-timer OFF
5. Recording status
No display
6. Electronic image stabilizer (EIS) (only in movie
recording mode)
No display: EIS OFF
7. Zoom
8. Expo s ure c orrection
9. Warning message
[when Video Flash (sold
: Always emits light
: N o lig ht e m is sion
: Microphone filter ON
: Self-timer ON (count is from 10
seconds)
:During recording
: During recording pause
*2
:EIS ON
(Digital Zoom: Off)
(Digital Zoom: 40×)
(Digital Zoom: 240×, only in movie
recording mode)
English
63
10.Disc/Card type
English
No display
:DVD-RAM
:DVD-R
: DVD-RAM (write-protected)
: DVD-R disc already finalized on this
DVD video camera/recorder
: DVD-R disc finalized on a device
other than this DVD video came r a /
recorder
: SD memory card or multimedia card
: Locked SD memory card
*3
11. Movie recording quality (only when using disc)
XTRA : Highest quality (only when using
FINE : High quality
STD : Standard
Still recording quality (only when using card)
FINE : High quality
NORM : Standard
ECO : Number of recordable stills is
*1 Not displayed on DZ-MV350E.
*2 When no disc or card is in the DVD video camera/recorder, or disc has not yet been initialized, a write-protected
disc or locked card, or a disc or card with no remaining space, has been inserted.
*3 When a disc or card that cannot be used in this DVD video camera/recorder is inserted
*4 No remaining time or number will be displayed with a protected disc or locked card, or finalized DVD-R disc.
*5 In XTRA mode, possible recording time may be longer than the displayed time.
*6 The displayed number of recordable stills is for reference: The decreasing number may not be correct, depending
on recording conditions (not displayed with a DVD-R disc).
DVD-RAM disc)
prioritized
12.Movie recording time (only in movie recording
mode)
13.Remaining spac e on disc/ c ar d
REM XX MIN*5: Remaining recordable minutes
*6
REM XX
during movie recording
:Number of remaining
recordable still images during
still recording
*4
14.Rema ining batt e r y level
(full charge)
(low remaining charge)
15.Brightness/Color density of LCD screen or
Volume
:
The volume can be adjusted during external
input and playback.
16.Current date/time
64
●Switching the information display mode
You can swit ch t he d isp lay mode of on-screen information:
Press the DISPLAY button.
The full and minimum display modes will alternate.
• Full display mode: All t y pe s of information will appe ar.
• Minimum display mode: Th e recording mode (s e e 1 on
page 63) and recording status (see 5 on page 63) will appear. If
the DVD video came ra/recorder has warning information, a
warning message will appear.
Note:
The DVD video camera/recorder does not record the date and time as a part of image. However, this information during
recording will be recorded with image as data which can be checked on Disc Navigation screen during playback (See
“Information Display During Playback” on page 70).
●Display when recording an image of yourself
When recording with t he LCD screen facin g the same directio n as the lens, the
operating status will appear, and in addition, the battery remaining level will
blink when the battery has almost no remaining charge.
The following ope rating status indicat or will light or blink to give warning
message to user . The message can be checked when returning th e LCD monitor
180° to the original status from the status in which the LCD screen was facing
the same direction as the lens.
English
No display :Disc or card that cannot be used has been loaded.
:The disc has almost no free space.
:Write-protected disc or locked card is loaded.
:You are attempting to record a still on DVD-R
disc.
:The disc or card is full, or you are attempting to
Operating status/
warning message
Battery remaining
level
record a copy-guarded image.
Note:
• If the LCD screen is set facing the same direction as the lens, the LCD screen will display a mirror image (left and right
reversed).
• If the LCD screen is set facing the same direction as the lens, you can also view subject image in the viewfinder.
• Although you can switch to the manual focus, exposure and on-screen display modes even during recording with LCD
screen facing the same direction as lens, they will not appear on the screen.
65
Playing Back
English
IMMEDIATELY CHECKING RECORDED SCENE
You can check your recording immediately on the spot.
Tilt up/down and to left/right
to select, and then press
to designate.
Note:
• If the LCD monitor is open during playback of movie,
playback sound will be heard from the speaker. Adjust the
sound volume using the volume control buttons (
• To temporarily stop playback, press the
Press the
button again to restart playback.
,
button.
• Even if you stop playback midway and immediately start
recording again, the new image will be recorded after the
last scene on disc or card (the previous images will not be
overwritten).
• Depending on the amount of data to be played back, it
may take some time for the playback image to appear.
• Do not operate the power switch or remove the card while
the ACCESS/PC or CARD ACCESS indicator is lit or
blinking: Doing so may damage the card or the data on
card.
).
1Press
button in the recording pause status.
The DVD video camera/r ecor der will enter the
playback mode, and the scene you have
recorded last will be played back.
When playback is finished, the DVD video
camera/recorder will enter the pause status at
the last image o n d isc.
If the pl ayback pause status continu es for as long
as 5 minutes, the DVD video camera/recorder
will automatically ret urn to the recording pause
status.
2Press the
button.
Playback will stop, and recor d ing pause status
will be restored.
Notes when playing back stills on card:
This DVD video camera/recorde r can pl ay back image
•
data recorded on SD memory card in other digital
cameras conforming to the DCF (Design rule for Camera
File system) standard. The range of image data normally
playable on this DVD video camera/recorder is that with
pixels from 80 horizontal x 60 vertical to 4000 horizontal
x 3000 vertical. If the pixel data is outside this range, blue
thumbnails will appear (thumbnails* in the figure),
meaning the image is unplayable.
1/ 6Al l scenes
PLAY
Fig. 1
*
• Even when the number of pixels is within the above
range, playback may not be possible, depending on the
recording status of the digital cameras used.
• When playing back a still, “Playback.” will appear: Stills
with a large number of pixels will take some time to
appear.
66
PLAYBACK FROM START OF DISC OR CARD
Use the Go To function (P. 69) or Disc Navigation
function (P . 93) to play back from the start of disc or
card.
SEARCH PLAYBACK OF MOVIE
During playback, tilt the j oystick to right or left and
hold it: Search playback will start.
Tilt and hold: Scenes will be visually scanned
Tilt and hold: Scenes will be visually scanned
Release the joystick when you find the desired
image: Normal playback will start from that point.
forward
backward
Note:
• When you skip or search scenes from playback or
playback pause, the screen will be dark briefly.
• See page 145 if search playback does not operate
normally.
FRAME ADVANCE/FRAME BACK/SLOW PLAYBACK OF MOVIE
During playback pause, tilt the joystick: Frame
advance, frame back or slow playback will start.
Tilt once : Picture will advance one frame.
Tilt once : Picture will go back one frame.
Tilt and hold : Forward slow playback
Tilt and hold : Reverse slow playback
After frame advance, frame back or slow playba ck,
the DVD video camera/recorder will enter the
playback pause status.
Note:
• In forward slow , a rap idly mov ing su bject image may be
distorted.
• The intervals for playi ng b ack fr ame s in fra me ad vanc e/
frame back/slow playback are as follows:
Frame advance and forward slow: Approx. 0.03 second
Frame back and reverse slow: Approx. 0.5 second
• No sound will be heard during search playback or slow
playback.
English
67
SKIP PLAYBACK OF MOVIE
English
During playback, tilt the joystick up or down to
locate the start of desi red sce ne.
Tilt once : To skip to the first image of the
Tilt once : To return to the first image of
Tilt and hold : To continuously locate the
Tilt and hold : To continuously locate the
scene following the one being
played back, and start
playback.
the scene being played back,
and start playback.
beginnings of scenes, starting
from the scene following the
scene being played back. When
the desired image appears,
release the joystick: Playback
will start from that point.
beginnings of scenes
backward, starting from the
scene preceding the scene
currently being played back.
When the desired image
appears, release the joystick:
Playback will start from that
point.
PLAYING BACK STILLS
Tilt the joystic k up or down during playback to
quickly play back stills in sequence.
Tilt once: To display stills one by one forward
Tilt once: To display stills one by one backward
Portion being played back
Tilt up twice Tilt up once Tilt down once Tilt down twice
Scene 1 Scene 2 Scene 3
Portion being played back
Tilt up once
Scene 1 Scene 2 Scene 3
Tilting up the joystick at a portion several seconds from
the start of scene being played back will return to the
start of the scene preceding that being played back.
Note:
• If you perform skip playback during playback pause, the
DVD video camera/recorder will enter the playback
pause status at the beginning of the located scene.
• Tilting down in the last scene on disc will set the DVD
video camera/recorder to the playback pause status at
the last image.
• See page 145 if skip playback does not operate normally.
Tilt down once
Tilt down twice
[When using disc]
Releasing the joystick will start continuous
playback.
[When using card]
When the joystick is released, the photo at that
point will be displayed, and then the DVD vi deo
camera/recorder will enter the playback pause
status.
Set the slide show function for continuous display
(P. 129).
68
JUMPING TO SPECIFIED POINT (GO TO)
Go T o
TOP END
ENTER
CANCEL
GO TO
0:00:00 0: 24:240:03:26
0:03:26
TOP ENDCURRENT
Go To
TOP END
ENTER
CANCEL
TOP
GO TO
ENDCURRENT
0:00:00
0:00:00 0: 24:240:03:26
1Press the MENU button
during play back.
2Choose the option (point
you want to go to), and
then press the
button.
Go To
Top
End
Spec i f y
ENTER RETURN
RAM
●Specifying the point to view
1Choose “Specify” in step 2 above, and then pre ss
button.
the
The screen for specifying the point to go to will
appear.
Position of currently
played back image
Cursor
T otal recording time of
all selected scenes
Cursor position
2Use the joystick to select the desired time of
chosen point.
:To select the start.
:To select the end.
:·Press once: To move the cursor in 10-
·Hold down: To move the cursor in 1-
second units (1-still uni t s
for card)
minute units (10 -still units
for card)
Top : To go to the start, and enter playback
pause.
End :To go to the end of last scene, and enter
playback pause.
Specify :To go to a specified point and enter
playback pause. See the following for
details.
3Press the
button to enter the selection.
The DVD video camera/r eco r der wil l go t o the
specified point and enter the playback pause
status.
T o cancel the “Go T o” procedure midway , pr ess the
button before going to the specified point.
Note:
• If multiple scenes are selected using the Disc Navigation
function or SELECT button, choosing “Top” will jump to
the beginning of selected scenes (P. 123).
• When multiple scenes are selected, the total time of
selected scenes will appear in the “total recording time”
display.
• When card is loaded, the number of stills will appear.
• The cursor may not move at same-pitch intervals.
English
(When the start of scene is selected)
Cursor at current image position.
Cursor at (GO TO) position.
69
English
RAM
00606 0:00:16
003 100—0003
On-Screen Information Display
INFORMATION DISPLAY DURING PLAYBACK
Various types of information on recording will be superimposed on playb ack image you are viewing.
No display Playback information
●Switching the information display
mode
Press the DISPLAY button: You can switch the
display mode of on-screen information.
When using disc:
Recording mode
Program or Play List
When using card:
Scene No. File name L ock
Recording mo de
*1
Scene No.
Program No. or Play List No.
*2
*1
Repeat play
Playback
operation
Counter
*4
Disc type
DPOF
Slide show
Playback operation
*5
*6
*3
*5
*5
*5
display
*1
(VIDEO) or (PHOTO);
(PHOTO) with card.
Only
*2
Program or
*3
Number of program or play list being played
Recording date/time
Play List
back (not displayed when all programs are being
played back)
*4
Refer to “Disc/Card type” on page 64.
*5
:Will appear when each function is specified
“On”
*6
:Standard playback
:Playback pause
:Forward search playback
:Reverse search playback
:Forward skip playback
:Reverse skip playback
:Forward frame advance
:Reverse frame back
Refer to “Playing Back” beginning on page 66 for
how to operate.
” mark will appear on the first image on
The “
disc.
” mark will appear on the last image on
The “
disc.
• Recording date/time display: Shows the date/
time when recording was star ted . Even when
playback starts, the date/time display wil l not
advance.
• No display: No information will app e ar.
However , when the mode of playback operatio n
*6
is switched, the symbol will appear for approx. 3
seconds.
70
Note:
See “Using Disc Navigation” on page 93 and lat er for
explanation on program and play list.
Playback on Other Devices
S-VIDEO VIDEOAUDIO
LR
VIDEOAUDIO
LR
VIDEOAUDIO
This section explains about playback on another AV device, such as TV.
CONNECTING TO A TV
Use the provided AV/S output cable to connect the DVD video camera/recorder to a TV as follows:
To AV output jack
AV/S output cable
(provided)
* If your TV has an S-VIDEO input jack, you can connect the S-VIDEO plug to it.
Note:
• Using S-VIDEO will deliver clearer playback status.
• Before connecting, make sure that the volume on TV is
turned down: Forgetting this may cause howling from the
TV speakers.
Stereo Type with
S-VIDEO Jack
Stereo Type
To S-VIDEO input jack*
White
Yellow
T o video/
audio input
jacks
Red
• Insert the AV/S output cable plugs into jacks straight:
Obliquely inserting them could damage the jacks.
Monaural Type
English
YellowWhite
Red
Red
White
Yellow
White
71
VIEWING ON TV SCREEN
English
1Turn the TV on and set the input selector to
“VCR” whichever applicable Video input.
Refer to the TV instruction manual for how to
switch the TV input.
2Turn the DVD video camera/ recorde r on .
The image that the DVD video camera/record er
is seeing will appear on the TV screen.
You can also monitor the image on the LCD
screen or viewfi nder of the D VD video camer a/
recorder.
3Perfo rm p layb ack, recording or editing.
Y ou can perform playback, editing or editing on
Disc Navigation while checking on TV screen.
Note:
• Adjust the volume of sound on TV.
• The infrared remote control is useful when operating the
DVD video camera/recorder while viewing an image on
TV screen. However, if you use a Hitachi VCR, the
remote control may inadvertently operate the VCR if it is
near the DVD video camera/recorder. T o prevent this, set
the remote control code of the VCR to a position other
than “VCR2”.
• Information that the DVD video camera/recorder is
recording will appear on the TV screen: You can also
display only part of information or switch off the display.
Refer to “Setting On-Screen Display Output On or Off
(OSD Output)” on page 88, and press the DISPLAY
button to switch the display status.
• When copy-guarded disc is played back, no image will
appear on TV screen.
• If you use TV with wide mode (aspect ratio 16:9) and set
the TV to the wide mode, the entire Disc Navigation
display may not be displayed on the TV screen. If this
happens, release the wide mode setting on TV (see the
TV instruction manual for releasing the wide mode).
72
Playback on DVD Player
Y ou can play back finalized DVD-R discs on DVD players or other devices that conform to 8 cm DVD-R
disc. However, DVD-R discs may not be usable on all those devices.
English
1Final ize a reco rde d D V D-R disc.
You n eed to fina lize a disc t o pla y it ba ck on DVD
player: See page 127.
No further data can be recorded on finalized
disc.
Note:
Use this DVD video camera/recorder to finalize the
DVD-R disc recorded on the DVD video camera/
recorder.
2Remove the disc from Round DVD Holder.
See “Removing and Replacing from/in Round
DVD Holder” on page 74.
3Insert the disc into the DVD player and play it
back.
See the instruction manual for DVD player .
Note:
DVD-R discs recorded on this DVD video camera/recorder
can be played back on other DVD players, but playback on
all DVD players is not guaranteed.
Playback may not be possible on some DVD players, or it
may depend on the recorded status of DVD-R discs: In
such cases, play back the DVD-R disc on this DVD video
camera/recorder.
Playback on DVD Video Recor der/Player
You can use a DVD video recorder or DVD player that conforms to DVD-RAM to play back DVD-RAM discs
recorded on this DVD video camera/recorder
1Remove the disc from Round DVD Holder.
2Insert the disc into the DVD video recorder/
player and play it back.
See the instruction manual for DVD video
recorder/player.
Note:
• Do not insert a DVD-R disc that has not been finalized into
a DVD video recorder: The recorded image data may be
damaged.
• When playing back disc on another device, the Disc
Navigation display will be different from the one on this
DVD video camera/recorder.
73
English
Removing and Replacing from/in Round DVD
Holder
Y ou can remove DVD-RAM or DVD-R disc used on this DVD video camera/recorder from Round DVD
Holder and use the uncovered disc on DVD player , DVD-RAM recor der, drive for PC, etc., which conforms
to 8 cm DVD-RAM or 8 cm DVD-R. Removing disc from Round DVD Holder may vary with the disc
maker: See the disc instruction sheet. The following explains the disc in Round DVD Holder made by
Hitachi Maxell.
It is recommended that you do not remove the disc from Round DVD Holder until camera recording is
finished, in order to avoid getting dirt on disc.
Note:
Using discs removed from holders on various devices may not always be possible.
HOW TO REMOVE DISC
1Hold the Round DVD
Holder with SIDE A
facing up. While pushing
the two release levers in
the direction of arrows (1)
marked on holder , slowly
open SIDE A of the holder
in the direction of arrows
(2), taking care not to dro p
the disc.
Release
levers
1
SIDE A mark
2
2
Do not open
more than 90°.
90°
1
recording/playback
surface, hold the disc edge
and center hole to remove
it.
2Without touching the
74
REPLACING DISC IN ROUND DVD HOLDER
4
1Open SIDE A of the Round DVD Holder, and
replace the disc in the holder with the SIDE A
mark or label surface facing up, taking car e not
to touch th e disc surf ace.
3
OPEN marks
SIDE A mark side
or label surface
SIDE A
mark
3
2Close SIDE A of the Round DVD Holder, and
push it to lock the release levers at positions (3).
WHEN THE HINGE OF ROUND DVD HOLDER COMES OFF
1Push the hinged portion of the holder piece
marked SIDE A with thumb and middle finger ,
and warp it in the direction of arrows (4).
SIDE A mark side
Hinged portions
Approx. 90°
2Fit the hinged portion of the other holder piece
into the warped hinge portion.
Note:
• Handle the disc carefully so that no scratch, dirt,
fingerprint or dust adheres to the recording/playback
surface.
• When not using the Round DVD Holder, store it in case:
Do not leave a bare holder as is.
• Be careful of drop or impact: If you drop the Round DVD
Holder, the disc may pop out.
• Do not subject the Round DVD Holder to force.
English
DISC CLEANING
Use a soft, dry cloth to lightly wipe off any dust, dirt, etc. adhering to disc, as s hown in t he figure. Never
use solvent. Do not use thinner, water, anti-static spray, etc. to clean disc.
Use soft cloth to clean
from inner to outer
circumference in axial
direction.
75
Advanced Techniques
English
This section explains about various settings to further extend the usefulness of this DVD video camera/
recorder.
Understanding Flow of Menu
Press the MENU button during reco rding pause: The “Camera Functions Setup” menu screen will a ppear.
Tilt the j oystick up, do wn, to l eft o r right to se lect a men u ite m, and then press the
the option.
The screens used here t o explain are disp layed when DVD-RAM disc is used. Some ite ms will not appear
when a DVD-R disc or card is used, or when no disc or card is inserted.
<Interpreting screen for setting>
Display of selected
setup item
Selection of setup items
: Camera
Functions Setup
: Record Functions
Setup
:Date Setup
: LCD Setup
: Initial Setup
Functions settable
Camera Funct ions Setup
Program AE
W
hi te Bal.
EIS
Dig. Zoo
MIC.Fi l ter
16:9
ENTER RETURN
Guide display
m
Auto
Spo r ts
Portrait
Spo t l i g h t
Sand&Snow
Low Li ght
RAM
Options settable
Display of disc or card
being used (P. 63)
button to choose
76
●Flow of Menu
Camer a Func t ions Setup
On
Au t o
RAM
Program AE :
W
hi te Bal. :
Dig. Zoom :
EIS :
ENTER RETURN
40x
MIC.Fi l ter :
Of f
Au t o
16:9 :O
ff
Record Funct ions Setup
RAM
V IDEO Mod e : F I NE
Sel f T imer : Of f
OSD Ou t pu t : On
ENTER RETURN
Camer a Func t ions Setup
On
Au t o
RAM
Program AE :
W
hi te Bal. :
Dig. Zoom :
EIS :
ENTER RETURN
40x
MIC.Fi l ter :
Of f
Au t o
16:9 :O
ff
Record Funct ions Setup
RAM
V IDEO Mod e F I NE
Sel f T imer
OSD Ou t pu t
ENTER RETURN
Refer to page indicated for details of each functio n.
Camera Functions Setup
Program AE (P. 78)
White balance (P. 79)
EIS (P. 81)
Digital zoom (P. 82)
Microphone filter* (P. 83)
16:9 (P. 84)
Date Setup
Dat e Setup
Date Mode : D/M/Y
Da t e Se t
ENTER RETURN
Display format (P. 50)
Date setting (P. 49)
RAM
* Not displayed when using
card.
LCD Setup
LCD Setup
Brightness (P. 89)
Color density (P. 89)
Recording Functions Setup
Movie quality (P. 85)
[The quality m ode will
appear when using card
Brightness
Col or L evel
ENTER RETURN
RAM
(P. 86)]
Self-timer (P. 87)
On-screen inform at ion
display output (P. 88)
Initial Setup
Initial Setup
Beep : O n
w
er Save : Of f
Po
Record LED : On
Language : Engl is h
Demo Mode : Auto
Reset
ENTER RETURN
Beep (P. 90)
Power save (P. 90)
Recording LED (P. 91)
Language selection (P. 91)
Demo mode (P. 144)
RAM
Reset (P. 92)
You can use the joystick on DVD video camera/recorder to select various setting options in menu and
designate them.
Press the MENU button.
English
or
Camera Funct i ons Setup
Program AE
W
hi te Bal.
EIS
Di g . Zoom
MIC.Fi l ter
16:9
ENTER RETURN
Auto
Spo r t s
Portrait
Spo t l i gh t
Sand&Snow
Low L ight
RAM
or
Press the button directly to choose an option from menu.
To return to the screen one before, press the
Pressing the MENU button again will cause the menu screen to
button.
disappear.
Note:
• Pressing the MENU button during recording will not work.
• The menu screen will disappear when it is left for approx. one minute without any operation.
• With DZ-MV380E, if the MENU button is pressed with a still image displayed, the size of image will change. Pressing
the MENU button again will restore the original image size.
77
English
Setting Up Camera Functions
SELECTING SHOOTING MODE TO MATCH THE SUBJECT
(SWITCHING PROGRAM AE MODE)
This DVD video camera/recorder automatically sets the shutter speed and aperture according to the
subject brightness for optimum recording: You can also specify one of six modes depending on the subject
conditions, recording environment or purpose of filming.
1Press the MENU button, use the joystick to
choose “Program AE” on the “Camera
Functions Setup” screen, and then press the
button.
The options will appear on the right of “Program
AE”.
2Use the joystick to
choose the des ired
option, and then press
button: The
the
selected option will be
set.
Selected AE mode
Camera Funct i ons Setup
Program AE
W
hi te Bal.
EIS
m
Dig. Zoo
MIC.Fi l ter
16:9
ENTER RETURN
FINE
30/ 9/2003
Auto
Spo r t s
Por t r a i t
Spo t l i gh t
Sand&Snow
Low L ight
RAM
0:00:00
REM
3 0 MIN
17:00
3Press the MENU button to end the setting.
The menu screen will disappear.
Note:
• You can check the selected AE mode by the on-screen
information display. However , nothing will appear in the
Auto mode.
• The shooting mode set as above will be stored in memory
even if the DVD video camera/recorder is turned off.
Tilt up/down and to left/right
to select, and then press
to designate.
Auto : The camera/recorder automatically
judges the subject and surrounding environment
for optimum recording.
Sports : Reduces blurring when recording
rapidly moving subjects such as in golf or tennis.
If the Sports mode is used under a fluorescent light,
the image may flicker: In this case, use the Auto
mode for rec ording.
Portrait : Makes a subject, such as a person or a
creature, stand out from a blurred background.
Spotlight : Prevents ov er exposure of subject
portrait face, etc. when strong light strikes the
subject, as in a wedding or on stage.
Sand & Snow : Prevents underexposure of
subject portrait face, etc. in a place where reflect ion
of light is intense, such as at the seaside in
midsummer or on a ski slop e .
Lo w Light : Allows u ser to record in a dark place
even with decreased lighting: However, an afterimage will app e ar with a moving subje ct.
Note that the Low Light mode cannot be used
when the recording quality mode is STD.
If there is difficulty in automatica lly focusing
subject image, adjust t h e focus manually.
78
ADJUSTING COLOR (WHITE BALANCE)
This DVD video camera/recorder automatically
adjusts the tint to ma tc h the conditions of subject .
However, it may not allow user to deli ver na tural
tint, depending on the weather or status of light
source. In this case, change the white balance
setting according to the situation.
Note:
• The white balance mode can be confirmed using the on-
screen information.
• The white balance setting will be stored in memory even
when the DVD video camera/recorder is turned off.
• Do not block the infrared sensor with hand, etc.
English
Mode Setting content
Auto White balance always
Set You can manuall y adjust
automatically adjusted
white balance to match
the light source or
situation
Outdoor To record in fine weather
Indoor To record under
incandescent light,
halogen light or bulbcolor type fluorescent
light
1Press the MENU button,
choose “White Bal.” on
the “Camera Functions
Setup” menu screen, and
then press the
button.
On-screen
display
None
Camera Funct i ons Setup
Program AE
W
hi te Bal.
EIS
m
Di g . Zoo
MIC.Fi l ter
16:9
ENTER RETURN
2Choose the desired
option, and then press the
button.
FINE
White balance mode
0:00:00
REM
30/ 9/2003
3Press the MENU button to end the setting.
Aut o
Set
Out door
Indoor
RAM
3 0 MIN
17:00
Infrared sensor block
• If a tele or wide-conversion lens is used, the auto white
balance may not operate depending on the recording
conditions. If this happens, set to the mode to match the
recording conditions, or manually set the white balance.
• Be sure to remove the lens cap before turning the DVD
video camera/recorder on: If the DVD video camera/
recorder is turned on with the lens capped, the white
balance will not work normally.
79
●Setting white balance manually
English
1Point the DVD video
camera/r ecorder at a
white object so that it
fills the screen. Use
an object that is not
transparent.
(White shirt or thick paper)
2Press the MENU
button, choose “White
Bal.”, “Set”, and then
press the
button.
Camera Funct i ons Setup
ENTER RETURN
Program AE
W
hi te Bal.
EIS
m
Di g .Zoo
MIC.Fi l ter
16:9
Aut o
Set
Out door
Indoor
RAM
3Press the
“
“ indicator will
button: The
change from blinking to a
steady light: The steady
light indicates that the
white balance setting is
Set EXIT
RAM
complete.
4Press the
the setti ng.
Note:
button to end
0:00:00
REM
3 0 MIN
FINE
17:00
30/ 9/2003
• The white balance set using the “Set” option will be stored
in memory until it is reset.
• Do not use a colored object when setting the white
balance: The appropriate tint cannot be set.
80
USING THE ELECTRONIC IMAGE STABILIZER (EIS)
This DVD video camera/recor der is equipped with an electronic image stabi lizer function: When you use
zoom to record a magnified subject image, it will correct fuzziness in the recorded image.
1Press the MENU button,
choose “EIS” on the
“Camera Functions
Setup” menu screen, and
then press the
button.
Camera Funct ions Setup
m
AE
Progra
W
hi te Bal.
EIS
oom
Dig .Z
MIC.Fi l ter
16:9
ENTER RETURN
On
Of f
●Checking EIS On or Off
You can check EIS On or Off by the on-screen
information display .
RAM
EIS
0:00:00
REM
3 0 MIN
English
2Choose the “On” or “Off”, and then press the
button.
3Press the MENU button to end the setting.
FINE
17:00
30/ 9/2003
After recording with EIS set to “Off”, it is
recommended that you retur n the setti ng to “ On”
and then turn the DVD video camer a/recorder o ff,
unless you norm ally record with “Off” settin g .
This function is e ffec ti ve on ly during movie
recording: It will not work during still recording.
Note:
• The EIS setting will be stored in memory even when the
DVD video camera/recorder is turned off.
• Although you can switch EIS between on and off during
still recording, the setting will be effective only during
movie recording.
• It is recommended that you specify “EIS Off” when using
the DVD video camera/recorder on a desk or tripod.
• When “EIS On” is specified, there will be a slight
difference between the actual movement and the
movement on screen.
• Gross camera shake may not be entirely corrected even
if “EIS On” is specified.
• EIS may not operate correctly when a tele or wide-
conversion lens is used.
81
MAGNIFYING SUBJECT IMAGE (DIG. ZOOM)
English
When the zoo m le ver is moved to “T” co ntrol si de w ith Di g. Zoom 40× or 2 40× sp ec ifie d, d igi tal zo om will
automatically kick in when optical 10× zoom range is exceeded. You can set the digital zoom to 40× or 240×
for movie recordin g, or 40× for still recordi ng.
Dig. Zoom “240×”, “40×” or “Off” setting will be
1Press the MENU button,
choose “Dig. Zoom” on
the “Camera Functions
Setup” menu screen, and
then press the
button.
Camera Funct ions Setup
Progra
m
AE
W
hi te Bal.
EIS
oom
Dig .Z
MIC.Fi l ter
16:9
ENTER RETURN
240x
40x
Of f
2Choose the desired magnification, and then
press the
button.
3Press the MENU button to end the setting.
Moving the zoom lever will display the digital
zoom bar.
0:00:00
REM
3 0 MIN
stored in memory even if the D VD vi deo ca mer a /
record er is turned off.
Note:
• You can check whether Dig. Zoom is “240×”, “40×” or
RAM
“Off” by pressing the DISPLAY button and reviewing the
on-screen information.
• You can also use the DIGITAL ZOOM button on remote
control to switch the digital zoom setting: Pressing the
button during movie recording will switch the setting
between “Off”, “40×” and “240×”: Pressing the button
during still recording will switch between “Off” and “40×”.
• When using card, zooming only up to 40× is possible,
even when “240×” or “40×” has been chosen.
• If the power switch is set to “
disc loaded, zooming only up to 40x is possible, even
when “240×” has been chosen.
PHOTO” with DVD-RAM
When Dig. Zoom is "Off"
W
When Dig. Zoom is "On"(40x)
When Dig. Zoom is "On"(240x)
(only in movie recording)
W
T
Digital zoom range
Digital zoom range
FINE
TW
T
17:00
30/ 9/2003
82
REDUCING WIND NOISE DURING RECORDING (MIC.FILTER)
When recording sound from the microphone built into this DVD video camera/recorder, you can reduce
wind noise in reco rding.
If “MIC.Filter: ON” is specified, the low-frequency components in the sound picked up by microphone
will be cut off during recording: Thi s makes it easier to hear the target voice or sound during playback.
English
1Press the MENU button,
choose “MIC.Filte r” on
Camera Funct i ons Setup
the “Camera Functions
Setup” menu screen, and
then press the
button.
ENTER RETURN
2Choose “On”, and then press the
3Press the MENU button
to end the setting.
FINE
Microphone filter icon
Program AE
W
hi te Bal.
EIS
Dig. Zoo
m
MIC.Fi l ter
16:9
On
RAM
button.
0:00:00
REM
3 0 MIN
17:00
30/ 9/2003
Note:
• You can also use the on-screen display to confirm that the
MIC.Filter has been set.
• The MIC.Filter setting will be stored in memory even
when the DVD video camera/recorder is turned off.
• The MIC.Filter function will work only during movie
recording.
• The microphone filter function works only with the built-
in microphone: It will not function when using an external
microphone (P. 53).
83
SWITCHING TO 16:9 MODE
English
If you intend to play back recorded images on a wide-scr een TV, it is recommended that you switch the
screen size to 16:9 mode.
1Press the MENU button,
choose “16:9” on the
“Camera Functions
Setup” screen, and then
press the
button.
2Choose “On”, and then
press the
button.
3Press the MENU button
to end the setting.
Black bands will appear
across the top and bo ttom
of screen.
Camera Funct i ons Setup
Program AE
W
hi te Bal.
EIS
Di g .Zoo
m
MIC.Fi l ter
16:9
ENTER RETURN
Camera Funct i ons Setup
Program AE
W
hi te Bal.
EIS
Di g .Zoo
m
MIC.Fi l ter
16:9
ENTER RETURN
Note:
The black bands that appear across the top and bottom of
screen will not be recorded. If you record in the 16:9 mode
Of f
On
On
and play back on a TV other than wide-screen TV, the
portions masked by the black bands will also be displayed.
Use the black bands as a guide for recording when playing
RAM
back on a wide-screen TV.
RAM
84
Setting Up Record Functions
SWITCHING MOVIE QUALITY (VIDEO MODE)
Choose the movie quality from “XTRA” (only with DVD-RAM di sc ), “FINE” and “STD”.
It is recommended that you record critical subjects in the “XTRA” or “FINE” when you are using a DVDRAM disc, or in the “FINE” with a DVD-R disc.
1Press the MENU button,
choose “VIDEO Mode”
on the “Record Functions
Setup” menu screen, and
then press the
button.
Record Funct ions Setup
V IDEO Mode
Se l f Ti mer
OSD Ou t p u t
ENTER RETURN
XTRA
FINE
STD
2Choose the desired quality mode, and then press
button.
the
3Press the MENU button to end the setting.
0:00:00
REM
Movie quality
FINE
17:00
30/ 9/2003
Note:
• The movie quality setting will be stored in memory even
when the DVD video camera/recorder is turned off.
• The “VIDEO Mode” setting will not change even if the
DVD-RAM disc is replaced with a DVD-R disc, or vice
RAM
versa. However, if “XTRA” has been set with DVD-RAM
disc, “FINE” will be set when the disc is changed.
• When usi ng DVD-R disc, you can not swi tch the movie
quality while recording on the disc: The DVD video
camera/recorder will be automatically set to the movie
quality first used with the disc for recording.
• The movie quality setting is effective only during movie
recording: Switching the movie quality will not work
during still recording.
3 0 MIN
English
85
Block-like noise may appear in recorded image, or the outline of subject image is distored under the
recordi ng conditions list ed below: Pan the DVD v ideo camera/r ecorder as slowly as possible. (Bl ock noise
English
is likely to appear in the “STD”):
• If there is a complicated pattern in background (as in following figure on lef t)
• If the DVD video camera/recorder is moved excessively or qui ckly
• If subject is moving rapidly even when the DVD video camera/recorder is not moving
(Image when block-like noise occurs) (Image without block-like noise)
SWITCHING QUALITY OF STILL IMAGE (QUALITY)
You can swit ch the still recording quality only when usin g card.
It is recommended that you use “FINE” when recording vital images.
1Press the MENU button,
choose “Quality ” on the
“Record Functions
Setup” menu screen, and
then press the
button.
Record Funct ions Setup
Quality
Se l f Ti mer
OSD Ou t p u t
ENTER RETURN
FINE
NORM
ECO
3Press the MENU button
to end the s etting.
2Choose the option you want, and then press the
button.
Note:
The still quality setting will be stored in memory even when
the DVD video camera/recorder is turned off.
REM
999
NORM
Still recording quality
17:00
30/ 9/2003
86
SELF-TIMER
Y ou can record stills of yourself alone or with your family, friends, etc., using the self-timer function, as
with ordinary cameras. A still will be recorded approximately 10 seconds after the REC button is pressed.
1Press the MENU button,
choose “Self Timer” on
the “Recor d Function s
Setup” menu screen, and
then press the
button.
2Select “On”, and then press the
Record Funct ions Setup
V IDEO Mode
Se l f Ti mer
OSD Ou t p u t
ENTER RETURN
button.
The self-timer will be set.
3Press the MENU button to end the setting.
10
Self-timer recording
REM
30/ 9/2003
On
Of f
17:00
4Press the REC button.
The recordin g indi cator at the front of DVD
video camera/recorder will blink.
RAM
999
The self-timer indicator will start to count down,
and recording will commence approximately 10
seconds later.
Note:
• You can also check that self-timer has been set by
reviewing the on-screen information.
• To release the self-timer mode, choose “Off” on the menu
screen or turn DVD video camera/recorder off.
• To suspend self-timer, press the REC button again before
recording starts, or press the
button.
• When the REC button is pressed, the
screen will be pink. It will also change in the same way
when recording with the LCD screen facing the same
direction as the lens.
mark on LCD
English
87
SETTING ON-SCREEN DISPLAY OUTPUT ON OR OFF (OSD OUTPUT)
3 0 MIN
0:00:00
REM
FINE
17:00
30/ 9/2003
English
If you connect this DVD video camera/r ecorder to a TV to view ima ges on TV screen, you can switch o ff
the on-screen information (displayed in the viewfinder or on the LCD screen) from the TV screen.
1Press the MENU button,
choose “OS D Output” on
the “Recor d Function s
Setup” menu screen, and
then press the
button.
Record Funct ions Setup
V IDEO Mode
Se l f Ti mer
OSD Ou t p u t
ENTER RETURN
2Choose “On” or “Off”, and press the
“On” setting
TV screen TV screen
3Press the MENU button to end the setting.
On
Of f
button.
LCD screen or viewfinder
FINE
Note:
• The “OSD Output” setting will be stored in memory even
RAM
when the DVD video camera/recorder is turned off.
• Even if “Off” is chosen, the on-screen information will
appear during playback. See page 70 for playback onscreen information display.
• Even after the on-screen information is removed from the
TV screen, it will still appear in the viewfinder or on the
LCD screen.
0:00:00
REM
3 0 MIN
17:00
30/ 9/2003
“Off” setting
88
LCD Setup
This function allows you to adjust the brightness and color density of LCD screen during recording and
playback.
SETTING BRIGHTNESS OF LCD SCREEN (BRIGHTNESS)
2Use the joystick for adjustment.
: The screen becomes dimmer
: The screen becomes brighter
English
3Press the MENU button
Tilt up/down and to left/
right to select, and
then press
designate.
1Press the MENU button,
choose “Brightness” on
LCD Setup
to
the “LCD Setup” menu
screen, and then press the
button.
Bri ghtness
Co l o r L e v e l
ENTER RETURN
RAM
The brightness adjustment bar will appear on
the screen.
SETTING COLOR DENSITY OF LCD SCREEN (COLOR LEVEL)
1Choose “Color Level” on
the “LCD Setup” menu
screen, and then press the
button.
The color density
adjustment bar will
appear on the screen.
LCD Setup
Bri ghtness
Co l o r Le v e l
ENTER RETURN
RAM
2Use the joystick for adjustment.
: For lighter color
: For denser color
to end the s etting.
Note:
The brightness setting will be stored in memory even when
the DVD video camera/recorder is turned off.
3Press the MENU button.
Note:
The color level setting will be stored in memory even when
the DVD video camera/recorder is turned off.
LCD Setup
Bri ghtness
Co l o r L e v e l
Brightness
adjustment bar
LCD Setup
Bri ghtness
Co l o r Le v e l
Color density
adjustment bar
ENTERADJ UST
RAM
ENTERADJ UST
RAM
89
English
Initial Settings
SWITCHING OPERATING SOUND ON OR OFF (BEEP)
This DVD video camera/recorder will emit a sound when the power switch is changed over, the REC
button is pressed to rec ord a movie, or other operations are engaged. If you do not need operating sound,
you can switch it off.
2Select “On” or “Off”, and then press the
Setting Content
On Beep is heard
Off No beep is heard
1Press the MENU button,
choose “Beep” on the
“Initial Setup” me nu
screen, and then press the
button.
Ini t ial Setup
Beep
Power Save
Record LED
Language
Demo Mode
Reset
ENTER RETURN
On
Of f
RAM
TURNING DVD VIDEO CAMERA/RECORDER OFF AUTOMATICALLY
(POWER SAVE)
This DVD video camera/recorder i s equipped with power save functi on. Specify “Powe r Save: On”: If
the DVD video camera/recorder is lef t in the recording pause status without being operated for 5 minutes,
it will automatically turn off to prevent the battery from discharging needlessly.
Setting Content
On To engage power save
Off To cancel power save
1Press the MENU button,
choose “Power Save” on
the “Initial Setup” menu
screen, and then press the
button.
Ini t ial Setup
Beep
Power Save
Record LED
Language
Demo Mode
Reset
ENTER RETURN
On
Of f
RAM
button.
3Press the MENU button to end the setting.
Note:
The “Beep” setting will be stored in memory even when the
DVD video camera/recorder is turned off.
Note:
• To turn the DVD video camera/recorder on again from
automatic off activated by the power save function, set
the power switch to “POWER OFF”, and then set it to “
VIDEO”, “
• The Power Save setting will not appear in the on-screen
information display.
• The Power Save setting will be stored in memory even
when the DVD video camera/recorder is turned off.
PHOTO” or “ PHOTO”
2Select “On” or “Off”, and
then press the
button.
3Press the MENU button to end the setting.
90
TURNING RECORD LED ON OR OFF (RECORD LED)
You can switch off th e recording in dicator on the front of DVD vid e o camera/recorder even duri ng
recording.
Setting Content
On
Off
The recording indicat or will light r ed to show tha t the DVD v ideo camera/record er is recording.
The recording indicator will not light even during recording.
English
2Select “On” or “Off”, and then press the
button.
Recording indicator
1Press the MENU button,
choose “Record LED” on
the “Initial Setup” me n u
screen, and then press the
button.
Ini t ial Setup
Beep
Power Save
Record LED
Language
Demo Mode
Reset
ENTER RETURN
On
Of f
CHANGING DISPLAY LANGUAGE (LANGUAGE)
You can change the language used to display t he menu and inform at ion.
The following shows that English is changed to French.
1Press the MENU button,
choose “Language” on
the “Initial Setup” me n u
screen, and then press the
button.
“English” has been set.
2Sele ct “Français”, and
then press the
button.
In itial Setup
Beep
Engl i sh
Power Save
Fr ança i s
Record LED
Language
Español
Demo Mode
Deu t sch
Reset
ENTER RETURN
Configurati on Initiale
Beep
Power Save
LED Enrg.
Langue
Fr ança i s
Mode Démo
Régl Défaut
ENTRER RETOUR
Italiano
3Press the MENU button to end the setting.
Note:
• The Record LED setting will not appear in the on-screen
information display.
• The Record LED setting will be stored in memory even
when the DVD video camera/recorder is turned off.
• Specify “Record LED: Off” when recording a subject
behind a glass or water tank that reflects light: The
reflected light of the recording indicator will not be
recorded.
• When using the self-timer function, the recording
RAM
indicator will blink when the REC button is pressed
regardless of whether Record LED is On or Off.
3Press the MENU button to end the setting.
Note:
The language setting will be stored in memory even when
the DVD video camera/recorder is turned off.
RAM
RAM
91
RESETTING MENU SETTINGS TO DEFAULTS (RESET)
English
Y ou can r estor e menu se ttings to de faults (initia l settings at the facto ry (P. 161)). (Note, however, that the
date/time, brightness and color density of LCD monitor will not be reset.)
1Press the MENU button,
choose “Reset” on the
“Initial Setup” me nu
screen, and then press the
button.
The screen for verifying
reset will appear.
2If you are sure that you
wish to reset, use the
joystick to choose “YES”,
and then press the
button.
The setting items have
now been reset to defaults.
Ini t ial Setup
Beep
Power Save
Record LED
Language
Demo Mode
Reset
ENTER RETURN
Reset
Reset?
YES NO
ENTER
3Press the MENU button to end the setting.
Note:
T o cancel resetting midway, choose “NO” on the screen for
verification in step 2 or press the
RAM
RAM
button.
92
Disc Navigation
Using Disc Navigation
STARTING DISC NAVIGATION
Disc Navigation is a tool for editing scenes recorded on this DVD video camera/recorder.
Here is an explanation on “sce n e ” an d “p rogram ”, so that you will be able to make most use of Di sc
Navigation function.
The screens in this instruction manual are ba sically those that will appear when DVD-RAM disc is used:
Some items will not appear when DVD-R disc or card is used, but the operation is the same.
Note:
Do not proceed with a following step while the disc is
being recognized or the ACCESS/PC indicator is
blinking.
1Press the DISC NAVIGATION button.
The Disc Navigation screen (sh own on page 94)
will appear.
●Thumbnail:
This refers to a reduced image that helps to distinguish recorded scenes quickly. Immediately recording
is finished, the first image of the rec orded scene wil l be used as a thumbnail of the scene: The thumbnail
can be changed later on this DVD video camera/recorder.
English
●Scene:
Movie (video): One scene ref ers to ima ges reco rded fr om one pr ess of the R EC button until recor ding is
Still (photo): One scene refers to a photo recorded by pressing the REC button.
temporarily stopped by pressing RE C agai n .
93
The following screen will appear when DVD-RAM dis c is used: Some display components will not appear
when DVD-R disc or card is used.
English
Thumbnail
*1
001/ 014All Programs
Cursor
Still image icon
Operation guide
*1 The displayed thumbnail will be the first image that you recorded.
*2 Scene number refers to display number on thumbnail display screen.
*3 No still icon will appear for card.
*4 The operation guide will vary depending on the operation status of DVD video camera/recorder.
*5 Appears when 13 scenes or more have been recorded.
*6 “ R” appears for DVD-R disc. “ ” will appear for card.
:
Note
• The background color of screen allows you to identify
whether disc or card is in DVD video camera/recorder.
- Purple: When disc is inserted
- Green: When card is inserted
• Pressing the DISPLAY button will display the recording
date/time of the scene on which the cursor is placed in the
space for operating guide. Pressing DISPLAY again will
display th e operating guide.
• If no disc or card is inserted, the Disc navigation screen
cannot be displayed even by pressing the DISC
NAVIGATION button.
*3
*4
PLAY
RAM
• If the following disc or card is inserted, the Disc
Navigation screen will appear or some message will be
displayed:
- Write-protected disc
- Locked card
- Finalized DVD-R disc
• Do not leave the disc navigation screen displayed on TV
to which the DVD video camera/recorder is connected:
Doing so could damage the TV screen, possibly by
burning.
Selected scene number*2/
Number of all scenes
Current page position
Bar graph
Disc type icon
*6
• Each time Disc Navigation is started with a DVD-R disc
inserted, message “Creating Thumbnail ...” will appear.
After the message appears, the Disc Navigation screen
will appear.
*5
94
TERMINATING DISC NAVIGATION
001/014All Programs
PLAY
RAM
1Press the DISC NAVIGATION button.
Disc Navigation will be termin ated and the
DVD video camera/recorder will enter the
recording pause status.
You can also press the
button to end Disc
Navigation.
PLAYING BACK FROM DISC NAVIGATION SCREEN
1Press the DISC NAVIGATION button.
2Use the joystick to select the desired scene.
The selected scene will be framed: This is called
a “cursor”.
Up or Down
Left or Right
●When playback ends:
The DVD video camera/
recorder will enter the
playback pause status at the
last image of last scene.
Pressing the
or DISC
NAVIGATION button will
restore the Disc Navigation
screen.
When the playback pause status continues for as
long as 5 minutes, the D isc Navi gation sc r een will
automatically be restored.
●Playing back stills
A still will be displayed for approx. 3 seconds.
When playing back stills on card, playback will
stop after each still playback.
PLAY
Playback pause
PLAY
3Press the
Playback will start from the selected scene.
Note:
Tilting the joystick to left or right will move the cursor to
the preceding or following scene.
Tilting it up or down will move to preceding or follo wing
page.
007/014All Programs
RAM
Note:
• Press the
Pressing
again will start from that point.
• If you press the
scene on disc finishes, playback will start again from the
beginning of disc.
• Pressing the
Navigation screen.
• With playback on Disc Navigation, you can select desired
scenes for playback and skip unnecessary scenes.
• When playing back a still with a large number of pixels on
card, “Playback.” will appear, and it will take some time for
the still to appear.
001/014All Programs
RAM
FINE
0:00:00
REM
3 0 MIN
17:00
30/ 9/2003
button.
button to temporarily stop playback.
button after playback of the last
button will always restore the Disc
English
95
SELECTING MULTIPLE SCENES
English
1Press the DISC NAVIGATION button.
2Use the joystick to select the desired scene.
3Press the SELECT button once:
The selected scene will be framed in red and
yellow.
SELECTING CONSECUTIVE SCENES TOGETHER
Repeat steps 2 and 3 to randomly select multiple
scenes.
T o cancel a selected scene, select the scene to be
cancelled, and then press the SELECT button.
T o cancel all selected scenes, pr ess the
Note:
Although scenes can be randomly selected, playback
will always start from the lowest scene number.
button.
1Press the DISC NAVIGATION button.
2Use the joystick to select
the desired scene.
PLAY
Yellow frame
3Hold down the SELECT
button for at least one
second:
The selected scene will be
doubly framed in yellow
and blue.
PLAY
Double frames in
yellow and blue
4Use the joystick to select
the last scene in the range
you want, and then press
the
button:
The thumbnails of scenes
in the specified range will
be framed in red, and
then selected.
PLAY
Red
frame
When scenes up to this
point are selected
Note:
• You can know the status o f scenes from the colors of
005 / 014All Programs
RAM
005 / 014All Programs
RAM
005 / 014All Programs
RAM
cursor and bargraph:
Cursor Bar graph Status of scenes
Yellow Blue
Blue Blue
Red Red
• Pressing the
back only the selected scenes from the beginning of
each.
• You can also select scenes in reverse from the last scene
in the range.
• To release multiple selection, press the SELECT or
button after step 4.
• Up to 999 scenes can be selected for both disc and card.
Current cursor position
Range of scenes being
selected
Scenes already selected
button after selecting scenes will play
96
Disc Navigation Menu
FUNCTIONS AVAILABLE WITH DISC NAVIGATION
Disc Navigation allows you to do the following:
Available function Disc or card used Contents
Deletion of scenes
Editing of scenes
Scene information
display
Setting of title
Creation of play list
Disc or Card initialization
Copy from disc to card
Disc finalization
Repeat play
Slide show
Remaining display
(Capacity)
Disc protection
Scene lock
DPOF setting
You can delete unnecessary scenes. 99
Y ou can attach f ade and skip to a s cene,
combine scenes, or divide one scene.
You can display informati on on one
scene or multiple scenes, such as image
quality, recording time, etc.
You can set desired titles to play lists and
programs.
You can create an origina l mo vi e b y
changing the combination of scenes.
You can initialize a DVD-RAM disc or
card so that it can be used on this DVD
video camera/recorder.
You can copy photos recorded on DVDRAM disc to card.
You can use this DVD video cam e ra/
recorder to finalize any DVD-R disc
recorded on it so that the dis c can be
viewed on DVD player, etc.
Y ou can repeated ly play back prog rams
and scenes.
You can play back stills continuously. 129
The remaining recordable movi e time or
number of recordable stills is displayed.
You can protect the DVD-RAM di sc to
prevent deletion or editing by mistake.
Y ou can lock any sce ne so that it will not
be deleted by mistake: Essential scenes
are thereby protected, and recording
another still is possible.
Y ou can set the number of prin ts for each
scene.
English
Reference
page
101 - 106
111
113, 1 22
115
125
107
127
128
124
124
108
109
97
UNDERSTANDING FLOW OF DISC NAVIGATION MENU
English
Press the MENU button on the Disc Navigation scr een: The menu scr eens for Disc Navi gation and menu
screens for disc and card will appear.
See pages 76-77 and 94 for how to interp ret t he sc reen .
Refer to pages indicated for details of settings.
●When using DVD-RAM disc
Scene
Play list Top (P.123)
Program
Delete (P.99)
Edit (P.101)
Copy (P.107)
Select (P.110)
Detail (P.111)
Switch (P.116)
Play (P.117)
Create (P.115)
Edit (P.1 18 - 121)
Title (P.122)
Delete (P.122)
Switch (P.112)
Play (P.113)
Title (P.113)
Thumbnail (P.101)
Skip (P.102)
Fade (P.103)
Combine (P.105)
Divide (P.106)
Move (P.104)
Start → Current (P.110)
Current → End (P.110)
All (P.110)
Go To
Disc
Others
ETC
End (P.123)
Capacity (P.124)
Protect Disc (P.124)
Format Disc (P.125)
Update Control Info. ( P.126)
Category (P.128)
Repeat Play (P.128)
●When using DVD-R disc
Scene
Select (P.110)
Detail (P.111)
Start → Current (P.110)
Current → End (P.110)
All (P.110)
Program
Go To
Switch (P.112)
Play (P.113)
Top (P.123)
End (P.123)
●When using card
Scene
Go To
Card
Delete (P.99)
Lock (P.108)
DPOF (P.109)
Select (P.110)
Detail (P.111)
Top (P.123)
End (P.123)
Capacity (P.124)
Format Card (P.125)
98
Disc
Others
ETC
Start → Current (P.110)
Current → End (P.110)
All (P.110)
Slide Show
Capacity (P.124)
Finalize Disc (P.127)
Repeat Play (P.128)
All (P.129)
DPOF (P.129)
Scene
DELETING SCENES (DELETE)
1Press the DISC NAVIGATION button.
2Select the scene to be
deleted.
All Programs
3Press the MENU button.
PLAY DESELECT ALL
Scene to be deleted
4Choose “Delete” on the
“Scene” menu screen,
and then press the
button.
5The “Delete Scene”
screen will appear: If you
are sure you want to delete the selected scene,
press the
button.
If you want to change the scene to be deleted,
you can change it on this screen.
6The screen for verifying
deletion will appear:
Choose “YES”, and then
press the
Choose “NO” to cancel
deletion.
After Yes or No setting, the “Delete Scene”
screen will be restored.
Repeat steps 5 and 6 to del e te ot h e r scenes.
button.
Scene
Delete
Ed i t
Copy
Sel ect
De t a i l
ETC
ENTER RETURN
Delete Scene
3 0 / 9/ 2003
Scene No.005
Delete scene?
YES NO
ENTER
17 : 00:00
005/014
RAM
RAM
7Press the
Note:
• If you point the cursor at the scene to be deleted on “All
Programs” screen, and then press the DELETE button on
remote control, the screen in step 5 will appear.
• If you delete all data on disc or card, initializing the disc
or card will be recommended (See page 125).
• If even one play list has been created, message “Same
scenes on PlayList will be deleted. Delete scenes?” will
appear before deleting scene(s). This message will
appear even if the scene(s) to be deleted is not used in
the corresponding play list. In this case, choose “YES”
and then press the
• If the time of deleted scenes (stills) is quite short, the
remaining free space of disc may not increase in the disc
or card remaining indicator.
• The locked scenes on card cannot be deleted (See page
108).
button to quit.
Delete Scene 005/013
button.
ENTER E X IT
RAM
English
99
●Editing using submenu
Ed i t
RAM
ENTER RETURN
Exi t
De l e t e
Press the MENU button befor e pressin g the button in step 5 (See page 99): The submenu will appear .
English
Se l ec t
Start– Current
Cu r r ent – End
All
ENTER RETURN
RAM
Go To
Top
End
ENTER RETURN
RAM
Edit Exit.....................To restore the Disc Navigation screen
Delete ................To delete selected scenes
Select Start→Current..To select scenes from the start to the one that the cursor is on at the
moment
Current→End...To select scenes from the scene the cursor is on to the end
All ............ ..........To selec t all s cenes
Go To Top .....................To move the cursor to the first scene
End.....................To move the cursor to the last scene
Pressing the
Note:
Although the submenu screen will appear for each setting, some menu items may not appear, depending on the setting.
button will restore the screen in step 5.
