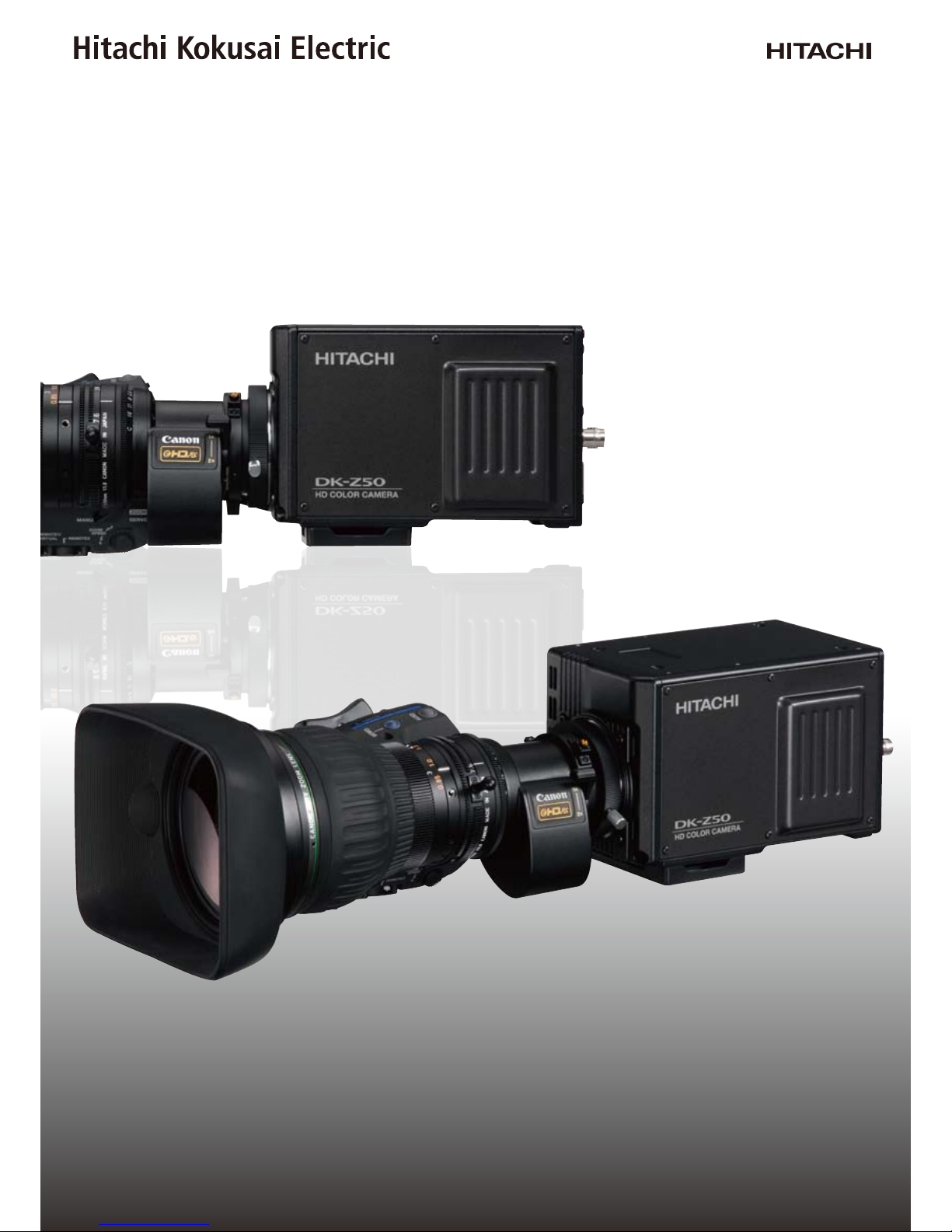

Economical, Multi-format, HDTV Box Camera
DK-Z50
The New DK-Z50 is a high-performance special application
HDTV/SD camera.The camera is ideal for graphic stands point of
view and remote observation applications. With its new 2/3-inch
1.0 million pixels 3-CCD, the DK-Z50 provides outstanding
performance. The camera offers sharper and cleaner HD images
due to its 14-bit A/D converters and Hitachi’s implementation
of the latest digital processing technology. The camera achieves
outstanding high sensitivity and a low vertical smear specification.

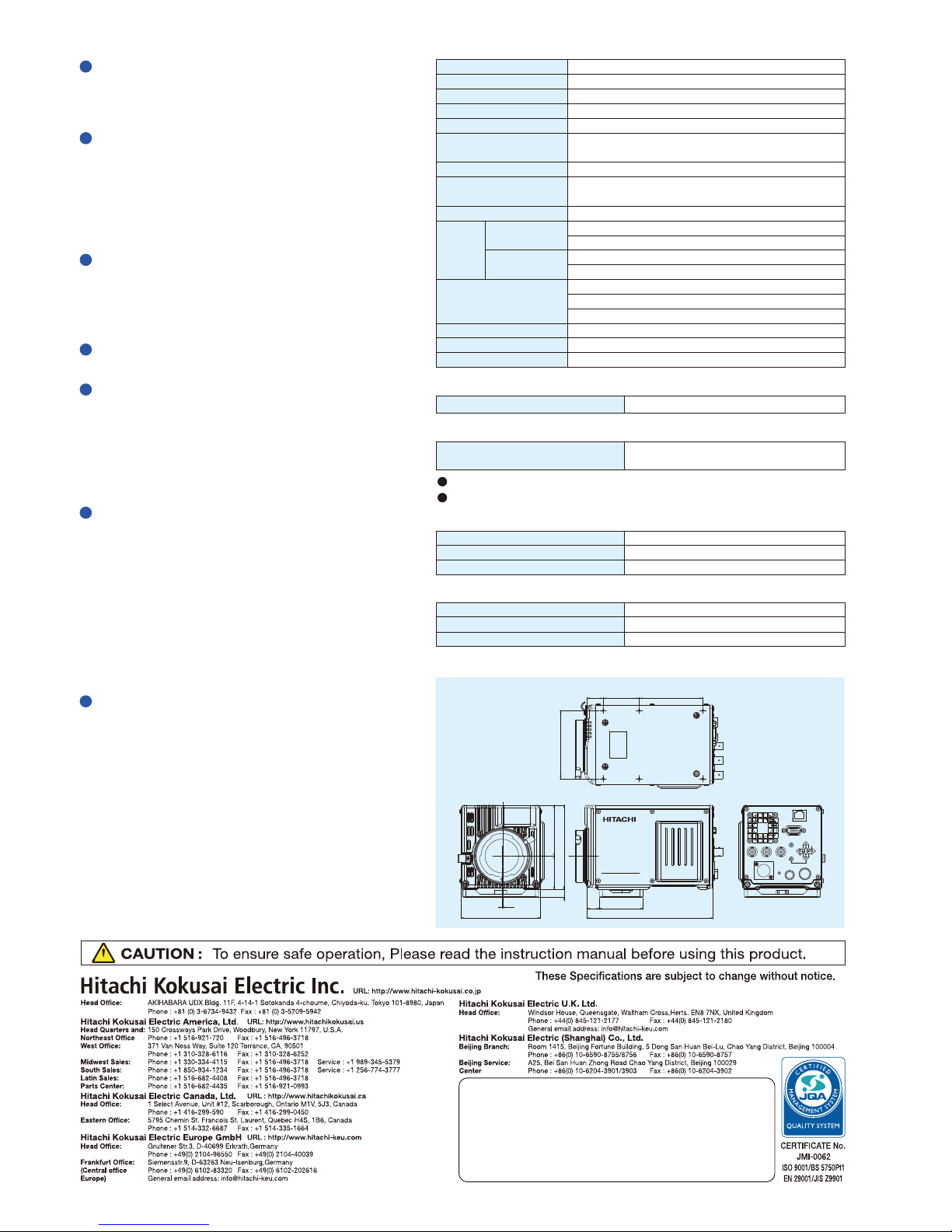

Page 2
・
Full Auto
・
Eight scene files are provided to store and recall functions
such as gain, detail, masking, gamma and other settings
・
White balance memories are provided for each Scene files for
a total of nine memories by the remote control panel
・
Menu access is provided for iris level (fine adjustment) and iris
peak/average selection
・
Computer controlled real-time auto-white balance
・
ECC (Electric Color Compensating) filter
High S/N with HD-SDI
14-bit ADC with the latest generation
Hitachi DSP
High dynamic range and color fidelity are achieved by employing
14-bit analog-to-digital converters on the RGB CCDs' outputs.
Hitachi is a leading developer for High performance CPU & DSP
in Broadcast Fields.
Outstanding Signal-to-noise ratio >58dB measured on the
HD-SDI (1080i) output.
High Resolution
The latest generation 2/3-inch CCD with micro lenses and
Spatial-offset Processing technologies provided a horizontal
resolution performance of 800 TV lines (luminance channel).
Small & light weight head
Versatile CCD shutter
・
Five Preset shutter speeds
・
Lock scan the camera video to images from asynchronous
computer monitors, video walls or projectors without flicker
・
Automatic Electronic Shutter (AES) maintains the video level
with a fixed lens f-stop
DSP provide advanced image handling
and adjustment functions
・
Knee saturation and auto-knee
・
12-Vector and Linear Matrix masking
・
Skin tone masking
・
Automatic Skin Tone Detail Circuits
・
Variable Detail Boost Frequency
・
Ultra Gamma
・
Gray Scale Automatic Setup
・
Automatic Shading Correction
Extensive User-Friendly Features
Features
Dimensions
155
99
5515
1
20 45
85
63.5
41.5
10510
79.5
HD COLOR CAMERA
SDI OUT MON OUT GL IN
MENU
VF OUT
ABB
REMOTE2
BAR
AWB
FILTER
LENS
REMOTE1POWER
DC IN(10.5-17V
)
Specifications
Input signals
Standard composition
Serial data /RS-232C interface (Remote1 4-pin connector
)
CCD
Total pixels
Aspect ratio
TV signal format
HD Resolution
Standard sensitivity
Minimum illumination
HD S/N
ECC Filter
Gain selection
Dimensions (W × H × D)
Power consumption
Mass
2/3-inch, IT-CCD
Total pixels 1.0 million pixels
16:9 (HD/SD), 4:3 (SD) switchable
1080/59.94i, 1080/50i, 480/59.94i, 576/50i
800TVL
2000 lx / F10 (1080/59.94i
),
2000 lx / F11 (1080/50i
)
3200K, 89.9% reflectance
0.002 lx (F1.4/+72dB
)
Typical 60dB
(
HD-SDI output decodeY channelBand : 27.5 MHz
)
3200K, 4300K, 5600K, 6300K, 8000K
1/100, 1/250, 1/500, 1/1000, 1/2000 second (59.94i
)
1/60, 1/250, 1/500, 1/1000, 1/2000 second (50i
)
1/59.94 to 1/10000 second, 1.07
(
+36dB) to 0.03second (+6dB), (59.94i
)
1/50.00 to 1/10000 second, 1.28
(
+36dB) to 0.04second (+6dB), (50i
)
L (low) -3/0dB
M (medium) 0 to +33dB, 3dB steps.
H (high) +3 to +36dB, 3dB steps.
99(W) × 105(H) × 155(D
) (
excluding protrusions
)
approx. 17W (DC12V
)
approx. 1.5 kg (3.3 lbs
)
Camera head DK-Z50
Lens Mount Cap
Operation Manual
1
1
1
Genlock Tri-level sync / BB
Output signals
HD / SD-SDI 2 output
HD-SDI:SMPTE274M 0.8Vp-p/1.5Gbps
SD-SDI:SMPTE259M-C 0.8Vp-p/270Mbps
Options
Camera control panel
AC adaptor
Lens Extension Cable
RJ-45 TCP/IP control
RU-1000VR / RU-1500JY
IA-60a (I.D.X
)
ECE-R22 (0.22m) (FUJINON
)
PRESET
Shutter
Lock Scan
DV-E226Q
PrintedinJapan（D）10-07
