HD COLOR CAMERA
DK-H100
OPERATING INSTRUCTIONS
Please read these operating instructions carefully for proper operation,
and keep them for future reference.
Note: The model and serial numbers of your product are important for you to keep for your
convenience and protection. These numbers appear on the nameplate located on bottom of the
product. Please record these numbers in the spaces provided below, and retain this manual for
future reference.
Model No.
Serial No.
A
SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual and safety Instructions on your equipment.
Follow recommended precautions and safe operating practices.
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol.”
This symbol is used to call your attention to items or operations that could be dangerous to you or
other persons using this equipment. Read these messages and follow these instructions
carefully.
It is essential that you read the instructions and safety regulations before you attempt to assemble or use this
equipment.
The definitions of signal words are as follows:
WARNING: Personal danger
Warning notes indicate any condition or practice, which if not strictly observed, could result
in personal injury or possible death.
CAUTION: Possible damage to equipment
Caution notes indicate any condition or practice, which if not strictly observed or remedied,
could result in damage or destruction of the equipment.
NOTE: Notes indicate an area or subject of special merit, emphasizing either the product′s
capabilities or common errors in operation or maintenance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS COLOR
CAMERA TO RAIN OR MOISTURE.
AVERTISSEMENT
Afin d’éviter tout risque d’incendie ou d’électrocution, ne pas exposer l’appareil á la pluie ou á l’humidité.
Afin d’écarter tout risque d’électrocution, garder le coffret fermé.
Ne confier l’entretien de l’appareil qu á un personnel qualifié.
VORSICHT
Um Feuergefahr und die Gefahr eines eiektrischen Schiages zu vermeiden, darf das Gerät weder Regen
noch Feuchtigkeit ausgesetzt werden.
Um einen elektrischen Schiag zu vermeiden, darf das Gehäuse richt geöffnet werden.
Überiassen Sie Wartungsarbeiten stets nur einem Fachmann.
WARNING
CAUTION
NOTE
!
!
!
B
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the product and the operating instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any
mounting of the product should follow the manufacturer's instructions, and should use a mounting
accessory recommended by the manufacturer.
9. Moving
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to
overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the
product and to protect it from overheating, and these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack unless proper
ventilation is provided or the manufacturer's instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label. If
company. For products intended to operate from battery power, or other sources, refer to the operating
instructions.
12. Grounding or Polarization
This product is equipped with a three-wire grounding-type plug a plug having a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the
safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed to that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plug, convenience receptacles, and
the point where they exit from the product.
C
14. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused
for long periods of time, unplug it from the wall outlet. This will prevent damage to the product due to
lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a
risk of fire or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on
the product.
17. Inflammable and Explosive Substance
Avoid using this product where there are gases, and also where there are inflammable and explosive
substances in the immediate vicinity.
18. Heavy Shock or Vibration
When carrying this product around, do not subject the product to heavy shock or vibration.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is damaged.
b. if liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the
product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance-this indicates a need for service.
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
24. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
D
WICHTIGE SICHERHEITSANWEISUNGEN
1. Alle Anweisungen lesen.
Vor Betrieb des Erzeugnisses sollten alle Sicherheits-und Bedienungsanleitungen gelesen werden.
2. Die Anweisungen aufbewahren.
Die Sicherheits-und Bedienungsanleitungen sollten fünftigen Bezug aufbewahrt werden.
3. Warnungen beachten.
Die Warnungen auf dem Erzeugnis und in den Bedienungsanleitungen solten beachtet werden.
4. Anweisungen befolgen.
Alle Bedienungsanleitung-und
Verwendungsanweisungen sollten befolgt werden.
5. Reinigung
Den Stecker des Geräts vor Reinigung aus der Steckdose ziehen. Keine flüssigen Reinigungsmittel
oder Aerosolreiniger verwenden. Zum Reinigen einen feuchten Lappen verwenden.
6. Zubehör
Nur vom-Hersteller des Erzeugnisses empfohlenes Zubehör verwenden, da es sonst zu Störungen
kommen kann.
7. Wasser und Feuchtigkeit
Dieses Erzeugnis nicht in der Nähe von Wasser verwenden - z.B, in der Nähe einer Badewanne, eines
Waschbeckens, einer Küchenspüle, eines Waschzubers, in einem nassen Keller, in der Nähe eines
Schwimmbeckens usw.
8. Aufstellung
Das Erzeugnis nicht auf einen unstabilen Wagen, Stand, Dreifuß, Träger oder Tisch stellen.
Das Erzeugnis kann sonst herunterfallen und ein kind oder einen Erwachsenen schwer verietzen.
Außerdem kann das Gerät schwer beschädigt werden. Nur mit einem Wagen, Stand, Dreifuß, Träger
oder Tisch verwenden, der vom Hersteller empfohlen oder mit dem Erzeugnis verkauft worden ist. Für
jegliche Anbringung sollten die Anweisungen des Herstellers befolgt werden, und das vom Hersteller
empfohlene Anbringungszubehör sollte verwendet werden.
9. Eine Kombination von Erzeugnis und Wagen sollte vorsichtig bewegt werden.
Schneller Halt, übermäßige Krafteinwirkung und unebene Oberflächen können Umkippen der
kombination von Erzeugnis und Wagen verursachen.
10. Ventilation
Schlitze und Öffnungen im Gehäuse dienen der Ventilation. Sie sind für zuverlässigen Betrieb des
Gerätes und Schutz vor Überhitzung erforderlich und dürfen nicht blockiert oder abgedeckt werden.
Die Öffnungen sollten niemals dadurch blockiert werden, daß, das Gerät auf ein Bett, ein Sofa, einen
Teppich oder eine ähnliche Oberfläche gestellt wird.
Das Gerät sollte nur dann in Einbauinstallierung wie in einem Bücherschrank oder einem Gestell
verwendet werden, wenn angemessene Ventilation vorgesehen ist bzw. Die Anweisungen des
Herstellers befolgt worden sind.
11. Stromversorgung
Dieses Erzeugnis sollte nur an der auf dem Typenschild angegebenen Stromversorgungsart betrieben
werden. Wenn Sie nicht sicher sind, was für eine Stromversorgung Sie haben, so wenden Sie sich bitte
an Ihren Erzeugnishändler oder an das lokale Elektrizitätswerk. Beziehen Sie sich für Batteriebetrieb
oder andere Stromquellen vorgesehene Erzeugnisse bitte auf die Bedienungsanleitungen.
12. Erdung oder Polarisierung
Dieses Erzeugnis ist mit einem Schutzkontaktstecker mit drei Leitern ausgerüstet, mit einem
Erdungskontakt. Dieser Stecker paßt nur in ein schuko-Steckdose. Dies ist eine
Sicherheitsmaßnahme. Wenn Sie den Stecker nicht in die Steckdose stecken können, so wenden Sie
sich bitte an ihren Elektriker, damit er die veraltete Schuts des Schutzkontaktsteckers unwirksam.
13. Netzkabelschutz
Netzkabel sollten so verlegt werden, deß möglichst nicht darauf getreten wird und daß sie nicht
eingeklemmt werden, mit besonderer Beachtung der kabel an Stackern, Verlängerungskabeln und dem
Austritt des Kabels aus dem Erzeugnis.
E
14. Blitzschlag
Für zusätzlichen Schutz des Erzeugnisses während eines Gewitters oder bei Nichtverwendung für lange
Zeit den Stecker aus der Steckdose ziehen. Dies verhütet Beschädigung durch Blitzschlag und
Netzspannungsstöße.
15. Überlastung
Wandsteckdosen, Verlängerungskabel und eingebaute Bequemlickkeitssteckdosen nicht überlasten, da
dies Feuer oder elektrischen Schlag verursachen kann.
16. Eindringen von Fremdkörpern und Flüssigkeit
Niemals Objekte irgendwelcher Art durch die Öffnungen in das Gerät schieben, da diese unter hoher
Spannung stehende Teile berühren oder kurzschließen können, wodurch es zu Feuer oder elektrischem
Schlag kommen kann. Niemals Flüssigkeiten irgendwelcher Art auf das Erzeugnis verschütten.
17. Entflammbare und explosive Substanzen
Vermeiden Sie Verwendung dieses Erzeugnisses an Orten mit Gasen bzw. entflammbaren oder
explosiven Substanzen in der direkten Umgebung.
18. Starke stöße oder Vibrationen
Setzen Sie das Erzeugnis beim Transport nicht starken Stößen oder Vibrationen aus.
19. Wartung
Versuchen Sie nicht, dieses Erzeugnis Selbst zu warten, da Sie sich durch Öffnen bzw. Entfernen von
Abdeckungen hohen Spannungen und sonstigen Gefährdungen ausserzen können.
Beziehen Sie sich für jegliche Wartung auf qualifiziertes Wartungspersonal.
20. Beschädigung, die Wartung erfordert
Ziehen Sie den Stecker dieses Erzeugnisses aus der Steckdose und wenden Sie sich an qualifiziertes
Wartungspersonal, wenn eine der folgenden Bedingungen vorliegt:
a. Wenn das Netzkabel oder der Stecker beschädigt ist.
b. Bei Eindringen von Flüssigkeit oder Fremdkörpern in das Gerät.
c. Wenn das Erzeugnis Regen oder Wasser ausgesetzt worden ist.
d. Wenn das Erzeugnis bei Befolgen der Bedienungsanleitungen nicht normal funktioniert.
Nur die Regelelemente verstellen, die in den Bedienungsanleitungen behandelt werden, da
unangemessene Einstellung anderer Regelelemente Beschädigung verursachen kann und oft
beträchtliche Arbeit durch einen qualifizierten Techniker erfordert, um das Erzeugnis wieder, zu
normalem Betrieb zurückzubringen.
e. Wenn das Erzeugnis fallen gelassen oder beschädigt worden ist.
f. Wenn das Erzeugnis eine klare Änderung in der Leistung zeigt-dies weist darauf hin, daß
Wartung erforderlich ist.
21. Ersatzteile
Wenn Ersatzteile erforderlich sind, darauf achten, daß der Wartungstechniker nur die vom Hersteller
festgelegten Ersatzteile oder Teile mit den gleichen Charakteristiken wie die ursprünglichen Teile
verwendet. Unautorisierte Ersatzteile können Feuer, elektrischen Schlag oder sonstige Gefährdungen
verursachen.
22. Sicherheitsprüfung
Bitten Sie den Wartungstechniker nach der Vollendung von Wartung oder Reparaturarbeiten an diesem
Erzeugnis um die Durchführung von Sicherheitsprüfungen, um zu bestimmen, daß das Erzeugnis im
angemissenen Betriebszustand ist.
23. Anbringung an der Wand oder an der Decke
Das Erzeugnis sollte nur entsprechend den Empfehlungen des Herstellers an einer Wand oder an der
Decke angebracht werden.
24. Wärme
Das Erzeugnis sollte fern von Wärmequellen wie Radiatoren, Heizwiderständen, Öfen und anderen
Wärme erzeugenden Erzeugnissen (einschließlich Verstärkern) aufgestellt werden.
F
MISES EN GARDE IMPORTANTES
1. Lire les instructions
Lire toutes les instructions de sécurité et de fonctionnement avant de faire fonctionner l’appareil.
2. Conserver ces instructions
Conserver les instructions de sécurité et de fonctionnement á des fins de référence ultérieure.
3. Tenir compte des avertissements
Tous les avertissements qui figurent sur l’appareil et dans le mode d’emploi devront être respectés.
4. Observer les instructions
Observer toutes les instructions de fonctionnement et d’utilisation.
5. Nettoyage
Avant de procéder au nettoyage, débrancher l’appareil de la prise secteur. Ne pas utiliser de produits
de nettoyage liquides ou en aérosol.
Nettoyer l’appareil avec un chiffon humide.
6. Fixations
Ne pas utiliser de fixations non recommandées par le fabricant de l’appareil car elles pourraient être
source de danger.
7. Eau et humidité
Ne pas utiliser l’appareil á proximité d’eau-par exemple prés d’une baignoire, d’un lavabo, d’un évier ou
d’un bac á lessive, dans un sous-sol humide, ou prés d’une piscine, etc.
8. Accessoires
Ne pas placer l’appareil sur un chariot, un socle, un pied, un support ou one table instables L’appareil
pourrait tomber, blessant griévement des enfants ou des adultes, et étant sérieusement endommagé.
Utiliser exclusivement le chariot, le socle, le pied, le support ou la table recommandés par le fabricant,
ou vendus avec l’appareil. Pour tout montage de l’appareil, respecter les instructions du fabricant, et
utiliser á cette fin l’accessoire de montage recommandé par le fabricant.
9. L’appareil monté sur son chariot devra être déplacé avec précaution.
Des arrêts brusques, une force excessive et des surfaces irréguliéres pourraient provoquer le
renversement de l’ensemble appareil-chariot.
10. Ventilation
Les fentes et les ouvertures du coffret sont prévues pour la ventilation ainsi que pour garantir un
fonctionnement en toute sécurité de l’appareil et le protéger de toute surchauffe, et ces ouvertures ne
devront donc être ni obstruées ni recouvertes. Ne jamais obstruer les ouvertures en placant l’appareil
sur un lit, un sofa, un tapis ou toute surface similaire. Ne jamais placer l’appareil dans un support
confiné, par exemple une bibliothéque ou une é tagé re, sans ventilation suffisante ou sans repecter les
instructions du fabricant.
11. Sources d’allmentation
L’appareil devra être alimenté exclusivement sur le type d’alimentation indiqué sur l’étiquette
signalétique. Sil’on n’est pas sûr du type d’alimentatio du local, consulter le revendeur de l’appareil ou
la compagnie d’électricité locale. Pour les appareils qui fonctionnent sur batterie ou sur d’autres
sources, voir le mode d’emploi.
12. Mise á la terre ou polarisation
L’appareil est doté d’une fiche trifilaire avec mise á la terre, dont la troisiéme broche assure la mise á la
terre. Cette fiche ne rentrera que dans les prises trifilaires de mise á la terre. Ceci est une mesure de
sécurité. Si la fiche ne rentre pas dans la prise, faire remplacer la prise désuéte par un électricien.
Ne pas rendre vaine la measure de sécurité assurée par cette prise avec mise á la terre.
13. Protection du cordon d’alimentation
Acheminer les cordons d’alimentation de facon qu’on ne risque pas de marcher dessus ou de les coincer
sous un objet placé dessus ou contre eux.
Faire particuliérement attention aux fiches des cordons, á la proximité des prises, et á l’endroit oú ils
ressortent de l’appareil.
G
14. Foudre
Pour renforcer la protection de l’appareil pendant un orage, ou si l’on s’en éloigne ou qu’on reste
longtemps sans l’utiliser, le débrancher de la source d’alimentation. Ceci permettra d’éviter tout
dommage de l’appareil dú á la foudre et aux surtensions de ligne.
15. Surcharge
Ne pas surcharger les prises, rallonges et prises multiples car cela pourrait entraîner un risque de feu ou
de choc électrique.
16. Pénétration d’objets et de liquides
Ne jamais enfoncer d’objets d’aucune sorte dans les ouvertures de l’appareil car ils pourraient toucher
des points de tension dangereuse ou court-circuiter des piéces, ce qui pourrait provoquer un feu ou un
choc électrique. Ne jamais renverser de liquide d’aucune sorte sur l’appareil.
17. Substances inflammabes et explosives
Eviter d’utiliser l’appareil en présence de gaz, ainsi qu’á proximité immédiate de substances
inflammables et explosives.
18. Chocs ou vibrations violents
Lorsqu’on transporte l’appareil, ne pas le soumettre á des chocs ou des vibrations violents.
19. Réparations
Ne pas tenter de réparer l’aapareil soi-même car le fait d’ouvrir ou de retirer les caches risque d’exposer
l’utilisateur á des tensions dangereuses notamment. Confier toute réparation á un personnel qualifié.
20. Dommages nécessitant réparations
Débrancher l’appareil de la source d’alimentation et confier les réparations á un personnel qualifié dans
les cas suivants:
a. Lorsque le cordon d’alimentation ou sa fiche sont endommagés
b. Si du liquide s’est renversé sur l’appareil ou que des objets sont tombés dedans
c. Si l’appareil a été exposé á la pluie ou á l’eau.
d. Si l’appareil ne fonctionne pas normalement lorsqu’on observe les instructions d’utilisation.
Ne régler que les commandes couvertes par le mode d’emploi ; en effet, un réglage incorrect des autres
commandes pourrait entrainer des dommages et nécessiteront souvent des travaux de réparation
coûteux par un technicien qualifié pour remettre l’appareil en état de marche.
e. Si l’appareil est tombé ou qu’il a été endommagé.
f. Si l’appareil affiche une nette modification de ses performances, cela signifie qu’il a besoin d’être
réparé.
21. Piéces de rechange
Si l’on a besoin de piéces de rechange, veiller á ce que le technicien de réparation utilise exclusivement
les piéces de rechange spécifiées par le fabricant ou des piéces ayant les mêmes caractéristiques que les
piéces d’origine. Les piéces de rechange non autorisées risquent de provoquer un feu, un choc
électrique et autres dangers.
22. Vérificaton de sécurité
Aprés tout travail d’entretien ou de réparation de l’appareil, demander au technicien de réparation
d’effectuer les vérifications de sécurité pour s’assurer que l’appareil est en bon état de marche.
23.Montage au mur ou au plafond
L’appareil ne pourra être monté au mur ou au plafond que de la maniére recommandée par le fabricant.
24. Chaleur
Eloigner l’appareil des sources de chaleur, telles que radiateurs, appareils de chauffage, cuisiniéres, et
de tour produit engendrant de la chaleur (y compris les amplificateurs).
H
IMPORTANT NOTICE
For USA
These products have been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this product in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
WARNING
Changes or modifications not expressly approved by Hitachi Kokusai Electric responsible for
compliance could void the user’s authority to operate the equipment.
For Canada
This product does not exceed the class A/class B limits for radio noise emissions from digital apparatus
as set out in the radio interference regulations.
Le présent appareil n’émet pas de bruits radioélectriques dépassant les limités applicable aux appareils
numériques de classe A prescrites dans le rVglement sur le brouillage radioélectrique édicter par le
ministére des communications du canada.
Contents
Outline and features................................................................................................................................................1
Warnings and cautions when using ........................................................................................................................2
Facility names and functions...................................................................................................................................3
Filter selection .........................................................................................................................................................4
White and black balance adjustment ......................................................................................................................8
Electronic shutter setting.......................................................................................................................................13
Function menu.......................................................................................................................................................14
Specifications ........................................................................................................................................................33
Service information................................................................................................................................................35
1
Outline and features
The DK-H100 is a high-performance special
application HDTV/SD camera.
The camera is ideal for graphic stands point of view
and remote observation applications.
With its 2.3million pixels 3-CCD, the DK-H100
provides outstanding performance. The camera offers
sharper and cleaner HD images due to its 14-bit A/D
converters and Hitachi’s implementation of the latest
digital processing technology. The camera achieves
outstanding high sensitivity and a low vertical smear
specifications.
Outstanding Features
High resolution
The latest generation 2/3-inch 2.3 million pixels
CCD with micro lenses and digital multi speed
signal processing circuits provide a horizontal
resolution performance of 1100 TV lines
(luminance channel).
Latest generation Digital technology
The brand new, power efficient Digital Signal
Processor LSI with 65nm design rule and 14-bit
analog-to-digital conversion provide very faithful
video image reproduction and quality.
Digital video processing and encoding provide low
interference and high stability.
High sensitivity and Signal to Noise ratio
Low-noise circuit technology provide a signal to
noise ratio of 58dB.
Even at high gain, clear images are obtained
with little noise.
The standard sensitivity is F10 at 2000lx and
minimum illumination is 0.002lx with F1.4 lens
iris stop.
Versatile CCD drive functions
Four modes of shutter operation are provided:
y
Five PRESET electronic shutter speeds
y
LOCK SCAN to image computer monitors
without flicker
y
Automatic Electronic Shutter (AES) maintains
the video level with a fixed lens F-stop.
y
Charge Controlled Frame (CC FRM) offers
improved vertical resolution.
Digital processing improves Image Highlight
Quality
y
Knee saturation and auto-knee
The auto knee provides a wide dynamic range
by dynamically compressing the video level
above 100％. Knee saturation restores color
saturation to scene highlights above 100％.
y
Automatic Skin Tone Detail Circuits
Skin tone detail smoothes and softens facial
lines and blemishes without sacrificing overall
scene detail, also provides two separate
settings that can be used separately or
simultaneously.
Automatic Skin tone detail provides an easy
and fast means to optimize Skin tone detail.
y
Variable Detail Boost Frequency
The detail frequency can be adjusted to
provide coarse or fine contours around edges of
subjects in the scene thereby reproducing a
natural and pleasing picture.
y12-Vector and Linear Matrix masking
The 12-vector and linear matrix provide the
user a wide latitude in subject image color
control.
y
Skin Tone masking
Skin tone masking provides “fine” “Painting”
(hue and saturation) of Skin tones without
effecting other colors in the scene.
y
Gray Scale Automatic Setup
This “through the lens” automatic setup is
uses a standard gray scale chart to
automatically setup gain, gamma, black and
flare thus saving the video operator time and
effort.
y
Automatic Shading
Automatic shading corrects white vertical
shading at the push of a button.
This function provides separate memory of
lens’ modulation shading characteristics to
optimize the X1 and X2 lens extender
positions.
Extensive User-Friendly
yScene Files
Gain, detail, masking, gamma and other settings
can be stored in eight scene file memories.

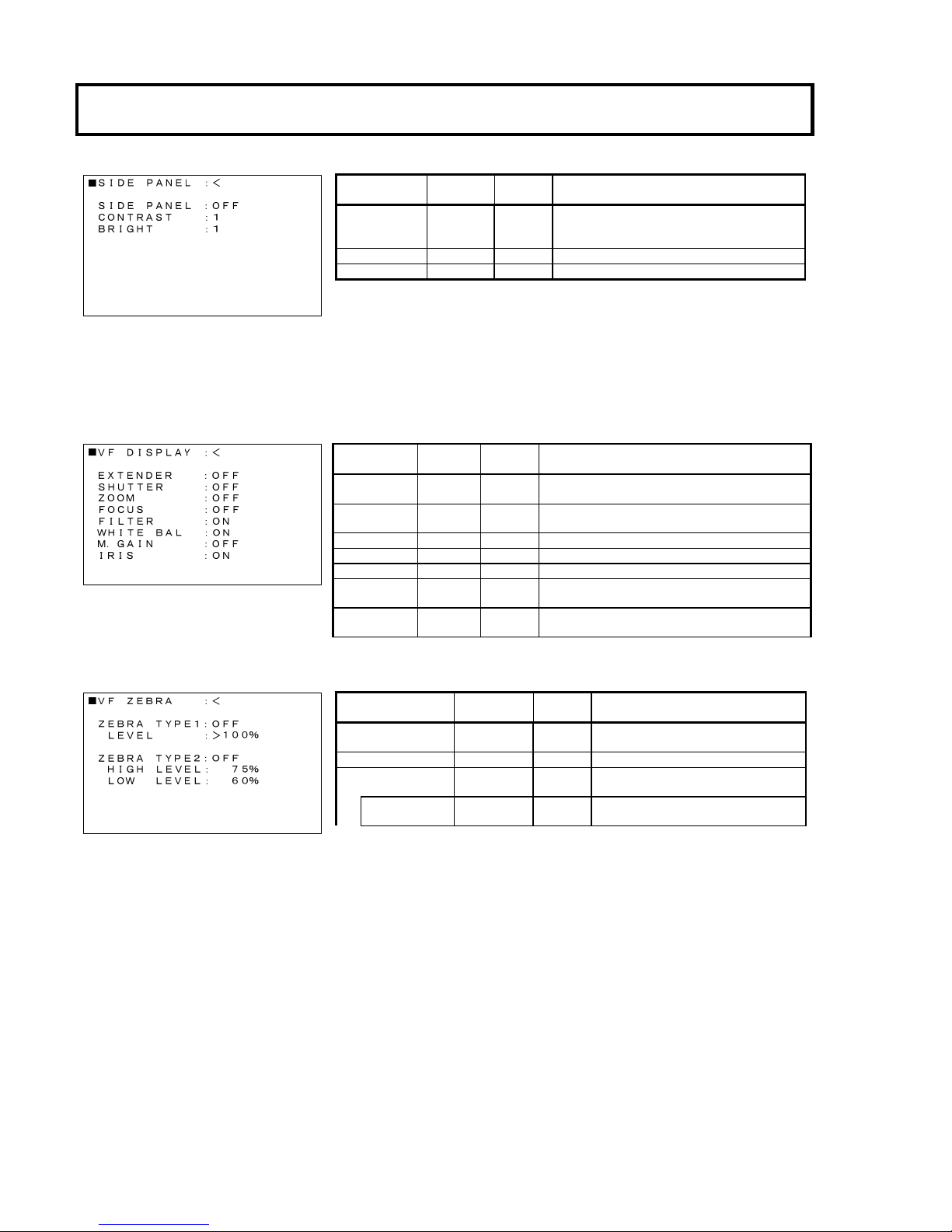

Viewfinder displays
y
Two mode zebra
Menu selection of over-level or between range
zebra is provided.
ySafety zone and center mark display
2
Warnings and cautions when using
Viewfinder high voltage
yDo not open the viewfinder cover. There is
danger of touching internal high voltage
components.
Power supply
The specified power supply input voltage of this
camera is 12VDC. Be sure to use the designated
power supply.
Do not disassemble or modify
The camera contains precision internal
components. Do not open the cover or disturb
switches and controls other than designated.
There is risk of impaired performance and
damage.
Keep foreign object out of interior
Entry of water, metallic or other foreign materials
can cause failure and damage.
Select use and storage locations carefully
Avoid using or storing the equipment in the
following types of locations. Impaired
performance and damage can be caused.
yExtremely hot or cold locations (exceeding -10 to
45°C), such as in enclosed vehicles.
ySubject to strong vibration.
yHumid or dusty locations.
ySalt spray or corrosive gases.
yStrong electromagnetic fields (e.g., near TV or
radio transmitters).
yWhere exposed to rain.
Do not cover or otherwise obstruct camera heat
dissipation during operation.
When connecting and disconnecting lens,
microphone and other cables, grasp the connector
by the body, not the attached cable. Cables can be
damaged by pulling on them.
Note when transporting
When transporting by hand, use the carrying
case. If shipping by truck or other means, pack
in the carrying case, then use further cushioning
and pack in a sturdy carton.
Cleaning
Use a photographers air blower to clear dust from
the lens and filters. Wipe the case with a soft
dry cloth. Do not use volatile solvents, as these
may deform the materials.
In event of difficulty
Disconnect from power and contact the nearest
Hitachi Kokusai Electric service agency.
**********CCD characteristic phenomena**********
The following types of phenomena are innate characteristics of a charge coupled device (CCD) and are
not malfunctions. Be aware of these when using a CCD camera for broadcast or other demanding
applications.
Smear
When a bright object is picked up, thin trails appear above and below the
image.
The effect is more pronounced at high electronic shutter speeds.
Fixed pattern
When operate at high temperature, a fixed pattern (vertical stripes,
white dots) can appear. The pattern is more easily seen when the
camera sensitivity is raised.
NOTE
3
Facility names and functions
1
9
10
11
12
13
14
15
16
5 6 7 8
2
3
4
1. Lens mount
Bayonet type lens mount.
2. SDI OUT connector
HD-SDI/SD-SDI signal output.
3. MON OUT connector
HD-SDI/SD-SDI signal output with character.
4. GL IN connector
External sync signal input
(Tri-level sync or Black burst)
5. DC IN connector
12V DC is supplied.
6. POWER LED
Off: Camera power not supplied.
Lights (green): Camera power on.
7. REMOTE1 connector
Connection for remote control unit or personal
computer.
8. LENS connector
Connection for lens plug.
9. FILTER button
It combines with the L/R button, and the ND
filter is controlled.
It combines with the U/D button, and the ECC
filter is controlled.
10. D button
Menu mode:The menu cursor moves down.
Direct mode:Color bar signal output.
11. R button
Menu mode:Change the menu data.
Direct mode:Hold the button depressed for longer
than 2 seconds for automatic black
balance(ABB) adjustment.
12. U button
Menu mode:The menu cursor moves up.
Direct mode:Not used
13. L button
Menu mode:Change the menu data.
Direct mode:Hold the button depressed for longer
than 2 seconds for automatic white
balance(AWB) adjustment.
14. MENU button
The function menu is displayed.
15. VF OUT connector
Connection for viewfinder.
16. REMOTE2 connector
Connection for remote control unit.
4
Lens installation
Lens installation
Install according to the following procedure.
1. Raise the lens lever and remove the mount cap.
3. Lower the lens lever to secure the lens.
2. Align the lens center mark with the indent at the
upper part of the lens mount and install the lens.
4. Engage the cable with the cable clamp and
connect it to the lens connector.
Notes
The following adjustments may be required according to the type of lens.
1. Lens flangeback, 2. Lens white shading.
3. Lens auto iris speed, 4. Lens iris close limit. (AUTO IRIS menu)
5
Lens flangeback adjustment
Lens flangeback adjustment
When operating a zoom lens, if the focus is not precisely aligned at both the telephoto and wide angle
extremes of the lens, the flangeback (distance from the lens mounting plane to the focal plane) is adjusted.
This adjustment is generally required only once unless the lens is replaced.
Adjustment
1. Set the lens iris for manual operation.
2. Set a flangeback adjusting chart about 3 meters distant.
3. Open the iris and adjust the lighting to obtain the correct video output level.
If the video level is too high, use a ND filter or electronic shutter.
4. Loosen the FB ring setscrew.
5. By hand or motor, set the zoom ring to the telephoto position.
6. Observe the flangeback chart image and turn the distance ring to adjust the focus.
7. Set the zoom ring to the wide angle position.
8. Turn the FB ring and adjust the focus. Use care not to turn the distance ring.
9. Repeat this process until focus is obtained at both telephoto and wide angle settings.
10. Securely tighten the FB ring setscrew.
･Also, see the lens operating instructions.
6
White shading adjustment
White shading adjustment
White shading adjustment is recommended after replacing the lens.
The adjustment relates to the camera vertical coloration. If the lens includes an extender, the shading can
be optimized for both extender on and off modes.
(Vertical coloration refers to an effect whereby the image of an overall white sheet of paper tends toward
green at the top and magenta at the bottom, or vice versa.)
Adjustment
1. Install the lens on the camera.
Be sure to connect the lens cable.
2. Set the electronic shutter to off and the gain to L (0 dB).
3. Set the lens extender to off.
4. When notice flicker on the monitor which occurred by fluorescent or mercury lighting,
use sunlight or halogen as the light source.
Using auto iris mode for the lens iris, the iris stop should be between F4 and F11. If necessary, adjust
the light source level and keep iris stop position in it (be sure the electronic shutter is off).
5. Open the WHITE SHADING sub menu from MAINTENANCE menu.
6. Shift cursor to WHT SHADING : PUSH > 1 SEC.
7. Hold the R button for about 1 second to adjust white shading. The screen top and bottom cursors
flash to indicate automatic white shading adjustment in progress. The cursors extinguish at the end of
adjustment.
8. Set the extender (if provided) to on and repeat the above step.
9. Close the Function menu.
White shading adjustment is completed by the above. The adjustment is stored in a nonvolatile memory
and ordinarily does not need to be repeated even if the power is switched off.
Notes
1. Precise adjustment may not be obtainable with some special lenses.
2. Even after adjustment, some coloration may occur near the open iris setting. This is due to
lens and optical system characteristics and is not a malfunction.
■ＷＨＴ ＳＨＡＤＩＮＧ
ＥＸＴＥＮＤＥＲ ：ＯＦＦ（Ｘ１）
ＷＨＴ ＳＨＡＤＩＮＧ：ＰＵＳＨ ＞ １ＳＥＣ
Ｒ Ｖ ＳＡＷ ： ０
Ｇ Ｖ ＳＡＷ ： ０
Ｂ Ｖ ＳＡＷ ： ０
ＩＮＩＴＩＡＬＩＺＥ ：
Cursors
7
Filter selection
Filter setting
In order to obtaining correct white balance, the sufficient optical filter selection is required accordance
with the scene lighting source. The correct optical filter according to the scene light source needs to be
selected in order to obtain correct white balance.
Operation method
Set the FILTER button and the L/R button.
ND Filter
Filter No. ND Filter
1 Clear
2 1/4ND
3 1/16ND
4 1/64ND
Set the FILTER button and the L/R button.
ECC Filter
Filter No. ECC Filter
A 3,200K
B 4,300K
C 5,600K
D 6,300K
E 8,000K
FILTER button + L/R button
Clear ⇔ 1/4 ND ⇔ 1/16 ND ⇔ 1/64 ND
FILTER button + U/D button
3200K ⇔ 4300K ⇔ 5600K ⇔ 6300K ⇔ 8000K
8
White and black balance adjustment
White balance adjustment
White balance will be adjusted to the best effort in the sequence of AWB (auto white balance), ABB (auto
black balance), and again AWB.
Readjustment is normally not required even at power off/on.
Be sure to adjust the white balance after changes in the lighting conditions.
White and black balance adjustment progress can be observed from the screen.
Adjustment
1. Set the W.BAL MODE in the WHITE GAIN menu to MEMORY.
2. Set the FILTER with lighting condition accordingly.
See Optical filter selection in page 7.
3. Place a white pattern at a location subject to the
same lighting conditions as the scene. Use zoom
function of the lens so that the screen is white.
A white object (e.g., cloth, wall) placed near the scene
of interest can be used provided the size is adequate
(see figure).
4. Adjust the lens iris.
5. Hold the L button depressed for two second. White
balance is adjusted automatically.
6. During adjustment, the following messages appear on the screen.
7. Adjustment is completed in several seconds.
Adjustment in progress Adjustment complete
White
cloth
<
Note
>
Use care a high luminosity
light source, such as a
spotlight, does not enter the
screen area.
A
t least 1/5 the screen height
A
t least 1/5 the screen width
9
White and black balance adjustment
Auto white balance error messages
When auto white balance adjustment fails, the following error messages will be displayed on the screen
for about 6 seconds.
Message Cause Correction
AUTO WHITE:NG
CHANGE TO CAM
TRY AGAIN
The color bar signal is output. Press the D button to turn off the color bar
signal.
AUTO WHITE:NG
CHANGE WHITE BAL TO MEN
TRY AGAIN
White balance mode is set to
PRESET or AUTO.
Open the WHITE GAIN menu. Set the
W.BAL MODE to MEMORY.
AUTO WHITE:NG
LOW LIGHT
TRY AGAIN
Insufficient lighting for
adjustment.
Increase the lighting or set the MASTER
GAIN to up. In case the manual iris is
using at the lens, adjust the iris stop of
the lens. Then repeat white balance
adjustment.
AUTO WHITE:NG
LEVEL HIGH
TRY AGAIN
Excessive lighting for adjustment. Set the MASTER GAIN to down.
In case the manual iris is using at the
lens, adjust the iris stop of the lens.
Then repeat white balance adjustment.
AUTO WHITE:NG
C.TEMP.HIGH
CHANGE FILTER
TRY AGAIN
Color temperature adjustment is
too high.
Change ECC filter and readjust.
AUTO WHITE:NG
C.TEMP.LOW
CHANGE FILTER
TRY AGAIN
Color temperature adjustment is
too low.
Change ECC filter and readjust.
When the above error messages appear, correct the settings and repeat white balance adjustment.
10
White and black balance adjustment
Black balance adjustment
Black balance requires adjustment in the following situations.
yEquipment being used for the first time
yEquipment idle for an extended period
yLarge change of ambient temperature
yGamma setting changed
1. Hold the R button depressed for two second. Black balance is adjusted automatically.
2. The displays the following messages during adjustment.
The lens iris is automatically closed.
Adjustment in progress Adjustment complete
3. Adjustment is completed in several seconds and automatically stored in memory.
11
White and black balance adjustment
Auto black balance error messages
When auto black balance adjustment fails, the following error messages appear on the screen for about 6
seconds.
Message Cause Correction
AUTO BLACK:NG
CHANGE TO CAM
TRY AGAIN
The color bar signal is output. Press the D button to turn off the color
bar signal.
AUTO BLACK:NG
IRIS NOT CLOSED
TRY AGAIN
The Iris is not closed. See Note 1.
AUTO BLACK:NG
???
TRY AGAIN
Range is exceeded, cannot adjust. See Note 2.
Note1
y Observe that the lens connector is engaged and the iris is closed.
y The iris closes automatically to block the light during black balance adjustment.
y During black balance adjustment, the gain circuit is switched automatically.
y Although flicker or noise may appear on the screen, these are not malfunctions.
Note2
y The lens iris is automatically closed during black balance adjustment. If the iris control is manual,
open the iris after adjustment.
y Check the lens connection. If ok, fault is in the lens or the camera. Consult service.
12
White and black balance adjustment
Gray scale auto set up
BLAK, GAIN, FLARE and GAMMA parameter can be adjusted automatically using with the gray scale
chart.
Gray scale chart with gate marker in the screen.
Gray scale auto set up can be accessed from Function menu or the Remote control unit and following
message is displayed during auto set up working
.
Following messages are displayed as an auto set up result.
CHANGE TO CAM (Error: Change Bar to CAM)
NOT GRAYSCALE (Not in the gate marker or no gray chart)
SETUP OK!!! (Finish set up)
BLACK: NG M.BLACK (Master black setup error)
GAIN(GAMMA/FLARE) NG R (R CH error)
GAIN(GAMMA/FLARE) NG G (G CH error)
GAIN(GAMMA/FLARE) NG B (B CH error)
GAIN(GAMMA/FLARE) NG R/G (R&G CH error)
GAIN(GAMMA/FLARE) NG R/B (R&B CH error)
GAIN(GAMMA/FLARE) NG G/B (G&B CH error)
GAIN(GAMMA/FLARE) NG R/G/B (R&G&B CH error)
BREAK OFF
(*: Cursor move to set up item.)
Gate marker
■BLACK：
GAIN ：
FLARE：
GAMMA：
GRAYSCALE SETUP
13
Electronic shutter setting
Shutter modes
The selectable electronic shutter modes and speeds are as follows.
Mode Shutter speeds Applications
PRESET 1/100(59.94i), 1/60(50i),
1/250, 1/500,1/1000,1/2000 second
Clear images of quickly moving objects.
LOCK SCAN
59.94i
1/59.94 to 1/11238 second
1.07s(+36dB) to 0.03s(+6dB)
50i
1/50.00 to 1/9375 second
1.28s(+36dB) to 0.04s(+6dB)
When shooting the computer monitor, It’s
image scroll. Reduce horizontal bar scrolling
in images of computer monitor.
CC FRM
(Charge Controlled
Frame)
1/59.94 second(59.94i)
1/50.00 second(50i)
Set to increase vertical resolution.
AES
(Auto Electronic
Shutter)
1/59.94 to 1/1000 second (59.94i)
1/50.00 to 1/1000 second (50i)
Set to obtain an always fixed video level when
the light is greater than the close limit.
Note
Camera sensitivity declines as shutter speed increases.
An auto iris lens stop opens at increased shutter speed, while the depth of focus is decreases.
14
Function menu
1. Operation and menu screen
The function menu screen show up by pressing the MENU button. The menu describes the camera
functions and structure with multiple pages. First page of structure is named TOP MENU. This TOP
MENU screen is appeared (ON) and disappeared (OFF) by pressing the MENU button.
TOP MENU
Top menu has the major camera function items and the selection cursor in the screen which cursor can
be moved by the U or D button. The cursor is located on the left side of the first line item in TOP
MENU right after open it.
Move down the cursor to the major item with the U or D button and press the R button, then the screen
change to MAIN MENU.
MAIN MENU
MAIN MENU is categorized into five for each camera operation and grouping to each control items as
possible which individual item has marker
on right side of it.
This indicate additional menu screen behind of it which is named to SUB MENU.
SUB MENU
Move the cursor with the U or D button.
First line of sub menu has the cursor and
or marker.
Marker
indicate additional sub menu. Press the R button and next sub menu screen show up.
Marker
indicate no additional sub menu behind. This indicate, can go back to main menu with
pressing the L button.
Some control items in sub menu has
marker on right side of it. This marker indicate daughter menu
screen behind. Move the cursor with the U or D button to these items and press the R button then open
the daughter menu screen.
15
Function menu
2. TOP MENU and MAIN MENU
16
Function menu
3. COLOR MENU (MAIN MENU and SUB MENU)
■ＣＯＬＯＲ ＭＥＮＵ
ＭＡＳＴＥＲ ＧＡＩＮ：＞
ＷＨＩＴＥ ＧＡＩＮ：＞
ＢＬＡＣＫ／ＦＬＡＲＥ：＞
ＧＡＭＭＡ ：＞＞
ＫＮＥＥ／ＣＬＩＰ ：＞＞
ＭＡＳＫＩＮＧ ：＞＞＞
■ＭＡＳＴＥＲ ＧＡＩＮ：＜ ＳＣＥＮＥ ０
ＰＲＥＳＥＴ ：０ｄＢ
ＭＯＤＥ ：ＰＲＥＳＥＴ
ＡＧＣ ＬＩＭＩＴ ：＋１８ｄＢ
ＬＯＷ ＳＥＴ ：０ｄＢ
ＭＩＤ ＳＥＴ ：３ｄＢ
ＨＩＧＨ ＳＥＴ ：６ｄＢ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＷＨＩＴＥ ＧＡＩＮ ：＜ ＳＣＥＮＥ ０
Ｗ．ＢＡＬ ＭＯＤＥ ：ＭＥＭＯＲＹ
Ｒ ＧＡＩＮ ： ０
Ｇ ＧＡＩＮ ： ０
Ｂ ＧＡＩＮ ： ０
ＩＮＩＴＩＡＬＩＺＥ ：
■ＢＬＡＣＫ／ＦＬＡＲＥ：＜ ＳＣＥＮＥ ０
Ｒ ＢＬＡＣＫ ： ０
Ｇ ＢＬＡＣＫ ： ０
Ｂ ＢＬＡＣＫ ： ０
Ｒ ＦＬＡＲＥ ： ０
Ｇ ＦＬＡＲＥ ： ０
Ｂ ＦＬＡＲＥ ： ０
ＦＬＡＲＥ ：ＯＮ
Ｍ．ＢＬＡＣＫ ： ０
ＩＮＩＴＩＡＬＩＺＥ ：
■ＧＡＭＭＡ ２：＜ ＳＣＥＮＥ ０
Ｕ．ＧＡＭＭＡ ＴＢＬ：１（９０％）
ＵＬＴＲＡ ＧＡＭＭＡ：ＯＦＦ
ＢＬＫ ＳＴＲ ＬＥＶ： ０
ＢＬＫ ＳＴＲＥＴＣＨ：ＯＦＦ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＫＮＥＥ／ＣＬＩＰ １：＞ ＳＣＥＮＥ ０
ＴＯＴＡＬ ＫＮＥＥ ： ２
Ｒ ＫＮＥＥ ： ０
Ｂ ＫＮＥＥ ： ０
ＴＯＴＡＬ ＳＬＯＰＥ： １３
Ｒ ＳＬＯＰＥ ： ０
Ｂ ＳＬＯＰＥ ： ０
ＫＮＥＥ ：ＯＮ
ＡＵＴＯ ＫＮＥＥ ：ＯＦＦ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＫＮＥＥ／ＣＬＩＰ ２：＜ ＳＣＥＮＥ ０
ＫＮＥＥ ＳＡＴ ： ２４
ＫＮＥＥ ＳＡＴ ：ＯＦＦ
ＷＨＩＴＥ ＣＬＩＰ ： －１６
ＷＨＩＴＥ ＣＬＩＰ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＭＡＳＫＩＮＧ １：＞ ＳＣＥＮＥ ０
ＨＵＥ ＳＡＴ ＨＵＥ ＳＡＴ
Ｒ ： ０ ０ Ｃ ： ０ ０
Ｙ－Ｒ： ０ ０ Ｂ－Ｃ： ０ ０
Ｙ ： ０ ０ Ｂ ： ０ ０
Ｇ－Ｙ： ０ ０ Ｍ－Ｂ： ０ ０
Ｇ ： ０ ０ Ｍ ： ０ ０
Ｃ－Ｇ： ０ ０ Ｒ－Ｍ： ０ ０
ＭＡＳＫＩＮＧ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＭＡＳＫＩＮＧ ２：＜ ＳＣＥＮＥ ０
－ＬＩＮＥＡＲ－
Ｒ－Ｇ： １９ Ｇ－Ｒ： １ Ｂ－Ｒ： ０
Ｒ－Ｂ： ３ Ｇ－Ｂ： ３ Ｂ－Ｇ： ６
ＰＲＥＳＥＴ ＴＹＰＥ：ＳＴＡＮＤＡＲＤ
ＣＨＲＯＭＡ ＳＡＴ ： ０
ＣＨＲＯＭＡ ＳＡＴ ：ＯＦＦ
ＭＡＳＫＩＮＧ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＭＡＳＫＩＮＧ ３：＜ ＳＣＥＮＥ ０
－ＳＫＩＮ ＭＡＳＫＩＮＧ－
Ｓ．ＭＡＳＫ．ＳＡＴ ： ０
Ｓ．ＭＡＳＫ．ＨＵＥ ： ０
ＳＫＩＮ ＭＡＳＫ ：ＯＦＦ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＧＡＭＭＡ １：＞ ＳＣＥＮＥ ０
Ｒ ＧＡＭＭＡ ： ０
Ｇ ＧＡＭＭＡ ： ０
Ｂ ＧＡＭＭＡ ： ０
ＴＯＴＡＬ ＧＡＭＭＡ： ０
ＧＡＭＭＡ ＴＡＢＬＥ：４．０
ＧＡＭＭＡ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
17
Function menu
4. DETAIL MENU (MAIN MENU and SUB MENU)
Note
Typical picture for explaining of DTL functions
Note
CH1/CH2 A.PHASE adjustment
When selected CH1 or CH2 A.PHASE item, Skin
tone DTL phase auto marker is displayed in the
center of the picture. Move the camera shooting
position where you want to set Skin tone DTL and
push function key one second. Automatically detect
video phase in the marker area and setting to two
persons of different complexions on the same scene.
18
Function menu
5. MAINTENANCE MENU (MAIN MENU and SUB MENU)
■ＭＡＩＮＴＥＮＡＮＣＥ ＭＥＮＵ
ＡＵＴＯ ＳＥＴＵＰ ：＞
ＷＨＴ ＳＨＡＤＩＮＧ：＞
ＡＵＴＯ ＩＲＩＳ ：＞
ＳＨＵＴＴＥＲ ：＞
ＳＹＳＴＥＭ ：＞
ＣＨＥＣＫ ：＞
■ＡＵＴＯ ＳＥＴＵＰ ：＜
ＣＨ１．Ａ．ＰＨＡＳＥ：ＰＵＳＨ ＞ １ＳＥＣ
ＣＨ２．Ａ．ＰＨＡＳＥ：ＰＵＳＨ ＞ １ＳＥＣ
ＧＲＡＹ ＳＣＡＬＥ ：ＰＵＳＨ ＞ １ＳＥＣ
ＢＬＡＣＫ ＬＥＶ ： ５．００％
ＦＬＡＲＥ ＬＥＶ ： １２．００％
ＧＡＭＭＡ ＬＥＶ ： ５８。００％
■ＷＨＴ ＳＨＡＤＩＮＧ：＜
ＥＸＴＥＮＤＥＲ ：ＯＦＦ（ｘ１）
ＷＨＴ ＳＨＡＤＩＮＧ：ＰＵＳＨ ＞ １ＳＥＣ
Ｒ Ｖ ＳＡＷ ： ０
Ｇ Ｖ ＳＡＷ ： ０
Ｂ Ｖ ＳＡＷ ： ０
ＩＮＩＴＩＡＬＩＺＥ ：
■ＡＵＴＯ ＩＲＩＳ ：＜
ＡＵＴＯ ＩＲＩＳ ：ＲＥＭＯＴＥ
ＩＲＩＳ ＴＲＩＭ ： ０
ＩＲＩＳ ＳＰＥＥＤ ： ０
ＰＥＡＫ／ＡＶＥ ：０／１０
ＩＲＩＳ ＧＡＴＥ ： １
ＯＰＥＮ ＬＩＭＩＴ： １２７
ＣＬＯＳＥ ＬＩＭＩＴ： －８５
ＩＮＩＴＩＡＬＩＺＥ ：
■ＳＨＵＴＴＥＲ ：＜ ＳＣＥＮＥ ０
ＳＨＵＴＴＥＲ ：ＯＦＦ
ＳＨＵＴＴＥＲ ＰＲＥ：１／１００
ＳＨＵＴＴＥＲ ＶＡＲ：１／５９．９４
ＣＣＤ ＭＯＤＥ ：ＦＩＥＬＤ
ＩＮＩＴＩＡＬＩＺＥ ：
■ＳＹＳＴＥＭ ：＜
ＣＡＭＥＲＡ ＩＤ ： １
ＦＡＮ ＭＯＤＥ ：ＡＵＴＯ
ＧＬ Ｈ ＰＨＡＳＥ ：－５１２
ＭＯＮ ＯＵＴ ：ＭＯＮＩＴＯＲ
ＴＩＭＥ／ＤＡＴＥ ：＞
ＦＯＲＭＡＴ ：＞
ＲＥＭＯＴＥ ：＞
■ＣＨＥＣＫ ：＜
ＴＥＳＴ ：ＯＦＦ
ＧＡＭＭＡ ：ＯＮ
ＤＥＴＡＩＬ ：ＯＮ
ＭＡＳＫＩＮＧ ：ＯＮ
ＫＮＥＥ ：ＯＮ
■ＴＩＭＥ／ＤＡＴＥ ：＜
（００：００：００， ０１－Ｊａｎ－２０００）
ＤＡＴＥ ＤＩＳＰ ：ＯＮ
ＴＩＭＥ ＤＩＳＰ ：ＯＮ
ＹＥＡＲ ：２０００
ＭＯＮＴＨ ： １
ＤＡＹ ： １
ＨＯＵＲ ： ０
ＭＩＮＩＴＥ ： ０
ＳＥＴ ＤＡＴＡ ：ＰＵＳＨ ＞

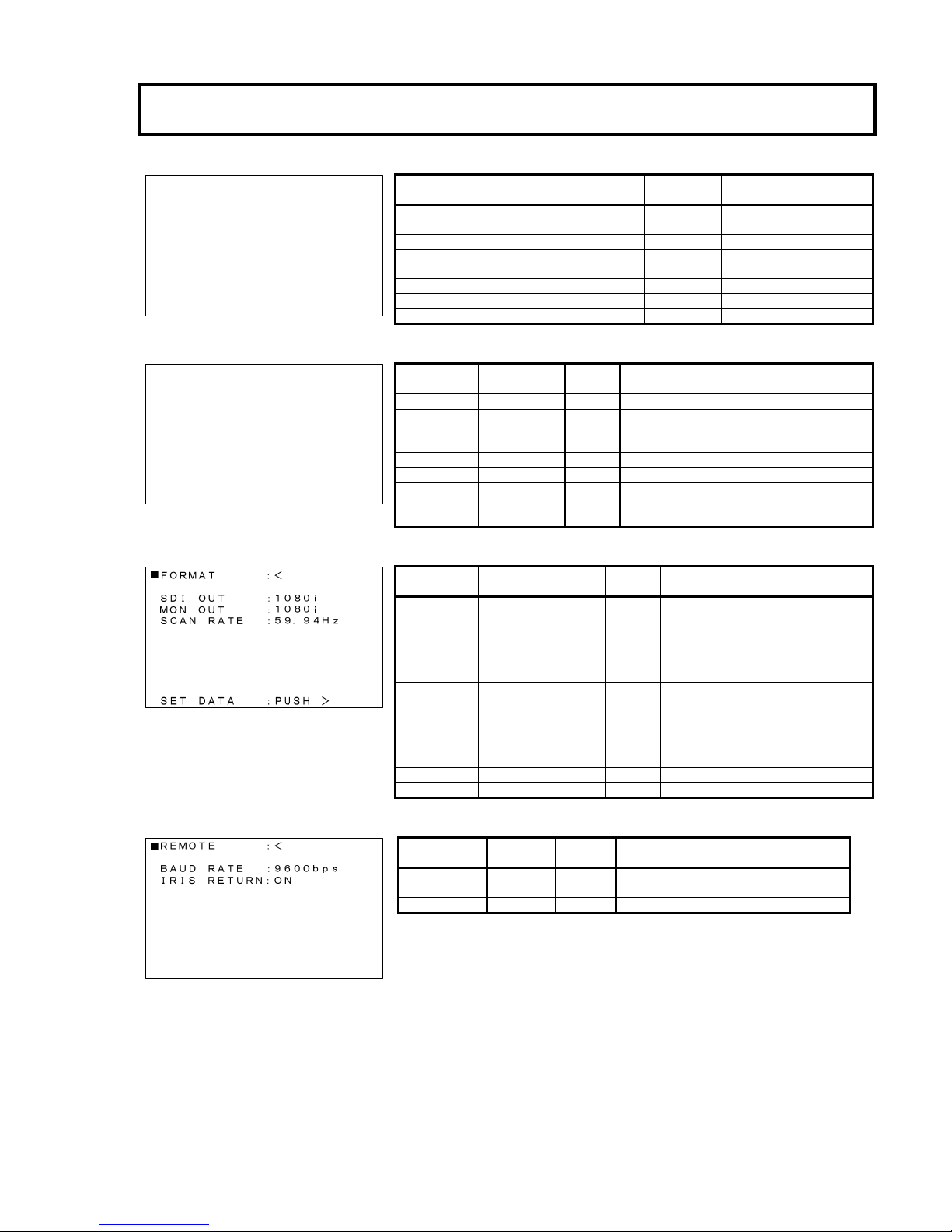

■ＦＯＲＭＡＴ ：＜
ＳＤＩ ＯＵＴ ：１０８０ｉ
ＭＯＮ ＯＵＴ ：１０８０ｉ
ＳＣＡＮ ＲＡＴＥ ：５９．９４Ｈｚ
ＳＥＴ ＤＡＴＡ ：ＰＵＳＨ ＞
■ＲＥＭＯＴＥ ：＜
ＢＡＵＤ ＲＡＴＥ ：９６００ｂｐｓ
ＩＲＩＳ ＲＥＴＵＲＮ：ＯＦＦ
19
Function menu
6. FILE MENU (MAIN MENU)
■ＦＩＬＥ ＭＥＮＵ
ＦＩＬＥ ＳＥＬＥＣＴ：ＳＣＥＮＥ ０
ＳＴＯＲＥ ＦＩＬＥ ：ＳＣＥＮＥ １
ＳＴＯＲＥ ：
ＡＬＬ ＩＮＩＴＩＡＬＩＺＥ ：
7. VF MENU (MAIN MENU and SUB MENU)
■ＶＦ ＭＥＮＵ
ＶＦ ＯＵＴ ＳＥＬ ：ＣＯＬＯＲ
ＶＦ ＤＥＴＡＩＬ ：＞
ＶＦ ＭＡＲＫＥＲ ：＞
ＳＩＤＥ ＰＡＮＥＬ ：＞
ＶＦ ＤＩＳＰＬＡＹ ：＞
ＶＦ ＺＥＢＲＡ ：＞
■ＶＦ ＤＥＴＡＩＬ ：＜
ＶＦ ＤＥＴＡＩＬ ：ＯＦＦ
ＤＴＬ ＬＥＶＥＬ ： ０
ＣＲＩＳＰ ： ０
■ＶＦ ＭＡＲＫＥＲ ：＜
ＵＳＥＲ ＳＥＬ ：ＵＳＥＲ １
ＭＡＲＫＥＲ１ ＳＥＬ：＞
ＭＡＲＫＥＲ２ ＳＥＬ：＞
ＣＲＯＳＳ ＳＥＴ ：＞
ＢＯＸ１ ＳＥＴ ：＞
ＢＯＸ２ ＳＥＴ ：＞
ＯＴＨＥＲ ＳＥＴ ：＞
ＭＡＲＫＥＲ１ ＳＷ ：ＯＦＦ
ＭＡＲＫＥＲ２ ＳＷ ：ＯＦＦ
■ＳＩＤＥ ＰＡＮＥＬ ：＜
ＳＩＤＥ ＰＡＮＥＬ ：ＯＦＦ
ＣＯＮＴＲＡＳＴ ：１
ＢＲＩＧＨＴ ：１
■ＶＦ ＺＥＢＲＡ ：＜
ＺＥＢＲＡ ＴＹＰＥ１：ＯＦＦ
ＬＥＶＥＬ ：＞１００％
ＺＥＢＲＡ ＴＹＰＥ２：ＯＦＦ
ＨＩＧＨ ＬＥＶＥＬ： ７５％
ＬＯＷ ＬＥＶＥＬ： ６０％
■ＭＡＲＫＥＲ１ ＳＥＬ：＜ＵＳＥＲ １
ＣＥＮＴＥＲ ＭＡＲＫ：ＯＦＦ
ＳＡＦＥＴＹ ＭＡＲＫ：ＯＦＦ
ＳＩＤＥ ４：３ ：ＯＦＦ
１３：９ ：ＯＦＦ
１４：９ ：ＯＦＦ
１５：９ ：ＯＦＦ
ＣＲＯＳＳ ：ＯＦＦ
ＢＯＸ１ ：ＯＦＦ
ＢＯＸ２ ：ＯＦＦ
■ＭＡＲＫＥＲ２ ＳＥＬ：＜ＵＳＥＲ １
ＣＥＮＴＥＲ ＭＡＲＫ：ＯＦＦ
ＳＡＦＥＴＹ ＭＡＲＫ：ＯＦＦ
ＳＩＤＥ ４：３ ：ＯＦＦ
１３：９ ：ＯＦＦ
１４：９ ：ＯＦＦ
１５：９ ：ＯＦＦ
ＣＲＯＳＳ ：ＯＦＦ
ＢＯＸ１ ：ＯＦＦ
ＢＯＸ２ ：ＯＦＦ
■ＣＲＯＳＳ ＳＥＴ ：＜ＵＳＥＲ １
Ｈ ＰＯＳＩＴＩＯＮ ： ５
Ｖ ＰＯＳＩＴＩＯＮ ： ５
■ＢＯＸ１ ＳＥＴ ：＜ＵＳＥＲ １
Ｈ ＰＯＳＩＴＩＯＮ ： ３０
Ｖ ＰＯＳＩＴＩＯＮ ： ２５
Ｈ ＳＩＺＥ ： １５
Ｖ ＳＩＺＥ ： １０
■ＢＯＸ２ ＳＥＴ ：＜ＵＳＥＲ １
Ｈ ＰＯＳＩＴＩＯＮ ：２２２
Ｖ ＰＯＳＩＴＩＯＮ ：２２８
Ｈ ＳＩＺＥ ： １５
Ｖ ＳＩＺＥ ： １０
■ＯＴＨＥＲ ＳＥＴ ：＜ＵＳＥＲ １
ＣＥＮＴＥＲ ＭＡＲＫ：ＴＹＰＥ１
ＳＡＦＥＴＹ ＭＡＲＫ：ＴＹＰＥ１
ＳＡＦＥＴＹ ＡＲＥＡ：９０．０％
ＭＡＲＫＥＲ ＬＥＶ ：１００
■ＶＦ ＤＩＳＰＬＡＹ ：＜
ＥＸＴＥＮＤＥＲ ：ＯＦＦ
ＳＨＵＴＴＥＲ ：ＯＦＦ
ＺＯＯＭ ：ＯＦＦ
ＦＯＣＵＳ ：ＯＦＦ
ＦＩＬＴＥＲ ：ＯＮ
ＷＨＩＴＥ ＢＡＬ ：ＯＮ
Ｍ．ＧＡＩＮ ：ＯＦＦ
ＩＲＩＳ ：ＯＮ
20
Function menu
8. Each menu item and description
8.1 COLOR main menu
■ＣＯＬＯＲ ＭＥＮＵ ＳＣＥＮＥ ０
ＭＡＳＴＥＲ ＧＡＩＮ：＞
ＷＨＩＴＥ ＧＡＩＮ：＞
ＢＬＡＣＫ／ＦＬＡＲＥ：＞
ＧＡＭＭＡ ：＞＞
ＫＮＥＥ／ＣＬＩＰ ：＞＞
ＭＡＳＫＩＮＧ ：＞＞＞
Item Description
MASTER GAIN Change to MASTER GAIN menu.
WHITE GAIN Change to WHITE GAIN menu.
BLACK/FLARE Change to BLACK/FLARE menu.
GAMMA Change to GAMMA menu.
KNEE/CLIP Change to KNEE/CLIP menu.
MASKING Change to MASKING menu.
8.1.1 MASTER GAIN sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
PRESET -3dB to 36dB 0dB
MODE PRESET, AGC PRESET
AGC LIMIT +1dB to +18dB +18dB
LOW SET -3dB, 0dB 0dB
MID SET 0dB to +21dB +6dB
HIGH SET +3dB to +36dB +12dB
INITIALIZE Press the L+R buttons to initialize
menu items.
8.1.2 WHITE GAIN sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
W.BAL MODE PRESET,
MEMORY,
AUTO
MEMORY
R GAIN -128 to 127 0 Adjust Red Gain.
G GAIN -128 to 127 0 Adjust Green Gain.
B GAIN -128 to 127 0 Adjust Blue Gain.
INITIALIZE Press the L+R buttons to initialize
menu items.
8.1.3 BLACK/FLARE sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
R BLACK -128 to 127 0 Adjust Red black level.
G BLACK -128 to 127 0 Adjust Green black level.
B BLACK -128 to 127 0 Adjust Blue black level.
R FLARE -128 to 127 0 Adjust Red Flare level.
G FLARE -128 to 127 0 Adjust Green Flare level.
B FLARE -128 to 127 0 Adjust Blue Flare level.
FLARE ON,OFF ON FLARE ON and OFF.
M.BLACK -128 to 127 0 Adjust Master black function.
INITIALIZE Press the L+R buttons to initialize menu
items.
21
Function menu
8.1.4 GAMMA 1 sub menu (COLOR MENU)
■ＧＡＭＭＡ １：＞ ＳＣＥＮＥ ０
Ｒ ＧＡＭＭＡ ： ０
Ｇ ＧＡＭＭＡ ： ０
Ｂ ＧＡＭＭＡ ： ０
ＴＯＴＡＬ ＧＡＭＭＡ： ０
ＧＡＭＭＡ ＴＡＢＬＥ：４．０
ＧＡＭＭＡ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
Item Setting
Initial
setting
Description
R GAMMA -128 to 127 0 Adjust Red Gamma
G GAMMA -128 to 127 0 Adjust Green Gamma
B GAMMA -128 to 127 0 Adjust Blue Gamma
TOTAL GAMMA -128 to 127 0 Adjust Total Gamma
GAMMA TABLE 3.0 to 8.0 4.0 Select gamma curve value from table
GAMMA ON, OFF ON GAMMA ON and OFF
INITIALIZE
Press the L+R buttons to initialize
menu items.
8.1.5 GAMMA 2 sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
U.GAMMA TBL
1(90%), (85%),
3(80%), (75%),
5(70%), 6(65%),
7(50%)
1(90%)
Select ultra gamma curve
ULTRA GAMMA ON, OFF OFF ultra gamma ON and OFF
BLK STR LEV 0 to 11 0 Select gamma curve value from table
BLK STRETCH ON, OFF OFF Black Stretch ON and OFF
INITIALIZE
Press the L+R buttons to initialize
menu items.
Note
Create high quality of picture, user can choose fixed gamma curve from table and also Black Stretch（BLK STR）
function bring out detail from dark portion of the picture without affecting middle level keeping with real black level.
8.1.6 KNEE/CLIP 1 sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
TOTAL KNEE -128 to 127 2 Adjust Total Knee level
R KNEE -128 to 127 0 Adjust R individual channel knee level
B KNEE -128 to 127 0 Adjust B individual channel knee level
TOTAL SLOPE -128 to 127 13 Adjust Total slope level
R SLOPE -128 to 127 0 Adjust R individual channel slope level
B SLOPE -128 to 127 0 Adjust B individual channel slope level
KNEE ON,OFF ON Knee function ON and OFF
AUTO KNEE ON,OFF OFF Auto Knee function ON and OFF
INITIALIZE
Press the L+R buttons to initialize menu
items.
8.1.7 KNEE/CLIP 2 sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
KNEE SAT -128 to 127 24 Adjust Knee Saturation.
KNEE SAT ON,OFF OFF Knee Saturation function ON And OFF
WHITE CLIP -128 to 127 0 Adjust White Clip level
WHITE CLIP ON,OFF ON White Clip function ON and OFF
INITIALIZE
Press the L+R buttons to initialize menu
items.
Note
Very bright portion of high light scene is reduced color saturation and changed hue. This Knee Saturation compensates
this effect and makes more natural color reproduction.
22
Function menu
8.1.8 MASKING 1 sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
R HUE, SAT -64 to +63 0 Adjust Red hue, saturation
Y-R HUE, SAT -64 to +63 0 Adjust Yellow - Red hue, saturation
Y HUE, SAT -64 to +63 0 Adjust Yellow hue, saturation
G-Y HUE, SAT -64 to +63 0 Adjust Green - Yellow hue, saturation
G HUE, SAT -64 to +63 0 Adjust Green hue, saturation
C-G HUE, SAT -64 to +63 0 Adjust Cyan - Green hue, saturation
C HUE, SAT -64 to +63 0 Adjust Cyan hue, saturation
B-C HUE, SAT -64 to +63 0 Adjust Blue - Cyan hue, saturation
B HUE, SAT -64 to +63 0 Adjust Blue saturation
M-B HUE, SAT -64 to +63 0 Adjust Magenta - Blue hue, saturation
M HUE, SAT -64 to +63 0 Adjust Magenta hue, saturation
R-M HUE, SAT -64 to +63 0 Adjust Red - Magenta hue, saturation
MASKING ON,OFF
OＮ
Masking ON and OFF
INITIALIZIE
Press the L+R buttons to initialize menu
items.
8.1.9 MASKING 2 sub menu (COLOR MENU)
Item Setting
Initial
setting
Description
LINEAR R-G -64 to +63 0 Adjust liner matrix R-G parameter
offset
LINEAR R-B -64 to +63 0 Adjust liner matrix R-B parameter
offset
LINEAR G-R -64 to +63 0 Adjust liner matrix G-R parameter
offset
LINEAR G-B -64 to +63 0 Adjust liner matrix G-B parameter
offset
LINEAR B-R -64 to +63 0 Adjust liner matrix B-R parameter
offset
LINEAR B-G -64 to +63 0 Adjust liner matrix B-G parameter
offset
PRESET TYPE STANDARD,
ITU-709,
SMPTE-240M,
SMPTE-WIDE,
NTSC, EBU,
OFF
STANDARD
CHROMA SAT -64 to +63 0 Adjust liner matrix SAT parameter
offset
CHROMA SAT ON,OFF OFF Adjust liner matrix SAT parameter
MASKING
ON,OFF
OＮ
Masking ON and OFF
INITIALIZE
Press the L+R buttons to initialize
menu items.
8.1.10 MASKING 3 sub menu (COLOR MENU)
■ＭＡＳＫＩＮＧ ３：＜ ＳＣＥＮＥ ０
－ＳＫＩＮ ＭＡＳＫＩＮＧ－
Ｓ．ＭＡＳＫ．ＳＡＴ ： ０
Ｓ．ＭＡＳＫ．ＨＵＥ ： ０
ＳＫＩＮ ＭＡＳＫ ：ＯＦＦ
ＩＮＩＴＩＡＬＩＺＥ ：
Item Setting
Initial
setting
Description
S.MASK.SAT -128 to 127 0 Adjust color saturation of the complexion
in the scene.
S.MASK.HUE -128 to 127 0 Adjust hue of the complexion in the scene.
SKIN MASK ON,OFF OFF Skin tone masking ON and OFF
INITIALIZE
Press the L+R buttons to initialize menu
items.
23
Function menu
8.2 DETAIL main menu
Item Setting
Initial
setting
Description
DETAIL
－ －
Change screen to DETAIL menu.
SKIN DTL
－ －
Change screen to SKIN DTL menu.
HIGH CHROMA
－ －
Change screen to HIGH CHROMA menu.
8.2.1 DETAIL 1 sub menu (DETAIL MENU)
■ＤＥＴＡＩＬ １：＞ ＳＣＥＮＥ ０
ＬＥＶＥＬ ： ０
Ｈ ＧＡＩＮ ：－１００
Ｖ ＧＡＩＮ ：－１００
Ｈ ＣＲＩＳＰ ： －５０
Ｖ ＣＲＩＳＰ ： －５０
ＬＥＶＥＬ ＤＥＰ ： －５０
ＤＴＬ ＦＲＥＱ ：１７ＭＨｚ
ＤＥＴＡＩＬ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
Item Setting
Initial
setting
Description
LEVEL -128 to +127 0
Adjust Detail level
H GAIN -128 to +127 -100
Adjust H. detail gain
V GAIN -128 to +127 -100
Adjust V. detail gain
H CRISP -128 to +127 -50 Adjust H detail crisp
V CRISP -128 to +127 -50 Adjust V detail crisp
LEVEL DEP -128 to +127 -50 Adjust level dependent of detail
DTL FREQ 13, 14, 15, 16, 17, 18, 19
17 MHz
Set boost frequency of detail
DETAIL ON,OFF ON Detail On and OFF
INITIALIZE
－ －
Press the L+R buttons to
initialize menu items.
8.2.2 DETAIL 2 sub menu (DETAIL MENU)
■ＤＥＴＡＩＬ ２：＜ ＳＣＥＮＥ ０
Ｄ．ＫＮＥＥ ＷＨＴ ： ５０
Ｄ．ＫＮＥＥ ＢＬＫ ： １００
ＤＥＴＡＩＬ ＫＮＥＥ：ＯＮ
Ｐ／Ｎ ＢＡＬＡＮＣＥ：８／８
ＫＮＥＥ ＤＥＴＡＩＬ： ０
ＤＴＬ ＳＯＵＲＣＥ ：Ｒ＋Ｇ
ＤＥＴＡＩＬ ：ＯＮ
ＩＮＩＴＩＡＬＩＺＥ ：
Item Setting
Initial
setting
Description
D.KNEE WHT -128 to +127 50 Positive detail knee adjust
D.KNEE BLK -128 to +127 100 Negative detail knee adjust
DETAIL KNEE ON, OFF ON DETAIL KNEE ON and OFF
P/N BALANCE 5/8, 6/8, 7/8, 8/8, 8/7,
8/6, 8/5
8/8 Balance adjustment for POS/NEG
detail
KNEE DETAIL -128 to +127 0 Adjust knee detail slope
DTL SOURCE G,R+G,R+G+B R+G Set source signal for detail
DETAIL OFF, ON ON Set On and OFF detail
INITIALIZE
－ －
Press the L+R buttons to initialize
menu items.
24
Function menu
8.2.3 SKIN DTL 1 sub menu (DETAIL MENU)
■ＳＫＩＮ ＤＴＬ １：＞ ＳＣＥＮＥ ０
ＣＨ ＳＥＬＥＣＴ ：１ｃｈ
ＣＨ１．Ａ．ＰＨＡＳＥ：ＰＵＳＨ ＞ １ＳＥＣ
Ｓ．ＤＴＬ ＬＥＶＥＬ： －１２８
ＰＨＡＳＥ： ９７ Ｙｅ－Ｒ
ＷＩＤＴＨ： ０
ＣＨ２．Ａ．ＰＨＡＳＥ：ＰＵＳＨ ＞ １ＳＥＣ
Ｓ．ＤＴＬ ＬＥＶＥＬ： ０
ＰＨＡＳＥ： ０ Ｙｅ－Ｒ
ＷＩＤＴＨ： ０
ＩＮＩＴＩＡＬＩＺＥ ：
Item Setting
Initial
setting
Description
CH SELECT 1ch,2ch 1ch CH selection for skin tone detail
CH1 A.PHASE
－ －
Set CH1 skin tone detail phase *1
LEVEL -128 to +127 -128 Adjust CH1 skin tone detail level
PHASE -128 to +127
R-Mg, Mg-B, B-Cy,
Cy-G, G-Ye, Ye-R
97
Ye-R
Set & adjust CH1 skin tone detail
phase.
CH1
S.DTL
WIDTH -128 to +127 0 Range setting of the CH1 skin tone
phase
CH2 A.PHASE
－ －
Set CH2 skin tone detail phase. *1
LEVEL -128 to +127 0 Adjust CH2 skin tone detail level
PHASE -128 to +127
R-Mg, Mg-B, B-Cy,
Cy-G, G-Ye, Ye-R
0
Ye-R
Set & adjust CH2 skin tone detail
phase.
CH2
S.DTL
WIDTH -128 to +127 0 Range setting of the CH2 skin tone
phase
INITIALIZE
－ －
Press the L+R buttons to initialize
*1: There is same functions in the AUTO SETUP menu and can be accessed from either menu. Refer page 55.
8.2.4 SKIN DTL 2 sub menu (DETAIL MENU)
Item Setting
Initial
setting
Description
THRESHOLD -128 to +127 -96 Threshold level for Skin tone Detail set
SKIN DETAIL ON, OFF OFF Skin tone Detail ON and OFF
SKIN GATE
OFF, 1, 2, 1+2
OFF Display ON and OFF for Skin tone Detail
gate
GATE IND. 1ch, 2ch 1ch Set skin tone Detail gate
INITIALIZE
－ －
Press the L+R buttons to initialize menu
items.
8.2.5 HIGH CHROMA sub menu (DETAIL MENU)
Item Setting
Initial
setting
Description
R
-128 to +127
0 Adjust detail level in high chrominance
Red portion in the scene.
G
-128 to +127
0 Adjust detail level in high chrominance
Green portion in the scene.
B
-128 to +127
0 Adjust detail level in high chrominance
Blue portion in the scene.
HIGH CHROMA ON, OFF OFF High Chroma detail ON and OFF
INITIALIZE
－ －
Press the L+R buttons to initialize menu
items.
25
Function menu
8.3 MAINTENANCE main menu
■ＭＡＩＮＴＥＮＡＮＣＥ ＭＥＮＵ
ＡＵＴＯ ＳＥＴＵＰ ：＞
ＷＨＴ ＳＨＡＤＩＮＧ：＞
ＡＵＴＯ ＩＲＩＳ ：＞
ＳＨＵＴＴＥＲ ：＞
ＳＹＳＴＥＭ ：＞
ＯＴＨＥＲＳ ：＞
ＣＨＥＣＫ ：＞
Item Description
AUTO SETUP Change screen to AUTO SETUP menu.
WHT SHADING Change screen to WHT SHADING menu.
AUTO IRIS Change screen to AUTO IRIS menu.
MIC GAIN Change screen to MIC GAIN menu.
GAIN SET Change screen to GAIN SET menu.
SHUTTER Change screen to SHUTTER menu.
SYSTEM Change screen to SYSTEM menu.
OTHERS Change screen to OTHERS menu.
CHECK Change screen to CHECK menu.
8.3.1 AUTO SETUP sub menu (MAINTENANCE MENU)
Item Setting
Initial
setting
Description
CH1.A.PHASE Skin tone Auto CH1 phase set. *1
CH2.A.PHASE Skin tone Auto CH2 phase set. *1
GRAY SCALE Gray scale Auto set up *2
BLACK LEV 0.0 to 12.35% 5.0% Black level set
FLARE LEV 0.0 to 24.70% 12.0% Flare level set
GAMMA LEV 42.20 to 67.70% 58.0% Gamma level set
*1: Displayed gate marker in enter of the picture for Skin tone detail Auto set up.
*2: Displayed 6 gate markers in the picture for Gray scale Auto set up.
Position the gray scale chart to 6 gate markers
8.3.2 WHT SHADING sub menu (MAINTENANCE MENU)
Item Setting
Initial
setting
Description
EXTENDER Display Lens extender position
OFF(X1)：Either of the following.
・When the extender is X1.
・The lens cable is not connected.
ON(X2)：When the extender is X2.
WHT SHADING Set Auto WHT SHADING
R V SAW -128 to +127 0 Adjust R V SAW shading
G V SAW -128 to +127 0 Adjust G V SAW shading
B V SAW -128 to +127 0 Adjust B V SAW shading
INITIALIZE
Press the L+R buttons to initialize
menu items.
Gate marker
26
Function menu
8.3.3 AUTO IRIS sub menu (MAINTENANCE MENU)
■ＡＵＴＯ ＩＲＩＳ ：＜
ＡＵＴＯ ＩＲＩＳ ：ＲＥＭＯＴＥ
ＩＲＩＳ ＴＲＩＭ ： ０
ＩＲＩＳ ＳＰＥＥＤ ： ０
ＰＥＡＫ／ＡＶＥ ：０／１０
ＩＲＩＳ ＧＡＴＥ ： １
ＯＰＥＮ ＬＩＭＩＴ： １２７
ＣＬＯＳＥ ＬＩＭＩＴ： －８５
ＩＮＩＴＩＡＬＩＺＥ ：
Item Setting
Initial
setting
Description
AUTO IRIS REMOTE,AUTO AUTO Setting of Iris control mode. *1
IRIS TRIM -128 to 127 0 Adjust Auto iris output level
IRIS SPEED -128 to 127 0 Speed control of the Iris response
PEAK/AVE 0/10, 1/9, 2/8, 3/7,
4/6, 5/5
0/10 Setting of Peak & Average detect for
Auto iris
IRIS GATE 1 to 6 1 Setting of Auto Iris gate. *2
OPEN LIMIT 0 to 127 127 Adjust limiter value for Auto Iris
open
CLOSE LIMIT -128 to -1 -85 Adjust closing limiter value for Auto
Iris
INITIALIZE
Press the L+R buttons to initialize
menu items.
*1: Effect only AUTO selected at the lens side selection switch. If it’s selected to MANUAL, drive iris directly.
*2:
8.3.4 SHUTTER sub menu (MAINTENANCE MENU)
Item Setting
Initial
setting
Description
SHUTTER OFF, PRESET, VAR, AES OFF
SHUTTER PRE 1/100(59.94i), 1/60(50i)
1/250,1/500, 1/1000, 1/2000,
CCFRM
1/100(59.94i)
1/60(50i)
SHUTTER VAR 59.94i
1.07s(36dB), 0.53s(30dB),
0.27s(24dB), 0.13s(18dB),
0.07s(12dB), 0.03s(6dB),
1/59.94 to 1/11238
50i
1.28s(36dB), 0.64s(30dB),
0.32s(24dB), 0.16s(18dB),
0.08s(12dB), 0.04s(6dB),
1/50.00 to 1/9375
59.94i
1/59.94
50i
1/50
CCD MODE FIELD
INITIALIZE Press the L+R
buttons to initialize
menu items.
27
Function menu
8.3.5 SYSTEM sub menu (MAINTENANCE MENU)
■ＳＹＳＴＥＭ ：＜
ＣＡＭＥＲＡ ＩＤ ： １
ＦＡＮ ＭＯＤＥ ：ＡＵＴＯ
ＧＬ Ｈ ＰＨＡＳＥ ：－５１２
ＭＯＮ ＯＵＴ ：ＭＯＮＩＴＯＲ
ＴＩＭＥ／ＤＡＴＥ ：＞
ＦＯＲＭＡＴ ：＞
ＲＥＭＯＴＥ ：＞
Item Setting
Initial
setting
Description
CAMERA ID 1 to 99 1 Setting of camera
number
FAN MODE OFF,AUTO,LOW,HIGH AUTO Setting of FAN mode
GL H PHASE -512 -512 Adjustment of GL Phase
MON OUT MONITOR
TIME/DATE
FORMAT
REMOTE
8.3.6 TIME/DATE sub menu (MAINTENANCE MENU)
■ＴＩＭＥ／ＤＡＴＥ ：＜
（００：００：００， ０１－Ｊａｎ－２０００）
ＤＡＴＥ ＤＩＳＰ ：ＯＮ
ＴＩＭＥ ＤＩＳＰ ：ＯＮ
ＹＥＡＲ ：２０００
ＭＯＮＴＨ ： １
ＤＡＹ ： １
ＨＯＵＲ ： ０
ＭＩＮＩＴＥ ： ０
ＳＥＴ ＤＡＴＡ ：ＰＵＳＨ ＞
Item Setting
Initial
setting
Description
DATE DISP ON, OFF ON The date is displayed at the colorbar.
TIME DISP ON, OFF ON The time is displayed at the colorbar.
YEAR 2000 to 2099 - Not affected by all initialize.
MONTH 1 to 12 - Not affected by all initialize.
DAY 1 to 31 - Not affected by all initialize.
HOUR 0 to 23 - Not affected by all initialize.
MINUTE 0 to 59 - Not affected by all initialize.
SET DATA Press the R button to activate the time and
date setting
8.3.7 FORMAT sub menu (MAINTENANCE MENU)
Item Setting
Initial
setting
Description
SDI OUT 59.94i
1080i,
480i(16:9), 480i(4:3)
50i
1080i,
576i(16:9), 576i(4:3)
59.94i
1080i
50i
1080i
MON OUT 59.94i
1080i,
480i(16:9), 480i(4:3)
50i
1080i,
576i(16:9), 576i(4:3)
59.94i
1080i
50i
1080i
SCAN RATE 59.94Hz, 50Hz 59.94Hz
SET DATA Press the R button to set output format.
8.3.8 REMOTE sub menu (MAINTENANCE MENU)
Item Setting
Initial
setting
Description
BAUD RATE 9600bps,
19200bps
9600bps
IRIS RETURN OFF, ON ON
28
Function menu
8.3.9 CHECK sub menu (MAINTENANCE MENU)
■ＣＨＥＣＫ ：＜
ＴＥＳＴ ：ＯＦＦ
ＧＡＭＭＡ ：ＯＮ
ＤＥＴＡＩＬ ：ＯＮ
ＭＡＳＫＩＮＧ ：ＯＮ
ＫＮＥＥ ：ＯＮ
Item Setting
Initial
setting
Description
TEST OFF,ON OFF TEST signal ON and OFF
GAMMA OFF,ON ON GAMMA function ON and OFF
DETAIL OFF,ON ON DETAIL function ON and OFF
MASKING OFF,ON ON MASKING function ON and OFF
KNEE OFF,ON ON KNEE function ON and OFF
8.4 FILE main menu
Item Setting
Initial
setting
Description
FILE SELECT 0 to 8,PRESET 0 Selection of file setting
STORE FILE 0 to 8 1 Setting of scene file memory
STORE Store scene file data to memory
ALL INITIALIZE Press the L+R buttons to initialize
scene file data
29
Function menu
8.5 VF main menu
■ＶＦ ＭＥＮＵ
ＶＦ ＯＵＴ ＳＥＬ ：ＣＯＬＯＲ
ＶＦ ＤＥＴＡＩＬ ：＞
ＶＦ ＭＡＲＫＥＲ ：＞
ＳＩＤＥ ＰＡＮＥＬ ：＞
ＶＦ ＤＩＳＰＬＡＹ ：＞
ＶＦ ＺＥＢＲＡ ：＞
Item Setting
Initial
setting
Description
VF OUT SEL
COLOR
Y,R,G,B
COLOR
VF DETAIL Change to VF DETAIL menu.
VF MARKER Change to VF MARKER menu.
SIDE PANEL Change to SIDE PANEL menu.
VF DISPLAY Change to VF DISPLAY menu.
VF ZEBRA Change to VF ZEBRA menu.
8.5.1 VF DETAIL sub menu (VF MENU)
■ＶＦ ＤＥＴＡＩＬ ：＜
ＶＦ ＤＥＴＡＩＬ ：ＯＦＦ
ＤＴＬ ＬＥＶＥＬ ： ０
ＣＲＩＳＰ ： ０
Item Setting
Initial
setting
Description
VF DETAIL ON,OFF OFF VF Detail ON and OFF
DTL LEVEL -128 to +127 0 Adjust VF detail level
CRISP -128 to +127 0 Adjust VF detail Crisp.
Note
When VF-L8HD or VF-L9HD is used, VF DTL LEVEL is controlled in Peaking volume of the viewfinder.
8.5.2 VF MARKER sub menu (VF MENU)
■ＶＦ ＭＡＲＫＥＲ ：＜
ＵＳＥＲ ＳＥＬ ：ＵＳＥＲ １
ＭＡＲＫＥＲ１ ＳＥＬ：＞
ＭＡＲＫＥＲ２ ＳＥＬ：＞
ＣＲＯＳＳ ＳＥＴ ：＞
ＢＯＸ１ ＳＥＴ ：＞
ＢＯＸ２ ＳＥＴ ：＞
ＯＴＨＥＲ ＳＥＴ ：＞
ＭＡＲＫＥＲ１ ＳＷ ：ＯＦＦ
ＭＡＲＫＥＲ２ ＳＷ ：ＯＦＦ
Item Setting
Initial
setting
Description
USER SEL USER1/ 2/3/4 USER1
MARKER1/2 SEL, CROSS SET
BOX1/2 SET, OTHER SET
These can do the memory.
MARKER1 SEL Change to MARKER1 menu.
MARKER2 SEL Change to MARKER2 menu.
CROSS SET Change to CROSS SET menu.
BOX1 SET Change to BOX1 SET menu.
BOX2 SET Change to BOX2 SET menu.
OTHER SET Change to OTHER SET menu.
MARKER1 SW ON, OFF OFF It is effective only to install VF-HD500.
30
Function menu
8.5.3 MARKER1 SEL/ MARKER2 SEL sub menu (VF MENU)
Item Setting
Initial
setting
Description
CENTER MARK ON,OFF ON Center marker ON and OFF.
SAFETY MARK ON,OFF ON Safety Maker ON and OFF.
SIDE 4:3 ON,OFF OFF
Side 4:3 marker ON and OFF
13:9 ON,OFF OFF
Side 13:9 Marker ON and OFF
14:9 ON,OFF OFF
Side 14:9 marker ON and OFF
15:9 ON,OFF OFF
Side 15:9 marker ON and OFF
CROSS ON,OFF OFF Cross marker ON and OFF.
BOX1 ON,OFF OFF Box1 marker ON and OFF.
BOX2 ON,OFF OFF Box2 marker ON and OFF.
Note
This safety marker is synchronized with aspect ratio (4:3, 13:9, 14:9, 15:9, OFF (16:9) ) of the Side panel.
8.5.4 CROSS SET sub menu (VF MENU)
Item Setting
Initial
setting
Description
H POSITION 0 to 255 5 Adjust Vertical line of Cross Marker
horizontally.
V POSITION 0 to 255 5 Adjust horizontal line of Cross Marker
vertically.
31
Function menu
8.5.5 BOX1 SET/BOX2 SET sub menu (VF MENU)
■ＢＯＸ１ ＳＥＴ ：＜ＵＳＥＲ １
Ｈ ＰＯＳＩＴＩＯＮ ： ３０
Ｖ ＰＯＳＩＴＩＯＮ ： ２５
Ｈ ＳＩＺＥ ： １５
Ｖ ＳＩＺＥ ： １０
■ＢＯＸ２ ＳＥＴ ：＜ＵＳＥＲ １
Ｈ ＰＯＳＩＴＩＯＮ ：２２２
Ｖ ＰＯＳＩＴＩＯＮ ：２２８
Ｈ ＳＩＺＥ ： １５
Ｖ ＳＩＺＥ ： １０
Item Setting
Initial
setting
Description
H POSITION 0 to 255 30 Adjust horizontal position.
V POSITION 0 to 255 25 Adjust vertical position.
H SIZE 0 to 255 15 Adjust H. size of the box.
V SIZE 0 to 255 10 Adjust V size of the box.
BOX1 MARKER
BOX2 MARKER
8.5.6 OTHER SET sub menu (VF MENU)
■ＯＴＨＥＲ ＳＥＴ ：＜ＵＳＥＲ １
ＣＥＮＴＥＲ ＭＡＲＫ：ＴＹＰＥ１
ＳＡＦＥＴＹ ＭＡＲＫ：ＴＹＰＥ１
ＳＡＦＥＴＹ ＡＲＥＡ：９０．０％
ＭＡＲＫＥＲ ＬＥＶ ：１００
Item Setting
Initial
setting
Description
CENTER MARK TYPE1/2/3/4 TYPE1
*1
Type setting of center marker.
*3
SAFTY MARK TYPE1/2/3 TYPE1
*2
Type setting of safety marker.
*4
SAFTY AREA 80.0%, 90.0%, 92.5%,
95.0%
90.0% Setting of safety area
MARKER LEV 0 to 100 100 Adjustment of marker level
*1：USER 1:TYPE 1, USER 2:TYPE 2, USER 3:TYPE 3, USER 4:TYPE 4
*2：USER 1:TYPE 1, USER 2:TYPE 2, USER 3:TYPE 3, USER 4:TYPE 1
*3：Type setting of center marker
*4：Type setting of safety marker
TYPE 1 TYPE 2 TYPE 3
32
Function menu
8.5.7 SIDE PANEL sub menu (VF MENU)
Item Setting
Initial
setting
Description
SIDE PANEL OFF,
4:3, 13:9,
14:9, 15:9
OFF Only when DISP SIZE is 16:9, it is effective.
CONTRAST 1 to 5 1 Set side panel contrast
BRIGHT 1 to 5 1 Set side panel brightness
8.5.8 VF DISPLAY sub menu (VF MENU)
Item Setting
Initial
setting
Description
EXTENDER ON,OFF OFF Display the Extender indicator in VF, ON and
OFF
SHUTTER ON,OFF OFF Display the Shutter indicator in VF, ON and
OFF
ZOOM ON,OFF OFF Display the Zoom indicator in VF, ON and OFF
FOCUS ON,OFF OFF Display the Focus indicator in VF, ON and OFF
FILER ON,OFF ON Display the Filter indicator in VF, ON and OFF
WHITE ＢＡＬ
ON,OFF ON Display the white balance mode indicator in VF,
ON and OFF
M.GAIN ON,OFF OFF Display the M. Gain indicator in VF, ON and
OFF
8.5.9 VF ZEBRA sub menu (VF MENU)
Item Setting
Initial
setting
Description
ZEBRA TYPE1 ON,OFF OFF Zebra marker type1 for VF, ON and
OFF
LEVEL 75% to 105% >100% Adjust limit value of VF zebra type 1
ZEBRA TYPE2 ON,OFF OFF Zebra marker type 2 for VF, ON and
OFF
HIGH LEVEL 55% to 100% 75% Adjust maximum value of VF zebra
type 2
33
Specifications
DK-H100
CCD 2/3-inch, IT-CCD 2.3 million pixels
Signal format 1080/59.94i, 1080/50i, 480/59.94i, 576/50i
Aspect ratio 16:9 (HD/SD), 4:3 (SD) switchable
Prism F1.4
Optical Filter
1X motorized filter wheel w/ 4 filter positions
(Clear, 1/4 ND, 1/16 ND, 1/64 ND)
ECC Filter 3200 K, 4300 K, 5600 K, 6300 K, 8000K
Lens mount B4 Bayonet
HD Resolution 1100TVL
HD SNR
Typical 60dB （HD-SDI output decode Y channel Band: 27.5 MHz）
Std Sensitivity
F10@2000lx (1080/59.94i), F11@2000lx (1080/50i)
3200K, 89.9% reflectance
Analog-to-Digital
Conversion depth
14-Bit
Minimum
illumination
0.002 lx (F1.4/+72dB)
+72dB at +36dB GAIN and CCD charge accumulation
Vertical Smear Typical -130dB
Gain selection
L (low) -3, 0dB
M (medium) 0 to 21dB, 3dB steps.
H (high) +3 to 36dB, 3dB steps.
Shutter
1/100(59.94i), 1/250, 1/500, 1/1000, 1/2000 (s)
1/60(50i), 1/250, 1/500, 1/1000, 1/2000 (s)
Lock scan
1/59.94 to 1/11238, 1.07s(+36dB) to 0.03s(+6dB) 59.94i
1/50.00 to 1/9375, 1.28s(+36dB) to 0.04s(+6dB) 50i
Geometric
distortion
Overall: 0 % (excluding lens characteristics)
Registration
Overall
0.01 % (excluding lens characteristics)
Dimensions 99(W) × 105(H) × 155(D) (excluding protrusions)
Power
Consumption
approx. 17W (DC12V)
MASS approx. 1.5 kg (3.3 lbs)
Input & Output
MON OUT:1X BNC HD-SDI or SD-SDI out (Character ON)
SDI OUT:1X BNC HD-SDI or SD-SDI out
GL IN:1X BNC for Tri-level sync or BB
REMOTE1:4-pin Multi connector for remote control panel
REMOTE2:8-pin RJ-45 connector for remote control
VF OUT:15-pin D-SUB connector for viewfinder
LENS:12-pin Multi LENS connector
34
Specifications

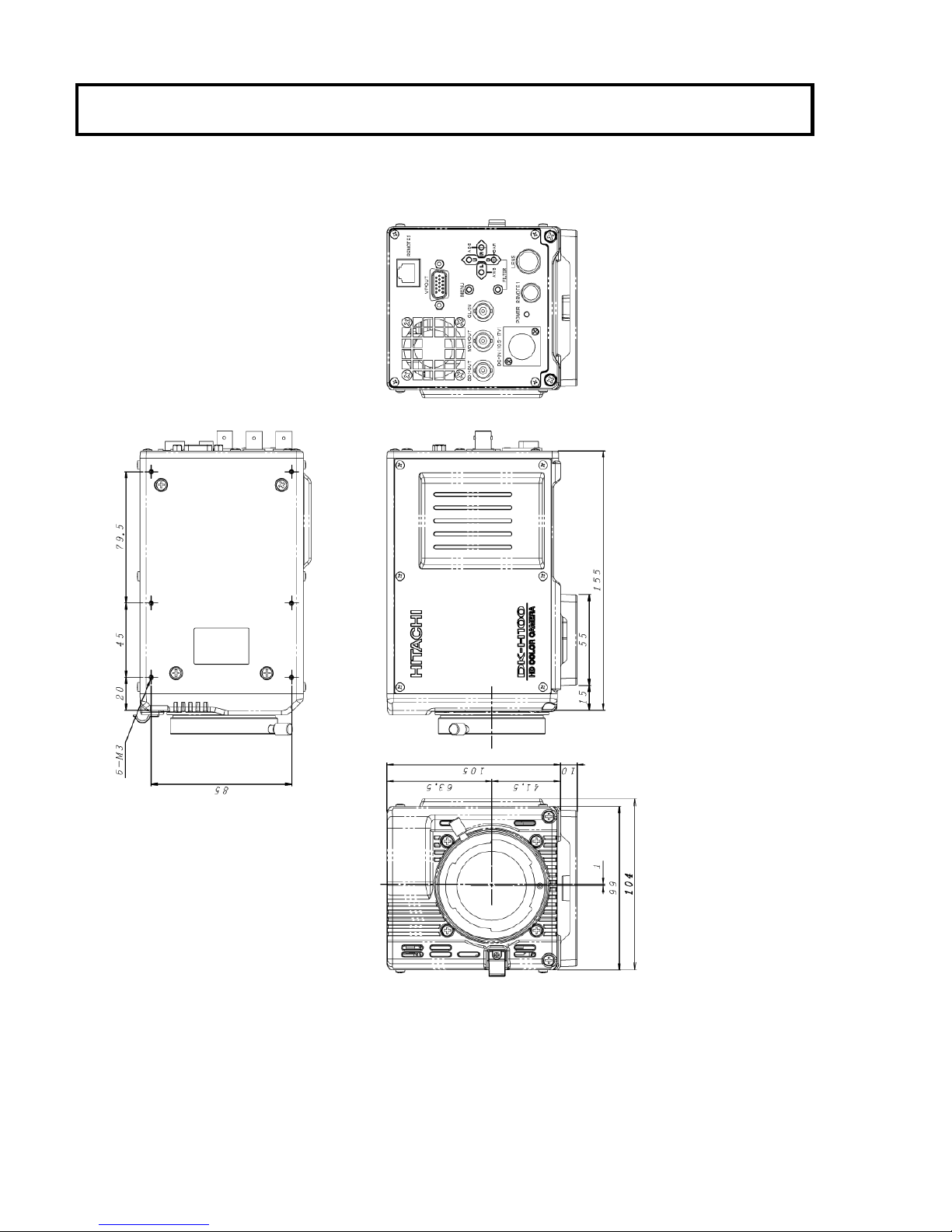

Dimensions
･DK-H100
35
Service information
Connector pin diagrams
LENS connector
1
2
3
4
11
5
7
12
6
8
9
10
Pin Signal Pin Signal
1 AUX SW 7 IRIS POSITION
2 CALL TRG 8 IRIS A/R
3 GND 9 EXETEND
4 ENF AUTO 10 ZOOM POS
5 IRIS CONTROL 11 F POS / L TX
6 +12V 12 L RX
REMOTE1 connector
1
23
4
Pin Signal
1 +12V output
2 SD input
3 SD output
4 SD GND
VF OUT connector
15
6
10
15
11
Pin Signal Pin Signal Pin Signal
1 Pr OUT 6 GND 11 CPU DATA IN
2 Y OUT 7 Y SHIELD 12 STRB1/R TALLY
3 Pb OUT 8 PEAKING CONT 13 STRB2/G TALLY
4 SYNC OUT 9 +12V OUT 14 CPU DATA OUT
5 VF DET 10 +12V OUT 15 CPU CLK/PEAKING SEL
DC IN connector
Pin Signal
1 GND
2 NC
3 NC
4 +12V IN
36
Service information
The solution in the case of having changed into the output mode which the color
monitor does not support.
When it changes to the output mode which the connected color monitor does not support, an image does
not appear. And the output mode change by a menu is difficult. Change of the output mode of a camera is
in the state which stopped the camera power supply and pushed the rear button, and is possible by
switching on a power supply. (Output mode is memorized by the memory.)
Please use it, changing the output mode to which a color monitor corresponds.
Button Video format
D 1080/59.94i
R 1080/50i
MENU + D 480/59.94i
MENU + R 576/50i
