ENGLISH

This Liquid Crystal Projector can display various computer
signals and NTSC/PAL/SECAM video signals.

Outline

(1) High brightness

A highly efficient optical system with a UHP lamp ensures

high brightness.

(2) High resolution

Three separate high-definition liquid crystal panels are

used for the R, G and B signals.

(3) Compact size, light weight for portability
(4) RGB output terminal
(5) RS232C Communication
(6)

Mouse emulation

(7)

Power zoom and power focus functions

(8)

Complies with VESA DDC1/2B specifications

(9) Auto-adjustment function

Contents

Page

Features

Liquid Crystal Projector

Model name

Thank you very much for purchasing this hitachi Liquid Crystal Projector.

Please read this operating guide to use correctly. After reading this manual, keep it carefully for

future reference.

OPERATING GUIDE

CP-X940W/E

Before use ......................................3

Contents of shipping box..................8

Names and functions of each part ..8

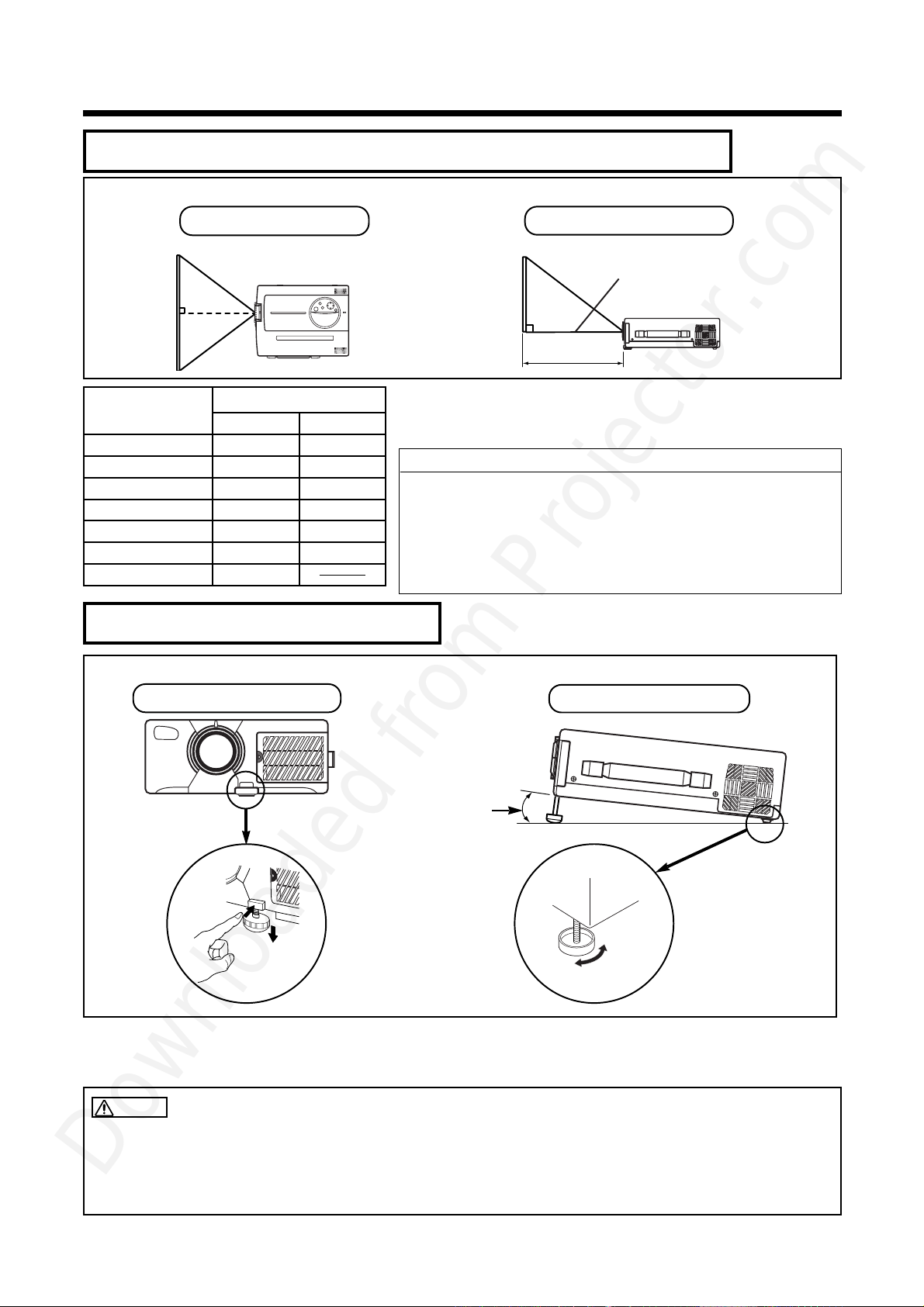

Installation ....................................12

Basic operations ............................13

Adjustments and functions ............16

Connection to the video signal

terminals ................................20

Connection to the RGB signal

terminal ..................................20

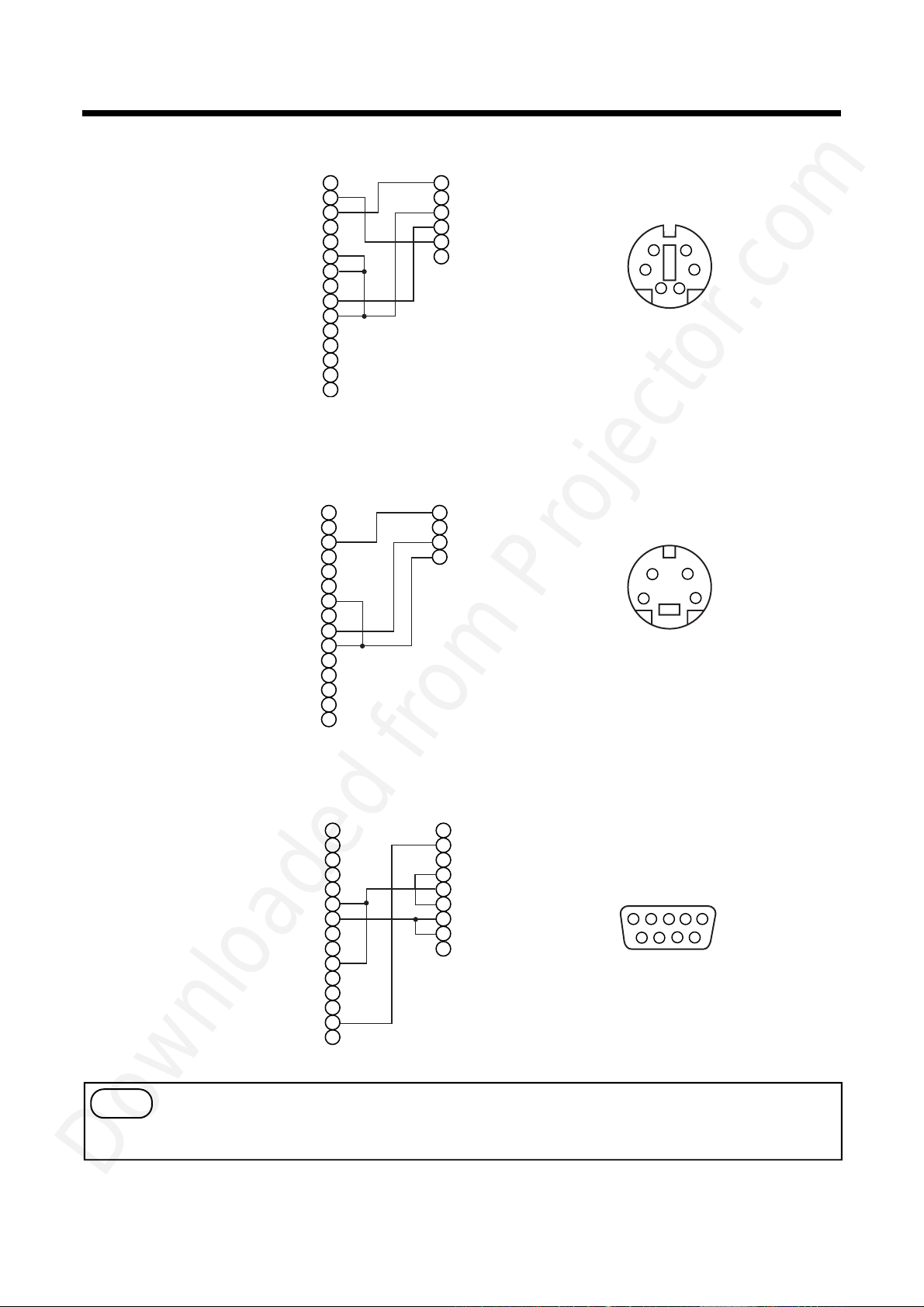

Connection to the control

signal terminal ........................23

Example of system setup ..............28

Cleaning the air filter ......................29

Lamp ..............................................30

Message table................................31

When you think something wrong ..32

Specifications ................................33

As these colours may not correspond with the coloured makings identifying the terminals in your plug,

proceed as follows:

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is

marked with the letter E or by the earth symbol or coloured Green or Green and Yellow.

The wire coloured Blue must be connected to the terminal marked with the letter N or coloured BLUE or

BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or

coloured BROWN or RED.

FOR THE CUSTOMERS IN U.K

THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE.

FOR THE U.K PLEASE REFER TO THE NOTES ON THIS PAGE.

IMPORTANT FOR UNITED KINGDOM

WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse, the value of which

is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS

1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover

omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin

face of the plug. Fuse covers are available from your dealer.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points

in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved

extension lead or consult your dealer.

Should it be necessary to change the mains plugs, this must be carried out by a competent person,

preferable a qualified electrician.

If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having

first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.

2

Green & Yellow to Earth

Fuse

Cord Clamp

Brown to Live

Blue to Neutral

WARNING: THIS EQUIPMENT MUST BE EARTHED
IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow=Earth, Blue=Neutral, Brown=Live.

3

ENGLISH

Before use

Examples of

illustrated marks

(Before Use)

Illustrated marks Various illustrated marks are used in this product and instruction manual so

the product is used correctly and safely, and also to protect you and others from

danger and your property from being damaged.

This shows that a person could be killed or injured if the

wrong operation is done by ignoring this indication.

This shows that a person could be injured or material may be

damaged if the wrong operation is done by ignoring this

indication.

The mark informs you that there is a warning (including caution).

The concrete details of the warning (the left diagram shows the

caution for an electric shock hazard) is shown in the diagram.

The mark informs you of a prohibited action. The concrete

prohibited action (the left diagram shows the prohibition of

disassembly) is drawn in the diagram or near it.

The mark informs you of actions you must do. The concrete

instruction details (the left diagram shows "Disconnect the power

plug from the power outlet") is drawn in the diagram.

Warning
Caution

WARNING:This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications,

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

Instructions to Users:

This equipment complies with the requirements of FCC (Federal Communication Commission)

Class A equipments provided that following conditions are met.

(1) Video signal cables:

Double shielded coaxial cables (so called FCC shield cable) must be used and the outer shield must be

connected to the ground. Or, if normal coaxial cables are used, the cables must be enclosed in metal

pipes or similar way to reduce the interference noise radiation.

(2) Power cord:

Shielded power cord must be used. The outer shield must be connected to the ground.

(3) Video inputs:

The input signal amplitude must no exceed the specified level.

Warning

4

If any abnormality occurs.

• When there is an abnormal smell or smoke, if

you use this unit as it is, this could cause a fire

or electric shock, etc. When an abnormality is

found, immediately turn off the power switch

and pull out the power plug from the power

outlet. Check that there is no smoke, etc., then

contact your dealer to repair the unit. Do not

repair it yourself as it is very dangerous.

• Do not use this unit as it is after

trouble has occurred,

such as "No picture", "No

sound", "Abnormal

sound", etc. This may cause a fire,

• electric shock, etc. In this case

immediately turn off the power

switch and disconnect the power

plug, then contact your dealer to repair the

unit.

• If water, etc. enters inside the unit, turn off the

power switch of the unit first and disconnect

the power plug and then contact your dealer.

If you use it as it is, it may cause a fire, electric

shock, etc.

Do not insert any foreign object.

• Do not insert a metal or flammable

object inside through the ventilation

holes, etc. This may cause a fire,

electric shock, etc.

• If foreign matter enters inside, turn

the power switch off and disconnect

the power plug from the power

outlet and contact your dealer. If

you use as it is, it may cause a fire,

electric shock, etc. Be careful

especially if children could touch the unit.

Pull out the
power plug
from the
power
outlet.

Do not put a container, etc. with
liquid on this unit.

Do not put a vase, flowerpot,

cosmetic container, medicine or

water and small metal objects on this unit. If

liquid spills and enter inside the unit, it may

cause a fire, electric shock, etc.

Do not apply any shock.

If you drop this unit or if the cabinet

is broken, turn off the power switch,

disconnect the power plug and

contact your dealer. If you use it as

it is, it may cause a fire, electric

shock, etc.

[Safety precaution]

Do not install this unit in an unstable place.

Avoid placing it in an unstable place

such as weak base, inclined floor, etc.

This may cause it to drop or fall over,

resulting in injury.

Do not open the cabinet.

Do not open the cabinet.

There are high voltage

parts inside the cabinet

and this may cause an

electric shock. Ask your

dealer to check inside and adjust and

repair the unit.

Do not remodel this unit.

Do not remodel this unit. It may

cause a fire, electric shock, etc.

Do not use this in a bathroom, etc.

Do not use this unit in a bathroom,

etc. This may cause a fire, electric

shock, etc.

Do not use
near water

Do not look directly at the lens when

the lamp is lit.

Do not look directly at the lens when

the lamp is lit. Since a strong light

is used, it could damage you vision, etc.

Especially pay attention if children are present.

Do not use power supplies other
than that specified.

Do not use this unit with a power

voltage other than specified power

supply voltage. It may cause a fire, electric

shock, etc.

Prohibition
of
disassembly

Electric shock
hazard

Pull out the
power plug
from the
power
outlet.

Pull out the
power plug
from the
power
outlet.

Prohibition
of
disassembly

5

ENGLISH

• If the cord is damaged (core wire is
exposed, disconnected, etc.), ask
your dealer to replace it. It may
cause a fire, electric shock, etc.

• Check that no dirt adheres to the
power plug and fully insert without any play. If
dirt adheres or the connection is incomplete, it
may cause a fire, electric shock, etc.

• The outer shield of power cord must be
connected to ground.

If you do not, it may cause a
electric shock.

Be careful in handling the power cord.

• Do not scratch, damage or process the power
cord. Do not bend it forcibly. Also do not put a
heavy object on it, do not heat it and do not pull
it. If you do, the power cord may be damaged and
it may cause a fire, electric shock, etc.

⋅ Do not pull the cord.
⋅ Do not put a heavy object on it.
⋅ Do not damage the cord.
⋅ Do not put it near a heating

device.

• Be careful that this unit is not placed
on the power cord. The power cord may be
damaged and it may cause a fire, electric shock,
etc. If the cord is covered with a carpet, etc. a
heavy object may be put on it without your
realizing it.

Warning

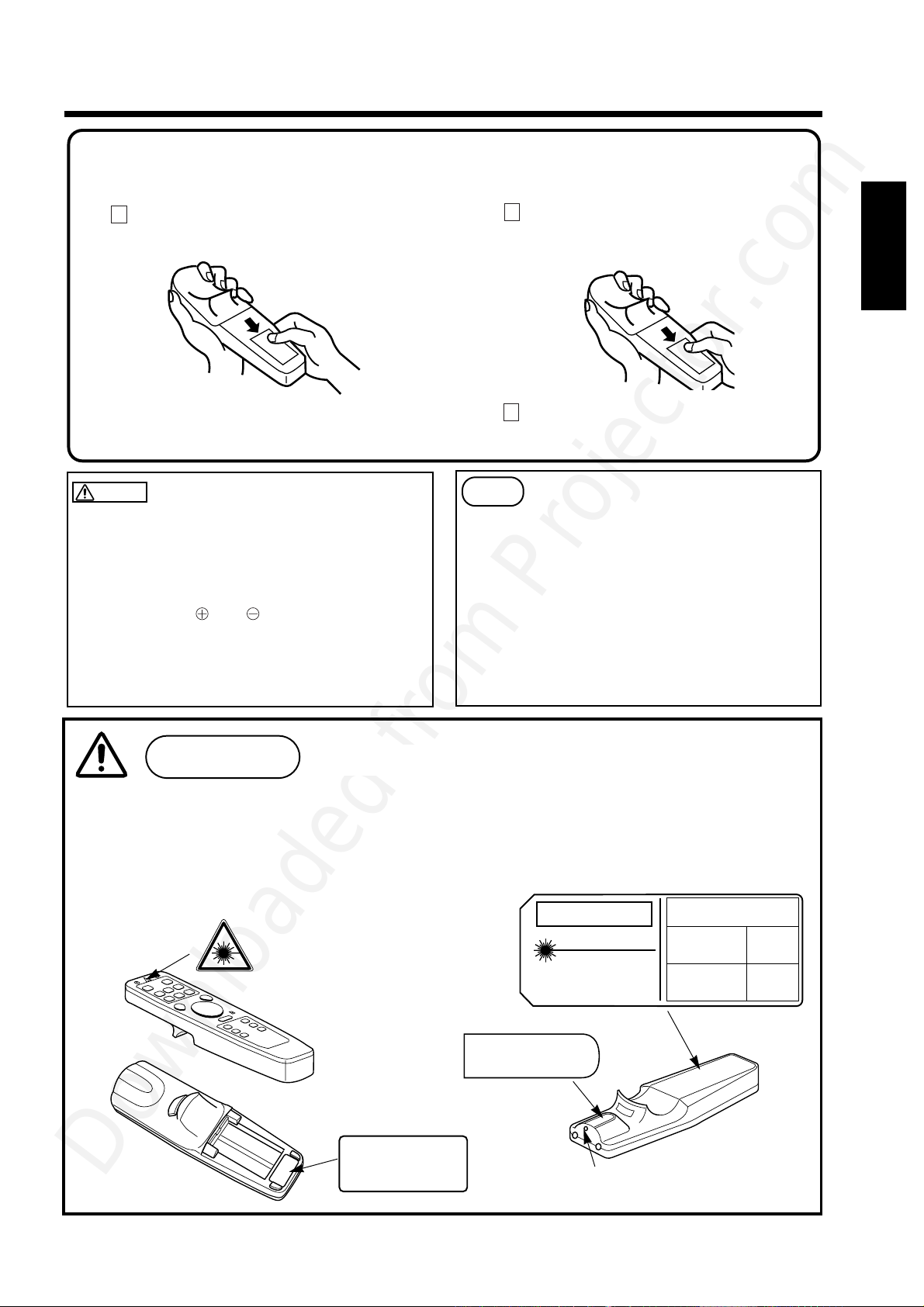

Do not stare directly into the laser aperture.

• The laser pointer on the remote control unit radiates the laser beam from the laser
aperture.

• Do not stare into the laser aperture or radiate the laser beam to other persons as the
laser emitted is a class 2 laser and it could damage you vision , etc.

Especially pay attention if children are present.

• The three labels below are caution labels for the laser beam.

LASER APERTURE

CAUTION

LASER RADIATION ­DO NOT STARE INTO BEAM

WAVE LEGTH : 670nm
MAX. OUTPUT : 1mW

CLASS 2 LASER PRODUCT

RADIAZIONI LASER
NON GUARDARE NEL RAGGIO LUCE
APPARECCHIO LASER DI CLASS 2
RAYONNEMENT LASER

MANUFACTURED
NE PAS REGARDER DANS
LE FAISCEAU APPAREIL Jun-99
A LASER DE CLASSE 2
LASER-STRAHLUNG PLACE OF
NICHT IN DEN STRAHL

MANUFACTURER:
BLICKEN LASAER KLASSE 2

AVOIDE EXPOSURE-LASER
RADIATION IS EMITTED
FROM THIS APERTURE

LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
IEC60825-1 : 1993 + A1 : 1997

High temperatures are generated
when the lamp is lit, so do not place
objects in front of the lens.

6

Caution

Do not step on this unit or do not put a

heavy object on it.

• Do not step on this unit. Especially

pay attention if children are

present. If you do, the unit may fall over or

may be broken causing an injury.

• Do not put a heavy object on this unit. If you

do, the unit may fall due to its imbalance or it

may drop, causing an injury.

Do not block the ventilation holes.

Do not block the ventilation holes. If

the ventilation holes are blocked, the

heat inside may build up and it may

cause a fire. Do not use this unit in

the following ways: On its side. In a poorly

ventilated, narrow place. On a carpet or

bedspread. Covered with a tablecloth. Place this

unit so that the ventilation holes are kept 30cm

or more away from the wall.

Do not place this unit in a moist or dusty place.

•

Do not place this unit in a moist or dusty place.

It may cause a fire, electric shock, etc.

• Do not place this unit where it would

be exposed to soot or steam, near a

cooking stove or humidifier, etc. It

may cause a fire, electric shock, etc.

Set the caster stoppers.

When this unit is installed on the

table with casters, set the caster

stoppers. If the table moves, it may

fall over, causing an injury.

Handle the power cord carefully.

• Do not bring the power cord near a heating

device. The shield of the cord may

melt and it may cause a fire, electric

shock, etc.

• Do not insert / disconnect the power

plug with wet hands. It may

cause an electric shock.

• When the power plug is to be

disconnected, do not pull the

power cord. The power cord may be damaged and

it may cause a fire, electric shock, etc. Be sure to

hold the power plug.

Cleaning

Be sure to pull out the power plug

from the power outlet for safety

when cleaning.

Pull out the power
plug from the
power outlet.

Caution when carrying it.

When this unit is to be moved, apply a

cover to the lens and be sure to

disconnect the power plug from the

power outlet and check that all

external connection cords are removed

before moving it. If not, the cord

may be damaged and it may cause

a fire, electric shock, etc.

Pull out the
power plug
from the power
outlet.

7

ENGLISH

Do not place this unit where it gets hot.

Be careful since if you place the unit
outdoors, in a place exposed to direct
sunlight or near a heating device,
the cabinet and parts could be
affected.

Cleaning the lens.

To clean the lens, use a generally­available lens cleaning tissue (used
for cleaning lens of camera, glasses,
etc.). Be careful not to scratch the
lens with a hard object.

Volume.

Use at the proper volume level so that it does
not bother persons in the neighborhood.
Especially, since the sound is likely to carry
well at the night even at a low volume, consider
the neighborhood to a good living environment.

[General cautions]

Cleaning the cabinet.

• Since many plastic materials are used on the
surface of the cabinet, if the surface is cleaned
using benzene, thinner, etc., it may change in
quality or the coating may be peeled off. Avoid
using chemicals.

• When a chemically-teated cloth is used, follow
the cautions that come with the cloth.

• Do not spray a volatile agent such as
insecticide on the unit. Do not leave a rubber
or vinyl object touching the cabinet for a long
time. It may cause the cabinet to change in
quality or the coating to peel off.

• Clean the dirt from the cabinet and operation
panel by dusting lightly with a soft cloth. If
the dirt is conspicuous, wipe off with a cloth
moistened with detergent diluted with water,
then wipe off with a dry soft cloth.

Rest your eyes occasionally when
viewing for a long time.

When you are not going to use

for a long time.

When you are not going use this unit
for a long time because you are going
on a trip, etc., be sure to pull out the
power plug from the power outlet for
safety. And also apply cover to the
lens so that the lens is not damaged.

Clean inside the unit at least once two years.

Ask your dealer to clean inside the unit at least
once two years. If the unit is left
with too much dust inside as it is for
a long this without cleaning, it may
cause a fire. Especially it is effective
to clean before the rainy season
starts. Consult your dealer for the cost of the
cleaning the inside the unit.

Pull out the
power plug
from the
power
outlet.

Caution

Use of batteries.

• Do not use batteries not specified
for this unit. Do not use new
batteries mixed together with old
ones. This may cause a fire, injury
due to burst of battery, liquid
leakage.

• When inserting batteries in this unit, pay
attention to the direction of the
and polarity indications and
insert the batteries correctly. If the
polarities are confused, it may cause
injury or damage near the unit due
to burst batteries, liquid leakage, etc.

Caution when replacing the lamp.

• When replacing the lamp, turn off the power of
the projector and disconnect the power plug
from the power outlet. Then wait for
45 minutes to allow the lamp cool:
Failure to do so could result in a
burn.

•

For disposal of used lamp, treat
according to the instruction of
community authorities.

• Since the lamp is made of glass, do
not apply shock to it and do not
scratch it.

• Also, do not use old lamp. This could also cause
explosion of the lamp.

• If it is probable that the lamp has exploded
(explosive sound is heard), disconnect the power
plug from the power outlet and ask your dealer
to replace lamp. The lamp is covered by front
glass and air-tight structure, but, in rare cases,
the reflector and the inside of the projector may
be damaged by scattered broken pieces of glass,
and broken pieces could cause injury when
being handled.

• When the lamp has been replaced, reset the
accumulated operation time of the lamp.

• Do not reset if the lamp has not been replaced.

Pull out the
power plug
from the
power
outlet.

Reflector

Front glass

Lamp

8

Main unit

Lens

Speaker

Speaker

Remote control
sensor

• Use the remote control transmitter within the range
of about 16 feet from the remote control sensor and
within 30° to both the left and right.

Cooling fan

(exhaust)

Contents of shipping box

Handle

STANDBY / ON button

Power ON/OFF button.
OFF sets the unit in standby mode.
(see page 13~14)

LAMP indicator

This lights or blinks when the lamp does
not light. (See page 32)

TEMP indicator

This lights or blinks when temperature
inside the projector is too high or when fan
is abnormal.(See page 32)

INPUT button

To select the input source.
Each time this button is pressed, the input
source is changed in sequence as shown
below.(See page 13)

ZOOM knob

Adjusts picture size.
(See page 13)

FOCUS ring

Adjusts focus. (See page 13)

MENU button

Picture adjustments.
Refer to page 16~19 for details.

RESET button

Resets unit to factory settings.
(See page 16)

Lens cap

MUTE button

Silences the sound. (Cancels the mute
when the unit is set in mute mode.)

RGB1

RGB2 VIDEO

Names and functions of each part

ON indicator

This blinks in the standby mode and lights
in the operation mode.(See page 32)

Power Cord

110V - US

220 - UK, Europe

3-Conductor

Video/Audio Cable

Liquid Crystal Projector Operating GuideRemote Control Transmitter

(batteries included)

RGB Cable

(15-15 pin M/M)

Mac adapter

with dip switch

Mouse cable 3

STANDBY/ON MUTE

POSITION ON

OFF

LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

INPUT

MENU ON

RIGHT

VOLUME

MAGNIFY

FREEZE

ON

OFF

123456

Check that the carton contains the following items.

RESET

MENU

MUTE

INPUT

LAMP
TEMP

STANDBY/ON

Cooling fan

(in take)

CP-X940W/E

Liquid Crystal Projector

OPERATING GUIDE

Flüssigkristall-Projektor

BEDIENUNGSANLEITUNG

Vidéoprojecteur à cristaux liquidis

NOTICE D'UTILISATION

Proiettore A Cristalli Liquidi

LIBRETTO D'ISTRUZIONI

Proyector con paneles de cristal líquido

MANUAL DE INSTRUCCIONES

Vloeibare-kristallen Projektor

GEBRUIKSAANWIJZING

Flytende krystall prosjektør

BRUKERHÅNDBOK

ENGLISH

DEUTSCHFRANÇAISITALIANOESPAÑOL

NEDERLANDS

NORSK

9

ENGLISH

Names and functions of each part (continued)

RGB input terminal

D-sub 15pin shrink terminal (1/2)

VIDEO input terminal

(on video-equipped models only)

S-VIDEO input terminal

Mini DIN 4pin connector

VIDEO input terminal

RCA Jack

AUDIO L/R input terminal

RCA Jack

AC IN socket

Connect the provided power cord.

MAIN POWER switch

Main power ON/OFF switch.

: OFF
: ON

RGB output terminal

D-sub 15pin shrink terminal
RGB output can be displayed
even in the standby mode.

CONTROL terminal

D-sub 15pin shrink terminal

AUDIO input terminal

Stereo mini jack (1/2)

AUDIO output terminal
(RGB/VIDEO)

Stereo mini jack

Remote control sensor

AUDIO IN

12

12

CONTROL

AUDIO

OUT

RGB IN

RGB OUT

S-VIDEO IN

VIDEO IN

AUDIO IN

L

MONO

R

10

MUTE button

Silences the sound. (Cancels the mute when
the unit is set in mute mode.)

VOLUME button

Adjusts volume. The sound is loud or low
while pressing the "+" or "-" button.

LASER button

Laser pointer ON button. Use as a stick (for
indication). (See page 11)

MOUSE LEFT button

Mouse left button is the left click of the
mouse. (bottom button) (See page 23)

RESET / RIGHT button

When displays the on-screen menus, resets
the menu item to factory settings.
When operates the mouse emulation, works
as right click of mouse in computer mode.
(See page 23)
After moving the picture (POSITION ON),
resets the position to factory settings.

MOUSE ON button

Mouse emulation mode starts.
(See page 23)
When menu are open or blank screen is
displayed or icon of position is displayed,
there are stopped and back light off.

TIMER ON / OFF button

Displays the setting time by count down.
See page 18 "TIMER" of menu when you set
the minutes of timer.

STANDBY / ON button

Power ON/OFF button.
OFF sets the unit in standby mode.
(See page 13, 14)

FREEZE Button

Pressing this button displays a still picture
(by freezing). (See page 15)

MAGNIFY button

Pressing this button partially magnifies a
displayed picture. (See page 15)

POSITION button

Moves the picture by DISK PAD after
pressed the POSITION ON button.
(Only RGB signal input)
While the back light on, you can operate
POSITION. *1

DISK PAD

When the back light of MENU ON button
on, selects or adjusts the menu item.

(See page 16)

When removes the on-screen menus,
works as mouse.
When the back light of the POSITION ON
button on, moves picture. *2

MENU ON button

Displays the on-screen menus.
And back light on. (See page 16 ~ 19)
While the back light on, you can operate
MENU.

BLANK ON button

The blank screen which is displayed by
pressing BLANK.
And the blank screen will be revealed
down by pressing BLANK again.

(See page 19)

INPUT SELECT button

Selects the input source. (See page 13)

2

1

3

2

1

Remote control transmitter

Names and functions of each part (continued)

*1 POSITION ON icon

When presses POSITION ON button, back light on and icon is
displayed.
While displaying the icon, you can operate POSITION.
Icon is displaying in video mode, but can not operate POSITION.

*2

When the back light of MENU ON or POSITION ON button on
without displaying the icon of POSITION ON or MENU, can
operate DISK PAD too.
Displays the icon or MENU at the same time as starting the
operation.
When presses the MOUSE ON button, MENU mode or
POSITION ON mode is stopped.

STANDBY/ON MUTE

POSITION ON

OFF

FREEZE

LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

INPUT

MENU ON

RIGHT

VOLUME

MAGNIFY

11

ENGLISH

Slide the battery compartment cover
in the direction of the arrow while
pressing slightly down on it.

Caution

Cautions on use of batteries

• Do not use batteries not specified for this unit.
Also do not use old and new batteries together.
It may cause a fire, injury due to burst of
battery or liquid leakage.

• When inserting batteries, pay attention to the
direction of the and polarity indications
and insert the batteries correctly. If the
polarities are confused, it may cause injury or
damage near the unit due to a burst of battery
or liquid leakage.

How to insert batteries

Insert the provided batteries (LR6 (alkal) into the remote control transmitter.

Remove the battery
compartment cover.

Caution

• Do not drop the remote control transmitter or
apply any shock to it.

• Do not let the remote control transmitter get
wet and do not put it on a wet object. It may
cause a malfunction.

• If you are not going to use it for a long time,
remove the batteries from the remote control
transmitter.

• If operation of the remote control becomes
difficult, replace the batteries.

Cautions on use

Insert the batteries
as illustrated inside
the battery compartment.

Replace the cover.

Names and functions of each part (continued)

1

2

3

• The laser pointer on the remote control unit radiates the laser beam from the laser aperture.

• This laser pointer used as a stick (for indication).

• Do not stare directly into the laser aperture or radiate the laser beam to other persons as the laser

emitted is a class II laser and it could damage you vision , etc.
Especially pay attention if children are present.

• The three labels below are caution labels for the laser beam.

Caution

Cautions on use of the laser pointer.

LASER APERTURE

CAUTION

LASER RADIATION ­DO NOT STARE INTO BEAM

WAVE LEGTH : 670nm
MAX. OUTPUT : 1mW

CLASS 2 LASER PRODUCT

RADIAZIONI LASER
NON GUARDARE NEL RAGGIO LUCE
APPARECCHIO LASER DI CLASS 2
RAYONNEMENT LASER

MANUFACTURED
NE PAS REGARDER DANS
LE FAISCEAU APPAREIL Jun-99
A LASER DE CLASSE 2
LASER-STRAHLUNG PLACE OF
NICHT IN DEN STRAHL

MANUFACTURER:
BLICKEN LASAER KLASSE 2

AVOIDE EXPOSURE-LASER
RADIATION IS EMITTED
FROM THIS APERTURE

LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
WAVE LENGTH : 670nm
MAX. OUTPUT : 1mW
IEC60825-1 : 1993 + A1 : 1997

12

Please basically use liquid crystal projector at the horizontal
position.
If you use liquid crystal projector by the lens up position, the lens
down position and the side up position, this may cause the heat
inside to build up and become the cause of damage.
Be especially careful not to install it with ventilation holes blocked.

Determine picture size and projection distance as illustrated below.

a:Distance from the projector to the screen.

(tolerance : ±10%)

This screen size is full-screen size.(1024 dots X 768 dots)

Screen

Installation

View from the top

View from the side

Adjust the projection position using the foot adjusters at the bottom of the projector.

View from the front

• Do not unlock the foot adjusters while you do not support the projector, to avoid falling of
the projector and causing an injury.

• Do not revolve the foot adjusters by force, the foot adjusters is damaged.

• Securely lock the adjuster.

• Do not apply unnecessary force from the upper side when lifting the projector. Otherwise,

projector may be damaged or a finger could be caught and cause injury.

1. Lift up the projector and press the button of the adjuster to release the lock.

2. Adjust the projection angle, release the button of the adjuster and securely lock it.

3. To adjust the angle slightly, revolve the foot adjusters.

Foot adjuster

Lens center

View from the side

Vertical adjustments
can be made in the
range of 0 to 9°.

Installation of liquid crystal projector

Caution

Example of the projector and screen installation

How to use foot adjusters

Screen (inch)

a (inch)

Minimum Maximum
40 64 84
60 97 127
80 130 169

100 163 213
120 196 256
150 244 319
200 326

Horizontal inclination
may be adjusted using
the adjuster at the rear.

a

13

ENGLISH

7

Press the INPUT button or the INPUT SELECT (VIDEO or
RGB) button to select the source of the signal to be projected
on the screen.

• The selected signal input is displayed at the bottom right of the screen
for 3 seconds.

Power on all connected equipment.

The method of connecting various equipment, see on the page 20~28.

Turn the MAIN POWER switch of the projector on.[ I : ON]

• The ON indicator will light up orange.

1

Press the STANDBY/ON button.

• The ON indicator blinks (green) during warm-up and then lights (green).

• Power cannot be turned on even if the STANDBY/ON button is pressed within 60 seconds after

power is turned off, since the lamp has cooled preparing for next lighting.

2

Adjust picture size using the projection lens ZOOM knob.

4

Adjust focus using the projection lens FOCUS ring.

5
6

Example on-screen display

Basic operations

3

Remove the lens cap.

RGB1

To project the picture

4

5

7

2

1

2

3

STANDBY/ON MUTE

POSITION ON

OFF

FREEZE

LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

INPUT

MENU ON

RIGHT

VOLUME

MAGNIFY

7

RESET

MENU

MUTE

INPUT

STANDBY/ON

14

Basic operations (continued)

• To reduce temperature inside the projector, fan will rotate for about 1 minute after the lamp
is turned off.

• Do not turn off the MAIN POWER switch during the lamp on because the lamp is damaged.

Press the STANDBY/ON button, for 1 second.

• The ON indicator blinks orange and the lamp turns off. (About 1 minute later), the fan stops and
the indicator lights up orange.

• Press the STANDBY/ON button for short time (less than 1 second), the projector do not set in
standby mode.

1

Turn the MAIN POWER switch of the projector off.[ : OFF]

2

3

Install the lens cap.

Caution

This projector complies with VESA DDC1/2B specifications. PLUG&PLAY is a system with computer,

peripherals (including projectors), and operating system.

It works when the projector is connected to DDC (Display Data Channel) ready computer that is running

an operating system software that incorporates plug & play functionality.

(Only RGB 1)

To turn off the power

PLUG&PLAY

1

2

1

3

RESET

MENU

MUTE

INPUT

STANDBY/ON

STANDBY/ON MUTE

POSITION ON

OFF

FREEZE

LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

INPUT

MENU ON

RIGHT

VOLUME

MAGNIFY

15

ENGLISH

Basic operations (continued)

MAGNIFYING FUNCTION

It is possible to display a partially magnified picture. This function can be used in combination with a
FREEZE function.

[TO CHANGE MAGNIFICATION]

3

Press the MAGNIFY + button.

• By doing so, the center of the picture can be magnified as one
part, becoming double in size.

1

Press the MAGNIFY + button.

• When the button is pressed, more magnification of display
takes place. (Maximum about 4 times)

2

Press the MAGNIFY - button.

• When the button is pressed, the magnified display reduces its
size. (Minimum about 1.1 times)

3

[TO SHIFT DISPLAY AREA]

Press the POSITION ON button.

4

Press the DISK PAD button up and down and left and right.

• The magnified display area shifts in the direction the button is pressed.

5

[TO RETURN TO NORMAL DISPLAY]

Press MAGNIFY OFF button.

6

Caution

Note: The MAGNIFY function is released when an input selector button is pressed or when the
display mode of a personal computer is switched over during display.

6

4
5

1, 2

STANDBY/ON MUTE

POSITION ON

OFF

FREEZE

LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

INPUT

MENU ON

RIGHT

VOLUME

MAGNIFY

FREEZE FUNCTION

This function can display a still picture (by freezing). This function can
be used in combination with a MAGNIFY function.

Press the FREEZE button.

The display image stops. A mark appears at the lower right of
the screen for about 3 seconds during the FREEZE function.

1

Press the FREEZE button.

The freeze function is cancelled.

Furthermore, a mark appears at the bottom of the screen for 3

seconds or so when FREEZE is released.

2

[TO RELEASE FREEZE]

Caution

• Note: When the FREEZE Button is pressed, FREEZE and RELEASE can function alternately.

• What is more, FREEZE is released when an input selector button is pressed or when the

display mode of a personal computer is switched over during display.

• The POSITION ON icon is not displayed during freeze. Also, scrolling using DISK PAD
operation is not possible.

• When a still picture signal is given as input and the freeze function is ON, do not forget to
cancel the freeze function.

1, 2

STANDBY/ON MUTE

POSITION ON

OFF

FREEZE

LASER

VOLUME

MAGNIFY

16

Press the MENU ( ) buttons or the MENU ON /
OFF button.

• On-screen menus are displayed on the screen.

1

Select the menu to be adjusted using the MENU ( )
buttons or DISK PAD.

• Menu displayed in green is selected.

2

Select the item to be adjusted using the MENU ( )
buttons or

DISK PAD

.

• Item displayed in green can be adjusted.

When no operation is done for about 5 ~ 10 seconds, menu screen will go off.

3

Individual memory functions are provided for the VIDEO, RGB1 and RGB2 input terminals. Adjustments

are saved after power off.

• Resetting menu items (SETUP, INPUT, IMAGE, OPT.)

(1)

Select the menu item to return to the initial setting.

(2)

Press the RESET button.

(3)

Select the DEFAULT (To select the CANCEL is not changed).

(Display shown on the right will appear.)

• Resetting adjustment items (VOLUME, BRIGHT etc.)

(1)

Select the adjustment item to return to the initial setting.

(2)

Press the RESET button.

Adjustments and functions

Memory function

To return to the initial setting

1

2, 3

1, 2, 3

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
SHARPNESS
COLOR
TINT
COLOR BAL

R B

RESET 'SETUP'

DEFAULT
CANCEL

STANDBY/ON MUTE

POSITION ON

OFF

FREEZE

LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

INPUT

MENU ON

RIGHT

VOLUME

MAGNIFY

RESET

MENU

MUTE

INPUT

STANDBY/ON

17

ENGLISH

RGB signal input

VIDEO signal input

The menu SET UP serves for the change of parameters influencing the picture and for
the move picture position.

Adjustments and functions (continued)

SET UP

Adjustment Item Details of adjustment

VOLUME

Decrease Increase

BRIGHT

(BRIGHTNESS)

Dark Bright

CONTRAST

Lower Higher

SHARPNESS

Soft Sharp

COLOR

Less More

TINT

Red Green

V.POSIT

(V.POSITION)

Moves the picture up or down. Or automatic control.

H.POSIT

(H.POSITION)

Moves the picture left or right. Or automatic control.

H.PHASE

Decreases the picture flicker. Or automatic control.

H.SIZE

Widens of Narrow the horizontal size of the picture. Or automatic control.

COLOR BAL

(COLOR BALANCE)

for Red for Blue

How to use the SET UP menu

1. Bar display items (VOLUME, BRIGHT etc.)
Move the green cursor to the item you wish to adjust, then move the MENU buttons on the unit, or the
DISK PAD, to left and right to adjust the length of the bar display. Some items can not be adjusted
during freeze or during magnify. (Please refer to the above table.)

2. Numerical display items (V POSIT, H POSIT etc.)
Use either manual operation or auto-adjustment. Some items can not be adjusted during freeze or
during magnify. (Please refer to the above table.)

< Manual Operation >

Adjust optional items manually.

(1) Use the MENU buttons on the unit or the DISK PAD on the remote

control to move the green cursor to the number of the item you wish to

adjust.

(2) With the green cursor on the number, use the MENU buttons on the

unit or the DISK PAD on the remote control to raise or lower the

value.

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
V POSIT
H POSIT
H PHASE
H SIZE
COLOR BAL

123
111

31

1024

R B

AUTO

Freeze Magnify

Freeze &

Magnify

: operation is possible. : operation is not possible.

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
V POSIT
H POSIT
H PHASE
H SIZE
COLOR BAL

123

AUTO

111

31

1024

R B

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
SHARPNESS
COLOR
TINT
COLOR BAL

R B

18

Adjustments and functions (continued)

The menu INPUT serves for the selection of input source.

INPUT

Adjustment Item Details of adjustment

RGB 1

Selects the RGB 1 terminal.

RGB 2

Selects the RGB 2 terminal.

VIDEO

Selects the VIDEO terminal.

SYSTEM

Selects the video signal systems. In normal circumstances, select AUTO. AUTO does not
support N-PAL.
When the picture (Video) is abnormal (no color), selects the input signal mode (NTSC,
PAL, SECAM, NTSC4.43 M-PAL and N-PAL). To input N-PAL signals, select N-PAL.

• When start up screen is displayed ("NO INPUT IS DETECTED" or "SYNC IS OUT OF
RANGE" is displayed), SETUP menu items other than VOLUME cannot be set.

• TINT cannot be adjusted with PAL/SECAM video signal input.

• TINT, COLOR and SHARPNESS cannot be adjusted with an RGB signal input.

• V.POSIT, H.POSIT, H.PHASE and H.SIZE cannot be adjusted with a VIDEO signal input.

• Auto-adjustment will take about 10 to 15 seconds to complete.

• In some cases auto-adjustment may not function normally, depending on the type of

computer to which the unit is connected, and the signal sent.

• Auto-adjustment may not perform normally with some images. Do not use with animated
or dark images.

• Carry out the auto-adjustment when the application, which is activated on the computer, is
set to the maximum display.

• After auto-adjustment the screen may become slightly dark due to the auto-adjustment of
the signal level.

• Auto-adjust can not be performed during freeze, during magnify, or during the initial
screen display ("NO INPUT IS DETECTED" or "SYNC IS OUT OF RANGE").

Caution

< AUTO-adjustment >

The projector will automatically adjust four items (V POSIT, H POSIT, H PHASE, H SIZE, White level).
When AUTO is selected (the cursor is moved from Manual Operation towards the right) the AUTO Confirm
screen shown below will be displayed.

< AUTO-adjustment Confirm Screen >

While the AUTO confirmation screen is displayed as illustrated on the
upper right, if you shift the cursor upward and select AUTO, the projector
will perform auto-adjustment.
It will become as illustrated on the lower right.
If CANCEL is selected for three seconds, or if the RESET button on either
the unit or the remote control is pressed, the green cursor will return to
the value for the selected item (Manual Operation)

< During AUTO-adjustment >

At the lower right of the screen the word <AUTO> will flash in green
letters.
When the auto-adjustment is completed the word <AUTO> will disappear.
The auto-adjustment of the white level is cancelled by input switching and
signal mode change.

SETUP INPUT IMAGE OPT.

VOLUME
BRIGHT
CONTRAST
V POSIT
H POSIT
H PHASE
H SIZE
COLOR BAL

123
111

31

1024

R B

AUTO

AUTO
CANCEL

AUTO

SETUP INPUT IMAGE OPT.

RGB1
RGB2
VIDEO

SETUP INPUT IMAGE OPT.

SYSTEM
RGB1
RGB2
V I DEO

AUTO
NTSC
PAL
SECAM
NTSC4.43
M

-PAL

N-PAL

19

ENGLISH

The menu OPT. allows you to control communication function etc.

Adjustments and functions (continued)

SETUP INPUT IMAGE OPT.

COM. SPEED
COM. BITS
TIMER
LANGUAGE
AUTO OFF
START UP

SETUP INPUT IMAGE OPT.

7N1
8N1

COM. BITS

SETUP INPUT IMAGE OPT.

1200
2400
4800
9600

19200

COM. SPEED

(bps)

SETUP INPUT IMAGE OPT.

LANGUAGE

ENGLISH
FRANÇAIS
DEUTSCH
ESPAÑOL
ITALIANO
NORSK
NEDERLANDS

SETUP INPUT IMAGE OPT.

TIMER

15 min.

SETUP INPUT IMAGE OPT.

START UP

TURN ON
TURN OFF

SETUP INPUT IMAGE OPT.

AUTO OFF

0 min.
STOP

OPT.

Adjustment Item Details of adjustment

COM. SPEED

(COMMUNICATION SPEED)

Selects the data speed of transmission. (five kinds)

COM. BITS

(COMMUNICATION BITS)

Selects the data format or transmission
7N1...7 data bits, No parity, 1 stop bit.
8N1...8 data bits, No parity, 1 stop bit.

TIMER

Sets the minutes of timer. (0~99)

LANGUAGE

Selects the language on-screen menu.
(English, Français, Deutsch, Español, Italiano, Norsk, Nederlands)

AUTO OFF

Sets time (minutes) from the start of displaying start up screen (No input is detected or
sync is out of range) to turning the power OFF. "0" is stop and another "1~99"

START UP

Sets/releases start up screen displayed when power is turned on, or when no input is
detected or sync is out of range.

The menu IMAGE serves of the picture inversion.

SETUP INPUT IMAGE OPT.

MESSAGE

TURN ON
TURN OFF

SETUP INPUT IMAGE OPT.

MIRROR
BLANK
REVEAL
MESSAGE

SETUP INPUT IMAGE OPT.

BLANK

WHITE
BLUE
BLACK

SETUP INPUT IMAGE OPT.

REVEAL

FAST

MEDIUM

SLOW

SETUP INPUT IMAGE OPT.

MIRROR

NORMAL
H : INVERT
V : INVERT
H&V :
INVERT


Adjustment Item Details of adjustment

MIRROR

Inverts the picture horizontally or vertically.

NORMAL Not invert.
H:INVERT Inverts the picture horizontally.
H:INVERT Inverts the picture vertically.
H&V:INVERT Inverts the picture horizontally and vertically.

BLANK

Selects the blank color of signal. See page 10 "BLANK ON button.
When start up screen is displayed, screen will blank out 5 minutes later.

REVEAL

Selects the speed or revelation. See page 10 "BLANK ON button.

MESSAGE

Turn off the on-screen message. (VOLUME, Input selection display)

20

1. Input / output signal

Connection to the RGB signal terminal

2. Signal input / output terminal

51

10

6

15

11

D-sub 15pin shrink terminal
(Female)

1. Input signal

Connection to the video signal terminals

2. Signal input terminal

Ground

Luminance signal

S VIDEO input (Mini DIN4 pin)

Ground

Chrominance signal

Caution

Video input signal terminals have priority in the following order.

S-VIDEO input terminal RCA jack input terminal

Even when the video signal is displayed, only an audio signal is output to RGB audio output terminals.

2

1

Caution

Do not use RGB cable other than that specified.

Some RGB cable may not operate DDC (Display Data Channel)
because there are not connect from pin NO. to pin NO. .

12

15

S-VIDEO signal

Luminance signal 1.0Vp-p, 75Ω termination
Chrominance signal 0.286Vp-p (burst signal), 75Ω termination

VIDEO signal

1.0Vp-p, 75Ω termination

AUDIO signal

Input

200mVrms, 20kΩ below (MAX 3.0Vp-p)

Output

0~200mVrms, 1kΩ

Video signal

Analog 0.7Vp-p 75Ω termination (Positive polarity)

Horizontal sync signal TTL level (Positive/negative polarity)

Vertical sync signal TTL level (Positive/negative polarity)

Composite sync signal TTL level

Audio signal

Input

200mVrms, 20kΩ below (MAX 3.0Vp-p)

Output

0~200mVrms, 1kΩ

1 Video signal (Red)
2 Video signal (Green)
3 Video signal (Blue)
4 N.C
5 N.C
6 Ground (for R)
7 Ground (for G)
8 Ground (for B)

9 N.C
10 Ground
11 N.C
12

DDC (Display Data channel) RGB1 only
13 Horizontal/Composite sync signal
14

Vertical sync signal
15

DDC (Display Data channel) RGB1 only

21

ENGLISH

3. Example of computer signal

Note 1: Signal mode

Note 2: MAC adapter is necessary to the resolution mode.

Projector is compatible with 13 inch mode and 16 inch mode.
MAC13"mode=switch 1 and switch 2 are ON.
MAC16"mode=switch 2 and switch 4 are ON.

Note 3:Display mode

Connection to the RGB signal terminal(continued)

ON

OFF

123456

(Example 16inch mode)

Caution

• Some input source may not be displayed properly because they are not compatible with the
projector.

• Some input source may not be displayed in full size as shown "Display Dots".

Resolution

H X V

fH

(kHz)

fV

(Hz)

Standard

Type

Note 1 Note 2 Note 3 Display Dots

640 X 400 24.8 56.4 NEC PC9800 Expanded 1024 X 640

640 X 400 37.9 85.1 VESA VGA-2 Expanded 1008 X 640

720 X 400 37.9 85.0 VESA TEXT Expanded 1008 X 640

640 X 480 31.5 59.9 VESA VGA-3 Expanded 1024 X 768

640 X 480 35.0 66.7 Mac13" mode

SW 1 ON
SW 2 ON

Expanded 1024 X 768

640 X 480 37.9 72.8 VESA VGA-3(72Hz) Expanded 1024 X 768

640 X 480 37.5 75.0 VESA VGA-3(75Hz) Expanded 1024 X 768

640 X 480 43.3 85.0 VESA VGA-3(85Hz) Expanded 1024 X 768

800 X 600 37.9 60.3 VESA SVGA (60Hz) Expanded 1000 X 750

800 X 600 48.1 72.2 VESA SVGA (72Hz) Expanded 1000 X 750

800 X 600 46.9 75.0 VESA SVGA (75Hz) Expanded 1000 X 750

800 X 600 53.7 85.1 VESA SVGA (85Hz) Expanded 1000 X 750

832 X 624 49.7 74.5 Mac16" mode

SW 2 ON
SW 4 ON

Expanded 1024 X 768

1024 X 768 48.4 60.0 VESA XGA (60Hz) 1024 X 768

1024 X 768 56.5 70.1 VESA XGA (70Hz) 1024 X 768

1024 X 768 60.0 75.0 VESA XGA (75Hz) 1024 X 768

640 X 350 37.9 85.1 VESA VGA-1 Expanded 1008 X 560

800 X 600 35.2 56.3 VESA SVGA (56Hz) Expanded 1000 X 750

1280 X 960 60.0 60.0 VESA SXGA (60Hz) Compressed 1024 X 768

1152 X 768 67.5 75.0 VESA SXGA (75Hz) Compressed 1008 X 756

1280 X 1024 64.0 60.0 VESA SXGA (60Hz) Compressed 960 X 768

1280 X 1024 80.0 75.0 VESA SXGA (75Hz) Compressed 960 X 768

22

4. Initial set signals

The following signals are initially set. The settings may be different depending on the computer type. In

this case, adjust the settings referring to pages 16, 17.

Connection to the RGB signal terminal(continued)

Back porch(b)

Back porch(b)

DATA

HSYNC

DATA

VSYNC

Sync.(a)

Front porch(d)

Active(c)

Sync.(a)

Front porch(d)

Active(c)

Computer/signal

Horizontal Timing (µs)

abcd
VGA-1 (85Hz) 2.0 3.0 20.3 1.0
VGA-2 (85Hz) 2.0 3.0 20.3 1.0

VGA-3 3.8 1.9 25.4 0.6
Mac 13" mode 2.1 3.2 21.2 2.1
VGA-3 (72Hz) 1.3 3.8 20.3 1.0
VGA-3 (75Hz) 2.0 3.8 20.3 0.5

SVGA (56Hz) 2.0 3.6 22.2 0.7

Computer/signal

Horizontal Timing (µs)

abcd
SVGA (72Hz) 2.4 1.3 16.0 1.1
SVGA (75Hz) 1.6 3.2 16.2 0.3
SVGA (85Hz) 1.1 2.7 14.2 0.6

Mac 16" mode 1.1 3.9 14.5 0.6

XGA (60Hz) 2.1 2.5 15.8 0.4
XGA (70Hz) 1.8 1.9 13.7 0.3
XGA (75Hz) 1.2 2.2 13.0 0.2

Computer/signal

Vertical Timing (lines)

abcd
VGA-1 (85Hz) 3 60 350 32
VGA-2 (85Hz) 3 41 400 1

PC-9800 8 25 400 7

TEXT 3 42 480 1

VGA-3 2 33 480 10
Mac 13" mode 3 39 480 3
VGA-3 (72Hz) 3 28 480 9
VGA-3 (75Hz) 3 16 480 1
VGA-3 (85Hz) 3 25 480 1

Computer/signal

Vertical Timing (lines)

abcd
SVGA (72Hz) 6 23 600 37
SVGA (75Hz) 3 21 600 1
SVGA (85Hz) 3 27 600 1

Mac 16" mode 3 39 624 1

XGA (60Hz) 6 29 768 3
XGA (70Hz) 6 29 768 3
XGA (75Hz) 3 28 768 1

SXGA (1152 X 864, 75Hz)

3 32 864 1

PC-9800 3.0 3.8 30.4 3.0

TEXT 2.0 3.0 20.3 1.0

VGA-3 (85Hz) 1.6 2.2 17.8 1.6

SVGA (60Hz) 3.2 2.2 20.0 1.0

SXGA (1152 X 864, 75Hz)

1.2 2.4 10.7 0.6

SXGA (1280 X 960, 60Hz)

1.0 2.9 11.9 0.9

SXGA (1280 X 1024, 60Hz)

1.0 2.9 11.9 0.9

SXGA (1280 X 1024, 75Hz)

1.1 1.8 9.5 0.1

SVGA (56Hz) 2 22 600 1
SVGA (60Hz) 4 23 600 1

SXGA (1280 X 1024, 75Hz)

3 38 1024 1

SXGA (1280 X 960, 60Hz)

3 36 960 1

SXGA (1280 X 1024, 60Hz)

3 38 1024 1

23

ENGLISH

1. Control signal terminal

Connection to the control signal terminal

2. Mouse emulation

51

10

6

15

11

D-sub 15pin shrink terminal (Male)

Caution

Turn off the power of both the projector and computer before connecting.

Connect the computer to the control terminal of the projector using an appropriate cable.

Refer to the instruction manual of each device before connecting.

(1) Connect the projector and the mouse terminal of computer using an appropriate cable, while the

projector and the computer are turn off.

(2) Turn the main power switch of the projector on and press the STANDBY/ON button. The indicator

will light. (The ON indicator will light up green.).

(3) Press the INPUT of the projector or RGB button of the remote control transmitter and select the

input connection.

(4) Turn on the computer.

(5) Start mouse emulation mode.

If can not start mouse emulation, reset the computer. (With soft reset or reset switch)

(6) See on the page 9 about to operate the remote control transmitter.

Caution : Mouse cannot be operated while start up screen or menu screen is being displayed.

Caution

• In some note computers which have internal pointing device, mouse emulation don't work
without setting the internal pointing device disabled. In this case, set the internal pointing
device disabled in BIOS setting. After setting in BIOS, operate (1) ~ (5) Please check its
hardware manuals to disable internal pointing device in BIOS setting.

• In some computers, mouse emulation don't work without the utility program. In this case,
see and check the operating manuals of the computer.

Pin No. RS-232C

Mouse

PS/2 ADB Serial
1
2 CLK
3 DATA DATA
4
5
6 SELO SELO SELO
7 RTS RTS RTS RTS
8
9 +5V +5V

10 GND GND GND GND
11
12
13 RDP
14 TDP TD
15

24

Connection to the control signal terminal (continued)

PS/2 mouse

ADB (Mac) mouse

2

1

4

3

6

5

2

1

4

3

6

5

8

7

10

9

12

11

14

13

15

CLK

DATA

SEL0

RTS

GND

+5V

DATA

GND

+5V

CLK

2

1

4

3

6

5

2

1

4

3

8

7

10

9

12

11

14

13

15

RTS

GND

+5V

ADB

GND

+5V

(

POWER ON

)

DATA

2

1

4

3

6

5

2

1

4

3

Projector Computer

Mini Din 6pin

Mini Din 4pin

PS/2 cable

ADB cable

Serial mouse

2

1

4

3

6

5

2

1

4

3

6

5

8

7

10

9

8

7

9

12

11

14

13

15

RI

CD

RD

TD
DTR
GND
DSR

CTS

RTS

RTS

GND

SEL0

TD

21

4

3

6

5

8

9

7

D-sub 9pin

Serial cable

Caution

Communication via RS-232C cannot be operated with Serial mouse cable.

Purchase RS-232C cable.

Type name : Cable serial interface Parts No. : ZU 0243 70 0010

Projector Computer

Projector Computer

25

ENGLISH

Connection to the control signal terminal (continued)

3. Communication

(1) Connect the projector and computer using RS 232C cable.

(2) Turn off the computer and after computer is setting up, turn on the projector.

(3) Select the data speed (COM.SPEED) and the data format (COM.BITS) of the projector. (See page 19)

(4) Start communication.

4. Control command table

Control command table

2

1

4

3

6

5

2

1

4

3

6

5

8

7

10

9

8

7

9

12

11

14

13

15

RI

CD
RD
TD

DTR
GND
DSR

CTS

RTS

RTS

GND

SEL0

RDP

TDP

21

4

3

6

5

8

9

7

Projector

Computer

D-sub 9pin

RS232C cable (Reference)

Projector→Computer Computer→Projector

Item

Reply code Ask code Set code Default code

1st 1st 1st 1st
MOUSE 11h 20h 31h 40h
COMMUNICATE 11h 20h 31h 40h
POWER 11h 20h 31h
MIRROR 11h 20h 31h 40h
INPUT 11h 20h 31h 40h
(VIDEO) SYSTEM

12h 20h 32h 40h
VOLUME 11h 20h 31h 40h
MUTE 11h 20h 31h 40h
BRIGHT 13h 20h 33h 40h
CONTRAST 13h 20h 33h 40h
COLOR 13h 20h 33h 40h
TINT 13h 20h 33h 40h
SHARPNESS 13h 20h 33h 40h
H. PHASE 13h 20h 33h 40h
H. POSIT 14h 20h 34h 40h
H. SIZE 14h 20h 34h 40h
V. POSIT 14h 20h 34h 40h
COLOR BALANCE

13h 20h 33h 40h

REVEAL 11h 20h 31h

MAGNIFY

11h 20h 40h

16h 36h
FREEZE 11h 20h 31h 40h

2nd
05h
06h
11h
14h
21h
22h
23h
24h
31h
32h
33h
34h
35h
37h
38h
36h
3Ah
3Bh

42h
15h
15h
16h

data

+1
+1
+1
+1
+1
+2
+1
+1
+3
+3
+3
+3
+3
+3
+4
+4
+4
+3

+1
+1
+6
+1

2nd
05h
06h
11h
14h
21h
22h
23h
24h
31h
32h
33h
34h
35h
37h
38h
36h
3Ah
3Bh

42h
15h

16h

2nd
05h
06h
11h
14h
21h
22h
23h
24h
31h
32h
33h
34h
35h
37h
38h
36h
3Ah
3Bh

42h

15h
16h

data

+1
+1
+1
+1
+1
+2
+1
+1
+3
+3
+3
+3
+3
+3
+4
+4
+4
+3

+1

+6
+1

2nd
05h
06h

14h
21h
22h
23h
24h
31h
32h
33h
34h
35h
37h
38h
36h
3Ah
3Bh

15h

16h

BLANK 11h 20h 31h 40h41h +1 41h 41h +1 41h

AUTO ADJUSTMENT

11h 20h 31h 40h3Ch +1 3Ch 3Ch +1 3Ch

26

Connection to the control signal terminal (continued)

Control data table

Caution

If computer sends the undefined command code or data code, Projector can not guarantee operation.

Command is consisted of 2 command bytes and following data bytes.
1-st byte indicates the kinds of commands and the length of command.

'0xH' : Error-reply Projector sends to computer.
'1xH' : Command reply Projector sends to computer.
'2xH' : Ask command Computer sends to Projector.
'3xH' : Set command Computer sends to Projector.
'4xH' : Default set command Computer sends to Projector
'5xH' - 'FxH' : Reserved

'x' indicates the length of data bytes.
2-nd byte indicates the command code 'yy' as command table.
Data table shows the data byte.

Item Data code

MOUSE 00h=stop mouse emulation. 01~7Fh=start mouse emulation

COMMUNICATE

0Xh=8N1, 1Xh=7N1

X0h=1200bps, X1h=2400bps, X2h=4800bps, X3h=9600bps, X4h=19200bps
POWER 3Eh=Power off (Standby mode), 3Fh=Power on
MIRROR 00h=Normal, 01h=H:Invert, 02h=V:Invert, 03h=H&V:Invert
INPUT 11h=VIDEO, 21h=RGB1, 22h=RGB2

VIDEO SYSTEM

00h 00h=Auto, 00h 01h=NTSC, 00h 04h=NTSC4.43

00h 02h=PAL, 00h 03h=SECAM, 00h 05h=M-PAL, 00h 06h=N-PAL
VOLUME 00h (min) ~ 24h (max)

MUTE 00h=Mute off, 01h=Mute on
BRIGHT 00h 00h 00h (dark) ~ 00h 00h 24h (brite)
CONTRAST 00h 00h 00h (lower) ~ 00h 00h 24h (higher)
COLOR 00h 00h 00h (less) ~ 00h 00h 24h (more)
TINT 00h 00h 00h (red) ~ 00h 00h 24h (green)
SHARPNESS 00h 00h 00h (soft) ~ 00h 00h 24h (sharp)
H. PHASE 00h 00h 00h ~ 00h 00h 1Fh
H. POSIT 00h 00h 4Fh 00h (left) ~ 00h 00h 17h 05h (right)
H. SIZE 00h 00h 06h 06h (narrow) ~ 00h 00h 04h 0Ch (wide)
V. POSIT 00h 00h 03h 00h (down) ~ 00h 00h 00h 06h (up)

BLANK

0Xh=Blank off, 1Xh=Blank on

bit0 0=Blue off, 1=Blue on, bit1 0=Green off, 1=Green on
bit2 0=Red off, 1=Red on, bit3 0=Not change, 1=change

REVEAL X1h=Reveal down, X4h=Reveal right, X=0 (slow) ~ 7 (fast)

MAGNIFY

(1) Circuit codes when ask code and default set code are issued (Number of data byte=1)

00h=normal display, 01h=magnified display

(2) When magnification is set by setting codes (Number of data bytes=6)

1st, 2nd data bytes: magnification starting positions in horizontal direction (left end)

00h 00h (left) ~ 3Ch 05h (right)

3rd, 4th data bytes: magnification starting positions in vertical direction (top)

00h 00h (top) ~ 0Dh 04h (bottom)

5th, 6th data bytes: Horizontally magnified dot number data

64h 00h (large) ~ 20h 06h (small)

FREEZE 00h=normal display, 01h=still picture display

COLOR BALANCE 00h 00h 00h (for Red) ~ 00h 00h 24h (for Blue)
AUTO ADJUST 00h (start) , 07h (stop)

27

ENGLISH

The procedure of getting the Projector status

(1)Computer sends the command '20H'+'yyH' to Projector.

(2)Projector reply the command '1xH'+'yyH'+data bytes.

The procedure of setting the Projector status

(1)Computer sends the command '3xH'+'yyH'+data bytes.

(2)Projector changes it’s status.

(3)Projector reply the command '1xH'+'yyH'+data bytes which indicate status.

The procedure of default setting the Projector status

(1)Computer sends the command '40H'+'yyH'

(2)Projector changes it's status to default setting.

(3)Projector reply the command '1xH'+'yyH'+data bytes which indicate default.

Connection to the control signal terminal (continued)

Caution

The example of command error

When projector cannot accept command from PC, error code '00H'+'yyH' is sent back.

(in a case when command code '2xH', '3xH' or '4xH'+'yyH'+data is sent from PC to projector)

The example of data error

When projector cannot accept command from PC, error code with data '00H'+'yyH'+data is sent back as it

is. (in a case when command code '2xH', '3xH' or '4xH'+'yyH'+data is sent from PC to projector)

When data is longer than required data code length, projector ignores excess data code.

When data is shorter than required data code length, projector sends back error code shown above.

The example of framing error

Projector sends error code '70H'+'70H' up to 10 times at intervals of 1 second until any answer is received.

The interval of command bytes and data bytes

After command code '2xH', '3xH' or '4xH' is sent from PC, if command or data is not sent within 500ms,

projector sends back error command '70H'+70H'. If no answer is sent within 1 second from that time,

framing error is assumed.

Caution

• The interval of command bytes and data bytes must be over 1mS and under 500mS. If it is
under 1mS, it may be treat as framing error.

• After projector has sent back answer code, when next command is to be sent from PC, allow
for an interval of 40ms or more between answer code and other code.

• (3) data bytes is not always same as (1) data bytes. If projector cannot realize the status of (1)
data bytes, projector set the proper status and reply this new setting data bytes or projector
reply the error reply '0xH'+'yyH'+data bytes same as (1).

• When only power control (POWER COMMAND) is performed, it takes about 2~140 seconds
between sending set code and receiving answering code.

28

S-VIDEO IN

RGB IN

CONTROL

AUDIO

OUT

AUDIO IN

12

RGB OUT

12

VIDEO IN

AUDIO IN

L

R

MONO

Example of system setup

Connecting various equipment.

AC Inlet

Computer(Desk type)

Computer (Note type)

VTR with S-VHS out

(video model only)

VTR, etc.

(video model only)

CRT Display

Audio amplifying equipment

29

ENGLISH

Clean the air filter about every 100 hours.

Cleaning the air filter

Turn the main power switch off and disconnect the power
plug from the power outlet.

1

Remove the front filter cover.

2

Clean the air filter using a vacuum cleaner.

• When air filter is very dirty, wash it using neutral detergent diluted with water, and dry well.

3

Attach the air filter on the cover.

4

Caution

• If air filter is strutted with dust, etc., protection circuit will turn the power off.

• Do not use with removed air filter.

Air filter

Filter cover

30

Lamp

Light source lamp has a service life.
The picture will become dark or color will be poor when the lamp is used for a long time.
If usage of lamp is continued in such cases, it could cause a malfunction. Replace lamp with new one.
As reference for replacement time, indicator will operate or message will be displayed when the power is
turned on, as shown on page 31,32. In these cases the lamp should be replaced. Consult your dealer.

1. How to replace lamp

Turn the main power switch off and disconnect the power
plug from the power outlet.

1

Remove the lamp cover.

• If lamp is hot at this time, this could cause burn. Wait
for minimum 45 minutes until lamp is cooled down.

• Loosen a screw and remove the cover.

2

Loosen two screws and pull
the handle to remove the
lamp.

• If the screws are not loosened completely, your fingers
may be damaged.

3

Replace the lamp with new one and
fix it using the same two screws.

• Firmly tighten the lamp screws. Loose screws may cause

bad connection of the connector which in turn may result
in malfunctioning.

4

Lamp cover

HIGH VOLTAGE
HIGH TEMPERATURE
HIGH PRESSURE

When replacing lamp, turn off and remove AC cord, wait 45 minutes to let lamp cool.
High-pressure lamp when hot, may explode if improperly handled.

Screw

Screw

(Option lamp : Lamp unit DT00205)

Caution

•

For disposal of used lamp, treat according to the instruction of community authorities.

• Since the lamp is made of glass, do not apply shock to it and do not scratch it.

• Also, do not use old lamp. This could also cause

explosion of the lamp.

• If it is probable that the lamp has exploded
(explosive sound is heard), disconnect the power
plug from the power outlet and ask your dealer to
replace lamp. The lamp is covered by front glass
and air-tight structure, but, in rare cases, the
reflector and the inside of the projector may be damaged by scattered broken pieces of glass,
and broken pieces could cause injury when being handled.

• Do not insert your hand into the box after the lamp is removed.
(There are optical parts inside. If touched by hand, it may result in color unevenness, etc.)

Caution

Also LAMP indicator will light when the lamp becomes too hot. Turn off the power and let the
projector cool for 45 minutes. Turn on. If LAMP indicator still lights up red, contact your
dealer.

Lamp

Reflector

Front glass

Lamp

Screw

Lamp

31

ENGLISH

On-screen display

The following messages are displayed on the screen.

Message table

*1 This message are not displayed after 3 minutes.

But this message are displayed when you turn on the power again.

*2 It is possible to again turn on the power, however the power will go off after about 10 minutes.

Install the lamp cover and fix it using screws.

• To prevent burn, install the lamp cover and secure it using the screws.

• Do not turn on the power with lamp cover removed.

5

Lamp

(continued)

If you have replaced the lamp after the lamp replacement time had expired, perform the procedure
explained below within 10 minutes after the power is turned on. The power will turn off automatically
when the 10-minute period expires.

2. Reset the lamp time

3

1

2

POSITION ON LASER

RESET

MOUSE ON

BLANK TIMER

RGB VIDEO

MENU ON

RIGHT

3

1, 2

1) Press the RESET button on projector for 3 seconds or remote control TIMER
button for 3 seconds and display the total lamp used time.

• When accumulated operation time of the lamp reaches 1700 hours, the
following display will appear at the bottom of the screen.

2) Press the RESET button on projector or remote control MENU ON button
during displaying the lamp used time.

3) Select the “0” on the screen using the MENU ( ) button or DISK PAD.

LAMP 1700 0 CANCEL

LAMP 1700 h

←

• Whenever the lamp is replaced, reset the total operation time of the lamp. Do not reset if
the lamp has not been replaced.

• Do not perform resetting without changing the lamp, as this can cause lamp breakage.

MESSAGE Action

CHANGE THE LAMP
AFTER REPLACING LAMP,
RESET THE LAMP TIMER.

The lamp has been in service for long. Replacement with a new lamp is
recommended. The lamp will go off automatically when the lamp replacement
time is exceeded. *1

CHANGE THE LAMP
AFTER REPLACING LAMP,
RESET THE LAMP TIMER.
THE POWER WILL TURN
OFF AFTER * Hr.

The total lamp service time will exceed the lamp replacement time in * hours.
The lamp will go off automatically when the lamp replacement time is
exceeded. Replace with a new lamp before that. *1
The asterisk (*) indicates the number of hours remaining before the lamp goes
off automatically.

Blinking of
CHANGE THE LAMP

The total lamp service time has exceeded the lamp replacement time. The lamp will go
off automatically about 10 minutes after it starts blinking. Replace with a new lamp.*2

NO INPUT IS DETECTED Signal is hot input. (See page 20, 21)

SYNC IS OUT OF RANGE

The horizontal frequency of the input signal exceeds the range of the projector,
it cannot be displayed. (See page 21, 22)

Lamp cover

Screw

RESET

MENU

MUTE

INPUT

STANDBY/ON

32

Check the following again before asking for service. If the trouble cannot be recovered, consult your dealer.

When you think something wrong

A bright dot may be seen in the picture. This is a phenomenon peculiar to the liquid crystal and is not a problem.

Message table (continued)

The ON indicator, LAMP indicator and TEMP indicator will light or
blink in the following cases.

Indicator display

When the LAMP indicator lights, turn the power off. If the problem cannot be recovered, contact your dealer.

*1 When the suction fan is stopped and the inside becomes hot, the power is cut automatically for cooling. (The

indicator light will go out.) In this case, turn off the power switch and allow the unit to cool down before turning the
power switch on again. The lamp will light. If the lamp does not light because it is still automatically turned off,
contact your dealer.

*2 If temperature inside the unit increases because of blocked vets, the lamp may go off for protection, and the LAMP

indicator will turn red. Should this happen, turn off the main switch, wait until the set cools down (about 45
minutes), then again turn on the main switch.

ON indicator LAMP indicator TEMP indicator Meaning Remedy

Lights orange Goes off Goes off Standby mode

Blinks green Goes off Goes off During warming up

Lights green Goes off Goes off During operation *1

Blinks orange Goes off Goes off During cooling down

Lights red Lights red Goes off Lamp cannot light *2

Cool projector by power off for 45
minutes.
If the indicator is still it, lamp may be
defective. Replace.

Lights red Blinks red Goes off

Lamp is not inserted or the
lamp door open

Securely insert the lamp or close the
lamp door.

Lights red Goes off Blinks red Cooling fan accidented Call a maintenance person.

Blinks red Blinks red Goes off

The total lamp service time has
exceeded the lamp
replacement time.

Call a maintenance person.

Phenomena Cause Check point Page

Power cannot be
turned on.

•The Main power is not turned on.

•The power cord is disconnected.

•60 seconds have not elapsed since the

power was turned off.

•Inside the projector too hot.

•Turn the MAIN POWER switch on.

•Insert the power cord into an AC socket.

•When the power is turned off turn the power

switch on after waiting at least 60 seconds.

•Do not block the ventilation holes.

•Clean the air filter.

•Use the projector under 35°C temperature.

P.13
P.9
P.13

P.6
P.29

No picture and
sound

•The setting of the input source is not

correct.

•Wiring to the projector is not correct.

•Set the correct input using the input select button

of the projector or the remote control.

•Connect the cable correctly.

P.8, 10,
13, 18
P.9, 28

Only picture is
displayed with no
sound

•Wiring to the projector is not correct.

•The volume is set to minimum.

•The unit enters the mute mode.

•Connect the cable correctly.

•Press the VOL button or press the MENU button

and adjust the volume.

•Press the MUTE button.

P.9, 28
P.10, 17

P.8, 10

Only sound is
heard without a

•Wiring the projector is not correct.

•The brightness is set fully to the dark

side.

•Lens cap is attached.

•Connect the cable correctly.

•Press the MENU button and select BRIGHT and

press the button.

•Remove the lens cap.

P.9, 28
P.17

P.13

Color is weak and
tint is incorrect

The color and tint have been adjusted
incorrectly.

Adjust the color and tint correctly. P.17

Picture is dark

•The brightness and contrast has been

adjusted incorrectly.

•The lamp has not been adjusted.

•Adjust the brightness and contrast correctly.

•Replace the lamp with a new one.

P.17

P.30

Picture is not clear

Focus or H.PHASE is not matched. Adjust the focus or H.PHASE P.13, 17

LAMP indicator
lights red.

Trouble with the lamp.

Turn off the power and leave for 45 minutes ;
then turn the power on again.

P.32

Remote control
mouse cannot be
operated.

•Cable was connected after the power

was turned on.

•RGB signal not selected.

•

Be sure to perform procedure in the following order:

(1)Connect cable. (2)Turn on projector. (3)Turn PC on.

•Input RGB signal and select and display input

source.

P.23

33

ENGLISH

Specifications

All dimensions shown in inches.

• All specifications are subject to change without notice.

Dimension diagram

Product name Liquid crystal projector
Model name CP-X940W/E
Display system 3 sheets of liquid crystal panels, 3 primary color lights shutter system

Liquid crystal
panel

2.3cm (0.9 inchs)
TFT active matrix

786,432 pixels (V768 X H1024)
Lens Zoom lens F=1.7 ~ 2.0 f=38 ~ 49
Lamp UHP lamp 150W
Speaker 1W+1W (stereo)
Power supply AC100 ~ 120V, 2.9A/AC220 ~ 240V, 1.3A
Power consumption 260W
Usable temperature range

32 ~ 95°F

Dimensions (W X H X D)

9.8" X 3.9" (excluding foot adjuster) X 13.0" (excluding lens).

9.8" X 4.2" (including foot adjuster) X 13.2" (including lens).

Weight 9.9 lbs.

Input/Output
terminal

S VIDEO : Mini DIN4-pin terminal

VIDEO : RCA Jack terminal

AUDIO : RCA Jack terminal

RGB signal : D-sub 15pin shrink terminal (Female)

AUDIO : Stereo mini jack

D-sub 15pin shrink terminal (Male)

Accessories

Remote control 1

POWER code 3(CP-X940W)

2(CP-X940E)
BATTERIES LR6 2
RGB cable 1

Panel size
Drive system
Number of pixels

Video signal
input terminal

RGB input/output
signal terminal

Control terminal

-4 ~ 140°F

Storage Temperature range

MAC adaptor 1
Video/Audio cable 1
Mouse cable 3
Operating guide 1

13.0

13.2

9.8

10.1

3.9

2.2

1.1

0.5

4.2

PLEASE READ

We are in no way responsible for the
contents of the manual. We do not guarantee
its accuracy and we do not make any claim
of copyright. The copyright remains the
property of their respective owners.

Visit the site to read the latest projector
news and reviews, read and comment on
projector specifications, download user
manuals and much more.
