Hitachi CP-X267 User Manual

Projector

CP-X308

User's Manual (detailed) Network Guide

Thank you for purchasing this projector.

This projector has the network function that brings you the following main features. ü Live Mode

This projector can project your PC images on screen through wireless or wired network, which can erase a signal cable from your desk.

ü Quick connection to your network

No expert knowledge is required any more. Various options for network setting give you a quick and simple connection to the network.

ü Web control

The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector.

ü PC-LESS Presentation

This projector can project images stored in an SD memory or a USB memory on screen, which allow you not to bring your PC with you.

This manual is only intended to explain Network functions only. For safety, operations or any other issues, refer to the Safety Guide and User’s Manual (concise and detailed).

WARNING

product. After reading them, store them in a safe place for future reference.

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Windows is a registered trademark of Microsoft Corporation. All other trademarks are the properties of their respective owners.

• The information in this manual is subject to change without notice.

►Before using this product, be sure to read all manuals for this

Content

About this manual . . . . . . . . . . . 1

Content . . . . . . . . . . . . . . . . . . . 2

Caution . . . . . . . . . . . . . . . . . . . 3

. . 5 . . 6 . . 7

. . 8

. . 10

. . 11

. . 16 . . 16 . . 17

. . 23 . . 24 . . 25 . . 26 . . 26 . . 27

. . 50

5. PC-LESS Presentation. . . .

6. Troubleshooting . . . . . . . .

7. Specications . . . . . . . . . . 118

1. Main functions . . . . . . . . . . .

Live Mode (Project images from PC)

1.1

1.2

Quick connection to your network

1.3

Conguring and controlling via a web browser

1.4 PC-LESS Presentation (Display the images stored in SD memory card/USB memory.)

Equipment connection and network setting

Required equipment preparation

2.1

2.2 Quick connection . . . . . . . . . . . 10

2.3

Manual network connection setting - Wired LAN -

2.3.1. Equipments connection . . . 11

2.3.2. Network settings . . . . . . . . . 11

2.3.3 “Internet Option” setting . . . . 14

2.3.4 Check connection . . . . . . . . 15

2.4

Manual network connection setting –Wireless LAN

2.4.1

Preparation for wireless LAN connection

2.4.2

Wireless LAN connection set up

3. Using the Live Mode . . . . . .

3.1 Outline of the Live Mode . . . . . . 21

3.1.1 Display mode . . . . . . . . . . . . 21

3.1.2 Presenter mode . . . . . . . . . . 22

3.1.3 Display User Name . . . . . . . 22

3.2 Install “Live Viewer 3” . . . . . . . . 23

Minimum PC hardware and software requirement

3.2.1

3.2.2

Software Installation Procedure

3.2.3

Version of the “Live Viewer” software

3.3

Quick connection to the network

3.3.1

Starting the “Live Viewer 3” Selecting the network connection mode

3.3.2

3.3.3 Connecting to the network . . 31

3.4 Passcord connection . . . . . . . . . 32

3.4.1 Getting the Passcode . . . . . 32

3.4.2 Entering the Passcode . . . . 34

3.4.3 Conguring manually . . . . . . 37

3.5 Manual conguration . . . . . . . . . 41

3.5.1 Prole connection . . . . . . . . 41

3.5.2 History connection . . . . . . . . 42

3.5.3 Conguring manually . . . . . . 43

3.6

Conrm the connection to your destination

3.6.1

Connection and transmission

3.6.2 Connection error . . . . . . . . . 52

3.6.3 Setting the Live Mode . . . . . 53



3.7 Start the “Live Viewer 3” . . . . . . 54

3.7.1

Main menu and Operating buttons

. . 54

3.7.2 Displaying the status . . . . . . 56

3.7.3

Switching the display mode

. . 57

3.7.4 Option menu . . . . . . . . . . . . 58

3.8 Prole data . . . . . . . . . . . . . . . . 60

3.8.1 Outline of Prole data . . . . . 60

3.8.2 Making Prole data . . . . . . . 60

3.8.3 Editing Prole data . . . . . . . 61

3.8.4 Registering My Connection . 62

Management with Web browser software

Conguring and controlling the projector via a web browser

4.1

. . 64

. . 65

4.1.1 Logon . . . . . . . . . . . . . . . . . 67

4.1.2 Network Information . . . . . . 68

4.1.3 Network Settings . . . . . . . . . 69

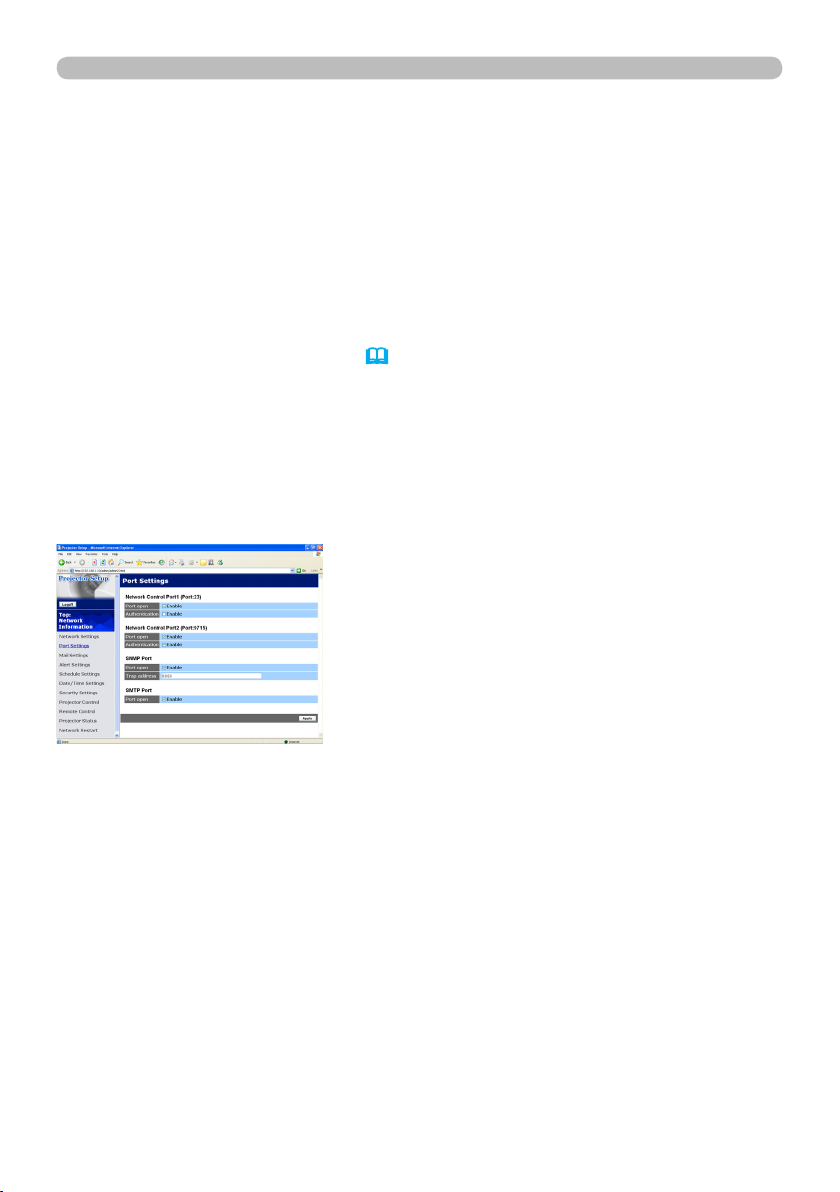

4.1.4 Port Settings . . . . . . . . . . . . 71

4.1.5 Mail Settings . . . . . . . . . . . . 72

4.1.6 Alert Settings . . . . . . . . . . . . 73

4.1.7 Schedule Settings . . . . . . . . 75

4.1.8 Date/Time Settings . . . . . . . 77

4.1.9 Security Settings . . . . . . . . . 79

4.1.10 Projector Control . . . . . . . . 81

4.1.11 Remote Control . . . . . . . . . 85

4.1.12 Projector Status . . . . . . . . . 87

4.1.13 Network Restart . . . . . . . . . 88

4.1.14 Logoff . . . . . . . . . . . . . . . . 88

4.2 E-mail Alerts . . . . . . . . . . . . . . . 89

4.3

Projector Management using SNMP

. . 91

4.4 Event Scheduling . . . . . . . . . . . 92

4.5

e-SHOT (Still Image Transfer) Display

4.6

Command Control via the Network

. . 95

. . 96

101

Outline of the PC-LESS Presentation

5.1

. . 101

5.2 Thumbnail mode . . . . . . . . . . . 103

Starting the Thumbnail mode

5.2.1

5.2.2

Operating by buttons or keys

5.2.3

Operation on the Thumbnail menu

. . 103

. . 105

. . 106

5.3 Full Screen Mode . . . . . . . . . . 107

5.4 Slide Show Mode . . . . . . . . . . 109

5.5 Directory Tree View . . . . . . . . . 111

5.6

“PC-LESS Presentation” error message

. . 114

5.7 Playlist . . . . . . . . . . . . . . . . . . . 115

116

Warranty and after-sales service

. . 119

Caution

[Restriction in terms of inserts or pulls storage media and wireless network card]

Do not pull out the wireless network card while the power is on. Do not touch the SD card while being accessed. The storage media can be pulled out only while not being accessed. Perform the REMOVE MEDIA procedure or turn the projector off before pulling out the media. To perform the REMOVE MEDIA procedure, choose an suitable item among the REMOVE ALL, REMOVE SD CARD or REMOVE USB using the PCLESS PRESENTATION menu under the MIU Menu. (MIU Menu in the User’s Manual (detailed) – Operating Guide)

CAUTION

The accompanying IEEE802.11b/g wireless network card uses the 2.4GHz radio

n

frequency band. You do not need a radio license to use this card, but you should be

aware of the following:

DO NOT USE NEAR THE FOLLOWING!

l

• Microwave ovens

• Industrial, scientic or medical devices

• Designated low power radio stations

• Premises radio stations Using the wireless network card near the above may result in radio interference, which in turn may result in a decrease in communication speed and even a

complete loss of communication.

Depending on the location where you attempt to use the wireless network card,

l

there may be interference with the radio waves, which may result in a decrease in communication speed and even a complete loss of communication. In particular, please be aware that using the wireless network card in locations where there is reinforced steel, other metals and concrete may interfere with radio communication. Available Channels

l

The wireless network card uses the 2.4GHz radio frequency band, but depending on the country or region you are in, you might be limited to the channels you can use. Please refer to the following table for conrming where and with what channels you may use the accompanying IEEE802.11b/g wireless network card. Please consult with your dealer for countries not included in the table.

Country or Region Available Channel

Japan 1 to 11

USA 1 to 11

Taiwan 1 to 11

Canada 1 to 11 UK, Spain, Germany, Italy, Austria, Switzerland, Belgium, Sweden, Netherlands, Portugal, Denmark, Finland, Greece, Norway, France, Ireland, Luxembourg, Iceland

You may not bring the wireless network card into countries not listed above as there

l

is a possibility that use of the wireless network card in those countries could lead to an infringement of established radio laws.

1 to 11

Caution

0560

The manufacturer (Gemtek) hereby declare that this equipment (the wireless network card), model SD-Link11g is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

1. Main functions

1.1 Live Mode (Project images from PC)

The MIU (Multi Information processing Unit) enables “Wireless presentation” by choosing Live Mode. The Live Mode gives you an ability to display the same image that is shown on the PC through the network by using an application program “Live Viewer 3” that is required to install into your PC. (Fig.1.1.a) The “Live Viewer 3” captures PC screen image and sends to the projector through wired LAN or wireless LAN connection. (20)

Live Viewer 3

Fig. 1.1.a “Live Viewer 3” outlines (through wireless LAN connection)

Fig. 1.1.b “Live Viewer 3” Main menu

One projector can be connected with up to 4 PCs using “Live Viewer 3”. (54)

1. Main functions

1.2 Quick connection to your network

The “Live Viewer 3” brings you very quick and simple connection to your network. The “Live Viewer 3” prepares some options for you to match your requirement.

1) Quick connection by the Passcode

The Passcode is a code that includes SSID and IP address and other information that are required for the network connection. The Passcode is given on screen by the projector, and then all you need to do is to input the code to the “Live Viewer 3” in your PC. (26)

Fig.1.2 PASSCODE on the projector screen

2) Connection by the prole for the network

You can set the information to connect the projector to your network as a prole data in the “Live Viewer 3” in your PC. After that, you just select the prole data on the “Live Viewer 3” to connect the projector to your network.

3) Connection by the history record for the network

Once you connect the projector to your network with the “Live Viewer 3”, the “Live Viewer 3” stores the history. You just select a history record to connect the

projector to your network.

1. Main functions

1.3 Conguring and controlling via a web browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network. Logon the network from the web browser and it offers the menus to congure the network settings, monitor the projector and so on. The Web Remote Control, one of the menus of web browser, allows you to control the projector like bundled remote control including operating the “Live Mode” and “PC-LESS Presentation”. (64)

Fig. 1.3. Web Remote Control

1. Main functions

1.4 PC-LESS Presentation (Display the images stored in SD memory card/USB memory.)

The MIU enables “PC-LESS Presentation” by choosing PC-LESS function. (Fig.

1.4)

The PC-LESS function enables to display images that are stored in a storage media like SD memory card or USB memory. The “PC-LESS Presentation” has 4 types of display modes.

1) Thumbnail Mode: Display thumbnails of stored images in the storage media.

(After this, “the storage media” is the general term for both of SD memory card and USB memory.)

2) Full Screen Mode: Display selected image or movie on the full screen mode.

3) Slide Show Mode: Display images in the Slide show mode with certain interval.

4) Directory Tree View: Display les and folders that are stored in the storage

media as directory tree view.

[Supported storage media]

- SD memory card

- USB memory (USB memory type, USB hard disk and USB card reader type)

NOTE

acknowledges as multiple devices connected).

• The supported formats are FAT 12, FAT 16(FAT) and FAT 32. NTFS is not supported.

• USB hub is not supported.

“PC-LESS Presentation” can be controlled via keypad on the projector or remote control (101).

• USB memory reader (adapter) is not supported (if the adapter

Fig. 1.4 “PC-LESS Presentation” outlines

1. Main functions

1.4 PC-LESS Presentation (Display the images stored in SD memory card/USB memory.) (continued)

NOTE

• There are several naming limitations for the folders and les.

(1) Alphanumeric and Japanese characters are supported if the language

setting is Japanese.

(2) Alphanumeric and Latin-1 characters are supported if the language setting

is NOT Japanese.

• The les may not be able to access depending on the type of USB hard disk, USB memory and USB card reader.

• It is recommended to use external power supply cable if the USB hard disk drive has the power cable.

2. Equipment connection and network setting

2.1 Required equipment preparation

The following equipments are required to connect the projector to your PC through

the network.

■ Common The projector: 1 unit, PC : 1 set *1 It is recommended to install the “Live Viewer 3” into the PC.

■ Depending on how you want to connect

1) For the wired connection LAN cable (CAT-5 or greater): 1 piece

2) For the wireless connection *2

- Projector side The Wireless Network Card : 1 unit

- PC side IEEE802.11b/g wireless LAN equipment: 1 unit *3

*1: For the PC, please refer to the item 3.2.1 Minimum PC hardware and software

requirement. (23)

*2: An access point is required when the wireless LAN connection is used as

Infrastructure mode.

*3: Depending on the type of wireless network device and PC you are using, the

projector may not be able to communicate properly with your PC, even if the PC you are using is equipped with built-in wireless LAN function. To eliminate communication problems, please use a Wi-Fi certied wireless network device.

2.2 Quick connection

The “Live Viewer 3” supports very quick and simple connection to the network. It is strongly recommended to install the “Live Viewer 3” into your PC to enjoy the feature. Proceed to the installation of the “Live Viewer 3” (23) and the connection. (26)

In case you don’t want to use the “Live Viewer 3” or you cannot use it by some reason, proceed to the manual setting, the item 2.3 for the wired LAN (11) and the item 2.4 for the wireless LAN. (16)

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN -

If you don’t use the “Live Viewer 3”, you need to set up your network connection

manually.

This section explains how to set it up manually.

2.3.1 Equipments connection

Connect the projector and PC with a LAN cable. * Before connecting with an existing network, contact the network administrator.

Next, please check the PC setting as explained below.

2.3.2 Network settings

This is the explanation of network connection settings for Windows XP and Internet Explorer.

1) Log on to Windows XP as administrator authority. (*)

2) Open “Control Panel” from “Start” menu.

3) Open “Network and Internet Connections” in “Control Panel”. (Fig. 2.3.2.a) * Administrator authority is the account, which can access to all functions.

Fig. 2.3.2.a “Network and Internet Connections” window

4) Open “Network Connections”. (Fig.2.3.2.b)

Fig. 2.3.2.b “Network Connections” window

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

5) Open “Local Area Connection Properties” window you use for network device. (Fig. 2.3.2.c)

Fig. 2.3.2.c “Local Area Connection Properties” window

6) Set used protocol as “TCP/IP” and open “Internet Protocol (TCP/IP) Properties” window.

Fig. 2.3.2.d “Internet Protocol (TCP/IP) Properties” window

7) Set IP address, subnet mask and default gateway for PC.

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

[About IP address]

■ Setting manually

The Network address portion included in the IP address set into your PC should be common with projector’s one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector.

For example

The projector’s initial settings are as follows.

IP address: 192.168.1.10 Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case)

Therefore, specify PC’s IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.) Subnet mask: 255.255.255.0 (Network address: 192.168.1 in this case)

Select from 1 to 254 for “xxx” not duplicating with any other equipments. In this case, projector has “192.168.1.10” IP address, specify from 1 to 254 except 10 for PC.

NOTE

• “0.0.0.0” cannot be set to the IP address.

• The projector’s IP address can be changed by using the conguration utility via a web browser. (65)

• If the projector and PC exist in the same network (i.e. network address is common), default gateway can be blank.

• When the projector and PC exist in different networks, default gateway setting is necessary. Contact the network administrator in detail.

■ Setting automatically

When DHCP server exists in network, it is possible to assign IP address to the projector and PC automatically. * DHCP is abbreviation for “Dynamic Host Conguration Protocol” and has the

function to provide necessary setting for network like IP address from server to client. A server that has DHCP function is called DHCP server.

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

2.3.3 “Internet Option” setting

1) Click “Internet Options” in “Network and Internet Connections” window (Fig. 2.3.3.a) to open “Internet Properties” window. (Fig.2.3.3.b)

Click

Fig. 2.3.3.a “Network and Internet Connections” window

Click

Fig. 2.3.3.b “Internet Properties” window

2) Click “Connections” tab and then click [LAN Settings] button to open “Local Area Network (LAN) settings”. (Fig. 2.3.3.c)

2. Equipment connection and network setting

2.3 Manual network connection setting - Wired LAN - (continued)

Fig. 2.3.3.c “Local Area Network (LAN) Settings” window

3) Uncheck all boxes in “Local Area Network (LAN) Settings” window. (Fig. 2.3.3.c)

2.3.4 Check connection

Check PC and projector are connected properly here. If it is not connected, check cable connections and settings are properly or not.

1) Start browser in PC and specify following URL, then click “Go” button.

URL: http://(Projector IP address)/

For example, if projector IP address is 192.168.1.10, specify

URL: http://192.168.1.10/

2) If Fig. 2.3.4 appears, it succeeds.

Fig. 2.3.4 “Logon Menu”

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN

The projector and PC can communicate in both of Ad-Hoc and Infrastructure modes, using the designated wireless network card on the projector. This section is intended to explain how to set up wireless LAN connection

manually.

2.4.1 Preparation for wireless LAN connection

Fig. 2.4.1.a Without an access point communication (Ad-Hoc)

Fig. 2.4.1.b With an access point communication (Infrastructure)

* Ad-Hoc is one of the wireless LAN communication methods without having

access point to communicate.

* Infrastructure is one of the wireless LAN communication methods with having

access point to communicate. If certain quantities of equipments are used, this mode is efcient. If communicating with existing network, contact your network administrator.

First, insert the wireless network card into SD card slot ( Using an SD card of

the User’s Manual (concise) ).

Then, make PC ready for wireless communication. In case IEEE802.11b/g wireless LAN device is built-in the PC, make it valid and make other network connections invalid. If wireless LAN device is not built-in the PC, connect IEEE802.11b/g wireless LAN device and install device driver. (Refer to the user guide for PC and wireless LAN device for detail.)

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN (continued)

2.4.2 Wireless LAN connection set up

Using wireless LAN utility for Windows XP standard.

Wireless LAN initial settings for the projector is as follows.

Connection Control : Ad-Hoc SSID : wireless Channel : 1ch Encryption rating : None Communication speed : AUTO IP address : 192.168.1.10

* You can change these settings as you want via a web browser on your PC or the

menu on the projector. Refer to the item 4.1.3 Network Settings (69) or  MIU Menu in the User's Manual (detailed) – Operating Guide.

1) Open ”Network Connections”. (Fig. 2.4.2.a)

Fig. 2.4.2.a “Network Connections”

2) Open “Wireless Network Connection Properties”. (Fig. 2.4.2.b)

Fig. 2.4.2.b “Wireless Network Connection Properties” window (1)

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN (continued)

3) Set used protocol as “TCP/IP” and open TCP/IP property. Set IP address and other settings as same as wired LAN connection set up. (12)

4) Open “Wireless Networks” tab. (Fig. 2.4.2.c)

Fig. 2.4.2.c “Wireless Network Connection Properties” window (2)

5) Add check mark for “Use Windows to congure my wireless network settings”

in “Wireless Network Connection Properties” window.

6) Click [Add] button in “Preferred networks” section in “Wireless Network Connection Properties” window (Fig. 2.4.2.c) to open “Wireless network properties” window. (Fig. 2.4.2.d)

Fig. 2.4.2.d “Wireless network properties” window

2. Equipment connection and network setting

2.4 Manual network connection setting –Wireless LAN (continued)

7) Set each item as follows. Network name (SSID): wireless Data encryption: not enabled (Default setting is not enabled.)

NOTE

• If the default setting in the projector is used, set the data as above into your PC. If an access point is used or any encryption mode is used, it is required to set the data that is matched to your system. Refer to the manuals for your PC or wireless LAN adapter or access point.

• If you want to use the existing network via an access point, contact your network administrator before the connection.

3. Using the Live Mode

The section is intended to explain the process to use the projector in the Live Mode.

The outline of the process is as follows.

1) Install the “Live Viewer 3” (23)

2) Quick Connection to the network (26)

The Quick Connection feature prepares some options to connect your network. You can select one that meets your requirement.

- Passcode connection

- Prole data connection

- History record connection

- My Connection

- Manual connection

3) Conrm the connection to your destination (50)

In some case, there are several projectors connected to the same network. Before you send your image, conrm that the right projector is selected.

4) Start the Live Mode (54)

The “Live Viewer 3” main menu will be on screen. Now, you can send your images to the projector through the network.

Fig. 3 “Live Viewer 3” Main menu

3. Using the Live Mode

3 4

3.1 Outline of the Live Mode

The Live Mode can display PC’s image on screen in real time through either wired or wireless LAN. So, no signal cable connection is required.

3.1.1 Display mode

In the Live Mode, there are two display modes, Single PC mode and Multi PC mode.

1) Single PC mode The projector displays images sent by one PC.

2) Multi PC mode The projector screen is divided to 4 zones. The projector displays images in

one zone sent by a PC, so that the projector can displays images sent by up to 4 PCs at the same time.

3. Using the Live Mode

3.1 Outline of the Live Mode (continued)

3.1.2 Presenter mode

In the Single PC mode, the projector can be occupied by one PC and can block an access from any other PC, if the Presenter mode is set to on in the “Live Viewer 3”. While making your presentation, you don’t need to worry that the image on screen is unexpectedly switched to an image sent by another PC. The Presenter mode can be set on the Option menu in the “Live Viewer 3” main menu. (58)

3.1.3 Display User Name

The user name can be input in the “Live Viewer 3”, which is displayed on screen by operating the menu on the projector. So, it can be found out whose image is currently displayed on screen. (58)

3. Using the Live Mode

3.2 Install “Live Viewer 3”

In order to use the Live Mode and Quick connection, you need to install the enclosed software, the “Live Viewer 3”, into all PCs that you want to connect to

the projector through the network.

3.2.1 Minimum PC hardware and software requirement

• OS: Windows 2000 Professional Service Pack4,

Windows XP Home Edition/Professional

• Graphic Interface: Video RAM 4MB or higher (8MB recommended)

• CPU: Pentium III (600MHz or higher recommended)

• Display: VGA 640x480 or higher (XGA 1024x768 recommended)

65,536 simultaneous colors or higher

NOTE

• For Windows VISTA, use the latest “Live Viewer 3”. Please get the latest version at Hitachi WEB site (http://hitachi.us/digitalmedia or http://www. hitachidigitalmedia.com). Since some functions maybe limited, please see the instruction manual that is supplied with the latest “Live Viewer 3”.

• Set your PC’s resolution to XGA or less. Refer to the user manual for your PC or Windows.

• In some cases, your PC’s screen will not be displayed correctly by the projector. If the resolution is larger than 1024x768, the projector can display only the 1024x768 portion of the image.

• Images might not been transmitted, caused by OS version or the driver software for Network Adapter on your PCs. It is highly recommended that OS and the driver should be updated to the latest.

• Memory: 64MB or higher (128MB or higher if using Windows XP)

• Available Hard Disk Space: 10MB or higher

• Web browser: Internet Explorer® (5.5 or higher)

• CD-ROM drive

• Wireless: IEEE802.11b/g

NOTE

• Depending on the type of wireless network device and PC you are using, the projector may not be able to communicate properly with your PC, even if the PC you are using is equipped with built-in wireless LAN functionality. If the communication problems occur, please use a Wi-Fi certied wireless network device.

3. Using the Live Mode

3.2 Install “Live Viewer 3” (continued)

3.2.2 Software Installation Procedure

1) Turn on the PC.

2) Shut down all applications.

3) Insert the accompanying CD-ROM into the PC's CD-ROM drive.

4) After a moment, the Welcome dialog will

appear as shown on the right. Press [Next].

NOTE

• If the Welcome dialog doesn't appear, proceed as follows: (1) Click on the [Start] button on the toolbar and select the “Run”. (2) Enter E:\software\setup.exe and then press [OK].

If your CD-ROM drive is not drive E on your PC, you will need to replace E with the correct drive letter assigned to your CD-ROM drive.

If the software has been already installed, Uninstallation will be done. Click [Cancel] button, then uninstallation will be canceled. If you uninstalled the software by miss-operation, please re-install the software from rst procedure.

5) The License Agreement dialog appears. If you accept it, press [Yes].

6) The Choose Destination Location dialog

appears. Press [Next].

NOTE

• The C:\Program Files\Projector Tools\LiveViewer3 folder will be created and the program will be installed into that folder. If you wish to install to a different folder, click [Browse] and select another folder.

7) Conrm the program folder name. If “Projector Tools” is okay, press [Next] to continue. If not, enter the desired folder name and then press

[Next].

3. Using the Live Mode

3.2 Install “Live Viewer 3” (continued)

8) The Hardware Installation dialog appears. Press Continue Anyway.

9) After a moment, installation will complete

and the Setup Complete dialog will appear as shown on the right. Click [Finish]. This

completes the software installation. Then your

PC automatically restarts. (1) To conrm that the software has been

properly installed, press [Start] button on the toolbar, select All Programs and then select the Projector Tools folder.

(2) The “Live Viewer 3” will appear in that

folder if the installation was successful.

3.2.3 Version of the “Live Viewer ” software

To use the Live Mode, it is required to install the software, the “Live Viewer”, into the PC that is going to be connected to the projector through the network. The right software version is depended on the models that you have. If the version is not matched with the projector, the software will not work properly.

Models

Live Viewer

Version

2.01

2.1x

2.20

3.xx

CP-X267

 Í Í Í

Í   Í

Í   

CP-X268A

CP-X608

CPX2

CP-X308 CP-X417 CP-X807

• “x” in the version means 0 or greater.

Please check and get the latest version at Hitachi Web site. http://hitachi.us/digitalmedia or http://www.hitachidigitalmedia.com

3. Using the Live Mode

3.3 Quick connection to the network

The Live Mode prepares some options for the network connection. You can

choose one that meets to your system.

The explanation here is based on the case that Windows XP is installed in your PC.

3.3.1 Starting the “Live Viewer 3”

Start the “Live Viewer 3” in your PC, taking one of the followings.

1) Double click the “Live Viewer 3” icon on the Desktop in your PC

2) Select “Start” → “All Programs” → “Projector Tools” → “Live Viewer 3” on Windows XP menu.

Then, proceed to the item 3.3.2 Selecting the connection mode. (27)

[trouble shooting]

n In order to display the computer image correctly, you will need to change the

screen resolution.

If the resolution on your PC is set higher than XGA(1024x768), the screen is displayed.

To change the resolution, click [Yes]. Not to change the resolution, click [No].

If you click [Yes], the resolution on your PC is switched to XGA(1024x768).

If you click [No], the resolution is not changed.

NOTE

• When the resolution is changed, the arrangement of icons on PC

Desktop screen may be changed.

• Even if the resolution is changed, it will be back to the original when the “Live Viewer 3“ is closed.

• If the resolution is not changed, the projector will display XGA(1024x768) portion from top left corner of your PC screen.

• Refer to the user manual for your PC or Windows to change the resolution.

3. Using the Live Mode

3.3 Quick connection to the network (continued)

3.3.2 Selecting the network connection mode

After starting the “Live Viewer 3”, the “Select the Network Connection” screen comes up. Select the network connection that you would

like to use. There are 3 options in the menu.

• Wireless LAN

• Wired LAN

• My Connection

If you select either the wireless LAN or wired LAN, proceed to the Selecting

either the wireless LAN or wired LAN below. If you select the My Connection, jump to the Selecting the My Connection. (29)

Selecting either the wireless LAN or wired LAN

If you select either the wireless LAN or wired LAN, a list of the network adapters in your PC

is shown in the menu.

Select what you like to use in the list, and click

[NEXT]. Then, proceed to the item 3.3.3 Connecting to the network. (31)

NOTE

• If you select the wireless LAN, the wireless LAN adapters in your PC

are shown in the list.

• If the wired LAN is selected, the wired LAN adapters in your PC are shown.

[trouble shooting]

n Are you sure that you want to turn on the network adapter?

The screen is displayed in the case that the selected network adapter is invalid.

• To turn it on, click [Yes], and then proceed to the item 3.3.3 (31)

• Not to turn it on, click [No], and then the screen is back to the previous one to select another network adapter. If no more adapter in your PC, the “Live Viewer 3” will be closed.

3. Using the Live Mode

3.3 Quick connection to the network (continued)

n A network connection was not established.

The screen is displayed in the case that the projector is not connected with a LAN cable to your PC when the wired LAN is selected.

Be sure that the projector is connected with a LAN cable to your PC.

Click [OK], then the screen is back to the previous one to select the network connection mode.

n Windows rewall is enabled(On).

The screen is displayed in the case that the rewall setting in Windows XP is activated, and the “Live Viewer 3“ is blocked by the rewall.

• To turn it disabled(Off), click [Yes].

• Not to turn it disabled(Off), click

[No],

but the projector may not be able to

communicate with your PC through the

network.

• If you put a check mark in the

[Allow communication with LiveView3 by

adding it to the Exceptions list] box, the “Live Viewer 3” will never be

blocked by Windows rewall.

Proceed to the item 3.3.3 Connecting to the network. (31)

NOTE

• If you click [Yes], the network access by the “Live Viewer 3” is

temporally permitted by Windows rewall, until the “Live Viewer 3” is closed.

• If any application software having the rewall function is installed into you PC, make the rewall function invalid with following the user’s manual.

3. Using the Live Mode

3.3 Quick connection to the network (continued)

Selecting the My Connection

Select [My Connection] and click [Connect].

If you select the My Connection, the PC is connected to the projector through the network by using the prole data that is preassigned to My Connection. (62) When you select the My Connection, the PC immediately starts the connection to the

projector.

Proceed to the item 3.6 Conrm the connection to your destination. (50)

NOTE

• If the DHCP is set on in the projector, the network connection between the projector and PC may not be established since IP address may be varied. If you like to use the My Connection, set the DHCP off in the projector.

• If no prole data is assigned to the My Connection, it can’t be used.

[trouble shooting]

n A network connection could not be established.

Windows prevented network conguration

changes.

You may log in the Windows under User

authority.

Click [OK] to return to the screen to select the network connection mode. (27)

Consult to the network administrator and log in again under the Administrator authority. After that, please resume at the item 3.3.1 Starting the “Live Viewer

3”. (26)

3. Using the Live Mode

3.3 Quick connection to the network (continued)

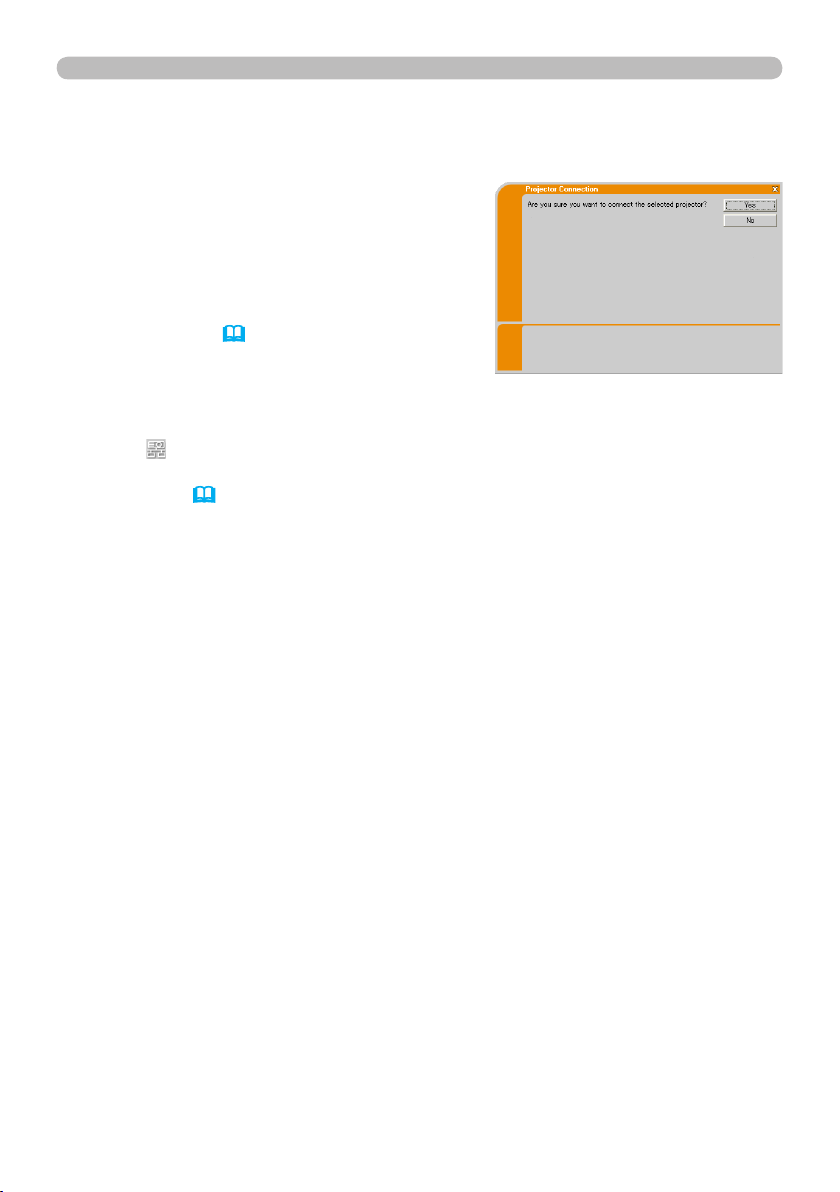

n Are you sure you want to connect the selected projector?

The message is appeared when the wireless adapter you selected is already used for another network connection.

• To connect, click [Yes]. Proceed to the

3.6 Conrm the connection to your

destination. (50)

• Not to connect, click [No] to return to the

screen to select the network connection

mode. (27)

+ 89 hidden pages
