Projector

CP-X2011N/CP-X2511N /CP-X3011N/CP-X4011N

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

WARNING

product. Be sure to read “Safety Guide” ﬁrst. After reading them, store them in a safe place for future reference.

►Before using this product, please read all manuals for this

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.



NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

• The information in this manual is subject to change without notice.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.

Trademark acknowledgment

• Mac® is a registered trademark of Apple Inc.

• Windows countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas.

All other trademarks are the properties of their respective owners.

is a registered trademark of Microsoft Corporation in the U.S. and/or other

Contents



Introduction . ..............3

Features . .....................3

Checking the contents of package

... 3

Part names . ...................4

Setting up . ................7

Arrangement ...................7

Connecting with your devices Connecting to a power supply

......9

.....14

Using the security bar and slot . . . . 14

Remote control ............15

Installing the batteries ...........15

About the remote control signal . . . 15 Changing the frequency of remote control signal Using as a simple PC mouse & keyboard

..16

. . 16

Power on/off . .............17

Turning on the power . ..........17

Turning off the power . ..........17

Operating . ...............18

Adjusting the volume ............18

Temporarily muting the sound .....18

Selecting an input signal .........18

Searching an input signal . .......20

Selecting an aspect ratio .........20

Adjusting the projector's elevator . . 21

Adjusting the zoom and focus .....21

Using the automatic adjustment feature

... 22

Adjusting the position . ..........22

Correcting the keystone distortions

.. 23

Using the magnify feature ........24

Temporarily freezing the screen . . . 25 Temporarily blanking the screen . . 25

Using the menu function . .......26

EASY MENU. . . . . . . . . . . . . . . 28

SPECT

PICTURE MODE, F

ILTER TIME

, A

UTO KEYSTONE

ECO

, L

ANGUAGE

, K

MODE

, M

, A

DVANCED MENU

EYSTONE

IRROR

, R

ESET

, E

PICTURE menu . ...........30

RIGHTNESS

OLOR

, T

INT

, C

ONTRAST

, S

HARPNESS

, G

AMMA

, A

CTIVE IRIS

, C

OLOR TEMP

, MY

MEMORY

IMAGE menu . .............33

SPECT

PHASE

, O

VER SCAN

, H

SIZE

, V

POSITION

, A

UTO ADJUST EXECUTE

, H

POSITION

INPUT menu . .............36

ROGRESSIVE

OMPONENT

DMI RANGE

RAME LOCK

, V

IDEO NR

, V

IDEO FORMAT

, C

OMPUTER IN

, R

ESOLUTION

, C

OLOR SPACE

, H

DMI FORMAT

SETUP menu ..............40

AUDIO menu . .............42

SCREEN menu .............44

OPTION menu . ............50

NETWORK menu ...........60

SECURITY menu ...........67

Presentation tools . ........73

Maintenance ..............85

XIT

Troubleshooting . ..........91

Speciﬁcations .............99



UTO KEYSTONE

CO MODE

E M

ONITOR OUT

OLUME

DMI AUDIO

ANGUAGE

TAR T UP

ESSAGE

UTO SEARCH

IRECT POWER ON

SB TYPE B

Y BUTTON

ETUP

MX D.D

ERVICE

ECURITY PASSWORD CHANGE

yScreen

RANSITION DETECTOR

Y TEXT DISPLAY

, S

, P

., P

PC-LESS Presentation

Thumbnail Mode, Full Screen Mode, Slideshow mode, Playlist

USB Display . ............82

Right-Click menu, Floating menu, Options window

Replacing the lamp .............85

Cleaning and replacing the air ﬁlter . . 87

Replacing the internal clock battery

Other care ....................90

Related messages . ............91

Regarding the indicator lamps . . . . 93

Shutting the projector down . .....94

Resetting all settings ............94

Phenomena that may be easy

to be mistaken for machine defects

, K

EYSTONE

IRROR

PEAKER

, MIC

, M

, S

OURCE NAME

, L

, MY

ROJECTOR NAME

RESENTATION

PASSWORD

, S

TAN DBY MODE

, A

UDIO SOURCE

LEVEL

ENU POSITION

yScreen

, A

AMP TIME

, M

UTO KEYSTONE

, A

UTO POWER OFF

SOURCE

, PIN

, MY

, A

UTO ECO MODE

, MIC

VOLUME

, B

LANK

yScreen Lock

, T

EMPLATE

, F

ILTER TIME

, S

ERVICE

, MY


, I

NFORMATION

LOCK

, MY

TEXT PASSWORD

TEXT WRITING

, C.C.

.......73

. . 89

.. 95

Introduction

Features

The projector provides you with the broad use by the following features.

 This projector has a variety of I/O ports that supposedly cover for any

business scene. The HDMI port can support various image equipment which have digital interface to get clearer pictures on a screen.

 This projector realizes the large projection image, even if in a small space.

If you insert a USB storage device, such as a USB memory, into the USB



TYPE A port and select the port as the input source, you can view images stored in the device.

 This projector can be controlled and monitored via LAN connection.

 This projector's network supports the PJLink

 PJLink

PJLinkTM enables central control of projectors manufactured by different vendors

and projectors can be operated by a controller. PJLink can be managed and controlled at any time and in any place, regardless of manufacturer. For the command of PJLink For speciﬁcations of PJLink and Information System Industries Association.

is a uniﬁed standard for operating and controlling data projectors.

, see “Technical”.

, see the web site of the Japan Business Machine

standard.

compliant equipment

URL: http://pjlink.jbmia.or.jp (as of Dec. 2009)

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

NOTE

to use the original packing materials when moving the projector. Use special caution for the lens.

• Keep the original packing materials, for future reshipment. Be sure

Introduction

Part names

Projector

(1) Lamp cover (

The lamp unit is inside.

85)

(2) Focus ring (21) (3) Zoom ring ( (4) Control panel (

21)

5)

(5) Elevator buttons (x 2) ( (6) Elevator feet (x 2) ( (7) Remote sensor ( (8) Lens (

90)

21)

15)

(9) Intake vents (10) Filter cover (

The air ﬁlter and intake vent are inside.

87)

(11) Battery cover

The internal clock battery is inside.

(12) Speaker (12, 18, 42) (

13) Exhaust vent

(

14) AC IN (AC inlet) (14)

(

15) Rear panel (5)

(

16) Security bar (14)

(

17) Security slot (14)

Shutdown switch

(

18)

(94)

21)

HOT!

(16)

(17)

(6)

(18)

HOT!

(11)

(13)

(

(9)

15)

(1)

(4)

(6)

(2) (3) (4)

(8)

(10)

(15)

(1)

(6)

(12)

(7)

(5)

(6)

(12)

HOT!

(

14)

(

13)

WARNING

HOT!

►HOT! : Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not look into the lens or vents while the lamp is on, since the strong light is not good for your eyes. ►Do not handle the elevator buttons without holding the projector, since the projector may drop down.

CAUTION

►Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air ﬁlter periodically. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.

Control panel

Introduction

(1) STANDBY/ON button ( (2) INPUT button ( (3) MENU button (

18)

26)

17)

It consists of four cursor buttons.

(4) POWER indicator (17, 93, 94) (5) TEMP indicator ( (6) LAMP indicator (

Rear panel

9 ~ 13)

(

93, 94)

(1) USB TYPE A port (2) LAN port (3) HDMI port (4) USB TYPE B port (5) MIC port (6) AUDIO IN1 port (7) AUDIO IN2 port (8) AUDIO IN3(L,R)

ports

(9) AUDIO OUT (L,R) ports

(6)(5)

(1) (3)(2) (4)

(10) COMPUTER IN1 port (11) COMPUTER IN2 port (12) MONITOR OUT port (13) CONTROL port (14) VIDEO port (15) S-VIDEO

port

(16) Cr/Pr,Cb/Pb,Y

(Component) ports

(2)

(5)

USB TYPE A DC5V 0.5A

(1)

LAN

MIC

(6)

IN1

IN2

(7)

(3)

HDMI

(8)

USB TYPE B

(9)

(4)

(16)

(10)

(15)

(14)

(11)

(13)

(12)

CAUTION

►Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down.

Introduction

Remote control

(1) VIDEO button ( (2) COMPUTER button ( (3) SEARCH button ( (4) STANDBY/ON button ( (5) ASPECT button ( (6) AUTO button ( (7) BLANK button ( (8) MAGNIFY - ON button ( (9) MAGNIFY - OFF button (

19)

20)

17)

20)

22)

25)

24)

(10) MY SOURCE/DOC.CAMERA button ( (11) VOLUME - button ( (12) PAGE UP button ( (13) PAGE DOWN button ( (14) VOLUME + button ( (15) MUTE button ( (16) FREEZE button ( (17) MY BUTTON - 1 button ( (18) MY BUTTON - 2 button ( (19) KEYSTONE button ( (20) POSITION button ( (21) MENU button ( (22) ▲/▼/◄/► cursor buttons ( (23) ENTER button ( (24) ESC button (

27)

(25) RESET button ( (26) Battery cover (

18)

16)

18)

25)

53) 53)

23)

22, 27)

26, 27)

27)

15)

19, 54)

(2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22)

(24)

COMPUTER

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

MY BUTTON

POSITION

ENTER

ESC

MY SOURCE/

DOC.CAMERA

PAGE UP

DOWN

BLANK

VOLUME

MUTE

RESET

(10) (4) (3) (7)

㧗

࡯

(12) (14) (11) (13) (15) (18) (21) (23) (25)

(26)

Back of

the remote control

Setting up

Install the projector according to the environment and manner the projector will be used in.

Arrangement

Refer to the illustrations and tables below to determine screen size and projection distance.

The values shown in the table are calculated for a full size screen: 1024 x 768 a Screen size (diagonal) b Projection distance (±10%)

c1 , c2 Screen height (±10%)

On a horizontal surface

Suspended from the ceiling

• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.

• For the case of installation in a special state such as ceiling mount, the speciﬁed mounting accessories

(

99)

and service may be required. Before installing the projector, consult your dealer about your installation.

Screen size

(diagonal)

type

(inch)

30 0.8 0.9 34 1.0 41 41 16 5 2 1.0 38 1.1 45 39 15 -1 0 40 1.0 1.2 46 1.4 55 55 22 6 2 1.3 51 1.5 60 51 20 -2 -1 50 1.3 1.5 58 1.8 69 69 27 8 3 1.6 64 1.9 76 64 25 -2 -1 60 1.5 1.8 70 2.1 83 82 32 9 4 1.9 77 2.3 91 77 30 -2 -1 70 1.8 2.1 82 2.5 97 96 38 11 4 2.3 80 2.0 2.4 94 2.8 112 110 43 12 5 2.6 103 3.1 122 103 41 -3 -1

90 2.3 2.7 106 3.2 126 123 49 14 5 2.9 116 3.5 137 116 46 -4 -1 100 2.5 3.0 118 3.6 140 137 54 15 6 3.3 129 3.9 153 129 51 -4 -2 120 3.0 3.6 142 4.3 168 165 65 18 7 3.9 155 4.7 183 154 61 -5 -2

150 3.8 4.5 178 5.3 211 206 81 23 9 4.9 194 5.8 229 193 76 -6 -2 200 5.1 6.0 237 7.1 281 274 108 30 12 6.6 259 7.8 306 257 101 -8 -3 250 6.4 7.5 297 8.9 352 343 135 38 15 8.2 324 9.7 383 322 127 -10 -4 300 7.6 9.1 357 10.7 422 411 162 46 18 9.9 389 11.7 460 386 152 -12 -5

m m inch m inch cm inch cm inch m inch m inch cm inch cm inch

Projection distance

min. max. min. max.

4 : 3 screen 16 : 9 screen

c1 c2

Screen

height

Screen

height

Projection distance

90 2.7 106 90 35 -3 -1

Screen

height

Screen

height

(continued on next page)

Setting up

Arrangement (continued)

WARNING

►Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in ﬁre and/or electric shock.

• Do not place the projector on an unstable, slanted or vibrational surface such

as a wobbly or inclined stand.

• Do not place the projector on its side, front or rear position.

• Consult with your dealer before a special installation such as suspending from

a ceiling or somewhere else. ►Place the projector in a cool place, and ensure that there is sufﬁcient ventilation. The high temperature of the projector could cause ﬁre, burns and/or malfunction of the projector.

• Do not stop-up, block or otherwise cover the projector's vents.

• Keep a space of 30 cm or more between the sides of the projector and other

objects such as walls.

Do not place or attach anything that would block the lens or vent holes.

•

• Do not place the projector on metallic thing or anything weak in heat.

• Do not place the projector on carpet, cushions or bedding.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place anything near the projector lens or vents, or on top of the

projector.

• Do not place anything that may be sucked into or stick to the vents on the

bottom of the projector. This projector has some intake vents also on the

bottom. ►Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause ﬁre, electric shock and/or malfunction of the projector.

• Do not place the projector in a bathroom or the outdoors.

• Do not place anything containing liquid near the projector. ►Use only the mounting accessories the manufacturer speciﬁed, and leave installing and removing the projector with the mounting accessories to the service personnel.

• Read and keep the user’s manual of the mounting accessories used.

CAUTION

►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause ﬁre, electric shock and/or malfunction of the projector.

• Do not place the projector near humidiﬁers, smoking spaces or a kitchen. ►Position the projector to prevent light from directly hitting the projector's remote sensor. ►Do not place the product in a place where radio interference may be caused. ►Do not place this product in a magnetic ﬁeld.

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conﬁrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the device and projector are turned off, connect them following the instructions below.

►

WARNING

a ﬁre or damage to the device and the projector.

- Use only the accessories specified or recommended by the projector’s manufacturer. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. It may be regulated under some standard.

- For a cable with a core at only one end, connect the end with the core to the projector. That may be required by EMI regulations.

- Neither disassemble nor modify the projector and the accessories.

- Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

Use only the appropriate accessories. Otherwise it could cause

CAUTION

►Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector. ►Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ﬁts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of the

projector are recessed.

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Please use the standard drivers in your computer as this projector is a Plug-andPlay monitor.

(continued on next page)

Setting up

Connecting with your devices (continued)

• When AUTO is selected for the COMPUTER IN1 or COMPUTER IN2 port in COMPUTER IN of the INPUT menu, that port will accept component video signals ( When the USB TYPE B port and the computer's type A USB port are connected,

•

38).

you can use the USB TYPE B port as a picture input port from the computer, or use the remote control as a simple mouse and keyboard of the computer. (

16, 51).

VCR/DVD/Blu-ray Disc

player

Cr/Pr

Cb/Pb

COMPONENT

OUT

AUDIO

VIDEO

OUT

AUDIO

S-VIDEO L

OUT

AUDIO

USB TYPE A DC5V 0.5A

LAN

MIC

HDMI

IN1

IN2

USB TYPE B

AUDIO

IN3

RLR

OUT

COMPUTER IN1

VIDEO

Cr/Pr

S-VIDEO CONTROL

Cb/Pb

MONITOR OUT

COMPUTER

IN2

Computer

HDMI

AUDIO

OUT

USB

(A)

DISPLAY

RS-232C

(continued on next page)

Connecting with your devices (continued)

Setting up

NOTE

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600X1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the

display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this

projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (

38).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

(continued on next page)

Setting up

Connecting with your devices (continued)

• If you insert a USB storage device, such as a USB memory, into the USB TYPE A port and select the port as the input source, you can view images stored in the

device (

73).

• You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug.

In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. The volume of the microphone and that of the sound from the projector can be controlled separately except for the standby mode. However, if you mute the sound from the projector, the sound from the microphone is also muted.

Speakers

(with an ampliﬁer)

Monitor

Microphone system

RGB IN

USB storage

device

COMPUTER

IN2

CAUTION

USB TYPE A DC5V 0.5A

LAN

MIC

HDMI

IN1

IN2

USB TYPE B

AUDIO

IN3

RLR

OUT

COMPUTER IN1

VIDEO

Cr/Pr

S-VIDEO CONTROL

Cb/Pb

MONITOR OUT

►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (

76).

NOTE

• If a loud feedback noise is produced from the speaker, move the

microphone away from the speaker.

• This projector doesn't support plug-in power for the microphone.

(continued on next page)

Setting up

Connecting with your devices (continued)

To use network functions of the projector, connect the LAN port with the computer's LAN port, or with an access point that is connected to the computer with wireless LAN, using a LAN cable. To use NETWORK BRIDGE function, also connect the CONTROL port and an RS-232C port of the external device to communicate as a network terminal. See the User's Manual - Network Guide for details of the network functions.

Computer

USB TYPE A DC5V 0.5A

CAUTION

Access point

HDMI

USB TYPE B

LAN

MIC

IN1

IN2

AUDIO

IN3

RLR

OUT

Cr/Pr

Cb/Pb

►Before connecting the projector to a network system be sure

LAN

COMPUTER IN1

VIDEO

S-VIDEO CONTROL

to obtain the consent of the administrator of the network (

Do not connect the LAN port to any network that might have the excessive voltage.

►

RS-232C

COMPUTER

IN2

MONITOR OUT

60).

NOTE

• If an oversized USB storage device blocks the LAN port, use a USB

extension cable to connect the USB storage device.

Setting up

Connecting to a power supply

Put the connector of the power cord into the

AC IN (AC inlet) of the projector. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated (50), the connection of the power supply make the projector turn on.

AC IN Power cord

WARNING

incorrect or faulty connections may result in ﬁre and/or electrical shock.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one.

• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Never modify the power cord.

►Please use extra caution when connecting the power cord, as

Using the security bar and slot

Security slot

A commercial anti-theft chain or wire up to 10 mm in diameter can be attached to the security bar on the projector. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

Security bar

Anti-theft chain or wire

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

• The security bar and slot is not comprehensive theft prevention

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery

cover, remove it. Align and insert the two AA batteries

(HITACHI MAXELL, Part No.LR6 or R6P) according to their plus and minus terminals as indicated in the remote control.

Replace the battery cover in the direction of the arrow and snap it back into place.

213

WARNING

directed. Improper use may result in battery explosion, cracking or leakage, which could result in ﬁre, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries speciﬁed. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a ﬁre or water. Keep batteries in a dark, cool and dry place.

• If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

•

NOTE

If it is difﬁcult to send the signal to the sensor directly, attempt to make the signal reﬂect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

The remote control may not work correctly if strong light (such as direct sun

• light) or light from an extremely close range (such as from an inverter ﬂuorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

The remote control signal reﬂected in the screen or the like may be available.

Approx.

3 m

30º

Remote control

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu

(56)

of the projector to be controlled should be

set to the same mode as the remote control.

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected and MOUSE is selected for the USB TYPE B item in the OPTION menu (

(1) PAGE UP key: Press PAGE UP button. (2) PAGE DOWN key: Press PAGE DOWN button. (3) Mouse left button: Press ENTER button. (4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (5) ESC key: Press ESC button. (6) Mouse right button: Press RESET button.

51).

USB TYPE B

USB port

(2)

COMPUTER

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

MY BUTTON

POSITION

ENTER

ESC

COMPUTER

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

MY BUTTON

MY SOURCE/ DOC.CAMERA

PAGE UP

DOWN

MY SOURCE/ DOC.CAMERA

PAGE UP

DOWN

BLANK

VOLUME

MUTE

RESET

BLANK

VOLUME

MUTE

㧗

࡯

(1)

㧗

࡯

(2)

ENTER

(4)

RESET

(6)

WARNING

►Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer’s manuals

(3)

(5)

POSITION

ESC

before connecting this product to the computer.

NOTE

• When the simple mouse & keyboard function of this product does not

work correctly, please check the following.

- When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

Windows 95 OSR 2.1 or higher is required for this function. And also this function may not work depending on the computer’s conﬁgurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.

- You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

- This function is activated only when the projector is working properly. This function is not available while the lamp is warming up (the POWER indicator blinks green), and while adjusting the volume and display, correcting for keystone, zooming in on the screen, using the BLANK function, or displaying the menu screen.

Power on/off

Turning on the power

STANDBY/ON button POWER indicator

Make sure that the power cord is ﬁrmly and

correctly connected to the projector and the outlet.

Make sure that the POWER indicator is

steady orange ( cover.

Press STANDBY/ON button on the

projector or the remote control. The projection lamp will light up and POWER

93). Then remove the lens

COMPUTER

VIDEO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

POSITION

ESC

AUTO

MY BUTTON

MY SOURCE/

DOC.CAMERA

PAGE UP

ENTER

BLANK

VOLUME

㧗

DOWN

࡯

MUTE

RESET

indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (

93).

To display the picture, select an input signal according to the section “Selecting an input signal” (

18).

Turning off the power

Press the STANDBY/ON button on the projector or the remote control.

The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears.

The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (

93).

Attach the lens cover, after the POWER indicator turns in steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Turning the projector on again too soon could shorten the lifetime of some consumable parts of the projector.

WARNING

Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE

• Turn the power on/off in right order. Please power on the projector

prior to the connected devices.

•

This projector has the function that can make the projector automatically turn on/ off. Please refer to the DIRECT POWER ON items of the OPTION menu.

• Use the shutdown switch ( normal procedure.

►A strong light is emitted when the projector’s power is on.

(50)

and AUTO POWER OFF

(51)

94) only when the projector is not turned off by

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume.

A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

● When disabled. Please see AUDIO SOURCE item of AUDIO menu (

is selected for current picture input port, the volume adjustment is

VOLUME +/- button

VIDEO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

42).

● Even if the projector is in the standby state, the volume is adjustable when both of the following conditions are true:

- An option other than is selected for STANDBY in the AUDIO SOURCE item of the AUDIO menu NORMAL is selected in the STANDBY MODE item of the SETUP menu

Temporarily muting the sound

Press MUTE button on the remote control.

A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE, VOLUME + or VOLUME - button. Even if you do not do anything, the dialog

(

42).

MUTE button

VIDEO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

will automatically disappear after a few seconds.

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

PAGE

FREEZE

DOWN

MY BUTTON

(42).

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

PAGE

FREEZE

DOWN

MY BUTTON

BLANK

VOLUME

MUTE

BLANK

VOLUME

MUTE

㧗

࡯

㧗

࡯

● When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (

42).

● C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPONENT, COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

49).

Selecting an input signal

Press INPUT button on the projector.

Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

COMPONENT (Y, Cb/Pb, Cr/Pr)  HDMI

● While ON is selected for AUTO SEARCH item in OPTION menu (50), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

INPUT button

(continued on next page)

Selecting an input signal (continued)

Operating

Press COMPUTER button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER IN1  COMPUTER IN2  LAN USB TYPE B



USB TYPE A

● While ON is selected for AUTO SEARCH item in OPTION

menu, the projector will keep checking every port sequentially till an input signal is detected (

50). If COMPUTER button is

pressed when VIDEO, S-VIDEO, COMPONENT or HDMI port is selected, the projector will check COMPUTER IN1 port ﬁrst.

● It may take several seconds to project the images from the USB TYPE B port.

Press VIDEO button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

HDMI  COMPONENT (Y, Cb/Pb, Cr/Pr)  S-VIDEO

VIDEO

●

While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (

50). If VIDEO button is

pressed when COMPUTER IN1 or COMPUTER IN2 port is selected, the projector will check HDMI port ﬁrst.

COMPUTER button

MY SOURCE/

COMPUTER

DOC.CAMERA

VIDEO

AUTO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

POSITION

FREEZE

MY BUTTON

PAGE UP

DOWN

BLANK

VOLUME

MUTE

㧗

࡯

VIDEO button

MY SOURCE/

COMPUTER

DOC.CAMERA

VIDEO

AUTO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

POSITION

FREEZE

MY BUTTON

PAGE UP

DOWN

BLANK

VOLUME

MUTE

㧗

࡯

Press the MY SOURCE / DOC. CAMERA button on

the remote control. The input signal will be changed into the signal you set as MY SOURCE (

54).

● This function also can use for document camera. Select the input port that connected the document camera.

MY SOURCE / DOC. CAMERA button

MY SOURCE/

COMPUTER

DOC.CAMERA

VIDEO

AUTO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

POSITION

FREEZE

MY BUTTON

PAGE UP

DOWN

BLANK

VOLUME

MUTE

㧗

࡯

Operating

Searching an input signal

SEARCH button

Press SEARCH button on the remote control.

The projector will start to check its input ports as below in order to ﬁnd any input signals. When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will

COMPUTER

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

return to the state selected before the operation.

COMPUTER IN1  COMPUTER IN2  LAN

POSITION

VIDEO USB TYPE A

S-VIDEO USB TYPE B

COMPONENT (Y, Cb/Pb, Cr/Pr)  HDMI

● While ON is selected for AUTO SEARCH item in OPTION menu (50), the

projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

MY SOURCE/

DOC.CAMERA

PAGE UP

DOWN

MY BUTTON

BLANK

VOLUME

MUTE

㧗

࡯

Selecting an aspect ratio

Press ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

 For a computer signal

NORMAL  4:3  16:9  16:10

 For an HDMI signal

NORMAL  4:3  16:9  16:10  14:9

 For a video signal, s-video signal or component video signal

4:3  16:9  14:9

 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

4:3 (ﬁxed)

ASPECT button

COMPUTER

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

MY BUTTON

POSITION

MY SOURCE/

DOC.CAMERA

PAGE UP

DOWN

BLANK

VOLUME

MUTE

㧗

࡯

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

Operating

Adjusting the projector's elevator

When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 14 degrees. This projector has 2 elevator feet and 2 elevator buttons. An elevator foot is adjustable while pushing the elevator button on the same side as it.

Holding the projector, push the elevator buttons to loose the elevator feet.

14°

Position the front side of the projector to the desired height.

Release the elevator buttons in order to lock the elevator feet.

After making sure that the elevator feet are locked, put the projector down

gently. If necessary, the elevator feet can be manually twisted to make more precise

adjustments. Hold the projector when twisting the feet.

To loose an elevator foot, push the

elevator button on the same side as it.

CAUTION

projector, since the projector may drop down. ►Do not tilt the projector other than elevating its front within 14 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

►Do not handle the elevator buttons without holding the

To ﬁnely adjust, twist the foot.

Adjusting the zoom and focus

Use the zoom ring to adjust the screen size.

Use the focus ring to focus the picture.

Zoom ring Focus ring

Operating

Using the automatic adjustment feature

Press AUTO button on the remote control.

Pressing this button performs the following.

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size

AUTO button

COMPUTER

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

MY BUTTON

prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

37).

The vertical position and

horizontal position will be automatically set to the default.

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

● The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model. The items adjusted by this function may vary when the FINE or DISABLE is selected

● for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

55).

MY SOURCE/

DOC.CAMERA

BLANK

PAGE

VOLUME

DOWN

MUTE

㧗

࡯

Adjusting the position

KEYSTONE

POSITION

ESC

MY BUTTON

ENTER

Press POSITION button on the remote control when no menu is

indicated. The “POSITION” indication will appear on the screen.

Use the ▲/▼/◄/► cursor buttons to adjust the picture position.

When you want to reset the operation, press RESET button on the remote control during the operation. To complete this operation, press POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

When this function is performed on a video signal or an s-video signal, some image

●

POSITION button

such as an extra-line may appear at outside of the picture.

● When this function is performed on a video signal or s-video signal, the range of this adjustment depends on OVER SCAN in IMAGE menu (

33) setting. It is not

possible to adjust when OVER SCAN is set to 10.

● If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does.

● This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

MUTE

RESET

Operating

Correcting the keystone distortions

Press KEYSTONE button on the remote

control. A dialog will appear on the screen to aid you in correcting the distortion.

Use the ▲/▼ cursor buttons to select AUTO or MANUAL

operation, and press the ► button to perform the following.

KEYSTONE button

MY SOURCE/

COMPUTER

DOC.CAMERA

VIDEO

AUTO

ASPECT SEARCH

PAGE

FREEZE

MAGNIFY

OFF

KEYSTONE

DOWN

MY BUTTON

(1) AUTO executes automatic vertical keystone correction. (2) MANUAL displays a dialog for keystone correction.

Use the ◄/► buttons for adjustment.

To close the dialog and complete this operation, press KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

● The adjustable range of this function will vary among inputs. For some input, this function may not work well.

● When V:INVERT or H&V:INVERT is selected to the MIRROR item in the

SETUP menu, if the projector screen is inclined or angled downward, automatic vertical keystone correction may not work correctly.

● When the zoom adjustment is set to the TELE (telephoto focus), this function

may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

● When the projector is placed on the level (about ±4°), the automatic keystone

distortion correction may not work.

● When the projector is inclined to near ±30 degree or over, this function may

not work well.

BLANK

VOLUME

MUTE

㧗

࡯

● This function will be unavailable when Transition Detector is on (

70).

Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control.

The picture will be magniﬁed, and the MAGNIFY dialog will

MAGNIFY ON/OFF button

appear on the screen. When the MAGNIFY ON button is

COMPUTER

pressed for the ﬁrst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

While the triangles are displayed on the dialog, use the

▲/▼/◄/► cursor buttons to shift the magnifying area.

VIDEO

ASPECT SEARCH

FREEZE

MAGNIFY

OFF

KEYSTONE

A magnifying glass icon will be displayed on the dialog when the MAGNIFY

ON button is pressed while the dialog with the triangles is displayed.

While the magnifying glass icon is displayed on the dialog, use the ▲/▼ cursor

buttons to adjust the magniﬁcation ratio. The magniﬁcation ratio will be adjusted with ﬁne steps. And changes in the ratio in single steps are subtle so they may be hard to recognize.

Press the MAGNIFY OFF button on the remote control to exit magniﬁcation.

MY SOURCE/

DOC.CAMERA

AUTO

PAGE UP

MY BUTTON

DOWN

BLANK

VOLUME

MUTE

㧗

࡯

● The MAGNIFY dialog will automatically disappear in several seconds with no

operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

● While the MAGNIFY dialog is displayed, press the MAGNIFY ON button to

switch the dialog between magnifying area shifting (with the triangles) and magniﬁcation ratio adjustment (with the magnifying glass icon).

● The magniﬁcation is automatically disabled when the displaying signal or its

display condition is changed.

● While the magniﬁcation is active, the keystone distortion condition may vary.

It will be restored when the magniﬁcation is disabled.

● Some horizontal stripes might be visible on the image while magniﬁcation is

active.

● This function is not available in the following cases:

- The USB TYPE A port is selected as the input source.

- A sync signal in the range not supported is input.

- There is no input signal.

Operating

Temporarily freezing the screen

FREEZE button

Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu ( projector will go into the FREEZE mode, which the picture is

46)), and the

OFF

frozen. To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

● The projector automatically exits from the FREEZE mode when some control buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD

panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

● Images might appear degraded when this function is operated, but it is not a

malfunction.

MY SOURCE/

COMPUTER

DOC.CAMERA

VIDEO

AUTO

ASPECT SEARCH

FREEZE

MAGNIFY

KEYSTONE

MY BUTTON

PAGE UP

DOWN

BLANK

VOLUME

MUTE

㧗

࡯

Temporarily blanking the screen

Press BLANK button on the remote control.

The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (

44).

To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

● The projector automatically exits from the some control buttons are pressed.

CAUTION

►If you wish to have a blank screen while the projector's lamp

is on, use one of methods below.

- Use the supplied lens cover.

- Use the BLANK function above.

Taking any other action may cause the damage on the projector.

BLANK

mode when

BLANK button

MY SOURCE/

COMPUTER

DOC.CAMERA

VIDEO

AUTO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

FREEZE

MY BUTTON

BLANK

PAGE

VOLUME

DOWN

MUTE

㧗

࡯

•

NOTE

The sound is not connected with the BLANK screen function. If necessary, set the volume or mute ﬁrst. To display the BLANK screen and mute the sound at one time, use AV MUTE function

(53).

Operating

Using the menu function

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classiﬁed into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

ENTER button MENU button

Cursor buttons

RESET

VIDEO

ASPECT SEARCH

MAGNIFY

OFF

KEYSTONE

POSITION

ESC

MENU button

POSITION

ENTER

ESC

(Cursor buttons)

ESC button

RESET button

To start the MENU, press the MENU button. The MENU you last used (EASY

or ADVANCED) will appear. EASY MENU has priority to appear just after powered on.

In the EASY MENU

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

In the ADVANCED MENU

COMPUTER

FREEZE

AUTO

MY BUTTON

MY SOURCE/ DOC.CAMERA

PAGE UP

ENTER

BLANK

VOLUME

㧗

DOWN

࡯

MUTE

RESET

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

(continued on next page)

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press

the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing the POSITION button.

● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

● When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button or ESC button on the remote control.

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

Selecting this word ﬁnishes the OSD menu. It's the same as pressing the MENU button.

Selecting this word cancels the operation in the present menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts the menu to the next menu.

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

Item Description

ASPECT

AUTO KEYSTONE

KEYSTONE

PICTURE MODE

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (

Using the ► button executes the auto keystone function. See the AUTO KEYSTONE (EXECUTE) item in SETUP menu (



33).



Using the ◄/► buttons corrects the vertical keystone distortion. See the KEYSTONE item in SETUP menu (



40).

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

NORMAL  CINEMA  DYNAMIC  BOARD(BLACK)

DAYTIME  WHITEBOARD  BOARD(GREEN)

GAMMA COLOR TEMP NORMAL 1 DEFAULT 2 MID CINEMA 2 DEFAULT 3 LOW DYNAMIC 3 DEFAULT 1 HIGH BOARD(BLACK) 4 DEFAULT 4 Hi-BRIGHT-1 BOARD(GREEN) 4 DEFAULT 5 Hi-BRIGHT-2 WHITEBOARD 5 DEFAULT 2 MID DAYTIME 6 DEFAULT 6 Hi-BRIGHT-3

40).

• When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

30, 31) items in PICTURE menu.



Item Description

EASY MENU

ECO MODE

MIRROR

RESET

FILTER TIME

LANGUAGE

ADVANCED MENU

Using the ◄/► buttons turns off/on the Eco mode. See the ECO MODE item in SETUP menu (



41).

Using the ◄/► buttons switches the mode for mirror status. See the MIRROR item in SETUP menu (



41).

Performing this item resets all of the EASY MENU items except the FILTER TIME and LANGUAGE. A dialog is displayed for conﬁrmation. Selecting the OK using the ► button performs resetting.

The usage time of the air ﬁlter is shown in the menu. Performing this item resets the ﬁlter time which counts usage time of the air ﬁlter. A dialog is displayed for conﬁrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item in OPTION menu (



52).

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (



44).

Press the ► or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

EXIT Press the ◄ or ENTER button to ﬁnish the OSD menu.

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

◄/►

BRIGHTNESS

Using the

Dark  Light

Using the

CONTRAST

Weak  Strong

Using the ▲/▼ buttons switches the gamma mode.

1 DEFAULT  1 CUSTOM  2 DEFAULT  2 CUSTOM  3 DEFAULT



6 CUSTOM 3 CUSTOM

buttons adjusts the brightness.

◄/►

buttons adjusts the contrast.



GAMMA

6 DEFAULT



5 CUSTOM  5 DEFAULT  4 CUSTOM  4 DEFAULT

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern  Gray scale of 9 steps Ramp  Gray scale of 15 steps

The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps) except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

Item Description

Using the ▲/▼ buttons switches the color temperature mode.

PICTURE menu

COLOR TEMP

1 HIGH



6 CUSTOM

6 Hi-BRIGHT-3

5 CUSTOM

1 CUSTOM



5 Hi-BRIGHT-24 CUSTOM4 Hi-BRIGHT-1



2 MID

2 CUSTOM



3 CUSTOM



3 LOW



To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.

OFFSET adjustments change the color intensity on the whole tones of the test pattern.

GAIN adjustments mainly affect color intensity on the brighter tones of the test pattern.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

COLOR

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern  Gray scale of 9 steps

Ramp  Gray scale of 15 steps

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

Using the ◄/► buttons adjusts the strength of whole color.

Weak  Strong

• This item can be selected only for a video, s-video and component video signal.

For an HDMI signal, this item can also be selected if either (1) or (2) applies.

• (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

Using the ◄/► buttons adjusts the tint.

Reddish  Greenish

• This item can be selected only for a video, s-video and component

TINT

video signal.

•

For an HDMI signal, this item can also be selected if either (1) or (2) applies.

(1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

(continued on next page)

projector recognizes that it receives video signals.

PICTURE menu

Item Description

Using the ◄/► buttons adjusts the sharpness.

SHARPNESS

ACTIVE IRIS

Weak  Strong

• There may be some noise and/or the screen may ﬂicker for a moment when an adjustment is made. This is not a malfunction.

This item is available only for CP-X2511N, CP-X3011N or CP-X4011N.

Using the ▲/▼ cursor buttons changes the active iris control mode.

PRESENTATION  THEATER  OFF

PRESENTATION : The active iris displays the best presentation

image for both bright and dark scenes.

THEATER : The active iris displays the best theater image for

both bright and dark scenes.

OFF : The active iris is always open.

• The screen may ﬂicker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.

This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

SAVE-1  SAVE-2  SAVE-3  SAVE-4

MY MEMORY

LOAD-4 LOAD-3  LOAD-2  LOAD-1

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may ﬂicker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (



53).

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the mode for aspect ratio.

For a computer signal

NORMAL  4:3  16:9  16:10

For an HDMI signal

IMAGE menu

ASPECT

OVER SCAN

NORMAL



4:3



16:9



16:10



14:9

For a video signal, s-video signal or component video signal

4:3  16:9  14:9

For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal

4:3 (ﬁxed)

• The NORMAL mode keeps the original aspect ratio of the signal. Using the ◄/► buttons adjusts the over-scan ratio.

Small (It magniﬁes picture)  Large (It reduces picture)

• This item can be selected only for a video, s-video and component video signal.

For an HDMI signal, this item can also be selected if either (1) or (2)

• applies. (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

projector recognizes that it receives video signals.

• When this adjustment is too large, certain degradation may appear at the frame area of the picture. In such a case, please adjust small.

(continued on next page)

IMAGE menu

Item Description

V POSITION

H POSITION

Using the ◄/► buttons adjusts the vertical position.

Down  Up

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN ( setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.

Using the ◄/► buttons adjusts the horizontal position.

Right  Left

Over-adjusting the horizontal position may cause noise to appear on

• the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN ( setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI por



33)

(continued on next page)

Item Description

IMAGE menu

H PHASE

H SIZE

AUTO ADJUST

EXECUTE

Using the

Right  Left

• This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

Using the ◄/► buttons adjusts the horizontal size.

Small  Large

• This item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

• When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

Selecting this item performs the automatic adjustment feature.

For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (



◄/►

buttons adjusts the horizontal phase to eliminate ﬂicker.

37).

The vertical position and horizontal position will be

automatically set to the default.

For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the PC model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



55).

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the progress mode.

TV  FILM  OFF

•

This function works only for a video signal, s-video signal, component

video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI

PROGRESSIVE

signal (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

VIDEO NR

COLOR SPACE

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH  MID  LOW

• This function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI signal (of 480i@60 or 576i@50 or 1080i@50/60).

• When this function is excessive, it may cause a certain degradation of the picture.

Using the ▲/▼ buttons switches the mode for color space.

AUTO  RGB  SMPTE240  REC709  REC601

• This item can be selected only for a computer signal (except for signals from the LAN, USB TYPE A and USB TYPE B ports) component video signal (except SCART RGB).

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

Using the ▲/▼ buttons switches the function of the COMPONENT (Y, Cb/Pb, Cr/Pr) port.

or a

COMPONENT

(continued on next page)

When the SCART RGB is selected, the COMPONENT (Y, Cb/ Pb, Cr/Pr) and VIDEO ports will function as a SCART RGB port. A SCART adapter or SCART cable is required for a SCART RGB input to the projector. For details, contact your dealer.

COMPONENT  SCART RGB

Item Description

The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ▲/▼ buttons to

select the input port.

(2) Using the ◄/► buttons

switches the mode for video format.

INPUT menu

VIDEO FORMAT

HDMI FORMAT

AUTO  NTSC  PAL  SECAM N-PAL  M-PAL  NTSC4.43

• This item is performed only for a video signal from the VIDEO port or the S-VIDEO port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

Using the ▲/▼ cursor buttons switches

the video format for an

input from the HDMI port.

AUTO  VIDEO  COMPUTER

Feature AUTO automatically sets the optimum mode. VIDEO sets the suitable mode for DVD signals. COMPUTER sets the suitable mode for computer signals.

•

When the COMPUTER is selected, the functions COLOR

(PICTURE menu), TINT (PICTURE menu) and OVER SCAN (IMAGE menu) are unavailable.

Using the ▲/▼ cursor buttons changes the digital range for input from the HDMI port.

HDMI RANGE

AUTO automatically sets the optimum mode. NORMAL s ENHANCED

• If the contrast of the screen image is too strong or too weak, try ﬁnding a more suitable mode.

(continued on next page)

AUTO  NORMAL  ENHANCED

Feature

ets the suitable mode for DVD signals. (16-

sets the suitable mode for computer signals. (0-255)

235)

INPUT menu

Item Description

The computer input signal type for COMPUTER IN1 and IN2 ports can be set.

Use the ▲/▼ buttons to select the COMPUTER IN port to be set.

(1) (2) Use the ◄/► buttons to select

the computer input signal type.

AUTO  SYNC ON G OFF

COMPUTER IN

FRAME LOCK

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port. Please refer to “Technical” for the connection of component video input to COMPUTER IN1/2 port.

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select

the input ports.

(2) Use the ◄/► buttons to turn the

frame lock function on/off .

ON  OFF

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

• This function may cause a certain degradation of the picture. In such a case, please select OFF.

(continued on next page)

Item Description

The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO will set a resolution appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and

horizontal size. The INPUT_INFORMATION dialog will be displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

RESOLUTION

the CUSTOM and the RESOLUTION_CUSTOM box will be

displayed. Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼/◄/► buttons. This function is may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO

CHANGE RESOLUTION?" appears. To save the setting, press

the ► button.

The horizontal and vertical positions, clock phase and horizontal

size will be automatically adjusted. The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or

ENTER button.

The screen will then return to the RESOLUTION menu

displaying the previous resolution.

• For some pictures, this function may not work well.

INPUT menu

STANDARD

↓

CUSTOM

↓

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Selecting this item performs the Automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself. This function will be executed only once when selected in the menu. When the slant of the projector is changed, execute this function again.

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• When V:INVERT or H&V:INVERT is selected to the MIRROR item in the SETUP menu, if the projector screen is inclined or angled

AUTO KEYSTONE

downward, this function may not work correctly.

• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

• When the projector is placed on the level (about ±4°), this function may not work.

• When the projector is inclined to near ±30 degree or over, this function may not work well.

• This function will be unavailable when the Transition Detector is on (

70).



Using the ◄/► buttons corrects the vertical keystone distortion.

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

KEYSTONE

AUTO ECO MODE

(continued on next page)

• This function will be unavailable when the Transition Detector is on (



Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.

•

When ON is selected, the projector will always be set to Eco mode

at start-up regardless of the ECO MODE ( message “AUTO ECO MODE” will be displayed for tens of seconds when the projector starts with this function activated.

Shrink the bottom of the image  Shrink the top of the image

70).

ON  OFF

41) setting. An OSD



Item Description

Using the ▲/▼ buttons turns off/on the Eco mode.

NORMAL  ECO

SETUP menu

ECO MODE

MIRROR

STANDBY MODE

• When the ECO is selected, acoustic noise and screen brightness are reduced.

• When AUTO ECO MODE (

40) is set to ON, the projector will



always be set to Eco mode at start-up regardless this setting.

Using the ▲/▼ buttons switches the mode for mirror status.

NORMAL  H:INVERT  V:INVERT  H&V:INVERT

If the Transition Detector is on and MIRROR status is changed, TRANSITION DETECTOR ON alarm (

70) will be displayed when



projector is restarted after the AC power is turned off. Using ▲/▼ buttons switches the standby mode setting between

NORMAL and SAVING.

NORMAL  SAVING

When SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled (

• When SAVING is selected,

42) is invalid, and no signal is output from AUDIO OUT port in

(



STANDBY setting of AUDIO SOURCE



57).

the standby mode.

MONITOR OUT

While the image signal from the input port chosen in step (1) is projected, the image signal from the input port selected in step (2) is output to MONITOR OUT port.

(1) Choose a picture input port using ▲/▼ buttons.

Choose STANDBY to select the picture output in the standby mode.

(2) Select one of the COMPUTER IN ports

using ◄/► buttons.

Select OFF to disable the MONITOR OUT port for the input port or standby mode chosen in the step (1).

• You cannot select COMPUTER IN1 in step (1) and COMPUTER IN2 in step (2) and vice versa.

• If you have changed the setting of STANDBY, it applies only to the current standby mode, NORMAL or SAVING, selected under STANDBY MODE, without changing the setting of the other mode. The factory settings are as follows:

- COMPUTER IN1 for the NORMAL mode of STANDBY MODE

- OFF for the SAVING mode of STANDBY MODE

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description

VOLUME

SPEAKER

AUDIO SOURCE

Using the ◄/► buttons adjusts the volume.

Low  High

Using the ▲/▼ buttons turns on/off the built-in speaker.

ON  OFF

When OFF is selected, the built-in speaker does not work.

While the image signal from the input port chosen in step (1) is projected, the audio signal from the input port selected in step (2) is output to both the AUDIO OUT port and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.

(1) Choose a picture input port using the

▲/▼ buttons.

Choose STANDBY to select the sound output in the standby mode.

(2) Select one of the AUDIO IN ports using

◄/► buttons.

Select input port or in the standby mode chosen in the step (1).

• In the AUDIO SOURCE window, “H” symbolizes the audio signal from the HDMI port. It can be selected only for the picture input from the HDMI port.

• Even if the projector is in the standby mode, cooling fans may work and make noises when the built-in speaker is in operation.

• C.C. (Closed Caption) is automatically activated when and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPONENT, COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

to mute the sound from the

49).



is selected

(continued on next page)

Item Description

Using the ▲/▼ buttons switches the mode for the HDMI audio.

HDMI AUDIO

Check each of the two modes provided and select the suitable one for your HDMI audio device.

1  2

Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port.

MIC LEVEL

HIGH  LOW

HIGH: for a microphone with an ampliﬁer. LOW: for a microphone without an ampliﬁer.

Using the ◄/► buttons adjusts the volume of the microphone

MIC VOLUME

connected to the MIC port.

Low  High

AUDIO menu

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

LANGUAGE

MENU POSITION

BLANK

ENGLISH  FRANÇAIS  DEUTSCH  ESPAÑOL

Press the ENTER or INPUT button to save the language setting. Using the ▲/▼/◄/► buttons adjusts the menu position.

To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature (25). It is displayed by pressing the BLANK button on the remote control.

MyScreen  ORIGINAL  BLUE  WHITE  BLACK

MyScreen : ORIGINAL : Screen preset as the standard screen. BLUE, WHITE, BLACK : Plain screens in each color.

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the plain black screen after several minutes.

Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

(shown in the LANGUAGE dialog)

Screen can be registered by the MyScreen item (45).

START UP

• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen ( minutes. If also the BLANK screen is the MyScreen or ORIGINAL, the plain black screen is instead used.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (

(continued on next page)

MyScreen  ORIGINAL  OFF

MyScreen : ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen.

Screen can be registered by the MyScreen item (45).

above) after several



68), the START UP is fixed to MyScreen.



Item Description

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

1. Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen.

Please wait for the target image to be displayed, and press the ENTER or INPUT button when the image is displayed. The image will freeze and the frame for capturing will appear. To stop performing, press the RESET button on the remote control.

2. Using the ▲/▼/◄/► buttons adjusts the frame position. Please move the frame to the position of the image which you want to use. The

MyScreen

frame may not be able to be moved for some input signals. To start registration, press the ENTER or INPUT button on the remote control.

To restore the screen and return to the previous dialog, press the RESET button on the remote control. Registration takes several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is ﬁnished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

SCREEN menu

• This function cannot be selected when the ON is selected to the

MyScreen Lock item (

• This function cannot be selected when the ON is selected to the

MyScreen PASSWORD item in SECURITY menu (

This function is unavailable for a signal from the LAN, USB TYPE A,

•

USB TYPE B or HDMI port.

(continued on next page)



46).



68).

SCREEN menu

Item Description

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON  OFF

MyScreen Lock

MESSAGE

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the

MyScreen PASSWORD item in SECURITY menu (



68).

Using the ▲/▼ buttons turns on/off the message function.

ON  OFF

When the ON is selected, the following message function works.

“AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “Searching….” while searching for the input “Detecting….” while an input signal is detected “AUTO ECO MODE” while starting up with AUTO ECO MODE The indication of the input signal displayed by changing The indication of the aspect ratio displayed by changing The indication of the PICTURE MODE displayed by changing The indication of the ACTIVE IRIS displayed by changing The indication of the MY MEMORY displayed by changing The indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button. The indication of the TEMPLATE displayed by changing.

• When the OFF is selected, please remember if the picture is

frozen. Do not mistake freezing for a malfunction (



25).

(continued on next page)

Item Description

SOURCE NAME

SCREEN menu

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE

NAME menu to select the port to be named and press the ► button. The SOURCE NAME dialog will be displayed.

Right side of the menu is blank until a name is speciﬁed.

(3) Select an icon you'd like to assign to the

port in the SOURCE NAME dialog. The name assigned to the port will also be automatically switched according to your icon selection. Press the ► or ENTER button to determine your icon selection.

(4) Select a number you'd like to assign to

(5) If you'd like to modify the name assigned

(continued on next page)

the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4.

to the port, select CUSTOM NAME and press the ► button.

SCREEN menu

Item Description

SOURCE NAME

(Continued)

(6) The current name will be displayed on

the ﬁrst line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the ﬁrst line, and use the ◄/► buttons to move the cursor on the character to be

changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (6) above.

To ﬁnish entering text, move the cursor to the OK on screen and

(8)

press the ►, ENTER or INPUT button. To revert to the previous

name without saving changes, move the cursor to the CANCEL

on screen and press the ◄, ENTER or INPUT button.

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the ENTER) button to display the selected template, and press the ◄ cursor button to close the displayed screen. The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (

TEMPLATE



You can turn a map upside down and scroll it horizontally when MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.

(continued on next page)

48).



TEST PATTERN  DOT-LINE1  DOT-LINE2  DOT-LINE3



MAP2  MAP1  CIRCLE2  CIRCLE1

DOT-LINE4



Item Description

C.C.

(Closed Caption)

SCREEN menu

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, ﬁles or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

DISPLAY

Select Closed Caption DISPLAY setting from following options using ▲/▼ buttons.

AUTO  ON  OFF

AUTO : Closed Caption automatically displays when the volume

is muted. ON : Closed Caption is on. OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using ▲/▼ buttons.

CAPTIONS  TEXT CAPTIONS : Display Closed Caption.

TEXT : Display Text data, which is for additional information such

as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using ▲/▼ buttons.

1  2  3  4

1: Channel 1, primary channel / language 2: Channel 2 3: Channel 3 4: Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons turns on/off the automatic signal search function.

ON  OFF

When the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from

AUTO SEARCH

the current port. Then when an input is found, the projector will stop searching and display the image.

AUTO

KEYSTONE

COMPUTER IN1  COMPUTER IN2  LAN  USB TYPE A

VIDEO  S-VIDEO  COMPONENT  HDMI USB TYPE B

• It may take several seconds to project the images from the USB TYPE B port.

Using the ▲/▼ buttons turns on/off the automatic keystone function.

ON  OFF ON : Automatic keystone distortion correction will be executed

whenever changing the slant of the projector.

OFF : This function is disabled. Please execute the AUTO

KEYSTONE (EXECUTE) in the SETUP menu for automatic keystone distortion correction.

• When the projector is suspended from the ceiling this feature will not function properly so select the OFF.

• This function will be unavailable when the Transition Detector is on (70)

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON  OFF

(Y, Cb/Pb, Cr/Pr)

When set to the ON, the lamp in projector will be automatically turned on without the usual procedure (

DIRECT POWER

(continued on next page)

supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

•

After turning the lamp on by the DIRECT if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO (



51) is disabled.

17), only when the projector is



POWER

ON function,

OFF function

Item Description

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes)  Short (min. 0 minute = DISABLE)

OPTION menu

AUTO POWER

OFF

USB TYPE B

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with nosignal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, projector will not be turned off. Please refer to the section “Turning off the power”

(

17).



Using the ▲/▼ buttons selects the function of USB TYPE B port. To use this function, you need to connect the USB TYPE B port of the projector and the type A USB port of a computer.

MOUSE  USB DISPLAY

MOUSE : The accessory remote control works as the simple mouse and keyboard of the computer. USB DISPLAY : The port works as an input port that receives image signals from the computer (



82).

• It may take several seconds to project the images from the USB TYPE B port.

• In the following cases, a message to notify you that USB TYPE B port is not available for picture input appears together with the USB TYPE B dialog:

- This setting is switched to MOUSE while a picture input from the USB TYPE B port is projected.

- The USB TYPE B port is selected as the picture input source while this setting is set to MOUSE. Select USB DISPLAY in the dialog to project the picture input to the USB TYPE B port. In this case, you cannot use the simple mouse and keyboard function. Otherwise select other port for picture input.

(continued on next page)

OPTION menu

Item Description

LAMP TIME

FILTER TIME

The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the lamp time, select the OK using the ► button.



CANCEL

• Please reset the lamp time only when you have replaced the lamp,

for a suitable indication about the lamp.

•

For the lamp replacement, see the section "Replacing the lamp" (



85).

The ﬁlter time is the usage time of the air ﬁlter, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog. To reset the ﬁlter time, select the OK using the ► button.

CANCEL

•

Please reset the ﬁlter time only when you have cleaned or replaced



the air ﬁlter, for a suitable indication about the air ﬁlter.

• For the air ﬁlter cleaning, see the section “Cleaning and replacing

the air ﬁlter” (



87, 88).

(continued on next page)

Item Description

This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (



6).

(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY

BUTTON - (1/2) and press the ► or ENTER button to display the MY BUTTON setup dialog.

(2) Then using the ▲/▼/◄/► buttons sets one of the following

functions to the chosen button. Press the ENTER or INPUT button to save the setting.

• LAN: Selects input from LAN port.

• USB TYPE A: Selects input from USB TYPE A port.

• USB TYPE B: Selects input from USB TYPE B port.

• HDMI: Selects input from HDMI port.

• COMPUTER IN1: Selects the input from COMPUTER IN1 port.

• COMPUTER IN2: Selects the input from COMPUTER IN2 port.

•

COMPONENT: Selects the input from component vide

• S-VIDEO: Selects the input from S-VIDEO port.

• VIDEO: Selects the input from VIDEO port.

•

SLIDESHOW: Selects the input from USB TYPE A, and starts a Slideshow.

• MY IMAGE: Displays the MY IMAGE menu (

MY BUTTON

• MESSENGER:

Turns the messenger text displayed on the screen on/off (Messenger Function in the User's Manual - Network Guide When there is no transferred text data to display, the message ”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION, INPUT_INFORMATION ( (

66) or nothing.



59), NETWORK_INFORMATION



• AUTO KEYSTONE : Performs automatic keystone distortion

correction (



40).

• MY MEMORY: Loads one of adjustment data stored ( When more than one data are saved, the adjustment changes every time the MY BUTTON is pressed. When no data is saved in memory, the dialog "No saved data" appears. When the current adjustment is not saved to memory, the dialog as shown in the right appears. If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition.

OPTION menu

(Y, Cb/Pb, Cr/Pr) ports.

63).



32).



(continued on next page)

OPTION menu

Item Description

MY BUTTON

(Continued)

MY SOURCE

• ACTIVE IRIS: Changes the active iris mode.

(This item is available only for CP-X2511N, CP-X3011N or CP- X4011N.)

• PICTURE MODE: Changes the PICTURE MODE (

•

FILTER RESET: Displays the ﬁlter time reset conﬁrmation dialogue



28). (

52).



• TEMPLATE: Makes the template pattern selected to the TEMPLATE item (

48) appear or disappear.



• AV MUTE: Turns the picture and audio on/off.

• RESOLUTION: Turns on/off the RESOLUTION dialog (

• MIC VOLUME: Turns on/off the MIC VOLUME dialog (

• ECO MODE: Turns on/off the ECO MODE dialog (



41).



39).

43).

Using ▲/▼ buttons selects the picture input port to be selected with pressing the MY SOURCE/DOC.CAMERA button on the remote control.

You can use this function not only for document cameras but also computers and other equipment.

COMPUTER IN1  COMPUTER IN2  LAN  USB TYPE A

(continued on next page)

VIDEOS-VIDEO  COMPONENT  HDMI  USB TYPE B

Item Description

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

FAN SPEED

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected.

HIGH  NORMAL

AUTO ADJUST

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE  FAST  DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

• Depending on conditions, such as input image, signal cable to

the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please

SERVICE

choose DISABLE to disable the automatic adjustment, and make adjustment manually.

OPTION menu

GHOST

1. Select a color element of ghost using

the ◄/► buttons.

2. Adjust the selected element using the

▲/▼ buttons to disappear ghost.

FILTER MESSAGE

Use the ▲/▼ button to set the timer for notifying by the message when to replace the ﬁlter unit

100h  200h  500h  1000h  2000h  5000h  OFF

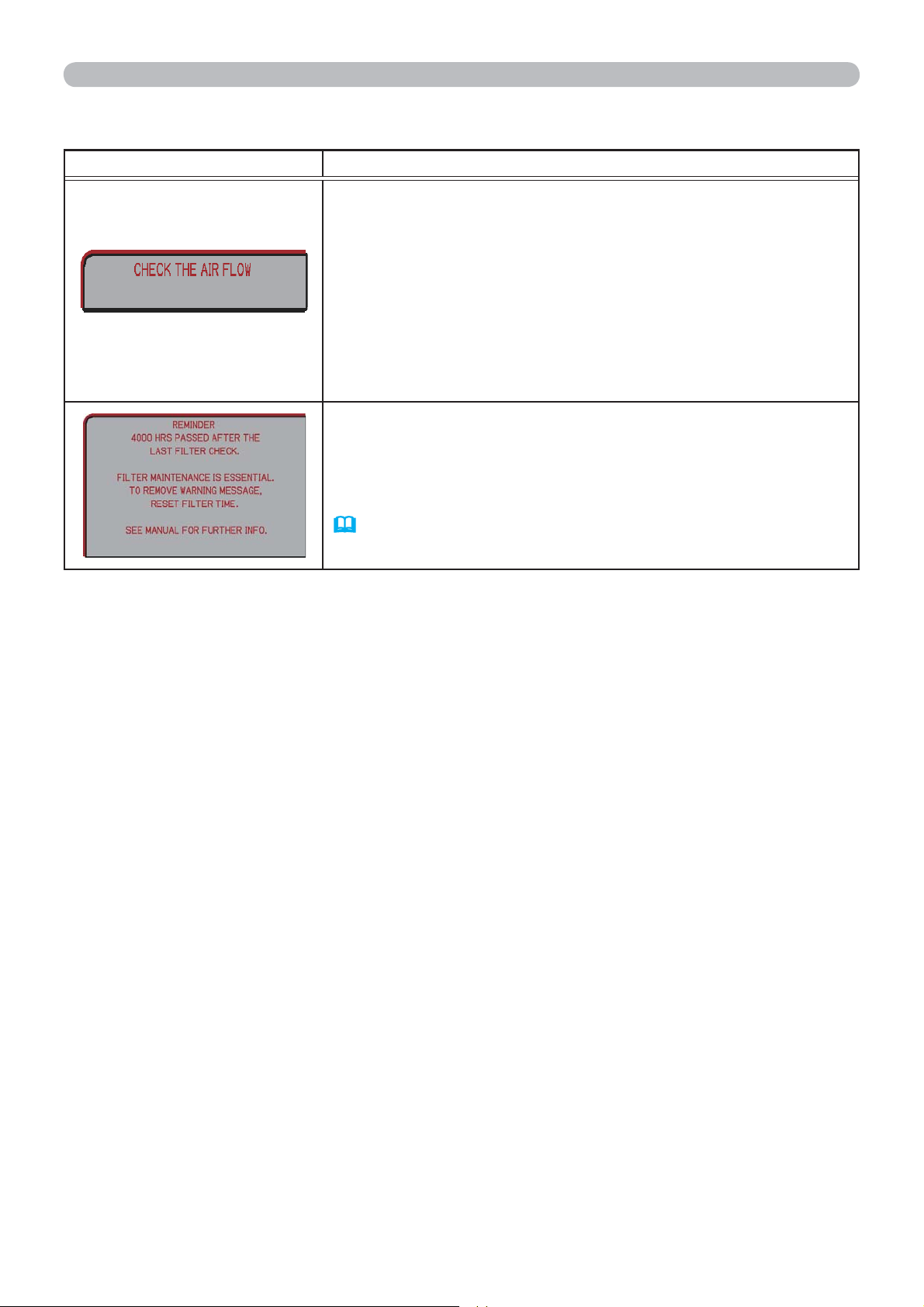

After choosing an item except OFF, the message “REMINDER ***

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature (



92). When the OFF is chosen, the message will not appear. Utilize this feature to keep the air ﬁlter clean, setting the suitable time according to your environment of this projector.

• Please take care of the ﬁlter unit periodically, even if there is no message. If the air ﬁlter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the ﬁlter unit.

(continued on next page)

OPTION menu

Item Description

KEY LOCK

Using the ▲/▼ buttons turns on/off the key lock feature. When ON is selected, the buttons on the projector except the STANDBY/ON button are locked.

ON  OFF

• Please use this function to prevent tampering or accidental operation. This function does not have any effect on the remote control.

REMOTE FREQ.

(1) Use the ▲/▼ button to change the projector's remote sensor

frequency setting (



4, 16).

1:NORMAL  2:HIGH

(2) Use the ◄/► button to change the

projector's remote sensor on or off.

ON  OFF

SERVICE

(continued)

The factory default setting is for both 1:NORMAL and 2:HIGH to be on. If the remote control does not function correctly, disable either of them. It's not possible to disable both options at the same time.

Selecting this item displays COMMUNICATION menu. In this menu, you can conﬁgure the serial communication settings of the projector using the

CONTROL port.

COMMUNICATION

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE



is set to

57)

( OFF, the other items in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to the User's Manual - Network Guide.

(continued on next page)

Item Description

COMMUNICATION TYPE

Select the communication type for transmission via the CONTROL port.

NETWORK BRIDGE



OPTION menu

OFF

SERVICE

(continued)

COMMUNICATION

(continued)

NETWORK BRIDGE:

Select this type, if it is required to control an external device as a network terminal, via this projector from the computer. The CONTROL port doesn't accept RS-232C commands (

User’s Manual - Network Guide

Network Bridge Function in the



)

OFF: Select this mode to receive RS-232C

commands using the CONTROL port. OFF is selected as the default setting.

•

• When you select the NETWORK BRIDGE, check (

the item, TRANSMISSTION METHOD



below)

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps  9600bps  19200bps  38400bps

PARITY

NONE  ODD  EVEN

(continued on next page)

•

The BAUD RATE is ﬁxed to 19200bps and PARITY is ﬁxed NONE when the COMMUNICATION TYPE is set to OFF

(

above)

TRANSMISSION METHOD

Select the transmission method for communication by the NETWORK BRIDGE from the CONTROL port.

HALF-DUPLEX  FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one

direction, either transmitting or receiving data, is

allowed at a time. FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and

receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of

(

the item RESPONSE LIMIT TIME



58)

OPTION menu

Item Description

SERVICE

(continued)

COMMUNICATION

(continued)

RESPONSE LIMIT TIME

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port.

OFF  1s  2s  3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector

sends data to. In this mode, the projector can

send out data from the computer continuously. 1s /2s /3s: Select the time period to keep the

projector waiting for response from the device

that the projector sends data to. While waiting the

response, the projector does not send out any

data from the CONTROL port.

(continued on next page)

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (



57).

• OFF is selected as the default setting.

Item Description

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• The “SCART RGB” message means the COMPONENT port is working as a SCART RGB input port. Please refer to the

SERVICE

(continued)

COMPONENT item in INPUT menu (

• This item can't be selected for no signal and sync out.

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_ INFORMATION box (



59).

FACTORY RESET

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset.

CANCEL  OK



OPTION menu

36).

NETWORK menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. Then perform it according to the following table. See the User’s Manual - Network Guide for details of NETWORK operation.

NOTE

• If you are not utilizing SNTP (Date/Time Settings in the User’s

Manual - Network Guide), then you must set the DATE AND TIME during the

initial installation.

• The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (

Item Description

Selecting this item displays the SETUP Menu for the network. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

SETUP

DHCP

(Dynamic Host

Conﬁguration

Protocol)



Use the ▲/▼ buttons to turn DHCP on/off.

ON  OFF

Select OFF when the network does not have DHCP enabled.

• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.

(continued on next page)

Item Description

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.

IP ADDRESS

• The IP ADDRESS is the number that identiﬁes this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited. Use the ▲/▼/◄/► buttons to enter the same

SUBNET MASK used by your computer.

SUBNET

MASK

This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited. Use the ▲/▼/◄/► buttons to enter the DEFAULT

GATEWAY (a node on a computer network that

DEFAULT

GATEWAY

SETUP

(continued)

serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.

NETWORK menu

DNS SERVER

DIFFERENCE

DATE AND

(continued on next page)

TIME

Use the ▲/▼/◄/► buttons to input the DNS server address. The DNS server is a system to control domain names and IP addresses on the Network.

Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT manager. Use the ► button to return to the menu after setting the TIME DIFFERENCE.

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (

Date/Time Settings



in the User’s Manual - Network Guide)

NETWORK menu

Item Description

PROJECTOR

NAME

(1) Use the ▲/▼ buttons on the

NETWORK menu to select the PROJECTOR NAME and press the ► button. The PROJECTOR NAME dialog will be displayed.

(2) The current PROJECTOR NAME will be displayed on the ﬁrst 3

lines. Particular projector name is pre-assigned by default.

Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64 characters.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the ﬁrst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To ﬁnish entering text, move the cursor to the OK on screen and

(continued on next page)

press the ►, ENTER or INPUT button. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

Item Description

Selecting this item displays the MY IMAGE menu.

To store images in the projector, the application software PJImg/Projector Image Tool that can be downloaded from our website is required.

Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (

My Image Function in the User’s manual - Network



Guide) and the ► or ENTER button to display the image.

• The item without image stored cannot be selected.

• The image names are each displayed in 16 characters or less.

NETWORK menu

MY IMAGE

AMX D.D.

(AMX Device

Discovery)

To switch the image displayed

Use the ▲/▼ buttons.

To return to the menu

Press the ◄ button on the remote control.

To erase the image displayed and its source ﬁle in the projector.

(1) Press the RESET button on the

remote control while displaying an image to display the MY IMAGE DELETE menu.

(2) Press the ► button to perform to erase.

To stop erasing, press the ◄ button.

Use the ▲/▼ buttons to turn the AMX Device Discovery on/off.

ON  OFF

When ON is selected, the projector can be detected by controllers of AMX connected to the same network. For the details of AMX Device Discovery, visit the AMX web site.

URL: http://www.amx.com/

(as of Dec.2009)

(continued on next page)

NETWORK menu

Item Description

PRESENTATION

Selecting this item displays the PRESENTATION menu. Use ▲/▼ buttons to select one of the following items, then press ► or ENTER button to use the function.

If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked. Use this function to quit the Presenter mode and

QUIT

PRESENTER

MODE

allow other computers to access the projector. Select this item to display a dialog. Press ► button to choose OK in the dialog. The Presenter mode is cancelled and a message is displayed indicating the result.

• To make Presenter mode setting, use “LiveViewer”. For details, see the section Presenter mode in the

User's Manual – Network Guide.

MULTI PC

(continued on next page)

MODE

If you set one or more computers to the Multi PC mode on “LiveViewer” and send their images to the projector, you can select the display mode on the projector from two options below.

- Single PC mode: displays the image of the selected computer on full screen.

- Multi PC mode: displays the images sent from up to four computers on screen that is divided into quarter sections.

Select this item to display a dialog. Use the dialog to change the display mode as explained below.

Item Description

PRESENTATION

(continued)

MULTI PC

MODE

(continued)

NETWORK menu

• To change from Multi PC mode to Single PC mode,

select one of computers in the dialog using the ▲/▼/◄/► buttons and press the ENTER or INPUT button. Press the ► button to choose OK, and then press ENTER or INPUT again. The image for the selected computer is displayed on full screen.

• To change from Single PC mode to Multi PC mode,

press ► button to choose OK in the dialog and press the ENTER or INPUT button. The display mode is changed.

•

For details on how to switch

the display mode to Multi PC mode on your computer, see the section Switching the display mode in the User's Manual – Network Guide.

• The Presenter mode setting of the selected

computer becomes valid when the display mode is changed to Single PC mode. Also, the Presenter mode setting becomes invalid when the display mode is changed to Multi PC mode, regardless the setting on the computers. For details, see the section Presenter mode in the User's Manual – Network Guide.

DISPLAY

USER NAME

(continued on next page)

Selecting this item displays the user name. This function helps you identify from which computer the current image is sent.

• You can set user names for each computer on

“LiveViwer”. For details, see the section Display User Name in the User's Manual – Network Guide.

NETWORK menu

Item Description

INFORMATION

Selecting this item displays the NETWORK_INFORMATION dialog for conﬁrming the network settings.

• For the details of PASSCODE, see the section Selecting the

network connection method in the User’s manual – Network Guide.

• Only the first 16 characters of the projector name are displayed.

•

When the voltage level of the battery for the built in clock decreases, the set time may become incorrect even though accurate date and time are input. Replace the battery suitably

(89).

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.

SERVICE

Executing this item restarts and initializes the network functions. Choose the RESTART EXECUTE using the button ►.

Then use the button ► to execute.

Network will be once cut off when choose restart. If DHCP is selected on, IP address may be changed. After selecting RESTART EXECUTE, NETWORK menu may not be controlled approx. 30 seconds.

SECURITY menu

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions.

Enter the SECURITY menu

1. Use the ▲/▼ buttons on the SECURITY menu to select ENTER PASSWORD and press the ► button. The ENTER PASSWORD box will be displayed.

2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is

(below)

PASSWORD box and press the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

3. Items shown in the table below can be performed.

. Move the cursor to the right side of the ENTER

9876. This password can be changed

If you have forgotten your password

(1). While the ENTER PASSWORD box is displayed, press and hold

the RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector.

(2). The 10 digit Inquiring Code will be displayed. Contact your dealer

with the 10 digit Inquiring Code. Your password will be sent after your user registration information is conﬁrmed.

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu

to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER

NEW PASSWORD box. (2) Use the ▲/▼/◄/► buttons to enter the new password. (3) Move the cursor to the right side of the

ENTER NEW PASSWORD box and press the

SECURITY

PASSWORD

CHANGE

► button to display the NEW PASSWORD

AGAIN box, enter the same password again.

Move the cursor to the right side of the NEW

(4)

PASSWORD AGAIN box and press the ►

button and the NOTE NEW PASSWORD box

will be displayed for about 30 seconds, please

make note of the password during this time.

Pressing the ENTER button on the remote control or ► button on the projector will close the NOTE NEW PASSWORD box.

• Please do not forget your password.

(continued on next page)

SECURITY menu

Item Description

MyScreen

PASSWORD

The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.

1 Turning on the MyScreen PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select MyScreen PASSWORD and press the ► button to display the MyScreen PASSWORD on/ off menu.

1-2 Use the ▲/▼ buttons on the MyScreen

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during

this time. Pressing the ENTER button on the remote control or ► button on the projector will return to MyScreen PASSWORD on/off menu.

When a password is set for MyScreen:

The MyScreen registration function (and menu) will be unavailable.

•

The MyScreen Lock menu will be unavailable.

•

The START UP setting will be locked on MyScreen (and the menu will be

•

unavailable). Turning the MyScreen PASSWORD off will allow normal operation of these functions.

Please do not forget your MyScreen PASSWORD.

•

ENTER NEW PASSWORD

box (small)

2 Turning off the MyScreen PASSWORD

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

2-2

If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

(continued on next page)

menu.

Select OFF to display the ENTER

PASSWORD box (large). Enter the registered

password and the screen will return to the

MyScreen PASSWORD on/off menu.

menu.

Inquiring Code will be displayed inside the box.

be sent after your user registration information is conﬁrmed.

ENTER PASSWORD box

(large)

Item Description

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

1 Turning on the PIN LOCK

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select PIN LOCK and press the ► button or the

ENTER button to display the PIN LOCK on/off

menu.

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

off menu to select ON and the Enter PIN

Code box will be displayed.

1-3 Input a 4 part PIN code using the ▲/▼/◄/►,

COMPUTER or INPUT button.

The PIN Code again box will appear. Reenter

the same PIN code. This will complete the PIN

code registration.

If there is no key input for about 55 seconds

•

while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.

Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again.

PIN LOCK

If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed. This function will activate only when the projector is started after AC power is turned off.

Please do not forget your PIN code.

•

2 Turning off the PIN LOCK

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu. 2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

displayed.

Enter the registered PIN code to turn the PIN LOCK function off.

If an incorrect PIN Code is input 3 times, the menu will close.

SECURITY menu

3 If you have forgotten your PIN code

3-1 While the Enter PIN code box is displayed, press and hold the RESET

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

(continued on next page)

button for three seconds or press and hold the INPUT button for 3

seconds while pressing the ► button on the projector.

The 10 digit Inquiring Code will be displayed.

If there is no key input for about 5 minutes

•

while the Inquiring Code is displayed, the projector will turn off.

be sent after your user registration information is conﬁrmed.

SECURITY menu

Item Description

TRANSITION

DETECTOR

If this function is set to ON when the vertical angle of the projector or MIRROR setting at which the projector is turned on is different than the previously recorded, the TRANSITION DETECTOR ON alarm will be displayed and the projector will not display the input signal.

• To display the signal again, set this function OFF.

• After about 5 minutes of displaying the TRANSITION DETECTOR ON alarm, the lamp will turn off.

• Keystone adjustment feature has been prohibited as long as the Transition Detector function is on.

1 Turning on the TRANSITION DETECTOR

1-1 Use the ▲/▼ buttons on the SECURITY menu

to select TRANSITION DETECTOR and press

the ► or the ENTER button to display the

TRANSITION DETECTOR on/off menu.

Use the ▲/▼ buttons on the TRANSITION

1-2

DETECTOR on/off menu to select ON. Select

ON and the current angle and MIRROR

setting will be recorded. The ENTER NEW

PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter a

password. Move the cursor to the right side

of the ENTER NEW PASSWORD box (small)

and press the ► button to display the NEW

PASSWORD AGAIN box, enter the same

password again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press

the ► button to display the NOTE NEW

PASSWORD box for about 30 seconds,

please make note of the password during this time.

Pressing the ENTER button on the remote control or the ► button on the projector will return to the TRANSITION DETECTOR on/off menu.

• Please do not forget your TRANSITION DETECTOR password.

• This function will activate only when the projector is started after turning off the AC power.

• This feature may not function properly if the projector is not in a stable position when ON is selected.

ENTER NEW PASSWORD

box (small)

2 Turning off the TRANSITION DETECTOR

2-1 2-2

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

(continued on next page)

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

Select OFF to display the ENTER

PASSWORD box (large). Enter the registered

password and the screen will return to the

TRANSITION DETECTOR on/off menu.

ENTER PASSWORD box

(large)

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

Inquiring Code will be displayed inside the box.

be sent after your user registration information is conﬁrmed.

Item Description

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.

1 Turning on the MY TEXT PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT PASSWORD and press the

► button to display the MY TEXT PASSWORD

on/off menu.

1-2 Use the ▲/▼ buttons on the MY TEXT

PASSWORD on/off menu to select ON. The

ENTER NEW PASSWORD box (small) will

be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter the

password. Move the cursor to the right side

of the ENTER NEW PASSWORD box (small)

and press the ► button to display the NEW

PASSWORD AGAIN box, and then enter the

same password again.

1-4 Move the cursor to the right side of the

MY TEXT

PASSWORD

NEW PASSWORD AGAIN box and press

► button to display the NOTE NEW

PASSWORD box for about 30 seconds, then

please make note of the password during

this time.

Pressing the ENTER button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu.

SECURITY menu

ENTER NEW PASSWORD

box (small)

2 Turning off the MY TEXT PASSWORD

2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

2-2 Select OFF to display the ENTER

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

(continued on next page)

menu.

PASSWORD box (large). Enter the

registered password and the screen will

return to the MY TEXT PASSWORD on/off

menu.

inquiring code will be displayed inside the box.

be sent after your user registration information is conﬁrmed.

ENTER PASSWORD box

(large)

SECURITY menu

Item Description

MY TEXT

DISPLAY

MY TEXT WRITING

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select

on or off.

ON  OFF

When it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_ INFORMATION when the INFORMATION on the SERVICE menu is chosen.

• This function is available only when the MY TEXT PASSWORD function is set to the OFF.

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY TEXT WRITING and press the ► button. The MY TEXT WRITING dialog will be displayed.

(2) The current MY TEXT will be displayed

on the ﬁrst 3 lines. If not yet written, the lines will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the ﬁrst 3 lines, and use the ◄/► buttons to move the cursor on the character to be

changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To ﬁnish entering text, move the cursor to the OK on screen and press

the ►, ENTER or INPUT button. To revert to the previous MY TEXT

without saving changes, move the cursor to the CANCEL on screen and

press the ◄, ENTER or INPUT button.

The MY TEXT WRITING function is available only when the MY TEXT

•

PASSWORD function is set to OFF.

Presentation tools

The projector has the following two convenient tools that enable on-screen presentations easily and quickly:

- PC-LESS Presentation (below)

- USB Display (

82)

PC-LESS Presentation

The PC-LESS Presentation reads image data from storage media inserted into the USB TYPE A port and displays the image on the following modes. The PC-LESS Presentation can be started by selecting the USB TYPE A port as the input source. This feature allows you to make your presentations without using your computer.

- Thumbnail mode (74)

- Full Screen mode (

- Slideshow mode (

78)

79)

[Supported storage media]

• USB memory (USB memory type, USB hard disk and USB card reader type)

NOTE

work (if the adapter is acknowledged as multiple devices connected).

• USB hubs may not work.

• USB devices with security software may not work.

• Be careful when inserting or removing a USB device. (

[Supported format]

• FAT12, FAT16 and FAT32

[Supported ﬁle format]

• JPEG (.jpeg, .jpg) * Progressive is not supported.

• Bitmap (.bmp) *

• PNG (.png) * Interlace PNG is not supported.

• GIF (.gif)

• USB readers (adapters) that have more than one USB slot may not

12, 76)

• NTFS is not supported.NOTE

16bit mode and compressed bitmap is not supported.

NOTE

• Files with a resolution smaller than 36x36 are not supported.

• Files with a resolution smaller than 100x100 may not be displayed.

• Some supported ﬁles may not be displayed.

• Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode.

• Files with a resolution greater than XGA are not supported.

Presentation tools

PC-LESS Presentation (continued)

Thumbnail mode

The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen. If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode. The Thumbnail mode will be started as the primary function of the PC-LESS Presentation after selecting the USB TYPE A port as the input source.

Selected image

Thumbnail images

Thumbnail menu

Presentation tools

PC-LESS Presentation (continued)

Operating by buttons or keys

You can control the images in the Thumbnail screen with the remote control or keypad or a web browser software. The following functions can be supported while the Thumbnail is displayed.

Button operation

The remote control

▲/▼/◄/► ▲/▼/◄/► UP/DOWN/LEFT/RIGHT Move cursor

PAGE UP PAGE DOWN

ENTER INPUT ENTER

The keypad on the projector

Web Remote in web browser software.

PAGE UP PAGE DOWN

Switches pages

• Displays the selected image on the Full Screen mode when a cursor is on a thumbnail image.

• Displays the SETUP menu ( selected image when a cursor is on a thumbnail image number.

Functions

next) for the



The SETUP menu for the selected image

Item Functions

SETUP

RETURN

START

STOP

SKIP

ROTATE

Use the ◄/► cursor buttons to switch each setting or use the ► cursor button to execute the functions as follows.

Press the ► cursor button or ENTER to return to the Thumbnail screen.

Switch to ON to set the selected image as the ﬁrst image in the Slideshow. This setting information will be saved in the “playlist. txt” ﬁle (

Switch to ON to set the selected image as the last image in the Slideshow. This setting information will be saved in the “playlist. txt” ﬁle (

Switch to ON to skip the selected image in the Slideshow. This setting information will be saved in the “playlist.txt” ﬁle (

Press the ► cursor button or ENTER to rotate the selected image 90 degrees clockwise. This setting information will be saved in the “playlist.txt” ﬁle (



81).



81).



81).

Presentation tools

PC-LESS Presentation (continued)

Operating by the menu on the Thumbnail screen

You can also control the images by using the menu on the Thumbnail screen.

Item Functions

Moves to an upper folder.

SORT Allows you to sort ﬁles and folders as following.

RETURN

NAME UP Sorts in ascending order by ﬁle name. NAME DOWN Sorts in descending order by ﬁle name. DATE UP Sorts in ascending order by ﬁle date.

DATE DOWN Sorts in descending order.by ﬁle date.

◄/► Go to previous / next page.

SLIDESHOW Conﬁgures and starts the Slideshow (

RETURN

PLAY Press the ► cursor button or ENTER to start the Slideshow.

START Sets the beginning number of the Slideshow.

STOP Sets the end number of the Slideshow.

INTERVAL Sets the interval time of the Slideshow.

PLAY MODE Selects the Slideshow mode.

Press the ► cursor button or ENTER to return to the Thumbnail screen.



79).

INPUT Switches the input port. MENU Displays the menu.

Be sure to use this function before removing USB storage device

REMOVE USB

from the projector. After that, the projector will not recognize a USB storage device until you insert it again into the USB TYPE A input port.

Presentation tools

PC-LESS Presentation (continued)

•

NOTE

These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode shows 20 pictures in 1 page as maximum.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• Some error icons will be displayed in the Thumbnail.

This ﬁle seems to be broken or not supported format.

A ﬁle that cannot be displayed on the thumbnail screen is indicated by a ﬁle format icon.

Presentation tools

PC-LESS Presentation (continued)

Full Screen Mode

The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control or the INPUT button on the keypad, or click [ENTER] on the Web Remote Control.

Full screen display

The following functions can be supported in the Full Screen mode.

Button operation

The remote control

▼ ► or PAGE DOWN

▲ ◄ or PAGE UP

ENTER INPUT ENTER Displays Thumbnail.

The keypad on the projector

▼ or ►

▲ or ◄

Web Remote in web browser software.

DOWN, RIGHT or PAGE DOWN

UP, LEFT or PAGE UP

Functions

Shows the next picture.

Shows the previous picture.

NOTE

•

These operations are not accessible while the projector OSD is displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

Presentation tools

PC-LESS Presentation (continued)

Slideshow mode

The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu (

74).

You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the ENTER button on the remote control or INPUT button on the projector.

The following operations can be accessible while the Slideshow is displayed.

Button operation

The remote control

ENTER INPUT ENTER Displays thumbnail

The keypad on the projector

Web Remote in web browser software.

Functions

* These operations are not accessible while the projector OSD is displayed.

NOTE

• It is not possible to change the input port by using the INPUT button

when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• When the Slideshow mode is set to ONE TIME, the last slide of the

presentation will be held on screen till the ENTER button on the remote control or Web Remote Control, or INPUT button on the projector is pushed.

Presentation tools

PC-LESS Presentation (continued)

You can play the Slideshow at your desired conﬁguration. Conﬁgure the Slideshow items in the Thumbnail.

1) RETURN :

Returns to the thumbnail mode.

2) PLAY : Play the Slideshow.

3) START :

Set the beginning number of the Slideshow.

4) STOP : Set the end number of the Slideshow.

5) INTERVAL : Set the interval time of the Slideshow. It is not recommend to set the interval

time very short something like several seconds, because it may take more than several seconds to read and display an image ﬁle if it is stored in very deep layer directory or if so many ﬁles are stored in the same directory.

6) PLAY MODE : Select the Slideshow mode. ONE TIME : Play the Slideshow one time. ENDLESS : Play the Slideshow endless.

NOTE

• The settings of the Slideshow are saved to the “playlist.txt” ﬁle that is stored in the storage media. If the ﬁle is not existed, it is generated automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist.

• If the storage media is under the write protection or the “playlist.txt” is the read only type ﬁle, it is impossible to change the settings of the Slideshow.

Presentation tools

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text ﬁle, which decides the order of displayed still image ﬁles in the Thumbnail or Slideshow. The playlist ﬁle name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image ﬁles when the PC-LESS Presentation is started or the Slideshow is conﬁgured.

[Example of “playlist.txt” ﬁles] START setting : STOP setting : INTERVAL setting : PLAY MODE setting : img001.jpg: : : : img002.jpg:600: : : img003.jpg:700:rot1: : img004.jpg: : :SKIP: img005.jpg:1000:rot2:SKIP:

The “playlist.txt” ﬁle contains the following information. Each piece of information requires to be separated by “:”, and “:” at the end of each line. 1st line: START, STOP, INTERVAL and PLAY MODE settings (80). 2nd line and after: ﬁle name, interval time, rotation setting and skip setting.

interval time: rotation setting

It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

: “rot1” means a rotation at 90 degrees clockwise; “rot2” and

“rot3” increase another 90 degrees in order.

skip setting: “SKIP” means that the image will not be displayed in the

Slideshow.

•

NOTE

The maximum length in a line on the "playlist.txt" ﬁle is 255 characters

including linefeed. If any line exceeds the limit, the "playlist.txt" ﬁle becomes invalid.

•

Up to 999 ﬁles can be registered to the Playlist. However, if some folders exist in the same directory the limit number is decreased by the number of folders. Any ﬁles over the limit will not be shown in the Slideshow.

•

If the storage device is protected or does not have sufﬁcient space, the “playlist.txt” ﬁle cannot be created.

• For the Slideshow settings, refer to the section “Slideshow mode” (79).

Presentation tools

USB Display

The projector can display images transferred from a computer via an USB cable (10).

Hardware and software requirement for computer

• OS: One of the following. Windows Windows Vista (32 bit version only)

• CPU: Pentium 4 (2.8 GHz or higher)

• Graphic card: 16 bit, XGA or higher

• Memory: 512 MB or higher

• Hard disk space: 30 MB or higher

• USB Port

• USB cable : 1 piece

Select the USB DISPLAY for the USB TYPE B item in the OPTION menu. When you connect your computer to the USB TYPE B port on the projector using a USB cable,

the projector will be recognized as a CD-ROM drive on your computer. software in the projector, “LiveViewerLiteUSB.exe”, will run automatically and the application, “LiveViewer Lite for USB”, will be ready on your computer for the USB Display. The application, “LiveViewer Lite for USB”, will be automatically closed when the USB cable is unplugged.

XP Home Edition /Professional Edition (32 bit version only)

Home Basic /Home Premium /Business /Ultimate /Enterprise

Then, the

NOTE

• If the software does not start automatically (this is typically because CD-ROM autorun is disabled on your OS), follow the instructions below. (1) Click on the [Start] button on the toolbar and select the “Run” (2) Enter F:\LiveViewerLiteUSB.exe and then press the [OK]

If your CD-ROM drive is not drive F on your computer, you will need to replace F with the correct drive letter assigned to your CD-ROM drive.

• Please check and get the latest version at Hitachi Web site.

http://hitachi.us/digitalmedia or http://www.hitachidigitalmedia.com

Follow the instructions that can be obtained at the site for updating.

This application will appear in the Windows notiﬁcation area once it starts. You can quit the application from your computer by selecting “Quit” on the menu.

NOTE

• The “LiveViewer” (refer to the User's Manual - Network Guide) and this application cannot be used at the same time. If you connect your computer to the projector by using a USB cable while the “LiveViewer” is running, the following message will be displayed.

• If any application software having the ﬁrewall function is installed into your computer, make the ﬁrwall function invalid with following the user's manual.

Presentation tools

USB Display (continued)

Right-Click menu

The menu shown in the right will be displayed when you right-click the application icon in the Windows notiﬁcation area.

Display : The Floating menu is displayed, and the icon disappears from the

Windows notiﬁcation area.

Quit : The application is closed, and the icon disappears from the Windows

notiﬁcation area.

NOTE

• If you wish to restart the application, you need to unplug the USB cable and plug it again.

Floating menu

If you select “Display” on the Right-Click menu, the Floating menu shown in the right will appear on your computer screen.

q Start capture button

The transmission to the projector is started and the images will be displayed.

w Stop button

The image transmission is stopped.

e Hold button

The image on the projector’s screen is temporally frozen. The last image before the button is clicked is remained on the screen. You can revise the image data on your computer without showing it on the projector's screen.

r Option button

The Options window is displayed.

t Minimize button

The Floating menu is closed, and the icon reappears in the Windows notiﬁcation area.

ert

NOTE

• If you click the Start capture button and/or Stop button repeatedly, images may not be displayed on the screen.

Presentation tools

USB Display (continued)

Options window

If you select the Option button on the Floating menu, the Options window is displayed.

Optimize Performance

The “LiveViewer Lite for USB” captures screenshots in JPEG data and sends them to the projector. The “LiveViewer Lite for USB” has two options that have different compression rate of JPEG data.

Transmission speed

Speed takes priority over Image quality. It makes JPEG compression rate higher. The screen on the projector is rewritten quicker because the transferred data is smaller, but the image quality is worse.

Image quality

Image quality takes priority over Speed. It makes JPEG compression rate lower. The screen on the projector is rewritten slower because the transferred data is larger, but the image quality is better.

Keep PC resolution

If you remove the check mark from the [Keep PC resolution] box, the screen resolution of your computer will be switched to XGA and the display speed may be faster.

NOTE

• When the resolution is changed, the arrangement of icons on

computer desktop screen may be changed.

About

The version information of the “LiveViewer Lite for USB”.

Maintenance

Replacing the lamp

A lamp has ﬁnite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number.

Type number : DT01021

Replacing the lamp

Turn the projector off, and unplug the power cord.

Allow the projector to cool for at least 45 minutes. Prepare a new lamp. If the projector is mounted on

a ceiling, or if the lamp has broken, also ask the dealer to replace the lamp.

In case of replacement by yourself, follow the following procedure.

Loosen the screw (marked by arrow) of the lamp

cover and then slide and lift the lamp cover to the side to remove it.

Loosen the 3 screws (marked by arrow) of the lamp,

and slowly pick up the lamp by the handles. Never loosen any other screws.

Insert the new lamp, and retighten ﬁrmly the 3

screws of the lamp that are loosened in the previous process to lock it in place.

lamp cover

Handles

While putting the interlocking parts of the lamp cover

and the projector together, slide the lamp cover back in place. Then ﬁrmly fasten the screw of the lamp cover.

Turn the projector on and reset the lamp time using

the LAMP TIME item in the OPTION menu.

(1) Press the MENU button to display a menu.

Point at the ADVANCED MENU in the menu using

(2)

the ▼/▲ button, then press the ► button.

(3)

Point at the OPTION in the left column of the menu using the ▼/▲button, then press the ► button.

(4)

Point at the LAMP TIME using the ▼/▲ button, then press the ► button. A dialog will appear.

(5)

Press the ► button to select “OK” on the dialog. It performs resetting the lamp time.

CAUTION

is taken out.

NOTE

for a suitable indication about the lamp.

• Please reset the lamp time only when you have replaced the lamp,

►Do not touch any inner space of the projector, while the lamp

Maintenance

Replacing the lamp (continued)

Lamp warning

HIGH VOLTAGE

►

WARNING

The projector uses a high-pressure mercury glass lamp. The lamp

HIGH TEMPERATURE

HIGH PRESSURE

can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, if the bulb bursts, it is possible for shards of glass to ﬂy into the lamp housing, and for gas containing mercury and dust containing ﬁne particles of glass to escape from the projector’s vent holes. ►About disposal of a lamp: This product contains a mercury lamp; do not put it in a trash. Dispose of it in accordance with environmental laws.

• For lamp recycling, go to www.lamprecycle.org (in the US).

• For product disposal, consult your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada). For more information, call your dealer.

• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector’s internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.

•

Disconnect

the plug from the

power

outlet

If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to inhale the gas or ﬁne particles that come out from the projector's vent holes, and not to get them into your eyes or mouth.

• Before replacing the lamp, turn the projector off and unplug the power cord, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

• Never unscrew except the appointed (marked by an arrow) screws.

• Do not open the lamp cover while the projector is suspended from a ceiling. This is dangerous, since if the lamp’s bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.

• Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

• Use only the lamp of the specified type. Use of a lamp that does not meet the lamp speciﬁcations for this model could cause a ﬁre, damage or shorten the life of this product.

• If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, consult your local dealer or a service representative.

•

Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

•

Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

Maintenance

Cleaning and replacing the air ﬁlter

The air ﬁlter unit of this projector consists of a ﬁlter cover, two kinds of ﬁlters, and a ﬁlter frame. The new double large ﬁlters system is expected to function longer. However, please check and clean it periodically to keep ventilation needed for normal operation of the projector. When the indicators or a message prompts you to clean the air ﬁlter, comply with it as soon as possible. Replace the ﬁlters when they are damaged or too soiled. To prepare new ﬁlters, make contact with your dealer and tell the following type number.

Type number : MU06481 (Filter set)

When you replace the lamp, please replace the air ﬁlter. An air ﬁlter of speciﬁed type will come together with a replacement lamp for this projector.

Turn the projector off, and unplug the power cord.

Allow the projector to sufﬁciently cool down.

Use a vacuum cleaner on and around the ﬁlter cover.

While supporting the projector with one hand, use

your other hand to pull the ﬁlter cover forward in the direction of the arrow.

Use a vacuum cleaner for the ﬁlter vent of the

projector and the outer side of the ﬁlter unit. Take the ﬁlters out while holding the ﬁlter cover.

Use a vacuum cleaner on both sides of the ﬁlters.

When vacuuming up the ﬁne meshed ﬁlter, hold it so it will not be sucked in. If the ﬁlters are damaged or heavily soiled, replace them with the new ones.

Filter cover

Filter unit

Filter cover

Put the ﬁlters back into the ﬁlter cover.

Put the coarse meshed ﬁlter into a ﬁlter cover ﬁrst. Then put the ﬁne meshed ﬁlter on the coarse meshed one, turning its stitched side up.

Put the ﬁlter unit back into the projector.

(continued on next page)

Filter (coarse meshed)

Filter (ﬁne meshed)

Stitched side

Maintenance

Cleaning and replacing the air ﬁlter (continued)

Turn the projector on and reset the ﬁlter time using the FILTER TIME item in

the EASY MENU. (1) Press the MENU button to display a menu.

(2) Point at the FILTER TIME using the ▼/▲ button, then press the ► button.

A dialog will appear.

(3) Press the ► button to select “OK” on the dialog. It performs resetting the

ﬁlter time.

WARNING

is not plugged in, then allow the projector to cool sufﬁciently. Taking care of the air ﬁlter in a high temperature state of the projector could cause an electric shock, a burn or malfunction to the projector. ►Use only the air ﬁlter of the speciﬁed type. Do not use the projector without the air ﬁlter or the ﬁlter cover. It could result in a ﬁre or malfunction to the projector. ►Clean the air ﬁlter periodically. If the air ﬁlter becomes clogged by dust or the like, internal temperatures rise and could cause a ﬁre, a burn or malfunction to the projector.

NOTE

• When you replace the projection lamp, please replace the air ﬁlter. An air ﬁlter of speciﬁed type will come together with a replacement lamp for this projector.

• Please reset the ﬁlter time only when you have cleaned or replaced the air ﬁlter, for a suitable indication about the air ﬁlter.

• The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

• Please replace the air ﬁlter when it is damaged or heavily soiled.

►Before taking care of the air ﬁlter, make sure the power cable

Maintenance

Replacing the internal clock battery

This projector has internal clock that uses a battery. When the clock of the network function does not work correctly, please try solution by replacement of the battery:

HITACHI MAXELL, part number CR2032 or CR2032H.

Battery cover

Turn the projector off, and unplug the power cord. Allow the projector to cool sufﬁciently.

After making sure that the projector has cooled adequately, slowly turn over the

projector, so that the bottom is facing.

indicated “OPEN” using a coin or the like, and pick the cover up to remove it.

Pry up the battery using a ﬂathead screwdriver or the like to take it out. While

prying it up, put a ﬁnger lightly on the battery since it may pop out of the holder.

Replace the battery with a new MAXELL,

Slide the battery in under the plastic claw, and push it into the holder until it clicks.

Replace the battery cover in place, then turn it in the direction indicated “CLOSE”

using such as coins, to ﬁx.

NOTE • The internal clock will be initialized by removing the battery. For setting the clock, see the User's Manual - Network Guide.

Part No.

CR2032

HITACHI

CR2032H

Turn the battery cover fully in the direction

90°

OPEN

90°

OPEN

WARNING ►Be careful of handling a battery, as a battery can cause explosion, cracking or leakage, which could result in a ﬁre, an injury, and environment pollution.

• Use only the speciﬁed and perfect battery. Do not use a battery with damage, such as a scratch, a dent, rust or leakage.

• When replacing the battery, replace it with a new battery.

•

When a battery leaked, wipe the leakage out well with a waste cloth. If the leakage adhered to your body, immediately rinse it well with water. When a battery leaked in the battery holder, replace the batteries after wiping the leakage out.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Do not work on a battery; for example recharging or soldering.

•

Keep a battery in a dark, cool and dry place. Never expose a battery to a ﬁre or water.

• Keep a battery away from children and pets. Be careful for them not to swallow a battery. If swallowed consult a physician immediately for emergency treatment.

• Obey the local laws on disposing a battery.

Maintenance

Other care

Inside of the projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year.

Caring for the lens

If the lens is ﬂawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the lens, being cautious of handling.

Turn the projector off, and unplug the power cord. Allow the projector to cool

sufﬁciently. After making sure that the projector is cool adequately, lightly wipe the lens

with a commercially available lens-cleaning wipe. Do not touch the lens directly with your hand.

Caring for the cabinet and remote control

Incorrect care could have adverse inﬂuence such as discoloration, peeling paint, etc.

Turn the projector off, and unplug the power cord. Allow the projector to cool

sufﬁciently.

After making sure that the projector is cool adequately, lightly wipe with gauze

or a soft cloth. If the projector is extremely dirty, dip soft cloth in water or a neutral cleaner diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

WARNING

and then allow the projector to cool sufﬁciently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector. ►Never try to care for the inside of the projector personally. Doing is so dangerous. ►Avoid wetting the projector or inserting liquids in the projector. It could result in a ﬁre, an electric shock, and/or malfunction to the projector.

• Do not put anything containing water, cleaners or chemicals near the projector.

• Do not use aerosols or sprays.

►Before caring, make sure the power cord is not plugged in,

CAUTION

following. Incorrect care could cause not only an injury but adverse inﬂuence such as discoloration, peeling paint, etc. ►Do not use cleaners or chemicals other than those speciﬁed in this manual. ►Do not polish or wipe with hard objects.

NOTICE ►Do not directly touch the lens surface with hands.

►Please take right care of the projector according to the

Troubleshooting

If an abnormal operation should occur, stop using the projector immediately.

WARNING

►

Never use the projector if abnormal operations such as smoke,

Troubleshooting

strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact to your dealer or service company.

Otherwise if a problem occurs with the projector, the following checks and measures are recommended before requesting repair. If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied.

Related messages

When some message appears, check and cope with it according to the following table. Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

Message Description

There is no input signal.

Please conﬁrm the signal input connection, and the status of the signal source.

The USB TYPE B port is selected as the picture input source even if MOUSE is selected for USB TYPE B

Select USB DISPLAY in the dialog to project the picture input to the USB TYPE B port. In this case, you cannot use the simple mouse and keyboard function. Otherwise select other port for picture input.

Projector is waiting for an image ﬁle.

Check the hardware connection, settings on the projector and network-related settings.

The computer-Projector network connection might be disconnected. Please re-connect using “Connect button” of the “LiveViewer”.

Manual - Network Guide)

The horizontal or vertical frequency of the input signal is not within the speciﬁed range.

Please conﬁrm the specs for your projector or the signal source specs.

An improper signal is input.

Please conﬁrm the specs for your projector or the signal source specs.

(

Using the “LiveViewer” in the User's



(

51).



(continued on next page)

Troubleshooting

Related messages (continued)

Message Description

The internal temperature is rising.

Please turn the power off, and allow the projector to cool down at least 20 minutes. After having conﬁrmed the following items, please turn the power ON again.

• Is there blockage of the air passage aperture?

• Is the air ﬁlter dirty?

• Does the peripheral temperature exceed 35°C? If the same indication is displayed after the remedy, please set FAN SPEED of the SERVICE item in the OPTION menu to HIGH.

A note of precaution when cleaning the air ﬁlter.

Please immediately turn the power off, and clean or change the air ﬁlter referring to the “Cleaning and replacing the air ﬁlter” section of this manual. After you have cleaned or changed the air ﬁlter, please be sure to reset the ﬁlter timer (

52,87).



Troubleshooting

Regarding the indicator lamps

When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table.

POWER

indicator

Lighting

Orange

Blinking

Green

Lighting

Green

Blinking

Orange

Blinking

Red

Blinking

Red

Lighting

Red

LAMP

indicator

Turned

off

Turned

off

Turned

off

Turned

off

(discretionary)

Lighting

Red

TEMP

indicator

Turned

off

Turned

off

Turned

off

Turned

off

(discretionary)

Turned

off

Description

The projector is in a standby state.

Please refer to the section “Power on/off”.

The projector is warming up.

Please wait.

The projector is in an on state.

Ordinary operations may be performed.

The projector is cooling down.

Please wait.

The projector is cooling down. A certain error has been detected.

Please wait until POWER indicator ﬁnishes blinking, and then perform the proper measure using the item descriptions below.

The lamp does not light, and there is a possibility that interior portion has become heated.

Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufﬁciently cooled down, please make conﬁrmation of the following items, and then turn the power on again.

• Is there blockage of the air passage aperture?

• Is the air ﬁlter dirty?

• Does the peripheral temperature exceed 35°C? If the same indication is displayed after the remedy, please change the lamp referring to the section “Replacing the lamp”.

Blinking

Red

Lighting

Red

Blinking

Red

Lighting

Red

(Continued on next page)

Blinking

Red

Turned

off

Turned

off

Blinking

Red

The lamp cover has not been properly ﬁxed.

Please turn the power off, and allow the projector to cool down at least 45 minutes. After the projector has sufﬁciently cooled down, please make conﬁrmation of the attachment state of the lamp cover. After performing any needed maintenance, turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.

The cooling fan is not operating.

Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufﬁciently cooled down, please make conﬁrmation that no foreign matter has become caught in the fan, etc., and then turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.

Troubleshooting

Regarding the indicator lamps (continued)

POWER

indicator

Blinking

Red

Lighting

Red

Lighting

Green

Lighting

Green

LAMP

indicator

Turned

off

Simultaneous

blinking in

Alternative

blinking in

TEMP

indicator

Lighting

Red

Description

There is a possibility that the interior portion has become heated.

• Is there blockage of the air passage aperture?

• Is the air ﬁlter dirty?

• Does the peripheral temperature exceed 35°C? If the same indication is displayed after the remedy, please set FAN SPEED of SERVICE item in OPTION menu to HIGH

(55)

It is time to clean the air ﬁlter.

Please immediately turn the power off, and clean or change the air ﬁlter referring to the section “Cleaning and replacing the air ﬁlter”. After cleaning or changing the air ﬁlter, please be sure to reset the ﬁlter timer. After the remedy, reset the power to ON.

There is a possibility that the interior portion has become overcooled.

Please use the unit within the usage temperature parameters (5°C to 35°C). After the treatment, reset the power to ON.

Blinking In

Green for

approx. 3

seconds.

NOTE

• When the interior portion has become overheated, for safety purposes,

Turned

off

Turned

off

At least 1 Power ON schedule is saved to the projector. Please refer to Schedule Settings section of User’s Manual - Network Guide.

the projector is automatically shut down, and the indicator lamps may also be turned off. In such a case, disconnect the power cord, and wait at least 45 minutes. After the projector has sufﬁciently cooled down, please make conﬁrmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

Shutting the projector down

Shutdown switch

Only when the projector can not be turned off by usual procedure (

17), please push the shutdown switch using

a pin or similar, and disconnect the power plug from the power outlet. Before turning it on again, wait at least 10 minutes to make the projector cool down enough.

HDMI

USB TYPE B

Resetting all settings

When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (

59) can reset all settings (except settings such as LANGUAGE, LAMP TIME, FILTER TIME, FILTER MESSAGE, SECURITY and NETWORK) to the factory default.

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects

About the phenomenon confused with a machine defect, check and cope with it according to the following table.

Phenomenon Cases not involving a machine defect

The electrical power cord is not plugged in.

Correctly connect the power cord.

The main power source has been interrupted during operation such as by a power outage (blackout), etc.

Please disconnect the power plug from the power outlet, and allow the projector to cool down at least 10 minutes,

Power does not

come on.

then turn the power on again.

Either there is no lamp and/or lamp cover, or either of these has not been properly ﬁxed.

Please turn the power off and disconnect the power plug from the power outlet, and allow the projector to cool down at least 45 minutes. After the projector has sufﬁciently cooled down, please make conﬁrmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

The signal cables are not correctly connected.

Correctly connect the connection cables.

Reference

page

12, 17

9 ~ 13

Signal source does not correctly work.

Correctly set up the signal source device by referring to the manual of the source device.

Neither sounds

nor pictures are

outputted.

The input changeover settings are mismatched.

Select the input signal, and correct the settings.

The BLANK function for pictures and the MUTE function for sounds are working.

AV MUTE may be active. Refer to the item “Sound does not come out” and “No

pictures are displayed” on the next page to turn off the MUTE and BLANK functions.

(Continued on next page)

–

18 ~ 20

18, 25,

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects (continued)

Phenomenon Cases not involving a machine defect

The signal cables are not correctly connected.

Correctly connect the audio cables.

The MUTE function is working.

Restore the sound pressing MUTE or VOLUME +/- button on the remote control.

Sound does not

come out.

The volume is adjusted to an extremely low level.

Adjust the volume to a higher level using the menu function or the remote control.

The AUDIO SOURCE/SPEAKER setting is not correct.

Correctly set the AUDIO SOURCE/SPEAKER in AUDIO menu.

The mode selected for HDMI AUDIO is not suitable. Check each of the two modes provided and select the suitable one for your HDMI audio device.

The lens cover is attached.

Remove the lens cover.

Reference

page

9 ~ 13

18, 42,

No pictures are

displayed.

The signal cables are not correctly connected.

Correctly connect the connection cables.

The brightness is adjusted to an extremely low level.

Adjust BRIGHTNESS to a higher level using the menu function.

The computer cannot detect the projector as a plug and play monitor.

Make sure that the computer can detect a plug and play monitor using another plug and play monitor.

The BLANK screen is displayed. Press BLANK button on the remote control.

The USB TYPE B port is selected as the picture input source even if MOUSE is selected for USB TYPE B.

Select USB DISPLAY for USB TYPE B in OPTION menu to project the picture input to the port. Otherwise select other port for picture input.

The projector does not recognize the USB storage device inserted into USB TYPE A port.

Use the REMOVE USB function ﬁrst, remove the USB storage device, and then insert it into the port again. Before removing the USB storage device, be sure to use the REMOVE USB function on the thumbnail screen, which appears when the USB TYPE A port is selected as the input source.

9 ~ 13

(continued on next page)

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects (continued)

Phenomenon Cases not involving a machine defect

Video screen

display freezes.

The FREEZE function is working. Press FREEZE button to restore the screen to normal.

Color settings are not correctly adjusted.

Colors have a

faded- out

Perform picture adjustments by changing the COLOR TEMP, COLOR, TINT and/or COLOR SPACE settings, using the menu functions.

appearance, or

Color tone is

poor.

COLOR SPACE setting is not suitable.

Change the COLOR SPACE setting to AUTO, RGB, SMPTE240, REC709 or REC601.

The brightness and/or contrast are adjusted to an extremely low level.

Adjust BRIGHTNESS and/or CONTRAST settings to a higher level using the menu function.

Pictures appear

dark.

The projector is operating in Eco mode.

Set ECO MODE to NORMAL, and set AUTO ECO MODE to OFF, in the SETUP menu.

The lamp is approaching the end of its product lifetime.

Replace the lamp.

Reference

page

31, 36

40, 41

85, 86

Either the focus and/or horizontal phase settings are not properly adjusted.

Pictures appear

blurry.

Adjust the focus using the focus ring, and/or H PHASE using the menu function.

The lens is dirty or misty.

Clean the lens referring to the section “Caring for the lens”.

The SAVING function is working.

Select NORMAL for STANDBY MODE item in the SETUP menu.

RS-232C does

not work.

The COMMUNICATION TYPE for the CONTROL port is set to NETWORK BRIDGE.

Select OFF for COMMUNICATION TYPE item in the OPTION - SERVICE - COMMUNICATION menu.

(continued on next page)

21, 35

Troubleshooting

Phenomena that may be easy to be mistaken for machine defects (continued)

Phenomenon Cases not involving a machine defect

Network does

not work

NETWORK

BRIDGE

function does

not work

Schedule

function does

not work

NOTE

• Although bright spots or dark spots may appear on the screen, this

The SAVING function is working.

Select NORMAL for STANDBY MODE item in the SETUP menu.

The NETWORK BRIDGE function is turned off.

Select NETWORK BRIDGE for COMMUNICATION TYPE item in the OPTION - SERVICE - COMMUNICATION menu.

The SAVING function is working.

Select NORMAL for STANDBY MODE item in the SETUP menu.

Reference

page

is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect.

Speciﬁcations

Item Speciﬁcation

Speciﬁcations

Product name Liquid Crystal Panel

Lamp

Speaker

Power supply/Rated current

Power consumption

Temperature range

Size

Weight (mass)

Ports

Liquid crystal projector 786,432 pixels (1024 horizontal x 768 vertical)

<CP-X2011N> 190 W UHP <CP-X2511N, CP-X3011N, CP-X4011N> 210 W UHP

16 W mono ( 8 W x 2 )

<CP-X2011N>AC 100-120 V/ 3.2 A, AC220-240 V/ 1.7 A <CP-X2511N, CP-X3011N, CP-X4011N>

<CP-X2011N>AC 100-120 V: 310 W, AC220-240 V: 290 W <CP-X2511N, CP-X3011N, CP-X4011N>

5 ~ 35°C (Operating) 317 (W) x 98 (H) x 288 (D) mm

* Not including protruding parts. Please refer to the following ﬁgure. approx. 3.5kg

Computer input port

COMPUTER IN1 ............................................D-sub 15 pin mini x1

COMPUTER IN2 ............................................D-sub 15 pin mini x1

HDMI input port

HDMI .................................................................HDMI connector x1

Computer output port

MONITOR OUT ...............................................D-sub 15 pin mini x1

Video input port

Y, Cb/Pb, Cr/Pr (Component video) .................................... RCA x3

S-VIDEO ............................................................... mini DIN 4 pin x1

VIDEO ................................................................................. RCA x1

Audio input/output port

AUDIO IN1 .................................................................Stereo mini x1

AUDIO IN2 .................................................................Stereo mini x1

AUDIO IN3 (R, L) ................................................................. RCA x2

AUDIO OUT (R, L) ............................................................... RCA x2

Others

USB TYPE A .....................................................................USB-A x1

USB TYPE B ....................................................................USB-B x1

CONTROL ................................................................ D-sub 9 pin x1

LAN ................................................................................... RJ45 x1

AC 100-120 V/ 3.4 A, AC220-240 V/ 1.8 A

AC 100-120 V: 330 W, AC220-240 V: 310 W

MIC ............................................................................Stereo mini x1

Optional parts

Lamp: DT01021 Filter set: MU06481 Mounting accessary: HAS-3010 (Bracket for ceiling mount)

HAS-204L (Fixing adaptor for low ceilings) HAS-304H (Fixing adaptor for high ceilings)

Laser remote control: RC-R008 Soft case: CA3010

* For more information, please consult your dealer.

Speciﬁcations

Speciﬁcations (continued)

IN2

IN1

MIC

LAN

USB

HDMI

288mm

317mm

98mm

113mm

[unit: mm]

End User License Agreement for the Projector Software

• Software in the projector consists of the plural number of independent software modules and there exist our copyright or/and third party copyrights for each of such software modules.

• Be sure to read “End User license Agreement for the Projector Software” which is separated document. (in the CD)

100

Hitachi CP-X2011N, CP-X2511N, CP-X3011N, CP-X4011N Operating Guide
