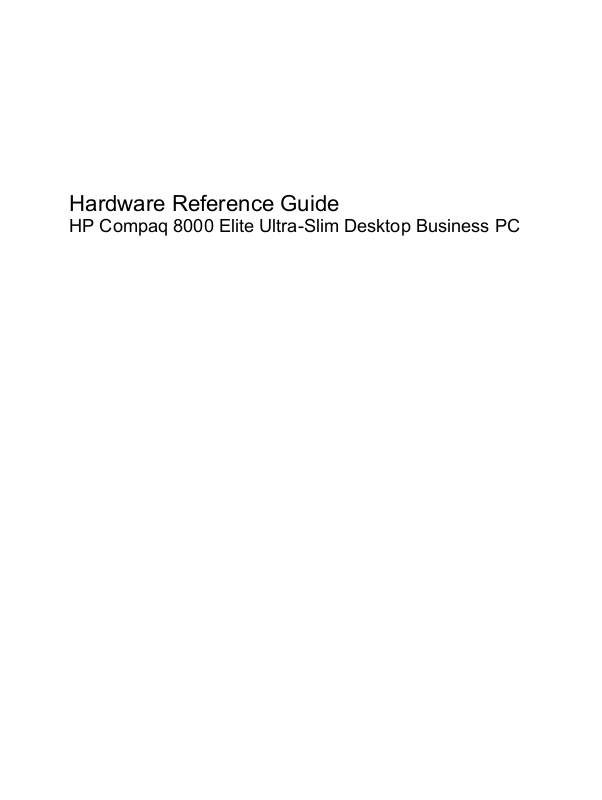

HP Compaq 8000 Elite Ultra-Slim Desktop Business PC

Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Hardware Reference Guide

HP Compaq 8000 Elite Ultra-Slim Desktop Business PC

First Edition (November 2009)

Document Part Number: 588914-001

About This Book

This guide provides basic information for upgrading this computer model.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage

to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

ENWW iii

iv About This Book ENWW

Table of contents

1 Product Features

Standard Configuration Features ......................................................................................................... 1

Front Panel Components ..................................................................................................................... 2

Rear Panel Components ...................................................................................................................... 3

Keyboard .............................................................................................................................................. 4

Using the Windows Logo Key .............................................................................................. 4

Serial Number Location ........................................................................................................................ 6

2 Hardware Upgrades

Serviceability Features ......................................................................................................................... 7

Warnings and Cautions ........................................................................................................................ 7

Connecting the Power Cord ................................................................................................................. 8

Removing the Computer Access Panel ................................................................................................ 9

Replacing the Computer Access Panel .............................................................................................. 10

Removing and Replacing the Front Bezel .......................................................................................... 11

Removing a Bezel Blank .................................................................................................................... 13

Changing from Desktop to Tower Configuration ................................................................................ 14

Installing Additional Memory .............................................................................................................. 15

SODIMMs .......................................................................................................................... 15

DDR3-SDRAM SODIMMs ................................................................................................. 15

Populating SODIMM Sockets ............................................................................................ 16

Installing SODIMMs ........................................................................................................... 17

Replacing the Optical Drive ................................................................................................................ 19

Removing the Existing Optical Drive ................................................................................. 19

Preparing the New Optical Drive ....................................................................................... 20

Installing the New Optical Drive ......................................................................................... 20

Replacing the Hard Drive ................................................................................................................... 22

Installing and Removing a Port Cover ................................................................................................ 26

Appendix A Specifications

Appendix B Battery Replacement

ENWW v

Appendix C Security Lock Provisions

Installing a Security Lock .................................................................................................................... 32

HP/Kensington MicroSaver Security Cable Lock ............................................................... 32

Padlock .............................................................................................................................. 33

HP Business PC Security Lock .......................................................................................... 34

Front Bezel Security .......................................................................................................... 35

Appendix D Electrostatic Discharge

Preventing Electrostatic Damage ....................................................................................................... 38

Grounding Methods ............................................................................................................................ 38

Appendix E Computer Operating Guidelines, Routine Care and Shipping Preparation

Computer Operating Guidelines and Routine Care ............................................................................ 39

Optical Drive Precautions ................................................................................................................... 40

Operation ........................................................................................................................... 40

Cleaning ............................................................................................................................. 40

Safety ................................................................................................................................. 40

Shipping Preparation .......................................................................................................................... 40

Index ................................................................................................................................................................... 41

vi ENWW

1 Product Features

Standard Configuration Features

The HP Compaq Ultra-Slim Desktop computer comes with features that may vary depending on the model. For a complete listing of the hardware and software installed in the computer, run the diagnostic utility (included on some computer models only).

Figure 1-1 Ultra-Slim Desktop

ENWW Standard Configuration Features 1

Front Panel Components

Drive configuration may vary by model.

Figure 1-2 Front Panel Components

Table 1-1 Front Panel Components

1 Optical Drive 5 Microphone/Headphone Connector

2 System Power LED 6 USB (Universal Serial Bus) Ports

3 SD Media Card Reader (optional) 7 Hard Drive Activity Light

4 Headphone Connector 8 Dual-State Power Button

NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking

if you want to use the connector for a microphone line Line-In device or a headphone. You can reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with

the computer and it is displaying a diagnostic code.

2 Chapter 1 Product Features ENWW

Rear Panel Components

Figure 1-3 Rear Panel Components

Table 1-2 Rear Panel Components

1 Line-Out Connector for powered audio

devices (green)

2 PS/2 Keyboard Connector (purple) 7 TV Tuner (optional)

3 Universal Serial Bus (USB) (6) 8 Line-In Audio Connector (blue)

4 DisplayPort Monitor Connector 9 PS/2 Mouse Connector (green)

5 VGA Monitor Connector (blue) 10 RJ-45 Network Connector

NOTE: Arrangement and number of connectors may vary by model.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.

6 Power Cord Connector

ENWW Rear Panel Components 3

Keyboard

Figure 1-4 Keyboard Components

Table 1-3 Keyboard Components

1 Function Keys Perform special functions depending on the software application being used.

2 Editing Keys Include the following: Insert, Home, Page Up, Delete, End, and Page Down.

3 Status Lights Indicate the status of the computer and keyboard settings (Num Lock, Caps

4 Numeric Keys Work like a calculator keypad.

5 Arrow Keys Used to navigate through a document or Web site. These keys allow you to

6 Ctrl Keys Used in combination with another key; their effect depends on the application

7 Application Key

8 Windows Logo Keys

9 Alt Keys Used in combination with another key; their effect depends on the application

Keys available in select geographic regions.

Using the Windows Logo Key

Use the Windows Logo key in combination with other keys to perform certain functions available in the Windows operating system. Refer to

Lock, and Scroll Lock).

move left, right, up, and down, using the keyboard instead of the mouse.

software you are using.

Used (like the right mouse button) to open pop-up menus in a Microsoft Office application. May perform other functions in other software applications.

Used to open the Start menu in Microsoft Windows. Used in combination with other keys to perform other functions.

software you are using.

Keyboard on page 4 to identify the Windows Logo key.

Table 1-4 Windows Logo Key Functions

The following Windows Logo Key functions are available in Microsoft Windows XP, Microsoft Windows Vista, and Micorosft Windows 7.

4 Chapter 1 Product Features ENWW

Table 1-4 Windows Logo Key Functions (continued)

Windows Logo Key Displays or hides the Start menu

Windows Logo Key + d Displays the Desktop

Windows Logo Key + m Minimizes all open applications

Shift + Windows Logo Key + m Undoes Minimize All

Windows Logo Key + e Launches My Computer

Windows Logo Key + f Launches Find Document

Windows Logo Key + Ctrl + f Launches Find Computer

Windows Logo Key + F1 Launches Windows Help

Windows Logo Key + l Locks the computer if you are connected to a network domain, or

allows you to switch users if you are not connected to a network domain

Windows Logo Key + r Launches the Run dialog box

Windows Logo Key + u Launches the Utility Manager

Windows Logo Key + Tab Windows XP - Cycles through the Taskbar buttons

Windows Vista and Windows 7 - Cycles through programs on the Taskbar using the Windows Flip 3-D

In addition to the Windows Logo Key functions described above, the following functions are also available in Microsoft Windows Vista and Windows 7.

Ctrl + Windows Logo Key + Tab

Windows Logo Key + Spacebar Brings all gadgets to the front and select Windows Sidebar

Windows Logo Key + g Cycles through Sidebar gadgets

Windows Logo Key + t Cycles through programs on the taskbar

Windows Logo Key + u Launches Ease of Access Center

Windows Logo Key + any number key Launches the Quick Launch shortcut that is in the position that

In addition to the Windows Logo Key functions described above, the following functions are also available in Microsoft Windows 7.

Windows Logo Key + Ctrl + b

Windows Logo Key + p Choose a presentation display mode

Windows Logo Key + up arrow Maximizes the window

Windows Logo Key + left arrow Snaps the window to the left side of the screen

Windows Logo Key + right arrow Snaps the window to the right side of the screen

Windows Logo Key + down arrow Minimizes the window

Use the arrow keys to cycle through programs on the Taskbar by using Windows Flip 3-D

corresponds to the number (for example, Windows Logo Key + 1 launches the first shortcut in the Quick Launch menu)

Switches to the program that displayed a message in the notification area

Windows Logo Key + Shift + up arrow Stretches the window to the top and bottom of the screen

Windows Logo Key + Shift + left arrow or right

arrow

Moves a window from one monitor to another

ENWW Keyboard 5

Table 1-4 Windows Logo Key Functions (continued)

Windows Logo Key + + (on numpad) Zooms in

Windows Logo Key + - (on numpad) Zooms out

Serial Number Location

Each computer has a unique serial number and a product ID that are located on the top of the computer when it is in the tower configuration. Keep these numbers available for use when contacting customer service for assistance.

Figure 1-5 Serial Number and Product ID Location

6 Chapter 1 Product Features ENWW

2 Hardware Upgrades

Serviceability Features

The computer includes features that make it easy to upgrade and service. No tools are needed for most of the installation procedures described in this chapter.

Warnings and Cautions

Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and warnings in this guide.

WARNING! To reduce the risk of personal injury or equipment damage from electrical shock, hot

surfaces, or fire:

Disconnect the power cord from the power outlet and allow the internal system components to cool before touching.

Do not plug telecommunications or telephone connectors into the network interface controller (NIC) receptacles.

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

To reduce the risk of serious injury, read the Safety & Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at

WARNING! Energized and moving parts inside.

Disconnect power to the equipment before removing the enclosure.

Replace and secure the enclosure before re-energizing the equipment.

CAUTION: Static electricity can damage the electrical components of the computer or optional

equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See Appendix D, more information.

When the computer is plugged into an AC power source, voltage is always applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent damage to internal components.

Electrostatic Discharge on page 38 for

http://www.hp.com/ergo.

ENWW Serviceability Features 7

Connecting the Power Cord

When connecting the power supply, it is important to follow the steps below to ensure the power cord does not pull free from the computer.

1. Connect the round end of the power cord to the power supply connector on the rear of the computer

(1).

2. Insert the power cord retainer clip into a slot on the air vent to prevent the cord from becoming

disconnected from the computer (2).

3. Bundle any excess power cord with the supplied strap (3).

4. Plug the female end of the other power cord into the power supply brick (4).

5. Connect the other end of the power cord to an electrical outlet (5).

Figure 2-1 Connecting the Power Cord

CAUTION: Failure to secure the power cable with the retainer clip may result in the power cord

becoming disconnected and loss of data.

8 Chapter 2 Hardware Upgrades ENWW

Removing the Computer Access Panel

To access internal components, you must remove the access panel:

1. Remove/disengage any security devices that prohibit opening the computer.

2. Remove all removable media, such as compact discs or USB flash drives, from the computer.

3. Turn off the computer properly through the operating system, then turn off any external devices.

4. Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION: Regardless of the power-on state, voltage is always present on the system board as

long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.

5. If the computer is on a stand, remove the computer from the stand and lay the computer down.

6. Loosen the thumbscrew on the rear of the computer (1), slide the access panel toward the rear of

the computer, then lift it off (2).

Figure 2-2 Removing the Computer Access Panel

ENWW Removing the Computer Access Panel 9

+ 33 hidden pages
