Hitachi 55HB6T62U, 55289DLB Schematic

HITACHI

55HB6T62U

55289DLB

MB97

SERVICE MANUAL

TABLE OF CONTENTS

1. INTRODUCTION .......................................................................................................................................................... 2

2. T/T2/C/A Tuner (U74) ................................................................................................................................................... 3

3. S/S2 TUNER & DEMODULATOR (U90) OPTIONAL ............................................................................................... 4

4. AUDIO AMPLIFIER STAGES ..................................................................................................................................... 7

A. MAIN AMPLIFIER (U62)(6-8-10 W option) ...................................................................................... ........................ 7

B. MAIN AMPLIFIER (U91)(2.5 W option) ................................................................................................................... 9

C. HEADPHONE AMPLIFIER (U85) ............................................................................................................................. 11

5. POWER STAGE .......................................................................................................................................................... 13

6. MICROCONTROLLER ............................................................................................................................................... 25

A. MSTAR MSD88RKM2 (U95) .................................................................................................................................. 25

7. 2Gb DDR3 SDRAM ..................................................................................................................................................... 30

A. Hynix H5TQ2G63FFR-PBC (U72) ........................................................................................................................... 30

8. 2Gbit (256M x 8 bit) NAND Flash Memory ................................................................................................................ 32

A. MT29F2G08ABAEAWP (U80) ................................................................................................................................ 32

9. 16M-BIT [16M x 1] CMOS SERIAL FLASH EEPROM ............................................................................................ 34

A. KH25L1606EM2-12G Macronix SPI Flash (U81) .................................................................................................... 34

10. USB Interface ............................................................................................................................................................... 35

A. CY7C65642 (U73) .................................................................................................................................................. 36

11. CI Interface ................................................................................................................................................................... 38

12. Software Update ........................................................................................................................................................... 38

A. Main SW update ................................................................................................................................................... 38

13. Troubleshooting ............................................................................................................................................................ 39

A. No Backlight Problem ........................................................................................................................................... 39

B. CI Module Problem ..........................................................................................................

C. Staying in Stand-by Mode ..................................................................................................................................... 41

D. IR Problem ............................................................................................................................................................ 42

E. Keypad Touchpad Problems ................................................................................................................................. 42

F. USB Problems ........................................................................................................................................................ 43

G. No Sound Problem ................................................................................................................................................ 43

..................................... 40

H. Standby On/Off Problem ...................................................................................................................................... 44

İ. No Signal Problem ........................................................................................................... ...................................... 44

14. Service Menu Settings .................................................................................................................................................. 47

15. PLACEMENT OF BLOCKS ........................................................................................................................................ 52

16. General Block Diagram ................................................................................................................................................ 53

1

WARNING: It is necessary to remove the internal lead connector before removing the back cover of the
TV completely!

1. INTRODUCTION

17MB97 main board is driven by MStar SOC. This IC is a single chip iDTV solution that supports channel
decoding, MPEG decoding, and media-center functionality enabled by a high performance AV CODEC and
CPU.

Key features include:

 Combo Front-End Demodulator
 A multi standart A/V format decoder
 The MACEpro video processor
 Home theatre sound processor
 Rich internet connectivity and completed digital home network solution
 Dual-stream decoder for 3D contents
 Mılti-purpose CPU for OS and multimedia
 Peripheral and power management
 Embedded DRAM

Supported peripherals are:

 1 RF input VHF I, VHF III, UHF
 1 Satellite input
 1 Side AV (CVBS, R/L_Audio)
 1 SCART socket(Common)
 1 PC input(Common)
 3 HDMI input
 1 Common interface(Common)
 1 Optic/ Quax S/PDIF output
 1 Headphone(Common)
 2 USB(1x common, 1x optional) and 2x internal USB for Wifi/Bluetooth
 1 Ethernet-RJ45
 1 External Touchpad(Common)
 1 DVD(Optional)

2

2. T/T2/C/A TUNER (U74)

Description

The MxL661 is a highly integrated low-power silicon tuner IC that targets all global and digital cable standards.

Broadband input filtering and channel filtering have been completely integrated on-chip. This integration

enables a compact design resulting in small footprint, low Bill-Of-Material (BOM) cost, and low-power

consumption.

A signal at the 75ohm RF input is filtered and converted to a programmable IF output frequency. Automatic

Gain Control (AGC), LO generation, and channel selectivity functions are completey integrated on the chip. All

functions of the IC can be controlled using the I2C interface.

The MxL is available in a 4 mm x 4mm x 0.85mm3, 24-pin QFN package.

Features

 Tuning range from 44MHz to 1002MHz
 Programmable channel bandwidths of 6, 7, and 8MHz
 Integrated channel filtering
 Low power consumption with 3.3V and 1.8V dual-supply operation - 351 mW (digital terrestrial)
 On-chip voltage regulator enables single supply 3.3V operation
 Programmable IF frequency and IF spectrum inversion
 Programmable RF to IF delay for ATV scrambling systems that relies on the H-Sync method
 Optioanl balun-less application note for cost-sensitive applications
 Reference clock output available for re-use by demodulators and additional tuners in multi-channel

 Input power reporting
 Open-drain General Purpose Output GPO available for controlling off-chip circuitry
 I

applications

2

C compatible digital control interface

 RoHS compliance

3

Figure: Pin description

Table: Pin functions

3. S/S2 TUNER & DEMODULATOR (U90) OPTIONAL

Description

The M88RS6000 is highly single-Chip DVB-S2/S receiver. The device is consisting of tuner, a demodulator

and an LNB controller. It is fully compliant with the DVB-S2 and DVB-S standards by supporting

QPSK,(PSK,16APSK and 32APSK demodulator schemes.

The tuner is the device an RF signal in the frequency range from 950 Mhz to 2150 Mhz and down-convert the

signal directly to analog baseband signal, which will be converted to a digital signal in the advanced ADC.

After the ADC, the digital signal will be demodulated in the demodulator, related errors generated during

transmission will be corrected at this stage and finally an MPEG transport stream will be delivered in serial,

parallel or DVB-CI format.

4

Figure: Pin description

5

FEATURES

6

4. AUDIO AMPLIFIER ST AGES

A. MAIN AMPLIFIER (U62)(6-8-10 W option)

Description

AD82587D is a digital audio amplifier capable of driving a pair of 8 ohm, 20W or a single 4ohm, 40W speaker,

both which operate with play music at a 24V supply without external heat-sink or fan requirement.

Using I2C digital control interface, the user can control AD82587D’s input format selection, mute and volume

control functions. AD82587D has many built-in protection circuits to safeguard AD82587D from connection

errors.

Features

 16/18/20/24-bit input with I
 PSNR & DR(A-weighting) Loudspeaker: 97dB (PSNR), 105dB (DR) @ 24V
 Multiple sampling frequencies (Fs)

o 32kHz / 44.1kHz / 48kHz and

2

S, Left-alignment and Right-alignment data format

o 64kHz / 88.2kHz / 96kHz and
o 128kHz/176.4kHz/192kHz

 System clock = 64x, 128x, 256x, 384x, 512x, 768x,1024x Fs

o 256x~1024x Fs for 32kHz / 44.1kHz / 48kHz
o 128x~512x Fs for 64kHz / 88.2kHz / 96kHz
o 64x~256x Fs for 128kHz /176.4kHz/192kHz

 Supply voltage

o 3.3V for digital circuit
o 10V~26V for loudspeaker driver

 Loudspeaker output power for Stereo@ 24V

o 10W x 2ch into 8_ @ 0.16% THD+N
o 15W x 2ch into 8_ @ 0.18% THD+N
o 20W x 2ch into 8_ @ 0.24% THD+N

 Loudspeaker output power for Mono@ 24V

o 20W x 1ch into 4_ @ 0.17% THD+N
o 30W x 1ch into 4_ @ 0.2% THD+N
o 40W x 1ch into 4_ @ 0.24% THD+N

 Sounds processing including:

o Volume control (+24dB~-103dB, 0.125dB/step)
o Dynamic range control
o Power clipping
o Channel mixing

7

o User programmed noise gate with hysteresis window
o DC-blocking high-pass filter

 Anti-pop design
 Short circuit and over-temperature protection
 I2C control interface with selectable device address
 Internal PLL
 LV Under-voltage shutdown and HV Under-voltage
 detection
 Power saving mode
 Dynamic temperature control

8

Figure: Pin description

Figure: Functional Block Diagram

Table: Absolute Maximum Ratings

Table: Recommended Operating Conditions

B. MAIN AMPLIFIER (U91)(2.5 W option)

Description

The AD52010 is a 3.0W stereo, filter-less class-D audio amplifier. Operating with 5.0V loudspeaker driver

supply, it can deliver 3.0W output power into 4 ohm loudspeaker within 10% THD+N or 2.6W at 1% THD+N.

The AD52010 is a stereo audio amplifier with high efficiency and suitable for the notebook computer, and

portable multimedia device.

Features

 Supply voltage range: 2.5 V to 5.5 V
 Support single-ended or differential analog input
 Low Quiescent Current
 Low Output Noise
 Low shut-down current
 Short power-on transient time
 Internal pull-low resistor on shut-down pins
 Short-circuit protection
 Over-temperature protection
 Loudspeaker power within 10% THD+N

o 1.78W/ch into 8 ohm loudspeaker

9

o >3W/ch into 4 ohm loudspeaker

 Loudspeaker efficiency

o 93% @ 8 ohm, THD+N=10%
o 85% @ 4 ohm, THD+N=10%

 E-TSSOP-14L package
 Integrated Feedback Resistor of 300kW

Figure: Pin description

10

Table:Pin functions

Table: Recommended operating conditions

C. HEADPHONE AMPLIFIER (U85)

Description

The AD22657B is a 2-Vrms cap-less stereo line driver. The device is ideal for single supply electronics. Cap-

less design can eliminate output dc-blocking capacitors for better low frequency response and save cost.

The AD22657B is capable of delivering 2-Vrms output into a 10k ohm load with 3.3V supply. The gain settings

can be set by users from 1V/V to 10V/V externally. The AD22657B has under voltage protection to prevent

POP noise. Build-in shutdown control and de-pop control sequence also help AD22657B to be a pop-less

device.

The AD22657B is available in a 10-pin MSOP package.

Features

 Operation Voltage: 3V to 3.6V
 Cap-less Output

o Eliminates Output Capacitors
o Improves Low Frequency Response
o Reduces POP/Clicks

 Low Noise and THD

o Typical SNR 107dB
o Typical Vn 7uVrms
o Typical THD+N < 0.02%

 Maximum Output Voltage Swing into 2.5k Load

o 2Vrms at 3.3V Supply Voltage

 Single-ended Input
 External Gain Setting from 1V/V to 10V/V
 Fast Start-up Time: 0.5ms
 Integrated De-Pop Control
 External Under Voltage Protection
 Thermal Protection

11

 Less External Components Required
 +/-8kV IEC ESD Protection at line outputs

Figure: Pin description

12

Table: Pin functions

Table: Recommended operating conditions

5. POWER STAGE

Power socket is used for taking voltages which are 12V_stby and 24V (VDD_Audio for 10W option). These

voltages are produced in power card. Also socket is used for giving dimming, backlight and stand-by signals

with power card. It is shown in figure.

Figure: Power socket and power options

List of the components are:

 SW1(Q56) → DMG6402LDM
 SW2(Q44) → FDC642P

13

 STP1(U63) → RT7278G(12V panel option)
 STP1(U63) → TPS54528(5V panel option)
 STP2(U88) → MP2315
 STP3(U70) → RT7257
 STP4(U96) → RT7237
 LDO1(U94) → LM1117
 LDO3(U89) → APL5910
 LDO4(U65) → APL5910

FDC642P

Description and Features

DMG6402LDM

Features

 Low RDS(ON)
 Low Input Capacitance
 Fast Switching Speed

Figure: Pin description

14

 Low Input/Output Leakage
 Lead Free By Design/RoHS Compliant (Note 1)
 Qualified to AEC-Q101 Standards for High Reliability

Figure: Pin description

TPS54528

Description

The TPS54528 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54528 enables

system designers to complete the suite of various end-equipment power bus regulators with a cost effective, low

component count, low standby current solution. The main control loop for the TPS54528 uses the D-CAP2™

mode control that provides a fast transient response with no external compensation components. The adaptive

on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode™

operation at light loads. Eco-mode™ allows the TPS54528 to maintain high efficiency during lighter load

conditions. The TPS54528 also has a proprietary circuit that enables the device to adopt to both low equivalent

series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors.

The device operates from 4.5-V to 18-V VIN input. The output voltage can be programmed between 0.76 V

and 6.0 V. The device also features an adjustable soft start time. The TPS54528 is available in the 8-pin DDA

package, and designed to operate from –40 C to 85 C.

Features

 D-CAP2™ Mode Enables Fast Transient Response
 Low Output Ripple and Allows Ceramic Output Capacitor
 Wide VIN Input Voltage Range: 4.5 V to 18 V
 Output Voltage Range: 0.76 V to 6.0 V
 Highly Efficient Integrated FETs Optimized for Lower Duty Cycle Applications

o 65 mΩ (High Side) and 36 mΩ (Low Side)

 High Efficiency, less than 10 μA at shutdown
 High Initial Bandgap Reference Accuracy

15

 Adjustable Soft Start
 Pre-Biased Soft Start
 650-kHz Switching Frequency (fSW)
 Cycle By Cycle Over Current Limit
 Auto-Skip Eco-mode™ for High Efficiency at Light Load

Figure: Pin description

Table: Pin functions

RT7278

Description

The RT7278 is a synchronous step down converter with Advanced Constant On-Time (ACOTTM) mode

control. The ACOTTM provides a very fast transient response with few external components. The low

impedance internal MOSFET supports high efficiency operation with wide input voltage range from 4.5V to

17V. The proprietary circuit of the RT7278 enables to support all ceramic capacitors. The output voltage can be

adjustable between 0.8V and 8V. The soft-start is adjustable by an external capacitor.

Features

TM

 ACOT

Mode Enables Fast Transient Response

 4.5V to 17V Input Voltage Range
 3A Output Current
 60mΩ Internal Low Site N-MOSFET

16

 Advanced Constant On-Time Control
 Support All Ceramic Capacitors
 Up to 95% Efficiency
 700kHz Switching Frequency
 Adjustable Output Voltage from 0.8V to 8V
 Adjustable Soft-Start
 Cycle-by-Cycle Current Limit
 Input Under Voltage Lockout
 Thermal Shutdown Protection
 RoHS Compliant and Halogen Free

Figure: Pin description

17

Table: Pin functions

MP2315

Description

The MP2315 is a high frequency synchronous rectified step-down switch mode converter with built in internal

power MOSFETs. It offers a very compact solution to achieve 3A continuous output current over a wide input

supply range with excellent load and line regulation. The MP2315 has synchronous mode operation for higher

efficiency over output current load range. Current mode operation provides fast transient response and eases

loop stabilization. Full protection features include OCP and thermal shut down. The MP2315 requires a

minimum number of readily available standard external components and is available in a space saving 8-pin

TSOT23 package.

Features

 Wide 4.5V to 24V Operating Input Range
 3A Load Current
 90mΩ/40mΩ Low Rds(on) Internal Power MOSFETs
 Low Quiescent Current
 High Efficiency Synchronous Mode Operation
 Fixed 500kHz Switching Frequency
 Frequency Sync from 200kHz to 2MHz External Clock
 AAM Power Save Mode
 Internal Soft Start
 OCP Protection and Hiccup
 Thermal Shutdown
 Output Adjustable from 0.8V
 Available in an 8-pin TSOT-23 package

18

Figure: Pin description

Table: Pin functions

RT7257

Description

The RT7257G is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to

3A output current from a 4.5V to 18V input supply. The RT7257G's current mode architecture and external

compensation allow the transient response to be optimized over a wide input voltage range and loads. Cycle-by-

cycle current limit provides protection against shorted outputs, and soft-start eliminates input current surge

during start-up. The RT7257G also provides under voltage protection and thermal shutdown protection. The

low current (<3uA) shutdown mode provides output disconnection, enabling easy power management in

battery-powered systems. The RT7257G is available in an SOP-8 (Exposed Pad) package.

Features

 ±1.5% High Accuracy Reference Voltage
 4.5V to 18V Input Voltage Range
 3A Output Current
 Integrated N-MOSFET Switches
 Current Mode Control
 Fixed Frequency Operation: 800kHz
 Output Adjustable from 0.8V to 12V
 Up to 95% Efficiency
 Programmable Soft-Start
 Stable with Low ESR Ceramic Output Capacitors
 Cycle-by-Cycle Current Limit

19

 Input Under Voltage Lockout
 Output Under Voltage Protection
 Thermal Shutdown Protection
 RoHS Compliant and Halogen Free

Figure: Pin description

Table: Pin functions

RT7237

Description

The RT7237C is a high efficiency, monolithic synchronous step-down DC/DC converter that can deliver up to

2A output current from a 4.5V to 18V input supply. The RT7237C's current mode architecture and external

compensation allow the transient response to be optimized over a wide input range and loads. Cycle-bycycle

current limit provides protection against shorted outputs, and soft-start eliminates input current surge during

start-up. The RT7237C also provides under voltage protection and thermal shutdown protection. The low

current (<3μA) shutdown mode provides output disconnection, enabling easy power management in battery-

powered systems. The RT7237C is available in an SOP-8 (Exposed Pad) package.

20

Features

 ±1.5% High Accuracy Reference Voltage
 4.5V to 18V Input Voltage Range
 2A Output Current
 Integrated N-MOSFET Switches
 Current Mode Control
 Fixed Frequency Operation : 800kHz
 Output Adjustable from 0.8V to 12V
 Stable with Low ESR Ceramic Output Capacitors
 Up to 95% Efficiency
 Programmable Soft-Start
 Cycle-by-Cycle Over Current Limit
 Input Under Voltage Lockout
 Output Under Voltage Protection
 Thermal Shutdown Protection
 RoHS Compliant and Halogen Free

Figure: Pin description

21

Table: Pin functions

LM1117

Description

The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It

has the same pin-out as National Semiconductor’s industry Standard LM317.

The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with

only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and

5V.

The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap

reference to assure output voltage accuracy to within ±1%.

The LM1117 series is available in SOT-223, TO-220, and TO-252 D-PAK packages. A minimum of 10μF

tantalum capacitor is required at the output to improve the transient response and stability.

Features

 Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions
 Space Saving SOT-223 Package
 Current Limiting and Thermal Protection
 Output Current 800mA
 Line Regulation 0.2% (Max)
 Load Regulation 0.4% (Max)
 Temperature Range

— LM1117 0°C to 125°C

— LM1117I −40°C to 125°C

Figure: Pin description

APL5910

Description

The APL5910 is a 1A ultra low dropout linear regulator. The IC needs two supply voltages, one is a control

voltage (VCNTL) for the control circuitry, the other is a main supply voltage (VIN) for power conversion, to

reduce power dissipation and provide extremely low dropout voltage. The APL5910 integrates many functions.

A Power-On- Reset (POR) circuit monitors both supply voltages on VCNTL and VIN pins to prevent erroneous
22

operations. The functions of thermal shutdown and current-limit protect the device against thermal and current

over-loads. A POK indicates that the output voltage status with a delay time set internally. It can control other

converter for power sequence. The APL5910 can be enabled by other power systems. Pulling and holding the

EN voltage below 0.4V shuts off the output.

The APL5910 is available in a SOP-8P package which features small size as SOP-8 and an Exposed Pad to

reduce the junction-to-case resistance to extend power range of applications.

Features

 Ultra Low Dropout

o 0.12V (Typical) at 1AOutput Current

 0.8V Reference Voltage
 High Output Accuracy

o ±1.5%over Line, Load, and Temperature Range

 Fast Transient Response
 Adjustable Output Voltage
 Power-On-Reset Monitoring on Both VCNTL and VIN Pins
 Internal Soft-Start
 Current-Limit and ShortCurrent-Limit Protections
 Thermal Shutdown with Hysteresis
 Open-Drain VOUT Voltage Indicator (POK)
 Low Shutdown Quiescent Current (< 30mA )
 Shutdown/Enable Control Function
 Simple SOP-8P Package with Exposed Pad
 Lead Free and Green Devices Available (RoHS Compliant)

23

Figure: Pin description

Table: Pin functions

24

6. MICROCONTROLLER

A. MSTAR MSD88RKM2 (U95)

Description

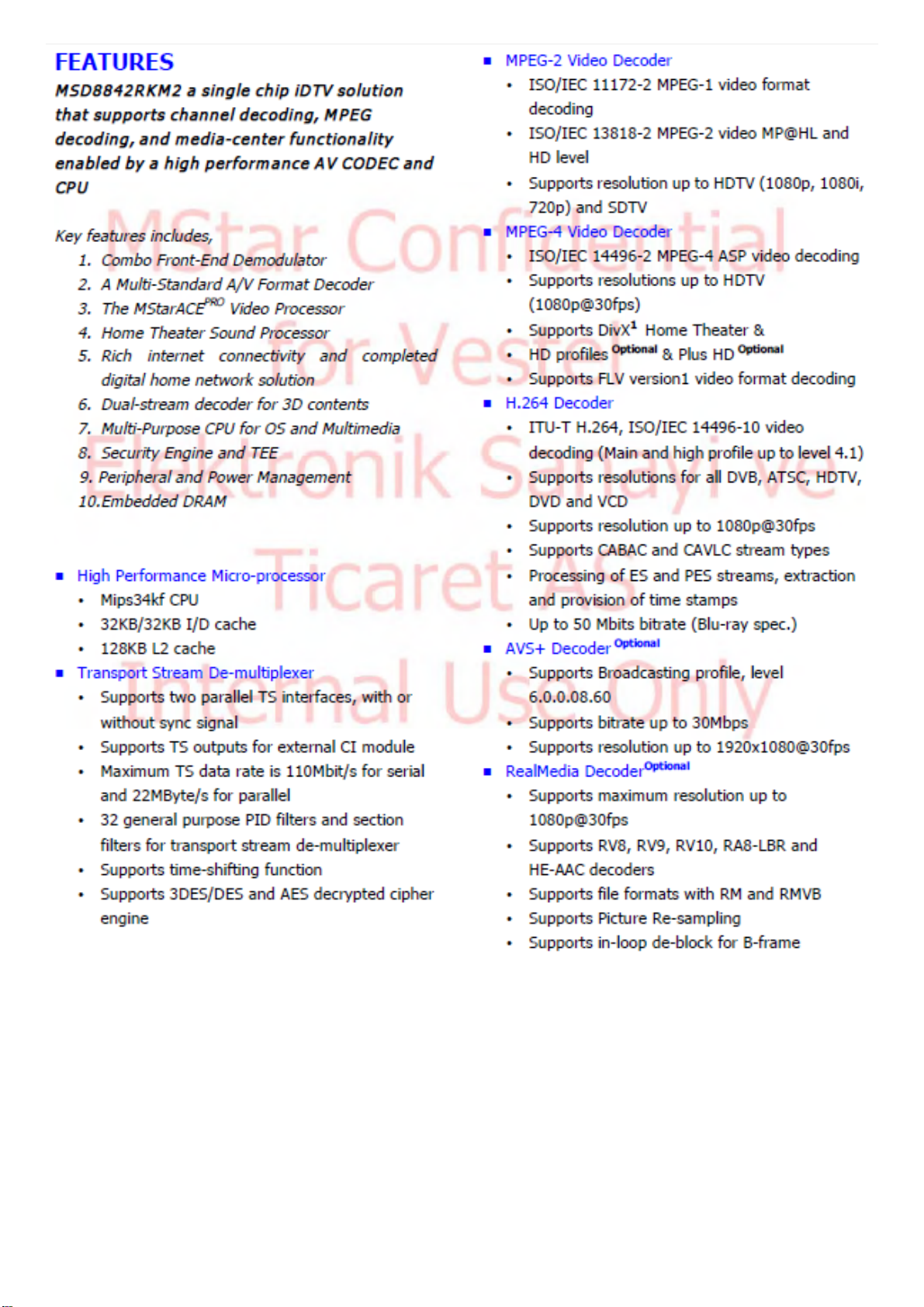

25

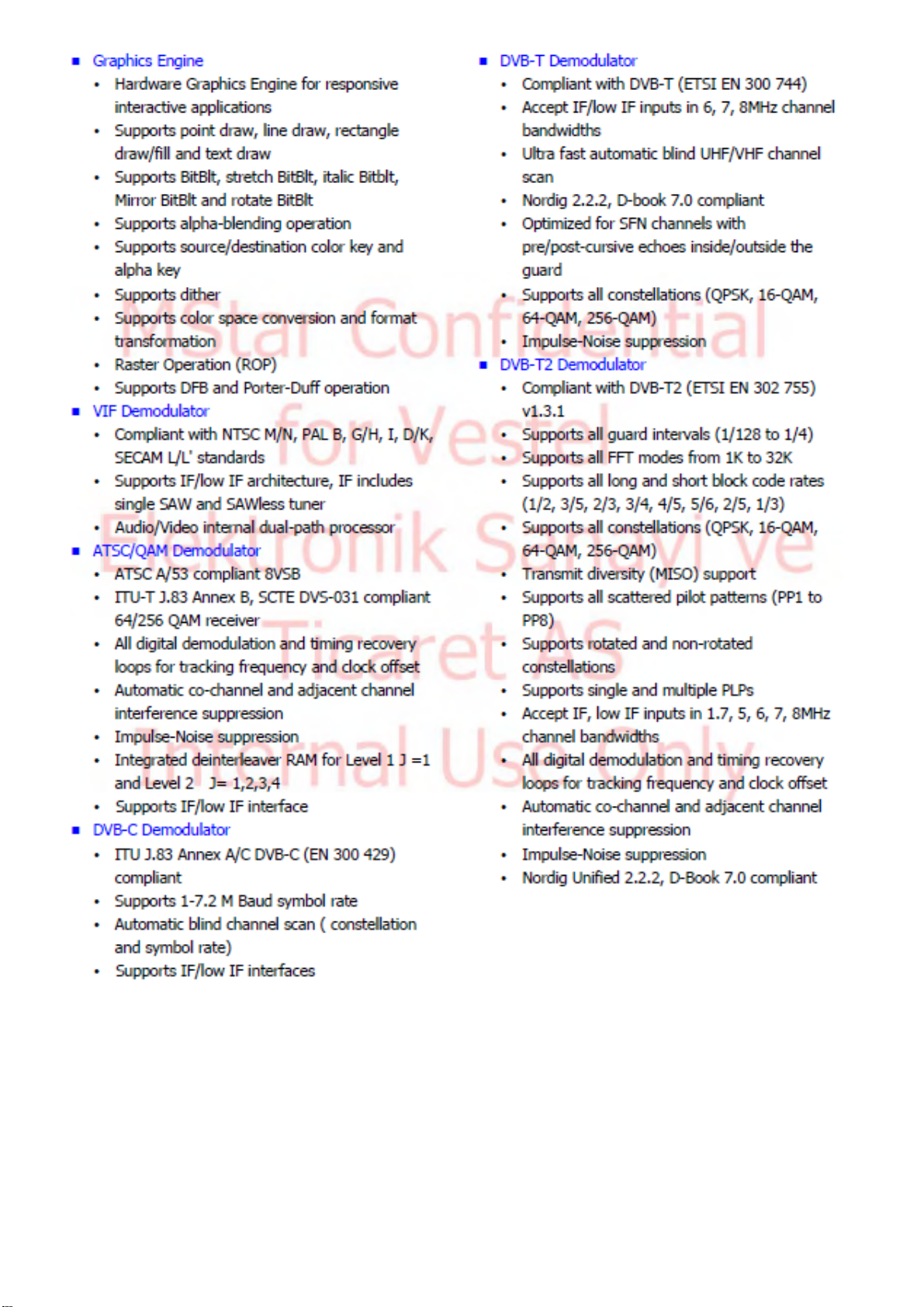

26

27

28

29

7. 2GB DDR3 SDRAM

Table: Recommended operating conditions

A. Hynix H5TQ2G63FFR-PBC (U72)

Description

The H5TQ2G83FFR-xxC, H5TQ2G63FFR-xxC, H5TQ2G83FFR-xxI, H5TQ2G63FFR-xxI, H5TQ2G83FFR-

xxL, H5TQ2G63FFR-xxL, H5TQ2G83FFR-xxJ, H5TQ2G63FFR-xxJ are a 2, 147, 483, 648-bit CMOS Double

Data Rate III (DDR3) Synchronous DRAM, ideally suited for the main memory applications which requires

large memory density and high bandwidth. SK Hynix 2Gb DDR3 SDRAMs offer fully synchronous operations

referenced to both rising and falling edges of the clock. While all addresses and control inputs are latched on

the rising edges of the CK (falling edges of the CK), Data, Data strobes and Write data masks inputs are

sampled on both rising and falling edges of it. The data paths are internally pipelined and 8-bit prefetched to

achieve very high bandwidth.

30

Features

 VDD=VDDQ=1.5V +/- 0.075V
 Fully differential clock inputs (CK, CK) operation
 Differential Data Strobe (DQS, DQS)
 On chip DLL align DQ, DQS and DQS transition with CK transition
 DM masks write data-in at the both rising and falling edges of the data strobe
 All addresses and control inputs except data, data strobes and data masks latched on the rising edges of

the clock

 Programmable CAS latency 5, 6, 7, 8, 9, 10, 11, 12, 13 and 14 supported
 Programmable additive latency 0, CL-1, and CL-2 supported
 Programmable CAS Write latency (CWL) = 5, 6, 7, 8
 Programmable burst length 4/8 with both nibble sequential and interleave mode
 BL switch on the fly
 8banks
 Average Refresh Cycle (Tcase 0

o 7.8 μs at 0
o 3.9 μs at 85

o

C ~ 85oC

o

C ~ 95oC

o Commercial Temperature (0
o Industrial Temperature (-40

o

C ~ 95oC)

o

C ~ 95oC)

o

C ~ 95oC)

 JEDEC standard 78ball FBGA(x8), 96ball FBGA(x16)
 Driver strength selected by EMRS
 Dynamic On Die Termination supported
 Asynchronous RESET pin supported
 ZQ calibration supported
 TDQS (Termination Data Strobe) supported (x8 only)
 Write Levelization supported
 8 bit pre-fetch

31

Table: Recommended operating conditions

8. 2GBIT (256M X 8 BIT) NAND FLASH MEMORY

A. MT29F2G08ABAEAWP (U80)

Description

Micron NAND Flash devices include an asynchronous data interface for high-performance I/O operations.

These devices use a highly multiplexed 8-bit bus (I/Ox) to transfer commands, address, and data. There are five

control signals used to implement the asynchronous data interface: CE#, CLE, ALE, WE#, and RE#. Additional

signals control hardware write protection and monitor device status (R/B#). This hardware interface creates a

low pin-count device with a standard pinout that remains the same from one density to another, enabling future

upgrades to higher densities with no board redesign. A target is the unit of memory accessed by a chip enable

signal. A target contains one or more NAND Flash die. A NAND Flash die is the minimum unit that can

independently execute commands and report status. A NAND Flash die, in the ONFI specification, is referred

to as a logical unit (LUN). There is at least one NAND Flash die per chip enable signal. For further details, see

Device and Array Organization. This device has an internal 4-bit ECC that can be enabled using the GET/SET

features or by factory (always enabled). See Internal ECC and Spare Area Mapping for ECC for more

information.

Features

 Open NAND Flash Interface (ONFI) 1.0-compliant
 Single-level cell (SLC) technology
 Organization

o Page size x8: 2112 bytes (2048 + 64 bytes)
o Page size x16: 1056 words (1024 + 32 words)
o Block size: 64 pages (128K + 4K bytes)
o Plane size: 2 planes x 1024 blocks per plane
o Device size: 2Gb: 2048 blocks

 Asynchronous I/O performance

t

o

RC/tWC: 20ns (3.3V), 25ns (1.8V)

 Array performance

o Read page: 25μs
o Program page: 200μs (TYP: 1.8V, 3.3V
o Erase block: 700μs (TYP)

 Command set: ONFI NAND Flash Protocol
 Advanced command set

o Program page cache mode
o Read page cache mode
o One-time programmable (OTP) mode

32

o Two-plane commands
o Interleaved die (LUN) operations
o Read unique ID
o Block lock (1.8V only)
o Internal data move

 Operation status byte provides software method for detecting

o Operation completion
o Pass/fail condition
o Write-protect status

 Ready/Busy# (R/B#) signal provides a hardware method of detecting operation completion
 WP# signal: Write protect entire device
 First block (block address 00h) is valid when shipped from factory with ECC. For minimum required

ECC, see Error Management.

 Block 0 requires 1-bit ECC if PROGRAM/ERASE cycles are less than 1000
 RESET (FFh) required as first command after poweron
 Alternate method of device initialization (Nand_Init) after power up (contact factory)
 Internal data move operations supported within the plane from which data is read
 Quality and reliability

o Data retention: 10 years

 Operating voltage range

o VCC: 2.7–3.6V
o VCC: 1.7–1.95V

 Operating temperature:

o Commercial: 0°C to +70°C
o Industrial (IT): –40ºC to +85ºC

 Package

o 48-pin TSOP type 1, CPL63-ball VFBGA

33

Table: Recommended operating conditions

9. 16M-BIT [16M X 1] CMOS SERIAL FLASH EEPROM

A. KH25L1606EM2-12G Macronix SPI Flash (U81)

Description

The device features a serial peripheral interface and software protocol allowing operation on a simple 3-wire

bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO).

Serial access to the device is enabled by CS# input. When it is in Dual Output read mode, the SI and SO pins

become SIO0 and SIO1 pins for data output. The device provides sequential read operation on whole chip.

After program/erase command is issued, auto program/erase algorithms which program/erase and verify the

specified page or sector/block locations will be executed. Program command is executed on byte basis, or page

basis, or word basis for erase command is executes on sector, or block, or whole chip basis. To provide user

with ease of interface, a status register is included to indicate the status of the chip. The status read command

can be issued to detect completion status of a program or erase operation via WIP bit. Advanced security

features enhance the protection and security functions; please see security features section for more details.

When the device is not in operation and CS# is high, it is put in standby mode. The device utilizes Macronix's

proprietary memory cell, which reliably stores memory contents even after typical 100,000 programs and erase

cycles.

Features

 Single Power Supply Operation

o 2.7 to 3.6 volt for read, erase, and program operations

 Serial Peripheral Interface compatible -- Mode 0 and Mode 3
 16,777,216 x 1 bit structure or 8,388,608 x 2 bits (Dual Output mode) structure
 512 Equal Sectors with 4K byte each

o Any Sector can be erased individually

 32 Equal Blocks with 64K byte each

o Any Block can be erased individually

 Program Capability

o Byte base
o Page base (256 bytes)

 Latch-up protected to 100mA from -1V to Vcc +1V

34

10. USB INTERFACE

Figure: Pin configuration

Table: Pin description

Mstar IC has two input port for USB, therefore internal Bluetooth , internal Wi-Fi interface and USB2 are

combined with HUB. This property is optional. If Bluetooth and Wi-Fi interfaces are not alined, two USB are

connected directly to main IC.

35

Figure: USB Block Diagram

A. CY7C65642 (U73)

Description

HX2VL is Cypress’s next generation family of high- performance, very low-power USB 2.0 hub controllers.

HX2VL has integrated upstream and downstream transceivers; a USB serial interface engine (SIE); USB hub

control and repeater logic; and transaction translator (TT) logic. Cypress has also integrated external

components such as voltage regulator and pull-up/pull-down resistors, reducing the overall BOM required to

implement a USB hub system. The CY7C65642 is a part of the HX2VL portfolio with four downstream ports

and an independent TT dedicated for each downstream port. This device option is for low-power but high-

performance applications that require up to four downstream ports. The CY7C65642 is available in 48-pin

TQFP and 28-pin QFN package options.

Features

 High-performance, low-power USB 2.0 hub, optimized for low-cost designs with minimum bill-of-

 USB 2.0 hub controller

material (BOM).

o Compliant with USB2.0 specification
o Up to four downstream ports support
o Downstream ports are backward compatible with FS, LS
o Multiple translator (TT), one per downstream port for maximum performance.

 Very low-power consumption

o Supports bus-powered and self-powered modes
o Auto switching between bus-powered and self-powered
o Single MCU with 2K ROM and 64 byte RAM
o Lowest power consumption.

 Highly integrated solution for reduced BOM cost

o Internal regulator – single power supply 5 V required.
o Provision of connecting 3.3 V with external regulator.
o Integrated upstream pull-up resistor
o Integrated pull-down resistors for all downstream ports
o Integrated upstream/downstream termination resistors
o Integrated port status indicator control
o 12-MHz +/-500 ppm external crystal with drive level 600uW (integrated PLL) clock input with

optional 27/48-MHz oscillator clock input.

o Internal power failure detection for ESD recovery

 Downstream port management

o Support individual and ganged mode power management

36

o Overcurrent detection
o Two status indicators per downstream port
o Slew rate control for EMI management

 Maximum configurability

o VID and PID are configurable through external EEPROM
o Number of ports, removable/non-removable ports are configurable through EEPROM and I/O pin

configuration

o I/O pins can configure gang/individual mode power switching, reference clock source and polarity of

power switch enable pin

o Configuration options also available through mask ROM
o Available in space saving 48-pin TQFP (7 × 7 mm) and 28-pin QFN (5 × 5 mm) packages
o Supports 0

o

C to +70oC temperature range

37

Figure: Pin configuration

11. CI INTERFACE

17MB97 Digital CI ve Smart Card Interface Block diagram:

Figure: CI interface

12. SOFTWARE UPDATE

A. Main SW update

In MB97 project, please follow software update procedure:

1. mb97_en.bin, RomBoot.bin, PM51.bin and usb_auto_update_D7L.txt documents should be copied

directly inside of a flash memory (not in a folder).

2. Insert flash memory to the TV when TV is powered off.

3. While pushing the OK button in remote control, power on and wait. TV will power-up itself.

4. If First Time Installation screen comes, it means software update procedure is successful.

38

13. TROUBLESHOOTING

A. No Backlight Problem

Problem: If TV is working, led is normal and there is no picture and backlight on the panel.

Possible causes: Backlight pin, dimming pin, backlight supply, stby on/off pin

BACKLIGHT_ON/OFF pin should be high when the backlight is ON. Collector pin of Q27 must be low when

the backlight is OFF. If it is a problem, please check Q27 and the panel cables. Also it can be tested in TP87 in

main board.

Dimming pin should be high or square wave in open position. If it is low, please check S248 for Mstar side and

panel or power cables, connectors.

Backlight power supply should be in panel specs. Please check Q43, shown below; also it can be checked

TP65.

39

STBY_ON/OFF should be low for TV on condition, please check Q36’s collector.

B. CI Module Problem

Problem: CI is not working when CI module inserted.
Possible causes: Supply, suply control pin, detects pins, mechanical positions of pins.

 CI supply should be 5V when CI module inserted. If it is not 5V please check CI_PWR_CTRL, this pin

should be low.

40

 Please check mechanical position of CI module. Is it inserted properly or not?
 Detect ports should be low. If it is not low please check CI connector pins, CI module pins.

C. Staying in Stand-by Mode

Problem: Staying in stand-by mode, no other operation.

This problem indicates a short on Vcc voltages. Protect pin should be logic high while normal operation. When

there is a short circuit protect pin will be logic low. If you detect logic low on protect pin, unplug the TV set

and control voltage points with a multimeter to find the shorted voltage to ground.

41

D. IR Problem

Problem: LED or IR not working

Check LED card supply on MB97 chasis.

E. Keypad Touchpad Problems

Problem: Keypad or Touchpad is not working

42

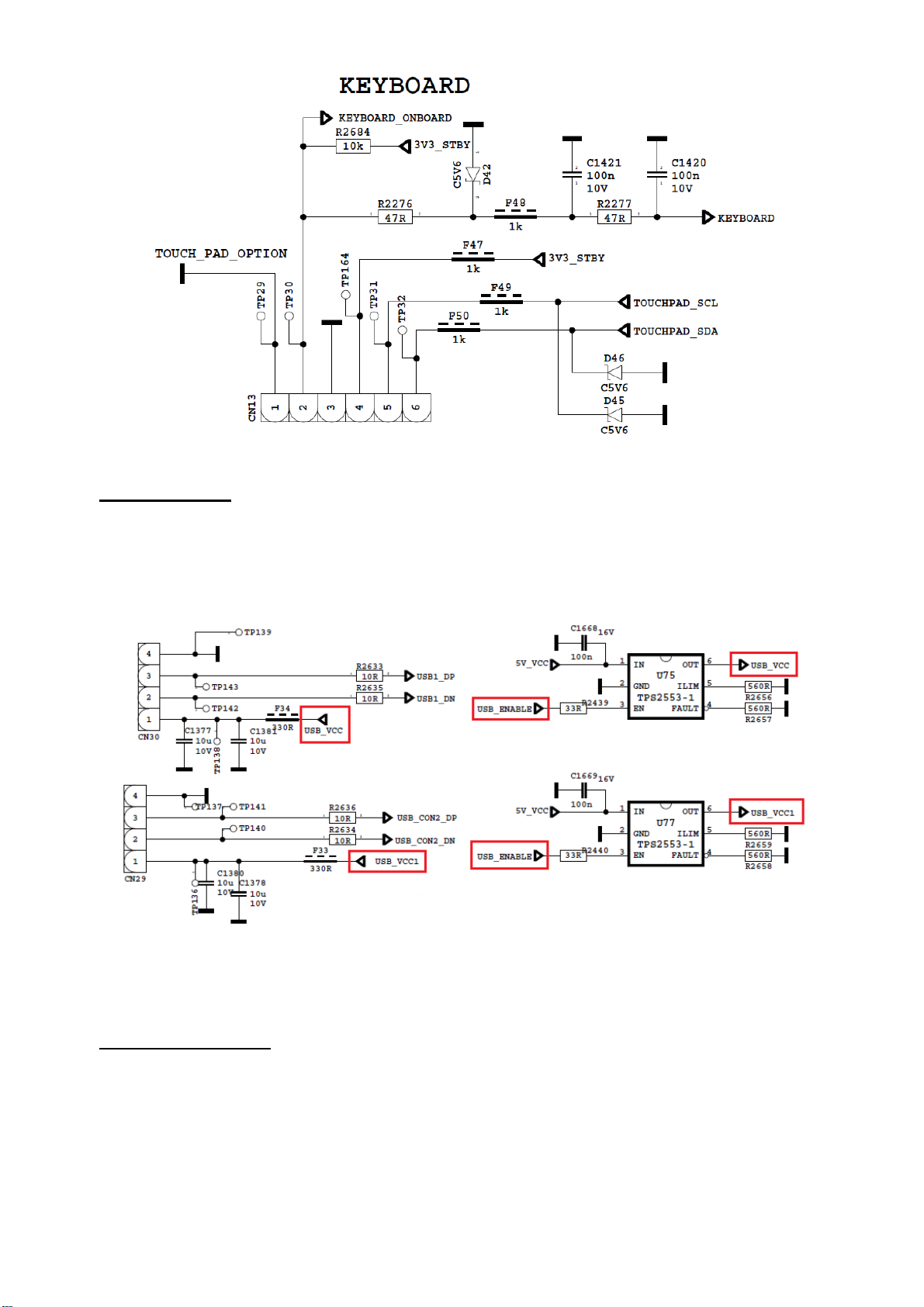

Check keypad supply on MB97.

F. USB Problems

Problem: USB is not working or no USB Detection.

Check USB Supply, It should be nearly 5V. Also USB Enable should be logic high.

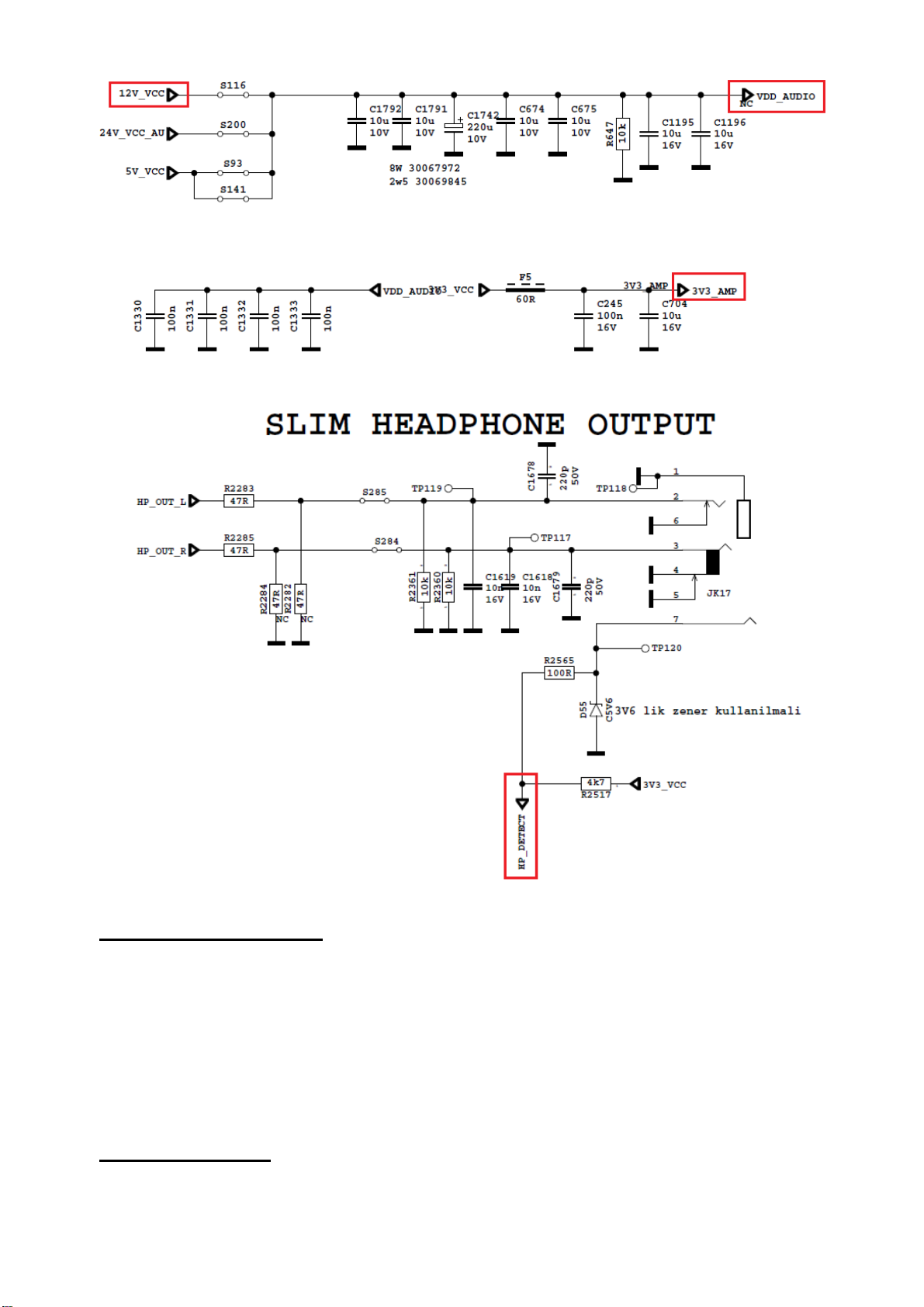

G. No Sound Problem

Problem: No audio at main TV speaker outputs.

Check supply voltages of 12V_VCC, VDD_AUDIO and 3V3_AMP with a voltage-meter. There may be a

problem in headphone connector or headphone detect circuit (when headphone is connected, speakers are

automatically muted). Measure voltage at HP_DETECT pin, it should be 3.3v.

43

H. Standby On/Off Problem

Problem: Device can not boot, TV hangs in standby mode.

There may be a problem about power supply. Check main supplies with a voltage-meter. Also there may be a

problem about SW. Try to update TV with latest SW. Additionally it is good to check SW printouts via

Teraterm. These printouts may give a clue about the problem. You can use Scart-1 for terraterm connection.

İ. No Signal Problem

Problem: No signal in DVB-T/T2/C mode.

44

Check tuner supply voltage; 3V3_TUNER and VDD_1V8. Check tuner options are correctly set in Service

menu. Check AGC voltage at IF_AGC pin of tuner.

Problem: No signal or Low signal in DVB-S/S2 mode.

Check signal cables and LNB voltage, if there is no problem, check RS6000 supply voltages;

3V3_SAT_VDDA1, 3V3_SAT_VDDA, 3V3_SAT_VDD and 1V3_SAT_VCC.

If the above measurements are OK, then measure the voltage from the PIN1 of U90.

If the PIN1 voltage is equal to 0V, please check i2c waveforms and software. If the PIN1 voltage is lower than

1V(e.g: 0.8Vor 0.3V), change the U90 with a new part.

45

46

14. SERVICE MENU SETTINGS

In order to reach service menu, first Press “MENU” buton, then write “4725” by uisng remote controller.

You can see the service menu main screen below. You can check SW releases by using this menu. In addition,

you can make changes on video, audio etc. by using video settings, audio settings titles.

Service Menu Main Screen

Video Settings

47

Audio Settings

Options-1 Menu

48

Options-2 Menu

Options-3 Menu

49

Tuner Settings Menu

Source Settings Menu

50

Diagnostic Menu

51

15. PLACEMENT OF BLOCKS

52

15. GENERAL BLOCK DIAGRAM

5V_VCC

CI_TS_IN

CI SOCKET

DVBS/S2

12V_VCC

LNBP

TPS65233

SYS_SDA

SYS_SCL

SYS_SDA

22kHz

DISEQC

H/V

Selection

SYS_SCL

LNB_SUP

SATELLITE

TUNER+DEMOD

RS6000

ResetN

3V3_VCC

F
R

3V3_VCC

DVBT/T2

SYS_SCL

RF

SYS_SDA

3V3_VCC

30 pins WXGA LVDS SOCKET

PARALEL_TS

DIGITAL/ANALOG_IF

3V3_VCC

CY7C65642

USB HUB

W<F<+USB2

USB_HUB_DN

USB2_HUB_DP

AZ099-4S

ESD

Protection

51 pins FHD LVDS SOCKET

1V5_MU1

1V5_VCC

1.15V_VCC

CI_TS_IN

USB2_DP

USB2_DN

USB_WIFI_DP

PANEL_VCC

30 pins FHD LVDS SOCKET

TS_IN

TS_OUT

ET_T

ET_R

USB_WIFI_DN

PANEL_VCC

PWR

7

PWR

6

PWR

5

TS BLOCK

DIGITAL/

ANALOG

DEMOD

USB 1ETHERNET

USB1_DP

USB1_DN

AZ099-4S

ESD

Protection

1.26V_VCC

PWR

1

HDMI 0 HDMI 1USB 0

HDMI 5V

I2C

ARC

LVDS ODD

TMDS

LVDS EVEN

MSTAR

MSD8842RKM2

HDMI 2

S
D

I2C

CEC

M
T

HDMI 5V

S
D
M

I2C

ARC

T

HDMI 5V

RAM BUS

ADDRESS BUS

2Gb DDR3

MEMORY

BACKLIGHT_DIM

3D_SYNC_OUT

DVD-IR_ON/OFF

HP_AMP_MUTE

PCM_PWR_CTRL

STBY_ON/OFF

DVD_WAKEUP

RX/TX_HOTEL

FLASH_WPN½

USB-ENABLE

MST_BACKL<GHT

GPIOs

S
U
B

A
T
A
D

PWM

KEYBOARD
DVD SENSE

SPI

TOUCHPAD

UART

AMP_RST

HP_DETECT

PC_SCL/SDA

3D_ENABLE

AUX_RESET
TUN_RESET

HDMI

PROTECT

PANEL_VCC
RESET_HUB
MXL_RESET

PWR

4

3V3_STBY

1V5_VCC

NAND

AUDIO I/OsVIDEO I/Os

XTAL

R
W

P

STBY

SPI

FLASH

SC_AUD_R_IN

SC_AUD_L_IN

SC_CVBS_IN_pin20

SC_L/R

SC_AUD_R/L_IN

3

GPIOs

KEYBOARD

VGA

HDMI
DVD_WAKEUP
STBY_ON/OFF

NAND128-A

SYS_SCL

SYS_SDA

5V_VCC

HP_RIGHT

HP_LEFT

AMP

SC_CVBS

OUT

SC_RGB

SC_CVBS

IN

VGA_RGB

VGA HS/VS

3V3_VCC

Keyboard

IR – Led1/2

MAIN_L

MAIN_R

SPDIF_OUT

DVD_CVBS

IN

AD22657B

HP AMP.

SC_L/R

OUT

SCART

24 MHz

12V_VCC

DVD_S/PDIF

IN

SC Pin8

SC FB

Keyboard Socket

Led/IR Socket

MX25l512

AD82587

2X6W or

2x8W AMP

HP_OUT_R

HP_OUT_L

VGA

AD52010

2X2.5W

DVD

MODULE

12V_VCC

HPHONE

DVD_SENSE

Speak. Connector

DVD_WAKE-UP

SPEAKERs

53

5V_VCC

USB2+W<F<

5V_VCC

USB1

HDMI 1

HDMI 2

HDMI 3

1 2 3 4 5 6 7 8

A_MCLK

56R

16V

10n

1k

R2587

1k

R2585

F15
60R

C1537
100n

16V

A_A[0]
A_A[1]
A_A[2]
A_A[3]
A_A[4]
A_A[5]
A_A[6]
A_A[7]
A_A[8]

A_A[9]
A_A[10]
A_A[11]
A_A[12]
A_A[13]

A_A[14]

A_BA[0]
A_BA[1]
A_BA[2]

A_CKE

A_CA0

A_RASZ

A_CASZ

A_WEZ

A_RET

R2604

240R

R2586

R2584

C1747

C1746

10u

10u

10V

10V

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

J1
L1
M7
L9
T7
J9

M2
N8
M3

J7
K7

K9

L2

J3
K3
L3

T2
L8

1k

1k

C1536

C1518

16V

100n

16V

100n

C1645

C1644

1V5_VCC

A

B

C

A_MCLKZ

56R

R2602

R2601

C1615

D

1V5_MIU0

E

1V5_MIU0

1V5_MIU0
C1538
100n

16V

B2D9G7K2K8N1N9R1R9A1A8C1C9D2E9F1H2

A0
A1

VDD_1

A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12/BC
A13

NC1
NC2
NC3
NC4
NC5
NC6

BA0
BA1
BA2

CK_0
CK_1

CKE

CS

RAS
CAS
WE

RESET
ZQ

A9B3E1G8J2J8M1M9P1P9T1T9B1B9D1D8E2E8F9G1G9

A-MVREFCA

50V

1n

A-MVREFDQ

50V

1n

1V5_MIU0

1V5_MIU0

VDD_9

VDD_8

VDD_7

VDD_6

VDD_5

VDD_4

VDD_3

VDD_2

U72

H5TQ2G63BFR-PB

VSS_8

VSS_7

VSS_6

VSS_5

VSS_4

VSS_3

VSS_2

VSS_1

C1527
100n

16V

close to DDR power pin

VDDQ_6

VDDQ_5

VDDQ_4

VDDQ_3

VDDQ_2

VDDQ_1

VSSQ_2

VSSQ_1

VSS_12

VSS_11

VSS_10

VSS_9

C1526
100n

16V

C1356
10u
10V

H9

VDDQ_8

VDDQ_7

VSSQ_4

VSSQ_3

VDDQ_9

VREF_DQ
VREF_CA

DQSL_0
DQSL_1

DQSU_1
DQSU_0

VSSQ_6

VSSQ_5

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VSSQ_7

C1525

C1524

100n

100n

16V

16V

C1535

C1534

100n 100n

16V

16V

H1
M8

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

F3
G3

B7
C7

E7

DML

D3

DMU

K1

ODT

VSSQ_9

VSSQ_8

C1523

C1522

100n

100n

16V

16V

C1533 C1532
100n

100n 100n

16V

16V

A-MVREFDQ
A-MVREFCA

A_DQL[0]
A_DQL[1]
A_DQL[2]
A_DQL[3]
A_DQL[4]
A_DQL[5]
A_DQL[6]
A_DQL[7]

A_DQU[0]
A_DQU[1]
A_DQU[2]
A_DQU[3]
A_DQU[4]
A_DQU[5]
A_DQU[6]
A_DQU[7]

A_DQSL
A_DQSLB

A_DQSUB
A_DQSU

A_DQML

A_DQMU

A_ODT

C1521

C1520

100n 100n

16V

16V

C1531

C1530
100n 100n

16V 16V

C1519
100n

16V

C1529

16V

C1517
100n

16V

C1528
100n

16V

VGA_R

VGA_G

VGA_B
VGA_HSNC
VGA_VSNC

SC_R

SC_G
SC_B

HP_RIGHT

HP_LEFT

33R

R2427

33R

R2426

68R

R2595

33R

R2430

68R

R2591

33R

R2425

33R

R2428

33R

R2429

SC_PIN8

SC_FB

33R

R2431

47n

C1404

47n

C1402

47n

C1406

47n

C1410

47n

C1403

47n

C1401

47n

C1407

47n

C1409

S231

R2438

33R

A_A[0]
A_A[1]
A_A[2]
A_A[3]
A_A[4]
A_A[5]
A_A[6]
A_A[7]
A_A[8]

A_A[9]
A_A[10]
A_A[11]
A_A[12]
A_A[13]
A_A[14]

A_DQL[0]
A_DQL[1]
A_DQL[2]
A_DQL[3]
A_DQL[4]
A_DQL[5]
A_DQL[6]
A_DQL[7]
A_DQU[0]
A_DQU[1]
A_DQU[2]
A_DQU[3]
A_DQU[4]
A_DQU[5]
A_DQU[6]
A_DQU[7]

A_CASZ

A_RASZ

A_WEZ
A_DQML
A_DQMU

A_ODT

A_BA[0]
A_BA[1]
A_BA[2]

A_RET

A_CKE
A_MCLK

A_MCLKZ

A_DQSL

A_DQSLB

A_DQSU

A_DQSUB

A_CA0

T3
R2
R1
R3
M6
M5

U2
U1
U3
T2
N6
N5

AA6
AA5

R2605

240R

RIN0P
GIN0M
GIN0P
BIN0P
HSYNC0
VSYNC0

RIN2P
GIN2M
GIN2P
BIN2P
HSYNC2
VSYNC2

MSD8842RKM2

EARPHONEOUTR
EARPHONEOUTL

MSD8842RKM2

E13
F14
D12
B12
E17
B13
F16
C13
D16
A14
F18
D15
D17
C14
E15
A22
A18
C21
C17
C22
C16
B23
B17
F20
D21
D19
E23
E21
D22
D20
F22
B11
C10
D13
C18
D23
B10
A11
D18
A12
F12
E19
C15
B15
A21
C20
B20
C19
D14

E11

ET_TX_CLK

ET_TXD[0]
ET_TXD[1]
ET_RXD[0]
ET_RXD[1]

5

U95

CVBS_OUT1

XOUT

U95

B_A[0]
B_A[1]
B_A[2]
B_A[3]
B_A[4]
B_A[5]
B_A[6]
B_A[7]
B_A[8]
B_A[9]
B_A[10]
B_A[11]
B_A[12]
B_A[13]
B_A[14]
B_DQL[0]
B_DQL[1]
B_DQL[2]
B_DQL[3]
B_DQL[4]
B_DQL[5]
B_DQL[6]
B_DQL[7]
B_DQU[0]
B_DQU[1]
B_DQU[2]
B_DQU[3]
B_DQU[4]
B_DQU[5]
B_DQU[6]
B_DQU[7]
B_CASZ
B_RASZ
B_WEZ
B_DQML
B_DQMU
B_ODT
B_BA[0]
B_BA[1]
B_BA[2]
B_RST
B_CKE
B_MCLK
B_MCLKZ
B_DQSL
B_DQSLB
B_DQSU
B_DQSUB
B_CS0

ZQ

RN
RP
TN
TP

ET_COL
ET_MDC

ET_TX_EN

ET_MDIO

DM_P0
DP_P0
DM_P1
DP_P1

CVBS2P
CVBS1P
CVBS0P

VCOM0

1

B5
C5
B4
C4

E8
D7
E7

D10

F9
D8

E9
E10
F10

AB11
AA11
AB10
AA10

V2

V1

T4

V3

T5

S230

47n

C1397

47n

C1405

ET_RN
ET_RP

ET_TN
ET_TP

ET_LED0

ET_LED1

USB1_DN
USB1_DP
USB2_DN
USB2_DP

C1396

47n
47n

C1398

24MHz

2

R2597

C1577
33p
50V

X4

1M

33R

R2423

68R

R2592

3
41

R2422

33R

33R

R2424

C1576
33p
50V

XIN

S404

S405

R2454

75R

DVD_CVBS
SAV_CVBS

A

B

SC_CVBS-IN

CVBS0_OUT

C

D

E

F

VESTEL

SCH NAME :
DRAWN BY :

DDR
<YOUR NAME HERE>

PROJECT NAME :

17mb97-r2

T. SHT:

05-01-2015_15:08

87654321

F

A3

10

AX M

1 2 3 4 5 6 7 8

A

B

C

D

FHD 50Hz 3D FFC

OP_PIN42

OP_PIN43

OP_PIN46

TX_2_CLK_P

TX_2_CLK_N

TX_2_2_P

TX_2_4_N

TX_2_4_P

TX_2_3_P

TX_2_3_N

TX_2_2_N

PANEL_VCC

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

OP_PIN42

OP_PIN45

OP_PIN44

OP_PIN41

OP_PIN40

OP_PIN51

PAN_SCL

PAN_SDA

49

50

51

48

OP_PIN43

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

19" TO 22" DOUBLE LVDS FFC OPTIONS

PANEL_VCC

CN14

OP_PIN9

1

2

3

4

5

TX_2_3_P

TX_2_3_N

TX_2_CLK_N

TX_2_CLK_P

6

7

8

9

10

11

WXGA FFC

OP_PIN9

OP_PIN8

OP_PIN27

SAM

CN15

OP_PIN11

PANEL_VCC

1

2

3

4

5

6

LG

7

CN16

8

1

OP_PIN7

9

10

2

3

11

12

4

5

TX_2_1_N

TX_2_1_P

TX_2_0_P

29

30

31

27

28

29

TX_2_2_P

12

TX_1_3_N

TX_1_3_P

13

14

6

7

OP_PIN27

OP_PIN26

TX_2_0_N

26

27

28

24

25

26

TX_2_2_N

13

14

15

8

TX_1_4_N

TX_1_4_P

24

25

22

23

TX_2_1_P

15

TX_1_CLK_P

16

9

TX_1_CLK_P

TX_1_3_N

TX_1_3_P

20

21

22

23

18

19

20

21

TX_2_1_N

16

17

TX_1_CLK_N

17

18

10

11

TX_1_2_N

TX_1_2_P

TX_1_CLK_N

16

17

18

19

14

15

16

17

TX_2_0_N

TX_2_0_P

18

19

TX_1_2_N

TX_1_2_P

19

20

12

13

TX_1_0_P

TX_1_1_N

TX_1_1_P

13

14

15

11

12

13

TX_1_3_P

20

TX_1_1_P

21

22

14

15

OP_PIN10

OP_PIN11

OP_PIN9

TX_1_0_N

10

11

12

10

TX_1_3_N

TX_1_CLK_P

21

22

TX_1_1_N

23

16

OP_PIN6

OP_PIN8

OP_PIN7

TX_1_CLK_N

23

TX_1_0_P

24

25

17

18

OP_PIN5

24

TX_1_0_N

26

19

OP_PIN4

PAN_SCL

PAN_SDA

123456789

CN17

TX_1_2_P

TX_1_2_N

25

26

27

20

OP_PIN1

123456789

LG BASED 30070519

CN18

PANEL_VCC

SAM BASED 30070519

TX_1_1_P

TX_1_1_N

TX_1_0_P

TX_1_0_N

27

28

29

30

15.6"

OP_PIN5

OP_PIN10

OP_PIN6

28

29

30

21

22

23

OP_PIN26

24

25

26

27

28

29

PANEL_VCC

30

OPTIONS TABLE

3D_SYNC_OUT

PANEL_VCC OP_PIN5

3V3_VCC

PANEL_VCC

PANEL_VCC

MEGA_DCR_IN

PANEL_VCC

MEGA_DCR_OUT

PANEL_VCC

PANEL_VCC

PANEL_VCC

PANEL_VCC

12V_VCC

12V_VCC

3D_EN

PANEL_VCC

12V_VCC

PANEL_VCC OP_PIN43

BACKLIGHT_ON/OFF

DIMMING

PANEL_VCC

S243

R2246

33k

R2317

1 2

10k

R2328

1 2

10k

R2248

33k

R2318

1 2

10k

R2249

33k

R2320

1 2

10k

S244

1 2

R2250

33k

R2321

1 2

10k

S233

R2251

33k

R2322

1 2

10k

R2245

33k

R2319

1 2

10k

R2243

33k

R2315

1 2

10k

R2247

33k

R2316

1 2

10k

R2313

1 2

10k

S235

1 2

S236

1 2

S245

R2252

33k

R2323

1 2

10k

S237

1 2

R2253

33k

R2324

1 2

10k

S238

1 2

S234

1 2

R2244

33k

R2314

1 2

10k

R2312

1 2

10k

12

12

12

OP_PIN6

OP_PIN7

OP_PIN8

OP_PIN9

OP_PIN9

OP_PIN10

OP_PIN11

OP_PIN27

OP_PIN26

OP_PIN40

OP_PIN41

OP_PIN42

OP_PIN44

OP_PIN45

OP_PIN46

12V_VCC

5V_VCC

5V_VCC

F16
60R

F18
60R

F19
60R

PANEL SUPPLY SWITCH

PANEL_VCC_ON/OFF

C1541
100n
16V

1 2

R2264

PAN_SCL

1 2

33k

R2259

1 2

33k

Q29

BC848B

1 2

S251

5V_VCC

3V3_VCC

C1736
100u

16V

100n

25V

220n

C1741
1n
50V

33k

1 2

12

33k

R2255

16V

R2256

R2278

1 2

47R

Q31
BC848B

R2326

10k

12

R2327

C1539

21

C1389

12

10k

PANEL I2C BUFFER

R2260

33k

R2258

33k

PANEL_VCC

5V_VCC

3V3_VCC

PAN_SDA

Backlight On/Off Circuit

C1422

BACKLIGHT_ON/OFF

Q27

BC848B

R2265

1 2

33k

R2261

1 2

33k

10V

100n

nc

R2504

4k7

1 2

C1423

3 4

R2502

4k7

1 2

R2503

4k7

1 2

10V

100n

5

2

Q30

BC848B

S252

TP65

6

Q43

FDC642P

1

PANEL_VCC

12

33k

R2254

BACKLIGHT_ON/OFF

12

10k

R2325

C1542
100n
16V

R2262

1 2

33k

R2263

1 2

33k

R2501

4k7

1 2

MST_BACKLIGHT_ON/OFF

5V_VCC

PANEL_VCC

A

B

PANEL_VCC

C

SYS_SDASYS_SCL

D

3V3_STBY

Dimming

Options Table

E

3V3_VCC

10_BIT PANEL

R2740

1 2

S242

1 2

S241

1 2

TX_1_4_N
TX_1_4_P

3V3_VCC10k

1

1

R2739

1 2

10k

S239
S240

2

2

TX_2_4_N
TX_2_4_P

3D_EN

3V3_VCC

PANEL_VCC

Test Pins

TX_1_0_N
TX_1_0_P
TX_1_1_N
TX_1_1_P
TX_1_2_N
TX_1_2_P

F

TX_1_CLK_N
TX_1_CLK_P

TX_1_3_N
TX_1_3_P
TX_1_4_N
TX_1_4_P

TP53
TP54
TP55
TP56
TP57
TP58

TP64
TP59

TP60
TP61
TP62
TP63

TX_2_0_N
TX_2_0_P

TX_2_1_N
TX_2_1_P

TX_2_2_N
TX_2_2_P

TX_2_CLK_N
TX_2_CLK_P

TX_2_3_N
TX_2_3_P
TX_2_4_N
TX_2_4_P

TP41
TP42
TP43
TP44
TP45
TP46

TP47
TP48

TP49
TP50
TP51
TP52

3V3_VCC

PANEL_VCC

3V3_VCC

R2329

1 2

10k

R2330

1 2

10k

R2257

33k

R2331

1 2

10k

R2335

1 2

10k

R2336

1 2

10k

R2333

1 2

10k

R2266

33k

R2332

1 2

10k

R2334

1 2

10k

OP_PIN26

OP_PIN4

OP_PIN13D_EN

OP_PIN51

OP_PIN27

3D ENABLE

R2507

12

4k7

R2509

5V_VCC

3V3_VCC 3D_EN

4k7

R2506

4k7

BC848B

12

12

Q28

S250

3

2

1

nc

4k7

1 2

R2505

C1540
100n
16V

4k7

1 2

R2508

3D_ENABLE

3V3_VCC

BACKLIGHT_DIM

MEGA_DCR_IN

MEGA_DCR_OUT

S247

R2685

1 2

10k

NC

S248

TP40

3V3_VCC

S249

R2499

1 2

4k7

VESTEL

SCH NAME :
DRAWN BY :

1k

R2286

1 2

S246

Q25
BC848B

LVDS
<YOUR NAME HERE>

R2498

1 2

4k7

C1675

21

220p

50V

R2500

1 2

4k7

C1676

21

220p 50V

PROJECT NAME :

BC858B
Q54

R4

45

R3

3

6

R2

2

7

R1

1

8

100R

Q26

R2660

BC848B

17mb97-r2

DIMMING

C1723
10u
16V

T. SHT:

31-12-2014_10:42

87654321

E

F

A3

10

AX M

1 2 3 4 5 6 7 8

CN12

12 11

10 9

8 7

A

6 5

4 3

2 1

CN11

1

TP75

TP76

2 1

4 3

1

6 5

8 7

10 9

B

S390

S391

12 11

3D_EN

3D_ENABLE

S392

S393

power_pin3

3D_BOOST

S262

S261

power_pin9

S254

C

12V_VCC SWITCH

12V_STBY

C1390

D

MOSFET_CONTROL

R2338

12V_STBY

power_pin9

DIMMING

BACKLIGHT_ON/OFF

power_pin3

power_pin1

power_pin9

DIMMING

BACKLIGHT_ON/OFF

power_pin3

S258

power_pin1

1

TP77

STBY_ON/OFF

STBY_ON/OFF_NOT

5V_STBY

21

25V

220n

12

10k

12V_STBY

S342

12

33k

R2268

R2280

1 2

12

33k

R2269

Q33
BC848B

47R

24V_VCC_AU

S343

S344

5

3 4

2

6

FDC642P

1

Q44

12V_STBY

10k

R2339

TPS_ENABLE

VFB

C1567
1u
16V

12V_VCC

100n

16V

12

C1452

C1550

1

2

3

4

8n2

C1445
10u
16V

50V

C1391
220n

C1443
10u
16V

R2340

1 2

10k

EN

U63

VFB

TPS54528

VREG5

VSS

F20
60R

25V

S345

S341

VIN

VBST

SSW

GND

C1392
220n
25V

C1572

3n3

50V

3V3_VCC STEP-DOWN

FS3

7A/32VDC

12V_VCC

STBY_ON/OFF_NOT

100n

16V

8

7

6

5

C1546

C1543

100n

C1616

10n

16V

R2542

3R3

100n

16V

16V

C1446
10u
16V

C1545

L28

10u

D57

SK24

R2543

3R3

2

1

S264

12V_STBY

12V_VCC

C1444
10u
16V

10u L27

C1357

10u

10V

C1573

3n3

1
2
3
4

L29

10u

5V_STBY

R2337

50V

TPS54329E

VBST
VIN
SW
GND

R2270

33k

R2267

33k

10k

U70

12

R2468

120k

6V322u

33p

C1578

D49

C1571

R2

TP69

1

R2510

4k7

100n

16V

C5V6

C1544

VFB

R2469

22k

S346
S138

R1

5V_STBY STEP-DOWN

C1598

470n

6V3

F30

330R

6

1

47R

R2345

12

10k

C1424

10V100n

21

S259

R2578=6.8K (30022069)
R2577= 22K(30022140)
R2576=470R (30022003)

C1363

C1361

10u

10u

10V

10V

5

43

TP66

2

100n

C1548

16V

R2578

R2342

1 2

SS
EN

VREG5

VFB

R2576

10R

C1358
10u
10V

12

12

1k

R2287

10k

Q32
BC848B

8
7
6
5

R2577

C1364
10u
10V

Q56

NTGS3446

1 2

4k7
R2

R2279

1k8

R1

D51

C1359
10u
10V

5V_STBY

C1360
10u
10V

3V3_VCC

3V3_VCC

1

TP81

C5V6

5V_VCC

STBY_ON/OFF

STBY_ON/OFF_NOT

5V_STBY

S263

S253

12V_VCC

C1365
10u
10V

IN OUT

3 2

MOSFET_CONTROL

10n

2

C1815

C1813
10u
16V

C1816
220n

25V

F76
60R

C1817
220n
25V

50V

S383

3n3

S340

U94

LM1117

ADJ

1234

U97

LM1117

VOUT

3V3_STBY LDO

3V3_STBY

C1362

C1800

10u

10u
10V

D50

10V

OUTIN

GND

VOUT

4

1

3V3_VCC

S379

C1750
10u
10V

1V3_VCC_SAT LDO

C1371
10u
10V

S364

3V3_VCC

1V15_POK

S268

1V15_VCC LDO

16V

1

C1814

R2765

10u
16V

3R3

C1806

3V3_STBY

C5V6

3V3_VCC

R2707

4k7

R2706

4k7

5V_VCC

3V3_VCC

R2513

4k7

R2514

4k7

5V_VCC

1
2
3
4

nc

12

nc

12

nc

12

nc

12

R2742

1 2

10k

R2741

1 2

10k

U96

TPS54329E

VBST
VIN
SW
GND

L36

VREG5

VFB

R2766

SS
EN

10R

10u

C1801
10u
10V

R2709

47R

1

2

3

4 5

1

2

3

4 5

POK

U89

EN

APL5910

VOUT

VIN

R2669

47R

POK

U65

EN

APL5910

VOUT

VIN

GND

FB

NCVCNTL

GND

FB

NCVCNTL

8
7
6
5

8

7

6

8

7

6

R2

C1804
10u
10V

1V15_VCC

1V5_VCC STEP-DOWN

21

10V

100n

C1805

C1818

470n

6V3

22k

R2768

F77

330R

1V3_SAT_VCC

R2703

22k

R2708

12k

R1

C1748
10u
10V

R2473

22k

R2617

12k

R1

C1373
10u
10V

S382

C1803
10u
10V

C1749
10u
10V

R2

C1372
10u
10V

R2767

24k9

R1

R2= 22K(30022140)
R1=24.9K(30061016)

C1802
10u

D85

10V

R2695

R2

1k

C1767
100n

1V3_SAT_VCC

R2473=27K 30022137
R2290= 330R 30073653

R2290

1k

C1426
100n

1V15_VCC

C1370
10u
10V

R2473=27K 30022137
R2290= 330R 30073653

C5V6

1V15_VCC

A

1V5_VCC

B

C

D

5V_VCC SWITCH

R2663=82K (30022122)

S273=1.3K (30061014)

COMMON

16V

C1617

10n

1

SS

U88

2

IN

MP1498

3

SW

EN/SYNC

4

GND

MP2234 kullanilacak

CN4

1 12V_INV

2

3

4

5

6

3V3_VCC

S384

Q60
BC848B

F21
60R

C1447
10u
16V

TPS_ENABLE

Q59
BC848B

10k

R2744

39k

R2762

12V_VCC

1V26_VCC STEP-DOWN

10k

R2743

10k

Q35

BC848B

S255

S256

22k

R2687

5

6

Q45

FDC642P

1

3 4

2

5

6

Q48

FDC642P

1

3 4

2

TP80

7A/32VDC

FS1

FS2

12V_STBY

12V_INV

5V_STBY

7A/32VDC

ADAPTER PROTECTION

S265

6

FDC642P

1

6

FDC642P

1

R2349

1 2

10k

R2348

1 2

10k

S257

5

2

1 2

5

2

3 4

R2347

10k

3 4

22k

R2471

1k2

R2547

R2346

1 2

10k

R2470

R2544

22k

2k2

R2288

1 2

1k

C1393

Q34

220n

BC848B

12

R2341

10V

E

Q47

TP70

5

4

F

JK13

3

2

TP85

TP79

TP78

Q46

1

8

FB

C1553

7

VCC

6

5

BST

TP88

TP86

DIMMING

BACKLIGHT_ON/OFF

TP87

TP82

16V

100n

R2352

1 2

10k

22R

R2648

100n

16V

R2474

22k

10k

1 2

R2351

C1554

2U2 olacak

STBY_ON/OFF

12V_VCC

N.C.

C1611

10u

L30

10u

3V3_STBY

C1740

N.C.

15p

50V

R2670

R2

6V3

VESTEL

SCH NAME :
DRAWN BY :

47k

R2350

C1551

10k

1 2

21

C1610

100n

10u
6V3

1 2

R2343

1 2

10k

16V

100n

10V
10u
C224

16V

R2344

10k

C1555

2

PROJECT NAME :

POWER
<YOUR NAME HERE>

10V
10u
C1374

STBY_ON/OFF_NOT

3

Q36
BC848B

1

15k

R2663

R1

S273

Q61

BSN20

1V26_VCC

17mb97-r2

15k

R2761

S385

R2764

4k7

1

TP68

1

TP67

1

TP74

1

TP73

1

TP84

1

TP72

1

TP83

1

TP91

05-01-2015_08:26

87654321

3V3_STBY

10k

R2745

1 2

VID

VID

5V_STBY
3V3_STBY

12V_VCC

5V_VCC
3V3_VCC

1V5_VCC
1V26_VCC
1V15_VCC

T. SHT:

E

F

A3

10

AX M

A

B

C

D

E

F

1 2 3 4 5 6 7 8

SCART

21

TP94

SC_CVBS-IN_pin20

SC1

VGA CONNECTOR

20

19

18

17

16

15

14

13

12

11

SCART LT1

10

9

8

7

TP98

6

5

4

3

2

1

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CN23

TP107

TP109

TP108

TP102

TP93

TP92

TP99

TP100

TP101

D67

S277

TP95

TP156

S274

TP157

TP1051TP1041TP103

8

1

TP97

TP96

S275

C1691
330p
50V

C1690
330p
50V

D68

1

1

TP110

1

1 2

S282

1 2

S281

1 2

S280

7

6

3

2

S276

75R

1 2

R2609

8

7

2

1

VGA_DDC_5V

TP158

54

75R

12

R2608

33p

C1796

SCART_AUD_L_IN

SCART_AUD_R_IN

6

54

3

1 2

S279

1 2

S278

8

7

2

1

50V

F56

1k

CDA4C16GTH

10k

R2355

1 2

12

2k2

R2545

Close to MST IC

Close to MST IC

5

4

321

D76

NUP4004M5

6

54

3

R2558

1 2

100R

C1689

4n7 50V

10k

R2357

R2356

1 2

1 2

R2561

R2562

1 2

R2563

1 2

R2560

12

Close to MST IC

2k2

R2546

D66

CDA4C16GTH

75R

R2611

50V

33p

C1583

75R

R2607

F55

1k

10k

nc

Close to MST IC

560R

100R

100R

560R

12

R2612

D74

12

D79

C15V

C1427

SC_B

12

100n

SC_AUD_R_OUT

C1428

2

100n

1

10V

12

75R

75R

R2613

21

AZ5125-01J

50V

33p

C1579

SC_R

75R

R2637

R2362

10k

2 1

10V

R2559

1 2

100R

C1688

4n7

SC_CVBS-IN_pin20

50V

SCART_AUD_L_IN

SCART_AUD_R_IN

12

75R

R2614

C1582

12

33p
50V

75R

R2610

Close to Chip side

SC_CVBS-IN

50V

33p

SC_CVBS_OUT

C1580

47R

12

R2281

SC_FB

UART-TX

50V

33p

C1581
R2638

75R

SC_G

UART-RX

SC_PIN8

5k1

R2606

2.7k

SC_AUD_L_OUT

INDIA OPTION

4

YEL

3

WHT

2

RED

1

5V_VCC

D75

BAV70

VGA_DDC_5V

VGA_VSNC

PC_SCL

PC_SDA

VGA_HSNC

VGA_B

VGA_G

VGA_R

JK14

SCART CVBS OUTPUT

SC_CVBS_OUT

SCART AUDIO FILTER

SCART_AUD_L_IN

SCART_AUD_R_IN

SAV Slim INPUT

S403

YEL

S400

JK15

WHT

RED

1

2

3

4

S395

5

SAV_CVBS

S398
S396

S397

SAV_OPT2

SAV_R

SAV_OPT1

SAV AUDIO FILTER

SAV_AUD_L_IN

SAV_AUD_R_IN

DVD CONNECTION

DVD_SENSE

10V

100n

1 2

12

21

4k7

C1432

R2518

DVD_SPDIF

R2354

10k

10k

R2353

SAV_L

DVD_CVBS

R2567

100R

R2272

R2618

R2359

10k

10k

R2358

33k

12k

SAV_L

SAV_R

D56

R2619

TP114

C5V6

R2596

68R

12k

TP113

12k

R2620

50V

220p

C1681

C1726
560p
50V

75R

1 2

SAV_L

TP112

TP111

SAV_R

R2621

R2455

NC

R2639

180R

TP123

TP124

R2566

1 2

100R

CVBS0_OUT

SC_AUD_L_IN

SC_AUD_R_IN

C1727
560p
50V

R2615

C1677

D54

C5V6

F58

1k

F57

1k

12k

75R

TP127

21

C1729
560p
50V

50V

220p

C1575

3n3

C1574

3n3 50V

C1728
560p
50V

TP122

50V

220p

C1680

50V

SAV_L_IN

SAV_R_IN

CN24

21

43

65

87

109

SAV_CVBS

SAV_AUD_L_IN

SAV_AUD_R_IN

C1449

10u

16V

TP125

1 2

S286

21

50V

27p

C1698

TP121

1

N.C.

1 2

S288

DVD_IR
TP126

HP_OUT_L

HP_OUT_R

C18V

DVD_Power

DVD_WAKEUP

JK18

R2283

R2285

1

2

6

3

4

5

7

TP115

JK16

TP116

SLIM HEADPHONE OUTPUT

21

47R

47R

47R

R2284

NC NC

47R

R2282

S285

S284

TP119

10k

R2361

1 2

10k

R2360

1 2

C1619
10n
16V

C1618
10n
16V

C1678

TP117

R2565

100R

220p

21

C1679

50V

TP118

50V

220p

3V6 lik zener kullanilmali

D55

C5V6

SAV_OPT2

S394

F80

1k

SAV_L

F79

1k

SAV_OPT1

SAV_CVBS

HP_DETECT

4k7

R2517

1

SAV_R

SPDIF OUT

SPDIF_COAX

3

2

1

C1431

100n

Q38

BC848B

10V

220R

R2646

220R

R2645

IR_IN

DVD_Power

DVD_IR_ON/OFF

PROJECT NAME :

SCART_AV_INOUT
<YOUR NAME HERE>

10V

C1692

12

4k7

R2515

100n

12

4k7

R2516

22p

50V

C1429

10V

1

Q39

BC848B

R2458

C1693
22p
50V

3

2

47k

1 2

17mb97-r2

1

2

SPDIF_COAX
3
1

1

C1631

Close to FS

10u

12V_VCC

5V_VCC

SPDIF_COAX

25V

FB1

R2644

220R

C1694 22p

50V

S283

!

FS4D77

4A/24VDC

FS5

4A/24VDC

VESTEL

SCH NAME :
DRAWN BY :

VIN

VCC

GND

100n

C1430

TP120

3V3_VCC

F59

1k

R2564

100R

N.C.

S287

1 2

1

2

6

3

4

JK17

5

7

5V_VCC

SPDIF_OUT

DVD_IR

R2520

12

12

4k7

R2519

T. SHT:

05-01-2015_16:55

87654321

A

B

C

D

E

3V3_VCC4k7

3V3_STBY

F

A3

10

AX M

1 2 3 4 5 6 7 8

1

TP143

TP142

1

TP138

1

1

C1380
10u
10V

System_rst

R2226

100k

S369
S368

S351
S352

TP139

F34

330R

C1381
10u
10V

TP141

TP140

C1378

10u
10V

RESET_HUB

S380

5V_VCC

20

21

VCC_D

OVR#3

CY7C65642

D-

D+

2

1

S350

S349

3V3_VCC

USB2_DN

USB2_DP

19

OVR#4

DD-1

3

100k

R2229

3V3_HUB

R2523

U73

USB_VCC

R2636

1 2

10R

R2634

1 2

10R

F33

330R

R2711

C1433

12

100n

4k7

17

18

RESET#

TEST/I2C_SCL

DD+1

VCC_A1

5

4

100k

R2230

3V3_HUB

3V3_HUB

USB_WIFI_DN

USB_WIFI_DP

USB_OPT_DP

USB_OPT_DN

USB & WIFI

R2633

1 2

R2635

1 2

10R

USB1_DP10R

USB1_DN

USB_CON2_DP

USB_CON2_DN

USB_VCC1

5V_VCC

USB_ENABLE

5V_VCC

USB_ENABLE

12

4k7

10V

16

DD+4

DD-2

6

15

DD-4

DD+2

7

R2234

100k

R2231

100k
S360

S359

VCC_A3

VCC_A2

DD+3

DD-3

XOUT

XIN

REF

USB_CON2_DP

USB_CON2_DN

14

13

12

11

10

9

8

TP134

USB_BT_DP

USB_BT_DN

USB_BT_DP

USB_BT_DN

TP133
TP132

S353

S354

TP131

S366

S367
F26
60R

C1379
10u
10V

C1557

100n

16V

VESTEL

SCH NAME :
DRAWN BY :

C1668

16V

100n

33R

C1669

100n

33R

3V3_HUB

R2439

R2440

16V

1

IN

2

GND

TPS2553-1

3

EN

1

IN

2

GND

TPS2553-1

3

EN

5V_VCC

U75

U77

3V3_HUB

USB_WIFI_DP

USB_WIFI_DN

1M

3V3_HUB

R2649

680R3V3_HUB

1

S381

CN25

21

1

1

43

65

87

100n
16V

109

C1560C1559
100n
16V

1

C1558
100n
16V

PROJECT NAME :

HDMI_USB
<YOUR NAME HERE>

6

OUT

ILIM

FAULT

OUT

ILIM

FAULT

F28
60R

F23
60R

USB_VCC

5

560R

R2656

4

560R

R2657

6

USB_VCC1

5

560R

R2659

4

560R

R2658

USB_VCC15V_VCC

USB_VCC

12MHz Kullanilacak

30068172

C1383

18p

50V

24MHz

2

3
4 1

R2598

X5

C1384
18p

GND1

50V

C1706

10u

16V

F32

330R

F31

330R

1

TP135

3D_SYNC_OUT

1

TP159

1

TP130

3V3_HUB

C1562

C1561

100n

100n

16V16V

17mb97-r2

87654321

5V_VCC

3V3_VCC

A3

T. SHT:

10

05-01-2015_15:03

A

B

C

D

E

F

AX M

CN20

CN37

A

21
20

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

B

CN21

CN35

C

21
20

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

CN22

CN36

D

21
20

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

E

CEC0

HOTPLUG

HDMI0_HPDIN

F

HDMI Connector

HDMI0

F39

F36
90R
90R

1

4

FR1

1

4

FR1

23

FR2

23

FR2

S312

S313

10R

1 2

R2630

47k

47k

R2463

S289

Q40

BC848B

F40

4
4

R2461

F41

4
4

1 2

90R
90R

FR1
FR1

FR2
FR2

47k

1 2

90R
90R

FR1
FR1

FR2
FR2

47k

R2466

1 2

3

1

R2459

1 2

HDMI1

F37

1
1

23
23

1 2

47k

R2460

1 2

HDMI3

F38

1
1

23
23

47k

R2467

1 2

CEC

R2291

1 2

2

1 2

1k

S299

10R

R2631

S296

1 2

R2632

R2292

1k

S298

47k

R2462

1 2

S297

10R

R2464

1 2

1

8

HDMI0_RX0N

HDMI0_RX0P

HDMI0_RX1N

HDMI0_RX1P

HDMI0_RX2N

HDMI0_RX2P

HDMI0_CLKN

HDMI0_CLKP

HDMI0_SDA

HDMI3_RX0N

HDMI3_RX0P

HDMI3_RX1N

HDMI3_RX1P

HDMI3_RX2N

HDMI3_RX2P

HDMI3_CLKN

HDMI3_CLKP

HDMI3_SDA

HDMI1_RX0N

HDMI1_RX0P

HDMI1_RX1N

HDMI1_RX1P

HDMI1_RX2N

HDMI1_RX2P

HDMI1_CLKN

HDMI1_CLKP

HDMI1_SCL

HDMI1_SDA

HOTPLUG1

HDMI0_ARC

DVD_SPDIF
SPDIF_OUT

3V3_VCC

HDMI0_SCL

HOTPLUG0

HDMI3_SCL

HOTPLUG3

C1717

1u 6V3
CEC

R2442

33RHP_DETECT

47k

HDMI0_RX2P

HDMI0_RX2N
HDMI0_RX1P

HDMI0_RX1N
HDMI0_RX0P

HDMI0_RX0N
HDMI0_CLKP

HDMI0_CLKN
CEC0

HDMI0_SCL
HDMI0_SDA

HDMI0_5V
HDMI0_HPDIN

3

2

1

D71

8

7

CDA4C16GTH

6

5 4

HDMI1_RX2P

HDMI1_RX2N
HDMI1_RX1P

HDMI1_RX1N
HDMI1_RX0P

HDMI1_RX0N
HDMI1_CLKP

HDMI1_CLKN
CEC0

HDMI1_SCL
HDMI1_SDA

HDMI1_5V
HDMI1_HPDIN

3

2

D70

7

CDA4C16GTH

5 4

6

HDMI3_RX2P

HDMI3_RX2N
HDMI3_RX1P

HDMI3_RX1N
HDMI3_RX0P

HDMI3_RX0N
HDMI3_CLKP

HDMI3_CLKN
CEC0

HDMI0_ARC

47k

R2465

1 2

HDMI3_SCL
HDMI3_SDA

HDMI3_5V
HDMI3_HPDIN

3

2

1

D69

8

7

CDA4C16GTH

6

5 4

AUVRM

AUVAG

HDMI0_5V

HDMI1_HPDIN

1k2

R2548

Q41

BC848B

HOTPLUG0 HOTPLUG1

R2293

1 2

1k

3

1

R2294

2

1 2

1k

33R

R2686

R2710

33RS2_RESET

R2364

10k

HDMI1_5V

1k2

R2549

0R

12

HP_LEFT

HP_RIGHT

MAIN_L
MAIN_R

SC_DAC_L
SC_DAC_R

M2

A_RX0N

N3

A_RX0P

N2

A_RX1N

P3

A_RX1P

P2

A_RX2N

P1

A_RX2P

M3

A_RXCKN

M1

A_RXCKP

M4

DDCDA_CK

L5

DDCDA_DA

L6

HOTPLUGA

F2

D_RX0N

G3

D_RX0P

G2

D_RX1N

H3

D_RX1P

H2

D_RX2N

H1

D_RX2P

F3

D_RXCKN

F1

D_RXCKP

H4

DDCDD_CK

H6

DDCDD_DA

H5

HOTPLUGD

J2

B_RX0N

K3

B_RX0P

K2

B_RX1N

L3

B_RX1P

L2

B_RX2N

L1

B_RX2P

J3

B_RXCKN

J1

B_RXCKP

K5

DDCDB_CK

L4

DDCDB_DA

J4

HOTPLUGB

J5

PAD_ARC0

J6

CEC

D4

SPDIF_IN

E4

SPDIF_OUT

AA4

DDCDC_DA/GPIO

AC10

DDCDC_CK/GPIO

C1587 C1585

1n
50V

C1730

C1662

4u7

1u

6V3

6V3

Close to MST IC
with width trace

HDMI3_HPDIN

LINE_IN_1L
LINE_IN_1R
LINE_IN_2L
LINE_IN_2R

LINE_OUT_0L
LINE_OUT_0R
LINE_OUT_2L
LINE_OUT_2R

I2S_OUT_BCK
I2S_OUT_MCK

I2S_OUT_WS
I2S_OUT_SD

I2S_IN_WS

3

I2S_IN_BCK

U95

I2S_IN_SD

MSD8842RKM2

C1584C1586

1n

1n
50V

CLOSE TO MST

ferrite bead

S370

Q42

BC848B

1n

50V

R2295

1 2

3

2

1

VAG
VRM

SPI1_D1
SPI1_CK
SPI2_DI
SPI2_CK

IRIN

RESET

XTALIN

XTALOUT

GND_129
GND_130

1k

R2296

1 2

1k

C1778

1n
50V50V

Y4
Y5
W5
W4

W6
Y6
Y3
W2
Y1
Y2

A6
C6
B6
A5

D6
E6
D5

P18
P17
P19
P16

F6

D3

AC3
AB3

F11

P9

C1779
1n
50V

HDMI3_5V

1k2

R2550

C1732

2u2 C1731

C1734

2u2

100R

HOTPLUG3

2u2

C1733

2u2

AUVAG
AUVRM

100R

R2726

100R

TP173
TP174

SPI_SDO_BS
SPI_XCS_BS
SPI_SCL_BS
SPI_SDI_BS

R2551

100R

C5V6

D47

System_rst

XIN
XOUT

R2435

33R

R2434

33R

R2433

33R

R2432

33R

R2571

R2569

AUWS_IN

SC_AUD_L_IN
SC_AUD_R_IN

SAV_L_IN
SAV_R_IN

SC_DAC_L
SC_DAC_R

MAIN_L
MAIN_R

R2570

100R

R2568

100R

IR_IN

C1711
12p
50V

AOBCK

AOMCLK

AOLRCK

AOSDATA0

3V3_STBY

3V3_HUB

3V3_HUB

USB_CON2_DN
USB_CON2_DP

C1606
10u

6V3

27k

R2603

R2227

100k

R2235

100k

USB_CON2_DP

4

3

2

1

CN30

4

3

2

1

CN29

R2552

100R

D48

C5V6

3V3_HUB

NC

R2228

100k

R2233

100k

R2232

100k

USB_BT_DN

USB_BT_DP

S401
S402

USB_CON2_DN

1

1

C1377

10u
10V

1

TP137

1

RESET_HUB

C1568

16V 1u

22

SELFPWR

23

GANG

24

OVR#2

25

OVR#1

26

PWR#/I2C_SDA

27

VCC

28

VREG

USB_OPT_DN

USB_OPT_DP

TP136

1 2 3 4 5 6 7 8

3

GNDRST

R2662

39k

R2664

15k

R2647

220R

R2381

AUX_RESET

R2448

33R

10k

PWM_PM

AUWS_IN

24V_VCC_AU

12V_VCC

5V_VCC

C1563
100n
16V

A

B

C

PWM_OUT_LED3

R2671

A

VSYNC_BS

BACKLIGHT_DIM

3D_SYNC_OUT

HSYNC_BS

PWM_PM

B

UART-RX

PC_SDA

1 2

3V3_VCC
3V3_VCC

S324

SYS_SCL
SYS_SDA

R2521

R2522

UART-TX

4k7

C

R2728

PM7

33R
4k7

33R

R2729

R2738

PM7

AMP_RST

DVD_IR_ON/OFF

HP_AMP_MUTE

LED2

HDMI3_5V

R2683

33R

R2446

33R

KEYBOARD

FLASH-WPN1

AUX_RESET

SPI-CS1N
SPI-CS2N

PC_SCL

4k7

VID

TX_HOTEL

TOUCHPAD_SCL

TOUCHPAD_SDA

LED1

STBY_ON/OFF

RX_HOTEL

DVD_WAKEUP

AMP_MUTE

33R

R2444

PM_LED

R2676

33R

SPI-SCK
SPI-SDI
SPI-SDO

S323

1 2

R2437
R2436

TP129
TP128

33R
33R

1 2

R2367

1 2

R2372

1 2

W20

PWM0

U22

PWM1

V23

PWM2

V22

PWM3

V21

PWM4

F4

PWM_PM

D2

SAR0

F8

SAR1

G7

SAR2

E3

SAR5

C1

PM_SPI_CK

C3

PM_SPI_DI

B1

PM_SPI_DO

B2

PM_SPI_CZ1N(PM6)

B3

SPI_CZ2N_PM10

E2

DDCA_CK/UART0_RX

E1

DDCA_DA/UART0_TX

L17

DDCR_CK

L18

DDCR_DA

L19

UART_RX2

L20

UART_TX2

W8

GPIO_PM0

A3

GPIO_PM1/PM_UART_TX

K6

GPIO_PM2

V8

GPIO_PM3

E5

GPIO_PM4

A2

GPIO_PM5/PM_UART_RX

W3

GPIO_PM7/CHIP_CONFIG

W10

GPIO_PM8

W9

GPIO_PM9

Y9

GPIO_PM11

AB9

GPIO_PM12

G5

GPIO_PM13/MHL_CABLE_DETECT

F5

GPIO_PM14/MHL_VBUS_EN

V10

GPIO_PM15

G6

PM_LED/CHIP_CONFIG

10k

10k

10k

3V3_VCC

3V3_VCC

3V3_VCC

4

U95

MSD8842RKM2

LVB0N
LVB0P
LVB1N
LVB1P
LVB2N

LVB2P
LVBCLKN
LVBCLKP

LVB3N

LVB3P

LVB4N

LVB4P

LVA0N

LVA0P

LVA1N

LVA1P

LVA2N

LVA2P
LVACLKN
LVACLKP

LVA3N

LVA3P

LVA4N

LVA4P

LDE/GPIO

LCK/GPIO
LVSYNC/GPIO
LHSYNC/GPIO

TCON0/GPIO
TCON1/GPIO
TCON2/GPIO
TCON3/GPIO
TCON4/GPIO
TCON5/GPIO
TCON6/GPIO
TCON7/GPIO

H22
J21
J22
J23
K21
K23
K22
L21
L22
M21
M22
M23

N21
N23
N22
P21
P22
R21
R22
R23
T21
T23
T22
U21

G22
H21
G23
G21

J18
J19
J17
K19
J20
K20
K18
K17

1 2

S386

1 2

S387

1 2

S388

1 2

S389

R2449

R2450

33R PROTECT

1 2

1 2

1 2

TX_2_4_P
TX_2_4_N
TX_2_3_P
TX_2_3_N
TX_2_CLK_P
TX_2_CLK_N
TX_2_2_P
TX_2_2_N
TX_2_1_P
TX_2_1_N
TX_2_0_P
TX_2_0_N

TX_1_4_P
TX_1_4_N
TX_1_3_P
TX_1_3_N
TX_1_CLK_P
TX_1_CLK_N
TX_1_2_P
TX_1_2_N
TX_1_1_P
TX_1_1_N
TX_1_0_P
TX_1_0_N

3D_ENABLE33R

DVD_SENSE

3D_BOOST

R2380

10k

R2365

10k

R2368

10k

R2769

1 2

10k

PCM_PWR_CTL
PANEL_VCC_ON/OFF

MST_BACKLIGHT_ON/OFF
USB_ENABLE

3V3_VCC

3V3_VCC

3V3_VCC

3V3_VCC

DEBUG:RESET FOR MCP DEMOD

TP153

R2775

12

4k7

VCC

U86

MAX809LTR

R2773

4k7

2 1

12

4k7

R2774

1 2

R2378

1 2

10k

D

R2375

1 2

10k

R2374

1 2

10k

R2376

1 2

10k

R2746

1 2

10k

R2747

1 2

10k

3V3_STBY

3V3_STBY

3V3_STBY

3V3_STBY

3V3_STBY

3V3_STBY

SPI-SDO

UART-RX

UART-TX

TOUCHPAD_SDA

LED2

R2748

1 2

10k

R2371

1 2

10k

R2370

1 2

10k

R2369

1 2

10k

R2373

1 2

10k

3V3_STBY

3V3_STBY

3V3_STBY

3V3_STBY

3V3_STBY

3V3_VCC

R2675

10k

R2674

10k

VSYNC_BS

HSYNC_BS

12

12

SPI_SCL_BS

SPI_SDI_BS

SPI_SDO_BS

SPI_XCS_BS

33R

33R

R2678

R2679

33R

33R

33R

33R

R2677

R2680

R2681

R2682

CN38

1

2

3

4

5

6

7

D

8

R2672

3V3_VCC

E

IC Configuration Selection

R2730

4k7

R2731

F

4k7

3V3_STBYPM7

SPI-SDI 3V3_STBY

NC

51 boot from SPI: 4b' 1000 (default)
MIPS boot from ROM: 4b' 1011

R2733

NC NC NC

4k7

R2732

4k7

R2735 R2736

4k7

R2734

4k7

10k

R2673

10k

3V3_STBY

12

12

E

4k7

R2737

4k7

3V3_STBYPM_LED PWM_PM

F

VESTEL

SCH NAME :
DRAWN BY :

MAIN_GPIO
<YOUR NAME HERE>

PROJECT NAME :

17mb97-r2

05-01-2015_16:56

87654321

A3

T. SHT:

10

AX M

1 2 3 4 5 6 7 8

CN34

657498

27p

C1782

GND1

50V

NC

50V

1n

1n

50V

C1776

GND1

3 2

3V3_SAT_VDDA1

27p

C1783

C1777

C1786

1

3p3

50V

27MHz

3V3_SAT_VDD

1n

50V

C1774

C1773

12

50V
2p2F

S375

C1763

10V

100n

41

3

X7

2

3V3_SAT_VDDA1

1V3_SAT_VCC

1n

50V

C1775

100pF

C1761

10V

LNB_OUT

1n

50V

D83

PESD9N5VH

50V

100p

50V

C1781

0p5 C1785
2pF

C1780

100p

50V

C1772

10nF

D82

PESD9N5VH

100n

C1760

R2704

1 2

4k7

R2705

1 2

4k7

LNB_OUT

D84

C1753

PESD9N5VH

1n 50V

10V

100n

S2_RESET

C1770
10p
50V

20pF 20pF

1

2

3

4

5

6

7

8

9

10

11

12

C1769
10p
50V

10V100n

48

VDDA5

LNA_IP

LNA_IN

TEST0

CAP

VDDA1

XTAL_OUT

XTAL_IN

CLK_OUT

VDDA2

GNDD1

VCC1

RESETN

SDA

13

33R

R2701

I2CM_SDA

47

VDDA4

SCL

14

33R

R2702

I2CM_SCL

3V3_SAT_VDDA

46

45

TEST2

VDDA3

VCC2

GNDD2

15

16

100n 10V

C1759

1V3_SAT_VCC

3V3_VCC

1V3_SAT_VCC

C1755

100n 10V

44

43

42

VCC5

GNDD5

TEST3

U90

M88RS6000

M_DATA0

TEST1

VDDD

17

18

19

C1758

10V100n

3V3_SAT_VDD

F70

220R

12

41

40

IT_LOCK

ADDR_SEL1

M_DATA2

M_DATA1

20

21

321

R4R3R2

33R

5 4

TS1_D0

TS1_D1

S374

TS1_D2

C1793
100n

39

38

OLF

LNB_EN

DISEQC_IN

DISEQC

M_SYNC

M_VALID

M_DATA7

M_DATA6

M_DATA4

M_DATA3

22

23

R1

R2697

876

TS1_D3

VSEL

VCC4

GNDD4

M_ERR

M_CLK

GNDD3

VCC3

M_DATA5

33R

R2696

C1794
100n

10V10V

37

24

R4R3R2

5 4

TS1_D4

36

35

34

33

32

31

30

29

28

27

26

25

321

TS1_D5

DISEQC_OUT

R2698

33R

R2699

33R

R2700

33R

C1757

R1

876

TS1_D6

TS1_D7

3V3_SAT_VDDA1

100n

NC

100n
10V

C1756

10V

1V3_SAT_VCC

C1768

10p

TS1_CLK

TS1_SYNC

TS1_VLD

1V3_SAT_VCC

A

B

C

D

L33

R2600

I2CM_SDA

I2CM_SCL

4k7

4k7

R2535

1 2

47p
50V

D72

AZ5425-01F

50V

1n

C1648

12n

1M

10V

100n

D_IF_AGC

C264

1u

C263

1u

C1725

3V3_TUNER

10u
16V

21

C1696

22p

50V

F61

1k

F60

1k

L32

12n

D78

C1434

4 3

C1695

22p

50V

ESD0P8RFL

21

C89

100n

R22

100R

MXL661_RST

C1703C1702
47p
50V

16V

C1704
47p
50V

L10

390n
C1719

82p

50V

L9

220n

220nH

C1720
180p
50V

C1685
100p
50V

NC

R2572

100R

R2573

100R

CLOSE TO DEMOD

390nH

0.7pF

IF_AGC

VDD_1V8

R2451

33R

C1699
27p
50V

2

10nF

C1718
1u
6V3

R14

360R

X3

16Mhz

C1714

2n2

50V

S326

4

F45

1

41

27MHz

3

100n

16V

C269

MST_IF_N

MST_IF_P

GS1

2 3

I2CM_SCL

I2CM_SDA

19

20

21

22

23

24

NC

R2383

10k

1k

180R

R2588

C1713

12p

XTAL_N

XTAL_P

GND_XTAL

VDD_1P8_2

RESET_N

AS

C1672
100n

16V

S328

S327

R784

22R

22R

R785

NC

560nH

18

17

SDA

CLK_OUT

MXL601

LNA_INP

VDD_3P3_0

1

2

RF_IN_N

3V3_TUNER

C1712

16

SCL

U74

LNA_INN

3

RF_IN_P

L35

3n9

12p

15

VDD_IO

VDD_1P8_0

4

C1673
100n
16V

1n

C1650

1n

C1649

100n

16V

3V3_TUNER

14

GND_DIG

AGC_2

5

F62

1k

50V

50V

C1670

C1715

2n2

50V

13

VDD_1P2

VDD_1P8_1

VDD_3P3_1

IF_OUTN_1

IF_OUTP_1

IF_OUTN_2

IF_OUTP_2

AGC_1

6

D_IF_AGC

RF_IN_P

RF_IN_N

1.8nF

VDD_1V8

12

11

10

9

8

7

VDD_1V8

C1663

1u

10u

C1612

1u

C1664

NC

C1665

1u

100n

16V

3V3_TUNER

DIGITAL_IF_N

DIGITAL_IF_P

6V3

6V3

6V3

6V3

C1671

GND1

JK12

1

8
6

2 4

NC

L34

270n

10V

C1435

100n

9
7
53

A

B

3V3_TUNER

R2536

1 2

I2CM_SDA

C

DIGITAL_IF_N

DIGITAL_IF_P

I2CM_SCL

IF FILTERS

3V3_VCC

S329

C1705
47p
50V

D

SYS_SCL

10k

EXTM

LX

16V

11

VCTRL

U71

VIN

2

SYS_SDA

100R

R2575

9

10

SDA

VCC

3

4

C1569
1u
16V

100R

R2574

FAULT

EN/ADDR

SCL/VADJ

ISEL

TCAP

AGND

8

7

6

5

130k

C1437

100n

22nF

R2236

100k

10V

R2538

100nF

100n

D60

C1450
10u
16V

NC

C1436

1N5819

F42

1k

10V

C1438
100n

10V

50V
220n
C1641

13

14

15

16

VLNB

VCP

BOOST

PGND

C1451
10u
16V

R2386

12

TPS65233

1

C1564

100n

3V3_VCC 4k7

DISEQC_OUT

F44

E

LNB_OUT

LNB_OUT
C1638

10u
25V

1k

F43

1k

12V_VCC

C1636
10u
25V

C22V

C1635
10u
25V

S347

D73

NC

C1634
10u
25V

S348

D64

1N5819

C1632
10u
25V

C1633
10u
25V

L31

10u

1N5819

25V
2u2
C1640

D63

1N5819

NC

D62

F

12V_VCC

3V3_VCC

3V3_VCC

VESTEL

SCH NAME :
DRAWN BY :

F71

220R

S376

C1795
2u2
6V3

PROJECT NAME :

TUNER_SAT_LNB
<YOUR NAME HERE>

C1765
100n

C1764
100n

10V

3V3_SAT_VDDA

10V

3V3_SAT_VDD

17mb97-r2

T. SHT:

31-12-2014_10:42

87654321

E

F

A3

10

AX M

A

B

C

D

E

F

NF_RBZ

3V3_NAND

MCP_TS1_D[4]

MCP_TS1_D[3]

MCP_TS1_D[2]

MCP_TS1_D[0]

MCP_TS1_D[1]

MCP_TS1_SYNC

PCM_A_12

PCM_WAIT_N

PCM_REG_N

PCM_RST

TS0_VALID

TS0_D_0

PCM_D[0]

TS0_SYNC

PCM_D[1]

TS0_D_2

PCM_A13

PCM_A14

PCM_WE

PCM_IRQA

1 2 3 4 5 6 7 8

TP2

SPI-SDI

F1

60R

33R

R2394

33R

R1

R2

R3

R4

R2390

8

7

6

1N5819
C1415

100n

3V3_SPI

SPI-SDI2

R2393

33R

8

R1

7

R2

6

R3

5 4

R4

R2392

8

7

6

5 4

50V

10p

1

2

3

33R

R1

R2

R3

R4

D58

C1797

10V

100n

10V

SPI-SCK

R2486

4k7

SPI-SCK2

C1351
10u
10V

1

2

3

33R

1

R1

2

R2

3

R3

R4

MCP_TS1_CLK

C1591

1

PCM_CE

2

PCM_A10

3

PCM_IORD

45

PCM_OE

3V3_STBY

C1798

100n

10V

3V3_STBY

TP3

1

C1414

2

100n

1

10V

PCM-D[4]

TS0_D4

PCM-D[5]

TS0_D5

PCM-D[6]

TS0_D6

PCM-D[7]

TS0_D7

PCM_A11

PCM_IOWR

PCM_A9

PCM_A8

2

1

C1413
100n
10V

CI_PWR

3V3_VCC

R2491

ETH_LED0
ETH_LED1

R2493

Place these capacitors

close to transformer

speed nets, except for the
chassis ground.
Also keep traces short and
route as matched length
differential pairs. Do not place
any parts or traces under the
transformer.

Q18

BC848B

1 2

PCM_D[0]
PCM_D[1]
PCM_D[2]
PCM_D[3]
PCM_D[4]
PCM_D[5]
PCM_D[6]
PCM_D[7]

PCM_A_0

PCM_A_1
PCM_A_2
PCM_A_3

PCM_A_4
PCM_A_5
PCM_A_6

PCM_A_7
PCM_A_8

PCM_A_9

PCM_A_10
PCM_A_11
PCM_A_12
PCM_A_13

PCM_A_14

PCM_RST

PCM_IRQA_N
PCM_IOWR_N

PCM_OE_N

PCM_IORD_N

PCM_CE_N
PCM_WE_N
PCM_CD_N

PCM_REG_N

PCM_WAIT_N

NF_ALE
NF_WPZ
NF_CEZ
NF_CLE
NF_REZ
NF_WEZ
NF_RBZ

PL1

PL2

PL3

4k7

4k7

R2475

4k7

4k7

R2492

4k7

R2494

IR_INHOTEL_IR

W18
V18

W19
AB18
AA18
AB19
AB20
AB21

AA17
AB17
AA16
AB16
AC16
AA15
AC15
AB15

Y22
AA21
AC22
AA23

V15

Y21

W22

V16

W21
AA22

Y20
AB23
AB22

W23

V20

Y16

W16

AC13
AC12
AA13
AB13
AB14
AA12
AA14

V9

ET_LED1

S209

ETH_LED1

5V_STBY

5V_STBY

5V_STBY

PCM_D0
PCM_D1
PCM_D2
PCM_D3
PCM_D4
PCM_D5
PCM_D6
PCM_D7

PCM_A0
PCM_A1
PCM_A2
PCM_A3
PCM_A4
PCM_A5
PCM_A6
PCM_A7
PCM_A8
PCM_A9
PCM_A10
PCM_A11
PCM_A12
PCM_A13
PCM_A14

PCM_RESET
PCM_IRQA_N
PCM_IOWR_N
PCM_OE_N
PCM_IORD_N
PCM_CE_N
PCM_WE_N
PCM_CD_N
PCM_REG_N
PCM_WAIT_N

NAND_ALE
NAND_WPZ
NAND_CEZ
NAND_CLE
NAND_REZ
NAND_WEZ
NAND_RBZ
NAND_AD0/GPIO

PL4

ET_LED0

S208

UART-RX

ET_TP

ETH_LED0

RX_HOTEL

ET_TN

TX_HOTEL

UART-TX

ET_RP

ET_RN

Ethernet lines must be 100ohm differential pairs

F3

60R

F78
60R

2

U95

MSD8842RKM2

TGPIO2/SCKM1
TGPIO3/SDAM1

NC(MCP_TS_ERR)

W_DISEQC_OUT1
NC(MCP_RESET)

S372
S204
S203
S205
S202
S371

S210

S211

C1819

TS1_D0
TS1_D1
TS1_D2
TS1_D3
TS1_D4
TS1_D5
TS1_D6
TS1_D7

TS0_D0
TS0_D1
TS0_D2
TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7

VIFP
VIFM

IFAGC

TGPIO0
TGPIO1

C1666
100n
16V

1u

C1565

1u

TS1_CLK
TS1_VLD

TS1_SYNC

TS0_CLK
TS0_VLD

TS0_SYNC

W_PAD_IP_S
W_PAD_IM_S
W_PAD_QP_S
W_PAD_QM_S

W_IFAGC_S

VESTEL

SCH NAME :
DRAWN BY :

ETHERNET

8

7

6

54

D65

CDA4C16GTH

3

2

1

TP4

TP175

C21
100n
16V

Y14
W14
V13
Y13
W13
W12
W11
V11
V12
Y11
W15

V17
V19

Y19
AC18
AC19
AA19
AA20
AC21

V14

W17

Y18

AB1

AB2

100n

AC2

AA2

AA1

AB4

AC4

AB7

AA7

AC8

AB8

AC9

U8

AC6

U9

CI_NAND_SPI_ETH
<YOUR NAME HERE>

HOTEL_IR

ETH_LED0

ETH_LED1

MCP_TS1_D[0]
MCP_TS1_D[1]
MCP_TS1_D[2]
MCP_TS1_D[3]
MCP_TS1_D[4]
MCP_TS1_D[5]
MCP_TS1_D[6]
MCP_TS1_D[7]

MCP_TS1_VALIDMCP_TS1_VALID
MCP_TS1_SYNC

TS0_D_0
TS0_D_1
TS0_D_2

TS0_D_3
TS0_D_4
TS0_D_5
TS0_D_6
TS0_D_7

TS0_CLK
TS0_VALID
TS0_SYNC

C1456

100n

C1455

IF-AGC

PROJECT NAME :

3V3_VCC

IF-AGC

S215
S214

R2366

1 2

PCM_CD1

PCM_CD2

R2719

33R

RESET_HUB

MXL661_RST
I2CM_SCL
I2CM_SDA

10k

S201

510R

R2653

510R

R2652

3V3_VCC

close to MST

R2541

NAND_REZ

NAND_CEZ

NAND_CLE

NAND_ALE

NAND_WEZ

NAND_WPZ

1

2

3

4 5

3V3_NAND

3k9

F4

60R

R2396

33R

8

R1

7

R2

6

R3

5 4

R4

R2395

33R

8

R1

7

R2

6

R3

5 4

R4

R2388

33R

8

R1

7

R2

6

R3

5 4

R4

R2391

33R

8

R1

7

R2

6

R3

5 4

R4

R2399

33R

R1

R2

R3

R4

NAND FLASH

1

1

2

3

1

2

3

1

2

3

1

2

3

8

7

6

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

C1352

10u

10V

TS1_D4

TS1_D3

TS1_D2

TS1_D0

TS1_D1

TS1_SYNC

PCM_A12

PCM_WAIT

PCM_REG
PCM-RST

TS0_VLD

TS0_D0

PCM-D[0]

TS0-SYNC

PCM-D[1]

TS0_D2

PCM_A_13

PCM_A_14

PCM_WE_N

PCM_IRQA_N

NC1

NC2

NC3

NC4

NC5

NC6

RB

R

E

NC7

NC8

VDD1

NAND128-A

VSS1

NC9

NC10

CL

AL

W

WP

NC11

NC12

NC13

NC14

NC15 NC16

100n

U80

C1454

16V

NC29

NC28

NC27

NC26

I/O7

I/O6

I/O5

I/O4

NC25

NC24

NC23

VDD2

VSS2

NC22

NC21

NC20

I/O3

I/O2

I/O1

I/O0

NC19

NC18

NC17

C1453

100n

16V

MCP_TS1_D[6]

MCP_TS1_D[7]

MCP_TS1_D[5]

TS0_D_1

PCM_A_7

PCM_A_6

PCM_A_5

PCM_A_4

PCM_A_3

PCM_A_2

PCM_A_1

PCM_A_0

PCM_D[3]

TS0_D_3

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

2524

PCM_D[2]

R2402

75R

33R

8

R1

7

R2

6

R3

5 4

R4

NF_ALE

NF_WPZ

3V3_NAND

NF_CEZ

NF_REZ

NF_WEZ

NF_CLE

R2401

33R

8

R1

7

R2

6

R3

5 4

R4

3V3_NAND3V3_VCC

R2387

33R

8

R1

7

R2

6

R3

5 4

R4

R2389

33R

8

R1

7

R2

6

R3

5 4

R4

R2397

33R

8

R1

7

R2

6

R3

5 4

R4

R2398

33R

8

R1

7

R2

6

R3

5 4

R4

1

2

3

75R

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

PCM_A_7

PCM_A_6

PCM_A_5

PCM_A_4

75R

PCM_A_0

PCM-D[3]

33R

33R

33R

PCM_A_3

PCM_A_2

PCM_A_1

TS1_VLD

TS1_D6

TS1_D7

TS1_D5

PCM-D[2]

TS0_D1

PCM_A7

PCM_A6

PCM_A5

PCM_A4

PCM_A3

PCM_A2

PCM_A1

PCM_A0

TS0_D3

R7

R6

R9

33R
R10
33R
R11
33R

R8

3V3_VCC

PCM_IORD
PCM_IOWR

3V3_VCC

3V3_VCC

TS0_CLK

NAND_ALE

NAND_WPZ

NAND_CEZ

NAND_REZ

NAND_WEZ

NAND_CLE

PCM_CD1

50V

10p

PCM_WAIT

CI_PWR

PCM_CD2

4k7

R2478

4k7

R2477

50V

C1590

R2415

33R

4k7

R2480

4k7

R2479

10p

FLASH-WPN1

3V3_VCC

33R

C1592

R2720

4k7

R2481

R2692

33R

3V3_VCC

SPI-CS1N

SPI-SDO

3V3_STBY

SPI-CS2N

SPI-SDO2

3V3_STBY

FLASH-WPN1

R2300

TS0_D3
TS0_D4
TS0_D5
TS0_D6
TS0_D7

TS1_SYNC

TS1_D0
TS1_D1
TS1_D2
TS1_D3

TS1_D4
TS1_D5
TS1_D6

TS1_D7

33R

PCM-RST

PCM_REG
TS0_VLD

TS0-SYNC

TS0_D0
TS0_D1
TS0_D2

R2299

SPI-SDO2

10k

10k

R2405

33R

R2406

33R

TP13
TP14

R2483

4k7

R2407

33R

C1416
100n
10V

R2418

33R

R2417

33R

TP176

TP8

R2487

4k7

R2416

33R

C1417
100n
10V

CI

CN26

35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

MSTAR SPI FLASH 1

3V3_STBY

4k7

R2482

TP16

U81

MX25L512

1

CS#

2

SO

3

WP#

4 5

TP1

NC

S206

VCC

HOLD#

SCLK

8
7
6

SIGND

MSTAR SPI FLASH 2

3V3_STBY

TP10

4k7

R2488

PCM_PWR_CTL

1R2408
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

5V_VCC

12V_VCC

PCM-D[3]
PCM-D[4]
PCM-D[5]
PCM-D[6]
PCM-D[7]

U82

MX25L512

1

CS#

2

HOLD#

SO

3
4 5

S207

PCM_CE
PCM_A10
PCM_OE
PCM_A11
PCM_A9
PCM_A8
PCM_A13
PCM_A14
PCM_WE

TS1_VLD
TS1_CLK
PCM_A12
PCM_A7
PCM_A6
PCM_A5
PCM_A4
PCM_A3
PCM_A2
PCM_A1

PCM_A0
PCM-D[0]
PCM-D[1]
PCM-D[2]

4k7

WP#

TP178

NC

CI_PWRCI_PWR

R2484

R2301

1 2

10k

CI_PWR

SCLK

VCC

SIGND

NC

S216

2

R2457

1 2

47k

TS1_CLK

4k7

R2490

PCM_IOWR_N

CI_PWR

8
7
6

Q58

PCM_IRQA

PCM_A_11

PCM_A_9

PCM_A_8

PCM_IORD_N

3V3_SPI

R2476

4k7

R2404

33R

SPI-SDI2

TP12

R2489

4k7

BSH103

3

1

R2456

1 2

47k

Q57
BC847B

PCM_D[4]

TS0_D_4

PCM_D[5]

TS0_D_5

PCM_D[6]

TS0_D_6

PCM_D[7]

TS0_D_7

50V

10p

PCM_CE_N

PCM_A_10

PCM_OE_N

R2403

33R

TP15

SPI-SCK2

3V3_SPI

R2420

33R

R2419

33R

TP180
TP179

C1412

100n

10V

1

2

C1593

R2421

8

7

6

5 4

10k

10k

R2694

R2693

1 2

1 2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

C1745
1n
50V

MCP_TS1_CLK

C1667

100n

F69

1k

10k

R2302

C1683

C1682

100p

100p

50V

50V

3V3_VCC

3V3_VCC

17mb97-r2

3V3_STBY

CN10

TD+

TD-

TCT

RD+

RD-

RCT

NC1

NC2

GR+

GR-

YL+

YL-

SHLD1

SHLD2

R2690

1 2

10k

1N4148

D80

1N4148

D81

R2691

1 2

10k

S373

MST_IF_P
MST_IF_N

I2CM_SDA

I2CM_SCL

PCM_CD_N

C1784
22n

IF_AGC

R2531

T. SHT:

05-01-2015_09:55

87654321

1 2

4k7

4k7

R2530

1 2

A3

10

A

B

C

D

E

F

AX M

A

B

C

D

E

F

1 2 3 4 5 6 7 8

12V_VCC

24V_VCC_AU

5V_VCC

100n

C1330

C1331

3V3_AMP 4k7

3V3_AMP

AOMCLK

R2223

R2214

AOMCLK

C250

1u

C140
100n
10V

NC NC

RIGHT

4k7

S116

S200

S93

S141

100n

C1332

AMP_EN

SYS_SDA

SYS_SCL

R2210

100n

C1333

AOSDATA0

AOLRCK

AMP_RST

C1350
100n
16V

C1328

3V3_AMP

100n
16V

R2209100R

100R

AOBCK
C1329
12p
50V

AMP_MUTE

3V3_STBY

HP_AMP_MUTE

R2712

C1742
220u
10V

F5

60R

C674
10u
10V

C675
10u
10V

C245
100n
16V

10k

R647

3V3_AMP

C704
10u
16V

C1195
10u
16V

3V3_AMP

C1196
10u
16V

100n

C1792
10u
10V 10V

VDD_AUDIO

C1791
10u

3V3_VCC

8W 30067972

R2213

100R

R2211

100R

R2212

100R

R2497

4k7

1

PD

2

ERROR

3

SDATA

4

LRCIN

5

SDA

6

SCL

7

RESET

8

DGND

9

DVDD

10

SA0

11

MCLK

12

BCLK

AMP_EN

R78

1 2

10k

HP_AMP_EN

R40

1 2

10k

U62

AD82587D

2

2

24

VDDLA

23

N.C.2

22

LA

21

GNDL

20

LB

19

VDDLB

18

VDDRB

17

RB

16

GNDR

15

RA

14

N.C.1

13

VDDRA

NC

3

BC848B
Q8

1

R100

4k7 3V3_VCC

3

BC848B
Q14

1

R2714

4k7

R824

4k7

VDD_AUDIO

A_OUT1A

A_OUT1B

VDD_AUDIO

VDD_AUDIO

A_OUT2B

A_OUT2A

VDD_AUDIO

C146
100n
16V

C1457
100n

Q17

16V

5V_VCC

3V3_VCC

3

Q7

1

BC848B

3

1

BC848B

2

2

R2119

1 2

10k

R2120

1 2

10k

R2121

1 2

10k

R2122

1 2

10k

R489

33k

R247

33k

R692

1 2

100k

R691

100k

1 2

AUDIO AMP for 16" to 24"

2w5 30069845

1

A_OUT1A

A_OUT1B

VDD_AUDIO

R2718 R2717

C193 C191

150k

220n

10V

10k

C1790

1u

C1788

R2716

150k

AMP_EN

1u

OUTPL

2

VSSL

3

OUTNL

VDDL

AD52010

INL+

INL-

SDN

U91

4

5

6

7

OUTPR

VSSR

OUTNR

VDDR

INR+

INR-

14

A_OUT2A

13

12

A_OUT2B

11

10

9

8

NC

C1787

R2715

150k

VDD_AUDIO

1u

150k

1u

C1789

VDD_AUDIO

NC

AOSDATA0

AOBCK

AOLRCK

AOMCLK

Q49

220n

10V

BC858B

R_OUT_N

L_OUT_P

10k

A_OUT2B

10k

1 2

R79

R2713

A_OUT1A

A_OUT1B

A_OUT2A

1 2

100n

10k
R80

10k

R1983

1 2

R_OUT_P

L_OUT_N

TP21

C251

1u

C141

10V

C620

470p

470p

470p

50V

470p

50V

1 2

12

100u

C5

C3

50V

50V

10k
R93

16V

F6

60R

15u

F8

60R

L4

10u

L5

10u

F7

60R

L2

10u

L3

10u

F9

15u

15u

15u

C1334

18R

R2215

18R

R2216

C1335

C1337

18R

R2217

18R

R2218

C1336

100n

C1338
220n
50V

C1339
220n
50V

100n

100n

C1341
220n
50V

C1340
220n
50V

100n

C286
C312
220n
50V

1u

50V

30068742

C313
220n
50V 50V

C311
220n
50V

C287

1u

C288

1u

50V

30068742

C307

C302

220n

1u

50V

50V

12V_VCC

C698
220n
50V

C699
220n
50V

L_OUT_P

L_OUT_N

R_OUT_P

R_OUT_N

HP_RIGHT

HP_OUT_R HP_OUT_L

SHORT CCT PROTECTION

PROTECT

STBY_ON/OFF

F63

C1

60R

10R

R3 R2

10R

C2

F64
60R

F65
60R

R5

10R10R

R4

F66
60R

C1658

3V3_VCC

3V3_STBY

12

10k

10k

R277612R2777

1u

4k7

R2495

R2304

10k

R2237

HP_AMP_EN

12

12

33k

1

2

3

4

C1656

5 6

1u
6V3

3V3_VCC

HEADPHONE AMP

-INR

OUTR

EN

PVSS

U85

AD22657B

C1566

1u
16V

3

1 2

-INL

OUTL

GND

PVDD

D40

CPCN

F46

1k

BAW56

1 2

10

9

8

7

R490

33k
R81
5k1

R494

10k
R86
3k9

R2303

10k

12

33k

R2238

12

C1657
1u
6V3

C1353
10u
10V

C1659

1u

24V_VCC_AU

12V_VCC

4k7

HP_LEFT

A

R2496

B

C

60R

S22
S21

12

12

VDD_AUDIO
12V_VCC

R2779

47k 120k

R2778

1N4148

BC848B

C1824
47u
16V

D88

Q62

C34

100n

10V

2

1

Q19

TP23

1

3

2

1

BC848B

R2305

10k

BC858B

1 2

Q51

R83
10k

12

R85
10k

R84

1 2

10k

BC848B

Q20

12

R322
100R

R657

47k

5V_VCC

3

D39

BAW56

1 2

R92

1 2

10k

3V3_VCC

1V26_VCC

R82

TP20TP17

TP19

MAIN_RMAIN_L

CN19

1

2

3

4

SC_AUD_R_OUT

SC_DAC_R

100k

R2224

10V

C1354

10u

C1661

1u
6V3

10k

1 2

3V3_VCC

VDD_AUDIO/2

56k

R2666

R2626

VDD_AUDIO/2

C1739
150p
50V

C1419
100n
10V

C1709

12p

68k

3V3_VCC

50V

C1721
10u
16V

Q50

BC858B
R804

6k8

10k
R88

33k

1 2

R2242

33k

1

OUT1

2

IN1-

TL062

3

IN1+

VSS IN2+

12

R2771

6k8

10k

R2770

33k

1 2

R2240

R2239

12

U87

OUT2

IN2-

VDD

12

8

7

6

54

3

D86

BAW56

1 2

3

D87

BAW56

1 2

12V_VCC 47R

VDD_Lineout

R2241

1 2

33k

C1710
12p
50V

R2627

68k

VDD_AUDIO/2

56k

C1355

R2665

C1738
150p
50V

1V5_VCC

1V15_POK

1V3_SAT_VCC

R2667

10V

10u

C1660

1u
6V3

VDD_Lineout

C1722
10u
16V

SC_AUD_L_OUT

100k

R2225

SC_DAC_L

D

E

F

VESTEL

SCH NAME :
DRAWN BY :

AUDIO
<YOUR NAME HERE>

PROJECT NAME :

17mb97-r2

05-01-2015_16:53

87654321

A3

T. SHT:

10

AX M

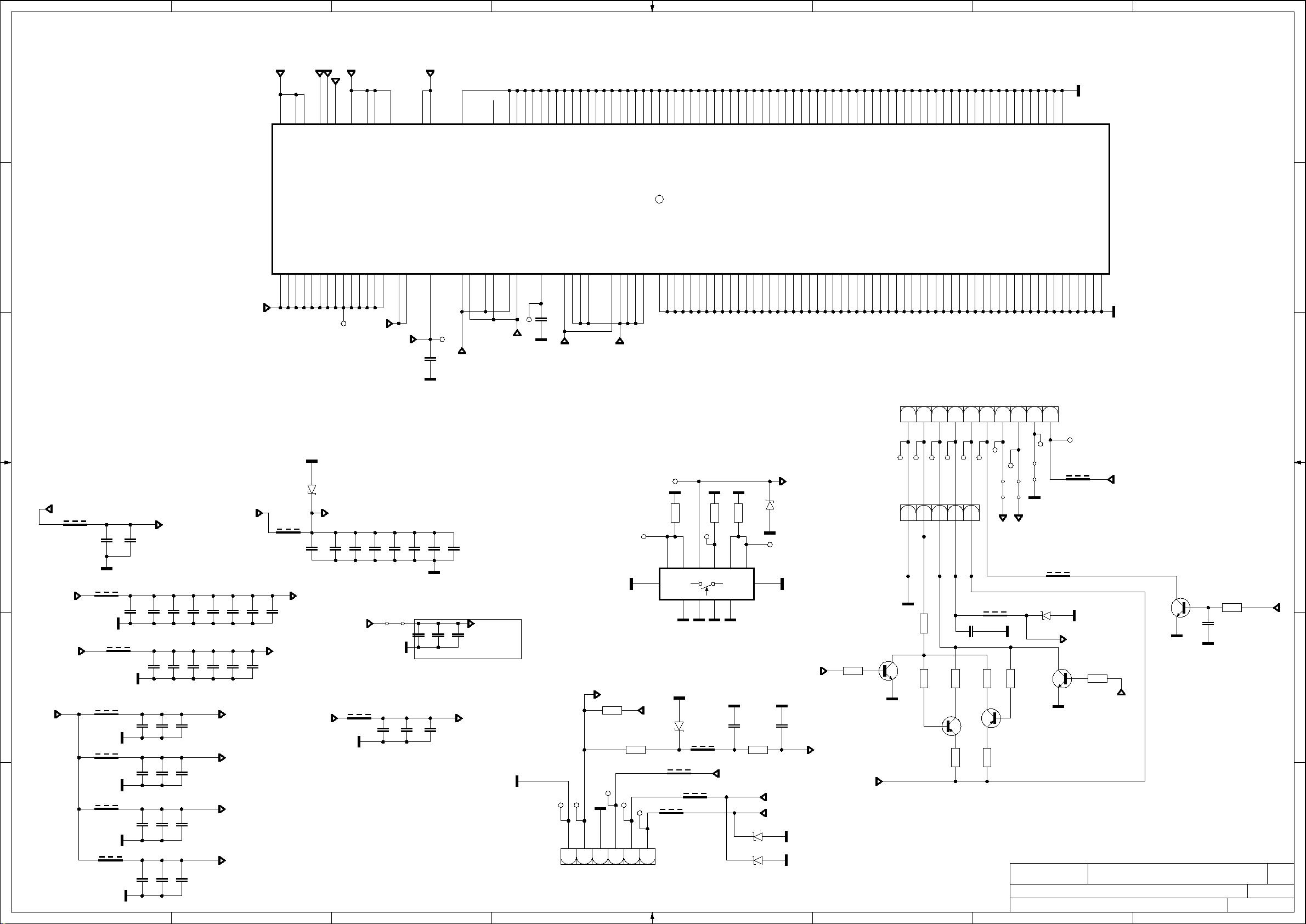

1 2 3 4 5 6 7 8

VCC3V3_T

VCC3V3A_T

AVDD_AU33

AVDD_EAR33

AVDD3P3_DMPLL

A

J7

U17

U18

U19

U20

U5

V5

V6

L7

K7

VDDP

AVDD_NODIE

AVDD_AU33

AVDD_EAR33

AVDD_PLL

AVDD_MOD_1

AVDD_MOD_2

AVDD3P3_DMPLL

AVDD_DVI_USB_MPLL_0

AVDD_DVI_USB_MPLL_1

B

VDDC_0

VDDC_1

VDDC_2

VDDC_3

VDDC_4

VDDC_5

VDDC_6

VDDC_7

VDDC_8

VDDC_9

VDDC_10

VDDC_11

VDDC_12

AVDDL_DVI_0

AA9

K10

N19

N15

P13

P12

P14

N14

N13

N12

M11

L11

M10

L10

N11

VDDC

1

MCP_VDD

VDDC

TP162

C

B7

AVDD_DRAM_0

MCP_VDD_0

MCP_VDD_1

Y10

C1499

AVDD_DRAM

B8

AVDD_DRAM_1

AVDD_MOD_0

P15

TP181

100n

C2

H7

GND_57

DVDD_RX_1_0

DVDD_RX_1_1

DVDD_RX_2_0

B9

A9

M14

M12

VDDC

J9

K15

J11

J10

GND_58

GND_59

GND_60

AVDD5V_MHL_D

DVDD_RX_2_1

DVDD_DDR_0

DVDD_DDR_1

C9

M13

TP182

DVDD_RX_O

L9

L8

K16

GND_61

GND_62

GND_63

DVDD_NODIE

F7

C1716
1u
6V3

M8

M7

L16

L15

GND_64

GND_65

GND_66

GND_67

GND_68

AVDD_DDR0_D_0

AVDD_DDR0_D_1

AVDD_DDR0_D_2

AVDD_DDR0_CMD

C7

K11

L12

K12

AVDD_DRAM

N9

N8

N7

M9

GND_69

GND_70

GND_71

AVDD_DDR1_D_0

C8

K14

R5

P8

P7

P10

N10

GND_72

GND_73

GND_74

GND_75

GND_76

GND_77

6

AVDD_DDR1_D_1

AVDD_DDR1_D_2

AVDD_DDR1_CMD

AVDD_DDR1_CLK

GND_0

A8

L13

K13

L14

AVDD_DDR

R9

R8

R7

R6

GND_78

GND_79

GND_80

R11

R10

GND_81

GND_82

GND_83

U95

MSD8842RKM2

GND_1

GND_2

GND_3

GND_4

GND_5

GND_6

B18

B16

B14

A20

A17

A15

R13

R12

GND_84

GND_85

GND_7

GND_8

B21

B19

R15

R14

GND_86

GND_87

GND_9

GND_10

C11

B22

R17

R16

GND_88

GND_89

GND_11

GND_12

C23

C12

R19

R18

GND_90

GND_13

E22

D11

P4

R20

GND_91

GND_92

GND_14

GND_15

F15

F13

T6

P5

GND_93

GND_94

GND_95

GND_16

GND_17

GND_18

F19

F17

T8

T7

GND_96

GND_97

GND_19

GND_20

F23

F21

T9

T10

GND_98

GND_99

GND_21

GND_22

G9

G8

T12

T11

GND_100

GND_101

GND_23

GND_24

G11

G10

T15

T14

T13

GND_102

GND_103

GND_25

GND_26

G14

G13

G12

T17

T16

GND_104

GND_105

GND_106

GND_27

GND_28

GND_29

G16

G15

T20

T19

T18

GND_107

GND_108

GND_30

GND_31

G19

G18

G17

U7

U4

GND_109

GND_110

GND_111

GND_32

GND_33

GND_34

H8

G20

U12

U11

U10

GND_112

GND_113

GND_35

GND_36

H9

H11

H10

U14

U13

GND_114

GND_115

GND_116

GND_37

GND_38

GND_39

H13

H12

U16

U15

GND_117

GND_118

GND_40

GND_41

H15

H14

LED

W7

V7

U6

GND_119

GND_120

GND_42

GND_43

H18

H17

H16

Y7

AA3

GND_121

GND_122

GND_123

GND_44

GND_45

GND_46

H20

H19

P6

R4

GND_124

GND_125

GND_47

GND_48

J8

J12

AA8

AB12

GND_126

GND_127

GND_49

GND_50

J14

J13

GND1

V4

GND_128

GND_51

GND_52

J16

J15

GND_53

GND_54

K9

K8

GND_55

P11

AB6

GND1

A

B

GND_56

C

D

E

F

1V5_VCC

3V3_STBY

1V26_VCC

1V5_VCC

F14
60R

C1494

100n

F11
60R

F12

1k

F73

1k

F74

1k

F75

1k

F72
60R

C1493

100n

C1599
10u

C1820

100n

C1821

100n

C1822

100n

C1823

100n

DVDD_RX_O

C1808

C1467

10u

100n

C1605

C1462

10u

100n

C1473

C1475

100n 100n

C1491

C1490

100n

100n

C1477C1476

100n

100n

C1486

C1484

100n 100n

C1466

C1465

100n 100n

C1461

C1460

100n 100n

1V26_VCC

C1464

C1463

100n

100n

C1459

C1458

100n

100n

VCC3V3A_T

AVDD3P3_DMPLL

AVDD_AU33

AVDD_EAR33

C1468

100n

AVDD_DDR

F13
60R

C5V6

C1603
10u

GND1

AVDD_DRAM

3V3_VCC

D52

VDDC

1V15_VCC

C1807
10u

C1505

C1504C1503

100n 100n

F54

1k

100n 100n

S224

C1507

C1602
10u

C1502

C1604
10u 100n

100n

C1501C1500
100n

C1514

close to IC

C1508

100n

100n

C1513

100n

MCP_VDD

VCC3V3_T

TOUCH_PAD_OPTION

TP29

CN13

1

2

3

4

5

6

7

8

9

CN27

10

TP154

1

1

1

KEYBOARD

KEYBOARD_ONBOARD

R2684

10k

TP164

TP30

TP26

R2276

1 2

47R

TP31

E2

3V3_STBY

TP32

R2306

4

F50

1k

10k

C5V6

F47

1k

+

3

SW1

G4

12

D42

F48

1k

F49

1k

3-WAY

R2623

2k

R2655

TP28

SOURCE

C

T

2

G3

G2

G1

2

1

3V3_STBY

470R

-

1

C1421
100n
10V

R2277

1 2

47R

D43

C5V6

1 2

TP27

E1

2

1

TOUCHPAD_SCL

TOUCHPAD_SDA

KEYBOARD_ONBOARDTP33

C1420
100n
10V

LED2

1 2

KEYBOARD

R2309

10k

5V_STBY

1

TP37

TP36

1

2

CN28

150R

R2654

3

2

Q23
BC848B

1

10k

1 2

BC858B

TP38

3

R2311

Q53

TP39

220R

220R

1

TP25

4

C1697

27p

R2643

1 2

BC858B

R2642

1 2

Q52

1

5

21

TP169

F51

1k

50V

220R

1 2

220R

1 2

R2640

R2641

TP35

TP34

S228

S227

1 2

1 2

TOUCHPAD_SDA

TOUCHPAD_SCL

10k

BC848B

R2310

1 2

S226

1 2

C5V6

Q24

TP155

D44

F52

1k

3

1

F53

1k

IR_IN

2

R2308

1 2

10k

5V_STBY

LED1

Q21

BC848B

D

3

2

1

C1643

R2307

1 2

10k

1n

50V

PWM_OUT_LED3

E

D46

C5V6

6

5

4

3

2

1

D45

C5V6

VESTEL

SCH NAME :
DRAWN BY :

MAIN_IC_POWER
<YOUR NAME HERE>

PROJECT NAME :

17mb97-r2

T. SHT:

31-12-2014_10:41

87654321

F

A3

10

AX M

1 2 3 4 5 6 7 8

OPS. TR100 PFC TRAFOSU

A

B

CN10021

C

S103

P1

P2

C112
1n
4kV

C109
1n
4kV

10R

R529

FS100

3.15A/250V

FS101

3.15A/250V

V_11

V_10

CN101

2

P3 P4

S112

10R

R107

C107
1n
4kV

C106
1n
4kV

S115

510V/?pF

S513

S118

S108

1

V100

TR101

1

NP NPD

2

V_1

LF100

V_2

S106

S105

4

1

S104

S100

Q101

FQT1N60C

GATE_PFC

CS_PFC

S119

100R

F101

Q100

FQPF9N50C

R112

R116

R150
100R

R114
100R

70R

56k

F100

R113

70R

C100
47p
2kV

56k

VCC

D101

UF5402

D506

UF5402

INV

ZCD

C103
39u
450V

C126
100p
50V

R127
100R

R131

100R

C130
100p
50V

C132
100p
50V

C104
39u
450V

C105
39u
450V

R133

C133
100p
50V

4

V_9

+400V

S111
C114

1n
4kV

S564

S534

150u

L100

ZCD

3

V_3

32

V_4

S101

S116

4

1

S109

S113

D105

1N4148

V_5

32
LF101

V_41

D103

1N4148

14

TH101 TH102

10R

10R

TH100

V_4

V_6

R2

3 2

10R

10R

TH103

S110

10R

RL100

R110

10R

10R

R100

10R

R108

C115
1n
4kV

C108
1n
4kV

GND4

F102
800R

S117

S102
F105
800R

C533
1n
4kV

GND4

VCC

V_3

V_8

10R

R109

10R

D104
GBU8K

R1

V_7

450V

1u

C110

R115 R117

10K

C113

1n
4kV

S528
D100

RL207

450V
1u
C111

GND4

+400V

10K

V_9

V_10

C548
10n
1kV

3

N1N2

TR100

4

ZCD

V_11

R118

10K

1

6

R124
100R

D108
C5V1

100R

+400V

C534
39u
450V

C129

50V
100p

C131
1n
50V

R129

CS_PFC

ZCD

100R

R122

100R

1k

R126

1

2

3

4

D110

1N4148

INV

INV

U101

COMP

FAN7529

MOT

CS

C121 C123

10p

50V

10p

50V

C2599

VCC

OUT

GND

ZCD

2u2

10V

8

7

6

5

C128
1n
50V

R125

ZCD

100R

100R

PFC PROTECTION CIRCUIT

D106

1N4148

D107

1N4148

R132

VCC

C2612

C2609

1n
50V

1n
50V

1N4148

D111
R130
100R
R123
100R

D109
C5V1

C2611

C2610

1n
50V

1n
50V

GATE_PFC

Q102 R128
BC858B

R119

10R

R120

10R

100R

R121

10R

SW_OFF_PFC

C199
1m
16V

A

CS_PFC

B

C

R280

AUX_M

R253

10k

10R

C225
1n
50V

D

FB_M CS_M

E

FB_M

D201
C12V

F

ST_BY

R297

R281

10k

10R

R296

VCC_MAIN

U200

4

3 2

TCET1102G

R243

10R

C230

10R

1

D204

1n
50V

C299
10p
50V

1

2

3

4

C6V8

Q204
BC848B

DET

U217

FB

FAN6300

CS

GND

R237

1k

R528

1k

U203

TL431SAMF2

HV

NC

VDD

GATE

R236

1k

D212

1N4148

1n 50V

R244

C201

1k

8

7

6

5

GATE_M

R211

1k

R223

1k

R291

10R

D298
C18V

C202
1n
50V

50V
1u

C296

+12V_STBY

1k

1k

R255

R290

10R

50V
1u

C295

R254

SOFT_START
C227

1u
50V

+12V_STBY

R289

10R

+400V

VCC_MAIN

D533
C18V

+400V

R581

R209

R268

R264

R252

R229

GATE_M

C2597
1u
50V

100k

100k

100k

100k

100k

100k

S567

S566
S545

S213

S214

S215

C208

4n7
630V

100k

R580

100k

R221

100k

R267

100k

R263

100k

R251

100k

R234

1N4148 D213

R217

10R

R230

10R

BC858B

CS_M

Q215

C214
1n
50V

R242

10R

24V_AC12V_AC

PIN_9

12V_ACPIN_9

DRAIN_M

HER207

D515

HER207

D532

Q211

FQPF8N60C

10k

R222

R228
120R

12V_DIODE_HEATSINK_12MM

HS7

TR202

1

N1

PIN_14

16

2

N3

15

TR200

1 6

N1 N2

14

2

N3 N4

13

D214

RS1008FL

C240
1m
16V

AUX_M

R235

56k

S575

S576

DRAIN_M

+400V

PIN_14

C206
47p
2kV

S217

+400V

AUX_M

S574

N2

9

5

87

10

C2613
1n2
50V

6

12

12V_AC_1

12V_AC

24V_AC

S2

1N4148

D215

24V_AC

PIN_9

12V_AC

D277

24V_AC

D220

SBR10U150

F515

26R

F516

26R

F522

26R

F523

26R

C207
1m
16V

D226

SBR10U150

D225

D209

D210

D207

D208

D221

D223

D229

C122
1n
50V

C280
2m2
35V

C209 C210
1m
25V

C213
1m5
35V

ST_BY1kR227

C2584

C2585 C2586

100n

100n

50V 50V

R204

1k

VCC_MAIN

C281

C282

2m2

2m2

35V

35V

C211 C212

1m

1m

25V 25V

L200

1u

C283
2m2
35V

1m
25V

+12V_STBY

AUDIO REGULATION

S223

100n
50V

C217
1m
50V

C216
1n
50V

R216

AUDIO_REG

1k

Q203
BC848B

R3

R4

10R

10R

R260

1k

Q202
BC848B

R248

SCH NAME :
DRAWN BY :

1k

F505

70R

+12V_STBY_MB

S1

C5V1

D2

C203

1 8

1n
50V

2

R241

1k

1n
50V

C231

3

4

PMOS_GATE

1
<YOUR NAME HERE>

Q512

PMOS_GATE

S224
C5V1

D1

Q210

FDS4685

7

6

5

AUDIO_REG

Q209

BC848B

PROJECT NAME :

C229

C200

22u

1m

16V

25V

R207

C277

1k

1n
50V

17ips20-r9

87654321

AUDIO_VCC_M

C284

D202

2m2

R206

1k

35V

C12V

R279

1k

1k

S220

D203
C12V

R205

T. SHT:

07-11-2014_15:36

D

E

F

A3

3

AX M

1 2 3 4 5 6 7 8

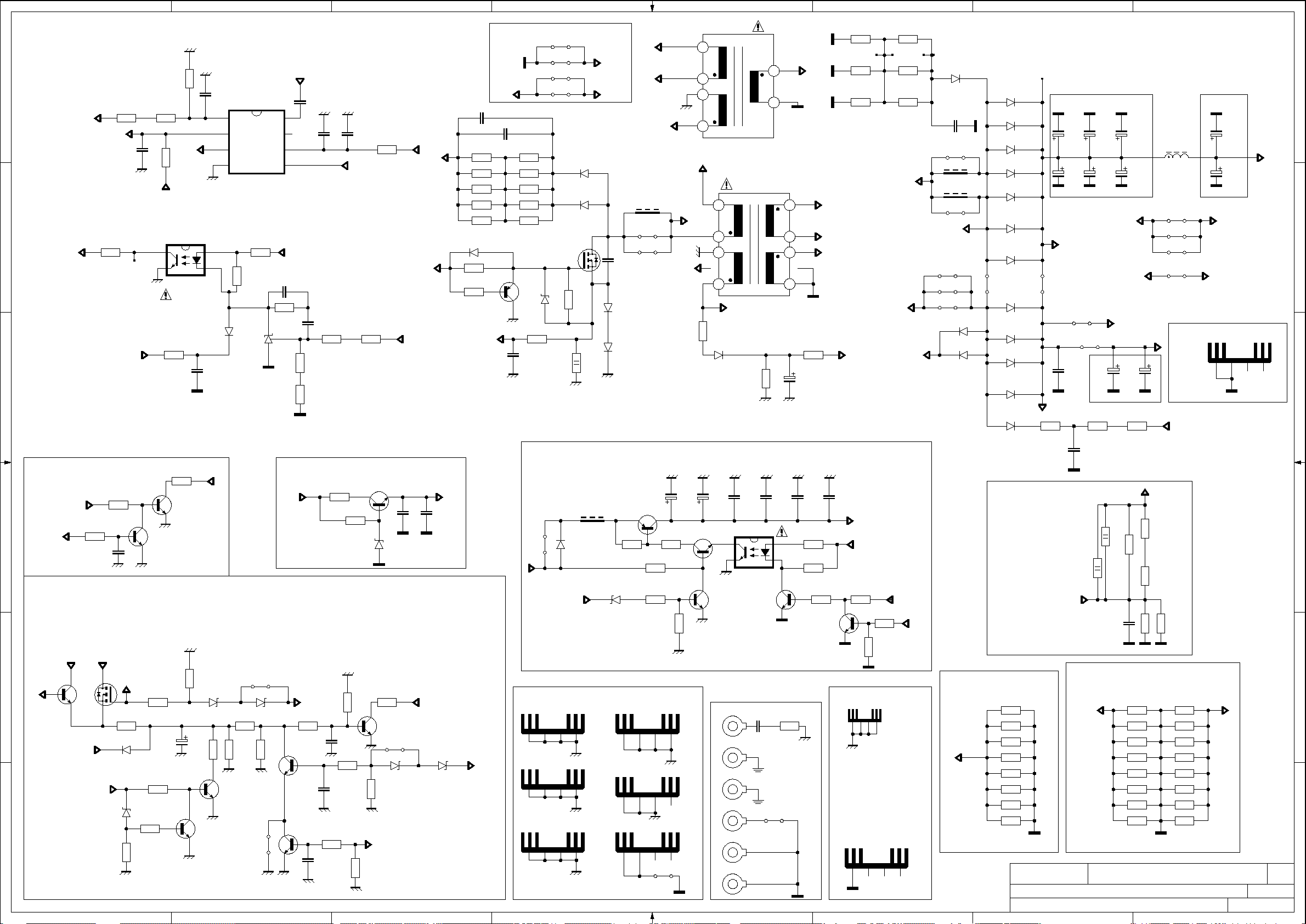

A

AUX_S

B

FB_S

C

SLAVE DELAY DEVRESI

VCC

R361

D

SW_OFF_PFC

10R

PRIMER SIDE KORUMA DEVRESI

VCC

FB_S

10R

R306

+24-80V_FB

R358

10R

C531
10p
50V

VCC

R399

4k7

1n
50V

R397

R398

1M

C314

10R

VCC

4

3 2

TCET1102G

R364

1k

SOFT_START

Q305
BC848B

CS_S

R396

U301

R349

10R

Q307
BC848B

10R

1

C377
1u
50V

FB_S

C399
10p
50V

1

DET

2

FB

3

CS

4

GND

1N4148

U300

FAN6300

R368

1k

R372

1k

U302

D301

TL431SAMF2

HV

NC

VDD

GATE

VCC

8

7

6

5

+24-80V_FB

C300

50V1n

1k

R367

+12V_STBY

1k

1k

C398
10p
50V

C397

C2607

10p

10p

50V

50V

GATE_S

C310
1n
50V

1k

R365

R376

R374

+5V STAND-BY REGULASYONU

R256

1k

R212

1k

R545

1k

BC337

D205

Q212

R582

10R

+24-80V

C2604 C2605
1n
50V

C6V8

VCC

GATE_S

1n
50V

+5V_STBY

C2598
1u
50V

R304

R316

R326

R334

R342

D307

1N4148

10R

10R

100k

100k

100k

100k

100k

CS_S

R329
R321

BC858B

PARALLEL WINDING OPS

PIN_5_SLAVE

C306

4n7
630V

100k

R305

100k

R317

100k

R362

100k

R369

100k

R343

FQPF8N60C

D525
C18V

Q300

R311

10R

C319
1n
50V

S219

VCC_MAIN

S580

S579

S577

S578

Q301

R366

HER207

HER207

10k

D216

VCC

PIN_9_SLAVE

+24-80V_AC

D516

D302

R320

56k

L201

50R

1N4148

D200
C6V8

D512

BA159

D513

BA159

C312
47p
2kV

BC327

Q216

R213

1k

OPS. EFD43_80V-100W

+400V

DRAIN_S

AUX_S

F1

800R

S3

S4

swjump

PRIMER SIDE VCC SWITCH DEVRESI

R258

1k

R246

1k

R225

1k

R239

1

16

2

15

+400V

DRAIN_S

PIN_5_SLAVE

10k

1m
16V

Q207

BC848B

1k

N1

N3

1 6

N1 N2

14

2

N3 N4

13

R371

D305

1N4148

C536
1m
16V

BC848B
Q208

TR301

N2

TR300

AUX_S

R373

C2587
100n
50V

cap

U201

4

3 2

TCET1102G

BC848B

Q205

6

+24-80V_AC

12

10k

C2588
100n
50V

1

+24-80V_AC

PIN_9_SLAVE

9

5

PIN_5_SLAVE

87

10

R375

10k

C2608
1m
16V

C2589
100n
50V 50V

R270

10k

R271

10k

R224

1k

BC848B

Q206

SW_OFF_S

C2590C223
100n

+12V_STBY

R386

10R

R391

10R

R392

10R

VCC

R238

1k

+24-80V_AC

PIN_5_SLAVE

+12V_STBY

R245

1k

R257

1k

R377

10R

R382

10R

R383

10R

ST_BY

V_20

D370

HER207

C370

1n

S573

F506

70R

F507

70R

S572

V_32

S571

S570

S551

UF5402

UF5402

1kV

D361

D360

D507

UF5402

D303

UF5402

D306

UF5402

D309

UF5402

D313

UF5402

D354

SF10L60U

D355

SF10L60U

S552

D314

UF5402

D304

UF5402

D357

SF10L60U

D356

SF10L60U

D3

1N4148

SLAVE FEEDBACK OPTOCOUPLER SUPPLY

S553

V_20

R7

10R

+24-80V_FB

C394
1m5
35V 35V

C318
1m
50V 50V

V_21

S554

S308

C374

4n7
630V

10p
50V

R574

56k

C393 C392
1m5

C317
1m

PIN_9_SLAVE

PIN_9_SLAVE

AUDIO_VCC_S

C315
1m
50V

R5

10R

C1

R380

56k

R307

C301

1n
1kV

1m5
35V

C304
1m +400V
50V

C395
1m5
35V

opsiyonel

R6

10R

100R

L300

1u

S556

S555

S565

S303

+24-80V_FB

+24-80V

R345

10R10R

R310

R312

R322

10R

10R

PIN_5_SLAVE

MASTER&SLAVE_HEATSINK_97MM

A

opsiyonelopsiyonel

C391
1m5
35V

+24-80V

C316
1m
50V

B

AUDIO_VCC_S+24-80V

HS9

C

D

Q306

BC848B

Q506

BSH103

E

DRV

F

VCC

VCC

D312
C11V

R356

DRV

R346

10R

D311

1N4148

10R

R359

10R

R357

10R

R347

10R

R539

C320
1m
16V

10R

Q308
BC848B

D509

C6V8

R351

10R

R353

10R

Q304
BC848B

R350

10R

S550

D519

C6V8

S300

R360

10R

SW_OFF_S

R540

10R

Q309

BC848B

Q303
BC848B

C529
10p
50V

R354

C530
10p
50V

R542

C532
10p
50V

R348

10R

10R

10R

R527

10R

SW_OFF_PFC10R

R541

10R

Q302
BC848B

S301

D310

C5V1

R355

FB_M

D518

C5V1

SW_OFF_S

MOSFET_M

HS3

MOSFET_S_12MM

HS2

HS1

MOSFET_S_40MM

HS6

MOSFET_PFC+BRIDGE

HS5

MOSFET_LEDMOSFET_PFC

HS4

S514

PL6

PL1

PL2

PL5

PL3

PL4

C550

1n
4kV

GND4

GND3

S5

R546

10R

MOSFET_M_27MM

HS11

MASTER_HEATSINK_55MM

HS14

+24V_AUDIO

AUDIO DESARJ

R573

10R

R572

10R

R570

10R

R571

10R

R569

10R

R568

10R

R567

10R

R566

10R

SCH NAME :
DRAWN BY :

SLAVE SIDE DE-SARJ

R330

10R

+24-80V

PROJECT NAME :

2
<YOUR NAME HERE>

R339

10R

R301

10R

R313

10R

R323

10R

R331

10R

R340

10R

R302

10R

R324

10R

R332

10R

R341

10R

R303

10R

R315

10R

R314

10R

R325

10R

R333

10R

V_20

17ips20-r9

07-11-2014_15:42

87654321

A3

T. SHT:

E

F

3

AX M

A

B

C

R575 R576

6k8

2D-3D OPS.

1 2 3 4 5 6 7 8

LED1_S

R565
100R

Q510

R560
100R

10k

R562

res

SMD_0805_1/10W_10k_J

LED DRIVER DÖNUS OPS.

S511

S501

S504

S507

S510

S512

S502

S531

S532

LED DRIVER SINK MOSFET OPS.

VCC_LED

SMD_0805_1/10W_100R_J

R564
100R

LED1

LED1_S

LED2_S

LED3_S

LED4_S

LED2

LED4

LED2

LED4_S

R577

4k7

BL_ON-OFF

PWM_DIM

6k8

C507

25V470n

330n 16V

S500

BC848B
Q513

25V

S503

C511

470n

C501

270R
R533
R534
270R
C515

16V330n

R512
100k

LED4

R508
270R

R504
330k
R520

6k8

C510
2u2

10V

1

COMP

2

EN

3

DBRT

U500

4

GND

MP3394

5

OSC

6

ISET

7

BOSC

8

LED4

VCC

VIN

GATE

ISENSE

OVP

LED1

LED2

LED3

16

15

14

13

12

11

10

C2600

2u2

10V

1n
50V

C500

10VC519

2u2

R522

LED1

LED2

9

LED3

330k

C514
2u2

10V

VCC_LED

1n R513
50V

C2606

GATE_LED

CS_LED

OVP_LED

LED DRIVER CIRCUIT

+24-80V

GATE_LED

10R +24-80V

S505

+12V_STBY

D527

1N4148

C502
1u
25V

L500
47u

L501

150u

R502

1N4148

D502

10k

R516

10R

Q500
BC858B

50RF511

F512 50R

F503

F502

Q502 Q503

50R50R

R556

10R

ZENER C10V_SOD123

ZENER C10V_SOD123

ZENER C10V_SOD123

F500

F501

C523
47p
2kV

R518R514

10R

10R

10R

ZENER OPS.

D529

D530

D531

R509R500

10R

R557

10R

LED2_S

LED3_S

LED4

CS_LED

D503

SB5100

D504

SB5100

D501

C538

2kV47p

WO/CONVERTER SOKET OPS.

BL_ON-OFF

PWM_DIM

2D-3D OPS.

+24-80V

20mm opsiyonel

C2582

C2583

560u

560u

35V 35V

C504

C505

1m

1m

50V

50V

CN200

1

2

3

4

5

6

7

8

10R

R551

R550

10R

R548

R547

2D-3D OPS.

2D-3D OPS.

10R

10R

R553

R552

10R 10R

10R

R549

100R 100R

100R

3D SOCKET

R506

R511

R515

CN10

1

2

3

4

V_LED+

OVP_LED

VCC_LED

res

SMD_0805_1/10W_100R_J

LED1

LED2

LED3

LED4

LED1

LED3

LED3

LED1_S LED2_S

LED3_S

Q511

R561
100R

res

R563

10k

ZENER C10V_SOD123
LED1_S

LED2_S

V_LED+

LED4_S

SMD_0805_1/10W_10k_J
res

LED4

LED DRIVER
SOKET

V_LED+

D528

S561

LED2_S

S533

S530

LED3_S

LED4_S

CN501

1

2

3

4

5

6

7

A

B

C

DISCRETE BRIDGE OPS.

PINGOOD OPS.

MAINBOARD SOCKET

SR2

SR3

SR5

SR4

SR1

CN4

21+24V_AUDIO

D

E

AUDIO_VCC_S

+24-80V

ST_BY

BL_ON-OFF

PWM_DIM

+5V_STBY

+12V_STBY_MB

S211

S203

AUDIO_VCC_M

43

65

87

109

1211

F517

50R

F518

50R

F521

50R

F519

50R

2D-3D OPS.

+12V_STBY_MB

+24V_AUDIO

C4
1m
16V 16V

C2
56n
275V

56n
275V

C5

1m

V_32

C3

PRIMER-SECONDER ARA MALZEMELER

R299

4M7

10R

R200

10R 10R

R202

10R

S200

C234

1n 4kV

C236

4kV1n

C268

C233

4kV1n

C235

1n 4kV

4kV1n

R578R579

10R

R201

R203

10R

GND3

WITHDRAWAL DE-SARJ

1

NC1

2

D1-1

3

D1-2

4

NC2

R101

1M

R102

1M

U100

D2-1

CAP002DG

D2-2

R103

1M

R104

1M

VCC

NC3

8

WD2WD1

7

6

5

WD2WD1

R111

1M

R105+12V_STBY_MB

1M

V_4V_3

C134

D112

RL207

D114

RL207

C136

F

V_7

C135

47p 2kV

2kV 47p

D113

RL207

D115

RL207

C137

47p 2kV

2kV47p

V_8

V_9

X_CAP KOMBINASYONU

V_5

C146
56n
275V

V_41

C139
220n
275V

C151
56n
275V

C143
56n
275V

C138
56n
275V

V_6

V_2

C142
56n
275V

C148
470n
275V

C140
220n
275V

D

E

V_1

V_3

C145
56n
275V

C144
56n
275V

C153
100n
275V

C154
100n
275V

C141
220n
275V

F

V_4

SCH NAME :
DRAWN BY :

PROJECT NAME :

3
<YOUR NAME HERE>

17ips20-r9

07-11-2014_16:03

87654321

A3

T. SHT:

3

AX M
