PROJECTION COLOR TV

65SWX20B 65TWX20B 57SWX20B 57TWX20B 51SWX20B

OPERATING GUIDE

IMPORTANT SAFETY INSTRUCTIONS 2-3

FIRST TIME USE 4-20

THE REMOTE CONTROL

ON-SCREEN DISPLAY

USEFUL INFORMATION INDEX 63-68

38-62

21-37

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

As an E

NERGY STAR

Partner, Hitachi, Ltd. has determined that this

product meets the E

NERGY STAR

guidelines for energy efficiency.

IMPORTANT

SAFETY POINTS YOU SHOULD KNOW ABOUT YOUR HITACHI TELEVISION

Our reputation has been built on the quality, performance, and ease of service of HITACHI televisions. Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this

section illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to the proper operation of your HITACHI television.

Please fill out your warranty card and mail it to HIT ACHI. This will enable HITACHI to notify you promptly in the improbable event that a safety problem should be discovered in your product model.

Follow all warnings and instructions marked on this color television.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS TELEVISION TO RAIN OR MOISTURE.

NOTE: • There are no user serviceable parts inside the color television.

• Model and serial numbers are indicated on back side of the television.

POWER SOURCE

THIS

TELEVISION

IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE

POWER CORD INTO A 120 VOLT 60Hz OUTLET.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THE COLOR TELEVISION’S (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

NEVER CONNECT THE

COLOR TELEVISION

TO 50Hz, DIRECT CURRENT, OR ANYTHING OTHER THAN

THE SPECIFIED VOLTAGE.

CAUTION: Never remove the back cover of the television as this can expose you to very high voltages and other haz-

ards. If the television does not operate properly, unplug the television and call your authorized dealer or service center.

NOTE: This television receiver will display television closed captioning, ( or ), in accordance with

paragraph 15.119 of the FCC rules.

CAUTION:

Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by HITACHI could void the user’s authority to operate the television.

MODIFICATIONS:

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user’s authority to operate the equipment.

IMPORTANT

Read before operating equipment

Follow all warnings and instructions marked on this television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use the attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Televisions are designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet which could cause the product to overturn resulting in product damage and/or personal injury.

16.Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

17.An outdoor antenna should not be located in the vicinity of overhead power lines or other electrical circuits.

18.If an outside antenna is connected to the receiver be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding for the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is provided to call the CA TV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUNDING CONDUCTORS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

Do not place any objects on the top of the television which may fall or cause a child to climb to retrieve the objects.

Disposal of this product may require specific instructions pertaining to your resident state. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

PREVENTION OF SCREEN BURN

Continuous on-screen displays such as video games, stock market quotations, computer generated graphics, and other fixed (nonmoving) patterns can cause permanent damage to television receivers. Such “SCREEN BURNS” constitute misuse and are NOT

COVERED by your HITACHI Factory Warranty.

PUBLIC VIEWING OF COPYRIGHTED MATERIAL

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may require prior authorization from the broadcaster or owner of the video program material.

Projection TV’s are heavy and can mark or damage floor surfaces (especially wood flooring) if moved improperly. Do not slide or force TV into position. Always roll TV allowing casters at bottom of unit to help steer and position the TV.

ACCESSORIES

1. Simple Remote Control Unit CLU-120S (Part No. HL01861).

2. Remote Control Unit CLU-5722TSI (Part No. HL01822).

3. Two “AA” size, 1.5V batteries (For Remote Control Unit).

4. Two “AAA” size, 1.5V batteries (for Simple Remote Control Unit).

5. Two IR Mouse Cables (Part No. EY01641).

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1. Open the battery cover of the remote control by pushing the notched part of the cover with your fingers and pulling the cover off.

2. Insert two new “AA” size batteries for the remote control, and two new “AAA” size batteries for the simple remote control. When replacing old batteries, push them towards the springs and lift them out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Replace the cover.

BOTTOM VIEW

Lift up on tab to remove back cover.

(Remote Control)

BOTTOM VIEW

(Simple Remote Control)

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace with the same or equivalent type.

Check to make sure you have the following accessories before disposing of the packing material.

CLU-120S 1.

CLU-5722TSI 2.

POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

CHVOL

UTE

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

STB

LAST CH

VCR PLUS+

GUIDE/TV

SCHD

VID 2

VID 3

VID 4

VID 5

TAPE

AMP

CLU-5722TSI

SIMPLE REMOTE

CONTROL

REMOTE CONTROL

BATTERIES

(“AA”)

IR MOUSE

CABLE

BATTERIES

(“AAA”)

A/V NET

CH +

SELECT

EXIT

VOL +

FAV CH

ANT

MUTE

VOL -

CH -

POWER

HOW TO SET UP YOUR NEW HITACHI PROJECTION TV

CAUTION: Magnetic fields, such as those of external speakers, may cause the picture to distort if they are placed too

close to the television. Move the magnetic field source away from the television until there is no picture distortion.

4' MINIMUM

10'

15'

BEST HORIZONTAL

VIEWING ANGLE

20'

ANTENNA

Unless your TV is connected to a cable TV system or to a centralized antenna system, a good outdoor color TV antenna is recommended for best performance. However, if you are located in an exceptionally good signal area that is free from interference and multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall directly on the picture screen. Also, be sure that the location selected allows a free flow of air to and from the perforated back cover of the set. To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can become excessively hot, for example, in direct sunlight or near a heating appliance, etc.

VIEWING

The major benefit of the HITACHI Projection Television is its large viewing screen. To see this large screen at its best, test various locations in the room to find the optimum spot for viewing.

The best picture is seen by sitting directly in front of the TV and about 10 to 18 feet from the screen. Picture brightness decreases as the viewer moves to the left and right of the receiver.

During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the reflection or the TV can be located in a different section of the room.

If the TV’s audio output will be connected to a Hi-Fi system’s external speakers, the best audio performance will be obtained by placing the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side or behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker placement for best performance.

10'

15'

BEST

VERTICAL VIEWING

ANGLE

20'

HOOK-UP CABLES AND CONNECTORS

ANTENNA CONNECTIONS TO REAR JACK PANEL

VHF (75-Ohm) antenna/CATV (Cable TV)

When using a 75-Ohm coaxial cable system, connect the outdoor antenna or CATV coaxial cable to the ANT A (75-Ohm) terminal. If you have a second antenna or cable TV system, connect the coaxial cable to the ANTB terminal.

VHF (300-Ohm) antenna/UHF antenna

When using a 300-Ohm twin lead from an outdoor antenna, connect the VHF or UHF antenna leads to screws of the VHF or UHF adapter. Plug the adapter into the antenna terminal on the TV.

When both VHF and UHF antennas are connected

Attach an optional antenna cable mixer to the TV antenna terminal, and connect the cables to the antenna mixer. Consult your dealer or service store for the antenna mixer.

To outdoor antenna or CATV cable

To second antenna or cable system

Antenna mixer

ANT A/ANT B

To UHF Antenna

To outdoor antenna or CATV system

To outdoor VHF or UHF antenna

Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors. For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output and input connector types required by the various components and the length of each cable.

300-Ohm Twin Lead Connector

This outdoor antenna cable must be connected to an antenna adapter (300-Ohm to 75-Ohm).

Phono Connector

Used on all standard video and audio cables which connect to inputs and outputs located on the PC ready color television’s rear jack panel and front control panel.

“F” Type 75-Ohm Coaxial Antenna Connector

For connecting RF signals (antenna or cable TV) to the antenna jack on the television.

S-Video (Super Video) Connector

This connector is used on camcorders, VCRs and laserdisc players with an S-Video feature in place of the standard video cable to produce a high quality picture.

IR Mouse Cable (Provided)

Connect the IR Mouse Cable to the IR BLASTER output of your TV when using the A/V Network feature. You must place the IR mouse transmitter in front of the IR sensor of your external components. This connection allows your TV to control your external components without using your external component’s remote control.

Digital Visual Interface (DVI) Connection Cable

This cable is used to connect external devices with DVIHDTV output capability.

FRONT PANEL CONTROLS

INPUT 5

S-VIDEO

VIDEO

-AUDIO-

L/MONO

EXIT

INPUT

SELECT

MAGIC FOCUS

VOL- VOL+ CH- CH+















POWER

PULL



 MENU/SELECT button

This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This button also serves as the SELECT button when in MENU mode.

 INPUT/EXIT button

Press this button to select the current antenna source, VIDEO: 1, 2, 3, 4, 5 or alternate antenna source. Your selection is shown in the top right corner of the screen. This button also serves as the EXIT button when in MENU mode.

 CHANNEL selector

Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as the cursor down () and up () buttons when in MENU mode.

 VOLUME level

Press these buttons for your desired sound level. The volume level will be displayed on the TV screen. These buttons also serve as the cursor left () and right () buttons when in MENU mode.

 POWER button

Press this button to turn the TV on or off.

 MAGIC FOCUS

Use this button to automatically adjust your picture quality to optimum performance (see page 42).

 FRONT INPUT JACKS (INPUT 5)

Use these audio/video jacks for a quick hook-up from a camcorder or VCR to instantly view your favorite show or new recording. Press the INPUT button until VIDEO: 5 appears in the top right corner of the TV screen. If you have mono sound, insert the audio cable into the left audio jack.

NOTES: Your remote control does not have an INPUT button. To change to video inputs, press VID1~VID5 buttons depending

on your choice (see page 27).

FRONT PANEL JACKS AND CONNECTORS

The front panel jacks are provided as a convenience to allow you to easily connect a camcorder or VCR as shown in the following examples:

NOTE: 1. Completely insert connection cord plugs when connecting to front panel jacks. If you do not, the played back picture

may be abnormal.

2. If you have a S-VHS VCR, use the S-INPUT cable in place of the standard video cable.

3. If you have a mono VCR, insert the audio cable into the left audio jack of your TV.

INPUT 5

S-VIDEO

VIDEO

-AUDIO-

L/MONO

VIDEO

-AUDIO-

L/MONO

MAGIC FOCUS

S-VIDEO

INPUT 5

REAR PANEL JACKS

 Antenna Input/Output

The remote control allows you to switch between two separate 75-Ohm RF antenna inputs, ANTA and ANT B. ANT A input can be displayed as a main picture or sub-picture. ANT B can only be displayed as a main picture. (ANT B cannot be displayed as a sub-picture.) The antenna output labeled “TO CONVERTER” allows the ANT A connection to pass directly to a different source such as a cable box, only when ANT B is displayed as a main picture.

 Audio/Video Inputs 1, 2, 3 and 4

The VID1~VID4 buttons will select each video source each time they are pressed. Use the audio and video inputs to connect external devices, such as VCRs, camcorders, laserdisc players, DVD players etc. (If you have mono sound, insert the audio cable into the left audio jack.)

 MONITOR OUT

These jacks provide fixed audio and video signals which are used for recording. Use the S-VIDEO Output for high quality video output.

 AUDIO TO HI-FI Output

These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can be controlled by the television’s main volume.

 CENTER IN (Input)

These jacks are for center signals such as Dolby. This feature allows the TV speakers to be used as a center speaker. The TV must be set as a center channel by selecting “TV as Center” on the Audio Advanced Settings Menu (see page 47).

 S-VIDEO Inputs 3 and 4

Inputs 3 and 4 provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability.

NOTE: You may use VIDEO or S-VIDEO inputs to connect to INPUT 3 and 4, but only one of these inputs may be used at a

time.

NOTE: S-VIDEO Output may be used for recording, only when the input is of S-VIDEO type.



IR BLASTER



ANT A

TO CONVERTER

ANT B

AUDIO TO HI-FI

CENTER









INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

(MONO)/L

(MONO)/L VIDEO

AUDIO

DVI-HDTV

L VIDEO

AUDIO

Y/VIDEO





S-VIDEO



REAR PANEL JACKS

 Component: Y-P

BPR

Inputs

Inputs 1 and 2 provide Y-P

BPR

jacks for connecting equipment with this capability, such as a DVD player or Set Top Box. You may

use composite video signal for INPUT:2.

NOTES: 1. Do not connect composite VIDEO and S-VIDEO to Input 3, 4 or 5 at the same time. S-VIDEO has priority

over VIDEO input.

Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s PBinput and the components R-Y output to the TV’s PRinput.

3. Your component outputs may be labeled Y-CBCR. In this case, connect the component CBoutput to the TV’s PBinput and the component CRoutput to the TV’s PRinput.

4. It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPR inputs. (See page 41)

5. To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the Y-PBPRjacks.

6. Input 2 (Y/VIDEO) can be used for composite video and component video input.

 IR Blaster

This jack provides IR output to your external components (VCR, Cable box, DVD player, etc.). With this connection, your external components can automatically be controlled by the A/V net feature. This connection will allow you to control the external components with your television’s remote control (see page 18).

 DVI-HDTV Input (Input 1)

Use this DVI-HDTV Input for your external devices with DVI-HDTV output such as a Set-Top-Box, high-band DTV decoders, DVD players and D-VHS with Digital Content Protection..

NOTES: 1. Only DTV format such as 1080i, 720p, 480i and 480p are available for DVI-HDTV input.

2. The DVI-HDTV input is NOT compatible when used with a DVD player from a personal computer.

3. When connecting a Set-Top-Box with a copy-protect digital out terminal, a high definition picture can be displayed on the screen in its digital form.

REAR PANEL CONNECTIONS

NOTE: 1.

Connect only 1 component to each input jack.

2. Follow connections that pertain to your personal entertainment system.

3. Composite video signal can be input to Input2~Input5.

4. Cables are optional except when noted as provided.

TYPICAL FULL-FEATURE SETUP

Outside antenna or cable TV coaxial cable

2-Way signal splitter

CONNECT TO IR BLASTER

IR BLASTER

IR Sensor

ANT A

TO CONVERTER

ANT B

AUDIO TO HI-FI

CENTER

(Provided)

DVD Player

B/CBPR/CR

OUTPUT

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

L R

AUDIO

DVI-HDTV

(MONO)/L

AUDIO

(MONO)/L

AUDIO

(MONO)/L VIDEO

L VIDEO

Y/VIDEO

HDTV Set-Top Box

Y P

S-VIDEO

OUTPUT

L R

ANT IN

OUTPUT CAPABILITY

DIGITAL OUTPUT

VCR #1

OUTPUT

VLR

S-VIDEO

DIGITAL

OUTPUT

INPUT

Cable TV Box

INPUT

IR Sensor

Stereo System Amplifier

CONNECT TO IR BLASTER

S-VIDEO

VCR #2

(Provided)

V L R

INPUT

V L R

S-VIDEO

OUTPUT

Laserdisc player, VCR, camcorder, etc.

TIPS ON REAR PANEL CONNECTIONS

S-VIDEO connections are provided for high performance laserdisc players, VCRs etc. that have this feature. Use these connections in place of the standard video connection if your device has this feature.

If your device has only one audio output (mono sound), connect it to the left audio jack on the television. Refer to the operating guide of your other electronic equipment for additional information on connecting your hook-up cables. A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output (INPUT: 3 in the

example on page 11). Refer to your VCR operating guide for more information on line input-output connections. You may use VIDEO or S-VIDEO inputs to connect to Input 3, Input 4 or Input 5, but only one of these may be used at a time. Connect only 1 component (VCR, DVD player, camcorder, etc.) to each input jack.

COMPONENT: Y-PBPR (Input 1 &2) connections are provided for high performance components, such as DVD players and settop-boxes. Use these connections in place of the standard video connection if your device has this feature. Input 2 accepts both composite and component video signals.

Your component outputs may be labeled Y, B-Y, and R-Y. In this case, connect the components B-Y output to the TV’s PBinput and the components R-Y output to the TV’s PRinput.

Your component outputs may be labeled Y-CBCR. In this case, connect the components CBoutput to the TV’s PBinput and the components CRoutput to the TV’s PRinput.

You may use composite video signal for Input 2~Input 5. It may be necessary to adjust TINT to obtain optimum picture quality when using the Y-PBPRinputs. (See page 41)

To ensure no copyright infringement, the MONITOR OUT output will be abnormal, when using the

Y-PBP

jacks.

CONNECTING EXTERNAL AUDIO SOURCES

To control the audio level of an external audio amplifier with the remote control, connect the system as shown below.

NOTE: 1. To prevent damage to the speaker and distorted sound, set the volume control of the audio amplifier lower and adjust

the sound using the remote control of the TV set.

2. See page 47 for AUDIO Advanced Settings.

REAR PANEL OF TELEVISION

CENTER

DVI-HDTV

Stereo System Amplifier

INPUT

ANT A

TO CONVERTER

ANT B

(MONO)/L

IR BLASTER

AUDIO TO HI-FI

S-VIDEO

Y/VIDEO

(MONO)/L

(MONO)/L VIDEO

LVIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

The exact arrangement you use to connect the VCR, camcorder, laserdisc player, DVD player, or HDTV Set Top Box to your TV set is dependent on the model and features of each component. Check the owner’s manual of each component for the location of video and audio inputs and outputs.

The following connection diagrams are offered as suggestions. However, you may need to modify them to accommodate your particular assortment of components and features. For best performance, video and audio cables should be made from coaxial shielded wire.

Before Operating External Video Source

The input mode is changed every time the VID1~VID5 button is pressed as shown below. Connect an external source to the INPUT terminal, then press the VID1~VID5 button as necessary to view the input source. (See page 27)

(ANTENNA)

(INPUT)

VID1

ANT

Ant A

BPR:1

VID1

NOTE: When the TV is set to VIDEO and a video signal is not received from the VIDEO INPUT JACK on the back panel of the

TV (i.e., VCR/laserdisc player, etc. is not connected or the video device is OFF), the set will appear to be OFF.

CONNECTING EXTERNAL VIDEO SOURCES

INPUT MODE SELECTION ORDER

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A MONAURAL AUDIO SOURCE TO INPUT2~INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set below.

2. Connect the cable from the AUDIO OUT of the VCR or the laserdisc player to the INPUT (MONO)/L(AUDIO) jack.

3. Press the VID2~VID5 button to view the program from the VCR or the laserdisc player. The VIDEO label disappears automatically after approximately four seconds.

4. Press the ANT button to return to the previous channel.

ANT A

DVI-HDTV

(MONO)/L

(MONO)/L VIDEO

L VIDEO

AUDIO

Y/VIDEO

AUDIO

S-VIDEO

IR BLASTER

TO CONVERTER

ANT B

AUDIO TO HI-FI

CENTER

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

Audio Video

OUTPUT

VCR

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A STEREO SOURCE TO INPUT2~INPUT5

1. Connect the cable from the VIDEO OUT of the VCR or the laserdisc player to the INPUT (VIDEO) jack, as shown on the TV set below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID2~VID5 button to view the program from the VCR or laserdisc player. The VIDEO label disappears automatically after approximately four seconds.

5. Press the ANT button to return to the previous channel.

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

2. A single VCR can be used for VCR #1 and VCR #2, but note that a VCR cannot record its own video or line output. (INPUT: 1 in example on page 11) Refer to your VCR operating guide for more information on line input-output connections.

CENTER

DVI-HDTV

VCR

OUTPUT

RL V

ANT A

TO CONVERTER

ANT B

(MONO)/L

IR BLASTER

AUDIO TO HI-FI

S-VIDEO

Y/VIDEO

(MONO)/L

(MONO)/L VIDEO

L VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING AN S-VIDEO SOURCE TO INPUT 3, 4 AND 5

1. Connect the cable from the S-VIDEO OUT of the VCR or the laserdisc player to the INPUT (S-VIDEO) jack, as shown on the TV set below.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID3~VID5 button to view the program from the VCR or laserdisc player. The VIDEO label disappears automatically after approximately four seconds.

5. Press the ANT button to return to the previous channel.

NOTES: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

ANT A

DVI-HDTV

(MONO)/L

(MONO)/L VIDEO

L VIDEO

AUDIO

Y/VIDEO

AUDIO

S-VIDEO

IR BLASTER

TO CONVERTER

ANT B

AUDIO TO HI-FI

CENTER

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

OUTPUT

RL V

S-VIDEO

VCR

CONNECTING EXTERNAL VIDEO SOURCES

CONNECTING A COMPONENT SOURCE TO INPUT 1 OR 2: Y-PBPR.

1. Connect the cable from the Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (Y) jack, as shown on the TV set at right.

2. Connect the cable from the CB/PBOUT or B-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PB)jack.

3. Connect the cable from the CR/PROUT or R-Y OUT of the Laserdisc/DVD player or HDTV set top box to the INPUT (PR) jack.

4. Connect the cable from the AUDIO OUT R of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/R) jack.

5. Connect the cable from the AUDIO OUT L of the Laserdisc/DVD player or HDTV set top box to the INPUT (AUDIO/L) jack.

6. Press the VID1~VID2 button, to view the program from the Laserdisc/DVD player or HDTV set top box. The VIDEO label disappears automatically after approximately four seconds.

7. Press the ANT button to return to the previous channel.

NOTE: 1. Completely insert the connection cord plugs when connecting to rear panel jacks. The picture and sound that is

played back will be abnormal if the connection is loose.

2. See page 12 for tips on REAR PANELCONNECTIONS.

CENTER

DVI-HDTV

DVD Player

OUTPUT

RPB

L R

AUDIO

ANT A

TO CONVERTER

ANT B

(MONO)/L

IR BLASTER

AUDIO TO HI-FI

S-VIDEO

Y/VIDEO

(MONO)/L

(MONO)/L VIDEO

L VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

CONNECTING A COMPONENT SOURCE WITH DVI-HDTV CAPABILITY TO INPUT 1

1. Connect the DVI connection cable from the output of the VCR or laserdisc player to the DVI-HDTV input as shown on the TV set at right.

2. Connect the cable from the AUDIO OUT R of the VCR or the laserdisc player to the INPUT (AUDIO/R) jack.

3. Connect the cable from the AUDIO OUT L of the VCR or the laserdisc player to the INPUT (AUDIO/L) jack.

4. Press the VID1 button to view the program from the VCR or laserdisc player. The VIDEO label disappears automatically after approximately four seconds.

5. Press the ANT button to return to the previous channel.

CENTER

DVI-HDTV

ANT A

TO CONVERTER

ANT B

(MONO)/L

IR BLASTER

AUDIO TO HI-FI

S-VIDEO

Y/VIDEO

(MONO)/L

(MONO)/L VIDEO

L VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

DIGITAL

OUTPUT CAPABILITY

DIGITAL OUTPUT

OUTPUT

AUDIO

CONNECTING A/V NETWORK

Your Hitachi Television is equiped with an A/V Network feature. This feature helps to control your external Audio/Video equipment (VCR, Set Top Box, DVD, etc.). Once this is setup, it allows your IR Mouse connector to control your equipment using your Hitachi TV Remote Control. You can use your Hitachi remote control to control the Audio/Video equipment command without the equipment’s remote control.

The Television rear panel has 2 IR BLASTER jacks. Each IR Mouse cable can connect up to 2 external Audio/Video components. Therefore, you can connect the Television with up to four components. Please see the following example of an A/V Network setup between your Hitachi Television and external Audio/Video equipment (VCR and DVD Player).

CONNECTING EXTERNAL AUDIO/VIDEO COMPONENTS TO IR BLASTER FOR A/V NETWORK

1. Connect your external Audio/Video components to the Rear Panel jacks as shown on pages 13~17.

2. Connect the IR Mouse cable to the IR BLASTER input of the Television’s rear panel.

3. Place the IR mouse in front of the infrared sensor of the external components you wish to control.

NOTES: 1. The Rear Panel has two IR BLASTER inputs which can control up to a total of four external components.

2. The IR Mouse must be placed in front of the external components IR sensor for the A/V Network to work.

3. The correct codes must be entered for each of the Audio/Video components for the A/V Network to function properly (see page 20).

CENTER

DVI-HDTV

DVD Player

IR Sensor

IR Mouse

VCR

R L V

OUTPUT

IR Sensor

OUTPUT

R/CRPB/CB

L R

ANT A

TO CONVERTER

ANT B

(MONO)/L

IR BLASTER

AUDIO TO HI-FI

S-VIDEO

Y/VIDEO

(MONO)/L

(MONO)/L VIDEO

L VIDEO

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

IR Mouse

AUDIO

4. Press the A/V NET button on the remote control. Use THUMB STICK  or  to highlight the component you wish to set up. Use THUMB STICK  to enter component’s “SOFT KEY” control button. The A/V Network Setup Wizard will automatically start upon the very first use. You can access the Setup Menu Wizard again in the future by pressing the A/V net button and selecting SETUP.

DVD

Amplifier

Cable Box

Set Top Box

VCR

Move

POWER

TV/VCR

CH CH



SETUP



A/V NETWORK SETUP WIZARD

There are six steps in the setup procedure (VCR setup example below).

HITACHI AV NET Wizard (step 1 of 6)

This Wizard helps you with

VCR connections and settings.

Would you like to setup or

modify your VCR?

BACK NEXT

HITACHI AV NET Wizard (step 2 of 6) Follow the digrams shown in Hitachi’s

Easy Graphic Guide

to connect your VCR.

Carefully position the IR “mouse” in front

of your VCR as shown in the diagrams.

BACK NEXT

HITACHI AV NET Wizard (step 3 of 6)

Find your VCR

4-digit manufacturers code

and enter it here - - - -

(Enter Code “9999” to uninstall)

BACK NEXT

If Error

ATTENTION

The 4-digit code did not match AV Net’s library. Please check

and re-enter a valid code - - - -

BACK NEXT

Proper Code Entered

from page 20.

HITACHI AV NET Wizard (step 4a of 6)

Which TV Rear Panel Input

is connected to your VCR? () ANT A ( ) INPUT 3 ( ) ANT B ( ) INPUT 4 ( ) INPUT 1 ( ) INPUT 5 ( ) INPUT 2

BACK NEXT

HITACHI AV NET Wizard (step 4b of 6)

Which RF channel does your VCR

use to send video to the TV?

() Channel 03 ( ) Channel 04

BACK NEXT

HITACHI AV NET Wizard (step 5 of 6)

Turn ON your VCR then press

each of the 3 function keys below.

Your VCR should respond to one of these

keys. Now press NEXT to continue.

BACK NEXT

POWER PLAY CH UP

HITACHI AV NET Wizard (step 6 of 6)

Did your VCR respond to

POWER, PLAY or CH UP?

Press DONE to finish this wizard or

HELP to trouble shoot settings.

HELP DONE

HITACHI AV NET Wizard

Congratulations!

Your VCR is now conected

to your AV network.

TROUBLE SHOOTING

Please check connections shown

in the EASY GRAPHIC GUIDE.

If connections are correct,

try a different manufacturers code

for your VCR 0 4 3 6

BACK NEXT

HITACHI AV NET Wizard (step 3b of 6)

This will uninstall VCR

on INPUT 1.

Would you like to proceed?

BACK YES

ANT A/B

DONE

HELP

From Step 3, once you enter “9999”, the following message appears.

5. Follow the steps below to setup your A/V network (See page 20 for A/V Network Codes).

6. Enter “9999” to uninstall the equipment from your A/V Network.

7. See Remote Control A/V NET button usage on page 24. NOTES: 1. If your equipment cannot be operated after performing the above procedures, your equipment code has not been pre-

coded into the A/V Net.

2. In the unlikely event that your equipment receiver cannot be operated after performing the above procedures, please consult your equipment receiver operating guide.

AUDIO/VIDEO NETWORK (A/V NET) CODES

VCR BRAND . . . . . . . . . . . . . . . . . . . . . . . CODE

Admiral. . . . . . . . . . . . . . . . . . . . . . . . 0048, 0209

Adventura . . . . . . . . . . . . . . . . . . . . . . . . . . .0000

Aiko . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0278

Aiwa . . . . . . . . . . . . . . . . . . . . . 0307, 0000, 0037

Akai. . . . . . . . . . . . . . . . . 0106, 0053, 0041, 0061

America Action . . . . . . . . . . . . . . . . . . . . . . . 0278

American High . . . . . . . . . . . . . . . . . . . . . . . 0035

Asha. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Audiovox . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Beaumark. . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Bell & Howell . . . . . . . . . . . . . . . . . . . . . . . . 0104

Broksonic . . . . . . . . . . . . 0121, 0184, 0002, 0209,

. . . . . . . . . . . . . . . . . . . . 0211, 0295, 0361, 0479

CCE . . . . . . . . . . . . . . . . . . . . . . . . . . 0072, 0278

Calix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Canon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0035

Capehart . . . . . . . . . . . . . . . . . . . . . . . . . . . 0020

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0081

Cineral . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0278

Citizen . . . . . . . . . . . . . . . . . . . . . . . . 0278, 0037

Colt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0072

Craig . . . . . . . . . . . 0037, 0072, 0047, 0240, 0271

Curtis Mathes. . . . . 0035, 0041, 0060, 0162, 0760

Cybernex . . . . . . . . . . . . . . . . . . . . . . 0051, 0240

Daewoo . . . . . . . . . . . . . . 0278, 0561, 0020, 0045

Daytron . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0020

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0042

Dynatech . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

Electrohome. . . . . . . . . . . . . . . . . . . . . . . . . 0037

Electrophonic . . . . . . . . . . . . . . . . . . . . . . . . 0037

Emerex. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0032

Emerson . . . . . . . . 0184, 0002, 0209, 0278, 0036,

. . . . . . . . . . . . . . . 0121, 0211, 0561, 0208, 0294,

. . . . . . . . . . . . . . . 0479, 0061, 0088, 0212, 0000,

. . . . . . . . . . . . . . . 0037, 0043, 0068, 0295, 0361

Fisher . . . . . . . . . . . . . . . 0047, 0104, 0054, 0066

Fuji . . . . . . . . . . . . . . . . . . . . . . . . . . . 0033, 0035

Funai . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

GE . . . 0035, 0060, 0048, 0202, 0240, 0760, 0761

Garrard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

Go Video. . . . . . . . . . . . . 0432, 0526, 0232, 0643

GoldStar . . . . . . . . . . . . . . . . . . . . . . . 0037, 0038

Gradiente . . . . . . . . . . . . . . . . . . . . . . 0008, 0000

Grundig . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0195

HI-Q. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0047

Harley Davidson. . . . . . . . . . . . . . . . . . . . . . 0000

Harman/Kardon. . . . . . . . . . . . . . . . . . 0038, 0081

Harwood. . . . . . . . . . . . . . . . . . . . . . . 0068, 0072

Headquarter . . . . . . . . . . . . . . . . . . . . . . . . . 0046

Hitachi. . . . . . . . . . . . . . . 0042, 0105, 0000, 0041

Hughes Network Systems. . . . . . . . . . . . . . . 0042

JVC. . . . . . . . . . . . . . . . . . . . . . 0067, 0008, 0041

Jensen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0041

KEC . . . . . . . . . . . . . . . . . . . . . . . . . . 0037, 0278

KLH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0072

Keen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0693

Kenwood. . . . . . . . . . . . . . . . . . 0041, 0067, 0038

Kodak. . . . . . . . . . . . . . . . . . . . . . . . . 0035, 0037

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . 0000, 0208

Logik . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0072

MEI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0035

MGA . . . . . . . . . . . . . . . . . . . . . 0043, 0061, 0240

MGN Technology . . . . . . . . . . . . . . . . . . . . . 0240

MTC . . . . . . . . . . . . . . . . . . . . . . . . . . 0000, 0240

Magnasonic . . . . . . . . . . . . . . . . . . . . . . . . . 0278

Magnavox. . . . . . . . . . . . 0035, 0081, 0110, 0563,

. . . . . . . . . . . . . . . . . . . . . . . . . 0000, 0039, 0149

Magnin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Marantz . . . . . . . . . . . . . . . . . . . . . . . 0081, 0035

Marta . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Matsushita. . . . . . . . . . . . . . . . . 0035, 0162, 0454

Memorex. . . . . . . . 0104, 0047, 0479, 0000, 0037,

. . . . . . . . . . 0048, 0035, 0046, 0240, 1037, 0307,

. . . . . . . . . . . 0039, 0162, 0209, 0454, 1162, 1262

Minolta . . . . . . . . . . . . . . . . . . . . . . . . 0105, 0042

Mitsubishi. . . . . . . . 0173, 0061, 0043, 0048, 0067

Motorola . . . . . . . . . . . . . . . . . . . . . . . 0035, 0048

Multitech. . . . . . . . . . . . . . . . . . . . . . . 0000, 0072

NAD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0058

NEC. . . . . . . . . . . . 0038, 0040, 0041, 0067, 0104

Nikko . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Nikon . . . . . . . . . . . . . . . . . . . . . . . . . 0034, 0253

Noblex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Olympus. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0035

Optimus . . . . . . . . 0162, 0454, 1062, 1162, 0048,

. . . . . . . . . . 0058, 1262, 0037, 1048, 0104, 0432

Optonica. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0062

Orion . . . . . . . . . . . 0479, 0002, 0184, 0209, 0295

Panasonic. . . . . . . 0035, 0162, 0454, 1162, 0077,

. . . . . . . . . . . . . . . 1062, 1262, 1362, 0225, 0616

Penney . . . . . . . . . . . . . . 0035, 0240, 0037, 0042,

. . . . . . . . . . . . . . . . . . . . . . . . . 0038, 0040, 0054

Pentax . . . . . . . . . . . . . . . . . . . . . . . . 0042, 0105

Philco . . . . . . . . . . . . . . . . . . . . 0035, 0209, 0479

Philips . . . . . . . . . . . . . . 0081, 0035, 0062, 0618,

. . . . . . . . . . . . . . . . . . . . . . . . . 0110, 1081, 1181

Pilot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . 0058, 0067

Polk Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 0081

Portland . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0020

Profitronic . . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Proscan . . . . . . . . . . . . . . 0060, 0202, 0760, 0761

Protec . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0072

Pulsar. . . . . . . . . . . . . . . . . . . . . . . . . 0039, 0051

Quarter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0046

Quartz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0046

Quasar . . . . . . . . . . 0035, 0162, 0077, 0454, 1162

RCA . . . . . . 0060, 0149, 0202, 0042, 0058, 0105,

. . . . . . 0035, 0048, 0077, 0106, 0240, 0760, 0761

Radio Shack . . . . . . . . . . . . . . . . . . . . 0000, 1037

Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Randex. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0037

Realistic . . . . . . . . . . . . . 0000, 0104, 0047, 0048,

. . . . . . . . . . . . . . . 0037, 0035, 0062, 0046, 0066

ReplayTV . . . . . . . . . . . . . . . . . . . . . . 0614, 0616

Ricoh . . . . . . . . . . . . . . . . . . . . . . . . . 0034, 0253

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0039

STS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0042

Samsung. . . . . . . . . . . . . 0045, 0051, 0053, 0240

Samtron . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0643

Sanky . . . . . . . . . . . . . . . . . . . . . . . . . 0039, 0048

Sansui . . . . . 0041, 0479, 0000, 0067, 0209, 0271

Sanyo . . . . . . . . . . . . . . . 0047, 0046, 0104, 0240

Scott. . . . . . . . . . . . . . . . 0184, 0211, 0121, 0043,

. . . . . . . . . . . . . . . . . . . . . . . . . 0045, 0210, 0212

Sears . . . . . . . . . . 0054, 0105, 0037, 0042, 0000,

. . . . . . . . . . . . . . . 0035, 0046, 0047, 0066, 0104

Semp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0045

Sharp . . . . . . . . . . . . . . . . . . . . 0048, 0062, 0738

Shintom . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0072

Shogun . . . . . . . . . . . . . . . . . . . . . . . . 0051, 0240

Singer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0072

Sony. . . . . . . . . . . . . . . . 0033, 0034, 0032, 0253,

. . . . . . . . . . . . . . . . . . . . 0000, 0035, 0636, 1032

Sunpak. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0253

Sylvania. . . . . . . . . 0035, 0081, 0000, 0043, 0110

Symphonic . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

TMK . . . . . . . . . . . . . . . . . . . . . 0036, 0208, 0240

Tatung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0041

Teac. . . . . . . . . . . . . . . . . . . . . . . . . . 0000, 0041

Technics. . . . . . . . . . . . . . . . . . . . . . . 0035, 0162

Teknika. . . . . . . . . . . . . . . . . . . 0000, 0035, 0037

Thomas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

Tivo . . . . . . . . . . . . . . . . . . . . . . . . . . 0618, 0636

Toshiba . . . . . . . . . . . . . . . . . . 0045, 0210, 0212,

. . . . . . . . . . . . . . . . . . . . . . . . . 0043, 0066, 0366

Totevision. . . . . . . . . . . . . . . . . . . . . . 0037, 0240

Unitech. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Vector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0045

Vector Research. . . . . . . . . . . . . . . . . 0038, 0040

Video Concepts. . . . . . . . . . . . . 0040, 0045, 0061

Videosonic . . . . . . . . . . . . . . . . . . . . . . . . . . 0240

Wards . . . . . 0035, 0060, 0062, 0000, 0047, 0212,

. . . . . . 0240, 0042, 0048, 0072, 0081, 0149, 0760

White Westinghouse . . . . . . . . . 0072, 0278, 0209

XR-1000 . . . . . . . . . . . . . . . . . . 0072, 0000, 0035

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0038

Zenith. . . . . . . . . . . . . . . . . . . . 0039, 0637, 0000,

. . . . . . . . . . . . . . . . . . . . 0033, 0034, 0209, 0479

DVD BRAND . . . . . . . . . . . . . . . . . . . . . . . CODE

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0641

Apex . . . . . . . . . . . . . . . . . . . . . . . . . . 0672, 0755

Audiologic. . . . . . . . . . . . . . . . . . . . . . . . . . . 0736

B & K . . . . . . . . . . . . . . . . . . . . . . . . . 0655, 0662

Denon. . . . . . . . . . . . . . . . . . . . . . . . . 0490, 0634

Emerson. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0591

Fisher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0670

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . 0522, 0717

GPX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0769

Go Video . . . . . . . . . . . . . . . . . . . . . . . . . . . 0715

Gradiente . . . . . . . . . . . . . . . . . . . . . . . . . . . 0651

Harman/Kardon . . . . . . . . . . . . . . . . . . . . . . 0582

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . 0573, 0664

Hiteker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0672

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . 0623, 0558

Kenwood. . . . . . . . . . . . . . . . . . 0737, 0682, 0534

Konka . . . . . . . . . . . . . . . 0719, 0711, 0720, 0721

Magnavox . . . . . . . . . . . . . . . . . . . . . . 0503, 0675

Marantz . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0539

Mitsubishi. . . . . . . . . . . . . . . . . . . . . . . . . . . 0521

Onkyo. . . . . . . . . . . . . . . . . . . . . . . . . 0627, 0503

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0571

Oritron . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0651

Panasonic . . . . . . . . . . . . 0490, 0677, 0678, 0632

Philips. . . . . . . . . . . . . . . . . . . . . . . . . 0539, 0503

Pioneer . . . . . . . . . . . . . . . . . . . 0571, 0525, 0632

Princeton . . . . . . . . . . . . . . . . . . . . . . . . . . . 0674

Proscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0522

RCA . . . . . . . . . . . . . . . . 0522, 0571, 0704, 0717

Samsung . . . . . . . . . . . . . . . . . . . . . . . . . . . 0573

Sanyo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0670

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0630

Sherwood . . . . . . . . . . . . . . . . . . . . . . . . . . . 0633

Sony. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0533

Technics. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0490

Techwood. . . . . . . . . . . . . . . . . . . . . . . . . . . 0692

Theta Digital. . . . . . . . . . . . . . . . . . . . . . . . . 0571

Toshiba. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0503

Yamaha . . . . . . . . . . . . . . . . . . . . . . . 0490, 0545

Zenith . . . . . . . . . . . . . . . . . . . . . . . . . 0591, 0503

CABLE BRAND . . . . . . . . . . . . . . . . . . . . . CODE

ABC . . . . . . . 0003, 0007, 0008, 0011, 0014, 0017

Americast. . . . . . . . . . . . . . . . . . . . . . . . . . . 0899

Bell & Howel . . . . . . . . . . . . . . . . . . . . . . . . .0014

Bell South. . . . . . . . . . . . . . . . . . . . . . . . . . . 0899

Contec. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0019

Everquest. . . . . . . . . . . . . . . . . . . . . . . . . . . 0015

Gemini . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0015

General Instrument . . . . . 0276, 0476, 0011, 0810

GoldStar. . . . . . . . . . . . . . . . . . . . . . . . . . . . 0144

Hamlin . . . . . . . . . . . . . . . . . . . 0020, 0009, 0273

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0011

Hytex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0007

Jasco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0015

Jerrold. . . . . . . . . . . . . . .0003, 0012, 0276, 0014,

. . . . . . . . . . . . . . . . . . . . 0476, 0011, 0015, 0810

Memorex. . . . . . . . . . . . . . . . . . . . . . . . . . . .0000

Motorola . . . . . . . . . . . . . . . . . . . . . . . 0476, 1106

Oak . . . . . . . . . . . . . . . . . . . . . . . . . . 0019, 0007

Optimus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0021

Pace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0237

Panasonic. . . . . . . . . . . . . . . . . 0021, 0107, 0000

Paragon . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

Philips. . . . . . . . . . . . . . . . . . . . . . . . . 0305, 0317

Pioneer . . . . . . . . . . . . . . 0144, 0533, 0877, 1877

Pulsar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

Quasar . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0000

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0021

Radio Shack. . . . . . . . . . . . . . . . . . . . . . . . . 0015

Regal . . . . . . . . . . . . . . . . . . . . .0273, 0279, 0020

Rembrandt . . . . . . . . . . . . . . . . . . . . . . . . . . 0011

Runco . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0000

Samsung . . . . . . . . . . . . . . . . . . . . . . . . . . . .0144

Scientific Atlanta. . . . . . . . . . . . . . . . . 0008, 0017,

. . . . . . . . . . . . . . . . . . . . . . . . .0477, 0877, 1877

Signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0015

Signature . . . . . . . . . . . . . . . . . . . . . . . . . . . 0011

Sony. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1006

Sprucer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0021

Starcom . . . . . . . . . . . . . . . . . . . . . . . 0003, 0015

Stargate . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0015

Starquest. . . . . . . . . . . . . . . . . . . . . . . . . . . .0015

Tocom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0012

Toshiba. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0000

Tusa. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0015

United Artists . . . . . . . . . . . . . . . . . . . . . . . . .0007

Zenith . . . . . . . . . . . . . . . . . . . . 0000, 0525, 0899

(SET-TOP-BOX) SATELLITE . . . . . . . . . . . CODE

AlphaStar . . . . . . . . . . . . . . . . . . . . . . . . . . . 0772

Chaparra . . . . . . . . . . . . . . . . . . . . . . . . . . . 0216

Echostar . . . . . . . . . . . . . . . . . . . . . . . 1005, 0775

Expressvu . . . . . . . . . . . . . . . . . . . . . . . . . . 0775

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0566

General Instrument . . . . . . . . . . . . . . . . . . . . 0869

HTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0775

Hitachi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0819

Hughes Network Systems . . . . . 0749, 1142, 1749

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0775

Magnavox . . . . . . . . . . . . . . . . . . . . . . 0722, 0724

Memorex.. . . . . . . . . . . . . . . . . . . . . . . . . . . 0724

Mitsubishi. . . . . . . . . . . . . . . . . . . . . . . . . . . 0749

Next Level . . . . . . . . . . . . . . . . . . . . . . . . . . 0869

Panasonic . . . . . . . . . . . . . . . . .0247, 1189, 0701

Philips . . . . . . . . . . 1076, 1142, 0722, 0724, 0749

Proscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0392

RCA . . . . . . . . . . . . . . . . 0566, 0392, 0143, 0855

Radio Shack . . . . . . . . . . . . . . . . . . . . . . . . .0869

Samsung . . . . . . . . . . . . . . . . . . . . . . . . . . . 1109

Sony. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0639

Star Choice . . . . . . . . . . . . . . . . . . . . . . . . . 0869

Toshiba. . . . . . . . . . . . . . . . . . . . . . . . 0749, 0790

Uniden . . . . . . . . . . . . . . . . . . . . . . . . 0724, 0722

Zenith. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0856

AMPLIFIER (AMPLIFIER). . . . . . . . . . . . . . CODE

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0406

Carver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0269

Curtis Mathes . . . . . . . . . . . . . . . . . . . . . . . .0300

Denon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0160

GE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0078

Harman/Kardon . . . . . . . . . . . . . . . . . . . . . . .0892

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0331

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0269

Luxman . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0165

Magnavox. . . . . . . . . . . . . . . . . . . . . . . . . . . 0269

Marantz. . . . . . . . . . . . . . . . . . . 0269, 0321, 0892

Nakamichi . . . . . . . . . . . . . . . . . . . . . . . . . . 0321

Optimus . . . . . . . . . . . . . . . . . . . . . . . 0395, 0300

Panasonic . . . . . . . . . . . . . . . . . . . . . . . . . . 0308

Parasound . . . . . . . . . . . . . . . . . . . . . . . . . . 0246

Philips. . . . . . . . . . . . . . . . . . . . . . . . . 0269, 0892

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . 0013, 0300

Polk Audio . . . . . . . . . . . . . . . . . . . . . 0269, 0892

RCA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0300

Realistic. . . . . . . . . . . . . . . . . . . . . . . . . . . . .0395

Sansui . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0321

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . 0689, 0220

Soundesign . . . . . . . . . . . . . . . . . . . . . 0078, 0211

Technics. . . . . . . . . . . . . . . . . . . . . . . 0308, 0521

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0331

Wards . . . . . . . . . . . . . . . . . . . . 0013, 0078, 0211

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0354

AMPLIFIER (RECEIVER) . . . . . . . . . . . . . . CODE

ADC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0531

Aiwa. . . . . . . 0121, 0405, 1405, 0158, 0189, 1089

Bose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1229

Capetronic. . . . . . . . . . . . . . . . . . . . . . . . . . .0531

Carver . . . . . . . . . . . . . . . 0189, 0042, 1089, 1189

Casio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0195

Clarinette. . . . . . . . . . . . . . . . . . . . . . . . . . . .0195

Compaq . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1136

Curtis Mathes. . . . . . . . . . . . . . . . . . . . . . . . 0080

Denon. . . . . . . . . . . . . . . . . . . . .0004, 1160, 1104

Fisher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0042

Garrard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0463

Harman/Kardon. . . . . . . . . . . . . 0891, 0110, 0189

Hewlett Packard . . . . . . . . . . . . . . . . . . . . . . 1181

JBL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0110

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0074

Kenwood . . . . . . . . . . . . . . . . . 0027, 1027, 1313,

. . . . . . . . . . . . . . . . . . . . 0042, 0186, 1569, 1570

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0181

Linn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0189

Lloyd's . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0195

MCS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0039

Magnavox . . . . . . . . . . . . . . . . 0189, 0391, 1089,

. . . . . . . . . . . . . . . . . . . . . . . . . 0531, 1189, 0195

Marantz . . . . . . . . . . . . . . 0189, 1189, 1089, 0039

Modulaire . . . . . . . . . . . . . . . . . . . . . . . . . . . 0195

Nakamichi . . . . . . . . . . . . . . . . . . . . . . . . . . 0097

Onkyo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0135

Optimus . . . . . . . . . . . . . 1023, 0181, 0080, 0186,

. . . . . . . . . . . . . . . 0531, 0738, 0801, 0042, 0670

Panasonic . . . . . . . . . . . . 0039, 0367, 0309, 1518

Penney. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0195

Philips. . . . . . 0189, 1089, 1120, 1189, 1269, 0391

Pioneer . . . . . . . . . . . . . . . . . . 0080, 0014, 0244,

. . . . . . . . . . . . . . . . . . . . 0150, 0531, 0630, 1023

Polk Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 0189

Proscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1254

Quasar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0039

RCA . . . . . . . . . . . . . . . . 1254, 0531, 0080, 1023

Realistic . . . . . . . . . . . . . . . . . . . . . . . 0181, 0195

Sansui . . . . . . . . . . . . . . . . . . . . . . . . 0189, 1089

Sanyo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0801

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0186

Sherwood . . . . . . . . . . . . . . . . . . . . . . 0502, 0491

Sony . . . . . . . . . . . 0158, 1158, 1058, 1258, 0474

Soundesign . . . . . . . . . . . . . . . . . . . . . . . . . 0670

Sunfire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1313

Teac. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0463

Technics. . . . . . . . . 0309, 0039, 1308, 1518, 1309

Thorens . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1189

Victor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0074

Wards. . . . . . . . . . . . . . . .0014, 0080, 0158, 0189

Yamaha. . . . . . . . . . . . . . . . . . . 0176, 0186, 1176

Yorx.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0195

Zenith. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0857

AMPLIFIER (AUDIO) . . . . . . . . . . . . . . . . . CODE

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . 0010, 0159

Fisher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0052

JVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0073

Jerrold . . . . . . . . . . . . . . . . . . . . . . . . 0459, 0520

Scientific Atlanta . . . . . . . . . . . . . . . . . . . . . . 0460

Sony . . . . . . . . . . . . . . . . . . . . . 0159, 0010, 0576

Starcom. . . . . . . . . . . . . . . . . . . . . . . . . . . . .0459

SET-TOP-BOX (VIDEO). . . . . . . . . . . . . . . CODE

AOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1061

Magnavox. . . . . . . . . . . . . . . . . . . . . . . . . . . 0818

Mitsubishi. . . . . . . . . . . . . . . . . . . . . . . . . . . 1002

Panasonic. . . . . . . . . . . . . . . . . . . . . . . . . . . 1120

Philips. . . . . . . . . . . . . . . . . . . . . . . . . 0818, 1061

Pioneer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1010

Princeton. . . . . . . . . . . . . . . . . . . . . . . 0113, 0295

Samsung . . . . . . . . . . . . . . . . . . . . . . . . . . . 1190

Sensory Science. . . . . . . . . . . . . . . . . . . . . . 1126

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1010

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0850

THE REMOTE CONTROL

In addition to controlling all the functions on your HITACHI Projection TV, the new remote control is designed to operate different types of VCRs, CATV (Cable TV) converters, set-top-box, satellite receiver, DVD players, and other audio/video equipment with one touch. Basic operation keys are grouped together in one area.

To operate your TV, point the remote control at the remote sensor of the TV and press the TV button. The TV button will blink, indicating that the remote will now control your television.

To operate your VCR, point the remote at the remote sensor of the VCR and press the VCR button. The VCR button will blink, indicating that the remote will now control your VCR. (See page 31 for instructions on how to program the remote to control your VCR.)

To operate your cable box, point the remote at the remote sensor of the cable box and press the CABLE (CBL) button. The CBL button will blink, indicating that the remote will now control your cable box. (See page 32 for instructions on how to program the remote to control your cable box.)

To operate your set-top-box or satellite receiver point the remote at the remote sensor of the set-top-box and press the SET-TOPBOX (STB) button. The STB button will blink, indicating that the remote will now control your set-top-box. If you have a satellite receiver, use this button to prorame your satellite receiver. (See page 33 for instructions on how to program the remote to control your set-top-box.)

To operate your DVD player, point the remote at the remote sensor of the DVD player and press the DVD button. The DVD button will blink, indicating that the remote will now control your DVD player. (See page 34 for instruction on how to program the remote to control your DVD player.)

To operate additional audio equipment, point the remote at the remote sensor of the component you wish to control and press the CD, TAPE or AMP button. This button will blink, indicating that the remote will now control the desired component. (See page 35 for instructions on how to program the remote to control additional Audio/Video equipment.)

 These buttons allow the remote to control your TV, VCR,

cable box, satellite receiver, DVD player, or other Audio/Video equipment depending on which mode is chosen, as explained above.

, LIGHT BUTTON

When you are in a dark room, press the light button  on the remote to light up the buttons shown in  and the source button will blink. The light will stay on for about 8 seconds if the light button is not pressed again. These buttons will not appear to light if the room is too bright.







POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

ASPECT

STB

LAST CH

VCR PLUS+

SVCS

GUIDE/TV

SCHD

VID 1

VID 2

VID 3

VID 4

VID 5

TAPE

AMP

CLU-5722TSI

HOW TO USE THE REMOTE TO CONTROL YOUR TV

 POWER button

Press this button to turn the TV set on or off when the remote is in TV mode. (See page 21 for instructions on how to set the remote control to TV mode.)

 TV button

When the TV button is pressed, it will blink, to indicate the remote is in TV mode.

 VCR button

When the VCR button is pressed, it will blink to indicate the remote is in VCR mode. (see page 31)

 CABLE (CBL)

When the CABLE button is pressed, it will blink to indicate the remote is in CABLE mode. (see page 32)

 SET-TOP-BOX (STB)

When the STB button is pressed, it will blink to indicate the remote is in STB mode. (see page 33) If you have a Satellite receiver, use this button to program your Satellite receiver. (see page 33)

 DVD button

When the DVD button is pressed, it will blink to indicate the remote is in DVD mode. (see page 34)

















 

























POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

STB

LAST CH

LUS

SVCS

GUIDE/TV

SCHD

VID 1

VID 3

VID 4

VID 5

TAPE

AMP

CLU-5722TSI

HOW TO USE THE REMOTE TO CONTROL YOUR TV

 C.C. button

Press this button to quickly turn the Closed Caption feature on, off and auto. You can also access this feature on the Setup menu. (See page 62).

 CD, TAPE, AMP buttons

When pressed, each of these buttons will blink to indicate the remote is in Audio mode. (see page 35)

 CHANNEL selector buttons

CHANNEL selector buttons are used to select channels, lock access code, etc. Enter one, two, or three numbers to select channels. Enter “0” first for channels 1 to 9, or simply press the single digit channel you wish to tune then wait a few seconds for the TV to tune. For channels 100 and above, press the “1” button, wait until two dashes appear next to the channel display on your TV, then enter the remaining two numbers using the number buttons. Channel selection may also be performed by pressing CH up () or down ().

 SLEEP button

Press this button to display the sleep timer in the lower left corner of the screen. Every subsequent press of this button will add 15 minutes to this timer, up to a maximum of three hours. Once set, use STATUSwhen you want to view time remaining. If the SLEEP button is pressed while the timer is set, it will reset to the original condition.

 INFO button

Press this button when you want to check the channel being received, the picture source, if the channel has stereo (ST) or second audio program (SAP), the time, CHANNEL ID and if the SLEEP timer is set.

 ANTENNA button

The ANT button will select between Antenna A and Antenna B each time the button is pressed.

NOTE: The TV may not receive some channels if you are not in the correct ANTENNA/CABLE mode. (see page 57)

Stereo (480i)

ST/SA

Audio

Broadcast

Audio Selected

Main Picture Source

Channel ID/Video ID

Time PIP/Sub-Picture

Source

Signal Format

Received

TV-PG DLSV

PIP TV-PG DLSV

Broadcast

Rating

16:9 Standard 1080i Movies C.C. On Off 10:05 AM Time Out 10:05 AM Sleep 0:01

Wide Mode

Virtual


Mode

Closed

Captioning

Off Timer

TV Time Out

Sleep Timer

Ant A 15

ABCDEFG

10:10 AM

PIP Ant A 10

PIP/Sub-Picture

OFF

Main Picture

When an S-VIDEO Input is connected to VIDEO: 3.

When a COMPONENT VIDEO: Y-PBPRInput is connected to VIDEO: 1.

S - IN: 3

YPBPR:1

Ant B 28

Ant A 10

ANT

HOW TO USE THE REMOTE TO

CONTROL YOUR TV

 AV/NET button

Press this button to access the Audio/Video network (A/V Net) menu. The A/V Net allows the user to control external components with the TV’s remote control.

When you press the A/V NET button, the following window will pop up within the Display screen. The window will disappear after eight seconds if you don’t press any buttons. Press the A/V NET button again and the last window displayed will appear.

The A/V Net Setup Wizard will automatically start upon the very first use. (see page 18-20). THUMBSTICK  or  to highlight the equipment you wish to control or setup. Use THUMBSTICK , , ,  to navigate and SELECT to select button. The command on the button is passed through the IR mouse and onto the AUDIO/VIDEO equipment. These on-screen buttons are called “Soft Keys”.

This window shows the available Audio/Video equipment soft keys. The equipment list will scroll up or down but the selected equipment will always stay on top.

VCR

Move

POWER

RETURN

CH  CH 

SETUP

DVD

Amplifier

Cable Box

Set Top Box

INFO

45 6

78 9

VCR

Move

POWER

RETURN

CH  CH 

SETUP

DVD

Amplifier

Cable Box

Set Top Box

INFO

45 6

78 9

THUMB

STICK

SELECT

DVD

Amplifier

Cable Box

Set Top Box

VCR

Move

POWER

TV/VCR

 CH 

SETUP



Move

SEL

Select

EXIT

SELECT

THUMB

STICK

SELECT

THUMB

STICK

SELECT

VCR

Move

POWER

INPUT

CH  CH 

SETUP

DVD

Amplifier

Cable Box

Set Top Box

VOL

 VOL 

VCR

Move

POWER

SETUP

DVD

Amplifier

Cable Box

Set Top Box

THUMB

STICK

SELECT

THUMB

STICK

SELECT

The button at the lower right side indicates that there are more soft keys available. Press this button to select between the two pages.

NOTES: There are some devices that don’t have a function matching the softkey A/V NET display.

HOW TO USE THE REMOTE TO CONTROL YOUR TV

 ASPECT button

Press this button to quickly change the picture format ASPECT ratio. Depending on the input signal, the picture format ratio allows you to adjust the images through the following options. 4:3 STANDARD Use this aspect mode to display conventional (4:3) images. Side panels (gray areas) are placed to the

left and right of the image to preserve the original aspect ratio of the source. Note: Use this mode for only 15% of your total viewing time to prevent uneven aging of the phosphors. Phosphors in the lighted area of the picture will age more rapidly than the gray areas.

4:3 EXPANDED Use this aspect mode to display conventional (4:3) sources by expanding the outer edges of the image

to fill the 16:9 screen. The center of the image remains unaltered. 4:3 Zoom1/Zoom2 Use these aspect modes to zoom in on conventional (4:3) sources. 16:9 STANDARD Use this aspect mode to display 16:9 sources like HDTV and DVD’s preserving the original 16:9 aspect

ratio. 16:9 Zoom Use this aspect to Zoom-in once while in 16:9 aspect.

(1) NTSC Input

(2) 480i/480p INPUT

(3) 720p/1080i INPUT

4:3

INPUT

4:3 EXPANDED

4:3 ZOOM1

4:3 ZOOM2

16:9 STANDARD

4:3 STANDARD

16:9

INPUT

4:3 EXPANDED

4:3 ZOOM1

4:3 ZOOM2

16:9 STANDARD

4:3 STANDARD

INPUT

16:9

16:9 STANDARD

16:9 ZOOM

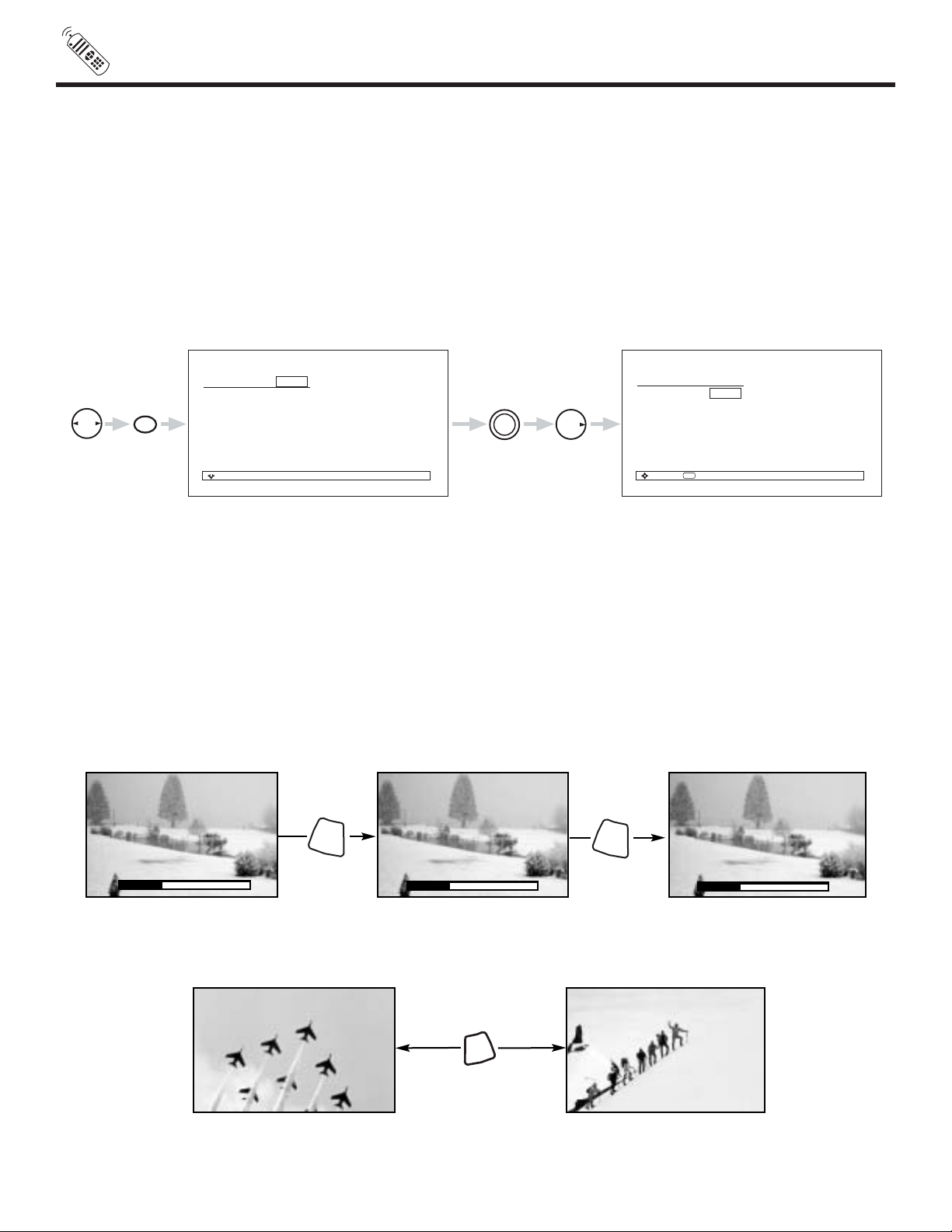

HOW TO USE THE REMOTE TO CONTROL YOUR TV

 VIRTUAL HD button

Press this button to toggle between 1080i and 540p.

 MENU button

The MENU button will start the On-Screen Display.

 EXIT button

When in MENU mode, this button will exit all On-Screen Displays.

 THUMB STICK/SELECT button

All the On-Screen Display features can be set or adjusted by using the THUMB STICK, except for numeric entries. The THUMB STICK will highlight functions or adjust and set different features. Press the THUMB STICK toward desired direction and press down to SELECT.

When no on-screen displays are on the TV screen, use THUMB STICK  or  to access the Favorite Channels feature. To add channels to Favorite Channels, use the number keys to enter the channel number. Use THUMB STICK  to highlight “Add”,

then press SELECT to store the channel to the Favorite Channel feature. To delete (Del) the channel from the Favorite Channel, use THUMB STICK  ,  to highlight the channel, then THUMB STICK 

to highlight Delete (Del) and press SELECT to delete. To view a Favorite Channel use THUMB STICK  ,  to highlight the channel and press SELECT to view.

 VOLUME, MUTE button

Press the VOLUME up () or down () button until you obtain the desired sound level. To reduce the sound to one half of normal volume (SOFT MUTE) to answer the telephone, etc., press the MUTE button. Press the

MUTE button again to turn the sound off completely (MUTE). To restore the sound, press the MUTE button one more time, or press the VOLUME Up () button.

Closed Captioning will display when MUTE/SOFT MUTE is on and Closed Caption is set to AUTO (See page 62).

 LAST CHANNEL (LAST CH) button

Use this button to select between the last two channels viewed. (Good for watching two sporting events, etc.)

Favorite Channels

Move

Ant A 8

A6 A3

- - - - -

THUMB

STICK

THUMB

STICK

Add

SEL

Select

Favorite Channels

Move

Ant A 8

A6 A3

- - - - -

Del

THUMB

STICK

SELECT

Volume 8

Mute 8

Soft Mute 8

Ant A 10

Ant A 39

LAST CH

MUTE

HOW TO USE THE REMOTE TO CONTROL YOUR TV

PICTURE-IN-PICTURE buttons

See separate section on pages 28~30 for a description.

PIP CH button

Use the PIP CH button to select between main picture and sub-picture tuning. The channel number which is highlighted indicates what channel is being controlled.

VID1 ~ VID5

When the remote control is in TV mode, press these buttons to directly select the video input sources between the five video inputs. When the remote control is in Set-Top-Box mode (STB) these buttons will control the Set-Top-Box or satellite receiver, and execute the secondary function labelled.

VIDEO button

Press this button to directly access the VIDEO adjustment menu.

Stereo

ST/SA

Ant A 28

TAKA

VID 1 VID 2

Ant

Video:5

VID5

VID 5

VIDEO

Contrast 100%

Next/Prev

Change Value

YPBPR:1

VID1

Video:4

VID4

SEL

Return

VID 4

EXIT

Video:2

Video:3

VID3

VID2

VID 3

Use above connection to view VCR program as a sub-picture while viewing another program as main picture (ANT A, ANT B, V:1, V:2, V:3, V:4, or V:5). You may also view the VCR program as a main picture while viewing another program as a sub-picture (ANT A, V:1, V:2, V:3, V:4, or V:5).

 PIP button

Press the PIP button and a sub-picture will appear in one of the four different modes (POP, PIP, SPLIT or SURF), depending on the last selection of the PIP mode. To change the PIP mode, use the PIP MODE button to cycle through the four different modes.

POP MODE PICTURE-IN-PICTURE

Press the PIP button and a sub-picture appears in one of the four different modes (POP, PIP, SPLIT or SURF), depending on the last selection of the PIP mode. Press the PIP button again to remove the sub-picture from the screen. Use the PIP CH button to select between main and sub-picture tuning control (indicated by green highlighted channel display.) Press the VID1, VID2, VID3, VID4 or VID5 button when sub-picture channel tuning is being controlled, to change between VIDEO: 1, VIDEO: 2, VIDEO: 3, VIDEO:4 and VIDEO:5 and ANT:A source. (ANT B source cannot be viewed as a sub-picture.)

PIP MODE PICTURE-IN-PICTURE (This feature is only available in 1080i input signal) To prevent a pattern burn, occasionally move the sub-picture using the THUMBSTICK.

PICTURE-IN-PICTURE (PIP)

NOTES: 1. When ANT B is selected as the main channel, the SWAP feature is disabled.

2. In POP mode, thumb stick CURSOR  ,  will move the sub-picture up/down.

Ant A 10

Main Picture

Sub Picture

Ant A 10

PIP

Your HITACHI Projection TV incorporates Dual Tuner technology designed for improved viewing enjoyment. This Dual Tuner feature allows you to view antenna inputs on both the main picture and sub-picture simultaneously, with separate tuning control for each. The Dual Tuner can operate with only one input (ANTAonly) or two inputs (ANTA and ANT B).

ANT A input can be viewed as both the main picture and the sub-picture simultaneously. ANT B can only be viewed as a main picture. To select between main picture and PIP sub-picture tuning, press the PIP CH button on the remote. The green highlighted channel display will move with every press of the PIP CH button. When the top channel display is highlighted, channel tuning is for the main picture. When the lower channel display is highlighted, channel tuning is for the PIP sub-picture.

The Picture-in-Picture feature is convenient when you want to watch more than one program at the same time. You can watch a TV program while viewing other programs from the ANTAsource or any of the video inputs.

PIP

, 





EXIT

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

REC

SELECT

LAST CH

VCR PLUS+

GUIDE/TV

SCHD

VID 2

VID 3

VID 4

VID 5

CLU-5722TSI

Ant A 10

IR BLASTER

ANT A

TO CONVERTER

ANT B

AUDIO TO HI-FI

CENTER

INPUT 1

INPUT 2

INPUT 3

INPUT 4

MONITOR

OUT

AUDIO

DVI-HDTV

(MONO)/L

(MONO)/L VIDEO

L VIDEO

AUDIO

Y/VIDEO

AUDIO

S-VIDEO

Audio Video

OUTPUT

VCR

PIP

PICTURE-IN-PICTURE (PIP)

SPLIT MODE PICTURE-IN-PICTURE

Split Mode PIP displays the main picture and sub-picture evenly on the screen.

SURF MODE PICTURE-IN-PICTURE

This feature will automatically scan all active channel numbers (those set in memory) and display them as PIP sub-pictures, Press the PIP button a second time to remove the sub-pictures from the screen.

 SWAP button

If you wish to switch what is being shown on the main picture to the sub-picture, press the SWAP button.

NOTES: 1. If no buttons are pressed when in SURF mode, auto-scanning will continuously scan channels in memory.

(see page 48)

2. If a channel is tuned during this SURF scanning, sub-pictures will be removed from the screen.

3. SURF MODE PIP is allowed only when ANTA or ANT B is selected as the main channel.

4. If MOVIE/TV RATINGS lock functions setting is ON, SURF mode will be deactivated.

5. Closed Caption will not appear when SURF mode is on.

NOTES: 1. The SWAP button will only operate in POP/SPLIT PIP mode.

2. The SWAP function will not operate if ANT B input is set as the main channel (ANT B input cannot be displayed as a sub-picture.)

Ant A 28

Ant A 10

 PIP MODE button

To change between the different PIP modes (POP, PIP, SPLIT or SURF) press the PIP MODE button when PIP is ON. Each press of this button will change PIP to a different mode.

PIP MODES will depend on the type of input signal.

PIP

PIP MODE

Ant A 12

Ant A 10

Ant A 12

PIP MODE

Ant A

PIP

PICTURE-IN-PICTURE (PIP) MODES

POP PIP SPLIT SURF YES x YES YES YES x YES x

xxYES x x xYES x x YES YES x

NTSC (ANT A/B) 480i 480p 720p 1080i

Ant A 10

Ant A 12

Main Picture

Sub Picture

SWAP

SPLIT

Ant A 12

Ant A 10

Ant A 12

Ant A

PICTURE-IN-PICTURE (PIP)

 FREEZE button (With PIP ON)

If you wish to freeze the sub-picture, press the FREEZE button. This is convenient when trying to write down the address for a mail order company, recording statistics for a sporting event, etc. To return the picture to motion, press the FREEZE button again.

 FREEZE button (with PIP OFF)

Press the FREEZE button to freeze the picture, depending on the PIP mode selected (POP Main Freeze, POP Sub Freeze, SPLIT or STROBE). To change FREEZE modes, use the PIP MODE button to cycle through the four different modes.

POP MAIN FREEZE (with PIP OFF)

PIP should be in POP mode. Press the FREEZE button to freeze one frame of the picture you are currently viewing and the frozen frame will show in the Main Picture. Press this button again or PIP to return to normal viewing. This feature is useful for freezing a picture frame with addresses.

POP SUB FREEZE (with PIP OFF)

PIP should be in POP mode. Press the PIP button and then press the FREEZE button to freeze the sub-picture. Press the FREEZE button again and press the PIP button to return to normal viewing.

NOTES: Each freeze frame is delayed about 0.1 (1/10) second.

NOTE: When PIP is on, the FREEZE function will only operate when POP/PIP/SPLIT mode is chosen.

Hot Springs Clay Mask

C/O John Doe

Run-Spa Retreat

P.O. Box 55512

Any Town, USA98765

Check or

Money Order Only

1-800-555-1212

STROBE FREEZE(with PIP OFF) PIP should be in SURF mode. Press the FREEZE button to freeze three frames of the picture you are currently viewing. Press

this button again or PIP to return to normal viewing. This feature is useful for viewing a moving picture that has many details, for example, a close play in a sporting event or a golf swing.

PIP

FREEZE

SPLIT FREEZE(with PIP OFF)

PIP should be in SPLIT mode. Press the FREEZE button to freeze the picture you are currently viewing (only the right sub-picture will freeze). Press the FREEZE button again and press the PIP button to return to normal viewing.

Ant A 12

Main Picture

Sub Picture

Ant A 10

Hot Springs Clay Mask

C/O John Doe

Run-Spa Retreat

P.O. Box 55512

Any Town, USA 98765

Check or

Money Order Only

1-800-555-1212

Hot Springs Clay Mask

C/O John Doe

Run-Spa Retreat

P.O. Box 55512

Any Town, USA98765

Check or

Money Order Only

1-800-555-1212

FREEZE

Hot Springs Clay Mask

C/O John Doe

Run-Spa Retreat

P.O. Box 55512

Any Town, USA98765

Check or

Money Order Only

1-800-555-1212

PIP

FREEZE

PIP

FREEZ

USING THE REMOTE TO CONTROL VCR FUNCTIONS

Operating the precoded function for your VCR.

This remote is designed to operate different types of VCRs. You must first program the remote to match the remote system of your VCR. (refer to page 37 for pre-codes)

1. Turn ON your VCR.

2. Aim the remote control at the front of your VCR.

3. Press and release the VCR button to switch to VCR pre-coded mode.

4. Hold down the VCR button on the remote and enter the two digit preset code that matches your VCR, as shown on page 37. The indicator light will flash 3 times if the code was accepted.

5. Aim the remote at the VCR and press the POWER button. The remote will turn off your VCR when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your VCR. If the VCR does not turn off, try a different two digit preset code.

6. The remote will now control your VCR.

NOTES:

1. If your VCR cannot be operated after performing the above procedures, your VCR’s code has not been precoded into the remote.

2. In the unlikely event that your VCR cannot be operated after performing the above procedures, please consult your VCR operating guide.

3. The remote control will remember the codes you have programmed until the batteries are removed from the remote control. After replacing the batteries repeat the entire programming procedure as stated above.

4. The MENU button will act as the VCR MENU button for HITACHI VCRs.

5. The LAST CH button will act as your VCR ENTER button if required.

6. The SLEEP button will act as your VCR ‘100’ button if required.

 VCR Button

This button allows the remote to control your VCR by setting it to VCR mode.

 PRECODED VCR Buttons

These buttons transmit the chosen precoded VCR codes. For some VCRs, you must press the RECORD button twice to record a program.

 EXCLUSIVE TV Buttons

These buttons are for operating the TV.



















POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

EXIT

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

ASPECT

STB

LAST CH

VCR PLUS+

SVCS

GUIDE/TV

SCH

VID 1

VID 2

VID 3

VID 4

VID 5

TAPE

AMP

CLU-5722TSI

MY VCR CODE IS:

NOTE: Refer to instruction manual of the VCR for operation of the buttons exclusively for the VCR.

USING THE REMOTE TO CONTROL CABLE BOX FUNCTIONS

Operating the precoded function for your cable box.

This remote is designed to operate different types of cable boxes. You must first program the remote to match the remote system of your cable box. (refer to page 37)

1. Turn ON your cable box.

2. Aim the remote control at the front of your cable box.

3. Press and release the Cable (CBL) button to switch to Cable pre-coded mode.

4. Hold down the CBL button on the remote and enter the two digit preset code that matches your cable box as shown on page 37. The indicator light will flash 3 times if the code was accepted.

5. Aim the remote at the cable box and press the POWER button. The remote will turn off your cable box when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your cable box. If the cable box does not turn off, try a different two digit preset code.

6. The remote will now control your Cable box.

NOTES:

1. If your cable box cannot be operated after performing the above procedures, your cable box code has not been precoded into the remote.

2. In the unlikely event that your cable box cannot be operated after performing the above procedures, please consult your cable box operating guide.

4. The LAST CH button will act as the cable box ENTER button if required.

5. The SLEEP button will act as your cable box ‘100’ button if required.

6. The ANT button will act as the TV/STB button when in STB mode.

 CABLE (CBL) button

This button allows the remote to control your cable box by setting it to CABLE mode.

 PRECODED CABLE BOX buttons

These buttons transmit the chosen precoded cable codes.

 EXCLUSIVE TV buttons

These buttons are for operating the TV.











POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

ASPECT

STB

LAST CH

VCR PLUS+

SVCS

GUIDE/TV

VID 1

VID 2

VID 3

VID 4

VID

TAPE

AMP

VIRTUAL HD

CLU-5722TSI

MY CABLE BOX CODE IS:

NOTE: Refer to instruction manual of the Cable Box for operation of the buttons exclusively for the Cable Box.

USING THE REMOTE TO CONTROL SET-TOP-BOX/SATELLITE RECEIVER FUNCTIONS

Operating the precoded function for your set-top-box/satellite receiver.

This remote is designed to operate different types of set-top-box/satellite systems. You must first program the remote to match the remote system of your set-top-box/satellite systems. (refer to page 37)

1. Turn ON your set-top-box/satellite systems.

2. Aim the remote control at the front of your set-top-box/satellite systems.

3. Press and release the SET-TOP-BOX (STB) button to switch to set-top-box/satellite pre-coded mode.

4. Hold down the STB button on the remote and enter the two digit preset code that matches your set-top-box/satellite receiver as shown on page 37. The indicator light will flash 3 times if the code was accepted.

5. Aim the remote at the set-top-box/satellite receiver and press the POWER button. The remote will turn off your set-top-box/satellite receiver when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your settop-box/satellite receiver. If the set-top-box/satellite receiver does not turn off, try a different two digit preset code.

6. The remote will now control your set-top-box/satellite receiver.

NOTES:

1. If your set-top-box/satellite receiver cannot be operated after performing the above procedures, your set-topbox/satellite receiver code has not been precoded into the remote.

2. In the unlikely event that your set-top-box/satellite receiver cannot be operated after performing the above procedures, please consult your set-top-box/satellite receiver operating guide.

4. The ANT button will act as the TV/STB button when in STB mode.

 SET-TOP-BOX (STB) button

This button allows the remote to control your satellite receiver by setting it to SET-TOP-BOX/SATELLITE mode.

 PRECODED SET-TOP-BOX/SATELLITE RECEIVER but-

tons

These buttons transmit the chosen precoded set-topbox/satellite codes.

 EXCLUSIVE TV buttons

These buttons are for operating the TV.



















POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

EXIT

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

ASPECT

STB

LAST CH

VCR PLUS+

SVCS

GUIDE/TV

SCHD

VID 1

VID 2

VID 3

VID 4

VID 5

TAPE

AMP

CLU-5722TSI

MY SATELLITE RECEIVER/STB CODE IS:

NOTE: Refer to instruction manual of the set-top-box/satellite receiver for operation of the buttons exclusively for the set-top-

box/satellite receiver.

USING THE REMOTE TO CONTROL DVD FUNCTIONS

Operating the precoded function for your DVD player.

This remote is designed to operate different types of DVD players. You must first program the remote to match the remote system of your DVD player. (refer to page 37 for pre-codes)

1. Turn ON your DVD player.

2. Aim the remote control at the front of your DVD player.

3. Press and release the DVD button to switch to DVD pre-coded mode.

4. Hold down the DVD button on the remote and enter the two digit preset code that matches your DVD player, as shown on page 37. The indicator light will flash 3 times if the code was accepted.

5. Aim the remote at the DVD player and press the POWER button. The remote will turn off your DVD player when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your DVD player. If the DVD player does not turn off, try a different two digit preset code.

6. The remote will now control your DVD player.

7. You will need to set the display type of your DVD player to 16:9 widescreen.

NOTES:

1. If your DVD player cannot be operated after performing the above procedures, your DVD player’s code has not been precoded into the remote.

2. In the unlikely event that your DVD player cannot be operated after performing the above procedures, please consult your DVD player operating guide.

 DVD Button

This button allows the remote to control your DVD player by setting it to DVD mode.

 PRECODED DVD Buttons

These buttons transmit the chosen precoded DVD codes.

 EXCLUSIVE TV Buttons

These buttons are for operating the TV.











POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

EXIT

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

ASPECT

STB

LAST CH

VCR PLUS+

SVCS

GUIDE/TV

VID 1

VID 2

VID 3

VID 4

VID 5

TAPE

AMP

CLU-5722TSI

MY DVD PLAYER CODE IS:

NOTE: Refer to instruction manual of the DVD player for operation of the buttons exclusively for the DVD player.

USING YOUR REMOTE TO CONTROL ADDITIONAL AUDIO EQUIPMENT

Operating the precoded function for your Audio component.

This remote is designed to operate different types of Audio component. You must first program the remote to match the remote system of your Audio component. (refer to page 37 for pre-codes)

1. Turn ON your Audio component you wish to control with the Remote.

2. Aim the remote control at the front of your Audio component.

3. Press and release the CD, TAPE or AMP button (Audio buttons) to switch to Audio component pre-coded mode.

4. Hold down the CD, TAPE or AMP button on the remote and enter the two digit preset code that matches your Audio component, as shown on page 37. The indicator light will flash 3 times if the code was accepted.

5. Aim the remote at the Audio component and press the POWER button. The remote will turn off your Audio component when the correct two digit preset code is entered. When this occurs, the remote control is programmed for your Audio component. If the Audio component does not turn off, try a different two digit preset code.

6. The remote will now control your Audio component.

7. Repeat steps 1 - 6 if you wish to program the remote to control another Audio component. Be sure to use a different Audio button on the remote, since only one component can be programmed per button.

NOTES:

1. If your Audio component cannot be operated after performing the above procedures, your Audio component’s code has not been precoded into the remote.

2. In the unlikely event that your Audio component cannot be operated after performing the above procedures, please consult your Audio equipment operating guide.

 CD, TAPE, AMP Buttons

These buttons allow the remote to control your Audio equipment by setting it to Audio mode.

 PRECODED AUDIO Buttons

These buttons transmit the chosen precoded Audio component codes.

 EXCLUSIVE TV Buttons

These buttons are for operating the TV.











POWER

VCR

CBL

DVD

INFOSLEEP

A/V NET

CHVOL

PIP PIP CH

SWAP

FREEZE

PIP MODE

PIP ACCESS

VIDEO

SOURCE WIZARD

REC

SELECT

ASPECT

STB

LAST CH

VCR PLUS+

GUIDE/TV

VID 2

VID 3

VID

TAPE

AMP

CLU-5722TSI

MY AUDIO EQUIPMENT CODE IS:

NOTE: Refer to instruction manual of the Audio equipment for operation of the buttons exclusively for the Audio equipment.

TAPE

AMP/RCVR

THE SIMPLE REMOTE CONTROL



 POWER button

Press Power button to turn the TV set ON or OFF.

 CH+ (), CH- ()

Press the CH+ () up or CH- () down buttons to select desired channel or to navigate the on screen display features when in A/V NET mode.

 VOL- (), VOL+ ()

Press the VOL- () down or VOL+ ()up buttons to select desired sound level or to navigate the on screen display features when in A/V NET mode.

 SELECT button

Press SELECT button to Select when in A/V NET mode.

 MUTE button

To reduce the sound to one half of normal volume (SOFT MUTE) to answer the telephone, etc., press the MUTE button. Press the MUTE button again to turn the sound off completely (MUTE). To restore the sound, press the MUTE button one more time, or press the VOLUME Up () button. (See complete explanation and example on page 26, Item .)

 FAV CH button

Press FAV CH button to access your favorite channels.

 ANT button

The ANTbutton will select between Antenna A and Antenna B each time the button is pressed. (See example on page 23, item .)

 EXIT button

When in MENU mode, this button will exit all On-Screen Displays.

 MENU button

Press the MENU button to start the On-Screen Display.

 A/V NET

Press this button to access the Audio/Video network (A/V Net) menu. The A/V Net allows the user to control external components with the TV’s remote control. (See complete explanation and example on page 24, item .)

HITACHI has provided a second remote control for your convenience. The Simple Remote Control has the basic features that are most often used.

NOTE: The Simple Remote cannot be programmed to control external components.









MUTE

CH +

VOL -

CH -

POWER

SELECT

EXIT

A/V NET

VOL +

ANT

FAV CH











VCR, CABLE, SATELLLITE, DVD and AUDIO/VIDEO CODES FOR REMOTE CONTROL

VCR BRAND. . . . . . . . . . . . . . . . . CODE

Adventura . . . . . . . . . . . . . . . . . . . . . . 01

Aiko. . . . . . . . . . . . . . . . . . . . . . . . . . . 09

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . 01

Akai. . . . . . . . . . . . . . . . . . . . . 02, 47, 48

American High. . . . . . . . . . . . . . . . . . . 23

Asha . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Audiovox. . . . . . . . . . . . . . . . . . . . . . . 24

Beaumark . . . . . . . . . . . . . . . . . . . . . . 44

Bell & Howell . . . . . . . . . . . . . . . . . . . . 32

Broksonic. . . . . . . . . . . . . . . . . 33, 34, 41

Calix . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Canon. . . . . . . . . . . . . . . . . . . . . . . . . 23

Carver. . . . . . . . . . . . . . . . . . . . . . . . . 31

CCE . . . . . . . . . . . . . . . . . . . . . . . . . . 09

Citizen. . . . . . . . . . . . . . . . . . . . . . 09, 24

Craig . . . . . . . . . . . . . . . . . . . . 19, 24, 44

Curtis Mathes . . . . . . . . . . . . . 02, 23, 46

Cybernex. . . . . . . . . . . . . . . . . . . . . . . 44

Daewoo . . . . . . . . . . . . . . . . . . . . . 09, 17

Dynatech. . . . . . . . . . . . . . . . . . . . . . . 01

Electrohome . . . . . . . . . . . . . . . . . . . . 24

Electrophonic. . . . . . . . . . . . . . . . . . . . 24

Emerex . . . . . . . . . . . . . . . . . . . . . . . . 08

Emerson . . . . . . . . 01, 09, 13, 16, 24, 27,

. . . . . . . . . . . . . . . 28, 33, 34, 36, 41, 47

Fisher . . . . . . . . . . . . . . . . . . . 19, 21, 32

Fuji . . . . . . . . . . . . . . . . . . . . . . . . 10, 23

Funai. . . . . . . . . . . . . . . . . . . . . . . . . . 01

Garrard . . . . . . . . . . . . . . . . . . . . . . . . 01

GE . . . . . . . . . . . . . . . . . . . 04, 23, 40, 46

Goldstar. . . . . . . . . . . . . . . . . . 24, 25, 43

Gradiente . . . . . . . . . . . . . . . . . . . . . . 01

Harley Davidson . . . . . . . . . . . . . . . . . 01

Harmon/Kardon. . . . . . . . . . . . . . . . . . 25

Headquarter . . . . . . . . . . . . . . . . . . . . 18

Hi-Q . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Hitachi . . . . . . . . . . . . . . . . 02, 03, 04, 05

Jensen . . . . . . . . . . . . . . . . . . . . . . . . 02

JVC. . . . . . . . . . . . . . . . . . . . . 02, 14, 26

KEC . . . . . . . . . . . . . . . . . . . . . . . 09, 24

Kenwood . . . . . . . . . . . . . . . . . 02, 25, 26

KLH. . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Kodak . . . . . . . . . . . . . . . . . . . . . . 23, 24

Lloyd. . . . . . . . . . . . . . . . . . . . . . . . . . 01

Lloyd’s. . . . . . . . . . . . . . . . . . . . . . . . . 27

LXI . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Magnavox . . . . . . . . . . . . . 15, 23, 31, 35

Magnin . . . . . . . . . . . . . . . . . . . . . . . . 44

Marantz. . . . . . . . . . . . . . . . . . . . . 23, 31

Marta. . . . . . . . . . . . . . . . . . . . . . . . . . 24

Matsushita. . . . . . . . . . . . . . . . . . . . . . 23

MEI. . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Memorex. . . . . . . . . . . . . . 01, 15, 18, 19,

. . . . . . . . . . . . . . . . . . 20, 23, 24, 32, 44

MGA . . . . . . . . . . . . . . . . . . . . . . . 16, 47

MGN Technology. . . . . . . . . . . . . . . . . 44

Minolta . . . . . . . . . . . . . . . . . . . . . 03, 05

Mitsubishi. . . . . . . . . . . 16, 26, 39, 47, 48

Motorola . . . . . . . . . . . . . . . . . . . . 20, 23

MTC . . . . . . . . . . . . . . . . . . . . . . . 01, 44

Multitech . . . . . . . . . . . . . . . . . . . . . . . 01

NEC. . . . . . . . . . . . . . . . . . 02, 25, 26, 32

Nikko. . . . . . . . . . . . . . . . . . . . . . . . . . 24

Noblex. . . . . . . . . . . . . . . . . . . . . . . . . 44

Olympus . . . . . . . . . . . . . . . . . . . . 12, 23

Optimus . . . . . . . . . . . . . . . . . 20, 24, 32

Panasonic . . . . . . . . . . . . . 11, 12, 23, 38

Penney . . . . . . . . . . . . 03, 23, 24, 25, 44

Pentax. . . . . . . . . . . . . . . . . . . 03, 04, 05

Philco . . . . . . . . . . . . . . . . . . . . . . . . . 23

Phillips. . . . . . . . . . . . . . . . . . . . . . 23, 31

Pilot. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . 26

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . 15

Quarter . . . . . . . . . . . . . . . . . . . . . . . . 18

Quartz. . . . . . . . . . . . . . . . . . . . . . . . . 18

Quasar . . . . . . . . . . . . . . . . . . . . . . . . 23

Radio Shack . . . . . . . . . . . . . . . . . 01, 24

Radix. . . . . . . . . . . . . . . . . . . . . . . . . . 24

Randex . . . . . . . . . . . . . . . . . . . . . . . . 24

RCA. . . . . . . . . . . . 03, 04, 05, 35, 40, 46

Realistic . . . . . . . . . . . . . . 01, 18, 19, 20,

. . . . . . . . . . . . . . . . . . 21, 23, 24, 32, 44

Ricoh. . . . . . . . . . . . . . . . . . . . . . . . . . 22

Runco . . . . . . . . . . . . . . . . . . . . . . . . . 15

Samsung. . . . . . . . . . . . . . . . . . . . 17, 44

Sanky . . . . . . . . . . . . . . . . . . . . . . 15, 20

Sansui. . . . . . . . . . . . . . . . . . . . . . 02, 26

Sanyo . . . . . . . . . . . . . . . . 18, 19, 32, 44

Scott . . . . . . . . . . . 16, 17, 33, 34, 36, 41

Sears . . . . . . . . . . . . . . . . 03, 05, 18, 19,

. . . . . . . . . . . . . . . . . . . . . 21, 23, 24, 32

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . 20

Shintom. . . . . . . . . . . . . . . . . . . . . . . . 30

Shogun . . . . . . . . . . . . . . . . . . . . . . . . 44

Sony . . . . . . . . . . . . . . . . . 08, 10, 22, 23

STS. . . . . . . . . . . . . . . . . . . . . . . . . . . 03

Sylvania . . . . . . . . . . . . . . . 01, 16, 23, 31

Symphonic . . . . . . . . . . . . . . . . . . . . . 01

Tatung . . . . . . . . . . . . . . . . . . . . . . . . . 02

Teac . . . . . . . . . . . . . . . . . . . . . . . 01, 02

Technics . . . . . . . . . . . . . . . . . . . . 23, 38

Teknika . . . . . . . . . . . . . . . . . . 01, 23, 24

TMK . . . . . . . . . . . . . . . . . . . . . . . . 27,44

Toshiba . . . . . . . . . . . . . . . 16, 17, 21, 36

Totvision . . . . . . . . . . . . . . . . . . . . 24, 44

Unitech . . . . . . . . . . . . . . . . . . . . . . . . 44

Vector . . . . . . . . . . . . . . . . . . . . . . . . . 17

Vector Research . . . . . . . . . . . . . . . . . 25

Video Concepts. . . . . . . . . . . . . . . 17, 47

Videosonic. . . . . . . . . . . . . . . . . . . . . . 44

Wards. . . . . . . . . . . . . 01, 03, 19, 20, 23,

. . . . . . . . . . . . . . . . . . . . . 35, 36, 44, 46

XR-1000 . . . . . . . . . . . . . . . . . . . . 01, 23

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . 25

Zenith . . . . . . . . . . . . . . . . . . . 10, 15, 22

DVD BRAND. . . . . . . . . . . . . . . . . CODE

Denon. . . . . . . . . . . . . . . . . . . . . . . . . 04

Hitachi. . . . . . . . . . . . . . . . . . . 07, 12, 13

JVC. . . . . . . . . . . . . . . . . . . . . . . . . . . 01

Kenwood. . . . . . . . . . . . . . . . . . . . . . . 04

Magnavox . . . . . . . . . . . . . . . . . . . . . . 05

Mitsubishi . . . . . . . . . . . . . . . . . . . . . . 10

Panasonic . . . . . . . . . . . . . . . . . . . . . . 04

Phillips . . . . . . . . . . . . . . . . . . . . . . . . 06

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . 03

RCA (Proscan) . . . . . . . . . . . . . . . . . . 09

Samsung. . . . . . . . . . . . . . . . . . . . . . . 12

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . 13

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . 05

Yamaha . . . . . . . . . . . . . . . . . . . . . . . . 08

Zenith . . . . . . . . . . . . . . . . . . . . . . 05, 11

CABLE BRAND . . . . . . . . . . . . . . CODE

ABC . . . . . . . . . . . . . . . . . 01, 07, 08, 17,

. . . . . . . . . . . . . . . . . . 18, 20, 36, 37, 49

Antronix. . . . . . . . . . . . . . . . . . . . . . . . 39

Archer . . . . . . . . . . . . . . . . . . . 11, 24, 39

Belcor . . . . . . . . . . . . . . . . . . . . . . . . . 32

Cable Star. . . . . . . . . . . . . . . . . . . . . . 32

Century . . . . . . . . . . . . . . . . . . . . . . . . 11

Citizen. . . . . . . . . . . . . . . . . . . . . . . . . 11

Colour Voice . . . . . . . . . . . . . . . . . 30, 42

Comtronics . . . . . . . . . . . . . . . . . . 25, 28

Contec . . . . . . . . . . . . . . . . . . . . . . . . 21

Dae Ryung . . . . . . . . . . . . . . . . . . . . . 20

Eastern . . . . . . . . . . . . . . . . . . . . . . . . 14

Electricord. . . . . . . . . . . . . . . . . . . . . . 31

Everquest . . . . . . . . . . . . . . . . . . . . . . 51

Focus . . . . . . . . . . . . . . . . . . . . . . . . . 52

Garrard . . . . . . . . . . . . . . . . . . . . . . . . 11

GC Electronics. . . . . . . . . . . . . . . . 32, 39

Gemini. . . . . . . . . . . . . . . . 05, 38, 43, 51

General Instrument . . . . . . . . . . . . 01, 12

Goldstar. . . . . . . . . . . . . . . . . . . . . 10, 25

Hamlin. . . . . . . . . . . . . . . . 04, 13, 22, 23

Hitachi. . . . . . . . . . . . . . . . . . . . . . . . . 01

Hytex. . . . . . . . . . . . . . . . . . . . . . . . . . 36

Jasco. . . . . . . . . . . . . . . . . . . . . . . . . . 11

Jerrold . . . . . . . 01, 08, 12, 37, 49, 50, 51

Macom . . . . . . . . . . . . . . . . . . . . . . . . 35

Magnavox . . . . . . . . . . . . . . . . . . . . . . 15

Memorex. . . . . . . . . . . . . . . . . . . . . . . 03

Movie Time . . . . . . . . . . . . . . . 29, 31, 33

NSC . . . . . . . . . . . . . . . . . . . . 29, 33, 38

Oak . . . . . . . . . . . . . . . . . . . . . 21, 36, 46

Panasonic . . . . . . . . . . . . . . . . 02, 03, 09

Paragon . . . . . . . . . . . . . . . . . . . . . . . 03

Phillips . . . . . . . . . . . . . . . 11, 15, 16, 26,

. . . . . . . . . . . . . . . . . . . . . 30, 42, 43, 44

Pioneer . . . . . . . . . . . . . . . . . . 06, 10, 19

Popular Mechanics . . . . . . . . . . . . . . . 52

Pulsar . . . . . . . . . . . . . . . . . . . . . . . . . 03

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Realistic . . . . . . . . . . . . . . . . . . . . . . . 39

Recoton. . . . . . . . . . . . . . . . . . . . . . . . 52

Regal. . . . . . . . . . . . . . . . . . . . 04, 22, 34

Regency . . . . . . . . . . . . . . . . . . . . . . . 14

Rembrandt. . . . . . . . . . . . . . . . . . . 01, 38

Runco . . . . . . . . . . . . . . . . . . . . . . . . . 03

Samsung. . . . . . . . . . . . . . . . . . . . 10, 25

Scientific Atlanta. . . . . . . . . 17, 20, 41, 45

Signal . . . . . . . . . . . . . . . . . . . . . . 25, 51

Signature. . . . . . . . . . . . . . . . . . . . . . . 01

SL Marx. . . . . . . . . . . . . . . . . . . . . . . . 25

Sprucer . . . . . . . . . . . . . . . . . . . . . . . . 02

Starcom . . . . . . . . . . . . . . . . . . 37, 49, 51

Stargate. . . . . . . . . . . . . . . . . . . . . 25, 51

Starquest. . . . . . . . . . . . . . . . . . . . . . . 51

Starsight . . . . . . . . . . . . . . . . . . . . 53, 54

Sylvania . . . . . . . . . . . . . . . . . . . . . . . 18

Teleview . . . . . . . . . . . . . . . . . . . . . . . 25

Texscan. . . . . . . . . . . . . . . . . . . . . . . . 18

Tocom . . . . . . . . . . . . . . . . . . . 07, 27, 50

Toshiba . . . . . . . . . . . . . . . . . . . . . . . . 03

Tusa . . . . . . . . . . . . . . . . . . . . . . . . . . 51

TV 86 . . . . . . . . . . . . . . . . . . . . . . . . . 29

Unika. . . . . . . . . . . . . . . . . . . . . . . 11, 39

United Artists. . . . . . . . . . . . . . . . . . . . 36

United Cable . . . . . . . . . . . . . . . . . . . . 49

Universal . . . . . . . . 11, 24, 31, 32, 34, 39

Videoway . . . . . . . . . . . . . . . . . . . . . . 47

Viewstar. . . . . . . . . . . . . . . 15, 28, 29, 40

Zenith . . . . . . . . . . . . . . . . . . . . . . 03, 48

Zentek. . . . . . . . . . . . . . . . . . . . . . . . . 52

SATELLITE BRAND. . . . . . . . . . . CODE

Echostar . . . . . . . . . . . . . . . . . . . . . . . 04

Hitachi. . . . . . . . . . . . . . . . . . . . . . . . . 01

Hughes . . . . . . . . . . . . . . . . . . . . . . . . 05

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . 03

SET-TOP-BOX . . . . . . . . . . . . . . . CODE

Panasonic . . . . . . . . . . . . . . . . . . . . . . 06

RCA . . . . . . . . . . . . . . . . . . . . . . . . . . 07

Samsung. . . . . . . . . . . . . . . . . . . . . . . 08

AMPLIFIER BRAND . . . . . . . . . . . CODE

Aiwa . . . . . . . . . . . . . . . . . . . . . . . 05, 06

Carver . . . . . . . . . . . . . . . . . . . 01, 06, 08

Denon. . . . . . . . . . . . . . . . . . . . . . . . . 10

Fisher . . . . . . . . . . . . . . . . . . . . . . 08, 11

Hitachi. . . . . . . . . . . . . . . . . . . . . . . . . 12

JVC. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Kenwood . . . . . . . . . . . . . . 14, 15, 17, 18

Magnavox . . . . . . . . . . . . . . . . . . . 01, 06

Marantz . . . . . . . . . . . . . . . . . . 01, 06, 16

MCS . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Optimus . . . . . . . . . . . . 03, 04, 11, 15, 20

Panasonic . . . . . . . . . . . . . . . . . . . . . . 16

Philips . . . . . . . . . . . . . . . . . . . . . . 01, 06

Pioneer . . . . . . . . . . . . 03, 04, 20, 21, 22

Quasar . . . . . . . . . . . . . . . . . . . . . . . . 16

Sansui. . . . . . . . . . . . . . . . . . . . . . . . . 06

Sanyo . . . . . . . . . . . . . . . . . . . . . . . . . 11

Sharp . . . . . . . . . . . . . . . . . . . . . . . . . 15

Sony . . . . . . . . . . . . . . . . . . . . . . . . . . 05

Technics. . . . . . . . . . . . 02, 16, 23, 24, 25

Victor. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wards . . . . . . . . . . 03, 05, 06, 08, 20, 21

Yamaha. . . . . . . . . . . . . . . . . . . . . 15, 26

CD BRAND. . . . . . . . . . . . . . . . . . CODE

Adcom. . . . . . . . . . . . . . . . . . . . . . . . . 01

Aiwa . . . . . . . . . . . . . . . . . . . . . . . . . . 02

California Audio Lab . . . . . . . . . . . . . . 03

Carver. . . . . . . . . . . . . . . . . . . . . . . . . 02

Denon. . . . . . . . . . . . . . . . . . . . . . . . . 04

DKK . . . . . . . . . . . . . . . . . . . . . . . . . . 05

Emerson . . . . . . . . . . . . . . . . . . . . . . . 01

Fisher . . . . . . . . . . . . . . . . . . . . . . . . . 06

Genexxa . . . . . . . . . . . . . . . . . . . . . . . 07

Hitachi . . . . . . . 01, 07, 08, 09, 10, 11, 12

JVC. . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Kenwood . . . . . . . . . . . . . . . . . 06, 14, 15

Krell . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Magnavox . . . . . . . . . . . . . . . . . . . . . . 02

Marantz. . . . . . . . . . . . . . . . . . . . . 02, 03

MCS . . . . . . . . . . . . . . . . . . . . . . . . . . 03

Mission . . . . . . . . . . . . . . . . . . . . . . . . 03

NSM . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Onkyo . . . . . . . . . . . . . . . . . . . . . . . . . 16

Optimus . . . . . . . . . . . . . . . . . . 05, 07, 17

Panasonic . . . . . . . . . . . . . . . . . . . . . . 03

Philips. . . . . . . . . . . . . . . . . . . . . . . . . 02

Pioneer . . . . . . . . . . . . . . . . . . . . . 07, 17

Proton. . . . . . . . . . . . . . . . . . . . . . . . . 02

QED . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Quasar . . . . . . . . . . . . . . . . . . . . . . . . 03

RCA . . . . . . . . . . . . . . . . . . . . . . . 01, 21

Realistic . . . . . . . . . . . . . . . . . . . . . . . 01

Rotel . . . . . . . . . . . . . . . . . . . . . . . . . . 02

SAE . . . . . . . . . . . . . . . . . . . . . . . . . . 02

Sansui. . . . . . . . . . . . . . . . . . . . . . . . . 02

Scott . . . . . . . . . . . . . . . . . . . . . . . . . . 01

Sony . . . . . . . . . . . . . . . . . . . . . . . 05, 18

Technics . . . . . . . . . . . . . . . . . 03, 19, 20

Victor. . . . . . . . . . . . . . . . . . . . . . . . . . 13

TAPE BRAND. . . . . . . . . . . . . . . . CODE

Aiwa . . . . . . . . . . . . . . . . . . . . . . . 11, 12

Hitachi . . . . . . . . . . . . . . . . 01, 02, 03, 04

JVC. . . . . . . . . . . . . . . . . . . . . . . . . . . 05

Kenwood. . . . . . . . . . . . . . . . . . . . . . . 06

Optimus. . . . . . . . . . . . . . . . . . . . . . . . 07

Pioneer . . . . . . . . . . . . . . . . . . . . . . . . 07

Sony . . . . . . . . . . . . . . . . . 09, 10, 11, 12

Wards . . . . . . . . . . . . . . . . . . . . . . . . . 07

OSD

1. Press MENU on the remote control to display the different features on your HITACHI Projection TV.

2. Press the THUMB STICK to highlight a different feature.

3. Press EXIT on the remote control to quickly exit from a menu.

4. Press A/V Net on the remote control to access the A/V Net menu to control external components.

5. Press THUMB STICK  or  to access Favorite Channels menu.

A/V Net

EXIT

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

This part of the screen shows which selections are available.

This part of the screen shows which Remote Control buttons to use.

OSD

Picture Mode Select between the four picture modes: Sports, Movies, News,

and Music. Contrast Adjust contrast. Brightness Adjust brightness. Color Adjust color. Tint Adjust tint. Sharpness Adjust sharpness. Vertical Position Centering top and bottom of the picture. Magic Focus Automatic or manual alignment of the Red, Green and Blue

colors to make white. Color System Automatically change tint and color coordinates for DTV

program. Advanced Settings Improve picture performance.

Treble Adjust the treble. Bass Adjust the bass. Balance Adjust the balance. Sound Enhancement Set SRS and BBE surround settings. Advanced Settings Improve sound performance.

Ant A View/edit Channel ID, Scan, and Lock settings in antenna A. Ant B View/edit Channel ID, Scan, and Lock settings in antenna B.

Change Access Code Change Lock access code. Engage Lock Choose to lock channel, video input, and front panel. TV Time Lock Set specific time to Lock TV. Movie Ratings Block various types of movies and video types based on motion

picture ratings. TV Ratings Block various types of movies and television programming

based on a parental guide ratings. Canadian Ratings (ENG) Block various types of movies and television programming

based on the Canadian ratings system. Canadian Ratings (FRN) Block various types of movies and television programming

based on the Canadian French ratings system.

Menu Preference Choose English, French, or Spanish text. Set The Clock Set the TV clock. It must be set before using Lock feature. Set The Channels Set Channel Source and Auto Channel Scan. Set The Inputs Label Video Inputs , VCR, DVD, etc. Set Event Timer Turn TV on and off once, daily, or weekly. Set Closed Captions Feature to display dialogue/text. About Your TV Information display for this TV.

Video

Audio

Channel Manager

Locks

Setup

VIDEO

Select VIDEO to adjust picture settings and improve picture quality.

Video

Use THUMB STICK  or  to highlight Picture Mode settings. When SPORTS mode is selected, the following are automatically set:

CONTRAST - 100%, COLOR TEMPERATURE - HIGH, LOUDNESS - OFF, PERFECT VOLUME - OFF, SURROUND - SRS and BBE.

When MOVIES mode is selected, the following are automatically set:

CONTRAST - 60%, COLOR TEMPERATURE - STANDARD, BASS - 63%, LOUDNESS - OFF, PERFECT VOLUME - OFF, SURROUND - SRS and BBE Mach3Bass.

When NEWS mode is selected, the following are automatically set:

CONTRAST - 75%, COLOR TEMPERATURE - MEDIUM, LOUDNESS - ON, PERFECT VOLUME - ON.

When MUSIC mode is selected, the following are automatically set:

CONTRAST - 100%, COLOR TEMPERATURE - HIGH, LOUDNESS - OFF, PERFECT VOLUME - OFF, SURROUND - BBE Mach3Bass.

You can customize each of the above modes (SPORTS, MOVIES, NEWS, and MUSIC) to your preference to increase viewing performance and pleasure, depending upon the video program being viewed. However, if RESET is selected, each mode will reset to the initial conditions as explained above.

If RESET is selected in SPORTS mode, only SPORTS mode will return to factory conditions. Press EXIT to quit menu or select PICTURE MODE to return to previous menu.

Use this function to choose from automatic picture settings to optimize your TV’s performance.

Picture Mode

THUMB

STICK

THUMB

STICK

SELECT

THUMB

STICK

SELECT

Color

Brightness

Contrast

Picture Mode

Video

Move

SEL

Select

Vertical Position

Sharpness

Tint

Advanced Settings

Color System

100%

50%

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Picture Mode

Video

Move

SEL

Return

Sports

Movies

News

Music

Reset

Magic Focus

Sports

NOTE:

MOVIE MODE 3:2 PULLDOWN DETECTION SPECIAL FEATURE

Theatrical movies are shot on film at 24 frames or still pictures per second, instead of 30 frames or 60 fields like video. When film is transferred to video for television viewing, the disparity between the two frame rates must be reconciled. This involves a process known as 3:2 pulldown.

When MOVIE mode is selected from the Picture Mode menu, your Hitachi Projection Television will activate the circuitry for this special feature to improve video performance when watching film based sources. This 3:2 pulldown detection will only work in MOVIE mode.

VIDEO

Use this function to change the contrast between black and white levels in the picture. This adjustment will only affect the picture when ADVANCED SETTINGS DIMMER is OFF.

Use the THUMB STICK  or  to highlight the function to be adjusted. Press the THUMB STICK  or  to adjust the function. Press down on THUMB STICK to select the function settings. Press MENU to return to main menu or select PICTURE MODE to return to previous menu. Press EXIT to quit menu.

Use this function to adjust the level of color in the picture.

Use this function to adjust overall picture brightness.

This function allows you to select when aspect style is either 4:3 EXPANDED/ZOOM1/ZOOM2. Vertical position can be changed with this mode. Adjustable range is -10 (video center is toward bottom of screen) to +10 (video center is toward top of screen).

Contrast

Color

Brightness

Vertical Position

NOTES: 1. If CONTRAST is selected, you are adjusting CONTRAST. The additional menu items BRIGHTNESS, COLOR, TINT,

and SHARPNESS can be selected and adjusted in the same manner.

2. It may be necessary to adjust TINT to obtain optimum picture quality when using the COMPONENT VIDEO Y-PBP

input jacks.

3. If you are using the COMPONENT VIDEO input jacks (Y-PBPR) and notice that the TINT and COLOR are abnormal, check to make sure that Picture Formats - Component Color Type is set properly.

Use this function to adjust flesh tones so they appear natural.

Tint

Use this function to adjust the amount of fine detail in the picture.

Sharpness

VIDEO

MAGIC FOCUS

Auto Digital Convergence Adjustment

Please turn ON your television for at least 20 minutes before using this feature. Your HITACHI Projection TV has three color projection tubes: one for red, one for green, one for blue. When mixed together in the

proper proportion, the output of these three color tubes can produce any color. To produce these colors, however, the beams must be precisely aligned over each other so that the colors can be mixed. The process of aligning these picture beams is called “convergence”.

Over a period of time, the picture tubes can drift out of alignment due to normal bumps and vibrations or moving the TV. If you move your TV, or if, after a time, you notice color rings or halos around objects in the picture, you may want to converge (align) the colors.

Properly converged, the lines appear white, which is actually a combination of the outputs of the three color tubes. The output of the green tube is stationary. The outputs of the red and blue tubes can be adjusted. When properly aligned, the outputs of all three tubes should be directly over each other to produce the white lines.

To simplify convergence, HITACHI incorporates a function called MAGIC FOCUS located on the front control panel, which allows the TV to self-adjust. Press this MAGIC FOCUS button and the convergence self adjustment will start and this process will take approximately 20 seconds. If this button is pressed during this process, no change in picture quality will occur. After this 20 second self-adjust period, picture quality will be optimum. (Do not move the TV during self-adjust.)

You may also select MAGIC FOCUS from the Video Menu.

Magic Focus

NOTES: Only a momentary press of the MAGIC FOCUS button is necessary to start AUTO DIGITAL CONVERGENCE. At any

time during this convergence correction process, you may press the MAGIC FOCUS button to exit the MAGIC FOCUS mode. However, the convergence correction process needs to be completed to SAVE the new corrected convergence data.

VIDEO

NOTES: 1. Please turn ON your television for at least 20 minutes before using this feature.

2. Auto Adjustment Mode is recommended. If convergence is still not acceptable, use the Manual Adjustment Mode. DO NOT press MAGIC FOCUS or use Auto Adjustment Mode after using Manual Adjustment Mode.

Manual Convergence Adjustment Mode

Using the Remote Control, select VIDEO-MAGIC FOCUS-MANUAL ADJUSTMENT MODE-START to access convergence crosshatch pattern. The adjustment point is indicated by the Adjustment Point Cursor.

To Move Adjustment Point

To move adjustment point, the Adjustment Cursor must be WHITE. Use the THUMB STICK to move the Adjustment Cursor. Another way to move the Adjustment Point Cursor is to press the followiing buttons: [2] up, [4] left, [5] down, [6] right. If you use the number buttons while the adjustment point is WHITE, it will change to RED.

To Change the Color of Adjustment Point

Press the SELECT button repeatedly (WHITE-RED-BLUE-WHITE...). Green color is fixed and cannot be adjusted.

To Adjust the Convergence

Move the Adjustment Cursor to the point to be adjusted. Use the THUMB STICK to match the RED and BLUE colors to GREEN (reference color). Properly aligned, all three colors should appear white.

If convergence is acceptable after Manual Convergence adjustment, press EXIT button to access menu mode.

Press the [1] button on the remote control to SAVE adjusted data and return to main picture. Press the [2] button on the remote control to CANCEL adjusted data and return to main picture. Press the [3] button on the remote control to recall the factory pre-set convergence data. Press the [4] button on the remote control to return to the manual convergence adjustment mode (crosshatch pattern). Press the [9] button on the remote control to read the SAVED data.

Magic Focus

Video

Move

SEL

Return

Aligns the Red, Green, and Blue colors to correct for Magnetic Influences.

Auto

Manual

THUMB

STICK

THUMB

STICK

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Color

Brightness

Contrast

Picture Mode

Video

Move

SEL

Select

Vertical Position

Sharpness

Tint

Advanced Settings

Color System

100%

50%

Magic Focus

Sports

THUMB

STICK

SELECT

Adjustment Mode

If you want to adjust now

THUMB

STICK

THUMB

STICK

SELECT

Start

DONE : [1] CANCEL : [2] INI. RESET : [3] BACK : [4]

Adjustment Point

Cursor

VIDEO

Your HITACHI Projection TV has an ADVANCED SETTINGS function which will automatically adjust picture settings to produce the highest quality picture possible. When ADVANCED SETTINGS is highlighted, press down on THUMB STICK to access an ADVANCED SETTINGS feature.

Use THUMB STICK to highlight functions. Press down on THUMB STICK to select the function setting. When the function has an “✓” in the box, it is ON. Press down on THUMB STICK to change COLOR TEMPERATURE setting. When the function shows a “ “, it is selected. Press EXIT to quit menu.

Color Temperature

Set this to High for less intense colors with more blue (9,300K), set to Medium for hotter colors with more red (7,500K), or set to Standard for standard colors (6,500K).

Dimmer

Turn ON the Dimmer to reduce picture contrast and brightness automatically when viewing in a dark room.

Auto Color

The AUTO COLOR function automatically monitors and adjusts the color to maintain constant color levels even after a program or channel changes. It also maintains natural flesh tones while preserving fidelity of background colors.

Noise Reduction

The NOISE REDUCTION function automatically reduces conspicuous noise in the picture without degrading picture quality. When the Noise Reduction feature is ON, the Sharpness feature is disabled.

Scan Velocity Modulation

The Scan Velocity Modulation function automatically enhances the edges between light and dark areas.

Black Level Expansion

The BLACK LEVEL EXPANSION function automatically enhances shadow detail in dark scenes.

Black Side Panel

The BLACK SIDE PANEL function turns the gray side bars on/off when watching 4:3 signals in Standard mode. The top/bottom gray bar will appear in SPLIT MODE PIP and SPLIT FREEZE.

Advanced Settings

Video

Move

SEL

Return

Color

Brightness

Contrast

Picture Mode

Video

Move

SEL

Select

Vertical Position

Sharpness

Tint

Advanced Settings

Color System

100%

50%

THUMB

STICK

SELECT

THUMB

STICK

SELECT

THUMB

STICK

SELECT

Color Temperature High Medium Standard

Dimmer

Auto Color

Noise Reduction

Scan Velocity Modulation

Black Level Expansion

Black Side Panel

Advanced Settings

Video

Move

SEL

On/Off

Color Temperature High Medium Standard

Dimmer

Auto Color

Noise Reduction

Scan Velocity Modulation

Black Level Expansion

Black Side Panel

Magic Focus

Sports

NOTE: To prevent pattern burn when watching 4:3 signal, Black Side Panel is cancelled at Power OFF. It is recommended to

watch 4:3 signal with gray side bar.

This function allows you to automatically change tint and color coordinates for DTV programs. HDTV - High Definition Television - Use for High Vision Signal Y-PBPRfrom HDTV Set-Top Box.

SDTV/DVD - Standard Definition Television or DVD (Digital Versatile Disc Player) Y-CBCR.

Color System

NOTES: 1. If Color System is set improperly (does not match actual input signal), the color and tint of the main picture will be

abnormal.

2. You must be tuned to VIDEO: 1 or 2 inputs and have a component hooked up to the Y-PBPRinput jacks to access this color system.

3. All component color type settings will affect only color component input you are currently viewing. If you are using both sets of component input jacks, be sure to set the color system feature for both inputs.

AUDIO

Select AUDIO to adjust the TV to your preference and to improve the sound quality.

Audio

THUMB

STICK

THUMB

STICK

SELECT

THUMB

STICK

SELECT

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Next/Prev Change Value Return

SEL

Sound Enhancement

Balance

Bass

Treble

Audio

Move

SEL

Return

50%

Sound Enhancement

Balance

Bass

Treble

Audio

Move

SEL

Select

50%

Treble

50%

THUMB

STICK

Advanced Settings

This function controls the low frequency audio to all speakers.

Use THUMB STICK to highlight functions. Press down on THUMB STICK to select the function setting. Press THUMB STICK  or  to adjust the function. Press EXIT to quit MENU, or select Audio to return to the main menu.

NOTE: If TREBLE is selected you are adjusting treble. The additional menu items Bass and Balance can be selected and

adjusted in the same manner.

This function controls the high frequency audio to all speakers.

This function will control the left to right balance of the TV internal speakers and the AUDIO TO HI-FI output.

Bass

Balance

Treble

AUDIO

Sound Enhancement

The following surround settings will reproduce the “live” sound you would hear in concert halls, sports stadiums, movie theaters, etc. with only two speakers.

THUMB

STICK

SELECT

Audio

Move

SEL

Return

Sound Enhancement

Balance

Bass

Treble

Audio

50%

SRS

BBE

BBE Mach3Bass

Advanced Settings

Move

SEL

Select

To enter SOUND ENHANCEMENT, use THUMB STICK  or  to highlight then press down on THUMB STICK to select SOUND ENHANCEMENT of your choice.

Use the THUMB STICK to highlight your sound enhancement choice, and press SELECT to select your choice.

Based on the principles of the human hearing system, SRS technology delivers and exciting and realistic 3D Sound experience from just two external speakers (or) the two internal speakers of your HITACHI Television. If your HITACHI Television is connected to an external audio system, SRS will also create an incredible 3D sound experience from two speakers and even enhance a complete multi-speaker surround sound system.

Technology

Sound reproduction quality enhancement system. The BBE technology produces sound that is natural and crisp from just two speakers (or) the two internal speakers of your HITACHI television. If your HITACHI television is connected to an external audio system, BBE will also create an incredible crisp sound experience from two speakers and even more complete and accurate reproduction of the original performance. BBE brings to the listener’s ear a more complete and accurate reproduction of the original performance. Each voice, speaking or singing, each instrument or sound effect is presented with its attendant harmonics or partials more clearly audible. The ear can then more easily recognize the unique tonal colors of each sound as though the sound was being produced live.

Mach3Bass

BBE Mach3Bass provides rich and natural bass sound.

NOTES:

*SRS and the symbol are registered trademarks of SRS Labs, Inc. SRS technology is incorporated under license

from SRS Labs, Inc.

NOTES:

Licensed by BBE Sound, Inc. under USP4638258 and 4482866. BBE, BBE Mach3Bass and BBE symbol are registered

trademarks of BBE Sound, Inc. Manufactured under license from BBE Sound, Inc.

AUDIO

Use ADVANCED SETTINGS to improve the sound performance of your TV , depending on listening conditions.

Audio Source

Multi-Channel Television Sound will allow you to select STEREO (a stereo broadcast), MONO (monaural sound) used when receiving a weak stereo broadcast or SAP (second audio program) which may be a secondary language, weather report, etc. The mode you select will be displayed at the left edge of the TV. The source received will be displayed above the mode. See example below for each selection when both stereo and second audio are received (monaural is always received).

Press THUMB STICK  or  to highlight a function. Press down on THUMB STICK to select the function setting. When the function has a “✓” in the box it is ON.

Advanced Settings

THUMB

STICK

SELECT

Audio

Move

SEL

Return

Advanced Settings

Sound Enhancement

Balance

Bass

Treble

Audio

50%

Audio Source Stereo Mono 2nd Audio Prog.

Internal Speakers On TV as Center Off

Advanced Settings

Move

SEL

Select

Auto Noise Cancel

Perfect Volume

Loudness

Internal Speakers

On - Select this feature if using the internal speakers only. TV as Center - Select this feature when setting up external speakers from a separate stereo system. The TV’s speakers will work as

the center speaker (see page 13). Off - Select this feature is you prefer to use only speakers from a separate stereo system.

Auto Noise Cancel

This function eliminates the noise between stations. If a channel is tuned and is noisy, this function will automatically elimi nate the audio for that channel.

Perfect Volume

This function will automatically adjust volume so each channel has the same average volume level.

Loudness

This function will improve the quality of both low and high frequency sounds when listening at low volume levels.

Ant A 31

NEWS

10:00 PM

Ant A 31

NEWS

10:00 PM

STEREO SELECTED

SAP SELECTED

MONO SELECTED

Stereo ST/SA

Ant A 31

NEWS

10:00 PM

SAP

ST/SA

Mono

ST/SA

Audio Selected

Audio Broadcast

CHANNEL MANAGER

Press THUMB STICK  or  to review more channels. Press EXIT to quit menu.

THUMB

STICK

SELECT

Ch. Manager

Move

SEL

Return

Ant A

Ant B

Ant A

Ch. Manager

CH# Scan CH ID Lock

2 Off -------3 Off -------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

Move

SEL

Select

This function allows you to review which channels are labeled (CH ID), which have been added to Channel Memory (SCAN), and which are protected by LOCK.

Channel Manager

Use this feature after Auto Channel Scan is completed to add (On) or erase (Off) additional channels to the remote control channel  or  buttons.

Scan

To add (Scan-On) or erase (Scan-Off) additional channels while in Channel Manager, THUMB STICK  to highlight the channel number, then THUMBSTICK  or  to highlight other channels. Once the desired channel is highlighted, THUMB STICK  to scan column, then THUMB STICK  or  to select ON or OFF.

THUMB

STICK

Ch. Manager

Move

SEL

Return

Ant A

CH# Scan CH ID Lock

2 Off -------3 Off -------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

Ch. Manager

Move

SEL



Ant A

CH# Scan CH ID Lock

2 Off -------3 Off -------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

Ch. Manager

Move

Set

Ant A

CH# Scan CH ID Lock

2 Off -------- 3 Off -------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

Ch. Manager

Ant A

CH# Scan CH ID Lock

2 On -------- 3 Off -------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

THUMB

STICK

THUMB

STICK

[]

Move

Set

Return

SEL

Return

SEL

Return

NOTE: Lock feature can not be selected or set in CHANNEL MANAGER.

CHANNEL MANAGER

This selection contains advanced features which will make TV viewing easier and more enjoyable. Use this feature to give up to 20 channels a name when ANTENNA signal source is selected and up to 60 channels a name when CATV signal source is selected.

NOTES: 1. If ANT A and ANT B are in the same ANTENNA/CABLE mode, the CHANNEL ID for both antenna inputs will be the

same.

2. CHANNEL ID will be displayed only when channel is displayed as main picture.

Channel ID

Channel Manager

Move

Edit (A-Z, 0-9, _, -)

Ant A

CH# Scan CH ID Lock

2On-------3On-------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

Channel Manager

SEL

Return

Ant A

CH# Scan CH ID Lock

2OnA------3On-------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

Channel Manager

Ant A

CH# Scan CH ID Lock

2OnA------3On-------4 Off -------5 Off -------6 Off -------7 Off -------8 Off -------9 Off --------

THUMB

STICK

THUMB

STICK

THUMB

STICK

[]

Move

Edit (A-Z, 0-9, _, -)

SEL

Return

Move

Edit (A-Z, 0-9, _, -)

SEL

Return

LOCKS

This function will block out the picture and sound of the selected channel or video input. It can also be used to keep the TV from being viewed for a scheduled time period that you set.

The code to enter the Locks feature is a four digit secret code number. The factory preset code is 0000. Use the number buttons to select access code.

Locks

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Please Enter Access Code

[ - - - - ]

0000

Movie Ratings

TV Time Lock

Engage Lock

Change Access Code

Locks

TV Ratings

Move

SEL

Return

Canadian Ratings (Eng)

Canadian Ratings (Frn)

THUMB

STICK

SELECT

[# Keys] Enter Code

NOTE: 1. If ANTA and ANT B are in the same signal source mode (see page 48), when a channel is locked, it is locked

on both antenna inputs.

2. When using TIME LOCK make sure the clock is set (see page 56).

3. Text appears on the screen to indicate that TV TIMED LOCK is activated.

4. If MOVIE/TV Ratings Lock and Closed Caption settings are ON, PIP SURF mode will be deactivated.

Use THUMB STICK  or  to highlight function and then press SELECT button. To change the access code number, select Change Access Code. Enter a new four digit key number you prefer.

Select CHANGE ACCESS CODE to change factory preset code (0000) to your preference. When ENGAGE LOCK is selected, SET CHANNEL LOCK, SET INPUT LOCK, and SET FRONT PANEL LOCK can be set individually.

When SET CHANNEL LOCK is turned on, the picture and sound for the chosen channel will be blocked out. When SET INPUT LOCK is turned on, the picture and sound for all video inputs and the picture and sound for channels 3, 4 will be

blocked out. When FRONT PANEL LOCK is turned on, all buttons on the Front Panel will be deactivated, except the Power button. When TV TIME LOCK is turned on (❒ TIME LOCK) you can set the BEGIN and END times (THUMB STICK ) and the TV

cannot be viewed during that time period (Set clock first). Use CURSOR  or  to highlight ONCE (TV will time out one time only), DAILY (TV will time out every day), WEEKLY - SUN~WEEKLY - MON (TV will time out one time a week) or OFF (to disable this function).

When MOVIE RATINGS is selected, you can block various types of movies and video tapes based on motion picture ratings. Picture in-Picture will also be blocked automatically (see page 51).

When TV RATINGS is selected, various types of television programming based on a parental guide ratings will be blocked. Picture-in-Picture will also be blocked automatically (see page 52).

Use CANADIAN RATINGS to block various types of movies and television programs based on the two rating systems used in Canada that you feel may be inappropriate due to its content (see pages 53-54).

If you forget your secret code, use the factory code 7777 to erase your key number. This will reset the secret code number back to the factory preset 0000. Press EXIT to quit the menu.

✔

LOCKS

Use MOVIE RATINGS to block from showing any movie you feel might have inappropriate content.

Use THUMB STICK  or  to select the MOVIE RATING category that you want to block. Press SELECT to block the MOVIE RATING that you have selected. Once rating is selected, for example PG-13, all movies rated PG-13 and higher (R, NC-17, and X) will be blocked. Press EXIT to quit menu or select MOVIE RATINGto return to the previous menu.

Movie Ratings

THUMB

STICK

SELECT

Locks

Move

SEL

Return

Movie Ratings

TV Time Lock

Engage Lock

Change Access Code

Locks

Status

TV Ratings

Move

SEL

Select

Canadian Ratings (Eng)

Canadian Ratings (Frn)

Not Rated:

PG:

PG-13:

NC-17:

THUMB

STICK

Contains no rating. Not Rated (NR) and Not Applicable (NA) programs. Movie has not been rated or

ratings do not apply.

Restricted. Under 17 requires accompanying parent or adult guardian.

Parents strongly cautioned. Some material may be inappropriate for children under 13.

Parental guidance suggested. Some material may not be suitable for children.

General audiences. All ages admitted.

Adults only

No one 17 and under admitted.

PG-13

NC-17

NOT RATED (NR)

Motion Picture Ratings Chart

LOCKS

TV Ratings

THUMB

STICK

SELECT

Locks

Move

SEL

Return

TV Ratings

Movie Ratings

TV Time Lock

Engage Lock

Change Access Code

Locks

Status

TV Ratings

Move

SEL

Select

Canadian Ratings (Eng)

Canadian Ratings (Frn)

TV-Y:

TV-Y7:

TV-YG:

TV-PG:

TV-14:

TV-MA:

THUMB

STICK

Sub Rating

DL S VFV

TV Parental Guide Ratings Chart

Use TV RATINGS to block from showing any programs or movies you feel might have inappropriate content.

Use THUMB STICK  or  to highlight the category that you want to block. Press select to block the TV RATING that you have selected.

Press EXIT to quit menu or select TV RATING to return to the previous menu.

Parental guidance suggested. The program may contain infrequent coarse language, limited violence, some suggestive sexual dialogue and situations.

Directed to older children. Themes and elements in this program may include mild physical or comedic violence, or may frighten children under the age of 7.

All children. The themes and elements in this program are specifically designed for a very young audience, including children from ages 2-6.

General audience. It contains little or no violence, no strong language, and little or no sexual dialogue or situations.

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

Parents strongly cautioned. This program may contain sophisticated themes, intense sexual situation, more intense violence and intensely suggestive dialogue.

Mature audiences only. This program may contain mature themes, indecent language, graphic violence, and explicit sexual content.

Fantasy Violence

Violence

Sexual Situation

Adult Language

Sexually Suggestive Dialogue.

L D

NOTE:

If you Block TV-14D, you will still permit TV-MAprograms; If you block TV-14DV, you will automatically block TV-MAV programs, but you will still permit TVMALS programs. This means that the TV will block violence in TV-14 and higher (TV-MA), but not language and sex.

LOCKS

Canadian Ratings

(Eng)

THUMB

STICK

SELECT

Locks

Move

SEL

Return

Canadian Ratings (Eng)

Movie Ratings

TV Time Lock

Engage Lock

Change Access Code

Locks

Status

TV Ratings

Move

SEL

Select

Canadian Ratings (Eng)

Canadian Ratings (Frn)

C8+:

PG:

14+:

18+:

THUMB

STICK

Canadian Ratings English Chart

Use Canadian Ratings (Eng) to block any type of movie and television program in Canada that you feel might be inappropriate in its content.

Use THUMB STICK  or  to select the CANADIAN RATINGS (Eng) category that you want to block. Press SELECT to set the CANADIAN RATINGS (Eng) that you have selected. Once rating is selected, for example C8+, all movies and television programs rated C8+ and higher (G, PG, 14+ and 18+) will be blocked automatically. Press EXIT to quit menu.

C8+

18+

14+

Programming intended for children under age 8 - Violence Guidelines; Careful attention is paid to themes, which could threaten children’s sense of security and wellbeing. There will be no realistic scenes of violence. Depictions of aggressive behaviour will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. Other Content Guidelines: There will be no offensive language, nudity or sexual content.

Programming generally considered acceptable for children 8 years and over to watch on their own - Violence Guidelines: Violence will not be portrayed as the pre-

ferred, acceptable, or only way to resolve conflict; or encourage children to imitate dangerous acts which they may see on television. Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. Other Content Guidelines: There will be no profanity, nudity or sexual content.

General Audience - Violence Guidelines: Will contain very little violence, either physical or verbal or emotional. Will be sensitive to themes which could frighten a younger child, will not depict realistic scenes of violence which minimize or gloss over the effects of violent acts. Other Content Guidelines: There may be some inoffensive slang, no profanity and no nudity.

Parental Guidance - Programming intended for a general audience but which may not be suitable for younger children. Parents may consider some content inappropriate for unsupervised viewing by children ages 8-13. Violence Guidelines: Depictions of conflict and/or aggression will be limited and moderate; may include physical, fantasy, or supernatural violence. Other Content Guidelines: May contain infrequent mild profanity, or mildly suggestive language. Could also contain brief scenes of nudity.

Programming contains themes or content which may not be suitable for viewers under the age of 14 - Parents are strongly cautioned to exercise discretion in permit-

ting viewing by pre-teens and early teens. Violence Guidelines: May contain intense scenes of violence. Could deal with mature themes and societal issues in a realistic fashion. Other Content Guidelines: May contain scenes of nudity and/or sexual activity. There could be frequent use of profanity.

Adult - Violence Guidelines: May contain violence integral to the development of the plot, character or theme, intended for adult audiences. Other Content Guidlines: May contain graphic language and explicit portrayals of nudity and/or sex.

LOCKS

Canadian Ratings

(Frn)

THUMB

STICK

SELECT

Locks

Move

SEL

Return

Canadian Ratings (Frn)

Movie Ratings

TV Time Lock

Engage Lock

Change Access Code

Locks

Status

TV Ratings

Move

SEL

Select

Canadian Ratings (Eng)

Canadian Ratings (Frn)

8 ans+:

13 ans+:

16 ans+:

18 ans+:

THUMB

STICK

Canadian Ratings French Chart

Use CANADIAN RATINGS (FRN) to block Canadian French programs according to various program ratings that you feel might be inappropriate in its content.

Use THUMB STICK  or  to highlight the category that you want to block. Press SELECT to set the CANADIAN RATINGS (FRN) that you have selected. Once rating is selected, for example 8 ans+, all movies and television programs rated 8 ans+ and higher will be

automatically blocked.

Press EXIT to quit menu or select THUMB STICK  to return to the previous menu.

8 + General - Not recommended for young children - Programming intended for a broad

audience but contains light or occasional violence that could disturb young children. Viewing with an adult is therefore recommended for young children (under the age of 8) who cannot differentiate between real and imaginary portrayals.

General - Programming intended for audiences of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately with humor or caricature or in an unrealistic manner.

Programming restricted to adults - Contains constant violence or scenes of extreme violence.

Programming is not suitable for children under the age of 16 - Contains frequent scenes

of violence or intense violence.

8 ans +

13 ans +

16 ans +

18 ans +

Programming may not be suitable for children under the age of 13 - Contains either a

few violent scenes or one or more sufficiently violent scenes to affect them. Viewing with an adult is therefore strongly recommended for children under 13.

SETUP

Select SETUP when setting your TV up for the first time. Use the THUMB STICK  or  on the remote to highlight the function desired.

This feature will allow you to select any one of three different languages for all on-screen displays.

Use THUMB STICK  ,  to highlight the language of your choice. Press SELECT to select the highlighted language. Press EXIT to quit menu or select MENU PREFERENCE to return to previous menu.

Menu Preference

THUMB

STICK

SELECT

Setup

Move

SEL

Return

Menu Preferences

Set The Language English Francais Español

Set The Menu Background Shaded Solid

Menu Preference

Setup

THUMB

STICK

Setup

Move

SEL

Select

Menu Preferences

Set The Language English Francais Español

Set The Menu Background Shaded Solid

THUMB

STICK

Set The Channels

Set The Clock

Set The Inputs

Move

SEL

Select

Set Event Timer

Set Closed Captions

About Your TV

Setup

Locks

Ch. Manager

Audio

Video

Move

SEL

Sel

Set The Channels

Set The Clock

Menu Preference

Setup

Set The Inputs

Move

SEL

Return

Set Event Timer

Set Closed Captions

THUMB

STICK

THUMB

STICK

SELECT

About Your TV

Use THUMB STICK  or  to select the sub-menu of your choice.

SETUP

The time must be adjusted before you can use the “Set Event Timer” or “TV Time Out” features.

Use THUMB STICK  or  to set the time and date. Press THUMB STICK  or  to change position. Press EXIT to quit menu.

Set The Clock

THUMB

STICK

SELECT

Set The Channels

Set The Clock

Menu Preference

Setup

Set The Inputs

Move

SEL

Select

Set Event Timer

Set Closed Captions

Setup

Move

SEL

Return

Set The Clock

Time : Sun --:-- AM

Setup

Move

SEL

Return

Set The Clock

Time : Sun --:-- AM

THUMB

STICK

Set

About Your TV

This function allows you to choose from two menu backgrounds.

Use THUMB STICK  ,  to highlight SET THE MENU BACKGROUND (shaded or solid), and press down on THUMB STICK to select setting. Press EXIT to quit menu or THUMB STICK  to return to previous menu. Select SOLID for a black background (no picture can be seen behind menu screen), or select SHADED for a light background.

Set The

Menu Background

THUMB

STICK

Setup

Move

SEL

Select

Menu Preferences

Set The Language English Francais Español

Set The Menu Background Shaded Solid

SETUP

Select ANTENNAif you are using an indoor or outdoor antenna. Select Cable if you have cable TV.

Use THUMB STICK  ,  to highlight the correct signal mode. Press down on THUMB STICK to select highlighted signal. Press EXIT to quit MENU or select ANT A to return to previous menu.

Reception channels for each mode are shown at the left.

Refer to your cable or TV guide for channel identification standards.

Set The Channels

THUMB

STICK

SELECT

Set The Channels

Set The Clock

Menu Preference

Setup

Set The Inputs

Move

SEL

Select

Set Event Timer

Set Closed Captions

Setup

Move

SEL

Return

Set The Channels

Ant A

Ant B

THUMB

STICK

Setup

Move

SEL

Select

Set The Channels

Setup

Move

SEL

Return

Set The Channels

Ant A

Source Antenna Cable(1) Cable(2)

Auto Channel Scan

Start

THUMB

STICK

SELECT

THUMB

STICK

Setup

Move

SEL

Select

Set The Channels

Ant A

Source Antenna Cable(1) Cable(2)

Auto Channel Scan

Start

Ant A

Ant B

About Your TV

RECEPTION BAND

CATV 1 OR CATV 2

AIR

VHF 2 ~ 13ch

UHF 14 ~ 69ch

CATV CHANNEL

VHF 2~13

Mid band A~1

A-5 ~ A-1

Super band J~W

Hyper band

W + 1 ~ W + 28

Ultraband

W + 29 ~ W + 84

Indicated on

the screen

2 ~ 13

14 ~ 22 95 ~ 99

23 ~ 36 37 ~ 64

65 ~ 125

NOTE: If certain CATV channel’s picture are poor or unable to be viewed in Cable (1) mode, select Cable (2).

SETUP

This feature will automatically store active TV channels in Auto Channel Scan. This will allow you to skip unused channels when using CHANNEL UP () or DOWN ().

If the EXIT button is pressed while AUTO CHANNEL SCAN function is engaged, programming will stop. If two antenna are connected, switch antenna inputs with the ANT button and repeat AUTO CHANNEL SCAN for the second antenna input.

Remember to select the correct ANTENNA/CABLE mode before using AUTO CHANNEL SCAN. See CHANNEL MANAGER - SCAN to add or to erase additional channels.

Auto Channel Scan

THUMB

STICK

SELECT

THUMB

STICK

Setup

SEL

Cancel

Set The Channels

Ant A

Setup

Move

SEL

Select

Set The Channels

Ant A

Source Antenna Cable(1) Cable(2)

Auto Channel Scan

Start

Setup

Move

SEL

Select

Set The Channels

Ant A

Source Antenna Cable(1) Cable(2)

Auto Channel Scan

Start

Auto Channel Scan

Cancel

Scanning Channel Number: 66

SETUP

Use this feature to give a name to any of the five video inputs.

Press THUMB STICK , , , , to highlight the name of the video inputs.

Press down on THUMB STICK to select desired input name. Select RESET to set video names to original factory preset condition.

Set The Inputs

THUMB

STICK

SELECT

Setup

Move

SEL

Return

Set The Inputs

Video1 Rename

Video2 Rename

Video2 Auto Link

Video3 Rename

Video4 Rename

Video5 Rename

Set The Channels

Set The Clock

Menu Preference

Setup

Set The Inputs

Move

SEL

Select

Set Event Timer

Set Closed Captions

THUMB

STICK

THUMB

STICK

Setup

Move

SEL

Select

Set The Inputs

Setup

Move

SEL

Return

Set The Inputs

List

CAM DVD2 VCR

CBL LD VCR1

DVD SAT VCR2

DVD1 STB Reset

THUMB

STICK

SELECT

Video1 Rename

Video2 Rename

Video2 Auto Link

Video3 Rename

Video4 Rename

Video5 Rename

About Your TV

Video 1 Rename

SETUP

Use this function to automatically turn the TV on and tune to Video2 when it detects a video signal to input 2.

Use THUMB STICK  or , then press down on THUMB STICK to change AUTO LINK setting. When AUTO INPUT SIGNAL SENSOR is selected, the TV will turn on and tune to Video2 automatically, when the Video2 input device

is turned on. This is convenient when you want to watch a movie with your VCR, laserdisc player, or DVD player. When REMOTE CONTROL SENSOR is selected, the TV will turn on and switch to Video2 automatically when the Video2 input device

is turned on and the VCR, laserdisc, or DVD play button on your remote control is pressed. This is convenient when you want to record a movie with your VCR and watch it later.

Select Off to disable this function. Press EXIT to quit menu.

Video 2 Auto Link

NOTES: 1. Once the TV has been turned on using the AUTO LINK feature, it must be reset before AUTO LINK is used again. To

do this, turn your VCR, laserdisc, or DVD player OFF. This feature is now reset and will turn on your TV as described above.

2. When using REMOTE CONTROL SENSOR mode, any remote control button will substitute for your video input device play button. However, intended operation is for use with your VCR, laserdisc, or DVD play button.

3. If no remote control button is pressed after the TV is turned on by AUTO LINK, the TV will automatically turn off after three hours.

THUMB

STICK

Setup

Move

SEL

Select

Set The Inputs

Setup

Move

SEL

Return

Set The Inputs

Video2 Auto Link

Auto Input Signal Sensor

Remote Control Sensor

Off

THUMB

STICK

SELECT

Setup

Move

SEL

Select

Set The Inputs

Video2 Auto Link

Auto Input Signal Sensor

Remote Control Sensor

Off

Video1 Rename

Video2 Rename

Video2 Auto Link

Video3 Rename

Video4 Rename

Video5 Rename

SETUP

This function will automatically turn the Projection TV on and off, one time only, every day, or once a week.

Use THUMB STICK  to select Event 1, 2 or 3. Use THUMB STICK  to change position of On time, Off time, Antenna, Channel, and On/Off Frequency. Use THUMB STICK  or  to select the time the TV will turn on and off. Use THUMB STICK  or  to select the day of the week you want the timer to turn on TV. Use number buttons to set the channel the TV will tune to when it automatically turns on. Use THUMB STICK  or  to select mode Once (TV will turn on/off one time only), Daily (TV will turn on/off at the same time every day), or Weekly-SUN (TV will turn on/off at same time every week). Press EXIT to quit the menu.

NOTE: 1. The Off Timer will only activate if the TV was turned on by the On Timer and no channel selection was

made after this time. If you change the channel after the On Timer has been activated, the Off Timer will deactivate.

2. If no remote control button is pressed after Event Timer is activated, the TV will automatically turn of f after three hours. Therefore, do not Set Event Timer for more than three hours if you do not plan to send a Remote Control I/R to your TV.

CAUTION: Do not use your TV as a deterrent when away from home by using the On and Off Timers. For safety, the TV

should be turned off when you are away from home.

Set Event Timer

THUMB

STICK

SELECT

Set The Channels

Set The Clock

Menu Preference

Setup

Set The Inputs

Move

SEL

Select

Set Event Timer

Set Closed Captions

Setup

Move

SEL

Return

Set Event Timer

Event 1 --:-- AM --:-- AM

Ant A Ch -- Once

Event 2 --:-- AM --:-- AM

Ant A Ch -- Once

Event 3 --:-- AM --:-- AM

Ant A Ch -- Once

Setup

Move

SEL

On/Off

Set Event Timer

Event 1 --:-- AM --:-- AM

Ant A Ch -- Once

Event 2 --:-- AM --:-- AM

Ant A Ch -- Once

Event 3 --:-- AM --:-- AM

Ant A Ch -- Once

THUMB

STICK

Return

About Your TV

Please Set The Clock First.

If the clock is not set, you can not use this function and the screen below will appear. The message on the screen will disappear after 3 seconds, then the screen automatically goes to the clock setup mode (see page 56).

SETUP

Caption Disply: On/Off will turn the display on or off.

Auto will turn the display on when Mute/Soft Mute is on.

Caption Mode: Captions is for the program you are viewing.

Text is for additional information such as news reports or a TV program guide. This information covers the entire

screen and viewing the TV program is not possible. Text may not be available with every program.

CHANNEL: 1 is used for the primary language (usually English).

2 is sometimes used for a second language (may vary by region). 3 is sometimes used for a third language (may vary by region). 4 is sometimes used for a fourth language (may vary by region).

Use THUMB STICK ,  to highlight the function to change then press THUMB STICK to change the function. Press EXIT to quit menu or THUMB STICK  to return to previous menu.

Closed Captions are the dialogue, narration, and/or sound effects of a television program or home video which are displayed on the TV screen. Your local TV program guide denotes these programs as

Closed Caption

THUMB

STICK

SELECT

Setup

Move

SEL

Return

Set Closed Caption

Caption Display Off On Auto

Captions

Mode: Captions Text

Channel: 1 2 3 4

Channel Setup

Set The Clock

Menu Preference

Setup

Set The Inputs

Move

SEL

Select

Set Event Timer

Set Closed Captions

About Your TV

NOTE: 1. CAPTION DISPLAY will not work when viewing a 480p, 720p, or 1080i input via the COMPONENT: Y-PBPRinputs.

2. When PIP Surf is on, Closed Caption will not work.

The TV model name and set dimensions will be displayed on the TV screen. The set dimensions of each TV model are listed on page 66.

About Your TV

Setup

Menu Preference

Set The Clock

Channel Setup

Set The Inputs

Set Event Timer

Set Closed Captions

About Your TV

Move

Setup

About Your TV

THUMB

STICK

SELECT

SEL

Select

Model:

Dimensions (Inches) (mm)

Height: - / -

Width: - / -

Depth: - / -

SEL

Return

Move

CARE OF YOUR HITACHI TELEVISION AND YOUR REMOTE CONTROL

Dust the screen and cabinet with a soft cloth.

Clean the screen with a soft cloth moistened in warm water and dry with a soft cloth. Amild soap may be used if the screen is extremely dirty.

Place your Television away from extreme heat, humidity, and extremely dusty places.

Remove the plug from the wall outlet if your Television will not be used for a long period of time, for instances, when you go on vacation.

DO NOT

Do not clean your screen or cabinet with strong cleaners, polishes or a chemically treated cloth.

Do not place rubber or vinyl products or cellophane tape on your Television.

Do not touch the screen too often.

Do not subject the remote control to shocks such as dropping it on the floor, etc. Physical damage to the precision parts may result.

Avoid placing the remote control or the Simple Remote Control in a high humidity place or getting it wet. Do not leave it on or near a heater. Excessive heat or moisture may cause the unit to cease operation.

When the batteries run down, remote control operation will become erratic or possibly stop altogether. Replace the old batteries with two new “AA” or “AAA” size batteries. Do not use an old battery with a new battery.

Exposure of the viewing screen to prolonged direct sunlight or heat may cause the screen to permanently warp, resulting in a distorted picture.

Reception Problems

• IGNITION NOISE: Black spots or horizontal streaks may appear, picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.

• GHOSTS: Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected from tall buildings, hills or some other objects. Changing the direction or position of the antenna may improve reception. Ghosting may also be caused by defects in the antenna system such as unshielded leads or connecting several sets to the same antenna without using multiple antenna couplers.

• SNOW: If your receiver is located in the fringe area of a television station where the signal is weak, your picture may be marred by the appearance of small dots. When the signal is extremely weak, it may be necessary to install a special antenna to improve the picture.

• RADIO FREQUENCY INTERFERENCE: The interference produces moving ripples or diagonal streaks, and in some cases, causes loss of contrast in the picture.

NOTE: The TV set can generate sound distortion in external devices such as a radio. Please separate radio equipment from

the TV set to a considerable distance.

USEFUL INFO

HITACHI Projection Television incorporates advanced power surge protection technology designed to protect against component or circuit damage due to external or internal voltage power surges.

IF YOUR TELEVISION SHOULD APPEAR TO HAVE A LOSS OF POWER, PLEASE FOLLOW THIS PROCEDURE:

1. Press the power switch (ON/OFF switch) once.

2. If there is still no power, wait 30 seconds and press the power switch again.

3. If there is still no power, unplug the power cord from the wall. Wait 30 seconds and plug the power cord back in. Press the power switch again.

This protective technology should provide for years of lasting entertainment from your HITACHI Projection Television.

SYMPTOMS

CHECK THESE ITEMS AND

TRY THESE ADJUSTMENTS

No Picture, no sound Sound OK, picture poor Picture OK, sound poor

Picture blurred

Lines or streaks in picture

Poor reception on some channels

Picture rolls vertically

No color

Poor color





 





























Be sure external connection is correct

Be sure power cord is plugged in

Be sure TV is switched''ON"

Try another channel (station trouble)

Check antenna connections (back of TV)

Check antenna for broken lead-in wire

Check for local interference

Check outside antenna

Adjust Contrast control

Adjust Brightness control

Adjust Color control

Adjust Tint control

Adjust Volume control

USEFUL INFO

•Velocity Modulation

• Six Aspect Modes

• Closed Caption Decoder

• 2-Tuner Picture in Picture

• Magic Focus (Auto Digital Convergence and Manual Adjustment)

• Dual Antenna Inputs

•Video Input Sensor

•3 Dimensional Y/C Comb Filter

• Full 1080i HDTV capable when used with a Set-Top Box.

• High bandwidth Digital Content Protection V1.0 compatible.

•Technology.

• Mach3Bass Technology.

•Technology. *SRS and the symbol are registered trademarks of SRS Labs, Inc. SRS technology is incorporated under license from SRS

Labs, Inc. *Licensed by BBE Sound, Inc. under USP4638258 and 4482866. BBE, BBE Mach3Bass and BBE symbol are registered trademarks of BBE Sound, Inc. Manufactured under license from BBE Sound, Inc.

Features:

• Superfine Picture Quality 1280 Line Horizontal Resolution

• Remote (Controls many VCR brands, cable boxes, satellite boxes, and other audio equipment.)

• Extra Simple Remote for easy basic operations.

• New Easy-to-Use (3-Language) On-Screen Menu

• New A/V Network Infra-Red (IR) System

Control up to 4 components with one remote. (2 IR Mouse cables included.)

• Full Set of Input Jacks, including S-VIDEO

• COMPONENT VIDEO: Y-P

B/PR

Inputs:

•

Power Input . . . . . . . . . . . . .AC 120V, 60Hz

•

Stand-by Power . . . . . . . . . . . . . . . . . .1.3W

• Power Consumption

- Refer to rear panel at the back of the T.V.

• Antenna input impedance . . . . . . . . .75 Ohm

• Channel coverage . . . . . . . . . . . . . . .181ch.

VHF-Band . . . . . . . . . . . . . . . . . . . . .2 ~ 13

UHF-Band . . . . . . . . . . . . . . . . . . . .14 ~ 69

CATV Mid Band . . . . . . . . . . . . . . .A-5 ~ A-1

. . . . . . . . . . . . . . . . . . . . . . . . . . .A-I

Super Band . . . . . . . . . . . . . . . . . . . . .J-W

Hyper Band . . . . . . . . . . . . . . .W+1 - W+28

Ultra Band . . . . . . . . . . . . . . .W+29 - W+84

•Video . . . . . . . . . . . . . . . .1.0Vp-p, 75 Ohm

• S-Video

Luminance (Y) . . . . . . . . . .1.0Vp-p, 75 Ohm

Chrominance (C) . . . . . .0.286Vp-p, 75 Ohm

• Component Video

Luminance (Y) . . . . . . . . . . . . . . .1.0Vp-p, 75 Ohm

Chrominance (PB/PR) . . . . . . . . .0.7Vp-p, 75 Ohm

• Audio input Impedence . . . . . . . . . .47k Ohm

•Average input level . . . . . . . . . . . . . . . .470mVrms

• DVI - HDTV . . . . . . . . . . . . . . . . . . . . . .DVI 25pin

Outputs:

•Video . . . . . . . . . . . . . . . . . . . . .1.0Vp-p. 75 Ohm

• Audio (Fixed) . . . . . . . . . . . . .470mVrms, 1k Ohm

Dimensions:

51SWX20B 57SWX20B 65SWX20B

57TWX20B 65TWX20B

•Height (in.) 50 1/8 54 3/16 59 7/8

• Width (in.) 48 12/16 54 61

• Depth (in.) 25 1/16 25 8/16 28

•Weight (lbs.) 238 265 319

NOTE: Due to improvements, specifications in this oper-

ating guide are subject to change without notice.

USEFUL INFO

Hitachi America, LTD.

Home Electronics Division

1855 Dornoch Court

San Diego, CA 92154

Hitachi America, LTD. Home Electronics Division

Hitachi has made every effort to assure you hours of trouble free operation from your unit. However, should you require service, a network of Hitachi Authorized Service Facilities has been established in all 50 states and Puerto Rico. Each facility will provide you with convenient and expedient assistance. Our service hotline operator will direct you to the Hitachi Authorized Service Facility nearest you. Just present proof of purchase and/or delivery receipts to the Hitachi Authorized Service Facility, and service will be rendered in accordance with the terms of the limited warranty as stated on your warranty card or operating guide.

Should you have any questions regarding warranty, service, operation, or technical assistance, please contact:

service

To locate an authorized HITACHI service facility in the continental U.S.A. and Canada,

DIAL TOLL FREE

7 days a week, 24 hours a day

800 HITACHI

(1-800-448-2244)

USEFUL INFO

In Canada:

1-800-HITACHI

(1-800-448-2244)

Monday - Friday EST 9:00am - 7:00pm

Saturday EST 9:00am - 5:00pm

Hitachi Canada, LTD. Digital Media Division

Should you have any questions regarding warranty, service, operation, or technical assistance, please contact:

Look for your French Manual on the outside of the box. If the manual is missing, call

for a copy.

1-800-HITACHI

(1-800-448-2244)

Au Canada:

1-800-HITACHI

(1-800-448-2244)

Lundi - Vendredi L’EST 9:00am - 7:00pm

Samedi L’EST 9:00am - 5:00pm

Pour de plus amples renseignements sur le service durant la période couverte par la garantie, sur le fonctionnement ou pour de l’assistance technique communiquez avec:

La version français de votre manual se trouve a l’exterieur de la boîte. Si le manuel est manquant, coposez le

pour obenir votre copie.

1-800-HITACHI

(1-800-448-2244)

HITACHI CANADA, LTD.

6740 Campobello Road

Mississauga, ON L5N 2L8

NOTES

QR51881

Hitachi 57TWX20B, 57SWX20B, 51SWX20B, 65TWX20B, 65SWX20B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
