Important

Please read this User's Manual thoroughly, especially the Safety Instructions on Page 4 to 7. Mis-use may cause damage to your plasma monitor, which could shorten its lifespan, or cause injury to yourself. Should you encounter any difficulty in the set-up or operation of your monitor, firstly refer to the Troubleshooting guide at the rear of this manual. In the unlikely event of a problem occurring with your plasma monitor, switch off at the mains sockets, pull out the plugs, and contact your dealer immediately.

CAUTION

Under no circumstances remove the rear cover of your plasma monitor. Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

Software Notice

It is prohibited for the end user of this product to copy, reverse engineer or reverse compile the software included therein, save to the extent permitted by law.

Plasma Monitor

After the plasma monitor has been on for any length of time, you will notice that the screen becomes warm. Please note that this is normal. Sometimes the screen might have some tiny bright or dark spots. Please note that this is normal.

FEATURES

Large-screen, high-definition plasma display panel

The 42-inch colour plasma display panel, with a resolution of 1024 (H) x 1024(V) pixels, creates a high-definition, large-screen (aspect ratio : 16:9) and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power lines, the panel produces high-quality display images free from colour misconvergence and display distortion.

High Performance Digital Processor

A wide range of input signals can be handled, including composite, component, and HDMI. High Definition Digital Processor creates the fine-textured image with dynamic contrast. In addition, it corresponds to a broad array of personal computer signals, from 640 x 400, and 640 x 480 VGA to 1600 x 1200 UXGA. (Analog Input)

Easy-to-use remote control and on screen display system

The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easy-to-view fashion.

CAUTION

To prevent scratches or damages to the plasma screen, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. A mild soap may be used if the screen is extremely dirty. Do not use harsh or abrasive cleaners!

CAUTION

Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.

Information for users applicable in European Union countries

This symbol on the product or on its packaging means that your electrical and electronic equipment should be disposed at the end of life separately from your household wastes. There are separate collection systems for recycling in EU. For more information, please contact the local authority or the dealer where you purchased the product.

Connecting to an Audio Visual Device

• Three Scart terminals*1, composite/S terminal*2, a component terminal*3, and a HDMI terminal have been added. A composite video output terminal is also provided as a monitoring output.

AV1 scart applies to composite/ S-video AV2 and AV3 apply to composite/ RGB

A composite/S terminal = Side Input

With AV4 input, if a composite terminal and a component terminal are used at the same time, the component terminal would govern.

• A wide range of devices can be also connected besides personal computers.

Power Swivel Feature

It allows turning the plasma display left or right within ± 30 degree using the remote control.

CONTENTS

FEATURES ....................................................2

SAFETY INSTRUCTIONS ..............................4

IMAGE RETENTION OF PLASMA DISPLAY ..8

COMPONENT NAMES ..................................9

Main Unit ............................................................................9

Remote control ..................................................................10

Loading Batteries ............................................................10

Handling the Remote Control..........................................10

INSTALLATION INSTRUCTIONS ................13

Installation..........................................................................13

Anti-tumble measures........................................................13

Connecting to an Audio Visual Device..............................14

Connecting to a PC ..........................................................16

Mounting the Speaker Unit................................................17

Mounting the Side Input ....................................................19

Power Cord Connection ....................................................20

OPERATING INSTRUCTIONS......................21

Turning Power On and Off ................................................21

Input Switching..................................................................22

Size Switching ..................................................................22

Volume Adjustment............................................................24

Audio Mute ........................................................................24

Power Swivel ....................................................................25

Input Signal Screen Display..............................................26

Displaying MULTI PICTURE ..............................................27

Picture Freezing ................................................................29

Using the Menu Screen (On-screen display system) ......30

SETUP MENU (TV mode) ..................................................31

SETUP MENU (Video mode) ............................................33

SETUP MENU (RGB mode: RGB1 (DVI-PC),

RGB2 (RGB)) ..................................................................34

FUNCTION MENU ............................................................36

PICTURE MENU (TV/Video mode) ....................................37

PICTURE MENU (RGB mode) ..........................................40

AUDIO MENU....................................................................41

TIMER MENU ....................................................................42

LANGUAGE MENU ..........................................................42

OTHER FUNCTIONS ..................................43

Automatic Store ................................................................43

Audio Switching ................................................................44

Power Save Mode ............................................................45

DVD Player/STB Selection ................................................45

Signal Check (RGB mode)................................................46

TROUBLESHOOTING ..................................47

Symptoms That Seemingly Appear to be Failures............47

Actions to Correct Abnormal Displays ..............................49

PRODUCT SPECIFICATIONS ......................50

Signal Input ......................................................................51

Recommended Signal List ................................................52

ENGLISH

Notes about This Manual

• The information in this manual is subject to change without notice.

• Whilst meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any comments, views or questions about our product.

• Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the product. We are not held liable for damages caused by improper handling of the product.

• Reproduction of this manual in whole or in part without our prior written permission is prohibited.

• The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners.

SAFETY INSTRUCTIONS

This Plasma monitor has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions.

About the Symbols

Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents.

WARNING

CAUTION

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling.

Typical Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that the power plug should be disconnected from the power outlet).

WARNING

Never use the monitor if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

Disconnect the

plug from the power outlet.

Do not insert liquids or foreign objects.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present. If liquids or foreign objects should enter the monitor, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

• Do not place the monitor in a bathroom.

• Do not expose the monitor to rain or moisture.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the monitor.

• Do not place metals, combustibles, etc on or around the monitor.

Never disassemble or modify the monitor.

The monitor contains high voltage components. Modification could result in fire or electrical shock.

• Never remove any fixed cover.

Do not give the monitor any shock or impact.

If the monitor should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock. If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

Do not place the monitor on an unstable surface.

If the monitor should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the monitor on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

Do not obstruct the ventilation of the monitor.

If the ventilation is obstructed during the operation of the monitor or just after switching off the power, it could result in damage and shorten the lifespan of your monitor due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the monitor and other objects such as walls.

• Do not place anything around ventilation openings of the monitor.

• Never block ventilation openings.

• Do not put the plasma screen side up.

• Do not cover the monitor with a tablecloth, etc.

• Do not place the monitor on a carpet or bedding, or near a curtain.

Do not

disassemble.

Use only the correct power outlet.

Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the monitor and the safety standard.

• The enclosed power cord must be used depending on the power outlet to be used.

SAFETY INSTRUCTIONS (continued)

About the Symbols (continued)

WARNING

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

•

Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an appropriate extension lead or consult your dealer.

• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value, type and approval as the original. Ensure the fuse cover is returned to its original position.

Be sure to keep safety ground connection.

Connect the ground terminal of AC inlet of this monitor with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables. If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the monitor or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.

• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.

• Do not place the cord near the heater.

• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.

• Do not touch the power plug when lightening is close to you.

• Avoid coiling the power cord and bending it sharply.

• Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they exit from the apparatus.

• Do not modify the power cord.

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

• Do not allow the battery to be exposed to fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with metallic tweezers.

• Keep the battery in a dark, cool and dry place.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not physically impact the battery.

• Use only the battery specified in the manual of this monitor.

• Make sure the plus and minus terminals are correctly aligned when loading the battery.

• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes, rinse well with water.

• Obey the local laws on disposing the battery.

ENGLISH

Surely connect

the ground wire.

• FOR THE CUSTOMERS IN THE U.K.

THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE U.K. PLEASE REFER TO THE NOTES ON THIS PAGE.

IMPORTANT FOR UNITED KINGDOM

WORDING FOR CLASS I EQUIPMENT INSTRUCTION BOOKS AND LABELS

The mains lead on this equipment is supplied with a molded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA or BSI approved BS 1362 fuse must be used of the same rating. If the fuse cover is detachable never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug. Fuse covers are available from your dealer. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. Should it be necessary to change the mains plugs, this must be carried out by a competent person, preferably a qualified electrician. If there is no alternative to cutting off the mains plug, ensure that you dispose of it immediately, having first removed the fuse, to avoid a possible shock hazard by inadvertent connection to the mains supply.

WARNING: THIS EQUIPMENT MUST BE EARTHED IMPORTANT

The wires in the mains lead are coloured in accordance with the following code :

Green and Yellow = Earth, Blue = Neutral, Brown = Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN and YELLOW must be connected to the terminal in the plug which is marked with the letter E

or by the earth symbol or coloured GREEN or GREEN and YELLOW. The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

Green & Yellow to Earth

Blue to Neutral

Brown to Live

Fuse

Cord Clamp

SAFETY INSTRUCTIONS (continued)

About the Symbols (continued)

CAUTION

Be careful in moving the monitor.

Neglect could result in an injury or damage.

• Do not move the monitor during use. Before moving, disconnect the power plug and all external connections.

• You are advised to move the monitor with two persons.

• Avoid any impact or shock to the monitor; particularly take care of glass screen.

Do not put anything on top of the monitor.

Placing anything on the monitor could result in loss of balance or falling, and cause an injury or damage. Use special caution in households where children are present.

Avoid a humid or dusty place.

Placing the monitor in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.

Avoid a high temperature environment.

The heat could have adverse influence on the monitor and other parts, and could result in transformation, melting or fire.

• Do not place the monitor, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

• Do not put the monitor in a place where the temperature is widely changing.

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the monitor is not to be used for prolonged periods of time.

• Before cleaning, turn off and unplug the monitor. Neglect could result in fire or electrical shock.

Be careful in operating power swivel.

Placing hands or faces near the monitor whilst operating the swivel function could cause a physical injury or damage. Use special caution in households where children are present.

Disconnect the

plug from the power outlet.

PRECAUTIONS

Installation environment

Do not obstruct a ventilation hole. Do not put the monitor on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the monitor.

Do not put the monitor in the following places.

• Hot places such as near heater, place exposed to the direct rays of the sun.

• A place where the temperature is widely changing.

• Places with soot, dust or high humidity.

• Poor air ventilation place.

• Place near fire.

• A wet place such as bathroom, or shower room.

• Place where you can trip over it.

• Always vibrating or strongly vibrating places.

• Distorted or unstable places.

How to view the monitor

If you use the monitor in too dark a room, your eyes may become tired. Please use it in a reasonably bright room. Avoid direct rays of the sun to the screen in order to prevent eye fatigue. Your eyes will get fatigued after viewing the monitor for long period of time. Relax your eyes by viewing away from the monitor from time to time. Please watch the monitor in downward direction.

Note on image retention

The plasma monitor illuminates phosphor to display images. The phosphor has a finite illumination life. After extended periods of illumination, the brightness of the phosphor will be degraded to such extent that stationary images would burn-in that part of the screen as greyed-out images. Tips to prevent such image retention are:

• Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns, for long.

• Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to move them using screen saver function.

• Turn down the contrast and brightness controls.

How to clean the plasma screen panel of the monitor

Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet. To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.

How to clean the cabinet of the monitor

SAFETY INSTRUCTIONS (continued)

About the Symbols (continued)

Prevention of an obstacle to Radio receivers

This monitor has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.

• Keep the monitor away from Radio.

• Adjust Radio antennas in order for the monitor not to receive interference.

• The antenna cable of Radio should be kept away from the monitor.

• Use a coaxial cable for antenna. You can check if this monitor influences Radio receivers by turning off all other equipment other than the monitor. If you find a problem receiving Radio when using the monitor, check the instructions mentioned above.

Precautions for the cable connection

• Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing connections.

• Confirm the connector is fixed tightly when the signal cable is connected. Also confirm the screws on the connector are tightened.

• Plug the power cord of the monitor into a different socket from that for other equipment, such as Radio etc.

• Use a plug with ground terminal and make sure that it connects to the ground.

Precaution during transportation

Please pay attention when you transport this monitor because it is heavy. Furthermore, use the original carton box and its packaging materials when the monitor is transported. Failure to transport the monitor in any carton except the original carton may result in damage to the monitor. Save the original carton box and all packing material.

ENGLISH

Do not physically impact the remote control.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place heavy objects on the remote control.

Avoid strong rays.

Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause distorted images or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the monitor.

Set the sound volume at a suitable level.

It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

Precautions for the installation

• Do not use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand or legs with the fixings provided according to the instructions.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.

• Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

• Only use the attachments/accessories specified by the manufacturer.

• Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

Other precautions

• Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people.

• Disposal of this product may require specific instructions pertaining to your resident region.

• Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

IMAGE RETENTION OF PLASMA DISPLAY

There are different characteristics that result in panel image retention depending on how the plasma display is used. Situations and effective usage methods related to ghosting are provided below.

Image retention characteristics of a plasma display

The image retention phenomenon of a plasma panel occurs due to partial phosphor degradation arising from partial character and figure display.

For example, when the character image as shown in Fig. A at the right is continuously displayed for a long period of time, the only part of the phosphor (Red, Green, Blue) that will degrade will be the colour of the applicable character display portion. Consequently, when a white image is displayed on the entire screen as shown in Fig. a, the character marks displayed up to that time will become a colour difference visible to the eye, but the phosphor will never burn.

■ The degree of image retention is proportional to the brightness of the characters and figures displayed as well as the display time.

• The tendency of the phosphor is to degrade more the brighter the characters and figures are displayed. When images of figures with different levels of brightness, as shown in Fig. B, are continuously displayed for a long period of time, it becomes easier for image marks at locations when the brighter figures are displayed to be noticeable.

[Fig. A]

[Fig. a]

[Fig. B]

* The image retention images in this document are exaggerated for the purpose of explanation. The actual manner in which the image retention

is seen differs depending on the operation time and brightness.

[Fig. b]

Methods to Reduce the Occurrence of Image Retention

• Lower the Contrast and Brightness settings of the plasma display as much as possible. A function is provided in the display that controls the brightness of the screen to reduce degradation of the panel. Using this function makes it possible to reduce image retention. (Refer to Panel Life (Extend 1.or Extend 2) shown on .)

• Set the plasma monitor to an “Screen Wipe” or “Luminance Manager” display. The occurrence of image retention when displaying images of identical patterns, such as static images, for long periods of time can be reduced by displaying a completely white screen for about 1 ~ 2 hours after terminating the display. Using Luminance Manager function works to reduce image retention when displaying images on the four corners, such as TV station logos and clock display. (Settings can be made using Screen Wipe and Luminance Manager from Function MENU shown on .)

• Using in combination with moving images Since the degradation of the fluorescent material progresses comparatively uniform for moving images, the occurrence of partial image retention can be controlled. We recommend to use in combination with moving images such as a DVD. * Please be careful since image retention will occur if display is left in a two screen display state for a long period of time. * Television broadcasts include images displayed for long periods of time in which the left and right or top and bottom of the image are cut

and broadcast station name or time are displayed for a long period of time at the same portion of the screen. Image retention in these portions can be expected to occur, so please be aware.

Notes

About screen defects

• High precision technology is used in the making of plasma panels but there may be dark spots (points that do not illuminate) and bright

spots (points that are too bright) in some cases. These do not indicate a malfunction.

About residual images

• In some cases, residual images may remain after the short-term display of still images and another image is displayed, but these will

disappear and return to normalcy. This is not a malfunction.

About the panel screen

• Plasma displays display images by means of electrical discharges inside the panel. Because of this, the temperature of the panel surface

may rise in some cases. Also, plasma displays are made of finely processed glass. A reinforced glass filter is installed over the panel surface but avoid strong impact because there is still danger of glass breakage.

About the power swivel

• Do not put hands or faces close to the monitor whilst operating the swivel function. It could cause a physical injury. Use special caution in

households where children are present. (Refer to Power Swivel shown on .)

COMPONENT NAMES

Main Unit

Panel

Control panel

• Adjustment buttons are located on the bottom.

• The back cover is provided with indications to distinguish the adjustment buttons.

MENU button

Front

Cabinet (front frame)

Remote-control receiver

Indicating lamp

• The main power switch is located at the back, on the lower surface.

Main power switch

ENGLISH

INPUT SELECT button

VOLUME UP/DOWN buttons ( ADJUST buttons)

왔

CHANNEL

UP/DOWN buttons (SELECT button)

SUB-POWER button

• ( ) indicates the function whilst the MENU is displayed on the screen.

왖

(OK button)

Caution when moving the main unit

• As this product is heavy, whenever it is moved, two people are required to transport it safely.

• Whenever the unit is moved it should be lifted forwards using the two handgrips at the back, and the unit should then be held at the base on both sides for stability.

Handgrips

Handgrip

External speaker terminals

16 16

Rear

Handgrip

External speaker terminals

External device connection terminals

RGB input terminals

COMPONENT NAMES (continued)

Remote control

POWER button

RECALL button

FUNCTION SELECT button

INPUT SELECT buttons

SOUND MODE button

VOLUME UP/DOWN button

PROGRAM SELECT buttons

MULTI MODE button

Loading Batteries

MENU button

OK button

(TV)

TV/TEXT button

(TV)

DVD CONTROL buttons

FREEZE/RETURN button

SELECT/ADJUST button

PICTURE MODE button CH I/CH II button (TV) CHANNEL UP/DOWN button (TV) MUTE button

MULTI PICTURE button

SWIVEL button

Handling the Remote Control

1. Open the battery cover.

• Slide back and remove the battery cover in the direction of the arrow.

2. Load batteries.

• Load two Size AA batteries included observing the correct polarities.

3. Close the battery cover.

• Replace the battery cover in the direction of the arrow and snap it back into place.

CAUTION

• Do not use new and old batteries together. The batteries could explode or leak, resulting in fires, physical injury, or stains.

• When loading batteries, observe their correct polarities as marked on the product. If loaded in the wrong direction, the batteries could explode or leak, resulting in fires, physical injury, or stains.

Use the remote control within about 5 m from front of the unit’s remote-control sensor and within 30 degrees on both sides.

Within 30 degrees

About 3m

Within 30 degrees

About 3m

About 5m

ATTENTION

• Do not drop or impact the remote control.

• Do not splash the remote control with water or put it on a wet object to avoid possible failures.

• Before leaving the remote control out of use for an extended period of time, remove the batteries from it.

• If the remote control begins to lack responsiveness, replace the batteries.

• Strong light such as direct sunlight impinging on the photoreceptor of the remote control can cause operational failure. Position this unit to avoid direct contact with such light.

COMPONENT NAMES (continued)

Remote control (continued)

FUNCTION SELECT

Press this button to indicate function mode with a lamp.

DVD and SAT

INPUT SELECT

Press this button to change input mode.

ENGLISH

RECALL (TV/Video/RGB)

Press this button to display input signal.

DVD CONTROL

You can use these buttons to operate the selected brand of DVD player.

SOUND MODE

You may recall the sound mode by pressing this button. Each time pressed, sound mode is changed in following sequence.

Movie Music

Favourite Speech

CH I/II

This button is for A2 / NICAM models only.

PROGRAM SELECT

Press these buttons to select a TV program directly.

MULTI MODE

In multi-picture mode, pressing this button will change the multi-picture mode.

FREEZE/RETURN

Press this button to change the picture to freeze mode. Press it again to return to normal picture.

PICTURE MODE

You may recall the picture mode by pressing this button. Each time pressed, picture mode is changed in following sequence.

Dynamic Natural

Cinema

MUTE

Press this button to turn off the set sound. When press again or the volume up button, the audio will be restored.

MULTI PICTURE

Press this button to change the screen to multi-pictures. Press it again to return to normal picture.

TIME (TV)

Pressing this button can indicate the time by On-Screen display when receiving a TV program on the screen including TELETEXT service with the time information.

ZOOM

Press this button can change Picture size.

SWIVEL

Press this button to rotate TV. Use cursor key ( ) to select the degree of rotation.

These buttons are not available in this model.

*1 FUNCTION SELECT button

This remote control has functions to control other makers of DVD Player, DVD Recorder, and Set Top Box as well as this set. Press the button to switch between TV, DVD and SAT modes. Each time the button is pressed, the indicator will light below the function selected. For details, refer to .

*2 LED

The LED indicator lamps for DVD and SAT have 2 modes (Lit or blinking). Lit: Indicates the mode that has been selected. Press the button to change modes when the LED is lit. Blinking: Indicates that the maker of DVD or STB can be set. You can set up the maker of DVD or STB whilst the LED is still

blinking (30 secs). For details, refer to .

45 46

COMPONENT NAMES (continued)

Remote control (continued)

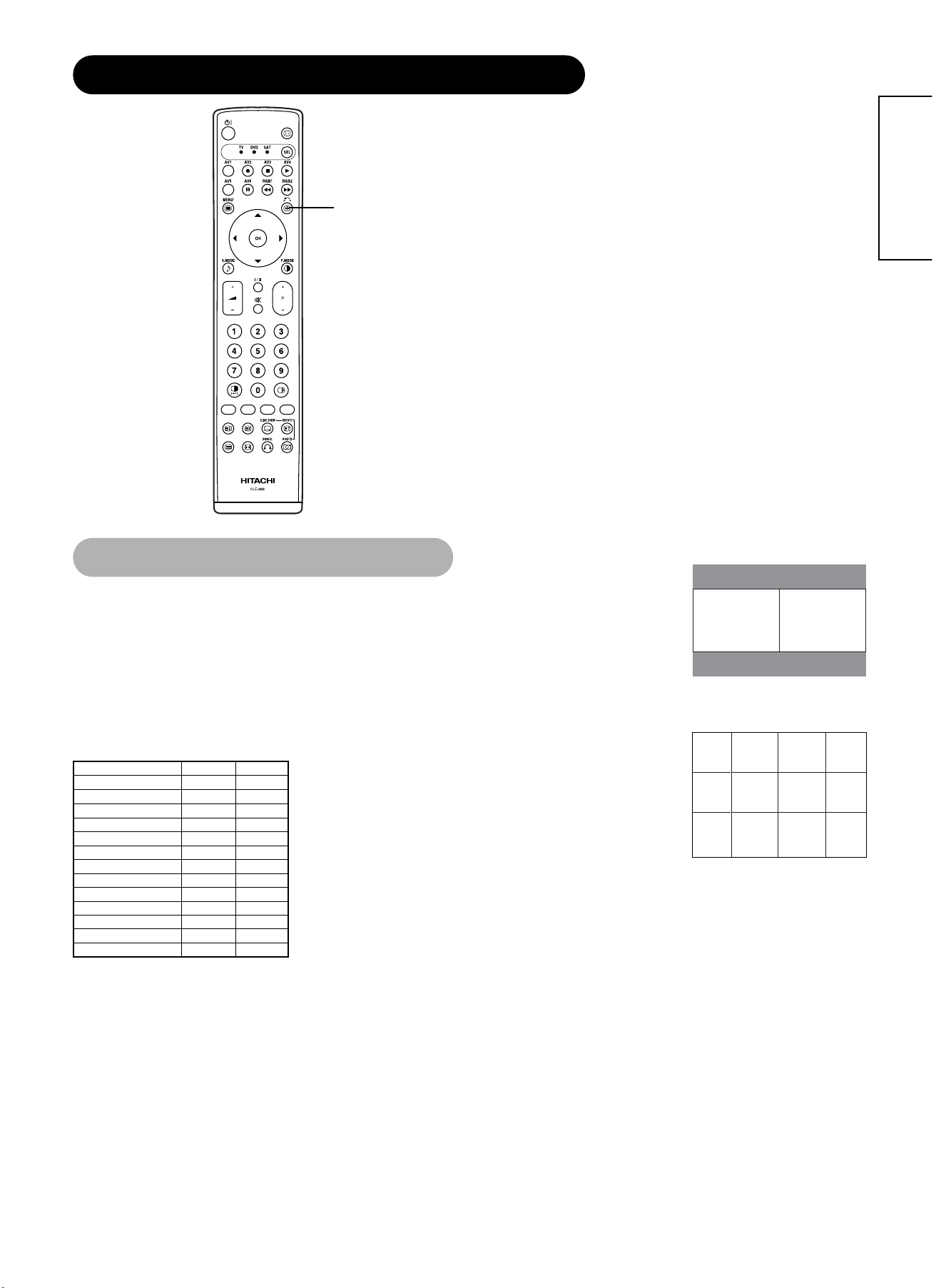

[Button for TELETEXT Mode]

TEXT / TV + TEXT button

INDEX button

CANCEL button

PAGE UP / DOWN button

COLOUR buttons (RED, GREEN, YELLOW, BLUE)

SUB TITLE button

REVEAL button

TV / TEXT button

TELETEXT FUNCTION

Buttons on Remote Control

TV / TEXT

TEXT / TV + TEXT

INDEX

SUB TITLE

CANCEL

RED

GREEN

YELLOW

BLUE

REVEAL

PAGE UP / DOWN

This switches the receiver between the TV mode and the TELETEXT mode.

In TELETEXT mode, this button switches between TV+TEXT screen (split) and TELETEXT only.

This selects the Index page.

Use this to access a subtitle service directly rather than through a TELETEXT service (subject to subtitle service broadcasting).

This allows the screen to return to the TV mode temporarily whilst searching for a required text page. When the required text page has been received, the page number will be displayed at the top left of the screen. Press the CANCEL button again to display the TELETEXT screen.

Each of these buttons selects a link page displayed at the lower part of the screen.

This allows hidden information (found on some teletext pages) to be displayed on the screen.

This button increases / decreases the TELETEXT page number.

Function

NOTE

• Certain pages do not show linked pages at the bottom of the screen. To display linked pages, press the INDEX button.

• Refer to Teletext Language shown on .

INSTALLATION INSTRUCTIONS

Installation

WARNING

Use one of the special mount units to install this product. A mount of insufficient strength or inadequate design can cause overturning or dropping and result in fire, electrical shock or injury. Please note that our company assumes absolutely no responsibility for personal injuries or property damage caused by use of other mount units or improper installation.

CAUTION

• In order to prevent an internal temperature increase, maintain a space of 10cm (4 inches : For a desktop set-up) or more between the sides and other objects such as walls, etc., so that the ventilation holes are not blocked.(*)

10cm or more*

Cord or chain

Wall or Pillar

Clamp

ENGLISH

Anti-tumble measures

CAUTION

Have this unit mounted in a stable place. Take measures to prevent it from tumbling down to avoid possible physical injury.

Securing to a wall or pillar

Using a commercially available cord, chain and clamp, secure the set to a firm wall or pillar.

Hook

Cord or chain

Securing desktop

1) Using wood screws (two), fasten the set to the clamping screw holes on the rear of the stand as shown.

Clamp

Cord or chain

Wall or Pillar

2) Using commercially available wood screws, secure the set firmly in position.

Read SAFETY INSTRUCTIONS ( to ) carefully to ensure maximum safety before pro-

4 7

Wood screw

Two places

ceeding to these steps:

• Choose an appropriate site and install the product on a level table where the stand is secure.

• Install the monitor to have ready access to a power socket available.

• Make sure that the power switch of this device is turned off.

CAUTION

Loosen a cord or chain enough whilst operating power swivel to avoid possible physical injury.

INSTALLATION INSTRUCTIONS (continued)

Connecting to an Audio Visual Device

(1) Make sure that the power switch of the monitor is turned off. (2) Make sure that the power switch of the audio visual device is turned off. (3) Use a commercially available cable and connector to connect the signal input terminal on the rear panel of this

device and the signal output terminal of the audio visual device.

Antenna

Speaker (R)

Power cord

Monitor (rear panel)

Speaker (L)

[An example of connecting audio visual devices]

• AV1 SCART applies to composite/S-video, and AV2 and AV3 SCART apply to composite/RGB.

• If a component input terminal and a composite input terminal of AV4 connect to the monitor at the same time, component input would govern.

• If video equipment with an S video output terminal is used, cabling by the S video cable is recommended to provide finer video quality. (If an S video input terminal and a video input terminal of AV5 (side input) connect to the monitor at the same time, S video input would govern.)

• If the OUTPUT (Monitor) terminal is connected to an external monitor with a 75 Ohm terminal, it is possible to view the same image as on the main unit. But it is possible to monitor only the composite video signal from AV1 ~ AV5 input that is displayed on the screen at the time.

• Set-Top Box is only for an AV1 input. (Tuner output signal is available only for AV1.)

• Secure connecting cables to the stand with the provided clamp.

HDMI*

• HDMI (High-Definition Multimedia Interface) is a digital interface based on DVI (Digital Visual Interface), which is an added function for audiovideo equipment.

– It does not have degradation by transmission since it is digital. – With only one cable, it is possible to transmit both picture signals and audio signals.

• In case of using analog audio, when connecting with DVI-HDMI transformation connector, use analog audio terminal for AV4 input.

SCART Specification

CVBS S-video RGB

AV1 쑗쑗—

AV2 쑗 — 쑗

AV3 쑗 — 쑗

INSTALLATION INSTRUCTIONS (continued)

Connecting to an Audio Visual Device (continued)

Precautions when connecting the antenna

• Please use a coaxial cable which is free from interference to connect the antenna. Avoid using a parallel flat feeder wire as interference may occur, causing reception to be unstable and stripe noise to appear on the screen.

• Avoid using indoor antenna as this may be affected by interference. Please use CATV net or outdoor antenna.

• Keep the power cord as far away from the antenna wire as possible.

If there are noise appearance in the picture of VHF-Low band channel, please use the double-shielded cable (not provided) for RF LEADS to reduce the noise.

ENGLISH

INSTALLATION INSTRUCTIONS (continued)

Connecting to a PC

(1) Make sure that the display signal of the personal computer to be used is compatible with the specifications of this

device.

• See “PRODUCT SPECIFICATIONS” concerning the specifications of this device.  .

(2) Make sure that the power switch of the personal computer is turned off. (3) Connect the signal input terminal (RGB 1 or RGB 2) on the rear panel of this device to the display signal output

terminal of the personal computer.

• Use a cable that fits the input terminal of this device and the output terminal of the personal computer.

• Depending on the type of personal computer being connected, the use of an optional conversion adapter or the adapter provided with the personal computer may be necessary in some cases. For details, refer to the instruction manual of the personal computer or ask the personal computer manufacturer or your local retail dealer.

Monitor (rear panel)

Speaker (R) Speaker (L)

50 54

To signal output terminal (DVI)

Power cable connector

3.5mm Stereo mini jack

Powe r cord

(D-sub)(DVI)

Connecting to a PC Device Connecting to an Audio Visual Device

To signal output terminal (D-sub)

To audio output terminal

To signal output terminal (DVI)

(Example)

To audio output terminal

DVD Player

• Setting RGB1: DVI-PC RGB2: RGB For details, refer to .

53 54

• Setting RGB1: DVI-STB RGB2: Component For details, refer to .

52 53

INSTALLATION INSTRUCTIONS (continued)

Mounting the Speaker Unit

CAUTION

Make sure that the main power switch of the monitor is turned off (standby or indicating lamp: off/red) when removing or connecting the speaker cables.

Mounting the Speaker System to the Monitor

ENGLISH

1. Mounting the Speaker System to the Monitor.

Hook the clamps (3 pieces) into the holes as shown in the figure,

Right Side

and pull them down. Follow the step in both Right and Left sides.

Clamps

CAUTION

Make sure to use the speaker systems fastened with the speaker holders and the screws.

Rear of the monitor

2. Attach the speaker holders.

After twisting the screws off as shown, fasten the speaker system to the monitor with the speaker holder by the screws. The speaker holder direction is opposite on the Right and Left speaker systems.

Right Side

Twist off the screws

Speaker System

Monitor

Speaker holder

Screws x 4

Speaker holder

NOTE

In the event of the speakers not aligning correctly with the panel.

Loosen the screws holding the aluminum trims and adjust up or down to fit.

Aluminum trims

Screwdriver

Rear of the monitor

Screws x 4

Place to attach the side input.

3. Attach the speaker connecting cables to the monitor. (Make sure the ferrite core is toward the monitor side.)

Treating the wire ends

Pull off whilst twisting

Please prepare the supplied speaker cables

(R)

RedBlack

Connect the silver colored wire

Connect the copper colored wire

Ferrite core Ferrite core

(L)

Connect the silver colored wire

RedBlack

Connect the copper colored wire

How to connect the speaker cables (Monitor side)

Press down the lever

Insert the wire

Raise the lever

INSTALLATION INSTRUCTIONS (continued)

Mounting the Speaker Unit (continued)

4. Attach the speaker cables to speaker systems.

Speaker terminals

Connect the copper - colored wire to the Red side.

Connect the silver - colored wire to the Black side.

How to connect the speaker cables (Speaker side)

Hold down the lever

Insert the wire

Release the lever

CAUTION

Make sure to secure the power cable and the connecting cables for other audio visual devices, except the speaker connecting cables, to the clamp of the monitor stand and the rear of it. When the monitor is swivelled, the connectors may drop out and generate heat. It could cause fire and/or connector failures.

INSTALLATION INSTRUCTIONS (continued)

Mounting the Side Input

• With the speaker unit

1. Mount the side input into the speaker holder.

Hook the clamps (4 pieces) of the speaker holder into the holes as shown in the figure and pull them down until it sounds click. Fasten the side input with the speaker holder by the screw. Refer to about the connection of side input. See the below figure how to treat the cable.

Side input

ENGLISH

Speaker holder

Screw x 1

• Without the speaker unit

1. Attach the holder for the side input.

Holder

Screw x 2

Screw hole

2. Mount the side input into the securing holder.

Fasten the side input with the speaker holder by the screw. See the below figure how to treat the cable.

ClampSide inputScrew hole Clamp

NOTE

About the fixing screw for the Side Input

• The screw for fixation is attached on the holder with the tape as shown below.

Screw

Side input

Clamp

INSTALLATION INSTRUCTIONS (continued)

Power Cord Connection

Connect the power cord, after completing all other connections.

UK only



Europe



Connect the power cord to this device.



Connect the power cord plug to the power outlet.

(The type of plug is different from this drawing for some countries.)



CAUTION

• Use only the power cord provided.

• Do not use a power supply voltage other than that indicated (AC100-240V, 50/60Hz) as this may cause fire or electric shock.

OPERATING INSTRUCTIONS

Indicating lamp

Main power switch

Turning Power On and Off

• To turn the monitor power ON, press the main power switch on the monitor main unit to ON, and then press the SUB POWER button of control panel or the POWER button on the remote control.

• To turn the monitor power OFF, press the SUB POWER button of control panel or the POWER button on the remote control, and then press the main power switch on the monitor main unit to OFF.

• During normal use, the main power switch is set in the ON position, and the monitor can then be turned ON/OFF using the SUB POWER button or the POWER button on the remote control.

Indicating lamp

ENGLISH

SUB-POWER button

POWER button

Indicating

lamp

Off Off

Lights red

Lights green On

Lights orange

When the indicating lamp lights in orange or the message “No Sync. Signal”, “Power Save” or “Invalid Scan Freq.” appears on the screen, there is something unusual about the status of reception. See “Power Save Mode” or “Symptoms That Seemingly Appear to be Failures.”

Power status Operating

When the main power switch is set to OFF.

When the main power switch is ON, and

Off

(standby)

Off

(Power Save)

45 46

the POWER button on the remote control or the SUB POWER button on the underside of the front of the frame is OFF.

When the main power switch is ON, and the POWER button on the remote control or the SUB POWER button on the underside of the front of the frame is ON.

When the main power switch is ON, and the POWER button on the remote control or the SUB POWER button on the underside of the front of the frame is ON. However, the state is in POWER SAVE mode.

ATTENTION

• Avoid repeatedly turning the monitor on and off at short time intervals. Failures might result from such operation.

• Turn off the main power switch before leaving the monitor out of use for an extended period of time.

• If a power failure occurs whilst the main unit is running, it would be powered on upon recovery from the failure. Turn off the unit main power switch before leaving the main unit.

OPERATING INSTRUCTIONS (continued)

INPUT SELECT

buttons

RECALL button

CHANNEL UP/DOWN buttons

INPUT SELECT button

Input Switching

• Input can be switched by pressing the AV1~6, RGB1 or RGB2 buttons of the remote control.

• Input can be switched to TV by pressing CHANNEL UP/DOWN buttons or PROGRAM SELECT buttons.

• Input can be switched in the sequence of TV

➝ AV1 ➝ AV2 ➝ AV3 ➝ AV4 ➝ AV5 ➝ AV6 ➝ RGB1 ➝ RGB2 by pressing the INPUT SELECT button of the control panel.

TV AV1 AV2 AV3 AV4

RGB2 RGB1 AV6 AV5

Size Switching

Each time the ZOOM button of the remote control is pressed, the screen display size will change in sequence and the status will be displayed at the bottom of the screen.

• During TV/VIDEO signal input (AV4, AV5, AV6, RGB1 (set to [DVI-STB]) and RGB2 (set to [Component]))

Panoramic 4:3 Full

14:9Zoom C14:9L Zoom

CHANNEL UP/DOWN button

PROGRAM SELECT buttons

ZOOM button

• During AV1~ AV3 signal input

Auto Full Zoom

14:9Zoom C14:9L

• [Auto] is the mode using the Switch signal from the equipment connected to AV1~AV3 terminal included in SCART connector No.8 pin which indicate the picture format of the video source. When Switch signal has not been detected, Default Zoom setting in the Function Menu is used to choose.

• The size will fix as Full mode and not change when receiving the component signal of 1080i/50, 1080i/60, 720p/50 or 720p/60.

Full

Display size selection diagram

When you want to

Play a 4:3 image in a 16:9 screen faithfully.

Play a 4:3 image in a 16:9 screen with the height and width of the middle of the screen enlarged on equal scales and with both sides appearing somewhat enlarged.

Play a 16:9 VISTA size image in the 4:3 image faithfully reproduced on the 16:9 screen.

Play a 4:3 image faithfully in a 16:9 screen in the standard vertical size and horizontally squeezed.*

Set the display size to

4 : 3

Panoramic

Zoom

Full

• During TV mode

Auto Full Zoom

14:9Zoom C14:9L

• [Auto] is the mode using WSS (Wide Screen Signals) which identify the picture format movies and programs are broadcast in. Various broadcast stations now transmit WSS. It can be detected and the monitor automatically switch to the correct format. However, some broadcasters do not transmit WSS, so this monitor will not recognize which format is being transmitted. Therefore, Default Zoom setting in the Function Menu is used to choose when a WSS has not been sent or has not been detected.

Input signal Display screen Remarks

Blanking occurs on both sides.

(4:3 signal)

• The 4:3 image is called a letterbox image.

• In some cases, some slight blanking may

(Vista)

(Squeeze)

remain at the top and bottom.

* An image with an aspect ratio of 16:9 shrunk

horizontally to 4:3 to display in a 4:3 screen.

OPERATING INSTRUCTIONS (continued)

Size Switching (continued)

When you want to

Play a 14:9 image in a 16:9 screen expanded vertically and squeezed horizontally.

Play a 14:9 image expanded vertically on the 16:9 screen.

Vertical picture position can be adjusted for [Panoramic], [Zoom] , [C14:9L] and [14:9Zoom] mode as follows.

1. Press SIZE button and SELECT buttons during picture size display.

2. Position display will appear.

3. Adjustment range of each picture size are as shown below. [Panoramic] - 12 to + 12 [Zoom] - 31 to + 31 [C14:9L] and [14:9Zoom] - 16 to + 16

4. When 1080i/60 component signal is received, vertical position can be adjusted only one step up. (The range: 0 to +1)

Set the display size to

C14 : 9L

14 : 9Zoom

Input signal Display screen Remarks

This mode is provided for the broadcasting program with WSS code-C14:9L.

(14:9 signal)

This mode is provided for the broadcasting program with WSS code-14:9Zoom.

(14:9 signal)

Position + 31 Position - 31

Press Press

ENGLISH

ATTENTION

Using a wide-screen monitor

• This monitor has a screen mode selection feature. If an incompatible screen mode is selected to play certain software, such as a TV program, the image would appear different from the original. Take this into consideration when making screen mode choices.

• Use of this monitor in its enlarged display mode with the wide feature enabled in coffee shops, hotels and other establishments for commercial or pubic viewing purposes could infringe on the copyright holder’s right protected by Copyright Law.

• When a normal 4:3 image is displayed over the entire screen in the Panoramic mode, parts of the periphery of the image may disappear and/or appear distorted in some cases. Use the 4:3 mode to view images, which were created in 4:3 mode.

This mode allows 4:3 content to be viewed without picture distortion.

• During RGB Input (RGB1 (set to [DVI-PC]) and RGB2 (set to [RGB]))

Normal Full Zoom1

Real Zoom3 Zoom2

* Real mode gives the image of the same shape as it is displayed on a computer monitor.

This mode is only available for VGA (640 X 480) and WVGA (864 X 480).

Display area selection diagram (RGB input)

Resolution Full display Circular display

640 X 480

(VGA)

800 X 600

(SVGA)

1024 X 768

(XGA)

1280 X 1024

(SXGA)

1600 X 1200

(UXGA)

Full Normal Real

* VGA and W-VGA

only

Zoom1 Zoom2 Zoom3Display

Processes such as compression (thinning) and expansion are performed for the above signal display. Because of this, there is a possibility that flicker may become noticeable on Zoom (1 ~ 3) depending on the display contents. If this occurs, turning the Vertical Filter On can reduce the flicker.

OPERATING INSTRUCTIONS (continued)

Audio MuteVolume Adjustment

The volume can be adjusted by pressing the and

buttons of the remote control (or the and

volume buttons of the monitor unit).

Volume setting value

Volume 15

Adjustment status guide display

• When a button is pressed, the volume adjustment status guide will be displayed.

• The volume will increase when the button is pressed whilst the guide is being displayed.

• The volume will decrease when the button is pressed whilst the guide is being displayed.

The audio volume can be temporarily muted by pressing the MUTE button of the remote control.

Volume setting value

Volume 15

Adjustment status guide display

(The display colour will change to magenta: volume ➝ Mute)

• When a button is pressed, the volume adjustment status guide (magenta) will be displayed.

• The volume setting can be lowered by pressing the button whilst the audio is mute.

• The muting can be cancelled by pressing the button or MUTE button whilst the audio is mute.

• The audio from the headphone terminal is not mute.

• The audio from the speaker is automatically mute whilst connecting the headphone to the headphone terminal of the side input (AV5).

When the MUTE button of the remote control is pressed again, the audio will be restored and the volume display (green) will appear.

OPERATING INSTRUCTIONS (continued)

Power Swivel

• This feature controls the motorized stand. It allows turning the plasma display left or right using the remote control.

CAUTION

Make sure that the main power switch of the monitor is turned off when removing or connecting the power cord, the connector cables, and the speaker cables.

1. Press Swivel button.

The controlling icon appears on the screen.

• If the connecting cable is not connected, the indication "Not Available" appears.

• The swivel display disappears in about 6 seconds without any operation.

Swivel

2. Adjust for preferred angle.

Opposite directions are displayed on the screen whilst the monitor is swivelled. Adjust by using key whilst the swivel display is on the screen. Swivelling angle of the monitor is available within 30 degrees from the front face.

ATTENTION

• Do not push the panel manually whilst using the swivel function. It could cause damage to the stand or panel.

• Do not get on and/or hang down the monitor. Do not swing the monitor back and forth and around either. It could cause the failure of the stand.

• Do not put hands or faces close to the monitor whilst operating the swivel function. It could cause a physical injury. Use special caution in households where children are present.

• Do not put any object, like a vase, near the monitor in swiveling area. It would cause a breakage of the object and /or a failure of the stand.

• Place the monitor on the stable location, or the swivel function would not operate correctly. It would cause the malfunction.

• In the case of using the monitor wall mounted, be sure to detach the connecting cable between the monitor and the stand.

ENGLISH

Caution when connecting the monitor with the stand

• When detaching the stand from the

monitor, make sure to detach the connector cable from the stand connection terminal on the rear of the monitor.

Pinch right and left locks of the connector and pull out downward.

• Make sure that the direction of the connector for stand connecting cable is correct.

• When attaching the stand to the monitor once again, insert the connector cable into the stand connection terminal on the rear of the monitor.

Insert until it clicks.

OPERATING INSTRUCTIONS (continued)

Input Signal Screen Display

The input signal status can be displayed on the screen by pressing the RECALL button of the remote control.

• The display will go out in approximately 6 seconds.

RECALL button

Off-timer On-timer

VIDEO

Off-timer On-timer

RGB

Off-timer On-timer

-- -- Min.

OFF

-- -- : -- -- B G

-- -- Min.

OFF

-- -- : -- --

-- -- Min.

OFF

-- -- : -- --

ABCDE

AV1

Composite

RGB2 RGB

H : 48.4kHz

V : 60.1 Hz

TV position Name Sound mode

Input mode Signal mode

Input mode Signal mode Input horizontal frequency Input vertical frequency

OPERATING INSTRUCTIONS (continued)

INPUT SELECT

Displaying MULTI PICTURE

buttons

RECALL button

ENGLISH

SELECT/ADJUST button (, , , )

CHANNEL UP/DOWN button

If the MULTI PICTURE button on the remote control is pressed, multi pictures will display. And then three types

MULTI MODE

button

of the screen can be selected by pressing the MULTI MODE button on the remote control. The multi picture mode will change in the following sequence each time the MULTI MODE button is pressed.

2 pictures (Split) 4 pictures 12 pictures

Activating the Split mode from the TV screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

• The speaker icon can be shifted left and right by pressing the and SELECT buttons; the audio will be output from the side on which the speaker icon is located.

• The same signal input cannot be selected for both screens at the same time.

• The TV channel can be changed by pressing the CHANNEL UP/DOWN button on the remote control.

• The signal input mode of picture-A or picture-B (the one that the speaker icon is located on) can be selected by pressing INPUT SELECT buttons on the remote control.

• Pressing the MULTI PICTURE button once again will cancel the multi picture mode.

• Refer to the table for 2 pictures (Split) mode.

Activating the 4 pictures mode from the TV screen

Pressing the MULTI MODE button one time at the 2 pictures mode will display 4 pictures.

• Press and SELECT buttons to select picture A or picture B indicated by a red triangle. For pictures on right, press change green.

• The TV channel can be changed by pressing the

• The audio can only be output from picture A in 4 pictures mode.

• The component signal input mode cannot be selected in pictures B. Refer to the table for 4 pictures mode.

• Pressing the MULTI PICTURE button at the 4 picture mode will cancel the multi picture mode. And then, pressing the MULTI PICTURE button again will display the 4 pictures.

and SELECT buttons to select picture. The input display on the selected picture would

CHANNEL UP/DOWN button on the remote control.

MULTI PICTURE button

5 AV1

A B

Activating the 12 pictures mode from the TV screen

Pressing the MULTI MODE button one time at the 4 pictures mode will display 12 pictures.

• Starting from channel 1, preset channels will automatically display in sequence on the 12 windows.

• This function activates only in TV mode.

• After several seconds, it refreshes the picture one by one.

• Pressing the MULTI PICTURE button at the 12 picture mode will cancel the multi picture mode. And then, pressing the MULTI PICTURE button again will display the 12 pictures again.

• Pressing the MULTI MODE button at the 12 picture mode will display the 2 pictures (Split) mode.

1234

5678

9101112

OPERATING INSTRUCTIONS (continued)

Displaying MULTI PICTURE (continued)

Activating the Split mode from the video input screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

AV1 AV2

• The speaker icon can be shifted left and right by pressing the and SELECT buttons. The audio of the video will be output from the side on which the speaker icon is located.

• The same video input mode cannot be selected for both screens at the same time.

• Pressing the MULTI PICTURE button again will cancel the 2 pictures display.

• Refer to the table for 2 pictures (Split) mode.

Activating the MULTI PICTURE mode from the RGB input screen

Pressing the MULTI PICTURE button one time will display 2 pictures.

• This mode can be available from RGB1(DVI-PC) and RGB2(RGB) input.

• The speaker icon can be shifted up and down by pressing the and SELECT buttons. The audio will be output from the side on which the speaker icon is located.

• The sub-screen position can be selected up and down by pressing and SELECT buttons.

• The sub-screen can be selected with the AV1AV6, TV channel buttons from the status that the speaker icon appears on the left side of AV✱ etc. as shown in the diagram to the right.

• Pressing the MULTI PICTURE button again will cancel the 2 pictures display.

• "Frequency Mode" in the Setup Menu should be set to Movie when sub-screen is the component signal of 1080i/50 or 1080i/60.

AV1: Displays the VIDEO input signal of the sub-screen.

RGB2

AV1

(Subscreen)

NOTE

• Even if the input of the horizontal / vertical synchronizing signal (or video signal) stops in the multi picture display, the mode will not change to power save mode.

• Please be careful since image retention will occur if display is left in a multi picture display state for a long period of time.

2 Pictures (Split)

Input terminal

Sub

Main

TV 쑗쑗쑗쑗쑗쑗쑗 쑗 쑗

PAL, SECAM 쑗쑗 쑗 쑗쑗쑗쑗쑗 쑗

AV1

 AV5

NTSC3.58/4.43 쑗쑗 쑗 쑗 쑗쑗쑗쑗 쑗

AV2 AV3

AV4 AV6

RGB1 RGB2

RGB 쑗쑗 쑗 쑗 쑗쑗쑗쑗 쑗

576i, 576p 쑗쑗 쑗 쑗쑗쑗쑗쑗 쑗 480i, 480p 쑗쑗 쑗 쑗쑗쑗쑗쑗 쑗

1080i/50 쑗쑗 쑗 쑗 쑗쑗쑗쑗 쑗 1080i/60 쑗쑗 쑗 쑗 쑗쑗쑗쑗 쑗 720p/50 720p/60 쑗쑗 쑗 쑗쑗쑗쑗쑗 쑗

STB

Component 쑗쑗 쑗 쑗쑗쑗쑗쑗 쑗

4 Pictures

Input terminal

Sub

Main

TV 쑗쑗쑗

PAL, SECAM 쑗쑗 쑗 쑗

AV1

 AV5

NTSC3.58/4.43 쑗쑗 쑗 쑗

AV2 AV3

AV4 AV6

RGB1 RGB2

RGB 쑗쑗 쑗 쑗

576i, 576p 쑗쑗 쑗 쑗 480i, 480p 쑗쑗 쑗 쑗

1080i/50 쑗쑗 쑗 쑗 1080i/60 쑗쑗 쑗 쑗 720p/50 720p/60 쑗쑗 쑗 쑗

STB

Component 쑗쑗 쑗 쑗

AV1

PAL

SECAM

AV1

PAL

SECAM



AV5

NTSC3.58 NTSC4.43



AV5

NTSC3.58 NTSC4.43

AV2, AV3

RGB

AV2, AV3

RGB

576i

576p

576i

576p

AV4, AV6 RGB1 RGB2

480i

1080i/501080i/

480p

AV4, AV6 RGB1 RGB2

480i

1080i/501080i/

480p

720p/

STB

Component

(쑗 : Available)

Component

(쑗 : Available)

TELE TEXT

Main Sub

Main

Sub 1

Sub 2

Sub 3

NOTE

About 720p/50Hz

• 720p/50Hz can support for AV4, AV6, and RGB 1 (DVI-STB) only during the single picture mode.

• RGB2 (component) is not available for 720p/50Hz.

OPERATING INSTRUCTIONS (continued)

FREEZE button

Picture Freezing

When the FREEZE button on the remote control is pressed, the screen transfers into the freeze mode.

• There are two types of freezing screen mode, Split and Strobe. These are possible to select at the “Freeze Mode” setting of the Function Menu.

• The Split mode will display 2 pictures from the same source on the screen with one active picture and the other still.

• The Strobe mode will display 12 pictures with the last picture active, whilst other 11 windows are still.

• Pressing the FREEZE button again changes the screen back to the normal picture.

• This function is also available from video input mode besides TV mode. Refer to the table for Freeze function as below:

ENGLISH

[Split]

A B

[Strobe]

1234

TV 쑗쑗

Split Strobe

PAL, SECAM 쑗쑗

NTSC3.58/4.43 쑗쑗

SCART (RGB) 쑗쑗

576i 쑗쑗

480i 쑗쑗 576p 쑗 480p 쑗

1080i/50 쑗 1080i/60 쑗 720p/50 720p/60 쑗

RGB, DVI-PC

(쑗 : Available)

5678

9 101112

Active

OPERATING INSTRUCTIONS (continued)

Using the Menu Screen

MENU button

OK button

RECALL button

RETURN button

SELECT/ADJUST button (, , , )

(On-screen display system)

When the MENU button is pressed, the adjustment menu screen will be displayed; from there, PC signal adjustment and setting is possible by using the SELECT button, ADJUST button and OK button.

• Refer to  concerning the adjustment items and the settings.

Example: Selecting the Picture screen

1. Press the MENU button to display the Main Menu

screen.

31 43

Picture Audio

Timer Function Setup Language Select OK Set

2. Press the OK button to display the Picture Menu screen. (Use the and SELECT buttons to select other items.)

Picture Contrast : + 31 Brightness : – 31 Colour : 0 Hue : + 31 Picture Enhancement : Off Colour Temperature : Normal Colour Temp.Adjust Reset Reset Select Return Exit

3. Use the and SELECT buttons to select the item to be adjusted and then use the and ADJUST buttons to adjust (example: Contrast).

Contrast + 31 Next / Prev Adjust Return

• Press the RETURN button to return to the previous screen.

• If there is no operation for a period of one minute, the Adjustment

Menu screen will be closed automatically.

OPERATING INSTRUCTIONS (continued)

SETUP MENU (TV mode)

Picture Audio

Timer Function Setup Language Select OK Set

Setup Auto Tuning Manual Tuning Fine Tuning Sort Teletext Language Auto Off Off Select Set Return

Setup Manual Tuning Position 99 Search C22

Name ABCDE Sound System BG Colour System Auto

NR Off Select Return Exit

Setup Prog.No.199 Fine Tuning +56 Select Adjust Return

Descrambler Off

Skip Off

Setup Auto Tuning Country Portugal San Marino Spain Sweden Switzerland Turkey United Kingdom

Select Set Return

Setup Auto Tuning Country Greece Hungary Iceland Ireland Italy Netherlands Norway Poland

Select Set Return

ENGLISH

Setup Auto Tuning Manual Tuning Fine Tuning Sort Teletext Language Auto Off Off Select Set Return

Setup Sort Position Name C.S.MHz 100 ABCDE 471MHz 101 BBC1 511MHz 102 ----- ---- 103 BBC 567MHz 104 FGHIJ 487MHz

105 XYZAB 543MHz

106 ----- 225MHz 107 ----- 599MHz

Select Return Exit

Setup Teletext Language

West Europe East Europe Cyrillic Greek/Turkish

Select Return Exit

Setup Auto Tuning Country Austria Belgium Croatia Czech Republic Denmark Finland France Germany

Cancel

Select Set Return

Setup Auto Tuning Country Portugal San Marino Spain Sweden Switzerland Turkey United Kingdom

Select Set Return

Setup Auto Tuning

Scanning Channel Number : 33

Cancel

OPERATING INSTRUCTIONS (continued)

SETUP MENU (TV mode) (continued)

Selected characters Setup hint

Auto Tuning

Manual Tuning

Country

Position

(C--)

(S--)

(--MHz)

Descrambler

Name

Select the country name by

(Page1) (Page2) (Page3)

––

1 2 3

––

••••••

199 AV00

Off On

( :a letter)

OK button.

• If some required stations could not be preset in this auto tuning function, select and preset the required station in the required position by the manual tuning operation.

Press the OK button and it starts the auto tuning.

Set the position number(1~199 and AV00) or channel number by (+) (–) CHANNEL UP/DOWN button.

At first, select the channel entry method, entering a two digit channel number(CH), entering a two digit S-band number or entering a three digit frequency(MHz), by pressing the OK button.

Enter two digit number by pressing 0~9 NUMBER buttons. If the number is normal, then it starts the channel search.

Enter three digit number by pressing 0~9 NUMBER buttons. If the number is normal, then it starts the channel search.

Set this to Off normally. If it is set to On, AV1 (Scart) terminal operates as TV signal output, and the screen changes to display AV1 (Scart) input signal automatically.

This is used to input the name of the TV station within 5 letters. After fixing the cursor on the first digit, select a letter by and SELECT buttons and move to next digit by ADJUST button. Press the OK button again after finished.

• Selectable letters are “0”~”9”, ”A”~”Z”, “+”, “–”, ” ”(blank), ”,”(comma) and ”.”(period) .

SELECT buttons and press

and

Sound System

Colour System

Fine Tuning

Sort

(A Line of position List)

Teletext Language

Auto Off

Skip

Decreasing the frequency data for the main tuner

L L' BG

DK I

Auto PAL SECAM

NTSC3.58 NTSC4.43

Off On

Increasing the frequency data for the main tuner.

––

Off On

Select the sound system through the 5 different settings.

Select the colour system through the 5 different settings.

If this is set to On, that position will be skipped whilst selecting positions by PROGRAM UP/DOWN button. This is automatically set to On for those non-broadcasting channels.

If this is set to On, it helps to reduce the noise interference visible on the screen, especially in the weaker signal reception areas.

After completing the fine-tuning, press the RETURN button to exit this mode.

• The variable range is -56 ~ +56.

Press OK button at the line that is required to change order, then the characters will change to green. And move it up or down in the list by pressing and SELECT buttons. And press OK button to complete it. Press the RETURN button to exit.

Select the teletext language, depending on the area utilized through the 4 settings: West Europe, East Europe, Cyrillic, and Greek/Turkish.

If this is set to On, the power will be turned off when there is no transmission signal and no operation for about 10 minutes in the TV mode.

OPERATING INSTRUCTIONS (continued)

SETUP MENU (Video mode)

Picture Audio

Timer Function Setup Language Select OK Set

Setup System System 1 Colour System Video Input Scart Output Monitor RGB1 DVI-STB RGB2 Component

Select Set Return

Setup System System 1 Colour System Video Input Scart Output Monitor RGB1 DVI-STB RGB2 Component

Select Set Return

HDTV

Setup Colour System

AV1 Auto AV2 PAL AV3 SECAM AV4 PAL AV5 Auto

Select Return Exit

Setup Video Input

AV1 Composite AV4 Auto

Select Return Exit

Selected characters Setup hint

System

Colour System

Video Input

AV1~AV5

System1 System2

System1

Auto PAL SECAM

NTSC3.58 NTSC4.43

System2

Auto NTSC-M

PAL-N PAL-M

Do not change the original setting. (System1 : Europe/Asia, System2 : North America)

This should correspond to the colour system of the signal from the equipment that is connected to AV1~AV5 video input terminal.

• Normally, set this to Auto. The system of the input signal will be automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.

• When the component signal is received, this would be not available (greyed out).

ENGLISH

Scart Output

RGB1

RGB2 (1st step)

RGB2 (2nd step)

AV1

AV4

S.Video Composite

Auto HDTV SDTV/DVD

TV Monitor

DVI-PC DVI-STB

RGB Component

Auto HDTV SDTV/DVD

This should correspond to the signal mode of the signal from the equipment that is connected to AV1 Scart input.

This should correspond to the signal mode of the signal from the equipment that is connected to AV4 video input terminal.

• Normally, set this to Auto. The signal mode of the input signal will be automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.

TV:AV1 (Scart) output will be fixed as TV signal output. Monitor:AV1 (Scart) output can view the image as on the main unit. But it is possible to monitor only the composite video signal from AV2, AV3, AV4, or AV5 input that is displayed on the screen at the time.

• If Descrambler is set to On, it will be fixed as TV automatically.

This should correspond to the signal mode of the signal from the equipment that is connected to RGB1 DVI terminal.

This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.

This step should be set only when [Component] is selected on the 1st step. This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.

• Normally, set this to Auto. The signal mode of the input signal will be automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.

OPERATING INSTRUCTIONS (continued)

SETUP MENU (RGB mode: RGB1 (DVI-PC), RGB2 (RGB))

Picture Audio

Timer Function Setup Language Select OK Set

Setup Auto Adjust Adjust Horizontal Position 0 Vertical Position + 31 Horizontal Clock – 20 Clock Phase 10 Reset Reset Select Set Return

Setup Input Level 0.7V Frequency Display Off WVGA Type Off WXGA Mode Off Vertical Filter On Frequency Mode Movie RGB1 DVI-PC RGB2 RGB Select Set Return

Horizontal Position 0 Next / Prev Adjust Return

Clock Phase 10 Next / Prev Adjust Return

Selected characters Setup hint

Auto Adjust*

Horizontal Position

Vertical Position

Horizontal Clock

Clock Phase

Reset

Input Level

Frequency Display

WVGA Type

WXGA Mode

–

Pressing the OK button here, Automatic regulation is started.

Adjust

Moves the horizontal position to left.

Moves down the vertical position.

Reduces the dot clock frequency (shrinks the right side).

Slows the dot clock phase (shifts slightly to left).

Moves the horizontal position to right.

Moves up the vertical position.

Increases the dot clock frequency (expands the right side).

Advances the dot clock phase (shifts slightly to right).

(off the function) (waiting to reset)

0.7V 1.0V

Off On

Off 1280x768 1366x768

Horizontal Position, Vertical Position, Horizontal Clock and Clock Phase are adjusted automatically.

Adjust the left-side display position. Screen display changes to Magenta colour if beyond the available range. (This function is only for RGB2. It’s not available (greyed out) for RGB1 (DVI-PC).)

Adjust the vertical display position. Screen display changes to Magenta colour if beyond the available range. (This function is only for RGB2. It’s not available (greyed out) for RGB1 (DVI-PC).)

Adjust for maximum character clarity. (This function is only for RGB2. It’s not available (greyed out) for RGB1 (DVI-PC).)

Adjust for clear character visibility. (This function is only for RGB2. It’s not available (greyed out) for RGB1 (DVI-PC).)

The original factory settings for the items of this Menu page can be restored by pressing the OK button.

Normally set to 0.7 V. If white is found to spread across the screen, set to 1.0 V. (This is effective only for RGB2.)

Set this to Off if the frequency information of the Input Signal Screen Display is not required.

This is only available for W-VGA signal. When it is set to On, the display area mode can be selected Full or Real. (With RGB1 INPUT, the screen remains the same. RGB2 (ANALOG) INPUT only)

This is only available for W-XGA signal.

(RGB2 (ANALOG) INPUT only)

OPERATING INSTRUCTIONS (continued)

SETUP MENU (RGB mode: RGB1 (DVI-PC), RGB2 (RGB)) (continued)

Selected characters Setup hint

Vertical Filter

Frequency Mode

RGB1

RGB2 (1st step)

RGB2 (2nd step)

Auto HDTV SDTV/DVD

Off On

Movie PC

DVI-PC DVI-STB

RGB Component

Turn On when concerned about screen flicker.

Set to Movie when viewing moving images on a personal computer.

This should correspond to the signal mode of the signal from the equipment that is connected to RGB1 DVI terminal.

This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.

This step should be set only when [Component] is selected on the 1st step. This should correspond to the signal mode of the signal from the equipment that is connected to RGB2 D-sub terminal.

• Normally, set this to Auto. The signal mode of the input signal will be automatically recognized.

• If the input signal contains much noise or has a low level at Auto and the operation is found erratic, set this to match the input signal.

* Depending on the type of signal displayed, displays may not be optimized through automatic adjustment. Adjust manually to optimize them.

ENGLISH

OPERATING INSTRUCTIONS (continued)

FUNCTION MENU

Picture Audio

Timer Function Setup Language Select OK Set

Function Screen Saver Off Screen Wipe On 60Min. Black Side Panel Off Video Power Save Off Freeze Mode Split Default Zoom Panoramic Panel Life Nomal Luminance Manager Off Reset Reset Select Set Return

Selected characters Setup hint

This moves the picture around the screen in small amounts, at set

Screen Saver

Screen Wipe

Black Side Panel

Off 5Min. 10Min.

60Min. 40Min. 20Min.

On 60Min.

Off On

intervals, to reduce the panel image retention. This is where stationary objects, such as screen logos, leave a slight image visible after they should have disappeared.

This is used to reduce the panel image retention that can occur with stationary pictures by the white field signal. Select On (continuous operation) or 60 Min. (time limit operation) and press the OK button. Press the MENU or RETURN button on the remote control to return to normal viewing.

This turns the grey sidebars to the black sidebars when watching normal mode screen size area. It is always set to Off when the monitor powered On. It is recommended to set to Off to reduce the panel image retention.

Video Power Save

Freeze Mode

Default Zoom

Panel Life

Luminance Manager

Reset

Off On

Split Strobe

Panoramic 4:3 14:9zoom

Normal Extend 1 Extend 2

Off On

(off the function) (waiting to reset)

This is used to reduce power consumption for video input when there is no video signal. Setting it On will lead the monitor to the standby mode when the AV input with no signal is selected.

This selects the display condition of the FREEZE mode between Split (2 pictures) and Strobe (12 pictures).

This selects the screen display size of TV input that appears first when the main power turned on.

This function is to suppress the contrast of the screen regardless of the Contrast setting in the Picture Menu. By this control, power consumption can be reduced or degradation of a panel can be mitigated. The order of power consumption is Extend 2 < Extend 1 < Normal. If the Contrast setting is changed when this item is set to Extend 1 or 2, it will be changed to Normal automatically.

This is used to reduce the panel image retention which is caused by especially displaying TV station logo. Brightness of 4 corners of the panel gets lower than the centre.

The original factory settings for the items of this Menu page can be restored by pressing the OK button.

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (TV/Video mode)

Picture Audio

Timer Function Setup Language Select OK Set

Picture Picture Mode Dynamic Contrast +31 Brightness -31 Colour 0 Sharpness +15 Hue 0 Colour Temperature Normal Contrast Mode Normal Reset Reset Select Set Return

Picture Dynamic YNR Off CNR Off Film Mode On PAL Comb Filter On LTI Off CTI Off Black Enhancement Off Auto Colour Off Reset Reset Select Set Return

Picture Mode Dynamic Next/Prev Select Return

Contrast Mode Normal Next/Prev Select Return

YNR Off Next/Prev Select Return

ENGLISH

Picture Dynamic YNR Off CNR Off Film Mode On PAL Comb Filter On LTI Off CTI Off Black Enhancement Off Auto Colour Off Reset Reset Select Set Return

Picture Dynamic Colour Temp. Adjust Colour Management Colour Decoding Select Set Return

Auto Colour Off Next/Prev On/Off Return

Picture Colour Temp. Adjust On Amplitude Red – 63

Green 0

Blue – 31 Cut Off Red + 31

Green 0 Blue – 31

Reset Reset Select On/Off Return

Picture Colour Management On

Magenta + 60

Red + 30

Yellow 0 Green + 60 Cyan + 30

Blue 0

Reset Reset Select On/Off Return

Picture Dynamic Colour Temp. Adjust Colour Management Colour Decoding Select Set Return

Picture Colour Decoding

RGB R G B

Red 0

Green + 60 Colour 0 Hue + 31

Reset Reset

Select Return Exit

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (TV/Video mode) (continued)

Selected characters

Picture Mode

Contrast

Brightness

Colour

Sharpness

Hue

Colour Temperature

Contrast Mode

Reset

YNR

CNR

Film Mode

PAL Comb Filter

LTI

CTI

Black Enhancement

Auto Colour

Colour Temp. Adjustment

Red

GreenAmplitude

Blue

Red

Cut Off

Green

Blue

Dynamic Natural

Narrows the gap between brightness and darkness.

Black is subdued for increased overall darkness.

Decrease colour intensity. Increase colour intensity. Adjust to preference.

Soft Sharp

Enhances red and weakens green.

Broadens the gap between brightness and darkness.

Black is set off for increased overall brightness.

Enhances green and weakens red.

Cinema

Cool Normal Warm Black / White

Normal Auto Dynamic

(off the function) (waiting to reset)

Off Low High

Off On

Off Low Middle High

Off On

Brighter scene is decreased in reddish colour.

Brighter scene is decreased in greenish colour.

Brighter scene is decreased in bluish colour.

Dark scene is decreased in reddish colour.

Dark scene is decreased in greenish colour.

Dark scene is decreased in bluish colour.

Brighter scene is increased in reddish colour.

Brighter scene is increased in greenish colour.

Brighter scene is increased in bluish colour.

Dark scene is increased in reddish colour.

Dark scene is increased in greenish colour.

Dark scene is increased in bluish colour.

Dynamic: This setting is best for very bright ambient lighting. Natural: This setting is for normal lighting conditions. Cinema: This setting is best for watching movie.

Adjust for maximum visibility to suit the ambient brightness. This can adjust further till [+40] by pressing and holding SELECT button at [+31]. The colour for [+32] to [+40] numbers will change from green to magenta. This special mode is better for dark scenes. For normal viewing we recommend that the Contrast is set to [+31]. "Panel Life" in the Function Menu should be set to Normal when this Contrast setting is adjusted.

Adjust to preference.

Shift to the minus (-) side for a softer effect and plus (+) for sharper picture.

This is not available to adjust when receiving PAL/SECAM signal. Then the character will be greyed out. Adjust for most realistic skin colour.

Normally set to Cool.

Dynamic:Emphasizes the differences between video shadings to

improve the feeling of contrast.

Normal : The gradation of an image is reproduced as faithfully as

possible.

Auto:Detects image brightness and automatically adjusts for natural

brightness.

The original factory settings for the items of this Menu page can be restored by pressing the OK button.

Performs picture signal noise reduction. Turn up to reduce noise.

Performs colour signal noise reduction. Turn up to reduce noise. And it will be fixed as Off only when selecting DVI-STB mode.

On:Automatically detects the movie film material and faithfully reproduces the original film image. Off:Set to OFF when switching between images does not appear natural.

This is available only when receiving a PAL composite signal. Turn On to reduce the discolorations in fine picture detail and provides purer colour.

Adjusts the sharpness of the picture signal.

Adjusts the sharpness of the colour signal.

Adjusts the black level compensation.

This is available only when receiving an NTSC composite/S.Video signal. This monitors and adjusts the colour to maintain constant colour levels. It also maintains natural flesh tones whilst preserving fidelity of background colours.

Turn On when you wish to change colour temperature depending on the user's preference.

Adjust colour temperature depending on the user’s preference. These settings are independently stored in each of the 4 Colour Temperature modes.

Setup hint

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (TV/Video mode) (continued)

Selected characters

Colour Management

Magenta

Red

Yellow

Green

Cyan

Blue

Colour Decoding

Red

Green

Colour

Hue

Off On

Magenta is weakened. Magenta is strengthened.

Red is weakened. Red is strengthened.

Yellow is weakened. Yellow is strengthened.

Green is weakened. Green is strengthened.

Cyan is weakened. Cyan is strengthened.

Blue is weakened. Blue is strengthened.

RGB R G B

Darkens red only. Lightens red only.

Darkens green only. Lightens green only.

Decrease colour intensity Increase colour intensity.

Enhances red and weakens green.

Enhances green and weakens red.

Setup hint

Turn On when the original balance of each colour is required to adjust depending on the user’s preference.

This adjusts listed colours individually to make them either deeper or more pure. These settings are independently stored in each of the 4 Colour Temperature modes.

Select the single colour screen when that is required to adjust R/G/B level individually depending on the user’s preference. And set it back to RGB mode that indicates all colour after adjusting. Press the OK button every time the setting is changed.

This adjusts R/G/B level or hue to make the colour appear natural for the user’s preference. These settings are independently stored in each of the 4 Colour Temperature modes. When select “Hue”, the display will be grey to indicate it is not available when receiving PAL/SECAM.

ENGLISH

OPERATING INSTRUCTIONS (continued)

PICTURE MENU (RGB mode)

Picture Audio Timer Function Setup Language Select OK Set

Picture Contrast : + 31 Brightness : – 31 Colour : 0 Hue : + 31 Picture Enhancement : Off Colour Temperature : Normal Colour Temp.Adjust Reset Reset Select Set Return

Contrast + 31 Next / Prev Adjust Return

Colour Temperature Nor mal Next/Prev Select Return

Picture Colour Temp. Adjust On Amplitude Red – 63

Green 0

Blue – 31 Cut Off Red + 31

Green 0 Blue – 31

Reset Reset Select On/Off Return

Selected characters

Contrast

Brightness

Colour

Hue

Picture Enhancement

Colour Temperature

Colour Temp. Adjustment

Amplitude

Red

Green

Blue

Cut Off

Red

Green

Blue

Reset

Adjust for maximum visibility to suit the ambient brightness.

Narrows the gap between brightness and darkness.

Broadens the gap between brightness and darkness.

This can adjust further till [+40] by pressing and holding SELECT button at [+31]. The colour for [+32] to [+40] numbers will change from green to magenta. This special mode is better for dark scenes. For brighter scene some parts of the picture might not be clear. We recommend to set at [+31]. "Panel Life" in the Function Menu should be set to Normal when Contrast setting is adjusted.

Black is subdued for increased overall darkness.

Black is set off for increased overall brightness.

Adjust to preference.

Decrease colour intensity. Increase colour intensity. Adjust to preference.

Enhances red and weakens green.

Enhances green and weakens red.

Off Low Middle High

Cool Normal Warm Black / White

Off On

Brighter scene is decreased in reddish colour.

Brighter scene is decreased in greenish colour.

Brighter scene is decreased in bluish colour.

Dark scene is decreased in reddish colour.

Dark scene is decreased in greenish colour.

Dark scene is decreased in bluish colour.

(off the function)

Brighter scene is increased in reddish colour.

Brighter scene is increased in greenish colour.

Brighter scene is increased in bluish colour.

Dark scene is increased in reddish colour.

Dark scene is increased in greenish colour.

Dark scene is increased in bluish colour.

(waiting to reset)

This is not available to adjust when receiving PAL/SECAM signal. In this case the character will be greyed out. Adjust for most realistic skin colour.

Sets the clarity of small details to the desired level.

Normally set to Normal.

Turn On when you wish to change colour temperature is required to adjust depending on the user’s preference.

Adjust colour temperature depending on the user’s preference. These settings are independently stored in each of the 4 Colour Temperature modes.

The original factory settings for the items of this Menu page can be restored by pressing the OK button.

Setup hint

OPERATING INSTRUCTIONS (continued)

AUDIO MENU

Selected characters

Audio Mode

Treble

Bass

Balance

Dynamic Bass

Matrix Surround

Perfect Volume

Reset

Headphone Volume

Headphone Select

Picture Audio

Timer Function Setup Language Select OK Set

Movie: This selects the audio suitable for Movie.

Movie Music Speech Favourite

Suppresses treble. Enhances treble. Adjust to preference.

Suppresses bass. Enhances bass. Adjust to preference.

Suppresses right-side sound. Suppresses left-side sound. Adjust to preference.

Off Low Middle High

Off On

(off the function) (waiting to reset)

Turns down the volume. Turns up the volume.

A/B B

Music: This selects the audio suitable for Music. Speech: This selects the audio suitable for News, Talk show etc. Favourite: This mode should be adjusted depending on user’s preference.

Dynamic Bass takes advantage of the ability of the human ear to be able to distinguish between two different tones. By using this ability, Dynamic Bass gives enhanced bass sound that otherwise would not be heard. Adjust it depending on the user’s preference.

This features the spacious sound effects of a stadium.

This will automatically adjust volume so each channel and input has the same average volume level.

The original factory settings for the items of this Menu page can be restored by pressing the OK button.

This is to set the volume for headphone. The audio from the speaker is mute when connected to headphone terminal.

A/B: During the 2 pictures mode, the audio will be output from

headphone on A (left picture) or B (right picture) to be selected. The speaker icon is located on the selected picture.

B: The audio of B (right picture) is from headphone.

Audio Audio Mode : Movie Treble : + 10 Bass : – 10 Balance : 0 L R Dynamic Bass : Middle Matrix Surround : Off Perfect Volume : Off Reset Reset Select Set Return

Audio Headphone Volume : +20 Headphone Select : A/B

Select Set Return

ENGLISH

Setup hint

NOTE

About the Headphone

• During PC input (RGB1/RGB2), the audio is not output from the headphone.

• When the input on B (right picture) is AV6 during the 2 pictures mode, even though “B” is selected from “Audio Menu, Headphone select”, the audio is not fixable at B (right picture) but output from the selected picture (A/B).

OPERATING INSTRUCTIONS (continued)

TIMER MENU

Picture Audio

Timer

Function Setup Language Select OK Set

Selected characters

Off Timer

On Timer

--Min. 30Min. 60Min. 120Min. 90Min.

- - ( : - - )

(- - : ) - -

hours

minutes

LANGUAGE MENU

Picture Audio

Timer

Select a language by ▲ and ▼ SELECT buttons and press the OK button.

Function Setup Language Select OK Set

Timer Off Timer : 30Min. On Timer : - - : - - Select Adjust Return

Setup hint

This function automatically sets the power to standby status when the indicated time period has elapsed.

This automatically sets the power from standby to ON when the indicated time period has elapsed. The settable time is 00:00~11:59. Input the required time by

▲ and ▼ SELECT buttons on the remote control.

Language English Français Deutsch

Español Italiano Norsk Svenska

Türkce

Nederlands

Select Return Exit

OTHER FUNCTIONS

Automatic Store

Approximately 1 sec. after adjustment is completed, the adjustments will be recorded as shown in the table below.

Menu Display Registration condition


Audio

Picture Mode Contrast Brightness Colour Sharpness Hue Colour Temperature Contrast Mode YNR CNR Film Mode PAL Comb Filter LT I CTI Black Enhancement Auto Colour

Colour Temp. Adjust

R Amplitude

G Amplitude

B Amplitude

R Cut Off

G Cut Off

B Cut Off

Colour Management

Magenta

Red Yellow Green

Cyan

Blue

Colour Decoding

Red Green

Colour

Hue

Audio Mode Treble Bass Balance Dynamic Bass Matrix Surround Perfect Volume Headphone Volume Headphone Select

1 setting is registered. For every input function and every Picture Mode, 1 setting is registered.

For every Colour Temperature, 1 setting is registered. 1 setting is registered.

For every input function and every Picture Mode, 1 setting is registered. 1 setting is registered.

For every Colour Temperature, 1 setting is registered. For every input function and every Picture Mode, 1 setting is registered. 1 setting is registered. For every Audio Mode, 1 setting is registered. 1 setting is registered. For every Audio Mode, 1 setting is registered.

Menu Display Registration condition

Function

Setup

Language

• The previously recorded items will be lost.

• The signal mode can be identified by the horizontal/vertical sync frequency and the sync signal polarity. Different signals with which all the elements are the same or similar will be handled as the same signal.

Screen Saver Screen Wipe Black Side Panel Video Power Save Freeze Mode Default Zoom Panel Life Luminance Manager System Colour System

Video Input

Scart Output RGB1 RGB2 Auto Adjust Horizontal Position Vertical Position Horizontal Clock Clock Phase Input Level Frequency Display WVGA Type WXGA Mode Vertical Filter Frequency Mode

1 setting is registered. (not registered) 1 setting is registered.

1 setting is registered.

For every input function, 1 setting

AV1

is registered.

AV2 AV3 AV4 AV5

1 setting is registered.

AV1 AV4

1 setting is registered.

(not registered) For every signal Mode, 1 setting is registered. (Only for RGB2)

1 setting is registered.

ENGLISH

OTHER FUNCTIONS (continued)

Audio Switching

A2 / NICAM / Sound Multiplex (TV mode)

• The CH I / II button is only useful for NICAM and sound multiplex signals. Otherwise pressing this button will have no effect.

BILINGUAL / DUAL sound broadcast

When bilingual program is received, sound mode display appears in yellow as shown on right. Press the CH I / II button to select the sound to be heard. Each time the button is pressed, I, II or ▼ (force mono) appear cyclically on the screen. When receiving NICAM signals, NICAM display will appear as below.

NICAM [II]

Sound multiplex signal received

Yellow

[I]

NICAM signal received

NICAM [I]

Select I, II or (force mono) to hear the CH I, CH II or MONO broadcast respectively.

Yellow

[II]

YellowYellow

NICAM [II]

STEREO sound broadcast

When a stereo program is received, sound mode display will appear in red, and you can press the CH I / II button to select between stereo and mono sound.

Each time the button is pressed, or ▼ (force mono) appear cyclically on the screen. When receiving NICAM signals, NICAM display will appear as below.

Sound multiplex signal received

Red Green

Green

NICAM signal received

NICAM

Select or (force mono) to hear the STEREO or MONO broadcast respectively.

Red

Green

Monaural sound broadcast

When a monaural program is received, sound mode display will appear in green. You can press the CH I / II button to select the sound mode between monaural and forced mono (sound is same). Each time the button is pressed, 왓 or ▼ (force mono) appear cyclically on the screen.

NOTE

• If sound signal is not strong enough for quality reception, press the CH I / II button until ▼ appears on the screen to receive a clear mono sound.

• If sound has hiss noise or keep switching between stereo and mono mode due to signal condition, press the CH I / II button until ▼ appears on the screen to receive a clear mono sound.

왓

OTHER FUNCTIONS (continued)

Power Save Mode

When the RGB1, RGB2 input is selected

• When this unit is connected to a VESA DPMS computer, the Power Save (Off) mode can be set to be activated automatically when the computer is not being used to reduce power consumption by this unit.

RGB sync signal

Horizontal Yes No Yes No

Vertical

Yes Yes No No

ENGLISH

PC signal

Operation mode

Indicating lamp

Power consumption

Active (normal display)

Lights green

380W

Blank (no display)

Off

Lights orange

3W or less (RGB1) 1W or less (RGB2 ; 100V

3W or less (RGB2 ; 120V<AC<240V)

≤AC≤120V)

Returning to operating status

• Operate the personal computer, or press either the INPUT SELECT button of the main unit or the RGB1/RGB2 buttons of the remote control.

DVD Player/STB Selection

• You can use this remote control to operate the selected maker of DVD player and Set Top Box by pressing the following buttons on the remote control simultaneously.

<“DVD” Selection>

Makers of DVD player Set Maker Set Type Makers of DVD player Set Maker Set Type

HITACHI

1 31

RCA

0 1

FUNAI

Pioneer

Panasonic

TOSHIBA

Philips

JVC

SAMSUNG

Sony

Sharp

2-4-12

<“SAT” Selection>

Makers of STB player Set Maker Set Type

HITACHI

TOSHIBA

DGTEC

1 21

Mitsubishi

ONKYO

ZENITH

THOMSON

SHINCO

SKYWORTH

BUBUKO

DENON

RED

GREEN

YELLOW

BLUE

Panasonic

OTHER FUNCTIONS (continued)

DVD Player/STB Selection (continued)

Set up hint

Example) HITACHI DVD 

To operate HITACHI DVD player, press and hold the button, followed by the  button.

1. Set up the maker.

Press button to indicate the DVD LED on the remote control. Whilst the DVD LED is flashing, press and .

2. Set up the maker type.

Release the  button whilst keeping button depressed. Then, press the  button.

3. Confirm the setting.

After setting the maker and type, press the POWER button on the remote control. If the DVD does not switch on, repeat step 1 and 2 using other maker types as listed in the chart on .

NOTE

• Not all models of the listed makers can be operated using this remote control.

Signal Check (RGB mode)

Changes in the signal status are displayed on the screen as they arise.

Status Display Action

When Mode Display is set to ON, the input signal is switched or when the RECALL button is pressed.

When the sync signal is no longer detected.

When the input signal does not match the monitor specifications or is in an unstable status.

A guide is displayed for the input terminal and the horizontal and vertical sync frequency.

• A guide displays No Sync. Signal, and Power Save (for approx. 5 sec.)

• When the condition continues where the sync signal cannot be detected, indicator lamp of power source changes in orange and the mode switches to power save mode.

A guide displays Invalid Scan Freq.

Recheck the personal computer power switch status and the connection status.

Recheck the input signal specifications.

52 54

RGB

RGB2

RGB H : 48.4kHz V : 60.1 Hz

-- -- Min.

OFF

-- -- : -- --

! No Sync. Signal

! Invalid Scan Freq.

TROUBLESHOOTING

Symptoms That Seemingly Appear to be Failures

Make the checks suggested below depending on the symptoms observed. If the symptoms remain uncorrected, contact your dealer.

WARNING

Customer servicing can be hazardous.

Symptom Point to check See page

• No picture with the power-indicating lamp off.

• The message “No Sync. Signal” or “Power Save” is displayed.

• No picture with the power indicating lamp lights in orange.

• The message “Invalid Scan Freq.” is displayed.

• The power indicating lamp is normally lit but no picture.

! No Sync. Signal

! Invalid Scan Freq.

• Check the way the power cable is connected.

• Press the power switch.

No sync signal is detected.

• Check the way the signal cable is connected.

• Make sure that the switch of the computer, imaging equipment, etc., is turned on.

• Make sure the computer is not in the power-save mode.

• Check to see if the input selection matches the connection terminal.

An input signal is not received normally.

• Check to see if the input signal matches the monitor specifications.

• Check the way the signal cable is connected.

• Check the contrast and brightness settings (adjust them for higher contrast and brightness).

• Check the way the signal cable is connected.

ENGLISH

• The display image appears flowing slantwise.

• Text displayed across the screen appears vertically streaked, with the characters in vertical columns blurred.

• Text displayed across the screen appears blurred.

• A fine pattern flickers when displayed on the screen.

• The remote control does not work. • Check to see if the batteries are loaded in the remote control in

• The display image does not appear in the normal position.

• Adjust the dot clock frequency and phase. (Adjust the dot clock frequency first, the dot clock phase next.)

(RGB input)

• Adjust the dot clock phase for the clearest viewing.

(RGB input)

opposite direction.

• Check to see if the batteries in the remote control are OK.

• Check to see if the displayed input signal match the monitor

AAAAA

specification by pressing button.

• Turn off the screen saver.

• The display has lack of picture around the screen. (PC input mode only)

• The temperature of the display panel surface is high. • The plasma display panel is lighting the phosphors by the

• Turn off the screen saver.

AAAAA

discharge of internal radiation. In some cases, this may cause the temperature of the panel surface to increase. Please note that this is not a malfunction.

–

TROUBLESHOOTING (continued)

Symptoms That Seemingly Appear to be Failures (continued)

Symptom Point to check See page

• There are locations on the screen that are different from

the periphery (*). *Points that do not light, points with brightness different from that of the periphery, points with colour different from that of the periphery, etc.

• Vertical noises appear, depending on the screen contents. • The plasma display panel is lighting the phosphors by the

• Coarse horizontal stripes appear in FULL display.

• High-precision technology is used to manufacture the plasma display panel, However in some cases, there are minor defects in some parts of the screen. Please note that this is not a malfunction.

discharge of internal radiation. Depending on the screen contents, in rare cases this may cause vertical stripes to appear because of failure to light. Please note that this is not a malfunction.

• Adjusting the Clock Phase will reduce the horizontal stripes.

(RGB input)

–

• Flickering in the form of horizontal lines oscillating up and down.

(PC INPUT MODE only)

• The top of the monitor heats up.

• Text characters are displayed with varying thicknesses.

• The screen becomes dark and the images cannnot be seen during VTR special playback (fast forward, rewind)

• During multi picture mode, sub pictures are not displayed.

• The screen display sizes are not switched.

• Images from AV6 (HDMI) are not displayed.

• If the direct frequency from the computer is below 85Hz, try a higher frequency (upper limit 85Hz). There may be a slight attenuation of the current image.

• Try turning the Vertical Filter On. For this case however, the vertical resolution will drop.

• When used for long periods of time, the top of the monitor may heat up. This is not a malfunction.

• The thicknesses of characters and lines may vary if images with a vertical resolution greater than 512 lines are displayed; however, this is not a malfunction.

• This sometimes occurs when a component output VTR such as the 480i is connected. This is not a malfunction; therefore, please take note that this may occur. When it does occur, change to composite output,or S.video output.

• Sub pictures image might not be able to be displayed, depending on the combination. (Refer to the table of “2 pictures mode” and “4 pictures mode”)

• The screen display size is fixed at “Full” as receiving 1080i/60Hz, 1080i/50Hz, 720p/50Hz, and 720p/60Hz.

• Check the cable and output format of connecting device. (Refer to “Connecting to an Audio Visual Device” and “Recommended Signal List”.)

–

TROUBLESHOOTING (continued)

Actions to Correct Abnormal Displays

Depending on the kind of system equipment used, images may not be displayed normally. In this case, make the adjustments suggested below. (only for RGB2)

Symptom 1

Example

Text displayed across the screen appears vertically streaked, with some characters blurred (Figure 1). (RGB input).

Vertical

Figure 1

ABCDEFGHIJ

abcdefgABCDEFGabcd

ABCDEFGHIJ

abcdefgABCDEFGabcd

streaks

Before adjustment, some characters are blurred.

ABC

After adjustment, all characters appear crisp now.

After adjustment, all characters are blurred.

1) Press the MENU button. The Main Menu will be displayed.

2) Press the SELECT button and select Setup.

3) Press the OK button. The Setup Menu will be displayed.

4) Press the SELECT button and select Auto Adjust.

When adjustment is not possible with Auto Adjust

Adjustment

procedure

5) Press the MENU button. The Main Menu will be displayed.

6) Press the SELECT button and select Setup.

7) Press the OK button. The Setup Menu will be displayed.

8) Press the SELECT button and select Horizontal Clock. (Display fine patterns as characters or a vertical striped pattern over the entire screen during Horizontal Clock adjustment.)

9) Press the or ADJUST buttons and search for clear characters over the entire screen. 10

) Perform adjustment for symptom 2 below, when the characters are blurred on the entire screen.

• The display image may be momentarily disturbed during clock adjustment but this is not a failure.

ENGLISH

Symptom 2

Example

Adjustment

procedure

Text displayed across the screen appears blurred in its entirety (Figure 2). A fine pattern flickers when displayed on the screen (Figure 3).

Figure 2 Figure 3

ABCDEFGHIJ

abcdefgABCDEFGabcd

ABCDEFGHIJ

abcdefgABCDEFGabcd

Before adjustment

ABC

After adjustment

Before adjustment

After adjustment

ABC

1) Press the MENU button. The Main Menu will be displayed.

2) Press the SELECT button and select Setup.

3) Press the OK button. The Setup Menu will be displayed.

4) Press the SELECT button and select Auto Adjust.

When adjustment is not possible with Auto Adjust

5) Press the MENU button. The Main Menu will be displayed.

6) Press the SELECT button and select Setup.

7) Press the OK button. The Setup Menu will be displayed.

8) Press the SELECT button and select Clock Phase. (Display fine patterns as characters or a vertical striped pattern over the entire screen during Clock Phase adjustment.)

9) Press or ADJUST buttons to make the text appear clean across the screen.

9) Press or ADJUST buttons to make the text appear without flickering.

PRODUCT SPECIFICATIONS

This table shows the specifications when the video unit and tuner unit have been inserted.

Display

Panel

Net dimensions (excluding Speakers/Stand)

Net weight (excluding Speakers/Stand)

Ambient conditions

Power supply

Power consumption/at standby

Audio output

(RGB input)

Input terminals

Input signals

Sync signals

Recommended signal

(Video input)

Input terminals

Input signals

dimensions Resolution

Temperature

Relative humidity

Approx. 42 inches (922 (H) x 522 (V) mm, diagonal 1059mm)

1024(H) x 1024 (V) pixels

1050 (W) x 676 (H) x 110 (D) mm

37.0kg

Operating : 5˚C to 35˚C, Storage : 0˚C to 40˚C

Operating : 20% to 80%, Storage : 20% to 90% (non-condensing)

AC100 - 240V, 50/60Hz

380W / <3W

speaker 12W + 12W (6Ω),

RGB1 DVI input terminal (DVI-D) RGB1 audio input terminal (3.5mm Stereo Mini Jack) RGB2 analog RGB input terminal (D-sub 15-pin) RGB2 audio input terminal (3.5mm Stereo Mini Jack)

0.7 V/1.0 Vp-p, analog RGB (Recommended Signal) 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/50*

H/V separate, TTL level [2KΩ] H/V composite, TTL level [2KΩ] Sync on green, 0.3 Vp-p [75Ω]

44 modes

AV1: composite video /S video / L/R audio input terminal (SCART) AV2: composite video /RGB / L/R audio input terminal (SCART) AV3: composite video /RGB / L/R audio input terminal (SCART) AV4: composite video / Y/P AV5: composite video /S video / L/R audio input terminal (RCA) AV6: HDMI input terminal

AV1: PAL, SECAM, NTSC3.58, NTSC4.43 AV2: PAL, SECAM, NTSC3.58, NTSC4.43, RGB AV3: PAL, SECAM, NTSC3.58, NTSC4.43, RGB AV4: PAL, SECAM, NTSC3.58, NTSC4.43 AV4: 480i, 576i, 480p, 576p, 720p/50, 720p/60, 1080i/50, 1080i/60, AV5: PAL, SECAM, NTSC3.58, NTSC4.43 AV6: HDMI input signal

53 54

B /PR video / L/R audio input terminal (RCA)

, 720p/60

OUTPUT (MONITOR): composite video monitor-output terminal (RCA)

Output Signal

Recommended signal

(RF input)

Input terminals

RF Video System

• The monitor takes at least 30 minutes to attain the status of optimal picture quality.

720p/50 does not support RGB2.

OUTPUT (MONITOR): L/R audio monitor- output terminal (RCA) OUTPUT (HEADPHONE): L/R audio monitor- output terminal (Mini-pin) AV1: composite video / L/R audio monitor /TV output terminal (SCART)

24 modes

ANT : 75Ω Unbalanced

PAL B, G, H / I / D, K SECAM B, G / K1 / L, L’ / (D, K)*

525353

*2The SECAM D, K system might not be normally received, depending on the model.

PRODUCT SPECIFICATIONS (continued)

Signal Input

RGB terminal (D-sub 15-pin connector)

Pin Input signal

1R (P

2 G or sync on green (Y)

3B (P

4 No connection

5 No connection

6 R.GND (P

7 G.GND (Y, GND)

8 B.GND (P

9 No connection

10 GND

11 No connection

12 [SDA]

13 H. sync or H/V composite sync

14 V.sync. [V.CLK]

15 [SCL]

R/CR

B/CB

R/CR

B/CB

)

, GND)

• When different kinds of input signals are simultaneously input to the monitor via a graphics board or the like, the monitor will automatically select the signals in the following priority order:

* Even in the case of the recommended signals shown on the

following page, there may be instances when correct display is not possible. In this case, use H/V separate sync, H/V composite sync.

Sync signal type

H/V separate sync.

H/V composite sync.

sync.on Green *

ENGLISH

Priority

( ) : With component input

S-input connector pin specifications

2 3 4

Frame

Input signal

Y-GND

C-GND

GND

HDMI connector pin specifications

Pin Input signal Pin Input signal

1 TMDS Data2+ 11 TMDS Clock Shield 2 TMDS Data2 Shield 12 TMDS Clock3 TMDS Data2- 13 CEC 4 TMDS Data 1+ 14 Reserved(N.C. on device) 5 TMDS Data1 Shield 15 SCL 6 TMDS Data1- 16 SDA 7 TMDS Data0+ 17 DDC/CED Ground 8 TMDS Data0 Shield 18 +5V Power 9 TMDS Data0- 19 Hot Plug Detect

10 TMDS Clock+

DVI terminal (DVI-D)

Pin Input signal Pin Input signal

1 T.M.D.S. Data2- 14 +5V Power 2 T.M.D.S. Data2+ 15 Ground (for+5V) 3 T.M.D.S. Data2/4 Shield 16 Hot Plug Detect 4 T.M.D.S. Data4- 17 T.M.D.S. Data05 T.M.D.S. Data4+ 18 T.M.D.S. Data0+ 6 DDC Clock 19 T.M.D.S. Data0/5 Shield 7 DDC Data 20 T.M.D.S. Data58 No Connect 21 T.M.D.S. Data5+ 9 T.M.D.S. Data1- 22 T.M.D.S. Clock Shield

10 T.M.D.S. Data1+ 23 T.M.D.S. Clock+

11 T.M.D.S. Data1/3 Shield 24 T.M.D.S. Clock12 T.M.D.S. Data3- Frame GND 13 T.M.D.S. Data3+

1 2 3 4 5 678 9 10 11 12 13 14 15 16

17 18 1920 21 22 23

PRODUCT SPECIFICATIONS (continued)

Signal Input (continued)

Scart connector pin specifications

Pin Signal Pin Signal

1 AUDIO OUT (RIGHT) 12 Not Used 2 AUDIO IN (RIGHT) 13 RGB-R GND 3 AUDIO OUT (LEFT/MONO) 14 GND 4 AUDIO GND 15 RGB-R / S.VHS CHROMINANCE IN 5 RGB-B GND 16 BLANKING SIGNAL 6 AUDIO IN (LEFT/MONO) 17 COMPOSITE VIDEO GND 7 RGB-B IN 18 BLANKING SIGNAL GND 8 AUDIO/RGB SWITCH / 16:9 19 COMPOSITE VIDEO OUT

9 RGB-G GND 20 COMPOSITE VIDEO / S.VHS LUMINANCE IN 10 Not Used 21 GND / SHIELD (CHASSIS) 11 RGB-G IN

Recommended Signal List

Applicable video signals for input terminal

20 18 16 14 12 10 8 6 4 2

15 13 11 975

19 17

Terminal

Signal CVBS S-video

AV1 쑗쑗 Refer to Setup Menu

AV2 쑗쑗 Refer to Setup Menu

AV3 쑗쑗 Refer to Setup Menu

AV4 쑗쑗 Refer to Setup Menu

AV5 쑗쑗 Refer to Setup Menu

AV6 쑗

RGB1 쑗쑗 Refer to Setup Menu

RGB2 쑗쑗Refer to Setup Menu

Component SCART (RGB)

HDMI

DVI

PC STB RGB

D-sub

Component

RemarksRCA/S-video/SCART

With composite input(AV1~AV5 input) and S-video input (AV1, AV5 input)

No.

Signal Name Resolution

NTSC4.43 NTSC3.58

PAL

SECAM

Signal mode

525

625

Vertical frequency

(Hz)

59.94

50.00

Horizontal

frequency (kHz)

15.73

15.63

Dot clock

frequency (MHz)

—

(쑗 : Available)

Remarks

With component input (AV4 and RGB2-component input)

Signal mode

No.

Signal Name Resolution

3 576p 576 50.00 31.26 —

4 480p 480 59.94 31.47 —

5 1080i/50 1080 50.00 28.13 —

6 1080i/60 1080 60.00 33.75 —

7 720p/50*

8 720p/60 720 60.00 45.00 —

576i

480i

576

480

720 50.00 37.50 —

Vertical frequency

(Hz)

50.00

59.94

Horizontal

frequency (kHz)

15.63

15.73

*1720p/50 is supported AV4 only.

Dot clock

frequency (MHz)

—

Remarks

PRODUCT SPECIFICATIONS (continued)

Recommended Signal List (continued)

With HDMI input (AV6 input)

Signal mode

No.

Signal Name Resolution

3 480i 720(1440) x 480 59.94 15.73

4 576p 720 x 576 50.00 31.25

5 480p 720 x 480 59.94 31.47

6 1080i/50 1920 x 1080 50.00 28.13

7 1080i/60 1920 x 1080 60.00 33.75

VGA

576i

640 x 480

720(1440) x 576

Vertical frequency

(Hz)

59.94

50.00

Horizontal

frequency (kHz)

31.47

15.63

Dot clock

frequency (MHz)

25.18

27.00

74.25

74.25 EIA-861B8 720p/50 1280 x 720 50.00 37.50

74.25 EIA-861B9 720p/60 1280 x 720 60.00 45.00

Remarks

EIA-861B

With Digital signal input

Signal mode

No.

Signal Name Resolution

1 640 X 400 70.08 31.47 25.18 쑗 2 640 X 480 59.94 31.47 25.18 쑗쑗 3 W-VGA 864 X 480 59.94 31.47 34.24 쑗 WVGA type : On 4 640 X 480 72.81 37.86 31.50 쑗 5 640 X 480 75.00 37.50 31.50 쑗 6 640 X 480 85.01 43.27 36.00 쑗 7 800 X 600 56.25 35.16 36.00 쑗 8 800 X 600 60.32 37.88 40.00 쑗

9 VESA 800 X 600 72.19 48.08 50.00 쑗 10 800 X 600 75.00 46.88 49.50 쑗 11 800 X 600 85.06 53.67 56.25 쑗 12 1024 X 768 60.00 48.36 65.00 쑗 13 1024 X 768 70.07 56.48 75.00 쑗 14 1024 X 768 75.03 60.02 78.75 쑗 15 480p 720 X 480 59.94 31.47 27.00 쑗 EIA-861B 16 576p 720 X 576 50.00 31.25 27.00 쑗 EIA-861B 17 720p/50 1280 X 720 50.00 37.50 74.25 쑗 EIA-861B 18 720p/60 1280 X 720 60.00 45.00 74.25 쑗 EIA-861B 19 1080i/60 1920 X 1080 60.00 33.75 74.25 쑗 EIA-861B 20 1080i/50 1920 X 1080 50.00 28.13 74.25 쑗 EIA-861B

VGA

Vertical frequency

(Hz)

Horizontal

frequency

(kHz)

Dot clock

frequency

(MHz)

Setup Menu Condition

DVI-PC DVI-STB

Remarks

(쑗 : acceptable)

ENGLISH

PRODUCT SPECIFICATIONS (continued)

Recommended Signal List (continued)

With Analog signal input (RGB2 input)

No.

Signal Name

VGA

W-VGA

VESA

Macintosh

W-XGA

Signal mode

Resolution

640 X 400

640 X 480

864 X 480

640 X 480

800 X 600

1024 X 768

1152 X 864

1280 X 1024

1600 X 1200

640 X 480

832 X 624

1024 X 768

1152 X 870

1280 X 768

1366 X 768

Vertical frequency

(Hz)

70.08

59.94

72.81

75.00

85.01

56.25

60.32

72.19

75.00

85.06

60.00

70.07

75.03

85.00

75.00

60.02

75.03

85.02

60.00

75.00

85.00

66.67

74.55

74.93

75.06

59.833

69.997

59.876

60.015

Horizontal

frequency (kHz)

31.47

37.86

37.50

43.27

35.16

37.88

48.08

46.88

53.67

48.36

56.48

60.02

68.68

67.50

63.98

79.98

91.15

75.00

93.75

106.25

35.00

49.72

60.24

68.68

47.986

56.137

47.776

47.712

Dot clock

frequency (MHz)

25.18

34.24

31.50

36.00

40.00

50.00

49.50

56.25

65.00

75.00

78.75

94.50

108.00

135.00

157.50

162.00

202.50

229.50

30.24

57.28

80.00

100.00

81.00

94.760

79.50

85.50

Remarks

WVGA type : On

WXGA Mode : 1280x768

WXGA Mode : 1366x768

• The type of video board or connecting cable used may not allow for correct displays adjustment of Horizontal Position, Vertical Position, Horizontal Clock and Clock Phase.

• The monitor may fail to display an animation image correctly when a signal having a vertical frequency of 85Hz or higher is input to it.

• The monitor differentiates the signal modes according to the horizontal and vertical frequencies and the horizontal and vertical sync signal polarities. Note that different signals having all these elements alike may be handled as the same signal.

• Displaying images with more than 512 lines of vertical resolution at Full diplay (compressed display) can result in the interpolation of stripes.

Thank you for purchasing this Hitachi Television.

In the unlikely event that this product should develop a fault, we undertake to

repair or replace any part of the product which fails due to a manufacturing defect

within 12 months of the date of purchase provided that ...

1. the product has been installed and used only in accordance with the instructions supplied with the product.

2. the product has not been repaired, maintained, or modified by any person other than a Hitachi authorized dealer.

3. the product serial number has not been removed or altered.

•This guarantee does not apply to a product acquired second hand or for commercial or communal use.

•This guarantee does not cover the replacement of exhausted batteries, the adjustment of user controls, or aerial alignment.

•Any parts replaced under this guarantee shall become the property of HITACHI

ENGLISH

EUROPE LTD.

•Please note that evidence of the date of purchase will be required before any service under this guarantee is carried out.

Use the boxes provided below to record your TV’s Model and Serial Number - these are found

on the rating plate located on the rear of the Plasma panel. Also, record where and when you

purchased this TV. This information will help any future queries you may have and should be

used in all correspondence with Hitachi service centres.

MODEL

SERIAL NUMBER DEALER/STORE DATE PURCHASED

This guarantee does not affect your statutory rights.

In all cases of difficulty,

please consult your Hitachi dealer.

Hitachi, Ltd. Tokyo, Japan

International Sales Division

THE HITACHI ATAGO BUILDING,

No. 15 –12 Nishi Shinbashi, 2 – Chome,

Minato – Ku, Tokyo 105-8430, Japan.

Tel: 03 35022111

HITACHI EUROPE LTD,

Whitebrook Park Lower Cookham Road Maidenhead Berkshire SL6 8YA

UNITED KINGDOM

Tel: 01628 643000 Fax: 01628 643400 Email: consumer-service@hitachi-eu.com

HITACHI EUROPE GmbH

Munich Office Dornacher Strasse 3 D-85622 Feldkirchen bei München

GERMANY

Tel: +49-8 9-991 80-0 Fax: +49-89-991 80-224 Hotline: +49-180-551 25 51 (12ct/min) Email: HSE-DUS.service@hitachi-eu.com

HITACHI EUROPE srl

Via Tommaso Gulli N.39, 20147 Milano, Italia

ITALY

Tel: +39 02 487861 Tel: +39 02 38073415 Servizio Clienti Fax: +39 02 48786381/2

Email: customerservice.italy@hitachi-eu.com

HITACHI EUROPE S.A.

364 Kifissias Ave. & 1, Delfon Str. 152 33 Chalandri Athens

GREECE

Tel: 1-6837200 Fax: 1-6835964 Email: service.hellas@hitachi-eu.com

HITACHI EUROPE S.A.

Gran Via Carlos III, 86, planta 5 Edificios Trade - Torre Este 08028 Barcelona

SPAIN

Tel: +34 93 409 2550 Fax: +34 93 491 3513 Email: atencion.cliente@hitachi-eu.com

HITACHI Europe AB

Box 77 S-164 94 Kista

SWEDEN

Tel: +46 (0) 8 562 711 00 Fax: +46 (0) 8 562 711 13 Email: csgswe@hitachi-eu.com

HITACHI EUROPE S.A.S

Lyon Office B.P. 45, 69671 BRON CEDEX

FRANCE

Tel: +33 04 72 14 29 70 Fax: +33 04 72 14 29 99 Email: france.consommateur@hitachi-eu.com

HITACH EUROPE AB

Egebækgård Egebækvej 98 DK-2850 Nærum

DENMARK

Tel: +45 43 43 6050 Fax: +45 43 60 51 Email: csgnor@hitachi-eu.com

Hitachi Europe Ltd

Bergensesteenweg 421 1600 Sint- Pieters-Leeuw

BELGIUM

Tel: +32 2 363 99 01 Fax: +32 2 363 99 00 Email: sofie.van.bom@hitachi-eu.com

www.hitachidigitalmedia.com

HITACHI EUROPE LTD (Norway) AB

STRANDVEIEN 18 1366 Lysaker

NORWAY

Tel: 67 5190 30 Fax: 67 5190 32 Email: csgnor@hitachi-eu.com

HITACHI EUROPE AB

Neopoli / Niemenkatu 73 FIN-15140 Lahti

FINLAND

Tel : +358 3 8858 271 Fax: +358 3 8858 272 Email: csgnor@hitachi-eu.com

HITACHI EUROPE LTD

Na Sychrove 975/8 101 27 Pr aha 10 – Bohdalec

CZECH REPUBLIC

Tel: +420 267 212 383 Fax: +420 267 212 385 Email: csgnor@hitachi-eu.com

Hitachi 42PD7A10A, 42PD7200A, 42PD7A10, 42PD7200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
