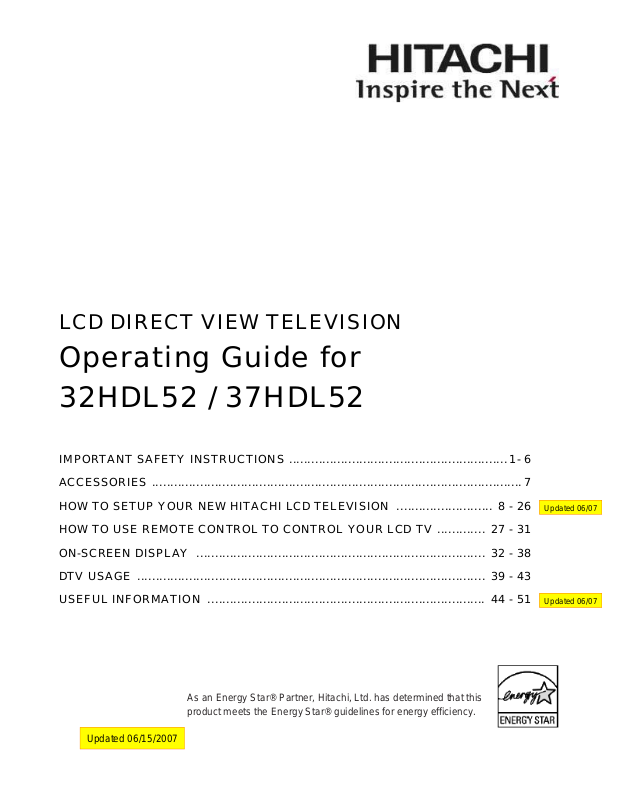

Hitachi 32HDL52, 37HDL52 Operating Instruction

LCD DIRECT VIEW TELEVISION

Operating Guide for
32HDL52 / 37HDL52

IMPORTANT SAFETY INSTRUCTIONS ...........................................................1- 6

ACCESSORIES .................................................................................................... 7

HOW TO SETUP YOUR NEW HITACHI LCD TELEVISION .......................... 8 - 26

HOW TO USE REMOTE CONTROL TO CONTROL YOUR LCD TV ............. 27 - 31

ON-SCREEN DISPLAY .............................................................................. 32 - 38

DTV USAGE .............................................................................................. 39 - 43

USEFUL INFORMATION ........................................................................... 44 - 51

As an Energy Star® Partner, Hitachi, Ltd. has determined that this
product meets the Energy Star® guidelines for energy efficiency.

Updated 06/15/2007

Updated 06/07

Updated 06/07

IMPORTANT SAFETY INSTRUCTIONS

pp

SAFETY POINTS YOU SHOULD KNOW ABOUT
YOUR HITACHI LCD TELEVISION

Our reputation has been built on the quality, performance, and ease of service of HITACHI LCD Televisions.
Safety is also foremost in our minds in the design of these units. To help you operate these products properly, this section
illustrates safety tips which will be of benefit to you. Please read it carefully and apply the knowledge you obtain from it to
the proper operation of your HITACHI LCD Television.
Please fill out your warranty card and mail it to HITACHI. This will enable HITACHI to notify you promptly in the improbable
event that a safety problem should be discovered in your product model.

Follow all warnings and instructions marked on this LCD television.

WARNING FOR CONTINUED SAFETY, REPLACE SAFETY CRITICAL
COMPONENTS ONLY WITH MANUFACTURER’S RECOMMENDED
PARTS (REFER TO SERVICE LITERATURE).

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of an exposed “dangerous voltage” within the
product’s enclosure that may be of a sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.

English

WARNING: • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS LCD TELEVISION TO RAIN OR
MOISTURE.

• THE LCD TELEVISION SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THE TELEVISION.

NOTE: Model and serial numbers are indicated on back side of the LCD Television.

CAUTION: Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly

approved by HITACHI could void the user’s authority to operate the LCD Television.

MODIFICATIONS: The FCC requires the user to be notified that any changes or modifications made to this device that are not

expressly approved by Hitachi America, Ltd. Home Electronics Division may void the user’s authority to
operate the equipment.

POWER SOURCE
THIS LCD TELEVISION IS DESIGNED TO OPERATE ON 120 VOLTS 60Hz, AC CURRENT. INSERT THE LCD TELEVISION
POWER CORD INTO A 120 VOLT 60Hz OUTLET.

TO PREVENT ELECTRIC SHOCK, DO NOT USE THE LCD TELEVISION’S (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES AND GROUND TERMINAL CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.

NEVER CONNECT THE LCD TELEVISION TO 50Hz, DIRECT CURRENT, OR ANYTHING OTHER THAN THE SPECIFIED
VOLTAGE.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the
a

aratus.

NOTE: This LCD Television will display television closed captioning, (
paragraph 15.119 of the FCC rules.

or

), in accordance with

CAUTION: Neve r remove the back cover of the LCD Television as this can expose you to very high
voltages and other hazards. If the television does not operate properly, unplug the LCD Television and
call your authorized dealer or service center.

1

IMPORTANT SAFETY INSTRUCTIONS

p

Read before operating equipment

Follow all warnings and instructions marked on this television.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the
obsolete outlet.

10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11. Only use the attachments/accessories specified by the
manufacturer.

12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when
unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

This product contains lead. Dispose of this product in accordance with applicable environmental laws. For product recycling and
disposal information, contact you local government agency or the Electronic Industries Alliance at www.eiae.org (in the US) or the
Electronic Product Stewardship Canada at www.epsc.ca (in Canada). For more information, call “1-800-HITACHI.”

Do not place any objects on the top of the television which may fall or cause a child to climb to retrieve the objects.

15. Televisions are designed to comply with the recommended
safety standards for tilt and stability.
Do not apply excessive pulling force to the front, or top, of the
cabinet which could cause the product to overturn resulting in
product damage and/or personal injury.

16. Follow instructions for wall, shelf or ceiling mounting as
recommended by the manufacturer.

17. An outdoor antenna should not be located in the vicinity of
overhead power lines or other electrical circuits.

18. If an outside antenna is connected to the receiver be sure
the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No.
70-1984, provides information with respect to proper grounding
for the mast and supporting structure, grounding of the lead-in
wire to an antenna discharge unit, size of grounding connectors,
location of antenna-discharge unit, connection to grounding
electrodes and requirements for the grounding electrode.

Note to the CATV system installer: This reminder is provided to
call the CATV system installer’s attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to
the grounding system of the building, as close to the point of
cable entry as practical.

PUBLIC VIEWING OF COPYRIGHTED MATERIAL

Public viewing of programs broadcast by TV stations and cable companies, as well as programs from other sources, may req uire

rior authorization from the broadcaster or owner of the video program material.

• This digital television is capable of receiving analog basic, digital basic and digital premium cable television programming by direct connection to a
cable system providing such programming. A Cable CARD provided by your cable operator is required to view encrypted digital programming.
Certain advanced and interactive digital cable services such as video-on-demand, a cable operator’s enhanced program guide and data-enhanced
television services may require the use of a set-top box. For more information call your local cable company.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited consumer uses only
unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

2

SAFETY INSTRUCTIONS

This LCD TV has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are
to obtain the best results and safety is to be assured.
Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions.

About the Symbols

Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and others,
and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and
fully understand the contents.

Typical Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates
that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates
that the power plug should be disconnected from the power outlet).

Never use the LCD Television if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables,
penetration of liquids or foreign matter, etc. can cause a fire or electrical shock.
In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the
smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

Do not insert liquids or foreign objects.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present.
If liquids or foreign objects should enter the projector, immediately turn off the power switch, disconnect the power plug from the power outlet
and contact your dealer.

• Do not place the LCD TV in a bathroom.

• Do not expose the LCD TV to rain or moisture.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the LCD TV.

• Do not place metals, combustibles, etc on or around the LCD TV.

Never disassemble or modify the LCD Television.

The LCD TV contains high voltage components. Modification could result in fire or electrical shock.

• Never remove any fixed cover.

Do not give the LCD Television any shock or impact.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to
incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to
incorrect handling.

Disconnect the

plug from the
power outlet.

Do not

disassemble.

English

If the LCD TV should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.
If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet and contact
your dealer.

Do not place the LCD Television on an unstable surface.

If the LCD TV should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the LCD TV on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

Do not obstruct the ventilation of the LCD Television.

If the ventilation is obstructed during the operation of the TV or just after switching off the power, it could result in damage and shorten the
lifespan of your LCD TV due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the LCD TV and other objects such as walls.

• Do not place anything around ventilation openings of the LCD TV.

• Never block ventilation openings.

• Do not put the LCD screen side up.

• Do not cover the LCD TV with a tablecloth, etc.

• Do not place the LCD TV on a carpet or bedding, or near a curtain.

Use only the correct power outlet.

Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the LCD TV
and the safety standard.

• The enclosed power cord must be used depending on the power outlet to be used.

3

SAFETY INSTRUCTIONS(continued)

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

• Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an
appropriate extension lead or consult your dealer.

• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value, type and
approval as the original. Ensure the fuse cover is returned to its original position.

Be sure to keep safety ground connection.

Connect the ground terminal of AC inlet of this LCD TV with the ground terminal provided at the power outlet using the enclosed power
cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or
tension to the power cord and cables.
If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the LCD TV or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this
could result in the inadvertent placing of heavy objects on the concealed power cord or cables.

• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug
or connector.

• Do not place the cord near the heater.

• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.

• Do not touch the power plug when lightening is close to you.

• Avoid coiling the power cord and bending it sharply.

• Protect the power cord from being walked on, pinched particularly at plugs, conveniences receptacles, and the point where they exit from
the apparatus.

• Do not modify the power cord.

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

• Do not allow the battery to be exposed to fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with metallic tweezers.

• Keep the battery in a dark, cool and dry place.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not physically impact the battery.

• Use only the battery specified in the manual of this TV.

• Make sure the plus and minus terminals are correctly aligned when loading the battery.

• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes,
rinse well with water.

• Obey the local laws on disposing the battery.

Surely connect
the ground wire.

4

SAFETY INSTRUCTIONS(continued)

Be careful in moving the LCD Television.

Neglect could result in an injury or damage.

• Do not move the LCD TV during use. Before moving, disconnect the power plug and all external connections.

• You are advised to move the LCD TV with two persons.

• Avoid any impact or shock to the LCD TV; particularly take care of glass screen.

Do not put anything on top of the LCD Television.

Placing anything on the LCD TV could result in loss of balance or falling, and cause an injury or damage. Use special caution in
households where children are present.

Avoid a humid or dusty place.

Placing the LCD TV in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.

Avoid a high temperature environment.

The heat could have adverse influence on the LCD TV and other parts, and could result in transformation, melting or fire.

• Do not place the LCD TV, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

• Do not put the LCD TV in a place where the temperature is widely changing.

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the LCD TV is not to be used for prolonged periods of time.

• Before cleaning, turn off and unplug the LCD TV. Neglect could result in fire or electrical shock.

• Installation environment

Do not obstruct a ventilation hole.
Do not put the LCD TV on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the LCD TV.
Do not put the LCD TV in the following places.

• Hot places such as near heater, place exposed to the direct rays of the sun.

• A place where the temperature is widely changing.

• Places with soot, dust or high humidity.

• Poor air ventilation place.

• Place near fire.

• A wet place such as bathroom, or shower room.

• Place where you can trip over it.

• Always vibrating or strongly vibrating places.

• Distorted or unstable places.

• How to view the LCD Television.

If you use the LCD TV in too dark a room, your eyes may become tired.
Please use it in a reasonably bright room.
Avoid direct rays of the sun to the screen in order to prevent eye fatigue.
Your eyes will get fatigued after viewing the LCD TV for long period of time.
Relax your eyes by viewing away from the LCD TV from time to time.
Please watch the LCD TV in downward direction.

• Note on image retention

The LCD TV illuminates phosphor to display images. The phosphor has a finite illumination life. After extended periods of illumination, the brightness of
the phosphor will be degraded to such extent that stationary images would burn-in that part of the screen as grayed-out images.
Tips to prevent such image retention are:

- Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns, for long.

- Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to move them using screen saver
function.

- Turn down the contrast and brightness controls.

•Dust the screen and frame with a cleaning cloth from the accessories pack.

• How to clean the LCD screen panel of the LCD Television.

Before cleaning the LCD TV, turn off the LCD TV and disconnect the power plug from the power outlet.
To prevent scratching or damaging the LCD screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth
moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.

• How to clean the cabinet of the LCD Television.

Use a soft cloth to clean the cabinet and control panel of the LCD TV. When excessively soiled dilute a neutral detergent in water, wet and wring out the
soft cloth and afterward wipe with a dry soft cloth.
Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they
would cause discoloration, scratches or cracks.

Disconnect the

plug from the
power outlet.

5

English

SAFETY INSTRUCTIONS(continued)

• Prevention of an obstacle to Radio receivers

This LCD TV has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.

- Keep the LCD TV away from Radio.

- Adjust Radio antennas in order for the LCD TV not to receive interference.

- The antenna cable of Radio should be kept away from the LCD TV.

- Use a coaxial cable for antenna.
You can check if this LCD TV influences Radio receivers by turning off all other equipment other than the LCD TV.
If you find a problem receiving Radio when using the LCD TV, check the instructions mentioned above.

• Precautions for the cable connection

- Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are properly made
and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing connections.

- Confirm the connector is fixed tightly when the signal cable is connected.
Also confirm the screws on the connector are tightened.

- Plug the power cord of the LCD TV into a different socket from that for other equipment, such as Radio etc..

- Use a plug with ground terminal and make sure that it connects to the ground.

• Precaution during transportation

Please pay attention when you transport this LCD TV because it is heavy.
Furthermore, use the original carton box and its packaging materials when the LCD TV is transported.
Failure to transport the LCD TV in any carton except the original carton may result in damage to the LCD TV.
Save the original carton box and all packing material.

Do not physically impact the remote control.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place heavy objects on the remote control.

Avoid strong rays.

Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause distorted images or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the LCD TV.

Set the sound volume at a suitable level.

It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

• Precautions for the installation

- Do not use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand or legs
with the fixings provided according to the instructions.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

- This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top,

of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.

- Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

- Only use the attachments/accessories specified by the manufacturer.

- Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

• Other precautions

- Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by

mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people.

- Disposal of this product may require specific instructions pertaining to your resident region.

- Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

6

ACCESSORIES

Check to make sure you have the following accessories before disposing of the packing material.

REMOTE
CONTROL

CAUTION: Ceiling mounting is not recommended. Mounting the panel on the ceiling does not provide adequate

ventilation for the electronics or proper support for the front glass panel. This LCD televisi on
product is designed for a maximum tilting angle of 45 degrees from vertical.

POWER CORD

USER’S GUIDE

1.

D-SUB MINI
15-PIN CABLE

2.

EASY GRAPHIC
GUIDE

7.

AUDIO/VIDEO
CABLE

3.

WARRANTY
CARD

8.

S-VIDEO CABLE

4.

CLEANING
CLOTH

9.

5.

10.

1. Remote Control Unit

2. Power Cord

3. D-SUB Mini 15-Pin Cable

4. Audio/Video Cable

5. S-Video Cables

6. Two “AAA” size, 1.5V batteries

7. User’s Guide

8. Easy Graphic Guide

9. Warranty Card

10.Cleaning Cloth

11.Cable Tie

BATTERIES

English

6.

CABLE TIE

11.

REMOTE CONTROL BATTERY INSTALLATION AND REPLACEMENT

1. Open the battery cover of the remote control by pressing the notched part of

the cover with your fingers and pulling the cover off.

2. Insert two new “AAA” size batteries for the remote control. When replacing old

batteries, push them towards the springs and lift them out.

3. Match the batteries to the (+) and (-) marks in the battery compartment.

4. Replace the cover.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace with the same or equivalent type.

7

HOW TO SETUP YOUR NEW HITACHI LCD TELEVISION

To take measures to prevent the LCD Television from tipping over and prevent possible injury it is important to mount the unit
in a stable place.

*Keep the LCD Television four inches away from the wall except those hung to the wall mount bracket.

NOTES: 1. Do not block the ventilation holes of the LCD Television. Blocking the ventilation holes might cause fire or defect.

2. If you purchased the wall mount bracket option, please ask for professional installer. Do not install by yourself.

Caution when moving the main unit

As this product is heavy, whenever it is moved, two people are required to transport it safely. Whenever the unit is moved it should be
lifted forward using the top and base on both sides for stability. When moving the LCD T elevision, lift the top and the bottom frame as
shown below.

ANTENNA

Unless your LCD Television is connected to a cable TV system or to a centralized antenna system, a good outdoor color TV antenna
is recommended for best performance. However, if you are located in an exceptionally good signal area that is free from interference
and multiple image ghosts, an indoor antenna may be sufficient.

LOCATION

Select an area where sunlight or bright indoor illumination will not fall dir ectl y on the picture screen. Also, be sure that the location
selected allows a free flow of air to and from the perforated back cover of the set.
To avoid cabinet warping, cabinet color changes, and increased chance of set failure, do not place the TV where temperatures can
become excessively hot, for example, in direct sunlight or near a heating appliance, etc.

8

HOW TO SETUP YOUR NEW HITACHI LCD TELEVISION

VIEWING

The major benefit of the HITACHI LCD Television is its large viewing screen. To see this large screen at its best, test various locations in
the room to find the optimum spot for viewing. The best picture is seen by sitting directly in front of the TV and about 5 to 11 feet from the
screen.
During daylight hours, reflections from outside light may appear on the screen. If so, drapes or screens can be used to reduce the
reflection or the TV can be located in a different section of the room.
If the TV’s audio output will be connected to a Hi-Fi system’s external speakers, the best audio performance will be obtained by placing
the speakers equidistant from each side of the receiver cabinet and as close as possible to the height of the picture screen center. For
best stereo separation, place the external speakers at least four feet from the side of the TV, place the surround speakers to the side or
behind the viewing area. Differences in room sizes and acoustical environments will require some experimentation with speaker
placement for best performance.

IMPORTANT NOTES

No. Items Notes
1 Arching sound from LCD

television panel.

2 Interference for infrared

equipment.

3 Bright and dark spots

4 Picture Image (Spectrum) When receiving still picture signals, (e.g. channel number indication or clock indication) for a while, you can see

5 LCD Surface The LCD display panel is made from glass. Heavy shock on the front panel might damage it.

6 Transportation When the LCD television is transported horizontally, the glass panel has the possibility of being broken or

7 Image retention The LCD TV illuminates phosphor to display images. The phosphor has a finite illumination life. After extended

8 Granular spots When a screen is seen at point-blank range, a random fine grain may be visible to a dark part.
9 Disturbance to video apparatus If an apparatus (VCR, etc.) antenna line is arranged near the LCD TV, the image may shake, or disturbance may

10 Lip Sync There is some time lag between the picture and the sound. You can see lip motion that is
11 About the use environment of

television (temperature)

LCD

12 Caution on prolonged storage Storing the LCD television for a period of more than 2 to 3 months without use might cause an unstable picture
13 Operating Operating altitude: 800 to 1,114hPa (6,194ft to -2,484ft). Operating temperature: 41°F to 95°F.

14 Storage Storage Altitude: 300 to 1,114hPa (31,912ft to -2,484ft). Storage temperature: 5°F to 140°F.
15 Power ON or OFF Frequent use of the Power ON or OFF might trigger the power protection circuit. If the TV

A buzzing sound might be heard when the LCD television is turned on in a very quiet room. This is due to the LCD
display panel drive circuit when it is functioning. This arching sound is normal and it is not a malfunction.
Some infrared rays are emitted from the LCD television’s panel that might affect other infrared controlling
equipment.
High-precision technology is used to manufacture the LCD display panel; But in some cases, there are minor
defects in some parts of the screen. Points that do not light, points with brightness different from that of the
periphery, points with color different from that of the periphery, etc. Some pixels will always be on or always off.
Please note that this is not a malfunction.

image-like when the picture varied. This is not a defect.

Do not press the panel surface hardly, this would cause “Mura” effect on the screen.

increasing the picture defects. At the time of transportation, horizontal style is prohibited. More-over, please treat
the LCD panel with great care because of a precision apparatus. Please instruct transporters so that it should be
put into the packing box at the time of shipment. (There is a possibility that breakage of the panel or defects will
increase.) Rough transportation might cause damage to the panel and pixel failure.

periods of illumination, the brightness of the phosphor will be degraded to such extent that stationary images
would burn-in that part of the screen as grayed-out images.
Tips to prevent such image retention are:

- Do not display images having sharp brightness differences or hi-contrast images, such as monochrome
characters and graphic patterns, for long.

- Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time, or try to
move them using screen saver function.

- Turn down the contrast and brightness controls.

be received.

delayed compared to the sound.
Electric discharge/luminescence characteristic of the LCD display panel also changes with peripheral temperature.
Moreover, since there is also high power consumption value, a specified

when the set is turned on.

does not turn ON, please wait a little before turning ON again.

temperature environment is required.

English

9

HOOKUP CABLES

Most video/audio connections between components can be made with shielded video and audio cables that have phono connectors.
For best performance, video cables should use 75-Ohm coaxial shielded wire. Cables can be purchased from most stores that sell
audio/video products. Below are illustrations and names of common connectors. Before purchasing any cables, be sure of the output
and input connector types required by the various components and the length of each cable.

300-Ohm Twin Lead Connector
This outdoor antenna cable must be connected to an antenna
adapter (300-Ohm to 75-Ohm).

Phono Connector (Provided)
Used on all standard video and audio cables which connect to
inputs and outputs located on the rear jack panel.

Stereo Cable
This cable is used to connect from external audio out to the audio
input of the LCD TV (ex. ANALOG RGB/DVI Audio Input).

“F” Type 75-Ohm Coaxial Antenna Connector
For connecting RF signals (antenna or cable TV) to the antenna
jack on the television.

S-Video (Super Video) Connector (Provided)
This connector is used on camcorders, VCRs and laserdisc
players with an S-Video feature in place of the standard video
cable to produce a high quality picture.

DVI Cable
DVI stands for Digital Visual Interface. Used for high
quality digital video from a set-top-box.

D-SUB MINI 15-Pin Cable (Provided)
This cable is used to connect a computer output to the D-SUB
input located on the rear panel of the LCD TV. The resolution
should be set correctly to display the signal on the LCD TV.

Subwoofer Cable
This cable is used to connect an external audio component input
to the subwoofer output of the LCD TV.

10

ANTENNA CONNECTIONS TO REAR PANEL JACKS

This unit has the ability to receive and display unscrambled Cable Digital Channels

VHF (75-Ω) antenna/CATV (Cable TV)

When using a 75-Ω coaxial cable system, connect the outdoor ante nna or CATV coaxial cable to the NTSC TUNER terminal
(75-Ω)and/or DTV TUNER terminal (75-Ω).

English

11

FRONT PANEL CONTROLS

FRONT VIEW

32”/37” LCD TV

① POWER light indicator

To turn the LCD TV ON, press the main power button located on the bottom left side of the TV. A red stand-by indicator lamp
located on the lower right corner of the front bezel will illuminate. The LCD TV is now ready for remote on/off operation.

Indicating Lamp Power Status Operating
Off Off When the MAIN POWER is set OFF.
Lights Red Off (Stand-by) When the MAIN POWER is set ON and the Front Key or

Remote Control POWER is Off.

Lights Orange Off (Power Saving) 1. When the MAIN POWER is set ON.

2. No signal

Lights Green On When the POWER is ON.

② REMOTE CONTROL sensor

Point your remote control at this area when selecting channels, adjusting volume ,etc.

input (Analog RGB only).

12

SIDE PANEL CONTROLS

SIDE VIEW

32”/37” LCD TV

POWER button

③

This power button is for power on the LCD television or change to standby mode.

④ CHANNEL selector

Press these buttons until the desired channel appears in the top left corner of the TV screen. These buttons also serve as the
cursor down (▼) and up (▲) buttons when in MENU mode.

⑤ VOLUME level

Press these buttons to adjust the sound level. The volume level will be displayed on the TV screen. These buttons also serve as the
cursor left (W) and right (X) buttons when in MENU mode.

⑥ INPUT/EXIT button

Press this button to select the desired input: NTSC, DTV,VIDEO1~4, Analog RGB or DVI source.
This button also serves as the EXIT button when in MENU mode.

③
④

⑤

⑥
⑦

⑦ MENU/SELECT button

This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This
button also serves as the SELECT button when in MENU mode.

English

13

REAR PANEL MAIN POWER SWITCH & AC INPUT

32”/37” LCD TV

AC IN input

①

This TV is designed to operate on 120VOLTS 60Hz AC current. Insert the TV power cord into a 120VOLTS 60Hz outlet.

①-1 Main power button:

This power button is for the complete system, and must be turned ON/OFF manually. It is recommended to leave the “MAIN

POWER” to ”ON” condition (lights red) for stand-by mode.

Note : It is required that there should be at least 5sec. between Main Power button off then on.

14

SIDE PANEL JACKS

32”/37” LCD TV

English

② Head Phone

Speakers is muted when insert it .To control volume: press volume button +, -.

S-VIDEO ( VIDEO 4)

③

Provide S-VIDEO (Super Video) jacks for connecting equipment with S-VIDEO output capability

④ VIDEO (VIDEO 4)

By using the VIDEO button of the remote control, you can select VIDEO 4.Use the video inputs to
connect external devices, such as camcorders.

⑤ L / MONO / R (VIDEO 4)

Connect audio of external devices.(if you have mono sound, insert the audio cable into the left (L) audio jack).

15
