32" LCD Television

户手册

Model

32LD380TA

32LD380T

USER'S MANUAL

用

Έ˾˿

кмдйЗйСлнЗй ийгъбйЗДнЦгь

取扱説明書

3V90441A [E] COVER 31/10/05, 9:23 AM1

HITACHI

32LD380T

NOTE:

The information in this manual is subject to change without notice. The manufacturer assumes no responsibility for any errors that may appear in this manual. TRADEMARK ACKNOWLEDGEMENT VGA and XGA are registered trademarks of International Business Machines Corporation. VESA is a trademark of a nonprofit organization, Video Electronics Standard Association. All brand or product names are trademarks or registered trademarks of their respective holders.

ጀ :

Ԩ๮֩ڦాඹሞ࿄ঢ়༵๖ڦ൧઄ူࣷᆶ߀ۯă዆ሰฆණྺܔీ၄ᇀԨ๮֩ዐڦٱဃփ׶څሴඪă ฆՔණ WHB!ࢅ!YHB!๟JCNࠅິڦጀ֩ฆՔă

WFTB!๟ݥᆐ૧ፇኯǉ๫ೕۉጱՔጚၹࣷڦฆՔă ໯ᆶ೗ಈׂ೗ఁ׬๟ഄ၎ᆌ׼ᆶኁڦฆՔጀ֩ฆՔă

ඃñ

ʹ˾ڄ˖ࣅϚ͵໩ಏΕڄશٜʓ๡ЉӢé჌௪ე޴࿬঻୏ؠʹ˾ˀڄᎤთʿ؀ዯ௕έé ᆤე <-' ֜ >-' ݵ/(3˙ڄංᆤé

<+9' ݵۍᐯѦஇᔶŔඁᏁྐʪᆤຊփ๡ڄᆤé ׿Љ܇೻׻୕܇ϏၳݵմߟᏻݠЉږڄᆤ׻ංᆤé

ЗзаеДзаЦ:

иВ‰УТЪ‡‚ОВММ‡ﬂ ‚ ‰‡ММУП ЫНУ‚У‰ТЪ‚В ЛМЩУП‡ˆЛﬂ ПУКВЪ ·˚Ъ¸ ЛБПВМВМ‡ ·ВБ ФВ‰‚‡ЛЪВО¸МУ„У Ы‚В‰УПОВМЛﬂ. иУЛБ‚У‰ЛЪВО¸ МВ МВТВЪ МЛН‡НУИ УЪ‚ВЪТЪ‚ВММУТЪЛ Б‡ Н‡НЛВ ·˚ ЪУ МЛ ·˚ОУ У¯Л·НЛ, НУЪУ˚В ПУ„ЫЪ ‚ТЪВЪЛЪ¸Тﬂ ‚ ‰‡ММУП ЫНУ‚У‰ТЪ‚В. ийСнЗЦкЬСЦзаЦ икДЗ зД нйкЙйЗхЦ еДкда VGA Л XGA ﬂ‚Оﬂ˛ЪТﬂ Б‡В„ЛТЪЛУ‚‡ММ˚ПЛ ЪУ„У‚˚ПЛ П‡Н‡ПЛ International Business Machines Corporation. VESA ﬂ‚ОﬂВЪТﬂ ЪУ„У‚УИ П‡НУИ МВНУППВ˜ВТНУИ У„‡МЛБ‡ˆЛЛ Video Electronics Standard Association. ЗТВ М‡Б‚‡МЛﬂ ФУ‰ЫНЪУ‚ Л П‡УН ﬂ‚Оﬂ˛ЪТﬂ ЪУ„У‚˚ПЛ П‡Н‡ПЛ ЛОЛ Б‡В„ЛТЪЛУ‚‡ММ˚ПЛ ЪУ„У‚˚ПЛ П‡Н‡ПЛ, ФЛМ‡‰ОВК‡˘ЛПЛ ЛБ Б‡НУММ˚П У·О‡‰‡ЪВОﬂП.

3V90441A [E] COVER 31/10/05, 9:23 AM2

HITACHI

32LD380T

USER'S MANUAL

ENGLISH

Thank you very much for purchasing the HITACHI LCD Television. Before using your television, please carefully read the "SAFETY INSTRUCTIONS" and this "USER'S MANUAL" so you will know how to operate the television properly. Keep this manual in a safe place. You will find it useful in the future.

Notes on lnstallation Work:

This product is marketed assuming that it is installed by qualified personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. HITACHI cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.

3V90441A [E] P01-07 31/10/05, 9:20 AM1

HITACHI

FEATURESFEATURES

32LD380T

Important

Please read this User's Manual thoroughly, especially the Safety Instructions on Page 4 to 7. Mis-use may cause damage to your LCD television, which could shorten its lifespan, or cause injury to yourself. Should you encounter any difficulty in the set-up or operation of your television, firstly refer to the Troubleshooting guide at the rear of this manual. In the unlikely event of a problem occurring with your LCD television, switch off at the mains sockets, pull out the plugs, and contact your dealer immediately.

CAUTION

Under no circumstances remove the rear cover of your LCD television. Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

Software Notice

It is prohibited for the end user of this product to copy, reverse engineer or reverse compile the software included therein, save to the extent permitted by law.

LCD Television

After the LCD television has been on for any length of time, you will notice that the screen becomes warm. Please note that this is normal. Sometimes the screen might have some tiny bright or dark spots. Please note that this is normal.

Large-screen, high-definition LCD display panel

The 32-inch color LCD display panel, with a resolution of 1366(H) x 768(V) pixels, creates a high-definition, large-screen (aspect ratio : 16:9) and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power lines, the panel produces highquality display images free from color misconvergence and display distortion.

Easy-to-use remote control and on screen display system

The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easyto-view fashion.

Connecting to an Audio Visual Device

• Three composite/S terminals*1, three composite terminals HDMI terminal have been added. A composite video output terminal is also provided as a monitoring output.

• A wide range of devices can also be connected

, two component terminals*2 and a

A composite/S terminal = A side input

If two composite terminal and two component terminal are used at the same time, the component terminal would govern.

besides personal computers.

CAUTION

To prevent scratches or damages to the LCD screen, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. A mild soap may be used if the screen is extremely dirty. Do not use harsh or abrasive cleaners!

CAUTION

Use a soft cloth to clean the cabinet and control panel of the television. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.

3V90441A [E] P01-07 31/10/05, 9:20 AM2

HITACHI

32LD380T

CONTENTS

FEATURES .......................................................... 2

SAFETY INSTRUCTIONS ................................... 4

ABOUT LCD PANEL ............................................ 8

Location of controls .............................................. 9

Remote Control .................................................. 10

Antenna connection ........................................... 12

Connections to other equipment ........................ 13

Quick guide for MENU-operation ....................... 18

Selecting the video input source ........................ 18

On-screen Language Selection ......................... 19

Teletext Language Selection ............................. 19

Automatic station presetting with

the built-in Tuner ................................................ 20

Change the order of stored channel .................. 21

Manual TV station presetting ............................. 22

Basic Operation.................................................. 23

Timer functions................................................... 24

Stereo reception with the built-in tuner .............. 25

Bass, Treble and Balance .................................. 27

Perfect volume ................................................... 27

Turning off the built-in speakers ......................... 28

Using the WOW™ surround sound feature ....... 28

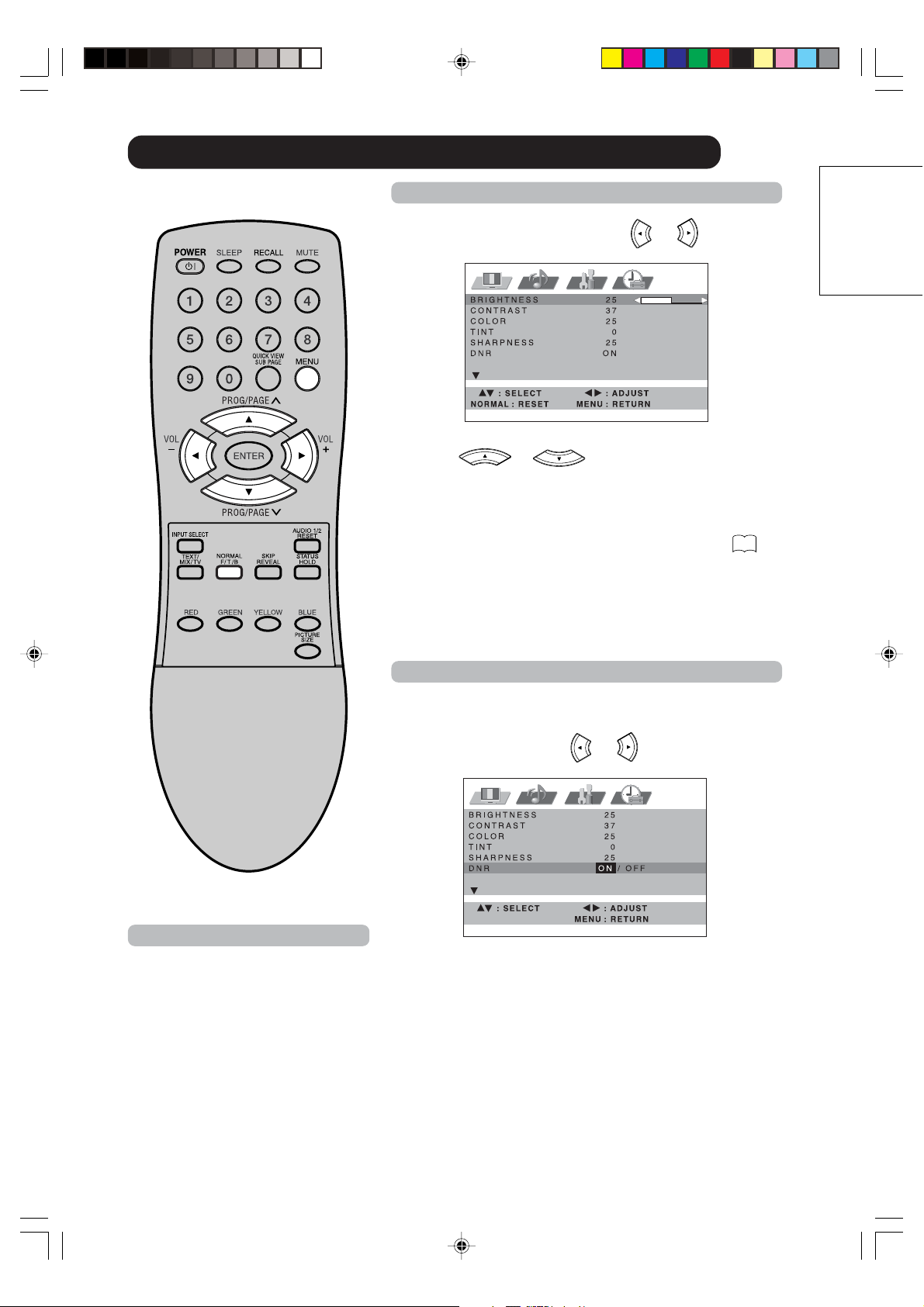

Brightness, Contrast, Color and Sharpness ....... 29

DNR ................................................................... 29

Selecting the color temperature ......................... 30

Film mode .......................................................... 30

Picture format ..................................................... 31

Scrolling the PANORAMIC-Wide picture ........... 32

Back light............................................................ 33

Using the panel lock feature .............................. 34

PC-Setting .......................................................... 35

Selecting the HDMI audio input source .............. 36

Teletext .............................................................. 37

Conceal stored channels ................................... 39

Color system adjusting ....................................... 40

Troubleshooting table......................................... 41

Specifications ..................................................... 41

ENGLISH

Notes about This Manual

• The information in this manual is subject to change without notice.

• While meticulous care has been taken in the preparation of this manual, you are requested to notify your dealer or us should you have any comments, views or questions about our product.

• Fully understand the prerequisites to using the product, such as hardware and software specifications and constraints, in using the product. We are not held liable for damages caused by improper handling of the product.

• Reproduction of this manual in whole or in part without our prior written permission is prohibited.

• The product names mentioned in this manual may be trademarks or registered trademarks of their respective owners.

3V90441A [E] P01-07 31/10/05, 9:20 AM3

HITACHI

32LD380T

SAFETY INSTRUCTIONS

This LCD television has been designed and manufactured to meet international safety standards, but like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Before using this product, please read and understand the Safety Instructions thoroughly to ensure correct usage, and follow all the instructions.

About the Symbols

Various symbols are used in this manual, the user’s manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents.

WARNING

CAUTION

Typical Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that the power plug should be disconnected from the power outlet).

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling.

WARNING

Never use the television if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing, elements, cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

Do not insert liquids or foreign objects.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present. If liquids or foreign objects should enter the television, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

• Do not place the television in a bathroom.

• Do not expose the television to rain or moisture.

• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the televi-

sion.

• Do not place metals, combustibles, etc on or around the television.

Never disassemble or modify the television.

The television contains high voltage components. Modification could result in fire or electrical shock.

• Never remove any fixed cover.

Do not give the television any shock or impact.

If the television should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock. If the glass panel is broken or damaged, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

Do not place the television on an unstable surface.

If the television should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the television on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

Do not obstruct the ventilation of the television.

If the ventilation is obstructed during the operation of the television or just after switching off the power, it could result in damage and shorten the lifespan of your television due to overheating. Make sure there is ample ventilation.

• Keep a space of 100mm (10cm) or more between the sides, rear and top of the television and other

objects such as walls.

• Do not place anything around ventilation openings of the television.

• Never block ventilation openings.

• Do not put the LCD screen side up.

• Do not cover the television with a tablecloth, etc.

• Do not place the television on a carpet or bedding, or near a curtain.

Use only the correct power outlet.

Incorrect power supply could result in fire or electrical shock. Use only the correct power outlet depending on the indication on the television and the safety standard.

• The enclosed power cord must be used depending on the power outlet to be used.

Disconnect the

plug from the power outlet.

Do not

disassemble.

3V90441A [E] P01-07 31/10/05, 9:20 AM4

HITACHI

32LD380T

SAFETY INSTRUCTIONS (continued)

About the Symbols (continued)

WARNING

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.

• Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

• Do not cut off the fitted power plug, the removal of which could lead to impaired performance. If you wish to extend the lead, obtain an appropriate extension lead or consult your dealer.

• Should you require replacing the fuse in the molded plug with a new fuse, then please replace with new one of the same value, type and approval as the original. Ensure the fuse cover is returned to its original position.

Be sure to keep safety ground connection.

• Connect the ground terminal of AC inlet of this television with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

• The socket-outlet must be installed near the television and easily accessible.

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables. If the power cord or cables are damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the television or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.

• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.

• Do not place the cord near the heater.

• Do not touch the power plug just after disconnecting it from the power outlet to prevent electric shock.

• Do not touch the power plug when lightening is close to you.

• Avoid coiling the power cord and bending it sharply.

• Protect the power cord from being walked on, pinched particularly at plugs conveniences receptacles, and the point where they exit from the apparatus.

• Do not modify the power cord.

Surely connect

the ground wire.

ENGLISH

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.

• Do not allow the battery to be exposed to fire or water.

• Avoid fire or high-temperature environment.

• Do not hold the battery with metallic tweezers.

• Keep the battery in a dark, cool and dry place.

• Do not short circuit the battery.

• Do not recharge, disassemble or solder the battery.

• Do not physically impact the battery.

• Use only the battery specified in the manual of this television.

• Make sure the plus and minus terminals are correctly aligned when loading the battery.

• If you observe a leakage of the battery, wipe out the liquid and then replace the battery. If the liquid adheres your body or clothes, rinse well with water.

• Obey the local laws on disposing the battery.

3V90441A [E] P01-07 31/10/05, 9:21 AM5

HITACHI

32LD380T

SAFETY INSTRUCTIONS (continued)

CAUTION

Be careful in moving the television.

Neglect could result in an injury or damage.

• Do not move the television during use. Before moving, disconnect the power plug and all external connections.

• You are advised to move the television with two persons.

• Avoid any impact or shock to the television; particularly take care of glass screen.

Do not put anything on top of the television.

Placing anything on the television could result in loss of balance or falling, and cause an injury or damage. Use special caution households where children are present.

Avoid a humid or dusty place.

Placing the television in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place near the kitchen, a humidifier or other place where there is oil, smoke or humidity.

Avoid a high temperature environment.

The heat could have adverse influence on the television and other parts, and could result in transformation, melting or fire.

• Do not place the television, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

• Do not put the television in a place where the temperature is widely changing.

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the television is not to be used for prolonged periods of time.

• Before cleaning, turn off and unplug the television. Neglect could result in fire or electrical shock.

PRECAUTIONS

Installation environment

Do not obstruct a ventilation hole. Do not put the television on carpet or blanket, or near a curtain which has a possibility of obstructing a ventilation hole of the television. Do not put the television in the following places.

• Hot places such as near heater, place exposed to the direct rays of the sun.

• A place where the temperature is widely changing.

• Places with soot, dust or high humidity.

• Poor air ventilation place.

• Place near fire.

• A wet place such as bathroom, or shower room.

• Place where you can trip over it.

• Always vibrating or strongly vibrating places.

• Distorted or unstable places.

How to view the television

If you use the television in too dark a room, your eyes may become tired. Please use it in a reasonably bright room. Avoid direct rays of the sun to the screen in order to prevent eye fatigue. Your eyes will get fatigued after viewing the television for long period of time. Relax your eyes by viewing away from the television from time to time. Please watch the television in downward direction.

Avoid a image retention

• Do not display images having sharp brightness differences or high-contrast images, such as monochrome characters and graphic patterns, for long.

• Do not leave stationary images appearing for long, but try to refresh them at appropriate intervals of time.

• Turn down the contrast and brightness controls.

How to clean the LCD screen panel of the television

Before cleaning the television, turn off the television and disconnect the power plug from the power outlet. To prevent scratching or damaging the LCD screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.

How to clean the cabinet of the television

Disconnect the

plug from the power outlet.

Disconnect the

plug from the power outlet.

3V90441A [E] P01-07 31/10/05, 9:21 AM6

HITACHI

32LD380T

SAFETY INSTRUCTIONS (continued)

Prevention of an obstacle to Radio receivers

This television has been designed pursuant to the international EMI standards. This is to prevent a problem to Radio receivers.

• Keep the television away from Radio.

• Adjust Radio antennas in order for the television not to receive interference.

• The antenna cable of Radio should be kept away from the television.

• Use a coaxial cable for antenna. You can check if this television influences Radio receivers by turning off all other equipment other than the television. If you find a problem receiving Radio when using the television, check the instructions mentioned above.

Precautions for the cable connection

• Do ensure that all connections, (including the power plug, extension leads and interconnections between the pieces of equipment), are properly made and in accordance with the manufacturers instructions. Switch off and withdraw the power plug before making or changing connections.

• Confirm the connector is fixed tightly when the signal cable is connected. Also confirm the screws on the connector are tightened.

• Plug the power cord of the television into a different socket from that for other equipment, such as Radio etc.

• Use a plug with ground terminal and make sure that it connects to the ground.

Precaution during transportation

Please pay attention when you transport this television because it is heavy. Furthermore, use the original carton box and its packaging materials when the television is transported. Failure to transport the television in any carton except the original carton may result in damage to the television. Save the original carton box and all packing material.

ENGLISH

Do not physically impact the remote control.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.

• Do not place heavy objects on the remote control.

Avoid strong rays.

Any strong rays (such as direct sun rays or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause distorted images or noises.

• Avoid radio generator such as a mobile telephone, transceiver, etc. around the television.

Set the sound volume at a suitable level.

It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

Precautions for the installation

• Do not use makeshift stands and NEVER fix legs with wood screws - to ensure complete safety, always fit the manufacturers approved stand or legs with the fixings provided according to the instructions.

• Use only with the cart, stand, tripod, bracket, or table specified by the dealer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• This product is designed to comply with the recommended safety standards for tilt and stability. Do not apply excessive pulling force to the front, or top, of the cabinet that could cause the product to overturn resulting in product damage and/or personal injury.

• Follow instructions for wall, shelf or ceiling mounting as recommended by the manufacturer.

• Only use the attachments/accessories specified by the manufacturer.

• Consult your dealer if you are in any doubt about installation, operation or safety of your equipment.

Other precautions

• Do not leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a stand-by mode. Switch off using the switch on the equipment and show your family how to do this. Make special arrangements for infirm or handicapped people.

• Disposal of this product may require specific instructions pertaining to your resident region.

• Never guess or take any chances with electrical equipment of any kind - it is better to be safe than sorry!

3V90441A [E] P01-07 31/10/05, 9:21 AM7

HITACHI

32LD380T

ABOUT LCD PANEL

Common phenomena of LCD Panel

The following are the common phenomena when operating LCD Panel due to its structural reason. Please note that they are not malfunctions.

•Defective Spots on Panel

The LCD panel is manufactured with high-precision technology. However, there might be some spots that are not emitted, brighter than the others, or in different colors, etc.

•Surface on Panel

The LCD panel displays images by blinking the fluorescent lamps internally. This could raise the temperature of the display surface. In addition, do not impact strongly on the surface of the panel because LCD panel is made with fine processing glass.

•Residual image

When a still image or menu is displayed on the screen for a short time (about a minute)and then switches to another image, it may leave an “after-image” on the screen. The residual image will disappear on its own.

•The Usage under the Low Temperature Environment

Because of the structural characteristics of the LCD panel, the response speed of the LCD panel becomes slower when the ambient temperature around the monitor becomes too low. In some cases, it may cause the residual image. The residual image will disappear on its own as the temperature goes up and back to normal.

3V90441A [E] P08 31/10/05, 9:21 AM8

HITACHI

Location of controls

32LD380T

Left Side

Top

ENGLISH

Right Side

Approx. 2˚

Approx. 6˚

Front Side

6 7

You can adjust the angle of the TV-screen for 2˚ forward or for 6˚ backward from vertical angle.

Description of Indicators and Controls

1. (SUB-POWER) button: To turn the unit standby mode on and off.

2. INPUT-button: Select input mode for TV/AV/COMPONENT/HDMI/PC.

3. MENU-button: To display the menu-screen.

4. VOLUME

5. PROGRAM ▲/▼ buttons: Press ▲ to change to a higher numbered channel set into memory. Press

▼ to change to a lower numbered channel set into memory. In Menu : Setting. In Standby : Turning on the unit.

6. HEADPHONES jack: Plug headphones with a mini plug (3.5 mm) into this jack.

7. AV3-Input: Input for analogue A/V-Signal (Composite). If your equipment has an S-video connector,

use an S-video cable instead of a standard yellow video cable (You still must connect the standard red and white audio cables for full system connection, but do not connect a standard yellow video cable at the same time or the picture performance will be unacceptable.)

8. Main Power Switch: To turn the unit on or off completely.

9. Loudspeakers

10. Remote sensor

11. STANDBY/ON mode indicator: It lights up in red at STANDBY, and in green at POWER ON.

▲/▼ buttons : To adjust the volume. In Menu : Setting.

3V90441A [E] P09-12 31/10/05, 9:21 AM9

HITACHI

Remote Control

32LD380T

Function Page

Turn the unit on or off

Sleep-Timer

Display program position number

Turn the sound on/off

Select channel Select Teletext page

Switches between the present channel and the last selected channel Sub Page selection

Call Menu

Select TV-channel or

Teletext

page step by step In Menu: Setting In Standby: Turning on the unit

Volume In Menu: Setting

Memorize

Select input source

Two Channel-Sound AUDIO 1/2 selector Teletext page 100

37 39

Teletext ON/ Mix/ OFF

Reset Sound/Picture Teletext enlargement

Program position-skipping Answer a Quiz

Teletext-Timer display Hold the text page

Fastext/TOPtext buttons

Select picture format

3V90441A [E] P09-12 31/10/05, 9:21 AM10

HITACHI

32LD380T

Remote Control

Install the batteries

Use batteries type UM-4 (AAA-Size). Do not use the storage batteries. The remote control does not work properly with weak voltage from the storage batteries. Replace the exhausted batteries with new batteries. Never charge batteries. Batteries may explode by the charge.

Note:

An exhausted empty batteries may leak, namely corrosive electrolyte will leak out. The remote control may damage by it. Therefore remove the exhausted batteries early.

ENGLISH

Open the battery compart-

ment.

Install the batteries as shown

below.

Distance of Remote Control Operation

Point the remote control

directly at the remote sensor.

30 30

The remote control handset will not work properly in the following cases:

Close the battery

compartment.

Remote sensor

Maximum distance approx. 5m

Transmitter window

If bright sunlight directly beams onto the unit front. If an obstacle is placed between the unit and the

handset.

If the batteries have not been installed according to their polarities.

3V90441A [E] P09-12 31/10/05, 9:21 AM11

HITACHI

If the batteries are weak.

32LD380T

Antenna connection

Note: Before you connect something:

• To avoid every possible damage, turn off the TV-unit with Main Power Switch and then pull the power plug out.

• Arrange the desired connection.

• When the connection made up firmly and correctly, connect the unit to AC100-240V, 50/60Hz and turn the unit on.

• For safety, install an external aerial conforming to AS1417.1 (applicable for Australia only).

Connect the antenna as shown below. Connect the unit with an outdoor antenna (A) or a cable-net (B). In case of reception disturbance, consult with a specialist of antenna.

(I)

(A)

(D)(B) (C) (G)(F)

(A) Outdoor antenna: If the outdoor antenna already exists, you can also connect to it for analog TV-

program.

(B) Antenna connection: The built-in Hyperband CATV tuner can receive all analog cable television

programs.

Subwoofer, and adjust the audio level using the TV’s remote control. To control the audio, turn off the TV's built-in speakers Signal from Video output jack are composite video signals.

(D) AV1/AV2 input: To the connection of audio and composite video/S-video cables. (E) COMPONENT-1/2 input: To the connection of audio and component cables. (F) PC Monitor input (PC): (G) HDMI input: (H) Power supply: Connect the supplied power cable. Connect to AC100-240V, 50/60Hz.

Never repair a damaged AC power cord with isolation-tape. Have a specialist exchange with a new AC power cord. Do not let your pet loose near the cable. To bite isolation is danger of life. Above all, a rat, a parakeet, a hamster, a rabbit and other toothed animals can bite the cable.

(I) Bracket holes: Fix a wall mounting bracket (not supplied) here.

16 36

16 35

(E) (H)

3V90441A [E] P09-12 31/10/05, 9:21 AM12

HITACHI

32LD380T

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to the LCD television is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs.

The connection diagrams below are offered as suggestions. You may need to modify them to accommodate your particular assortment of components. The diagrams are intended to show component video and audio interconnections only.

Note: Select a appropriate external input mode

To connect the LCD television to a VCR

Rear lower of the LCD television

To AV IN 1 (or 2)

Audio/Video cord (not supplied)

To Audio/Video OUT

To connect the LCD television to a VCR with an S-Video cord

If you connect a VCR with a S-VIDEO cord to the S-VIDEO IN jack on the rear of the must also connect cord only carries the video signal. The audio signal is separate.

the audio cords to the AUDIO IN jacks on the rear of the LCD television. The S-VIDEO

LCD television

, you

ENGLISH

Rear lower of the LCD television

To AUDIO IN 1 (or 2)

NOTE:

When the S-video cord and the video cord are connected to each jack at the same time, the S-video cord takes precedence over the video cord.

To S-VIDEO IN 1 (or 2)

To S-Video OUT

S-Video cord (not supplied)

Audio cord (not supplied)

To Audio OUT

3V90441A [E] P13-17 31/10/05, 9:21 AM13

HITACHI

32LD380T

Connections to other equipment

To connect the LCD television to a DVD player/Satellite receiver

If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown.

Rear lower of the LCD television

To AUDIO IN 1 (or 2)

To S-VIDEO IN 1 (or 2)

To S-Video OUT

S-Video cord (not supplied)

Audio cord (not supplied)

To Audio OUT

To connect the LCD television to a DVD player with component video

If your DVD player has component video out jacks, connect your LCD television to a DVD player using a component video cord. It can greatly enhance picture quality and performance.

Rear lower of the LCD television

To COMPONENT-1

(or 2)

To Audio OUT

Audio cord (not supplied)

NOTE:

Component Video input of this unit are for use of device which output interlaced signals (PAL: 576i/1080i or NTSC: 480i/1080i) and progressive signals (PAL: 576p/720p or NTSC: 480p/720p).

3V90441A [E] P13-17 31/10/05, 9:21 AM14

Video cord (not supplied)

To Component OUT

HITACHI

32LD380T

Connections to other equipment

To connect the LCD television to a DTV receiver/set-top box

If you connect a DTV receiver/set-top box, connect your LCD television to a DTV receiver/set-top box using a component video cord.

Rear lower of the LCD television

To COMPONENT-1

(or 2)

To Audio OUT

Audio cord (not supplied)

Video cord (not supplied)

To Component OUT

ENGLISH

Connecting an audio system or Subwoofer

This connection allows you to use an audio amplifier and external speakers or Subwoofer, and adjust the audio level using the LCD television’s remote control. To control the audio, turn off the LCD television’s built-in speakers (see “Turning off the built-in speakers” on

Subwoofer

Rear lower of the LCD television

AUDIO (L) OUTPUT

AUDIO (R) OUTPUT

Audio cord (not supplied)

Subwoofer cord (not supplied)

Amplifier

To Audio (L) Input

To Audio (R) Input

Note:

To hear sound when using an external audio amplifier or Subwoofer, the volume of both the LCD television and the amplifier/Subwoofer must be set above 0 (zero). For example, if the volume of the LCD television is set to 0, you will not be able to hear any sound, even if the volume of the amplifier/Subwoofer is at its highest level.

3V90441A [E] P13-17 31/10/05, 9:21 AM15

HITACHI

32LD380T

Connections to other equipment

To connect the LCD television to a HDMI or a DVI device

The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only the video signal. Separate analog audio cords are required.

Rear lower of the

LCD television

Audio cord (not supplied)

HDMI - to - DVI adapter cable

HDMI, the HDMI logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

NOTE:

(HDMI type A connector)

(not supplied)

To DVI output

HDMI cable (type A connector)

(not supplied)

To HDMI out

You must choose an appropriate setting for each connection 36.

To connect the LCD television to a PC (Personal Computer)

Before you connect this LCD television to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz). Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to

VGA connector PC MONITOR on the back of the

the screws on the plug. your Multimedia computer and to the AUDIO connector of the PC AUDIO IN jack of the LCD television. Switch on the computer. The LCD television can operate as the computer monitor.

Rear lower of the LCD television

To PC IN

Note:

If there is no video signal from the computer when the unit is in PC mode, “NO SYNC. SIGNAL” will appear on the TV-screen for approx. 10 seconds.

In case of a Multimedia computer, connect the audio cable to the audio output of

To PC AUDIO IN jack

Audio cord (not supplied)

VGA cable (not supplied)

LCD television

Monitor Television modes

MODE Resolution Refresh rate VGA 640x480 60Hz

VGA 720x400 70Hz WVGA 848x480 60Hz SVGA 800x600 60Hz XGA 1024x768 60Hz WXGA 1280x720/768 60Hz WXGA 1360x768 60Hz

. Attach the connectors firmly with the

3V90441A [E] P13-17 31/10/05, 9:21 AM16

HITACHI

32LD380T

Connections to other equipment

To connect the LCD television to a camcorder

To playback from a camcorder, connect the camcorder to the LCD television as shown.

Side of the LCD television

To Audio/Video OUT

Audio/Video cord (not supplied)

To connect the LCD television to a Game

The LCD television can also be used as a television device for many video games. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for additional information.

ENGLISH

To Audio/Video OUT

Audio/Video cord (not supplied)

Side of the LCD television

3V90441A [E] P13-17 31/10/05, 9:21 AM17

HITACHI

32LD380T

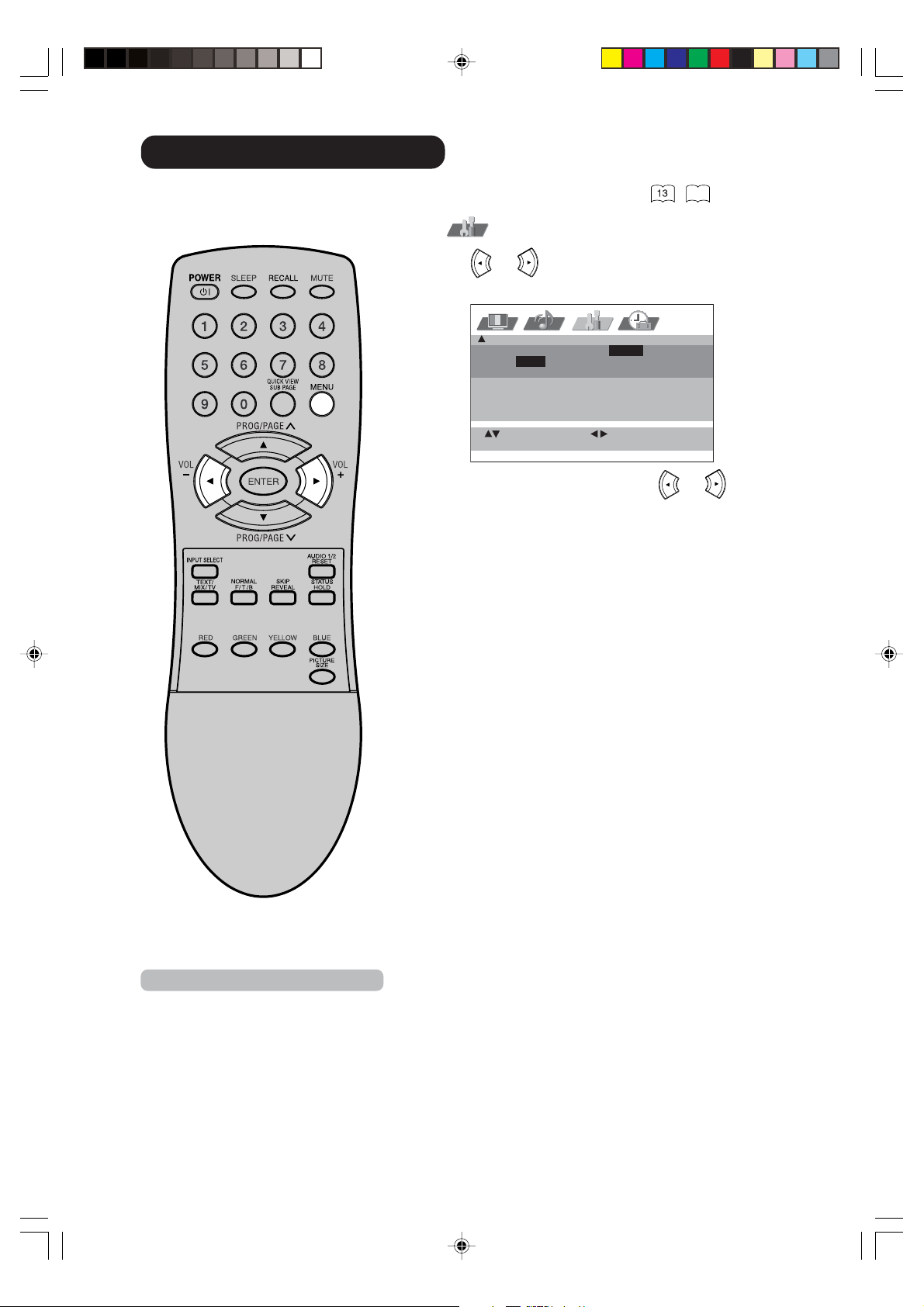

Quick guide for MENU-operation/Selecting the video input source

Make sure the antenna connection and power supply as the description

Quick guide for MENU-operation

Preparation:

• Turn on the unit with Main Power Switch on the bottom left of screen. Standby indicator will light up in red. Then press

(SUB-POWER) on the unit or remote control. Standby

indicator will change to green. You can also turn on the unit with PROGRAM ▲/▼ on the unit or remote control.

• Press 1. CH1 will appear.

Call MENU and for example: Select AUTO TUNING.

Press MENU.

If you press MENU for the first time after the purchase, the Language-selection screen (step 1 on next page) will appear.

Press or to

select

AUTO TUNING MANUAL TUNING SORT TEXT LANGUAGE WEST LANGUAGE ENGLISH

VERTICAL POSITION

: SELECT : EXITMENU

/ on the

Note:

If no buttons are pressed for more than approx. 60 seconds, the MENU disappears automatically.

Press or

to select

AUTO TUNING.

... on the following pages the MENU can be called in the same

AUTO TUNING MANUAL TUNING SORT TEXT LANGUAGE WEST LANGUAGE ENGLISH

VERTICAL POSITION

: SELECT : ADJUST

way as here.

Press MENU repeatedly until the MENU disappears.

Selecting the video input source

Press INPUT SELECT to view a signal from another device connected to your TV, such as a VCR or DVD player. You can select each input source depending on which input jacks you used to connect your devices. To select the video input

source, press button. Then press ENTER within 6 seconds.

O 5 6 7

OONNEENNTT1

[

E0N–T7E]R::SSEELT

ECT

/ or the corresponding number

: RETURNMENU

3V90441A [E] P18-24 31/10/05, 9:21 AM18

HITACHI

32LD380T

On-screen Language Selection/Teletext Language Selection

On-screen Language Selection

Select LANGUAGE.

Then press

Press MENU repeatedly until the MENU disappears.

or to select the desired language.

PìCCäàâ

ENGLISH

Teletext Language Selection

Select TEXT LANGUAGE.

Then press

AUTO TUNING MANUAL TUNING SORT TEXT LANGUAGE WEST/EAST LANGUAGE ENGLISH

VERTICAL POSITION

Press MENU repeatedly until the MENU disappears.

or to select WEST or EAST.

: SELECT : ADJUS T

: RETURNMENU

3V90441A [E] P18-24 31/10/05, 9:21 AM19

HITACHI

32LD380T

Automatic station presetting with the built-in Tuner

Your television has an Automatic Tuning System which makes tuning in your television easy. This Automatic Tuning System scans the entire reception range in your area and automatically stores all available channels of suitable signal strength in the correct order. Please note that the Auto tuning facility can only search for analogue signals - if you have any digital decoders connected, please refer to their instructions for details of how to set them up.

Preparation:

Connect a antenna or a cable-net. Do not connect any other unit or cable. To avoid every reception disturbance, all connected unit must be turned off and power supply is disconnected. Press 1-button. CH1 will appear.

Select AUTO TUNING.

AUTO TUNING MANUAL TUNING SORT TEXT LANGUAGE WEST LANGUAGE ENGLISH

VERTICAL POSITION

Note:

If you receive a signal of NTSC4.43 from ANT IN (e.g. connect with your VCR) and then tuning with AUTO TUNING, its color and sound may not come out. But it is not a failure. In case you tune to the NTSC4.43signal, perform MANUAL TUNING on

setting color system on step 2 as

“NTSC4.43”.

: SELECT : ADJUS T

Then press .

The broadcast-searcher searches the broadcasts and stores them in order. During the search the sound is muted. When all programs have been stored, the AUTO TUNING menu will appear automatically.

PAL CH 1

: RETURNMENU

3V90441A [E] P18-24 31/10/05, 9:21 AM20

HITACHI

32LD380T

Change the order of stored channel

The Automatic station presetting stores the found station in a specific order. This order can be changed.

Select SORT.

Then press

AUTO TUNING MANUAL TUNING SORT TEXT LANGUAGE WEST LANGUAGE ENGLISH

VERTICAL POSITION

Press or until the position number that

you want to move appears (e.g. CH 40), then press ENTER.

: SELECT : ADJUST

: RETURNMENU

ENGLISH

Note:

To arrange all channels, begin with program 1. Furthermore, continue this procedure to select the broadcast that should be seen on program-position 2, 3, 4 and so on.

Press or until the program-position on

which you want to put the moving program appears (e.g. CH 5), then press ENTER.

The original program 40 is now stored in memory position 5.

To arrange the other channels, repeat this procedure.

3V90441A [E] P18-24 31/10/05, 9:21 AM21

Press MENU repeatedly until the MENU disappears.

HITACHI

32LD380T

Manual TV station presetting

Usually Automatic station presetting stores all stations of each reception-area. In case of bad receiving condition, some broadcasts may not be stored. These stations can also be stored manually.

Example: Preset the BBC on program position 2.

Select MANUAL TUNING. Then press .

AUTO TUNING MANUAL TUNING SORT TEXT LANGUAGE WEST LANGUAGE ENGLISH

VERTICAL POSITION

: SELECT : ADJUST

Press or to select color system (e.g. PAL). Then press ENTER.

: RETURNMENU

Notes:

• The auto search stops at the best receiving position automatically. A manual fine tuning is normally not necessary. If want, you can do the manual fine tuning additionally. In step 3, when the auto search stopped at each station, press

or until the desired

fine tuning achieved. Then press ENTER.

• The search moves up to the next station position automatically. If want, you can also hold the search

manually. Press desired position. The search keeps

hold. If want, do the fine tuning as the description above.

or at the

PAL CH 1

ENTER

Press . The auto search starts forward. It will stop at

each station with good reception. Press receive the BBC. Then press ENTER.

Press or to select sound system (e.g. AUTO). Then press ENTER.

ENTER

The channel position number will be highlighted. Press

or repeatedly until the number next to

CH change to 2. Then press ENTER. The BBC was now stored in the channel position CH 2.

Repeat the steps 2 - 5 to preset other TV stations.

: ADJUST : RETURNMENU: SET

AUTO

again until you

3V90441A [E] P18-24 31/10/05, 9:21 AM22

Press MENU repeatedly until the MENU disappears.

HITACHI

Basic Operation

Channel selection

32LD380T

With the 10 number buttons. Example:

• CH 2: Press 0, 0, 2 continuously. The station

stored in the position 2 will appear.

• CH 29: Press 0, 2, 9 continuously. The station

stored in the position 29 will appear.

• CH 107: Press 1, 0, 7 continuously. The station

stored in the position 107 will appear.

QuickView QUICK VIEW button allows you to go back to the last selected

channel.

Volume adjusting

Press disappears after 4 seconds.

MUTE

Press MUTE. The sound will be cut off. MUTE will appear for approx. 4 seconds. The muting can be released by pressing MUTE again or

RECALL

Press RECALL. Channel number and wide screen type will appear.

The display will disappear after 4 seconds.

Press or to change to the program forward or backward. The changing takes approx. 2

seconds. If the auto search stored only 5 stations, these only 5 also will appear. Still uncovered or hidden store position will not appear

or to adjust the volume. The volume level

ENGLISH

Note:

If the built-in tuner does not receive anything (e.g. if no antenna is connected) during TV-operation, then the TV-unit will change to standby after approx. 15 minutes.

3V90441A [E] P18-24 31/10/05, 9:22 AM23

STATUS

Press STATUS.The clock and a program information will appear approx. 2 seconds later, if the station supported.

SLEEP TIMER

Press SLEEP. SLEEP and the minutes until the shut-off will appear. Each time you press SLEEP the number near SLEEP will change. When the displayed time runs out, the unit will switch to standby. The display will disappear after approx. 4 seconds.

To cancel the sleep timer: Press SLEEP repeatedly until “0” appears.

HITACHI

Timer functions

32LD380T

The on timer feature allows you to automatically turn on your TV after a preset amount of time (up to 12 hours and 59 minutes) at the selected channel. The off timer also allows you to turn off your TV after a preset amount of time. You can set the off timer in conjunction with the on timer.

Example: Turning on the TV to channel 3 at 10:30.

Select ON TIMER.

Then press ENTER.

Press or to enter the hours and minutes

at which you want your TV to automatically switch on.

Notes:

• button allows you to set the

time in step 2 backward.

• When a timer-event is executed, the

timer will return to 00:00.

• If the OFF TIMER and SLEEP-

timer overlapped, the TV will shut off with the earlier reached timer.

• The TV will automatically turn off

approximately 1 hour later after the ON TIMER turns on the TV. If you wish to continue watching the TV, press any button to cancel the one hour automatic shut off. This shut off feature prevents the TV from playing continuously if no OFF TIMER is set. If OFF TIMER is set, the shut off feature does not work.

• For rapid time change in ten minute intervals, press and hold the

Press

Press or to select the channel you wish

to display when you TV switches on. Press ENTER.

ENTER

If you wish to set the OFF TIMER, press

to select OFF TIMER at step 1.

Press MENU repeatedly until the MENU disappears.

Put your TV into standby mode by pressing POWER) button.

or button.

MENU: SET

: SELECT: ADJUST : RETURN

(SUB-

3V90441A [E] P18-24 31/10/05, 9:22 AM24

HITACHI

32LD380T

Stereo reception with the built-in tuner

This built-in Tuner can receive Stereo-/2 channel-program. In case the Stereo broadcast was send out with NICAM, this unit can distinguish these NICAM Stereo broadcasts automatically.

NICAM stereo sound reception:

Select NICAM.

Press

Select OFF if you want no NICAM-reception.

Press MENU repeatedly until the MENU disappears.

or to select AUTO or OFF.

NICAM AUTO / OFF BASS 25 TREBLE 25 BALANCE 0 PERFECT VOLUME OFF SPEAKERS ON HDMI HDMI

: SELECT : ADJUST

: RETURNMENU

Followings can be displayed by NICAM-reception.

"NICAM ST" illuminates for approx. 4 seconds when a NICAM STEREO broadcast signal is received.

ENGLISH

Notes:

• In case of bad reception, the stereo sound also can be disturbed.

• A stereo is not available in the broadcast area of only NTSC.

"NICAM M1" illuminates for approx. 4 seconds when a NICAM MONO A broadcast signal is received.

"NICAM M1/M2" illuminates for approx. 4 seconds when a NICAM MONO A and MONO B broadcast signal is received.

It will be displayed for the NICAM signal for approx. 4 seconds when the "NICAM OFF" is selected in menu screen.

A2 Stereo reception

"STEREO" illuminates for approx. 4 seconds when a A2 STEREO broadcast signal is

received.

3V90441A [E] P25-31 31/10/05, 9:22 AM25

HITACHI

32LD380T

Stereo reception with the built-in tuner

In case of 2 channel-sound reception, you can select the desired sound with AUDIO 1/2.

Each time you press the AUDIO 1/2, the both sound channels alternate with each other.

NICAM-2 channel-Sound reception

A2 STEREO-2 channel-Sound reception

3V90441A [E] P25-31 31/10/05, 9:22 AM26

HITACHI

32LD380T

Bass, Treble and Balance/Perfect Volume

Bass, Treble, and Balance

Select BASS. Then press or to adjust the bass.

NICAM AUTO BASS 25 TREBLE 25 BALANCE 0 PERFECT VOLUME OFF SPEAKERS ON HDMI HDMI

ENGLISH

NORMAL

: RESET

: ADJUST: SELECT : RETURNMENU

If you wish to set the treble or balance, press or to select TREBLE or BALANCE.

Press MENU repeatedly until the MENU disappears.

Perfect volume

This will automatically adjust volume so each channel and input has the same average volume level.

Select PERFECT VOLUME. Then press or to

select ON or OFF.

NICAM AUTO BASS 25 TREBLE 25 BALANCE 0 PERFECT VOLUME ON/OFF SPEAKERS ON HDMI HDMI

: ADJUST: SELECT : RETURNMENU

Note:

To centralize BASS, TREBLE and BALANCE, press MENU and select each setting option (e.g. BASS). Then press NORMAL. The selected option return to center level.

3V90441A [E] P25-31 31/10/05, 9:22 AM27

Press MENU repeatedly until the MENU disappears.

HITACHI

32LD380T

Turning off the built-in speakers/Using the wow

surround sound feature

Turning off the built-in speakers

Use this feature to turn the TV speakers off when you connect an audio system

Select SPEAKERS.

Then press

NICAM AUTO BASS 25 TREBLE 25 BALANCE 0 PERFECT VOLUME OFF SPEAKERS ON / OFF HDMI HDMI

Press MENU repeatedly until the MENU disappears.

or to select ON or OFF.

: ADJUST: SELECT : RETURNMENU

Using the WOW™ surround sound feature

WOW is a special combination of SRS Labs audio technologies that creates a thrilling surround sound experience with deep, rich bass from stereo sound sources. Your TV’s audio will sound fuller, richer, and wider. WOW consists of three features; SRS 3D, FOCUS, and TruBass.

Notes:

• Make sure the volume control of your audio amplifier is set to a moderate listening level.

• If the broadcast is monaural, the SRS 3D effect will not work.

• The headphone jack, variable audio OUT jacks and Subwoofer OUT jack do not output any of the WOW audio features.

WOW, SRS and trademarks of SRS Labs, Inc. WOW technology is incorporated under license from SRS Labs, Inc.

symbol are

Select desired WOW feature you want to adjust.

Then press

WOW SRS 3D ON / OFF

• SRS 3D — To turn on or off the surround sound effect.

• FOCUS — To turn on or off the vocal emphasis effect.

• TruBass — To select your desired bass expansion level

Press MENU repeatedly until the MENU disappears.

or to select the desired mode.

FOCUS ON TruBass HIGH

: ADJUST: SELECT : RETURNMENU

(HIGH, LOW or OFF).

3V90441A [E] P25-31 31/10/05, 9:22 AM28

HITACHI

32LD380T

Brightness, Contrast, Color and Sharpness/DNR

Brightness, Contrast, Colour and Sharpness

Select BRIGHTNESS. Then press or to adjust the

brightness.

If you wish to set the contrast, color, tint, or sharpness, press COLOR, TINT, or SHARPNESS.

The menu “TINT” can be selected at AV-Playback, if a NTSC 3.58MHz signal comes in through a AV socket and NTSC or AUTO was selected at COLOR SYSTEM

or to select CONTRAST,

ENGLISH

Notes:

• To centralize these picture adjust-

ments, press NORMAL in step 1.

• In HDMI or COMPONENT mode, the “DNR”-option can not be selected.

Press MENU repeatedly until the MENU disappears.

DNR

DNR (Digital Noise Reduction) can reduce the roughness of the picture.

Select DNR. Then press or to select ON or

OFF.

Press MENU repeatedly until the MENU disappears.

3V90441A [E] P25-31 31/10/05, 9:22 AM29

HITACHI

32LD380T

Selecting the color temperature/Film mode

Selecting the color temperature

Change the picture quality by selecting from three preset color temperatures –cool, normal and warm– as described in the following table;

Select COLOR TEMPERATURE.

COLOR TEMPERATURE

FILM MODE OFF

Press or to select the desired setting.

Mode Picture Quality

COOL Bluish

NORMAL Neutral

WARM Reddish

Press MENU repeatedly until the MENU disappears.

COOL / NORMAL / WARM

COOL

: ADJUST: SELECT : RETURNMENU

Film mode

You can set the TV to automatically detects the movie film material and faithfully reproduces the original film image.

Select FILM MODE.

Then press

or to select ON or OFF.

Note:

FILM MODE is not available in PAL or SECAM-signal mode.

3V90441A [E] P25-31 31/10/05, 9:22 AM30

COLOUR TEMPERATURE COOL

FILM MODE ON / OFF

: ADJUST: SELECT : RETURNMENU

Press MENU repeatedly until the MENU disappears.

HITACHI

32LD380T

Picture format

Each time the PICTURE SIZE button is pressed, the screen display size will change in sequence.

4:3

It shows a 4:3-picture in original size with black bands on left and right side.

ENGLISH

PANORAMIC

Stretches the left and right hand sides of a 4:3 picture horizontally to fill the screen, while leaving the centre of the picture unstretched.

Note:

In this mode the picture is geometrically distorted on the left and the right sides of the screen.

FULL

This mode is used with 16:9 signals from a DVD or digital decoder.

Note:

16:9 format signals can only come from external sources - the built-in tuner does not receive signals in this format.

(PANORAMIC)

(FULL)

Notes:

• In PC mode, the PICTURE SIZE feature is available only for FULL- or 4:3- format. (In “WXGA INPUT” and “WVGA INPUT”-mode, the PICTURE SIZE feature is not available.)

• In HDMI/COMPONENT1/2 mode of scanning rate: 720p and 1080i, the PICTURE SIZE feature is not available.

• In PANORAMIC mode, the top of the picture will be slightly cut off. If you want to see this part you can scroll the picture

3V90441A [E] P25-31 31/10/05, 9:22 AM31

HITACHI

32LD380T

Scrolling the PANORAMIC-Wide picture

Scrolling the PANORAMIC-wide picture

During the PANORAMIC-wide mode you can adjust the vertical picture position.

Select VERTI-

CAL POSITION.

Then press

AUTO TUNING MANUAL TUNING

SORT TEXT LANGUAGE WEST LANGUAGE ENGLISH

VERTICAL POSITION

: SELECT : ADJUST

Press or to adjust the vertical position of

the picture.

• To raise the picture, press

• To lower the picture, press

Press MENU repeatedly until the MENU disappears.

: RETURNMENU

Note:

You cannot move the picture vertically in other wide mode.

3V90441A [E] P32-39 31/10/05, 9:22 AM32

HITACHI

Back light

You can use the Back light feature to adjust the screen brightness for improved picture clarity.

32LD380T

Select

BACKLIGHT.

Then press

or to adjust

the level you require appears.

Press MENU repeatedly until the MENU disappears.

ENGLISH

Note:

To initialize the adjusted value, press NORMAL in step 1.

3V90441A [E] P32-39 31/10/05, 9:22 AM33

HITACHI

32LD380T

Using the panel lock feature

You can lock the front panel buttons to prevent your settings from being changed accidentally (by children, for example). When the panel lock is in ON, all control buttons on the TV front panel (except POWER) do not operate.

Select F.PANEL LOCK.

Then press

Using the 10 number buttons to enter your password,

then press ENTER. The F.PANEL LOCK menu screen appears. If you input the password for the first time, enter the same password again for confirmation.

• If you input wrong number, “ERROR” will appear for approx. 4 seconds. Then input correct number again.

to display the password entering screen.

ON TIMER SET

OFF TIMER SET

F.PANEL LOCK OFF

00:00 CH 1

00:00

: ADJUST: SELECT : RETURNMENU

PASSWORD

: SELECT

[0—9]

Select F.PANEL LOCK and press or to select ON.

F.PANEL LOCK ON / OFF

NEW PASSWORD

Press MENU repeatedly until the MENU disappears.

: SETENTER : RETURNMENU

: ADJUST: SELECT : RETURNMENU

If a button on the front panel is pressed, the message “F.PANEL LOCK” appears for approx 4 seconds.

To unlock the panel

Select OFF at step 3 above.

3V90441A [E] P32-39 31/10/05, 9:22 AM34

To change password

At step 3 above select NEW PASSWORD and press display the password entering screen. Then input new password.

HITACHI

PC-Setting

32LD380T

Example: Adjust the contrast.

During PC mode press MENU once. The Menu appears on

the TV-screen.

ENGLISH

Press or to select CONTRAST. Then

press

Press MENU repeatedly until the MENU disappears.

or to adjust CONTRAST.

NORMAL

Description about the each setting option:

PICTURE Menu

BRIGHTNESS and CONTRAST: can be set as you

are accustomed to your TV. : the NORMAL button resets these values to the middle. H.POSITION and V.POSITION: to adjust the horizontal and vertical placing of the image.

CLOCK PHASE and HORIZONTAL CLOCK:

eliminates the horizontal (HORIZONTAL CLOCK) and vertical (CLOCK PHASE) interfering lines. AMPLITUDE RED/GREEN/BLUE: influences the colour balance. : the NORMAL button resets these values to the middle. WXGA MODE: When you input WXGA, set this option to “ON”. WVGA MODE: When you input WVGA, set this option to “ON”.

AUDIO Menu

BASS/TREBLE/BALANCE: Tone setting menu; the NORMAL button resets these values to the middle. PERFECT VOLUME: Select PERFECT VOLUME

ON or OFF

SPEAKERS: Select SPEAKERS

HDMI: Select HDMI or DVI

WOW SRS 3D/FOCUS/TruBass: Adjust desired

WOW feature

Note:

The PC Monitor Menu settings are not effective for normal TV-mode or external input mode.

: SELECT

: SELECT : RESET

: EXITMENU

: ADJUST : RETURNMENU

ON or OFF 28.

3V90441A [E] P32-39 31/10/05, 9:22 AM35

HITACHI

32LD380T

Selecting the HDMI audio input source

You must choose an appropriate HDMI audio input setting for

each connection on 16.

Select HDMI.

Press

Press MENU repeatedly until the MENU disappears.

or to select HDMI or DVI.

NICAM AUTO BASS 25 TREBLE 25 BALANCE 0 PERFECT VOLUME OFF SPEAKERS ON HDMI HDMI/DVI

: ADJUST: SELECT : RETURNMENU

3V90441A [E] P32-39 31/10/05, 9:22 AM36

HITACHI

32LD380T

Teletext

Teletext is sent page by page. This unit is able to automatically store up to 812 pages. Storage lasts until all pages have been received. The pages can only be accessed when they have been stored. This can take a moment.

Fastext/Toptext

The Fastext/Toptext is teletext with a special directory. On the lower part of the screen there are four different coloured fields (red, green, yellow and blue). These fields lead directly to the pages shown within. The coloured buttons on the remote control correspond to the coloured fields. Press the appropriate coloured button (RED, GREEN, YELLOW, BLUE) in order to activate the desired colour field.

Switch on / off Teletext

Teletext is not transmitted by all channels. Select the channel that shows teletext. Press TEXT/MIX/TV. You will now see a teletext page. The channel you have chosen does not send teletext if 100 is shown. Press TEXT/MIX/TV again. Teletext and TV picture are shown simultaneously. Press TEXT/MIX/TV again in order to switch off teletext. Press TEXT/MIX/TV again in order to switch on teletext again. The last page which was stored is now shown.

ENGLISH

Note:

You cannot select any other channels as long as teletext is switched on. Switch teletext off when you want to switch over to another channel.

Select Page

Press Or ... enter the requested page number by using the 10 Number Buttons. And if you mistype something, just enter the complete 3-digit wrong page number then enter the desired number again. Or ... press one of the coloured teletext buttons so that a page from Fastext/Toptext is shown.

or until the page you desire appears.

3V90441A [E] P32-39 31/10/05, 9:22 AM37

HITACHI

Teletext

32LD380T

Hold Pages

Some pages are divided up into subpages by the channel. Subpages are automatically shown in turn, as they are transmitted. In order to hold the page, press HOLD. Press HOLD again in order to display the next subpage.

Directly Select Subpages

You can directly select the subpages if required.

Example:

Page 667 from BBC comprises of 2 subpages. In the right upper corner you will, for example, see 1/2. That means that page one of 2 subpages is being shown at the moment.

667 667 BBC-Text 21.07.03 15:01:38

Press SUB PAGE in order to select subpage 2. 4 dashes (----) are shown. Enter 0 0 0 2. It can take a minute before subpage 0002 appears. Press SUB PAGE again in order to switch off the subpage feature. You can only select other teletext pages when the subpage feature is switched off.

Enlargement

In order to enlarge the display, press F/T/B. Either the upper or lower half of the screen is enlarged. Each time you press F/T/B you switch between the display of the upper or lower half of the screen or the full picture.

Answering Quiz Questions

Some pages contain quiz questions with concealed answers. Press REVEAL in order to show the answers.

Reset Press RESET in order to show page 100.

1/2

3V90441A [E] P32-39 31/10/05, 9:22 AM38

HITACHI

32LD380T

Conceal stored channels

The stored channels are switched back or fore individually using

concealed. These channels are not deleted. They can be accessed at any time with the 10 Number Buttons.

Select the channel to be concealed (i.e. CH29).

Press SKIP. The programme number flashes.

Select the next channel to be concealed.

Press SKIP. The programme number flashes.

or . Channels that should not appear can be

ENGLISH

You can conceal as many channels as you like.

Example:

5 channels are automatically stored via the automatic channel storage feature. When you keep pressing then the channel will appear in the following order: 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, ... etc. Now conceal programme places 3 and 5. The sequence is now 1, 2, 4, 1, 2, 4, 1,... etc.

Cancel Concealment of Channels

Select the concealed channels with the 10 Number Buttons. The programme number flashes. Press SKIP. The programme number no longer flashes. This channel is no longer concealed.

3V90441A [E] P32-39 31/10/05, 9:22 AM39

HITACHI

32LD380T

Color system adjusting

Connect with another equipment

In menu, select COLOR SYSTEM.

Press or to select AUTO.

COLOR SYSTEM AUTO

AUTO/PAL/SECAM/NTSC4.43

NTSC3.58/PAL60

BACKLIGHT 16

: SELECT

If AUTO option does not work, press or to select

desired color (e.g. NTSC 3.58).

Press MENU repeatedly until the menu disappears.

: ADJUST : RETURNMENU

~17.

Note:

COLOR SYSTEM is available only in AV1/AV2/AV3 mode.

3V90441A [E] P40-BACK 31/10/05, 9:22 AM40

HITACHI

32LD380T

Troubleshooting table / Specifications

Troubleshooting table

Please check the following items, before you request for service.

Symptom

No picture, no sound

No reception Preset the station without using the AV cable.

The TV switches off with missing antenna input signal

In menu, TUNING-line can not be selected.

Wrong Colours

Switch on the set. Check the 100~240 V wall outlet. Select appropriate input mode.

Press 1 on the remote control. Connect the antenna. Check your antenna.

This is normal. 15 minutes after the antenna signal has disappeared, the set will change to standby.

The unit is set to AV mode. Press 1 on the remote control.

Colour and Brightness errors can occur when the viewing angle / ambient air temperature (see technical specifications) are exceeded.

Possible solution

Specifications

Color System: Frequency Range: Power Supply: Power Consumption:

LCD:

HDMI input:

Output Power: Surrounding temperature:

Operating Humidity: Dimensions: Weight: Accessories:

PAL/SECAM/NTSC 1~S6, S7~S36, S37~E69 AC 100~240V, 50/60Hz Operation: approx. 170W Stand by: approx. 1W

31.5" TYPE (80 cm visible) TFT low-glass Active Matrix Colour LCD, 1366 x 768 Pixel Brightness: 500 cd/m2 View Lange:Left/Right: 85 degree Up/Down: 85 degree HDMI compliant (type A connector) HDCP compliant Suggested scan rates:

PAL: 576i/576p/720p/1080i NTSC: 480i/480p/720p/1080i

HDMI Audio: 2-channel PCM

32/44.1/48 kHz sampling frequency

16/20/24 bits per sample 10W x 2 (MAX) Operation: 5°C ~ 40°C Storage: –20°C ~ 60°C Less than 80%RH

82.2(W) x 60.4(H) x 33.3(D) cm approx. 19 kg (w/o Accessories) 2 batteries (AAA/R03/UM-4) Remote control unit AC cord

Page

ENGLISH

Weight and dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

3V90441A [E] P40-BACK 31/10/05, 9:22 AM41

HITACHI

32LD380T

3V90441A [E] P40-BACK 31/10/05, 9:22 AM42

HITACHI

Hitachi 32LD380TA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
